Deister Electronic PRD2SWH4000 PROXIMITY READER User Manual SWH 4000 install guide

Deister Electronic GmbH PROXIMITY READER SWH 4000 install guide

Users Manual

1
Model SWH-4000
Multi-Technology Mullion
125 KHz and 13.56 MHz (Flex)
Reader Installation Guide
Version A0
Part Number UM-104
September 2005
2
CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Model SWH-4000 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . 10
FCC Digital Device Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
UL Standards Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3
INTRODUCTION
The SWH-4000 reader will read Prox and Smart Cards at frequencies of
both 125 kHz and 13.56 MHz. The reading capability includes, for Smart
Cards, both unencrypted serial numbers and encrypted MIFARE®
programmed sectors. Refer to Table 1 for a complete list of compatible
standards and data.
TABLE 1. Compatible Credential Formats - Model SWH-4000
HID® 26 Bit ISO 14443A (MIFARE®) Sector
HID® Corporate 1000 ISO 14443B Serial Number
HID® 36 Bit Wiegand ISO 15693 Serial Number
HID® 37 Bit Wiegand MIFARE® Sector
Other HID pass through formats DESFire® Serial Number
deister Prox SmartFrame® iCLASS® Serial Number
CASI-RUSCO® Prox Lite Others - Future Expansion
4
FEATURES
Universal compatibility with most 125 kHz Prox (including all HID®
Prox formats), all ISO 15693, and ISO 14443A credentials (badges, disk
tags and key fobs). Reads both 125 kHz and 13.56 MHz credentials in
the same reader.
Electrical protection (reverse polarity diode protection on power lines).
Data lines: high-speed transient voltage suppressor diodes.
IP65-rated sealed electronics for deployment in both interior and
exterior environments.
5
MOUNTING
Mount the reader module directly to a metal door frame or wall and snap
the front cover in place as indicated in Figure 1.

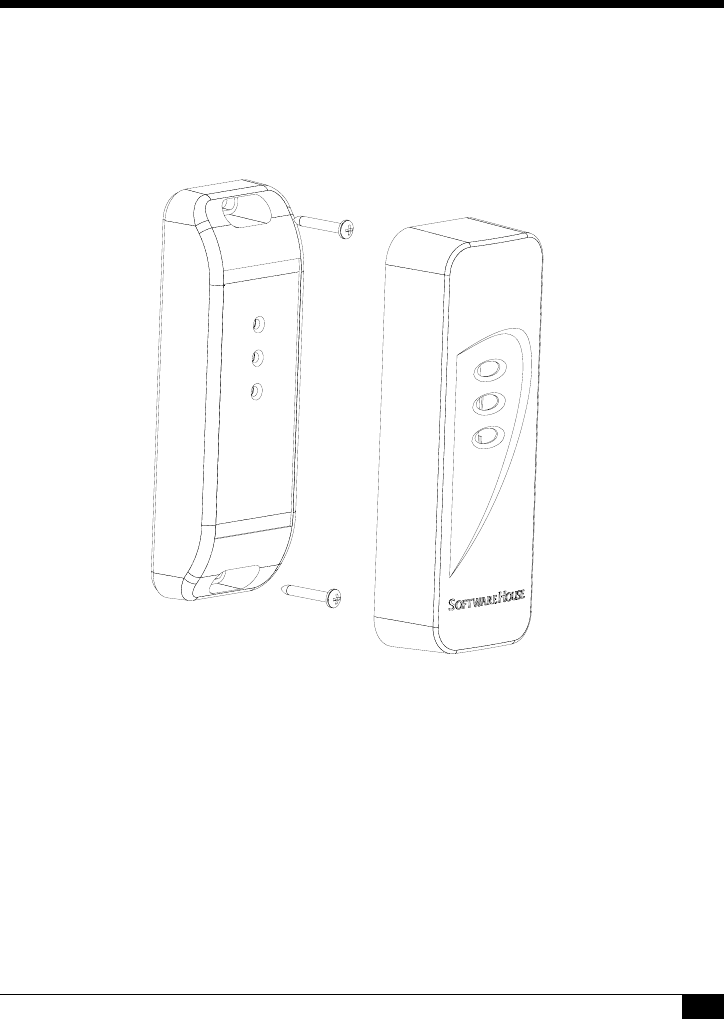

FIGURE 1. Mounting Assembly
6
WIRING
The SWH-4000 model has ten terminals as noted in Table 2. When
attaching wires to the connector, strip off only the minimum insulation
required (approx. 1/8'') and push the wire into the connector until the
insulation is flush or inside the connector body. This is particularly critical
for outdoor readers. While the reader itself is designed and protected to
IP65 standards, the cable wires can potentially corrode and short together if
not carefully mounted and tightly fastened in the connector body.
Table 3 indicates maximum wiring distances per Wiegand standard with
the three most common gauges of cable.
TABLE 2. Connector Pins for Model SWH-4000
Pin Description Pin
1 External Beeper Control 6 Reserved for Future Use
2 Ground 7 External Green LED Control
3 Power (8 to 16 VDC) 8 External Red LED Control
4 D1 Wiegand 9 A - RS-485 – used for Flash upgrade
5 D0 Wiegand 10 B - RS-485 – used for Flash upgrade
TABLE 3. Maximum cable distance for 18, 20, or 22 AWG wire
Wire Gauge 18 AWG 20AWG 22 AWG
Cable
Distance
500 feet
(152 meters)
300 feet
(91 meters)
200 feet
(61 meters)
7
Beeper Wiring
Figure 2 shows how to wire the beeper so that it beeps when a valid card is
presented to the reader.

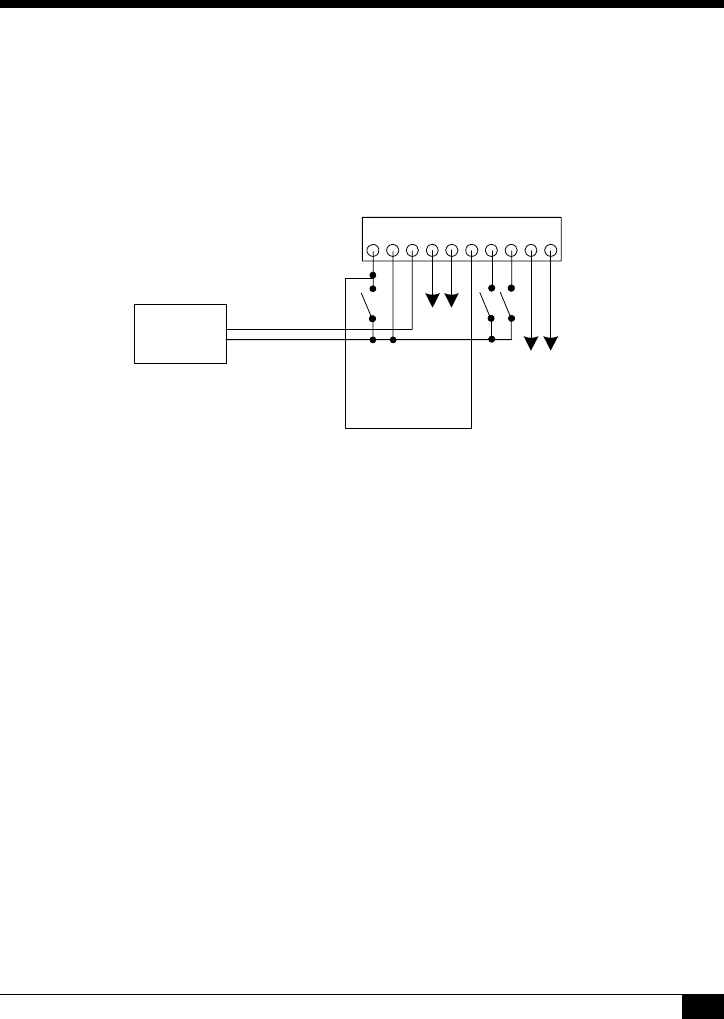

FIGURE 2. Beeper Wiring
NOTE
If you wire the beeper as shown in Figure 2, do not wire the
beeper back to the controller.
Terminal Block
110
AC or
DC
RS-485 B
RS-485 A
Red LED
Green LED
+12V
GND
Beeper
D1
D0
For internal beep,
connect Pin 6 to
Pin 1 as shown
8
INSTALLATION NOTES
Unless otherwise specified in this manual, please follow these guidelines:
1. Shielded cable is recommended in electrically noisy environments.
2. You can use a local power supply for the reader. If so, don’t connect the
power supply from the controller to the reader. The ground line of the
local power supply must be connected to the power supply of the
controller.
3. The unit needs to be operated with a power source with limited power
consumption according to EN 60950-1 (2001) paragraph 2.5.
Das Gerät ist mit einer Stromquelle mit begrenzter Leistung nach EN
60950-1 (2001) Absatz 2.5 zu betreiben.
4. Use of a pull-up resistor may be required by some controllers. Consult
your controller manual.
9
TROUBLESHOOTING
If the operation of a component is in doubt, substitute a known good
component and retry the system. Always verify wiring against the provided
wiring information before powering up the reader.
TABLE 4. Error Conditions and Possible Solutions
Condition Possible Solutions
None of the LEDs
are on.
Check the following:
Power connections to the reader.
Reader supply voltage at connector pin 3 and
that the ground connection pin 2 is secure and
well connected.
The door does not
open and the green
LED does not light
when a qualified
credential is
presented.
Verify that the door strike and the green LED are
wired correctly. Verify that the access credential
has been entered and that the reader has been
properly configured in the host system.
The green LED
does not light but
the door strike
unlocks the door
when a valid
credential is
presented.
Verify that the door strike is wired correctly. Refer
to the appropriate wiring diagram in your
controller manual. Disconnect the wire from pin 7
(green LED) and connect pin 7 to pin 2 (ground). If
the green LED is now on, the reader is good and
the connection to the reader is defective. If the
green LED does not light, replace the reader.
10
MODEL SWH-4000 TECHNICAL
SPECIFICATIONS
Cable Recommendations: 4 core (minimum), shielded, 22 AWG
(minimum) cable.
Connectors: 10 position, 3.5 mm Screw Terminals -
Plug-In
Certifications: FCC Part 15, CE and UL 294
Open Standards
Compliance:
ISO 14443A
ISO 14443B (Depending on specific
implementation)
ISO 15693 (including some partially
compliant credentials)
Other Standards
Compliance:
deister SmartFrame® in both 125 kHz and
13.56 MHz implementations
HID® Prox at 125 kHz (All Formats)
Standard Color: Black (other colors available; contact your
Software House representative)
Dimensions
(height/width/depth):
4.92" × 1.77" × 0.98"
(125 × 45 × 25 mm)
Power Supply Rated Voltage: 9.4-16 VDC 125 mA
maximum current
Note: Unit has been tested and is reliable
operating to 8 VDC on long lines.
Environments: Meets UL 294 standards for Outdoor Use
Humidity: 5 to 90% (non-condensing)
11
Operating Temperature: -31º F to 151º F (-35º C to 67º C)
Index of Protection: IP 65 (IEC 529)
Read Range: 1 to 5 inches depending on credential
technology and environment.
Note: Read range for credentials of
identical technologies may vary greatly
depending on the tuning and antenna
structure of each individual credential.
Standard Wiegand Output
including:
ID Pass-Through Option
Serial Number Read
Fixed Wiegand bit stream option
SmartFrame® encrypted MIFARE Sector
read and conversion to Wiegand. Consult
your Software House representative for
available reconfiguration cards for your
reader.
Upgrade Complete upgrade capability using RS-485
port for reflashing of internal ROM.
RS485 output option Available for compatible controllers.
12
FCC DIGITAL DEVICE LIMITATIONS
Radio and Television Interference
This equipment has been tested and found to comply with the limits
for a digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
In order to maintain compliance with FCC regulations, shielded cables
must be used with this equipment. Operation with non-approved
equipment or unshielded cables is likely to result in interference to
radio and television reception.
CAUTION: Changes or modifications not expressly approved by
Software House for compliance could void the user’s authority to
operate this equipment.
13
CANADIAN RADIO EMISSIONS
REQUIREMENTS
This digital apparatus does not exceed the Class A limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Le present appareil numerique n'emet pas de bruits radioelectriques
depassant les limites applicables aux appareils numeriques de la class A
prescrites dans le Reglement sur le brouillage radioelectrique edicte par le
ministere des Communications du Canada.
UL STANDARDS COMPLIANCE
This reader has been tested by Underwriters Laboratories, Inc. for standard
UL 294, Access Control System Units, but has not been tested for
compliance with any particular model of controller.
UL has not evaluated the RS-485 output of this reader.
14
CE MARKING
Hereby, Software House declares that this equipment, if used according to
the instructions, is in compliance with the essential requirements and other
relevant provisions of the RTTE Directive 1999/5/EC. For use in all
countries of the EU.
A Declaration of Conformity exists for the following Software House
Multi-technology readers:
To obtain a copy, contact Software House and request the “Declaration of
Conformity” document for Multi-technology readers.
Software House
70 Westview Street
Lexington, MA 02421 U.S.A.
In case of alteration of the product, not agreed to by us, this declaration will
lose its validity.
SWH-4100 SWH-2100 SWH-1100 SWH-2000
SWH-5100 SWH-4200 SWH-3100 SWH-4000
SWH-1000 SWH-3000 SWH-5000
This symbol indicates proof of conformity to
applicable European Economic Community
Council directives and harmonized standards
published in the official journal of the European
Communities.
15
Software House
70 Westview Street
Lexington, MA 02421
http://www.swhouse.com
Fax: 781-466-9550 Phone: 781-466-6660
#896028
16
Copyrights and Trademarks
This document contains proprietary information of Tyco International, Inc. and is furnished to its
customer solely to assist in the installation, testing, operation and maintenance of the equipment
described. This document may not be reproduced in whole or in part without the written approval of
Tyco International.
Copyright 2005 Tyco International
All rights reserved.
Printed in Germany.
Software House is a trademark of Sensormatic Electronics Corporation.
MIFARE, SmartFrame, HID, DesFire, iCLASS, and CASI-RUSCO are registered trademarks of
other companies not affiliated with Sensormatic.

Navigation menu
