Model SWH-5100
Proximity 125 KHz Credential
Reader Installation Guide
Version A2
Part Number UM-091
February 2005
2
Tyco CONFIDENTIAL
CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installation Considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installation Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Model SWH-5100 Technical Specifications . . . . . . . . . . . . . . . . . . . . . . .11
FCC Digital Device Limitations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
UL Standards Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
CE Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3
Tyco CONFIDENTIAL
INTRODUCTION

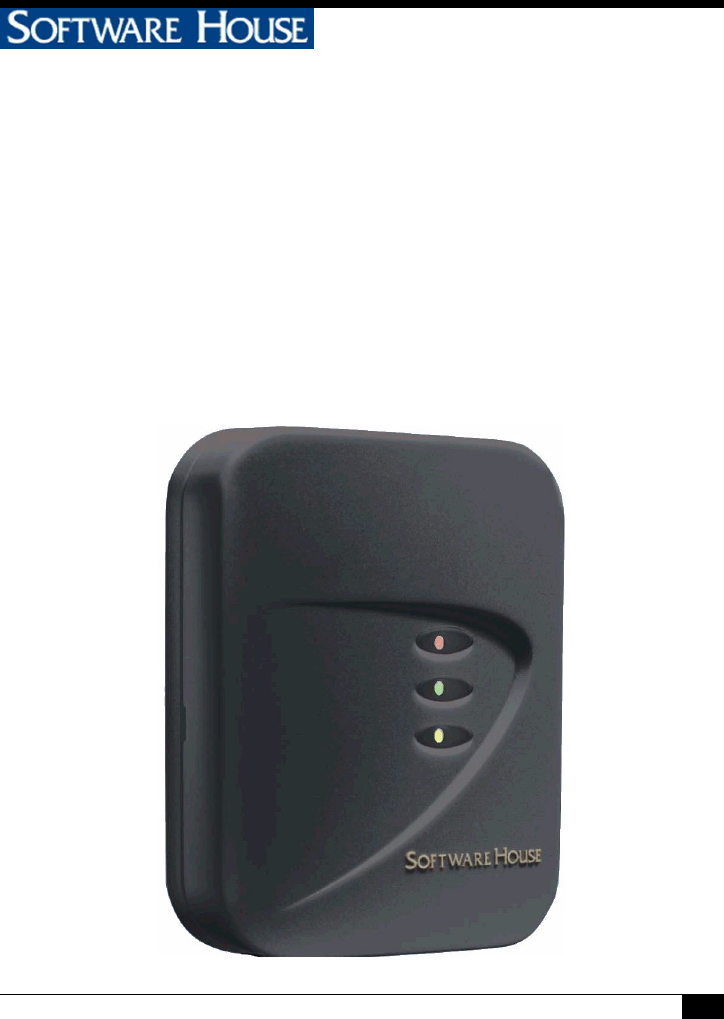

The SWH-5100 Proximity single-gang reader will read a variety of prox
cards at a frequency of 125 kHz. Compatible standards include HID and
Diester Prox SmartFrame®. Refer to Table 1 for a complete list of
compatible standards and data.
TABLE 1. Compatible Credential Formats - Model SWH-5100
HID® 26 Bit
HID® Corporate 1000
HID® 36 Bit Wiegand
HID® 37 Bit Wiegand
Other HID pass through formats
Diester Prox SmartFrame®
CASI-RUSCO® Prox Lite
Others - Future Expansion
4
Tyco CONFIDENTIAL
FEATURES
Universal compatibility with most 125 kHz Prox (including all HID®
Prox formats)
Electrical protection (reverse polarity diode protection on power lines)
Data lines: high-speed transient voltage suppressor diodes
IP65-rated sealed electronics for deployment in both interior and
exterior environments
Integrated reader tamper protection
5
Tyco CONFIDENTIAL
MOUNTING
Mount the single-gang backplate (with tamper magnet installed) onto the
wall.
FIGURE 1. Model SWH-5100 Reader Backplate
(includes tamper switch magnet)
NOTE
Mounting holes fit standard U.S. single-width electrical box and
standard European (EMEA) electrical box hole patterns.
6
Tyco CONFIDENTIAL
Mount the reader module directly to the backplate and then snap the front
cover in place as indicated in Figure 2.
FIGURE 2. Mounting Assembly
(including 1 optional isolation spacer)
INSTALLATION CONSIDERATIONS
An isolation spacer (available from Software House, part number
SWH-ISOSPC) may be used to improve the read range distance when
mounting the reader to a metal surface. To optimize reader range, use the
number of backplates as indicated in Table 2. Use of Isolation Spacers is
optional and not required for non-metal mounting surfaces.
7
Tyco CONFIDENTIAL
Installation of two SWH-5100 readers side-by-side
and back-to-back
Read range is not affected if the center-to-center distance between two
readers is greater than or equal to four (4) inches (101.6 mm). If the
distance between the two readers is less than four inches, field interference
between the two readers may result in a double-badge read. Two readers
can simultaneously read the same badge or tag if the distance between the
two readers is less than 4 inches, center-to-center.
NOTE
If two readers are being placed back-to-back on a wall less
than 4 inches thick, maximum performance can be achieved
by using a metal separation plate and then using isolation
spacers as necessary.
TABLE 2. Isolation spacer recommendation
for mounting the SWH-5100 reader on metal.
Distance Reading Distance
No metal plate 100%
4.5 cm 100%
2.7 cm (3 tamper plates) 85%
1.8 cm (2 tamper plates) 70%
0.9 cm (1 tamper plate) 50%
0 cm 10%
8
Tyco CONFIDENTIAL
WIRING
The Model SWH-5100 has twelve terminals as noted in Table 3. The
terminal strip is removable for easy installation and wiring. When attaching
wires to the connector, strip off only the minimum insulation required
(approx. 1/8'') and push the wire into the connector until the insulation is
flush or inside the connector body. This is particularly critical for outdoor
readers. While the reader itself is designed and protected to IP65 standards,
the cable wires can potentially corrode and short together if not carefully
mounted and tightly fastened in the connector body.
Table 4 indicates maximum wiring distances per Wiegand standard with
the three most common gauges of cable.
TABLE 3. Connector Pins for Model SWH-5100
Pin Description Pin
1 External Beeper Control 7 External Green LED Control
2 Ground 8 External Red LED Control
3 Power (8 to 16 VDC) 9 Reserved for Future Use
4 D1 Wiegand 10 Reserved for Future Use
5 D0 Wiegand 11 Tamper (Normally Closed)
6 Reserved for Future Use 12 Tamper (Normally Closed)
TABLE 4. Maximum cable distance for 18, 20, or 22 AWG wire
Wire Gauge 18 AWG 20AWG 22 AWG
Cable
Distance
500 feet
(152 meters)
300 feet
(91 meters)
200 feet
(61 meters)
9
Tyco CONFIDENTIAL
INSTALLATION NOTES
Unless otherwise specified in this manual, please follow these guidelines:
1. Shielded cable is recommended in electrically noisy environments.
2. You can use a local power supply for the reader. If so, don’t connect the
power supply from the controller to the reader. The ground line of the
local power supply must be connected to the power supply of the
controller.
3. The unit needs to be operated with a power source with limited power
consumption according to EN 60950-1 (2003) paragraph 2.5.
Das Gerät ist mit einer Stromquelle mit begrenzter Leistung nach EN
60950-1 (2003) Absatz 2.5 zu betreiben.
4. Use of a pull-up resistor may be required by some controllers. Consult
your controller manual.
5. For tamper wiring, connect Pins 11 and 12 to a normally closed
supervised input, as shown in Figure 3.

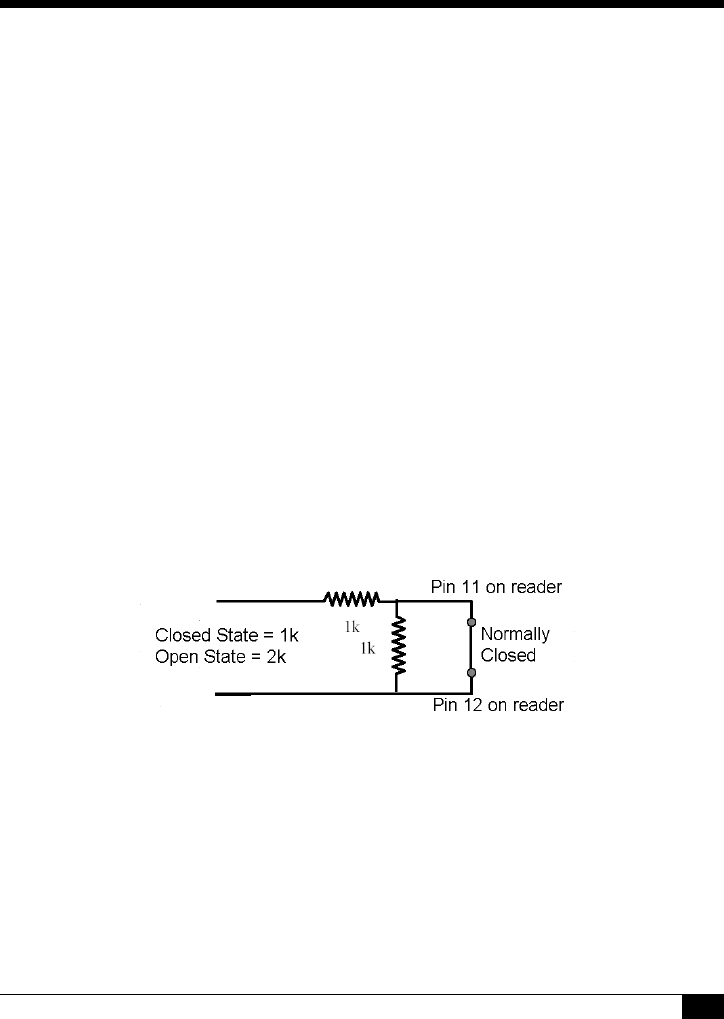

FIGURE 3. Normally Closed Wiring for Reader Tamper
10
Tyco CONFIDENTIAL
TROUBLESHOOTING
If the operation of a component is in doubt, substitute a known good
component and retry the system. Always verify wiring against the provided
wiring information before powering up the reader.
TABLE 5. Error Conditions and Possible Solutions
Condition Possible Solutions
None of the LEDs
are on.
Check the following:
Power connections to the reader.
Reader supply voltage at connector pin 3 and
that the ground connection pin 2 is secure and
well connected.
The door does not
open and the green
LED does not light
when a qualified
credential is
presented.
Verify that the door strike and the green LED are
wired correctly. Verify that the access credential
has been entered and that the reader has been
properly configured in the host system.
The green LED
does not light but
the door strike
unlocks the door
when a valid
credential is
presented.
Verify that the door strike is wired correctly. Refer
to the appropriate wiring diagram in your
controller manual. Disconnect the wire from pin 7
(green LED) and connect pin 7 to pin 2 (ground). If
the green LED is now on, the reader is good and
the connection to the reader is defective. If the
green LED does not light, replace the reader.
11
Tyco CONFIDENTIAL
MODEL SWH-5100 TECHNICAL
SPECIFICATIONS
Cable Recommendations: 4 core (minimum), shielded, 22 AWG
(minimum) cable.
Connectors: 12 position, 3.5 mm Screw Terminals -
Plug-In
Certifications: FCC Part 15, CE and UL 294 (pending)
Other Standards
Compliance:
Deister SmartFrame® in 125 kHz
implementations
HID® Prox at 125 kHz (All Formats)
Standard Color: Black (other colors available; contact your
Software House representative)
Dimensions with backplate
(height/width/depth):
4.37" × 3.31" × 1.10" (110.99 × 84.07 ×
27.94 mm)
Power Supply 8-16 VDC 125 mA maximum current @
12 VDC
Environments: Meets UL 294 standards for Outdoor Use
Humidity: 5 to 100% (non-condensing)
Operating Temperature: -31º F to 151º F (-35º to 67º C)
12
Tyco CONFIDENTIAL
Index of Protection: IP 65 (IEC 529)
Read Range: 1 to 5 inches depending on credential
technology and environment.
Note: Read range for credentials of
identical technologies may vary greatly
depending on the tuning and antenna
structure of each individual credential.
Standard Wiegand Output
including:
ID Pass-Through Option
Fixed Wiegand bit stream option
Consult your Software House
representative for available
reconfiguration cards for your reader.
13
Tyco CONFIDENTIAL
FCC DIGITAL DEVICE LIMITATIONS
Radio and Television Interference
This equipment has been tested and found to comply with the limits
for a digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference, in which case the user will be
required to correct the interference at his own expense.
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
In order to maintain compliance with FCC regulations, shielded cables
must be used with this equipment. Operation with non-approved
equipment or unshielded cables is likely to result in interference to
radio and television reception.
Caution: Changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate this
equipment.
14
Tyco CONFIDENTIAL
CANADIAN RADIO EMISSIONS
REQUIREMENTS
This digital apparatus does not exceed the Class A limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Le present appareil numerique n'emet pas de bruits radioelectriques
depassant les limites applicables aux appareils numeriques de la class A
prescrites dans le Reglement sur le brouillage radioelectrique edicte par le
ministere des Communications du Canada.
UL STANDARDS COMPLIANCE
This reader has been tested by Underwriters Laboratories, Inc. for standard
UL 294, Access Control System Units, but has not been tested for
compliance with any particular model of controller.
15
Tyco CONFIDENTIAL
CE MARKING
Hereby, Software House declares that this equipment, if used according to
the instructions, is in compliance with the essential requirements and other
relevant provisions of the RTTE Directive 1999/5/EC. For use in all
countries of the EU.
A Declaration of Conformity exists for the following Software House
Multi-technology readers:
To obtain a copy, contact Software House and request the “Declaration of
Conformity” document for Multi-technology readers.
Software House
70 Westview Street
Lexington, MA 02421 U.S.A.
In case of alteration of the product, not agreed to by us, this declaration will
lose its validity.
SWH-4100 SWH-2100 SWH-1100 SWH-2000
SWH-5100 SWH-4200 SWH-3100
SWH-1000 SWH-3000 SWH-5000
This symbol indicates proof of conformity to
applicable European Economic Community
Council directives and harmonized standards
published in the official journal of the European
Communities.
Software House
70 Westview Street
Lexington, MA 02421
http://www.swhouse.com
Fax: 781-466-9550 Phone: 781-466-6660
16
Tyco CONFIDENTIAL
Copyrights and Trademarks
This document contains proprietary information of Tyco International, Inc. and is furnished to its
customer solely to assist in the installation, testing, operation and maintenance of the equipment
described. This document may not be reproduced in whole or in part without the written approval of
Tyco International.
Copyright 2005 Tyco International
All rights reserved.
Printed in Germany.
Software House is a trademark of Sensormatic Electronics Corporation.
HID, SmartFrame, and CASI-RUSCO are registered trademarks of other companies not affiliated
with Sensormatic.
