Dekolink Wireless CBDAPCSAC1W65 MW-CBDA-PCS-X-1W65-A Cellular Bi-Directional Ampli User Manual Installation and operating instructions
Dekolink Wireless Ltd MW-CBDA-PCS-X-1W65-A Cellular Bi-Directional Ampli Installation and operating instructions
Installation and operating instructions

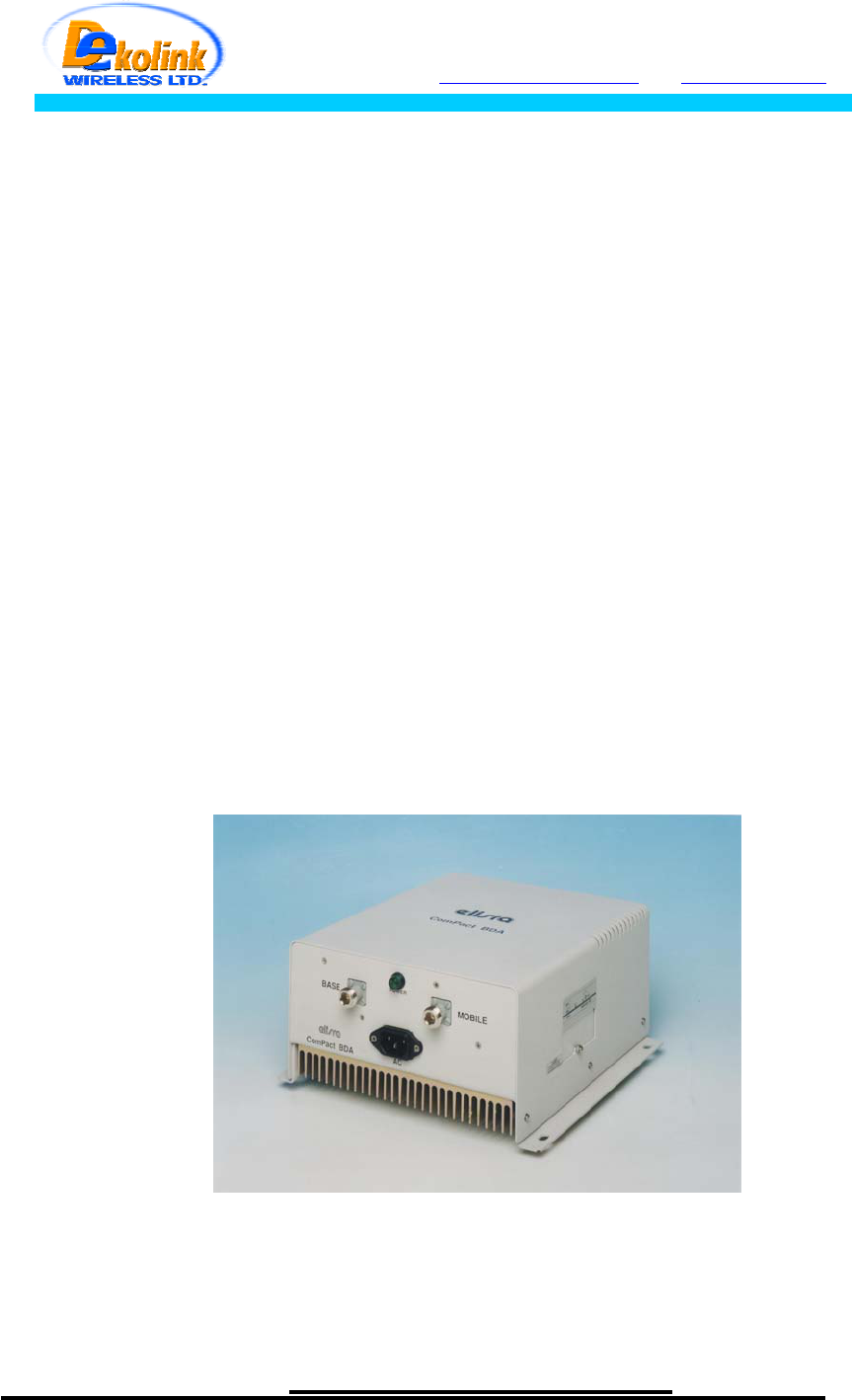

Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@decolink.com web www.decolink.com
INSTALLATION
AND
OPERATING INSTRUCTIONS
FOR
MW-CBDA-PCS-X-1W65-A
CELLULAR
BI-DIRECTIONAL AMPLIFIER
Page 1 of 9 CBDA PCSX 1W65 Install.doc
TABLE OF CONTENTS
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@decolink.com web www.decolink.com
PARAGRAPH PAGE No
BDA OVERVIEW 3
BLOCK DAIGRAM DESCRIPTION 3
BDA OPERATION 4
AGC & MGC FUNCTION 5
RF EXPOSURE WARNING 6
ELECTRICAL SPECIFICATIONS 7
MECHANICAL SPECIFICATIONS 7
ENVIRONMENTAL CONDITIONS 7
LIST OF DRAWINGS
DRAWING PAGE No
BDA (WITH AGC) RF BLOCK DIAGRAM DRAWING 4
AGC & MGC CONTROL 5
MECHANICAL OUTLINE 8
Page 2 of 9 CBDA PCSX 1W65 Install.doc
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@decolink.com web www.decolink.com
BDA OVERVIEW:
The Bi-Directional Amplifier (BDA) assembly provides an exceptional repeater/booster performances to
extend the coverage area of radio communications in buildings and RF shielded environments.
Features such as high linearity power amplifiers are contributing for the overall improved system
linearity performances. The unit is based on a duplexed path configuration, having sharp out of band
attenuation for improved isolation between the receiving and transmitting paths.
BLOCK DIAGRAM DESCRIPTION:
The CBDA Downlink path receives the RF signals from base station amplifies them and transmits them
to the subscriber. The BDA Uplink path receives the RF signals from the subscriber amplifies them and
transmits them to the base station. Two duplexers frequency separate the signals to the proper
amplifying path and isolate the two signals.
For each path there is an AGC amplifier. The amplifier has an AGC option switch. When switched on,
the AGC circuit limits the amplifier output power. The AGC circuit senses the output power and
introduces more attenuation, when the output power exceeds the preset level. This way the gain of the
amplifier is reduced, its output power is limited and the intermodulations products are kept below the
desired level.
In this manner the output power cannot exceed the preset power and the IMD levels are always kept
below –13 dBm.
The AGC amplifier has a Power LED lamp that illuminates when the output power has reached the
preset power limit.
In addition the BDA has a trimmer that enables continuos reduction of the gain by over 15 dB.
Page 3 of 9 CBDA PCSX 1W65 Install.doc
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@decolink.com web www.decolink.com
Duplexer
Downlink
Duplexer
Uplink
TO
BASE
STATION
ANTENNA
TO
AREA
ANTENNA
(N-TYPE)
(N-TYPE)
AGC RF AMPLIFIER
AGC CIRCUIT
DETECTER
AGC CIRCUIT
DETECTER
AGC RF AMPLIFIER
COUPLER
COUPLER
MGC
MGC

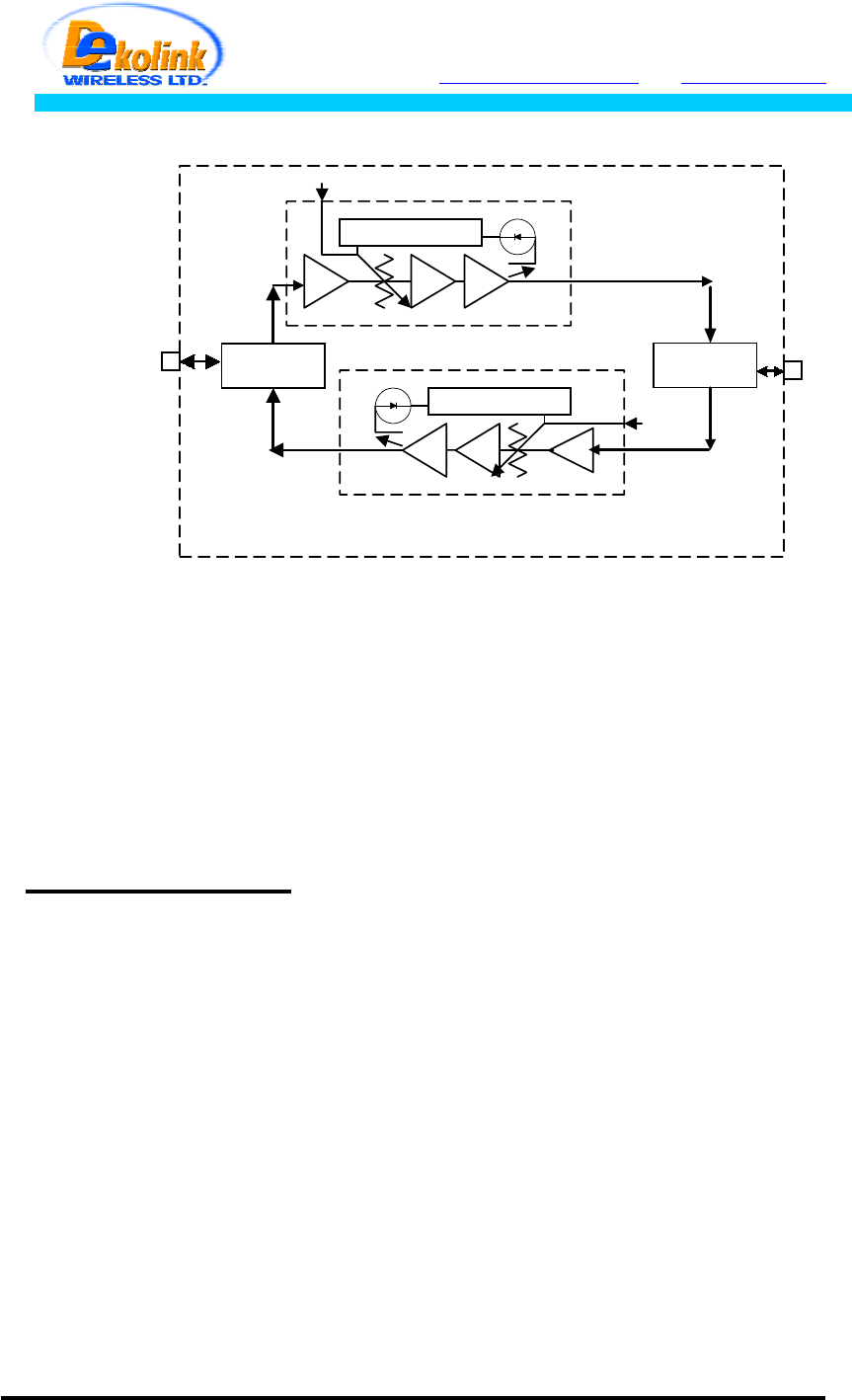

BDA with AGC & MGC
RF BLOCK DIAGRAM
BDA OPERATION
The RF connection is made via two type “N” female connectors. The RF connector labeled “Base” must
be connected to the antenna pointing to the base station. The RF connection labeled “Mobile” must be
connected to the antenna pointing into the area to be covered by the BDA.
The isolation between the base station antenna and the mobile antenna should be at least 12 dB higher
than the BDA gain. If the isolation were less than the BDA gain, oscillation would start and would
saturate the amplifier. Isolation few dB higher than the BDA gain cannot start oscillations but would
causes gain ripple in the band.
Page 4 of 9 CBDA PCSX 1W65 Install.doc
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@decolink.com web www.decolink.com
AGC & MGC FUNCTION
The BDA has AGC function. Their amplifier has a directional coupler and a detector at the output of the
high power amplifier to monitor the output power. When a high signal is received the automatic level
control detects the amplitude and sends a feedback signal to a voltage variable attenuator which
attenuates the signal level so that the output power of the amplifier does not exceed the preset limit.
The LED on the amplifier illuminates when the power out the amplifier is within the set limit (both when
the AGC is On and when the AGC is OFF).
The switch on the RF amplifier enables the AGC function. If the AGC is disabled then the amplifier gives
maximum gain.
MGC: The RF gain of the BDA can be reduced by about 15 dB using the continuos trimmer on the
amplifier. The RF gain is at maximum when the trimmer is at anti-clockwise direction. To reduce the
gain, turn the trimmer clockwise using a screwdriver. Turning it halfway would reduce the gain by 7.5
dB.
The AGC and MGC functions for the uplink path are reached by opening a small cover located on the
DBA side adjacent to the Mobile antenna port. For the downlink path the window is located on the side
near the Base antenna port.
Note: The BDA is shipped with the AGC switch in the OFF position and maximum RF gain.

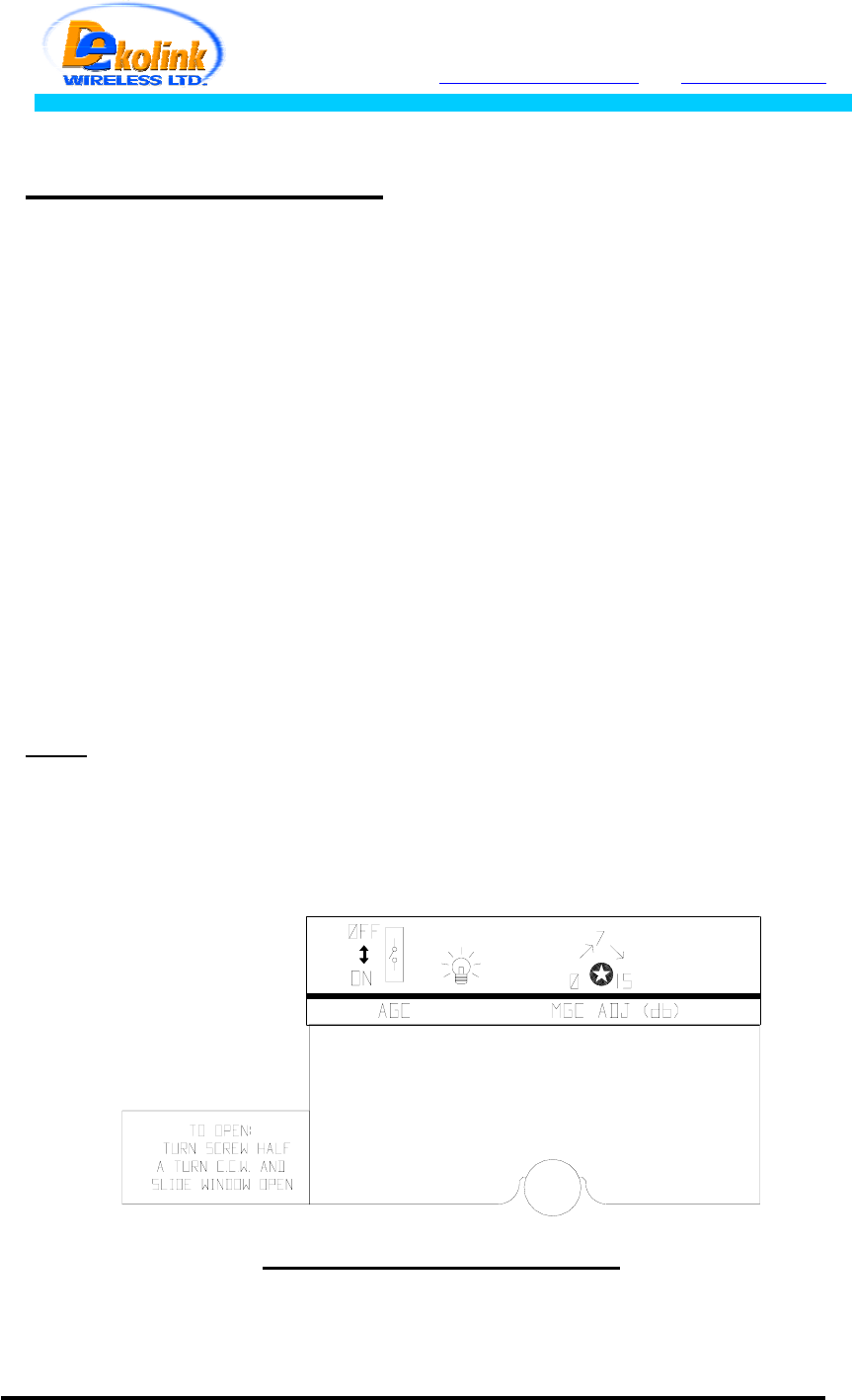

AGC & MGC CONTROL
(Control Window Located at BDA sides)
Gain Control
Trimmer
(MGC)
Power
Out
LED
AGC
Enable
Switch
Page 5 of 9 CBDA PCSX 1W65 Install.doc
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@decolink.com web www.decolink.com
RF EXPOSURE WARNING
In order to satisfy the FCC RF exposure requirements, you must ensure that the
installation complies with the following:
One antenna is connected via cable that has typical 1~10 dB attenuation (depends on
the length of the cable) to the BDA BASE port. This antenna is installed outdoor and
has very sharp beam (Yagi type or similar) pointed to the donor (BTS). This type of
antenna has about 16 dBi gain. Typical specifications: gain: 8 dBd (=10.1 dBi), VSWR:
better than 1.5:1 , Impedance: 50 ohm. The outdoor antenna must be installed to
provide a minimum separation distance of 0.5 m (50 cm) from persons within the area.
The second antenna is connected via cable that has typical 1~10 dB attenuation
(depends on the length of the cable) to the CBDA MOBILE port. This type of antenna
is omnidirecttional (isotropic), or wide beam, with 0 to 2 dBi typical gain and is installed
and distributes indoor (in buildings, tunnels, basements, park lots, shopping centers
etc.). Typical specifications: gain: 2 dBi, VSWR: better than 2:1 , Impedance: 50 ohm.
The indoor antenna must be installed to provide a minimum separation distance of 0.2
m (20 cm) from persons within the area.
Page 6 of 9 CBDA PCSX 1W65 Install.doc
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@decolink.com web www.decolink.com
ELECTRICAL SPECIFICATIONS:
Uplink Downlink
Frequency Range (MHz) See Table See Table
CDMA Total Output Power +24 dBm typ
+27 dBm typ
AGC Factory Power Preset +24± 1dBm
+27±1 dBm
3rd Order Output Intercept point
+45 dBm typical +48 dBm typical
3rd Order IMD (dBc typ)
50 dBc @ two tones
+20 dBm each
50 dBc @ two tones
+23 dBm each
Passband Gain @Min attenuation 65 dB min
Passband Ripple ± 1.5 dB max
Manual Attenuation Range (Continuous) 15 dB min
Noise Figure 5.0 dB max
Impedance level 50 ohms
V.S.W.R In/Out 1.8 : 1 max
AGC Selection By ON/OFF Switch
AGC Attenuation Range 30 dB typical
AGC LED Indication LED turn ON when power reaches AGC Set
Power Level. (both at On and Off positions).
Power Supply : 110/220V AC, 50-60 Hz /1A
SYSTEM FREQUENCY RANGE:
BLOCK Model No. Up Link Down Link
A MW-CBDA-PCS-A-1W65-A 1850-1865 1930-1945
B MW-CBDA-PCS-B-1W65-A 1870-1885 1950-1965
C MW-CBDA-PCS-C-1W65-A 1895-1910 1975-1990
D MW-CBDA-PCS-D-1W65-A 1865-1870 1945-1950
E MW-CBDA-PCS-E-1W65-A 1885-1890 1965-1970
F MW-CBDA-PCS-F-1W65-A 1890-1895 1970-1975
Page 7 of 9 CBDA PCSX 1W65 Install.doc
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@decolink.com web www.decolink.com
ENVIRONMENTAL CONDITIONS:
The unit is designed for indoor applications:
Operating temperature : - 30°C to + 50°C
Storage temperature : - 50°C to + 80°C
MECHANICAL SPECIFICATIONS:
Size : 10 x 10 x 5 inch approx.
(250 x 250 x 120 mm approx.)
RF Connectors : N-type Female
Weight : 15 Lbs. (7 kg.) approx.
Page 8 of 9 CBDA PCSX 1W65 Install.doc
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@decolink.com web www.decolink.com

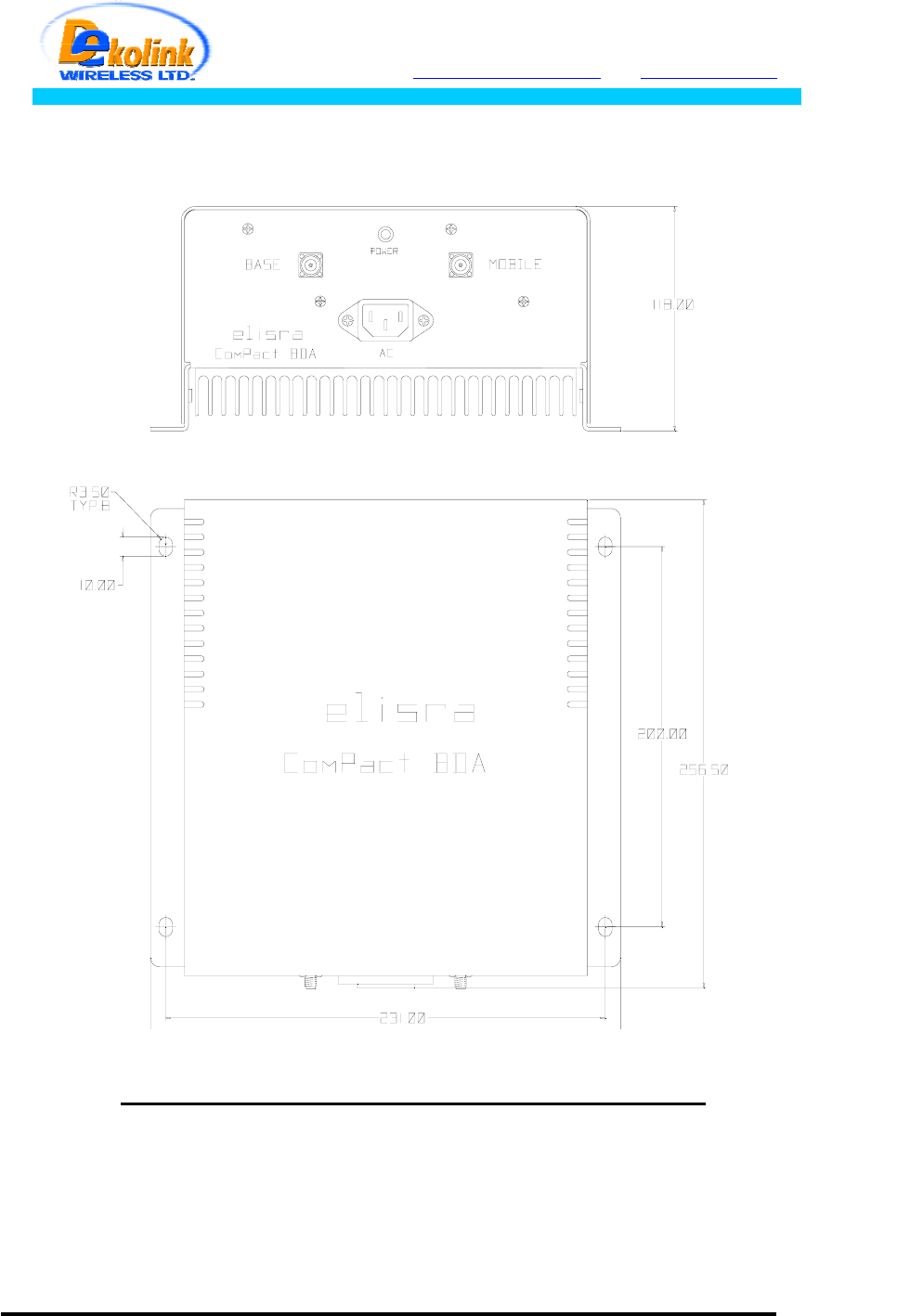

MECHANICAL OUTLINE
Page 9 of 9 CBDA PCSX 1W65 Install.doc
