Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@dekolink.com web www.dekolink.com
Installation and
Operating Instructions
For
High Power
Fiber-optic Repeater System
(MW-FBDA-PCS-xxx-50W)
& FiberopticBase Interface Unit
(FBIU)
FO-50W SYS Page 1 of 12
Dekolink Wireless Proprietary and Confidential Information. Copying, Distribution, and Disclosure are
prohibited without Express Authorization from Dekolink Wireless Company.
This document is protected by all applicable copyright laws.
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@dekolink.com web www.dekolink.com
TABLE OF CONTENTS
Para No. Paragraph Page No.
1. OVERVIEW 3
1.1 FBIU 3
1.2 FBDA 4
2. SUBSYSTEM DESCRIPTION 5
2.1 FBDA 5
2.2 FBIU 5
2.2.1 FIBEROPTIC TRANSCEIVER 5
2.2.2 ATTENUATORS 5
3 SYSTEM SPECIFICATIONS 7
3.1 RF SPECIFICATIONS 7
3.2 FBDA ALARM SPECIFICATIONS 8
3.3 MECHANICAL SPECIFICATIONS 8
3.4 ENVIRONMENTAL CONDITIONS 8
4 INSTALLATION PROCEDURE 9
4.1 FIBER OPTIC LINK ASSEMBLY 9
4.2 DOWNLINK CALLIBRATION 9
4.3 UPLINK CALLIBRATION 9
4.4 SYSTEM ASSEMBLY 10
DEKOLINK WIRELESS LIMITED WARRANTY 12
LIST OF FIGURES
Fig No. Fig. Name Page No.
1 FBDA SYSTEM BLOCK DIAGRAM 4
2 FBIU RF BLOCK DIAGRAM 6
3 FBIU MECHANICAL LAYOUT 11
FO-50W SYS Page 2 of 12
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@dekolink.com web www.dekolink.com
1. OVERVIEW:

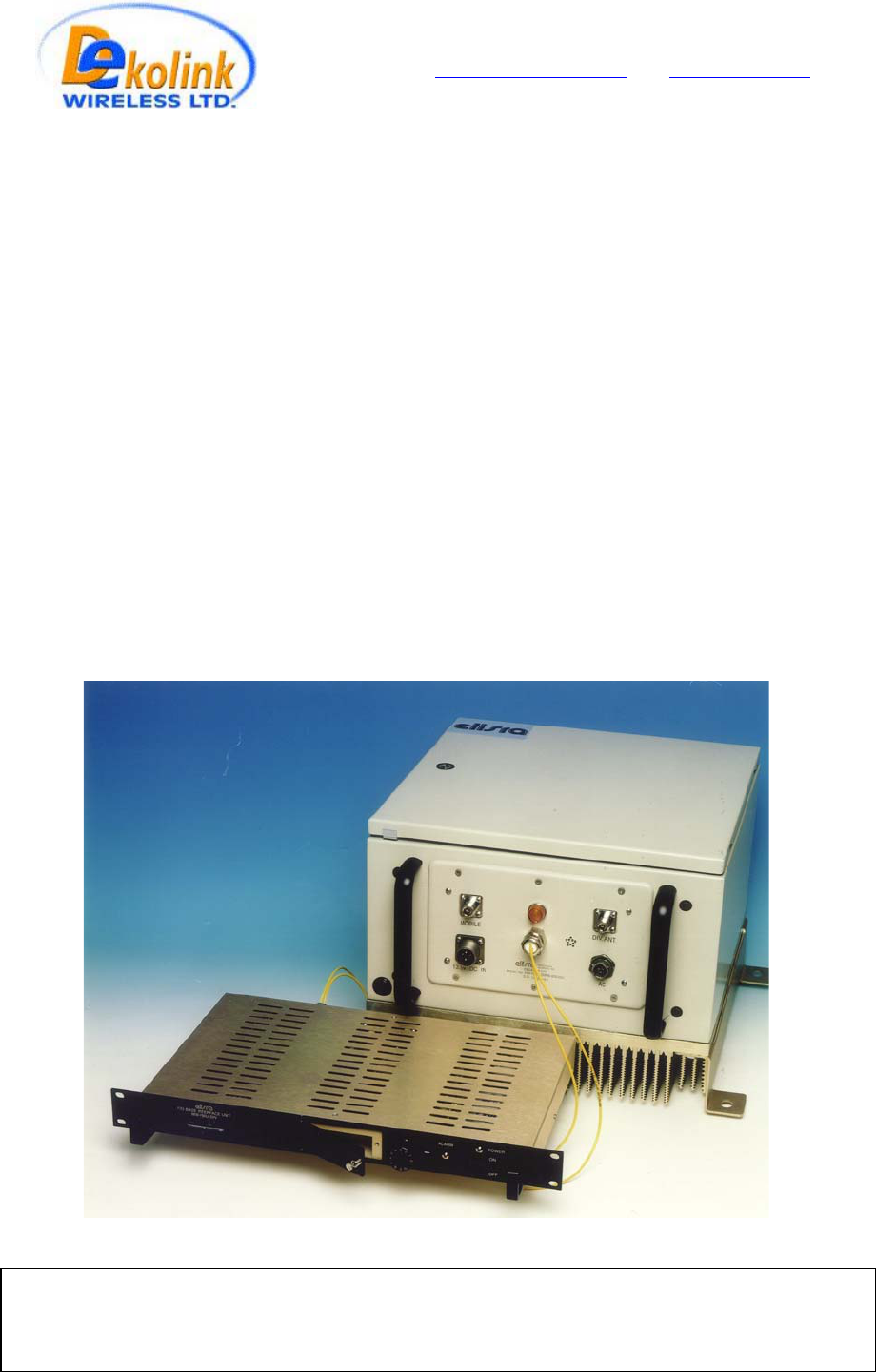

The Fiber optic repeater system is an excellent solution for BTS coverage
extension by means of Fiber optic link and remote high power RF head.
The system consists of two conversion boxes;
- FBIU (Fiberoptic Base Interface Unit)
- FBDA (Fiber optic Bi Directional Amplifier)
One fiber, for both uplink and downlink directions connect the FBIU to the
FBDA. Using fiberoptic cable allows long distance transmission, up to 20 Km.
1.1 FBIU
The FBIU is installed near the BTS and is connected to the BTS by RF
cables. A Fiberoptic transceiver converts the Downlink RF signals to optical
signals and the uplink optical signal to RF. A high power attenuator is used
as power adjustment between BTS Tx power and Fiberoptic transceiver
requirements. A separate attenuator is used for Rx direction.
FO-50W SYS Page 3 of 12
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@dekolink.com web www.dekolink.com
1.2 FBDA
The FBDA is installed near the area to be covered and is connected to the
mobile antenna. A Fiberoptic transceiver converts the Downlink optical
signals to RF signals and the uplink RF signals to optical signals. A duplexer
in the FBDA separates the uplink and downlink signals thus enabling the use
of the same antenna for receiving and transmitting. The duplexer has sharp
out of band attenuation for better isolation between the receiving and
transmitting paths and for reduction of out of band interfering signals. A high
power amplifier in the downlink path produces high RF power to the antenna.
A pre-amplifier is used to drive the uplink signals from the antenna to the
Fiberoptic transceiver input to maintain reasonable NF (noise figure) in the
uplink path. The FBDA contains a monitoring unit to monitor the operation of
the active elements inside the FBDA. Whenever a fault occurs an ALARM
signal is sent to the FBIU.

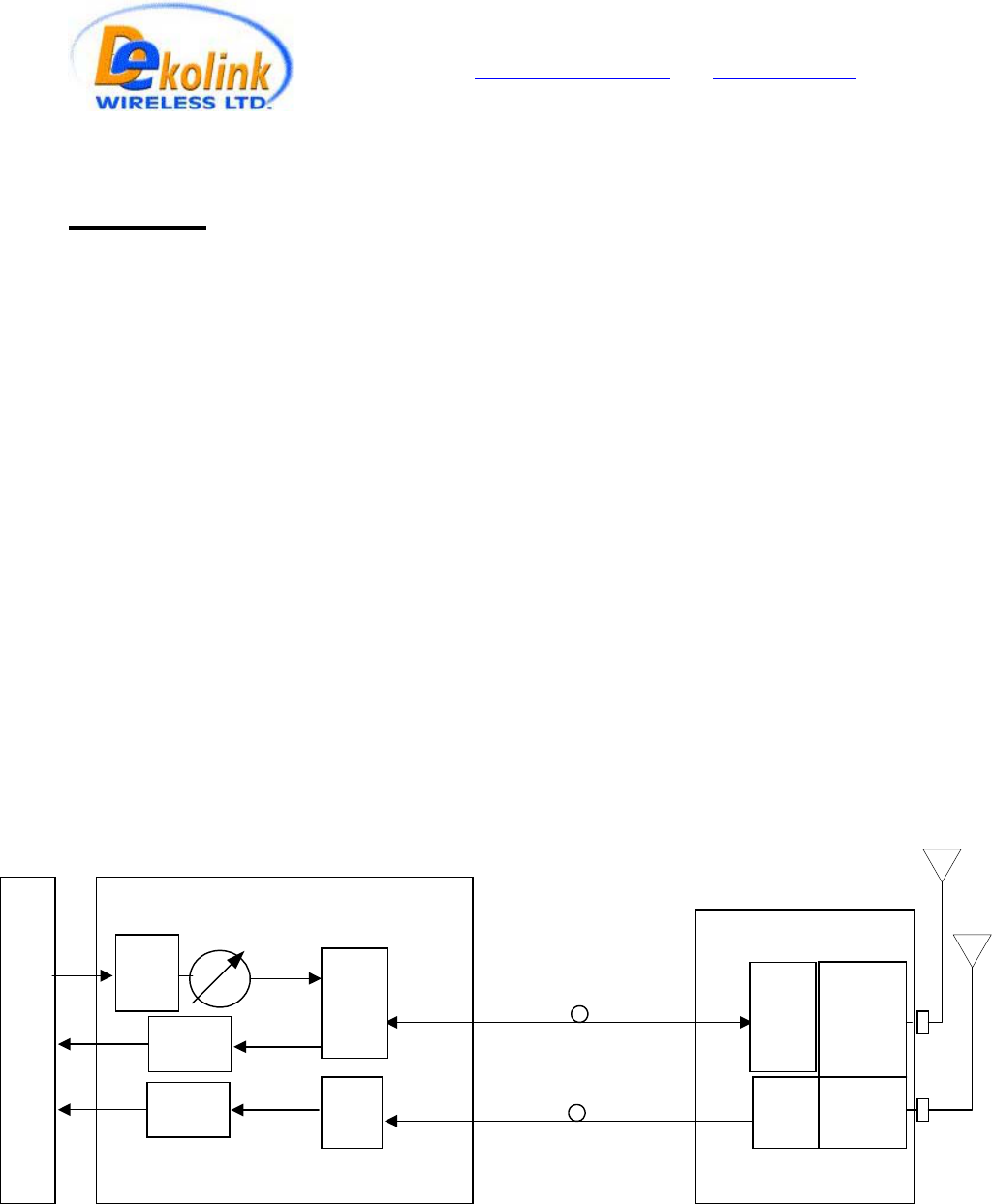

FBDA SYSTEM BLOCK DIAGRAM
Mobile ANT.
BTS
High
pwr
ATTN.
30 dB
Tx
Rx
F/O+
WDM
RF IN
RF Out
optical in/out
optical in
F/O+
WDM
optical in/out
optical Out
FBDA
RF
section
FBIU
FIBEROPTIC CABLE
RUN UP TO 20Km
ATTN.
30 dB
(MAX. 0dBm)
F/O
F/O
RF Out
ATTN.
30 dB
Rx1
ATTN
FO-50W SYS Page 4 of 12
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@dekolink.com web www.dekolink.com
2. SUBSYSTEM DESCRIPTION:
2.1 FBDA
Refer to installation and operation instructions for
MW-FBDA-PCS-xxx-50W
2.2 FBIU
The FBIU is the BTS interface of the system. It contains one Fiberoptic
transceiver and attenuators for uplink and downlink paths and power supply.
2.2.1 Fiberoptic transceiver
The Fiberoptic transceiver converts the signal form RF to optical in the
downlink direction and from optical signal to RF in the uplink direction.
2.2.2 Attenuators
Assuming that the output power of BTS is +30dBm, a 30 dB high power
external attenuator is required. In practice, more attenuation can be added
for different system setting.
For the RX path a separate 30 dB attenuator is connected at the F/O unit
output.
FO-50W SYS Page 5 of 12
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@dekolink.com web www.dekolink.com
FO-50W SYS Page 6 of 12
TO BTS

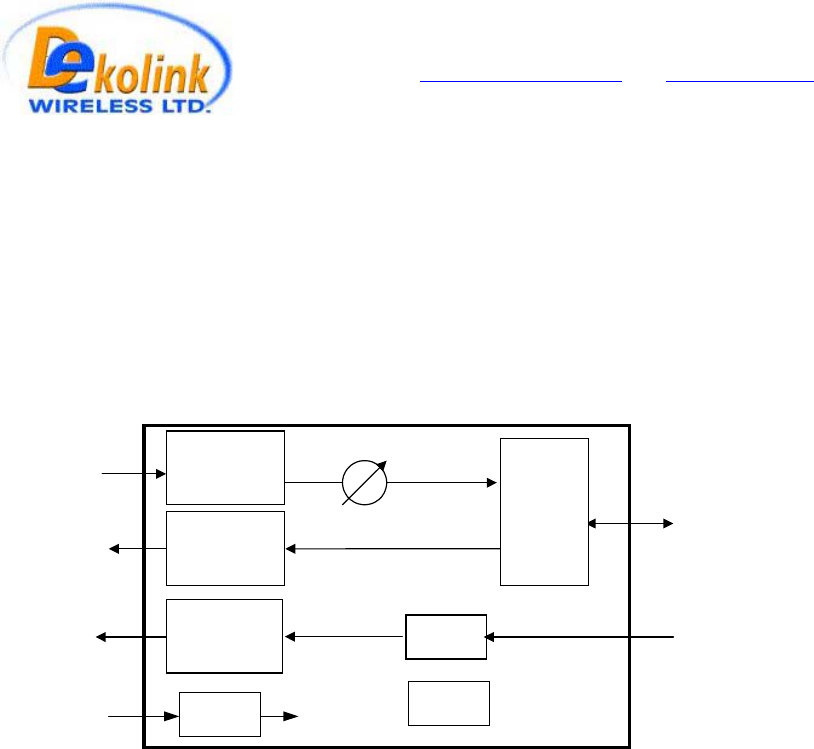

FIG 2: FBIU RF BLOCK DIAGRAM
High pwr ATTN.
30 dB
F/O+
WDM
RF IN
RF Out
optical in/out
optical in
ATTN.
30 dB
(MAX. 0dBm)
F/O
RF Out
ATTN.
30 dB
VAR. ATTN.
TX
RX
RX1
DIV
DC/DC
Converter
-48
VDC
PCB
Alarm
Circuit
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@dekolink.com web www.dekolink.com
3 . SYSTEM SPECIFICATIONS:
3.1 RF SPECIFICATIONS
(optical loss adjusted to 0dBm, all attenuators 30 dB)
Uplink (RX) Downlink (TX)
Frequency Range
Per system Per system
Passband Gain @ min attenuation 16 dB Nom. 10dB Nom.
Passband Ripple ± 1.0 dB typical ± 1.0 dB typical
Manual Attenuation Range 0 to 16 db cont.
(FBDA side)
0-10 dB in 1dB steps
(FBIU side)
0-30 dB in 2dB steps
(FBDA side)
Noise Figure @+25°C
(optical loss less than 3 dB)
6.0 dB max N.A.
Up-Link 3rd Order Intermodulation
Products @two tones -3 dBm each
at FBIU Rfiber Output
55 dBc typical N.A.
Down-Link 3rd Order Intermodulation
Products @two tones +37 dBm each at
Output
---------------
50 dBc min.
AGC Power Level(Factory Set) 0 ± 1.0 dBm nom. 40±1 dBm
AGC Range 30 dB min 10
Impedance Level 50 Ohms
VSWR In 1.5 : 1 typ
VSWR Out 2.0 : 1 typ
System Frequency Range
SYSTEM TYPE MODEL No DOWN-LINK UP-LINK
Block B MW-FBDA-PCS-B-50W 1950-1965 1870-1885
Block D+B+E MW-FBDA-PCS-DE-50W 1945-1970 1865-1890
Block B+E+F MW-FBDA-PCS-BF-50W 1950-1975 1870-1895
Block D+B+E+F MW-FBDA-PCS-DF-50W 1945-1975 1865-1895
FO-50W SYS Page 7 of 12
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@dekolink.com web www.dekolink.com
3.2 FBDA ALARM SPECIFICATIONS
RemoteFault
Indication
(Summarized
alarm)
Alarm is sent on the serial data link of the FO transmitter
to FBIU
Fault List : Power Supply Over-voltage or Under-voltage
Uplink Amplifier Over Current or Under Current
Downlink Power Amplifier Over Current or Under Current
FO Transceiver Over Current or Under Current
FO Receiver Power fall (Bad Optical Connection)
Fan Over Current or Under Current
Electrical Fault
Indication LED
Illuminated LED on Monitor Box for each Electrical Fault
Fiber Optic
Connection Fault
Indication LED
Illuminated LED on FO Transceiver when Optical
Connection is performing Correctly.
LED is OFF when FO Receiver Power falls.
FBIU alarm
output
D type 9pin male, N.C. relay contact between pin 2 and pin
4, open for active alarm + Illuminated LED on front panel.
3.3 MECHANICAL SPECIFICATIONS:
FBDA FBIU
Size 400 x 400 x 300 mm approx. 19” 1Ux250mm
Weight 25 kg. Approx. 3 kg. Approx.
Type Weatherproof Enclosure for
Wall Mounted Installation
In door, rack mount
Power Supply 110 VAC / 2A or 220VAC/1A -48V DC 1A
Molex 2.13 mm , 3 circuits
female, male pins
3.4 ENVIRONMENTAL CONDITIONS:
Operating temperature - 30°C to + 50°C
Storage temperature - 30°C to + 70°C
Weatherproof conditions Protected to IP65 (FBDA only)
FO-50W SYS Page 8 of 12
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@dekolink.com web www.dekolink.com
4. INSTALLATION PROCEDURE
4.1 Fiber Optic Link Assembly:(both FBDA and FBIU)
4.1.1 Insert main optical fiber trough the Fiber In/out hole on the FBDA
panel and connect it to the Optical In/out connector on the Fiberoptic
transceiver. On the FBIU connect the optical fiber to the Optical In/out
connector on the Fiberoptic transceiver.
4.2 Downlink calibration:
4.2.1 Connect Spectrum analyzer through High Power Attenuator of 40 dB to
the Antenna port of the FBDA.
4.2.2 Inject (+20) dBm TX band signal from the FBIU Tx antenna through the
optical link.
4.2.3 Adjust Gain on the Fiberoptic transceiver front panel in the FBDA so
that RF power at the output is +30dBm.
4.3 Uplink calibration:
4.3.1 Connect Spectrum analyzer to the Rx port of the FBIU.
4.3.2 Inject (–60) dBm RX band signal from the antenna port on the FBDA
side through the optical link.
4.3.3 Adjust Gain on the Fiberoptic transceiver in the FBIU so that RF power
at the output is -44 dBm.
FO-50W SYS Page 9 of 12
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@dekolink.com web www.dekolink.com
4.4 System assembly:
4.4.1 Connect BTS Tx to Tx antenna port on FBIU. (Another 10dB attenuator
can be connected to the RF IN port of the Fiberoptic transceiver in the FBIU
and the Rotary Attenuator on the FBIU front panel adjusted slightly for
system performance optimization).
4.4.2 Connect Spectrum analyzer or Power Meter through High Power
Attenuator of 40 dB to the Antenna port of the FBDA.
4.4.3 Turn the system ON, make sure that output power of BTS is no more
than +30dBm. In case of higher power, higher attenuation is needed
between BASE and FBIU.
4.4.4 Adjust Gain on the Fiberoptic transceiver front panel in the FBDA so
that RF power at the output is +40±1dBm.
4.4.5 Turn power off. Disconnect Spectrum analyzer and attenuator from
Antenna port on the FBDA and connect Mobile Antenna to the FBDA.
4.4.6 Turn power on.
FO-50W SYS Page 10 of 12
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@dekolink.com web www.dekolink.com

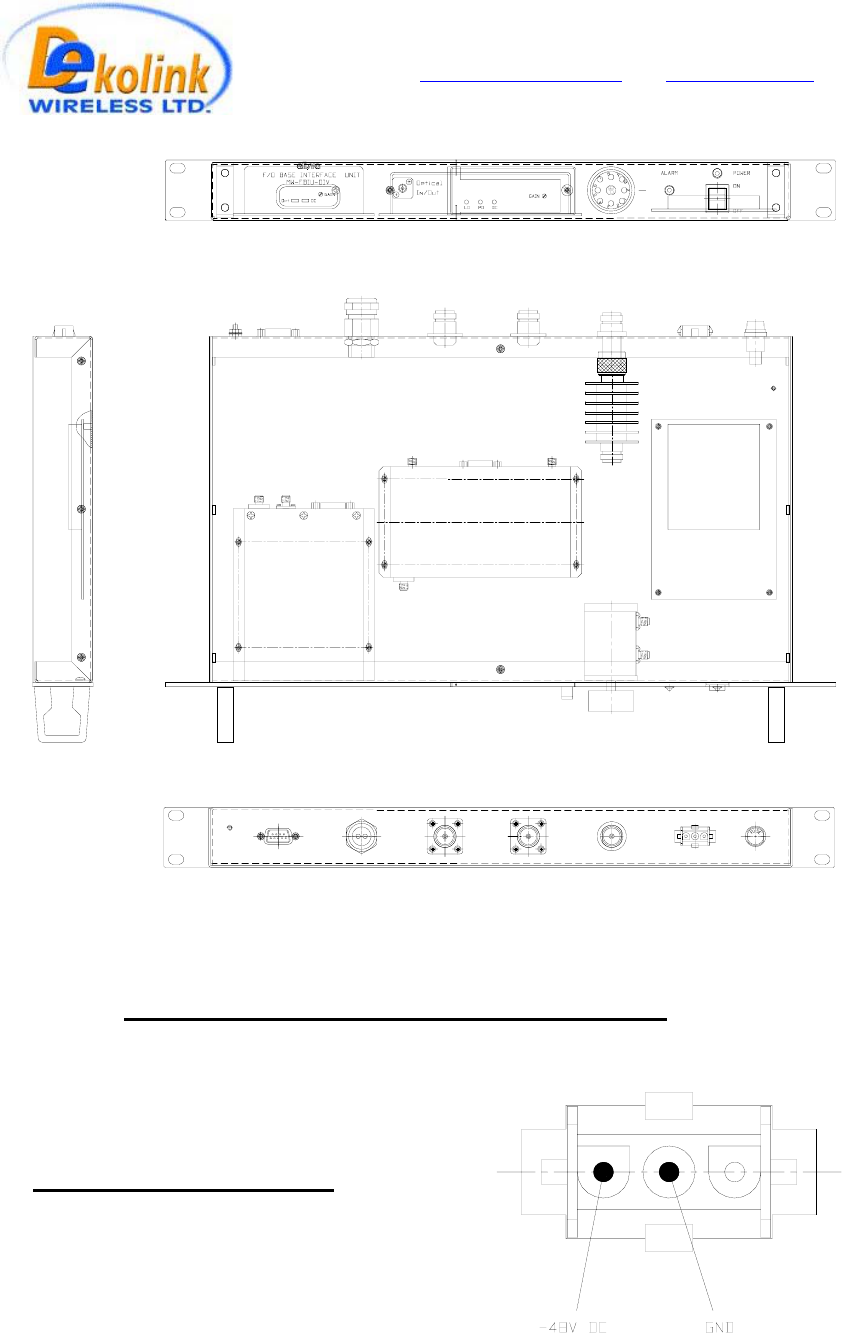

Fig. 3: FBIU MECHANICAL LAYOUT
FBIU DC CONNECTOR
FO-50W SYS Page 11 of 12
Dekolink WIRELESS Ltd.
16 Bazel St. Qiryat-Arieh Petah-Tikva, Israel, 49510
Tel- 972-3-9180-180 Fax-972-3- 190-9180
e-mail: marketing@dekolink.com web www.dekolink.com
DEKOLINK WIRELESS
LIMITED WARRANTY
Dekolink Wireless [Ltd.] (“Dekolink”), manufacturer of this product (the “Product”)
warrants to the original purchaser (“Purchaser”) that the Product is free from defects
in materials and workmanship for a term that ends on the earlier of twelve (12) months
from the date of activation of the Product or fifteen (15) months from the date of
shipment of the Product by Dekolink. The obligations of Dekolink under this warranty
shall be limited solely to the repair or exchange or giving credit for, at the option of
Dekolink, any Product that may prove defective in accordance with evidence
satisfactory to Dekolink. Any repair or replacement of the Product by Dekolink shall
not extend the original warranty period. This warranty is exclusive to the original
Purchaser and is not assignable.
This warranty applies only upon the condition that the Product has been installed,
maintained and operated under conditions of normal use. The provisions of this
warranty shall not apply if, in Dekolink’s judgment, the Product has been subject to
misuse or neglect, damaged in an accident or by act of vandalism, or repaired or altered
in any way that adversely affects its performance or reliability.
To obtain warranty service, Purchaser may, upon the prior written authorization of
Dekolink or its authorized service representative, return the defective Product to
Dekolink’s authorized service center. All shipping and insurance charges are the sole
responsibility of Purchaser and are not included in this warranty.
Dekolink expressly excludes and disclaims all other warranties, including but not limited
to any warranties of merchantability or fitness for a particular purpose.
Dekolink shall in no event be liable for any special, indirect, incidental, consequential or
punitive damages or for loss, damage, or expense, including loss of use, profits,
revenue, or goodwill, directly or indirectly arising from purchaser’s use or inability to
use the merchandise, or for loss or destruction of other property or from any other
cause, even if Dekolink has been advised of the possibility of such damage. Some states
do not allow the exclusion or limitation of incidental or consequential damages so these
limitations may not apply under certain circumstances.
The liability of Dekolink shall in no event exceed an amount equivalent to the purchase
price paid by the purchaser for the defective product.
This warranty shall not be extended, altered or varied except by a written instrument
duly signed by Dekolink.
FO-50W SYS Page 12 of 12
