Effective August 2008
Compact Refrigerators & Freezers
Service and Installation Manual
Please read this manual completely before attempting to install or operate this equipment! Notify carrier of damage! Inspect all
components immediately. See page 2.
400 Series
Work-top and undercounter
refrigerator or freezer bases
4500 Series
Work-top and undercounter
freezer bases
4000 Series
Undercounter refrigerator or
freezer bases
IMPORTANT INFORMATION
READ BEFORE USE
PLEASE SAVE THESE INSTRUCTIONS!
Compact Refrigerators and Freezers Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
2
Receiving & Inspecting Equipment ................................................. 2
Specifications .................................................................................. 3
Installation ...................................................................................... 4
Caster Installation ........................................................................... 5
Caster/Leg Mounting Detail ............................................................ 5
Operation ........................................................................................ 6
Door Maintenance ........................................................................... 6
Defrosting ....................................................................................... 6
Maintenance .................................................................................7-8
Wiring Diagrams ............................................................................. 9
Drawer Assembly Drawing ............................................................ 10
Replacement Parts Lists ............................................................... 11
Standard Labor Guidelines ............................................................ 12
Manufacturers Limited Warranty .................................................. 13
Standard Warranties ..................................................................... 14
Notes ............................................................................................ 15
The serial number on 400 series compact refrigerators and
freezers is printed on the right side of the interior back wall.
The serial number on 4000 and 4500 series compact refrigerators
and freezers is printed under the top nosing directly above the
door when door is in the closed position. Above the right hand
door on two and three door models.
Always have the serial number of your unit available when calling
for parts or service. A complete list of authorized Delfield parts
depots is on www.delfield.com.
This manual covers standard units only. If you have a custom
unit, consult the customer service department at 1-800-733-
8829
©2008 The Delfield Company. All rights reserved. Reproduction without
written permission is prohibited.
“Delfield” is a registered trademark of The Delfield Company.
Even though most equipment is shipped crated, care should
be taken during unloading so the equipment is not damaged
while being moved into the building.
1. Visually inspect the exterior of the package and skid or
container. Any damage should be noted and reported to
the delivering carrier immediately.
2. If damaged, open and inspect the contents with the
carrier.
3. In the event that the exterior is not damaged, yet upon
opening, there is concealed damage to the equipment
notify the carrier. Notification should be made verbally
as well as in written form.
4. Request an inspection by the shipping company of the
damaged equipment. This should be done within 10 days
from receipt of the equipment.
5. Check the lower portion of the unit to be sure legs or
casters are not bent.
6. Be sure to check the compressor compartment housing
and visually inspect the refrigeration package. Be sure
lines are secure and base is still intact.
7. Freight carriers can supply the necessary damage forms
upon request.
8. Retain all crating material until an inspection has been
made or waived.
Receiving And Inspecting The Equipment
Contents Serial Number Location
Compact Refrigerators and Freezers Service and Installation Manual
3
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
Work top refrigerator or freezer bases with stainless steel top & backsplash
Model Description L D H Storage Ft.3Shelves Ft.2H.P. Refg. Charge Amp NEMA Plug Ship Weight
402 refrigerator 27”
(68.6cm) 28.5”
(72.4cm) 39.5”
(100.3cm) 5.7 7.2 1/5 7.0 4.0 5-15P 176lbs
(80kg)
403 freezer 27”
(68.6cm) 28.5”
(72.4cm) 39.5”
(100.3cm) 5.7 7.2 1/5 7.0 5.8 5-15P 184lbs
(83kg)
ST4048 refrigerator 48”
(121.9cm) 28.5”
(72.4cm) 39.5”
(100.3cm) 11.4 13 1/5 7.0 4.0 5-15P 234lbs
(106kg)
ST4148 freezer 48”
(121.9cm) 28.5”
(72.4cm) 39.5”
(100.3cm) 11.4 13 1/3 8.0 6.0 5-15P 242lbs
(110kg)
Undercounter refrigerator or freezer bases with stainless steel top
Model Description L D H Storage Ft.3Shelves Ft.2H.P. Refg. Charge Amp NEMA Plug Ship Weight
406 refrigerator 27”
(68.6cm) 28.5”
(72.4cm) 35.5”
(90.2cm) 5.7 7.2 1/5 7.0 4.0 5-15P 176lbs
(80kg)
407 freezer 27”
(68.6cm) 28.5”
(72.4cm) 35.5”
(90.2cm) 5.7 7.2 1/5 7.0 5.8 5-15P 176lbs
(80kg)
UC4048 refrigerator 48”
(121.9cm) 28.5”
(72.4cm) 35.5”
(90.2cm) 11.4 13 1/5 7.0 4.0 5-15P 236lbs
(107kg)
UC4148 freezer 48”
(121.9cm) 28.5”
(72.4cm) 35.5”
(90.2cm) 11.4 13 1/3 8.0 6.0 5-15P 236lbs
(107kg)
Undercounter refrigerator or freezer with subtop and 3.75” casters
Model Description L D H Storage Ft.3Shelves Ft.2H.P. Refg. Charge Amp NEMA Plug Ship Weight
406-CA refrigerator 27”
(68.6cm) 27.75”
(70.5cm) 33.25”
(84.5cm) 5.7 7.2 1/5 7.0 4.0 5-15P 168lbs
(76kg)
407-CA freezer 27”
(68.6cm) 27.75”
(70.5cm) 33.25”
(84.5cm) 5.7 7.2 1/5 7.0 5.8 5-15P 168lbs
(76kg)
Flat top freezer bases
Model Description L D H Storage Ft.3Shelves Ft.2H.P. Refg. Charge Amp NEMA Plug Ship Weight
4532N one door 32”
(81.3cm) 31.5”
(80.0cm) 36”
(91.4cm) 6.9 3.88 1/3 9.0 9.5 5-15P 280lbs
(127kg)
D4532N two drawer 32”
(81.3cm) 31.5”
(80.0cm) 36”
(91.4cm) 2.7 1/3+ 9.5 12.0 5-15P 315lbs
(143kg)
4560N two door 60”
(152.4cm) 31.5”
(80.0cm) 36”
(91.4cm) 15.7 7.19 1/3+ 13.0 12.0 5-15P 340lbs
(154kg)
Work top freezer bases with 4” backsplash
Model Description L D H Storage Ft.3Shelves Ft.2H.P. Refg. Charge Amp NEMA Plug Ship Weight
ST4532N one door 32”
(81.3cm) 31.5”
(80.0cm) 36”
(91.4cm) 6.9 3.88 1/3 9.0 9.5 5-15P 280lbs
(127kg)
STD4532N two drawer 32”
(81.3cm) 31.5”
(80.0cm) 36”
(91.4cm) 2.7 1/3+ 9.5 12.0 5-15P 315lbs
(143kg)
ST4560N two door 60”
(152.4cm) 31.5”
(80.0cm) 36”
(91.4cm) 15.7 7.19 1/3+ 13.0 12.0 5-15P 340lbs
(154kg)
Undercounter freezers
Model Description L D H Storage Ft.3Shelves Ft.2H.P. Refg. Charge Amp NEMA Plug Ship Weight
UC4532N one door 32”
(81.3cm) 31.5”
(80.0cm) 34.25”
(87.0cm) 6.9 3.88 1/3 9.0 9.5 5-15P 280lbs
(127kg)
UCD4532N two drawer 32”
(81.3cm) 31.5”
(80.0cm) 34.25”
(87.0cm) 2.7 1/3+ 9.5 12.0 5-15P 315lbs
(143kg)
UC4560N two door 60”
(152.4cm) 31.5”
(80.0cm) 34.25”
(87.0cm) 15.7 7.19 1/3+ 13.0 12.0 5-15P 340lbs
(154kg)
Specifications
Compact Refrigerators and Freezers Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
4
Location
Units represented in this manual are intended for indoor use
only. Be sure the location chosen has a floor strong enough to
support the total weight of the cabinet and contents. Reinforce
the floor as necessary to provide for maximum loading.
For the most efficient refrigeration, be sure to provide good air
circulation inside and out.
Inside cabinet: Do not pack refrigerator so full that air cannot
circulate.
Outside cabinet: Be sure that the unit has access to ample air. On
all 400 and 4000 Series equipment, (for 4500 Series equipment
door and drawer models see below), a minimum space of 3”
(7.6cm) at the back of the unit and 1” (2.5cm) at the top and
sides is required to conform to Underwriters Laboratories’
standards. On undercounter units it is imperative that the proper
air flow be maintained. The refrigeration system is designed so
air will flow under the unit, over the compressor/condenser area,
and out at the top rear of the unit. Avoid hot corners and locations
near stoves and ovens.
4500 Series equipment door and drawer models: These units
have Delfields “front-breathing design. They may be installed
flush against a wall or built into a counter as required. The
louver at the floor level must be kept completely clear of any
obstructions. Proper operation of these models is dependent on
air being able to flow freely through the front louver. The louver
at the back of the unit is not necessary for proper operation, but
any air flow through is beneficial.
Any restriction of the proper air flow outlined
above, total or partial, will void the warranty on
the unit.
Leveling
A level cabinet will perform better because the drain pan will drain
properly, the drawers or doors will line up with the frames and the
cabinet will not be subject to undue strain.
All four legs are adjustable. Adjust each leg until the unit is stable
and level left to right. If necessary adjusting the front legs slightly
higher than the rear by about 1/8(0.3cm) will help the door or
drawers remain closed.
If the unit is supplied with casters, no adjustments are available.
Ensure the floor where the unit is to be located is level.
Never stand on the unit or its drawers! Doing so may
result in bodily injury. They are not designed to hold
the weight of an adult and will collapse if misused in
this manner.
Stabilizing
Some models are supplied on casters for your convenience, for
ease of cleaning underneath and mobility.
The unit must be installed in a stable condition with
the front wheels locked. Locking the front casters
after installation is the owner’s and operators
responsibility.
Plumbing
Self-contained models are standard with a condensate evaporator.
If, for some reason, a unit does not have a condensate evaporator,
or the evaporator fails, the unit’s drain must have an outlet to an
appropriate drainage area or container.
Moisture collecting from improper drainage can
create a slippery surface on the floor and a hazard
to employees. It is the owners and operator’s
responsibility to provide a container or outlet for
drainage.
Electrical connection
Refer to the amperage data on page 3, the serial tag, your
local code or the National Electrical Code to be sure the unit is
connected to the proper power source. A protected circuit of the
correct voltage and amperage must be run for connection of the
line cord, or permanent connection to the unit.
A 7’ (2.1 m) long grounded supply cord and plug are provided
with standard units. Simply plug the unit in to begin operation.
The thermostat must be turned to OFF and the unit
disconnected from the power source whenever
performing service, maintenance functions or
cleaning the refrigerated area.
CAUTION
Installation
Compact Refrigerators and Freezers Service and Installation Manual
5
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com

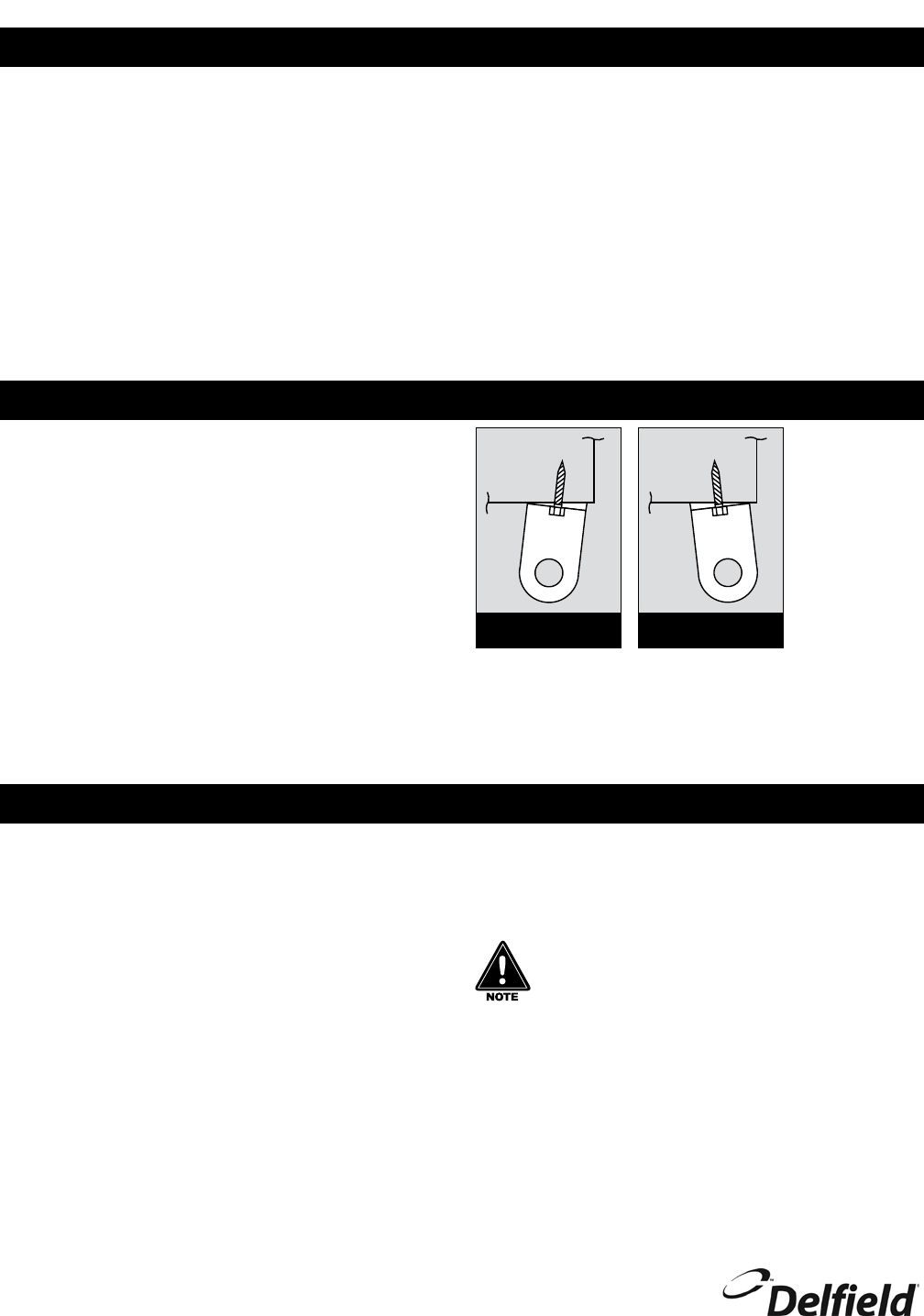

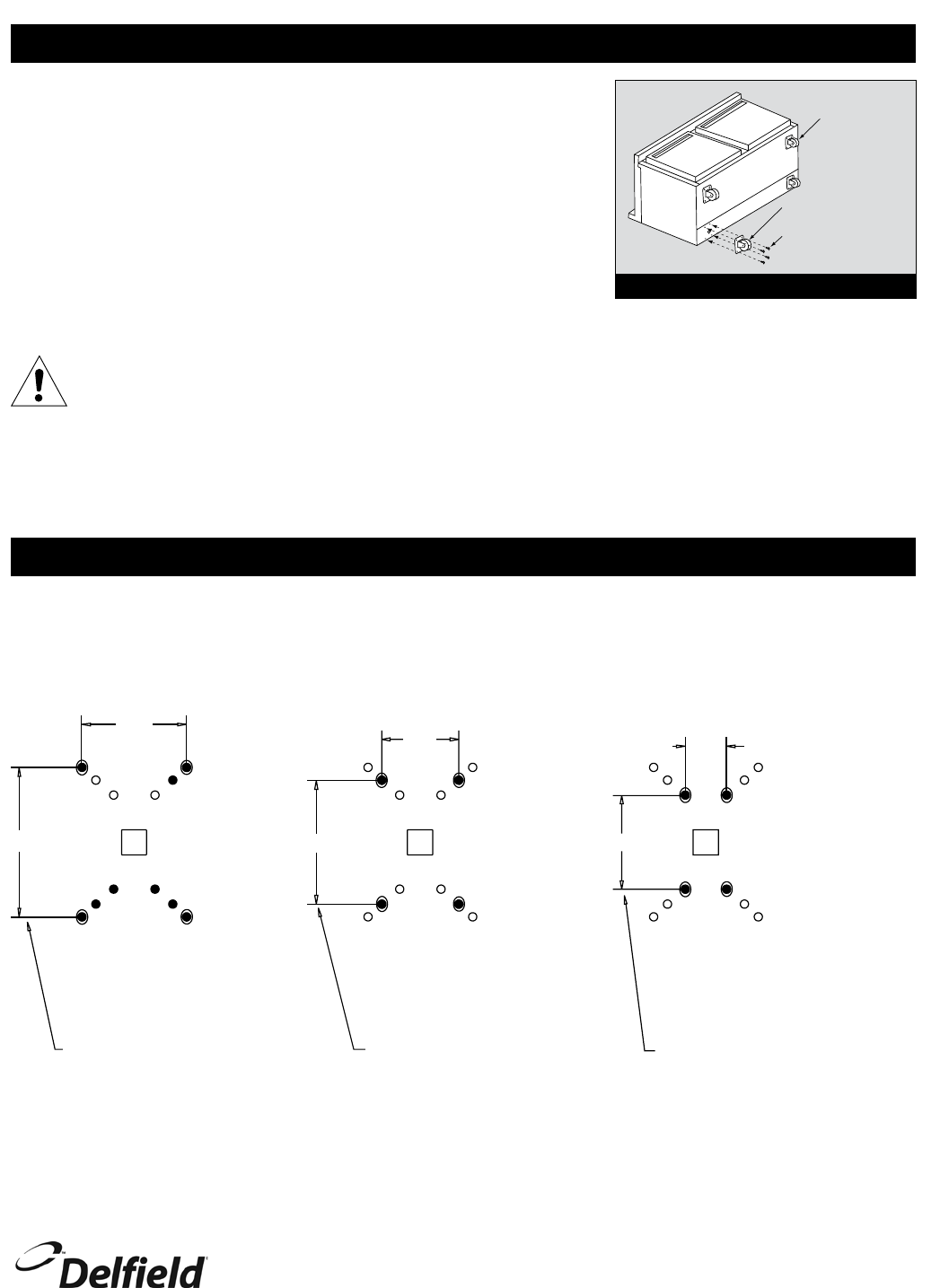

400 & 4000 Series caster installation
Carefully place the unit on its back (see illustration at right).
Remove legs by unscrewing them in a counter clockwise direction.
Located on each end of the compressor channel are 4 hex head screws, for a total of
8 screws. Remove them. 8 additional screws are provided with your casters.
Place a locking plate caster over one of the front holes, matching the 4 mounting
holes to the pre-drilled holes in the underside of the unit. Insert 4 hex head screws
and tighten. Repeat with the other locking front casters.
Repeat step 4 with the non-locking casters in the rear of the unit.
Carefully lift the unit upright.
After installing casters, the unit must stand upright for twenty-four (24)
hours before being powered up to assure oil return to the compressor
sump.
NOTE: Check parts list for correct caster application.
1.
2.
3.
4.
5.
6.
Plate Casters
W/Locks
Plate Casters
W/O Locks
#14 x .75" Hex Head
Screws #932-1116
Plate caster installation, 400 & 4000 Series.
Caster Installation - 400 & 4000 Series
Caster/Leg Mounting Detail
2”, 3” and 5” Caster and Leg Mounting Detail
A universal bolt hole pattern is provided on the bottom of the cabinet. It will accommodate any leg or caster. Simply line up the plate
holes with the corresponding cabinet holes.
2.38”
3.40”
1.75”
2.82”
0.94”
2.14”
NOTE:
If hole pattern on caster/leg
matches the one above mount
in inner set of holes.
2” Caster - 3234148
NOTE:
If hole pattern on caster/leg
matches the one above mount
in middle set of holes.
3” Caster - 3234024
5” Caster - 3234161
NOTE:
If hole pattern on caster/
leg matches the one above
mount in outer set of holes.
6” Leg - 3234569
WARNING
Compact Refrigerators and Freezers Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
6
After the unit is connected to power it will automatically begin
operating. With the doors closed, the temperature of the
cabinet should reach 36°F to 40°F (2°C to 4°C) on refrigerators
or 0°F (-18°C) on freezers in about one hour.
Temperature control instruction
Refrigerators: A thermostat located in the evaporator housing
on interior rear of the unit, controls the temperature in the box.
The factory setting for the control is “4” and maintains about
38°F (3°C) in the box. Set toward “1” for higher temperatures
and toward “7” for lower temperatures.
Freezers: A thermostat located in the evaporator housing on
interior rear of the unit, controls the temperature in the box.
The factory setting for the control is “4” and maintains about -
3°F (-18°C) in the box. Set toward “1” for higher temperatures
and toward “7” for lower temperatures.
Continuous opening and closing of the doors will hamper the
units ability to maintain optimum refrigeration temperature.
Illustration 1:
spacer outside
Illustration 2:
spacer inside
Adjusting door hinges
Doors have been adjusted at the factory. If it becomes
necessary to adjust a door, follow these instructions:
1) If the door needs lowering at the handle, use a 5/16wrench
to loosen the hinge screws and install a spacer outside of
the hinge (see illustration 1). Tighten the screws.
2) If the door needs to be higher at the handle, use a 5/16”
wrench to loosen the hinge screws and install a spacer
inside of the hinge (see illustration 2). Tighten the screws.
Refrigerators
Refrigerators defrost automatically with every cycle of the
compressor. The water generated is routed to a pan on the
rear of the unit and is evaporated by the heat given off by the
compressor.
Freezers
When defrost control goes into defrost, power to the condensing
unit and evaporator fans is interrupted and the defrost heater
is energized. The defrost heater warms the evaporator coil
thereby melting all frost accumulated during the previous
refrigeration cycle. Once all frost is eliminated, the temperature
of the coil continues to rise until it reaches 27 minutes. The
defrost control switches to refrigeration mode. Defrost will
initiate every six hours.
Turn the screw ONLY in a clockwise direction,
turning the screw counter-clockwise will break
the cam motor.
Operation
Door Maintenance
Defrosting
Compact Refrigerators and Freezers Service and Installation Manual
7
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
Maintenance
The thermostat must be turned to OFF and the unit
disconnected from the power source whenever
performing service, maintenance functions or
cleaning the refrigerated area.
Refrigerators and Freezers
The interior and exterior can be cleaned using soap and warm
water. If this isn’t sufficient, try ammonia and water or a
nonabrasive liquid cleaner. When cleaning the exterior, always
rub with the “grain” of the stainless steel to avoid marring the
finish.
Do not use an abrasive cleaner because it will scratch the
stainless steel and plastic and can damage the breaker strips
and gaskets.
Cleaning the Condenser Coil
The condenser coil requires regular cleaning, recommended is
every 90 days. In some instances though you may find that
there is a large amount of debris and dust or grease accumulated
prior to the 90 day time frame. In these cases the condenser coil
should be cleaned every 30 days.
If the build up on the coil consists of only light dust and debris
the condenser coil can be cleaned with a simple brush, heavier
dust build up may require a vacuum or even compressed air to
blow through the condenser coil.
If heavy grease is present there are de-greasing agents available
for refrigeration use and specifically for the condenser coils.
The condenser coil may require a spray with the de-greasing
agent and then blown through with compressed air.
Failure to maintain a clean condenser coil can initially cause high
temperatures and excessive run times, continuous operation
with dirty or clogged condenser coils can result in compressor
failures. Neglecting the condenser coil cleaning procedures will
void any warranties associated with the compressor or cost to
replace the compressor.
Never use a high pressure water wash for this
cleaning procedure as water can damage the
electrical components located near or at the
condenser coil.
In order to maintain proper refrigeration performance, the
condenser fins must be cleaned of dust, dirt and grease regularly.
It is recommended that this be done at least every three months.
If conditions are such that the condenser is totally blocked in
three months, the frequency of cleaning should be increased.
Clean the condenser with a vacuum cleaner or stiff brush. If
extremely dirty, a commercially available condenser cleaner may
be required.
Stainless Steel Care and Cleaning
To prevent discoloration or rust on stainless steel several
important steps need to be taken. First, we need to understand
the properties of stainless steel. Stainless steel contains 70-80%
iron which will rust. It also contains 12-30% chromium which
forms an invisible passive film over the steels surface which
acts as a shield against corrosion. As long as the protective
layer is intact, the metal is still stainless. If the film is broken
or contaminated, outside elements can begin to breakdown the
steel and begin to form rust of discoloration.
Proper cleaning of stainless steel requires soft cloths or plastic
scouring pads.
NEVER USE STEEL PADS, WIRE BRUSHES OR
SCRAPERS!
Cleaning solutions need to be alkaline based or non-chloride
cleaners. Any cleaner containing chlorides will damage
the protective film of the stainless steel. Chlorides are also
commonly found in hard water, salts, and household and
industrial cleaners. If cleaners containing chlorides are used be
sure to rinse repeatedly and dry thoroughly upon completion.
Routine cleaning of stainless steel can be done with soap and
water. Extreme stains or grease should be cleaned with a non-
abrasive cleaner and plastic scrub pad. It is always good to
rub with the grain of the steel. There are also stainless steel
cleaners available which can restore and preserve the finish of
the steels protective layer.
Early signs of stainless steel breakdown can consist of small
pits and cracks. If this has begun, clean thoroughly and start to
apply stainless steel cleaners in attempt to restore the passivity
of the steel.
Never use an acid based cleaning solution!
Many food products have an acidic content which
can deteriorate the finish. Be sure to clean the
stainless steel surfaces of ALL food products.
Common items include, tomatoes, peppers and
other vegetables.
Compact Refrigerators and Freezers Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
8
If your freezer seems to vibrate excessively when the
compressor is running, loosen (but do not remove) the
bolts on the compressor. Semi hermetic models should be
loosened before operating.
BASIC MAINTENANCE
Gasket Maintenance
Gaskets require regular cleaning to prevent mold and mildew
build up and also to keep the elasticity of the gasket. Gasket
cleaning can be done with the use of warm soapy water. Avoid
full strength cleaning products on gaskets as this can cause
them to become brittle and prevent proper seals. Also, never
use sharp tools or knives to scrape or clean the gasket which
could possibly tear the gasket and rip the bellows.
Gaskets can easily be replaced and do not require the use of
tools or authorized service persons. The gaskets are “Dart”
style and can be pulled out of the grove in the door and new
gaskets can be “pressed” back into place.
Doors/Hinges
Over time and with heavy use doors the hinges may become
loose. If it is noticed that the door is beginning to sag, it may
become necessary to tighten the screws that mount the hinge
brackets to the frame of the unit. If the doors are loose or
sagging this can cause the hinge to pull out of the frame which
may damage both the doors and the door hinges. In some
cases this can require qualified service agents or maintenance
personnel.
Drain Maintenance
Each unit has a drain located inside the unit which removes the
condensation from the evaporator coil and evaporates it at an
external condensate evaporator pan. Each drain can become
loose or disconnected from moving or bumping the drain. If
you notice excessive water accumulation on the inside of the
unit be sure the drain tube is connected from the evaporator
housing to the condensate evaporator drain pan. If water
is collected underneath the unit you may want to check the
condensate evaporator drain tube to be sure it is still located
inside the drain pan. The leveling of the unit is important as the
units are designed to drain properly when on a level surface,
if your floor is not level this can also cause drain problems.
Be sure all drain lines are free of obstructions, typically food
product is found blocking drain lines causing water to back up
and overflow the drain pans.
Refrigeration cycle
Refrigerators: During the refrigeration cycle the evaporator
fans will run continuously with the exception of door openings.
The door switch will activate the lights when opened and turn
power off to the evaporator fan motors.
The temperature control allows for the evaporator coil to clear
after each off cycle and before the compressor runs again.
Freezers: During the refrigeration cycle the timer supplies
power to the temperature control (for power to the condensing
unit) and evaporator fan motors. The evaporator fans will run
at any time when the compressor is running, they will also
cycle off during door openings and during a defrost period.
The door switch will activate the lights when opened and turn
power off to the evaporator fan motors.
See Defrost Cycle
Maintenance Continued
Compact Refrigerators and Freezers Service and Installation Manual
9
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com

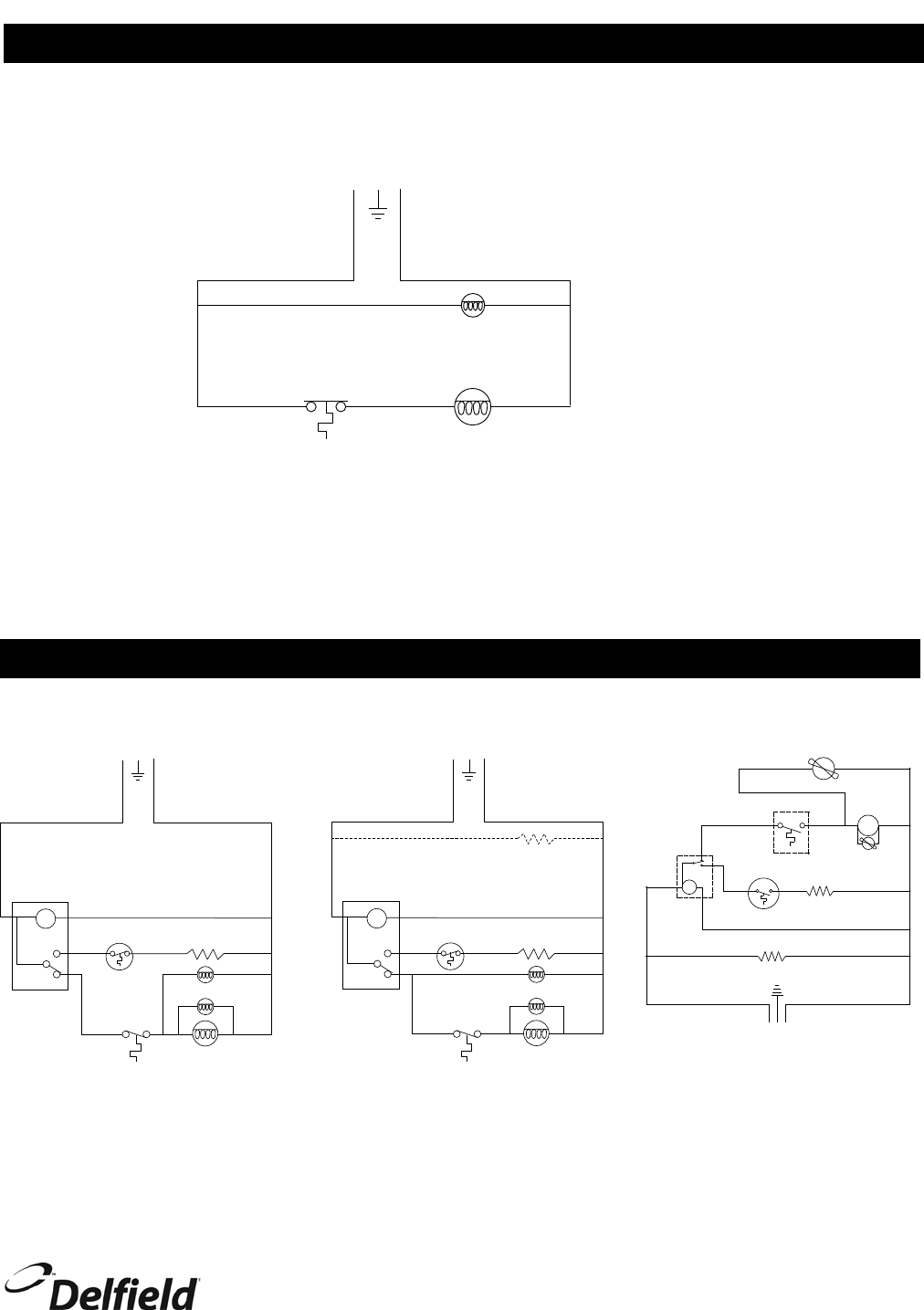

Wiring Diagram Refrigerators - 400 and 4000 Series
Wiring Diagram Freezers - 400, 4100 and 4500 Series
L1 G N
Evaporator Fan
NEMA 5-15P
Supply Cord &
Plug Furnished
115V/60Hz/1Ø
Temperature
Control
WhiteBlack
Condensing
Unit
Mullion Heater
(4148 Only)
Defrost Limit
Defrost
Timer
Defrost Heater
4100 Series 4500 Series
Evaporator Fan
1 Per Evaporator
White
Defrost Heater
1 Per Evaporator
White
White
NEMA 5-15P
Supply Cord &
Plug Furnished
115V/60Hz/1Ø
Black
Black
Black
Brown
Brown
L1 G N
Hi-Limit
1 Per Evaporator
Defrost
Timer
Thermostat
Comp
TM
Frame Heater
L1 G N
Evaporator Fan
NEMA 5-15P
Supply Cord &
Plug Furnished
115V/60Hz/1Ø
Temperature
Control
WhiteBlack
Condensing
Unit
Defrost Limit
Defrost
Timer
Defrost Heater
400 Series
Compact Refrigerators and Freezers Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
10

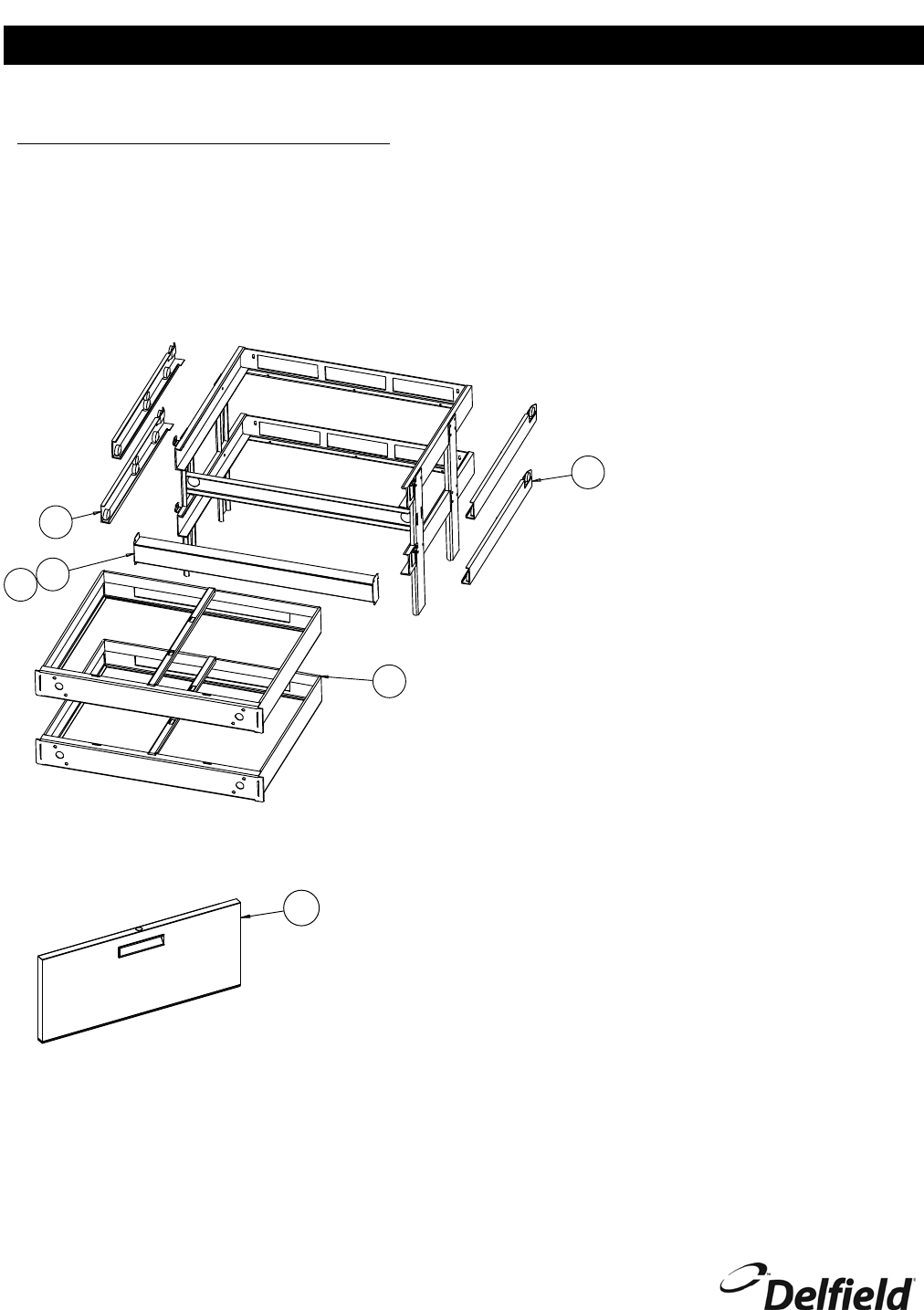

Two Drawer Assembly
2
1
4
5
3
D4532N/STD4532N/UCD4532N
Key Part Description Part #
Drawer assembly kit 000-B4Y-0033
1 Interm prof, RH, drawer slide 3234578
2 Drawer box cart system assy. 000-333-003J
3 Drawer mullion assembly 0302174-FRZ
4 Heater, mullion, frz. drawer 2184034
5 Interm prof, RH, drawer slide 3234579
6 Drawer front 000-C16-0033
6
Compact Refrigerators and Freezers Service and Installation Manual
11
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
Replacement Parts List
4532N/ST4532N/UC4532N
Part # Description
3234795 2” Caster (UC4532N Only)
3234148 2” Caster, Brake
3234147 2” Caster, No Brake
000-B4X-0036 32” Door, Hinged Right
000-B4X-0037 32” Door, Hinged Left
3526938 Compressor
0074143 Condensate evap heater only
0330515 Cond evap pan assy with heater
3516296 Condenser Coil
2162681 Condenser Fan Blade
2162667 Condenser Motor
2194687 Defrost Heater
3516156 Defrost Timer
1702475 Door Gasket
0330629 Evaporator Pan Assembly
3516299 Evaporator Coil
3516172 Evaporator Fan Blade
3516178 Evaporator Fan Guard
2162691 Evaporator Fan Motor
3516271 Expansion Valve
3516321 Filter Dryer
RF000066 Hinge Kit (Left or Right Hinged)
0077308 Louvered Panel (Front)
3978163 Shelf
2194532 Temperature Control
D4532N/STD4532N/UCD4532N
Part # Description
000-C16-0033 32” Drawer front
3234795 2” Caster (UCD4532N Only)
3234148 2” Caster, Brake
3234147 2” Caster, No Brake
3526896 Compressor
0074143 Condensate evap heater only
0330515 Cond evap pan assy with heater
3516297 Condenser Coil
2162681 Condenser Fan Blade
2162667 Condenser Motor
2164687 Defrost Heater
3516156 Defrost Timer
1702522 Drawer Gasket
3516299 Evaporator Coil
3516172 Evaporator Fan Blade
3516178 Evaporator Fan Guard
2162691 Evaporator Fan Motor
0330629 Evaporator Pan Assembly
3516271 Expansion valve
3516321 Filter Dryer
0077308 Louvered Panel (Front)
2194532 Temperature Control
4560N/ST4560N/UC4560N
Part # Description
3234795 2” Caster (UC4560N Only)
3234147 2” Caster, No Brake
3234148 2” Caster, Brake
000-B4X-0035 30” Door, hinged left
000-B4X-0034 30” Door, hinged right
3526896 Compressor
3516297 Condensor coil
2162681 Condensor fan blade
2162667 Condensor fan motor
0074149 Condensate evap heater only
0330580 Cond evap pan assy with heater
2194687 Defrost Heater
3516156 Defrost Timer
1702562 Door gasket
3516299 Evaporator Coil
3516178 Evaporator fan guard
2162691 Evaporator fan motor
0330629 Evaporator pan assy
3516172 Evaporator fan blade
3516271 Expansion Valve
3516321 Filter Drier
RF000066 Hinge kit (left or right hinged)
122-B96-0037 Louvered panel (front)
3978162 Shelf
2194532 Temperature Control
402/406/406CA
Part # Description
3234025 3” Caster, brake
3234024 3” Caster, no brake
3234160 5” Caster, no brake
3234161 5” Caster, brake
3234791 6” Leg
000-B3I-0031 27” Door, left hand
000-B3I-0030 27” Door, right hand
0074057 Capillary tube (.044 id x 144”)
3526997 Compressor
3516446 Compressor relay
2194787 Compressor start capacitor
0053452 Condensate evap heater only
0330154 Cond evap pan assy with heater
3516275 Condenser coil
3516172 Condenser fan blade
2162691 Condenser fan motor
1702623 Door gasket
3516116 Evaporator coil
3516172 Evaporator fan blade
2162691 Evaporator fan motor
3516321 Filter drier
0420067 Hinge kit (left or right hinged)
3978030 Shelf
5189779 Shelf clip
2194759KT Temperature control
(Includes control, knob and dial plate)
2194761 Temperature control knob
403/407/407CA
Part # Description
3234025 3” Caster, brake
3234024 3” Caster, no brake
3234160 5” Caster, no brake
3234161 5” Caster, brake
3234791 6” Leg
000-B3I-0031 27” Door, left hand
000-B3I-0030 27” Door, right hand
0074058 Capillary tube (.036 id x 168”)
3526996 Compressor
3516446 Compressor relay
2194787 Compressor start capacitor
158-B4Z-0034 Condensate evap heater only
0330154T Cond evap pan assy with heater
3516275 Condenser coil
3516172 Condenser fan blade
3516173 Condenser fan guard
2162715 Condenser fan motor
2194744 Defrost heater
3516156 Defrost timer
1702623 Door gasket
3516418 Evaporator Coil
3517356 Evaporator fan blade
3516173 Evaporator fan guard
2162691 Evaporator fan motor
3516321 Filter Drier
3978055 Heater guard, 18”
0420067 Hinge kit (left or right hinged)
3978030 Shelf
5189779 Shelf clip
3516043 Temperature control
ST4048/UC4048
Part # Description
3234025 3” Caster, brake
3234024 3” Caster, no brake
3234160 5” Caster, no brake
3234161 5” Caster, brake
3234791 6” Leg
000-B3I-0035 24” Door, left hand
000-B3I-0034 24” Door, right hand
0074057 Capillary tube (.044 id x 144”)
3526997 Compressor
3516446 Compressor relay
2194787 Compressor start capacitor
0053452 Condensate evap heater only
0330154 Cond evap pan assy with heater
3516275 Condenser coil
3516172 Condenser fan blade
3516173 Condenser fan guard
2162691 Condenser fan motor
1702622 Door gasket
3516116 Evaporator coil
3516172 Evaporator fan blade
3516173 Evaporator fan guard
2162691 Evaporator fan motor
3516321 Filter drier
0420067 Hinge kit (left or right hinged)
3978033 Shelf
2194759KT Temperature control
(Includes control, knob and dial plate)
2194761 Temperature control knob
ST4148/UC4148
Part # Description
3234025 3” Caster, brake
3234024 3” Caster, no brake
3234160 5” Caster, no brake
3234161 5” Caster, brake
000-B3I-0035 24” Door, left hand
000-B3I-0034 24” Door, right hand
3234791 6” Leg
0074058 Capillary tube (.036 id x 168”)
3526938 Compressor
158-B4Z-0034 Condensate evap heater only
0330154T Cond evap pan assy with heater
3516276 Condenser coil
3516172 Condenser fan blade
2162691 Condenser fan motor
2194644 Defrost heater
3516156 Defrost timer
1702622 Door gasket
3516153 Evaporator coil
3517356 Evaporator fan blade
3516173 Evaporator fan guard
2162691 Evaporator fan motor
3516321 Filter drier
3978055 Heater guard, 18”
0420067 Hinge kit (left or right hinged)
3978033 Shelf
3516043 Temperature control
Compact Refrigerators and Freezers Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
12
Standard Labor Guidelines To Repair Or Replace Parts On Delfield Equipment
Advice and recommendations given by Delfield Service Technicians do not constitute or guarantee any special coverage.
• A maximum of 1-hour is allowed to diagnose a defective component.
• A maximum of 1-hour is allowed for retrieval of parts not in stock.
• A maximum travel distance of 100 miles round trip and 2-hours will be reimbursed.
• Overtime, installation/start-up, normal control adjustments, general maintenance, glass breakage, freight damage, and/or
correcting and end-user installation error will not be reimbursed under warranty unless pre-approved with a Service Work
Authorization from Delfield. You must submit the number with the service claim.
Labor Of 1-Hour Is Allowed To Replace:
Thermostat Contractor/Relay
Infinite Switch Transformer
Door Jam Switch Evaporator/Condenser Fan Motor and Blade
Solenoid Coil Circulating Fan Motor and Blade
Hi-limit/Thermal Protector Switch Microprocessor Control
Fan Delay/Defrost Termination Switch Water Level Sensor/Probe
Compressor Start Components and Overload Protector Door Hinges, Locks, and Gaskets
Defrost Timer Condensate Element
Thermometer Springs/Lowerator
Gear Box
Labor Of 2 Hours To Replace:
Drawer Tracks/Cartridges Defrost Element
Pressure Control Heating Element
Solenoid Valve Locate/Repair Leak
Labor Of 3 Hours To Replace:
EPR or CPR Valve Condenser or Evaporator Coil
Expansion Valve
Labor Of 4 Hours To Replace:
Compressor
This includes recovery of refrigerant and leak check.
$55.00 maximum reimbursement for refrigerant recovery (includes recovery machine, pump, torch, oil, flux, minor fittings,
solder, brazing rod, nitrogen, or similar fees.)
Refrigerants:
R22 A maximum of $4.00/lb. or 25¢/oz. will be reimbursed.
R134A A maximum of $5.00/lb. or 31¢/oz. will be reimbursed.
R404A A maximum of $15.00/lb. or $1.00/oz. will be reimbursed.
Compact Refrigerators and Freezers Service and Installation Manual
13
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
Delfield warrants to the original purchaser-user, subject to the
limitations and exclusions set forth below, that the ABS interior of the
Delfield models identified above will be free of manufactured defects
for as long as the equipment is owned by the original purchaser-user
and is in operation.
What is covered.
The interior liner of the Vantage 6000 Series™ Reach In or
400/4000/4400/4500 Series prep tables, is covered against
manufactured defects under normal use. For purposes of this
Warranty, interior liner is defined as the portion of the interior liner
which is made of ABS material. This warranty applies only to products
sold and installed after March 1, 2000 in the United States, Canada,
Puerto Rico, and Mexico. For purposes of this warranty, lifetime is
defined as the expected usable life for the equipment of 12 years.
Delfield’s Obligation
Limited strictly to shipping OEM replacement parts or repair kits for
any covered ABS interior. A Delfield authorized service dealer and
Delfield’s Service Department must confirm the liner defect has
occurred under normal conditions and is not due to misuse as defined
below. All decisions regarding the ABS interior shall be made by
Delfield’s Service Department and shall be binding upon the parties.
No labor or service charges or allowances are covered by this warranty.
Warranty service must be performed by a Delfield approved authorized
service agent.
User Responsibility
The product must be installed, cleaned and maintained as described in
the Service and Installation manual which is furnished with the product.
Only approved replacement parts may be used. Failure to adhere to
the requirements of this paragraph may void warranty coverage.
Procedures
All claims for replacement parts or repair kits must be made through
a Delfield Parts Depot or an authorized Delfield dealer. The defective
part invoice must be returned to Delfield within 15 days after the date
of service to be eligible for warranty coverage. All claims must include
the model number, serial number, an original date of installation and
customer identification. Use of parts other than original Delfield
replacement parts will not be covered.
Exclusions
This warranty does not cover labor, service, charges for travel time,
mileage, or premium charges. This warranty also does not include
defects resulting from:
Operation of the product beyond the specification set forth in the
Service and Installation Manual.
Failure to clean and maintain the product as described in the
Service and Installation Manual.
Installation of the product in a manner other than as set forth in the
Service and Installation.
Use of installation of replacement parts not approved by Delfield;
or
The introduction hot items directly onto the ABS liner.
This warranty is in lieu of all other warranties or guarantees of
any kind, express or implied, except Delfield’s One Year Parts
and 90-Day Labor Warranty 400/4000/4400/4500 Series. ANY
IMPLIED WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE ARE HEREBY DISCLAIMED AND EXCLUDED.
IN NO EVENT SHALL DELFIELD BE LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE, OR FOR
ANY DEFECT RESULTING IN WHOLE OR IN PART FROM MISUSE,
ALTERATION, IMPROPER INSTALLATION OR INADEQUATE
MAINTENANCE OF THE PRODUCT OR ANY PART THEREOF.
No part or assembly which has been subject to accident, alteration or
misuse, or which has not been installed or serviced in accordance with
the Operation Manual furnished with the product, or which is from
equipment on which the serial number has been altered or removed,
shall be covered by this warranty.
Manufacturers Limited Lifetime Warranty
Compact Refrigerators and Freezers Service and Installation Manual
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
14
The Delfield Company (“Delfield”) warrants to the Original Purchaser of
the Delfield product (herein called the “Unit”) that such Unit, and all
parts thereof, will be free from defects in material and workmanship
under normal use and service for a period of one (1) year from the date
of shipment of the Unit to the Original Purchaser or, if the Original
Purchaser returns the warranty card completely filled out including the
date of installation within thirty (30) days of receipt of the Unit, one (1)
year from the date of installation. During this one year warranty period,
Delfield will repair or replace any defective part or portion there of returned
to Delfield by the Original Purchaser which Delfield determines was
defective due to faulty material or workmanship. The Original purchaser
will pay all labor, crating, freight and related costs incurred in the removal
of the Unit of defective component and shipment to Delfield, except that
during a period of either ninety (90) days from the date of shipment of
the Unit to the Original Purchaser or, if the Original Purchaser returns
the warranty card completely filled out including the date of installation
within thirty (30) days of receipt of the Unit, ninety (90) days from the
date of installation Delfield will pay all related labor costs. Delfield will
pay the return costs if the Unit or part thereof was defective.
The term Original Purchaser” as used herein means that person, firm,
association, or corporation for whom the Unit was originally installed.
This warranty does not apply to any Unit or part thereof that has been
subjected to misuse, neglect, alteration, or accident, such as accidental
damage to the exterior finish, operated contrary to the recommendations
specified by Delfield; or repaired or altered by anyone other than Delfield
in any way so as to, in Delfield’s sole judgement, affect its quality or
efficiency. This warranty does not apply to any Unit that has been moved
from the location where it was originally installed. This warranty also
does not cover the refrigerator drier or the light bulbs used in the Unit.
The warranty is subject to the user’s normal maintenance and care
responsibility as set forth in the Service and Installation Manual, such
as cleaning the condenser coil, and is in lieu of all other obligations
of Delfield. Delfield neither assumes, nor authorizes any other person
to assume for Delfield, any other liability in connection with Delfield’s
products.
Removal or defacement of the original Serial Number or Model Number
from any Unit shall be deemed to release Delfield from all obligations
hereunder or any other obligations, express or implied.
Parts furnished by suppliers to Delfield are guaranteed by Delfield only
to the extent of the original manufacturer’s express warranty to Delfield.
Failure of the Original Purchaser to receive such manufacturer’s express
warranty to Delfield. Failure of the Original Purchaser to receive such
manufacturers warranty shall in no way create any warranty, expressed
or implied, or any other obligation or liability on Delfields part in respect
thereof.
IF THE CUSTOMER IS USING A PART THAT RESULTS IN A VOIDED
WARRANTY AND A DELFIELD AUTHORIZED REPRESENTATIVE
TRAVELS TO THE INSTALLATION ADDRESS TO PERFORM WARRANTY
SERVICE, THE SERVICE REPRESENTATIVE WILL ADVISE CUSTOMER
THE WARRANTY IS VOID. SUCH SERVICE CALLS WILL BE BILLED
TO CUSTOMER AT THE AUTHORIZED SERVICE CENTER’S THEN
APPLICABLE TIME AND MATERIALS RATES. CONSIDER: CUSTOMER
MAY INITIATE A SERVICE AGREEMENT WITHOUT PARTS COVERAGE.
If shipment of a replacement part is requested prior to the arrival in the
Delfield factory of the part claimed to be defective, the Original Purchaser
must accept delivery of the replacement part of a C.O.D. basis, with credit
being issued after the part has been received and inspected at Delfield’s
plant and determined by Delfield to be within this warranty.
Under no condition does this warranty give the Original Purchaser the
right to replace the defective Unit with a complete Unit of the same
manufacturer or of another make. Unless authorized by Delfield in
writing, this warranty does not permit the replacement of any part,
including the motor-compressor, to be made with the part of another
make or manufacturer.
No claims can be made under this warranty for spoilage of any products
for any reason, including system failure.
The installation contractor shall be responsible for building access,
entrance and field conditions to insure sufficient clearance to allow any
hood(s), vent(s), or Unit(s) if necessary, to be brought into the building.
Delfield will not be responsible for structural changes or damages
incurred during installation of the Unit or any exhaust system.
Delfield shall not be liable in any manner for any default or delay in
performance hereunder caused by or resulting from any contingency
beyond Delfield’s control, including, but not limited to, war, governmental
restrictions or restraints, strike, lockouts, injunctions, fire, flood, acts of
nature, short or reduced supply of raw materials, or discontinuance of
the parts by the original part manufacturer.
Except as provided in any Additional Four Year Protection Plan, if
applicable, and the Service Labor Contract, if applicable, the foregoing
is exclusive and in lieu of all other warranties, whether written or
oral, express or implied. This warranty supersedes and excludes any
prior oral or written representations or warranties. Delfield expressly
disclaims any implied warranties of merchantability, fitness for a
particular purpose of compliance with any law, treaty, rule or regulation
relating to the discharge of substances into the environment. The sole
and exclusive remedies of any person relating to the Unit, and the full
liability of Delfield for any breach of this warranty, will be as provided
in this warranty.
Other than this Delfield Standard One Year Limited Warranty, any applicable
Delfield Additional Four Year Protection Plan or applicable Delfield Service
Labor Contract, the Original Purchaser agrees and acknowledges that no
other warranties are offered or provided in connection with or for the unit
or any other part thereof.
In no event will Delfield be liable for special, incidental or consequential
damages, or for damages in the nature of penalties.
IF DURING THE WARRANTY PERIOD, CUSTOMER USES A PART FOR
THIS DELFIELD EQUIPMENT OTHER THAN AN UNMODIFIED NEW OR
RECYCLED PART PURCHASED DIRECTLY FROM DELFIELD OR ANY OF
ITS AUTHORIZED SERVICE CENTERS AND/OR THE PART BEING USED
IS MODIFIED FROM ITS ORIGINAL CONFIGURATION, THIS WARRANTY
WILL BE VOID. FURTHER, DELFIELD AND ITS AFFILIATES WILL NOT
BE LIABLE FOR ANY CLAIMS DAMAGES OR EXPENSES INCURRED BY
THE CUSTOMER WHICH ARISE DIRECTLY OR INDIRECTLY, IN WHOLE
OR IN PART, DUE TO THE INSTALLATION OF ANY MODIFIED PART AND/
OR PART RECEIVED FROM AN UNAUTHORIZED SERVICE CENTER. If
the warranty becomes void, Customer may purchase from Delfield, if
available, a Service Agreement or service at the then current time and
materials rate.
For more information on Delfield warranty’s log on and check out the
service section of our web site at www.delfield.com.
Standard One Year Warranty (One year parts, 90 days labor.)
Compact Refrigerators and Freezers Service and Installation Manual
15
For customer service, call (800) 733-8829, (800) 773-8821, Fax (989) 773-3210, www.delfield.com
Notes
Thank you for choosing Delfield!
Help is a phone call away. Help our team of professional, courteous
customer service reps by having your model number and serial number
available at the time of your call (800) 733-8829.
Model: ____________________ S/N: ___________________
Installation Date: ____________
For a list of Delfield’s authorized parts depots,
visit our website at www.delfield.com.
Delfield
®
Mt. Pleasant, MI Covington, TN
980 S. Isabella Rd., Mt. Pleasant, MI 48858, U.S.A. • (989) 773-7981 or (800) 733-8829 • Fax (989) 773-3210 • www.delfield.com
Delfield reserves the right to make changes in design or specifications without prior notice. ©2008 The Delfield Company. All rights reserved. Printed in the U.S.A.
DM4_40_45 08/08
9294045
Delfield
®

Navigation menu
