Dell Cast Adapter
User's Manual
NOTE: A NOTE indicates important information that helps you make better use of your
Dell Cast Adapter.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury, or
death.
© 2014 Dell Inc. All rights reserved.
Information in this document is subject to change without notice. Reproduction of these
materials in any manner whatsoever without the written permission of Dell Inc. is strictly
forbidden.
Trademarks used in this text: Dell™, the DELL logo, and Venue™ are trademarks of Dell Inc.
Bluetooth ® is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under
license. Other trademarks and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary
interest in trademarks and trade names other than its own.
2014 – 7 Rev. A00
Features 3
Features
Part Functionality
1.
2.
HDMI port
Connect the USB cable to provide power to your Dell Cast Adapter
3.
4.
USB port Can plug in mouse , keyboard, USB HUB
Reset Pinhole Reset your device to default setting
Micro-USB port
4
1
2
3

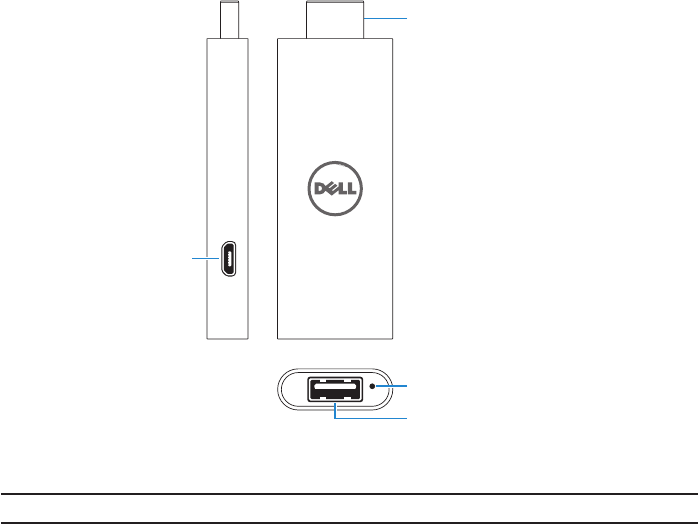

1. HDMI port
2. Reset pinhole
3. USB port
4. Micro-USB port
Plugs into any HDMI port on your TV , Monitor , Projector
4 Step your D ell Cast Adapter
Step Your Dell Cast Adapter
NOTE: Your Dell Cast Adapter may can't power on when you provide the power from a stander
USB port of other devices and the Device go into sleep mode. please avoid the device going into

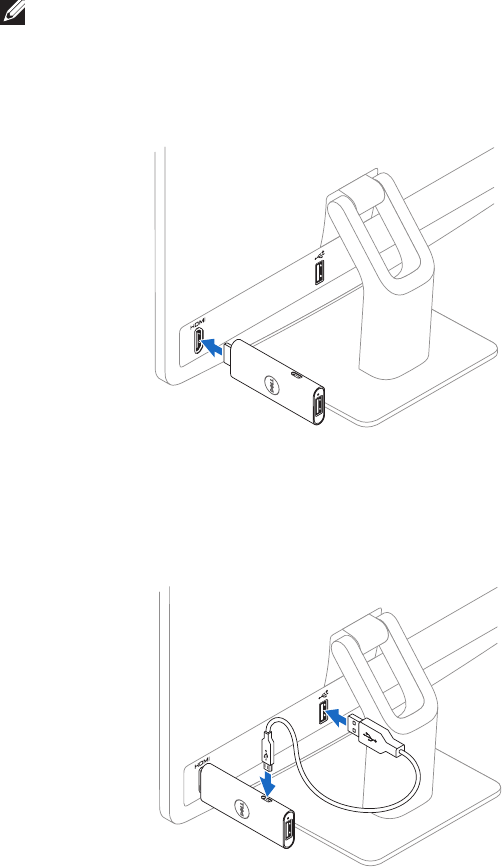

1.Connect the HDMI dongle to a HDMI-in port
your plugs into any HDMI port on you TV, Monitor, ProjectorDell Cast Adapter
2.Connect the power cable
1. Connect the micro-USB end of the USB cable to the USB port of the Dell Cast Adapter.
2. The other end of the USB cable plugs into either a USB port on your TV, Monitor, Projector,
3. the power supply is optional, and can be used with the USB cable to power your Dell Cast Adapter
A HDMI extender is Optional ,and can be used if your does not fit directly Dell Cast Adapter
into your TV, Monitor, Projector it may also be used to inprove your WI-fi reception.attach
between your Dell Cast Adapter and your TV, Monitor, Projector
sleep made.
or the power supply.
if your TV, Monitor, Projector does not have a USB port.
Connect to the HDMI dongle 5
NOTE: Make sure your TV, Monitor, Projector select HDMI channel .
Connect keyboard, mouse, HUB,
Connect to the Dell Cast
1. Open the app on your tablet.Dell Cast
2. In the app window, select the under Dell Cast Dell Cast
ADAPTERS.
3. Tap Productivity Mode and follow the instructions on screen.
Productivity Mode
Miracast
1. Open WiFi on your tablet.
2. In the Cast Screen window, Enable wireless display,
ADAPTERS
.
3. select the HDMI dongle under and go into Screen Cast.
Connect to the Dell Cast
6 Warnings to users
Warnings to users
Dell Cast Adapter Dell Cast Adapter may get hot to the touch; this is normal, Unplug 's
power source and let it cool before removing it from your television.
Use only the cables provided with your deciveto plut into a power Dell Cast Adapter
source.Using other cables may damage and /or your television.Dell Cast Adapter
Do not expose to water or extreme conditions(heat,cold,dust),as Dell Cast Adapter
Dell Cast Adapter may malfunction or cease to work when exposed to such elements.
Do not attempt to disassemble or repair yourself. Doing so voids the Dell Cast Adapter
limited warranty and could harm you, your television ,and/or .Dell Cast Adapter
Dell Cast Adapter is an entertainment device; it is not designed, manufactured or
intended for use in hazardous enciroments requiring fail-safe performance in which the
failure of could lead directly to death, personal injury,or servere Dell Cast Adapter
physical or environmental damage.
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate Dell cast adapter or warranty.
This device complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter. To comply with FCC RF exposure
compliance requirements, this grant is applicable to only Mobile Configurations.
The antennas used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in conjunction with
any other antenna or transmitter.
NOTE: The Manufacture is not responsible for any radio or TV interference caused by
unauthourized modifications to this equipment. such modifications could void the user's
authority to operate the equipment.
This device complies with Industry Canada licence-exempt RSS-210 standard(s).
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada RSS-210 applicables aux
appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes :
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
This device complies with RSS-210 of Industry Canada. This Class B device meets all the
requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
The device for operation in the band 5150-5250 MHZ is only for indoor use to reduce the
potential for harmful interference to co-channel mobile satellite system.
Les dispositifs fonctionnant dans la bande 5.15-5.25GHz sont reserves uniquement pour
une utilisation à l'intérieur afin de réduire les risques de brouillage préjudiciable aux systè
mes de satellites mobiles utilisant les mêmes canaux.
The maximum antenna gain 2.52 dBi permitted for devices in the band 5725-5825 MHz
shall comply with the e.i.r.p. limits specified for point-topoint operation as appropriate.
Le gain d'antenne maximal autorisé pour le dispositifest 2,52 dBi, pour se conformer à la
limite de p.i.r.e. en et 5725-5825 MHz spécifiée pour un fonctionnement point à point.
High-power radars are allocated as primary users (i.e. priority users) of the bands 5.65 to
5.85GHz and that these radars could cause interference and/or damage to LE-LAN
devices.
Les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute
puissance sont désignés utilisateurs principaux (c.-à-d., qu'ils ont la priorité) pour les
bandes 5.65-5.85GHz et que ces radars pourraient causer du brouillage et/ou des
dommages aux dispositifs LANEL.
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
These devices complied with the essential requirements of Article 3 of the R&TTE
1999/5/EC Directive and Directive 2004/108/EC
Certification Information for CE Statement
Troubleshooting
Connect to the HDMI dongle 7
Specifications
Marketing model Dell Cast Adapter
Regulatory model BEL01
Regulatory type BEL01001
Temprature range 0 °C - 40 °C (30 °F -104 °F)
Dimensions:
Height 73 mm
Width 28 mm
Depth 10 mm
8 Specifications
