Dell DWRFID1201 RFID 13.56MHz Wireless Module User Manual
Dell Inc. RFID 13.56MHz Wireless Module
Dell >
User Manual
Dell Latitude E6430/E6530/E6430 ATG
Setup and Features Information
About Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury,
or death.
Latitude E6430 Front and Back View

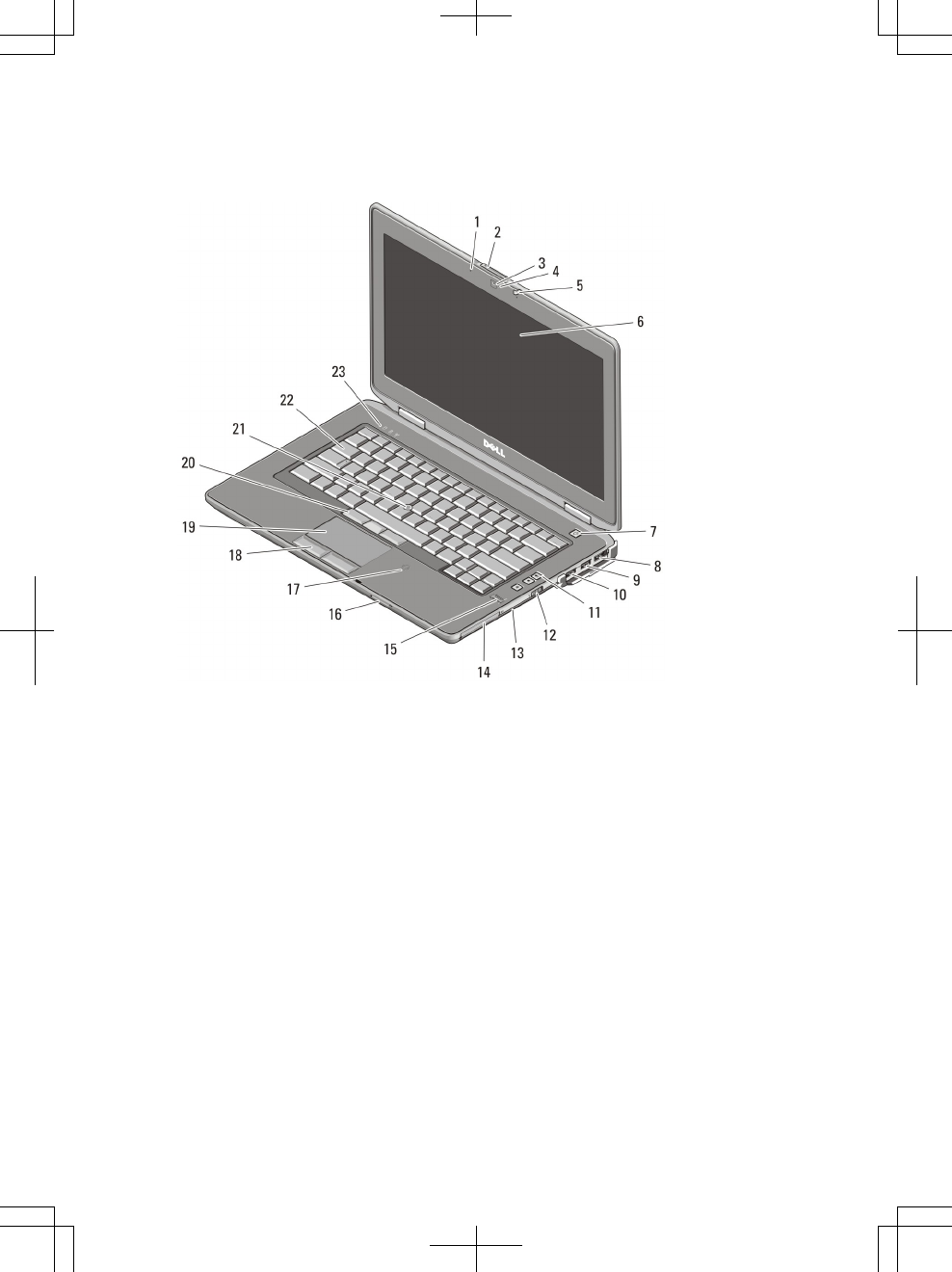

Figure 1. Front View
1. microphone
2. display release latch
3. camera
4. camera status light
5. display latch
6. display
Regulatory Model : P25G, P19F, P25G
Regulatory Type : P25G001, P19F001,
P25G002
2011 - 9
7. power button
8. eSATA/USB 2.0 connector
9. USB 3.0 connector
10. powered USB 3.0 connector
11. volume control buttons
12. wireless switch
13. optical drive
14. ExpressCard slot
15. fingerprint reader
16. Secure Digital (SD) memory-card
reader
17. contactless smart card reader
18. touchpad buttons (2)
19. touchpad
20. trackstick buttons (3)
21. trackstick
22. keyboard
23. device status lights

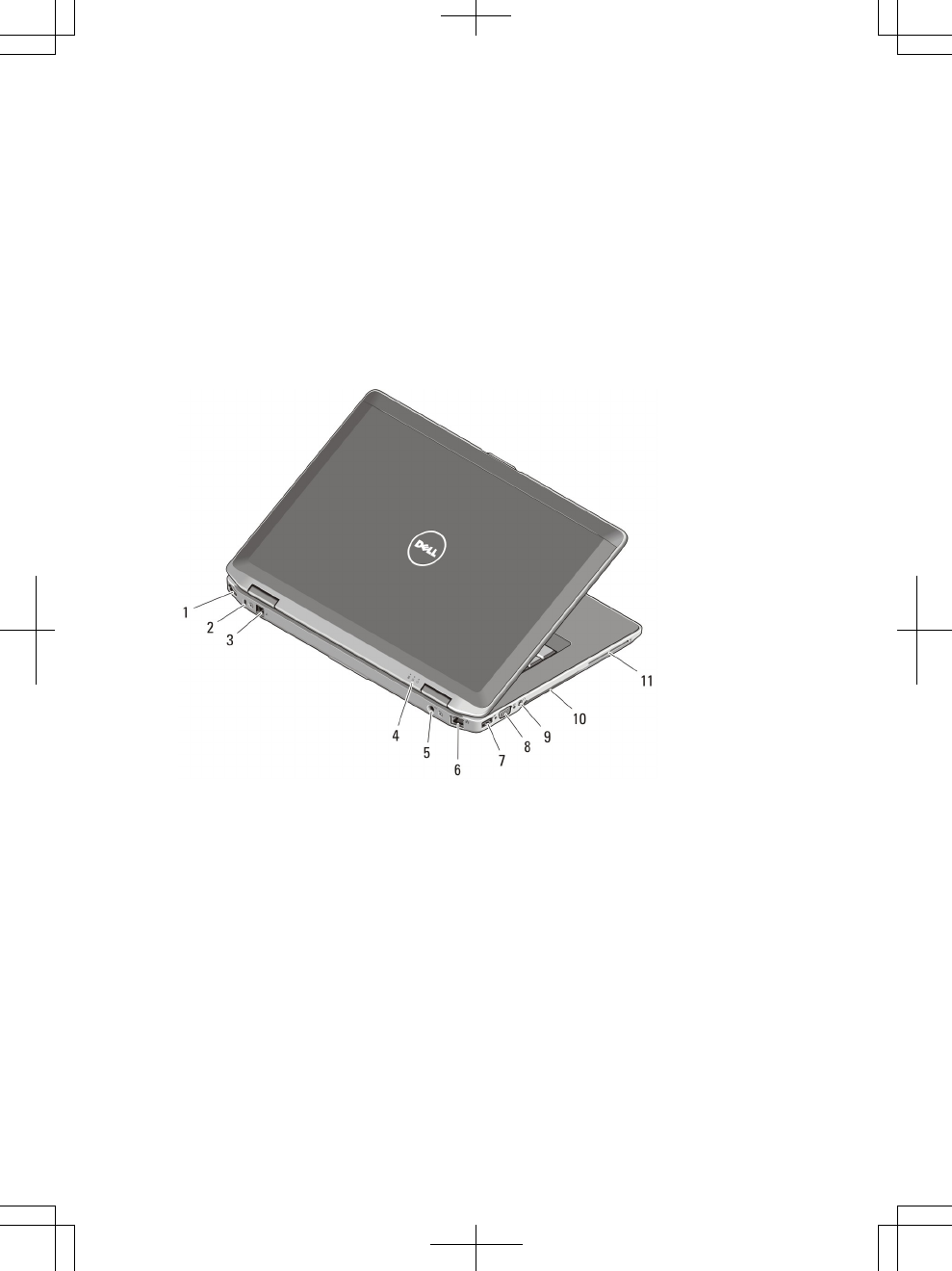

Figure 2. Back View
1. HDMI connector
2. security cable slot
3. modem connector
4. device status lights
5. power connector
6. network connector
7. USB 2.0 connector
8. VGA connector
9. audio connector
10. cooling vents
11. smart card slot
2
WARNING: Do not block, push objects into, or allow dust to accumulate in the air
vents. Do not store your Dell computer in a low-airflow environment, such as a
closed briefcase, while it is running. Restricting the airflow can damage the
computer or cause a fire. The computer turns on the fan when the computer gets
hot. Fan noise is normal and does not indicate a problem with the fan or the
computer.
Latitude E6530 Front and Back View

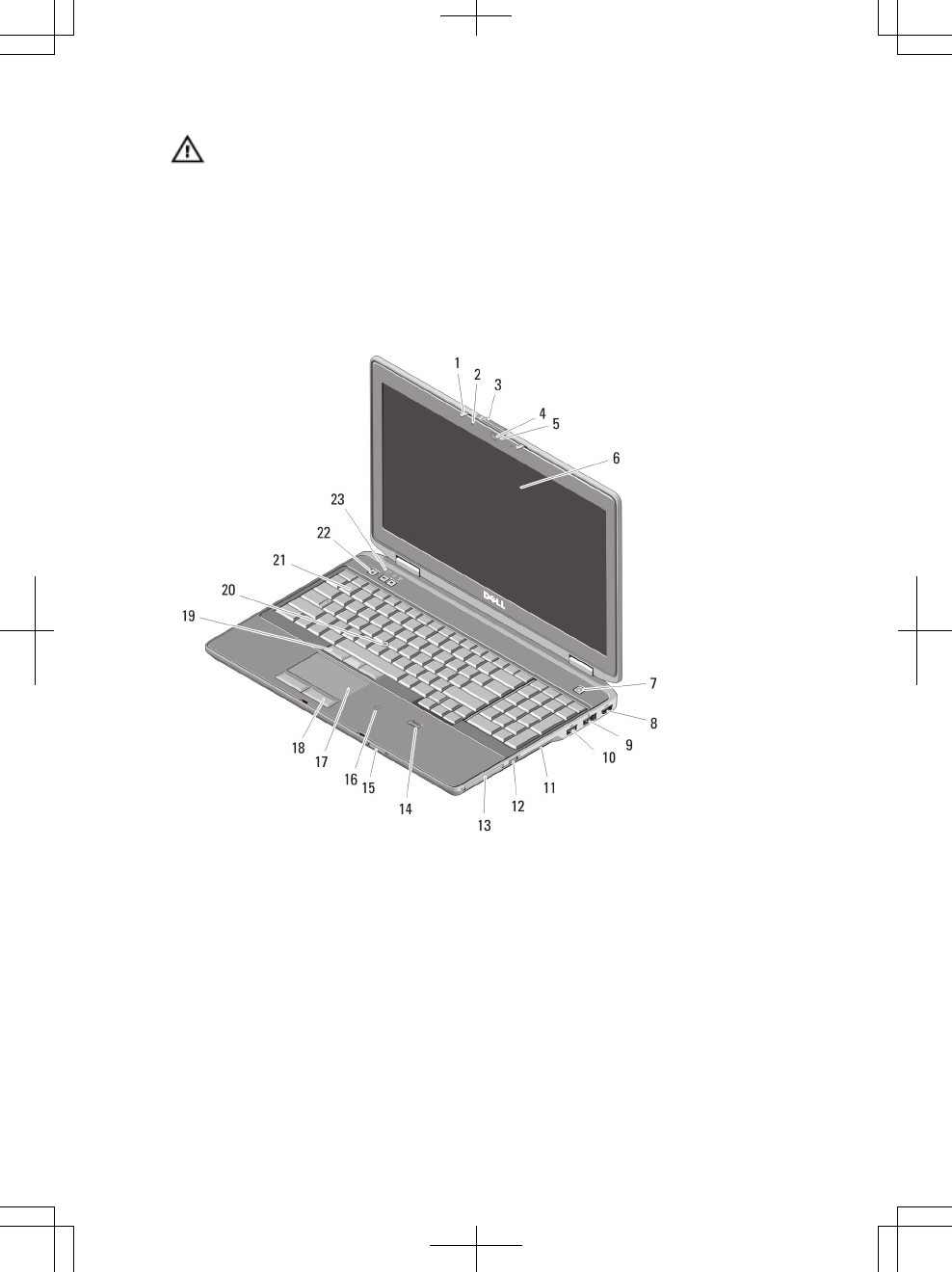

Figure 3. Front View
1. display latch
2. microphone
3. display release latch
4. camera
5. camera status light
6. display
7. power button
8. HDMI connector
9. eSATA/USB 2.0 connector
10. powered USB 3.0 connector
11. optical drive
12. wireless switch
13. ExpressCard slot
14. fingerprint reader
15. Secure Digital (SD) memory-card
reader
3
16. contactless smart card reader
17. touchpad
18. touchpad buttons (2)
19. trackstick buttons (3)
20. trackstick
21. keyboard
22. volume control buttons
23. device status lights
Figure 4. Back View
1. network connector
2. security cable slot
3. modem connector
4. device status lights
5. power connector
6. USB 2.0 connector
7. VGA connector
8. USB 3.0 connector
9. audio connector
10. cooling vents
11. smart card slot
WARNING: Do not block, push objects into, or allow dust to accumulate in the air
vents. Do not store your Dell computer in a low-airflow environment, such as a
closed briefcase, while it is running. Restricting the airflow can damage the
computer or cause a fire. The computer turns on the fan when the computer gets
hot. Fan noise is normal and does not indicate a problem with the fan or the
computer.
4
Latitude E6430 ATG Front and Back View
Figure 5. Front view
1. microphone
2. display release latch
3. camera
4. camera status light
5. display latch
6. display
7. power button
8. eSATA/USB 2.0 connector
9. USB 3.0 connector
10. powered USB 3.0 connector
11. volume control buttons
12. wireless switch
13. optical drive
14. ExpressCard slot
15. fingerprint reader
16. Secure Digital (SD) memory-card
reader
17. contactless smart card reader
18. touchpad buttons (2)
19. touchpad
20. trackstick buttons (3)
21. trackstick
22. keyboard
23. device status lights
5
Figure 6. Back view
1. HDMI connector
2. security cable slot
3. modem connector /WWAN pass-
through (optional)
4. device status lights
5. power connector
6. network connector
7. USB 2.0 connector
8. VGA connector
9. audio connector
10. cooling vents
11. smart card slot
WARNING: Do not block, push objects into, or allow dust to accumulate in the air
vents. Do not store your Dell computer in a low-airflow environment, such as a
closed briefcase, while it is running. Restricting the airflow can damage the
computer or cause a fire. The computer turns on the fan when the computer gets
hot. Fan noise is normal and does not indicate a problem with the fan or the
computer.

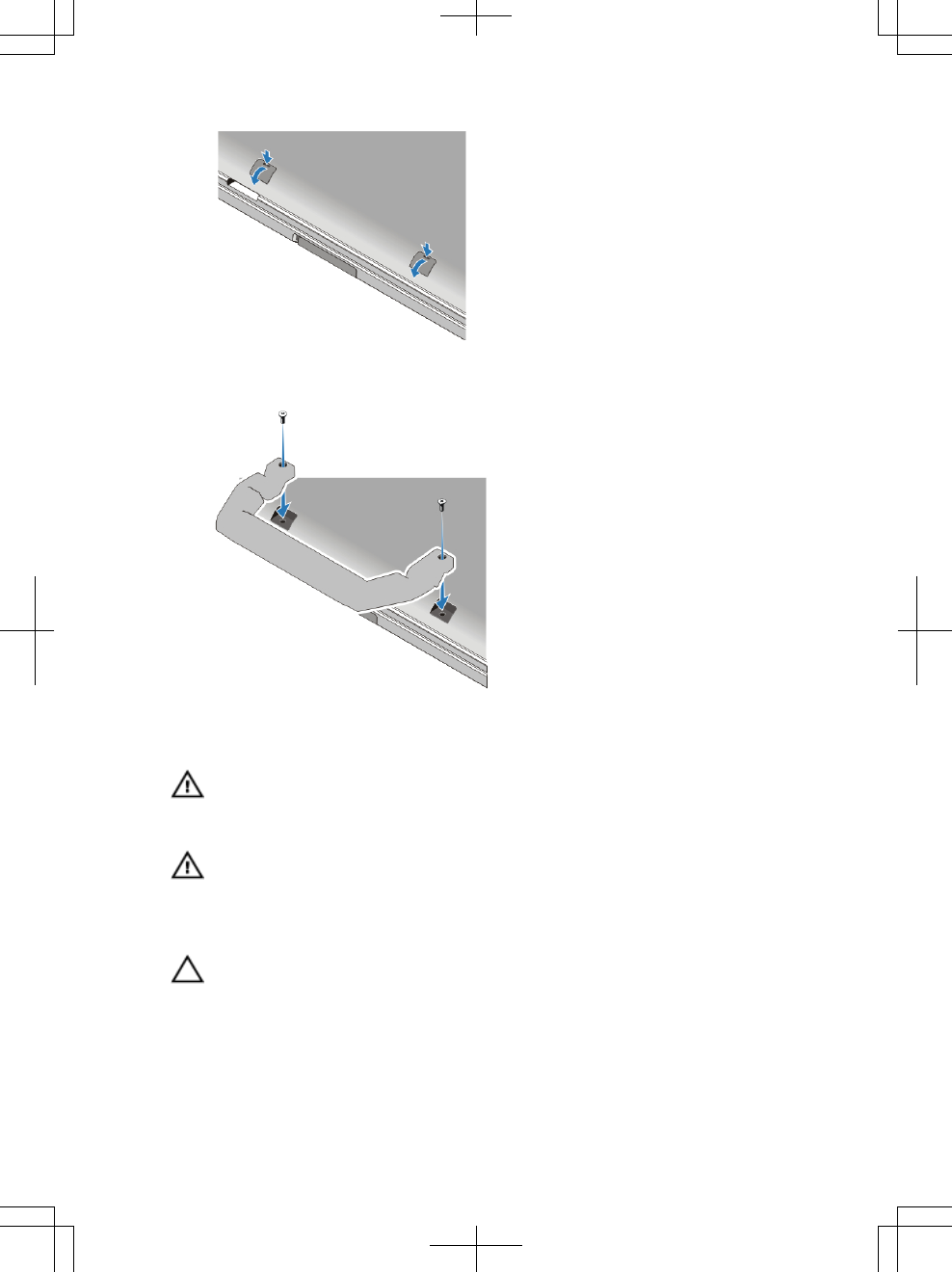

Installing Handle Assembly (Latitude E6430 ATG)
1. Insert a paper clip into the release holes to unlock and remove the covering
plugs from their slots.
6
2. Place the handle assembly into the slots. Use the screws to tighten and
secure the handle assembly to the computer.
Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety
information that shipped with your computer. For additional best practices
information, see www.dell.com/regulatory_compliance.
WARNING: The AC adapter works with electrical outlets worldwide. However,
power connectors and power strips vary among countries. Using an incompatible
cable or improperly connecting the cable to the power strip or electrical outlet may
cause fire or equipment damage.
CAUTION: When you disconnect the AC adapter cable from the computer, grasp
the connector, not the cable itself, and pull firmly but gently to avoid damaging the
cable. When you wrap the AC adapter cable, ensure that you follow the angle of the
connector on the AC adapter to avoid damaging the cable.
7
NOTE: Some devices may not be included if you did not order them.

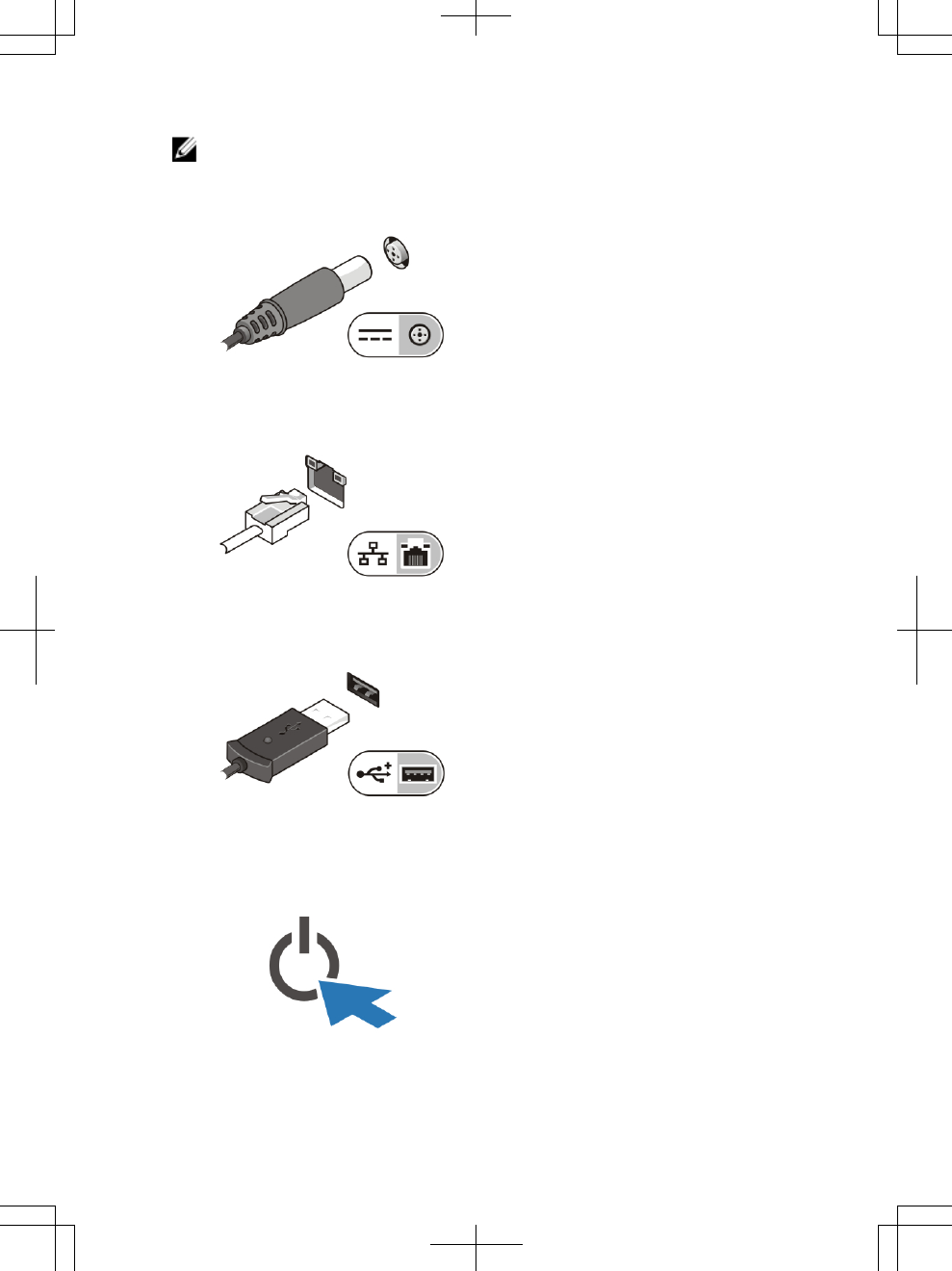

1. Connect the AC adapter to the AC adapter connector on the computer and
to the electrical outlet.
Figure 7. AC Adapter
2. Connect the network cable (optional).
Figure 8. Network Connector
3. Connect USB devices, such as a mouse or keyboard (optional).
Figure 9. USB Connector
4. Open the computer display and press the power button to turn on the
computer.
Figure 10. Power Button
8
NOTE: It is recommended that you turn on and shut down your computer at least
once before you install any cards or connect the computer to a docking device or
other external device, such as a printer.
Specifications
NOTE: Offerings may vary by region. The following specifications are only those
required by law to ship with your computer. For more information regarding the
configuration of your computer, click Start → Help and Support and select the
option to view information about your computer.
Power
AC Adapter
Latitude E6430 and Latitude E6530 65 W and 90 W
NOTE: 65 W AC adapter is available only
for computers with integrated video card.
Latitude E6430 ATG 90 W
Input voltage 100 VAC to 240 VAC
Coin-cell battery 3 V CR2032 lithium coin cell
Physical
Latitude E6430
Height 26.90 mm to 32.40 mm (1.06 inches to 1.27
inches)
Width 352.00 mm (13.86 inches)
Depth 241.00 mm (9.49 inches)
Weight (Dis with 6 cell) 2.62 kg (5.78 lb)
Latitude E6530
Height 28.30 mm to 34.20 mm (1.11 inches to 1.35
inches)
Width 384.00 mm (15.12 inches)
Depth 258.00 mm (10.16 inches)
9
Physical
Weight (Dis with 6 cell) 2.75 kg (6.06 lb)
Latitude E6430 ATG
Height 33.80 mm to 37.80 mm (1.33 inches to 1.49
inches)
Width 359.20 mm (14.14 inches) with port cover
Depth 247.40 mm (9.74 inches) with port cover
Weight (UMA with 6 cell) 2.88 kg (6.34 lb)
Environmental
Operating Temperature: 0 °C to 35 °C (32 °F to 95 °F)
Information para NOM (únicamente para México)
Voltaje de alimentación 100 V CA – 240 V CA
Frecuencia 50 Hz – 60 Hz
Consumo eléctrico 1,50 A~2,50 A
Voltaje de salida 19,50 V de CC
Intensidad de salida 3,34 A/4,62 A
Finding More Information and Resources
See the safety and regulatory documents that shipped with your computer and
the regulatory compliance website at www.dell.com/regulatory_compliance for
more information on:
• Safety best practices
• Regulatory certification
• Ergonomics
See www.dell.com for additional information on:
• Warranty
• Terms and Conditions (U.S. only)
• End User License Agreement
10
Additional information on your product is available at support.dell.com/manuals.
Information in this publication is subject to change without notice.
© 2011 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell
Inc. is strictly forbidden.
Trademarks used in this text: Dell™, the DELL logo, Dell Precision™, Precision ON™,
ExpressCharge™, Latitude™, Latitude ON™, OptiPlex™, Vostro™, and Wi-Fi Catcher™ are
trademarks of Dell Inc. Intel®, Pentium®, Xeon®, Core™, Atom™, Centrino®, and Celeron® are
registered trademarks or trademarks of Intel Corporation in the U.S. and other countries. AMD® is a
registered trademark and AMD Opteron™, AMD Phenom™, AMD Sempron™, AMD Athlon™,
ATI Radeon™, and ATI FirePro™ are trademarks of Advanced Micro Devices, Inc. Microsoft®,
Windows®, MS-DOS®, Windows Vista®, the Windows Vista start button, and Office Outlook® are
either trademarks or registered trademarks of Microsoft Corporation in the United States and/or
other countries. Blu-ray Disc™ is a trademark owned by the Blu-ray Disc Association (BDA) and
licensed for use on discs and players. The Bluetooth® word mark is a registered trademark and
owned by the Bluetooth® SIG, Inc. and any use of such mark by Dell Inc. is under license. Wi-Fi® is
a registered trademark of Wireless Ethernet Compatibility Alliance, Inc.
Other trademarks and trade names may be used in this publication to refer to either the entities
claiming the marks and names or their products, Dell Inc. disclaims any proprietary interest in
trademarks and trade names other than its own.
11
Interference Statement
These devices comply with Part 15 of the FCC Rules. Operation of the devices is subject
to the following two conditions: (1) The devices may not cause harmful interference, and
(2) The devices must accept any interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy. If the equipment is
not installed and used in accordance with the instructions, the equipment may cause
harmful interference to radio communications. There is no guarantee, however, that such
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception (which can be determined by turning
the equipment off and on), the user is encouraged to try to correct the interference by
taking one or more of the following measures:
Relocate this device.
Increase the separation between the device and the receiver.
Connect the device into an outlet on a circuit different from that of other
electronics.
Consult the dealer or an experienced radio technician for help.
NOTE: Dell RFID devices must be installed and used in strict accordance with the
manufacturer’s instructions as described in the user documentation that comes with
the product. Any other installation or use will violate FCC Part 15 regulations.
Modifications not expressly approved by Dell could void your authority to operate
the equipment.
Canada, Industry Canada (IC) Notices
Class B digital circuitry of this device complies with Canadian ICES-003.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may cause undesired operation of the
device.
Under Industry Canada regulations, the radio transmitter(s) in this device may only operate using
an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry
Canada. To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than
that necessary for successful communication.
This device has been certified for use in Canada. Status of the listing in the Industry Canada’s
REL (Radio Equipment List) can be found at the following web address:
http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Canada, avis d'Industry Canada (IC)
La circuiterie numérique de Classe B de cet appareil est conforme à la norme canadienne ICES-
003.
Cet appareil est conforme aux normes d'exemption de licence RSS d'Industry Canada. Son
fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer
d'interférence et (2) cet appareil doit accepter toute interférence, notamment les interférences qui
peuvent affecter son fonctionnement.
Conformément aux réglementations d'Industry Canada, les émetteurs radio de cet appareil ne
peuvent fonctionner qu'à l'aide d'une antenne dont le type et le gain maximal (ou minimal) pour
ces émetteurs - transmetteurs sont approuvés par Industry Canada. Pour réduire le risque
d'interférence éventuelle pour les autres utilisateurs, le type et le gain de l'antenne doivent être
choisis de manière à ce que la puissance isotrope rayonnée équivalente (p.i.r.e.) minimale
nécessaire à une bonne communication soit fournie.
Informations sur l'exposition à la fréquence radio (FR)
La puissance rayonnée de sortie de cet appareil est inférieure aux limites d'exposition à la
fréquence radio d'Industry Canada (IC). Cet appareil a été évalué et jugé conforme aux limites
d'exposition à la fréquence radio (FR) d'IC. Cet appareil devrait être utilisé de manière à ce que
le risque de contact humain au cours d'un fonctionnement normal soit réduit.
Cet appareil est homologué pour l'utilisation au Canada. Pour consulter l'entrée correspondant à
l'appareil dans la liste d'équipement radio (REL - Radio Equipment List) d'Industry Canada,
rendez-vous sur : http://www.ic.gc.ca/app/sitt/reltel/srch/nwRdSrch.do?lang=eng
Pour des informations canadiennes supplémentaires sur l'exposition FR, rendez-vous sur :
http://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html
