Dell™ C1760nw/C1660w Color Printer
User's Guide
Regulatory Model: Dell C1760nw/Dell C1660w
Template Last Updated - 2/7/2007 Contents 1
Contents
Before Beginning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
A Notes, Cautions, and Warnings . . . . . . . . . . . . . . . . . . . . . . 13
1 Dell™ C1760nw/C1660w Color Printer User's Guide . . . . . 15
Conventions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2 Finding Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

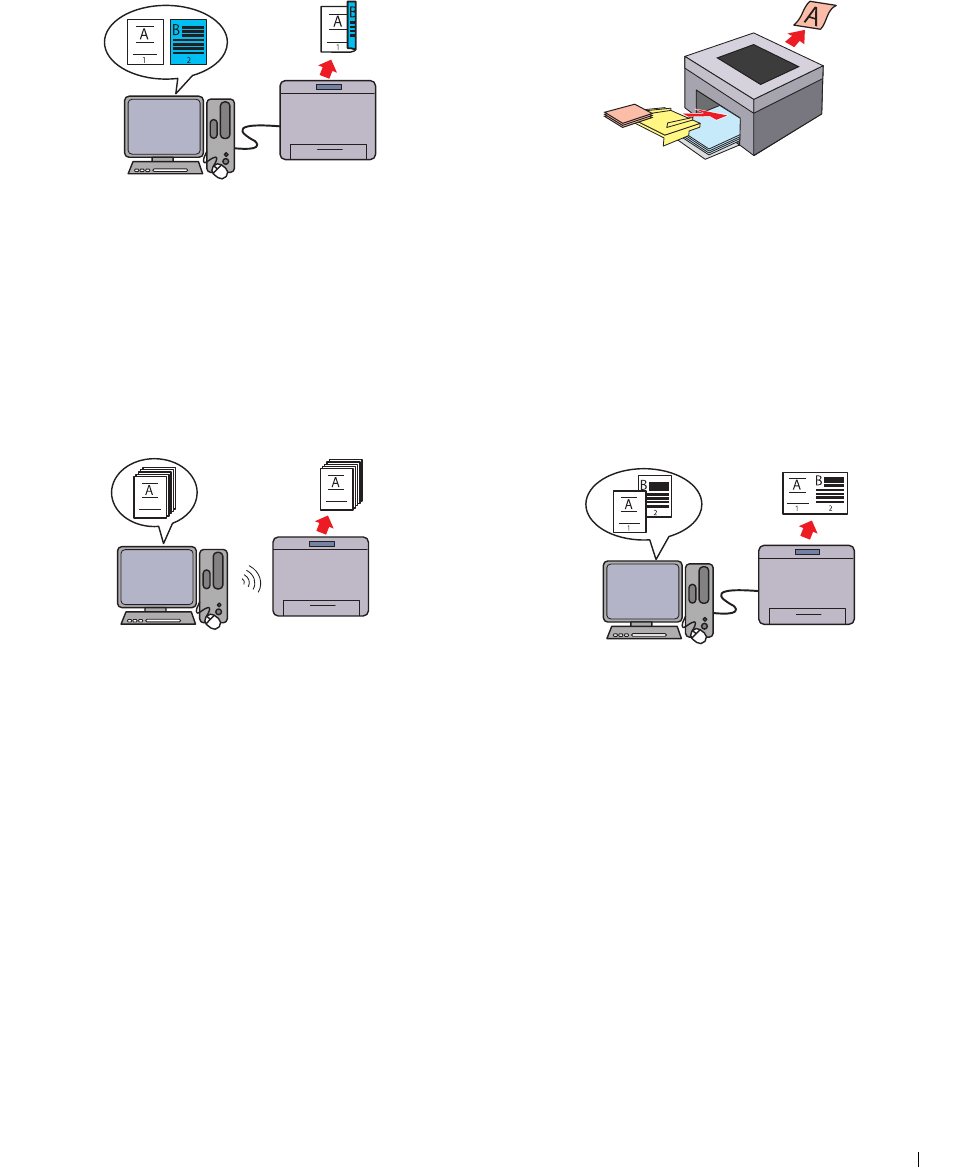

3 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4 About the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

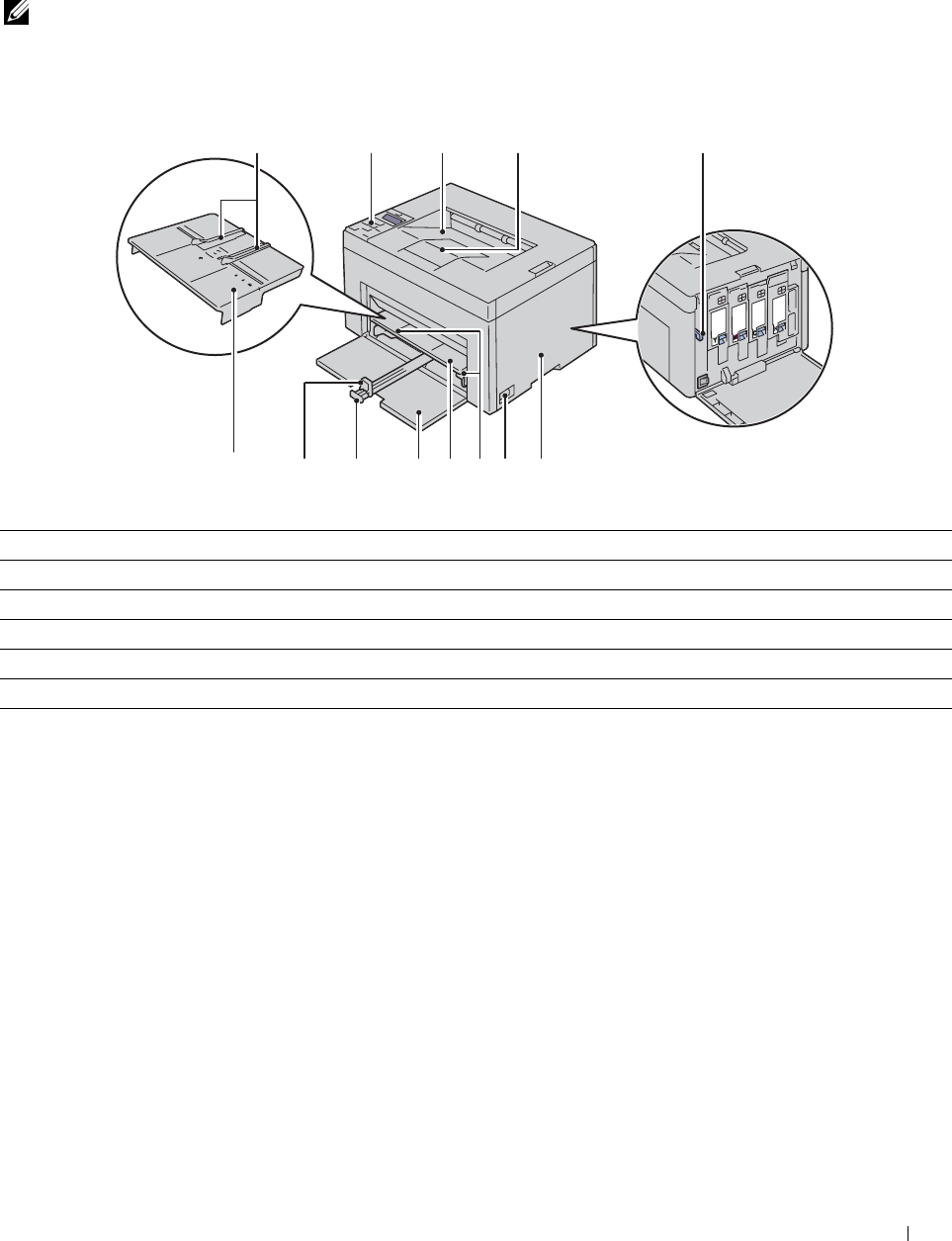

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

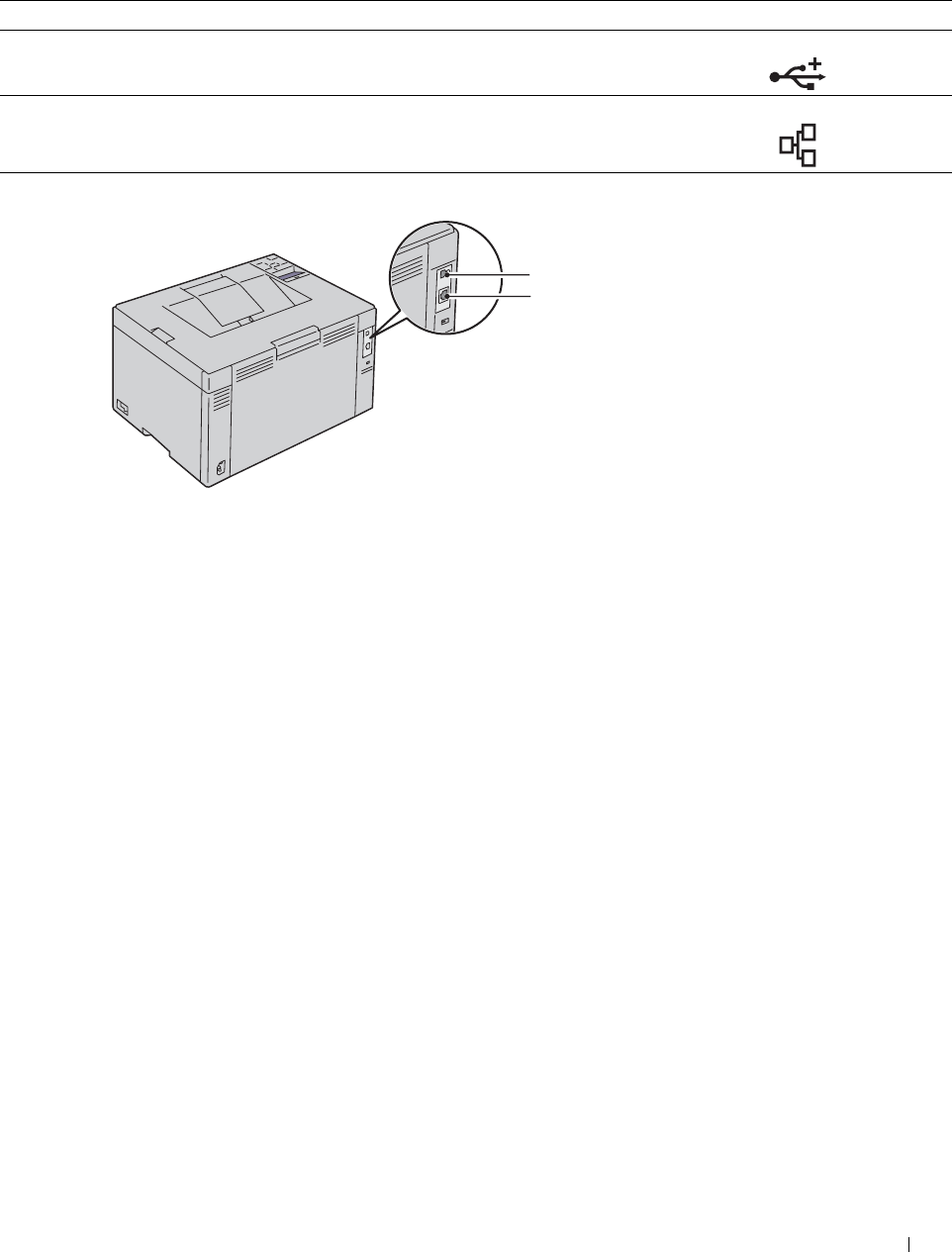

Rear View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

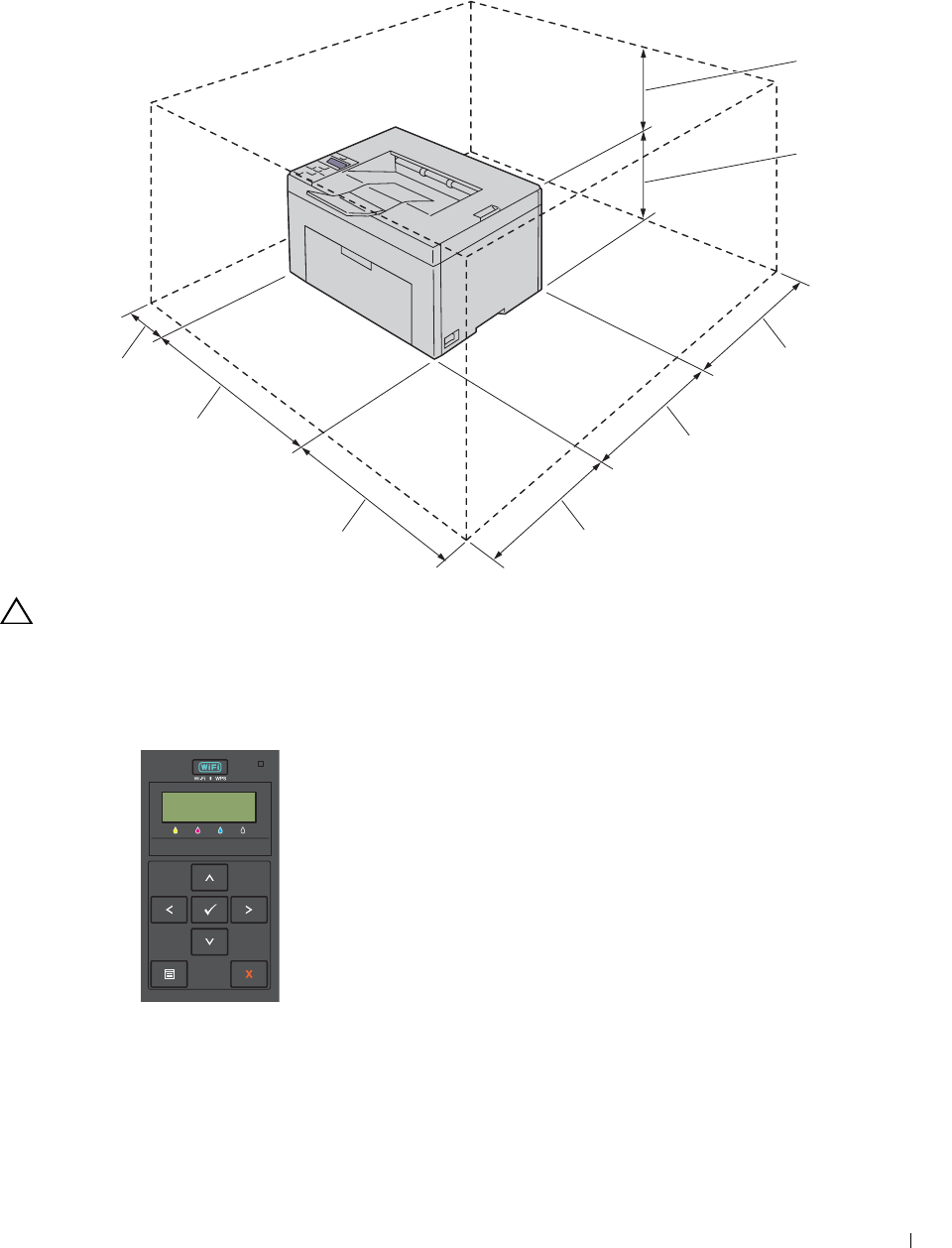

Space Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Operator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Securing the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Ordering Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Printer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5 Connecting Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Connecting Printer to Computer or Network . . . . . . . . . . . . . . . . . . . . 29

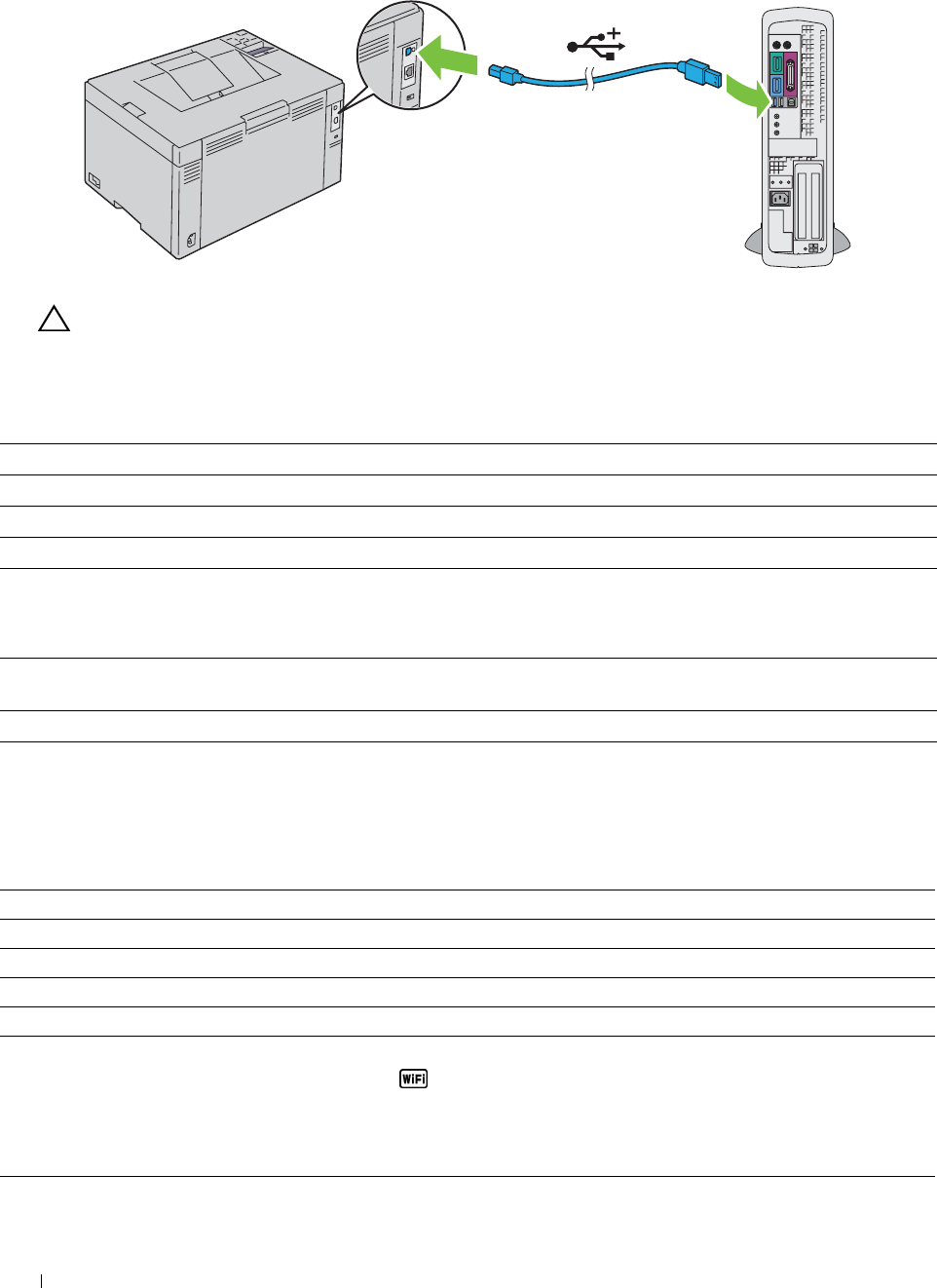

Direct Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Wireless Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

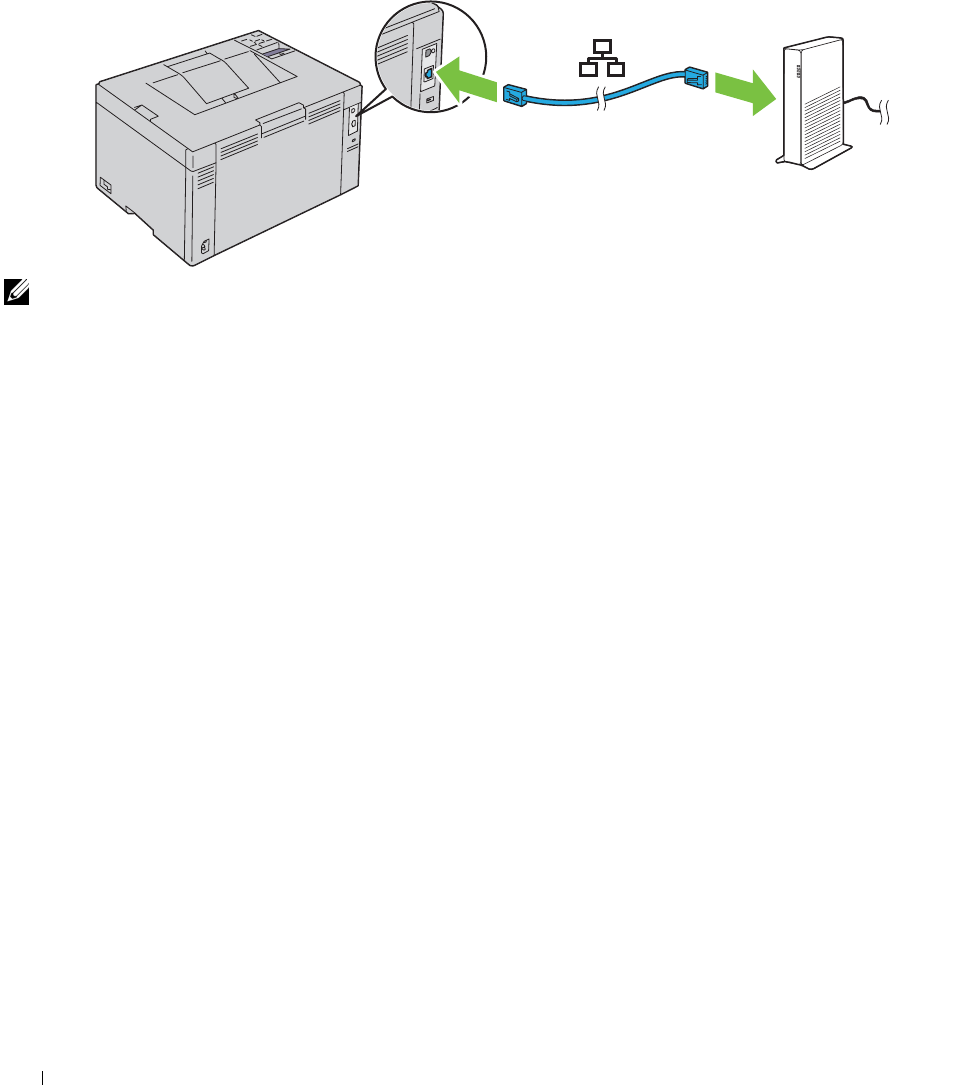

Ethernet Connection (Dell C1760nw Color Printer only) . . . . . . . . . . . . 34
Reconfiguring the Wireless Setting . . . . . . . . . . . . . . . . . . . . . . . . . 35
2Contents Template Last Updated - 2/7/2007

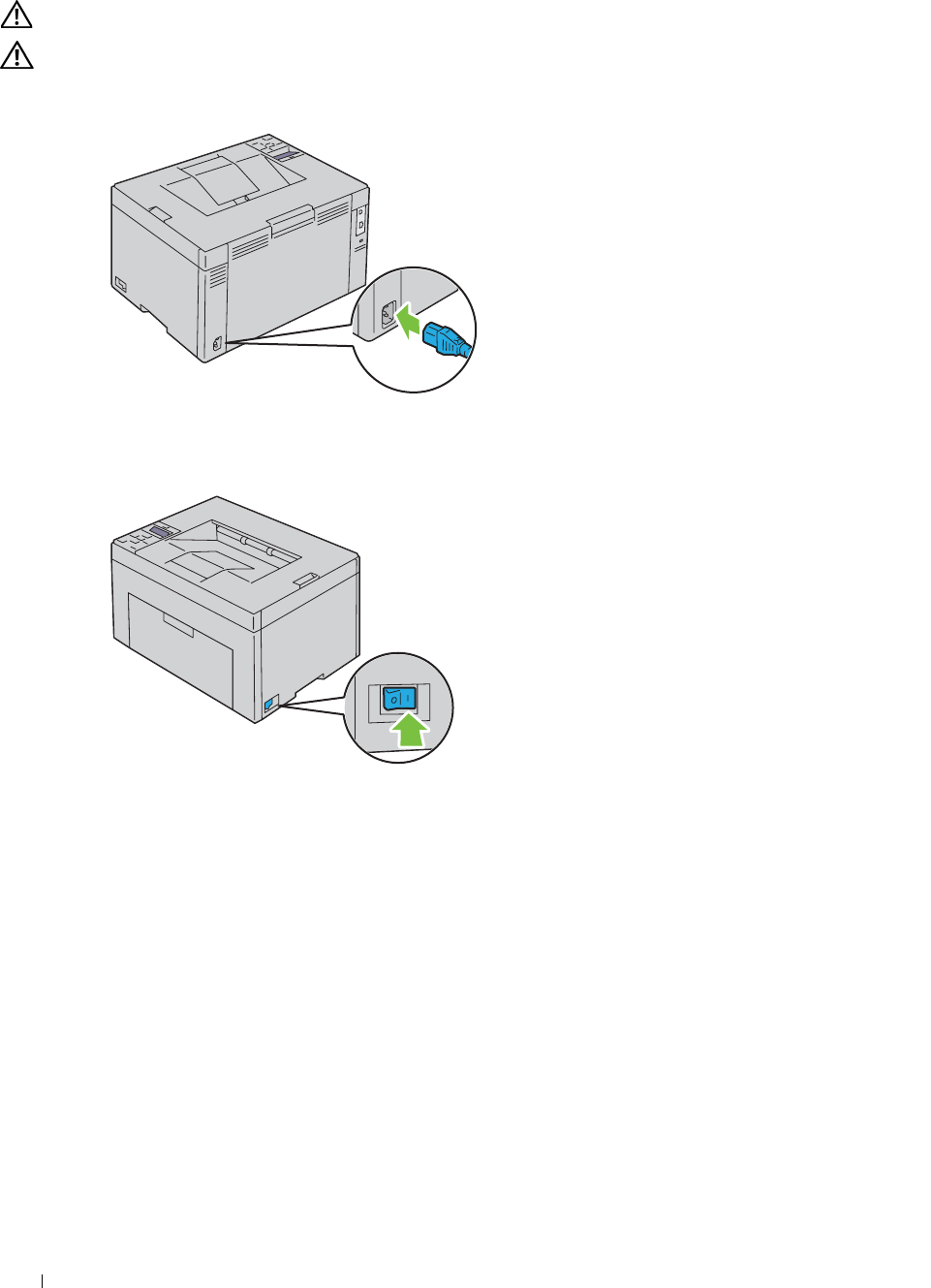

Turning On the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
6 Setting Up Your Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Setting Initial Settings on the Operator Panel
(Dell™ C1660w Color Printer Only) . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Printer Setup Using the Software and Documentation Disc. . . . . . . . . . . . . 38
7 Setting the IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Assigning an IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
The Operator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
The Tool Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Verifying the IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
The Operator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
The System Settings Report . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
The Ping Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
8 Loading Paper. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

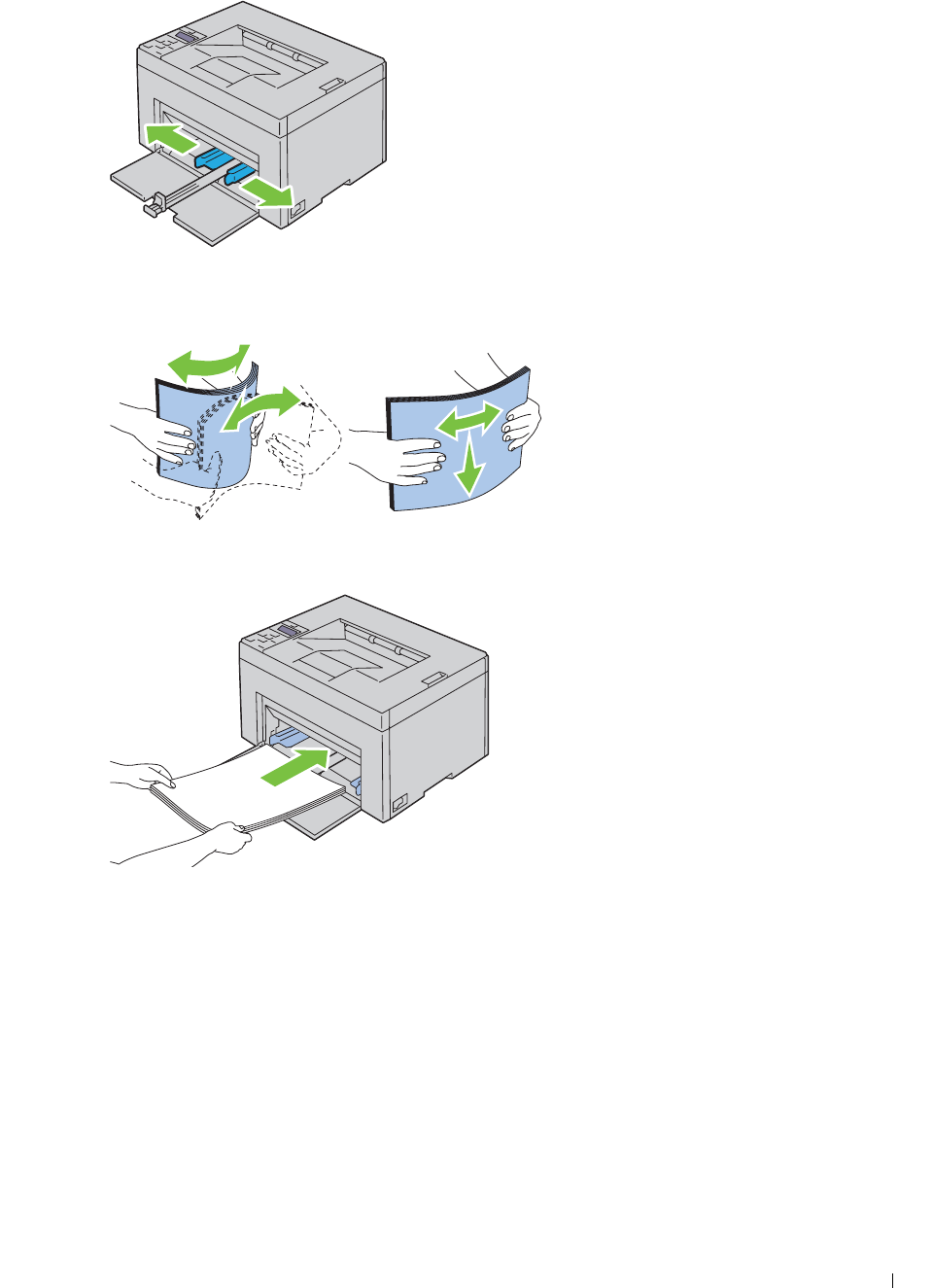

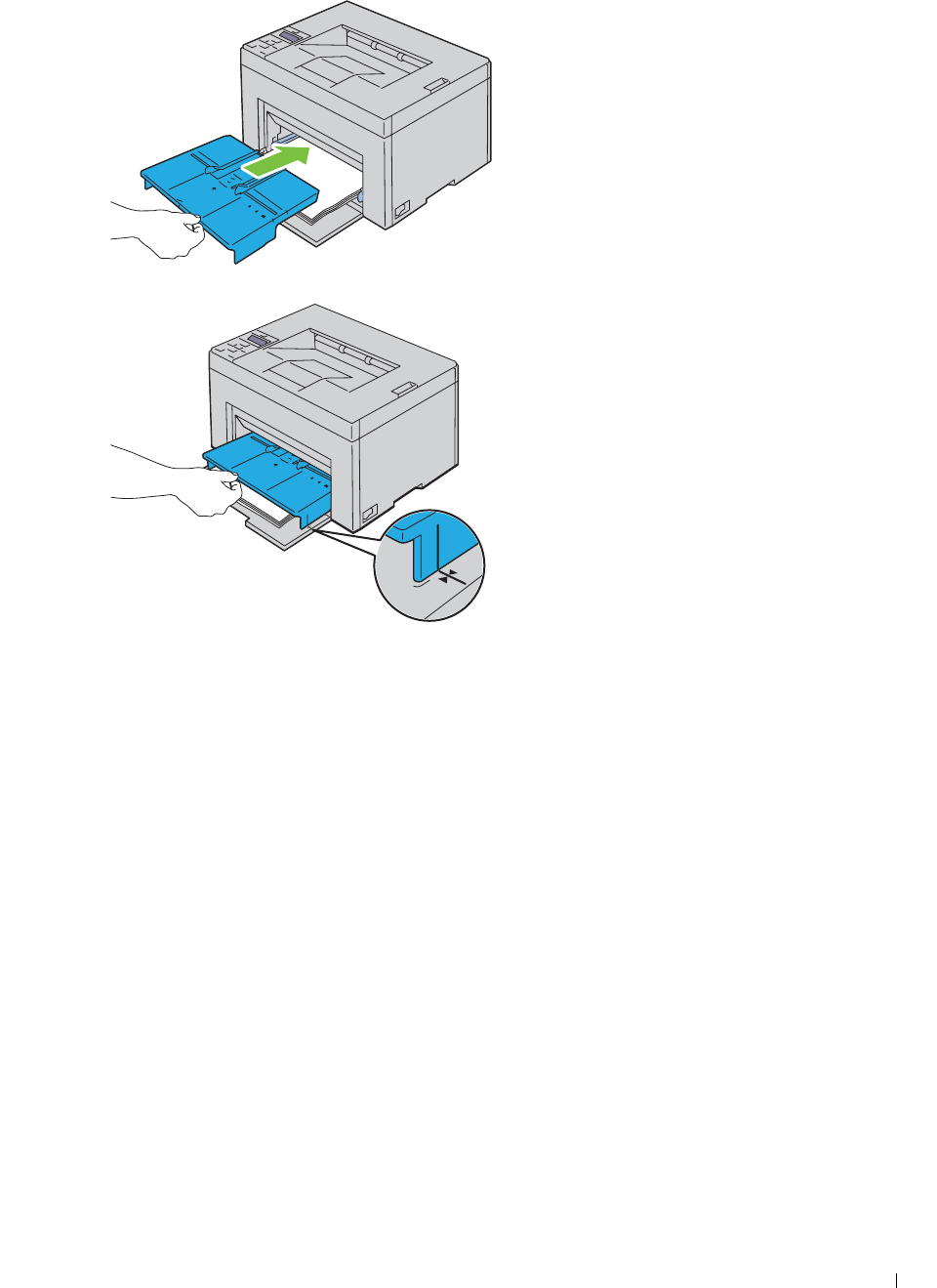

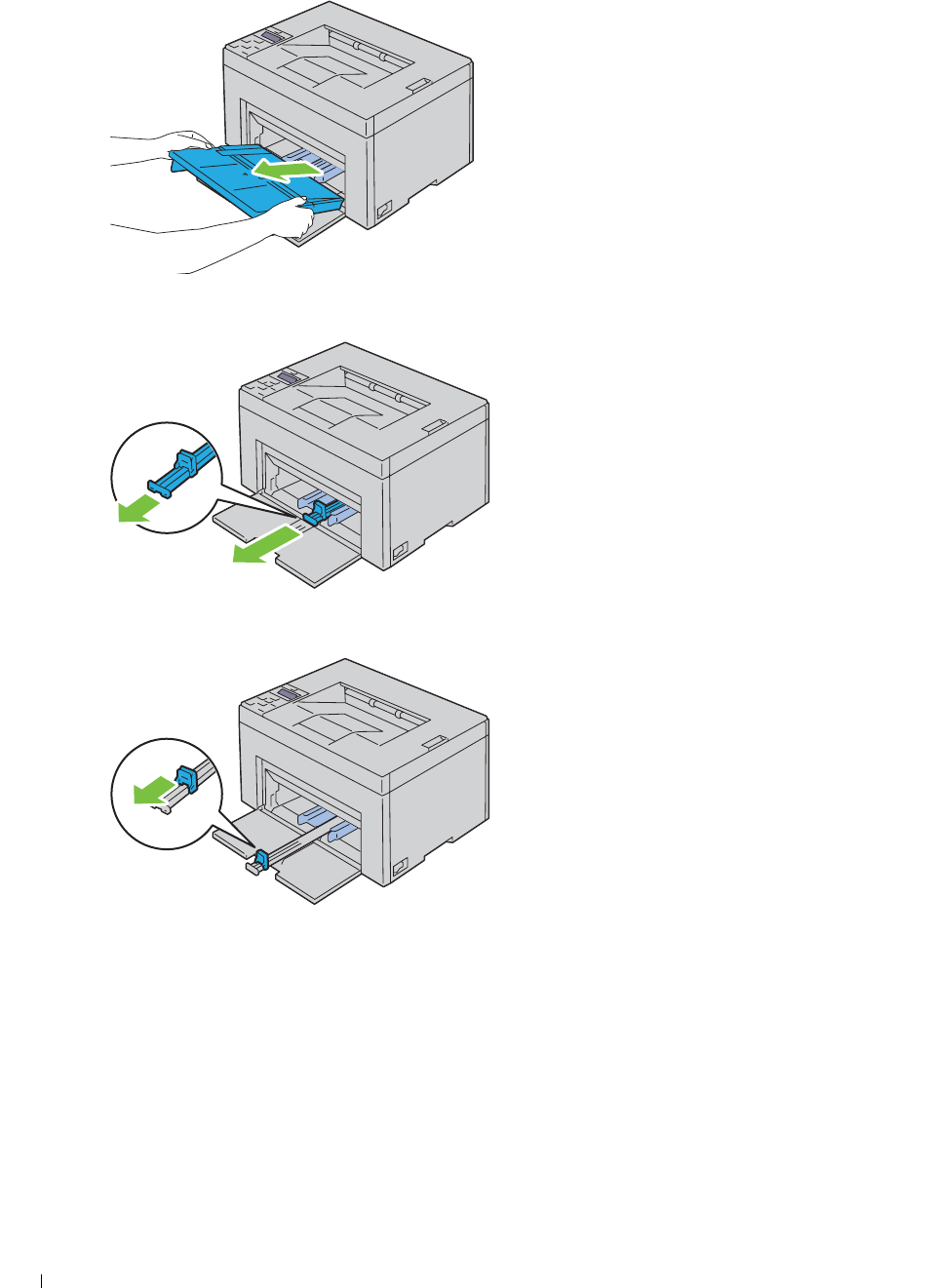

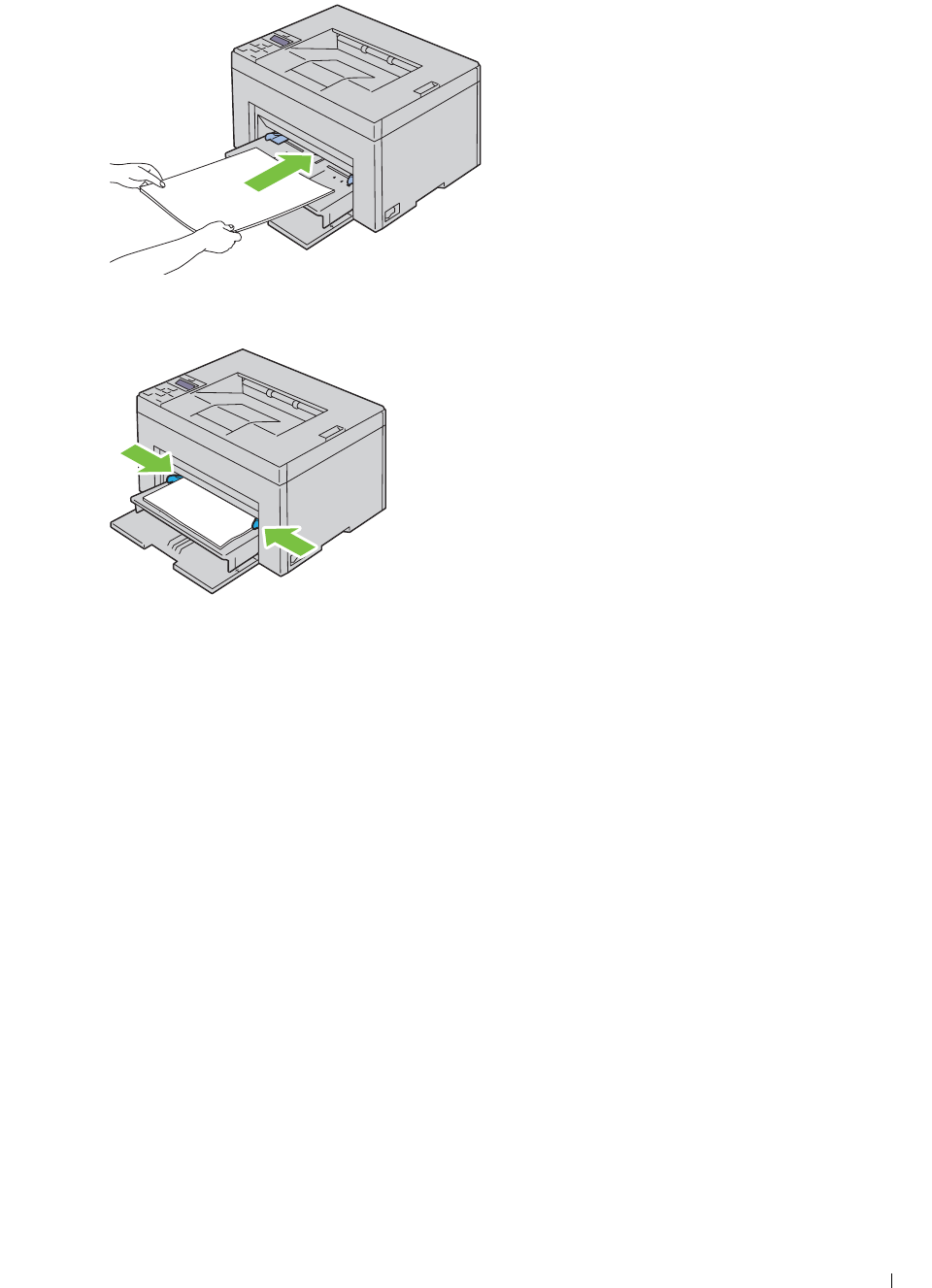

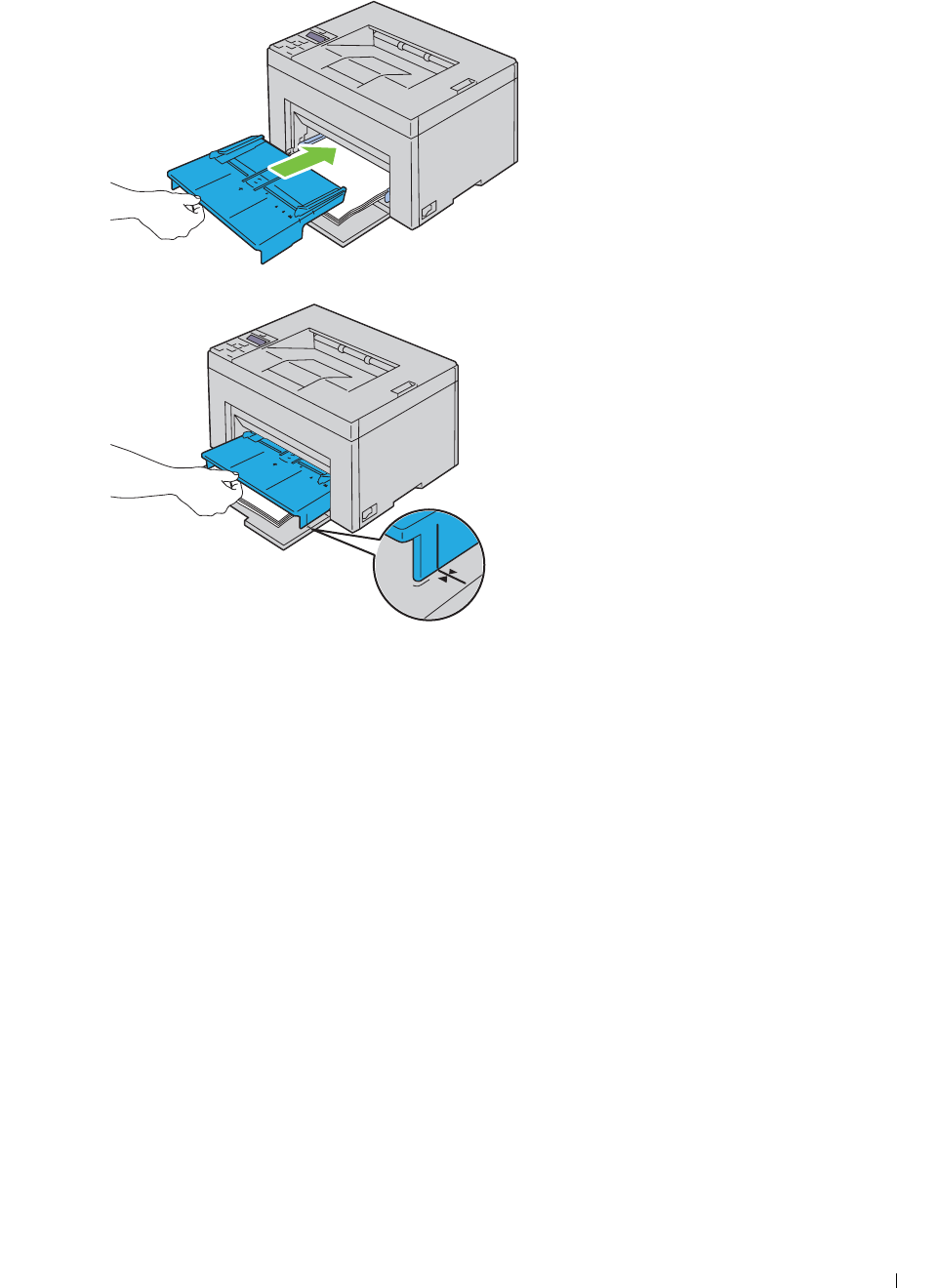

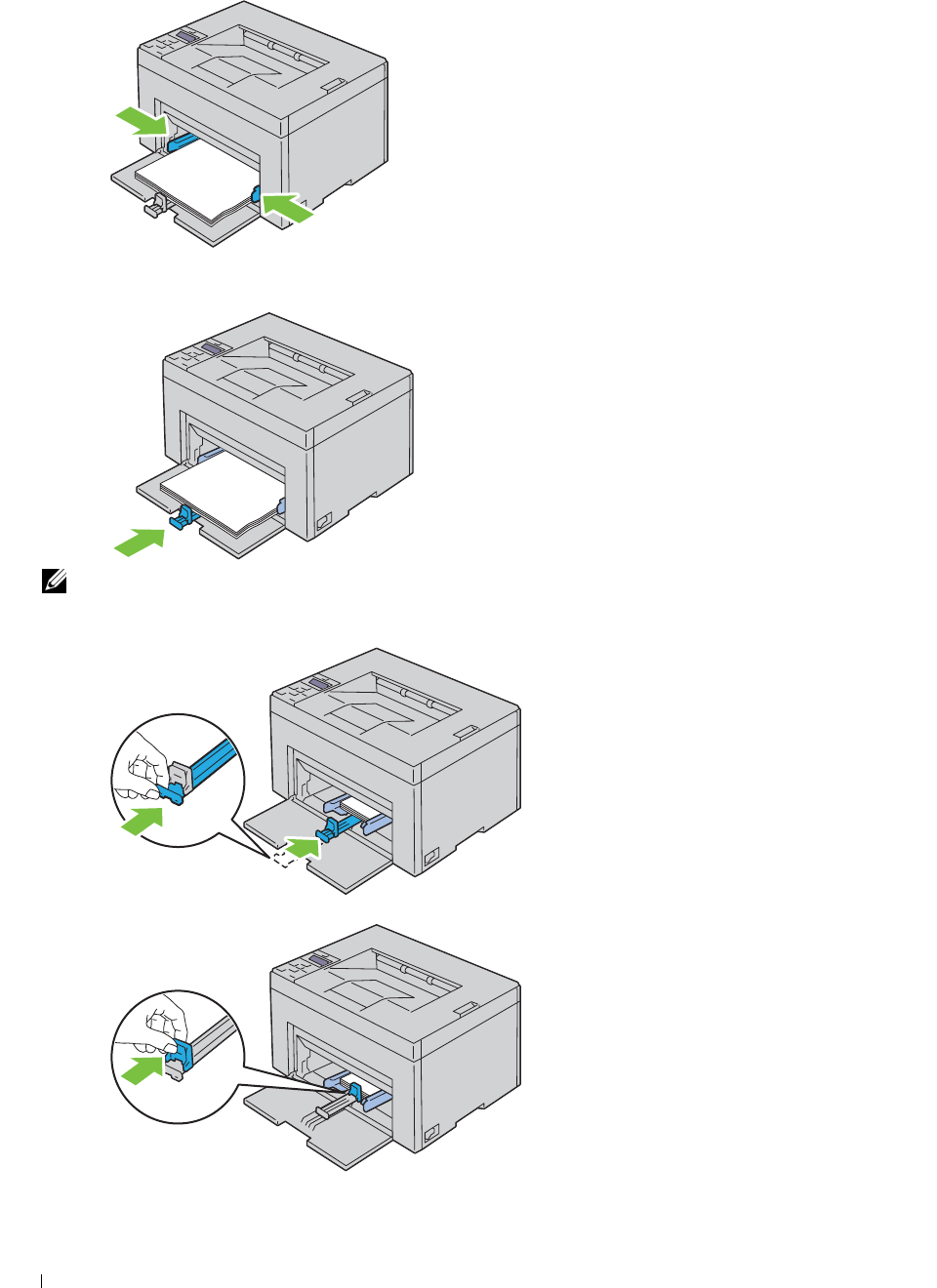

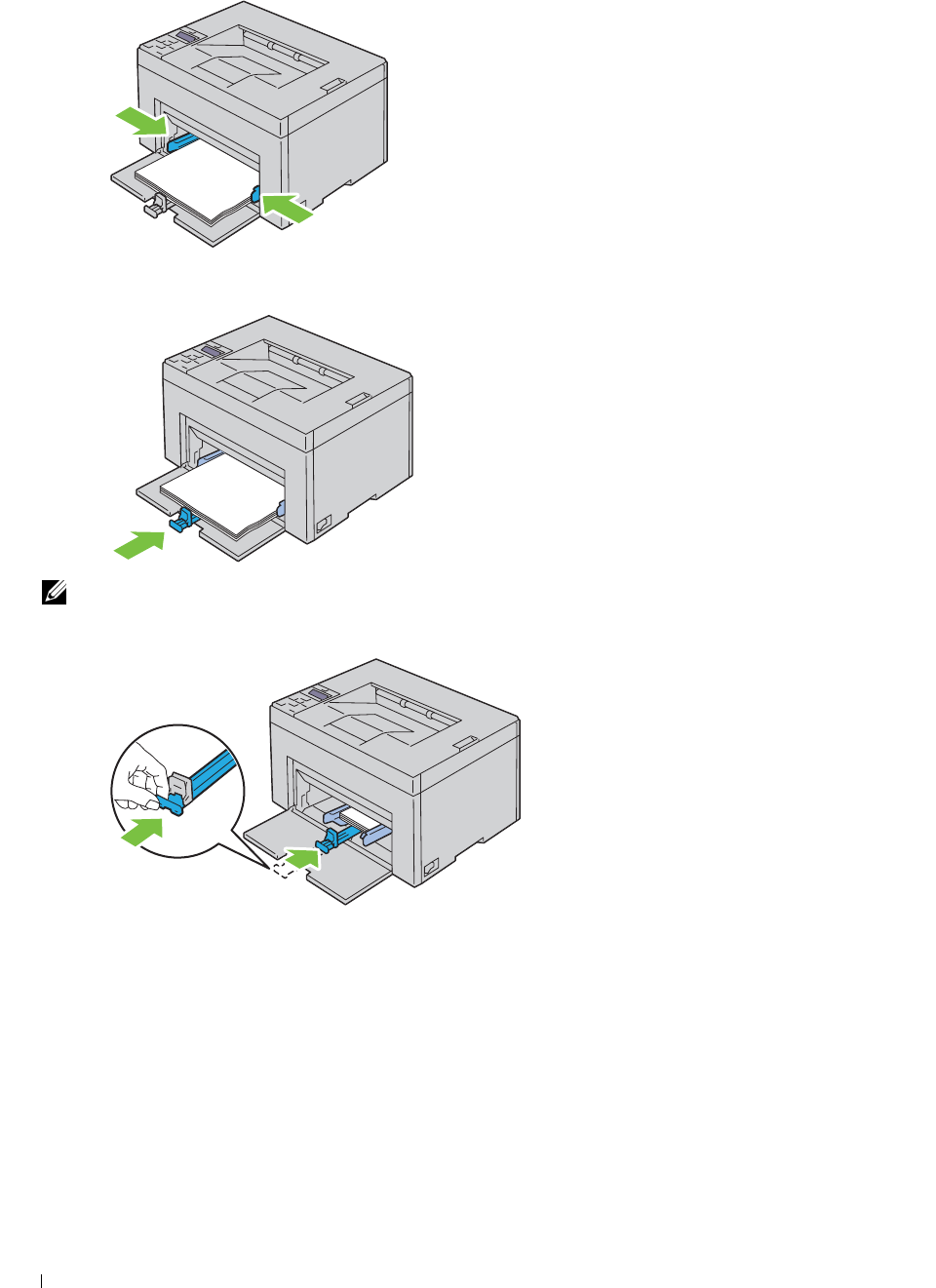

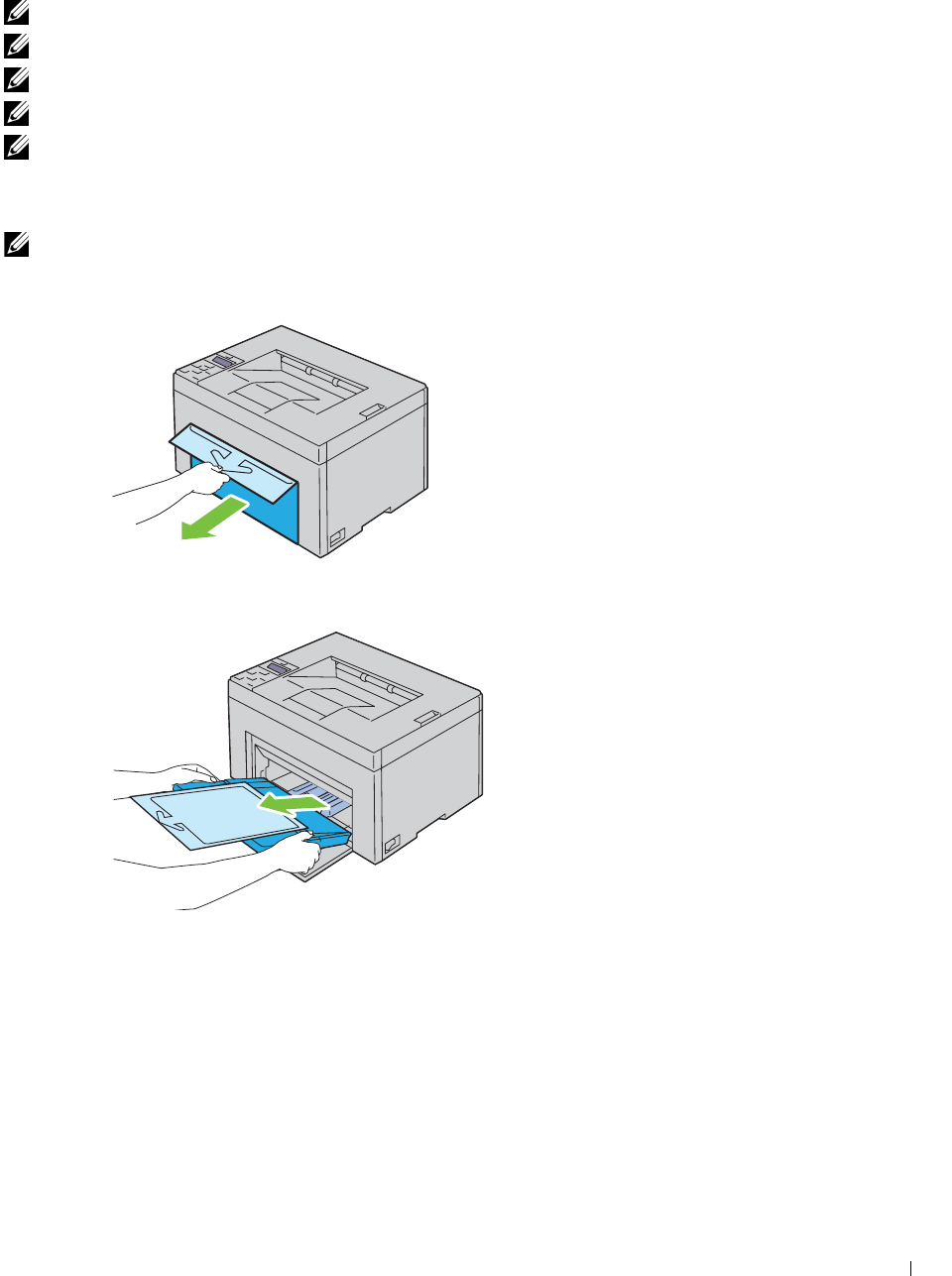

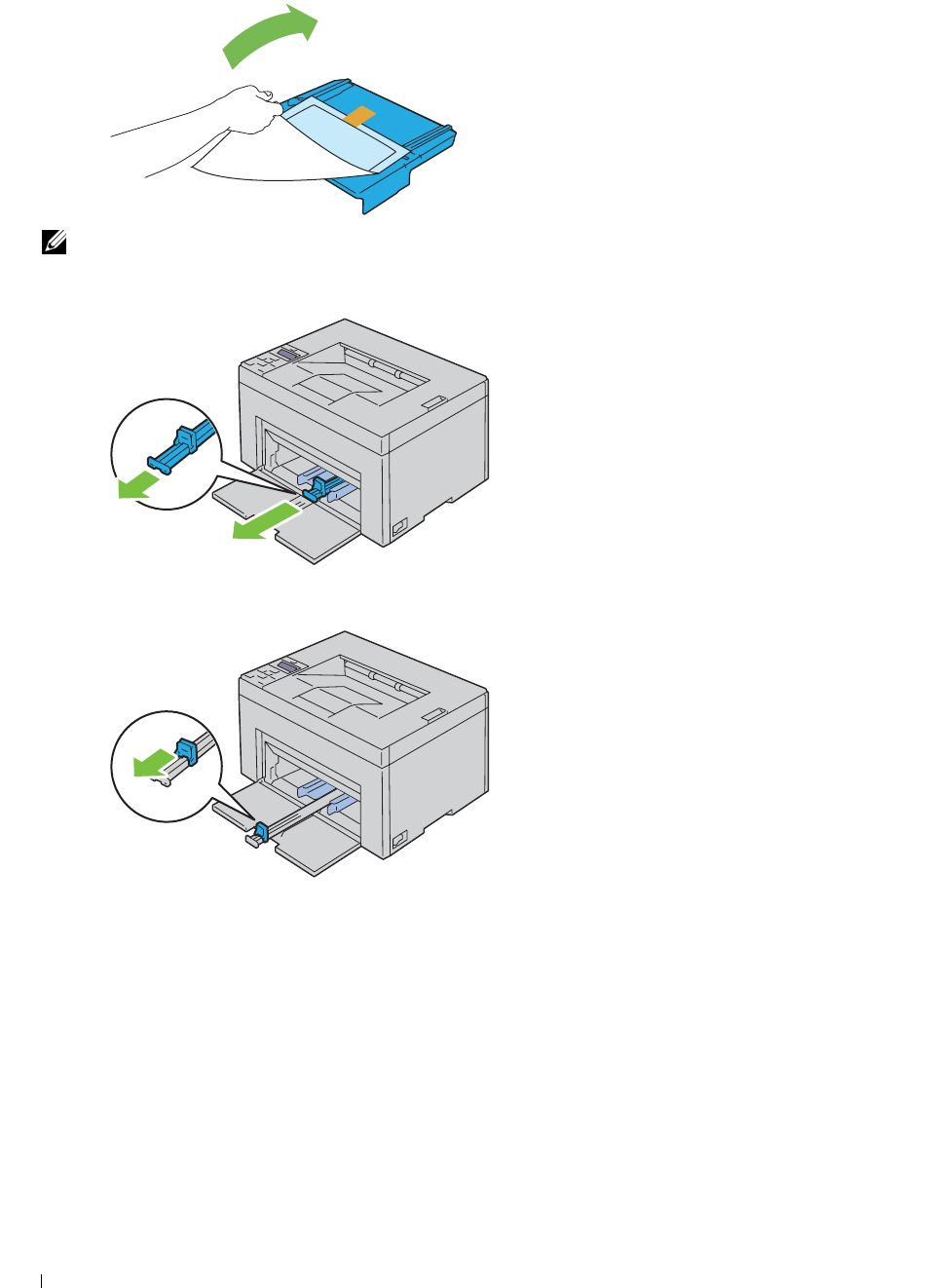

Loading Print Media in the Multipurpose Feeder (MPF). . . . . . . . . . . . . . . 43
Loading Print Media in the Priority Sheet Inserter (PSI)
(Dell C1760nw Color Printer only) . . . . . . . . . . . . . . . . . . . . . . . . . . 48
9 Installing Printer Drivers on Computers Running Windows®
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Identifying Printer Driver Pre-install Status . . . . . . . . . . . . . . . . . . . . . 51
Changing the firewall settings before installing your printer . . . . . . . . . . 51
Direct Connection Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
For installing host-based printer driver . . . . . . . . . . . . . . . . . . . . . 51
For installing XML Paper Specification (XPS) printer driver . . . . . . . . . . 52
Network Connection Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Network Printer Setup on a Local Network . . . . . . . . . . . . . . . . . . . 54
Network Printer Setup on a Remote Network. . . . . . . . . . . . . . . . . . 58
Setting Up for Web Services on Devices (WSD) . . . . . . . . . . . . . . . . . . . 62
Adding Roles of Print Services . . . . . . . . . . . . . . . . . . . . . . . . . 62
WSD Printer Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Setting Up for Shared Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Template Last Updated - 2/7/2007 Contents 3

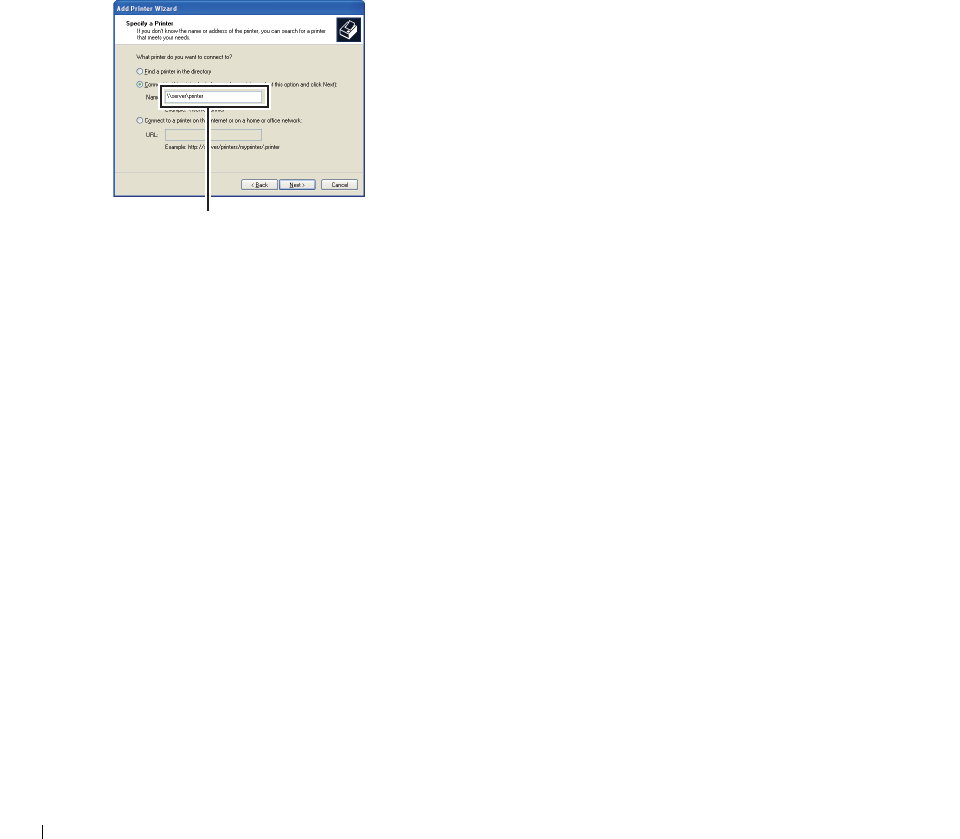

Point and Print. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Peer-to-Peer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
10 Installing Printer Drivers on Computers Running Macintosh
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Installing the Drivers and Software . . . . . . . . . . . . . . . . . . . . . . . . . 71
Adding a Printer on Mac OS X 10.5 or Later Version(s) . . . . . . . . . . . . . 71
Adding a Printer on Mac OS X 10.4.11 . . . . . . . . . . . . . . . . . . . . . 72
Using Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
11 Operator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Using the Operator Panel Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . 77

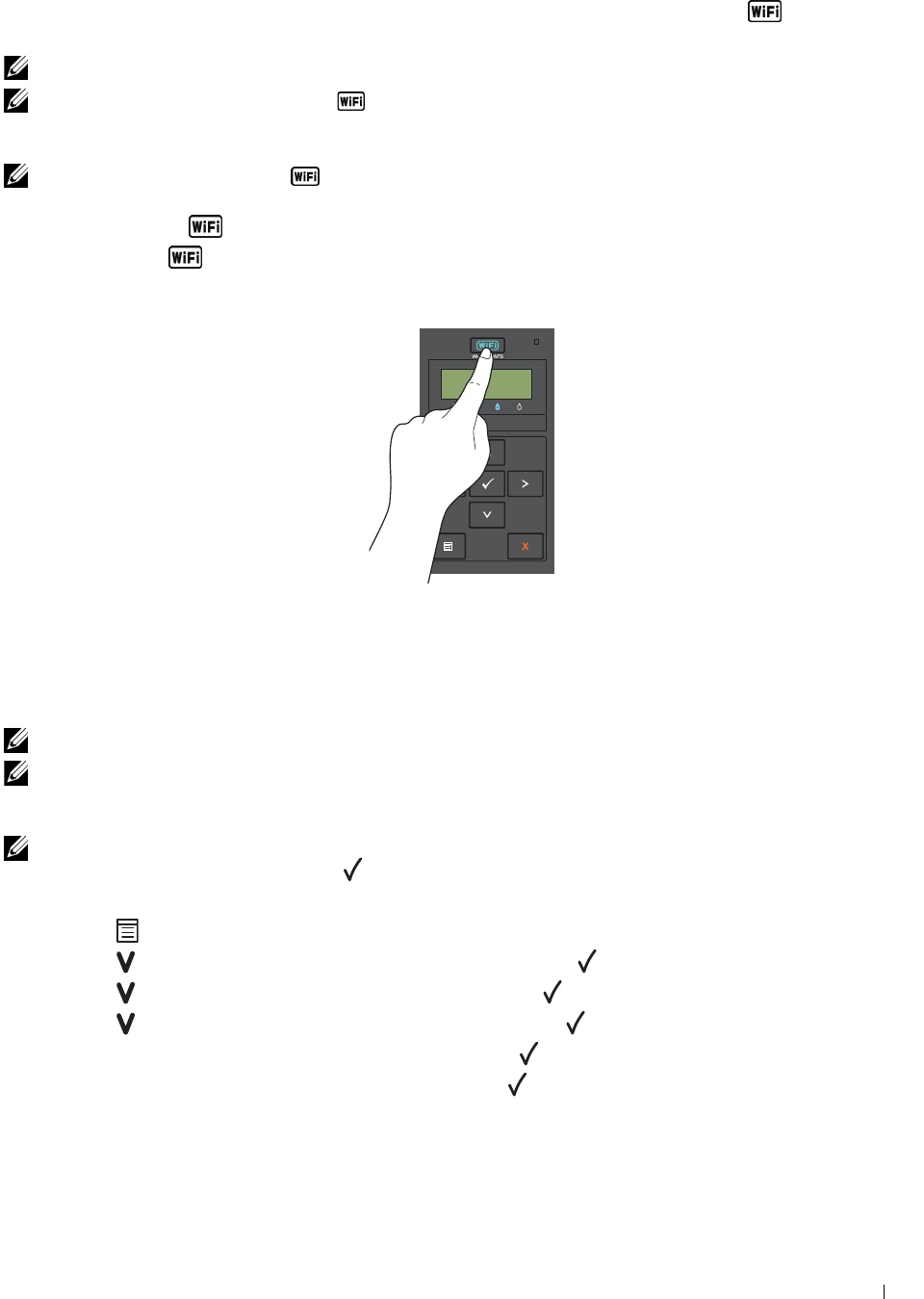

Status of Wi-Fi | WPS Button Backlight. . . . . . . . . . . . . . . . . . . . . 78
Using the Operator Panel to Change Printer Settings . . . . . . . . . . . . . . . . 79
Printing a Device Settings Page . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Changing the Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
The Operator Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
The Tool Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Setting the PowerSaver Time Option . . . . . . . . . . . . . . . . . . . . . . . . 80

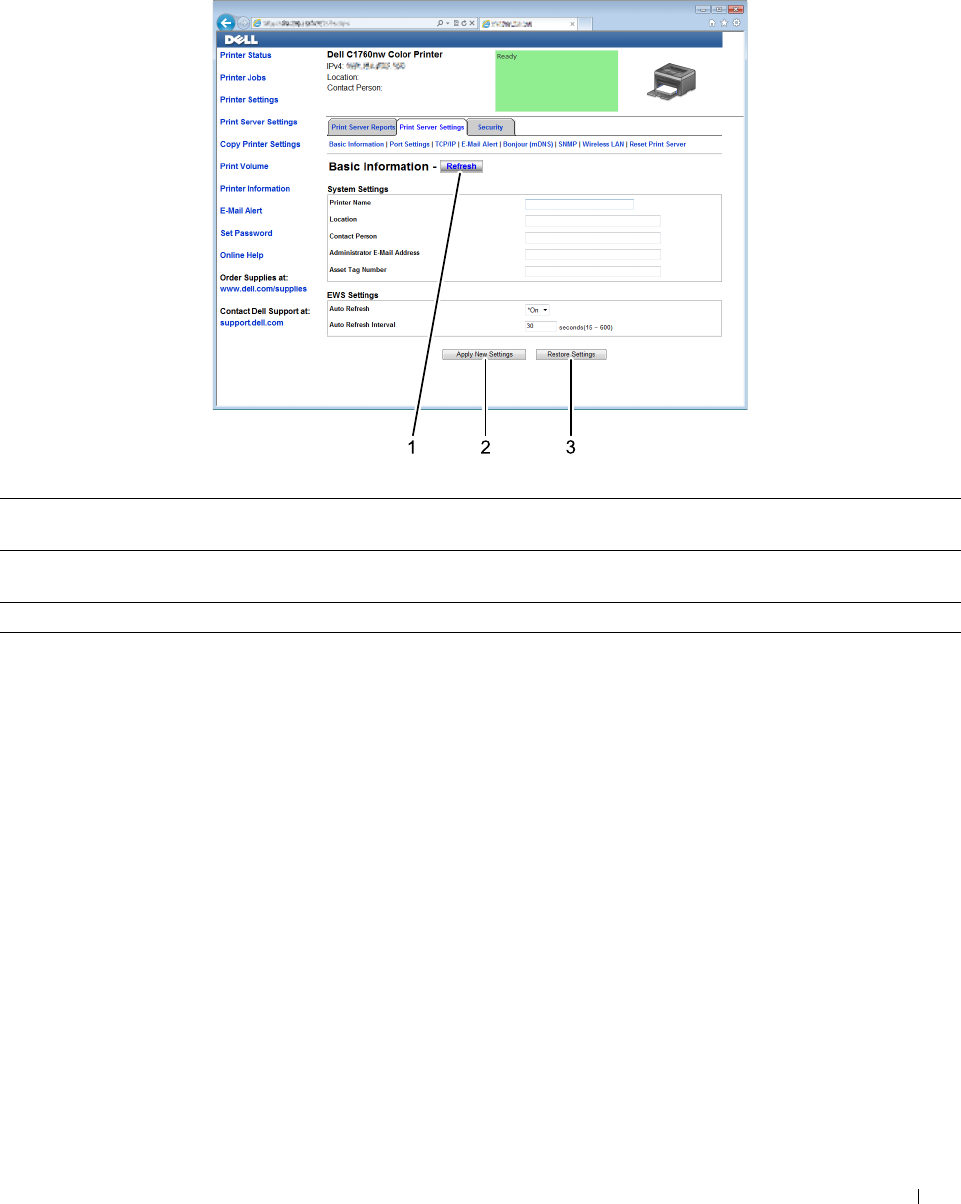

12 Dell™ Printer Configuration Web Tool . . . . . . . . . . . . . . . . 81
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Setting Up the Dell Printer Configuration Web Tool . . . . . . . . . . . . . . . . . 81
Setting Up From Web Browser . . . . . . . . . . . . . . . . . . . . . . . . . 81
Setting Up From Operator Panel . . . . . . . . . . . . . . . . . . . . . . . . 83
Starting the Dell Printer Configuration Web Tool . . . . . . . . . . . . . . . . . . 83

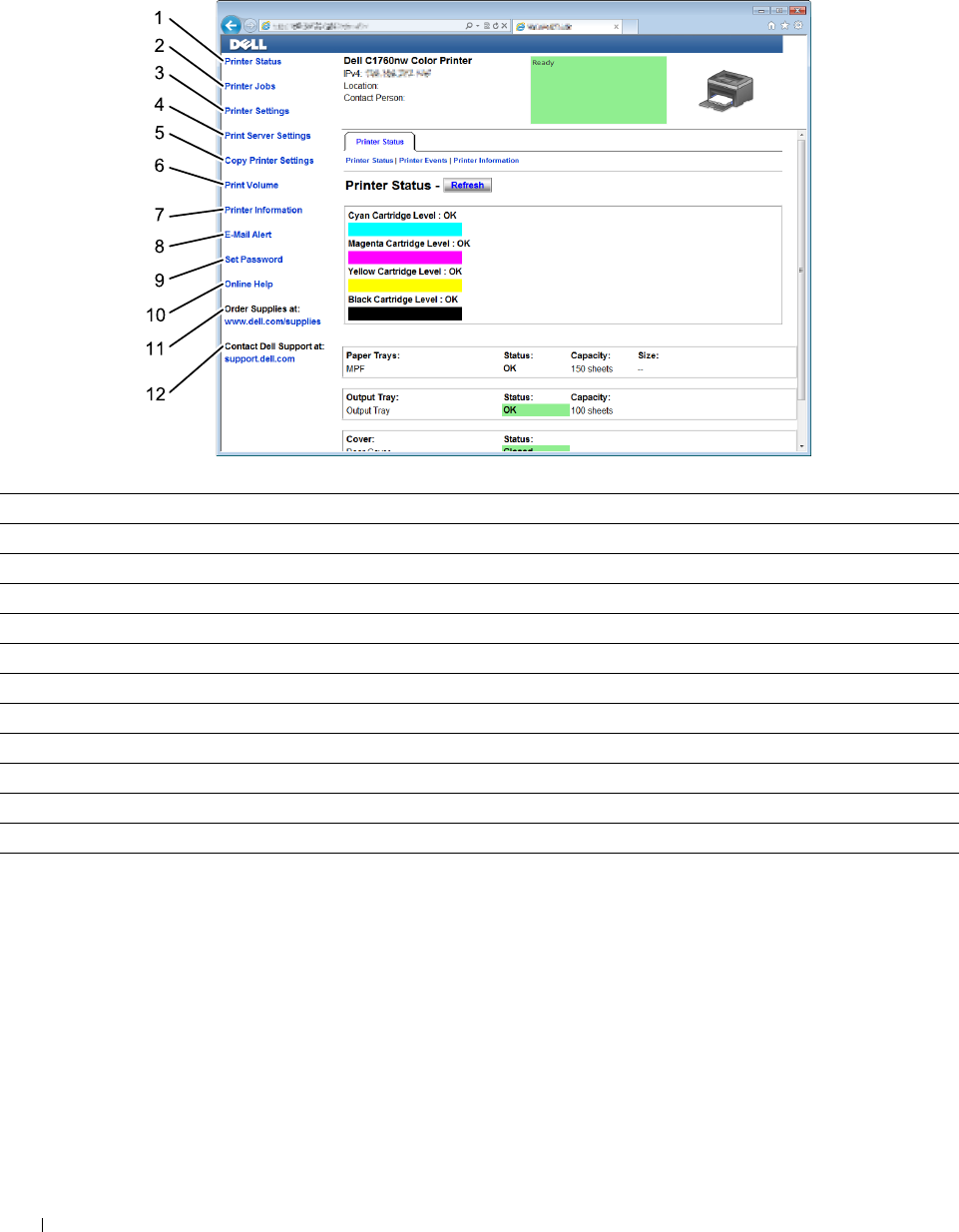

Overview of the Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Page Display Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Top Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Left Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Right Frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Changing the Settings of the Menu Items . . . . . . . . . . . . . . . . . . . . . . 88
Details of the Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
4Contents Template Last Updated - 2/7/2007
Printer Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Printer Jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Printer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Print Server Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Copy Printer Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
Print Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
13 Understanding the Tool Box Menus . . . . . . . . . . . . . . . . . 111
Starting the Tool Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Using the Tool Box to Change the Printer Settings . . . . . . . . . . . . . . . . 111
Printer Settings Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Printer Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Menu Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Reports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
TCP/IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Printer Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Paper Density . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Adjust BTR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Adjust Fusing Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

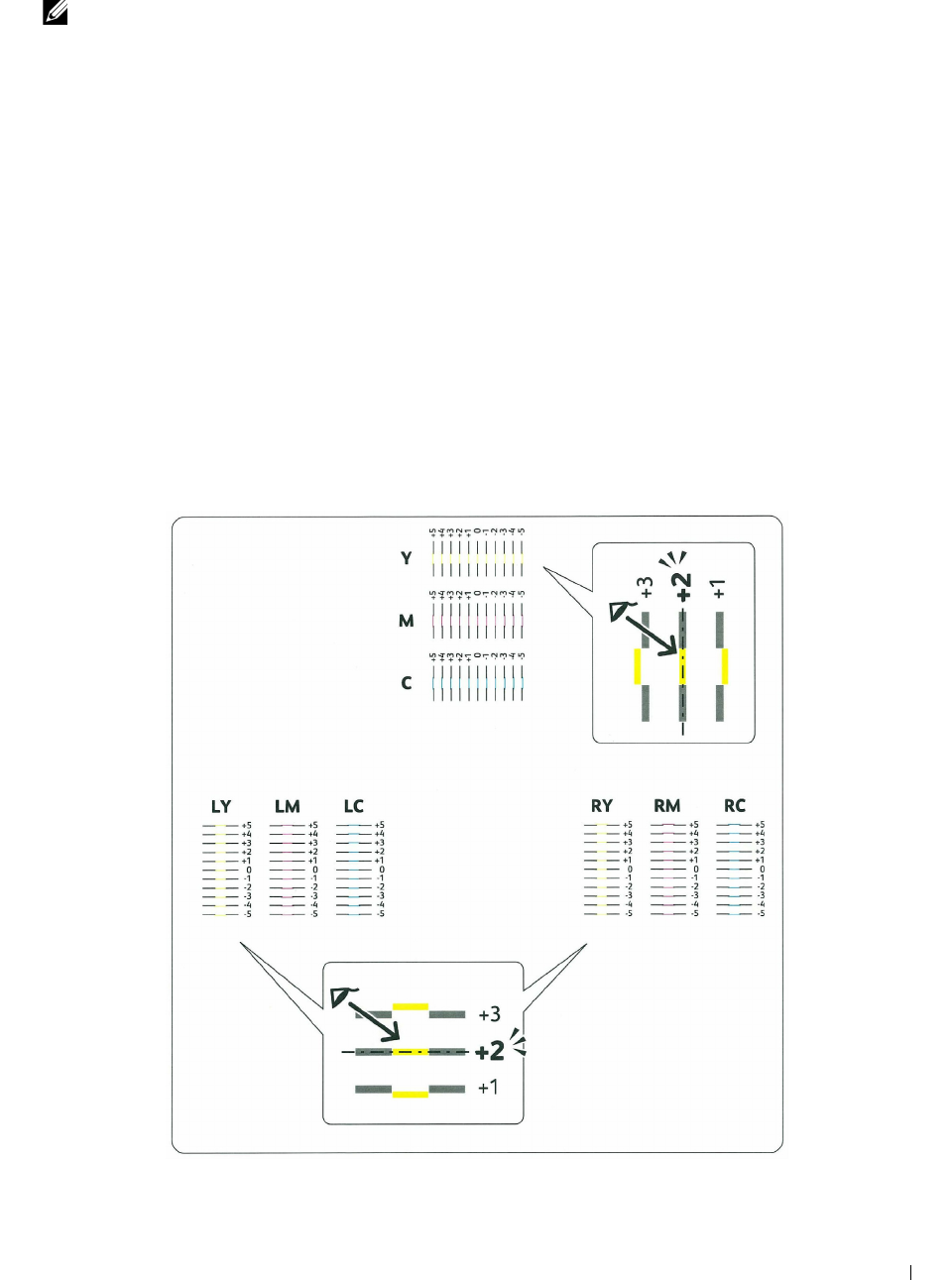

Color Registration Adjustment. . . . . . . . . . . . . . . . . . . . . . . . . 117
Adjust Altitude . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Reset Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Non-Dell Toner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
BTR Refresh Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
TCP/IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Diagnosis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Chart Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Machine Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Environment Sensor Info . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Developer Stir Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Refresh Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122
Resetting Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
14 Understanding the Printer Menus . . . . . . . . . . . . . . . . . . 125
Report/List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Printer Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Template Last Updated - 2/7/2007 Contents 5
Job History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Error History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Color Test Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Printing a Report/List Using the Operator Panel . . . . . . . . . . . . . . . 125
Printing a Report/List Using the Tool Box . . . . . . . . . . . . . . . . . . . 126
Admin Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
USB Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Secure Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Panel Language. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Panel Lock Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Enabling the Panel Lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Disabling the Panel Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Resetting Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
15 Print Media Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Paper Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Recommended Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Unacceptable Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Selecting Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Selecting Preprinted Media and Letterhead . . . . . . . . . . . . . . . . . 145
Printing on Letterhead. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Loading Letterhead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Selecting Pre-Punched Paper . . . . . . . . . . . . . . . . . . . . . . . . 146

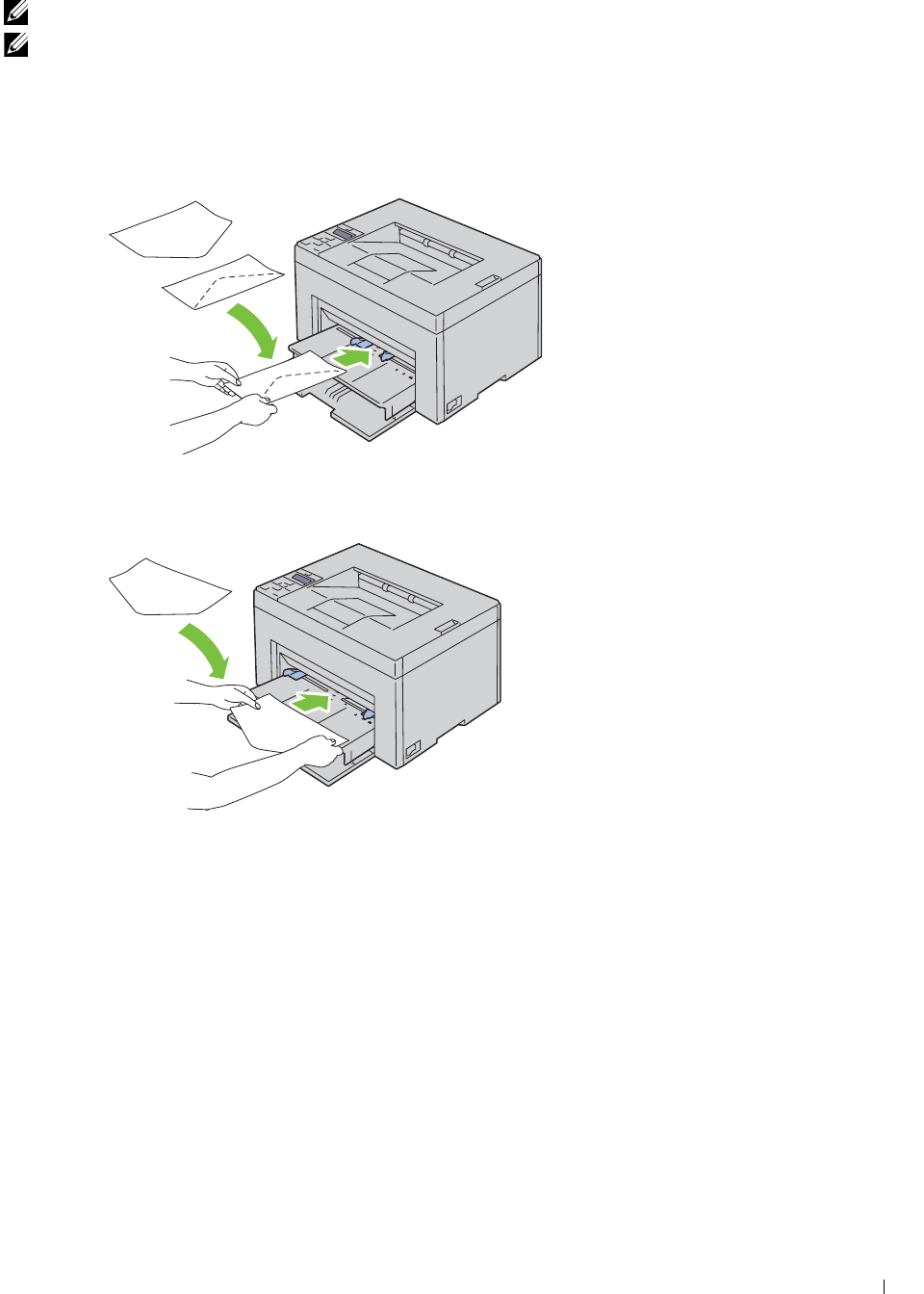

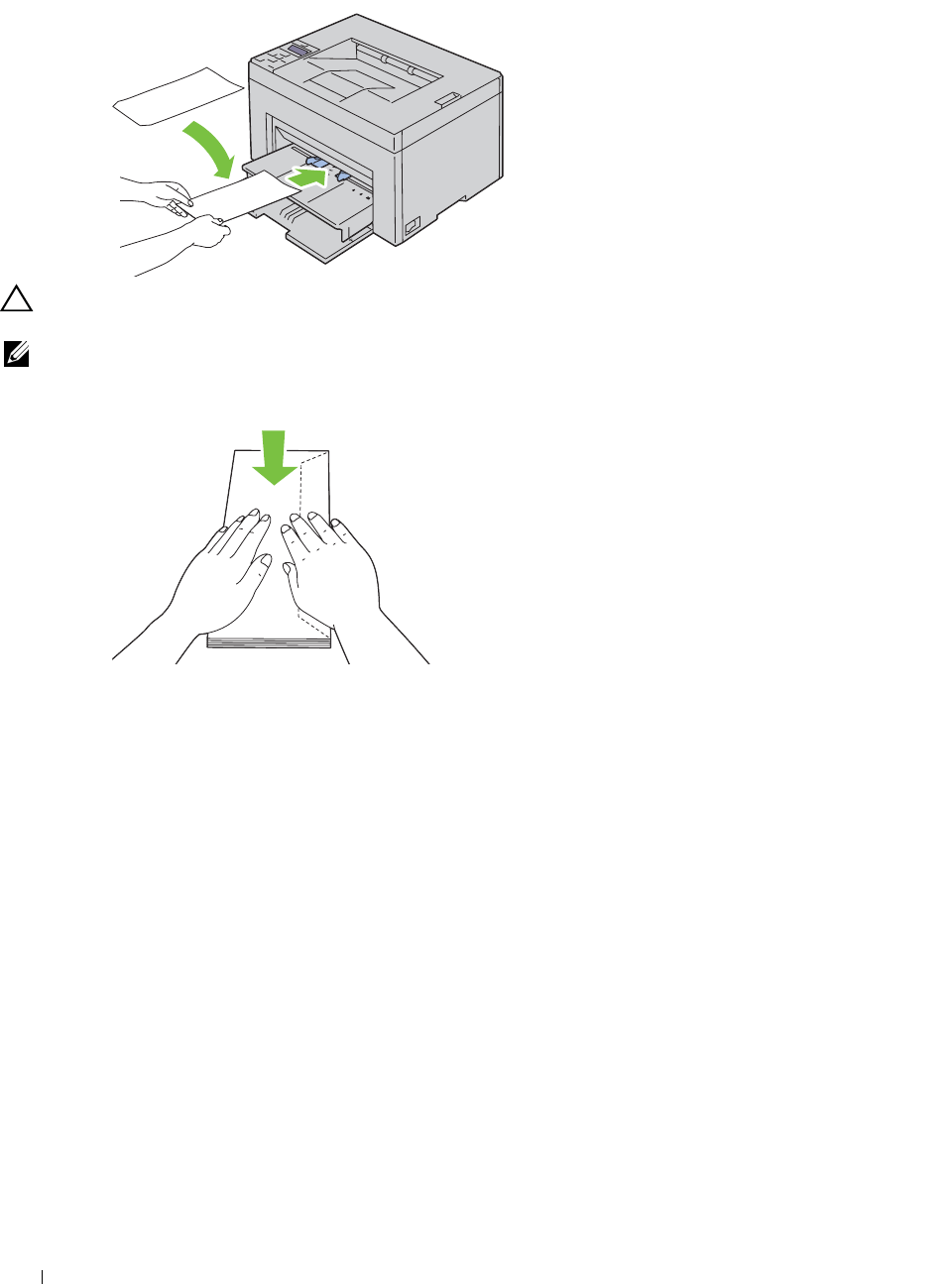

Envelopes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Storing Print Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Identifying Print Media and Specifications . . . . . . . . . . . . . . . . . . . . 148
Supported Paper Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Supported Paper Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Paper Type Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 149
16 Loading Print Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
Capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
6Contents Template Last Updated - 2/7/2007
Print Media Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

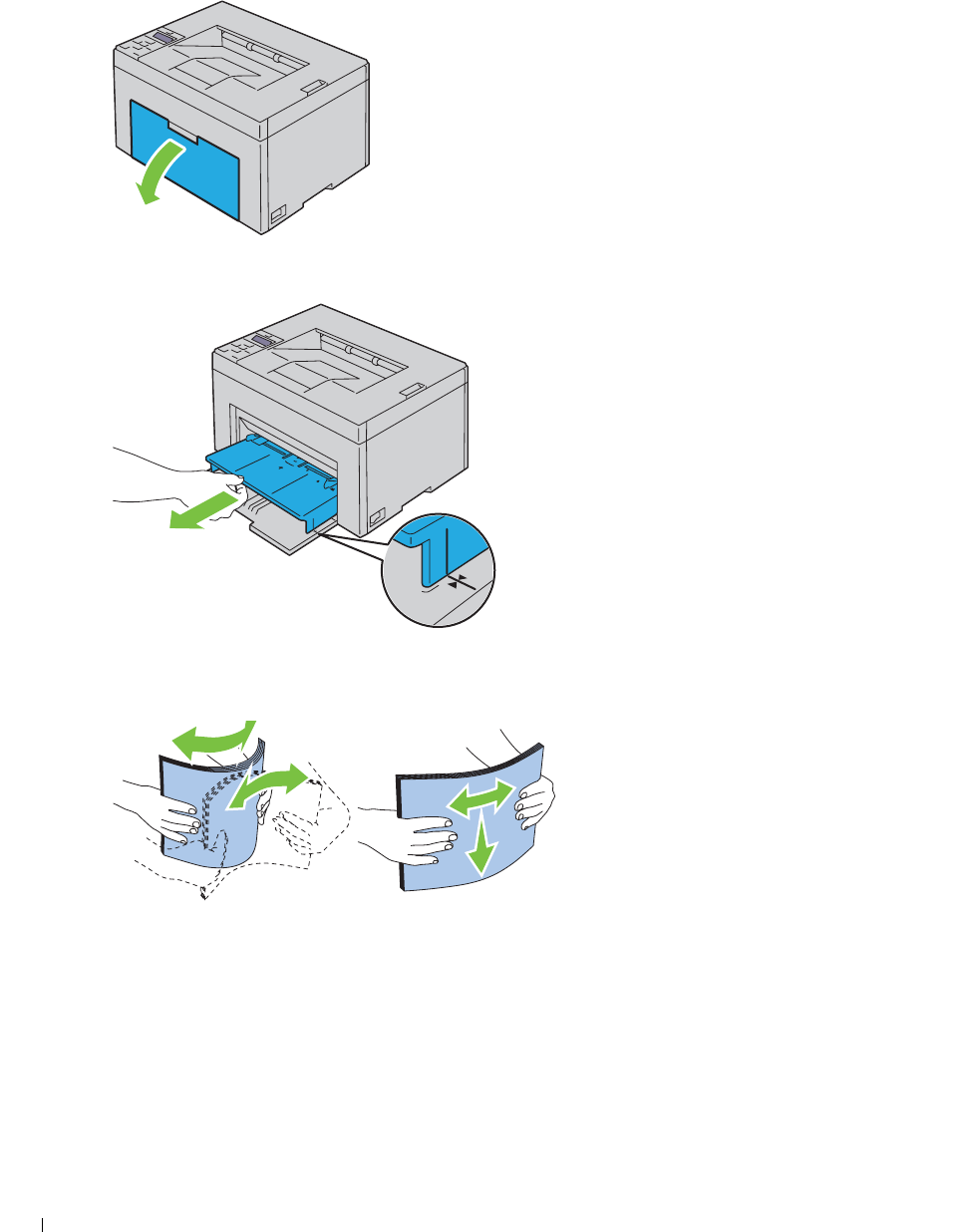

Loading Print Media in the Multipurpose Feeder (MPF). . . . . . . . . . . . . . 151

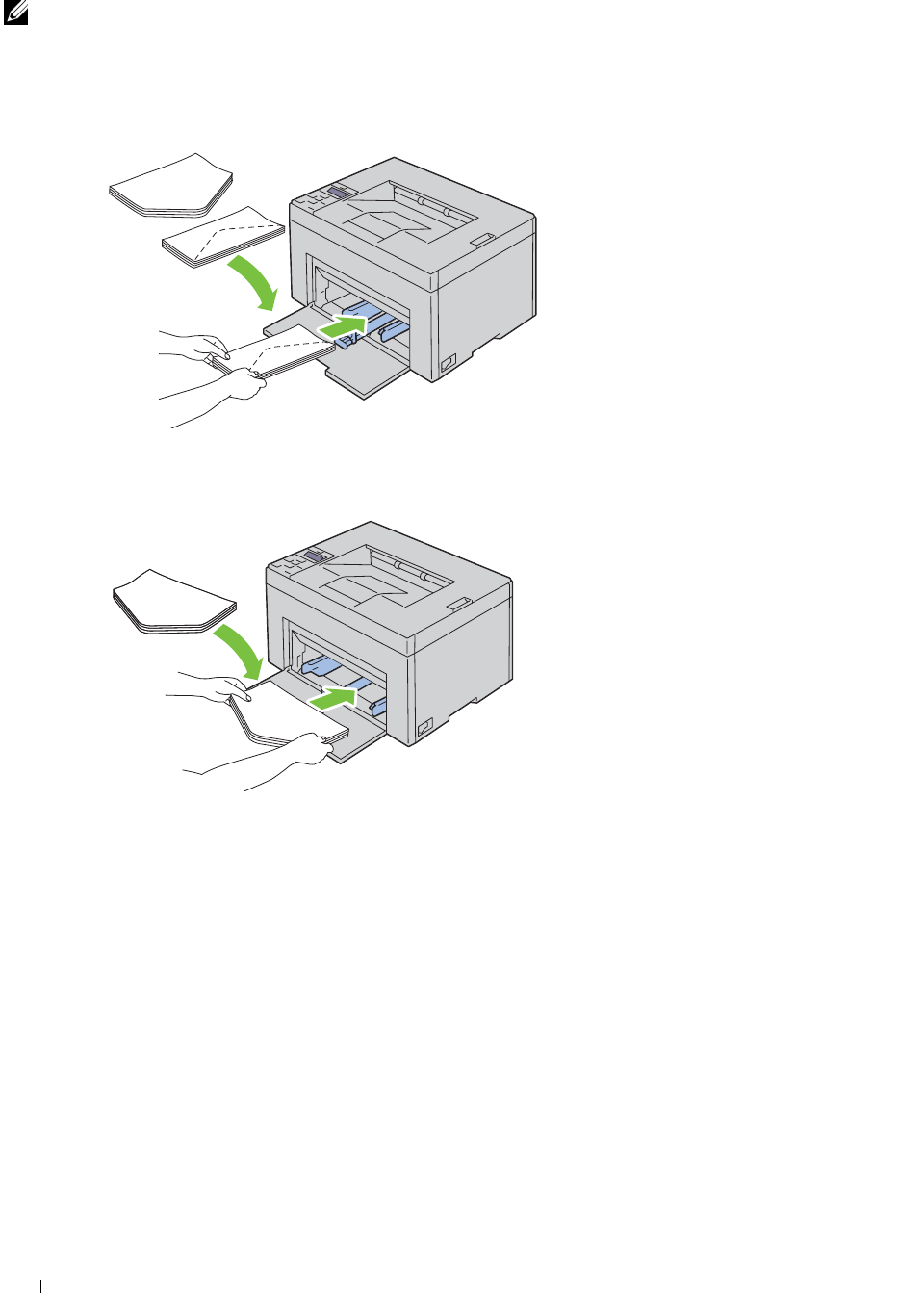

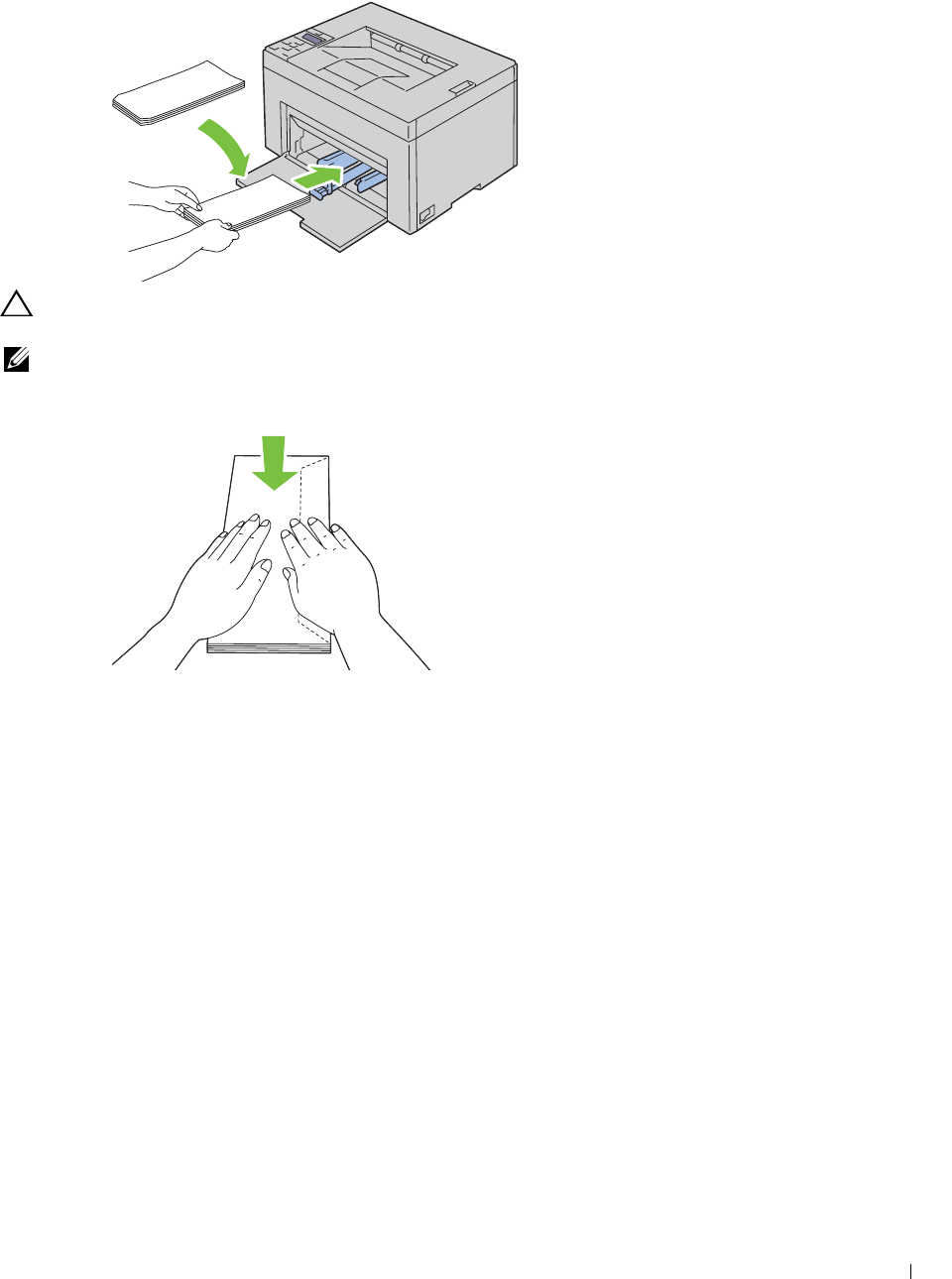

Loading Envelopes in the Multipurpose Feeder (MPF) . . . . . . . . . . . . 156
Loading Letterhead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Loading Print Media in the Priority Sheet Inserter (PSI) (Dell C1760nw Color Printer
only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Loading an Envelope in the Priority Sheet Inserter (PSI) . . . . . . . . . . . 161

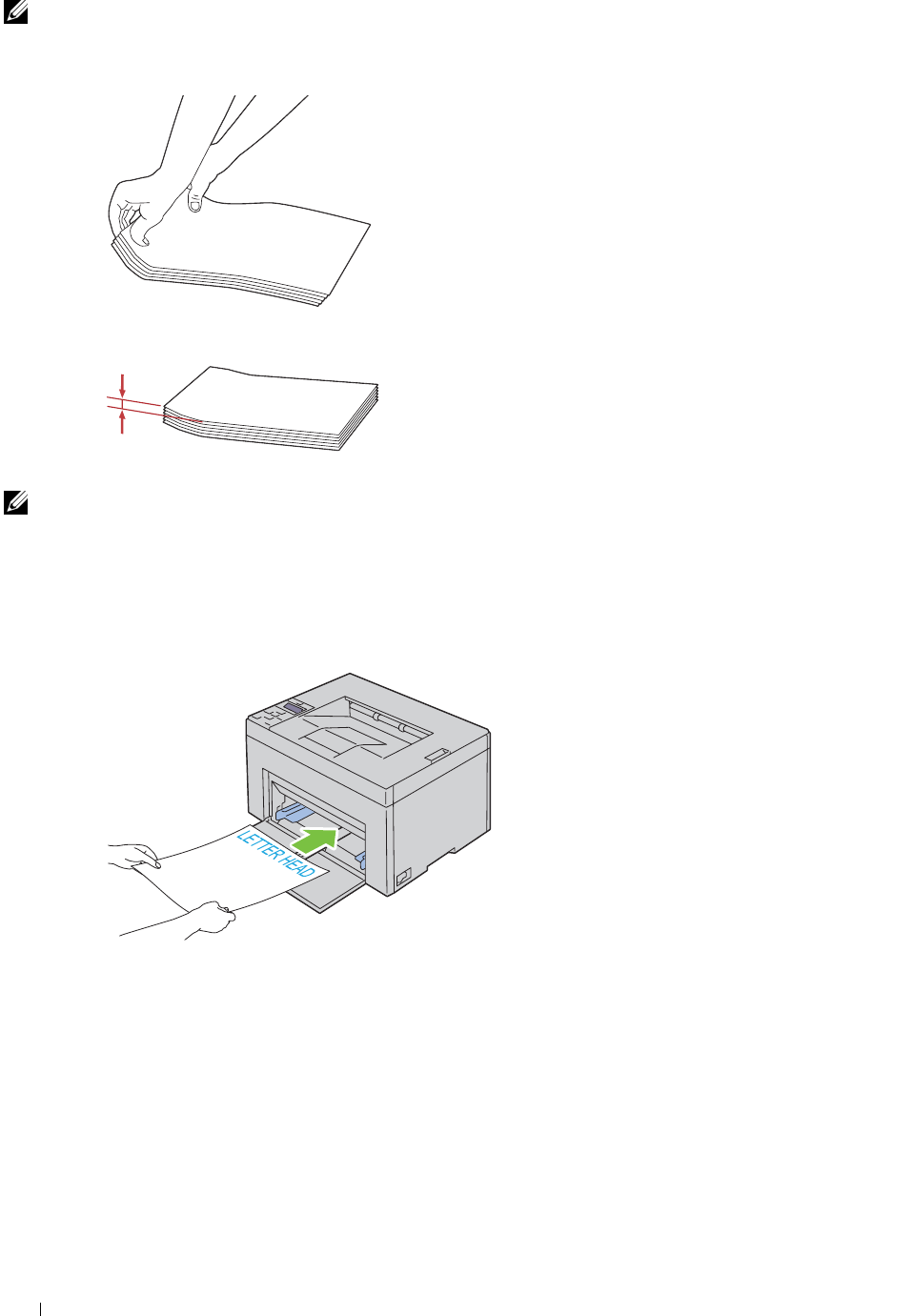

Loading Letterhead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

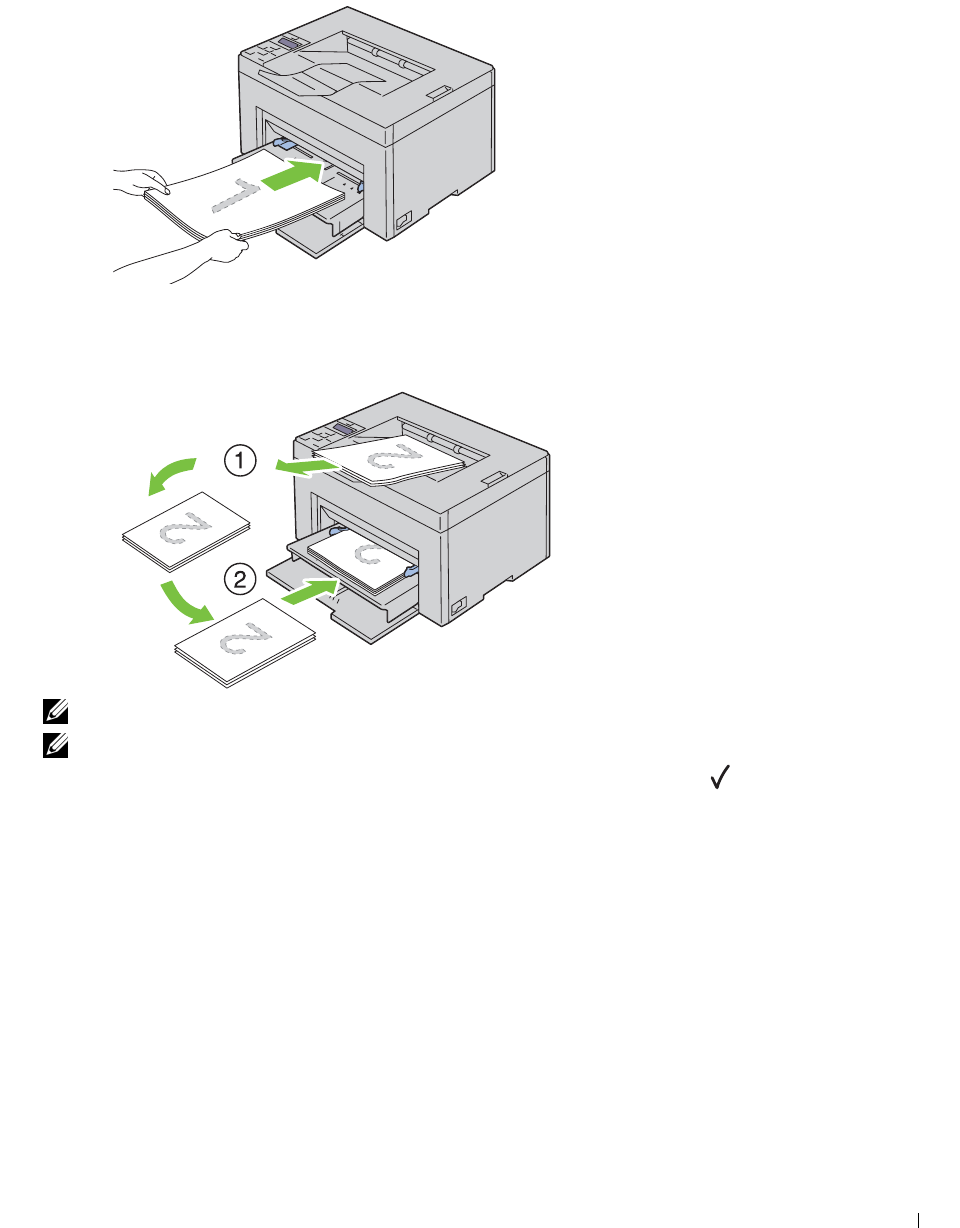

Loading Print Media When Manual Duplex Printing . . . . . . . . . . . . . . . 164
When Using the Multipurpose Feeder (MPF) . . . . . . . . . . . . . . . . . 164
When Using the Priority Sheet Inserter (PSI) (Dell C1760nw Color Printer only)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

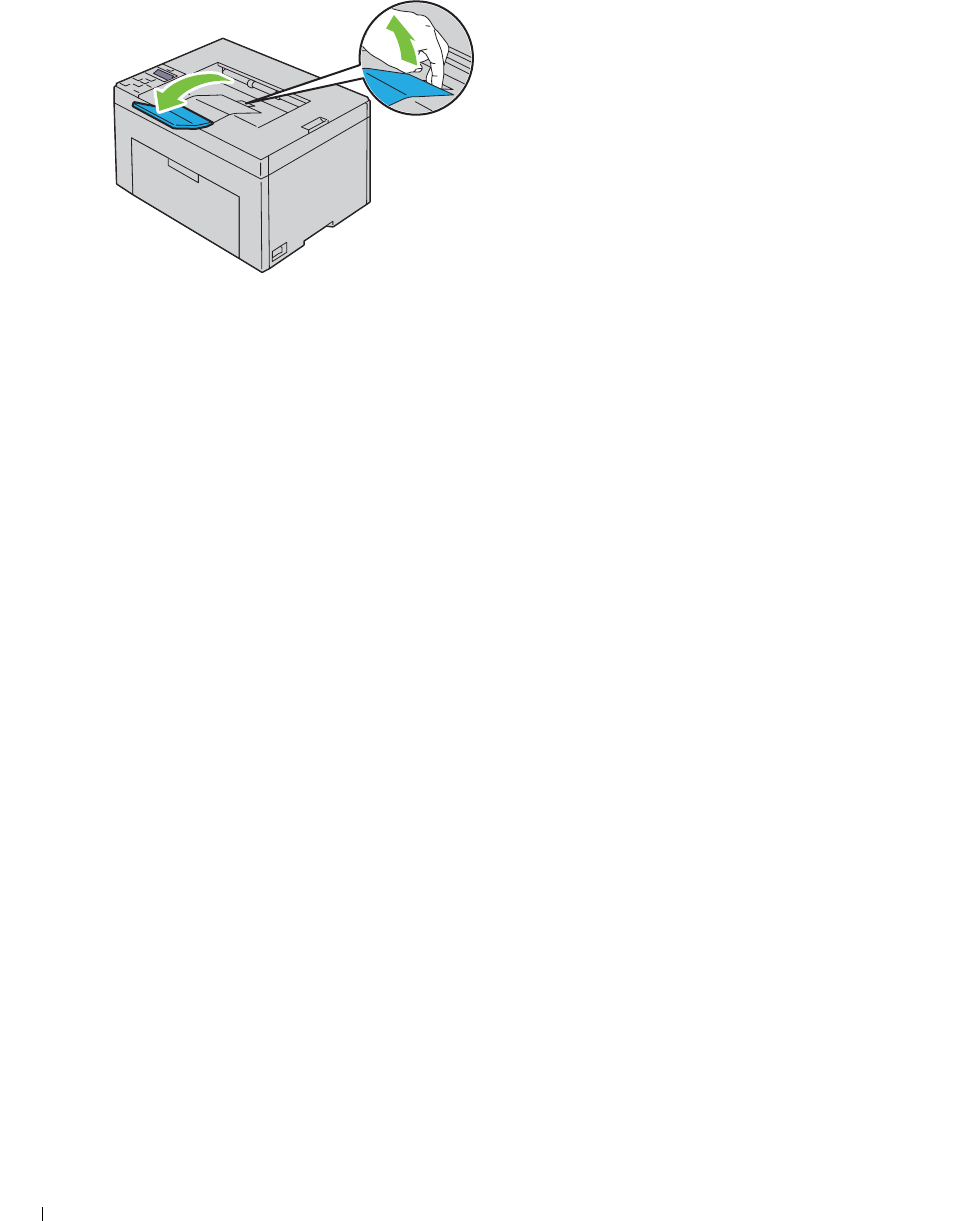

Using the Output Tray Extension . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
17 Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Tips for Successful Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Tips on Storing Print Media . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Avoiding Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Sending a Job to Print . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Canceling a Print Job . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Canceling From the Operator Panel . . . . . . . . . . . . . . . . . . . . . . 170
Canceling a Job From the Computer Running Windows . . . . . . . . . . . 170
Printing a Report Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Know Your Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
18 Understanding Your Printer Software . . . . . . . . . . . . . . . 173
Windows® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Printer Status Window. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

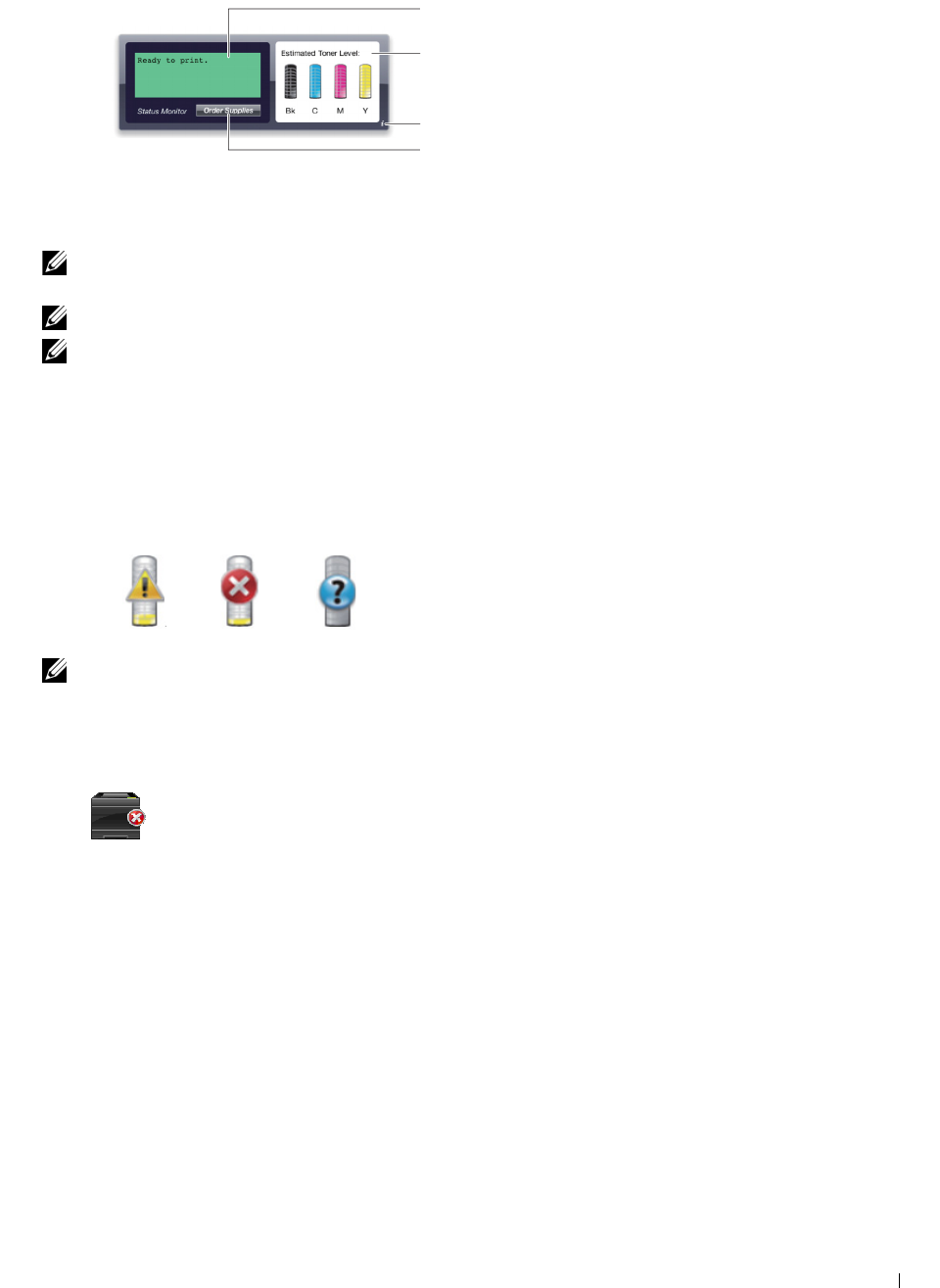

Status Monitor Console . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Dell Supplies Management System . . . . . . . . . . . . . . . . . . . . . . 173

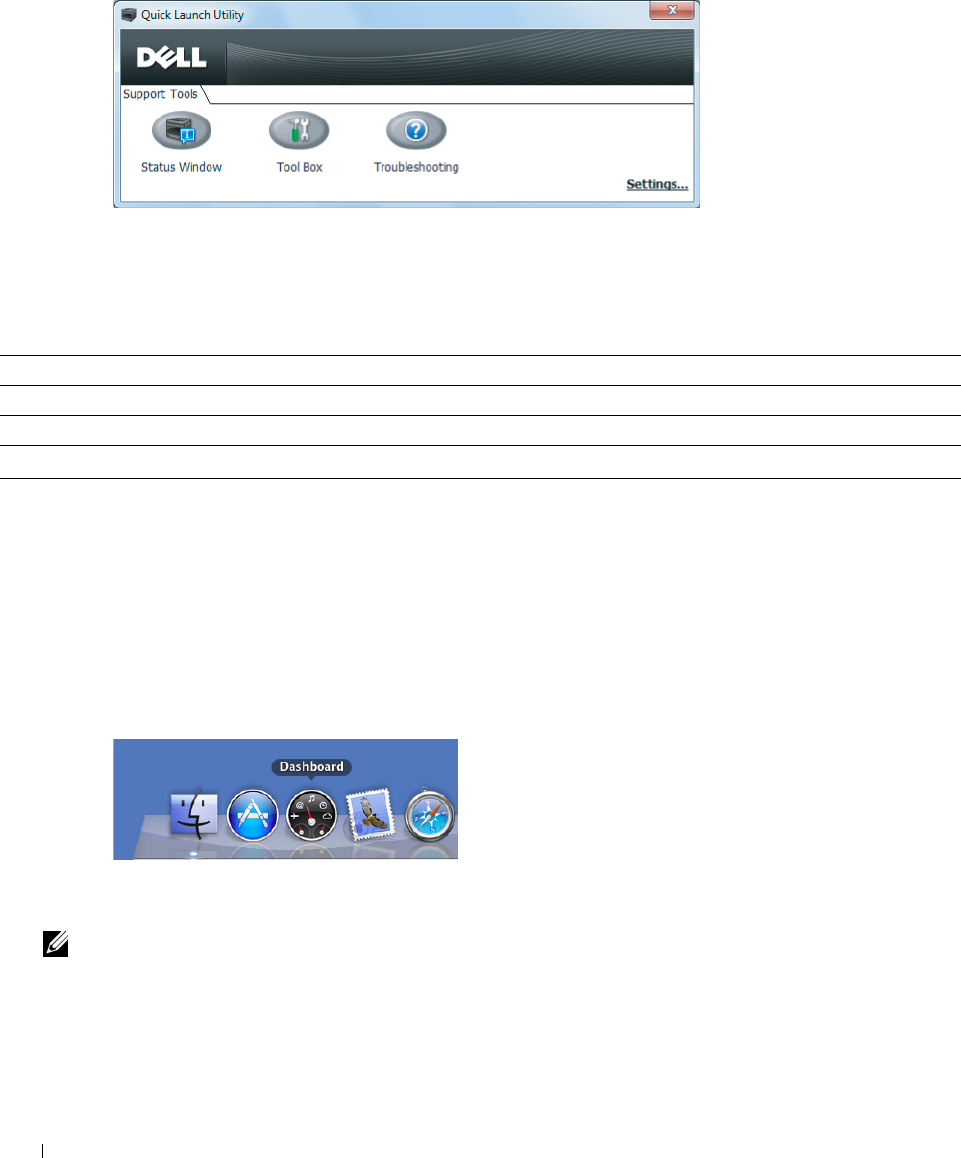

Quick Launch Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Macintosh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Template Last Updated - 2/7/2007 Contents 7
Status Monitor Widget . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
19 Understanding Printer Messages . . . . . . . . . . . . . . . . . . 177
20 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Operating System Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Power Supply. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Page Description Language (PDL)/Emulation, Operating System, and Interface . 182
MIB Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

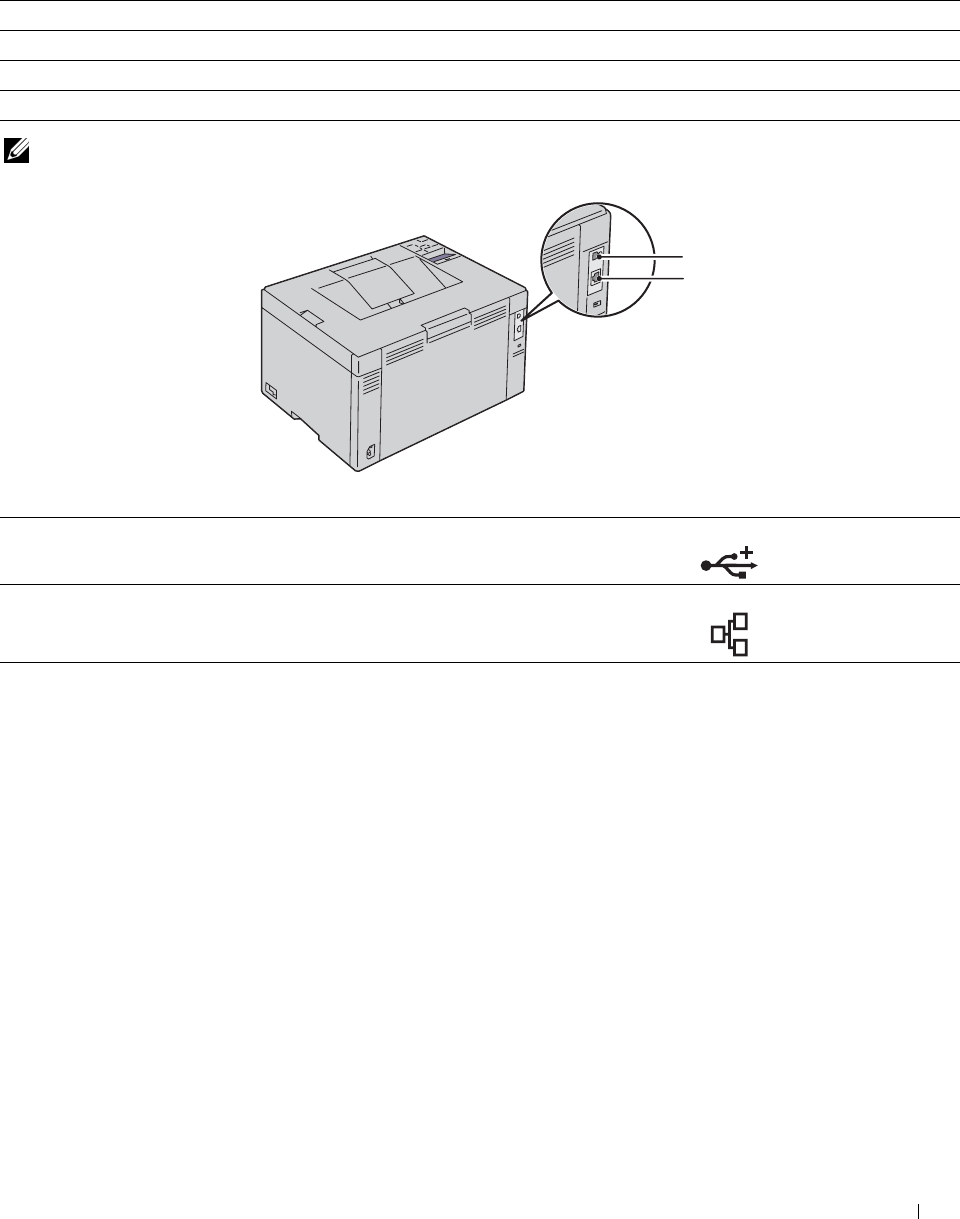

Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Maintaining Your Printer . . . . . . . . . . . . . . . . . . . . . . . 185
21 Maintaining Your Printer . . . . . . . . . . . . . . . . . . . . . . . . . 187
Determining the Status of Supplies . . . . . . . . . . . . . . . . . . . . . . . . 187
Conserving Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Storing Print Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Storing Consumables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

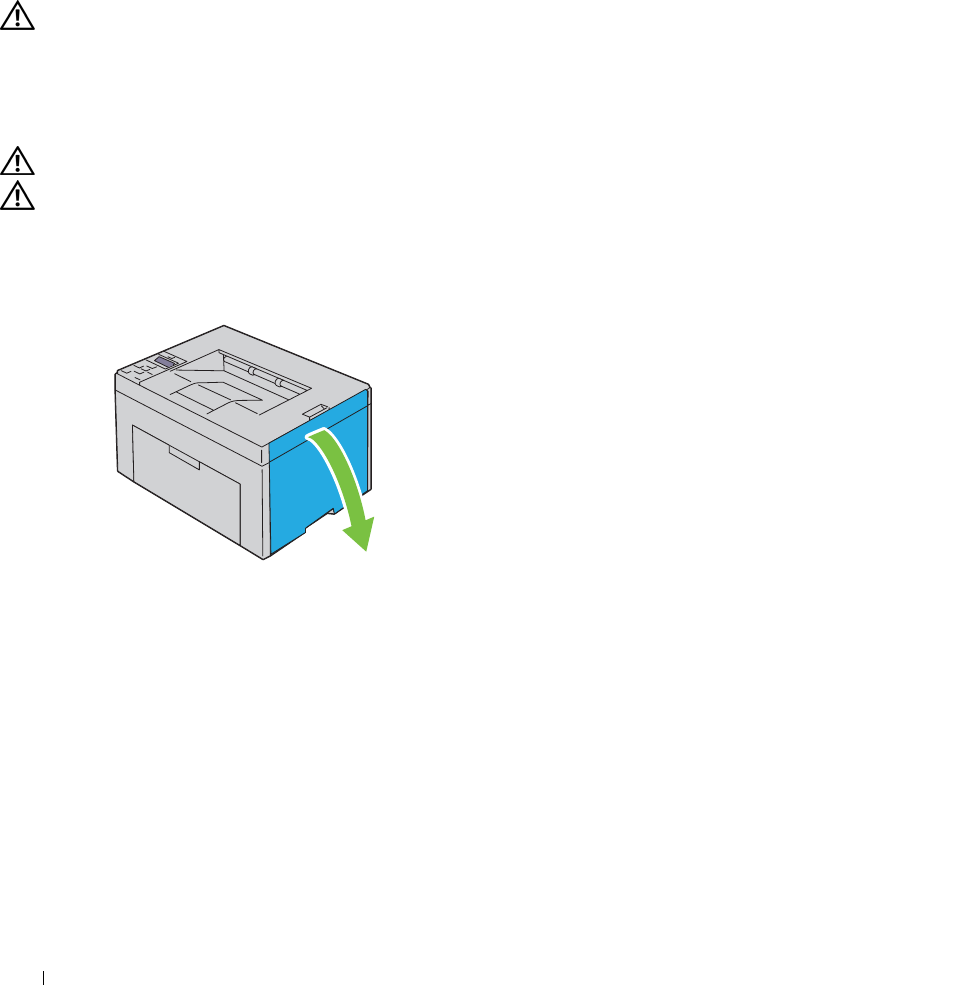

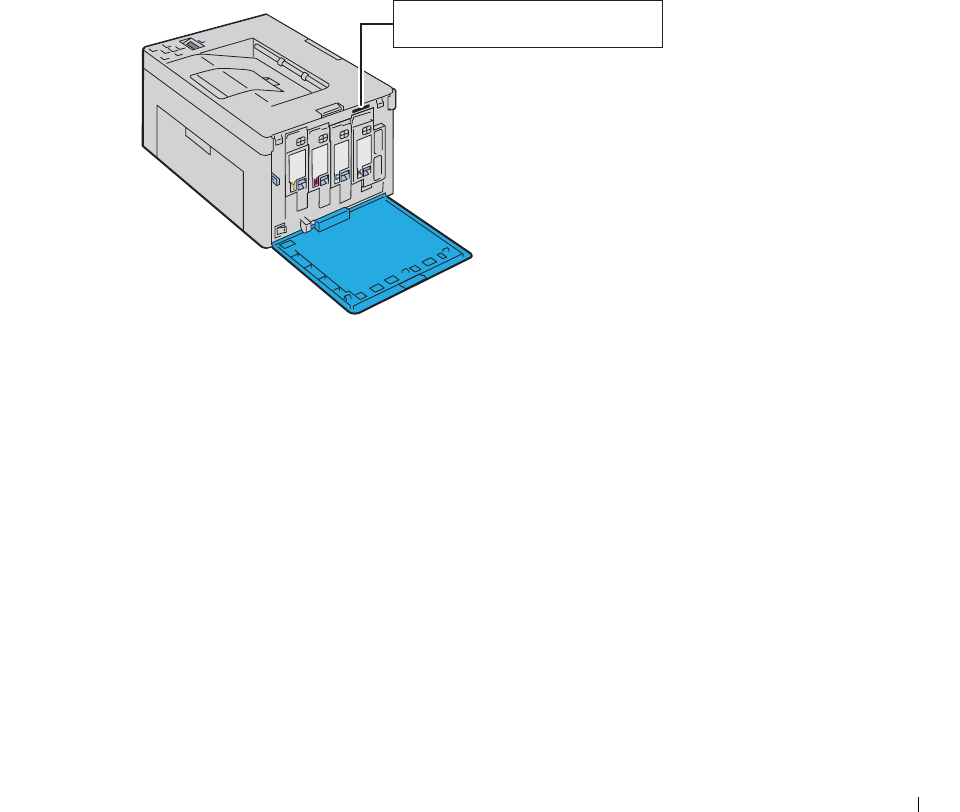

Replacing Toner Cartridges . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

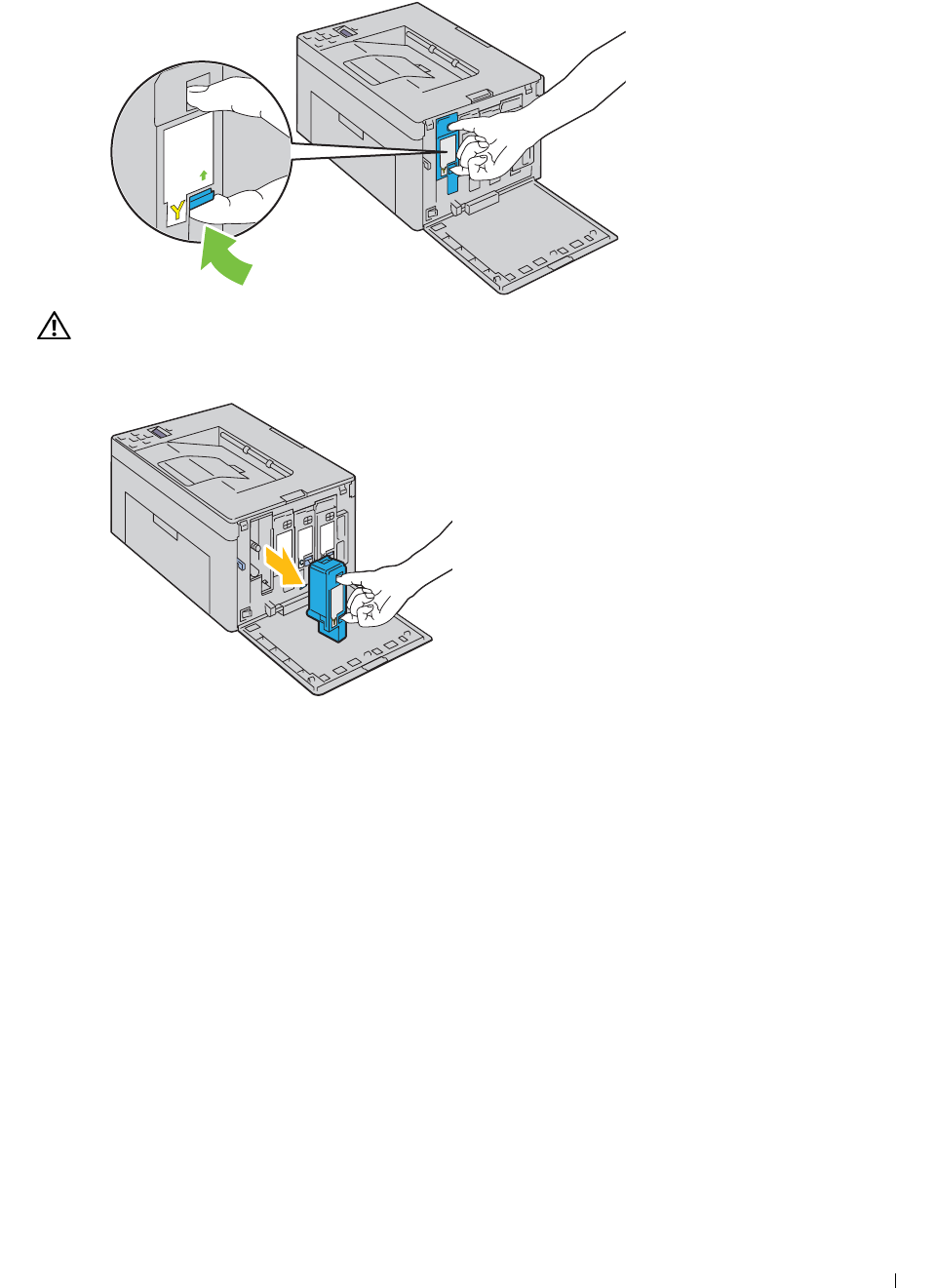

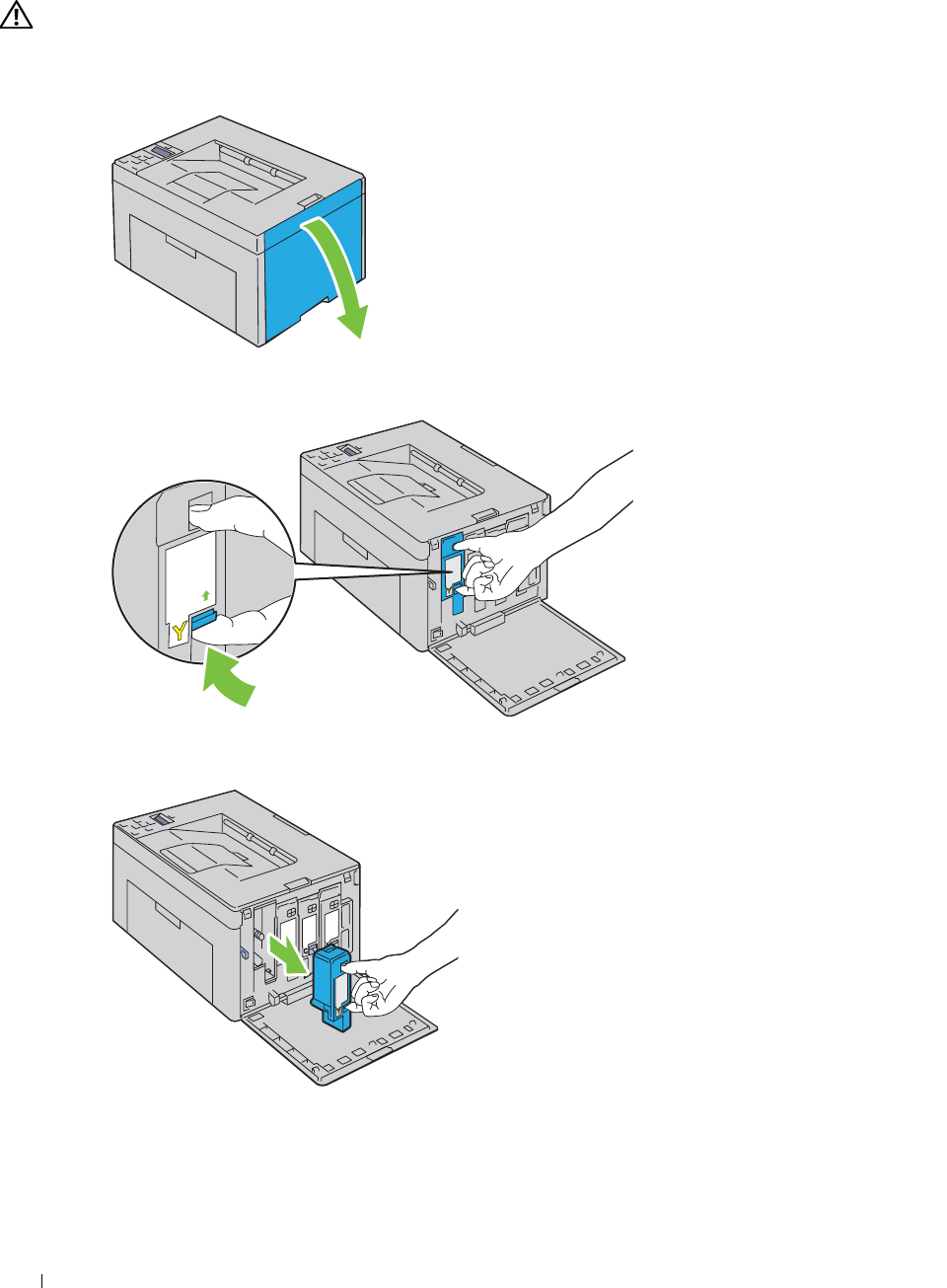

Removing the Toner Cartridges . . . . . . . . . . . . . . . . . . . . . . . . 188

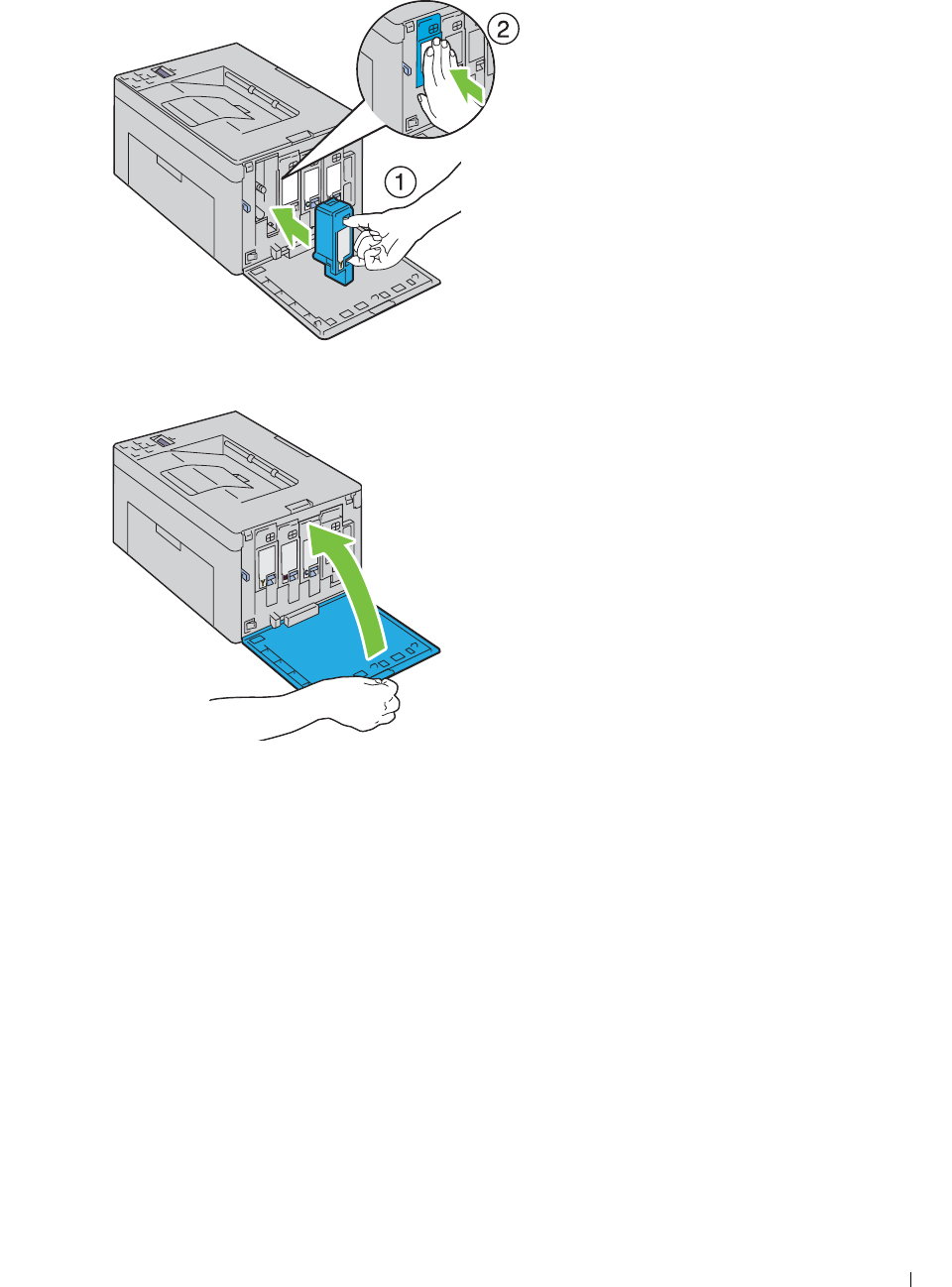

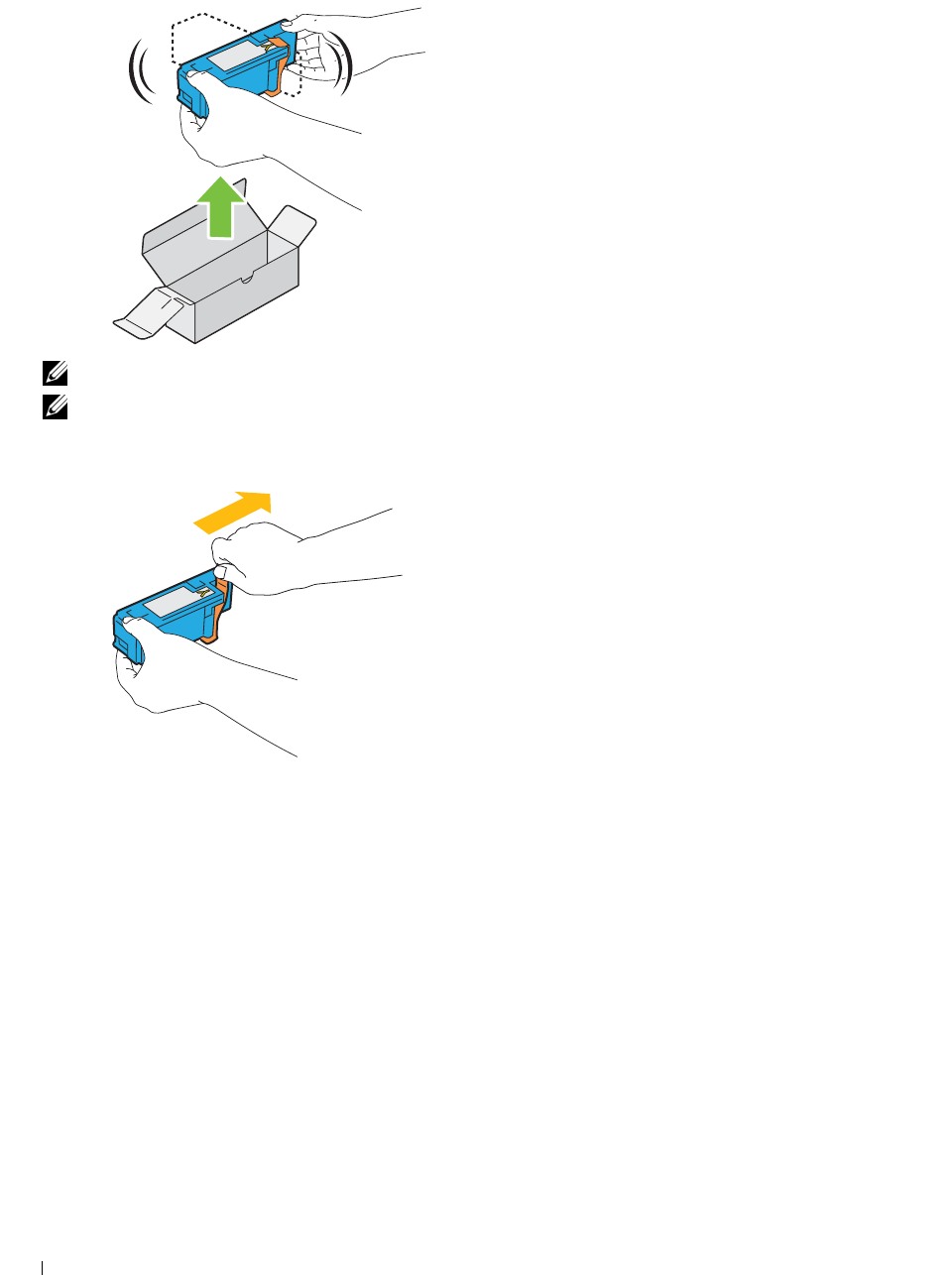

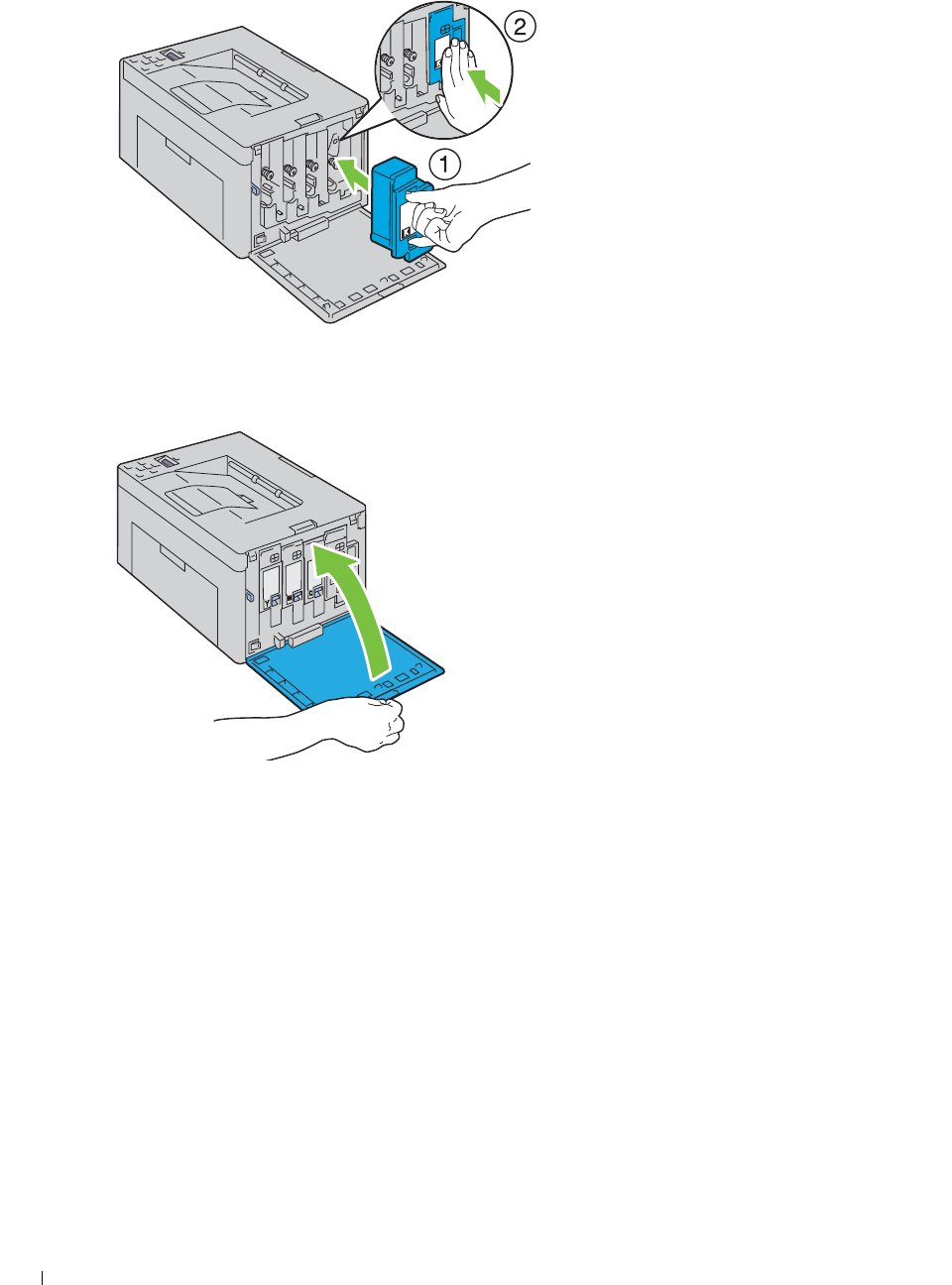

Installing a Toner Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Cleaning Inside the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

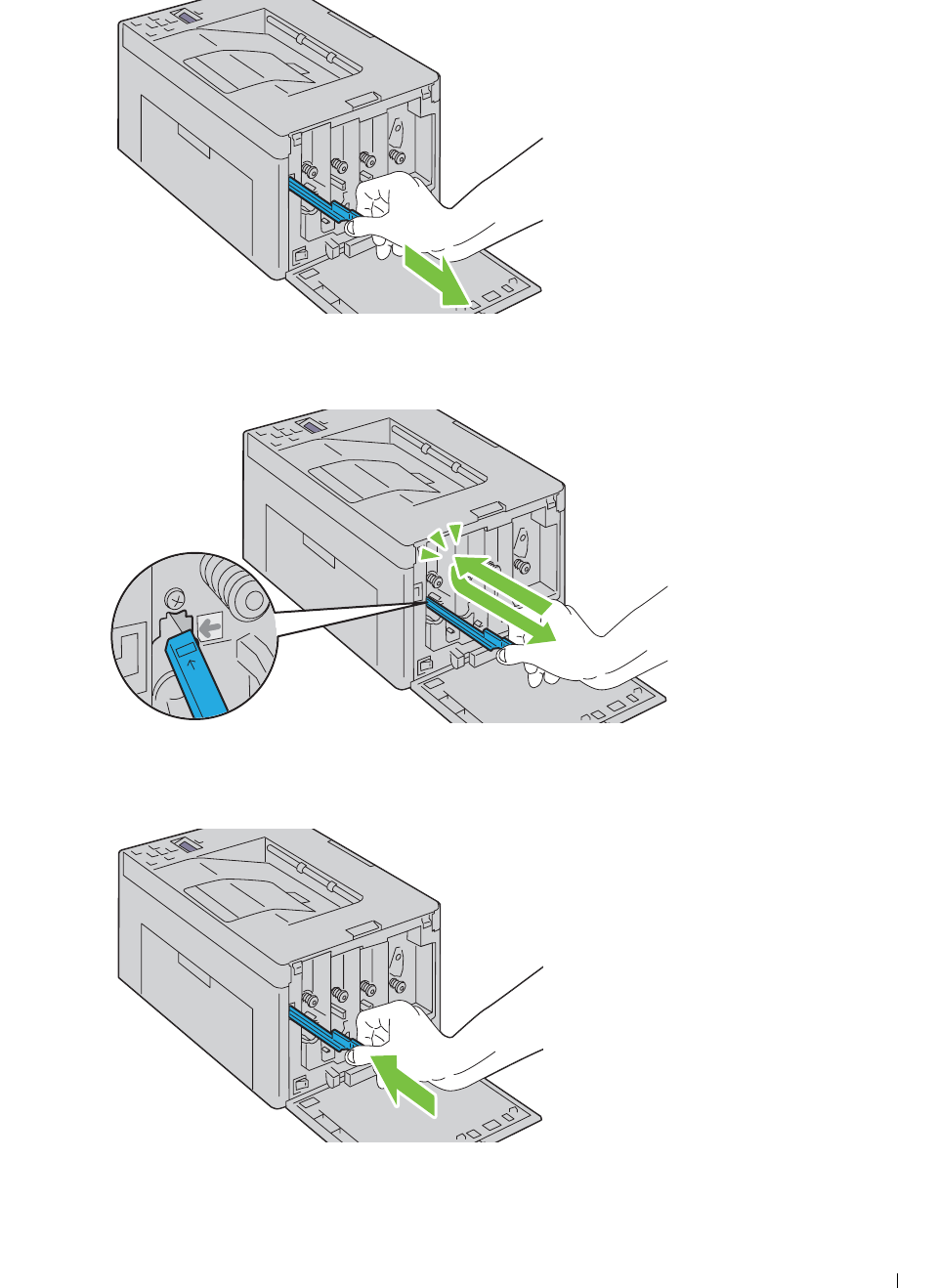

Cleaning the Color Toner Density (CTD) Sensor . . . . . . . . . . . . . . . . . . 195
Adjusting Color Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Performing Auto Correct . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Printing the Color Registration Chart . . . . . . . . . . . . . . . . . . . . . 196
Determining Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Entering Values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 198
8Contents Template Last Updated - 2/7/2007
22 Clearing Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201
Avoiding Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201

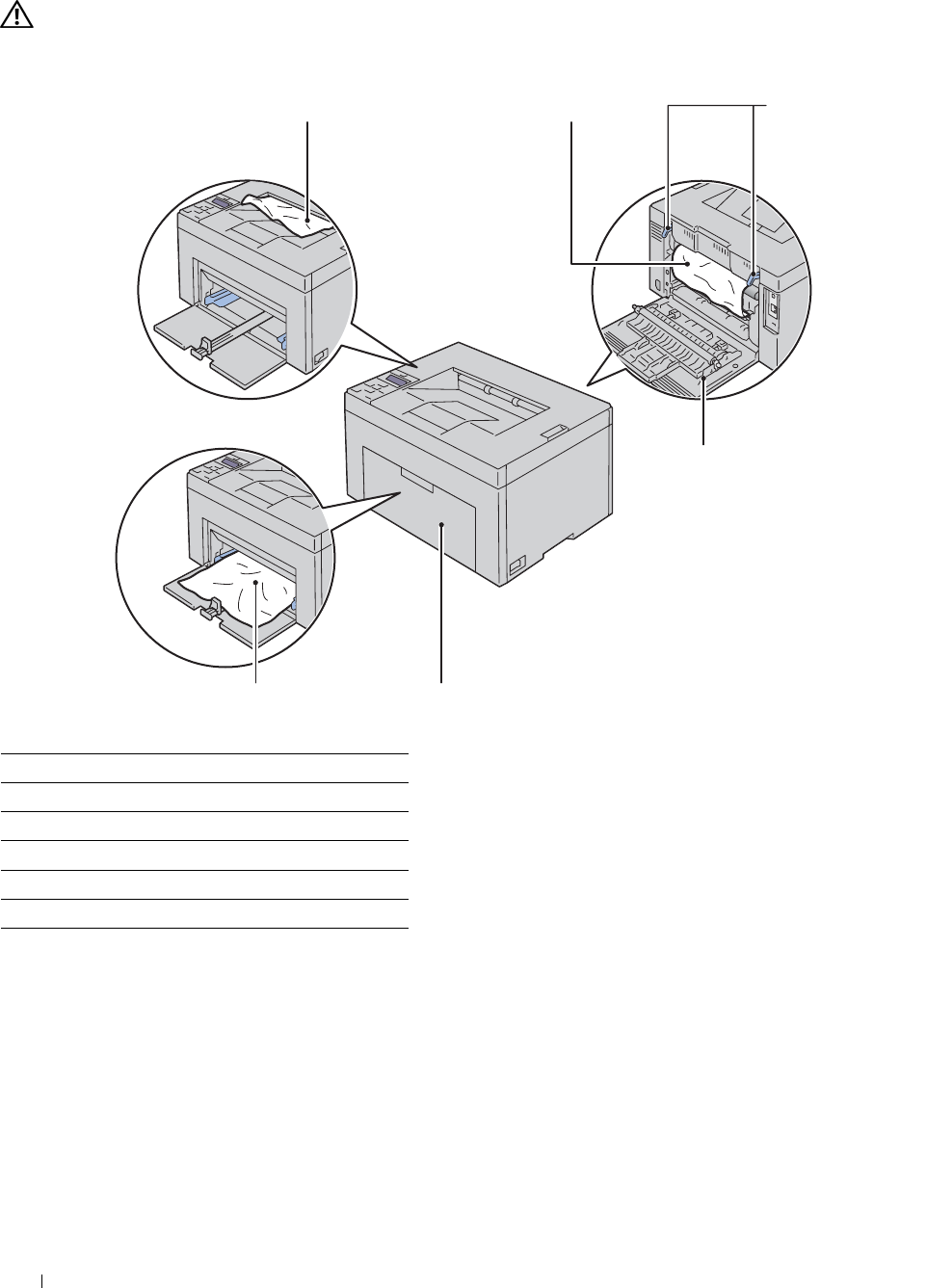

Identifying the Location of Paper Jams . . . . . . . . . . . . . . . . . . . . . . 202
Clearing Paper Jams From the Front of the Printer . . . . . . . . . . . . . . . . 203

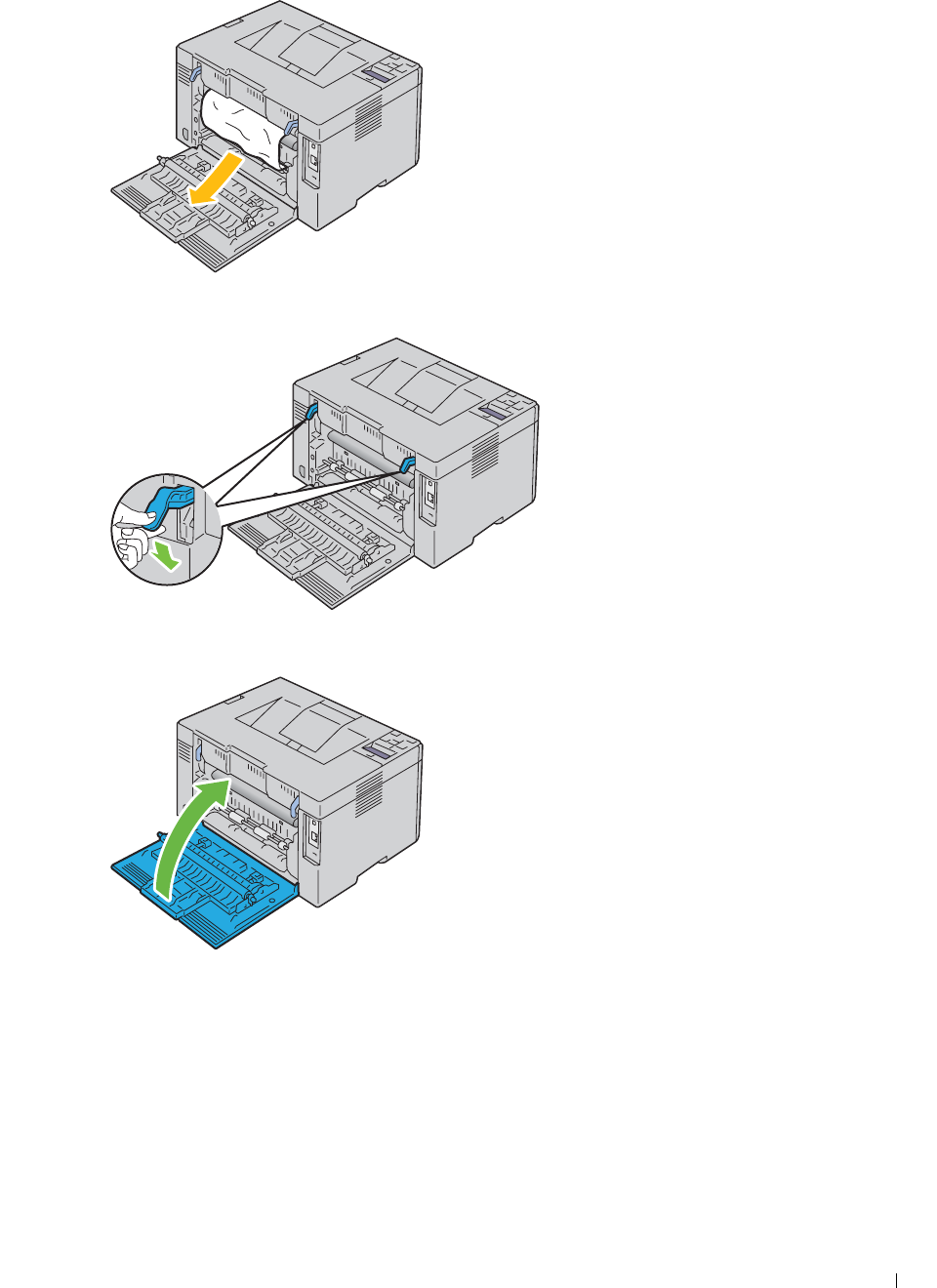

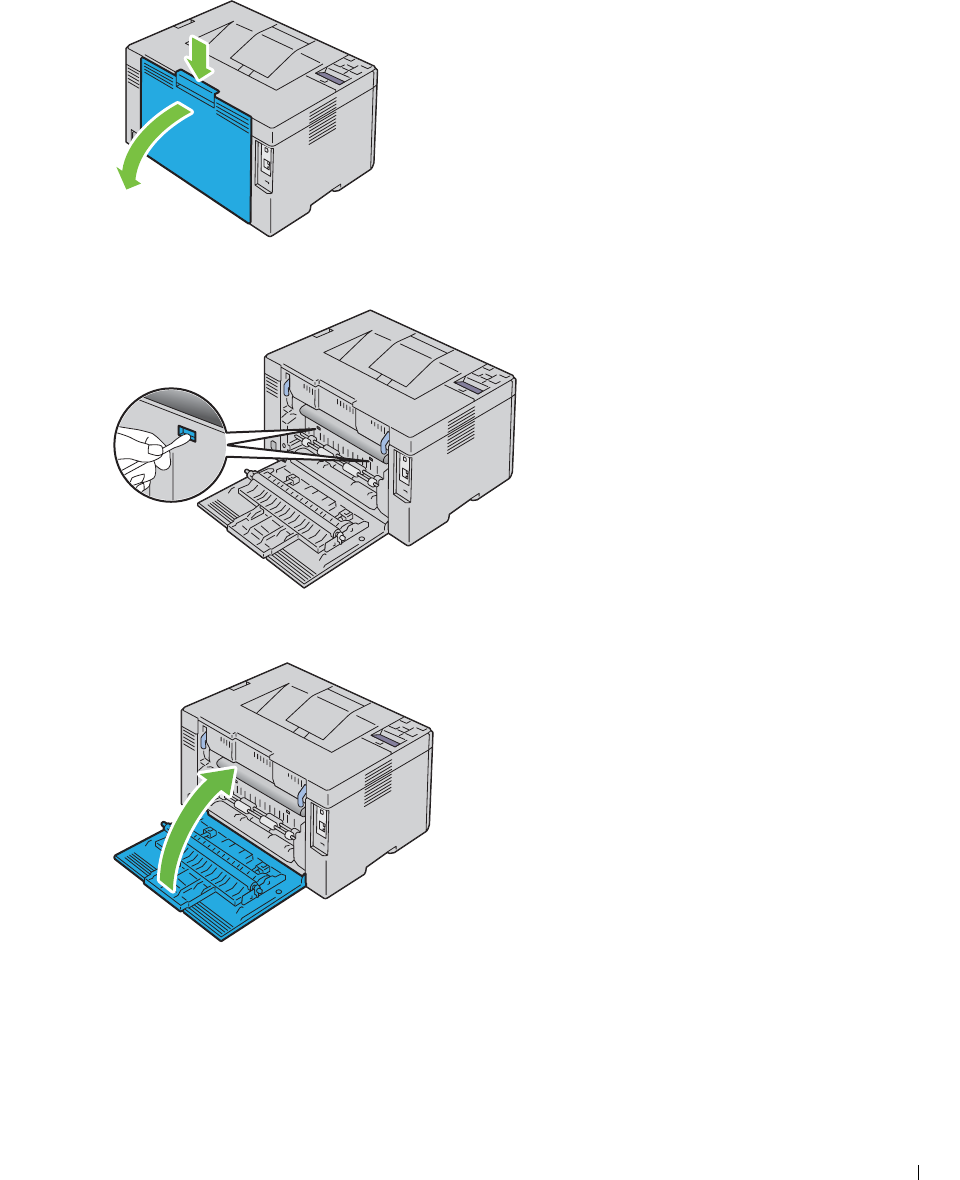

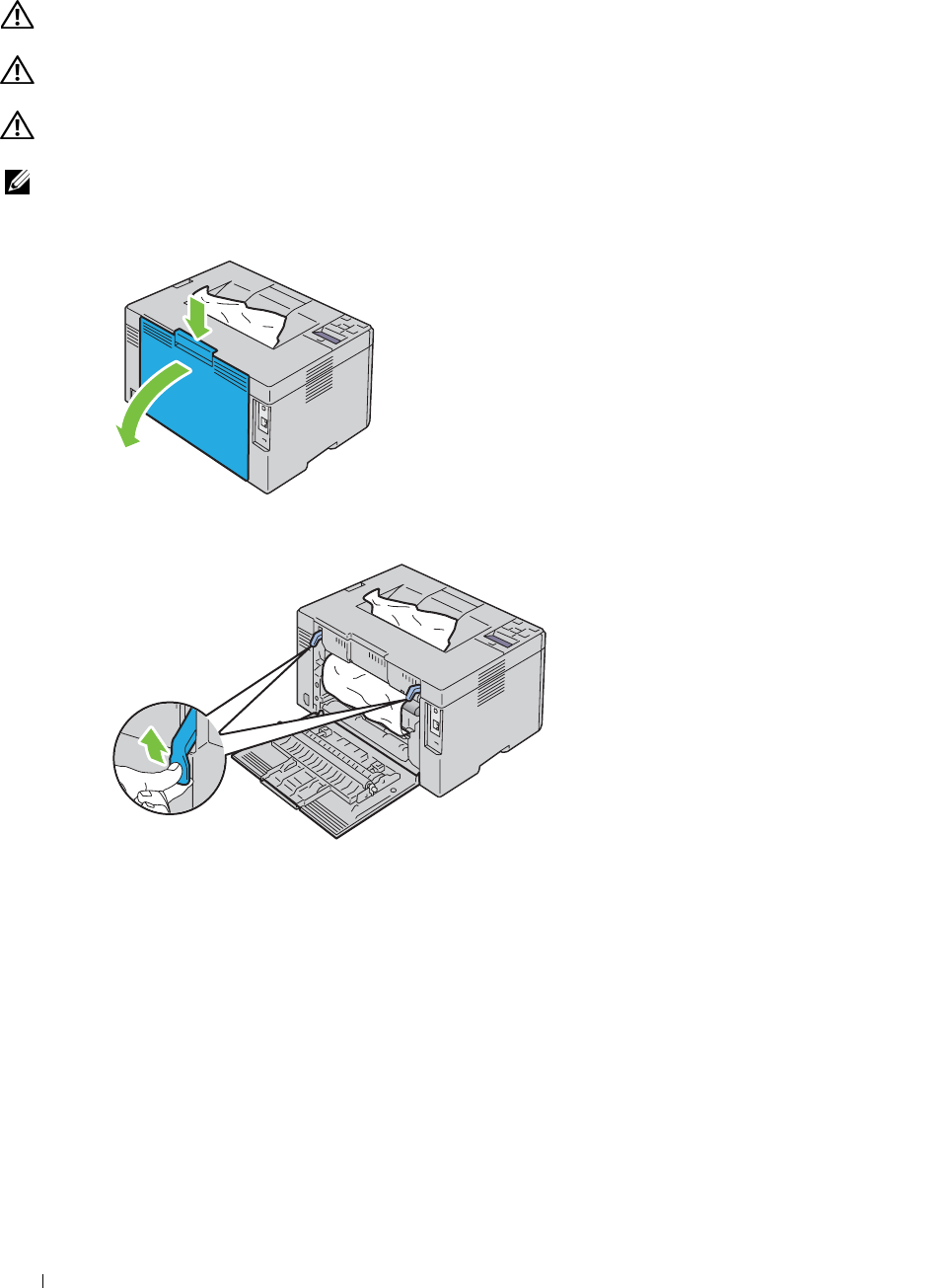

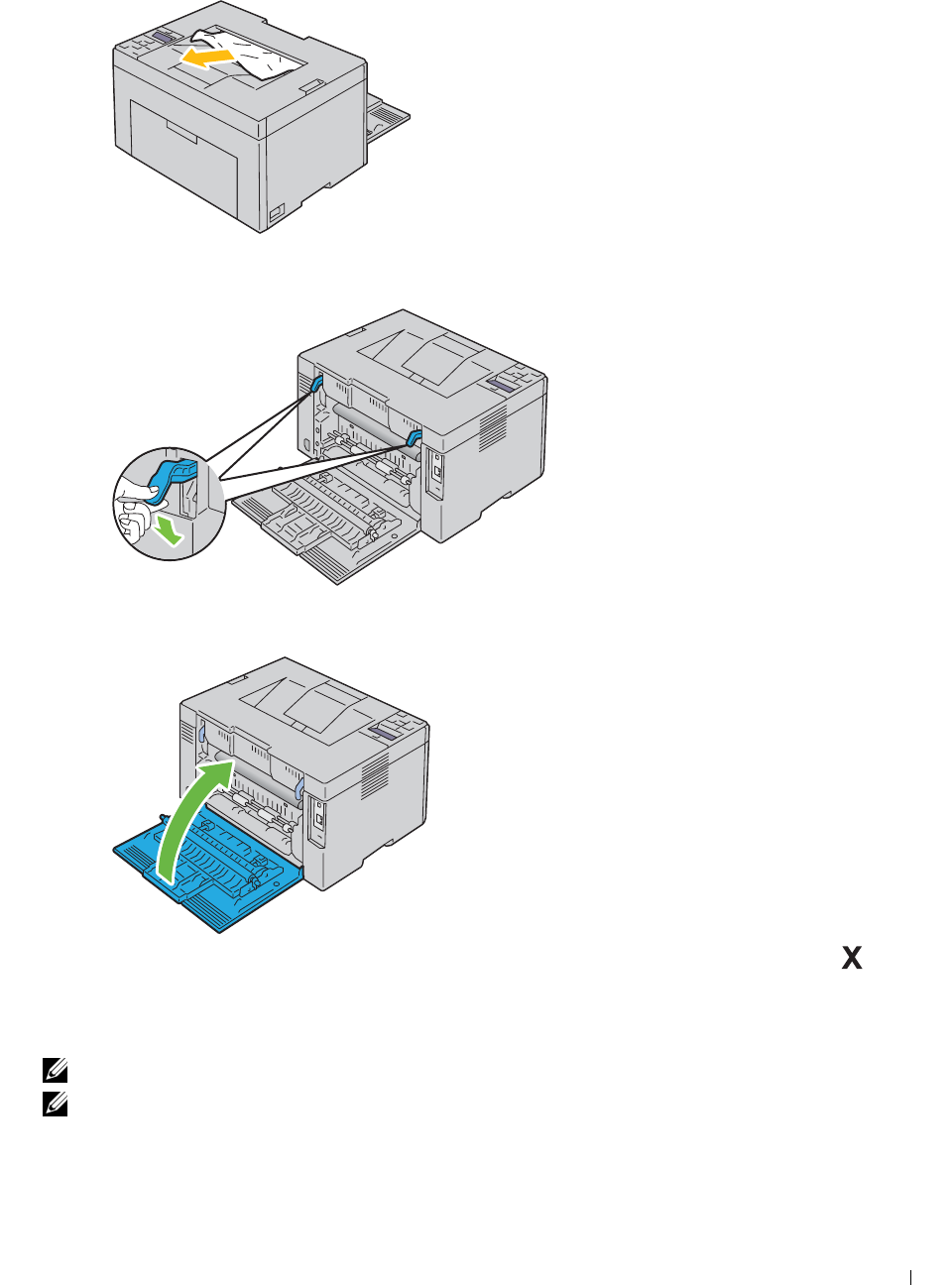

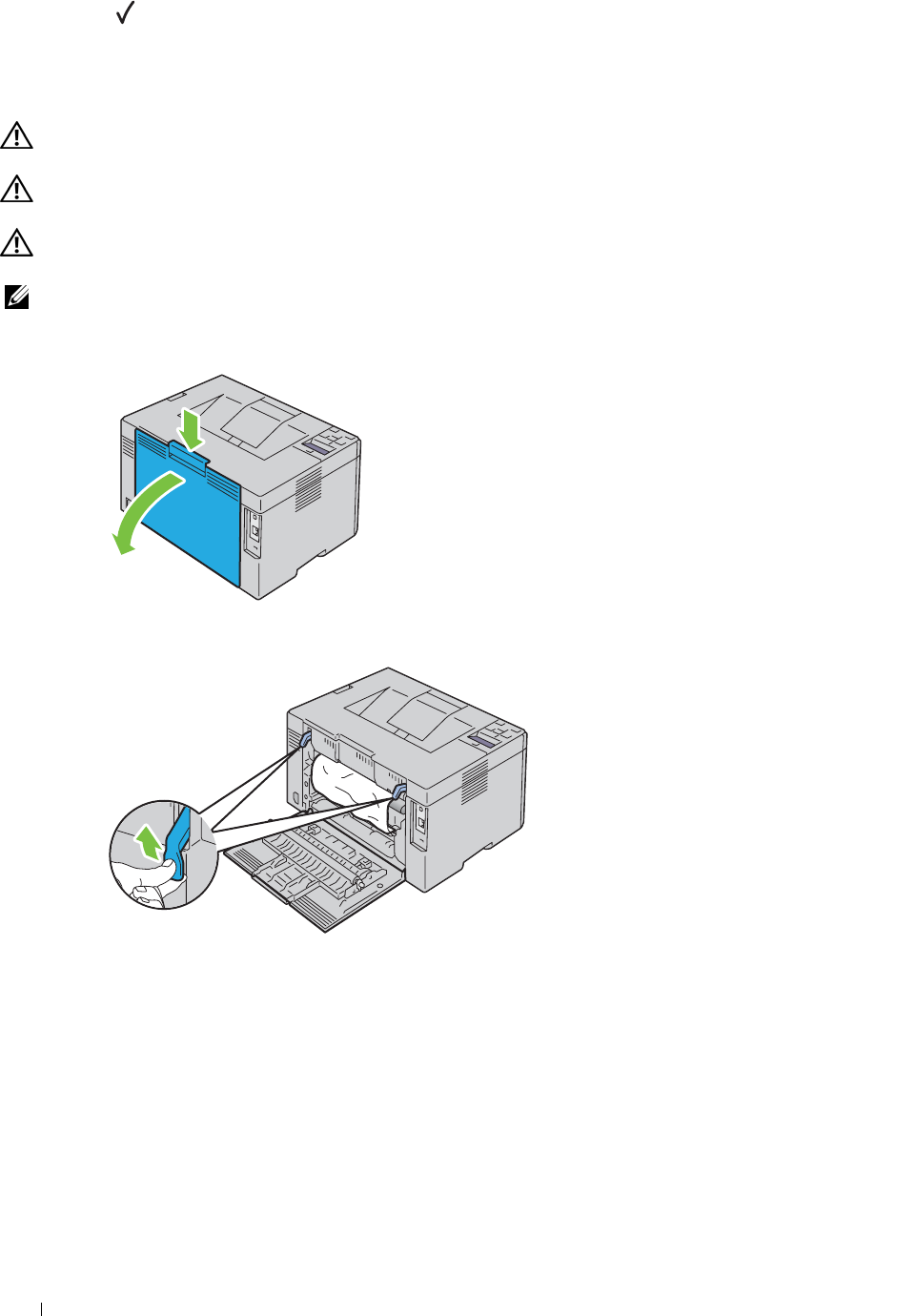

Clearing Paper Jams From the Back of the Printer . . . . . . . . . . . . . . . . 204
Clearing Paper Jams From the Output Tray . . . . . . . . . . . . . . . . . . . . 206
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
23 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Basic Printer Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Display Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Printing Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Print Quality Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
The output is too light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Toner smears or print comes off/Stain on back side . . . . . . . . . . . . . 214

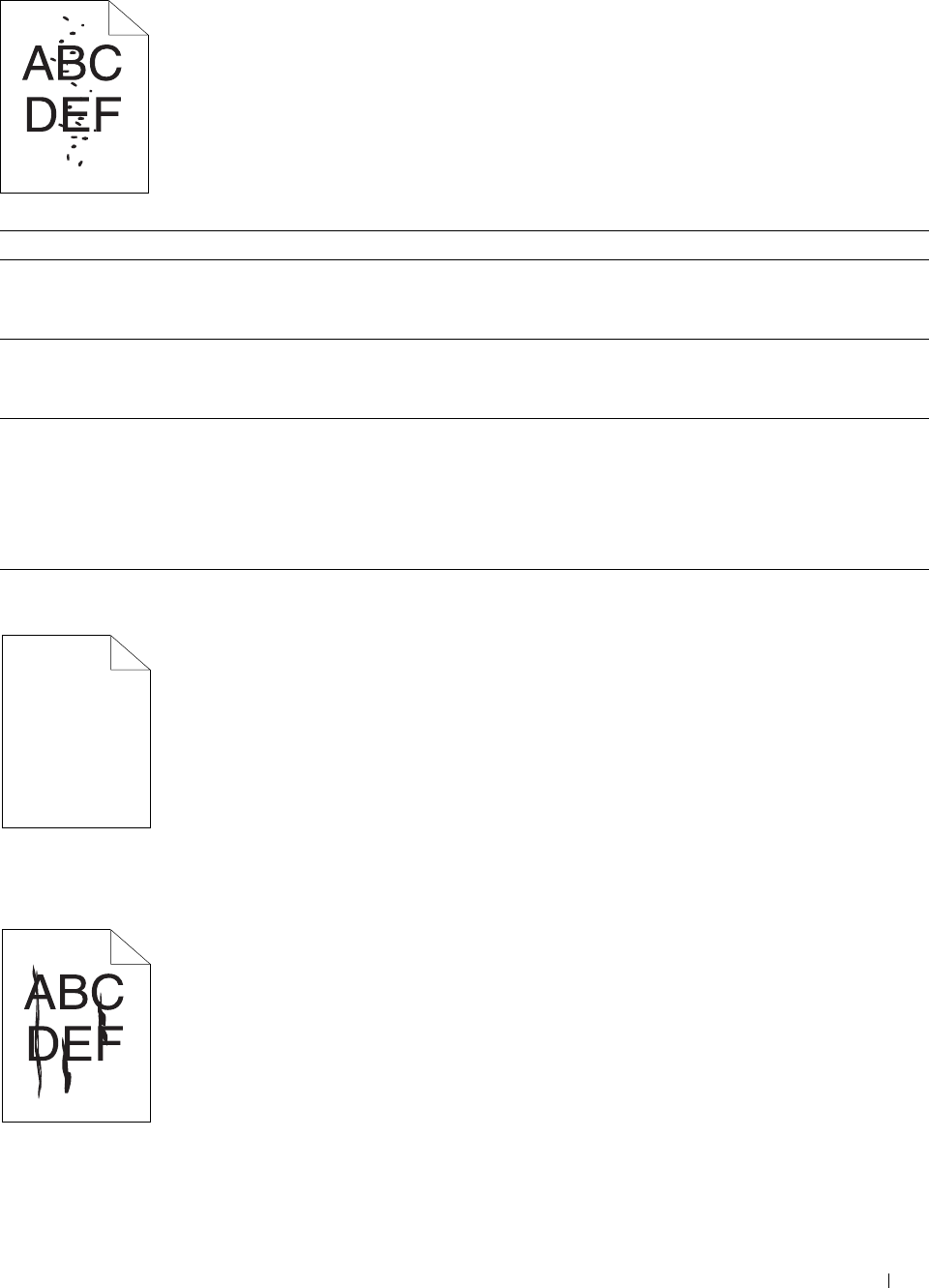

Random spots/Blurred images . . . . . . . . . . . . . . . . . . . . . . . . 215
The entire output is blank . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Streaks appear on the output . . . . . . . . . . . . . . . . . . . . . . . . . 215

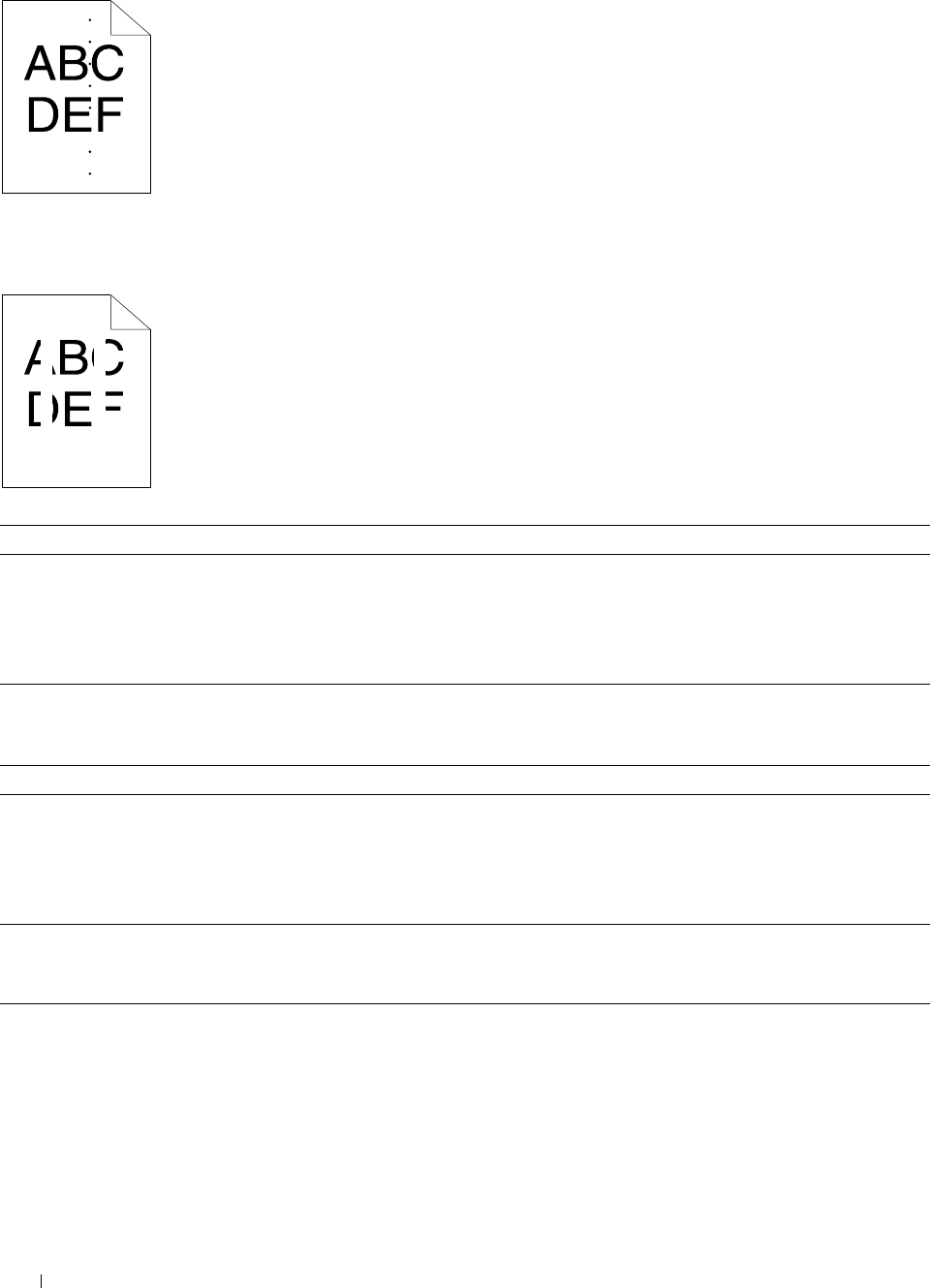

Pitched color dots . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Vertical blanks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Mottle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 216
Ghosting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Fog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Bead-Carry-Out (BCO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 218
Auger mark. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
Wrinkled/Stained paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219
The top margins is incorrect. . . . . . . . . . . . . . . . . . . . . . . . . . 220
Color registration is out of alignment . . . . . . . . . . . . . . . . . . . . . 220
Protrudent / Bumpy paper . . . . . . . . . . . . . . . . . . . . . . . . . . . 221
Noise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 222
Jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Misfeed jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Multi-feed jam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Wireless Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224
Template Last Updated - 2/7/2007 Contents 9
Other Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Contacting Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227
B Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Dell Technical Support Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Online Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Warranty and Return Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Recycling Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Contacting Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
10 Contents Template Last Updated - 2/7/2007
11
Before Beginning
Notes, Cautions, and Warnings ..................................................... 13
1 Dell™ C1760nw/C1660w Color Printer User's Guide............. 15
2 Finding Information..................................................................... 17
3 Product Features......................................................................... 19
4 About the Printer......................................................................... 21
12
Notes, Cautions, and Warnings 13
Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your printer.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Information in this document is subject to change without notice.
© 2012 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text:
Dell
and the
DELL
logo are trademarks of Dell Inc.;
Microsoft
,
Windows
,
Windows Server
,
Windows Vista, and
Internet Explorer
are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Macintosh
and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries. Wi-Fi is a registered trademark of the Wi-Fi Alliance. Wi-Fi
Protected Setup, WPA, and WPA2 are trademarks of the Wi-Fi Alliance.
XML Paper Specification (XPS)
: This product may incorporate intellectual property owned by Microsoft Corporation. The terms and conditions
upon which Microsoft is licensing such intellectual property may be found at http://go.microsoft.com/fwlink/?LinkId=52369;
DES
: This product
includes software developed by Eric Young (eay@mincom.oz.au);
AES
: Copyright © 2003, Dr Brian Gladman, Worcester, UK. All rights reserved.
This product uses published AES software provided by Dr Brian Gladman under BSD licensing terms;
TIFF (libtiff)
: Copyright © 1988-1997 Sam
Leffler and Copyright © 1991-1997 Silicon Graphics, Inc.;
ICC Profile (Little cms)
: Copyright © 1998-2004 Marti Maria.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.
The printer software uses some of the codes defined by the Independent JPEG Group.
____________________
UNITED STATES GOVERNMENT RESTRICTED RIGHTS
This software and documentation are provided with RESTRICTED RIGHTS. Use, duplication or disclosure by the Government is subject to
restrictions as set forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013 and in
applicable FAR provisions: Dell Inc., One Dell Way, Round Rock, Texas, 78682, USA.
November 2012 Rev. A00
14 Notes, Cautions, and Warnings
Dell™ C1760nw/C1660w Color Printer User's Guide 15
1
Dell™ C1760nw/C1660w Color Printer User's Guide
Click the links to the left for information on the features, options, and operation of your Dell C1760nw/C1660w
Color Printer. For information on other documentation included with your Dell C1760nw/C1660w Color Printer,
see
"Finding Information" on page 17
.
NOTE: In this manual, Dell C1760nw/C1660w Color Printer is referred to as the "printer."
Conventions
The following describe the meaning of the symbols and fonts used in this manual:
Bold texts :
• Names of hardware button on the operator panel.
• Screen names on the LCD panel.
• Menus, commands, windows, or dialog boxes displayed on the computer screen.
Texts in Courier New font :
• Menus and messages displayed on the LCD panel.
• Characters entered from the computer.
• Directory paths.
<> :
• Key on the keyboard of the computer.
→:
• Indicates a path to a certain item within a procedure on a computer.
" " :
• Cross references in this manual.
• Characters entered from the operator panel.
• Messages displayed on the computer screen.
16 Dell™ C1760nw/C1660w Color Printer User's Guide
Finding Information 17
2
Finding Information
NOTE: The images used in this manual are those of the Dell™ C1760nw Color Printer unless otherwise mentioned.

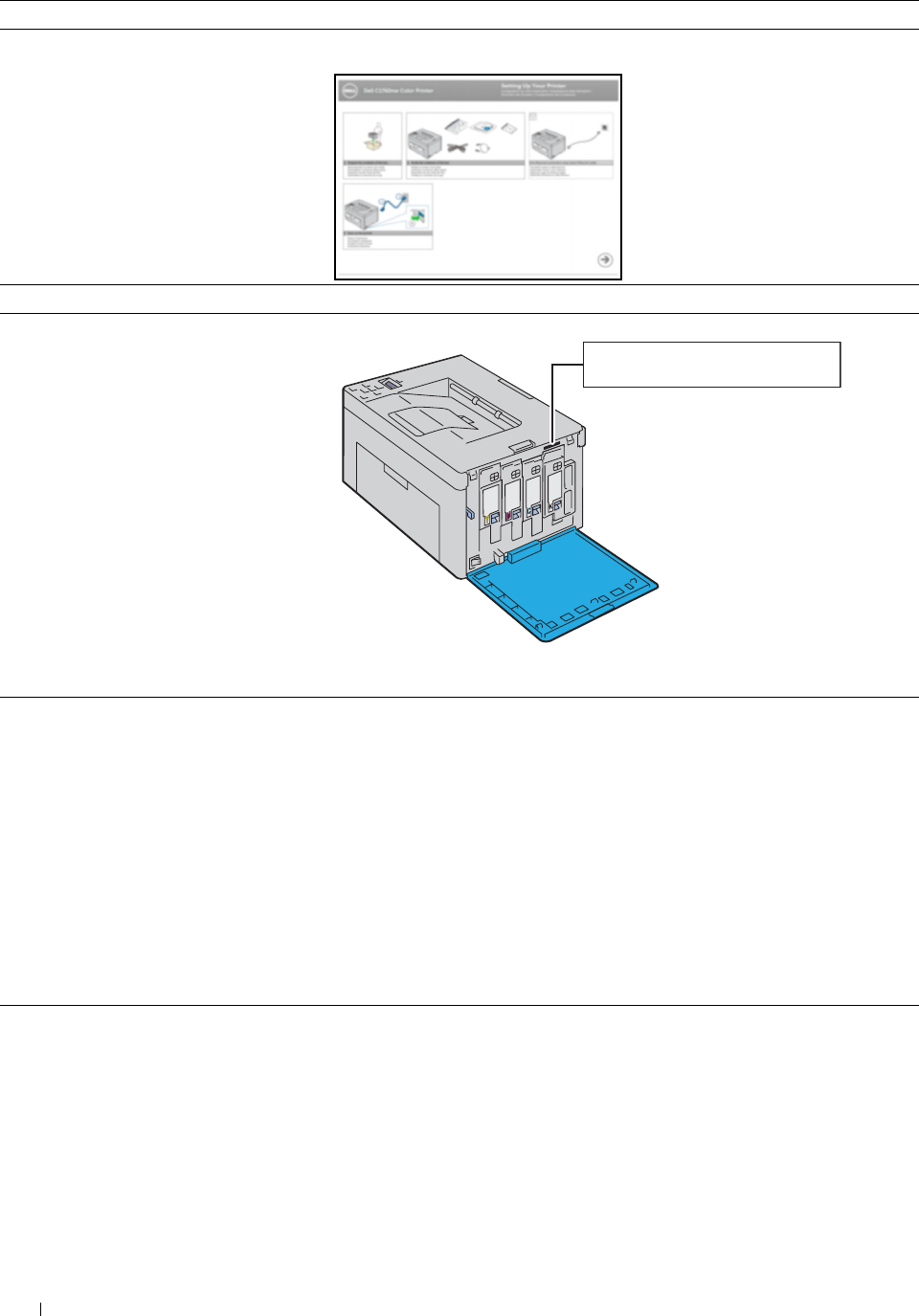

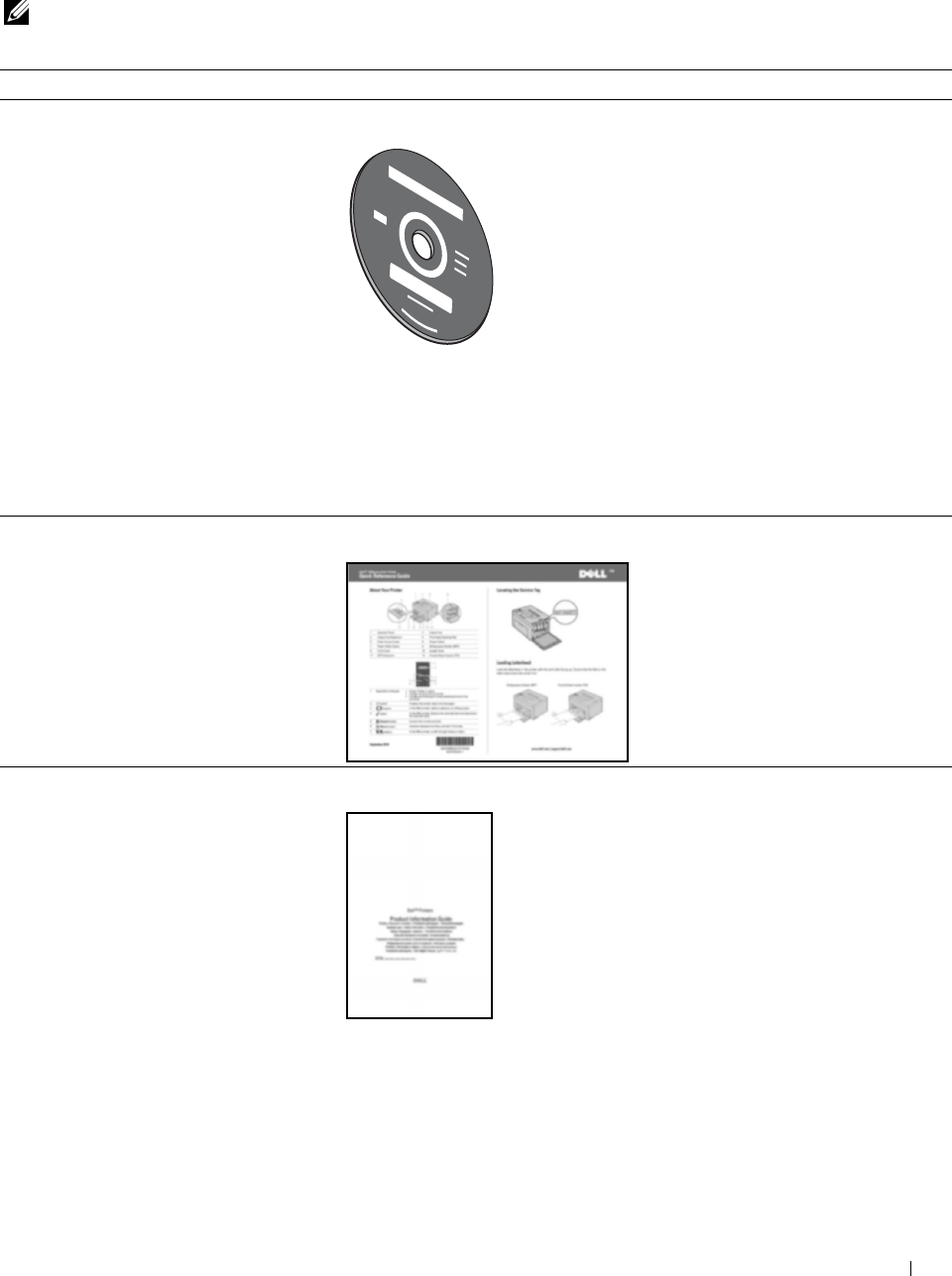

What are you looking for? Find it here
• Drivers for my printer
•My
User's Guide
Software and Documentation
disc
The
Software and Documentation
disc contains setup video, documentation,
and drivers for your printer. You can use the disc to install/re-install drivers or
access your setup video and documentation.
Readme files may be included on your disc to provide last-minute updates about
technical changes to your printer or advanced technical reference material for
experienced users or technicians.
How to use my printer
Quick Reference Guide
• Safety information
• Warranty information
Important Information
WARNING: Read and follow all safety instructions in the
Important Information
prior to setting up and operating your printer.
18 Finding Information
How to set up my printer
Setup diagram
Troubleshooting "Troubleshooting" on page 211
Express Service Code and Service Tag
The Express Service Code and Service Tag are located inside the side door of your
printer.
• Latest drivers for my printer
• Answers to technical service and support
questions
• Documentation for my printer
Go to support.dell.com
support.dell.com provides several online tools, including:
• Solutions — Troubleshooting hints and tips, articles from technicians, and
online courses
• Upgrades — Upgrade information for components, such as printer driver
• Customer Care — Contact information, order status, warranty, and repair
information
•Downloads — Drivers
• Manuals — Printer documentation and product specifications
Go to support.dell.com. Select your region, and fill in the requested details to
access help tools and information.
What are you looking for? Find it here
Service Tag
xxxxxxx
Express Service Code
000 000 000 00
Product Features 19
3
Product Features
This chapter describes the product features and indicates their links.
2-Sided Printing (Manual Duplex Print)
Manual Duplex Print is to print two or more pages on the
front and back side of a single sheet of paper manually. This
feature allows you to reduce the paper consumption.
For more information, see "Loading Print Media When
Manual Duplex Printing" on page 164.
Priority Sheet Inserter (PSI) (Dell C1760nw Color Printer only)
Print media loaded on the PSI are given precedence over those
loaded on the Multipurpose Feeder (MPF). Using the PSI
allows you to use other types or sizes of print media
preferentially over the regular print media loaded on the MPF.
For more information, see "Loading Print Media in the Priority
Sheet Inserter (PSI) (Dell C1760nw Color Printer only)" on
page 159.
Printing through Wireless Connection (Wireless Print)
The Wireless LAN feature on your printer allows you to install
the printer at any location, and enables printing without a
wired connection to your computer.
For more information, see "Wireless Connection" on page 30.
Printing multiple pages on a single sheet of paper (Multiple Up)
Multiple Up Print allows you to print multiple pages on a
single sheet of paper. This feature allows you to reduce the
paper consumption.
For more information, see the printer driver's help.
20 Product Features
About the Printer 21
4
About the Printer
This chapter provides an overview of your Dell™ C1760nw/C1660w Color Printer.
NOTE: The images used in this manual are those of the Dell C1760nw Color Printer unless otherwise mentioned.
Front View
1Operator Panel 2Output Tray
3Output Tray Extension 4Print Head Cleaning Rod
5Toner Access Cover 6Power Switch
7Paper Width Guides 8Multipurpose Feeder (MPF)
9Front Cover 10 MPF Extension
11 Length Guide 12 Priority Sheet Inserter (PSI) (Dell C1760nw Color Printer only)
1
5671011 9 8
423
7
12
22 About the Printer
Rear View
1Power Connector 2Rear Cover Release Handle
3USB Port 4Ethernet Port (Dell C1760nw Color Printer only)
5Security Slot 6Rear Cover
7Transfer Roller 8Paper Chute
9Paper Feed Roller 10 Transfe r Belt
11 Levers
1
6
7
8
9
10
11
2
3
4
5
About the Printer 23
Space Requirements
Place the printer at a location such that there is adequate space for using the printer feeder and covers.
CAUTION: To avoid irregular screen image or malfunctioning of your printer, avoid placing the printer in direct sunlight with
the front cover opened.
Operator Panel
For more information on the operator panel, see "Operator Panel" on page 77.
218 mm/8.6 inches
225 mm/8.9 inches
295.5 mm/11.6 inches
300 mm/11.8 inches
329.5 mm/13 inches
307 mm/12.1 inches
394 mm/15.5 inches
100 mm/3.9 inches
24 About the Printer
Securing the Printer
To protect your printer from theft, you can use the optional Kensington lock.
Attach the Kensington lock to the security slot on your printer.
For details, see the operating instructions supplied with the Kensington lock.
Security slot
About the Printer 25
Ordering Supplies

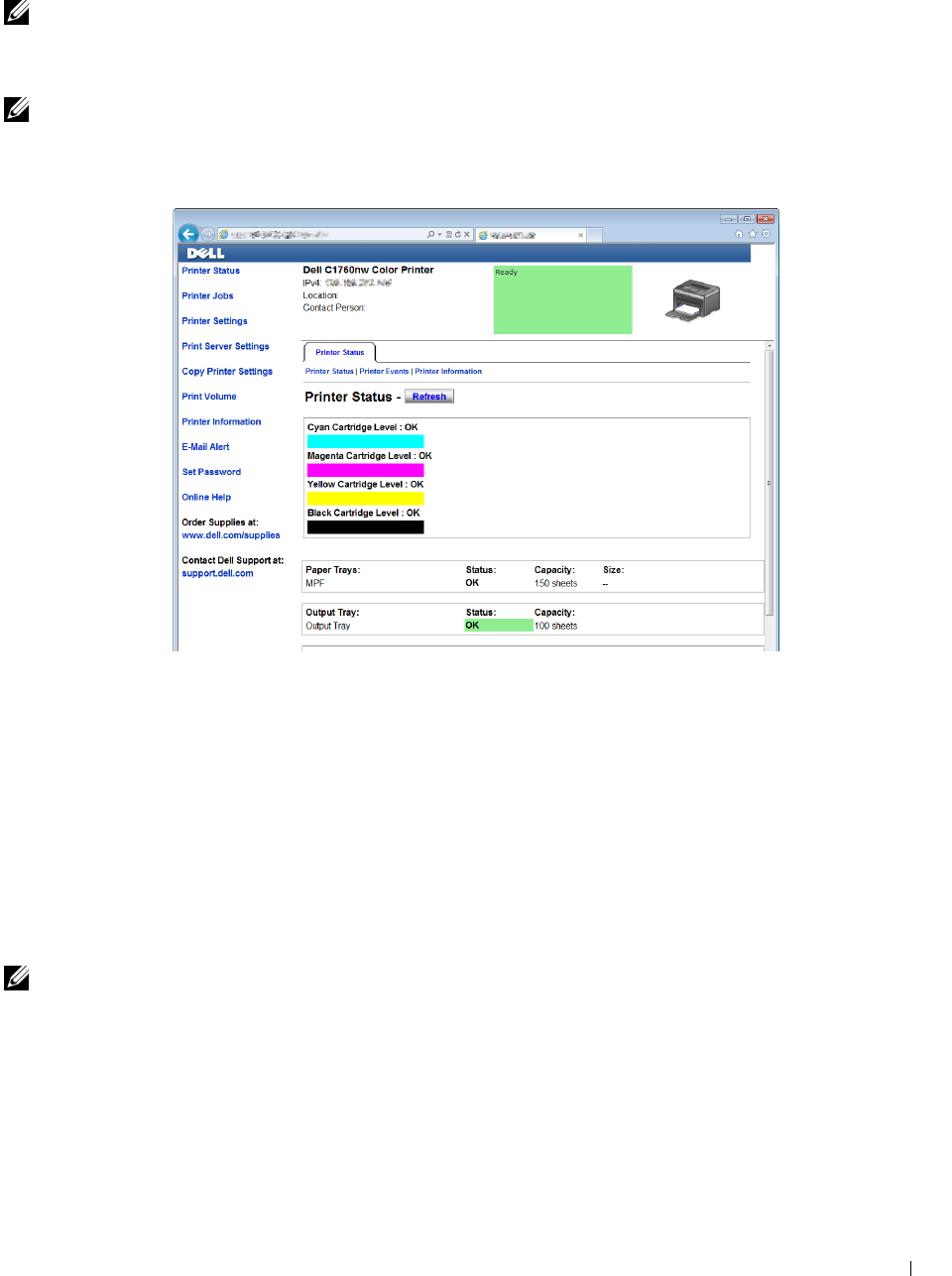

You can order consumables from Dell on the Internet when using a networked printer. Enter the IP address of your
printer in your web browser, launch the Dell Printer Configuration Web Tool, and click the Order Supplies at: to
order toner for your printer.
You can also order toner cartridges by the following method:
1
Click
Start
→
All Programs
→
Dell Printers
→
Additional Color Laser Software
→
Dell Supplies Management System
.
The
Dell Supplies Management System
window appears.
2
Select your printer from the
Select Printer Model
list.
3
If ordering from the web:
a
Select a web address from the
Select Reorder URL
list.
b
Click the
Visit Dell Printer supplies ordering web site
.
The
Dell C1760nw Color Printer/Dell C1660w Color Printer - Dell Supplies Management System
screen
appears.
c
Enter the Service Tag, and then click
OK
.
The Service Tag is located inside the toner access cover of your printer.
Dell supplies web site appears.
If you order by phone, call the number that appears in the Order by Phone section.
Service Tag
xxxxxxx
Express Service Code
000 000 000 00
26 About the Printer
27
Printer Setup
5 Connecting Your Printer............................................................. 29
6 Setting Up Your Printer............................................................... 37
7 Setting the IP Address ............................................................... 39
8 Loading Paper.............................................................................. 43
9 Installing Printer Drivers on Computers Running Windows®
........................................................................................................ 51
10 Installing Printer Drivers on Computers Running Macintosh
........................................................................................................ 71
28
Connecting Your Printer 29
5
Connecting Your Printer
Your Dell™ C1760nw/C1660w Color Printer interconnection cable must meet the following requirements:
NOTE: The images used in this manual are those of the Dell™ C1760nw Color Printer unless otherwise mentioned.
Connecting Printer to Computer or Network
Direct Connection
A local printer is a printer attached to your computer using a USB cable. If your printer is attached to a network, go
to "Ethernet Connection (Dell C1760nw Color Printer only)" on page 34.
To connect the printer to a computer:
1
Ensure that the printer, computer, and any other attached devices are turned off and unplugged from the power
source/outlet.
Connection type Connection specifications
USB USB 2.0 compatible
Wireless IEEE 802.11b/802.11g/802.11n
Ethernet 10 Base-T/100 Base-TX compatible (Dell C1760nw Color Printer only)

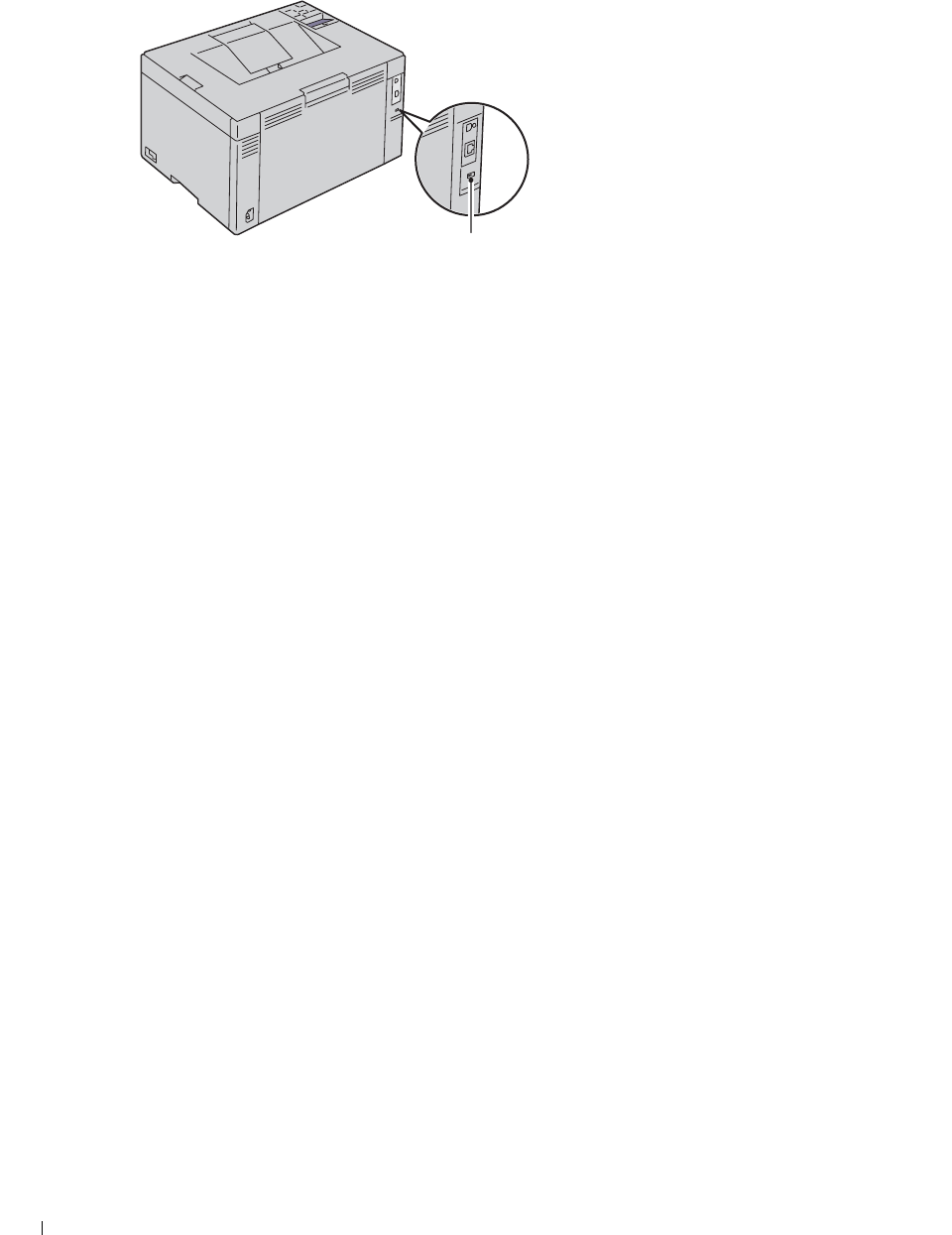

1USB Port
2Ethernet Port
(Dell C1760nw Color Printer only)
1
2
30 Connecting Your Printer
2
Connect the smaller USB connector into the USB port at the back of the printer.
3
Connect the other end of the cable into a USB port of your computer.
CAUTION: Do not connect the printer USB cable to the USB port available on the keyboard.
Wireless Connection
The specifications of wireless setting function are described below:
You can select a method to configure a wireless setting from the following:
Item Specification
Connectivity Wireless
Connectivity Standard IEEE 802.11b/802.11g/802.11n compliant
Bandwidth 2.4 GHz
Data Transfer Rate IEEE 802.11b mode: 11, 5.5, 2, 1 Mbps
IEEE 802.11g mode: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
IEEE 802.11n mode: 65 Mbps
Security 64 (40-bit key)/ 128 (104-bit key) WEP, WPA-PSK (TKIP, AES), WPA2-PSK (AES)(IEEE
802.1x attestation function of WPA 1x non-corresponds), Mixed Mode PSK
Wi-Fi Protected Setup® (WPS)*1 Push Button Configuration (PBC), Personal Identification Number (PIN)
*1 WPS 2.0 compliant. WPS 2.0 works on access points with the following encryption types: Mixed mode PSK, WPA-PSK AES, WPA2-PSK
AES, WPA-PSK TKIP, Open (No Security)
WPS-PBC (Wi-Fi | WPS Button)*1
WPS-PBC (Operator Panel Menu)*1
WPS-PIN*2
Auto SSID Setup
Manual SSID Setup
*1
WPS-PBC (Wi-Fi Protected Setup-Push Button Configuration) is a method to authenticate and register devices required for wireless con-
figuration, by starting WPS-PBC on the printer with the (Wi-Fi | WPS) button or operator panel menu, and then pressing the button
provided on the wireless LAN access point (Registrar) or router. This setting is available only when the access point supports WPS-PBC.
*2 WPS-PIN (Wi-Fi Protected Setup-Personal Identification Number) is a method to authenticate and register devices required for wire-
less configuration, by entering PIN assignments in the printer and computer. This setting, performed through access point, is available
only when the access points of your wireless router supports WPS.
Connecting Your Printer 31
WPS-PBC (Wi-Fi | WPS Button)
You can start WPS-PBC (Wi-Fi Protected Setup-Push Button Configuration) by pressing the (Wi-Fi | WPS)
button.
NOTE: WPS-PBC is available only when the wireless LAN access point (Registrar) or router supports WPS-PBC.
NOTE: Before starting WPS-PBC with the (Wi-Fi | WPS) button, confirm the position of the WPS button (button name may
vary) on the wireless LAN access point (Registrar) or router. For information about WPS operation on the wireless LAN access
point (Registrar) or router, refer to the manual supplied with the product.
NOTE: For more information on the (Wi-Fi | WPS) button, see "Status of Wi-Fi | WPS Button Backlight" on page 78.
If a problem occurs or error messages are displayed on the operator panel, see "Wireless Problems" on page 224.
1
Press and hold the
(Wi-Fi | WPS) button on the printer for 2 seconds.
Ensure that the
(Wi-Fi | WPS) button starts to flash and
Press WPS Button on Router
appears on
the operator panel.
2
Start the WPS operation on the wireless LAN access point (Registrar) or router within two minutes.
3
When the WPS operation is successful and the printer is rebooted, wireless LAN connection setting is completed.
WPS-PBC (Operator Panel Menu)
You can start WPS-PBC (Wi-Fi Protected Setup-Push Button Configuration) from the operator panel.
NOTE: WPS-PBC is available only when the wireless LAN access point (Registrar) or router supports WPS-PBC.
NOTE: Before starting WPS-PBC, confirm the position of the WPS button (button name may vary) on the wireless LAN access
point (Registrar) or router. For information about WPS operation on the wireless LAN access point (Registrar) or router, refer to
the manual supplied with the product.
NOTE: A Password is required to enter Admin Menu when Panel Lock Set is set to Enable. In this case, enter
the password you specified, and press
the
(Set) button.
1
Press the
(Menu)
button.
2
Press the button until
Admin Menu
appears, and then press the
(Set)
button.
3
Press the button until
Network
appears, and then press the
(Set)
button.
4
Press the button until
WPS Setup
appears, and then press the
(Set)
button.
5
Ensure that
Push Btn. Ctrl
appears, and then press the
(Set)
button.
6
Ensure that
Are you sure?
appears, and then press the
(Set)
button.
Ensure that
Press WPS Button on Router
is displayed, and start the WPS-PBC on the wireless LAN
access point (Registrar) or router within two minutes.
7
When the WPS operation is successful and the printer is rebooted, wireless LAN connection setting is completed.
32 Connecting Your Printer
WPS-PIN
The PIN code of WPS-PIN can only be configured from the operator panel.
NOTE: WPS-PIN is available only when the wireless LAN access point (Registrar) or router supports WPS-PIN.
NOTE: A Password is required to enter Admin Menu when Panel Lock Set is set to Enable. In this case, enter
the password you specified, and press
the
(Set) button.
1
Press the
(Menu)
button.
2
Press the button until
Admin Menu
appears, and then press the
(Set)
button.
3
Press the button until
Network
appears, and then press the
(Set)
button.
4
Press the button until
WPS Setup
appears, and then press the
(Set)
button.
5
Ensure that
PIN Code
appears, and then press the
(Set)
button.
6
Write down the displayed 8-digit PIN code or select
Print PIN Code
. The PIN code is printed.
7
Ensure that
Start Config.
appears, and then press the
(Set)
button.
8Ensure that Operate Wireless Router is displayed, and enter the PIN code displayed on step 6 into the
wireless LAN access point (Registrar) or router.
NOTE: For WPS operation on the wireless LAN access point (Registrar) or router, refer to the manual supplied with the
product.
9
When the WPS operation is successful and the printer is rebooted, wireless LAN connection setting is completed.
Auto SSID Setup
NOTE: A Password is required to enter Admin Menu when Panel Lock Set is set to Enable. In this case, enter
the password you specified, and press
the
(Set) button.
1
Press the
(Menu)
button.
2
Press the button until
Admin Menu
appears, and then press the
(Set)
button.
3
Press the button until
Network
appears, and then press the
(Set)
button.
4
Press the button until
Wireless Setup
appears, and then press the
(Set)
button.
The printer automatically searches the access points on wireless network.
5
Press the button until the desired access point appears, and then press the
(Set)
button.
If the desired access point does not appear, go to "Manual SSID Setup" on page 33.
NOTE: Some hidden SSID may not be displayed. If the SSID is not detected turn on SSID broadcast from the router.
6
Enter the passphrase or WEP key.
When the encryption type of the selected access point is WPA, WPA2 or Mixed in step 5:
• Enter the passphrase, and then press the
(Set)
button.
When the encryption type of the selected access point is WEP in step 5:
• Enter the WEP key, and then press the
(Set)
button.
NOTE: A passphrase is an encryption key for WPA and WPA2 encryption which consists of 8 to 63 alphanumeric
characters. It may be described as a key on some access points or routers. For details, refer to the manual supplied with
the access point or router.
7
Ensure that
Restart Printer to apply settings
appears.
8
Turn off the printer, and turn it on again to apply the settings.
Wireless LAN connection setting is complete.
Connecting Your Printer 33
Manual SSID Setup
NOTE: A Password is required to enter Admin Menu when Panel Lock Set is set to Enable. In this case, enter
the password you specified, and press
the
(Set) button.
1
Press the
(Menu)
button.
2
Press the button until
Admin Menu
appears, and then press the
(Set)
button.
3
Press the button until
Network
appears, and then press the
(Set)
button.
4
Press the button until
Wireless Setup
appears, and then press the
(Set)
button.
5
Press the button until
Manual Setup
appears, and then press the
(Set)
button.
6
Enter the SSID, and then press the
(Set)
button.
7
Select the network mode from
Infrastructure
and
Ad-hoc
depending on your environment, and then press
the
(Set)
button.
If you select
Infrastructure
, proceed to step 8.
If you select
Ad-hoc
, proceed to step 9.
8
Select the encryption type from
No Security
,
Mixed mode PSK
,
WEP
,
WPA-PSK-TKIP
, or
WPA2-PSK-
AES
.
If you do not set security for your wireless network:
•Press the
button until
No Security
appears, and then press the
(Set)
button.
To use Mixed mode PSK, WPA-PSK-TKIP, or WPA2-PSK-AES encryption:
a
Press the button until
Mixed mode PSK
,
WPA-PSK-TKIP
, or
WPA2-PSK-AES
appears, and then
press the
(Set)
button.
b
Enter the passphrase, and then press the
(Set)
button.
NOTE: A passphrase is an encryption key for WPA and WPA2 encryption which consists of 8 to 63 alphanumeric
characters. It may be described as a key on some access points or routers. For details, refer to the manual supplied with
the access point or router.
To use WEP encryption:
a
Press the button until
WEP
appears, and then press the
(Set)
button.
b
Enter the WEP key, and then press the
(Set)
button.
c
Press the button to highlight the desired transmit key from
Auto
or
WEP Key 1
to
WEP Key 4
, and
then press the
(Set)
button.
Proceed to step 10.
9
Select the encryption type from
No Security
or
WEP
.
If you do not set security for your wireless network:
• Ensure that
No Security
appears, and then press the
(Set)
button.
To use WEP encryption:
a
Press the button until
WEP
appears, and then press the
(Set)
button.
b
Enter the WEP key, and then press the
(Set)
button.
c
Press the button to highlight the desired transmit key from
WEP Key 1
to
WEP Key 4
, and then press
the
(Set)
button.
34 Connecting Your Printer
10
Ensure that
Restart Printer to apply settings
appears.
11
Turn off the printer, and turn it on again to apply the settings.
Wireless LAN connection setting is complete.
Ethernet Connection (Dell C1760nw Color Printer only)
To connect the printer to a network:
1
Ensure that the printer, computer and any other connected devices have been turned off and all cables have been
disconnected.
2
Connect the Ethernet cable.
NOTE: Connect the Ethernet cable, only if you need to setup a wired connection.
To connect the printer to the network, connect one end of an Ethernet cable into the Ethernet port on the back of
the printer, and the other end to a LAN port or LAN hub.
To setup a wireless connection, see "Wireless Connection" on page 30.
Connecting Your Printer 35
Reconfiguring the Wireless Setting
To change the wireless setting through an Ethernet or wireless connection from your computer, perform the
following.
NOTE: To change the wireless setting through wireless connection, ensure that the wireless connection setting is completed in
"Wireless Connection" on page 30.
NOTE: The following settings are available when the network mode is set to infrastructure in "Wireless Connection" on page 30.
1
Check the IP address of the printer.
For details about how to check the IP address of the printer, see "Verifying the IP Settings" on page 41.
2
Launch the
Dell Printer Configuration Web Tool
by entering the IP address of the printer in your web browser.
3
Click
Print Server Settings
.
4
Click
Print Server Settings
tab.
5
Click
Wireless LAN
.
6
Change the wireless setting of the printer.
7
Reboot the printer.
8
Change the wireless settings on your computer or access point accordingly.
NOTE: To change the wireless settings on your computer, refer to the manuals provided with the wireless adapter or if
your computer provides a wireless adapter tool, change the wireless settings using that tool.
36 Connecting Your Printer
Turning On the Printer
WARNING: Do not use extension cords or power strips.
WARNING: The printer should not be connected to an Uninterruptible Power Supply (UPS) system.
1
Connect the power cable to the power connector on the back of your printer (see "Rear View" on page 22).
2
Connect the other end of the cable to the power source.
3
Turn on the printer.
Setting Up Your Printer 37
6
Setting Up Your Printer
Setting Initial Settings on the Operator Panel
(Dell™ C1660w Color Printer Only)
You need to set the printer language and whether to enable wireless LAN when you turn on the printer for the first
time.
When you turn the printer on, the wizard screen to perform the initial setup appears on the operator panel. Follow
the steps below to set the initial settings.
NOTE: If you do not start configuring the initial settings, the printer automatically restarts in three minutes. After that, you can
set the following initial setup by enabling Power On Wizard on the operator panel or Dell Printer Configuration Web Tool
if needed.
NOTE: For more information on operator panel, see "Operator Panel" on page 77.
NOTE: For more information on Dell Printer Configuration Web Tool, see "Dell™ Printer Configuration Web Tool" on page 81.
1
Ensure that
Language
appears. Press the button until the desired language appears, and then press the
(Set)
button.
2
Ensure that
Wireless
appears. Press the button until the desired selection appears, and then press the
(Set)
button.
The printer automatically restarts.
English
Français
Italiano
Deutsch
Español
Dansk
Nederlands
Norsk
Svenska
38 Setting Up Your Printer
Printer Setup Using the Software and Documentation Disc
1
Insert the
Software and Documentation
disc into your computer to start
Dell Printer Setup
.
2
Double-click the
Dell C1760/C1660 Installer
icon, and follow the on-screen instructions to connect the computer
and the printer.
NOTE: If the
Software and Documentation
disc does not automatically launch, try the following steps.
For Windows
®
XP, Windows Vista
®
, Windows 7, Windows Server
®
2003, Windows Server 2008, and Windows
Server 2008 R2:
1
Click
Start
→
All Programs
(for Windows Vista and Windows 7)
→
Accessories
(for Windows Vista and
Windows 7)
→
Run
.
2
Ty p e
D:\setup_assist.exe
(where D is the drive letter of the optical drive), and then click
OK
.
For Windows 8 and Windows Server 2012:
1
Point to the bottom right corner of the screen, and then click
Search
→
Ty p e
Run
in the search box, click
Apps
,
and then click
Run
.
2
Ty p e
D:\setup_assist.exe
(where D is the drive letter of the optical drive), and then click
OK
.
Setting the IP Address 39
7
Setting the IP Address
Assigning an IP Address
An IP address is a unique number that consists of four sections that are delimited by a period and can include up to
three digits in each section, for example, 111.222.33.44.
You can select the IP mode from Dual Stack, IPv4, and IPv6. If your network supports both IPv4 and IPv6, select
Dual Stack.
CAUTION: Assigning an IP address that is already in use can cause network performance issues.
NOTE: Assigning an IP address is considered as an advanced function and is normally done by a system administrator.
NOTE: When you assign an IP address manually in IPv6 Mode, use the Dell™ Printer Configuration Web Tool. To open the Dell
Printer Configuration Web Tool, use the link local address. To check a link local address, see "Verifying the IP Settings" on
page 41.
NOTE: Depending on the address class, the range of the IP address assigned may be different. On Class A, for example, an IP
address in the range from 0.0.0.0 to 127.255.255.255 will be assigned. For assignment of IP addresses, contact
your system administrator.
You can assign the IP address by using the operator panel or using the Tool Box.
The Operator Panel
For more information on using your operator panel, see "Operator Panel" on page 77.
NOTE: A Password is required to enter Admin Menu when Panel Lock Set is set to Enable. In this case, enter
the password you specified, and press
the
(Set) button.
1
Turn on the printer.
The
Ready to Print
message appears on the operator panel.
2
Press the
(Menu)
button.
3
Press the button until
Admin Menu
appears, and then press the
(set)
button.
4
Ensure that
Network
appears, and then press the
(set)
button.
5
Press the button until
TCP/IP
appears, and then press the
(set)
button.
6
Press the button until
IPv4
appears, and then press the
(set)
button.
7
Ensure that
Get IP Address
appears, and then press the
(set)
button.
8
Press the button until
Panel
appears, and then press the
(set)
button.
9
Press the button and ensure that
Get IP Address
appears.
10
Press the button until
IP Address
appears, and then press the
(set)
button.
The cursor is located at the first digit of the IP address.
11
Press the or button to enter the numbers for the IP address.
12
Press the
button.
The next digit is selected.
13
Repeat step 11 and step 12 to enter all the digits in the IP address, and then press the
(set)
button.
14
Press the button and ensure that
IP Address
appears.
15
Press the button until
Subnet Mask
appears, and then press the
(set)
button.
The cursor is located at the first digit of the subnet mask.
40 Setting the IP Address
16
Press the or the button to enter the numbers for the subnet mask.
17
Press the button.
The next digit is selected.
18
Repeat step 16 and step 17 and set subnet mask, and then press the
(set)
button.
19
Press the button and ensure that
Subnet Mask
appears.
20
Press the button until
Gateway Address
appears, and then press the
(set)
button.
The cursor is located at the first digit of the gateway address.
21
Press the or button to enter the numbers for the gateway address.
22
Press the button.
The next digit is selected.
23
Repeat step 21 and step 22 to set gateway address, and then press the
(set)
button.
24
Turn off and turn on the printer.
The Tool Box
NOTE: When you use IPv6 Mode for network printing, the Tool Box cannot be used to assign an IP address.
1
Click S
tart
→
All Programs
→
Dell Printers
→
Dell C1760nw Color Printer
or
Dell C1660w Color Printer
→
Tool Box
.
NOTE: The Select Printer dialog box opens in this step, when multiple printer drivers are installed on your computer. In this
case, click the name of Dell C1760nw Color Printer or Dell C1660w Color Printer listed in Printer Name, and then click OK.
The
Tool Box
opens.
2
Click the
Printer Maintenance
tab.
3
Select
TCP/IP Settings
from the list at the left side of the page.
The
TCP/IP Settings
page is displayed.
4
Select the mode from
IP Address Mode
, and then enter the values in
IP Address
,
Subnet Mask
, and
Gateway
Address
.
5
Press the
Apply New Settings
button to take effect.
The IP address is assigned to your printer. To verify the setting, open the web browser on any computer connected to the
network and enter the IP address into the address bar on the browser. If the IP address is set up correctly, the
Dell Printer
Configuration Web Tool
displays in your browser.
You can also assign the IP address to the printer when installing the printer drivers with installer. When you use the
Network Installation
feature, and the
Get IP Address
is set to
AutoIP
on the operator panel menu, you can set
the IP address from
0.0.0.0
to the desired IP address on the printer selection window.
Setting the IP Address 41
Verifying the IP Settings
You can confirm the settings by using the operator panel, printing the printer settings report, or using the ping
command.
NOTE: A Password is required to enter Admin Menu when Panel Lock Set is set to Enable. In this case, enter
the password you specified, and press the (Set) button.
The Operator Panel
1
Press the (
Menu)
button.
2
Press the button until
Admin Menu
appears, and then press the
(set)
button.
3
Ensure that
Network
appears, and then press the
(set)
button.
4
Press the button until
TCP/IP
appears, and then press the
(set)
button.
5
Press the button until
IPv4
appears, and then press the
(set)
button.
Check the IP address displayed on the operator panel.
The System Settings Report
1
Print the system settings report.
For details about how to print a system settings report, see "Printing a Report/List Using the Operator Panel" on
page 125.
2
Verify the correct IP address, subnet mask, and gateway address are listed in the system settings report under
Wired
Network
or
Wireless Network
.
If the IP address shows 0.0.0.0 (the factory default), an IP address has not been assigned. To assign one for your
printer, see "Assigning an IP Address" on page 39.
The Ping Command
Ping the printer and verify that it responds. For example, at a command prompt on a network computer, type ping
followed by the new IP address (for example, 192.168.0.11):
ping 192.168.0.11
If the printer is active on the network, you will receive a reply.
42 Setting the IP Address
Loading Paper 43
8
Loading Paper
NOTE: The priority sheet inserter (PSI) is available for Dell™ C1760nw Color Printer only.
NOTE: The images used in this manual are those of the Dell C1760nw Color Printer unless otherwise mentioned.
NOTE: To avoid paper jams, do not remove the priority sheet inserter while a printing is in progress.
NOTE: Use only laser print media. Do not use ink jet paper in your printer.
NOTE: For printing envelopes, see "Loading Print Media" on page 151.
Loading Print Media in the Multipurpose Feeder (MPF)
NOTE: The PSI is available for Dell C1760nw Color Printer only.
1
Open the front cover by pulling out the instruction sheet.
2
Pull the PSI out.
44 Loading Paper
3
Remove the instruction sheet attached to the PSI with adhesive tape.
NOTE: Read the instruction sheet before you use the PSI.
4
Pull the length guide forward until it stops.
5
Pull the MPF extension forward until it stops.
Loading Paper 45
6
Adjust the paper width guides to their maximum.
7
Before loading the print media, flex the sheets back and forth, and then fan them. Straighten the edges of the stack
on a level surface.
8
Load print media on the MPF with the top edge first and with the recommended print side facing up.
46 Loading Paper
9
Adjust the width guides until they rest lightly against the edges of the stack of print media.
10
Slide the length guide towards the printer until it touches the print media.
NOTE: Depending on the size of print media, first slide the length guide backward until it stops, and then slide the MPF
extension until it touches print media.
Loading Paper 47
11
Insert the PSI into the printer and then align the PSI to the marking on the paper tray.
12
Select the paper type from the printer driver if the loaded print media is not standard plain paper.
If a user-specified print media is loaded in the MPF, you must specify the paper size setting by using the printer
driver.
48 Loading Paper
Loading Print Media in the Priority Sheet Inserter (PSI)
(Dell C1760nw Color Printer only)
1

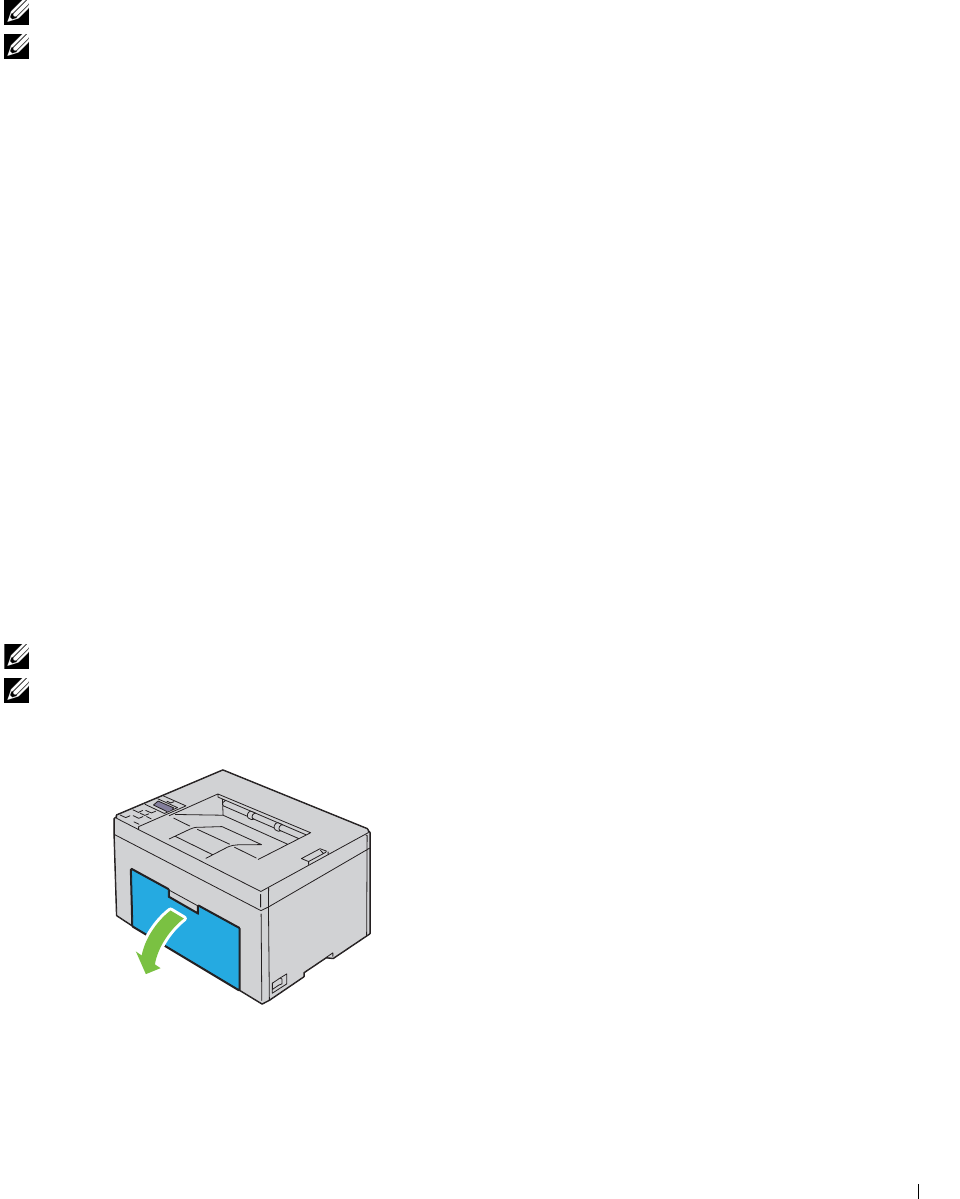

Open the front cover.
2
Slide the PSI forward, and then align the PSI to the marking on the paper tray.
3
Before loading the print media, flex the sheets back and forth, and then fan them. Straighten the edges of the stack
on a level surface.
Loading Paper 49
4
Load print media on the PSI with the top edge first and with the recommended print side facing up.
5
Adjust the width guides until they rest lightly against the edges of the stack of print media.
6
Select the paper type from the printer driver if the loaded print media is not standard plain paper.
If a user-specified print media is loaded in the PSI, you must specify the paper size setting by using the printer
driver.
50 Loading Paper
Installing Printer Drivers on Computers Running Windows®51
9
Installing Printer Drivers on Computers Running
Windows®
NOTE: The images used in this manual are those of the Dell™ C1760nw Color Printer unless otherwise mentioned.
Identifying Printer Driver Pre-install Status
Before installing the printer driver on your computer, check the IP address of your printer by performing one of the
procedures in "Verifying the IP Settings" on page 41.
Changing the firewall settings before installing your printer
If you are running one of the following operating systems, you must change the firewall settings before installing the
Dell printer software:
•Microsoft
®
Windows XP
•Windows Vista
®
•Windows 7
•Windows 8
•Windows Server
®
2008
• Windows Server 2008 R2
• Windows Server 2012
NOTE: For Windows XP, Service Pack 2 or 3 must be installed.
The following procedure uses Windows 7 as an example.
1
Insert the
Software and Documentation
disc into your computer.
2
Click
Start
→
Control Panel
.
3
Select
System and Security
.
4
Click
Allow a program through Windows Firewall
.
5
Click
Change settings
→
Allow another program
.
6
Check
Browse
.
7D:\setup_assist.exe
(where D is the drive letter of the optical drive) in the
File name
text box, and then
click
Open
.
8
Click
Add
, and then click
OK
.
Direct Connection Setup
For installing host-based printer driver
1
Insert the
Software and Documentation
disc into your computer to start
Dell Printer Setup
.
2
Click
Install Printer Driver and Software
.
3
Select
Personal Installation
, and then click
Next
.
52 Installing Printer Drivers on Computers Running Windows®
4
Follow the on-screen instructions to connect the computer and the printer with a USB cable, and then turn on the
printer.
The Plug and Play installation starts and the installation software proceeds to the next page automatically.
5
Click
Finish
to exit the wizard when the
Ready to Print!
screen appears. If necessary, click
Print Test Page
to print
a test page.
Personal Installation
A personal printer is a printer attached to your computer or a print server using a USB. If your printer is attached to
a network and not your computer, see "Network Connection Setup" on page 54.
For installing XML Paper Specification (XPS) printer driver
NOTE: Download and install the XPS printer driver at support.dell.com.
NOTE: The XPS driver is supported on the following operating systems: Windows Vista, Windows Vista 64-bit Edition, Windows
7, Windows 7 64-bit Edition, Windows 8, Windows 8 64-bit Edition, Windows Server 2008, Windows Server 2008 64-bit Edition,
Windows Server 2008 R2, and Windows Server 2012.
Windows Vista or Windows Vista 64-bit Edition
1
Extract the zip file you downloaded to your desired location.
2
Click
Start
→
Control Panel
→
Hardware and Sound
→
Printers
.
3
Click
Add a printer
.
4
Click
Add a local printer
.
5
Select the port connected to this product, and then click
Next
.
6
Click
Have Disk
to display the
Install From Disk
dialog box.
7
Click
Browse
, and then select the extracted folder in step 1.
8
Click
OK
.
9
Select your printer name and click
Next
.
10
To change the printer name, enter the printer name in the
Printer name
box. To use this printer as the default
printer, select the check box displayed under the
Printer name
. Click
Next
.
Installation starts.
If the
User Account Control
dialog box appears, click
Continue
.
NOTE: If you are an administrator on the computer, click Continue; otherwise, contact your administrator to continue the
desired action.
11
As the driver installation is completed, click
Print a test page
to print a test page.
12
Click
Finish
.
Windows Server 2008 or Windows Server 2008 64-bit Edition
NOTE: You must log in as an administrator.
1
Extract the zip file you downloaded to your desired location.
2
Click
Start
→
Control Panel
→
Hardware and Sound
→
Printers
.
3
Click
Add a printer
.
4
Click
Add a local printer
.
5
Select the port connected to this product, and then click
Next
.
6
Click
Have Disk
to display the
Install From Disk
dialog box.
Installing Printer Drivers on Computers Running Windows®53
7
Click
Browse
, and then select the extracted folder in step 1.
8
Click
OK
.
9
Select your printer name and click
Next
.
10
To change the printer name, enter the printer name in the
Printer name
box.
To use this printer as the default printer, select the
Set as the default printer
check box. Click
Next
.
Installation starts.
11
If you do not share your printer, select
Do not share this printer
. If you share your printer, select
Share this printer
so that others on your network can find and use it
. Click
Next
.
12
As the driver installation is completed, click
Print a test page
to print a test page.
13
Click
Finish
.
Windows 7, Windows 7 64-bit Edition, or Windows Server 2008 R2
1
Extract the zip file you downloaded to your desired location.
2
Click
Start
→
Devices and Printers
.
3
Click
Add a printer
.
4
When you use Windows Server 2008 R2, click
Add a local or network printer as an administrator
.
If the
User Account Control
dialog box appears, click
Yes
.
NOTE: If you are an administrator on the computer, click Yes; otherwise, contact your administrator to continue the desired
action.
5
Click
Add a local printer
.
6
Select the port connected to this product, and then click
Next
.
7
Click
Have Disk
to display the
Install From Disk
dialog box.
8
Click
Browse
, and then select the extracted folder in step 1.
9
Click
OK
.
10
Select your printer name and click
Next
.
11
To change the printer name, enter the printer name in the Printer name box, and then click
Next
.
Installation starts.
12
If you do not share your printer, select
Do not share this printer
. If you share your printer, select
Share this printer
so that others on your network can find and use it
. Click
Next
.
13
As the driver installation is completed, click
Print a test page
to print a test page. To use this printer as the default
printer, select the
Set as the default printer
check box.
14
Click
Finish
.
Windows 8, Windows 8 64-bit Edition, or Windows Server 2012
1
Extract the zip file you downloaded to your desired location.
2
Right-click the bottom left corner of the screen, and then click
Control Panel
.
3
Click
Hardware and Sound
(
Hardware
for Windows Server 2012)
→
Devices and Printers
→
Add a printer
.
4
Click
Have Disk
to display the
Install From Disk
dialog box.
5
Click
Browse
, and then select the extracted folder in step 1.
6
Click
OK
.
7
Select your printer name and click
Next
.
54 Installing Printer Drivers on Computers Running Windows®
8
To change the printer name, enter the printer name in the Printer name box, and then click
Next
.
Installation starts.
9
If you do not share your printer, select
Do not share this printer
. If you share your printer, select
Share this printer
so that others on your network can find and use it.
Click
Next
.
10
As the driver installation is completed, click
Print a test page
to print a test page. To use this printer as the default
printer, select the
Set as the default printer
check box.
11
Click
Finish
.
Network Connection Setup
Network Printer Setup on a Local Network
For installing host-based printer driver
1
Insert the
Software and Documentation
disc into your computer to start
Dell Printer Setup
.
2
Click
Install Printer Driver and Software
.
3
Select
Network Installation
, and then click
Next
.
4
Select
Local Installation
, and then click
Next
.
5
Select the printer you want to install from the printer list, and then click
Next
. If the target printer is not displayed
on the list, click
Refresh
to refresh the list or click
Add Printer
to add a printer to the list manually. You may specify
the IP address and port name at this point.
If you have installed this printer on the server computer, select
I am
setting up this printer on a server
check box.
NOTE: When using AutoIP, 0.0.0.0 is displayed in the installer. Before you can continue, you must enter a valid IP address.
NOTE: You can install the Web Services on Devices (WSD) printer, but the installation of using Windows Server 2008 is not
supported.
NOTE: If you are running any of the following operating systems, a Windows Security Alert is displayed:
•Windows Vista
•Windows Vista 64-bit Edition
•Windows 7
•Windows 7 64-bit Edition
•Windows 8
•Windows 8 64-bit Edition
•Windows Server 2008
•Windows Server 2008 64-bit Edition
•Windows Server 2008 R2 64-bit Edition
•Windows Server 2012
To continue installing the host-based printer driver, click
Unblock
or
Allow access
(for Windows Server 2008 R2
and Windows 7).
6
Specify the printer settings, and then click
Next
.
a
Enter the printer name.
b
If you want other users on the network to access this printer, select
Share this printer with other computers on
the network
, and then enter a share name that users can identify.
c
If you want to set a printer as the default, select the
Set this printer as default
check box.
Installing Printer Drivers on Computers Running Windows®55
7
Select the software and documentation you want to install, and then click
Install
. You can specify folders in which
to install the Dell software and documentation. To change the folders, click
Browse
.
8
Click
Finish
to exit the wizard when the
Ready to Print!
screen appears. If necessary, click
Print Test Page
to print
a test page.
For installing XML Paper Specification (XPS) printer driver
NOTE: Download and install the XPS printer driver at support.dell.com.
NOTE: The XPS driver is supported on the following operating systems: Windows Vista, Windows Vista 64-bit Edition, Windows
7, Windows 7 64-bit Edition, Windows 8, Windows 8 64-bit Edition, Windows Server 2008, Windows Server 2008 64-bit Edition.,
Windows Server 2008 R2, and Windows Server 2012.
Windows Vista or Windows Vista 64-bit Edition
1
Extract the zip file you downloaded to your desired location.
2
Click
Start
→
Control Panel
→
Hardware and Sound
→
Printers
.
3
Click
Add a printer
.
4
Click
Add a network
,
wireless or Bluetooth printer
.
5
Select printer or click
The printer that I want isn't listed
.
6
Select
Add a printer using a TCP/IP address or hostname,
and then click
Next
.
7
Select
TCP/IP Device
for
Device type
, and enter the IP address for
Hostname or IP address
, and then click
Next
.
If the
User Account Control Continue
dialog box appears, click
Continue
.
NOTE: If you are an administrator on the computer, click Continue; otherwise, contact your administrator to continue the
desired action.
8
Click
Have Disk
to display the
Install From Disk
dialog box.
9
Click
Browse
, then select the extracted folder in step 1, and then click
OK
.
10
Select your printer name and click
Next
.
11
To change the printer name, enter the printer name in the
Printer name
box, and then click
Next
.
To use this printer as the default printer, select the
Set as the default printer
check box.
Installation starts.
If the
User Account Control
dialog box appears, click
Continue
.
NOTE: If you are an administrator on the computer, click Continue; otherwise, contact your administrator to continue the
desired action.
12
As the driver installation is completed, click
Print a test page
to print a test page.
13
Click
Finish
.
Windows Server 2008 or Windows Server 2008 64-bit Edition
NOTE: You must log in as an administrator.
1
Extract the zip file you downloaded to your desired location.
2
Click
Start
→
Control Panel
→
Hardware and Sound
→
Printers
.
3
Click
Add a printer
.
4
Click
Add a network
,
wireless or Bluetooth printer
.
56 Installing Printer Drivers on Computers Running Windows®
5
Select your printer or click
The printer that I want isn't listed
.
When you select your printer, go to step 8.
When you click
The printer that I want isn't listed
, go to step 6.
6
Select
Add a printer using a TCP/IP address or hostname,
and then click
Next
.
7
Select
TCP/IP Device
from
Device type
, and enter the IP address for
Hostname or IP address
, and then click
Next
.
If the
User Account Control Continue
dialog box appears, click
Continue
.
8
Click
Have Disk
to display the
Install From Disk
dialog box.
9
Click
Browse
, then select the extracted folder in step 1, and then click
OK
.
10
Select your printer name and click
Next
.
11
To change the printer name, enter the printer name in the
Printer name
box, and then click
Next
.
To use this printer as the default printer, select the
Set as the default printer
check box.
Installation starts.
12
If you do not share your printer, select
Do not share this printer
. If you share your printer, select
Share this printer
so that others on your network can find and use it
. Click
Next
.
13
As the driver installation is completed, click
Print a test page
to print a test page.
14
Click
Finish
.
Windows Server 2008 R2
1
Extract the zip file you downloaded to your desired location.
2
Click
Start
→
Devices and Printers
.
3
Click
Add a printer
.
4
Click
Add a network
,
wireless or Bluetooth printer
.
5
Select your printer or click
The printer that I want isn't listed
.
NOTE: When you click The printer that I want isn't listed, Find a printer by name or TCP/IP screen appears where you can
find your printer using your printer name or TCP/IP.
If the
User Account Control
dialog box appears, click
Yes
.
NOTE: If you are an administrator on the computer, click Yes; otherwise, contact your administrator to continue the desired
action.
6
Click
Have Disk
to display the
Install From Disk
dialog box.
7
Click
Browse
, then select the extracted folder in step 1, and then click
OK
.
8
Select your printer name and click
Next
.
9
To change the printer name, enter the printer name in the
Printer name
box, and then click
Next
.
10
If you do not share your printer, select
Do not share this printer
. If you share your printer, select
Share this printer
so that others on your network can find and use it
.
11
Click
Next
.
Installation starts.
12
As the driver installation is completed, click
Print a test page
to print a test page. To use this printer as the default
printer, select the
Set as the default printer
check box.
13
Click
Finish
.
Installing Printer Drivers on Computers Running Windows®57
Windows 7 or Windows 7 64-bit Edition
1
Extract the zip file you downloaded to your desired location.
2
Click
Start
→
Devices and Printers
.
3
Click
Add a printer
.
4
Click
Add a network
,
wireless or Bluetooth printer
.
5
Select your printer or click
The printer that I want isn't listed
.
When you select your printer, go to step 8.
When you click
The printer that I want isn't listed
, go to step 6.
6
Select
Add a printer using a TCP/IP address or host name
, and then click
Next
.
7
Select
TCP/IP Device
from
Device type
, and enter the IP address for
Hostname or IP address
, and then click
Next
.
If the
User Account Control
dialog box appears, click
Yes
.
NOTE: If you are an administrator on the computer, click Yes; otherwise, contact your administrator to continue the desired
action.
8
Click
Have Disk
to display the
Install From Disk
dialog box.
9
Click
Browse
, then select the extracted folder in step 1, and then click
OK
.
10
Select your printer name and click
Next
.
11
To change the printer name, enter the printer name in the
Printer name
box, and then click
Next
.
Installation starts.
12
As the driver installation is completed, click
Print a test page
to print a test page. To use this printer as the default
printer, select the
Set as the default printer
check box.
13
Click
Finish
.
Windows 8, Windows 8 64-bit Edition, or Windows Server 2012
1
Extract the zip file you downloaded to your desired location.
2
Right-click the bottom left corner of the screen, and then click
Control Panel
.
3
Click
Hardware and Sound
(
Hardware
for Windows Server 2012)
→
Devices and Printers
→
Add a printer
.
4
Click
Have Disk
to display the
Install From Disk
dialog box.
5
Click
Browse
, and then select the extracted folder in step 1.
6
Click
OK
.
7
Select your printer name and click
Next
.
8
To change the printer name, enter the printer name in the
Printer name
box, and then click
Next
.
Installation starts.
9
If you do not share your printer, select
Do not share this printer
. If you share your printer, select
Share this printer
so that others on your network can find and use it.
Click
Next
.
10
As the driver installation is completed, click
Print a test page
to print a test page. To use this printer as the default
printer, select the
Set as the default printer
check box.
11
Click
Finish
.
58 Installing Printer Drivers on Computers Running Windows®
Use the Dell Printer Configuration Web Tool to monitor the status of your network printer without leaving your
desk. You can view and/or change the printer settings, monitor toner level, and acknowledge the timing of ordering
replacement consumables. You can click the Dell supplies link for ordering supplies.
NOTE: The
Dell Printer Configuration Web Tool
is not available when the printer is directly connected to a computer or a print
server.
To launch the Dell Printer Configuration Web Tool, type the printer's IP address in your web browser. The printer
configuration appears on the screen.
You can set up the Dell Printer Configuration Web Tool
to send you an e-mail when the printer needs supplies or
intervention.
To set up e-mail alerts:
1
Launch the
Dell Printer Configuration Web Tool
.
2
Click
E-Mail Alert
link.
3
Under
E-Mail Server Settings
, enter the
Primary SMTP Gateway
,
Reply Address
, and your or key operator's e-mail
address in the e-mail list box.
4
Click
Apply New Settings
.
NOTE:
Connection pending until printer sends an alert
is displayed on the SMTP server until an error occurs.
Network Printer Setup on a Remote Network
Before Installation
Before you start remote installation, perform the following procedures.
Allow Print Spooler to Accept Client Connections
NOTE: This step is required for Windows XP 64-bit Edition, Windows Vista, Windows Vista 64-bit Edition, Windows 7, Windows 7
64-bit Edition, Windows Server 2003, Windows Server 2003 x64 Edition, Windows Server 2008, Windows Server 2008 64-bit
Edition, Windows Server 2008 R2.
For Windows XP 64-bit Edition, Windows Vista, Windows Server 2003, and Windows Server 2008:
1
Click
Start
→
All Programs
(for Windows Vista only)
→
Accessories
(for Windows Vista only)
→
Run
.
2
Ty p e
gpedit.msc
, and then click
OK
.
3
Click
Computer Configuration
→
Administrative Templates
→
Printers
.
4
Right-click
Allow Print Spooler to accept client connections
and select
Properties
.
5
On the
Setting
tab, select
Enabled
, and then click
OK
.
6
Restart the computer.
For Windows Server 2008 R2 and Windows 7:
1
Click
Start
→
All Programs
(for Windows 7 only)
→
Accessories
(for Windows 7 only)
→
Run
.
2
Ty p e
gpedit.msc
, and then click
OK
.
3
Click
Computer Configuration
→
Administrative Templates
→
Printers
.
4
Right-click
Allow Print Spooler to accept client connections
and select
Edit
.
5
Select
Enabled
, and then click
OK
.
6
Restart the computer.
Installing Printer Drivers on Computers Running Windows®59
Share the Firewall File and Printer
NOTE: This step is required for Windows XP, Windows XP 64-bit Edition, Windows Vista, Windows Vista 64-bit Edition, Windows
7, Windows 7 64-bit Edition, Windows 8, Windows 8 64-bit Edition, Windows Server 2008, Windows Server 2008 64-bit Edition,
Windows Server 2008 R2, and Windows Server 2012.
For Windows XP:
1
Click
start
→
Control Panel
.
2
Select
Security Center
.
3
Click
Windows Firewall
.
4
On the
Exceptions
tab, check the
File and Printer Sharing
check box, and then click
OK
.
For Windows Vista:
1
Click
Start
→
Control Panel
.
2
Select
Security
.
3
Click
Windows Firewall
.
4
Click
Change settings
.
5
Click
Continue
.
6
On the
Exceptions
tab, check the
File and Printer Sharing
check box, and then click
OK
.
For Windows Server 2008:
1
Click
Start
→
Control Panel
.
2
Double-click
Windows Firewall
.
3
Click
Change settings
.
4
On the
Exceptions
tab, check the
File and Printer Sharing
check box, and then click
OK
.
For Windows Server 2008 R2 and Windows 7:
1
Click
Start
→
Control Panel
.
2
Select
System and Security
.
3
Click
Windows Firewall
.
4
Click
Allow a program or feature through Windows Firewall
.
5
If the check boxes under
Allowed programs and features:
are dimmed, click
Change settings
.
6
Check the
File and Printer Sharing
check box.
Home/Work (Private)
or
Public
check box is automatically selected
according to your settings.
If
File and Printer Sharing Properties
dialog box appears, click
OK
.
7
Click
OK
.
60 Installing Printer Drivers on Computers Running Windows®
Start Remote Registry
NOTE: This step is required for Windows Vista, Windows Vista 64-bit Edition, Windows 7, Windows 7 64-bit Edition, Windows 8,
and Windows 8 64-bit Edition.
1
Click
Start
→
Control Panel
.
2
Select
System and Maintenance (System and Security
for Windows 7
)
.
3
Click
Administrative Tools
.
4
Double-click
Services
.
5
Click
Continue
(for Windows Vista only).
6
Right-click
Remote Registry
and select
Start
.
7
Right-click
Remote Registry
and select
Properties
.
8
Change
Startup type:
to
Automatic
, and then click
OK
.
Disable User Account Control
NOTE: Disabling the User Account Control might leave the system vulnerable to virus attacks.
NOTE: This step is required for Windows Vista, Windows Vista 64-bit Edition, Windows 7, Windows 7 64-bit Edition, Windows
Server 2008, Windows Server 2008 64-bit Edition, Windows Server 2008 R2.
For Windows Vista:
1
Click
Start
→
Control Panel
.
2
Select
User Accounts and Family Safety
.
3
Click
User Accounts
.
4
Click
Turn User Account Control on or off
.
5
Click
Continue
.
6
Clear the
Use User Account Control (UAC) to help protect your computer
check box.
7
Restart the computer.
For Windows Server 2008:
1
Click
Start
→
Control Panel
.
2
Double-click
User Accounts
.
3
Click
Turn User Account Control on or off
.
4
Click
Continue
.
5
Clear the
Use User Account Control (UAC) to help protect your computer
check box.
6
Click
OK
.
7
Restart the computer.
For Windows Server 2008 R2:
1
Click
Start
→
Control Panel
.
2
Select
User Accounts
.
3
Click
User Accounts
.
4
Click
Change User Account Control Settings
.
5
Move the slider to the bottom, and then click
OK
.
6
Click
Yes
.
7
Restart the computer.
Installing Printer Drivers on Computers Running Windows®61
For Windows 7:
1
Click
Start
→
Control Panel
.
2
Select
User Accounts and Family Safety
.
3
Click
User Accounts
.
4
Click
Change User Account Control Settings
.
5
Move the slider to the bottom, and then click
OK
.
6
Click
Yes
in
User Account Control
dialog box.
7
Restart the computer.
Enable Network Discovery and File Sharing for all Public Networks
NOTE: This step is required when you use Windows Vista, Windows Vista 64-bit Edition, Windows 7, Windows 7 64-bit Edition,
Windows 8, Windows 8 64-bit Edition, Windows Server 2008, Windows Server 2008 64-bit Edition, Windows Server 2008 R2, and
Windows Server 2012 for the server computer.
For Windows 7, Windows 7 64-bit Edition, Windows Server 2008 R2:
1
Click
Start
→
Control Panel
→
Network and Internet
→
Network and Sharing Center
→
Change advanced
sharing settings
.
2
To allow your computer to be found on the network, and to allow other computers on the network to share the files
and folders on your computer, click
Turn on network discovery
.
3
Click
Save changes
.
4
If you see the
User Account Control
dialog box, click
Yes
.
For Windows Vista, Windows Vista 64-bit Edition, Windows Server 2008, Windows Server 2008 64-bit Edition:
1
Click
Start
→
Network
.
2
Right-click
Network
and select
Properties
.
The
Network an Sharing Center
screen appears.
3
Click the down arrow button next to either
Network
discovery
.
4
To allow your computer to be found on the network, and to allow other computers on the network to share the files
and folders on your computer, click
Turn on network discovery
.
5
Click
Apply
.
6
If the
User Account Control
dialog box appears, click
Continue
.
Disable Simple File Sharing
NOTE: This step is required for Windows XP, and Windows XP 64-bit Edition.
1
Click
Start
→
Control Panel
.
2
Select
Appearance and Themes
.
3
Select
Folder Options
.
4
On the
View
tab, clear the
Use simple file sharing (Recommended)
check box, and then click
OK
.
5
Click
Start
→
Control Panel
.
6
Select
Performance and Maintenance
.
7
Select
Administrative Tools
.
8
Double-click
Local Security Policy
.
9
Click
Local Policies
→
Security Options
.
10
Right-click
Network access: Sharing and security model for local accounts
and select
Properties
.
62 Installing Printer Drivers on Computers Running Windows®
11
Ensure that
Classic - local users authenticate as themselves
is selected.
12
Click
OK
.
Installing the Printer Driver
NOTE: Installation on Windows XP Home Edition, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista
x64 Home Basic, Windows Vista x64 Home Premium, Windows 7 Starter, Windows 7 Home Basic, Windows 7 Home Premium,
Windows 7 x64 Home Basic, and Windows 7 x64 Home Premium, Windows 8, Windows 8 x64, Windows 8 Pro, Windows 8 x64
Pro, and Windows Server 2012 is not supported.
1
Insert the
Software and Documentation
disc provided with the printer in your computer. The
Dell Printer Setup
file launches automatically.
2
Click
Install Printer Driver and Software
.
The
Choose an installation type
screen appears.
3
Select
Network Installation
, and then click
Next
.
4
Select
Remote Installation
, and then click
Next
.
5
Enter the Administrator user name and password of the client computer, then select the clients or servers, and then
click
Next
.
NOTE: If you are running any of the following operating systems, a Windows Security Alert is displayed:
•Windows Vista
•Windows Vista 64-bit Edition
•Windows 7
•Windows 7 64-bit Edition
•Windows Server 2008
•Windows Server 2008 64-bit Edition
•Windows Server 2008 R2 64-bit Edition
To continue installing the host-based printer driver, click
Unblock
or
Allow access
(for Windows Server 2008 R2
and Windows 7).
6
Check if the printer to be installed is listed in
Select Printer
, and then click
Next
.
NOTE: If the printer to be installed is not listed in Select Printer, try the following steps:
•Click Refresh to update the information.
•Click Add Printer, and then enter a port name (any alphanumeric string of your choosing) and an existing IP address
for the printer.
7
Select the required items on
Software and Documentation
, and then click
Install
.
8
Click
Finish
to exit this tool.
Setting Up for Web Services on Devices (WSD)
This section provides information for network printing with WSD, the protocol of Microsoft for Windows Vista,
Windows 7, Windows 8, Windows Server 2008, Windows Server 2008 R2, and Windows Server 2012.
Adding Roles of Print Services
When you use Windows Server 2008 or Windows Server 2008 R2, you need to add the roles of print services to the
Windows Server 2008 or Windows Server 2008 R2 client.
Installing Printer Drivers on Computers Running Windows®63
For Windows Server 2008 R2:
1
Click
Start
→
Administrative Tools
→
Server Manager
.
2
Select
Add Roles
from the
Action
menu.
3
Check the
Print and Document Services
check box on the
Server Roles
window in the
Add Roles Wizard
, and
then click
Next
.
4
Click
Next
.
5
Check the
Print Server
check box, and then click
Next
.
6
Click
Install
.
For Windows Server 2008:
1
Click
Start
→
Administrative Tools
→
Server Manager
.
2
Select
Add Roles
from the
Action
menu.
3
Check the
Print Services
check box on the
Server Roles
window in the
Add Roles Wizard
, and then click
Next
.
4
Check the
Print Server
check box, and then click
Next
.
5
Click
Install
.
For Windows Server 2012:
1
Click
Server Manager
of the
Start
screen.
2
Select
Add Roles and Features
from the
Manage
menu.
3
Click
Next
on the
Before You Begin
window
→
Select installation type on the
Installation Type
window
→
Select
destination server on the
Server Selection
window in the
Add Roles and Features Wizard
.
4
Check the
Print and Document Services
check box on the
Server Roles
window, and then click
Next
.
5
Select features on the
Features
window
→
Confirm installation selections on the
Confirmation
window.
6
Click
Install
.
WSD Printer Setup
You can install your new printer on the network using Windows Add Printer wizard. When installing using the
Software and Documentation
disc that shipped with your printer, see "Network Connection Setup" on page 54 for
details.
NOTE: Installing WSD printer for Windows 8, Windows Server 2008, Windows Server 2008 R2, and Windows Server 2012 is
available only with the Add Printer wizard.
Installing a Printer Driver Using the Add Printer Wizard
1
For Windows Vista, Windows 7, Windows Server 2008, and Windows Server 2008 R2:
Click
Start
→
Devices and Printers
(
Start
→
Control Panel
→
Hardware and Sound
→
Printers
for Windows
Server 2008 and Windows Vista).
For Windows 8, Windows Server 2012:
Right-click the bottom left corner of the screen, and then click
Control Panel
→
Hardware and Sound
(
Hardware
for Windows Server 2012)
→
Devices and Printers
.
2
Click
Add a printer
to launch the
Add Printer
wizard.
3
Select
Add a network, wireless or Bluetooth printer
.
4
In the list of available printers, select the one you want to use, and then click
Next
.
NOTE: In the list of available printers, the WSD printer is displayed in the form of http://IP address/ws/.
64 Installing Printer Drivers on Computers Running Windows®
NOTE: If no WSD printer is displayed in the list, enter the printer's IP address manually to create a WSD printer. To enter
the printer's IP address manually, follow the instructions below. For Windows Server 2008 R2, to create a WSD printer, you
must be a member of Administrators group.
1. Click The printer that I want isn't listed.
2. Select Add a printer using a TCP/IP address or hostname and click Next.
3. Select Web Services Device from Device type.
4. Enter the printer's IP address in the Hostname or IP address text box and click Next.
NOTE: Before installing the driver using the Add Printer wizard on Windows Server 2008 R2 or Windows 7, perform one of
the followings:
•Establish the Internet connection so that Windows Update can scan your computer.
•Add the printer driver to your computer in advance.
5
Install the printer driver on your computer. If you are prompted for an administrator password or confirmation,
type the password or provide confirmation.
6
Complete the additional steps in the wizard, and then click
Finish
.
7
Print a test page to verify print installation.
a
For Windows Vista, Windows 7, Windows Server 2008, and Windows Server 2008 R2:
Click
Start
→
Devices and Printers
(
Start
→
Control Panel
→
Hardware and Sound
→
Printers
for
Windows Server 2008 and Windows Vista).
For Windows 8, Windows Server 2012:
Right-click the bottom left corner of the screen, and then click
Control Panel
→
Hardware and Sound
(
Hardware
for Windows Server 2012)
→
Devices and Printers
.
b
Right-click the printer you just created, and then click
Printer properties
(
Properties
for Windows Server 2008
and Windows Vista).
c
On the
General
tab, click
Print Test Page
. When a test page is printed successfully, installation is complete.
Setting Up for Shared Printing
You can share your new printer on the network using the
Software and Documentation
disc that shipped with your
printer, or using Windows Point and Print or peer-to-peer method. However, if you use either of the Microsoft
methods you will not get features such as the status monitor and other printer utilities, which will get installed with
the
Software and Documentation
disc.
If you want to use the printer on a network, share the printer and install its drivers on all the computers on the
network.
NOTE: You need to purchase the Ethernet cable separately for shared printing.
For Windows XP, Windows XP 64-bit Edition, Windows Server 2003, Windows Server 2003 x64 Edition
1
Click
Start
→
Printers and Faxes
.
2
Right-click this printer icon and select
Properties
.
3
From the
Sharing
tab, check the
Share this printer
check box, and then type a name in the
Share name
text box.
4
Click
Additional Drivers
and select the operating systems of all network clients using this printer.
5
Click
OK
.
If the files are not present in your computer, then you will be prompted to insert the server operating system CD.
For Windows Vista, Windows Vista 64-bit Edition
1
Click
Start
→
Control Panel
→
Hardware and Sound
→
Printers
.
2
Right-click the printer icon and select
Sharing
.
Installing Printer Drivers on Computers Running Windows®65
3
Click
Change sharing options
.
4
The "
Windows needs your permission to continue
" appears.
5
Click
Continue
.
6
Select the
Share this printer
check box, and then type a name in the
Share name
text box.
7
Select
Additional Drivers
and select the operating systems of all network clients using this printer.
8
Click
OK
.
For Windows Server 2008, Windows Server 2008 64-bit Edition
1
Click
Start
→
Control Panel
→
Printers
.
2
Right-click the printer icon and select
Sharing
.
3
Click
Change Sharing Options
if exists.
4
Select the
Share this printer
check box, and then type a name in the
Share name
text box.
5
Click
Additional Drivers
and select the operating systems of all network clients using this printer.
6
Click
OK
.
For Windows 7, Windows 7 64-bit Edition, Windows Server 2008 R2
1
Click
Start
→
Devices and Printers
.
2
Right-click the printer icon and select
Printer properties
.
3
On the
Sharing
tab, click
Change Sharing Options
if exists.
4
Select the
Share this printer
check box, and then type a name in the
Share name
text box.
5
Click
Additional Drivers
and select the operating systems of all network clients using this printer.
6
Click
Apply
, and then click
OK
.
For Windows 8, Windows 8 64-bit Edition, Windows Server 2012
1
Right-click the bottom left corner of the screen, and then click
Control Panel
→
Hardware and Sound
(
Hardware
for Windows Server 2012)
→
Devices and Printers
.
2
Right-click the printer icon and select
Printer properties
.
3
On the
Sharing
tab, click
Change Sharing Options
if exists.
4
Select the
Share this printer
check box, and then type a name in the
Share name
text box.
5
Click
Additional Drivers
and select the operating systems of all network clients using this printer.
6
Click
Apply
, and then click
OK
.
To check that the printer is shared:
• Ensure that the printer object in the
Printers, Printers and Faxes, or Devices and Printers
folder is shared. The
share icon is shown under the printer icon.
•Browse
Network or My Network Places
. Find the host name of the server and look for the shared name you
assigned to the printer.
Now that the printer is shared, you can install the printer on network clients using the Point and Print method or the
peer-to-peer method.
66 Installing Printer Drivers on Computers Running Windows®
Point and Print
Point and Print is a Microsoft Windows technology that allows you to connect to a remote printer. This feature
automatically downloads and installs the printer driver.
For Windows XP, Windows XP 64-bit Edition, Windows Server 2003, Windows Server 2003 x64 Edition
1
On the Windows desktop of the client computer, double-click
My Network Places
.
2
Locate the host name of the server computer, and then double-click the host name.
3

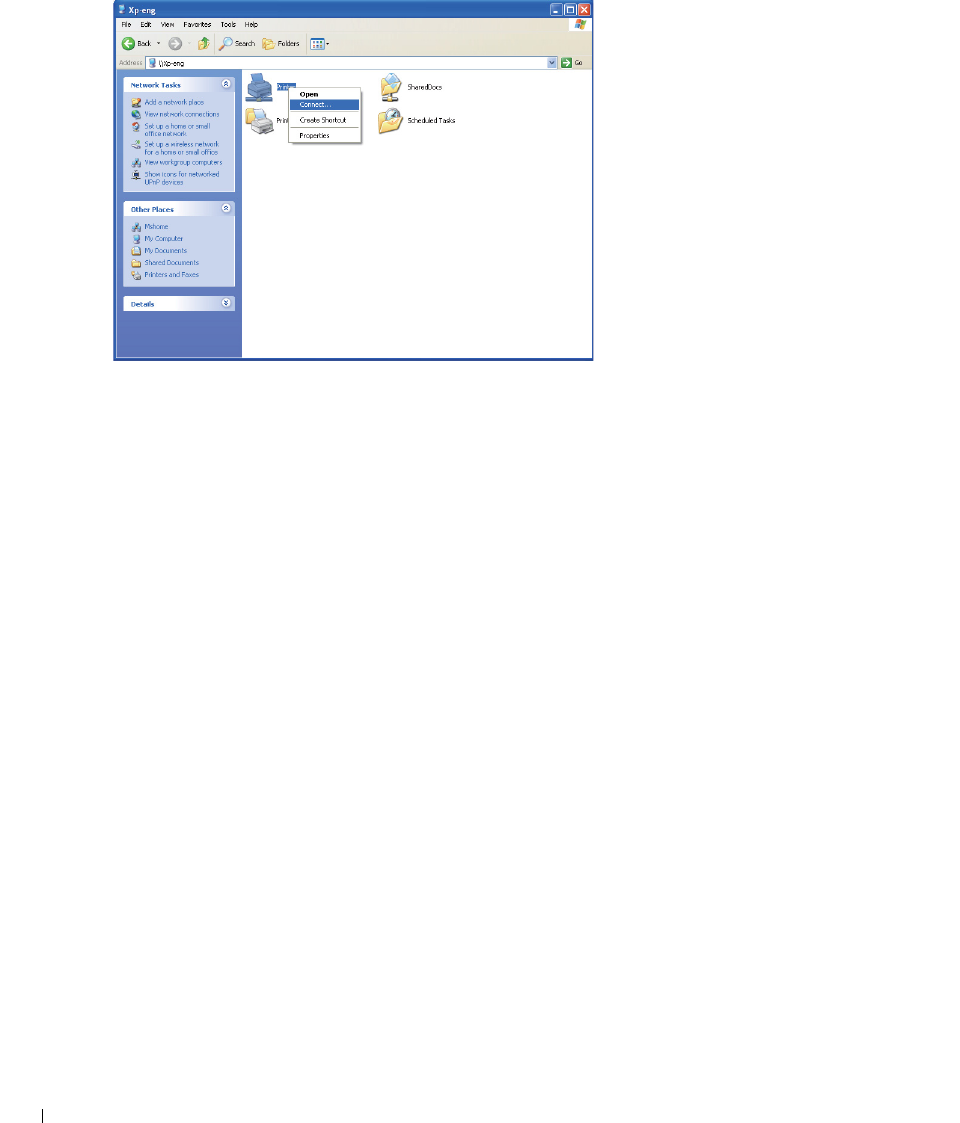

Right-click the shared printer name, and then click
Connect
.
Wait for the driver information to be copied from the server computer to the client computer, and for a new printer
object to be added to the
Printers and Faxes
folder. The time taken to copy varies based on the network traffic.
Close
My Network Places
.
4
Print a test page to verify installation.
a
Click
start
(
Start
for Windows Server 2003 / Windows Server 2003 x64 Edition)
→
Settings
(for Windows XP
/ Windows XP 64-bit Edition)
→
Printers and Faxes
.
b
Select the printer you have installed.
c
Click
File
→
Properties
.
d
On the
General
tab, click
Print Test Page
.
When a test page is printed successfully, installation is complete.
For Windows Vista, Windows Vista 64-bit Edition
1
Click
Start
→
Network
.
2
Locate and double-click the host name of the server computer.
3
Right-click the shared printer name, and then click
Connect
.
4
Click
Install driver
.
5
Click
Continue
in
User Account Control
dialog box.
Wait until the driver is copied from the server to the client computer. A new printer object is added to the Printers
folder. The duration of this procedure may vary based on the network traffic.
Installing Printer Drivers on Computers Running Windows®67
6
Print a test page to verify installation.
a
Click
Start
→
Control Panel
→
Hardware and Sound
.
b
Select
Printers
.
c
Right-click the printer you just created and select
Properties
.
d
On the
General
tab, click
Print Test Page
.
When a test page is printed successfully, installation is complete.
For Windows Server 2008, Windows Server 2008 64-bit Edition
1
Click
Start
→
Network
.
2
Locate the host name of the server computer, and then double-click the host name.
3
Right-click the shared printer name, and then click
Connect
.
4
Click
Install driver
.
5
Wait until the driver is copied from the server to the client computer. A new printer object will be added to the
Printers
folder. The time taken for these activities varies based on network traffic.
6
Print a test page to verify installation.
a
Click
Start
→
Control Panel
.
b
Select
Printers
.
c
Right-click the printer you just created and select
Properties
.
d
On the
General
tab, click
Print Test Page
.
When a test page is printed successfully, installation is complete.
For Windows 7, Windows 7 64-bit Edition, Windows Server 2008 R2
1
Click
Start
→
your user name
→
Network
(
Start
→
Network
for Windows Server 2008 R2)..
2
Locate the host name of the server computer, and then double-click the host name.
3
Right-click the shared printer name, and then click
Connect
.
4
Click
Install driver
.
5
Wait until the driver is copied from the server to the client computer. A new printer object will be added to the
Printers folder. The time taken for these activities varies based on network traffic.
6
Print a test page to verify installation.
a
Click
Start
→
Devices and Printers
.
b
Right-click the printer you just created and select
Printer properties
.
c
On the
General
tab, click
Print Test Page
.
When a test page is printed successfully, installation is complete.
For Windows 8, Windows 8 64-bit Edition, Windows Server 2012
1
Point to the bottom right corner of the screen, and then click
Search
→
Ty p e
Network
in the search box, click
Apps
, and then click
Network
.
2
Locate the host name of the server computer, and then double-click the host name.
3
Right-click the shared printer name, and then click
Connect
.
4
Click
Install driver
.
5
Wait until the driver is copied from the server to the client computer. A new printer object will be added to the
Printers
folder. The time taken for these activities varies based on network traffic.
68 Installing Printer Drivers on Computers Running Windows®
6
Print a test page to verify installation.
a
Right-click the bottom left corner of the screen, and then click
Control Panel
→
Hardware and Sound
(
Hardware
for Windows Server 2012)
→
Devices and Printers
.
b
Right-click the printer you just created and select
Printer properties
.
c
On the
General
tab, click
Print Test Page
.
When a test page is printed successfully, installation is complete.
Peer-to-Peer
If you use the peer-to-peer method, the printer driver is installed on each client computer. The client computers can
modify the drivers and handle the print jobs.
For Windows XP, Windows XP 64-bit Edition, Windows Server 2003, Windows Server 2003 x64 Edition
1
Click
start
(
Start
for Windows Server 2003 / Windows Server 2003 x64 Edition)
→
Settings
(for Windows XP /
Windows XP 64-bit Edition)
Printers and Faxes
.
2
Click
Add a Printer
to launch the
Add Printer
wizard.
3
Click
Next
.
4
Select
A network printer, or a printer attached to another computer
, and then click
Next
. If the printer is not
listed, type in the path of the printer in the text box.
The server host name is the name of the server computer that identifies it to the network. The shared printer name
is the name assigned during the server installation process.
5
Click
Browse for a printer
, and then click
Next
.
If this is a new printer, you may be prompted to install a printer driver. If no system driver is available, specify the
location where the driver is available.
6
Select
Yes
if you want this printer to be set as the default printer, and then click
Next
.
If you want to verify installation, click
Yes
to print a test page.
7
Click
Finish
.
When a test page prints successfully, installation is complete.
For Windows Vista, Windows Vista 64-bit Edition
1
Click
Start
→
Control Panel
→
Hardware and Sound
→
Printers
.
2
Click
Add a Printer
to launch the
Add Printer wizard
.
For example:\\<server host name>\<shared printer name>
Installing Printer Drivers on Computers Running Windows®69
3
Select
Add a network, wireless or Bluetooth printer
, and then click
Next
. If the printer is listed, select the printer
and click
Next
, or select
The printer that I want isn't listed
and type in the path of the printer in the
Select a
shared printer by name
text box and click
Next
.
The server host name is the name of the server computer that identifies it on the network. The shared printer
name is the name assigned during the server installation process.
4
If this is a new printer, you may be prompted to install a printer driver. If no system driver is available, specify the
location where the driver is available.
5
Select
Yes
if you want this printer to be set as the default printer, and then click
Next
.
6
If you want to verify installation, click
Print a test page
.
7
Click
Finish
.
When a test page is printed successfully, installation is complete.
For Windows Server 2008, Windows Server 2008 64-bit Edition
1
Click
Start
→
Control Panel
→
Printers
.
2
Click
Add a Printer
to launch the
Add Printer
wizard.
3
Select
Add a network, wireless or Bluetooth printer
, and then click
Next
. If the printer is listed, select the printer
and click
Next
, or select
The printer that I want isn't listed
and type in the path of the printer in the
Select a
shared printer by name
text box and click
Next
.
For example:
\\<server host name>\<shared printer name>
The server host name is the name of the server computer that identifies it on the network. The shared printer
name is the name assigned during the server installation process.
4
If this is a new printer, you may be prompted to install a printer driver. If no system driver is available, specify the
location where the driver is available.
5
Select
Yes
if you want this printer to be set as the default printer, and then click
Next
.
6
If you want to verify installation, click
Print a test page
.
7
Click
Finish
.
When a test page is printed successfully, installation is complete.
For Windows 7, Windows 7 64-bit Edition, Windows Server 2008 R2
1
Click
Start
→
Devices and Printers
.
2
Click
Add a Printer
to launch the
Add Printer
wizard.
For example:\\<server host name>\<shared printer name>
70 Installing Printer Drivers on Computers Running Windows®
3
Select
Add a network, wireless or Bluetooth printer
. If the printer is listed, select the printer and click
Next
, or
select
The printer that I want isn't listed
. Click
Select a shared printer by name
and type in the path of the printer
in the text box, and then click
Next
.
For example:
\\<server host name>\<shared printer name>
The server host name is the name of the server computer that identifies it to the network. The shared printer name
is the name assigned during the server installation process.
4
If this is a new printer, you may be prompted to install a printer driver. If no system driver is available, you need to
specify the path to the available drivers.
5
Confirm the printer name, and then click
Next
.
6
Select
Yes
if you want this printer to be set as the default printer, and then click
Next
.
7
If you want to verify installation, click
Print a test page
.
8
Click
Finish
.
When a test page is printed successfully, installation is complete.
For Windows 8, Windows 8 64-bit Edition, Windows Server 2012
1
Right-click the bottom left corner of the screen, and then click
Control Panel
→
Hardware and Sound
(
Hardware
for Windows Server 2012)
→
Devices and Printers
.
2
Click
Add a Printer
to launch the
Add Printer
wizard.
3
Select
Add a network, wireless or Bluetooth printer
. If the printer is listed, select the printer and click
Next
, or
select
The printer that I want isn't listed
. Click
Select a shared printer by name
and type in the path of the printer
in the text box, and then click
Next
.
For example:
\\<server host name>\<shared printer name>
The server host name is the name of the server computer that identifies it to the network. The shared printer name
is the name assigned during the server installation process.
4
If this is a new printer, you may be prompted to install a printer driver. If no system driver is available, you need to
specify the path to the available drivers.
5
Confirm the printer name, and then click
Next
.
6
Select
Yes
if you want this printer to be set as the default printer, and then click
Next
.
7
If you want to verify installation, click
Print a test page
.
8
Click
Finish
.
When a test page is printed successfully, installation is complete.
Installing Printer Drivers on Computers Running Macintosh 71
10
Installing Printer Drivers on Computers Running
Macintosh
Installing the Drivers and Software
1
Run the
Software and Documentation
disc on the Macintosh computer.
2
Double-click the
Dell C1760/C1660 Installer
icon, and then click
Continue
.
3
Click
Continue
on the
Introduction
screen.
4
Click
Continue
on the
Important Information
screen.
5
Select a language for the Software License Agreement.
6
After reading the Software License Agreement, click
Continue
.
7
If you agree to the terms of the Software License Agreement, click
Agree
to continue the installation process.
8
Confirm the installation location, and then click
Continue
.
9
Click
Install
to perform the standard installation.
10
Type the administrator's name and password, and then click
Install Software
.
11
Click
Close
to complete installation.
Adding a Printer on Mac OS X 10.5 or Later Version(s)
When Using a USB connection
1
Turn on the printer.
2
Connect the USB cable between the printer and Macintosh computer.
3
Open the
System Preferences
, and click
Print & Fax
(
Print & Scan
for Mac OS X 10.7).
4
Click the Plus (+) sign, and click
Default
.
5
Select the printer connected via USB from the
Printer Name
list.
Name
and
Print Using
are automatically entered.
6
Click
Add
.
When Using Bonjour
1
Turn on the printer.
2
Ensure that your Macintosh computer is connected to the network.
If you use wired connection, connect the Ethernet cable between the printer and the network.
If you use wireless connection, ensure that wireless connection is configured properly on your Macintosh computer
and printer.
3
Open the
System Preferences
, and click
Print & Fax
(
Print & Scan
for Mac OS X 10.7).
4
Click the Plus (+) sign, and click
Default
(Click the Plus (+) sign, and select the printer from
Nearby Printers
. If
there are no printers in
Nearby Printers
, select
Add Other Printer or Scanner
for Mac OS X 10.7).
5
Select the printer connected via Bonjour from the
Printer Name
list.
Name
and
Print Using
are automatically entered.
6
Click
Add
.
72 Installing Printer Drivers on Computers Running Macintosh
When Using IP Printing
1
Turn on the printer.
2
Ensure that your Macintosh computer is connected to the network.
If you use wired connection, connect the Ethernet cable between the printer and the network.
If you use wireless connection, ensure that wireless connection is configured properly on your Macintosh computer
and printer.
3
Open the
System Preferences
, and click
Print & Fax
(
Print & Scan
for Mac OS X 10.7).
4
Click the Plus (+) sign, and click
IP
.
5
Select
Line Printer Daemon - LPD
for
Protocol
.
6
Type the IP address for the printer in the
Address
area.
7
Select the model of your printer for
Print Using
.
NOTE: When the printing is set up using IP printing, the queue name is displayed as blank. You do not need to specify it.
8
Click
Add
.
Adding a Printer on Mac OS X 10.4.11
When Using a USB Connection
1
Turn on the printer.
2
Connect the USB cable between the printer and Macintosh computer.
3
Start
Printer Setup Utility
.
NOTE: You can find Printer Setup Utility in the Utilities folder in Applications.
4
Click
Add
.
5
Click
Default Browser
in the
Printer Browser
dialog box.
6
Select the printer connected via USB from the
Printer Name
list.
Name
and
Print Using
are automatically entered.
7
Click
Add
.
When Using Bonjour
1
Turn on the printer.
2
Ensure that your Macintosh computer is connected to the network.
If you use wired connection, connect the Ethernet cable between the printer and the network.
If you use wireless connection, ensure that wireless connection is configured properly on your Macintosh computer
and printer.
3
Start the
Printer Setup Utility
.
NOTE: You can find Printer Setup Utility in the Utilities folder in Applications.
4
Click
Add
.
5
Click
Default Browser
in the
Printer Browser
dialog box.
6
Select the printer connected via Bonjour from the
Printer Name
list.
Name
and
Print Using
are automatically entered.
7
Click
Add
.
Installing Printer Drivers on Computers Running Macintosh 73
When Using IP Printing
1
Turn on the printer.
2
Ensure that your Macintosh computer is connected to the network.
If you use wired connection, connect the Ethernet cable between the printer and the network.
If you use wireless connection, ensure that wireless connection is configured properly on your Macintosh computer
and printer.
3
Start
Printer Setup Utility
.
NOTE: You can find Printer Setup Utility in the Utilities folder in Applications.
4
Click
Add
.
5
Click
IP Printer
in the
Printer Browser
dialog box.
6
Select
Line Printer Daemon - LPD
for
Protocol
.
7
Type the IP address for the printer in the
Address
area.
8
Select the model of your printer for
Print Using
.
NOTE: When the printing is set up using IP printing, the queue name is displayed as blank. You do not need to specify it.
9
Click
Add
.
74 Installing Printer Drivers on Computers Running Macintosh
75
Using Your Printer
11 Operator Panel ............................................................................ 77
12 Dell™ Printer Configuration Web Tool..................................... 81
13 Understanding the Tool Box Menus....................................... 111
14 Understanding the Printer Menus.......................................... 125
15 Print Media Guidelines............................................................. 143
16 Loading Print Media ................................................................. 151
76
Operator Panel 77
11
Operator Panel
Using the Operator Panel Buttons
The operator panel has a liquid crystal display (LCD), seven buttons, and an indicator.
1
Ready/Error indicator
• Lights up green when the printer is ready or sleeping and blinks when data is being received.
• Lights up orange when an error occurs and blinks when an unrecoverable print error occurs.
2
LCD Panel
3
buttons
• Selects submenus or setting values in the Menu mode.
4
(Set) button
• Displays the selected menu or item and determines the selected value in the Menu mode.
5
(Cancel)
button
• Cancels the current print job.
• Switches to the Print mode from the top menu of the Menu mode.
• Switches to the upper hierarchy of the menu from the submenu of the Menu mode.
6
(Menu)
button
• Switches to the Menu mode from the Print mode.
• Switches to the Print mode from the Menu mode.
7
buttons
• Scrolls through menus or items in the Menu mode. To enter numbers or passwords, press these buttons.
8
(Wi-Fi | WPS)
button
• Starts Wi-Fi Protected Setup
®
(Push Button Configuration). Lights up when it is activated, and blinks in
certain conditions.
1
6
8
7
5
3
4
2
78 Operator Panel
Status of Wi-Fi | WPS Button Backlight
This section describes when the backlight of the (Wi-Fi | WPS) button lights up or blinks.
For more information, see "Wireless Problems" on page 224.
*1You can enable/disable the Wireless LAN settings. For more information, see "Wireless LAN" on page 127.
Wi-Fi | WPS Button
Backlight
Wireless LAN
settings*1 Printer Status Error Message
Off N/A Connected to the network via Ethernet
cable; Wi-Fi settings is not available when
an Ethernet cable is connected to the
printer.
-
Disable --
Enable The printer enters Sleep/Deep Sleep mode -
On Enable Wireless link established -
Blinking
normal
Enable Searching for wireless LAN access point or
router
-
Blinking
slowly
Enable Searching/Connecting with WPS access
point or router during wireless operation
-
Blinking
fast
Enable No wireless LAN access point or router
found within the specified time
Wireless Timeout Error
WPS Connection failure WirelessDownload Error
Wireless LAN access point or router found
but connection error occurs (Passphrase
error)
Wireless Password Error
Detected WPS signals from multiple access
points or routers during wireless operation
(session overlap)
Wireless Session Overlap
Error
WPS Connection failure; Security setting of
the wireless LAN access point or router is
WEP, which is unsupported on WPS.
Wireless WEP AP Connected
Error
Wrong WEP key entered during the wireless
setup
WEP Key Input Error
Operator Panel 79
Using the Operator Panel to Change Printer Settings
You can select menu items and corresponding values from the operator panel.
When you first enter the menus from the operator panel, you see an asterisk (*) next to a value in the menus. This
asterisk indicates the factory default menu setting. These settings are the original printer settings.
NOTE: Factory defaults may vary for different countries.
When you select a new setting from the operator panel, an asterisk appears next to the setting to identify it as the
current user default menu setting.
These settings are active until new ones are selected or the factory defaults are restored.
To select a new value as a setting:
1
Press the
(Menu)
button.
2
Press the or button until the desired menu appears, and then press the
(Set)
button.
3
Press the or button until the desired menu or menu item appears, and then press the
(Set)
button.
• If the selection is a menu, the menu is opened and the first system setting in the menu appears.
• If the selection is a menu item, the default menu setting for the menu item appears.
Each menu item has a list of values for the menu item. A value can be:
• A phrase or word to describe a setting
• A numerical value that can be changed
• An On or Off setting
• Press the or button at the same time. This will restore the factory default menu settings. Press
the
(Set)
button to return the settings to the factory default menu settings.
4
Press the or button to scroll until the desired value appears.
5
Press the
(Set)
button.
This enables the setting value, which is indicated by an asterisk (*) next to the setting value.
6
Press
the
(Cancel)
or button to return to the previous menu.
To continue setting other items, select the desired menu. To quit setting new values, press the
(Cancel)
button.
Driver settings may have precedence over changes previously made. In such case, change the defaults of the operator
panel.
Printing a Device Settings Page
The device settings page shows current settings for the printer menus. For details about how to print a panel settings
report, see "Understanding the Printer Menus" on page 125.
80 Operator Panel
Changing the Language
To display a different language on the operator panel:
The Operator Panel
1
Press the
(Menu)
button.
2
Press the button until
Panel Language
appears, and then press the
(Set)
button.
3
Press the button until the desired language appears, and then press the
(Set)
button.
The Tool Box
1
Click
Start
→
All Programs
→
Dell Printers
→
Dell C1660w Color Printer
or
Dell C1760nw Color Printer
→
Tool Box
.
NOTE: For details about starting the Tool Box, see "Starting the Tool Box" on page 111.
The
Tool Box
opens.
2
Click the
Printer Maintenance
tab.
3
Select
System Settings
from the list at the left side of the page.
The
System Settings
page is displayed.
4
Select the desired language from
Panel Language
, and then click
Apply New Settings
.
Setting the PowerSaver Time Option
You can set the powersaver time for the printer. The printer waits before it restores the default copy settings, if you
do not start copying after changing them on the operator panel.
1
Press the
(Menu)
button.
2
Press the button until
Admin Menu
appears, and then press the
(Set)
button.
3
Press the button until
System Settings
appears, and then press the
(Set)
button.
4
Ensure that
PowerSaver Time
appears, and then press the
(Set)
button.
5
Press the button to select
Sleep, Deep Sleep,
or
Auto-Off Timer
, and then press the
(Set)
button.
When you select
Sleep
or
Deep Sleep
, go to step 7.
When you select
Auto-Off Timer
, go to step 6.
6
Press the button to select
Off
or
On
, and then press the (Set) button.
If you select
Off
, go to step 8.
7
Press the or button or enter the desired value using the numeric keypad, and then press the
(Set)
button.
You can select from 5
–
30 minutes for
Sleep
, 1-6 minutes for
Deep Sleep
, or 60-1440 minutes for
Auto-Off Timer
.
8
Press the (Cancel) or button to return to the previous menu.
Dell™ Printer Configuration Web Tool 81
12
Dell™ Printer Configuration Web Tool
NOTE: The images used in this manual are those of the Dell C1760nw Color Printer unless otherwise mentioned.
Overview
NOTE: This web tool is available only when the printer is connected to a network.
One of the features of the Dell Printer Configuration Web Tool is the E-Mail Alert Setup, which sends an e-mail to
you or the key operator when the printer needs supplies or intervention.
To fill out printer inventory reports requiring the asset tag number of all the printers in your area, use the Printer
Information feature in the Dell Printer Configuration Web Tool. Enter the IP address of each printer on the
network to display the asset tag number.
The Dell Printer Configuration Web Tool feature also allows you to change the printer settings and keep track of
printing trends. If you are a network administrator, you can copy the printer settings to one or all printers on the
network using your web browser.
Setting Up the Dell Printer Configuration Web Tool
Ensure that you activate JavaScript in your browser before using the Dell Printer Configuration Web Tool.
It is recommended that you configure the environment settings of your web browser before using the Dell Printer
Configuration Web Tool.
NOTE: The Dell Printer Configuration Web Tool pages may be unreadable if the language differs from that of your web browser.
Setting Up From Web Browser
It is recommended that you configure both the environment settings of your web browser and the operator panel
before using the Dell Printer Configuration Web Tool.
82 Dell™ Printer Configuration Web Tool
For Internet Explorer®
Setting Up the Display Language
1
Select
Internet Options
from
Tools
on the menu bar.
2
Select
Languages
in the
General
tab.
3
Specify the display language in order of preference in the
Language
list.
For example:
• Italian (Italy) [it-IT]
• Spanish (Traditional Sort) [es-ES tradnl]
• German (Germany) [de-DE]
• French (France) [fr-FR]
• English (United States) [en-us]
• Danish [da-DK]
• Dutch (Netherlands) [nl-NL]
• Norwegian (Bokmal) [no]
•Swedish [sv-SE]
Setting the IP Address of the printer to Non-Proxy
1
Select
Internet Options
from the
Tools
menu.
2
Click
LAN Settings
under
Local Area Network (LAN) settings
in the
Connections
tab.
3
You can configure the LAN settings in one of the following ways:
•Clear the
Use a proxy server for your LAN
check box under
Proxy server
.
•Click
Advanced
, and then specify the IP address of your printer in the
Do not use proxy server for addresses
beginning with
field under
Exceptions
.
After setting the language and proxy, enter <http://nnn.nnn.nnn.nnn/> (the IP address of your printer) in
the URL entry field of the browser to activate the Dell Printer Configuration Web Tool.
For Firefox®
Setting Up the Display Language
1
Select
Options
from the
Tools
menu.
2
Click
Choose
in the
Content
tab.
3
Specify the display language in order of preference in the
Languages in order of preference
list.
For example:
•
English [en]
or
English/United States [en-us]
• Italian [it]
•Spanish [es]
• German [de]
•French [fr]
•Dutch [nl]
• Norwegian [no]
•Swedish [sv]
• Danish [da]
Dell™ Printer Configuration Web Tool 83
Setting the IP Address of the printer to Non-Proxy
1
Select
Options
from the
Tools
menu.
2
Click
Advanced
tab.
3
Click
Network
on the
Options
dialog box.
4
Click
Connection
→
Settings
.
5
You can configure the LAN settings in one of the following ways:
• Select the
No Proxy
check box, if you do not want to use a proxy.
• Select the
Auto-detect proxy settings for this network
check box.
• Select the
Manual proxy configuration:
check box, and then enter a hostname and a port number if you have
a list of one or more proxy servers. If you have an IP address that does not use a proxy, enter the IP address of
your printer in the
No Proxy for:
edit box.
• Select the
Automatic proxy configuration URL:
check box.
After setting the language and proxy, enter <http://nnn.nnn.nnn.nnn/> (the IP address of your printer) in
the URL entry field of the browser to activate the Dell Printer Configuration Web Tool.
Setting Up From Operator Panel
You can launch the Dell Printer Configuration Web Tool only when EWS is set to Enable (the factory default) on
the operator panel. Check the operator panel setting if you cannot launch the Dell Printer Configuration Web Tool.
For more information, see "Understanding the Printer Menus" on page 125.
Starting the Dell Printer Configuration Web Tool
To launch the Dell Printer Configuration Web Tool, enter the IP address of your printer in your web browser.
If you do not know the IP address of your printer, print the printer settings report or display the TCP/IP Settings
page, which lists the IP address. For details about how to find your printer's IP address, see "Verifying the IP Settings"
on page 41.
Overview of the Menu Items
Use the Dell Printer Configuration Web Tool for:
Printer Status
Use the Printer Status menu to get feedback on the printer status. When a toner cartridge is running low, click the
order supplies link on the first screen to order an additional toner cartridge.
Printer Jobs
Use the Printer Jobs menu to contain information on the Job List page and Completed Jobs page.
These pages show the details of the status regarding each protocol or job.
Printer Settings
Use the Printer Settings menu to change printer settings and view the settings in the operator panel remotely.
84 Dell™ Printer Configuration Web Tool
Print Server Settings
Use the Print Server Settings menu to change the type of printer interface and necessary conditions for
communications.
Copy Printer Settings
Use the Copy Printer Settings menu to copy the printer settings to another printer or printers on the network by
entering the IP address of each printer.
NOTE: You must log in as an administrator to use this feature.
Print Volume
Use the Print Volume option to check the number of pages printed for each paper size.
Printer Information
Use the Printer Information menu to display the information of your printer.
E-Mail Alert
Use the E-Mail Alert menu to receive an e-mail when the printer needs supplies or intervention. Enter your name or
the key operator name in the e-mail list box to be notified.
Set Password
Use the Set Password menu to lock the Dell Printer Configuration Web Tool with a password so that other users do
not inadvertently change the printer settings you selected.
NOTE: You must log in as an administrator to use this feature.
Online Help
Click Online Help to visit the Dell Support web site.
Order Supplies at:
www.dell.com/supplies
Contact Dell Support at:
support.dell.com
Dell™ Printer Configuration Web Tool 85
Page Display Format
The layout of the page is divided into three sections.
Top Frame
The top frame is located on the top of all pages. When the Dell Printer Configuration Web Tool is activated, the
current status and specifications of the printer are displayed in the top frame on every page.
The following items are displayed in the top frame.
1Dell C1760nw Color Printer Displays the printer model name.
2IP Address Displays the IP address of your printer.
3Location Displays the location of the printer. The location can be changed in the Basic
Information on the Print Server Settings page.
4Contact Person Displays the administrator name of the printer. The name can be changed in the Basic
Information on the Print Server Settings page.
5Event Panel Displays the condition of the printer. If an error occurs, the error code and message are
displayed. For example, 077-090:Paper jam. Open...
6Printer Bitmap Shows the bitmap image of the printer. The Printer Status menu appears in the right
frame when you click the image.
86 Dell™ Printer Configuration Web Tool
Left Frame
The left frame is located on the left side of all pages. The menu titles displayed in the left frame are linked to
corresponding menus and pages. You can go to the corresponding page by clicking their characters.
The following menus are displayed in the left frame.
1Printer Status Links to the Printer Status menu.
2Printer Jobs Links to the Printer Jobs menu.
3Printer Settings Links to the Printer Settings Report menu.
4Print Server Settings Links to the Print Server Reports menu.
5Copy Printer Settings Links to the Copy Printer Settings menu.
6Print Volume Links to the Print Volume menu.
7Printer Information Links to the Printer Status menu.
8E-Mail Alert Links to the Print Server Settings menu.
9Set Password Links to the Security menu.
10 Online Help Links to the Dell Support website.
11 Order Supplies at: Links to the Dell web page.
12 Contact Dell Support at: Links to the Dell support page web address: support.dell.com
Dell™ Printer Configuration Web Tool 87
Right Frame
The right frame is located on the right side of all pages. The contents of the right frame correspond to the menu that
you select in the left frame. For details on the items displayed in the right frame, see "Details of the Menu Items" on
page 88.
Buttons in the Right Frame
1Refresh button Receives the current printer configuration and updates the latest information in the right
frame.
2Apply New Settings button Submits new settings made on the Dell Printer Configuration Web Tool to the printer.
The new settings replace the old settings of the printer.
3Restore Settings button Restores the old settings. New settings will not be submitted to the printer.
88 Dell™ Printer Configuration Web Tool
Changing the Settings of the Menu Items
Some menus allow you to change the printer settings access through the Dell Printer Configuration Web Tool.
When you access these menus, the authentication window appears on the screen. Enter a user name and password of
the administrator by following the prompts displayed in the dialog box.
The default user name is admin, and the default password is left blank (NULL). You can change only the password in
the Set Password page in the Security menu. For more information, see "Set Password" on page 109.
Details of the Menu Items
"Printer Status" "Printer Status"
"Printer Events"
"Printer Information"
"Printer Jobs" "Job List"
"Completed Jobs"
"Printer Settings" "Printer Settings Report" "Menu Settings"
"Reports"
"Printer Settings" "System Settings"
"USB Settings"
"Secure Settings"
"Printer Maintenance" "Paper Density"
"Adjust BTR"
"Adjust Fusing Unit"
"Auto Registration Adjustment"
"Color Registration Adjustments"
"Clean Developer"
"BTR Refresh"
"Maintenance Chart"
"Reset Defaults"
"Non-Dell Toner"
"Adjust Altitude"
"Web Link Customization"
Dell™ Printer Configuration Web Tool 89
Printer Status
Use the Printer Status menu to check the status of consumables, hardware, and specifications of the printer.
The following pages are displayed in the Printer Status menu.
Printer Status
Purpose:
To check the status of the consumables and trays.
Val u e s:
"Print Server Settings" "Print Server Reports" "Print Server Setup Page"
"E-Mail Alert Setup Page"
"Print Server Settings" "Basic Information"
"Port Settings"
"TCP/IP"
"E-Mail Alert"
"Bonjour (mDNS)"
"SNMP"
"Wireless LAN"*1
"Reset Print Server"
"Security" "Set Password"
"IP Filter (IPv4)"
"Copy Printer Settings" "Copy Printer Settings"
"Copy Printer Settings Report"
"Print Volume" "Print Volume"
*1This item is available only when the printer is connected with a wireless network.
Cyan Cartridge Level
Magenta Cartridge Level
Yellow Cartridge L evel
Black Cartridge Level
Displays the percentage of toner remaining in each toner cartridge.
When a cartridge is empty, a message appears. The text
Call or
Order
is linked to the Dell Printer Supplies website.
Paper Trays Status OK Indicates that there is some paper in the tray but the quantity is
unknown.
Add Paper Indicates that there is no paper in the tray.
Capacity Displays the maximum capacity of the output tray.
Size Displays the size of paper in the tray.
Output Tray Status OK Indicates that the tray is available.
Capacity Displays the maximum capacity of the output tray.
Cover Status Closed Indicates that the cover is closed.
Open Indicates that the cover is open.
Printer Type Displays the type of the printer. Color Laser is displayed normally.
Printing Speed Displays the printing speed.
90 Dell™ Printer Configuration Web Tool
Printer Events
Purpose:
When faults such as
Out of Paper
or
Rear Cover is Open
occur, the details of all alerts or indications of faults are
displayed in the Printer Events page.
Val u e s:
Printer Information
Purpose:
To display the system information of the printer. This page can also be displayed by clicking Printer Information in
the left frame.
Val u e s:
Printer Jobs
The Printer Jobs menu contains information on the Job List and Completed Jobs pages. These pages show the
details of the status regarding each protocol or the print jobs.
Job List
Purpose:
To confirm the print jobs that are being processed. Click Refresh to update the screen.
Val u e s:
Location Displays the location where the error occurred.
Details Displays the details of the error.
Dell Service Tag Number Displays Dell's service tag number.
Express Service Code Displays the express service code of the printer.
Asset Tag Number Displays the asset tag number of the printer.
Printer Serial Number Displays the serial number of the printer.
Memory Capacity Displays the memory capacity.
Processor Speed Displays the processing speed.
Printer Revision Levels Firmware Version Displays the version of the controller.
Network Firmware Version Displays the NIC version.
ID Displays the job ID.
Job Name
Displays the file name of the job being printed
.
Owner Displays the name of the job owner.
Host Name Displays the name of the host computer.
Job Status Displays the status of the job being printed.
Host I/F Displays the status of the host interface.
Job Submitted Time Displays the date when the print job was submitted.
Dell™ Printer Configuration Web Tool 91
Completed Jobs
Purpose:
To check the completed jobs. Up to 10 latest print jobs are displayed. Click Refresh to update the screen.
Val u e s:
Printer Settings
Use the Printer Settings menu to display the Printer Settings Report and to configure the printer settings.
The following tabbed pages are displayed at the top of the right frame.
Printer Settings Report
The Printer Settings Report tab contains the Menu Settings and Reports pages.
Menu Settings
Purpose:
To display the current settings of your printer.
Val u e s:
ID Displays the job ID.
Job Name Displays the file name of the job.
Owner Displays the name of the job owner.
Host Name Displays the name of the host computer.
Output Result Displays the status of the job.
Impression Number Displays the total number of pages used by the print job.
No. of Sheets Displays the total number of sheets used by the print job.
Host I/F Displays the status of the host interface.
Job Submitted Time Displays the date when the job was submitted.
System Settings Power Saver Time - Sleep Displays the time taken by the printer before it enters Sleep mode
after it finishes a job.
Power Saver Time - Deep
Sleep
Displays the time taken by the printer before it enters Deep Sleep
mode after it goes into Sleep mode.
Power Saver Time - Auto-Off
Timer*1 Displays the time taken by the printer to be turned off after it has
entered Deep Sleep mode.
Fault Time-Out Displays the time taken by the printer before it cancels jobs that
stop abnormally.
Job Time-Out Displays the amount of time that the printer waits for data to arrive
from the computer.
mm/inch Displays the measurement unit used after the numeric value on the
operator panel.
Default Paper Size Displays the default paper size.
Disable printing with larger
paper size
Displays whether to disable printing if the paper size set in the
printer driver and the paper size set in the tray of the printer does
not match (the paper set in the tray is larger).
92 Dell™ Printer Configuration Web Tool
Auto Log Print Displays whether to automatically print a job history report after
every 10 jobs.
Low Toner Alert Msg Displays whether to show the alert message when the toner is low.
Panel Language Displays the language used on the operator panel.
USB Settings USB Port Displays whether the USB interface is enabled.
Secure Settings Panel Lock Set Displays whether to limit access to the menus with a password.
Login Error - Attempts Displays the maximum number that the administrator fails to log
in.
Software Download Displays whether to enable download of software updates.
Paper Density Plain Displays the paper density of plain paper.
Label Displays the paper density of labels.
Adjust BTR Plain Displays the voltage setting of the transfer roller for plain paper.
Plain Thick Displays the voltage setting of the transfer roller for thick plain
paper.
Covers Displays the voltage setting of the transfer roller for cover paper.
Label Displays the voltage setting of the transfer roller for labels.
Coated Displays the voltage setting of the transfer roller for coated paper.
Envelope Displays the voltage setting of the transfer roller for envelopes.
Recycled Displays the voltage setting of the transfer roller for recycled paper.
Adjust Fusing Unit Plain Displays the temperature setting of the fusing unit for plain paper.
Plain Thick Displays the temperature setting of the fusing unit for thick plain
paper.
Covers Displays the temperature setting of the fusing unit for cover paper.
Label Displays the temperature setting of the fusing unit for labels.
Coated Displays the temperature setting of the fusing unit for coated
paper.
Envelope Displays the temperature setting of the fusing unit for envelopes.
Recycled Displays the temperature setting of the fusing unit for recycled
paper.
Auto Registration Adjustment Displays whether to automatically adjust color registration.
Adjust Altitude Displays the altitude of the location where the printer is installed.
BTR Refresh Displays whether to execute counter measures for
curling/separating discharge of the paper.
Non-Dell Toner Displays whether to use toner cartridge of another manufacturer.
Web Link Customization Select Reorder URL Displays a link used for ordering consumables, which can be
accessed from Order Supplies at: in the left frame.
Regular Displays the regular web address
(http://accessories.us.dell.com/sna) that can be linked to Order
Supplies at:
Premier Displays the premier web address (http://premier.dell.com) that
can be linked to Order Supplies at:
*1 Auto-Off Timer feature is available only in certain regions.
Dell™ Printer Configuration Web Tool 93
Reports
Purpose:
To print the settings and history information of your printer.
Val u e s:
Printer Settings
The Printer Settings tab contains the System Settings, USB Settings, and Secure Settings pages.
System Settings
Purpose:
To configure the basic printer settings.
Val u e s:
Printer Settings Click Start to print the printer settings page.
Device Settings Click Start to print the device settings page.
Job History Click Start to print the Job History report.
Error History Click Start to print the Error History report.
Color Test Page Click Start to print the Color Test Page.
Power Saver Time - Sleep*1 Specifies the time taken by the printer before it enters Sleep mode after it finishes a job.
Power Saver Time - Deep
Sleep
Specifies the time taken by the printer before it enters Deep Sleep mode after it goes into Sleep
mode.
Power Saver Time - Auto-Off
Timer*2 Specifies the time it takes to automatically turn off the printer after it has entered Deep Sleep
mode.
Fault Time-Out Specifies the time taken by the printer before it cancels jobs that stop abnormally. The print job is
cancelled if it times out.
Job Time-Out Specifies the amount of time that the printer waits for data to arrive from the computer. The print
job is cancelled if it times out.
mm / inch*3 Specifies the measurement unit displayed after the numeric value on the operator panel.
Default Paper Size Specifies the default paper size.
Disable printing with larger
paper size*4 Specifies whether to print jobs if the paper set in the tray of the printer is larger than the paper
size set in the printer driver (the paper size does not have to match).
Auto Log Print Specifies if a job history needs to be printed after every 10 jobs.
Low Toner Alert Msg Alerts you if the toner is low.
Panel Language Used to set the language on the operator panel.
*1 Enter 5 in Sleep to put the printer in the Sleep mode five minutes after it finishes a job. This uses less energy, but requires more
warm-up time for the printer. Enter 5 if your printer shares an electrical circuit with room lighting and you notice lights flickering.
Select a high value if your printer is in constant use. In most circumstances, this keeps the printer ready to operate with minimum
warm-up time. Select a value between 5 and 30 minutes for the Sleep mode if you want a balance between energy consumption and a
shorter warm-up period.
The printer automatically returns to the standby mode from the Sleep mode when it receives data from the computer. You can also
return the printer to the standby mode by pressing any button on the operator panel.
*2 Auto-Off Timer feature is available only in certain regions.
*3 The default for mm/inch and Default Paper Size vary depending on country-specific factory default.
*4 Disable printing with larger paper size is available only in the Dell Printer Configuration Web Tool and the Tool Box.
94 Dell™ Printer Configuration Web Tool
USB Settings
Purpose:
To change the USB settings on your printer.
Val u e s:
Secure Settings
Panel Lock
Purpose:
To restrict access to Admin Menu and Report/List with a password, and to set or change the password.
NOTE: This menu sets a password to lock the operator panel. When you change the password for the Dell Printer Configuration
Web Tool, click Set Password on the left frame and set the password.
Val u e s:
Login Error
Purpose:
To set the maximum number of failed login attempts before an administrator is denied access to Admin Menu and
Report/List.
NOTE: This item is available only when Panel Lock Set is set to Enable.
Software Download
Purpose:
To set whether to enable download of software updates.
Printer Maintenance
The Printer Maintenance tab contains the Paper Density, Adjust BTR, Adjust Fusing Unit, Auto Registration
Adjustment, Color Registration Adjustments, Clean Developer, BTR Refresh, Maintenance Chart, Reset Defaults,
Non-Dell Toner, Adjust Altitude, and Web Link Customization pages.
Paper Density
Purpose:
To specify the paper density.
Val u e s:
USB Port To enable the USB interface on your printer.
Panel Lock Set Restricts access to Admin Menu and Report/List with a password.
New Password Sets a password required to access Admin Menu and Report/List.
Re-enter Password Enter the new password again to confirm.
Plain Sets the paper density of plain paper.
Label Sets the paper density of labels.
Dell™ Printer Configuration Web Tool 95
Adjust BTR
Purpose:
To specify the optimum voltage settings for printing for the transfer roller (BTR). To decrease the voltage, set
negative values. To increase the voltage, set positive values.
The default settings may not give the best output on all paper types. If you see mottles on the print output, try to
increase the voltage. If you see white spots on the print output, try to decrease the voltage.
NOTE: The print quality changes depending on the values you select for this item.
Val u e s:
Adjust Fusing Unit
Purpose:
To specify the optimum temperature settings for printing for the fusing unit. To decrease the temperature, set
negative values. To increase the temperature, set positive values.
The default settings may not give the best output on all paper types. When the printed paper has curled, try to
decrease the temperature. When the toner does not fuse on the paper properly, try to increase the temperature.
NOTE: The print quality changes depending on the values you select for this item.
Val u e s:
Auto Registration Adjustment
Purpose:
To specify whether to automatically adjust color registration.
Plain Sets the reference voltage setting for the transfer roller for plain paper within the range of -3 to 3.
Plain Thick Sets the reference voltage setting for the transfer roller for thick plain paper within the range of
-3 to 3.
Covers Sets the reference voltage setting for the transfer roller for cover paper within the range of -3 to 3.
Label Sets the reference voltage setting for the transfer roller for labels within the range of -3 to 3.
Coated Sets the reference voltage setting for the transfer roller for coated paper within the range of -3 to 3.
Envelope Sets the reference voltage setting for the transfer roller for envelopes within the range of -3 to 3.
Recycled Sets the reference voltage setting for the transfer roller for recycled paper within the range of
-3 to 3.
Plain Sets the temperature settings for the fusing unit for plain paper within the range of -3 to 3.
Plain Thick Sets the temperature settings for the fusing unit for thick plain paper within the range of -3 to 3.
Covers Sets the temperature settings for the fusing unit for cover paper within the range of -3 to 3.
Label Sets the temperature settings for the fusing unit for labels within the range of -3 to 3.
Coated Sets the temperature settings for the fusing unit for coated paper within the range of -3 to 3.
Envelope Sets the temperature settings for the fusing unit for envelopes within the range of -3 to 3.
Recycled Sets the temperature settings for the fusing unit for recycled paper within the range of -3 to 3.
96 Dell™ Printer Configuration Web Tool
Color Registration Adjustments
Purpose:
To specify whether to manually adjust color registration.
Color registration adjustments need to be made during the initial setup of the printer or when the printer is moved
to a different location.
NOTE: The Color Registration Adjustments feature can be configured when Auto Registration Adjustment is set to Off.
Val u e s:
Clean Developer
Purpose:
To rotate the developer motor and stir the toner in the toner cartridge, to use up a toner cartridge when you need to
replace it before the end of its life, or to stir the toner in a new toner cartridge.
Val u e s:
BTR Refresh
Purpose:
To specify whether to automatically execute counter measures for curling/separating discharge of the paper.
Auto Correct Click Start to automatically correct color registration.
Color Regi Chart Click Start to print a color registration chart. The color registration chart prints a lattice pattern of
yellow, magenta, and cyan lines. On the chart, find the values on the right side that are next to the
line that is perfectly straight for each of the three colors. If the value for this line is 0, color
registration is not needed. If the value for this line is any value other than 0, specify the
adjustment values under Color Registration Adjustments.
Color Registration
Adjustments
Enter Number Specifies lateral (perpendicular to paper feed direction) and process
(paper feed direction) color adjustment values individually for Y
(Yellow), M (Magenta), C (Cyan), LY (Left Yellow), LM (Left
Magenta), LC (Left Cyan), RY (Right Yellow), RM (Right
Magenta), and RC (Right Cyan) within the range of -5 to +5.
Clean Developer Click Start to stir the toner in the toner cartridge.
Yellow Toner Refresh Click Start to clean the toner in the yellow toner cartridge.
Magenta Toner Refresh Click Start to clean the toner in the magenta toner cartridge.
Cyan Toner Refresh Click Start to clean the toner in the cyan toner cartridge.
Black Toner Refresh Click Start to clean the toner in the black toner cartridge.
Dell™ Printer Configuration Web Tool 97
Maintenance Chart
Purpose:
To print various charts that can be used for diagnosing your printer.
Val u e s:
Reset Defaults
Purpose:
To initialize NVM (non-volatile memory) for system parameters. After executing this function and rebooting the
printer, all the menu parameters, except the parameters for the network, are reset to their default values.
Val u e s:
Non-Dell Toner
Purpose:
To use toner cartridge of another manufacturer.
NOTE: Using non-Dell-brand toner cartridges may make some printer features unusable, reduce print quality and decrease the
reliability of your printer. Dell recommends only new Dell-brand toner cartridges for your printer. Dell does not provide warranty
coverage for problems caused by using accessories, parts, or components not supplied by Dell.
NOTE: Before you use toner cartridge of another manufacturer, be sure to restart the printer.
Adjust Altitude
Purpose:
To specify the altitude of the location where the printer is installed.
The discharge phenomenon for charging the photo conductor varies with barometric pressure. Adjustments are
performed by specifying the altitude of the location where the printer is being used.
NOTE: An incorrect altitude adjustment setting leads to poor printing quality, incorrect indication of remaining toner.
Ghost Click Start to print a chart to check for ghost printing.
4Colors Click Start to print bands of yellow, magenta, cyan, and black with varying density.
Alignment Click Start to print a chart, and then check for proper alignment of the print image on the paper.
Drum Refresh Click Start to print a chart to check the light fatigue of the drum cartridge.
Reset Defaults and restart
printer.
Click Start to initialize the system parameters.
98 Dell™ Printer Configuration Web Tool
Web Link Customization
Purpose:
To specify a link used for ordering consumables, which can be accessed from Order Supplies at: in the left frame.
Val u e s:
Print Server Settings
Use the Print Server Settings menu to set the type of printer interface and necessary conditions for
communications.
The following tabbed pages are displayed in the top of the right frame.
Print Server Reports
The Print Server Reports tab contains the Print Server Setup Page and E-Mail Alert Setup Page.
Print Server Setup Page
Purpose:
To verify the current settings of TCP/IP (Transmission Control Protocol/Internet Protocol) and printing ports. On
this page, you can only verify the settings of items. If you want to change the settings, go to the pages in the Print
Server Settings tab.
Val u e s:
Select Reorder URL Select Regular or Premier web address to be linked to Order Supplies at:
Regular Displays the regular web address (http://accessories.us.dell.com/sna) that can be linked to
Order Supplies at:
Premier Displays the premier web address (http://premier.dell.com) that can be linked to
Order Supplies at:
Ethernet*1Ethernet Settings Displays the current settings of Ethernet transmission rate and the
duplex settings.
Current Ethernet Settings Displays the current Ethernet settings.
MAC Address Displays the Media Access Control (MAC) address of the printer.
Wireless Settings*2Wireless LAN Displays whether to enable wireless connection.
SSID Displays the name that identifies the network.
Network Type Displays the network type from either the Ad-Hoc or Infrastructure
mode.
MAC Address Displays the MAC address of the wireless printer setting.
Link Channel Displays the channel number of the connection.
Link Quality Displays the quality of the connection.
Dell™ Printer Configuration Web Tool 99
TCP/IP Settings IP Mode Displays the IP mode.
Host Name Displays the host name.
IPv4*3 IP Address Mode Displays the IP address mode.
IP Address Displays the IP address.
Subnet Mask Displays the subnet mask.
Gateway Address Displays the gateway address.
IPv6*4 Enable Stateless Address Displays whether to enable the
stateless address.
Use Manual Address Displays whether to set the IP
address manually.
Manual Address*5 Displays the IP address.
Stateless Address 1-3*6 Displays the stateless addresses.
Link Local Address*6 Displays the link local address.
Manual Gateway Address*5 Displays the gateway address.
Auto Configure Gateway
Address*6 Displays the gateway address.
DNS IPv4*3 Get DNS Server Address
from DHCP
Displays if the printer receives the
DNS server address automatically
from the DHCP server.
Current DNS Server Address Displays the DNS server address.
IPv6*4 Get DNS Server Address
from DHCPv6-lite
Displays if the printer receives the
DNS server address automatically
from the DHCPv6-lite server.
Current DNS Server Address Displays the DNS server address.
Priority to IPv6 DNS Name
Resolution*7Displays whether to use the DNS
Name Resolution feature.
LPD Port Status Displays the port status.
Connection Time-Out Displays the connection time-out period.
Port9100 Port Status Displays the port status.
Port Number Displays the port number.
Connection Time-Out Displays the connection time-out period.
WSD Port Status Displays the WSD (Web Services on Devices) port status.
Port Number Displays the WSD port number.
Receive Time-Out Displays the receive time-out period.
Notification Time-Out Displays the notification time-out period.
Maximum Number of TTL Displays the maximum number of TTLs.
Maximum Number of
Notification
Displays the maximum number of notifications.
HTTP Port Status Displays the port status.
Port Number Displays the port number.
Simultaneous Connections Displays the number of connections received simultaneously by the
client.
Connection Time-Out Displays the connection time-out period.
100 Dell™ Printer Configuration Web Tool
E-Mail Alert Setup Page
Purpose:
To verify the current settings of SMTP/POP (Simple Mail Transfer Protocol/Post Office Protocol) used for the e-mail
feature and e-mail alert feature. In this page, you can only verify the settings of items. If you want to change the
settings, go to the pages in the Print Server Settings tab.
Val u e s:
Bonjour (mDNS) Port Status Displays the port status.
Host Name Displays the host name.
Printer Name Displays the printer name.
SNMP Port Status Displays the port status.
IP Filter (IPv4)*8Address Displays the list of IP addresses that are permitted or denied access
to the printer.
Address Mask Displays the list of subnet mask that are permitted or denied access
to the printer.
Active Mode Displays whether to be permitted or denied access to the printer.
*1 This item is available only when the printer is connected with a wired network.
*2 This item is available only when the printer is connected with a wireless network.
*3 This item is displayed when IPv4 or Dual Stack Mode is selected.
*4 This item is displayed when IPv6 or Dual Stack Mode is selected.
*5 This item is displayed only when Use Manual Address is Enable.
*6 This item is displayed only when an IP address has been assigned.
*7 This item is available only when using IPv6 dual mode.
*8 This item is only available for LPD or Port9100.
E-Mail Server Settings Port Status Displays the port status.
Primary SMTP Gateway Displays the primary SMTP gateway.
SMTP Port Number Displays the SMTP port number.
E-Mail Send Authentication Displays the authentication method for outgoing e-mail.
POP3 Server Address Displays the POP3 server address.
POP3 Port Number Displays the POP3 port number.
Reply Address Displays the reply e-mail address sent with each e-mail alert.
SMTP Server Connection Displays the status of the SMTP server connection.
Dell™ Printer Configuration Web Tool 101
Print Server Settings
The Print Server Settings tab contains the Basic Information, Port Settings, TCP/IP, E-Mail Alert, Bonjour
(mDNS), SNMP, Wireless LAN, and Reset Print Server pages.
Basic Information
Purpose:
To configure the basic information of the printer.
NOTE: The Auto Refresh feature is effective for the contents of the top frame, Printer Status page, Job List page, and Completed
Jobs page.
Val u e s:
E-Mail Alert Settings E-Mail List 1 Displays the acceptable e-mail addresses for the e-mail alert feature
specified in E-Mail List 1.
Select Alerts for List 1 Supplies Alerts Displays the e-mail alert receive
status for consumables.
Paper Handling Alerts Displays the e-mail alert receive
status for paper handling.
Service Call Displays the e-mail alert receive
status for service calls.
E-Mail List 2 Displays the acceptable e-mail addresses for the e-mail alert feature
specified in E-Mail List 2.
Select Alerts for List 2 Supplies Alerts Displays the e-mail alert receive
status for consumables.
Paper Handling Alerts Displays the e-mail alert receive
status for paper handling.
Service Call Displays the e-mail alert receive
status for service calls.
System Settings Printer Name Specifies the name of the printer using up to 31 alphanumeric
characters.
Location Specifies the location of the printer using up to 63 alphanumeric
characters.
Contact Person Specifies the contact name, number, and other information of the
administrator and service center using up to 63 alphanumeric
characters.
Administrator E-Mail
Address
Specifies the contact address of the administrator and service
center using up to 63 alphanumeric characters.
Asset Tag Number Enter the asset tag number for the printer.
EWS Settings Auto Refresh Automatically refreshes the contents of the status display pages.
Auto Refresh Interval Sets the time interval for refreshing the contents of the status
display pages automatically from 15 to 600 seconds.
102 Dell™ Printer Configuration Web Tool
Port Settings
Purpose:
To enable or disable printing connectors and management protocol features.
NOTE: The settings in the Port Settings page will be valid only when the printer is rebooted. When you change or configure the
settings, click Apply new settings to apply new settings.
Val u e s:
Ethernet*1Ethernet Settings Auto Detects Ethernet transmission rate
and the duplex settings
automatically.
10Base-T
Half-Duplex
Selects 10Base-T Half-Duplex as the
default value.
10Base-T
Full-Duplex
Selects 10Base-T Full-Duplex as the
default value.
100Base-TX Half-Duplex Selects 100Base-TX Half-Duplex as
the default value.
100Base-TX Full-Duplex Selects 100Base-TX Full-Duplex as
the default value.
Current Ethernet Settings Displays the current settings of Ethernet.
MAC Address Displays the MAC address of the printer.
Port Status LPD Specifies whether to enable LPD.
Port9100 Specifies whether to enable Port9100.
WSD Specifies whether to enable the WSD port.
Bonjour (mDNS) Specifies whether to enable the Bonjour (mDNS) feature.
E-Mail Alert Specifies whether to enable the E-Mail Alert feature.
SNMP Specifies whether to enable the SNMP.
*1This item is available only when the printer is connected with a wired network.
Dell™ Printer Configuration Web Tool 103
TCP/IP
Purpose:
To configure the IP address, subnet mask, and gateway address of the printer.
Val u e s:
TCP/IP Settings IP Mode Specifies the IP mode.
Host Name Specifies the host name.
IPv4 IP Address Mode Selects the IP address mode.
Manual IP Address Manually sets the IP address.
Manual Subnet Mask Manually sets the subnet mask.
Manual Gateway Address Manually sets the gateway address.
IPv6 Enable Stateless Address To enable the stateless address.
Use Manual Address To set the IP address manually.
Manual Address Manually sets the IP address. To
specify an IPv6 address, enter the
address. Followed by a slash (/) and
then "64". For details, consult your
system administrator.
Manual Gateway Address Manually sets the gateway address.
DNS DNS Domain Name Specifies the domain name of the domain name server. Up to 255
alphanumeric characters, periods, and hyphens can be used. If you
need to specify more than one domain name, separate them using a
comma or semicolon.
IPv4 Get DNS Server Address
from DHCP
Specifies if the printer receives the
DNS server address automatically
from the DHCP server.
Manual DNS Server Address Sets the DNS server address.
IPv6 Get DNS Server Address
from DHCPv6-lite
Specifies if the printer receives the
DNS server address automatically
from the DHCPv6-lite server.
Manual DNS Server Address Sets the DNS server address.
Priority to IPv6 DNS Name
Resolution
Specifies whether to enable the DNS
Name Resolution feature.
LPD Connection Time-Out Sets the connection time-out period from 1 to 1000 seconds.
IP Filter (IPv4) Click IP Filter (IPv4) to set the IP filter settings on the IP Filter
(IPv4) page.
Port9100 Port Number Sets the port number from 9000 to 9999.
Connection Time-Out Sets the connection time-out period between 1 and 1000 seconds.
IP Filter (IPv4) Click IP Filter (IPv4) to set the IP filter settings on the IP Filter
(IPv4) page.
104 Dell™ Printer Configuration Web Tool
E-Mail Alert
Purpose:
To configure settings for E-Mail Alert. This page can also be displayed by clicking E-Mail Alert in the left frame.
Val u e s:
WSD Port Number Sets the port number. This must be 80 or between 8000 and 9999.
Receive Time-Out Sets the receive time-out period from 1 to 65535 seconds.
Notification Time-Out Sets the notification time-out period from 1 to 60 seconds.
Maximum Number of TTL Sets the maximum number of TTL from 1 to 10.
Maximum Number of
Notification
Sets the maximum number of notifications from 10 to 20.
HTTP Port Number Sets the port number. This must be 80 or between 8000 and 9999.
Simultaneous Connections Displays the maximum number of connections received
simultaneously by the client.
Connection Time-Out Sets the connection time-out period from 1 to 255 seconds.
E-Mail Server Settings Primary SMTP Gateway Sets the primary SMTP gateway.
SMTP Port Number Specifies the SMTP port number. This must be 25, 587 or between
5000 and 65535.
E-Mail Send Authentication Specifies the authentication method for outgoing e-mail.
SMTP Login User Specifies the SMTP login user. Up to 63 alphanumeric characters,
periods, hyphens, underscores, and at symbols (@) can be used. If
specifying more than one address, separate them using commas.
SMTP Login Password Specifies the SMTP account password using up to 31 alphanumeric
characters.
Re-enter SMTP Login
Password
Enter the SMTP account password again to confirm.
POP3 Server Address*1Specifies the POP3 server address in IP address format of
"aaa.bbb.ccc.ddd" or as a DNS host name using up to 63 characters.
POP3 Port Number*1Specifies the POP3 server port number. This must be 110 or
between 5000 and 65535.
POP User Name*1Specifies the POP3 account user name. Up to 63 alphanumeric
characters, periods, hyphens, underscores, and at symbols (@) can
be used. If specifying more than one address, separate them using
commas.
POP User Password*1Specifies the POP3 account password using up to 31 alphanumeric
characters.
Re-enter POP User
Password*1Enter the POP3 account password again to confirm.
Reply Address Designates the reply e-mail address sent with each e-mail alert.
SMTP Server Connection Displays the status of the SMTP server connection.
Dell™ Printer Configuration Web Tool 105
Bonjour (mDNS)
Purpose:
To configure the detailed settings for Bonjour.
Val u e s:
SNMP
Purpose:
To configure the detailed settings of SNMP.
Val u e s:
E-Mail Alert Settings E-Mail List 1 Sets acceptable e-mail addresses for the e-mail alert feature using
up to 255 alphanumeric characters.
Select Alerts for List 1 Supplies Alerts Specifies whether to receive an e-mail
alert for consumables.
Paper Handling Alerts Specifies whether to receive an e-mail
alert for paper handling.
Service Call Specifies whether to receive an e-mail
alert for service calls.
E-Mail List 2 Sets acceptable e-mail addresses for the e-mail alert feature using
up to 255 alphanumeric characters.
Select Alerts for List 2 Supplies Alerts Specifies whether to receive an e-mail
alert for consumables.
Paper Handling Alerts Specifies whether to receive an e-mail
alert for paper handling.
Service Call Specifies whether to receive an e-mail
alert for service calls.
*1This item is available only when POP before SMTP for E-Mail Send Authentication is selected.
Host Name Specifies the host name up to 63 alphanumeric characters and "-" (dash). The original setting will
remain valid if nothing is entered.
Printer Name Specifies the printer name up to 63 alphanumeric characters and symbol sets.
Community Name Community Name (Read
only)*1 Specifies the community name to access (read only) data using up
to 31 alphanumeric characters.
The original setting will remain valid if nothing is entered.
Characters entered for community name in the previous settings
will not be displayed on the screen. The default Read Community
is public.
Re-enter Community Name
(Read only)*1 Enter the community name to access (read only) data again to
confirm.
Community Name
(Read/Write)*1 Specifies the community name to access (read and write) data
using up to 31 alphanumeric characters.
The original setting will remain valid if nothing is entered.
Characters entered for community name in the previous settings
will not be displayed on the screen. The default Read/Write
Community is private.
106 Dell™ Printer Configuration Web Tool
Re-enter Community Name
(Read/Write)*1 Enter the community name to access (read and write) data again to
confirm.
Community Name (Trap)*1 Specifies the community name used for trap up to 31
alphanumeric characters.
The original setting will remain valid if nothing is entered.
Characters entered for community name in the previous settings
will not be displayed on the screen. The default Trap Community is
" " (NULL).
Re-enter Community Name
(Trap)*1 Enter the community name used for trap again to confirm.
Trap Notification 1-4 Trap Address Type Select the trap address type from the list. Selecting Off clears the
settings in Trap Address, Port Number, and Notify, and does not
notify trap occurrence. Selecting IPv4 or IPv6 allows you to enter
Trap Address.
Trap Address Specifies the IP address and IP socket in the following format:
•IPv4
Specifies the IP address and IP socket in the
nnn.nnn.nnn.nnn:mmmmm format. Each section of "nnn" is a
variable value between 0 and 255. Note that values 127 and 224-
254 are not valid for the first three-digits only. The IP socket
mmmmm is a variable value between 0 and 65535.
•IPv6
Specifies the IP address and IP socket in the
xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:xxxx:mmmmm format. Each
section of "xxxx" is a hexadecimal variable value between 0 and
ffff. The IP socket mmmmm is a variable value between 0 and
65535.
Port Number Enter the SNMP trap destination port number.
Notify Specifies whether to notify trap occurrence.
Authenticate Error Trap Specifies whether to notify Authenticate Error Trap.
*1The default value can be changed by using Dell Printer Configuration Web Tool.
Dell™ Printer Configuration Web Tool 107
Wireless LAN
Purpose:
To con figure wireless network settings.
To connect the printer with a wireless network, be sure to disconnect the Ethernet cable.
NOTE: Once wireless LAN is activated, wired LAN protocol will be disabled.
Val u e s:
Wireless Settings Wireless LAN Specifies whether to enable wireless connection.
SSID Specifies the name that identifies the wireless network using up to
32 alphanumeric characters.
Network Type Specifies the network type from either Ad-Hoc or Infrastructure.
MAC Address Displays the MAC address of the wireless network setting of the
printer.
Link Channel Displays the channel number of the wireless connection of the
printer.
Link Quality Displays the quality of the wireless network connection of the
printer.
Security Settings Encryption Select the security method from the list.
No Security Specifies No Security to configure
the wireless setting without
specifying a security method from
WEP, WPA-PSK TKIP, WPA-PSK
AES/WPA2-PSK AES, and Mixed
Mode PSK.
WEP Specifies the WEP to use through
the wireless network.
WPA-PSK TKIP*1Specifies the WPA-PSK TKIP to use
through the wireless network.
WPA-PSK AES/WPA2-PSK
AES*1Specifies the WPA-PSK AES/WPA2-
PSK AES to use through the wireless
network.
Mixed Mode PSK Specifies the Mixed Mode PSK to
use through the wireless network
108 Dell™ Printer Configuration Web Tool
Reset Print Server
Purpose:
To initialize NVM (non-volatile memory) for the network feature and reboot the printer. You can also initialize NVM
of the printer from Reset Defaults in the Printer Settings menu.
Val u e s:
WEP Encryption Select the WEP key code from the list.
WEP Key 1 Enter the WEP key when WEP is selected from Encryption of
Security Settings.
Re-enter WEP Key 1 Enter the WEP key 1 again to confirm.
WEP Key 2 Enter the WEP key when WEP is selected from Encryption of
Security Settings.
Re-enter WEP Key 2 Enter the WEP key 2 again to confirm.
WEP Key 3 Enter the WEP key when WEP is selected from Encryption of
Security Settings.
Re-enter WEP Key 3 Enter the WEP key 3 again to confirm.
WEP Key 4 Enter the WEP key when WEP is selected from Encryption of
Security Settings.
Re-enter WEP Key 4 Enter the WEP key 4 again to confirm.
Transmit Key Specifies the transmit key type from the list.
WPA-PSK Pass Phrase Specifies the passphrase.
Re-enter Pass Phrase Enter the passphrase again to confirm.
*1This item is available only when the Infrastructure mode is selected for Network Type.
Initialize NIC NVRAM
Memory and restart printer.
Click Start to initialize NVM. Network settings will revert to the factory default settings and
reboot the network capability.
Restart Printer Click Start to reboot the printer.
Dell™ Printer Configuration Web Tool 109
Security
The Security tab contains the Set Password and IP Filter (IPv4) pages.
Set Password
Purpose:
To set or change the password that is required to access the setup parameters of the printer from the Dell Printer
Configuration Web Tool.
This page can also be displayed by clicking Set Password in the left frame.
NOTE: If you forgot your password, initialize NVM (non-volatile memory) to restore the password to the default (NULL). See
"Reset Print Server" on page 108.
NOTE: When you change the password to lock the operator panel, set the password from Panel Lock Set in the Printer Settings.
Val u e s:
IP Filter (IPv4)
Purpose:
To specify the IP address and subnet mask to be permitted or denied access to the printer.
NOTE: This item is only available for LPD or Port9100.
Val u e s:
Administrator Password Sets the password using up to 10 alphanumeric characters. The password will appear as asterisks
(*) in the field when it is entered.
Re-enter Administrator
Password
Enter the password again to confirm.
Access denial by the
authentication failure of the
Administrator
Sets the maximum number that the administrator fails to log in. If you set 0, this feature is
disabled. The failed attempts counter is reset to 0 by a successful authentication. Every
administrator authentication is rejected if the counter exceeds the maximum number of failed
login attempts.
Address Specifies the IP addresses that are permitted or denied access to the printer. Enter a numeric value
between 0 and 255 in each field.
Address Mask Specifies the subnet mask that are permitted or denied access to the printer. Enter a numeric
value between 0 and 255 in each field.
Active Mode Reject Rejects printing from specified network address.
Permit Permits printing from specified network address.
Disabled Disables the IP Filter feature for the specified IP address.
110 Dell™ Printer Configuration Web Tool
Copy Printer Settings
The Copy Printer Settings menu contains the Copy Printer Settings and Copy Printer Settings Report pages.
Copy Printer Settings
Purpose:
To copy the printer settings to one or more printers of the same model.
To copy the settings to another printer, specify the IP address and password of the printer to which the settings are
copied in the IP Address
text box and Password text box. Then, click Copy the settings to the Host in the above list.
Copying the settings is complete. The connection time-out period is 60 seconds. After that, you can check whether
the settings were copied to this page. And you need to click Copy settings to the Host in the above list and reboot
the machine of the Dell Printer Configuration Web Tool in the destination printer to verify if the settings were
actually copied or not.
If the settings can be copied but the printer configuration is different, the settings of only the common items are
copied. Printer settings can be copied to 10 IP addresses of printers simultaneously.
Copy Printer Settings Report
Purpose:
To verify the histories of copying.
NOTE: The history is cleared by turning off the printer.
Print Volume
Purpose:
Use the Print Volume menu to verify the number of printed pages.
Val u e s:
Printer Page Count Displays the total number of pages printed since the printer was shipped from the factory.
Paper Used
Displays the number of pages printed for each paper size.
Understanding the Tool Box Menus 111
13
Understanding the Tool Box Menus
The Tool Box allows you to view or specify the printer settings. You can also diagnose the printer settings by using
the Tool Box.
The Tool Box consists of the Printer Settings Report, Printer Maintenance, and Diagnosis tabs.
NOTE: The Password dialog box appears the first time you try to change settings on Tool Box when Panel Lock is set on the
printer. In this case, enter the password you specified, and click OK to apply the settings.
Starting the Tool Box
Click
Start
→
All Programs
→
Dell Printers
→
Dell C1760nw Color Printer
or
Dell C1660w Color Printer
→
Tool Box
.
NOTE: The Select Printer window appears in this step, when multiple printer drivers are installed on your computer. In this case,
click Dell C1760nw Color Printer or Dell C1660w Color Printer listed in Printer Name, and then click OK.
The Tool Box opens.
Using the Tool Box to Change the Printer Settings
You can select menu items and corresponding values from the Tool Box.
To select a new value as a setting:
1
Click
Start
→
All Programs
→
Dell Printers
→
Dell C1760nw Color Printer
or
Dell C1660w Color Printer
→
Tool Box
.
NOTE: The Select Printer window appears in this step, when multiple printer drivers are installed on your computer. In this
case, click Dell C1760nw Color Printer or Dell C1660w Color Printer listed in Printer Name, and then click OK.
The
Tool Box
opens.
2
Click the
Printer Maintenance
tab.
3
Select the desired menu item.
Each menu item has a list of values for the menu item. A value can be:
• A phrase or word to describe a setting
• A numerical value that can be changed
• An On or Off setting
4
Select the desired value, and then click the associated button with each menu item.
Driver settings may have precedence over changes previously made and may require you to change the
Tool Box
defaults.
112 Understanding the Tool Box Menus
Printer Settings Report
The Printer Settings Report tab contains the Printer Information, Menu Settings, Reports, and TCP/IP Settings
pages.
Printer Information
Purpose:
To display the information of your printer.
Val u e s:
Menu Settings
Purpose:
To display the current settings of your printer.
Val u e s:
Dell Service Tag Number Displays the service tag number of your printer.
Express Service Code Displays the express service code of the printer.
Printer Serial Number Displays the serial number of the printer.
Printer Type Displays the type of the printer.
Asset Tag Number Displays the asset tag number of the printer.
Memory Capacity Displays the memory capacity.
Processor Speed Displays the processing speed.
Firmware Version Displays the version of the controller.
Network Firmware Version Displays the Network Interface Card (NIC) version.
MCU Firmware Version Displays the version of the Machine Control Unit (MCU) firmware.
Printing Speed (Color) Displays the speed for color printing.
Printing Speed (Monochrome) Displays the speed for monochrome printing.
System Settings Power Saver Timer - Sleep Displays the time taken by the printer before it enters
Sleep mode after it finishes a job.
Power Saver Timer - Deep Sleep Displays the time taken by the printer before it enters
Deep Sleep mode after it goes into Sleep mode.
Power Saver Timer - Auto-Off Timer *1 Displays the time it takes to automatically turn off the
printer after the printer has entered the Deep Sleep mode.
Fault Time-Out Displays the time taken by the printer before it cancels
jobs that stop abnormally.
Job Time-Out Displays the amount of time that the printer waits for data
to arrive from the computer.
Auto Log Print Displays whether to automatically print a job history
report after every 10 jobs.
mm/inch Displays the measurement unit used after the numeric
value on the operator panel.
Panel Language Displays the language used on the operator panel.
Default Print Paper Size Displays the default paper size.
Understanding the Tool Box Menus 113
Low Toner Alert Message Displays whether to show the alert message when the
toner is low.
Disable printing with larger paper size Displays whether to disable printing if the paper size set in
the printer driver and the paper size set in the tray of the
printer does not match (the paper set in the tray is larger).
Paper Density Plain Displays the paper density of plain paper.
Label Displays the paper density of labels.
Adjust BTR Plain Displays the voltage setting of the transfer roller for plain
paper.
Plain Thick Displays the voltage setting of the transfer roller for thick
plain paper.
Recycled Displays the voltage setting of the transfer roller for
recycled paper.
Covers Displays the voltage setting of the transfer roller for cover
paper.
Coated Displays the voltage setting of the transfer roller for coated
paper.
Envelope Displays the voltage setting of the transfer roller for
envelopes.
Label Displays the voltage setting of the transfer roller for labels.
Adjust Fusing Unit Plain Displays the temperature setting of the fusing unit for
plain paper.
Plain Thick Displays the temperature setting of the fusing unit for
thick plain paper.
Recycled Displays the temperature setting of the fusing unit for
recycled paper.
Covers Displays the temperature setting of the fusing unit for
cover paper.
Coated Displays the temperature setting of the fusing unit for
coated paper.
Envelope Displays the temperature setting of the fusing unit for
envelopes.
Label Displays the temperature setting of the fusing unit for
labels.
Auto Registration
Adjustment
Displays whether to automatically adjust color registration.
Adjust Altitude Displays the altitude of the location where the printer is installed.
Non-Dell Toner Displays whether to use toner cartridge of another manufacturer.
BTR Refresh Mode Displays whether to execute counter measures for curling/separating discharge of the paper.
*1 Auto-Off Timer feature is available only in certain regions.
114 Understanding the Tool Box Menus
Reports
Purpose:
To print the settings and history information of your printer.
The reports are printed in the paper size specified in printer settings.
Val u e s:
TCP/IP Settings
Purpose:
To display the current settings of TCP/IP (Transmission Control Protocol/Internet Protocol) protocol.
Val u e s:
Printer Maintenance
The Printer Maintenance tab contains the System Settings, Paper Density, Adjust BTR, Adjust Fusing Unit, Color
Registration Adjustment, Adjust Altitude, Reset Defaults, Non-Dell Toner, BTR Refresh Mode, TCP/IP Settings,
and Network Settings pages.
System Settings
Purpose:
To configure the power saving mode, time-out time, job log auto print, mm/inch setting, operator panel language
setting, default paper size setting, and low toner alert message setting.
Val u e s:
Printer Settings Click to print a detailed list of the printer settings.
Device Settings Click to print a detailed list of the device settings.
Job History Click to print the completed jobs history.
Error History Click to print the error history.
Color Test Page Click to print a color test page.
IP Address Mode Displays the method for acquiring the IP address.
IP Address Displays the IP address of your printer.
Subnet Mask Displays the subnet mask.
Gateway Address Displays the gateway address.
Sleep*1Available Range:
5–30 minutes
Specifies the time taken by the printer before it enters Sleep mode after it
finishes a job.
Deep Sleep Available Range:
1–6 minutes
Specifies the time taken by the printer before it enters Deep Sleep mode
after it goes into Sleep mode.
Auto-Off Timer*2 0: Off Specifies the time taken by the printer before it automatically turns off
after it has entered Deep Sleep mode.
60–1440 minutes
Fault Time-Out 0: Off Disables the fault time-out.
Available Range:
3–300 seconds
Specifies the time taken by the printer before it cancels jobs that stop
abnormally. The print job is cancelled if it times out.
Understanding the Tool Box Menus 115
Job Time-Out 0: Off Disables the job time-out.
Available Range:
5–300 seconds
Specifies the amount of time that the printer waits for data to arrive from
the computer. The print job is cancelled if it times out.
Auto Log Print Off Does not automatically print a job history report.
On Automatically prints a job history report after every 10 jobs.
mm/inch millimeter (mm) Specifies the measurement unit displayed after the numeric value on the
operator panel.
inch (")
Panel Language English Specifies the language to be used on the operator panel.
French
German
Italian
Spanish
Danish
Dutch
Norwegian
Swedish
Default Print Paper Size A4 Specifies the default paper size.
Letter
Low Toner Alert
Message
On Shows the alert message when the toner is low.
Off Does not show the alert message.
Disable printing with
larger paper size*3 Off Prints even if the paper set in the tray of the printer is larger than the
paper size set in the printer driver (the paper size does not have to match).
On Disables printing if the paper size set in the printer driver differs from the
paper set in the tray of the printer (the paper set in the tray is larger).
Apply New Settings After you complete the settings, click Apply New Settings to apply the changes.
*1 Enter 5 in Sleep to put the printer in the Sleep mode five minutes after it finishes a job. This uses less energy, but requires more warm-
up time for the printer. Enter 5 if your printer shares an electrical circuit with room lighting and you notice lights flickering.
Select a high value if your printer is in constant use. In most circumstances, this keeps the printer ready to operate with minimum
warm-up time. Select a value between 5 and 30 minutes for the Sleep mode if you want a balance between energy consumption and a
shorter warm-up period.
The printer automatically returns to the standby mode from the Sleep mode when it receives data from the computer. You can also
return the printer to the standby mode by pressing any button on the operator panel.
*2 Auto-Off Timer feature is available only in certain regions.
*3 Disable printing with larger paper size is available only in the Dell Printer Configuration Web Tool and the Tool Box.
116 Understanding the Tool Box Menus
Paper Density
Purpose:
To specify the paper density.
Val u e s:
Adjust BTR
Purpose:
To specify the optimum voltage settings for printing for the transfer roller (BTR). To decrease the voltage, set
negative values. To increase, set positive values.
The default settings may not give the best output on all paper types. If you see mottles on the print output, try to
increase the voltage. If you see white spots on the print output, try to decrease the voltage.
NOTE: The print quality changes depending on the values you select for this item.
Val u e s:
Plain Normal Specifies the paper density of plain paper.
Light
Label Normal Specifies the paper density of labels.
Light
Apply New Settings After you complete the settings, click Apply New Settings to apply the
changes.
Restart printer to apply new settings Click Restart printer to apply new settings to apply the changes.
Plain Available Range:
-3 – +3
Plain Thick Available Range:
-3 – +3
Recycled Available Range:
-3 – +3
Covers Available Range:
-3 – +3
Coated Available Range:
-3 – +3
Envelope Available Range:
-3 – +3
Label Available Range:
-3 – +3
Apply New Settings After you complete the settings, click Apply New Settings to apply the changes.
Restart printer to apply new settings Click Restart printer to apply new settings to apply the changes.
Understanding the Tool Box Menus 117
Adjust Fusing Unit
Purpose:
To specify the optimum temperature settings for printing for the fusing unit. To decrease the temperature, set
negative values. To increase, set positive values.
The default settings may not give the best output on all paper types. When the printed paper has curled, try to
decrease the temperature. When the toner does not fuse on the paper properly, try to increase the temperature.
NOTE: The print quality changes depending on the values you select for this item.
Val u e s:
Color Registration Adjustment
Purpose:
To set Color Registration Adjustment (individual yellow, magenta, cyan correction) settings. When Auto
Registration Adjustment is set to On, the printer prints the color registration chart and adjusts the color registration
by using the chart. Color registration adjustments need to be made during the initial setup of the printer or when
the printer is moved to a different location.
Val u e s:
Plain Available Range:
-3 – +3
Plain Thick Available Range:
-3 – +3
Recycled Available Range:
-3 – +3
Covers Available Range:
-3 – +3
Coated Available Range:
-3 – +3
Envelope Available Range:
-3 – +3
Label Available Range:
-3 – +3
Apply New Settings After you complete the settings, click Apply New Settings to apply the changes.
Restart printer to apply new settings Click Restart printer to apply new settings to apply the changes.
Auto Registration
Adjustment
On Automatically adjusts color registration.
Off Does not automatically adjust color registration.
Auto Correct*1 Click Start to automatically correct color registration.
Print Color Regi Chart*1, *2 Click Start to open the Print Color Regi Chart window, and then select the
paper size and click OK to print a color registration chart.
118 Understanding the Tool Box Menus
Adjust Altitude
Purpose:
To specify the altitude of the location where the printer is installed.
The discharge phenomenon for charging the photo conductor varies with barometric pressure. Adjustments are
performed by specifying the altitude of the location where the printer is being used.
NOTE: An incorrect altitude adjustment setting leads to poor printing quality, incorrect indication of remaining toner.
Val u e s:
Registration
Adjustments*1 Y(Yellow) Available Range:
-5–+5
Specifies lateral (perpendicular to paper feed direction)
color adjustment values individually.
M(Magenta) Available Range:
-5–+5
C(Cyan) Available Range:
-5–+5
LY(Left Yellow) Available Range:
-5–+5
Specifies process (paper feed direction) color
adjustment values individually.
LM(Left Magenta) Available Range:
-5–+5
LC(Left Cyan) Available Range:
-5–+5
RY(Right Yellow) Available Range:
-5–+5
RM(Right Magenta) Available Range:
-5–+5
RC(Right Cyan) Available Range:
-5–+5
Apply New Settings After you complete the settings, click Apply New Settings to apply the
changes.
Restart printer to apply new settings Click Restart printer to apply new settings to apply the changes.
*1 This item is available only when Auto Registration Adjustment is set to Off.
*2 The color registration chart prints a lattice pattern of yellow, magenta, and cyan lines. On the chart, find the values on the right side that
are next to the line that is perfectly straight for each of the three colors. If the value for this line is 0, color registration is not needed. If
the value for this line is any value other than 0, specify the adjustment values under Registration Adjustments.
0 meter Specifies the altitude of the location where the printer is installed.
1000 meters
2000 meters
3000 meters
Apply New Settings After you complete the settings, click Apply New Settings to apply the changes.
Restart printer to apply new settings Click Restart printer to apply new settings to apply the changes.
Understanding the Tool Box Menus 119
Reset Defaults
Purpose:
To initialize NVM (non-volatile memory) for system parameters. After executing this function and rebooting the
printer, all the menu parameters, except the parameters for the network, are reset to their default values.
For details, see "Resetting Defaults" on page 123.
Val u e s:
Non-Dell Toner
Purpose:
To use toner cartridge of another manufacturer.
NOTE: Using non-Dell™-brand toner cartridges may make some printer features unusable, reduce print quality and decrease
the reliability of your printer. Dell recommends only new Dell-brand toner cartridges for your printer. Dell does not provide
warranty coverage for problems caused by using accessories, parts, or components not supplied by Dell.
NOTE: Before you use toner cartridge of another manufacturer, be sure to restart the printer.
Val u e s:
BTR Refresh Mode
Purpose:
To execute counter measures for curling/separating discharge of the paper.
Val u e s:
Start Click to initialize the system parameters.
Non-Dell Toner Off Does not use toner cartridge of another manufacturer.
On Use toner cartridge of another manufacturer.
Apply New Settings After you complete the settings, click Apply New Settings to apply the changes.
Restart printer to apply new settings Click Restart printer to apply new settings to apply the changes.
BTR Refresh Mode Off Does not automatically execute counter measures for curling/separating discharge of
the paper.
On Automatically executes counter measures for curling/separating discharge of the paper.
Apply New Settings After you complete the settings, click Apply New Settings to apply the changes.
Restart printer to apply new settings Click Restart printer to apply new settings to apply the changes.
120 Understanding the Tool Box Menus
TCP/IP Settings
Purpose:
To configure TCP/IP settings.
Val u e s:
Network Settings
Purpose:
To display the server settings of the Dell Printer Configuration Web Tool.
NOTE: When the printer is connected to the USB port, this setting cannot be displayed.
Val u e s:
IP Address Mode AutoIP Automatically sets the IP address.
DHCP Uses DHCP to set the IP address.
BOOTP Uses BOOTP to set the IP address.
RARP Uses RARP to set the IP address.
Manually Set Manually sets the IP address.
IP Address Manually sets the IP address allocated to the printer.
Subnet Mask Manually sets the subnet mask.
Gateway Address Manually sets the gateway address.
Apply New Settings After you complete the settings, click Apply New Settings to apply the changes.
Restart printer to apply new settings Click Restart printer to apply new settings to apply the changes.
Print Server
Settings
Display Click to display the server settings for the Dell Printer Configuration Web Tool.
Display of Dell
Configuration Web
Tool
Off Turns off the display of the server settings for the Dell Printer Configuration Web
Tool.
On Turns on the display of the server settings for the Dell Printer Configuration Web
Tool.
Apply New Settings After you complete the settings, click Apply New Settings to apply the changes.
Restart printer to apply new settings Click Restart printer to apply new settings to apply the changes.
Understanding the Tool Box Menus 121
Diagnosis
The Diagnosis tab contains the Chart Print, Machine Check, Environment Sensor Info, Developer Stir Mode, and
Refresh Mode pages.
Chart Print
Purpose:
To print various charts that can be used for diagnosing your printer.
Val u e s:
Machine Check
Purpose:
To check the operation of the different components of the printer.
Val u e s:
Paper Size A4 Selects the paper size to print charts.
Letter
Ghost Configuration Chart Click to print a chart to check for ghost printing.
4 Colors Configuration Chart Click to print bands of yellow, magenta, cyan, and black with varying density.
Alignment Chart Click to print a chart, and then check for proper alignment of the print image on the
paper.
Drum Refresh Configuration Chart Prints a chart to check the light fatigue of the drum cartridge.
Machine Check Main Motor Operation
Check
Click Start to operate the main motor inside the printer. Confirm the motor
sound.
Feed Roll Operation
Check*1 Click Start to operate the feed roll. Confirm the motor sound.
REGI CLUTCH
Operation Check
Click Start to operate the REGI CLUTCH. Confirm that you can hear the
clutch clicking.
Dispense Motor Check
(Yellow)
Click Start to operate the dispense motor for each toner cartridge. Confirm
the motor sound.
Dispense Motor Check
(Magenta)
Dispense Motor Check
(Cyan)
Dispense Motor Check
(Black)
Play of Sound Click to play back through speakers of your computer a recording of the
normal sound for the currently selected Machine Check item.
Start Click to check the operation of the item selected in Machine Check and
display the results to Result.
*1 When you perform the feed roll operation check, remove the paper from the Multipurpose Feeder (MPF).
122 Understanding the Tool Box Menus
Environment Sensor Info
Purpose:
To display the internal environment sensor information of the printer to Result.
Developer Stir Mode
Purpose:
To rotate the developer motor and stir the toner in the toner cartridge.
Val u e s:
Refresh Mode
Purpose:
To use up a toner cartridge when you need to replace it before the end of its life, or to stir the toner in a new toner
cartridge.
NOTE: Using the Refresh Mode consumes extra toner.
Val u e s:
Get Environment Sensor Info Click to confirm the internal environment sensor information of the printer such as
temperature and humidity.
Start Click to stir the toner.
Yellow Click to clean the toner in the yellow toner cartridge.
Magenta Click to clean the toner in the magenta toner cartridge.
Cyan Click to clean the toner in the cyan toner cartridge.
Black Click to clean the toner in the black toner cartridge.
Understanding the Tool Box Menus 123
Resetting Defaults
After executing this function and rebooting the printer, all the menu parameters are reset to their default values.
The following menu parameters are exceptions and are not reset.
• Network settings
• Panel Lock settings and password
• Login Error settings
• USB Port settings
1
Click
Start
→
All Programs
→
Dell Printers
→
Dell C1760nw Color Printer
or
Dell C1660w Color Printer
→
Tool Box
.
NOTE: For details about starting the Tool Box, see "Starting the Tool Box" on page 111.
The
Tool Box
opens.
2
Click the
Printer Maintenance
tab.
3
Select
Reset Defaults
from the list at the left side of the page.
The
Reset Defaults
page is displayed.
4
Click
Start
.
The printer restarts automatically to apply the settings.
124 Understanding the Tool Box Menus
Understanding the Printer Menus 125
14
Understanding the Printer Menus
When your printer is configured as a network printer available to a number of users, the access to the Admin Menu
menus can be limited. This prevents unauthorized users from using the operator panel to inadvertently change the
default menu settings that has been set by the administrator. However, you can select settings for individual print
jobs using the printer driver. Print settings selected from the printer driver have precedence over the default menu
settings selected from the operator panel.
Report/List
Use the Report/List menu to print the settings and history information of your printer.
NOTE: A Password is required to enter the Report/List menu when Panel Lock Set is set to Enable. In this
case, enter the password you specified, and press the (Set) button.
Printer Setting
Purpose:
To print a list of the information such as the printer name, service tag, the status of the printer, consumables, and
the network settings.
Device Settings
Purpose:
To print a detailed list of all the settings on the operator panel menus.
Job History
Purpose:
To print a detailed list of the print jobs that have been processed. This list contains the last 10 print jobs.
Error History
Purpose:
To print a detailed list of paper jams and fatal errors.
Color Test Page
Purpose:
To print a page for testing colors.
Printing a Report/List Using the Operator Panel
1
Press the
(Menu)
button.
2
Press the button until
Report/List
appears, and then press the
(Set)
button.
3
Press the button until the desired report or list appears, and then press the
(Set)
button.
The selected report or list is printed.
126 Understanding the Printer Menus
Printing a Report/List Using the Tool Box
1
Click
Start
→
All Programs
→
Dell Printers
→
Dell C1760nw Color Printer
or
Dell C1660w Color Printer
→
Tool Box
.
NOTE: The Select Printer window appears in this step, when multiple printer drivers are installed on your computer. In this
case, click Dell C1760nw Color Printer or Dell C1660w Color Printer listed in Printer Name, and then click OK.
The
Tool Box
opens.
2
Click the
Printer Settings Report
tab.
3
Select
Reports
from the list at the left side of the page.
The
Reports
page is displayed.
4
Click the button for the desired report or list.
The report or list is printed.
Admin Menu
Use the Admin Menu menu to configure a variety of printer features.
NOTE: A Password is required to enter the Admin Menu menu when Panel Lock Set is set to Enable. In this
case, enter the password you specified, and press
the
(Set) button.
Network
Use the Network menu to change the printer settings affecting jobs sent to the printer through the wired or
wireless network.
NOTE: Values marked by an asterisk (*) are the factory default menu settings.
Ethernet (Dell C1760nw Color Printer only)
Purpose:
To specify the communication speed and the duplex settings of Ethernet. The change takes effect after the printer is
turned off and then on.
Val u e s:
NOTE: This item is not displayed when the Ethernet cable is disconnected and Wireless LAN is set to Enable.
Auto* Detects the Ethernet settings automatically.
10Base Half Uses 10base-T half-duplex.
10Base Full Uses 10base-T full-duplex.
100Base Half Uses 100base-TX half-duplex.
100Base Full Uses 100base-TX full-duplex.
Understanding the Printer Menus 127
Wireless LAN
Purpose:
To enable the wireless connection.
Val u e s:
NOTE: For Dell C1760nw Color Printer, the factory default is Enable. For Dell C1660w Color Printer, the factory default is
Disable.
NOTE: When you use the USB connection and do not use the wireless connection, you need to disable the wireless LAN.
Wireless Status
Purpose:
To display the information on the wireless signal strength. No changes can be made on the operator panel to improve
the status of the wireless connection.
Val u e s:
NOTE: For Dell C1760nw Color Printer, this item is displayed when the Ethernet cable is disconnected and Wireless LAN is
set to Enable.
NOTE: For Dell C1660w Color Printer, this item is displayed only when Wireless LAN is set to Enable.
Wireless Setup
Purpose:
To configure the wireless network interface.
Val u e s:
Enable Enables the wireless connection.
Disable Disables the wireless connection.
Good Indicates good signal strength.
Acceptable Indicates marginal signal strength.
Low Indicates insufficient signal strength.
No Reception Indicates that no signal is received.
Select Access Select the access point from the list.
WEP Key When you select an access point using WEP as the security method,
enter the WEP key. For 64bit keys, up to 10 hexadecimal characters
can be entered. For 128bit keys, up to 26 hexadecimal characters can
be entered.
PassPhrase
Entry
When you select an access point using WPA, WPA2, or Mixed as the
encryption type, enter the passphrase of 8 to 63 alphanumeric
characters.
128 Understanding the Printer Menus
NOTE: For Dell C1760nw Color Printer, this item is displayed when the Ethernet cable is disconnected and Wireless LAN is
set to Enable.
Manual Setup Enter (SSID) Specify a name to identify the wireless network. Up to 32
alphanumeric characters can be entered.
Infrastructure Select when you configure the wireless setting through the access
point such as a wireless router.
No Security*Specify No Security to configure the wireless setting without
specifying a security method from WEP, WPA-PSK-TKIP, and WPA2-
PSK-AES.
Mixed mode PSK Select to configure the wireless setting with the encryption type of
Mixed mode PSK. Mixed mode PSK automatically selects the
encryption type from either WPA-PSK-TKIP, WPA-PSK-AES, or
WPA2-PSK-AES.
PassPhrase
Entry
Specifies the passphrase of alphanumeric characters
from 8 to 63.
WEP Specifies the WEP key to use through the wireless network. For 64bit
keys, up to 10 hexadecimal characters can be entered. For 128bit keys,
up to 26 hexadecimal characters can be entered.
Transmit Key Specifies the transmit key from Auto*, WEP Key 1,
WEP Key 2, WEP Key 3, and WEP Key 4.
WPA-PSK-TKIP Select to configure the wireless setting with the security method of
WPA-PSK-TKIP.
PassPhrase
Entry
Specify the pass phrase of alphanumeric characters
from 8 to 63.
WPA2-PSK-AES Select to configure the wireless setting with the security method of
WPA2-PSK-AES or WPA-PSK-AES.
PassPhrase
Entry
Specify the pass phrase of alphanumeric characters
from 8 to 63.
Ad-hoc Select to configure the wireless setting without the access point such
as a wireless router.
No Security*Specify No Security to configure the wireless setting without
specifying the security method from WEP.
WEP Specifies the WEP key to use through the wireless network. For 64bit
keys, up to 10 hexadecimal characters can be entered. For 128bit keys,
up to 26 hexadecimal characters can be entered.
Transmit Key Specifies the transmit key from WEP Key 1*, WEP
Key 2, WEP Key 3, and WEP Key 4.
Understanding the Printer Menus 129
WPS Setup
Purpose:
To configure the wireless network using WPS.
Val u e s:
NOTE: WPS 2.0 compliant. WPS 2.0 works on access points with the following encryption types: Mixed mode PSK, WPA-PSK
AES, WPA2-PSK AES, WPA-PSK TKIP, Open (No Security)
NOTE: For Dell C1760nw Color Printer, this item is displayed when the Ethernet cable is disconnected and Wireless LAN is
set to Enable.
NOTE: For Dell C1660w Color Printer, this item is displayed only when Wireless LAN is set to Enable.
Reset Wireless
Purpose:
To initialize wireless network settings. After executing this function and rebooting the printer, all wireless network
settings are reset to their default values.
NOTE: For Dell C1760nw Color Printer, this item is displayed when the Ethernet cable is disconnected and Wireless LAN is
set to Enable.
NOTE: For Dell C1660w Color Printer, this item is displayed only when Wireless LAN is set to Enable.
TCP/IP
Purpose:
To configure TCP/IP settings.
The change takes effect after the printer is turned off and then on.
Val u e s:
Push Btn. Ctrl PBC Start*1 Configures the wireless setting with the security method of WPS-PBC.
PIN Code Start Config. Configures the wireless setting using the PIN code assigned automatically
by the printer.
Print PIN Code Prints the PIN code. Confirm it when you enter the PIN code to your
computer.
*1 You can also start WPS-PBC by pressing and holding the (Wi-Fi | WPS) button.
IP Mode Dual Stack* Uses both IPv4 and IPv6 to set the IP address.
IPv4 Mode Uses IPv4 to set the IP address.
IPv6 Mode Uses IPv6 to set the IP address.
IPv4 Get IP Address AutoIP* Automatically sets the IP address.
BOOTP Uses BOOTP to set the IP address.
RARP Uses RARP to set the IP address.
DHCP Uses DHCP to set the IP address.
Panel Enables the IP address entered on the operator panel.
IP Address Manually sets the IP address allocated to the printer.
Subnet Mask Manually sets the subnet mask.
Gateway Address Manually sets the gateway address.
130 Understanding the Printer Menus
Protocol
Purpose:
To enable or disable each protocol.
The change takes effect after the printer is turned off and then on.
Val u e s:
IP Filter
Purpose:
To block data received from certain IP addresses through the wired or wireless network. You can set up to five IP
addresses. The change takes effect after the printer is turned off and then on.
Val u e s:
NOTE: This item is only available for LPD or Port9100.
Reset LAN
Purpose:
To initialize network data stored in NVM (non-volatile memory). After executing this function and rebooting the
printer, all network settings are reset to their default values.
LPD Enable* Enables the Line Printer Daemon (LPD) port.
Disable Disables the LPD port.
Port9100 Enable* Enables the Port9100 port.
Disable Disables the Port9100 port.
WSD Enable* Enables the Web Services on Devices (WSD) port.
Disable Disables the WSD port.
SNMP UDP Enable* Enables the UDP port.
Disable Disables the UDP port.
E-Mail Alert Enable* Enables the E-mail Alert feature.
Disable Disables the E-mail Alert feature.
EWS Enable* Enables an access to Dell™ Printer Configuration Web Tool embedded in the printer.
Disable Disables an access to Dell Printer Configuration Web Tool embedded in the printer.
Bonjour (mDNS) Enable* Enables the Bonjour (mDNS).
Disable Disables the Bonjour (mDNS).
No. n/Address
(n is 1-5.)
Sets the IP address for Filter
n
.
No. n/Mask
(n is 1-5.)
Sets the address mask for Filter
n
.
No. n/Mode
(n is 1-5.)
Off* Disables the feature for Filter
n
.
Accept Accepts an access from the specified IP address.
Reject Rejects an access from the specified IP address.
Understanding the Printer Menus 131
USB Settings
Use the USB Settings menu to change printer settings affecting a USB port.
NOTE: Values marked by an asterisk (*) are the factory default menu settings.
USB Port
Purpose:
To change the USB settings on your printer. The change takes effect after the printer is turned off and then on.
Val u e s:
System Settings
Use the System Settings menu to configure a variety of printer features.
NOTE: Values marked by an asterisk (*) are the factory default menu settings.
PowerSaver Time
Purpose:
To specify the time for transition to power saver mode.
Val u e s:
Enter 5 in Sleep to put the printer in the Sleep mode five minutes after it finishes a job. This uses less energy, but
requires more warm-up time for the printer. Enter 5 if your printer shares an electrical circuit with room lighting and
you notice lights flickering.
Select a high value if your printer is in constant use. In most circumstances, this keeps the printer ready to operate
with minimum warm-up time. Select a value between 5 and 30 minutes for the Sleep mode if you want a balance
between energy consumption and a shorter warm-up period.
The printer automatically returns to the standby mode from the Sleep mode when it receives data from the
computer. You can also return the printer to the standby mode by pressing any button on the operator panel.
If the Auto-Off Timer feature turns off the printer, the printer cannot be turned back on automatically. To turn the
printer back on, physically turn the power switch of the printer to On.
Enable* Enables the USB interface.
Disable Disables the USB interface.
Sleep 5min.* Specifies the time taken by the printer before it enters Sleep mode
after it finishes a job.
Available Range:
5-30min.
Deep Sleep 6min.* Specifies the time taken by the printer before it enters Deep Sleep
mode after it goes into Sleep mode.
Available Range:
1–6min.
Auto-Off Timer*1 Off Disables the Auto-Off Timer.
On*180min.*Specifies the time it takes to automatically turn off the printer after it
has entered Deep Sleep mode.
Available Range:
60–1440min.
*1 Auto-Off Timer feature is available only in certain regions.
132 Understanding the Printer Menus
Fault Time-Out
Purpose:
To specify the time taken by the printer before it cancels jobs that stop abnormally. The print job is cancelled if it
times out.
Val u e s:
Job Time-out
Purpose:
To specify the amount of time that the printer waits for data to arrive from the computer. The print job is cancelled
if it times out.
Val u e s:
mm/inch
Purpose:
To specify the measurement unit displayed after the numeric value on the operator panel.
Val u e s:
NOTE: The default for mm/inch varies depending on country-specific factory default.
Def. Paper Size
Purpose:
To specify the default paper size.
Val u e s:
NOTE: The default for Def. Paper Size varies depending on country-specific factory default.
On* 60 sec.* Specifies the time taken by the printer before it cancels jobs that stop abnormally.
Available Range:
3–300 sec.
Off Disables the fault time-out.
On* 30 sec.* Specifies the amount of time that the printer waits for data to arrive from the computer.
Available Range:
5–300 sec.
Off Disables the job time-out.
millimeter(mm) Specifies the default measurement unit.
inch(")
A4
Letter
Understanding the Printer Menus 133
Auto Log Print
Purpose:
To automatically print a job history report after every 10 jobs.
Val u e s:
NOTE: The job history report can also be printed using the Report/List menu.
Low Toner Msg
Purpose:
To specify whether to show the alert message when toner is low.
Val u e s:
Power On Wizard (Dell C1660w Color Printer only)
Purpose:
To perform initial setup for the printer.
Val u e s:
Maintenance
Use the Maintenance menu to initialize the NV (non-volatile) memory, configure the plain paper quality
adjustment settings, and configure the security settings.
NOTE: Values marked by an asterisk (*) are the factory default menu settings.
F/W Version
Purpose:
To display the version of the controller.
Service Tag
Purpose:
To display the service tag of the printer.
Express Code
Purpose:
To display the express service code of the printer.
Off* Does not automatically print a job history report.
On Automatically prints a job history report.
On* Shows the alert message when the toner is low.
Off Does not show the alert message when the toner is low.
No*Does not perform the initial setup for the printer.
Yes Performs the initial setup for the printer.
134 Understanding the Printer Menus
Paper Density
Purpose:
To specify the paper density.
Val u e s:
Adjust BTR
Purpose:
To specify the optimum voltage settings for printing for the transfer roller (BTR). To decrease the voltage, set
negative values. To increase the voltage, set positive values.
The default settings may not give the best output on all paper types. If you see mottles on the print output, try to
increase the voltage. If you see white spots on the print output, try to decrease the voltage.
NOTE: The print quality changes depending on the values you select for this item.
Val u e s:
Plain Normal*
Light
Label Normal*
Light
Plain 0*
Available Range: -3 – +3
Plain Thick 0*
Available Range: -3 – +3
Covers 0*
Available Range: -3 – +3
Label 0*
Available Range: -3 – +3
Coated 0*
Available Range: -3 – +3
Envelope 0*
Available Range: -3 – +3
Recycled 0*
Available Range: -3 – +3
Understanding the Printer Menus 135
Adj. FusingUnit
Purpose:
To specify the optimum temperature settings for printing for the fusing unit. To decrease the temperature, set
negative values. To increase the temperature, set positive values.
The default settings may not give the best output on all paper types. When the printed paper has curled, try to
decrease the temperature. When the toner does not fuse on the paper properly, try to increase the temperature.
NOTE: The print quality changes depending on the values you select for this item.
Val u e s:
Auto Reg Adj
Purpose:
To specify whether to automatically adjust color registration.
Val u e s:
Plain 0*
Available Range: -3 – +3
Plain Thick 0*
Available Range: -3 – +3
Covers 0*
Available Range: -3 – +3
Label 0*
Available Range: -3 – +3
Coated 0*
Available Range: -3 – +3
Envelope 0*
Available Range: -3 – +3
Recycled 0*
Available Range: -3 – +3
On* Automatically adjusts color registration.
Off Does not automatically adjust color registration.
136 Understanding the Printer Menus
Color Reg Adj
Purpose:
To specify whether to manually adjust color registration.
Color registration adjustments need to be made during the initial setup of the printer or when the printer is moved
to a different location.
NOTE: The Color Reg Adj feature can be configured when Auto Reg Adj is set to Off.
Val u e s:
Clean Developer
Purpose:
To rotate the developer motor and stir the toner in the toner cartridge.
Auto Correct Automatically corrects color registration.
ColorRegi Chart Prints a color registration chart. The color registration chart prints a
lattice pattern of yellow, magenta, and cyan lines. On the chart, find
the values on the right side that are next to the line that is perfectly
straight for each of the three colors. If the value for this line is 0, color
registration is not needed. If the value for this line is any value other
than 0, specify the adjustment values under Enter Number.
Enter Number Y 0*Specifies lateral (perpendicular to paper feed direction) color
adjustment values individually for Y (Yellow), M (Magenta), C
(Cyan).
Available Range: -5–+5
M0
*
Available Range: -5–+5
C0
*
Available Range: -5–+5
LY 0*Specifies process (paper feed direction) color adjustment values
individually for LY (Left Yellow), LM (Left Magenta), LC (Left
Cyan), RY (Right Yellow), RM (Right Magenta) and RC (Right
Cyan).
Available Range: -5–+5
LM 0*
Available Range: -5–+5
LC 0*
Available Range: -5–+5
RY 0*
Available Range: -5–+5
RM 0*
Available Range: -5–+5
RC 0*
Available Range: -5–+5
Understanding the Printer Menus 137
Toner Refresh
Purpose:
To use up a toner cartridge when you need to replace it before the end of its life, or to stir the toner in a new toner
cartridge.
Val u e s:
BTR Refresh
Purpose:
Specify whether to execute counter measures for curling/separating discharge of the paper.
Val u e s:
Chart
Purpose:
To print various charts that can be used for diagnosing your printer.
Val u e s:
Reset Defaults
Purpose:
To initialize NVM (non-volatile memory) for system parameters. After executing this function and rebooting the printer,
all the menu parameters, except the parameters for the network, are reset to their default values.
For details, see "Resetting Defaults" on page 141.
Yellow Cleans the toner in the yellow toner cartridge.
Magenta Cleans the toner in the magenta toner cartridge.
Cyan Cleans the toner in the cyan toner cartridge.
Black Cleans the toner in the black toner cartridge.
Off*Does not automatically execute counter measures for curling/separating discharge of the paper.
On Automatically executes counter measures for curling/separating discharge of the paper.
Ghost Prints a chart to check for ghost printing.
4Colors Prints bands of yellow, magenta, cyan, and black with varying density.
Alignment Prints a chart, and then check for proper alignment of the print image on the paper.
Drum Refresh Prints a chart to check the light fatigue of the drum cartridge.
138 Understanding the Printer Menus
Non-Dell Toner
Purpose:
To use toner cartridge of another manufacturer.
NOTE: Using non-Dell-brand toner cartridges may make some printer features unusable, reduce print quality and decrease the
reliability of your printer. Dell recommends only new Dell-brand toner cartridges for your printer. Dell does not provide warranty
coverage for problems caused by using accessories, parts, or components not supplied by Dell.
NOTE: Before you use toner cartridge of another manufacturer, be sure to restart the printer.
Val u e s:
Adjust Altitude
Purpose:
To specify the altitude of the location where the printer is installed.
The discharge phenomenon for charging the photo conductor varies with barometric pressure. Adjustments are
performed by specifying the altitude of the location where the printer is being used.
NOTE: An incorrect altitude adjustment setting leads to poor printing quality, incorrect indication of remaining toner.
Val u e s:
Secure Settings
Use the Secure Settings menu to set a password to limit access to the menus. This prevents items from being
changed accidentally.
NOTE: Values marked by an asterisk (*) are the factory default menu settings.
Panel Lock
Panel Lock Set
Purpose:
To restrict access to Admin Menu and Report/List.
For details see "Panel Lock Function" on page 140.
Val u e s:
Off* Does not use toner cartridge of another manufacturer.
On Uses toner cartridge of another manufacturer.
0m* Specifies the altitude of the location where the printer is installed.
1000m
2000m
3000m
Disable* Does not restrict access to Admin Menu and Report/List.
Enable Restricts access to Admin Menu and Report/List with a password.
New Password Sets a password required to access Admin Menu and Report/List.
Understanding the Printer Menus 139
Change Password
Purpose:
To change a password to limit access to the menus.
Val u e s:
NOTE: This item is displayed only when Panel Lock set is set to Enable.
Login Error
Purpose:
To set the maximum number of failed login attempts before an administrator is denied access to Admin Menu and
Report/List.
Val u e s:
NOTE: This item is available only when Panel Lock Set is set to Enable.
S/W Download
Purpose:
To enable or disable download of firmware updates.
Val u e s:
Re-enter Enters the new password again to confirm.
Current Password*1 Enter the current password to disable Panel Lock Set.
*1 Current Password is displayed only when changing the setting from Enable to Disable.
Current Password Enter the current password to change the password.
New Password Enter the new password.
Re-enter Enter the new password again to confirm.
Off*Does not set the maximum number of failed login attempts.
On 5times*Sets the maximum number of failed login attempts.
Available Range:
1 - 10times
Enable*Enables firmware updates.
Disable Disables firmware updates.
140 Understanding the Printer Menus
Panel Language
Purpose:
To specify the language to be used on the operator panel.
Val u e s:
Panel Lock Function
This feature prevents unauthorized users from changing settings made by the administrator. However, you can select
settings for individual print jobs using the printer driver.
Enabling the Panel Lock
1
Press the
(Menu)
button.
2
Press the
button
until
Admin Menu
appears, and then press the
(Set) button
.
3
Press the
button
until
Secure Settings
appears, and then press the
(Set) button
.
4
Ensure that
Panel Lock
appears, and then press the
(Set) button
.
5
Ensure that
Panel Lock Set
appears, and then press the
(Set)
button.
6
Press the
button
until
Enable
appears, and then press the
(Set) button
.
7
Enter the new password, and then press the
(Set) button
.
8
Re-enter the password to confirm the password that you entered, and then press the
(Set) button
.
NOTE: If you forget your password, turn off the printer. Then, while holding the (Menu) button, turn on the printer. Continue
to hold the (Menu) button until New Password appears. Perform step 7 and 8. The display will briefly indicate the
password has been changed.
NOTE: If you change the password, perform steps 1 and 2. Enter the current password, and then press the (Set) button.
Perform steps 3 and 4. Press the button until Change Password appears, and then press the (Set) button. Enter the
current password, and then press the (Set) button. Perform step 7 and 8. This will change the password.
Disabling the Panel Lock
1
Press the
(Menu)
button.
2
Press the
button until
Admin Menu
appears, and then press the
(Set)
button.
3
Enter the password, and then press the
(Set)
button.
4
Press the
button
until
Secure Settings
appears, and then press the
(Set)
button.
5
Ensure that
Panel Lock
appears, and then press the
(Set)
button.
English*
Français
Italiano
Deutsch
Español
Dansk
Nederlands
Norsk
Svenska
Understanding the Printer Menus 141
6
Ensure that
Panel Lock Set
appears, and then press the
(Set)
button.
7
Press the
button
until
Disable
appears, and then press the
(Set)
button.
8
Enter the current password, and then press the
(Set)
button.
Resetting Defaults
After executing this function and rebooting the printer, all the menu parameters are reset to their default values.
The following menu parameters are exceptions and are not reset.
• Network settings
• Panel Lock settings and password
• Login Error settings
• USB Port settings
NOTE: A Password is required to enter the Admin Menu menu when Panel Lock Set is set to Enable. In this case,
enter the password you specified, and press the (Set) button.
1
Press
the
(Menu)
button.
2
Press the
button until
Admin Menu
appears, and then press the
(Set)
button.
3
Press the
button until
Maintenance
appears, and then press the
(Set)
button.
4
Press the
button until
Reset Defaults
appears, and then press the
(Set)
button.
5
Ensure that
Are you sure?
appears, and then press the
(Set)
button.
6
Turn off the printer, and turn it on again to apply the settings.
142 Understanding the Printer Menus
Print Media Guidelines 143
15
Print Media Guidelines
Print media can be paper, labels, envelopes, and coated paper among others. Your printer provides high-quality
printing on a variety of print media. Selecting the appropriate print media for your printer helps avoid printing
troubles. This section describes selecting print media, caring for print media, and loading the print media in
Multipurpose Feeder (MPF) or Priority Sheet Inserter (PSI).
NOTE: The images used in this manual are those of the Dell™ C1760nw Color Printer unless otherwise mentioned.
NOTE: PSI is available only for Dell C1760nw Color Printer.
Paper
For the best print quality in color, use 75 g/m2 (20 lb) xerographic, grain long paper. For the best print quality in
black and white, use 90 g/m2 (24 lb) xerographic, grain long paper. Before buying large quantities of any print media,
it is recommended that you try a sample first.
When loading paper, identify the recommended print side on the paper package, and load the paper accordingly. See
"Loading Print Media in the Multipurpose Feeder (MPF)" on page 151 and "Loading Print Media in the Priority
Sheet Inserter (PSI) (Dell C1760nw Color Printer only)" on page 159 for detailed loading instructions.
Paper Characteristics
The following paper characteristics affect print quality and reliability. It is recommended that you follow these
guidelines when evaluating new paper stock.
Weight
Both MPF and PSI automatically feed paper whose weights range from 60 to 163 g/m2 (16 to 44 lb bond) grain long.
Paper lighter than 60 g/m2 (16 lb) may not feed properly, and could cause paper jams. For best performance, use 75
g/m2 (20 lb bond) grain long paper.
Curl
Curl is the tendency of print media to curve at its edges. Excessive curl can cause paper feeding problems. Curl
usually occurs after the paper passes through the printer, where it is exposed to high temperatures. Storing paper
unwrapped, even in the paper feeder, can contribute to paper curling prior to printing and cause feeding problems
regardless of humidity. When printing on curled paper, straighten the paper and then insert it into the MPF or PSI.
Smoothness
The degree of paper smoothness directly affects print quality. If the paper is too rough, the toner does not fuse to the
paper properly, resulting in poor print quality. If the paper is too smooth, it can cause paper feeding problems.
Smoothness between 150 and 250 Sheffield points produces the best print quality.
Moisture Content
The amount of moisture in the paper affects both print quality and the ability of the printer to feed the paper
properly. Leave the paper in its original packaging until you are ready to use it. This limits the exposure of the paper
to moisture changes that can degrade its performance.
Grain Direction
Grain refers to the alignment of the paper fibers in a sheet of paper. Grain is either grain long, running the length of
the paper, or grain short, running the width of the paper. For 60 to 135 g/m2 (16 to 36 lb bond) paper, grain long
fibers are recommended. For paper heavier than 135 g/m2 (36 lb bond), grain short is preferred.
144 Print Media Guidelines
Fiber Content
Most high-quality xerographic paper is made from 100% chemically pulped wood. Paper containing fibers such as
cotton possess characteristics that can result in degraded paper handling.
Recommended Paper
To ensure the best print quality and feed reliability, use dry 75 g/m2 (20 lb) xerographic paper. Business paper
designed for general business use also provide acceptable print quality. Only use paper able to withstand high
temperatures without discoloring, bleeding, or releasing hazardous emissions. The laser printing process heats paper
to high temperatures. Check with the manufacturer or vendor to determine whether the paper you have chosen is
acceptable for laser printers.
NOTE: Always print several samples before buying large quantities of any type of print media. When choosing any print media,
you should consider the weight, fiber content, and color.
Unacceptable Paper
The following paper types are not recommended for use with the printer:
• Chemically treated paper used to make copies without carbon paper, also known as carbonless paper, carbonless
copy paper (CCP), or no carbon required (NCR) paper
• Preprinted paper with chemicals that may contaminate the printer
• Preprinted paper that can be affected by the temperature in the fusing unit
• Preprinted paper that require a registration (the precise print location on the page) greater than ±0.09 inches, such
as optical character recognition (OCR) forms
In some cases, you can adjust registration with your software program to successfully print on these forms.
• Coated paper (erasable bond), synthetic paper, thermal paper
• Rough-edged, rough or heavily textured surface paper, or curled paper
• Recycled paper containing more than 25% post-consumer waste that do not meet DIN 19 309
• Multiple-part forms or documents
• Print quality may deteriorate (blank spaces or blotches may appear in the text) when printing on talc or acid paper.
• Moist paper that may cause wrinkle
Selecting Paper
Proper paper selection helps prevent jams and ensures trouble-free printing.
To help avoid jams or poor print quality:
• Always use new, dry, and undamaged paper.
• Before loading the paper, identify the recommended print side of the paper. This information is usually indicated
on the paper package.
• Do not use paper that you have cut or trimmed yourself.
• Do not mix print media sizes, weights, or types in the same source. This may result in a paper jam.
• Do not remove the PSI while a job is printing.
• Ensure that the paper is properly loaded in the MPF or PSI.
• Flex paper back and forth, and then fan them. Straighten the edges of the stack on a level surface.
Print Media Guidelines 145
Selecting Preprinted Media and Letterhead
When selecting preprinted media and letterhead paper for the printer:
• Use grain long paper for best results.
• Use only forms and letterhead printed using an offset lithographic or engraved printing process.
• Select paper that absorb ink, but do not bleed.
• Avoid paper with rough or heavily textured surfaces.
• Use paper printed with heat-resistant inks designed for use in xerographic copying machines. The ink must
withstand temperatures of 225°C (437°F) without melting or releasing hazardous emissions.
• Use inks that are not affected by the resin in toner or the silicone in the fusing unit. Inks that are oxidation-set or
oil-based should meet these requirements; latex inks might not. If you are in doubt, contact your paper supplier.
Printing on Letterhead
Check with the manufacturer or vendor to determine whether the pre-printed letterhead you have selected is
acceptable for laser printers.
Page orientation is important when printing on letterhead. Use the following illustration for help when loading
letterhead in the print media sources.
Loading Letterhead
Load the letterhead in the printer with the print side facing up. Ensure that the title on the letterhead enters the
printer first.
Multipurpose Feeder (MPF) Priority Sheet Inserter (PSI)
146 Print Media Guidelines
Selecting Pre-Punched Paper
Pre-punched paper brands can differ in the number and placement of holes and in manufacturing techniques.
However, it may not be possible to print on the paper to depending on the placement of holes on the paper.
To select and use pre-punched paper:
• Test paper from several manufacturers before ordering and using large quantities of pre-punched paper.
• Paper should be punched at the paper manufacturer and not drilled into paper already packaged in a ream. Drilled
paper can cause jams when multiple sheets feed through the printer. This may result in a paper jam.
• Pre-punched paper can include more paper dust than standard paper. Your printer may require more frequent
cleaning and feed reliability may not be as good as standard paper.
• Weight guidelines for pre-punched paper are the same as non-punched paper.
Envelopes
Depending on the choice of envelopes, it is possible to expect variable levels of light wrinkling. Before buying large
quantities of any print media, it is recommended that you try a sample first. See "Loading Print Media in the
Multipurpose Feeder (MPF)" on page 151 or "Loading Print Media in the Priority Sheet Inserter (PSI) (Dell
C1760nw Color Printer only)" on page 159 for instructions on loading an envelope.
When printing on envelopes:
• Use only high-quality envelopes that are designed for use in laser printers.
• Set the print media source to MPF or PSI. Set the paper type to
Envelope
, and select the correct size of envelope
from the printer driver.
• For best performance, use envelopes made from 75 g/m
2
(20 lb bond) paper. You can use up to 105 g/m
2
(28 lb
bond) weight for the envelope feeder as long as the cotton content is 25% or less. Envelopes with 100% cotton
content must not exceed 90 g/m
2
(24 lb bond) weight.
• Use only freshly unpackaged, undamaged envelopes.
• Use envelopes that can withstand temperatures of 205°C (401°F) without sealing, excessive curling, wrinkling, or
releasing hazardous emissions. If you have any doubts about the envelopes you are considering, check with the
envelope supplier.
• Adjust the guide to fit the width of the envelopes.
• To load envelope in MPF or PSI, the print side must be facing up.
• See "Loading Envelopes in the Multipurpose Feeder (MPF)" on page 156 or "Loading an Envelope in the Priority
Sheet Inserter (PSI)" on page 161 for instructions on loading an envelope.
• Use one envelope size during a print job.
• Ensure that the humidity is low because high humidity (more than 60%) and the high printing temperatures may
seal the envelopes.
• For best performance, do not use envelopes that:
– Have excessive curl or twist
– Are stuck together or damaged in any way
– Contain windows, holes, perforations, cutouts, embossing
– Use metal clasps, string ties, or metal folding bars
– Have an interlocking design
– Have postage stamps attached
– Have nicked edges or bent corners
Print Media Guidelines 147
– Have rough, cockle, or laid finishes
Labels
Your printer can print on many labels designed only for use with laser printers.
When selecting labels:
• Label adhesives, face sheet (printable stock), and topcoats must be able to withstand temperatures of 205°C
(401°F) and pressure of 25 pounds per square inch (psi).
• Use labels that can be without sealing, excessive curling, wrinkling, or releasing hazardous emissions.
• Do not use label sheets with a slick backing material.
CAUTION: Before buying large quantities of any print media, it is recommended that you try a sample first.
When printing on labels:
• Use labels that can withstand temperatures of 205°C (401°F) without sealing, excessive curling, wrinkling, or
releasing hazardous emissions.
• Set the paper type to
Label
from the printer driver.
• Do not load labels together with paper in the same tray.
• Do not print within 1 mm (0.04 inches) of the die-cut.
• Do not print within 1 mm (0.04 inches) of the edge of the label, of the perforations, or between die-cuts of the
label.
• Do not print a label through the printer more than once.
• Portrait orientation is preferred, especially when printing bar codes.
• Do not use labels that have exposed adhesive.
• Use full label sheets. Partial sheets may cause labels to peel off during printing, resulting in a jam.
• Do not use label sheets that have adhesive to the edge of the sheet. It is recommended that zone coating of the
adhesive is done at least 1 mm (0.04 inches) away from edges. Adhesive material contaminates your printer and
could void your warranty.
WARNING: Otherwise a jam occurs in the printer and contaminate your printer and your cartridges with adhesive. As a result,
could void your printer and cartridge warranties.
Storing Print Media
For proper print media storage, the following guidelines help avoid media feeding problems and uneven print
quality.
• For best results, store print media in an environment where the temperature is approximately 21°C (70°F) and the
relative humidity is 40%.
• Store cartons of print media on a pallet or shelf, rather than directly on the floor.
• If you store individual packages of print media out of the original carton, ensure that they rest on a flat surface so
that the edges do not buckle or curl.
• Do not place anything on top of the print media packages.
148 Print Media Guidelines
Identifying Print Media and Specifications
This section provides information on supported paper sizes, types, and specification.
Supported Paper Sizes
Multipurpose Feeder (MPF) Priority Sheet Inserter (PSI)
A4 (210x297 mm) YY
B5 (182x257 mm) YY
A5 (148x210 mm) YY
C5 (162x229 mm) YY
Monarch (3.875x7.5 in) YY
Monarch LEF (7.5x3.875 in)*1YY
*4
Envelope #10 (4.125x9.5 in) YY
DL (110x220 mm) YY
DL LEF (220x110 mm)*1YY
*4
Letter (8.5x11 in) YY
Legal (8.5x14 in) YY
Folio (8.5x13 in) YY
Executive (7.25 x 10.5 in) YY
Custom*2*3YY
*1You can place the originals in a long-edge feed direction or in a short-edge feed direction. The following illustration shows SEF and LEF.
The arrow mark in the illustration shows the orientation of the paper loading.
NOTE: Not available when the XML Paper Specification (XPS) Printer Driver is used.
*2Custom width: 76.2 mm (3.00 inches) to 215.9 mm (8.50 inches)
The maximum width for envelope (DL LEF): 220 mm (8.66 inches)
Custom length: 127 mm (5.00 inches) to 355.6 mm (14.00 inches)
The maximum length for envelope (Monarch LEF): 98.4 mm (3.87 inches)
*3Only the administrator user can set the custom size from the printer driver.
*4Be sure to fully insert the envelope until it stops. Otherwise, print media that is loaded on the MPF will be fed.
SEF LEF
Print Media Guidelines 149
Supported Paper Types
Paper Type Specifications
Media Multipurpose Feeder (MPF) Priority Sheet Inserter (PSI)
Plain Y* Y*
Plain Side 2 YY
Plain Thick YY
Plain Thick Side 2 YY
Recycled YY
Recycled Side 2 YY
Label YY
Covers YY
Covers Side 2 YY
Envelope YY
Coated YY
Coated Side 2 YY
* Values marked by an asterisk (*) are the factory default menu settings.
Paper type Weight (gsm) Remarks
Plain Paper 60–90 -
Plain Thick Paper 91–105 -
Covers 106–163 -
Coated 106–163 Inkjet printer paper cannot be used.
Label - Inkjet printer paper cannot be used.
Envelopes - -
Recycled 60–105 -
150 Print Media Guidelines
Loading Print Media 151
16
Loading Print Media
Loading print media properly helps prevent jams and ensures trouble-free printing.
Before loading print media, identify the recommended print side of the print media. This information is usually on
the print media package.
NOTE: The images used in this manual are those of the Dell™ C1760nw Color Printer unless otherwise mentioned.
NOTE: Priority Sheet Inserter (PSI) is available only for Dell C1760nw Color Printer.
Capacity
Multipurpose Feeder (MPF) can hold:
• 150 sheets of standard paper
• 16.2 mm (0.64 inches) of thick paper
• One sheet of coated paper
• 16.2 mm (0.64 inches) of post cards
• Five envelopes
• 16.2 mm (0.64 inches) of labels
Priority Sheet Inserter (PSI) can hold:
• 10 sheets of standard paper or one sheet of other paper
Print Media Dimensions
Both MPF and PSI accept print media within the following dimensions:
• Width — 76.2 mm (3.00 inches) to 215.9 mm (8.50 inches)
• Length — 127.0 mm (5.00 inches) to 355.6 mm (14.00 inches)
Loading Print Media in the Multipurpose Feeder (MPF)
NOTE: PSI is available only for Dell C1760nw Color Printer.
NOTE: Use only laser print media. Do not use ink jet paper in this printer.
1
Open the front cover.
152 Loading Print Media
2
Pull the PSI out.
3
Pull the length guide forward until it stops.
4
Pull the MPF extension forward until it stops.
Loading Print Media 153
5
Adjust the paper width guides to their maximum.
6
Before loading the print media, flex the sheets back and forth, and then fan them. Straighten the edges of the stack
on a level surface.
7
Load print media on the MPF with the top edge first and with the recommended print side facing up.
154 Loading Print Media
8
Adjust the width guides until they rest lightly against the edges of the stack of print media.
9
Slide the length guide towards the printer until it touches the print media.
NOTE: Depending on the size of print media, first slide the length guide backward until it stops, and then slide the MPF
extension until it touches print media.
Loading Print Media 155
10
Insert the PSI into the printer and then align the PSI to the marking on the paper tray.
156 Loading Print Media
Loading Envelopes in the Multipurpose Feeder (MPF)
NOTE: When you print on envelopes, be sure to specify the envelope setting on the printer driver. If not specified, the print
image will be rotated 180 degrees.
When Loading Envelope #10, DL, or Monarch
Load envelopes with the side to be printed on facing up, the flap side facing down, and the flap turned to the right.
To prevent DL and Monarch from being wrinkled, they are recommended to be loaded with the print-side facing up,
flap opened, and facing you.
Loading Print Media 157
When Loading C5
Load envelopes with the side to be printed on facing up, with the flap open.
CAUTION: Never use envelopes with windows, or coated linings. These lead to paper jams and can cause damage to the
printer.
NOTE: If you do not load envelopes in the MPF right after they have been removed from the packaging, they may bulge. To avoid
jams, flatten them as shown below when loading them in the MPF.
158 Loading Print Media
NOTE: If envelopes are still not fed correctly, add some bending to the flap of the envelopes as shown in the following
illustration.
The amount of the bending shall be 5 mm (0.20 inches) or less.
NOTE: To confirm the correct orientation of each print media such as envelopes, see the instruction on the Envelope/Paper
Setup Navigator on the printer driver.
Loading Letterhead
Load the letterhead in the printer with the print side facing up. Ensure that the title on the letterhead enters the
printer first.
Loading Print Media 159
Loading Print Media in the Priority Sheet Inserter (PSI) (Dell C1760nw
Color Printer only)
NOTE: To avoid paper jams, do not remove the PSI while printing is in progress.
NOTE: Use only laser print media. Do not use ink jet paper in this printer.
1
Open the front cover.
2
Slide the PSI forward, and then align the PSI to the marking on the paper tray.
3
Adjust the paper width guides to their maximum.
160 Loading Print Media
4
Before loading the print media, flex the sheets back and forth, and then fan them. Straighten the edges of the stack
on a level surface.
5
Load print media on the PSI with the top edge first and with the recommended print side facing up.
6
Adjust the width guides until they rest lightly against the edges of the stack of print media.
7
Select the paper type from the printer driver if the loaded print media is not standard plain paper. If a
user-specified print media is loaded in the PSI, you must specify the paper size setting by using the printer driver.
Loading Print Media 161
Loading an Envelope in the Priority Sheet Inserter (PSI)
NOTE: Be sure to fully insert the envelope until it stops. Otherwise, print media that is loaded on the MPF will be fed.
NOTE: When you print on envelopes, be sure to specify the envelope setting on the printer driver. If not specified, the print
image will be rotated 180 degrees.
When Loading Envelope #10, DL, or Monarch
Load an envelope with the side to be printed on facing up, the flap side facing down, and the flap turned to the right.
To prevent DL and Monarch from being wrinkled, they are recommended to be loaded with the print-side facing up,
flap opened, and facing you.
162 Loading Print Media
When Loading C5
Load envelopes with the side to be printed on facing up, with the flap open.
CAUTION: Never use envelopes with windows, or coated linings. These lead to paper jams and can cause damage to the
printer.
NOTE: If you do not load envelopes in the PSI right after they have been removed from the packaging, they may bulge. To avoid
jams, flatten them as shown below when loading them in the PSI.
Loading Print Media 163
NOTE: If envelopes are still not fed correctly, add some bending to the flap of the envelopes as shown in the following
illustration.
The amount of the bending shall be 5 mm (0.20 inches) or less.
NOTE: To confirm the correct orientation of each print media such as envelopes, see the instruction on the Envelope/Paper
Setup Navigator on the printer driver.
Loading Letterhead
Load the letterhead in the printer with the print side facing up. Ensure that the title on the letterhead enters the
printer first.
164 Loading Print Media
Loading Print Media When Manual Duplex Printing
NOTE: When printing on curled paper, straighten the paper and then insert it into the feeder.
When you start manual duplex printing, the instruction window appears. Note that the window cannot be reopened
once it is closed. Do not close the window until duplex printing is complete.
Manual duplex printing can be done using the MPF or PSI.
When Using the Multipurpose Feeder (MPF)
1
First print the even pages (rear sides).
For a six page document, rear sides are printed in the order of page 6, page 4, then page 2.
The orange LED lights and the message appears on the operator panel when the even pages finish printing.
2
After the even pages are printed, remove the paper stack from the output tray and set them as they are (with the
blank side facing up) into the MPF.
NOTE: Warped or curled prints can cause paper jams. Straighten them before setting them.
NOTE: Printing on both sides of the paper is not possible if the document consists of various sizes of papers.
3
Ensure that
Insert Output into paper tray
appears, and then press the
(Set)
button. Print pages in
the order page 1 (rear of page 2), page 3 (rear of page 4), then page 5 (rear of page 6).
Loading Print Media 165
When Using the Priority Sheet Inserter (PSI) (Dell C1760nw Color Printer only)
1
First print the even pages (rear sides).
For a six page document, rear sides are printed in the order of page 6, page 4, then page 2.
The orange LED lights and the message appears on the operator panel when the even pages finish printing.
2
After the even pages are printed, remove the paper stack from the output tray and set them as they are (with the
blank side facing up) into the PSI.
NOTE: Warped or curled prints can cause paper jams. Straighten them before setting them.
NOTE: Printing on both sides of the paper is not possible if the document consists of various sizes of papers.
3
Ensure that
Insert Output into paper tray
appears, and then press the
(Set)
button. Print pages in
the order page 1 (rear of page 2), page 3 (rear of page 4), then page 5 (rear of page 6).
166 Loading Print Media
Using the Output Tray Extension
The output tray extension is designed to prevent print media from falling from the printer after the print job is
complete.
Before printing a document, ensure that the output tray extension is fully extended.
167
Printing
17 Printing........................................................................................ 169
168
Printing 169
17
Printing
This chapter covers tips for printing, how to print certain lists of information from your printer, and how to cancel a
job.
Tips for Successful Printing
Tips on Storing Print Media
Store your print media properly. For more information, see "Storing Print Media" on page 187.
Avoiding Paper Jams
NOTE: It is recommended that you try a limited sample of any print media you are considering using with the printer before
purchasing large quantities.
By selecting appropriate print media and loading it properly, you can avoid paper jams. See the following instructions
on loading print media:
• "Loading Print Media in the Multipurpose Feeder (MPF)" on page 151
• "Loading Print Media in the Priority Sheet Inserter (PSI) (Dell C1760nw Color Printer only)" on page 159
• "Avoiding Jams" on page 201
If you experience a jam, see "Jam" on page 223 for instructions.
Sending a Job to Print
To support all of the printer features, use the printer driver. When you choose Print from an application, a window
representing the printer driver opens. Select the appropriate settings for the specific job you are sending to print.
Print settings selected from the driver have precedence over the default menu settings selected from the operator
panel or Tool Box.
You may need to click Preferences from the initial Print box to see all of the available system settings you can
change. If you are not familiar with a feature in the printer driver window, open the online Help for more
information.
To print a job from a typical Microsoft® Windows® application:
1
Open the file you want to print.
2
From the
File
menu, select
Print
.
3
Verify that the correct printer is selected in the dialog box. Modify the system settings as needed (such as the pages
you want to print or the number of copies).
4
Click
Preferences
to adjust system settings not available from the first screen, and then click
OK
.
5
Click
OK
or
Print
to send the job to the selected printer.
170 Printing
Canceling a Print Job
There are several methods for canceling a print job.
Canceling From the Operator Panel
To cancel a job after it has started printing:
1
Press the
(Cancel)
button.
NOTE: Printing is canceled only for the current job. All the following jobs will continue to print.
Canceling a Job From the Computer Running Windows
Canceling a Job From the Taskbar
When you send a job to print, a small printer icon appears in the right corner of the taskbar.
1
Double-click the printer icon.
A list of print jobs appears in the printer window.
2
Select the job you want to cancel.
3
Press <Delete> on the keyboard.
Canceling a Job From the Desktop
1
Minimize all programs to reveal the desktop.
Click
Start
→
Devices and Printers
(for Windows 7 and Windows Server
®
2008 R2).
Click
Start
→
Printers and Faxes
(for Windows XP)
.
Click
Start
→
Control Panel
→
Hardware and Sound
→
Printers
(for Windows Vista
®
).
Click
Start
→
Control Panel
→
Printers
(for Windows Server 2008).
Right-click the bottom left corner of the screen, and then click
Control Panel
→
Hardware and Sound
→
Devices and Printers
(for Windows 8).
Right-click the bottom left corner of the screen, and then click
Control Panel
→
Hardware
→
Devices and Printers
(for Windows Server 2012).
A list of available printers appears.
2
Right-click the printer that you selected when you sent the job for print, and then select
See what's printing
.
3
Select the printer driver.
A list of print jobs appears in the printer window.
4
Select the job you want to cancel.
5
Press <Delete> on the keyboard.
Printing a Report Page
By using the Report/List menu, you can print a various of settings for your printer including printer settings. For
details about how to print reports or lists, see "Report/List" on page 125.
171
Know Your Printer
18 Understanding Your Printer Software ................................... 173
19 Understanding Printer Messages .......................................... 177
20 Specifications............................................................................ 181
172
Understanding Your Printer Software 173
18
Understanding Your Printer Software
Use the
Software and Documentation
disc that shipped with your printer to install a combination of software
programs, depending on your operating system.
NOTE: The images used in this manual are those of the Dell™ C1760nw Color Printer unless otherwise mentioned.
Windows®
Printer Status Window
The Printer Status window alerts you when there is a warning or when an error occurs, for example, when a paper
jam occurs or toner is running low.
By default, the Printer Status window launches only when an error occurs. When an error occurs, the error message
appears on the Printer Status window. You can set the Printer Status window to always launch when printing in
Printing Status Window Properties.
You can also check the toner level of your printer.
Status Monitor Console
Use the Status Monitor Console to manage multiple instances of the Status Window for a particular printer.
Select a printer from the list view (or Printer Selection) by clicking its name to open a Status Window for a
particular printer.
Dell Supplies Management System
You can launch the Dell Supplies Management System dialog box from the All Programs menu or the desktop icon.
You can order consumables by phone or from the web.
1
Click
Start
→
All Programs
→
Dell Printers
→
Additional Color Laser Software
→
Dell Supplies Management
System
.
The
Dell Supplies Management System
window appears.
2
Select your printer from the
Select Printer Model
list.
3
If you are ordering from the web:
a
Select a web address from the
Select Reorder URL
list.
b
Click
Visit Dell printer supplies ordering web site
.
Dell C1760nw Color Printer/Dell C1660w Color Printer - Dell Supplies Management System
window
appears.
c
Enter the Service Tag, and then click
OK
.
If you order by phone, call the number that appears in the
Order by Phone
section.
174 Understanding Your Printer Software
Quick Launch Utility
Using the Quick Launch Utility window, you can open Status Window, Tool Box, and Troubleshooting.
To use the Quick Launch Utility, select to install the Quick Launch Utility when you install the Dell software.
To open the Quick Launch Utility window:
1
Click
Start
→
All Programs
→
Dell Printers
→
Additional Color Laser Software
→
Quick Launch Utility.
The
Quick Launch Utility
dialog box opens.
2
The
Quick Launch Utility
window provides three buttons;
Status Window
,
Tool Box
, and
Troubleshooting.
To exit, click
X
at the top-right of the window.
For details, click
Help
of each application.
Macintosh
Status Monitor Widget
Status Monitor Widget is a printer utility that promotes efficient use of the printer through the exchange of
information between the Macintosh and the printer.
To open the Status Monitor Widget:
1
Click the Dashboard icon in the Dock to launch Dashboard.
2
Click the Plus (+) sign to display the Widget Bar.
3
Click the icon of
Status Monitor
in the Widget Bar. The
Printer Status
window appears.
NOTE: If Select a printer. is displayed, select your printer in Preferences.
Status Window Click to open the Printing Status window. See "Printer Status Window" on page 173.
Tool Box Click to open the Tool Box. See "Understanding the Tool Box Menus" on page 111.
Troubleshooting*1 Click to open the Troubleshooting Guide, which allows you to resolve issues by yourself.
*1 Troubleshooting Guide is the Portable Document Format (PDF) file. This item needs software to view the document.
Understanding Your Printer Software 175
Status Monitor window appears.
1
Printer Status Message Area
Displays a message of the current printer status.
NOTE: The Status Monitor Widget automatically obtains the printer information at the updated interval that can be
specified in Preferences. Also, the printer status is refreshed when Dashboard is launched or Preferences is closed.
NOTE: If the Status Monitor Widget receives no response from the printer, Cannot get printer information is displayed.
NOTE: When the printer is connected via USB cable, you cannot check the status of the printer during a print job.
2
Printer Status Image Area
Displays the image of printer condition.
• Estimated Toner Level image
Displays the estimated toner level of each color if the printer is functioning properly.
NOTE: If the utility does not receive a response from the printer, the Unknown toner image is displayed.
• Printer error image
Displays an indication image when an error occurs.
An error has occurred and the printer cannot be used.
1
2
3
4
Less than 29% Less than 9% Unknown
176 Understanding Your Printer Software
3
Info (i) button
Click this button to open
Preferences
.
NOTE: The Info (i) button appears on the lower-right corner of the window when the cursor is over the Status Monitor
window.
4
Order Supplies button
Click this button to display the
Order
window.
This window provides you with the information for ordering printer supplies by telephone or from the web site.
NOTE: The Order window automatically appears when low toner is detected.
Printer Displays a list of available printer names in the drop-down list. The first printer displayed in
this list is set as default.
Status Update Interval You can update the interval of the printer status. By default, it is set to obtain the printer
information every 10 seconds. The range varies between 0 and 600.
SNMP Community Name You can change the SNMP (Simple Network Management Protocol) community name if
using default community name (public). Up to 31 characters can be entered.
Service Tag button Click Get Tag to obtain the service tag.
done button Click this button to return to the Printer Status window.
Order Online Select a web address from the drop-down list and click Visit Dell printer supplies ordering
web site. hyperlink to access the web site for ordering Dell printer supplies.
Order By Phone Displays a list of available phone numbers that you can call to order Dell printer supplies.
Dell and the Environment Click the hyperlink to access the web site about recycling.
Understanding Printer Messages 177
19
Understanding Printer Messages
The printer operator panel displays messages describing the current state of the printer and indicates possible printer
problems you must resolve. This chapter describes messages, their meanings, and how to clear them.
CAUTION: When an error code is displayed, the print data remaining on the printer and the information accumulated in the
memory of the printer are not secured.
Error-Code What you can do
001-360 Turn off the printer, and then on again. If this does not solve the problem, contact Dell™. See "Contacting
Dell" on page 230.
003-340
003-356
006-370
007-340
007-371
009-654
010-354
010-377
016-302
016-313
016-315
016-317
016-324
016-338
016-340
016-344
016-345
016-346
016-347
016-370
016-383 Press the (Set) button. Contact Dell if this message appears repeatedly. See "Contacting Dell" on page 230.
016-384
016-385
016-386
016-387
016-391
016-392 Turn off the printer, and then on again. If this does not solve the problem, contact Dell. See "Contacting Dell"
on page 230.
016-393
016-394
016-700 Press the (Set) button to cancel the current print job. See "Canceling a Print Job" on page 170.
016-720
178 Understanding Printer Messages
016-746 Press the (Set) button. Enable S/W Download and execute the operation again according to the
operation procedure. See "Secure Settings" on page 138.
016-799 Press the (Set) button to cancel the current print job. See "Canceling a Print Job" on page 170.
016-920 Press the (Set) button. Execute the operation again according to the operation procedure.
016-921
016-922 Press the (Set) button. Check that no other wireless LAN access point (Registrar) or router is setting up
wireless connection with WPS-PBC (Wi-Fi Protected Setup®-Push Button Configuration), and execute the
operation again according to the operation procedure.
016-923 Press the (Set) button. Check the passphrase for the wireless LAN access point (Registrar) or router and
execute the operation again according to the operation procedure.
016-924 Press the (Set) button. Check the WEP key for the wireless LAN access point (Registrar) or router and
execute the operation again according to the operation procedure.
024-360 Turn off the printer, and then on again. If this does not solve the problem, contact Dell. See "Contacting Dell"
on page 230.
024-914 Load the specified paper. See "Loading Print Media in the Multipurpose Feeder (MPF)" on page 151 or
"Loading Print Media in the Priority Sheet Inserter (PSI) (Dell C1760nw Color Printer only)" on page 159.
024-969
• Load the appropriate paper. See "Loading Print Media in the Multipurpose Feeder (MPF)" on page 151 or
"Loading Print Media in the Priority Sheet Inserter (PSI) (Dell C1760nw Color Printer only)" on page 159.
• For Dell C1660w Color Printer:
If there are paper loaded in the MPF and this error is displayed, paper may be jammed. Check and clear the
paper path, load the specified paper, and then press the (Set) button. See "Clearing Paper Jams From the
Front of the Printer" on page 203.
027-452 Change IP address to avoid duplication. Turn off the printer, and then on again.
027-446
075-100 Check and clear the paper path, load the specified paper, and then press the (Set) button. See "Clearing
Paper Jams From the Front of the Printer" on page 203.
075-921 Load paper for the second side (odd) pages, and press the (Set) button. See "Loading Print Media When
Manual Duplex Printing" on page 164.
077-100 Check and clear the paper path. See "Clearing Jams" on page 201.
077-101
077-102 Check and clear the paper path. See "Clearing Paper Jams From the Back of the Printer" on page 204.
077-104 Check and clear the paper path. See "Clearing Jams" on page 201.
077-105
077-300 Close the rear cover.
077-900 Check and clear the paper path. See "Clearing Paper Jams From the Output Tray" on page 206.
077-901 Check and clear the paper path. See "Clearing Jams" on page 201.
092-310 Clean the CTD sensor. See "Cleaning the Color Toner Density (CTD) Sensor" on page 195.
092-910
093-423 Replace the specified toner cartridge soon. Order a new consumable from www.dell.com/supplies
See "Removing the Toner Cartridges" on page 188.093-424
093-425
093-426
Error-Code What you can do
Understanding Printer Messages 179
093-919 Re-install or replace the specified toner cartridge. See "Replacing Toner Cartridges" on page 188.
093-920
093-921
093-922
093-930 Remove the specified toner cartridge and install a new one. If you do not replace the toner cartridge, print
quality problems may occur. Order a new consumable from www.dell.com/supplies
See "Replacing Toner Cartridges" on page 188.
093-931
093-932
093-933
093-940 Re-install the specified toner cartridge. See "Installing a Toner Cartridge" on page 190.
093-941
093-942
093-943
093-960 Replace the specified toner cartridge with the supported one. Order a new consumable from
www.dell.com/supplies
See "Replacing Toner Cartridges" on page 188.
093-961
093-962
093-963
093-970 Re-install the specified toner cartridge. See "Installing a Toner Cartridge" on page 190.
093-971
093-972
093-973
093-974
116-399 Turn off the printer, and then on again. If this does not solve the problem, contact Dell. See "Contacting Dell"
on page 230.
124-333
191-310
193-700 This message indicates the printer is in the non-Dell toner mode.
Error-Code What you can do
180 Understanding Printer Messages
Specifications 181
20
Specifications
NOTE: The images used in this manual are those of the Dell™ C1760nw Color Printer unless otherwise mentioned.
Operating System Compatibility
Your Dell C1760nw/C1660w Color Printer is compatible with Microsoft® Windows® XP, Windows XP 64-bit
Edition, Windows Vista®, Windows Vista 64-bit Edition, Windows 7, Windows 7 64-bit Edition, Windows 8,
Windows 8 64-bit Edition, Windows Server® 2003, Windows Server 2003 x64 Edition, Windows Server 2008,
Windows Server 2008 64-bit Edition, Windows Server 2008 R2, Windows Server 2012, Mac OS X Version 10.4.11,
10.5, 10.6, and 10.7.
Power Supply
Dimensions
Height: 225 mm (8.9 inches) Width: 394 mm (15.5 inches) Depth: 300 mm (11.8 inches)
Weight (including toner cartridges):
• Dell C1760nw Color Printer: 10.6 kg (23.4 lb)
• Dell C1660w Color Printer: 10.5 kg (23.2 lb)
Memory
Rated Voltage 220-240 VAC 110-127 VAC
Frequency 50/60 Hz 50/60 Hz
Current 5.0 A 11.0 A
Base memory 128 MB
182 Specifications
Page Description Language (PDL)/Emulation, Operating System, and
Interface
MIB Compatibility
A Management Information Base (MIB) is a database containing information about network devices (such as
adapters, bridges, routers, or computers). This information helps network administrators manage the network
(analyze performance, traffic, errors, and so on). Dell C1760nw/C1660w Color Printer complies with standard
industry MIB specifications, allowing the printer to be recognized and managed by various printer and network
management software systems.
Environment
Operation
Print Quality Guarantee
Storage
Altitude
PDL/Emulations Host-based printing system
OSes Windows XP, Windows XP 64-bit Edition, Windows Vista, Windows Vista 64-bit Edition, Windows 7,
Windows 7 64-bit Edition, Windows 8, Windows 8 64-bit Edition, Windows Server 2003, Windows
Server 2003 x64 Edition, Windows Server 2008, Windows Server 2008 64-bit Edition, Windows Server
2008 R2, Windows Server 2012, Mac OS X Version 10.4.11, 10.5, 10.6, and 10.7.
Interfaces Standard local:
Standard network:
USB 2.0
10Base-T/100Base-TX Ethernet (Dell C1760nw Color Printer only)
IEEE 802.11b/802.11g/ 802.11n(Wireless)
Temperature
10-32°
C
Relative humidity 10-85% RH (no condensation)
Temperature 15
-
28
°
C
Relative humidity 20-70% RH (no condensation)
Temperature range -20-40°C
Storage humidity range 5-85% RH (no condensation)
Operating Up to 3,100 m (10,000 feet)
Storage 70.9275 Kpa
Specifications 183
Cables
Your interconnection cable must meet the following requirements:
Connection type Connection specifications and symbols
1USB USB 2.0
2Ethernet
(Dell C1760nw Color Printer only)
10 Base-T/100 Base-TX
1
2
184 Specifications
185
Maintaining Your Printer
21 Maintaining Your Printer.......................................................... 187
22 Clearing Jams............................................................................ 201
186
Maintaining Your Printer 187
21
Maintaining Your Printer
Periodically, your printer requires you to complete certain tasks to maintain optimum print quality. If several people
are using the printer, you may want to designate a key operator to maintain your printer. Refer printing problems and
maintenance tasks to this key operator.
NOTE: The images used in this manual are those of the Dell™ C1760nw Color Printer unless otherwise mentioned.
Determining the Status of Supplies
If your printer is connected to the network, the Dell Printer Configuration Web Tool can provide instant feedback
on remaining toner levels. Type the IP address of your printer in your web browser to view this information. To use
the E-Mail Alert feature that notifies you when the printer requires new supplies, type your name or the name of the
key operator in the e-mail list box.
On the operator panel, you can also confirm the following:
• Any supply or maintenance items that require attention replacing (However, the printer can only display
information about one item at a time).
• Amount of toner remaining in each toner cartridge.
Conserving Supplies
You can change several settings in your printer driver to conserve toner cartridge and paper.
Storing Print Media
To avoid potential paper feeding problems and uneven print quality, you need to consider the following points:
• To achieve the best possible print quality, store print media in an environment where the temperature is
approximately 21°C (70°F) and the relative humidity is 40%.
• Store cartons of print media on a pallet or shelf, rather than directly on the floor.
• If you store individual packages of print media out of the original carton, ensure that they rest on a flat surface so
the edges do not buckle or curl.
• Do not place anything on top of the print media packages.
Supply Setting Function
Toner cartridge Toner Sav er in the
Others tab of the printer
driver
This drop-down menu allows the users to select a print mode that uses less toner.
When this feature is used, the image quality will be lower than when it is not
used.
Print media Multiple Up in the
Layout tab of the printer
driver
The printer prints two or more pages on one side of a sheet. The available
numbers that each printer driver can print one sheet of paper are as follows:
• Printer driver for Microsoft
®
Windows
®
: 2, 4, 8, 16, or 32 pages
• Printer driver for Macintosh: 2, 4, 6, 9, or 16 pages
Combined with the duplex setting, Multiple Up allows you to print up to 64
pages on one sheet of paper. (32 images on the front and 32 on the back)
188 Maintaining Your Printer
Storing Consumables
Store consumables in their original packaging until you need to use them. Do not store consumables in:
• Temperatures greater than 40°C (104°F).
• An environment with extreme changes in humidity or temperature.
• Direct sunlight.
• Dusty places.
• A car for a long period of time.
• An environment where corrosive gases are present.
• An environment with salty air.
Replacing Toner Cartridges
WARNING: Before replacing toner cartridges, read and follow the safety instructions in the
Important Information
.
Dell toner cartridges are available only through Dell. You can order more cartridges online at
http://www.dell.com/supplies or by phone. To order by phone, see "Contacting Dell" on page 230.
It is recommended that you use Dell toner cartridges for your printer. Dell does not provide warranty coverage for
problems caused by using accessories, parts, or components not supplied by Dell.
WARNING: Never throw used toner cartridges into fire. The residual toner could explode resulting in burns and injuries.
WARNING: Do not shake the used toner cartridge to avoid spilling of toner.
Removing the Toner Cartridges
1
Open the toner access cover.
Maintaining Your Printer 189
2
Pinch the cartridge firmly as shown in the illustration.
WARNING: Always pull the cartridge out slowly so that you do not spill any toner.
3
Pull the toner cartridge out.
190 Maintaining Your Printer
Installing a Toner Cartridge
1
Unpack a new toner cartridge of the desired color and shake it five to six times to distribute the toner evenly.
NOTE: Ensure that the color of the new toner cartridge matches that on the handle before replacing it.
NOTE: Handle the toner cartridge carefully to avoid spillage of the toner.
2
Remove the tape from the toner cartridge.
Maintaining Your Printer 191
3
Adjust the toner cartridge to the associated cartridge holder, and then insert it firmly by pressing near the center of
the label until the cartridge clicks.
4
Close the toner access cover.
192 Maintaining Your Printer
Cleaning Inside the Printer
WARNING: To prevent electric shock, always turn off the printer and disconnect the power cable from the grounded outlet
before performing maintenance.
1
Confirm that the printer is not in operation, and open the toner access cover.
2
Pinch the cartridge firmly as shown in the illustration.
3
Pull the toner cartridge out.
4
Pull the other three cartridges out as well.
Maintaining Your Printer 193
5
Pull the cleaning rod out.
6
Insert the cleaning rod fully into the hole beside the arrow on the printer until its tip reaches the interior of the
printer as illustrated below, and then pull it out.
7
Repeat the same procedure for the other three holes.
8
Insert the cleaning rod back to its original location.
194 Maintaining Your Printer
9
Replace the black cartridge by adjusting it to the associated cartridge holder, and then insert it firmly by pressing
near the center of the label until the cartridge clicks.
10
Replace the other three cartridges as well.
11
Close the toner access cover.
Maintaining Your Printer 195
Cleaning the Color Toner Density (CTD) Sensor
Clean the CTD sensor only when an alert for the CTD sensor is shown on the Status Monitor or operator panel.
1
Ensure that the printer is turned off.
2
Push the rear cover release handle and open the rear cover.
3
Clean the CTD sensor inside the printer with a clean dry cotton swab.
4
Close the rear cover.
5
Turn on the printer.
196 Maintaining Your Printer
Adjusting Color Registration
This section describes how to adjust the color registration when you first install the printer or after moving it to a
new location.
NOTE: A Password is required to enter the Admin Menu menu when Panel Lock Set is set to Enable. In this case,
enter the password you specified, and press the (Set) button.
Performing Auto Correct
Auto Correct allows you to correct the color registration automatically.
The Operator Panel
1
Press the
(Menu)
button.
2
Press the button until
Admin Menu
appears, and then press the
(Set)
button.
3
Press the button until
Maintenance
appears, and then press the
(Set)
button.
4
Press the button until
Color Reg Adj
appears, and then press the
(Set)
button.
5
Ensure that
Auto Correct
appears, and then press the
(Set)
button.
6
Ensure that
Are you sure?
appears, and then press the
(Set)
button.
Auto correct is performed.
The Tool Box
1
Click
Start
→
All Programs
→
Dell Printers
→
Dell C1760nw Color Printer
or
Dell C1660w Color Printer
→
Tool Box
.
NOTE: The Select Printer window appears in this step, when multiple printer drivers are installed on your computer. In this
case, click Dell C1760nw Color Printer or Dell C1660w Color Printer listed in Printer Name, and then click OK.
The
Tool Box
opens.
2
Click the
Printer Maintenance
tab.
3
Select
Color Registration Adjustment
from the list at the left side of the page.
The
Color Registration Adjustment
page is displayed.
4
Clear the
On
check box for
Auto Registration Adjustment
.
5
Click
Start
next to
Auto Correct
.
The color registration is corrected automatically.
Printing the Color Registration Chart
The Operator Panel
1
Load paper. For details about loading paper, see "Loading Print Media" on page 151.
2
Press the
(Menu)
button.
3
Press the button until
Admin Menu
appears, and then press the
(Set)
button.
4
Press the button until
Maintenance
appears, and then press the
(Set)
button.
5
Press the button until
Color Reg Adj
appears, and then press the
(Set)
button.
6
Press the button until
Color Regi Chart
appears, and then press the
(Set)
button.
The color registration chart is printed.
Maintaining Your Printer 197
The Tool Box
1
Click
Start
→
All Programs
→
Dell Printers
→
Dell C1760nw Color Printer
or
Dell C1660w Color Printer
→
Tool Box
.
NOTE: The Select Printer window appears in this step, when multiple printer drivers are installed on your computer. In this
case, click Dell C1760nw Color Printer or Dell C1660w Color Printer listed in Printer Name, and then click OK.
The
Tool Box
opens.
2
Click the
Printer Maintenance
tab.
3
Select
Color Registration Adjustment
from the list at the left side of the page.
The
Color Registration Adjustment
page is displayed.
4
Clear the
On
check box for
Auto Registration Adjustment
.
5
Click
Start
next to
Print Color Regi Chart
.
The color registration chart is printed.
Determining Values
On the color registration chart printed, find the straightest lines where the two black lines and the colored line are
most closely aligned for each color (Y, M, and C).
If you find the straightest line, make a note of the value (-5–+5) indicated by the straightest line for each color.
When the value is 0 for each color, you do not need to adjust the color registration.
When the value is not 0, enter the value according to the procedure in "Entering Values" on page 198.
198 Maintaining Your Printer
Entering Values
The Operator Panel
Using the operator panel, enter the values that you found in the color registration chart to make adjustments.
1
Load paper. For details about loading paper, see "Loading Print Media" on page 151.
2
Press the
(Menu)
button.
3
Press the button until
Admin Menu
appears, and then press the
(Set)
button.
4
Press the button until
Maintenance
appears, and then press the
(Set)
button.
5
Press the button until
Color Reg Adj
appears, and then press the
(Set)
button.
6
Press the button until
Enter Number
appears, and then press the
(Set)
button.
7
Ensure that
Enter (Y, M, C)
appears, and then press the or button until you reach the value (for
example, +3) displayed on the chart.
8
Press the button once and move the cursor to the next value.
9
Repeat steps 7 and 8 to enter all of the digits, and then press the
(Set)
button.
10
Ensure that
Enter (LY, LM, LC)
appears.
11
Press the or button until you reach the value (for example, +3) displayed on the chart.
12
Press the button once and move the cursor to the next value.
13
Repeat steps 11 and 12 to enter all of the digits, and then press the
(Set)
button.
14
Ensure that
Enter (RY, RM, RC)
appears.
15
Press the or button until you reach the value (for example, +3) displayed on the chart.
16
Press the button once and move the cursor to the next value.
17
Repeat steps 15 and 16 to enter all of the digits, and then press the
(Set)
button.
18
Press the
(Menu)
button.
19
Press the button until
Admin Menu
appears, and then press the
(Set)
button.
20
Press the button until
Maintenance
appears, and then press the
(Set)
button.
21
Press the button until
Color Reg Adj
appears, and then press the
(Set)
button.
22
Press the button until
Color Regi Chart
appears, and then press the
(Set)
button.
The color registration chart is printed with the new values.
23
Adjust the values for every color until the lines at 0 are the straightest. If a line is not the straightest at 0, determine
the value and adjust the printer again.
The Tool Box
Using the Tool Box, enter the values that you found in the color registration chart to make adjustments.
1
Click
Start
→
All Programs
→
Dell Printers
→
Dell C1760nw Color Printer
or
Dell C1660w Color Printer
→
Tool Box
.
NOTE: The Select Printer window appears in this step, when multiple printer drivers are installed on your computer. In this
case, click Dell C1760nw Color Printer or Dell C1660w Color Printer listed in Printer Name, and then click OK.
The
Tool Box
opens.
2
Click the
Printer Maintenance
tab.
3
Select
Color Registration Adjustment
from the list at the left side of the page.
The
Color Registration Adjustment
page is displayed.
Maintaining Your Printer 199
4
Clear the
On
check box for
Auto Registration Adjustment
.
5
Select the value with the straight line, and then click
Apply New Settings
.
6
Click
Start
next to
Print Color Regi Chart
.
The color registration chart is printed with the new values.
7
Adjust the values for every color until the lines at 0 are the straightest. If a line is not the straightest at 0, determine
the value and adjust the printer again.
CAUTION: After printing the color registration chart, do not turn off the printer until the printer motor has stopped running.
200 Maintaining Your Printer
Clearing Jams 201
22
Clearing Jams
Careful selection of appropriate print media and proper loading allow you to avoid paper jams. See "Print Media
Guidelines" on page 143 for more information.
NOTE: The images used in this manual are those of the Dell™ C1760nw Color Printer unless otherwise mentioned.
NOTE: Priority Sheet Inserter (PSI) is available only for Dell C1760nw Color Printer.
NOTE: Before buying large quantities of any print media, it is recommended that you try a sample first.
Avoiding Jams
• Use only recommended print media. See "Print Media Guidelines" on page 143 for more information.
• See "Loading Print Media in the Multipurpose Feeder (MPF)" on page 151 and "Loading Print Media in the
Priority Sheet Inserter (PSI) (Dell C1760nw Color Printer only)" on page 159 to load print media properly.
• Do not overload the print media sources. Ensure that the stack print media height does not exceed the maximum
height indicated by the line with an arrow on each width guide.
• Do not load wrinkled, creased, damp, or curled print media.
• Flex, fan, and straighten print media before you load it. If a jam occurs with print media, try feeding one sheet at a
time through the MPF or the PSI.
• Do not use print media that you have cut or trimmed yourself.
• Do not mix print media sizes, weights, or types in the same print media source.
• Ensure that the recommended print side is face up when you insert the print media.
• Keep print media stored in an acceptable environment. For more information, see "Storing Print Media" on
page 147.
• Do not remove the PSI during a print job.
• Ensure that all cables that connect to the printer are correctly attached.
• Over tightening the guides may cause jams.
202 Clearing Jams
Identifying the Location of Paper Jams
WARNING: Do not attempt to clear any jams using tools or instruments. This may permanently damage the printer.
The following illustration shows where paper jams may occur along the print media path.
1Output Tray
2Fusing Unit
3Levers
4Rear Cover
5Front Cover
6Multipurpose Feeder (MPF)
123
6 5
4
Clearing Jams 203
Clearing Paper Jams From the Front of the Printer
WARNING: Before performing any of the following procedures, read and follow the safety instructions in the
Important
Information
.
NOTE: PSI is available only for Dell C1760nw Color Printer.
NOTE: To resolve the error displayed on the operator panel, you must clear all print media from the print media path.
1
Pull the PSI out.
2
Remove any jammed paper from the front of the printer.
3
Replace the PSI in the printer.
WARNING: When putting the PSI back into the printer, do not use excessive force. Doing so could damage the PSI or the
inside of the printer.
204 Clearing Jams
4
Press the
(Set)
button.
Clearing Paper Jams From the Back of the Printer
WARNING: Before performing any of the following procedures, read and follow the safety instructions in the
Important
Information
.
WARNING: To prevent electric shock, always turn off the printer and disconnect the power cable from the grounded outlet
before performing maintenance.
WARNING: To avoid burns, do not clear paper jams immediately after printing. The fusing unit becomes extremely hot during
use.
NOTE: To resolve the error displayed on the operator panel, you must clear all print media from the print media path.
1
Push the rear cover release handle and open the rear cover.
2
Lift up the levers.
Clearing Jams 205
3
Remove any jammed paper from the back of the printer.
4
Lower the levers to their original position.
5
Close the rear cover.
206 Clearing Jams
Clearing Paper Jams From the Output Tray
WARNING: Before performing any of the following procedures, read and follow the safety instructions in the
Important
Information
.
WARNING: To prevent electric shock, always turn off the printer and disconnect the power cable from the grounded outlet
before performing maintenance.
WARNING: To avoid burns, do not clear paper jams immediately after printing. The fusing unit becomes extremely hot during
use.
NOTE: To resolve the error displayed on the operator panel, you must clear all print media from the print media path.
1
Push the rear cover release handle and open the rear cover.
2
Lift up the levers.
Clearing Jams 207
3
Remove any jammed paper from the back of the printer. If no paper is found in the paper path, then remove any
jammed paper out of the output tray.
4
Lower the levers to their original position.
5
Close the rear cover.
6
When you cannot remove the jammed paper even if performing the above steps, press and hold the
(Cancel)
button for 2 seconds.
The message
Clearing jammed paper
is displayed and the jammed paper is ejected along with a paper fed
from the MPF or PSI.
NOTE: After using this feature, the print job in progress is canceled.
NOTE: To use this feature, paper must be loaded in the MPF or PSI.
208 Clearing Jams
209
Troubleshooting
23 Troubleshooting......................................................................... 211
210
Troubleshooting 211
23
Troubleshooting
NOTE: Priority Sheet Inserter (PSI) is available only for Dell™ C1760nw Color Printer.
Basic Printer Problems
NOTE: Ethernet connection is available only for Dell C1760nw Color Printer.
Some printer problems can be easy to resolve. If a problem occurs with your printer, check each of the following:
• The power cable is connected to the printer, and to a properly grounded electrical outlet.
• The printer is turned on.
• The electrical outlet is not turned off at any switch or breaker.
• Other electrical equipment plugged into the outlet is working.
• When your printer is connected to the network with the Ethernet cable, the USB cable is not connected between
the printer and the computer.
• When your printer is connected to the computer with the USB cable, the Ethernet cable is not connected between
the printer and the network.
If you have checked all of the above and still have a problem, turn off the printer, wait for 10 seconds, and then turn
on the printer. This often fixes the problem.
NOTE: If error messages are displayed on the operator panel or on your computer screen, follow the on-screen instructions to
resolve the printer problems. For details about error messages and error codes, see "Understanding Printer Messages" on
page 177.
Display Problems
Printing Problems
NOTE: A Password is required to enter the Admin Menu menu when Panel Lock Set is set to Enable. In this case,
enter the password you specified, and press the (Set) button.
Problem Action
Menu settings changed from the operator
panel have no effect.
Settings in the software program, the printer driver, or the printer utilities have
precedence over the settings made on the operator panel.
Change the menu settings from the printer driver, the printer utilities, or the
software program instead of the operator panel.
Problem Action
Job did not print or incorrect characters
printed.
Ensure that Ready to Print appears on the operator panel before you send
a job to print. Press the (Menu) button to return to Ready to Print.
Ensure that print media is loaded in the printer. Press the (Menu) button to
return to Ready to Print.
Verify that you are using the correct printer driver.
Ensure that you are using the correct Ethernet cable (Dell C1760nw Color Printer
only) or USB cable and that it is securely connected to the printer.
212 Troubleshooting
Verify that the correct print media size is selected.
If you are using a print spooler, verify that the spooler has not stalled.
Check the interface of your printer from the Admin Menu.
Determine the host interface you are using. Print a device settings report to verify
that the current interface settings are correct. Refer to "Printing a Report/List
Using the Operator Panel" on page 125 for details on how to print a device settings
report.
Print media misfeeds or multiple feeds
occur.
Ensure that the print media you are using meets the specifications for your printer.
See "Supported Paper Sizes" on page 148 for more information.
Fan the print media before loading it.
Ensure that the print media is loaded correctly.
Ensure that the width and length guides are adjusted correctly.
Ensure that the PSI is securely inserted.
Do not overfill the print media sources.
Do not force print media into the PSI or the Multipurpose Feeder (MPF) when
you load it. Otherwise, it may skew or buckle.
Ensure that the print media is not curled.
Load the recommended print side correctly for the type of print media you are
using. See "Loading Print Media" on page 151 for more information.
Turn the print media over or around and try printing again to see if feeding
improves.
Do not mix print media types.
Do not mix reams of print media.
Remove the top and bottom curled sheets of a ream before loading the print
media.
Load a print media source only when it is empty.
The envelope is creased after printing. Ensure that the envelope is loaded as instructed in "Loading Envelopes in the
Multipurpose Feeder (MPF)" on page 156 or "Loading an Envelope in the Priority
Sheet Inserter (PSI)" on page 161.
Page breaks in unexpected places. Increase the setting for Time-Out in the Printer Settings menu in the
Dell Printer Configuration Web Tool.
Print media does not stack neatly in the
output tray.
Turn the print media stack over in the PSI and MPF.
Printer does not duplex pages. Select Flip on Short Edge or Flip on Long Edge from the Duplex menu on the
General tab in the printer driver.
Problem Action
Troubleshooting 213
Print Quality Problems
NOTE: In this section, some procedures that use the Tool Box can also be performed using the operator panel or
Dell Printer Configuration Web Tool. For information on how to use the operator panel and Dell Printer Configuration Web Tool,
see "Understanding the Printer Menus" on page 125 and "Dell™ Printer Configuration Web Tool" on page 81.
The output is too light
Action Yes No
1The toner cartridges may be low or need to be replaced. Confirm the
amount of toner in each toner cartridge.
a
Check the toner level in the
Status
tab in the Status Monitor.
b
Replace the toner cartridges as necessary.
Is the problem recovered?
The task is complete. Go to action 2.
2Verify that the print media is not damp and the correct print media is
used. See "Supported Paper Types" on page 149. If not, use the print
media recommended for the printer.
Is the problem recovered?
The task is complete. Go to action 3.
3Verify that the Paper Type setting in the printer driver matches the print
media you loaded.
a
On the
General
tab in
Printing Preferences
of the printer driver,
check the
Paper Type
setting.
b
Load dry (not damp) and corrected print media, and then click
Print
Test Page
in
Printer properties
of the printer driver.
Is the problem recovered?
The task is complete. Go to action 4.
4Disable the Toner Saver in the printer driver.
a
On the
Others tab in Printing Preferences of the printer driver,
ensure that Off is selected in the Toner Saver drop-down menu.
Is the problem recovered?
The task is complete. Contact Dell.
214 Troubleshooting
Toner smears or print comes off/Stain on back side
Action Yes No
1The print media surface may be uneven. Try changing the Paper Type
setting in the printer driver. For example, change the plain paper to
thick.
a
On the
General tab in Printing Preferences of the printer driver,
change the Paper Type setting.
Is the problem recovered?
The task is complete. Go to action 2.
2Verify that the correct print media is being used. See "Supported Paper
Types" on page 149. If not, use the print media recommended for the
printer.
Is the problem recovered?
The task is complete. Go to action 3.
3Adjust the fusing unit temperature.
a
Launch the
Tool Bo x
, click
Adjust Fusing Unit
on the
Printer
Maintenance
tab.
b
Adjust the fixing temperature by turning up the value for your
printing media.
c
Click
Apply New Settings
.
d
Click close box to exit
Tool Box
.
Is the problem recovered?
The task is complete. Contact Dell.
Troubleshooting 215
Random spots/Blurred images
The entire output is blank
If this trouble comes out, contact Dell.
Streaks appear on the output
If this trouble comes out, contact Dell.
Action Yes No
1Ensure that the toner cartridges are installed correctly. See
"Installing a
Toner Cartridge" on page 190.
Is the problem recovered?
The task is complete. Go to action 2.
2If you use non-Dell brand toner cartridges, install Dell brand toner
cartridges.
Is the problem recovered?
The task is complete. Go to action 3.
3Clean up the fusing unit.
a
Load one sheet of paper on the MPF, and then print a solid image all
over paper.
b
Load the printed sheet with the side to be printed on facing down,
and then print a blank sheet of paper.
Is the problem recovered?
The task is complete. Contact Dell.
216 Troubleshooting
Pitched color dots
If this trouble comes out, contact Dell.
Vertical blanks
Mottle
Action Yes No
1Clean inside the printer and performing test print.
a
Clean inside the printer by using the cleaning rod. See "Cleaning
Inside the Printer" on page 192.
b
Click
Print Test Page
in
Printer properties
of the printer driver.
Is the problem recovered?
The task is complete. Contact Dell.
Action Yes No
1Adjust the transfer bias.
a
Launch the
Tool Bo x
, click
Adjust BTR
on the
Printer Maintenance
tab.
b
Adjust the setting for the type of print media being used.
Is the problem recovered?
The task is complete. Go to action 2.
2If you use non-recommended print media, use the print media
recommended for the printer.
Is the problem recovered?
The task is complete. Contact Dell.
Troubleshooting 217
Ghosting
Action Yes No
1Adjust the transfer bias.
a
Launch the
Tool Bo x
, click
Chart Print
on the
Diagnosis
tab.
b
Click
Ghost Configuration Chart
.
The Ghost Configuration Chart is printed.
c
Launch the
Tool Bo x
, click
BTR Refresh Mode
on the
Printer
Maintenance
tab.
d
Check the check box next to
On
, and then click
Apply New Settings
.
e
Click
Chart Print
on the
Diagnosis
tab.
f
Click
Ghost Configuration Chart
.
The Ghost Configuration Chart is printed.
Is the problem recovered?
The task is complete. Go to action 2.
2The print media surface may be uneven. Try changing the Paper Type
setting in the printer driver. For example, change the plain paper to
thick.
a
On the
General
tab in
Printing Preferences
of the printer driver,
change the
Paper Type
setting.
Is the problem recovered?
The task is complete. Go to action 3.
3Adjust the fusing unit temperature.
a
Launch the
Tool Bo x
, and click
Adjust Fusing Unit
on the
Printer
Maintenance
tab.
b
Adjust the fixing temperature by turning up the value for your
printing media.
c
Click
Apply New Settings
.
d
Click close box to exit
Tool Box
.
Is the problem recovered?
The task is complete. Go to action 4.
4If you use non-recommended print media, use the print media
recommended for the printer.
Is the problem recovered?
The task is complete. Contact Dell.
218 Troubleshooting
Fog
Bead-Carry-Out (BCO)
Action Yes No
1Is the whole page printed light? Contact Dell. Go to action 2.
2Start Developer Stir Mode.
a
Launch the
Tool Bo x
, click
Developer Stir Mode
on the
Diagnosis
tab.
b
Click
Start
.
Is the problem recovered?
The task is complete. Contact Dell.
Action Yes No
1If the printer is installed in a high altitude location, set the altitude of
the location.
a
Launch the
Tool Bo x
, and click
Adjust Altitude
on the
Printer
Maintenance
tab.
b
Select the value close to the altitude of the location where the printer
is installed.
Is them problem recovered?
The task is complete. Contact Dell.
Troubleshooting 219
Auger mark
Wrinkled/Stained paper
Action Yes No
1The toner cartridges may be low or need to be replaced. Confirm the
amount of toner in each toner cartridge.
a
Check the toner level in the
Status
tab in the Status Monitor.
b
Replace the toner cartridges as necessary.
Is the problem recovered?
The task is complete. Go to action 2.
2Start Developer Stir Mode.
a
Launch the
Tool Bo x
, click
Developer Stir Mode
on the
Diagnosis
tab.
b
Click
Start
.
Is the problem recovered?
The task is complete. Contact Dell.
Action Yes No
1Verify that the correct print media is being used. See "Supported Paper
Sizes" on page 148 and "Print Media Guidelines" on page 143. If not, use
the print media recommended for the printer.
Is the problem recovered?
The task is complete. If printing on an
envelope, go to action
2.
If printing on print
media other than
envelopes, contact Dell.
2
Check the crease. Is the crease within 30 mm of the four edges of the
envelope?
This type of crease is
considered normal.
Your printer is not at
fault.
If the envelope is 220
mm or longer (C5 or
Envelope #10), go to
action 3a.
If the envelope is
shorter than 220 mm
(Monarch or DL), go to
action 3b.
220 Troubleshooting
The top margins is incorrect
Color registration is out of alignment
3a
Does the envelope have a flap on the long edge?
The envelope is
Envelope #10.
Go to action 4b.
The envelope is C5.
Go to action 4a.
3b Load the envelope long edge feed in the MPF with the flap open and
facing up. For details, see "When Loading Envelope #10, DL, or
Monarch" on page 156.
Is the problem recovered?
The task is complete. Go to action 4b.
4a Load the envelope in the MPF with the flap open and facing up. For
details, see "When Loading C5" on page 157.
Is the problem recovered?
The task is complete. Contact Dell.
4b Use a different size envelope.
Is the problem recovered?
The task is complete. Contact Dell.
Action Yes No
1Ensure that the margins are set correctly on the application being used.
Is the problem recovered?
The task is complete. Contact Dell.
Action Yes No
1Execute auto color registration adjustment.
a
Launch the
Tool Bo x
, and click
Color Registration Adjustment
on
the
Printer Maintenance
tab.
b
Clear the
On
check box for
Auto Registration Adjustment
.
c
Click
Start
next to
Auto Correct
.
Is the problem recovered?
The task is complete. Go to action 2.
Action Yes No
Troubleshooting 221
Protrudent / Bumpy paper
2Clean the CTD sensor.
a
Clean the CTD sensor. See "Cleaning the Color Toner Density
(CTD) Sensor" on page 195.
b
Launch the
Tool Bo x
, and click
Color Registration Adjustment
on
the
Printer Maintenance
tab.
c
Clear the
On
check box for
Auto Registration Adjustment
.
d
Click
Start
next to
Auto Correct
.
Is the problem recovered?
The task is complete. Go to action 3.
3Print the Color Registration Chart and manually correct the color
registration.
a
Click
Color Registration Adjustment
on the
Printer Maintenance
tab.
b
Clear the
On
check box for
Auto Registration Adjustment
.
c
Click
Start
next to
Print Color Regi Chart
.
The color registration chart is printed.
d
Select the value with the straight line. See "Adjusting Color
Registration" on page 196 for details.
e
Click
Apply New Settings
.
f
Click
Start
next to
Print Color Regi Chart
to print the Color
Registration Chart again.
g
Adjust the values for every color until the lines at 0 are the straightest.
Is the problem recovered?
The task is complete. Contact Dell.
Action Yes No
1Clean up the fusing unit.
a
Load one sheet of paper on the MPF, and then print a solid image all
over paper.
b
Load the printed sheet with the side to be printed on facing down,
and then print a blank sheet of paper.
Is the problem recovered?
The task is complete. Contact Dell.
Action Yes No
222 Troubleshooting
Noise
NOTE: In this section, some procedures that use the Tool Box can also be performed using the operator panel or
Dell Printer Configuration Web Tool. For information on how to use the operator panel and Dell Printer Configuration Web Tool,
see "Understanding the Printer Menus" on page 125 and "Dell™ Printer Configuration Web Tool" on page 81.
Action Yes No
1Locate the cause of the problem by removing the toner cartridges.
a
Remove the toner cartridges. See "Replacing Toner Cartridges" on
page 188.
b
Launch the
Tool Bo x
, and click
Machine Check
on the
Diagnosis
tab.
c
Select
Main Motor Operation Check
from the drop-down list box,
and click
Start
.
d
Click
Play of Sound
to check the motor sound.
Does the sound generated from the printer match with the sound from
the Play of Sound button?
Go to action 2. Contact Dell.
2a
Click
Machine Check
on the
Diagnosis
tab.
b
Select
Dispense Motor Check (Yellow)
,
Dispense Motor Check
(Magenta)
,
Dispense Motor Check (Cyan)
, or
Dispense Motor
Check (Black)
from the drop-down list box, and click
Start
.
c
Click
Play of Sound
to check the motor sound.
d
Repeat steps
a
and
b
to perform Dispense Motor Check for the rest of
the toner cartridges.
NOTE: You can perform Dispense Motor Check for CMYK in any order you
desire.
NOTE: Do not check the operation of the dispense motor repeatedly.
Does the sound generated from the printer match with the sound from
the Play of Sound button?
Go to action 3. Contact Dell.
3a
Reinstall the toner cartridges.
b
Perform action 2 again.
Does the sound generated from the printer match with the sound from
the Play of Sound button?
The task is complete. Contact Dell.
Troubleshooting 223
Jam
NOTE: In this section, some procedures that use the Tool Box can also be performed using the operator panel or
Dell Printer Configuration Web Tool. For information on how to use the operator panel and Dell Printer Configuration Web Tool,
see "Understanding the Printer Menus" on page 125 and "Dell™ Printer Configuration Web Tool" on page 81.
Misfeed jam
Action Yes No
1Remove the paper from the PSI, and then ensure that papers are
properly inserted on the MPF.
Is the problem recovered?
The task is complete. Proceed to the action
corresponding to the
type of the print media
being used:
•Thick - 2a
• Thin - 2b
• Envelope - 2c
If performing manual
duplex printing, go to
action 2d.
If using paper other
than the above or if not
performing duplex
printing, go to action
2e.
2a Use thick paper that is 216 gsm or less.
Is the problem recovered?
The task is complete. Go to action 3a.
2b Use thin paper that is 60 gsm or more.
Is the problem recovered?
The task is complete. Go to action 3a.
2c Ensure that the envelope is properly loaded in the MPF as instructed in
"Loading Envelopes in the Multipurpose Feeder (MPF)" on page 156.
Is the problem recovered?
The task is complete. Go to action 3b.
2d Ensure that the print media is not curled.
Is the problem recovered?
The task is complete. Go to action 3a.
2e Is the print media damp? Go to action 3c. Go to action 3a.
3a Fan the print media.
Is the problem recovered?
The task is complete. Go to action 3c.
If you are performing
manual duplex printing
or if using an envelope,
contact Dell.
3b If the envelope is deformed, correct it or use another envelope.
Is the problem recovered?
The task is complete. Go to action 3a.
3c Turn over the print media.
Is the problem recovered?
The task is complete. Go to action 4.
4Use print media that is not damp.
Is the problem recovered?
The task is complete. Contact Dell.
224 Troubleshooting
Multi-feed jam
Wireless Problems
Action Yes No
1Remove the paper from the PSI, and then ensure that papers are
inserted properly in the MPF.
Is the problem recovered?
The task is complete. Go to action 2.
2Is the print media damp? Go to action 3a. Go to action 3b.
3a Use print media that is not damp.
Is the problem recovered?
The task is complete. Go to action 3b.
3b Fan the print media.
Is the problem recovered?
The task is complete. Contact Dell.
Problem Action
Cannot setup wireless connection. Ensure that the Ethernet cable (Dell C1760nw Color Printer only) and USB cable
are disconnected from the printer.
Ensure that Wireless LAN is set to Enable. See "Wireless LAN" on
page 127.
Try disabling the firewall on your computer. The firewall on your computer may be
blocking communication with your printer.
Cannot setup wireless connection with WPS
(Wi-Fi Protected Setup
®
).
Ensure that the security setting of the wireless LAN access point or router is WPA
or WPA2. (WEP is not supported on WPS.)
Turn off the printer, and then on again.
The message Wireless Session
Overlap Error is displayed when
setting up wireless connection.
Two or more wireless LAN access points or routers may be performing WPS setup
at the same time. Wait for a while, and then try again.
Cannot setup wireless connection with the
WPS-PBC (Wi-Fi Protected Setup-Push
Button Configuration).
Press the WPS button on the wireless LAN access point or router within 2 minutes
after starting the WPS operation on the printer. For details about the wireless LAN
access point or router, refer to the manual supplied with the wireless LAN access
point or router.
Cannot setup wireless connection with
WPS-PIN (Wi-Fi Protected Setup-Personal
Identification Number).
Check if the PIN you have entered on the computer is correct.
Cannot connect to the wireless network
after setting up wireless connection.
Check if the passphrase for WPA/WPA2 encryption or WEP key set on the wireless
LAN access point or router has been changed. (Passphrase may be described as key
on some access points or routers.) For details about the wireless LAN access point
or router, refer to the manual supplied with the wireless LAN access point or
router.
Troubleshooting 225
Other Problems
Contacting Service
When you call for printer service, be prepared to describe the problem you are experiencing or the error message on
the display.
You need to know the model of your printer type and serial number. See the label located inside the side door of your
printer.
Problem Action
Condensation has occurred inside the
printer.
This usually occurs within several hours after you heat the room in winter. This
also occurs when the printer is operating in a location where relative humidity
reaches 85% or more. Adjust the humidity or relocate the printer to an appropriate
environment.
226 Troubleshooting
227
Appendix
Appendix..................................................................................... 229
Index............................................................................................ 231
228
Appendix 229
Appendix
Dell Technical Support Policy
Technician-assisted technical support requires the cooperation and participation of the customer in the
troubleshooting process and provides for restoration of the operating system, software program and hardware drivers
to the original default configuration as shipped from Dell, as well as the verification of appropriate functionality of
the printer and all Dell-installed hardware. In addition to this technician assisted technical support, online technical
support is available at Dell Support. Additional technical support options may be available for purchase.
Dell provides limited technical support for the printer and any Dell-installed software and peripherals. Support for
third-party software and peripherals is provided by the original manufacturer, including those purchased and/or
installed through Software & Peripherals (DellWare), ReadyWare, and Custom Factory Integration (CFI/DellPlus).
Online Services
You can learn about Dell products and services on the following websites:
www.dell.com
www.dell.com/ap
(Asian/Pacific countries only)
www.dell.com/jp
(Japan only)
www.euro.dell.com
(Europe only)
www.dell.com/la
(Latin American and Caribbean countries)
www.dell.ca
(Canada only)
You can access Dell Support through the following websites and e-mail addresses:
• Dell Support websites
support.dell.com
support.euro.dell.com
(Europe only)
• Dell Support e-mail addresses
mobile_support@us.dell.com
support@us.dell.com
la-techsupport@dell.com (Latin America and Caribbean countries only)
apsupport@dell.com
(Asian/Pacific countries only)
• Dell Marketing and Sales e-mail addresses
apmarketing@dell.com
(Asian/Pacific countries only)
sales_canada@dell.com (Canada only)
• Anonymous file transfer protocol (FTP)
ftp.dell.com
Log in as user:
anonymous
, and use your e-mail address as your password.
230 Appendix
Warranty and Return Policy
Dell Computer Corporation ("Dell") manufactures its hardware products from parts and components that are new or
equivalent to new in accordance with industry-standard practices. For information about the Dell warranty for your
printer, see support.dell.com.
Recycling Information
It is recommended that customers dispose of their used computer hardware, monitors, printers, and other peripherals in an environmentally
sound manner. Potential methods include reuse of parts or whole products and recycling of products, components, and/or materials.
For specific information on Dell's worldwide recycling programs, see www.dell.com/recyclingworldwide.
Contacting Dell
You can access Dell Support at support.dell.com. Select your region on the WELCOME TO DELL SUPPORT page,
and fill in the requested details to access help tools and information.
You can contact Dell electronically using the following addresses:
•World Wide Web
www.dell.com
www.dell.com/ap
(Asian/Pacific countries only)
www.dell.com/jp
(Japan only)
www.euro.dell.com
(Europe only)
www.dell.com/la
(Latin American and Caribbean countries)
www.dell.ca
(Canada only)
• Anonymous file transfer protocol (FTP)
ftp.dell.com
Log in as user: anonymous, and use your e-mail address as your password.
• Electronic Support Service
mobile_support@us.dell.com
support@us.dell.com
la-techsupport@dell.com (Latin America and Caribbean countries only)
apsupport@dell.com (Asian/Pacific countries only)
support.jp.dell.com (Japan only)
support.euro.dell.com (Europe only)
• Electronic Quote Service
apmarketing@dell.com (Asian/Pacific countries only)
sales_canada@dell.com (Canada only)
Appendix 231
Index
Numerics
100Base-TX Full-Duplex, 102
100Base-TX Half-Duplex, 102
10Base-T Full-Duplex, 102
10Base-T Half-Duplex, 102
A
A4, 148
A5, 148
About printer, 21
Ad-Hoc, 107
Adjust Altitude, 92, 97, 118, 138
Adjust BTR, 92, 95, 116, 134
Adjust Fusing Unit, 92, 95, 117, 135
Adjusting color registration, 196
Admin Menu, 126
Administrator Password, 109
Altitude, 182
Appendix, 229
Apply New Settings Button, 87
Asset Tag Number, 90
Authenticate Error Trap, 106
Auto Log Print, 92-93, 133
Auto Reg Adj, 135
Auto Registration Adjustment, 92, 95
Auto SSID Setup, 32
Avoiding jam, 169, 201
B
B5, 148
Base memory, 181
Basic Information, 101
Basic Printer Problems, 211
Bonjour (mDNS), 100, 102, 105, 130
BTR Refresh, 92, 96, 137
BTR Refresh Mode, 119
C
C5, 148
Cable, 183
Cancel button, 77
Canceling a print job, 170
Carbonless copy paper, 144
CCP, 144
Change Password, 139
Chart, 137
Chart Print, 121
Clean Developer, 96, 136
Cleaning Inside the Printer, 192
Cleaning the Color Toner Density (CTD)
Sensor, 195
Clearing jam, 201
Clearing Paper Jams From the Back of the
Printer, 204
Clearing Paper Jams From the Front of the
Printer, 203
Clearing Paper Jams From the Output Tray, 206
Coated, 92, 95, 116-117, 134-135
Color Reg Adj, 136
Color Regi Chart, 96
Color Registration Adjustment, 117
Color Registration Adjustments, 96
Color registration chart, 196
Color Test Page, 93, 125
Community Name, 105
Completed Jobs, 83, 91
Connecting Printer to Computer or Network, 29
232 Appendix
Connecting your printer, 29
Connection specification, 29, 183
Connection type, 29, 183
Conserving supplies, 187
Contact Dell Support at, 84
,86
Contact Person, 85
Contacting Service, 225
Copy Printer Settings, 84, 86, 110
Copy Printer Settings Report, 110
Cover, 89
Covers, 92, 95, 116-117, 134-135
Current, 181
Current Ethernet Settings, 102
D
Def. Paper Size, 132
Default Paper Size, 91, 93
Dell Printer Configuration Web Tool, 81
Dell Service Tag Number, 90
Dell Supplies Management System, 173
Dell technical support policy, 229
Details, 90
Determining Values, 197
Developer Stir Mode, 122
Device Settings, 93, 125
Device Settings page, 79
Dimensions, 181
Direct Connection, 29
Direct Connection Setup, 51
Disable printing with larger paper size, 91, 93
Disabling Panel Lock, 140
Display Problems, 211
DL, 148
DL LEF, 148
DNS, 99, 103
Driver, 17
E
E-Mail Alert, 84, 86, 102, 104, 130
E-Mail Alert Settings, 101, 105
E-mail Alert Setup Page, 100
E-Mail Server Settings, 100, 104
Emulations, 182
Encryption, 107-108
Entering Values, 198
Envelope, 92, 95, 116-117, 134-135, 146
Envelope #10, 148
Environment, 182
Environment Sensor Info, 122
Error History, 93, 125
Ethernet, 98, 102, 183
Ethernet Connection, 34
Ethernet Port, 22, 29
Ethernet Settings, 102
Event Panel, 85
EWS, 130
EWS Settings, 101
Executive, 148
Express Code, 133
Express Service Code, 90
F
F/W Version, 133
Fault Time-Out, 91, 93, 132
Finding Information, 17
Firmware Version, 90
Folio, 148
Frequency, 181
Front Cover, 21, 202
Fusing Unit, 202
H
Host I/F, 90-91
Appendix 233
Host Name, 90-91, 100
host-based printer driver, 51, 54
HTTP, 99, 104
I
ID, 90-91
Identifying Print Media and Specifications, 148
Important Information, 17
Impression Number, 91
Infrastructure, 107
Initial Settings, 37
Initialize NIC NVRAM and restart printer, 108
Installing a Toner Cartridge, 190
Installing Printer Drivers, 51, 71
Interfaces, 182
IP Address, 39, 83, 85, 106
IP Filter, 100, 130
IP Filter (IPv4), 109
IPv4, 99-100, 103, 106
IPv6, 99, 103, 106
J
Jam, 223
Job History, 93, 125
Job List, 83, 90
Job Name, 90-91
Job Status, 90
Job Submitted Time, 90-91
Job Time-Out, 91, 93, 132
K
Kensington lock, 24
L
Label, 92, 95, 116-117, 134-135, 147
LCD, 77
LCD Panel, 77
Left frame, 86
Legal, 148
Length Guide, 21
Letter, 148
Levers, 22, 202
Link Channel, 107
Link Quality, 107
Liquid crystal display, 77
Loading Envelopes, 156, 161
Loading Letterhead, 145, 158, 163
Loading paper, 43
Loading Print Media, 151
Loading Print Media in Multipurpose Feeder
(MPF), 43, 151
Loading Print Media in Priority Sheet Inserter
(PSI), 48, 159
Location, 85, 90
Login Error, 94, 139
Login Error - Attempts, 92
Low Toner Alert Msg, 92-93
Low Toner Msg, 133
LPD, 99, 102-103, 130
M
MAC Address, 102, 107
Machine Check, 121
Maintaining Your Printer, 187
Maintenance, 133
Maintenance Chart, 97
Manual duplex printing, 164
Manual SSID Setup, 33
Memory, 181
Memory Capacity, 90
Menu button, 77
Menu Items, 88
234 Appendix
Menu Settings, 91, 112
MIB compatibility, 182
Mixed Mode PSK, 107
mm/inch, 91, 93, 132
Monarch, 148
Monarch LEF, 148
MPF Extension, 21
Multiple Up, 187
Multipurpose Feeder (MPF), 21, 202
N
NCR, 144
Network, 126
Ethernet, 126
Protocol, 130
Reset LAN, 130
Reset Wireless, 129
TCP/IP, 129
Network Connection Setup, 54
Network Firmware Version, 90
Network Settings, 120
Network Type, 107
No carbon required, 144
No. of Sheets, 91
Non-Dell Toner, 92, 97, 119, 138
O
OCR, 144
Online Help, 84, 86
Online Services, 229
Operating System compatibility, 181
Operation, 182
Operator Panel, 21, 77
Button, 77
Order Supplies at, 84, 86
Ordering supplies, 25
Output Result, 91
Output Tray, 21, 89, 202
Output Tray Extension, 21, 166
Owner, 90-91
P
Panel Language, 80, 92-93, 140
Panel Lock, 138
Panel lock function, 140
Panel Lock Set, 92, 138
Paper, 143
Characteristics, 143
Curl, 143
Fiber content, 144
Grain direction, 143
Moisture content, 143
Smoothness, 143
Weight, 1 4 3
Paper Chute, 22
Paper Density, 92, 94, 116, 134
Paper Feed Roller, 22
Paper jam location, 202
Paper Size, 148
Paper Trays, 89
Paper Type, 149
Paper Used, 110
Paper Width Guides, 21
Parts name, 21
PDL, 182
Peer-to-Peer, 68
Plain, 92, 95, 116-117, 134-135
Plain Thick, 92, 95, 116-117, 134-135
Point and Print, 66
Port Settings, 102
Port Status, 100, 102
Port9100, 99, 102-103, 130
Power Connector, 22
Power On Wizard, 133
Power Saver Time - Auto-Off Timer, 91, 93
Appendix 235
Power Saver Time - Deep Sleep, 91, 93
Power Saver Time - Sleep, 91, 93
Power supply, 181
Power Switch, 21
PowerSaver Time, 80, 131
Premier, 92
Print Head Cleaning Rod, 21
Print media, 187
Print Media Dimensions, 151
Print Media Guidelines, 143
Print quality guarantee, 182
Print Quality Problems, 213
Print Server Reports, 98
Print Server Settings, 84, 86, 98, 101
Print Server Setup Page, 98
Print Volume, 84, 86, 110
Printer Bitmap, 85
Printer Driver Pre-install Status, 51
Printer Events, 90
Printer Information, 84, 86, 90, 112
Printer Jobs, 83, 86, 90
Printer Maintenance, 94
Printer message, 177
Printer Name, 100
Printer Page Count, 110
Printer Revision Levels, 90
Printer Serial Number, 90
Printer Settings, 83, 86, 91, 93, 125
Printer Settings Report, 91
Printer software, 173
Printer specification, 181
Printer Status, 83, 86, 89
Printer Type, 89
Printing, 169
Printing on letterhead, 145
Printing Problems, 211
Printing Speed, 89
Printing Status Window, 173
Priority Sheet Inserter (PSI), 21
Processor Speed, 90
Product Features, 19
Q
Quick Launch Utility, 174
Quick Reference Guide, 17
R
Rated Voltage, 181
Ready/Error indicator, 77
Rear Cover, 22, 202
Rear Cover Release Handle, 22
Recommended paper, 144
Recycled, 92, 95, 116-117, 134-135
Recycling Information, 230
Refresh button, 87
Refresh Mode, 122
Regular, 92
Relative humidity, 182
Removing toner cartridge, 188
Report Page, 170
Reports, 93, 114
Reset Defaults, 97, 119, 137
Reset Print Server, 108
Restart Printer, 108
Restore Settings button, 87
Return policy, 230
Right frame, 87
S
S/W Download, 139
Safety information, 17
Secure Settings, 92, 94, 138
Security, 109
236 Appendix
Security Settings, 107
Security Slot, 22
Select Reorder URL, 92
Selecting paper, 144
Selecting preprinted media and letterhead, 145
Selecting pre-punched paper, 146
Sending print job, 169
Service code, 18
Service Tag, 18, 133
Set button, 77
Set Password, 84, 86, 109
Setting the IP Address, 39
Setting Up Printer, 37
Setup diagram, 18
Shared Printing, 64
SNMP, 100, 102, 105
SNMP UDP, 130
Software and Documentation Disc, 38
Software and Documentation disc, 17
Software Download, 92
SSID, 107
Status Monitor Console, 173
Status Monitor Widget, 174
Status of supplies, 187
Storage, 182
Storage humidity range, 182
Storing consumables, 188
Storing Print Media, 147, 169, 187
Support
Contacting Dell, 230
System Settings, 91, 93, 101, 114, 131
T
TCP/IP, 103
TCP/IP Settings, 99, 103, 114, 120
Temperature, 182
Toner Access Cover, 21
Toner Refresh, 137
Tool Box, 111
Top frame, 85
Transfe r Belt, 22
Transfer Roller, 22
Trap Notification 1-4, 106
Troubleshooting, 211
Turning On Printer, 36
U
Unacceptable paper, 144
UNITED STATES GOVERNMENT
RESTRICTED RIGHTS, 13
USB, 183
USB Port, 22, 29, 92, 94, 131
USB Settings, 92, 94, 131
V
Verifying IP settings, 41
W
Warranty, 230
Warranty information, 17
Web Link Customization, 92, 98
WEP, 107-108
Wi-Fi | WPS button, 31, 77
Backlight, 78
Wireless Connection, 30
Wireless LAN, 107, 127
Wireless Problems, 224
Wireless Settings, 98, 107
Wireless Setup, 127
Wireless Status, 127
WPA-PSK, 108
WPA-PSK AES/WPA2-PSK AES, 107
WPA-PSK TKIP, 107
Appendix 237
WPS Setup, 129
WPS-PBC, 31
WPS-PIN, 32
WSD, 62, 99, 102, 104, 130
