Dell Data Protection | Encryption
Enterprise Edition
Administrator Guide
DDP|E Encryption Client, SED, Advanced Authentication,
BitLocker Manager, and Cloud Edition
© 2014 Dell Inc.
Registered trademarks and trademarks used in the DDP|E, DDP|ST
, and DDP|CE suite of documents: Dell™ and the Dell logo, Dell
Precision™, OptiPlex™, ControlVault™, Latitude™, XPS®, and KACE™ are trademarks of Dell Inc. Intel®, Pentium®, Intel Core Inside
Duo®, Itanium®, and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries. Adobe®, Acrobat®, and
Flash® are registered trademarks of Adobe Systems Incorporated. Authen Tec® and Eikon® are registered trademarks of Authen Tec.
AMD® is a registered trademark of Advanced Micro Devices, Inc. Microsoft®, Windows®, and Windows Server®, Internet Explorer®,
MS-DOS®, Windows Vista®, MSN®, ActiveX®, Active Directory®, Access®, ActiveSync®, BitLocker®, BitLocker To Go®, Excel®, Hyper-
V®, Silverlight®, Outlook®, PowerPoint®, OneDrive®, SQL Server®, and Visual C++® are either trademarks or registered trademarks
of Microsoft Corporation in the United States and/or other countries. VMware® is a registered trademark or trademark of VMware, Inc.
in the United States or other countries. Box® is a registered trademark of Box. DropboxSM is a service mark of Dropbox, Inc. Google™,
Android™, Google™ Chrome™, Gmail™, YouTube®, and Google™ Play are either trademarks or registered trademarks of Google Inc. in
the United States and other countries. Apple®, Aperture®, App StoreSM, Apple Remote Desktop™, Apple TV®, Boot Camp™, FileVault™,
iCloud®SM, iPad®, iPhone®, iPhoto®, iTunes Music Store®, Macintosh®, Safari®, and Siri® are either servicemarks, trademarks, or
registered trademarks of Apple, Inc. in the United States and/or other countries. GO ID®, RSA®, and SecurID® are registered trademarks
of EMC Corporation. EnCase™ and Guidance Software® are either trademarks or registered trademarks of Guidance Software. Entrust®
is a registered trademark of Entrust®, Inc. in the United States and other countries. InstallShield® is a registered trademark of Flexera
Software in the United States, China, European Community, Hong Kong, Japan, Taiwan, and United Kingdom. Micron® and RealSSD®
are registered trademarks of Micron Technology, Inc. in the United States and other countries. Mozilla® Firefox® is a registered trademark
of Mozilla Foundation in the United States and/or other countries. iOS® is a trademark or registered trademark of Cisco Systems, Inc. in
the United States and certain other countries and is used under license. Oracle® and Java® are registered trademarks of Oracle and/or its
affiliates. Other names may be trademarks of their respective owners. SAMSUNG™ is a trademark of SAMSUNG in the United States
or other countries. Seagate® is a registered trademark of Seagate Technology LLC in the United States and/or other countries. Travelstar®
is a registered trademark of HGST, Inc. in the United States and other countries. UNIX® is a registered trademark of The Open Group.
VALIDITY™ is a trademark of Validity Sensors, Inc. in the United States and other countries. VeriSign® and other related marks are the
trademarks or registered trademarks of VeriSign, Inc. or its affiliates or subsidiaries in the U.S. and other countries and licensed to Symantec
Corporation. KVM on IP® is a registered trademark of Video Products. Yahoo!® is a registered trademark of Yahoo! Inc.
This product uses parts of the 7-Zip program. The source code can be found at www.7-zip.org. Licensing is under the GNU LGPL
license + unRAR restrictions (www.7-zip.org/license.txt).
2014-08
Protected by one or more U.S. Patents, including: Number 7665125; Number 7437752; and Number 7665118.
Information in this document is subject to change without notice.
Enterprise Edition Administrator Guide 3
Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Encryption Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
SED Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Advanced Authentication Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
BitLocker Manager Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cloud Edition Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Interoperability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Pre-Installation Configuration to Enable DDP|HCA. . . . . . . . . . . . . . . . . . 27
Upgrade Legacy HCA Computers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Requirements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Upgrade Legacy HCA Computers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
DDP|HCA Pre-Installation BIOS Configuration . . . . . . . . . . . . . . . . . . . . . . . 29
Reset System Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Pre-Installation Configuration to Set Up a BitLocker PBA Partition . . . . 31
Set GPO on Domain Controller to Enable Entitlements . . . . . . . . . . . . . . . 33
4Enterprise Edition Administrator Guide
Extract the Child Installers from the Master Installer . . . . . . . . . . . . . . . 37
Commonly Used Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
DDP|E Client and Advanced Authentication . . . . . . . . . . . . . . . . . . . . 40
SED Client (including Advanced Authentication) and External
Media Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
SED Client (including Advanced Authentication), External Media
Edition, and Cloud Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
DDP|E Client and Cloud Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
BitLocker Manager and External Media Edition . . . . . . . . . . . . . . . . . 45
BitLocker Manager, External Media Edition, and Cloud Edition . . . . . 45
SED Client (including Advanced Authentication), DDP|E Client, and
Cloud Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
DDP|E Client and Advanced Authentication for Computers with HCA 48
Section I. Dell Data Protection Installer (Master Installer). . . . . . . . . . . . . . . . . . 51
Dell Data Protection Master Installer . . . . . . . . . . . . . . . . . . . . . . . . . 53
Install DDP|E Interactively . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Install DDP|E Using the Command Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Uninstallation Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Enterprise Edition Administrator Guide 5
Section II. Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Drivers Installation Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Install Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Command Line Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Section III. DDP|E Encryption Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Encryption Client Installation Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Best Practices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Install Encryption Client. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Command Line Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Install External Media Edition (EME) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Convert External Media Edition to Enterprise Edition . . . . . . . . . . . . . . . . . . . . . 70
Create a Custom Transform File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Encryption Client Uninstallation and Decryption Tasks . . . . . . . . . . . 73
Best Practices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Uninstall Encryption Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Command Line Uninstallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Uninstall External Media Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
How to Create an Encryption Removal Agent Log File (Optional). . . . . . . . . . . . 77
Check Encryption Removal Agent Status. . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Encryption Client Data Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Retrieve the Recovery Bundle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Recover Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
6Enterprise Edition Administrator Guide
Troubleshooting HCA Recovery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Check the Recovery Log File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
When Escrow Cannot Be Completed during the WinPE Recovery (HCA) . . . . . . . . . 83
Reset TPM Security (HCA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Recover User Access to a Computer Equipped with HCA . . . . . . . . . . . . . . . . 84
Self-Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
Recover Access using Challenge/Response Codes. . . . . . . . . . . . . . . . . . . . . . 86
Assisted Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Configure Dell Key Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Windows Service Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Key Server Config File Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Sample Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Windows Service Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Remote Management Console Instructions . . . . . . . . . . . . . . . . . . . . . . . . . 89
Use WSScan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Section IV. SED Management and Advanced Authentication . . . . . . . . . . . . . . . . 93
SED Management and Advanced Authentication Installation Tasks . 95
Best Practices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Install SED Management and Advanced Authentication . . . . . . . . . . . . . . . . . 95
Command Line Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
SED and Advanced Authentication Deactivation and Uninstallation
Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Deactivate the PBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Enterprise Edition Administrator Guide 7
Uninstall SED Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Command Line Uninstallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
SED and OS Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Self-Recovery, OS Logon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Self-Recovery, PBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Assisted Recovery, PBA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Retrieve the Recovery Bundle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
How to Turn Off Manager SSL Trust Validation . . . . . . . . . . . . . . . . . . 109
How to Use the Initial Access Code Policy . . . . . . . . . . . . . . . . . . . . . 111
How to Create a PBA Log File for Troubleshooting. . . . . . . . . . . . . . . . . . . . 112
Section V. User Experience - Credential Management and Authentication
Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Configure Credentials in the Security Console . . . . . . . . . . . . . . . . . . 115
Use the Authentication Applications. . . . . . . . . . . . . . . . . . . . . . . . . . 123
Credentials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Enrollment Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Backup and Restore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Back up Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Restore Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Password Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Website and Application Logon Training . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Add Logon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Icon Context Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Web Domain Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
8Enterprise Edition Administrator Guide
Logging on to Trained Logon Screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Filling in with Windows Credentials . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Use Old Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Password Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
Password Manager Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Settings Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Section VI. BitLocker Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
BitLocker Manager Installation Tasks. . . . . . . . . . . . . . . . . . . . . . . . . 145
Best Practices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Install BitLocker Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
Command Line Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
BitLocker Manager Uninstallation Tasks. . . . . . . . . . . . . . . . . . . . . . . 147
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Uninstall BitLocker Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Command Line Uninstallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
BitLocker Manager Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Recover Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
How to Turn Off Manager SSL Trust Validation . . . . . . . . . . . . . . . . . . 151
Section VII. Cloud Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Cloud Edition Installation Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
DDP Server Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Configure DDP Enterprise Server - VE for Cloud Edition . . . . . . . . . . . . . . . . . . 155
Configure Dell Enterprise Server for Cloud Edition . . . . . . . . . . . . . . . . . . . . . 155
Allow/Deny Users on Whitelist /Blacklist. . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Enterprise Edition Administrator Guide 9
Use Dropbox for Business . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Run Reports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Provide Temporary Folder Management Rights . . . . . . . . . . . . . . . . . . . . . . . 160
Update Cloud Edition Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Client Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Before Installing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Best Practices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Install Cloud Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Notify End Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Activate Cloud Edition and Install a Cloud Sync Client . . . . . . . . . . . . . . . . . . . 162
Cloud Edition Uninstallation Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Prerequisites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Remove Protected Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Dropbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
OneDrive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Uninstall Cloud Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Command Line Uninstallation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Section VIII. User Experience - Cloud Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Cloud Edition Activation and User Experience . . . . . . . . . . . . . . . . . . 169
Activate Cloud Edition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Install a Cloud Sync Client . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Authenticate Dropbox for Business . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Sync Folders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Dropbox for Business . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Box. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
OneDrive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Work with Folders and Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Cloud Storage Provider Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
10 Enterprise Edition Administrator Guide
Pre-existing Folders with Unencrypted Files. . . . . . . . . . . . . . . . . . . . . . . . . 171
Access a Cloud Storage Provider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Dropbox for Business . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Connect Cloud Edition and Dropbox. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Use Dropbox for Business Context Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Use Business and Personal Dropbox Accounts . . . . . . . . . . . . . . . . . . . . . . . 173
Understand the Cloud Edition System Tray Menu Items . . . . . . . . . . . . . . . . 174
Details Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Cloud Edition Manage Folders Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Using Cloud Edition with iOS or Android . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Prerequisite. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Cloud Edition on an iOS device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Cloud Edition on an Android device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Share Files With External Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Administrator Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
External User Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177
Cloud Edition Frequently Asked Questions (FAQs) . . . . . . . . . . . . . . . . . . . . 178
Administrator FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178
Folder Management FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Dropbox FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Box Sync Client FAQs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Miscellaneous FAQs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Appendix A Change Secure Boot/UEFI to Legacy Boot Mode in BIOS . . . . . . . . . . . . . . . . . . 183
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185
Enterprise Edition Administrator Guide 11
Introduction
This guide details how to install and configure the DDP|E encryption client, SED management client, Advanced
Authentication (and its drivers), BitLocker Manager, and Cloud Edition.
You can install all the clients together using the master installer user interface or individually by extracting the child
installers out of the master installer and then installing them by command line (or user interface). The clients can be
installed using any push technology available to your organization.
Generally, the best practice is to follow this order:
1
Install the Dell Enterprise Server or DDP Enterprise Server – VE (Virtual Edition) before deploying clients.
If you have not yet installed the Server, locate the appropriate guide as shown below, follow the instructions, and then
return to this guide.
DDP Enterprise Server Installation and Migration Guide
After Server installation, either apply a policy template at the Enterprise level or apply policies individually as
appropriate to specific domains, user groups, endpoint groups, users, or endpoints.
DDP Enterprise Server – Virtual Edition Quick Start Guide and Installation Guide
After Server installation, verify that polices are set as desired for Enterprise, domains, user groups, endpoint groups,
users, and endpoint levels.
2
Access the AdminHelp from in the Remote Management Console. From the Table of Contents, go to
Manage
Policies
to learn about platforms and how to use each policy.
12 Enterprise Edition Administrator Guide
3
Deploy the appropriate client (or clients) to end users.
4
Learn how to monitor your Enterprise and issue commands.

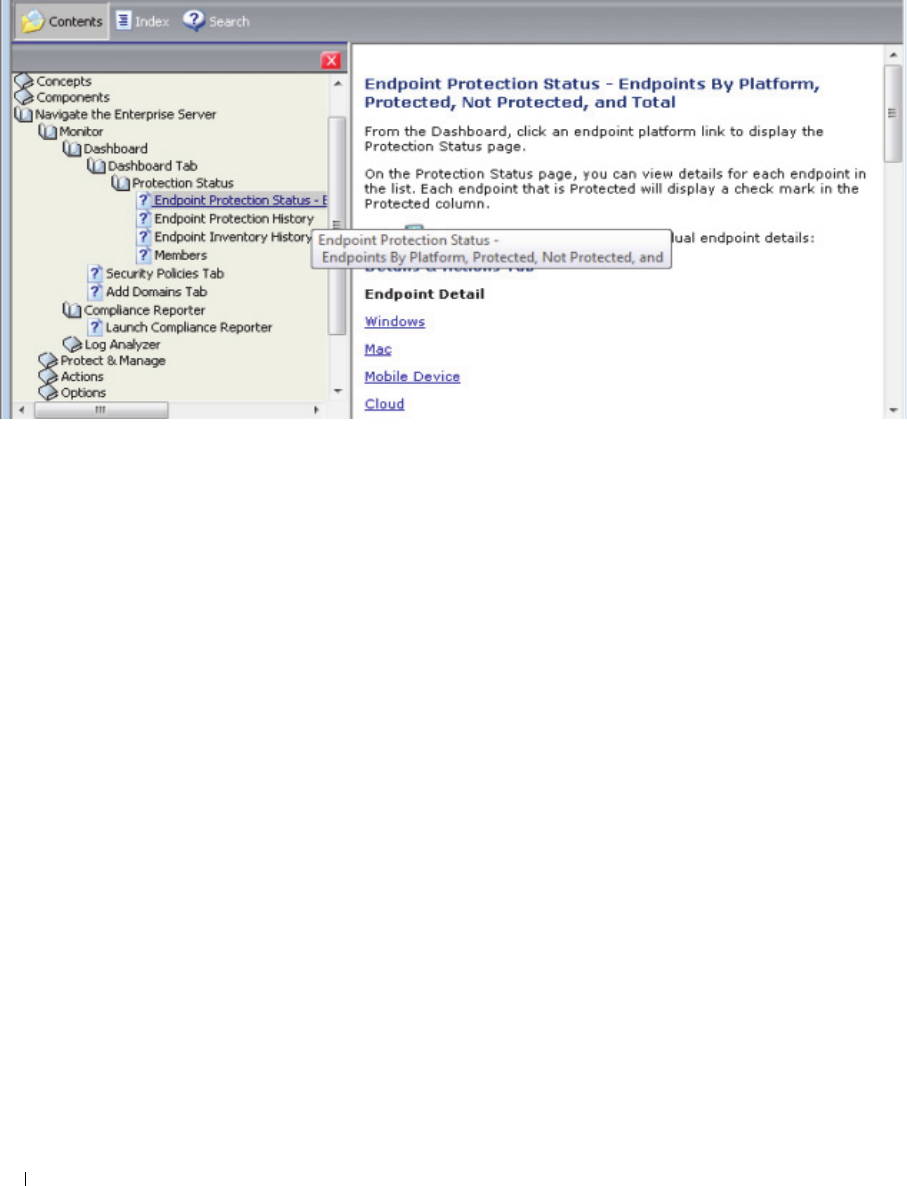

From the AdminHelp Table of Contents, go to Navigate the Enterprise Server > Monitor > Dashboard > Dashboard
Tab > Protection Status >
Endpoint Protection Status - Endpoints By Platform, Protected, Not Protected, and Total
.
Be sure to periodically check www.dell.com/support for updated documentation.
Use this guide in the following order:
Requirements
If needed, see Pre-Installation Configuration to Enable DDP|HCA
If needed, see Pre-Installation Configuration to Set Up a BitLocker PBA Partition
If your clients will be entitled from the Dell factory or if you purchase licenses from the Dell factory, see Set GPO on
Domain Controller to Enable Entitlements
NOTE: If your clients will be entitled from the Dell factory or if you purchase licenses from the Dell factory, ensure that outbound port 443 is
available to communicate with the Server. If port 443 is blocked (for any reason), the entitlement functionality will not work.
If you intend to install the clients together from the master installer user interface, see Dell Data Protection Master
Installer
If you intend to install the clients individually, see Extract the Child Installers from the Master Installer and then:
Select the client or clients to deploy:
Encryption Client Installation Tasks
Drivers Installation Tasks (required if using Advanced Authentication on Dell hardware or if installing the
encryption client)
SED Management and Advanced Authentication Installation Tasks
BitLocker Manager Installation Tasks
Cloud Edition Installation Tasks
If you already understand the products and want to work with a list of our most commonly used scenarios, see
Commonly Used Scenarios.
Enterprise Edition Administrator Guide 13
Requirements
Encryption Client
The user account performing the installation must be a local or domain Admin user, which can be temporarily assigned
by a deployment tool such as Microsoft SMS or KACE. A non-Admin user that has elevated privileges is not supported.
To successfully install DDP|E, the computer must have network connectivity.
If you intend to use Hardware Crypto Accelerator (HCA) policies, you must first set up the Trusted Platform Mod ule
(TPM), and if setting up a computer with legacy HCA, create a System password. Follow the instructions detailed in
Pre-Installation Configuration to Enable DDP|HCA
prior
to DDP|E installation.
The features available as of v8.3 with HCA are supported on legacy BIOS non-UEFI computers. If running
Windows 8
or
Windows 8.1
, follow the instructions detailed in Change Secure Boot/UEFI to Legacy Boot Mode in BIOS
prior
to client
installation.
Windows 8.1 should not be installed on drive 1 on HCA-enabled computers. This operating system configuration is not
supported because Windows 8.1 creates a recovery partition on drive 0 which in turn, breaks Preboot Authentication.
Instead, either install Windows 8.1 on the drive configured as drive 0, or restore Windows 8.1 as an image to any of the
drives.
Non-UEFI computers can have up to four primary partitions. When the PBA is installed on a client computer, it needs to
create and use one of the four partitions for the startup partition, also called the Preboot Authentication (PBA) partition.
If all four partitions are already in use on a client computer, then the HCA card will fail to activate on it.
Before configuring Preboot Authentication (PBA) on a computer equipped with an HCA card, ensure that the computer
has a network connection to the DDP Server.
HCA features for v8.3 and later do not support RAID configuration.
Legacy
HCA features (pre-v8.3) can be configured
using RAID.
Client Prerequisites
The installer installs these components if not already installed on the computer.
Prerequisites
Microsoft Visual C++ 2012 Update 3 or later Redistributable Package (x86 and x64)
Microsoft SQL Server Compact 3.5 SP2 (x86 and x64)
Microsoft .NET Framework v4.0
BEST PRACTICE: Potential installation problems can be avoided if
Microsoft .NET Framework is installed on the target computer prior to
client installation.
14 Enterprise Edition Administrator Guide
Hardware Requirements
The following table details supported hardware.
Windows Hardware
Intel Pentium-class or AMD processor
512 MB-1GB RAM
+-110 MB of free disk space
plus
•250 MB free space in Preboot Authentication partition
Optional Embedded Hardware
Trusted Platform Module (TPM) chipset with TCG Software Stack (TSS) version 1.2.1.42
NOTE: TSS is a component that interfaces with the Trusted Platform Module (TPM). To find the TSS version, go to (default location)
C:\Program Files\Dell\Dell Data Protection\Drivers\TSS\bin > tcsd_win32.exe. Right-click the file and select Properties. Verify the file
version on the
Details
tab.
Dell Data Protection | Hardware Crypto Accelerator
NOTE: Enterprise PBA is supported on Microsoft Windows 7, Microsoft Windows 8, and Microsoft Windows 8.1 on Dell X5 and X4
computers, model numbers listed below.
Legacy PBA is not supported on Microsoft Windows 8 or Microsoft Windows 8.1. Legacy PBA is supported on Microsoft Windows 7
only, on Dell X4 computers, model numbers listed below.
Model Name Enterprise PBA Legacy PBA
Latitude E6420 ATG
Latitude E6420 XFR
Latitude XT3
Latitude E6430u
Latitude E6530
Latitude E6230
Latitude E6330
Latitude E6430s
Latitude E6430
Latitude E6430 ATG
Latitude E5430
Latitude E5530
Latitude E7240  
Latitude E7440  
Latitude E6440  
Latitude E6540  
Precision M4600
Precision M6600
Precision M4700
Enterprise Edition Administrator Guide 15
Operating Systems
The following table details supported operating systems.
NOTE: The Encryption client does not support dual boot configurations as it is possible to encrypt system files of the other operating system,
which would interfere with its operation.
XP Mode is not compatible with the Encryption client, it is designed to run Microsoft Windows 7 or later natively.
Precision M6700
Precision M4800  
Precision M6800  
Precision T3600
Precision T3610
Precision T5600
Precision T5610
Precision T7600
Precision T7610
Precision T1650
Precision T1700  
OptiPlex 9010 AIO
OptiPlex 9010
OptiPlex 7010  
OptiPlex 7020
OptiPlex XE2  
OptiPlex 9020 AIO  
OptiPlex 9020  
OptiPlex 9020 Micro
OptiPlex 9030 AIO
Windows Operating Systems (32- and 64-bit)
• Microsoft Windows XP SP3
- Professional Edition
NOTE: Software encryption only is supported on Microsoft Windows XP SP3.
Microsoft Windows 7 SP0-SP1
- Enterprise
- Professional
- Ultimate
Windows Hardware
16 Enterprise Edition Administrator Guide
Operating Systems for External Media Edition (EME)
The following table details the operating systems supported when accessing media protected by EME.
NOTE: To host External Media Shield (EMS), removable storage must have approximately 55MB available plus open space on the media that
is equal to the largest file to be encrypted.
Operating Systems Supported to Access EMS-Protected Media (32- and 64-bit)
Microsoft Windows XP SP3
- Professional Edition
- Home Edition
- Media Center Edition
NOTE: Software encryption only is supported on Microsoft Windows XP SP3.
Microsoft Windows 7 SP0-SP1
- Enterprise
- Professional
- Ultimate
- Home Premium
Microsoft Windows 8
- Enterprise
- Pro
- Windows 8 (Consumer)
Microsoft Windows 8.1 - Windows 8.1 Update 1
- Enterprise Edition
- Pro Edition
Microsoft Windows 8
- Enterprise
- Pro
Microsoft Windows 8.1 - Windows 8.1 Update 1
- Enterprise Edition
- Pro Edition
•Windows Embedded 8.1
- Industry Enterprise
VMware Workstation 5.5 and higher
Windows Embedded Standard 7 in Application Compatibility Mode
Windows Operating Systems (32- and 64-bit)
Enterprise Edition Administrator Guide 17
Language Support
The Encryption client is Multilingual User Interface (MUI) compliant and supports the following languages.
SED Client
The user account performing the installation must be a local or domain Admin user, which can be temporarily assigned
by a deployment tool such as Microsoft SMS or KACE.
To successfully install SED management, the computer must have network connectivity.
Be prepared to shutdown and restart the computer after you apply policies and are ready to begin enforcing them.
Windows 8.1 should not be installed on drive 1 on self-encrypting drives. This operating system configuration is not
supported because Windows 8.1 creates a recovery partition on drive 0 which in turn, breaks Preboot Authentication.
Instead, either install Windows 8.1 on the drive configured as drive 0, or restore Windows 8.1 as an image to any of the
drives.
The SED management client does not support UEFI Secure Boot with self-encrypting drives on Windows 8 or
Windows 8.1. For more information about UEFI, see
http://en.community.dell.com/techcenter/extras/m/white_papers/20278835.aspx.
Supported Opal compliant SEDs require updated Intel Rapid Storage Technology Drivers, located at
http://www.dell.com/support/drivers/us/en/19/DriverDetails/Product/latitude-e6440-laptop?driverId=1KX2H&osCode=
W764&fileId=3356216042&languageCode=en&categoryId=SA.
NOTE: IPv6 is not supported.
IMPORTANT: Due to the nature of RAID and SEDs, SED management supports RAID only with the Intel Rapid Storage Technology Driver
configured to use a single disk. The issue with “RAID=On” with SEDs is that RAID requires access to the disk to read and write
RAID-related data at a high sector not available on a locked SED from start and cannot wait to read this data until after the
user is logged on. Change the SATA operation in the BIOS from “RAID=On” to “AHCI” to resolve the issue. If the operating
system does not have the AHCI controller drivers pre-installed, the operating system will blue screen when switched from
“RAID=On” to “AHCI.”
Drivers
Intel Rapid Storage Technology Driver
http://www.dell.com/support/drivers/us/en/19/DriverDetails/Product/latitude-e6440-laptop?driverId=1KX2H&osCode=
W764&fileId=3356216042&languageCode=en&categoryId=SA
Language Support
• EN - English • JA - Japanese
• ES - Spanish • KO - Korean
•FR - French •PT-BR - Portuguese, Brazilian
• IT - Italian • PT-PT - Portuguese, Portugal (Iberian)
•DE - German
18 Enterprise Edition Administrator Guide
Client Prerequisites
The installer installs these components if not already installed on the computer.
Prerequisites
Microsoft Visual C++ 2012 Update 3 or later Redistributable Package (x86 and x64)
Microsoft .NET Framework v4.0
BEST PRACTICE: Potential installation problems can be avoided if
Microsoft .NET Framework is installed on the target computer prior to
client installation.
Opal Compliant SEDs
Drives with “X” are supported for SED management but are not qualified for or shipped in Dell systems.
Drive Availability Standard
Seagate ST320LT009 (FIPS Julius) Opal 1
Seagate ST500LT015 (Yarra 1D FIPS 500) Opal 2/eDrive
Seagate ST500LT012 (Yarra 1D non-FIPS 500) XOpal 2/eDrive
Seagate ST500LM020 (Kahuna V FIPS) Opal 2
Travelstar 5K750 series XOpal
Travelstar 7K750 series XOpal
Travelstar Z5K320 series XOpal
MKxx61GSYD series X
MKxx61GSYG series X
Samsung SM841 OPAL SSD Opal 2
Samsung SM841N OPAL SSD Opal 2
LiteOn L9M OPAL SSD (Model: LMT-256L9M-41) Opal 2
LiteOn M3 series SSD Opal 1
LiteOn M6 series SSD Opal 2
Micron RealSSD C400 SSD XOpal 1
Enterprise Edition Administrator Guide 19
Operating Systems
The following table details the supported operating system.
Windows Operating Systems (32- and 64-bit)
Microsoft Windows 7 SP0-SP1
- Enterprise
- Professional
Microsoft Windows 8
- Enterprise
- Professional
- Windows 8 (Consumer)
• Microsoft Windows 8.1
- Enterprise Edition
- Pro Edition
Language Support
The SED client is Multilingual User Interface (MUI) compliant and supports the following languages.
NOTE: PBA localization is not supported in Russian, Traditional Chinese, or Simplified Chinese.
Language Support
EN - English KO - Korean
FR - French ZH-CN - Chinese, Simplified
IT - Italian ZH-TW - Chinese, Traditional/Taiwan
DE - German PT-BR - Portuguese, Brazilian
ES - Spanish PT-PT - Portuguese, Portugal (Iberian)
JA - Japanese RU - Russian
Advanced Authentication Client
Hardware
The following table details supported Dell hardware. Drivers for fingerprint readers and smart cards are located in the
client installation package. Other hardware vendors may require their own drivers.
Fingerprint and Smart Card Readers
Validity VFS495 in Secure Mode
Broadcom ControlVault Swipe Reader
UPEK TCS1 FIPS 201 Secure Reader 1.6.3.379
Authentec Eikon and Eikon To Go USB Readers
20 Enterprise Edition Administrator Guide
Operating Systems
The following table details supported operating systems.
Windows Operating Systems (32- and 64-bit)
Microsoft Windows 7 SP0-SP1
- Enterprise
- Professional
- Ultimate
• Microsoft Windows 8
- Enterprise
- Pro
• Microsoft Windows 8.1 - Windows 8.1 Update 1
- Enterprise Edition
- Pro Edition
Language Support
The Advanced Authentication client is Multilingual User Interface (MUI) compliant and supports the following
languages.
Language Support
EN - English KO - Korean
FR - French ZH-CN - Chinese, Simplified
IT - Italian ZH-TW - Chinese, Traditional/Taiwan
DE - German PT-BR - Portuguese, Brazilian
ES - Spanish PT-PT - Portuguese, Portugal (Iberian)
JA - Japanese RU - Russian
Smart Cards
PKCS #11 Smart Cards using the ActivIdentity client
NOTE: The ActivIdentity client is not pre-loaded and must be installed separately.
CSP Cards
• Common Access Cards (CACs)
NOTE: With CACs that have more than one certificate, at logon, the user selects the correct certificate from a list.
Contactless Cards
Contactless Cards using Contactless Card Readers built in to Dell laptops
Enterprise Edition Administrator Guide 21
BitLocker Manager Client
If Windows BitLocker is not yet deployed in your environment, consider reviewing BitLocker requirements.
The user account performing the installation must be a local or domain Admin user, which can be temporarily assigned
by a deployment tool such as Microsoft SMS or KACE.
Ensure that the PBA partition is already set up. If BitLocker Manager is installed before the PBA partition is set up,
BitLocker cannot be enabled and BitLocker Manager will not be operational. See Pre-Installation Configuration to Set
Up a BitLocker PBA Partition.
Turn on and enable the TPM. BitLocker Manager will take ownership of the TPM and will not require a reboot. However,
if TPM ownership already exists, BitLocker Manager will begin the encryption setup process (no restart is required). The
point is that the TPM must be “owned” and enabled.
The keyboard, mouse, and video components must be directly connected to the computer. Do not use a KVM switch to
manage peripherals as the KVM switch can interfere with the computer's ability to properly identify hardware.
Client Prerequisites
The installer installs this component if not already installed on the computer.
Prerequisites
• Microsoft .NET Framework v4.0
BEST PRACTICE: Potential installation problems can be avoided if
Microsoft .NET Framework is installed on the target computer prior to
client installation.
Hardware
The following table details supported hardware.
Hardware
• Intel Pentium-class processors
Operating Systems
The following table details supported operating systems.
Windows Operating Systems
Microsoft Windows 7 SP0-SP1 (32- and 64-bit)
- Enterprise
- Ultimate
Microsoft Windows 8 (64-bit)
- Enterprise Edition
•Microsoft Windows 8.1 (64-bit)
- Enterprise Edition
- Pro Edition
Microsoft Windows Server 2008 R2 (64-bit)
- Standard Edition
- Enterprise Edition
22 Enterprise Edition Administrator Guide
Language Support
BitLocker Manager is Multilingual User Interface (MUI) compliant and supports the following languages.
Language Support
EN - English JA - Japanese
ES - Spanish KO - Korean
FR - French PT-BR - Portuguese, Brazilian
IT - Italian PT-PT - Portuguese, Portugal (Iberian)
DE - German
Cloud Edition Client
The user account performing the installation must be a local or domain Admin user, which can be temporarily assigned
by a deployment tool such as Microsoft SMS or KACE.
Cloud Edition can be used with DDP|E v7.2.4 or later.
Ensure that target devices have connectivity to
https://yoursecurityservername.domain.com:8443/cloudweb/register
and https://yoursecurityservername.domain.com:8443/cloudweb
.
Before deploying Cloud Edition, it is best if the target devices do not yet have Dropbox, Box, or OneDrive accounts set
up. This is not essential, but it prevents problems with data ownership.
Should end users decide to keep their existing accounts, they should ensure that any files that are to remain
unencrypted
are moved out of Dropbox, Box, or OneDrive before installing Cloud Edition.
End users should be prepared to restart Windows computers after the client is installed.
Cloud Edition does not interfere with the behavior of Dropbox, Box, or OneDrive. Therefore, Administrators and end
users should familiarize themselves with how these applications work prior to deploying Cloud Edition. For more
information, see Box support at https://support.box.com/home, Dropbox support at https://www.dropbox.com/help, or
OneDrive support at http://windows.microsoft.com/en-us/onedrive/onedrive-help#onedrive=other.
NOTE: IPv6 is not supported.
Client Prerequisites
The installer installs these components if not already installed on the computer.
Prerequisites
Microsoft Visual C++ 2010 SP1 Redistributable Package (x86 and x64)
Microsoft .NET Framework 4.0 Client Profile
Enterprise Edition Administrator Guide 23
Cloud Sync Clients
The following table details the latest tested sync clients. Sync clients release updates fairly frequently; later released
versions may work properly with DDP|CE, but should be tested prior to rolling out in a production environment.
Hardware
The following table details supported hardware for the Windows client.
Cloud Sync Clients
• Dropbox 2.4-2.12
- Dropbox for Business requires Dropbox version 2.8 or later plus the DDP Enterprise Server - Virtual Edition (VE) v8.4 or later
NOTE: With a pre-v8.4 VE Server or a Dell Enterprise Server, the client protects all files and folders. With VE v8.4 or later, a user can upload
files to a personal Dropbox account; based on policy, those files can remain unprotected.
• Box 3.4, 4.0
• OneDrive 17.0
Windows Hardware
• Intel Pentium-class or AMD processor
• 512 MB-2 GB RAM, depending on operating system
• 15 GB-20 GB free disk space, depending on operating system
• 10/100/1000 or Wi-Fi network interface card
• TCP/IP installed and activated
24 Enterprise Edition Administrator Guide
Operating Systems
The following table details supported operating systems.
Windows Operating Systems (32-bit and 64-bit)
Microsoft Windows 7 SP0-SP1
• Microsoft Windows 8
Microsoft Windows 8.1 (Box and Dropbox only)
Android Operating Systems
4.0 Ice Cream Sandwich
4.1 - 4.3 Jelly Bean
4.4 KitKat
iOS Operating Systems
iOS 5.x
iOS 6.x
iOS 7.x
Enterprise Edition Administrator Guide 25
Interoperability
Deprovision and Uninstall Dell Data Protection | Access
If DDP|A is installed now or has been installed in the past on your computer, before installing the Encryption client, SED,
or Advanced Authentication, you must deprovision the DDP|A-managed hardware and then uninstall DDP|A. If DDP|A
has not been used, you may simply uninstall DDP|A and restart the installation process.
Deprovisioning DDP|A-managed hardware includes the fingerprint reader, smart card reader, BIOS passwords, TPM, and
the Self-Encrypting Drive.
NOTE: If running DDP|E encryption products, stop or pause an encryption sweep. If running Microsoft BitLocker, suspend the encryption
policy. Once DDP|A is uninstalled and Microsoft BitLocker policy is unsuspended, initialize the TPM by following the instructions
located at
http://technet.microsoft.com/en-us/library/cc753140.aspx
.
Deprovision DDP|A-Managed Hardware
1
Launch DDP|A and click the
Advanced
tab.
2
Select
Reset System
. This will require that you enter any provisioned credentials to verify your identity. After DDP|A
verifies the credentials, DDP|A will perform the following actions:
Remove all provisioned credentials from Dell ControlVault (if present)
Remove Dell ControlVault owner password (if present)
Remove all provisioned fingerprints from integrated fingerprint reader (if present)
Remove all BIOS passwords (BIOS System, BIOS Admin, and HDD passwords)
Clear the Trusted Platform Module
Remove the DDP|A Credential Provider
Once the computer is deprovisioned, DDP|A reboots the computer to restore the Windows default credential provider.
Uninstall DDP|A
Once the authentication hardware is deprovisioned, uninstall DDP|A.
1
Launch DDP|A and perform a Reset System.
This will remove all DDP|A managed credentials and passwords and will clear the Trusted Platform Module (TPM).
2
Click
Uninstall
to launch the installer.
3
When the uninstall finishes, click
Yes
to restart.
NOTE: If using a self-encrypting drive, removing DDP|A will also unlock the SED and remove the Preboot Authentication.
Initialize the TPM
1
Follow the instructions located at http://technet.microsoft.com/en-us/library/cc753140.aspx.
26 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 27
Pre-Installation Configuration to Enable DDP|HCA
If the computer targeted for encryption is equipped with a Dell Data Protection | Hardware Crypto Accelerator (HCA)
and you intend to use Hardware Crypto Accelerator (HCA) policies, you must first set up and activate the TPM. If using
legacy HCA, you need to set up a System password.
Follow the instructions detailed in this section to configure DDP|HCA prior to the Encryption client installation.
NOTE: The features available as of v8.3 with Enterprise PBA are supported on legacy BIOS non-UEFI computers. If running Windows 8 or
Windows 8.1, follow the instructions detailed in
Change Secure Boot/UEFI to Legacy Boot Mode in BIOS
prior to performing these
steps.
Upgrade Legacy HCA Computers
Requirements
Computers running legacy BIOS must upgrade to an enterprise BIOS.
The computer must have at least one partition free to accommodate the Preboot Authentication (PBA) partition.
Upgrade Legacy HCA Computers
To upgrade legacy HCA computers, follow these steps:
1
Disable HCA policies and apply the policy change.
2
Wait for hard drives to be decrypted.
3
Uninstall the Encryption client and Security Tools (if needed).
4
Upgrade the BIOS.
a
Close all applications.
b
Go to support.dell.com.
c
In
General support > Select a product
, click
Laptops
if Latitude or
Desktops & All-in-Ones
if Precision or Optiplex.
d
Select your model.
TIP: The following computers need the updated BIOS versions to run Enterprise PBA.
Computer BIOS Needed
Latitude E6440 A05
Latitude E6540 A08
Latitude E7240 A08
Latitude E7440 A08
OptiPlex 7010 A16
OptiPlex 9020 A05
OptiPlex 9020 AIO A06
28 Enterprise Edition Administrator Guide
e
Select
Get drivers and downloads
in the left menu.
f
Click
View All Drivers
.
g

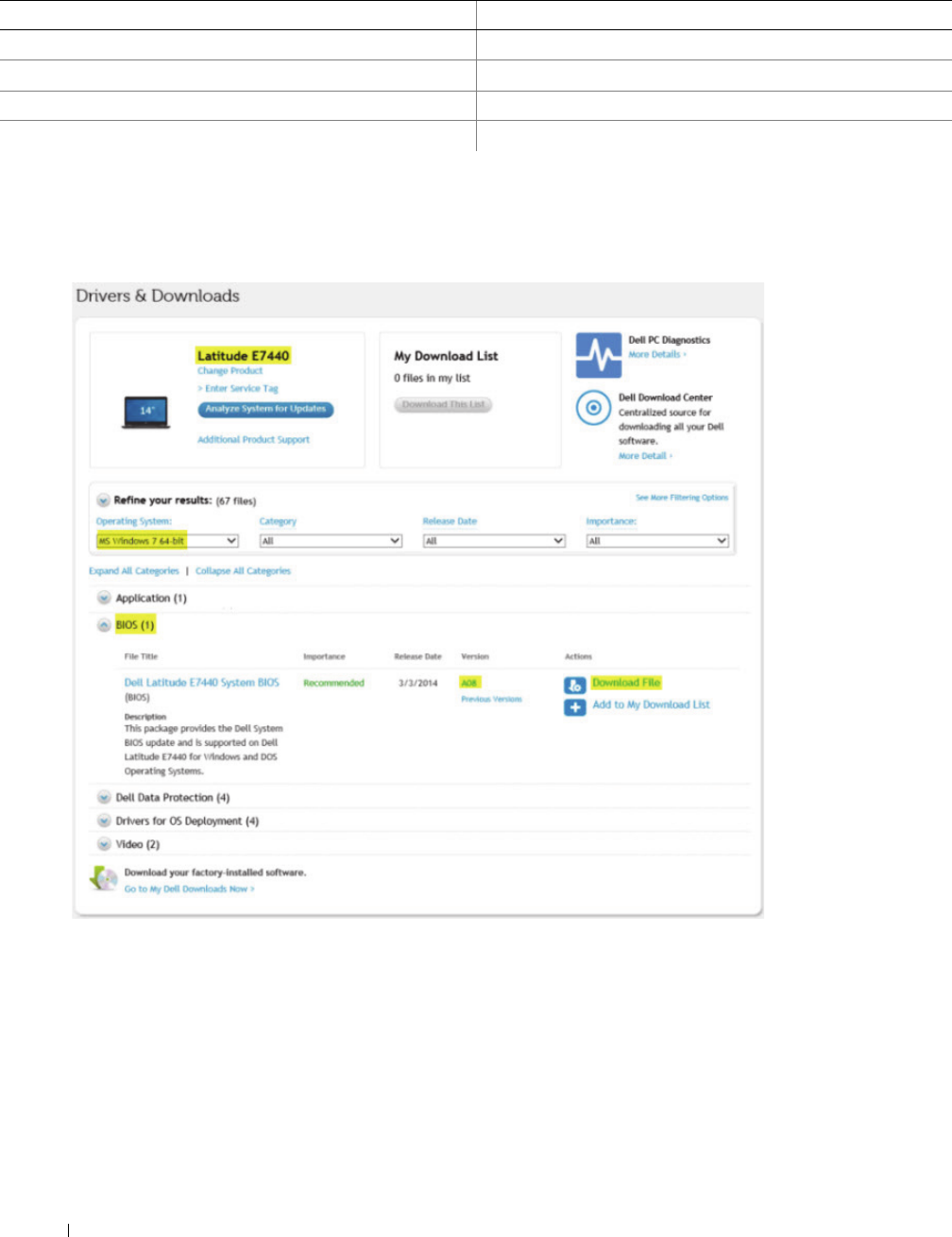

Scroll down to
Refine your results
and expand the
BIOS
drop-down. Download and install the updated BIOS,
following the prompts in the BIOS installer package. The following example displays a Latitude E7440.
5
Install the product using the DDPSetup.exe file. Using DDPSetup.exe installs the Encryption client and Advanced
Authentication.
6
Re-apply HCA policies and apply the change.
OptiPlex XE2 A05
Precision M4800 A07
Precision M6800 A07
Precision T1700 A06
Computer BIOS Needed
Enterprise Edition Administrator Guide 29
DDP|HCA Pre-Installation BIOS Configuration
If the following hardware and BIOS instructions are not completed, are inaccurate, or are otherwise not met, the
Encryption client ignores HCA policies and software encryption is implemented.
1
Boot into the BIOS Configuration:
Press F2 or F12 continuously during boot until a message in the upper right screen is similar to “preparing to
enter setup” (F2) or “preparing one-time boot menu” (F12). Enter BIOS Administrator password if prompted.
NOTE: Typically, you will not see this prompt if this is a new computer since the BIOS password has not yet been configured.
2
If the computer is equipped with legacy HCA, follow this step. Otherwise, skip to step 4.
Define the BIOS Administrator Password if not already configured:
—Under Settings, click the + (plus) sign next to Security, and then click Admin Password. You must complete this
step before you can create a System (Preboot) password.
Enter your new Admin password information and click Apply.
3
If the computer is equipped with legacy HCA, follow this step. Otherwise, skip to step 4.
Define a System (Preboot) Password if not already configured:
—Click System Password in the same menu.
Enter your new System Password information and click Apply.
IMPORTANT: Before performing Steps 4 and 5, understand that you should never clear TPM or DDP|HCA ownership after HCA policies have
been implemented. If you ignore the BIOS warning and clear the TPM or HCA after policies have been implemented, you will
lose access to the encrypted hard drive and must complete a recovery process to regain access.
4
Clear and activate the TPM:
—Click TPM Security in the same menu.
Select the Clear option and click Apply.
Select the Activate option and click Apply.
5
Clear HCA ownership:
—Click Dell Encryption in the same menu.
Select the Clear Owner check box.
—Click Yes at the warning dialog and then click Apply.
—Click Exit.
NOTE: If the check box is grayed out, it is
Owned
. If the HCA ownership check box will not clear, select Load Default and then Exit.
6
If the computer is equipped with legacy HCA, enter the System (Preboot) Password:
After exiting the BIOS configuration you will be prompted for the
System (Preboot)
password defined in
step 3
.
DDP|HCA pre-installation configuration is complete.
7
Log in to Windows:
Log in with local or domain Admin credentials when the computer boots to Windows.
30 Enterprise Edition Administrator Guide
Reset System Password
If the computer is equipped with legacy HCA, and
you forget your System password, log in with the BIOS Admin password
and assign a new System password as described in
DDP|HCA Pre-Installation BIOS Configuration
. If the BIOS password is
also unknown, you must contact Dell support to reset the passwords (refer to your Welcome Letter for contact
information).
Enterprise Edition Administrator Guide 31
Pre-Installation Configuration to Set Up a BitLocker PBA
Partition
You must create the PBA partition
before
installing BitLocker Manager.
Use the BdeHdCfg.exe command to create the PBA partition. The default parameter indicates that the command line
tool will follow the same process as the BitLocker Setup Wizard:
BdeHdCfg -target default
For more options available for the BdeHdCfg command, see Microsoft’s BdeHdCfg.exe Parameter Reference.
NOTE: You may need to partition the disk manually. See Microsoft’s Description of the BitLocker Drive Preparation Tool for further
instructions.
Before installing BitLocker Manager, turn on and activate the TPM. BitLocker Manager will take ownership of the TPM
and will not require a reboot. However, if TPM ownership already exists, BitLocker Manager will begin the encryption
setup process. The point is that the TPM must be “owned”.
32 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 33
Set GPO on Domain Controller to Enable Entitlements
If your clients will be entitled from the factory or you purchase licenses from the factory, follow these instructions to set
the GPO on the domain controller to enable entitlements (this may not be the same server running Enterprise Edition).
The workstation must be a member of the OU where the GPO is applied.
NOTE: Ensure that outbound port 443 is available to communicate with the Server. If port 443 is blocked
(
for any reason), the entitlement
functionality will not work.
1
On the Domain Controller to manage the clients, click
Start > Administrative Tools > Group Policy Management
.
2
Right-click the OU where the policy should be applied and select
Create a GPO in this domain, and Link it here...
.
3
Enter a name for the new GPO, select (none) for Source Starter GPO, and click
OK
.
4
Right-click the GPO that was created and select
Edit
.
34 Enterprise Edition Administrator Guide
5
The Group Policy Management Editor loads. Access
Computer Configuration > Preferences > Windows Settings >
Registry
.
6
Right-click the Registry and select
New \ Registry Item
. Complete the following:
Action: Create
Hive: HKEY_LOCAL_MACHINE
Key Path: SOFTWARE\Dell\Dell Data Protection
Value name: Server
Value type: REG_SZ
Value data: <IP address of Server>
Enterprise Edition Administrator Guide 35
7
Click
OK
.
8
Log out and then back into the workstation, or run
gpupdate /force
to apply the group policy.
36 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 37
Extract the Child Installers from the Master Installer
To install each client individually, first extract the child executable files from the master installer.
1
From the Dell installation media, copy the master installer’s
DDPSetup.exe
file to the local computer.
2
Open a command prompt in the same location as the DDPSetup.exe file and enter:
DDPSetup.exe /z"\"EXTRACT_INSTALLERS=C:\extracted\""
The extracted child installers are located at C:\extracted\.
38 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 39
Commonly Used Scenarios
To install each client individually, the child executable files must first be extracted from the master installer, as shown in
Extract the Child Installers from the Master Installer.
The default location of log files is: C:\ProgramData\Dell\Dell Data Protection.
If your computer has DDP|A installed now or has had it installed in the past, be sure to follow the steps in
Interoperability before you continue.
The computer restart has been suppressed in these examples but is eventually required for completion of the installation
process.
You will be securing access to this computer using advanced authentication credentials that are managed and enrolled
using Dell Data Protection | Security Tools. DDP|ST is now the primary manager of your authentication credentials for
Windows Sign-in, including Windows password, fingerprints, and smart cards. Picture password, PIN, and fingerprint
credentials enrolled using the Microsoft Operating System will not be recognized at Windows Sign-in.
To continue using the Microsoft Operating System to manage your credentials, uninstall DDP|ST.
If the computer targeted for encryption is equipped with a Hardware Crypto Accelerator or a self-encrypting drive, ensure
that the Active Directory option,
User Must Change Password at Next Logon
, is disabled. Preboot Authentication does
not support this Active Directory option.
Dell recommends that you do not change the authentication method after Preboot Authentication has been activated
(SED) or HCA policy has been set to True (HCA). If you must switch to a different authentication method, you must
either:
Remove all the users from the PBA, and then re-enroll the users.
or
Deactivate the PBA(SED) or set the HCA policy to False (HCA), change the authentication method, and then
re-activate the PBA (SED) or set the HCA policy to True (HCA).
On computers equipped with a Hardware Crypto Accelerator or a self-encrypting drive, to use smart cards with Preboot
Authentication, the following registry value must be set on the client computer:
[HKLM\SOFTWARE\DigitalPersona\Policies\Default\SmartCards]
"MSSmartcardSupport"=dword:1
0 or no key = Smart Card Support Off, 1 = Smart Card Support On
40 Enterprise Edition Administrator Guide
DDP|E Client and Advanced Authentication
See
Configure Credentials in the Security Console
and
Use the Authentication Applications
to learn how to use the features
of Advanced Authentication.
NOTE: Drivers are needed for Advanced Authentication if installing on Dell hardware. These are the drivers for the various smart cards and
fingerprint readers for which Dell supplies drivers. Installing these drivers should be omitted if using Advanced Authentication on
non-Dell hardware, as they may interfere with other vendor’s drivers.
Drivers are also needed if installing the encryption client. Additional drivers and software stack are required for supporting Hardware
Crypto Accelerator (HCA). This includes the HCA driver and the Trusted Software Stack (TSS) for TPM. The ControlVault driver and
firmware update is installed as part of this scenario.
Drivers - C:\extracted\Drivers
The following example installs the drivers at the specified location, does not create an entry in the Control Panel
Programs list, and suppresses the reboot.
setup.exe /S /z"\"InstallPath=<c:\location>, ARPSYSTEMCOMPONENT=1,
SUPPRESSREBOOT=1\""
Then:
SED Client - C:\extracted\Security Tools
The following example installs remotely managed SED (silent installation, no reboot, log file at the specified location, no
entry in the Control Panel Programs list, and is installed in the default location of C:\Program Files\Dell\Dell Data
Protection).
EMAgent_XXbit_setup.exe /S /v"CM_EDITION=1 SERVERHOST=server.organization.com
SERVERPORT=8888 SECURITYSERVERHOST=securityserver.organization.com
SECURITYSERVERPORT=8443 ARPSYSTEMCOMPONENT=1 /l*v SEDinstall.log /norestart /qn"
NOTE: The SED client is required for Advanced Authentication in v8.x.
Then:
Advanced Authentication Client - C:\extracted\Security Tools\Authentication
The following example installs Advanced Authentication (silent installation, no reboot, log file at the specified location,
installed in the default location of C:\Program Files\Dell\Dell Data Protection).
DP_XXbit_setup.exe /s /v"/norestart /l*v DPinstall.log /qn"
Then:
Dell ControlVault - C:\extracted\UshCvReset (Dell ControlVault Software Update) Child Installer
The following example installs Dell ControlVault software updates used by Security Tools (silent installation, no reboot,
log file at the specified location, installed in the default location of C:\Program Files\Dell\Dell Data Protection). If the
target computer is not equipped with Dell ControlVault, installing this software is not harmful and will have no effect.
Dell_CV_SW_Update_xXX.exe /s /v"/norestart /l*v CVinstall.log /qn"
Enterprise Edition Administrator Guide 41
Then
:
DDP|E Encryption Client - C:\extracted\Encryption
The following example installs the client with default parameters (encryption client, Encrypt for Sharing,
CREDActivate, no dialogue, no progress bar, no restart, logs at the specified location, installed in the default location of
C:\Program Files\Dell\Dell Data Protection).
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8081/xapi /norestart /l*v
Shieldinstall.log /qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8443/xapi/ /norestart /l*v
Shieldinstall.log /qn"
SED Client (including Advanced Authentication) and External Media Edition
See
Configure Credentials in the Security Console
and
Use the Authentication Applications
to learn how to use the features
of Advanced Authentication.
NOTE: Drivers are needed for Advanced Authentication if installing on Dell hardware. These are the drivers for the various smart cards and
fingerprint readers for which Dell supplies drivers. Installing these drivers should be omitted if using Advanced Authentication on
non-Dell hardware, as they may interfere with other vendor’s drivers.
Drivers are also needed if installing the encryption client. Additional drivers and software stack are required for supporting Hardware
Crypto Accelerator (HCA). This includes the HCA driver and the Trusted Software Stack (TSS) for TPM.
Drivers - C:\extracted\Drivers
The following example installs the drivers at the specified location, does not create an entry in the Control Panel
Programs list, and suppresses the reboot.
setup.exe /S /z"\"InstallPath=<c:\location>, ARPSYSTEMCOMPONENT=1,
SUPPRESSREBOOT=1\""
Then
:
SED Client - C:\extracted\Security Tools
The following example installs remotely managed SED (silent installation, no reboot, log file at the specified location, no
entry in the Control Panel Programs list, installed in the default location of C:\Program Files\Dell\Dell Data Protection).
EMAgent_XXbit_setup.exe /S /v"CM_EDITION=1 SERVERHOST=server.organization.com
SERVERPORT=8888 SECURITYSERVERHOST=securityserver.organization.com
SECURITYSERVERPORT=8443 ARPSYSTEMCOMPONENT=1 /l*v SEDinstall.log /norestart /qn"
42 Enterprise Edition Administrator Guide
Then:
Advanced Authentication Client - C:\extracted\Security Tools\Authentication
The following example installs Advanced Authentication (silent installation, no reboot, log file at the specified location,
installed in the default location of C:\Program Files\Dell\Dell Data Protection).
DP_XXbit_setup.exe /s /v"/norestart /l*v DPinstall.log /qn"
Then:
Dell ControlVault - C:\extracted\UshCvReset (Dell ControlVault Software Update) Child Installer
The following example installs Dell ControlVault software updates used by Security Tools (silent installation, no reboot,
log file at the specified location, installed in the default location of C:\Program Files\Dell\Dell Data Protection). If the
target computer is not equipped with Dell ControlVault, installing this software is not harmful and will have no effect.
Dell_CV_SW_Update_xXX.exe /s /v"/norestart /l*v CVinstall.log /qn"
Then
:
DDP|E Encryption Client - C:\extracted\Encryption
The following example installs EME only (silent installation, no reboot, log file at the specified location, installed in the
default location of C:\Program Files\Dell\Dell Data Protection).
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"EME=1 SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com DEVICESERVERURL=
https://server.organization.com:8081/xapi MANAGEDDOMAIN=ORGANIZATION /norestart
/l*v EMEinstall.log /qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"EME=1 SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com DEVICESERVERURL=
https://server.organization.com:8443/xapi/ MANAGEDDOMAIN=ORGANIZATION /norestart
/l*v EMEinstall.log /qn"
SED Client (including Advanced Authentication), External Media Edition, and
Cloud Edition
See
Cloud Edition Activation and User Experience
to learn how to use Cloud Edition.
See
Configure Credentials in the Security Console
and
Use the Authentication Applications
to learn how to use the features
of Advanced Authentication.
NOTE: Drivers are needed for Advanced Authentication if installing on Dell hardware. These are the drivers for the various smart cards and
fingerprint readers for which Dell supplies drivers. Installing these drivers should be omitted if using Advanced Authentication on
non-Dell hardware, as they may interfere with other vendor’s drivers.
Drivers are also needed if installing the encryption client. Additional drivers and software stack are required for supporting Hardware
Crypto Accelerator (HCA). This includes the HCA driver and the Trusted Software Stack (TSS) for TPM.
Enterprise Edition Administrator Guide 43
Drivers - C:\extracted\Drivers
The following example installs the drivers at the specified location, does not create an entry in the Control Panel
Programs list, and suppresses the reboot.
setup.exe /S /z"\"InstallPath=<c:\location>, ARPSYSTEMCOMPONENT=1,
SUPPRESSREBOOT=1\""
Then:
SED Client - C:\extracted\Security Tools
The following example installs remotely managed SED (silent installation, no reboot, log file at the specified location, no
entry in the Control Panel Programs list, installed in the default location of C:\Program Files\Dell\Dell Data Protection).
EMAgent_XXbit_setup.exe /S /v"CM_EDITION=1 SERVERHOST=server.organization.com
SERVERPORT=8888 SECURITYSERVERHOST=securityserver.organization.com
SECURITYSERVERPORT=8443 ARPSYSTEMCOMPONENT=1 /l*v SEDinstall.log /norestart /qn"
Then:
Advanced Authentication Client - C:\extracted\Security Tools\Authentication
The following example installs Advanced Authentication (silent installation, no reboot, log file at the specified location,
installed in the default location of C:\Program Files\Dell\Dell Data Protection).
DP_XXbit_setup.exe /s /v"/norestart /l*v DPinstall.log /qn"
Then:
Dell ControlVault - C:\extracted\UshCvReset (Dell ControlVault Software Update) Child Installer
The following example installs Dell ControlVault software updates used by Security Tools (silent installation, no reboot,
log file at the specified location, installed in the default location of C:\Program Files\Dell\Dell Data Protection). If the
target computer is not equipped with Dell ControlVault, installing this software is not harmful and will have no effect.
Dell_CV_SW_Update_xXX.exe /s /v"/norestart /l*v CVinstall.log /qn"
Then:
DDP|E Encryption Client - C:\extracted\Encryption
The following example installs EME only (silent installation, no reboot, log file at the specified location, installed in the
default location of C:\Program Files\Dell\Dell Data Protection).
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"EME=1 SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com DEVICESERVERURL=
https://server.organization.com:8081/xapi MANAGEDDOMAIN=ORGANIZATION /norestart
/l*v EMEinstall.log /qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"EME=1 SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com DEVICESERVERURL=
https://server.organization.com:8443/xapi/ MANAGEDDOMAIN=ORGANIZATION /norestart
/l*v EMEinstall.log /qn"
Then
:
44 Enterprise Edition Administrator Guide
Cloud Client - C:\extracted\Cloud
The following example installs Cloud Edition (silent installation, no reboot, log file at the specified location, installed in
the default location of C:\Program Files\Dell\Dell Data Protection).
Cloud_XXbit_setup.exe /s /v"SERVER=securityserver.organization.com /norestart
/l*v Cloudinstall.log /qn"
DDP|E Client and Cloud Edition
See
Cloud Edition Activation and User Experience
to learn how to use Cloud Edition.
NOTE: Drivers are needed for Advanced Authentication if installing on Dell hardware. These are the drivers for the various smart cards and
fingerprint readers for which Dell supplies drivers. Installing these drivers should be omitted if using Advanced Authentication on
non-Dell hardware, as they may interfere with other vendor’s drivers.
Drivers are also needed if installing the encryption client. Additional drivers and software stack are required for supporting Hardware
Crypto Accelerator (HCA). This includes the HCA driver and the Trusted Software Stack (TSS) for TPM.
Drivers - C:\extracted\Drivers
The following example installs the drivers at the specified location, does not create an entry in the Control Panel
Programs list, and suppresses the reboot.
setup.exe /S /z"\"InstallPath=<c:\location>, ARPSYSTEMCOMPONENT=1,
SUPPRESSREBOOT=1\""
Then:
DDP|E Encryption Client - C:\extracted\Encryption
The following example installs the client with default parameters (encryption client, Encrypt for Sharing,
CREDActivate, no dialogue, no progress bar, no restart, logs at the specified location, installed in the default location of
C:\Program Files\Dell\Dell Data Protection).
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8081/xapi /norestart /l*v
Shieldinstall.log /qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8443/xapi/ /norestart /l*v
Shieldinstall.log /qn"
Then
:
Cloud Client - C:\extracted\Cloud
The following example installs Cloud Edition (silent installation, no reboot, log file at the specified location, installed in
the default location of C:\Program Files\Dell\Dell Data Protection).
Cloud_XXbit_setup.exe /s /v"SERVER=securityserver.organization.com /norestart
/l*v Cloudinstall.log /qn"
Enterprise Edition Administrator Guide 45
BitLocker Manager and External Media Edition
BitLocker Manager Client - C:\extracted\Security Tools
The following example installs BitLocker Manager (silent installation, no reboot, log file at the specified location, no
entry in the Control Panel Programs list, installed in the default location of C:\Program Files\Dell\Dell Data Protection).
EMAgent_XXbit_setup.exe /s /v"CM_EDITION=1 SERVERHOST=server.organization.com
SERVERPORT=8888 SECURITYSERVERHOST=securityserver.organization.com
SECURITYSERVERPORT=8443 ARPSYSTEMCOMPONENT=1 ADDLOCAL=
DELL_Security_Tools,BITLOCKER FEATURE=BLM /l*v Bitlockerinstall.log /norestart
/qn"
Then:
DDP|E Encryption Client - C:\extracted\Encryption
The following example installs EME only (silent installation, no reboot, log file at the specified location, installed in the
default location of C:\Program Files\Dell\Dell Data Protection).
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"EME=1 SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com DEVICESERVERURL=
https://server.organization.com:8081/xapi MANAGEDDOMAIN=ORGANIZATION /norestart
/l*v EMEinstall.log /qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"EME=1 SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com DEVICESERVERURL=
https://server.organization.com:8443/xapi/ MANAGEDDOMAIN=ORGANIZATION /norestart
/l*v EMEinstall.log /qn"
BitLocker Manager, External Media Edition, and Cloud Edition
See
Cloud Edition Activation and User Experience
to learn how to use Cloud Edition.
BitLocker Manager Client - C:\extracted\Security Tools
The following example installs BitLocker Manager (silent installation, no reboot, log file at the specified location, no
entry in the Control Panel Programs list, installed in the default location of C:\Program Files\Dell\Dell Data Protection).
EMAgent_XXbit_setup.exe /s /v"CM_EDITION=1 SERVERHOST=server.organization.com
SERVERPORT=8888 SECURITYSERVERHOST=securityserver.organization.com
SECURITYSERVERPORT=8443 ARPSYSTEMCOMPONENT=1 ADDLOCAL=
DELL_Security_Tools,BITLOCKER FEATURE=BLM /l*v Bitlockerinstall.log /norestart
/qn"
Then:
DDP|E Encryption Client - C:\extracted\Encryption
The following example installs EME only (silent installation, no reboot, log file at the specified location, installed in the
default location of C:\Program Files\Dell\Dell Data Protection).
46 Enterprise Edition Administrator Guide
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"EME=1 SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com DEVICESERVERURL=
https://server.organization.com:8081/xapi MANAGEDDOMAIN=ORGANIZATION /norestart
/l*v EMEinstall.log /qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"EME=1 SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com DEVICESERVERURL=
https://server.organization.com:8443/xapi/ MANAGEDDOMAIN=ORGANIZATION /norestart
/l*v EMEinstall.log /qn"
Then:
Cloud Client - C:\extracted\Cloud
The following example installs Cloud Edition (silent installation, no reboot, log file at the specified location, installed in
the default location of C:\Program Files\Dell\Dell Data Protection).
Cloud_XXbit_setup.exe /s /v"SERVER=securityserver.organization.com /norestart
/l*v Cloudinstall.log /qn"
SED Client (including Advanced Authentication), DDP|E Client, and Cloud
Edition
See
Cloud Edition Activation and User Experience
to learn how to use Cloud Edition.
See
Configure Credentials in the Security Console
and
Use the Authentication Applications
to learn how to use the features
of Advanced Authentication.
NOTE: Drivers are needed for Advanced Authentication if installing on Dell hardware. These are the drivers for the various smart cards and
fingerprint readers for which Dell supplies drivers. Installing these drivers should be omitted if using Advanced Authentication on
non-Dell hardware, as they may interfere with other vendor’s drivers.
Drivers are also needed if installing the encryption client. Additional drivers and software stack are required for supporting Hardware
Crypto Accelerator (HCA). This includes the HCA driver and the Trusted Software Stack (TSS) for TPM.
Drivers - C:\extracted\Drivers
The following example installs the drivers at the specified location, does not create an entry in the Control Panel
Programs list, and suppresses the reboot.
setup.exe /S /z"\"InstallPath=<c:\location>, ARPSYSTEMCOMPONENT=1,
SUPPRESSREBOOT=1\""
Then:
SED Client - C:\extracted\Security Tools
The following example installs remotely managed SED (silent installation, no reboot, log file at the specified location, no
entry in the Control Panel Programs list, installed in the default location of C:\Program Files\Dell\Dell Data Protection).
Enterprise Edition Administrator Guide 47
EMAgent_XXbit_setup.exe /S /v"CM_EDITION=1 SERVERHOST=server.organization.com
SERVERPORT=8888 SECURITYSERVERHOST=securityserver.organization.com
SECURITYSERVERPORT=8443 ARPSYSTEMCOMPONENT=1 /l*v SEDinstall.log /norestart /qn"
Then:
Advanced Authentication Client - C:\extracted\Security Tools\Authentication
The following example installs Advanced Authentication (silent installation, no reboot, log file at the specified location,
installed in the default location of C:\Program Files\Dell\Dell Data Protection).
DP_XXbit_setup.exe /s /v"/norestart /l*v DPinstall.log /qn"
Then:
Dell ControlVault - C:\extracted\UshCvReset (Dell ControlVault Software Update) Child Installer
The following example installs Dell ControlVault software updates used by Security Tools (silent installation, no reboot,
log file at the specified location, installed in the default location of C:\Program Files\Dell\Dell Data Protection). If the
target computer is not equipped with Dell ControlVault, installing this software is not harmful and will have no effect.
Dell_CV_SW_Update_xXX.exe /s /v"/norestart /l*v CVinstall.log /qn"
Then:
DDP|E Encryption Client - C:\extracted\Encryption
The following example installs the client with default parameters (encryption client, Encrypt for Sharing,
CREDActivate, no dialogue, no progress bar, no restart, logs at the specified location, installed in the default location of
C:\Program Files\Dell\Dell Data Protection).
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8081/xapi /norestart /l*v
Shieldinstall.log /qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8443/xapi/ /norestart /l*v
Shieldinstall.log /qn"
Then:
Cloud Client - C:\extracted\Cloud
The following example installs Cloud Edition (silent installation, no reboot, log file at the specified location, installed in
the default location of C:\Program Files\Dell\Dell Data Protection).
Cloud_XXbit_setup.exe /s /v"SERVER=securityserver.organization.com /norestart
/l*v Cloudinstall.log /qn"
48 Enterprise Edition Administrator Guide
DDP|E Client and Advanced Authentication for Computers with HCA
NOTE: Drivers are needed for Advanced Authentication if installing on Dell hardware. These are the drivers for the various smart cards and
fingerprint readers for which Dell supplies drivers. Installing these drivers should be omitted if using Advanced Authentication on
non-Dell hardware, as they may interfere with other vendor’s drivers.
Drivers are also needed if installing the encryption client. Additional drivers and software stack are required for supporting Hardware
Crypto Accelerator (HCA). This includes the HCA driver and the Trusted Software Stack (TSS) for TPM.
The ControlVault driver and firmware update is installed as part of the following scenario.
BIOS Configuration
Complete the instructions in DDP|HCA Pre-Installation BIOS Configuration.
Then:
Drivers - C:\extracted\Drivers
The following example installs the drivers at the specified location, does not create an entry in the Control Panel
Programs list, and suppresses the reboot.
setup.exe /S /z"\"InstallPath=<c:\location>, ARPSYSTEMCOMPONENT=1,
SUPPRESSREBOOT=1\""
Then:
SED Client - C:\extracted\Security Tools
The following example installs remotely managed SED (silent installation, no reboot, log file at the specified location, no
entry in the Control Panel Programs list, and is installed in the default location of C:\Program Files\Dell\Dell Data
Protection).
EMAgent_XXbit_setup.exe /S /v"CM_EDITION=1 SERVERHOST=server.organization.com
SERVERPORT=8888 SECURITYSERVERHOST=securityserver.organization.com
SECURITYSERVERPORT=8443 ARPSYSTEMCOMPONENT=1 /l*v SEDinstall.log /norestart /qn"
NOTE: The SED client is required for Advanced Authentication in v8.x.
Then:
Advanced Authentication Client - C:\extracted\Security Tools\Authentication
The following example installs Advanced Authentication (silent installation, no reboot, log file at the specified location,
installed in the default location of C:\Program Files\Dell\Dell Data Protection).
DP_XXbit_setup.exe /s /v"/norestart /l*v DPinstall.log /qn"
Then:
Dell ControlVault - C:\extracted\UshCvReset (Dell ControlVault Software Update) Child Installer
The following example installs Dell ControlVault software updates used by Security Tools (silent installation, no reboot,
log file at the specified location, installed in the default location of C:\Program Files\Dell\Dell Data Protection). If the
target computer is not equipped with Dell ControlVault, installing this software is not harmful and will have no effect.
Dell_CV_SW_Update_xXX.exe /s /v"/norestart /l*v CVinstall.log /qn"
Enterprise Edition Administrator Guide 49
Then:
DDP|E Encryption Client - C:\extracted\Encryption
The following example installs the client with default parameters (encryption client, Encrypt for Sharing,
CREDActivate, no dialogue, no progress bar, no restart, logs at the specified location, installed in the default location of
C:\Program Files\Dell\Dell Data Protection).
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8081/xapi /norestart /l*v
Shieldinstall.log /qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8443/xapi/ /norestart /l*v
Shieldinstall.log /qn"
Then
:

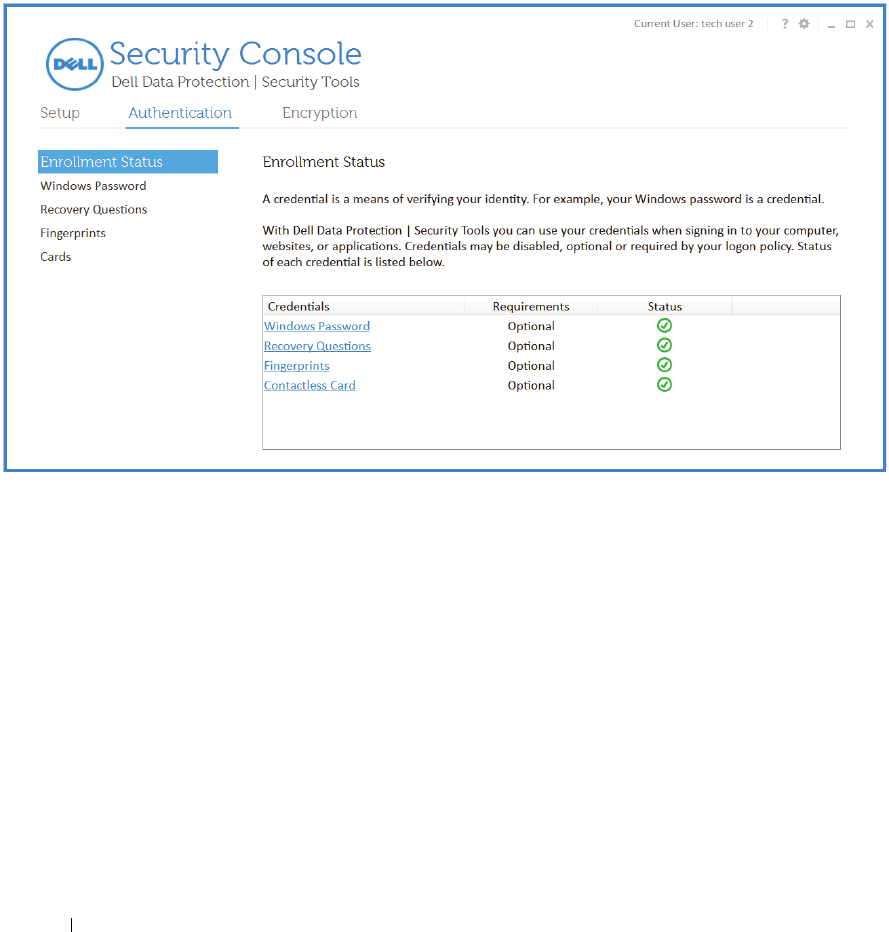

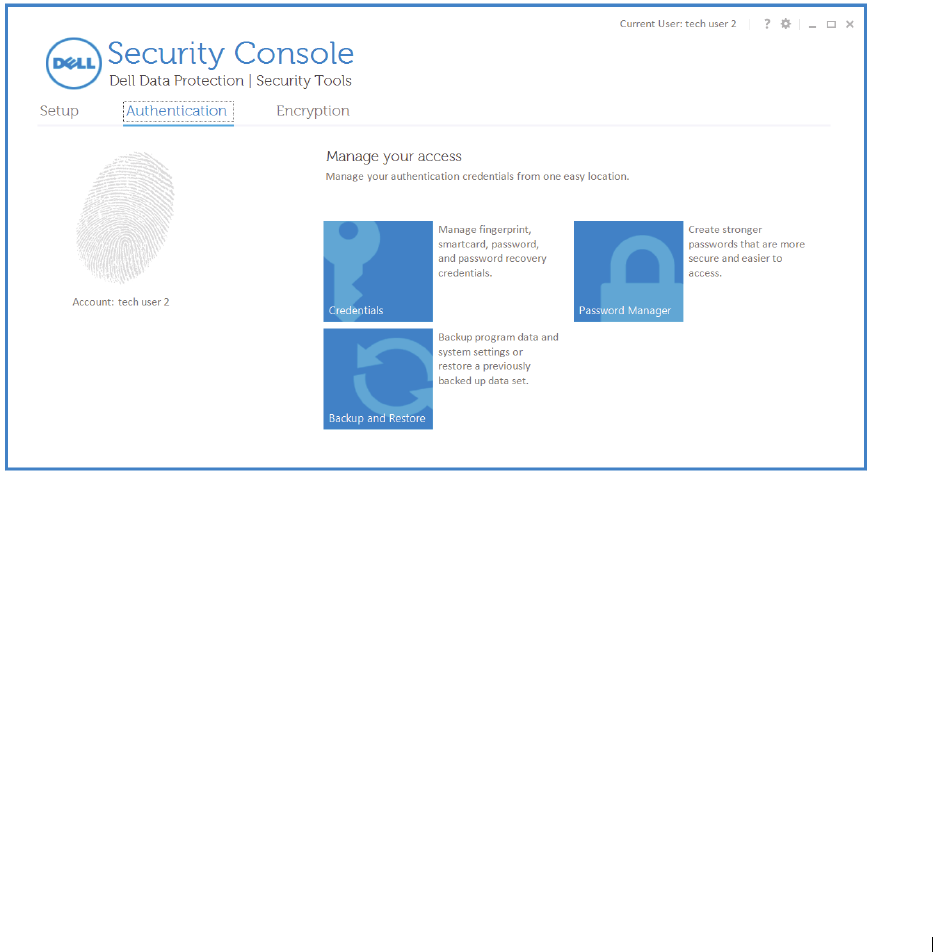

Configure user credentials and recovery questions in the Security Console.
See Configure Credentials in the Security Console and Use the Authentication Applications to learn how to use the
features of Advanced Authentication.
Then
:
Enable hardware-based encryption by issuing a policy of Hardware Crypto Accelerator (HCA) = True. This step causes
the PBA partition to be created. The computer will restart to complete the process.
50 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 51
Section I. Dell Data Protection
Installer (Master
Installer)
52 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 53
Dell Data Protection Master Installer
The Dell Data Protection Master Installer is commonly known as the Master Installer, as it installs the Enterprise Edition
suite of products.
The master installer does not support upgrades from pre-v8.0 components. For upgrade needs, extract the appropriate
child installer from the master installer. See Extract the Child Installers from the Master Installer for extraction
instructions.
You will be securing access to this computer using advanced authentication credentials that are managed and enrolled
using Dell Data Protection | Security Tools. DDP|ST is now the primary manager of your authentication credentials for
Windows Sign-in, including Windows password, fingerprints, and smart cards. Picture password, PIN, and fingerprint
credentials enrolled using the Microsoft Operating System will not be recognized at Windows Sign-in.
To continue using the Microsoft Operating System to manage your credentials, uninstall DDP|ST.
The default location of log files is: C:\ProgramData\Dell\Dell Data Protection
If your computer has DDP|A installed now or has had it installed in the past, be sure to follow the steps in
Interoperability before you continue.
If the computer targeted for encryption is equipped with a Hardware Crypto Accelerator or a self-encrypting drive, ensure
that the Active Directory option,
User Must Change Password at Next Logon
, is disabled. Preboot Authentication (PBA)
does not support this Active Directory option.
Dell recommends that you do not change the authentication method after Preboot Authentication has been activated
(SED) or HCA policy has been set to True (HCA). If you must switch to a different authentication method, you must
either:
Remove all the users from the PBA, and then re-enroll the users.
or
Deactivate the PBA (SED) or set the HCA policy to False (HCA), change the authentication method, and then
re-activate the PBA (SED) or set the HCA policy to True (HCA).
On computers equipped with a Hardware Crypto Accelerator or a self-encrypting drive, to use smart cards with Preboot
Authentication, the following registry value must be set on the client computer:
[HKLM\SOFTWARE\DigitalPersona\Policies\Default\SmartCards]
"MSSmartcardSupport"=dword:1
0 or no key = Smart Card Support Off, 1 = Smart Card Support On
There are two methods available to install Dell Data Protection | Encryption using the master installer. Choose one of the
following methods:
Install DDP|E Interactively
Install DDP|E Using the Command Line
54 Enterprise Edition Administrator Guide
Install DDP|E Interactively
Use these instructions to install DDP|Enterprise Edition interactively.
This method can be used to install the
Enterprise Edition suite of products on one computer at a time.This installer includes the components you need for
either software encryption or hardware encryption for computers equipped with Hardware Crypto Accelerator (HCA).
1
Locate
DDPSetup.exe
in the Dell installation media. Copy it to the local computer.
2
Double-click
DDPSetup.exe
to launch the installer.
Dialogs display that alert you to the status of the installing the prerequisites. This may take several minutes.
3
Click
Next
when the Welcome screen displays.
4
Read the license agreement, agree to the terms, and click
Next
.
5
Select
Enterprise Edition
on the Choose Edition screen.
If you intend to install External Media Edition
only
, select the
External Media Edition only
check box.
Enterprise Edition Administrator Guide 55
6
Click
Next
.
7
In the
Dell Enterprise Server Name
field, enter the fully qualified host name of the DDP Server that will manage the
target user, such as server.organization.com.
In the
Dell Device Server URL
field, enter the URL of the Device Server that the client will communicate with.
If your DDP Server is pre-v7.7, the format is https://server.organization.com:
8081
/xapi.
If your DDP Server is v7.7 or later, the format is https://server.organization.com:
8443
/xapi
/
(including the trailing forward
slash).
56 Enterprise Edition Administrator Guide
8
Click
Next.
9
Click
Next
to install the products in the default location of C:\Program Files\Dell\Dell Data Protection\.
10
Self-Encrypting Drive
management (your SED must be supported by Dell to be managed) and
Authentication
are
installed by default and cannot be deselected. This is listed as Dell Data Protection | Security Framework in the installer.
Drivers
are installed by default and cannot be deselected.
Drivers
installs smart card, fingerprint reader, and other
necessary drivers.
Optionally, select the check box for
Dell Data Protection | Encryption
to install the encryption client for Windows
computers.
Optionally, select the check box for
Dell Data Protection | Cloud Edition
to install the Cloud client.
Optionally, select the check box for
BitLocker Management
to install the BitLocker Manager client.
Enterprise Edition Administrator Guide 57
11
Click
Next.
12
Click
Install
to begin the installation.
58 Enterprise Edition Administrator Guide

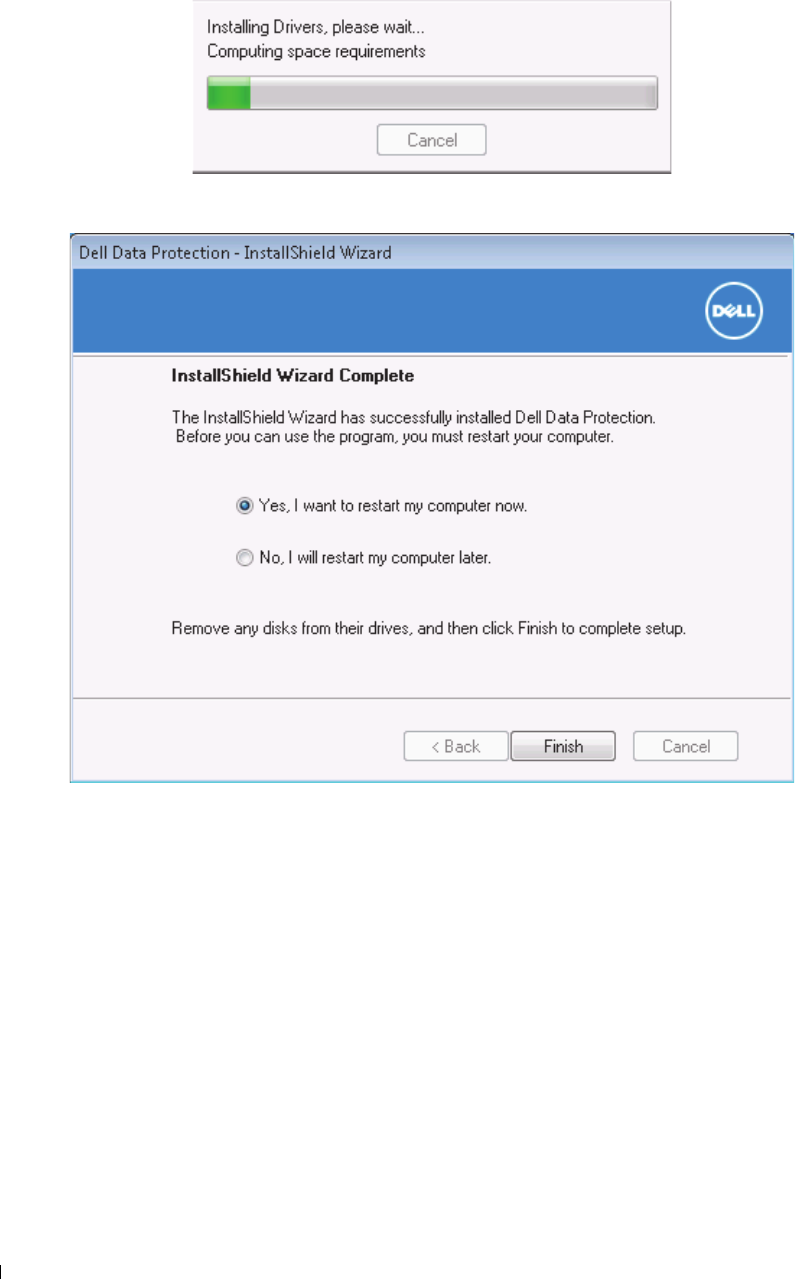

A status window displays. This may take several minutes.
13
Select
Yes, I want to restart my computer now
and click
Finish
when the InstallShield Wizard Complete dialog displays.
Installation of the selected products is complete.
Enterprise Edition Administrator Guide 59
Install DDP|E Using the Command Line
Command line options are case-sensitive.
Switches
The following table describes the switches that can be used with the master installer.
Switch Meaning
-y –gm2 Pre-extraction of master installer. The -y and -gm2 switches must be used together.
Do not separate the switches.
/S Silent installation
/z Pass variables to the .msi inside the DDPSetup.exe
Parameters
The following table describes the parameters that can be used with the master installer.
Parameter Description
SUPPRESSREBOOT Silent mode. Suppresses the automatic reboot after the installation completes.
SERVER UI mode. Specifies the URL of the Dell Enterprise Server (or Enterprise Server – VE).
InstallPath Silent mode. Specifies the path for the installation.
NOTE: Although the reboot can be suppressed, an eventual reboot is required. Encryption cannot begin until the computer has rebooted.
Examples of Command Line Installation
This example installs DDP|E using silent installation and installs it in the specified location of
C:\Program Files\Dell\My_Directory:
DDPSetup.exe -y –gm2 /S /z"\"InstallPath=C:\Program Files\Dell\My_Directory\""
This example installs DDP|E and configures it to use the specified Server:
DDPSetup.exe -y –gm2 /S /z"\"SERVER=server.organization.com\""
This example suppresses rebooting at the end of an installation:
DDPSetup.exe -y -gm2 /S /z"\"SUPPRESSREBOOT=1\""
60 Enterprise Edition Administrator Guide
Uninstallation Process
To uninstall, each product must be uninstalled separately, in a specific order.
1
Extract the child installers, following the process in Extract the Child Installers from the Master Installer.
2
When complete, go to C:\extracted\ to obtain each client installed on the computer.
3
Uninstall the clients in the following order:
DDP|E (DDPE_xxbit_setup.exe)
Security Framework (EMAgent_xxbit_setup.exe)
DDP|Authentication (DP_xxbit_setup.exe)
If Cloud Edition is installed, it can be uninstalled independently without uninstalling the clients listed above.
Cloud Edition (Cloud_xxbit_setup.exe)
4
When all clients are uninstalled, run the master installer’s DDPSetup.exe to uninstall the master installer.
Enterprise Edition Administrator Guide 61
Section II. Drivers
62 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 63
Drivers Installation Tasks
Drivers are needed for Advanced Authentication if installing on Dell hardware. These are the drivers for the various
smart cards and fingerprint readers for which Dell supplies drivers.
Installing these drivers should be omitted if using
Advanced Authentication on non-Dell hardware, as they may interfere with other vendor’s drivers.
Drivers are also needed if installing the encryption client. Additional drivers and software stack are required for
supporting Hardware Crypto Accelerator (HCA). This includes the HCA driver and the Trusted Software Stack (TSS) for
TPM.
If you have not extracted the individual installer yet, follow the procedure in Extract the Child Installers from the Master
Installer. The drivers can be installed by command line using any push technology available to your organization.
Install Drivers
Drivers - locate the installer at C:\extracted\Drivers
•Use
setup.exe
to install using a scripted installation, batch files, or any other push technology available to your
organization.
Command Line Installation
For a command line installation, the switches must be specified first. The /v switch is required and takes an argument.
Other parameters go inside an argument that is passed to the /v switch.
Switches
The following table details the switches available for the installation.
Switch Meaning
/v Pass variables to the .msi inside the setup.exe
/s Silent mode
Parameters
The following table details the parameters available for the installation.
NOTE: The /l*v parameter is not needed. A log is generated at %temp%\ DellDriverInstaller.log.
Parameters
SUPPRESSREBOOT=1
INSTALLPATH=<change the installation destination>
ARPSYSTEMCOMPONENT=1 <no entry in the Control Panel Programs list>
64 Enterprise Edition Administrator Guide
Options
The following table details the display options that can be specified at the end of the argument passed to the /v switch, to
achieve your expected behavior.
Option Meaning
/q No Progress dialog, restarts itself after process completion
/qb Progress dialog with Cancel button, prompts for restart
/qb- Progress dialog with Cancel button, restarts itself after process completion
/qb! Progress dialog without Cancel button, prompts for restart
/qb!- Progress dialog without Cancel button, restarts itself after process completion
/qn No user interface
NOTE: Do not use both /q and /qn in the same command line. Only use ! and - after /qb.
Example Command Line Installation
The installation is performed using the
setup.exe
file located in the
C:\extracted\Drivers
folder.
NOTE: Be sure to enclose a value that contains one or more special characters, such as a blank space, in escaped quotation marks.
The following example installs the drivers at the specified location, does not create an entry in the Control Panel
Programs list, suppresses the reboot.
setup.exe /S /z"\"InstallPath=<c:\location>, ARPSYSTEMCOMPONENT=1,
SUPPRESSREBOOT=1\""
Enterprise Edition Administrator Guide 65
Section III. DDP|E Encryption
Client
66 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 67
Encryption Client Installation Tasks
You can install the Encryption client by itself by extracting the child installer out of the master installer. If you have not
extracted the individual installer yet, follow the procedure in Extract the Child Installers from the Master Installer. The
Encryption client can be installed using the user interface or by command line using any push technology available to
your organization.
On computers equipped with a Hardware Crypto Accelerator, to use smart cards with Preboot Authentication, the
following registry value must be set on the client computer:
[HKLM\SOFTWARE\DigitalPersona\Policies\Default\SmartCards]
"MSSmartcardSupport"=dword:1
0 or no key = Smart Card Support Off, 1 = Smart Card Support On
Use these instructions to install software encryption or hardware encryption for computers equipped with an HCA card.
Best Practices
IT best practices should be followed during deployment. This includes, but is not limited to, controlled test environments
for initial tests and staggered deployments to users.
Back up any important data.
To reduce encryption time, run the Windows Disk Cleanup Wizard to remove temporary files and any other unnecessary
data.
Turn off sleep mode to prevent an unattended computer from going to sleep. Encryption cannot occur on a sleeping
computer.
In environments where systems are installed with images, it is
strongly recommended
to install the Encryption client
after image installation. If it is necessary to incorporate the Encryption client in an image, it should be done in an
unencrypted state. Should you have questions or concerns, contact Dell Pro Support.
When upgrading, Dell recommends doing so when no encryption sweep is running. Performing an upgrade during an
encryption sweep may prevent the client from restarting normally after the installation finishes. If this occurs, a
computer restart corrects the issue.
Install Encryption Client
DDP|E Encryption Client - locate the installer at C:\extracted\Encryption
•Use
DDPE_XXbit_setup.exe
to install or upgrade using a scripted installation, using batch files, or any other push
technology available to your organization.
NOTE: Drivers are needed if installing the encryption client. Additional drivers and software stack are required for supporting Hardware
Crypto Accelerator (HCA). This includes the HCA driver and the Trusted Software Stack (TSS) for TPM.
68 Enterprise Edition Administrator Guide
Command Line Installation
For a command line installation, the switches must be specified first. The /v switch is required and takes an argument.
Other parameters go inside an argument that is passed to the /v switch.
Switches
The following table details the switches available for the installation.
Switch Meaning
/v Pass variables to the .msi inside the DDPE_
XX
bit_setup.exe
/a Administrative installation
/s Silent mode
Parameters
The following table details the parameters available for the installation.
Component Log File Command Line Parameters
All /l*v [fullpath][filename].log SERVERHOSTNAME=<ServerName>
POLICYPROXYHOSTNAME=<RGKName>
MANAGEDDOMAIN=<MyDomain>
DEVICESERVERURL=<ServerName>
GKPORT=<NewGKPort>
MACHINEID=<MachineName>
RECOVERYID=<RecoveryID>
REBOOT=ReallySuppress
HIDEOVERLAYICONS=1
HIDESYSTRAYICON=1
EME=1
NOTE: Although the reboot can be suppressed, an eventual reboot is required. Encryption cannot begin until the computer has rebooted.
Options
The following table details the display options that can be specified at the end of the argument passed to the /v switch, to
achieve your expected behavior.
Option Meaning
/q No Progress dialog, restarts itself after process completion
/qb Progress dialog with Cancel button, prompts for restart
/qb- Progress dialog with Cancel button, restarts itself after process completion
/qb! Progress dialog without Cancel button, prompts for restart
/qb!- Progress dialog without Cancel button, restarts itself after process completion
/qn No user interface
NOTE: Do not use both /q and /qn in the same command line. Only use ! and - after /qb.
Enterprise Edition Administrator Guide 69
Example Command Line Installation
The installation is performed using the
DDPE_
XX
bit_setup.exe
file located in the
C:\extracted\Encryption
folder.
NOTE: Be sure to enclose a value that contains one or more special characters, such as a blank space, in escaped quotation marks.
To specify a log location other than the default location where the executable is located, provide the complete path in the command.
For example, “/l*v C:\Logs” will create install logs in a “C:\Logs” folder.
The Dell Device Server URL is case sensitive.
The following example installs the client with default parameters (encryption client, Encrypt for Sharing,
CREDActivate, no dialogue, no progress bar, automatic restart, logs at the specified location, installed in the default
location of C:\Program Files\Dell\Dell Data Protection).
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8081/xapi /l*v Shieldinstall.log
/qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8443/xapi/ /l*v
Shieldinstall.log /qn"
The following example installs the encryption client, Encrypt for Sharing, and CREDActivate, hides the DDP|E system
tray icon, hides the overlay icons, no dialogue, no progress bar, suppresses restart, installed in the default location of
C:\Program Files\Dell\Dell Data Protection.
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8081/xapi HIDESYSTRAYICON=1
HIDEOVERLAYICONS=1 REBOOT=ReallySuppress /qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8443/xapi/ HIDESYSTRAYICON=1
HIDEOVERLAYICONS=1 REBOOT=ReallySuppress /qn"
Install External Media Edition (EME)
The following example installs EME only
(silent installation, no progress bar, automatic restart, installed in the default
location of C:\Program Files\Dell\Dell Data Protection).
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8081/xapi EME=1 /qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8443/xapi/ EME=1 /qn"
70 Enterprise Edition Administrator Guide
The following example installs EME only
(silent installation, no reboot, with logs at the specified location, installed in
the default location of C:\Program Files\Dell\Dell Data Protection)
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"EME=1 SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com DEVICESERVERURL=
https://server.organization.com:8081/xapi MANAGEDDOMAIN=ORGANIZATION /norestart
/l*v EMEinstall.log /qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"EME=1 SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com DEVICESERVERURL=
https://server.organization.com:8443/xapi/ MANAGEDDOMAIN=ORGANIZATION /norestart
/l*v EMEinstall.log /qn"
NOTE: Although the About box in the client displays software version number information, it does not display whether a full client is installed
or EME only. To locate this information, go to C:\ProgramData\Dell\Dell Data Protection\Encryption\CMGShield.log;
on an XP, the path is C:\Documents and Settings\All Users\Application Data\Dell\Dell Data Protection\Encryption\CMGShield.log
and locate the following entry:
[<date/timestamp> DeviceInfo: < >]
Shield Information - SM=External Media Only
, SB=DELL, UNF=FQUN, last sweep={0, 0}
Convert External Media Edition to Enterprise Edition
Run a command line similar to the following:
If your DDP Server is pre-v7.7:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8081/xapi REINSTALL=ALL EME=0
REINSTALLMODE=vemus /qn"
If your DDP Server is v7.7 or later:
DDPE_XXbit_setup.exe /s /v"SERVERHOSTNAME=server.organization.com
POLICYPROXYHOSTNAME=rgk.organization.com MANAGEDDOMAIN=ORGANIZATION
DEVICESERVERURL=https://server.organization.com:8443/xapi/ REINSTALL=ALL EME=0
REINSTALLMODE=vemus /qn"
NOTE: A decrypt operation is not needed when converting External Media Edition to Enterprise Edition.
Create a Custom Transform File
The DDPE_
XX
bit_setup.exe file provides the ability to create custom transform files. Dell Pro Support is provided for
issues relating to the use of the DDPE_
XX
bit_setup.exe file or the extraction of the .msi file. Creating transforms requires
specialized knowledge of the tool used to create the transform and of the environment in which the transform will be
deployed. Dell Pro Support cannot provide support for third-party tools. Once the transform file is created, issues related
to troubleshooting or deployment should be handled by your in-house subject matter expert.
NOTE: Be sure to enclose a value that contains one or more special characters, such as a blank space, in escaped quotation marks.
Do not run the extracted MSI. There is a high risk of installing components in the wrong order or missing an installation step. Run
DDPE_XXbit_setup.exe for installation.
Follow the steps below to extract the necessary client files to create a custom transform file.
1
Enter the following command to create an administrative installation package.
DDPE_XXbit_setup.exe /a
Enterprise Edition Administrator Guide 71
2
In the Setup window, specify the network location where you want to store the extracted files, and click
Install
.
3
Consult the documentation of your specific transform tool to create the transform file to be used in the next step.
4
Use a command line similar to the following to pass the transform file to the DDPE_
XX
bit_setup.exe installer.
DDPE_XXbit_setup.exe /v"PROPERTY1=\"value with spaces\" PROPERTY2=
ValueWithoutSpaces INSTALLDIR=D:\Program Files\Destination TRANSFORMS=
NewTransform1.mst /qn"
72 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 73
Encryption Client Uninstallation and Decryption Tasks
When using
System Data Encryption (SDE)
,
User
, or
Common
encryption, file decryption optionally occurs at
uninstallation if you choose to install the Encryption Removal Agent. This enables you to decide whether or not to decrypt
files.
When using HCA encryption, all HCA-encrypted drives must be decrypted prior to uninstallation. The Encryption
Removal Agent does not decrypt HCA encrypted drives. To decrypt HCA encrypted drives, publish the policy Hardware
Crypto Accelerator=False, allow the decryption process to complete, and then initiate the uninstall process.
Before beginning the uninstall process, see
How to Create an Encryption Removal Agent Log File (Optional)
. This log file is
useful for troubleshooting an uninstall/decryption operation. If you do not intend to decrypt SDE, User, or Common
encrypted files during the uninstall process, you do not need to create an Encryption Removal Agent log file.
Best Practices
1
Back up all data.
2
To reduce decryption time, run the Windows Disk Cleanup Wizard to remove temporary files and other unneeded data.
3
Disable UAC. UAC may prevent uninstallation of the Encryption client.
4
Plan to decrypt overnight, if possible.
5
Turn off sleep mode to prevent an unattended computer from going to sleep. Decryption cannot occur on a sleeping
computer.
6
Ensure that you have the correct version of the DDPE_
XX
bit_setup.exe file. Use the same version to uninstall as was
used to install.
7
Shut down all processes and applications to minimize decryption failures because of locked files.
8
Follow your existing process for decrypting data, such as issuing a policy update.
9
Before performing a restart, run WSScan to ensure that all data is decrypted. See Use WSScan for instructions.
10
Disable all network connectivity. Otherwise new policies may be acquired that would re-enable encryption.
11
Periodically Check Encryption Removal Agent Status. If the
Encryption Removal Agent
Service exists, then data
decryption is still in process.
Prerequisites
When using the option
Encryption Removal Agent - Download Keys from Server,
you must first configure the Dell Key
Server and DDP Enterprise Server. See Configure Dell Key Server for instructions. The Dell Key Server is not used with
the DDP Enterprise Server - VE.
When using the option
Encryption Removal Agent - Import Keys from a file
, you must use the CMGAd utility prior to
launching the Encryption Removal Agent to obtain the encryption key bundle. The CMGAd utility and its instructions
are located in the Dell installation media (Dell-Offline-Admin-
XX
bit-8.x.x.xxx.zip)
74 Enterprise Edition Administrator Guide
Optionally create an Encryption Removal Agent log file to aid in troubleshooting. See How to Create an Encryption
Removal Agent Log File (Optional). If you do not intend to decrypt SDE, User, or Common encrypted files during the
uninstall process, you do not need to create an Encryption Removal Agent log file.
You must have a
local or domain Admin user
account to perform the uninstallation.
Dell ControlVault is typically not uninstalled, as it is a driver for your fingerprint reader.
Uninstall Encryption Client
Before you begin, ensure the following items are complete:
If the uninstallation target device is activated against a DDP Enterprise Server, ensure that a domain account is
configured for the “Logon As” in the Dell Key Server service.
If the uninstallation target device is activated against a DDP Enterprise Server, ensure that the DA_RUNAS user is in the
Key Server list in the Remote Management Console.
See How to Create an Encryption Removal Agent Log File (Optional) for instructions on how to create an Encryption
Removal Agent log file.
See Check Encryption Removal Agent Status for information on how to check decryption status following uninstallation.
NOTE: If performing a silent uninstall of a client that is activated against a DDP Enterprise Server - VE and using a password on the command
line is a security concern, Dell recommends that the administrator:
1. Create a Forensic Administrator account in the VE Remote Management Console for the purpose of performing the silent
uninstallation.
2. Use a temporary password for that account that is unique to that account and time period.
3. After the silent uninstallation has been completed, remove the temporary account from the list of administrators or change its
password.
Command Line Uninstallation
For a command line uninstallation, the switches must be specified first. The /v switch is required and takes an argument.
Other parameters go inside an argument that is passed to the /v switch.
Switches
The following table details the switches available upon the uninstallation.
Switch Meaning
/v Pass variables to the .msi inside the DDPE_xxbit_setup.exe
/a Administrative uninstallation
/x Uninstall mode
/s Silent mode
Enterprise Edition Administrator Guide 75
Parameters
The following table details the parameters available for the uninstallation.
Parameter Selection
CMG_DECRYPT - Property for selecting the type of Encryption
Removal Agent installation
1 - Download keys from the DDP Server
0 - Do not install Encryption Removal Agent
CMGSILENTMODE - Property for silent uninstallation. 1 - Silent
0 - Not Silent
Required Properties
DA_SERVER FQHN for the DDP Enterprise Server hosting the negotiate
session
DA_PORT*Port on the DDP Enterprise Server for request (default is 8050)
SVCPN*Username in UPN format that the Dell Key Server service is logged
on as on the DDP Enterprise Server
DA_RUNAS Username in SAM compatible format under whose context the key
fetch request will be made. This user must be in the Key Server list
in the DDP Enterprise Server
DA_RUNASPWD Password for the runas user
FORENSIC_ADMIN *The Forensic administrator account on the DDP Enterprise Server
- VE. This account is used only when the Server is a DDP
Enterprise Server - VE.
FORENSIC_ADMIN_PWD *The password for the Forensic administrator account.
This account is used only when the Server is a DDP Enterprise
Server - VE.
Optional Properties
SVCLOGONUN Username in UPN format for Encryption Removal Agent service
logon as parameter
SVCLOGONPWD Password for logon as user
NOTE: * The Forensic administrator account is created in the VE Remote Management Console. Use the Forensic administrator’s
credentials only when the client to be uninstalled is activated against a DDP Enterprise Server - VE. When the Server is a non-VE
Server, use the DA_PORT and SVCPN parameters.
Options
The following table details the display options that can be specified at the end of the argument passed to the /v switch, to
achieve your expected behavior.
Option Meaning
/q No Progress dialog, restarts itself after process completion
/qb Progress dialog with Cancel button, prompts for restart
/qb- Progress dialog with Cancel button, restarts itself after process completion
/qb! Progress dialog without Cancel button, prompts for restart
/qb!- Progress dialog without Cancel button, restarts itself after process completion
/qn No user interface
NOTE: Do not use both /q and /qn in the same command line. Only use ! and - after /qb.
76 Enterprise Edition Administrator Guide
Example Command Line Uninstallation
The uninstallation is performed using the
DDPE_
XX
bit_setup.exe
file located in the
C:
\
extracted
\
Encryption
folder.
NOTE: Be sure to enclose a value that contains one or more special characters, such as a blank space, in escaped quotation marks.
To specify a log location other than the default location where the executable is located, provide the complete path in the command.
For example, “/l C:\Logs” will create install logs in a “C:\Logs” folder.
Dell does not recommend using verbose logging in a command line uninstallation, as the username/password is recorded in the log
file. Should you decide to use verbose logging, ensure that the log file is deleted and the recycle bin is emptied.
The DA_Server URL is case-sensitive.
The following example downloads the keys from the DDP Enterprise Server.
DDPE_XXbit_setup.exe /s /x /v"CMG_DECRYPT=\"1\" CMGSILENTMODE=\"1\" DA_SERVER=
\"server.organization.com\" DA_PORT=\"8050\"
SVCPN=\"administrator@organization.com\"
DA_RUNAS=\"ORGANIZATION\UserInKeyServerList\" DA_RUNASPWD=\"password\" /qn"
Allow the Encryption Removal Agent to run and check its status as needed (see Check Encryption Removal Agent Status
for information).
The following example uses a temporary Forensic Administrator account to uninstall DDP|EE when activated against
DDP Enterprise Server - VE:
DDPE_XXbit_setup.exe /s /x /v"CMG_DECRYPT=\"1\" CMGSILENTMODE=\"1\"
FORENSIC_ADMIN=\"tempsuperadmin\" FORENSIC_ADMIN_PWD=\"tempchangeit\" /qn /l
c:\ddpe_uninstall.log"
Uninstall External Media Edition
Run a command line similar to the following:
DDPE_XXbit_setup.exe /s /x /v"/qn /l c:\ddpe_uninstall.log"
Allow the Encryption Removal Agent to run and check its status as needed (see Check Encryption Removal Agent Status
for information).
NOTE: Windows and EME Shields update the DDP Server to change the status to
Unprotected
at the beginning of a Shield uninstall process.
However, in the event that the client cannot contact the DDP Server, regardless of the reason, the status cannot be updated. In this
case, you will need to manually
Remove
Endpoint
in the Remote Management Console. If your organization uses this workflow for
compliance purposes, Dell recommends that you verify that
Unprotected
has been set as expected, either in the Remote Management
Console or Compliance Reporter.
Enterprise Edition Administrator Guide 77
How to Create an Encryption Removal Agent Log File (Optional)
Before beginning the uninstall process, you can optionally create an Encryption Removal Agent log file. This log file is
useful for troubleshooting an uninstall/decryption operation. If you do not intend to decrypt files during the uninstall
process, you do not need to create an Encryption Removal Agent log file.
Create the following Windows Registry entry on the computer targeted for decryption to create an Encryption Removal
Agent log file.
1
Click
All Programs > Run
from the Windows Start menu.
2
Enter
regedit
in the Open: field.
3
Go to HKLM\Software\Credant\DecryptionAgent.
4
Right-click in the right pane and select
New > DWORD Value
.
5
Name the key
LogVerbosity
.
6
Double-click the key to open it.
7
Enter 0, 1, 2, 3, or 5 in the Value Data: field.
LogVerbosity 0: no logging
LogVerbosity 1: logs errors that prevent the Service from running
LogVerbosity 2: logs errors that prevent complete data decryption (recommended logging level)
LogVerbosity 3: logs information about all decrypting volumes and files
LogVerbosity 5: logs debugging information
8
Select
Hexadecimal
in the Base section.
9
Click
OK
to save and close the key.
10
Close the Registry Editor.
For Windows XP, the log file path is C:\Documents and Settings\All Users\Application Data\Dell\Dell Data
Protection\Encryption.
For Windows 7, Windows 8, and Windows 8.1 the log file path is C:\ProgramData\Dell\Dell Data Protection\Encryption.
The Encryption Removal Agent log file is not created until after the Encryption Removal Agent Service runs, which does
not happen until the computer is restarted. Once the client is successfully uninstalled and the computer is fully decrypted,
the log file is permanently deleted.
Check Encryption Removal Agent Status
When the Encryption Removal Agent runs, its status displays in the description of the Windows Service panel (
Start >
Run... > services.msc > OK)
as follows.
Waiting for Deactivation DDP|E is still installed, is still configured, or both. Decryption does not start until DDP|E is
uninstalled.
Initial sweep – The Service is making an initial sweep, calculating the number of encrypted files and bytes. The initial
sweep occurs one time.
Decryption sweep – The Service is decrypting files and possibly requesting to decrypt locked files.
Decrypt on Reboot (partial) The decryption sweep is complete and some locked files (but not all) are to be decrypted on
the next restart.
Decrypt on Reboot – The decryption sweep is complete and all locked files are to be decrypted on the next restart.
78 Enterprise Edition Administrator Guide
All files could not be decrypted – The decryption sweep is complete, but all files could not be decrypted. This status
means one of the following occurred:
The locked files could not be scheduled for decryption because they were too big, or an error occurred while making the
request to unlock them.
An input/output error occurred while decrypting files.
The files could not be decrypted by policy.
The files are marked as should be encrypted.
An error occurred during the decryption sweep.
In all cases, a log file is created (if logging is configured) when LogVerbosity=2 (or higher) is set. To troubleshoot, set the
log verbosity to 2 and restart the Encryption Removal Agent Service to force another decryption sweep.
See How to Create an Encryption Removal Agent Log File (Optional) for instructions.
Complete – The decryption sweep is complete. The Service, the executable, the driver, and the driver executable are all
scheduled for deletion on the next restart.
Periodically refresh the Service (highlight the Service > right-click > Refresh) to update its status.
Enterprise Edition Administrator Guide 79
Encryption Client Data Recovery
Situations such as operating system failure or hardware failure may cause encrypted data to become inaccessible. Data
recovery allows you to regain access to encrypted data on computers encrypted by DDP|E software encryption or HCA
encryption.
Prerequisites
A recovery bundle is needed to recover data. The bundle is a recovery program that must be run with Administrative
rights on the drive that it is recovering. In Windows XP, the user account under which the recovery program is run must
at least be a member of the Administrator Group. In Windows 7, Windows 8, and Windows 8.1, the recovery program
must be “Run as Administrator”.
If the target computer is not bootable, data recovery must be performed on the computer booted into a pre-installed
environment (or a slaved drive). Instructions to create pre-installed environments are located in the Dell installation
media in “Windows Recovery Kit.” Several sets of instructions are included: for HCA, SED, and File/Folder Encryption
(FFE). Once you have created your pre-installed environment and followed all instructions, return to this document.
Retrieve the Recovery Bundle
To perform data recovery, a recovery program containing the disk's encryption keys must first be retrieved from the Remote
Management Console.
1
As a Dell Administrator, log in to the Remote Management Console.
2
In the left pane, click
Actions > Recover Endpoint
.
3
Select the appropriate Endpoint Type.
4
Enter the fully qualified Host Name of the computer, such as username.organization.com. You can find the Host Name
on the Endpoint Detail page in the Endpoint Detail section. It is listed as the Unique ID.
5
Click
Download
.
6
When prompted, create a Recovery Password for this computer and click
Save
.
7
When prompted, save the file to a convenient and accessible location.
You may now use this recovery bundle to
Recover Data
.
Recover Data
There are two methods to recover data:
Recover Data using Current Computer - If the target computer is
still bootable
, data recovery can be accomplished
in-place
.
Recover Data using a Pre-Installed Environment (or a Slaved Drive) - If the target computer is
not bootable
, data
recovery must be accomplished on the computer booted into the pre-installed environment or a slaved drive.
Instructions to create a pre-installed environment are located in the Dell installation media in the “Windows Recovery
Kit” folder.
80 Enterprise Edition Administrator Guide
Recover Data using Current Computer
These instructions restore access to encrypted files by forcing DDP|E to re-acquire its keys from the server. Follow these
instructions when the computer is bootable, but you are having problems accessing encrypted files.
1
Locate the recovery bundle downloaded from the Remote Management Console.
2
Copy the recovery bundle to the target computer (the computer to recover data).
3
Right-click the file and select
Run as Administrator
to launch the recovery utility.
The recovery bundle that you downloaded from the Server is in a compressed, self-extracting format. The compressed
recovery file extracts to the same location as the compressed file, and executes. A dialog displays prompting you to select
the scenario that best describes your problem:
My system fails to boot and displays a message asking me to perform SDE recovery.
My system does not allow me to access encrypted data, edit policies, or is being reinstalled.
I want to decrypt my HCA encrypted drive.
I want to restore access to my HCA encrypted drive.
4
Select the
second
option,
My system does not allow me to access encrypted data, edit policies, or is being reinstalled
, and
click
Next
.
5
Click
Next
at the Backup\Recovery Information screen.
6
Select the disk to recover and click
Next
.
7
Enter the recovery password associated with this file. This is the Recovery Password defined when the recovery bundle
was retrieved from the Remote Management Console. A dialog displays notifying you of the disk that is being recovered.
8
Click
Recover
.
A dialog displays notifying you that recovery was completed successfully.
9
Click
Finish
.
10
When recovery is finished, close the console.
The self-extracting file will delete the extracted files.
Recover Data using a Pre-Installed Environment (or a Slaved Drive)
This procedure covers these three scenarios:
Type of Recovery Description
SDE recovery My system fails to boot and displays a message asking me to
perform SDE recovery.
HCA decryption I want to decrypt my HCA encrypted drive.
HCA recovery I want to restore access to my HCA encrypted drive.
Prerequisites
Ensure that the following prerequisites are met before beginning the recovery process.
Ensure that you have physical access to the drive to be recovered.
Ensure that you have access to the Dell installation media. The files in the “Windows Recovery Kit” folder contain the
files needed for this process.
Be prepared to create a WinPE image. All instructions and special drivers that are needed to create a WinPE image and
recover the computer are included in the “Windows Recovery Kit” folder.
Enterprise Edition Administrator Guide 81
Prepare the Environment (or Slaved Drive)
SDE Environment Prerequisite
The computer must be booted into the appropriate recovery image or a slaved drive.
HCA Decryption Environment Prerequisites
The computer must be booted into any Windows-based alternate operating system environment on the computer to
recover, with the hard drive you are trying to recover attached. This can be accomplished by booting to the appropriate
recovery image or by booting from another drive or helper partition that has another version of Windows installed (but not
HCA encrypted). This can be done on any computer running a compatible operating system as long as the drive to be
decrypted is attached and accessible.
HCA Recovery Environment Prerequisites
An HCA encrypted drive must be attached.
The computer must be booted to the appropriate recovery image: the Win PE HCA recovery environment that has HCA
drivers and other required components. HCA recovery outside of this environment will not work.
The booted environment must have network connectivity to the Dell Device Server.
Establish HCA Card Ownership
When the HCA card is already owned,
the recovery process can still be successful. The recovery process will try to use the
existing backup of the HCA Critical Data and password to establish and maintain the HCA ownership of an
already-owned HCA card. If this attempt fails, then the recovery operation fails. When it fails, reboot and clear the HCA
card’s ownership.
When Installing an HCA Card from Another Computer,
you must clear HCA ownership on the swapped HCA card and
establish new ownership. Since the HCA card from the other computer was previously owned, recovery cannot succeed
until the HCA owner is cleared in the BIOS.
See DDP|HCA Pre-Installation BIOS Configuration for instructions on clearing HCA ownership.
CAUTION
Drives encrypted by HCA will become inaccessible if ownership is cleared. The user will need to perform an HCA
recovery or an HCA decrypt in order to restore access.
Set up a System Password (Legacy HCA only)
Recovery of a computer equipped with legacy HCA requires a system password to be validated prior to recovery. If no
system password is set, you will be prompted to go into the BIOS and set up a password. See DDP|HCA Pre-Installation
BIOS Configuration for instructions on setting up the system password.
Extract the Recovery File (optional)
Running the recovery program at the command line with parameters gives you a little more control over the process and
outcome. Because the compressed recovery bundle that you downloaded from the Server does not respond to command
line switches, the LSARecovery file must be extracted from the bundle. Follow these steps to obtain the LSARecovery file:
1
Locate the downloaded recovery file.
2
Right-click it and select
Run as administrator
. The recovery program runs and displays a dialog box.
3
In Windows Explorer, check the directory where the recovery file is located to find a file called
LSARecovery_
machinename
_
domain
.com.exe.
4
Copy the LSARecovery file to another location to save it.
82 Enterprise Edition Administrator Guide
5
Cancel
the recovery dialog box.
Now you can use the LSARecovery file to run the recovery from a command line.
Recover the Data
1
Locate the recovery file downloaded from the Remote Management Console.
2
Right-click the recovery file and select
Run as administrator
.
Or (if you extracted the recovery file in the previous procedure)
Run the LSARecovery executable from a command prompt:
LSARecovery.exe –server [https://my.Dell Enterprise Server.com]
*
Or
LSARecovery.exe –server [IP address of the Dell Enterprise Server]
NOTE: * The Dell Enterprise Server can either be specified in the command line as the URL or as the IP address, or by creating the servlet
URL registry entry that the Shield uses.
If the recovery is an SDE or HCA decryption recovery,
no escrow takes place and the only parameter needed in the
command line is the Dell Device Server’s URL.
If the recovery is occurring on a computer equipped with an HCA card,
as the recovery runs, it escrows the new HCA
Critical Data back to the Dell Device Server.
NOTE: If the HCA card is already owned, no escrow step is performed (unless recovery generates new data).
A dialog displays prompting you to select the scenario that best describes your problem.
3
Select the appropriate option:
For SDE Recovery
, select
My system fails to boot and displays a message asking me to perform SDE recovery
and click
Next
.
For HCA
Decryption,
select
I want to decrypt my HCA encrypted drive
and click
Next
.
For HCA
Recovery
, select
I want to restore access to my HCA encrypted drive
and click
Next
.
4
Click
Next
when the Backup\Recovery Information screen displays.
5
Select the disk to decrypt or recover and click
Next
.
6
Enter the recovery password. This is the recovery password defined when the recovery bundle was retrieved from the
Remote Management Console. A dialog displays notifying you of the disk that is being recovered.
7
Click
Recover
.
A dialog displays notifying you that recovery was completed successfully.
8
Click
Finish
.
9
Restart the computer when prompted and log in to Windows.
HCA NOTES: At the end of an HCA decryption process, if an HCA card is detected, the HCA recovery process changes
the boot order of the disk, bypassing the PBA so that the system boots directly to Windows.
If the HCA card was unowned prior to recovery, then the recovery process takes ownership of the HCA, and escrows the
HCA Critical Data to the server.
Enterprise Edition Administrator Guide 83
When the computer restarts, it downloads the updated HCA Critical Data to complete the recovery. It will attempt to
download the HCA Critical Data on every login until it succeeds in obtaining the new data. Once this has happened, the
drive’s device icon should be green again in the console.
After the escrow takes place, the local console requests the updated data from the server the next time anyone logs in.
If recovery fails, refer to
Troubleshooting HCA Recovery
for assistance.
Troubleshooting HCA Recovery
Check the Recovery Log File
The recovery log file is located in C:\ProgramData\Dell\Dell Data Protection\Encryption\LSARecovery.log
If you are booted into WinPE, the recovery log file path defaults to drive X:\ProgramData\Dell\Dell Data
Protection\Encryption\LSARecovery.log. Drive X is in memory and will disappear after you restart the computer. If you
want have the log file to examine later, save the log file to a permanent location.
When Escrow Cannot Be Completed during the WinPE Recovery (HCA)
If escrow cannot be completed during the WinPE recovery, the recovery saves a new copy of the backup file to the recovery
directory specified after clicking Recover.
Use the extracted LSARecovery file and the following command line options to escrow the data to the server from any
Windows computer that has network connectivity to the server.
LSARecovery.exe –escrowAll –server https://my.server.com:8443/xapi
Reset TPM Security (HCA)
If there is a problem with the TPM, recovery can fail. When this occurs, you need to reset TPM ownership.
TPM security must also be reset when a computer’s motherboard is replaced.
See DDP|HCA Pre-Installation BIOS
Configuration for instructions.
84 Enterprise Edition Administrator Guide
Recover User Access to a Computer Equipped with HCA
Self-Recovery
This workflow enables end users to log on with provisioned recovery questions.
Once the end user's recovery questions have been configured in the Security Console, then the option to use the recovery
questions for self-recovery is available. See
Configure Credentials in the Security Console
for instructions on configuring
recovery questions.
1
At the PBA login screen, the end user enters their user name and clicks the gear in lower left.
2
The end user selects
Forgot Password
.
Enterprise Edition Administrator Guide 85
3
The end user enters the correct answers to the recovery questions and clicks
Finish
.
86 Enterprise Edition Administrator Guide
Recover Access using Challenge/Response Codes
1
As a Dell Administrator, open the Remote Management Console.
2
In the left pane, click
Actions > Recover Data
.
3
Select the
SED
tab on the top menu.
4
In the
Recover SED User Access
area, enter the Host Name of the computer to recover.
Enter the
Host Name
as a fully qualified host name. You can find the
Host Name
on the Endpoint Detail page in the
Endpoint Detail section. It is listed as the Unique ID.
5
Click
Search
.
6
When the host is found, select the user name from the list.
7
Enter the challenge code obtained from the endpoint, and click
Generate Response
.
8
Instruct the user to enter the response code on his computer.
Assisted Recovery
Assisted recovery will be needed if you need to bypass the PBA login for any reason.
Prerequisites
When contacting Dell Support for recovery assistance, ensure that the following prerequisites are met:
Ensure that you have physical access to the drive to be recovered.
Ensure that you have the recovery keys. Your recovery keys are saved on a network drive or on removable media.
1
Log on to www.dell.com/support > Endpoint Security Solutions and enter the Dell service tag number which is located
on the bottom of the computer. After entering the service tag number, follow the instructions to contact Dell Support for
recovery assistance and to obtain the necessary files.
Enterprise Edition Administrator Guide 87
Configure Dell Key Server
This section explains how to configure components for use with Kerberos Authentication/Authorization when using a
DDP Enterprise Server. The DDP Enterprise Server - VE does not use the Key Server.
Dell Key Server is a Service that listens for clients to connect on a socket. Once a client connects, a secure connection is
negotiated, authenticated, and encrypted using Kerberos APIs (if a secure connection cannot be negotiated, the client is
disconnected).
The Dell Key Server then checks with the Dell Device Server to see if the user running the client is allowed to access keys.
This access is granted on the Remote Management Console via individual domains.
NOTE: If Kerberos Authentication/Authorization is to be used, then the server that contains the Dell Key Server component will need to be
part of the affected domain.
NOTE: The DDP Enterprise Server - VE does not use the Dell Key Server, which affects how the Encryption client is uninstalled. Uninstallation
uses standard forensic key retrieval through the Dell Security Server instead of the Key Server’s Kerberos method. For available
parameters, see
Parameters
.
Windows Service Instructions
1
Navigate to the Windows Service panel (Start > Run... > services.msc > OK).
2
Right-click Dell Key Server and select
Properties
.
3
Go to the Log On tab and select the
This account:
option button.
4
In the This account: field, add the desired domain user. This domain user must have at least local Admin rights to the
Key Server folder (must be able to write to the Key Server config file, as well as the ability to write to the log.txt file).
5
Click
OK.
Restart the Service (leave the Windows Service panel open for further operation).
6
Navigate to <Key Server install dir> log.txt to verify that the Service started properly.
Key Server Config File Instructions
1
Navigate to <Key Server install dir>.
2
Open
Credant.KeyServer.exe.config
with a text editor.
3
Go to <add key="user" value="superadmin" /> and change the “superadmin” value to the name of the appropriate user
(you may also leave as “superadmin”).
The “superadmin” format can be any method that can authenticate to the DDP Enterprise Server. The SAM account
name, UPN, or domain\username is acceptable. Any method that can authenticate to the DDP Enterprise Server is
acceptable because validation is required for that user account for authorization against Active Directory.
For example, in a multi-domain environment, only entering a SAM account name such as “jdoe” will likely will fail
because the DDP Enterprise Server will not be able to authenticate “jdoe” because it cannot find “jdoe”. In a
multi-domain environment, the UPN is recommended, although the domain\username format is acceptable.
In a single domain environment, the SAM account name is acceptable.
88 Enterprise Edition Administrator Guide
4
Go to <add key="epw" value="<encrypted value of the password>" /> and change “epw” to “password”. Then change
"<encrypted value of the password>" to the password of the user from Step 3. This password is re-encrypted when the
DDP Enterprise Server restarts.
If using “superadmin” in Step 3, and the superadmin password is not “changeit”, it must be changed here. Save and close
the file.
Sample Configuration File
<?xml version="1.0" encoding="utf-8" ?>
<configuration>
<appSettings>
<add key="port" value="8050" /> [TCP port the
Dell Key Server
will listen to. Default is 8050.]
<add key="maxConnections" value="2000" /> [number of active socket connections the
Dell Key Server
will allow]
<add key="url" value="https://keyserver.domain.com:8443/xapi/" /> [Dell Device Server URL (the format is
8081/xapi for a pre-v7.7 DDP Enterprise Server)]
<add key="verifyCertificate" value="false" /> [true verifies certs/set to false to not verify or if using self-signed certs]
<add key="user" value="superadmin" /> [User name used to communicate with the Dell Device Server. This user
must have the Administrator role selected in the Remote Management Console. The “superadmin” format can be
any method that can authenticate to the DDP Enterprise Server. The SAM account name, UPN, or
domain\username is acceptable. Any method that can authenticate to the DDP Enterprise Server is acceptable
because validation is required for that user account for authorization against Active Directory. For example, in a
multi-domain environment, only entering a SAM account name such as “jdoe” will likely will fail because the DDP
Enterprise Server will not be able to authenticate “jdoe” because it cannot find “jdoe”. In a multi-domain
environment, the UPN is recommended, although the domain\username format is acceptable. In a single domain
environment, the SAM account name is acceptable.]
<add key="cacheExpiration" value="30" /> [How often (in seconds) the Service should check to see who is allowed
to ask for keys. The Service keeps a cache and keeps track of how old it is. Once the cache is older than the value, it
gets a new list. When a user connects, the Dell Key Server needs to download authorized users from the Dell Device
Server. If there is no cache of these users, or the list has not been downloaded in the last “x” seconds, it will be
downloaded again. There is no polling, but this value configures how stale the list can become before it is
refreshed when it is needed.]
<add key="epw" value="encrypted value of the password" /> [Password used to communicate with the Dell Device
Server. If the superadmin password has been changed, it must be changed here.]
</appSettings>
</configuration>
Windows Service Instructions
1
Go back to the Windows Service panel (Start > Run... > services.msc > OK).
2
Restart the Dell Key Server service.
3
Navigate to <Key Server install dir> log.txt to verify that the Service started properly.
4
Close the Windows Service panel.
Enterprise Edition Administrator Guide 89
Remote Management Console Instructions
1
If needed, log on to the Remote Management Console.
2
Click
Domains
and click the
Detail
icon.
3
Click
Key Server
.
4
In the Key Server account list, add the user that will be performing the Admin activities. The format is
Domain\username. Click
Add Account
.
5
Click
Users
in the left menu. In the search box, search for the username added in Step 4. Click
Search
.
6
Once the correct user is located, click the
Detail
icon.
7
Select
Admin
. Click
Update
.
The components are now configured for Kerberos Authentication/Authorization.
90 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 91
Use WSScan
When uninstalling the Encryption client, follow your existing process for decrypting data, such as issuing a policy update.
After decrypting data, but before performing a restart in preparation for uninstall, run WSScan to ensure that all data is
decrypted.
Administrator privileges are required to run this utility.
1
From the Dell installation media, copy WSScan.exe to the Windows device to scan.
2
Launch a command line at the location above.
3
At the command prompt, enter
wsscan.exe
.
4
Click
Advanced >>
.
5
From the drop-down box, select the type of drive to scan:
All Drives,
Fixed Drives
,
Removable Drives
, or
CDROMs/
DVDROM
s.
or
To only scan a particular folder, go to Scan Settings and enter the folder path in the
Search Path
field. If this field is used,
the selection in the drop-down box is ignored.
6
If you do not want to write WSScan output to a file, clear the
Output to File
check box.
7
If desired, change the default path and filename in
Path
.
8
If you do not want to overwrite any existing WSScan output files, select
Add to Existing File
.
9
Choose your output format as follows:
Select Report Format for a report style list of scanned output. This is the default format.
Select Value Delimited File for output that can be imported into a spreadsheet application. The default delimiter is
“|”, although it can be changed to up to 9 alphanumeric, space, or keyboard punctuation characters.
Select the Quoted Values option to enclose each value in double quotation marks.
Select Fixed Width File for non-delimited output containing a continuous line of fixed-length information about
each encrypted file.
10
Click
Search
. To stop your search, click Stop Searching. To clear displayed messages, click Clear.
92 Enterprise Edition Administrator Guide
WSScan Output
WSScan information about encrypted files contains the following information.
Example Output:
[2010-07-28 07:52:33] SysData.7vdlxrsb._SDENCR_: “c:\temp\Dell - test.log” is still AES256 encrypted
Output Meaning
Date/time stamp The date and time the file was scanned.
Encryption type The type of encryption used to encrypt the file.
SysData: SDE Encryption Key.
User: User Encryption Key.
Common: Common Encryption Key.
WSScan does not report files encrypted using Encrypt for Sharing.
DCID The Device ID.
As shown in the example above, “7vdlxrsb
If you are scanning a mapped network drive, the scanning report
does not return a DCID.
UCID The User ID.
As shown in the example above, “_SDENCR_
The UCID is shared by all the users of that computer.
File The path of the encrypted file.
As shown in the example above, “c:\temp\Dell - test.log
Algorithm The encryption algorithm being used to encrypt the file.
As shown in the example above, “is still AES256 encrypted
RIJNDAEL 128
RIJNDAEL 256
AES 128
AES 256
3DES
Enterprise Edition Administrator Guide 93
Section IV. SED Management and
Advanced
Authentication
94 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 95
SED Management and Advanced Authentication
Installation Tasks
You can install the SED management client and Advanced Authentication clients by themselves by extracting the child
installers out of the master installer. If you have not extracted the individual installers yet, follow the procedure in
Extract the Child Installers from the Master Installer. The SED management client and Advanced Authentication client
can be installed using the user interfaces or by command line using any push technology available to your organization.
Before You Begin
Ensure that the Active Directory option,
User Must Change Password at Next Logon
, is disabled. Preboot
Authentication does not support this Active Directory option.
A self-encrypting drive must be configured as the boot drive (drive 0) for Preboot Authentication to function properly.
To use smart cards with Preboot Authentication, the following registry value must be set on the client computer:
[HKLM \SOFTWARE\DigitalPersona\Policies\Default\SmartCards]
"MSSmartcardSupport"=dword:1
0 or no key = Smart Card Support Off, 1 = Smart Card Support On
Best Practices
IT best practices should be followed during deployment. This includes, but is not limited to, controlled test environments
for initial tests and staggered deployments to users.
Install SED Management and Advanced Authentication
NOTE: The SED client is required for Advanced Authentication in v8.x.
SED Client - locate the installer at C:\extracted\Security Tools
Advanced Authentication Client - locate the installer at C:\extracted\Security Tools\Authentication
Dell ControlVault Client - locate the installer at C:\extracted\UshCvReset (Dell ControlVault Software Update) Child Installer
•Use
EMAgent_
XX
bit_setup.exe
to install SED management using a scripted installation, using batch files, or any other
push technology available to your organization.
•Use
DP_
XX
bit_setup.exe
to install Advanced Authentication using a scripted installation, using batch files, or any other
push technology available to your organization.
•Use
Dell_CV_SW_Update_xXX.exe
to install Dell ControlVault software updates used by Security Tools using a
scripted installation, using batch files, or any other push technology available to your organization.
96 Enterprise Edition Administrator Guide
Command Line Installation
For a command line installation, the switches must be specified first. The /v switch is required and takes an argument.
Other parameters go inside an argument that is passed to the /v switch.
Switches
The following table details the switches available for the installation.
Switch Meaning
/v Pass variables to the .msi inside the exe files(required)
/a Administrative installation
/x Uninstall mode
/s Silent mode
Parameters
The following table details the parameters available for the installation.
Log File Parameters
/l*v [fullpath][filename].log CM_EDITION=1 <remote management>
INSTALLDIR=<change the installation destination>
SERVERHOST=<coreserver.organization.com>
SERVERPORT=8888
SECURITYSERVERHOST=<securityserver.organization.com>
SECURITYSERVERPORT=8443
ARPSYSTEMCOMPONENT=1 <no entry in the Control Panel Programs list>
Options
The following table details the display options that can be specified at the end of the argument passed to the /v switch, to
achieve your expected behavior.
Options Meaning
/q No Progress dialog, restarts itself after process completion
/qb Progress dialog with Cancel button, prompts for Restart
/qb- Progress dialog with Cancel button, restarts itself after process completion
/qb! Progress dialog without Cancel button, prompts for restart
/qb!- Progress dialog without Cancel button, restarts itself after process completion
/qn No user interface
NOTE: Do not use both /q and /qn in the same command line. Only use ! and - after /qb.
Enterprise Edition Administrator Guide 97
Example Command Line Installation
Special drivers are needed for Advanced Authentication if installing on Dell hardware. These are the drivers for the
various smart cards and fingerprint readers for which Dell supplies drivers.
Installing these drivers should be omitted if
using Advanced Authentication on non-Dell hardware, as they may interfere with other vendor’s drivers.
Additional drivers and software stack are required for supporting Hardware Crypto Accelerator (HCA). This includes the
HCA driver and the Trusted Software Stack (TSS) for TPM.
The installation is performed using the
EMAgent_
XX
bit_setup.exe
,
DP_
XX
bit_setup.exe
, and
Dell_CV_SW_Update_xXX.exe
files located in the
C:\extracted\Security Tools
,
C:\extracted\Security
Tools\Authentication
, and
C:\extracted\UshCvReset (Dell ControlVault Software Update) Child Installer
folders.
NOTE: Be sure to enclose a value that contains one or more special characters, such as a blank space, in escaped quotation marks.
To specify a log location other than the default location where the executable is located, provide the complete path in the command.
For example, “/l*v C:\Logs” will create install logs in a “C:\Logs” folder.
The following example installs remotely managed SED (silent installation, no reboot, log file at the specified location, no
entry in the Control Panel Programs list, installed in the default location of C:\Program Files\Dell\Dell Data Protection)
EMAgent_XXbit_setup.exe /S /v"CM_EDITION=1 SERVERHOST=server.organization.com
SERVERPORT=8888 SECURITYSERVERHOST=securityserver.organization.com
SECURITYSERVERPORT=8443 ARPSYSTEMCOMPONENT=1 /l*v SEDinstall.log /norestart /qn"
Then:
The following example installs Dell ControlVault software updates used by Security Tools (silent installation, no reboot,
log file at the specified location, installed in the default location of C:\Program Files\Dell\Dell Data Protection). If the
target computer is not equipped with Dell ControlVault, installing this software is not harmful and will have no effect.
Dell_CV_SW_Update_xXX.exe /s /v"/norestart /l*v CVinstall.log /qn"
Then:
The following example installs Advanced Authentication (silent installation, no reboot, log file at the specified location)
DP_XXbit_setup.exe /s /v"/norestart /l*v DPinstall.log /qn"
Once policies are applied at the endpoint and are ready to be enforced, the end user will be notified by the client that a
computer shutdown and restart is required. End users will log in to the computer through the PBA using their Windows
password. The drive is now managed by the DDP Server.
IMPORTANT:
Dell recommends that you do not change the authentication method after Preboot Authentication has been activated (SED) or HCA
policy has been set to True (HCA). If you must switch to a different authentication method, you must either:
Remove all the users from the PBA, and then re-enroll the users.
or
Deactivate the PBA (SED) or set the HCA policy to False (HCA), change the authentication method, and then re-activate the PBA (SED)
or set the HCA policy to True (HCA).
98 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 99
SED and Advanced Authentication Deactivation and
Uninstallation Tasks
These instructions detail the process of:
Deactivating the PBA, which removes all PBA data from the computer and unlocks the SED key.
Uninstalling the SED client software.
Uninstalling the Advanced Authentication client software.
Prerequisites
You must have an Administrator account to perform the uninstallation.
Network connection to the DDP Server is required for PBA deactivation.
The PBA
must
be deactivated on the computer before uninstallation.
Use the same EMAgent_
XX
bit_setup.exe and DP_
XX
bit_setup.exe files to uninstall that were used to install.
Deactivate the PBA
1
As a Dell Administrator, log in to the Remote Management Console.
2
In the left pane, click
Protect & Manage
>
Endpoints
.
3
Select the appropriate Endpoint Type.
4
Select Show >
Visible
,
Hidden
, or
All
.
5
If you know the Hostname of the computer, enter it in the Hostname field (wildcarding is supported). You may leave the
field blank to display all computers. Click
Search
.
If you do not know the Hostname, scroll through the list of available computers to locate the computer.
A computer or list of computers displays based on your search filter.
6
Select the
Details
icon of the desired computer.
7
Click
Security Policies
on the top menu.
8
From the Policy Category drop-down menu select
Self-Encrypting Drives
.
9
Expand the
SED Administration
area and change the
Enable SED Management
and
Activate PBA
policies from
True
to
False
.
10
Click
Save
.
11
In the left pane, click
Actions > Commit Policies
.
12
Click
Apply Changes
.
Wait for the policy to propagate from the DDP Server to the computer targeted for deactivation.
After the PBA is deactivated, you may uninstall the clients.
100 Enterprise Edition Administrator Guide
Uninstall SED Client
The uninstallation is performed using the
EMAgent_
XX
bit_setup.exe
,
DP_
XX
bit_setup.exe
, and
Dell_CV_SW_Update_xXX.exe
files located in the
C:\extracted\Security Tools
,
C:\extracted\Security
Tools\Authentication
, and
C:\extracted\UshCvReset (Dell ControlVault Software Update) Child Installer
folders.
Command Line Uninstallation
For a command line uninstallation, the switches must be specified first. The /v switch is required and takes an argument.
Other parameters go inside an argument that is passed to the /v switch.
Switches
The following table details the switches available for the uninstallation.
Switch Meaning
/v Pass variables to the .msi inside the .exe files (required)
/a Administrative installation
/x Uninstall mode
/s Silent mode
Parameters
The following table details the parameters available for the uninstallation.
Log File Parameters
/l [fullpath][filename].log CM_EDITION=1 <remote management>
INSTALLDIR=<change the installation destination>
SERVERHOST=<coreserver.organization.com>
SERVERPORT=8888
SECURITYSERVERHOST=<securityserver.organization.com>
SECURITYSERVERPORT=8443
ARPSYSTEMCOMPONENT=1 <no entry in the Control Panel Programs list>
Options
The following table details the display options that can be specified at the end of the argument passed to the /v switch, to
achieve your expected behavior.
Options Meaning
/q No Progress dialog, restarts itself after process completion
/qb Progress dialog with Cancel button, prompts for Restart
/qb- Progress dialog with Cancel button, restarts itself after process completion
/qb! Progress dialog without Cancel button, prompts for restart
/qb!- Progress dialog without Cancel button, restarts itself after process completion
/qn No user interface
NOTE: Do not use both /q and /qn in the same command line. Only use ! and - after /qb.
Enterprise Edition Administrator Guide 101
Example Command Line Uninstallation
NOTE: Be sure to enclose a value that contains one or more special characters, such as a blank space, in escaped quotation marks.
To specify a log location other than the default location where the executable is located, provide the complete path in the command.
For example, “/l C:\Logs” will create install logs in a “C:\Logs” folder.
EMAgent_XXbit_setup.exe /x /s /v"/l Uninstall.log /qn"
Shut down and restart the computer.
Then:
DP_XXbit_setup.exe /x /s /v"/l DPuninstall.log /qn"
Then:
Dell_CV_SW_Update_xXX.exe /x /s /v"/l CVuninstall.log /qn"
Reboot the computer.
The SED client and Advanced Authentication clients are uninstalled.
102 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 103
SED and OS Recovery
Self-Recovery, OS Logon
This workflow enables an end user to log on with provisioned recovery questions.
Once the end user's recovery questions have been set up, and if the
Allow recovery questions for Windows logon
setting is
allowed by policy, then the option to use the recovery questions for Windows logon is available from the Windows Start
screen.
1
The end user clicks
Can't access your account?
to use the Recovery Questions.
104 Enterprise Edition Administrator Guide
2
Clicking the link displays the questions selected by the end user during their initial setup in the Security Console. The
end user enters the answers and clicks
OK
.
3
Upon successful entry of the answers to the questions, the end user is in
Access Recovery
mode. The following options
are available to end users:
Change their Windows password
Re-enroll their credentials
Go directly into Windows
Enterprise Edition Administrator Guide 105
The end user selects one option and clicks
Next
.
NOTE: If none of the options are selected within the Windows timeout period, the end user is automatically logged into Windows without
further action.
106 Enterprise Edition Administrator Guide
Self-Recovery, PBA
This workflow enables end users to log on with provisioned recovery questions.
Once the end user's recovery questions have been set up, then the option to use the recovery questions for PBA
self-recovery is available.
1
At the PBA login screen, the end user enters their user name and clicks the gear in lower left.
2
The end user selects
Forgot Password
.
Enterprise Edition Administrator Guide 107
3
The end user enters the correct answers to the recovery questions and clicks
Finish
.
108 Enterprise Edition Administrator Guide
Assisted Recovery, PBA
Assisted recovery will be needed if you cannot gain access to the computer using any commands or policies and you need
to bypass the PBA login. Some examples include:
You need to remove SED management because it is malfunctioning and you need to get to the Windows login
screen.
You need to deactivate the computer, but cannot because:
a PBA failure has occurred.
the operating system has been accidentally re-imaged so there effectively is not an SED client.
Prerequisites
Ensure that the following prerequisites are met before beginning the recovery process.
Ensure that you have physical access to the drive to be recovered.
Ensure that you have USB media or a network drive available to save the recovery file downloaded from the Remote
Management Console.
Ensure that you have access to the Dell installation media. The files in the “Windows Recovery Kit” folder contain the
files needed for this process.
Be prepared to create a WinPE image. All instructions and special drivers that are needed to create a WinPE image and
recover the computer are included in the “Windows Recovery Kit” folder.
Retrieve the Recovery Bundle
This section details part of the steps to take when data recovery is needed for an SED.
1
As a Dell Administrator, log in to the Remote Management Console.
2
In the left pane, click
Actions > Recover Data
.
3
Click the
SED
tab on the top menu.
4
In the
Recover SED Endpoint
area, enter the Host Name of the computer and click
Create Recovery File
.
The
Host Name
is typically the fully qualified host name. If not, you can find the
Host Name
on the Endpoint Detail
page in the Endpoint Detail section. It is listed as the Unique ID.
5
When prompted, save this file to USB media or a network drive. Dell suggests using the default naming convention of
[hostname].dat.
6
Go to the Dell installation media and locate the “Windows Recovery
Kit” folder.
7
Open
Instructions for building the WinPe.txt
and follow the instructions to create the WinPE image that will be used to
recover the computer.
Enterprise Edition Administrator Guide 109
How to Turn Off Manager SSL Trust Validation
When using SED or BitLocker Manager and you want to turn off Manager SSL trust validation, follow the steps below.
Dell Enterprise Server
NOTE: The Server Configuration Tool and the Remote Management Console cannot run simultaneously. Close the Remote Management
Console before opening the Server Configuration Tool.
1
In the Server Configuration Tool on the
Settings
tab, check the box for
Disable Trust Chain Check
.
2
Save your changes and close the Server Configuration Tool.
3
On the client computer, add the following registry entry:
HKLM\System\CurrentControlSet\Services\CredMgmtAgent\Parameters\DisableSSLCertTrust (DWORD (32-bit)
Value)=1
NOTE: Disabling trust validation lessens security, but allows you to use a self-signed certificate for pilots, POCs, etc. Dell does not
recommend the use of self-signed certificates for a production environment.
Manager SSL trust validation is now turned off.
DDP Enterprise Server - VE
If a self-signed certificate is used on VE for SED or Bitlocker Manager, SSL trust validation must be disabled on the client
computer. On the VE Server, SSL trust validation is disabled by default.
On the client computer, add the following registry entry:
HKLM\System\CurrentControlSet\Services\CredMgmtAgent\Parameters\DisableSSLCertTrust (DWORD (32-bit)
Value)=1
NOTE: Disabling trust validation lessens security, but allows you to use a self-signed certificate for pilots, POCs, etc. Dell does not
recommend the use of self-signed certificates for a production environment.
Manager SSL trust validation is now turned off.
110 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 111
How to Use the Initial Access Code Policy
This policy is used to log on to a computer when network access is unavailable. Meaning, access to the DDP Server and
AD are both unavailable. Only use the
Initial Access Code
policy if absolutely necessary. Dell does not recommend this
method to log in. Using the
Initial Access Code
policy does not provide the same level of security as the usual method of
logging in using User Name, Domain, and Password.
In addition to being a less secure method of logging in, if an end user is
activated
using the
Initial Access Code
, then there
is no record on the DDP Server of that user activating on this computer. In turn, there is no way to generate a Response
Code from the DDP Server for the end user if they fail password and self help questions.
The
Initial Access Code
can only be used one time, immediately after activation. After an end user has logged in, the
Initial Access Code
will not be available again. The first domain login that occurs after the
Initial Access Code
is entered
will be
cached,
and the
Initial Access Code
entry field will not be displayed again.
The
Initial Access Code
will only display under the following circumstances:
A user has never activated inside the PBA.
The client has no connectivity to the network or DDP Server.
1
Set a value for the
Initial Access Code
policy in the Remote Management Console.
2
Save and commit the policy.
3
Start the local computer.
4
Enter the
Initial Access Code
when the Access Code screen displays.
Click the
blue arrow
.
5
Click
OK
when the Legal Notice screen displays.
6
Log in to Windows with the user credentials for this computer. These credentials must be part of the domain.
7
After logging in, open the Security Console and verify that the PBA user was successfully created.
Click
Log
in the top menu and look for the message
Created PBA user for <domain\username
>, which indicates the
process was successful.
8
Shut down and restart the computer.
9
At the login screen, enter the User Name, Domain, and Password that was previously used to log in to Windows.
NOTE: You must match the UPN format that was used when creating the PBA user. Thus, if you used the format username@domain.com, you
must enter username@domain.com for the Username.
10
Respond to the Question and Answer prompts.
Click the
blue arrow
.
11
Click
OK
when the Legal Notice screen displays.
Windows now launches and the computer can be used as usual.
112 Enterprise Edition Administrator Guide
How to Create a PBA Log File for Troubleshooting
There may be cases when a PBA log file is needed for troubleshooting PBA issues, such as:
You are unable to see the network connection icon, yet you know there is network connectivity. The log file contains
DHCP information to track down the issue.
You are unable to see the Server connection icon. The log file contains information to help diagnose Server connectivity
issues.
Authentication fails even when entering correct credentials. The log file used with the Server logs can help diagnose the
issue.
Follow these steps to capture logs when booting into the PBA.
1
Create a folder on a USB drive and name it \
CredantSED
, at the root level of the USB drive.
2
Create a file named actions.txt and place it in the \
CredantSED
folder.
3
In actions.txt, add the line:
get environment
4
Save and close the file.
NOTE: Do not insert the USB drive when the computer is powered down. If the USB drive is already inserted during the shutdown state,
remove the USB drive.
5
Power on the computer and log in to the PBA with the UPN user format. Insert the USB drive into the computer that the
logs are to be collected from during this step.
6
After inserting the USB drive, wait for 5-10 seconds, then remove the drive.
A credpbaenv.tgz file is created in the \CredantSED folder that contains the needed log files.
Enterprise Edition Administrator Guide 113
Section V. User Experience -
Credential
Management and
Authentication
Applications
114 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 115
Configure Credentials in the Security Console
The Security Console is the centralized user interface for all end users of the computer.
The Security Console is used to set up and manage users’ credentials, view the enrollment status of their credentials,
back up and restore program data as well as Password Manager logons and credentials for Windows. The Security
Console provides a wizard-driven user interface to enable end users to configure their credentials and self-recovery
questions.
The Security Console provides end users with an easy way to enroll their authentication credentials, manage their logons
to websites, programs and network resources, back up and restore program data, and monitor encryption status. The
Security Console contains three tabs: Setup, Authentication, and Encryption.
1
Instruct end users to launch the Security Console from the
Start Menu
or the
System Tray
.
2
When the Security Console launches, the
Setup
tab displays. The end user clicks
Setup
to launch the Setup wizard.
3
The end user clicks
Next
at the Welcome page.
4
Verify Your Identity
116 Enterprise Edition Administrator Guide
The end user enters their Windows password to verify their identity and clicks
Next
.
5
Recovery Questions
A question and answer-based method of authentication is provided for end users to access their Windows account if
other credentials are unavailable (for example, if they forgot their password). The end user selects the Administrator’s
pre-defined questions (these questions were selected when policies were set up in the Remote Management Console)
from the drop-down menu and then enters and confirms their answers. The end user may also click
Skip recovery
questions setup
to bypass this page at this time. The end user clicks
Next
when finished.
NOTE: After Recovery Questions have been set up, this page no longer displays the Recovery Questions. Instead, links to the
Re-enroll
Recovery Questions
page and
Delete Recovery Questions
page display.
Enterprise Edition Administrator Guide 117
6
Choose Credentials
On the
Choose Credentials
page, the end user can select which additional credentials to enroll at this time.By default, all
credentials permitted by the Administrator and supported by the computer’s hardware and software are listed on this
page. Disconnected peripherals are not displayed until they are reconnected. The end user clicks
Next
to continue to
enroll the selected credentials.
NOTE: Credentials may be enrolled at any time by re-launching the Setup Wizard.
7
Enroll Credentials
During the process of enrolling the credentials selected in the previous step, a series of pages are presented to the end
user to enroll their credentials. The actual pages shown will vary, depending on the credentials selected by the end user.
a
Fingerprint Enrollment
The end user enrolls their fingerprint credential on the
Choose Credentials
page.
118 Enterprise Edition Administrator Guide
The end user clicks the desired finger to enroll and clicks
Save
. The end user may also click
Skip fingerprint
enrollment
to bypass this page at this time.
NOTE: The minimum and maximum number fingerprints to enroll is Administrator-configured in the Remote Management Console.
The number of swipes needed to complete fingerprint enrollment depends on the quality of the fingerprint scan.
The end user clicks
Save
when finished with each finger.
Enterprise Edition Administrator Guide 119
To delete an enrolled fingerprint, click the highlighted fingerprint. A confirmation dialog displays, which ensures
that the end user intends to delete the fingerprint. The end user clicks
Save
when finished.
120 Enterprise Edition Administrator Guide
b
Card Enrollment
To set up a built-in contactless card, place the card very close to the reader. Once the contactless card communicates
with the reader, the end user is prompted to verify their identity. The end user enters their Windows password and
clicks
Authenticate
.
If authenticating with a CAC that has more than one certificate, the user selects the correct certificate from a list.
The end user is prompted to
Save
the credential information after authentication of the card.
c
Enrollment summary
A summary of the credentials enrolled is shown after enrollment of required credentials is complete. The end user
clicks
Finish
to close the wizard.
Enterprise Edition Administrator Guide 121
8

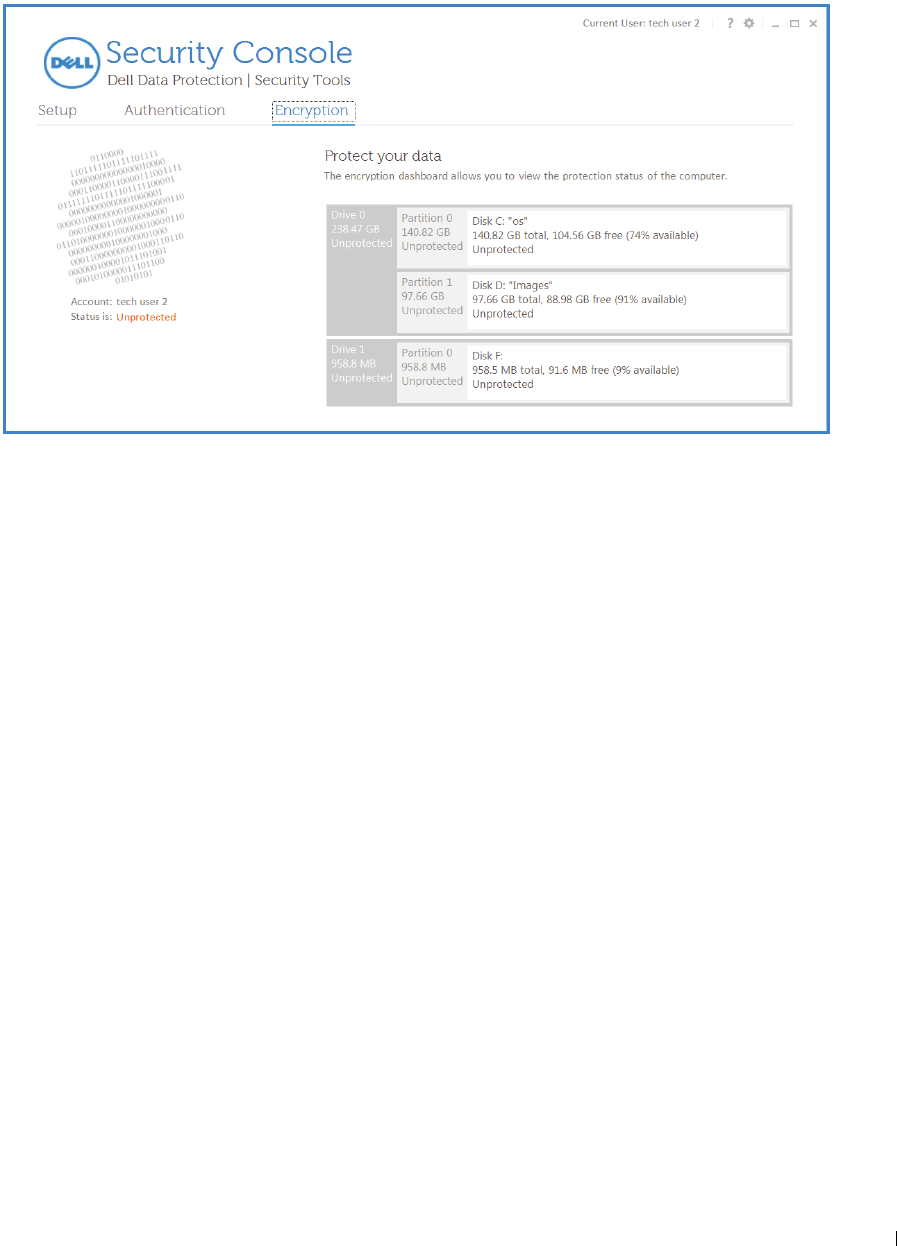

The
Encryption
tab displays the protection status of the computer. Once provisioned (encrypted), the status updates to
Protected
.
122 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 123
Use the Authentication Applications
The Security Console provides access to three applications through the tiles located on the Authentication tab. The
applications are:
Credentials
Backup and Restore
Password Manager
124 Enterprise Edition Administrator Guide
Credentials
The
Credentials
application provides a way to enroll end user credentials. By default, end users enroll and modify their
own credentials. However, Administrators may limit the ability of the end user to enroll or manage credentials.
Enrollment Status
The
Enrollment Status
page is the default page shown when you click the Credentials tile. This page displays a list of all
supported credentials and specifies their status: Required, Optional, or Disabled.
End users can access details about each credential by clicking the credential in the status list or through the navigation on
the left menu.
However, if you have prohibited end users from enrolling their credentials, the navigation to the end users’ credentials is
hidden. The following message displays on the page:
No credentials allowed for setup. Please contact your administrator.
If you have prohibited modification of credentials, the following message displays:
<type of credential> No credentials
allowed for modification. Please contact your system administrator.
The end user clicks OK to dismiss the dialog.
Enterprise Edition Administrator Guide 125
Windows Password
The
Windows Password
page allows end users to easily change their Windows password from within the Security Console.
Password changes are effective immediately after clicking Change.
NOTE: End users should be instructed to change their Windows password only in the Security Console, rather than in Windows. If the
Windows password is changed outside of the Security Console, a password mismatch will occur, requiring a recovery operation.
Recovery Questions
The
Recovery Questions
page is as described in the Setup Wizard. See
Recovery Questions
.
Fingerprints
Fingerprint enrollment is as described in the Setup wizard. See
Fingerprint Enrollment
. You can grant permission to end
users to enroll or modify fingerprint credentials in the Remote Management Console.
Cards
Card enrollment is as described in the Setup Wizard. See
Card Enrollment
.
If authenticating with a CAC that has more than one certificate, the user selects the correct certificate from a list.
126 Enterprise Edition Administrator Guide
Backup and Restore
The Backup and Restore Wizard helps end users securely back up passwords managed by Password Manager. This data can
be restored on any computer protected by Password Manager.
1
Click the
Backup and Restore
tile on the
Authentication
page.
2
Click either
Back up data
or
Restore data
to launch the Backup and Restore Wizard.
3
End users can also view a text log of backup and restore operations performed on this computer by clicking
View Backup
and Restore log
at the bottom of the
Backup and Restore
page.
NOTE: The data backed up does not include operating system or PBA logon credentials or credential-specific information, such as the end
user's fingerprints.
Enterprise Edition Administrator Guide 127
Back up Data
1
Click
Back up data
to launch the Backup and Restore Wizard.
The first page of the wizard allows the end user to select the application data to back up. By default, Password Manager is
selected.
2
The end user clicks
Next
.
3
On the second page of the wizard, the end user types the location and name of the file to be created or navigates to the
desired location by clicking
Browse
.
If the end user attempts to back up the data to the same drive as the original data, a warning displays a recommendation
to back up the data to portable storage or a network drive.
4
The end user clicks
Next
.
128 Enterprise Edition Administrator Guide
5
On the third page of the wizard, the end user must enter and confirm a password to protect the data in the backup file.
6
The end user clicks
Next.
7
The final page of the wizard informs the end user that the backup has been completed and lists the applications that
have had their data backed up.
The end user clicks
View Details
to view a text log of the backup operations performed.
The end user clicks
Finish
to close the dialog.
Enterprise Edition Administrator Guide 129
Restore Data
1
Click
Restore data
to launch the Backup and Restore Wizard and to restore the data that was previously backed up using
Back up Data.
2
The end user enters the name and location of the backup file or clicks
Browse
to navigate to the file and then enters the
password for the file. The end user clicks
Next
.
3
On the next page of the wizard, the end user is asked to select the data to restore. By default, all data that is managed is
restored. The end user can deselect specific applications that they do not want to have restored at this time. The end user
clicks
Next
.
4
The final page of the wizard informs the end user that the restore has been completed, and lists the applications that
have had their data restored.
The end user clicks
View Details
to view a text log of the backup operations performed.
130 Enterprise Edition Administrator Guide
The end user clicks
Finish
to close the dialog.
Enterprise Edition Administrator Guide 131
Password Manager
Password Manager allows an end user to automatically fill in and submit data required to log on to websites, Windows
applications, and network resources. Password Manager also provides the capability for an end user to change their logon
passwords through the application, ensuring that logon passwords maintained by Password Manager are kept in sync with
those of the targeted resource.
NOTE: Due to the ever changing structure of web logon screens, the software may not be able to support all websites at all times.
Website and Application Logon Training
To train new website and application logons, an end user launches the logon screen (a web page or program) to train. An
icon displays when the software detects the logon screen. Alternatively, the end user can click
Add Logon
and then
navigate to the web page or program logon screen.
The Password Manager icon in the upper left area of a screen indicates that this screen can be trained with the software.
To start training a logon screen, an end user can perform any of the following actions:
a
Scan enrolled credentials. An end user with an enrolled fingerprint or contactless smart card can touch the
fingerprint reader with an enrolled fingerprint or present an enrolled card to the card reader.
b
Double-click the active area of the Password Manager icon (arrow) or click the active area and select the appropriate
item from the context menu.
c
Press the Password Manager hot key combination (user configurable). The default is Ctrl+Win+H).
132 Enterprise Edition Administrator Guide
After performing one of the above-listed actions, the
Add Logon to Password Manager
dialog displays.
Add Logon
The end user adds their logon information for the website or program in the Add Logon dialog.
The end user can add or subtract logon fields or edit the field labels through the
More fields
button.
For password fields, a password strength indicator is shown below the password field in the dialog. The indicator bar
changes from red (weak) to yellow (medium) to green (strong). To accommodate color blindness, the length of the
strength bar grows as the password becomes stronger. A message is shown to alert the end user of the password strength.
Because this is training an existing logon, the end user can only create a stronger password by going to the change
password screen of the website or application.
Enterprise Edition Administrator Guide 133
NOTE: If there are several editable fields on the logon screen, the software may not choose the desired editable fields automatically. To
specify which fields to include, the end user can click the
More fields
button. The
More Field
s dialog box is displayed and the end user
can specify the desired fields. When the end user navigates to a field in the
More Fields
dialog, the corresponding field on the logon
screen is highlighted.
An end user can edit field labels by clicking on the item in the
fields
list.
134 Enterprise Edition Administrator Guide
For logon to applications, Submit changes. A drop-down list of available options displays.
When saving the entered logon data, the end user is required to authenticate according to the Session Authentication
policy in force (configured in the Remote Management Console).
The Add logon dialog box can also be launched by clicking the
Password Manager
icon on the white arrow of the blue
circle and selecting the first menu item.
Icon Context Menu
The context menu displays the following options:
Add <domain> to Password Manager - launches the Add logon dialog.
Open Password Manager - launches the
Password Manager
page in the Security Console.
Icon Settings - Allows the end user to configure the display of the Password Manager icon on trainable logon pages.
NOTE: The
Exclude this screen
option is not reversible for the specific logon screen for the current user. The
Prompt to add
or
Do not prompt
to add
options can be changed on the
Settings
page of the Password Manager application.
Once trained, the web or application logon displays in Password Manager.
Enterprise Edition Administrator Guide 135
Web Domain Support
If an end user has trained a logon screen for a specific web domain but then wants to access his account on that web
domain from a different logon screen, the end user can navigate to the new logon screen. The end user is then prompted
to use an existing logon or to add a new one to Password Manager.
If the end user clicks
Use logon
, they are logged on to the previously created account. The next time the end user tries to
access that account from the new logon screen, they can access without the prompt.
If the end user clicks
Add logon
, the Add logon dialog is shown.
Logging on to Trained Logon Screens
If the end user directly navigates to a web or application logon, the application detects whether this screen was trained
and shows the Password Manager icon in the upper left corner of the screen.
The first three times the end user accesses a trained logon, an information balloon is shown to guide the end user.
To start the logon process, an end user can perform any of the following actions:
a
Scan enrolled credentials. An end user with an enrolled fingerprint or contactless smart card can touch the
fingerprint reader with an enrolled fingerprint or present an enrolled card to the card reader.
b
Double-click the active area of the Password Manager icon (arrow), or click the active area and select the appropriate
item from the context menu.
c
Press the Password Manager hot key combination (user configurable, the default is Ctrl+Win+H).
136 Enterprise Edition Administrator Guide
The end user must authenticate according to the Session Logon authentication policy in force, which is configurable in
the Remote Management Console. Upon a successful authentication, the logon data is filled in on the logon screen. The
end user is prompted to choose the account to use if more than one logon for the logon screen exists.
Additional options are available through the context menu upon successful authentication.
Fill in logon data - If the end user selects
Fill in logon data
or double-clicks the active area of the icon, the logon data
populates the logon screen. Using the context menu or pressing the Password Manager hot key combination (default is
Ctrl+Win+H) are the only actions available to fill in logon data if password is the only authentication credential
available (no Fingerprint, no Contactless or Smart card).
Edit logon - Clicking the
Edit Logon
menu item opens the Edit Logon dialog. The caption is
Edit Logon
. The text is the
same as in the
Add Logon
dialog.
Add logon - opens the
Add logon
dialog.
Open Password Manager - The Security Console is opened to the
Password Manager
page.
Filling in with Windows Credentials
The application allows the end user to use their Windows credentials for web and application logon.
Instead of typing the username and password, the end user can choose their Windows credentials from the drop-down
menus available in the
Add Logon
and
Edit Logon
dialogs.
For the username, the end user can choose between the following types:
Windows User Name
Windows User Principal Name
Windows Domain\User Name
Windows Domain
Enterprise Edition Administrator Guide 137
For the password, the end user can use their Windows password.
All options above are hard-coded and cannot be modified.
Use Old Password
It is possible that an end user may modify a password in Password Manager and then have the password rejected by the
application. In this case, the application allows the end user to use a previous password (a password previously entered for
this logon page) instead of the most recent one.
If the end user selects
Use previous password
, then after authentication, the end user is prompted to choose an old
password from the Password Manager list. The list includes seven passwords and can be deleted permanently by clicking
Clear list
.
138 Enterprise Edition Administrator Guide
Password Change
Password Manager provides a change password functionality that helps the end user create stronger passwords. When the
application detects a password change screen, a dedicated Password Manager icon is shown on the password screen.
Upon authentication, the end user can change their password from a dedicated change password dialog. Generate
password functionality is supported. The end user can also choose the complexity criteria to be used in generating a
password.
Enterprise Edition Administrator Guide 139
Password Manager Page
•The
Password Manager
page allows an end user to launch their trained logons and to add, remove, and edit logon data.
Until the end user has created a logon, instructional text is shown on the user interface to help the end user understand
the password management functionality offered by the program.
After the end user has created a logon, the regular user interface displays.
140 Enterprise Edition Administrator Guide

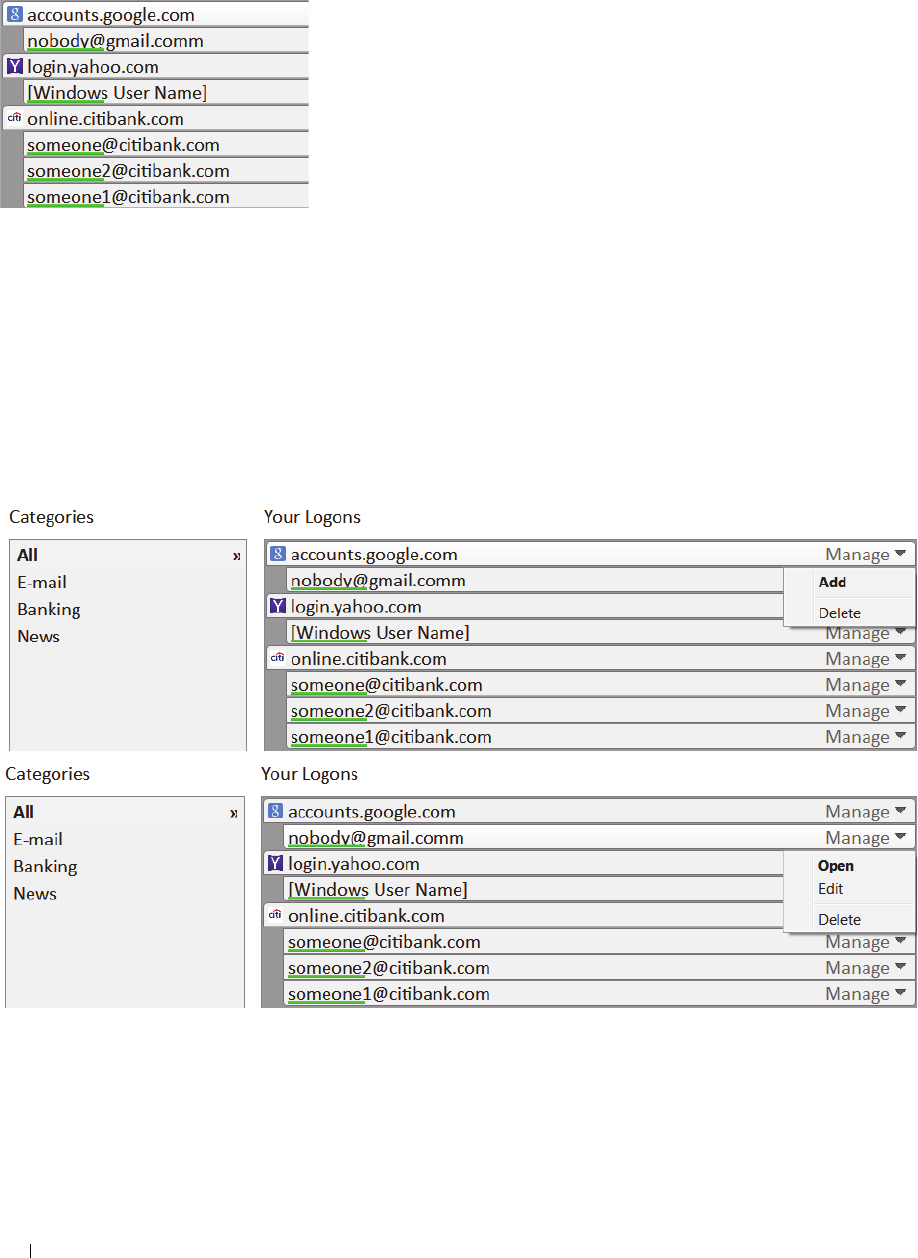

Logons are grouped by domain. If an end user has multiple logons for the same web domain, the logons will be listed,
indented, under their domain.
If the end user clicks the
Manage
command next to a logon, a drop-down menu shows a subset of the following
commands, depending on whether a domain or a logon is selected.
Open (default - also triggered if the end user double-clicks the logon)
Edit
Add
Delete
The logons show a password strength indicator bar for each account added. The indicator bar changes from red (weak) to
yellow (medium) to green (strong). To accommodate color blindness, the length of the strength bar grows as the
password is stronger.
Enterprise Edition Administrator Guide 141

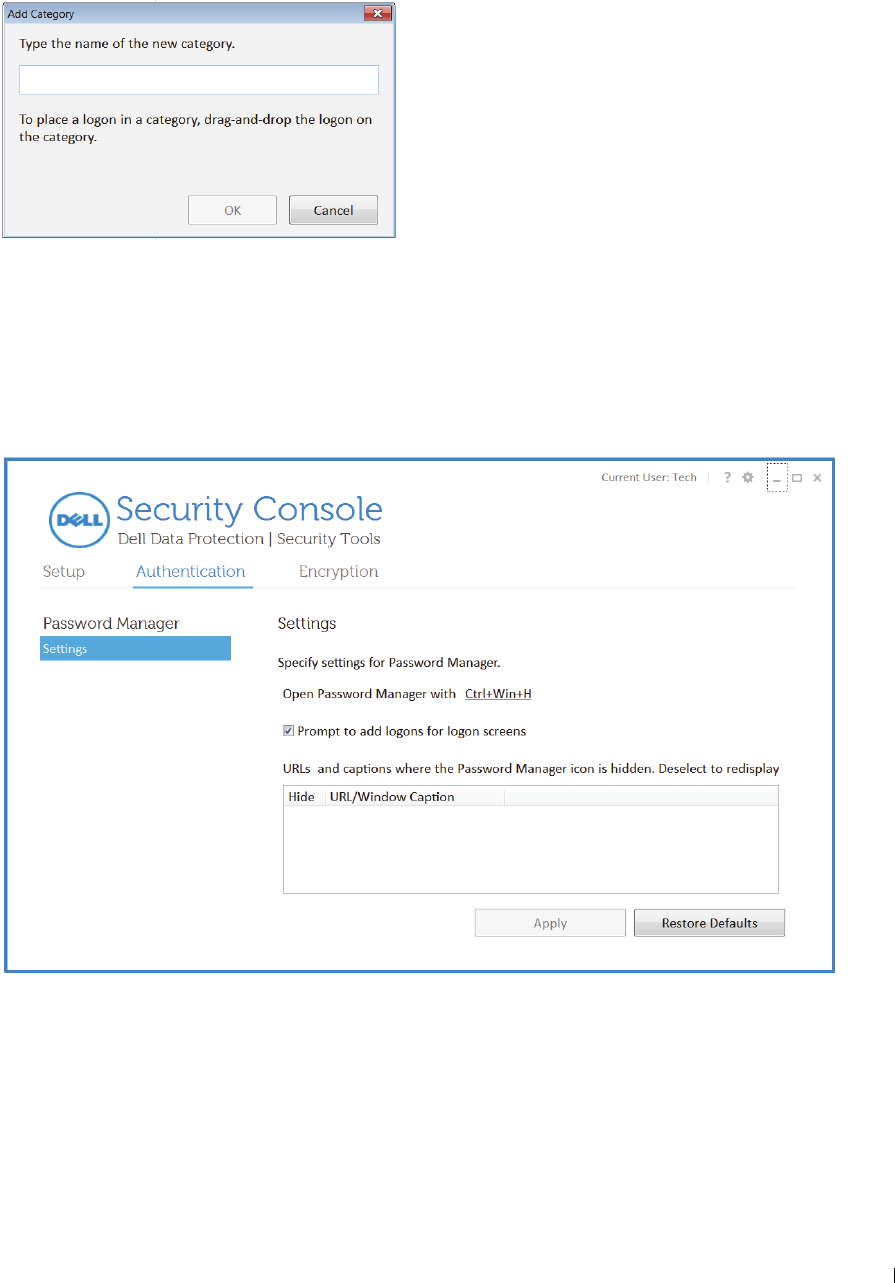

If the end user clicks the
Add
category, the Add Category dialog displays.
Settings Page
•On the
Settings
page, the end user can configure the following:
The display of the Password Manager icon on the logon screens that can be trained for automatic data fill in.
Clearing the
Prompt to add logons for logon screens
check box disables the Password Manager.
The key combination that can be pressed to display the Logons menu. The default key combination is
“Ctl+Alt+H”.
142 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 143
Section VI. BitLocker Manager
144 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 145
BitLocker Manager Installation Tasks
You can install BitLocker Manager by itself by extracting the child installer out of the master installer. If you have not
extracted the individual installer yet, follow the procedure in Extract the Child Installers from the Master Installer.
BitLocker Manager can be installed by command line using any push technology available to your organization.
Best Practices
IT best practices should be followed during deployment. This includes, but is not limited to, controlled test environments
for initial tests, and staggered deployments to users.
Install BitLocker Manager
BitLocker Manager Client - locate the installer at C:\extracted\Security Tools
•Use
EMAgent_
XX
bit_setup.exe
to install BitLocker Manager using a scripted installation, using batch files, or any other
push technology available to your organization.
Command Line Installation
For a command line installation, the switches must be specified first. The /v switch is required, and takes an argument.
Other parameters go inside an argument that is passed to the /v switch.
Switches
The following table details the switches available for the installation.
Switch Meaning
/v Pass variables to the .msi inside the
EMAgent_
XX
bit_setup.exe
(required)
/a Administrative installation
/x Uninstall mode
/s Silent mode
146 Enterprise Edition Administrator Guide
Parameters
The following table details the parameters available for the installation.
Log File Parameters
/l*v [fullpath][filename].log CM_EDITION=1 <remote management>
INSTALLDIR=<change the installation destination>
SERVERHOST=<coreserver.organization.com>
SERVERPORT=8888
SECURITYSERVERHOST=<securityserver.organization.com>
SECURITYSERVERPORT=8443
ADDLOCAL=DELL_Security_Tools
ARPSYSTEMCOMPONENT=1 <no entry in the Control Panel Programs list>
Options
The following table details the display options that can be specified at the end of the argument passed to the /v switch, to
achieve your expected behavior.
Options Meaning
/q No Progress dialog, restarts itself after process completion
/qb Progress dialog with Cancel button, prompts for Restart
/qb- Progress dialog with Cancel button, restarts itself after process completion
/qb! Progress dialog without Cancel button, prompts for restart
/qb!- Progress dialog without Cancel button, restarts itself after process completion
/qn No user interface
NOTE: Do not use both /q and /qn in the same command line. Only use ! and - after /qb.
Example Command Line Installation
The installation is performed using the
EMAgent_
XX
bit_setup.exe
file located in the C:\extracted\Security Tools folder.
NOTE: Be sure to enclose a value that contains one or more special characters, such as a blank space, in escaped quotation marks.
To specify a log location other than the default location where the executable is located, provide the complete path in the command.
For example, “/l*v C:\Logs” will create install logs in a “C:\Logs” folder.
The following example installs BitLocker Manager (silent installation, no reboot, log file at the specified location, no
entry in the Control Panel Programs list, installed in the default location of C:\Program Files\Dell\Dell Data Protection)
EMAgent_XXbit_setup.exe /s /v"CM_EDITION=1 SERVERHOST=server.organization.com
SERVERPORT=8888 SECURITYSERVERHOST=securityserver.organization.com
SECURITYSERVERPORT=8443 ARPSYSTEMCOMPONENT=1 ADDLOCAL=
DELL_Security_Tools,BITLOCKER FEATURE=BLM /l*v Bitlockerinstall.log /norestart
/qn"
Enterprise Edition Administrator Guide 147
BitLocker Manager Uninstallation Tasks
These instructions detail the process of uninstalling BitLocker Manager client software.
Prerequisites
You must have a local or domain Administrator account to uninstall BitLocker Manager.
Use the same EMAgent_
XX
bit_setup.exe file to uninstall that was used to install.
Uninstall BitLocker Manager
Command Line Uninstallation
For a command line uninstallation, the switches must be specified first. The /v switch is required, and takes an argument.
Other parameters go inside an argument that is passed to the /v switch.
Switches
The following table details the switches available for the uninstallation.
Switch Meaning
/v Pass variables to the .msi inside the
EMAgent_
XX
bit_setup.exe
(required)
/a Administrative installation
/x Uninstall mode
/s Silent mode
Parameters
The following table details the parameters available for the uninstallation.
Log File Parameters
/l [fullpath][filename].log CM_EDITION=1 <remote management>
INSTALLDIR=<change the installation destination>
SERVERHOST=<coreserver.organization.com>
SERVERPORT=8888
SECURITYSERVERHOST=<securityserver.organization.com>
SECURITYSERVERPORT=8443
ADDLOCAL=DELL_Security_Tools
ARPSYSTEMCOMPONENT=1 <no entry in the Control Panel Programs list>
148 Enterprise Edition Administrator Guide
Options
The following table details the display options that can be specified at the end of the argument passed to the /v switch, to
achieve your expected behavior.
Options Meaning
/q No Progress dialog, restarts itself after process completion
/qb Progress dialog with Cancel button, prompts for Restart
/qb- Progress dialog with Cancel button, restarts itself after process completion
/qb! Progress dialog without Cancel button, prompts for restart
/qb!- Progress dialog without Cancel button, restarts itself after process completion
/qn No user interface
NOTE: Do not use both /q and /qn in the same command line. Only use ! and - after /qb.
Example Command Line Uninstallation
The uninstallation is performed using the
EMAgent_
XX
bit_setup.exe
file located in the C:\extracted\Security Tools
folder.
NOTE: Be sure to enclose a value that contains one or more special characters, such as a blank space, in escaped quotation marks.
To specify a log location other than the default location where the executable is located, provide the complete path in the command.
For example, “/l C:\Logs” will create install logs in a “C:\Logs” folder.
EMAgent_XXbit_setup.exe /x /s /v"/l Uninstall.log /qn"
Reboot the computer when prompted.
BitLocker Manager is uninstalled.
Enterprise Edition Administrator Guide 149
BitLocker Manager Recovery
To recover data, you obtain a recovery password or key package from the Remote Management Console, which then allows
you to unlock data on the computer.
Recover Data
1
As a Dell Administrator, log in to the Remote Management Console.
2
In the left pane, click
Actions
>
Recover Data
.
3
Click the
Manager
tab.
4
For
BitLocker
:
Enter the
Recovery ID
received from BitLocker.
Click
Get Recovery Password
or
Create Key Package
.
Depending on how you want to recover, you will use this recovery password or key package to recover data.
For
TPM
:
Enter the
Recovery ID
received from BitLocker.
Click
Get Recovery Password
or
Create Key Package
.
Depending on how you want to recover, you will use this recovery password or key package to recover data.
5
To complete the recovery, see Microsoft’s Instructions for Recovery
.
NOTE: If BitLocker Manager does not “own” the TPM, the TPM password and key package are not available in the Dell database. You will
receive an error message stating that Dell cannot find the key, which is the expected behavior.
To recover a TPM that is “owned” by an entity other than BitLocker Manager, you should follow the process to recover the TPM from
that specific owner or follow your existing process for TPM recovery.
150 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 151
How to Turn Off Manager SSL Trust Validation
When using SED or BitLocker Manager and you want to turn off Manager SSL trust validation, follow the steps below.
Dell Enterprise Server
NOTE: The Server Configuration Tool and the Remote Management Console cannot run simultaneously. Close the Remote Management
Console before opening the Server Configuration Tool.
1
In the Server Configuration Tool on the
Settings
tab, check the box for
Disable Trust Chain Check
.
2
Save your changes and close the Server Configuration Tool.
3
On the client computer, add the following registry entry:
HKLM\System\CurrentControlSet\Services\CredMgmtAgent\Parameters\DisableSSLCertTrust (DWORD (32-bit)
Value)=1
NOTE: Disabling trust validation lessens security, but allows you to use a self-signed certificate for pilots, POCs, etc. Dell does not
recommend the use of self-signed certificates for a production environment.
Manager SSL trust validation is now turned off.
DDP Enterprise Server - VE
If a self-signed certificate is used on VE for SED or Bitlocker Manager, SSL trust validation must be disabled on the client
computer. On the VE Server, SSL trust validation is disabled by default.
On the client computer, add the following registry entry:
HKLM\System\CurrentControlSet\Services\CredMgmtAgent\Parameters\DisableSSLCertTrust (DWORD (32-bit)
Value)=1
NOTE: Disabling trust validation lessens security, but allows you to use a self-signed certificate for pilots, POCs, etc. Dell does not
recommend the use of self-signed certificates for a production environment.
Manager SSL trust validation is now turned off.
152 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 153
Section VII. Cloud Edition
154 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 155
Cloud Edition Installation Tasks
Before you begin installing Cloud Edition, you must first complete a few tasks on the DDP Server.
DDP Server Tasks
Configure DDP Enterprise Server - VE for Cloud Edition
To configure VE to support Cloud Edition, in the VE Remote Management Console, set the Cloud Storage Protection
Enabled protection policy to True.
Configure Dell Enterprise Server for Cloud Edition
To configure Dell Enterprise Server to support Cloud Edition, in the Remote Management Console, set the Cloud
Storage Protection Enabled protection policy to True, then
Set Up the Dell Security Server to Allow Cloud Client
Downloads
.
Set Up the Dell Security Server to Allow Cloud Client Downloads
This section details the steps needed to allow end users to download the Windows Cloud client from your Dell Security
Server.
1
On the Dell Enterprise Server, go to <Security Server install dir>\webapps\cloudweb\brand\dell\resources and open the
messages.properties file with a text editor.
2
Ensure that the entries are as follows:
download.deviceWin.mode=remote
download.deviceWin.local.filename.32=cloud32.exe
download.deviceWin.local.filename.64=cloud64.exe
download.deviceWin.remote.link.32=https://<YOUR HOST URL>:<PORT>/cloudweb/download/cloud32.exe
download.deviceWin.remote.link.64=https://<YOUR HOST URL>:<PORT>/cloudweb/download/cloud64.exe
3
Save and close the file.
4
Go to <Security Server install dir> and create a new folder under it named Download (Security Server\Download).
5
Within the Download folder, create another new folder and name it Cloudweb (Security Server\Download\Cloudweb).
6
Add the 64-bit and the 32-bit setup files for Cloud Edition to the Cloudweb folder and rename them to cloud64.exe and
cloud32.exe, respectively.
156 Enterprise Edition Administrator Guide
Set Up the Server for Automatic Downloads of the Windows Cloud Client (Optional)
1
On the server hosting your Dell Enterprise Server, go to C:\inetpub\wwwroot\.
NOTE: This web server must have a trusted certificate.
2
Create a folder under wwwroot named CloudUpdate (C:\inetpub\wwwroot\CloudUpdate).
NOTE: CloudUpdate is used in this example, but you can choose any name.
3
Place the updated executables in the CloudUpdate folder.
4
Place the updated
versions.xml
file in the CloudUpdate folder.
5
Open
versions.xml
with a text editor and verify the filename path is correct for your environment.
Sample:
<?xml version="1.0"?>
<VERSIONS>
<VERSION channel="release" brand="1" arch="x86" version="1.0.0.1814" filename="/Cloud32.exe"/>
<VERSION channel="release" brand="1" arch="x64" version="1.0.0.1814" filename="/Cloud64.exe"/>
</VERSIONS>
Version: File version of the updated executables
Filename: Path from the end of the URL above (/CloudUpdate) to the actual executables.
6
Save and close the file.
7
Restart IIS.
8
As a Dell administrator, login to the Dell Remote Management Console.
9
In the left pane, click
Protect & Manage > Enterprise
.
10
Click
Security Policies
on the top menu.
11
Select the Policy Category:
Cloud Storage
from the drop-down list.
12
Expand the Policy grouping to show
Cloud Storage Settings
.
13
Scroll to the
Software Update Server URL
policy and enter
https://<YOUR HOST URL>/CloudUpdate
.
NOTE: CloudUpdate is only an example to match the example above.
14
Click
Save
to store the policy modification in the queue to commit.
15
Click
Actions > Commit Policies
.
16
Click
Apply Changes
.
Allow/Deny Users on Whitelist /Blacklist
The whitelist and blacklist entries determine which users can register with the DDP Server to use Cloud Edition. For
adequate security, be sure to carefully set up and manage these lists.
Enterprise Edition Administrator Guide 157
Whitelist
The whitelist allows specific users or groups of users to register with the DDP Server and to use
Cloud Edition
. To allow
external users
, they must be placed on the whitelist to allow registration. However, in order for the blacklist to be used, if
you have used a wildcard in the whitelist, it must be removed. See the following examples:
<Allow>*@organization.com</Allow>
Allows all organization.com email addresses to register with the DDP
Server.
<Allow>*</Allow>
All users are allowed to register DDP Server.
<Allow>jdoe@organization.com</Allow>
Allows this specific user to register with the DDP Server.
<Allow>*@gmail.com</Allow>
Allows all Gmail
users to register with the with the DDP Server.
Blacklist
The blacklist prevents specific users or groups of users from registering with the DDP Server and using
Cloud Edition
.
This list does not prevent users who are already registered from using
Cloud Edition
. Users whose email addresses are
entered in the blacklist receive a message stating that they cannot register for
Cloud Edition
.
You can use the blacklist to exclude specific users who are members of approved groups on the whitelist. Additionally,
using the wildcard (*), entire domains can be placed on the blacklist, which will prevent anyone with an email address in
that domain from registering. See the following examples:
<deny>*@organization.com</deny>
Prevents all organization.com email addresses from registering with the
DDP Server.
<deny>jdoe@organization.com</deny>
Prevents this specific user from registering this email address with
the DDP Server.
<deny>*@gmail.com</deny>
Prevents all Gmail users from registering with the DDP Server.
To modify the whitelist/blacklist, follow the instructions below:
1
Go to <Security Server install dir>\conf\.
2
Open registration-access.xml with a text editor.
3
Allow or deny users based on the above information and the following example:
<?xml version="1.0" encoding="UTF-8"?>
<access>
<whitelist>
<allow>user1@organization.com</allow>
<allow>*@organization.com</allow>
-->
<allow>*</allow>
</whitelist>
<blacklist>
<!--All addresses not specifically allowed are denied.
<deny> </deny>
-->
</blacklist>
</access>
4
Save and close the file.
An email is automatically sent (as configured in the Server Configuration Tool’s SMTP tab) to the users added to the
whitelist directing them to https://yoursecurityservername.domain.com:8443/cloudweb/register.
158 Enterprise Edition Administrator Guide
Use Dropbox for Business
Cloud Edition with Dropbox for Business offers additional functionality:
Remote Wipe a Team Member Account
With a DDP Enterprise Server - Virtual Edition v8.4 or later, you can set policies to control how business and personal
Dropbox folders are protected. If your enterprise allows both business and personal accounts, end users should
understand encryption of each type of account. See Policy for Business and Personal Accounts.
Policy for Business and Personal Accounts
Your enterprise may have guidelines on whether team members can use business and personal accounts. Also, the
enterprise may allow only certain users to have both business and personal accounts.
NOTE: If your enterprise allows both business and personal accounts, and an end user chooses to use both, the user must understand folder
management of both account types.
The following table describes encryption based on your DDP Server and policy.
Encryption DDP Server and Policy Deployment Considerations
Encrypt all business and personal files and
folders.
DDP Enterprise Server - VE (pre-v8.4) or
Dell Enterprise Server
or
DDP Enterprise Server - VE: v8.4 or later
with
Policy >
Dropbox Encrypt Personal Folders
> set to True
(True is the default.)
Before Cloud Edition is deployed, users
should back up pre-existing business files
that are in cloud storage sync folders to
locations outside the sync folders.
Users with personal files that should
remain unencrypted must move the files
out of sync folders or unlink personal
accounts from business sync clients.
After Cloud Edition is deployed, cloud files
and folders can be viewed only on
computers or devices running Cloud
Edition. If a personal folder becomes
unintentionally encrypted, see
Decrypting
Folders in a Personal Account
.
Encrypt all business account files and
folders.
Allow personal account files and folders to
remain unencrypted.
DDP Enterprise Server - VE v8.4 or later
with
Policy >
Dropbox Encrypt Personal Folders
> set to False
You can use the optional
Dropbox Encrypt
Personal Folders Message
policy to display a
customized message to remind users not to
store business files in personal accounts,
since those files won’t be protected. The
message is displayed at these times:
Each time the user logs in
When the user creates or adds a new file
or folder to a personal Dropbox
account
If you set the
Dropbox Encrypt Personal
Folders
policy to False for an Endpoint or
Endpoint Group, personal accounts of all
users on those endpoints will remain
unencrypted.
Business and Personal Folders
If your enterprise has Dropbox for Business and you allow end users to have both business and personal folders, you may
want to run reports to ensure that all business files have the .xen file extension, in case an end user copies a sensitive
unprotected file into a business folder. See
Run Reports
.
Enterprise Edition Administrator Guide 159
Remote Wipe a Team Member Account
If your enterprise has Dropbox for Business, you can remotely remove a team member from the corporate Dropbox for
Business team account if, for example, a user leaves the company. Files and folders associated with the team member's
account will be removed from all devices used by the account. This revokes that user’s access to those files.
Prerequisites
NOTE: Before you perform this procedure, you must back up any files or folders from the team member account that might be needed by the
enterprise or other Dropbox for Business team members.
Only a Dropbox for Business Administrator can remote wipe a Dropbox for Business account.
The end user must have activated Cloud Edition and connected to Dropbox for Business.
Register in Remote Management Console
Only one Dropbox for Business Administrator needs to register.
1
In the Remote Management Console, select
Settings
in the left pane.
2
Click the
Cloud
tab.
3
Click
Register
.
The browser opens to the Dropbox for Business site.
4
If prompted, log in to Dropbox with your Dropbox for Business Administrator account.
5
To allow access to
Cloud Edition, click Allow.
A confirmation page displays to indicate Dropbox authorization is granted to the DDP Enterprise Server - VE.
6
In the Remote Management Console, return to
Settings > Cloud
and refresh the page.
The Administrator name displays.
NOTE: Generally, the best practice is not to de-register. However, to withdraw the privileges of the Dropbox for Business Administrator for
removing team members from the Dropbox for Business team, click De-register.
Remote Wipe a Team Member Account
NOTE: The Remote Wipe option is available only for enrolled Dropbox for Business team member accounts. If the Remote Wipe option does
not display for a user account, the user has not enrolled a Dropbox for Business account.
1
In the Remote Management Console, select
Users
in the left pane.
2
Access the
User Detail
page.
3
In the Command column, click
Remote Wipe
.
The remote wipe is performed.
NOTE: Before you select Remote Wipe, you must back up any files or folders from the team member account that might be needed by the
enterprise or other Dropbox for Business team members.
4
At the confirmation for Remote Wipe, click
Yes
.
The User Detail page lists the date the remote wipe is performed.
5
In your Dropbox for Business
Administrator Console Members
page, refresh the list of Team Members.
The user is removed from the list. You can select the
Removed Members
tab to view which users have been removed.
160 Enterprise Edition Administrator Guide
Run Reports
Reports about your Cloud Edition environment are available through Dell Compliance Reporter, a component of the Dell
Enterprise Server and DDP Enterprise Server - VE. For example, you can run reports that detail the following:
User activations
Applied policy on a device
Actions performed on encrypted files
Dropbox for Business file encryption status
For more information on running reports, see
Compliance Reporter Help
.
Essential Steps
You can run reports to confirm that all internal users have completed some essential steps. For example:
End users must activate Cloud Edition.
If your enterprise uses Dropbox for Business, the end user must connect to it through Cloud Edition. Otherwise, you
won’t have the ability to use Dropbox for Business’ Remote Wipe option.
Provide Temporary Folder Management Rights
If users uploaded files before you installed
Cloud Edition, you can provide temporary Folder Management rights to some
users.
1
Set the
Folder Management Enabled
policy for specific end points to
True
.
2
Instruct the user to manually turn on encryption for the pre-existing folder. The files will be encrypted when the files
sync to the cloud.
3
After the folders are encrypted, set the
Folder Management Enabled
policy for those end points to
False
.
Update Cloud Edition Policy
The
Server Polling Period
policy determines how often the client checks for policy updates. If you modify a policy
that internal end users need to implement before that time interval, be sure to inform end users to check for the
update.
Enterprise Edition Administrator Guide 161
Client Tasks
You can install the Cloud Edition client by itself by extracting the child installer out of the master installer. If you have not
extracted the individual installer yet, follow the procedure in
Extract the Child Installers from the Master Installer
. The
Cloud Edition client can be installed using the user interface or by command line using any push technology available to
your organization. Activation by the end user is still required.
Before Installing
As a best practice, deploy Cloud Edition before users set up cloud storage accounts and store files in them.
If end users decide to keep existing cloud storage accounts on computers where Cloud Edition will be installed, they
must use the settings in the cloud storage application to deselect any folders that are to remain
unencrypted
before you
install Cloud Edition. Otherwise, their existing personal data might be encrypted. For more information, see Remove
Protected Files.
Be prepared to restart the computer after Cloud Edition client is installed. If applicable, notify users of the timeframe
during which their computers will be rebooted.
Best Practices
IT best practices should be followed during deployment. This includes, but is not limited to, controlled test environments
for initial tests, and staggered deployments to users.
Install Cloud Edition
Cloud Edition Client - locate the installer at C:\extracted\Cloud
•Use
Cloud_
XX
bit_setup.exe
to install or upgrade using a scripted installation, using batch files, or any other push
technology available to your organization.
Command Line Installation
For a command line installation, the switches must be specified first. The /v switch is required, and takes an argument.
Other parameters go inside an argument that is passed to the /v switch.
Switches
The following table details the switches available for the installation.
Switch Meaning
/v Pass variables to the .msi inside the Cloud_
XX
bit_setup.exe (required)
/a Administrative installation
/x Uninstall mode
/s Silent mode
Parameters
The following table details the parameters available for the installation.
Log File Parameters
/l*v [fullpath][filename].log SERVER=<securityserver.organization.com>
162 Enterprise Edition Administrator Guide
Options
The following table details the display options that can be specified at the end of the argument passed to the /v switch, to
achieve your expected behavior.
Options Meaning
/q No Progress dialog, restarts itself after process completion
/qb Progress dialog with Cancel button, prompts for Restart
/qb- Progress dialog with Cancel button, restarts itself after process completion
/qb! Progress dialog without Cancel button, prompts for restart
/qb!- Progress dialog without Cancel button, restarts itself after process completion
/qn No user interface
NOTE: Do not use both /q and /qn in the same command line. Only use ! and - after /qb.
Example Command Line Installation
The installation is performed using the
Cloud_
XX
bit_setup.exe
file located in the C:\extracted\Cloud folder.
NOTE: Be sure to enclose a value that contains one or more special characters, such as a blank space, in escaped quotation marks.
To specify a log location other than the default location where the executable is located, provide the complete path in the command.
For example, “/l*v C:\Logs” will create install logs in a “C:\Logs” folder.
The following example installs Cloud Edition (silent installation, no reboot, log file at the specified location, installed in
the default location of C:\Program Files\Dell\Dell Data Protection)
Cloud_XXbit_setup.exe /s /v"SERVER=securityserver.organization.com /norestart
/l*v Cloudinstall.log /qn"
Reboot the computer and authenticate to Windows.
Installation of Cloud Edition is complete.
Notify End Users
Cloud Edition users must perform the following tasks in order for files and folders in their cloud sync clients to be
protected:
Activate Cloud Edition.
Download a cloud storage provider.
If your enterprise has a provider preference, specify that.
If your enterprise uses Dropbox for Business, provide users with a link for downloading and installing it.
NOTE: Dropbox for Business users must connect to Dropbox for Business through Cloud Edition.
Also, if your enterprise has previously blocked access to cloud storage, you will need to change that setting.
Activate Cloud Edition and Install a Cloud Sync Client
For information about Cloud Edition user tasks, see
Cloud Edition Activation and User Experience
.
Enterprise Edition Administrator Guide 163
Cloud Edition Uninstallation Tasks
If an end user has a local Administrator account, they can uninstall Cloud Edition themselves. See
Cloud Edition User
Guide
. This section describes the
Administrator
process for uninstalling Cloud Edition.
These instructions detail the process of:
Removing protected files
Uninstalling Cloud Edition client software.
Prerequisites
You must have a local or domain Administrator account to perform the uninstallation.
Use the same Cloud_
XX
bit_setup.exe file to uninstall that was used to install.
Remove Protected Files
All encrypted documents on the device must be removed locally. Choose one of the following methods to remove
protected files:
Recommended method
: Turn off syncing from the sync folders. All folders and files will remain in the cloud but will be
removed from the local device.
Delete the files directly from the cloud and allow syncing to occur. The cloud service will show there are no files on the
device, and when syncing occurs the local device will remove all data from the shared folder.
Delete the files directly from the local sync folder. The sync client will observe the change and remove all files from the
cloud service.
The installer offers the option to override its protection check for synchronized files. For more information, see Override
Protection Check for Synchronized Files.
Dropbox
1
In the system tray, select the
Dropbox icon
, and click the Settings icon.
2
In
Preferences
, click the
Account
tab, and then
Selective Sync
.
3
Deselect folders to remove syncing.
4
Click
Update
.
5
At the confirmation dialog, click
OK
. (The folders will be removed from Dropbox on the computer but are still available
on the web and other devices.)
6
At the Dropbox Preferences window, click
OK
.
7
The system tray icon indicates settings are being applied. This may take several minutes.
8
When the Dropbox icon indicates that remove syncing is complete, navigate to
Windows Explorer > Dropbox
. If any
files or folders were not removed, manually delete them.
164 Enterprise Edition Administrator Guide
Box
1
In the system tray, right-click the Box icon and select
Open Box web site
2
In the Box web site, right-click a file or folder and select
Synced > Unsync
.
3
In the Disable Sync window, click
Unsync
Folder
.
4
The system tray icon indicates settings are being applied. This may take several minutes.
5
When complete, navigate to
Windows Explorer > Box
. If any files or folders were not removed, manually delete them.
OneDrive
1
In the system tray, right-click the
OneDrive icon
, and click
Settings
.
2
Select the
Choose Folders
tab and then click
Choose Folders
.
3
Then, select
Choose folders to sync
.
4
When the list of folders displays, clear the check boxes to remove syncing and click
OK
.
5
Click
OK
.
6
The system tray icon indicates settings are being applied. This may take several minutes.
7
When complete, navigate to
Windows Explorer > OneDrive
. If any files or folders were not removed, manually delete
them.
Uninstall Cloud Edition
Command Line Uninstallation
For a command line uninstallation, the switches must be specified first. The /v switch is required, and takes an argument.
Other parameters go inside an argument that is passed to the /v switch.
Switches
The following table details the switches available for the uninstallation.
Switch Meaning
/v Pass variables to the .msi inside the
Cloud_
XX
bit_setup.exe
(required)
/a Administrative installation
/x Uninstall mode
/s Silent mode
Parameters
The following table details the parameters available for the uninstallation.
Log File Parameters
/l [fullpath][filename].log SERVER=<securityserver.organization.com>
Options
The following table details the display options that can be specified at the end of the argument passed to the /v switch, to
achieve your expected behavior.
Options Meaning
/q No Progress dialog, restarts itself after process completion
Enterprise Edition Administrator Guide 165
Example Command Line Uninstallation
The uninstallation is performed using the
Cloud_
XX
bit_setup.exe
file located in the C:\extracted\Cloud folder.
NOTE: Be sure to enclose a value that contains one or more special characters, such as a blank space, in escaped quotation marks.
To specify a log location other than the default location where the executable is located, provide the complete path in the command.
For example, “/l C:\Logs” will create install logs in a “C:\Logs” folder.
Cloud_XXbit_setup.exe /x /s /v"/l Uninstall.log /qn"
Reboot the computer when prompted.
Cloud Edition is uninstalled.
OR
Override Protection Check for Synchronized Files
You can uninstall files without stopping synchronization. However, if you use this option, and protected files are currently
synchronizing, these files could enter the cloud unencrypted. Use this option with caution.
To override the check for synchronized files and perform a silent uninstall, enter the following command:
Cloud_XXbit_setup.exe /x /s /v"PROTECTIONCHECK=0 /qn"
Reboot the computer when prompted.
Cloud Edition is uninstalled.
/qb Progress dialog with Cancel button, prompts for Restart
/qb- Progress dialog with Cancel button, restarts itself after process completion
/qb! Progress dialog without Cancel button, prompts for restart
/qb!- Progress dialog without Cancel button, restarts itself after process completion
/qn No user interface
NOTE: Do not use both /q and /qn in the same command line. Only use ! and - after /qb.
Options Meaning
166 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 167
Section VIII.User Experience -
Cloud Edition
168 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 169
Cloud Edition Activation and User Experience
Activate Cloud Edition
After
Dell Data Protection | Cloud Edition is installed and
the computer reboots, follow these steps:
1
Log in to Windows.
2
From the Cloud Edition system tray icon, select
User Activation
.
3
Enter your domain email address and domain password, and click
Activate
.
After activation finishes, a green check displays on the Cloud Edition system tray icon.
4
Confirm your user mode status. Click the Cloud Edition system tray icon and select
Details
.
5
At the top, confirm User Mode:
Internal
: A user with an email address within the company’s domain.
External
: A user with a non-domain email address.
Install a Cloud Sync Client
NOTE: The installation steps will prompt you for the Server Name that this computer will communicate with, such as server.domain.com. This
information is supplied by your Administrator.
The best practice is to select and install just one sync client to work with Cloud Edition
. If applicable, use your company’s
preferred cloud sync client.
1Click one of the following to install a sync client:
Dropbox
(if your company allows business and personal accounts, this is the personal account) - see
https://www.dropbox.com/install
Dropbox for Business
- If your company has Dropbox for Business, your Administrator will provide you with a
link for downloading and installing it. Your enterprise will determine if internal users can have a business
account only or if they can use both business and personal folders. If you install Dropbox for Business, see
Authenticate Dropbox for Business.
Box
- see https://www.box.com/platform/
OneDrive
- see https://onedrive.live.com/about/en-us/download/
2
In the sync client, create a shared folder or accept an existing one from another person or group in your company.
If you are running one of the following, you can access a sync client folder from the system tray:
Dropbox/Dropbox for Business
- Click the Dropbox icon and select
Dropbox Folder
.
Box
- Right-click the Box icon and select
Open Box Sync folder
.
OneDrive
-
C
lick the OneDrive icon and select
Open your OneDrive folder
.
3
In Windows Explorer, you can use the sync client to create folders and upload files
.
NOTE: You can upload files using the browser. However, the best practice is to upload files through the sync client in Windows Explorer. For
more information, see
Sync Folders
.
170 Enterprise Edition Administrator Guide
Authenticate Dropbox for Business
If you install Dropbox for Business, Cloud Edition prompts for authentication.
1After you install Cloud Edition, an Authentication window may open, or
click the
Cloud Edition icon and then select
Dropbox > Connect.
The Authentication window notifies you that
Cloud Edition must have access to your Dropbox account and may give
instructions about business and personal accounts.
2
At the Authentication window, click
Next
.
3
If a Network Threat Protection window opens, click
Yes
.
4
In the Authentication window, enter your domain email and Dropbox password.
5
If you have linked your Dropbox business and personal accounts, you will be prompted to select one now. You must select
your business account.
6
At the next window, click
Allow
.
7
Click
Finish
or wait for the window to close.
Sync Folders
Select the instructions for one sync client.
Dropbox for Business
To sync folders:
1
In the system tray, click the
Dropbox for Business icon.
2Click the Settings icon, and select Preferences.
3
Click the
Account
tab, then click
Selective Sync
.
4
Select only folders or subfolders that you will share.
5
Click
Update
.
6
On the Update confirmation dialog, click
OK
.
7
On the Dropbox Preferences window, click
OK
.
8
A pop-up displays in the system tray that folders are being synced.
Enterprise Edition Administrator Guide 171
Box
To sync folders:
1
In the system tray, right-click the Box icon and select
Open Box web site
.
2
In the cloud, right-click a folder and select
Sync Folder to Computer
.
3
In the Sync folder window, click
Sync
Folder
.
4
The system tray icon indicates settings are being applied. This may take several minutes.
5
When complete, navigate to
Windows Explorer > Box Sync
. The synced folders display with a check mark.
OneDrive
To sync folders:
1
In the system tray, right-click the
OneDrive icon
, and click
Settings
.
2
Select the
Choose Folders
tab and then click
Choose Folders
.
3
Next, select
Choose folders to sync
.
4
A list of folders display. Select or clear check boxes to sync those folders. Click
OK
.
5
Click
OK
.
6
The system tray icon indicates settings are being applied. This may take several minutes.
7
When complete, navigate to
Windows Explorer > OneDrive
. The synced folders display with a check mark.
Work with Folders and Files
You can continue to use Dropbox, Box, or OneDrive to sync and continue working on files as you normally would.
Depending on policy settings, when files are synced into the cloud, they are encrypted.
Cloud Storage Provider Help
Cloud Edition works transparently with your cloud sync client. Before using Cloud Edition, be sure to learn about the
cloud storage provider:
Dropbox support at https://www.dropbox.com/help
•Box support at https://support.box.com/home
OneDrive support at http://windows.microsoft.com/en-us/onedrive/onedrive-help#onedrive=other
Pre-existing Folders with Unencrypted Files
When you install DDP|CE and have pre-existing folders that are now being synced by a sync client, DDP|CE will not
encrypt them.
Using Windows Explorer, one person within the group that shares that folder must move the files out of the sync client’s
folder to a temporary location outside of the sync client’s folder. When the sync client folder indicates that it has
completed syncing the changes, move the files back into the original folder.
or
For large content, request permission to have the Manage Folders option. Select that folder.
172 Enterprise Edition Administrator Guide
Access a Cloud Storage Provider
Dropbox
In the system tray, click the Dropbox icon and select
Dropbox.com
.
NOTE: If you use Chrome or Firefox to open Dropbox.com, be sure to close it after you finish working with files and folders. Even if you open
another tab in the browser, the content will be encrypted. This could include email, an attachment, or uploads using the browser.
Box
In the system tray, right-click the Box icon and select
Open Box web site
.
OneDrive
In the system tray, right-click the OneDrive icon and select
Go to OneDrive.com
.
Enterprise Edition Administrator Guide 173
Dropbox for Business
Dropbox for Business has specific requirements. See
Cloud Sync Clients
.
Connect Cloud Edition and Dropbox
If your company uses Dropbox for Business, you must allow Cloud Edition to stay connected. To connect:
1
In the system tray, click the
Cloud Edition icon and then select Dropbox > Connect.
2
At the Dropbox Authentication window, read the information and then click
Next
.
3
If you have linked your Dropbox business and personal accounts, you will be prompted to select one now. You must select
your business account.
4
At the prompt to allow
Cloud Edition to access your Dropbox files and folders, click Allow.
5
Click
Finish
.
Use Dropbox for Business Context Menu
In Windows Explorer when Cloud Edition is installed, Dropbox for Business has an additional context menu.
NOTE: You must connect Cloud Edition to Dropbox.
To access the context menu, in Windows Explorer, open a Dropbox folder and right-click a file. The cloud icon has these
options:
Share Secure Dropbox link
View on Dropbox.com
View previous versions
Use Business and Personal Dropbox Accounts
If your company has Dropbox for Business and also allows you to link a personal Dropbox account with your business
account, be sure to understand the policies set by your administrator for those accounts. For example, a company can set
the following policies:
Both business and personal files are encrypted.
or
Only business files and folders are encrypted. Personal files remain unencrypted.
For security, your enterprise may have an auditing policy. File names in the personal folder are logged and sent to the Dell
Data Protection Server.
If you use business and personal Dropbox accounts, do not store business files in your personal Dropbox folder.
Decrypting Folders in a Personal Account
If a personal folder is accidentally encrypted, navigate to the Cloud Edition system tray icon > Manage Folders and
deselect folders that should be unencrypted. Also, you can remove folders from syncing by unlinking the account or
unsyncing personal folders that should remain unencrypted.
174 Enterprise Edition Administrator Guide
Understand the Cloud Edition System Tray Menu Items
Details Screen
You can use the Details screen for troubleshooting or support issues. For example:
If a user creates a folder but it's not encrypting, select
Details > Files > Folder State
.
•Check Cloud Edition Policy Settings.
View logs for troubleshooting.
The Details screen has a basic view and an enhanced view with additional details.
Basic Details Screen
Click the
Cloud Edition system tray icon,
and then
click
Details...
The upper-left corner of the Details screen displays the following information:
Service Status: Status of the Cloud Edition Service. Values are: Stopped, Start Pending, Stop Pending, Running,
Continue Pending, Pause Pending, Paused
Run State: The device activation state. Values are: Active, Reactivating, Suspended, Suspending
User Mode: Internal user - a user within this domain address
External user - a user outside of this domain address
Registration Email: For Internal users, this is the domain email address. For External users, this is the email they
registered under.
Server URL: DDP Server that communicates with this client.
Policy Last Modified: Date and timestamp of when the policy was last modified and consumed by the client.
Policy Version: Policy version generated by the DDP Server.
The Files and Folders areas of the Details screen display the following information:
Name: Name of the file or folder
Key: Key ID assigned to that folder (new files use that key for encryption)
Sync Client: The last sync client to sync that folder (Dropbox, Box, or OneDrive)
FolderOwnership: This value indicates who the folder is owned by. Value is determined by the Key ID.
FolderState: The folder state is typically
Idle
unless a sync client is working on a folder, in which case it would be
Enumerating.
Obfuscation Type: A set on each folder indicating what type of .xen files will be created in the cloud. This is a policy set
by your Administrator. If your Administrator selects
Extension only
, the actual filename with the
“.xen” extension will be displayed. If your Administrator selects
Guid
, a scrambled filename with the
“.xen” extension will display. This is a policy setting that takes effect on new folders only.
Enhanced Details Screen
While pressing <Ctrl> <Shift>, click the
Dell Data Protection | Cloud Edition
system tray icon,
and then
select
Details.
In addition to Files and Folders, the following display:
Security: Lists the key, key type, and state.
Enterprise Edition Administrator Guide 175
Audit: Lists modules, user ID, and event type. Information is in queue in this audit log and then sent to the
server at specified intervals. The Administrator can use Compliance Reporter to create reports for
auditing. See
Compliance Reporter Help
.
Policy: Lists the policy names and values for your enterprise.
To view log files, from the bottom-left corner of the Details screen, click View Log.
NOTE: Log files can be also be found at C:\ProgramData\Dell\Dell Data Protection\Cloud Edition.
If needed, Administrators can increase logging levels to aid in troubleshooting, as follows:
Create or modify the registry setting:
HKLM\SOFTWARE\Dell\Dell Data Protection\Cloud Edition\
LogVerbosity (DWORD value)=0x1f (31)
By default, the logging level is set to 0xf (15).
Available values:
Off = 0x0 (0)
Critical = 0x1 (1)
Error = 0x3 (3)
Warning = 0x7 (7)
Information = 0xf (15)
Debug = 0x1f (31)
Cloud Edition Policy Settings
To view the policy setting for your enterprise:
1
Press
<Ctrl> <Shift>
.
2
In the system tray, click the Cloud Edition icon and then select
Details
.
3
Click the
Policy
tab.
4
Look at the Value column for the
Cloud Storage Protection Enabled
policy.
True
- the client encrypts and protects all files and folders.
False
- the client encrypts and protects all files and folders in the business account, but the user can create a personal
folder in which the contents are not encrypted. When set to False, the system displays a message each time the user
logs in or reboots, reminding them not to add business files to a personal folder, since those files won’t be protected.
Cloud Edition Manage Folders Menu
Based on policy, your Administrator grants access to this screen
This feature is allowed or denied by policy and enables the management of encryption on a folder-by-folder basis within
the sync client folders. To access the Manage Folders screen, click the
Cloud Edition system tray icon and select
Manage
Folders.
If this feature is not enabled by policy, Manage Folders does not display in the menu. Additionally, when the policy is
enabled, the menu item does not display until the end user has created a folder, added files, and those files are encrypted
up to the cloud.
A hierarchical view of cloud synchronized folders on the computer displays for each sync client. All folders are selected by
default, although the end user can clear folders they do not want to encrypt.
176 Enterprise Edition Administrator Guide
Using Cloud Edition with iOS or Android
This section describes basic information on installing
Cloud Edition
on iOS or Android devices as well as a few tips.
When using Cloud Edition on an iOS or Android client, if you open files directly through Dropbox, Box, or OneDrive, the
file names and file contents are encrypted and unreadable.
NOTE: Be aware that Windows has more options for sync clients than some other devices. For example, on some mobile devices, you can
open and view Dropbox, Box, and OneDrive files, but you cannot upload a change.
Prerequisite
Before you install
DDP|CE
, you need the name of your enterprise’s Dell Data Protection Server,
such as
server.domain.com
.
Cloud Edition on an iOS device
Install on an iOS device
1
On your device, tap
App Store
and search for
Dell Data
or
Cloud Edition
.
2
Select and install the
Dell Data Protection |Cloud Edition
app.
3For the Server field at the login screen, enter the name of your company’s Dell Data Protection Server,
such as
server.domain.com
.
4Select a
cloud storage
provider: Dropbox, Box, or OneDrive.
Cloud Edition on an Android device
Install on an Android device
1
On your device, access
Google Play
and search for
DDP
.
2
Select and install the
DDP Cloud Edition
app.
3For the Server field at the login screen, enter the name of your company’s Dell Data Protection Server,
such as
server.domain.com
.
4
Enter your user name and password and click
Login
.
5Select a
cloud storage
provider: Dropbox, Box, or OneDrive.
Enterprise Edition Administrator Guide 177
Share Files With External Users
An external user is one with a non-domain email address. If an internal user wants to work on or share files protected by
Cloud Edition with an external user, they must coordinate this with the Administrator.
Administrator Tasks
The enterprise determines the extent to which internal users can share business-sensitive files and folders with external
users. For example:
An internal user can send a request to any external user to register with and install Cloud Edition.
or
Best practice: The enterprise blacklists any user not within the enterprise email domain. Internal users must first request
that the Administrator add an external user to the whitelist.
The Administrator can control this through policies and the whitelist/blacklist. See
Allow/Deny Users on Whitelist
/Blacklist
.
External User Tasks
The external user must have Administrator rights on their computer in order to install
Dell Data Protection | Cloud
Edition (DDP|CE).
Register Cloud Edition
The external user must do the following:
1
When you receive a registration email, click the link.
2
At the Registration web page, enter your email address and password. Confirm your password, and click
Register
.
3
A confirmation email will be sent to you. Follow the link in the email.
4
Log in using the same email address and password you used to register.
Registration is complete. A Cloud Edition download page opens.
Download Cloud Edition
1
Select Windows or a device on which to install Cloud Edition.
2
When prompted for the server name, use the name at the top of the Download page.
178 Enterprise Edition Administrator Guide
Cloud Edition Frequently Asked Questions (FAQs)
Administrator FAQs
Question
I changed the
Obfuscate Filenames
cloud policy from GUID to Extension only. However, the folders I had previously been
syncing are still encrypting those files to the other format with GUID filenames.
Answer
When a policy is changed on the DDP Server, DDP|CE maintains the previous policy for that folder. Any new folders
created will have the new policy applied and will encrypt to the
Extension only
format.
Solution
To reapply the
Extension only
format to the old files, cut and paste them to a new folder that has the new policy applied.
Question
I installed and activated DDP|CE, but a new domain was stood up. I disjoined the old domain and joined it to the new
domain. DDP|CE is still showing as active, but it is not getting any policy updates and no encryption occurs.
Answer
Currently, the DDP Server only recognizes the endpoint against which you originally activated. If you change the endpoint
name, the DDP Server will not recognize that endpoint in order to send policy and
DDP|CE
will not perform as expected.
Solution
1
Uninstall DDP|CE and then reinstall.
2
Activate the same user again.
NOTE: Ensure that you stop syncing files to the local computer before you do this, or valuable data may become unprotected in the cloud or
possibly deleted.
Question
Is there a reason that DDP|CE does not download unobfuscated files in a managed session?
Answer
DDP|CE transforms everything that the browser sees into .xen files. This includes the clear text downloads after the file
has been created. You should encourage end users to protect all files in a managed cloud website.
Enterprise Edition Administrator Guide 179
Folder Management FAQs
NOTE: To use the Manage Folders option, you may need to request permission from your Administrator.
Question
I have a folder with files that I have shared with another user. In the system tray, I used the Cloud Edition > Manage
Folders utility to unprotect that folder's contents. Recently, my files have become encrypted in the cloud again. That
folder no longer displays in the Manage Folders utility, so I can no longer get those files to become unprotected in the
cloud.
Answer
An encryption key ID is associated with a folder based on the first user who adds a file to that folder. If one user creates a
folder and does not add any files, their key is not associated with that folder. The user whose encryption key ID has been
set on the folder is the only one who can view the folder in the Manage Folders utility. If the user who sees the folder
deselects the folder in the Manage Folders utility and they share that folder with another DDP|CE user, the second user’s
DDP|CE will re-encrypt the contents.
Solution
1
Create a new folder.
2
Move all the files to be protected to the new folder.
3In the system tray, use the Cloud Edition > Manage Folders
utility again to decrypt those files.
NOTE: If you unprotect the contents of a folder that are shared with other users who have DDP|CE, the other user’s DDP|CE will enforce
the policy to encrypt them. You can use the Manage Folders utility to unprotect files that are unshared with other DDP|CE users.
The best practice is to unprotect only unshared folders.
Question
I am syncing to a decrypted folder that I had deselected using the Manage Folders
utility
. However, when I try to upload it
through the web browser, I can only upload encrypted files.
Answer
DDP|CE is not designed to actively search for folders in the cloud. With unencrypted folders, DDP|CE can sync through
the sync client because it is controlling that environment. Files going through the web browser are required to be
protected.
Solution
Add files to the sync folder.
Question
I recently uninstalled my cloud-based file sharing system (Dropbox, Box, or OneDrive) from my computer, but when I
opened the Manage Folders utility, Dropbox was still listed as an option.
Answer
DDP|CE does not monitor installation or uninstallation of third-party software. Those options are still listed because, by
design, when these clients are uninstalled, they do not remove your existing files. Those files are still being protected by
DDP|CE even though that sync client is no longer there.
180 Enterprise Edition Administrator Guide
Solution
To remove the old sync client option from the Manage Folders utility, delete the folder that houses those protected files.
The best practice is to move any wanted folders/files out of the default Sync folder prior to deleting it. After you remove it,
that file or folder is no longer listed in the Folder Management utility.
Dropbox FAQs
Question
My Dropbox account has many conflicted files. When I delete them from the cloud, they keep being created.
Answer
Sometimes, when a folder has already been shared and then multiple Cloud Edition accounts are activated at the same
time, these files are seen as being created at the same time. In an effort to preserve the original, Dropbox will create
multiple files of the same name and type and place them into the cloud. Therefore, Cloud Edition will allow all the files to
be created without interfering.
Solution
1
Everyone who is sharing that file must collaborate on deselecting that folder for sync from the Dropbox application. See
Dropbox for Business.
2
After all the files and the folder have been removed from each local machine, one person must access the cloud and
delete the duplicate files.
Then, each person can use the selective sync to re-add the folder to be synced.
Box Sync Client FAQs
Question
I am using the Box sync client. I created a new folder locally and added some files. The sync client appears to be working,
but nothing has been created in the cloud.
Answer
The Box sync client may require some time to collect information about new folders and files. The process can take several
minutes compared to other sync clients. Be sure to wait for several minutes for the sync client to complete before creating
new folders and files.
Question
I am using the Box sync client. I ran out of room on my primary partition, so I moved it to another drive. Now, the My Box
Files folder has one or more folders created and named New Folder.
Answer
Currently, when files are being synced between two machines to the same file share, if one person moves that folder to
another location, then any new folders that other people create in that file share will create an empty folder named New
Folder.
Solution
Delete the New Folder directly from the cloud. It will be removed from all systems that are sharing that folder.
Enterprise Edition Administrator Guide 181
Miscellaneous FAQs
Question
I moved the cloud provider’s sync folder to Program Files, and now I cannot decrypt the files that are being downloaded to
my sync folder from the cloud.
Answer
By design, the Program Files folder or other excluded folders are unprotected, based on policy. DDP|CE will not decrypt
any files downloaded to this folder or its subfolders.
Solution
Unlink or uninstall the sync client and move the sync folder back to its default location or to an alternate managed
location.
NOTE: For a list of managed and unmanaged locations, contact your Administrator.
Question
I had some archived .xen files, and I copied them to my desktop. Some of them decrypted, but others did not.
Answer
During a sync, DDP|CE is designed to decrypt directly to the Sync folder or decrypt when downloading through a web
browser. For files that have been copied from another location, use Windows Explorer and move the .xen file into the sync
client folder to be decrypted. In the system tray, click the Cloud Edition icon and then select Details. Locate the .xen file
and its key to determine if that provides any information.
Solution
Move the .xen files into the Sync folder to have them uploaded into the cloud. Then, they will be decrypted locally.
Question
I renamed my computer. Now, I am not getting any policy updates, and I am not encrypting into the cloud.
Answer
Currently, the Server only recognizes the endpoint against which you originally activated. If you change the endpoint
name, the Server will not recognize the location for sending the policy and DDP|CE will not perform as expected.
Solution
1
Uninstall DDP|CE and then reinstall. You must have Administrator rights to uninstall.
2
Activate the same user again.
NOTE: Ensure that you stop syncing files to the local computer before you do this, or you will run the risk of having valuable data become
unprotected in the cloud or possibly deleted.
Question
On suspended Windows devices, when I try to upload files into the cloud, nothing happens. When I close the windows
that were already opened, an error message states, Access Denied.
Answer
The error message is not from DDP|CE. You can access the files locally but will not get future updates to the files.
182 Enterprise Edition Administrator Guide
Enterprise Edition Administrator Guide 183
A
Change Secure Boot/UEFI to Legacy Boot Mode in BIOS
The features available as of v8.3 with HCA are supported on legacy BIOS non-UEFI systems. If running Windows 8 or
Windows 8.1, follow these instructions prior to client installation.
1
Turn on the power to your Dell computer. If the computer is already running, reboot it.
2Press F2 or F12 continuously during boot until a message in the upper right screen says something similar to
“preparing to enter setup” (F2) or “preparing one-time boot menu” (F12).
This launches the system BIOS.
3
In
Settings > General > Boot Sequence
, ensure that the
Legacy
Boot List Option is selected.
4
In
Settings > General > Advanced Boot Options
, ensure that the
Enable Legacy Option ROMs
check box is selected.
184 Enterprise Edition Administrator Guide
5
In
Settings > Secure Boot > Secure Boot Enable
, ensure that the
Secure Boot Enable
selection is
Disabled
.
6
Apply the changes.
7
Now that the computer BIOS has been changed to a legacy boot mode, the computer must be re-imaged.
Enterprise Edition Administrator Guide 185
Glossary
Activate(d) - Activation occurs when the computer has been registered with the Server and has received at least an initial
set of policies.
Active Directory (AD) - A directory service created by Microsoft for Windows domain networks.
Cached Credentials - Cached credentials are credentials that are added to the PBA database when a user successfully
authenticates with Active Directory. This information about the user is retained so that a user can log in when they do not
have a connection to Active Directory (for example, when taking their laptop home).
Common Encryption – The Common key makes files accessible to all managed users on the device where they were created.
Deactivate(d) - Deactivation occurs when SED management is turned to FALSE in the Server. Once the computer is
deactivated, the PBA database is deleted and there is no longer any record of cached users.
External Users - Users outside the organization’s domain address. Likewise, Internal Users are users inside the
organization’s domain address.
Hardware Crypto Accelerator (HCA) – HCA cards enable hardware-based encryption and provide advanced security.
During setup, the HCA card is locked to the motherboard, and a unique key is created, encrypted, signed, and stored.
Thereafter, access to your encrypted data is allowed only on that specific computer and only with the correct user
authentication.
The newest release of DDP|E offers enhanced Preboot Authentication (PBA) for the Dell HCA. The enhanced PBA uses
a separate preboot partition to provide encryption of the full windows volume and optional secondary partitions. Enhanced
PBA provides features equivalent to PBA for self-encrypting drives, such as network authentication, multi-user support, and
network unlock. When HCA policies are in play, System Data Encryption (SDE) policies are ignored.
Legacy Hardware Crypto Accelerator (HCA) – Computers equipped with legacy HCA use a BIOS password to emulate
preboot authentication. The BIOS of most of these computers can be upgraded to take advantage of the newest HCA
features used by DDP|E v8.3 and later. If the BIOS cannot be upgraded, DDP|E can be installed and run, but the computer
will not have access to the newest features of HCA.
See Also Hardware Crypto Accelerator (HCA).
Preboot Authentication (PBA)– Preboot Authentication (PBA) serves as an extension of the BIOS or boot firmware and
guarantees a secure, tamper-proof environment external to the operating system as a trusted authentication layer. The PBA
prevents anything being read from the hard disk, such as the operating system, until the user has confirmed they have the
correct credentials.
Protected - For SED, a computer is protected once it has been activated and the PBA is deployed.
186 Enterprise Edition Administrator Guide
System Data Encryption (SDE) – SDE policies encrypt the System Drive, the Fixed Drives, or both - depending on the
policy template chosen. SDE policies do not encrypt the files needed by the operating system to start the boot process. SDE
policies do not require preboot authentication or interfere with the Master Boot Record in any way. When the computer
starts, the encrypted files are available before user login (to enable patch management, SMS, backup and recovery tools).
SDE is designed to encrypt the operating system and program files. In order to accomplish this purpose, SDE must be able
to open its key while the operating system is booting, without intervention of a password by the user. Its intent is to prevent
alteration or offline attacks on the operating system by an attacker. SDE is not intended for user data. Common and User
key encryption are intended for sensitive user data because they require a user password in order to unlock encryption keys.
Trusted Platform Module (TPM) – TPM is a security chip with three major functions: secure storage, measurement, and
attestation. DDP|E uses TPM for its secure storage function. The TPM can also provide encrypted containers for the
DDP|E software vault and to protect the DDP|E HCA encryption key. Dell recommends provisioning the TPM. The TPM
is required for use with DDP|E HCA.
User Encryption – The User key makes files accessible only to the user who created them, only on the device where they
were created.
0 XXXXXA0 X
