Dell™ Lifecycle Controller
Version 1.2
User Guide
LC1_2.book Page 1 Wednesday, November 18, 2009 9:42 AM

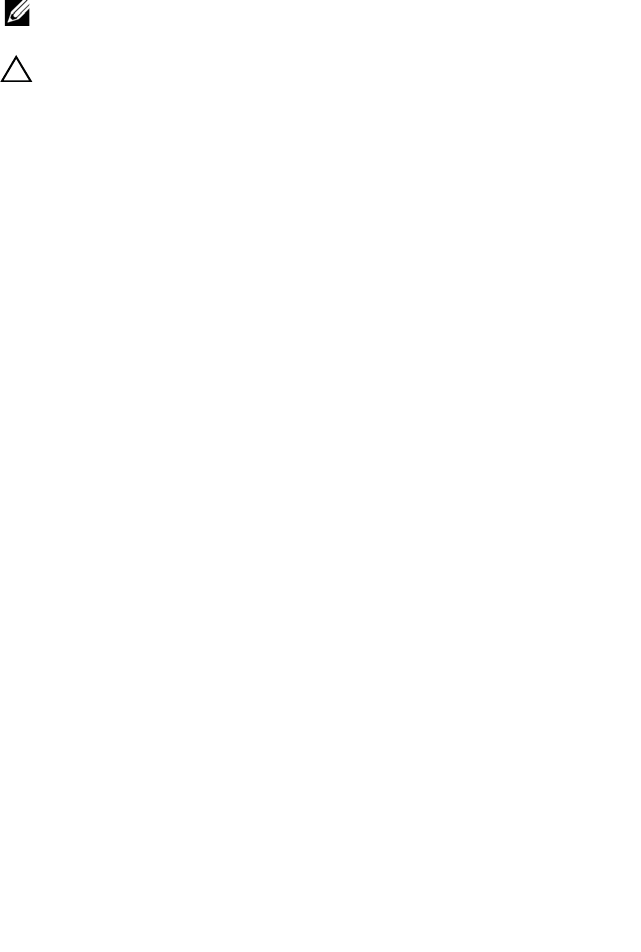

Notes and Cautions
NOTE: A NOTE indicates important information that helps you make better use of
your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of data if
instructions are not followed.
__________________
Information in this document is subject to change without notice.
© 2009 Dell Inc. All rights reserved.
Reproduction of these material in any manner whatsoever without the written permission of Dell Inc.
is strictly forbidden.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft, Windows,
and Windows Server are registered trademarks of Microsoft Corporation in the United States and/or
other countries; Red Hat, Red Hat Linux, and Red Hat Enterprise Linux are registered trademarks of
Red Hat, Inc. in the United States and other countries; SUSE is a registered trademark of Novell, Inc.
in the United States and other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and
trade names other than its own.
August 2009
LC1_2.book Page 2 Wednesday, November 18, 2009 9:42 AM
Contents 3
Contents
1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Services . . . . . . . . . . . . . . . . . . . 7
Unified Server Configurator (USC) . . . . . . . . . . 8
2 Unified Server Configurator
and Unified Server Configurator -
Lifecycle Controller Enabled . . . . . . . . . 11
Common Features . . . . . . . . . . . . . . . . . . . . 11
Launching the Product . . . . . . . . . . . . . . . 12
Using the Wizards . . . . . . . . . . . . . . . . . 13
Accessing Help . . . . . . . . . . . . . . . . . . . 15
Viewing Readme . . . . . . . . . . . . . . . . . . 15
Updating USC - LCE. . . . . . . . . . . . . . . . . 15
Disabling the Product. . . . . . . . . . . . . . . . 15
Canceling a Request to
Enter System Services . . . . . . . . . . . . . . . 16
Using USC Settings Wizard. . . . . . . . . . . . . 16
Deploying the Operating System
Using the OS Deployment Wizard . . . . . . . . . 17
Hardware Diagnostics . . . . . . . . . . . . . . . 25
Repairing USC . . . . . . . . . . . . . . . . . . . 26
Repairing USC - LCE . . . . . . . . . . . . . . . . 26
LC1_2.book Page 3 Wednesday, November 18, 2009 9:42 AM
4Contents
How to Upgrade to an iDRAC6 Express Card . . . . . . 27
Installing the iDRAC6 Express Card. . . . . . . . . 27
Transferring an iDRAC6 Express Card
from an Existing System to a Different System . . . 28
Uninstalling the iDRAC6 Express Card . . . . . . . 28
Unified Server Configurator -
Lifecycle Controller Enabled Unique Features . . . . . 29
Updating the Platform using
the Platform Update Wizard . . . . . . . . . . . . 29
Rolling Back to Previous BIOS
and Firmware Versions . . . . . . . . . . . . . . . 32
Updating Devices That Affect Trusted
Platform Module Settings. . . . . . . . . . . . . . 33
Hardware Configuration . . . . . . . . . . . . . . 34
Configuring a Local FTP Server . . . . . . . . . . . . . 54
Requirements for a Local FTP Server. . . . . . . . 54
Creating the Local FTP Server
Using Dell Server Updates DVD . . . . . . . . . . 55
Accessing Updates on a Local FTP Server . . . . . 55
Configuring a Local USB Device. . . . . . . . . . . . . 55
Creating the Local USB Repository
Using Dell Server Updates DVD . . . . . . . . . . 56
3 Remote Service Features . . . . . . . . . . . 57
Web Services for Management . . . . . . . . . . . . . 57
Auto-Discovery. . . . . . . . . . . . . . . . . . . . . . 60
Configuring DHCP/DNS . . . . . . . . . . . . . . . 61
Enable and Disable Auto-Discovery Feature . . . . 61
Auto-Discovery Workflow . . . . . . . . . . . . . 62
LC1_2.book Page 4 Wednesday, November 18, 2009 9:42 AM
Contents 5
Remote Operating System Deployment . . . . . . . . . 63
Remote Operating System
Deployment Main Features. . . . . . . . . . . . . 63
Remote Operating System
Deployment Interface . . . . . . . . . . . . . . . 63
Operating System Deployment
Typical Use Case Scenario . . . . . . . . . . . . . 66
A Troubleshooting and
Frequently Asked Questions . . . . . . . . . . 69
Error Messages . . . . . . . . . . . . . . . . . . . . . 69
Frequently Asked Questions. . . . . . . . . . . . . . . 82
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
LC1_2.book Page 5 Wednesday, November 18, 2009 9:42 AM
6Contents
LC1_2.book Page 6 Wednesday, November 18, 2009 9:42 AM
Overview 7
Overview
In order to provide new and robust server management capabilities,
the Unified Server Configurator/Unified Server Configurator - Lifecycle
Controller Enabled (USC/USC-LCE) software product has been enhanced to
include additional remote services functionality. Since this addition allows for
a comprehensive approach to server management, the entire set of software
components is now called Lifecycle Controller 1.2 (LC 1.2).
The LC 1.2 software
components are built upon the integrated Dell Remote
Access Controller 6 (iDRAC6) Express card and the Unified Extensible
Firmware Infrastructure (UEFI) system firmware. The iDRAC6 works together
with the UEFI firmware to access and manage every aspect of the hardware,
including component and subsystem management that is beyond the
traditional BMC (Baseboard Management Controller) capabilities.
Remote server management is accomplished using the network for
programmatic web services, while command line (CLI) and graphical user
interfaces (GUI) are provided by the iDRAC6 card in an operating system-and
system-power-state independent manner. The UEFI environment provides the
local console interface, and the infrastructure for locally and remotely managing
system components.
The remote services functionality enables consoles, such as the Dell Management
Console (DMC) and partner consoles, to access LC 1.2 features in a
pre-operating system environment. USC/USC-LCE provides an
embedded
solution on the local server to assist with provisioning in a pre-operating
system environment.
Remote Services
Remote services are accessible over the network using a secured web services
interface and can be programmatically utilized by applications and scripts.
Remote services enables existing consoles to perform one-to-many bare metal
server provisioning. The combination of a new Auto-discovery feature to
identify and authenticate the attached Dell system to the network and
integration with one-to-many management consoles reduces the manual
steps required for server provisioning. Additionally, remote services provides
remotely accessible operating system deployment related features that
LC1_2.book Page 7 Wednesday, November 18, 2009 9:42 AM
8Overview
simplifies the tasks involved in operating system and driver installation.
For more information on the features supported by the remote services
provisioning solution, see "Remote Service Features."
Unified Server Configurator (USC)
Unified Server Configurator (USC): Base-level product that uses BMC and
provides operating system deployment, hardware diagnostics, and USC
settings capabilities.
Unified Server Configurator - Lifecycle Controller Enabled (USC - LCE):
Full-featured product that uses iDRAC6 Express and Enterprise cards, and
provides platform updates, hardware configuration, operating system
deployment, hardware diagnostics, USC settings, dedicated NIC port,
virtual KVM, and virtual media capabilities. Dell systems series 200-500
can be upgraded to USC-LCE. For more information, see your
Hardware Owner’s Manual.
For information on the supported sytems and operating systems, see the Dell
Systems Software Support Matrix.
Depending on your system configuration, USC or USC - LCE will display the
features that are supported by the system. See "Table 1-1" for more details.
LC1_2.book Page 8 Wednesday, November 18, 2009 9:42 AM
Overview 9
Table 1-1. Product Classification
Dell
System
Series
Options
Available Remote
System Management
Device
USC or
USC-LCE Available Features
100 No Options Embedded BMC USC
BMC - Operating System
Deployment, Diagnostics,
Settings
200 to
500
Standard Embedded BMC USC
BMC - Operating System
Deployment, Diagnostics,
Settings
Optional
Embedded BMC +
iDRAC6 Express
Card
USC-LCE
BMC - Operating System
Deployment, Diagnostics,
Settings
iDRAC6 Express - adds
Platform Update,
Hardware Configuration,
Driver Repository
Embedded BMC +
iDRAC6 Express
card +
iDRAC6 Enterprise
card
USC-LCE
BMC - Operating System
Deployment, Diagnostics,
Settings
iDRAC6 Express - adds
Platform Update,
Hardware Configuration,
Driver Repository
iDRAC6 Enterprise - adds
Full Remote Management,
Dedicated NIC port,
Virtual KVM, Virtual Media,
Virtual Flash
LC1_2.book Page 9 Wednesday, November 18, 2009 9:42 AM
10 Overview
600 to
900
Standard
Embedded BMC
with iDRAC6
Express card
USC-LCE
BMC with iDRAC6
Express -Operating System
Deployment, Diagnostics,
Settings, Platform Update,
Hardware Configuration,
Driver Repository
Optional*
Embedded BMC
with iDRAC6
Express card +
iDRAC6
Enterprise card
USC-LCE
BMC with iDRAC6
Express - Operating System
Deployment, Diagnostics,
Settings, Platform Update,
Hardware Configuration,
Driver Repository
iDRAC6 Enterprise - adds
Full Remote Management,
Dedicated NIC port,
Virtual KVM, Virtual Media,
Virtual Flash
* For Dell modular systems — BMC, iDRAC6 Express card, and iDRAC6 Enterprise
card are included as standard configurations.
Table 1-1. Product Classification (continued)
Dell
System
Series
Options
Available Remote
System Management
Device
USC or
USC-LCE Available Features
LC1_2.book Page 10 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 11
Unified Server Configurator and
Unified Server Configurator - Lifecycle
Controller Enabled
Unified Server Configurator (USC) and Unified Server
Configurator-Lifecycle Controller Enabled (USC - LCE) reside on an
embedded flash memory card and are embedded configuration utilities that
enable systems and storage management tasks from an embedded
environment throughout your system’s life cycle. USC and USC - LCE are
similar to a BIOS utility in that they can be started during the boot sequence
and can function in a pre-operating system environment. "Table 1-1" details
the Dell system series, remote system management device options, USC or
USC-LCE, and available features.
Using USC, you can download drivers for operating system installation from the
Dell FTP website at ftp.dell.com or using local devices such as a USB device or
the Dell Systems Management Tools and Documentation or the Dell Server
Updates DVD. You can also deploy an operating system, or run Hardware
Diagnostics to validate the system and attached hardware. Depending on your
system, you can upgrade from a Baseboard Management Controller (BMC) to an
iDRAC6 Express or an iDRAC6 Enterprise card; this hardware upgrade will also
upgrade USC to USC - LCE. See "How to Upgrade to an iDRAC6 Express Card"
and the Hardware Owner’s Manual for your system for more information on how
to upgrade. Using USC - LCE, you can quickly identify, download, and apply
system updates without searching the Dell Support site at support.dell.com.
You can also configure BIOS and system devices (such as NIC, RAID,
and iDRAC), deploy an operating system, and run Hardware Diagnostics to
validate the system and attached hardware.
Common Features
This section contains the features that are common to both USC and
USC - LCE. Any additional steps or information required for USC - LCE tasks
are noted and provided.
LC1_2.book Page 11 Wednesday, November 18, 2009 9:42 AM
12 USC and USC - LCE
Launching the Product
To launch either USC or USC - LCE, boot the system and press the <F10>
key within 10 seconds of the Dell logo being displayed during the system boot
process to enter System Services.
If the system is in one of the following states, pressing <F10> will not allow
you to enter System Services:
•
System Services disabled
— If you power on or restart your system while
iDRAC is initializing, the message
System Services disabled
will
display during the system boot process. This situation happens if you
power on your system immediately after AC is applied to the system, or if
you restart the system immediately after resetting iDRAC. To avoid this
issue, wait about a minute after resetting iDRAC to restart your system,
thus allowing enough time for iDRAC to complete initialization.
If the message
System Services disabled
still displays, then the
product may have been manually disabled. See "Disabling the Product" for
information on how to enable USC or USC - LCE.
•
System Services update required
—
If the message System Services
update required appears when you boot your system, the
embedded device that stores the product may contain corrupted data.
To resolve the issue, update the product by executing USC or USC - LCE
Dell Update Package (DUP). See the
Dell Update Packages User’s Guide
at
support.dell.com/manuals
for more information.
If an operating system is not installed on the system or if executing the
DUP does not fix the problem, run USC or USC - LCE repair package.
See "Repairing USC" or "Repairing USC - LCE" for more information.
•
System Services not available
— Another process is currently using
iDRAC. Dell recommends waiting 30 minutes for the current process
to complete; then, reboot your system and try to enter USC or
USC - LCE again.
NOTE: If you believe the system is in an error condition or if you cannot
wait the recommended 30-minute time period, see "Canceling a Request to
Enter System Services." After rebooting, try to enter USC or USC - LCE again.
LC1_2.book Page 12 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 13
The first time you launch USC or USC - LCE, it displays USC Settings
wizard that allows you to configure your preferred language and network
settings. See "Using USC Settings Wizard" for more information.
Using the Wizards
Wizard Description
USC and USC - LCE provide the following wizards based on your system’s
configuration:
•
OS Deployment
—
Enables you to install an operating system. See
"Deploying the Operating System Using the OS Deployment Wizard" for
more information.
•
Hardware Diagnostics
— Enables you to perform diagnostics to validate
the memory, I/O devices, CPU, physical disks, and other peripherals.
See "Hardware Diagnostics" for more information.
•
USC Settings
—
Enables you to specify the language, keyboard layout,
and network settings to be used with USC or USC-LCE.
See
"Using USC
Settings Wizard" for more information.
USC - LCE provides the following additional wizards based on your system’s
configuration:
•
Platform Update
—
Enables you to download and apply updates for
your system. You can access the updates from
ftp.dell.com
or a
USB device attached to your system. See "Updating the Platform using the
Platform Update Wizard" and "Configuring a Local USB Device" for
more information.
•
Hardware Configuration
— Enables you to configure system devices.
See "Hardware Configuration" for more information.
Along with the above mentioned wizards, USC-LCE provides
following options:
•
Home —
Enables you to navigate back to
Home
screen.
•
About
— Enables you to view the version information of USC-LCE and
UEFI. Click
View Readme
in the
About
wizard to view USC-LCE readme.
LC1_2.book Page 13 Wednesday, November 18, 2009 9:42 AM
14 USC and USC - LCE
Launching a Wizard
USC and USC - LCE display the available wizards in the left pane. Click the
wizard you want to launch, and then follow the instructions displayed in the
right pane.
Wizard Task Flow USC
When using USC for the first time, Dell recommends you run the following
wizards listed in order:
•
USC Settings
— You do not need to run this wizard again unless you want
to change the language, keyboard, or network settings.
•
OS Deployment
— Run this wizard to install operating system.
•
Hardware Diagnostics
— Ensure that you maintain your system by
running diagnostics on a regular basis.
Wizard Task Flow USC - LCE
When using USC - LCE for the first time, Dell recommends you run the
following wizards listed in order:
•
USC Settings
— You do not need to run this wizard again unless you want
to change the language, keyboard, or network settings.
•
Platform Update
—
Download and apply any updates. Ensure that you
run the Platform Update wizard regularly so that your system is up to
date.
•
Hardware Configuration
— Run this wizard to configure your system
devices.
•
OS Deployment
— Run this wizard to install operating system.
•
Hardware Diagnostics —
Ensure that you maintain your system by
running diagnostics on a regular basis.
LC1_2.book Page 14 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 15
Accessing Help
Each USC or USC - LCE screen has a Help button in the upper-right corner.
Click Help to display help for the current screen.
Viewing Readme
Click About→ View Readme to display the Readme file.
Updating USC - LCE
You can update to the latest version of USC - LCE using the Platform
Update wizard. Dell recommends running the Platform Update wizard on a
regular basis to access updates as they become available. See "Updating the
Platform using the Platform Update Wizard" for more information.
Disabling the Product
You can disable USC or USC - LCE to prevent your system from entering it
on start-up:
1
Press
<Ctrl><e> when prompted during system start-up.
NOTE: You must press <Ctrl><e> within 5 seconds of when the
message displays.
The
iDRAC6 Configuration Utility
page displays.
2
Navigate to
System Services
.
3
Select
Disable System Services
.
4
Save your changes and exit the
iDRAC6 Configuration Utility
page
menu. The system reboots automatically.
To enable the product, repeat "step 1" and "step 2", and then select Enable
System Services.
LC1_2.book Page 15 Wednesday, November 18, 2009 9:42 AM
16 USC and USC - LCE
Canceling a Request to Enter System Services
If USC or USC - LCE causes the system to repeatedly reboot, you can cancel
a request to enter System Services.
CAUTION: This action cancels all tasks USC or USC - LCE is in the process of
executing. Dell strongly recommends that you cancel the request to enter System
Services only when absolutely necessary.
1
Press
<Ctrl><e> when prompted during system start-up.
NOTE: You must press <Ctrl><e> within 5 seconds of when the message
displays.
The
iDRAC6 Configuration Utility
page
displays.
2
Navigate to
System Services
.
3
Select
Cancel System Services
.
Save your changes and exit the
iDRAC6 Configuration Utility
page.
The system reboots automatically.
Using USC Settings Wizard
USC Settings wizard enables you to specify the language, keyboard layout,
and network settings for USC or USC - LCE.
NOTE: USC settings apply only to USC or USC - LCE and do not apply to the system
or any other application running on the system.
1
Launch
USC Settings
Wizard:
a
Boot your system and press the
<F10> key within 10 seconds of the
Dell logo being displayed.
b
Wait until
USC Home
screen is displayed then, click
USC Settings
in
the left pane.
2
Click
Language and Keyboard
in the right pane.
NOTE: Use the up-arrow and down-arrow keys to access all options on the
Language and Keyboard Type drop-down menus.
a
Select the language from the
Language
drop-down menu.
b
Select the type of keyboard you are using from the
Keyboard Type
drop-down menu.
c
Click
Finish
.
LC1_2.book Page 16 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 17
3
Click
Network Settings
in the right pane.
a
Use the
NIC Card
drop-down menu to select the NIC card you want
to configure on your system.
b
Use the
IP Address Source
drop-down menu to select either
No
Configuration
,
DHCP
, or
Static IP
.
NOTE: The IP Address Source function only supports IPv4.
•
No Configuration
- Select if you do not want to configure your
NIC.
•
DHCP
- Select to obtain an IP address from a DHCP server.
•
Static IP
- Select to use a static IP address. Specify the following
IP address properties. If you do not have this information, see
your network administrator.
–
IP Address
–
Subnet Mask
–
Default Gateway
–
DNS Address
c
Click
Finish
.
NOTE: If USC settings are not configured correctly, an error message is displayed.
Deploying the Operating System Using the OS Deployment Wizard
The OS Deployment wizard assists you in installing an operating system on
your system.
USC does not provide a local operating system drivers repository that may be
required for operating system installation. You have to download the
operating system drivers from the Dell FTP website at ftp.dell.com or use a
local source that has drivers on it — for example, Dell Systems Management
Tools and Documentation DVD or a local USB device.
USC - LCE provides a local repository for drivers that may be required for
operating system installation, depending on which operating system you are
installing. The OS Deployment wizard extracts these drivers and copies
them to a staging directory. For supported Microsoft® Windows®
operating systems, these extracted drivers are installed during the
operating system installation. For supported Linux operating systems,
LC1_2.book Page 17 Wednesday, November 18, 2009 9:42 AM
18 USC and USC - LCE
such as Red Hat® Enterprise Linux® versions 4.7, 4.8, 5.2, and 5.3 and
SUSE® Linux Enterprise Server version 10 SP2, you must manually install
the extracted drivers after the operating system installation is completed.
However, starting with Red Hat Enterprise Linux version 5.4, SUSE Linux
Enterprise Server version 10 SP3, 11 and later installs, the extracted drivers
are during the operating system installation. See "Deploy the Operating
System" for more information.
NOTE: Although USC - LCE comes with embedded drivers that are factory installed,
there may be more current drivers available. You should run the Platform Update
wizard to ensure that you have the most current drivers before installing the
operating system.
Before installing the operating system, the OS Deployment wizard detects if
a boot device is available. A boot device is a physical disk, virtual disk, or other
storage device on which the operating system can be installed.
If your system has a RAID controller, you can configure a virtual disk and
choose to use the virtual disk as the boot device.
If your system does not have a RAID controller or if you choose to bypass the
optional RAID configuration, the OS Deployment wizard installs the
operating system to a default location, which is typically the disk identified as
Disk 0 in the BIOS utility.
Launch the Operating System Deployment Wizard
1
To launch USC, boot your system and press the
<F10> key
within 10 seconds of the Dell logo being displayed.
2
Click
OS Deployment
in the left pane.
3
Click
Deploy OS
in the right pane.
4
For
USC
, continue with the "Select the Operating System Driver Source
Location (for USC only)" procedure that follows.
5
For
USC - LCE
,
if your system has a RAID controller, continue with
"Optional RAID Configuration." If your system does not have a RAID
controller, continue with "Select an Operating System."
LC1_2.book Page 18 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 19
Select the Operating System Driver Source Location
(for USC only)
Use this screen to select the driver required for operating system installation.
You can download operating system drivers from an online repository or from
a local drive.
NOTE: The text boxes or drop-down menus under Online Repository and Local
Drive do not become active until you select the corresponding Online Repository or
Local Drive check box.
1
Select either
Online Repository
or
Local Drive
.
Online Repository
Select
Online Repository
to download drivers from an FTP server.
Enter the appropriate information according to the method you are using
to access the FTP server.
NOTE: If you use a firewall, you should configure it to allow outgoing FTP
traffic on port 21. The firewall must also be configured to accept incoming FTP
response traffic.
NOTE: Currently, USC supports only anonymous FTP login.
• To download drivers from the online repository (Dell FTP server),
you must enter
ftp.dell.com
in the
Address
field.
or
To download drivers from a locally-configured online repository, in the
Address
field you must specify the server host name or the IP address
of the server on which the drivers reside. For information on setting
up local FTP server, see "Configuring a Local FTP Server."
• To download drivers by using a proxy server to access an FTP server,
you must specify:
•
Proxy Server
— The server host name or the IP address of the
proxy server
•
Proxy Port
— The port number of the proxy server
LC1_2.book Page 19 Wednesday, November 18, 2009 9:42 AM
20 USC and USC - LCE
•
Proxy Type
— The type of proxy server
NOTE: HTTP and SOCKS 4 proxy types are supported by USC.
•
Proxy User Name
— The user name required for authentication
on the proxy server
•
Proxy Password
— The password required for authentication on
the proxy server
2
Select
Save Locally
to save the drivers locally from the online repository.
From the
Save Locally
drop-down menu, select the USB drive to save the
system drivers.
Local Drive
Select
Local Drive
if the drivers are available from a USB device or
Dell Systems Management Tools and Documentation DVD
. For
information on setting up a USB device for updates see "Configuring a
Local USB Device."
3
Click
Next
.
If your system has a RAID controller, continue with "Optional RAID
Configuration." If your system does not have a RAID controller, continue
with "Select an Operating System."
Optional RAID Configuration
If your system has a RAID controller, you have the option of launching the
RAID Configuration wizard and configuring a virtual disk as the boot device.
NOTE: If your system does not have a RAID controller, the OS Deployment
wizard bypasses the RAID configuration option and goes directly to "Select an
Operating System."
NOTE: For S100 /S300 controllers, virtual disks cannot be created using the
RAID Configuration Wizard in USC - LCE. To create RAID, use the controller
utilities by pressing <Ctrl><R> when prompted during system start-up.
LC1_2.book Page 20 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 21
To configure RAID:
• Select
Configure RAID Now
and click
Next
. This option launches
the
RAID Configuration
wizard. After RAID configuration is complete,
you will return to the
OS Deployment
wizard.
To bypass RAID configuration:
• Select
Go Directly to OS Deployment
and click
Next
. This option
launches the
OS Deployment
wizard. If you select this option,
the operating system will be installed on the default boot device identified
in the BIOS utility. Continue with
"Select an Operating System."
Deploy the Operating System
The drivers required by the operating system, or recommended for updating
your system after installation, are extracted to a temporary location.
These files are deleted after an 18-hour period or when you press
the <F10> key to either cancel operating system installation or re-enter
USC after rebooting.
NOTE: During the 18-hour period when the drivers are extracted to the temporary
location, you cannot update USC or USC-LCE, drivers, or hardware diagnostics
using a DUP after the operating system is installed, or the DUP will display a
message that another session is open.
Select an Operating System
Use the following steps to select an operating system:
1
Select the operating system you want to install and click
Next
.
2
USC or USC - LCE extracts the drivers required by the operating system
you selected. The drivers are extracted to an internal USB drive
named
OEMDRV
.
3
After the drivers are extracted, USC or USC - LCE prompts you to insert
the operating system installation media.
NOTE: For Red Hat Enterprise Linux 4.x server and Red Hat Enterprise Linux 5.x
server, the drivers are extracted to OEMDRV under /oemdrv/*.rpm.
For SUSE Linux Enterprise Server 10 SP2, the drivers are extracted under
/linux/suse/x86_64-sles10/install/*.rpm.
LC1_2.book Page 21 Wednesday, November 18, 2009 9:42 AM
22 USC and USC - LCE
NOTE: When installing the Microsoft Windows operating system, the extracted
drivers are automatically installed during the operating system installation. When
installing the Red Hat Enterprise Linux 4.x operating system, the operating system
installation uses native drivers. After the Linux installation is complete, you need to
manually install the drivers extracted by USC or USC-LCE. See "Update Drivers for
Linux Systems Only" for more information.
Kickstart Installation for the Linux Operating System
If you are using a kickstart installation for the Linux operating system,
provide the following information in the post-installation script:
• Command to mount the USB device containing the operating system
drivers labeled
OEMDRV
. For example:
mkdir OEMDRV
mount /dev/sdc1 /mnt/OEMDRV
• Path to the operating system drivers on the OEMDRV drive:
For Red Hat Enterprise Linux:
/oemdrv/*.rpm
For SUSE Linux Enterprise Server:
/linux/suse/x86_64-sles10/install/*.rpm
• Command to install the drivers:
rpm -Uvh *.rpm
Insert the Operating System Media
To insert the operating system media:
1
Insert the operating system installation media when prompted and
click
Next
.
NOTE: USC supports internal SATA optical drives and USB optical drives and
USC - LCE supports internal SATA optical drives, USB optical drives, and virtual
media devices. If the installation media is corrupt or not readable, then USC and
USC-LCE may be unable to detect the presence of a supported optical drive. In this
case, you may receive an error message stating that no optical drive is available.
If the media is not valid (if it is the incorrect CD or DVD, for example), a message
displays requesting that you insert the correct installation media.
NOTE: FOR USC - LCE ONLY: Virtual media is supported through iDRAC. S
ee the
User Guide
for your system’s iDRAC device
for more information on setting up virtual
media through iDRAC
.
LC1_2.book Page 22 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 23
Reboot the System
Use the following steps to reboot the system:
1
Click
Finish
to reboot the system and continue with the operating system
installation. Upon reboot, the system boots to the operating system
installation media.
CAUTION: During Red Hat 5.x installation, you will receive a warning that a
read-only file system was detected; Linux has detected the temporary storage area
of USC and USC-LCE that stores updates for your system. Click OK, and a second
warning will appear indicating that the read-only file system has a loop partition
layout and that it needs to be formatted. Click the Ignore drive button. You may see
both warnings several times during the course of Red Hat 5.x installation.
CAUTION: During the beginning of Windows Server® 2003 installation, the
installer will automatically detect and possibly assign the default drive letter C
to USC and USC-LCE temporary storage device OEMDRV. Creating a new
Windows-bootable system partition on the hard-disk will assign the partition to a
drive letter other than C; this is standard Windows installer behavior. To assign
the new partition to C, see "Assign a Windows-Bootable System Partition to the C:
Drive" for more information.
NOTE: When the system reboots after you click Finish, you may be prompted to
press a key before booting to the operating system installation media. If you do not
press a key, the system boots to the hard-disk and not the operating system
installation media.
NOTE: In the event that the operating system installation is interrupted and the
system reboots before installation completes, you may be prompted to press a key
in order to boot from the operating system installation media.
NOTE: You can cancel the operating system installation by pressing the <F10> key.
Pressing the <F10> key at any point during the installation process or while
rebooting causes any drivers provided by the OS Deployment wizard to be removed.
NOTE: Microsoft Windows Server 2008 UEFI operating system installations are not
currently supported.
NOTE: After the operating system is installed, you cannot update USC or USC-LCE
by running a DUP in the operating system environment for the next 18 hours.
LC1_2.book Page 23 Wednesday, November 18, 2009 9:42 AM
24 USC and USC - LCE
Update Drivers for Linux Systems Only
On the following
operating systems
, Dell recommends that you update your
system with the extracted drivers after installation. The drivers are extracted
to a drive (or device) named OEMDRV.
•Red Hat
Enterprise Linux 4.8 server — The location of the drivers on the
OEMDRV
drive
after installation is:
/oemdrv/*.rpm
• Red Hat Enterprise Linux 5.3 server — The location of the drivers on the
OEMDRV
drive
after installation is:
/oemdrv/*.rpm
• SUSE Linux Enterprise Server 10 with Service Pack 2 — The location of
the drivers on the
OEMDRV
drive
after installation is:
/linux/suse/x86_64-sles10/install/*.rpm
Use the following command to install the drivers:
rpm -Uvh *.rpm
Assign a Windows-Bootable System Partition to the C: Drive
After you have completed USC or USC - LCE portion of Windows Server
2003 installation, your server will reboot and begin the text-mode portion of
the installation. During this phase, you may need to perform the following
steps to ensure Windows installs to your C: drive.
NOTE: Following these instructions after Windows Server 2003 setup presents you
with a list of existing drive partitions and/or unpartitioned space available on your
computer.
1
Select the unpartitioned space, and then press
<c>
to create a hard-disk
partition. Follow the on-screen instructions to create a partition.
NOTE: The partition may not be enumerated as a C: drive.
2
Select the newly-created partition, and then press
<d>
to delete the
partition. Follow the on-screen instructions to delete the partition.
LC1_2.book Page 24 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 25
3
Select the unpartitioned space again, and then press
<c>
to create a
primary hard-disk partition.
NOTE: The partition will now be enumerated as C: drive.
4
Follow the on-screen instructions to create a partition. Windows will now
install on the C: drive.
See http://support.microsoft.com/kb/896536 for more information on
assigning the Windows-bootable system partition to the C: drive.
Hardware Diagnostics
Utilizing the Hardware Diagnostics utility, Dell recommends that you run
diagnostics as part of a regular maintenance regimen to validate that the
system and attached hardware are functioning properly. Because the
diagnostics utility has a physical (as opposed to logical) view of attached
hardware, this utility may be able to identify hardware problems that the
operating system and other online tools cannot. You can use the hardware
diagnostics utility to validate the memory, I/O devices, CPU, physical disks,
and other peripherals.
Performing Hardware Diagnostics
To start the hardware diagnostics utility, click Hardware Diagnostics in the
left pane and click Run Hardware Diagnostics in the right pane. When the
diagnostics utility launches, follow the instructions on the screen.
NOTE: You must reboot your system to exit the Hardware Diagnostics utility and
press <F10> to re-enter USC or USC-LCE.
The results of the diagnostics tests are displayed on the screen when the tests
complete. The test results describe the problems found. You can use this
information to search the Dell Support website at support.dell.com for
details on resolving the problem.
If you want to exit the Hardware Diagnostics utility, press the <Esc> key.
Pressing the <Esc> key causes the system to reboot.
LC1_2.book Page 25 Wednesday, November 18, 2009 9:42 AM
26 USC and USC - LCE
Updating the Hardware Diagnostics Utility
For Systems Supporting USC
Download the required Dell Update Package (DUP) from Dell Support
site at support.dell.com. Run the DUP as an executable in the installed
operating system.
For Systems Supporting USC - LCE
Use the Platform Update wizard to update the hardware diagnostics utility.
See "Updating the Platform using the Platform Update Wizard" for more
information. Alternatively, you can also download the required Dell Update
Package (DUP) from Dell Support site at support.dell.com and run the DUP
as an executable in the installed operating system.
Repairing USC
If the message System Services update required appears when
you boot up, the embedded device that stores USC may contain corrupted
data.
To resolve the issue, you must first attempt to update USC by executing
USC Dell Update Package (DUP). See the
Dell Update Packages User’s Guide
available at
support.dell.com/manuals
for more information.
Repairing USC - LCE
If the message System Services update required appears when
you boot up, the embedded device that stores USC - LCE may contain
corrupted data.
To resolve the issue, you must first attempt to update
USC - LCE by executing USC - LCE Dell Update Package (DUP). See the
Dell Update Packages User’s Guide
available at
support.dell.com/manuals
for more information.
If running the DUP does not solve the problem,
use USC - LCE repair package:
1
Go to
ftp.dell.com
→
LifecycleController
and download the file named
USC_1.1.0_Rep_A00.usc
(or newer version) to a temporary location.
2
Connect to iDRAC on your system using the iDRAC Web interface.
For more information on iDRAC, see the
Integrated Dell Remote Access
Controller 6 (iDRAC6) User’s Guide
.
3
From the iDRAC Web interface, click
Remote Access
.
4
Select the
Update
tab, and then browse to USC - LCE Repair Package you
downloaded from
ftp.dell.com
.
LC1_2.book Page 26 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 27
5
Click
Next
, and then click
OK
to confirm the upload. Allow the process to
complete before you continue to "step 6."
6
Reboot your system, and then press the
<F10>
key to enter USC - LCE.
7
Complete the installation of all recommended updates. See "Updating the
Platform using the Platform Update Wizard" for more information.
When updates are complete, your system automatically reboots.
8
While the system reboots, press the
<F10>
key again to enter
USC - LCE
.
If a warning message appears on the initial
USC - LCE
screen, you must
repeat "step 7" until the server is in a fully-recovered state.
NOTE: Updates that are required for a complete system recovery are pre-selected
by USC - LCE. Dell highly recommends running all selected updates on your system.
How to Upgrade to an iDRAC6 Express Card
This section provides information about installing an iDRAC6 Express card,
transferring the iDRAC6 Express card from one system to another system,
and Uninstalling iDRAC6 Express card. This hardware upgrade will also
upgrade USC to USC - LCE.
NOTE: This is applicable only on Dell System Series 200-500.
Installing the iDRAC6 Express Card
1
Turn off the system, including any attached peripherals, and disconnect
the system from the electrical outlet.
NOTE: To discharge the residual power in the system, press the
power button once.
2
Insert the iDRAC6 Express card into the iDRAC6 Express slot.
See the
Hardware Owner’s Manual
for your system for more information
on Installing iDRAC6 Express Card.
LC1_2.book Page 27 Wednesday, November 18, 2009 9:42 AM
28 USC and USC - LCE
3
Reconnect the system and peripherals to their power sources.
iDRAC automatically starts. Wait one minute, before switching on the
system, to allow the iDRAC to fully start.
4
Switch on the system, and then press
<F10>
to enter USC.
USC automatically detects the iDRAC6 Express card installed on the
system and completes the upgrade process.
If the installation is successful, you are able to boot to Unified Server
Configurator — Lifecycle Controller Enabled.
NOTE: If the installation fails, you must upgrade iDRAC. See the Integrated
Dell Remote Access Controller User Guide for more information. After you have
upgraded iDRAC, repeat the above instructions.
Transferring an iDRAC6 Express Card from an Existing System to a
Different System
If the iDRAC6 Express card is transferred from one system to another:
• The rollback feature is unavailable on the new system. See "Rolling Back to
Previous BIOS and Firmware Versions" for more information.
• All pending USC-LCE tasks that are in the process of execution are
deleted on the new system.
• Run
Platform Update
wizard to download the appropriate driver pack for
the new system.
NOTE: The driver pack is deleted if the iDRAC6 Express card is transferred to a
different Dell system. For example, if you move the iDRAC6 Express card from
Dell R410 system to Dell T410 system, the driver pack is deleted.
Uninstalling the iDRAC6 Express Card
1
Turn off the system, including any attached peripherals, and disconnect
the system from the electrical outlet.
NOTE: To discharge the residual power in the system, press the
power button once.
2
Remove the iDRAC6 Express card from the iDRAC6 Express slot. See the
Hardware Owner’s Manual
for your system for more information on
Installing iDRAC6 Express Card.
LC1_2.book Page 28 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 29
3
Reconnect the system and peripherals to their power sources.
4
Switch on the system, and then press
<F10>
to enter USC.
Unified Server Configurator - Lifecycle Controller
Enabled Unique Features
This section contains the features that are only available in USC - LCE.
For information on features common to USC and USC - LCE
see "Common Features."
Updating the Platform using the Platform Update Wizard
Use the Platform Update wizard to view the current versions of the installed
applications and firmware information. You can use the Platform Update
Wizard to display a list of available updates for your system. After you select
the updates you want to apply, USC - LCE downloads and applies the
updates.
NOTE: To ensure optimal system performance and avoid system problems,
Dell recommends that you download and apply updates on a regular basis.
To run the Platform Update wizard, you need access to the Dell File Transfer
Protocol (FTP) server at ftp.dell.com. Alternatively, your system
administrator may provide the updates on a local USB device or on a
Dell Server Update Utility DVD. Contact your system administrator to find
out the preferred method for accessing updates in your organization.
See "Configuring a Local FTP Server"
for more information.
NOTE: If you are using FTP as your update method, you must configure the network
card using USC - LCE USC Settings wizard before accessing the updates. See
"Using USC Settings Wizard" for more information.
View Current Version Information
1
Boot your system and press the
<F10> key within 10 seconds of
the Dell logo being displayed.
2
Click
Platform Update
in the left pane.
3
Click
View Current Versions
in the right pane.
LC1_2.book Page 29 Wednesday, November 18, 2009 9:42 AM
30 USC and USC - LCE
Launch the Platform Update Wizard
1
Boot your system and press the
<F10> key within 10 seconds of the
Dell logo being displayed.
2
Click
Platform Update
in the left pane.
3
Click
Launch Platform Update
in the right pane.
Select Download Method
You can download updates from Dell’s FTP server at ftp.dell.com using the
Platform Update wizard or from a local FTP server or from a local USB device
or Dell Server Updates DVD.
NOTE: To enable the text boxes and drop-down menus under local FTP server or
Dell FTP Server and USB Device, select the corresponding FTP Server or
Local Drive check box.
1
Select either
FTP Server
or
Local Drive
.
FTP Server
Select
FTP Server
to download updates from the configured FTP server
using the
Platform Update
wizard. Enter the appropriate information
according to the method you are using to access the FTP server.
NOTE: If you use a firewall, you should configure it to allow outgoing
FTP traffic on port 21. The firewall must also be configured to accept incoming
FTP response traffic.
To download updates by using a proxy server to access the FTP server,
you must specify:
•
Address —
The IP address of the local FTP server or
ftp.dell.com
.
•
Proxy Server
— The server host name of the proxy server
•
Proxy Port
— The port number of the proxy server
•
Proxy Type
— The type of proxy server
NOTE: HTTP and SOCKS 4 proxy types are supported by USC - LCE.
LC1_2.book Page 30 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 31
•
Proxy User Name
— The user name required for authentication
on the proxy server
•
Proxy Password
— The password required for authentication on
the proxy server
Local Drive
Select
Local Drive
if you are accessing the updates from a local USB
device or
Dell Server Updates
DVD. Select the appropriate volume label
from the
Local Drive
drop-down menu.
See "Configuring a Local USB Device" for more information.
2
Click
Next
.
Select and Apply Updates
The Select Updates screen displays a list of available updates.
1
Select the check box for each update that you want to apply to your
system. The components for which a more current update is available
are selected by default.
If you want to compare the version of the update with the version
currently installed on the system, compare the versions in the
Current
and
Available
fields.
NOTE: An ellipsis (...) appearing at the end of the displayed field indicates that
the full value is not displayed. To view more detailed information, select the
field; the information appears below the comparison report.
•
Component
— Displays the available updates. Select the check box
for each update you want to apply.
•
Current
— Displays the component version currently installed
on the system.
•
Available
— Displays the version of the available update.
LC1_2.book Page 31 Wednesday, November 18, 2009 9:42 AM
32 USC and USC - LCE
2
Click
Apply
.
NOTE: The system reboots after the update process is complete. When applying
more than one update, the system may need to reboot between updates. In this
case, the system boots directly into USC - LCE and continues the update process.
No action on your part is required when the system reboots to complete the
update process.
NOTE: If the iDRAC firmware update is interrupted for any reason, you may need
to wait for up to 30 minutes before attempting another firmware update.
NOTE: USC-LCE does not support the update or rollback of PERC 5/E Adapter for
external storage, SAS 5i/R Adapter for tape, PERC S100 and PERC S300 Adapters,
and Intel™ NIC Adapters.
Rolling Back to Previous BIOS and Firmware Versions
USC - LCE enables you to roll back to a previously-installed version of
BIOS or firmware. Dell recommends that you use this feature if you have
a problem with the currently-installed version and want to revert to the
previously-installed version.
NOTE: Only BIOS and firmware can be rolled back. USC - LCE, the hardware
diagnostics application, and drivers needed for operating system (OS) installation
cannot be rolled back to earlier versions.
This feature is available only if you have used the USC - LCE update feature
to update BIOS and firmware, or if you have updated the system BIOS or
firmware using a post-operating system Dell Update Package. If you have
used other update methods, this feature is not available.
NOTE: Power supply firmware does not support creation of a rollback image if it is
updated using a post-operating system Dell Update Package.
NOTE: If you have updated your system’s BIOS or firmware only once, the rollback
feature offers the option of reverting to the factory-installed BIOS or firmware
images. If you have updated your BIOS or firmware more than once, the
factory-installed images are overwritten and you cannot revert to them.
Launch the Rollback Wizard
1
Boot your system to launch USC - LCE. When the Dell logo displays,
press the
<F10>
key within 10 seconds.
2
Click
Platform Update
in the left pane.
3
Click
Launch Platform Rollback
in the right pane.
LC1_2.book Page 32 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 33
Select and Apply Rollbacks
The Platform Rollback screen displays a list of available rollback components.
1
Select the check box of each rollback image that you want to apply to
the system.
To compare the version of the rollback image with the version currently
installed on the system, compare the versions in the
Current
and
Previous
fields.
NOTE: An ellipsis (...) appearing at the end of the displayed field indicates
that the full value is not displayed. To view more detailed information,
select the field; the information appears below the comparison report.
•
Component
— Displays the available updates; select the check box
of each update you want to apply.
•
Current
— Displays the component version currently installed
on the system.
•
Previous
— Displays the version of the rollback image.
2
Click
Apply
.
NOTE: The system reboots after the update process is complete.
When applying more than one update, the system may need to reboot
between updates. In this case, the system boots directly into USC - LCE and
continues the update process. This is an unattended update process.
Updating Devices That Affect Trusted Platform Module Settings
If BitLocker protection is enabled on your system, updating certain
components requires you to enter a recovery password or insert a USB flash
drive containing a recovery key during the next system boot. This situation
occurs only if the Trusted Platform Module (TPM) security setting is set to
On with Pre-boot Measurements.
NOTE: For information on how to set TPM settings, see the BIOS User Guide
available at support.dell.com/manuals.
When USC - LCE detects that TPM security is set to On with Pre-boot
Measurements, a warning message displays indicating that certain updates
require the recovery password or USB flash drive with the recovery key.
The warning message also indicates which components affect the BitLocker.
You can choose either not to update or to roll back those components by
navigating to the Select Updates screen and deselecting the check boxes for
the components.
LC1_2.book Page 33 Wednesday, November 18, 2009 9:42 AM
34 USC and USC - LCE
Hardware Configuration
USC - LCE provides two different methods for configuring your hardware,
both of which are available from the main Hardware Configuration screen:
•
Configuration Wizards
guide you through setting up system devices.
The Configuration Wizards include: Physical Security Configuration,
System Date/Time Configuration, iDRAC Configuration,
and RAID Configuration.
•
Advanced Configuration
allows you to configure certain devices, such as
Network Interface Controllers (NICs) and the BIOS, using Human
Interface Infrastructure (HII).
NOTE: Ensure that you understand the implications of HII before using the
Advanced Configuration feature. HII is part of the UEFI standard; USC - LCE
complies to UEFI version 2.1. See "Advanced Configuration" for more information.
Physical Security Configuration
Use the Physical Security Configuration Wizard to control access to the
system control panel.
To launch the Physical Security Configuration Wizard:
1
Click
Hardware Configuration
in the left pane.
2
Click
Configuration Wizards
in the right pane.
3
Click
Physical Security Configuration
to launch the wizard.
4
Set
System Control Panel Access
to one of the following options:
•
Disabled
— You do not have access to information or control,
other than the information displayed by the management controller,
and you cannot specify actions.
•
View Only
— You can move through the data screens to obtain
information using the system control panel interface.
•
View and Modify
— You can obtain information and make changes
using the system control panel interface.
5
Click
Finish
to apply the changes.
To return to the Configuration Wizards screen, click Back.
To exit the wizard, click Cancel.
LC1_2.book Page 34 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 35
System Date/Time Configuration
Use the System Date/Time Configuration Wizard to set the date and time
for the system.
To launch the System Date/Time Configuration Wizard:
1
Click
Hardware Configuration
in the left pane.
2
Click
Configuration Wizards
in the right pane.
3
Click
System Date/Time Configuration
to launch the wizard.
The default system date and system time shown in USC - LCE is the date
and time reported by the system BIOS.
4
Modify the
System Date
and
Time
(HH:MM:SS AM/PM)
values,
as required.
5
Click
Finish
to apply the changes.
To return to the Configuration Wizards screen, click Back.
To exit the wizard, click Cancel.
iDRAC Configuration
Use the iDRAC Configuration Wizard to configure and manage
iDRAC parameters.
This wizard is similar to the iDRAC Configuration Utility in the legacy
BIOS operation. You can use the wizard to configure iDRAC parameters
applicable to the system, such as LAN, common IP settings, IPv4, IPv6,
virtual media, and LAN user configuration.
To launch the iDRAC Configuration Wizard:
1
Click
Hardware Configuration
in the left pane.
2
Click
Configuration Wizards
in the right pane.
3
Click
iDRAC Configuration
to launch the wizard.
The following steps will walk you through the iDRAC Configuration Wizard:
a
"LAN Configuration"
b
"Advanced LAN Configuration"
c
"Common IP Configuration"
d
"IPv4 Configuration"
LC1_2.book Page 35 Wednesday, November 18, 2009 9:42 AM
36 USC and USC - LCE
e
"IPv6 Configuration"
f
"Virtual Media Configuration"
g
"LAN User Configuration"
h
"Confirmation"
LAN Configuration
View or configure iDRAC LAN, IPMI over LAN, MAC address,
and NIC selection.
•
iDRAC LAN
— Enables or disables the iDRAC NIC. Disabling
iDRAC LAN deactivates the remaining controls.
•
IPMI Over LAN
— Enables or disables Intelligent Platform
Management Interface (IPMI) commands on the iDRAC
Local Area Network (LAN) channel.
•
MAC Address
— Enables you to view the Media Access Control (MAC)
address that uniquely identifies each node in a network (read-only).
•
NIC Selection
— Enables you to view or edit the NIC mode using the
following mode options:
–
Dedicated
— This option enables remote access to utilize the
dedicated network interface available on the Dell Remote Access
Controller (DRAC). Because the DRAC interface is not shared with
the host operating system and routes management traffic to a separate
physical network, it can be separated from the application traffic.
NOTE: This option is available only if an iDRAC6 Enterprise controller is
present in the system.
–
Shared with failover
— Select this option to share the network
interface with the host operating system. The remote access device
network interface is fully functional when the host operating system
is configured for NIC teaming. The remote access device receives data
through the LAN on motherboard LOM 1 and LOM 2, but it
transmits data only through LOM 1. If LOM 1 fails, the remote access
device fails over to LOM 2 for all data transmission. The remote
access device continues to use LOM 2 for data transmission.
If LOM 2 fails, the remote access device fails over all data
transmission back to LOM 1.
LC1_2.book Page 36 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 37
–
Shared with failover - LOM 2
— Select this option to share the
network interface with the host operating system. The remote access
device network interface is fully functional when the host operating
system is configured for NIC teaming. The remote access device
receives data through the LAN on Motherboard LOM 1 and LOM 2,
but transmits data only through LOM 2. If LOM 2 fails, the remote
access device fails over to LOM 1 for all data transmission.
The remote access device continues to use LOM 1 for data
transmission. If LOM 1 fails, the remote access device fails
over all data transmission back to LOM 2.
NOTE: If one LOM fails but is later restored, you can manually revert back to
the original LOM settings by editing the NIC selection through the iDRAC
Hardware Configuration wizard.
–
Shared with failover - All LOMS
— Select this option to share the
network interface with the host operating system. The remote access
device network interface is fully functional when the host operating
system is configured for NIC teaming. The remote access device
receives data through NIC 1, NIC 2, NIC 3, and NIC 4; but it
transmits data only through NIC 1. If NIC 1 fails, the remote access
device will transmit data on NIC 2. If NIC 2 fails, the remote access
device will transmit data on NIC 3. If NIC 3 fails, the remote access
device will transmit data on NIC 4. If NIC 4 fails the remote access
device fails over all data transmission back to NIC 1, but only if the
original NIC 1 failure has been corrected.
NOTE: Shared with failover - All LOMS option may not be available on
iDRAC6 Enterprise controller.
Advanced LAN Configuration
1
Set additional attributes for VLAN, VLAN ID, VLAN priority,
Auto Negotiate, LAN speed, and LAN duplex.
•
VLAN
— Enables or disables the VLAN mode of operation and
parameters. When VLAN is enabled, only matched VLAN ID traffic is
accepted. When disabled, VLAN ID and VLAN Priority are not
available, and any values present for those parameters are ignored.
•
VLAN ID
— Sets the VLAN ID value. Legal values fall in the range of
1 to 4094, as defined by IEEE 801.1g specification.
LC1_2.book Page 37 Wednesday, November 18, 2009 9:42 AM
38 USC and USC - LCE
•
VLAN Priority
— Sets the VLAN ID priority value. Legal values fall in
the range of 0 to 7, as defined by IEEE 801.11g specification.
•
Auto Negotiate
— Turns the auto-negotiate feature on or off. When
auto-negotiate is on, it determines whether iDRAC automatically sets
the
Duplex Mode
and
Network Speed
values by communicating with
the nearest router or hub. When auto-negotiate is off, you must set
the
Duplex Mode
and
Network Speed
values manually.
•
LAN Speed
— Configures the network speed to 100 Mb or 10 Mb to
match the user's network environment.
NOTE: This option is not available if Auto-Negotiate is set to On.
•
LAN Duplex
— Configures the duplex mode to
Full
or
Half
to match
the user's network environment.
NOTE: This option is not available if Auto-Negotiate is set to On.
2
Click
OK
to save your settings and return to the
LAN Configuration
menu.
3
Click
Next
to proceed to "Common IP Configuration."
Common IP Configuration
Register the iDRAC name, set the domain name from DHCP, and specify the
domain name and host name string.
•
Register iDRAC Name
— If set to
Yes
, the iDRAC name is registered
with the Domain Name System (DNS). If set to
No
, no registration takes
place.
•
iDRAC Name
— Enables you to view or edit the iDRAC name to be
used when registering with DNS. The
iDRAC Name
string can contain
up to 63 printable ASCII characters. You can edit the
iDRAC Name
string
when
Register iDRAC Name
is
No
. The information in this field is erased
after updating the iDRAC firmware.
•
Domain Name from DHCP
— If set to
Yes
, iDRAC acquires the domain
name from the Dynamic Host Configuration Protocol (DHCP) server.
If set to
No
, you must enter the domain name manually.
LC1_2.book Page 38 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 39
•
Domain Name
— Enables you to view or edit the iDRAC domain name to
be used if it is not acquired from DHCP. You can specify a domain name
when
Domain Name from DHCP
is set to
No
. The information in this
field is erased after updating the iDRAC firmware.
•
Host Name String
— Enables you to specify or edit the host name
associated with iDRAC. The information in this field is erased if iDRAC is
reset to the original defaults or if the iDRAC firmware is updated.
The
Host Name
string can contain up to 62 ASCII printable characters.
Click Next to proceed to "IPv4 Configuration."
IPv4 Configuration
Enable or disable IPv4, and set the RMCP+ encryption key, IP address
source, subnet mask, default gateway, and DNS server values.
•
IPv4
— Enables or disables iDRAC NIC IPv4 protocol support.
Disabling IPv4 deactivates the remaining controls.
•
RMCP+Encryption Key
— Configures the RMCP+ encryption key
using 0 to 40 hexadecimal digits (no blanks allowed). The default setting
is all zeros (0).
•
IP Address Source
— Enables or disables the ability of the iDRAC NIC
to acquire an IPv4 address from the DHCP server; deactivate or activate
the
Ethernet IP Address
,
Subnet Mask
, and
Default Gateway
controls.
•
Ethernet IP Address
— Enables you to specify or edit a static IPv4 address
for the iDRAC NIC. The IP address you enter in the
Ethernet IP Address
field is reserved, and used only when DHCP fails to resolve and assign an
available IP address. The
Ethernet IP Address
field is limited to a
maximum value of 255.255.255.255.
•
Subnet Mask
— Enables you to specify or edit the static subnet mask for
the iDRAC NIC. The subnet mask defines the significant bit positions in
the IPv4 address. The
Subnet Mask
string should be in the form of a
netmask, where the more significant bits are all ones (1) with a single
transition to all zeros (0) in the lower-order bits. For example:
255.255.255.0. The
Subnet Mask
field is limited to a maximum value of
255.255.255.255.
LC1_2.book Page 39 Wednesday, November 18, 2009 9:42 AM
40 USC and USC - LCE
•
Default Gateway
— Enables you to specify or edit the static IPv4 default
gateway for the iDRAC NIC. Requests that cannot be resolved locally are
routed to this address. The
Default Gateway
field is limited to a
maximum value of 255.255.255.255.
•
Get DNS Servers from DHCP
— If set to
Yes
, the iDRAC NIC acquires
the Domain Name System (DNS) server information from the DHCP
server, and deactivates the
DNS Server 1
and
DNS Server 2
controls. If set
to
No
, the iDRAC NIC does not acquire the DNS Server information from
the DHCP server, and you must manually define the
DNS Server 1
and
DNS Server 2
fields.
•
DNS Server 1
— Enables you to specify or edit the static IPv4 address for
a primary DNS server. This IPv4 address is that of a DNS server utilized
for name-to-IPv4 address resolution. The
DNS Server 1
field is limited to
a maximum value of 255.255.255.255.
•
DNS Server 2
— Enables you to specify or edit the static IPv4 address for
a secondary DNS server. In the event that DNS Server 1 does not produce
results, the
DNS Server 2
IPv4 address serves as a backup utilized for
name-to-IPv4 address resolution. This field is limited to a maximum value
of 255.255.255.255.
Click Next to proceed to "IPv6 Configuration."
IPv6 Configuration
Set IPv6, IP address source, ethernet IP address, IPv6 address, prefix length,
default gateway, and DNS server values.
•
IPv6
— Enables or disables the iDRAC NIC IPv6 protocol support.
Disabling IPv6 deactivates the remaining controls.
•
IP Address Source
— Enables or disables the ability of the iDRAC NIC to
acquire an IPv6 address from the DHCP server. Disabling
IP Address
Source
deactivates the
Ethernet IP Address
,
Prefix Length
, and
Default
Gateway
controls.
LC1_2.book Page 40 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 41
•
Ethernet IP Address
— Enables you to specify or edit the static
IPv6 address for the iDRAC NIC when not provided by DHCP.
This field is limited to a maximum value of
FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF. The multi-cast (ff00:/8)
and loopback (::1/128) values are not valid addresses for the Ethernet
IP address and/or the other address related fields described in this section.
IPv6 Address forms supported:
–
X:X:X:X:X:X:X:X
— In this preferred form,
X
represents the
hexadecimal values of the eight 16-bit pieces of the address. You can
omit leading zeros in individual fields, but you must include at least
one numeral in every field.
–
::
(two colons) — Using this form, you can represent a string of
contiguous zero fields in the preferred form. The
::
can only appear
once in the address. You can also use this form to represent
unspecified addresses (0:0:0:0:0:0:0:0).
–
x:x:x:x:x:x:d.d.d.d
— This form is sometimes more convenient when
dealing with a mixed environment of IPv4 and IPv6 nodes. In this
form,
x
represents the hexadecimal values of the six high-order 16-bit
pieces of the address, and
d
represents the decimal values of the four
low-order 8-bit pieces of the address (standard IPv4 representation).
•
Prefix Length
— Enables you to specify or edit the number of significant
bits in the IPv6 address to be used as a prefix, up to a maximum of 128.
The prefix length number of bits in the Ethernet IP address is the netmask
for the IPv6 network to which the iDRAC NIC belongs. The more
significant bits that are defined, the fewer IPv6 addresses will be available
on the network with the specified prefix.
•
Default Gateway
— Enables you to specify or edit the static IPv6 default
gateway for the iDRAC NIC when not provided by DHCP. This is the
address that will be used to route requests when they cannot be resolved
locally. The
Default Gateway
field is limited to a maximum value of
FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF.
LC1_2.book Page 41 Wednesday, November 18, 2009 9:42 AM
42 USC and USC - LCE
•
Get DNS Servers from DHCP
— If set to
Yes
, the iDRAC NIC acquires
the Domain Name System (DNS) server information from the
DHCP server and deactivates the DNS Server 1 and DNS Server 2
controls. If set to
No
, the iDRAC NIC does not acquire the DNS server
information from the DHCP server, and you must manually specify the
DNS Server 1
and
DNS Server 2
fields.
•
DNS Server 1
— Enables you to specify or edit the static IPv6 address
for a primary DNS server when not provided by DHCP. The
DNS Server 1
field is limited to a maximum value of
FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF. The iPv6 address is
that of a DNS server utilized for name-to-IPv6 address resolution.
•
DNS Server 2
— Enables you to specify or edit the static IPv6 address for
a secondary DNS server when not provided by DHCP. In the event that
DNS Server 1 does not produce results, the DNS Server 2 iPv6 address
serves as a backup DNS server utilized for name-to-IPv6 address
resolution. The
DNS Server 2
field is limited to a maximum value of
FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF.
Click
Next
to proceed to "Virtual Media Configuration."
Virtual Media Configuration
Set Virtual Media and Virtual Flash parameters.
NOTE: The Virtual Media and Virtual Flash features are available only if the system
includes iDRAC 6 Enterprise. The Virtual Flash feature is only available if an SD card
is installed and enabled in the iDRAC.
•
Virtual Media
— Select attached, auto-attached, or detached mode. If set
to
Attach
, the virtual media devices are available for use in the current
operating environment. Virtual Media enables a floppy image, floppy
drive, or CD/DVD drive from your system to be available on the managed
systems console, as if the floppy image or drive were present (attached or
connected) on the local system. If set to
Detach
, you cannot access virtual
media devices. If set to
Auto-Attach
, the virtual media device is
automatically mapped to the server every time the user physically
connects a media.
NOTE: For more information on supported virtual media devices, see the
Integrated Dell Remote Access Controller 6 (iDRAC6) User’s Guide
available at support.dell.com/manuals.
LC1_2.book Page 42 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 43
•
Virtual Flash
— Enable or disable the use of flash memory that resides
in the iDRAC file system. This memory can be used for persistent storage
and accessed by the system. If set to
Enabled
, the virtual flash card is
configured as a virtual drive; it appears in the boot order, allowing you
to boot from the virtual flash card. If set to
Disabled
, virtual flash is
not accessible.
NOTE: To boot from the virtual flash, the virtual flash image must be bootable.
The virtual flash feature of iDRAC requires a formatted secure digital (SD)
card that is 256 MB or greater. This feature can be enabled only if a valid
image is present on the SD card. S
ee the
User Guide
for your system’s
iDRAC device for more information.
NOTE: Dell-branded vFlash media is required for the virtual flash partition.
Click Next to proceed to "LAN User Configuration."
LAN User Configuration
Set account access, account-related attributes, and smart card authentication.
•
Account Access
— Enables or disables account access. Disabling account
access deactivates all other fields on the
LAN User Configuration
screen.
•
Account Username
— Enables the modification of an iDRAC username.
The
Account Username
field accepts a maximum of 16 printable
ASCII characters.
•
Password
— Enables an administrator to specify or edit the iDRAC user's
password. The
Password
string is encrypted and cannot be seen or
displayed after this property is set. The
Password
field accepts a maximum
of 20 characters.
•
Confirm Password
— Re-enter the iDRAC user's password to confirm.
LC1_2.book Page 43 Wednesday, November 18, 2009 9:42 AM
44 USC and USC - LCE
•
Account Privilege
— Assigns the user's maximum privilege on the IPMI
LAN channel to one of the following user groups: Admin, Operator, User,
or No Access.
–
Admin
— Privileges: Login to iDRAC, Configure iDRAC, Configure
Users, Clear Logs, Execute Server Control Commands, Access
Console Redirection, Access Virtual Media, Test Alerts, Execute
Diagnostic Commands
–
Operator
— Privileges: Login to iDRAC, Configure iDRAC,
Configure Users, Execute Server Control Commands, Access Console
Redirection, Access Virtual Media, Test Alerts, Execute Diagnostic
Commands
–
User
— Privileges: Login to iDRAC
–
No Access
— No assigned privileges
•
Smart Card Authentication
— Enables or disables Smart Card
Authentication for iDRAC log in. If enabled, a Smart Card must be
installed to access the iDRAC.
–
Enabled
— Enabling Smart Card login disables all command-line
out-of-band interfaces including SSM, Telnet, Serial,
remote RACADM, and IPMI over LAN.
–
Disabled
— On subsequent logins from the graphical user interface
(GUI), the regular login page displays. All command-line out-of-band
interfaces—including Secure Shell (SSH), Telnet, Serial, and
RACADM—are set to their default states.
–
Enabled with RACADM
— Enabling smart card login with
RACADM disables all command-line out-of-band interfaces—
including SSM, Telnet, Serial, remote RACADM, and IPMI over
LAN—while still allowing RACADM access.
Click
Next
to proceed to "Summary."
Summary
Displays the summary of the iDRAC configuration changes.
Click
Apply
to proceed to "Confirmation."
LC1_2.book Page 44 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 45
Confirmation
Confirm the changes you made by viewing the Summary screen. You can
apply the changes, or cancel all changes and exit the iDRAC Configuration
Wizard. If you apply the changes, a Please Wait message displays while
your changes are saved. When the operation is complete, a final
Confirmation screen displays indicating whether the changes were applied
successfully, left unchanged, or failed.
Click Finish to save your settings and return to the main wizards screen.
RAID Configuration
If your system has one or more supported PERC RAID controller(s) with
PERC 6.1 firmware or greater or SAS RAID controller(s), you have the
option of using the RAID Configuration wizard to configure a virtual disk
as the boot device.
To launch the RAID Configuration Wizard:
1
Click
Hardware Configuration
in the left pane.
2
Click
Configuration Wizards
in the right pane.
3
Click
RAID Configuration
to launch the wizard.
The following steps will walk you through the RAID Configuration wizard:
a
"View Current Configuration"
b
"Select RAID Controller"
c
"Foreign Configuration Found"
d
"Select the Express or Advanced Wizard"
e
"Select Basic Settings"
f
"Express Wizard Only - Assign a Hot Spare"
g
"Express Wizard Only - Review Summary"
h
"Advanced Wizard Only - Select Physical Disks"
i
"Advanced Wizard Only - Additional Settings"
j
"Advanced Wizard Only - Review Summary"
LC1_2.book Page 45 Wednesday, November 18, 2009 9:42 AM
46 USC and USC - LCE
View Current Configuration
The View Current Configuration screen displays the attributes of
any virtual disks already configured on the supported RAID controllers
attached to the system. You have two options:
• Accept the existing virtual disks without making changes. To select this
option, click
Back
.
NOTE: If you intend to install the operating system on an existing virtual disk,
ensure that the virtual disk size and RAID level are appropriate.
• Delete all existing virtual disks and use the
RAID configuration
wizard
to create a single, new virtual disk to be used as the new boot device.
To select this option, click
Next
.
NOTE: RAID 0 does not provide data redundancy. Other RAID levels provide
data redundancy and may enable you to reconstruct data in the event of a
disk failure.
Select RAID Controller
The Select RAID Controller screen displays all supported RAID controllers
attached to the system. Select the RAID controller on which you want to
create the virtual disk, and then click Next.
Foreign Configuration Found
The Foreign Configuration Found screen displays only if a foreign
configuration resides on the selected RAID controller.
A foreign configuration is a set of physical disks containing a RAID
configuration that has been introduced to the system but is not yet managed
by the RAID controller to which it is attached. You may have a foreign
configuration if physical disks have been moved from a RAID controller on
another system to a RAID controller on the current system.
LC1_2.book Page 46 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 47
You have two options: Ignore Foreign Configuration and Clear Foreign
Configuration.
• If the foreign configuration contains data that you want to keep,
select
Ignore Foreign Configuration
. If you select this option, the disk
space containing the foreign configuration is not available for use in a
new virtual disk.
• To delete all data on the physical disks containing the foreign
configuration, select
Clear Foreign Configuration
. This option frees the
disk space containing the foreign configuration and makes it available for
use in a new virtual disk.
Click Next after making your selection.
Select the Express or Advanced Wizard
• Create a virtual disk using either the
Express Wizard
or the
Advanced Wizard
.
• The
Express Wizard
enables you to select the RAID level only.
The
Express Wizard
then selects a virtual disk configuration for the user
which implements the selected RAID level and optionally enables you to
assign a hot spare. Select
Express Wizard
to quickly create a virtual disk
using recommended settings.
NOTE: Express Wizard is not available on all controllers.
NOTE: If the available physical disks are using both Serial Attached
SCSI (SAS) and Serial ATA (SATA) protocols, Dell recommends that you use
the Advanced Wizard.
• The
Advanced Wizard
enables you to specify which protocol is used when
creating the disk pool for the virtual disks. A disk pool is a logical grouping
of disks attached to a RAID controller on which one or more virtual disks
can be created. In addition to the RAID level, the
Advanced Wizard
allows
more flexibility with physical disk selection, span configuration, cache
policy, and other virtual disk attributes. Select
Advanced Wizard
to specify
all virtual disk settings.
NOTE: Dell recommends a good knowledge of RAID and your hardware
configuration to use the Advanced Wizard.
Click Next after making your selection.
LC1_2.book Page 47 Wednesday, November 18, 2009 9:42 AM
48 USC and USC - LCE
Select Basic Settings
Select the RAID type for the virtual disk from the RAID Level drop-down menu:
•
RAID 0 —
Stripes data across the physical disks. RAID 0 does not
maintain redundant data. When a physical disk fails in a RAID 0 virtual
disk, there is no method for rebuilding the data. RAID 0 offers good read
and write performance with 0 data redundancy.
•
RAID 1 —
Mirrors or duplicates data from one physical disk to another.
If a physical disk fails, data can be rebuilt using the data from the other
side of the mirror. RAID 1 offers good read performance and average write
performance with good data redundancy.
•
RAID 5 —
Stripes data across the physical disks, and uses parity
information to maintain redundant data. If a physical disk fails, the data
can be rebuilt using the parity information. RAID 5 offers good read
performance and slower write performance with good data redundancy.
•
RAID 6 —
Stripes data across the physical disks, and uses two sets of
parity information for additional data redundancy. If one or two physical
disks fail, the data can be rebuilt using the parity information. RAID 6
offers better data redundancy and read performance but slower write
performance with very good data redundancy.
•
RAID 10 —
Combines mirrored physical disks with data striping. If
a physical disk fails, data can be rebuilt using the mirrored data. RAID 10
offers good read and write performance with good data redundancy.
•
RAID 50
— A dual-level array that uses multiple RAID 5 sets in a single
array. A single physical disk failure can occur in each of the RAID 5
without any loss of data on the entire array. Although the RAID 50 has
increased write performance, when a physical disk fails and reconstruction
takes place, performance decreases, data/program access is slower,
and transfer speeds on the array are affected.
•
RAID 60
— Combines the straight block level striping of RAID 0 with the
distributed double parity of RAID 6. Your system must have at least eight
physical disk to use RAID 60. Because RAID 60 is based on RAID 6,
two physical disk from each of the RAID 6 sets could fail without loss
of data. Failures while a single physical disk is rebuilding in one RAID 6
set do not lead to data loss. RAID 60 has improved fault tolerance
because more than half the number of total physical disk must fail for data
loss to occur.
LC1_2.book Page 48 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 49
NOTE: The virtual disk size is automatically calculated and displayed in the Size field.
You cannot change the virtual disk size.
If you are using the Express Wizard, proceed to "Express Wizard Only -
Assign a Hot Spare."
If you are using the Advanced Wizard, click Next and proceed to "Advanced
Wizard Only - Select Physical Disks."
Express Wizard Only - Assign a Hot Spare
To assign a hot spare to the virtual disk, select the Assign a Hot Spare Disk
check box; otherwise, leave the check box clear.
NOTE: A hot spare is an unused backup physical disk that can be used to rebuild
data from a redundant virtual disk. A hot spare can be used only with a redundant
RAID level. Hot spares also have requirements for physical disk size. The hot spare
must be as big as or bigger than the smallest physical disk included in the virtual
disk. If the RAID level and physical disk availability do not meet these requirements,
a hot spare will not be assigned.
Click Next to continue with "Express Wizard Only - Review Summary."
Express Wizard Only - Review Summary
Review the virtual disk attributes you selected before creating a virtual disk.
CAUTION: Clicking the Finish button deletes all existing virtual disks except for
any foreign configurations that you specified should be kept. All data residing on
the deleted virtual disks will be lost.
Click Finish to create a virtual disk with the displayed attributes.
OR
To return to a previous screen to review or change selections, click Back.
To exit the Wizard without making changes, click Cancel.
NOTE: For more control over the virtual disk attributes, click Cancel and use the
Advanced Wizard to create the virtual disk.
Advanced Wizard Only - Select Physical Disks
Use the Select Physical Disks screen to select the physical disks to be used for
the virtual disk. The number of physical disks required for the virtual disk
varies depending on the RAID level. The minimum and maximum numbers
of physical disks required for the RAID level are displayed on the screen.
LC1_2.book Page 49 Wednesday, November 18, 2009 9:42 AM
50 USC and USC - LCE
• Select the protocol for the disk pool from the
Protocol
drop-down menu:
Serial Attached SCSI (SAS)
or
Serial ATA (SATA)
. SAS drives are used
for high performance, and SATA drives provide a more cost-effective
solution.
NOTE: A disk pool is a logical grouping of physical disks on which one or
more virtual disks can be created. The protocol is the type of technology used
to implement RAID.
• Select the media type for the disk pool from the
Media Type
drop-down
menu:
Hard Disk Drives (HDD)
or
Solid State Disks (SSD)
. HDDs use
traditional rotational magnetic media for data storage, and SSDs
implement flash memory for data storage.
• Select the span length from the
Select Span Length
drop-down menu.
The span length value refers to the number of physical disks included in
each span.
NOTE: Span length applies only to RAID 10, RAID 50, and RAID 60. The Select
Span Length drop-down menu is active only if the user has selected RAID-10,
RAID-50, or RAID 60.
• Select the physical disks using the check boxes at the bottom of the screen.
Your physical disk selection must meet the requirements of the RAID level
and span length. To select all of the physical disks, click
Select All
.
Click Next after making your selections.
Advanced Wizard Only - Additional Settings
Use the Additional Settings screen to specify cache policies and stripe
element size. You can also assign a hot spare to the virtual disk.
NOTE: The virtual disk size is automatically calculated and displayed in the Size
field. The user cannot change the virtual disk size.
• Select the stripe element size from the
Stripe Element Size
drop-down
menu. The stripe element size is the amount of disk space a stripe
consumes on each physical disk in the stripe.
NOTE: The Stripe Element Size drop-down menu may contain more options
than initially displayed on the screen. Use the up-arrow and down-arrow keys
to display all options.
LC1_2.book Page 50 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 51
• Select the read policy from the
Read Policy
drop-down menu.
–
Read Ahead
— The controller reads sequential sectors of the virtual
disk when seeking data. The Read Ahead policy may improve system
performance if the data is written to sequential sectors of the virtual
disk.
–
No Read Ahead
— The controller does not use the Read Ahead policy.
The No Read Ahead policy may improve system performance if the
data is random and not written to sequential sectors.
–
Adaptive Read Ahead
— The controller initiates the Read Ahead
policy only if the most recent read requests accessed sequential sectors
of the disk. If the recent read requests accessed random sectors of the
disk, then the controller uses the No Read Ahead policy.
• Select the write policy from the
Write Policy
drop-down menu.
–
Write Through
— The controller sends a write-request completion
signal only after the data is written to the disk. The Write Through
policy provides better data security than the Write Back policy since
the system assumes the data is available only after it has been written
to the disk.
–
Write Back
— The controller sends a write-request completion signal
as soon as the data is in the controller cache but has not yet been
written to disk. The Write Back policy may provide faster write
performance, but it also provides less data security since a system
failure could prevent the data from being written to disk.
–
Force Write Back
— The write cache is enabled regardless of whether
the controller has an operational battery. If the controller does not
have an operational battery, data loss may occur in the event of a
power failure.
LC1_2.book Page 51 Wednesday, November 18, 2009 9:42 AM
52 USC and USC - LCE
• To assign a hot spare to the virtual disk, select the
Assign a Hot Spare Disk
check box. A hot spare is an unused backup physical disk that can be used
to rebuild data from a redundant virtual disk.
• Select the physical disk to be used as the hot spare from the
Hot Spare
Disk
drop-down menu.
NOTE: A hot spare can be used only with a redundant RAID level. Hot spares
also have requirements for physical disk size. The hot spare cannot be smaller
than the smallest physical disk included in the virtual disk. If the RAID level
and physical disk availability do not meet these requirements, the Assign a
Hot Spare Disk check box is disabled.
Click Next after making your selection.
Advanced Wizard Only - Review Summary
The Summary screen displays the virtual disk attributes based on your selections.
CAUTION: Clicking the Finish button deletes all existing virtual disks except for
any foreign configurations that you specified should be kept. All data residing on
the deleted virtual disks will be lost.
Click Finish to create a virtual disk with the displayed attributes.
OR
To return to a previous screen to review or change selections, click Back. To
exit the Wizard without making changes, click Cancel.
Advanced Configuration
Use Advanced Configuration to modify advanced settings.
1
Select
Hardware Configuration
from the left menu
2
Click
Advanced Configuration
in the right panel.
3
Select the device you want to configure.
NOTE: Depending on the configuration setting changes, the following message
may be displayed: One or more of the settings requires a reboot to be saved and
activated. Do you want to reboot now?. You can select No and continue making
additional configuration changes or perform other tasks such as operating system
deployment. All changes will be applied during the next system boot.
LC1_2.book Page 52 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 53
USC - LCE Hardware Configuration allows you to configure other devices
through Human Interface Infrastructure (HII). HII is a UEFI-standard
method for viewing and setting a device's configuration. You can utilize a
single utility to configure multiple devices that had different pre-boot
configuration utilities in the past. HII also provides localization, meaning that
utilities that were previously English-only, such as the BIOS <F2> setup,
may now have a localized HII equivalent.
As of the current release of USC - LCE, your server's default configuration
contains setups for two device types that are supported in the Hardware
Configuration Advanced Configuration: the system BIOS and NIC.
• The
BIOS
setup is very similar to the current setup utility (press the
<F2>
key during system startup); however, HII can access only a subset of the
utilities available in system startup.
• The
NIC
setup reflects various NIC attributes, some of which were visible in
the controller option read-only memory (ROM). However, many of these
attributes were previously only modifiable in Operating System utilities.
Depending on your system configuration, other device types may also appear
in Advanced Configuration, if they support the HII configuration standard.
Advanced Configuration wizard allows you to configure the following:
• System BIOS Settings
• Intel Pro/1000 PT Server Adapter
• Intel Pro/1000 PT Dual Port Server Adapter
• Intel Gigabit VT Quad Port Server Adapter
• Intel 10 Gigabit AF DA Dual Port Server Adapter
• Intel 10 Gigabit AT Port Server Adapter
• Intel 10 Gigabit XF SR Port Server Adapter
• Broadcom (Dual Port) 10G KX4
• Broadcom (Quad Port) GBE
• Intel (Quad Port) GBE
• Intel (Dual Port) 10G KX4
• Broadcom (Dual Port) 10G SFP+
• Broadcom (Quad Port) 10/100/1000 BASET
• Intel (Quad Port) 10/100/1000 BASET
LC1_2.book Page 53 Wednesday, November 18, 2009 9:42 AM
54 USC and USC - LCE
• Intel (Dual Port) 10/100/1000 BASET
• Broadcom NetXtreme Gigabit Ethernet
• Broadcom 5709C NetXtreme II GigE
• Broadcom 5709C NetXtreme II GigE
• Broadcom 57710 NetXtreme II 10GigE
NOTE: Integrated Broadcom NICs are controlled both by the BIOS and by settings
stored on the device itself. As a result, the Boot Protocol field in the HII of
integrated NICs has no effect; this setting is instead controlled by the BIOS on the
Integrated Devices screen. To set integrated NICs to an iSCSI or PXE boot mode,
select System BIOS Settings, then select Integrated Devices. On this screen, you
will see a list of each embedded NIC—select the appropriate value: Enabled for no
boot capability, Enabled with PXE to use the NIC for PXE boot, or Enabled with iSCSI
to use the NIC to boot from an iSCSI target.
Configuring a Local FTP Server
If your organization’s users are on a private network that does not have access
to external sites, specifically ftp.dell.com, you can provide platform updates
from a locally-configured FTP server. The users in your organization can
access updates or drivers for their Dell server from the local FTP server
instead of ftp.dell.com.
NOTE: A local FTP server is not required for users who have access to ftp.dell.com
through a proxy server.
NOTE: Check ftp.dell.com frequently to make sure your local FTP server has the
most recent updates.
Requirements for a Local FTP Server
The following requirements apply when configuring a local FTP server.
• The local FTP server must support anonymous user access. That is,
the local FTP server cannot require user authentication.
• The local FTP server must use the default port (21).
• You must use
USC Settings
wizard to configure the network card on your
system before accessing updates from the local FTP server. See "Using
USC Settings Wizard" for more information.
LC1_2.book Page 54 Wednesday, November 18, 2009 9:42 AM
USC and USC - LCE 55
Creating the Local FTP Server Using Dell Server Updates DVD
1
Download the
Dell Server Updates
ISO to your system from Dell Support
site at
support.dell.com
, and burn it to a DVD.
2
Copy all files in the
repository
folder of the DVD you just created to the
root directory of the local FTP server.
3
Create a folder named
catalog
in the root directory of the local FTP server
and move the files
catalog.xml.gz
and
catalog.xml.gz.sign
from the root
directory of the FTP server to the catalog folder you just created.
4
Use this local FTP server for Platform Update
.
Accessing Updates on a Local FTP Server
The users in your organization need to know the IP address of the local FTP
server in order to specify the online repository when using the
OS Deployment wizard.
If your users are accessing the local FTP server through a proxy server,
then they need to know the following information for the proxy server:
• The proxy server host name or IP address
• The port number of the proxy server
• The user name required for authentication on the proxy server
• The password required for authentication on the proxy server
• The type of proxy server
Configuring a Local USB Device
If your organization’s users are on a private network that does not have access
to external sites like ftp.dell.com, you can provide updates from a
locally-configured USB device.
The USB device you use as a repository must be able to hold at least 3 GB of
content.
A USB device is not required for users that have access to ftp.dell.com
through a proxy server.
For the latest updates, download the most recent Dell Server Updates ISO for
your system from the Dell Support website at support.dell.com.
LC1_2.book Page 55 Wednesday, November 18, 2009 9:42 AM
56 USC and USC - LCE
Creating the Local USB Repository Using Dell Server Updates DVD
To create a repository on a local USB device using Dell Server Updates DVD:
1
Download the
Dell Server Updates
ISO to your system from the Dell
Support site at
support.dell.com
, and burn it to a DVD.
2
Copy all files in the
repository
folder of the DVD you just created to the
root directory of the USB device.
3
Create a folder named
catalog
in the root directory of the USB device and
move the files
catalog.xml.gz
and
catalog.xml.gz.sign
from the root
directory of the USB device to the
catalog
folder you just created.
4
Use this USB device for Platform Update
LC1_2.book Page 56 Wednesday, November 18, 2009 9:42 AM
Remote Service Features 57
Remote Service Features
The Dell™ Lifecycle Controller Remote Services
are a set of features focused
on enabling automated system discovery by the remote consoles and enhancing
remote operating system deployment capabilities. These capabilities use the
web services based hardware management interface provided by the Lifecycle
Controller firmware.
Remote Services
are aimed at simplifying operating
system deployment and automating the setup and configuration of new
Dell systems remotely.
Web Services for Management
Web Services for Management (WS-MAN) is a Simple Object Access
Protocol (SOAP)-based protocol designed for systems management.
WS-MAN is published by the Distributed Management Task Force (DMTF)
and provides a interoperable protocol for devices to share and exchange data
across networks. Dell Lifecycle Controller - Remote Services uses WS-MAN
to convey DMTF Common Information Model (CIM)-based management
information; the CIM information defines the semantics and information
types that can be manipulated in a managed system. The Dell-embedded
server platform management interfaces are organized into profiles, where
each profile defines the specific interfaces for a particular management
domain or area of functionality. Additionally, Dell has defined a number of
model and profile extensions that provide interfaces for additional
capabilities.
The data and methods available through WS-MAN are provided by the
Lifecycle Controller - Remote Services’ instrumentation interface mapped to
the following DMTF profiles and Dell extension profiles:
LC1_2.book Page 57 Wednesday, November 18, 2009 9:42 AM
58 Remote Service Features
Standard DMTF
• Base Server — defines CIM classes for representing the host server.
• Base Metrics — defines CIM classes for providing the ability to model and
control metrics captured for managed elements.
• Host LAN Network Port — defines CIM classes for representing a network
port that provides a LAN interface to a host system, its associated
controller, and network interfaces.
• Service Processor — defines CIM classes for modeling service processors.
• USB Redirection — defines CIM classes for describing information about
USB redirections. For keyboard, video, and mouse devices, this profile
should be used if the devices are to be managed as USB devices.
• Physical Asset — defines CIM classes for representing the physical aspect
of the managed elements.
• SM CLP Admin Domain — defines CIM classes for representing
CLP’s configuration.
• Power State Management — defines CIM classes for power
control operations.
• Command Line Protocol Service — defines CIM classes for representing
CLP’s configuration.
• IP Interface — defines CIM classes for representing an IP interface of a
managed system.
• DHCP Client — defines CIM classes for representing a DHCP client and
its associated capabilities and configuration.
• DNS Client — defines CIM classes for representing a DNS client in a
managed system.
• Record Log — defines CIM classes for representing different type of logs.
• Software Inventory — defines CIM classes for inventory of installed or
available software.
• Role Based Authorization — defines CIM classes for representing roles.
• Software Update — defines CIM classes for inventory of available
software updates.
• SMASH Collections — defines CIM classes for representing
CLP’s configuration.
LC1_2.book Page 58 Wednesday, November 18, 2009 9:42 AM
Remote Service Features 59
• Profile Registration — defines CIM classes for advertising the profile
implementations.
• Simple Identity Management — defines CIM classes for representing
identities.
• SSH Service — defines CIM classes for extending the management
capability of referencing profiles by adding the capability to represent an
SSH service and its associated sessions in a managed system.
• Battery — defines CIM classes for describing and setting the logical
properties of the battery. Such properties include the description of
the battery’s charge status and the time it takes for the battery charge to
be depleted. The profile also describes operations such as recharging
the battery.
Dell Extensions
• Dell Active Directory Client Version 2.0.0 — defines CIM and
Dell extension classes for configuring the Active Directory client and
the local privileges for Active Directory groups.
• Dell Virtual Media — defines CIM and Dell extension classes for
configuring Virtual Media. Extends the USB Redirection Profile.
• Dell Ethernet Port — defines CIM and Dell extension classes for
configuring NIC Side-Band interface for the NIC. Extends the
Ethernet Port Profile.
• Dell Power Utilization Management — defines CIM and Dell extension
classes for representing the host server’s power budget and for
configuring/monitoring the host server’s power budget.
• Dell OS Deployment — defines CIM and Dell extension classes for
representing the configuration of operating system deployment features.
It extends the management capability of referencing profiles by adding
the capability to support operating system deployment activities by
manipulating operating system deployment features provided by the
service processor. For more information on Dell OS Deployment
functions, see "Remote Operating System Deployment Interface."
NOTE: The WS-MAN implementation complies with the DMTF WS-MAN
specification version 1.0.0.
LC1_2.book Page 59 Wednesday, November 18, 2009 9:42 AM
60 Remote Service Features
The Lifecycle Controller - Remote Services WS-MAN implementation uses
SSL on port 443 for transport security, and supports basic and digest
authentication. Web services interfaces can be utilized by leveraging client
infrastructure such as Windows® WinRM and Powershell CLI, open source
utilities like WSMANCLI, and application programming environments like
Microsoft® .NET®.
There are additional implementation guides, white papers, profile
specifications, class definition (.mof) files, and code samples available in
the Dell Tech Center at www.delltechcenter.com. For more information,
also see the following:
• DTMF Web site:
www.dmtf.org/standards/profiles/
• WS-MAN release notes or Readme file.
Auto-Discovery
The auto-discovery feature enables automated discovery of unprovisioned
systems on the network by management consoles that have integrated the
Dell provisioning server. The management console provides user credentials
to the iDRAC to create an admin account with these credentials so that the
discovered systems can be managed.
With auto-discovery enabled, the iDRAC6 requests an IP address from
DHCP and either acquires the name of the system where the management
console or provisioning server is located and/or subsequently resolves the
address through DNS. After acquiring the address of the management
console the iDRAC6 securely handshakes to acquire account credentials.
The iDRAC can now be managed through its newly acquired credentials to
perform operations, such as remote operating system deployment.
If you explicitly ordered a Dell system with the Auto-Discovery feature
Enabled (factory default setting is Disabled), then the iDRAC will be
delivered DHCP enabled and no user accounts are enabled. If the
auto-discovery feature is set to Disabled, you can manually enable this
feature from the iDRAC6 Configuration Utility when booting your system.
For more information on Enabling and Disabling auto-discovery feature,
see "Enable and Disable Auto-Discovery Feature."
LC1_2.book Page 60 Wednesday, November 18, 2009 9:42 AM
Remote Service Features 61
Configuring DHCP/DNS
Before adding your Dell system to the network and using the Auto-Discovery
feature, ensure that Dynamic Host Configuration Protocol (DHCP)
server/Domain Name System (DNS) are configured with added support for
auto-discovery. There are several alternatives for enabling the network
environment to support management console discovery by newly
installed servers. Ensure that one of the following prerequisites is met for the
Auto-Discovery feature to work properly:
• The DHCP server specifies the IP address and port of the management
console in vendor specific option (option 43) data in response to the
DHCP REQUEST sent out by default by the iDRAC. Ensure the
LifecycleController
vendor class is created. The DHCP server will resolve
hostname of the management console to an IP address with a DNS lookup.
• The DNS server specifies a service option
_dcimprovsrv._tcp
that
will resolve to an IP address.
• The DNS server specifies an IP address for a server with the known name
DCIMCredentialServer
.
For more information on configuring DHCP and DNS, see Lifecycle
Controller Auto Discovery Network Setup Specification on the Dell Enterprise
Technology Center at www.delltechcenter.com.
Enable and Disable Auto-Discovery Feature
Before enabling the Auto-Discovery feature, do the following:
1
Press
<Ctrl><e> when prompted during system start-up.
NOTE: You must press <Ctrl><e> within 5 seconds of when the
message displays.
The
iDRAC6 Configuration Utility page
displays.
2
Enable
NIC
(for modular system only)
3
Enable
DHCP
.
4
Select
Account Access
.
LC1_2.book Page 61 Wednesday, November 18, 2009 9:42 AM
62 Remote Service Features
5
Select
Disabled
.
6
Navigate to
LAN Parameters
.
7
Select
Domain Name from DHCP
.
8
Select
On
.
9
Select
DNS Server from DHCP
.
10
Select
On
.
11
Save and exit
iDRAC6 Configuration Utility
.
12
Restart the system.
To enable the auto-discovery feature:
1
Press
<Ctrl><e> when prompted during system start-up.
NOTE: You must press <Ctrl><e> within 5 seconds of when the
message displays.
The
iDRAC6 Configuration Utility page
displays.
2
Navigate to
LAN User Configuration
.
3
Select
Auto-Discovery
.
4
Select
Enable
to enable the Auto-Discovery feature.
To disable the auto-discovery feature, repeat "step 1," "step 2," and "step 3"
and select Disable.
NOTE: Auto-discovery feature will not run if any admin accounts are enabled.
Auto-Discovery Workflow
1
Plug in your new Dell system to your network
2
Plug-in the power cables to turn on the system.
3
iDRAC starts, acquires the management console/provisioning server
address from DHCP/DNS and announces itself to the management
console.
4
The management console validates and optionally accepts the secure
handshake session from the iDRAC.
LC1_2.book Page 62 Wednesday, November 18, 2009 9:42 AM
Remote Service Features 63
5
The management console provides creates user credentials with admin
privileges and sends the login credentials to iDRAC.
6
iDRAC receives and completes the secure handshake.
Remote Operating System Deployment
The remote operating system deployment capabilities enable deployment of
an operating system remotely using WS-Man web services protocols and
CIFS and NFS network file sharing protocols.
Remote Operating System Deployment Main Features
Following are the main capabilities of remote operating system deployment:
• Remote activation of local exposure of embedded drivers as a USB device
• Remote acquisition of embedded drivers per selected operating system.
• Boot to an ISO image located on a network share.
Remote Operating System Deployment Interface
Dell OS Deployment web services interface provides the capability to support
operating system deployment activities by manipulating operating system
deployment features provided by the iDRAC service processor. Detailed
interface specifications and class definition (.mof) files can be found at the
Lifecycle Controller area on the Dell Enterprise Technology Center at
www.delltechcenter.com
. Using CIM and Dell extension classes using the web
services protocols WS-MAN, Dell OS Deployment feature provides the
following capabilities:
• Get the embedded driver pack (a package of all supported operating
system drivers for all supported operating systems for the platform)
version:
Remote management consoles, applications, and scripts request driver
pack version and list of supported operating systems from iDRAC through
WS-MAN.
The
GetDriverPackInfo()
method on the
DCIM_OSDeploymentService
class returns the embedded driver pack version and the list of operating
systems supported by the driver pack.
LC1_2.book Page 63 Wednesday, November 18, 2009 9:42 AM
64 Remote Service Features
• After determining which operating system the drivers are needed for, one
the following methods can be invoked via WS-MAN to unpack the
appropriate drivers and expose them locally or acquire them remotely.
a
The
UnpackAndAttach()
method on the
DCIM_OSDeploymentService
class extracts the drivers for the
requested operating system and places them on a internal USB device
labeled
OEMDRV
. The
OEMDRV
appears as a locally attached USB
device to the system. The method takes the operating system name
and an expose duration time as input parameters and returns a job
identification that can be subsequently checked for the status of the
unpack and attach activity.
NOTE: The drivers unpacked and attached are removed after the time specified
in ExposeDuration parameter or if no time is specified in the method invocation
then by default the OEMDRV USB device will be removed after 18 hours.
NOTE: Ensure that ISO images attached during the process are detached
before you use system services.
b
The
UnpackAndShare()
method on the
DCIM_OSDeploymentService
class extracts the drivers for the requested operating system and copies
them to a network share. The method takes the operating system name
and network share information as input parameters and returns a job
identification that can be subsequently checked for the status of the
unpack and share activity. Network share information includes the IP
address of the share, the share name, share type, and username, password
and workgroup data for secure shares.
• The following methods can be used to boot the system from an ISO image
on a network share or to initiate PXE boot mechanisms:
a
The
BootToNetworkISO()
method on the
DCIM_OSDeploymentService
class will boot the system using an
ISO image that has been made available on a CIFS or NFS network share.
The method takes the ISO image name, network share information, and
exposure duration as input parameters and returns a job identification
that can be subsequently checked for the status of the unpack and share
activity. Network share information includes the IP address of the share,
the share name, share type, and username, password and workgroup data
for secure shares. For additional security a hash value can be calculated
using well known hash algorithms and this value along with the type of
the hash used can be provided as input parameters.
LC1_2.book Page 64 Wednesday, November 18, 2009 9:42 AM
Remote Service Features 65
NOTE: The drivers unpacked and attached are removed after the time specified
in ExposeDuration parameter. If no time is specified in the method invocation,
then by default the OEMDRV USB device will be removed after 18 hours.
NOTE: Ensure that ISO images attached during the process are detached
before you use system services.
b
The
BootToPXE()
method on the
DCIM_OSDeploymentService
class initiates a Pre-Boot Execution Environment (PXE) boot of the
system. The method requires no input parameters.
• The following methods are used to directly detach the local OEMDRV
device or the network ISO image. These can be used before the previously
set exposure durations time out:
a
The
DetachDrivers()
method on the
DCIM_OSDeploymentService
class detaches and removes the
OEMDRV
device that had been
previously attached by an invocation of the
UnpackAndAttach()
method.
b
The
DetachISOImage()
method on the
DCIM_OSDeploymentService
class detaches and removes the
network share based ISO image that had been previously attached by
an invocation of the
BootToNetworkISO()
method.
• Several methods described in this document return job identifications as
output parameters. The jobs provide a means of keeping track of a
requested action that cannot be performed immediately and, because of
underlying technology constraints, will take longer than standard web
service request response timeouts. The returned job identification can
subsequently be used in WS-MAN Enumerate or Get requests to retrieve
job object instances. Job object instances contain a job status property that
can be checked to see what state the job is in and whether it completed
successfully or encountered a problem and failed. If a job failure occurs,
the job instance also contains an error message property that provides
detailed information on the nature of the failure. Other properties contain
other error identification information that can be used to localize the error
message to the supported languages and get more detailed error
descriptions and recommended response action descriptions.
• The
GetHostMACInfo()
method on the
DCIM_OSDeploymentService
class returns an array of physical network port MAC addresses representing
all the LAN on Motherboard (LOM) ports in the system. The method
requires no input parameters.
LC1_2.book Page 65 Wednesday, November 18, 2009 9:42 AM
66 Remote Service Features
•All the
DCIM_OSDeploymentService
methods described in this
document return error codes indicating whether the method successfully
executed, an error occurred, or a job was created. Job creation occurs if the
action being performed in the method cannot be completed immediately.
Additionally, if an error occurs, the methods will also return output
parameters that include an error message (in English) and other error
identifiers that can be used to localize the error to languages supported by
the Unified Server Configurator. The other error identifiers can be used to
index into and process Dell Message Registry XML files. The Dell Message
Registry files are available in the six supported languages, one file per
language. In addition to translated error messages, the Message Registry
files contain additional detailed error descriptions and recommended
response actions for each error returned by the Lifecycle Controller
Remote Services web service interface. For more information on
methodologies for localizing web services error messages, see
Localizing
Dell Web Services Error Message
white paper
at the Lifecycle Controller
area on the Dell Enterprise Technology Center at
www.delltechcenter.com.
Operating System Deployment Typical Use Case Scenario
This section contains a typical scenario to deploy an operating system
remotely. You need to perform the following steps in order to deploy
operating systems remotely.
Prerequisites and Dependencies
The following are the prerequisites and dependencies for deploying the
operating system remotely:
• Boot disk is available to install operating system or the operating system
ISO image on the network share
• It is recommended that the latest driver pack is installed and available in
USC-LCE
• Provisioning console, application or appropriate scripts that utilize are
capable of sending WS-MAN web services requests and method
invocations.
LC1_2.book Page 66 Wednesday, November 18, 2009 9:42 AM
Remote Service Features 67
Workflow
The following is a typical workflow for remote operating system deployment:
• Create the custom pre-operating system/operating system image and share
it on the network or create the desired operating system media ISO image.
• Get the list of supported operating system and driver pack version
information.
• Stage the operating system drivers by unpacking and attaching drivers for
operating system deployment. These drivers will be installed during the
operating system deployment process.
• Remotely boot to the custom pre-operating system/operating system
image to initiate the operating system deployment process.
• Run Detach commands to detach the ISO media and driver device.
For more information on the Lifecycle Controller Remote Operating Systems
Deployment feature including the Lifecycle Controller 1.2 Web Services
Interface Guideline, white papers, the Dell OS Deployment Profile data
model specification, class definition (.mof) files, sample code and scripts, see
the Lifecycle Controller area on the Dell Enterprise Technology Center at
www.delltechcenter.com.
LC1_2.book Page 67 Wednesday, November 18, 2009 9:42 AM
68 Remote Service Features
LC1_2.book Page 68 Wednesday, November 18, 2009 9:42 AM
Troubleshooting and Frequently Asked Questions 69
Troubleshooting and Frequently
Asked Questions
This section describes the error messages commonly generated by USC and
USC - LCE, and provides suggestions for resolving the errors. It also answers
questions that are frequently asked by USC and USC - LCE users.
Error Messages
"Table A-1" describes the error messages commonly generated by USC and
USC - LCE, and provides suggestions for resolving the errors. "Table A-2"
describes the error messages commonly generated by USC, and provides
suggestions for resolving the errors. "Table A-3" describes the error messages
commonly generated by USC - LCE, and provides suggestions for resolving
the errors. "Table A-4" describes the error messages commonly generated by
Lifecycle Controller, and provides suggestions for resolving the errors
Table A-1. USC and USC - LCE Error Messages and Resolutions
Error Message Resolution
Unable to find a boot
device on which to
install the operating
system
USC or USC - LCE does not detect a device on which an
operating system can be installed. One of the following
situations is probably causing the error:
• The drives are not properly connected.
• There are no recognized storage controllers on the system.
• The on-board SATA controller is disabled in the BIOS.
To resolve this issue, click Exit and Reboot and shut down
the system. Then, make sure you have at least one device
on which to install an operating system before launching
USC or USC - LCE again.
Unable to copy driver
files
The drivers required to install the operating system are
corrupted. To resolve this issue, perform a platform update
(see "Updating the Platform using the Platform
Update Wizard.")
LC1_2.book Page 69 Wednesday, November 18, 2009 9:42 AM
70 Troubleshooting and Frequently Asked Questions
The inserted OS media
is invalid
The operating system media is damaged or corrupted,
or the optical device used to read the media is not
functioning correctly.
The updates you are
trying to apply are not
Dell-authorized updates
USC or USC - LCE has detected that one or more of the
DUPs used to update your system are not Dell authorized.
If you are using a local USB device for your update
repository and this problem persists, create it again
using DUPs from the Server Update Utility DVD
(see "Configuring a Local USB Device") or provide an
alternate repository.
Fatal error launching
USC has occurred.
The system will reboot.
A fatal error occurred when launching USC or USC - LCE.
The system will automatically reboot and attempt to enter
USC or USC - LCE again. If the problem persists after
rebooting, see "Repairing USC" or "Repairing USC - LCE."
Network is not
configured
Network settings must be configured for USC or USC -
LCE to work correctly.
See "Using USC Settings Wizard"
for information on
configuring USC or USC - LCE network
settings from the Network Settings page.
Unable to set new date
and time
USC or USC - LCE was unable to change the system date
and time. To resolve this issue:
1
Reboot the system.
2
Re-enter USC or USC - LCE by pressing the
<F10>
key.
3
Change the date and time settings again.
Invalid Proxy Server The proxy server specified to access the FTP server
is invalid.
See "Select Download Method" for
more information.
Please enter a valid
Encryption Key of
up to 40 Hex digits
Enter a valid encryption key that contains not more
than 40 hex digits. Valid characters are within the ranges
of 0–9, a–f, and A–F.
Please enter a valid
IPv4 Address for
this iDRAC
Enter a valid IPv4 protocol address for iDRAC that is
between 0.0.0.0 and 255.255.255.255.
Please enter a valid
Subnet Mask
Enter a valid Subnet Mask that is between 0.0.0.0 and
255.255.255.255.
Table A-1. USC and USC - LCE Error Messages and Resolutions (continued)
Error Message Resolution
LC1_2.book Page 70 Wednesday, November 18, 2009 9:42 AM
Troubleshooting and Frequently Asked Questions 71
Please enter a valid
Default Gateway
Address
Enter a valid default gateway address that is between
0.0.0.0 and 255.255.255.255.
Please enter a valid IPv4
DNS Server 1 Address
Enter a valid IPv4 DNS Server1 address that is between
0.0.0.0 and 255.255.255.255.
Please enter a valid IPv4
DNS Server 2 Address
Enter a valid IPv4 DNS Server2 address that is between
0.0.0.0 and 255.255.255.255.
Account access change
failed. Multiple user
accounts required. See
help for details.
You must create another user account. Click the Help
button in the upper-right corner of the screen for
more information.
Please enter a valid
Username
You must enter a valid user name. To maintain
compatibility with other iDRAC configuration tools,
Dell recommends using only digits (0–9),
alphanumeric characters (a–z, A–Z), and hyphens (–)
in the user name string.
Please enter a valid
Password
You must enter a valid password. To maintain compatibility
with other iDRAC configuration tools, Dell recommends
using only digits (0–9), alphanumeric characters
(a–z, A–Z), and hyphens (–) in the password string.
Please enter a valid
Confirmation password
You must re-enter the new password and the
confirmation password. Be certain that both passwords
are exactly the same.
Table A-1. USC and USC - LCE Error Messages and Resolutions (continued)
Error Message Resolution
LC1_2.book Page 71 Wednesday, November 18, 2009 9:42 AM
72 Troubleshooting and Frequently Asked Questions
Table A-2. USC Error Messages and Resolutions
Error Message Resolution
Unable to find a device
capable of reading the OS
install media
USC cannot detect a device to read the operating system
media. One of the following situations is probably causing
the error:
• No optical device is available on the system. Shut down
the system and add a SATA optical device or
USB optical device.
• If an optical device is present, it may not be properly
connected. Check to ensure the device cables are
adequately seated.
• If an optical device is present, it is disabled in the BIOS.
Reboot the system, enter the BIOS setup utility, and
enable the SATA ports for the optical device.
The repository you
selected as a source for
the updates has failed an
integrity check
This error may be caused by temporary network problems;
try again later to connect to the update repository.
If you are using a local FTP server for your update
repository and this problem persists, create the
repository again (see "Configuring a Local FTP Server")
or provide an alternate repository.
LC1_2.book Page 72 Wednesday, November 18, 2009 9:42 AM
Troubleshooting and Frequently Asked Questions 73
Table A-3. USC - LCE Error Messages and Resolutions
Error Message Resolution
Drivers pack not found
OR
Error populating OS list
USC - LCE cannot find the drivers required to install the
operating system. To resolve this issue, perform a platform
update (see "Updating the Platform using the Platform
Update Wizard.)"
Unable to find a device
capable of reading the
OS install media
USC - LCE cannot detect a device to read the operating
system media. One of the following situations is probably
causing the error:
• No optical device is available on the system. Shut down
the system and add a SATA optical device or
USB optical device.
• If an optical device is present, it may not be properly
connected. Check to ensure the device cables are
adequately seated.
• If an optical device is present, it is disabled in the BIOS.
Reboot the system, enter the BIOS setup utility, and enable
the SATA ports for the optical device.
• iDRAC virtual media is disabled. See the
Integrated
Dell Remote Access Controller 6 (iDRAC6) User’s Guide
for your system available at
support.dell.com/manuals
.
The repository you
selected as a source for
the updates has failed
an integrity check
This error may be caused by temporary network problems;
try again later to connect to the update repository. If you are
using a local USB device for your update repository and this
problem persists, create the repository again (see
"Configuring a Local USB Device") or provide an alternate
repository.
Decompression of the
catalog file failed
The catalog downloaded to compare currently installed
versions with the latest available versions cannot be
decompressed. This error may be caused by temporary
network problems; try again later to connect to the update
repository. If you are using a local USB device for your
update repository and this problem persists, create the
repository again (see "Configuring a Local USB Device")
or provide an alternate repository.
LC1_2.book Page 73 Wednesday, November 18, 2009 9:42 AM
74 Troubleshooting and Frequently Asked Questions
File seek of catalog
archive failed
The catalog downloaded to compare currently installed
versions with the latest available versions is corrupt.
This error may be caused by temporary network problems;
try again later to connect to the update repository. If you are
using a local USB device for your update repository and this
problem persists, create the repository again (see
"Configuring a Local USB Device") or provide an alternate
repository.
FTP download of
catalog sign file failed
The catalog downloaded to compare currently installed
versions with the latest available versions has failed the
digital signature verification check. This error may be caused
by temporary network problems; try again later to connect to
the update repository. If you are using a local USB device for
your update repository and this problem persists, create the
repository again (see "Configuring a Local USB Device") or
provide an alternate repository.
Unable to resolve host
name
This error is probably caused by one of the following:
• You have specified an invalid name for the platform update
FTP server. See "Select Download Method."
• The Domain Name Server (DNS) specified in the
Network
Settings
page is invalid. See "Using USC Settings Wizard."
DUP corrupted USC - LCE has detected that one or more of the DUPs used
to update your system is corrupted. If you are using a local
USB device for your update repository and this problem
persists, create the repository again (see "Configuring a
Local USB Device") or provide an alternate repository.
Please enter a valid
IPv6 Address for
this iDRAC
Enter a valid IPv6 network address for iDRAC.
See "IPv6 Configuration."
Please specify the
IPv6 network address
prefix length in the
range of 1 to 128
Enter the number of significant bits in the IPv6 address
prefix for your network. The prefix length should be
between 1 and 128. See "IPv6 Configuration."
Table A-3. USC - LCE Error Messages and Resolutions (continued)
Error Message Resolution
LC1_2.book Page 74 Wednesday, November 18, 2009 9:42 AM
Troubleshooting and Frequently Asked Questions 75
Please enter the IPv6
Default Gateway
address
Enter the IPv6 default gateway address.
See "IPv6 Configuration."
Please enter a valid IPv6
DNS Server 1 Address
Enter a valid IPv6 DNS Server1 address.
See "IPv6 Configuration."
Please enter a valid IPv6
DNS Server 2 Address
Enter a valid IPv6 DNS Server2 address.
See "IPv6 Configuration."
Please enter a valid
iDRAC Name of
up to 63 characters
Enter a valid iDRAC name that is less than or
equal to 63 characters.
Please enter a valid
Domain Name of
up to 64 characters
Enter a valid domain name that is less than or
equal to 64 characters.
Please enter a valid Host
Name of up to
62 characters
Enter a valid host name that is less than or
equal to 62 characters.
Please enter a value in
the range of 1 to 4094
Enter a VLAN ID between 1 and 4094. See "Advanced LAN
Configuration."
Please enter a value in
the range of 0 to 7
Enter a VLAN ID priority value between 0 and 7.
See "Advanced LAN Configuration."
iDRAC communication
failure. Please power
down, unplug the
system, wait 5 seconds,
apply power and
power on
Communication with iDRAC has failed. To resolve
this issue:
1
Turn off the system, and then unplug it.
2
Wait 5 seconds.
3
Plug the system back in, and then turn it on.
iDRAC hard failure.
Please power down,
unplug the system, wait
5 seconds, apply power
and power on
Connection with iDRAC has failed. To resolve this issue:
1
Turn off the system, and then unplug it.
2
Wait 5 seconds.
3
Plug the system back in, and then turn it on.
Table A-3. USC - LCE Error Messages and Resolutions (continued)
Error Message Resolution
LC1_2.book Page 75 Wednesday, November 18, 2009 9:42 AM
76 Troubleshooting and Frequently Asked Questions
RAID configuration
failed
USC - LCE failed when creating the RAID configuration.
To resolve this issue:
1
Reboot the system.
2
Re-enter USC - LCE by pressing the
<F10>
key.
3
Try again to create the RAID configuration.
Generic Failure USC - LCE experienced an unidentified error when creating
the RAID configuration. To resolve this issue:
1
Reboot the system.
2
Re-enter USC - LCE by pressing the
<F10>
key.
3
Try again to create the RAID configuration.
Sufficient physical disks
not available on any
supported RAID
controller. The wizard
will exit.
You do not have a sufficient number of disks to support
RAID configuration—you must attach more physical disks
and start the RAID Configuration wizard again.
Please select required
number of physical
disk(s) for current span
The number of physical disks you selected for the current
RAID span is incorrect. Review your span selections,
and enter the correct number.
No physical disk has
been selected for this
virtual disk
The number of physical disks you selected for the virtual
disk is insufficient. Review the minimum number of
physical disks required for the current RAID level, and select
at least that number of physical disks.
No controller is present
in the system
No RAID controller is present in your system. To resolve
this issue:
1
Add a supported RAID controller that includes two or more
physical disks.
2
Re-enter USC - LCE by pressing the
<F10>
key.
3
Restart the
RAID Configuration
wizard.
No valid RAID level
found
The number of physical disks attached to your system is
insufficient for the RAID level you selected. Attach more
physical disks and try again.
Table A-3. USC - LCE Error Messages and Resolutions (continued)
Error Message Resolution
LC1_2.book Page 76 Wednesday, November 18, 2009 9:42 AM
Troubleshooting and Frequently Asked Questions 77
An error occurred. One
or more settings may
not be saved.
An error occurred when changing Hardware Advanced
Configuration settings. To resolve this issue:
1
Reboot the system.
2
Re-enter USC - LCE by pressing the
<F10>
key.
3
Change the settings again.
An error occurred. One
or more settings may
not be restored.
An error occurred when restoring Hardware Advanced
Configuration settings. To resolve this issue:
1
Reboot the system.
2
Re-enter USC - LCE by pressing the
<F10>
key.
3
Re-open the
Advanced Configuration
screen.
This feature is not
supported in this
configuration
Your modular system does not support the
feature you selected.
Table A-4. Lifecycle Controller Error Messages and Resolutions
Error Message Resolution
General failure An error has occurred. No other details are available
at this time.
1
Run the command again.
2
Reset iDRAC and run the command.
Lifecycle Controller is
being used by another
process
Lifecycle Controller is currently locked by another process.
Ensure that the process is completed before attempting to
run another command.
1
Run the command again after sometime.
2
Ensure that USC or DUP is not running.
3
Reset iDRAC and run the command
Table A-3. USC - LCE Error Messages and Resolutions (continued)
Error Message Resolution
LC1_2.book Page 77 Wednesday, November 18, 2009 9:42 AM
78 Troubleshooting and Frequently Asked Questions
Cannot access Driver
Pack partition in
Lifecycle Controller.
Driver Pack partition in Lifecycle Controller is not
accessible. The Lifecycle Controller might be corrupted.
1
Reset iDRAC and run the command.
Driver Pack not found in
Lifecycle Controller
No Driver Pack in Lifecycle Controller.
1
Update the Driver Pack using USC or DUP and then run
the command again.
Cannot allocate memory Unable to dynamically allocate memory to
perform the task.
1
Reset iDRAC and run the command.
Driver Pack does not
have drivers for the
selected operating
system.
Lifecycle Controller does not have any drivers for the
selected operating system. The installation will have to use
the native drivers present on the operating system media.
Cannot create
USB device to copy
drivers for the selected
operating system.
Unable to create USB device to copy drivers for selected
operating system. iDRAC may not be operating normally
1
Reset iDRAC and run the command again.
Cannot mount
USB device to copy
drivers for the selected
operating system.
Unable to access the newly created USB device to copy
drivers for selected operating system. IDRAC may not be
operating normally
1
Reset iDRAC and run the command again
Unable to expose
USB device containing
operating system drivers
to host system.
Unable to expose the newly created USB device (with
drivers for selected operating system) to the host server.
IDRAC may not be operating normally.
1
Reset iDRAC and run the command again.
Mount network share
failed - incorrect
username or password.
Unable to mount the network share using the credentials
specified in the command. Either username or password
is incorrect.
1
Run the command again with correct username and
password.
Table A-4. Lifecycle Controller Error Messages and Resolutions (continued)
Error Message Resolution
LC1_2.book Page 78 Wednesday, November 18, 2009 9:42 AM
Troubleshooting and Frequently Asked Questions 79
Mount network share
failed - incorrect
IP address or
share name.
Unable to mount the network share using the credentials
specified in the command. Either IP address or share name
is incorrect.
1
Run the command again with correct IP address and
share name.
Exposing ISO image as
internal device to the
host system failed.
Unable to expose the ISO image as internal CD device to
the host system. The ISO file is no longer present,
network errors are preventing access to the ISO file,
or IDRAC may not be operating normally.
1
Reset iDRAC and run the command again.
Unable to locate the
ISO image on the
network share point.
Unable to find the ISO file specified in the network share.
Ensure that you have specified the correct path to the
ISO file in the command and all other user
credentials are correct.
1
Run the command again with correct path to ISO file.
The fork() command
for a child process to do
the task failed
Failed to execute fork() system call to perform the task in
a child process. IDRAC may not be operating normally.
1
Reset iDRAC and run the command
Unable to get size or
label from Driver Pack
for selected operating
system.
Unable to get the size or label for selected operating
system from the Driver Pack present in Lifecycle
Controller. The driver pack may be corrupt.
1
Update the driver pack using USC or DUP and run the
command again
Unable to boot
to ISO image
Booting to ISO has failed. Either BIOS was unable to
boot to the ISO image or provider did not get a response
in 5 minutes from BIOS on successful boot to ISO image.
1
Ensure there is no POST error that resulted in user
interaction (Press F1 to continue or F2 to run setup).
2
Reset iDRAC and run the command
Unable to detach
ISO image from the host
Unable to detach ISO image from the host. Either the
image may have already detached or IDRAC may not
be operating normally.
1
Reset iDRAC to automatically detach the ISO image.
Table A-4. Lifecycle Controller Error Messages and Resolutions (continued)
Error Message Resolution
LC1_2.book Page 79 Wednesday, November 18, 2009 9:42 AM
80 Troubleshooting and Frequently Asked Questions
Unable to continue
with DetachISOImage -
another command is in
the process of exposing
ISO Image and
booting to it.
Cannot continue with DetachISOImage because another
command is in the process of exposing ISO image and
booting to it.
1
See ConcreteJob status to ensure that the current running
process is complete and then run DetachISOImage.
Unable to continue
with DetachDrivers -
UnPackAndAttach
is in progress
1
Wait until UnpackAndAttach finishes and then run
DetachDrivers.
Unable to detach
USB device containing
operating system drivers.
Detaching the USB device (that contains drivers for the
operating system installation) from the host has failed.
The device may have been detached already or
IDRAC may not be operating normally.
1
Reset iDRAC to detach this device automatically.
Unable to continue with
BootToPXE - another
command is running.
Unable to continue with BootToPXE command because
another process is using Lifecycle Controller.
1
See ConcreteJob status to ensure that the current running
process is complete and then run BootToPXE.
Copying drivers for
selected operating
system failed.
Copying drivers for selected operating system failed.
The Driver Pack may be corrupt.
1
Update the Driver Pack using USC or DUP and then run
the command again.
Hash verification on
the ISO image failed.
Hash verification on the ISO image has failed. The hash
value specified in the command is either not correct or the
ISO image has been changed.
1
Verify that the hash value specified in the command is
correct.
2
Ensure that the ISO has not been changed - replace the
ISO image on the share and run the command again.
Driver Pack config file
not found in Lifecycle
Controller. Driver Pack
might be corrupt.
Driver Pack config file not found in Lifecycle Controller.
Driver Pack may be corrupt.
1
Update the Driver Pack using USC or DUP and then run
the command again.
Table A-4. Lifecycle Controller Error Messages and Resolutions (continued)
Error Message Resolution
LC1_2.book Page 80 Wednesday, November 18, 2009 9:42 AM
Troubleshooting and Frequently Asked Questions 81
Invalid value for
ExposeDuration - must
be 60-65535 seconds
The value specified for ExposeDuration is out of range.
It must be 60-65535 seconds
1
Run the command again with ExposeDuration
value 60 to 65535 seconds.
Copying operating
system drivers to
network share failed
Copying drivers for selected operating system to network
share failed. The share may be read-only or the driver pack
present in Lifecycle Controller may be corrupt.
1
Ensure that the network share has write permission.
2
Update the Driver Pack using USC or DUP and then run
the command again.
Unable to detach ISO
image from the system
Cannot continue with DetachISOImage because system
does not have attached ISO image.
1
Do not run DetachISOImage command.
Installed BIOS version
does not support this
method.
The system has an older version of BIOS that does not
support this method. Install the latest version of BIOS to
use this method.
1
Update the BIOS to version 1.2 or later and then run the
command again.
Unable to continue with
BootToPXE - ISO image
is attached to the
system.
Unable to continue with BootToPXE command because
system has an ISO image attached. Detach the ISO image
before continuing with BootToPXE.
1
Run DetachISOImage command and then run
BootToPXE.
Lifecycle Controller is
disabled
Lifecycle Controller is disabled on the system, so none of
the remote enablement OSD commands will work.
Ensure Lifecycle Controller is enabled before running
any command
1
Reboot the system and enable System Services using
CTLR+E option in the POST
Boot to ISO Image has
been cancelled by user
using CTLR+E option
on the server
User has cancelled system services by using CTLR+E
option during POST. This has effectively cancelled the
WSMAN request to boot to ISO
1
Do not cancel system services using CTLR+E during
POST when system is rebooting to the ISO
Table A-4. Lifecycle Controller Error Messages and Resolutions (continued)
Error Message Resolution
LC1_2.book Page 81 Wednesday, November 18, 2009 9:42 AM
82 Troubleshooting and Frequently Asked Questions
Frequently Asked Questions
When USC - LCE downloads updates, where are the files stored?
The files are stored in non-volatile memory, located on the main system
board. This memory is not removable and is not accessible through the
operating system.
Is a virtual media device or vFlash card required to store data for updates?
No. The files are stored in memory on the main system board.
What is virtual media?
Virtual media is remote media—like CDs, DVDs, and USB keys—that a
server identifies as local media.
What should I do if an update fails?
If an update fails, USC-LCE will reboot and then attempt all the remaining
pending updates selected. After the final reboot, the system returns to the
USC-LCE Home page. Launch Platform Updates again and then re-select
the update that had failed and click Apply.
What is vFlash or virtual flash?
vFlash is a formatted SD (Secure Digital) card that plugs into iDRAC6
Enterprise. vFlash can be formatted and enabled via iDRAC to make it
accessible as a USB key for data storage. Virtual flash is a partition on vFlash
to which you can remotely write an ISO. See the Integrated Dell Remote
Access Controller 6 (iDRAC6) User’s Guide available at
support.dell.com/manuals for more information.
Can I add my own drivers to use for operating system installation?
No. You cannot add your own drivers for operating system installation.
See "Updating the Platform using the Platform Update Wizard" for
more information on updating the drivers that are used for operating
system installation.
LC1_2.book Page 82 Wednesday, November 18, 2009 9:42 AM
Troubleshooting and Frequently Asked Questions 83
Can I update the drivers used by an installed operating system through USC
or USC - LCE?
No. USC or USC - LCE only provides drivers that are required for operating
system installation. To update the drivers used by an installed operating
system, see your operating system’s help documentation.
Can I add my own drivers and firmware for updating USC or USC - LCE to a local
USB device?
No. Only drivers and firmware downloaded from the Server Update Utility
DVD’s are supported. See "Configuring a Local USB Device" for more
information.
Can I delete USC or USC - LCE?
No.
Can I use virtual media for the operating system media source during installation?
Yes. S
ee the
Integrated Dell Remote Access Controller 6 (iDRAC6) User’s Guide
for your system’s iDRAC device for more information (
available at
support.dell.com/manuals
).
Can I use a virtual USB for my update repository?
Yes. S
ee the
Integrated Dell Remote Access Controller 6 (iDRAC6) User’s Guide
for your system’s iDRAC device for more information (
available at
support.dell.com/manuals
).
What is UEFI? With which version does USC or USC - LCE comply?
UEFI (Unified Extensible Firmware Interface) is a specification that details
an interface for transitioning control from the pre-boot environment to the
operating system. USC or USC - LCE complies with UEFI version 2.1. See
www.uefi.org for more information.
LC1_2.book Page 83 Wednesday, November 18, 2009 9:42 AM
84 Troubleshooting and Frequently Asked Questions
Within Hardware Configuration, what is the difference between the Configuration
Wizards and Advanced Configuration?
USC - LCE offers two ways to configure hardware: Configuration Wizards and
Advanced Configuration.
Configuration Wizards guide you through a sequence of steps to configure
your system devices. The Configuration Wizards include iDRAC, RAID,
System Date/Time, and Physical Security. See "Hardware Configuration"
for more information.
Advanced Configuration allows you to configure Human Interface
Infrastructure (HII) enabled devices (for example, NICs and BIOS).
See "Advanced Configuration" for more information.
Does USC or USC - LCE support configuration of all RAID levels and all RAID cards
for xx1x systems?
USC or USC - LCE supports RAID levels 0, 1, 5, 6, 10, 50, and 60 on
PERC 6 cards running PERC 6.1 firmware. RAID 0 and 1 are supported
on the SAS 6/iR.
Does USC - LCE support rollback of BIOS and firmware?
Yes. See "Rolling Back to Previous BIOS and Firmware Versions" for more
information.
Which devices support system updates?
USC - LCE currently supports updates to the BIOS, iDRAC firmware,
power supply firmware, and certain RAID and NIC controller firmware.
See "Updating the Platform using the Platform Update Wizard" for
more information.
Which devices are supported in Advanced Configuration within Hardware
Configuration?
Advanced Configuration is available for the BIOS and NIC. Depending on
your system configuration, other devices may also appear in Advanced
Configuration if they support the HII configuration standard. See "Hardware
Configuration" for more information.
LC1_2.book Page 84 Wednesday, November 18, 2009 9:42 AM
Troubleshooting and Frequently Asked Questions 85
What should I do if my system crashes while using USC or USC - LCE?
If your system crashes while using USC or USC - LCE, a black screen with red
text will appear. To resolve this problem, first try rebooting your system and
re-entering USC or USC - LCE. If that does not resolve the problem,
perform the steps in "Repairing USC" of "Repairing USC - LCE." If that does
not resolve the problem, contact Dell for technical assistance.
How do I find out the current installed version details of the USC-LCE product?
Click About on the left navigation pane.
What should I do if I have an issue with mouse synchronization when I access
USC LCE over the iDRAC KVM?
Ensure that the Single Cursor option under Tools in the iDRAC KVM menu
is selected on the iDRAC KVM client. See the Integrated Dell Remote Access
Controller 6 (iDRAC6) User’s Guide available on the Dell Support site at
support.dell.com/manuals for more information.
LC1_2.book Page 85 Wednesday, November 18, 2009 9:42 AM
86 Troubleshooting and Frequently Asked Questions
LC1_2.book Page 86 Wednesday, November 18, 2009 9:42 AM
Glossary 87
Glossary
BitLocker
A full disk encryption feature included with the Microsoft
®
Windows Server
®
2008 operating system that encrypts entire volumes.
Controller
A chip that controls the transfer of data between the microprocessor and memory
or between the microprocessor and a peripheral device, such as a disk drive or the
keyboard. RAID controllers perform RAID functions, such as striping and
mirroring to provide data protection.
disk pool
A logical grouping of disks attached to a RAID controller on which one or more
virtual disks can be created.
DUP
Dell Update Package. A self-contained executable in a standard package format.
Each Update Package is designed to update a single software component
on your system.
HII
Human Interface Infrastructure. HII is a UEFI-standard method for viewing and
setting a device's configuration.
hot spare
A physical disk that is available to aid in recovery of a logical drive.
logical drive
See
virtual disk
.
physical disk
A non-volatile, randomly addressable device for storing data. Physical disks are
rewritable and commonly referred to as disk drives.
RACADM
A command-line utility that provides a scriptable interface that allows you to
locally or remotely configure a remote access controller (RAC).
LC1_2.book Page 87 Wednesday, November 18, 2009 9:42 AM
88 Glossary
RAID
Redundant Array of Independent Disks
SAS
Serial Attached SCSI
SATA
Serial ATA
SBUU
Systems Build and Update Utility. An integrated tool for your Dell systems that
enables you to update BIOS and firmware in the pre-operating system
environment, apply these settings on the current system or on multiple systems,
and install the operating system.
SCSI
Small Computer Systems Interface
SD card
Secure Digital card. A solid-state memory card.
span
A span is a RAID technique used to combine storage space from groups of physical
disks into a RAID-10 virtual disk.
SSD
Solid state disk
SSM
System Service Manager. The SSM performs USC or USC - LCE functions, such as
downloading updates, as a background task.
stripe
See
striping
.
stripe element
A stripe element is the portion of a stripe that resides on a single physical disk.
See also
striping
.
stripe element size
The amount of disk space consumed by a stripe element.
LC1_2.book Page 88 Wednesday, November 18, 2009 9:42 AM
Glossary 89
stripe size
The total disk space consumed by a stripe, not including a parity disk.
striping
Disk striping writes data across all physical disks in a virtual disk. Each stripe
consists of consecutive virtual disk data addresses that are mapped in fixed-size
units to each physical disk in the virtual disk using a sequential pattern.
For example, if the virtual disk includes five physical disks, the stripe writes data
to physical disks one through five without repeating any of the physical disks.
The amount of space consumed by a stripe is the same on each physical disk.
The portion of a stripe that resides on a physical disk is a stripe element. Striping
by itself does not provide data redundancy. Striping in combination with parity
does provide data redundancy.
TPM
Trusted Platform Module. TPM is a secure cryptoprocessor that stores
cryptographic keys used to protect data.
UEFI
Unified Extensible Firmware Interface. UEFI is a specification that details an
interface for transitioning control from the pre-boot environment to the operating
system. See
www.uefi.org
for more information.
virtual disk
A virtual disk refers to storage created by a RAID controller from one or more
physical disks. Although a virtual disk may be created from several physical disks,
it is seen by the operating system as a single disk. Depending on the RAID level
used, the virtual disk may retain redundant data in case of a disk failure.
LC1_2.book Page 89 Wednesday, November 18, 2009 9:42 AM
90 Glossary
LC1_2.book Page 90 Wednesday, November 18, 2009 9:42 AM
Index 91
Index
A
auto-discovery, 60
disable, 62
enable, 61
B
BIOS
configuring with HII, 53
rolling back, 32
BitLocker, 33
C
CLI, 7
D
deployment interfaces, 60
DHCP/DNS
configure, 61
DUP, 12, 21, 26, 87
E
error messages, 69
F
FAQs, 82
firmware
adding custom, 83
interrupting install, 32
rolling back, 32
FTP
configuring a local server for
updates, 54-55
H
hardware
advanced configuration, 52
configuration wizards, 34
configuring, 34
hardware diagnostics
updating the utility, 26
HII, 53
I
iDRAC
configuring, 35
Enterprise, 36, 42, 82
LC1_2.book Page 91 Wednesday, November 18, 2009 9:42 AM
92 Index
L
LAN
advanced configuration, 37
Linux
driver location, 21, 24
read-only file system, 23
updating drivers, 24
O
operating system
adding custom drivers, 82
deploying, 17, 19
launching the wizard, 18
using virtual media for
installation, 83
P
physical security
configuring, 34
platform
updating from local FTP
server, 54-55
R
RAID
configuration wizard, 20
configuring, 45
remote operating system
deployment, 63
deployment interface, 63
main features, 63
prerequisites and
dependencies, 66
use case, 66
workflow, 66
remote services, 7, 57
S
SUSE
driver location, 21
system crashes, 85
system date/time, 35
system services
canceling request to enter, 16
disabled, 12
not available, 12
systems services
update required, 12
T
TPM, 33
troubleshooting, 69
LC1_2.book Page 92 Wednesday, November 18, 2009 9:42 AM
Index 93
U
UEFI, 53, 83
USC
deleting, 83
disabling, 15
repair package, 26
storing update files, 82
updating, 15
wizards, 13
V
vFlash, 82
virtual disk
configuring as a boot device, 20
virtual media
using for operating system
installation, 83
W
web services for management, 57
Windows
drivers, 22
installing to C drive, 24
wizards
Diagnostics, 13
Hardware Configuration, 13
OS Deployment, 13
Platform Update, 13
Settings, 13
WS-MAN, 57
LC1_2.book Page 93 Wednesday, November 18, 2009 9:42 AM
94 Index
LC1_2.book Page 94 Wednesday, November 18, 2009 9:42 AM

Navigation menu
