Dell Openmanage Network Manager Web Client Guide 5.0

2015-01-05

: Dell Dell-Dell-Openmanage-Network-Manager-Web-Client-Guide-136343 dell-dell-openmanage-network-manager-web-client-guide-136343 dell pdf

Open the PDF directly: View PDF .
Page Count: 384 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Preface
Getting Started with Dell OpenManage Network Manager
Portal Conventions
Key Portlets
Resource Management
Visualize
File Server / File Management
Monitoring
Traffic Flow Analyzer
Change Management / ProScan
Actions and Adaptive CLI
Index

Dell OpenManage Network Manager version 5.0

Web Client Guide

Notes, and Cautions

A NOTE indicates important information that helps you make better use of your computer or software.

A CAUTION indicates potential harm to your data or hardware if you proceed as indicated.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, PowerEdge™, PowerVault™, PowerConnect™, OpenManage™, EqualLogic™,

KACE™, FlexAddress™ and Vostro™ are trademarks of Dell Inc. Microsoft

, Windows

, Windows Server

, MS-DOS

and Windows

Vista

are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. Red Hat Enterprise

Linux

and Enterprise Linux

are registered trademarks of Red Hat, Inc. in the United States and/or other countries.

Other trademarks and trade names may be used in this publication to refer to either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

2012-5 Rev. A02

1 Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Why Dell OpenManage Network Manager?. . . . . . . . . . . . . . . . . . . . . . . . . 9

Key Features

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Networks with Dell OpenManage Network Manager

. . . . . . .

Additional Products

. . . . . . . . . . . . . . . . . . . . . . .

Online Help / Filter

. . . . . . . . . . . . . . . . . . . . . . . .

How to: Use “How To” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Feedback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

A Note About Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2 Getting Started with Dell OpenManage Network Manager .15

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

System Basics

. . . . . . . . . . . . . . . . . . . . . . . . . .

Single Server Sizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Sizing for Standalone Installations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Network Basics

. . . . . . . . . . . . . . . . . . . . . . . . .

Authentication

. . . . . . . . . . . . . . . . . . . . . . . . . .

Supported PowerConnect Models

. . . . . . . . . . . . . . . .

Windows Management Interface

. . . . . . . . . . . . . . . . .

Getting Started. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Installation and Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

How to: Set Linux Permissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Perl

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Starting Web Client

. . . . . . . . . . . . . . . . . . . . . . . .

Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

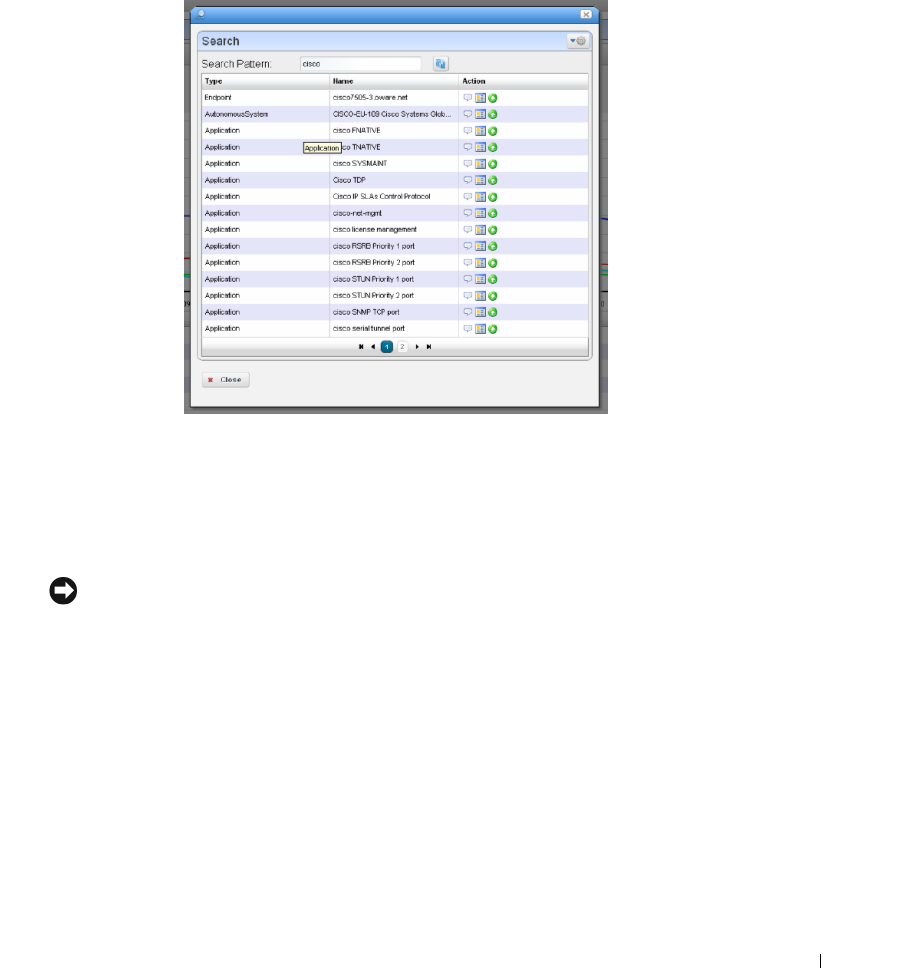

Search Indexes

. . . . . . . . . . . . . . . . . . . . . . . . . .

[My Account]

. . . . . . . . . . . . . . . . . . . . . . . . . . .

RCSynergy / [Domain]

. . . . . . . . . . . . . . . . . . . . . .

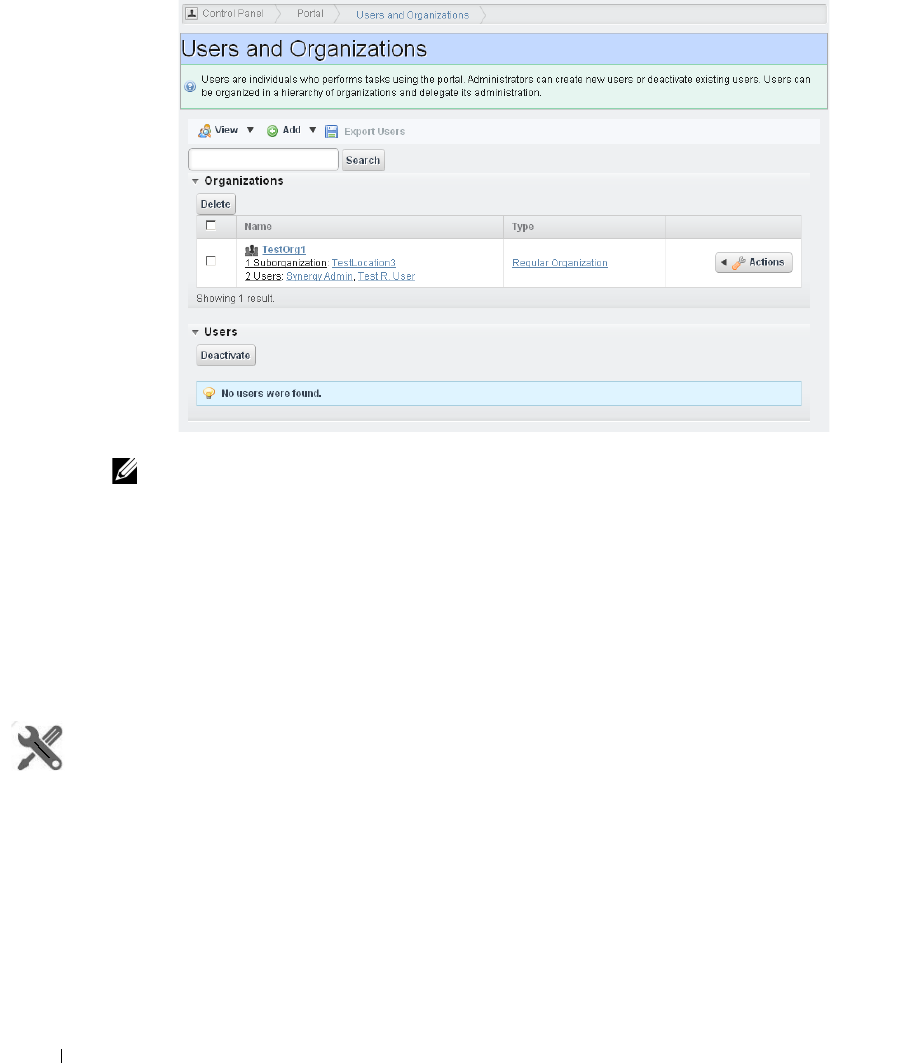

Portal > Users and Organizations

. . . . . . . . . . . . . . . . .

How to: Add Users and connect them to Roles . . . . . . . . . . . . . . . . 36

How to: Configure Organizations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Public / Private Page Behavior

. . . . . . . . . . . . . . . . . .

How to: Add and Configure User Roles / Permissions . . . . . . . . . . 40

Portal > Roles

. . . . . . . . . . . . . . . . . . . . . . . . . .

Portal > Portal Settings

. . . . . . . . . . . . . . . . . . . . . .

Portal > [Other]

. . . . . . . . . . . . . . . . . . . . . . . . . .

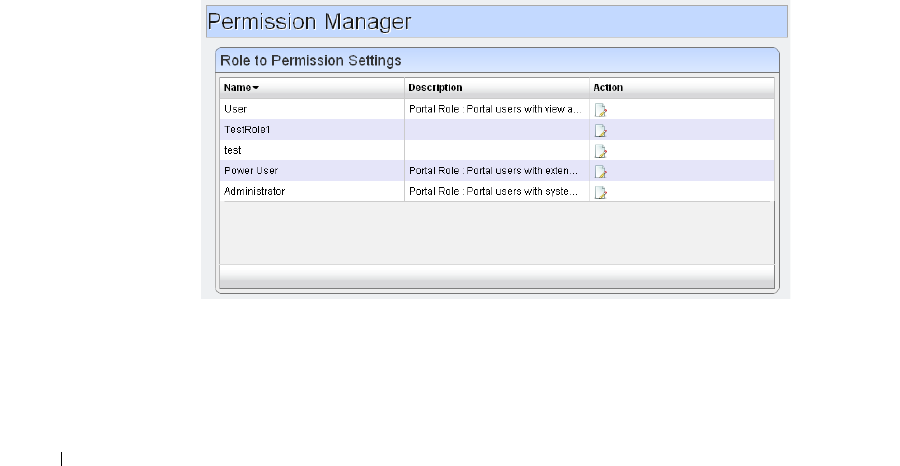

Redcell > Permission Manager

. . . . . . . . . . . . . . . . . .

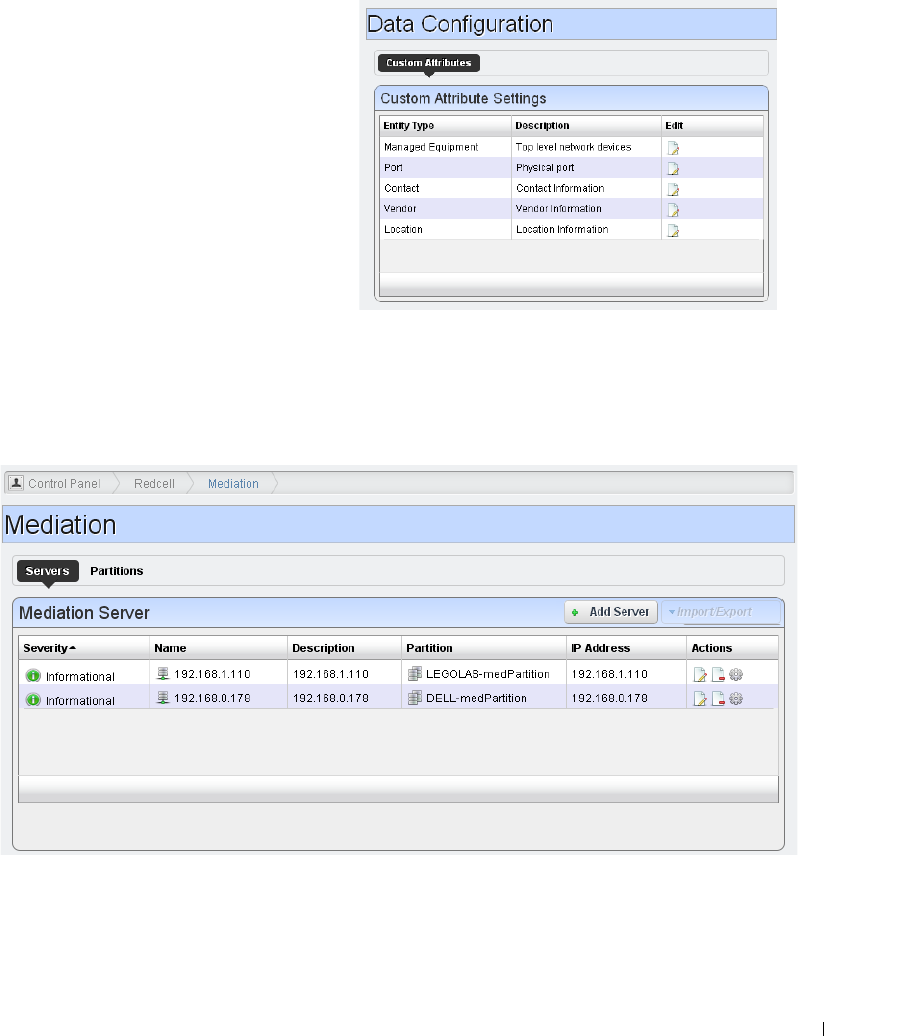

Redcell > Data Configuration

. . . . . . . . . . . . . . . . . . .

Redcell > Mediation

. . . . . . . . . . . . . . . . . . . . . . .

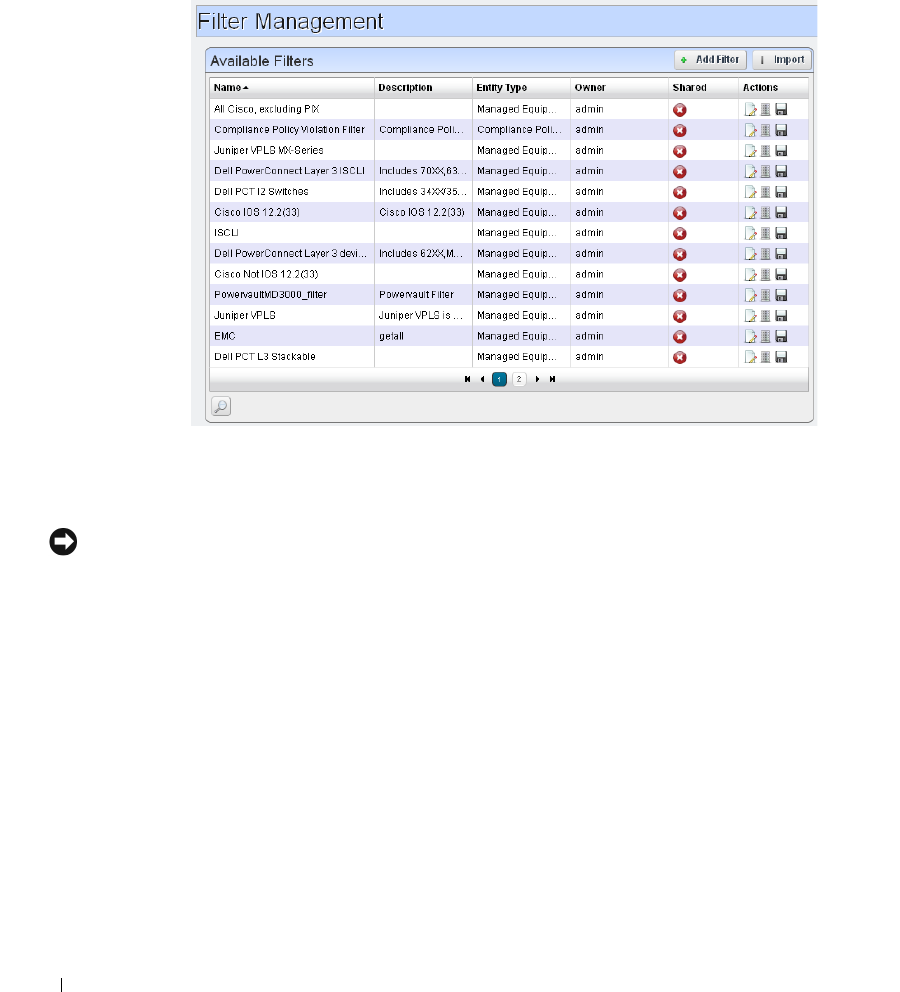

Redcell > Filter Management

. . . . . . . . . . . . . . . . . . .

Server

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Redcell > Database Aging Policies (DAP). . . . . . . . . . . . . . . . . . . . . . . . . . 50

Contents

How to: DAP Workflow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

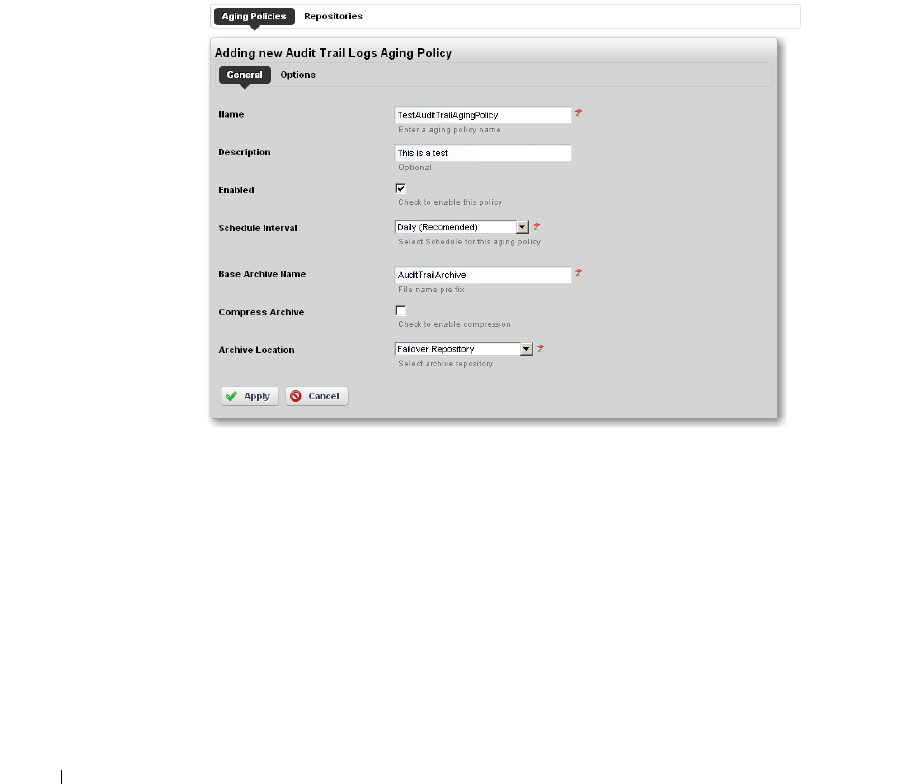

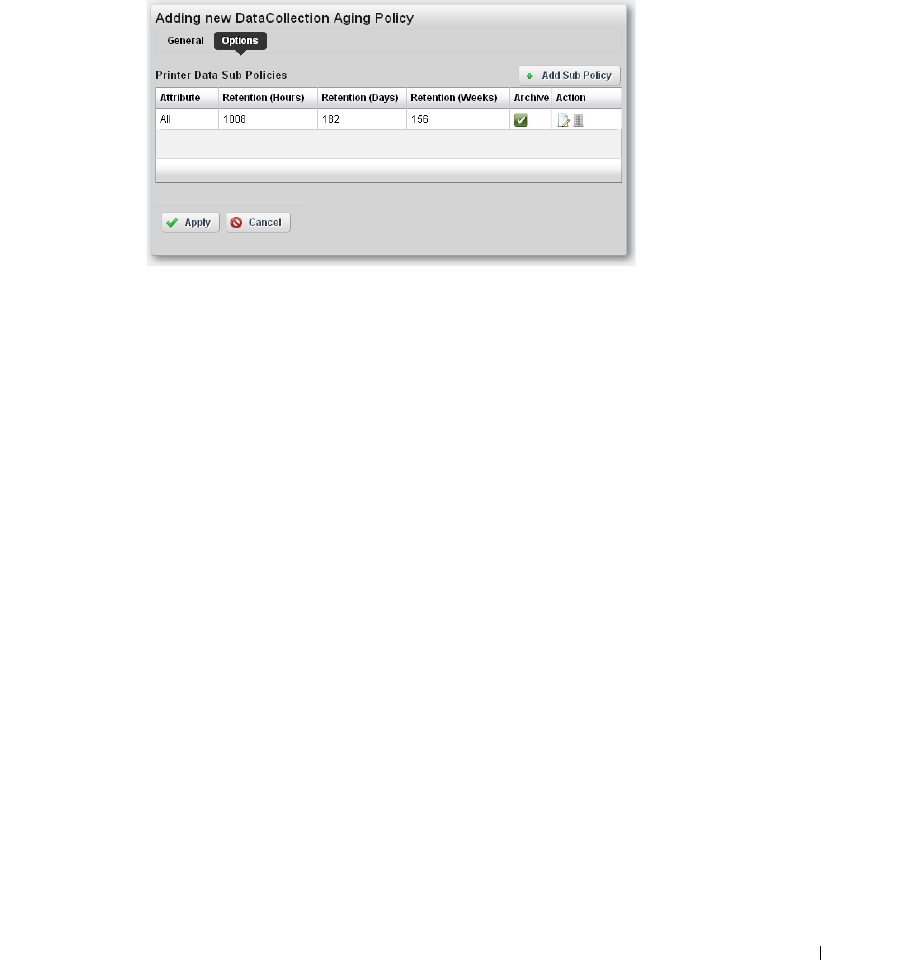

Aging Policies Editor

. . . . . . . . . . . . . . . . . . . . . . .

Aging Policies Options

. . . . . . . . . . . . . . . . . . . . . .

Sub-Policies

. . . . . . . . . . . . . . . . . . . . . . . . . . .

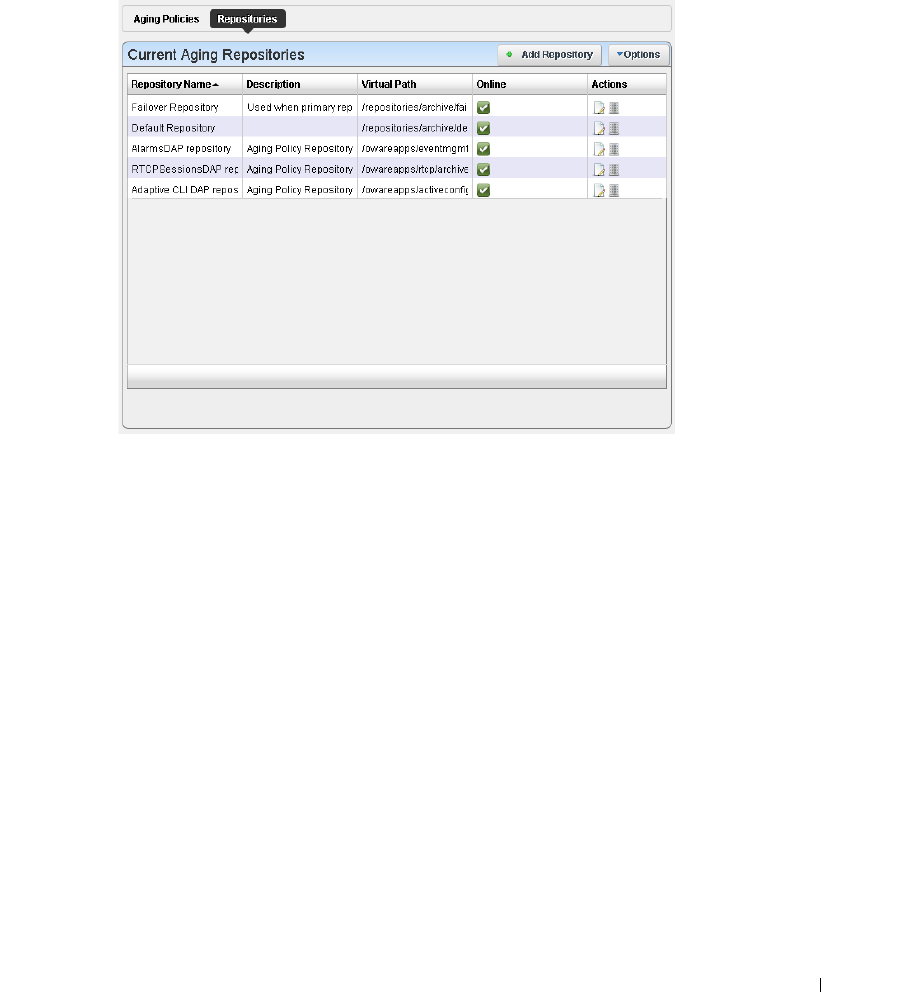

Repositories

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Portlet Level Permissions

. . . . . . . . . . . . . . . . . . . . .

How to: Configure Portlet Permissions . . . . . . . . . . . . . . . . . . . . . . . 59

How to: Configure Resource Level Permissions . . . . . . . . . . . . . . . . . . 59

Quick Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

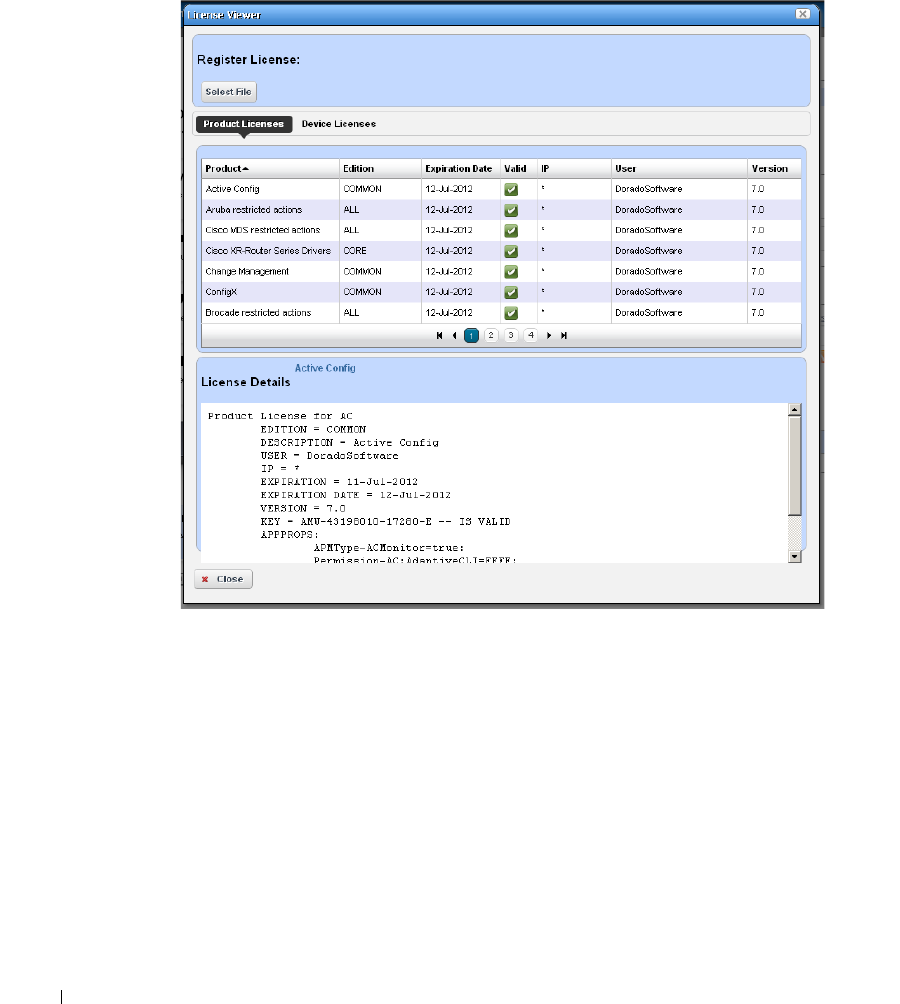

License Viewer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

How to: Register a License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

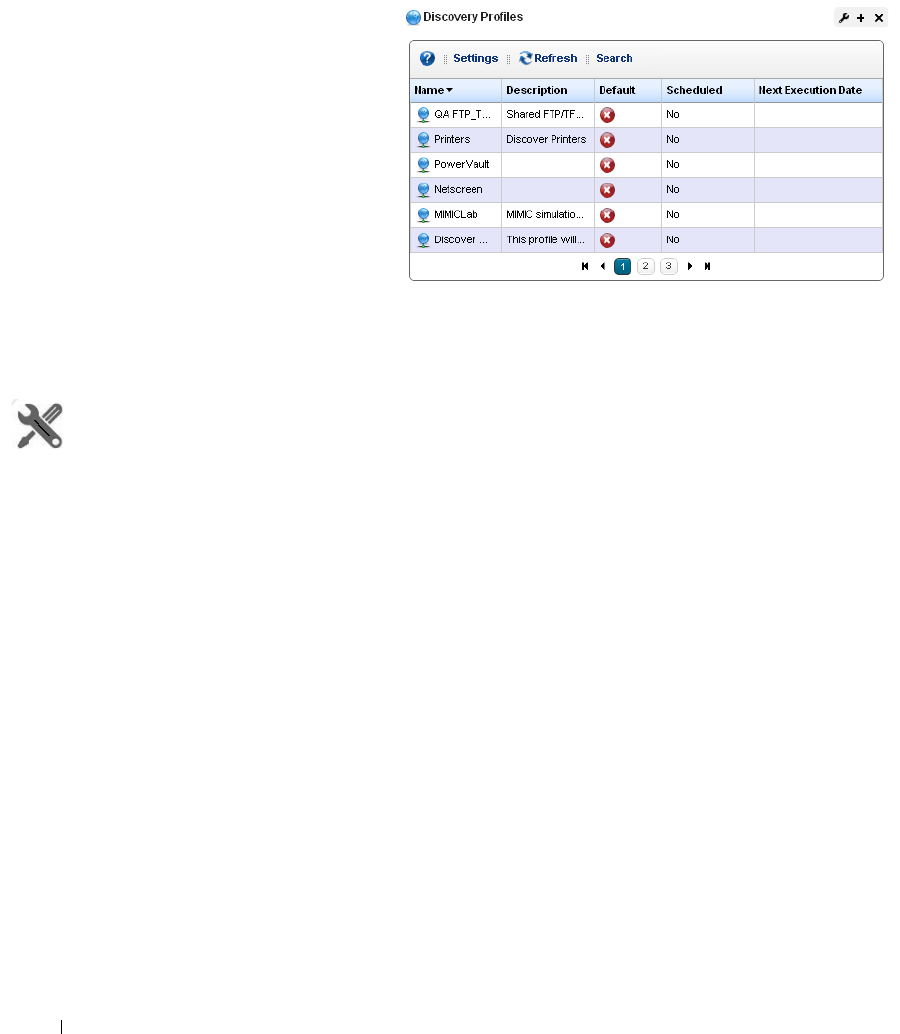

Discovery Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

How to: Discover Your Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Managed Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Common Setup Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

SMTP Configuration

. . . . . . . . . . . . . . . . . . . . . . .

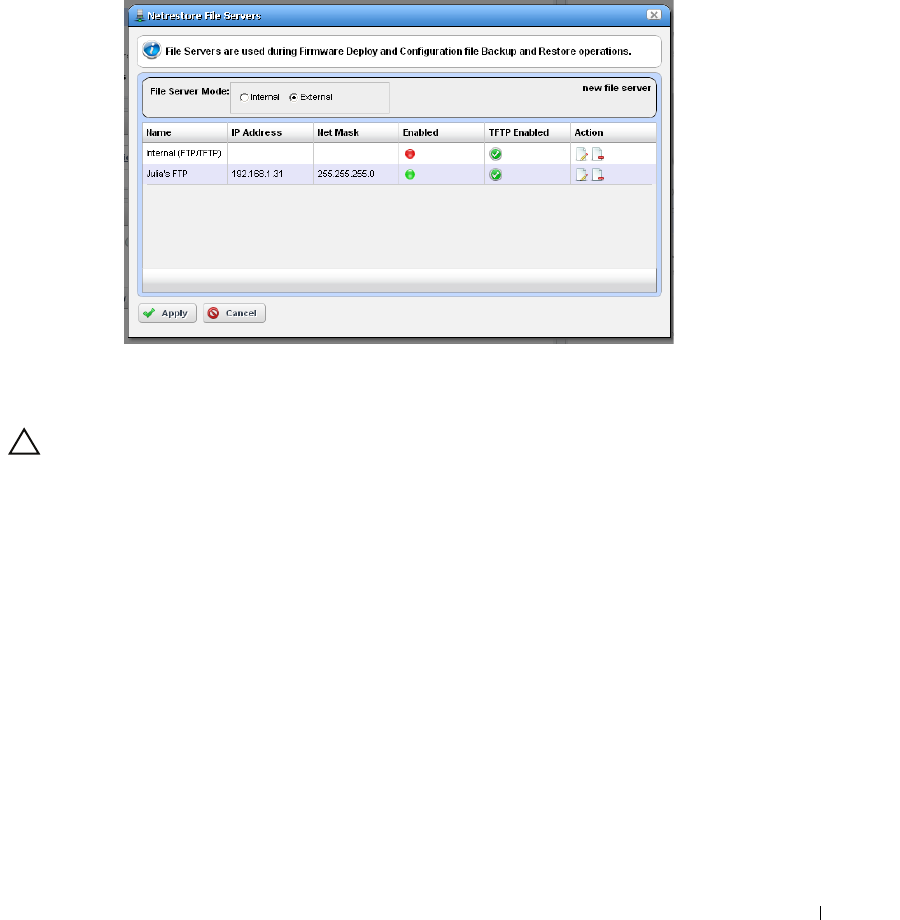

Netrestore File Servers

. . . . . . . . . . . . . . . . . . . . . .

3 Portal Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

Portal Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Tooltips

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Refresh

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

The Back Button

. . . . . . . . . . . . . . . . . . . . . . . . .

Show Versions

. . . . . . . . . . . . . . . . . . . . . . . . . .

The Dock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Status Bar Alerts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Chat / Conferencing

. . . . . . . . . . . . . . . . . . . . . . .

Menu Bar

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

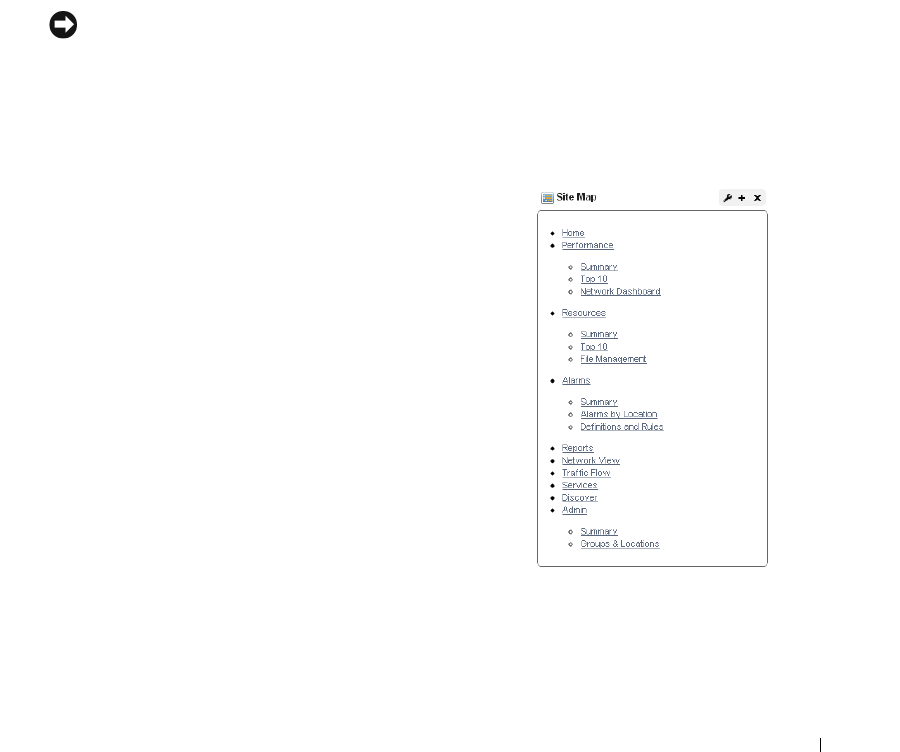

Site Map

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Graphs

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Portlets

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Expanded Portlets

. . . . . . . . . . . . . . . . . . . . . . . .

How to: Show / Hide / Reorder Columns . . . . . . . . . . . . . . . . . . . . . . 84

How to: Filter Expanded Portlet Displays . . . . . . . . . . . . . . . . . . . . . . 85

Common Menu Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Import / Export

. . . . . . . . . . . . . . . . . . . . . . . . . .

Sharing

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How to: Share a Resource . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Edit Custom Attributes

. . . . . . . . . . . . . . . . . . . . . .

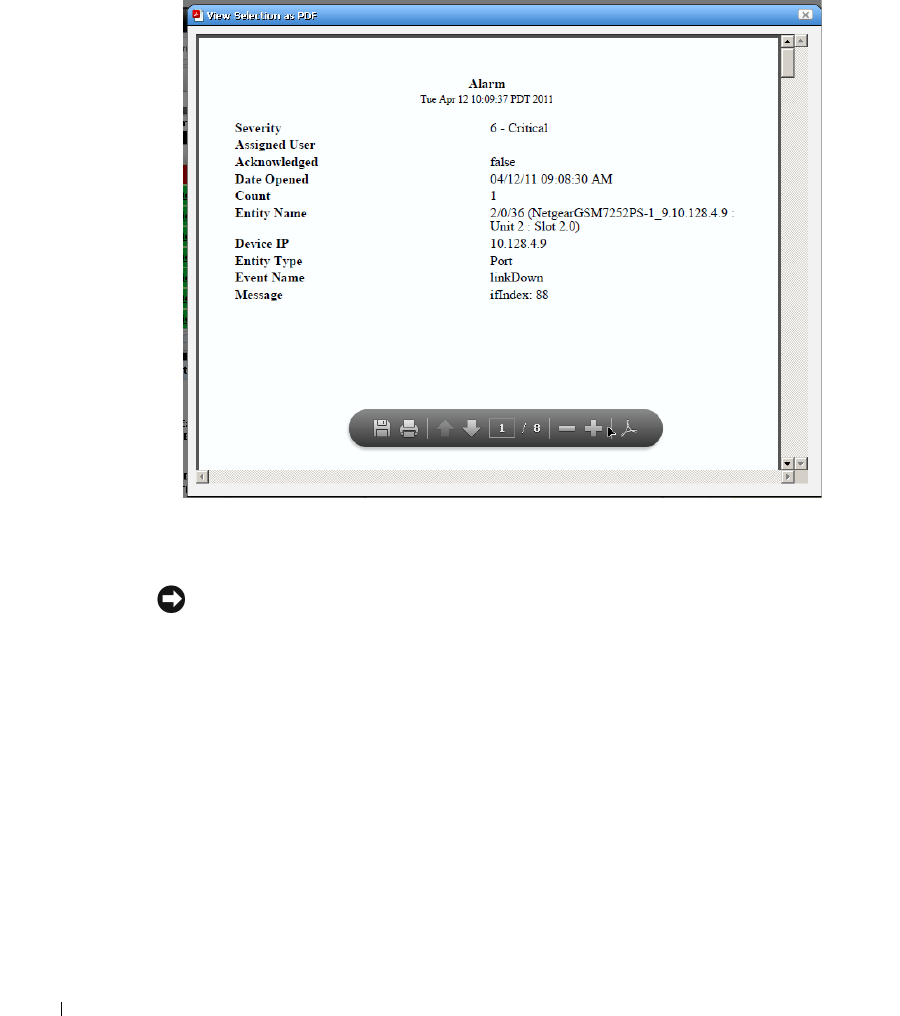

View as PDF

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Tag

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Audit Trail / Jobs Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Audit Trail Viewer

. . . . . . . . . . . . . . . . . . . . . . . . .

Audit Trail Portlet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Schedules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Schedules Portlet

. . . . . . . . . . . . . . . . . . . . . . . .

4 Key Portlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .99

Overview of Key Portlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

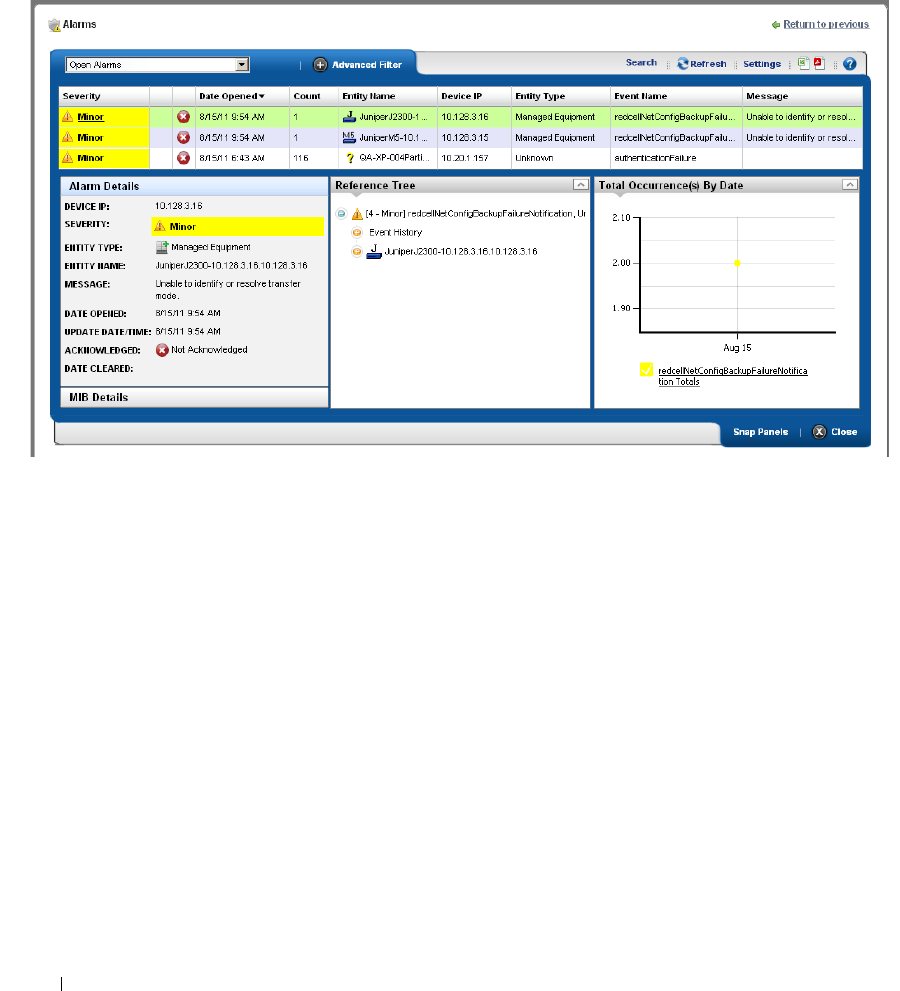

Expanded Alarm Portlet

. . . . . . . . . . . . . . . . . . . .

102

Event History. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

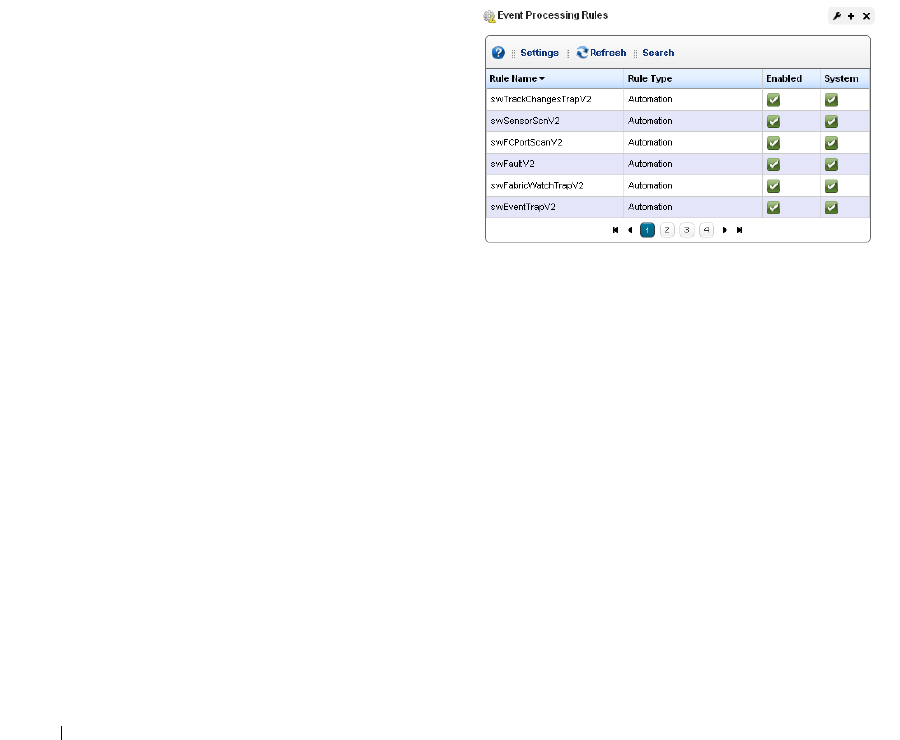

Event Processing Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

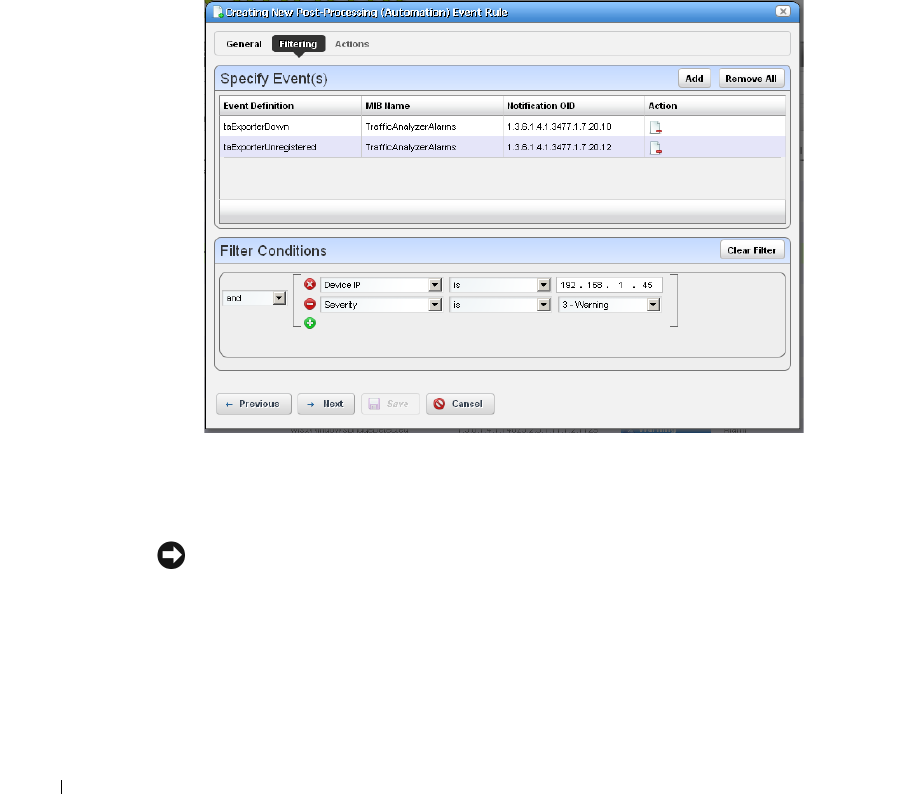

How to: Create Event Processing Rules . . . . . . . . . . . . . . . . . . . . . 109

Rule Editor

. . . . . . . . . . . . . . . . . . . . . . . . . . .

111

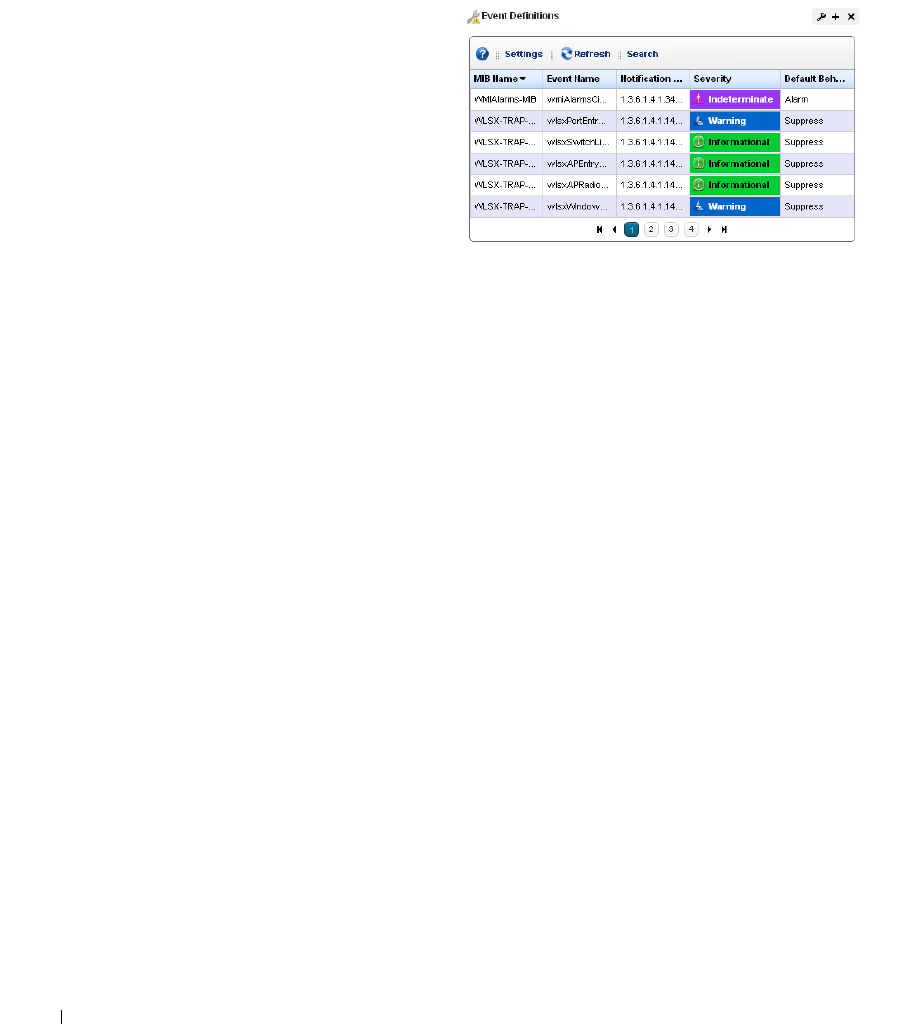

Event Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Event Definition Editor

. . . . . . . . . . . . . . . . . . . . .

128

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

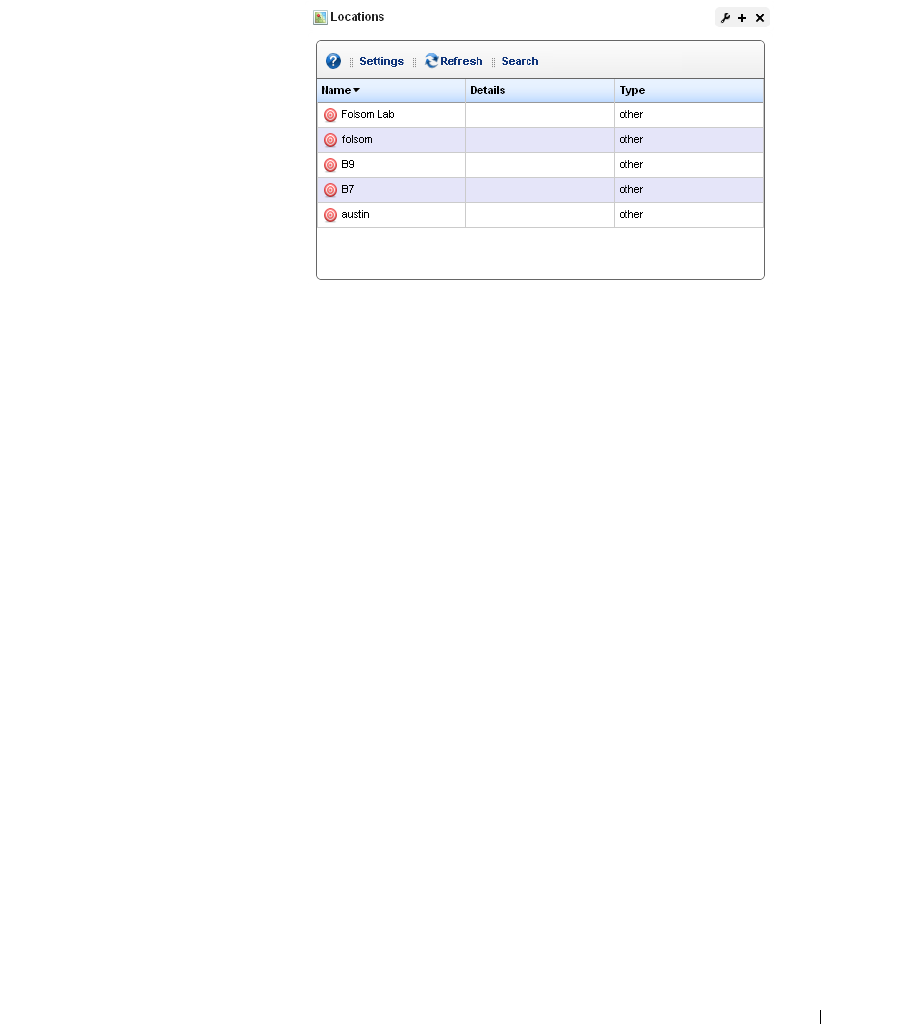

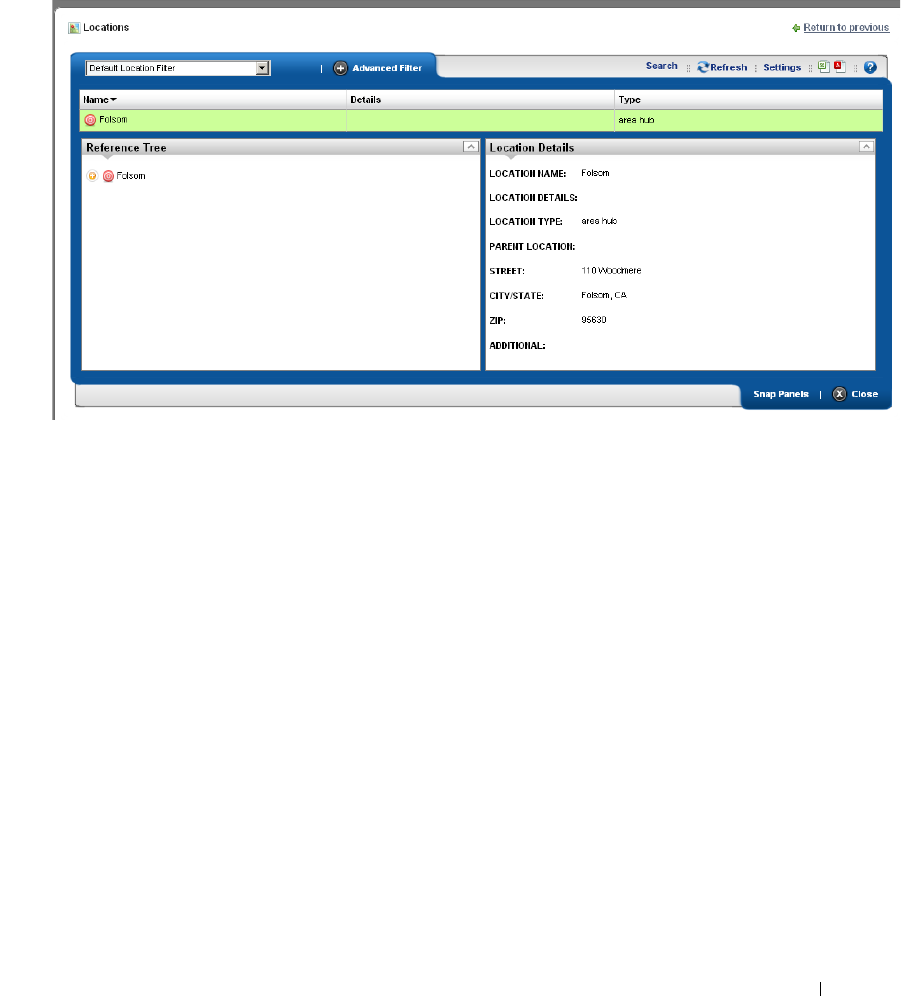

Locations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

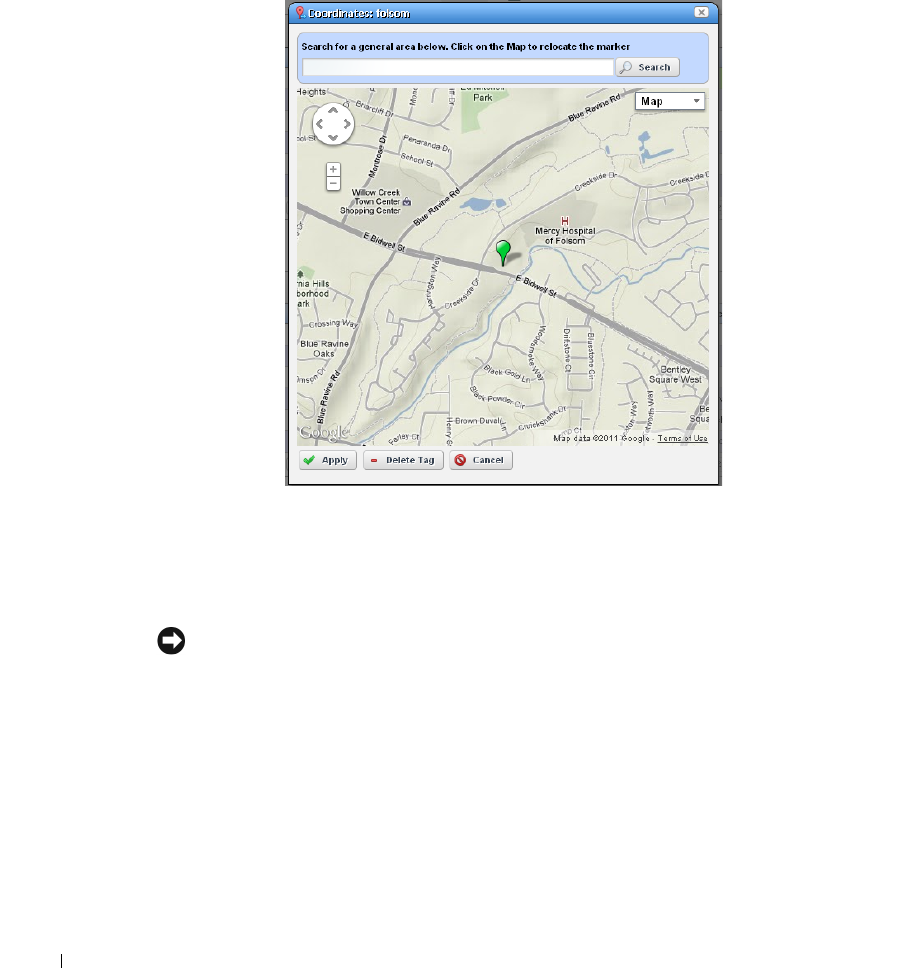

Tag

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

138

Vendors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

5 Resource Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

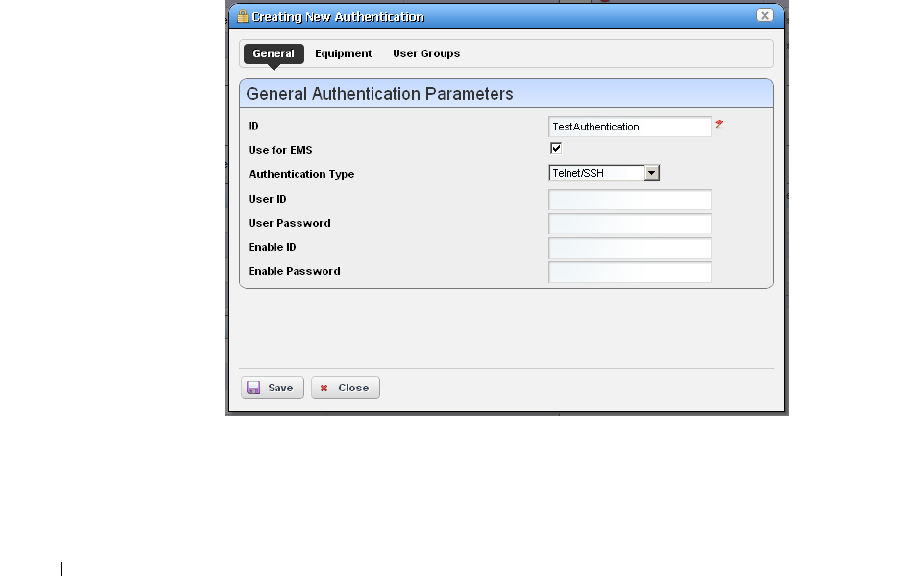

Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

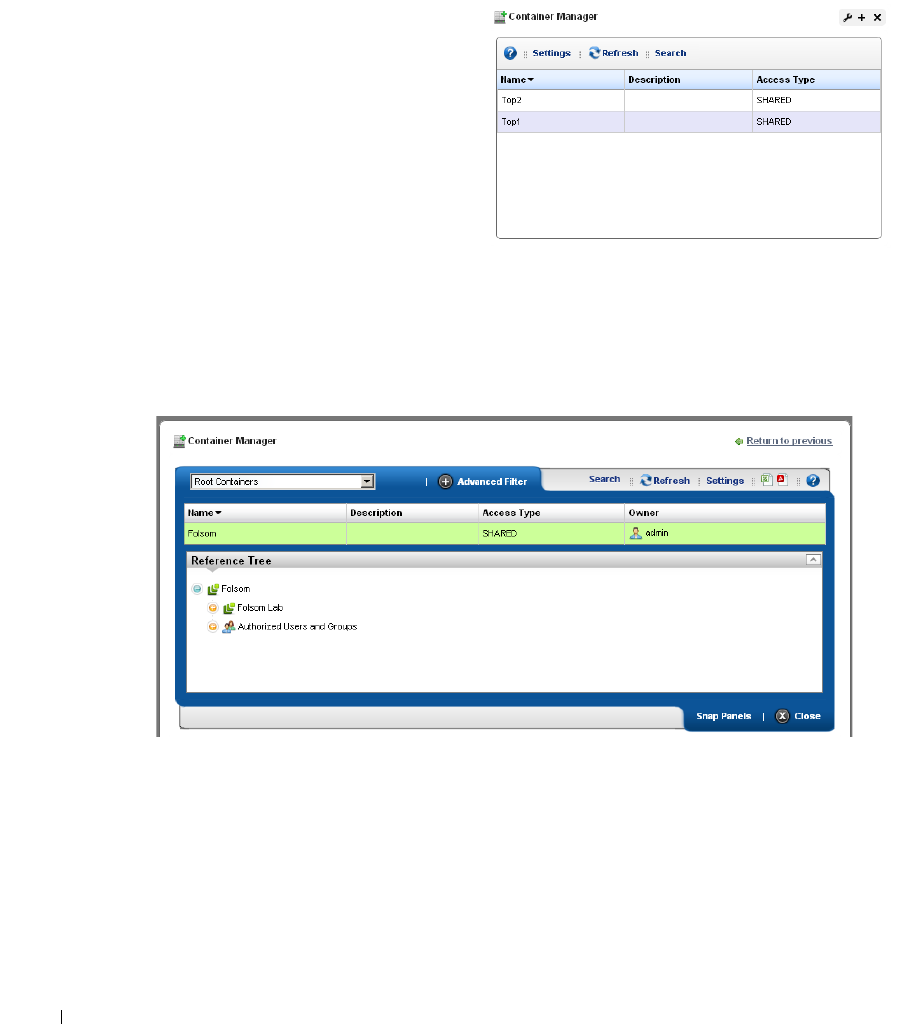

Container Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Container Manager Expanded

. . . . . . . . . . . . . . . . .

146

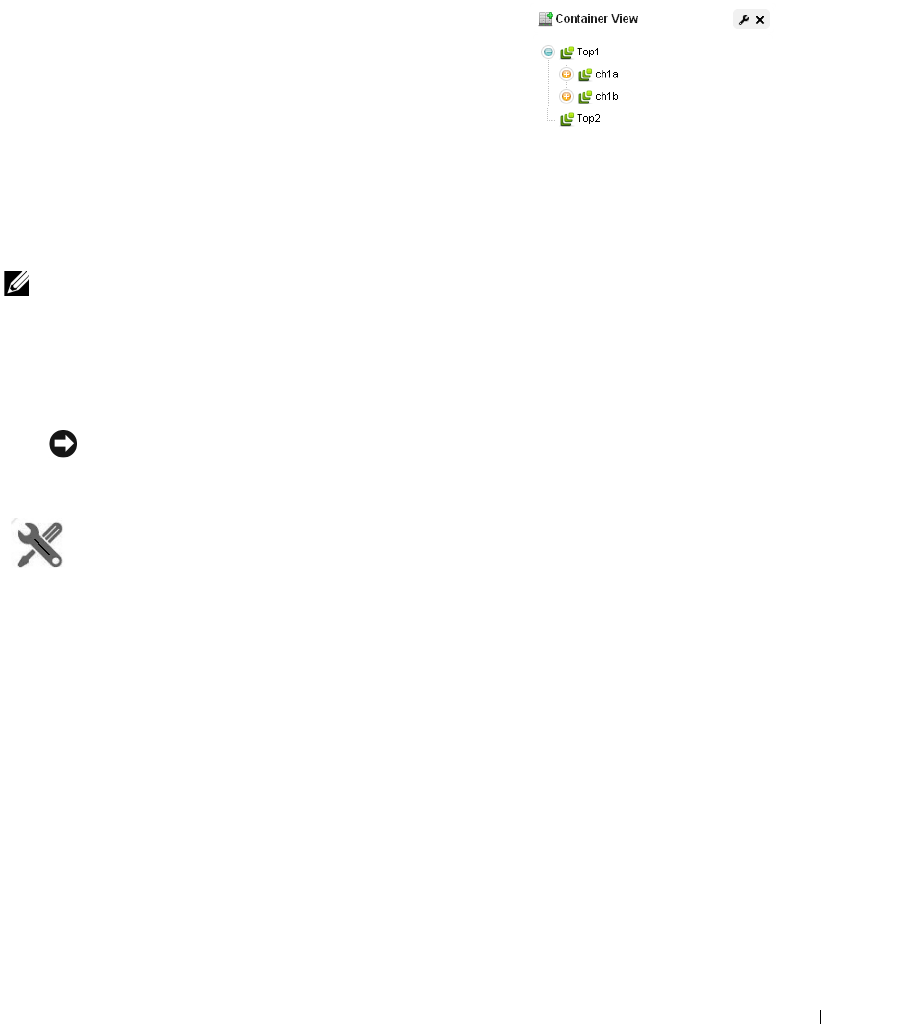

Container View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

How to: Use Containers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

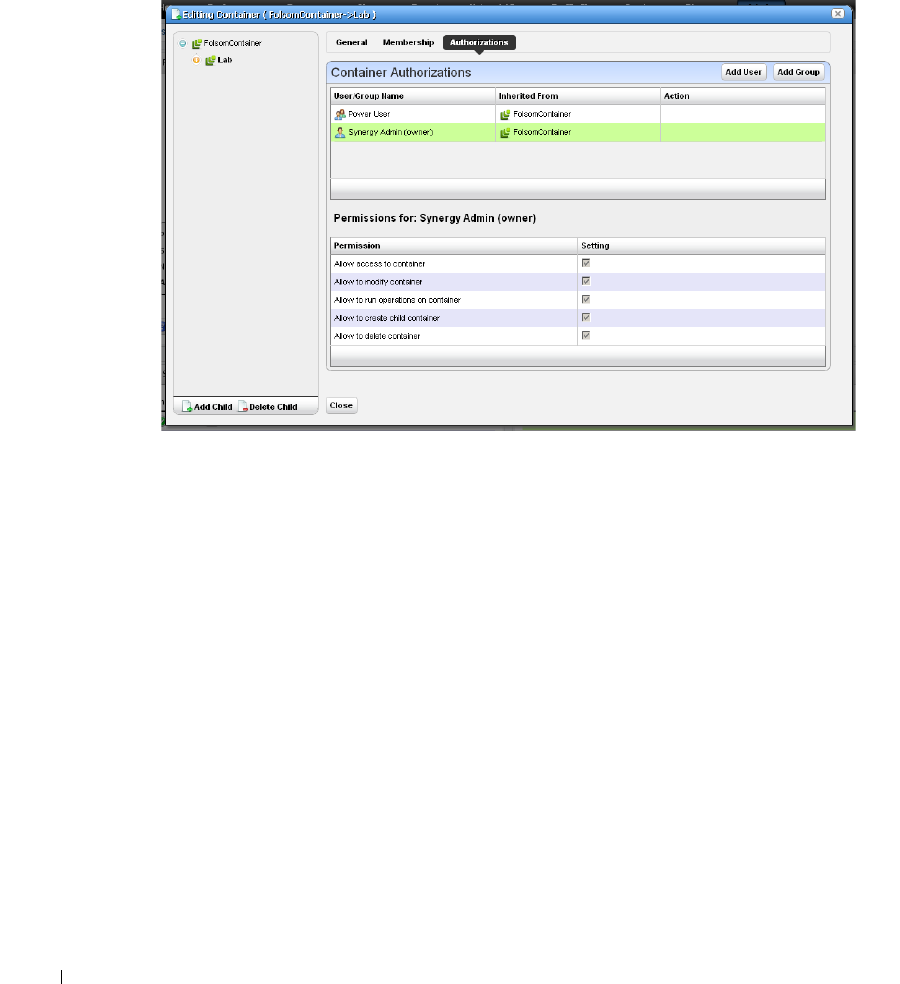

Container Editor

. . . . . . . . . . . . . . . . . . . . . . . .

148

Map Context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

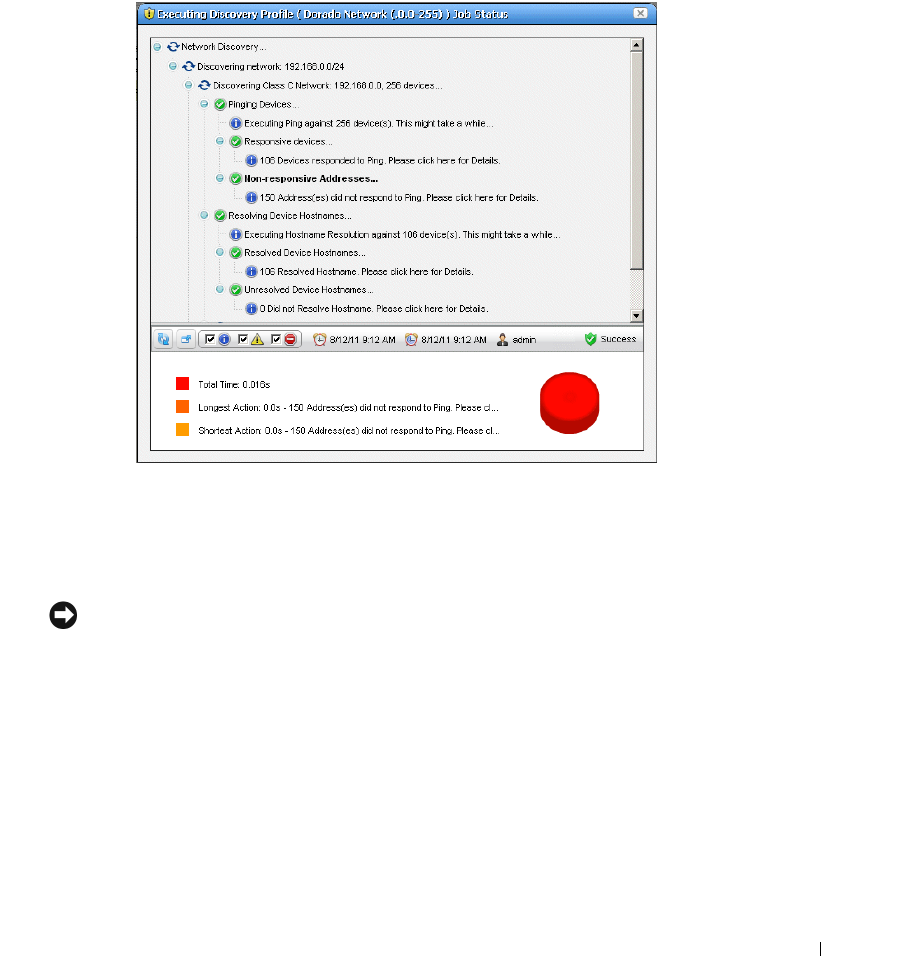

Resource Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

How to: Discover Resources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Discovery Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

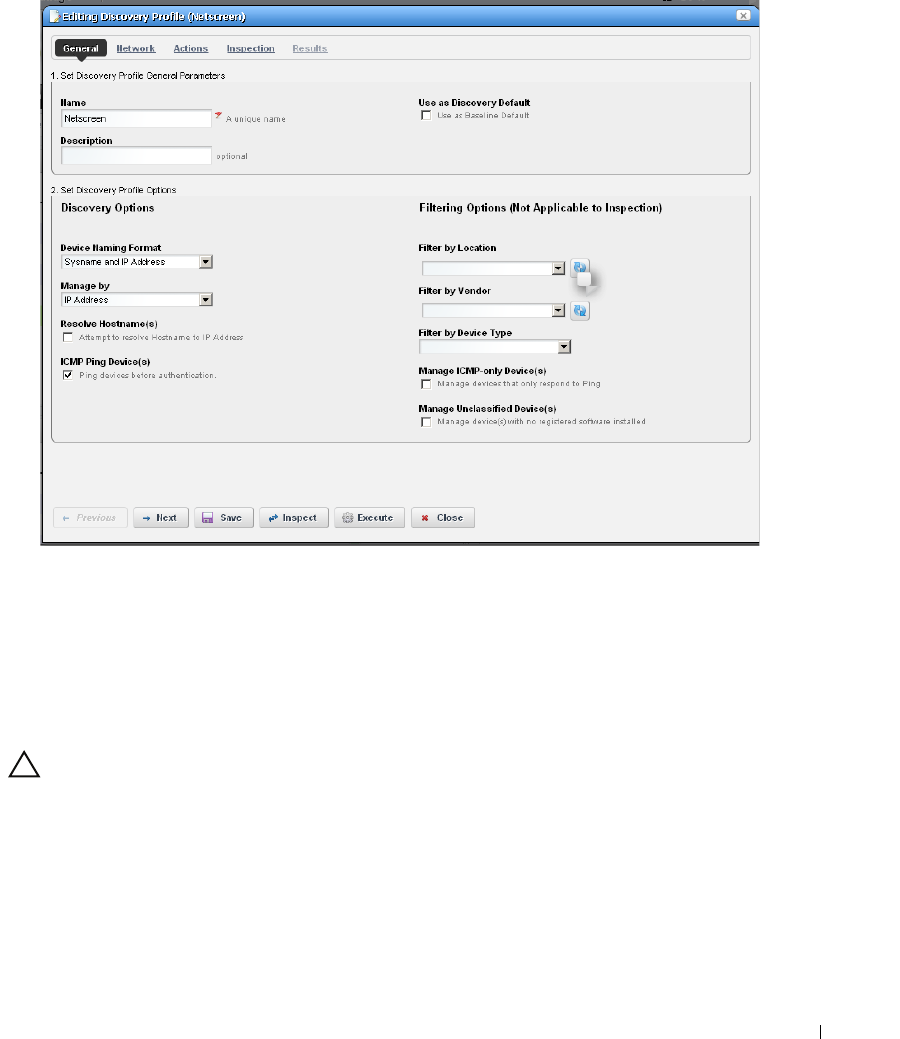

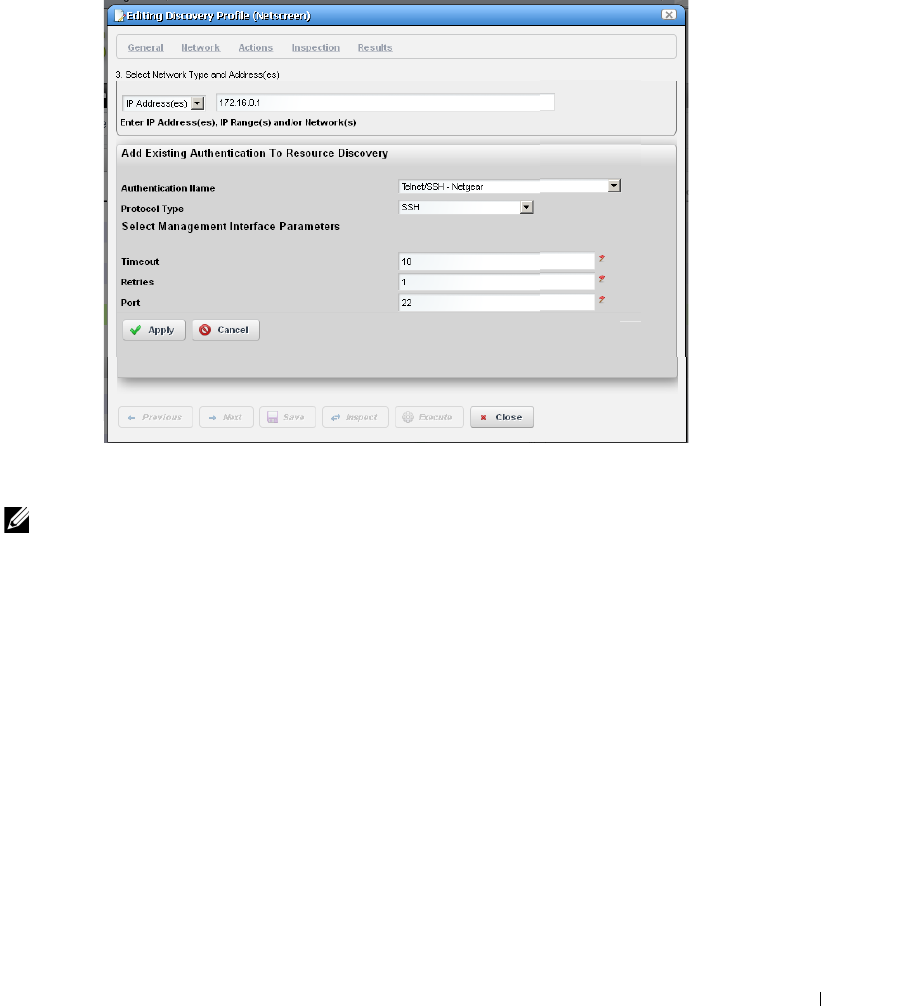

Discovery Profile Editor

. . . . . . . . . . . . . . . . . . . . .

154

How to: Edit Discovery Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

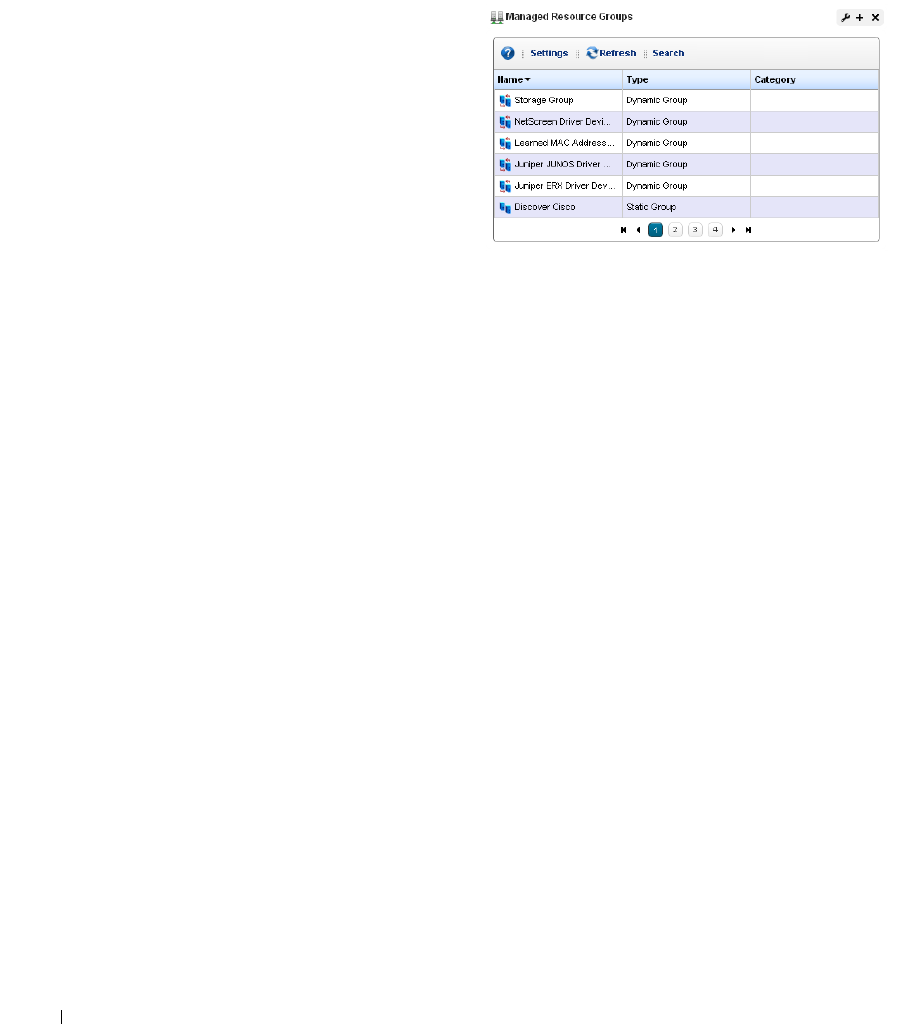

Managed Resource Groups. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Static Group

. . . . . . . . . . . . . . . . . . . . . . . . . .

164

Dynamic Group

. . . . . . . . . . . . . . . . . . . . . . . . .

165

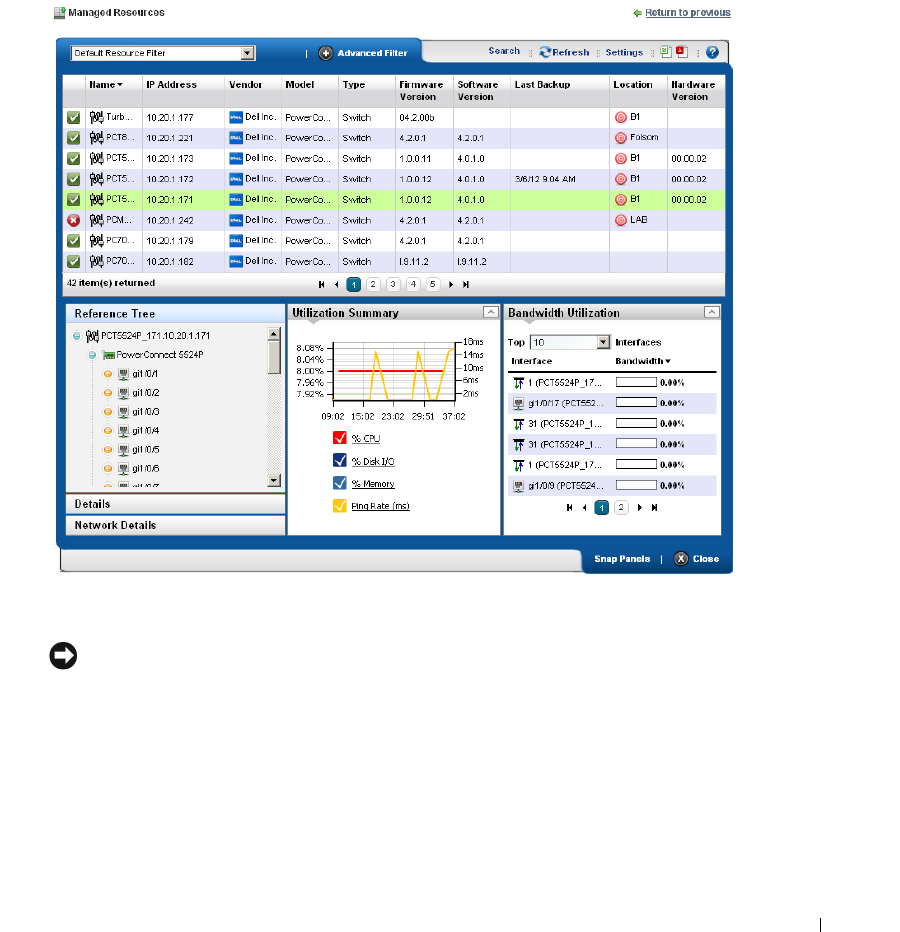

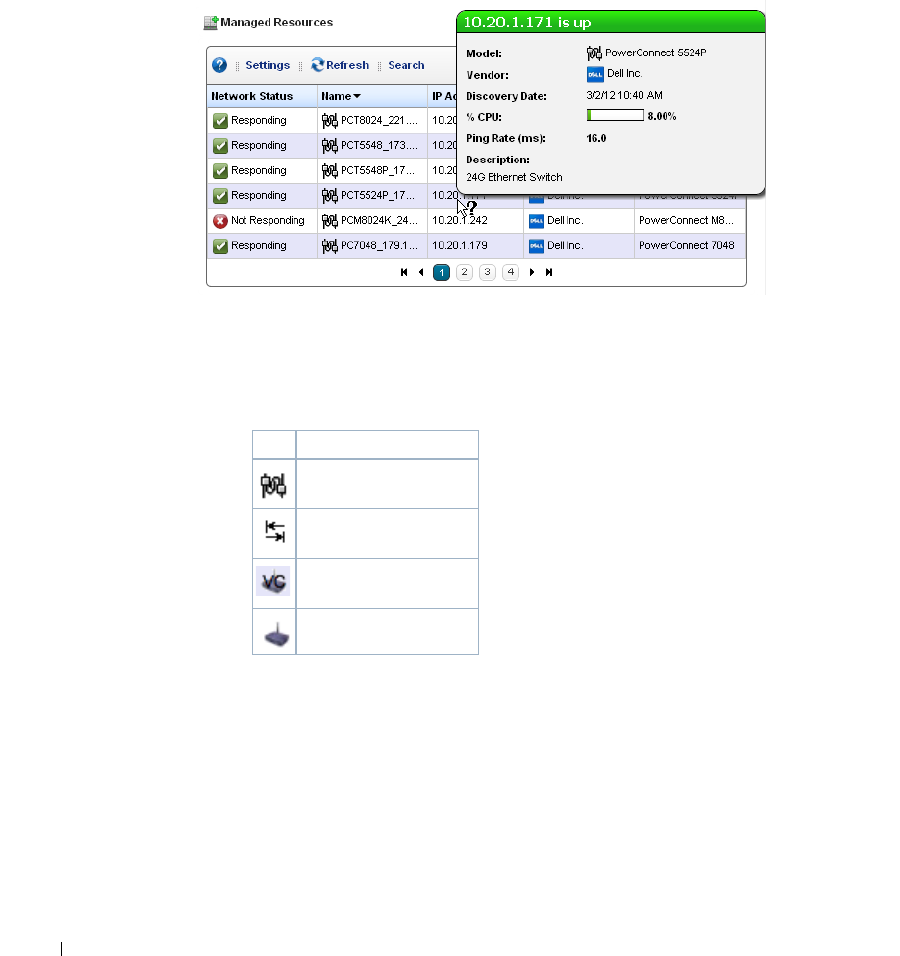

Managed Resources. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

New Link

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

175

Link Discovery

. . . . . . . . . . . . . . . . . . . . . . . . .

176

Equipment Details . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Performance Indicators

. . . . . . . . . . . . . . . . . . . .

179

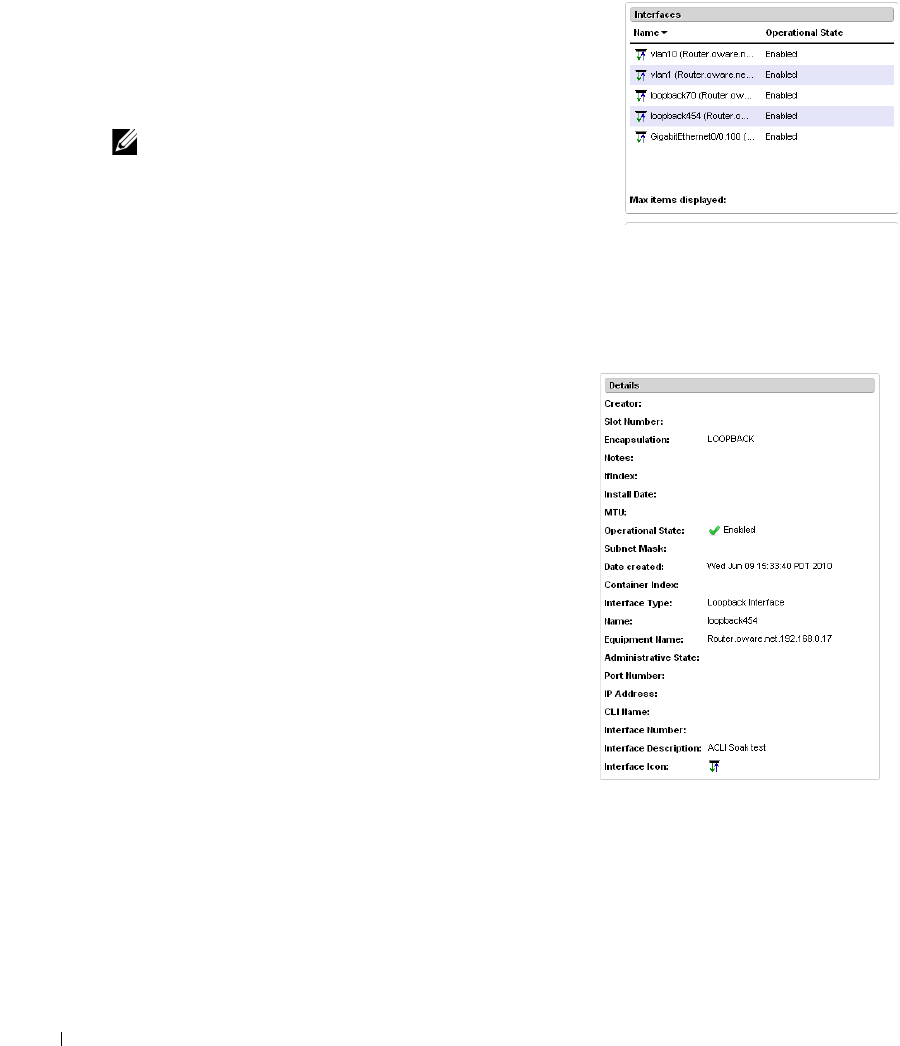

Interfaces

. . . . . . . . . . . . . . . . . . . . . . . . . . .

180

Alarms

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

181

Ports

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

181

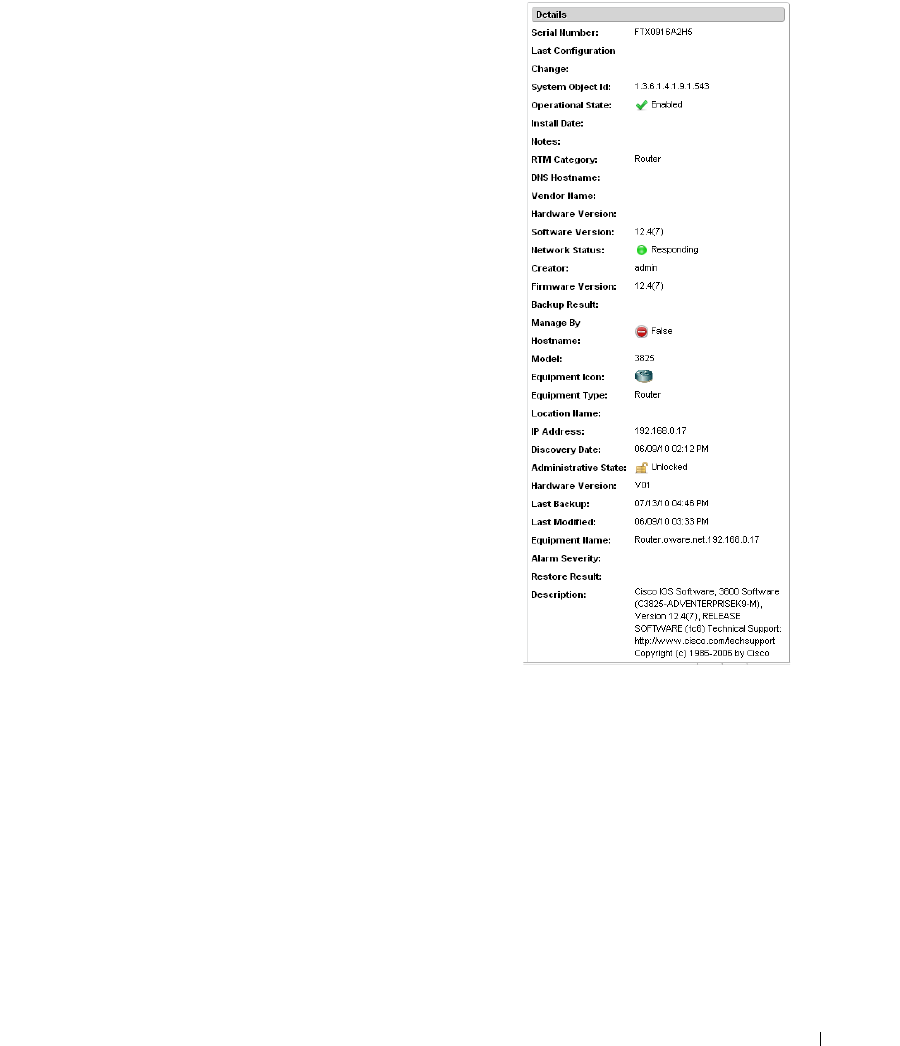

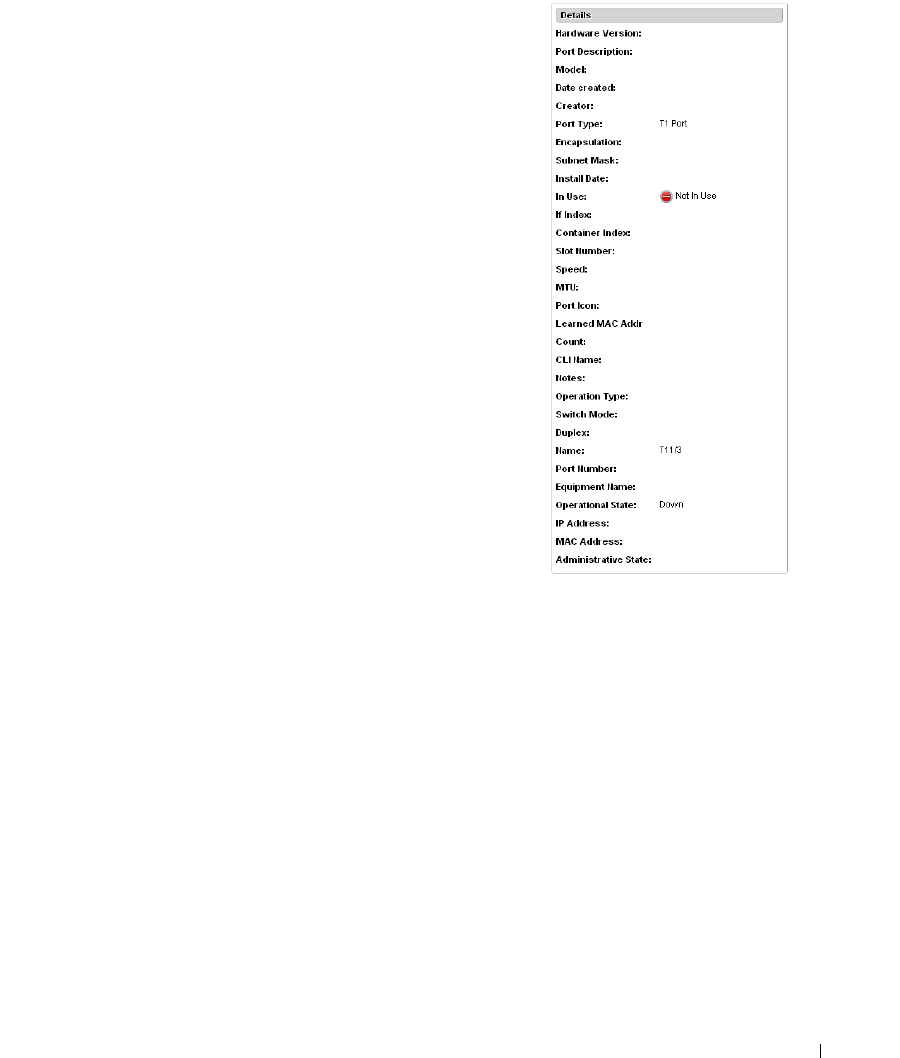

Details

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

185

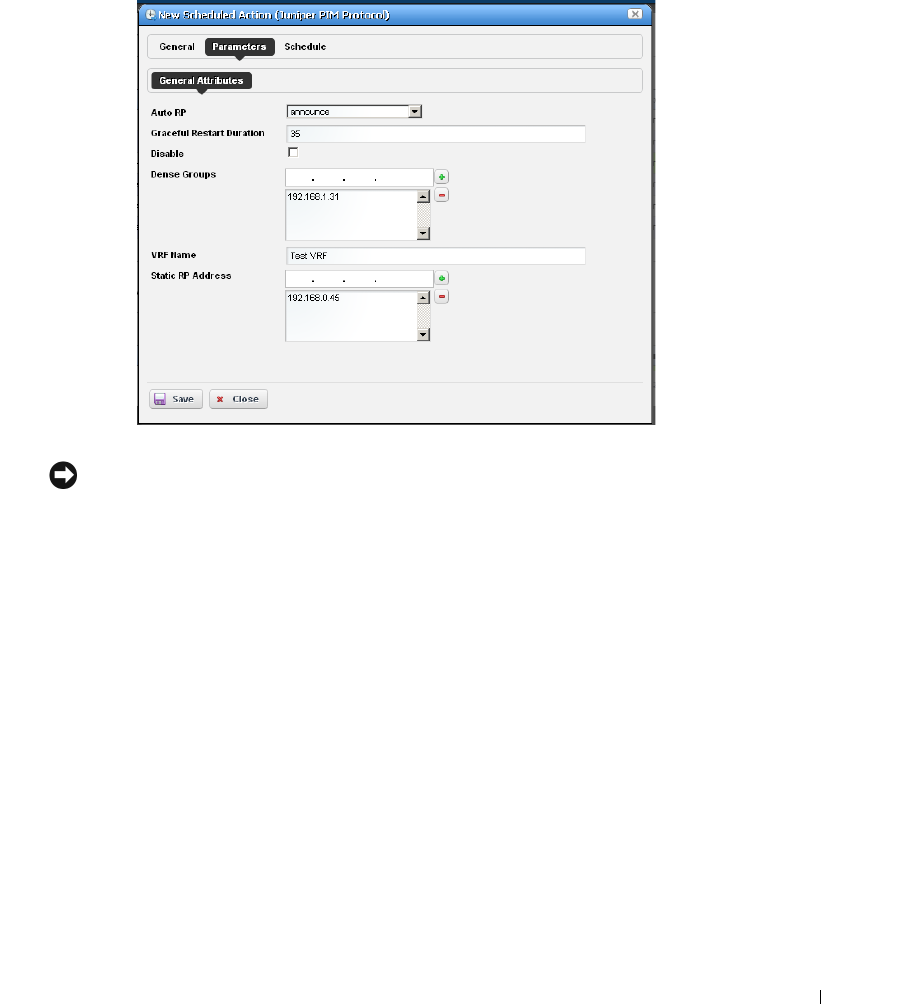

How to: Schedule Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Direct Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188

MIB Browser

. . . . . . . . . . . . . . . . . . . . . . . . . .

188

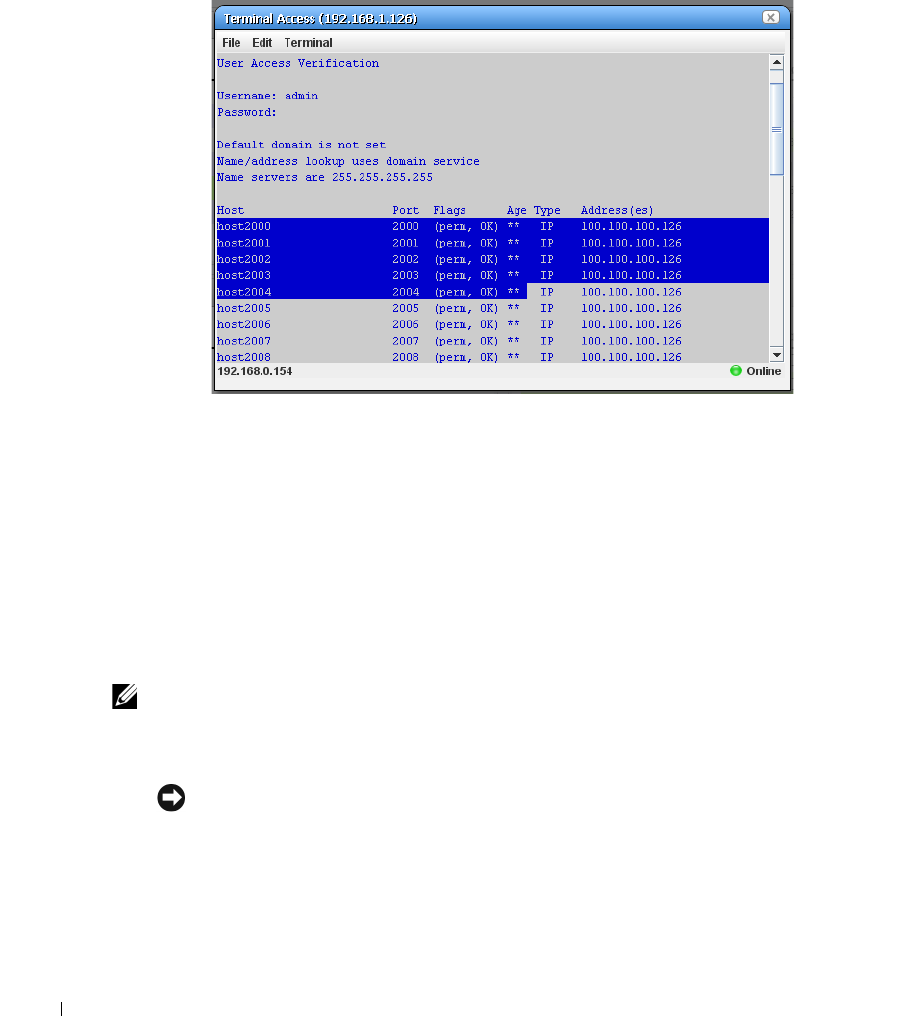

Terminal

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

190

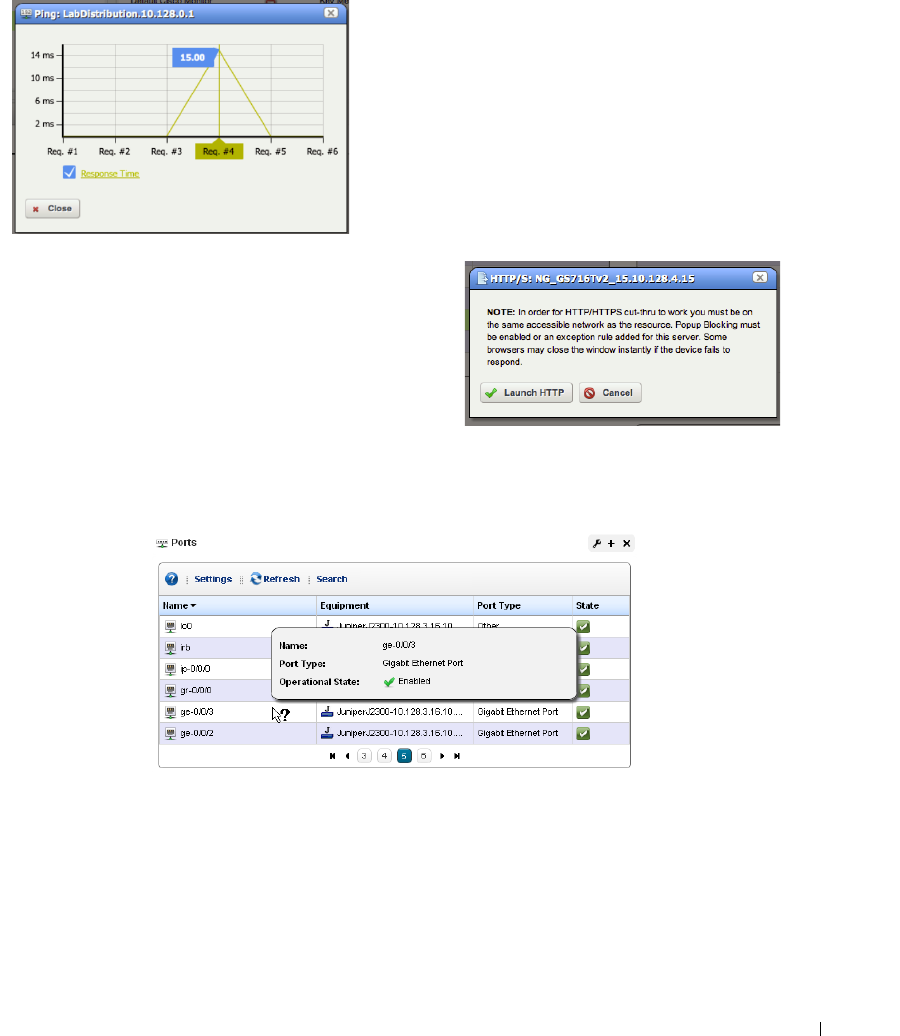

Ping (ICMP)

. . . . . . . . . . . . . . . . . . . . . . . . . .

191

HTTP / HTTPS

. . . . . . . . . . . . . . . . . . . . . . . . .

191

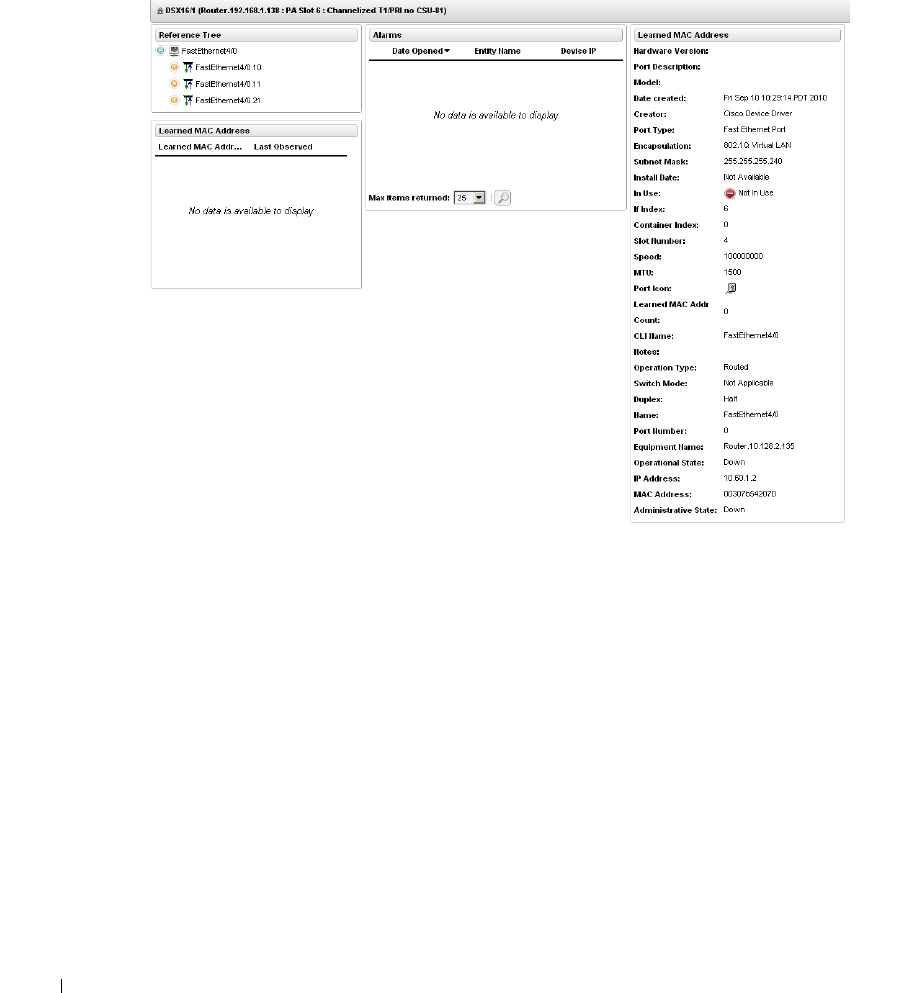

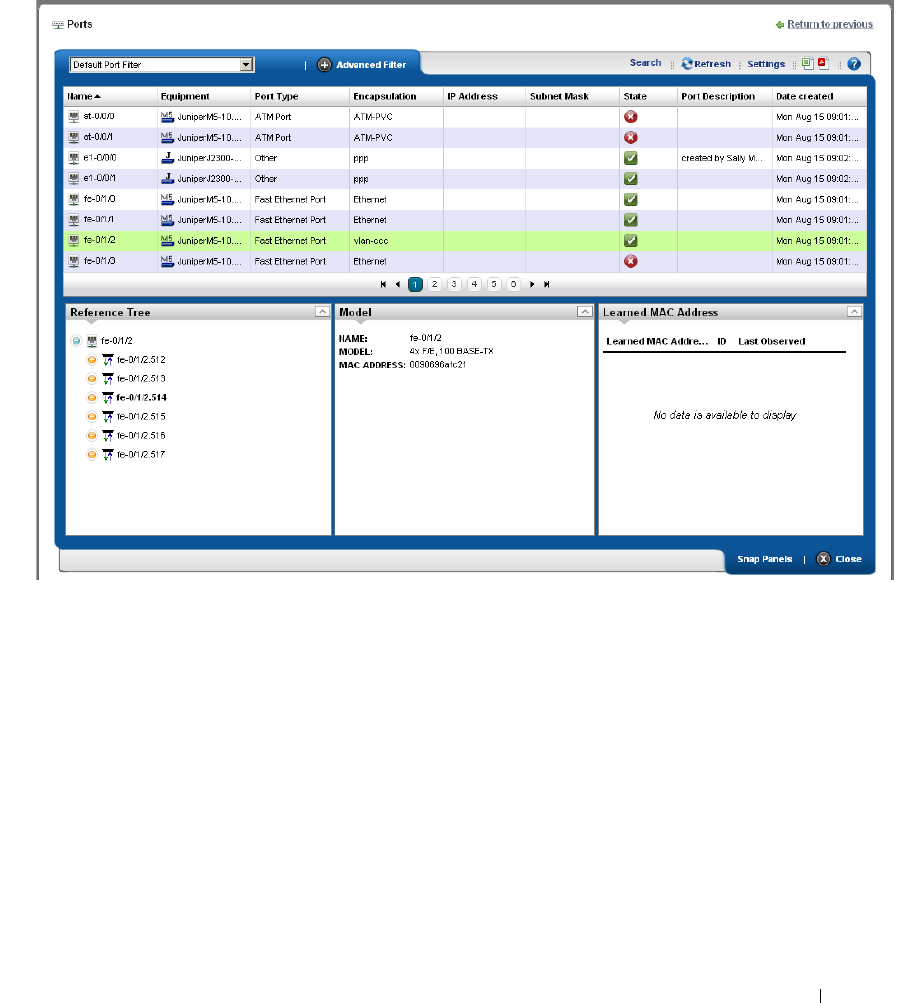

Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

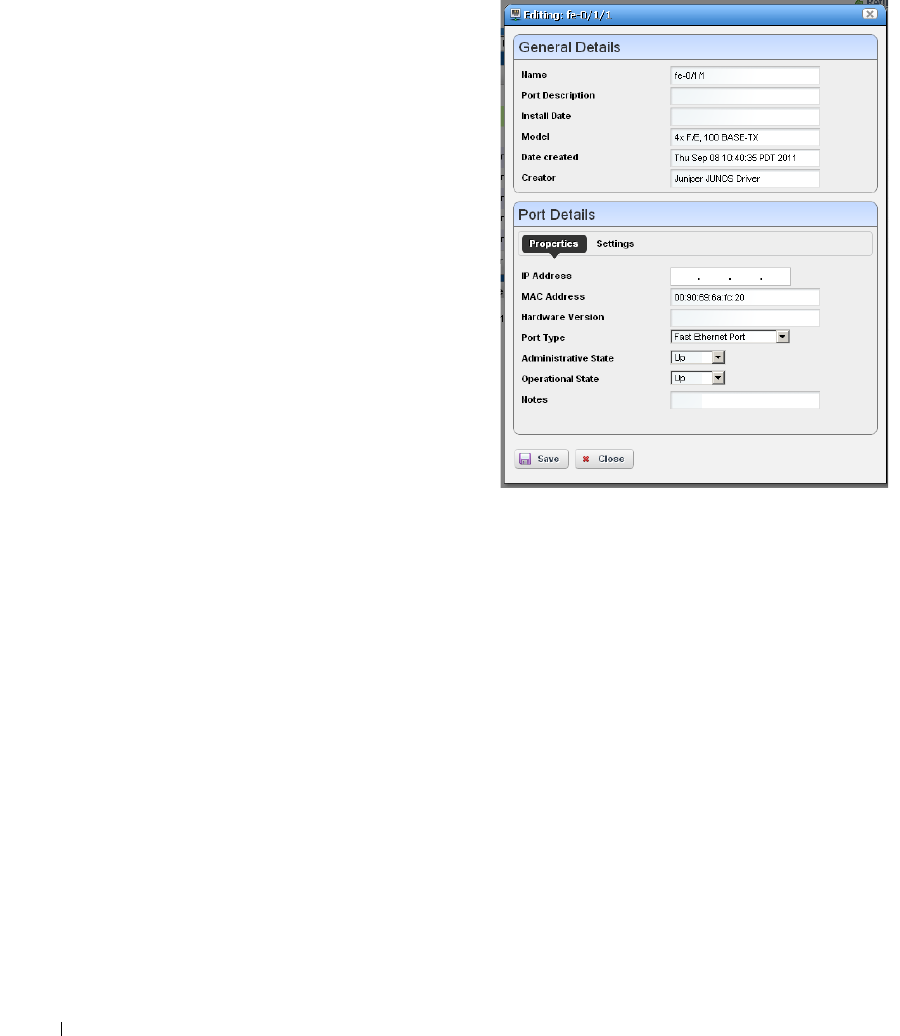

Port Editor

. . . . . . . . . . . . . . . . . . . . . . . . . . .

194

Report Templates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

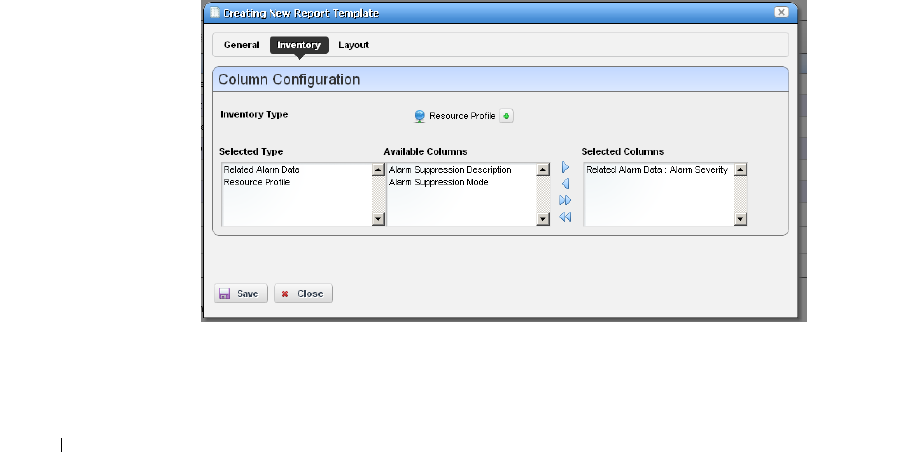

How to: Create a Report Template . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Report Template Editors

. . . . . . . . . . . . . . . . . . . .

196

Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

How to: Generate a Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Report Editor

. . . . . . . . . . . . . . . . . . . . . . . . . .

204

Branding Reports

. . . . . . . . . . . . . . . . . . . . . . . .

206

6 Visualize . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .207

Visualize My Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

How to: Create a Visualization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

Configuring Views

. . . . . . . . . . . . . . . . . . . . . . .

208

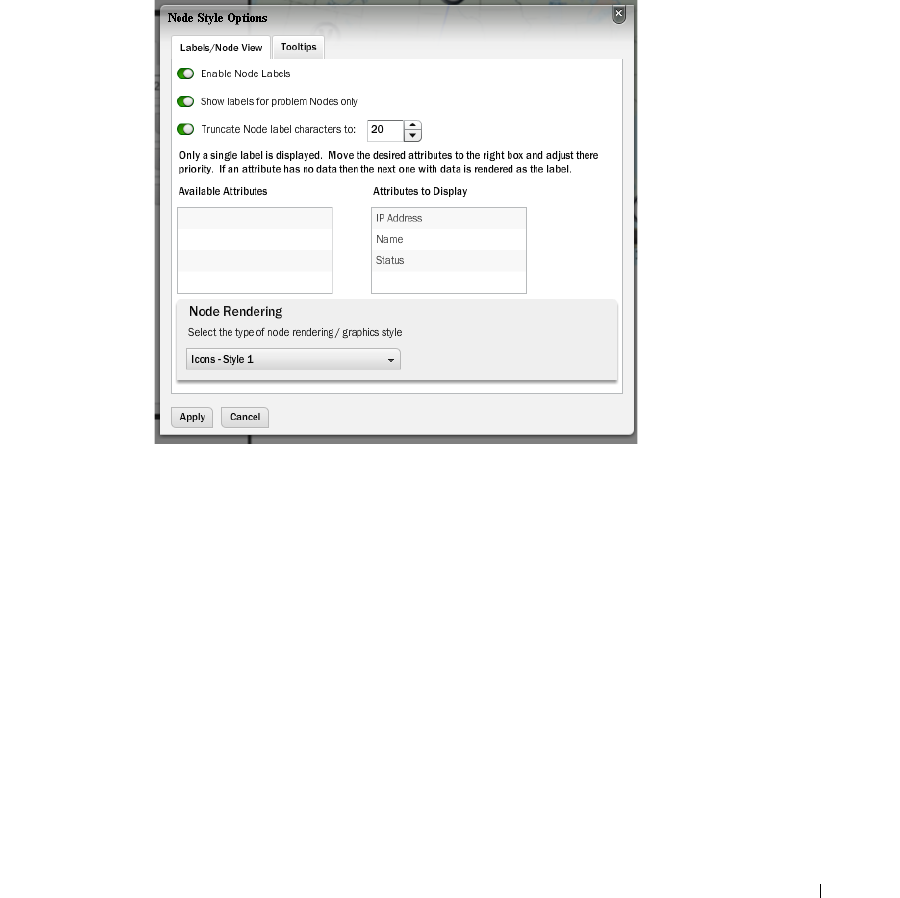

Control and Styles

. . . . . . . . . . . . . . . . . . . . . . .

210

Data / Node Finder

. . . . . . . . . . . . . . . . . . . . . . .

213

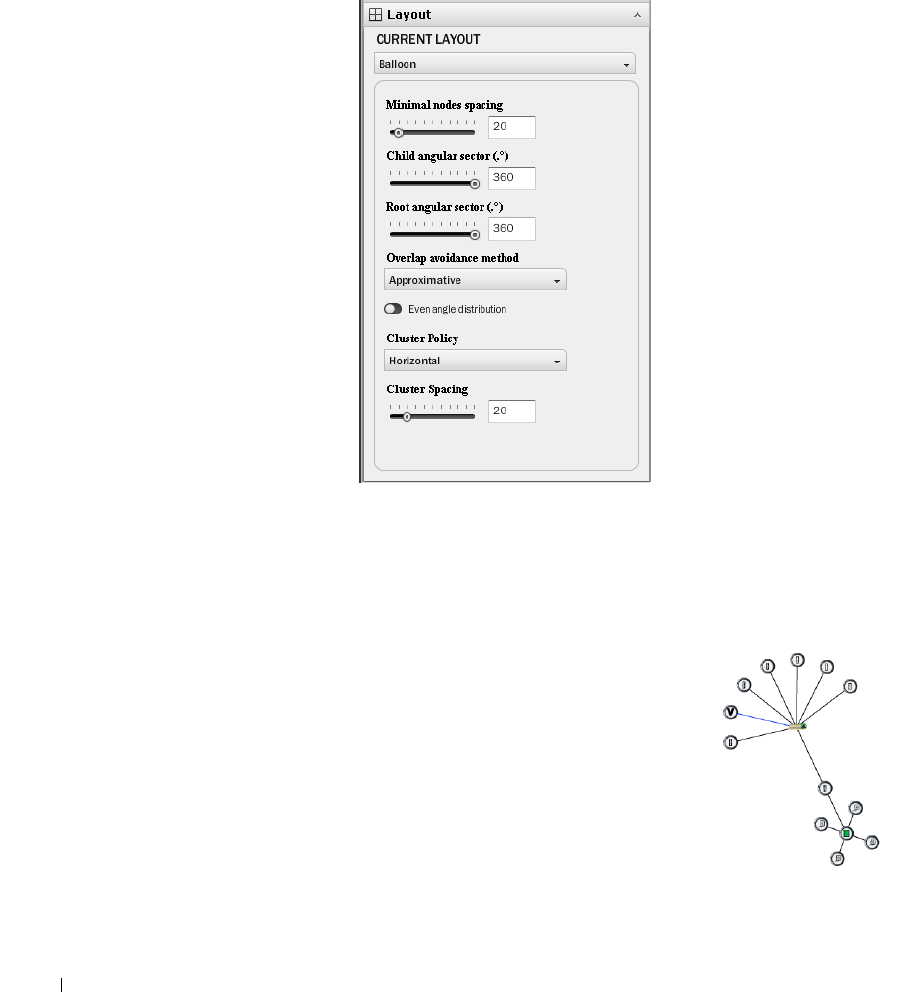

Layout

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

216

OVERVIEW

. . . . . . . . . . . . . . . . . . . . . . . . . . .

219

Alarms in Visualizations / Topologies. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 219

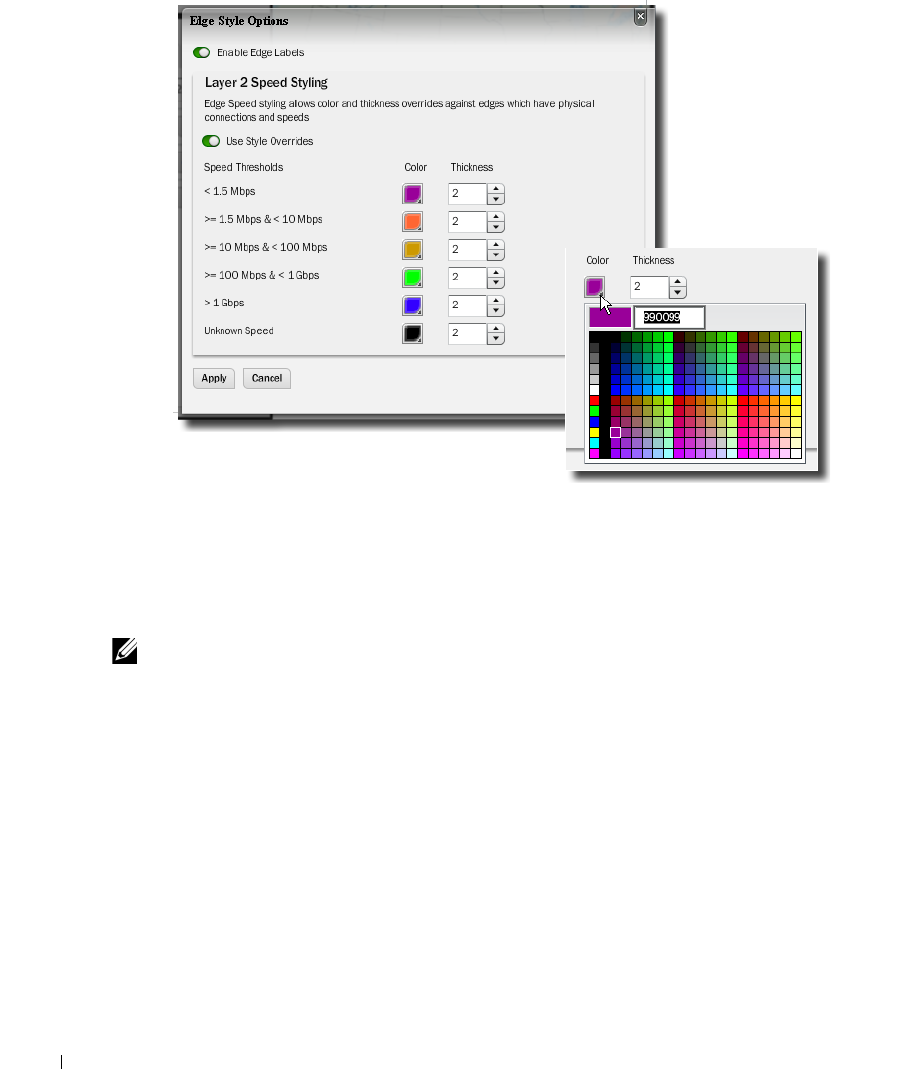

Links in Visualization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220

7 File Server / File Management . . . . . . . . . . . . . . . . . . . . . . . . .221

File Servers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 221

File Server Editor

. . . . . . . . . . . . . . . . . . . . . . . .

222

File Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223

How to: Backup Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

How to: Restore Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

Configuration Files

. . . . . . . . . . . . . . . . . . . . . . .

229

Image Repository. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 233

Firmware Image Editor

. . . . . . . . . . . . . . . . . . . . .

235

Configuration Image Editor

. . . . . . . . . . . . . . . . . . .

236

Deploy Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

How to: Deploy Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239

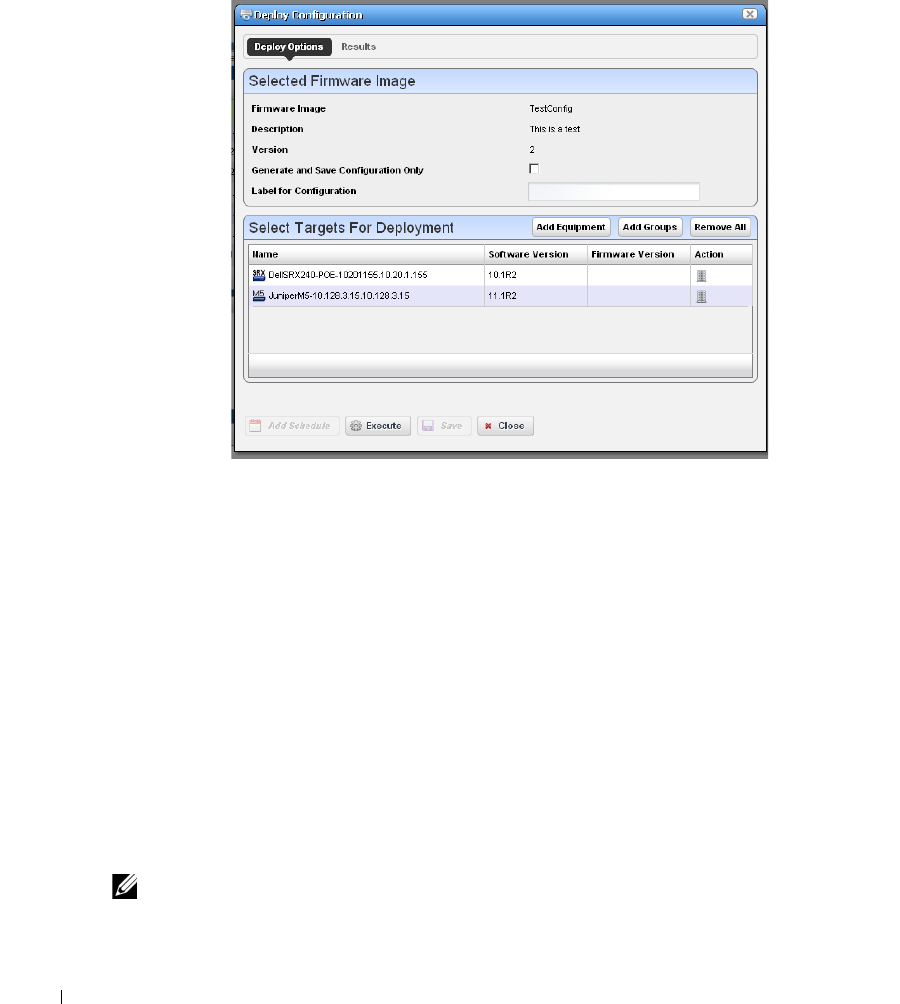

Deploy Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

How to: Restore a single configuration to many target devices . 241

8 Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .243

How to’s. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243

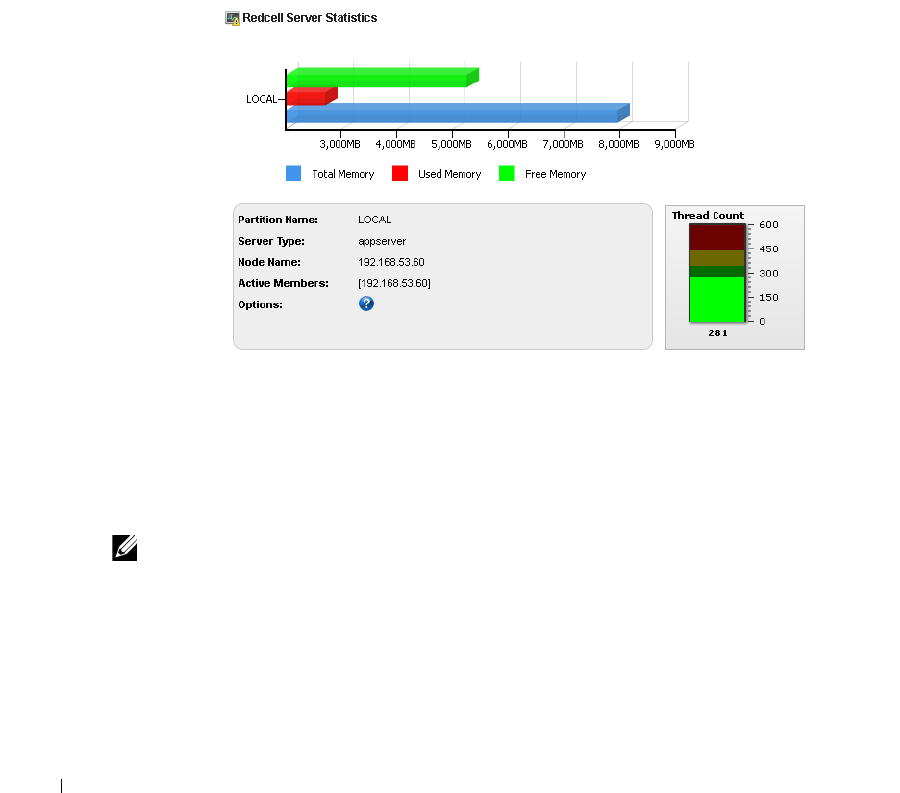

OpenManage Network Manager Server Statistics. . . . . . . . . . . . . . . . . 244

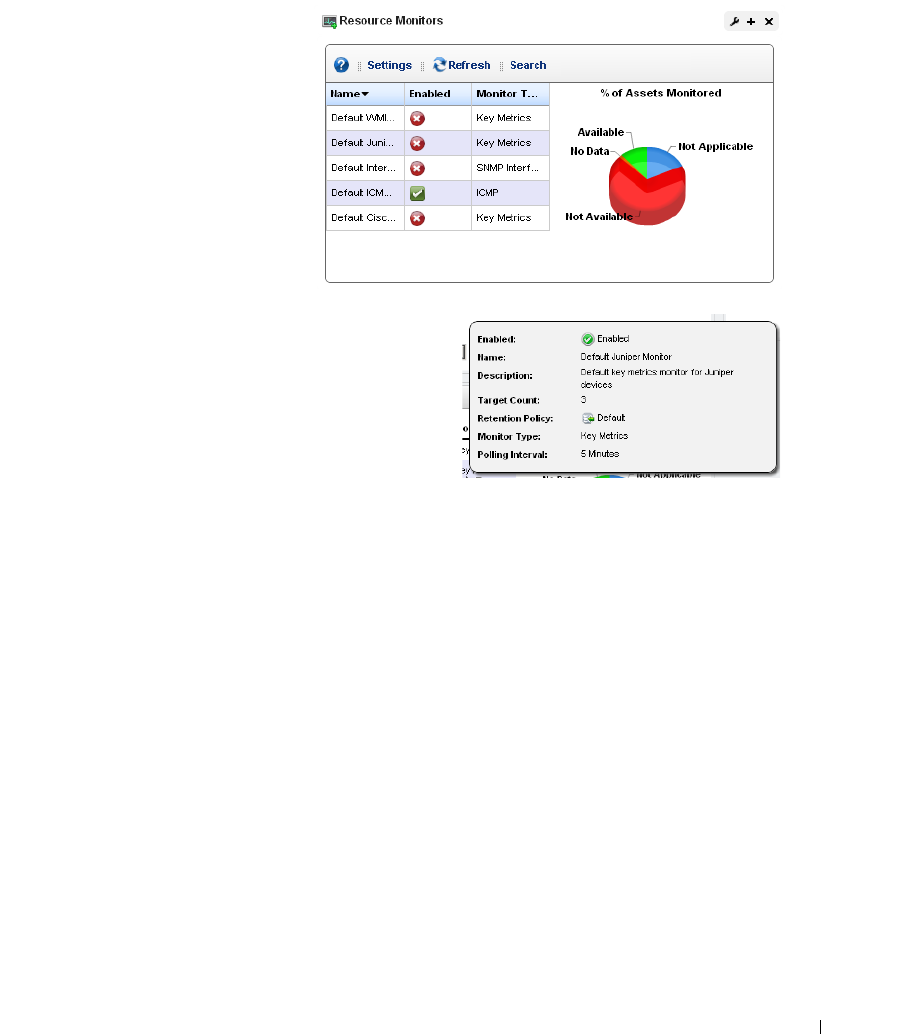

Resource Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 245

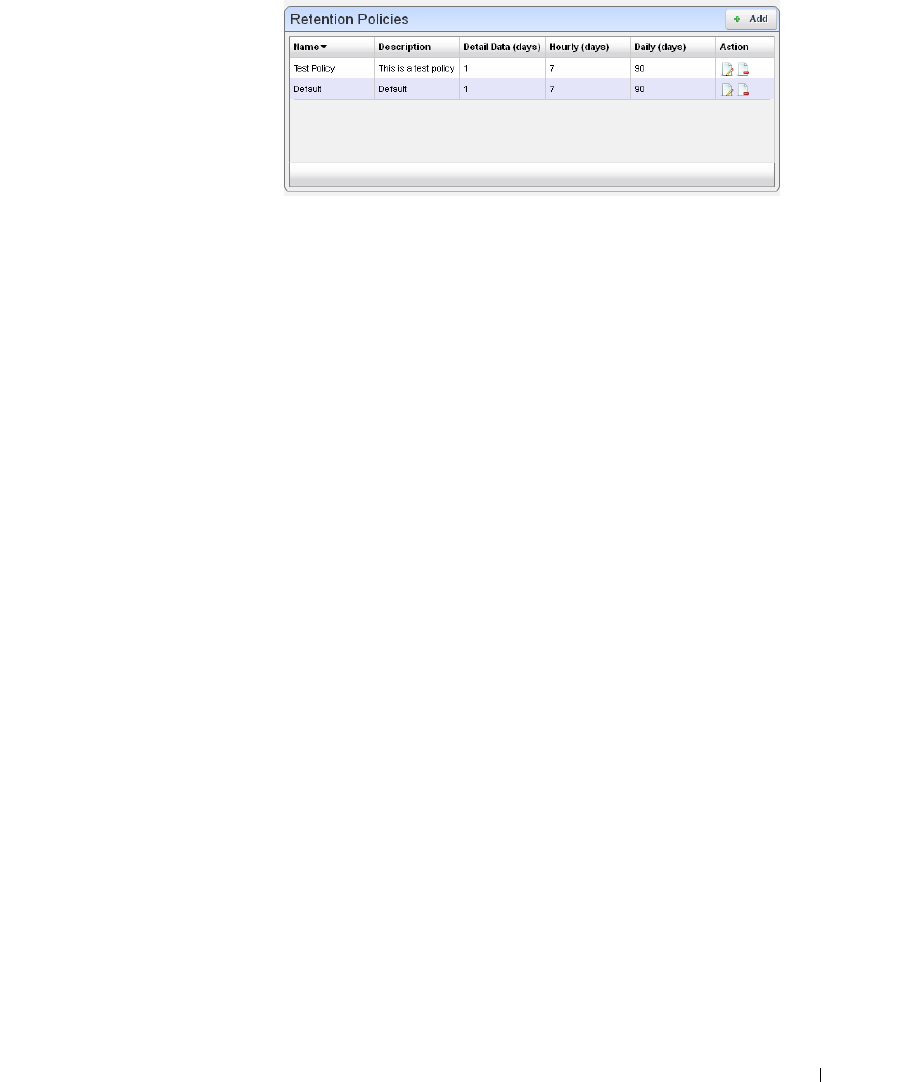

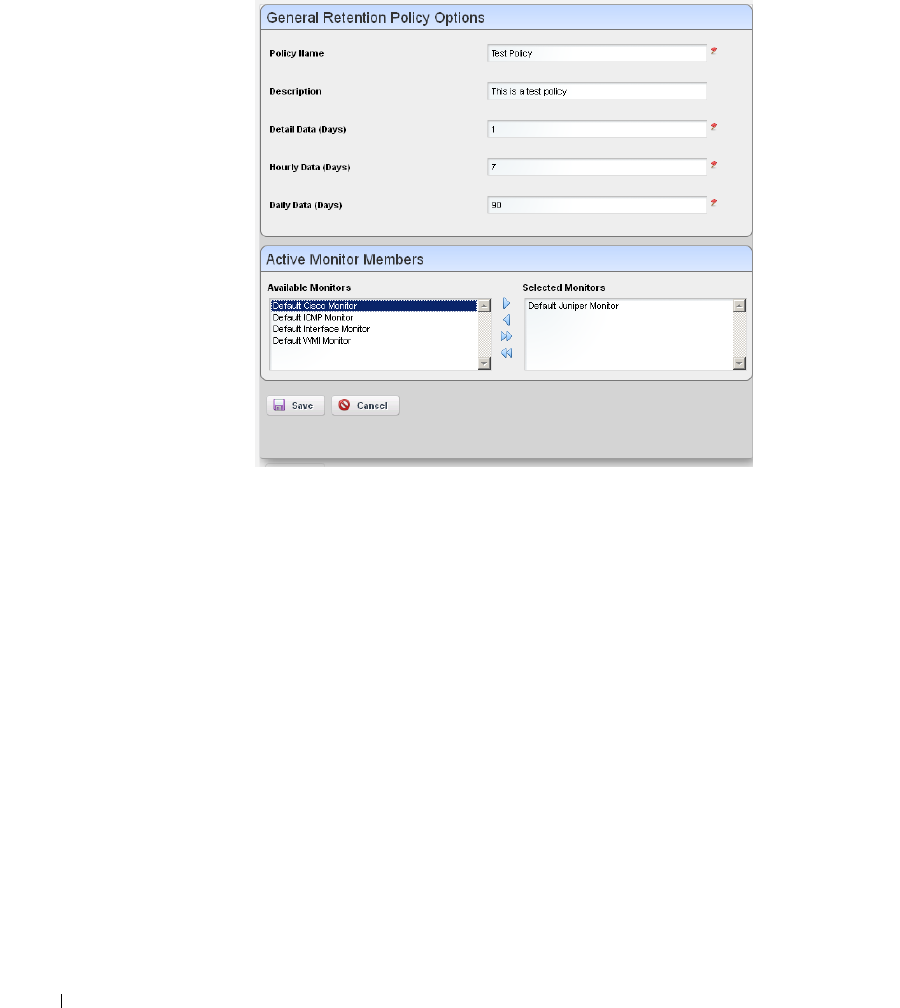

Retention Policies

. . . . . . . . . . . . . . . . . . . . . . .

248

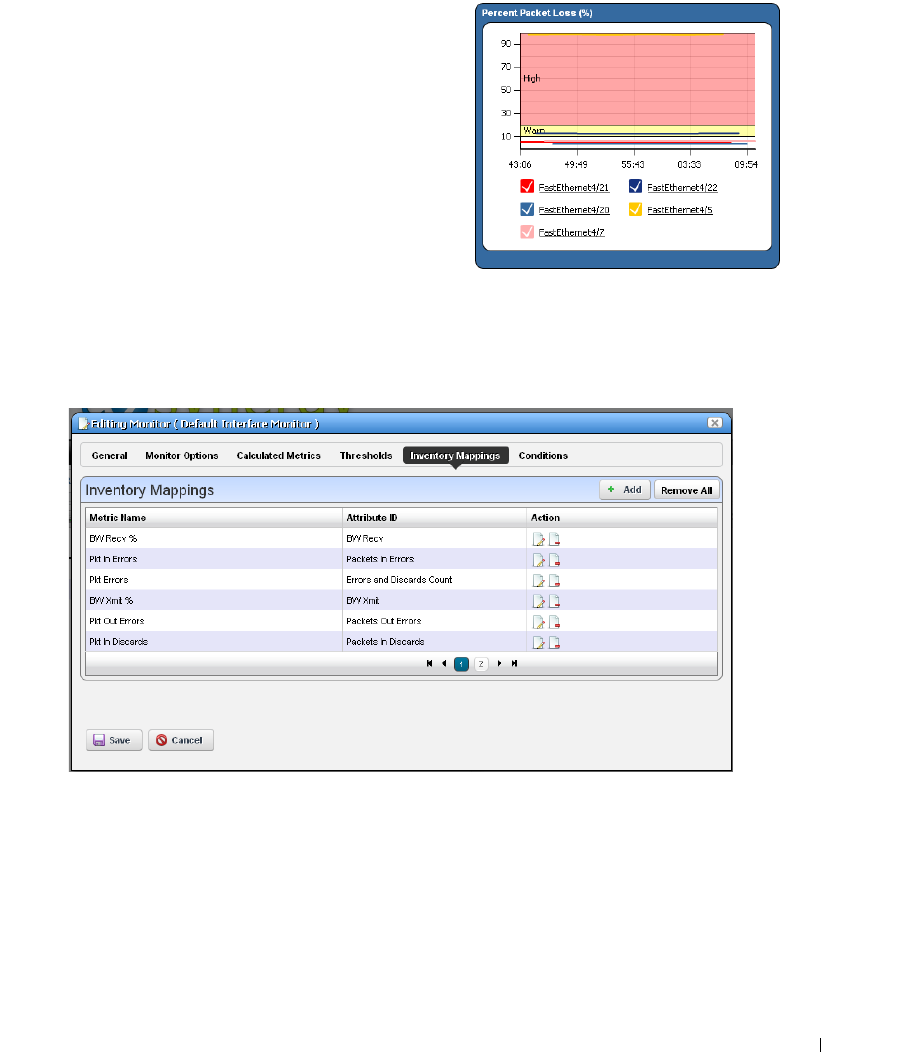

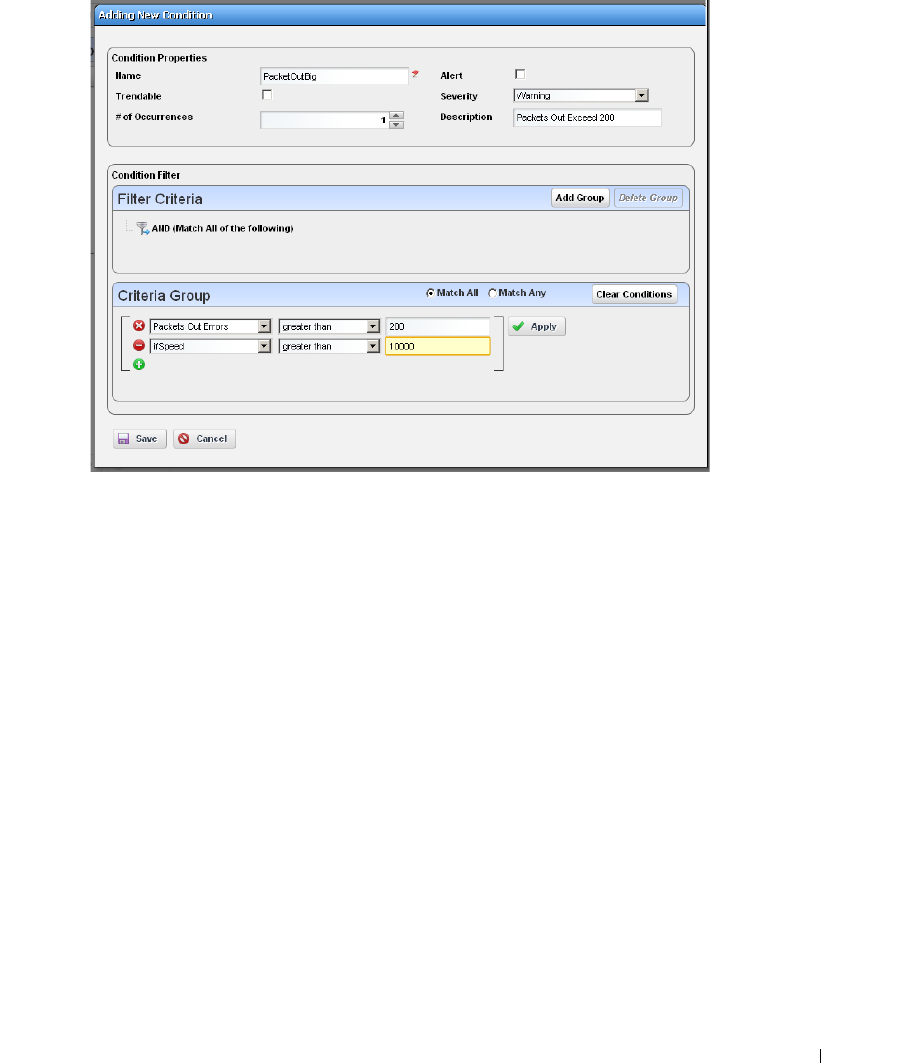

Monitor Editor

. . . . . . . . . . . . . . . . . . . . . . . . .

251

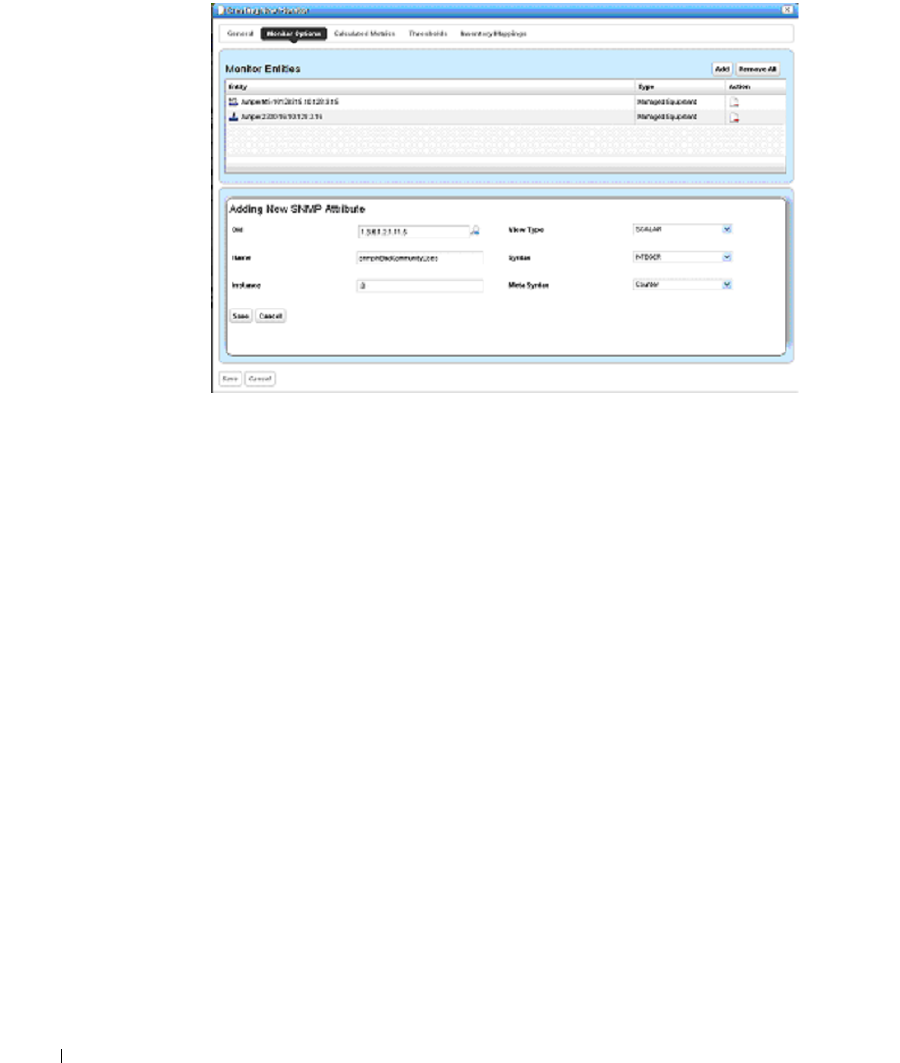

How to: Create an SNMP Interface Monitor . . . . . . . . . . . . . . . . . 262

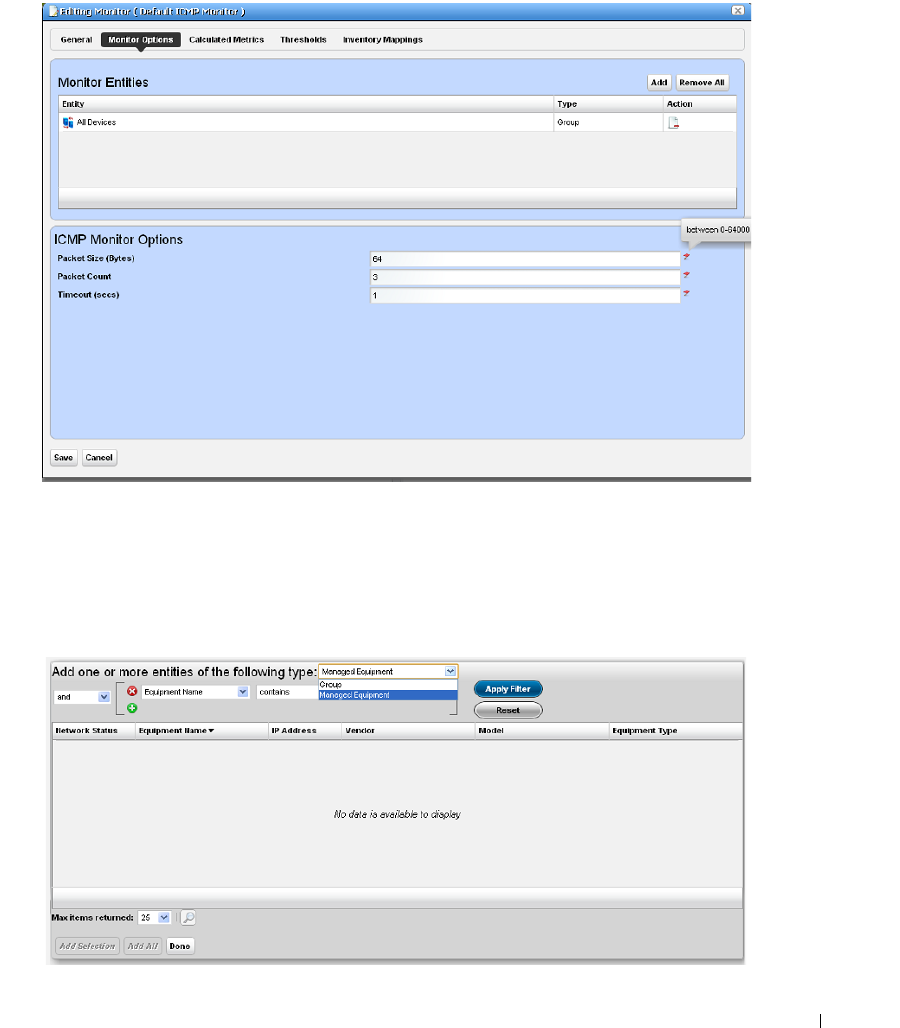

How to: Create an ICMP Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 263

How to: Create a Key Metrics Monitor . . . . . . . . . . . . . . . . . . . . . . 264

How to: Create a Monitor Report . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

Monitor Options Type-Specific Panels

. . . . . . . . . . . . .

266

Scheduling Refresh Monitor Targets

. . . . . . . . . . . . . .

276

Top [Asset] Monitors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 276

Top Configuration Backups

. . . . . . . . . . . . . . . . . . .

277

Dashboard Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 277

How to: Create a Simple Dashboard View . . . . . . . . . . . . . . . . . . . 279

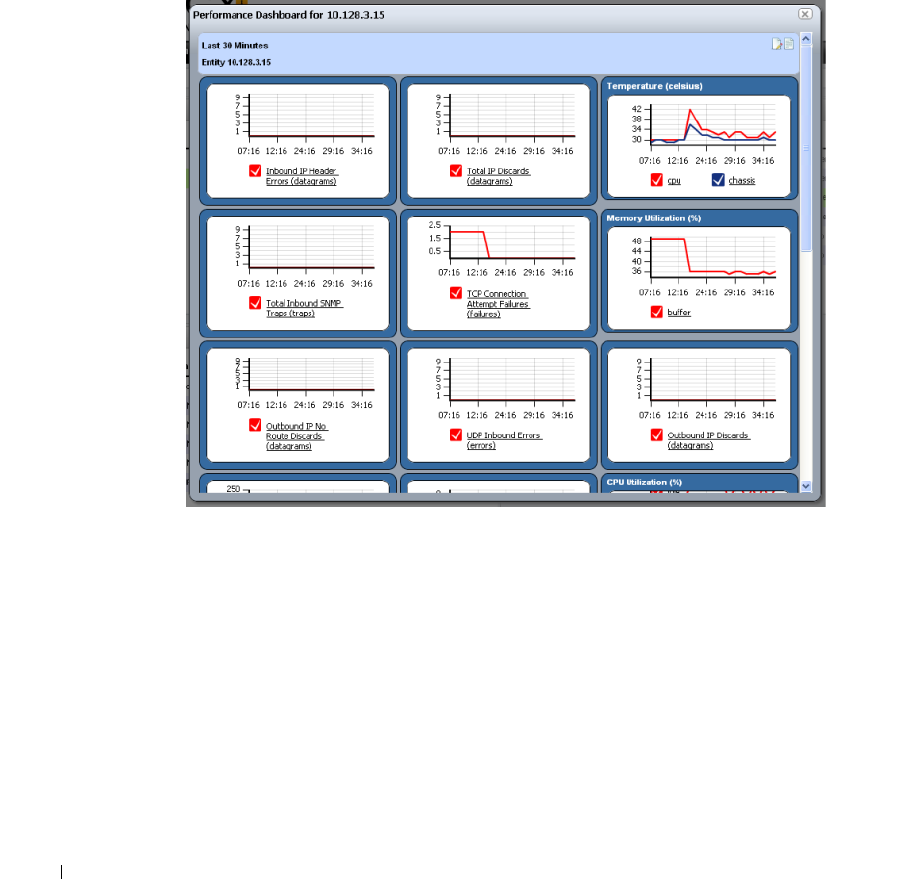

Performance Dashboard

. . . . . . . . . . . . . . . . . . . .

279

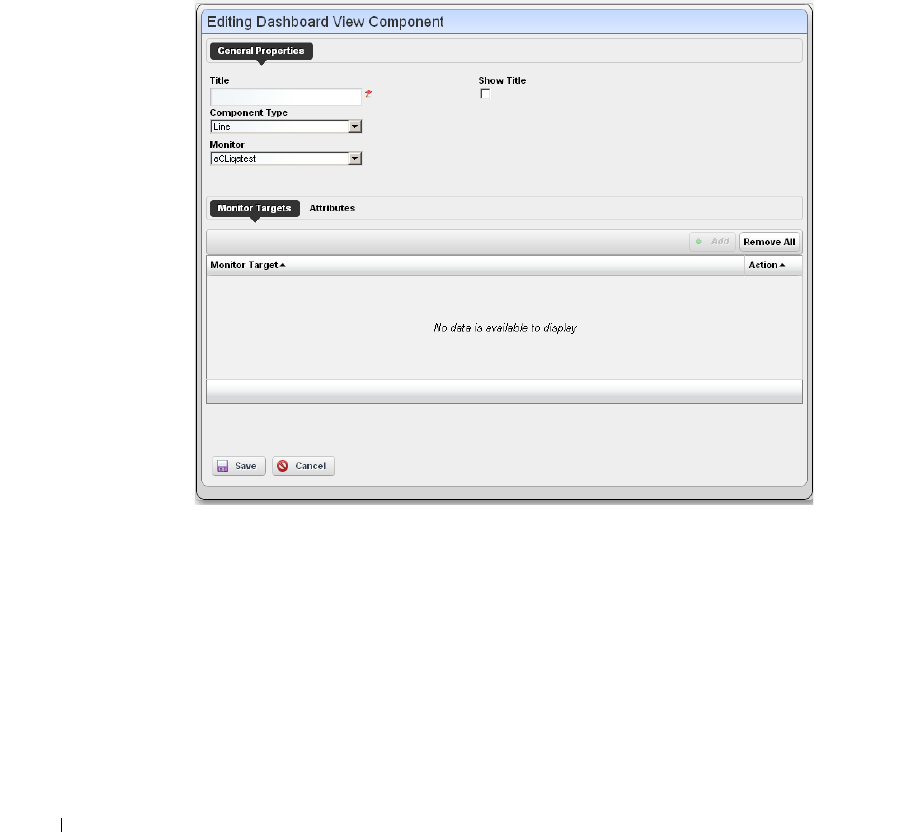

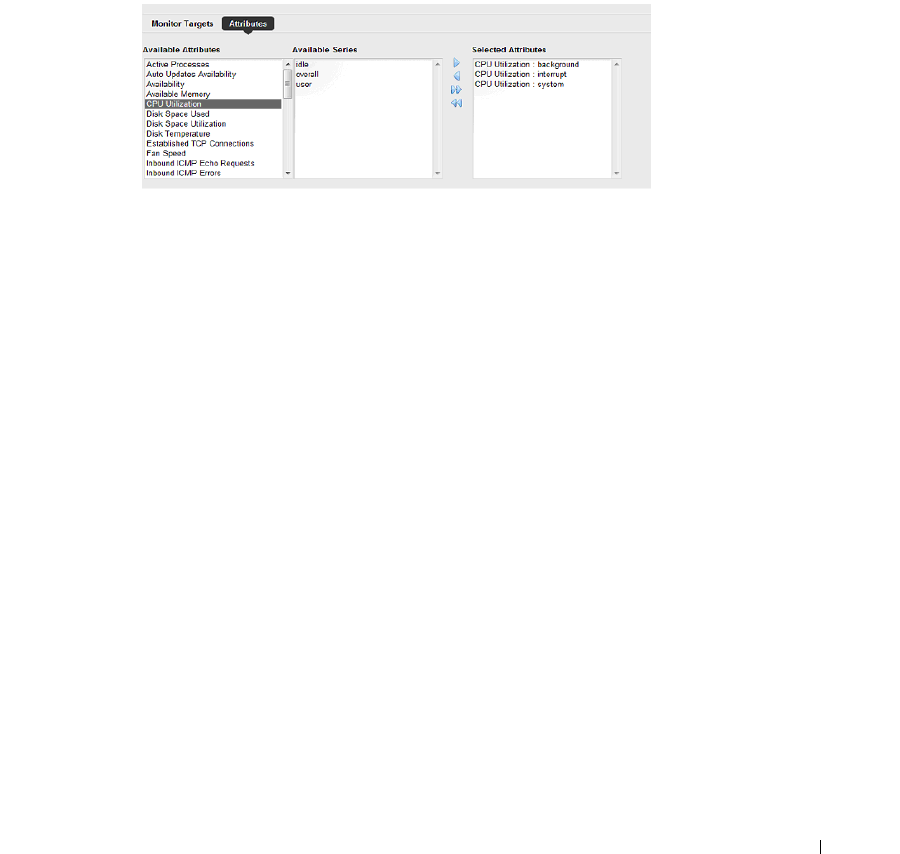

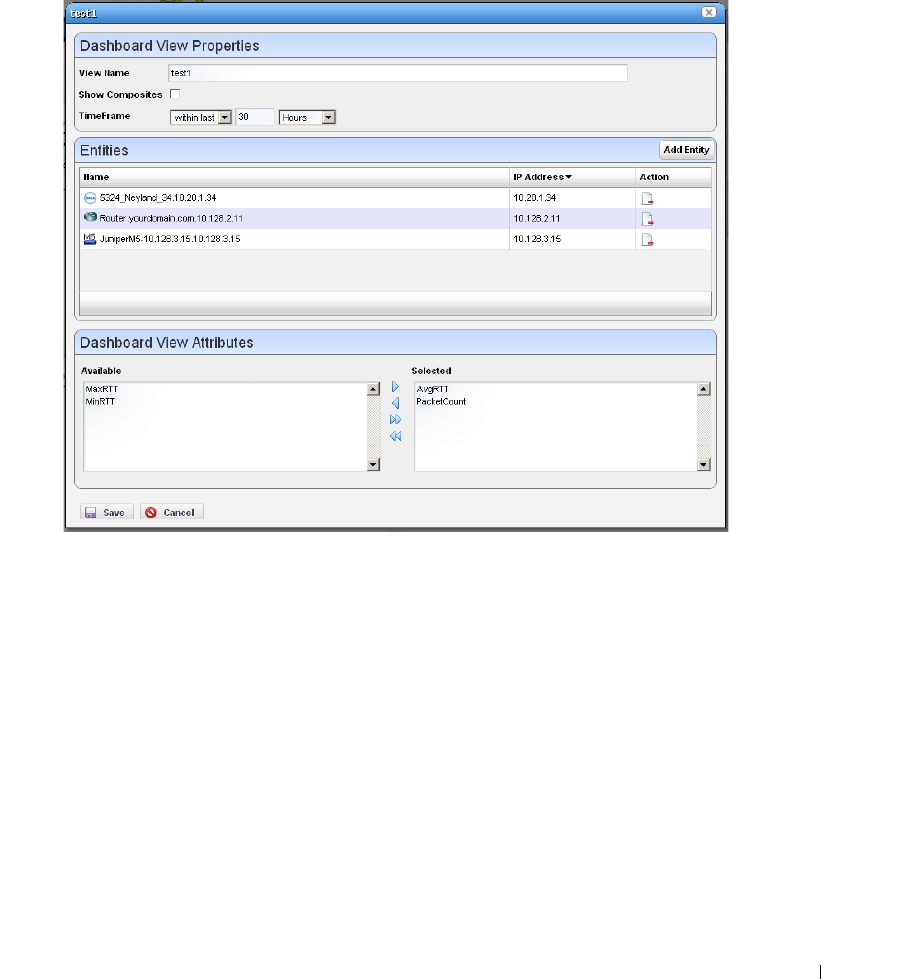

Dashboard Editor

. . . . . . . . . . . . . . . . . . . . . . . .

281

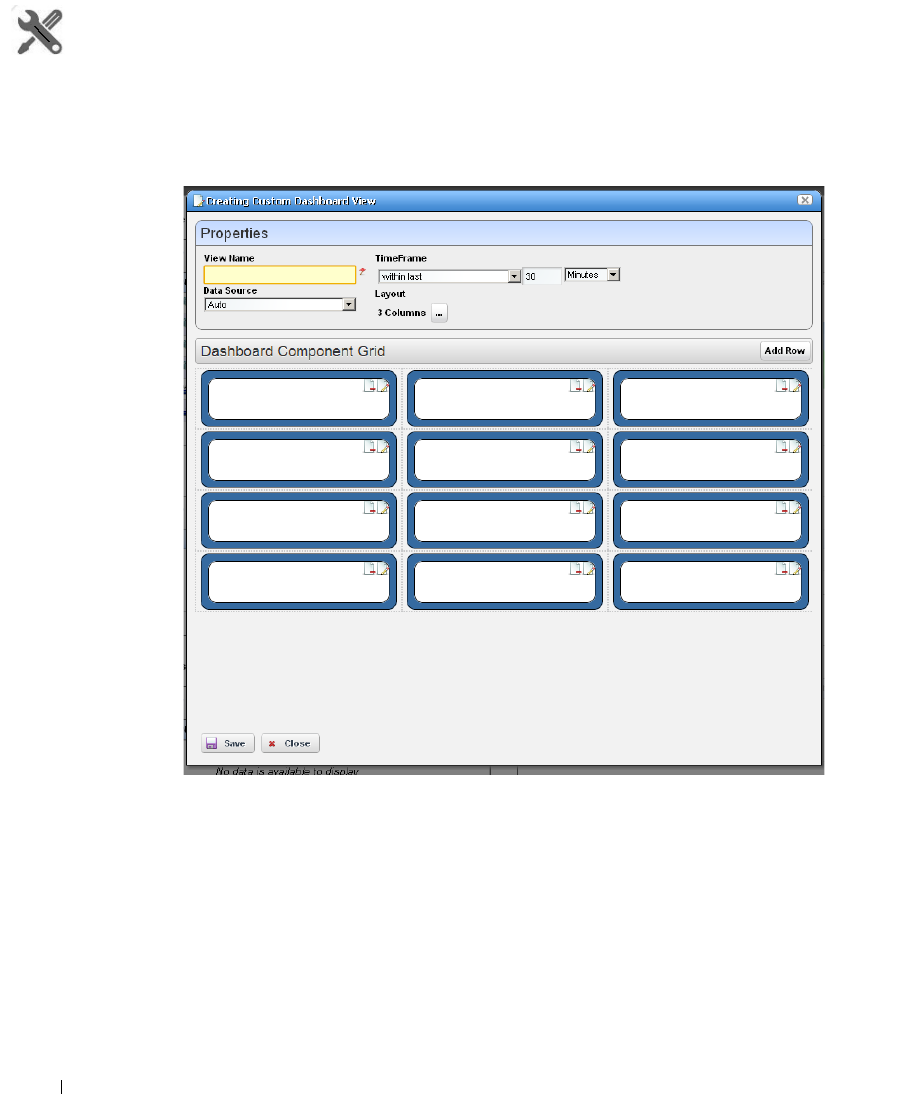

How to: Create a Custom Dashboard View . . . . . . . . . . . . . . . . . . . . . 282

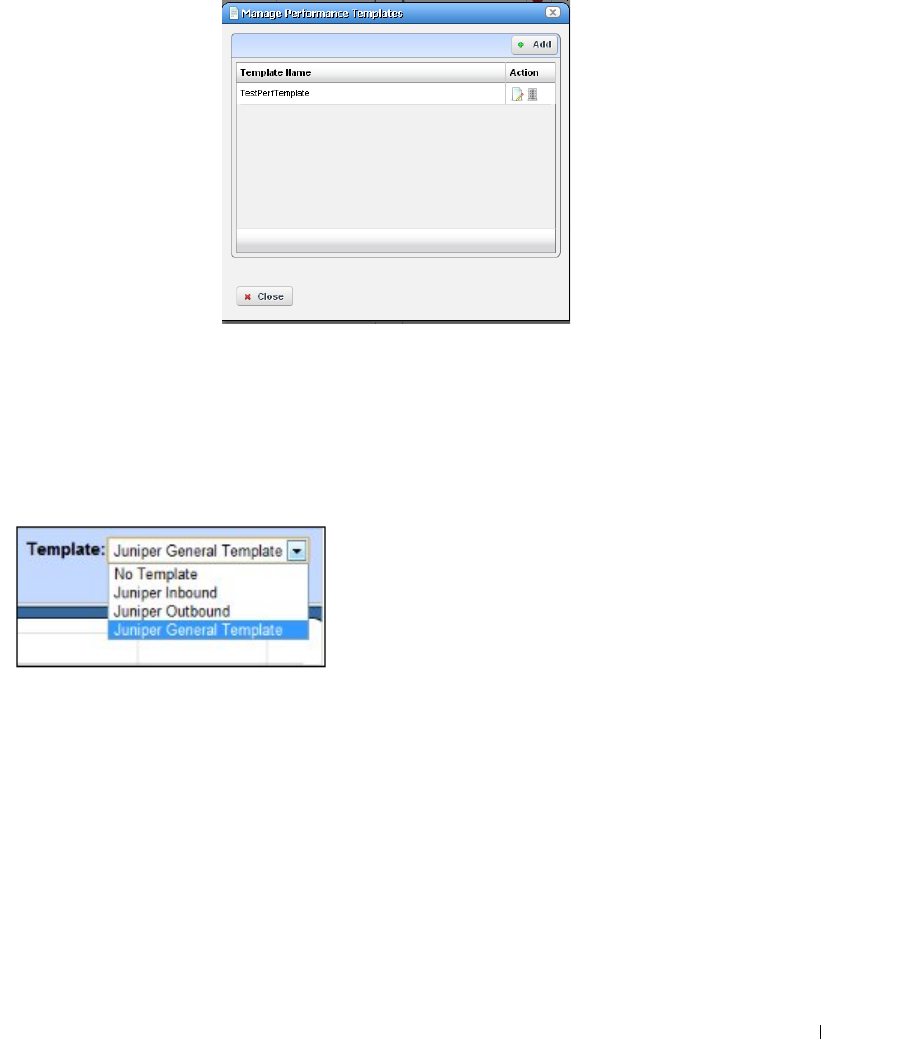

Show Performance Templates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286

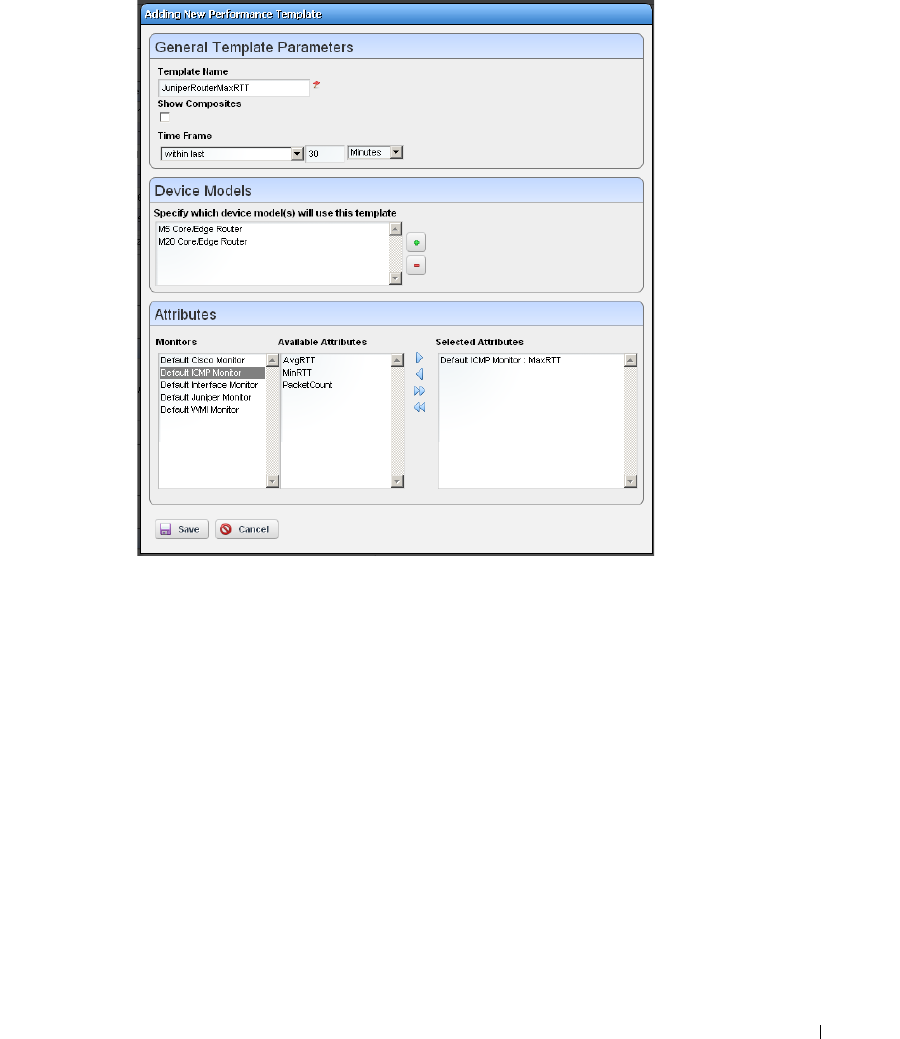

How to: Create A Performance Template . . . . . . . . . . . . . . . . . . . . 286

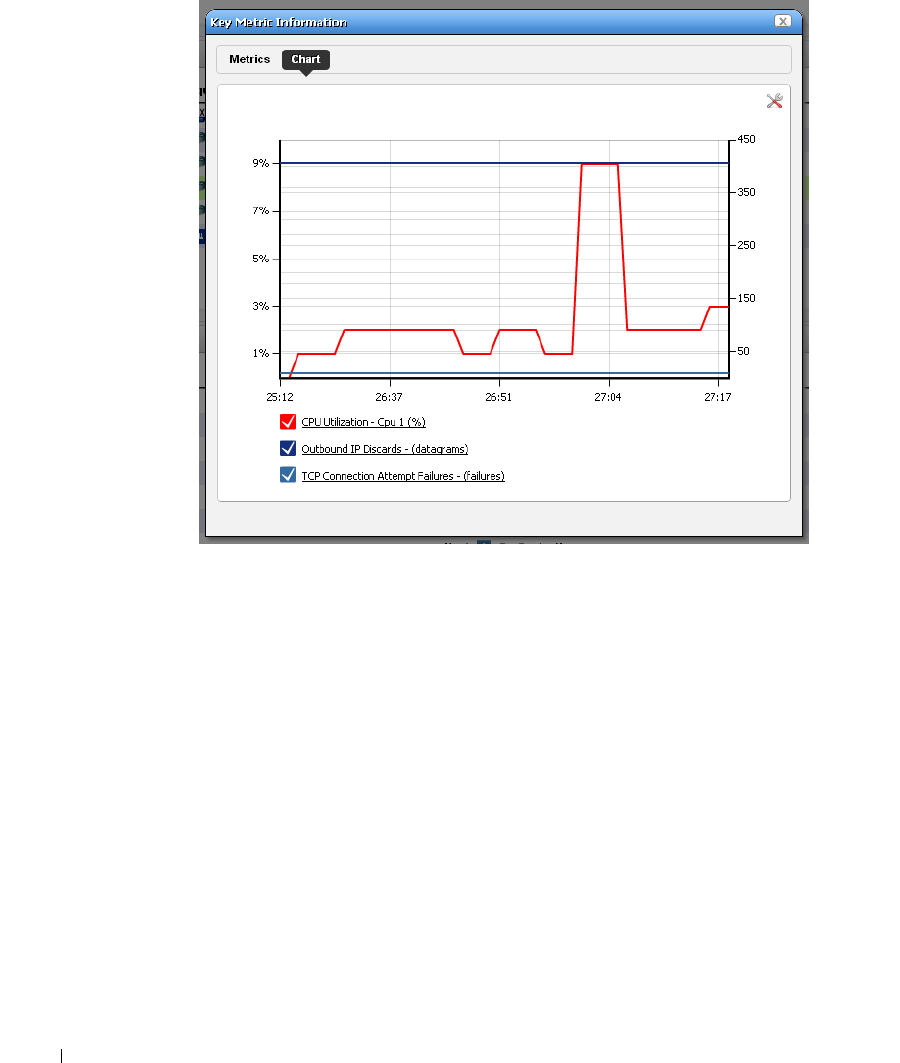

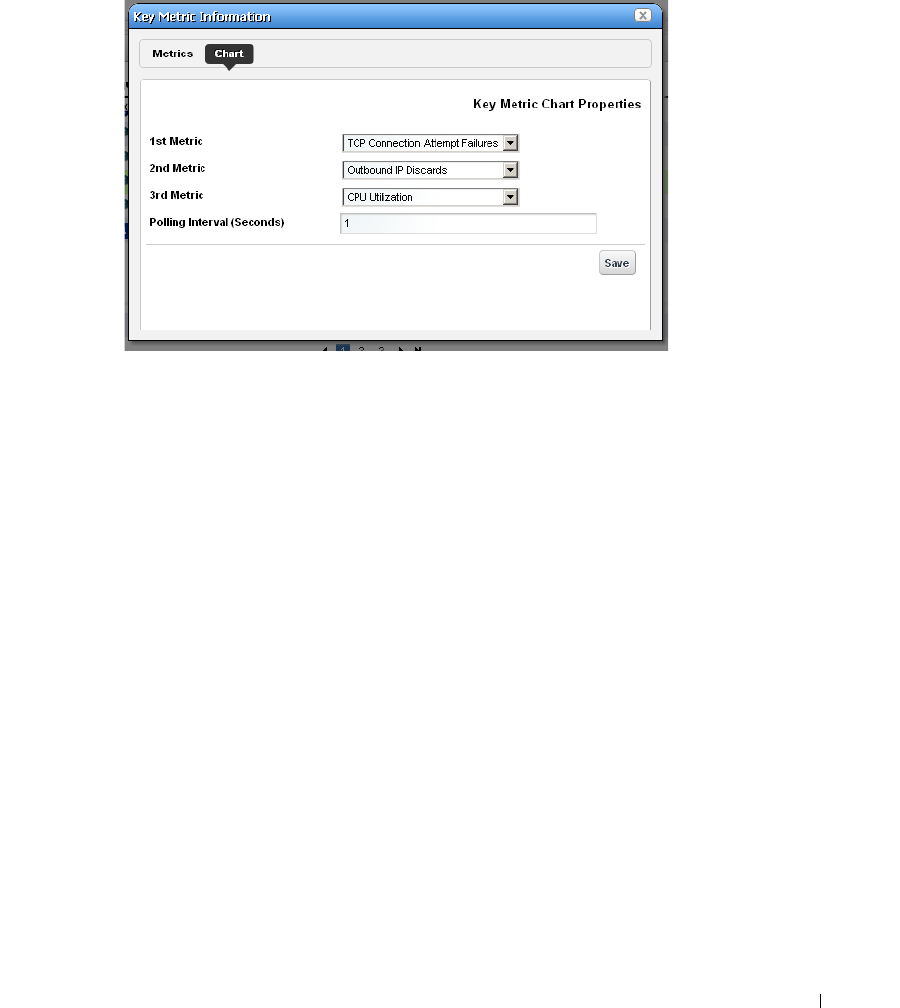

Key Metric Editor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 289

9 Traffic Flow Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .293

How does it work?. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294

Setup

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

294

How to: Use Traffic Flow Analyzer . . . . . . . . . . . . . . . . . . . . . . . . . . 295

Exporter Registration

. . . . . . . . . . . . . . . . . . . . . .

296

Traffic Flow Portlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296

Drill Down

. . . . . . . . . . . . . . . . . . . . . . . . . . .

299

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

301

Traffic Flow Analyzer - Example . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301

10 Change Management / ProScan . . . . . . . . . . . . . . . . . . . . . . .303

Introducing ProScan and Change Management . . . . . . . . . . . . . . . . . . . 303

How to: Use ProScan / Change Management . . . . . . . . . . . . . . . . . . 303

How to: Configure ProScan Groups . . . . . . . . . . . . . . . . . . . . . . . . . 304

How to: Do Change Management (Example) . . . . . . . . . . . . . . . . . 305

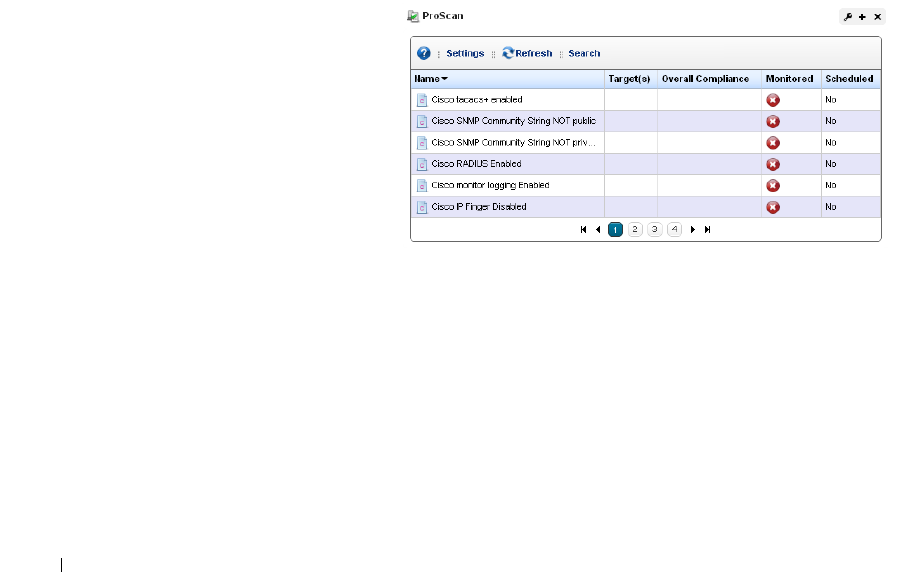

ProScan Portlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 306

Compliance Policy Summary

. . . . . . . . . . . . . . . . . .

308

Creating or Modifying a ProScan Policy

. . . . . . . . . . . .

310

How to: Create Source Group Criteria . . . . . . . . . . . . . . . . . . . . . . . 316

Creating or Modifying ProScan Policy Groups

. . . . . . . . .

326

Change Determination Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 327

Change Determination Process Workflow

. . . . . . . . . . .

328

How to: Run Change Determination . . . . . . . . . . . . . . . . . . . . . . . . . 330

Change Determination Defaults

. . . . . . . . . . . . . . . . .

330

Compliance and Change Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330

How to: Report on Change Determination . . . . . . . . . . . . . . . . . . . . 332

11 Actions and Adaptive CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . .335

Introducing Actions and Adaptive CLI . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

Using Adaptive CLI

. . . . . . . . . . . . . . . . . . . . . . .

336

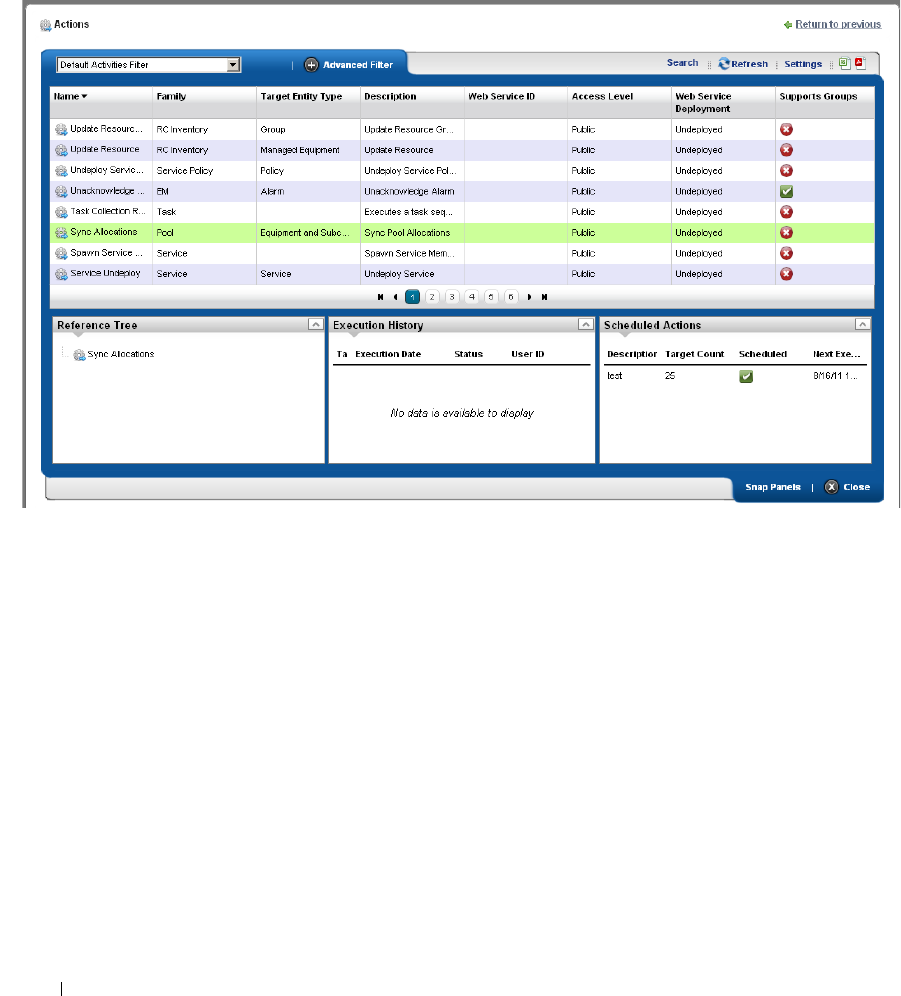

Actions Portlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337

Adaptive CLI Editor

. . . . . . . . . . . . . . . . . . . . . . .

342

General

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

343

Attributes

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

344

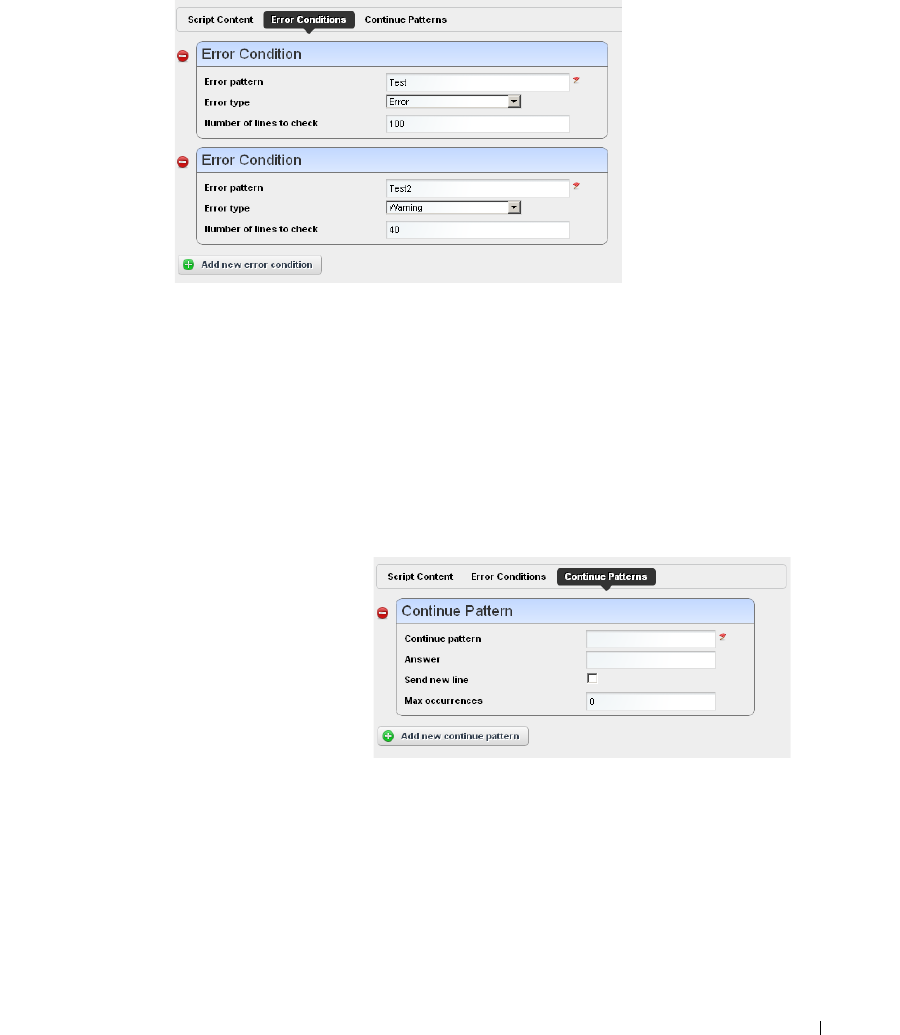

Scripts

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

350

Comparison

. . . . . . . . . . . . . . . . . . . . . . . . . .

355

External Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 355

Seeded Scripts

. . . . . . . . . . . . . . . . . . . . . . . . .

357

How to: Create a Monitor for an External Script . . . . . . . . . . . . . . 359

Adaptive CLI Script Language Syntax . . . . . . . . . . . . . . . . . . . . . . . . . . . . 361

Attributes

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

361

Conditional Blocks

. . . . . . . . . . . . . . . . . . . . . . .

362

Perl Scripts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 363

Perl Example

. . . . . . . . . . . . . . . . . . . . . . . . . .

364

How to: Create Adaptive CLI Example . . . . . . . . . . . . . . . . . . . . . . . . . 365

Scheduling Actions

. . . . . . . . . . . . . . . . . . . . . . .

365

Active Performance Monitor Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . 367

Adaptive CLI Records Archiving Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . 369

Glossary. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 371

Index

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

377

Why Dell OpenManage Network Manager? | Preface

Preface

Dell OpenManage Network Manager can give you automated, consolidated configuration and

control of your network’s resources. It is customizable, unifying multiple systems while still

communicating with other software systems (like billing) in generic WSDL, XML and SOAP.

OpenManage Network Manager’s

Administration Section

describes security and some of the

runtime features supporting these applications. The OpenManage Network Manager

Administration Section of the User Guide and

Administration Section

discuss licensing. Consult

Release Notes for information about changes not covered in this

Synergy User Guide

Why Dell OpenManage Network Manager?

Dell OpenManage Network Manager’s benefits:

Productive

Discovery and wizard-driven configuration features within minutes of installing Dell OpenManage

Network Manager, you can monitor your network.

Easy

Dell OpenManage Network Manager provides the network information you need, and offers

advanced capabilities with minimal configuration overhead.

Valuable

Dell OpenManage Network Manager often costs less to use and maintain than most other

solutions.

Scalability

You can scale Dell OpenManage Network Manager to almost any size.

Key Features

The following are some key features of Dell OpenManage Network Manager:

Customizable and Flexible Web Portal

You can customize the web portal, even providing custom designed views of your data assigned to

individual users. You can even create web portal accounts for departments, geographic areas, or

other criteria.

Why Dell OpenManage Network Manager? | Preface

Automate and Schedule Device Discovery

Device discovery populates Dell OpenManage Network Manager’s database and begins network

analysis. You can also create network discovery schedules to automatically run Discovery whenever

you need them.

Dell OpenManage Network Manager Administration

You can now conduct administrative tasks—adding devices, user accounts, and web portal

displays—from a secure console on your network.

Open Integration

Dell OpenManage Network Manager supports industry standards. It comes with an open-source

MySQL database, and supports using Oracle

databases. It also uses industry-standard MIBs and

protocols, and even lets you install open-source screen elements like Google® gadgets to the web

portal.

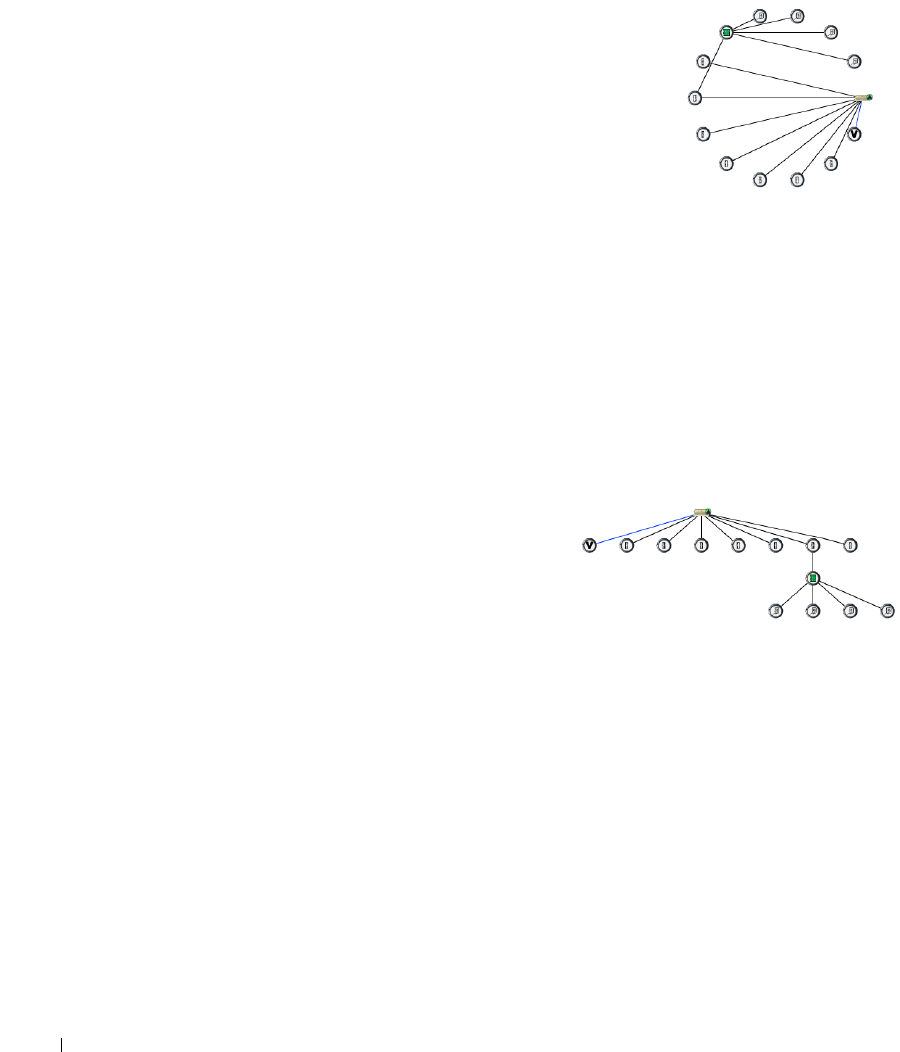

Topology

The OpenManage Network Manager

topology screen lets you create multi-layered, fully

customizable, web-based maps of your network to track devices wherever they are in your network.

Alarms

You can configure custom alarms to respond to hundreds of possible network scenarios, including

multiple condition checks. Dell OpenManage Network Manager’s alarms help you recognize issues

before your network users experience productivity losses. Alarms can also trigger actions like email,

executing Perl

scripts, paging, SNMP traps, Syslog messaging, and external application execution.

Traps and Syslog

Dell OpenManage Network Manager lets you investigate network issues with traps and Syslog

messages. You can use Dell OpenManage Network Manager to set up events / alarms and then

receive, process, forward, and send syslog and trap messages.

Reports and Graphs

Dell OpenManage Network Manager comes with many pre-configured reports and graphs to

display data from its database. You can archive and compare reports, or automate creating them

with Dell OpenManage Network Manager’s scheduler.

Modularity

With additional modules, Dell OpenManage Network Manager can analyze network traffic,

manage services and IP address and subnet allocations. OpenManage Network Manager modules

save time adding to existing Dell OpenManage Network Manager deployments to add feature

functionality without requiring additional standalone software.

Why Dell OpenManage Network Manager? | Preface

Networks with Dell OpenManage Network Manager

The beginning of network management with Dell OpenManage Network Manager is Discovery

Profiles of the resources on a network. After that occurs, you can configure

Visualize

(topology

views), Resource Monitors and Performance Dashboards.

Once you have done these initial steps, Dell OpenManage Network Manager helps you understand

and troubleshoot your network. For example: Suppose a OpenManage Network Manager

Performance Dashboard displays something you want to troubleshoot. You can right-click the

impacted device in the

Visualize

topology view to access configuration and actions. The color of

the icon in this view indicates the highest severity alarm on the device or its sub-components. For

example, red indicates a

Critical

alarm.

Displays include right-click access to the Details screen (see Equipment Details on page 178),

where you can examine each section of device information and right-click to see further applicable

actions. For example right-click to Show Performance, and edit and/or save that view of

performance as another Performance Dashboard. Performance can also display portlets that Show

Top Talkers (the busiest devices) or Show Key Metrics.

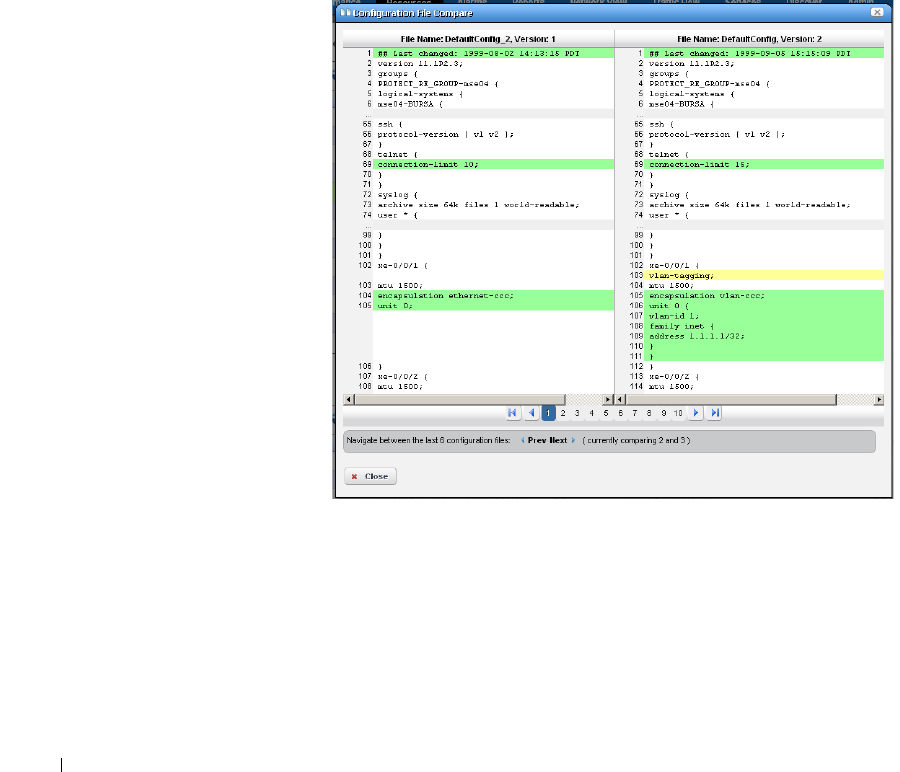

From looking at Performance Dashboards or Top [Asset] Monitors you may conclude some

configuration changes made memory consumption spike. Right-click to access resource actions

under

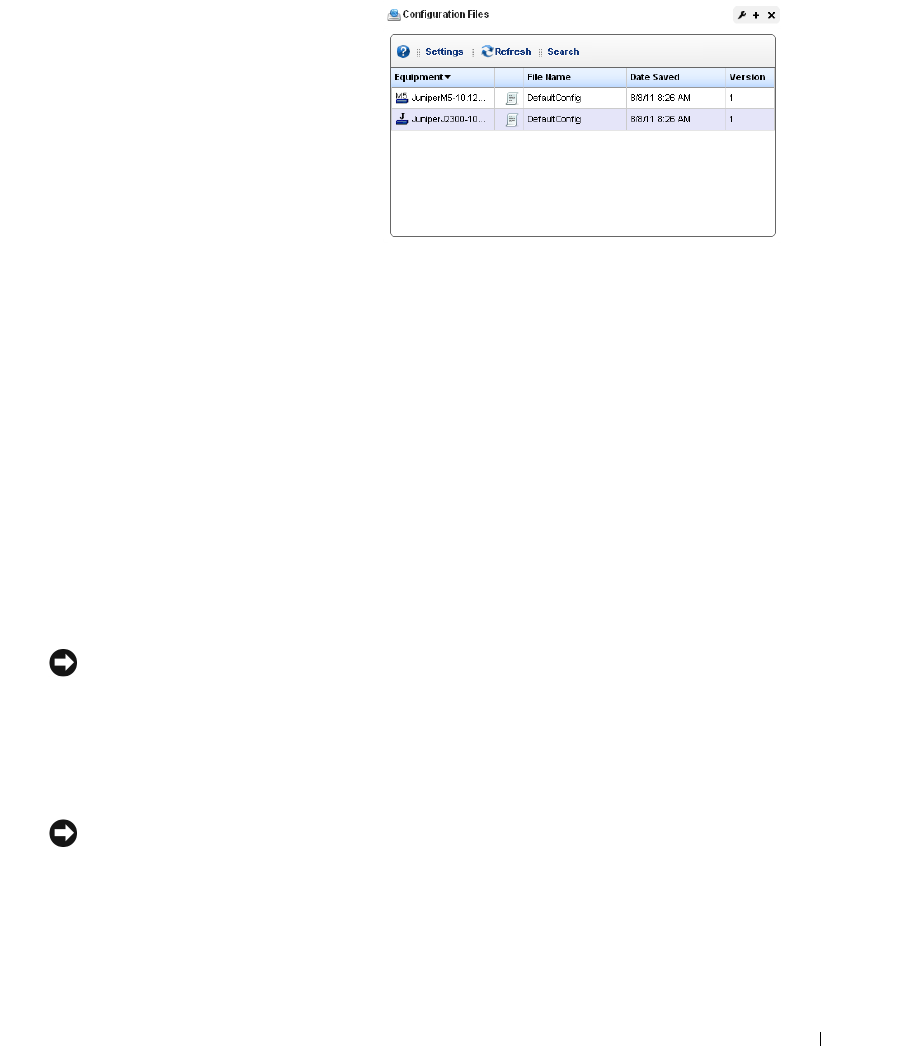

File Management

that let you see the current configuration files on devices, and compare

current to previous. You can also back up devices (see Backup Configurations on page 225) and

restore previously backed up files (see Restore Configurations on page 227). Finally, you may simply

want to Resync (another right-click menu item) to insure the device and your management system

are up-to-date.

Tip

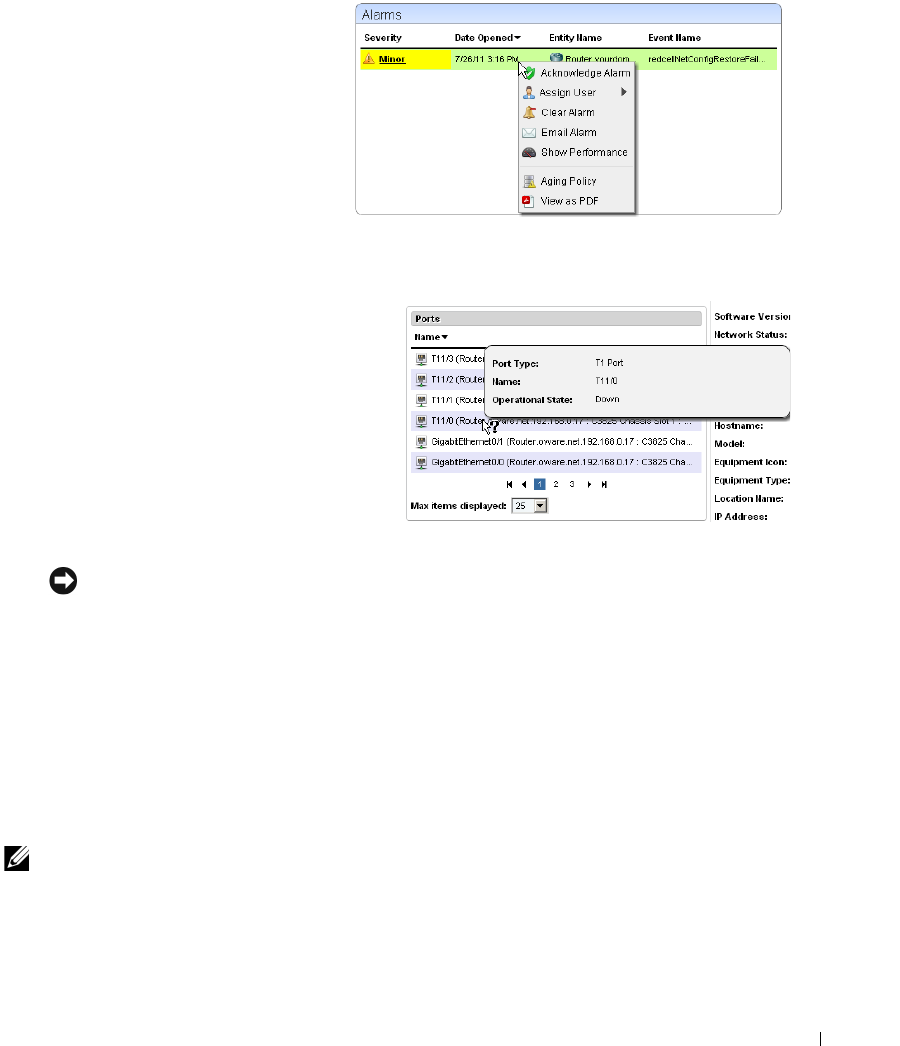

Alternatively, the Alarms portlet also lets you right-click to expose Alarm Actions.

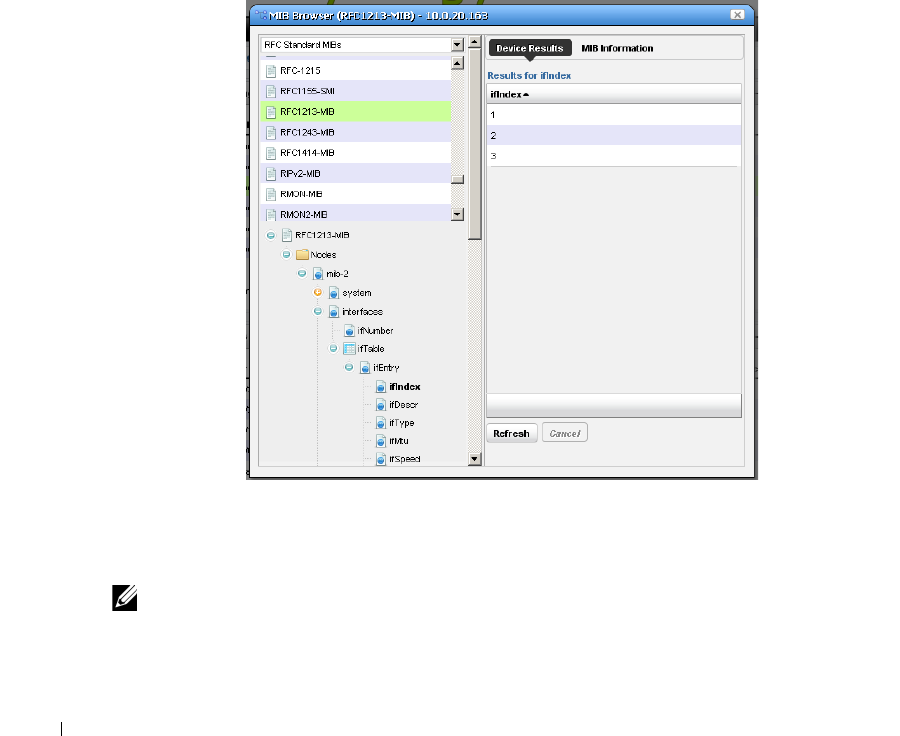

You can right click for Direct Access – Telnet or Direct Access – MIB Browser to display a command

line telnetting to the device, or an SNMP MIB browser to examine SNMP possibilities for it.

The Managed Resources portlet can display the anatomy of a Resource with its right-click actions

(see Equipment Details on page 178). Click the plus in the upper right corner to see Managed

Resources Expanded. This displays detail or “Snap-in” panels with additional information about a

selected resource.

Reports let you take snapshots of network conditions to aid in analysis of trends, and Audit Trail

Portlets track message traffic between Dell OpenManage Network Manager and devices.

Additional Products

The following describes how to increase the power of your Dell OpenManage Network Manager

installation. While the documents mentioned above describe everything available with Dell

OpenManage Network Manager, your installation may provide only a limited subset of those

features.

Why Dell OpenManage Network Manager? | Preface

Updating Your License

If you have a limited license — for example OpenManage Network Manager may limit discovery to

a certain number of devices— then your application does not function outside those licensed

limits.

You can purchase additional capabilities, and can update your license for OpenManage Network

Manager by putting the updated license file in a convenient directory. Then click

License

Management

in the Quick Navigation portlet item to open a screen with a button leading to a file

browser (

). Locate the license file, and click the

button. Your updated license should be visible in the

License Viewer

(See

License Viewer on page

for details.)

NOTE:

If you update your installation from a previous one where you upgraded license, you must also re-

You must restart application server or wait up to 15 minutes before a license modification takes

effect. (see Installation and Startup on page 28). Licenses now support three expiration formats:

Never, Date certain, and a format that indicates the license will be valid for a number of days after

registration.

Online Help / Filter

Access general online help by clicking

Help

in the The Dock at the top of the screen. Help

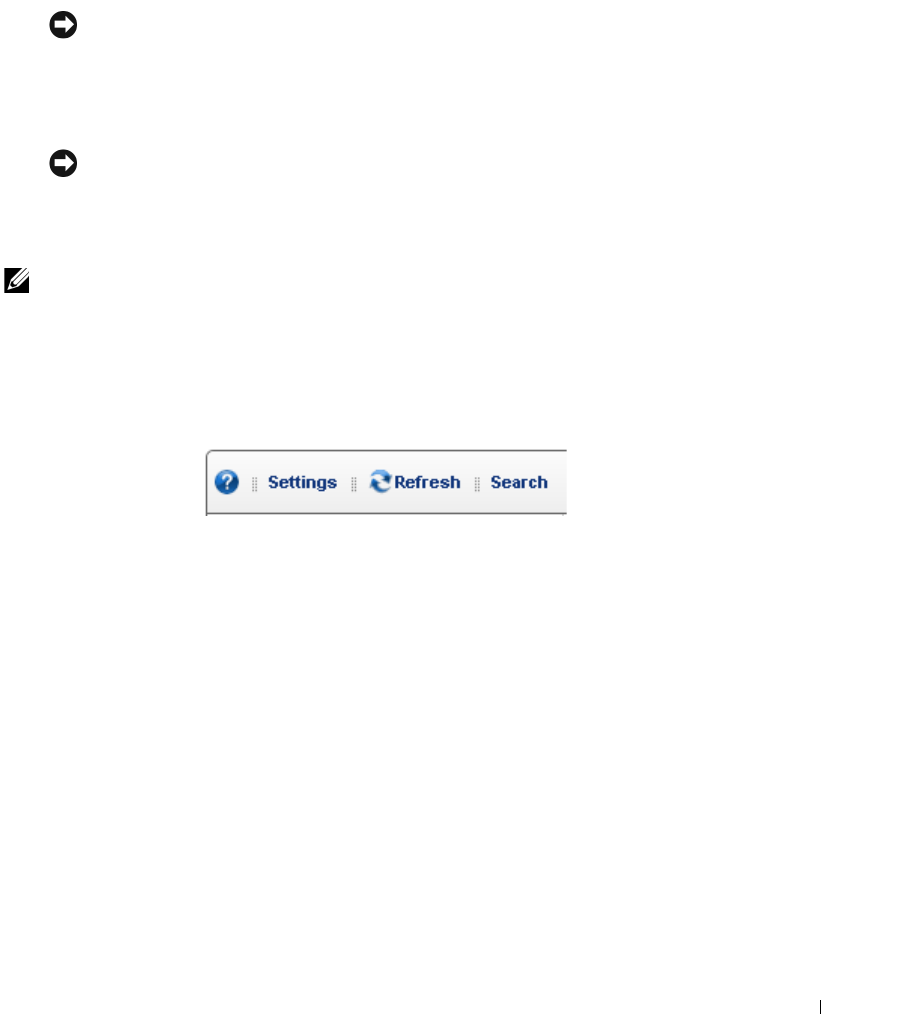

appropriate to each portlet appears when you click question mark icon on the portlet title bar.

By default, this opens a separate browser window which is not necessarily always in front of the

screen that calls it. Because it is separate, you can arrange the display so the help screen does not

conceal the portlet it describes. Click the

Show

button to display the contents, index and search

tabs (

Hide

conceals them again), and the

Prev / Next

buttons, or clicking table of contents topics

moves to different topics within the helpset.

Tip

Sometimes your browser’s cache may interfere with help’s correct appearance. If you see a table of

contents node without contents, you can often repair it by refreshing the panel or whole screen.

How To:

Use “How To”

Several sections of what follows contain the “How to” instructions for use. These are typically steps

to follow to produce the desired result. For a look at all such steps available, refer to the

How to

section of the Index.

Feedback | Preface

Feedback

To provide your input about this software click the

Feedback

link in the lower left corner of the Dell

OpenManage Network Manager screen. Provide your contact information, enter

Questions, Likes,

New Idea

or a

Problem,

in the screen that appears next, then click

Send.

Dorado Software

responds, and often uses customer suggestions in future versions of the software.

A Note About Performance

Dell OpenManage Network Manager is designed to help you manage your network with alacrity.

Unfortunately, the devices managed or the networks that communicate with those devices are not

always as fast as this software. If discovery takes a long time (it can), often network and device

latency is the culprit. You can also optimize installations to be faster (see the recommendations in

the Administration Section of the User Guide and

Administration Section

s), and limit device

queries with filters, but device and network latency limit how quickly your system can respond.

Tip

If you use management systems other than this one, you must perform a device level resync before

performing configuration actions. Best practice is to use a single management tool whenever possible.

A Note About Performance | Preface

Overview | Getting Started with Dell OpenManage Network Manager

Getting Started with Dell OpenManage

Network Manager

Overview

This chapter describes how to install and start Dell OpenManage Network Manager for basic

network monitoring and management. For more detailed descriptions of all this software’s features,

consult its other manuals (the OpenManage Network Manager Administration Section of the User

Guide,

Synergy User Guide

Administration Section

and

User Guide

) or the online help.

Tip

If you want to find something but are unsure about which manual it is in, you can search all text in the

Acrobat® files in a single directory. You can also click on the blue cross-references to go to the target

destination of cross-references in Acrobat, however for such electronic cross-references to the other

documents to work, they must be in the same directory. Cross-document links do not work between

documents for different versions of this software, but may provide an approximate location to consult.

If you are sure your hardware, software and network is correct and just want to get started

immediately, go to Getting Started on page 27.

The Dell OpenManage Network Manager portal delivers powerful solutions to network problems,

and, in addition to the OpenManage Network Manager technology documented in the following

pages, Dell OpenManage Network Manager offers the following capabilities:

• Message Boards, Blogs, Wikis

• Shared Calendars

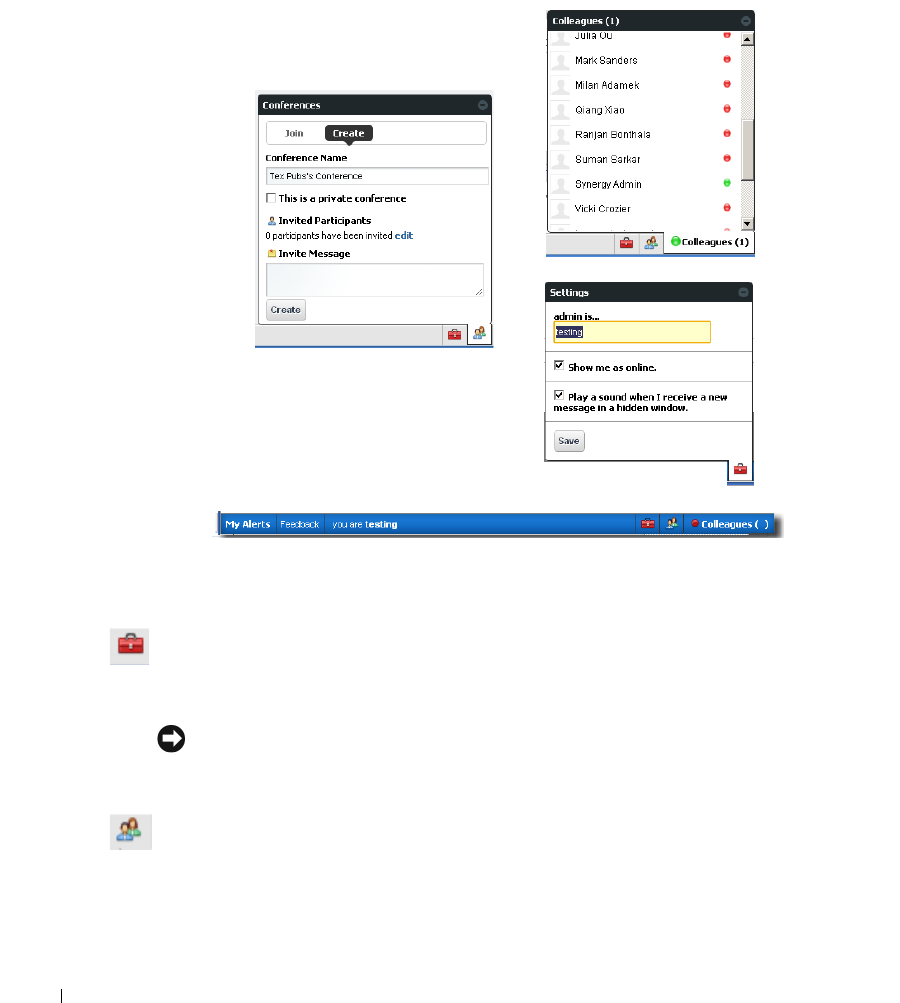

• Enterprise Chat / Messaging

• RSS Feeds

• Tagging, Ratings, Comments

The section Server on page 49 describes how to set up some of these features.

System Basics

System requirements depend on how you use the application and the operational environment.

Your specific network and devices may require something different from the recommendations for

typical installations.

Overview | Getting Started with Dell OpenManage Network Manager

Generally, base the minimum configuration of any system on its expected peak load. Your

installation should spend 95% of its time idle and 5% of its time trying to keep pace with the

resource demands.

Upgrading from a Previous Version

When you upgrade your OpenManage Network Manager installation from a previous version, keep

the following in mind:

• Upgrading requires a new license to activate new features.

• Performance capabilities have been completely reconfigured. When upgrading from previous

versions, you must (re-)create dashboards from scratch.

• The following require manual migration (export, then import) from previous versions: SMTP

settings. Some scheduled items.

• You must re-create topologies as Visualizations. (suggestion: take a screenshot)

• Group Operations have been deprecated, replaced by Adaptive CLIs.

• Command monitors must be recreated, and monitors must be re-configured to monitor

Adaptive CLIs that run external scripts.

• User Names / Passwords, and User Groups (Roles) are not automatically reassigned and must

be created manually.

Supported Operating System Versions

The following are supported operating system versions:

Microsoft Windows

—The supported operating systems are: Windows 2003 (Standard,Enterprise

and Web) and Windows Server 2008 (including R2 and Enterprise Edition). This is a 64-bit

application, it has been tested for Windows on 64-bit operating system versions.

NOTE:

Windows Terminal Server is not supported. The installer becomes non-responsive with Data Execution

Prevention enabled. This option is disabled by default on Windows Server 2008, but is enabled on a

Windows Server 2008 machine running Terminal Server.

• You must disable User Account Control if you are installing Windows Server 2008.

• Installer may halt when pre-existing bash sessions or cmd sessions are left open. Close all such

sessions.

Linux

—This application supports Red Hat (Enterprise version 5.5 or 6.0) Linux, 64-bit only. (See

32-bit Linux Libraries on page 18 for additional requirements)

CAUTION:

For Linux, you must install no more than a single instance of MySQL

—the one installed with this

software. Before you install, remove any MySQL if it exists on your Linux machine.

Overview | Getting Started with Dell OpenManage Network Manager

Linux Installation Best Practices

How you install Linux has an impact on Dell OpenManage Network Manager’s installation. Here

are some tested best practices:

• You can install Linux in its Desktop option, or if you select Basic Server (default) - choose

additional packages: XWindows, Basic / Core Gnome Desktop without Gnome utilities,

although we suspect any Gnome will work).

• Turn off SE Linux in /etc/selinux/config. Change SELINUX=disabled. This typically requires

a reboot.

• You must install compatibility library from installation media (so it is compatible with

installation)

compat-libstdc++-33.x86_64 3.2.3-69.el6 @InstallMedia.

Also: verify that

/etc/hosts

points to new name-use the following command and you

should see similar output.

[qa@rh6Test Desktop]$ cat /etc/hosts

10.18.0.241rh6Test.localrh6Test# Added by NetworkManager

127.0.0.1localhost.localdomainlocalhost

::1 rh6Test.localrh6Testlocalhost6.localdomain6localhost6

Upgrading on Linux

The following are best practices for upgrading from a previous OpenManage Network Manager

version on a Linux machine:

Make sure Red Hat is not installed with a MySql database option (or remove the Linux MySql

first).

Ensure you have installed the 32-bit Linux Libraries, as described below.

Verify your previous version’s installation application server starts without excpetions

Back up the database, and any other resources that need manual installation. Consult Release

notes for a list of these.

Proceed with the upgrade.

Disable Firewalls

System->Administration->Firewall - You may be prompted to enter the root password; the

password dialog may be hidden behind the Firewall Configuration Startup dialog.

Directories and Permissions

Create the directory for the installation:

Open a terminal.

Change to Super User: su <enter> password: []

Create directory and configure its ownership and permissions:

Overview | Getting Started with Dell OpenManage Network Manager

mkdir /opt/

chown [your login name] /opt/[your installation directory]

chmod 775 /opt/[your installation directory]

NOTE:

[your login name] is the original non-root user available when you imported the machine. Replace [your

You may need to change the permissions on the installer in our package in order to give it execute

rights. If you have used the shared folder method from above, you can give the Linux installer

rights as follows:

chmod uga+x /[Install Media Path]/install/linux_install

Make sure that there is no other

my.cnf

file under the

/etc

directory. If there is, do the following:

mv /etc/my.cnf /etc/my.cnf.original

32-bit Linux Libraries

For Red Hat Enterprise 64 bit installations, you must identify the appropriate package containing

32-bit libtcl8.4.so (for the example below: tcl-8.4.13-3.fc6.i386.rpm for Red Hat).

NOTE:

Do not use any x86_x64 rpms; these would not install the 32-bit libraries.

Any 32-bit tcl rpm that is of version 8.4 and provides libtcl8.4.so works. You can download them

from Sourceforge:

http://sourceforge.net

. Download these, then issue the command:

rpm -ivh --force tcl-8.4.13-3.fc6.i386.rpm

This forces the installation of the 32-bit libraries on a 64-bit system. Ensure that your expect

executable in your installation directory is properly linked by issuing the following commands:

[someone@RHEL5-64bit ~]$ which expect

/opt/dorado/oware3rd/expect/linux/bin/expect

[someone@RHEL5-64bit ~]$ ldd /opt/dorado/oware3rd/expect/linux/bin/expect

linux-gate.so.1 => (0xffffe000)

libexpect5.38.so => /opt/dorado/oware3rd/expect/linux/bin/

libexpect5.38.so (0xf7fd2000)

libtcl8.4.so => /usr/lib/libtcl8.4.so (0x0094c000)

libdl.so.2 => /lib/libdl.so.2 (0x0033e000)

libm.so.6 => /lib/libm.so.6 (0x00315000)

libutil.so.1 => /lib/libutil.so.1 (0x00b8d000)

libc.so.6 => /lib/libc.so.6 (0x001ba000)

/lib/ld-linux.so.2 (0x0019d000)

Overview | Getting Started with Dell OpenManage Network Manager

Make sure that

libtcl8.4.so

maps to

/lib/libtcl8.4.so

An Alternative for Red Hat

Linux:

Copy

/usr/lib/libtcl8.4.so

from a 32-bit RH system to

/usr/local/lib/32bit

on your 64-bit Red Hat system

As root, execute:

ln –s /usr/local/lib/32bit/libtcl8.4.so /usr/lib/

libtcl8.4.so

Supported Web Browsers

Supported web browsers include:

• Chrome (v 6 and above)

• Safari (v 5 and above)

• Firefox (v 3.6 and above)

• Internet Explorer (v 9 and above)

Screen resolution should equal or exceed 1280 x N pixels. Users running Safari on an Apple

machine must modify Java preference to run applets as their own process. Java Preferences are

under Applications > Utilities on OSX.

NOTE:

Internet Explorer versions 8 and older display alignment issues, have slower JavaScript and Flash

processing, and some transparencies do not work. Other anomalies include non-rounded corners, no

alpha rendering, scroll bars in performance indicators, non-working multi-level menus, a too-large OS

Images schedule form, and others. To fix these anomalies, install the Chrome plug-in at http://

code.google.com/chrome/chromeframe/. After it installs, close IE and re-open it. The look and feel

should improve.

Tip

You can often resolve problems by refreshing the browser’s display.

CAUTION:

Opening Dell OpenManage Network Manager, or links originating within it in multiple tabs on multi-tab

browsers is not supported. To see “multiple” screens, configure Dell OpenManage Network Manager’s

Menu Bar.

You can download and install updates if your browser or version varies from those supported. To

have all Dell OpenManage Network Manager functionality, you must also install the latest version

of Java (v.1.6 or later) Adobe’s Flash™ and Adobe’s Acrobat® that works with these browsers. Flash

Single Server Sizing | Getting Started with Dell OpenManage Network Manager

for 64-bit browsers is currently a preliminary version, but you can typically run a 32-bit browser

even in a 64-bit operating system, so Flash features will still be available even if you do not want to

run Adobe’s beta software.

NOTE:

If Flash is installed, but the screen still requests it, reload the page in the browser. Also: Your screen must

be at least 1250 pixels wide.

Tip

When no cursor or focus is onscreen, some browsers interpret backspace as the Previous button.

Single Server Sizing

The following describes hardware and sizing configuration for common Dell OpenManage

Network Manager deployments. Before any deployment, administrators should review and

understand the different deployment options and requirements. Consider future growth of the

network when estimating hardware sizing. You can generally expand modern systems running Dell

OpenManage Network Manager by adding more RAM to the host server(s). Selecting expandable

hardware may also be critical to future growth. For ease of management, deployments selection

best practice is to use the fewest possible servers. Standalone (single server) deployment offer the

simplest and easiest management solution. Where high availability (HA) is required, you can

produce the simplest deployment with as few as two servers.

Minimum Hardware

The minimum hardware specification describes what Dell OpenManage Network Manager needs

at a minimum. In such minimum installations, traffic flowing from the network to OpenManage

Network Manager may exceed the capacity of the hardware. When estimating the size of a

deployment, it is important to understand the applications configurations in the target

environment. Applications that are typically the most demanding of resources are Traffic Flow

Analyzer (TFA), Event Management and Performance Monitoring.

REQUIRED Minimum hardware

—6GB RAM, dual core CPU, 200 GB 7200 RPM Disk.

Supports

• Standalone installations (Single Server) is supported when high-resource demand

applications are used minimally.

RECOMMENDED Minimum hardware:

8GB RAM, quad core CPU, 400 GB 10,000 RPM Disk

Supports:

• Standalone installations (non-distributed).

Sizing for Standalone Installations | Getting Started with Dell OpenManage Network Manager

Sizing for Standalone Installations

The following are suggested sizing guidelines for your Dell OpenManage Network Manager system.

Assumptions: Servers have at least four cores and are no more than four years old. As memory and

usage increases, the number of CPU cores increase. Two cores can work for the most basic installations,

but are not recommended.

Each device is equivalent to a L2 or L3 switch with a total of 48 interfaces per device being monitored.

For each of devices not being monitored for 48 interfaces, one can add another 50 devices to the overall

inventory for ICMP-only monitoring.

Application Constraints are most relevent to Traffic Flow Analysis, Peformance Management, and Event

Management.

Traffic Flow Analysis ratings map to constant throughput divided by sample rate, as in bandwidth /

sample rate. 20G / 2000 is easier to manage than 20G / 1000. 20G / 1 is a thousand times more demanding

than 20G / 1000. Best practice is to avoid such high sample rates. The bandwidth the hardware your Dell

OpenManage Network Manager installation can support is dramatically lower in such cases. Best

Operating System / Disks /

RAM / Hardware

Network Size Devices

Application Constraints

Installation Changes to

Heap (RAM) Settings

64-bit OS with 6GB RAM

or 32-bit OS with 4GB

RAM

All below are 64-bit OS’s:

<5 Users <20 <2Mbs Internet egress and a

1:1000 sample rate

Use defaults: (1 or 2GB

application server heap (32

v. 64-bit) 512M database

768M Synergy

8GB RAM, single disk,

consumer level PC

Single-site, less than 10

concurrent users

<100 <2Mbs Internet egress and a

1:1000 sample rate

3GB application server

heap, 2GB database, 1G

Synergy

12GB RAM, single disk,

business level PC

Single-site, less than 25

concurrent users.

< 500 < 10Gbs Internet egress and

a sample rate of 1:1000

4GB application server

heap, 3GB database, 3G

Synergy

16GB RAM, multi-disk,

server level PC

Medium-large network,

up to 50 concurrent

users

< 1,000 < 50Gbs Internet egress and

a sample rate of 1:1000

5G application server heap,

4G database, 4.5G Synergy

32GB RAM, multi-disk,

server level PC,

recommend fast disk array

or SSD drive array for the

many database actions

Large network, up to

100 concurrent users

< 2,000 < 200Gbs Internet egress

and a sample rate of 1:1000

10G application server

heap, 8G database, 9G

Synergy

Sizing for Standalone Installations | Getting Started with Dell OpenManage Network Manager

practice is to sample a maximum of one traffic flow for every 1000 (1:1000). Higher sampling rates

degrade database performance and increase network traffic without adding any significant statistical

information.

Performance Management can support 600 inserts per second using a single disk (SSD) Drive. 1 insert =

1 monitored attribute. Expect better performance as you add more drives (and worse performance with

slower drives).

Event Management can support a sustained 1200 traps /sec using a single (SSD) drive. Expect better

performance as you add more drives (and worse performance with slower drives).

Database memory settings increase as the number of database hits increases. At the 32GB level best

practice is to use an SSD drive or fast disk array because of the large number of database actions

possible.

You can start and stop the client portion of the software without impacting the application server.

Device monitoring stops when you stop the application server or turn off its host machine. The

client can also be on a different machine than the application server.

NOTE:

See Starting Web Client on page 32 for more information about using web access to this software.

64-bit

Since Dell OpenManage Network Manager has a web server, demands on 32-bit system resources

are near their limits. A standalone 32-bit system with Application server, Web server, and database

requires nearly all addressable memory, and is therefore not supported. Applications like Traffic

Flow Analyzer and Performance Monitoring require even more memory. For these reasons, and for

future scalability, do not install the this software on 32-bit systems.

Tablets, phones and iPads

Dell OpenManage Network Manager detects mobile devices and pads. For smaller screens, the

Navigation bar collapses to the left hand side and the page only displays a single column. Some

limits apply:

• Since touch devices do not support right click, the first time clicking on a row selects it. A

repeat click launches a menu displaying the available actions. Click the one you want.

• Charts that require flash may not work (some have HTML5 backup).

• Visualize / Topology is unavailable.

• Phones may limit views further

Network Basics

OpenManage Network Manager communicates over a network. In fact, the machine where you

install it must be connected to a network for the application to start successfully. Firewalls, or even

SNMP management programs using the same port on the same machine where this software is

installed can interfere with communication with your equipment.

Sizing for Standalone Installations | Getting Started with Dell OpenManage Network Manager

Dealing with any network barriers to communicating with OpenManage Network Manager, any

required initial device configuration to accept management, and managing security measures or

firewalls—all are outside the scope of these instructions. Consult with your network administrator

to ensure this software has access to the devices you want to manage with the Protocols described

below.

Tip

One simple way to check connectivity from a Windows machine to a device is to open a command shell

with Start > Run

cmd

. Then, type

ping [device IP address]

at the command line. If the

device responds, it is connected to the network. If not, consult your network administrator to correct this.

No useful information comes from disconnected or powered-down devices.

Name Resolution

OpenManage Network Manager server requires resolution of equipment names to work completely,

whether by host files or domain name system (DNS). The application server cannot respond to

hosts with IP addresses alone. The application server might not even be in the same network and

therefore the host would be unable to connect.

If your network does not have DNS, you can also assign hostnames in

%windir%\System32\drivers\etc\hosts

on Windows (

/etc/hosts

in Linux). Here,

you must assign a hostname in addition to an IP address somewhere in the system. Here are some

example hosts file contents (including two commented lines where you would have to remove the

# sign to make them effective):

# 102.54.94.97 rhino.acme.com # source server

# 38.25.63.10 x.acme.com # x client host

127.0.0.1 localhost

Protocols

OpenManage Network Manager uses the following protocols: TCP/IP, SNMP, HTTP/S, UDP

Multicast.

Overriding Properties

Dell OpenManage Network Manager lets you fine-tune various features of the application. Rather

than lose those changes if and when you upgrade your application, best practice is to override

changes. To do this, first change the provided file

\oware\synergy\conf\server-

overrides.properties.sample

server-overrides.properties

, and enable the

properties within it by uncommenting them, and altering them to fit your needs. The comments in

this file provide more information.

You can also override application server-related properties in

\owareapps\installprops\lib\installed.properties

Sizing for Standalone Installations | Getting Started with Dell OpenManage Network Manager

Fixed IP Address

OpenManage Network Manager includes a web server and application server which must be

installed to hosts with fixed IP addresses or permanently assigned Dynamic Host Control Protocol

(DHCP) leases.

If you do change your host’s IP address

To accommodate a changed IP address, first delete the contents of

\oware\temp

. Change your

local IP address anywhere it appears in

\owareapps\installprops\lib\installed.properties

. Then restart your machine.

Alternatively, in a shell, after running

oware

to set the environment, you can run

ipaddresschange -n

followed by the new IP address.

NOTE:

If you change your host’s IP address, you must also change the Virtual host IP to the new IP address in

Manage > Control Panel > Portal.

If you do change your server’s IP address, you must also change the URL for web client access in

your browser.

Authentication

For successful discovery of the resources on your network, this software requires authenticated

management access to the device. To get this access, you must provide the correct SNMP

community strings, WMI login credentials, and any other command-line (Telnet / SSH) or browser

(HTTP/HTTPS) authentication, and SNMP must be turned on, if that is not the device’s default.

Some devices require pre-configuration to recognize this management software. Consult your

network administrator or the device’s manuals for instructions about how to enable those. See

Authentication on page 143 for more.

Supported PowerConnect Models

Refer to release notes for a list of supported devices. You can also look at the HTML files in the

SupportedDevices directory of your installation source for information about supported devices

and operating systems.

Windows Management Interface

The Windows Management driver currently supports any Windows based operating system that

supports the Windows Management Interface (WMI).

Windows Management is always installed on the following operating systems (or later):

• Windows XP Professional (with a browser other than Internet Explorer)

Sizing for Standalone Installations | Getting Started with Dell OpenManage Network Manager

• Windows 2003 All Editions

•Windows Vista

The login credentials must be for an administrator on the installation host for complete

functionality. Both this and .NET installation are requirements for any installation managing

devices supported by this driver.

This driver supports global group operations.

NOTE:

Discovery may display benign retry warning messages in the application server shell or log. You can

safely ignore these.

Prerequisites

Before installing this software to manage other computers with a Windows Management Interface

driver (assuming you are installing that driver), if you do not already have it installed, you must

download and install the Microsoft .Net™ framework version 3.0 or later on the application server.

For complete functionality, the WMI login for this software must be a login for a domain user who

also belongs to the administrator group on the WMI device. Both are requirements for any

installation managing WMI devices.

The following are common Windows Base prerequisites:

Credentials

—You must use administrative credentials to manage the computer system.

Firewall

— Some firewalls installed on the computer may block Windows Management requests.

Allow those you want to manage. (See Firewall Issues below.)

License

—Make sure you have the proper Windows Base driver license installed. If you have a Dell-

only license and are discovering a non-Dell computer, discovery does not work. Or if you have

a Dell license for desktop discover you cannot discover a server.

License come in the following types:

• Major Vendor by Name—For example: Dell, Compaq, HP, Gateway

• Server/Desktop individual license support

• Generic computers—Non-major vendors

• ALL—This gives the driver all capabilities for any computer system

Firewall Issues

Configure the firewall between your server and the Internet as follows:

• Deny all incoming traffic from the Internet to your server.

• Permit incoming traffic from all clients to TCP port 135 (and UDP port 135, if necessary) on

your server.

• Open Port 445 (WMI)

Sizing for Standalone Installations | Getting Started with Dell OpenManage Network Manager

• Permit incoming traffic from all clients to the TCP ports (and UDP ports, if necessary) on

your server in the Ports range(s) specified above.

• If you are using callbacks, permit incoming traffic on all ports where the TCP connection was

initiated by your server.”

WMI queries will succeed only if you add the User account to local admin group. Refer to the

Microsoft knowledgebase articles for the way to do this. For example: Leverage Group Policies with

WMI Filters: support.microsoft.com/kb/555253/en-us

For user rights for WMI access, see: www.mcse.ms/archive68-2005541196.html

Category

—The syslog category varbind value.

Event Severity

—Select the alarm severity of the event emitted when a match occurs.

Message Pattern

—An optional regular expression for the text to retrieve and transmit in the

created event’s message.

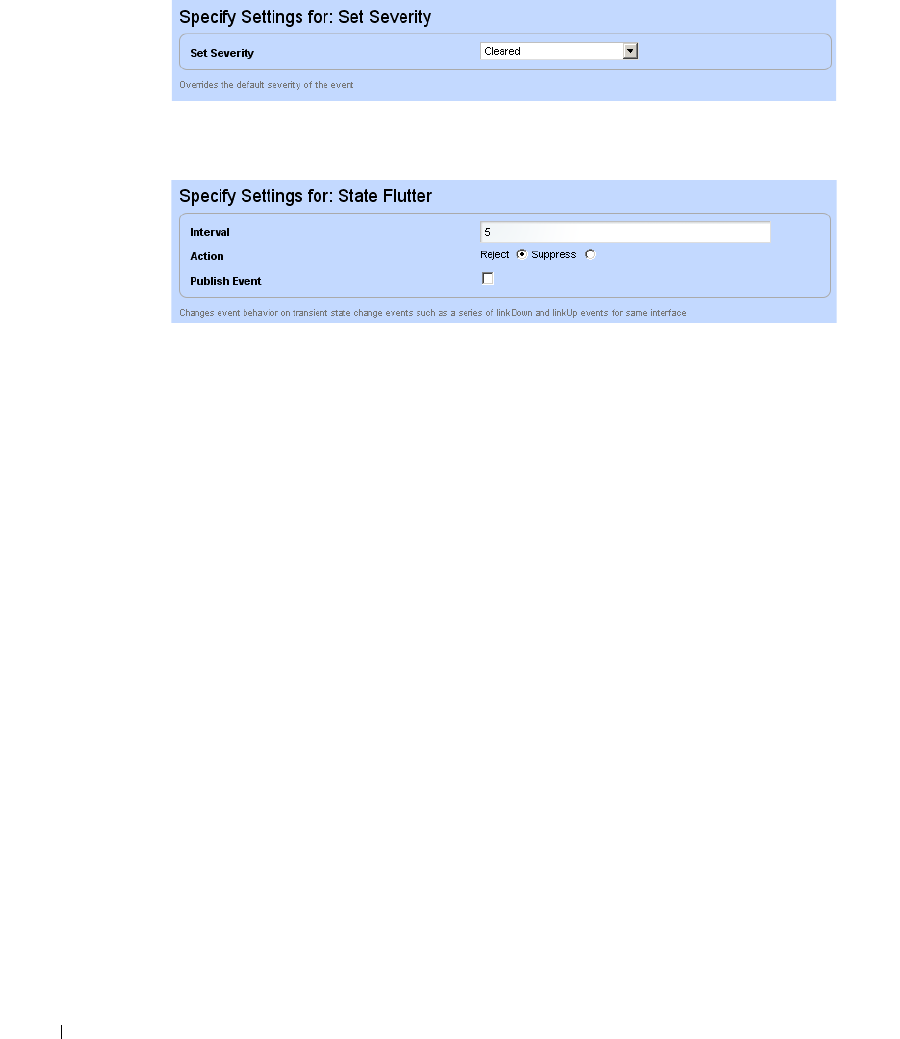

116

Event Processing Rules | Key Portlets

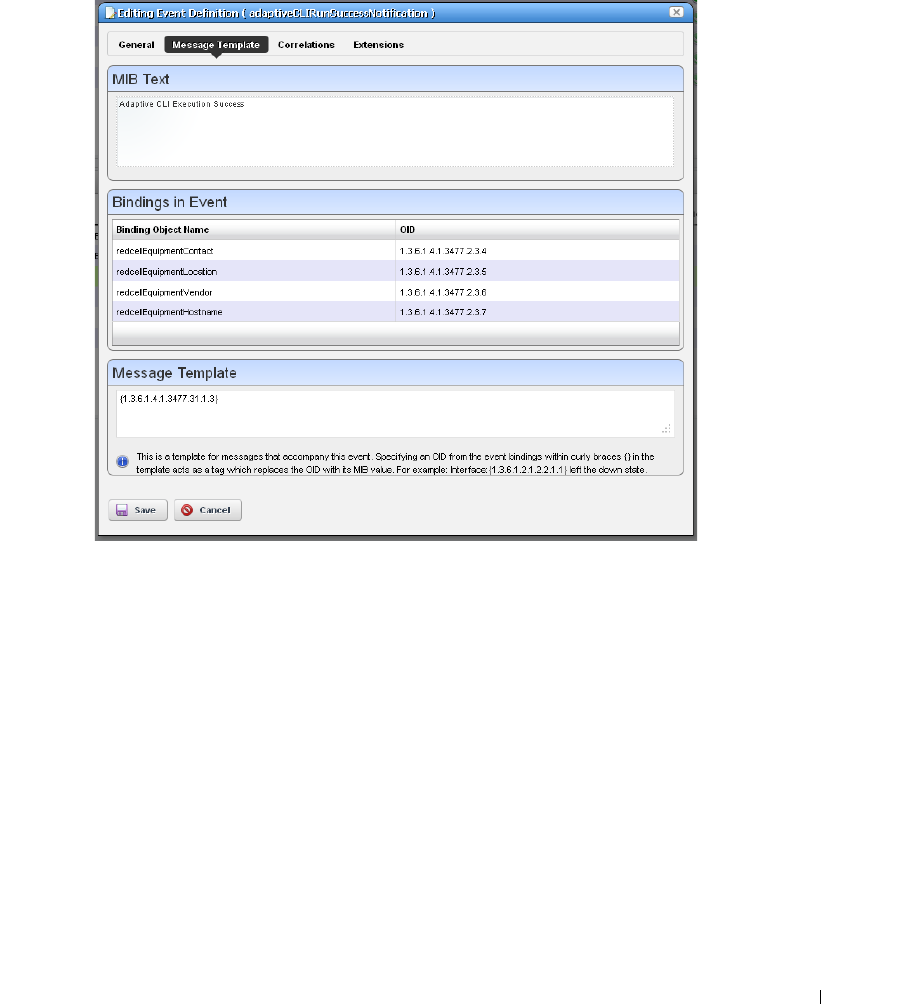

Message Template

—The configuration of the message when sent. For example: the template

occurred on %3 for %2

creates a message with the first message pattern retrieved,

followed by the third, then the second within the specified text.

Message Test

This screen lets you test your message against the pattern and/or template. Click the

Te s t

button to

the right of the top field to activate this testing.

Test Message

—Enter a message to test.

Test Message Result

—The text extracted for the event as it appears in the template.

Click

Apply

to accept these escalation criteria, or

Cancel

to abandon them without saving.

Actions

This screen catalogs the actions configured for the Post-Processing (Automation) rule you have

configured in previous screens.

Click

Add Action

to create anew action in the editor. The

Actions

column lets you revise (

Edit this

entry

) or

Delete

entries in this table. Click

Save

to preserve the action(s) configured here, or

Cancel

to abandon any edits.

Clicking

Add Action

lets you select from the following:

• Forward Northbound

•Email

•Custom

Event Processing Rules | Key Portlets

117

Click

Apply

to accept configured actions, or

Cancel

to abandon their editor and return to this

screen.

Tip

Actions available here are like those for Discovery Profiles on page 153.

Forward Northbound

When you want to forward an SNMP v2 event (trap) to another host, then configure automation in

this screen to do that.

Enter the following fields:

Destination Address

—The IP address of the northbound destination.

Destination Port

—The port on the northbound destination.

Community String

—The SNMP community string for the northbound destination.

Send as Proxy

—When checked, this sends the IP address of the application server as the source of

the event. Unchecked, it sends the IP address of the source device. (See Send as Proxy on

page 118 for more.)

For details of the Trap Forwarding Process, see the next section.

118

Event Processing Rules | Key Portlets

Trap Forwarding Process

SNMPv1 and SNMPv3 traps become SNMPv2 Traps

SNMPv1 traps are converted according to RFC 1908. SNMPv3 traps are already in SNMPv2 format

and the application simply does not use SNMPv3 security when sending these northbound. The

following is the relevant snippet from RFC 1908:

3.1.2. SNMPv1 -> SNMPv2

When converting responses received from a SNMPv1 entity acting in an agent role into

responses sent to a SNMPv2 entity acting in a manager role:

(1) ...

(2) If a Trap-PDU is received, then it is mapped into a SNMPv2-Trap-PDU. This is done by

prepending onto the variable-bindings field two new bindings: sysUpTime.0 [6], which takes

its value from the timestamp field of the Trap-PDU; and, snmpTrapOID.0 [6], which is

calculated as follows: if the value of generic-trap field is

enterpriseSpecific

, then the

value used is the concatenation of the enterprise field from the Trap-PDU with two additional

sub- identifiers, ‘0', and the value of the specific-trap field; otherwise, the value of the

corresponding trap defined in [6] is used. (For example, if the value of the generic-trap field is

coldStart

, then the application uses the coldStart trap [6]) Then, one new binding is

appended onto the variable-bindings field: snmpTrapEnterprise.0 [6], which takes its value

from the enterprise field of the Trap-PDU. The destinations for the SNMPv2-Trap-PDU are

determined in an implementation-dependent fashion by the proxy agent.

Despite this description, many vendors defined a trap for SNMPv2 and then had to support

sending as SNMPv1 protocol. The assembly of v2 OID from v1 enterprise and specific is supposed

to include an extra ‘0'; enterpriseOID.0.specific. However, if a v2 trap is defined that has no '0' in it,

so it cannot be sent as v1 and converted back following the specifications

Send as Proxy

This application can forward a trap as though it came from device (sourceIP spoofing) or act as an

agent proxy according to the SNMP-COMMUNITY-MIB.

If not sending as proxy, we forward trap from application server cluster as an SNMPv2 notification

as though it is coming directly from the originating agent (device). This is a common and desired

behavior. Some operating systems prevent packet spoofing as a security measure so this behavior is

necessarily optional.

If sending as proxy, the trap is forwarded from application server using the application server IP as

sourceIP. The relevant snippet from SNMP-COMMUNITY-MIB is the following:

-- The snmpTrapAddress and snmpTrapCommunity objects are included

-- in notifications that are forwarded by a proxy, which were

-- originally received as SNMPv1 Trap messages.

Event Processing Rules | Key Portlets

119

snmpTrapAddress OBJECT-TYPE

SYNTAX IpAddress

MAX-ACCESS accessible-for-notify

STATUS current

DESCRIPTION

"The value of the agent-addr field of a Trap PDU which

is forwarded by a proxy forwarder application using

an SNMP version other than SNMPv1. The value of this

object SHOULD contain the value of the agent-addr field

from the original Trap PDU as generated by an SNMPv1

agent."

-- 1.3.6.1.6.3.18.1.3 -- ::= { snmpCommunityMIBObjects 3 }

snmpTrapCommunity OBJECT-TYPE

SYNTAX OCTET STRING

MAX-ACCESS accessible-for-notify

STATUS current

DESCRIPTION

"The value of the community string field of an SNMPv1

message containing a Trap PDU which is forwarded by a

a proxy forwarder application using an SNMP version

other than SNMPv1. The value of this object SHOULD

contain the value of the community string field from

the original SNMPv1 message containing a Trap PDU as

generated by an SNMPv1 agent."

-- 1.3.6.1.6.3.18.1.4 -- ::= { snmpCommunityMIBObjects 4 }

Dell OpenManage Network Manager always adds

snmpTrapAddress

to every trap forwarded as

proxy, (never adding

snmpTrapCommunity

). It does not keep track of the community string on

the traps received.

120

Event Processing Rules | Key Portlets

Email actions configure destinations and messages for e-mail and SMS recipients. You can include

fields that are part of the event by using the variables described in Email Action Variables on page

122.

Notice that below the Description of the e-mail action, you can check to send this mail (and/or

SMS) to associated Contacts, if any are available, even if you specify no mail address destination.

The SMS tab is similar to the e-mail tab, but limits the number of characters you can enter with a

field at its bottom.

The SMS tab is similar to the e-mail tab, but limits the number of characters you can enter with a

field at its bottom.

NOTE:

You must send SMS to the destination phone carrier’s e-mail-to-SMS address. For example sending text

to 916-555-1212 when Verizon is the carrier means the destination address is 9165551212@vtext.com.

When enabled, notification emails go to the Contact associated with the Managed Equipment for

the notification event. For the contact's email address, mail goes to the first specified address from

either the Work Email, Home Email or Other Email fields in the Contact editor. SMS messages go

Event Processing Rules | Key Portlets

121

to the Pager Email field for the contact. If a Contact was not found or the required addresses are

not specified for the Contact, then Dell OpenManage Network Manager uses the Recipent

addresses configured in the the Email Action.

This screen has the following fields:

Recipient Addresses

—Enter an e-mail address in the field below this label, then click the plus (+)

sign to add it to the list of recipients. The minus (-) removes selected recipients.

Subject

—The e-mail subject.

Email Header / Footer

—The e-mail’s heading and footing.

SMS Body

—The e-mail contents to be sent as text.

SMS Max Length

—The maximum number of characters to send in the SMS. Typically this is

140, but the default is 0, so be sure to set to your carrier’s maximum before saving.

Here is what Email looks like when it arrives:

Sent: Wednesday, March 02, 2011 2:37 PM

To: techpubs@doradosoftware.com

Subject: Web Test

Notification: redcellInventoryAttribChangeNotification

Notification Attributes:

===============================

sysUpTime.0 = 5 hours, 16 mins, 43 secs

snmpTrapOID.0 = 1.3.6.1.4.1.3477.2.2.1

redcellInventoryAttrName.0 = RedCell.Config.EquipmentManager_Notes

redcellInventoryAttrChangedBy.0 = admin

redcellInventoryAttrNewValue.0 = hello

world

severity

auto

redcellInventoryAttrOldValue.0 = hello

world

severity

122

Event Processing Rules | Key Portlets

Custom

This screen lets you configure

Action

based on Adaptive CLI actions available in the system. Notice

that you can select by

most common

or by

keyword search,

depending on which of the links in the

upper right corner of the screen is selected.

The

most common

actions include those you have used most recently. To search for actions, either

enter a keyword, or click the search icon (the magnifying glass) to produce a pick list below the

Action

field. Select an action by clicking on its appearance in that list.

Select the device target of the custom action by selecting from the

Targ et

pick list. If you do not

specify an explicit target, Dell OpenManage Network Manager uses the default entity for the event

as the target.

If you select an action with additional parameters, those parameters appear in the screen below the

Ta rg e t

field. To see definitions for such parameters, hover the cursor over the field and a tooltip

describing the field appears.

Click

Apply

to accept your edits, or

Cancel

to abandon them.

Email Action Variables

The following are the Email Action variables you can use in customizing the content of action e-

mail. These appear classified as follows:

• Basic Variables

• Managed Equipment Variables

•Entity Type: Port

Event Processing Rules | Key Portlets

123

• Entity Type: Interface, Logical interface

CAUTION:

To successfully retrieve Custom attributes, you must first create them. See Edit Custom Attributes on

page 89.

You can also configure more limited variables that are slightly more efficient in performance, if not

as detailed as those described in the following section.

For example, you can retrieve the following attributes:

{RedCell.Config.EquipmentManager_Custom1}

{RedCell.Config.EquipmentManager_Custom2}

{RedCell.Config.EquipmentManager_LastBackup}

{RedCell.Config.EquipmentManager_LastConfigChange} and

{RedCell.Config.EquipmentManager_HealthStatus}

NOTE:

If the entity does not contain/return these values, then the message [No data for <attribute name>]

appears in the email instead.

Basic Variables

Attribute Description Email Action Variable

Name The event / alarm name {Name}

Message Description from the event {Message}

Entity Name The entity (interface, card...) name {EntityName}

Equipment Manager

Name

The name of the equipment, parent or chassis. {EquipMgrName}

Device IP address the IP of the device in alarm {DeviceIP}

Entity Type Type of entity (Router, and so on) {EntityType}

Instance ID An identifier for the event {InstanceID}

Protocol Type Of originating alarm (SNMP, syslog, etc.) {ProtocolType}

Protocol Sub Type Inform, Trap, [blank] (for internal events) {ProtocolSubType}

Receive Time {RecvTime}

Region The mediation server partition name. {Region}

Severity 0 - cleared, through 6 - critical, from Alarm

Definition

{Severity}

Source IP address The IP of the component sending the alarm {SourceIP}

124

Event Processing Rules | Key Portlets

The following section describes variables whose use may have a performance impact.

Managed Equipment Variables

Attribute Description Email Action Variable

Custom 1 Note that although you

can re-name any Custom

attribute, you must use

the variable’s original

name. For example here,

that is

{RedCell.Config.Equipm

entManager_Custom1}

{RedCell.Config.EquipmentManager_Cu

stom1}

Custom 2 {RedCell.Config.EquipmentManager_Cu

stom2}

Custom 3 {RedCell.Config.EquipmentManager_Cu

stom3}

Custom 4 {RedCell.Config.EquipmentManager_Cu

stom4}

Custom 5 {RedCell.Config.EquipmentManager_Cu

stom5}

Custom 6 {RedCell.Config.EquipmentManager_Cu

stom6}

Custom 7 {RedCell.Config.EquipmentManager_Cu

stom7}

Custom 8 {RedCell.Config.EquipmentManager_Cu

stom8}

Custom 9 {RedCell.Config.EquipmentManager_Cu

stom9}

Custom 10 {RedCell.Config.EquipmentManager_Cu

stom10}

Custom 11 {RedCell.Config.EquipmentManager_Cu

stom11}

Custom 12 {RedCell.Config.EquipmentManager_Cu

stom12}

Custom 13 {RedCell.Config.EquipmentManager_Cu

stom13}

Description Description of the

equipment

{RedCell.Config.EquipmentManager_De

viceDescription}

DNS Hostname Hostname of equipment {RedCell.Config.EquipmentManager_Ho

stname}

Event Processing Rules | Key Portlets

125

Entity Type: Port

Equipment Type Equipment Type {RedCell.Config.EquipmentManager_Co

mmonType}

Firmware Version Version of the

equipment’s firmware

{RedCell.Config.EquipmentManager_Fir

mwareVersion}

Hardware Version Version of the

equipment’s hardware

{RedCell.Config.EquipmentManager_Har

dwareVersion}

Last Backup Last Backup {RedCell.Config.EquipmentManager_Las

tBackup}

Last Configuration

Change

Last Configuration

Change

{RedCell.Config.EquipmentManager_Las

tConfigChange}

Last Modified Timestamp of Last

Modified

{RedCell.Config.EquipmentManager_Las

tModified}

Model Model number of the

equipment

{RedCell.Config.EquipmentManager_Mo

del}

Name Component name {RedCell.Config.EquipmentManager_Na

me}

Network Status Network Status {RedCell.Config.EquipmentManager_He

althStatus}

Notes Equipment Notes {RedCell.Config.EquipmentManager_Not

es}

OSVersion OSVersion {RedCell.Config.EquipmentManager_OS

Version}

Serial Number Unique identifier for the

equipment

{RedCell.Config.EquipmentManager_Seri

alNumber}

Software Version Version of the

equipment’s software

{RedCell.Config.EquipmentManager_Sof

twareVersion}

System Object Id SNMP based system

object identifier

{RedCell.Config.EquipmentManager_Sys

ObjectID}

Attribute Description Email Action Variable

Custom 1 Note that although you can

re-name any Custom

attribute, you must use the

variable’s original name. For

example here, that is

{RedCell.Config.Equipment

Manager_Custom1}

{RedCell.Config.Port_Custom1}

Custom 2 {RedCell.Config.Port_Custom2}

Custom 3 {RedCell.Config.Port_Custom3}

Attribute Description Email Action Variable

126

Event Processing Rules | Key Portlets

Custom 4 {RedCell.Config.Port_Custom4}

Encapsulation Encapsulation {RedCell.Config.Port_Encapsulation}

Hardware Version Version of the port’s

hardware

{RedCell.Config.Port_HardwareVersion

}

If Index SNMP If Index {RedCell.Config.Port_IfIndex}

MAC Address “Typically a MAC Address,

with the octets separated by

a space, colon or dash

depending upon the device.

Note that the separator is

relative when used as part of

a query.”

{RedCell.Config.Port_UniqueAddress}

Model Model number of the port {RedCell.Config.Port_Model}

MTU Maximum Transmission

Unit

{RedCell.Config.Port_Mtu}

Name Port name {RedCell.Config.Port_Name}

Notes Port Notes {RedCell.Config.Port_Notes}

Port Description Description of the port {RedCell.Config.Port_DeviceDescriptio

Port Number Port Number {RedCell.Config.Port_PortNumber}

Slot Number Slot Number {RedCell.Config.Port_SlotNumber}

Speed Speed {RedCell.Config.Port_Speed}

Subnet Mask SubMask {RedCell.Config.Port_SubMask}

Attribute Description Email Action Variable

Event Processing Rules | Key Portlets

127

Entity Type: Interface, Logical interface

Best practice is to clarify such attributes by combining them with others that spell out their source.

Attribute Description Redcell Email Action variable

Custom 1 Note that although you

can re-name any Custom

attribute, you must use

the variable’s original

name. For example here,

that is

{RedCell.Config.Equipm

entManager_Custom1}

{RedCell.Config.Interface_Custom1}

Custom 2 {RedCell.Config.Interface_Custom2}

Custom 3 {RedCell.Config.Interface_Custom3}

Custom 4 {RedCell.Config.Interface_Custom4}

Encapsulation Encapsulation {RedCell.Config.Interface_Encapsulation}

IfIndex SNMP Interface Index {RedCell.Config.Interface_IfIndex}

Interface Description Description of the

Interface

{RedCell.Config.Interface_DeviceDescripti

on}

Interface Number Interface Number {RedCell.Config.Interface_InterfaceNumbe

Interface Type Common Interface Type {RedCell.Config.Interface_CommonType}

MTU Maximum Transmission

Unit

{RedCell.Config.Interface_Mtu}

Name Interface name {RedCell.Config.Interface_Name}

Notes Interface Notes {RedCell.Config.Interface_Notes}

Port Number Port Number {RedCell.Config.Interface_PortNumber}

Slot Number Slot Number {RedCell.Config.Interface_SlotNumber}

Subnet Mask Subnet Mask of the

Interface

{RedCell.Config.Interface_SubMask}

128

Event Definitions | Key Portlets

Event Definitions

You can define how the system treats

messages (events) coming into the

system. Administrators can define event

behavior deciding whether it is

suppressed, rejected or generates an

Alarm. Manage the definitions of events

in this portlet.

In this screen, you can configure events

that, when correlated as described in

Event Processing Rules on page 108,

trigger actions.

Columns include the

MIB Name, Event

Name, Notification OID, Severity

for associated alarms

and

Default Behavior.

See Event

Definition Editor for how to alter these. Right-click a selected event definition for the following

menu items:

Edit

—Either open the selected event in Event Definition Editor, or open a details panel for the

underlying equipment.

Set Behavior

—This lets you select from the following options

Reject–Every received message is rejected.

Suppress–The message is tracked in Event History and then ignored.

Alarm–The message is tracked in Event History and then processed, with Correlated events

and Event Processing Rules of any type other than Syslog.

Set Severity

—Set the alarm severity for the selected event.

MIB

—This lets you upload a new MIB to your event definitions.

You can also configure an Aging Policy and View events as PDF in this menu. See Redcell >

Database Aging Policies (DAP) on page 50, and View as PDF on page 90 for more about those

options.

Event Definition Editor

This editor lets you modify event definitions in the following tabs:

• General

• Message Template

• Correlations

Click

Save

to preserve any modifications you have made, or

Cancel

to abandon them.

Event Definitions | Key Portlets

129

General

This tab manages basics for Event Definitions.

It has the following fields:

Event Name

—A text identifier for the event.

Notification OID

—The object ID.

Severity

—The severity of any associated alarm. If a new alarm is a clearing severity, then it closes

any existing alarm to which it correlates. Otherwise, if a new alarm severity does not match

the existing severity then the existing alarm is closed and a new alarm opened for the new

severity.

MIB Name

—The MIB with which this event is associated.

Default Behavior

—The options for behavior (

Undefined, Alarm, Suppress, Reject

Alarm

means:

Process at the mediation server, generate event history and an alarm.

Suppress

means: Process

at the mediation server and generate an event (

not

an alarm).

Reject

means: Reject at the

mediation server (do not process)

Propagation

—The propagation behavior for the event (

Default, Impacts subcomponents, Impacts

top level, Not service effecting

Only service effecting alarms are propagated. By default, events are service-effecting, provided

their severity is indeterminate or above. Select the propagation type from the pick list.

An event definition configures “Impact Propagation” (distinct from “Alarm propagation”)

based on the event type. Does the event impact the overall device (

Impacts top level

subcomponents (

Impacts subcomponents

), or just the correlated inventory entity (

Default

130

Event Definitions | Key Portlets

Not Service Effecting

means that alarm propagation ignores alarms for this event. In other

words, no impact to associated entities occurs. This also means alarms created for this event

type appear as

Not Service Effecting

in the alarm manager—handy to help clean up noisy

alarm views since you can filter to conceal these.

Propagation policies configure “Alarm Propagation”—associations based propagation paths to

generate calculated alarm states against associated entities like links and services. See Event

Processing Rules on page 108 for more about configuring these.

For example, link propagation works like this: If one or both associated endpoints have an

impacting alarm, then OpenManage Network Manager generates a calculated alarm for the

corresponding link at the highest severity of either endpoint. If both endpoints are clear then

the resulting, calculated event is clear. This means alarm correlation removes any existing

calculated alarm against the link.

If you upgrade Dell OpenManage Network Manager, all alarms migrated to from previous

versions appear as service-effecting, regardless of severity. To alter multiple events’ impact

propagation, export the event definitions, and alter the XML export to reflect the kind of

propagation desired for events.

Search for the paired

tags, and alter

the numbers within them as follows:

Default—0

Impacts Top Level—1

Impacts Subcomponents—2

Not service effecting—4

Re-import the altered event definition file to update your event definitions.

Advisory Text

—The

Advisory Text

appears with the event. Configure it in the text box here.

Event Definitions | Key Portlets

131

Message Template

This panel lets you view or alter MIB Text, Bindings and the Message Template for the event

selected.

This contains three sections:

MIB Text

—A read-only reminder of the MIB contents for this OID.

Bindings in Event

—A read-only reminder of the MIB bindings for this event. This displays the

varbind contents of the event, matching the

Binding Object Name

and the

OID

(object

identifier).

Message Template

—A template for messages that accompany this event. Specifying an OID

within the curly braces {} in the template acts as a tag which replaces the OID with its MIB

value. For example: Interface: {1.3.6.1.2.1.2.2.1.1} left the down state.

132

Event Definitions | Key Portlets

If a message template exists for an existing, correlated alarm and the generated text does not

match the original alarm, then Dell OpenManage Network Manager closes the existing alarm,

and generates a new one. Leaving this blank transmits the original message.

Tip

Putting an OID in curly brackets amounts to a tag replaced by the MIB text for that OID. Look for OIDs and

messages in the MIB browser (as described in MIB Browser on page 188).

Correlations

This screen lets you configure Correlated Events and Correlation Key Bindings. For example, a link

down event could correlate with a link up event, or an alarm with a clear alarm event.

In the Correlated Events panel, click

Add

to display a selector (with filter) to find events to

correlate with the one you are editing.

In Correlation Key Bindings, use the right/left arrows to select

Key Variables

from

Available

Vari ables

. The variables considered keys for correlation are the key bindings for the target alarm in

the correlation process. This means that if event A is defined to include event B as a correlated

event, comparison of the key bindings defined for event B is also considered when comparing a new

alarm for event A to an existing alarm for event B.

Contacts | Key Portlets

133

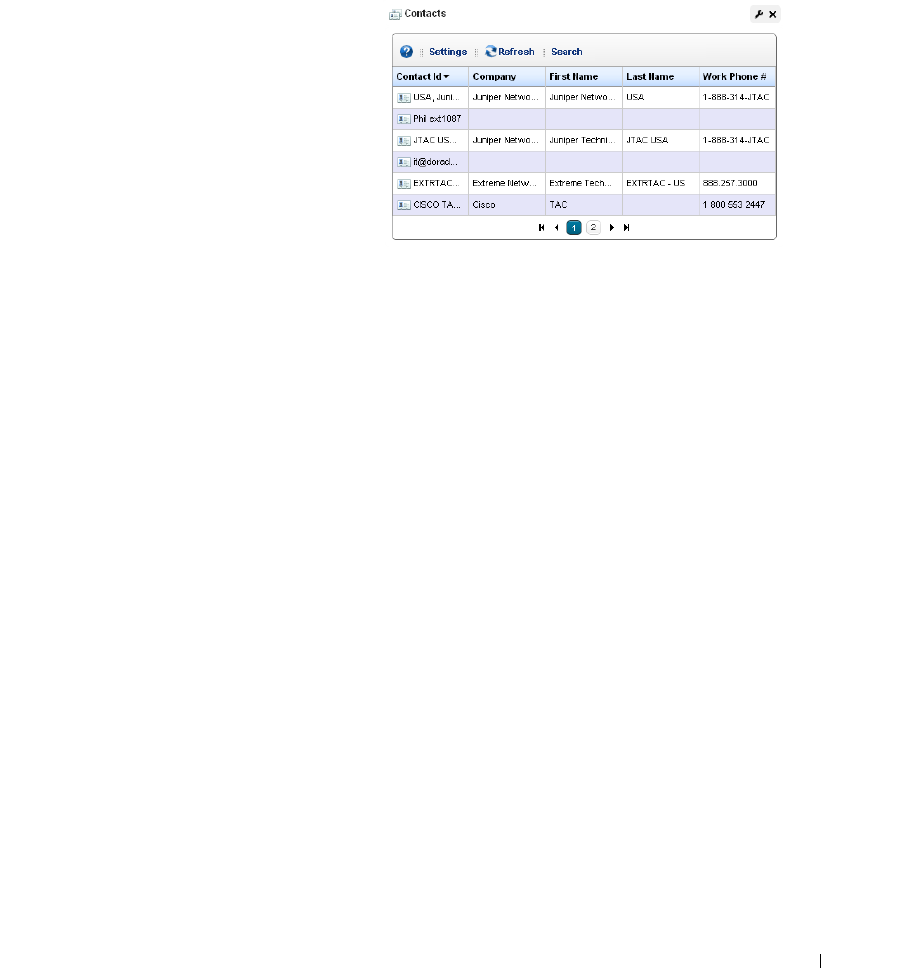

Contacts

The contact portlet displays available

contacts for your system. There is no

expanded version of this portlet.

You can right-click to act on the the selected

contact with the following menu items.

New / Open

—Displays the Contacts

Editor, where you can create new

contacts or alter existing ones.

Details

—Displays a screen with contact-

associated alarms, and the information

entered in Contacts Editor.

Visualize

—Displays a mapping of the selected contact’s association to devices. See Chapter 5,

Visualize.

Delete

—Displays a mapping of the selected contact’s association to devices.

Visualize

—Displays a mapping of the selected contact’s association to devices.

Dell OpenManage Network Manager only retrieves Contact and Location information on initial

discovery. You can modify these once the resource is under management. However doing will not

modify the any system info on the device.

134

Contacts | Key Portlets

Contacts Editor

This editor has two

panels where you can

enter contact

information (

Name,

Address, Phone,

and

so on). Click the tabs

at the top of this

screen to move

between the panels.

The

Contact ID

, a

unique identifier for

the contact in your

system, is a required

field at the top of the

first page.

Click

Save

to preserve

your new or modified

contact information.

Click

Cancel

to leave

the contact

unmodified.

Locations | Key Portlets

135

Locations

In its summary form, the locations

portlet displays configured

locations in your system.

You can right-click to create,

modify or remove (

New, Open,

Delete

) the selected location. See

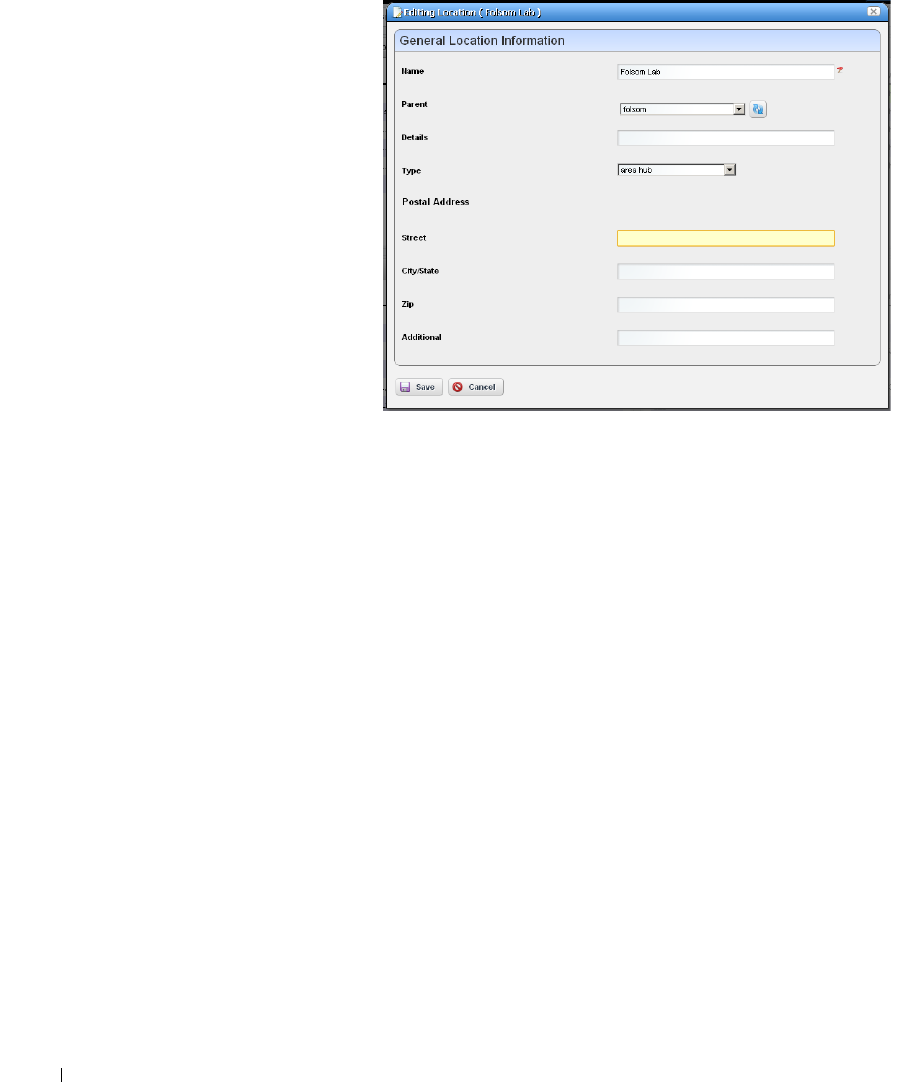

Location Editor description below

for more about editing or creating

locations.

If you select

Visualize,

a map of

the selected location’s connection

to equipment appears. See

Chapter 5, Visualize

for more.

The

Update Coordinates

option lets you revise a location’s longitude and latitude. See Tag on page

138 for more.

This screen has the following columns:

[Icon]

—The icon for this location.

Name

—The name for this location.

Details

—A description for this location.

Ty p e

—A designated type for the location.

136

Locations | Key Portlets

Location Editor

When you click

New

Open

an editor appears. The

Name

field is mandatory.

Name

—A unique name for

the Location. If you alter

the name of an existing

location already in use by

existing equipment, the

editor creates a new

location. To change a

location name, you must

delete the original

location and the

equipment using it then

re-make it. You can

change the name of an

unused location without

deleting anything.

Parent

—The “parent” of this location (the location to which this location is subordinate). Select a

Parent Location from the pick list. The maximum number of levels supported is 15.

Details

—A text description of the location.

Ty p e

—Type of location, as selected from the drop-down menu. Available types are: Area Hub,

Customer, National Hub, Other, Provider, Regional Hub, and State.

Postal Address

—The

Street, City/State, Zip

address of the location.

Additional

—Any optional notes.

Click

Save

save the Location, or any modifications you have made.

Locations | Key Portlets

137

Expanded Location Portlet

The location portlet displays a list of all locations, with Snap Panels to display a selected location’s

connection to the network, and details.

The

New

menu option appears in the expanded location portlet. Click

Settings

to change the

column appearance (see Show / Hide / Reorder Columns on page 84). This has the same columns

as Locations on page 135.

Locations Snap Panels

Selecting a location row displays the

Reference Tree

Snap Panel, with that location’s connection to

containers (see

Container View on page 147)

and equipment. Click the plus (+) icons to expand

the tree. The

Location Details

panel displays what has been configured in the

Location Editor.

138

Locations | Key Portlets

Tag

When creating a location, Dell OpenManage Network Manager automatically selects the latitude

and longitude of the address entered for a location. To update or make these more accurate, select

Update Location

by right-clicking a location in the Locations portlet.

The location created by default is the address entered in the Locations editor. You can also enter

the address in the Search field, or click and drag the marker that appears on this screen. Click

Apply

to accept the re-location. A

Delete Tag

button appears when you have created a tag, and lets you

remove it.

Cancel

closes the screen.

Tip

You can zoom in or out on the displayed map with the + and - buttons in the upper left corner of this

screen.

Vendors | Key Portlets

139

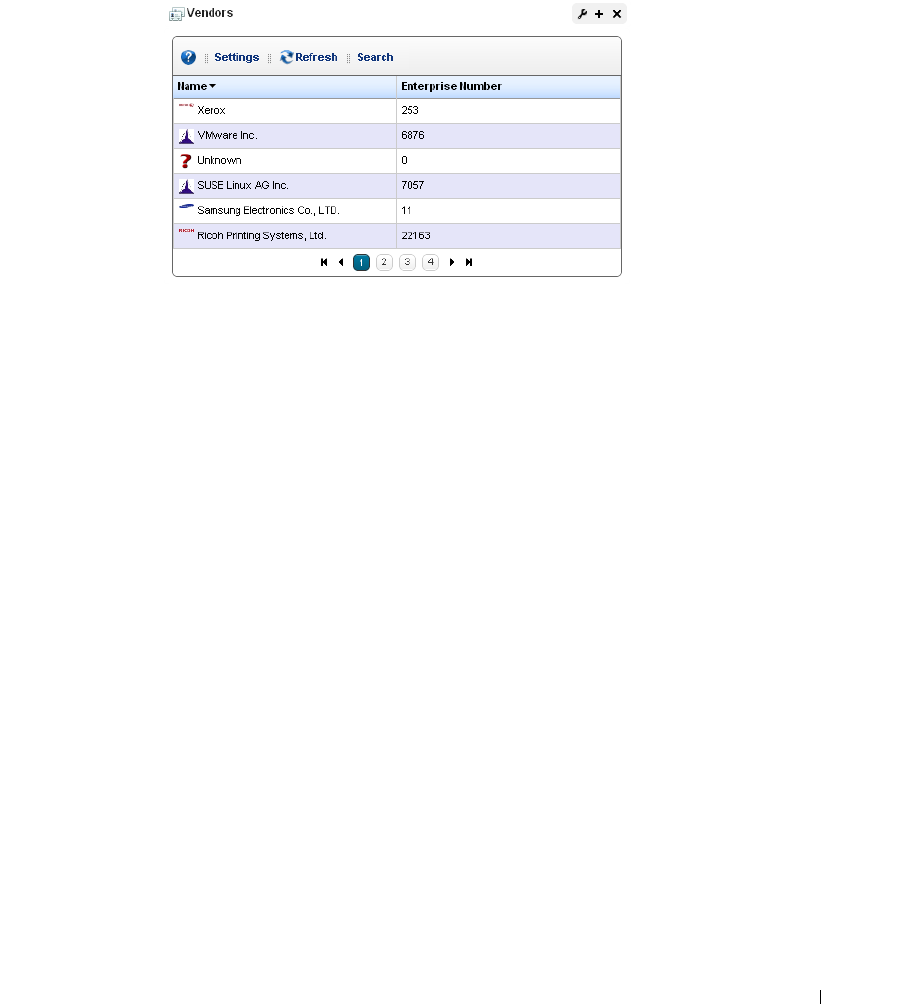

Vendors

In its summary form, this portlet displays the available vendors for network resources.

Right-clicking a row lets you do the following:

New / Edit—

Opens the Vendor Editor where you can configure or re-configure a vendor.

Details—

Displays a panel showing the alarms, registered models, and identifiers for the selected

vendor.

Visualize —

See a topology of the network filtered to display only the selected vendor, see Chapter

5, Visualize

Import / Export

—Common menu capabilities described in

Import / Export on page 86

This screen has the following columns:

Vendor Icon

—The icon for this vendor.

Enterprise Number

—The enterprise number for this vendor.

Ven dor Name

—The name for this vendor.

140

Vendors | Key Portlets

Vendor Editor

This editor configures (or re-configures) vendors.

It has the following fields:

General

Ven dor Name

—A text identifier for the vendor.

Enterprise

—A numeric identifier for the vendor.

Vendor Icon

—Select an icon from the pick list.

Contact

Click the

Add

button to select from contacts in Dell

OpenManage Network Manager to associate with

this vendor. See

Contacts on page 133

for

instructions about configuring contacts.

Expanded Vendor Portlet

When you expand the Vendor portlet, besides sharing you can also click

Settings

to configure the

columns that appear here (see Show / Hide / Reorder Columns on page 84). This screen has the

same columns available as the summary screen.

Vendors | Key Portlets

141

Vendors Snap Panel

The snap panel displays the icon for the selected vendor.

142

Vendors | Key Portlets

Introduction | Resource Management

143

Resource Management

Introduction

The Resource management portlets let you manage devices you have discovered or created on your

network.

Resource Management portlets let you view device-specific information, both general (name, type,

location, contact) and technical (vendor, subcomponents, and so on).

This chapter contains information about the following portlets:

• Authentication

•Container Manager

• Container View

• Discovery Profiles

• Managed Resources

•Ports

•Reports

Authentication

The authentication summary screen displays credentials used to communicate with and manage

devices.

144

Authentication | Resource Management

This portlet displays credentials used in discovery and communication with network resources. The

Name

column identifies the set of credentials,

Designated for EMS

means it is available for all

users, and

Ty p e

indicates the protocol for that authentication.

Functions common to many menus, in addition to the Import / Export and Sharing, include the

following actions are available in the right-click menu:

New / Edit

—Opens Authentication Editor, where you can create a new authentication or edit the

selected authentication. You cannot change the Authentication Type when you edit an

existing authentication.

Details

—Displays a reference tree, associated equipment, and the configuration created or altered

in Authentication Editor.

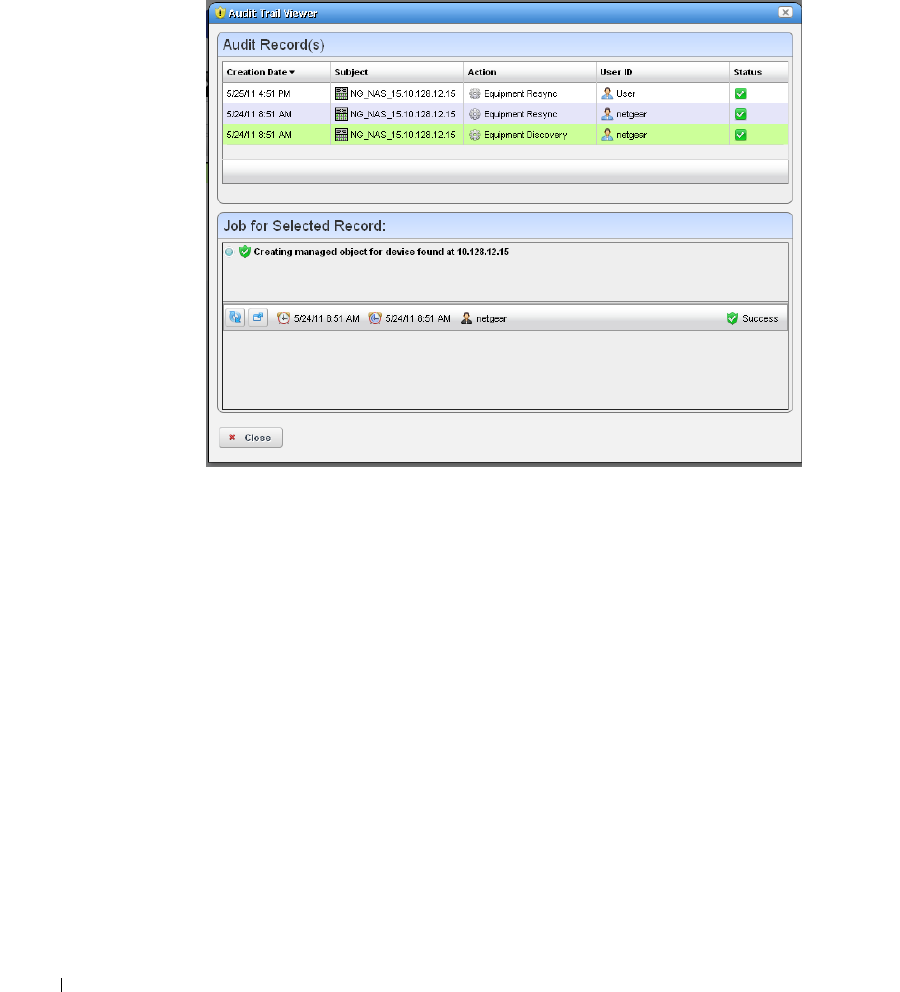

Audit

—Opens an audit trail viewer for the selected authentication.

Delete

—Deletes the selected authentication. If it is in use, an error message appears saying that

deletion is not allowed.

Import / Export

—Imports or exports authentications to your Dell OpenManage Network

Manager system.

Authentication Editor

You can right-click and select

New

Open

to create or modify credentials for your system. You can

also

Delete

and

Share with User

from that right-click menu.

Authentication | Resource Management

145

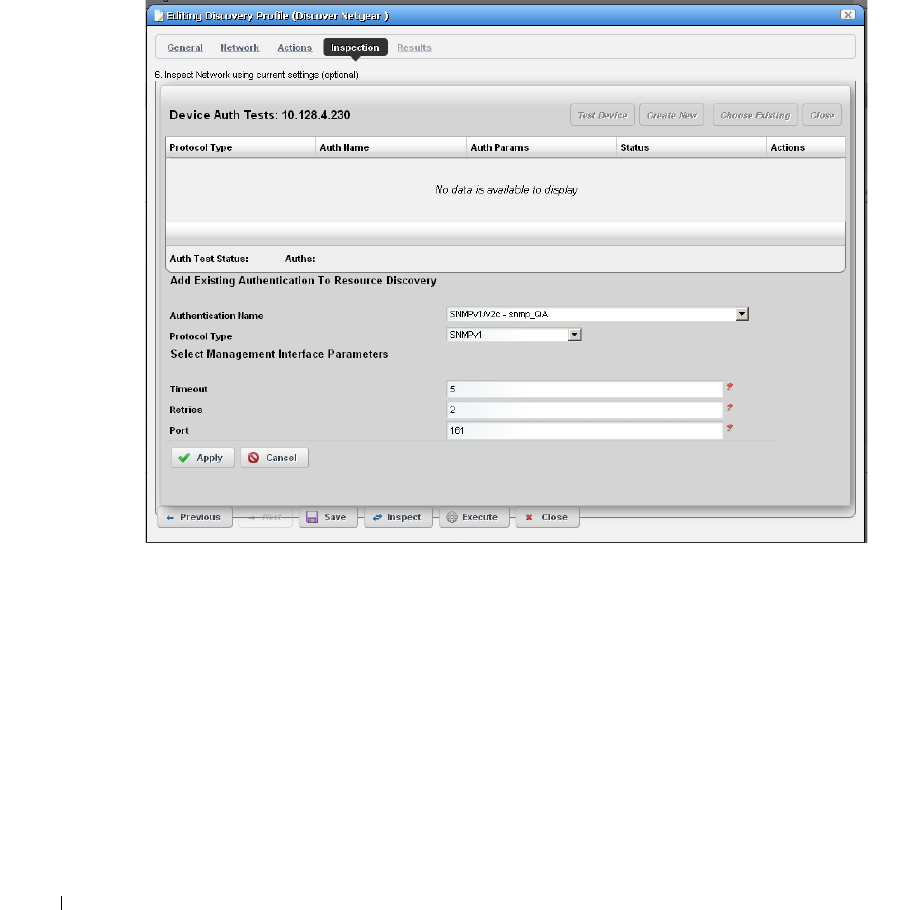

The fields that appear in this editor vary, depending on the type of authentication. The

(name)

for the authentication is mandatory. If you

Add

an existing authentication, for example to

Discovery Profiles, you can also configure the Management Interface Parameters like

Timeout,

Retries

, and

Port

used. If you have an authentication that works for multiple protocols (for example

SSH or Telnet), you can also select the

Protocol Type.

Use the

Equipment

and

User Groups

tabs to associate the authentication you configure here to

devices or groups of users.

Expanded Authentication Portlet

The

Settings

button in the expanded Authentication portlet lets you configure column appearance

(see Show / Hide / Reorder Columns on page 84). This offers the same column setup as the

summary screen.

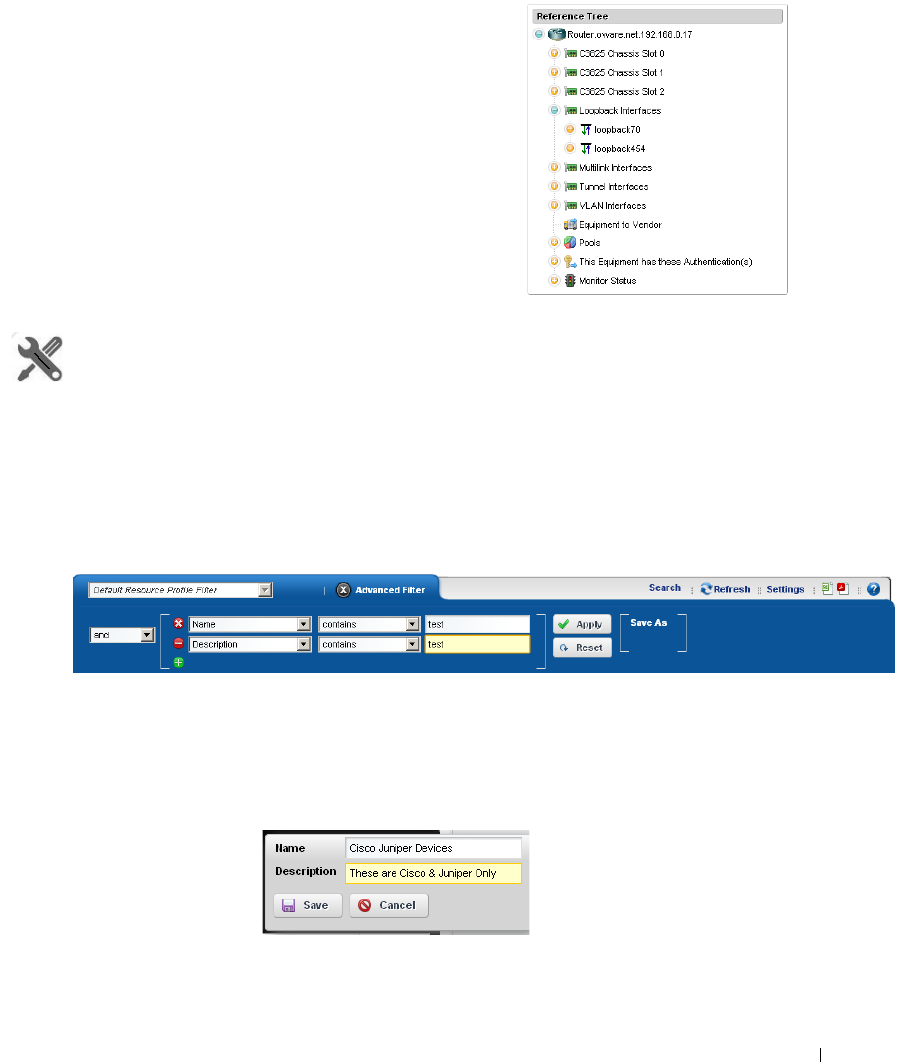

Authentication Snap Panel

When you select a listed authentication the

Reference Tree

Snap Panel displays a tree of that

authentication’s connections to Discovery profiles and equipment.

146

Container Manager | Resource Management

Container Manager

Container manager lets you create, edit and

delete Container tree models displayed in

Container Views (described in the next

section).

The relationship to users and devices

appears in Container Manager Expanded.

Right-click to select from a menu with

New,

Edit

and

Delete

and

Refresh Members

Selecting

New,

Edit

displays the

Container Editor, described below.

Container Manager

Expanded

The expanded view displays the same information as the summary view, but displays the selected

container’s authorized users, creator, owner, and membership in the Reference Tree snap panel.

Container View | Resource Management

147

Container View

This (non-instanceable) container portlet displays configured

containers for Dell OpenManage Network Manager. Because it

is non-instanceable, only one can appear on a page.

Expand the container tree by clicking the plus to each

container’s left. The container selected acts as a filter for a

screen’s other Dell OpenManage Network Manager portlets. If

you select “Folsom” as a location in the container portlet, then

only items related to Folsom devices appear in the other

portlets on the page. If you select a parent container, that expands the selection to include all child

containers’ selections. It does not, however select everything. You can configure containers in

Container Editor, described in the next section.

NOTE:

You may have to wait a few moments to see a container’s contents accurately.

Portlets that respond to Container or Map Context “filtering” include the following: Audit Trail,

Event History, Locations, Vendors, Contacts, Managed Resources, Ports, Authentications,

Discovery Profiles, Monitors, Services.

Tip

If a container displays unexpected results, right-click it to refresh its membership or alarm state.

How To:

Use Containers

Create the containers you would like for filtering views of resources. For example, you can

create a container for each customer or location.

Create a page with Managed Resources or other container-filtered portlets (Ports, Alarms and

so on).

Add the Container View portlet to that page.

Click the container to filter by.

Observe the other portlets to see resources assigned to the selected container, for example,

customer or location.

148

Container View | Resource Management

Container Editor

This editor lets you create and manage containers. You can also associate user authorizations with

container models to specify which groups or users have access to contained items.

In this editor, a tree panel on the left lets you build and navigate the container tree. Click

Add

Child (

Delete Child)

to create (or remove) a node to / from the node you have selected in the

tree. Clicking a node in the tree displays the tabbed panel on the right where you can edit it.

The

Container Details

panel has the following tabs:

• General

•Membership

•Authorizations

Click the labels at the top of the screen to access these.

NOTE:

Alarm states are recalculated and propagated for containers like they are for Visualizations.

General

This panel has the following fields:

Name

—The container identifier.

Container View | Resource Management

149

Description

—A text description of the container.

Parent

—A read-only reminder of the container’s parent, if one exists.

Access

—Select

Private

(creator only), or

Shared

. A private container is accessible to the container

owner alone.

Shared

indicates other users can access a container, but even for

Shared

containers, you must assign Roles to give others access to the container. The

all

role grants

access to everyone.

Owner

—Select an owner for the container. The owner of a container can also change the

ownership of the container

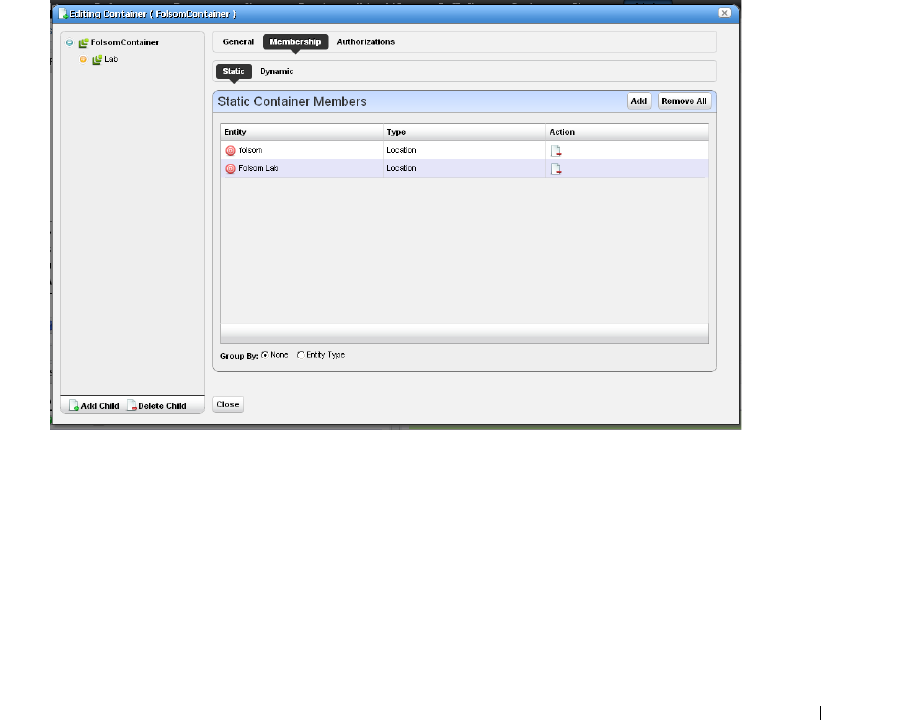

Membership

Container membership defines the inventory items that are in a container. You can select either a

Static

membership, which cannot change, or a

Dynamic

one, based on a filter. When Dell

OpenManage Network Manager evaluates the filter it adds the resulting items as members in the

container.

The sub-tabs at the top of the screen let you edit these types. See Managed Resource Groups on

page 162 for more about the specifics of editing these groups. Click

Save

to preserve the

membership you have configured. If you

Group By Entity Type

(at the bottom of the screen) rather

than

None

, the list of devices appears in a tree, with each node as an entity type. Click the plus (+)

to the left of the entity label to expand the tree.

150

Container View | Resource Management

Authorizations

This tab configures user or group access to the container you are editing. Click

Add User

Add

Group

to select the users or groups with permission to access the container you are configuring. By

default containers are accessible to everyone.

Each entry in the Container Authorizations list specifies the name of the user or group, and

whether the entry is inherited or not. A child container by default inherits the authorizations from

parent hierarchy, no explicit authorizations for child containers are necessary. Edit any

authorizations in the parent.

When editing a child container, click a listed authorized user or group and its permissions appear in

the panel at the bottom of this screen.

Clicking

Save

preserves any alterations you have made. Confirm the container is configured as you

like by examining it in a Container View portlet.

Map Context | Resource Management

151

Map Context

In addition to displaying filtered-by-container portlets, you can view discovered devices in the

Map

Context

portlet, automatically placed by location.

Notice that you can move the center of the map with the arrows in its upper left corner above the

zoom in / out (+/-) buttons. The menu in the upper right corner lets you select a

Map

Satellite

views, and fine-tune them to include labels, terrain and so on.

You can configure locations with the

Ta g

menu item. See Tag on page 90 for an explanation.

152

Resource Discovery | Resource Management

Map Context without Containers

If a page has no containers then the Map Context can act like a container too. It displays all tagged

resources within the system (see Tag on page 90). Clicking on a tagged item behaves like clicking a

Container, confining displayed resources, alarms, and so on, to those for the selected tag.

Each tagged coordinate is cross-correlated with the Alarm State table (if there are alarms against it)

and its color reflects the current Alarm state.

Resource Discovery

The following explains and demonstrates the features included in Resource Discovery. The guide

assumes you have full access to all the features (full license) included in the web portal.

How To:

Discover Resources

Here are the steps:

Set up Discovery Profiles for the resources you want to discover.

Execute the profile

View the results in the Managed Resources portlet.

Tip

Quick Discovery executes the selected Default discovery profile.

Discovery Profiles | Resource Management

153

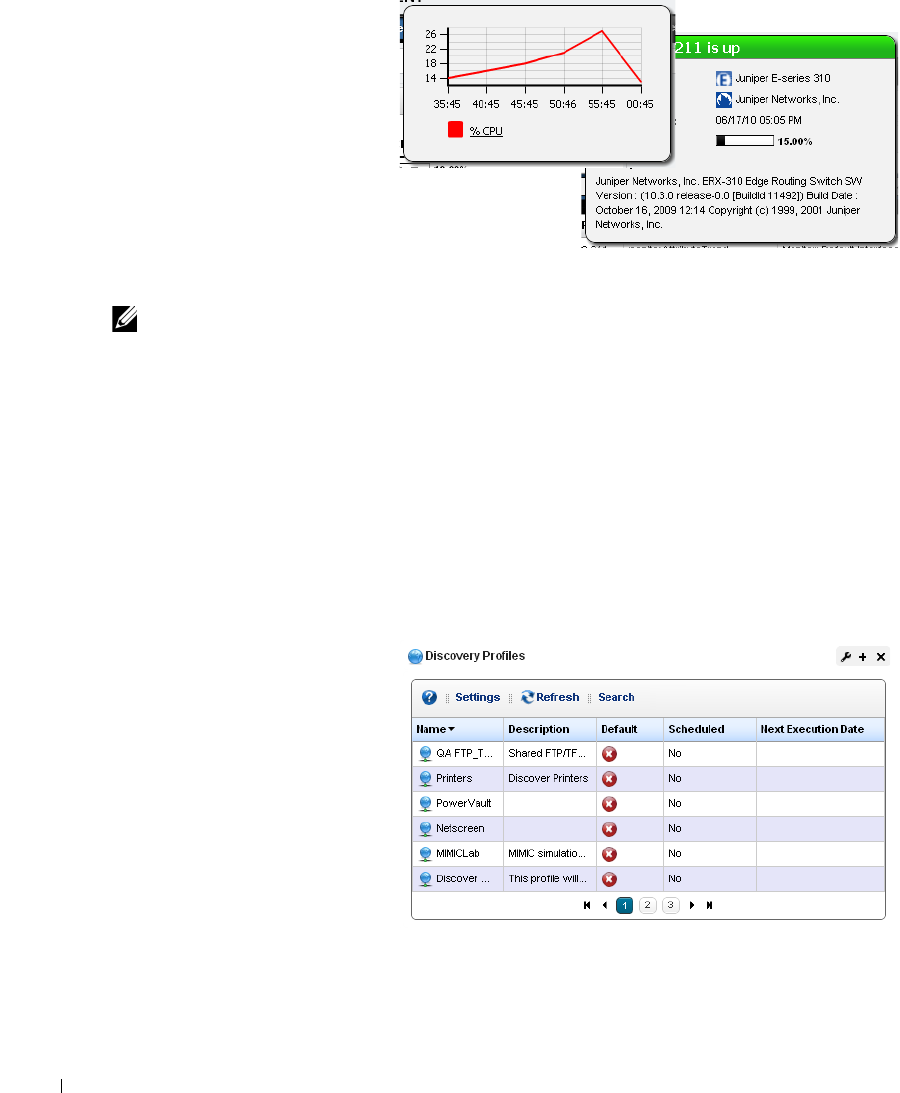

Discovery Profiles

The discovery profiles set up equipment discovery for Dell OpenManage Network Manager.

The summary view displays the

Name, Description, Default

(the green check indicates the default

profile), whether the profile is

Scheduled

and

Next Execution Date

for scheduled discovery

NOTE:

When Dell OpenManage Network Manager discovers unknown devices, it examines the RFC1213 MIB

for hints of the device's capabilites, determining if it looks similar to a layer 3 router or a layer 2 switch.

Since some device can do both, Dell OpenManage Network Manager classifies such ambiguous devices

as routers.

Menu Options

When you right-click a profile, the following menu options appear (in addition

to the Common Menu Items):

New

—Opens Discovery Profile Editor in new profile mode. (see General on

page 154)

Edit

— Opens Discovery Profile Editor.

Copy

— Opens Discovery Profile Editor, and renames the selected profile as

“CopyOf[Original Name]”.

Execute

—Executes a discovery profile. This also produces an Audit trail (see

Audit Trail / Jobs Screen on page 91

). A message appears indicating the

success or failure of discovery execution.

Tip

Discovery execution continues in the background even when you close the audit trail / jobs screen, but

the message indicating success / failure still appears when the discovery process is done.

154

Discovery Profiles | Resource Management

Inspect

—Validate the profile’s credentials, and that the device pings, and is licensed for discovery.

Described in Inspection on page 159.

Quick Discovery

—Opens discovery wizard displaying network and authentications. Click the

Execute

button once you open this screen to quickly discover equipment. (See Network on

page 156 for more about the screen this displays.)

Schedule

—Opens schedule editor where you can create and/or modify the schedule for a discovery

profile’s execution.

Audit

—Displays audit trails for the selected profile. See

Audit Trail / Jobs Screen on page 91

Delete

—Deletes a discovery profile, after you confirm deletion. A notification message appears

when deletion is completed on the application server.

The remaining menu items include

Import, Export Selection, Export All

and (if other users exist in

the system)

Share with User.

NOTE:

Dell OpenManage Network Manager discovers Aruba Access points through the controllers to which

they connect; discovery does not find stand-alone access points.

Discovery Profile Editor

This editor lets you create or modify profiles. It has the following sub-sections:

• General

•Network

•Actions

•Inspection

•Results

How To:

Edit Discovery Profiles

Here are the steps that appear in Discovery Profile Editor:

General

The General Panel collects all required data for a discovery profile. Dell OpenManage Network

Manager validates each field, one at a time. Hints and tooltips appear if you hover your cursor near

a field or label.

Discovery Profiles | Resource Management

155

General Parameters

—Set the

Name, Description

and a checkbox to indicate whether this

profile is the discovery default.

Profile Options

—Select the

Device Naming Format

(how the device appears in lists, once

discovered), whether to

Manage by IP

address or hostname, and check whether to

Resolve

Hostname(s), ICMP Ping Device(s), Manage ICMP-only Device(s),

Manage Unclassified

Device(s)

This last checkbox determines whether OpenManage Network Manager attempts

to manage devices that have no OpenManage Network Manager device driver installed. If

your system’s license permits it, such management may be possible, but more limited than for

devices with drivers installed.

CAUTION:

If your license limits the number of devices you manage, discovering such “generic” devices may count

against that limit.

156

Discovery Profiles | Resource Management

The Filters (by

Location, Vendor,

Device Type

) let you narrow the list of devices discovered

by the selected item(s). As the screen says, this filtering will not have any impact on the

processing that occurs during the Inspection step.

NOTE:

Fields like Location query the database for current information, so even though its field may appear

empty, Locations may exist. Click the Search button to the right of this field to populate it. Keeping such

fields empty until you use them enhances performance.

The buttons at the bottom of the Profile Editor let you navigate through this series of panels.

Previous / Next

move back and forth between screens,

Save

lets you preserve whatever stage

you have configured, and close the editor,

Inspect

moves directly to the Inspection screen

(described below), and

Execute

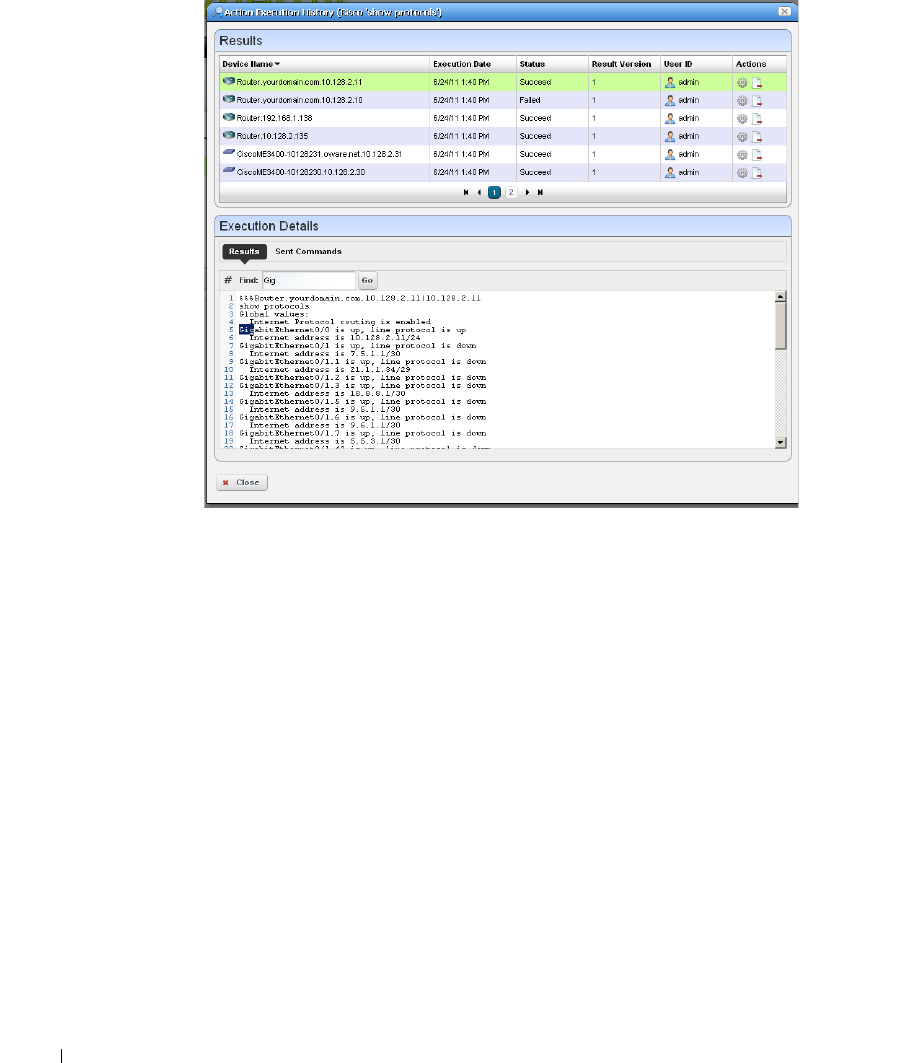

triggers the discovery profile and opens the Results panel,

displaying message traffic between Dell OpenManage Network Manager and the device(s).

Click the “X” in the top right corner of these screens to close them without saving.

Tip

If you discover devices without retrieving their hostnames, and that hostname is needed later, you can

run the Resolve DNS Hostnames activity to get the hostname. This fetches the DNS hostname and

resyncs the device.

Network

The Network Panel collects the network (IP range, hosts, and so on) and the authentication

information for the discovery profile.

Discovery Profiles | Resource Management

157

After you click

the

Network

panel appears.

Network Type and Addresses

—Select the type of entry in the pick list

(IP Address(es),

CIDR Address, Hostname, SNMP Broadcast, Subnet).

The tooltips in the data entry field tell what valid entries look like.

NOTE:

When specifying network addresses using the Subnet type, you must specify the Network address at the

beginning of the subnet since Dell OpenManage Network Manager assumes it is the starting IP address

for the range. If you specify an address in the middle of the subnetwork then Dell OpenManage Network

Manager may discover devices outside of that subnetwork. This also means that IP addresses in the

network that precede the specified address are not discovered. To avoid these issues, use the CIDR

specification of the network to discover rather that the subnet ID.

Authentication

—You can create new, or add existing authentications. See Authentication on

page 143 for the way to create such authentications outside the discovery process.

Notice that authentications appear with

Edit / Delete

icons and

Up / Down

arrows on their

right. The

Edit

icon opens the authentication editor. Click the arrows to arrange the order in

158

Discovery Profiles | Resource Management

which credentials are tried (top first). Ordering only applies when two credentials are of the

same type.

Tip

If you have imported a discovery profile without importing or creating the authentications it uses, editing

authentications is an exercise in frustration. If you cannot import authentications, or have not created

them when you do attempt to edit them, the easiest solution is to delete the un-imported un-created

authentication the profile refers to and create a new one.

Actions

When you click

, the

Actions

panel appears.

You can simply accept the default actions that appear here (like

Resync,

and

Learned MAC

discovery) by clicking

to the Inspection portion of discovery, or you can do the following:

Add Action—This opens a screen with a selection list of available actions. Click Apply to

select an action to add to the list for this profile.

Notice the default for this screen displays the most common actions, but you

can also click keyword search in the top right corner to display a search field

instead of a pick list with the most common actions. The search results

Discovery Profiles | Resource Management

159

appear in the pick list. When you select an item, if it has parameters, they

appear listed below that item. Use the checkbox(es) or pick list to configure

these parameters, then click Apply to select this action as part of the profile.

See Actions on page 116 for more about these.

Edit, Delete, Move—These icons appear to the right of each action. If you Edit a profile

with parameters, you can change them. The screen looks like the one that appears when

you Add actions. Deleting actions removes them from the list, and the Move arrows

help arrange the order in which actions appear listed, and are executed. The list of

actions the profile executes goes from top-to-bottom.

Inspection

Using the Inspection Panel is an optional step. If you want to execute the profile after entering the

required information on the General and Network panels, you can skip this step, and just click

Execute

at the bottom of the panel.

Inspection

—This screen lets you preview the discovery profile’s actions and access to

devices. If you clicked

rather than

Inspect

at the bottom of the previous screen, click

Start Inspection

in the top right corner of this screen to begin the inspection process that

validates the device’s credentials.

160

Discovery Profiles | Resource Management

Notice that the

Inspection Status

fields at the bottom of the screen indicate the success or

failure of Ping, Hostname resolution, and Authentications, and the

Status

column displays

whether a valid authentication exists, whether it has been tested, and whether the test is

successful.

When authentications are unsuccessful, click the icons to their right to remove or edit them.

You can also click the wrench / screwdriver “fix it” icon in the

Discover

column to open an

editor where you can revise the authentications for that device.

Clicking

Create New

lets you create new authentications,

Choose Existing

lets you select

from existing authentications,

Tes t Dev i ce

lets you try out the authentications you have

selected, and

closes this screen. Notice that you can configure new or existing

authentications’ port, retry and timeout settings before you click

Apply

(or

Cancel

) in the

authentication editor that appears after clicking the “Fix it” button.

Save—

Click

Save

to preserve the profile. You can then right-click it to select

Execute

If you

select

Execute

from the profile editor, Dell OpenManage Network Manager does not save the

profile to execute later.

Discovery Profiles | Resource Management

161

Results

Execute

—Clicking

Execute

begins discovery, and the message traffic between Dell

OpenManage Network Manager and the device appears on the

Results

screen.

This produces a standard Audit Trail / Jobs Screen

screen displaying the message traffic. See

also

Audit Trail / Jobs Screen on page 91

for more about retrieving archives of such screens.

A message (

Discovery Profile Execute

is complete

) appears in the

Messages

at the bottom left

of the status bar.

Click the X in the top right corner of the discovery profile editor to close it.

Discovery Profiles Expanded

This larger view offers a

Reference Tree

snap panel where you can see the connection between a

selected profile and the authentications and discovery tasks it includes.

In addition to the right-click available in the summary screen, you can also click

Settings

configure columns.

162

Managed Resource Groups | Resource Management

Managed Resource Groups

These groups make acting on several devices

at once more convenient, making

management of groups of devices possible.

The summary screen displays columns

describing the group

Name, Type,

and

Icon

You can also right-click to do the following:

New

—Lets you make either a Static Group

(one in which you select devices) or a

Dynamic Group (one in which a filter

selects devices). See details of these

screens below.

Edit

—This opens the same editors as

New

populated with the information for the selected group.

Edit Resources

—Lets you edit resources associated with the selected group like its location,

contact, or whether to manage it by hostname.

Visualize

—Displays a topology map of the selected group. See Chapter 5, Visualize for more.

Actions

—Select from a sub-menu of actions available for the group.

Adaptive CLI

—Select from a sub-menu of Adaptive CLI

Change Management

—Elect to run Change Determination process, or any Proscan policies

associated with the group. See Chapter 9, Change Management / ProScan for an explanation

of these. If you want to execute a ProScan policy not already associated with this group, then

select

Execute Proscan Policy.

A selection screen appears where you can select a policy and

either execute or schedule it.

Managed Resource Groups | Resource Management

163

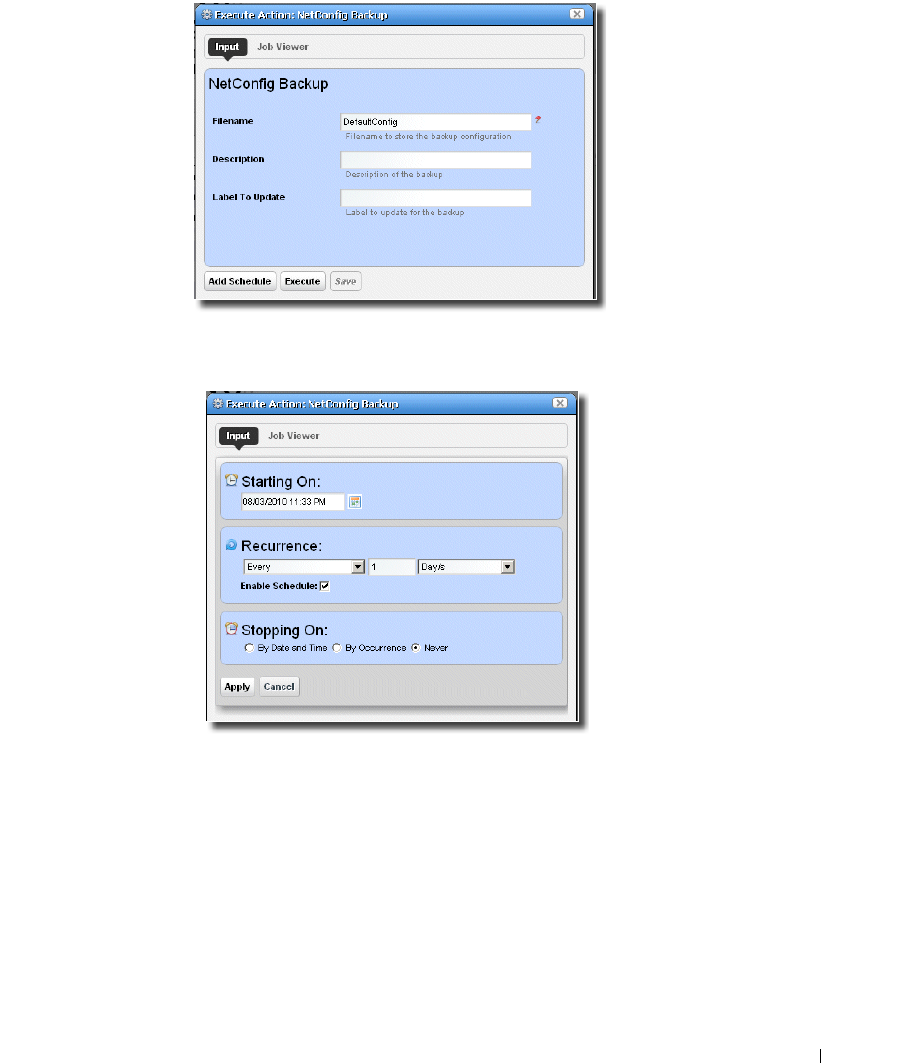

File Management > Backup, Restore, Deploy

—Lets you call on Dell OpenManage Network

Manager’s NetConfig configuration file backup, restore and deploy capabilities. See Backup

Configurations on page 225 for an example of the steps this follows. See also File

Management on page 223 and more about deploying updates to the OS for the selected

resource group. See Deploy Firmware on page 238 for details.

When you select a group backup, and the group contains devices of several types, the

Device

Options

panel displays a tab for each device type. Select the backup parameters there before

executing or scheduling backup.

Link Discovery

—Discover links between members of the selected group, and others. See New

Link on page 175 and Link Discovery on page 176 for details.

Resync Resources

—Queries the devices in the group to update Dell OpenManage Network

Manager’s database.

Delete

—Remove the selected group from inventory. The devices remain in inventory, but this

removes the grouping.

Import / Export

—Lets you import from or export to file the group configuration.

Share with User

—Share the group with another user. See Sharing on page 87.

164

Managed Resource Groups | Resource Management

Dell OpenManage Network Manager does not supports static groups that include members

retrieved by (dynamic) filters. You can configure membership with dynamic resource groups that

include group memberships as filter criteria. For example you can create a filter for members of

ResourceGroupABC or members of ResourceGroupXYZ.

Expanded Managed Resource Groups

The expanded Managed Resource Groups screen lets you see the summary screen’s groups with a

Reference Tree snap panel that displays a selected group’s connection to its devices and any

assigned monitors.

Static Group

Selecting

Static Group

as the

type to create displays a

selector screen where you can

Name

and select a

Category

for

the group, then search for

available resources with a filter.

Click

Apply Filter

after you

have configured it, and a list of

devices fitting its criteria

appears. Select device(s) and

click

Add Selected

, or simply

click

Add All

to add the entire

list to your static group. Notice

that you can continue to re-use

this filter to list devices, and

continue to select them.

When you select a device, it no

longer appears listed. When

you click

Done

the subsequent screen displays all devices you have selected. You can click

Add

this screen to return to the previous screen (or

Remove All

to delete the listed devices from the

group). At the bottom of this screen, you can also elect to group devices by

None, Vendor

Common Type

(Switch, Router, and so on). These last two create “trees” with nodes for each vendor

or type. You can also click the magnifying glass to search through listed devices. Clicking

Remove

All

removes all devices in the group.

Click

Save

to preserve the group you have configured.

Managed Resource Groups | Resource Management

165

Dynamic Group

In contrast to Static

Groups, Dynamic

Groups do not let you

select individual

equipment. You simply

configure a filter, and

OpenManage Network

Manager creates the

group on the fly. After

you enter the

Name

and

Category

for the

group, create the filter.

To see what the group

would look like, click

Preview Group

. This

opens the

Preview

tab,

concealing the

General

tab. To return to

General

, click that at

the top of the screen.

Click

Save

to preserve

the group

configuration, or

Cancel

to exit without

saving.

166

Managed Resources | Resource Management

Managed Resources

The

Managed Resources

summary portlet displays the discovered devices on your network, their

Network Status, Severity

(of their highest recent alarm),

Equipment Name, IP Address,

and

Vendor

Name

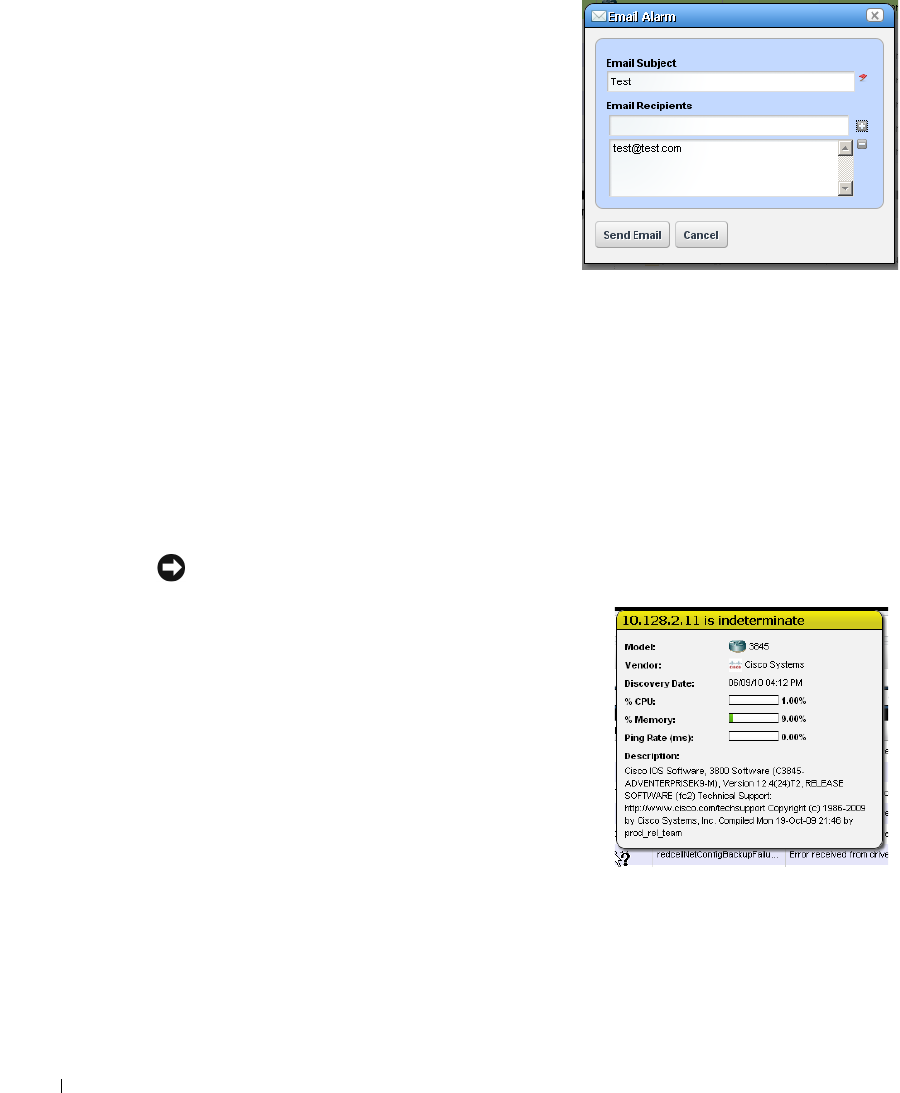

Hovering the cursor over a listed device’s IP address produces a popup with its alarm status in the

headline (both severity name and color), the % CPU, % Memory, and Ping. See the Managed

Resources Expanded section for a description of columns and additional capabilities in that version

of the portlet.Icons that appear next to the equipment name have some significance. For example:

You can schedule actions selected here in addition to executing them immediately. See Schedule

Actions on page 186 for more about that. Right-clicking a listed resource can display the following

menu items:

Edit

—This lets you use the following screens:

• General

• Authentication

Icon Device Type

Switch

Router or Switch/

Router

Wireless Virtual

Controller

Wireless Access Point

Managed Resources | Resource Management

167

• Management Interface

Click

Save

to preserve any changes made in these screens to Dell OpenManage Network

Manager’s database, or

to abandon any changes made in editor screens. Unless the

device is a printer, changes to these screens typically make database changes, not changes on

the device.

General

This screen may vary for different kinds of devices. Its

General Details

panel displays the

Name, Description, Vendor, Location, Contact,

and

Equipment Icon

for the selected device.

The

Extended Details

panel includes

Network,

Properties

and

Settings

tabs. These let you

view or alter things like

IP Address, DNS Hostname, Manage by Hostname, , Network Status,

Model

and

Equipment Type, Serial Number, Software Version

Firmware

and

Hardware

versions

The

Settings

tab lists the

System Object ID, Date created

(the date this managed

device entered the database),

Creator

(the user who discovered or created the device),

Install

Date, Administrative State, Operational State,

and any

Notes

about the device.

168

Managed Resources | Resource Management

Management Interface

This lists the management interfaces for the selected device, including the

IP Address, Port,

Retries,

and

Timeout

Notice you can

Add

interfaces with the button in the upper right corner.

Authentication

This lists the authentications for the selected device. You can

Add

authentications with the

button in the upper right corner too. These authentications originate in the portlet described

in Authentication on page 143.

Managed Resources | Resource Management

169

Details

—Displays several panels with detailed resource information. These include

Alarms,

Performance Indicators

graphs

Ports, Audit Trail, Interfaces, Associated Link(s), Latest

Configurations

and a

Details

panel with model and other information. A

Network Details

panel displays

VLAN(s) by ID, VLAN(s) by Port,

STP Data

Click the button in the upper

right corner of the panel to select among those options

Notice that you can right-click listed interfaces, configuration files, and so on to perform

more actions.

Visualize

—Create a topology map of the selected resources. See Chapter 5, Visualize for more

about such maps.

170

Managed Resources | Resource Management

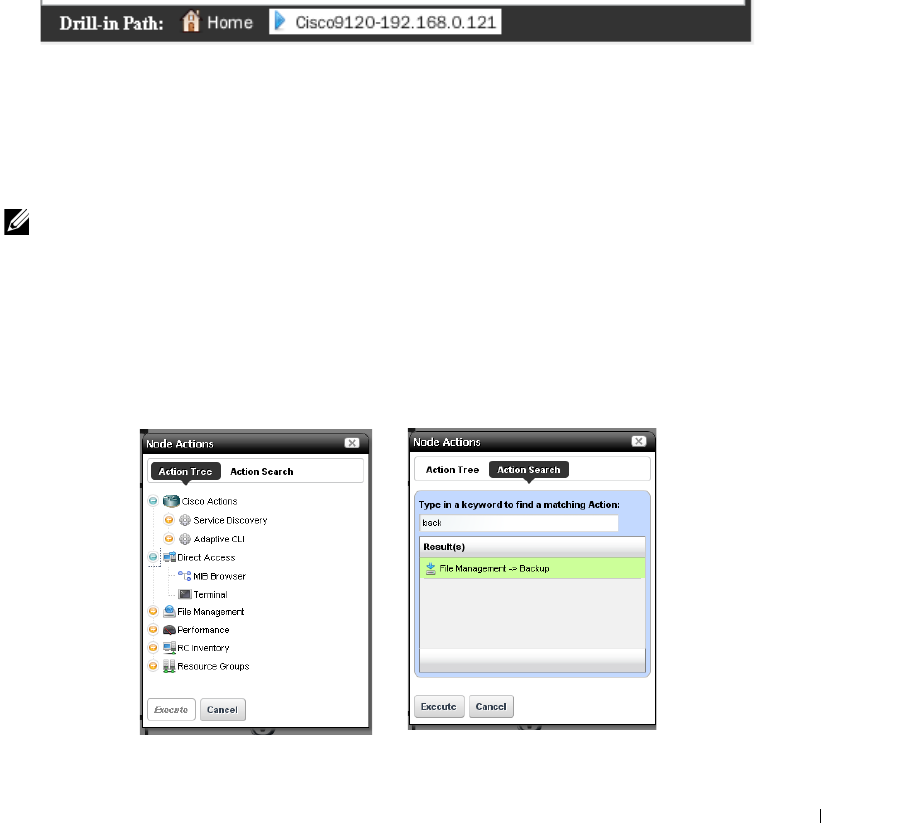

Actions

—Actions you can initiate here can include

things Adaptive CLI Actions (see Chapter 10,

Actions and Adaptive CLI), and other actions

specific to the selected device.

Actions (including Adaptive CLI) appear in

SHOW,

CONFIG

and in some cases

MANAGE

categories.

The list that appears depends on the device

selected. You can also open search field by clicking

the magnifying glass at the bottom of this screen.

Using that field, the list narrows to actions matching

your search string. Select one, and click

Load

Selected

to run it manually.

NOTE:

Since menu items appear in alphabetical order, this may

be in a different location, depending on the device vendor

name.

Adaptive CLI

—This displays

Adaptive CLIs

related to

the selected device, and opens with a screen where

you can enter any relevant parameters for those

commands. See the previous

Action

menu item’s description, and Chapter 10, Actions and

Adaptive CLI for more about these.

Change Management

—Run

Change Determination,

Execute ProScan

policies for the selected

device. See Chapter 9, Change Management / ProScan for more about these capabilities. If

you want to execute a ProScan policy not already associated with this device, then select

Execute Proscan Policy.

A selection screen appears where you can select a policy and either

execute or schedule it.

Direct Access

—This opens a sub-menu where you can select the type of available direct cut-thru

access to the selected device, or ICMP ping that device. See MIB Browser on page 188 and

Terminal on page 190 for more the about the available direct access options.

NOTE:

You must have Java installed (and updated) on the client for direct access to function correctly.

Event Management

—This lets you suppress or update alarms related to the selected resource.

Yo u c a n

Start Alarm Suppression

(

Stop

appears, once you have started suppression)

Stop All

Alarm Suppression, Schedule Alarm Suppression, View Active Suppression(s),

and

Resync

Alarms

(corrects Dell OpenManage Network Manager’s display to match the latest

information from the device already in the database). Event Management — This lets you

suppress or update alarms related to the selected resource. You can Start Alarm Suppression

(Stop appears, once you have started suppression), Stop All Alarm Suppression, Schedule

Alarm Suppression, View Active Suppression(s), and Resync Alarms (corrects Java client’s

display to match the latest information from the device already in the database). Alarms

Managed Resources | Resource Management

171

resync for all devices. This corrects the display when the alarm color displayed, either here or

in topologies, does not match the highest severity alarm for the device in the alarm portlet.

Dell OpenManage Network Manager issues no alerts when resync occurs.

When you

Start

alarm suppression, first enter a description in a subsequent screen, then a

Success / Failure message appears confirming suppression has started.

Schedule

displays a

Parameters

screen where you can describe the scheduled suppression and

select a duration and any additional suppression targets. The

Schedule

tab on this screen lets

you start suppression at a specific time and configure any recurrence, and termination

(

Stopping on

) for the scheduled suppression. The termination can either be a date, a number

of occurrences or

Never

Deleting, stopping or disabling a schedule does not interrupt suppression, once it has started.

You must right click selected devices and select

Stop All

Alarm Suppression

. You can also

delete suppressions after you select

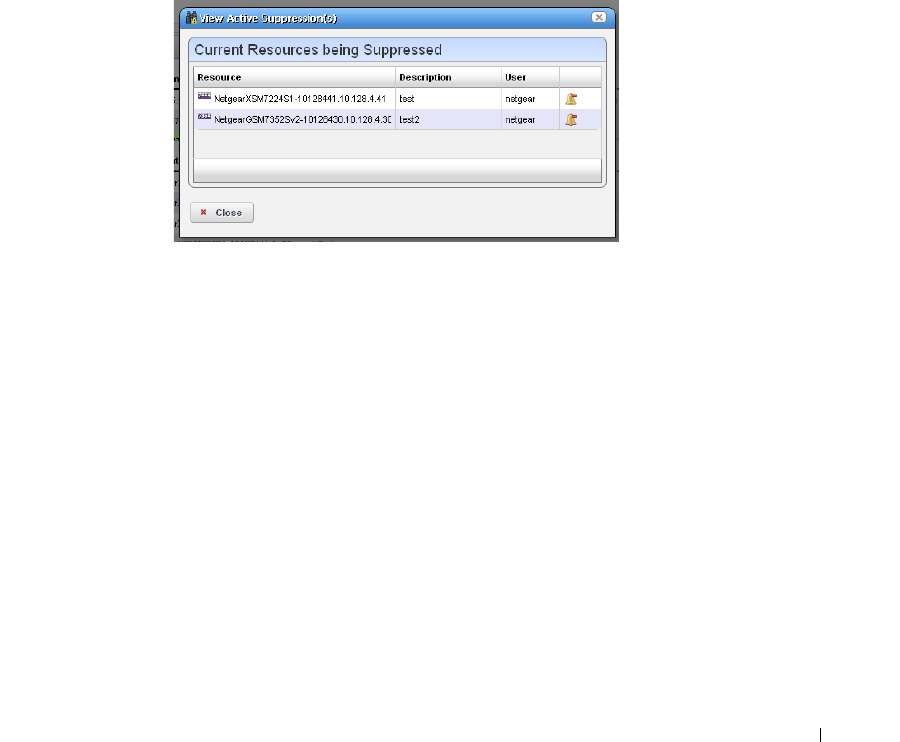

Event Management > View Active Suppression(s)

The viewer lists devices for which alarm suppression is active, their description and

configuring user. Click the

Stop Suppression

icon to the right of listed devices to terminate

their alarm suppression.

Suppressed events / alarms do not appear in the Alarm display, but, unlike rejected events, the

Event History screen can display a record of them.

File Management

—View a current configuration file, compare it to previous backups, backup,

restore, import or export a configuration file. You can also deploy firmware to devices from

this menu.

If you go to the Configuration Files portlet, you can also edit backed up configuration files.

See File Management on page 223 for details.

Links

—Create a new link or discover links between members of the selected group, and others.

See New Link on page 175 and Link Discovery on page 176 for details.

172

Managed Resources | Resource Management

Performance

—Select from the following options:

Show Performance–This displays a dashboard with various performance metrics for the

selected device. These can include packet counts, RTT (round-trip time) measure-

ments, and CPU / Memory utilization graphs.

See Dashboard Views on page 277 for more about re-using and managing

these capabilities.

S h o w Top Ta lke r s –This displays a To p Talk ers D a shb o ard

of performance metrics for the

selected resource. Use the icon in the top right corner to re-configure the default dis-

play. See Dashboard Views on page 277 and Top [Asset] Monitors on page 276 for more

information.

Show Key Metrics–This lets you see available key metrics for the selected resource, and con-

figure their display.

Resource Groups

—This lets you add the selected device to new Dynamic or Static groups, or to

existing groups. See for Managed Resource Groups on page 162 more about this.

Resync

—This re-queries the device for more current information.

Traffic Analyzer

—

Unregister

the selected resource for traffic analysis. You can also

select

Show Traffic

to see a screen with traffic for the selected device. See Chapter 8, Traffic

Flow Analyzer for more about Traffic Flow.

Delete

—Remove the selected device from inventory.

View as PDF

—Displays the selected device as an Acrobat pdf. See View as PDF on page 90.

Managed Resources | Resource Management

173

Managed Resources Expanded

If you click the plus (+) in the upper right corner of the summary screen, this expanded screen

appears. As in all such screens, you can limit what appears listed with the filters at the top of the

screen. Select the filter from default, seeded filters with the pick list at the top left corner of the

screen. You can also create your own custom filter by clicking

Advanced Filter

to the right of this

pick list (see Filter Expanded Portlet Displays on page 85 for more).

The

Settings

button lets you configure the displayed columns and their order

Tip

You can select multiple devices by Ctrl+clicking them in the expanded portlet. This lets you do these

same tasks on more than one device. You can also perform such tasks on multiple devices with managed

resource groups. See Managed Resource Groups on page 162.

The following are available columns:

Network Status

—The network status of the device.

Alarm Severity

—The highest open alarm for the device.

Equipment Name

—The name of the device.

174

Managed Resources | Resource Management

IP Address

—The IP address of the device.

Ven dor Name

—The vendor for this device.

Model

—The model of the device.

Equipment Type

—The type of equipment.

Firmware Version

—The firmware version of the device.

Software Version

—The software version of the device.

Last Backup

—The device’s last backup date.

Location Name

—The device’s location.

Hardware Version

—The hardware version for the device.

Backup Result

—The result the device’s last backup.

Restore Result

—The result the device’s last restoration.

This screen has several snap panels, some compressed “windowshade” style. Click the title bar for

these snap panels to toggle expand / collapse. These display information about the device selected

in the list at the top of the panel.

Reference Tree

This displays the device and connected components, tree style.

General: Details

This includes information about the

Equipment Name, Vendor, Location, Contact, Icon,

and

its

Last Modified

and

Discovery Date

General: Properties

This tab includes the

IP Address, DNS Hostname, Firmware Version, Hardware Version, Model,

Serial Number, Software Version, Managed by Hostname

(if active, this resolves a DNS name

rather than use an IP address to manage this resources)

and

Equipment Type

information.

General: Settings

This includes the

system Object Id, Date Created

(that is, discovered),

Creator

(the user who

performed discovery),

Install Date, Administrative State

(Locked [Device use is prohibited]

Shutting Down [Only existing users can use the device] Unlocked [Normal use of device is

permitted])

Operational State

(Disabled [Inoperable because of a fault, or resources are

unavailable] Enabled [Operable and available for use] Active [Device is operable and currently in

use with operating capacity available to support further services] Busy [Operable and currently in

use with no operating capacity to spare])OpenManage Network Manager.

Managed Resources | Resource Management

175

Network Details

This displays network information like

VLAN(s) by ID, VLAN(s) by Port

and

STP Data

Use the

pick list in the upper right corner of this snap panel to select which to display.

Utilization Summary

A graph of the device utilization, typically for CPU, Disk I/O, Memory and ping rate.

Bandwidth Utilization

A graph of the device’s bandwidth utilization. Notice that you can change the number of top

interfaces graphed, when this is applicable.

New Link

When you create a new link, the

Link Details

screen appears where you can configure the link.

This screen has the following fields:

Link Name

—A text identifier for the link.

Link Type

—Select the type of link from the pick list.

A End Point Resource / Address

—Click the plus (+) to select a resource for one end of the link.

When you right-click a selected resource, it automatically appears here. Click the minus (-) to

remove it.

Z End Point Resource / Address

—Click the plus (+) to select a resource for one end of the link.

When you have selected two resources, they automatically appear as A and Z endpoints.

Tip

Remember, you can only multi-select in the expanded version of the portlet.

176

Managed Resources | Resource Management

Link Discovery

This is an automated network link discovery feature that you can initiate from individual devices in

the Managed Resources portlet, or with the

Link Discovery

button on the home screen. See Link

Discovery Prerequisites on page 177 for a list of device features that provide link information. Links

discovered can also appear in the screen described in

Links in Visualization on page 220

When you elect to discover links from a right-click menu, the

Network Link Discovery

screen

appears. Check the type of links you want to discover or from which you want to refresh collected

data. Other options available on this screen include the following:

Layer 2 / Layer 3

[checkboxes]—Select the layer for which you want to discover links. Depending

on the layer selected, the available types appear as checkboxes below this tab selection.

Tip

Click All / None to select all or none of the displayed types for each layer. Remember, selecting more link

types consumes more time and processing power.

Managed Resources | Resource Management

177

Advanced Options

Archive Data

—Checking this archives current data before collecting information about and

discovering links.

Ignore / Include Links with Incomplete Endpoint Information

—Select the option best suited

for your network.

Click

Add Schedule

to schedule link discovery, or

Execute

to run it now (and confirm you are

willing to wait for results in a subsequent screen). The

Job Viewer

tab in the link discovery screen

displays the message traffic between Dell OpenManage Network Manager and the device(s). See

Audit Trail Portlet on page 93 for more about Job Viewer screens.

Link Discovery Prerequisites

Although Dell OpenManage Network Manager automates link discovery, you must enable the

sources for link discovery information on the devices where you do such discovery.

Data sources used to derive links appear listed below. These sources are typically required for the

network operations, so if all the sources are disabled, there would be no network to manage in the

first place. The more of the sources are enabled, the higher is the quality of links discovered.

Data sources supported:

• IEEE Link Layer Discovery Protocol (LLDP) support

• Cisco Discovery Protocol (CDP) support (reserved for future use)

• Extreme Discovery Protocol (EDP) support (reserved for future use)

• VLAN support

• Spanning Tree Protocol (IEEE STP/RSTP/PVSTP+/PVSTP+) support

• AFT support

178

Equipment Details | Resource Management

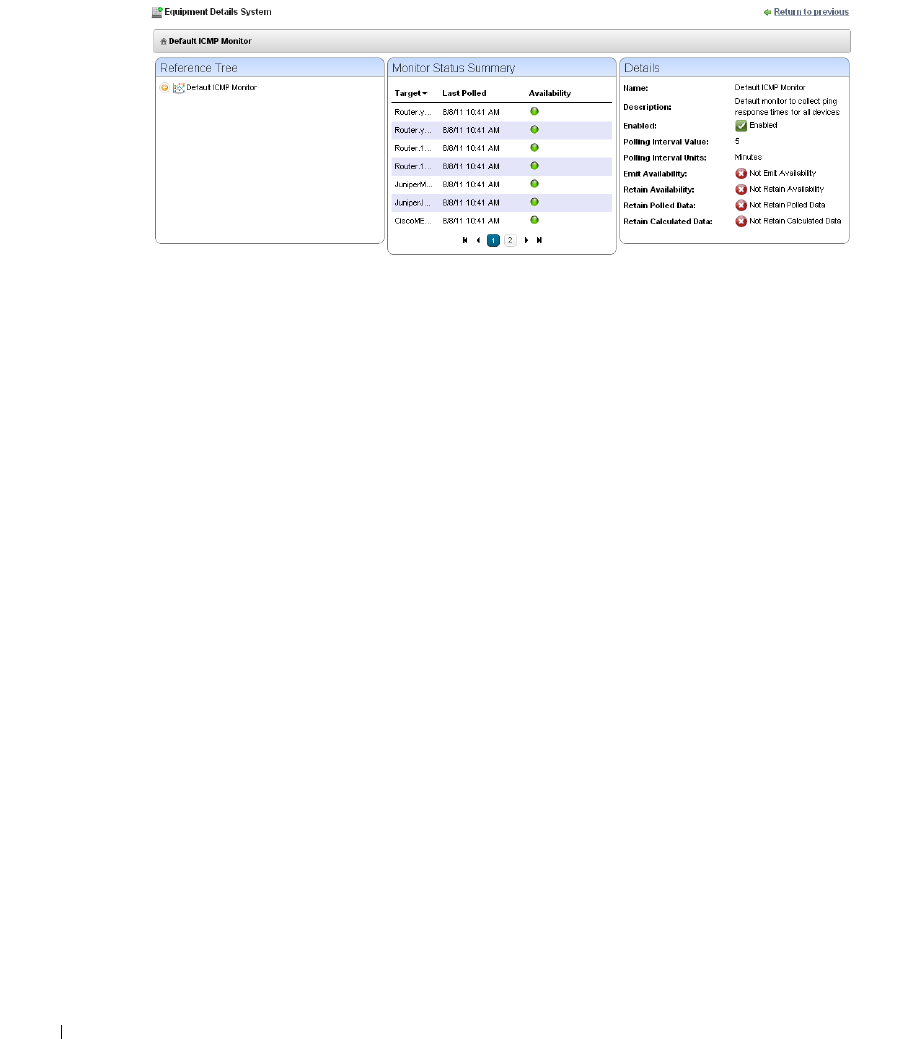

Equipment Details

This screen lets you “drill down” to display equipment details for resources. You can see it by

selecting

Details

in the right-click menu for the Managed Resources portlet. You can also install an

Equipment Details portlet on a page and use the Container View portlet to select individual

devices that appear in it. In that case, you must select an individual device before it displays data.

Equipment Details | Resource Management

179

Details screens are available for a variety of things besides equipment, too. The Equipment Details

screen (and others) can have the following sub-panels:

• Performance Indicators

•Interfaces

• Top Configuration Backups (see Top Configuration Backups on page 277)

•Alarms

•Ports

•Details

You can also right-click to open further

Details

screens about some subcomponents like Interfaces

and Ports. These display a

Reference

Tr e e

(like Snap Panels (Reference Tree) on page 85) too.

You can even right-click nodes in that reference tree to drill down to additional details.

Tip

Notice the breadcrumb trail at the top of the Equipment Detail panel tracks the levels through which you

drill down. You can click a level that appears in this trail to return to a previous screen. If you click Return

to previous in the upper right corner of the screen, you will return to the original screen from which you

selected the basic equipment.

Some fields may be truncated onscreen. Workaround: hover the cursor over the truncated field so

the text appears as a tooltip or drill down to see the detail.

Performance Indicators

These gauges display CPU and Memory Utilization. The

numbers indicate percentage of capacity. These rely on

Flash.

180

Equipment Details | Resource Management

Interfaces

This panel displays interfaces on the selected device. Notice

that you can right-click these to display additional details, or

to share this list with another user. You can right-click to

an interface’s information, or to open a Interfaces > Details

screen.

NOTE:

Some devices have ports, but no interfaces. This panel is empty

for such devices. Interfaces may appear for Force10, Cisco or

Juniper devices. You may discover such devices as type:

Unknown. Force 10 devices interfaces details can display Port

Channels (LAGs), VLANs (SVIs) and Loopbacks.

Interfaces > Details

The details available for interfaces can include a

Reference

Tre e

panel that displays the interface’s root equipment and

its sub-components. The

Details

panel also appears with

the following fields:

Creator

—The user that created this interface.

Slot Number

—This interface’s type. For example

Loopback.

Name

—The interface name.

Equipment Name

—The name of the equipment that

contains the interface.

Administrative State

—The state of the interface.

Port Number

—The port for this interface.

IP Address

—The interface’s IP address.

CLI Name

—The command line interface name.

Interface Number

—A numeric identifier for the interface.

Interface Description

—A text description for the

interface.

Interface Icon

—An icon for the interface.

Equipment Details | Resource Management

181

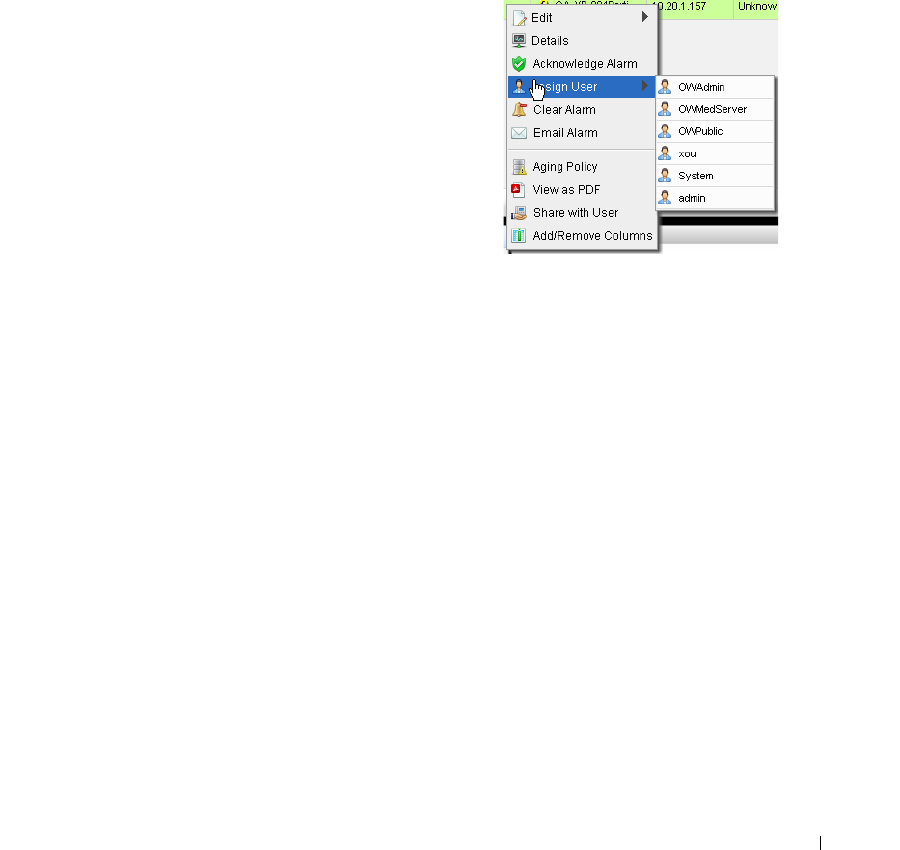

Alarms

The alarm panel in Equipment Details

displays alarms connected to the selected

equipment. You can right-click these and

Acknowledge, Clear

the selected

alarm. You can also

Assign User

and

with User.

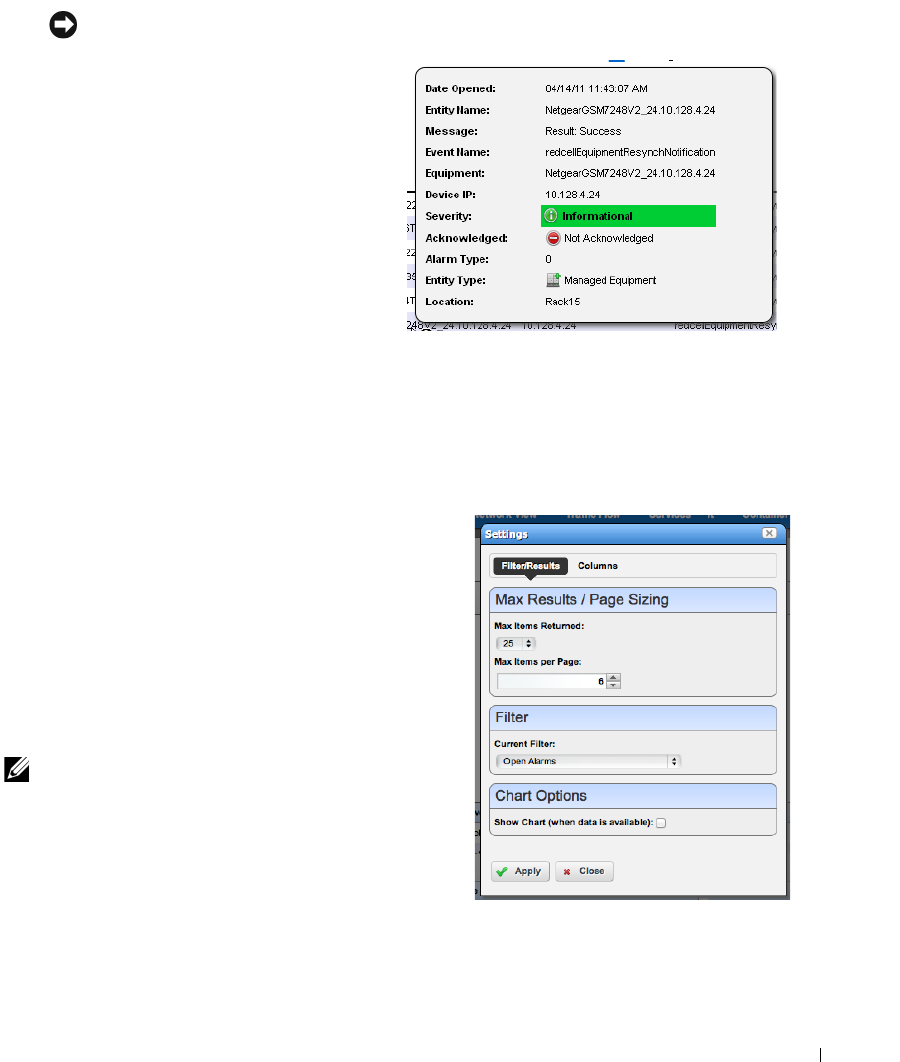

Hover the cursor over an alarm and a

popup appears with that alarm’s details

just as described in Alarms on page 100.

Ports

This displays the equipment’s ports. If you hover

the cursor over a port, you can also see the

Port

Ty p e

(for example, Fast Ethernet, T1, and so

on),

Name

(port identifier), and

Operational

Ty p e

(Up, Down). A column in the summary

portlet lists what

Equipment

the port belongs to.

The Expanded portlet displays snap panels and

additional columns for

Encapsulation, IP

Address, Subnet Mask, Port Description, 8

Date Created.

Tip

If the Ports portlet is on the same page as the Managed Resources Proscan portlet, selecting a device in

Managed Resources makes its ports appear in the Ports portlet. These can get out of sync, but clicking

the browser’s Refresh restores the correspondence between a selected device and the ports displayed.

You can also add

Links

to ports with the right-click menu. (See Ports > Links). Existing links

appear in the

Reference Tree

snap-in for the selected port in the Expanded Ports portlet. Other

snap-ins display port information and any learned MAC address(es) for the port.

Right-clicking a listed port produces a menu with the following items:

Edit, Details, Visualize,

Event Management, Links, Performance

and

View as PDF

See Ports on page 191 for more about a

portlet exclusively for ports, and Port Editor on page 194 for information about editing them.

NOTE:

To resync a port, resync the device that contains it.

182

Equipment Details | Resource Management

Ports > Links

When you add or edit a link, the

Link Details

screen appears.

It contains the following fields:

Link Name—

An identifier for the link

Link Type—

Select the type of link to create in the pick list.

A / Z Endpoint Resource—

Select a resource for the A or Z endpoint

A / Z Endpoint Address—

The IP address, if available, for the endpoint.

Click

Save

to preserve your edits, or

to abandon them.

Equipment Details | Resource Management

183

Ports > Details

You can right-click to

port information, or to open a

Details

screen for the selected port. This includes the device’s

Reference

Tre e

so you can see this port in relation to other parts of the device.

It also includes a

Details

panel that can include the following

fields:

Hardware Version—

The port’s hardware version

Port Description—

A text description of the port.

Model—

A model number.

Date created—

When the port was discovered.

Creator—

The logged-in user who discovered it.

Port Type —

The port’s type (T1, Fast Ethernet, and so on).

Encapsulation—

The port’s encapsulation.

Subnet Mask—

The port’s subnet mask.

Install Date—

The port’s installation date.

In Use—

An indicator use.

IF Index—

The SNMP MIB designation for the port.

Container Index—

The SNMP MIB designation for the port’s

container.

Slot Number—

The port’s slot number.

Speed—

The port’s speed.

MTU—

The port’s MTU.

Port Icon—

The port’s configured icon.

Learned MAC Addr—

The port’s learned MAC address.

Count—

The port’s count.

CLI Name—

The port’s command line interface name.

Notes—

Any notes recorded about the port.

Operation Type—

The port’s operation type.

Switch Mode—

Is the port in switch mode?

Duplex—

Is the port in duplex mode?

Name—

The port’s name.

Port Number —

The port’s number.

Equipment Name—

The port’s equipment name.

Operational State

—One of following possible values describing the availability of the resource.

184

Equipment Details | Resource Management

Disabled—Inoperable because of a fault, or resources are unavailable.

Enabled—Operable and available for use.

Active—Device is operable and currently in use with operating capacity available to support

further services.

Busy—Operable and currently in use with no operating capacity to spare.

IP Address—

The port’s IP address

Hardware Version—

The port’s hardware version

MAC Address

—The port’s Media Access Control (MAC) address.

Administrative State

—One of the following values:

Locked—Device use is prohibited.

Shutting Down—Only existing users can use the device.

Unlocked—Normal use of device is permitted.

Equipment Details | Resource Management

185

Details

This panel displays detailed information about the equipment

selected. This can include the following fields:

Serial Number

—The selected resource’s serial number.

Last Configuration

—The date for the last backed-up

configuration file.

Change

—The date for the last configuration file change.

System Object ID

—The SysObjectID of the resource.

Operational State

—One of following possible values, selected

from a drop-down menu, describing the availability of the

resource.

Disabled—Inoperable because of a fault, or resources are

unavailable.

Enabled—Operable and available for use.

Active—Device is operable and currently in use with

operating capacity available to support further ser-

vices.

Busy—Operable and currently in use with no operating

capacity to spare.

Install Date

—The date this equipment was installed.

Notes—

Any notes recorded about the device.

RTM Category —

The “Right to Manage” category for

licensing.

DNS Hostname

—The DNS name of the resource; this name

must be unique.

Ven dor

—The vendor that manufactures/distributes this resource. See the Vendors on page 139 for

more information about managing vendors.

Hardware Version

—This resource’s hardware version.

Software Version

—The selected resource’s software version.

Network Status

—The status of the resource in the network. For example:

Responding

means this

application can, via some network protocol, get the device to respond.

Not Responding

means

the device does not respond to the protocol.

Indeterminate

means the monitoring software

has not tried to reach the device or there was some other error which prevented us from

determining one of the other two statuses.

186

Equipment Details | Resource Management

The appearance of

Network Status

depends on the default ICMP monitor (see Resource

Monitors on page 245. If you exclude this equipment from the monitor or disable it (for

example, for performance reasons) then a status may appear, but it is not meaningful.

Creator

—The logged in user that created this record in the database.

Firmware Version

—This resource’s firmware version.

Backup Result

—The result of any attempted configuration file backup for this resource.

Managed By Hostname

—True/false. True means DNS rather IP address is how OpenManage

Network Manager manages this resources.

Model

—The resource’s model number.

Equipment Icon

—The resource’s icon (typically related to the Vendor).

Equipment Type

—The resource’s type. For example

Router

Location Name

—The resource’s location.

IP Address

—The resource’s IP address.

Discovery Date

—When the resource was discovered.

Administrative State

—One of three descriptive values. The options are:

Locked—Device use is prohibited.

Shutting Down—Only existing users can use the device.

Unlocked—Normal use of device is permitted.

Hardware Version

—The resource’s hardware version.

Last Backup

—When the resource’s configuration was last backed up.

Last Modified

— When the resource’s configuration was last modified.

Equipment Name

—The resource’s name on the network.

Alarm Severity

—The most severe alarm on the resource.

Restore Result

—The result of any attempted restoration of configuration for this resource.

Description

—A text description of the device.

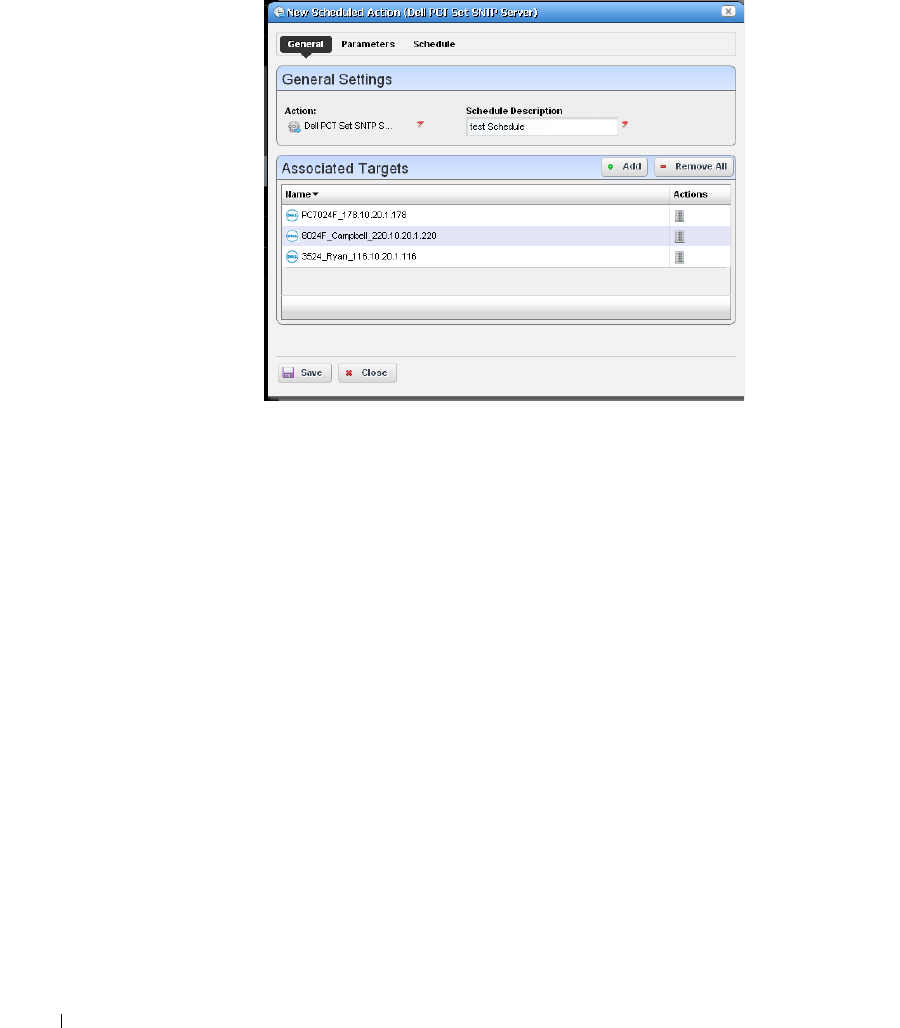

How To:

Schedule Actions

To schedule an action triggered from a right-click menu (for example from Managed Resources)

rather than execute it immediately, follow these steps.

Equipment Details | Resource Management

187

Select the action in the right-click menu. For example: Netconfig Backup.

Rather than clicking

Execute

, click

Add Schedule

The schedule panel appears.

Once you click

Apply

on this panel, the previous panel returns, the

Add Schedule

button now

appearing as

Edit Schedule

If you click

Save

, Dell OpenManage Network Manager creates a scheduled item around the

activity and its data. A row also appears in the screen described in Schedules Portlet on page

95 for this schedule.

When you have scheduled something from the

Add Schedule

button, clicking

Apply

in the

schedule panel returns you to the previous screen.

If you click

Execute

in that previous screen, the action begins, and audit trail panel appears,

displaying the running job for the activity. If you have attached a Schedule, Dell OpenManage

Network Manager also saves the activity as a scheduled item in the Schedules Portlet.

188

Direct Access | Resource Management

Direct Access

Direct access provides less-mediated access to the device in the following ways:

•MIB Browser

•Terminal

•Ping (ICMP)

•HTTP / HTTPS

The following sections describe those direct options in more detail.

MIB Browser

As part of the

Direct Access

menu, the

MIB Browser

lets you examine SNMP data available about

devices.

The screen that opens when you select this option displays MIBs available in Dell OpenManage

Network Manager in a tree on the left. Notice that a pick list at the top of the left column narrows

what appears in the tree.

NOTE:

A progress bar at the bottom of this screen indicates a query for the selected information is in progress.

Use the menu described in Event Definitions on page 128 for loading new MIBs.

Direct Access | Resource Management

189

Select a MIB and expand it to see the contents for a selected node appear on the right. In addition

to the

Device Results

tab, which displays what the currently selected device uses from the MIB, the

MIB Information

tab displays the parameters available for the selected node.

Notice that the

Description, Comments, Notification Variables,

and

Valid Values

tabs appear at

the bottom of this screen.

190

Direct Access | Resource Management

Terminal

This opens a terminal shell connected to the selected device.

A green icon in the lower right corner indicates the device is online, while the IP address of the

device appears in title bar. The IP address of Dell OpenManage Network Manager’s server also

appears in the lower left corner, when the connection is active.

The following menus appear for your terminal session:

File

—This menu lets you

Connect

Disconnect

to the device.

Edit

—This menu lets you

Copy

Paste

text within the terminal session. Click and drag to select

text.

Terminal

—This menu lets you set

Foreground

and

Background

colors, as well as configuring the

Font

and

Buffer

sizes

. Reset Terminal

restores the defaults.

NOTE:

Terminal is now an applet that requires a Java Runtime Environment be installed and associated to the

browser as a plug-in on the client machine.

Tip

You can cut and paste from the Direct Access terminal.

Ports | Resource Management

191

Ping (ICMP)

Select this option from the Direct Access menu to

initiate ICMP ping, and to display a progress bar,

and graph of the selected device’s ping responses.

Alternatively, an error message can appear describing

the device’s lack of response.

When ping responds in less than one millisecond,

results appear in a table with <1ms entries.

HTTP / HTTPS

Selectin

g this menu item opens the default browser, connected

to the selected device.

An intervening dialog appears advising you about the

required network conditions for a successful

connection.

Ports

This summary portlet displays discovered device ports.

This displays a list of ports, with columns for

Port Icon, Equipment Name, Name, Type

and

Encapsulation

Hover your cursor over the

Name

column, and a popup appears adding the port’s

Date Created

and

Operational State

information. Right-clicking offers a subset of the actions

listed in Managed Resources on page 166

You can also create links. See Ports > Links on page 182.

See Port Editor on page 194 for details of the editor specifically for ports.

192

Ports | Resource Management

Port Details

This screen displays all the port’s settings that have been retrieved, including a Reference Tree of

logical interfaces below the port, a Learned MAC Address panel, Alarms related to the port, and

other Details.

In Details, fields describing the following for the selected port:

Hardware Version, Port Description,

Model, Date Created

(typically, this is the date discovered)

Creator, Port Type, Encapsulation,

Subnet Mask, Install Date, In Use, If Index, Container Index, Slot Number, Speed, MTU

(maximum transmission unit),

Port Icon, Learned MAC Addr, Count, CLI Name, Notes,

Operation Type, Switch Mode, Duplex, Name, Port Number, Equipment Name, Operational State,

IP Address, MAC address, Administrative State.

See Port Details on page 192 and Managed

Resources Expanded on page 173 for an explanation of some of these fields.

Ports | Resource Management

193

Ports Expanded

Clicking the plus (+) in the upper right corner of the summary screen displays this expanded view

of available ports.

The

Settings

button lets you configure columns that appear and their order. The available columns

for this view include many related to the attributes that appear in Port Details on page 192, above.

This screen also includes a

Reference Tree

displaying a tree of the selected port’s relationship to

logical interfaces and monitors.

194

Ports | Resource Management

Port Editor

When you right-click a port, and select

Edit

this screen appears.

It has the following fields:

General Details

Name

—An identifier for the port.

Port Description

—A text description for the

port.

Install Date

—The date this port was

installed.

Model

—The port’s model.

Date created

—The date this port was

created.

Port Details - Properties

IP Address

—The IP address for the port.

MAC Address

—The port’s Media Access

Control (MAC) address.

Hardware Version

—The port’s hardware

version.

Port Type

—The type of port.

Administrative State

—One of three descriptive values. The options are:

Locked—Device use is prohibited.

Shutting Down—Only existing users can use the device.

Unlocked—Normal use of device is permitted.

Operational State

—One of the following values:

Down—Inoperable because of a fault, or resources are unavailable.

Dormant—The port is dormant.

Not Present—The port is absent.

Up—Operable and available for use.

Unknown—Status is unknown.

Te s t i n g —Status is testing.

Notes

—Any notes recorded about the device.

Report Templates | Resource Management

195

Port Details - Settings

Encapsulation

—An identifier for the port.

MTU

—The size of the maximum transmission unit.

Speed

—The port’s speed.

Subnet Mask

—Any subnet mask associated with the port.

In Use

—Checked if the port is in use.

IF Index

—The port’s SNMP If Index number.

NOTE:

The polling frequency is once-an-hour. This is not configurable.

Report Templates

Report Templates are the basis of

reports. This portlet displays the

Template Name, Description,

and

Ty p e

in columns.

Right-clicking in this portlet lets

you create a

New

template,

Edit

selected template (see Report

Template Editors for information

about subsequent screens), view

Details

Delete

a selected

template. You can also

Import / Export

report templates to files.

The expanded Report Templates portlet also includes a Reference Tree snap panel displaying a tree

for selected templates connecting them to Report Groups and specific reports.

How To:

Create a Report Template

The following steps create a report template:

In the Report Templates portlet, right-click and select

New

Tab le tem plate .

Name the template (for example: Test Amigopod Report)

In the

Source

tab, select an inventory source (for example: Inventory resources [A - DD]

Amigopod).

196

Report Templates | Resource Management

Select

Inventory Columns

by clicking the arrow(s) between

Available

and

Selected

columns.

(for example: Amigopod: Administrative State, Amigopod: DNS Hostname, Amigopod:

Equipment Name, Amigopod:IP Address)

In the

Layout

tab, configure the column order (top is first, bottom is last).

Notice you can also configure the font size, color, alignment, and so on when you select a

column in this tab.

Click

Save.

You have successfully created a template.

Report Template Editors

Dell OpenManage Network Manager has several report template editors. Creating a

New

template, can make

Comparison, Table

and

Tre n d

templates.

This editor has General, Inventory, and Layout tabs.

You can edit any but pre-existing templates, whether they have reports attached to them or not.

Consider this example:

Template T has three columns; A, B and C. Someone creates a report R against Template T,

executes the report, saves the data as a historical report H1. Two weeks later, someone modifies the

Template T, removing column C, adding column D.

When executing report R against the revised Template T’, the report now shows columns A, B and

D. User saves the report as historical report H2. Here, H1 only has data for columns A, B and C. H2

has data for columns A, B and D.

Report Templates | Resource Management

197

If you view H1 you see Template T’ is in use and this template creates a report with columns A, B

and D. Unfortunately, H1 only has data for columns A, B and C, so the report created has data for

columns A and B only. Column D is empty. When viewing H2 you can see Template T’ is in use

and can create a report with columns A, B and D. H2 has data for columns A, B and D, so all data

appears.

General

The following are fields that appear on these screens. Not all screens have all fields.

General Settings

Name

—An identifier for the template.

Description

—An optional description of the template.

Chart Type

—Select from the available alternatives (

column, line

Summarize by Group

—Group similar results together.

Advanced Settings

Orientation

—Select from

Portrait

and

Landscape

Include Chart Details

—Enables the following fields

Report Summary

—Enable a report summary

Row Separator

—Display a row separator.

Page Header Position

—Select

none, top, bottom

both.

Auto Column Split

—Enable automatic column splitting. This automatically aligns the columns

equally on the report providing the column widths that are most proportional.

Group on First Attribute

—Create a report that groups rows based on the first reported attribute.

This creates groups of items in the report whenever the left most column’s value changes.

For example, with disabled, a report looks like this:

Device Name Gig/e Port Name Health Status

M5 ge/0/0/1 Up

M5 ge/0/0/2 Down

M5 ge/0/0/3 Up

M5 ge/0/0/4 Unknown

M18 ge/0/1/1 Up

M18 ge/0/1/2 Starting

M18 ge/0/1/3 Up

198

Report Templates | Resource Management

M18 ge/0/1/4 Down

The same report looks like this with

Group on First Attribute

enabled:

Device Name Gig/e Port Name Health Status

ge/0/0/1 Up

ge/0/0/2 Down

ge/0/0/3 Up

ge/0/0/4 Unknown

M18

ge/0/1/1 Up

ge/0/1/2 Starting

ge/0/1/3 Up

ge/0/1/4 Down

The Inventory and Layout tabs are common to all editors.

Inventory

Select the type of inventory for a report, and its data types in this screen.

Report Templates | Resource Management

199

Click the green plus (+) to select the

Inventory Type

. The types of data available for that inventory

type appear in the leftmost column in this screen. Click on a

Selected Type

to see its

Available

Columns

Click the arrows to move columns from

Available

Selected

. The

Selected Columns

appear in the template’s report.

Layout

This tab outlines the column layout for the template.

Click on the up/down arrows on the right of each row to re-order data columns. Click to select a

row, and the editor panel at the bottom of the screen appears. It has the following fields:

Column Text

—The column label.

Horizontal Alignment

—

Right, Left, Center

(the default).

Column Width

—The column width in characters.

Sort Priority

—Configures report sorting. Define the attribute sort order here. You can sort within

a sort, so you can sort on Name and then by Location and then by IP Address, and so on. The

number configures the sort group, so 1 sorts, then 2 within 1, then 3, and so on.

Font Size

—The data’s font size.

Font / Background Color

—The color for the text/background. Click the field to open a color

chooser.

200

Reports | Resource Management

Calculation Type

—How to calculate for summarizing the numeric data. Select from the available

options (

Average, High, Low, Sum

Click

Save

to preserve any template you have configured, or

to close the editor screens

without saving.

Reports

This portlet’s summary screen lists the available reports that you can run with Dell OpenManage

Network Manager.

The report

Icon, Name, Template,

and

Subtitle

appear in the columns in this summary screen.

Generally speaking, the report selects the target equipment, and the template configures the layout

and attributes reported.

NOTE:

If the Interface details panel is empty, then the Interface reports will have no contents. Some devices

have ports, but no interfaces. Use the Ports report for such devices.

Right-click a selected report to do the following:

New / Edit / Copy —

This opens the Report Editor, described below, to configure a new report,

edit or copy an existing, selected report.

Copy

automatically renames the selected report.

Schedule

— Opens a scheduler screen to automate report creation.

Reports | Resource Management

201

Execute Report

— When you execute a

report, a numbered message

notification appears, and a link to the

report appears in the

Messages

panel

to notify you the report is ready for

viewing. Click the magnifying glass to

the right of the notification to view

either the audit trail or the report.

NOTE:

Reports with lots of data may take a long

time to appear without much indication that

they are in process. This is an artifact of the

Acrobat plug-in, and outside the scope of Dell OpenManage Network Manager to influence. Acrobat

also produces an error if a report has too much data to display meaningfully.

Execute Report (Advanced)

—Also lets you schedule reports.

Aging Policy

—If you automate report generation, you may also want to configure a Database

Aging Policy to insure the volume of reports does not overwhelm your storage capacity. See

Redcell > Database Aging Policies (DAP) on page 50 for more about doing that.

Delete

—Removes the selected report from the list display

Delete History

— Removes the selected report’s history.

To change reports’ appearance and contents, you must configure their Report Templates. Also, see

Branding Reports on page 206 for instructions about changing the default report logo.

When you

View or Execute Report (Advanced)

, by right clicking either a listed report or a historical

instance of that report, a configuration screen appears that lets you select several parameters.

202

Reports | Resource Management

These include the following:

Report Email / Export Type

—Select the export file type from the pick list. Options include

CSV,

HTML, PDF, XLS,

and

XLSM.

Overwrite Existing

—Check to activate overwriting any existing report.

Save

—Check to activate saving the report to the database.

Notify

—Check to activate emitting a notification event.

Email Address

—Enter an e-mail destination for the generated report, and click the plus (+) to list

it. You can enter several such e-mails.

Export Directory

—Enter directory destinations for saved reports as you would e-mail

destinations.x

Click

Add Schedule

to schedule the report for future or repeated execution,

Execute

to run the

report immediately, or

Save

to preserve this report’s configuration. The

Job Viewer

tab displays the

report’s progress if you click

Execute

Reports | Resource Management

203

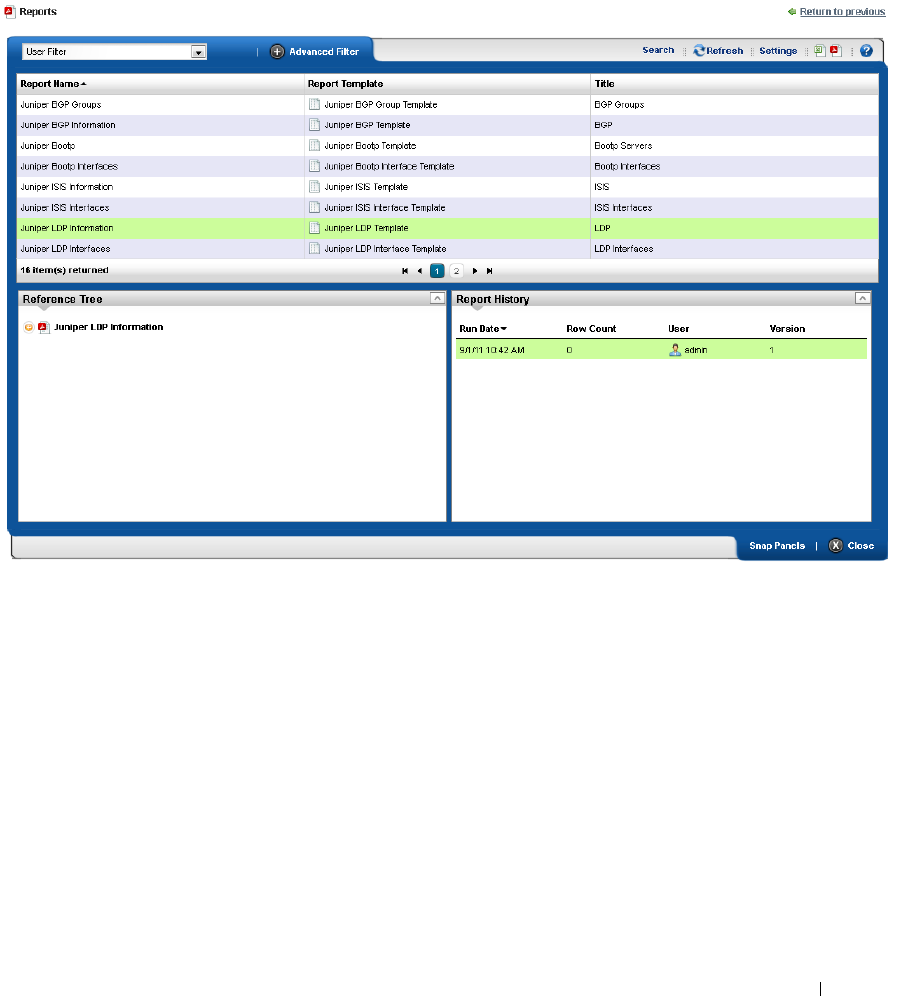

Expanded Reports Portlet

Clicking the plus (+) icon displays the expanded portlet. the expanded portlet adds

Add / Remove

Column

to the menu options available in the summary screen.

Available columns are the same as the summary screen’s. The

Reference Tree

snap panel displays

the selected report’s connection to devices, historical reports and any report template. Right-click

to view the reports in the Historical Reports node.

Reports Snap Panels

The Snap Panels for reports display a Reference Tree of connections between the selected report

and target equipment, and between the report and any Report Template.

The

Report History

Snap Panel displays the selected report’s

Run Date, Row Count

and the

User

who ran the report. Right-click a row in this panel, and you can

Delete, Print

(the report history) or

Export

(the report history)

View

(the report)

View (Advanced)

. If you

View

the report, a

message with a link to the report appears in the bottom left of the screen.

204

Reports | Resource Management

How To:

Generate a Report

The following steps configure, then generate, a report.

In the Reports portlet, right-click and select

New.

Name

the report (for example: Test Powerconnect Router Report)

Enter a title / subtitle for the report (“Powerconnect Routers”)

Select a template for the report in the pick list. (For example, the template configured in How

to: Create a Report Template.)

Tip

If you create a template, the first report you create after making that template automatically selects the

newly created template.

In the

Filters

tab, you can create a filter to confine the reports input to certain devices,

locations, and so on. (Here, select the existing All Powerconnect Routers filter)

Click

Save

Locate the newly created report in the Reports portlet.

Right-click and select

Execute.

Click the

My Alerts

panel in the lower left corner of the portal.

Click the magnifying glass icon to the right of the

Report is now ready for viewing

message.

The report appears onscreen.

Hover your cursor over the lower right corner of the report to

see a set of icons that let you expand, zoom out and in, save,

or print the report.

NOTE:

Some reports may appear pre-seeded in the portlet that are not supported by your package. For example,

pool reports may appear for programmatic restrictions on pooled assets like IP addresses, or Route

Targets not supported.

Report Editor

This editor configures reports, and their targets. It has the following screens and fields:

• General

•Filter

Reports | Resource Management

205

General

This screen configures the

Name, Title

(displayed text in the report),

Subtitle

, and

lets you select the

Report Template

for the

report (see Report Templates on page 195 for

more about them)

Filter

This screen configures a

filter to retrieve devices that

are the source of the report.

Click

Add Filter

in the filter

panel to select an existing

filter, create a new filter, or

copy an existing filter. When

you create a new filter, you

must enter a

Name

and

optionally a

Description

for

it, select an

Entity Type

with

the green plus (+), and elect

whether this filter is

available to other users

(Shared)

. See How to: Filter Expanded Portlet Displays on page 85 for

instructions about configuring the filter itself in the lower portion of this screen.

206

Reports | Resource Management

Once you have configured or selected a filter, the

Filter

panel displays its characteristics in tree form.

Click

Edit

to re-open the editor, or

Del

to remove

the filter.

NOTE:

Filters appear only for the entity type of your

Report template.

Branding Reports

Reports come with a default logo, but you can

change that, as is illustrated in the above screen. Put the

.png

.jpg

.gif

graphic file with

your desired logo in

owareapps\redcell\images

on the application server. In the

owareapps\installprops\lib\installed.properties

file, alter this property:

redcell.report.branding.image=<filename_here>

No need to include the path, just use the file name.

CAUTION:

You must create images that are no taller than 50 pixels, and no wider than 50 pixels.

Visualize My Network | Visualize

207

Visualize

Visualize My Network

The Visualize My Network portlet displays discovered devices, mapping them in relationship to

each other. It also lets you store and retrieve views you have arranged, as well as configure the

default view (see VIEW DETAILS on page 213 for more about these capabilities).

How To:

Create a Visualization

Creating a topology map of devices or services is as simple as right-clicking the item(s) you want to

map, and selecting

Visualize.

You can also save different topologies after you configure them. See VIEW DETAILS on page 213

for more about that.

You can fine-tune the appearance of what you see with the tools described in Configuring Views

and what follows.

Tip

If you do not see what you expect, make sure you have refreshed your browser so cached images do not

interfere with current ones.

208

Visualize My Network | Visualize

Configuring Views

Click and drag displayed portions of this screen to see other parts of the topology. To move the

display more, click in the OVERVIEW panel. You can also expand / collapse the panels on the left

of the screen by clicking their title bars. (Figures below display them expanded.)

Hover the cursor over an icon or link between icons to see a small screen describing its contents and

alarm state. Click an icon to highlight it (or click its name in the GRAPH INVENTORY tab list)

and its connections to the network. See Alarms in Visualizations / Topologies on page 219 for more

about the alarm states indicated by icons in topology.

CAUTION:

If you have installed a firewall on the application server, ports 80 and 8080 must both be open for topology

to work.

Click the double arrows in the upper right corner to open the

Legend

for this screen, which

describes the link colors and their meaning. Hover the cursor over a link to see its type described.

See Icons on page 215 for an explanation of the icons that appear in these screens.

The screen to the left of the map displays the following panels:

• Control and Styles (which includes VIEW DETAILS)

• Data / Node Finder

•Layout

Visualize My Network | Visualize

209

•OVERVIEW

Click on the title bars when these appear collapsed on the left of the screen to expand them. Click

the blue left arrow at the top of them to re-collapse them.

In addition to the screen components immediately displayed, you can right-click an icon or

component, and

Drill in

Expand

a device to see its subcomponents. If you expand, then its

subcomponents appear onscreen with the rest of the topology. If you

Expand w/o Filtering

, then

any filtering you have applied in the Data / Node Finder tab does not apply to the subcomponents

that appear. If you drill in, other components do not appear. Finally, you can select Actions to

execute. The Layout selected in determines the arrangement of such expansions or drill-ins.

When you drill in, the path back to the top level appears below the topology.

Click the level where you want to “drill out,” or click

Home

to go to the top level.

Right-clicking a device can also let you select available Adaptive CLI

Actions to execute on the

selected device or component.

If you right click the blank area of the screen, you can

Export

it as

either an image or GML (graphic

markup language), or print the displayed topology.

NOTE:

Because Topology uses Adobe Flash, menu items appear for that software when you right-click nodes.

This includes Settings, Global Settings and About Flash menu items. The text below does not discuss

these.

Actions

Available Node Actions mirror the kinds of menu items available in Managed Resources on page

166.

210

Visualize My Network | Visualize

The

Action Tree

panel displays the available actions. The

Action Search

panel lets you enter a

desired action and search for it. Select an action and click

Execute

to implement it. Click

Cancel

dismiss this screen without running any action

Control and Styles

•ZOOM

•DISPLAYED LEVELS

• STYLE OPTIONS

• VIEW DETAILS

ZOOM

Click the + or - icons to zoom in or out. The

icon returns to the original default magnification

(100%). The

Autofit

icon zooms to fit all devices in the topology.

DISPLAYED LEVELS

Clicking

displays the top level. Clicking

displays the top level and the one below it. Clicking

All

displays all discovered levels, from device to interface.

Tip

The fewer levels displayed, the more quickly the display appears.

Clicking the

Filter

button opens a screen that lets you

further tune the Topology display. It includes the following:

Level 1 Filters

Excluded Association Types (

Contact, Vendor, Location

)

lets you turn off those icons. When these are activated, the

icons disappear.

Level 2 Filters

Select a

Minimum Alarm Severity

to display from the pick

list. When you select a severity, then only resources with

that alarm level or greater appear in the topology display.

Level 3 Filters

Select a

Minimum Alarm Severity

to display from the pick list. This restricts the display on a lower

level than

Level 2

Condition Override(s)

When active, this excludes level expands on nodes with links that do not match the severity filters.

Visualize My Network | Visualize

211

Click the

Apply Filtering

button to implement your configuration, or

Cancel

to dismiss this screen

without applying it.

STYLE OPTIONS

This tab’s options configure node and line appearance. It displays the following when you click

buttons in this panel. Notice the fist two have Tooltips tabs in addition to the first one you see:

Node Style Options

—Configure how nodes appear in topology.

In the

Label / Node View

tab, you can elect to

Enable Node Labels

so labels appear next to

icons in topology. Select the attributes in the middle panel. You can also elect to

Show Labels

for Problem Nodes Only,

and

Truncate Node Label Characters

(and select the maximum

number of characters).

Click to move attributes from

Attributes to Display

(all appear by default) to

Available

Attributes

to conceal attributes you do not want displayed.

The

Node Rendering

pick list lets you select from several styles of icon that appear in

topology.

These include two icon styles (

Style 1

, the default, and

Style 2

), colored

Circles

(the

color is the associated alarm color), and

Labels Only

. This last style overrides any previous

selection to display labels only for problem nodes.

212

Visualize My Network | Visualize

Edge Style Options

—This lets you configure the colors on connections between icons.

First, click to

Enable Edge Labels

. To have the edge reflect speeds, you can then elect

Layer 2

Speed Styling

(enable

Use Style Overrides

). Select colors for speeds by clicking the lower right

corner of the colored boxes that appear next to speed range labels. You can also configure the

thickness of the edge next to that color selector. Click

Apply

to enable your configuration, or

Cancel

to abandon it and close this options screen.

NOTE:

Revising colors does not mean the revision appears in the legend

Background Image

—Click the

to select an image, typically a map, that you want to appear in

the background, or the - to remove an existing one. Click and drag icons to locations on that

image after it has appeared onscreen.

The selector looks for images on the machine where the browser is located. The size and

appearance of images depends on the resolution of the monitor and the layout of the page in

the browser. For example, setting the screen to1280 by 1024 pixel resolution, with a one-

column layout for the page where topology appears, a background graphic can be as large as

800 x 650 pixels.

Visualize My Network | Visualize

213

VIEW DETAILS

This panel displays the saved status of the

current View, and has buttons to let you

Save

Load Existing

saved views. The View

Name

defaults to

Not Saved

when the

display has not yet been saved. Clicking

Save

displays a screen where you can

Name

and

enter a

Description

for the view you are

saving. You can also configure a saved view

for Dell OpenManage Network Manager to

Use as Default

, so it appears by default

whenever you see a topology view.

Saving preserves Views and current Layout, Level, Node/Edge Settings, Top Level graphic

elements, Name, Description, Owner, Dates and Filters.

Clicking

Load Existing

loads other saved views selected from a screen that also lets you

Delete

selected view. Users who do not own the retrieved view can save a copy. Deletion is only possible for

views you own.

If you delete the default view and do not set a new one, then the Network View defaults to its

original settings.

CAUTION:

Deleting views is not confirmed.

The saved label appears in the title bar the next time you open the view.

Data / Node Finder

This screen offers additional topology information to help you locate specific resources within the

visualization you have produced.

214

Visualize My Network | Visualize

GRAPH INVENTORY

This displays a legend of icon types followed by a count (in parentheses) of how many of each

appear in the topology. The switch at the bottom of this panel centers the display around the

selected icon.

Click the plus (+) to the left of the inventory category icons to display a list of devices in that

category in the topology. Click on a list item to highlight that device and its network connection in

the topology view. A circle highlights the device and a colored glow highlights its network

connection(s). Notice that the listed inventory changes if you drill in.

Tip

To make sure the selection appears in your view, select Center view around selected item at the bottom

of this panel.

This tab also lets you

Search for nodes by Keyword.

Search results highlight specific items within

the topology.

Visualize My Network | Visualize

215

Icons

The the icons next to listed devices mean the following:

In the GRAPH INVENTORY tab (not the topology), the icons to the left of the devices are alarm

icons, and their color reflects the highest alarm state on that device. Icons that appear on the right

in the summary tree view displays the highest alarm severity for that type of device.

Icon Type Explanation

Alarm This shows the alarm state of the devices listed.

In a composite list, like appears in Inventory, it

shows the highest alarm state.

Indeterminate No alarm information is available for this device.

Status Green means the device is Online, red means

Offline, and yellow means indeterminate.

Topology Alarm

Tria ngl e

These appear next to the device icons. The

upward pointing triangle indicates the icon

attached is a top-level device. The color in the

circle is connection status color described above.

The color in the triangle the device’s alarm state.

If the triangle points down, it indicates the

triangle’s alarm state color comes from a “child”

component of the node.

216

Visualize My Network | Visualize

Layout

The layout tab lets you select and configure the type of automated node layout that appears in the

topology display.

Under CURRENT LAYOUT, use the pick list to select the type of layout. The fields and selectors

that appear below depend on the selection. Here are the available layouts, and the fields that go

with them:

Balloon

Balloon layouts display links between managed objects in a balloon tree

structure. The root is typically whatever device you have expanded or

drilled into.

You can specify the following in the settings for this layout:

Minimal nodes spacing

– Use the slider to determine how close nodes

are to each other.

Child / Root angular sector (.o)

–Use the slider to determine the

angular sector. The root sector determines how much of an arc

around that root the child nodes fill, and the child sector

determines the orientation around the child nodes.

Overlap avoidance method

–Select

Approximate

Deterministic

Visualize My Network | Visualize

217

Even angle distribution

–Enable even angle distribution of nodes

Cluster Policy

–Select

Vertical

Horizontal

. This determines the (automated) orientation of the

topology. Remember, you can click and drag device icons.

Cluster Spacing

—Use the slider to determine the spacing between icons not in child / parent

hierarchy.

Orthogonal

Orthogonal connections include right angles. You can specify the following

settings for such layouts

Minimal nodes spacing

–Use the slider to configure the node spacing.

Use pseudo-orthogonal edges

–Enable pseudo-orthogonal edges that have

non-right angles

Cluster Policy

–Select

Vertical

Horizontal

. This determines the

(automated) orientation of the topology. Remember, you can click

and drag device icons.

Cluster Spacing

—Use the slider to determine the spacing between icons not in child / parent

hierarchy.

Radial

Radial layouts arrange nodes in concentric rings.

Minimal concentric rings radius

– Use the slider to determine the

concentric ring spacing.

Minimal nodes spacing

– Use the slider to determine the nodes

spacing.

Angular sector (.o)

–Use the slider to determine the arc where child

nodes appear.

Overlap avoidance method

–Select

Approximate

Deterministic

Root node selection policy

–Select

Most weighted (for general graphs), Manual (for general

graphs)

Directed (only for tree graphs)

Link drawing type

–Select from

Straight, Straight polyline, Curved polyline, Orthogonal polyline,

Orthogonal curved.

Cluster Policy

–Select

Vertical

Horizontal

. This determines the (automated) orientation of the

topology. Remember, you can click and drag device icons.

Cluster Spacing

—Use the slider to determine the spacing between icons not in child / parent

hierarchy.

218

Visualize My Network | Visualize

Circular

Circular layouts arrange all nodes in a circle.

Minimal circle radius

– Use the slider to determine the radius of

the circle.

Minimal nodes spacing

– Use the slider to determine the nodes

spacing.

Wedge Angle

–Use the slider to determine the arc where child

nodes appear.

Overlap avoidance method

–Select

Approximate

Deterministic

Root node selection policy

–Select

Most weighted (for general graphs), Manual (for general

graphs)

Directed (only for tree graphs)

Link drawing type

–Select from

Straight, Straight polyline, Curved polyline, Orthogonal polyline,

Orthogonal curved.

Cluster Policy

–Select

Vertical

Horizontal

. This determines the (automated) orientation of the

topology. Remember, you can click and drag device icons.

Cluster Spacing

—Use the slider to determine the spacing between icons not in child / parent

hierarchy.

Hierarchical-Cyclic

This arranges connections in a hierarchy. Use the

following settings to alter its appearance.

Distance between levels

– Use the slider to determine

the distance between levels.

Distance between nodes

– Use the slider to determine

the distance between nodes.

Orientation

– Select from

Top to Bottom, Bottom to Top, Left to Right

Right to Left

Draw edges from

–Select from

Node Center

Node Side

Link drawing type

–Select from

Straight, Straight polyline, Curved polyline, Orthogonal polyline

Orthogonal curved

Cluster Policy

–Select from

Horizontal

Vertical

Cluster Spacing

—Use the slider to determine the spacing between icons not in child / parent

hierarchy.

Alarms in Visualizations / Topologies | Visualize

219

Basic Spring

Basic Spring is an algorithm attempts to produce a natural

layout that optimizes a spread out topology.

Optimal Edge Length

– Use the slider to determine the

distance between nodes.

Cluster Policy

–Select from

Horizontal

Vertical

Cluster Spacing

—Use the slider to determine the spacing

between icons not in child / parent hierarchy.

OVERVIEW

This displays a thumbnail of the entire topology that appears in the larger screen to the right. Click

a location to move the larger view to center on it.

Alarms in Visualizations / Topologies

Colored circles and triangles appear next to topology nodes to

indicate its network status (circles) or the alarm state of the device

(triangles, apex points up) or the alarm state of its child entities

(off-center triangles, apex points down). For information about the

alarm, hover your cursor over the triangle, and a popup appears

describing the device, whether the alarm is on the device or a “child,” and what is its severity.

The alarms indicated are like alarms described in the portlet Alarms on page 100.

NOTE:

The displayed alarms in the Alarms portlet may not be up to date, or may differ from those within

Visualizations. Resyncing alarms and/or refreshing the browser resolves this difference.

220

Links in Visualization | Visualize

Links in Visualization

When you have discovered links between devices in

your network (see Link Discovery on page 176), they

appear in the visualization.

Hover the cursor over a link, and a panel appears with

the link information (

Name, Type

(for example:

Ethernet)

, A / Z Name

s for the endpoints).

NOTE:

Dell OpenManage Network Manager currently does

not support displaying one-ended links.

File Servers | File Server / File Management

221

File Server / File Management

File Servers

You must configure FTP and/or TFTP file

servers to push and pull configuration files

to and from devices, or to deploy firmware

updates. With this portlet you can switch

between internal and external file server

mode, and

Show

Hide

not applicable File

Servers depending on the file server mode

by checking/unchecking the

Show All

Servers

check box. When this is un-

checked, only the relevant file server(s)

appear onscreen.

Right clicking a file server, or the empty list

space lets you do the following:

New

—Displays the File Server Editor screen.

Edit

—Displays the selected File Server in the File Server Editor screen.

Disable

—Disables the selected file server. When file servers are disabled, they are not used in a

Backup, Restore or Deploy operation. This too appears only for External File Servers.

Enable

—Activates the selected file server. Again, exposed for External file Servers only.

Test

—Tests the selected file server by sending and retrieving a file.

Delete

—Removes the selected file server from the list. This appears for External File Servers only.

NOTE:

You can select whether Dell OpenManage Network Manager is in Internal or External File Server Mode

with the radio buttons at the top of this portlet. Checking Show All Servers displays the internal file

server.

CAUTION:

Port conflicts prevent having an external file server and internal file server operate on the same machine.

Columns in this manager identify the server, and describe whether it is enabled, and has TFTP

enabled.

222

File Servers | File Server / File Management

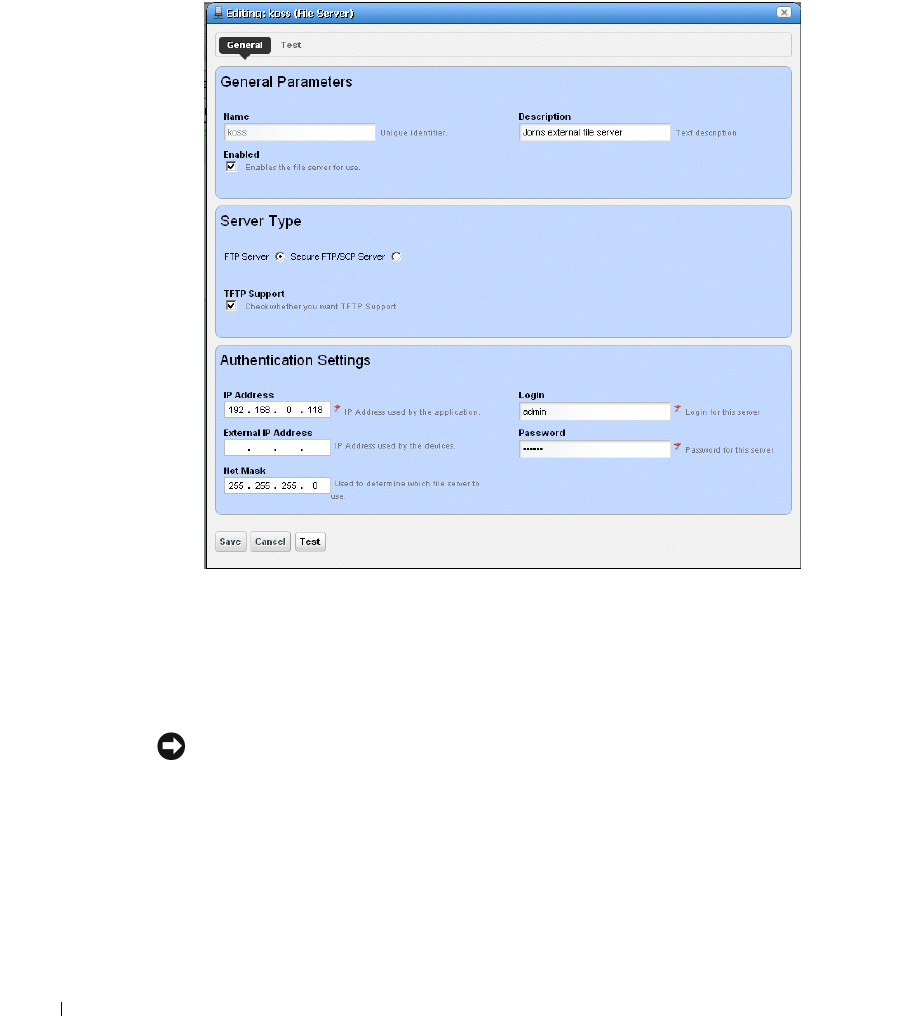

File Server Editor

This editor lets you configure new and existing file servers.

This is where you specify the

Name,

whether the server is

Enabled,

whether the connection is

secure (

Secure FTP/SCP Server

), supports TFTP, internal and external (optional) IP addresses, and

Net Masks, and the login and password for the file server. Once you have configured a server, you

can test the file server credentials by clicking on the

Te s t

button at the bottom of the screen. Click

Save

to preserve your changes.

Tip

FTP servers typically must be on the same side of the firewall as the devices with which they

communicate. If you have several such servers, the specified Net Mask also determines which server

communicates with devices in which portion of the network.

Notice that you can now configure an IP address used by Dell OpenManage Network Manager, and

another

External IP Address

used by the devices. If you configure multiple file servers, Dell

OpenManage Network Manager selects the server with the

Net Mask

whose subnet is closest to the

device(s) with which it communicates.

File Management | File Server / File Management

223

File Management

In addition to letting you back up and restore configuration files, and deploy firmware updates to

devices, this menu manages viewing and comparing configuration files backed up from the selected

devices. Details about these capabilities appear below.

Compare

and

View

options have the following limitations:

• If you select a config file that is a single file, without any historical precedent, no comparison

option appears on the menu since the selected version does not have a prior version.

• If you select a single config file of version two or higher, comparison is an option. When

selected, OpenManage Network Manager automatically compares against the prior version for

that device and file name.

• If you select two config files of any version, compares is between those two versions.

• If you select three or more config files, no comparison option appears.

•The

View

option appears for a single selection only, and only lets you view files that are not

binary.

Tip

The icon to the left of the File Name listed in the portlet lets you know whether a configuration file is

binary ( ), and not viewable, or text ( ), and viewable.

The file management menu contains the following:

View / Edit

— This opens a panel

displaying the configuration file’s

contents. Use the browser’s

Find

function (as demonstrated on the right)

to locate specific text within the Config

File. You can also select and copy text

within this screen.

Notice that

Selected Config

and

Live

Config

(current) version and storage

dates appear at the top of this screen.

When you perform a backup that differs

from the config that is

Labeled Current

that label changes to

Live Config

changes are detected.

Selected Config

appears when you open

this screen from the Configuration Files

Portlet, but

Live Config / Current

Config

appear side-by-side when you

open this screen from the Managed

Resources portlet.

224

File Management | File Server / File Management

You can also compare two different configurations (

Selected Config

and

Labeled Current / Live

Config

) in the tabs that appear on this screen. with the

Compare Files

tab at the top.

the screen with the buttons at its bottom. Notice you can also

Backup

Restore

what you

are viewing with buttons at the bottom of the screen.

Assign Labels

—Use this option to select an existing label or create a new one. You cannot assign

System labels (

Current, Compliant

, and so on).

Compare Current v. Previous / to Label

Selected

—You can compare configurations by right-

clicking a device, or two devices then selecting

Compare

. If you right click a single device with

a previous backup, then the comparison is between the latest and next-to-latest backup. If it

does not have a previous backup, then the menu offers to compare to a designated label. You

can compare two different

Selected

devices too. Ctrl+click to select two different devices

before you

Compare

Notice that the

Prev / Next

buttons

at the bottom of

this screen cycle

through as many as

five previous

configuration files.

The comparison

screen appears with

the configurations

side-by-side (note

the file names in

the title bar of this

screen).

Lines that differ

between the two

configurations

appear highlighted

green. Lines that

are missing in one,

but that appear in

another appear highlighted red. Added lines appear highlighted in yellow. Use the right/left

arrows to page through the side-by-side comparison.

The page numbers and beginning / forward / back / end arrows help you navigate between

pages of pairs of files. Notice also that if you have more than two such files, a panel appears at

File Management | File Server / File Management

225

the bottom that lets you navigate between adjacent pairs of such files (1 and 2, 2 and 3, 3 and

4, and so on). Click the Prev / Next links to move between pairs of files.

Tip

You can use the browser’s “Find” function (typically initiated by Ctrl+F) to locate text within these views.

Backup / Restore

—Select these to backup or restore a configuration file. See How to: Backup

Configurations on page 225 or Restore Configurations on page 227 for step-by-step

instructions.

Deploy

—Select this option to deploy an OS Image (firmware). SeeDeploy Firmware on page 238

for more.

NOTE:

Some devices, including the Dell Force10 C-Series and E-Series, will allow then drop telnet connections

during deployment or file restoration when you select restart as part of the process. This can take from

six to eight minutes, though it can take as long as fifteen minutes for a fully populated chassis. During

that time, you can pint the device; however, Dell OpenManage Network Manager cannot log in to the

device until the reboot is complete.

Restoring configurations to Dell Force 10 devices may produce errors when individual

commands already exist in the running config and cannot be overwritten. Dell OpenManage

Network Manager ignores such errors and reports success by default since the errors indicate a

command was not applied, not that restoration was unsuccessful. Best practice is to restore to

startup config to avoid these errors, especially when scheduling backup or backing up a group

on such devices.

Export / Import

—Export lets you save a local copy of the selected config file. Import opens a

screen that lets you select a locally-accessible file to store, view, compare and deploy.

Tip

You can see configuration files in the Latest Configurations portion of the Details screen for a device or in

the Configuration Files or Top Configuration Backups portlets.

How To:

Backup Configurations

Dell OpenManage Network Manager simplifies backing up devices so you always have their

configuration files, even if the one on the device becomes corrupted or out-of-date.

Tip

You can back up several devices at once for what amounts to a “group operation.” Select more than one

device by Ctrl+clicking in the expanded portlet, then right-click as outlined below. You must expand

portlets to multi-select.

226

File Management | File Server / File Management

Here are the steps to back up a device:

Make sure you have configured an FTP or TFTP server to handle the backup. See Netrestore

File Servers on page 69.

Right-click a device in the

Managed Resources

portlet.

Select

File Management > Backup.

Configure the subsequent

Backup Device

screen.

This screen lets you configure the following:

File Name—A text identifier for the file

Description—A text identifier for the file

Update User Label—A text identifier for the file. Entering such a label creates it, and

makes it available for later restoration, comparison, and so on.

Email Settings—Click add email to configure an email notification about this backup.

Select Targets for Backup—This screen defaults to the device you selected in Managed

Resources

You can also click the Add Equipment to add individual devices, or Add

Groups to add groups, or Remove All to manage devices that appear in this list of tar-

gets.

File Management | File Server / File Management

227

Device Options—This portion of the Backup Options

screen displays detailed configura-

tion options available for the selected target. For example, you could select between

backing up the running-config and the startup-config.

Click one of the buttons at the bottom of the screen to initiate the next backup action.

Add Schedule

opens the scheduling screen to let you automate the backup you have

configured on a specified date, time, or repetition. See Scheduling Actions on page 365.

Execute

performs the backup immediately. The

Results

tab in this screen opens, displaying

the message traffic between Dell OpenManage Network Manager and the device(s). See

Audit Trail Portlet on page 93.

Save

preserves this configuration without scheduling or executing it.

closes this screen without saving the configured restoration.

How To:

Restore Configurations

The following are the steps to restore a config file to a device:

Make sure you have configured an FTP or TFTP server to handle the backup. See Netrestore

File Servers on page 69.

Right-click a device in the

Managed Resources

portlet.

Select

File Management > Restore.

228

File Management | File Server / File Management

Configure the subsequent

Restore Device

screen.

This screen lets you configure the following:

Select Targets for Restore—This portion of the screen lets you Add Equipment, Add

Groups, or Remove All target devices. Listed targets and their Restore Config / Label

Selection. Click the icon in the Action column to remove the listed target.

Select what to apply to the selected target—This portion of the screen lets you select

either a label (like Current, Compliant and so on—a selector listing available labels

appears onscreen once you click this option), or Restore a specific Configuration File.

The latter lists available files and lets you click to select. Click Apply to configure the

selected target, or Apply to All to configure all targets.

Click one of the buttons at the bottom of the screen to initiate the next backup action.

Add Schedule

opens the scheduling screen to let you automate the restoration you have

configured on a specified date, time, or repetition. See Scheduling Actions on page 365.

Execute

performs the restoration immediately. The

Results

tab in this screen opens,

displaying the message traffic between Dell OpenManage Network Manager and the

device(s). See Audit Trail Portlet on page 93.

Save

preserves this configuration without scheduling or executing it.

closes this screen without saving the configured restoration.

File Management | File Server / File Management

229

Configuration Files

One place backed up configuration files can

appear is in this portlet. Right-clicking offers

you the following options (all options listed

may not be available):

View / Edit

—See or edit the backed up

configuration file, if it is not a binary

file. See File Management on page 223

and Configuration File Editor on page

231 for a description of these

capabilities.

Compare to Label / Compare Selected

—

ompare labeled configuration files to the current selection. See File Management on page

223 for a description of this capability. You can create labels when you back up a config file, or

you can compare to the default labels

(Change Determination, Current, Compliant)

. If you

select two configuration files in the expanded portlet, you can also

Compare Selected

Promote—

Makes the selected config file available for mass deployment. This is a useful way to

make a “pattern” configuration file to deploy to several devices. See Image Repository on page

233 for additional information about how to do this.

Backup / Restore

—Back up the device (again) related to the selected file, or restore the selected

file.

Archive

it.

The

Labels Using Config File

snap-in displays all labels connected to the selected configuration

file, and the date on which that connection was made. The

Reference Tree

displays the

configuration file name, and lets you right-click it to access the available operations it supports.

To see the most recent configuration files, see Top Configuration Backups on page 277.

File Management | File Server / File Management

231

Configuration File Editor

This editor lets you manually edit configuration files, and save them to the Dell OpenManage

Network Manager database.

When you select a file in the Configuration Files portlet, and right-click to select

Edit

, this screen

appears with the following features.

Find / Replace

—Click the magnifying glass icon to open a text search feature. Notice that you can

check

A/a

to make your search case-sensitive, or

RegEx

to use regular expressions to search.

Click the

Find

button to locate text in the config file. Click

Replace

to replace found text,

once it is located. Check the

All

checkbox and click

Replace

to bulk replace all instances of

the

Find

text.

Click

Save

to preserve your edits, or

to abandon them. Notice that the edited configuration

appears listed with the other Configuration Files in the portlet as a different version than the

original (the version increments by one every time you edit and save a configuration).

232

File Management | File Server / File Management

Image Repository | File Management

233

Image Repository

The Image repository manages firmware

updates to deploy to devices in your

network, or configurations you want to

deploy to several devices.

You must add such files to your Dell

OpenManage Network Manager system

before you can deploy them. The summary

screen listing these images displays their

Name, Description, File Name, Image Type

and

Installed Date

. Right-clicking this

screen displays the following menu items:

New

—Select either

Firmware Image,

Configuration Image.

Firmware Image displays the Firmware Image Editor screen.

Configuration Images originate from Configuration Files that are promoted to mass restore.

See the Configuration Image Editor on page 236 for its functionality.

Edit

—Displays the selected Firmware image in the Firmware Image Editor screen, or the

Configuration Image Editor if the selected line is a configuration image.

Deploy

—Deploys the selected file to devices, and with the options you select in a subsequent

selection screen. For this to function, you must have enabled a server, as described in File

Management on page 223.

Download Firmware For

—Some devices (typically Dell) support downloading firmware from the

internet. These devices appear listed in a sub-menu. Select the type for which you want to

download OS images, and Dell OpenManage Network Manager automatically downloads

them.

Delete

—Removes the selected OS image / configuration from the list.

234

Image Repository |

Expanded Image Repository portlet.

When you click the plus, this portlet expands to display the OS images list, a snap panel Reference

tree of the connections to devices, and another panel listing the files within the selected image.

Image Repository | File Management

235

Firmware Image Editor

When you open or create an OS image, its configuration appears in this editor. The

General

Parameters

tab contains its

OS Image Name, Description, Version,

and the

Device Class

and

Device Family

. The

Image Files

tab displays a selector that lets you create new OS Images,

retrieving files from the local file system (

Import from Disk

) or a URL (

Import from URL

). Because

such images can consist of multiple files, you can import multiple files here. Finally, you can also

import a

Readme File

to accompany this image, and view it in that tab.

Click

Save

to preserve the OS Image you have configured, or

Cancel

to exit these screens without

saving.

236

Image Repository |

Configuration Image Editor

This editor appears for new configuration images, or for configurations you

Promote

in the

Configuration Files portlet for mass restoration. This screen has the following tabs:

• General Parameters

• Configuration

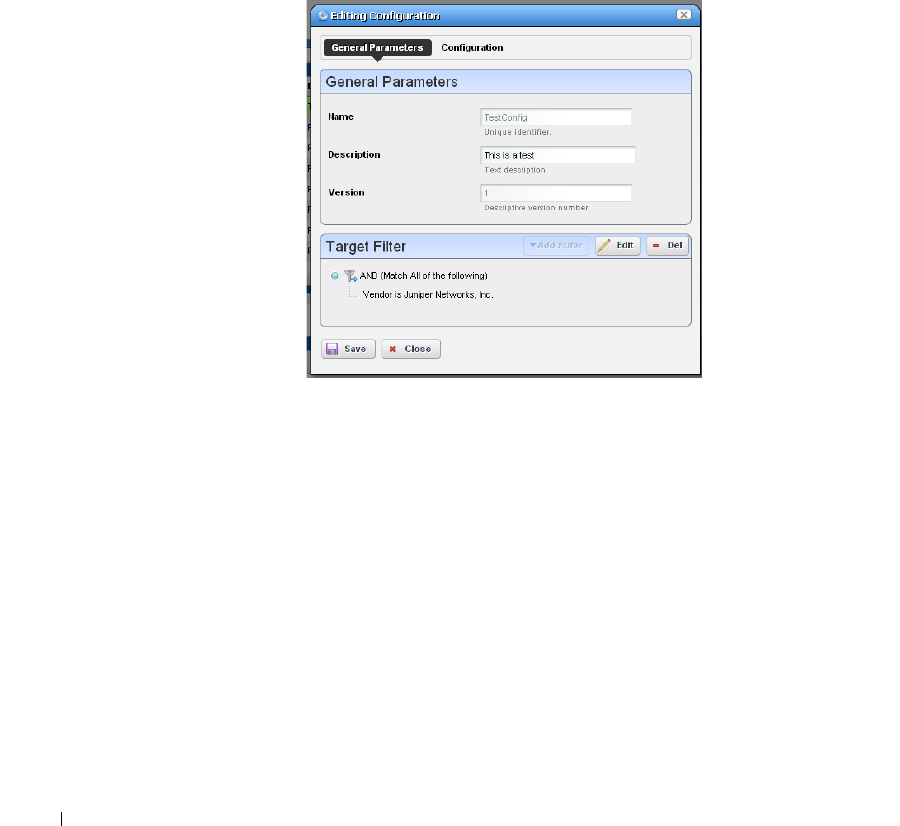

General Parameters

In this screen you can name and describe the configuration file, and configure a filter to screen

restoration targets.

The

Version

field automatically tracks changes to the original.

The

Target Fi lt e r

panel lets you configure how this configuration decides which devices to target.

When targets fail, restoration skips them.

Image Repository | File Management

237

Configuration

This panel lets you configure what is restored, and what is variable in mass deployments.

This screen appears without contents when you create a new Configuration Image, but appears

with data from any promoted configuration file, if it originated as a promoted config file.

Target Param

The panel of parameters that appears to the right of this screen lets you insert a value retrieved

from Dell OpenManage Network Manager’s database into the restored configuration file.

For example, if a Contact appears in the file, delete the specifics retrieved from a particular device’s

config and double-click the

Target Param

“Contact.” Dell OpenManage Network Manager inserts

$_EquipmentManager_RedCell_Config_EquipmentManager_Contact

(a unique

identifier for the database’s Contact field) wherever you put the cursor.

238

Deploy Firmware |

Now, when you deploy this config file to the devices that pass the filter in the General Parameters

editor screen, Dell OpenManage Network Manager first updates this parameter with discovered

data retrieved from the device before restoring the configuration. This facilitates deploying the

same config to many devices while retaining individual Target Params like contacts, DNS

Hostname, and so on.

NOTE:

Target Params include all available discover-able parameters. Some may not apply to the specific device

or configuration file.

Deploy Firmware

This screen lets you configure a deployment, whether triggered from resource groups, individual

resources, or the Image Repository screen. Deployment validates the selected image is appropriate

for the selected devices, or appropriate devices within a group.

Notice you can

Add Schedule

to schedule this deployment rather than

Execute

it immediately.

Click

Save

if you schedule this deployment, or

to abandon your edits.

Deploy Firmware | File Management

239

How To:

Deploy Firmware

To deploy firmware, follow these steps:

Make sure you have an FTP / TFTP server correctly configured. See File Management on page

223.

Right click a device in

Managed Resources

or the groups or Image Repository pages and select

File Management > Deploy.

The

Deploy Firmware

screen appears.

You can Select OS Image in the top panel, and configure deployment with the following

fields:

OS Image—Select an image. It must already have been uploaded in the Image Repository.

Description—A text description of the image.

Version —The image version.

Device Driver—The device driver associated with this image.

Image Type—A read-only reminder of the type of image.

Select Targets for Deployment—Select targets for deploying the image. This defaults to

the device right-clicked in Managed Resources to initiate this action, or devices that

match the selected file you want to deploy. You can then click the Add Equipment but-

ton (again, restricted to devices that match the deploy file’s type). You can also remove

devices from the target list with the Remove All button. Notice the Status column in

the table of targets shows whether the OS deployment is supported or not.

NOTE:

You can also select devices, then change the OS selection so a potential mismatch will occur. This will

likely trigger rejection of the deployment by the device, but is not a recommended experiment.

Device Options—The appearance of the Device Options panel, at the bottom of this

screen, depends on the device selected in the Targets panel. These vendor-specific fields

let you fine-tune the deployment.

Click one of the buttons at the bottom of the screen to initiate the next backup action.

Add Schedule

opens the scheduling screen to let you automate the backup you have

configured on a specified date, time, or repetition. See Schedule Actions on page 186.

Execute

performs the backup immediately. The

Results

tab in this screen opens, displaying

the message traffic between Dell OpenManage Network Manager and the device(s). See

Audit Trail Portlet on page 93.

Save

preserves this configuration without scheduling or executing it.

closes this screen without saving the configured backup.

240

Deploy Configuration |

Deploy Configuration

When you deploy a configuration, a screen appears to configure how that occurs.

It has the following fields:

Select Firmware Image

Firmware Image

—The identifier for the image

Description

—The description for the image

Version

—The version for the image

Generate and Save Configuration Only

—Check this if you simply want to configure for later

restoration.

Label for Configuration

—Enter a label name, if applicable.

Select Targets for Deployment

Use the

Add Equipment

Add Groups

buttons to select individual devices or groups of devices

(both are possible together). Use

Remove All

to delete all targets, or use the delete icon in the

Action

column to delete individual equipment or groups.

NOTE:

The listed targets must still pass the filter set in the editor’s General Parameters.

Deploy Configuration | File Management

241

How To:

Restore a single configuration to many target devices

The following steps describe restoring a single configuration to many discovered devices without

overwriting those devices’ essential information.

Back up a single device’s configuration that is nearest to the kind you would like to see

generally.

Right-click this backed up file in the File Management portlet, and

Promote

it so it appears in

the Image Repository portlet.

Right-click > Edit the promoted configuration in the Image Repository.

Name the file, and, if necessary, configure a filter In the General Parameters

tab of the editor.

In the Configuration tab, locate the parameters you want to preserve in discovered devices

when you restore this file. This can include items like the device’s DNS Hostname, IP

Address, and so on. Delete the file’s specifics and double-click to insert the

Ta rg e t Pa r ams

place of these variables.

Save the configuration.

Right-click to deploy this configuration.

You can check

Generate and save for configuration only

if you simply want to configure

deployment for later, and save for now. You can also optionally name a label for the deployed

files.

Select the devices, or groups of devices to which you want to deploy.

Click

Save, Execute

Add Schedule

depending on your desired outcome.

If you click

Execute

, you will have to confirm this action.

When Dell OpenManage Network Manager performs the restoration (deploy), it reads the

Target Params from those discovered for each device, inserts those in the config file, then

restores it, device by device, skipping any that do not pass the filter set up in step 4.

242

Deploy Configuration |

How to’s | Monitoring

243

Monitoring

This section describes Resource Monitors as they appears in Dell OpenManage Network Manager’s

web portal. The following describes these monitors:

•

OpenManage Network Manager Server Statistics

•

Resource Monitors

•

Top [Asset] M onitors

(pre-configured monitors that come with your installation by default.

Finally, this chapter contains a reminder about scheduling refreshes of monitor target groups. See

Scheduling Refresh Monitor Targets

on page 276.

Monitors and Discovery

Not all monitors are enabled for devices discovered by default. Typically discovery adds devices only

to ICMP (ping) monitoring. If you enable an SNMP monitor during discovery, for example,

performance degrades if discovery finds devices with many interfaces that the monitor attempts to

process.

To improve performance such behavior is disabled by default so processing occurs only for the

ICMP Monitors. To re-enable processing for other monitors during discover (assuming they are

enabled), set/create the following property in

owareapps/installprops/lib/

installed.properties

pm.monitor.process.implicits=true

By default, this is set to

false

. Monitors automatically refresh all implicit targets when a rule

executes independently of discovery in roughly six hour intervals. Alternatively you can select the

monitor(s), right mouse click and select

Refresh

Monitor

to manually refresh the target.

How to’s

This chapter contains the following step-by-step instructions for these features:

•

Create an SNMP Interface Monitor

•

Create an ICMP Monitor

•

Create a Key Metrics Monitor

•

Create a Simple Dashboard View

You can see Performance Options from a variety of locations by right-clicking in Dell OpenManage

Network Manager. For example:

• Ports in the Ports portlet

244

OpenManage Network Manager Server Statistics | Monitoring

•Interfaces

• Ports / Interfaces in the Details panels lets you

Show Performance

• Right clicking on any of the above within a Reference tree displays Performance Options.

• All

Top [Asset] Monitors

right click to offer Performance options.

OpenManage Network Manager Server

Statistics

This summary screen has no expanded view. It displays the statistics for the OpenManage Network

Manager application server.

The bar graph displays

To t al, U sed ,

and

Free

memory on the server. One such graph appears per

server monitored. Hover your cursor over a bar to see its reading in a tooltip. Click the trio of bar

graphs related to the server you want to monitor, and its information appears in the text and in the

thread count gauge.

The text displays the

Server Type

(appserver), the

Node Name

(typically the IP address of the server

providing information), and

Active Members

(more than one appears for a cluster).

NOTE:

The graphs in this portlet do not start at zero (0), so the bars may appear out of proportion. The total of

Used plus Free memory may appear to be much smaller than the Total Memory bar.

Resource Monitors | Monitoring

245

Resource Monitors

This summary screen displays

currently, active performance

monitors in brief.

The

Name

column displays the

identifier for each monitor instance,

Enable

displays a green check if it is

currently enabled, or a red minus if it

is disabled.

The

Monitor Type

column typically

displays what the monitor covers. Hover your cursor

over this column to see a popup with the selected

monitor’s properties. The popup that appears after

this query displays the relevant information for the

monitor, including whether it is

Enabled

Name,

Description, Target Count, Retention Policy,

and

Polling Interval Value

The graph that appears to the right of the monitors displays the aggregate availability information

for the enabled monitors. Topics graphed include,

Available, Not Available, No Data

and

Not

Applicable.

Right-click a listed monitor to do the following (not all menu items appear for all types of

monitors):

New Monitor

—Lets you either create a new monitor of the type you select in the sub-menu, or

edits the monitor selected in the portlet. See

Monitor Editor

on page 251 for details.

New (from Template)

—Opens the

Monitor Editor

, where you can configure the equipment

targets for template monitors, selected in the sub-menu. These templates already have

selected attributes and calculations. You can examine exactly what these are in the editor that

appears when you select one.

Edit Monitor

—Opens the

Monitor Editor

, where you can modify the selected monitor.

246

Resource Monitors | Monitoring

Details

—Opens a Detail panel, with a reference tree, status summary, and general information

about the selected monitor.

Enable / Disable

Monitor

—Enables or disables the monitor. Only one of these options appears.

Only enabled monitors report data (and demand resources), while disabled monitors do not.

Refresh Monitor—

Re-query to update any targets for the current monitor. See

Scheduling

Refresh Monitor Targets

on page 276 for instructions about automating this.

Manage Retention Policies

—Select this to manage the data retention policies for the selected

monitor. See

Retention Policies

on page 248 for details.

Delete

—Removes the selected monitor.

Resource Monitors | Monitoring

247

Expanded Resource Monitor

This screen appears when you click the plus in the upper right corner of the summary screen.

As in most expanded views, this one displays a list ordered by the

Name

of the monitor. Click

Settings

to configure the column display. Available columns include those on the summary screen

(

Name, Enabled, Monitor Type

) as well as

Description, Poling Interval, Target Count

and

Retention

Policy.

Resource Monitor Snap Panels

When you select a monitor, the Snap Panels at the bottom of the screen display details about it.

The

Reference Tree

shows the selected monitor’s connection to attributes, groups, retention

policies and its membership (the devices monitored).

The

Details

Snap Panel displays the attributes the popup shows when you hover the cursor over the

Monitor Type

column in the summary screen, and adds

Emit Availability

(events),

Retain

Availability, Retain Polled Data,

and

Retain Calculated Data

parameters.

248

Resource Monitors | Monitoring

The

Monitor Status Summary

Snap Panel displays the

status of each individual member (

Ta rg e t

) of the

monitor, showing the

Last Polled

time and date, and a

title bar and icon indicating

Availability

(green is

available, red is not).

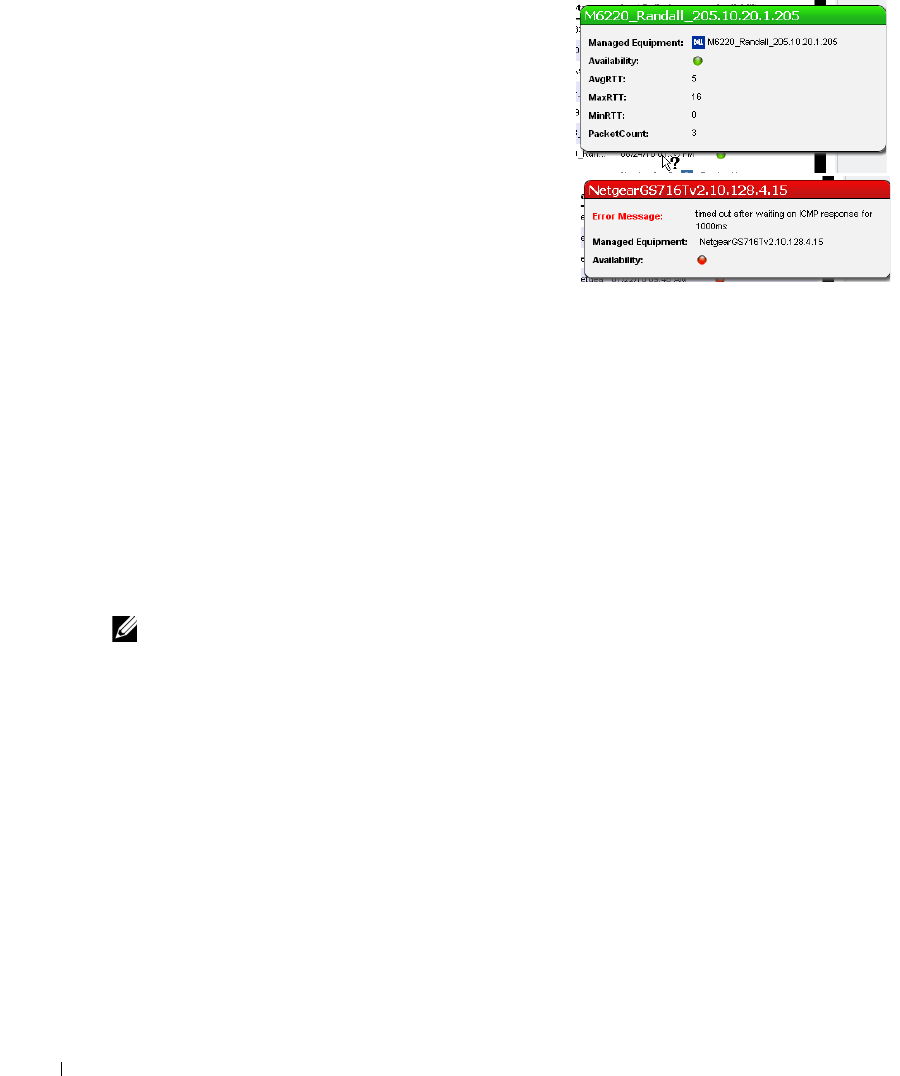

Hover the cursor over the Availability icon, and a popup

appears with details about availability. If the device is

available, the

RTT

(round-trip time) for

communication appears in

Avg

(average),

Max

(maximum), and

Min

(minimum) amounts, along with

the

PacketCount

. If it is not, an

Error Message

appears

instead of the

RTT

and

PacketCount

parameters.

To edit more performance settings and targets than are

available here, use the features described in

Dashboard Views

on page 277. You can create and

display dashboards by right-clicking items in

Managed Resources

, selecting

Show Performance

Excluding Attributes from Display

The

show.perf.exclude

property in the

portal-ext.properties

file contains a comma

delimited list of the attribute display names to exclude from display. Remember, best practice is to

override properties as described in

Overriding Properties

on page 23.

For example,

show.perf.exclude=CPU Utilization,AvgRTT

If you define this property, the

Show Performance

command creates charts for the listed attributes.

This has no impact on manually created dashboards.

NOTE:

You must restart tomcat after changing the properties file for the changes to take effect.

Retention Policies

The basis of all reporting and dashboard presentations is retained data from established monitors.

In other words, each monitor provides a simple schema from which you can produce a chart, graph

or report.

Resource Monitors | Monitoring

249

To reduce resource impacts, the

scope of retained data may

exclude some of the collected

data. A monitor may have no

retained data and only emit

events based on transient results

in the execution/calculation.

For example, the application

can derive a metric from several

collected values and you may

opt to retain only the derived result.

All monitors rely on a polling engine which provides runtime mediation activities for distributed

device interaction at regular intervals. Monitors may share a retention policy. Data is rolled up

hourly and daily into summary data. The retention policy controls how long data is held per roll-up

period.

When you manage these policies, you configure how monitored data is retained. When you select

Manage Retention Policies

in the Monitors portlet, first a list of available policies appears.

Clicking the

Add

button at the top of the screen lets you create a new policy, while clicking the

Edit

button to the right of selected, listed policies lets you modify existing policies. The

Delete

button

to the right of listed policies removes them from the list.

250

Resource Monitors | Monitoring

Editor

Monitors may share a retention policy. The retention policy controls how long data is held per roll-

up period. The editor for Retention policies lets you assign characteristics and monitors to them.

The editor contains the following fields:

General Retention Policy Options

Policy Name

—A text identifier for the policy.

Description

—An optional description for the policy.

Detail / Hourly / Daily Data (Days)

—How many days to retain the selected data.

The amount retained has both a performance and data storage impact. For example, retaining

day’s information from an active performance SNMP monitor configured with one target’s

worth of data, retrieved on one minute intervals can consume 0.7 G of database, and require

21 inserts per second.

Traffic flow analysis can process and retain even larger amounts of information. Flows that

correlate 50%, polled every minute for a day require roughly 109G of database, and require

4500 inserts per second.

Active Monitor Members

Select from

Available Monitors

on the left, and click arrows to move the desired monitor(s) to the

Selected Monitors

on the right.

Resource Monitors | Monitoring

251

Click

Save

to preserve your edits, and include the monitor as listed among existing

Retention

Policies

, or click

Cancel

to abandon any changes.

Monitor Editor

This editor lets you fine-tune the monitor you selected and right-clicked to open the editor. It

includes the following panels and fields:

•

General

•

Monitor Options

•

Calculated Metrics

•

Thresholds

•

Inventory Mappings

•

Conditions

General

The General panel is common to all different monitor types.

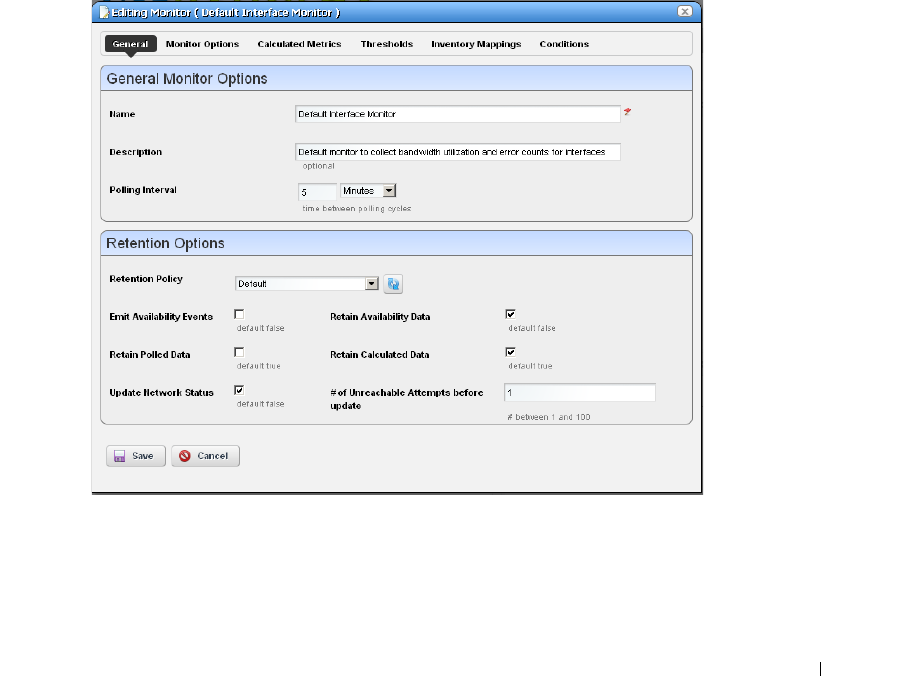

General Monitor Options

Name

—The identifier for this monitor.

Description

—A text description for this monitor.

252

Resource Monitors | Monitoring

Polling Interval

—Use these fields to configure how often the monitor polls its target(s).

Retention Options

Retention Policy

—This configures how long Dell OpenManage Network Manager retains the

monitor’s data. Manage these by right-clicking in the

Resource Monitors

portal, and

selecting

Retention Policies

. You must make retention policies before you can select them

here.

Enabled

—Check to enable.

Emit Availability Events

—Check to activate emitting availability events. The monitor does not

emit an event until the monitored entity’s state has changed. All monitors can generate

events on failure to contact the monitored device, port, and so on. For example, by default

ICMP monitor updates the network status after a selected number of consecutive failures.

You can configure the monitor to generate an event in addition to updating network status,

but Dell OpenManage Network Manager does not like the polling interval to be very small

especially when monitoring many devices.

Example: poll every 10 secs for 10,000 devices with Packet Size = 64 bytes, Packet Count = 3

Timeout (secs) = 1, and configure Unreachable attempts = 1 with polling interval = 10

seconds. This polls the device every 10 seconds and emits a “down” event on the first failed

attempt.

Retain Availability Data

—Check to activate. You must Retain availability data to enable alarms.

If you define thresholds, you should retain availability data.

Retain availability data

stores the

Boolean values of whether availability data was in the range your defined metrics.

Retain Polled Data

—Check to activate. If you uncheck

Retain polled data

only calculated data

remains, you cannot view data retrieved from monitored entities. Turning off

Retain polled

data

discards the data as it arrives from the device.

Retain Calculated Data

—Check to activate.

Retain calculated data

complements

Retain polled

data

. If checked, it stores the calculated results which came from the raw poll data received

from the device.

Update Network Status

—Check to activate reporting the network status of the target device(s).

The results of this monitor's activity then appear in the Network Status column of the

Managed Resources

portlet.

Only one monitor—and no monitors on interfaces or child components—should ever update

networks status. Any monitors on child components or interfaces are rolled up to the top level

device, so status may be erroneously reported. For example the top level device is not

necessarily down if the interace is down.

If two monitors report the network status of a single device on different intervals, they must

both agree it is down before that state appears in Managed Resources. As long as one monitor

says a device is Responding, then that is the state displayed.

Resource Monitors | Monitoring

253

If ping fails (an endpoint is down) and update network status is configured, then Dell

OpenManage Network Manager tries to ping the switch/router in front of the endpoint to

determine if that device is reachable. If that device also failed, then the endpoint’s status

becomes

indeterminate

Tip

For clarity’s sake, best practice has only one monitor per device updating network status. By default

ICMP monitoring enables Update Network Status, and monitors all discovered devices.

NOTE:

Migrating from previous versions automatically replaces any configured Heartbeats with ICMP monitors

with Update Network Status enabled. If your previous system had HTTP or SNMP heartbeats, you must

manually configure monitors to provide equivalent monitoring in this version.

# of Unreachable Attempts before update

—The number of attempts to reach the device before

Dell OpenManage Network Manager updates the displayed network status of the device. (1-

100)

Click

Save

to preserve any edits you make, or

Cancel

to abandon them.

254

Resource Monitors | Monitoring

Monitor Options

Monitor options contains two panels. The entity panel lets you select the monitor targets. The

types of monitor entities allowed varies depending on the type of monitor. The second panel

contains options specific to the monitor type being edited.

The entity and options panels for the various types of monitors appear below in

Monitor Options

Type-Specific Panels

on page 266.

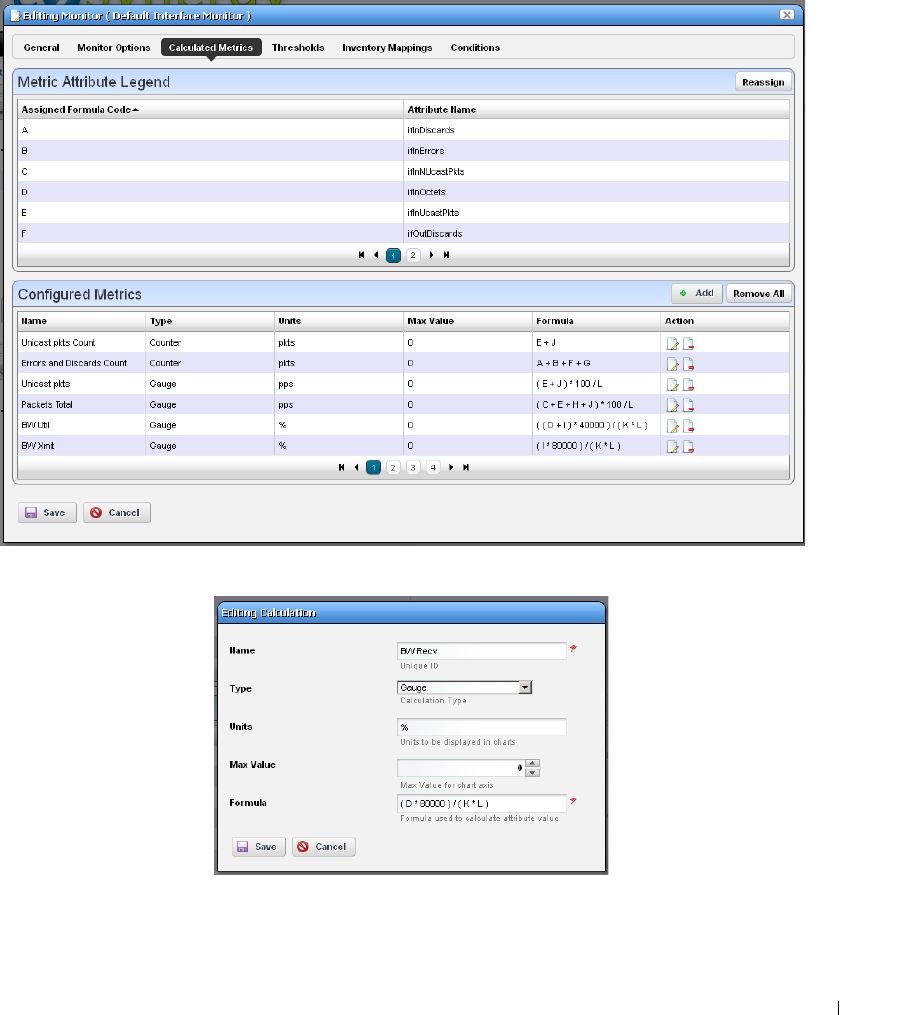

Calculated Metrics

The calculated metrics panel lets you create attributes that are calculated from existing monitor

attributes. The metric attribute legend assigns a letter value to each monitor attribute. The

Reassign

button reassigns the letters. This is useful if some attributes have been deleted and their

letters are no longer used.

Resource Monitors | Monitoring

255

The

Configured Metrics

table lists the calculated metrics. An edit and delete action appears to the

right of each row. The

Add

button creates a new calculated metric and the

Remove All

button

deletes all the calculated metrics.

Clicking on the Add button or edit button displays the calculation editor.

This panel contains the following properties:

Name

—The attribute name to be displayed for the calculation

256

Resource Monitors | Monitoring

Ty p e

—Calculation Type - Gauge or Counter

Units

—Units string to appear in graphs

Max Value

—Maximum value to be used in graphing (0 = no max)

Formula

—The formula for the calculation using the assigned formula codes from the metric

attribute legend.

Thresholds

The thresholds panel allows the user to set threshold intervals on attributes in the monitor. The

table lists the attributes for which attributes have been configured. Each row has an edit action and

delete action. The Add button allows thresholds to be specified for another attribute. If all monitor

attributes have thresholds defined for them the Add button will be disabled.

Resource Monitors | Monitoring

257

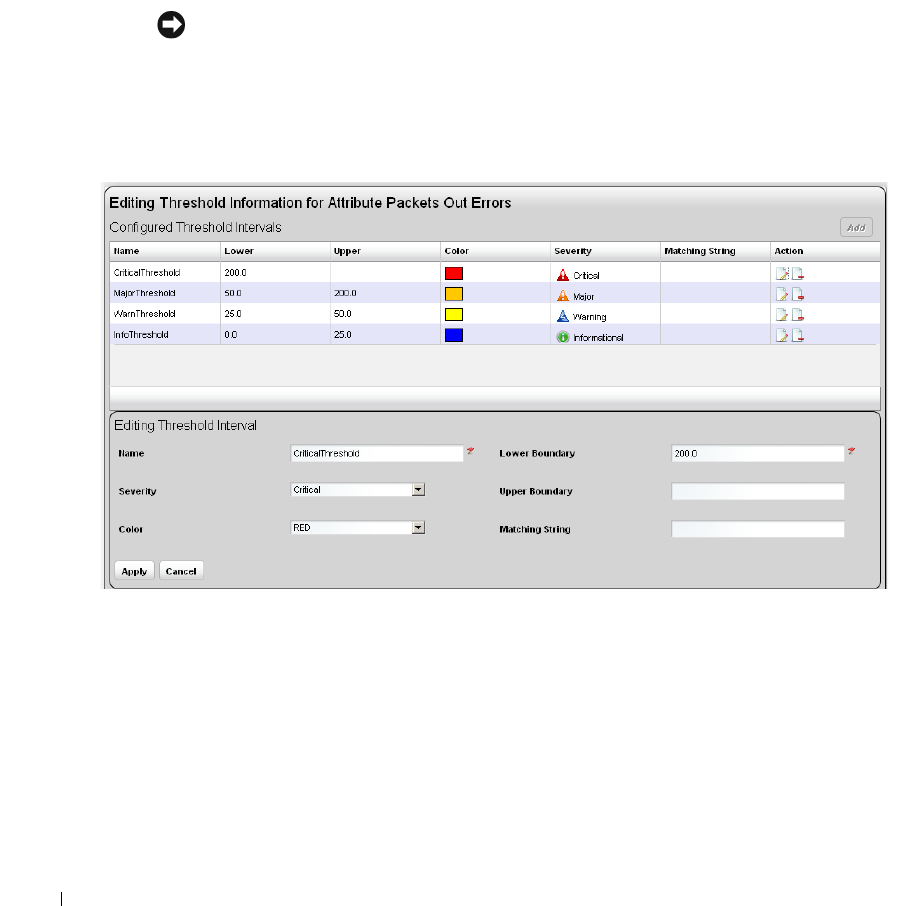

The

Add

Edit

buttons open a threshold editor (blank or with existing, configured thresholds,

respectively).

Configure threshold intervals you

Add

at in the editor screen according to the following

parameters.

Attribute Name—

Appears when you click

Add

rather than

Edit

ing a selected threshold

Use the

pick list that appears in this screen to select the attribute for which you are specifying

threshold information. When you

Edit

, the name of the attribute appears as a title within the

editor screen.

Calculation Type

—Select from the pick list. Specifies whether the range calculation is to be done

based on

Average

Consecutive

values.

Consecutive Value Count

—Select how many consecutive values to consider at once for a range

calculation. Typically the larger the number here, the less “flutter” in reporting threshold

crossings.

Emit Notification

—Check to emit an event if the device crosses the configured threshold(s). The

notification event contains the threshold-crossing value, as well as which threshold was

crossed, and is an alarm at the severity selected when you configure the threshold.

Tip

You can make a set of thresholds for each monitored attribute, so a single monitor can throw different

alarms for different attributes. To see available events and their descriptions, view the contents of the

RedcellMonitor-MIB in \owareapps\performance\mibs.

258

Resource Monitors | Monitoring

Apply to Series

—Check to enable on composite attributes only. Checking this applies the

threshold to individual elements within the series. When it is unchecked, the threshold

applies only to aggregate measurements (the overall value of the series), not individual

elements within the series.

For example; a Key Metric monitor for CPU utilization on a device with two CPUs actually

monitors both CPUs. When unchecked, the threshold applies to the average of both CPUs,

when checked, the threshold applies to each individual CPU.

Tip

When you check this, you can also apply thresholds to regular expressions. This is useful to monitor

components within components, for example cores within a CPU.

Click

Apply

to preserve your edits, or

Cancel

to abandon them.

The threshold interval editor pops up when you select the

Add

button or the

Edit

icon to the right

of a threshold’s row in the threshold attribute editor.

This screen contains the following fields:

Name

—The identifier for the threshold interval.

Severity

—The event severity for crossing this threshol7d interval (

informational/indeterminate/

warning/minor/major/critical

)

Color

—The color to display threshold interval on graphs.

Lower Boundary

—The interval’s lower boundary.

Upper Boundary

—The interval’s upper boundary. May be blank.

Matching String

—A Regex matching string.

Resource Monitors | Monitoring

259

Threshold Graph Background

If you configure a set of thresholds, the dashboard graph

displaying the data monitored displays the threshold

colors in the background. When an upper or lower

threshold has no upper or lower bound, then those

background colors may appear as white.

Inventory Mappings

The inventory mappings panel allows the user to associate any of several predefined inventory

metrics with a monitor attribute. The available metrics are

CPU Utilization %, Memory

Utilization %, ICMP Round Trip Time, ICMP packet errors,

and

Bandwidth utilization %.

260

Resource Monitors | Monitoring

You can

Add

a new mapping with that button, or

Remove All

listed mappings with that button. You

can also edit or delete listed mappings with the

Action

icons to the right of each row. Adding or

editing opens the Inventory Mapping Editor.

This lets you configure the following:

Metric ID

—Inventory metric name

Attribute ID

— Attribute to associate with the inventory metric

Conditions

This panel lets you add multiple conditions to the monitor you are editing.

Click the

Add

button to enter a new set of conditions, or click the

Edit this entry

button to the

right of a listed Monitor Condition to open the editor. Click the

Delete

button to remove a listed

set of conditions. Click the

Copy

icon to duplicate the listed condition.

Resource Monitors | Monitoring

261

The editor has the following fields and settings to configure:

Condition Properties

Name

— Enter a text identifier for the conditions.

Alert

— Check this if you want Dell OpenManage Network Manager to emit an alert when the

monitor satisfies the conditions.

Trendable

— Check if the conditions specified are trendable.

Severity

— Specify the severity of the emitted alert, if any.

# of Occurrences

— Enter the number of occurrences of what is specified in the

Condition Filter

to satisfy the Conditions.

Description

— A text description for the conditions.

Condition Filter

Minimally, use this panel to select a condition, an operator and a value. If you want to use the

logical AND or OR operators with a second condition, click the green plus (+), and select a second

condition, operator and value. For example,

Packet Out Errors

greater than 200

AND

ifSpeed

greater than 10000

can be a set of conditions that only has to occur once to satisfy this monitor’s

condition.

Click

Save

to accept your edits, or

Cancel

to abandon them.

262

Resource Monitors | Monitoring

How To:

Create an SNMP Interface Monitor

To set up a typical performance monitor, follow these steps:

In the

Resource Monitors

portlet, and create a new monitor by right-clicking and selecting

New

Select the type of monitor from the submenu—for this example, an

SNMP Interfaces

monitor.

NOTE:

Some devices have ports rather than interfaces. This monitor works for them too, even though it is an

“interface” monitor.

In the

General

screen, enter a polling interval (5 minutes is the default). For this example,

check

Retain polled data

and accept the remaining defaults for checkboxes and the retention

policy.

Select an entity to monitor by clicking the

Add

button in the top portion of the

Monitor

Options

screen. For an interface monitor, select

Interface

as the Type at the top of the screen.

You can also filter the list of interfaces that appear further by selecting

Interface Type

(gigabit ethernet), for example.

Tip

Notice that you can add refinements like filtering on Administrative State and IP Address to the filter.

Select interfaces (Ctrl+click to add more than one), then click

Add Selection

then

Done

confirm your entity.

Tip

Hover your cursor over a line describing an interface to have a more complete description appear as a

popup.

Click

Browse

to display the MIB Browser. For the sake of this example, we elect to monitor

ifInErrors (in RFC Standard MIBs, RFC1213-MIB > Nodes > mib-2 > interfaces > ifTable

> ifEntry > ifInErrors).

In the

Thresholds

screen, configure thresholds by first clicking

Add.

Click

Add

above the threshold levels list for each threshold you want to add.

In the threshold editor, enter a name (Examples:

Low, Medium, Overload

), an upper and

lower boundary, (0 - 10, 10 - 100, 100+), a severity (

Informational, Warning, Critical

) and

color (BLUE, YELLOW, RED). In this case, no string matching is necessary. When the data

crosses thresholds, the monitor reacts.

Resource Monitors | Monitoring

263

Attributes available depend on the type of monitor you are creating. Notice that you can also

check to make crossing this threshold emit a notification (an alarm that would appear on the

Alarm panel). You can also configure the type of calculation, and so on. You can even alter

existing thresholds by selecting one then clicking

Edit

to the right of the selected threshold.

Click

Apply

for each threshold interval you configure, then

Apply

for the entire threshold

configuration.

NOTE:

If a threshold’s counter is an SNMP Counter32 (a 32-bit counter) monitoring can exceed its capacity with a

fully utilized gigabit interface in a relatively short period of time. The defaults configured in this monitor

account for this, but if you know that this is an issue, you can probably configure the monitor to account for

it too.

After taking a look at Thresholds no more configuration is required. Notice, however, that you

can also configure

Calculated Metrics

Inventory Mappings

and

Conditions

on other screens

in this editor to calculate additional values based on the monitored attributes, to map them,

and to make conditional properties based on monitored behavior.

Tip

Calculated Metrics is particularly valuable if you want to monitor a composite like ifInErrors + ifOutErrors

or want to calculate a parameter like errors per minute when you have a 5-minute monitoring interval.

Click

Save

and the monitor is now active.

Notice that the

Availability

icon appears at the top of a

Monitor Status Summary

snap panel

in the

Expanded Resource Monitor

next to a time/date stamp of its last polling. Right-click

the monitor and select

Refresh Monitor

to manually initiate polling.

Values displayed in the Overall Availability column of the Monitor Manager do not

automatically refresh and may be out of date. The

Reference Tree

snap panel maps the

monitor’s relationship to its target(s) attribute(s) and other elements. The

Details

snap panel

summarizes the monitor’s configuration.

For information about having the monitor’s results appear in the a

Dashboard

portlet, see

Dashboard Views

on page 277.

How To:

Create an ICMP Monitor

The following steps create an ICMP (ping) monitor.

In the

Resource Monitors

portlet, and create a new monitor by right-clicking and selecting

New

Select the type of monitor from the submenu—for this example, an

ICMP

monitor.

264

Resource Monitors | Monitoring

In the

General

screen, enter a name (Test ICMP Monitor), and a polling interval (5 minutes

is the default). For this example, check

Retain polled data

and accept the remaining defaults

for checkboxes and the retention policy.

Select an entity to monitor by clicking the

Add

button in the top portion of the

Monitor

Options

screen.

Select devices you want to ping, (Ctrl+click to add more than one), then click

Add Selection

then

Done

to confirm your entity.

Define packets in the ICMP Monitor Options panel, including Packet Size, Packet Count and

timeout. You can accept the defaults here, too.

In the Thresholds tab, select an attribute (MaxRTT, or maximum round trip time) and add

the following thresholds by clicking

Add

Name

High

color red, Lower Boundary 15 and Upper Boundary [blank] Severity

Critical

Name

Fine

color green, Lower Boundary 0 and Upper Boundary 15 Severity

Cleared

Notice that this example does not emit a notification. If you checked that checkbox, an alarm

of the configured severity would accompany crossing the threshold.

Accept the other defaults and click

Apply

Click

Save.

Test ICMP Monitor now appears in the portlet.

How To:

Create a Key Metrics Monitor

Follow these steps to create a Key Metrics Monitor (also, see

Key Metric Editor

on page 289).

In the

Resource Monitors

portlet, and create a new monitor by right-clicking and selecting

New

Select the type of monitor from the submenu—for this example, an

Key Metrics

monitor.

In the

General

screen, enter a name (Test Key Metrics Monitor), and a polling interval (5

minutes is the default). For this example, check

Retain polled data

and accept the remaining

defaults for checkboxes and the retention policy.

Select an entity to monitor by clicking the

Add

button in the top portion of the

Monitor

Options

screen.

Select devices on which you want to monitor Key Metrics.

Select from the available metrics that appear at the bottom of the screen in Key Metric

Properties by selecting a category with the pick list at the top of the screen, then click on an

Available

metric, and click the right arrow to make it a

Selected

metric.

Click

Save

to retain your new Monitor.

Resource Monitors | Monitoring

265

Test Key Metrics Monitor appears in the Resource Monitors portlet.

How To:

Create a Monitor Report

You can create reports based on your monitors. The following example creates a report based on

How to:

Create an SNMP Interface Monitor

above.

Create a new Report Template by right-clicking the Report Templates portlet, selecting

New

> Table Tem pl a te .

Name the report (here: Test SNMP Interface Report).

Select a source in the

Source

tab. Here:

Active Monitoring > SNMP Interfaces.

Notice that the

Select your inventory columns

panel displays the attributes available based on

your monitor selection.

Select

Available

columns and click the right arrow to move them to

Selected.

In this case we

select SNMP Interfaces: Monitor Target, Polled Date / Time, ifInErrors.

Arrange the columns and fonts as you like in the

Layout

tab.

Save

the template.

Right-click, and select

New

in the Reports portlet.

Enter a

Name

and

Title

for the report.

Notice that since this is the first report created since you made the Test SNMP Interface

Report template, that it is the

Report Template

already selected.

Since the monitor already filters devices, we add no filter in the Report, although you could

add one to further filter the monitored devices.

Test SNMP Interface Report should appear in the Reports portlet.

Right-click and select

Execute

(noticing that you can also schedule such reports, even

repeatedly).

266

Resource Monitors | Monitoring

Click the magnifying glass to the right of the Report Completed message in My Alerts to see

the report.

Hover your cursor over the lower right corner of the report to

see a set of icons that let you expand, zoom out and in, save,

or print the report.

Monitor Options Type-Specific Panels

The following describes the panels associated with the following

Monitor Options

types.

•

ICMP

•

Key Metrics

•

Proscan

•

SNMP

•

SNMP Interfaces

•

SNMP Table Monitor

Resource Monitors | Monitoring

267

ICMP

The ICMP Monitor Options panel contains the following properties:

Packet Size

—Size of packet for ICMP transmission

Packet Count

—Number of packets to send.

Timeout

—Number of seconds without a response before a timeout is issued

The ICMP Entity Panel lets you select resource groups and Resource manager objects. Clicking

Add

button displays a selector panel for these.

268

Resource Monitors | Monitoring

Select the type of entity you want to add, then select any desired filter attributes, then click

Apply

Filter

. Select from the entities that appear and add them to the monitor.

NOTE:

Migrating from previous versions updates the Network Status check box to true and redeploys the

monitor.

Key Metrics

The Key Metrics Properties panel contains a list of key metrics you can add to the monitor. They

are grouped by category.

The Monitor Entities Panel lets you select equipment group and equipment manager objects (as

described in

ICMP

on page 267, above).

The Key Metrics Properties panel at the bottom of this screen uses a pre-defined list of key metrics.

It does not check if the key metrics selected are supported by the devices and groups selected in the

monitor.

Resource Monitors | Monitoring

269

Proscan

In this screen, you simply select the Proscan policy to monitor. In the Thresholds tab, you can set

thresholds for both in and out of compliance numbers.

The Proscan policy contains the target network assets.

270

Resource Monitors | Monitoring

SNMP

The SNMP attributes panel lets you specify which SNMP attributes are to be monitored.

Specify SNMP attributes as follows:

•With the SNMP browser, or

• Entering SNMP attribute properties explicitly.

Resource Monitors | Monitoring

271

The

Browse

button launches the SNMP browser.

Click on the desired SNMP nodes and then click on the

Add Selection

button to add an SNMP

attribute. When done selecting, click the

Done

button to add selected attributes to the monitor or

Cancel

to abandon the operation and close the browser.

272

Resource Monitors | Monitoring

The Add and Edit buttons in the SNMP attribute panel launch the SNMP Attribute editor.

This panel contains the following properties:

Oid

—The object identifier for this attribute

Name

—This attribute’s name

Instance

—SNMP instance. 0 for scalar or the ifIndex value for an SNMP column.

View Type

—

Scalar

Column.

Syntax

—

Integer, Boolean, DisplayString,

and so on.

Meta Syntax

—

Counter, Gauge

, and so on.

If you type in an OID and click the search button next to the OID field, the browser searches the

MIB for the OID and fills in the other values if it finds the OID.

Resource Monitors | Monitoring

273

SNMP Interfaces

The SNMP Interface Monitor Entity editor supports the following entity types: group, equipment

manager, port and interface. It also supports port and interface filters on groups and equipment

manager objects.

The PF and IF table columns indicate if a port filter or interface filter is configured for the entity.

Click the icons on the right side of the list of Monitor Entities to configure filters. Clicking these

buttons displays an interface configuration panel.

274

Resource Monitors | Monitoring

This panel lets you specify filter attributes for the port or interface filters you want to monitor. For

example, if you select a device but only want to monitor active interfaces created by a particular

user, then these filters do the job.

The SNMP Attributes panel is the same as described in

SNMP

on page 270.

SNMP Table Monitor

This panel appears if you are creating an SNMP Table monitor. The application stores not absolute

numbers from counters but the counter’s change since its last measurement.

Columns include the SNMP Attribute Name, OID, Row Identifier, Foreign Key, Series Name, Meta

Syntax, Units, and Action.

If you check the Collect from ifXTable checkbox, then OpenManage Network Manager attempts to

fetch attributes from the ifXTable. These attributes are ifHighSpeed, ifHCInOctets,

ifHCInUcastPkts, ifHCOutOctets and ifHCOutUcastPkts. If any of these attributes are not

available, then it fetches from ifTable.

Clicking the

Add

or the

Edit

button to the right opens either a

MIB Browser

where you can retrieve

these attributes, or an

Add / Edit SNMP Attributes

editor at the bottom of the screen, See the

following sections for details.

Resource Monitors | Monitoring

275

MIB Browser

This lets you select attributes to monitor as described in

MIB Browser

on page 188. The SNMP

table monitor lets you pick a table column, not the entire table.

Add / Edit SNMP Attributes

This screen lets you specify individual attributes.

It has the following fields:

Oid

— A field where you can enter the object identifier. This also has an integrated search

function. Click the magnifying glass icon on the right to activate it. A successful search

populates the rest of the fields for the object identifier.

Row Identifier

—This mandatory field defaults to @instance (The OID instance).

Name

—The text identifier for the OID

Foreign Key

—Enter the foreign key, if any.

Series Name

—This defaults to @RowIdentifier.

Units

—Enter the units of measurement.

276

Top [Asset] Monitors | Monitoring

Meta Syntax

—Further refine the variable type with the pick list. For example, you can select

Counter32

(a 32-bit counter). For Counter types, the monitor computes change from

previous readings, and for Gauges it does not.

NOTE:

If a message appears saying: “Device fault: Return packet too big” in the Monitor Status Summary, then

you have selected too many SNMP attributes to poll in a single request. Please modify your monitor to

request smaller numbers of attributes

Scheduling Refresh Monitor Targets

Because monitors can address targets that are members of dynamic groups, refreshing these ensures

that group memberships are up-to-date. To do this, you can create or alter the schedule for Monitor

Target Refresh. When executed, this updates monitors with groups as targets based on current

memberships. This removes targets no longer members of a monitored group and adds new group

members. A seeded schedule refreshes these every six hours, by default.

Tip

You can also Refresh Monitor manually by right-clicking in the Resource Monitors table.

Top [Asset] Monitors

Dell OpenManage Network Manager uses seeded, default Active Performance Monitors (APM) to

display performance data in several categories. These portlets display the summary results of device

monitoring, for example, the devices slowest to respond to ping.

Dashboard Views | Monitoring

277

Devices appear, ranked by the monitored parameter. Hover the cursor over a row’s summary graph

Ping Rate

and a popup graph of recent activity over time appears.

If you right-click a monitored item, you can select from menu items like those that appear in the

portlet described in

Managed Resources

on page 166.

For some portlets (for example Top CPU Utilization, Top Interface Errors and Top Memory

Utilization), the right-click Performance menu items include Key Metrics. The menu can include

Performance

which displays

Dashboard Views

related to the selected monitor.

Top Configuration Backups

This panel lists the most recent

configurations backed up from devices. The

pick list in the upper right corner lets you

select not just the top 10 such backups, but

the top 5, 10, 15, 20, and 25.

Right-clicking a backup offers the same

options as the portlet described in

Configuration Files

on page 229.

Dashboard Views

The Dashboard Views portlet lets you

assemble several monitors into a single

display, or dashboard. You can create and

display dashboards by right-clicking items in

Managed Resources

, selecting

Show

Performance

, or by selecting

New

in the

Dashboard Views

portlet.

Right-click the listed dashboards, and a menu

appears that lets you

Copy

and rename,

Delete

Edit

, create a

New

simple or custom

dashboard, or

Launch

a Dashboard View

(either

Maximize

—a larger view—or as a

Popup

). See

Dashboard Editor

on page 281 for information about creating or modifying

dashboards. For an explanation of

Convert

, see

Convert Simple Dashboards to Custom Dashboards

on page 286

The

Performance Dashboard

on page 279 and

Dashboard Editor

on page 281 describe configuring

simple dashboards. See the How to:

Create a Custom Dashboard View

on page 282 section for a

description of custom dashboard view creation.

278

Dashboard Views | Monitoring

Yo u c a n a l s o

Convert Simple Dashboards to Custom Dashboards

, as described below. When you

Edit

a view,

Dashboard Editor

appears. It lets you select which monitors appear in the dashboard,

the monitored entities, and attributes.

The expanded portlet offers similar capabilities.To make a monitor appear on a page, use the

portlet described in

Performance Dashboard

on page 279.

Launch a Dashboard View

Launching a view lets you view the monitors active for a Dashboard view.

Some packages display a

Network Dashboard

by default. Click the

select new

text in the upper

right corner of the dashboard to select an alternative, already configured view from those in

Dashboard Views

portlet. Click the

edit

button in that same corner to alter the configuration of

the existing dashboard. See

Dashboard Editor

on page 281 for more about altering views.

You can configure Dashboards appear by configuring them in the

Dashboard Views

portlet, or by

selecting a device or devices in

Managed Resources

portlet, right-clicking and choosing

Show

Performance

. To select more than one device, use the expanded Managed Resources portlet.

The first time you create a default dashboard for a single device, Dell OpenManage Network

Manager saves it in the

Dashboard Views

manager. Invoking

Show Performance

for that device

subsequently displays its default view.

Dashboard Views | Monitoring

279

The icons in the dashboard’s upper right corner let you edit

Dashboard Properties

with the

Dashboard Editor

, or

Save

the dashboard with the other icon.

Tip

Hovering the cursor over the individual charts displays the charted attribute value(s) as popup tooltips. If

a graph has multiple lines, the data points for different lines are charted at different times (Dell

OpenManage Network Manager distributes polling to balance the load on its mediation service). Hover

the cursor over the time when a line’s data point appears, and that line’s value appears as a tooltip. It may

seem a device reporting the same value as others is not graphed properly, but mousing over the graph

displays the value.

How To:

Create a Simple Dashboard View

Follow these steps to create a simple dashboard view. See How to:

Create a Custom Dashboard

View

on page 282 for more complex monitor creation.

In the Dashboard Views portlet, right click to select

New > Simple Dashboard.

Select a name (for example SNMP Interface, to display the monitor configured in How

to:

Create an SNMP Interface Monitor

on page 262).

Click

Add Entity

in the Entities panel.

In the filter that appears, select the type: Interface.

Filter for the IP address of the entity monitored in the previous SNMP interface monitor

creation, select it and click

Add Selection

and

Done.

Select the ifInErrors attribute, and click the right arrow in the Dashboard View Attributes

panel.

Click

Save

. The dashboard view you have configured should appear in the portlet.

To launch it, right-click and either

Launch (Popup)

Launch (Maximize)

If you want to convert this simple dashboard to a custom dashboard so you can alter it further,

right-click and click

Convert.

Performance Dashboard

This portlet lets you install and configure

Dashboard Views

as permanent displays rather than

portlets. When you initially install this portlet, it appears empty. The message “No Dashboard View

has been set:” appears with a

Select

button. Click that button to open the

Dashboard View

Selection

screen.

280

Dashboard Views | Monitoring

Dashboard View Selection

This screen displays any existing dashboards so you can select one for the

Performance Dashboard

you want to appear on a page in Dell OpenManage Network Manager.

Use the filter at the top of this selector to limit the listed dashboards from which you can select.

See

Dashboard Views

on page 277 for more about creating and configuring the views from which

you select.

Tip

If you delete the Network Status Dashboard can put it back by adding the Performance Dashboard

portlet to the desired page, then select the desired Dashboard View you would like to display as your

Network Dashboard.

Dashboard Views | Monitoring

281

Dashboard Editor

When you

Edit

dashboard by right-clicking a resource in

Managed Resources

and selecting

Show

Performance

, or create (select

New

) a dashboard from the

Dashboard Views

portlet, an editor

appears that lets you select and rearrange the monitor components of the dashboard.

This screen has the following fields:

View Name

—The identifier for the dashboard. The default is “Performance dashboard for [IP

address],” but you can edit this. This is what appears in the Dashboard Views list.

Show Composites

—Show attributes that are constructed from other attributes.

TimeFrame

—Use the selectors to configure the time frame for the performance measurement

displayed.

Entities

—Select the equipment you want to monitor. When you right-click to

Show Performance

with resource(s) selected, those resources appear in this list.

Dashboard View Attributes

—Click the arrows between

Available

and

Selected

panels to select

monitors for the dashboard. The Available Attributes list shows all the available attributes for

that device based on its monitor affiliations. If you select none, a chart appears for each

attribute that has data. This is the default. If the user moves some attributes to the

Selected

list then only charts for those attributes appear.

282

Dashboard Views | Monitoring

How To:

Create a Custom Dashboard View

The following steps create a custom dashboard view:

In the Dashboard Views portlet, select the

New Custom Dashboard

command. An empty

default view with twelve components appears.

The Properties panel contains the following controls:

View Name —The name of the dashboard view (Required)

Time Frame—The period over which to display the data. May be either relative (like last 30

minutes) or absolute (between specific dates and times). The specified frame applies to

all charts in the dashboard.

Data Source—Source for the data. Current displays current (raw) data. Hourly displays

rolled up hourly data. Daily displays rolled up daily data. Auto (default) determines

which data source to use based on the selected time frame.

Dashboard Views | Monitoring

283

Layout—Select the desired layout style used to display the dashboard components.

To select a layout style, click on the ... button next to the current layout. The layout chooser

appears.

Click on the desired layout or click

to keep the current layout. The components

displayed to reflect the selected new layout.

If no dashboard components have been configured yet a default configuration appears with

three or four rows depending on the dashboard style. If the dashboard components have been

configured it will create at least enough rows to display all the configured dashboard

284

Dashboard Views | Monitoring

components. Add more rows by clicking on the

Add Row

button. An individual dashboard

component can be deleted by clicking on the delete button on the component.

Moving Dashboard Components

To move a dashboard component to another location, click and drag it over another

component. When you release the mouse, the components exchange places.

Configuring Dashboard Components

To configure a dashboard component, click the

Edit

button in the upper right corner of the

component. The component editor appears.

The following properties appear in the General Properties section:

Title —Title of this component (required)

Show Title—Check to display this title above the chart for this component. This overrides

the default title that is shown for some charts.

Component Type—Combo Box which specifies what type of component to create. These

include the following chart types, Line, Dial, Bar, To p Talk e rs (a line chart showing the

top [or bottom] n components for a specific attribute on a specific monitor) To p Su b -

components (a line chart showing the top [or bottom] n subcomponents belonging to a

specific device for a specific attribute. See

Dashboard Views | Monitoring

285

Other controls appear depending on the component type selected. These components

also have a Monitor control, a pick list where you can select from which monitor the

charted data originates. See Dial Chart Properties, Top Talkers Properties and Top Sub-

components Properties below for specifics about those.

The line and bar components have two tabs under the general properties section: Mon-

itor Targets and Attributes. The Monitor Targets section lets you select the devices that

are sources of data. Click the Add button displays the monitor target selector.

The Attributes tab selects the attribute(s) that appear in the chart. If an attribute is a

composite, then its series appears in the Available Series listbox.

Select the desired series and click the right arrow to move them to the Selected Attributes

listbox.

If the attribute is not a composite, then nothing appears in the Available Series listbox. Here,

click the right arrow to move the attribute to the

Selected Attributes

listbox.

Dial Chart Properties

Dial charts have the following additional properties

Monitor

—Select which monitor the charted data comes from in the pick list.

Attribute

—The attribute to get data for.

Min / Max Value

—The minimum / maximum value on the dial.

Entity

—The monitor target to get the data for. Clicking on the + button brings up the entity

selector.

Top Talkers Properties

Top Talkers components have the following properties.

Monitor

—Select which monitor the charted data comes from in the pick list.

Attribute

—The attribute to get data for.

Max # of Entities—

The number of entities to display

Order

—Select either

Ascending

(Bottom n), or

Descending

(Top n).

286

Show Performance Templates | Monitoring

Top Subcomponents Properties

Top Subcomponents components have the following properties.

Entity

—The parent entity for the found subcomponents. Clicking on the + button brings up the

entity selector.

Attribute

—The attribute to get data for.

Max # of Entities—

The number of entities to display

Order

—Select either

Ascending

(Bottom n), or

Descending

(Top n).

Convert Simple Dashboards to Custom Dashboards

To convert a simple dashboard to a custom dashboard use the

Convert

command on the

Dashboard Views

menu. You cannot convert custom dashboards to simple dashboards.

Show Performance Templates

By default, the Show Performance command displays data for the first twelve attributes it finds.

You can control which attributes appear when you select Show Performance by creating a

performance template. A performance template lets you set dashboard parameters and associate

them to one or more device models. Then, when you execute Show Performance on a device of that

type, those dashboard parameters display the dashboard for that device.

How To:

Create A Performance Template

To create a performance template, follow these steps:

Right click in the Dashboard Views portlet and click on the

Performance Templates

item.

The Performance Templates manager appears.

Show Performance Templates | Monitoring

287

To create a new performance template, click on the Add button. The Performance Template

Editor appears.

Name your template. The Show Composites and Time Frame fields are the same as in the

dashboard (see

Dashboard Editor

on page 281).

288

Show Performance Templates | Monitoring

To specify which device model(s) this template will apply to, click on the + button in the

Device Models panel. The model selector appears.

Select multiple devices by clicking + repeatedly, selecting a single device each time. You can

also make several templates for each device. See

Multiple Performance Templates

on page 289

for the way that works.

Click on a vendor to see the device types for that vendor. Then click on a device type to see

the models available for that vendor and device type. Select the model you want and click on

the select button.

To select the attributes that you want to appear by default in a performance dashboard for the

selected device, click on a monitor to see the attributes available for that monitor. Click on

the right arrow button to move the selected attributes from

Available

Selected

. Those are

the attributes that will appear by default in dashboards for the selected device.

Key Metric Editor | Monitoring

289

When you have selected all the parameters you want, click

Save

. It then appears in the

template list.

To edit or delete your template, use the buttons in the action column of the table.

Now when you click on show performance, Dell OpenManage Network Manager checks whether a

template for that device type exists. If one exists, then that template guides what appears in the

performance view for the device.

Multiple Performance Templates

The template name appears in the upper right corner

of dashboards that appear when you select Show

Performance.

If other templates for that device type exist they also

appear in a template pick list in the upper right corner.

You can pick another template to display its attribute

selection. The

No Template

selection displays the

default dozen attributes that would appear if you

selected Show Performance without a template defined for the device.

Key Metric Editor

When you select

Performance > Show Key Metrics

, this editor appears for devices that have such

metrics. It displays the available

Metrics

, and a

Chart

panel where you can configure their display.

290

Key Metric Editor | Monitoring

Metrics

This panel’s display depends on the selected device.

Key Metric Editor | Monitoring

291

Chart

Click

Chart

to first select up to three metrics you want to graph, and the polling interval for the

graph.

292

Key Metric Editor | Monitoring

Then click

Save

, and the graph appears.

Click the screwdriver / wrench icon in the upper right corner to return to the chart configuration

screen.

| Traffic Flow Analyzer

293

Traffic Flow Analyzer

OpenManage Network Manager’s Traffic Flow Analyzer listens on UDP ports for sFlow, or JFlow

datagrams. A flow is a unidirectional stream of packets between two network nodes. The following

key parameters appear in flows:

• Source IP address

• Destination IP address

• Source port number

• Destination port number

• Layer 3 protocol type

• ToS byte (Type of Service)

•Input logical interface

Using that data, Traffic Flow Analyzer can help you visualize network traffic, troubleshoot and

anticipate bottlenecks.

NOTE:

The default license supports tracking flow for five devices. If you want to monitor more devices, upgrade

your license. See Updating Your License on page 12 for more about that.

294

How does it work? | Traffic Flow Analyzer

How does it work?

• The sFlow exporting router monitors traffic traversing it

• The router becomes an Exporter of sFlow data.

• It forwards information to the sFlow Collector

• Collector stores, correlates and presents the information about

• Traffic bottlenecks in networks?

• Applications responsible for bandwidth utilization?

Definitions

NetFlow

—NetFlow is a traffic profile monitoring technology

J-Flow

—Juniper's implementation of NetFlow.

sFlow

—For Dell devices.

Collector

—Application listening on a UDP port for sFlow datagram.

Exporter

—Network element that sends the sFlow datagram.

Conversations

— IP communications between two network nodes.

Flow

—A flow is a unidirectional stream of packets between two network nodes.

Setup

If they are not already set up to emit flow information, set up devices themselves to emit flow data.

Consult the manuals for your devices for instructions about how to do this.

How does it work? | Traffic Flow Analyzer

295

Set up Dell OpenManage Network Manager with the following:

Exporter Registration

—To register a device, right-click in Resources portlet, after you select the

router and choose

Tr af f ic A n a l yz er > R e g i s t e r

. The system should then be ready to accept

flow data from the device.

Router Configuration

—You must configure the router to send flow reports to the Dell

OpenManage Network Manager server on port 9996 by default.

Resolving Autonomous System (AS) Numbers

—Dell OpenManage Network Manager provides

local resolution of autonomous system numbers (ASN) based on static mapping of AS

number registrations. It also supports user overrides to the default mappings. To do this,

configure properties you can find in the

\owareapps\trafficanalyzer\lib\ta.properties

file. Remember, best practice

is to override properties as described in Overriding Properties on page 23.

How To:

Use Traffic Flow Analyzer

registration’s success.

Look in the Traffic Flow Portlet for the flows captured.

Remember, you can Drill Down to specific data, and Search for specific devices monitored.

For more about Traffic Flow in context of network management, see Traffic Flow Analyzer -

Example on page 301.

296

Traffic Flow Portlet | Traffic Flow Analyzer

Exporter Registration

Before you can collect traffic data from

a device, you must

it as a traffic

flow exporter. If a device is not

registered, the

command

appears in the menu. If it is registered

the

Unregister

command appears.

When you successfully register an

eligible device, a success message

appears; otherwise, a failure message

appears, and no registration occurs.

The

Show Traffic

menu option opens a

drop-in (full screen) Traffic Flow Portlet

with a pick list of available information

types.

This displays the

Exporters Detail, Top

5 Applications, Top 5 Autonomous

Systems, Top 5 Conversations, Top 5

Endpoints, Top 5 Protocols, Top 5

Receivers,

and

Top 5 S e nd e r s

related to

the device selected before right-

clicking. Select a type and click the

Refresh

double arrow to the right of the

selector.

The screen that then appears has the features of the Expanded Traffic Flow Portlet described

below. See also How to: Use Traffic Flow Analyzer on page 295.

Traffic Flow Portlet

Traffic Flow Analyzer uses several types of portlets, one for each of the types of objects on which it

reports. These are Applications, Autonomous Systems, Conversations, Endpoints, Exporters,

Protocols, Receivers and Senders.

Traffic Flow Portlet | Traffic Flow Analyzer

297

When you add one of the traffic analyzer portlets to a page, its summary, or minimized form

appears. This displays a simple view containing a pie chart and a table showing the summarized

collected data over the configured time period. The only thing that can be changed in this view is

the period. Change this by clicking the clock dropdown button in the upper right corner of the

portlet.

The Expanded Traffic Flow Portlet displays an interactive graph. You can also Drill Down to details

about components within this portlet by clicking on one of the links in the table below the graph.

298

Traffic Flow Portlet | Traffic Flow Analyzer

Expanded Traffic Flow Portlet

When you expand the portlet, a more complex interactive view appears. Initially, it displays a line

graph for the selected period.

NOTE:

It may seem a device reporting the same value as others is not graphed properly, but mousing over the

graph displays the value.

The following controls appear in its title bar:

Select Chart Type

—Lets you change the chart type. Available chart types include

Pie, Line, Bar,

Stacked Bar

and

Column

Select Timeframe

—Lets you change the period between

Last 15 Minutes, Last Hour, Last 24

Hours, Last 5 Days

and

Last 30 Days.

—Displays a search dialogue to find specific traffic data.

Report Type

—Lets you change the report type between Top 5, 10 or 25 and Bottom 5, 10 or 25.

Load View

—Loads a saved traffic flow view, created with the

Save

button.

Save

—Saves the current view to a named view.

Below the title bar a navigation bar displays the context path. See Drill Down, below, for more

about this.

Below that navigation bar a row containing the following controls appear:

Entity Type

—Selects the type of entity to report on (Conversations, End points, and so on).

Attribute

—Selects which attribute to graph (Bytes, Packets, Bits/Sec).

Traffic Flow Portlet | Traffic Flow Analyzer

299

Refresh

—Refreshes the screen (runs the report) applying any new settings.

Drill Down

you can “drill down” into a report by clicking on one of the links in the table. This displays a detail

view of the selected entity and the name of the entity appears in the navigation bar.

When a detail view appears, the entity type appears as in the title bar. You can change to a “Top /

Bottom n” report of a different type, then click refresh to display a report of the top entities that

apply to the current detailed entity. This process can continue until the conversation detail view is

reached. This is the end of the line.

300

Traffic Flow Portlet | Traffic Flow Analyzer

To go back up through the drill-down path the user can click anywhere on the navigation bar.

Traffic Flow Analyzer - Example | Traffic Flow Analyzer

301

Search by clicking on the Search (magnifying glass) icon in the title bar. Type any string in the next

screen to search through the traffic data. A list of all entities found matching the string appears

below it.

Entity found in the search support the following actions:

View Top Conversations

—Displays the top n conversations for the selected entity.

Show Detail View

—Displays a top level detail view of the selected entity.

Add to Current View

—Adds the entity to the current view and drills down to it.

Tip

The Settings button (the gear in the upper right corner) lets you confine the search by types (All,

Applications, Protocols, and so on).

Traffic Flow Analyzer - Example

The following describes typical situations where flow is useful. When ports are over-utilized

because of intermittent performance problems diagnosis of the problem sometimes difficult. Turn

on flow traffic data collection to evaluate who, what applications, and so on, are responsible for the

traffic on the affected ports. This avoids getting overwhelmed with collection of traffic going in all

directions. Follow these steps to do this:

From the Resources monitor, select a desired router that has support for sFlow

302

Traffic Flow Analyzer - Example | Traffic Flow Analyzer

Enable sFlow on most impacted routers that support sFlow. Also, register a number of

exporters to enable an efficient and scalable data collection environment.

NOTE:

You can disable sFlow and unregister exporters.

After sFlow has been running for a while, verify that bandwidth utilization is within

expectation. This will help insure optimum performance of critical business applications.

Select the Top 5 Applications portlet (or add it to the page).

From the list of the Top 5 Applications, you’ll typically see most bandwidth is being

consumed by the key applications in our organization.

Alternative 1

To ensure bandwidth is not being hijacked by unauthorized or unwanted video or music

streaming applications, select the Top 5 Conversations.

Often the top conversation is video streaming software.

To answer “Where and who is running this rogue application?,” drill down into the

conversation to see End points involved in the conversation. This identifies the user running

the streaming application. You could now go and stop (or block) this rogue application.

Alternative 2

An alarm indicates port X is surpassing its threshold. If the port has become a bottleneck in the

overall network bandwidth, we want to identify what applications are at cause, and who is

responsible for running them.

Look in the Top 5 Traffic Flow Endpoints portlet.

From the list of the Top 5 Endpoints, you will typically see that port X is high on the list.

Expand the portlet and drill down into the port X endpoint to see what are the top

conversations going through port X.

Drill down into conversations to identify any unauthorized applications.

Drill down further to identify users of any unauthorized applications

Now, go stop them!

Introducing ProScan and Change Management | Change Management / ProScan

303

Change Management / ProScan

Introducing ProScan and Change

Management

Dell OpenManage Network Manager’s change management utility is ProScan, which lets you scan

stored configurations to verify managed devices compliance with company, department or industry

standards. This application automatically tracks all changes occurring to managed devices. You can

report on user-specified values found in persisted backup configuration files for a group of devices.

This lets network managers, security officers and external auditors generate detailed audit trail

documents to validate compliance with both internal standards (ISO 17799, NSA Guidelines) as

well as industry regulations (Sarbanes-Oxley, GLBA, HIPAA).

Compliance reporting lets you specify a text string, regular expression, or optionally the generated

configlet from File Management (NetConfig) for matching. Group results must be separated by

device like Adaptive CLI Manager. When ProScan policies run, the application emits notifications

whose contents depend on whether compliance was or was not maintained.

Tip

Your system may have several ProScan examples. You can use these as provided, or alter them to suit

your network.

How To:

Use ProScan / Change Management

The following outlines common use cases for this software, and the steps to achieve the goals of

each case:

Goal: Verify configurations are compliant on a scheduled / recurring basis.

Create ProScan policy(ies) based on what indicates compliance. Right-click

New > Policy

the ProScan portlet.

Specify the Name and Input source (based on Device Backup, Current Config, Configuration

Label, By Date and Adaptive CLI Results)

304

Introducing ProScan and Change Management | Change Management / ProScan

Add Targets > Filter Option available for selecting Equipment/Group

Tip

The advantage of selecting dynamic device groups is that newly discovered devices of the selected type

are automatically members of the group, so they are scanned too. A benign warning (“No proscan

policies have target group(s)”) lets you know you have not selected either dynamic or static groups when

you execute a ProScan policy without them.

Specify Proscan Compliance Criteria. Add Criteria.

Save.

Execute or schedule your created ProScan policies.

Any out-of-compliance devices throw an alarm, which you can email, or configure to trigger

other actions (see the next use case).

Goal:...And if not compliant restore compliant configuration

In addition to the steps in the previous section:

Create an action to restore the labelled compliant configuration.

Create event processing rule that says when ProScan fails execute the restore action in 7.

If you have multiple device types you do not need to assign actions for each device, or even each

device type. OpenManage Network Manager supports the

assigned policies,

so it knows which

actions to do to that device based on which device sent the trap.

How To:

Configure ProScan Groups

If you have different ProScans for different device type, then you can run a ProScan Group and

automatically scan even different types of devices.in one action. For more about this, see Creating

or Modifying ProScan Policy Groups on page 326.

Right-click and select

New > Group

Specify the Proscan Policy Group Parameters.

Add ProScan Policies.

Tip

These policies can be in multiple groups.

Add Targets. Notice that group targets appear in the “child” policies, grayed out. Child

policies can add more targets.

Save.

Execute or schedule the group policies to run against the selected targets.

Introducing ProScan and Change Management | Change Management / ProScan

305

How To:

Do Change Management (Example)

The following describes an example use of Change Manager. This backs up a configuration file,

modifies it, then scans the file for the modified text, and acts according to the result. The following

steps describe how to do this:

Back up a device configuration. Select a device and click the

File Management > Backup

right-click menu in Managed Resources portlet.

Right click, and Export this backup to a file in the Configuration Files portlet.

Edit this config file, adding the word “MyTestContact” somewhere in its text that has no

impact. For example, the snmp-server contact, or in comments.

Tip

Some devices let you create descriptions within their configurations so you can enter a word without

impact there.

Now import this edited file from the Managed Resources portlet after you have right-clicked

on the same device from which you exported it. Renaming it something distinctive is helpful.

Right-click this file and

Restore

to the device. Since the name is a comment or description, it

should not interfere with the device’s operations.

Right-click the device and select

File Management > Backup

. This makes the

MyTestContact file label Current.

Tip

To confirm MyTestContact is labeled Current, you can use an Advanced filter in the expanded

Configuration Files portlet to view only Current labels.

Now, create a ProScan policy by right-clicking in the ProScan portlet, selecting

New > Policy.

In the General tab, name this policy MyTestContactScan, and as an input, select the

Configuration Label > Current

label as the Input Source.

In the Targets tab, select the equipment from which you exported the config file.

In the Criteria tab, click

Add Criteria

enter

contains

MyTestContact as the

Match All of the

following criteria

Click

Save.

Right-click the new policy and select

Execute Compliance

The audit screen that appears should indicate

Success.

Right-click and

Open

the MyTestContactScan policy, and change the Criteria to “does not

contain” MyTestContact.

Save

306

ProScan Portlet | Change Management / ProScan

Re-execute the policy.

The audit screen that appears should indicate

Failure.

Alarms / Events

Once you have a ProScan policy that has failed, the redcellProScanFailureNotification alarm

appears in the Alarms portlet. Success produces and event, not an alarm (visible in the Event

History portlet) called redcellProScanClearNotification.

To create a response, create processing rules for the event / alarm (see Event Processing Rules on

page 108). For example, you could restore the Compliant-labeled configuration file if

redcellProScanFailureNotification occurs, or send an e-mail to a technician, among many other

responses.

Some Limitations in this Example

Note that this example does not change authentication, either for telnet or SNMP. If it did alter the

SNMP authentication, you would have to create an SNMP authentication alternative before

scanning could occur.

ProScan Portlet

This portlet lets you configure

compliance requirements. You

can use filtering in the Expanded

ProScan Portlet to limit the

visible policies.

The

Icon

and

ProScan Type

columns indicate whether the

policy is a single policy or a group.

Columns also display the

Overall

Compliance

of a policy, and the

Ta rg e t( s )

(number of devices to

scan), and whether the policy is

Monitored

(red means no, green means yes. See Proscan on page 269 in Chapter 7, Monitoring for

details). Finally, you can see whether a policy’s execution is scheduled. To execute a policy

manually, go to the Managed Resources portlet, and right-click the targeted device to find the

Change Management

menu item. You can

Execute ProScan

policies that target the device with that

menu item. If you want to execute a ProScan policy not already associated with the device or group,

then select

Execute Proscan Policy.

A selection screen appears where you can select a policy and

either execute or schedule it.

ProScan Portlet | Change Management / ProScan

307

Overall Compliance

Overall Compliance can have the following values and flag icon colors:

All Compliant

—Icon: Green. All selected equipment is in compliance with the policy.

None Compliant

—Icon: Red. None of the selected equipment is in compliance with the policy.

None Determined

—Icon: blank. None of the equipment has been tested for compliance.

Partial Compliance

—Icon: Yellow. Not all equipment complies with the policy but all equipment

has been tested.

Compliance Varies

—Icon: Yellow Not all equipment has been tested for compliance. The tested

equipment might be compliant or not compliant.

Portlet Menu

This screen also has the following right-click menu items:

New

— Select either a new policy or group. Creating a new policy opens the ProScan Policy Editor,

through which you can define one. See Creating or Modifying a ProScan Policy on page 310

for more information about the Editor. See Creating or Modifying ProScan Policy Groups on

page 326 for the group editor.

Edit

—Opens the selected policy or group for modification. See Creating or Modifying a ProScan

Policy on page 310 for more information. See Creating or Modifying ProScan Policy Groups

on page 326 for the group editor.

Refresh Targets

—Queries to check targets, particularly those in dynamic groups, are up-to-date.

Tip

Best practice is to Refresh ProScan Targets before running a scan particularly if your network has

changed since the last scan. You can also schedule this. See Schedules on page 95.

Modify Targets

—Lets you modify and/or select target equipment for the policy.

Schedule

—Configure a policy to run on a schedule.

Audit

—Opens an Audit Viewer with the results of a selected policy’s runs. This is one way to see

the historical results of proscan policy runs. Another is to consult the Compliance Policy

Summary snap-in in the Expanded ProScan Portlet.

Delete

—Deletes the selected policy. Select the item to remove and click

Delete

. The application

prompts you for confirmation.

Import / Export

—Lets you import policies or export the selected policy.

308

ProScan Portlet | Change Management / ProScan

Expanded ProScan Portlet

The expanded ProScan portlet lets you see the Compliance Policy Summary, a reference tree of the

connections between a policy and its targets, and a Compliance Policy Chart snap panel.

See Compliance Policy Summary on page 308 for a description of the snap panel that appears

below the listed policies in this manager.

Compliance Policy Summary

This snap panel appears at the bottom of the expanded

portlet described in ProScan Portlet on page 306. It catalogs

the compliance policy’s history and lists the

Equipment

scanned

a status icon indicating whether the run

discovered equipment

(green) or

out

(red)

compliance. If you added equipment to a policy before it

ProScan Portlet | Change Management / ProScan

309

has run, you may also see a

Not Executed

(blue) status. Each run date for the policy and equipment

combination selected in the list at the top of the detail panel screen appears as a row in this panel.

Tip

You can also see compliance failure messages in OpenManage Network Manager’s audit trails.

Compliance scans do not stop the first time they fail. They continue so all failures of compliance in

the entire device configuration appear cataloged in the result.

Each time OpenManage Network Manager executes a compliance policy it stores a history record

in the database. Similarly, edits to these policies update history records. When you edit a

compliance policy to add/remove equipment, OpenManage Network Manager creates or deletes

the corresponding history record. Every time OpenManage Network Manager executes the

compliance policy, it updates the Last Run Date, Status and Details on the history record.

NOTE:

Executing Proscan policy triggers may trigger a benign warning that "No proscan policies have target

group(s)" if that is the case. You can safely ignore this warning message.

Groups

When you run a ProScan group policy, the history for the group appears in this detail panel just as

it would for a single policy. History concatenates the results of the component policies, as does

reporting. See Compliance and Change Reporting on page 330.

Tip

You can print a Compliance Policy Violation report from Report Manager. It produces a document based

on the Compliance Policy History.

310

ProScan Portlet | Change Management / ProScan

Creating or Modifying a ProScan Policy

This series of screens lets you configure ProScan policies.

This screen has the following tabs:

• General

•Targets

• Criteria

The Compliance Policy Job Status screen displays progress of a ProScan policy as it executes.

Tip

If you have more than one type of device, you must typically have more than one ProScan policy to

address each device type. To run more than one ProScan, so you can address multiple types of devices,

create a ProScan group. See Creating or Modifying ProScan Policy Groups on page 326.

General

This tab has the following fields:

General Properties

Name

—A unique identifier for the policy (editable only when you click

New

, not on existing

policies).

ProScan Portlet | Change Management / ProScan

311

Enabled

—Check to enable this policy.

Description

—A text description of the policy. This also appears when the policy is listed in the

manager.

Input Source

Use the radio buttons to select a source. Select from among the following options:

Device Backup

—Retrieve the configuration from the device and scan it for compliance.

Current Config

—The scan the current configuration backed up from the device.

Configuration Label

—Select the configuration to run against based on a label. This software

automatically updates the

Current

label so it points to the most recently backed up

configuration files.

By date

—When you click this radio button, you can then select a configuration file backed up

that precedes a specified date most closely in a selector that appears below the radio button.

NOTE:

You can scan even historic configurations for compliance, with the Based on date field. There is no

validation to ensure this date is the current one.

Adaptive CLI

—Select a desired

Show

Adaptive CLI to scan the target device below the radio

button. The policy configured scans the show results, and that show appears in the Audit

screen.

312

ProScan Portlet | Change Management / ProScan

Targets

The top of this screen (

Current Inherited Targets

) displays any targets inherited from already-

configured ProScan Groups. Click

Add Targets

in the

Current Implicit Targets

panel at the bottom

to select equipment that are targets to scan with this policy. You can also select listed equipment

click the

Remove

icon to delete it from the list.

Tip

Use filtering in the subsequent selector screen to make individual selection easier, but do not forget this

is not dynamic selection. You must assign policies whenever your managed environment adds new

equipment.

To provide information for individual policies that are part of groups, this screen displays inherited

group targets grayed out. See Creating or Modifying ProScan Policy Groups on page 326 for more

about groups.

ProScan Portlet | Change Management / ProScan

313

Criteria

This screen lets you filter configuration files based on text, or Regular Expressions. Click

Add

open an editor line.

This screen ultimately determines whether the configuration file(s) for the selected equipment

complies with the applicable policy. To create a policy, first select whether you want to

Match Any

(logical OR), or

All

(logical AND) of the criteria you configure with the radio buttons at the top of

this screen.

See these sections for more about criteria:

• Editing Compliance Policy Criteria

• Match Regex for each line

• Count number of occurrences

• Input Source Grouping

For additional criteria information consult these sections:

• Create Source Group Criteria

• Regular Expressions

• Perl / Java (Groovy) Language Policies

314

ProScan Portlet | Change Management / ProScan

Editing Compliance Policy Criteria

After clicking

Add Criteria

, use the pick list on the upper right to select an operation to select a

criteria match type (

Contains, Doesn’t contain, [does not] match Regex

(see

Regular Expressions

on page 320), [does not]

Match Regex for each line, Count number of occurrences, Perl or Java

(Groovy)). Specify the match string or regular expression (Regex) in the text editor below the pick

list.

Tip

With the Add Criteria button, you can configure multi-criteria policies with several lines. For example,

configure one saying a maximum of four lines containing

name-server

can appear (<5), in any order

(Match Regex for each line), and another that says the configuration must contain

no ip domain

lookup [domain]

. Notice the radio buttons Match Any of the following and Match all of the

following. Selecting Any means that if either of the lines matched the policy would succeed. Selecting All

says that both lines must pass before the policy is successful.

For more complex scans, you can also enter Perl or Java (Groovy) language policies. See Perl / Java

(Groovy) Language Policies on page 323 for details about these.

NOTE:

The does not operators are just the negative of the match without does not.

Click the

Apply

green check button to accept your term, or the

Cancel

button to abandon your

edits.

ProScan Portlet | Change Management / ProScan

315

You can edit already listed compliance tests by clicking the

Edit

button (pencil and paper) in the

list row. You can delete them by clicking the

Delete

button next to the criterion.

Match Regex for each line

In using this type of term, OpenManage Network Manager processes each line separately,

comparing the input source to the match criteria. This returns a true value only if the criteria find a

match in the source. The order of matching is not important since OpenManage Network Manager

processes each line separately.

Count number of occurrences

This operator lets you specify a less than,

greater than, or equal mathematical

operator (<, >, =) and a number of lines

after you provide regex or string criteria

with the operator and count value.

This returns true if the criteria (as a whole)

match the input source count and operator

combination. On the other hand, for

example, if you choose a match criterion

that includes =9 lines as the operator, and

the scanned configuration has ten lines

that match, the scan returns

false

Input Source Grouping

Configuration files often have repeating sections or groups of parameters. OpenManage Network

Manager scan configurations by section using

Start Criteria

and

End Criteria

Regex group criteria

patterns. A configuration can contain multiple start and stops. This is especially useful when the

criteria provided might occur multiple times in the input source but you want to find only the

instances which are preceded by a particular line in the source.

316

ProScan Portlet | Change Management / ProScan

Click

Add new group

the

Input Source

panel,

and the grouping editor

appears. (Click the red

icon to the source

grouping’s left to delete

it.)

Enter the starting and

ending regular expressions

(

Start at / End at

), and

elect whether the

beginning or end of the

source group includes or

excludes what that

expression matches. Click

Apply

to accept your edits,

Cancel

to abandon

them. You can create

multiple group criteria.

OpenManage Network Manager applies the group criteria in order, from top to bottom.

When you have defined a

Start

and

Stop

, OpenManage Network Manager finds the information

between these. OpenManage Network Manager logically extracts the data from the main config

(essentially creating sections) and then does the audit.

For example, if your configuration has one section of

router bgp

and multiple sections for each bgp

neighbor, you can specify matches within each neighbor. Your policy can audit each router bgp

section and each neighbor within each router bgp.

See Create Source Group Criteria below for an example of how to use these capabilities. Also, see

Regular Expressions below for more about what match criteria are supported.

How To:

Create Source Group Criteria

Here is an example of how you can use source group criteria. Suppose you want to scan for the

following text:

neighbor 2.3.4.5 activate

neighbor 2.3.4.5 route-map allanRM01

This is within the following configuration:

router ospf 888

log-adjacency-changes

ProScan Portlet | Change Management / ProScan

317

redistribute bgp 88 metric 10010 metric-type 1 subnets tag 334 route-map

allanRM02

network 2.3.4.0 0.0.0.255 area 123

network 2.3.5.0 0.0.0.255 area 124

network 2.3.6.0 0.0.0.255 area 125

router isis

router rip

version 2

network 175.92.0.0

no auto-summary

address-family ipv4 vrf VPN_PE_A

no auto-summary

no synchronization

exit-address-family

router bgp 88

bgp log-neighbor-changes

neighbor 2.3.4.5 remote-as 22

neighbor description "This is Test"

neighbor test-parameter xxx

neighbor 4.5.6.7 remote-as 66

neighbor description "This is Test"

neighbor test-parameter xxx

address-family ipv4

redistribute connected route-map map-12

redistribute static route-map hjlhjhjhjk

redistribute ospf 888 metric 500 match internal external 2 nssa-external 1

nssa-external 2 route-map allanRM03

neighbor 2.3.4.5 activate

neighbor 2.3.4.5 route-map allanRM01 in

neighbor 4.5.6.7 activate

neighbor 4.5.6.7 route-map allanRM02 in

318

ProScan Portlet | Change Management / ProScan

default-information originate

no auto-summary

no synchronization

exit-address-family

address-family ipv4 vrf VPN_PE_A

redistribute ospf 10 vrf VPN_PE_A match internal external 1 external 2

no auto-summary

no synchronization

exit-address-family

In addition, within this configuration, you want to check if the target lines are present under each

address-family in the

router bgp

section. To scan for this, follow these steps:

Select the

Match All of the following

radio button and enter both of the above lines as match

criteria. Select the

Config Term

match Regex for each line

, so the order in which these lines

appears does not matter.

Add

a source group criterion to search for a section that begins with “routers bgp”—in regex:

routers\sbgp

. No end match criterion is needed. Click

Apply.

Click

Add

to make another criterion. This time, the start is

address-family\s

, and the

end is

exit-address-family

. Click

Apply.

You should see both criteria listed in the editor

Applying the first group criterion finds the match (underlined) in the following:

router bgp 88

bgp log-neighbor-changes

neighbor 2.3.4.5 remote-as 22

neighbor description "This is Test"

neighbor test-parameter xxx

neighbor 4.5.6.7 remote-as 66

neighbor description "This is Test"

neighbor test-parameter xxx

ProScan Portlet | Change Management / ProScan

319

address-family ipv4

redistribute connected route-map map-12

redistribute static route-map hjlhjhjhjk

redistribute ospf 888 metric 500 match internal external 2 nssa-external 1

nssa-external 2 route-map allanRM03

neighbor 2.3.4.5 activate

neighbor 2.3.4.5 route-map allanRM01 in

neighbor 4.5.6.7 activate

neighbor 4.5.6.7 route-map allanRM02 in

default-information originate

no auto-summary

no synchronization

exit-address-family

address-family ipv4 vrf VPN_PE_A

redistribute ospf 10 vrf VPN_PE_A match internal external 1 external 2

no auto-summary

no synchronization

exit-address-family

Applying the second group criterion on the above result divides the source:

Source 1:

address-family ipv4

redistribute connected route-map map-12

redistribute static route-map hjlhjhjhjk

redistribute ospf 888 metric 500 match internal external 2 nssa-external 1

nssa-external 2 route-map allanRM03

neighbor 2.3.4.5 activate

neighbor 2.3.4.5 route-map allanRM01 in

neighbor 4.5.6.7 activate

neighbor 4.5.6.7 route-map allanRM02 in

default-information originate

no auto-summary

no synchronization

exit-address-family

320

ProScan Portlet | Change Management / ProScan

Source 2:

address-family ipv4 vrf VPN_PE_A

redistribute ospf 10 vrf VPN_PE_A match internal external 1 external 2

no auto-summary

no synchronization

exit-address-family

This creates two sources sections.

Now OpenManage Network Manager applies the regex in the criteria field to each of the

sources. It returns

true

only if both sources pass (we selected the

Match All

radio button). In

this case “Source 2" does not have those lines, so OpenManage Network Manager returns a

false value.

The error details appear in the audit trail panel.

Regular Expressions

The following table outlines standard, supported regular expressions.

Label Pattern

Single digit \d

Two digits \d{2}

Three digits \d{3}

Four digits \d{4}

Five digits \d{5}

Number [0-9]+ One or more

[0-9]* Zero or more

Decimal .[0-9]+

Float [0-9]+.[0-9]+

IP Address (\d{1,3}.){3}\d{1,3}

IP Address/Mask (\d{1,3}.){3}\d{1,3}/\d+

Domestic phone

number with

extension

1?[\s\-\/\.]*$?([1-9]\d{2})$?[\s\-\/\.]*([0-9]{3})[\s\-\/\.]*([09]{4})[\s\-\/

\.x]*([0-9]{3,4})?

MAC Address ([0-9a-fA-F]{1,2}:){5}[0-9a-fA-F]{1,2}

MAC Address ([0-9a-fA-F]{1,2}.){5}[0-9a-fA-F]{1,2}

MIB2 OID (1.3.6.1.6.1.2.1.(\d+\.)+\d)

Enterprise OID (1.3.6.1.4.1.(\d+\.)+\d)

Time [0-1][0-3]:[0-5][0-9]:[0-5][0-9]

All .*

ProScan Portlet | Change Management / ProScan

321

Here are some examples of such expressions:

The following are examples of the kinds of matching possible:

CAUTION:

Cutting and pasting from notepad into OpenManage Network Manager may cause carriage return or

line-feed issues. Best practice is to compose these within OpenManage Network Manager.

Ending Number \d+$

Character \w

Word \w+ One or more.

\w* Zero or more.

Whitespace \s+One or more.

\s* Zero or more.

String w/o space \S+One or more.

\S* Zero or more.

Newline \n

FormFeed \f

Tab \t

Carriage Return \r

Backspace \b

Escape \e

Backslash \B

URL (?:^|")(http|ftp|mailto):(?://)?(\w+(?:[\.:@]\w+)*?)(?:/

|@)([^"\?]*?)(?:\?([^\?"]*?))?(?:$|")

HTML Tag <(\w+)[^>]*?>(.*?)</\1>

Label Pattern

Email address (U.S.) ^[A-Za-z0-9._%+-]+@[A-Za-z0-9.-]+\.[A-Za-

z]{2,4}$

MAC Address ([0-9a-fA-F]{1,2}:){5}[0-9a-fA-F]{1,2}

Time hh:mm:ss (0[0-9]|1[0-2]):[0-5][0-9]:[0-5][0-9]

IP Address (\d{1,3}.){3}\d{1,3}

Validated IP Address (restricts what matches

better than the previous example)

(25[0-5]|2[0-4][0-9]|[01]?[0-9][0-9?])\.(25[0-

5]|2[0-4][0-9]|[01]?[0-9][0-9?])\.(25[0-5]|2[0-

4][0-9]|[01]?[0-9][0-9?])\.(25[0-5]|2[0-4][0-

9]|[01]?[0-9][0-9]?)

MIB2 OID (1.2.6.1.6.1.2.1.(\d+\.)+\d

322

ProScan Portlet | Change Management / ProScan

Simple (CIsco ACL)

To match the following rows in a Cisco ACL:

access-list 159 permit icmp any any

access-list 159 permit tcp any any eq smtp

access-list 159 permit tcp any any eq www

To match these lines, simply create a compliance policy for

Config Term contains

(line contents)

for each line.

Complex (Juniper)

When you have a multi-line statement to match, with varying elements, regular expressions are

necessary. For example:

lab@MyServer# show protocols

bgp {

group internal {

type internal

export nhs

neighbor 10.1.1.1

}

In the above statement, the goal is to ensure an export policy in the BGP group internal called

nhs

A suggested regex expression to match with the goal:

bgp/s+{/n/s+group/s+internal/s+{/n/s+type/s+internal;/n/s+export/s+nhs

NOTE:

Make sure you check Multi-line Support.

Another example:

lab@MyServer# show policy-options

policy-statement nhs {

term set-nhs {

then {

next-hop self;

}

The following regex statement matches this example:

ProScan Portlet | Change Management / ProScan

323

policy-statement\s+ns\s+{\n\s+term\s+set-nhs\s+{\n\s+then\s+{\n\s+next-

hop\s+self

Perl / Java (Groovy) Language Policies

In addition to regular expressions, you can enter Config Terms that use either Perl or Java (Groovy)

language capabilities for scans. The following sections describe these.

•Perl

• Java (Groovy)

These scans are compiled at runtime, and the Java scan uses the Groovy libraries, included with

OpenManage Network Manager. As always, you must install Perl on Windows application servers if

you want to use that type of Config Term (it typically comes with other supported operating

systems).

Perl

When you select Perl as the type of Config term, an editor appears that lets you enter Perl scans.

As the screen says

$input_source

is what the code scans. The following is example of the type

of Perl you can enter that scans for contents like

description

in shut down interfaces, and prints

output “Success” visible in the Audit viewer when it finds a matching term like

description

whatever source you select:

if($input_source =~ m/shutdown/){

print("Success");

}

324

ProScan Portlet | Change Management / ProScan

elsif($input_source =~ m/description/){

print("Success");

}

else

{

print("Failure - no description found");

}

Tip

Notice that you can also combine these scans with the Edit Source Group Criteria regular expressions to

streamline them.

Java (Groovy)

When you select Groovy as the type of Config term, an editor appears that lets you enter that type

of scans.

As the screen says this implements ProScanGroovy or Groovy Java classes. The method should

return ‘Success or ‘Failure -’ results, and assumes

public String validate (String

input) {

precedes what you enter in the text editor. The following is example of the type of Java

code you can enter that scans for contents like

description

in shut down interfaces, and prints

output “Success” visible in the Audit viewer when it finds a matching term like

description

whatever source you select:

ProScan Portlet | Change Management / ProScan

325

if(input.contains("shutdown") || input.contains("description"))

{

return "Success";

}

else

{

return "Failure - no description found";

}

Tip

Notice that you can also combine these scans with the Edit Source Group Criteria regular expressions to

streamline them.

Click

Save

to preserve the policy you have configured in these screens, or click

(in the tool

bar) to abandon your edits.

Compliance Policy Job Status

This screen displays the progress of compliance scanning you have configured.

You can the revisit history of this policy’s use in the Audit portlet (see Audit Trail Portlet on page

93). Select an audit trail in this portlet to review details.

When you see the

Success

indicator, then the scanned item is compliant. If you

also see a warning message that no policies have target groups, this does not have

an impact on compliance.

326

ProScan Portlet | Change Management / ProScan

When you see the

Failure

indicator, then the scanned item is

Not

compliant. Select

the “Following Config Term not satisfied” message to see the contents of the failed

file at the bottom of this screen.

Creating or Modifying ProScan Policy Groups

When you create or modify a ProScan Policy Group after right-clicking

New > Group

Open

when you have selected a group, the ProScan Policy Group editor appears.

This has the following to configure:

Name

—A text identifier for the group.

Enabled

—Check to enable this grouping.

Grouped Policies

—Click

Add Policy

to select ProScan policies in a selector screen. Click the

Remove

icon to delete a selected policy. You can use individual policies in several groups.

Grouped Targets

—Click

Add Targets

to select targets for the scans.

NOTE:

Individual policies that are part of groups display inherited group targets grayed out.

Change Determination Process | Change Management / ProScan

327

Executing a group executes all the member policies and update the history records of the group and

member policies. Any policy execution also update its parent group history records.

Change Determination Process

If you run the

Change Determination (CD) Process

, it collects all the configuration changes that

occurred on the target resources since the last time the CD process ran. It also associates these

changes with the date and time when the CD process runs. After running CD, you can then

produce a report (see

Compliance and Change Reporting on page 330

)

outlining all such changes

by date and time. This report comes seeded with installation.

Dell OpenManage Network Manager stores incremental changes as

RedcellConfigChangeRecords

by device/timestamp. The

ConfigChangeRecordsDAP

Database Aging Policy (DAP) manages how

long the OpenManage Network Manager database retains these records. This DAP’s default setting

stores incremental records for 30 days, then archives or purges them. Reporting shows only records

in the database; therefore, by default, the

Configuration Change Report

shows only resource

changes made in the last 30 days, but no older. Change this default by changing the number of days

to retain such records with the DAP.

The next section describes Change Determination Process Workflow.

328

Change Determination Process | Change Management / ProScan

Change Determination Process Workflow

Change Manager seeds the Change Determination Process and ProScan group operations. You can

configure this to run on groups of your choosing if you create a new Change Determination Process

group operation.

This process records what is removed, updated or added since it last ran on a scanned device’s

configuration. If you run the Change Determination Process on equipment, it first backs up the

devices’ configuration(s), and stores those with the Change Determination label.

Initiate Change

Determination

Back up device con-

fig and add it to

label: Change Deter-

mination

Check internal con-

fig changed flag

Is there a

configuration

change?

Make equipment

change records for

later reporting

Copy config in

Change Determina-

tion label to Current

label

Compare configura-

tion labels -

“Change Determina-

tion” and “Current”

End Change

Determination

Reset internal config

changed flag

Yes

Change Determination Process | Change Management / ProScan

329

Change Determination Process then looks for Config Changed Flags, and if it finds such flags,

indicating a change occurred on the device, it then compares the device’s changed configuration

(in the Change Determination label) to the one in the Current label, storing the difference for

future reporting.

At its end, the Change Determination Process re-labels the configuration with the Change

Determination label to the Current label, and it un-sets the Config Changed Flag on scanned

resources so the flag will not signal change occurred when Change Determination runs again.

After running the Change Determination Process, you can run the Configuration Change report to

display what changed for a defined period. The contents of that report depends on the report filter,

and the specified period. This report lists changed attributes in the configurations.

You can also execute CD as a scheduled operation. Find it in the Schedules portlet, where it is

disabled by default. Open, and enable it. CD runs with the

All Devices

group as its target. You can

also execute CD as a target action of an Event Processing Rule, so it runs against the device that

generated the trap triggering that Rule. (See Event Processing Rules on page 108.) In either case,

Dell OpenManage Network Manager determines incremental configuration changes for resources

by comparing the latest backup version against the version to which a resource's Change

Determination label points.

Before making this comparison, Dell OpenManage Network Manager determines whether it made

configuration changes that have not yet been backed up. If such changes exist, Dell OpenManage

Network Manager backs up the resource configuration before running the CD process. Dell

OpenManage Network Manager always flags configuration changes made (in Dell OpenManage

Network Manager) between backups, clearing these flags following a config file backup.

Once the CD process compares configurations, and determines and stores the incremental

configuration changes, it updates the resource's

Change Determination

label to point to the latest

config file backup version.

Steps in the Change Determination Process are as follows:

Retrieve configuration file indicated by the Change Determination Label (if any).

Retrieve configuration file indicated by the Current Label (which should be the same as the

device in the network has).

Compare these two files.

Write changes to History Records that will be used during Change Reporting.

Move Change Determination Label for this device to the configuration file pointed to by the

Current Label.

If the Change Determination Label points to no configuration file for this device, it must be the

very first time this device is processed by the Change Determination Process: It creates a Change

Determination Label Item for this Device.

The compliant label contains a pointer to the last configuration file that was compliant for each

device that has been through ProScan. If a device fails ProScan, you can automatically restore the

last compliant configuration file, indicated by the compliant label.

330

Compliance and Change Reporting | Change Management / ProScan

To retrieve this information, see the instructions in Compliance and Change Reporting on page

330.

How To:

Run Change Determination

Follow these steps to run the Default Change Determination:

In the Schedules portlet, locate the Default Change Determination operation.

Right-click and select

Open.

Configure the schedule

This runs Change Determination with the target group of

All Devices

(all discovered devices).

Change Determination Defaults

By default, Change Determination can run against all devices without requiring the config change

update flag be set or updated based on events tied to the Conifg Update Flag event processing rule/

action.

To disable the manual run-ability of the Change Determination process, uncomment the property

\owareapps\changemgmt\lib\cm.properties

(or add it to

\owareapps\installprops\lib\installed.properties

#############################################

# Change Determination Flag

# Allows system to be flagged to only run

# change determination against devices we

# have received Config Change Event for.

# Default Behavior is to run change determination

# for All targets (the same as setting the below property = false)

#com.dorado.changemgmt.change.determination.require.config.events=true

Compliance and Change Reporting

The Compliance Policy Violation report is seeded when you have ProScan / Change Management

in Dell OpenManage Network Manager. Inventory Compliance Attributes for reporting can also

appear in report templates when you install ProScan. These report in-compliance or out-of-

compliance, the last compliance date (when last compliant or not compliant), last config date

(when configuration last changed), last checked date (when change was last determined).

Compliance and Change Reporting | Change Management / ProScan

331

You can also run the Change Determination Report that displays changes made to configurations.

See

Reports on page 200

for more about reporting capabilities.

The Change Determination Report report displays detected changes based on a configuration

change flag set when OpenManage Network Manager detects a change made to the device. To

successfully execute this report, you must enable a scheduled Change Determination Process. The

process must run before the reports has any contents. To run the process, go to the Schedules

portlet, and schedule that change determination process.

Reporting Limitations

The Configuration Change Report only reports on incremental configuration changes discovered

in the CD process. Simply making changes to configurations and backing them up in OpenManage

Network Manager does

not

ensure these appear in

Configuration Change Reports

. They appear in

reports only after running the CD process.

332

Compliance and Change Reporting | Change Management / ProScan

The

Configuration Change Report

includes a Filter that you can alter at runtime. By default, the

report filters on

Ty p e

only. If you want more filter criteria—like device IP, and/or date ranges—you

must edit the Report filter. To edit the filter, in the Reports manager, right click the

Configuration

Change Report,

and select

Open,

then edit the filter in the

Filter

screen by selecting that node on

the left.

Tip

A recommended best practice is to execute the CD process as an operation run against multiple

resources following a scheduled group backup of these resources. If you run backups every day, the

Configuration Change Report then shows the daily changes, until they are purged from the database.

The application stores the specifics of what changed for future reporting.

How To:

Report on Change Determination

Follow these steps to produce regular change determination reports:

First, insure the devices you want to scan are discovered, and send change notifications to the

application server.

Check your vendor’s manuals to determine how to forward configuration change information

to Dell OpenManage Network Manager for your system.

When Dell OpenManage Network Manager receives a configuration change notification, the

device transmits an event to the OpenManage Network Manager mediation server. When

received, this event automatically generates an event called OpenManage Network

ManagerEquipmentConfigChangeNotification. Event history displays that notification.

When OpenManage Network Manager receives the OpenManage Network

ManagerEquipmentConfigChangeNotification event, it can initiate (if enabled) an event

processing rule called

Configuration Change

This processing rule triggers a flag in the OpenManage Network Manager database saying a

change has occurred in the device’s configuration and that OpenManage Network Manager

should run change determination against the device when requested.

When you run OpenManage Network Manager’s change determination process, it reviews the

flag setting in the database and backs up a managed device if the flag indicates a change. This

backup updates the OpenManage Network Manager system label

Current

which is then

compared to the OpenManage Network Manager system

Change Determination

label.

OpenManage Network Manager then writes the differences between the two labelled

configurations to its database, where it is available for reporting purposes.

Once this occurs, the

Change Determination

label moves to point to the same configuration

which is reflected by the

Current

label.

Compliance and Change Reporting | Change Management / ProScan

333

The report which can run to display these changes is OpenManage Network Manager’s

Configuration Change Report

. It displays the name of the device in question, the IP address,

date/time of change, who made the change, what was removed and what was added. You can

schedule this report to run immediately after an Change Determination process too, so you

can capture a history of changes.

334

Compliance and Change Reporting | Change Management / ProScan

Introducing Actions and Adaptive CLI | Actions and Adaptive CLI

335

Actions and Adaptive CLI

Introducing Actions and Adaptive CLI

The Actions Manager lets you manage actions like enabling monitors, file backups, resyncs and so

on. These actions are typically limited in scope, and not that complex. On the other hand, it also

manages Adaptive CLI (command-line interface) commands to run against devices which can be

complex.

These commands amount to “mini-scripts” to query and configure those devices. In it, you can

create commands to run against devices after the device driver has opened a connection to the

devices. The driver handles logins, and general connection management. You can even initiate

these actions with the application’s optional group operations—although if you delete a target

group, the operation will not work. Many drivers seed pre-configured command that appear listed

when you first open this manager. For a brief overview of creating and using these, see How to:

Create Adaptive CLI Example on page 365.

Adaptive CLI’s Attributes capabilities let you insert variables in scripts. See Attributes on page 344

for the details. You can also assemble configurations made here as component Tasks to execute

with other component Tasks. You can even use this capability to include Perls scripts within

OpenManage Network Manager. See Perl Scripts on page 363.

Tip

You can have Actions maintain lists like ACLs, and when these change, in the Adaptive CLI script, push

the updated list out to the appropriate devices.

Adaptive CLI commands let you map several vendor-specific commands to a single action, so you

could, for example, query two types of devices throughout the network for their MAC addresses

with a single action. Adaptive CLI actions can also help you debug more complex scripts that either

query or configure devices.

The Adaptive CLI manager displays a list of

Configure

and

Show

commands (the

Command Type

)

with a

Name, Description

and the

Last Run Date

. You can filter what appears in this manager with

the fields at its top.

NOTE:

The contents of the Action Portlet vary, depending on the various options you have installed.

336

Introducing Actions and Adaptive CLI | Actions and Adaptive CLI

Using Adaptive CLI

You can quickly take a set of commands or configuration file snippet from a device, copy it directly

into the Script editor, mark it up, and save it as a working CLI.

When using the CLI Format, The Adaptive CLI tool will prompt you to create new attributes

based upon your script markup. This lets you quickly create a script and schema to create an ACLI.

If you have attributes that are mainly simple String attributes, this is a very quick and automated

approach.

Using Perl in Adaptive CLI

If you need conditional logic that goes beyond simple scripting, you can use Perl in Adaptive CLI.

The example below checks to see if a String Attribute is empty (null) or not. If the String attribute

(ShowCmdString

) has content, the show command with

ShowCmdString

as a parameter goes

to the device. Otherwise, the Perl script skips or excludes this statement.

Embedded CLI Example:

[IF ShowCmdString]

Show [ShowCmdString]

[ENDIF ShowCmdString]

You could use the CLI format for the above example, but if you need to check attributes of other

types, besides String, then you must switch to Perl. For example:

Boolean

myFlag

equals True:

if ($myFlag)

{

…

}

Integer

myInt

greater than zero:

Example:

if ($myInt > 0)

{

…

}

To check whether a string is a particular value—like from a valid values list entry assigned to the

String attribute—then you must also use Perl. The CLI format only can test if the String exists. It

cannot validate its value when populated. For example: EncapsulationType = “VLAN-CCC”,

“VLAN-TCC”, … You can not do this check with the CLI Format:

[IF EncapsulationType =

“VLAN-TCC”].

Instead, use a Perl script with a statement like this:

If ($EncapsulationType eq “VLAN-TCC”)

Actions Portlet | Actions and Adaptive CLI

337

{

print “set encapsulation $EncapsulationType\n”;

}

If any attributes in your script are a List (Collection), the only way to loop through the list’s items

during the Adaptive CLI execution is to use Perl. For example: Processing a List of Strings:

$count = 0;

foreach @MyCommandList)

{

print (“$MyCommandList[$count]\n”);

$count++

}

Actions Portlet

The Actions Portlet lets you

manage actions like Adaptive

CLI, backups, change

management actions, and so on.

The list of actions available to

your system depends on the exact

configuration you have installed.

This portlet is the primary access

point for Adaptive CLI editing.

The summary portlet displays

columns with the

Name, Family,

and

Target Entity Type

for the

listed Action. The Family column describes the type of Action.

NOTE:

For ACLI to be fully functional, you must install Perl on your application server. See Perl on page 32 for

more about this.

338

Actions Portlet | Actions and Adaptive CLI

Expanded Actions Portlet

The expanded portlet adds columns for

Description, Last Web Service ID, Access Level, Web

Service Deployment,

and

Supports Groups.

The expanded portlet also has snap panels to display Reference Tree connections between the

selection and other elements within Dell OpenManage Network Manager, as well as an Execution

History panel listing

Device Name

(s),

Execution Date

and

Status

for the selected Action, and a

Scheduled Actions panel cataloging any Schedules for the selected Action. Right-click a Schedule

to edit, execute or delete it.

Actions Portlet | Actions and Adaptive CLI

339

The Execution History snap

panel displays history by

device. Right-click to see the

details of what occurred when

the selected action ran against

a particular device (

Execution

Details).

The Execution Details panel

displays tabs showing the

Results

of running an Adaptive

CLI, and the

Sent Commands

Yo u c a n a l s o

View Job

to see a

screen like

the Audit Trail /

Jobs Screen on page 91,

Delete

to remove a listed Action record from the list.

Right-click menus on the Actions portlet can include the following items (these vary, depending on

the Action’s family):

New / Edit

—Lets you create or modify a selected action in the Adaptive CLI Editor, described

below.

Execute

—Execute the selected Action. This typically displays a target equipment selector screen,

and a screen where you can configure any parameters necessary for execution, then a screen

like the

Audit Trail / Jobs Screen on page 91

. Dell OpenManage Network Manager validates

the parameters before executing the Adaptive CLI. If a parameter is invalid, for example a

blank community name in the Dell PCT Set SNMP Community Settings Adaptive CLI, Dell

OpenManage Network Manager logs a validation error to the audit trail. In this case the

Adaptive CLI is not executed and leaves behind no history record.

Some Adaptive CLI scripts also let you

Preview

what is sent the device in a subsequent screen.

This does not appear in the execution of Targetless, and Multi-target Adaptive CLIs.

Details

—Opens a screen displaying the Reference Tree, Execution History, and Action Details for

the selected Action.

Web Services

—You can elect to

Deploy / Undeploy

Export WSDL

to create a web service from

the selected Action.

Deploy / Undeploy Web Service

–Deploy or undeploy the selected activity as a web service.

Export WSDL

–This exports the WSDL for the selected activity. You must select the file

name and location. Web Services Description Language (WSDL) is an XML format for the

description of network services as a set of endpoints operating on messages containing either

document-oriented or procedure-oriented information.

340

Actions Portlet | Actions and Adaptive CLI

History

—Displays the history of the selected action.

In the

Results

(top of screen panel) click to select the device for which you want additional

information, and the

Execution

Details

panel displays the

Results

of execution in one tab and

the

Sent Commands

in another.

Notice that you can

Find

text within a result (click

to repeat the find). You can also see the

bottom panel if you right-click a single execution within the

Execution History

snap panel in

the Expanded Actions Portlet.

Actions Portlet | Actions and Adaptive CLI

341

If you select two executions in the top panel (or in the

Execution History

snap panel and

right-click), a comparison appears.

This has the same color coding as you would see comparing configuration files. Lines that

differ between the two Adaptive CLI results appear highlighted green. Lines that are missing

in one, but that appear in another appear highlighted red. Added lines appear highlighted in

yellow. Use the right/left arrows or the page numbers at the bottom of the screen to page

through the side-by-side comparison.

Audit

—Opens an Audit Trail Viewer for the selected Action. See Audit Trail Viewer on page 92 for

details.

Show Last Results

—Show the last execution details (like history for a single run).

Schedule

—Schedule the selected Action. See Scheduling Actions on page 365 for details.

Delete

—Remove the selected Action from the list.

Import / Export

—Import or Export a file representations of the ACLI action selected. Dell

OpenManage Network Manager supports ACLI import / export only.

342

Actions Portlet | Actions and Adaptive CLI

Adaptive CLI Editor

This editor creates new Adaptive CLIs When you click

New,

Edit

after, selecting an existing

command, the command editor screen opens. You can create

Configure

Command

External

Command

s, and

Show

Command

The editor screen has the following tabs (the ones that appear depend on the type of command you

are editing):

• General

• Attributes

•Scripts

NOTE:

The Adaptive CLI Manager logs into devices in enable mode by default. For most configuration

commands (and even some show commands), you must typically first set the device to its configuration

mode. For example: The first Adaptive CLI Manager command must be

config t

(Juniper E-Series) or

edit

(Juniper M/T series) to initiate the router's config/edit mode.

Tip

Dell OpenManage Network Manager validates entries. If saving fails, a red “X” appears next to required

omitted entries.

Click

Save

to preserve the Adaptive CLI you have configured. Clicking

does not save your

configuration.

Actions Portlet | Actions and Adaptive CLI

343

General

The following are parameters to configure in this panel:

Name

—A unique identifier for this action. For example: “Retrieve MyDevice MAC addresses.”

For a new action to appear on the right-click Action menu, begin its name with the vendor

name. For example,

Force10-showversion

would appear under Actions in that menu.

Otherwise, it appears under and Adaptive CLI classification.

Description

—A text description of the action.

Ty p e

—Select a type from the pick list (

Configure, External

Show Command

Tip

You can use Dell OpenManage Network Manager’s optional Proscan policies to scan Adaptive CLI show

commands for compliance, and trigger actions (alarms, e-mail, and so on) based on their contents. See

Chapter 9, Change Management / ProScan.

The

External

command refers to a script. Making this an ACLI means Dell OpenManage

Network Manager can schedule such scripts or include them in a workflow. See External

Commands on page 355 for more about these.

Targ e t Type

—Select a type of target from the pick list (

Card, Equipment and Subcomponents,

Interfaces, Managed Devices, Ports

). Adaptive CLI targets can also be

None

(

Targetless)

. On

execution, if you create an Adaptive CLI type with port target, then the selection view panel

lets you choose ports. When the Adaptive CLI type is

External

then Target Type can be

None

;

otherwise it is not an option

Export File Location

—This is a file name and path (

C:\mypath\myfile

) where you elect to

store the result of an adaptive CLI execution. You may specify the variable

$IPAddress

the filename for pattern substitution.

Overwrite on Export

—Check to overwrite the result file. This overwrites any existing results file

with new results (if checked). If it is unchecked, the new results appends to the file.

Is Batch Execution Enabled

—Check to allow consolidation of related Adaptive CLI scripts,

provided the associated device driver supports such consolidation when provisioning a service.

(Currently supported by the Juniper JUNOS driver only.)

Batching is valuable for instances like the following: if an Adaptive CLI-provisioned service

has 10 sub-services, OpenManage Network Manager runs commands for the first service, then

if it’s successful, commits, and logs off. Then OpenManage Network Manager repeats this

procedure nine times more, logging on, committing and logging off for each command. If

batching is turned on, then OpenManage Network Manager sends the 10 Adaptive CLIs to

the device as a single unit before committing and logging off. (This logic does not apply if you

are running a procedure against 10 devices.)

344

Actions Portlet | Actions and Adaptive CLI

Batching is best practice for Juniper devices, since if one line of a command fails, the device

rolls back the entire block of commands. Cisco devices typically skip and do not commit

failing lines.

Last Executed On

—Displays the last execution date. This is blank for

New

Adaptive CLIs.

Attributes

Adaptive CLI commands let you configure

modifiable

Attributes

as part of the command

you send to the selected equipment.

Use the radio buttons to select from the following

options:

• Do not use Parameter Schema

• Create a new Parameter Schema

• Use an existing Parameter Schema for this

Adaptive CLI

Tip

Why share a schema rather than creating a new

one with each Adaptive CLI? One reason is that

creating an entity often requires a

complementary script to remove it. In this case, the valid values, labels, and so on for the attributes are

always going to be the same in both create and delete Adaptive CLIs; therefore, sharing the same

schema is both safe and easy. Any delete script can mark unused attributes as “Not applicable.”

Do not use Parameter Schema

This option does not save a set of standard attributes to re-use later. Go directly to the Scripts tab

to create this type of Adaptive CLI.

Actions Portlet | Actions and Adaptive CLI

345

Create a new Parameter Schema

Click the

New

button and the schema

screens appear.

Entity Type Settings

The

Entity Type Settings

tab has the

following fields:

Entity Type Name

—An identifier for

the schema.

Description

—A text description for

the schema.

Category

—A category for the schema.

Version

—An automatically-created

version number.

Attribute Settings

Click the

New Attribute

button and select the attribute

type and open editor panel and

configure the attribute.

Configured attributes appear

in a tree to the left of the

editor panel. Click a listed

attribute to edit it after it has

been created.

The editor panel has the

following fields:

Entity Type Name

—An

identifier for the schema.

Description

—A text

description for the

attribute.

The following tabs may appear,

depending on the type of attribute you are configuring (some are absent). Additional fields may

appear, depending on the attribute type you are configuring:

Datatype Settings

Default Value

—An optional default value for the attribute.

346

Actions Portlet | Actions and Adaptive CLI

Collection Settings

Is Collection?

—Check to classify this attribute as a collection.

Allow Duplicate Values

—Check to enable allowing duplicates.

Allow Reordering

—Check to enable allowing reordering.

Collection Min / Max Length

—Enter the minimum/maximum number of characters in this

attribute.

Properties

Upper / Lower Case

—Check to validate on case.

Case Insensitive

—Validation ignores case.

Multi Line Text

—Check to enable multiline text.

One Way Encrypt

—Check to encrypt.

Truncate

—Truncate the attribute.

Attribute Settings

You can create new attribute schemas. See Attribute Editor Panels below for information about

different datatypes’ fields. Once you create a set of attributes, they remain available for re-use as a

schema, or collection of attributes. To identify schemas, enter the following fields:

Label

—A unique, mandatory identifier for the collection of attributes.

Description

—A text description of the entity.

Click

New

to create or select an attribute in the displayed tree and click

Edit

to open an editor

where you can create or modify attributes. Select an attribute and click

Remove

to delete it from

the list.

Attribute Editor Panels

The following panels appears, depending on the attribute type selected from the pick list. The

fields in the editor depend on this selection. Available types include

Boolean, Coded Value, Date,

Decimal, IP Address, Integer, Long, Inventory Reference,

and

String.

The following fields appear

for each of these types (omitting redundant fields):

NOTE:

Configure the data type of an attribute before you save a task. After attributes are in Scripts, you cannot

change the data type.

Boolean

Default Value

—Check for

Tr u e

Actions Portlet | Actions and Adaptive CLI

347

Coded Value

Default Coded Value

—Enter the default coded value. If an attribute a Coded Value then enter

valid values in the format of NUMBER:Display Label. For example:

10:Hello World

20:Hello Moon

Without this pattern a validation error appears. Coded values become a Drop Down (Combo

Selection) at runtime containing the Display labels within it (like Hello World, Hello Moon).

Selecting one gives the script the numeric value (If users select Hello World, the value the

script gets is 10)

The default appears by default in this list of alternatives. Enter any other alternatives below

this field in the

Valid Values

Vali d Va lues

—Enter a valid value in the line above the table of valid values, then click the green +

to add the value entered to the list. Click the

Remove

icon (the red -) to delete a selected

value. These must be formatted like the

Default Coded Value.

Date

Default Value

—Enter a default date, or use date icon to display a calendar where you can select

one. Click off the calendar to make it disappear.

Vali d Va lues

—Enter valid date values above the list, and click the green plus to add them to the

list.

Decimal

Default Value

—Enter a single or range of default decimal values.

Constraints

—Enter a range of acceptable numbers separated by a colon. For example, Constraints

= 2:4096. At runtime, a field where you can enter numbers. validates that entered numbers

are between 2 and 4096 when running the Adaptive CLI. If you enter a number outside this

range, a validation message appears and the attribute name turns red. You can also include

several numbers or ranges separated by the pipe (|) character. If you specify a range, the

lowest number must be to the left of the highest number. For example 9:99|999:1010.

Vali d Va lues

—Enter valid decimal range values, and click the green + (the red - removes them).

You can manage these as described in Coded Value above.

IP Address

See also Validating IP Address Variables on page 349.

Default Value

—Enter a default IP Address.

Vali d Va lues

—Enter valid values as described in Coded Value above. Check

IP Mask

Subnet,

Allow 32 Bit Mask,

and

Allow Any Valid Ip

in the

Properties

tab if you want the values

entered to be those.

348

Actions Portlet | Actions and Adaptive CLI

Edi t a ble Vali d Va lues

—Check to enable editing of default or entered IP addresses.

Integer

Default Value

—Enter a default integer.

Constraints

—Enter a range of acceptable numbers separated by a colon. You can also include

several numbers or ranges separated by the pipe (|) character. If you specify a range, the

lowest number must be to the left of the highest number. For example 9:99|999:1010.

Vali d Va lues

—Enter ranges of valid values as described in Decimal above.

Edi t a ble Vali d Va lues

—Check to enable editing of default or entered integer.

Long

Default Value

—Enter a default long.

Constraints

—Enter a range of acceptable numbers separated by a colon. You can also include

several numbers or ranges separated by the pipe (|) character. If you specify a range, the

lowest number must be to the left of the highest number. For example 9:99|999:1010.

Vali d Va lues

—Enter ranges of valid values as described in Decimal above.

Inventory Reference

Select the

Reference Type

entity with the list that appears when you click the green plus (+), then

use the side-by-side widget’s arrows to move available attributes from

Available

Selected

. You

can change the

Reference Type

by deleting it with the red minus (-), then selecting a new type with

the green plus.

String

Default String

—Enter a default string.

Vali d Va lues

—Enter valid values as described in Coded Value above.

Edi t a ble Vali d Va lues

—Check to enable editing valid values.

Constraint

—Enter the regular expression constraints, if any, on the string attribute.

Constraint Description

—Enter the message to appear if the regular expression constraints are not

met.

Min / Max Length

—Enter the minimum / maximum number of characters in a valid string.

Click

Apply

to accept your edits for the attribute, or

Cancel

to abandon them.

Use an existing Parameter Schema for this Adaptive CLI

Select this, and a

Select Existing

button appears. Clicking this button opens a selector where you

can select from previously-configured attribute schemas (collections of attributes) to use in the

Adaptive CLI you are configuring.

Actions Portlet | Actions and Adaptive CLI

349

Validating IP Address Variables

Programatically, IP address attributes support four extended properties: IP_MASK, SUBNET,

ALLOW_32_BIT_MASK, and ALLOW_ANY_VALID_IP. The state of the first two largely defines

Dell OpenManage Network Manager’s responses.

IP_MASK

—Determines whether Dell OpenManage Network Manager accepts an IP address OR

a subnet/subnet mask. The value accepted is an IP address attribute when false, subnet/

subnet mask when true.

SUBNET

—This property determines whether a subnet value must be provided or not, and

controls display of the subnet portion of the widget. Valid subnet values are 1-31.

By default, when both of the above are false, the attribute only accepts valid IPv4 addresses. For

example: 10.10.10.4

If IP_MASK is false and SUBNET is true then Dell OpenManage Network Manager accepts any

valid IP address with a subnet specified. The address must be an IP within the specified subnet. For

example, 10.10.10.4/24 is a valid entry whereas 10.10.10.0/24 is invalid since it represents the

subnet id, not an actual address within the subnet.

If IP_MASK is true and SUBNET is false, then OpenManage Network Manager accepts one of the

32 valid subnet masks. The widget displays pick list for user to choose from. For example

255.255.255.0

If IP_MASK is true and SUBNET is true, then OpenManage Network Manager accepts a subnet id

(the first IP address within a subnet). For example 10.10.10.0/24, with 10.10.10.0 as the first

address within the subnet spanning 10.10.10.0 to 10.10.10.254. Entering an IP address within the

subnet, say 10.10.10.4/24, the attribute would convert that to 10.10.10.0/24

ALLOW_32_BIT_MASK

—Valid subnet values are between 1 and 31. To extend this to support a

32-bit subnet, which is essentially a single IP address (10.10.10.4/32), set the

ALLOW_32_BIT_MASK property.

ALLOW_ANY_VALID_IP

—To accept either an IP address, IP address and subnet or subnet,

then IP_MASK remains false, SUBNET is true. With the ALLOW_ANY_VALID_IP true, the

subnet field is optional and OpenManage Network Manager disables any requirement that a

subnet id be specified. Basically the only validation is that a valid IP address is entered. For

example, in this configuration, 10.10.10.4, 10.10.10.4/24 and 10.10.10.0/24 would all be valid.

350

Actions Portlet | Actions and Adaptive CLI

Scripts

This screen manages the Adaptive CLI scripts created to query (show) devices or configure them.

Dell OpenManage Network Manager runs only one script per target.

Notice you can order multiple scripts with the arrow(s) to the right of a listed script. Dell

OpenManage Network Manager uses the first script’s filter to match the target. In other words,

suppose there are two scripts, the first with filter = target.type = SWITCH, and the second with

no filter. Then only SWITCH devices run the first script and quit. All other devices will not run

first script, but run the second script since that script has no filter.

Actions Portlet | Actions and Adaptive CLI

351

Script Settings

Click

Add New Script

to create a new item in those listed at the top of this screen, or select and

item and click the

Edit

icon to its right to alter it. When you create a new script, you must select

either

Embedded CLI

Perl

. Embedded CLI scripts are command-line interface (CLI)

interactions. See Perl Scripts on page 363 for more about using Perl.

Clicking the

Delete

icon removes a selected item. Notice that the up/down buttons to the right of

the list allow you to re-order selected items (they run from top first to bottom last).

See Attribute Appearance and Validation for a description of what constitutes a valid attribute.

Name

—Enter an identifier for the script you are creating or altering.

Target Filter

—Click the plus (+) to create a filter that describes the target for this script. For

example, this filter could confine the action of the configured script to devices from a certain

vendor, or only devices with an operating system version later than a certain number. Since

you can have several scripts, those Adaptive CLIs with a single label (“Show Users,” for

example) could therefore contain several scripts with syntax appropriate to a variety of devices

and operating systems.

CAUTION:

Adaptive CLI supports only filters that select the Managed Equipment type of device.

Attribute Delimiter

—The delimiter(s) you select from the pick list here surround the attributes

you designate as mandatory. See Adaptive CLI Script Language Syntax on page 361 for more

about these.

352

Actions Portlet | Actions and Adaptive CLI

Optional Attribute Delimiter

—The delimiter(s) you select from the pick list here surround the

attributes you designate as optional. See Adaptive CLI Script Language Syntax on page 361

for more about these.

All but

Delete

open a script editor with the following panels:

•Script Content

• Error Conditions

• Continue Pattern

• Attributes Extraction

Script Content

On the left, you can enter text,

by clicking the magnifying glass, and use

Cut, Copy, Paste

Undo, Jump to Line #, reformat

. The

Attributes

appear under

Ta rg e t Pa r ams

on the right of this

text entry screen. Double-click an attribute to insert it unless you are writing a Perl script; this

feature does not work for Perl. Right-click the previously-configured attributes in this panel to

designate them as

Mandatory, Optional, Not Applicable

Non Configuration

in a context menu

that appears when you right-click.

Tip

The Non Configuration attributes you select are not sent to the device with the script, but can serve to

remind users of critical information. For example, you can make Non Configuration boolean attributes

into a checklist for someone executing a script, and the history of this script records whether these

checks were made when the script executed.

Notice that the

also permits Regular expressions.

You can also enter two types of script language here. See Adaptive CLI Script Language Syntax on

page 361 for a description of the internal

capabilities. If you need more elaborate scripting, you

can also use Perl scripts to send text to devices. See

Perl Scripts on page 363

for a description of

those capabilities.

Actions Portlet | Actions and Adaptive CLI

353

Error Conditions

The error condition lets you configure errors for your script.

Click

Add new error conditions

to configure a condition at the bottom of this screen with the

following fields:

Error Pattern

—Enter a regular expression for the error.

Error Type

—Select from the pick list of options (

Error, Warning, Ignore

Number of lines to check

—Enter the number of lines of the script output to check for the pattern

specified above, after each command execution. An error message is most likely to appear

immediately right after the command is invoked.

Continue Pattern

Like Error Conditions, this screen lets you

enter conditions to which script execution

can respond.

The Continue Pattern editor operates like

the Error Conditions editor, but has slightly

different fields.

Continue Pattern—

If you expect the

device output of a script to prompt to

continue, you may add a

Continue

Pattern

with a regular expression to parse.

Answer—

This field specifies the

Answer

to the

Continue Pattern

prompt.

Send New Line—

For some devices, a single key response without a new line would be sufficient;

in such cases, you may need to uncheck the

Send New Line

option.

Max Occurrences—

Indicates the maximum number of times respond to a prompt. The default

value zero (0) indicates no limit.

354

Actions Portlet | Actions and Adaptive CLI

Attributes Extraction

To support Adaptive Service and Active Monitor functions, Adaptive CLI provides a way for the

user to define output schema attributes. This tab is active only if you have selected schema

attributes previously in the Attributes portion of this editor.

This lets you

Add, Edit

Delete

extracted attributes, like Error Conditions’s editor, and configure

them with the following fields:

Attribute Name—

This field specifies the name of the extracted attribute. To specify the output

value of an attribute, select it from the provided list.

Attribute Type—

The data type of the attribute extracted. Only schema attributes of simple type

String, Integer, Long, Float, Double, and Boolean are available to choose from.

Parse Algorithm—

Select from the pick list (

Extract, Match

). For match algorithm, the result is

either

true

false

for the Boolean attribute type, 0 or 1 for numeric types, or

“true”

“false”

for String type.

NOTE:

Currently, Active Performance Monitor supports only numeric types.

Parse Expression—

Enter a regular expression for Parse Expression and the Parse Algorithm

(Extract or Match) used when evaluating the device output on a given script execution.

Click

Apply

to accept your edits, or

Cancel

to abandon them. Click

Add new attribute extraction

add more such patterns to your script.

Attribute Appearance and Validation

Invalid schema attribute names appear in the script in red italics. This indicates that you cannot

use such attributes in the script.

Valid attribute names contain alphanumeric characters and underscore (_). They must begin with

either an underscore or a letter [A-Za-z].

All blank space characters in the schema attribute name are converted to underscore (_) by default.

A schema attribute name that is invalid in Adaptive CLI may still be valid in other entities, so you

can specify them in the schema but they are not usable by Adaptive CLI.

Click

Apply

to accept your edits for the script, or

Cancel

to abandon them.

External Commands | Actions and Adaptive CLI

355

Comparison

Selecting (ctrl+clicking) two Adaptive CLI runs within the

Execution History

portlet lets you

compare the two execution results. Right-click and select

Compare

Lines that differ between the two configurations appear highlighted green. Lines that are missing

in one, but that appear in another appear highlighted red. Added lines appear highlighted in yellow.

Use the right/left arrows at the bottom of this screen to page through the side-by-side comparison.

External Commands

External commands are essentially scripts that run in the Dell OpenManage Network Manager

environment. For example, you could run the DOS

dir

command (and schedule its execution).

You can execute external commands with a device as target, using device attributes as input

parameters to the Adaptive CLI script. See some of the Seeded Scripts on page 357.

Audit Trail

When you execute a script, the audit screen displays information about it.

356

External Commands | Actions and Adaptive CLI

Results

Dell OpenManage Network Manager stores the results of running a script as lines the Execution

Details snap panel. Right click the particular command run in the snap panel at the bottom of the

Expanded Actions Portlet. Tabs show the Results, Sent Command, and Script and Parameters.

When viewing a script run the results of running it appear target device-by-device.

External Commands | Actions and Adaptive CLI

357

Results can also appear in the audit screen messages and in the Results panel of the Action job

viewer screen.

You can also extract parameters for these external commands as is described in Attributes

Extraction on page 354.

Seeded Scripts

Several external perl scripts come with Dell OpenManage Network Manager as examples of the

kind of commands you can execute. These are in

\owareapps\performance\scripts

under

the installation root.

To run these, the scripts panel in the Adaptive CLI editor should contain something like the

following:

358

External Commands | Actions and Adaptive CLI

perl ../../../owareapps/performance/scripts/http_test.pl

Notice that these also include a parameter (

Result

) that contains values extracted.

Set up attribute extraction in the

Values Extraction

tab of the script editor.

Script Names and Functions

common.pl

—Common functions defined for scripts in this directory.

External Commands | Actions and Adaptive CLI

359

dns_test.pl

—Check if DNS can resolve the specified host name.

finger_test.pl

—Check if the finger service is running on a specified host.

ftp_test.pl

—Check the FTP service is running on a specified host.

http_test.pl

—Check the HTTP service is running on a specified host.

nntp_test.pl

—Check if the NNTP service is running on a specified host. (Public NNTP server to

test: news.aioe.org)

peping_test.pl

—Check if a target is pingable from the specified remote host.

pop3_test.pl

—Check if the POP3 service is running on a specified host.

smtp_test.pl

—Check if the SMTP service is running on a specified host.

telnet_test.pl

—Check if the TELNET service is running on a specified host.

How To:

Create a Monitor for an External Script

The following steps describe creating a monitor for an external command configured as an

Adaptive CLI (ACLI).

Create the Adaptive CLI

Right click in the Actions portlet, and create a new

External Command

ACLI

Make a new attribute schema with attribute: Status (integer)

In Scripts, enter the following as Script Content:

perl

"C:\Dorado\owareapps\performance\scripts\http_test.pl"[_EquipmentManage

r_IP_Address]

Tip

Several Perl scripts appear in this performance\scripts directory by default. You can try others in addition

to the http_test.pl script.

In the Value Extraction panel enter the following:

^\{(\d+)\}.*

Click Apply

Click Save

Right click and

Execute

the ACLI to test it.

360

External Commands | Actions and Adaptive CLI

Look in Job Viewer for the results.

Click

Set attribute extraction results, click here

to see the results appear in the bottom panel.

Notice also that you must check informational messages for all these to appear, and that

several additional sets of messages besides the extraction results appear.

Create a Monitor for the External Script Adaptive ACLI

Now that you have verified the script is working, you can create a monitor to see how this attribute

is doing.

In the Monitors portlet, create a new ACLI Monitor

Uncheck

Update Network Status

(recommended since the ICMP monitor is already doing

this)

Monitor Options

select your example monitor configured previously.

Confirm that

Monitor Attributes

displays the Status attribute configured previously.

In the

Conditions

tab of the Monitor Editor, create “Status Up” condition, with the severity

Informational,

and check

Alert

Create a criterion which is Status = 0.

Save this condition

Create a new Condition called “Status Down”

The criterion is Status = 1

Apply and Save

Adaptive CLI Script Language Syntax | Actions and Adaptive CLI

361

Save your monitor

NOTE:

You may want to test your monitor, in which case, you may want to change the interval to 30 seconds.

Right-click to select

View Monitor Data

, and you can see the results of your efforts.

Adaptive CLI Script Language Syntax

Here's the Adaptive CLI scripting language syntax:

• CLI script is a line-based syntax. In other words, each line’s syntax has to be completed.

• CLI script supports primarily two features: Attributes and Conditional Blocks.

Attributes

Each attribute in the script is marked by a delimiter. The following delimiters are supported:

<> [] {} () $ % @ #

Think of Attribute delimiters as a pair of open/close markers surrounding a variable name. For

single character Attribute delimiters, there is no closing marker (the close marker is empty).

Examples of Attributes are:

<var>, [var], {var}, (var), $var, %var, #var, @var

362

Adaptive CLI Script Language Syntax | Actions and Adaptive CLI

The default mandatory delimiters are

, and the default optional delimiters are

[]

, but you can

change those default settings. That means an Attribute variable like <var> may represent a

mandatory or an optional Attribute depending on what are set as delimiters.

NOTE:

Single delimiter symbols require a space after the attribute. These do allow values immediately before

the symbol. Perl requires a space after the attribute, or the attribute’s closing delimiter, but values

immediately before single delimiters works.

Here is an example of a command line with a mandatory and optional Attribute:

show <mandatory> [optional]

If you set the

Attribute to

interface

and do not set the

[optional]

one, then the

resulting command would be this:

show interface

If you set the

Attribute to

interface

and set

[optional]

brief

then the resulting

command would be:

show interface brief

Conditional Blocks

Every line in the script is presumably a command to be sent to the device, except for lines that

denote either a beginning or ending of a conditional block.

The begin conditional block marker is tied to a Attribute and has the following syntax:

<optional-open-delimiter> IF optional-attribute <optional-close-delimiter>

The end conditional block marker has the following syntax:

<optional-open-delimiter> ENDIF optional-text < optional-close-delimiter>

Here is an example of a conditional block, where the Attribute delimiters are

, optional delimiter

[]

, and the conditional Attribute variable is

set

[IF set]

execute this command

and execute this command

[ENDIF set]

If the Attribute set has a value then the block is evaluated; otherwise, it is ignored. The text after

ENDIF

., that is

set

or whatever is not required and it is ignored.

Nested conditional blocks are allowed.

Perl Scripts | Actions and Adaptive CLI

363

Perl Scripts

This section describes the details of using Perl scripts within Adaptive CLI. See Using Perl in

Adaptive CLI on page 336 for more about why to use Perl.

The Perl output goes to the selected target device. Typically, this means creating lines like the

following:

println(“show $param”);

print(“show $param\n”);

You must specify parameters within the script (like

$param

) in the screen described in Attributes

on page 344. Unlike its internal scripts, Adaptive CLI does not automatically create attributes. You

must also manually configure created attributes to be

Mandatory,

Optional

in that screen.

A few things to remember when using Perl:

• The normal output of your Perl scripts (to stdout) are the commands sent to a device by this

application.

• If your script produces an error message (to stderr), the job fails with that message and all

script outputs are ignored. You can validate a script before sending any command to the

device by using die(...) and warn(...) functions in Perl to produce error messages to stderr.

Such messages trigger the script’s failure.

• For such scripts to operate correctly, you must have Perl installed on the directory path for all

OpenManage Network Manager servers.

• Perl does not come with OpenManage Network Manager and must be installed on the server

system independently for it to work with Adaptive CLI.

• You can install your version of Perl and set the PATH environment variable accordingly so that

one can run

perl -v

from the command line (where the OpenManage Network Manager

server is to be started). Adaptive CLI invokes that same

perl

command.

If for some reason Adaptive CLI, fails to invoke the default

perl

command, it reads the

setting of

activeconfig.perl.exe=...

inside

owareapps/activeconfig/lib/

ac.properties

, and uses that alternative command.

Note that the default

activeconfig.perl.prefix=

setting in

ac.properties

prepended to every Perl script. It basically forces the script to

use strict

mode and

provides a convenient

println

method for the user. Knowledgeable Perl users can change

this default behavior setting but should be careful about it. Remember, best practice is to

override properties as described in Overriding Properties on page 23.

• The standard output (using

println

) of the Adaptive CLI Perl script represents the

command set that is to be sent to the device. For convenience, a

println

subroutine is

embedded with the script.

• See Perl Example for an example.

364

Perl Scripts | Actions and Adaptive CLI

Perl Example

The following is an example Perl script for Adaptive CLI:

# A script example for testing against a Cisco-XR machine.

# The following variables (attributes) are defined in the schema,

# and their values are assigned when the script

# is invoked from the Adaptive CLI (or Resources) manager.

# These variables will be declared with values and prepended

# to each script automatically. Something like:

# my $FromPort=<some number>;

# my $ToPort=<some number>;

# my $Mtu=<some number>;

# my $Desc=<some text>;

print("config t\n");

foreach ($FromPort .. $ToPort) {

my $Desc = "$Desc Port #$_";

my $addr = 100 + $_;

print("interface GigabitEthernet0/1/1/1.$_\n");

print("description $Desc\n");

print("ipv4 address 10.10.100.$addr 255.255.255.0\n");

print("ipv4 unreachables disable\n");

print("mtu $Mtu\n");

}

print("exit\ncommit\nexit\n");

Perl Scripts | Actions and Adaptive CLI

365

How To:

Create Adaptive CLI Example

The following describes the basics of creating and using Adaptive CLIs.

Create a new Adaptive CLI. Right-click and select

New

In the

Attributes

panel, create attributes named

required

and

optional

In the

Script

panel define the Attribute Delimiter (< >) and Optional Attributes Delimiter

([ ]) and enter the following three scripts:

show run

show <Required>

show [Optional]

Save this Adaptive CLI execute it with

action > Execute

When executing, select a target.

Click

. The Show Run command results appear. These are searchable with the job screen.

Scheduling Actions

You can schedule actions with a right-click in the Actions Portlet or the Schedules Portlet. This

opens an editor with the following screens:

• General

• Parameters

•Schedule

See Schedules Portlet on page 95 for more scheduling actions with that portlet. Schedules created

in the Actions Portlet also appear in the Schedules Portlet.

366

Perl Scripts | Actions and Adaptive CLI

General

This screen lets you identify the scheduled item and its targets.

This has the following fields:

General Settings

Action

—Identifies the action being scheduled.

Schedule Description

—Identifies the schedule.

Associated Targets

Click the

Add

button to select target equipment. You can remove listed equipment with the icon to

the right of listed items or with the

Remove All

button.

Active Performance Monitor Support | Actions and Adaptive CLI

367

Parameters

This screen’s configuration depends on the selected action you are scheduling. Many actions have

no parameters, so this tab is disabled. Enter the parameters for the action you are scheduling.

Tip

Hover the cursor over fields to make their description appear in a tooltip.

Schedule

This screen is a standard scheduler screen, as described in Schedules on page 95.

Active Performance Monitor Support

You can monitor Adaptive CLI execution results with Active Performance Monitor. To do this, you

must select Adaptive CLI as the monitored type when creating a new performance monitor (see

Resource Monitors on page 245), then select a target entities (with the

Add

button in the top

368

Active Performance Monitor Support | Actions and Adaptive CLI

panel) and a particular Adaptive CLI (with the green plus [+] in the Adaptive CLI Properties panel

at the bottom of this screen. Click the

Edit

(page) icon to select the

Input Parameters

to monitor

once you have selected an Adaptive CLI.

The user can choose an Adaptive CLI to monitor and may have to configure both its input values

and metric type for each output attribute. The Input data depends on what is configured in the

Adaptive CLI attributes.

Input Parameters

In Active Monitoring, all attributes of the schema appear in the

Input Data

for user-entered values.

You must enter the data necessary for all selected targets’ scripts. To enter data, click

Edit

and then

enter values. Clicking

Apply

switches the panel back to read-only mode.

NOTE:

You must click Save to preserve input or output data configurations.

Adaptive CLI Records Archiving Policy | Actions and Adaptive CLI

369

Monitor Attributes

Configure Adaptive CLI output attributes for

monitoring in this tab in the lower panel of the

Monitor Editor screen. You can monitor only

exposed attributes of numeric or boolean

types. To change metric type, select the row

and click the

Edit

button to its right.

An Adaptive CLI Properties screen appears

that reminds you of the

Attribute Name,

and

Attribute Type,

where you can

Enable

the attribute

monitoring, and select

Gauge, Counter

Boolean

buttons to the right of this panel to configure

the metric type of the selected output data.

These attributes default to the metric type

Gauge

. Adaptive CLI is where you define these

attributes, but you must select their metric type settings on this screen if it is something other than

the default.

Click

Save

to preserve your configuration, or

Cancel

to abandon it and close the editor screen.

Adaptive CLI Records Archiving Policy

You can use OpenManage Network Manager’s archiving feature to preserve Adaptive CLI

information. Click the Redcell > Database Archiving Policy (DAP) node of the Control panel, and

click the default

Adaptive CLI DAP

and click the edit button on its right.I

After filling in the

General Info

tab, the

Parameters

screen lets you configure the following:

Keep History

—Enter the number of days to retain the history in the database.

Delete history associated with Negate command

—Check to remove archived records associated

with

Negate

(described under General on page 343).

Archive Deleted Records

—Check to have deleted archived records saved as a file (configured in

the

General Info

parameters too).

370

Adaptive CLI Records Archiving Policy | Actions and Adaptive CLI

| Glossary

371

Glossary

CCESS

ONTROL

—

Refers to mechanisms and policies that restrict access to computer

resources. An access control list (ACL), for example, specifies what operations different users

can perform on specific files and directories.

LARM

—

A signal alerting the user to an error or fault. Alarms are produced by events. Alarms

produce a message within the Alarm Window.

API —

Application Programing Interface—A set of routines used by the application to direct

the performance of procedures by the computer’s operating system.

UTHENTICATION

—

The process of determining the identity of a user that is attempting to

access a network. Authentication occurs through challenge/response, time-based code

sequences or other techniques. See CHAP and PAP.

UTHORIZATION

—

The process of determining what types of activities or access are permitted on

a network. Usually used in the context of authentication: once you have authenticated a user,

they may be authorized to have access to a specific service.

S—

Class of Service—Describes the level of service provided to a user. Also provides a way of

managing traffic in a network by grouping similar types of traffic.

ATABASE

—

An organized collection of Oware objects.

EPLOYMENT

—

The distribution of solution blades throughout the domain.

IGITAL

ERTIFICATE

—

A digital certificate is an electronic “credit card” that establishes your

credentials when doing business or other transactions on the Web. It is issued by a certification

authority (CA). It contains your name, a serial number, expiration dates, a copy of the certificate

holder's public key (used for encrypting and decrypting messages and digital signatures), and the

digital signature of the certificate-issuing authority so that a recipient can verify that the certifi-

cate is real.

OMAIN

—

A goal-oriented environment that can include an industry, company, or department.

You can use Oware to create solutions within your particular domain.

NCRYPTION

—

Scrambling data in such a way that it can only be unscrambled through the

application of the correct cryptographic key.

QUIPMENT

—

A network device managed by the system.

THERNET

RUNK

—

An Ethernet Trunk service represents a point-to-point connection between

two ports of two devices. Ethernet frames transported by the connection are encapsulated

according to IEEE 802.1Q protocol. The each tag ID value in 802.1Q encapsulated Ethernet

frames distinguishes an Ethernet traffic flow. Thus, an Ethernet trunk can aggregate multiple

Ethernet VLANs through a same connection which is why “trunk” describes these.

372

| Glossary

THERNET

RUNK

ORT

—

An Ethernet trunk port is a port that terminates a point-to-point

Ethernet trunk. Since Ethernet trunk is a point-to-point connection, each Ethernet trunk

contains two Ethernet trunk ports.

THERNET

ERVICE

—

An Ethernet service represents a virtual layer broadcast domain that

transports or transmits Ethernet traffic entering from any one endpoint to all other end-

points.

Often, this is a VLAN service across multiple devices.

An Ethernet service may or may not use Ethernet trunk, depending on the desired connec-

tion between two neighboring devices. If the connection is exclusively used for this Ether-

net service, no Ethernet trunk is needed. On the other hand, if the connection is configured

as an aggregation which can be shared by multiple Ethernet services, an Ethernet trunk

models such a configuration.

Each Ethernet service can have multiple Ethernet Access Ports through which Ethernet

traffic flows get access to the service.

THERNET

CCESS

ERVICE

—

Since an Ethernet trunk can be shared by multiple Ethernet

Services, each Ethernet Service relates to a shared trunk via a unique Ethernet Access com-

ponent.

Because Ethernet trunk is a point-to-point connection, there are two Ethernet Access Ser-

vices per trunk per Ethernet service instance.

THERNET

CCESS

OINT

—

These represent the access points through which Ethernet

frames flow in and out of an Ethernet service.

For an Ethernet Service that uses an Ethernet Trunk Service, an Ethernet Access Port must

be associated with either one of the two Ethernet Access Services.

VENT

—

Notification received from the NMS (Network Management System). Notifica-

tions may originate from the traps of network devices or may indicate an occurrence such as

the closing of a form. Events have the potential of becoming alarms.

VENT

EFINITION

—

Parameters that define what an event does. For example, you can tell

Oware that the event should be to wait for incoming data from a remote database, then

have the Oware application perform a certain action after it receives the data.

VENT

NSTANCE

—

A notification sent between two Oware components. An event instance

is the action the event performs per the event definition.

VENT

EMPLATE

—

Defines how an event is going to be handled.

VENT

HRESHOLD

—

Number of events within a given tomfooleries that must occur before

an alarm is raised.

XPORTING

—

Saving business objects, packages, or solution blades to a file for others to

import.

Template Last Updated - 7/01/2005 | Glossary

373

FILE LOCATION: Q:\CD_Stage\Apps_CD\DellNM50\docs\OMNM_5\Glossary.fm

DELL CONFIDENTIAL – PRELIMINARY 5/23/12 – FOR PROOF ONLY

ILTER

—

In network security, a filter is a program or section of code that is designed to

examine each input or output request for certain qualifying criteria and then process or for-

ward it accordingly.

GUI —

Graphical User Interface

ISATAP —

The Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) is an IPv6 tran-

sition mechanism which is defined as a tunneling IPv6 interface and is meant to transmit

IPv6 packets between dual-stack nodes on top of an IPv4 network.

—

In cryptography, a key is a variable value that is applied using an algorithm to a string

or block of unencrypted text to produce encrypted text. The length of the key generally

determines how difficult it will be to decrypt the text in a given message.

ANAGEMENT

—

The establishment and enforcement of message encryption and

authentication procedures, in order to provide privacy-enhanced mail (PEM) services for

electronic mail transfer over the Internet.

ANAGED

BJECT

—

A network device managed by the system.

EDIATION

—

Communication between this application and external systems or devices, for

example, printers. Mediation services let this application treat these devices as objects.

EDIATION

GENT

—

Any communication to and from equipment is handled by the Media-

tion Agent. This communication includes SNMP requests, ASCII requests, and unsolicited

ASCII messages. In addition, the Mediation Agent receives and translates emitted SNMP

traps and converts them into events.

MEG —

Maintenance Entity Group

MEP —

Maintenance End Point

MIB —

Management Information Base. A database (repository) of equipment containing

object characteristics and parameters that can be monitored by the network management

system.

OAM —

Operation, Administration and Maintenance

OID —

Object ID.

OSPF —

Open Shortest Path First routing protocol.

OLICY

—

A rule made up of conditions and actions and associated with a profile. Policy

objects contain business rules for performing configuration changes in the network for con-

trolling Quality of Service and Access to network resources. Policy can be extended to per-

form other configuration functions, including routing behavior, VLAN membership, and

VPN security.

OLICY

NFORCEMENT

OINTS

(PEP) —

In a policy enforced network, a policy enforcement

point represents a security appliance used to protect one or more endpoints. PEPs are also

points for monitoring the health and status of a network. PEPs are generally members of a

policy group.

374

| Glossary

OLICY

ROUTING

—

Routing scheme that forwards packets to specific interfaces based on

user-configured policies. Such policies might specify that traffic sent from a particular net-

work should be routed through interface, while all other traffic should be routed through

another interface.

OLICY

ULES

—

In a policy enforced network (PEN), policy rules determine how the mem-

bers and endpoint groups of a policy group communicate.

PPTP (P

OINT

-P

OINT

UNNELING

ROTOCOL

)—

Point-to-Point Tunneling Protocol (PPTP)

is a network protocol that enables the secure transfer of data from a remote client to a pri-

vate enterprise server by creating a virtual private network (VPN) across TCP/IP-based data

networks. PPTP supports on-demand, multi-protocol, virtual private networking over public

networks, such as the Internet.

RIVATE

—

In cryptography, a private or secret key is an encryption/decryption key

known only to the party or parties that exchange secret messages. In traditional secret key

cryptography, a key would be shared by the communicators so that each could encrypt and

decrypt messages. The risk in this system is that if either party loses the key or it is stolen,

the system is broken. A more recent alternative is to use a combination of public and private

keys. In this system, a public key is used together with a private key.

ROFILE

—

A profile is an abstract collection of configuration data that is utilized as a tem-

plate to specify configuration parameters to be applied to a device as a result of a policy con-

dition being true.

UBLIC

—

A public key is a value provided by some designated authority as a key that,

combined with a private key derived from the public key, can be used to effectively encrypt

and decrypt messages and digital signatures. The use of combined public and private keys is

known as asymmetric encryption. A system for using public keys is called a public key infra-

structure (PKI).

S—

Quality of Service. In digital circuits, it is a measure of specific error conditions as

compared with a standard. The establishment of QoS levels means that transmission rates,

error rates, and other characteristics can be measured, improved, and, to some extent, guar-

anteed in advance. Often related to Class of Service (CoS).

RADIUS —

RADIUS (Remote Authentication Dial-In User Service) is a client/server proto-

col and software that enables remote access servers to communicate with a central server to

authenticate dial-in users and authorize their access to the requested system or service.

RADIUS allows a company to maintain user profiles in a central database that all remote

servers can share.

RIP —

Routing Information Protocol

ELF

SIGNED

ERTIFICATE

A self-signed certificate uses its own certificate request as a signature rather than the signa-

ture of a CA. A self-signed certificate will not provide the same functionality as a CA-signed

certificate. A self-signed certificate will not be automatically recognized by users' browsers,

Template Last Updated - 7/01/2005 | Glossary

375

FILE LOCATION: Q:\CD_Stage\Apps_CD\DellNM50\docs\OMNM_5\Glossary.fm

DELL CONFIDENTIAL – PRELIMINARY 5/23/12 – FOR PROOF ONLY

and a self-signed certificate does not provide any guarantee concerning the identity of the

organization that is providing the website.

SMTP —

Simple Mail Transfer Protocol.

SNMP —

Simple Network Management Protocol. Network management protocol used

almost exclusively in TCP/IP networks. SNMP provides the means to monitor and control

network devices, and to manage configurations, statistics collection, performance, and secu-

rity.

PANNING

REE

ROTOCOL

(STP) —

The inactivation of links between networks so that infor-

mation packets are channeled along one route and will not search endlessly for a destina-

tion.

SSH (S

ECURE

HELL

)—

A protocol which permits secure remote access over a network from

one computer to another. SSH negotiates and establishes an encrypted connection between

an SSH client and an SSH server.

SSL (S

ECURE

OCKETS

AYER

)—

A program layer created by Netscape for managing the

security of message transmissions in a network. Netscape's idea is that the programming for

keeping your messages confidential ought to be contained in a program layer between an

application (such as your Web browser or HTTP) and the Internet's TCP/IP layers. The

“sockets” part of the term refers to the sockets method of passing data back and forth

between a client and a server program in a network or between program layers in the same

computer.

RAP

(SNMP T

RAP

)—

A notification from a network element or device of its status, such as a

server startup. This notification is sent by an SNMP agent to a Network Management Sys-

tem (NMS) where it is translated into an event by the Mediation Agent.

RAP

ORWARDING

—

The process of re-emitting trap events to remote hosts. Trap Forward-

ing is available from the application through Actions and through the Resource Manager.

VLAN —

A virtual local area network (LAN), commonly known as a VLAN, is a group of

hosts with a common set of requirements that communicate as if they were attached to the

Broadcast domain, regardless of their physical location. A VLAN has the same attributes as

a physical LAN, but it allows for end stations to be grouped together even if they are not

located on the same network switch. Network reconfiguration can be done through software

instead of physically relocating devices.

376

| Glossary

Index 377

Index

Numerics

32-bit Linux Libraries 18

A Note About Performance

About Box 72

Access Control 371

ACLI needs Perl 32

Acrobat 19

Action Job Screen Results

panel 357

Actions 116, 337

Active Performance Monitor

SNMP Performance

Monitoring 262

SNMP Performance

Monitoring Ex-

ample 262

Active Performance Monitor

Support 367

Adaptive CLI 337

Attribute Appearance

and Validation

354

Attributes 344

Conditional Blocks 362

General 343

Juniper E-Series 342

Juniper M/T 342

Monitor Attributes 369

Non Configuration at-

tributes 352

Perl Scripts 363

Scripts 350

Setting devices to con-

figuration mode

342

Adaptive CLI Editor 342

Adaptive CLI Script Lan-

guage Syntax 361

Additional Products 11

Administration Overview 15

Aging Policies Editor 52

Aging Policies Options 54

Alarm 371

Alarm Email 105

Alarms 100

Alarm State 102

Assigned User 103

Date Assigned 103

Date Closed 102

Date Opened 100

Email 105

Entity Type 100

In Equipment Detail 181

In Topology 219

Notification Instance

102

Service Effecting 101

Snap Panels 104

Suppression 170

Amigopod 27

API 371

Top 276

Attributes Extraction 354

Audit Trail 93

Audit Trail Screen 91

Audit Trail Snap Panels 94

Authentication 24, 371

Authentication Editor 144

Authentication Portlet 143

Authentication Snap Panel

145

Authorization 371

Back button 72

Backups

Latest Configurations

277

Basic Network Consider-

ations 22

Branding Reports 206

Breadcrumb trail 179

Change Determination 329

Change Management

Compliance Policy Vio-

lation report 309

Change Management / ProS-

can 303

Change Manager

Use paradigms 303

Changing the Session Time-

out Period 33

Chat / Conferencing 76

Common Menu Items 86

378 |

378 Index

Common Setup Tasks 67

Compliance Policy Summa-

ry 308

Compliant label 329

Condition Override(s) 210

Configuration File Editor

231

Configuration Files 229

Configure Alarm E-mail 104

Contacts Editor 134

Contacts Portlet 133

Container Editor 148

Container Manager 146

Container Manager Expand-

ed 146

Container View 147

Containers

Portlets filtered 147

Continue Pattern 353

Control Panel 33

CoS 371

Creating a new label 226

Creating or Modifying a

ProScan Policy 310

Creating or Modifying ProS-

can Policy Groups 326

Custom Action 122

Custom attributes 45

Customizing Report Logos

206

DAP 50

DAP SubPolicies 53

dapviewer 58

Dashboard Editor 281

Dashboard View Selection

280

Dashboard Views 277

DATA (Topology) 214

DATA / VIEW SETTINGS

(Topology) 213

Data Configuration 45

Database 371

Database Aging Policies 50

Database Aging Sub-Poli-

cies 55

Deploy OS 238

Deployment 371

Details 185

Digital Certificate 371

Direct Access 188

Discovering hostnames 156

Discovery Profile

Actions 158

General 154

Inspect 65, 159

Network 65, 156

Results 66, 161

Discovery Profile Editor 64,

154

Discovery Profiles 153

Discovery Profiles Expand-

ed 161

DISPLAYED LEVELS (To-

pology) 210

DNS 23

Dock 73

Domain 371

Domain Name Servers 23

Dynamic Group 165

Edit Custom Attributes 89

Email Action 120

Email Action Variables 122

Encryption 371

Equipment 371

Equipment Details 178

Equipment Icons 166

Equipment Name 102

Error Condition 353

Ethernet Access Point 372

Ethernet Access Service 372

Ethernet Service 372

Ethernet Trunk 371

Ethernet Trunk Port 372

Event 372

Event Definition 372

Event Definition Editor 128

Event Definitions 128

Correlations 132

General 129

Message Template 131

Event History Portlet 106

Event History Snap Panels

108

Event Instance 372

Event processing filters 112

Event Processing Rules 108

Event Template 372

Event Threshold 372

Example Perl Script 364

Executing Change Determi-

nation 329

Expanded Actions Portlet

338

Expanded Alarm Portlet 102

Expanded Audit Trail Portlet

Index 379

Expanded Authentication

Portlet 145

Expanded Event History

Portlet 107

Expanded Location Portlet

137

Expanded OS Images port-

let. 234

Expanded Portlets 82

Expanded Reports Portlet

203

Expanded Resource Monitor

247

Expanded Vendor Portlet

140

Export / Import 86

Exporter Registration 296

Exporting 372

Feedback 13

File Handles 31

File Management 223

File Server Editor 222

File server port conflict 69

File Servers Portlet 221

Filter 12, 373

Filter / Settings (Rule Editor)

112

Filter Management 48

Firewall Issues 25

Firewall requirements 30

Fixed IP Address 24

Flash 19

Flash for 64-bit browsers 19

Forward Northbound 117

FTP Protocol Selection 69

General (Rule Editor) 111

Getting Started 27

Graphs 77

Group Operations 225

GUI 373

Heap 28, 29

Help / Tooltips 72

How to

Add / Remove Columns

Add User Roles 40

Add Users 36

Backup Configurations

225

Configure ProScan

Groups 304

Configure Resource

Level Permis-

sions 59

Create a Container for

each Customer

Create a Custom Dash-

board View 282

Create a Key Metrics

Monitor 264

Create a Monitor for an

External Script

359

Create a Monitor Report

265

Create A Performance

Template 286

Create a Report Tem-

plate 195

Create a Simple Dash-

board View 279

Create a topology view

207

Create a Visualization

207

Create Adaptive CLI Ex-

ample 365

Create an ICMP Monitor

263

Create an SNMP Inter-

face Monitor 262

Create Event Processing

Rules 109

Create Source Group

Criteria 316

DAP Workflow 51

Deploy an OS Image 239

Discover Resources 152

Discover Your Network

Do Change Management

(Example) 305

Edit Discovery Profiles

154

Filter Expanded Portlet

Displays 85

Report on Change Deter-

mination 332

Restore a single configu-

ration to many

target devices

241

Restore Configurations

380 |

380 Index

227

Run Change Determina-

tion 330

Set Unix Permissions 31

Share a Resource 88

Use “How To” 12

Use Containers 147

Use Traffic Flow Ana-

lyzer 295

ICMP Monitor 267

IIS 29

Import / Export 86

Installation and Startup 28

Installing Perl 32

Interfaces 180

Interfaces > Details 180

Internet Information Servic-

es 29

Introducing ProScan 303

IP address changes 24

ISATAP 373

Java 19

Key 373

Key Features 9

Key Management 373

Key Metric Editor 289

Key Metrics Monitor 268

Key Portlets 99

Labels 224

Level 1 Filters 210

Level 2 Filters 210

Level 3 Filters 210

License 12

License Viewer 62

Link Discovery 176

Location Editor 136

Location Manager

Address 136

Parent location 136

Location, updates 138

Locations Portlets 135

Locations Snap Panels 137

Mail hosts 41

Managed Object 373

Managed Resource Groups

162

Managed Resources 66

Managed Resources Ex-

panded 173

Managed Resources Portlet

166

Managing Windows systems

Mandatory Fields 81

Map Context

Portlets filtered 147

Map Context without Con-

tainers 152

mass deployments 237

Match Regex for each line

315

Mediation 45, 373

Mediation Agent 373

MEG 373

Memory Footprint 28

Menu 103

Menu Bar 77

Menu Options 153

MEP 373

MIB 373

MIB Browser 188

Migrating heartbeats 253

Minimum hardware 16

Monitor Editor 251

Calculated Metrics 254

Conditions 260

Inventory Mappings 259

Monitor Options 254

Thresholds 256

Monitor Graph Background

259

Monitor Options Type Spe-

cific Panels 266

Monitors 276

Monitors and Discovery 243

Multiple Performance Tem-

plates 289

Name Resolution 23

Navigation 71

Netrestore File Servers 69

Network Basics 22

Network Considerations 22

Network Requirements 23

Network Topology 207

New link creation 175

newlink ConfigImageEditor

236

Non Configuration attributes

352

OAM 373

OID 373

Index 381

OS Image Editor 235

OS Images Portlet 233

OSPF 373

Portal > 42

Overall Compliance 307

PDF 90

Performance Dashboard 279

Performance Dashboard

Portlet 279

Performance Indicators 179

Performance Note 13

Perl 32

Perl / Java (Groovy) Lan-

guage Policies 323

Permissions when installing

to Unix 31

Policy 373

Policy Enforcement Points

(PEP) 373

Policy routing 374

Policy Rules 374

Port Details 192

Port Expanded 193

Portal > Roles 41

Portal > Settings 41

Portal > Users 35

Portal Overview 71

Portlet Instances 81

Portlet Level Permissions 58

Portlets 78

Ports > Details 181, 183

Ports Expanded 193

Ports Portlet 191

Ports required 30

Post-processing rules 114

PPTP (Point-to-Point Tun-

neling Protocol) 374

Printing manager contents

Private Key 374

Profile 374

ProScan 303

Compliance Reporting

330

count number of occur-

rences 315

Editor - Compliance 313

Editor - General 310

Java (Groovy) 324

Perl 323

Supported Regular Ex-

pressions 320

Use Cases 303

Use paradigms 303

ProScan Editor 310

ProScan Manager 306

Proscan Monitor 269

Proscan Policy Group Editor

326

Protocols Used 23

Public / Private Page Behav-

ior 40

Public Key 374

QoS 374

Quick Navigation 61

Quick Start 27

Quickstart 15

RADIUS 374

RCSynergy 35

Recommended Operating

System Versions 16

Recorder / Page turn icons

Redcell > Mediation 45

Refresh 72

Refresh Monitor Targets 276

re-index 34

Report Template Editors 196

Report Templates 195

Reports

Customizing Logos 206

Portlet 200

Snap Panels 203

Repositories 57

Resolve DNS Hostnames

Activity 156

Resource Discovery 152

Resource Icons 166

Resource Management Port-

lets 143

Resource Monitor Snap Pan-

els 247

Resource Monitors Portlet

245

Retention Policies 248

Return to previous 72

RIP 374

Rule Editor 111

Actions 116

Saving Views 213

Schedule Refresh Monitor

Targets 276

Schedules 95

Schedules Portlet 95

382 |

382 Index

Scheduling 95

Scheduling Actions 186

Scheduling Monitor Target

Refresh 276

Scheduling Refresh Monitor

Targets 276

Screen resolution 19

Screen width in pixels 20

Search in Portlets 81

Search Indexes 34
