SETUP GUIDE

INSPIRON™

SETUP GUIDE

Model P04S series Regulatory type: P04S001

INSPIRON™

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your

computer.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells

you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

If you purchased a Dell™ n Series computer, any references in this document to Microsoft® Windows® operating systems

are not applicable.

__________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text:

Dell

, the

DELL

logo,

Inspiron, YOURS IS HERE

, Dell On Call, and

DellConnect

are trademarks

of Dell Inc.;

ATI Radeon

is a trademark of Advanced Micro Devices, Inc;

Intel, Celeron,

and

Pentium

are registered

trademarks and

Core

is a trademark of Intel Corporation in the U.S. and other countries;

Microsoft

Windows

Vista,

and

Windows Vista

start button logo are either trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries.;

Bluetooth

is a registered trademark owned by Bluetooth SIG, Inc. and is used by

Dell under license;

SRS Premium Sound, SRS,

and the symbol are trademarks of SRS Labs, Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and

names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

May 2009 P/N G374R Rev. A00

Setting Up Your Inspiron™ Laptop. . . . . . . . .5

Before Setting Up Your Computer . . . . . . . . . 5

Connect the AC Adapter . . . . . . . . . . . . . . . .6

Connect the Network Cable (Optional) . . . . . 7

Press the Power Button . . . . . . . . . . . . . . . . .8

Set Up Microsoft® Windows Vista®. . . . . . . .9

Enable or Disable Wireless (Optional). . . . . 10

Connect to the Internet (Optional) . . . . . . . . 12

Using Your Inspiron Laptop. . . . . . . . . . . . .14

Right Side Features . . . . . . . . . . . . . . . . . . . . 14

Left Side Features . . . . . . . . . . . . . . . . . . . . . 16

Computer Base Features. . . . . . . . . . . . . . . . 18

Media Controls. . . . . . . . . . . . . . . . . . . . . . . . 21

Display Features . . . . . . . . . . . . . . . . . . . . . . 22

Removing and Replacing the Battery . . . . . 24

Software Features . . . . . . . . . . . . . . . . . . . . . 26

Solving Problems . . . . . . . . . . . . . . . . . . . . .29

Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Network Problems . . . . . . . . . . . . . . . . . . . . . 31

Power Problems. . . . . . . . . . . . . . . . . . . . . . . 32

Memory Problems . . . . . . . . . . . . . . . . . . . . . 34

Lockups and Software Problems . . . . . . . . . 35

Using Support Tools. . . . . . . . . . . . . . . . . . .37

Dell Support Center . . . . . . . . . . . . . . . . . . . . 37

System Messages . . . . . . . . . . . . . . . . . . . . . 38

Hardware Troubleshooter. . . . . . . . . . . . . . . 40

Dell Diagnostics . . . . . . . . . . . . . . . . . . . . . . 40

Restoring Your Operating System . . . . . . .43

System Restore . . . . . . . . . . . . . . . . . . . . . . . 44

Dell Factory Image Restore . . . . . . . . . . . . . 45

Operating System Reinstallation . . . . . . . . . 47

Contents

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . .49

Technical Support and Customer

Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

DellConnect™ . . . . . . . . . . . . . . . . . . . . . . . . . 50

Online Services . . . . . . . . . . . . . . . . . . . . . . . 51

Automated Order-Status Service . . . . . . . . . 52

Product Information. . . . . . . . . . . . . . . . . . . . 52

Returning Items for Repair Under

Warranty or for Credit . . . . . . . . . . . . . . . . . . 53

Before You Call. . . . . . . . . . . . . . . . . . . . . . . . 54

Contacting Dell. . . . . . . . . . . . . . . . . . . . . . . . 55

Finding More Information and

Resources . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Specifications . . . . . . . . . . . . . . . . . . . . . . .58

Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Macrovision Product Notice. . . . . . . . . . . . . 67

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

This section provides information about setting

up your Inspiron 1320 laptop.

Before Setting Up Your

Computer

When positioning your computer, ensure that

you allow easy access to a power source,

adequate ventilation, and a level surface to

place your computer.

Restricting airflow around your Inspiron

laptop may cause it to overheat. To prevent

overheating ensure that you leave at least

10.2 cm (4 inches) at the back of the computer

and a minimum of 5.1 cm (2 inches) on all other

sides. You should never place your computer in

an enclosed space, such as a cabinet or drawer

when it is powered on.

WARNING: Do not block, push objects

into, or allow dust to accumulate in

the air vents. Do not store your Dell™

computer in a low-airflow environment,

such as a closed briefcase, while it is

powered on. Restricting the airflow can

damage the computer or cause a fire.

The computer turns on the fan when the

computer gets hot. Fan noise is normal

and does not indicate a problem with the

fan or the computer.

CAUTION: Placing or stacking heavy or

sharp objects on the computer may result

in permanent damage to the computer.

Setting Up Your Inspiron™ Laptop

INSPIRON

Setting Up Your Inspiron™ Laptop

Connect the AC Adapter

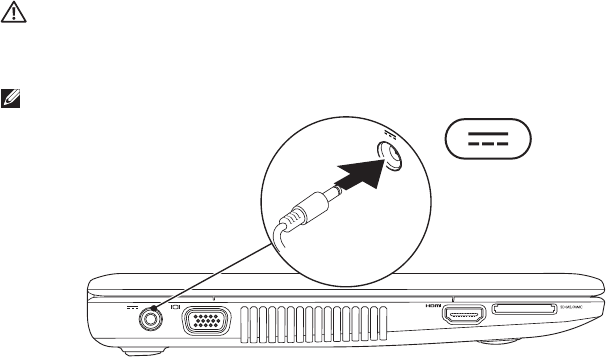

Connect the AC adapter to the computer and then plug the other end to an electrical outlet or surge

protector.

WARNING: The AC adapter works with electrical outlets worldwide. However, power

connectors and power strips vary among countries. Using an incompatible cable or improperly

connecting the cable to a power strip or electrical outlet may cause fire or permanent damage

to your computer.

NOTE: Use only Dell AC adapter family PA-12, PA-2E, and PA-3E with your computer.

Setting Up Your Inspiron™ Laptop

Connect the Network Cable (Optional)

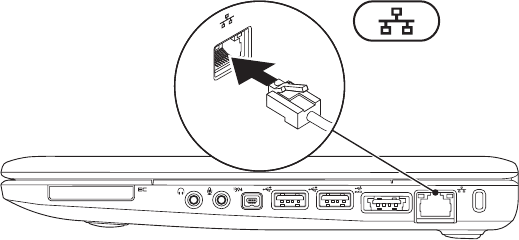

To use a wired network connection, connect the network cable.

Setting Up Your Inspiron™ Laptop

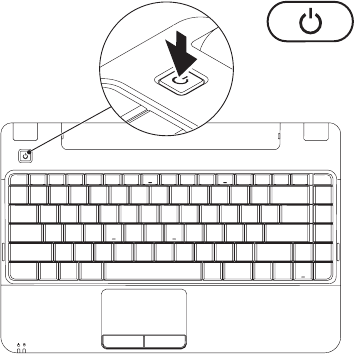

Press the Power Button

Setting Up Your Inspiron™ Laptop

Set Up Microsoft® Windows Vista®

Your computer is preconfigured with Windows Vista operating system if you ordered it while

purchasing your computer. To set up Windows Vista for the first time, follow the instructions on the

screen. These steps are mandatory and may take up to 15 minutes to complete. The Windows Vista

setup screen will take you through several procedures including accepting license agreements,

setting preferences, and setting up an Internet connection.

CAUTION: Do not interrupt the operating system’s setup process. Doing so may render your

computer unusable and you will need to reinstall the operating system.

Setting Up Your Inspiron™ Laptop

Enable or Disable Wireless (Optional)

Setting Up Your Inspiron™ Laptop

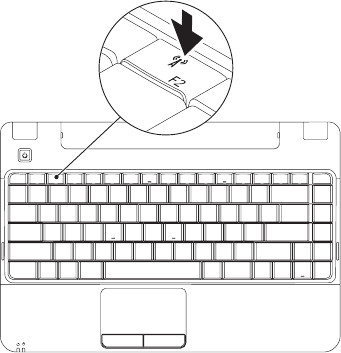

Press the <F2> key or press the1. key on the keyboard to enable or disable wireless. The

wireless enable or disable dialog box will appear on your screen.

Press the left-arrow key or the right-arrow keys to:2.

Enable Bluetooth –

Enable Wireless LAN –

Enable Bluetooth and Wireless LAN –

Disable Bluetooth and Wireless LAN –

Press <Enter> to apply the change.3.

Setting Up Your Inspiron™ Laptop

Connect to the Internet

(Optional)

To connect to the Internet, you need an external

modem or network connection and an Internet

service provider (ISP).

If an external USB modem or WLAN adapter

is not a part of your original order, you can

purchase one from the Dell website at

www.dell.com.

You can connect to the Internet using either a

wired or a wireless connection.

Setting Up a Wired Connection

If you are using a dial-up connection, •

connect the telephone line to the external

USB modem (optional) and to the telephone

wall connector before you set up your

Internet connection.

If you are using a DSL or cable/satellite •

modem connection, contact your ISP

or cellular telephone service for setup

instructions

Setting Up a Wireless Connection

Before you can use your wireless Internet

connection, you need to connect to your

wireless router.

Ensure that wireless is enabled on your 1.

computer (see “Enable or Disable Wireless”

on page 10).

Save and close any open files, and exit any 2.

open programs.

Click 3. Start → Connect To.

Follow the instructions on the screen to 4.

complete the setup.

Setting Up Your Inspiron™ Laptop

Setting Up Your Internet Connection

ISPs and ISP offerings vary by country. Contact

your ISP for offerings available in your country.

If you cannot connect to the Internet but have

successfully connected in the past, the ISP

might have a service outage. Contact your ISP

to check the service status, or try connecting

again later.

Have your ISP information ready. If you do not

have an ISP, the Connect to the Internet wizard

can help you get one.

Save and close any open files, and exit any 1.

open programs.

NOTE: The following instructions are

applicable for the Windows default view,

they may not apply if you set your computer

to the Windows Classic view.

Click 2. Start → Control Panel.

Click 3. Network and Internet→Network

and Sharing Center→Setup a

Connection→Connect to the Internet.

The Connect to the Internet window appears.

NOTE: If you do not know which type of

connection to select, click Help me choose

or contact your ISP.

Follow the instructions on the screen and 4.

use the setup information provided by your

ISP to complete the setup.

Using Your Inspiron Laptop

Your Inspiron 1320 laptop has indicators and buttons that provide information and enable you to

perform common tasks. The connectors on your computer provide the option of attaching additional

devices.

Right Side Features

12345678

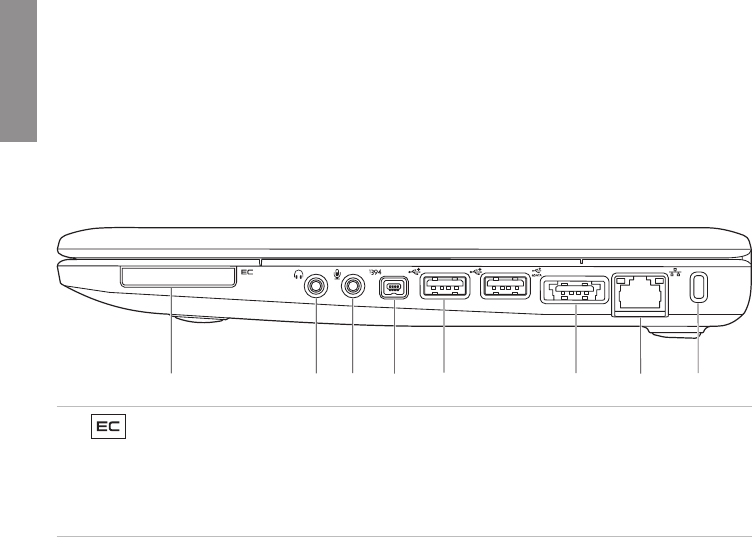

1 ExpressCard slot – Supports one ExpressCard. The computer ships with a plastic blank

installed in the slot.

NOTE: Your computer ships with a plastic blank installed in the ExpressCard slot. Blanks

protect unused slots from dust and other particles. Save the blank for use when no

ExpressCard is installed in the slot; blanks from other computers may not fit your computer.

INSPIRON

Using Your Inspiron Laptop

2 Audio out/Headphone connector – Connects to a pair of headphones, or sends audio to a

powered speaker or sound system.

3 Audio in/Microphone connector – Connects to a microphone or inputs signal for use

with audio programs.

4 IEEE 1394 connector – Connects to high-speed serial multimedia devices, such as digital

video cameras.

5 USB 2.0 connectors (2) – Connects to USB devices, such as a mouse, keyboard, printer,

external drive, or MP3 player.

6 eSATA/USB combo connector – Connects to eSATA compatible storage devices (such

as external hard disk drives or optical drives) or USB devices (such as a mouse, keyboard,

printer, external drive, or MP3 player).

7 Network connector – Connects your computer to a network or a broadband device if you

are using a wired network.

8Security cable slot – Attaches a commercially available antitheft device to the computer.

NOTE: Before you buy an antitheft device, ensure that it works with the security cable slot on

your computer.

Using Your Inspiron Laptop

Left Side Features

1 2 3 4

Using Your Inspiron Laptop

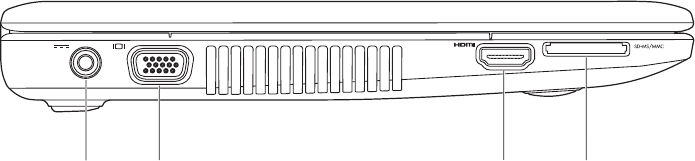

1 AC adapter connector – Connects to the AC adapter to power the computer and charge

the battery.

2 VGA connector – Connects to a monitor or projector.

3 HDMI connector – Connects to a TV for both 5.1 audio and video signals.

NOTE: When used with a monitor, only the video signal is read.

4 5-in-1 Media Card Reader – Provides a fast and convenient way to view and

share digital photos, music, videos, and documents stored on the following digital memory

cards:

Secure Digital (SD) memory card•

Secure Digital High Capacity •

(SDHC) card

Multimedia Card (MMC)•

Memory Stick•

Memory Stick PRO•

NOTE: Your computer ships with a plastic blank installed in the Media Card Reader slot. Blanks

protect unused slots from dust and other particles. Save the blank for use when no Media card

is installed in the slot; blanks from other computers may not fit your computer.

Using Your Inspiron Laptop

Computer Base Features

123 4 5

Using Your Inspiron Laptop

1 Power/Battery indicator light – The light indicates the following states when powered

using an AC adapter or a battery.

Indicator light status Computer state(s) Battery charge level

AC Adapter Solid white on

off/hibernate

n/a

<90%

Breathing white standby n/a

off off/hibernate >90%

Battery Solid white on >10%

Breathing white standby >10%

Solid amber on/standby <10%

off off/hibernate n/a

NOTE: The battery is charging when the computer is powered using an AC adapter.

Using Your Inspiron Laptop

2 Hard drive activity light – Turns on when the computer reads or writes data. A blinking

light indicates hard drive activity.

NOTE: To avoid loss of data, never turn off the computer while the hard drive activity light is

flashing.

3Keyboard – The media controls are also located on the keyboard. These keys control CD, DVD,

and media playback. For more information about the keyboard, see the

Dell Technology Guide

on your hard drive or on the Dell Support website at support.dell.com.

4Touch pad – Provides the functionality of a mouse to move the cursor, drag or move selected

items, and left-click by tapping the surface.

5Touch pad buttons – Provide left- and right-click functions like those on a mouse.

Using Your Inspiron Laptop

Media Controls

The media control keys are located on the keyboard.

To use the media controls, press the required key. You can use the Function Key Behavior setting in

the System Setup (BIOS) utility to configure the media control keys.

The options in the Function Key Behavior setting are:

Multimedia Key First – This is the default option. Press any multimedia key to perform the associated

action. For function key, press <Fn> + the required function key.

Function Key First – Press any function key to perform the associated action. For multimedia key, press

<Fn> + the required multimedia key.

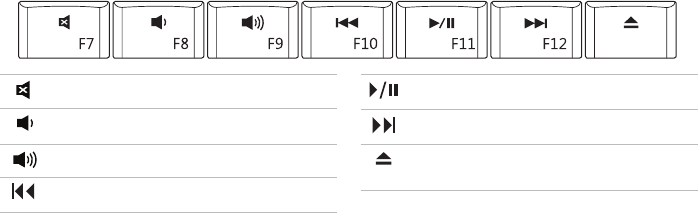

Mute the sound

Decrease the volume level

Increase the volume level

Play the previous track or chapter

Play or pause

Play the next track or chapter

Eject the disc from optional USB/eSATA

optical drive

Using Your Inspiron Laptop

Display Features

1234

Using Your Inspiron Laptop

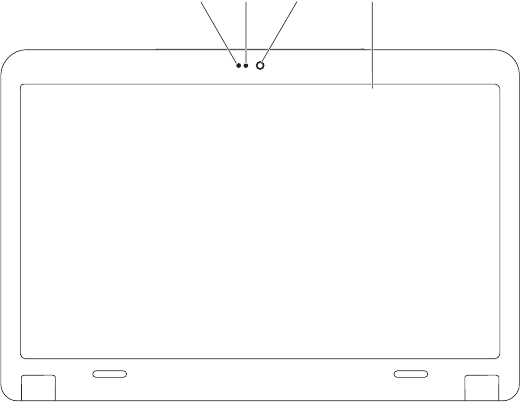

1Microphone – Provides quality sound for audio chatting and voice recording.

2Camera activity light – Indicates if the camera is on or off.

3Camera – Built-in camera for video capture, conferencing, and chat.

4Display – Your display can vary based on selections you made when purchasing your

computer. For more information about displays, see the

Dell Technology Guide

on your hard

drive or on the Dell Support website at support.dell.com.

Using Your Inspiron Laptop

Removing and Replacing the Battery

WARNING: Before you begin any of the procedures in this section, follow the safety

instructions that shipped with your computer.

WARNING: Using an incompatible battery may increase the risk of fire or explosion. This

computer should only use a battery purchased from Dell. Do not use batteries from other

computers.

WARNING: Before removing the battery, shut down the computer, and remove external cables

(including the AC adapter).

To remove the battery:

Shut down the computer and turn it over. 1.

Slide the battery release latch to the unlock position.2.

Slide the battery out and lift it.3.

To replace the battery:

Align the battery with the notch on both sides and place it in the battery bay. 1.

Push the battery until it clicks into place.2.

Using Your Inspiron Laptop

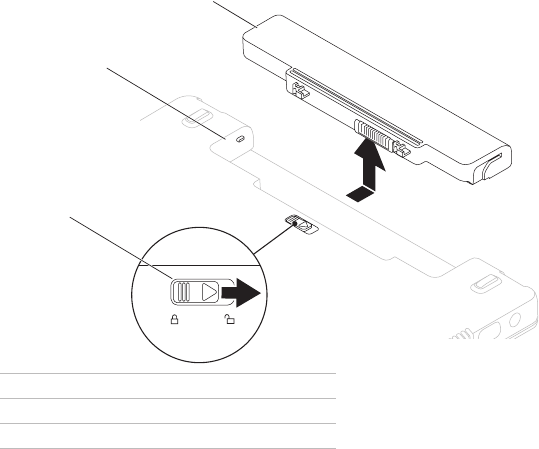

1battery

2battery bay

3battery release latch

Using Your Inspiron Laptop

Software Features

NOTE: For more information about the

features described in this section, see

the

Dell Technology Guide

on your hard

drive or on the Dell Support website at

support.dell.com.

Productivity and Communication

You can use your computer to create

presentations, brochures, greeting cards, fliers,

and spreadsheets. You can also edit and view

digital photographs and images. Check your

purchase order for software installed on

your computer.

After connecting to the Internet, you can access

websites, setup an e-mail account, upload and

download files, and so on.

Entertainment and Multimedia

You can use your computer to watch videos,

play games, create your own CDs/DVDs, listen

to music and Internet radio stations.

NOTE: Your computer does not have an

internal optical drive. Use an external

optical drive or any external storage device

for the procedures that involve discs.

You can download or copy pictures and video files

from portable devices, such as digital cameras

and cell phones. Optional software applications

enable you to organize and create music and

video files that can be recorded to disc, saved

on portable products such as MP3 players and

handheld entertainment devices, or played and

viewed directly on connected TVs, projectors,

and home theater equipment.

Using Your Inspiron Laptop

Customizing the Desktop

You can customize your desktop to change the

appearance, resolution, wallpaper, screensaver,

and so on by accessing the Personalize

appearance and sounds window.

To access the Display Properties window:

Right-click an open area of the desktop.1.

Click 2. Personalize, to open the Personalize

appearance and sounds window and learn

more about your customization options.

Customizing Your Energy Settings

You can use the power options in your operating

system to configure the power settings on your

computer. Microsoft® Windows Vista® installed

on your Dell computer provides three default

options:

Dell Recommended• — This power option

offers full performance when you need it and

saves power during periods of inactivity.

Power saver• — This power option saves

power on your computer by reducing system

performance to maximize the life of the

computer and by reducing the amount of

energy consumed by your computer over its

lifetime.

High performance• — This power option

provides the highest level of system

performance on your computer by adapting

processor speed to your activity and by

maximizing system performance.

Using Your Inspiron Laptop

Transferring Information to a New

Computer

Click 1. Start → Control Panel→ System

and Maintenance→ Welcome Center→

Transfer files and settings.

If the User Account Control window appears,

click Continue.

Follow the instructions in the 2. Windows Easy

Transfer wizard.

Backing Up Your Data

It is recommended that you periodically back

up files and folders on your computer. To back

up files:

Click 1. Start → Control Panel→ System

and Maintenance→ Backup and Restore

Center→ Backup Files.

If the User Account Control window appears,

click Continue.

NOTE: Certain editions of Windows

Vista provide an option to back up your

computer.

Follow the instructions in the 2. Back Up Files

wizard.

Solving Problems

This section provides troubleshooting

information for your computer. If you cannot

solve your problem using the following

guidelines, see “Using Support Tools”

on page 37 or “Contacting Dell” on page 55.

WARNING: Only trained service personnel

should remove the computer cover. See the

Service Manual

on the Dell Support

website at support.dell.com for advanced

service instructions.

Beep Codes

Your computer might emit a series of beeps

during start-up if the monitor cannot display

errors or problems. The following repetitive

beep codes help you troubleshoot problems

with your computer.

NOTE: To replace parts, see the

Service

Manual

on the Dell Support website at

support.dell.com.

One beep —

Possible motherboard failure -

BIOS ROM checksum failure

Contact Dell (see “Contacting Dell” on page 55).

INSPIRON

Solving Problems

Two beeps —

No RAM detected

Remove the memory modules, reinstall •

one module and restart the computer. If

the computer starts normally, reinstall an

additional module. Continue until you have

identified a faulty module or reinstalled all

modules without an error.

If available, install memory modules of the •

same type in your computer.

If the problem persists, contact Dell (see •

“Contacting Dell” on page 55).

Three beeps —

Possible motherboard failure -

Chipset error

Contact Dell (see “Contacting Dell” on page 55).

Four beeps —

RAM read/write failure

Ensure that no special memory module/•

memory connector placement requirements

exist (see the

Service Manual

on the Dell

Support website at support.dell.com).

Verify that the memory modules that you are •

installing are compatible with your computer.

For more information about the type of

memory supported by your computer, see

“Specifications” on page 58.

If the problem persists, contact Dell (see •

“Contacting Dell” on page 55).

Five beeps —

Real Time Clock failure

Replace the battery.

Six beeps —

Video card or chip failure

Contact Dell (see “Contacting Dell” on page 55).

Seven beeps —

Processor failure

Contact Dell (see “Contacting Dell” on page 55).

Eight beeps —

Display failure

Contact Dell (see “Contacting Dell” on page 55).

Solving Problems

Network Problems

Wireless Connections

If the wireless network connection is lost —

The wireless router is offline or wireless has

been disabled on the computer.

Check your wireless router to ensure it is •

powered on and connected to your data

source (cable modem or network hub).

Interference may be blocking or interrupting •

your wireless connection. Try moving the

computer closer to your wireless router.

Re-establish your connection to the wireless •

router:

Ensure that wireless is enabled on your a.

computer (see “Enabling or Disabling

Wireless” on page 10).

Click b. Start → Connect To.

Follow the instructions on the screen c.

to complete the setup.

Wired Connections

If the network connection is lost — The cable

is loose or damaged.

Check the cable to ensure it is plugged in •

and not damaged.

The link integrity light on the integrated network

connector lets you verify that your connection is

working and provides information on the status:

Green — A good connection exists between •

a 10-Mbps network and the computer.

Orange — A good connection exists between •

a 100/1000-Mbps network and the computer.

Off — The computer is not detecting a •

physical connection to the network.

NOTE: The link integrity light on the network

connector is only for the wired cable

connection. The link integrity light does not

provide status for wireless connections.

Solving Problems

Power Problems

If the power light is off — The computer is

either turned off, in hibernate state or is not

receiving power.

Reseat the power cable into both the •

power connector on the computer and the

electrical outlet.

If the computer is plugged into a power strip, •

ensure that the power strip is plugged into

an electrical outlet and that the power strip

is turned on. Also bypass power protection

devices, power strips, and power extension

cables to verify that the computer turns on

properly.

Ensure that the electrical outlet is working •

by testing it with another device, such as

a lamp.

Check the AC adapter cable connections. •

If the AC adapter has a light, ensure that the

light on the AC adapter is on.

If the power light is solid white and the

computer is not responding — The computer

is either turned off, in hibernate state or the

display may not be responding.

Press the power button. The computer •

resumes normal operation if it is off or in

hibernate mode.

If the display is not responding, press the •

power button until the computer turns off

and then turn it back on.

If the problem persists, contact Dell (see •

“Contacting Dell” on page 55 for assistance).

If the power light is solid amber and the

computer is not responding — The computer is

in standby mode with low battery or the display

may not be responding.

Connect the AC adapter to power the •

computer and charge the battery.

Solving Problems

Move the connected mouse or a finger on •

the touch pad or press the power button to

resume normal operation.

If the display is not responding, press the •

power button until the computer turns off

and then turn it back on.

If the problem persists, contact Dell (see •

“Contacting Dell” on page 55 for assistance).

If the power light is breathing white and the

computer is not responding — The computer

is in standby mode or the display may not be

responding.

Move the connected mouse or a finger on •

the touch pad or press the power button to

resume normal operation.

If the display is not responding, press the •

power button until the computer turns off

and then turn it back on.

If the problem persists, contact Dell (see •

“Contacting Dell” on page 55 for assistance).

If you encounter interference that hinders

reception on your computer — An unwanted

signal is creating interference by interrupting or

blocking other signals. Some possible causes of

interference are:

Power, keyboard, and mouse extension cables.•

Too many devices connected to a power strip.•

Multiple power strips connected to the same •

electrical outlet.

Solving Problems

Memory Problems

If you receive an insufficient memory

message —

Save and close any open files and exit any •

open programs you are not using to see if

that resolves the problem.

See the software documentation for •

minimum memory requirements. If

necessary, install additional memory (see the

Service Manual on the Dell Support website

at support.dell.com).

Reseat the memory modules (see the •

Service Manual on the Dell Support website

at support.dell.com) to ensure that your

computer is successfully communicating

with the memory.

If you experience other memory problems —

Ensure that you are following the memory •

installation guidelines (see the Service

Manual on the Dell Support website at

support.dell.com).

Check if the memory module is compatible •

with your computer. Your computer supports

DDR2 memory. For more information about the

type of memory supported by your computer,

see “Specifications” on page 58.

Run the Dell Diagnostics (see “Dell •

Diagnostics” on page 40).

Reseat the memory modules (see the •

Service Manual on the Dell Support website at

support.dell.com) to ensure that your computer

is successfully communicating with the memory.

Solving Problems

Lockups and Software

Problems

If the computer does not start up — Ensure

that the power cable is firmly connected to the

computer and to the electrical outlet.

If a program stops responding —

End the program:

Press <Ctrl><Shift><Esc> simultaneously.1.

Click 2. Applications.

Select the program that is no longer 3.

responding.

Click 4. End Task.

If a program crashes repeatedly — Check the

software documentation. If necessary, uninstall

and then reinstall the program.

NOTE: Software usually includes

installation instructions in its

documentation or on the CD.

NOTE: Your computer does not have an

internal optical drive. Use an external

optical drive or any external storage device

for the procedures that involve discs.

If the computer stops responding or a solid blue

screen appears —

WARNING: You might lose data if you are

unable to perform an operating system

shutdown.

If you are unable to get a response by pressing

a key on your keyboard or moving your mouse,

press the power button for at least 8 to 10 seconds

until the computer turns off and then restart your

computer.

Solving Problems

If a program is designed for an earlier

Microsoft® Windows® operating system —

Run the Program Compatibility Wizard. The

Program Compatibility Wizard configures a

program so that it runs in an environment

similar to non-Windows Vista operating system

environments.

Click 1. Start → Control Panel→

Programs→ Use an older program with this

version of Windows.

In the welcome screen, click 2. Next.

Follow the instructions on the screen.3.

If you have other software problems —

Back up your files immediately.•

Use a virus-scanning program to check the •

hard drive or CDs.

Save and close any open files or programs •

and shut down your computer through the

Start menu.

Check the software documentation or •

contact the software manufacturer for

troubleshooting information:

Ensure that the program is compatible –

with the operating system installed on

your computer.

Ensure that your computer meets the –

minimum hardware requirements needed

to run the software. See the software

documentation for information.

Ensure that the program is installed and –

configured properly.

Verify that the device drivers do not –

conflict with the program.

If necessary, uninstall and then reinstall –

the program.

Using Support Tools

Dell Support Center

The Dell Support Center helps you find

the service, support, and system-specific

information you need.

Click the icon in the taskbar to run the

application. The home page provides links to access:

Self Help (Troubleshooting, Security, System •

Performance, Network/Internet, Backup/

Recovery, and Windows Vista)

Alerts (technical support alerts relevant to •

your computer)

Assistance from Dell (Technical Support with •

DellConnect™, Customer Service, Training

and Tutorials, How-To Help with Dell on Call,

and Online Scan with PC CheckUp)

About Your System (System Documentation, •

Warranty Information, System Information,

Upgrades & Accessories)

The top of the Dell Support Center home page

displays your system’s model number along with

its service tag and express service code.

For more information about the Dell Support

Center and available support tools, click the

Services tab on support.dell.com.

INSPIRON

Using Support Tools

System Messages

If your computer has an issue or an error, it may

display a System Message that will help you identify

the cause and action needed to resolve the issue.

NOTE: If the message you received is not

listed in the following examples, see the

documentation for either the operating

system or the program that was running

when the message appeared. Alternatively

you could see the Dell Technology Guide

on your hard drive or on the Dell Support

website at support.dell.com or see

“Contacting Dell” on page 55 for assistance.

Alert! Previous attempts at booting this system

have failed at checkpoint [nnnn]. For help

in resolving this problem, please note this

checkpoint and contact Dell Technical

Support — The computer failed to complete

the boot routine three consecutive times for the

same error (see “Contacting Dell” on page 55

for assistance).

CMOS checksum error — Possible motherboard

failure or RTC battery low. Replace the battery

(see the Service Manual on the Dell Support

website at support.dell.com or see “Contacting

Dell” on page 55 for assistance).

CPU fan failure — CPU fan has failed. Replace

the CPU fan (see the Service Manual on the Dell

Support website at support.dell.com).

Hard-disk drive failure — Possible hard disk

drive failure during POST (see “Contacting Dell”

on page 55 for assistance).

Hard-disk drive read failure — Possible hard

disk drive failure during HDD boot test (see

“Contacting Dell” on page 55 for assistance).

Keyboard failure — Keyboard failure or

loose cable. Replace the keyboard, see the

Service Manual on the Dell Support website at

support.dell.com.

Using Support Tools

No boot device available — No bootable

partition on hard disk drive, the hard disk drive

cable is loose, or no bootable device exists.

If the hard drive is your boot device, ensure •

that the cables are connected and that the

drive is installed properly and partitioned as

a boot device.

Enter system setup and ensure that the boot •

sequence information is correct (see the

Dell Technology Guide on the Dell Support

website at support.dell.com).

No timer tick interrupt — A chip on the system

board might be malfunctioning or motherboard

failure (see “Contacting Dell” on page 55

for assistance).

USB over current error — Disconnect the USB

device. Your USB device needs more power for

it to function properly. Use an external power

source to connect the USB device, or if your

device has two USB cables, connect both

of them.

NOTICE- Hard Drive SELF MONITORING

SYSTEM has reported that a parameter has

exceeded its normal operating range. Dell

recommends that you back up your data

regularly. A parameter out of range may or may

not indicate a potential hard drive problem —

S.M.A.R.T error, possible hard disk drive failure.

This feature can be enabled or disabled in the

BIOS setup (see “Contacting Dell” on page 55

for assistance).

Using Support Tools

Hardware Troubleshooter

If a device is either not detected during

the operating system setup or is detected

but incorrectly configured, you can use the

Hardware Troubleshooter to resolve the

incompatibility.

To start the Hardware Troubleshooter:

Click 1. Start → Help and Support.

Type 2. hardware troubleshooter in

the search field and press <Enter> to start

the search.

In the search results, select the option that 3.

best describes the problem and follow the

remaining troubleshooting steps.

Dell Diagnostics

If you experience a problem with your

computer, perform the checks in “Lockups and

Software Problems” on page 35 and run the

Dell Diagnostics before you contact Dell for

technical assistance.

NOTE: Dell Diagnostics works only on Dell

computers.

NOTE: The

Drivers and Utilities

disc

is optional and may not ship with your

computer.

See the Dell Technology Guide to review your

computer’s configuration information, and

ensure that the device that you want to test

displays in the system setup program and is

active.

Start the Dell Diagnostics from your hard drive

or from the

Drivers and Utilities

disc.

Using Support Tools

Starting Dell Diagnostics From Your

Hard Drive

The Dell Diagnostics is located on a hidden

diagnostic utility partition on your hard drive.

NOTE: If your computer cannot display a

screen image, see “Contacting Dell” on

page 55.

Ensure that the computer is connected to an 1.

electrical outlet that is known to be working

properly.

Turn on (or restart) your computer.2.

When the DELL3. ™ logo appears, press <F12>

immediately. Select Diagnostics from the

boot menu and press <Enter>.

NOTE: If you wait too long and the operating

system logo appears, continue to wait until

you see the Microsoft® Windows® desktop;

then, shut down your computer and try again.

NOTE: If you see a message stating that no

diagnostics utility partition has been found,

run the Dell Diagnostics from the

Drivers

and Utilities

disc.

Press any key to start the Dell Diagnostics 4.

from the diagnostics utility partition on your

hard drive.

When the Dell Diagnostics 5. Main Menu

appears, select the test you want to run.

Using Support Tools

Starting Dell Diagnostics From the

Drivers and Utilities Disc

NOTE: Your computer does not have an

internal optical drive. Use an external

optical drive or any external storage device

for the procedures that involve discs

Insert the1.

Drivers and Utilities

disc.

Shut down and restart the computer. 2.

When the DELL logo appears, press <F12>

immediately.

NOTE: If you wait too long and the

operating system logo appears, continue to

wait until you see the Microsoft® Windows®

desktop; then, shut down your computer

and try again.

NOTE: The next steps change the boot

sequence for one time only. On the next

start-up, the computer boots according to

the devices specified in the system setup

program.

When the boot device list appears, highlight 3.

CD/DVD/CD-RW and press <Enter>.

Select the 4. Boot from CD-ROM option from

the menu that appears and press <Enter>.

Type 1 to start the CD menu and press 5.

<Enter> to proceed.

Select 6. Run the 32 Bit Dell Diagnostics from

the numbered list. If multiple versions are

listed, select the version appropriate for

your computer.

When the Dell Diagnostics 7. Main Menu

appears, select the test you want to run.

Restoring Your Operating System

You can restore your operating system in the

following ways:

System • Restore returns your computer to an

earlier operating state without affecting data

files. Use System Restore as the first solution

for restoring your operating system and

preserving data files.

Dell • Factory Image Restore returns your hard

drive to the operating state it was in when

you purchased the computer. This procedure

permanently deletes all data on the hard

drive and removes any programs installed

after you received the computer. Use Dell

Factory Image Restore only if System

Restore did not resolve your operating

system problem.

If you received an Operating System disc •

with your computer, you can use it to restore

your operating system. However, using the

Operating System disc also deletes all data

on the hard drive. Use the disc only if System

Restore did not resolve your operating

system problem.

NOTE: Your computer does not have an

internal optical drive. Use an external

optical drive or any external storage device

for the procedures that involve discs.

INSPIRON

Restoring Your Operating System

System Restore

The Windows operating systems provide

a System Restore option which allows

you to return your computer to an earlier

operating state (without affecting data files) if

changes to the hardware, software, or other

system settings have left the computer in an

undesirable operating state. Any changes that

System Restore makes to your computer are

completely reversible.

CAUTION: Make regular backups of your

data files. System Restore does not monitor

your data files or recover them.

NOTE: The procedures in this document are

applicable for the Windows default view,

so they may not apply if you set your Dell™

computer to the Windows Classic view.

Starting System Restore

Click 1. Start .

In the 2. Start Search box, type System

Restore and press <Enter>.

NOTE: The User Account Control window

may appear. If you are an administrator on

the computer, click Continue; otherwise,

contact your administrator to continue the

desired action.

Click 3. Next and follow the instructions on the

screen.

In the event that System Restore did not resolve

the issue, you may undo the last system restore.

Restoring Your Operating System

Undoing the Last System Restore

NOTE: Before you undo the last system

restore, save and close all open files and

exit any open programs. Do not alter, open,

or delete any files or programs until the

system restoration is complete.

Click 1. Start .

In the 2. Start Search box, type System

Restore and press <Enter>.

Click 3. Undo my last restoration and click

Next.

Dell Factory Image Restore

CAUTION: Using Dell Factory Image

Restore permanently deletes all data on

the hard drive and removes any programs

or drivers installed after you received your

computer. If possible, back up the data

before using this option. Use Dell Factory

Image Restore only if System Restore did

not resolve your operating system problem.

NOTE: Dell Factory Image Restore may

not be available in certain countries or on

certain computers.

Use Dell Factory Image Restore only as the

last method to restore your operating system.

This option restores your hard drive to the

operating state it was in when you purchased

the computer. Any programs or files added

since you received your computer—including

data files—are permanently deleted from

the hard drive. Data files include documents,

spreadsheets, e-mail messages, digital photos,

Restoring Your Operating System

music files, and so on. If possible, back up all

data before using Dell Factory Image Restore.

Turn on the computer. When the Dell logo 1.

appears, press <F8> several times to access

the Vista Advanced Boot Options window.

NOTE: If you wait too long and the

operating system logo appears, continue to

wait until you see the Microsoft® Windows®

desktop; then, shut down your computer

and try again.

Select 2. Repair Your Computer.

The 3. System Recovery Options window

appears.

Select a keyboard layout and click 4. Next.

To access the recovery options, log on as 5.

a local user. To access the command prompt,

type administrator in the User name

field, then click OK.

Click 6. Dell Factory Image Restore. The Dell

Factory Image Restore welcome screen

appears.

NOTE: Depending upon your configuration,

you may need to select Dell Factory Tools,

then Dell Factory Image Restore.

Click 7. Next. The Confirm Data Deletion

screen appears.

NOTE: If you do not want to proceed with

Factory Image Restore, click Cancel.

Select the checkbox to confirm that you 8.

want to continue reformatting the hard drive

and restoring the system software to the

factory condition, then click Next.

The restore process begins and may take

five or more minutes to complete. A message

appears when the operating system and

factory-installed applications have been

restored to factory condition.

Click 9. Finish to reboot the system.

Restoring Your Operating System

Operating System

Reinstallation

Before You Begin

If you are considering reinstalling the Windows

operating system to correct a problem with a

newly installed driver, first try using Windows

Device Driver Rollback. If Device Driver Rollback

does not resolve the problem, then use System

Restore to return your operating system to the

operating state it was in before you installed

the new device driver. See “System Restore” on

page 44.

CAUTION: Before performing the

installation, back up all data files on your

primary hard drive. For conventional hard

drive configurations, the primary hard

drive is the first drive detected by the

computer.

To reinstall Windows, you need the following:

Dell•

Operating System

disc

Dell•

Drivers and Utilities

disc

NOTE: The

Drivers and Utilities

disc

contains drivers that were installed during

the assembly of the computer. Use the

Dell Drivers and Utilities disc to load any

required drivers. Depending on the region

from which you ordered your computer, or

whether you requested the disc, the

Dell

Drivers and Utilities

disc and

Operating

System

disc may not ship with your

computer.

Restoring Your Operating System

Reinstalling Windows Vista

NOTE: Your computer does not have an

internal optical drive. Use an external

optical drive or any external storage device

for the procedures that involve discs.

The reinstallation process can take 1 to 2 hours

to complete. After you reinstall the operating

system, you must also reinstall the device

drivers, virus protection program, and other

software.

Save and close any open files and exit any 1.

open programs.

Insert the 2.

Operating System

disc.

Click 3. Exit if the Install Windows message

appears.

Restart the computer.4.

When the DELL logo appears, press <F12> 5.

immediately.

NOTE: If you wait too long and the

operating system logo appears, continue to

wait until you see the Microsoft® Windows®

desktop; then, shut down your computer

and try again.

NOTE: The next steps change the boot

sequence for one time only. On the next

start-up, the computer boots according to

the devices specified in the system setup

program.

When the boot device list appears, highlight 6.

CD/DVD/CD-RW Drive and press <Enter>.

Press any key to 7. Boot from CD-ROM.

Follow the instructions on the screen to

complete the installation.

Getting Help

If you experience a problem with your computer,

you can complete the following steps to

diagnose and troubleshoot the problem:

See “Solving Problems” on page 1. 29 for

information and procedures that pertain to

the problem your computer is experiencing.

See the 2.

Dell Technology Guide

for more

troubleshooting information.

See “Dell Diagnostics” on page 3. 40 for

procedures on how to run Dell Diagnostics.

Fill out the “Diagnostic Checklist” on 4.

page 54.

Use Dell’s extensive suite of online services 5.

available at Dell Support (support.dell.com)

for help with installation and troubleshooting

procedures. See “Online Services” on

page 51 for a more extensive list of Dell

Support online.

If the preceding steps have not resolved the 6.

problem, see “Before You Call” on page 54.

NOTE: Call Dell Support from a telephone

near or at the computer so that the support

staff can assist you with any necessary

procedures.

NOTE: Dell’s Express Service Code system

may not be available in all countries.

When prompted by Dell’s automated telephone

system, enter your Express Service Code to

route the call directly to the proper support

personnel. If you do not have an Express

Service Code, open the Dell Accessories folder,

double-click the Express Service Code icon, and

follow the directions.

NOTE: Some of the services are not

always available in all locations outside

the continental U.S. Call your local

Dell representative for information on

availability.

INSPIRON

Getting Help

Technical Support and

Customer Service

Dell’s support service is available to answer

your questions about Dell hardware. Our support

staff use computer-based diagnostics to provide

fast, accurate answers.

To contact Dell’s support service, see “Before

You Call” on page 54 and then see the contact

information for your region or go to

support.dell.com.

DellConnect™

DellConnect is a simple online access tool that

allows a Dell service and support associate to

access your computer through a broadband

connection, diagnose your problem and repair it

all under your supervision. For more information,

go to www.dell.com/DellConnect.

Getting Help

Online Services

You can learn about Dell products and services

on the following websites:

www.dell.com•

www.dell.com/ap• (Asian/Pacific countries

only)

www.dell.com/jp• (Japan only)

www.euro.dell.com• (Europe only)

www.dell.com/la• (Latin American and

Caribbean countries)

www.dell.ca• (Canada only)

You can access Dell Support through the

following websites and e-mail addresses:

Dell Support websites

support.dell.com•

support.jp.dell.com• (Japan only)

support.euro.dell.com• (Europe only)

Dell Support e-mail addresses

mobile_support@us.dell.com•

support@us.dell.com•

la-techsupport@dell.com• (Latin America and

Caribbean countries only)

apsupport@dell.com• (Asian/Pacific

countries only)

Dell Marketing and Sales e-mail

addresses

apmarketing@dell.com• (Asian/Pacific

countries only)

sales_canada@dell.com• (Canada only)

Anonymous file transfer protocol (FTP)

ftp.dell.com•

e-mail address as your password.

Getting Help

Automated Order-Status

Service

To check on the status of any Dell products that

you have ordered, you can go to

support.dell.com, or you can call the automated

order-status service. A recording prompts you

for the information needed to locate and report

on your order. For the telephone number to call

your region, see “Contacting Dell” on page 55.

If you have a problem with your order, such as

missing parts, wrong parts, or incorrect billing,

contact Dell for customer assistance. Have your

invoice or packing slip handy when you call.

For the telephone number to call for your region,

see “Contacting Dell” on page 55.

Product Information

If you need information about additional

products available from Dell, or if you would like

to place an order, visit the Dell website at

www.dell.com. For the telephone number to call

for your region or to speak to a sales specialist,

see “Contacting Dell” on page 55.

Getting Help

Returning Items for Repair

Under Warranty or for Credit

Prepare all items being returned, whether for

repair or credit, as follows:

NOTE: Before you return the product to Dell,

make sure to back up any data on the hard

drive and on any other storage device in the

product. Remove any and all confidential,

proprietary and personal information, as

well as removable media, such as CDs, and

PC Cards. Dell is not responsible for any of

your confidential, proprietary or personal

information; lost or corrupted data; or

damaged or lost removable media that may

be included with your return.

Call Dell to obtain a Return Material 1.

Authorization Number, and write it clearly

and prominently on the outside of the box.

For the telephone number to call for your 2.

region, see “Contacting Dell” on page 55.

Include a copy of the invoice and a letter 3.

describing the reason for the return.

Include a copy of the Diagnostics Checklist (see 4.

“Diagnostic Checklist” on page 54), indicating

the tests that you have run and any error

messages reported by the Dell Diagnostics

(see “Dell Diagnostics” on page 40).

Include any accessories that belong with 5.

the item(s) being returned (power cables,

software, guides, and so on) if the return is

for credit.

Pack the equipment to be returned in the 6.

original (or equivalent) packing materials.

NOTE: You are responsible for paying

shipping expenses. You are also

responsible for insuring any product

returned, and you assume the risk of loss

during shipment to Dell. Collect On Delivery

(C.O.D.) packages are not accepted.

NOTE: Returns that are missing any of the

preceding requirements will be refused at

Dell’s receiving dock and returned to you.

Getting Help

Before You Call

NOTE: Have your Express Service Code

ready when you call. The code helps Dell’s

automated-support telephone system direct

your call more efficiently. You may also be

asked for your Service Tag (located on the

back or bottom of your computer).

Remember to fill out the following Diagnostics

Checklist. If possible, turn on your computer

before you call Dell for assistance and call from

a telephone at or near the computer. You may be

asked to type some commands at the keyboard,

relay detailed information during operations, or

try other troubleshooting steps possible only at

the computer itself. Ensure that the computer

documentation is available.

Diagnostic Checklist

Name:•

Date:•

Address:•

Phone number:•

Service Tag (bar code on the back or bottom •

of the computer):

Express Service Code:•

Return Material Authorization Number (if •

provided by Dell support technician):

Operating system and version:•

Devices:•

Expansion cards:•

Are you connected to a network? Yes /No•

Network, version, and network adapter:•

Programs and versions:•

Getting Help

See your operating system documentation

to determine the contents of the computer’s

start-up files. If the computer is connected to

a printer, print each file. Otherwise, record the

contents of each file before calling Dell.

Error message, beep code, or diagnostic •

code:

Description of problem and troubleshooting •

procedures you performed:

Contacting Dell

For customers in the United States, call

800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active

Internet connection, you can find contact

information on your purchase invoice,

packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-

based support and service options. Availability

varies by country and product, and some

services may not be available in your area.

To contact Dell for sales, technical support, or

customer service issues:

Visit 1. support.dell.com.

Verify your country or region in the 2. Choose

A Country/Region drop-down menu at the

bottom of the page.

Click 3. Contact Us on the left side of the page.

Select the appropriate service or support link 4.

based on your need.

Choose the method of contacting Dell that is 5.

convenient for you.

If you need to: See:

reinstall your operating system the Operating System disc

run a diagnostic program for your computer,

reinstall notebook system software, or update

drivers for your computer, and readme files

the

Drivers and Utilities

disc

NOTE: Drivers and documentation updates

can be found on the Dell™ Support website

at support.dell.com.

learn more about your operating system,

maintaining peripherals, Internet, Bluetooth®,

networking, and e-mail

the

Dell Technology Guide

installed on your

hard drive

upgrade your computer with new or additional

memory, or a new hard drive

reinstall or replace a worn or defective part

the Service Manual on the Dell Support website

at support.dell.com

NOTE: In some countries, opening and

replacing parts of your computer may void

your warranty. Check your warranty and

return policies before working inside your

computer.

Finding More Information and Resources

INSPIRON

Finding More Information and Resources

If you need to: See:

find safety best practices information for your

computer review Warranty information, Terms

and Conditions (U.S. only), Safety instructions,

Regulatory information, Ergonomics

information, and End User License Agreement

the safety and regulatory documents that

shipped with your computer and also see the

Regulatory Compliance Homepage at

www.dell.com/regulatory_compliance

find your Service tag/Express Service Code—

You must use the service tag to identify your

computer on support.dell.com or to contact

technical support

the back or bottom of your computer

find drivers and downloads

access technical support and product help

check on your order status for new purchases

find solutions and answers to common

questions

locate information for last-minute updates

about technical changes to your computer or

advanced technical-reference material for

technicians or experienced users

the Dell Support website at

support.dell.com

System Model

Inspiron 1320

This section provides information that you may

need when setting up, updating drivers for, and

upgrading your computer.

NOTE: Offerings may vary by region.

For more information regarding the

configuration of your computer, click

Start→ Help and Support and select the

option to view information about your

computer.

Processor

Type L2 cache

Intel® Core™2 Duo

Intel Pentium® Dual-Core

Intel Celeron® Dual-Core

2 MB/3 MB

1 MB

L1 cache 128 KB (Intel-

64 KB per core)

External bus frequency:

Intel Core2 Duo

Intel Pentium Dual-Core

Intel Celeron Dual-Core

800 MHz/1066

MHz

800 MHz

Specifications

INSPIRON

Specications

Memory

Connectors two user-accessible

SODIMM

connectors

Capacities 1 GB, 2 GB, and

4 GB

Type 800 MHz SODIMM

DDR2

Memory configuration

possible

1 GB, 2 GB, 3 GB, 4

GB, 6 GB, and 8 GB

Minimum 1 GB (single

channel)

Maximum 8 GB (dual channel)

NOTE: Memory specification of greater

than 4 GB is not well supported by 32-bit

operating systems.

Computer Information

System Chipset Intel GM45 (UMA)

Intel GM45 (Discrete)

Data bus width 64 bits

DRAM bus width dual channel (2)

64-bit buses

Processor address

bus width

32 bits

Flash EPROM 2 MB

Graphics bus PCI-E X16

Specications

ExpressCard

Controller Mobile Intel Express

(ICH9m)

Cards supported ExpressCard/34 (34 mm)

1.5 V and 3.3 V

Connector size 26 pins

Communications

Network adapter 10/100/1000 Ethernet LAN

on system board

Wireless WPAN with Bluetooth®

wireless technology,

wireless internal WLAN

with WiFi bg and WiFi agn

Video

UMA

Video type integrated on system

board

Video controller Intel GM45

Video memory Up to 1292 MB of system

shared memory

LCD interface Low Voltage Differential

Signaling (LVDS)

Discrete

Video type discrete video card

Video controller ATI Mobility Radeon™ HD

4330

Video memory 512 MB

(64M x 16 x 4 DDR2)

LCD interface Low Voltage Differential

Signaling (LVDS)

Specications

Audio

Audio type IDT 92HD81B High

Definition Audio codec

with SRS Premium Sound™

Audio controller IDT 92HD81B

Stereo

conversion

24-bit (analog-to-digital

and digital-to-analog)

Internal

Interface

Intel High Definition Audio

External

Interface

microphone-in connector,

stereo headphone/

speaker connector

Speaker two 4-ohm speakers

Internal speaker

amplifier

1 watt per channel into

4 ohms

Volume controls software program menus

or media control buttons

Ports and Connectors

Audio one microphone

connector, one stereo

headphone/speaker

connector

IEEE 1394a 4-pin serial connector

Mini-Card one half size Mini-Card

slot

Network adapter RJ45 connector

eSATA one seven-pin/four-pin

eSATA/USB combo

connector with 5V/1.5A

output

USB two 4-pin USB

2.0-compliant connectors

HDMI 19-pin connector

VGA 15-hole connector

Specications

Display

Type 13.3 inch High Definition

TrueLife

Dimensions:

Height 308.1 mm (12.1 inches)

Width 183.6 mm (7.23 inches)

Diagonal 336.6mm (13.3 inches)

Maximum

resolution

1366 x 768

Refresh rate 60 Hz

Luminance 200 min. 220 typ. cd/m²

(WLED 5 point avg)

Viewing Angles:

Horizontal ±45° (WLED) typ.

Vertical +15°/–35° (WLED) typ.

Pixel pitch 0.2148 mm

Display

Controls brightness can be

controlled through

keyboard shortcuts (see

the

Dell Technology Guide

for more information)

Keyboard

Number of keys 86/103 (English-U.S.,

Simplified Chinese,

Traditional Chinese, and

Thai)

Layout QWERTY

Specications

Camera

Pixel 1.3 megapixel

Video resolution 320 x 240 ~1280 x 1024

(640 x 480 at 30 fps)

Diagonal viewing

angle

60° ± 1°

Touch Pad

Resolution:

X coordinate 1701 DPI

Y coordinate 2540 DPI

Size:

Width 79.62 mm (3.13 inches)

sensor-active area

Height 39.51 mm (1.56 inches)

rectangle

Battery

Type 4-cell/6-cell smart

lithium ion

Depth 51.6 mm (2.03 inches)

(4/6 cell)

Height 21.0 mm (0.83 inches)

(4/6 cell)

Width 207.7 mm (8.18 inches)

(4/6 cell)

Weight 0.26 kg (0.57 lb) (4 cell)

0.34 kg (0.75 lb) (6 cell)

Voltage 14.8 VDC (4 cell)

11.1 VDC (6 cell)

Charge time

(approximate):

4 hours (when the

computer is turned off)

Specications

Battery

Operating time Battery operating time

varies depending on

operating conditions

and can be significantly

reduced under certain

power-intensive

conditions.

See the

Dell Technology

Guide

on your hard drive

or on the Dell Support

website at support.dell.

com for more information.

Life span

(approximate)

300 discharge/charge

cycles

Temperature range:

Operating 0° to 50°C (32° to 122°F)

Storage –20° to 60°C (–4° to 140°F)

Coin-cell battery CR-2032

AC Adapter

Input voltage 100–240 VAC

Input current

(maximum)

1.5 A

Input frequency 50–60 Hz

Output power 65 W or 90 W

Rated Output

current (90 W)

4.62 A

Rated Output

current (65 W)

3.34 A

Rated output

voltage

19.5 VDC

Dimensions:

65 W

Height 28.0 mm (1.10 inches)/

16 mm (0.63 inches)

Width 58.0 mm (2.28 inches)/

66 mm (5.6 inches)

Specications

AC Adapter

Depth 137.0 mm (5.39 inches)/

127 mm (5.0 inches)

Weight

(with cables)

0.56 kg (1.23 lb)/0.25 kg

(0.55 lb)

90 W

Height 21 mm (0.83 inches)/

16 mm (0.63 inches)

Width 70 mm (2.76 inches)/

65 mm (2.56 inches)

Depth 147 mm (5.79 inches)/

90 mm (3.54 inches)

Weight (with

cables)

0.46 kg (1.01 lb)/0.26 kg

(0.57 lb)

Operating 0° to 40°C (32° to 104°F)

Storage –40° to 70°C (–104° to

158°F)

Physical

Height 27.0 mm to 31.0 mm

(1.06 inches to 1.22 inches)

Width 322.0 mm (12.7 inches)

Depth 218.0 mm (8.58 inches)

Weight (with 4-cell battery):

Configurable to

less than

1.68 kg (3.74 lb)

Computer Environment

Relative humidity (maximum):

Operating 10% to 90%

(noncondensing)

Storage 5% to 95%

(noncondensing)

Specications

Computer Environment

Altitude (maximum):

Operating –15.2 to 3048 m

(–50 to 10,000 ft)

Storage –15.2 to 10,668 m

(–50 to 35,000 ft)

Airborne

contaminant

level

G2 or lower as defined by

ISA-S71.04-1985

Temperature range:

Operating 0° to 35°C (32° to 95°F)

Storage –40° to 65°C (–40° to

149°F)

Computer Environment

Maximum vibration (using a random-vibration

spectrum that simulates user environment)

Operating 0.66 GRMS

Non-Operating 1.3 GRMS

Maximum shock (for operating - measured

with Dell Diagnostics running on the hard

drive and a 2-ms half-sine pulse; for non-

operating - measured with hard drive in

head-parked position and a 2-ms half-sine

pulse ):

Operating 110 GRMS

Non-Operating 160 GRMS

Appendix

Macrovision Product Notice

This product incorporates copyright protection

technology that is protected by method claims

of certain U.S. patents and other intellectual

property rights owned by Macrovision

Corporation and other rights owners. Use of

this copyright protection technology must be

authorized by Macrovision Corporation, and is

intended for home and other limited viewing

uses only unless otherwise authorized by

Macrovision Corporation. Reverse engineering

or disassembly is prohibited.

INSPIRON

AC adapter

size and weight 64, 65

airflow, allowing 5

backups

creating 28

calling Dell 54

CDs, playing and creating 26

chipset 59

computer capabilities 26

computer, setting up 5

conserving energy 27

Contacting Dell online 55

customer service 50

customizing

your desktop 26

your energy settings 27

damage, avoiding 5

data, backing up 28

Dell Diagnostics 40

Dell Factory Image Restore 43

Dell Support Center 37

Dell support website 57

Dell Technology Guide

for further information 56

Index

INSPIRON

Index

Diagnostic Checklist 54

drivers and downloads 57

DVDs, playing and creating 26

email addresses

for technical support 51

energy

conserving 27

expansion bus 60

finding more information 56

FTP login, anonymous 51

hardware problems

diagnosing 40

Hardware Troubleshooter 40

help

getting assistance and support 49

Internet connection 12

ISP

Internet Service Provider 12

memory problems

solving 34

memory support 59

network connection

fixing 31

network speed

testing 31

Index

power problems, solving 32

power strips, using 6

processor 58

products

information and purchasing 52

reinstalling Windows 43

resources, finding more 56

restoring factory image 45

setup, before you begin 5

shipping products

for return or repair 53

software features 26

software problems 35

specifications 56, 58

support email addresses 51

System Messages 38

System Restore 43

USB PowerShare 15

ventilation, ensuring 5

warranty returns 53

Windows, reinstalling 43

Windows Vista® 9

Program Compatibility Wizard 36

reinstalling 48

wired network connection 7

wireless network connection 31

0G374RA00

Printed in the U.S.A.

www.dell.com | support.dell.com

Dell Inspiron 1320 Setup Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
