Dell Inspiron 15R 5521 Specifications

: Dell Dell-Inspiron-15R-5521-Specifications-111830 dell-inspiron-15r-5521-specifications-111830 dell pdf

Open the PDF directly: View PDF .
Page Count: 22

Views

Specifications

© 2013 - 2014 Dell Inc.

Copyright © 2013-2014 Dell Inc. All rights reserved. This product is protected by U.S. and international

copyright and intellectual property laws. Dell and the Dell logo are trademarks of Dell Inc. in the United States

and/or other jurisdictions. All other marks and names mentioned herein may be trademarks of their respective

companies.

2014 - 01 Rev. A03

Regulatory model: P28F | Type: P28F001/P28F003

Computer model: Inspiron 5521/5537

NOTE: The images in this document may differ from your computer

depending on the configuration you ordered.

15

1 Power-status light

Indicates the power state of the computer.

White light — Power adapter is connected and the

battery is fully charged.

2 Hard-drive activity light

Turns on when the computer reads from or writes to the

hard drive.

3 Battery-status light

Indicates the battery state of the computer.

Solid yellow light — Battery charge is low or critical.

Blinking yellow light — Battery charge is critical.

4 Wireless-status light

Turns on when wireless is turned on.

5 Media-card reader

Reads from and writes to media cards.

2

3 4 5

1

Views

Specifications

Front

Left

Right

Base

Display

Front

1 Power-adapter port

Connect a power adapter to provide power to your

computer and charge the battery.

2 HDMI port

Connect a TV or another HDMI-in enabled device.

Provides video and audio output.

3 Network port

Connect an Ethernet (RJ45) cable from a router or a

broadband modem for network or internet access.

The two lights next to the connector indicate the

connectivity status and network activity.

4 USB 3.0 ports (2)

Connect peripherals such as storage devices, printers,

and so on. Provide data transfer speeds up to 5 Gbps.

5 USB 2.0 port

Connect peripherals such as storage devices, printers,

and so on. Provides data transfer speeds up to

480 Mbps.

6 Headset port

Connect a headphone, a microphone, or a headphone

and microphone combo (headset).

1 2 3 4 5 6

Views

Specifications

Front

Left

Right

Base

Display

Left

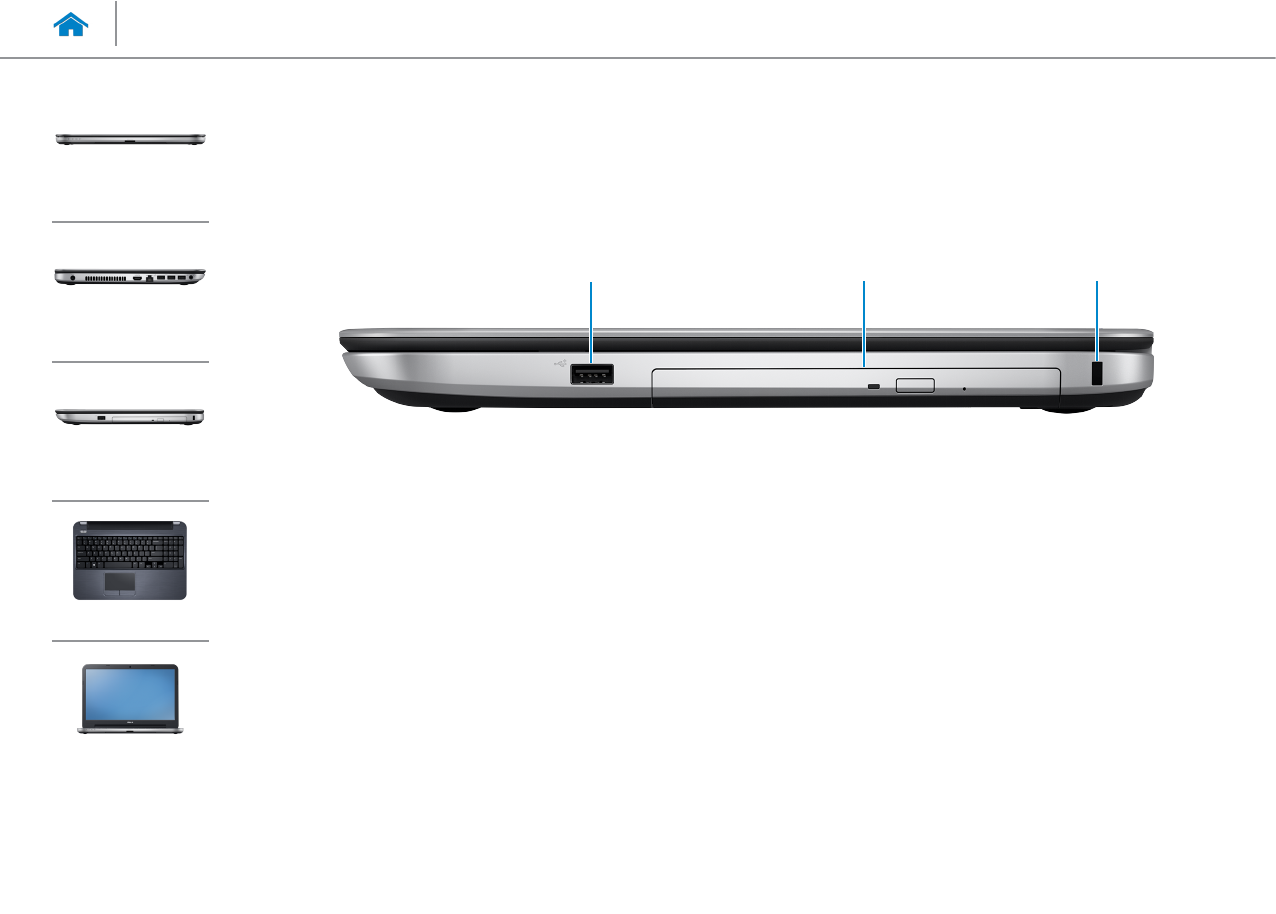

1 USB 2.0 port (supports Windows debugging)

Connect peripherals such as storage devices, printers,

and so on. Provides data transfer speeds up to

480Mbps.

This USB port can be used for Windows debugging.

2 Optical drive

Reads from and writes to CDs , DVDs and Blu-ray discs.

3 Security-cable slot

Connect a security cable to prevent unauthorized

movement of your computer.

321

Views

Specifications

Front

Left

Right

Base

Display

Right

1 Power button

Press to turn on the computer if it is turned off or in

Sleep state.

Press to put the computer in Sleep state if it is turned on.

Press and hold for 10 seconds to force shut-down the

computer.

NOTE: You can customize the power-button behaviour in

Power Options. For more information, see Me and My Dell at

dell.com/support.

2 Touchpad

Move your finger on the touchpad to move the mouse

pointer. Tap to left-click.

1

2

Views

Specifications

Front

Left

Right

Base

Display

Base

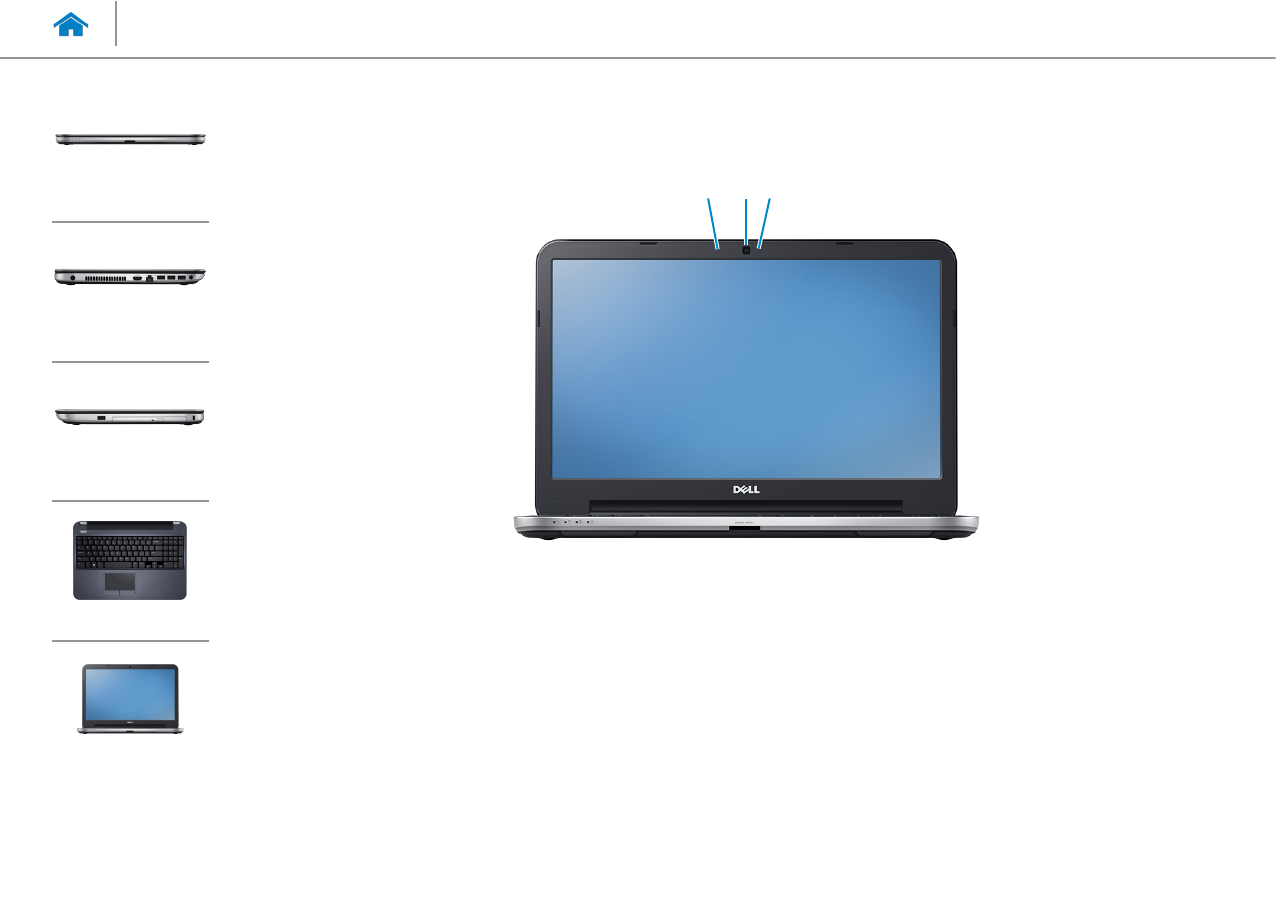

1 Digital microphone

Provides high-quality digital sound input for audio

recording, voice calls, and so on.

2 Camera-status light

Turns on when the camera is in use.

3 Camera

Allows you to video chat, capture photos, and record

videos.

2

1 3

Views

Specifications

Front

Left

Right

Base

Display

Display

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Dimensions and Weight

Height (with 6-cell battery):

Non-touch 1 in (25.40 mm)

Touch 1.10 in (27.90 mm)

Width 14.80 in (376 mm)

Depth 910.20 in (259 mm)

Weight with 4-cell battery (maximum):

Non-touch 5.18 lbs (2.35 kg)

Touch 5.84 lbs (2.65 kg)

Weight with 6-cell battery (maximum):

Non-touch 4.85 lbs (2.20 kg)

Touch 5.51 lbs (2.50 kg)

NOTE: The weight of your laptop varies depending on the configuration ordered

and the manufacturing variability.

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

System Information

Computer model Inspiron 5521/5537

Processor Inspiron 5521 Inspiron 5537

• Intel Celeron Dual Core

(2nd and 3rd generation)

• Intel Pentium Dual Core

(2nd and 3rd generation)

• Intel Core i3 ULV (3rd generation)

• Intel Core i5 ULV (3rd generation)

• Intel Core i7 ULV (3rd generation)

• Intel Celeron Dual Core (4th generation)

• Intel Pentium Dual Core (4th generation)

• Intel Core i3 ULV (4th generation)

• Intel Core i5 ULV (4th generation)

• Intel Core i7 ULV (4th generation)

L1 cache 32 KB 64 KB per core

L2 cache 256 KB 256 KB per core

L3 cache Up to 4 MB Up to 4 MB

Chipset Intel HM76 Integrated in processor

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Memory

Connectors:

Inspiron 5521 Two internally-accessible DDR3 SODIMM connectors

Inspiron 5537 Two internally-accessible DDR3L SODIMM connectors

Capacity Up to 16 GB

Type:

Inspiron 5521 Dual channel DDR3

Inspiron 5537 Dual channel DDR3L

Speed Up to 1600 MHz

Configurations supported 2 GB, 4 GB, 6 GB, 8 GB, and 16 GB

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Ports and Connectors

External:

Network One RJ45 port

USB • Two USB 3.0 ports

• One USB 2.0 port

• One USB 2.0 port with Windows debugging

HDMI One HDMI port

Audio One headphone and microphone combo (headset) port

Internal:

Mini-card One mini-card slot

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Communications

Ethernet 10/100 Mbps Ethernet controller integrated on systemboard

Wireless • Wi-Fi 802.11 b/g/n

• Bluetooth 4.0

• Wireless Display (optional)

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Video

Controller:

Integrated Intel HD Graphics 5100/4200/4400 series

Discrete • AMD Radeon HD 8670M

• AMD Radeon HD 8850M

Memory:

Integrated

Discrete

Shared system memory

Up to 2 GB

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Audio

Controller ALC3223

Speakers Two

Speaker output:

Average 2 watt

Peak 2 watt

Microphone Single digital microphone in the camera assembly

Volume controls Program menus and keyboard media-control keys

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Storage

Interface • SATA 1.5 Gbps

• SATA 3 Gbps

• SATA 6 Gbps

Hard drive One 2.5-inch drive (supports Intel Smart Response Technology)

Optical drives One 9.5 mm SATA drive

Drives supported • DVD+/-RW

• Blu-ray RW

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Media-card reader

Type One 8-in-1 slot

Cards supported • Secure Digital (SD) memory card

• SD High-Capacity (SDHC) card

• Secure-Digital Extended Capacity (SDXC) card with Ultra High Speed (UHS)

• Memory Stick

• Memory Stick PRO

• Memory Stick XC (MSXC)

• MultiMedia Card (MMC)

• MultiMedia Card plus (MMC+)

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Display

Type • 15.6-inch HD

• 15.6-inch HD with touch

• 15.6-inch full HD

Resolution (maximum) • HD — 1366 x 768

• Full HD — 1920 x 1080

Dimensions:

Height 8.83 in (224.30 mm)

Width 14.17 in (360 mm)

Diagonal 15.60 in (396.24 mm)

Refresh rate 60 Hz

Operating angle 0 degree (closed) to 140 degrees

Pixel pitch 0.252 mm x 0.252 mm

Controls Brightness can be controlled using shortcutkeys.

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Keyboard

Type Chiclet keyboard

Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be

used to type alternate characters or to perform secondary functions. To type

the alternate character, press Shift and the desired key. To perform secondary

functions, press Fn and the desired key.

NOTE: You can define the primary behavior of the shortcut keys by changing

Function Key Behavior in System Setup.

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Camera

Resolution:

Still image 0.92 megapixel

Video 1280 x 720 (HD) at 30 fps (maximum)

Diagonal viewing angle 74 degrees

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Touchpad

Resolution:

Horizontal

Vertical

1261 dpi

1810 dpi

Dimensions:

Width 2.13 in (54 mm)

Height 3.86 in (98 mm)

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Battery

Type • 4-cell “smart” lithium ion (40 WHr) — non-touch only

• 6-cell “smart” lithium ion (65 WHr)

Dimensions: 4-cell 6-cell

Height (touch) N/A 1.08 in (27.4 mm)

Height (non touch) 0.79 in (20 mm) 0.98 in (24.9 mm)

Width 10.72 in (272.40 mm) 10.72 in (272.40 mm)

Depth 1.94 in (49.30 mm) 1.94 in (49.3 mm)

Weight (maximum) 0.57 lb (0.26 kg) 0.79 lb (0.36 kg)

Voltage 14.80 VDC 11.10 VDC

Operating time Varies depending on operating conditions and can significantly reduce under certain

power-intensive conditions.

Life span (approximate) 300 discharge/charge cycles

Temperature range:

Operating 0 °C to 35 °C (32 °F to 95 °F)

Storage –40 °C to 65 °C (–40 °F to 149 °F)

Coin-cell battery CR-2032

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Power Adapter

Type • 65 W

• 90 W

Input voltage 100 VAC–240 VAC

Input frequency 50 Hz–60 Hz

Input current 1.50A/1.60A/1.70A/2.50A

Output current 3.34 A/ 4.62 A

Rated output voltage 19.50 VDC

Temperature range:

Operating 0 °C to 40 °C (32 °F to 104 °F)

Storage –40 °C to 70 °C (–40 °F to 158 °F)

Specifications

Views

System

Information Memory Ports and

Connectors

Dimensions and

Weight

Computer

Environment

Storage

Touchpad Power AdapterCamera

Communications

Battery

Video Audio

Display

Media-card

reader Keyboard

Computer Environment

Airborne contaminant level G1 as defined by ISA-S71.04-1985

Operating Storage

Temperature range 0 °C to 40 °C (32 °F to 104 °F) –40 °C to 70 °C (–40 °F to 158 °F)

Relative humidity (maximum) 10 % to 90 % (non-condensing) 10 % to 95 % (non-condensing)

Vibration (maximum)*0.66 GRMS 1.30 GRMS

Shock (maximum)†110 G 160 G

Altitude (maximum) –15.2 m to 3048 m (–50 ft to 10,000 ft) –15.2 m to 10,668 m (–50 ft to 35,000 ft)

* Measured using a random vibration spectrum that simulates user environment

† Measured with hard drive in operating status and a 2-ms half-sine pulse for operating. Also measured with hard drive in head-parked position and a 2-ms

half-sine pulse for storage
