Dell™XPS™M1330ServiceManual
Notes, Notices, and Cautions
Information in this document is subject to change without notice.
©2007DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and XPS are trademarks of Dell Inc.;Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under
license. Intel, Pentium, and Celeron are registered trademarks of Intel Corporation; Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model PP25L
July 2007 Rev. A00
Before You Begin
Internal Card With Bluetooth®Wireless Technology
Hard Drive
Memory
Coin-Cell Battery
Hinge Covers and Center Control Cover
Keyboard
Communication Cards
Display Assembly
LCD Camera (optional)
Palm Rest
Wireless Sniffer Board
Optical Drive
ExpressCard Reader
Processor Thermal-Cooling Assembly
Processor
Speaker
System Board
Flashing the BIOS
Pin Assignments for I/O Connectors
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.
Back to Contents Page
Before You Begin
Dell™XPS™M1330ServiceManual
Recommended Tools
Turning Off Your Computer
Before Working Inside Your Computer
This section provides procedures for removing and installing the components in your computer. Unless otherwise noted, each procedure assumes that the
following conditions exist:
lYou have performed the steps in Turning Off Your Computer and Before Working Inside Your Computer.
lYouhavereadthesafetyinformationintheDell™Product Information Guide.
lA component can be replaced or—if purchased separately—installed by performing the removal procedure in reverse order.
Recommended Tools
The procedures in this document may require the following tools:
lSmall flat-blade screwdriver
lPhillips screwdriver
lHex nut driver
lFlash BIOS update program CD
Turning Off Your Computer
1. Save and close all open files and exit all open programs.
2. Click the Windows Vista Start button , in the lower-left corner of the desktop, click the arrow in the lower-right corner of the Start menu as shown
below, and then click Shut Down.
The computer turns off after the operating system shutdown process is complete.
3. Ensure that the computer and all attached devices are turned off. If your computer and attached devices did not automatically turn off when you shut
down your operating system, press and hold the power button until they turn off.
Before Working Inside Your Computer
Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety.
1. Ensure that the work surface is flat and clean to prevent the computer cover from being scratched.
2. Turn off your computer (see Turning Off Your Computer).
3. If the computer is connected to a docking device (docked), undock it. See the documentation that came with your docking device for instructions.
NOTICE: To avoid losing data, save and close all open files and exit all open programs before you turn off your computer.
NOTICE: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal
mounting bracket. Hold a component such as a processor by its edges, not by its pins.
NOTICE: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not
covered by your warranty.
NOTICE: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking tabs; if
you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep them evenly
aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.
NOTICE: To avoid damaging the computer, perform the following steps before you begin working inside the computer.
NOTICE: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.
4. Disconnect all telephone or network cables from the computer.
5. Close the display and turn the computer upside down on a flat work surface.
6. Disconnect your computer and all attached devices from their electrical outlets.
7. Remove the main battery:
a. Slide the battery-bay release latch on the bottom of the computer.
b. Remove the battery from the battery bay.
8. Press the power button to ground the system board.
Back to Contents Page
NOTICE: To avoid damaging the system board, you must remove the main battery before you service the computer.
1
battery
2
battery-bay release latch
Back to Contents Page
Flashing the BIOS
Dell™XPS™M1330ServiceManual
Flashing the BIOS From a CD
Flashing the BIOS From the Hard Drive
If a BIOS-update program CD is provided with the new system board, flash the BIOS from the CD. If you do not have a BIOS-update program CD, flash the
BIOS from the hard drive.
Flashing the BIOS From a CD
1. Ensure that the AC adapter is plugged in and that the main battery is installed properly.
2. Insert the BIOS-update program CD, and restart the computer.
Follow the instructions that appear on the screen. The computer continues to boot and updates the new BIOS. When the flash update is complete, the
computer will automatically reboot.
3. Press <F2> during POST to enter the system setup program.
4. Press <Alt> and <F> to reset the computer defaults.
5. Press <Esc>, select Save changes and reboot, and press <Enter> to save configuration changes.
6. Remove the flash BIOS-update program CD from the drive and restart the computer.
Flashing the BIOS From the Hard Drive
1. Ensure that the AC adapter is plugged in, the main battery is properly installed, and a network cable is attached.
2. Turn on the computer.
3. Locate the latest BIOS update file for your computer at support.dell.com.
4. Click Download Now to download the file.
5. If the Export Compliance Disclaimer window appears, click Yes, I Accept this Agreement.
The File Download window appears.
6. Click Save this program to disk and then click OK.
The Save In window appears.
7. Click the down arrow to view the Save In menu, select Desktop, and then click Save.
The file downloads to your desktop.
8. Click Close if the Download Complete window appears.
The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.
9. Double-click the file icon on the desktop and follow the instructions on the screen.
Back to Contents Page
NOTE: If you use a BIOS-update program CD to flash the BIOS, set up the computer to boot from a CD before inserting the CD.
Back to Contents Page
Internal Card With Bluetooth®Wireless Technology
Dell™XPS™M1330ServiceManual
Removing the Bluetooth Card
Replacing the Bluetooth Card
If you ordered a card with Bluetooth wireless technology with your computer, it is already installed.
Removing the Bluetooth Card
1. Follow the procedures in Before You Begin.
2. Remove the hinge covers and center control cover (see Hinge Covers and Center Control Cover).
3. Disconnect the cable on the card to remove the card from the computer.
Replacing the Bluetooth Card
1. Replace the card at an angle to slide it under the securing tabs in the card compartment.
2. Connect the cable to the card.
Back to Contents Page
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the
computer.
1
card
2
securing tabs (2)
3
cable
Back to Contents Page
LCD Camera (optional)
Dell™XPS™M1330ServiceManual
Removing the LCD Camera
Replacing the LCD Camera
Removing the LCD Camera
1. Follow the instructions in Before You Begin.
2. Remove the display assembly (see Display Assembly).
3. Remove the LCD camera cable from the routing channel.
4. Remove the screw securing the LCD camera.
5. Remove the LCD camera and cable.
Replacing the LCD Camera
1. Align the camera under the securing clip and over the screw hole.
2. Replace the screw that secures the camera to the display back.
3. Replace the display (see Replacing the Display Assembly).
Back to Contents Page
CAUTION: Before working inside your computer, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
1
securing tab
2
camera cable connector
3
camera
4
screw
Back to Contents Page
Coin-Cell Battery
Dell™XPS™M1330ServiceManual
Removing the Coin-Cell Battery
Removing the Coin-Cell Battery
1. Follow the procedures in Before You Begin.
2. Turn the computer over.
3. Turn the computer over and loosen the three captive screws along with the M2.5 x 5-mm screw. Remove the module cover.
4. Disconnect the coin-cell battery cable from the system board.
5. Slide the coin-cell battery from under the antenna cables and remove the battery from the computer.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the
computer.
1
M2.5 x 5-mm screw
2
captive screws (3)
3
module cover
1
coin-cell battery
2
cable connector
Back to Contents Page
Back to Contents Page
Processor
Dell™XPS™M1330ServiceManual
Removing the Processor
Installing the Processor
Removing the Processor
1. Follow the instructions in Before You Begin.
2. Remove the processor thermal-cooling assembly (see Processor Thermal- Cooling Assembly).
3. To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.
The ZIF-socket cam screw secures the processor to the system board. Take note of the arrow on the ZIF-socket cam screw.
4. Use a processor extraction tool to remove the processor.
Installing the Processor
1. Align the pin-1 corner of the processor so that it points to the triangle on the system board, and insert the processor into the ZIF socket.
When the processor is correctly seated, all four corners are aligned at the same height. If one or more corners of the processor are higher than the
CAUTION: Before working inside your computer, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTICE: To prevent intermittent contact between the ZIF-socket cam screw and the processor when removing or replacing the processor, press to
apply slight pressure to the center of the processor while turning the cam screw.
NOTICE: To avoid damage to the processor, hold the screwdriver so that it is perpendicular to the processor when turning the cam screw.
NOTICE: When removing the processor, pull it straight up. Be careful not to bend the pins on the processor.
1
processor
2
pin-1 corner of processor
3
ZIF socket
4
ZIF-socket cam screw
NOTICE: Ensure that the cam lock is in the fully open position before seating the processor. Seating the processor properly in the ZIF socket does not
require force.
NOTICE: A processor that is not properly seated can result in an intermittent connection or permanent damage to the processor and ZIF socket.
others, the processor is not seated correctly.
2. Tighten the ZIF socket by turning the cam screw clockwise to secure the processor to the system board.
3. Peel the backing off the thermal cooling pad and adhere the pad to the portion of the thermal-cooling assembly that covers the processor.
4. Replace the processor thermal-cooling assembly (see Replacing the Processor Thermal-Cooling Assembly).
5. Replace the module cover.
6. Update the BIOS using a flash BIOS-update program CD. See (Flashing the BIOS).
Back to Contents Page
NOTICE: To prevent intermittent contact between the ZIF-socket cam screw and the processor when removing or replacing the processor, press to
apply slight pressure to the center of the processor while turning the cam screw.
Back to Contents Page
Processor Thermal-Cooling Assembly
Dell™XPS™M1330ServiceManual
Removing the Processor Thermal-Cooling Assembly
Replacing the Processor Thermal-Cooling Assembly
Removing the Processor Thermal-Cooling Assembly
1. Follow the instructions in Before You Begin.
2. Turn the computer upside down and loosen the three captive screws along with the M2.5 x 5-mm screw. Remove the module cover.
3. Loosen the five captive screws from the thermal-cooling assembly.
4. Remove the fan connector from the system board.
CAUTION: Before working inside your computer, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
1
M2.5 x 5-mm screw
2
captive screws (3)
3
module cover
1
fan connector
2
thermal-cooling assembly
3
captive screws (5)
NOTE: The fan is a part of the thermal-cooling assembly.
5. Lift the thermal-cooling assembly out of the computer.
Replacing the Processor Thermal-Cooling Assembly
1. Peel the backing off the thermal cooling pad and adhere the pad to the portion of the thermal-cooling assembly that covers the processor.
2. Place the assembly on the system board.
3. Tighten the five captive screws on the thermal-cooling assembly.
4. Replace the module cover.
Back to Contents Page
CAUTION: Before working inside your computer, follow the safety instructions in the Product Information Guide.
NOTICE: To prevent static damage to components inside your computer, discharge static electricity from your body before you touch any of your
computer's electronic components. You can do so by touching an unpainted metal surface.
NOTE: The original pad can be reused if the original processor and heat sink are reinstalled together. If either the processor or heat sink is replaced,
use the thermal pad provided in the kit to ensure that thermal conductivity is achieved.
NOTE: This procedure assumes that you have already removed the processor thermal-cooling assembly and are ready to replace it.
Back to Contents Page
Display Assembly
Dell™XPS™M1330ServiceManual
Removing the Display Assembly
Replacing the Display Assembly
Removing the Display Bezel
Replacing the Display Bezel
Removing the Display Panel
Replacing the Display Panel
Removing the Display Panel Cable
Removing the Display Hinges
Removing the Display Assembly
1. Follow the instructions in Before You Begin.
2. Remove the hinge covers and center control cover (see Hinge Covers and Center Control Cover).
3. Remove the Mini Card cables from the Mini Cards if applicable (see Wireless Mini Cards).
4. Make note of the cable routing and carefully dislodge the Mini-Card antenna cables from their routing guides.
5. Remove the two M2.5 x 5-mm screws labeled "D" from the computer base.
6. Remove the keyboard (see Keyboard).
7. Remove the two M2.5 x 5-mm screws from each side of the display assembly.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the
computer.
8. Make note of the cable routing and carefully dislodge the Mini-Card antenna cables from their routing guides and pull the cables with their connectors
through the system board so that they are clear of the computer base.
9. Pull on the display cable pull-tab to disconnect the display cable from the display connector on the system board.
10. If applicable, remove the camera cable connector from the system board.
11. Remove the display assembly from the computer base.
Replacing the Display Assembly
1. If applicable, replace the camera cable.
2. Reconnect the display cable to the connector on the system board.
3. Make note of the cable routing and carefully slide the Mini-Card antenna cables through the computer base and into their routing guides.
4. Replace the two M2.5 x 5-mm screws on each side of the display assembly.
1
M2.5 x 5-mm
screws (2)
2
camera cable connector (optional)
3
display cable pull-
tab
4
Mini-Card antennae cables (view from the bottom
of the computer)
5. Replace the keyboard (see Keyboard).
6. Turn the computer over and replace the two M2.5 x 5-mm screws labeled "D" on the computer base.
7. Make note of the cable routing and carefully insert the Mini-Card antenna cables through their routing guides.
8. Reconnect the mini card cables to the Mini Cards if applicable (see Wireless Mini Cards).
9. Replace the hinge covers and center control cover (see Hinge Covers and Center Control Cover).
Removing the Display Bezel
1. Using your fingertips, carefully pry up the inside edge of the display bezel.
2. Remove the display bezel.
Replacing the Display Bezel
Realign the display bezel over the display panel, and gently snap into place.
Removing the Display Panel
1. Remove the display assembly (see Removing the Display Assembly).
2. Remove the display bezel (see Removing the Display Bezel).
3. Remove the display cable from the routing channel.
4. Remove the four screws securing the display panel brackets.
NOTICE: The display bezel is extremely fragile. Be careful when removing it to prevent damaging the bezel.
1
display bezel
5. Remove the camera cable connector.
6. Remove the display panel.
7. Remove the six screws (three on each side) that secure the display panel brackets to the display panel.
Replacing the Display Panel
1. Replace the six screws that attach the display panel brackets to each side of the display panel.
2. Align the display panel with the display back and replace the four screws.
3. Connect the LCD camera cable to the display panel.
4. Route the cables back through their routing channels.
5. Replace the display bezel (see Replacing the Display Bezel).
Removing the Display Panel Cable
1. Remove the display assembly (see Removing the Display Assembly).
2. Remove the display bezel (see Removing the Display Bezel).
3. Remove the display panel (see Removing the Display Panel).
4. Turn over the display panel, placing it on a clean surface.
1
display panel
2
screws (4)
3
camera cable connector (optional)
4
display panel-cable connector
1
display panel bracket (1 left, 1 right)
2
screws (6 total; 3 each side)
5. Gently pull the pull-tab on the bottom flex-cable connector to release the cable from the inverter board.
6. Squeeze the flex-cable release levers at either side of the top flex-cable connector, releasing the connector.
Removing the Display Hinges
1. Remove the display assembly (see Removing the Display Assembly).
2. Remove the display bezel (see Removing the Display Bezel).
3. Remove the display panel (see Removing the Display Panel).
4. Remove the four screws (two on each side) that secure the hinge to the display back.
5. Remove the hinges.
Back to Contents Page
NOTICE: To avoid damage to the computer when replacing the bottom flex cable, gently support the bottom of the inverter board with one finger as
you reseat the bottom flex-cable connector. Do not bend the inverter board.
1
pull-tab
2
back of display panel
3
flex cable
1
screws (2 each side)
2
display hinge (1 left, 1 right)
Back to Contents Page
Hard Drive
Dell™XPS™M1330ServiceManual
Removing the Hard Drive
Removing the Hard Drive
1. Follow the procedures in Before You Begin.
2. Turn the computer over.
3. Remove the four M3 x 3-mm screws and slide the hard drive away from the bay.
Replacing the Hard Drive
1. Remove the new drive from its packaging.
Save the original packaging for storing or shipping the hard drive.
2. Slide the hard drive into the bay.
3. Replace and tighten the four screws on the hard drive.
4. Install the operating system for your computer, as needed (see "Restoring Your Operating System" in your computer Owner's Manual).
5. Install the drivers and utilities for your computer, as needed (see "Reinstalling Drivers and Utilities" in your computer Owner's Manual).
CAUTION: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.
NOTICE: To prevent data loss, turn off your computer (see Turning Off Your Computer) before removing the hard drive. Do not remove the hard drive
while the computer is on or in Sleep state.
NOTICE: Hard drives are extremely fragile. Exercise care when handling the hard drive.
NOTE: Dell does not guarantee compatibility or provide support for hard drives from sources other than Dell.
NOTE: If you are installing a hard drive from a source other than Dell, you need to install an operating system, drivers, and utilities on the new hard
drive (see "Restoring Your Operating System" and "Reinstalling Drivers and Utilities" in your Owner's Manual).
NOTICE: When the hard drive is not in the computer, store it in protective antistatic packaging (see "Protecting Against Electrostatic Discharge" in the
Product Information Guide).
NOTICE: Use firm and even pressure to slide the drive into place. If you use excessive force, you may damage the connector.

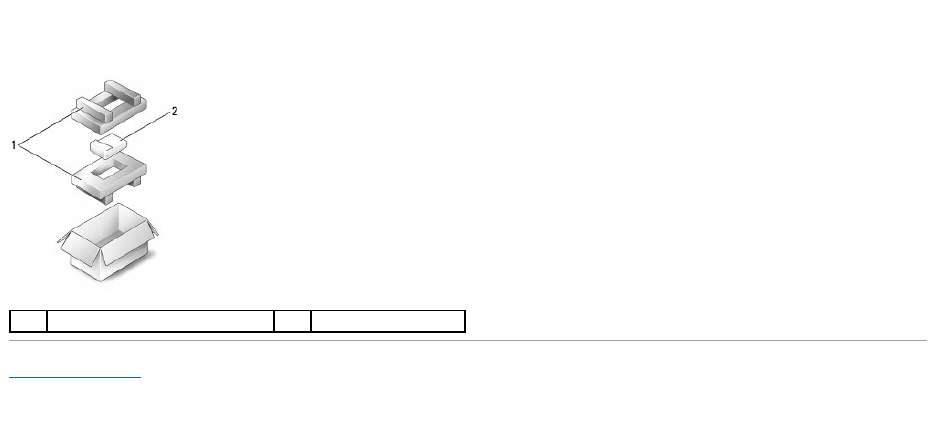

Returning a Hard Drive to Dell
Return your old hard drive to Dell in its original, or comparable, foam packaging. Otherwise, the hard drive may be damaged in transit.
Back to Contents Page
1
foam packaging
2
hard drive
Back to Contents Page
Hinge Covers and Center Control Cover
Dell™XPS™M1330ServiceManual
Removing the Hinge Covers and Center Control Cover
Replacing the Hinge Covers and Center Control Cover
Removing the Hinge Covers and Center Control Cover
1. Follow the procedures in Before You Begin.
2. Turn the computer over and remove the two M2 x 3-mm screws that secure the center control cover.
3. Turn the computer top side up, and open the display as far as it will open.
4. Remove the hinge covers from each side of the computer.
5. Ease the center control cover up, and remove the cable that attaches it to the system board.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the
computer.
1
center control cover
2
hinge cover (2)
NOTICE: Be extremely careful when removing the center control cover. The cover along with the cable that attaches to it are very fragile.
6. Remove the keyboard (see Keyboard).
7. Using your fingernail, pull the cable release tabs forward and remove the center control cover cable.
Replacing the Hinge Covers and Center Control Cover
1. Reconnect the cable that attaches the center control cover to the system board, and snap the center control cover in place.
2. Replace the keyboard (see Replacing the Keyboard).
3. Replace the hinge covers.
4. Turn the computer over and replace the two M2 x 3-mm screws that secure the center control cover to the computer base.
Back to Contents Page
1
center control cover
1
cable release tabs (2)
2
center control cover cable
Back to Contents Page
Keyboard
Dell™XPS™M1330ServiceManual
Removing the Keyboard
Replacing the Keyboard
For more information about the keyboard, see "Using the Keyboard and Touchpad" in your Owner's Manual.
Removing the Keyboard
1. Follow the procedures in Before You Begin.
2. Remove the hinge covers and center control cover (see Hinge Covers and Center Control Cover).
3. Remove the two M2 x 2-mm screws at the top of the keyboard.
4. Carefully slide the keyboard toward the back of the computer.
5. Pull up on the plastic bar that secures the keyboard cable to the system board and remove the keyboard
Replacing the Keyboard
1. Slide the keyboard connector into the slot until it clicks and pull down on the plastic bar that secures the keyboard connector to the system board.
2. Align the five tabs along the bottom of the keyboard and slide them under the palm rest.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the
computer.
NOTICE: The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the
keyboard.
NOTICE: Be extremely careful when removing and handling the keyboard. Failure to do so could result in scratching the display panel.
1
M2 x 2-mm screw (2)
2
keyboard
3
keyboard tabs (5)
4
keyboard cable
5
plastic securing bar
NOTICE: The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the
keyboard.
3. Replace the two M2 x 2-mm screws along the top of the keyboard.
Back to Contents Page
Back to Contents Page
Memory
Dell™XPS™M1330ServiceManual
Removing the DIMM 1 Memory Module
Replacing the DIMM 1 Memory Module
Removing the DIMM 2 Memory Module
Replacing the DIMM 2 Memory Module
You can increase your computer memory by installing memory modules on the system board. See "Specifications" in your Owner's Manual for information on the
memory supported by your computer. Install only memory modules that are intended for your computer.
Your computer has two user-accessible SODIMM sockets that can be accessed from the bottom of the computer.
Removing the DIMM 1 Memory Module
1. Follow the procedures in Before You Begin.
2. Turn the computer over and loosen the three captive screws along with the M2.5 x 5-mm screw. Remove the module cover.
3. Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.
4. Remove the module from the connector.
NOTE: Memory modules purchased from Dell are covered under your computer warranty.
NOTICE: If you need to install memory modules in two connectors, install a memory module in the connector labeled "DIMM1" before you install a
module in the connector labeled "DIMM2."
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTICE: If a memory module is installed in the DIMM 2 connector, remove it prior to removing the memory module from the DIMM 1 connector. Failure to
do so could result in damaging both memory modules.
1
M2.5 x 5-mm screw
2
captive screws (3)
3
module cover
NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.
Replacing the DIMM 1 Memory Module
1. Align the notch in the module edge connector with the tab in the connector slot.
2. Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If you do not feel the click, remove the
module and reinstall it.
3. Replace the module cover.
4. Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical outlet.
5. Turn on the computer.
As the computer boots, it detects the additional memory and automatically updates the system configuration information.
To confirm the amount of memory installed in the computer, click Start ® Help and Support® Dell System Information.
Removing the DIMM 2 Memory Module
The DIMM 2 memory module is located directly above the DIMM 1 memory module located on the bottom of the computer.
1. Follow the procedures in Before You Begin.
2. Turn the computer over and loosen the three captive screws along with the M2.5 x 5-mm screw. Remove the module cover.
1
upper memory module connector
2
securing clips (2)
3
memory module (DIMM 1)
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTE: If the memory module is not installed properly, the computer may not boot. No error message indicates this failure.
1
tab
2
notch
3. Use your fingertips to carefully spread apart the securing clips on each end of the memory module connector until the module pops up.
4. Remove the module from the connector.
Replacing the DIMM 2 Memory Module
1. Align the notch in the module edge connector with the tab in the connector slot.
2. Slide the module firmly into the slot at a 45-degree angle, and rotate the module down until it clicks into place. If you do not feel the click, remove the
module and reinstall it.
1
M2.5 x 5-mm screw
2
captive screws (3)
NOTICE: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
1
lower memory module connector
2
securing clips (2)
3
memory module (DIMM 2)
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as a connector on the back of the computer).
NOTE: If the memory module is not installed properly, the computer may not boot. No error message indicates this failure.
3. Replace the module cover.
4. Insert the battery into the battery bay, or connect the AC adapter to your computer and an electrical outlet.
5. Turn on the computer.
As the computer boots, it detects the additional memory and automatically updates the system configuration information.
To confirm the amount of memory installed in the computer, click Start ® Help and Support® Dell System Information.
Back to Contents Page
1
tab
2
notch
NOTICE: If the cover is difficult to close, remove the module and reinstall it. Forcing the cover to close may damage your computer.
Back to Contents Page
Communication Cards
Dell™XPS™M1330ServiceManual
Subscriber Identity Module
Wireless Mini Cards
Flash Cache Module
Subscriber Identity Module
Subscriber Identity Modules (SIM) identify users uniquely through an International Mobile Subscriber Identity.
1. Follow the procedures in Before You Begin.
2. In the battery bay, slide the SIM into the compartment.
Wireless Mini Cards
If you ordered a wireless Mini Card with your computer, the card is already installed. Your computer supports three types of wireless Mini Cards:
lWireless Local Area Network (WLAN)
lMobile Broadband or Wireless Wide Area Network (WWAN)
Removing a WLAN Card
1. Follow the procedures in Before You Begin.
2. Turn the computer over.
3. Loosen the captive screw on the Mini Card module cover and remove the cover.
NOTE: Only Cingular and Vodafone need a SIM. Verizon, Sprint, and Telus do not use SIMs.
1
battery bay
2
SIM
NOTICE: To help prevent damage to the system board, you must remove the battery from the battery bay before you begin working inside the
computer.
4. Disconnect the antenna cables from the WLAN card.
5. Release the WLAN card by removing the securing screw.
6. Lift the WLAN card out of its system board connector.
Replacing a WLAN Card
1. Insert the WLAN card connector at a 45-degree angle into the system board connector labeled "WLAN."
2. Press the other end of the WLAN card down into the slot on the system board until the card clicks into place.
1
WLAN
card
2
M2 x 3-mm securing
screw
3
antenna cable connectors
(2)
NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors on the card and on the system board, and
realign the card.
NOTICE: To avoid damage to the WLAN card, never place cables under the card.
3. Replace the M2 x 3-mm securing screw.
4. Connect the appropriate antenna cables to the WLAN card you are installing:
If the WLAN card has two triangles on the label (white and black), connect the white antenna cable to the connector labeled "main" (white triangle), and
connect the black antenna cable to the connector labeled "aux" (black triangle).
If the WLAN card has three triangles on the label (white, black, and gray), connect the white antenna cable to the white triangle, connect the black
antenna cable to the black triangle, and connect the gray antenna cable to the gray triangle.
5. Secure unused antenna cables in the protective mylar sleeve.
6. Replace the cover and tighten the captive screws.
Removing a Mobile Broadband or WWAN Card
1. Follow the procedures in Before You Begin.
2. Turn the computer over.
3. Loosen the captive screw on the Mini Card module cover and remove the cover.
4. Disconnect the two antenna cables from the WWAN card.
5. Release the WWAN card by removing the securing screw.
6. Lift the WWAN card out of its system board connector.
NOTE: WWAN is also available on an ExpressCard (see "Using ExpressCards" in your Owner's Manual).
1
WWAN
card
2
M2 x 3-mm securing
screw
3
antenna cable connectors
(2)
Replacing a WWAN Card
1. Insert the WWAN card connector at a 45-degree angle into the system board connector labeled "WWAN."
2. Press the other end of the WWAN card down into the slot on the system board until the card clicks into place.
3. Replace the M2 x 3-mm securing screw.
4. Connect the black antenna cable with a gray stripe to the connector labeled "aux" (black triangle), and connect the white antenna cable with a gray
stripe to the connector labeled "main" (white triangle).
5. Secure unused antenna cables in the protective mylar sleeve.
6. Replace the cover and tighten the captive screws.
Flash Cache Module
The FCM, or Flash Cache Module, is an internal memory card that helps improve the performance of your computer. The FCM card is also known as Intel Turbo
Memory and the Intel®Flash Cache Logic Chip Mini-card.
If you ordered an FCM card with your computer, the card is already installed.
Removing the FCM
1. Follow the procedures in Before You Begin.
2. Turn the computer over and remove the cover on the Mini Card compartment.
NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors on the card and on the system board, and
realign the card.
NOTICE: To avoid damage to the WWAN card, never place cables under the card.
NOTE: ThiscardisonlycompatiblewiththeMicrosoftWindowsVista™operatingsystem.
3. Ground yourself by touching one of the metal connectors on the back of the computer.
4. Remove the M2 x 3-mm securing screw.
5. Remove the FCM card.
Replacing the FCM Card
1. Insert the FCM card connector at a 45-degree angle into the system board connector labeled "FCM."
2. Press the other end of the FCM card down into the slot on the system board until the card clicks into place.
3. Replace the M2 x 3-mm securing screw.
Back to Contents Page
NOTE: If you leave the area, ground yourself again when you return to the computer.
1
FCM card
2
M2 x 3-mm securing screw
NOTICE: Install the FCM card in the WWAN or WPAN slot. Do not install an FCM cardin the WLAN card slot. Doing so may cause damage to your
computer.
Back to Contents Page
Optical Drive
Dell™XPS™M1330ServiceManual
1. Follow the procedures in Before You Begin.
2. Remove the hinge covers and center control cover (see Hinge Covers and Center Control Cover).
3. Remove the keyboard (see Keyboard).
4. Remove the display assembly (see Display Assembly).
5. Remove the palm rest (see Palm Rest).
6. Remove the four M2 x 3-mm screws that secure the optical drive to the computer base.
7. Lift the drive out of the computer base and remove the connector from the back of the drive.
Back to Contents Page
CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching a connector on the back panel of
the computer.
1
M2 x 3-mm screws (4)
2
optical drive
Back to Contents Page
Palm Rest
Dell™XPS™M1330ServiceManual
Removing the Palm Rest
Replacing the Palm Rest
Removing the Palm Rest
1. Follow the instructions in Before You Begin.
2. Remove any installed ExpressCards from the ExpressCard slot.
3. Remove any installed memory modules or Mini Cards (see Memory and Communication Cards).
4. Remove the hard drive (see Hard Drive).
5. Remove the display assembly (see Display Assembly).
6. Turn the computer upside down and remove the six M2.5 x 5-mm screws from the computer base.
7. Turn the computer top side up and remove the seven screws from the top of the palm rest.
8. Disconnect the touch pad cable from the system board.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: Pull on the plastic tab on top of the connectors to avoid damaging the connectors.
9. Starting at the back center of the palm rest, use your fingers to separate the palm rest from the computer base by lifting the inside of the palm rest
while pushing in on the outside.
Replacing the Palm Rest
1. Align the palm rest with the computer base and gently snap it into place.
2. Connect the touch pad connector to the system board.
3. Replace the seven screws on the top of the palm rest.
4. Turn the computer upside down and replace the six screws in the computer base.
5. Replace the display assembly (see Replacing the Display Assembly).
6. Replace the internal card with Bluetooth®wireless technology (see Replacing the Bluetooth Card).
7. Replace the keyboard (see Replacing the Keyboard).
8. Replace the hinge covers and center control cover (see Replacing the Hinge Covers and Center Control Cover).
Back to Contents Page
1
palm rest
2
touch pad connector
NOTICE: Carefully separate the palm rest from the computer base to avoid damage to the palm rest.
Back to Contents Page
ExpressCard Reader
Dell™XPS™M1330ServiceManual
1. Follow the procedures in Before You Begin.
2. Remove any installed ExpressCards from the ExpressCard slot.
3. Remove the display assembly (see Display Assembly).
4. Remove the palm rest (see Palm Rest).
5. Remove the three M2 x 3-mm screws that secure the Express Card reader to the computer base.
6. Pull up on the Express Card reader to disconnect it from the system board.
Back to Contents Page
CAUTION: Before performing the following procedures, follow the safety instructions in the Product Information Guide.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching a connector on the back panel of
the computer.
1
M2 x 3-mm screws (3)
2
Express Card reader
Back to Contents Page
Pin Assignments for I/O Connectors
Dell™XPS™M1330ServiceManual
USB Connector
Video Connector
HDMI Connector
USB Connector
Video Connector
HDMI Connector
Pin
Signal
1
USB5V+
2
USBP–
3
USBP+
4
GND
NOTE: The color of the video connector may vary in color between blue and black.
Pin
Signal
Pin
Signal
1
CRT_R
9
5V+
2
CRT_G
10
GND
3
CRT_B
11
MONITOR_DETECT–
4
NC
12
DDC_DATA
5
GND
13
CRT_HS
6
GND
14
CRT_VS
7
GND
15
DDC_CLK
8
GND
Back to Contents Page
Pin
Signal
Pin
Signal
1
TMDS Data 2+
11
TMDS Clock Shield
2
TMDS Data 2 Shield
12
TMDS Clock-
3
TMDS Data 2-
13
CEC
4
TMDS Data 1+
14
No Connect
5
TMDS Data 1 Shield
15
DDC Clock
6
TMDS Data 1-
16
DDC Data
7
TMDS Data 0+
17
Ground
8
TMDS Data 0 Shield
18
+5V Power
9
TMDS Data 0-
19
Hot Plug Detect
10
TMDS Clock+
20
SHELL
Back to Contents Page
Wireless Sniffer Board
Dell™XPS™M1330ServiceManual
1. Follow the instructions in Before You Begin.
2. Remove any installed ExpressCards from the ExpressCard slot.
3. Remove the palm rest (see Palm Rest).
4. Remove the express card cage (see ExpressCard Reader
5. Disconnect the wireless sniffer board cable from the system board.
6. Remove the two M2 x 3-mm screws from each side of the sniffer board and remove it from the computer base.
Back to Contents Page
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: Handle components and cards by their edges, and avoid touching pins and contacts.
1
wireless sniffer board cable connector
2
M2 x3-mm screws (2)
3
wireless sniffer board
Back to Contents Page
Speaker
Dell™XPS™M1330ServiceManual
1. Follow the instructions in Before You Begin.
2. Remove any installed ExpressCards from the ExpressCard slot.
3. Remove any installed memory modules or Mini Cards (see Memory and Communication Cards).
4. Remove the hard drive (see Hard Drive).
5. Remove the hinge covers and center control cover (see Hinge Covers and Center Control Cover).
6. Remove the keyboard (see Keyboard).
7. Remove the display assembly (see Display Assembly).
8. Remove the palm rest (see Palm Rest).
9. Remove the two speaker screws (one on each speaker) from the computer base.
10. Disconnect the speaker connector from the system board.
Back to Contents Page
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
1
speaker
2
M2 x 3-mm speaker screws (2)
3
speaker cables routing
4
speaker connector
Back to Contents Page
System Board
Dell™XPS™M1330ServiceManual
Removing the System Board
Replacing the System Board
Removing the System Board
The system board's BIOS chip contains the Service Tag, which is also visible on a barcode label on the bottom of the computer. The replacement kit for the
system board includes a CD that provides a utility for transferring the Service Tag to the replacement system board.
1. Follow the instructions in Before You Begin.
2. Remove any installed ExpressCards from the ExpressCard slot.
3. Remove any installed memory modules or Mini Cards (see Memory and Communication Cards).
4. Remove the hard drive (see Hard Drive).
5. Remove the internal card with Bluetooth®wireless technology (see Internal Card With Bluetooth® Wireless Technology).
6. Remove the display assembly (see Display Assembly).
7. Remove the palm rest (see Palm Rest).
8. Remove the optical drive (see Optical Drive).
9. Remove the ExpressCard cage (see ExpressCard Reader).
10. Remove the wireless sniffer board (see Wireless Sniffer Board).
11. Remove the thermal-cooling assembly (see Processor Thermal-Cooling Assembly).
12. Remove the processor (see Processor).
13. Disconnect the power button cable from the system board connector.
14. Disconnect the center control cover cable from the system board connector.
15. Disconnect the speaker cable from the system board connector.
16. Remove the two remaining M2.5 x 5-mm screws that secure the system board to the computer base.
NOTICE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such
as the back panel) on the computer.
NOTICE: Handle components and cards by their edges, and avoid touching pins and contacts.
17. Lift the system board at an angle toward the side of the computer and out of the computer base.
Replacing the System Board
1. Follow all of the steps in Removing the System Board in reverse order.
2. Turn on the computer.
3. Insert the CD that accompanied the replacement system board into the appropriate drive. Follow the instructions that appear on the screen.
Back to Contents Page
1
speaker cable connector
2
power button cable connector
3
power button cable release tabs (2)
NOTICE: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may result in
damage to the computer.
NOTE: After you have replaced the system board, enter the computer Service Tag into the BIOS of the replacement system board.
Back to Contents Page
Dell™XPS™M1330ServiceManual
Information in this document is subject to change without notice.
©2007DellInc.Allrightsreserved.
Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and XPS are trademarks of Dell Inc.;Bluetooth is a registered trademark owned by Bluetooth SIG, Inc. and is used by Dell under
license. Intel, Pentium, and Celeron are registered trademarks of Intel Corporation; Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
July 2007 Rev. A00
Back to Contents Page
NOTE: A NOTE indicates important information that helps you make better use of your computer.
NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.
CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death.

Navigation menu
