Setup and Features Information

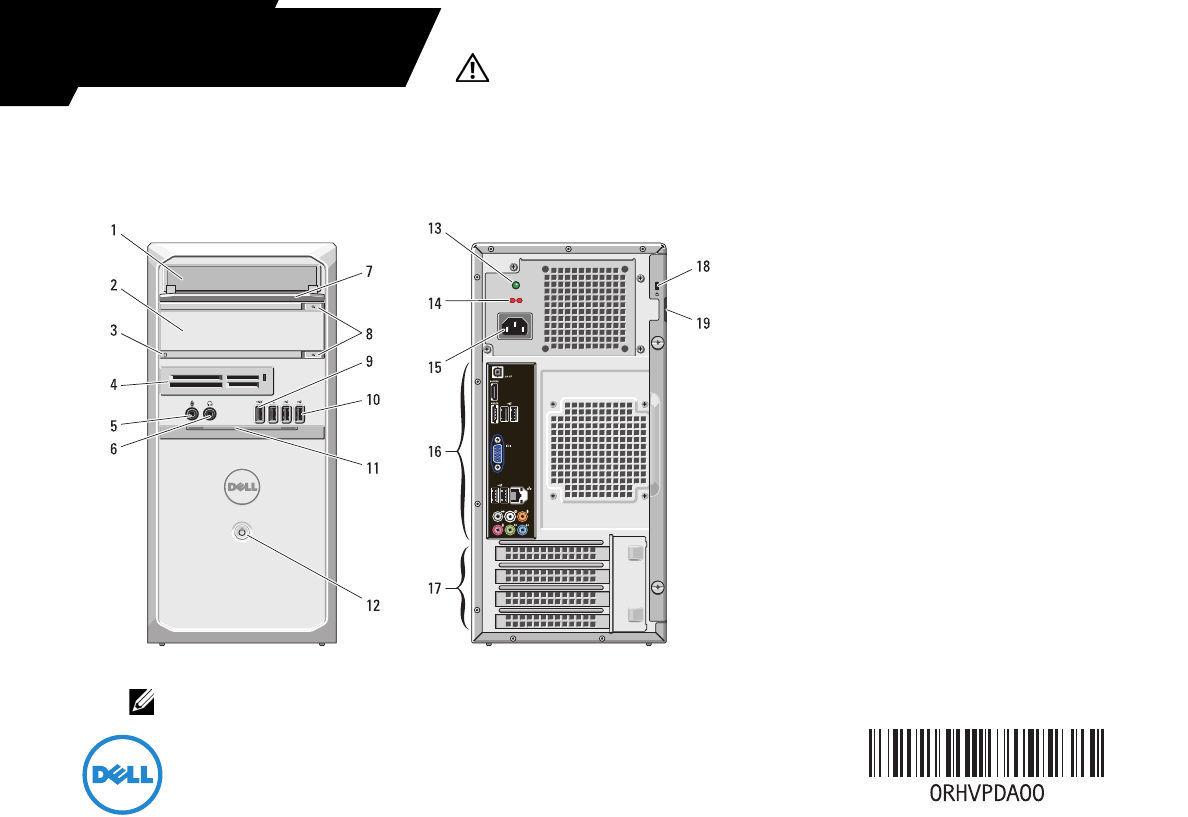

Front and Back View

1optical drive

2optical drive (optional)

3hard-drive activity light

4media-card reader (optional)

5microphone connector

6headphone connector

7drive bay front panel (open)

8optical-drive eject buttons (2)

9powered USB 2.0 connector

10 USB 2.0 connectors (3)

11 front panel door (open)

12 power button

13 power supply diagnostic light

14 voltage selector switch

15 power connector

16 back panel connectors

17 expansion card slots (4)

18 security cable slot

19 padlock slot

NOTE: The second optical drive eject button is functional only if a second optical drive

is installed in the computer.

Dell Vostro 460

About Warnings

WARNING: A WARNING indicates a potential

for property damage, personal injury, or death.

Regulatory Model: D10M Regulatory Type: D10M001 December 2010

RHVPDam0.fm Page 1 Friday, November 19, 2010 10:57 AM

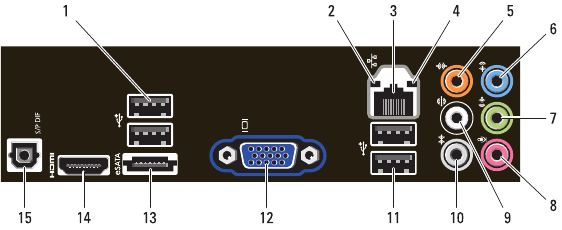

Back Panel

1USB 2.0 connectors (2)

2link integrity light

3network adapter connector

4network activity light

5center/subwoofer connector

6line-in connector

7front L/R line-out connector

8microphone connector

9rear L/R speaker connector

10 side L/R surround connector

11 USB 2.0 connectors (2)

12 VGA connector

13 eSATA connector

14 HDMI connector

15 S/PDIF connector

RHVPDam0.fm Page 2 Friday, November 19, 2010 10:57 AM

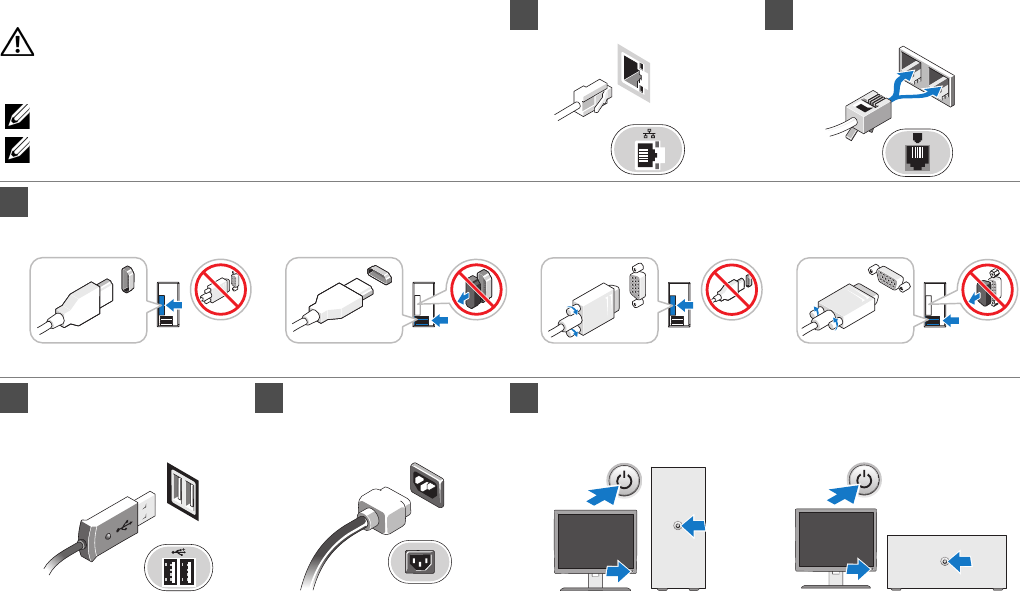

1Connect the network cable

(optional).

2Connect the telephone cable

(optional).

3If you purchased the optional discrete graphics card, connect the display to the connector on the discrete graphics card. Otherwise, connect the

display using either the integrated VGA or HDMI connector. Connect the monitor using only one of the following cables.

4Connect the

USB keyboard or

mouse (optional).

5Connect the

power cable(s).

6Press the power buttons on the monitor and the computer.

Quick Setup

WARNING: Before you begin any of the procedures in this section,

read the safety information that shipped with your computer. For additional

best practices information, see www.dell.com/regulatory_compliance.

NOTE: Some devices may not be included if you did not order them.

NOTE: Some cables may not be shipped with your computer.

RHVPDam0.fm Page 3 Friday, November 19, 2010 10:57 AM

Specifications

NOTE: The following specifications are only those required by law

to ship with your computer. For a complete and current listing of the

specifications for your computer, go to support.dell.com.

System Information

Chipset Intel H67

Processor Intel Core i3 series

Intel Core i5 series

Intel Core i7 series

Video

Video type:

Integrated

Intel HD graphics 2000

Discrete

PCI-E x16 graphics card

• NVIDIA GeForce GTX460

•NVIDIA M114A

•NVIDIA M207 GT420

• AMD Radeon HD 5450

• AMD Radeon HD 5670

Video memory (discrete) 256 MB, 512 MB, and 1024 MB

Memory

Memory module connector four DIMM slots

Memory module capacity 1 GB, 2 GB, or 4 GB

Memory type 1333 MHz DDR3

Minimum memory 1 GB

Maximum memory 16 GB

Drives

Externally accessible:

3.5 inch drive bays

one

5.25 inch drive bays

two

Internally accessible:

3.5 inch SATA

drive bays

two

RHVPDam0.fm Page 4 Friday, November 19, 2010 10:57 AM

Control Lights and Diagnostic Lights

Power button light White light — Solid white light indicates

power-on state; blinking white light

indicates sleep state of the computer.

Amber light — Solid amber light when the

computer does not start indicates a problem

with the system board or power supply.

Blinking amber light indicates a problem

with the system board.

Drive activity light White light — Blinking white light

indicates that the computer is reading data

from or writing data to the hard drive.

Link integrity light Green or Amber light — A good

connection exists between the network

and the computer.

Off (no light) — The computer is not

detecting a physical connection to the network.

Diagnostic lights For information on the diagnostic lights,

see the Service Manual available on the

Dell Support website at

support.dell.com/manuals.

Power

Wattage 350 W

Voltage 100 V – 127 V/200 V – 240 V, 50 Hz – 60 Hz,

10 A/5 A

Maximum heat dissipation 1837 BTUs/h (350 W power supply)

NOTE: Heat dissipation is calculated by using the power supply

wattage rating.

NOTE: See the safety information that shipped with your computer

for important voltage–setting information.

Coin-cell battery 3 V CR2032 lithium coin cell

Physical

Height

Without base

360.00 mm (14.17 inches)

With base

362.90 mm (14.29 inches)

Width 175.00 mm (6.89 inches)

Depth 445.00 mm (17.52 inches)

Weight 9.66 kg – 11.22 kg (21.30 lb – 24.74 lb)

RHVPDam0.fm Page 5 Friday, November 19, 2010 10:57 AM

Finding More Information and Resources

See the safety and regulatory publications that shipped with your computer

and the regulatory compliance website at

www.dell.com/regulatory_compliance for more information on:

• Safety best practices

• Warranty

• Terms and Conditions

• Regulatory certification

•Ergonomics

• End User License Agreement

________________

Information in this publication is subject to change without notice.

© 2010 Dell Inc. All rights reserved. Printed in the U.S.A.

Reproduction of these materials in any manner whatsoever without the written

permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell™, the DELL logo, and Vostro™ are

trademarks of Dell Inc.; Intel® is a registered trademark and Core™ is a

trademark of Intel Corporation in the U.S. and other countries.

Other trademarks and trade names may be used in this publication to refer to

either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other

than its own.

Environmental

Temperature:

Operating

10 °C to 35 °C (50 °F to 95 °F)

Non-operating

–40 °C to 65 °C (–40 °F to 149 °F)

Relative humidity 20 % to 80 % (noncondensing)

Altitude:

Operating

–15.2 m to 3048 m (–50 ft to 10,000 ft)

Non-operating

–15.2 m to 10,668 m (–50 ft to 35,000 ft)

Airborne contaminant level G2 or lower as defined by ISA-S71.04-1985
