Dell™ KM632 Desktop
Wireless Keyboard and
Mouse
Setup
Keyboard
Features
Troubleshooting
Specifications
Mouse
Features
Troubleshooting
Specifications
Statutory Information
Warranty
Regulatory
Certifications
Information in this document is subject to change
without notice.
© 2011 Dell Inc. All rights reserved.
Reproduction of these materials in any manner
whatsoever without the written permission of Dell Inc.
is strictly forbidden. Trademarks used in this text:
Microsoft® and Windows® are registered trademarks
of Microsoft Corporation in the United States and/or
other countries; Dell™ and the Dell logo are
trademarks of Dell Inc.
Other trademarks and trade names may be used in
this document to refer to either the entities claiming
the marks and names or their products. Dell Inc.
disclaims any proprietary interest in trademarks and
trade names other than its own.
2011 - 05 Rev. A00
Restrictions and Disclaimers
The information contained in this document,
including all instructions, cautions, and
regulatory approvals and certifications, is
provided by the supplier and has not been
independently verified or tested by Dell. Dell
cannot be responsible for damage caused as a
result of either following or failing to follow
these instructions.
All statements or claims regarding the
properties, capabilities, speeds or qualifications
of the part referenced in this document are
made by the supplier and not by Dell. Dell
specifically disclaims knowledge of the
accuracy, completeness or substantiation for
any such statements. All questions or
comments relating to such statements or
claims should be directed to the supplier.
Export Regulations
Customer acknowledges that these Products,
which may include technology and software,
are subject to the customs and export control
laws and regulations of the United States
("U.S.") and may also be subject to the
customs and export laws and regulations of
the country in which the Products are
manufactured and/or received. Customer
agrees to abide by those laws and regulations.
Further, under U.S. law, the Products may not
be sold, leased or otherwise transferred to
restricted end-users or to restricted countries.
In addition, the Products may not be sold,
leased or otherwise transferred to, or utilized
by an end-user engaged in activities related to
weapons of mass destruction, including without
limitation, activities related to the design,
development, production or use of nuclear
weapons, materials, or facilities, missiles or
the support of missile projects, and chemical
or biological weapons.
Back to Contents Page
Setup: Dell™ KM632 Desktop Wireless Keyboard and Mouse
System Requirements
The following is a list of system requirements:
One USB port (for the USB Receiver)
Microsoft Windows 7/Vista/XP, Media Center Edition and Linux Ubuntu
Getting Started
Contents of the Box • Setting Up •
Contents of the Box
Setting Up
Step 1: Setting up the Keyboard

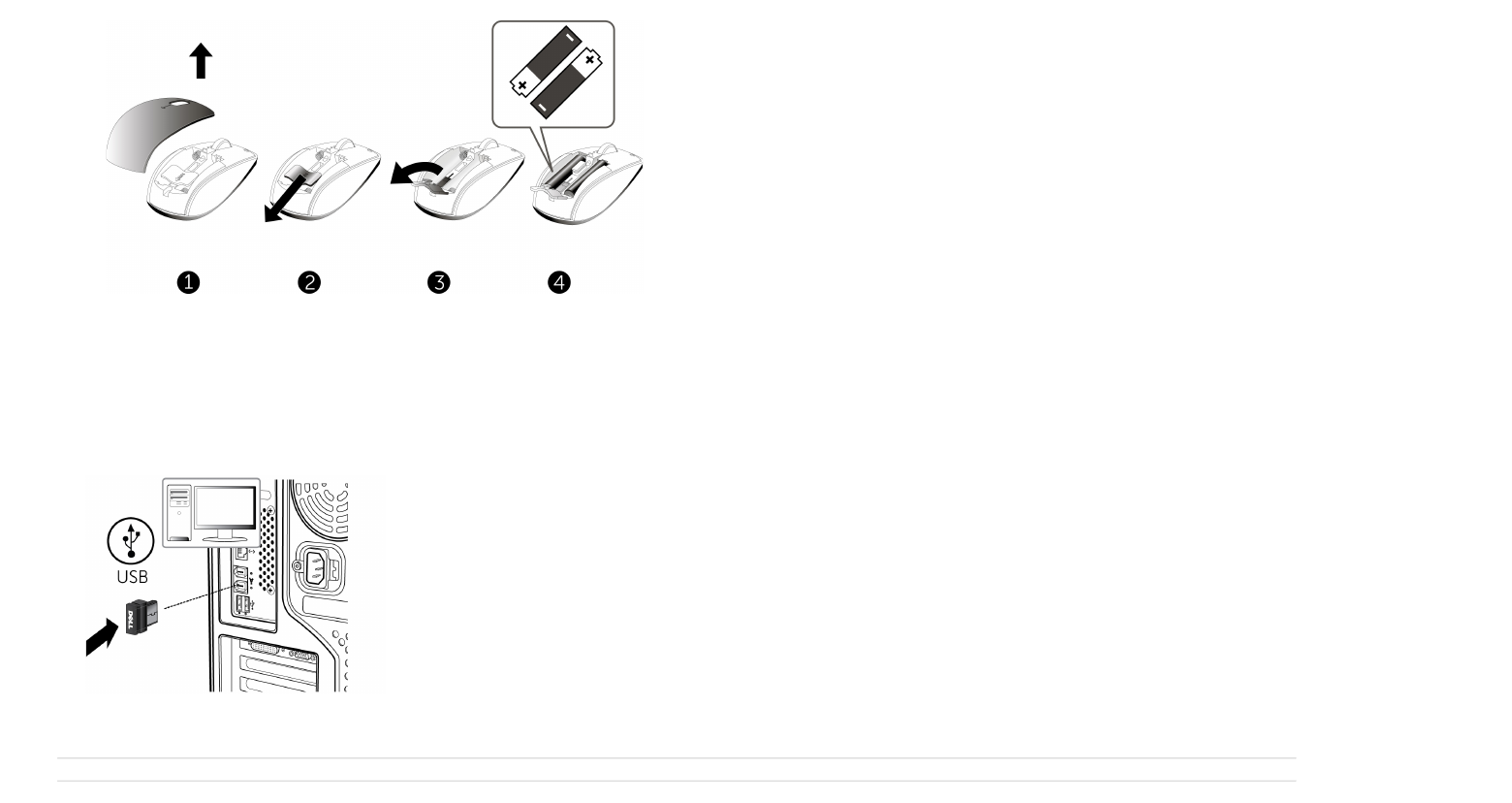

Step 2: Setting up the Mouse
Back to Contents Page
Features: Dell KM632
Wireless Desktop
Wireless Keyboard
Overview • Multimedia Functions • Application
Keys and Windows Keys •On-Screen Display •
Overview
Dell™ KM632 Desktop
Wireless Keyboard Front
View
Label Description/Function
1Battery Indicator Green-colored Power
Indicator
Amber-colored Low
Battery Indicator
2Sleep Key Press the Sleep key to
put computer to Standby
Mode.
To wake up computer,
press any key on the
keyboard.
3 Multimedia
Functions Mute, Volume up,
Volume down,
Play/Pause, Skip
forward, Skip backward
Dell™ KM632 Desktop
Wireless Keyboard Back
View
Label
1Battery Compartment
2On/Off Switch
Multimedia Functions
Mute the media that is
playing
Volume Down
Volume Up
Skips back to
previous track
Play/Pause
Skips forward to next
track
Application Keys and
Windows Keys
Key
Combinations Function
Application
key
The same shortcut
menu as right-clicking
the desktop while
pressing this key
Windows
key Start Menu
Windows key +
EWindows Explorer
Windows key +
FFind Document
Windows key +
MMinimize All
Windows key +
RDisplay Run Dialog box
Windows key +
F1 Display Help Menu
Windows key +
TAB Activate next taskbar
button
Windows key +
Ctrl + F Find Computer
Windows key +
Shift + M Undo Minimize All
Windows key +
Pause/Break Perform a system
function
On-Screen Display
Caps Lock On
Caps Lock Off
Caps Lock — allows the typing of all
caps where appropriate, such as titles at
the top of a page, without requiring the
typist to manually keep the shift key
depressed as long as needed.
If the Caps Lock indicator does not
appear on the screen, please download
the driver from
www.support.dell.com/KM632.
Please read all restrictions and disclaimers.
Back to Contents Page
Back to Contents Page
Troubleshooting: Dell™
KM632 Desktop
Wireless Keyboard
If you have problems with your keyboard:
Check if the batteries are placed in the
correct position.
Check if the On/Off switch is on.
After installing the batteries, you will
see a green-colored power indicator on
the front of the keyboard. The LED will
fade off after 15 seconds.
Remove and insert the USB receiver
again.
If you still have a problem, restart your
computer.
Try the USB Receiver on another USB
connector.
Please read all restrictions and disclaimers.
Back to Contents Page
Back to Contents Page
Specifications: Dell™
KM632 Desktop
Wireless Keyboard
General • Electrical • Physical • Environmental
• 2.4 GHz Wireless •
General
Manufacturer Chicony Electronics Co.,
Ltd.
Model number KG-1089
Connection type 2.4 GHz Wireless
technology
Supported
Operating
Systems
Microsoft® Windows®
7/Vista/ XP and Media
Center Edition and Linux
Ubuntu.
Rollover Pseudo N-key rollover
capability
Key mechanism Rubber dome
Electrical
Operating Voltage 2.0 V to 3.2V
Battery life approx. 6 months
Battery require 2*AA Alkaline
Physical Characteristics
Height 31.64 mm
Length 444.38 mm
Width 141.01 mm
Weight 497.8g, without batteries
Environmental
Operating
temperature 0 °C to 40 °C
Storage
temperature -40 °C to 65 °C
Operating
humidity
90%max Relative
Humidity, non
condensing
Storage humidity 95%max Relative
Humidity, non
condensing
2.4 GHz Wireless
Radio transmission Bi-directional, Enhanced Shock Burst™
Range Up to 10 meters
Please read all restrictions and disclaimers.
Back to Contents Page
Back to Contents Page
Troubleshooting: Dell™
KM632 Desktop
Wireless Mouse
If you have problems with your mouse:
Check if the batteries are placed in the
correct position.
Check if the On/Off switch is on.
After installing the batteries, you will
see a green-colored power indicator on
the front of the mouse. The LED will
fade off after 15 seconds.
Remove and insert the USB receiver
again.
If you still have a problem, restart your
computer.
Try the USB Receiver on another USB
connector.
Please read all restrictions and disclaimers.
Back to Contents Page
Back to Contents Page
Specifications: Dell™
KM632 Desktop
Wireless Mouse
General • Electrical • Physical • Environmental
• 2.4 GHz Wireless •
General
Manufacturer Chicony Electronics Co.,
Ltd.
Model number MG-1090
Connection type 2.4 GHz Wireless
technology
Supported
Operating
Systems
Microsoft® Windows®
7/Vista/ XP and Media
Center Edition and Linux
Ubuntu.
Electrical
Operating Voltage 2.0V to 3.2V
Battery life approx. 6 months
Battery require 2*AA Alkaline
Physical Characteristic
Height 38.97 mm
Width 64.12mm
Length 113.06 mm
Weight 81.8 g, without batteries
Environmental
Operating
temperature 0 °C to 40 °C
Storage
temperature -40 °C to 65 °C
Operating
humidity
90%max Relative
Humidity, non
condensing
Storage humidity 90%max Relative
Humidity, non
condensing
2.4 GHz Wireless
Radio transmission Bi-directional, Enhanced Shock Burst™
Range Up to 10 meters
Please read all restrictions and disclaimers.
Back to Contents Page
Back to Contents Page
Warranty: Dell™ KM632
Desktop Wireless
Keyboard and Mouse
Limited Warranties and Return policies
Dell-branded products carry a 1-year limited
hardware warranty.
If purchased together with Dell system, it will
follow the system warranty.
For U.S. customers: This purchase and your
use of this product are subject to Dell's end
user agreement, which you can find at
www.dell.com/terms. This document contains
a binding arbitration clause.
For European, Middle Eastern and African
customers: Dell- branded products that are
sold and used are subject to applicable
national consumer legal rights, the terms of
any retailer sale agreement that you have
entered into (which will apply between you and
the retailer) and Dell’s end user contract
terms. Dell may also provide an additional
hardware warranty – full details of the Dell end
user contract and warranty terms can be found
by going to www.Dell.com, selecting your
country from the list at the bottom of the
“home” page and then clicking the “terms and
conditions” link for the end user terms or the
“support” link for the warranty terms.
FOR NON-U.S. CUSTOMERS: Dell- branded
products that are sold and used are subject to
applicable national consumer legal rights, the
terms of any retailer sale agreement that you
have entered into (which will apply between
you and the retailer) and Dell’s warranty
terms. Dell may also provide an additional
hardware warranty – full details of Dell’s
warranty terms can be found by going to
www.Dell.com, selecting your country from the
list at the bottom of the “home” page and then
clicking the “terms and conditions” link or the
“support” link for the warranty terms.
Please read all restrictions and disclaimers.
Back to Contents Page
Back to Contents Page
Regulatory: Dell™
Desktop KM632
Wireless Keyboard and
Mouse Bundle
Regulatory and Safety Information
Keyboard Regulatory Model: KG-1089
Mouse Regulatory Model: MG-1090
Dongle Regulatory Model: RG-1091
Regulatory Information
These devices comply with Part 15 of the FCC
Rules. Operation of the devices is subject to
the following two conditions: (1) The devices
may not cause harmful interference, and (2)
The devices must accept any interference that
may cause undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy. If the equipment is
not installed and used in accordance with the
instructions, the equipment may cause harmful
interference to radio communications. There is
no guarantee, however, that such interference
will not occur in a particular installation. If this
equipment does cause harmful interference to
radio or television reception (which can be
determined by turning the equipment off and
on), the user is encouraged to try to correct
the interference by taking one or more of the
following measures:
• Relocate this device.
• Increase the separation between the device
and the receiver.
• Connect the device into an outlet on a circuit
different from that of other electronics.
• Consult the dealer or an experienced radio
technician for help.
Agency Approval: FCC, CE, cULus, ICES,
VCCI, NOM, BSMI, NCC, C-Tick, SRRC, TELEC,
IDA, KCC.
Please read all restrictions and disclaimers.
Back to Contents Page
Back to Contents Page
Certifications: Dell™
KM632 Desktop
Wireless Keyboard and
Mouse
Microsoft WHQL Logo
The Dell™ KM632 Desktop Wireless Keyboard
and Mouse have passed WHQL logo testing by
Microsoft Windows Hardware Quality Labs.
WHQL Logo is a certification scheme operated
by Microsoft Windows Hardware Quality Labs.
In this case it ensures that hardware is
compatible with Microsoft Operating Systems.
The keyboard and mouse are qualified through
the use of WHQL test kits and has been
included in the Microsoft Hardware
Compatibility List.
Please read all restrictions and disclaimers.
Back to Contents Page
