3 | In this Guide
In this Guide
This Getting Started Guide provides instructions for basic installation and configuration of the Dell SonicWALL Network Security
Appliance (NSA) E6500 running SonicOS. After you complete this guide, computers on your Local Area Network (LAN) will have secure
Internet access.
Dell SonicWALL NSA E6500
Note: Always observe proper safety and regulatory guidelines when removing administrator-serviceable parts from the Dell
SonicWALL NSA E6500. Proper guidelines can be found in the Product Safety and Regulatory Information, on page 68.
I
o
PML
Front
Back
1U rack-mountable
17 x 16.75 x 1.75 in
43.18 x 42.54 x 4.44 cm
17.30 lbs/7.9 kg
17.30 lbs/7.9 kg
E5500
Network Security Appliance
Form Factor
Dimensions
Weight
WEEE Weight
4
Chapter 1 Sections Include
Pre-Configuration Tasks - page 6 Check Package Contents - page 7
Obtain Configuration Information - page 8
The Front Panel - page 10
The Back Panel - page 11
Front Bezel Control Features - page 12
Front Bezel Configuration Example - page 16
Chapter 2 Sections Include
Registering the Appliance - page 18 Before You Register - page 19
Creating a MySonicWALL Account - page 20
Registering and Licensing the Appliance on MySonicWALL - page 20
Chapter 3 Sections Include
Deployment Scenarios - page 24 Selecting a Deployment Scenario - page 25
Initial Setup - page 29
Configuring a Stateful HA Pair - page 37
Configuring L2 Bridge Mode - page 42
5 | In this Guide
Chapter 4 Sections Include
Additional Deployment Configuration - page 46 An Introduction to Zones and Interfaces - page 47
Creating a NAT Policy - page 48
Enabling Security Services in SonicOS - page 51
Applying Security Services to Zones - page 52
Troubleshooting Diagnostic Tools - page 52
Deployment Configuration Reference Checklist - page 55
Chapter 5 Sections Include
Support and Training Options - page 56 Customer Support - page 57
Knowledge Portal - page 57
User Forums - page 58
Training - page 59
Related Documentation - page 60
Dynamic Tooltips - page 61
Dell SonicWALL Live Product Demos - page 61
Chapter 6 Sections Include
Rack Mounting Instructions - page 62 Rack Mounting Instructions - page 63
Chapter 7 Sections Include
Product Safety and Regulatory Information -
page 68
Safety and Regulatory Information - page 69
Warranty Information - page 73
Copyright Notice - page 73
6
Pre-Configuration Tasks
In this Section:
This section provides pre-configuration information. Review this section before setting up your Dell SonicWALL NSA E6500.
Check Package Contents - page 7
Obtain Configuration Information - page 8
The Front Panel - page 10
The Back Panel - page 11
Front Bezel Control Features - page 12
Front Bezel Configuration Example - page 16
1
7 | Check Package Contents
Check Package Contents
Before setting up your Dell SonicWALL NSA E6500, verify that your package contains the following parts:
1. Dell SonicWALL NSA E6500
2. DB9 -> RJ45 (CLI) Cable
3. Ethernet Cable
4. Standard Power Cord*
5. Rack Kit
6. Getting Started Guide
*The included power cord(s) are approved for use only in specific countries or regions. Before using a power cord, verify that it is rated and approved for use in your location. The
power cords are for AC mains installation only.
Missing Items? If any items are missing from your package, contact Dell SonicWALL Support:
Web: http://www.sonicwall.com/us/Support.html
Email: customer_service@sonicwall.com
1
34
257
6
Getting Started Guide
Dell SonicWALL E-Class NSA Appliances
NETWORK SECURITY
NSA E6500
E6500
Network Security Appliance
Obtain Configuration Information | 8
Obtain Configuration Information
Please record and keep for future reference the following setup
information:
Registration Information
Networking Information
Administrator Information
Serial Number:
Record the serial number found on the
bottom panel of your SonicWALL
appliance.
Authentication
Code:
Record the authentication code found on
the bottom panel of your SonicWALL
appliance.
LAN IP Address:
. . .
Select a static IP address for your
SonicWALL appliance that is within the
range of your local subnet. If you are
unsure, you can use the default IP
address (192.168.168.168).
Subnet Mask:
. . .
Record the subnet mask for the local
subnet where you are installing your
SonicWALL appliance.
Ethernet WAN IP
Address:
. . .
Select a static IP address for your
Ethernet WAN. This setting only applies
if you are already using an ISP that
assigns a static IP address.
Admin Name:
Select an administrator account name.
(default is admin)
Admin Password:
Select an administrator password.
(default is password)
9 | Obtain Configuration Information
Obtain Internet Service Provider (ISP)
Information
Record the following information about your current Internet
service:
Note: If you are not using one of the network configurations
above, refer to the SonicOS Administrator’s Guide:
http://www.sonicwall.com/us/support.html
If You connect
using Please record
DHCP No information is usually required: Some
providers may require a Host name:
Static IP
IP Address: . . .
Subnet Mask: . . .
Default Gateway: . . .
Primary DNS: . . .
DNS 2 (optional): . . .
DNS 3 (optional): . . .
10
The Front Panel
Icon Feature Description
LCD Screen Displays the front panel bezel interface which can be used to display status information, make
certain configuration changes, restart the appliance or boot the appliance in SafeMode.
Control Buttons Used to navigate the front panel bezel interface.
Console Port Used to access the SonicOS Command Line Interface (CLI) via the DB9 -> RJ45 cable.
USB Ports (2) Future extension.
Reset Button Press and hold the button for a few seconds to manually reset the appliance.
LED (from left to right) Power LED: Indicates the Dell SonicWALL NSA E6500 is powered on.
Test LED: Flickering: Indicates the appliance is initializing. Steady blinking: Indicates the
appliance is in SafeMode. Solid: Indicates that the appliance is in test mode.
Alarm LED: Indicates an alarm condition.
HD LED: Future extension.
HA Port High Availability port.
X0-X7 (Copper) Gigabit Ethernet ports.
Bypass Status LED Future extension. Please check Release Notes for future availability.
E6500
Network Security Appliance
A C
BDFGHI
E
11 | The Back Panel
The Back Panel
Warning: Potential Hazard from Fan
This manual contains specific warning and caution statements where they apply. Please read the Safety Instructions before
use! See the Product Safety and Regulatory Information, on page 68.
Icon Feature Description
Expansion Bay Future extension.
Fans (2) The Dell SonicWALL NSA E6500 includes two fans for system temperature control.
Power Supply The Dell SonicWALL NSA E6500 power supply.
I
o
PML
ABC
Front Bezel Control Features | 12
Front Bezel Control Features
The Dell SonicWALL Network Security Appliance E-Class is
equipped with a front panel bezel interface that allows an
administrator to customize certain aspects of the appliance or
simply monitor its status without having to log into it through a
separate terminal.
Note: Using the front bezel for configuration purposes prior to
completing initial setup will bypass the Setup Wizard’s
automatic launch at startup.
LCD Control Buttons
The LCD interface is controlled by a D-pad, consisting of four
buttons: Up, Down, Left, Right. The table below describes the
functions of the buttons:
Icon Feature Description
LCD
Screen
Displays the front panel bezel interface
which can be used to display status
information, perform basic
configurations, restart the appliance or
boot the appliance in SafeMode.
Control
Buttons
Up, Down, Left and Right buttons,
used to navigate the LCD menu
system.
Network Security Appliance
B
A
E
D
C
Icon Button Navigation Features
Up/Down Selects options and navigates up and
down lists.
Left Cancels changes and returns to the
previous menu.
Right Confirms choices and enters menus.
Also sets the appliance to screen-saver
mode when used from the main menu.
13 | Front Bezel Control Features
Main Menu
Upon booting the LCD display will initially show the Main Menu.
The menu is made up of four options:
Use the Up and Down button to select the menu you wish to
enter and click the Right button to enter it.
Status
The Status menu allows you to view specific aspects of the
appliance. Once selected, the LCD displays the Status List.
This list is navigated using the Up and Down buttons. Status
options available include:
Appliance serial number
Firmware / ROM versions
Appliance name
Date and Time
•Uptime
CPU statistical readings
Current number of connections
Interface (X0, X1) network settings
Interface (X0, X1) data transfer statistics
The X1 DNS1-3 entries will only be displayed if they have been
set from the Configure menu. If their value is still 0.0.0.0
(default value), they will not appear in the Status List.
Contains basic status values including
system resources, connections and port
configuration values.
Allows configuration of basic system
values including X0 (LAN) and X1
(WAN) port configuration. Requires
system pin for access, default: 76642.
Provides the ability to restart the
appliance. Requires system pin for
access.
Provides the ability to restart and boot
the appliance into SafeMode. Requires
system pin for access.
Front Bezel Control Features | 14
Configure
The Configure Menu allows you to configure specific aspects of
the appliance. Once selected, the LCD will display a PIN
request.
Note: The Default PIN is 76642. This number spells SONIC
on a phone keypad. The PIN number can be changed
from the System > Administration page.
All numbers are inputted using the 4 buttons. Select the
individual digit field using the Left and Right button and select
the desired number using the Up and Down Button. Digits
increase incrementally from 0 to 9. Press the Right button to
confirm your PIN and enter the Configuration Menu.
The appliance allows the user to navigate in and out of the
Configuration Menu without having to re-enter the PIN.
However, once the appliance enters Screen-Saver Mode,
whether from the 6 second time out or from pressing the Left
button from the Main Menu, the PIN number must be re-entered
again to access the Configuration Menu.
After entering a new value for a setting in the configuration
menu, you are asked if you want to commit changes. Using the
4-way D-pad, press the Right button for yes or the Left button
for no.
If you choose yes, the screen notifies you that the settings are
updated.
15 | Front Bezel Control Features
Configuration Options
This option allows you to configure network port settings for the
appliance. Once selected, the LCD displays a list of
configurable options. Status options available include:
X0 IP and subnet
X1 Mode
X1 IP and subnet
X1 Gateway
X1 DNS settings (3 available)
Restore defaults
The X1 Mode can be set to Static (default option) or to DHCP.
If DHCP is selected, manual configuration options are not
shown for X1 IP, subnet, gateway and DNS.
The Restore Defaults option will reset the appliance to default
factory settings. If selected it will prompt for confirmation twice
before restoring defaults.
If an option is selected but not modified, the appliance will
display a message stating that no changes were made and will
return the user to the edit value screen. If a change was made,
it will prompt the user for confirmation before effecting the
change.
Restart
This option allows you to safely restart without resorting to
power cycling the appliance. Once selected, the LCD will
display a confirmation prompt. Select Y for yes and press the
Right button to confirm. The appliance will reboot.
SafeMode
This option will set the appliance to SafeMode. Once selected,
the LCD will display a confirmation prompt. Select Y for yes and
press the Right button to confirm. The appliance will change to
SafeMode. Once SafeMode is enabled, the NSA E6500 must
be controlled from the Web management interface.
Screen-Saver
If no button is pressed for over 60 seconds, or if the Left button
is pressed from the Main Menu, the appliance will enter Screen-
Saver mode. In this mode, the Status List will cycle, displaying
every entry for a few seconds.
If the Up or Down button is pressed while in Screen-Saver
mode, the appliance will display the adjacent status entry.
To exit Screen-Saver mode, press the Right button.
Front Bezel Configuration Example | 16
Front Bezel Configuration Example
LAN IP Configuration
The Dell SonicWALL NSA E6500 is assigned the default LAN IP
of 192.168.168.168. Complete the following steps to change it
to 192.168.168.10.
1. Press Right to exit screen-saver mode if not at the root
menu.
2. Press Down to select the Configuration entry.
3. Press Right to enter Configuration Mode.
4. Input PIN (76642 by default; SONIC on a phone keypad.)
5. Press Up or Down until the cursor displays 7, press Right.
6. Press Up or Down until the cursor displays 6, press Right.
7. Press Up or Down until the cursor displays 6, press Right.
8. Press Up or Down until the cursor displays 4, press Right.
9. Press Up or Down until the cursor displays 2, press Right.
10. Press Right.
11. Press Down until X1 IP is selected (four times).
12. Press Right to configure X1 IP.
13. Edit X1 IP, press Right ten times to select the tenth digit.
14. Press UP or Down until the cursor displays 0.
15. Press Right once to select the next digit.
16. Press UP or Down until the cursor displays 1.
17. Press Right once to select the next digit.
18. Press Up or Down until the cursor displays 0.
19. Press Right to finish editing the X1 IP.
20. Press Right again to confirm changes.
17 | Front Bezel Configuration Example
18
Registering Your Appliance
In this Section:
This section provides instructions for registering your Dell SonicWALL NSA E6500.
Before You Register - page 19
Creating a MySonicWALL Account - page 20
Registering and Licensing Your Appliance on MySonicWALL - page 20
Note: Registration is an important part of the setup process and is necessary in order to receive the benefits of Dell SonicWALL security
services, firmware updates, and technical support.
2
19 | Before You Register
Before You Register
You need a MySonicWALL account to register the Dell
SonicWALL NSA E6500. You can create a new MySonicWALL
account on www.mysonicwall.com or directly from the Dell
SonicWALL management interface. This section describes how
to create an account by using the Web site.
You can use MySonicWALL to register your Dell SonicWALL
appliance and activate or purchase licenses for Security
Services, Analyzer Reporting and other services, support, or
software before you even connect your device. This allows you
to prepare for your deployment before making any changes to
your existing network.
For a High Availability configuration, you must use
MySonicWALL to associate a secondary unit that can share the
Security Services licenses with your primary appliance.
Note: Your NSA E6500 does not need to be powered on
during account creation or during the MySonicWALL
registration and licensing process.
Note: After registering a new Dell SonicWALL appliance on
MySonicWALL, you must also register the appliance
from the SonicOS management interface. This allows
the unit to synchronize with the License Server and to
share licenses with the associated appliance, if any.
See Accessing the Management Interface, on page 30.
Creating a MySonicWALL Account | 20
Creating a MySonicWALL Account
To create a MySonicWALL account, perform the following steps:

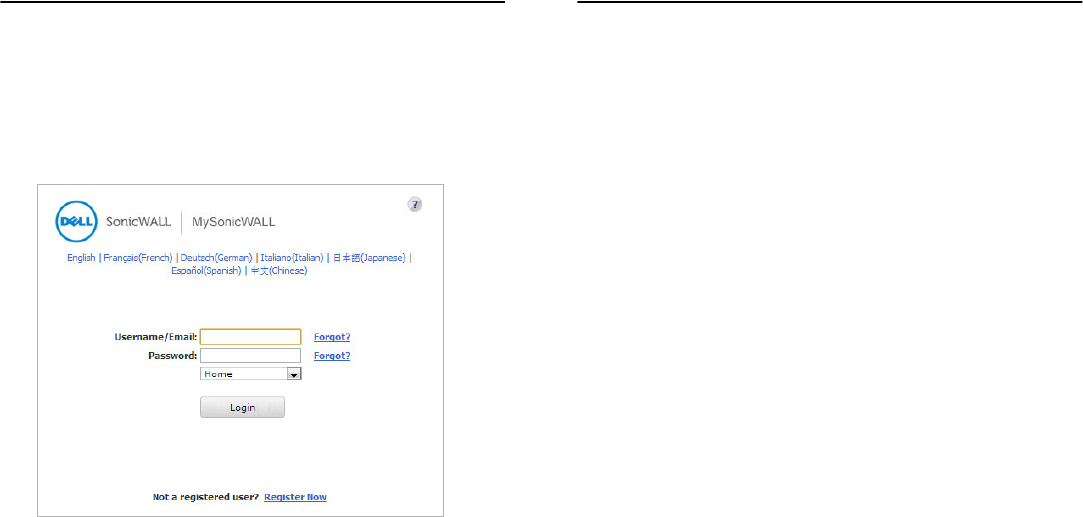

1. In your browser, navigate to www.mysonicwall.com.
2. In the login screen, click the Register Now link If you are
not a registered user.
3. Complete the Registration form and then click Register.
4. Verify that the information is correct and then click Submit.
5. In the screen confirming that your account was created,
click Continue.
Registering and Licensing Your
Appliance on MySonicWALL
This section contains the following subsections:
Product Registration - page 20
Licensing Security Services and Software - page 21
Registering a Second Appliance as a Backup - page 22
Registration Next Steps - page 23
Product Registration
You must register your Dell SonicWALL security appliance on
MySonicWALL to enable full functionality.
1. Login to your MySonicWALL account. If you do not have an
account, you can create one at www.mysonicwall.com.
See Creating a MySonicWALL Account, on page 20.
2. On the main page, in the Register A Product field, type the
appliance serial number and then click Next.
3. On the My Products page, under Add New Product, type
the friendly name for the appliance, select the Product
Group if any, type the authentication code into the
appropriate text boxes, and then click Register.
4. On the Product Survey page, fill in the requested
information and then click Continue.
21 | Registering and Licensing Your Appliance on MySonicWALL
Licensing Security Services and Software
The Service Management - Associated Products page in
MySonicWALL lists security services, support options, and
software such as Analyzer that you can purchase or try with a
free trial. For details, click the Info button. Your current licenses
are indicated in the Status column with either a license key or
an expiration date. You can purchase additional services now or
at a later time.
The following products and services are available for the Dell
SonicWALL NSA E6500:
Service Bundles:
Client/Server Anti-Virus Suite
Comprehensive Gateway Security Suite
Gateway Services:
Gateway AV, Anti-Spyware, Intrusion Prevention Service,
Application Firewall
Content Filtering: Premium Edition
Stateful High Availability (HA) Upgrade
Desktop and Server Software:
Enforced Client Anti-Virus and Anti-Spyware
Global VPN Client
Global VPN Client Enterprise
VPN Policy Upgrade (for site-to-site VPN)
Global Management System
• Analyzer
Support Services:
Dynamic Support 24x7
Software and Firmware Updates
Consulting Services:
Implementation Service
GMS Preventive Maintenance Service
To manage your licenses, perform the following tasks:
1. In the MySonicWALL Service Management - Associated
Products page, check the Applicable Services table for
services that your appliance is already licensed for. Your
initial purchase may have included security services or
other software bundled with the appliance. These licenses
are enabled on MySonicWALL when the appliance is
delivered to you.
2. If you purchased a service subscription or upgrade from a
sales representative separately, you will have an
Activation Key for the product. This key is emailed to you
after online purchases, or is on the front of the certificate
that was included with your purchase. Locate the product
on the Services Management page and click Enter Key in
that row.
3. In the Activate Service page, type or paste your key into
the Activation Key field and then click Submit. Depending
on the product, you will see an Expire date or a license key
string in the Status column when you return to the Service
Management page.
Registering and Licensing Your Appliance on MySonicWALL | 22
4. To license a product of service, do one of the following:
To try a Free Trial of a service, click Try in the Service
Management page. A 30-day free trial is immediately
activated. The Status page displays relevant information
including the activation status, expiration date, number of
licenses, and links to installation instructions or other
documentation. The Service Management page is also
updated to show the status of the free trial.
To purchase a product or service, click Buy Now.
5. In the Buy Service page, type the number of licenses you
want in the Quantity column for either the 1 year, 2 year, or
3 year license row and then click Add to Cart.
6. In the Checkout page, follow the instructions to complete
your purchase.
The MySonicWALL server will generate a license key for the
product. The key is added to the license keyset. You can use
the license keyset to manually apply all active licenses to your
appliance.
Registering a Second Appliance as a
Backup
To ensure that your network stays protected if your Dell
SonicWALL NSA E6500 has an unexpected failure, you can
associate a second appliance with the first in a high availability
(HA) pair. You can associate the two appliances as part of the
registration process on MySonicWALL. The second appliance
will automatically share the Security Services licenses of the
primary appliance.
Note: In order so setup an HA pair, you must use two NSA
appliances of the same model.
To register a second appliance and associate it with the primary,
perform the following steps:
1. Login to your MySonicWALL account.
2. On the main page, in the Register A Product field, type the
appliance serial number and then click Next.
3. On the My Products page, under Add New Product, type
the friendly name for the appliance, select the Product
Group if any, type the authentication code into the
appropriate text boxes, and then click Register.
4. On the Product Survey page, fill in the requested
information and then click Continue. The Create
Association Page is displayed.
23 | Registering and Licensing Your Appliance on MySonicWALL
5. On the Create Association Page, click the radio button to
select the primary unit for this association, and then click
Continue. The screen only displays units that are not
already associated with other appliances.
6. On the Service Management - Associated Products page,
scroll down to the Associated Products section to verify
that your product registered successfully. You should see
the HA Primary unit listed in the Parent Product section, as
well as a Status value of 0 in the Associated Products /
Child Product Type section.
7. Although the Stateful High Availability Upgrade and all the
Security Services licenses can be shared with the HA
Primary unit, you must purchase a separate Analyzer
license for the secondary unit. This will ensure that you do
not miss any reporting data in the event of a failover. You
must also purchase a separate support license for the
secondary unit. Under DESKTOP & SERVER
SOFTWARE, click Buy Now for Analyzer. Follow the
instructions to complete the purchase.
To return to the Service Management - Associated Products
page, click the serial number link for this appliance.
Registration Next Steps
Your Dell SonicWALL NSA E6500 or E6500 HA Pair is now
registered and licensed on MySonicWALL. To complete the
registration process in SonicOS and for more information, see:
Accessing the Management Interface - page 30
Activating Licenses in SonicOS - page 33
Upgrading Firmware on Your Dell SonicWALL Appliance -
page 33
24
Deployment Scenarios
In this Section:
This section provides detailed overviews of advanced deployment scenarios as well as configuration instructions for connecting your Dell
SonicWALL NSA E6500.
Selecting a Deployment Scenario - page 25
Initial Setup - page 29
Configuring a Stateful HA Pair - page 36
Configuring L2 Bridge Mode - page 42
Tip: Before completing this section, fill out the information in Obtain Configuration Information, on page 8. You will need to enter this
information during the Setup Wizard.
3
25 | Selecting a Deployment Scenario
Selecting a Deployment Scenario
Before continuing, select a deployment scenario that best fits your network scheme. Reference the table below and the diagrams on the
following pages for help in choosing a scenario.
Scenario A: NAT/Route Mode Gateway - page 26
Scenario B: State Sync Pair in NAT/Route Mode - page 27
Scenario C: L2 Bridge Mode - page 28
Current Gateway Configuration New Gateway Configuration Use Scenario
No gateway appliance Single NSA appliance as a primary gateway. A - NAT/Route Mode Gateway
Pair of NSA appliances for high availability. B - NAT with State Sync Pair
Existing Internet gateway appliance NSA appliance as replacement for an existing
gateway appliance.
A - NAT/Route Mode Gateway
NSA appliance in addition to an existing gateway
appliance.
C - L2 Bridge Mode
Existing Dell SonicWALL gateway appliance NSA appliance in addition to an existing Dell
SonicWALL gateway appliance.
B - NAT with State Sync Pair
A
E5500
Network Security Appliance
SonicPoint
B
E5500
Network Security Appliance
E5500
Network Security Appliance
E5500
Network Security Appliance
SonicPoint
C
Selecting a Deployment Scenario | 26
Scenario A: NAT/Route Mode Gateway
For new network installations or installations where the Dell
SonicWALL NSA E6500 is replacing the existing network
gateway.
In this scenario, the NSA E6500 is configured in NAT/Route
mode to operate as a single network gateway. Two Internet
sources may be routed through the appliance for load balancing
and failover purposes. Because only a single appliance is
deployed, the added benefits of high availability with a stateful
synchronized pair are not available.
To set up this scenario, follow the steps covered in Initial Setup,
on page 29. If you have completed setup procedures in that
section, continue to Additional Deployment Configuration, on
page 46, to complete configuration.
A
E6500
Network Security Appliance
LAN Zone
DMZ Zone WLAN Zone
SonicPoint
SonicWALL NSA E-Class
Internet
ISP 1
27 | Selecting a Deployment Scenario
Scenario B: State Sync Pair in NAT/Route
Mode
For network installations with two Dell SonicWALL NSA E6500
appliances configured as a stateful synchronized pair for
redundant high-availability networking.
In this scenario, one NSA E6500 operates as the primary
gateway device and the other NSA E6500 is in passive mode.
All network connection information is synchronized between the
two devices so that the secondary appliance can seamlessly
switch to active mode without dropping any connections if the
primary device loses connectivity.
Note: Active/Active pair functionality is also available for
high-availability deployments. For more information on
the benefits and setup instruction for Active/Active pair,
see the “SonicOS Active/Active Feature Module” at
http://www.sonicwall.com/us/support.html
To set up this scenario, follow the steps covered in Initial Setup,
on page 29 and Configuring a Stateful HA Pair, on page 36. If
you have completed setup procedures in those sections,
continue to Additional Deployment Configuration, on page 46,
to complete configuration.
SonicWALL NSA E-Class 1
SonicWALL NSA E-Class 2
B
E6500
Network Security Appliance
E6500
Network Security Appliance
Local Network
SonicWALL
HA / Failover Pair
Internet
HA Link
Selecting a Deployment Scenario | 28
Scenario C: L2 Bridge Mode
For network installations where the Dell SonicWALL NSA
E6500 is running in tandem with an existing network gateway.
In this scenario, the original gateway is maintained. The NSA
E6500 is integrated seamlessly into the existing network,
providing the benefits of deep packet inspection and
comprehensive security services on all network traffic.
L2 Bridge Mode employs a secure learning bridge architecture,
enabling it to pass and inspect traffic types that cannot be
handled by many other methods of transparent security
appliance integration. Using L2 Bridge Mode, a Dell SonicWALL
security appliance can be non-disruptively added to any
Ethernet network to provide in-line deep-packet inspection for
all traversing IPv4 TCP and UDP traffic. L2 Bridge Mode can
pass all traffic types, including IEEE 802.1q VLANs, Spanning
Tree Protocol, multicast, broadcast and IPv6.
To set up this scenario, follow the steps covered in Initial Setup,
on page 29 and Configuring L2 Bridge Mode, on page 42. If you
have completed setup procedures in those sections, continue to
Additional Deployment Configuration, on page 46, to complete
configuration.
E6500
Network Security Appliance
SonicWALL NSA E-Class
SonicPoint
LAN Zone
Network Gateway
WLAN Zone
Internet or
LAN Segment 2
L2 Bridge Link
C
29 | Initial Setup
Initial Setup
This section provides initial configuration instructions for
connecting your Dell SonicWALL NSA E6500. Follow these
steps if you are setting up Scenario A, B, or C.
This section contains the following subsections:
System Requirements - page 29
Connecting the WAN Port - page 29
Connecting the LAN Port - page 30
Applying Power - page 30
Accessing the Management Interface - page 30
Accessing the Setup Wizard - page 31
Connecting to Your Network - page 32
Testing Your Connection - page 32
Activating Licenses in SonicOS - page 33
Upgrading Firmware on Your Dell SonicWALL Appliance -
page 33
System Requirements
Before you begin the setup process, check to verify that you
have:
An Internet connection
A Web browser supporting Java Script and HTTP uploads
Connecting the WAN Port
1. Connect one end of an Ethernet cable to your Internet
connection.
2. Connect the other end of the cable to the X1 (WAN) port on
your NSA E6500.
Accepted
Browser
Browser Version
Number
Internet Explorer 8.0, 9.0, and 10.0 (do not
use compatibility mode)
Firefox 16.0 or higher
Chrome 18.0 or higher
Safari 5.0 or higher for MacOS
E6500
Network Security Appliance
SonicWALL NSA E6500
Management
Station
X0 X1 Internet
Initial Setup | 30
Connecting the LAN Port
1. Connect one end of the provided Ethernet cable to the
computer you are using to manage the NSA E6500.
2. Connect the other end of the cable to the X0 port on
your NSA E6500.
The Link LED above the X0 (LAN) port will light up in green
or amber depending on the link throughput speed,
indicating an active connection:
Amber indicates 1 Gbps
Green indicates 100 Mbps
Unlit while the right (activity) LED is illuminated indicates
10 Mbps
Applying Power
1. Plug the power cord into an appropriate power outlet.
2. Turn on the power switch on the rear of the appliance next
to the power cords.
The Power LEDs on the front panel light up blue when you
plug in the Dell SonicWALL NSA E6500. The Alarm LED
may light up and the Test LED will light up and may blink
while the appliance performs a series of diagnostic tests.
When the Power LEDs are lit and the Test LED is no longer lit,
the NSA E6500 is ready for configuration. This typically occurs
within a few minutes of applying power to the appliance.
Warning: When disconnecting power, be sure to remove both
power cords from the unit.
Note: If the Test or Alarm LEDs remain lit after
the NSA E6500 has booted, restart the appliance by
cycling power.
Accessing the Management Interface
The computer you use to manage the Dell SonicWALL NSA
E6500 must be set up to accept a dynamic IP address, or it
must have an unused IP address on the 192.168.168.x/24
subnet, such as 192.168.168.20.
To access the SonicOS Web-based management interface:
1. Start your Web browser.
Note: Disable pop-up blocking software or add the
management IP address http://192.168.168.168 to your
pop-up blocker’s allow list.
2. Enter http://192.168.168.168 (the default LAN
management IP address) in the Location or Address field.
31 | Initial Setup
3. The SonicWALL Setup Wizard launches and guides you
through the configuration and setup of your Dell
SonicWALL NSA E6500.
The Setup Wizard launches upon initial loading of the
NSA E6500 management interface.
4. Follow the on-screen prompts to complete the Setup
Wizard.
Depending on the changes made during your setup
configuration, the appliance may restart.
Accessing the Setup Wizard
If you cannot connect to the Dell SonicWALL NSA E6500 or the
Setup Wizard does not display, verify the following
configurations:
Did you correctly enter the Dell SonicWALL NSA E6500
management IP address in your Web browser?
Are the Local Area Connection settings on your computer set
to use DHCP or set to a static IP address on the
192.168.168.x/24 subnet?
Do you have the Ethernet cable connected to your computer
and to the X0 (LAN) port on your appliance?
Is the connector clip on your network cable properly seated in
the port of the security appliance?
Some browsers may not launch the Setup Wizard
automatically. In this case:
Log into the NSA E6500 using “admin” as the user name
and “password” as the password.
Click the Wizards button on the System > Status page.
Select Setup Wizard and click Next to launch the Setup
Wizard.
Some pop-up blockers may prevent the launch of the
Setup Wizard. You can temporarily disable your pop-up
blocker, or add the management IP address of your
SonicWALL appliance (192.168.168.168 by default) to
your pop-up blocker's allow list.
Initial Setup | 32
Connecting to Your Network
The Dell SonicWALL NSA E6500 ships with the internal DHCP
server active on the LAN port. However, if a DHCP server is
already active on your LAN, the Dell SonicWALL will disable its
own DHCP server to prevent conflicts.

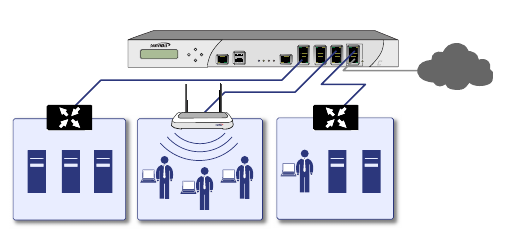

As shown in the illustration on this page, ports X1 and X0 are
preconfigured as WAN and LAN respectively. The remaining
ports (X2-X7) can be configured to meet the needs of your
network. In the graphical example on this page, the zones are:
X1: WAN, X0: LAN, X2: WLAN, X7: DMZ.
Refer to the SonicOS Administrator’s Guide for advanced
configuration deployments.
Testing Your Connection
1. After you exit the Setup Wizard, the login page reappears.
Log back into the Management Interface and verify your IP
and WAN connection.
2. Ping a site outside of your local network, such as
http://www.sonicwall.com.
3. Open another Web browser and navigate to:
http://www.sonicwall.com.
If you can view the Dell SonicWALL home page, you have
configured your Dell SonicWALL NSA E6500 correctly.
If you cannot view the Dell SonicWALL home page, renew
your management station DHCP address.
4. If you still cannot view a Web page, try one of these
solutions:
Restart your Management Station to accept new
network settings from the DHCP server in the
SonicWALL appliance.
Restart your Internet Router to communicate with the
DHCP Client in the SonicWALL appliance.
E6500
Network Security Appliance
SonicPoint
LAN Zone
SonicWALL NSA E6500
DMZ Zone WLAN Zone
X1
X0
X2
X7
Internet
33 | Initial Setup
Activating Licenses in SonicOS
After completing the registration process in SonicOS, you must
perform the following tasks to activate your licenses and enable
your licensed services from within the SonicOS user interface:
Activate licenses
Enable security services
Apply services to network zones
This section describes how to activate your licenses. For
instructions on how to enable security services and apply
services to network zones, see the following sections:
Enabling Security Services in SonicOS - page 51
Applying Security Services to Zones - page 52
To activate licensed services in SonicOS, you can enter the
license keyset manually, or you can synchronize all licenses at
once with MySonicWALL.
The Setup Wizard automatically synchronizes all licenses with
MySonicWALL if the appliance has Internet access during initial
setup. If initial setup is already complete, you can synchronize
licenses from the System > Licenses page.
Manual upgrade using the license keyset is useful when your
appliance is not connected to the Internet. The license keyset
includes all license keys for services or software enabled on
MySonicWALL. It is available on MySonicWALL at the top of the
Service Management page for your SonicWALL appliance.
To activate licenses in SonicOS:
1. Navigate to the System > Licenses page.
2. Under Manage Security Services Online do one of the
following:
Enter your MySonicWALL credentials, then click the
Synchronize button to synchronize licenses with
MySonicWALL.
Paste the license keyset into the Manual Upgrade
Keyset field.
3. Click Submit.
Upgrading Firmware on Your Dell
SonicWALL Appliance
The following procedures are for upgrading an existing
SonicOS image to a newer version:
Obtaining the Latest Firmware - page 33
Saving a Backup Copy of Your Preferences - page 34
Upgrading the Firmware - page 34
Using SafeMode to Upgrade Firmware - page 35
Obtaining the Latest Firmware
1. To obtain a new SonicOS firmware image file for your
SonicWALL appliance, connect to your MySonicWALL
account at
http://www.mysonicwall.com.
2. Copy the new SonicOS image file to a convenient location
on your management station.
Initial Setup | 34
Saving a Backup Copy of Your Preferences
Before beginning the update process, make a system backup of
your Dell SonicWALL appliance configuration settings. The
backup feature saves a copy of the current configuration
settings on your Dell SonicWALL appliance, protecting all your
existing settings in the event that it becomes necessary to
return to a previous configuration state.
In addition to using the backup feature to save your current
configuration state to the Dell SonicWALL appliance, you can
export the configuration preferences file to a directory on your
local management station. This file serves as an external
backup of the configuration preferences, and can be imported
back into the Dell SonicWALL appliance.
Perform the following procedures to save a backup of your
configuration settings and export them to a file on your local
management station:
1. On the System > Settings page, click Create Backup.
Your configuration preferences are saved. The System
Backup entry is displayed in the Firmware Management
table.
2. To export your settings to a local file, click Export Settings.
A popup window displays the name of the saved file.
Upgrading the Firmware
Perform the following steps to upload new firmware to your Dell
SonicWALL appliance and use your current configuration
settings upon startup.
Note: The appliance must be properly registered before it can
be upgraded. For more information, refer to Registering
and Licensing Your Appliance on MySonicWALL, on
page 20.
1. Download the SonicOS firmware image file from
MySonicWALL and save it to a location on your local
computer.
2. On the System > Settings page, click Upload New
Firmware.
3. Browse to the location where you saved the SonicOS
firmware image file, select the file and click the Upload
button.
4. On the System > Settings page, click the Boot icon in the
row for Uploaded Firmware - New! or Uploaded
Firmware with Factory Default Settings - New!.
5. In the confirmation dialog box, click OK. The SonicWALL
appliance restarts and then displays the login page.
6. Enter your user name and password. Your new SonicOS
image version information is listed on the System >
Settings page.
35 | Initial Setup
Using SafeMode to Upgrade Firmware
If you are unable to connect to the Dell SonicWALL appliance’s
management interface, you can restart the appliance in
SafeMode. The SafeMode feature allows you to recover quickly
from uncertain configuration states with a simplified
management interface that includes the same settings available
on the System > Settings page.
To use SafeMode to upgrade firmware on the Dell SonicWALL
appliance, perform the following steps:
1. Connect your computer to the X0 port on the appliance and
configure your IP address with an address on the
192.168.168.0/24 subnet, such as 192.168.168.20.
2. To configure the appliance in SafeMode, perform one of
the following methods:
Use a narrow, straight object, like a straightened paper
clip or a toothpick, to press and hold the reset button on
the front of the security appliance for more than 20
seconds. The reset button is in a small hole next to the
USB ports.
Use the LCD control buttons on the front bezel to set the
appliance to SafeMode. Once selected, the LCD displays
a confirmation prompt. Select Y and press the Right
button to confirm. The Dell SonicWALL appliance
changes to SafeMode.
The Test light starts blinking when the Dell SonicWALL
appliance has rebooted into SafeMode.
3. Point the Web browser on your computer to
192.168.168.168. The SafeMode management interface
displays.
4. If you have made any configuration changes to the security
appliance, select the Create Backup On Next Boot
checkbox to make a backup copy of your current settings.
Your settings will be saved when the appliance restarts.
5. Click Upload New Firmware, and then browse to the
location where you saved the SonicOS firmware image,
select the file and click the Upload button.
6. Select the boot icon in the row for one of the following:
Uploaded Firmware - New!
Use this option to restart the appliance with your
current configuration settings.
Uploaded Firmware with Factory Default Settings - New!
Use this option to restart the appliance with default
configuration settings.
7. In the confirmation dialog box, click OK to proceed.
Configuring a Stateful HA Pair | 36
8. After successfully booting the firmware, the login screen is
displayed. If you booted with factory default settings, enter
the default user name and password (admin / password) to
access the Dell SonicWALL management interface.
Configuring a Stateful HA Pair
This section provides instructions for configuring a pair of Dell
SonicWALL NSA E6500 appliances for high availability (HA).
This section is relevant to administrators following deployment
Scenario B.
This section contains the following subsections:
Initial High Availability Setup - page 37
Configuring High Availability - page 37
Configuring Advanced HA Settings - page 38
Configuring HA Monitoring Settings - page 39
Synchronizing Settings - page 40
HA License Configuration Overview - page 41
Associating Pre-Registered Appliances - page 42
Configuring L2 Bridge Mode - page 42
If You Are Following
Scenario...
Proceed to section:
A - NAT/Route Mode
Gateway
Additional Deployment Configuration
- page 46
B - NAT with State Sync
Pair
Configuring a Stateful HA Pair -
page 36
C - L2 Bridge Mode Configuring L2 Bridge Mode -
page 42
SonicWALL NSA E-Class 1
SonicWALL NSA E-Class 2
HA
HA
X0 X1
X1
X0
E6500
Network Security Appliance
E6500
Network Security Appliance
Local Network
SonicWALL
HA / Failover Pair
Internet
HA Link
37 | Configuring a Stateful HA Pair
Initial High Availability Setup
Before you begin the configuration of HA on the primary Dell
SonicWALL appliance, perform the following setup:
On the bottom panel of the secondary Dell SonicWALL
appliance, locate the serial number and write the number
down. You need to enter this number in the High Availability
> Settings page.
Verify that the primary appliance and secondary appliance
appliances are registered, running the same SonicOS
versions.
Make sure the primary and secondary appliances’ LAN, WAN
and other interfaces are properly configured for failover.
Connect the HA ports on the primary and secondary
appliances with a CAT6-rated crossover cable (red crossover
cable). The primary and secondary appliances must have a
dedicated connection using the HA interface. Dell SonicWALL
recommends cross-connecting the two together using a CAT
6 crossover Ethernet cable, but a connection using a
dedicated 100Mbps hub/switch is also valid.
Power up the primary appliance, and then power up the
secondary appliance.
Do not make any configuration changes to the primary’s HA
interface; the High Availability configuration in an upcoming
step takes care of this issue. When done, disconnect the
workstation.
Configuring High Availability
The first task in setting up HA after initial setup is configuring
the High Availability > Settings page on the primary Dell
SonicWALL appliance. Once you configure HA on the primary
appliance, it communicates the settings to the secondary
appliance.
To configure HA on the primary SonicWALL, perform the
following steps:
1. Navigate to the High Availability > Settings page.
2. Select the Enable High Availability checkbox.
3. Under SonicWALL Address Settings, type in the serial
number for the secondary SonicWALL appliance.
You can find the serial number on the bottom of the Dell
SonicWALL appliance, or in the System > Status screen of the
secondary unit. The serial number for the primary Dell
SonicWALL appliance is automatically populated.
4. Click Apply to retain these settings.
Configuring a Stateful HA Pair | 38
Configuring Advanced HA Settings
1. Navigate to the High Availability > Advanced page.
2. To configure Stateful HA, select Enable Stateful
Synchronization. A dialog box is displayed with
recommended settings for the Heartbeat Interval and
Probe Interval fields. The settings it shows are minimum
recommended values. Lower values may cause
unnecessary failovers, especially when the appliance is
under a heavy load. You can use higher values if your
SonicWALL handles a lot of network traffic. Click OK.
3. To cause the HA pair to change back to the original primary
unit when it becomes available after a failover, select the
Enable Preempt Mode checkbox.
4. To backup the firmware and settings when you upgrade the
firmware version, select Generate/Overwrite Backup
Firmware and Settings When Upgrading Firmware.
5. Select the Enable Virtual MAC checkbox. Virtual MAC
allows the primary and secondary appliances to share a
single MAC address. This greatly simplifies the process of
updating network ARP tables and caches when a failover
occurs. Only the WAN switch that the two appliances are
connected to needs to be notified. All outside devices will
continue to route to the single shared MAC address.
6. Optionally adjust the Heartbeat Interval to control how
often the two units communicate. This timer is the length of
time between status checks. By default this timer is set to
5000 milliseconds, the minimum recommended value is
1000 milliseconds. Using a longer interval will result in the
appliance taking more time to detect when/if failures have
occurred. Less than this may cause unnecessary failovers,
especially when the appliance is under a heavy load.
7. Set the Probe Interval for the interval in seconds between
communication with upstream or downstream systems.
This timer controls the path monitoring speed. Path
monitoring sends pings to specified IP addresses to
monitor that the network critical path is still reachable. The
default is 20 seconds, and the allowed range is from 5 to
255 seconds. It is recommended that you set the interval
for at least 5 seconds. You can set the Probe IP
Address(es) on the High Availability > Monitoring
screen.
8. In the Probe Count text-field, enter the desired number of
consecutive probes before the appliance considers the
network critical path to be reachable or broken. The
minimum and default is 3 probes, and the maximum is 10.
9. Typically, Dell SonicWALL recommends leaving the
Failover Trigger Level (missed heart beats), Election
Delay Time (seconds), and Dynamic Route Hold-Down
Time fields to their default settings. These fields can be
tuned later as necessary for your specific network
environment.
•The Failover Trigger Level (missed heart beats) timer
is the number of heartbeats the appliance will miss before
failing over. By default, this time is set to 5 missed heart
beats.This timer is linked to the Heartbeat Interval timer –
for example, if you set the Heartbeat Interval to 10
seconds, and the Failover Trigger Level timer to 5, it will
be 50 seconds before the appliance fails over.
39 | Configuring a Stateful HA Pair
•The Election Delay Time can be used to specify an
amount of time the appliance will wait to consider an
interface up and stable before one of them takes the
primary role. This is useful when dealing with switch ports
that have a spanning-tree delay set
•The Dynamic Route Hold-Down Time setting is used
when a failover occurs on a HA pair that is using either
RIP or OSPF dynamic routing. When a failover occurs,
Dynamic Route Hold-Down Time is the number of
seconds the newly-active appliance keeps the dynamic
routes it had previously learned in its route table. During
this time, the newly-active appliance relearns the
dynamic routes in the network. When the Dynamic
Route Hold-Down Time duration expires, it deletes the
old routes and implements the new routes it has learned
from RIP or OSPF. The default value is 45 seconds. In
large or complex networks, a larger value may improve
network stability during a failover.
10. Click the Include Certificates/Keys checkbox to have the
appliances synchronize all certificates and keys.
11. Click Synchronize Settings to synchronize the settings
between the primary and secondary appliances.
12. Click Synchronize Firmware if you previously uploaded
new firmware to your Primary unit while the Secondary unit
was offline, and it is now online and ready to upgrade to the
new firmware. Synchronize Firmware is typically used
after taking your Secondary appliance offline while you test
a new firmware version on the Primary unit before
upgrading both units to it.
13. Click Accept to retain the settings on this screen.
Configuring HA Monitoring Settings
After configuring the HA settings, you need to configure the
Monitoring settings for the LAN or WAN.This includes
configuring unique IP addresses for each appliance in the
Stateful HA pair. You will need to log into the appliances using
these IP addresses in order to complete the registration
process from within SonicOS, which will allow license sharing
and synchronization.
Navigate to the High Availability > Monitoring page to
configure the Monitoring settings.

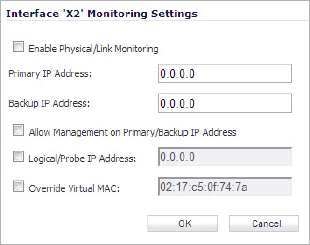

1. Click the Configure icon of the Interface for which you
want to edit settings. The Edit HA Monitoring dialog box
displays.
2. In the Primary IP Address field, enter the unique LAN or
WAN management IP address of the Primary appliance.
Configuring a Stateful HA Pair | 40
3. In the Secondary IP Address field, enter the unique LAN
or WAN management IP address of the Secondary
appliance.
4. Select the Allow Management on Primary/Secondary IP
Address checkbox.
5. Optionally Enable Physical / Link Monitoring by selecting
the checkbox.
6. Optionally enable Logical / Probe IP Address by selecting
the checkbox and providing the IP Address of the target
host.
7. Click OK.
You can repeat these steps to configure Monitoring on other
interfaces.
For more information regarding the optional settings, see the
SonicOS Administrator’s Guide.
Synchronizing Settings
Once you have configured the HA setting on the primary Dell
SonicWALL appliance, click the Synchronize Settings button.
You should see a HA Peer Firewall has been updated
message at the bottom of the management interface page. Also
note that the management interface displays Logged Into:
Primary SonicWALL Status: Active in the upper-right-hand
corner.
By default, the Include Certificate/Keys setting is enabled.
This specifies that Certificates, CRLs and associated settings
(such as CRL auto-import URLs and OCSP settings) are
synchronized between the primary and secondary units. When
Local Certificates are copied to the secondary unit, the
associated Private Keys are also copied. Because the
connection between the primary and secondary units is typically
protected, this is generally not a security concern.
Note: A compromise between the convenience of
synchronizing Certificates and the added security of not
synchronizing Certificates is to temporarily enable the
Include Certificate/Keys setting and manually
synchronize the settings, and then disable Include
Certificate/Keys.
To verify that primary and secondary Dell SonicWALL
appliances are functioning correctly, wait a few minutes, then
power off the primary device. The secondary appliance should
quickly take over.
From your management workstation, test connectivity through
the secondary appliance by accessing a site on the public
Internet – note that the secondary appliance, when active,
assumes the complete identity of the primary appliance,
including its IP addresses and Ethernet MAC addresses.
Log into the secondary appliance’s unique LAN IP address. The
management interface should now display Logged Into:
Backup SonicWALL Status: Active in the upper-right-hand
corner.
41 | Configuring a Stateful HA Pair
Now, power the primary appliance back on, wait a few minutes,
then log back into the management interface. If stateful
synchronization is enabled (automatically disabling preempt
mode), the management GUI should still display Logged Into:
Backup SonicWALL Status: Active in the upper-right-hand
corner.
If you are using the Monitor Interfaces feature, experiment with
disconnecting each monitored link to ensure correct
configuration.
HA License Configuration Overview
You can configure HA license synchronization by associating
two Dell SonicWALL appliances as HA primary and HF
secondary on MySonicWALL. Note that the secondary
appliance of your HA pair is referred to as the HF Secondary
unit on MySonicWALL.
You must purchase a single set of security services licenses for
the HA primary appliance. To use Stateful HA, you must first
activate the Stateful High Availability Upgrade license for the
primary unit in SonicOS. This is automatic if your appliance is
connected to the Internet. See Registering and Licensing Your
Appliance on MySonicWALL, on page 20.
License synchronization is used during HA so that the
secondary appliance can maintain the same level of network
protection provided before the failover. To enable HA, you can
use the SonicOS UI to configure your two appliances as a HA
pair in Active/Idle mode.
MySonicWALL provides several methods of associating the two
appliances. You can start by registering a new appliance, and
then choosing an already-registered unit to associate it with.
You can associate two units that are both already registered.
Or, you can select a registered unit and then add a new
appliance with which to associate it.
Configuring L2 Bridge Mode | 42
Note: After registering new Dell SonicWALL appliances on
MySonicWALL, you must also register each appliance
from the SonicOS management interface by logging
into the unique IP address assigned on the High
Availability > Monitoring page and then clicking the
registration link on the System > Status page. This
allows each unit to synchronize with the license server
and share licenses with the associated appliance.
Associating Pre-Registered Appliances
To associate two already-registered Dell SonicWALL appliances
so that they can use HA license synchronization, perform the
following steps:
1. Login to MySonicWALL.
2. In the left navigation bar, click My Products.
3. On the My Products page, under Registered Products,
scroll down to find the appliance that you want to use as
the parent, or primary, unit. Click the product name or
serial number.
4. On the Service Management - Associated Products page,
scroll down to the Associated Products section.
5. Under Associated Products, click HF Secondary.
6. On the My Product - Associated Products page, in the text
boxes under Associate New Products, type the serial
number and the friendly name of the appliance that you
want to associate as the child/secondary/secondary unit.
7. Select the group from the Product Group drop-down list.
The product group setting specifies the MySonicWALL
users who can upgrade or modify the appliance.
8. Click Register.
Configuring L2 Bridge Mode
This section provides instructions to configure the Dell
SonicWALL NSA E6500 appliance in tandem with an existing
Internet gateway device. This section is relevant to users
following deployment scenario C.
This section contains the following subsections:
Connection Overview - page 43
Configuring the Primary Bridge Interface - page 43
Configuring the Secondary Bridge Interface - page 43
If You Are Following
Scenario...
Proceed to:
B - NAT with State Sync Pair Additional Deployment Configuration -
page 46
43 | Configuring L2 Bridge Mode
Connection Overview
Connect the X1 port on your Dell SonicWALL NSA E6500 to the
LAN port on your existing Internet gateway device. Then
connect the X0 port on your NSA E6500 to your LAN.
Configuring the Primary Bridge Interface
The primary bridge interface is your existing Internet gateway
device. The only step involved in setting up your primary bridge
interface is to ensure that the WAN interface is configured for a
static IP address. You will need this static IP address when
configuring the secondary bridge.
Note: The primary bridge interface must have a static IP
assignment.
Configuring the Secondary Bridge Interface
Complete the following steps to configure the secondary bridge
interface on the NSA E6500:
1. Navigate to the Network > Interfaces page from the
navigation panel.
2. Click the Configure icon in the right column of the X0 (LAN)
interface.
3. In the IP Assignment drop-down, select Layer 2 Bridged
Mode.
4. In the Bridged to drop-down, select the X1 interface.
5. Configure management options (HTTP, HTTPS, Ping,
SNMP, SSH, User logins, or HTTP redirects).
E6500
Network Security Appliance
SonicWALL NSA E-Class
Network Gateway
L2 Bridge Link
Network Resources
X1
LAN
X0
Internet or
LAN Segment 2
Configuring L2 Bridge Mode | 44
Note: Do not enable Never route traffic on the bridge-pair
unless your network topology requires that all packets
entering the L2 Bridge remain on the L2 Bridge
segments.
You may optionally enable the Block all non-IPv4
traffic setting to prevent the L2 bridge from passing
non-IPv4 traffic.
If You Are Following
Scenario...
Proceed to Section:
C - L2 Bridge Mode Additional Deployment Configuration
- page 46
45 | Configuring L2 Bridge Mode
46
Additional Deployment Configuration
In this Section:
This section provides basic configuration information to begin building network security policies for your deployment. This section also
contains several SonicOS diagnostic tools and a deployment configuration reference checklist.
An Introduction to Zones and Interfaces - page 47
Creating a NAT Policy - page 48
Enabling Security Services in SonicOS - page 51
Applying Security Services to Zones - page 52
Troubleshooting Diagnostic Tools - page 52
Deployment Configuration Reference Checklist - page 54
4
47 | An Introduction to Zones and Interfaces
An Introduction to Zones and Interfaces
Zones split a network infrastructure into logical areas, each with
its own set of usage rules, security services, and policies. Most
networks include multiple definitions for zones, including those
for trusted, untrusted, public, encrypted, and wireless traffic.
Some basic (default) zone types include:
WAN— Untrusted resources outside your local network
LAN— Trusted local network resources
WLAN— Local wireless network resources originating from Dell
SonicWALL wireless enabled appliances such as SonicPoints.
DMZ— Local network assets that must be accessible from the
WAN zone (such as Web and FTP servers)
VPN— Trusted endpoints in an otherwise untrusted zone, such
as the WAN
The security features and settings configured for the zones are
enforced by binding a zone to one or more physical interfaces
(such as, X0, X1, or X2) on the Dell SonicWALL appliance.
The X1 and X0 interfaces are preconfigured as WAN and LAN
respectively. The remaining ports can be configured to meet the
needs of your network, either by using basic zone types (WAN,
LAN, WLAN, DMZ, VPN) or configuring a custom zone type to
fit your network requirements (for example: Gaming Console
Zone, Wireless Printer Zone, Wireless Ticket Scanner Zone).
A Zone is a logical grouping of one or more interfaces designed
to make management, such as the definition and application of
access rules, a simpler and more intuitive process than
following a strict physical interface scheme.
By default, the Dell SonicWALL appliance’s stateful packet
inspection allows all communication from the LAN to the
Internet, and blocks all traffic from the Internet to the LAN. The
following behaviors are defined by the “Default” stateful
inspection packet access rule enabled in the Dell SonicWALL
appliance:
Originating Zone Destination Zone Action
LAN, WLAN WAN, DMZ Allow
DMZ WAN Allow
WAN DMZ Deny
WAN and DMZ LAN or WLAN Deny
Creating a NAT Policy | 48
Creating a NAT Policy
The Network Address Translation (NAT) engine in SonicOS
allows users to define granular NAT policies for their incoming
and outgoing traffic. By default, the Dell SonicWALL appliance
has a preconfigured NAT policy to allow all systems connected
to the LAN interface to perform Many-to-One NAT using the IP
address of the WAN interface, and a policy to not perform NAT
when traffic crosses between the other interfaces.
You can create multiple NAT policies on a Dell SonicWALL
appliance running SonicOS for the same object – for instance,
you can specify that an internal server use one IP address when
accessing Telnet servers, and to use a totally different IP
address for all other protocols. Because the NAT engine in
SonicOS supports inbound port forwarding, it is possible to hide
multiple internal servers off the WAN IP address of the Dell
SonicWALL appliance. The more granular the NAT Policy, the
more precedence it takes.
Before configuring NAT Policies, you must create all Address
Objects associated with the policy. For instance, if you are
creating a One-to-One NAT policy, first create Address Objects
for your public and private IP addresses.
Address Objects are one of four object classes (Address, User,
Service and Schedule) in SonicOS. These Address Objects
allow for entities to be defined one time, and to be re-used in
multiple referential instances throughout the SonicOS interface.
For example, take an internal Web server with an IP address of
67.115.118.80. Rather than repeatedly typing in the IP address
when constructing Access Rules or NAT Policies, Address
Objects allow you to create a single entity called “My Web
Server” as a Host Address Object with an IP address of
67.115.118.80. This Address Object, “My Web Server”, can then
be easily and efficiently selected from a drop-down menu in any
configuration screen that employs Address Objects as a
defining criterion.
Since there are multiple types of network address expressions,
there are currently the following Address Objects types:
Host— Host Address Objects define a single host by its IP
address.
Range— Range Address Objects define a range of
contiguous IP addresses.
Network— Network Address Objects are like Range objects
in that they comprise multiple hosts, but rather than being
bound by specified upper and lower range delimiters, the
boundaries are defined by a valid netmask.
MAC Address— MAC Address Objects allow for the
identification of a host by its hardware address or MAC (Media
Access Control) address.
FQDN Address— FQDN Address Objects allow for the
identification of a host by its Fully Qualified Domain Names
(FQDN), such as www.sonicwall.com.
49 | Creating a NAT Policy
SonicOS provides a number of Default Address Objects that
cannot be modified or deleted. You can use the Default Address
Objects when creating a NAT policy, or you can create custom
Address Objects to use. All Address Objects are available in the
drop-down lists when creating a NAT policy.
Configuring Address Objects
The Network > Address Objects page allows you to create
and manage your Address Objects. You can view Address
Objects in the following ways using the View Style menu:
All Address Objects— displays all configured Address
Objects.
Custom Address Objects— displays Address Objects with
custom properties.
Default Address Objects— displays Address Objects
configured by default on the Dell SonicWALL appliance.
To add an Address Object:
1. Navigate to the Network > Address Objects page.
2. Below the Address Objects table, click Add.
3. In the Add Address Object dialog box, enter a name for the
Address Object in the Name field.
4. Select the zone to assign to the Address Object from the
Zone Assignment drop-down list.
5. Select Host, Range, Network, MAC, or FQDN from the
Type menu.
If you selected Host, enter the IP address in the IP
Address field.
If you selected Range, enter the starting and ending IP
addresses in the Starting IP Address and Ending IP
Address fields.
If you selected Network, enter the network IP address
and netmask in the Network and Netmask fields.
If you selected MAC, enter the MAC address and
netmask in the Network and MAC Address field.
If you selected FQDN, enter the domain name for the
individual site or range of sites (with a wildcard) in the
FQDN field.
6. Click OK.
Creating a NAT Policy | 50
Configuring NAT Policies
NAT policies allow you to control Network Address Translation
based on matching combinations of Source IP address,
Destination IP address and Destination Services. Policy-based
NAT allows you to deploy different types of NAT simultaneously.
The following NAT configurations are available in SonicOS:
Many-to-One NAT Policy
Many-to-Many NAT Policy
One-to-One NAT Policy for Outbound Traffic
One-to-One NAT Policy for Inbound Traffic (Reflexive)
One-to-Many NAT Load Balancing
Inbound Port Address Translation via One-to-One NAT Policy
Inbound Port Address Translation via WAN IP Address
This section describes how to configure a One-to-One NAT
policy. One-to-One is the most common NAT policy used to
route traffic to an internal server, such as a Web Server. Most of
the time, this means that incoming requests from external IPs
are translated from the IP address of the Dell SonicWALL
appliance WAN port to the IP address of the internal web
server.
For other NAT configurations, see the SonicOS Administrator’s
Guide.
An example configuration illustrates the use of the fields in the
Add NAT Policy procedure. To add a One-to-One NAT policy
that allows all Internet traffic to be routed through a public IP
address, two policies are needed: one for the outbound traffic,
and one for the inbound traffic. To add both parts of a One-to-
One NAT policy, perform the following steps:
1. Navigate to the Network > NAT Policies page. Click Add.
The Add NAT Policy dialog box displays.
2. For Original Source, select Any.
3. For Translated Source, select Original.
4. For Original Destination, select X0 IP.
5. For Translated Destination, select Create new address
object and create a new address object using WAN for
Zone Assignment and Host for Type.
6. For Original Service, select HTTP.
7. For Translated Service, select Original.
8. For Inbound Interface, select X0.
9. For Outbound Interface, select Any.
10. For Comment, enter a short description.
11. Select the Enable NAT Policy checkbox.
12. Select the Create a reflexive policy checkbox if you want
a matching NAT Policy to be automatically created in the
opposite direction. This will create the outbound as well as
the inbound policies.
13. Click OK
51 | Enabling Security Services in SonicOS
Enabling Security Services in SonicOS
You must enable each security service individually in the
SonicOS user interface. See the following procedures to enable
and configure the following three basic security services:
Gateway Anti-Virus
Intrusion Prevention
Anti-Spyware
For more information on configuring your security services,
refer to the SonicOS Administrator’s Guide.
Applying Security Services to Zones | 52
Applying Security Services to Zones
A network zone is a logical group of one or more interfaces to
which you can apply security rules to regulate traffic passing
from one zone to another zone.
Security services such as Gateway Anti-Virus are automatically
applied to the LAN and WAN network zones when you activate
the license and enable the service. To protect other zones such
as the DMZ or Wireless LAN (WLAN), you must apply the
security services to the network zones. For example, you can
configure Dell SonicWALL Intrusion Prevention Service for
incoming and outgoing traffic on the WLAN zone to add more
security for internal network traffic.
To apply services to network zones:
1. Navigate to the Network > Zones page.
2. In the Zone Settings table, click the Configure icon for the
zone where you want to apply security services.
3. In the Edit Zone dialog box on the General tab, select the
checkboxes for the security services to enable on this
zone.
4. On the Edit Zone page, select the checkboxes for the
security services that you want to enable.
5. Click OK.
6. To enable security services on other zones, repeat steps 2
through 4 for each zone.
Troubleshooting Diagnostic Tools
SonicOS provides a number of diagnostic tools to help you
maintain your network and troubleshoot problems. Several tools
can be accessed on the System > Diagnostics page, and
others are available on other screens.
This section contains the following subsections:
Using Ping - page 53
Using the Active Connections Monitor - page 53
Using Log > View - page 53
53 | Troubleshooting Diagnostic Tools
Using Ping
Ping is available on the System > Diagnostics page.
The Ping test bounces a packet off a machine on the Internet
and returns it to the sender. This test shows if the Dell
SonicWALL appliance is able to contact the remote host. If
users on the LAN are having problems accessing services on
the Internet, try pinging the DNS server, or another machine at
the ISP location. If the test is unsuccessful, try pinging devices
outside the ISP. If you can ping devices outside of the ISP, then
the problem lies with the ISP connection.
Using the Active Connections Monitor
The Active Connections Monitor displays real-time,
exportable (plain text or CSV), filterable views of all connections
to and through the Dell SonicWALL appliance. This tool is
available on the Systems > Diagnostics page.
You can filter the results to display only connections matching
certain criteria. You can filter by Source IP, Destination IP,
Destination Port, Protocol, Src Interface and Dst Interface.
Enter your filter criteria in the Active Connections Monitor
Settings table.
The fields you enter values into are combined into a search
string with a logical AND. Select the Group Filters box next to
any two or more criteria to combine them with a logical OR.
Using Log > View
The Dell SonicWALL appliance maintains an Event log for
tracking potential security threats. You can view the log in the
Log > View page, or it can be automatically sent to an email
address for convenience and archiving. The log is displayed in
a table and can be sorted by column.
You can filter the results to display only event logs matching
certain criteria. You can filter by Priority, Category,
Source (IP or Interface), and Destination (IP or Interface).
The fields you enter values into are combined into a search
string with a logical AND. Select the Group Filters box next to
any two or more criteria to combine them with a logical OR.
54
Deployment Configuration Reference Checklist
Use this checklist to find more information about various deployment tasks within the SonicOS Administrator’s Guide.
For this Task... See this Chapter...
Inspecting the rule base for inbound and outbound rules Configuring Access Rules
Setting logging levels Configuring Log Categories (“Logging Level” section)
Configuring threat prevention on all used zones Configuring Zones
(“Enabling Dell SonicWALL Security Services on Zones“ section)
Configuring Web filtering protection Configuring Dell SonicWALL Content Filtering Service
Changing administrator login Configuring Administration Settings
("Administrator Name & Password“ section)
Setting administrator email Configuring Log Automation (“Email Log Automation“ section)
Disabling HTTP and ping access Configuring Interfaces
(“Configuring Advanced Settings for the Interfaces“ section)
Disabling or enabling DHCP Setting Up the DHCP Server
Configuring user management Managing Users and Authentication Settings
Configuring VPN policies Configuring VPN Policies
Securing wireless access Managing SonicPoints
55 | Deployment Configuration Reference Checklist
56
Support and Training Options
In this Section:
This section provides overviews of customer support and training options for the Dell SonicWALL NSA E6500.
Customer Support - page 57
Knowledge Portal - page 57
User Forums - page 58
Training - page 59
Related Documentation - page 60
Dynamic Tooltips - page 61
Dell SonicWALL Live Product Demos - page 61
5
57 | Customer Support
Customer Support
Dell SonicWALL offers Web-based and telephone support to
customers who have a valid Warranty or who purchased a
Support Contract. Please review our Warranty Support Policy
for product coverage. Dell SonicWALL also offers a full range of
consulting services to meet your needs, from our innovative
implementation services to traditional statement of work-based
services.
For further information, visit:
http://www.sonicwall.com/us/support/contact.html
Knowledge Portal
The Knowledge Portal is a resource which allows users to
search for Dell SonicWALL documents based on the following
types of search tools:
•Browse
Search for keywords
Full-text search
For further information, visit:
http://www.sonicwall.com/us/en/support/2213.html
User Forums | 58
User Forums
The Dell SonicWALL User Forums is a resource that provides
users the ability to communicate and discuss a variety of
security and appliance subject matters. In this forum, the
following categories are available for users:
Content Security Manager topics
Continuous Data Protection topics
Email Security related topics
Firewall related topics
Network Anti-Virus related topics
Security Services and Content Filtering topics
GMS and Analyzer related topics
SonicPoint and Wireless related topics
SSL VPN related topics
TZ 190 / Wireless WAN - 3G Capability
VPN Client related topics
VPN site-to-site and interoperability topics
For further information, visit:
https://forum.sonicwall.com/
59 | Training
Training
Dell SonicWALL offers an extensive sales and technical training
curriculum for Network Administrators, Security Experts and
Dell SonicWALL Medallion Partners who need to enhance their
knowledge and maximize their investment in Dell SonicWALL
Products and Security Applications. Dell SonicWALL Training
provides the following resources for its customers:
• E-Training
Instructor-Led Training
Custom Training
Technical Certification
Authorized Training Partners
For further information, visit:
http://www.sonicwall.com/us/support/training.html
Related Documentation | 60
Related Documentation
See the following related documents for more information:
SonicOS Administrator’s Guide
SonicOS Release Notes
SonicOS Feature Modules
Application Firewall
• Dashboard
HA License Sync
Multiple Admin
NAT Load Balancing
Packet Capture
RF Management
Single Sign On
SSL Control
Virtual Access Points
Dell SonicWALL GVC Administrator’s Guide
Dell SonicWALL Analyzer Administrator’s Guide
Dell SonicWALL GAV Administrator’s Guide
Dell SonicWALL IPS Administrator’s Guide
Dell SonicWALL Anti-Spyware Administrator’s Guide
Dell SonicWALL CFS Administrator’s Guide
For further information, visit:
http://www.sonicwall.com/us/en/support.html
61 | Dynamic Tooltips
Dynamic Tooltips
SonicOS features dynamic tooltips that appear over various
elements of the GUI when the mouse hovers over them.
Elements that display these tooltips include text fields, radio
buttons, and checkboxes.
Dell SonicWALL Live Product Demos
The Dell SonicWALL Live Demo Site provides free test drives of
Dell SonicWALL security products and services through
interactive live product installations:
Unified Threat Management Platform
Secure Cellular Wireless
Continuous Data Protection
SSL VPN Secure Remote Access
Content Filtering
Secure Wireless Solutions
Email Security
GMS and Analyzer
For further information, visit: http://livedemo.sonicwall.com/
62
Rack Mounting Instructions
In this Section:
This section provides illustrated rack mounting instructions for the Dell SonicWALL NSA E6500.
Rack Mounting Instructions - page 63
6
63 | Rack Mounting Instructions
Rack Mounting Instructions
M4 SCREW*8 WASHERS*8
Fasten 4 screws to the rail.
Assemble the Slide Rail
11
A B
A
B
64
M5 SCREW*8
M5 Nut*8
Assemble the Slide Rail
Fasten two-sided screws to the rail.
2
C
C
65 | Rack Mounting Instructions

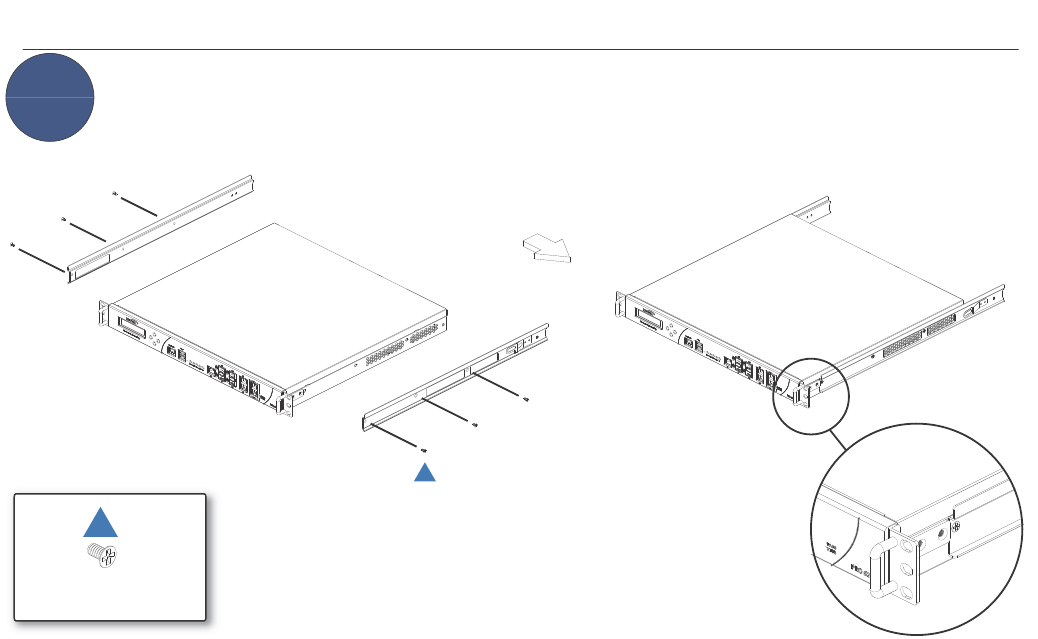

Assemble Inner Rail to Chassis
Fasten 6 screws to attach the inner channel onto the chassis.
M4 SCREW*6
3
D
D
66
Insert Chassis to Frame
4
Push hook down to separate.
Slide inner channel into rails.
67 | Rack Mounting Instructions
68
Product Safety and Regulatory Information
In this Section:
This section provides regulatory along with trademark and copyright information.
Safety and Regulatory Information - page 69
Warranty Information - page 73
Copyright Notice - page 73
7
69 | Safety and Regulatory Information
Safety and Regulatory Information
Safety Instructions
The following conditions are required for proper installation:
The Dell SonicWALL appliance is designed to be mounted in a standard 19-inch
rack mount cabinet.
Use the mounting hardware recommended by the rack manufacturer and ensure
that the rack is adequate for the application.
Ensure that no water or excessive moisture can enter the unit.
Allow unrestricted airflow around the unit and through the vents on the side of
the unit. A minimum of 1 inch (25.44mm) clearance is recommended.
Route cables away from power lines, fluorescent lighting fixtures, and sources
of noise such as radios, transmitters, and broadband amplifiers.
This product is not intended to be installed and used in a home or public area
accessible to the general population. When installed in schools, this equipment
must be installed in a secure location accessible only by trained personnel.
Mount in a location away from direct sunlight and sources of heat. A maximum
ambient temperature of 104º F (40º C) is recommended.
If installed in a closed or multi-rack assembly, the operating ambient temperature
of the rack environment may be greater than the room ambient. Therefore,
consideration should be given to installing the equipment in an environment
compatible with the maximum recommended ambient temperature.
Mount the Dell SonicWALL appliances evenly in the rack in order to prevent a
hazardous condition caused by uneven mechanical loading.
Four mounting screws, compatible with the rack design, must be used and hand-
tightened to ensure secure installation. Choose a mounting location where all
four mounting holes line up with those of the mounting bars of the 19-inch rack
mount cabinet.
A suitably rated and approved branch circuit breaker shall be provided as part of
the building installation. Follow local code when purchasing materials or
components.
Consideration must be given to the connection of the equipment to the supply
circuit. Appropriate consideration of equipment nameplate ratings must be used
when addressing this concern. Do not overload the circuit.
Reliable grounding of rack-mounted equipment must be maintained. Particular
attention must be given to power supply connections other than direct
connections to the branch circuits, such as power strips.
As shipped from the factory this Dell SonicWALL product includes two power
supplies for redundant AC power and added reliability.
To disconnect AC power, both power cords must be removed.
The included power cord(s) are approved for use only in specific countries or
regions. Before using a power cord, verify that it is rated and approved for use in
your location.
This model is shipped as AC mains configuration using standard 3 conductor
appliance couplers.
Never remove or install a power supply with the AC power cord attached to the
power supply being removed or installed.
Thumbscrews should be tightened with a tool after both installation and
subsequent access to the rear of the product.
Before replacing the fan unit, carefully read and follow the instructions provided
with the unit.
Lithium Battery Warning
The Lithium Battery used in the Dell SonicWALL Internet security appliance may
not be replaced by the user. The appliance must be returned to a Dell SonicWALL
authorized service center for replacement with the same or equivalent type
recommended by the manufacturer. If, for any reason, the battery or
Dell SonicWALL Internet security appliance must be disposed of, do so following
the battery manufacturer's instructions.
Cable Connections
All Ethernet and RS232 (Console) cables are designed for intra-building
connection to other equipment. Do not connect these ports directly to
communication wiring or other wiring that exits the building where the
Dell SonicWALL is located.
Regulatory Model/Type Product Name
1RK12-04F
1RK22-074
E6500
Warning—Potential Hazard from Fan
Safety and Regulatory Information | 70
Sicherheitsanweisungen
Für eine ordnungsgemäße Montage sollten die folgenden Hinweise beachtet
werden:
Das Dell SonicWALL Modell ist für eine Montage in einem standardmäßigen 19-
Zoll-Rack konzipiert.
Vergewissern Sie sich, dass das Rack für dieses Gerät geeignet ist und
verwenden Sie das vom Rack-Hersteller empfohlene Montagezubehör.
Stellen Sie sicher, dass das Gerät vor Wasser und hoher Luftfeuchtigkeit
geschützt ist.
Stellen Sie sicher, dass die Luft um das Gerät herum zirkulieren kann und die
Lüftungsschlitze an der Seite des Gehäuses frei sind. Hier ist ein
Belüftungsabstand von mindestens 26 mm einzuhalten.
Achten Sie darauf, das sich die Netzwerkkabel nicht in der unmittelbaren Nähe
von Stromleitungen, Leuchtstoffröhren und Störquellen wie Funksendern oder
Breitbandverstärkern befinden
Dieses Produkt ist nicht dafür entwickelt, um in Bereichen mit öffentlichem
Zugang betrieben zu werden. Wenn es in Schulen betrieben wird, stellen Sie
sicher, dass das Gerät in einem abgeschlossenen Raum installiert wird, der nur
von speziell ausgebildetem Personal betreten werden kann.
Wählen Sie für die Montage einen Ort, der keinem direkten Sonnenlicht
ausgesetzt ist und sich nicht in der Nähe von Wärmequellen befindet. Die
Umgebungstemperatur darf nicht mehr als 40 °C betragen.
Wenn das Gerät in einem geschlossenen 19"-Gehäuse oder mit mehreren
anderen Geräten eingesetzt ist, wird die Temperatur in der Gehäuse höher sein
als die Umgebungstemperatur. Achten Sie darauf, daß die
Umgebungstemperatur nicht mehr als 40° C beträgt.
Bringen Sie die Dell SonicWALL waagerecht im Rack an, um mögliche Gefahren
durch ungleiche mechanische Belastung zu vermeiden.
Verwenden Sie für eine sichere Montage vier passende Befestigungsschrauben,
und ziehen Sie diese mit der Hand an. Wählen Sie einen Ort im 19-Zoll-Rack, wo
alle vier Befestigungen der Montageschien verwendet werden.
Ein angemessen dimensionierter und geprüfte Sicherung, sollte Bestandteil der
Haus-Installation sein. Bitte folgen die den lokalen Richtlinien beim Einkauf von
Material oder Komponenten.
Prüfen Sie den Anschluss des Geräts an die Stromversorgung, damit der
Überstromschutz sowie die elektrische Leitung nicht von einer eventuellen
Überlastung der Stromversorgung beeinflusst werden. Prüfen Sie dabei
sorgfältig die Angaben auf dem Aufkleber des Geräts. Überlasten Sie nicht den
Stromkreis.
Eine sichere Erdung der Geräte im Rack muss gewährleistet sein. Insbesondere
muss auf nicht direkte Anschlüsse an Stromquellen geachtet werden wie z. B.
bei Verwendung von Mehrfachsteckdosen.
Dieses Produkt wird mit zwei Wechselstrom-Netzteilen zur redundanten
Stromversorgung fuer erhöhte Verfu¨gbarkeit ausgeliefert.
Um den Wechselstrom (AC) zu unterbrechen muessen beide Stromkabel
entfernt werden.
Das im Lieferumfang enthaltene bzw. die im Lieferumfang enthaltenen
Netzkabel sind nur für die Verwendung in bestimmten Ländern und Regionen
zugelassen. Überprüfen Sie bitte vor der Verwendung eines Netzkabels, ob es
für die Verwendung in Ihrem Land oder Ihrer Region zugelassen ist und den
geforderten Normen entspricht.
Die Wechselstrom Konfiguration verwendet standardisierte Kaltgerätekabel.
Wenn Sie das Netzteil wechseln, entfernen Sie unbedingt die Stromversorgung
von dem zu wechselnden Netzteil.
Vergewissern Sie sich, dass die Schrauben nach dem Austausch mit
entsprechendem Werkzeug fest angezogen werden.
Lesen Sie vor dem Austausch der Lüftereinheit die Anleitung, die mit dem Gerät
geliefert wurde und befolgen Sie die Anweisungen.
Hinweis zur Lithiumbatterie
Die in der Internet Security Appliance von Dell SonicWALL verwendete
Lithiumbatterie darf nicht vom Benutzer ausgetauscht werden. Zum Austauschen
der Batterie muss die Dell SonicWALL in ein von Dell SonicWALL autorisiertes
Service-Center gebracht werden. Dort wird die Batterie durch denselben oder
entsprechenden, vom Hersteller empfohlenen Batterietyp ersetzt. Beachten Sie
bei einer Entsorgung der Batterie oder der Dell SonicWALL Internet Security
Appliance die diesbezüglichen Anweisungen des Herstellers.
Kabelverbindungen
Alle Ethernet- und RS232-C-Kabel eignen sich für die Verbindung von Geräten in
Innenräumen. Schließen Sie an die Anschlüsse der Dell SonicWALL keine Kabel
an, die aus dem Gebäude in dem sich das Gerät befindet herausgeführt werden.
Achtung—Lüfter Potentielle Gefahrenquelle
71 | Safety and Regulatory Information
安全說明
需要滿足以下條件以進行正確安裝:
•戴爾 SonicWALL 設備被設計成安裝在一個標準的 19 吋機架安
裝櫃。需要滿足以下條件以進行正確安裝:
•使用機架製造商推薦的裝載硬體,確認機架足夠裝置所需
•請確認裝置內不會滲入水分或過多的濕氣。
•裝置週邊請保持通風,特別是裝置通風口側。建議裝置與牆
壁間至少要有 1 英吋 (25.44 公釐 ) 的淨空。
•纜線的路徑應遠離電源線、日光燈,以及會產生雜訊的來源,
如無線電、發送器與寬頻放大器。
•本產品的設計目的不是安裝並使用於住家或一般大眾可接觸
到的公共區域。如果是安裝在學校,本設備只能安裝在受訓人
員能接觸到的安全位置。
•架設位置需遠離陽光直射與熱源。建議周圍溫度最高溫不 要
超過 104°F (40°C)。
•如果是安裝於封閉式或多組機架配件,機架環境的周圍操作
溫度可能會高過室內周遭。因此,在與上述建議之最高周圍溫
度相容的環境中安裝設備時,應將此列入考量。
•將 戴爾 SonicWALL 裝置平坦地裝設在機架中,如此才能避免
因不均勻的機械負荷造成危險狀況。
•必須使用四顆與機架設計相容的安裝螺釘,並用手鎖緊螺釘,
確定安裝牢固。選擇一個安裝位置,將四個裝載洞孔對齊 19
吋架設機櫃的安裝桿。
•應當提供一個合適額定值並且已被認可的分支電路斷路器作
為安裝該裝置的一部分。在購買材料或部件時,應遵循當地安
全代碼。
•必須留心裝置與電源電路的連接問題,電路過載對過電流保
護與電路電線的影響需降至最低。解決這個問題時,需正確考
慮裝置銘牌額定值。不要過載電路。
•必須維護可靠的機架裝載設備接地。必須特別留意電源供應
器連線,而不是直接連接到電源板之類的分支電路。
•從工廠運出時,這個戴爾 SonicWALL 產品包括為後備交流電
源和增加可靠性而附帶的兩個電源。
•要斷開交流電源,兩條電源線都必須被拔除。
•隨附的電源線僅限於特定的國家或地區使用。使用前,請確
認電源線的額定值且已被認可在你的地區上使用。
•這個型號出貨時附帶的交流電源,是標準三芯器具耦合器的
配置。
•切勿在交流電源線還連接著電源時移除或安裝電源。
•當安裝及後續接觸產品背面之後,必須用工具將指旋螺釘鎖
緊。
•更換風扇部件前,請仔細閱讀,並遵循所提供的指示。
鋰電池警告
使用者不得自行更換 戴爾 SonicWALL 網際網路安全性裝置中使
用的鋰電池。必須將 戴爾 SonicWALL 送回 戴爾 SonicWALL 授權
的服務中心,以更換相同的鋰電池或製造商推薦的同類型鋰電
池。若因任何原因必須丟棄電池或 戴爾 SonicWALL 網際網路安
全性裝置,請嚴格遵守電池製造商的指示。
風扇潛在危險警告
Safety and Regulatory Information | 72
纜線連結
所有乙太網路與 RS232 ( 主控台 ) 線路都是為與其他裝置進行內
建連接所設計的。請不要將這些連接埠直接連接至通訊線路,或
其他連出 戴爾 SonicWALL 所在建築的線路。
FCC Part 15 Class A Notice
NOTE: This equipment was tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can
radiate radio frequency energy. And if not installed and used in accordance with the
instruction manual, the device may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user is required to correct the interference at
his own expense.
Caution: Modifying this equipment or using this equipment for purposes not shown
in this manual without the written consent of Dell, Inc. could void the user’s
authority to operate this equipment.
BMSI Statement
警告使用者:
此為甲類資訊技術設備,於居住環境中使用時,可能會造成射
頻擾動,在此種情況下,使用者會被要求採取某些適當的對策。
VCCI Statement
この装置は、クラスA情報技術装置です。この装置を家庭環境
で使用すると電波妨害を引き起こすことがあります。この場合
には使用者が適切な対策を講ずるよう要求
されることがあります。       VCCI - A
Canadian Radio Frequency Emissions Statement
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à toutes la norme NMB-003 du
Canada.
Complies with CISPR 22 (EN 55022) Class A
Warning: This is a class A product. In a domestic environment, this product may
cause radio interference in which case the user may be required to take adequate
measures.
Declaration of Conformity
Application of council Directive 2004/108/EC (EMC) and
2006/95/EC (LVD)
Standards to which conformity is declared
EN 55022 (2006) +A1 (2007) Class A
EN 55024 (1998) +A1 (2001), +A2 (2003)
EN 61000-3-2 (2006)
EN 61000-3-3 (2008)
EN 60950-1 (2006) +A11
National Deviations: AR, AT, AU, BE, BR, CA, CH, CN, CZ,
DE, DK, FI, FR, GB, GR, HU, IL, IN, IT, JP, KE,
KR, MY, NL, NO, PL, SE, SG, SI, SK, US
73 | Warranty Information
Regulatory Information for Korea
All products with country code “A” and “J” are made in the USA.
All products with country code “B” are made in China.
All products with country code "C" or "D" are made in Taiwan R.O.C.
All certificates held by NetSonic, Inc.
Warranty Information
All Dell SonicWALL appliances come with a 1-year Limited Hardware Warranty
which provides delivery of critical replacement parts for defective parts under
warranty. Visit the Warranty Information page details on your product’s warranty:
http://www.sonicwall.com/us/en/support/Services.html#tab=warranty
Copyright Notice
© 2013 Dell, Inc.
All rights reserved.
Under the copyright laws, this manual or the software described within, cannot be
copied, in whole or part, without the written consent of the manufacturer, except in
the normal use of the software to make a backup copy. The same proprietary and
copyright notices must be affixed to any permitted copies as were affixed to the
original. This exception does not allow copies to be made for others, whether or not
sold, but all of the material purchased (with all backup copies) can be sold, given,
or loaned to another person. Under the law, copying includes translating into
another language or format.
Specifications and descriptions subject to change without notice.
Ministry of Information and Telecommunication
Certification Number
SWL-1RK22-074
SWL-1RK12-050

Navigation menu
