Dell P05G Notebook Computer User Manual Dell Latitude 4310 Setup and Features Information

Dell Inc. Notebook Computer Dell Latitude 4310 Setup and Features Information

Contents

Users Manual

Setup and Features Information
Front View
34
5
6
7
8
1ambient-light sensor
2camera (optional)
3camera-status light (optional)
4display
5microphone (optional)
6Dell Latitude ON™ button (optional)
7power button
8video connector (VGA)
9USB 2.0 connector
10 optical drive
11 volume-control buttons (3)
12 wireless switch
13 ExpressCard slot
14 fingerprint reader (optional)
15 contactless smart-card reader (optional)
16 memory-card slot
17 touchpad buttons (2)
18 touchpad
19 track-stick buttons (3)
20 track stick
21 keyboard
22 device-status lights
23 microphone
12
9
10
11
12
13
14
17
16
20
15
19
18
21
23
22
Regulatory Model: P05G Regulatory Type: P05G001
Dell™ Latitude™ 4310
About Warnings
WARNING: A WARNING indicates a potential for
property damage, personal injury, or death.
March 2010
NOTE: Two microphones are available only if you purchase
a camera with the computer.
7JR5Tcc0.fm Page 1 Friday, January 22, 2010 10:42 AM
Back View
WARNING: Do not block, push objects into, or allow dust to accumulate in the air vents. Do not store your Dell computer in a low-airflow
environment, such as a closed briefcase, while it is running. Restricting the airflow can damage the computer or cause a fire. The computer
turns on the fan when the computer gets hot. Fan noise is normal and does not indicate a problem with the fan or the computer.
5
4
3
2
1network connector
2power and battery lights
3AC-adapter connector
4security-cable slot
5eSATA/USB 2.0 connector
6audio (line-out)/microphone (line-in) connector
7cooling vents
8smart-card slot
1
8
6
7
7JR5Tcc0.fm Page 2 Friday, January 22, 2010 10:42 AM

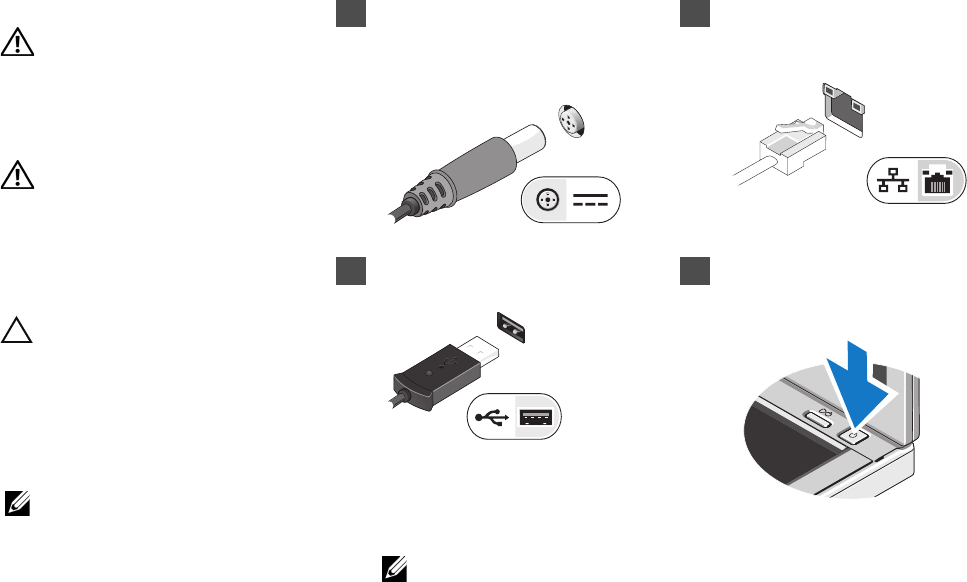

1Connect the AC adapter to the
AC-adapter connector on the
portable computer and to the
electrical outlet.
2Connect the network cable
(optional).
3Connect USB devices, such as a
mouse or keyboard (optional).
4Open the computer display and
press the power button to turn on
the computer.
NOTE: It is recommended that you turn on and shut down your computer at least
once before you install any cards or connect the computer to a docking device or
other external device, such as a printer.
Quick Setup
WARNING: Before you begin any of the
procedures in this section, read the safety
information that shipped with your
computer. For additional best practices
information, see
www.dell.com/regulatory_compliance.
WARNING: The AC adapter works with
electrical outlets worldwide. However,
power connectors and power strips vary
among countries. Using an incompatible
cable or improperly connecting the cable
to the power strip or electrical outlet may
cause fire or equipment damage.
CAUTION: When you disconnect the
AC adapter cable from the computer,
grasp the connector, not the cable itself,
and pull firmly but gently to avoid
damaging the cable. When you wrap the
AC adapter cable, ensure that you follow
the angle of the connector on the
AC adapter to avoid damaging the cable.
NOTE: Some devices may not be
included if you did not order them.
7JR5Tcc0.fm Page 3 Friday, January 22, 2010 10:42 AM
Specifications
NOTE: Offerings may vary by region. For more information regarding
the configuration of your computer, click Start→ Help and Support
and select the option to view information about your computer.
System Information
Processor type Intel® Core™ i5
Intel Core i7
Chipset Intel 5-Series chipset
Memory
Memory module connector two SODIMM sockets
Memory module capacity 1 GB, 2 GB, or 4 GB
Memory type DDR3, 1066 MHz
Minimum memory 1 GB
Maximum memory 8 GB
NOTE: Memory greater than 4 GB
is supported by 64-bit operating
systems only.
Video
Video type integrated on system board
Video controller Intel HD graphics
Contactless Smart Card
Supported Smart
Cards/Technologies
ISO14443A — 106 kbps, 212 kbps,
424 kbps, and 848 kbps
ISO14443B — 106 kbps, 212 kbps,
424 kbps, and 848 kbps
ISO15693
HID iClass
FIPS201
NXP Desfire
Battery
Type 3-cell, 2.8 AHr, 30 WHr
6-cell, 2.8 AHr and above, 60 WHr
6-cell, 2.5 AHr long life, 54 WHr
battery slice, 48 WHr
Dimensions:
Depth 3-cell
— 28.80 mm (1.13 inches)
6-cell — 51.10 mm (2.01 inches)
Height
21.90 mm (0.86 inches)
Width
189.80 mm (7.47 inches)
Weight 3-cell — 0.19 kg (0.42 lb)
6-cell — 0.34 kg (0.75 lb)
battery slice — 0.63g (1.39 lb)
Voltage 11.1 VDC
Temperature range:
Operating
0 °C to 35 °C (32 °F to 95 °F)
Storage
–40 °C to 70 °C (–40 °F to 158 °F)
Coin-cell battery 3 V CR2032 lithium
7JR5Tcc0.fm Page 4 Friday, January 22, 2010 10:42 AM
AC Adapter
Input voltage 100–240 VAC
Input current (maximum) 1.5 A
Input frequency 50–60 Hz
Output power 65 W
Output current 4.34 A (maximum at 4-second pulse)
3.34 A (continuous)
Output voltage 19.5 +/– 1.0 VDC
Dimensions:
Width
66 mm (2.60 inches)
Height
16 mm (0.63 inches)
Depth
217 mm (8.54 inches)
Temperature range:
Operating
0 °C to 35 °C (32 °F to 95 °F)
Storage
–40 °C to 70 °C (–40 °F to 158 °F)
Physical
Front height 25.40 mm–26.50 mm (1.00–1.04 inches)
Back height 30.55 mm–31.65 mm (1.20–1.24 inches)
Width 323 mm (12.72 inches)
Depth 215 mm (8.47 inches)
Weight 1.56 kg–1.77 kg (3.44 lb–3.90 lb)
Environmental
Temperature range:
Operating
0 °C to 35 °C (32 °F to 95 °F)
Storage
–40 °C to 70 °C (–40 °F to 158 °F)
Relative humidity (maximum):
Operating
10 % – 90 % (noncondensing)
Storage
5 % – 95 % (noncondensing)
Altitude (maximum):
Operating
–15.2 m to 3048 m (–50 ft to 10,000 ft)
Storage
–15.2 m to 10,668 m (–50 ft to 35,000 ft)
7JR5Tcc0.fm Page 5 Friday, January 22, 2010 10:42 AM
Finding More Information and Resources
See the safety and regulatory documents that shipped with your computer
and the regulatory compliance website at
www.dell.com/regulatory_compliance for more information on:
• Safety best practices
• Warranty
•Terms and Conditions
• Regulatory certification
• Ergonomics
• End User License Agreement
________________
Information in this document is subject to change without notice.
© 2010 Dell Inc. All rights reserved.
Reproduction of these materials in any manner whatsoever without the written
permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, Latitude, and Latitude ON are
trademarks of Dell Inc.; Intel is a registered trademark and Core is a trademark
of Intel Corporation in the U.S. and other countries.
Other trademarks and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Dell Inc. disclaims
any proprietary interest in trademarks and trade names other than its own.
