Dell Latitude E6220
Setup and Features Information
About Warnings
WARNING: A WARNING indicates a potential for property damage, personal injury,
or death.
Front And Back View

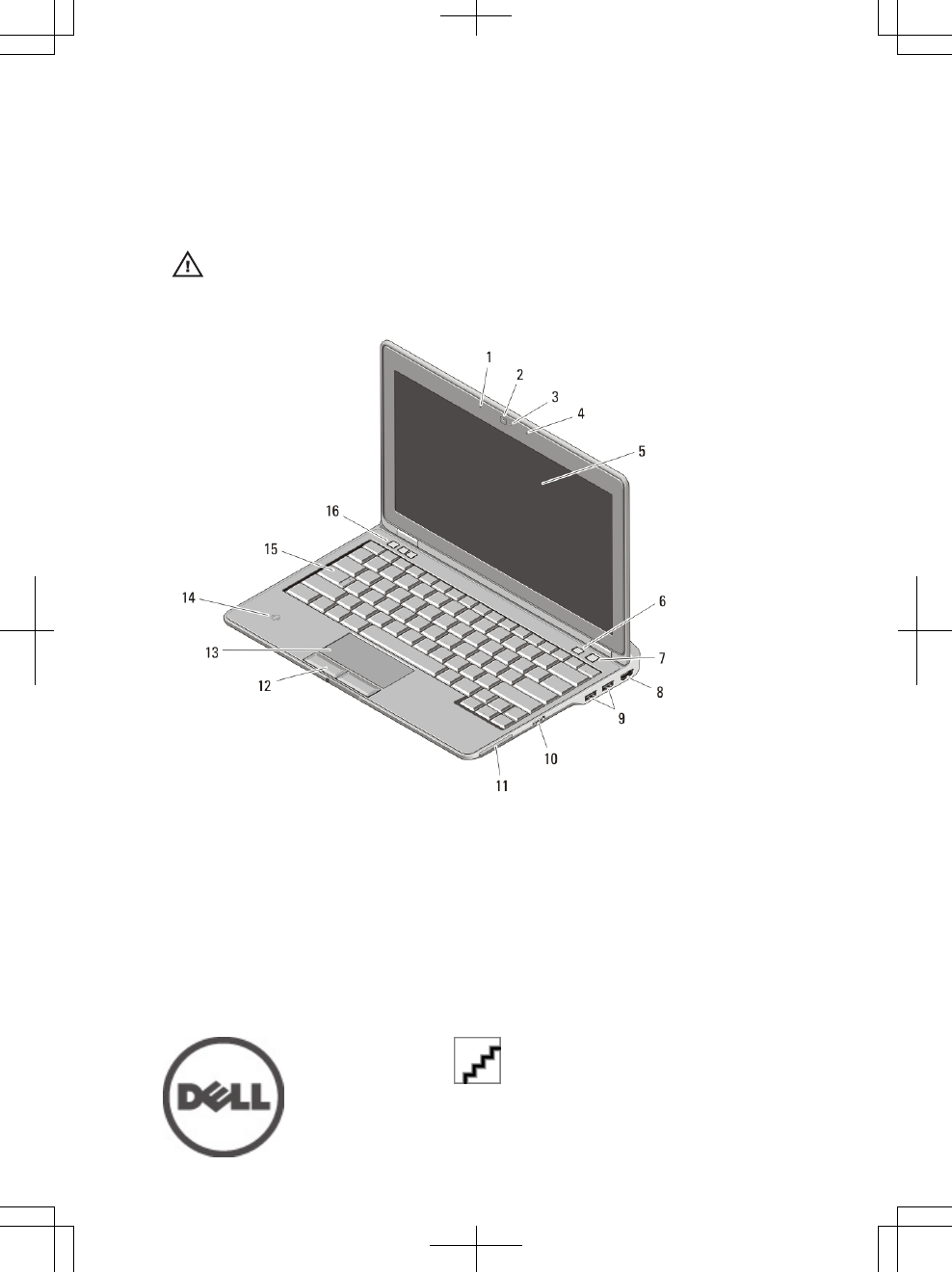

Figure 1. Front View
1. microphone
2. camera (optional)
3. camera status light (optional)
4. microphone (optional)
5. display
6. Latitude ON
7. power button
8. HDMI connector
9. USB 2.0 connectors (2)
10. wireless switch
11. PCI express card
12. touchpad buttons (2)
13. touchpad
14. contactless smart card reader
Regulatory Model: P15S
Regulatory Type: P15S001
November 2010
![](/img.php?id=1424660&img=bg2.png)
15. keyboard 16. volume control buttons (3)

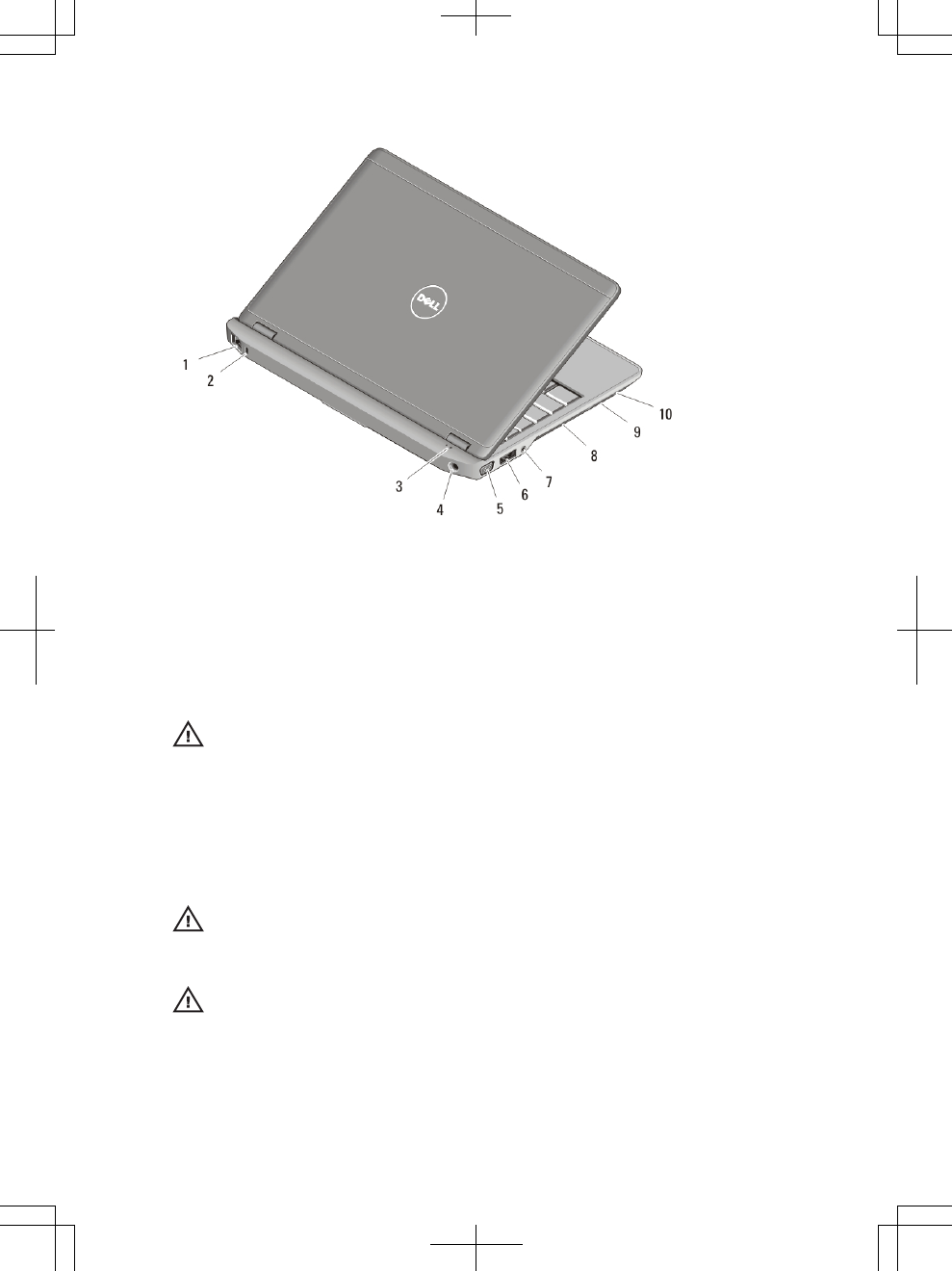

Figure 2. Back View
1. network connector
2. security cable slot
3. device status lights
4. power connector
5. video connector (VGA)
6. e-SATA/USB connector
7. audio connector
8. cooling vent
9. Secure Digital (SD) memory-card
reader
10. smart card
WARNING: Do not block, push objects into, or allow dust to accumulate in the air
vents. Do not store your Dell computer in a low-airflow environment, such as a
closed briefcase, while it is running. Restricting the airflow can damage the
computer or cause a fire. The computer turns on the fan when the computer gets
hot. Fan noise is normal and does not indicate a problem with the fan or the
computer.
Quick Setup
WARNING: Before you begin any of the procedures in this section, read the safety
information that shipped with your computer. For additional best practices
information, see www.dell.com/regulatory_compliance.
WARNING: The AC adapter works with electrical outlets worldwide. However,
power connectors and power strips vary among countries. Using an incompatible
cable or improperly connecting the cable to the power strip or electrical outlet may
cause fire or equipment damage.
2
![](/img.php?id=1424660&img=bg3.png)
CAUTION: When you disconnect the AC adapter cable from the computer, grasp
the connector, not the cable itself, and pull firmly but gently to avoid damaging the
cable. When you wrap the AC adapter cable, ensure that you follow the angle of the
connector on the AC adapter to avoid damaging the cable.
NOTE: Some devices may not be included if you did not order them.

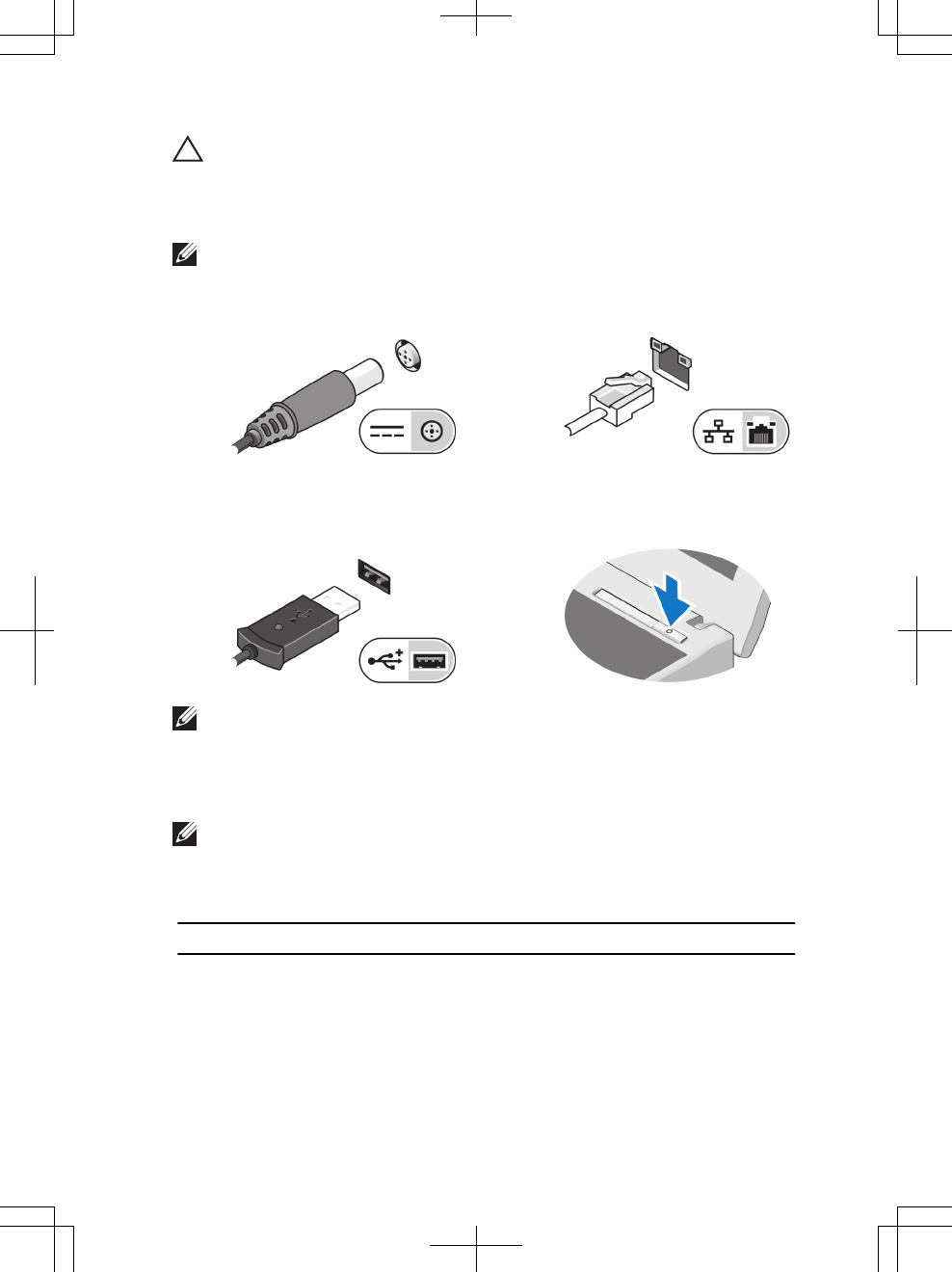

1. Connect the AC adapter to the AC adapter connector on the computer
and to the electrical outlet. Connect the network cable (optional).
2. Connect USB devices, such as a mouse or keyboard (optional). Open
the computer display and press the power button to turn on the
computer.
NOTE: It is recommended that you turn on and shut down your computer at least
once before you install any cards or connect the computer to a docking device or
other external device, such as a printer.
Specifications
NOTE: Offerings may vary by region. The following specifications are only those
required by law to ship with your computer. For more information regarding the
configuration of your computer, click Start → Help and Support and select the
option to view information about your computer.
System Information
Chipset Intel Mobile QM67 Enhanced Chipset
Processor • Intel Core i5 2520M
• Intel Core i5 2540M
• Intel Core i7 2620M
3
![](/img.php?id=1424660&img=bg4.png)
Video
Video type GT2 Intel HD Graphics 3000
Data bus integrated video
Video controller and memory 512 MB
Memory
Memory connector two SODIMM slot
Memory capacity 1 GB, 2 GB, 4 GB, or 8 GB
Memory type DDR3 SDRAM (1333 MHz)
Minimum memory 1 GB
Maximum memory 8 GB
Battery
Type • 3-cell “smart” Lithium ion
• 6-cell "smart" Lithium ion
Dimensions: 3–cell battery 6–cell battery
Depth 29.9 mm (1.90 inches) 54.00 mm (2.12 inches)
Height 19.80 mm (0.78 inches) 20.85 mm (0.82 inches)
Width 208 mm (8.18 inches) 214 mm (8.43 inches)
Weight 174.0 g (0.38 lbs) 335.9 g (0.74 lbs)
Voltage 11.10 VDC
Temperature range:
Operating 0 °C to 35 °C (32 °F to
95 °F)
Non-operating –40 °C to 65 °C (–40 °F
to 149 °F)
Coin-cell battery 3 V CR2032 lithium coin
cell
AC Adapter
Type 65 W and 90 W
Input voltage 100 VAC to 240 VAC
4
![](/img.php?id=1424660&img=bg5.png)
AC Adapter
Input current (maximum) 1.5 A/ 1.6 A/ 1.7 A
Input frequency 50 Hz to 60 Hz
Output power 65 W/ 90 W
Output current 3.34 A and 4.62 A
(continuous)
Rated output voltage 19.5 +/– 1.0 VDC
Dimensions: 65 W adapter 90 W adapter
Height 28.5 mm (1.12 inches) 16.00 mm (0.63 inches)
32.00 mm (1.26 inches)
Width 108.00 mm (4.25 inches) 146.70 mm (5.78 inches)
128.00 mm (5.04 inches)
Depth 47.00 mm (1.85 inches) 70.00 mm (2.76 inches)
52.00 mm (2.05 inches)
Temperature range:
Operating 0° to 40°C (32° to 104°F)
Non Operating -40° to 70°C (-40° to
158°F)
Physical
Height 24.65 mm (0.97 inches)
Width 309.00 mm (12.16 inches)
Depth 226.00 mm (8.89 inches)
Weight (Minimum) 1.42 kg (3.15 lbs)
Environmental
Temperature:
Operating 10 ° to 35 °C (50 ° to 95 °F)
Storage -40 ° to 65 °C (-40 ° to 149 °F)
Relative humidity (maximum):
Operating 10% to 90% (noncondensing)
Storage 5% to 95% (noncondensing)
5
![](/img.php?id=1424660&img=bg6.png)
Environmental
Airborne contaminant level G2 or lower as defined by ISA-S71.04–
1985
Finding More Information and Resources
See the safety and regulatory documents that shipped with your computer
and the regulatory compliance website at www.dell.com/
regulatory_compliance for more information on:
• Safety best practices
• Regulatory certification
• Ergonomics
See www.dell.com for additional information on:
• Warranty
• Terms and Conditions (U.S. only)
• End User License Agreement
