Dell B3460dn Mono Laser Printer User's Guide User Manual En Us
Dell-Dell-B3460Dn-Mono-Laser-Printer-Users-Manual-136211 dell-dell-b3460dn-mono-laser-printer-users-manual-136211
User Manual: Dell dell-b3460dn Dell B3460dn Mono Laser Printer User's Guide
Open the PDF directly: View PDF
.
Page Count: 165 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- Contents
- Safety information
- Learning about the printer
- Additional printer setup

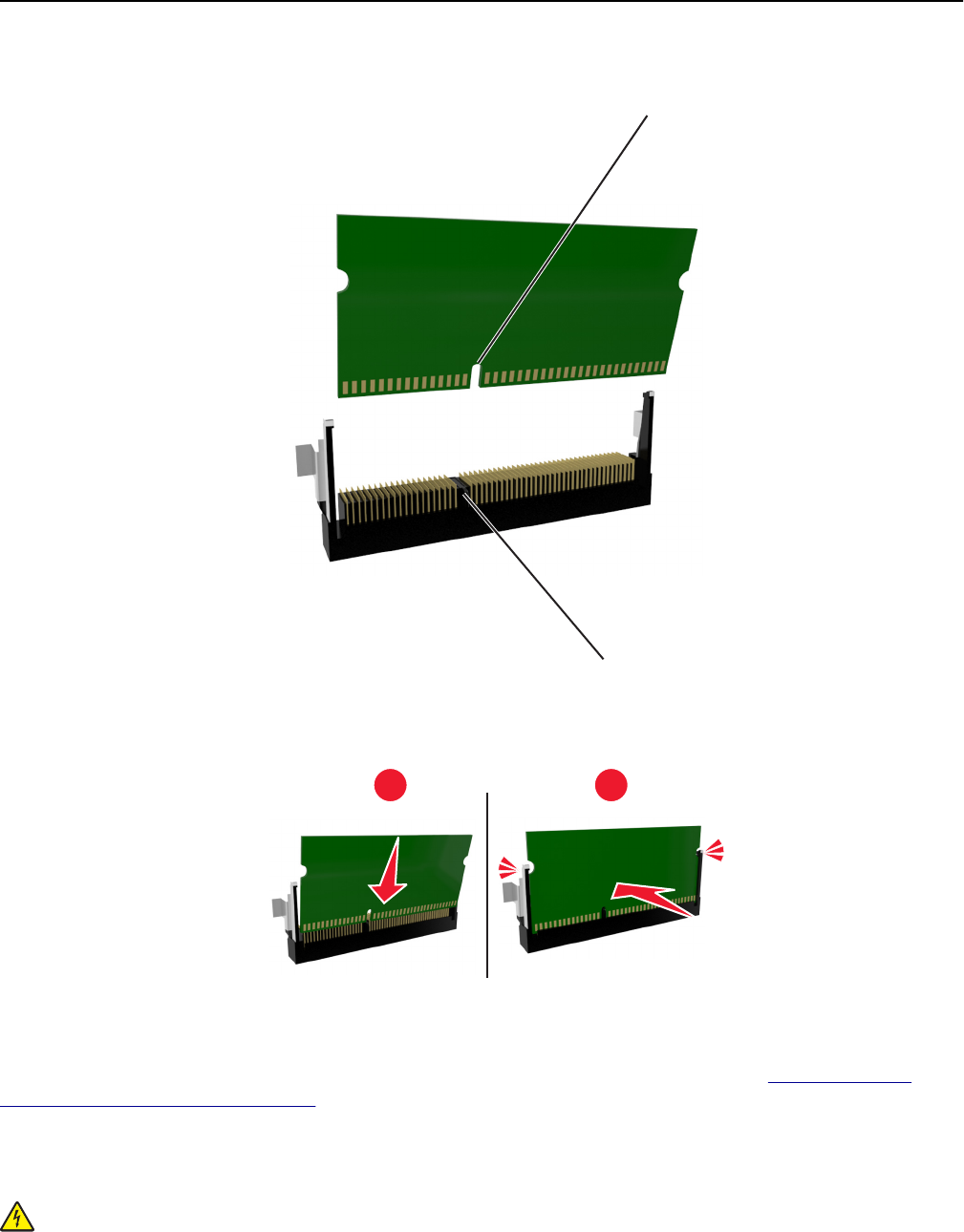

- Installing internal options
- Installing hardware options

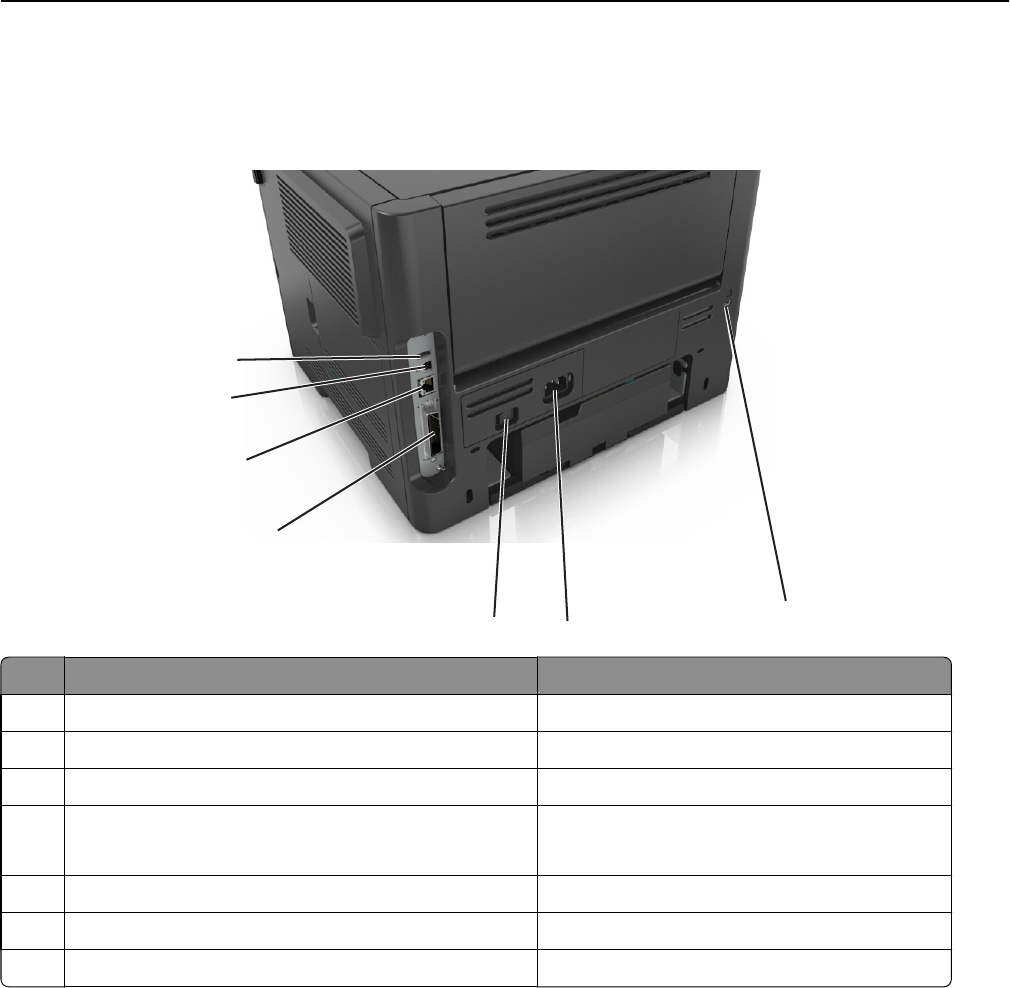

- Attaching cables
- Setting up the printer software
- Networking
- Preparing to set up the printer on an Ethernet network
- Preparing to set up the printer on a wireless network
- Connecting the printer using the Wireless Setup Wizard
- Connecting the printer to a wireless network using Wi-Fi Protected Setup (WPS)
- Connecting the printer to a wireless network using the Embedded Web Server
- Verifying printer setup
- Loading paper and specialty media
- Paper and specialty media guide
- Printing
- Understanding the printer menus
- Saving money and the environment
- Securing the printer
- Maintaining the printer
- Managing the printer
- Clearing jams
- Avoiding jams
- Understanding jam messages and locations

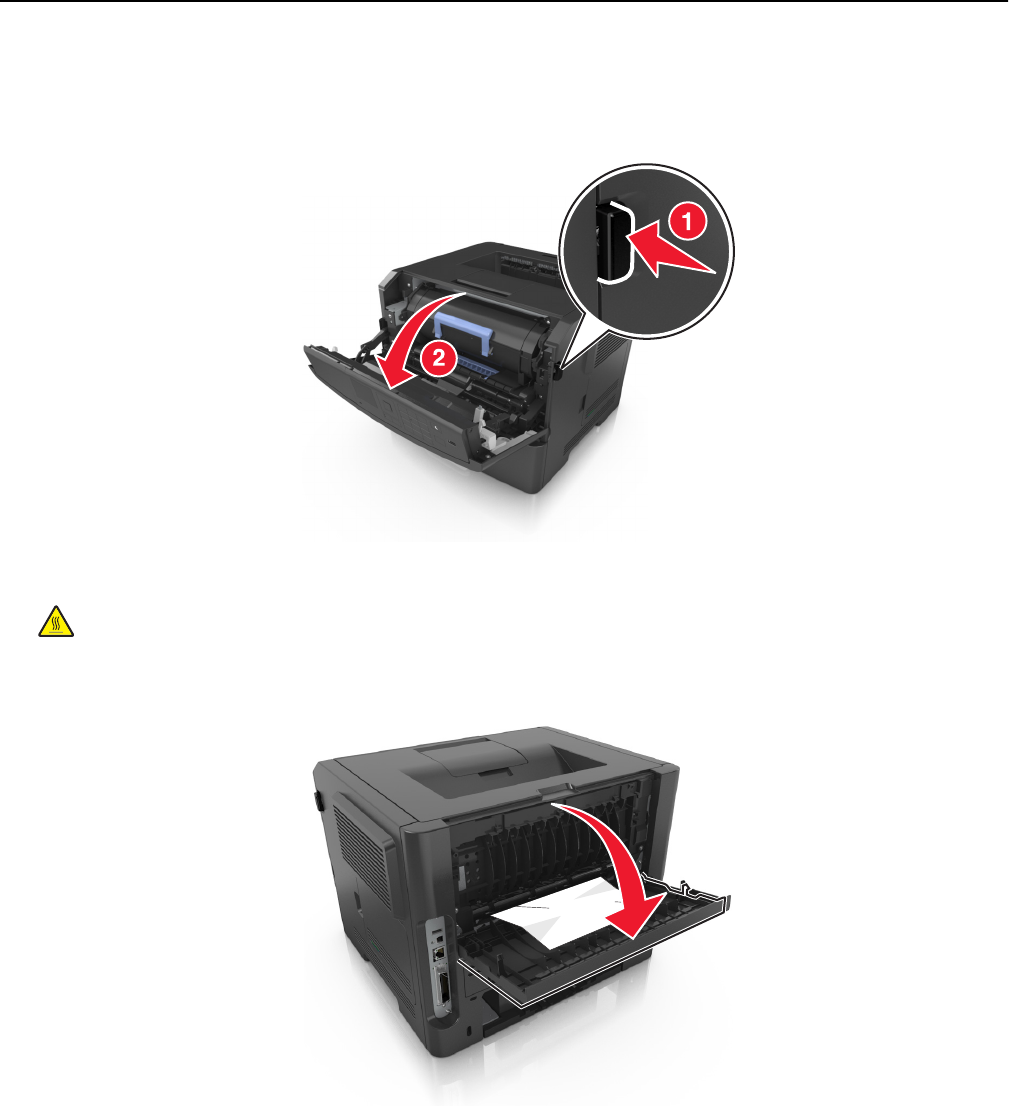

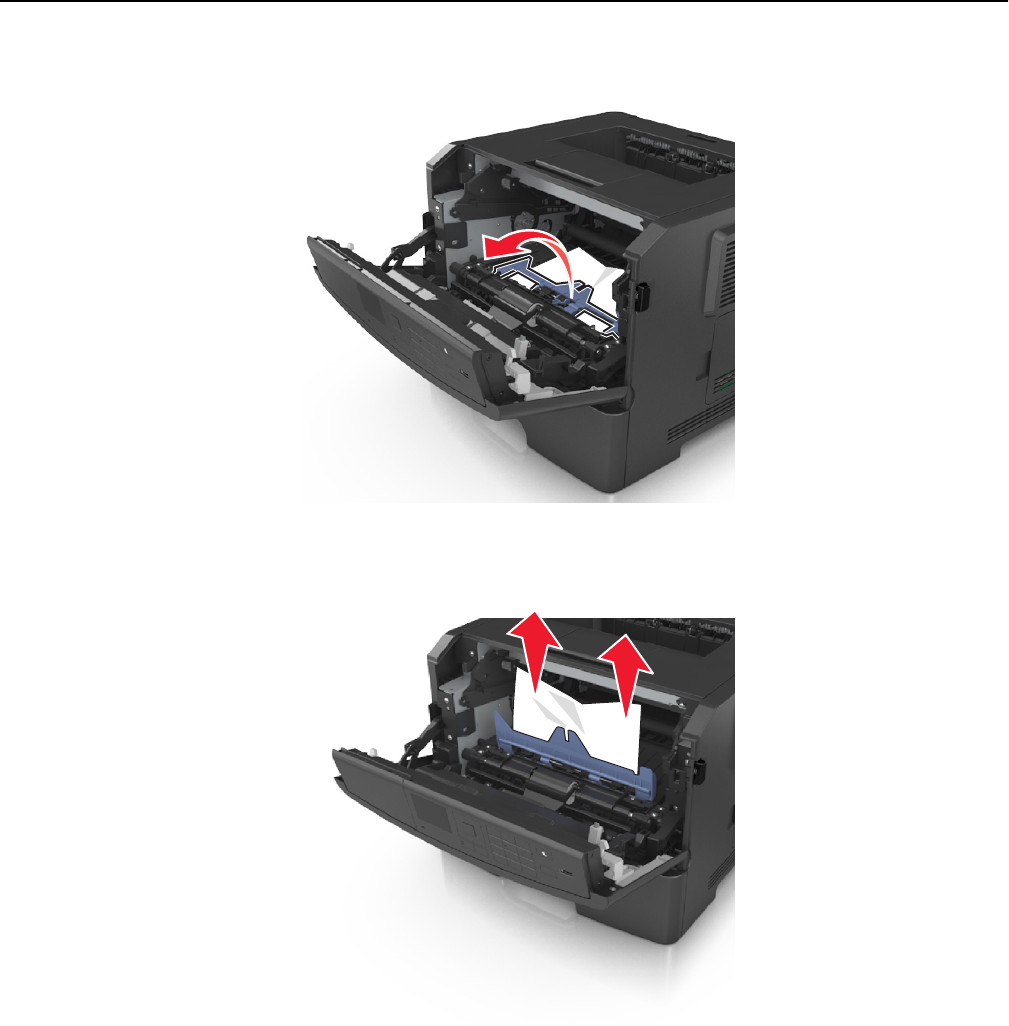

- [x]-page jam, open front door. [20y.xx]

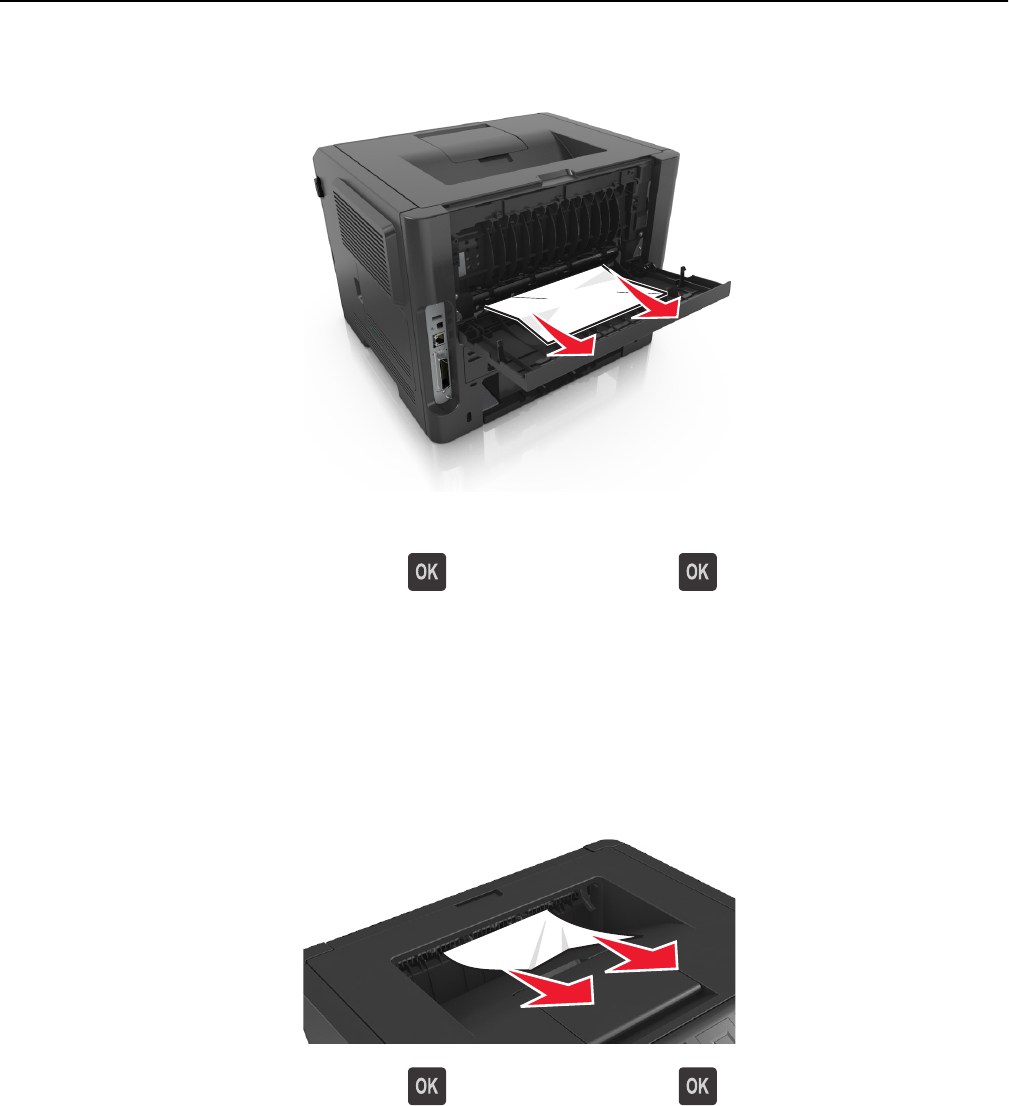

- [x]-page jam, open rear door. [20y.xx]
- [x]-page jam, clear standard bin. [20y.xx]

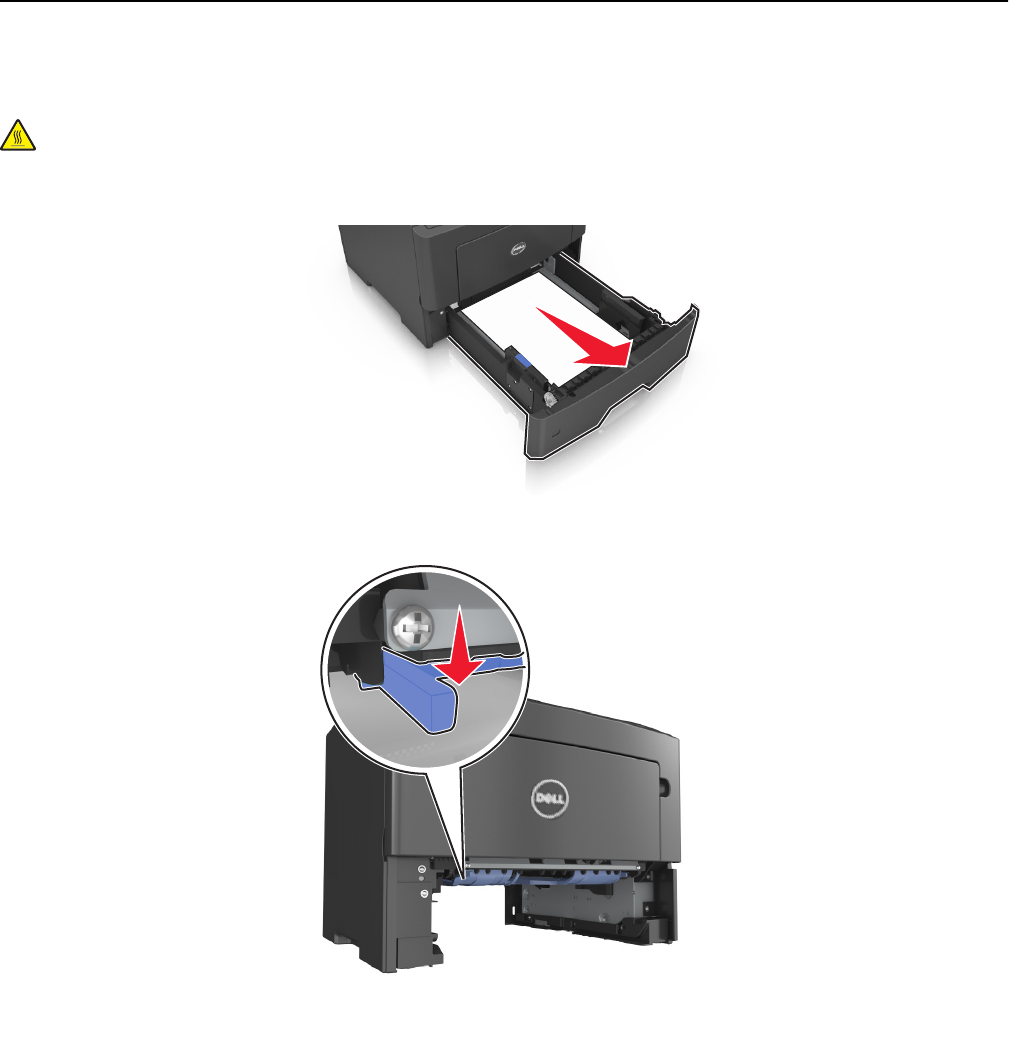

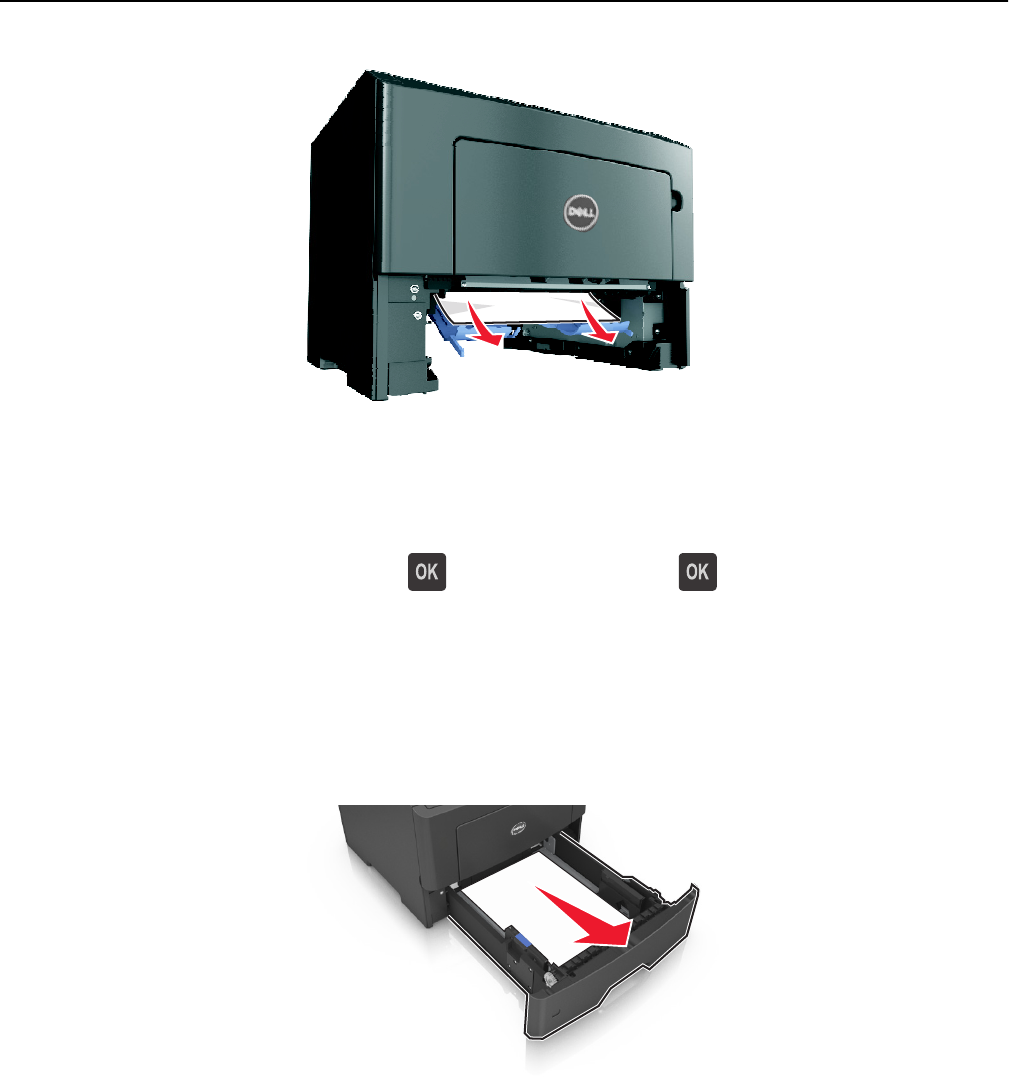

- [x]-page jam, remove tray 1 to clear duplex. [23y.xx]
- [x]-page jam, open tray [x]. [24y.xx]
- [x]-page jam, clear manual feeder. [25y.xx]
- Troubleshooting
- Understanding the printer messages
- Cartridge low [88.xy]
- Cartridge nearly low [88.xy]
- Cartridge very low, [x] estimated pages remain [88.xy]
- Change [paper source] to [custom type name] load [orientation]
- Change [paper source] to [custom string] load [orientation]
- Change [paper source] to [paper size] load [orientation]
- Change [paper source] to [paper type] [paper size] load [orientation]
- Close front door
- Complex page, some data may not have printed [39]
- Defective flash detected [51]
- Error reading USB drive. Remove USB.
- Error reading USB hub. Remove hub.
- Imaging unit low [84.xy]
- Imaging unit nearly low [84.xy]
- Imaging unit very low, [x] estimated pages remain [84.xy]
- Incorrect paper size, open [paper source] [34]
- Insert Tray [x]
- Insufficient memory to support Resource Save feature [35]
- Insufficient memory to collate job [37]
- Insufficient memory for Flash Memory Defragment operation [37]
- Insufficient memory, some Held Jobs were deleted [37]
- Insufficient memory, some held jobs will not be restored [37]
- Load [paper source] with [custom string] [orientation]
- Load [paper source] with [custom type name] [orientation]
- Load [paper source] with [paper size] [orientation]
- Load [paper source] with [paper type] [paper size] [orientation]
- Load Manual Feeder with [custom type name] [orientation]
- Load Manual Feeder with [custom string] [orientation]
- Load Manual Feeder with [paper size] [orientation]
- Load Manual Feeder with [paper type] [paper size] [orientation]
- Maintenance kit low [80.xy]
- Maintenance kit nearly low [80.xy]
- Maintenance kit very low, [x] estimated pages remain [80.xy]
- Memory full [38]
- Network [x] software error [54]
- Non-Dell [supply type], see User’s Guide [33.xy]
- Not enough free space in flash memory for resources [52]
- PPDS font error [50]
- Reinstall missing or unresponsive cartridge [31.xy]
- Reinstall missing or unresponsive imaging unit [31.xy]
- Remove paper from standard output bin
- Replace cartridge, 0 estimated pages remain [88.xy]
- Replace imaging unit, 0 estimated pages remain [84.xy]
- Replace maintenance kit, 0 estimated pages remain [80.xy]
- Replace unsupported cartridge [32.xy]
- Replace unsupported imaging unit [32.xy]
- SMTP server not set up. Contact system administrator.
- Standard network software error [54]
- Standard parallel port disabled [56]
- Standard USB port disabled [56]
- Too many flash options installed [58]
- Too many trays attached [58]
- Unformatted flash detected [53]
- Unsupported option in slot [x] [55]
- Solving printer problems
- Solving print problems
- Printing problems
- Multiple-language PDF files do not print
- Error message about reading the flash drive appears
- Print jobs do not print
- Print job takes longer than expected
- Job prints from the wrong tray or on the wrong paper
- Incorrect characters print
- Tray linking does not work
- Large jobs do not collate
- Unexpected page breaks occur
- Print quality problems
- Characters have jagged or uneven edges
- Clipped pages or images
- Shadow images appear on prints
- Gray background on prints
- Incorrect margins on prints
- Paper curl
- Print irregularities
- Repeating defects appear on prints
- Print is too dark

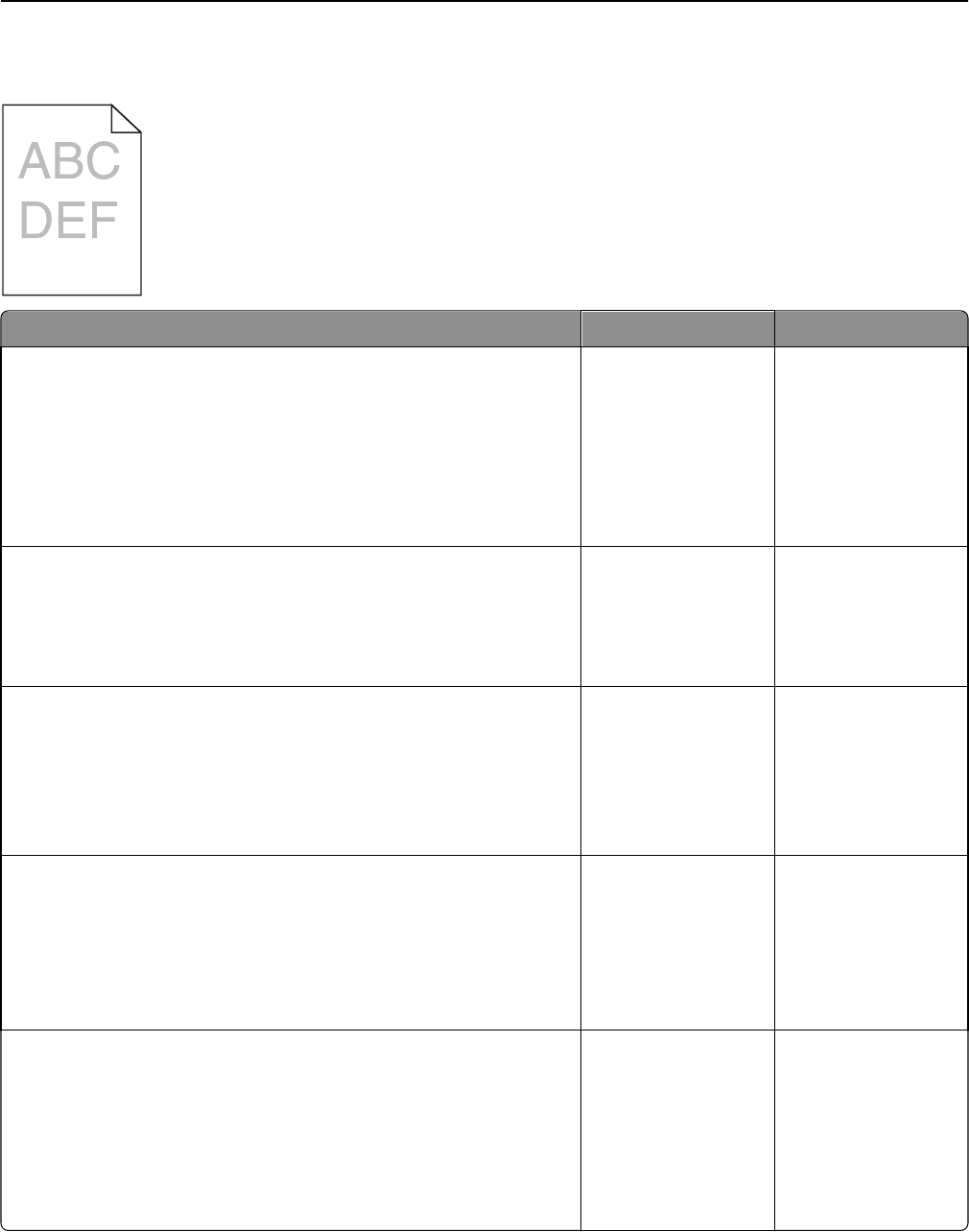

- Print is too light

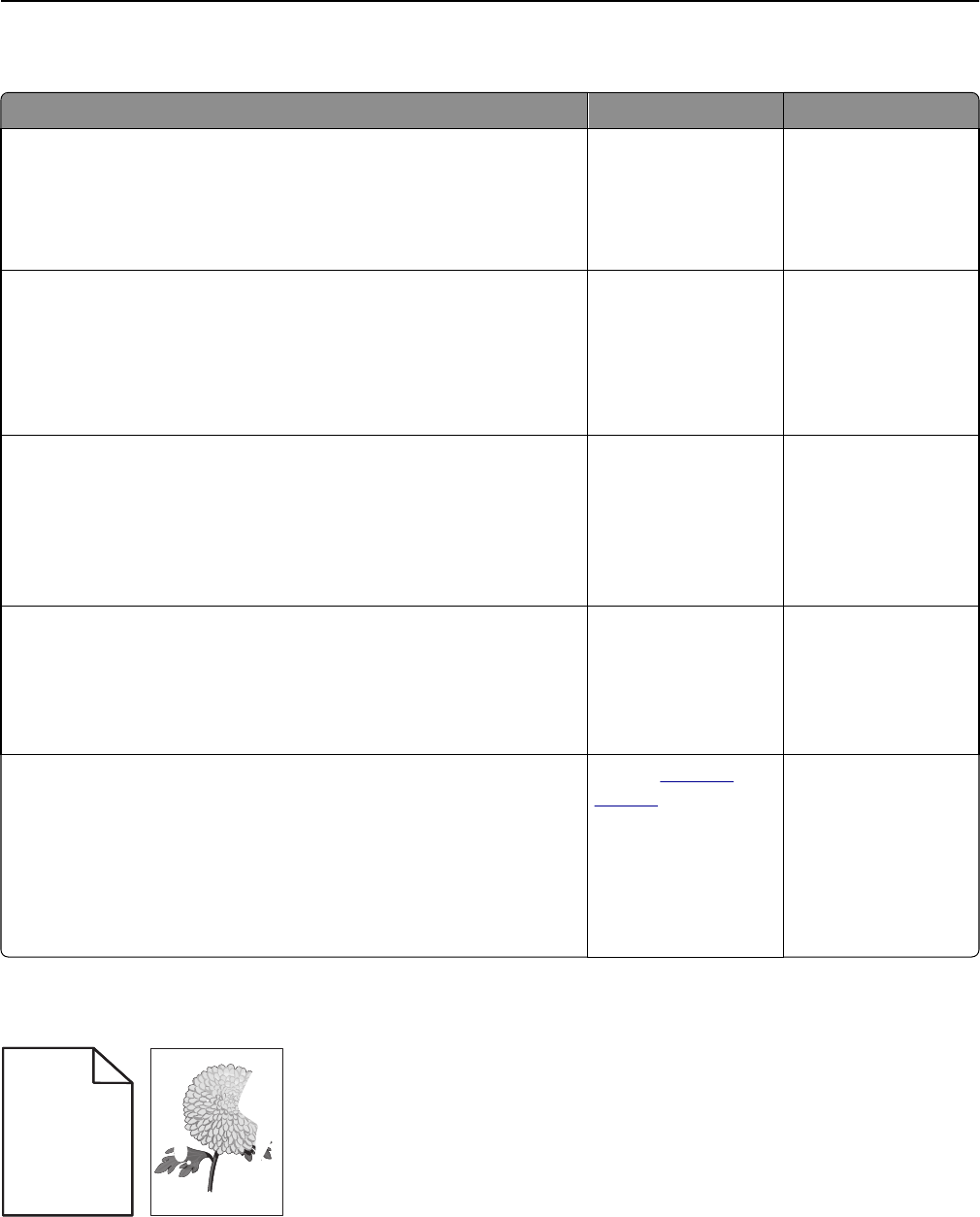

- Printer is printing blank pages
- Skewed print

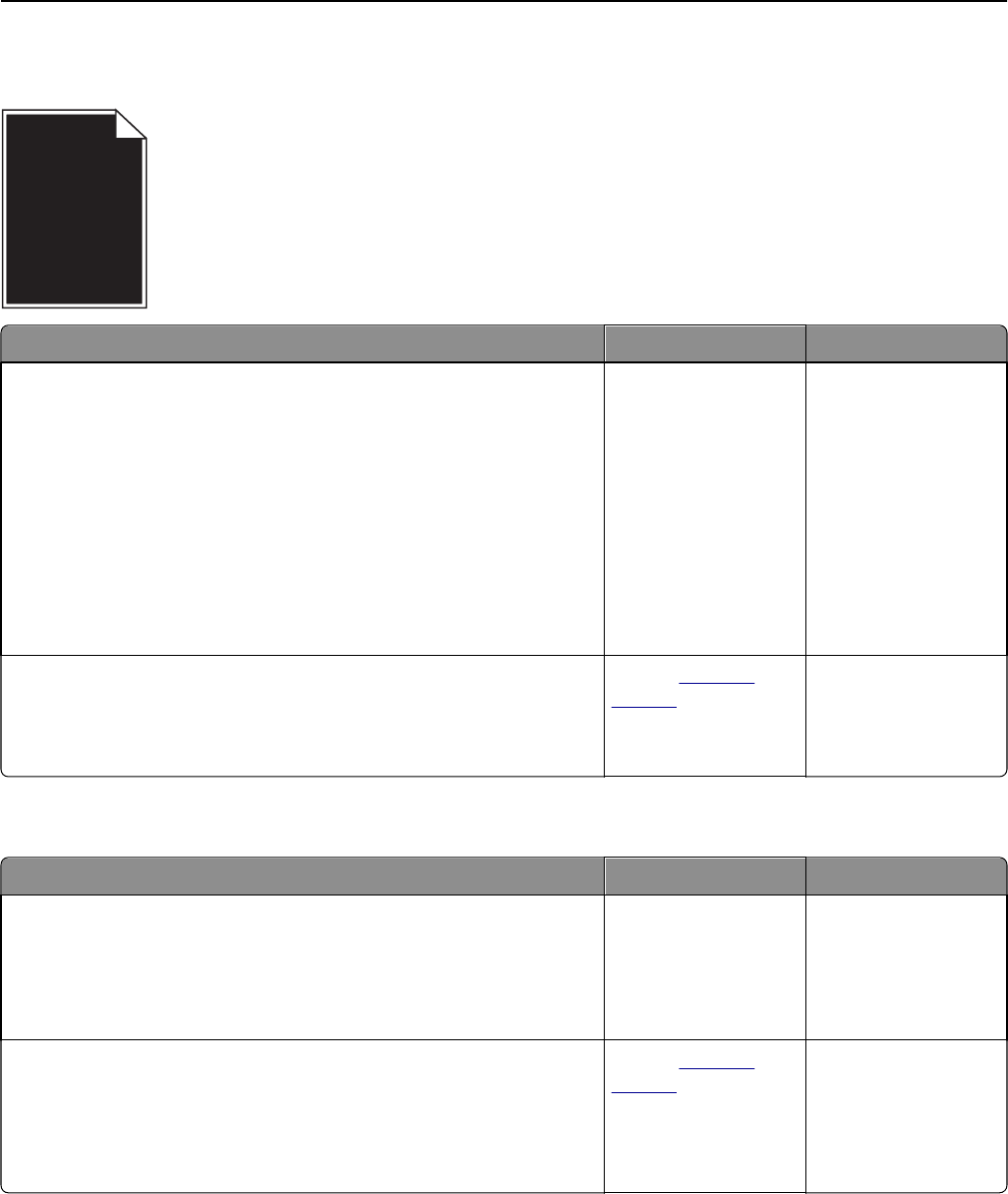

- Printer is printing solid black pages
- Transparency print quality is poor
- Streaked horizontal lines appear on prints
- Streaked vertical lines appear on prints
- Horizontal voids appear on prints
- Vertical voids appear on prints
- Toner specks appear on prints
- Toner fog or background shading appears on prints
- Toner rubs off
- Uneven print density
- Printing problems
- Embedded Web Server does not open
- Contacting technical support
- Understanding the printer messages
- Appendix
- Index
Dell B3460dn Laser Printer
User's Guide
March 2014 www.dell.com | dell.com/support/printers
Trademarks
Information in this document is subject to change without notice.
© 2014 Dell, Inc. All rights reserved.
Reproduction of this material in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, Inspiron, Dell Precision, Dimension, OptiPlex, Latitude, PowerEdge, PowerVault, PowerApp, and Dell OpenManage are trademarks
of Dell Inc.; Intel, Pentium, and Celeron are registered trademarks of Intel Corporation; Microsoft and Windows are registered trademarks of Microsoft Corporation; AirPrint and
the AirPrint logo are trademarks of Apple, Inc.
Other trademarks and trade names may be used in this document to refer to the entities claiming the marks and names of their products. Dell Inc. disclaims any proprietary
interest in trademarks and trade names other than its own.
Contents
Safety information.......................................................................................6
Learning about the printer...........................................................................8
Finding information about the printer......................................................................................................8

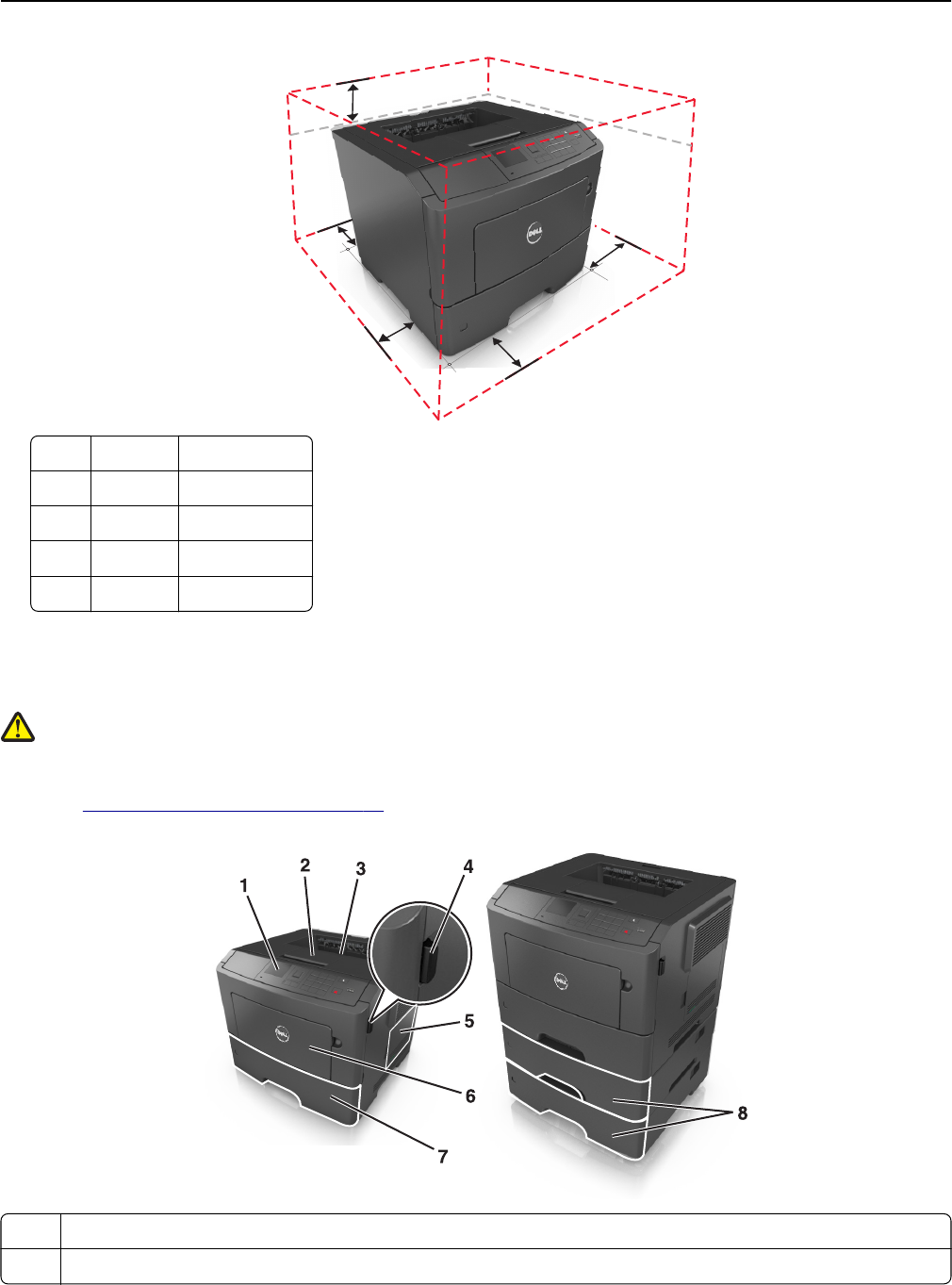

Selecting a location for the printer............................................................................................................9
Printer configurations.............................................................................................................................10

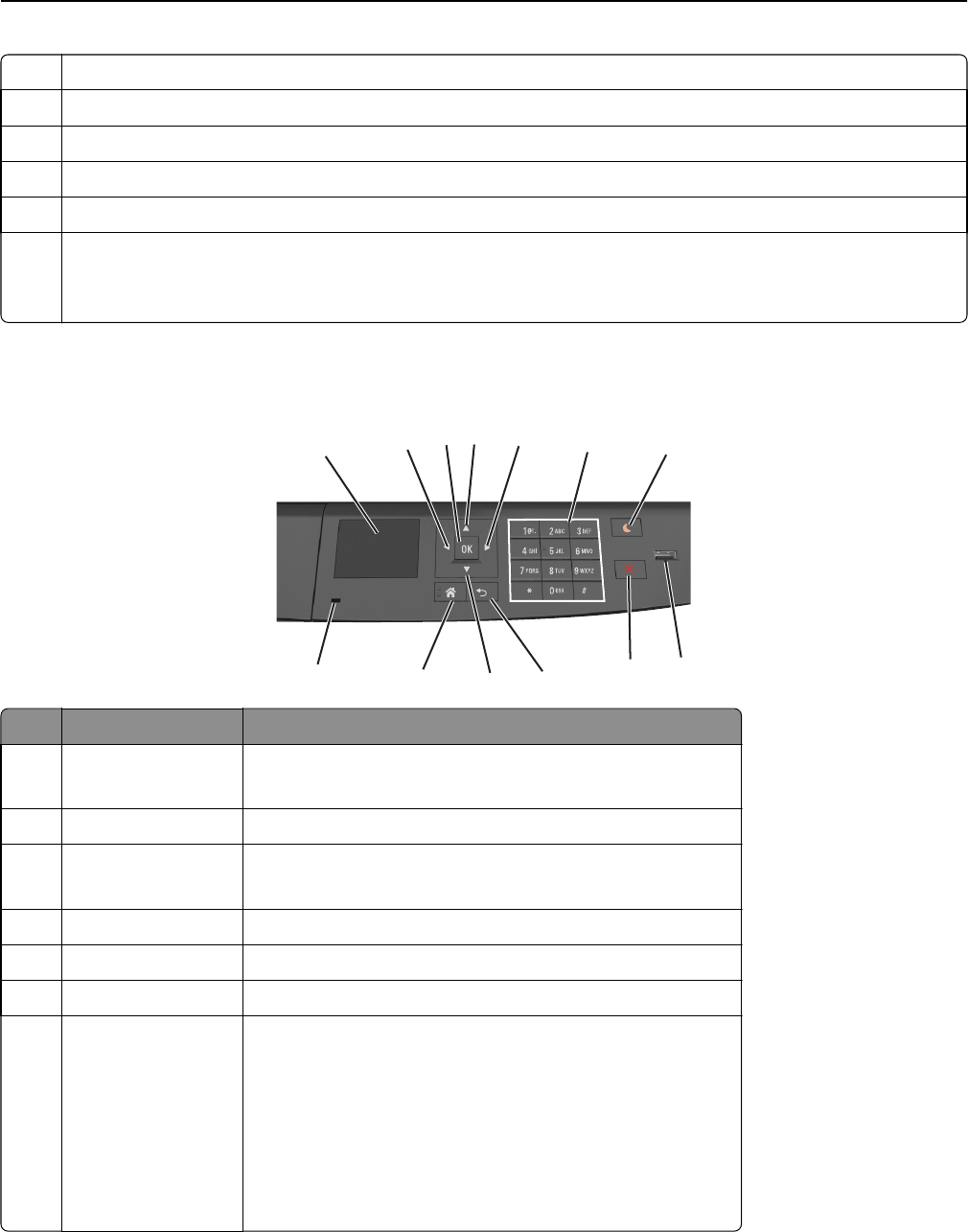

Using the printer control panel...............................................................................................................11
Understanding the colors of the Sleep button and indicator lights........................................................12
Additional printer setup.............................................................................13
Installing internal options........................................................................................................................13
Installing hardware options.....................................................................................................................17
Attaching cables......................................................................................................................................19
Setting up the printer software...............................................................................................................20
Networking..............................................................................................................................................21
Verifying printer setup............................................................................................................................24
Loading paper and specialty media............................................................26
Setting the paper size and type...............................................................................................................26
Configuring Universal paper settings......................................................................................................26
Using the standard bin and paper stop...................................................................................................26

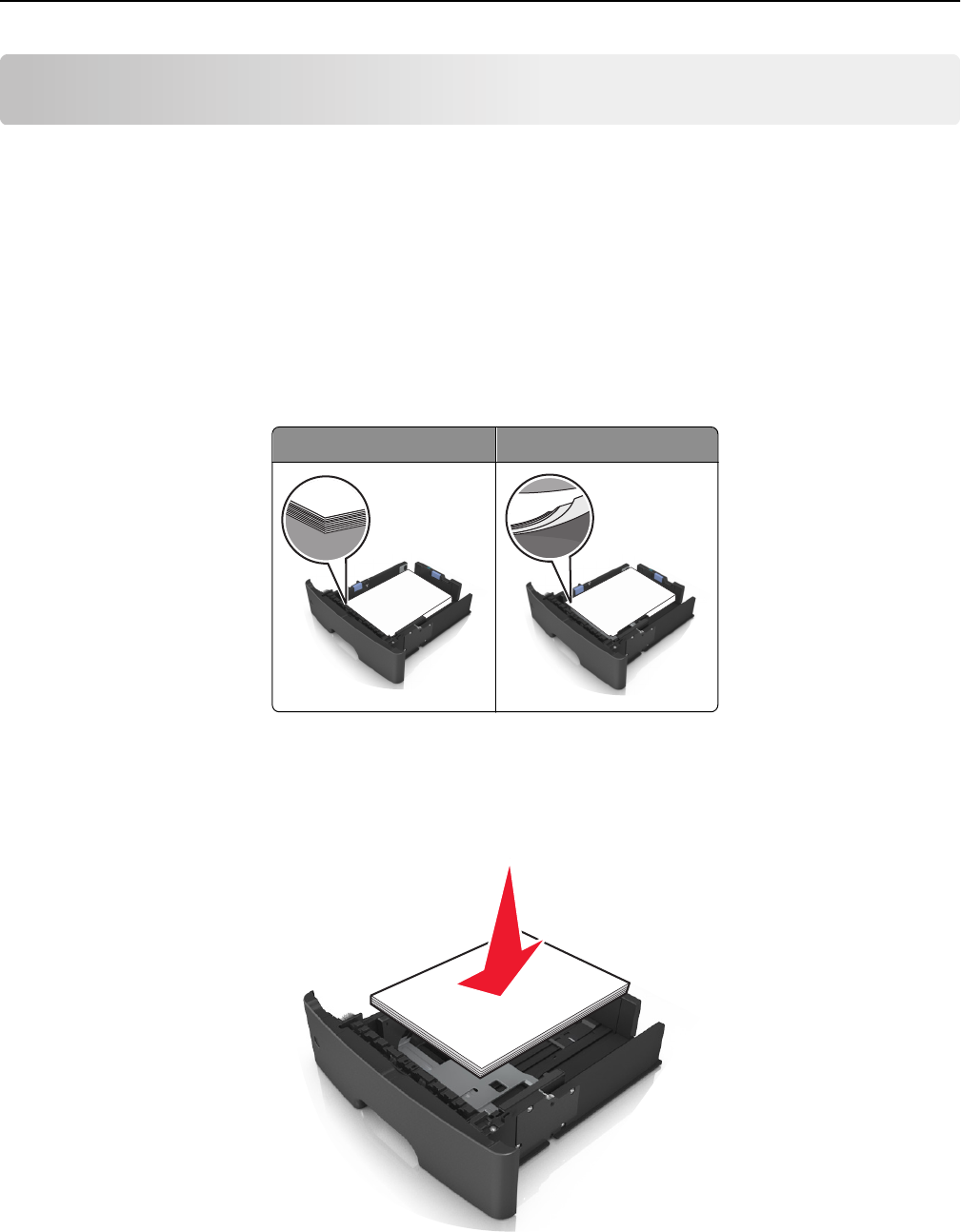

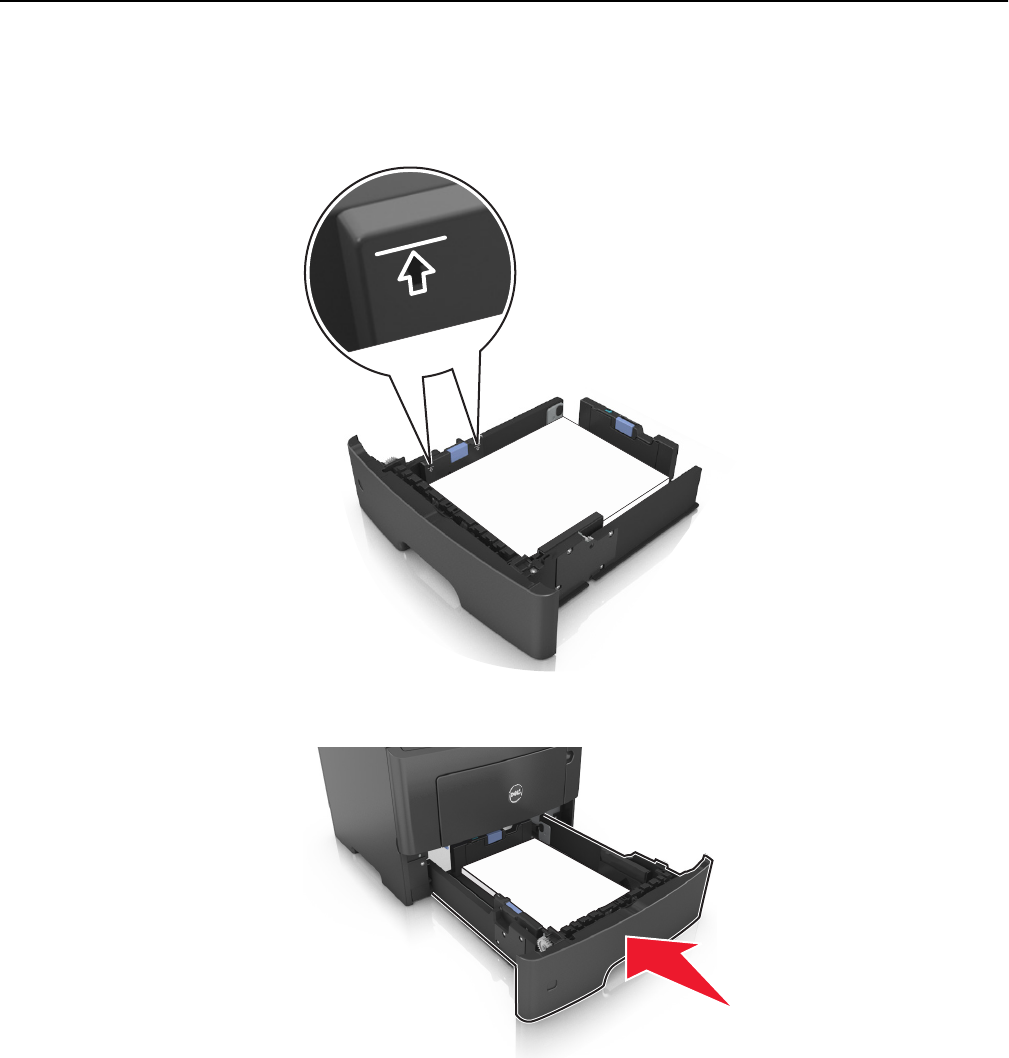

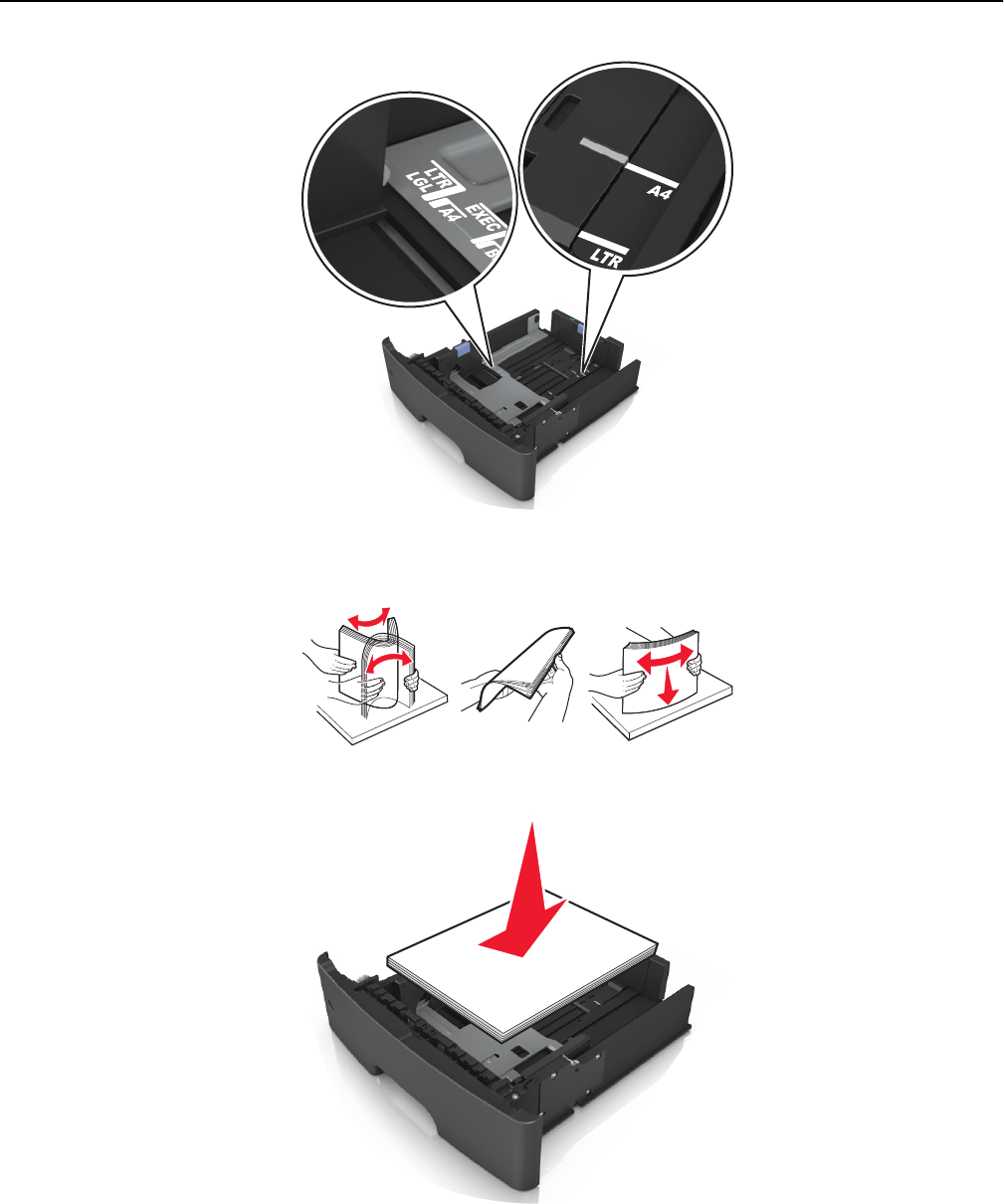

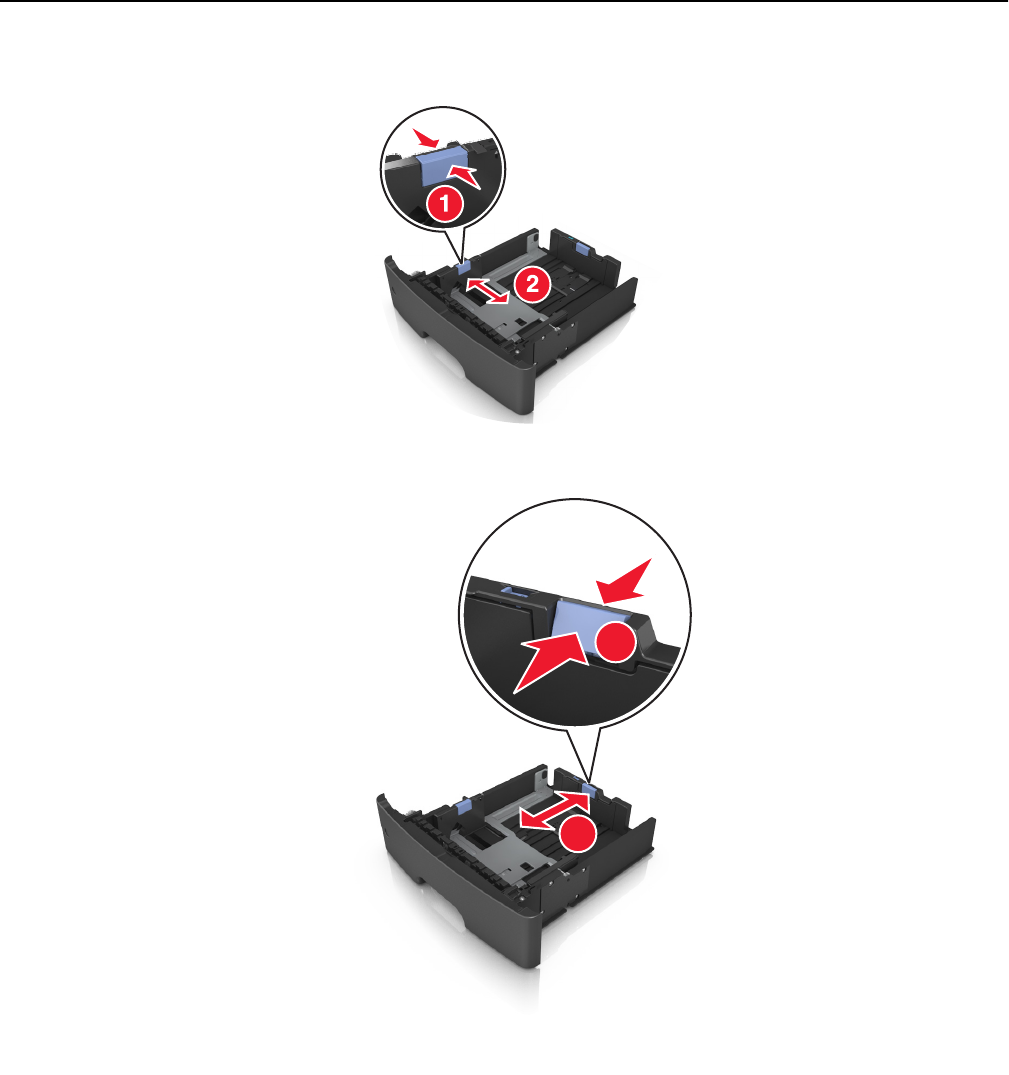

Loading trays...........................................................................................................................................27

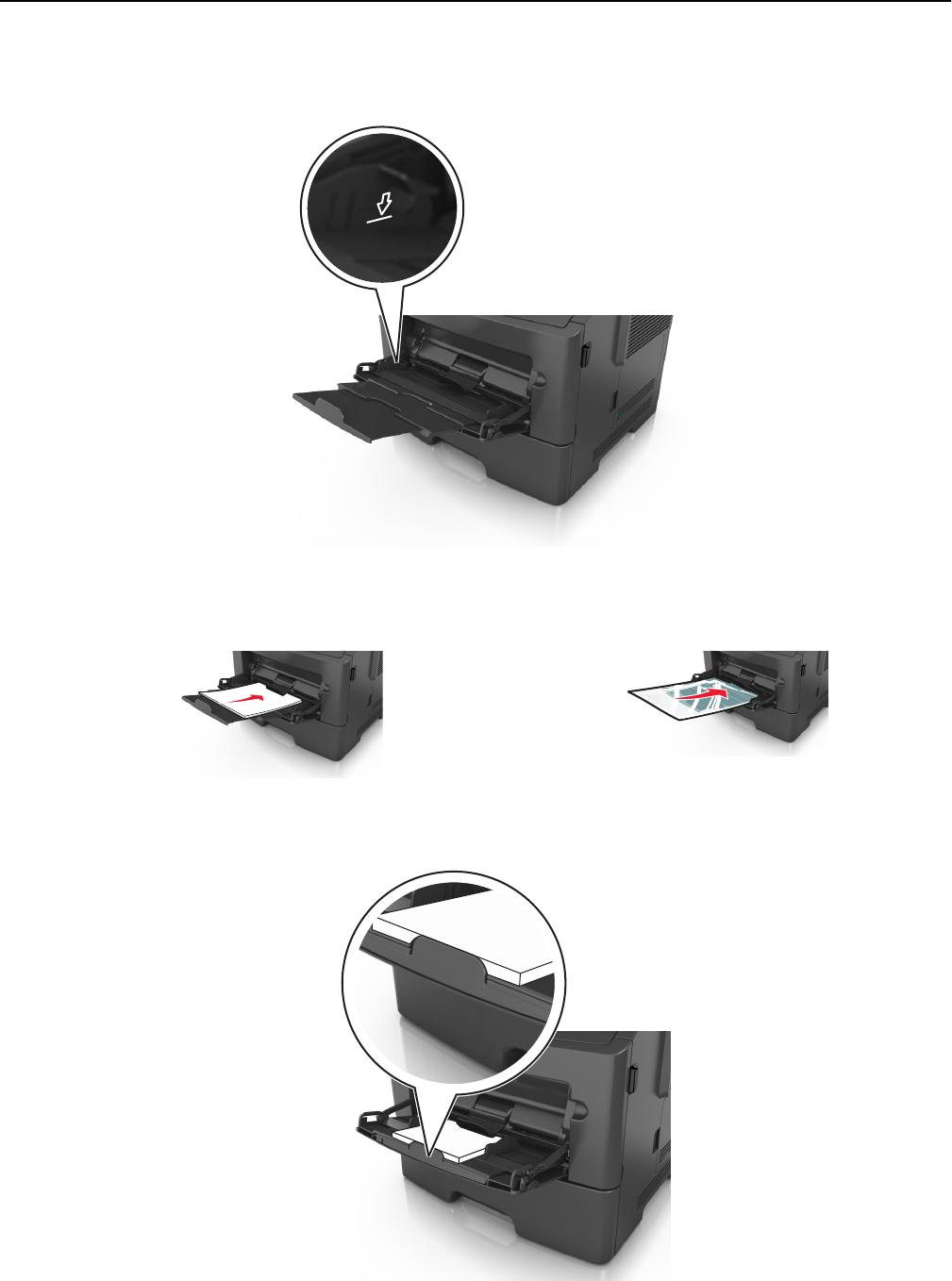

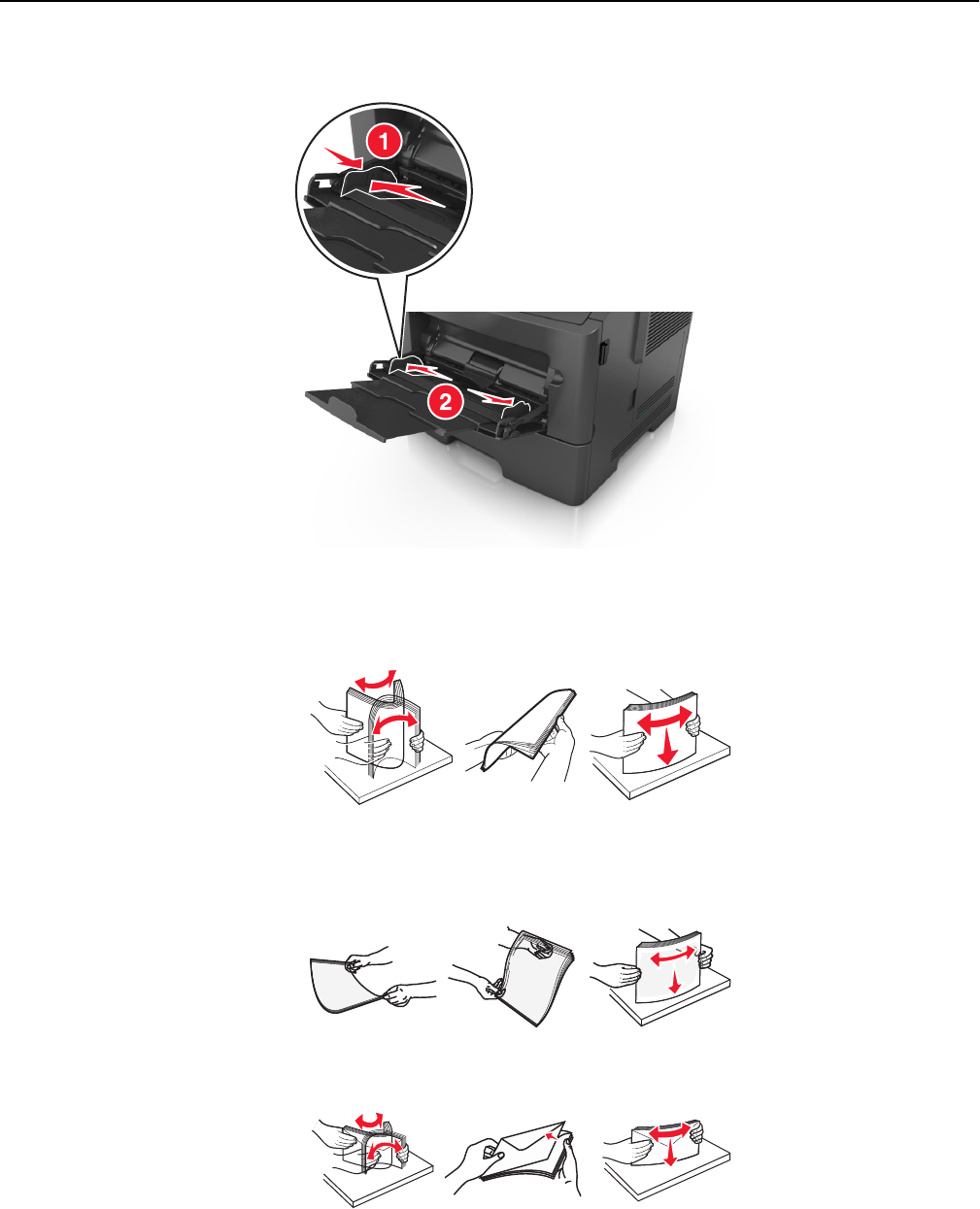

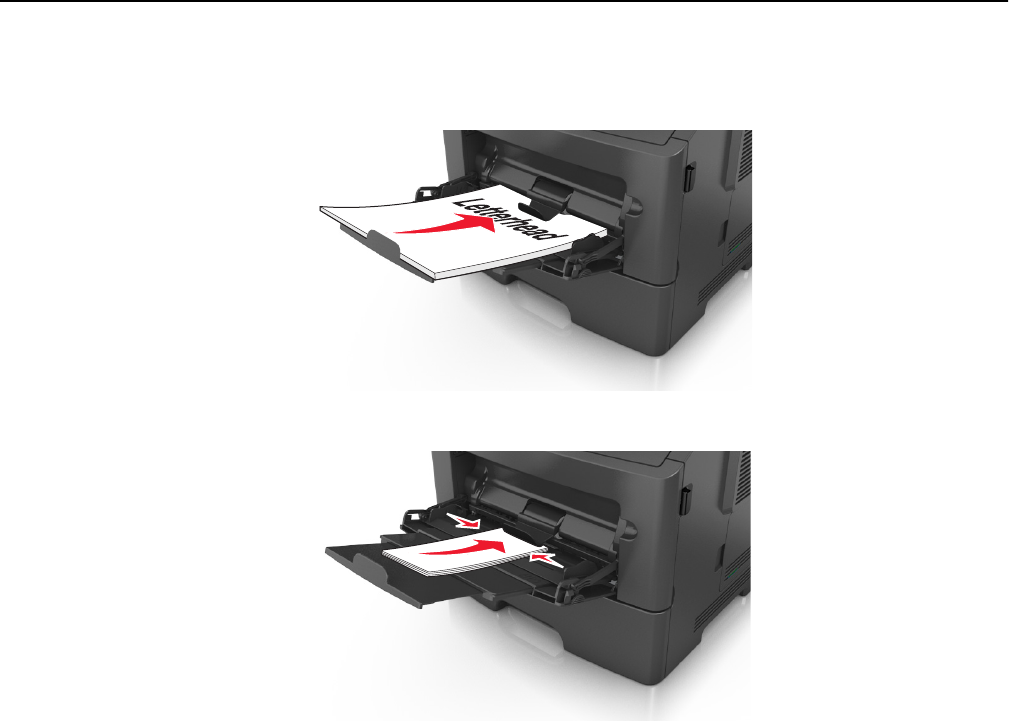

Loading the multipurpose feeder............................................................................................................31
Linking and unlinking trays......................................................................................................................34
Linking and unlinking trays ...............................................................................................................................34
Creating a custom name for a paper type ........................................................................................................35
Assigning a custom paper type name ...............................................................................................................35
Assigning a custom paper type .........................................................................................................................36
Paper and specialty media guide................................................................37
Paper guidelines......................................................................................................................................37
Using specialty media..............................................................................................................................39
Supported paper sizes, types, and weights.............................................................................................41
Printing......................................................................................................45
Printing a document................................................................................................................................45
Contents 2
Printing a document .........................................................................................................................................45
Adjusting toner darkness ..................................................................................................................................45

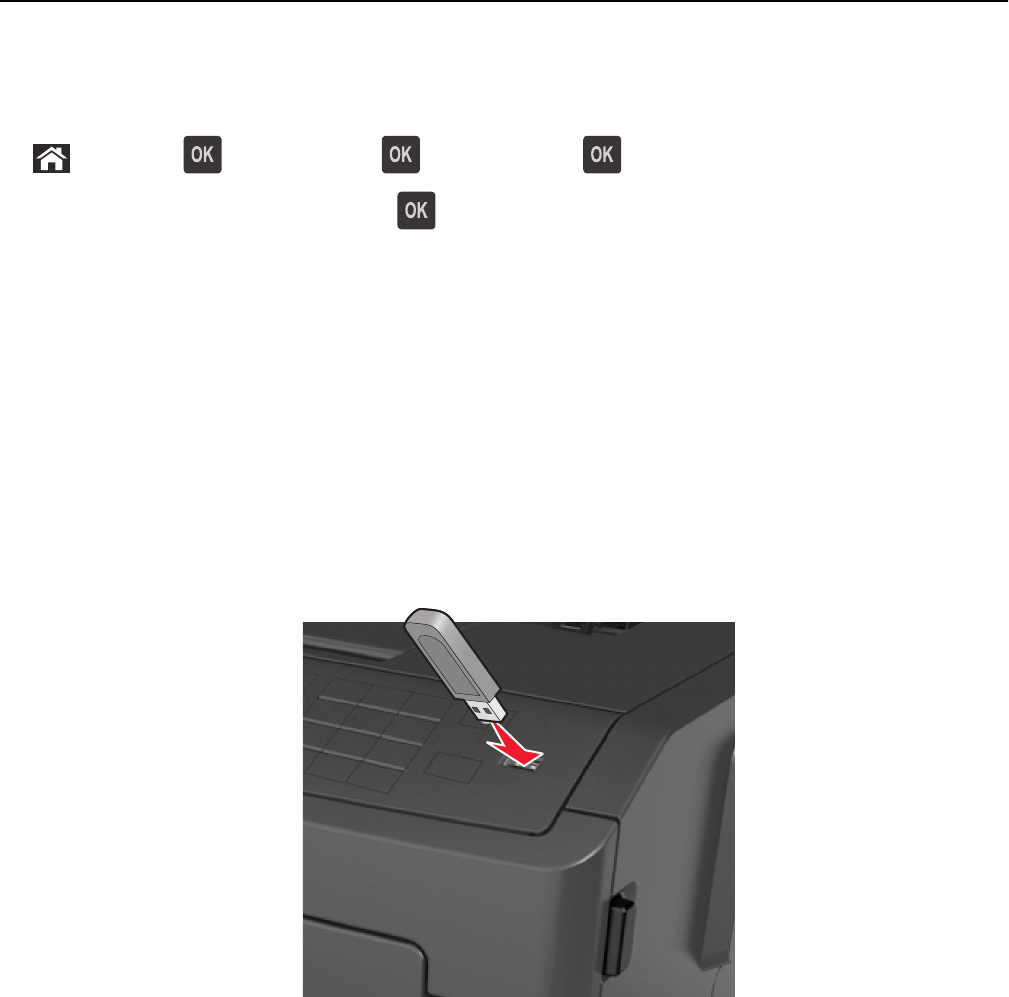

Printing from a flash drive.......................................................................................................................46
Printing from a flash drive ................................................................................................................................46
Supported flash drives and file types................................................................................................................47
Printing from a mobile device.................................................................................................................48
Printing from a mobile device using AirPrint ....................................................................................................48
Printing from a mobile device using Dell Mobile Print .....................................................................................48
Printing confidential and other held jobs................................................................................................49
Printing confidential and other held jobs .........................................................................................................49
Printing information pages......................................................................................................................50
Printing a font sample list .................................................................................................................................50
Printing a directory list......................................................................................................................................50
Canceling a print job................................................................................................................................50
Canceling a print job from the printer control panel........................................................................................50
Canceling a print job from the computer .........................................................................................................50
Understanding the printer menus..............................................................51
Menus list................................................................................................................................................51
Paper menu.............................................................................................................................................52
Reports menu..........................................................................................................................................60
Network/Ports menu...............................................................................................................................61
Security menu.........................................................................................................................................69
Settings menu..........................................................................................................................................71
Help menu...............................................................................................................................................84
Saving money and the environment...........................................................86
Saving paper and toner...........................................................................................................................86
Saving energy..........................................................................................................................................87
Recycling..................................................................................................................................................89
Securing the printer...................................................................................90
Using the security lock feature................................................................................................................90
Statement of Volatility............................................................................................................................90
Erasing volatile memory..........................................................................................................................91
Erasing non‑volatile memory..................................................................................................................91
Finding printer security information.......................................................................................................91
Contents 3
Maintaining the printer..............................................................................92
Cleaning the printer................................................................................................................................92
Checking the status of parts and supplies...............................................................................................92
Estimated number of remaining pages...................................................................................................93
Ordering supplies....................................................................................................................................93
Storing supplies.......................................................................................................................................93

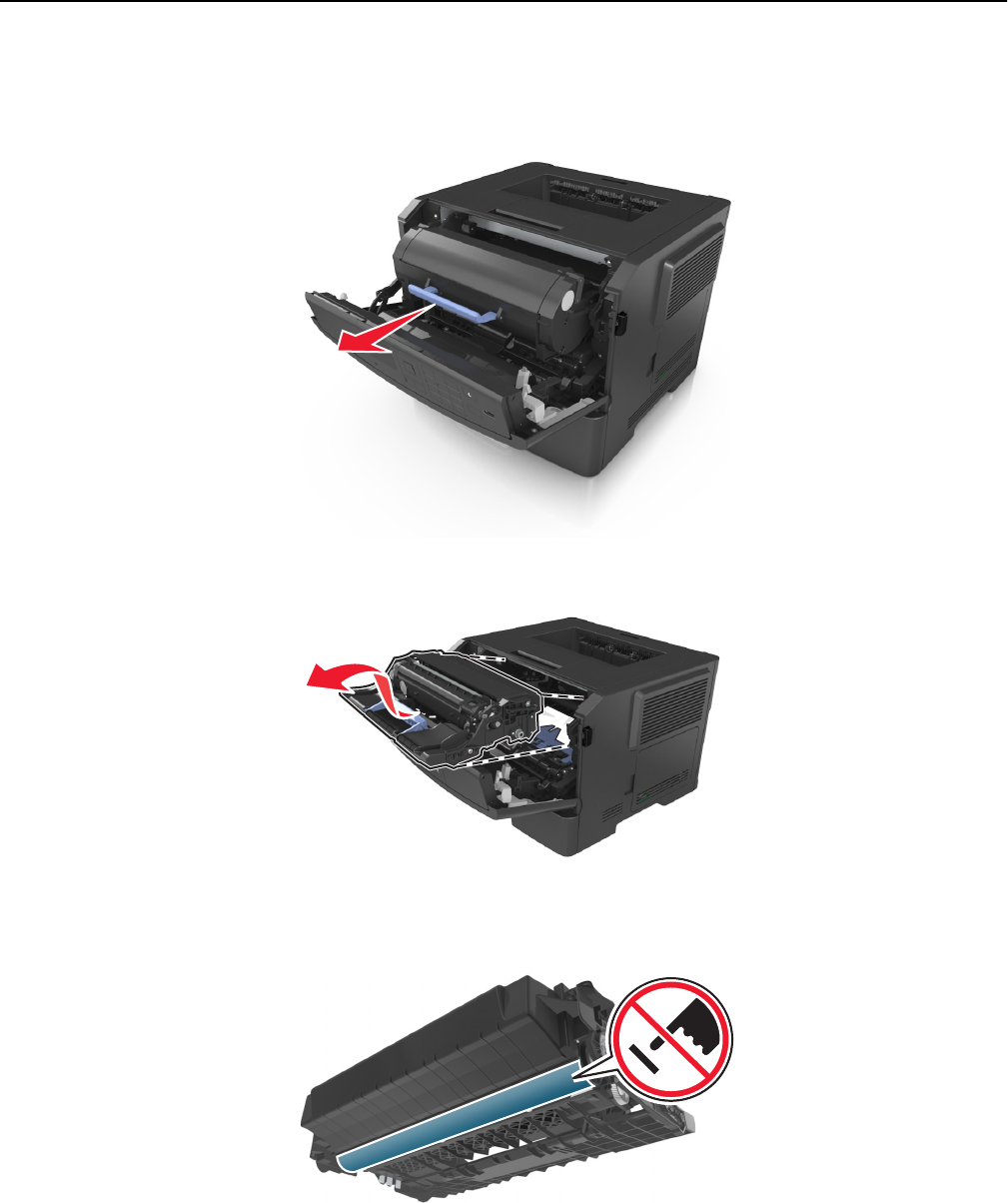

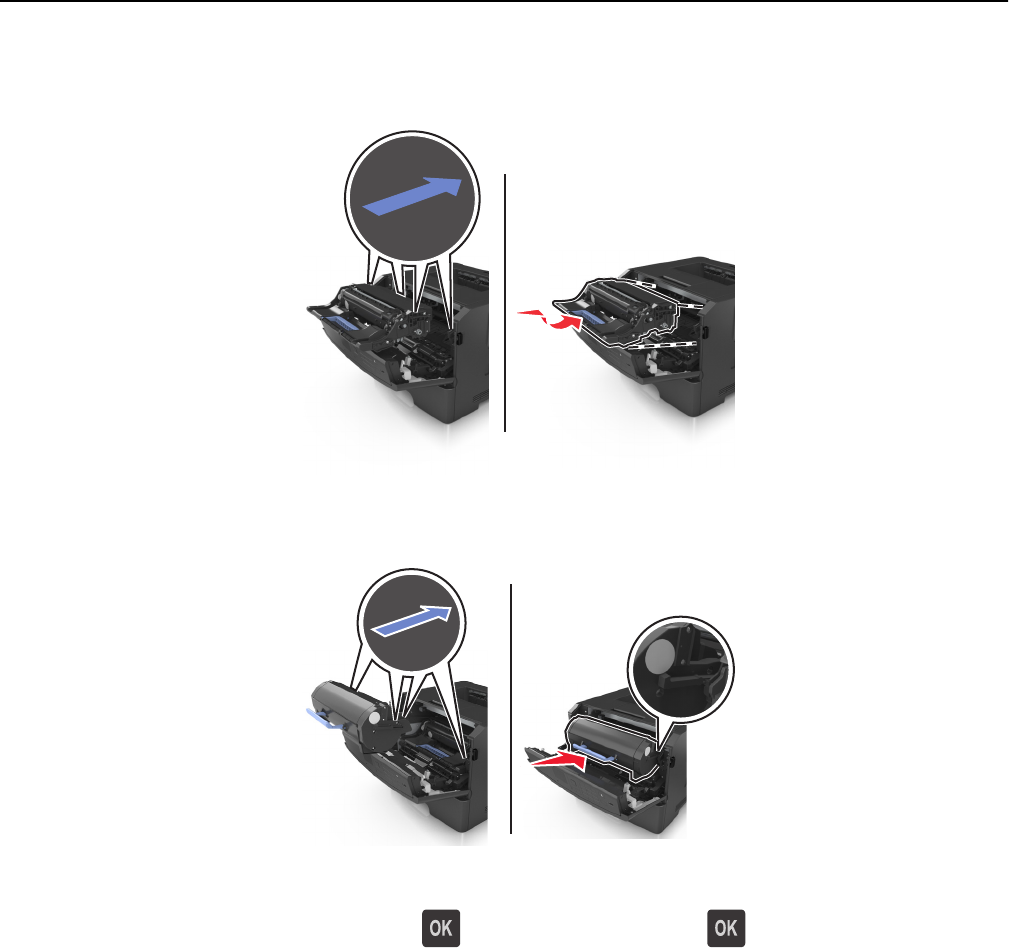

Replacing supplies...................................................................................................................................94
Moving the printer..................................................................................................................................98
Managing the printer.................................................................................99
Managing printer messages....................................................................................................................99
Accessing Status Monitor Center............................................................................................................99
Checking the virtual display.....................................................................................................................99
Viewing reports.....................................................................................................................................100
Configuring supply notifications from the Embedded Web Server.......................................................100
Modifying confidential print settings....................................................................................................101
Copying printer settings to other printers.............................................................................................101
Restoring factory default settings.........................................................................................................102
Clearing jams............................................................................................103
Avoiding jams........................................................................................................................................103
Understanding jam messages and locations.........................................................................................104
[x]‑page jam, open front door. [20y.xx]................................................................................................105
[x]‑page jam, open rear door. [20y.xx]..................................................................................................109
[x]‑page jam, clear standard bin. [20y.xx].............................................................................................110
[x]‑page jam, remove tray 1 to clear duplex. [23y.xx]...........................................................................111
[x]‑page jam, open tray [x]. [24y.xx].....................................................................................................112

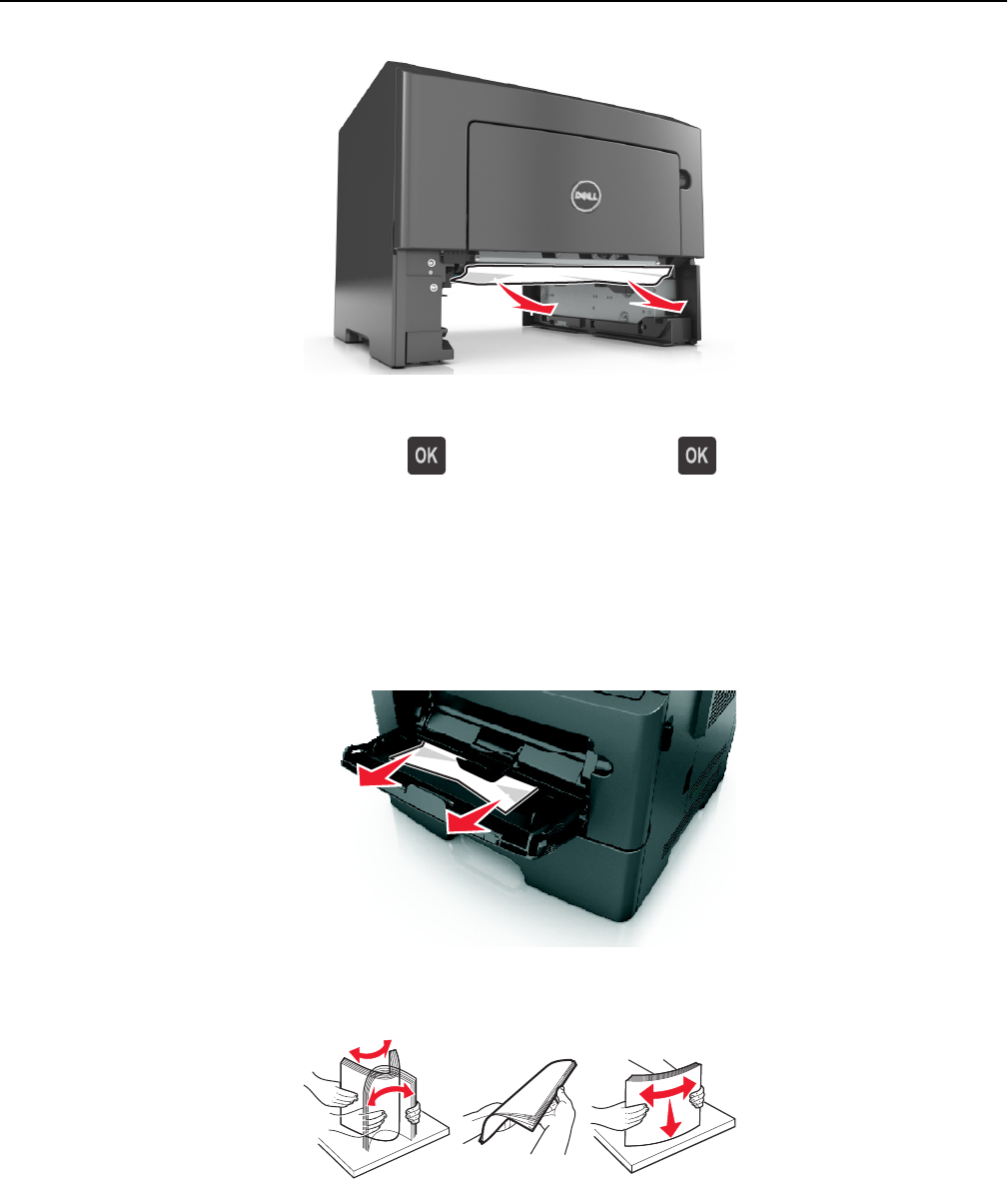

[x]‑page jam, clear manual feeder. [25y.xx]..........................................................................................113
Troubleshooting.......................................................................................115
Understanding the printer messages....................................................................................................115
Solving printer problems.......................................................................................................................125
Solving print problems..........................................................................................................................131
Embedded Web Server does not open.................................................................................................154
Contacting technical support................................................................................................................156
Contents 4
Safety information
Connect the power cord to a properly grounded electrical outlet that is near the product and easily accessible.
Do not place or use this product near water or wet locations.
CAUTION—POTENTIAL INJURY: This product uses a laser. Use of controls or adjustments or performance of
procedures other than those specified herein may result in hazardous radiation exposure.
This product uses a printing process that heats the print media, and the heat may cause the media to release emissions.
You must understand the section in your operating instructions that discusses the guidelines for selecting print media
to avoid the possibility of harmful emissions.
CAUTION—POTENTIAL INJURY: The lithium battery in this product is not intended to be replaced. There is a
danger of explosion if a lithium battery is incorrectly replaced. Do not recharge, disassemble, or incinerate a
lithium battery. Discard used lithium batteries according to the manufacturer's instructions and local
regulations.
CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or
printer damage:
•Turn the printer off using the power switch, and then unplug the power cord from the electrical outlet.
•Disconnect all cords and cables from the printer before moving it.

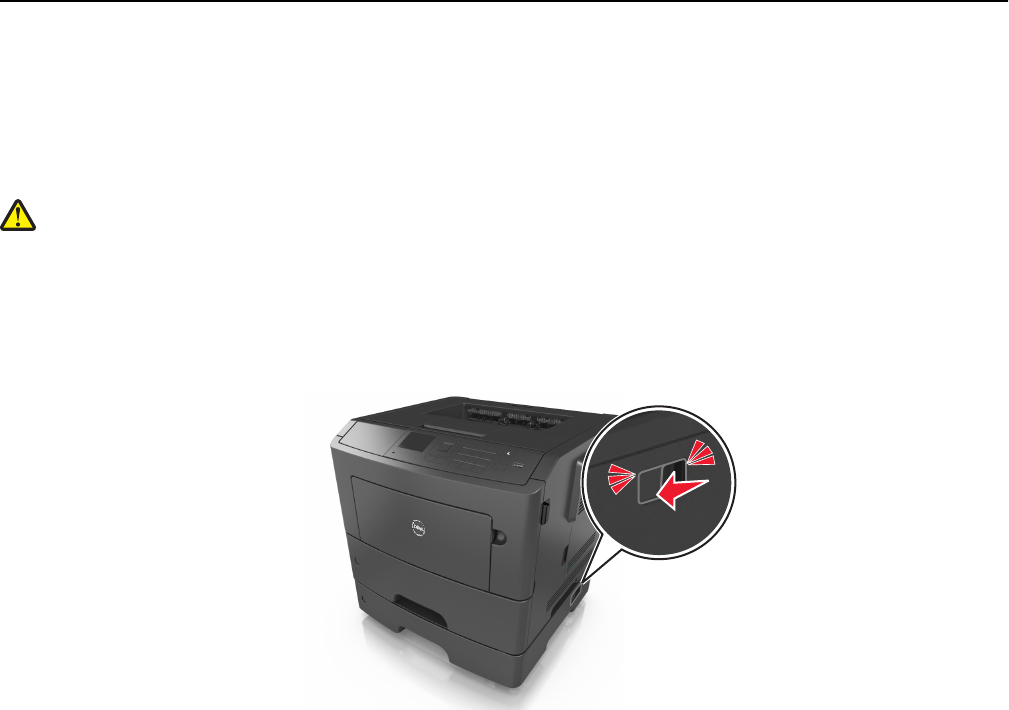

•If an optional tray is installed, then remove it from the printer. To remove the optional tray, slide the latch on the
right side of the tray toward the front of the tray until it clicks into place.
•Use the handholds located on both sides of the printer to lift it.
•Make sure your fingers are not under the printer when you set it down.
•Before setting up the printer, make sure there is adequate clearance around it.
Use only the power cord provided with this product or the manufacturer's authorized replacement.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching it.
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
CAUTION—SHOCK HAZARD: Make sure that all external connections (such as Ethernet and telephone system
connections) are properly installed in their marked plug-in ports.
This product is designed, tested, and approved to meet strict global safety standards with the use of specific
manufacturer's components. The safety features of some parts may not always be obvious. The manufacturer is not
responsible for the use of other replacement parts.
CAUTION—POTENTIAL INJURY: Do not cut, twist, bind, crush, or place heavy objects on the power cord. Do not
subject the power cord to abrasion or stress. Do not pinch the power cord between objects such as furniture
and walls. If any of these things happen, a risk of fire or electrical shock results. Inspect the power cord regularly
for signs of such problems. Remove the power cord from the electrical outlet before inspecting it.
Refer service or repairs, other than those described in the user documentation, to a service representative.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer,
unplug the power cord from the electrical outlet and disconnect all cables from the printer before proceeding.
Safety information 6
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all
other trays closed until needed.
CAUTION—SHOCK HAZARD: Do not set up this product or make any electrical or cabling connections, such as
the fax feature, power cord, or telephone, during a lightning storm.
SAVE THESE INSTRUCTIONS.
Safety information 7
Learning about the printer
Finding information about the printer
What are you looking for? Find it here
Initial setup instructions:
•Connecting the printer
•Installing the printer software
Setup documentation—The setup documentation came
with the printer.
Additional setup and instructions for using the printer:
•Selecting and storing paper and specialty media
•Loading paper
•Configuring printer settings
•Viewing and printing documents and photos
•Setting up and using the printer software
•Configuring the printer on a network
•Caring for and maintaining the printer
•Troubleshooting and solving problems
User's Guide and Quick Reference Guide—The guides may
be available on the Software and Documentation CD.
For more information, visit our Web site at
www.dell.com/support/manuals.
Instructions for:
•Connecting the printer to an Ethernet network
•Troubleshooting printer connection problems
Networking Guide—Open the Software and
Documentation CD, and then navigate to:
Documentation > User’s Guide and other publications >
Networking Guide
Help using the printer software Windows or Mac Help—Open a printer software program
or application, and then click Help.
Click
?
to view context‑sensitive information.
Notes:
•Help is automatically installed with the printer
software.
•The printer software is located in the printer
program folder or on the desktop, depending on
your operating system.
The latest supplemental information, updates, and technical
support:
•Documentation
•Driver downloads
•Product upgrades
•Service call and repair information
•Order status
•Live chat support
•E‑mail support
•Voice support
Dell support Web site—
www.dell.com/support/printers
Support telephone numbers and hours of operation for
your country or region can be found on the support Web
site.
Have the following information ready when you contact
support so that they may serve you faster:
•Service tag
•Express service Code
Note: The service tag and express service code appear
on labels located on your printer.
Learning about the printer 8
What are you looking for? Find it here
•Software and Drivers—Certified drivers for your printer and
installers for Dell printer software
•Readme files—Last‑minute technical changes, or advanced
technical reference materials for experienced users or
technicians
Software and Documentation CD
•Supplies and accessories for your printer
•Replacement cartridges
Dell printer supplies Web site–www.dell.com/printers
You can purchase printer supplies online, by telephone,
or in select retail stores.
•Safety information for preparing to operate your printer
•Regulatory information
•Warranty information
Product Information Guide
Note: The Product Information Guide may not be
available in your country or region.
Selecting a location for the printer
When selecting a location for the printer, leave enough room to open trays, covers, and doors. If you plan to install any
hardware options, then leave enough room for them also. It is important to:
•Set up the printer near a properly grounded and easily accessible electrical outlet.
•Make sure airflow in the room meets the latest revision of the ASHRAE 62 standard or the CEN Technical Committee
156 standard.
•Provide a flat, sturdy, and stable surface.
•Keep the printer:
–Clean, dry, and free of dust.
–Away from stray staples and paper clips.
–Away from the direct airflow of air conditioners, heaters, or ventilators.
–Free from direct sunlight and humidity extremes.
•Observe the recommended temperatures and avoid fluctuations.
Ambient temperature 16 to 32°C (60 to 90°F)
Storage temperature ‑20 to 40°C (‑4 to 104°F)
•Allow the following recommended amount of space around the printer for proper ventilation:
Learning about the printer 9
5
1
2
3
4
1
1Right side 305 mm (12 in.)
2Front 508 mm (20 in.)
3Left side 203 mm (8 in.)
4Rear 203 mm (8 in.)
5Top 305 mm (12 in.)
Printer configurations
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all
other trays closed until needed.
You can configure your printer by adding up to two optional 550‑sheet trays. For instructions on installing the optional
trays, see “Installing optional trays” on page 17.
1Printer control panel
2Paper stop
Learning about the printer 10
3Standard bin
4Front door release button
5Controller board access door
6100‑sheet multipurpose feeder
7Standard 550‑sheet tray
8Optional 550‑sheet trays
Note: A lockable 550‑sheet tray is also available. For more information, contact the place where you purchased
the printer.
Using the printer control panel
1234567
8
9
10
11
12
13
Use the To
1Display View the printer status and messages.
Set up and operate the printer.
2Left arrow button Scroll to the left.
3Select button Select menu options.
Save settings.
4Up arrow button Scroll up.
5Right arrow button Scroll to the right.
6Keypad Enter numbers, letters, or symbols.
7Sleep button Enable Sleep mode or Hibernate mode.
The following actions wake the printer from Sleep mode:
•Pressing any hard button
•Opening a tray or the front door
•Sending a print job from the computer
•Performing a power‑on reset using the main power switch
•Attaching a device in the USB port
Learning about the printer 11
Use the To
8USB port Connect a flash drive to the printer.
Notes:
•Only the front USB port supports flash drives.
•This feature is available only in select printer models.
9Stop or cancel button Stop all printer activities.
10 Back button Return to the previous screen.
11 Down arrow button Scroll down.
12 Home button Go to the home screen.
13 Indicator light Check the status of the printer.
Understanding the colors of the Sleep button and indicator
lights
The colors of the Sleep button and indicator lights on the printer control panel signify a certain printer status or condition.
Indicator light Printer status
Off The printer is off or in Hibernate mode.
Blinking green The printer is warming up, processing data, or printing.
Solid green The printer is on, but idle.
Blinking red The printer requires user intervention.
Sleep button light Printer status
Off The printer is off, idle or in Ready state.
Solid amber The printer is in Sleep mode.
Blinking amber The printer is entering or waking from Hibernate mode.
Blinking amber for 0.1 second, then goes
completely off for 1.9 seconds in a slow,
pulsing pattern
The printer is in Hibernate mode.
Learning about the printer 12
Additional printer setup
Installing internal options
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Available internal options

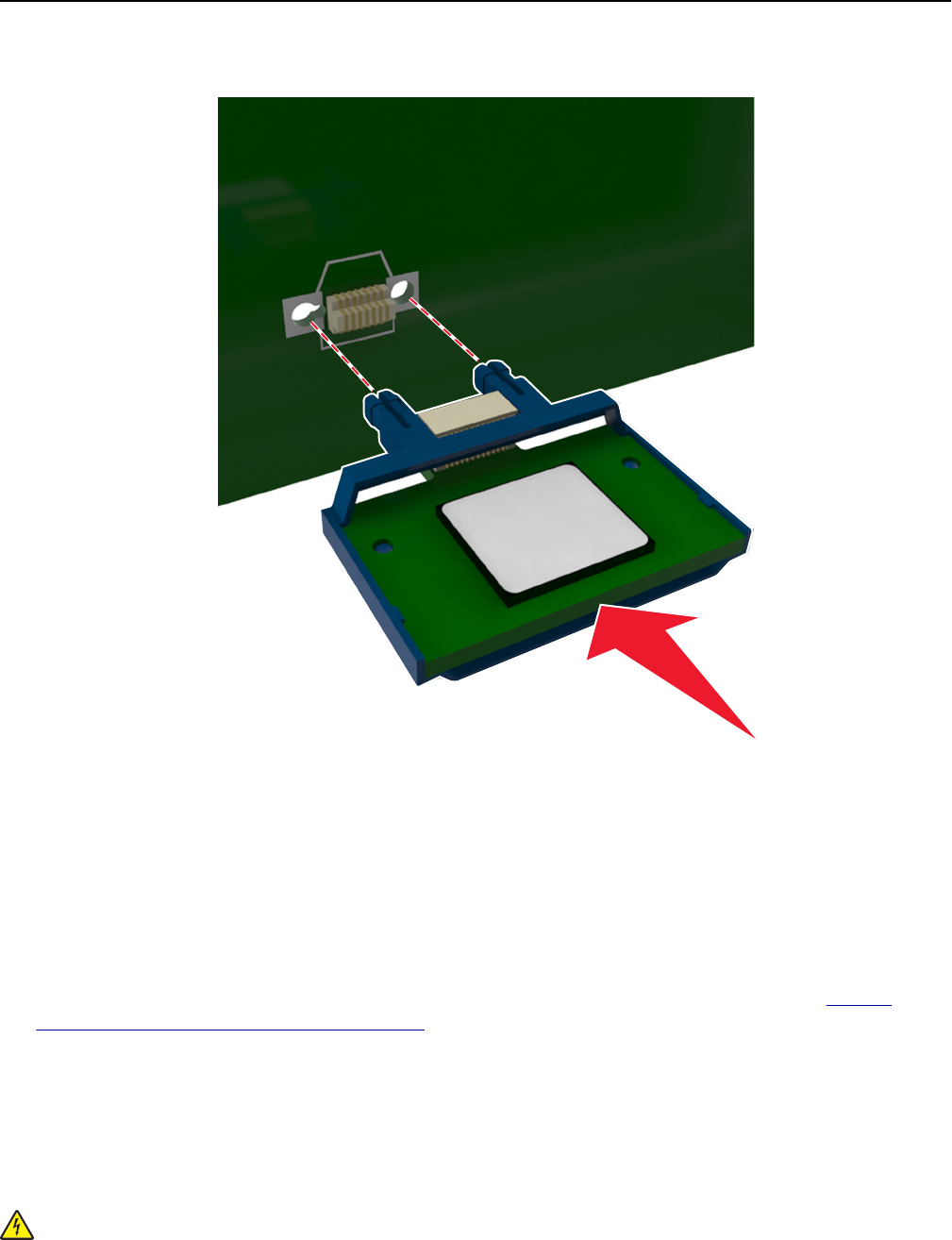

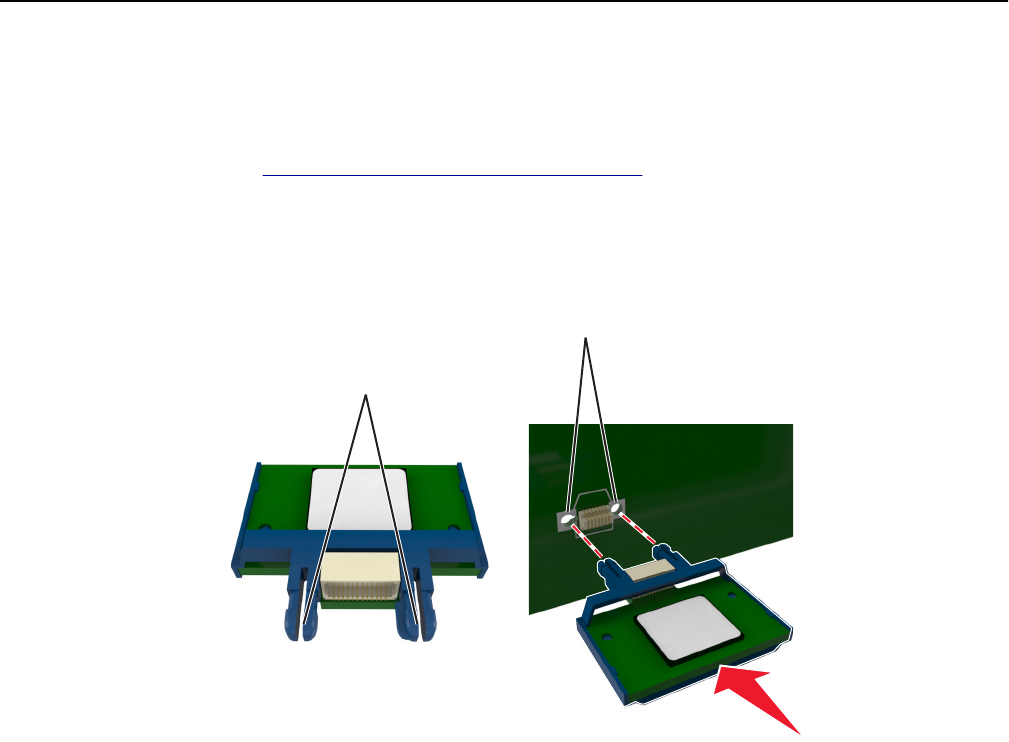

Memory cards
•DDR3 DIMM
•Flash memory
–Fonts
–Firmware
•Forms Barcode
•Prescribe
•IPDS
•Printcryption
Accessing the controller board
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.

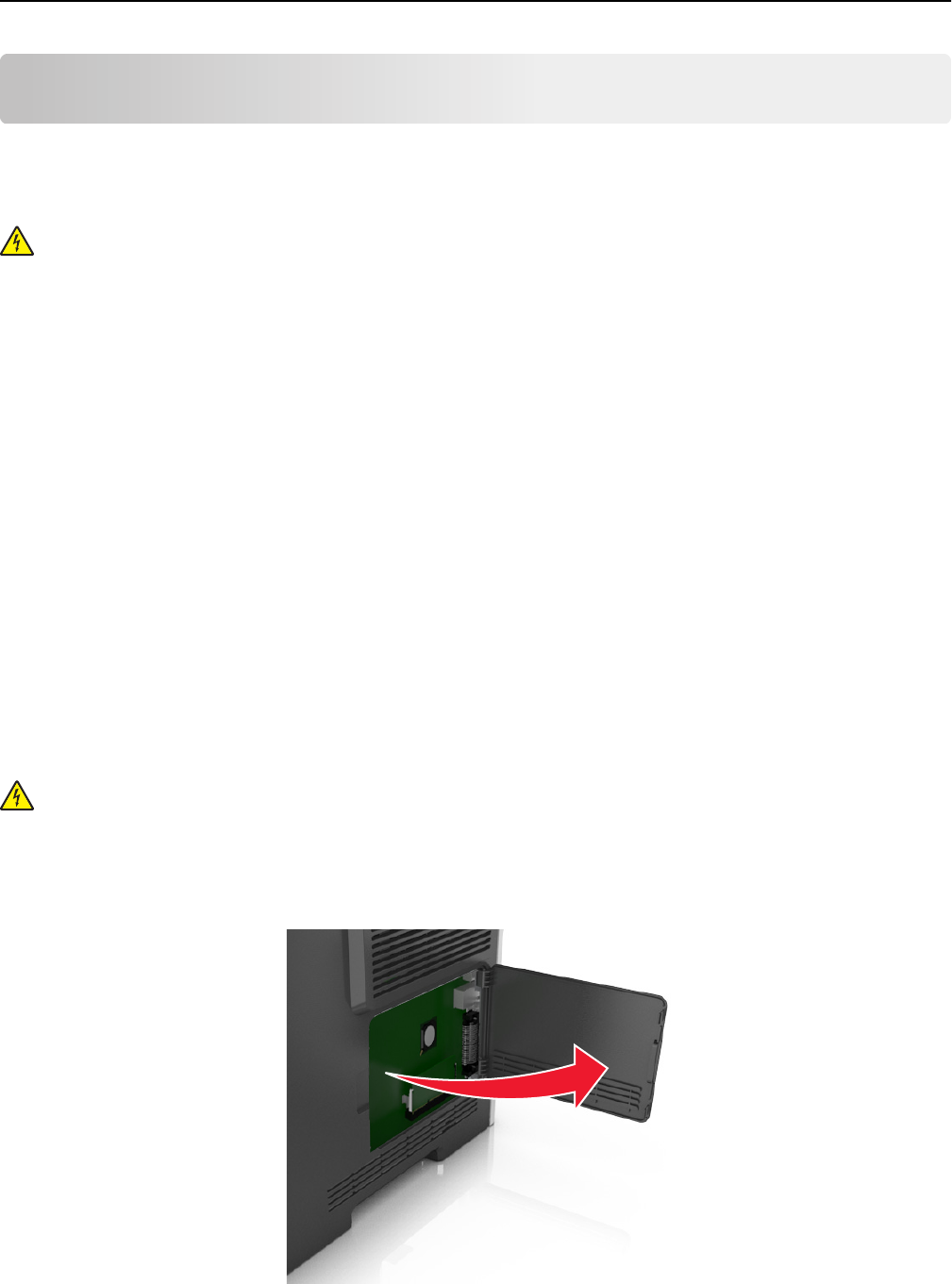

1Open the controller board access door.
Additional printer setup 13

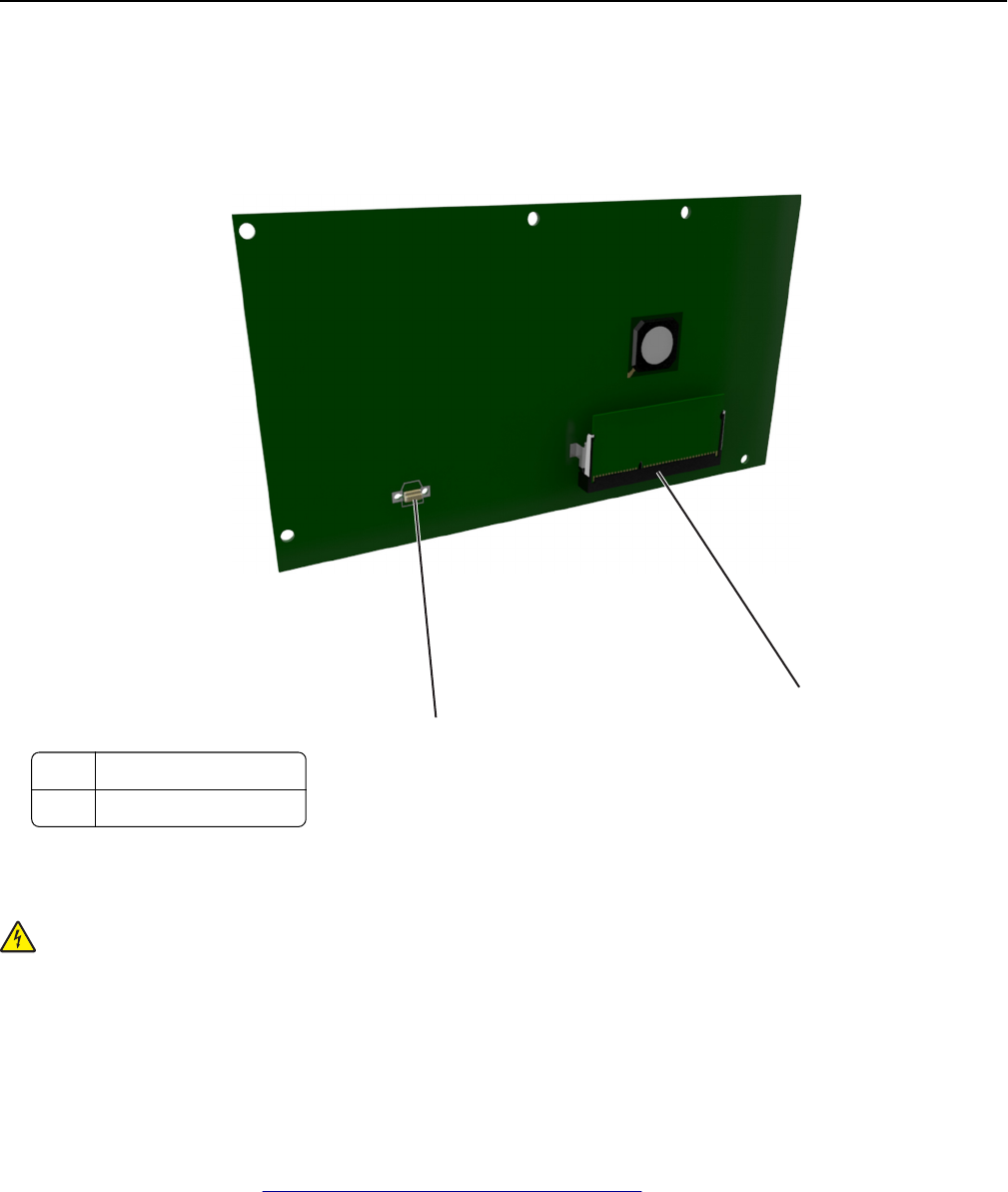

2Use the following illustration to locate the appropriate connector.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch a metal surface on the printer before touching any controller board electronic components or
connectors.
2
1
1Memory card connector
2Option card connector
Installing a memory card
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch a metal surface on the printer before touching any controller board electronic components or connectors.
An optional memory card can be purchased separately and attached to the controller board.
1Access the controller board.
For more information, see “Accessing the controller board” on page 13.
2Unpack the memory card.
Warning—Potential Damage: Do not touch the connection points along the edge of the card. Doing so may
cause damage.
Additional printer setup 14
3Align the notch (1) on the memory card with the ridge (2) on the connector.
1
2
4Push the memory card straight into the connector, and then push the card toward the controller board wall until
it clicks into place.
12
5Close the controller board access door.
Note: When the printer software and any hardware options are installed, it may be necessary to manually add the
options in the printer driver to make them available for print jobs. For more information, see “Adding available
options in the print driver” on page 21.
Installing an optional card
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have other devices attached to the printer, then turn them
off as well, and unplug any cables going into the printer.
Additional printer setup 15
Warning—Potential Damage: Controller board electronic components are easily damaged by static electricity.
Touch a metal surface on the printer before touching any controller board electronic components or connectors.
1Access the controller board.
For more information, see “Accessing the controller board” on page 13.
2Unpack the optional card.
Warning—Potential Damage: Avoid touching the connection points along the edge of the card.
3Holding the card by its sides, align the plastic pins (1) on the card with the holes (2) on the controller board.
2
1
Additional printer setup 16
4Push the card firmly into place as shown in the illustration.
Warning—Potential Damage: Improper installation of the card may cause damage to the card and the
controller board.
Note: The entire length of the connector on the card must touch and be flushed against the controller board.
5Close the controller board access door.
Note: When the printer software and any hardware options are installed, it may be necessary to manually add
the options in the printer driver to make them available for print jobs. For more information, see “Adding
available options in the print driver” on page 21.
Installing hardware options
Installing optional trays
CAUTION—SHOCK HAZARD: If you are accessing the controller board or installing optional hardware or
memory devices sometime after setting up the printer, then turn the printer off, and unplug the power cord
from the electrical outlet before continuing. If you have any other devices attached to the printer, then turn
them off as well, and unplug any cables going into the printer.
Additional printer setup 17

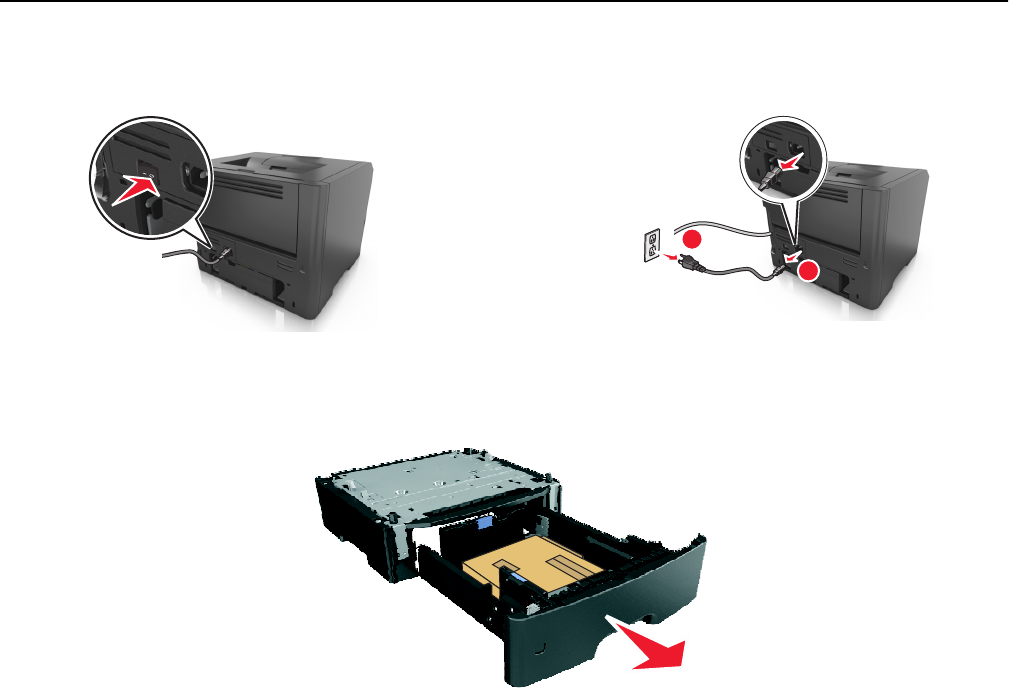

1Turn off the printer using the power switch, and then unplug the power cord from the electrical outlet.
2
1
2
2Unpack the tray, and then remove all packing materials.
3Pull the tray completely out of the base.
4Remove any packing material from inside the tray.
5Insert the tray into the base.
6Place the tray near the printer.
7Align the printer with the tray, and then lower the printer into place.
Note: Optional trays lock together when stacked.
Additional printer setup 18
1
8Connect the power cord to the printer, then to a properly grounded electrical outlet, and then turn on the printer.
2
1
Note: When the printer software and any hardware options are installed, you may need to manually add the
options in the printer driver to make them available for print jobs. For more information, see “Adding available
options in the print driver” on page 21.
To uninstall the optional trays, slide the latch on the right side of the printer toward the front of the printer until
it clicks into place, and then remove stacked trays one at a time from the top to the bottom.
Attaching cables
Connect the printer to the computer using a USB or parallel cable, or to the network using an Ethernet cable.
Make sure to match the following:
•The USB symbol on the cable with the USB symbol on the printer
•The appropriate parallel cable with the parallel port
Additional printer setup 19
•The appropriate Ethernet cable with the Ethernet port
Warning—Potential Damage: Do not touch the USB cable, any network adapter, or the printer in the area shown
while actively printing. Loss of data or a malfunction can occur.
1
2
3
4
56
7
Use the To
1USB port Attach an optional wireless network adapter.
2USB printer port Connect the printer to a computer.
3Ethernet port Connect the printer to an Ethernet network.
4Parallel port
Note: This port is available only in select printer models.
Connect the printer to a computer.
5Power switch Turn on or turn off the printer.
6Printer power cord socket Connect the printer to an electrical outlet.
7Security slot Attach a lock that will secure the printer in place.
Setting up the printer software
Installing the printer
1Obtain a copy of the software installer package.
2Run the installer, and then follow the instructions on the computer screen.
3For Macintosh users, add the printer.
Note: Obtain the printer IP address from the TCP/IP section in the Network/Ports menu.
Additional printer setup 20
Adding available options in the print driver
For Windows users
1Open the printers folder, and then select your printer.
2Open the printer properties, and then add or manually install any options.
3Apply the changes.
For Macintosh users
1From System Preferences in the Apple menu, navigate to your printer, and then select Options & Supplies >
Driver.
2Add any installed hardware options.
3Apply the changes.
Networking
Notes:
•Purchase a wireless network adapter first before setting up the printer on a wireless network. To install the
wireless network adapter, see the instruction sheet that came with the adapter.
•A Service Set Identifier (SSID) is a name assigned to a wireless network. Wireless Equivalent Privacy (WEP), Wi-Fi
Protected Access (WPA), WPA2, and 802.1X - RADIUS are types of security used on a network.
Preparing to set up the printer on an Ethernet network
To configure your printer to connect to an Ethernet network, organize the following information before you begin:
Note: If your network automatically assigns IP addresses to computers and printers, continue on to installing the
printer.
•A valid, unique IP address for the printer to use on the network
•The network gateway
•The network mask
•A nickname for the printer (optional)
Note: A printer nickname can make it easier for you to identify your printer on the network. You can choose to
use the default printer nickname, or assign a name that is easier for you to remember.
You will need an Ethernet cable to connect the printer to the network and an available port where the printer can
physically connect to the network. Use a new network cable when possible to avoid potential problems caused by a
damaged cable.
Preparing to set up the printer on a wireless network
Notes:
•Make sure your wireless network adapter is installed in your printer and working properly.
Additional printer setup 21
•Make sure your access point (wireless router) is turned on and is working properly.
Make sure you have the following information before setting up the printer on a wireless network:
•SSID—The SSID is also referred to as the network name.
•Wireless Mode (or Network Mode)—The mode is either infrastructure or ad hoc.
•Channel (for ad hoc networks)—The channel defaults to automatic for infrastructure networks.
Some ad hoc networks will also require the automatic setting. Check with your system support person if you are
not sure which channel to select.
•Security Method—There are three basic options for Security Method:
–WEP key
If your network uses more than one WEP key, then enter up to four in the provided spaces. Select the key
currently in use on the network by selecting the default WEP transmit key.
or
–WPA or WPA2 preshared key or passphrase
WPA includes encryption as an additional layer of security. The choices are AES or TKIP. Encryption must be set
for the same type on the router and on the printer, or the printer will not be able to communicate on the
network.
–802.1X–RADIUS
If you are installing the printer on an 802.1X network, then you may need the following:
•Authentication type
•Inner authentication type
•802.1X user name and password
•Certificates
–No security
If your wireless network does not use any type of security, then you will not have any security information.
Note: Using an unsecured wireless network is not recommended.
Notes:
–If you do not know the SSID of the network that your computer is connected to, then launch the wireless utility
of the computer network adapter, and then look for the network name. If you cannot find the SSID or the
security information for your network, then see the documentation that came with the access point, or contact
your system support person.
–To find the WPA/WPA2 preshared key/passphrase for the wireless network, see the documentation that came
with the access point, see the Web page associated with the access point, or consult your system support
person.
Connecting the printer using the Wireless Setup Wizard
Before you begin, make sure that:
•A wireless network adapter is installed in the printer and is working properly. For more information, see the
instruction sheet that came with the wireless network adapter.
•An Ethernet cable is disconnected from the printer.
Additional printer setup 22
•Active NIC is set to Auto. To set this to Auto, navigate to:
> Settings > > Network/Ports > > Active NIC > > Auto >
Note: Make sure to turn off the printer, then wait for at least five seconds, and then turn the printer back on.
1From the printer control panel, navigate to:
> Settings > > Network/Ports > > Network [x] > > Network [x] Setup > > Wireless > >
Wireless Connection Setup >
2Select a wireless connection setup.
Use To
Search for networks Show available wireless connections.
Note: This menu item shows all broadcast secured or unsecured SSIDs.
Enter a network name Manually type the SSID.
Note: Make sure to type the correct SSID.
Wi‑Fi Protected Setup Connect the printer to a wireless network using Wi‑Fi Protected Setup.
3Press , and then follow the instructions on the printer display.
Connecting the printer to a wireless network using Wi-Fi Protected Setup (WPS)
Before you begin, make sure that:
•The access point (wireless router) is WPS certified.
•A wireless network adapter is installed in the printer and is working properly. For more information, see the
instruction sheet that came with the wireless network adapter.
Using the Push Button Configuration (PBC) method
1From the printer control panel, navigate to:
> Settings > >Network/Ports > > Network [x] > > Network [x] Setup > > Wireless > >
Wi‑Fi Protected Setup > > Start Push Button Method >
2Follow the instructions on the printer display.
Using the Personal Identification Number (PIN) method
1From the printer control panel, navigate to:
> Settings > >Network/Ports > > Network [x] > Wireless > > Wi‑Fi Protected Setup > >
Start PIN Method >
2Copy the eight‑digit WPS PIN.
3Open a Web browser, and then type the IP address of your access point in the address bar.
Additional printer setup 23
Notes:
•The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
4Access the WPS settings.
5Enter the eight‑digit PIN, and then save the setting.
Connecting the printer to a wireless network using the Embedded Web Server
Before you begin, make sure that:
•Your printer is connected temporarily to an Ethernet network.
•A wireless network adapter is installed in your printer and working properly. For more information, see the
instruction sheet that came with your wireless network adapter.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Network/Ports > Wireless.
3Modify the settings to match the settings of your access point (wireless router).
Note: Make sure to enter the correct SSID.
4Click Submit.
5Turn off the printer, and then disconnect the Ethernet cable. Then wait for at least five seconds, and then turn the
printer back on.
6To verify if your printer is connected to the network, print a network setup page. Then in the Network Card [x]
section, see if the status is “Connected”.
For more information, see the “Verifying printer setup” section of the User’s Guide.
Verifying printer setup
Printing a menu settings page
Print a menu settings page to review the current menu settings and to verify if the printer options are installed correctly.
Note: If you have not changed any menu settings, then the menu settings page lists all the factory default settings.
When you select and save other settings from the menus, they replace the factory default settings as user default
settings. A user default setting remains in effect until you access the menu again, choose another value, and save it.
From the printer control panel, navigate to:
> Settings > >Reports > > Menu Settings Page >
Additional printer setup 24
Printing a network setup page
If the printer is attached to a network, then print a network setup page to verify the network connection. This page
also provides important information that aids network printing configuration.
1From the printer control panel, navigate to:
> Settings > > Reports > > Network Setup Page >
2Check the first section of the network setup page, and then confirm that the status is Connected.
If the status is Not Connected, then the LAN drop may not be active, or the network cable may be malfunctioning.
Consult your system support person for a solution, and then print another network setup page.
Additional printer setup 25
Loading paper and specialty media
The selection and handling of paper and specialty media can affect how reliably documents print. For more information,
see “Avoiding jams” on page 103 and “Storing paper” on page 39.
Setting the paper size and type
1From the printer control panel, navigate to:
> Settings > > Paper Menu > > Paper Size/Type >
2Press the up or down arrow button to select the tray or feeder, and then press .
3Press the up or down arrow button to select the paper size, and then press .
4Press the up or down arrow button to select the paper type, and then press to change the settings.
Configuring Universal paper settings
The Universal paper size is a user‑defined setting that lets you print on paper sizes that are not preset in the printer
menus.
Notes:
•The smallest Universal paper size is 6 x 127 mm (3 x 5 inches), and is supported only from the multipurpose
feeder.
•The largest Universal paper size is 216 x 355.6 mm (8.5 x 14 inches), and is supported from all paper sources.
1From the printer control panel, navigate to:
> Settings > > Paper Menu > > Universal Setup > > Units of Measure > > select a unit of
measure >
2Select Portrait Width or Portrait Height, and then press .
3Press the left or right arrow button to change the setting, and then press .
Using the standard bin and paper stop
The standard bin holds up to 150 sheets of 75‑g/m2 (20‑lb) paper. It collects prints facedown. The standard bin includes
a paper stop that keeps paper from sliding out the front of the bin as it stacks.
Loading paper and specialty media 26
To open the paper stop, pull it so that it flips forward.
Note: Close the paper stop when moving the printer to another location.
Loading trays
CAUTION—POTENTIAL INJURY: To reduce the risk of equipment instability, load each tray separately. Keep all
other trays closed until needed.
1Pull out the tray completely.
Note: Do not remove trays while a job prints or while Busy appears on the printer display. Doing so may cause
a jam.
1
Loading paper and specialty media 27
2Squeeze and then slide the width guide tab to the correct position for the size of the paper you are loading.
3Squeeze and then slide the length guide tab to the correct position for the size of the paper you are loading.
2
1
Notes:
•For some paper sizes like letter, legal, and A4, squeeze and slide the length guide tab backward to
accommodate their length.
•If you are loading A6-size paper in the standard tray, then squeeze and then slide the length guide tab
toward the center of the tray to the A6‑size position.
•Make sure the width and length guides are aligned with the paper size indicators on the bottom of the tray.
Loading paper and specialty media 28

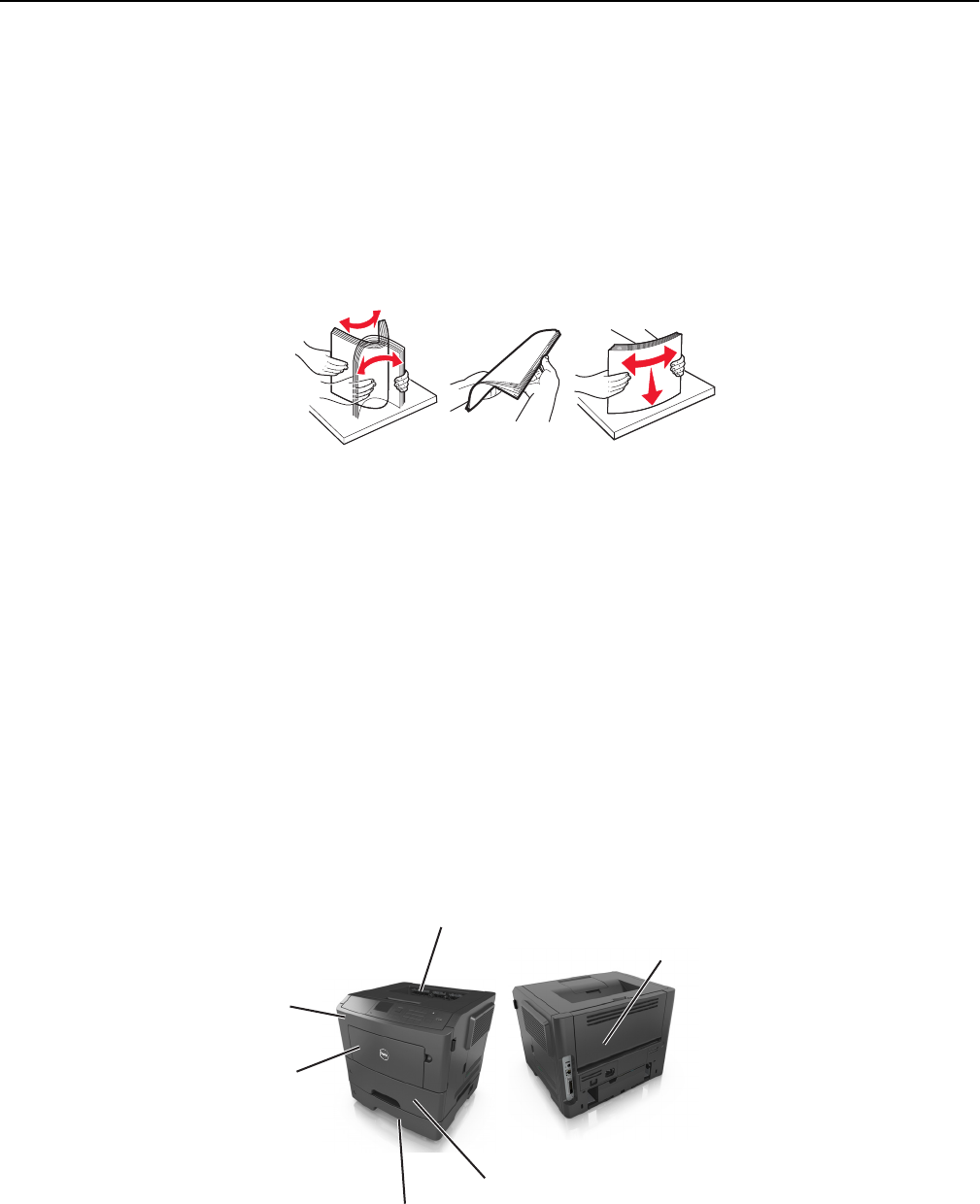

4Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the
edges on a level surface.
5Load the paper stack.
Notes:
•Load with the printable side facedown when using recycled or preprinted paper.
•Load prepunched paper with the holes on the top edge toward the front of the tray.
Loading paper and specialty media 29
•Load letterhead facedown, with the top edge of the sheet toward the front of the tray. For two‑sided
printing, load letterhead faceup with the bottom edge of the sheet toward the front of the tray.
•Make sure the paper is below the maximum paper fill indicator located on the side of the width guide.
6Insert the tray.
1
7From the printer control panel, set the paper size and paper type in the Paper menu to match the paper loaded in
the tray.
Note: Set the correct paper size and type to avoid paper jams and print quality problems.
Loading paper and specialty media 30
Loading the multipurpose feeder
Use the multipurpose feeder when printing on different paper sizes and types or specialty media, such as card stock,
transparencies, and envelopes. You can also use it for single‑page print jobs on letterhead.

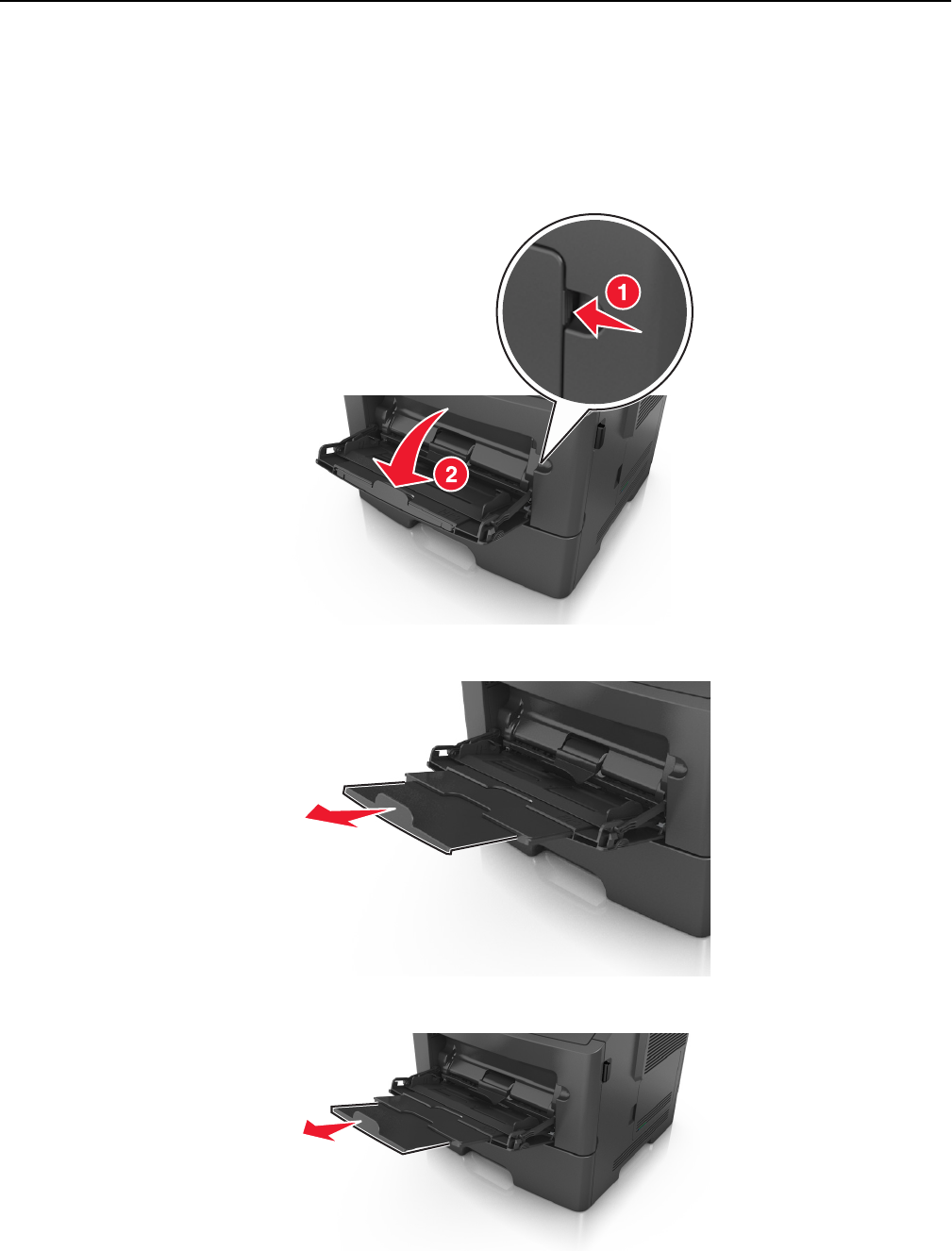

1Open the multipurpose feeder.
aPull the multipurpose feeder extender.
bPull the extender gently so that the multipurpose feeder is fully extended and open.
Loading paper and specialty media 31
2Squeeze the tab on the left width guide, and then move the guides for the paper you are loading.
3Prepare the paper or specialty media for loading.
•Flex sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten
the edges on a level surface.
•Hold transparencies by the edges. Flex the stack of transparencies back and forth to loosen them, and then fan
them. Straighten the edges on a level surface.
Note: Avoid touching the printable side of the transparencies. Be careful not to scratch them.
•Flex the stack of envelopes back and forth to loosen them, and then fan them. Straighten the edges on a level
surface.
4Load the paper or specialty media.
Notes:
•Do not force paper or specialty media into the multipurpose feeder.
Loading paper and specialty media 32
•Make sure the paper or specialty media is below the maximum paper fill indicator located on the paper
guides. Overfilling may cause paper jams.
•Load paper, transparencies, and card stock with the recommended printable side faceup and the top edge
entering the printer first. For more information on loading transparencies, see the packaging that the
transparencies came in.
Note: When loading A6‑size paper, make sure the multipurpose feeder extender rests lightly against the
edge of the paper so that the last few sheets of paper remain in place.
Loading paper and specialty media 33
•Load letterhead faceup with the top edge entering the printer first. For two‑sided (duplex) printing, load
letterhead facedown with the bottom edge entering the printer first.
•Load envelopes with the flap on the left side facedown.
Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or
self‑stick adhesives. These envelopes may severely damage the printer.
5From the printer control panel, set the paper size and paper type in the Paper menu to match the paper or specialty
media loaded in the multipurpose feeder.
Linking and unlinking trays
Linking and unlinking trays
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address on the printer control panel in the TCP/IP section under the Network/Ports
menu. The IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu.
Loading paper and specialty media 34
3Change the paper size and type settings for the trays you are linking.
•To link trays, make sure the paper size and type for the tray match that of the other tray.
•To unlink trays, make sure the paper size or type for the tray does not match that of the other tray.
4Click Submit.
Note: You can also change the paper size and type settings using the printer control panel. For more information,
see “Setting the paper size and type” on page 26.
Warning—Potential Damage: Paper loaded in the tray should match the paper type name assigned in the printer.
The temperature of the fuser varies according to the specified paper type. Printing issues may occur if settings are
not properly configured.
Creating a custom name for a paper type
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu > Custom Names.
3Select a custom name, and then type a new custom paper type name.
4Click Submit.
5Click Custom Types, and then verify if the new custom paper type name has replaced the custom name.
Using the printer control panel
1From the printer control panel, navigate to:
> Settings > > Paper Menu > > Custom Names
2Select a custom name, and then type a new custom paper type name.
3Press .
4Press Custom Types, and then verify if the new custom paper type name has replaced the custom name.
Assigning a custom paper type name
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
Loading paper and specialty media 35
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu > Custom Names.
3Type a name for the paper type, and then click Submit.
4Select a custom type, and then verify that the correct paper type is associated with the custom name.
Note: Plain Paper is the factory default paper type for all user‑defined custom names.
Using the printer control panel
1From the printer control panel, navigate to:
> Settings > > Paper Menu > > Custom Names
2Type a name for the paper type, and then press .
Assigning a custom paper type
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Paper Menu > Custom Types.
3Select a custom paper type name, and then select a paper type.
Note: Paper is the factory default paper type for all user‑defined custom names.
4Click Submit.
Using the printer control panel
1From the printer control panel, navigate to:
> Settings > > Paper Menu > > Custom Types
2Select a custom paper type name, and then select a paper type.
Note: Paper is the factory default paper type for all user‑defined custom names.
3Press .
Loading paper and specialty media 36
Paper and specialty media guide
Paper guidelines
Selecting the correct paper or specialty media reduces printing problems. For the best print quality, try a sample of the
paper or specialty media before buying large quantities.
Paper characteristics
The following paper characteristics affect print quality and reliability. Consider these characteristics when evaluating
new paper stock.
Weight
The printer trays can automatically feed paper weights up to 120‑g/m2 (32‑lb) bond grain long paper. The multipurpose
feeder can automatically feed paper weights up to 163‑g/m2 (43‑lb) bond grain long paper. Paper lighter than
60 g/m2 (16 lb) might not be stiff enough to feed properly, causing jams. For best performance, use 75‑g/m2 (20‑lb)
bond grain long paper. For paper smaller than 182 x 257 mm (7.2 x 10.1 inches), we recommended to use 90 g/m2
(24 lb) or heavier paper.
Note: Two‑sided printing is supported only for 60–90‑g/m2 (16–24‑lb) bond paper.
Curl
Curl is the tendency for paper to curl at its edges. Excessive curl can cause paper feeding problems. Curl can occur after
the paper passes through the printer, where it is exposed to high temperatures. Storing paper unwrapped in hot, humid,
cold, or dry conditions, even in the trays, can contribute to paper curling prior to printing and can cause feeding
problems.
Smoothness
Paper smoothness directly affects print quality. If paper is too rough, then toner cannot fuse to it properly. If paper is
too smooth, then it can cause paper feeding or print quality issues. Always use paper between 100 and 300 Sheffield
points; however, smoothness between 150 and 250 Sheffield points produces the best print quality.
Moisture content
The amount of moisture in paper affects both print quality and the ability of the printer to feed the paper correctly.
Leave paper in its original wrapper until it is time to use it. This limits the exposure of paper to moisture changes that
can degrade its performance.
Store paper in its original wrapper in the same environment as the printer for 24 to 48 hours before printing. Extend
the time to several days if the storage or transportation environment is very different from the printer environment.
Thick paper may also require a longer conditioning period.
Grain direction
Grain refers to the alignment of the paper fibers in a sheet of paper. Grain is either grain long, running the length of
the paper, or grain short, running the width of the paper.
For 60–90‑g/m2 (16–24‑lb) bond paper, grain long paper is recommended.
Paper and specialty media guide 37
Fiber content
Most high‑quality xerographic paper is made from 100% chemically treated pulped wood. This content provides the
paper with a high degree of stability resulting in fewer paper feeding problems and better print quality. Paper containing
fibers such as cotton can negatively affect paper handling.
Unacceptable paper
The following paper types are not recommended for use with the printer:
•Chemically treated papers used to make copies without carbon paper, also known as carbonless papers, carbonless
copy paper (CCP), or no carbon required (NCR) paper
•Preprinted papers with chemicals that may contaminate the printer
•Preprinted papers that can be affected by the temperature in the printer fuser
•Preprinted papers that require a registration (the precise print location on the page) less than ±2.5 mm (±0.10 inch),
such as optical character recognition (OCR) forms
In some cases, registration can be adjusted with a software application to successfully print on these forms:
•Coated papers (erasable bond), synthetic papers, thermal papers
•Rough‑edged, rough or heavily textured surface papers, or curled papers
•Recycled papers that fail EN12281:2002 (European)
•Paper weighing less than 60 g/m2 (16 lb)
•Multiple‑part forms or documents
Selecting paper
Using the appropriate paper prevents jams and helps ensure trouble‑free printing.
To help avoid paper jams and poor print quality:
•Always use new, undamaged paper.
•Before loading paper, know the recommended printable side of the paper. This information is usually indicated on
the paper package.
•Do not use paper that has been cut or trimmed by hand.
•Do not mix paper sizes, types, or weights in the same tray; mixing results in jams.
•Do not use coated papers unless they are specifically designed for electrophotographic printing.
Selecting preprinted forms and letterhead
Use these guidelines when selecting preprinted forms and letterhead:
•Use grain long for 60 to 90 g/m2 (16 to 24 lb) weight paper.
•Use only forms and letterhead printed using an offset lithographic or engraved printing process.
•Avoid papers with rough or heavily textured surfaces.
Use papers printed with heat‑resistant inks designed for use in xerographic copiers. The ink must be able to withstand
temperatures up to 230°C (446°F) without melting or releasing hazardous emissions. Use inks that are not affected by
the resin in toner. Inks that are oxidation‑set or oil‑based generally meet these requirements; latex inks might not.
When in doubt, contact the paper supplier.
Paper and specialty media guide 38
Preprinted papers such as letterhead must be able to withstand temperatures up to 230°C (446°F) without melting or
releasing hazardous emissions.
Using recycled paper and other office papers
•Low moisture content (4–5%)
•Suitable smoothness (100–200 Sheffield units, or 140–350 Bendtsen units, European)
Note: Some much smoother papers (such as premium 24 lb laser papers, 50–90 Sheffield units) and much
rougher papers (such as premium cotton papers, 200–300 Sheffield units) have been engineered to work very
well in laser printers, despite surface texture. Before using these types of paper, consult your paper supplier.
•Suitable sheet-to-sheet coefficient of friction (0.4–0.6)
•Sufficient bending resistance in the direction of feed
Recycled paper, paper of lower weight (<60 g/m2 [16 lb bond]) and/or lower caliper (<3.8 mils [0.1 mm]), and paper
that is cut grain-short for portrait (or short-edge) fed printers may have lower bending resistance than is required for
reliable paper feeding. Before using these types of paper for laser (electrophotographic) printing, consult your paper
supplier. Remember that these are general guidelines only and that paper meeting these guidelines may still cause
paper feeding problems in any laser printer (for example, if the paper curls excessively under normal printing
conditions).
Storing paper
Use these paper storage guidelines to help avoid jams and uneven print quality:
•For best results, store paper where the temperature is 21°C (70°F) and the relative humidity is 40 percent. Most
label manufacturers recommend printing in a temperature range of 18–24°C (65–75°F) with relative humidity
between 40 and 60 percent.
•Store paper in cartons, on a pallet or shelf, rather than on the floor.
•Store individual packages on a flat surface.
•Do not store anything on top of individual paper packages.
•Take paper out of the carton or wrapper only when you are ready to load it in the printer. The carton and wrapper
help keep the paper clean, dry, and flat.
Using specialty media
Tips on using card stock
Card stock is heavy, single‑ply specialty media. Many of its variable characteristics, such as moisture content, thickness,
and texture, can significantly impact print quality. Print samples on the card stock being considered for use before
buying large quantities.
When printing on card stock:
•Make sure the Paper Type is Card Stock.
•Select the appropriate Paper Texture setting.
•Be aware that preprinting, perforation, and creasing may significantly affect the print quality and cause jams or
other paper handling problems.
Paper and specialty media guide 39
•Check with the manufacturer or vendor to ensure that the card stock can withstand temperatures up to 240°C
(464°F) without releasing hazardous emissions.
•Do not use preprinted card stock manufactured with chemicals that may contaminate the printer. Preprinting
introduces semi‑liquid and volatile components into the printer.
•Use grain short card stock when possible.
Tips on using envelopes
Print samples on the envelopes being considered for use before buying large quantities.
•Use envelopes designed specifically for laser printers. Check with the manufacturer or vendor to ensure that the
envelopes can withstand temperatures up to 230°C (446°F) without sealing, wrinkling, curling excessively, or
releasing hazardous emissions.
•For best performance, use envelopes made from 90‑g/m2 (24‑lb bond) paper or 25% cotton. All‑cotton envelopes
must not exceed 70‑g/m2 (20‑lb bond) weight.
•Use only new envelopes from undamaged packages.
•To optimize performance and minimize jams, do not use envelopes that:
–Have excessive curl or twist
–Are stuck together or damaged in any way
–Have windows, holes, perforations, cutouts, or embossing
–Have metal clasps, string ties, or folding bars
–Have an interlocking design
–Have postage stamps attached
–Have any exposed adhesive when the flap is in the sealed or closed position
–Have bent corners
–Have rough, cockle, or laid finishes
•Adjust the width guides to fit the width of the envelopes.
Note: A combination of high humidity (over 60%) and high printing temperature may wrinkle or seal envelopes.
Tips on using labels
Print samples on the labels being considered for use before buying large quantities.
Note: Use only paper label sheets. Vinyl, pharmacy, and two‑sided labels are not supported.
When printing on labels:
•Use labels designed specifically for laser printers. Check with the manufacturer or vendor to verify that:
–The labels can withstand temperatures up to 240°C (464°F) without sealing, excessive curling, wrinkling, or
releasing hazardous emissions.
–Label adhesives, face sheet (printable stock), and topcoats can withstand up to 172‑kPa (25‑psi) pressure without
delaminating, oozing around the edges, or releasing hazardous fumes.
•Do not use labels with slick backing material.
•Use full label sheets. Partial sheets may cause labels to peel off during printing, resulting in a jam. Partial sheets
also contaminate the printer and the cartridge with adhesive, and could void the printer and toner cartridge
warranties.
Paper and specialty media guide 40
•Do not use labels with exposed adhesive.
•Do not print within 1 mm (0.04 inch) of the edge of the label, of the perforations, or between die‑cuts of the label.
•Make sure the adhesive backing does not reach to the edge of the sheet. Zone coating of the adhesive should be
at least 1 mm (0.04 inch) away from edges. Adhesive material contaminates the printer and could void the warranty.
•If zone coating of the adhesive is not possible, then remove a 2‑mm (0.08‑inch) strip on the leading and driver edge,
and then use a non‑oozing adhesive.
•Portrait orientation is recommended, especially when printing bar codes.
Tips on using letterhead
•Use letterhead designed specifically for laser printers.
•Print samples on the letterhead being considered for use before buying large quantities.
•Before loading letterhead, flex, fan, and straighten the stack to prevent sheets from sticking together.
•Page orientation is important when printing on letterhead. For information on how to load letterhead, see:
–“Loading trays” on page 27
–“Loading the multipurpose feeder” on page 31
Tips on using transparencies
•Print a test page on the transparencies being considered for use before buying large quantities.
•Feed transparencies from the standard tray, or the multipurpose feeder.
•Use transparencies designed specifically for laser printers. Transparencies must be able to withstand temperatures
up to 185°C (365°F) without melting, discoloring, offsetting, or releasing hazardous emissions.
Note: If the transparency weight is set to Heavy and the transparency texture is set to Rough in the Paper menu,
then transparencies can be printed at a temperature up to 195°C (383°F).
•Avoid getting fingerprints on the transparencies to prevent print quality problems.
•Before loading transparencies, flex, fan, and straighten the stack to prevent sheets from sticking together.
Supported paper sizes, types, and weights
Supported paper sizes
Note: For an unlisted paper size, select the closest larger listed size. For information on card stock and labels, see the
Card Stock & Label Guide.
Paper and specialty media guide 41
Paper size Standard tray Optional 550‑sheet
tray
Multipurpose feeder Duplex mode
A4
210 x 297 mm (8.3 x 11.7 in.)
A5
148 x 210 mm (5.8 x 8.3 in.)
X
A6
105 x 148 mm (4.1 x 5.8 in.)
X X
JIS B5
182 x 257 mm (7.2 x 10.1 in.)
X
Letter
216 x 279 mm (8.5 x 11 in.)
Legal
216 x 356 mm (8.5 x 14 in.)
Executive
184 x 267 mm (7.3 x 10.5 in.)
X
Oficio (Mexico)1
216 x 340 mm (8.5 x 13.4 in.)
Folio
216 x 330 mm (8.5 x 13 in.)
Statement
140 x 216 mm (5.5 x 8.5 in.)
X
Universal2
76.2 x 127 mm (3 x 5 in.) up to
216 x 356 mm (8.5 x 14 in.)
7 3/4 Envelope (Monarch)
98 x 191 mm (3.9 x 7.5 in.)
XX X
9 Envelope
98 x 225 mm (3.9 x 8.9 in.)
XX X
10 Envelope
105 x 241 mm (4.1 x 9.5 in.)
XX X
DL Envelope
110 x 220 mm (4.3 x 8.7 in.)
XX X
C5 Envelope
162 x 229 mm (6.4 x 9 in.)
XX X
1 This size setting formats the page for 216 x 356 mm (8.5 x 14 in.) unless the size is specified by the software application.
2 Universal is supported only in the standard tray if the paper size is at least 105 x 148 mm (4.1 x 5.8 in.). Universal is supported
only in the optional 550-sheet tray if the paper size is at least 148 x 210 mm (5.8 x 8.3 in.). Universal is supported only in
duplex mode if the width is at least 210 mm (8.3 in.) and length is at least 279 mm (11 in.). The smallest supported Universal
size is supported only in the multipurpose feeder.
Paper and specialty media guide 42
Paper size Standard tray Optional 550‑sheet
tray
Multipurpose feeder Duplex mode
B5 Envelope
176 x 250 mm (6.9 x 9.8 in.)
XX X
Other Envelope
229 x 356 mm (9 x 14 in.)
XX X
1 This size setting formats the page for 216 x 356 mm (8.5 x 14 in.) unless the size is specified by the software application.
2 Universal is supported only in the standard tray if the paper size is at least 105 x 148 mm (4.1 x 5.8 in.). Universal is supported
only in the optional 550-sheet tray if the paper size is at least 148 x 210 mm (5.8 x 8.3 in.). Universal is supported only in
duplex mode if the width is at least 210 mm (8.3 in.) and length is at least 279 mm (11 in.). The smallest supported Universal
size is supported only in the multipurpose feeder.

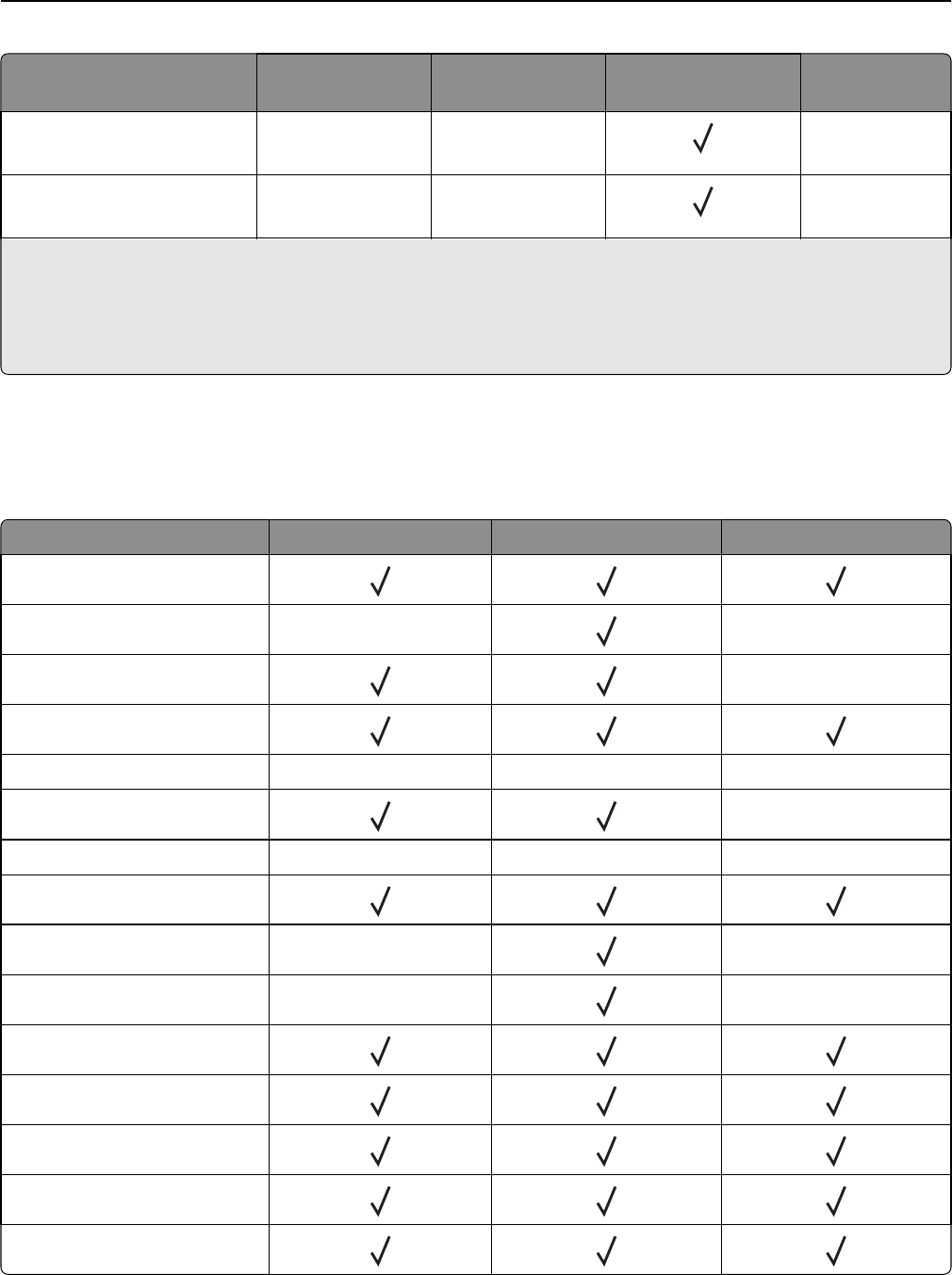

Supported paper types and weights
The standard tray supports 60–90‑g/m2 (16–24‑lb) paper weights. The optional tray supports 60–120‑g/m2 (16–32‑lb)
paper weights. The multipurpose feeder supports 60–163‑g/m2 (16–43‑lb) paper weights.
Paper type 550‑sheet tray Multipurpose feeder Duplex mode
Plain paper
Card stock X X
Transparencies X
Recycled
Glossy paper X X X
Paper labels1X
Vinyl labels X X X
Bond2
Envelope X X
Rough envelope X X
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper2
Paper and specialty media guide 43
Paper type 550‑sheet tray Multipurpose feeder Duplex mode
Rough/Cotton X
Custom Type [x] 3
1 One‑sided paper labels designed for laser printers are supported for occasional use. It is recommended to print 20 or fewer
pages of paper labels per month. Vinyl, pharmacy, and two‑sided labels are not supported.
2 Bond and Heavy Paper are supported in duplex mode up to 90‑g/m2 (24‑lb) paper weight.
3 Custom Type [x] is supported in duplex mode if any of the paper type listed in the Custom Types menu is selected. For
more information, see “Custom Types menu” on page 59.
Paper and specialty media guide 44
Printing
Printing a document
Printing a document
1From the Paper menu on the printer control panel, set the paper type and size to match the paper loaded.
2Send the print job:
For Windows users
aWith a document open, click File > Print.
bClick Properties, Preferences, Options, or Setup.
cAdjust the settings, if necessary.
dClick OK > Print.
For Macintosh users
aCustomize the settings in the Page Setup dialog if necessary:
1With a document open, choose File > Page Setup.
2Choose a paper size or create a custom size to match the paper loaded.
3Click OK.
bCustomize the settings in the Page Setup dialog if necessary:
1With a document open, choose File > Print.
If necessary, click the disclosure triangle to see more options.
2From the Print dialog and pop‑up menus adjust the settings if necessary.
Note: To print on a specific paper type, adjust the paper type setting to match the paper loaded, or
select the appropriate tray or feeder.
3Click Print.
Adjusting toner darkness
Using the Embedded Web Server
1Open a Web browser, and then type the IP address of the printer in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Print Settings > Quality Menu > Toner Darkness.
3Adjust the toner darkness, and then click Submit.
Printing 45
Using the printer control panel
1From the printer control panel, navigate to:
> Settings > > Print Settings > > Quality Menu > > Toner Darkness
2Adjust the toner darkness, and then press .
Printing from a flash drive
Printing from a flash drive
Notes:
•Before printing an encrypted PDF file, you will be prompted to enter the file password from the printer control
panel.
•You cannot print files for which you do not have printing permissions.
1Insert a flash drive into the USB port.
Notes:
•A flash drive icon appears on the printer control panel and in the held jobs icon when a flash drive is
installed.
•If you insert the flash drive when the printer requires attention, such as when a jam has occurred, then the
printer ignores the flash drive.
•If you insert the flash drive while the printer is processing other print jobs, then Busy appears. After these
print jobs are processed, you may need to view the held jobs list to print documents from the flash drive.

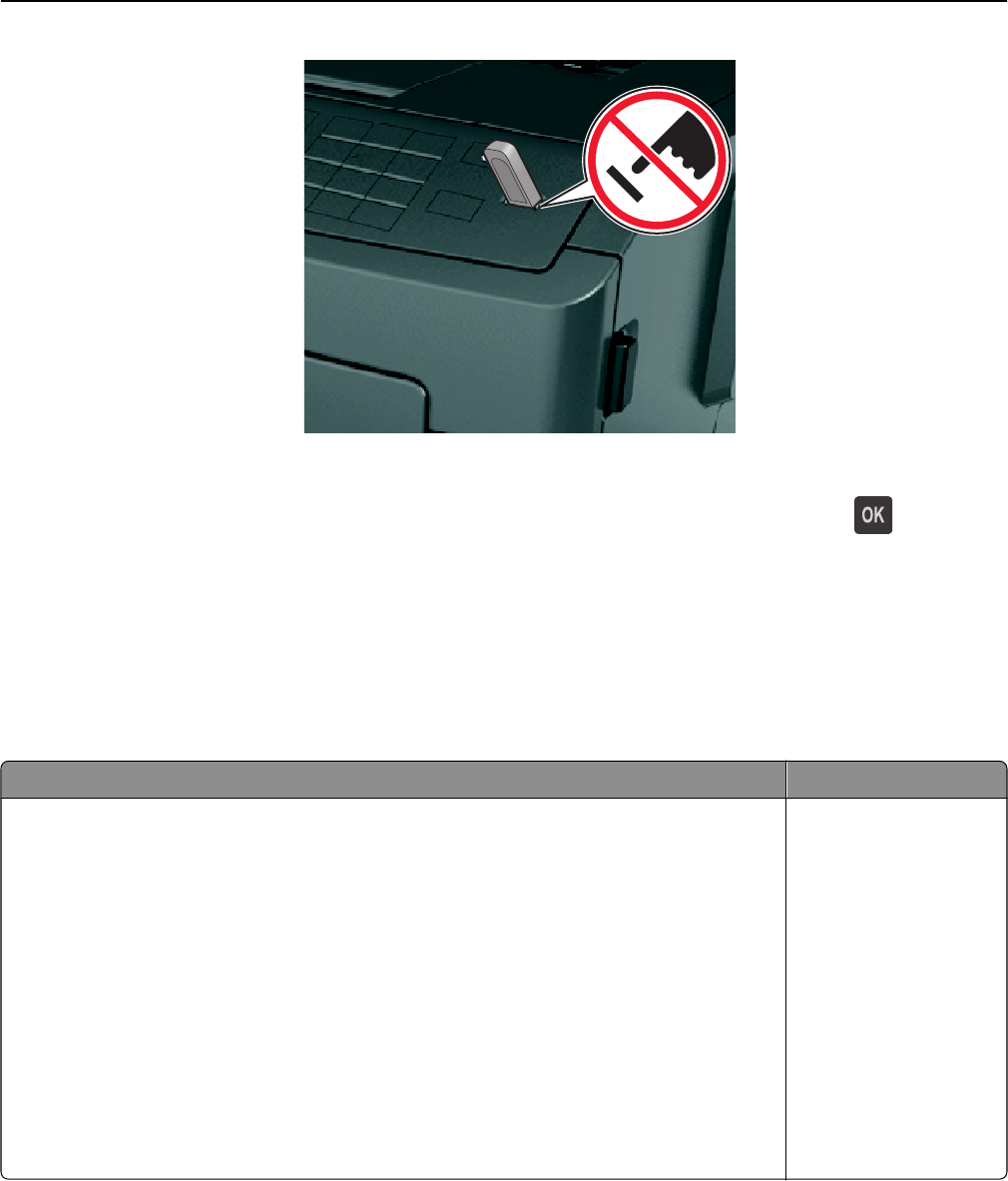

Warning—Potential Damage: Do not touch the printer or the flash drive in the area shown while actively
printing, reading, or writing from the memory device. Loss of data can occur.
Printing 46
2From the printer control panel, select the document you want to print.
3Press the left or right arrow button to specify the number of copies for printing, and then press .
Notes:
•Do not remove the flash drive from the USB port until the document has finished printing.
•If you leave the flash drive in the printer after leaving the initial USB menu screen, then access held jobs
from the printer control panel to print files from the flash drive.
Supported flash drives and file types
Flash drive File type
Notes:
•Hi‑Speed USB flash drives must support the full‑speed standard. Devices supporting only
USB low‑speed capabilities are not supported.
•USB flash drives must support the File Allocation Table (FAT) system. Devices formatted
with New Technology File System (NTFS) or any other file system are not supported.
Documents:
•.pdf
•.xps
Images:
•.dcx
•.JPEG or .jpg
•.pcx
•.TIFF or .tif
•.fls
Printing 47
Printing from a mobile device
Printing from a mobile device using AirPrint
AirPrintTM is a mobile printing application that allows you to print directly from your iPad® (all models), iPhone® (3GS
or later), or iPod touch® (3rd generation or later) to your AirPrint‑enabled printer. AirPrint‑enabled printers work with
these mobile devices that run the latest version of iOS.
Note: Make sure the printer and the mobile device share the same wireless network. For information on configuring
the wireless settings of your mobile device, see the documentation that came with the device.
1From the home screen of your mobile device, launch the application.
Note: You can print any content from these Apple applications: iBook, Mail, Photos, Safari, and some select App
Store applications.
2Select the item to print, and then tap .
3Tap Print, and then choose your printer.
4Set the print options you want, and then tap Print.
Printing from a mobile device using Dell Mobile Print
You can print directly from an Android mobile device (OS 2.1 or later) to your printer using Dell Mobile Print.
Notes:
•Make sure the printer and the mobile device share the same wireless network.
•For information on configuring the wireless settings, see the documentation that came with your mobile device.
1From Google Play, download the Dell Mobile Print application.
2From the home screen of your mobile device, tap .
3Select the item to print.
You can choose from the list of supported applications (such as Calendar, Contacts, Gallery, Google Docs, GMail,
Internet, Messaging, Word Documents, Excel Documents, PowerPoint Documents, and PDF Documents).
4From the print preview dialog, set the print and printer options if necessary.
Note: If your printer does not appear in the list, then check the network settings of both your printer and your
mobile device to make sure that both share the same wireless network.
5Tap Print.
Printing 48
Printing confidential and other held jobs
Printing confidential and other held jobs
Note: Confidential and Verify print jobs are automatically deleted from memory after printing. Repeat and Reserve
jobs are held in the printer until you choose to delete them.
For Windows users
1With a document open, click File > Print.
2Click Properties, Preferences, Options, or Setup.
3Click Print and Hold.
4Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential
print job, also enter a four‑digit PIN.
5Click OK or Print.
6From the printer control panel, release the print job.
•For confidential print jobs, navigate to:
Held jobs > select your user name > Confidential Jobs > enter the PIN > select the print job > specify the number
of copies > Print
•For other print jobs, navigate to:
Held jobs > select your user name > select the print job > specify the number of copies > Print
For Macintosh users
1With a document open, choose File > Print.
If necessary, click the disclosure triangle to see more options.
2From the print options or Copies & Pages pop‑up menu, choose Job Routing.
3Select the print job type (Confidential, Repeat, Reserve, or Verify), and then assign a user name. For a confidential
print job, also enter a four‑digit PIN.
4Click OK or Print.
5From the printer control panel, release the print job:
•For confidential print jobs, navigate to:
Held jobs > select your user name > Confidential Jobs > enter the PIN > select the print job > specify the number
of copies > Print
•For other print jobs, navigate to:
Held jobs > select your user name > select the print job > specify the number of copies > Print
Printing 49
Printing information pages
For more information on printing information pages, see “Printing a menu settings page” on page 24 and “Printing a
network setup page” on page 25.
Printing a font sample list
1From the printer control panel, navigate to:
> Settings > > Reports > > Print Fonts
2Press the up or down arrow button to select the font setting.
3Press .
Note: The PPDS fonts appear only when the PPDS data stream is activated.
Printing a directory list
From the printer control panel, navigate to:
> Settings > Reports > > Print Directory >
Note: The Print Directory menu item appears only when an optional flash memory is installed.
Canceling a print job
Canceling a print job from the printer control panel
1From the printer control panel, press .
2When a list of print jobs appears, select the job to cancel, and then press .
3Press to go back to the home screen.
Canceling a print job from the computer
For Windows users
1Open the printers folder, and then select your printer.
2From the print queue, select the print job you want to cancel, and then delete it.
For Macintosh users
1From System Preferences in the Apple menu, navigate to your printer.
2From the print queue, select the print job you want to cancel, and then delete it.
Printing 50
Understanding the printer menus
Menus list
Paper Menu Reports Network/Ports
Default Source
Paper Size/Type
Configure MP
Substitute Size
Paper Texture
Paper Weight
Paper Loading
Custom Types
Universal Setup
Menu Settings Page
Device Statistics
Network Setup Page1
Profiles List
Print Fonts
Print Directory
Print Demo
Asset Report
Active NIC
Standard Network2
Standard USB
Reports
Network Card
TCP/IP
IPv6
Wireless
AppleTalk
SMTP Setup
Security Settings Help
Confidential Print
Security Audit Log
Set Date and Time
General Settings
Flash Drive Menu
Print Settings
Print All Guides
Print Quality
Printing Guide
Media Guide
Print Defects Guide
Menu Map
Information Guide
Connection Guide
Moving Guide
1 Depending on the printer setup, this menu item appears as Network Setup Page or Network [x] Setup Page.
2 Depending on the printer setup, this menu item appears as Standard Network or Network [x].
Understanding the printer menus 51
Paper menu
Default Source menu
Use To
Default Source
Tray [x]
MP Feeder
Manual Paper
Manual Envelope
Set a default paper source for all print jobs.
Notes:
•Tray 1 (standard tray) is the factory default setting.
•From the Paper menu, set Configure MP to "Cassette" for MP Feeder to
appear as a menu setting.
•If two trays contain paper of the same size and type, and the trays have
the same settings, then the trays are automatically linked. When one tray
is empty, the print job continues using the linked tray.
Paper Size/Type menu
Use To
Tray [x] Size
A4
A5
A6
JIS‑B5
Letter
Legal
Executive
Oficio (Mexico)
Folio
Statement
Universal
Specify the paper size loaded in each tray.
Notes:
•Letter is the US factory default setting. A4 is the international factory
default setting.
•If two trays contain paper of the same size and type, and the trays have
the same settings, then the trays are automatically linked. When one
tray is empty, the print job continues using the linked tray.
•The A6 paper size is supported only in Tray 1 and the multipurpose
feeder.
Tray [x] Type
Plain Paper
Transparency
Recycled
Labels
Bond
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
Rough/Cotton
Custom Type [x]
Specify the type of paper loaded in each tray.
Notes:
•Plain Paper is the factory default setting for Tray 1. Custom Type [x] is
the factory default setting for all other trays.
•If available, a user‑defined name will appear instead of Custom Type [x].
•Use this menu to configure automatic tray linking.
Note: Only installed trays and feeders are listed in this menu.
Understanding the printer menus 52
Use To
MP Feeder Size
A4
A5
A6
JIS B5
Letter
Legal
Executive
Oficio (Mexico)
Folio
Statement
Universal
7 3/4 Envelope
9 Envelope
10 Envelope
DL Envelope
C5 Envelope
B5 Envelope
Other Envelope
Specify the paper size loaded in the multipurpose feeder.
Notes:
•Letter is the US factory default setting. A4 is the international factory
default setting.
•From the Paper menu, set Configure MP to “Cassette” for MP Feeder
Size to appear as a menu.
•The multipurpose feeder does not automatically detect paper size.
Make sure to set the paper size value.
MP Feeder Type
Plain Paper
Card Stock
Transparency
Recycled
Labels
Bond
Envelope
Rough Envelope
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
Rough/Cotton
Custom Type [x]
Specify the type of paper loaded in the multipurpose feeder.
Notes:
•Plain Paper is the factory default setting.
•From the Paper menu, set Configure MP to “Cassette” for MP Feeder
Type to appear as a menu.
Note: Only installed trays and feeders are listed in this menu.
Understanding the printer menus 53
Use To
Manual Paper Size
A4
A5
A6
JIS B5
Letter
Legal
Executive
Oficio (Mexico)
Folio
Statement
Universal
Specify the paper size being manually loaded.
Note: Letter is the US factory default setting. A4 is the international factory
default setting.
Manual Paper Type
Plain Paper
Card Stock
Transparency
Recycled
Labels
Bond
Letterhead
Preprinted
Colored Paper
Light Paper
Heavy Paper
Rough/Cotton
Custom Type [x]
Specify the paper type being manually loaded.
Notes:
•Plain Paper is the factory default setting.
•From the Paper menu, set Configure MP to “Manual” for Manual Paper
Type to appear as a menu.
Manual Envelope Size
7 3/4 Envelope
9 Envelope
10 Envelope
DL Envelope
C5 Envelope
B5 Envelope
Other Envelope
Specify the envelope size being manually loaded.
Note: 10 Envelope is the US factory default setting. DL Envelope is the
international factory default setting.
Manual Envelope Type
Envelope
Rough Envelope
Custom Type [x]
Specify the envelope type being manually loaded.
Note: Envelope is the factory default setting.
Note: Only installed trays and feeders are listed in this menu.
Understanding the printer menus 54
Configure MP menu
Use To
Configure MP
Cassette
Manual
First
Determine when the printer selects paper from the multipurpose feeder.
Notes:
•Cassette is the factory default setting. Cassette configures the
multipurpose feeder as the automatic paper source.
•Manual sets the multipurpose feeder only for manual‑feed print jobs.
•First configures the multipurpose feeder as the primary paper source.
Substitute Size menu
Use To
Substitute Size
Off
Statement/A5
Letter/A4
All Listed
Substitute a specified paper size if the requested paper size is not available.
Notes:
•All Listed is the factory default setting. All available substitutions are
allowed.
•Off indicates that no size substitutions are allowed.
•Setting a size substitution lets the print job continue without Change
Paper appearing.
Paper Texture menu
Use To
Plain Texture
Smooth
Normal
Rough
Specify the relative texture of the plain paper loaded.
Note: Normal is the factory default setting.
Card Stock Texture
Smooth
Normal
Rough
Specify the relative texture of the card stock loaded.
Notes:
•Normal is the factory default setting.
•The options appear only if card stock is supported.
Transparency Texture
Smooth
Normal
Rough
Specify the relative texture of the transparencies loaded.
Note: Normal is the factory default setting.
Recycled Texture
Smooth
Normal
Rough
Specify the relative texture of the recycled paper loaded.
Note: Normal is the factory default setting.
Understanding the printer menus 55
Use To
Labels Texture
Smooth
Normal
Rough
Specify the relative texture of the labels loaded.
Note: Normal is the factory default setting.
Bond Texture
Smooth
Normal
Rough
Specify the relative texture of the bond paper loaded.
Note: Rough is the factory default setting.
Envelope Texture
Smooth
Normal
Rough
Specify the relative texture of the envelopes loaded.
Note: Normal is the factory default setting.
Rough Envelope Texture
Rough
Specify the relative texture of the rough envelopes loaded.
Letterhead Texture
Smooth
Normal
Rough
Specify the relative texture of the letterhead loaded.
Note: Normal is the factory default setting.
Preprinted Texture
Smooth
Normal
Rough
Specify the relative texture of the preprinted paper loaded.
Note: Normal is the factory default setting.
Colored Texture
Smooth
Normal
Rough
Specify the relative texture of the colored paper loaded.
Note: Normal is the factory default setting.
Light Texture
Smooth
Normal
Rough
Specify the relative texture of the paper loaded.
Note: Normal is the factory default setting.
Heavy Texture
Smooth
Normal
Rough
Specify the relative texture of the paper loaded.
Note: Normal is the factory default setting.
Rough/Cotton Texture
Rough
Specify the relative texture of the cotton paper loaded.
Custom [x] Texture
Smooth
Normal
Rough
Specify the relative texture of the custom paper loaded.
Notes:
•Normal is the factory default setting.
•The options appear only if the custom type is supported.
Understanding the printer menus 56
Paper Weight menu
Use To
Plain Weight
Light
Normal
Heavy
Specify the relative weight of the plain paper loaded.
Note: Normal is the factory default setting.
Card Stock Weight
Light
Normal
Heavy
Specify the relative weight of the card stock loaded.
Note: Normal is the factory default setting.
Transparency Weight
Light
Normal
Heavy
Specify the relative weight of the transparencies loaded.
Note: Normal is the factory default setting.
Recycled Weight
Light
Normal
Heavy
Specify the relative weight of the recycled paper loaded.
Note: Normal is the factory default setting.
Labels Weight
Light
Normal
Heavy
Specify the relative weight of the labels loaded.
Note: Normal is the factory default setting.
Bond Weight
Light
Normal
Heavy
Specify the relative weight of the bond paper loaded.
Note: Normal is the factory default setting.
Envelope Weight
Light
Normal
Heavy
Specify the relative weight of the envelope loaded.
Note: Normal is the factory default setting.
Rough Envelope Weight
Light
Normal
Heavy
Specify the relative weight of the rough envelope loaded.
Note: Normal is the factory default setting.
Letterhead Weight
Light
Normal
Heavy
Specify the relative weight of the letterhead loaded.
Note: Normal is the factory default setting.
Preprinted Weight
Light
Normal
Heavy
Specify the relative weight of the preprinted paper loaded.
Note: Normal is the factory default setting.
Understanding the printer menus 57
Use To
Colored Weight
Light
Normal
Heavy
Specify the relative weight of the colored paper loaded.
Note: Normal is the factory default setting.
Light Weight
Light
Specify that the weight of the paper loaded is light.
Heavy Weight
Heavy
Specify that the weight of the paper loaded is heavy.
Cotton/Rough Weight
Light
Normal
Heavy
Specify the relative weight of the cotton or rough paper loaded.
Note: Heavy is the factory default setting.
Custom [x] Weight
Light
Normal
Heavy
Specify the relative weight of the custom paper loaded.
Notes:
•Normal is the factory default setting.
•The options appear only when the custom type is supported.
Paper Loading menu
Use To
Recycled Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Recycled as the paper type.
Bond Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Bond as the paper type.
Letterhead Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Letterhead as the paper type.
Preprinted Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Preprinted as the paper type.
Colored Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Colored as the paper type.
Notes:
•Duplex sets two‑sided printing as the default for all print jobs unless one‑sided printing is set from Printing
Preferences or Print dialog.
•If Duplex is selected, then all print jobs are sent through the duplex unit, including one‑sided jobs.
•Off is the factory default setting for all the menus.
Understanding the printer menus 58
Use To
Light Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Light as the paper type.
Heavy Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Heavy as the paper type.
Custom [x] Loading
Duplex
Off
Determine and set two‑sided printing for all print jobs that specify
Custom [x] as the paper type.
Note: Custom [x] Loading is available only if the custom type is
supported.
Notes:
•Duplex sets two‑sided printing as the default for all print jobs unless one‑sided printing is set from Printing
Preferences or Print dialog.
•If Duplex is selected, then all print jobs are sent through the duplex unit, including one‑sided jobs.
•Off is the factory default setting for all the menus.
Custom Types menu
Use To
Custom Type [x]
Paper
Card Stock
Transparency
Rough/Cotton
Labels
Envelope
Associate a paper or specialty media type with a factory default Custom Type [x]
name or a user‑defined custom name created in the Embedded Web Server.
Notes:
•Paper is the factory default setting for Custom Type [x].
•The custom media type must be supported in the selected tray or feeder
in order to print from that source.
Recycled
Paper
Card Stock
Transparency
Rough/Cotton
Labels
Envelope
Cotton
Specify a paper type when the Recycled setting is selected in other menus.
Notes:
•Paper is the factory default setting.
•The Recycled paper type must be supported in the selected tray or
feeder in order to print from that source.
Understanding the printer menus 59
Universal Setup menu
Use To
Units of Measure
Inches
Millimeters
Identify the units of measure.
Notes:
•Inches is the US factory default setting.
•Millimeters is the international factory default setting.
Portrait Width
3–8.5 inches
76–216 mm
Set the portrait width.
Notes:
•If the width exceeds the maximum, then the printer uses the
maximum width allowed.
•8.5 inches is the US factory default setting. You can increase the
width in 0.01‑inch increments.
•216 mm is the international factory default setting. You can increase
the width in 1‑mm increments.
Portrait Height
3–14.17 inches
76–360 mm
Set the portrait height.
Notes:
•If the height exceeds the maximum, then the printer uses the
maximum height allowed.
•14 inches is the US factory default setting. You can increase the
height in 0.01‑inch increments.
•356 mm is the international factory default setting. You can increase
the height in 1‑mm increments.
Feed Direction
Short Edge
Long Edge
Specify the feed direction if the paper can be loaded in either direction.
Notes:
•Short Edge is the factory default setting.
•Long Edge appears only when the longest edge is shorter than the
maximum width supported in the tray.
Reports menu
Reports menu
Use To
Menu Settings Page Print a report containing information about the paper loaded in trays, installed
memory, total page count, alarms, timeouts, printer control panel language,
TCP/IP address, status of supplies, status of the network connection, and other
information.
Device Statistics Print a report containing printer statistics, such as supply information and details
about printed pages.
Understanding the printer menus 60
Use To
Network Setup Page Print a report containing information about the network printer settings, such as
the TCP/IP address information.
Note: This menu item appears only in network printers or in printers connected
to print servers.
Profiles List Print a list of profiles stored in the printer.
Note: This menu item appears only when LDSS is enabled.
Print Fonts
PCL Fonts
PostScript Fonts
Print a report of all the fonts available for the printer language currently set in
the printer.
Note: A separate list is available for PCL and PostScript emulations.
Print Directory Print a list of all the resources stored in an optional flash memory card.
Notes:
•Job Buffer Size must be set to 100%.
•Make sure the optional flash memory is installed correctly and working
properly.
•This menu item appears only when an optional flash memory card is
installed.
Asset Report Print a report containing printer asset information, such as serial number and
model name.
Network/Ports menu
Active NIC menu
Use To
Active NIC
Auto
[list of available network cards]
Notes:
•Auto is the factory default setting.
•This menu item appears only when an optional network card is installed.
Standard Network or Network [x] menu
Note: Only active ports appear in this menu. All inactive ports are omitted.
Use To
PCL SmartSwitch
On
Off
Set the printer to automatically switch to PCL emulation when a print job requires
it, regardless of the default printer language.
Notes:
•On is the factory default setting.
•If PCL SmartSwitch is disabled, then the printer does not examine incoming
data and it uses the default printer language specified in the Setup menu.
Understanding the printer menus 61
Use To
PS SmartSwitch
On
Off
Set the printer to automatically switch to PS emulation when a print job requires it,
regardless of the default printer language.
Notes:
•On is the factory default setting.
•If PS SmartSwitch is disabled, then the printer does not examine incoming
data and it uses the default printer language specified in the Setup menu.
NPA Mode
Off
Auto
Set the printer to perform the special processing required for bidirectional
communication following the conventions defined by the NPA protocol.
Notes:
•Auto is the factory default setting.
•Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is then updated.
Network Buffer
Disabled
Auto
3KB to [maximum size allowed]
Set the size of the network input buffer.
Notes:
•Auto is the factory default setting.
•The value can be changed in 1‑KB increments.
•The maximum size allowed depends on the amount of memory in the printer,
the size of the other link buffers, and whether Resource Save is set to On or
Off.
•To increase the maximum size range for the Network Buffer, disable or
reduce the size of the parallel, serial, and USB buffers.
•Changing this setting from the printer control panel and then exiting the
menus causes the printer to restart. The menu selection is then updated.
Mac Binary PS
On
Off
Auto
Set the printer to process Macintosh binary PostScript print jobs.
Notes:
•Auto is the factory default setting.
•Off filters print jobs using the standard protocol.
•On processes raw binary PostScript print jobs.
Reports menu
To access the menu, navigate to any of the following:
•Network/Ports menu > Networks/Ports > Standard Network > Standard Network Setup > Reports
•Network/Ports menu > Networks/Ports > Network [x] > Network [x] Setup > Reports
Use To
Print Setup Page Print a report containing information about the network printer settings, such as the TCP/IP address.
Understanding the printer menus 62
Network Card menu
To access the menu, navigate to either of the following:
•Network/Ports > Standard Network > Standard Network Setup > Network Card
•Network/Ports > Network [x] > Network [x] Setup > Network Card
Use To
View Card Status
Connected
Disconnected
View the connection status of the network card.
View Card Speed View the speed of an active network card.
Network Address
UAA
LAA
View the network addresses.
Job Timeout
0–255 seconds
Set the amount of time it takes for a network print job to be canceled.
Notes:
•90 seconds is the factory default setting.
•A setting value of 0 disables the timeout.
•If a value of 1–9 is selected, then the setting is saved as 10.
TCP/IP menu
To access the menu, navigate to any of the following:
•Network/Ports > Standard Network > Standard Network Setup > TCP/IP
•Network/Ports > Network [x] > Network [x] Setup > TCP/IP
Note: This menu is available only in network printers or printers connected to print servers.
Use To
Set Hostname Set the host name.
Notes:
•This setting can be changed only from the Embedded Web Server.
•The host name is limited to 15 characters, and accepts US‑ASCII, alphanumeric
characters and hyphen only.
IP Address View or change the current TCP/IP address.
Note: Manually setting the IP address sets the Enable DHCP and Enable Auto IP
settings to Off. It also sets Enable BOOTP and Enable RARP to Off on systems that
support BOOTP and RARP.
Netmask View or change the current TCP/IP netmask.
Gateway View or change the current TCP/IP gateway.
Enable DHCP
On
Off
Specify the DHCP address and parameter assignment.
Note: On is the factory default setting.
Understanding the printer menus 63
Use To
Enable AutoIP
Yes
No
Specify the Zero Configuration Networking setting.
Note: Yes is the factory default setting.
Enable FTP/TFTP
Yes
No
Enable the built-in FTP server, which lets you send files to the printer using File Transfer
Protocol.
Note: Yes is the factory default setting.
Enable HTTP Server
Yes
No
Enable the built-in Web server (Embedded Web Server). When enabled, the printer
can be monitored and managed remotely using a Web browser.
Note: Yes is the factory default setting.
WINS Server Address View or change the current WINS server address.
Enable DDNS
Yes
No
View or change the current DDNS setting.
Note: Yes is the factory default setting.
Enable mDNS
Yes
No
View or change the current mDNS setting.
Note: Yes is the factory default setting.
DNS Server Address View or change the current DNS server address.
Backup DNS Server Address View or change the backup DNS server addresses.
Backup DNS Server Address 2
Backup DNS Server Address 3
Enable HTTPS
Yes
No
View or change the current HTTPS setting.
Note: Yes is the factory default setting.
IPv6 menu
To access the menu, navigate to any of the following:
•Network/Ports > Standard Network > Standard Network Setup > IPv6
•Network/Ports > Network [x] > Network [x] Setup > IPv6
Note: This menu is available only in network printers or printers connected to print servers.
Use To
Enable IPv6
On
Off
Enable Internet Protocol Version Six (IPv6) in the printer.
IPv6 uses bigger numbers to create IP addresses.
Note: On is the factory default setting.
Auto Configuration
On
Off
Specify whether or not the network adapter accepts the automatic IPv6
address configuration entries provided by a router.
Note: On is the factory default setting.
* These settings can be changed only from the Embedded Web Server.
Understanding the printer menus 64
Use To
Set Hostname*Set the host name.
Note: The host name is limited to 15 characters, and accepts US‑ASCII,
alphanumeric characters and hyphen only.
View Address*View the current IPv6 addresses.
View Router Address*View the current router address.
Enable DHCPv6
On
Off
Enable DHCPv6 in the printer.
Note: On is the factory default setting.
* These settings can be changed only from the Embedded Web Server.
Wireless menu
Note: This menu is available only in printer models connected to a wireless network.
To access the menu, navigate to any of the following:
•Network/Ports > Standard Network > Standard Network Setup >Wireless
•Network/Ports > Network [x] > Network [x] Setup > Wireless
Use To
Wi‑Fi Protected Setup (WPS)
Start Push Button Method
Start PIN Method
Establish a wireless network and enable network security.
Notes:
•Start Push Button Method connects the printer to a wireless
network by pressing buttons on both the printer and the access
point (wireless router) within a given period of time.
•Start PIN Method connects the printer to a wireless network by
using a PIN on the printer and entering it into the wireless settings
of the access point.
Enable/Disable WPS Auto‑detection
Enable
Disable
Automatically detect the connection method that an access point with
WPS uses—Start Push Button Method or Start PIN Method.
Note: Disable is the factory default setting.
Network Mode
Infrastructure
Ad hoc
Specify the network mode.
Notes:
•Ad hoc is the factory default setting. This configures wireless
connection directly between the printer and a computer.
•Infrastructure lets the printer access a network using an access
point.
Compatibility
802.11b/g
802.11b/g/n
Specify the wireless standard for the wireless network.
Note: The 802.11b/g/n is the factory default setting.
Choose Network Select an available network for the printer to use.
View Signal Quality View the quality of the wireless connection.
Understanding the printer menus 65
Use To
View Security Mode View the encryption method for the wireless network.
AppleTalk menu
Note: This menu is available only in printer models connected to a wired network or when an optional network card
is installed.
To access the menu, navigate to any of the following:
•Network/Ports > Standard Network > Standard Network Setup > AppleTalk
•Network/Ports > Network Setup [x] > AppleTalk
Use To
Activate
Yes
No
Enable or disable AppleTalk support.
Note: Yes is the factory default setting.
View Name Show the assigned AppleTalk name.
Note: The name can be changed only from the Embedded Web Server.
View Address Show the assigned AppleTalk address.
Note: The address can be changed only from the Embedded Web Server.
Set Zone
[list of zones available on the network]
Provide a list of AppleTalk zones available on the network.
Note: The factory default setting is the default zone for the network. If no
default zone exists, then the zone marked with an asterisk (*) is the default
setting.
Standard USB menu
Use To
PCL SmartSwitch
On
Off
Set the printer to automatically switch to PCL emulation when a print job received
through a USB port requires it, regardless of the default printer language.
Notes:
•On is the factory default setting.
•When set to Off, the printer does not examine incoming data. The printer uses
PostScript emulation if the PS SmartSwitch is set to On. It uses the default
printer language specified in the Setup menu if the PS SmartSwitch is set to
Off.
PS SmartSwitch
On
Off
Set the printer to automatically switch to PS emulation when a print job received
through a USB port requires it, regardless of the default printer language.
Notes:
•On is the factory default setting.
•When set to Off, the printer does not examine incoming data. The printer uses
PCL emulation if the PCL SmartSwitch is set to On. It uses the default printer
language specified in the Setup menu if the PCL SmartSwitch is set to Off.
Understanding the printer menus 66
Use To
NPA Mode
On
Off
Auto
Set the printer to perform the special processing required for bidirectional
communication following the conventions defined by the NPA protocol.
Notes:
•Auto is the factory default setting. Auto sets the printer to examine data,
determine the format, and then process it appropriately.
•The printer automatically restarts when changing the setting from the printer
control panel. The menu selection is then updated.
USB Buffer
Disabled
Auto
3K to [maximum size allowed]
Set the size of the USB input buffer.
Notes:
•Auto is the factory default setting.
•Disabled turns off job buffering.
•The USB buffer size value can be changed in 1-KB increments.
•The maximum size allowed depends on the amount of memory in the printer,
the size of the other link buffers, and whether Resource Save is set to On or
Off.
•To increase the maximum size range for USB Buffer, disable or reduce the size
of the parallel, serial, and network buffers.
•The printer automatically restarts when the setting is changed from the printer
control panel. The menu selection is then updated.
Mac Binary PS
On
Off
Auto
Set the printer to process Macintosh binary PostScript print jobs.
Notes:
•Auto is the factory default setting.
•On processes raw binary PostScript print jobs.
•Off filters print jobs using the standard protocol.
ENA Address
yyy.yyy.yyy.yyy
Set the network address information for an external print server.
Note: This menu is available only when the printer is attached to an external print
server through the USB port.
ENA Netmask
yyy.yyy.yyy.yyy
Set the netmask information for an external print server.
Note: This menu is available only when the printer is attached to an external print
server through the USB port.
ENA Gateway
yyy.yyy.yyy.yyy
Set the gateway information for an external print server.
Note: This menu is available only when the printer is attached to an external print
server through the USB port.
Understanding the printer menus 67
SMTP Setup menu
Use To
Primary SMTP Gateway Specify SMTP server gateway and port information.
Note: 25 is the default SMTP gateway port.
Primary SMTP Gateway Port
Secondary SMTP Gateway
Secondary SMTP Gateway Port
SMTP Timeout
5–30
Specify the amount of time in seconds before the server stops trying to
send an e‑mail.
Note: 30 seconds is the factory default setting.
Reply Address Specify a reply address of up to 128 characters in the e-mail sent by the
printer.
Use SSL
Disabled
Negotiate
Required
Set the printer to use SSL for increased security when connecting to the
SMTP server.
Notes:
•Disabled is the factory default setting.
•When the Negotiate setting is used, the SMTP server determines if
SSL will be used.
SMTP Server Authentication
No authentication required
Login/Plain
CRAM‑MD5
Digest‑MD5
NTLM
Kerberos 5
Specify the type of user authentication required for printing privileges.
Note: “No authentication required” is the factory default setting.
Device‑Initiated E‑mail
None
Use Device SMTP Credentials
Specify what credentials will be used when communicating to the SMTP
server. Some SMTP servers require credentials to send an e-mail.
Notes:
•None is the factory default setting for Device‑Initiated E‑mail.
•Device Userid and Device Password are used to log in to the SMTP
server when Use Device SMTP Credentials is selected.
Device Userid
Device Password
Understanding the printer menus 68
Security menu
Miscellaneous Security Settings menu
Use To
Login Restrictions
Panel Login Timeout
Remote Login Timeout
Limit the number and time frames of failed login attempts on the printer control
panel before all users are locked out.
Notes:
•Panel Login Timeout specifies how long the printer remains idle on the printer
control panel before automatically logging the user off. Settings range from 1
to 900 seconds. 3 seconds is the factory default setting.
•Remote Login Timeout specifies how long a remote interface remains idle
before automatically logging the user off. Settings range from 1 to 120
minutes. 10 minutes is the factory default setting.
Minimum PIN Length
1–16
Limit the digit length of the PIN.
Note: 4 is the factory default setting.
Security Audit Log menu
Use To
Export Log Let an authorized user export the audit log.
Notes:
•To export the audit log from the printer control panel, connect a flash drive to
the printer.
•You can also download the audit log from the Embedded Web Server, and
then save it on your computer.
Delete Log
Delete now
Do not delete
Specify whether or not audit logs are deleted.
Note: Delete now is the factory default setting.
Configure Log
Enable Audit
Yes
No
Enable Remote Syslog
No
Yes
Remote Syslog Facility
0–23
Severity of events to log
0–7
Specify how and whether or not audit logs are created.
Notes:
•Enable Audit determines if events are recorded in the secure audit log and
remote syslog. No is the factory default setting.
•Enable Remote Syslog determines if logs are sent to a remote server. No is the
factory default setting.
•Remote Syslog Facility determines the value used to send logs to the remote
syslog server. 4 is the factory default setting.
•If the security audit log is activated, then the severity value of each event is
recorded. 4 is the factory default setting.
Understanding the printer menus 69
Set Date and Time menu
Use To
Current Date and Time Show the current date and time settings for the printer.
Manually Set Date and Time
[input date/time]
Enter the date and time.
Notes:
•For touch‑screen printer models, date and time are set in YYYY-MM-DD
HH:MM format.
•Manually setting the date and time sets Enable NTP to No.
•For non‑touch‑screen printer models, the wizard lets you set the date and
time in YYYY‑MM‑DD‑HH:MM format.
Time Zone
[list of time zones]
Select the time zone.
Note: GMT is the factory default setting for non‑touch‑screen printer models.
Automatically observe DST
On
Off
Set the printer to use the applicable daylight saving time (DST) start and end times
associated with the printer Time Zone setting.
Note: On is the factory default setting.
Enable NTP
On
Off
Enable Network Time Protocol, which synchronizes the clocks of devices on a
network.
Notes:
•On is the factory default setting.
•The setting is turned off if you manually set the date and time.
Understanding the printer menus 70
Settings menu
General Settings menu
Use To
Display Language
English
Francais
Deutsch
Italiano
Espanol
Dansk
Norsk
Nederlands
Svenska
Portuguese
Suomi
Russian
Polski
Greek
Magyar
Turkce
Cesky
Simplified Chinese
Traditional Chinese
Korean
Japanese
Set the language of the text appearing on the display.
Note: Not all languages are available for all printers, and you may
need to install special hardware for those languages to appear.
Show Supply Estimates
Show estimates
Do not show estimates
Display the estimates of the supplies on the control panel,
Embedded Web Server, menu settings, and the device statistics
reports.
Eco-Mode
Off
Energy
Energy/Paper
Paper
Minimize the use of energy, paper, or specialty media.
Notes:
•Off is the factory default setting. This resets the printer to its
factory default settings.
•Energy minimizes the power used by the printer.
•Energy/Paper minimizes the use of power and of paper and
specialty media.
•Paper minimizes the amount of paper and specialty media
needed for a print job.
Understanding the printer menus 71
Use To
Quiet Mode
Off
On
Reduce the amount of noise produced by the printer.
Notes:
•Off is the factory default setting. This supports the
performance specifications for your printer.
•On configures the printer to produce as little noise as
possible. This is best suited for printing text and line art.
•Selecting Photo from the printer driver may disable Quiet
Mode and provide better print quality and full speed
printing.
Run Initial setup
Yes
No
Instruct the printer to run the setup wizard.
Notes:
•Yes is the factory default setting.
•After completing the setup wizard by selecting Done at the
Country select screen, the default becomes No.
Paper Sizes
US
Metric
Specify the unit of measurement for paper sizes.
Notes:
•US is the factory default setting.
•The initial setting is determined by your country or region
selection in the initial setup wizard.
Home screen customization
Change Language
Search Held Jobs
Held Jobs
Change the icons and buttons that appear on the home screen.
For each icon or button, select from the following options:
Display
Do not display
Notes:
•Display is the factory default setting for Search Held Jobs and
Held Jobs.
•Do not display is the factory default setting for Change
language.
Timeouts
Sleep Mode
Disabled
1–120 min
Set the amount of time the printer waits after a job is printed before
it goes into a reduced power state.
Notes:
•30 min is the factory default setting.
•Disabled appears only when Energy Conserve is set to Off.
•The maximum amount of time is increased to 240 minutes
when Energy Conserve is set to Off.
•Lower settings conserve more energy, but may require
longer warm‑up times.
•Select a high setting if the printer is in constant use. Under
most circumstances, this keeps the printer ready to print
with minimum warm‑up time.
Understanding the printer menus 72
Use To
Timeouts
Print with Display Off
Allow printing with display off
Display on when printing
Print a job with the display turned off.
Note: Display on when printing is the factory default setting.
Timeouts
Hibernate Timeout
Disabled
1 hour
2 hours
3 hours
6 hours
1 day
2 days
3 days
1 week
2 weeks
1 month
Set the amount of time the printer waits before it enters Hibernate
mode.
Note: 3 days is the factory default setting.
Timeouts
Hibernate Timeout on Connection
Hibernate
Do Not Hibernate
Set the printer to Hibernate mode even if there is an active Ethernet
connection.
Note: Do Not Hibernate is the factory default setting.
Timeouts
Screen Timeout
15–300 sec
Set the amount of time in seconds the printer waits before
returning the display to the ready state.
Note: 30 sec is the factory default setting.
Timeouts
Print Timeout
Disabled
1–255 sec
Set the amount of time in seconds the printer waits to receive an
end‑of‑job message before canceling the remainder of the print
job.
Notes:
•90 sec is the factory default setting.
•When the timer expires, any partially printed page still in the
printer is printed.
•Print Timeout is available only when using PCL emulation.
This setting has no effect on PostScript emulation print jobs.
Timeouts
Wait Timeout
Disabled
15–65535 sec
Set the amount of time in seconds the printer waits for additional
data before canceling a print job.
Notes:
•40 sec is the factory default setting.
•This setting has no effect on PCL emulation print jobs.
Understanding the printer menus 73
Use To
Error Recovery
Auto Reboot
Reboot when idle
Reboot always
Reboot never
Max Auto Reboots
1–20
Set the printer to restart when an error is encountered.
Notes:
•Reboot always is the factory default setting for Auto Reboot.
•2 is the factory default setting for Max Auto Reboots.
•If the printer performs the same number of automatic
reboots that is set in the printer within a certain amount of
time, then the printer shows the applicable error instead of
rebooting.
Print Recovery
Auto Continue
Disabled
5–255 sec
Let the printer automatically continue printing from certain offline
situations when these are not resolved within the specified time
period.
Note: Disabled is the factory default setting.
Print Recovery
Jam Recovery
On
Off
Auto
Specify whether the printer reprints jammed pages.
Notes:
•Auto is the factory default setting. The printer reprints
jammed pages unless the memory required to hold the
pages is needed for other printer tasks.
•On sets the printer to always reprint jammed pages.
•Off sets the printer to never reprint jammed pages.
Print Recovery
Jam Assist
On
Off
Notes:
•On is the factory default setting. This sets the printer to
automatically dump or partially printed pages to the
standard bin after a jammed page has been cleared.
•Off requires the user to remove all pages from all possible
jam locations.
Print Recovery
Page Protect
Off
On
Let the printer successfully print a page that may not have printed
otherwise.
Notes:
•Off is the factory default setting. This prints a partial page
when there is not enough memory to print the whole page.
•On sets the printer to process the whole page so that the
entire page prints.
Press Sleep Button
Do nothing
Sleep
Hibernate
Determine how the printer, while in idle state, reacts to a short
press of the Sleep button.
Note: Sleep is the factory default setting.
Press and Hold Sleep Button
Do nothing
Sleep
Hibernate
Determine how the printer, while in idle state, reacts to a long press
of the Sleep button.
Note: Do nothing is the factory default setting.
Understanding the printer menus 74
Use To
Factory Defaults
Do Not Restore
Restore Now
Return the printer settings to the factory default settings.
Notes:
•Do Not Restore is the factory default setting. This keeps the
user‑defined settings.
•All downloads stored in the RAM are deleted. Downloads
stored in the flash memory are not affected.
Custom Home Message
Off
IP Address
Hostname
Contact Name
Location
Zero Configuration Name
Custom Text [x]
Select a custom home message that appears as an alternating
display of the printer status.
Note: Off is the factory default setting.
Setup menu
Use To
Printer Language
PCL Emulation
PS Emulation
Set the default printer language.
Notes:
•PCL Emulation is the factory default setting.
•PostScript emulation uses a PostScript interpreter for
processing print jobs.
•PCL Emulation uses a PCL interpreter for processing print
jobs.
•Setting a printer language default does not prevent a
software program from sending print jobs that use another
printer language.
Print Area
Normal
Whole Page
Set the logical and physical printable area.
Notes:
•Normal is the factory default setting. When attempting to
print data on the non‑printable area defined by the Normal
setting, the printer clips the image at the boundary.
•Whole Page allows the image to be moved into the
non‑printable area defined by the Normal setting. This
setting affects only pages printed using a PCL 5 interpreter
and has no effect on pages printed using the PCL XL or
PostScript interpreter.
Understanding the printer menus 75
Use To
Download Target
RAM
Flash
Set the storage location for downloads.
Notes:
•RAM is the factory default setting. Storing downloads in the
RAM is temporary.
•Storing downloads in a flash memory places them in
permanent storage. Downloads remain in the flash memory
even when the printer is turned off.
•This menu item appears only when an optional flash memory
is installed.
Resource Save
On
Off
Specify how the printer handles temporary downloads, such as
fonts and macros stored in the RAM, when the printer receives a
print job that requires more than the available memory.
Notes:
•Off is the factory default setting. Off sets the printer to retain
downloads only until memory is needed. Downloads are
deleted in order to process print jobs.
•On sets the printer to retain downloads during language
changes and printer resets. If the printer runs out of
memory, then Memory Full [38] appears on the
printer display, but downloads are not deleted.
Finishing menu
Use To
Sides (Duplex)
1 sided
2 sided
Specify whether two‑sided (duplex) printing is set as the default for all print jobs.
Notes:
•“1 sided” is the factory default setting.
•You can set two‑sided printing from the printer software.
For Windows users:
Click File > Print, and then click Properties, Preferences, Options, or Setup.
For Macintosh users:
Choose File > Print, and then adjust the settings from the Print dialog and pop‑up
menus.
Duplex Binding
Long Edge
Short Edge
Define binding for duplexed pages in relation to page orientation.
Notes:
•Long Edge is the factory default setting. This assumes binding along the long
edge of the page (left edge for portrait and top edge for landscape).
•Short Edge assumes binding along the short edge of the page (top edge for
portrait and left edge for landscape).
Copies
1–999
Specify the default number of copies for each print job.
Note: 1 is the factory default setting.
Understanding the printer menus 76
Use To
Blank Pages
Do Not Print
Print
Specify whether blank pages are inserted in a print job.
Note: Do Not Print is the factory default setting.
Collate
(1,1,1) (2,2,2)
(1,2,3) (1,2,3)
Stack the pages of a print job in sequence when printing multiple copies.
Note: “(1,2,3) (1,2,3)” is the factory default setting.
Separator Sheets
Off
Between Copies
Between Jobs
Between Pages
Specify whether blank separator sheets are inserted.
Notes:
•Off is the factory default setting.
•Between Copies inserts a blank sheet between each copy of a print job if
Collate is set to “(1,2,3) (1,2,3).” If Collate is set to “(1,1,1) (2,2,2),” then a
blank page is inserted between each set of printed pages, such as after all
page 1's and after all page 2's.
•Between Jobs inserts a blank sheet between print jobs.
•Between Pages inserts a blank sheet between each page of a print job. This
setting is useful when printing transparencies or when inserting blank pages in
a document.
Separator Source
Tray [x]
Multipurpose Feeder
Specify the paper source for the separator sheet.
Note: Tray 1 (standard tray) is the factory default setting.
Paper Saver
Off
2‑Up
3‑Up
4‑Up
6‑Up
9‑Up
12‑Up
16‑Up
Print multiple pages on a single sheet of paper.
Notes:
•Off is the factory default setting.
•When the number of pages per sheet is selected, each page is scaled so that
the number of pages you want can be displayed on the sheet.
Paper Saver Ordering
Horizontal
Reverse Horizontal
Reverse Vertical
Vertical
Specify the order in which pages are printed on a single sheet when using Paper Saver.
Notes:
•Horizontal is the factory default setting.
•Positioning depends on the number of page images and whether they are in
portrait or in landscape orientation.
Paper Saver Orientation
Auto
Landscape
Portrait
Specify the orientation in which pages are printed on a single sheet.
Note: Auto is the factory default setting. The printer chooses between portrait and
landscape.
Paper Saver Border
None
Solid
Print a border when using Paper Saver.
Note: None is the factory default setting.
Understanding the printer menus 77
Quality menu
Use To
Print Resolution
300 dpi
600 dpi
1200 dpi
1200 Image Q
2400 Image Q
Specify the printed output resolution in dots per inch.
Note: 600 dpi is the factory default setting.
Pixel Boost
Off
Fonts
Horizontally
Vertically
Both directions
Isolated
Enable more pixels to print in clusters for clarity, in order to enhance images horizontally
or vertically, or to enhance fonts.
Note: Off is the factory default setting.
Toner Darkness
1–10
Lighten or darken the printed output.
Notes:
•8 is the factory default setting.
•Selecting a smaller number can help conserve toner.
Enhance Fine Lines
On
Off
Enable a print mode preferable for files such as architectural drawings, maps, electrical
circuit diagrams, and flow charts.
Notes:
•Off is the factory default setting.
•You can set this option from the printer software. For Windows users, click File >
Print, and then click Properties, Preferences, Options, or Setup. For Macintosh
users, choose File > Print, and then adjust the settings from the Print dialog and
pop‑up menus.
•To set this option using the Embedded Web Server, type the network printer IP
address in the Web browser address field.
Gray Correction
Auto
Off
Automatically adjust the contrast enhancement applied to images.
Note: Auto is the factory default setting.
Brightness
‑6 to 6
Adjust the printed output either by lightening or darkening it. You can conserve toner
by lightening the output.
Note: 0 is the factory default setting.
Contrast
0–5
Adjust the contrast of printed objects.
Note: 0 is the factory default setting.
Understanding the printer menus 78
Utilities menu
Use To
Format Flash
Yes
No
Format the flash memory.
Warning—Potential Damage: Do not turn off the printer while the flash memory is
being formatted.
Notes:
•Flash memory refers to the memory added by installing a flash memory card in
the printer.
•Yes deletes all data stored in the flash memory.
•No cancels the format request.
•The flash memory option card must not be read/write‑ or write‑protected.
•This menu item appears only when a non‑defective flash memory card is
installed.
Hex Trace Assist in isolating the source of a print job problem.
Notes:
•When activated, all data sent to the printer is printed in hexadecimal and
character representation, and control codes are not executed.
•To exit or deactivate Hex Trace, turn off or reset the printer.
Coverage Estimator
Off
On
Provide an estimate of the percentage coverage of toner on a page. The estimate is
printed on a separate page at the end of each print job.
Note: Off is the factory default setting.
XPS menu
Use To
Print Error Pages
Off
On
Print a page containing information on errors, including XML markup errors.
Note: Off is the factory default setting.
PDF menu
Use To
Scale to Fit
Yes
No
Scale page content to fit the selected paper size.
Note: No is the factory default setting.
Annotations
Do Not Print
Print
Print annotations in a PDF.
Note: Do Not Print is the factory default setting.
Understanding the printer menus 79
PostScript menu
Use To
Print PS Error
On
Off
Print a page containing the PostScript error.
Note: Off is the factory default setting.
Lock PS Startup Mode
On
Off
Disable the SysStart file.
Note: Off is the factory default setting.
Font Priority
Resident
Flash
Establish the font search order.
Notes:
•Resident is the factory default setting.
•This menu item is available only when a formatted flash memory card is
installed and operating properly.
•Make sure the flash memory card is not read/write‑, write‑, or
password‑protected.
•Job Buffer Size must not be set to 100%.
PCL Emul menu
Use To
Font Source
Resident
Download
Flash
All
Specify the set of fonts used by the Font Name menu.
Notes:
•“Resident” is the factory default setting. “Resident” shows the factory
default set of fonts downloaded in the RAM.
•“Download” shows all the fonts downloaded in the RAM.
•“Flash” shows all fonts resident in that option. The optional flash memory
card must be properly formatted and cannot be read/write‑, write‑, or
password‑protected.
•“All” shows all fonts available to any option.
Font Name
Courier 10
Identify a specific font and the option where it is stored.
Note: Courier 10 is the factory default setting. Courier 10 shows the font
name, font ID, and the storage location in the printer. The font source
abbreviation is R for Resident, F for Flash, and D for Download.
Symbol Set
10U PC‑8
12U PC‑850
Specify the symbol set for each font name.
Notes:
•10U PC‑8 is the US factory default setting. 12U PC‑850 is the international
factory default setting.
•A symbol set is a set of alphabetic and numeric characters, punctuation,
and special symbols. Symbol sets support the different languages or
specific program, such as math symbols for scientific text. Only the
supported symbol sets are shown.
Understanding the printer menus 80
Use To
PCL Emulation Settings
Point Size
1.00–1008.00
Change the point size for scalable typographic fonts.
Notes:
•12 is the factory default setting.
•Point size refers to the height of the characters in the font. One point
equals approximately 0.014 inch.
•Point sizes can be increased or decreased in 0.25‑point increments.
PCL Emulation Settings
Pitch
0.08–100
Specify the font pitch for scalable monospaced fonts.
Notes:
•10 is the factory default setting.
•Pitch refers to the number of fixed‑space characters per inch (cpi).
•Pitch can be increased or decreased in 0.01‑cpi increments.
•For nonscalable monospaced fonts, the pitch appears on the display but it
cannot be changed.
PCL Emulation Settings
Orientation
Portrait
Landscape
Specify the orientation of text and graphics on the page.
Notes:
•Portrait is the factory default setting. Portrait prints text and graphics
parallel to the short edge of the page.
•Landscape prints text and graphics parallel to the long edge of the page.
PCL Emulation Settings
Lines per Page
1–255
Specify the number of lines that print on each page.
Notes:
•60 is the US factory default setting. 64 is the international default setting.
•The printer sets the amount of space between each line based on the
Lines per Page, Paper Size, and Orientation settings. Select the Paper Size
and Orientation you want before setting Lines per Page.
PCL Emulation Settings
A4 Width
198 mm
203 mm
Set the printer to print on A4‑size paper.
Notes:
•198 mm is the factory default setting.
•The 203‑mm setting sets the width of the page to allow printing of eighty
10‑pitch characters.
PCL Emulation Settings
Auto CR after LF
On
Off
Specify whether the printer automatically performs a carriage return (CR) after
a line feed (LF) control command.
Note: Off is the factory default setting.
PCL Emulation Settings
Auto LF after CR
On
Off
Specify whether the printer automatically performs a line feed (LF) after a
carriage return (CR) control command.
Note: Off is the factory default setting.
Understanding the printer menus 81
Use To
Tray Renumber
Assign MP Feeder
Off
None
0–199
Assign Tray [x]
Off
None
0–199
Assign Manual Paper
Off
None
0–199
Assign Manual Env
Off
None
0–199
Configure the printer to work with printer software or programs that use
different source assignments for trays and feeders.
Notes:
•Off is the factory default setting.
•None cannot be selected. It is only displayed when it is selected by the
PCL 5 interpreter. It also ignores the Select Paper Feed command.
•0–199 allows a custom setting to be assigned.
Tray Renumber
View Factory Defaults
MPF Default = 8
T1 Default = 1
T1 Default = 4
T1 Default = 5
T1 Default = 20
T1 Default = 21
Env Default = 6
MPaper Default = 2
MEnv Default = 3
Display the factory default setting assigned to each tray or feeder.
Tray Renumber
Restore Defaults
Yes
No
Restore all tray and feeder assignments to their factory default settings.
Understanding the printer menus 82
HTML menu
Use To
Font Name
Albertus MT
Antique Olive
Apple Chancery
Arial MT
Avant Garde
Bodoni
Bookman
Chicago
Clarendon
Cooper Black
Copperplate
Coronet
Courier
Eurostile
Garamond
Geneva
Gill Sans
Goudy
Helvetica
Hoefler Text
Intl CG Times
Intl Courier
Intl Univers
Joanna MT
Letter Gothic
Lubalin Graph
Marigold
MonaLisa Recut
Monaco
New CenturySbk
New York
Optima
Oxford
Palatino
StempelGaramond
Taffy
Times
TimesNewRoman
Univers
Zapf Chancery
NewSansMTCS
NewSansMTCT
New SansMTJA
NewSansMTKO
Set the default font for HTML documents.
Note: The Times font is used in HTML documents that do not
specify a font.
Use To
Font Size
1–255 pt
Set the default font size for HTML documents.
Notes:
•12 pt is the factory default setting.
•Font size can be increased in 1‑point increments.
Scale
1–400%
Scale the default font for HTML documents.
Notes:
•100% is the factory default setting.
•Scaling can be increased in 1% increments.
Orientation
Portrait
Landscape
Set the page orientation for HTML documents.
Note: Portrait is the factory default setting.
Understanding the printer menus 83
Use To
Margin Size
8–255 mm
Set the page margin for HTML documents.
Notes:
•19 mm is the factory default setting.
•Margin size can be increased in 1‑mm increments.
Backgrounds
Do Not Print
Print
Specify whether to print backgrounds on HTML documents.
Note: Print is the factory default setting.
Image menu
Use To
Auto Fit
On
Off
Select the optimal paper size, scaling, and orientation.
Note: On is the factory default setting. It overrides scaling and orientation settings
for some images.
Invert
On
Off
Invert bitonal monochrome images.
Notes:
•Off is the factory default setting.
•This setting does not apply to GIF or JPEG images.
Scaling
Anchor Top Left
Best Fit
Anchor Center
Fit Height/Width
Fit Height
Fit Width
Scale the image to fit the selected paper size.
Notes:
•Best Fit is the factory default setting.
•When Auto Fit is set to On, Scaling is automatically set to Best Fit.
Orientation
Portrait
Landscape
Reverse Portrait
Reverse Landscape
Set the image orientation.
Note: Portrait is the factory default setting.
Help menu
The Help menu consists of a series of Help pages that are stored in the printer as PDFs. They contain information about
using the printer and performing printing tasks.
English, French, German, and Spanish translations are stored in the printer.
Menu item Description
Print All Guides Prints all the guides
Print Quality Provides information about solving print quality issues
Understanding the printer menus 84
Menu item Description
Printing Guide Provides information about loading paper and other specialty media
Media Guide Provides a list of the paper sizes supported in trays and feeders
Print Defects Guide Provides information about resolving print defects
Menu Map Provides a list of the printer control panel menus and settings
Information Guide Provides help in locating additional information
Connection Guide Provides information about connecting the printer locally (USB) or to a network
Moving Guide Provides instructions for safely moving the printer
Understanding the printer menus 85
Saving money and the environment
Saving paper and toner
Studies show that as much as 80% of the carbon footprint of a printer is related to paper usage. You can significantly
reduce your carbon footprint by using recycled paper and the following printing suggestions, such as printing on both
sides of the paper and printing multiple pages on one side of a single sheet of paper.
For information on how you can quickly save paper and energy using one printer setting, see “Using Eco‑mode” on
page 87.
Using recycled paper
As an environmentally conscious company, we support the use of recycled office paper produced specifically for use
in laser printers. For more information on recycled papers that work well with your printer, see “Using recycled paper
and other office papers” on page 39.
Conserving supplies
Use both sides of the paper
If your printer model supports two‑sided printing, then you can control whether print appears on one or two sides of
the paper.
Notes:
•Two-sided printing is the default setting in the print driver.
•For a complete list of supported products and countries, go to www.dell.com/support.
Place multiple pages on one sheet of paper
You can print up to 16 consecutive pages of a multiple‑page document onto one side of a single sheet of paper by
setting multiple page printing (N‑Up) for the print job.
Check your first draft for accuracy
Before printing or making multiple copies of a document:
•Use the preview feature to see how the document looks like before you print it.
•Print one copy of the document to check its content and format for accuracy.
Avoid paper jams
Correctly set the paper type and size to avoid paper jams. For more information, see “Avoiding jams” on page 103.
Saving money and the environment 86
Saving energy
Using Eco‑mode
Use Eco‑Mode to quickly select one or more ways to reduce your printer's environmental impact.
1From the printer control panel, navigate to:
> Settings > Settings > > General Settings > > Eco‑Mode > > select the setting you want
Use To
Off Use the factory default settings for all settings associated with Eco‑Mode. This setting supports the
performance specifications for your printer.
Energy Reduce energy use, especially when the printer is idle.
•Printer engine motors do not start until a job is ready to print. You may notice a short delay before
the first page is printed.
•The printer enters Sleep mode after one minute of inactivity.
Energy/Paper Use all the settings associated with Energy and Paper modes.
Plain Paper •Enable the automatic two‑sided (duplex) feature.
•Turn off print log features.
2Press .
Reducing printer noise
Use Quiet mode to reduce the printer noise.
1From the printer control panel, navigate to:
> Settings > Settings > > General Settings > > Quiet Mode >
2Select a setting you want.
Use To
On Reduce printer noise.
Notes:
•Print jobs will process at a reduced speed.
•Printer engine motors do not start until a document
is ready to print. There is a short delay before the
first page is printed.
Off Use factory default settings.
Note: This setting supports the performance
specifications of the printer.
3Press .
Saving money and the environment 87
Adjusting Sleep mode
To save energy, decrease the number of minutes the printer waits before it enters Sleep mode.
Available settings range from 1–180 minutes. The factory default setting is 30 minutes.
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Reports menu. The IP address appears as
four sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > General Settings > Timeouts.
3In the Sleep Mode field, enter the number of minutes you want the printer to wait before it enters Sleep mode.
4Click Submit.
Using the printer control panel
1From the printer control panel, navigate to:
> Settings > Settings > > General Settings > > Timeouts > > Sleep Mode >
2Press the left or right arrow button to select the number of minutes you want the printer to wait before it enters
Sleep mode.
3Press .
Using Hibernate mode
Hibernate is an ultra‑low‑power saving mode.
Notes:
•Three days is the default amount of time before the printer enters Hibernate mode.
•Make sure to wake the printer from Hibernate mode before sending a print job. A hard reset or a long press of
the Sleep button wakes the printer from Hibernate mode.
•If the printer is in Hibernate mode, then the Embedded Web Server is disabled.
1From the control panel, navigate to:
> Settings > > Settings > > General Settings >
2Select Press Sleep Button or Press and Hold Sleep Button, and then press .
3Press Hibernate > .
Saving money and the environment 88
Adjusting the brightness of the printer display
To save energy, or if you have trouble reading the display, adjust its brightness settings.
Using the Embedded Web Server
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > General Settings.
3In the Screen Brightness field, enter the brightness percentage you want for the display.
4Click Submit.
Recycling
Recycling Dell products
To return Dell products for recycling:
1Visit our Web site at www.dell.com/recycle.
2Select your country or region.
3Follow the instructions on the computer screen.
Saving money and the environment 89
Securing the printer
Using the security lock feature
The printer is equipped with a security lock feature. Attach a security lock compatible with most laptop computers in
the location shown to secure the printer in place.
Statement of Volatility
Your printer contains various types of memory that can store device and network settings, and user data.
Type of memory Description
Volatile memory Your printer uses standard random access memory (RAM) to
temporarily buffer user data during simple print jobs.
Non-volatile memory Your printer may use two forms of non-volatile memory:
EEPROM and NAND (flash memory). Both types are used to
store operating system, device settings, and network
information.
Erase the content of any installed printer memory in the following circumstances:
•The printer is being decommissioned.
•The printer is being moved to a different department or location.
•The printer is being serviced by someone from outside your organization.
•The printer is being removed from your premises for service.
•The printer is being sold to another organization.
Securing the printer 90
Erasing volatile memory
The volatile memory (RAM) installed in your printer requires a power source to retain information. To erase the buffered
data, turn off the printer.
Erasing non‑volatile memory
Erase individual settings, device and network settings, security settings, and embedded solutions by following these
steps:
1Turn off the printer.
2Hold down 2 and 6 on the keypad while turning the printer on. Release the buttons only when the screen with the
progress bar appears.
The printer performs a power-on sequence, and then the Configuration menu appears. When the printer is fully
turned on, a list of functions appears on the printer display.
3Press the up or down arrow button until Wipe All Settings appears.
The printer will restart several times during this process.
Note: Wipe All Settings securely removes device settings, solutions, jobs, and passwords from the printer
memory.
4Navigate to:
Back > Exit Config Menu
The printer will perform a power‑on reset, and then return to normal operating mode.
Finding printer security information
In high-security environments, you may need to take additional steps to make sure that confidential data stored in the
printer cannot be accessed by unauthorized persons. For more information, check the “Embedded Web Server —
Security” Administrator’s Guide from your printer CD or from our Web site, or contact the place where you purchased
the printer.
Securing the printer 91
Maintaining the printer
Periodically, certain tasks are required to maintain the optimum performance of your printer.
Warning—Potential Damage: Failure to replace parts and supplies when directed may cause damage to your printer
or prevent the printer from performing optimally.
Cleaning the printer
Cleaning the printer
Note: You may need to perform this task after every few months.
Warning—Potential Damage: Damage to the printer caused by improper handling is not covered by the printer
warranty.
1Make sure that the printer is turned off and unplugged from the electrical outlet.
CAUTION—SHOCK HAZARD: To avoid the risk of electrical shock when cleaning the exterior of the printer,
unplug the power cord from the electrical outlet and disconnect all cables from the printer before
proceeding.
2Remove paper from the standard bin and multipurpose feeder.
3Remove any dust, lint, and pieces of paper around the printer using a soft brush or vacuum.
4Dampen a clean, lint-free cloth with water, and use it to wipe the outside of the printer.
Warning—Potential Damage: Do not use household cleaners or detergents to prevent damage to the exterior
of the printer.
5Make sure all areas of the printer are dry before sending a new print job.
Checking the status of parts and supplies
A message appears on the printer display when a replacement supply item is needed or when maintenance is required.
Checking the status of parts and supplies on the printer control panel
From the printer control panel, navigate to:
> Status/Supplies > View Supplies >
Checking the status of parts and supplies from the Embedded Web Server
Note: Make sure the computer and printer are connected to the same network.
1Open a Web browser, and then type the printer IP address in the address field.
Maintaining the printer 92
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Device Status > More Details.
Estimated number of remaining pages
The estimated number of remaining pages is based on the recent printing history of the printer. Its accuracy may
vary significantly and is dependent on many factors, such as actual document content, print quality settings, and
other printer settings.
The accuracy of the estimated number of remaining pages may decrease when the actual printing consumption is
different from the historical printing consumption. Consider the variable level of accuracy before purchasing or replacing
supplies based on the estimate. Until an adequate print history is obtained on the printer, initial estimates assume
future supplies consumption based on the International Organization for Standardization* test methods and page
content.
* Average continuous black declared cartridge yield in accordance with ISO/IEC 19752.
Ordering supplies
Ordering supplies using the Supplies Ordering Utility
1Use the Search command on the Start menu to locate Status Monitor Center.
2Open the application, and then click Order Supplies.
Ordering supplies using Printer Home
1Use the Search command on the Start menu to locate Dell Printer Home.
2Open the application, and then click Maintenance > Order supplies.
Storing supplies
Choose a cool, clean storage area for the printer supplies. Store supplies right side up in their original packing until you
are ready to use them.
Do not expose supplies to:
•Direct sunlight
•Temperatures above 35°C (95°F)
•High humidity above 80%
•Salty air
•Corrosive gases
•Heavy dust
Maintaining the printer 93
Replacing supplies
Replacing the toner cartridge

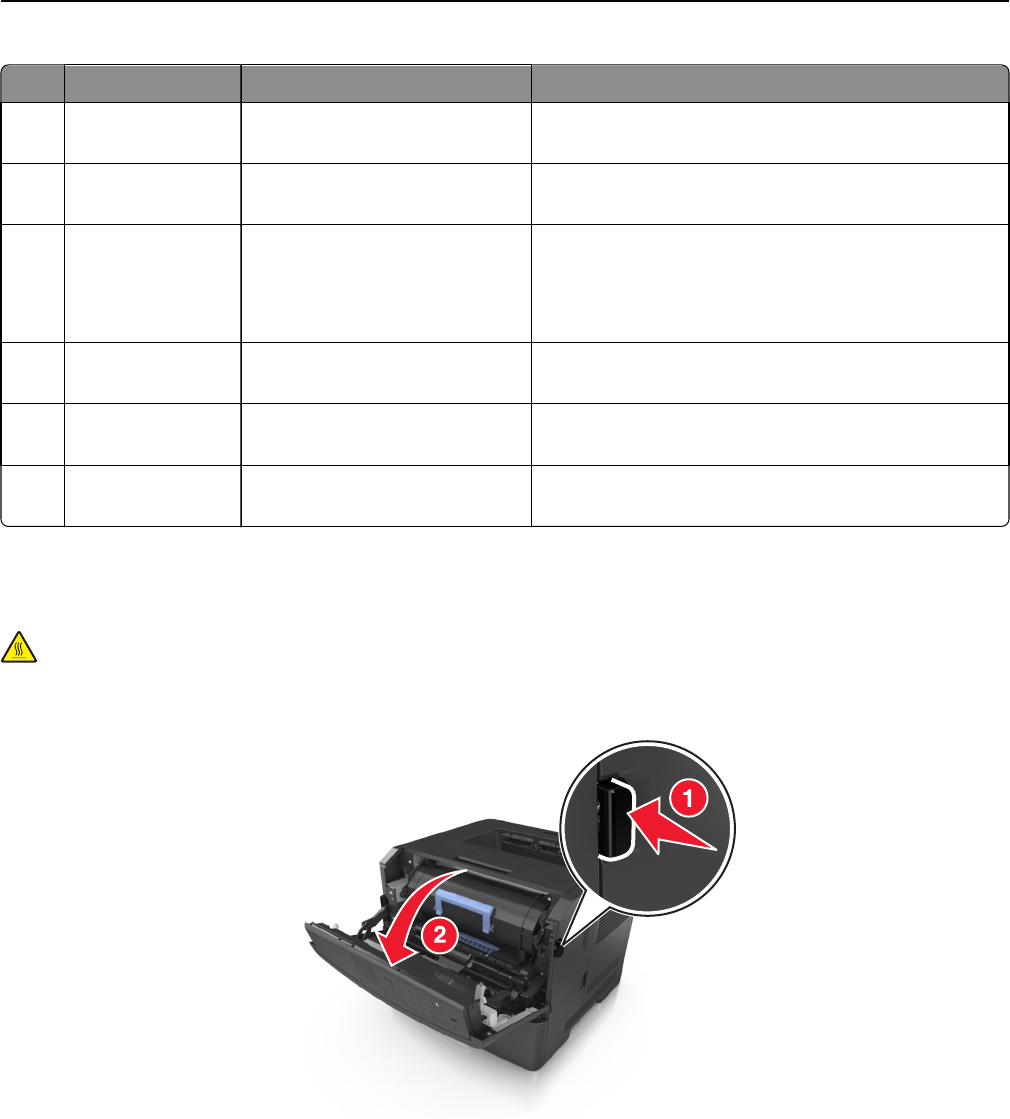

1Press the button on the right side of the printer, and then open the front door.
2Pull the toner cartridge out using the handle.
3Unpack the toner cartridge, and then remove all packing materials.
Maintaining the printer 94

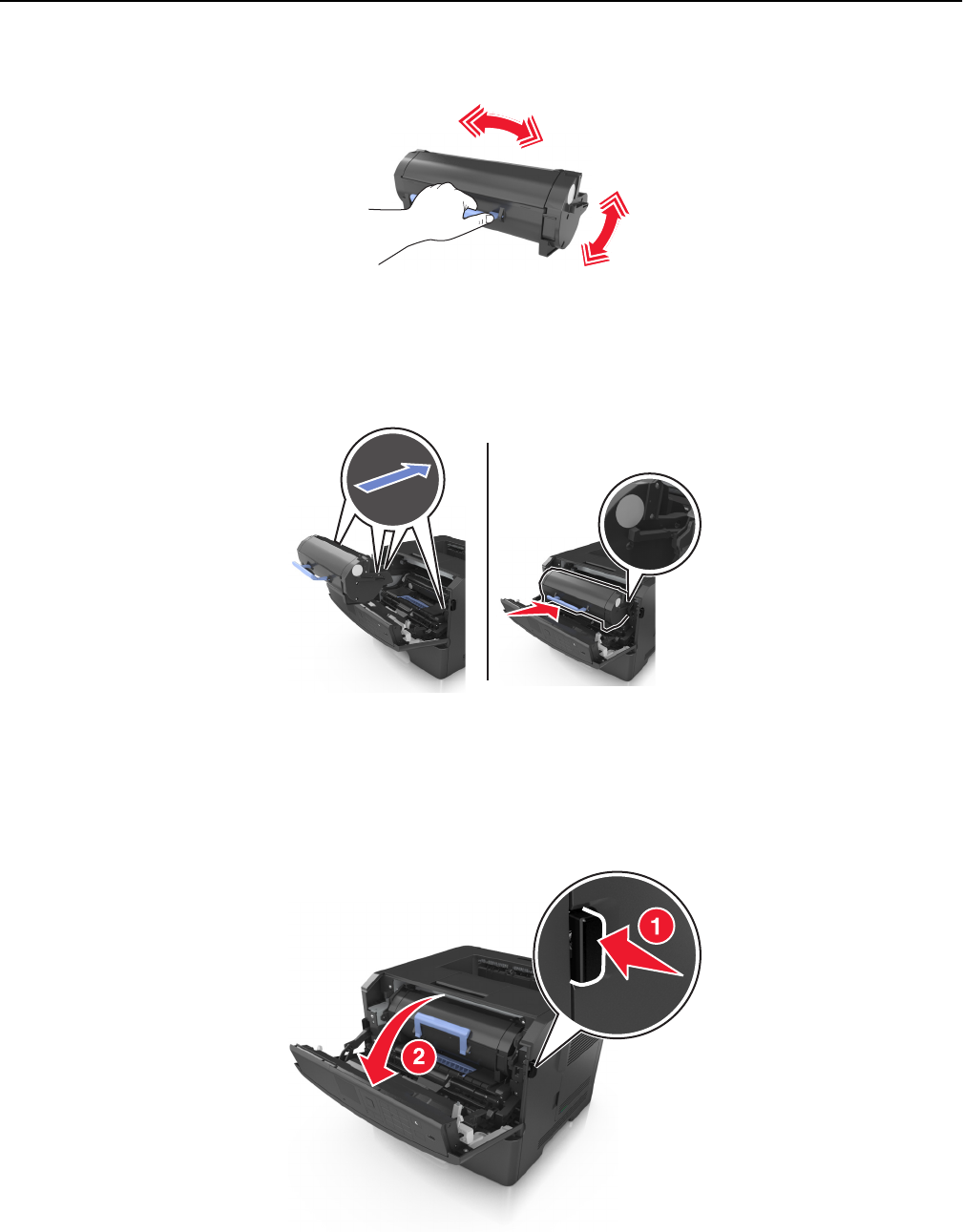

4Shake the new cartridge to redistribute the toner.
5Insert the toner cartridge into the printer by aligning the side rails of the cartridge with the arrows on the side rails
inside the printer.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
6Close the front door.

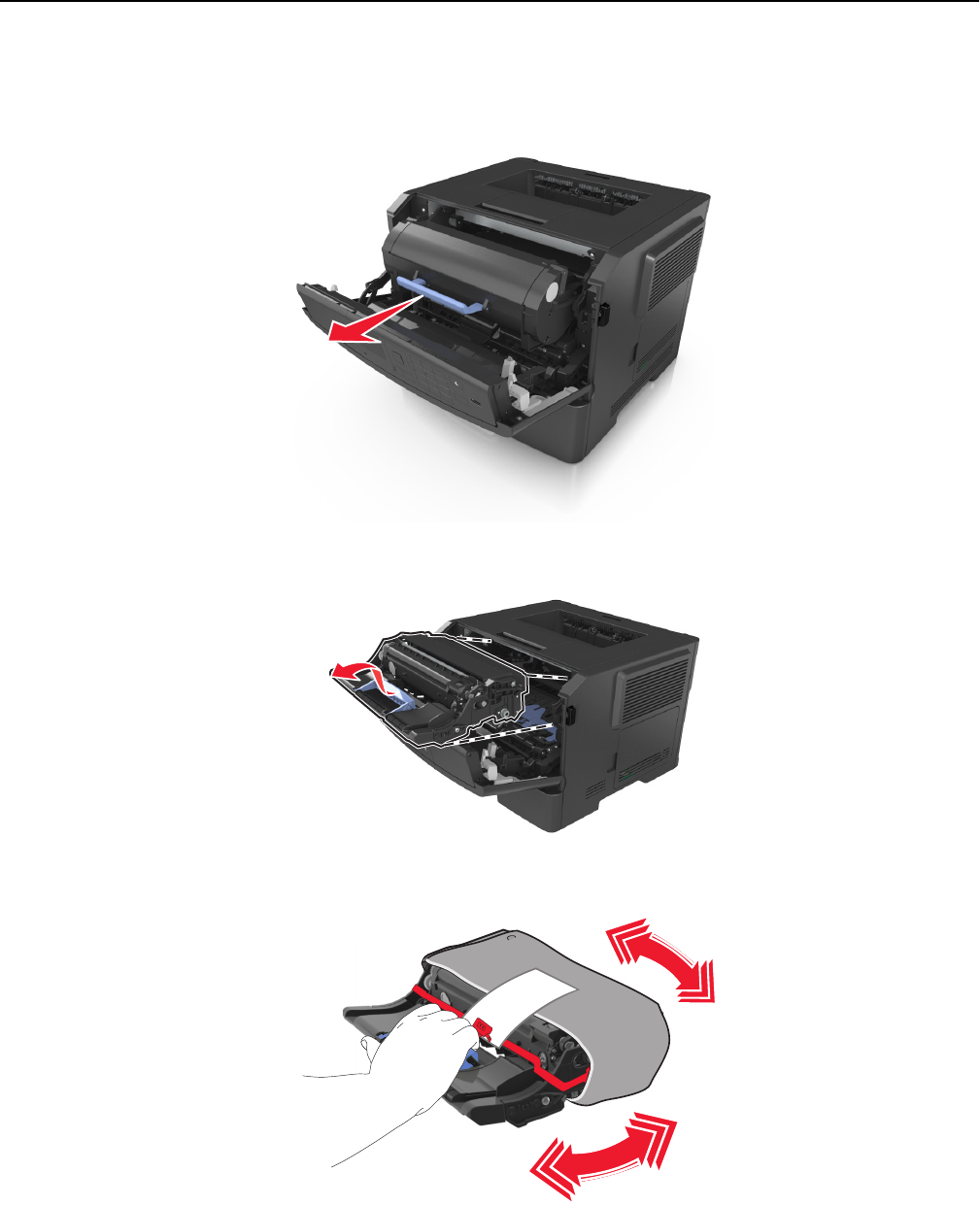

Replacing the imaging unit
1Press the button on the right side of the printer, and then open the front door.
Maintaining the printer 95
2Pull the toner cartridge out using the handle.
3Lift the blue handle, and then pull the imaging unit out of the printer.
4Unpack the new imaging unit, and then shake it.
5Remove all packing materials from the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
Maintaining the printer 96
Warning—Potential Damage: Do not touch the photoconductor drum. Doing so may affect the print quality of
future print jobs.
6Insert the imaging unit into the printer by aligning the arrows on the side rails of the imaging unit with the arrows
on the side rails inside the printer.
7Insert the toner cartridge into the printer by aligning the side rails of the cartridge with the arrows on the side rails
inside the printer.
8Close the front door.
Maintaining the printer 97
Moving the printer
Before moving the printer
CAUTION—POTENTIAL INJURY: Before moving the printer, follow these guidelines to avoid personal injury or
printer damage:
•Turn the printer off using the power switch, and then unplug the power cord from the electrical outlet.
•Disconnect all cords and cables from the printer before moving it.
•If an optional tray is installed, then remove it from the printer. To remove the optional tray, slide the latch on the
right side of the tray toward the front of the tray until it clicks into place.
•Use the handholds located on both sides of the printer to lift it.
•Make sure your fingers are not under the printer when you set it down.
•Before setting up the printer, make sure there is adequate clearance around it.
Use only the power cord provided with this product or the manufacturer's authorized replacement.
Warning—Potential Damage: Damage to the printer caused by improper moving is not covered by the printer
warranty.
Moving the printer to another location
The printer and its hardware options can be safely moved to another location by following these precautions:
•Any cart used to move the printer must have a surface able to support the full footprint of the printer.
•Any cart used to move the hardware options must have a surface able to support the dimensions of the hardware
options.
•Keep the printer in an upright position.
•Avoid severe jarring movements.
Shipping the printer
When shipping the printer, use the original packaging.
Maintaining the printer 98
Managing the printer
Managing printer messages
Use the Status Messenger application to view error messages requiring your intervention on your printer. When there
is an error, a bubble appears telling you what the error is, and points you to the appropriate recovery information.
If you installed Status Messenger with your printer software, then the application launches automatically when the
software installation is completed. The installation is successful if you see the Status Messenger icon in the system tray.
Notes:
•This feature is available only in Windows XP or later.
•Make sure bidirectional communication support is in place so the printer and the computer can communicate.
Disabling Status Messenger
1From the system tray, right‑click the Status Messenger icon.
2Select Exit.
Enabling Status Messenger
1Use the Search command on the Start menu to locate Status Messenger.
2Open the application.
Accessing Status Monitor Center
Use this application to view the status of any USB‑ or network‑connected printer and to order supplies online.
Note: Make sure bidirectional communication support is in place so the printer and the computer can communicate.
1Use the Search command on the Start menu to locate Status Monitor Center.
2Open the application.
Checking the virtual display
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•Print a network setup page or menu settings page, and then locate the IP address in the TCP/IP section. The
IP address appears as four sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Press Enter to open the Web page of your printer.
Managing the printer 99
3Click Applications > Remote Operator Panel > Launch VNC Applet.
Note: VNC Applet requires a Java plug‑in to launch.
4Click Click here to continue.
The virtual display works as an actual display would work on a printer control panel.
Viewing reports
You can view some reports from the Embedded Web Server. These reports are useful for assessing the status of the
printer, network, and supplies.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Reports, and then click the type of report you want to view.
Configuring supply notifications from the Embedded Web
Server
You can determine how you would like to be notified when supplies run nearly low, low, very low, or reach their
end‑of‑life by setting the selectable alerts.
Notes:
•Selectable alerts can be set on the toner cartridge, imaging unit, and maintenance kit.
•All selectable alerts can be set for nearly low, low, and very low supply conditions. Not all selectable alerts can
be set for the end‑of‑life supply condition. E‑mail selectable alert is available for all supply conditions.
•The percentage of estimated remaining supply that prompts the alert can be set on some supplies for some
supply conditions.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings > Print Settings > Supply Notifications.
3From the drop‑down menu for each supply, select one of the following notification options:
Managing the printer 100
Notification Description
Off The normal printer behavior for all supplies occurs.
E‑mail Only The printer generates an e-mail when the supply condition is reached. The status of the
supply will appear on the menus page and status page.
Warning The printer displays the warning message and generates an email about the status of the
supply. The printer does not stop when the supply condition is reached.
Continuable Stop1The printer stops processing jobs when the supply condition is reached, and the user needs
to press a button to continue printing.
Non Continuable Stop1,2 The printer stops when the supply condition is reached. The supply must be replaced to
continue printing.
1 The printer generates an e-mail about the status of the supply when supply notification is enabled.
2 The printer stops when some supplies become empty to prevent damage.
4Click Submit.
Modifying confidential print settings
Note: This feature is available only in network printers or printers connected to print servers.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click Settings tab > Security > Confidential Print Setup.
3Modify the settings:
•Set a maximum number of PIN entry attempts. When a user exceeds a specific number of PIN entry attempts,
all of the jobs for that user are deleted.
•Set an expiration time for confidential print jobs. When a user has not printed the jobs within the specified time,
all of the jobs for that user are deleted.
4Save the modified settings.
Copying printer settings to other printers
Note: This feature is available only in network printers.
1Open a Web browser, and then type the printer IP address in the address field.
Notes:
•View the printer IP address in the TCP/IP section in the Network/Ports menu. The IP address appears as four
sets of numbers separated by periods, such as 123.123.123.123.
•If you are using a proxy server, then temporarily disable it to load the Web page correctly.
2Click the Copy Printer Settings.
Managing the printer 101
3To change the language, select a language from the drop-down menu, and then click Click here to submit language.
4Click Printer Settings.
5Type the IP addresses of the source and target printers in their appropriate fields.
Note: If you want to add or remove a target printer, then click Add Target IP or Remove Target IP.
6Click Copy Printer Settings.
Restoring factory default settings
If you want to keep a list of the current menu settings for reference, then print a menu settings page before restoring
the factory default settings. For more information, see “Printing a menu settings page” on page 24.
If you want a more comprehensive method of restoring the printer factory default settings, then perform the Wipe All
Settings option. For more information, see “Erasing non‑volatile memory” on page 91.
Warning—Potential Damage: Restoring factory defaults returns most printer settings to the original factory default
settings. Exceptions include the display language, custom sizes and messages, and network/port menu settings. All
downloads stored in the RAM are deleted. Downloads stored in the flash memory or in the printer hard disk are not
affected.
From the printer control panel, navigate to:
> Settings > > Settings > > General Settings > > Factory Defaults > > Restore Now >
Managing the printer 102
Clearing jams
Carefully select paper and specialty media and load them properly to avoid most jams. If jams occur, then follow the
steps outlined in this chapter.
Note: Jam Recovery is set to Auto by default. The printer reprints jammed pages unless the memory required to hold
the pages is needed for other printer tasks.
Avoiding jams
Load paper properly
•Make sure paper lies flat in the tray.
Correct loading of paper Incorrect loading of paper
•Do not remove a tray while the printer is printing.
•Do not load a tray while the printer is printing. Load it before printing, or wait for a prompt to load it.
•Do not load too much paper. Make sure the stack height is below the maximum paper fill indicator.
•Do not slide the paper into the tray. Load paper as shown in the illustration.
Clearing jams 103
•Make sure the guides in the tray or the multipurpose feeder are properly positioned and are not pressing tightly
against the paper or envelopes.
•Push the tray firmly into the printer after loading paper.
Use recommended paper
•Use only recommended paper or specialty media.
•Do not load wrinkled, creased, damp, bent, or curled paper.
•Flex, fan, and straighten paper before loading it.
•Do not use paper that has been cut or trimmed by hand.
•Do not mix paper sizes, weights, or types in the same tray.
•Make sure the paper size and type are set correctly on the computer or printer control panel.
•Store paper according to manufacturer recommendations.
Understanding jam messages and locations
When a jam occurs, a message indicating the jam location and information to clear the jam appears on the printer
display. Open the doors, covers, and trays indicated on the display to remove the jam.
Notes:
•When Jam Assist is set to On, the printer automatically flushes blank pages or pages with partial prints to the
standard bin after a jammed page has been cleared. Check your printed output stack for discarded pages.
•When Jam Recovery is set to On or Auto, the printer reprints jammed pages. However, the Auto setting does not
guarantee that the page will print.
1
5
6
2
3
4
Clearing jams 104
Area Printer control panel message What to do
1Standard bin [x]‑page jam, clear standard
bin. [20y.xx]
Remove the jammed paper.
2Rear door [x]‑page jam, open rear
door. [20y.xx]
Open the rear door, and then remove the jammed paper.
3Tray 1 [x]‑page jam, remove tray 1 to
clear duplex. [23y.xx]
Pull tray 1 completely out, then push the front duplex flap
down, and then remove the jammed paper.
Note: You may need to open the rear door to clear
some 23y.xx paper jams.
4Tray [x] [x]‑page jam, remove tray
[x]. [24y.xx]
Pull the indicated tray out, and then remove the jammed
paper.
5Multipurpose
feeder
[x]‑page jam, clear manual
feeder. [250.xx]
Remove all paper from the multipurpose feeder, and then
remove the jammed paper.
6Front door [x]‑page jam, open front
door. [20y.xx]
Open the front door, then remove the toner cartridge,
imaging unit, and jammed paper.
[x]‑page jam, open front door. [20y.xx]
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching it.
1Press the button on the right side of the printer, and then open the front door.
Clearing jams 105
2Pull out the toner cartridge using the handle.
3Lift the blue handle, and then pull out the imaging unit from the printer.
Warning—Potential Damage: Do not touch the shiny blue photoconductor drum under the imaging unit. Doing
so may affect the quality of future print jobs.
4Place the imaging unit aside on a flat, smooth surface.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
Clearing jams 106
5Lift the blue flap in front of the printer.
6Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
Clearing jams 107
7Insert the imaging unit by aligning the arrows on the side rails of the unit with the arrows on the side rails inside
the printer, and then insert the imaging unit into the printer.
8Insert the toner cartridge by aligning the side rails of the cartridge with the arrows on the side rails inside the printer,
and then insert the cartridge into the printer.
9Close the front door.
10 From the printer control panel, select Next > > Clear the jam, press OK > .
Clearing jams 108
[x]‑page jam, open rear door. [20y.xx]
1Open the front door.
2Gently pull down the rear door.
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching it.
3Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
Clearing jams 109
4Close the rear door.
5From the printer control panel, select Next > > Clear the jam, press OK > to clear the message and continue
printing.
[x]‑page jam, clear standard bin. [20y.xx]
1Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
2From the printer control panel, select Next > > Clear the jam, press OK > to clear the message and continue
printing.
Clearing jams 110
[x]‑page jam, remove tray 1 to clear duplex. [23y.xx]
CAUTION—HOT SURFACE: The inside of the printer might be hot. To reduce the risk of injury from a hot
component, allow the surface to cool before touching it.
1Pull the tray completely out of the printer.
1
2Locate the blue lever, and then pull it down to release the jam.
3Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
Clearing jams 111
4Insert the tray.
5From the printer control panel, select Next > > Clear the jam, press OK > to clear the message and continue
printing.
[x]‑page jam, open tray [x]. [24y.xx]
1Pull the tray completely out of the printer.
Note: The message on the printer display indicates the tray where the jammed paper is located.
1
2Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
Clearing jams 112
3Insert the tray.
4From the printer control panel, select Next > > Clear the jam, press OK > to clear the message and continue
printing.
[x]‑page jam, clear manual feeder. [25y.xx]
1From the multipurpose feeder, firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
2Flex the sheets of paper back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten
the edges on a level surface.
Clearing jams 113
3Reload paper into the multipurpose feeder.
Note: Make sure the paper guide lightly rests against the edge of the paper.
4From the printer control panel, select Next > > Clear the jam, press OK > to clear the message and continue
printing.
Clearing jams 114
Troubleshooting
Understanding the printer messages
Cartridge low [88.xy]
You may need to order a toner cartridge. Press to clear the message and continue printing.
Cartridge nearly low [88.xy]
If necessary, press on the printer control panel to clear the message and continue printing.
Cartridge very low, [x] estimated pages remain [88.xy]
You may need to replace the toner cartridge very soon. For more information, see the “Replacing supplies” section of
the User’s Guide.
If necessary, press to clear the message and continue printing.
Change [paper source] to [custom type name] load [orientation]
Try one or more of the following:
•Load the correct size and type of paper in the tray, and then press on the printer control panel.
Note: Make sure the paper size and type settings are specified in the Paper menu on the printer control panel.
•Cancel the print job.
Change [paper source] to [custom string] load [orientation]
Try one or more of the following:
•Load the correct size and type of paper in the tray, and then press on the printer control panel.
Note: Make sure the paper size and type settings are specified in the Paper menu on the printer control panel.
•Cancel the print job.
Troubleshooting 115
Change [paper source] to [paper size] load [orientation]
Try one or more of the following:
•Load the correct size and type of paper in the tray, and then press on the printer control panel.
Note: Make sure the paper size and type settings are specified in the Paper menu on the printer control panel.
•Cancel the print job.
Change [paper source] to [paper type] [paper size] load [orientation]
Try one or more of the following:
•Load the correct size and type of paper in the tray, and then press on the printer control panel.
Note: Make sure the paper size and type settings are specified in the Paper menu on the printer control panel.
•Cancel the print job.
Close front door
Close the front door of the printer.
Complex page, some data may not have printed [39]
Try one or more of the following:
•From the printer control panel, press to clear the message and continue printing.
•Reduce the number and size of fonts, the number and complexity of images, and the number of pages in the print
job.
•Cancel the print job.
•Install additional printer memory.
Defective flash detected [51]
Try one or more of the following:
•Replace the defective flash memory card.
•From the printer control panel, press to ignore the message and continue printing.
•Cancel the current print job.
Error reading USB drive. Remove USB.
An unsupported USB device is inserted. Remove the USB device, and then insert a supported one.
Error reading USB hub. Remove hub.
An unsupported USB hub has been inserted. Remove the USB hub, and then install a supported one.
Troubleshooting 116
Imaging unit low [84.xy]
You may need to order an imaging unit. If necessary, press to clear the message and continue printing.
Imaging unit nearly low [84.xy]
If necessary, press on the printer control panel to clear the message and continue printing.
Imaging unit very low, [x] estimated pages remain [84.xy]
You may need to replace the imaging unit very soon. For more information, see the "Replacing supplies" section of the
User’s Guide.
If necessary, press to clear the message and continue printing.
Incorrect paper size, open [paper source] [34]
Try one or more of the following:
•Load the correct size of paper in the tray.
•From the printer control panel, press to clear the message and print using a different tray.
•Check the tray length and width guides and make sure the paper is loaded properly in the tray.
•Make sure the correct paper size and type are specified in Print Properties or in the Print dialog.
•Make sure the paper size and type settings are specified in the Paper menu on the printer control panel.
•Make sure the paper size is correctly set. For example, if the MP Feeder Size is set to Universal, then make sure the
paper is large enough for the data being printed.
•Cancel the print job.
Insert Tray [x]
Insert the indicated tray into the printer.
Insufficient memory to support Resource Save feature [35]
Try one or more of the following:
•From the printer control panel, press to disable Resource Save, clear the message, and continue printing.
•Install additional printer memory.
Troubleshooting 117
Insufficient memory to collate job [37]
Try one or more of the following:
•From the printer control panel, press to print the portion of the job already stored and begin collating the rest
of the print job.
•Cancel the current print job.
Insufficient memory for Flash Memory Defragment operation [37]
Try one or more of the following:
•From the printer control panel, press to stop the defragmentation and continue printing.
•Delete fonts, macros, and other data in the printer memory. From the printer control panel, navigate to:
> Settings > > Settings > >Print Settings > > Utilities Menu > > Format Flash > > Yes >
•Install additional printer memory.
Insufficient memory, some Held Jobs were deleted [37]
From the printer control panel, press to clear the message.
Insufficient memory, some held jobs will not be restored [37]
Do either of the following:
•From the printer control panel, press to clear the message.
•Delete other held jobs to free up additional printer memory.
Load [paper source] with [custom string] [orientation]
Try one or more of the following:
•Load the indicated tray or feeder with the correct size and type of paper.
•From the printer control panel, press to clear the message and continue printing.
Note: If the printer finds a tray that has the correct paper type and size, then it feeds from that tray. If the
printer cannot find a tray that has the correct size and type of paper, then it prints from the default paper
source.
•Cancel the current job.
Troubleshooting 118
Load [paper source] with [custom type name] [orientation]
Try one or more of the following:
•Load the tray or feeder with the correct size and type of paper.
•From the printer control panel, press to clear the message and continue printing.
Note: If the printer finds a tray that has the correct size and type of paper, then it feeds from that tray. If the
printer cannot find a tray that has the correct size and type of paper, then it prints from the default paper
source.
•Cancel the current job.
Load [paper source] with [paper size] [orientation]
Try one or more of the following:
•Load the tray or feeder with the correct size of paper.
•From the printer control panel, press to clear the message and continue printing.
Note: If the printer finds a tray that has the correct paper size, then it feeds from that tray. If the printer cannot
find a tray that has the correct size of paper, then it prints from the default paper source.
•Cancel the current job.
Load [paper source] with [paper type] [paper size] [orientation]
Try one or more of the following:
•Load the tray or feeder with the correct size and type of paper.
•From the printer control panel, press to clear the message and continue printing.
Note: If the printer finds a tray that has the correct size and type of paper, then it feeds from that tray. If the
printer cannot find a tray that has the correct size and type of paper, then it prints from the default paper
source.
•Cancel the current job.
Load Manual Feeder with [custom type name] [orientation]
Try one or more of the following:
•Load the feeder with the correct size and type of paper.
•From the printer control panel, press to clear the message and continue printing.
Note: If no paper is loaded in the feeder, then the printer manually overrides the request, and then prints from
an automatically selected tray.
•Cancel the current job.
Troubleshooting 119
Load Manual Feeder with [custom string] [orientation]
Try one or more of the following:
•Load the feeder with the correct size and type of paper.
•From the printer control panel, press to clear the message and continue printing.
Note: If no paper is loaded in the feeder, then the printer manually overrides the request, and then prints from
an automatically selected tray.
•Cancel the current job.
Load Manual Feeder with [paper size] [orientation]
Try one or more of the following:
•Load the feeder with the correct size of paper.
•From the printer control panel, press to clear the message and continue printing.
Note: If no paper is loaded in the feeder, then the printer manually overrides the request, and then prints from
an automatically selected tray.
•Cancel the current job.
Load Manual Feeder with [paper type] [paper size] [orientation]
Try one or more of the following:
•Load the feeder with the correct size and type of paper.
•From the printer control panel, press to clear the message and continue printing.
Note: If no paper is loaded in the feeder, then the printer manually overrides the request, and then prints from
an automatically selected tray.
•Cancel the current job.
Maintenance kit low [80.xy]
You may need to order a maintenance kit. For more information, contact technical support or your Dell printer dealer,
and then report the message.
If necessary, press on the printer control panel to clear the message and continue printing.
Maintenance kit nearly low [80.xy]
For more information, contact technical support or your Dell printer dealer, and then report the message.
If necessary, press on the printer control panel to clear the message and continue printing.
Troubleshooting 120
Maintenance kit very low, [x] estimated pages remain [80.xy]
You may need to replace the maintenance kit very soon. For more information, contact technical support or your Dell
printer dealer.
If necessary, press on the printer control panel to clear the message and continue printing.
Memory full [38]
Try one or more of the following:
•From the printer control panel, press to clear the message.
•Decrease the resolution setting.
•Install additional printer memory.
Network [x] software error [54]
Try one or more of the following:
•From the printer control panel, press to clear the message and continue printing.
•Turn off the printer, wait for about 10 seconds, and then turn the printer back on.
•Update the network firmware in the printer or print server. For more information, contact technical support or
your Dell printer dealer.
Non‑Dell [supply type], see User’s Guide [33.xy]
Note: The supply type can either be a toner cartridge or imaging unit.
The printer has detected a non‑Dell supply or part installed in the printer.
Your Dell printer is designed to function best with genuine Dell supplies and parts. Use of third-party supplies or parts
may affect the performance, reliability, or life of the printer and its imaging components.
All life indicators are designed to function with Dell supplies and parts, and may deliver unpredictable results if third-
party supplies or parts are used. Imaging component usage beyond the intended life may damage your Dell printer or
associated components.
Warning—Potential Damage: Use of third-party supplies or parts can affect warranty coverage. Damage caused by
the use of third-party supplies or parts are not covered by the warranty.
To accept any and all of these risks and to proceed with the use of non-genuine supplies or parts in your printer,
press and on the printer control panel simultaneously for 15 seconds to clear the message and continue
printing.
If you do not wish to accept these risks, then remove the third-party supply or part from your printer, and then install
a genuine Dell supply or part.
Note: For the list of supported supplies, see the “Ordering supplies” section of the User's Guide or visit
www.dell.com/printers.
Troubleshooting 121
Not enough free space in flash memory for resources [52]
Try one or more of the following:
•From the printer control panel, press to clear the message and continue printing.
•Delete fonts, macros, and other data stored in the flash memory.
From the printer control panel, navigate to:
> Settings > > Settings > > Print Settings > > Utilities Menu > > Format Flash > >
Yes >
•Use a larger‑capacity flash memory card.
Note: Downloaded fonts and macros that are not stored in the flash memory are deleted when the printer is turned
off or restarted.
PPDS font error [50]
Try one or more of the following:
•From the printer control panel, press to clear the message and continue printing.
•If the printer cannot find the requested font, then navigate to:
> Settings > > Settings > Print Settings > > PPDS menu > > Best Fit > > On >
The printer finds a similar font and reformats the affected text.
•Cancel the current print job.
Reinstall missing or unresponsive cartridge [31.xy]
Try one or more of the following:
•Check if the toner cartridge is missing. If missing, install the toner cartridge.
For information on installing the cartridge, see the “Replacing supplies” section of the User’s Guide.
•If the toner cartridge is installed, then remove the unresponsive toner cartridge, and then reinstall it.
Note: If the message appears after reinstalling the supply, then the cartridge is defective. Replace the toner
cartridge.
Reinstall missing or unresponsive imaging unit [31.xy]
Try one or more of the following:
•Check if the imaging unit is missing. If missing, install the imaging unit.
For information on installing the imaging unit, see the “Replacing supplies” section of the User’s Guide.
•If the imaging unit is installed, then remove the unresponsive imaging unit, and then reinstall it.
Note: If the message appears after reinstalling the supply, then the imaging unit is defective. Replace the
imaging unit.
Troubleshooting 122
Remove paper from standard output bin
Remove the paper stack from the standard bin.
Replace cartridge, 0 estimated pages remain [88.xy]
Replace the toner cartridge to clear the message and continue printing. For more information, see the instruction sheet
that came with the supply or see the “Replacing supplies” section of the User’s Guide.
Note: If you do not have a replacement cartridge, then see the “Ordering supplies” section of the User’s Guide or
visit our Web site.
Replace imaging unit, 0 estimated pages remain [84.xy]
Replace the imaging unit to clear the message and continue printing. For more information, see the instruction sheet
that came with the supply or see the “Replacing supplies” section of the User’s Guide.
Note: If you do not have a replacement imaging unit, then see the “Ordering supplies” section of the User’s Guide or
visit our Web site.
Replace maintenance kit, 0 estimated pages remain [80.xy]
The printer is scheduled for maintenance. Contact technical support or your Dell printer dealer, and then report the
message.
Replace unsupported cartridge [32.xy]
Remove the toner cartridge, and then install a supported one to clear the message and continue printing. For more
information, see the instruction sheet that came with the supply or see the “Replacing supplies” section of the User’s
Guide.
Note: If you do not have a replacement cartridge, then see the “Ordering supplies” section of the User’s Guide or
visit our Web site.
Replace unsupported imaging unit [32.xy]
Remove the imaging unit, and then install a supported one to clear the message and continue printing. For more
information, see the instruction sheet that came with the supply or see the “Replacing supplies” section of the User’s
Guide.
Note: If you do not have a replacement imaging unit, then see the “Ordering supplies” section of the User’s Guide or
visit our Web site.
SMTP server not set up. Contact system administrator.
From the printer control panel, press to clear the message.
Note: If the message appears again, then contact your system support person.
Troubleshooting 123
Standard network software error [54]
Try one or more of the following:
•From the printer control panel, press to confirm.
•Unplug the router, wait for 30 seconds, and then plug it back again.
•Turn off the printer, and then turn it back on.
•Update the network firmware in the printer or the print server. For more information, visit the Dell support Web
site at www.dell.com/support/printers contact your system support person.
Standard parallel port disabled [56]
•From the printer control panel, select Continue to clear the message. For non‑touch‑screen printer models, press
to confirm.
Notes:
•The printer discards any data received through the parallel port.
•Make sure the Parallel Buffer menu is not set to Disabled.
Standard USB port disabled [56]
Try one or more of the following:
•From the printer control panel, press to clear the message and continue printing.
Note: The printer discards any data received through the USB port.
•From the printer control panel, set USB Buffer to Auto.
Too many flash options installed [58]
1Turn off the printer.
2Unplug the power cord from the electrical outlet.
3Remove the extra flash memory.
4Connect the power cord to a properly grounded electrical outlet.
5Turn the printer back on.
Too many trays attached [58]
1Turn off the printer.
2Unplug the power cord from the electrical outlet.
3Remove the extra trays.
4Connect the power cord to a properly grounded electrical outlet.
5Turn the printer back on.
Troubleshooting 124
Unformatted flash detected [53]
Try one or more of the following:
•From the printer control panel, press to stop the defragmentation and continue printing.
•Format the flash memory device.
Note: If the error message remains, then the flash memory device may be defective and need to be replaced.
Unsupported option in slot [x] [55]
1Turn off the printer.
2Unplug the power cord from the electrical outlet.
3Remove the unsupported option card from the printer controller board, and then replace it with a supported card.
4Connect the power cord to a properly grounded electrical outlet.
5Turn the printer back on.
Solving printer problems
•“Basic printer problems” on page 125
•“Option problems” on page 127
•“Paper feed problems” on page 129
Basic printer problems
The printer is not responding
Action Yes No
Step 1
Make sure the printer is turned on.
Is the printer turned on?
Go to step 2. Turn on the printer.
Step 2
Check if the printer is in Sleep mode or Hibernate mode.
Is the printer in Sleep mode or Hibernate mode?
Press the Sleep button
to wake the printer
from Sleep mode or
Hibernate mode.
Go to step 3.
Step 3
Check if one end of the power cord is plugged into the printer and the
other to a properly grounded electrical outlet.
Is the power cord plugged into the printer and a properly grounded
electrical outlet?
Go to step 4. Plug one end of the
power cord into the
printer and the other to
a properly grounded
electrical outlet.
Troubleshooting 125
Action Yes No
Step 4
Check other electrical equipment plugged into the electrical outlet.
Does other electrical equipment work?
Unplug the other
electrical equipment,
and then turn on the
printer. If the printer
does not work, then
reconnect the other
electrical equipment.
Go to step 5.
Step 5
Check if the cables connecting the printer and the computer are inserted
in the correct ports.
Are the cables inserted in the correct ports?
Go to step 6. Make sure to match the
following:
•The USB symbol on
the cable with the
USB symbol on the
printer
•The appropriate
Ethernet cable with
the Ethernet port
Step 6
Make sure the electrical outlet is not turned off by a switch or breaker.
Is the electrical outlet turned off by a switch or breaker?
Turn on the switch or
reset the breaker.
Go to step 7.
Step 7
Check if the printer is plugged into any surge protectors, uninterruptible
power supplies, or extension cords.
Is the printer plugged into any surge protectors, uninterruptible power
supplies, or extension cords?
Connect the printer
power cord directly to
a properly grounded
electrical outlet.
Go to step 8.
Step 8
Check if one end of the printer cable is plugged into a port on the printer
and the other to the computer, print server, option, or other network
device.
Is the printer cable securely attached to the printer and the computer,
print server, option, or other network device?
Go to step 9. Connect the printer
cable securely to the
printer and the
computer, print server,
option, or other
network device.
Step 9
Make sure to install all hardware options properly and remove any packing
material.
Are all hardware options properly installed and all packing material
removed?
Go to step 10. Turn off the printer,
remove all packing
materials, then
reinstall the hardware
options, and then turn
on the printer.
Step 10
Check if you have selected the correct port settings in the printer driver.
Are the port settings correct?
Go to step 11. Use correct printer
driver settings.
Troubleshooting 126
Action Yes No
Step 11
Check the installed printer driver.
Is the correct printer driver installed?
Go to step 12. Install the correct
printer driver.
Step 12
Turn off the printer, then wait for about 10 seconds, and then turn the
printer back on.
Is the printer working?
The problem is solved. Contact technical
support.
Printer display is blank
Action Yes No
Step 1
Press the Sleep button on the printer control panel.
Does Ready appear on the printer display?
The problem is solved. Go to step 2.
Step 2
Turn off the printer, then wait for about 10 seconds, and then turn the
printer back on.
Do Please wait and Ready appear on the printer display?
The problem is solved. Turn off the printer,
and then contact
technical support.
Option problems
Cannot detect internal option
Action Yes No
Step 1
Turn off the printer, then wait for about 10 seconds, and then turn on the
printer.
Does the internal option operate correctly?
The problem is solved. Go to step 2.
Step 2
Check if the internal option is properly installed in the controller board.
aTurn off the printer using the power switch, and then unplug the power
cord from the electrical outlet.
bMake sure the internal option is installed in the appropriate connector
in the controller board.
cConnect the power cord to the printer, then to a properly grounded
electrical outlet, and then turn on the printer.
Is the internal option properly installed in the controller board?
Go to step 3. Connect the internal
option to the controller
board.
Troubleshooting 127
Action Yes No
Step 3
Print a menu settings page, and then check to see if the internal option is
listed in the Installed Features list.
Is the internal option listed in the menu settings page?
Go to step 4. Reinstall the internal
option.
Step 4
aCheck if the internal option is selected.
It may be necessary to manually add the internal option in the printer
driver to make it available for print jobs. For more information, see
“Adding available options in the print driver” on page 21.
bResend the print job.
Does the internal option operate correctly?
The problem is solved. Contact technical
support.
Tray problems
Action Yes No
Step 1
aOpen the tray and do one or more of the following:
•Check for paper jams or misfeeds.
•Check if the paper size indicators on the paper guides are aligned
with the paper size indicators on the tray.
•If you are printing on custom‑size paper, then make sure that the
paper guides rest against the edges of the paper.
•Make sure the paper is below the maximum paper fill indicator.
•Make sure paper lies flat in the tray.
bCheck if the tray closes properly.
Is the tray working?
The problem is solved. Go to step 2.
Step 2
aTurn off the printer, then wait about 10 seconds, and then turn the
printer back on.
bResend the print job.
Is the tray working?
The problem is solved. Go to step 3.
Step 3
Check if the tray is installed and recognized by the printer.
Print a menu settings page, and then check if the tray is listed in the
Installed Features list.
Is the tray listed in the menu settings page?
Go to step 4. Reinstall the tray. For
more information, see
the setup
documentation that
came with the tray.
Troubleshooting 128
Action Yes No
Step 4
Check if the tray is available in the printer driver.
Note: If necessary, manually add the tray in the printer driver to make it
available for print jobs. For more information, see “Adding available
options in the print driver” on page 21.
Is the tray available in the printer driver?
Go to step 5. Manually add the tray
in the printer driver.
Step 5
Check if the option is selected.
aFrom the application you are using, select the option. For Mac OS X
version 9 users, make sure the printer is set up in Chooser.
bResend the print job.
Is the tray working?
The problem is solved. Contact technical
support.
Paper feed problems
Paper frequently jams
Action Yes No
Step 1
aPull out the tray, and then do one or more of the following:
•Make sure paper lies flat in the tray.
•Check if the paper size indicators on the paper guides are aligned
with the paper size indicators on the tray.
•Check if the paper guides are aligned against the edges of the
paper.
•Make sure the paper is below the maximum paper fill indicator.
•Check if you are printing on a recommended paper size and type.
bInsert the tray properly.
If jam recovery is enabled, then the print jobs will reprint
automatically.
Do paper jams still occur frequently?
Go to step 2. The problem is solved.
Step 2
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Do paper jams still occur frequently?
Go to step 3. The problem is solved.
Troubleshooting 129
Action Yes No
Step 3
aReview the tips on avoiding jams. For more information, see “Avoiding
jams” on page 103.
bFollow the recommendations, and then resend the print job.
Do paper jams still occur frequently?
Contact technical
support.
The problem is solved.
Paper jam message remains after jam is cleared
Action Yes No
Open front door and remove all trays.
aClear any jammed pages.
Note: Make sure all paper fragments are removed.
bPress to clear the message and continue printing.
Does the paper jam message remain?
Contact technical
support.
The problem is solved.
Jammed pages are not reprinted
Action Yes No
aTurn on jam recovery.
1From the printer control panel, navigate to:
Settings > > General Settings > > Print Recovery > >
Jam Recovery
2Press the left or right arrow button to scroll to On or Auto, and
then press .
bResend the pages that did not print.
Were the jammed pages reprinted?
The problem is solved. Contact technical
support.
Troubleshooting 130
Solving print problems
Printing problems
Multiple‑language PDF files do not print
Action Yes No
Step 1
aCheck if the print options for the PDF output are set to embed all fonts.
bGenerate a new PDF file, and then resend the print job.
Do the files print?
The problem is solved. Go to step 2.
Step 2
aOpen the document you want to print in Adobe Acrobat.
bClick File > Print > Advanced > Print As Image > OK > OK.
Do the files print?
The problem is solved. Contact technical
support.
Error message about reading the flash drive appears
Action Yes No
Step 1
Check if the flash drive is inserted into the front USB slot.
Note: The flash drive will not work if it is inserted into the rear USB slot.
Is the flash drive inserted into the front USB slot?
Go to step 2. Insert the flash drive
into the front USB slot.
Step 2
Check if the printer is busy.
Note: A green blinking light indicates that the printer is busy.
Is there an error message on the display?
Wait until the printer is
ready, then view the
held jobs list, and then
print the documents.
Go to step 3.
Step 3
Check for an error message on the display.
Note: A blinking red light indicates a printer error. Since the printer
requires attention, the printer ignores the flash drive.
Does the printer require attention?
Clear the message. Go to step 4.
Troubleshooting 131
Action Yes No
Step 4
Check if the flash drive is supported.
For more information regarding tested and approved USB flash
memory devices, see “Supported flash drives and file types” on
page 47.
Is the flash drive supported?
Go to step 5. Use a supported flash
drive.
Step 5
Check if the USB slot is disabled by the system support person.
Is the USB slot disabled?
Contact your system
support person.
Contact technical
support.
Print jobs do not print
Action Yes No
Step 1
aFrom the document you are trying to print, open the Print dialog and
check if you have selected the correct printer.
Note: If the printer is not the default printer, then you must select
the printer for each document that you want to print.
bResend the print job.
Do the jobs print?
The problem is solved. Go to step 2.
Step 2
aCheck if the printer is plugged in and turned on, and if Ready appears
on the printer display.
bResend the print job.
Do the jobs print?
The problem is solved. Go to step 3.
Step 3
If an error message appears on the printer display, then clear the message.
Note: The printer continues to print after clearing the message.
Do the jobs print?
The problem is solved. Go to step 4.
Step 4
aCheck if the ports (USB, serial, or Ethernet) are working and if the
cables are securely connected to the computer and the printer.
Note: For more information, see the setup documentation that
came with the printer.
bResend the print job.
Do the jobs print?
The problem is solved. Go to step 5.
Troubleshooting 132
Action Yes No
Step 5
aTurn off the printer, then wait for about 10 seconds, and then turn the
printer back on.
bResend the print job.
Do the jobs print?
The problem is solved. Go to step 6.
Step 6
aRemove, and then reinstall the printer software. For more
information, see “Installing the printer” on page 20.
Note: For more information, visit www.dell.com/support/printers.
bResend the print job.
Do the jobs print?
The problem is solved. Contact technical
support.
Print job takes longer than expected
Action Yes No
Step 1
Change the environmental settings of the printer.
aFrom the printer control panel, navigate to:
Settings > General Settings
bSelect Eco‑Mode or Quiet Mode, and then select Off.
Note: Disabling Eco-Mode or Quiet Mode may increase the
consumption of energy or supplies, or both.
Did the job print?
The problem is solved. Go to step 2.
Step 2
Reduce the number and size of fonts, the number and complexity of
images, and the number of pages in the print job, and then resend the job
Did the job print?
The problem is solved. Go to step 3.
Step 3
aRemove held jobs stored in the printer memory.
bResend the print job.
Did the job print?
The problem is solved. Go to step 4.
Step 4
aDisable the Page Protect feature.
From the printer control panel, navigate to:
Settings > General Settings > Print Recovery > Page Protect > Off
bResend the print job.
Did the job print?
The problem is solved. Go to step 5.
Troubleshooting 133
Action Yes No
Step 5
Install additional printer memory, and then resend the print job.
Did the job print?
The problem is solved. Contact technical
support.
Job prints from the wrong tray or on the wrong paper
Action Yes No
Step 1
aCheck if you are printing on paper that is supported by the tray.
bResend the print job.
Did the job print from the correct tray or on the correct paper?
The problem is solved. Go to step 2.
Step 2
aFrom the Paper menu on the printer control panel, set the paper size
and type to match the paper loaded in the tray.
bResend the print job.
Did the job print from the correct tray or on the correct paper?
The problem is solved. Go to step 3.
Step 3
aDepending on your operating system, open Printing Preferences or
the Print dialog, and then specify the paper type.
bResend the print job.
Did the job print from the correct tray or on the correct paper?
The problem is solved. Go to step 4.
Step 4
aCheck if the trays are not linked.
bResend the print job.
Did the job print from the correct tray or on the correct paper?
The problem is solved. Contact technical
support.
Troubleshooting 134
Incorrect characters print
Action Yes No
Step 1
Make sure the printer is not in Hex Trace mode.
Note: If Ready Hex appears on the printer display, then turn off the
printer, and then turn it back on to deactivate Hex Trace mode.
Is the printer in Hex Trace mode?
Deactivate Hex Trace
mode.
Go to step 2.
Step 2
aFrom the printer control panel, select Standard Network or
Network [x], and then set SmartSwitch to On.
bResend the print job.
Do incorrect characters print?
Contact technical
support.
The problem is solved.
Tray linking does not work
Note: The trays and the multipurpose feeder do not automatically detect the paper size. You must set the size from
the Paper Size/Type menu.
Action Yes No
aFrom the printer control panel, set the paper size and type in the Paper
menu to match the paper loaded in the trays to be linked.
Note: The paper size and type must match for trays to be linked.
bResend the print job.
Do the trays link correctly?
The problem is solved. Contact technical
support.
Large jobs do not collate
Action Yes No
Step 1
aFrom the Finishing menu on the printer control panel, set Collate to
(1,2,3) (1,2,3).
bResend the print job.
Did the job print and collate correctly?
The problem is solved. Go to step 2.
Step 2
aFrom the printer software, set Collate to (1,2,3) (1,2,3).
Note: Setting Collate to (1,1,1) (2,2,2) in the software overrides the
setting in the Finishing menu.
bResend the print job.
Did the job print and collate correctly?
The problem is solved. Go to step 3.
Troubleshooting 135
Action Yes No
Step 3
Reduce the complexity of the print job by eliminating the number and size
of fonts, the number and complexity of images, and the number of pages
in the job.
Did the job print and collate correctly?
The problem is solved. Contact technical
support.
Unexpected page breaks occur
Action Yes No
Step 1
Adjust the print timeout settings.
aFrom the printer control panel, navigate to:
Settings > General Settings > Timeouts > Print Timeout
bSelect a higher setting, and then press .
cResend the print job.
Did the file print correctly?
The problem is solved. Go to step 2.
Step 2
aCheck the original file for manual page breaks.
bResend the print job.
Did the file print correctly?
The problem is solved. Contact technical
support.
Print quality problems
Characters have jagged or uneven edges
Troubleshooting 136
Action Yes No
Step 1
aPrint a font sample list to check if the fonts you are using are supported
by the printer.
1From the printer control panel, navigate to:
Menus > Reports > Print Fonts
2Select PCL Fonts or PostScript Fonts.
bResend the print job.
Are you using fonts that are supported by the printer?
Go to step 2. Select a font that is
supported by the
printer.
Step 2
Check if the fonts installed on the computer are supported by the printer.
Are the fonts installed on the computer supported by the printer?
The problem is solved. Contact technical
support.

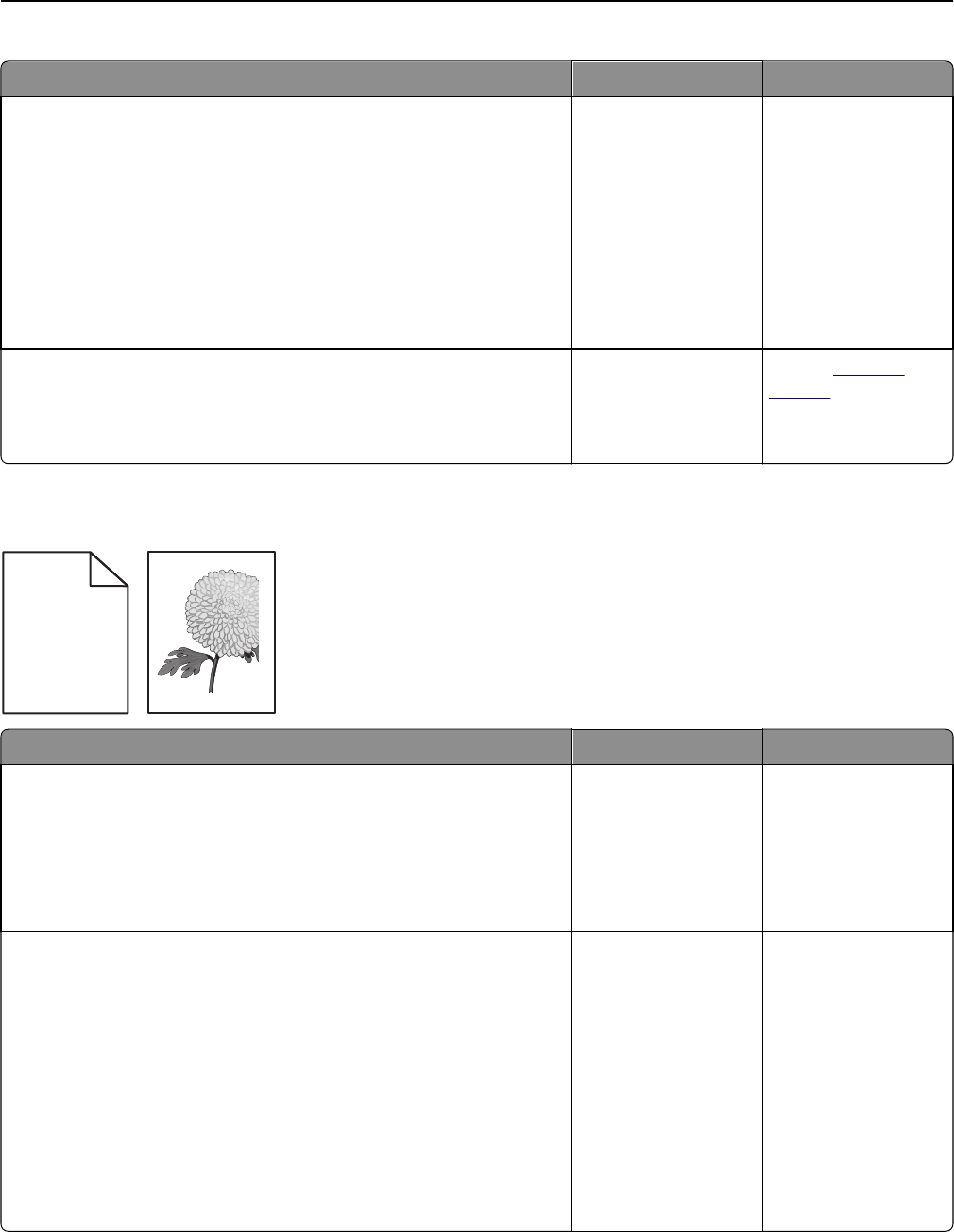

Clipped pages or images
Leading edge
Trailing edge
ABCDE
ABCDE
ABCDE
Action Yes No
Step 1
aMove the width and length guides in the tray to the correct positions
for the paper loaded.
bResend the print job.
Is the page or image clipped?
Go to step 2. The problem is solved.
Step 2
From the printer control panel, set the paper size and type in the Paper
menu to match the paper loaded in the tray.
Do the paper size and type match the paper loaded in the tray?
Go to step 3. Do one or more of the
following:
•Specify the paper
size from the tray
settings to match
the paper loaded in
the tray.
•Change the paper
loaded in the tray
to match the paper
size specified in the
tray settings.
Troubleshooting 137
Action Yes No
Step 3
aDepending on your operating system, specify the paper size from
Printing Preferences or from the Print dialog.
bResend the print job.
Is the page or image clipped?
Go to step 4. The problem is solved.
Step 4
aReinstall the imaging unit.
1Remove the toner cartridge.
2Remove the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
3Install the imaging unit, and then the cartridge.
bResend the print job.
Is the page or image clipped?
Contact technical
support.
The problem is solved.

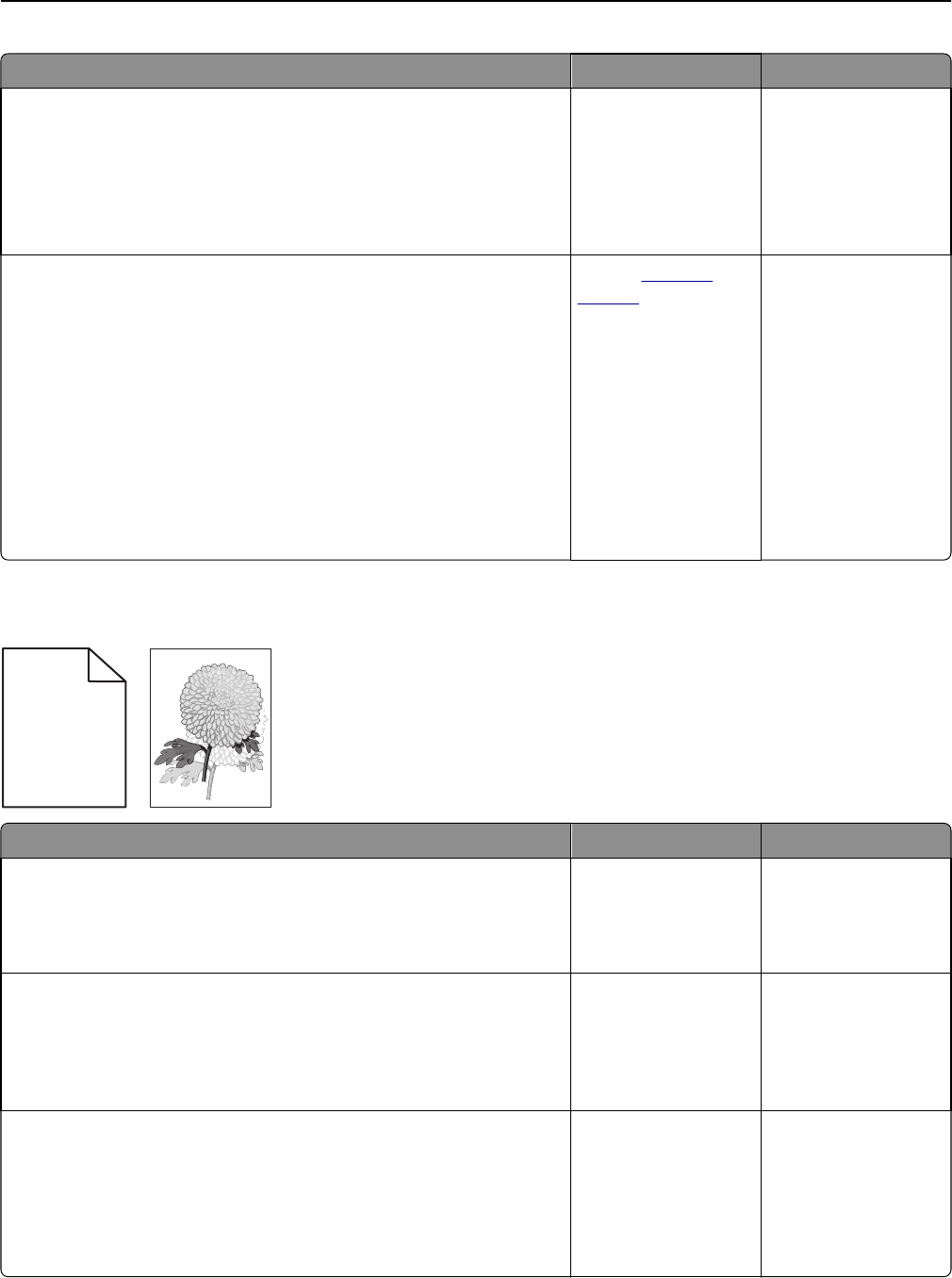

Shadow images appear on prints
ABCD
ABCD
ABCD
ABCD
Leading edge
Trailing edge
Action Yes No
Step 1
Load paper with the correct paper type and weight in the tray.
Is paper with the correct paper type and weight loaded in the tray?
Go to step 2. Load paper with the
correct paper type and
weight in the tray.
Step 2
From the printer control panel, set the paper type and weight in the Paper
menu to match the paper loaded in the tray.
Is the tray set to the type and weight of the paper loaded?
Go to step 3. Change the paper
loaded in the tray to
match the paper type
and weight specified in
the tray settings.
Step 3
aDepending on your operating system, specify the paper type and
weight from Printing Preferences or from the Print dialog.
bResend the print job.
Do shadow images still appear on prints?
Go to step 4. The problem is solved.
Troubleshooting 138
Action Yes No
Step 4
Replace the imaging unit, and then resend the print job.
Do shadow images still appear on prints?
Contact technical
support.
The problem is solved.

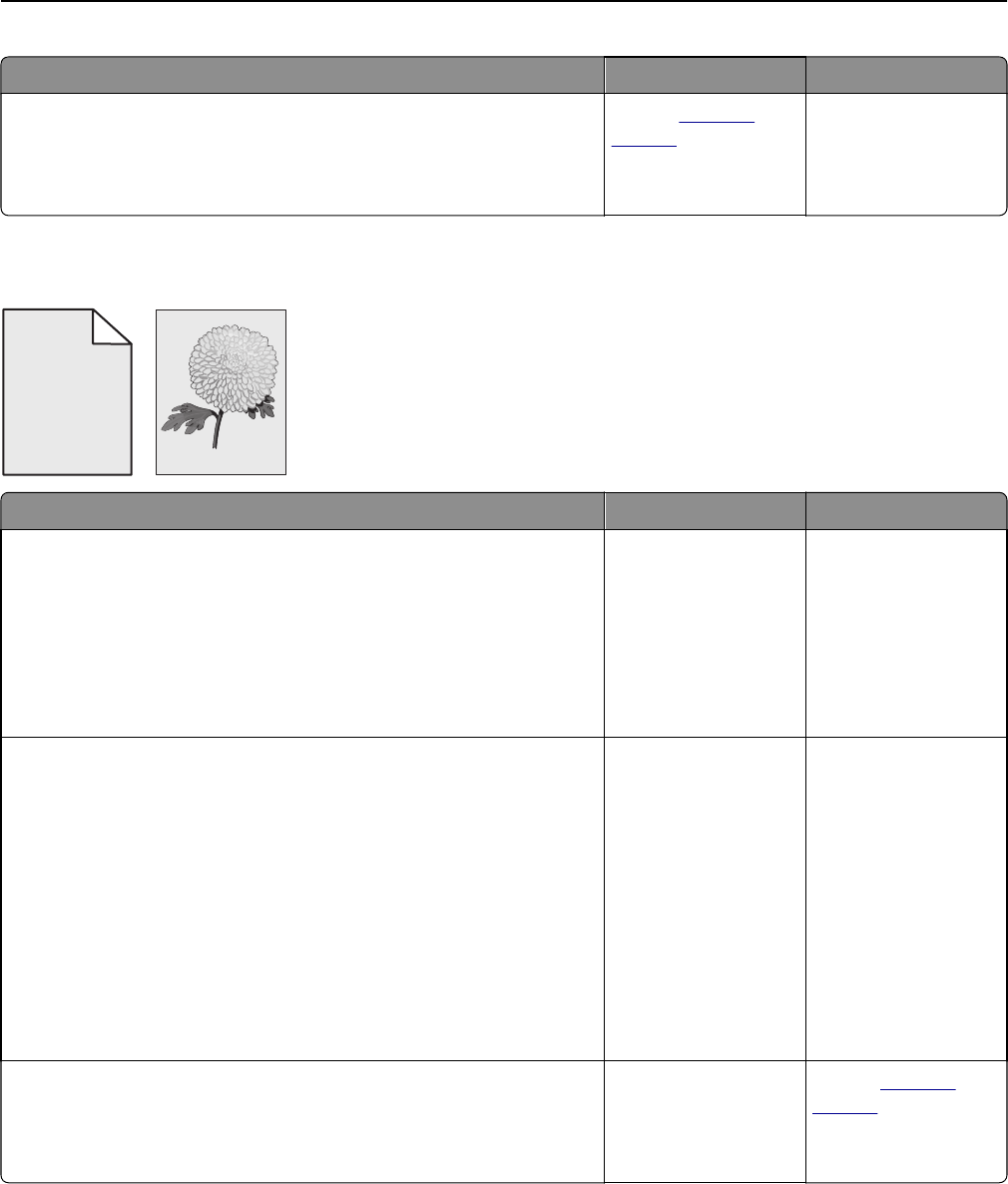

Gray background on prints
ABCDE
ABCDE
ABCDE
Leading edge
Trailing edge
Action Yes No
Step 1
aFrom the Quality Menu on the printer control panel, decrease the
toner darkness.
Note: 8 is the factory default setting.
bResend the print job.
Did the gray background disappear from the prints?
The problem is solved. Go to step 2.
Step 2
Reinstall the imaging unit and the toner cartridge.
aRemove the toner cartridge.
bRemove the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to light
can cause print quality problems.
cInstall the imaging unit, and then the cartridge.
dResend the print job.
Did the gray background disappear from the prints?
The problem is solved. Go to step 3.
Step 3
Replace the imaging unit, and then resend the print job.
Did the gray background disappear from the prints?
The problem is solved. Contact technical
support.
Troubleshooting 139
Incorrect margins on prints
ABCD
ABCD
ABCD
Action Yes No
Step 1
aMove the width and length guides in the tray to the correct positions
for the paper size loaded.
bResend the print job.
Are the margins correct?
The problem is solved. Go to step 2.
Step 2
From the printer control panel, set the paper size in the Paper menu to
match the paper loaded in the tray.
Does the paper size match the paper loaded in the tray?
Go to step 3. Do one or more of the
following:
•Specify the paper
size from the tray
settings to match
the paper loaded in
the tray.
•Change the paper
loaded in the tray
to match the paper
size specified in the
tray settings.
Step 3
aDepending on your operating system, specify the paper size from
Printing Preferences or from the Print dialog.
bResend the print job.
Are the margins correct?
The problem is solved. Contact technical
support.
Troubleshooting 140
Paper curl
Action Yes No
Step 1
Move the width and length guides in the tray to the correct positions for
the size of the paper loaded.
Are the width and length guides positioned correctly?
Go to step 2. Adjust the width and
length guides.
Step 2
From the printer control panel, set the paper type and weight in the Paper
menu to match the paper loaded in the tray.
Do the paper type and weight match the type and weight of the paper in
the tray?
Go to step 3. Specify the paper type
and weight from the
tray settings to match
the paper loaded in the
tray.
Step 3
aDepending on your operating system, specify the paper type and
weight from Printing Preferences or from the Print dialog.
bResend the print job.
Is the paper still curled?
Go to step 4. The problem is solved.
Step 4
aRemove the paper from the tray, and then turn it over.
bResend the print job.
Is the paper still curled?
Go to step 5. The problem is solved.
Step 5
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Is the paper still curled?
Contact technical
support.
The problem is solved.
Print irregularities
) )
ABCDE
ABCDE
ABCDE
Leading edge
Trailing edge
Troubleshooting 141
Action Yes No
Step 1
aMove the width and length guides in the tray to the correct positions
for the size of the paper loaded in the tray.
bResend the print job.
Do print irregularities still appear?
Go to step 2. The problem is solved.
Step 2
From the printer control panel, set the paper size and type in the Paper
menu to match the paper loaded in the tray.
Do the printer settings match the type and weight of the paper loaded in
the tray?
Go to step 3. Specify the paper size
and type from the tray
settings to match the
paper loaded in the
tray.
Step 3
aDepending on your operating system, specify the paper type and
weight from Printing Preferences or from the Print dialog.
bResend the print job.
Do print irregularities still appear?
Go to step 4. The problem is solved.
Step 4
Check if the paper loaded in the tray has texture or rough finishes.
Are you printing on textured or rough paper?
From the printer
control panel, set the
paper texture in the
Paper menu to match
the paper loaded in the
tray.
Go to step 5.
Step 5
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Do print irregularities still appear?
Go to step 6. The problem is solved.
Step 6
Replace the imaging unit, and then resend the print job.
Do print irregularities still appear?
Contact technical
support or your Dell
printer dealer.
The problem is solved.
Troubleshooting 142
Repeating defects appear on prints
Action Yes No
Step 1
Measure the distance between the defects.
Check for a distance between the defects that equals:
•97 mm (3.82 in.)
•47 mm (1.85 in.)
•38 mm (1.5 in.)
Is the distance between defects equal to one of the listed measurements?
Go to step 2. 1Check if the
distance between
the defects equal
to 80 mm (3.15 in.)
2Take note of the
distance, and then
contact technical
support or your
Dell printer dealer.
Step 2
Replace the imaging unit, and then resend the print job.
Do the repeating defects still appear?
Contact technical
support or your Dell
printer dealer.
The problem is solved.
Print is too dark
Action Yes No
Step 1
aFrom the Quality menu on the printer control panel, reduce the toner
darkness.
Note: 8 is the factory default setting.
bResend the print job.
Is the print still too dark?
Go to step 2. The problem is solved.
Troubleshooting 143
Action Yes No
Step 2
aFrom the printer control panel, set the paper type, texture and weight
in the Paper menu to match the paper loaded in the tray.
bResend the print job.
Is the tray set to the type, texture, and weight of the paper loaded?
Go to step 3. Do one or more of the
following:
•Specify the paper
type, texture, and
weight from the
tray settings to
match the paper
loaded in the tray.
•Change the paper
loaded in the tray
to match the paper
type, texture and
weight specified in
the tray settings.
Step 3
aDepending on your operating system, specify the paper type, texture
and weight from Printing Preferences or from the Print dialog.
bResend the print job.
Is the print still too dark?
Go to step 4. The problem is solved.
Step 4
Check if the paper loaded in the tray has texture or rough finishes.
Are you printing on textured or rough paper?
From the printer
control panel, change
the texture settings in
the Paper Texture
menu to match the
paper you are printing
on.
Go to step 5.
Step 5
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Is the print still too dark?
Go to step 6. The problem is solved.
Step 6
Replace the imaging unit, and then resend the print job.
Is the print still too dark?
Contact technical
support.
The problem is solved.
Troubleshooting 144
Print is too light
Action Yes No
Step 1
aFrom the Quality menu on the printer control panel, increase the toner
darkness.
Note: 8 is the factory default setting.
bResend the print job.
Is the print still too light?
Go to step 2. The problem is solved.
Step 2
From the printer control panel, set the paper type, texture, and weight in
the Paper menu to match the paper loaded in the tray.
Is the tray set to the type, texture, and weight of the paper loaded?
Go to step 3. Change the paper type,
texture, and weight to
match the paper
loaded in the tray.
Step 3
aDepending on your operating system, specify the paper type, texture,
and weight from Printing Preferences or from the Print dialog.
bResend the print job.
Is the print still too light?
Go to step 4. The problem is solved.
Step 4
Make sure that the paper has no texture or rough finishes.
Are you printing on textured or rough paper?
From the printer
control panel, change
the texture settings in
the Paper Texture
menu to match the
paper you are printing
on.
Go to step 5.
Step 5
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Is the print still too light?
Go to step 6. The problem is solved.
Troubleshooting 145
Action Yes No
Step 6
aRedistribute the toner in the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
2Firmly shake the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
3Install the imaging unit, and then the cartridge.
bResend the print job.
Is the print still too light?
Go to step 7. The problem is solved.
Step 7
Replace the imaging unit, and then resend the print job.
Is the print still too light?
Contact technical
support.
The problem is solved.
Printer is printing blank pages
Action Yes No
Step 1
aCheck if there is packing material left on the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
2Check if the packing material is properly removed from the imaging
unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
3Reinstall the imaging unit, and then the cartridge.
bResend the print job.
Is the printer still printing blank pages?
Go to step 2. The problem is solved.
Troubleshooting 146
Action Yes No
Step 2
aRedistribute the toner in the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
2Firmly shake the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
3Reinstall the imaging unit, and then the cartridge.
bResend the print job.
Is the printer still printing blank pages?
Go to step 3. The problem is solved.
Step 3
Replace the imaging unit, and then resend the print job.
Is the printer still printing blank pages?
Contact technical
support.
The problem is solved.
Skewed print
) )
ABCDE
ABCDE
ABCDE
Action Yes No
Step 1
aMove the width and length guides in the tray to the correct positions
for the size of the paper loaded.
bResend the print job.
Is the print still skewed?
Go to step 2. The problem is solved.
Step 2
aCheck if you are printing on a paper that is supported by the tray.
bResend the print job.
Is the print still skewed?
Contact technical
support.
The problem is solved.
Troubleshooting 147
Printer is printing solid black pages
Action Yes No
Step 1
aReinstall the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
2Install the imaging unit, and then the cartridge.
bResend the print job.
Is the printer printing solid black pages?
Go to step 2. The problem is solved.
Step 2
Replace the imaging unit, and then resend the print job.
Is the printer printing solid black pages?
Contact technical
support.
The problem is solved.
Transparency print quality is poor
Action Yes No
Step 1
From the printer control panel, set the paper type in the Paper menu to
match the paper loaded in the tray.
Is the paper type for the tray set to Transparency?
Go to step 2. Set the paper type to
Transparency.
Step 2
aCheck if you are using a recommended type of transparency.
bResend the print job.
Is the print quality still poor?
Contact technical
support.
The problem is solved.
Troubleshooting 148

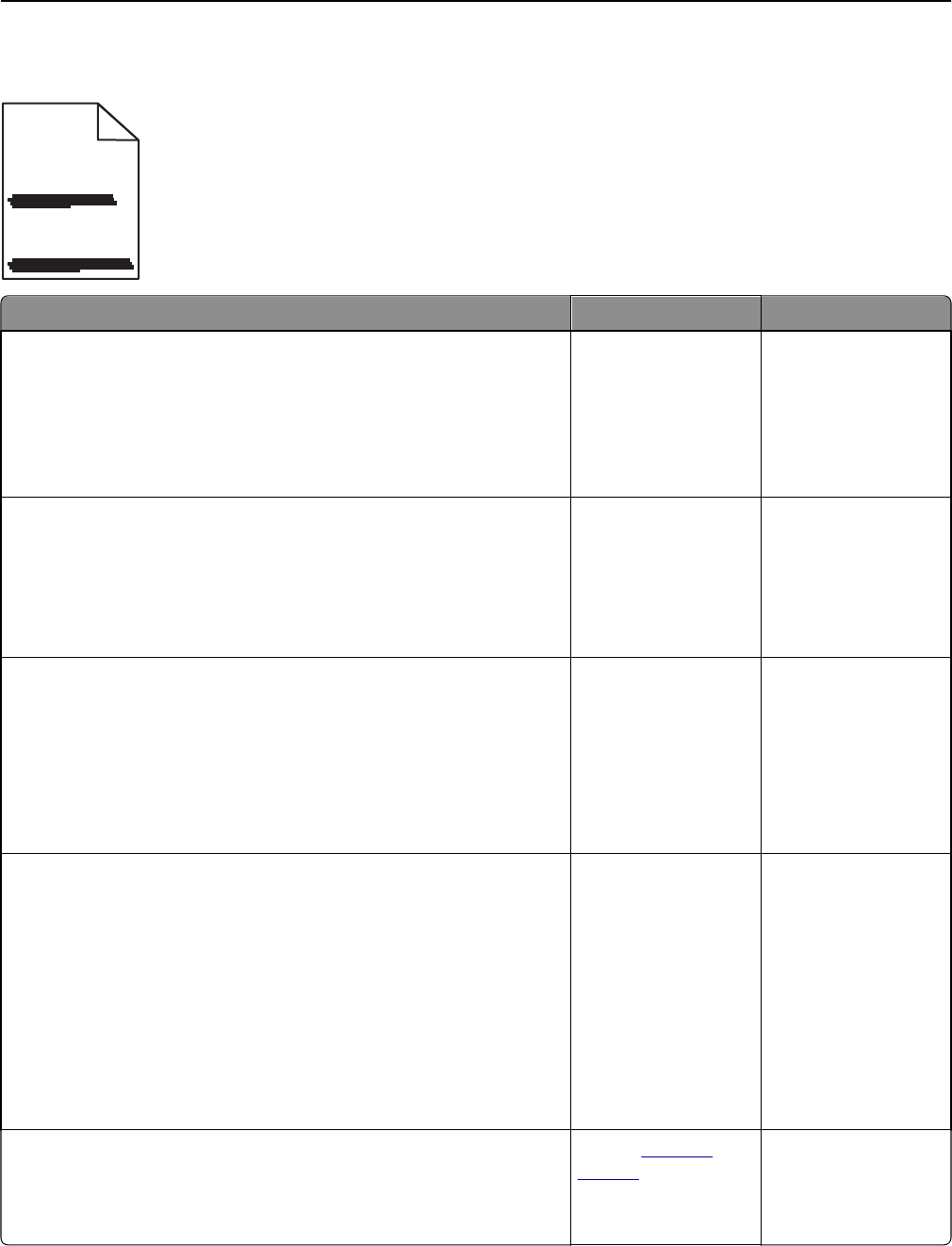

Streaked horizontal lines appear on prints
ABCDE
ABCDE
ABCDE
Action Yes No
Step 1
aDepending on your operating system, specify the tray or feeder from
Printing Preferences or the Print dialog.
bResend the print job.
Do streaked horizontal lines appear on prints?
Go to step 2. The problem is solved.
Step 2
From the printer control panel, set the paper type and weight in the Paper
menu to match the paper loaded in the tray.
Do the paper type and weight match the type and weight of the paper in
the tray?
Go to step 3. Change the paper type
and weight to match
the paper loaded in the
tray.
Step 3
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Do streaked horizontal lines appear on prints?
Go to step 4. The problem is solved.
Step 4
aReinstall the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
2Install the imaging unit, and then the cartridge.
bResend the print job.
Do streaked horizontal lines appear on prints?
Go to step 5. The problem is solved.
Step 5
Replace the imaging unit, and then resend the print job.
Do streaked horizontal lines appear on prints?
Contact technical
support.
The problem is solved.
Troubleshooting 149

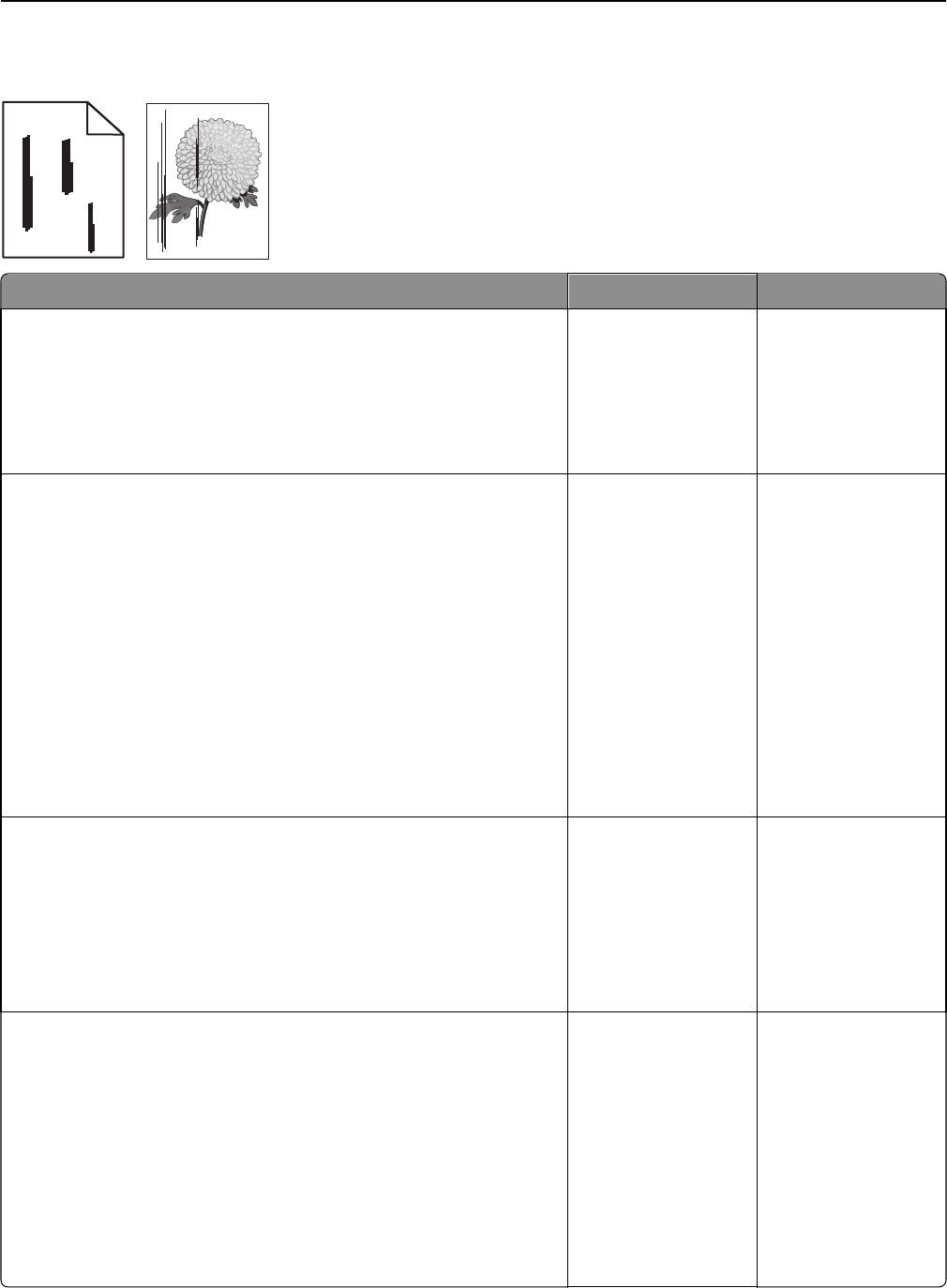

Streaked vertical lines appear on prints
ABCDE
ABCDE
ABCDE
Leading edge
Trailing edge
Action Yes No
Step 1
aDepending on your operating system, specify the paper type, texture,
and weight from Printing Preferences or from the Print dialog.
bResend the print job.
Do streaked vertical lines appear on prints?
Go to step 2. The problem is solved.
Step 2
From the printer control panel, set the paper texture, type, and weight in
the Paper menu to match the paper loaded in the tray.
Do the paper texture, type, and weight match the paper in the tray?
Go to step 3. Do one or more of the
following:
•Specify the paper
texture, type, and
weight from the
tray settings to
match the paper
loaded in the tray.
•Change the paper
loaded in the tray
to match the paper
texture, type, and
weight specified in
the tray settings.
Step 3
aLoad paper from a fresh package.
Note: Paper absorbs moisture due to high humidity. Store paper in
its original wrapper until you use it.
bResend the print job.
Do streaked vertical lines appear on prints?
Go to step 4. The problem is solved.
Step 4
aReinstall the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
2Install the imaging unit, and then the cartridge.
bResend the print job.
Do streaked vertical lines appear on prints?
Go to step 5. The problem is solved.
Troubleshooting 150
Action Yes No
Step 5
Replace the imaging unit, and then resend the print job.
Do streaked vertical lines appear on prints?
Contact technical
support or your Dell
printer dealer.
The problem is solved.

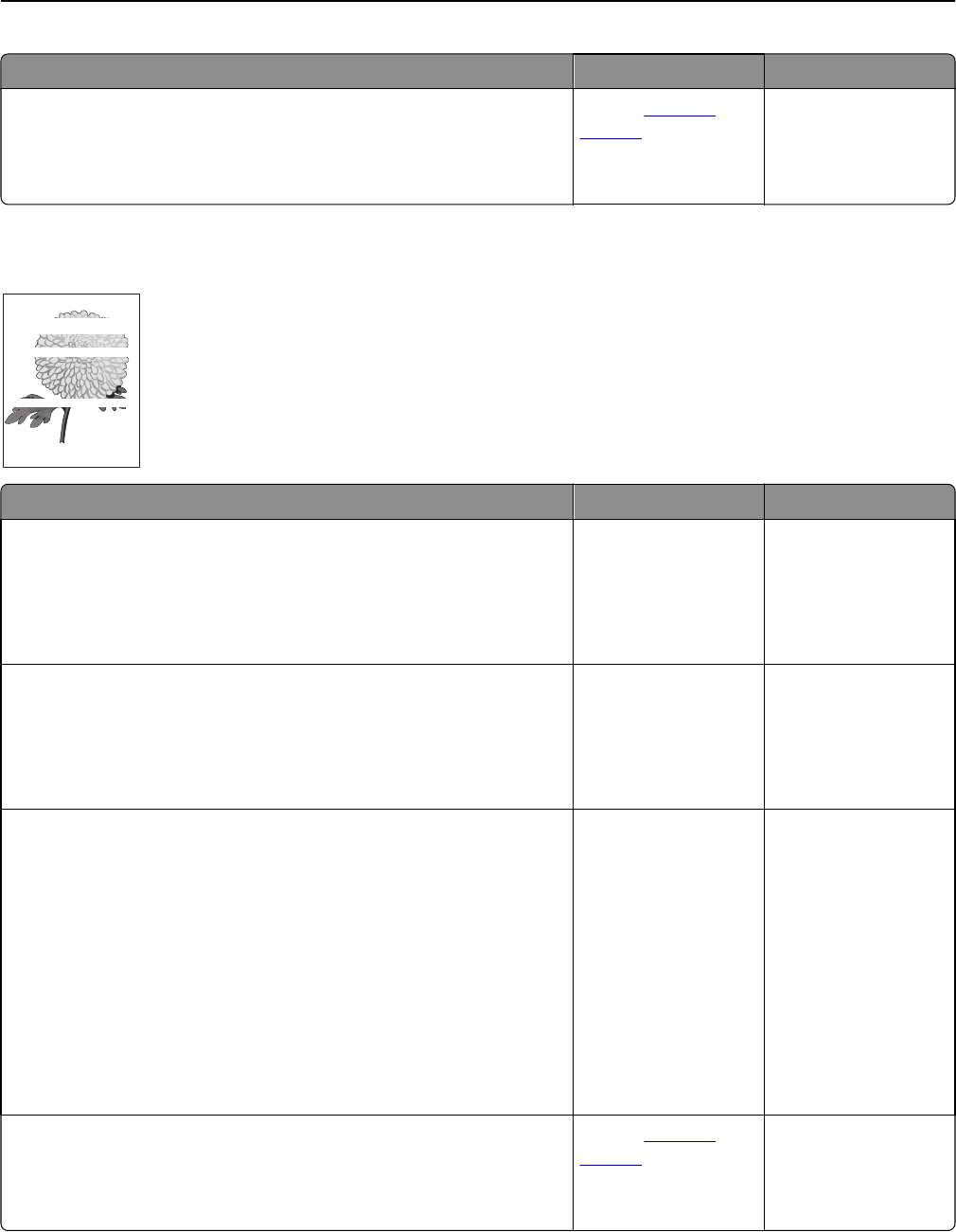

Horizontal voids appear on prints
Leading edge
Trailing edge
Action Yes No
Step 1
aMake sure your software program is using a correct fill pattern.
bResend the print job.
Do horizontal voids appear on prints?
Go to step 2. The problem is solved.
Step 2
aLoad the specified tray or feeder with a recommended type of paper.
bResend the print job.
Do horizontal voids appear on prints?
Go to step 3. The problem is solved.
Step 3
aRedistribute the toner in the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
2Firmly shake the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
3Reinstall the imaging unit, and then the cartridge.
bResend the print job.
Do horizontal voids appear on prints?
Go to step 4. The problem is solved.
Step 4
Replace the imaging unit, and then resend the print job.
Do horizontal voids appear on prints?
Contact technical
support.
The problem is solved.
Troubleshooting 151

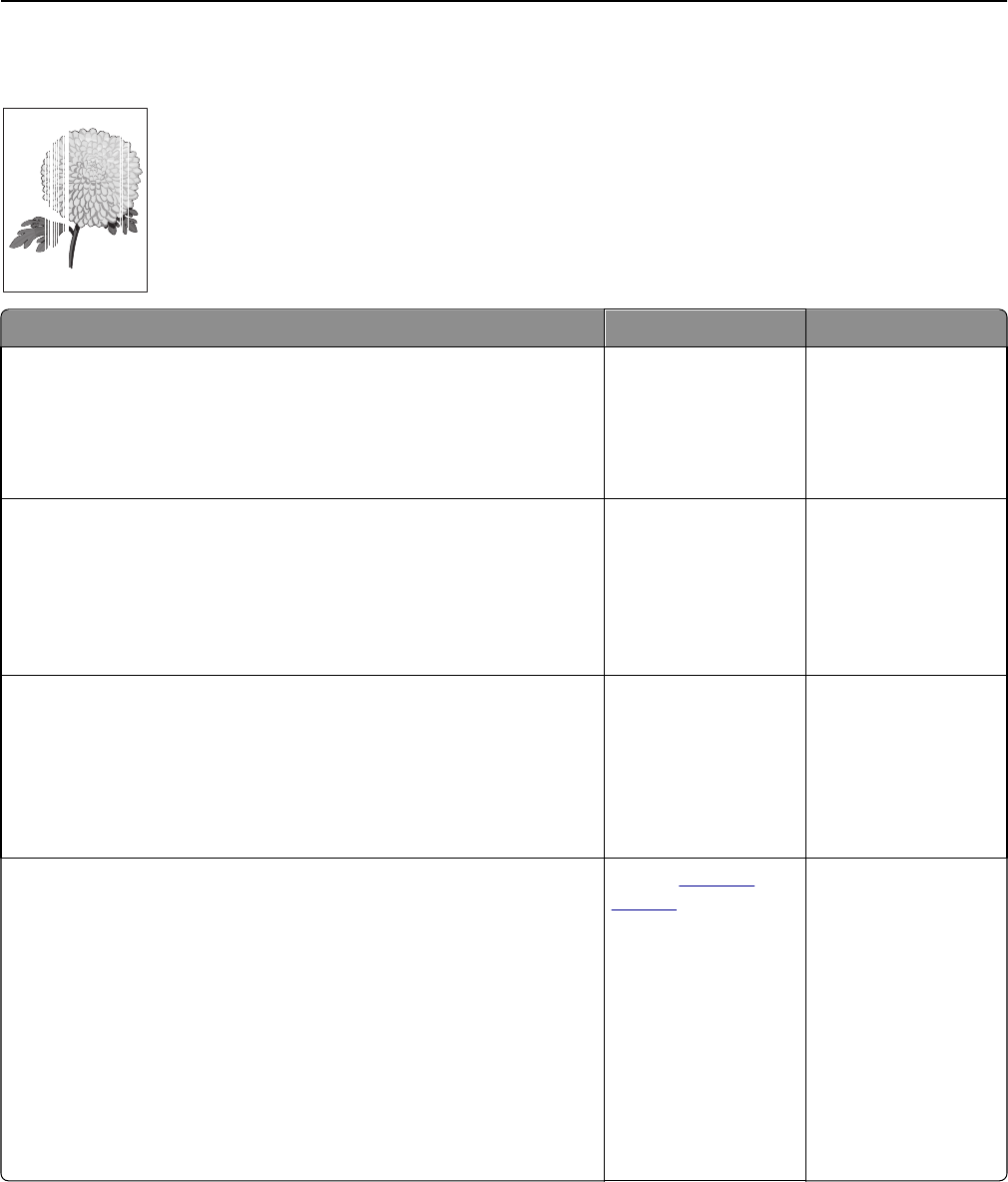

Vertical voids appear on prints
Leading edge
Trailing edge
Action Yes No
Step 1
aMake sure your software program is using a correct fill pattern.
bResend the print job.
Do vertical voids appear on prints?
Go to step 2. The problem is solved.
Step 2
aFrom the printer control panel, set the paper type and weight in the
Paper menu to match the paper loaded in the tray.
bResend the print job.
Do vertical voids appear on prints?
Go to step 3. The problem is solved.
Step 3
Check if you are using a recommended type of paper.
aLoad the indicated tray or feeder with a recommended type of paper.
bResend the print job.
Do vertical voids appear on prints?
Go to step 4. The problem is solved.
Step 4
aRedistribute the toner in the imaging unit.
1Remove the toner cartridge, and then the imaging unit.
2Firmly shake the imaging unit.
Warning—Potential Damage: Do not expose the imaging unit to
direct light for more than 10 minutes. Extended exposure to
light may cause print quality problems.
3Reinstall the imaging unit, and then the cartridge.
bResend the print job.
Do vertical voids appear on prints?
Contact technical
support.
Note: The laser
scanning unit may be
defective.
The problem is solved.
Troubleshooting 152

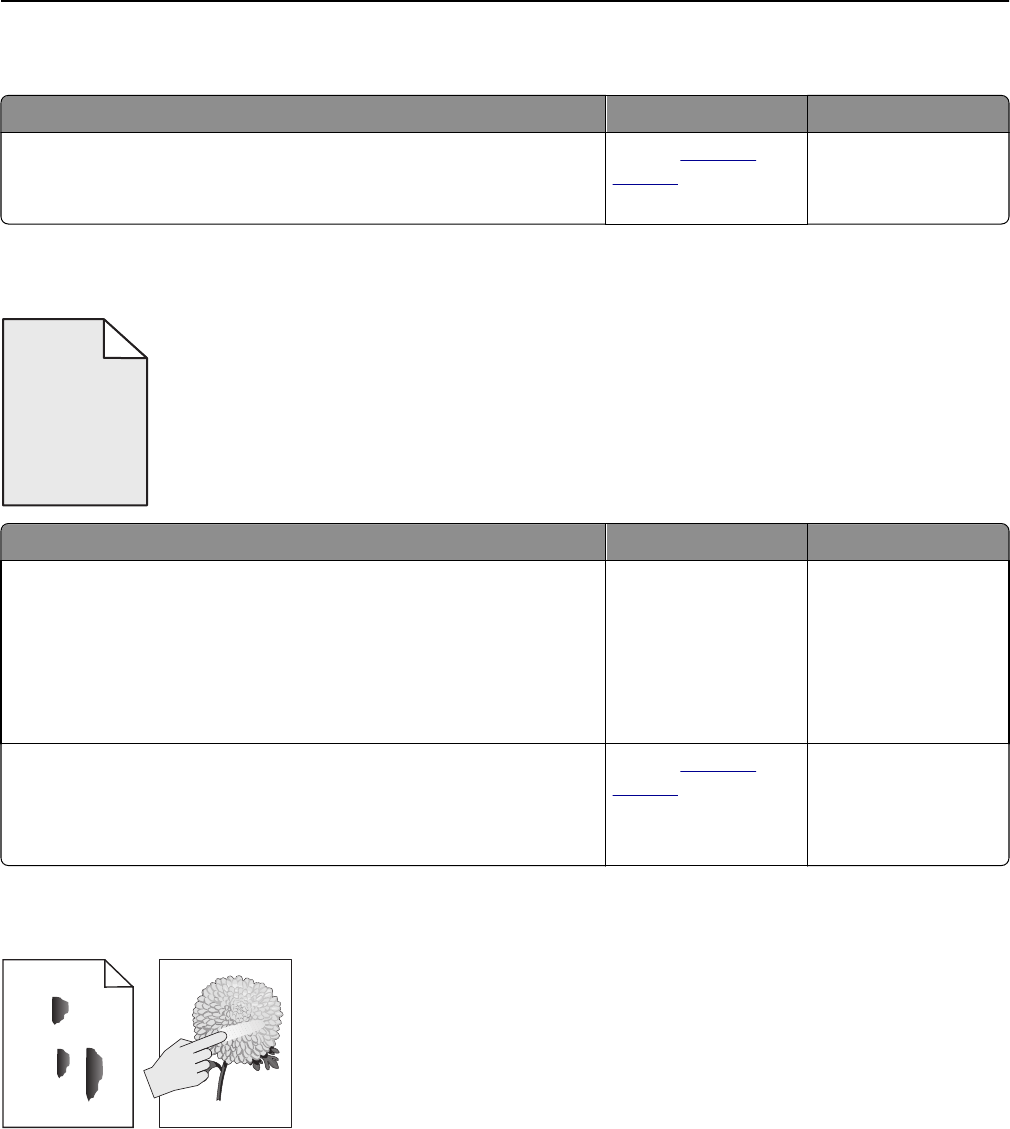

Toner specks appear on prints
Action Yes No
Replace the imaging unit, and then resend the print job.
Do toner specks appear on prints?
Contact technical
support.
The problem is solved.
Toner fog or background shading appears on prints
ABCDE
ABCDE
ABCDE
Action Yes No
Step 1
Reinstall the imaging unit.
aRemove, and then install the imaging unit.
bResend the print job.
Do fog or shading appear on prints?
Go to step 2. The problem is solved.
Step 2
Replace the imaging unit, and then resend the print job.
Do fog or shading appear on prints?
Contact technical
support or your Dell
printer dealer.
The problem is solved.
Toner rubs off
Leading edge
Trailing edge
ABC
DEF
Troubleshooting 153
Action Yes No
Step 1
From the Paper menu on the printer control panel, check the paper type,
texture, and weight.
Do the paper type, texture, and weight match the paper loaded in the
tray?
Go to step 2. Specify the paper type,
texture, and weight
from the tray settings
to match the paper
loaded in the tray.
Step 2
Resend the print job.
Does the toner still rub off?
Contact technical
support or your Dell
printer dealer.
The problem is solved.
Uneven print density
Action Yes No
Replace the imaging unit, and then resend the print job.
Is the print density uneven?
Contact technical
support.
The problem is solved.
Embedded Web Server does not open
Action Yes No
Step 1
aTurn on the printer.
bOpen a Web browser, and then type the printer IP address.
cPress Enter.
Does the Embedded Web Server open?
The problem is solved. Go to step 2.
Troubleshooting 154
Action Yes No
Step 2
Make sure the printer IP address is correct.
aView the printer IP address:
•From the TCP/IP section in the Network/Ports menu
•By printing a network setup page or menu settings page, and then
finding the TCP/IP section
Note: An IP address appears as four sets of numbers separated
by periods, such as 123.123.123.123.
bOpen a Web browser, and then type the IP address.
Note: Depending on the network settings, you may need to type
“https://” instead of “http://” before the printer IP address
to access the Embedded Web Server.
cPress Enter.
Does the Embedded Web Server open?
The problem is solved. Go to step 3.
Step 3
Check if the network is working.
aPrint a network setup page.
bCheck the first section of the network setup page and confirm that the
status is Connected.
Note: If the status is Not Connected, then the connection may be
intermittent, or the network cable may be defective. Contact your
system support person for a solution, and then print another
network setup page.
cOpen a Web browser, and then type the printer IP address.
dPress Enter.
Does the Embedded Web Server open?
The problem is solved. Go to step 4.
Step 4
Check if the cable connections to the printer and print server are secure.
aConnect the cables properly. For more information, see the setup
documentation that came with the printer.
bOpen a Web browser, and then type the printer IP address.
cPress Enter.
Does the Embedded Web Server open?
The problem is solved. Go to step 5.
Step 5
Temporarily disable the Web proxy servers.
Proxy servers may block or restrict you from accessing certain Web
sites including the Embedded Web Server.
Does the Embedded Web Server open?
The problem is solved. Contact your system
support person.
Troubleshooting 155
Contacting technical support
When you call technical support, describe the problem you are experiencing, the message on the printer display, and
the troubleshooting steps you have already taken to find a solution.
You need to know your printer model type and the service tag number or express service code. For more information,
see the label on the inside top front cover or at the back of the printer. The service tag number is also listed on the
menu settings page.
For more information, check the Dell support Web site at www.dell.com/support/printers.
Troubleshooting 156
Appendix
Dell Technical Support Policy
Technician‑assisted technical support requires the cooperation and participation of the customer in the troubleshooting
process and provides for restoration of the Operating System, application software and hardware drivers to the original
default configuration as shipped from Dell, as well as the verification of appropriate functionality of the printer and all
Dell‑installed hardware. In addition to this technician assisted technical support, online technical support is available
at Dell Support. Additional technical support options may be available for purchase.
Dell provides limited technical support for the printer and any Dell‑installed software and peripherals. Support for
third‑party software and peripherals is provided by the original manufacturer, including those purchased and/or
installed through Software & Peripherals (DellWare), ReadyWare, and Custom Factory Integration (CFI/DellPlus).
Contacting Dell
You can access Dell Support at www.dell.com/support/printers.
You can contact Dell electronically using the following addresses:
•World Wide Web
www.dell.com/
www.dell.com/ap/ (Asian/Pacific countries only)
www.dell.com/jp/ (Japan only)
www.euro.dell.com (Europe only)
www.dell.com/la/ (Latin American and Caribbean countries)
www.dell.ca (Canada only)
•Anonymous file transfer protocol (FTP)
ftp.dell.com
Log in as user: anonymous, and use your email address as your password.
•Electronic Support Service
mobile_support@us.dell.com
support@us.dell.com
la-techsupport@dell.com (Latin America and Caribbean countries only)
apsupport@dell.com (Asian/Pacific countries only)
support.jp.dell.com (Japan only)
support.euro.dell.com (Europe only)
•Electronic Quote Service
apmarketing@dell.com (Asian/Pacific countries only)
sales_canada@dell.com (Canada only)
Appendix 157
Warranty and Return Policy
Dell Inc. (“Dell”) manufactures its hardware products from parts and components that are new or equivalent to new
in accordance with industry‑standard practices. For information about the Dell warranty for your printer, refer to the
Product Information Guide.
Appendix 158
Index
Numerics
250‑sheet tray
installing 17
550‑sheet tray
installing 17
Symbols
[x]‑page jam, clear manual feeder.
[25y.xx] 113
[x]‑page jam, clear standard bin.
[20y.xx] 110
[x]‑page jam, open front door.
[20y.xx] 105
[x]‑page jam, open rear door.
[20y.xx] 109
[x]‑page jam, open tray [x].
[24y.xx] 112
[x]‑page jam, remove tray 1 to clear
duplex. [23y.xx] 111
A
accessing Status Monitor Center 99
accessing the controller board 13
Active NIC menu 61
adding hardware options
print driver 21
adjusting printer display
brightness 89
adjusting Sleep mode 88
adjusting toner darkness 45
AirPrint
using 48
AppleTalk menu 66
attaching cables 19
available internal options 13
avoiding jams 39
avoiding paper jams 103
C
cables
Ethernet 19
parallel 19
USB 19
canceling a print job
from a computer 50
from the printer control panel 50
cannot open Embedded Web
Server 154
card stock
loading, multipurpose feeder 31
tips 39
Cartridge low [88.xy] 115
Cartridge nearly low [88.xy] 115
Cartridge very low, [x] estimated
pages remain [88.xy] 115
Change [paper source] to [custom
string] load [orientation] 115
Change [paper source] to [custom
type name] load [orientation] 115
Change [paper source] to [paper
size] load [orientation] 116
Change [paper source] to [paper
type] [paper size] load
[orientation] 116
checking an unresponsive
printer 125
checking status of parts and
supplies 92
checking the status of parts and
supplies 92
checking the virtual display
using the Embedded Web
Server 99
cleaning
exterior of the printer 92
cleaning the printer 92
Close front door 116
Complex page, some data may not
have printed [39] 116
confidential data
information on securing 91
confidential jobs
modifying print settings 101
confidential print jobs
printing from a Macintosh
computer 49
printing from Windows 49
configuration information
wireless network 21
configurations
printer 10
Configure MP menu 55
configuring
multiple printers 101
supply notifications, imaging
unit 100
supply notifications, maintenance
kit 100
supply notifications, toner
cartridge 100
configuring supply notifications 100
configuring the Universal paper size
settings 26
connecting to a wireless network
using PBC, Push Button
Configuration method 23
using PIN, Personal Identification
Number method 23
using the Embedded Web
Server 24
using wireless setup wizard 22
conservation settings
brightness, adjusting 89
Eco‑Mode 87
Quiet mode 87
Sleep mode 88
contacting technical support 156
control panel, printer 11
indicator light 12
Sleep button light 12
controller board
accessing 13
custom paper type
assigning 36
custom paper type name
creating 35
custom paper type names
assigning 35
Custom Type [x]
assigning a paper type 36
Custom Type [x] name
creating 35
Custom Types menu 59
D
Default Source menu 52
Defective flash detected [51] 116
Dell Mobile Print
using 48
device and network settings
erasing 91
Index 159
directory list
printing 50
display troubleshooting
printer display is blank 127
display, control panel 11
display, printer control panel
adjusting brightness 89
documents, printing
from Macintosh 45
from Windows 45
E
Eco‑Mode setting 87
embedded solutions
erasing 91
Embedded Web Server
adjusting brightness 89
checking the status of parts 92
checking the status of supplies 92
copying settings to other
printers 101
modifying confidential print
settings 101
problem accessing 154
Embedded Web Server — Security:
Administrator’s Guide
where to find 91
envelopes
loading, multipurpose feeder 31
tips on using 40
environmental settings
Eco‑Mode 87
printer display brightness,
adjusting 89
Quiet mode 87
Sleep mode 88
erasing non‑volatile memory 91
erasing volatile memory 91
Error reading USB drive. Remove
USB. 116
Error reading USB hub. Remove
hub. 116
Ethernet network
preparing to set up for Ethernet
printing 21
Ethernet port 19
Ethernet setup
preparing for an 21
exterior of the printer
cleaning 92
F
factory defaults, restoring 102
finding more information about the
printer 8
Finishing menu 76
firmware card 13
flash drive
printing from 46
flash drives
supported file types 47
font sample list
printing 50
G
green settings
Eco‑Mode 87
Quiet mode 87
Sleep mode 88
H
hardware options, adding
print driver 21
held jobs
printing from a Macintosh
computer 49
printing from Windows 49
Help menu 84
HTML menu 83
I
Image menu 84
imaging unit
replacing 95
Imaging unit low [84.xy] 117
Imaging unit nearly low [84.xy] 117
Imaging unit very low, [x] estimated
pages remain [84.xy] 117
Incorrect paper size, open [paper
source] [34] 117
indicator light 11
individual settings
erasing 91
Insert Tray [x] 117
installing an optional card 15
installing printer 20
installing the 250‑sheet tray 17
installing the 550‑sheet tray 17
Insufficient memory for Flash
Memory Defragment operation
[37] 118
Insufficient memory to collate job
[37] 118
Insufficient memory to support
Resource Save feature [35] 117
Insufficient memory, some Held
Jobs were deleted [37] 118
Insufficient memory, some held
jobs will not be restored [37] 118
internal options 13
IPv6 menu 64
J
jams
accessing 104
avoiding 103
understanding messages 104
jams, clearing
in duplex area 111
in front door 105
in manual feeder 113
in rear door 109
in standard bin 110
in tray [x] 112
L
labels, paper
tips on using 40
letterhead
loading, multipurpose feeder 31
tips on using 41
light, indicator 11
linking trays 34
assigning custom paper type
names 35
Load [paper source] with [custom
string] [orientation] 118
Load [paper source] with [custom
type name] [orientation] 119
Load [paper source] with [paper
size] [orientation] 119
Load [paper source] with [paper
type] [paper size] [orientation] 119
Load Manual Feeder with [custom
string] [orientation] 120
Load Manual Feeder with [custom
type name] [orientation] 119
Load Manual Feeder with [paper
size] [orientation] 120
Load Manual Feeder with [paper
type] [paper size] [orientation] 120
Index 160
loading
multipurpose feeder 31
trays 27
loading the optional tray 27
loading the standard tray 27
lock, security 90
M
Maintenance kit low [80.xy] 120
Maintenance kit nearly low
[80.xy] 120
Maintenance kit very low, [x]
estimated pages remain
[80.xy] 121
managing printer messages 99
memory
types installed on printer 90
memory card 13
installing 14
Memory full [38] 121
menu settings
loading on multiple printers 101
menu settings page
printing 24
menus
Active NIC 61
AppleTalk 66
Configure MP 55
Custom Types 59
Default Source 52
Finishing 76
Help 84
HTML 83
Image 84
IPv6 64
list of 51
Miscellaneous 69
Network [x] 61
Network Card 63
Paper Loading 58
Paper Size/Type 52
Paper Texture 55
Paper Weight 57
PCL Emul 80
PDF 79
PostScript 80
Quality 78
Reports 60, 62
Security Audit Log 69
Set Date and Time 70
Setup 75
SMTP Setup menu 68
Standard Network 61
Standard USB 66
Substitute Size 55
TCP/IP 63
Universal Setup 60
Utilities 79
Wireless 65
XPS 79
Miscellaneous menu 69
mobile device
printing from 48
moving the printer 9, 98
multipurpose feeder
loading 31
N
Network [x] menu 61
Network [x] software error
[54] 121
Network Card menu 63
network setup page
printing 25
Non‑Dell [supply type], see User’s
Guide [33.xy] 121
non‑volatile memory 90
erasing 91
Not enough free space in flash
memory for resources [52] 122
number of remaining pages
estimate 93
O
optional card
installing 15
optional tray
loading 27
options
250‑sheet tray, installing 17
550‑sheet tray, installing 17
firmware cards 13
memory card 14
memory cards 13
ordering supplies
using Printer Home 93
P
paper
characteristics 37
letterhead 38
loading, multipurpose feeder 31
preprinted forms 38
recycled 39
selecting 38
setting size 26
setting type 26
storing 39
unacceptable 38
Universal size setting 26
using recycled 86
paper feed troubleshooting
message remains after jam is
cleared 130
paper jams
avoiding 103
paper jams, clearing
in duplex area 111
in front door 105
in manual feeder 113
in rear door 109
in standard bin 110
in tray [x] 112
Paper Loading menu 58
paper messages
[x]‑page jam, remove tray 1 to
clear duplex. [23y.xx] 111
Paper Size/Type menu 52
paper sizes
supported by the printer 41
paper stop, using 26
Paper Texture menu 55
paper types
duplex support 43
supported by printer 43
where to load 43
Paper Weight menu 57
parallel port 19
parts
checking status 92
checking, using the Embedded
Web Server 92
parts and supplies, status of
checking, on printer control
panel 92
PCL Emul menu 80
PDF menu 79
Personal Identification Number
method
using 23
PostScript menu 80
PPDS font error [50] 122
preparing to set up the printer on
an Ethernet network 21
Index 161
print driver
hardware options, adding 21
print irregularities 141
print job
canceling from the printer control
panel 50
canceling, from computer 50
print quality troubleshooting
blank pages 146
characters have jagged edges 136
clipped pages or images 137
gray background on prints 139
horizontal voids appear on
prints 151
print irregularities 141
print is too dark 143
print is too light 145
printer is printing solid black
pages 148
repeating print defects appear on
prints 143
shadow images appear on
prints 138
skewed print 147
streaked horizontal lines appear
on prints 149
streaked vertical lines 150
toner fog or background
shading 153
toner rubs off 153
toner specks appear on prints 153
transparency print quality is
poor 148
uneven print density 154
white streaks 152
print troubleshooting
error reading flash drive 131
incorrect characters print 135
incorrect margins on prints 140
jammed pages are not
reprinted 130
job prints from wrong tray 134
job prints on wrong paper 134
jobs do not print 132
Large jobs do not collate 135
multiple‑language PDF files do not
print 131
paper curl 141
paper frequently jams 129
print job takes longer than
expected 133
tray linking does not work 135
unexpected page breaks
occur 136
printer 20
configurations 10
minimum clearances 9
moving 9, 98
selecting a location 9
shipping 98
printer configurations
basic model 10
configured model 10
printer control panel 11
adjusting brightness 89
factory defaults, restoring 102
indicator light 12
Sleep button light 12
using 11
printer control panel, virtual
display
using the Embedded Web
Server 99
printer information
where to find 8
printer is printing blank pages 146
printer messages
[x]‑page jam, clear manual feeder.
[25y.xx] 113
[x]‑page jam, clear standard bin.
[20y.xx] 110
[x]‑page jam, open front door.
[20y.xx] 105
[x]‑page jam, open rear door.
[20y.xx] 109
[x]‑page jam, open tray [x].
[24y.xx] 112
Cartridge low [88.xy] 115
Cartridge nearly low [88.xy] 115
Cartridge very low, [x] estimated
pages remain [88.xy] 115
Change [paper source] to [custom
string] load [orientation] 115
Change [paper source] to [custom
type name] load
[orientation] 115
Change [paper source] to [paper
size] load [orientation] 116
Change [paper source] to [paper
type] [paper size] load
[orientation] 116
Close front door 116
Complex page, some data may not
have printed [39] 116
Defective flash detected [51] 116
Error reading USB drive. Remove
USB. 116
Error reading USB hub. Remove
hub. 116
Imaging unit low [84.xy] 117
Imaging unit nearly low
[84.xy] 117
Imaging unit very low, [x]
estimated pages remain
[84.xy] 117
Incorrect paper size, open [paper
source] [34] 117
Insert Tray [x] 117
Insufficient memory for Flash
Memory Defragment operation
[37] 118
Insufficient memory to collate job
[37] 118
Insufficient memory to support
Resource Save feature [35] 117
Insufficient memory, some Held
Jobs were deleted [37] 118
Insufficient memory, some held
jobs will not be restored
[37] 118
Load [paper source] with [custom
string] [orientation] 118
Load [paper source] with [custom
type name] [orientation] 119
Load [paper source] with [paper
size] [orientation] 119
Load [paper source] with [paper
type] [paper size]
[orientation] 119
Load Manual Feeder with [custom
string] [orientation] 120
Load Manual Feeder with [custom
type name] [orientation] 119
Load Manual Feeder with [paper
size] [orientation] 120
Load Manual Feeder with [paper
type] [paper size]
[orientation] 120
Maintenance kit low [80.xy] 120
Maintenance kit nearly low
[80.xy] 120
Maintenance kit very low, [x]
estimated pages remain
[80.xy] 121
managing 99
Memory full [38] 121
Index 162
Network [x] software error
[54] 121
Non‑Dell [supply type], see User’s
Guide [33.xy] 121
Not enough free space in flash
memory for resources [52] 122
PPDS font error [50] 122
Reinstall missing or unresponsive
cartridge [31.xy] 122
Reinstall missing or unresponsive
imaging unit [31.xy] 122
Remove paper from standard
output bin 123
Replace cartridge, 0 estimated
pages remain [88.xy] 123
Replace imaging unit, 0 estimated
pages remain [84.xy] 123
Replace maintenance kit, 0
estimated pages remain
[80.xy] 123
Replace unsupported cartridge
[32.xy] 123
Replace unsupported imaging unit
[32.xy] 123
SMTP server not set up. Contact
system administrator. 123
Standard network software error
[54] 124
Standard parallel port disabled
[56] 124
Standard USB port disabled
[56] 124
Too many flash options installed
[58] 124
Too many trays attached [58] 124
Unformatted flash detected
[53] 125
Unsupported option in slot [x]
[55] 125
Unsupported USB hub, please
remove 116
printer options troubleshooting
internal option is not
detected 127
tray problems 128
printer problems, solving basic 125
printer security
information on 91
printing
directory list 50
font sample list 50
from a mobile device using
AirPrint 48
from a mobile device using Dell
Mobile Print 48
from flash drive 46
from Macintosh 45
from Windows 45
menu settings page 24
network setup page 25
printing a document 45
printing a network setup page 25
printing confidential and other held
jobs
from a Macintosh computer 49
from Windows 49
printing from a flash drive 46
publications
where to find 8
Push Button Configuration method
using 23
Q
Quality menu 78
Quiet mode 87
R
recycled paper
using 39, 86
recycling
Dell products 89
reducing noise 87
Reinstall missing or unresponsive
cartridge [31.xy] 122
Reinstall missing or unresponsive
imaging unit [31.xy] 122
Remove paper from standard
output bin 123
repeat print jobs
printing from a Macintosh
computer 49
printing from Windows 49
repeating print defects appear on
prints 143
Replace cartridge, 0 estimated
pages remain [88.xy] 123
Replace imaging unit, 0 estimated
pages remain [84.xy] 123
Replace maintenance kit, 0
estimated pages remain
[80.xy] 123
Replace unsupported cartridge
[32.xy] 123
Replace unsupported imaging unit
[32.xy] 123
replacing
imaging unit 95
toner cartridge 94
reports
viewing 100
Reports menu 60, 62
reserve print jobs
printing from a Macintosh
computer 49
printing from Windows 49
S
safety information 6, 7
security
modifying confidential print
settings 101
Security Audit Log menu 69
security lock 90
security settings
erasing 91
security Web page
where to find 91
selecting a location for the
printer 9
selecting paper 38
Set Date and Time menu 70
setting
paper size 26
paper type 26
TCP/IP address 63
Setup menu 75
shipping the printer 98
Sleep mode
adjusting 88
SMTP server not set up. Contact
system administrator. 123
SMTP Setup menu 68
software
Status Messenger 99
Status Monitor Center 99
Supplies Ordering Utility 93
standard bin, using 26
Standard Network menu 61
Standard network software error
[54] 124
Standard parallel port disabled
[56] 124
Index 163
standard tray
loading 27
Standard USB menu 66
Standard USB port disabled
[56] 124
statement of volatility 90
Status Monitor Center
accessing 99
status of parts and supplies
checking 92
storing
paper 39
supplies 93
streaked horizontal lines appear on
prints 149
streaked vertical lines appear on
prints 150
streaks appear 152
Substitute Size menu 55
supplies
checking status 92
checking, using the Embedded
Web Server 92
ordering 93
storing 93
using recycled paper 86
Supplies Ordering Utility
ordering supplies 93
supply notifications
configuring 100
supported flash drives 47
supported paper sizes 41
supported paper types and
weights 43
T
TCP/IP menu 63
tips
card stock 39
letterhead 41
on using envelopes 40
on using labels 40
transparencies 41
tips on using envelopes 40
toner cartridge
replacing 94
toner darkness
adjusting 45
Too many flash options installed
[58] 124
Too many trays attached [58] 124
transparencies
loading, multipurpose feeder 31
tips 41
trays
linking 34
loading 27
unlinking 34
troubleshooting
cannot open Embedded Web
Server 154
checking an unresponsive
printer 125
contacting technical support 156
solving basic printer
problems 125
troubleshooting, display
printer display is blank 127
troubleshooting, paper feed
message remains after jam is
cleared 130
troubleshooting, print
error reading flash drive 131
incorrect characters print 135
incorrect margins on prints 140
jammed pages are not
reprinted 130
job prints from wrong tray 134
job prints on wrong paper 134
jobs do not print 132
Large jobs do not collate 135
multiple‑language PDF files do not
print 131
paper curl 141
paper frequently jams 129
print job takes longer than
expected 133
tray linking does not work 135
unexpected page breaks
occur 136
troubleshooting, print quality
blank pages 146
characters have jagged edges 136
clipped pages or images 137
gray background on prints 139
horizontal voids appear on
prints 151
print irregularities 141
print is too dark 143
print is too light 145
printer is printing solid black
pages 148
repeating print defects appear on
prints 143
shadow images appear on
prints 138
skewed print 147
streaked horizontal lines appear
on prints 149
streaked vertical lines 150
toner fog or background
shading 153
toner rubs off 153
toner specks appear on prints 153
transparency print quality is
poor 148
uneven print density 154
white streaks on a page 152
troubleshooting, printer options
internal option is not
detected 127
tray problems 128
U
unacceptable paper 38
uneven print density 154
Unformatted flash detected
[53] 125
Universal paper size settings
configuring 26
Universal Setup menu 60
unlinking trays 34
Unsupported option in slot [x]
[55] 125
Unsupported USB hub, please
remove 116
USB port 19
using recycled paper 86
using the printer control panel 11
Utilities menu 79
V
verify print jobs
printing from a Macintosh
computer 49
printing from Windows 49
vertical voids appear 152
viewing
reports 100
virtual display
checking, using Embedded Web
Server 99
voids appear 152
Index 164
