Dell Storage Manager 2016 R3
Installation Guide
Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use of your product.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
Copyright © 2017 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its
subsidiaries. Other trademarks may be trademarks of their respective owners.
2017 - 04
Rev. B
Contents
About This Guide............................................................................................................... 5
How to Find Information.....................................................................................................................................................5
Contacting Dell...................................................................................................................................................................5
Revision History..................................................................................................................................................................5
Audience............................................................................................................................................................................ 5
Related Publications........................................................................................................................................................... 5
Storage Manager Documents.......................................................................................................................................5
Storage Center Documents.......................................................................................................................................... 6
FluidFS Cluster Documents.......................................................................................................................................... 6
Fluid Cache Cluster Documents....................................................................................................................................7
Dell TechCenter............................................................................................................................................................ 7
1 Introduction to Storage Manager.....................................................................................9
Storage Manager Components...........................................................................................................................................9
Management Compatibility.................................................................................................................................................9
Software and Hardware Requirements..............................................................................................................................10
Data Collector Requirements.......................................................................................................................................10
Dell Storage Manager Virtual Appliance Requirements.................................................................................................11
Dell Storage Manager Client Requirements..................................................................................................................11
Server Agent Requirements........................................................................................................................................ 12
Default Ports Used by Storage Manager...........................................................................................................................12
Data Collector Ports....................................................................................................................................................12
Dell Storage Manager Client Ports.............................................................................................................................. 13
Server Agent Ports..................................................................................................................................................... 14
IPv6 Support.....................................................................................................................................................................14
2 Planning and Preparation...............................................................................................15
Choose a Data Storage Method........................................................................................................................................15
Gather Required Installation Information........................................................................................................................... 15
Record Database Information......................................................................................................................................15
Prepare the Database....................................................................................................................................................... 16
Prepare a Microsoft SQL Server Database..................................................................................................................16
Prepare a MySQL Database........................................................................................................................................ 17
3 Installing and Conguring the Data Collector................................................................. 19
Install the Data Collector................................................................................................................................................... 19
Congure the Data Collector.............................................................................................................................................19
4 Installing and Conguring the Dell Storage Manager Virtual Appliance..........................23
Virtual Appliance Requirements for vSphere.....................................................................................................................23
Deploying the Dell Storage Manager Virtual Appliance..................................................................................................... 23
Deploy the Virtual Appliance.......................................................................................................................................23
Conguring the Dell Storage Manager Virtual Appliance...................................................................................................24
3
Set Up the Virtual Appliance.......................................................................................................................................24
Migrating an Existing Data Collector to the Storage Manager Virtual Appliance...............................................................25
Data Collector Migration Requirements...................................................................................................................... 25
Migrate an Existing Data Collector............................................................................................................................. 25
Next Steps After Migration.........................................................................................................................................26
5 Installing and Conguring the Storage Manager Client.................................................. 27
Connect to the Storage Manager Web UI.........................................................................................................................27
Install the Storage Manager Client on Windows................................................................................................................27
Install the Storage Manager Client on Linux......................................................................................................................27
Use the Client to Connect to the Data Collector.............................................................................................................. 28
Add Storage Centers to Storage Manager........................................................................................................................28
Next Steps....................................................................................................................................................................... 29
6 Updating Dell Storage Manager..................................................................................... 31
Updating the Storage Manager Data Collector..................................................................................................................31
Update the Dell Storage Manager Client........................................................................................................................... 31
Update the Storage Manager Server Agent...................................................................................................................... 31
Updating the Storage Manager Virtual Appliance............................................................................................................. 32
4
About This Guide
This guide describes how to install and congure Storage Manager components.
For information about using Storage Manager to manage and monitor your Dell storage infrastructure, see the Dell Storage Manager
Administrator’s Guide.
How to Find Information
To Find Action
A description of a eld or option in the user
interface
In Storage Manager, click Help.
Tasks that can be performed from a particular
area of the user interface 1. In Storage Manager, click Help.
2. See the Related Tasks section at the bottom of the topic.
A term in a .pdf le Using Adobe Acrobat or Adobe Reader:
• To nd a matching term, press Control+F, type the search term, then press
Enter.
• To nd all matching terms, press Control+Shift+F, type the term in the search
eld, then click Search.
Contacting Dell
Go to www.dell.com/support.
Revision History
Document number: 680-028-023
Revision Date Description
A January 2017 Initial release
B April 2017 Release of Dell Storage Manager 2016 R3.10
Audience
Storage administrators make up the target audience for this document. The intended reader has a working knowledge of storage and
networking concepts.
Related Publications
The following documentation is available for Dell storage components managed using Storage Manager.
Storage Manager Documents
•Dell Storage Manager Installation Guide
Contains installation and setup information.
About This Guide 5
•Dell Storage Manager Administrator’s Guide
Contains in-depth feature conguration and usage information.
•Dell Storage Manager Web UI Administrator’s Guide
Contains instructions and information for managing
Dell storage devices using the Dell Storage Manager Web UI.
•Dell Storage Manager Release Notes
Provides information about Storage Manager releases, including new features and enhancements, open issues, and resolved
issues.
•Dell Storage Manager Online Help
Provides context-sensitive help for the Client, Data Collector Manager, and Server Agent.
•Dell Storage REST API Getting Started Guide
Contains command examples and usage instructions for the Dell Storage REST API.
•Dell Storage API PowerShell SDK Getting Started Guide
Contains setup instructions and examples for the Dell Storage API for PowerShell.
Storage Center Documents
•Storage Center Release Notes
Contains information about features and open and resolved issues for a particular product version.
•Storage Center Deployment Guide
Provides cabling instructions for Storage Center controllers, switches, and enclosures and provides instructions for conguring a
new Dell Storage Center.
•Storage Center Software Update Guide
Describes how to update Storage Center software from an earlier version to the current version.
•Storage Center Update Utility Administrator’s Guide
Describes how to update Storage Center software on Storage Center controllers. Updating Storage Center software using the
Storage Center Update Utility is intended for use only by sites that cannot update Storage Center using the standard update
options available through Dell Storage Manager.
•Storage Center Command Utility Reference Guide
Provides instructions for using the Storage Center Command Utility. The Command Utility provides a command-line interface
(CLI) to enable management of Storage Center functionality on Windows, Linux, Solaris, and AIX platforms.
•Storage Center Command Set for Windows PowerShell
Provides instructions for getting started with Windows PowerShell cmdlets and scripting objects that interact with the Storage
Center via the PowerShell interactive shell, scripts, and hosting applications. Help for individual cmdlets is available online.
FluidFS Cluster Documents
•Dell FluidFS Version 6.0 FS8600 Appliance Pre-Deployment Requirements
Provides a checklist that assists in preparing to deploy an FS8600 appliance prior to a Dell installer or certied business partner
arriving on site to perform an FS8600 appliance installation. The target audience for this document is Dell installers and certied
business partners who perform FS8600 appliance installations.
•Dell FluidFS Version 6.0 FS8600 Appliance Deployment Guide
Provides information about deploying an FS8600 appliance, including cabling the appliance to the Storage Center(s) and the
network, and deploying the appliance using the Storage Manager software. The target audience for this document is Dell
installers and certied business partners who perform FS8600 appliance installations.
•Dell FluidFS 6.0 FS8600 Appliance CLI Reference Guide
Provides information about the FS8600 appliance command-line interface. The target audience for this document is customers.
•Dell FS8600 Appliance FluidFS Version 6.0 Software Update Guide
Provides information about upgrading the FluidFS software from version 2.0 to 3.0. The target audience for this document is
customers.
6
•Dell FluidFS Version 6.0 Release Notes
Provides information about FluidFS releases, including new features and enhancements, open issues, and resolved issues. The
target audience for this document is customers.
•Dell FS8600 Appliance Service Guide
Provides information about FS8600 appliance hardware, system component replacement, and system troubleshooting. The
target audience for this document is Dell installers and certied business partners who perform FS8600 appliance hardware
service.
•Dell NAS Appliance SFP+ Replacement Procedure
Provides information about replacing SFP+ transceivers on an inactive system. The target audience for this document is Dell
installers and certied business partners who perform FS8600 appliance hardware service.
•Dell FluidFS FS8600 Appliance 1Gb to 10Gb Upgrade Procedure
Provides information about upgrading a Fibre Channel FS8600 appliance from 1Gb Ethernet client connectivity to 10Gb Ethernet
client connectivity. The target audience for this document is Dell installers and certied business partners who perform FS8600
appliance hardware service.
Fluid Cache Cluster Documents
•Dell Fluid Cache for SAN Deployment Guide for VMware ESXi Systems
Describes the process of deploying Fluid Cache for SAN, including system requirements, installation procedures, and
troubleshooting. Includes additional procedures specic to conguring Fluid Cache clusters in VMware environments.
•Dell Fluid Cache for SAN Deployment Guide for Linux Systems
Describes the process of deploying Fluid Cache for SAN, including system requirements, installation procedures, and
troubleshooting. Includes requirements specic to supported Linux distributions.
•Dell Fluid Cache for SAN Release Notes
Documents known issues and lists the most current software and hardware requirements.
Dell TechCenter
Provides technical white papers, best practice guides, and frequently asked questions about Dell Storage products. Go to: http://
en.community.dell.com/techcenter/storage/
About This Guide 7
8
1
Introduction to Storage Manager
Storage Manager allows you to monitor, manage, and analyze Storage Center SANs, FluidFS clusters, and Fluid Cache clusters from
a centralized management console. The Storage Manager Data Collector stores data and alerts it gathers from managed storage
devices in an external database or an embedded database. To perform monitoring and administrative tasks, administrators use the
Dell Storage Manager Client to connect to the Storage Manager Data Collector or to connect directly to a Storage Center.
Storage Manager Components
Storage Manager consists of the following components.
Table 1. Storage Manager Components
Component Description Setup Documentation
Primary Storage Manager
Data Collector
Service that gathers reporting data and
alerts from Storage Center SANs
Dell Storage Manager Installation Guide
Dell Storage Manager Client Windows-based application that
connects to the Storage Manager Data
Collector to provide a centralized
management console for one or more
storage devices
Dell Storage Manager Installation Guide
Dell Storage Manager Web UI Web application that connects to the
Storage Manager Data Collector to
provide a centralized management
console for one or more storage
devices
Dell Storage Manager Installation Guide
Remote Storage Manager
Data Collector
Storage Manager Data Collector that is
connected to the primary Storage
Manager Data Collector and can be
used to activate a disaster recovery
site if the primary Storage Manager
Data Collector becomes unavailable
Dell Storage Manager Administrator’s Guide
Storage Manager Server
Agent
Service for Windows that allows
Storage Manager to free volume
storage space from expired snapshots
that would otherwise remain locked by
Windows
Dell Storage Manager Administrator’s Guide
Management Compatibility
Storage Manager manages Dell storage products and also provides management integration for Microsoft and VMware products.
Storage Manager is compatible with the products listed in the following table.
Introduction to Storage Manager 9
Product Versions
Dell Storage Center Storage Center versions 6.5–7.2
PS Series group rmware 7.0–9.0
Dell FluidFS 4.0–6.0
Microsoft System Center Virtual Machine Manager (SCVMM) 2012, 2012 SP1, 2012 R2, and 2016
VMware vCenter Site Recovery Manager (SRM) 5.5, 5.8, 6.0, 6.1.1, and 6.5
Dell Storage Replication Adapter (SRA) 16.3.10
CITV 4.0 and later
Software and Hardware Requirements
The following sections list the requirements for the Storage Manager Data Collector, Dell Storage Manager Client, and Storage
Manager Server Agent.
Data Collector Requirements
The following table lists the Storage Manager Data Collector requirements.
NOTE: For best results, install the Data Collector on a Windows Server VM on a traditional volume sourced from shared
storage. Do not use a VVol for the Data Collector VM.
Component Requirements
Operating system Any of the following 64-bit operating systems with the latest service packs:
• Windows Server 2008 R2
• Windows Server 2012
• Windows Server 2012 R2
• Windows Server 2016
NOTE: 32-bit operating systems are not supported, and Windows Server Core is not supported.
Windows User
Group
Administrators
CPU 64-bit (x64) microprocessor with two or more cores
RAM At least 4 GB; 8 GB if using the Dell Storage Replication Adapter (SRA) for VMware vCenter Site Recovery
Manager
Disk space At least 20 GB; additional space is required to manage FluidFS cluster software updates
Software Microsoft .NET Framework 4.0 Full
Web browser Any of the following web browsers:
• Internet Explorer 11
• Firefox
• Google Chrome
• Microsoft Edge
NOTE: Other web browsers might work but are not ocially supported.
External database One of the following databases:
• Microsoft SQL Server 2008 R2
• Microsoft SQL Server 2008 R2 Express (limited to 10 GB)
• Microsoft SQL Server 2012
10 Introduction to Storage Manager
Component Requirements
• Microsoft SQL Server 2012 Express (limited to 10 GB)
• Microsoft SQL Server 2014
• Microsoft SQL Server 2014 Express (limited to 10 GB)
• Microsoft SQL Server 2016
• MySQL 5.5
• MySQL 5.6
• MySQL 5.7
NOTE: The embedded database stored on the le system can be used instead of an external
database. However, the embedded database is limited to 64 GB and retains only the last 30 days of
data. The embedded database is not recommended for a production environment.
Dell Storage Manager Virtual Appliance Requirements
The Dell Storage Manager Virtual Appliance requires the following conditions.
Component Requirement
Server operating
system
VMware vSphere 5.5, 6.0, or 6.5 with 64–bit hardware
Datastore size 55 GB
Software • VMware vCenter Server
• VMware vSphere High Availability
Memory Varies based on size of the storage environment
• 4 GB: 1–5 storage arrays or 1–1000 total volumes
• 8 — 32GB: 6–10 storage arrays or 1001–2000 total volumes
Dell Storage Manager Client Requirements
The following table lists the requirements for the Dell Storage Manager Client.
Component Requirements
Operating system Any of the following 32-bit or 64-bit operating systems (with the latest service packs):
• Windows 8
• Windows 8.1
• Windows 10
Any of the following 64-bit operating systems:
• Windows Server 2008 R2
• Windows Server 2012
• Windows Server 2012 R2
• Windows Server 2016
• Red Hat Enterprise Linux 6.7
• Red Hat Enterprise Linux 7
• Red Hat Enterprise Linux 7.1
• Red Hat Enterprise Linux 7.2
• SUSE Linux Enterprise 12
• Oracle Linux 6.5
• Oracle Linux 7.0
Introduction to Storage Manager 11
Component Requirements
NOTE: Windows Server Core is not supported.
CPU 32-bit (x86) or 64-bit (x64) microprocessor
NOTE: Linux versions of the Dell Storage Manager Client support only 64-bit microprocessors.
Software Microsoft .NET Framework 4.0 (Windows only)
Web browser Any of the following web browsers:
• Internet Explorer 11
• Firefox
• Google Chrome
• Microsoft Edge
NOTE: Other web browsers might work but are not ocially supported.
Server Agent Requirements
The following table lists the requirements for the Storage Manager Server Agent for Windows-based servers.
Component Requirements
Operating system Any of the following 64-bit operating systems (with the latest service packs):
• Windows Server 2008 R2 (full or core installation)
• Windows Storage Server 2008 R2
• Windows Server 2012 (full or core installation)
• Windows Server 2012 R2 (full or core installation)
• Windows Server 2016
CPU 64-bit (x64) microprocessor
Microsoft .NET
Framework
4.0 Full
Default Ports Used by Storage Manager
The Storage Manager components use network connections to communicate with each other and with other network resources.
The following tables list the default network ports used by the Storage Manager Data Collector, Dell Storage Manager Client, and
Storage Manager Server Agent. Many of the ports are congurable.
NOTE: Some ports might not be needed for your conguration. For details, see the Purpose column in each table.
Data Collector Ports
The following tables list the ports used by the Storage Manager Data Collector.
Inbound Data Collector Ports
The Data Collector accepts connections on the following ports.
Port Protocol Name Purpose
514 UDP syslog Receiving logs forwarded from Storage Center SANs
3033 TCP Web Server Port Receiving:
12 Introduction to Storage Manager
Port Protocol Name Purpose
• Communication from all clients, including the Dell Storage Manager
Client and Dell Storage Replication Adapter (SRA)
• Alerts from FluidFS clusters
• Alerts from Fluid Cache clusters
3034 TCP Web Server Port Receiving vCenter/ESXi communication for VASA and VVol
provisioning and administration
8080 TCP Legacy Web Services
Port
Receiving:
• Storage Manager Server Agent communication
• Alerts forwarded from Storage Center SANs
7342 TCP Legacy Client Listener
Port
• Communicating with the remote Data Collector
• Providing automatic update functionality for previous versions of
the Dell Storage Manager Client
5989 TCP SMI-S over HTTPS Receiving encrypted SMI-S communication
Outbound Data Collector Ports
The Data Collector initiates connections to the following ports.
Port Protocol Name Purpose
25 TCP SMTP Sending email notications
443 TCP SSL • Communicating with managed Storage Center SANs
• Sending diagnostic data with Dell SupportAssist
514 UDP syslog Forwarding Storage Center logs to syslog servers
1199 TCP SIMS RMI Communicating with managed PS Series groups
1433 TCP Microsoft SQL Server Connecting to an external Microsoft SQL Server database
3033 TCP SSL Communicating with managed Storage Center SANs
3306 TCP MySQL Connecting to an external MySQL database
6774 TCP Fluid Cache Communicating with Fluid Cache servers
8080 TCP VMware SDK Communicating with VMware servers
27355 TCP Server Agent Socket
Listening Port
Storage Manager Server Agent communication
35451 TCP FluidFS Communicating with managed FluidFS clusters
44421 TCP FluidFS diagnostics Retrieving diagnostics from managed FluidFS clusters
Dell Storage Manager Client Ports
The following table lists the ports used by the Dell Storage Manager Client.
Inbound Dell Storage Manager Client Port
The Dell Storage Manager Client does not use any inbound ports.
Outbound Dell Storage Manager Client Port
The Dell Storage Manager Client initiates connections to the following port.
Introduction to Storage Manager 13
Port Protocol Name Purpose
3033 TCP Web Server Port Communicating with the Storage Manager Data Collector
Server Agent Ports
The following tables list the ports used by the Storage Manager Server Agent.
Inbound Server Agent Port
The Server Agent accepts connections on the following port.
Port Protocol Name Purpose
27355 TCP Server Agent Socket Listening Port Receiving communication from the Data
Collector
Outbound Server Agent Port
The Server Agent initiates connections to the following port.
Port Protocol Name Purpose
8080 TCP Legacy Web Services Port Communicating with the Data Collector
IPv6 Support
The Storage Manager Data Collector can use IPv6 to accept connections from the Dell Storage Manager Client and to communicate
with managed Storage Center SANs.
To use IPv6, assign IPv6 addresses as described in the following table.
IPv6 Connection Requirements
Dell Storage Manager Client to Data Collector • Dell Storage Manager Client computer must have an IPv6
address.
• Data Collector server must have both an IPv4 address and
an IPv6 address.
Data Collector to Storage Center • Data Collector server must have both an IPv4 address and
an IPv6 address.
• Storage Center SAN must have both an IPv4 address and an
IPv6 address on the management interface.
14 Introduction to Storage Manager
2
Planning and Preparation
Before you install Storage Manager, plan your conguration and install the required software.
Choose a Data Storage Method
You can congure the Data Collector to store data in an external database or in an embedded database on the le system of the host
server.
Choose the option that is most appropriate for your environment:
•External database: If you decide to use an external database, select the supported database type that best suits your needs.
The following external databases are supported:
– Microsoft SQL Server 2008 R2
– Microsoft SQL Server 2008 R2 Express (limited to 10 GB)
– Microsoft SQL Server 2012
– Microsoft SQL Server 2012 Express (limited to 10 GB)
– Microsoft SQL Server 2014
– Microsoft SQL Server 2014 Express (limited to 10 GB)
– Microsoft SQL Server 2016
– MySQL 5.5
– MySQL 5.6
– MySQL 5.7
Storage Manager uses a database administrator account to create a database user named compmsauser and a database named
compmsadb, which uses a custom schema.
NOTE: To protect data stored on the database, including VVols metadata, congure the external database to take
consistent snapshots.
•Embedded database: If you decide to use the embedded database, the Data Collector can retain only 30 days worth of data, and
the database size cannot exceed 64 GB.
NOTE: The embedded database is not recommended for a production environment.
Related links
Data Collector Requirements
Gather Required Installation Information
Before installing Storage Manager components, print this page and record the following information.
Record Database Information
If you plan to use an SQL database, record database information that is needed for installation.
Item Write down your information
Database version
Name of server that hosts the database
Planning and Preparation 15
Item Write down your information
Database server port
Database user name For security reasons, only record the database username in a
secure location.
Database password For security reasons, only record the database password in a
secure location.
Prepare the Database
If you plan to use an external database, prepare the database by performing the task that corresponds to your database type.
NOTE: If you want to store Data Collector data in the embedded database, skip this step.
•Prepare a Microsoft SQL Server Database
•Prepare a MySQL Database
Prepare a Microsoft SQL Server Database
Set up the Microsoft SQL Server database or Microsoft SQL Server Express database for the Data Collector.
1. If necessary, install the database software.
2. Make sure you have the credentials for a database administrator account with privileges equivalent to the default sa account.
3. Congure the database for mixed-mode authentication (SQL Server and Windows Authentication mode).
4. Start the SQL Server Conguration Manager application.

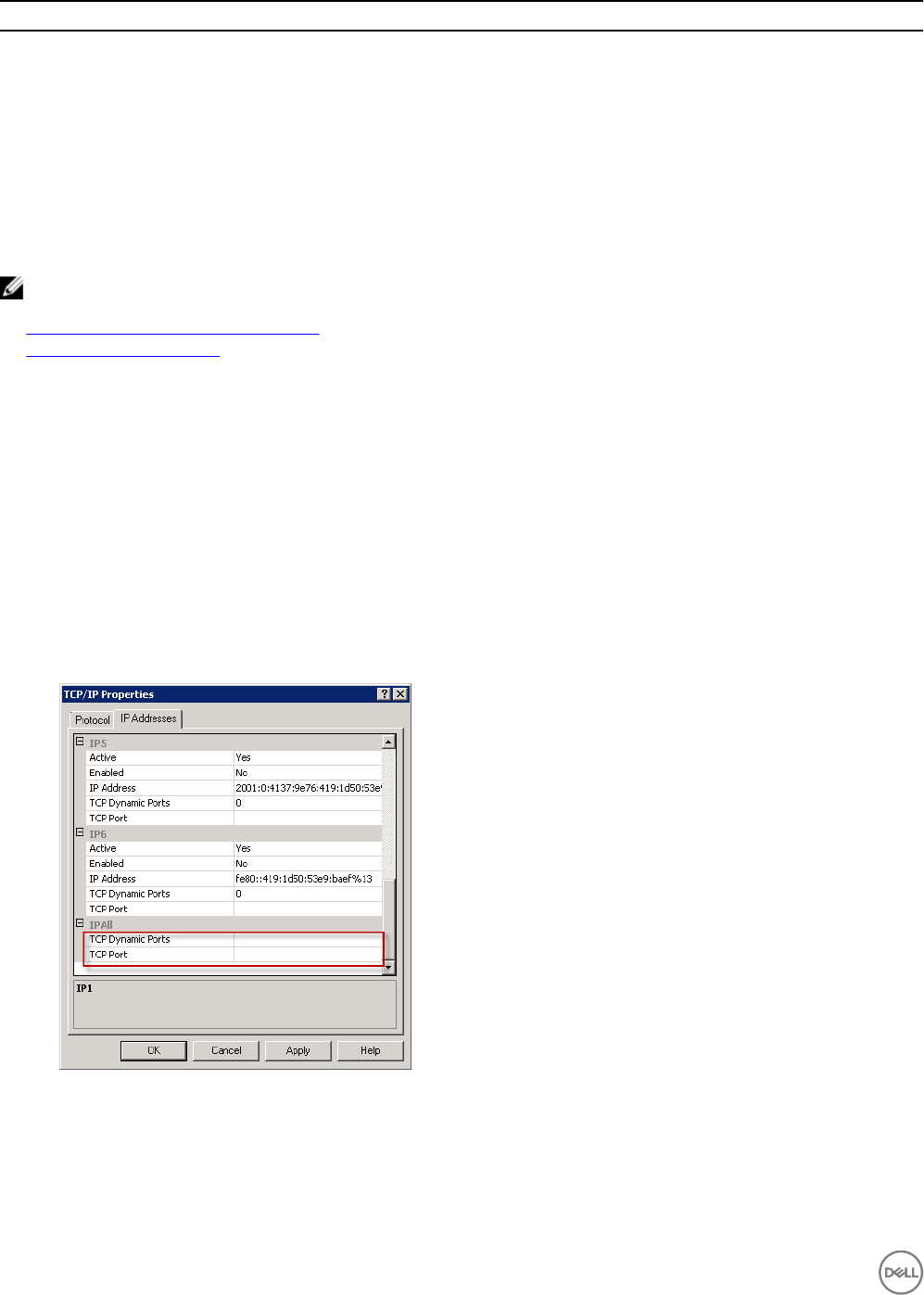

5. Set the TCP/IP ports.
a. In the navigation pane, expand SQL Server Network Conguration.
b. Click Protocols for MSSQLSERVER or Protocols for SQLEXPRESS.
c. Right-click TCP/IP and select Properties. The TCP/IP Properties dialog box appears.
d. Click the IP Addresses tab.
Figure 1. TCP/IP Properties Dialog Box IP Addresses Tab
e. Under IPALL, make sure the TCP Port is set to a valid port number. The default TCP port for SQL Server is 1433.
f. Click Apply and click OK to close the dialog box.
6. Enable TCP/IP protocol:
a. In the navigation pane, click Protocols for MSSQLSERVER or Protocols for SQLEXPRESS.
16 Planning and Preparation
b. Right-click TCP/IP and select Enable.
7. Restart SQL Server.
a. In the navigation pane, click SQL Server Services.
b. Right-click SQL Server and select Restart.
Prepare a MySQL Database
Set up the database permissions for the Data Collector.
1. If necessary, install the database software.
2. Make sure that you have administrator rights from remote servers (preferably root user).
3. Make sure the database admin user has the global CREATE USER, RELOAD, and SELECT permissions, and has full permissions
to the compmsadb database.
Enter the following commands from the MySQL admin tool, where root is the name of the admin user:
•grant create user, reload, select on *.* to 'root'@'%';
•grant all privileges on compmsadb.* to 'root'@'%' with grant option;
•flush privileges;
Planning and Preparation 17
18
3
Installing and Conguring the Data Collector
Install the Data Collector and congure settings using the Data Collector Setup Wizard.
Install the Data Collector
Install the Data Collector on a Windows server that has network connectivity to your Storage Centers.
Prerequisites
• The host server must meet the requirements described in Data Collector Requirements.
• The host server must be dierent than the server that hosts VMware vCenter.
• The tasks described in Planning and Preparation must be complete.
• The Windows user installing the Data Collector must be a member of the Administrators group on the local machine.
Steps
1. Download the latest Storage Manager Data Collector software from the Knowledge Center by logging on to the customer or
partner portal (from www.dell.com/support).
2. Unzip and launch the Storage Manager Data Collector Setup le. The InstallShield Wizard appears.
3. Select a language from the drop-down menu then click OK.
4. Click Next. The License Agreement page appears.
5. Read the license agreement and then click Yes to accept it. The Setup Status page appears and displays installation progress.
When installation is complete, the InstallShield Wizard Complete page appears.
6. Click Finish. The Storage Manager Data Collector Setup wizard appears.
Congure the Data Collector
Perform this task if you want the Data Collector to store data in a Microsoft SQL Server, MySQL, or embedded database.
1. Congure the rst page of the Data Collector Setup wizard.

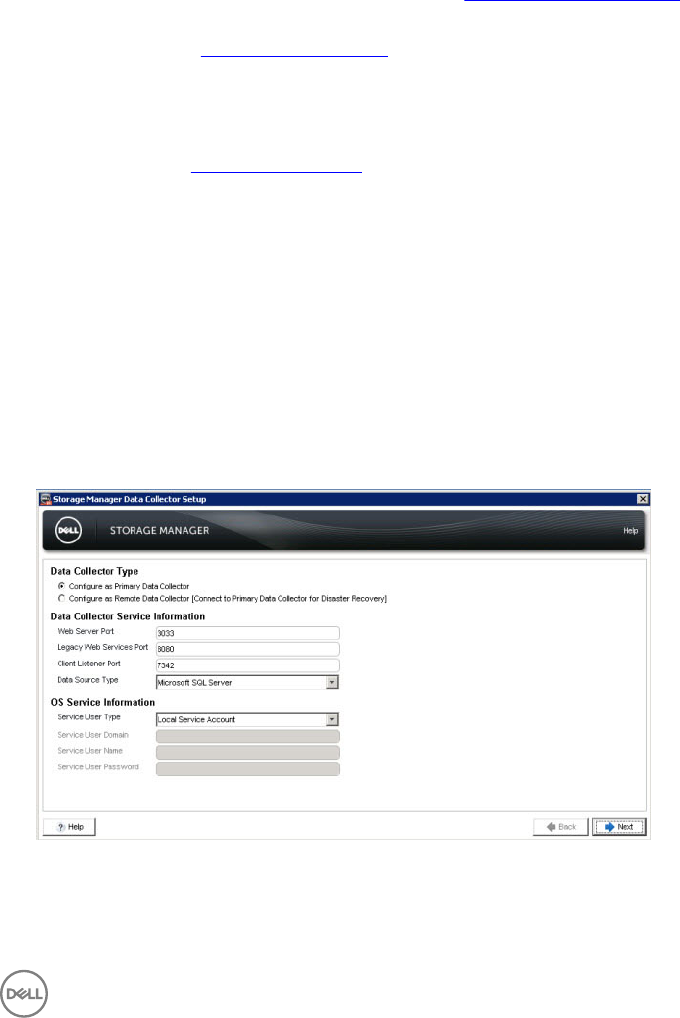

Figure 2. Data Collector Setup Wizard
a. Under Data Collector Type, select Congure as Primary Data Collector.
Installing and Conguring the Data Collector 19
b. (Optional) Under Data Collector Service Information, modify the default Data Collector ports if one or more of the default
ports are already in use.
NOTE: If a rewall is enabled on the host computer, make sure that these ports are allowed inbound.
c. In the Data Source Type drop-down menu, select a database type.
d. In the Service User Type drop-down menu, select the type of Windows account under which the Data Collector will run.
NOTE: User accounts (local or domain) must be able to log in as a service and must have administrator
privileges.
e. Click Next. The Data Source Properties page appears.

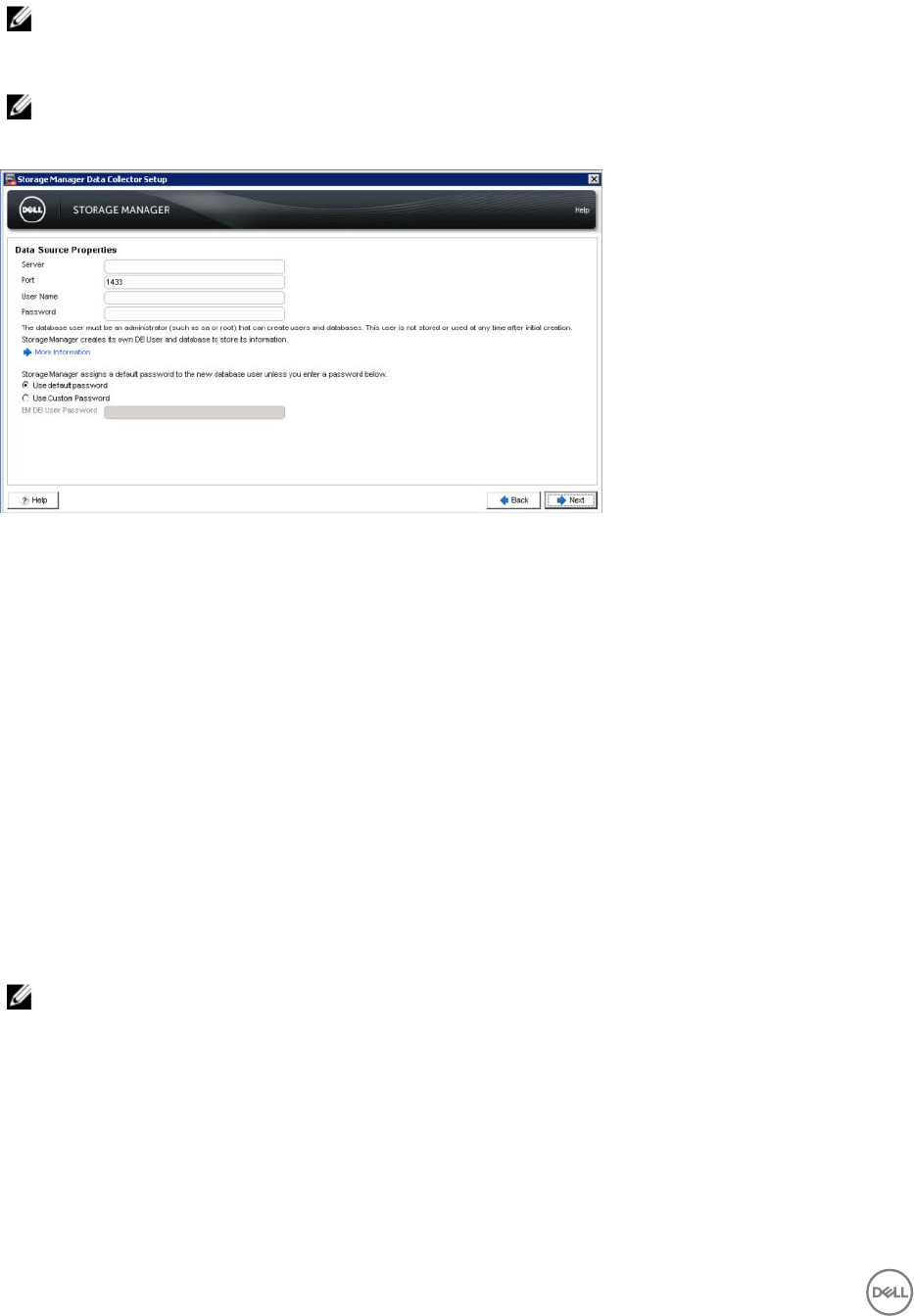

Figure 3. Data Source Properties Page
2. Specify the database information. (Microsoft SQL or MySQL databases only)
a. In the Server eld, type the host name or IP address of the server on which the database is installed.
b. In the Port eld, type the TCP port that was congured during the database TCP/IP setup. The default port for Microsoft
SQL Server is 1433 and the default for MySQL is 3306.
c. In the User Name/Password elds, type the user name and password for a user dened in the database that has
administrator rights to create databases and database users. The Data Collector uses this information to create a database
user named compmsauser.
d. (Optional) To specify a password for the compmsauser database user, select Use Custom Password, then type a password
in the DSM DB User Password eld. If you do not specify a password, a 13‑character default password is used.
e. Click Next. Storage Manager attempts to communicate with the database server.
• If a communication error appears, verify the database information, verify that Storage Manager has connectivity to the
database server, and make sure that the database server allows remote connections.
• If a user-creation error appears and the database server was previously used to store Storage Manager data, delete the
database user named compmsauser and the database named compmsadb, and then try again.
• If Storage Manager is able to communicate with the database server, the SMI‑S Server Properties page appears.
3. (Optional) Congure SMI-S Server Properties.
a. To congure SMI-S at this time, select Enabled, then congure the remaining properties.
NOTE: You can also congure SMI-S after the Data Collector is installed and congured. For information on
setting up and using SMI-S, see the
Dell Storage Manager Administrator’s Guide
.
b. Click Next. The Network Adaptor and Max Memory Settings page appears.
20 Installing and Conguring the Data Collector

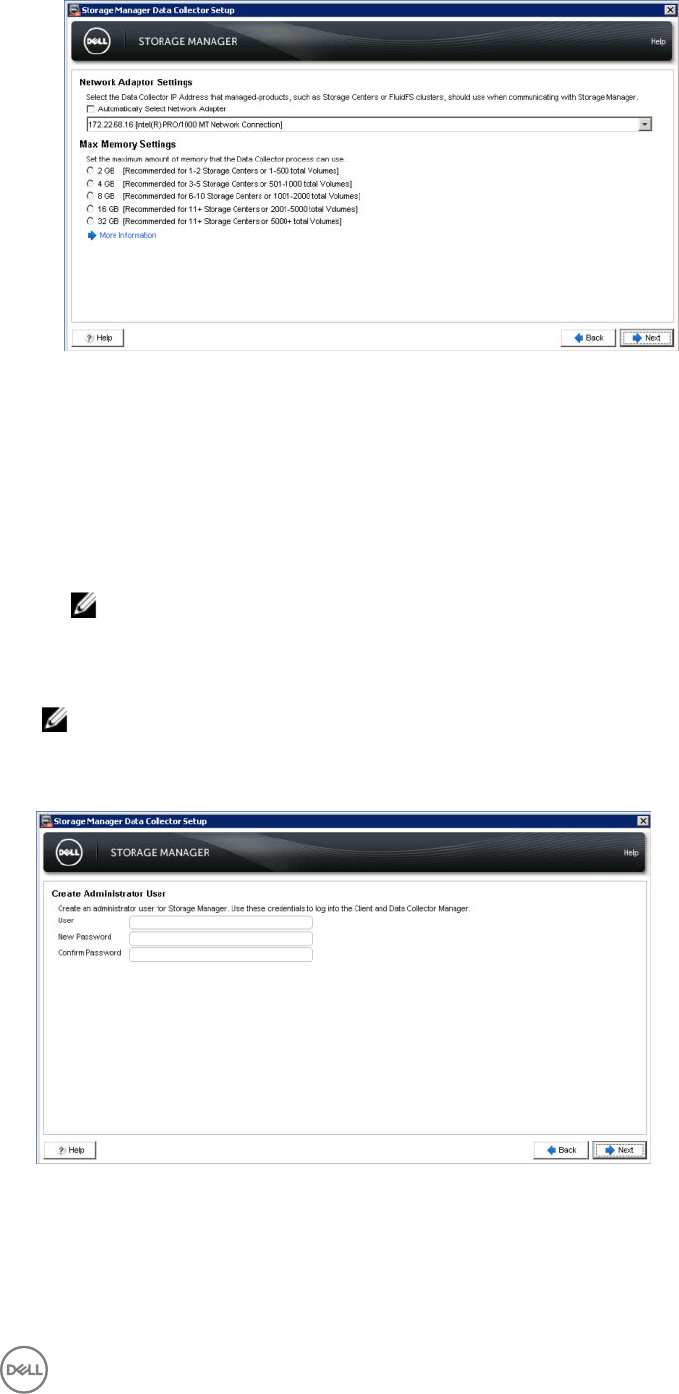

Figure 4. Network Adaptor and Max Memory Settings Page
4. Select the network adapter and specify the memory limit for the Data Collector.
a. If the server that hosts the Data Collector has multiple network adapters, select which adapter the Data Collector should
use for communication.
• To select a network adapter automatically, select the Automatically Select Network Adapter check box.
• To manually select a network adapter, select a network adapter from the drop-down menu.
b. In the Max Memory Settings area, select an option to specify the maximum amount of memory that can be used by the
Data Collector. If the Data Collector manages many Storage Centers, increasing this limit can improve performance.
NOTE: Specify a value that is less than the total memory available to the Data Collector host server.
c. Click Next. The SupportAssist System State Information Collection and Storage page appears.
5. To accept the SupportAssist System State Information Collection and Storage agreement, select the check box below the
agreement.
NOTE: SupportAssist collects diagnostic data from Storage Manager then sends it to technical support. If you do
not accept the agreement, proactive technical support services that rely on SupportAssist will not be available to
you.
6. Click OK. The Create Administrator User page appears.
Figure 5. Create Administrator User Page
7. Create an administrator user.
a. Type a user name, password, and password conrmation.
Installing and Conguring the Data Collector 21
NOTE: Record the user name and password. You will need this information to log on to Storage Manager after
installation is complete.
b. Click Next. The Data Collector Service is started. After the Data Collector starts, the Setup is Complete page appears.

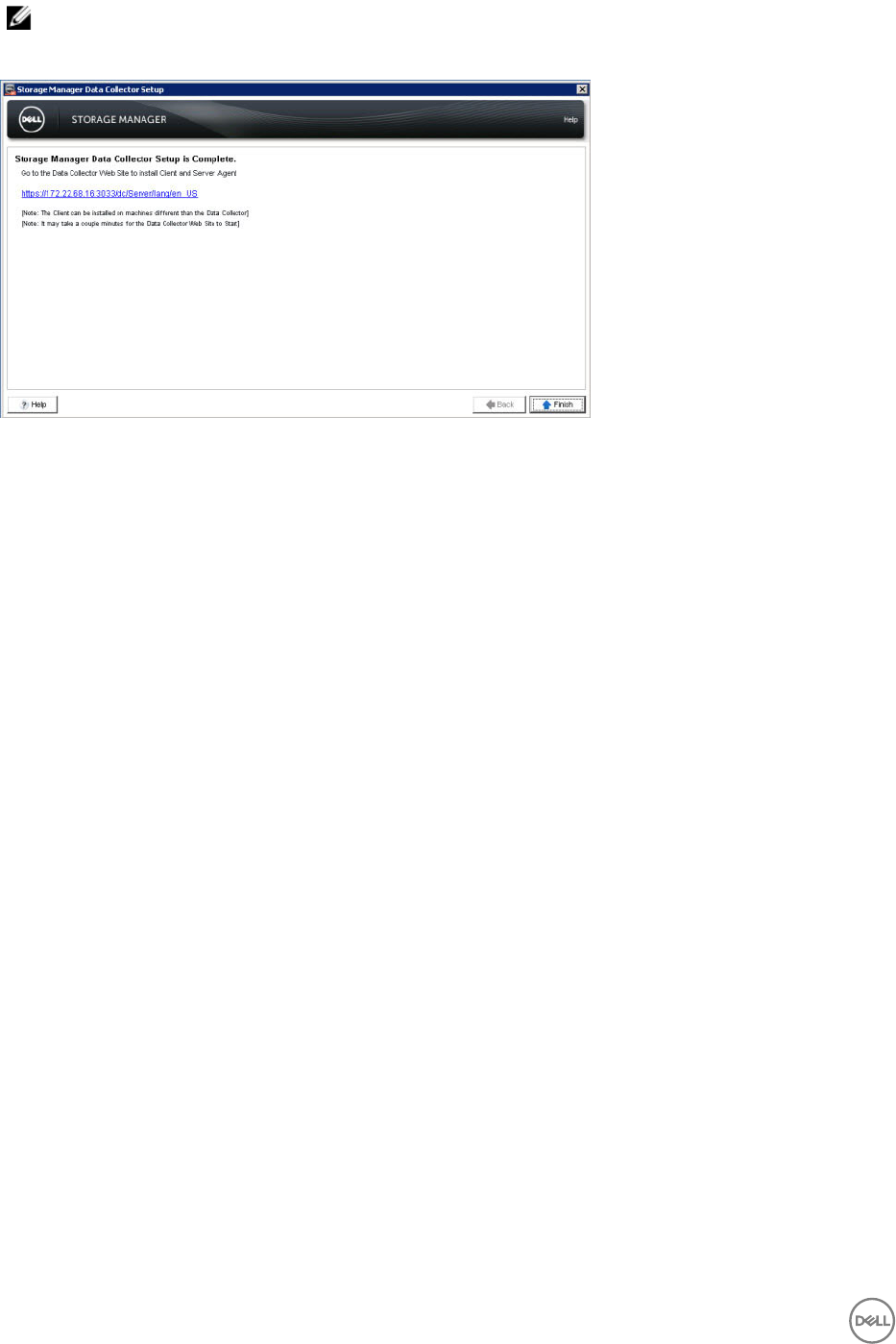

Figure 6. Setup is Complete Page
8. Record the URL for the Data Collector website, then click Finish. The Storage Manager Data Collector Setup wizard exits.
22 Installing and Conguring the Data Collector
4
Installing and Conguring the Dell Storage Manager
Virtual Appliance
This section includes instructions for installing and conguring the Dell Storage Manager Virtual Appliance.
Virtual Appliance Requirements for vSphere
The Storage Manager Virtual Appliance requires the following conditions from the vSphere server.
• The Virtual Appliance must be deployed on a standard datastore. Do not deploy the Virtual Appliance on a VVols datastore.
• The vSphere server must be congured to take regular snapshots of the datastore.
Deploying the Dell Storage Manager Virtual Appliance
Deploying the Virtual Appliance installs it as a virtual machine on an ESX server using the VMware vSphere Web Client. After
deploying the Virtual Appliance, set up the default administrator user.
Deploy the Virtual Appliance
Deploy the Dell Storage Manager Virtual Appliance on a VMware vCenter server.
Prerequisites
• VMware vCenter server
• The ESX server must meet the requirements in Dell Storage Manager Virtual Appliance Requirements.
• The local computer used to deploy the Virtual Appliance must have the VMware Client Integration plug-in installed.
Steps
1. Log on to the VMware vCenter server with the vSphere Web Client.
2. In the right pane, click Host and Clusters.
3. Right-click on Datacenter then select Deploy OVF Template.
The Deploy OVF Template wizard appears.
4. Click Local File.
5. Click Browse and select the Virtual Appliance .ova template le.
6. Click Next.
The Review details page appears.
7. Conrm the details for the Virtual Appliance.
8. Click Next.
The Accept EULAs page appears.
9. Click Accept.
10. Click Next.
The Select name and folder page appears.
11. In the name eld, type a name or accept the default name.
12. From the Select a folder or datacenter table, select a folder or datacenter.
13. Click Next.
The Select a resource page appears.
Installing and Conguring the Dell Storage Manager Virtual Appliance 23
14. Select a server or a server cluster on which to deploy the Virtual Appliance.
15. Click Next.
The Select Storage page appears.
16. Select the datastore that will hold the Virtual Appliance data.
17. Click Next.
The Setup Networks page appears.
18. From the Destination drop-down menu, select a network for the Virtual Appliance.
19. Click Next.
The Customize Template page appears.
20. Complete the following elds.
NOTE: Some of these features are hidden. Expand the heading to view the setting.
• Hostname: Type a host name for the Virtual Appliance.
• Domain Name: Type the domain name of the network.
• NTP Servers: Type the IP addresses of one or more time servers.
• IP Address Type: Select DHCP or Static. If you select DHCP do not complete the rest of the elds in the IP Address
Properties area.
• IP Address: Type an IP address for the Virtual Machine.
• Netmask: Type the netmask of the subnet.
• Default Gateway: Type the gateway of the subnet.
• DNS: Type the IP address of one or more domain name servers.
• SSH Access: Select Enabled or Disabled to enable or disable SSH Access.
• Locale: Select a language for the Virtual Appliance.
21. Click Next.
The Ready to complete page appears.
22. (Optional) Select the Power on after deployment check box to power the Virtual Appliance on after deployment.
23. Click Finish.
Conguring the Dell Storage Manager Virtual Appliance
Connect to the Dell Storage Manager Virtual Appliance to set up the database and complete the setup of the Virtual Appliance.
Set Up the Virtual Appliance
The Dell Storage Manager Virtual Appliance uses a database to store Data Collector information including VVol metadata.
Prerequisites
The Virtual Appliance must be deployed and powered on.
Steps
1. In a web browser, navigate to https://[VA IP address]/setup/.
NOTE: Depending on your web browser settings, you may need to acknowledge security alerts to continue.
2. Log in to the Data Collector Manager using the temporary user.
• User name: cong
• Password: dell
The Storage Manager Data Collector Setup wizard appears.
3. Click Next.
4. Click Congure as a Primary Data Collector.
5. Click Next.
The Database page appears.
24 Installing and Conguring the Dell Storage Manager Virtual Appliance
6. From the Type drop-down menu, select a database type.
7. In the Server eld, type the IP address of the server hosting the database.
8. In the Port eld, type the number of the port that the database uses for external communication.
9. In the User Name eld, type the user name for the database.
10. In the Password eld, type the password for the database user.
11. (Optional) To specify a password for the compmsauser database user, select Use Custom Password, then type a password in
the DSM DB User Password eld. Retype the password in the Conrm Password eld.
NOTE: If you do not specify a password, a 13‑character default password is used.
12. Click Next.
The Administrator User page appears.
13. Set up the administrator user.
a. In the User eld, type the name of the administrator user.
b. In the New Password eld, type a password for the administrator user.
c. In the Conrm Password eld, type the password again to conrm the password.
14. Click Next
The Summary page appears.
15. Click Finish.
A conrmation dialog box appears.
16. Click Yes.
The Virtual Appliance restarts then displays the login page for the Dell Storage Manager Web UI.
Migrating an Existing Data Collector to the Storage Manager Virtual
Appliance
Migrate an existing Data Collector to the Storage Manager Virtual Appliance to use the Storage Manager Virtual Appliance as the
primary Data Collector.
These Data Collector objects are transferred during a migration:
• Users and user groups
• Storage Center mappings
• Password conguration settings
• Internal database information
Data Collector Migration Requirements
The Data Collector and the Storage Manager Virtual Appliance must meet the following requirements to migrate from a Windows
installation of the Data Collector to the Storage Manager Virtual Appliance.
• The Storage Manager Virtual Appliance and the Windows installation of the Data Collector must be running the same version of
Dell Storage Manager.
• Data Collector migration supports only Windows installation to Storage Manager Virtual Appliance.
• The Windows Data Collector must not have any ongoing tasks. These tasks may not be reected in the Storage Manager Virtual
Appliance after the migration.
• If using VVols, unregister the VASA provider before migrating the Data Collector.
Migrate an Existing Data Collector
Migrate an existing Data Collector to the Storage Manager Virtual Appliance to use the Storage Manager Virtual Appliance as the
primary Data Collector with existing Data Collector information.
Prerequisites
The Virtual Appliance must be deployed and powered on.
Installing and Conguring the Dell Storage Manager Virtual Appliance 25
Steps
1. Take a snapshot of the Storage Manager Virtual Appliance instance in VMware vSphere.
2. In a web browser, navigate to https://[VA IP address]/setup/.
NOTE: Depending on your web browser settings, you may need to acknowledge security alerts to continue.
3. Log in to the Data Collector Manager using the temporary user.
• User name: cong
• Password: dell
The Storage Manager Data Collector Setup wizard appears.
4. Click Next.
5. Click Migrate from an existing Data Collector.
6. In the Server eld, type the IP address of the existing Data Collector.
7. In the Client Listener Port, type the port number of the outbound port of the existing Data Collector. The default is 3033.
8. In the User Name eld, type the user name of the administrator user of the existing Data Collector.
9. In the Password eld, type the password of the administrator user.
10. Click Next.
11. Set up the administrator user.
a. In the User eld, type the name of the administrator user.
b. In the New Password eld, type a password for the administrator user.
c. In the Conrm Password eld, type the password again to conrm the password.
12. Click Next.
13. Verify the information on the conrmation page.
14. Click Finish.
15. Stop the Data Collector on the original Windows Data Collector.
Next Steps After Migration
Depending on the conguration of the existing Data Collector, you may need to perform some additional setup tasks.
•Congure Active Directory
• Import SSL certicates or generate new SSL certicates
• Register plug-ins like Application Protection Manager
26 Installing and Conguring the Dell Storage Manager Virtual Appliance
5
Installing and Conguring the Storage Manager
Client
Install the Client on a Windows computer and use it to connect to the Data Collector.
Connect to the Storage Manager Web UI
After installing and conguring the Data Collector, you can access the Storage Manager Web UI using a web browser.
Connect to the Storage Manager Web UI using the following URL:
https://[Data Collector IP Address]/ui/
Install the Storage Manager Client on Windows
The Storage Manager Client is an application that connects to a Data Collector or directly to a Storage Center, allowing you to view
and manage Storage Centers. You can install the client on the Data Collector server or a computer that has network connectivity to
the Data Collector server.
Prerequisites
The host computer must meet the requirements listed in Dell Storage Manager Client Requirements.
Steps
1. In a web browser, go to the Storage Manager Data Collector website.
The default location for the website is https://<dsm/dc_hostname_ip>:<dsmdc_web_server_port>.
•dsmdc_hostname_ip: Host name or IP address of the Data Collector server.
•dsmdc_web_server_port: Web server port of the Data Collector server. The default port is 3033.
2. If a certicate warning appears, acknowledge the warning and continue.
3. Next to Client Installer, click Download (.exe) to save the Storage Manager Client Installer to your computer.
4. When the download is complete, double-click the downloaded le. A Security Warning dialog box appears.
5. Click Run to start the installation. The InstallShield Wizard appears.
6. Use the wizard to install the Storage Manager Client.
Install the Storage Manager Client on Linux
The Storage Manager Client is an application that connects to a Data Collector or directly to a Storage Center, allowing you to view
and manage Storage Centers. Install the Storage Manager Client on a Linux computer using the terminal.
Prerequisites
• The host computer must meet the requirements in Dell Storage Manager Client Requirements.
• The user must have root access.
• The Linux computer must have a full X-windows environment.
Steps
1. Download the rpm le from the Data Collector.
a. Navigate to the download location using this command: $ cd download_directory
b. Download the rpm installation le from the Data Collector using this command: $ wget <Data Collector IP>:<Data Collector
Port> --no-check-certicate https://<Data Collector IP>:<Data Collector Port>/dc/Server/web/apps/client/SmClient.rpm
2. Run the installer with this command: # rpm -U SmClient.rpm
Installing and Conguring the Storage Manager Client 27
Use the Client to Connect to the Data Collector
After the Storage Manager Client is installed, use it to connect to the Data Collector.
1. Start the Storage Manager Client application.
NOTE: On a Linux computer, use the terminal to navigate to the application directory by running:
$ cd /var/lib/dell/bin
Then launch the client by running:
$ ./Client
2. If the Welcome screen appears, select a language then click Log into a Storage Center or Data Collector.
3. To change the language displayed in the Storage Manager Client, select a language from the Display Language drop-down
menu.
4. Complete the following elds:
•User Name: Type the name of the Storage Manager user that was created during Data Collector installation. You can also
use the name of a Storage Manager user that was previously created.
•Password: Type the password for the user. You can also use the password of a Storage Manager user that was previously
created.
•Host/IP: Type the host name or IP address of the server that hosts the Data Collector. If the Data Collector and Client are
installed on the same system, you can type localhost instead.
•Web Server Port: If you changed the Web Server Port during installation, type number of the updated port. The default
port is 3033.
NOTE: Do not select the Use Windows Credentials check box (if present) at this time. To use this feature, the
Data Collector must be congured for Active Directory and Kerberos.
5. Click Log In.
The Client connects to the Data Collector and displays the Storage (SAN/NAS) view.

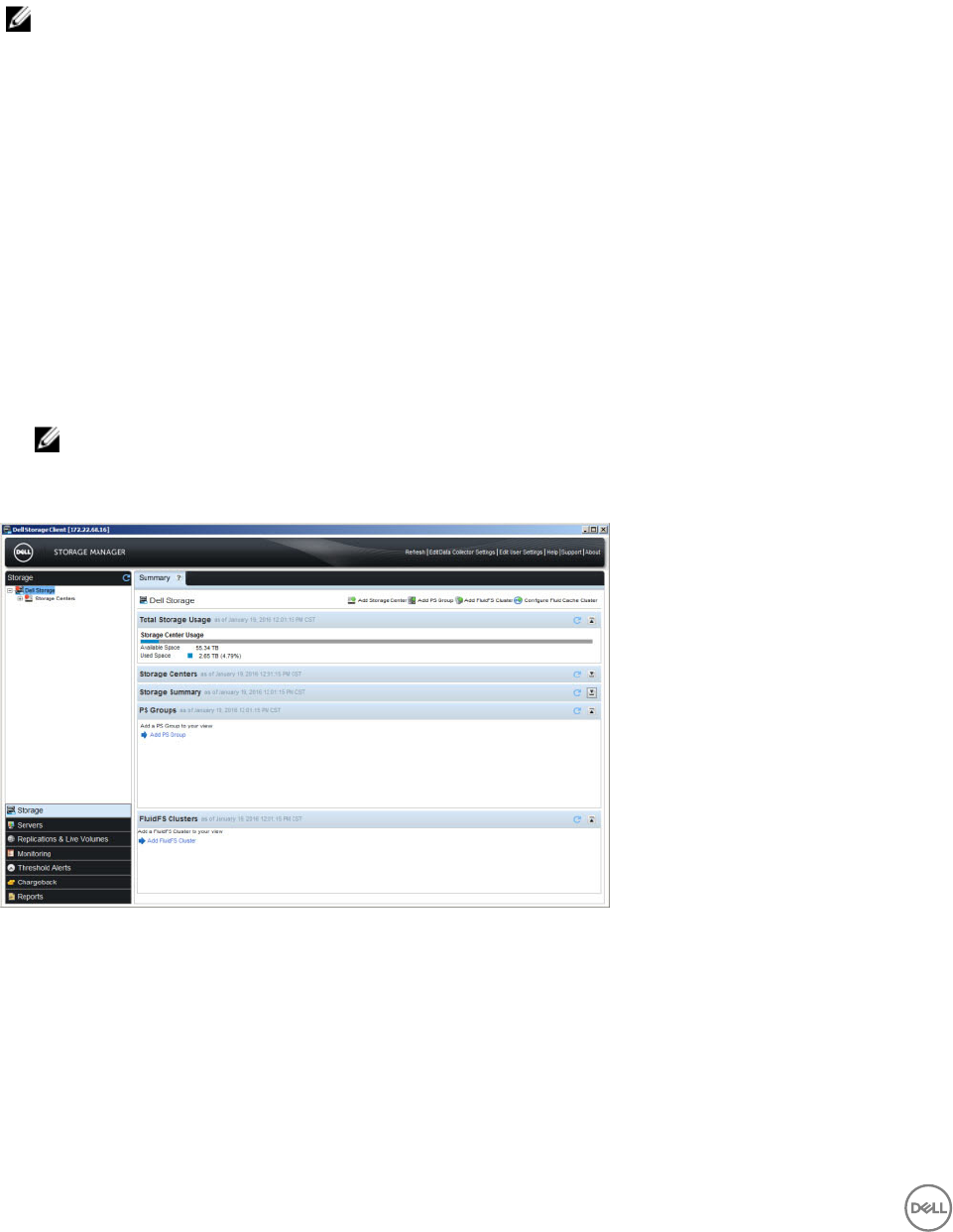

Figure 7. Storage Manager Client Storage (SAN/NAS) View
Add Storage Centers to Storage Manager
Use the Client to add the Storage Centers that you want to centrally manage.
Prerequisites
• You must have the hostname or IP address of the Storage Center.
• You must have the user name and password for a Storage Center user account.
28 Installing and Conguring the Storage Manager Client
– The rst time a Storage Center is added to Storage Manager, you must specify a Storage Center user account that has the
Administrator privilege. When the Storage Center is subsequently added for other Storage Manager users, you can specify
Storage Center user accounts of any privilege level.
– If your Storage Manager user account has the Reporter privilege, you must specify a Storage Center user account that has
the Reporter privilege.
• The Storage Manager Data Collector must have connectivity to the Storage Center management interface.
• The Storage Center certicate must contain the host name or management IP address that is used to add the Storage Center to
Storage Manager. For instructions on regenerating an SSL certicate, see the Dell Storage Manager Administrator’s Guide.
Steps
1. In the Storage Manager Client, click Add Storage Center. The Add Storage Center dialog box appears.
NOTE: If one or more Storage Centers are associated with other Storage Manager users, the dialog box allows you
to select an existing Storage Center or add a new Storage Center.
2. Type Storage Center logon information.
•Host Name: Type the host name or IP address of a Storage Center controller. For a dual-controller Storage Center, type the
IP address or host name of the management controller.
•User Name and Password: Type the user name and password for a Storage Center user.
If you specify a Storage Center user with the Reporter or Volume Manager privilege, access to the Storage Center from
Storage Manager is restricted based on the privilege and user group(s) assigned to the Storage Center user.
•Folder: Select the parent folder for the Storage Center.
3. (Optional) Congure the Storage Center to use settings applied to another Storage Center by selecting the Inherit settings
from existing Storage Center check box. If this check box is selected, after the wizard closes, the Inherit Settings wizard
appears.
4. Click Finish.
• If the Inherit settings from existing Storage Center check box was not selected, the Storage Center is added to Storage
Manager.
• If the Inherit settings from existing Storage Center check box was selected, the Inherit Settings dialog box appears.
5. (Inherit settings only) Choose the Storage Center settings to inherit.
a. Select the Storage Center from which you want to inherit settings, then click Next. The wizard advances to the next page.
b. Select the check box for each category of settings that you want to inherit.
c. When you are done, click Finish.
• If passwords are not congured for the Dell SupportAssist proxy, Secure Console proxy, or SMTP server, the dialog box
closes.
• If passwords for the Dell SupportAssist proxy, Secure Console proxy, or SMTP server are congured, you are prompted
to retype the required passwords.
d. Type the required passwords to complete the wizard.
Next Steps
After installation is complete, perform basic tasks to congure Storage Manager for your environment. These tasks depend on the
conguration, so some of them might not apply to your site.
See the Storage Manager Administrator’s Guide for detailed conguration instructions, including how to:
• Add Storage Manager users.
•Congure the Data Collector to authenticate Storage Manager users using an Active Directory or OpenLDAP directory service.
• Add a Storage Center to Storage Manager.
• Create Storage Center volumes.
• Add servers to Storage Centers.
• Add FluidFS clusters to Storage Manager.
•Congure email notications.
• Set up remote Storage Centers and Replication QoS.
•Congure replications and Live Volumes.
Installing and Conguring the Storage Manager Client 29
•Predene your disaster recovery plan.
•Congure VMware vSphere Virtual Volumes.
30 Installing and Conguring the Storage Manager Client
6
Updating Dell Storage Manager
Use these tasks to update the Dell Storage Manager Client, Data Collector, Virtual Appliance, or Server Agent.
Updating the Storage Manager Data Collector
Follow these steps to update the Storage Manager Data Collector to a newer version.
Prerequisites
• The Data Collector being updated must be running version 6.1 or later.
• The server that hosts the Data Collector must be running a 64-bit operating system. If the Data Collector is installed on a 32‑bit
server, migrate to a 64–bit operating system.
• For each managed Storage Center, the Storage Center certicate must contain the host name or management IP address used
to add the Storage Center to Storage Manager.
Steps
1. Download the Storage Manager software.
2. Unzip the Storage Manager Data Collector Setup le.
3. Run the Storage Manager Data Collector Setup le to update the Data Collector.
Data Collector Manager opens and the Data Collector service attempts to start.
NOTE: Please allow at least 60 minutes for the Data Collector service to start. If the service takes longer than 60
minutes, contact technical support.
4. If you are using a remote Data Collector, repeat steps 2–3 on the server that hosts the remote Data Collector.
Update the Dell Storage Manager Client
Follow these steps to update an existing installation of the Dell Storage Manager Client to a newer version.
Prerequisites
Java version 7 update 45 is required if you are updating from Dell Storage Manager 2014 R2 or earlier.
Steps
1. Use the Dell Storage Manager Client to connect to the updated Data Collector.
The Dell Storage Manager Client prompts you to download the Dell Storage Manager Client installation le.
2. Click Yes.
3. Run the installer and follow the steps.
Update the Storage Manager Server Agent
Follow these steps to update the Storage Manager Server Agent. Update the Storage Manager Server Agent on all servers managed
by the Data Collector.
Prerequisites
• The Server Agent must be connected to a Data Collector.
• The Data Collector must be updated to the newer version.
Steps
1. Open the Server Agent Manager.
2. Click Check for Upgrades.
Updating Dell Storage Manager 31
The server downloads the Server Agent installer from the Data Collector.
3. Open the Server Agent installer and follow the instructions to update the Server Agent.
Updating the Storage Manager Virtual Appliance
Follow these steps to update the Storage Manager Virtual Appliance using the Dell Storage Manager Web UI. The Storage Manager
Virtual Appliance update package is a .zip le that is included with the Storage Manager Virtual Appliance installation les.
About this task
NOTE: Updating the Storage Manager Virtual Appliance does not change the version number shown in the VMware
vSphere Client. The VMware vSphere Client will still show the version number at the time the Storage Manager Virtual
Appliance was rst deployed.
Steps
1. Download the new version of the Storage Manager Virtual Appliance.
The update package is a .zip le included with the Storage Manager Virtual Appliance .ova le.
2. In a browser, connect to the Storage Manager Virtual Appliance using the Dell Storage Manager Web UI.
https://[IP Address]/ui
3. Click Dell Storage Manager → Data Collector.
4. Click the General tab, then click the Summary subtab.
5. Click System Updates.
The System Updates dialog box opens.
6. Click Upload Package.
The Upload Package dialog box opens.
7. Click Choose File then open the Storage Manager Virtual Appliance update package.
8. Click OK on the Upload Package dialog box.
The Dell Storage Manager Web UI loads the update package.
9. Click Install.
A conrmation dialog box appears.
10. Click Yes.
The Storage Manager Virtual Appliance updates.
NOTE: The Storage Manager Virtual Appliance might take up to 10–15 minutes to update. The Dell Storage Manager
Web UI login page appears when the update is complete.
32 Updating Dell Storage Manager
