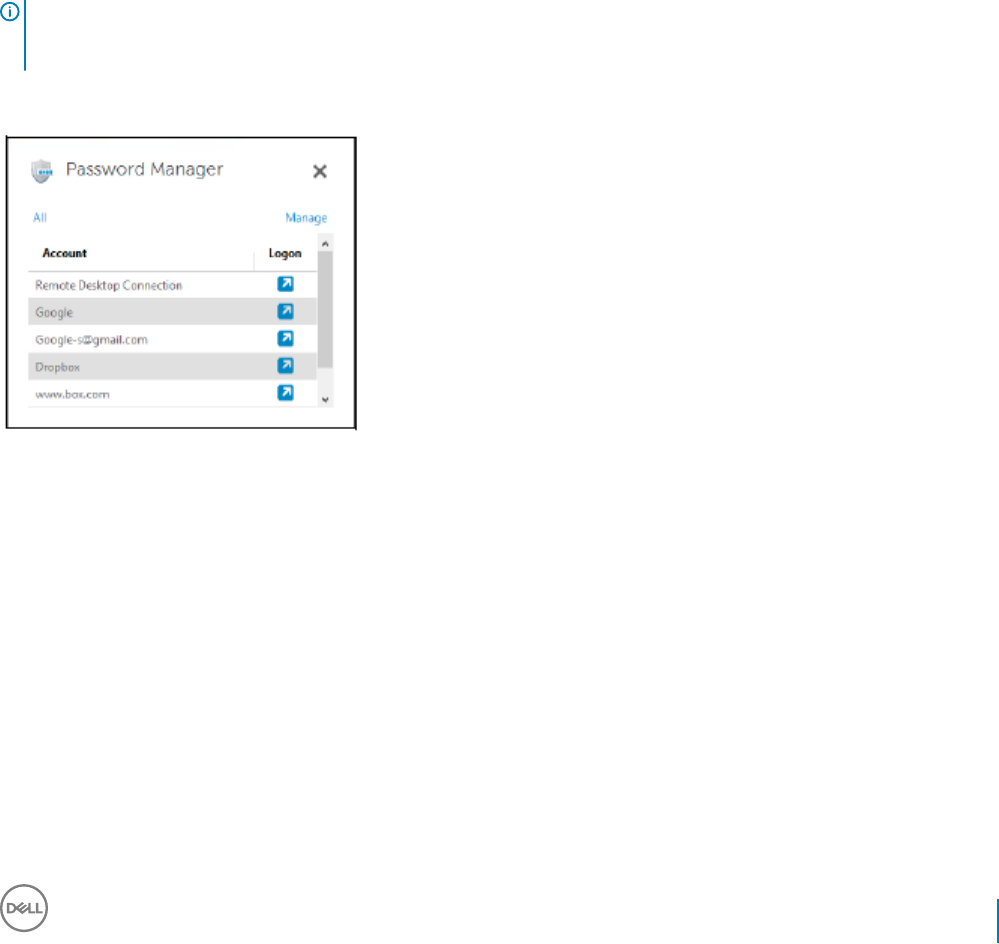

- Password Manager
- Glossary
Dell Data Protection Console User Guide
Encryption Status/Authentication Enrollment/Password
Manager v1.12
Legend
CAUTION: A CAUTION icon indicates potential damage to hardware or loss of data if instructions are not followed.
WARNING: A WARNING icon indicates a potential for property damage, personal injury, or death.
IMPORTANT, NOTE, TIP, MOBILE, or VIDEO: An information icon indicates supporting information.
© 2016 Dell Inc. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of
their respective owners. Registered trademarks and trademarks used in the Dell Data Protection | Encryption, Dell Data Protection | Endpoint Security Suite,
Dell Data Protection | Endpoint Security Suite Enterprise, Dell Data Protection | Security Tools, and Dell Data Protection | Secure Lifecycle suite of
documents: DellTM and the Dell logo, Dell PrecisionTM, OptiPlexTM, ControlVaultTM, LatitudeTM, XPS®, and KACETM are trademarks of Dell Inc. McAfee® and
the McAfee logo are trademarks or registered trademarks of McAfee, Inc. in the US and other countries. Intel®, Pentium®, Intel Core Inside Duo®,
Itanium®, and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries. Adobe®, Acrobat®, and Flash® are registered
trademarks of Adobe Systems Incorporated. Authen Tec® and Eikon® are registered trademarks of Authen Tec. AMD® is a registered trademark of
Advanced Micro Devices, Inc. Microsoft®, Windows®, and Windows Server®, Internet Explorer®, MS-DOS®, Windows Vista®, MSN®, ActiveX®, Active
Directory®, Access®, ActiveSync®, BitLocker®, BitLocker To Go®, Excel®, Hyper-V®, Silverlight®, Outlook®, PowerPoint®, OneDrive®, SQL Server®,
and Visual C++® are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. VMware® is a
registered trademark or trademark of VMware, Inc. in the United States or other countries. Box® is a registered trademark of Box. DropboxSM is a service
mark of Dropbox, Inc. GoogleTM, AndroidTM, GoogleTM ChromeTM, GmailTM, YouTube®, and GoogleTM Play are either trademarks or registered trademarks of
Google Inc. in the United States and other countries. Apple®, Aperture®, App StoreSM, Apple Remote DesktopTM, Apple TV®, Boot CampTM, FileVaultTM,
iCloud®SM, iPad®, iPhone®, iPhoto®, iTunes Music Store®, Macintosh®, Safari®, and Siri® are either servicemarks, trademarks, or registered trademarks
of Apple, Inc. in the United States and/or other countries. GO ID®, RSA®, and SecurID® are registered trademarks of Dell EMC. EnCaseTM and Guidance
Software® are either trademarks or registered trademarks of Guidance Software. Entrust® is a registered trademark of Entrust®, Inc. in the United States
and other countries. InstallShield® is a registered trademark of Flexera Software in the United States, China, European Community, Hong Kong, Japan,
Taiwan, and United Kingdom. Micron® and RealSSD® are registered trademarks of Micron Technology, Inc. in the United States and other countries.
Mozilla® Firefox® is a registered trademark of Mozilla Foundation in the United States and/or other countries. iOS® is a trademark or registered trademark
of Cisco Systems, Inc. in the United States and certain other countries and is used under license. Oracle® and Java® are registered trademarks of Oracle
and/or its aliates. Other names may be trademarks of their respective owners. SAMSUNGTM is a trademark of SAMSUNG in the United States or other
countries. Seagate® is a registered trademark of Seagate Technology LLC in the United States and/or other countries. Travelstar® is a registered trademark
of HGST, Inc. in the United States and other countries. UNIX® is a registered trademark of The Open Group. VALIDITYTM is a trademark of Validity Sensors,
Inc. in the United States and other countries. VeriSign® and other related marks are the trademarks or registered trademarks of VeriSign, Inc. or its aliates
or subsidiaries in the U.S. and other countries and licensed to Symantec Corporation. KVM on IP® is a registered trademark of Video Products. Yahoo!® is a
registered trademark of Yahoo! Inc. This product uses parts of the 7-Zip program. The source code can be found at 7-zip.org. Licensing is under the GNU
LGPL license + unRAR restrictions (7-zip.org/license.txt).
Dell Data Protection Console User Guide
2017 - 02
Rev. A01
Contents
1 DDP Console Introduction.............................................................................................................................. 5
Contact Dell ProSupport...................................................................................................................................................5
2 DDP Console................................................................................................................................................. 6
Navigation........................................................................................................................................................................... 6
3 Encryption Status..........................................................................................................................................9
4 Enrollments.................................................................................................................................................. 10
Enroll Credentials for the First Time...............................................................................................................................10
Add, Modify, or View Enrollments....................................................................................................................................11
Password........................................................................................................................................................................... 12
Recovery Questions......................................................................................................................................................... 12
Recovery Questions Already Enrolled...................................................................................................................... 12
Fingerprints........................................................................................................................................................................13
Mobile Device....................................................................................................................................................................14

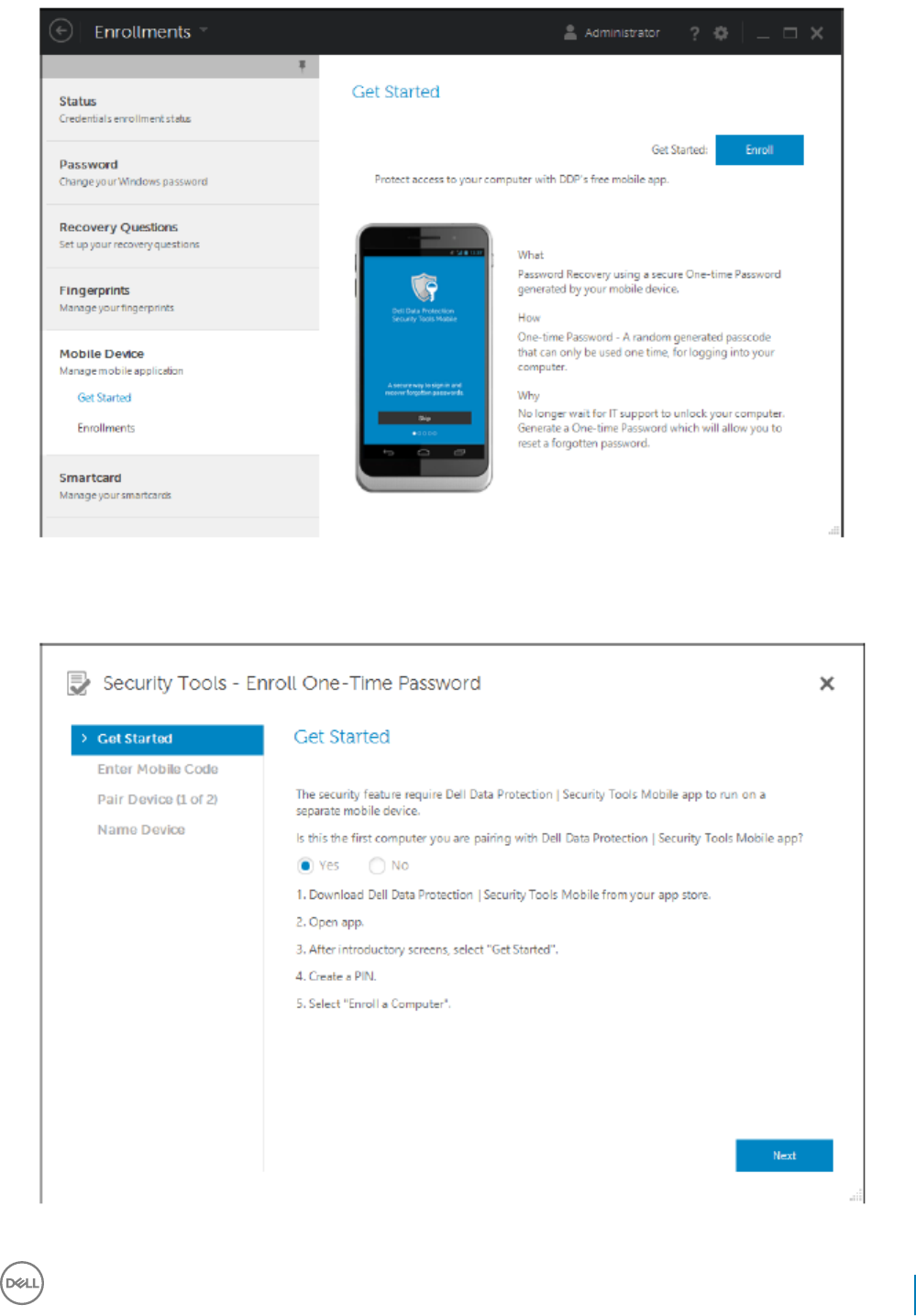

Enroll the Mobile Device............................................................................................................................................ 14
Set up Security Tools Mobile.....................................................................................................................................16
Pair the mobile device and the computer................................................................................................................16
Enroll Another Mobile Device.................................................................................................................................... 17
Unpair a Computer and Mobile Device.................................................................................................................... 17
Log On with One-Time Password................................................................................................................................... 17
Security Tools Mobile Management Tasks.....................................................................................................................18
Reset the Security Tools Mobile App PIN................................................................................................................18
Uninstall Security Tools Mobile App......................................................................................................................... 19
Smart Cards...................................................................................................................................................................... 19
5 Password Manager...................................................................................................................................... 20
Get Started with Password Manager............................................................................................................................20
Manage Logons.................................................................................................................................................................21
Add Category..............................................................................................................................................................22
Add Logon...................................................................................................................................................................22
Import Credentials............................................................................................................................................................24

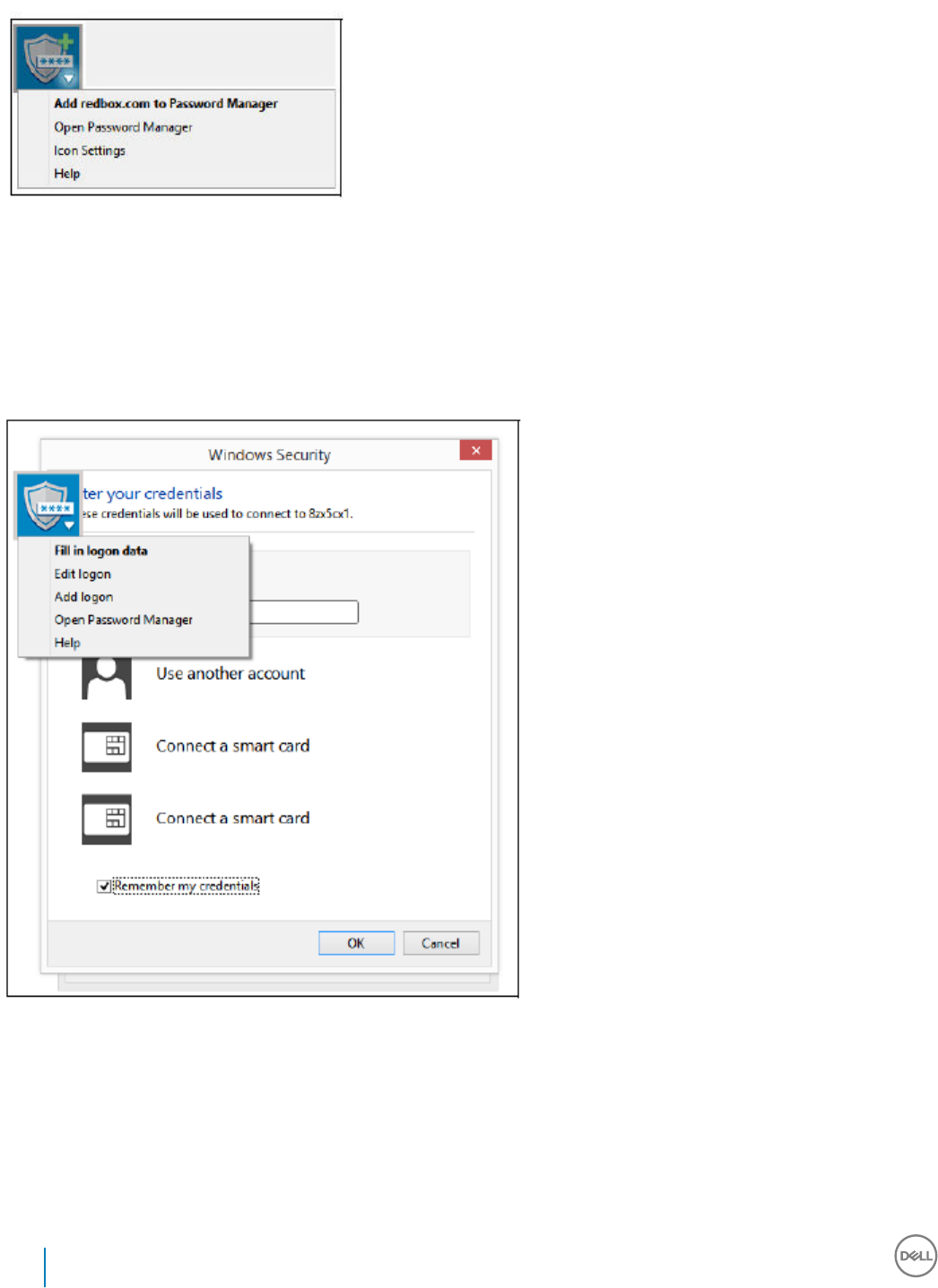

Icon Context Menu.......................................................................................................................................................... 25
Log on to Trained Logon Pages...................................................................................................................................... 27
Web Domain Support.......................................................................................................................................................27
Fill in Windows Credentials............................................................................................................................................. 28
Use Old Password......................................................................................................................................................29
Exclude Websites............................................................................................................................................................. 29
Disable Prompts to Train Logon Forms......................................................................................................................... 30

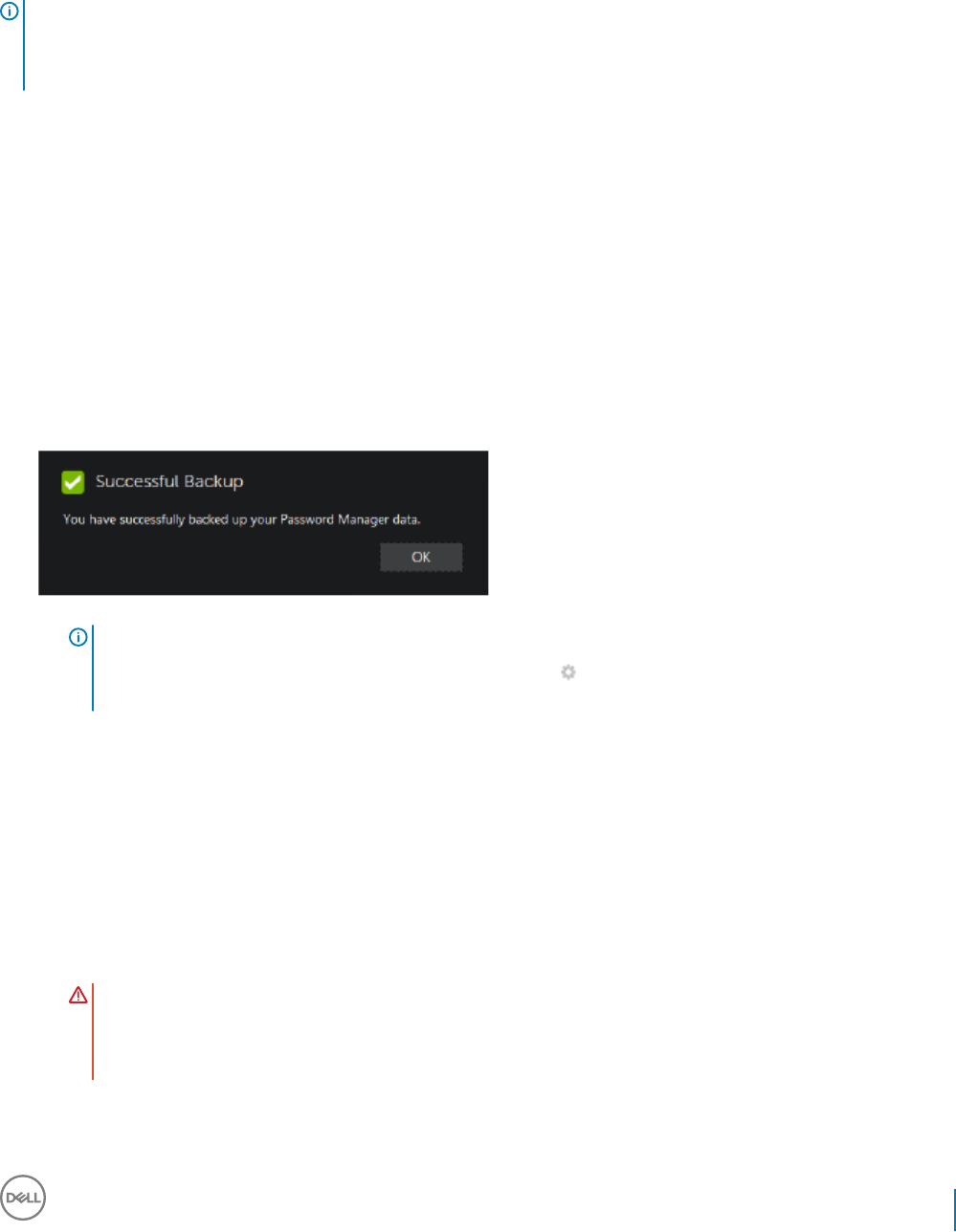

Back up and Restore Password Manager Credentials................................................................................................. 31
Back up Credentials....................................................................................................................................................31
Restore Credentials.................................................................................................................................................... 31
Dell Data Protection | Console User Guide
Contents
3
DDP Console Introduction
Dell Data Protection | Security Tools provides you with simple-to-use and intuitive tools to increase the security of your computer.
The following features are available through the DDP Console, on a workstation operating system:
• Enroll credentials for use with Security Tools
• Take advantage of multi-factor credentials, including passwords, ngerprints, and smart cards
• Recover access to your computer if you forget your password without help desk calls or administrator assistance
• Back up and restore your program data
• Easily change your Windows password
• Set personal preferences
• View encryption status (on computers with self-encrypting drives)
DDP Console
The DDP Console is the interface through which you can enroll, manage your credentials and congure self-recovery questions.
You can access these applications:
• The Encryption Status tool allows you to view the encryption status of the computer's drives.
• The Enrollments tool allows you to set up and manage credentials, congure self-recovery questions, and view the status of your
credential enrollment. Your ability to enroll in each type of credential is set by the administrator.
• Password Manager allows you to automatically ll in and submit data required to log on to websites, Windows applications, and network
resources. Password Manager also lets you change your logon passwords through the application, ensuring that passwords maintained
by Password Manager are kept in sync with those of the targeted resource.
This guide describes how to use each of these applications.
Be sure to periodically check dell.com/support for updated documentation.
Contact Dell ProSupport
Call 877-459-7304, extension 4310039 for 24x7 phone support for your Dell Data Protection product.
Additionally, online support for Dell Data Protection products is available at dell.com/support. Online support includes drivers, manuals,
technical advisories, FAQs, and emerging issues.
Be sure to help us quickly connect you to the right technical expert by having your Service Code available when you call.
For phone numbers outside of the United States, check Dell ProSupport International Phone Numbers.
1
Dell Data Protection | Console User Guide
DDP Console Introduction
5
DDP Console
The DDP Console provides access to applications that ensure security for all users of the computer, to view and manage encryption status
of the computer's drives and partitions and, based on policy set by the administrator, manage their logons to websites, programs and
network resources; and to easily enroll their authentication credentials.
To open the DDP Console, from the Desktop, double-click the DDP Console icon.
When the DDP Console launches, the home page displays the Security Tools applications:
•Encryption Status
•Enrollments
•Password Manager
To set up credentials for the rst time, select the Getting Started link on the Enrollments tile. A wizard guides you through the short
enrollment process. For more information, see Enroll Credentials for the First Time.
Navigation
To access an application, click the appropriate tile.
Title bar
To return to the home page from within an application, click the back arrow in the left corner of the title bar, next to the name of the active
application.
2
6 Dell Data Protection | Console User Guide
DDP Console
To navigate directly to another application, click the down arrow next to the active application name, and select an application.
To minimize, maximize, or close the DDP Console, click the appropriate icon in the right corner of the title bar.
To restore the DDP Console after minimizing, double-click its system tray icon.
To open Help, click the ? on the title bar.
DDP Console Details
To view details about the DDP Console, policies, running services, and logs, click the gear icon on the left side of the title bar. This
information might be necessary for an administrator to provide technical support.
Select an item from the menu.
Menu Item Purpose
About Contains version and copyright information.
Show Info Contains the following:
• product version and date information
• whether the DDP Console is managed on this computer by the enterprise or by a local administrator
Dell Data Protection | Console User Guide
DDP Console
7
• version numbers of the operating system, BIOS, motherboard, and Trusted Platform Module (TPM).
MS Info Runs the Microsoft Windows System Information utility to display detailed information about the hardware,
components, and software environment.
Copy Info Copies all of the system information to the clipboard, to paste into an email for your administrator or Dell
ProSupport.
Feedback Displays a form where you can provide feedback to Dell about this product. (On non-domain computers, this
option is always available. On domain computers, this option is determined by enterprise policy.)
Policies Displays a hierarchy of policies that apply to this computer.
Services Displays details about the services that are running.
Support Connects to the Dell ProSupport website.
Log Displays a detailed list of logged events, for troubleshooting.
Start Tracing Lets you start and stop a recording of sign-in activities, for troubleshooting.
8 Dell Data Protection | Console User Guide
DDP Console
Encryption Status
The Encryption page displays the encryption status of the computer. If a disk, drive, or partition is not encrypted, its status reads
Unprotected. A drive or partition that is encrypted shows the status Protected.
To update encryption status, right-click the appropriate disk, drive, or partition, and select Refresh.
3
Dell Data Protection | Console User Guide
Encryption Status
9
Enrollments
The Enrollments tool lets you enroll, modify, and check enrollment status, based on policy set by the administrator.
The rst time you enroll your credentials with the DDP Console, a wizard guides you through enrolling a password change, Recovery
Questions, ngerprints, mobile device and smart card. Depending on policy, you can either enroll or skip each credential. After initial
enrollment, you can click the Enrollment tile to add or modify credentials.
Enroll Credentials for the First Time
To enroll credentials for the rst time:
1 On the DDP Console home page, click the Getting Started link on the Enrollments tile.
2 On the Welcome page, click Next.
3 In the Authentication Required dialog, log in with your Windows password, and click OK.
4
10 Dell Data Protection | Console User Guide
Enrollments

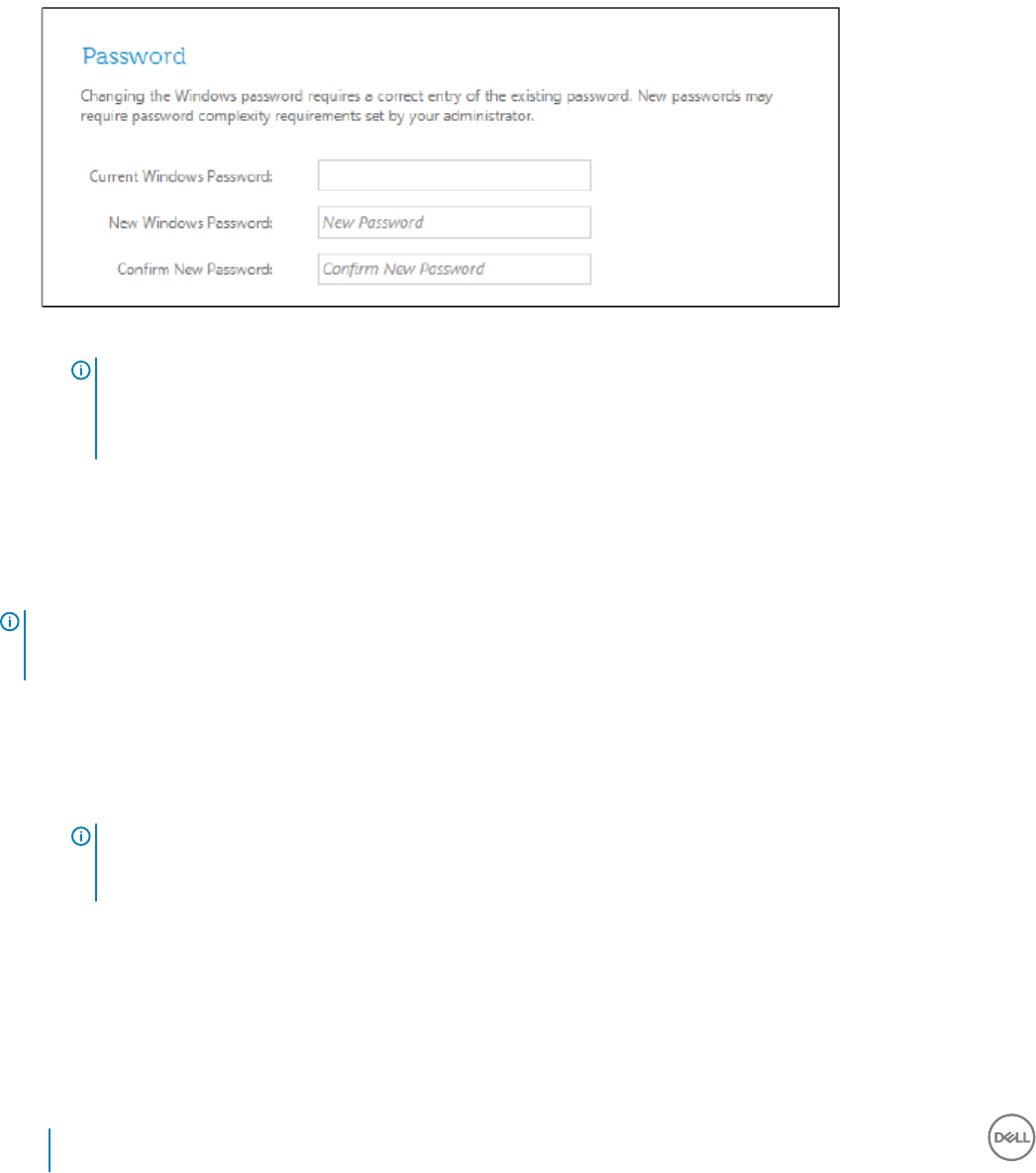

4 On the Password page, to change your Windows password, enter and conrm a new password and click Next.
To skip changing your password, click Skip. The wizard allows you to skip a credential if you don't want to enroll it. To return to a page,
click Back.
5 Follow the instructions on each page, and click the appropriate button: Next, Skip, or Back.
6 On the Summary page, conrm the enrolled credentials and, when nished with enrollment, click Apply.
To return to a credential enrollment page to make a change, click Back until you reach the page you want to change.
For more detailed information about enrolling a credential, or to change a credential, see Add, Modify, or View Enrollments.
Add, Modify, or View Enrollments
To add, modify, or view enrollments, click the Enrollments tile.
Tabs in the left pane list available Enrollments. This varies based on your platform or type of hardware.
The Status page displays supported credentials, their policy setting (Required or N/A), and their enrollment status. From this page, users
can manage their enrollments, based on policy set by the administrator:
• To enroll a credential for the rst time, on the line with the credential, click Enroll.
• To delete an existing enrolled credential, click Delete.
• If policy does not allow you to either enroll or modify your own credentials, the Enroll and Delete links on the Status page are inactive.
• To change an existing enrollment, click the appropriate tab in the left pane.
If policy does not allow enrollment or modication of a credential, a message displays on the credential's enrollment page, "Credentials
modication is not allowed by policy."
Dell Data Protection | Console User Guide
Enrollments
11
Password
To change your Windows password:
1 Click the Password tab.
2 Enter the current Windows password.
3 Enter the new password and enter it again to conrm it, and click Change.
Password changes are eective immediately.
4 At the Successful Enrollment dialog, click OK.
NOTE:
You should only change your Windows password in the DDP Console rather than in Windows. If the Windows password is
changed outside of the DDP Console, a password mismatch will occur, requiring a recovery operation.
Recovery Questions
The Recovery Questions page allows you to create, delete, or change your recovery questions and answers. Recovery Questions provide a
question and answer-based method for you to access your Windows accounts if, for example, the password is expired or forgotten.
NOTE:
Recovery questions are used to recover access to a computer only. The questions and answers cannot be used to log on.
If you have no previous Recovery Questions enrolled:
1 Click the Recovery Questions tab.
2 Select from a list of pre-dened questions and then enter and conrm the answers.
3 Click Enroll.
NOTE:
Click the Reset button to clear the selections on this page and start over.
Recovery Questions Already Enrolled
If recovery questions have already been enrolled, you can either delete or re-enroll your recovery questions.
1 Click the Recovery Questions tab.
2 Click the appropriate button:
12 Dell Data Protection | Console User Guide
Enrollments
• To remove the recovery questions completely, click Delete.
• To re-dene the recovery questions and answers, click Re-enroll.
Fingerprints
NOTE:
To use this feature, your computer must have a ngerprint
reader.
To enroll ngerprints, follow these instructions:
1 Click the Fingerprints tab.
2 On the Fingerprint page, click the nger you want to enroll.
3 Follow the on-screen instructions to enroll your ngerprint.
NOTE:
The nger must be successfully scanned four times to be enrolled. The number of scans needed to complete ngerprint
enrollment depends on the quality of each scan. The administrator dened the minimum and maximum number of
ngerprints.
4 Click each subsequent nger to scan until you have enrolled the minimum number of ngerprints required by policy.
A dialog will inform you if you have not enrolled the minimum number of ngerprints. Click OK to continue.
5 Complete the scanning of the required number of ngerprints, and click Save.
To delete a scanned ngerprint, on the Fingerprint enrollment page, click a highlighted ngerprint to unenroll it, click Yes to conrm
deletion, then click Save.
Dell Data Protection | Console User Guide
Enrollments
13
Mobile Device
Mobile Device enrollment provides the One-time Password (OTP) feature. With OTP, the user can log on to Windows using a password
generated by the Security Tools Mobile app, on a mobile device that is paired with the computer. Alternatively, if allowed by policy, the OTP
feature can be used to recover access to the computer in case a password is expired or forgotten.
NOTE:
If the Mobile Device tab does not display in your DDP Console, your computer's conguration does not support it, or policy set by your
administrator does not allow it.
NOTE:
Policy settings determine how the OTP feature can be used - either to log on or to recover access to your computer if your password
is expired or forgotten. It cannot be used for both log on and recovery.
To use the OTP feature, you must enroll, or pair, your mobile device with your computer. On a computer with multiple users, each user can
enroll one mobile device with the computer. Mobile devices can be enrolled with multiple computers.
When a device is already enrolled, enrolling a new device automatically unpairs the previous device.
Enroll the Mobile Device
1 In the DDP Console Enrollments page, click the Mobile Device tab.
14 Dell Data Protection | Console User Guide
Enrollments
2 In the upper right, click Enroll.
The Enroll One-time Password page opens.
3 If this is the rst computer to pair, select Yes.
Dell Data Protection | Console User Guide
Enrollments
15
a On the mobile device, download the Dell Data Protection | Security Tools Mobile app from your app store.
b On the computer, click Next.
Set up Security Tools Mobile
1 Open the Security Tools Mobile app.
2 Create and enter a PIN to access the Security Tools Mobile app.
NOTE:
The PIN may be required by policy when the mobile device is not locked. If you do not use a PIN to unlock the mobile device,
you will need one to access the Security Tools Mobile app.
3 Select Enroll a Computer. (If necessary, tap the upper-left corner of your mobile screen to access the commands.)
A code displays on the mobile device. The length of the code and the alphanumeric combination are based on policy set by the
administrator.
Pair the mobile device and the computer
1 On the computer, in the DDP Console Mobile Code page:
a Enter the code from the mobile device into the eld.
b Click Next.
c On the Pair Device page, select one:
QR Code - A QR Code displays.
or
Manual Entry - A 24-digit pairing code displays.
2 On the mobile device:
a Tap Pair Devices.
b Select the same pairing option (Scan QR Code or Manual Entry) that you selected on the computer.
c Select one:
• For QR Code, place the mobile device in front of the computer screen to scan the QR Code.
Note the numeric verication code that displays on the mobile device, then tap Next.
NOTE:
If the Trouble Scanning? bar displays, try again, or select Manual Entry.
• For Manual Entry, enter the 24-digit pairing code from the computer, then tap Done.
Note the numeric verication code that displays on the mobile device, then tap Next.
3 On the computer, in the DDP Console:
a Click Next.
b Enter the verication code displayed on the mobile device and click Next.
c Optionally, modify the name for the mobile device.
d Click Apply.
the devices are paired.
4 On the mobile device:
a Tap Continue.
b Optionally, modify the name for the computer and tap Done.
c Tap Finish.
16 Dell Data Protection | Console User Guide
Enrollments
Enroll Another Mobile Device
Enrolling a new device automatically unpairs the previous device. No separate steps are required to unpair.
Unpair a Computer and Mobile Device
To unpair a computer and mobile device without enrolling another device, select one:
• In the DDP Console: On the Enrollments Status page, next to the Mobile Device credential, click Delete.
• On the mobile device - see the steps below.
1 On the mobile device, complete the following:
a Run the Security Tools Mobile app.
b In the upper left, tap the menu bars to open the drawer.
c Tap Remove Computers.
d Select the computer to unpair.
e Select Remove (Android) or tap Done (iOS).
A conrmation message appears.
f Select Remove All to remove all enrolled computers from your device.
The Remove All option appears when you are removing multiple computers and when removing the only computer that was
paired.
• Select Restore Default Settings to remove the enrolled computer and remove the PIN. If you restore defaults, it will remove
all enrolled computers and the PIN that you use to access the Security Tools Mobile app.
• Select Cancel to leave the computer enrolled.
Log On with One-Time Password
NOTE:
OTP authentication can only be used with Windows logons.
OTP can be used either for recovery, to regain access to a computer from which you have been locked out, or for Windows logon. It
cannot be used for both.
If allowed by policy, and the OTP symbol displays on your logon screen, you can log on to Windows with OTP.
To log on with OTP:
1 On the computer, at the Windows logon screen, select the OTP icon .
Dell Data Protection | Console User Guide
Enrollments
17
2 On the mobile device, open the Security Tools Mobile app and enter the PIN.
3 Select the computer you want to access.
If the computer name does not display on the mobile device, one of these conditions may exist:
• The mobile device is not enrolled, or paired, with the computer you are trying to access.
• If you have more than one Windows user account, either Security Tools is not installed on the computer that you are trying to
access or you are attempting to log on to a dierent user account than was used to pair the computer and the mobile device.
4 Tap One-time Password.
A password displays on the mobile device screen.
NOTE:
If necessary, click the Refresh symbol to get a new code. After the rst two OTP refreshes, there will be a thirty-
second delay before another OTP can be generated.
The computer and mobile device must be in sync so that they both can recognize the same password at the same time.
Trying to rapidly generate password after password will cause the computer and mobile device get out of sync and the OTP
feature to fail. If this problem should occur, wait for thirty seconds for the two devices to get back in sync, and then try again.
5 On the computer, at the Windows logon screen, type the password displayed on the mobile device and press Enter.
If you have used OTP for recovery, after you gain access to the computer, follow the on-screen instructions to reset your password.
Security Tools Mobile Management Tasks
These tasks are performed using the Security Tools Mobile app on the mobile device.
Reset the Security Tools Mobile App PIN
To reset the Security Tools Mobile app PIN:
1 In the upper right, tap the menu options.
2 Select Reset Pin.
3 Enter and conrm the new PIN.
18 Dell Data Protection | Console User Guide
Enrollments
Uninstall Security Tools Mobile App
On your mobile device:
1 Unpair the device and the computer.
2 Delete or uninstall the Security Tools Mobile app as you normally would delete an app from your mobile device.
Smart Cards
NOTE:
To use this feature, your computer must have a smart card reader.
To enroll smart cards, follow these instructions:
1 Click the Smartcard tab.
2 Enroll the smart card, based on type of card:
• Insert the smart card into the card reader.
• With a contactless card, place and hold the card on or near the reader.
3 When the card is detected, a green check box and Enroll the card display. Select Enroll the card.
4 At the Successful Enrollment dialog, click OK.
To unenroll all smart cards associated with the user, on the Smartcard enrollment page, select Remove enrolled cards from your account.
Dell Data Protection | Console User Guide
Enrollments
19
Password Manager
Password Manager allows you to automatically log on to websites, Windows programs, and network resources and manage logon
credentials in a single tool. Password Manager also allows users to change their logon passwords through the application, ensuring that
passwords maintained by Password Manager are kept in sync with those of the targeted resource.
Password Manager is supported with Internet Explorer and Mozilla Firefox. Password Manager is not supported with Microsoft accounts
(previously Windows Live ID).
NOTE:
If running Password Manager on Firefox, you must install and register the Password Manager extension. For instructions on installing
extensions in Mozilla Firefox, see https://support.mozilla.org/.
NOTE:
Use of Password Manager icons (both pre-trained and trained icons) in Mozilla Firefox diers from their use in Microsoft Internet
Explorer:
• Double-click functionality on Password Manager icons is not available.
• The default action is not shown in bold in the drop-down context menu.
• If a page has multiple logon forms, you may see more than one Password Manager icon.
NOTE:
Due to the ever-changing structure of web logon pages, Password Manager may not be able to support all websites at all times.
Get Started with Password Manager
Password Manager collects and stores your logon credentials as you work. You can begin to use Password Manager immediately after
Security Tools is installed. When you enter credentials into a logon page, Password Manager detects the
logon form and lets you choose whether you want Password Manager to save your credentials.
You have three options:
• Click Save Logon to store your logon credentials in Password Manager.
5
20 Dell Data Protection | Console User Guide
Password Manager
• If you
do not
want to save your logon, each time you log on to the website or program, you will be prompted to save the logon
credentials again. If you prefer not to be prompted, select Never for this site. A record will be created in the Website Exclusions list.
See Exclude Websites for details.
• If you do not want to save the credentials, click Don't Save Logon.
This dialog also displays when you have previously saved credentials for a website or program, but you enter a dierent user name or
password. With a new user name, if you select Save Logon, a new set of credentials is stored. With the previously saved user name and
new password, if you select Save Logon, your original credentials are updated with the new password.
Manage Logons
Logon Manager simplies and centralizes management of all of your logons to websites, Windows programs, and network resources.
To open Logon Manager:
1 On the DDP Console home page, click the Password Manager tile.
2 Click the Logon Manager tab.
You can add logons and categories and sort and lter them:
Add Logon - Allows you to add a new set of logon credentials. Based on policy, you may be required to enter credentials stored in
Security Tools in order to add a logon.
Add Category - Allows you to add a new category (such as Email, Storage, News, Corporate Resources, Social Media), for use in
sorting and ltering.
Sort: Sort the logons by Account, Username, or Category. Click a column heading to sort by its column.
Filter: Select a category from the View list to hide all logons except for those in the selected category. To remove the lter, select All.
You can manage logons:
Launch - Opens the website or program and submits logon credentials, based on user settings.
Edit - Allows you to change the stored logon data of a website or program.
Delete - Allows you to remove stored logon data from the Password Manager.
Add - Allows you to add a new logon, category, or new logon data.
Dell Data Protection | Console User Guide
Password Manager
21
Add Category
Before adding logons, create categories (such as Email, Storage, News, Corporate Resources, and Social Media) so that you can categorize
your logons as you create them. Then you can sort and lter your logons by category.
To add a category, on the Logon Manager page, click Add category, type a category name, and click Save.
Add Logon
1 On the Logon Manager page, click Add Logon.
Based on policy, you may be required to authenticate to add a logon.
2 Open the website or program to log on to.
3 In the Add Logon dialog, click Continue.
22 Dell Data Protection | Console User Guide
Password Manager
4 In the next dialog, enter the following:
•Category - Choose a category for the website or program logon that you are storing. If you have not added categories, this list will
be empty.
•Account Name - Leave as-is to accept the pre-lled name, or type the name of the website or program.
•Undetected Title - These elds are detected by Password Manager as the elds on the logon page in which you enter your logon
information. These elds typically include User Name or Email, and Password.
5 If a eld name is shown as Undetected Title, or if the wrong elds have been included as logon elds, click the More Fields button to
edit eld names or remove elds.
6 In the More Fields dialog, click Undetected Title and enter the correct eld name for each eld.
When the More Fields dialog displays, the eld that was active on the Add Logon dialog is highlighted, to assist you in renaming the
elds.
If a eld is unnecessary for logon, to exclude it from logon information, clear its check box.
Dell Data Protection | Console User Guide
Password Manager
23
7 To save changes, click OK.
8 In the Add Logon dialog, complete the elds required for logon.
NOTE:
Because you are storing an existing logon, you can only change the password by going to the Change Password function of
the website or program.
9 If you want Password Manager to automatically ll in and submit the logon information, select Automatically submit log in data.
10 Click Save.
The website or program logon displays on the Logon Manager page.
Import Credentials
You can import credentials stored in web browsers into the Password Manager.
1 In the Password Manager tool, select Import Credentials.
2 Select the browser to import and click Scan.
24 Dell Data Protection | Console User Guide
Password Manager
3 When prompted, enter the password for the selected browser.
NOTE:
If the import does not result in imported passwords, check to determine whether the browser has stored data to import. If
you are using Firefox, log on to Sync. Try importing your credentials again.
Icon Context Menu
When you visit a website or program, the Password Manager icon displays.
The indicates that the logon form can be trained.
When the is not present, the logon form has already been trained. Double-click the icon to log on to the program or website.
When you click the icon a context menu displays dierent options, based on whether the logon form is trained or untrained.
When the current logon elds are not yet trained, the context menu displays the following options:
Dell Data Protection | Console User Guide
Password Manager
25
Add to Password Manager - Opens the Add Logon dialog.
Icon Settings - Allows the user to congure the display of the Password Manager icon on trainable logon pages.
Open Password Manager - Launches the Password Manager Administration tool and opens the Logon Manager page.
Help - Opens the online help.
When the current logon elds are trained, the context menu displays the following options:
Fill in logon data - Depending on your selections when you trained the logon form, it either automatically logs on or lls the user name and
password elds allowing you to submit the logon data.
Edit logon - Opens the Edit logon dialog.
Add logon - Opens the Add logon dialog.
Open Password Manager - Opens the Logon Manager page.
26 Dell Data Protection | Console User Guide
Password Manager
Help - Opens the online help.
If Password Manager icons do not appear with logon forms, turn o your browser's password-saving feature:
• In Mozilla Firefox: Menu icon > Options > Security > clear the Remember passwords for sites check box
• In Internet Explorer: Gear icon > Internet Options > Content tab > Autocomplete Settings > clear the User names and passwords on
forms check box
Log on to Trained Logon Pages
When you open a website or program logon, Password Manager detects whether the page is trained. If trained, the Password Manager
icon displays in the logon area. If untrained, the Password Manager icon displays-unless prompts for untrained forms have been disabled.
To log on, select one:
• Scan enrolled credentials. If you have enrolled a ngerprint or smart card, you can touch the ngerprint reader with an enrolled
ngerprint or present an enrolled card to the card reader.
• Click the Password Manager icon and select Fill in logon data from the context menu.
• Press the Password Manager hot key combination: Ctrl+Win+H. Password Manager pop-up presents your trained sites in a pop-up,
allowing you to launch one quickly.
NOTE:
You can change the hot key combination in the DDP Console > Password Manager > Settings.
If more than one logon for the site or program has been stored, you are prompted to choose the account to use.
Web Domain Support
If you have trained a logon page for a specic web domain but want to access the account on that web domain from a dierent logon
page, navigate to the new logon page. You are prompted to use an existing logon or to add a new one to Password Manager.
• If you click Use logon, you are logged on to the previously created account. The next time you access that account from the new logon
page, you are automatically logged on to the previously created account.
• If you click Add logon, the Add Logon dialog displays.
Dell Data Protection | Console User Guide
Password Manager
27
Fill in Windows Credentials
Some programs allow the use of Windows credentials for logon.
Instead of typing your user name and password, choose the Windows credentials from the drop-down menus available in the Add Logon
and Edit Logon dialogs.
For the username, choose between the following types:
• Windows User Name
• Windows User Principal Name
• Windows Domain\User Name
• Windows Domain
For the password, use your Windows password.
These options cannot be modied.
28 Dell Data Protection | Console User Guide
Password Manager
Use Old Password
It is possible to have changed a password in Password Manager and then the program rejects the new password. In this case, the program
allows you to use a previous password (a password previously entered for this logon page) instead of the most recent one.
Select Password History. After authentication, you are prompted to choose an old password from the Password History list. The list
includes seven passwords.
Exclude Websites
To prevent websites from being managed by the Password Manager, click the Website Exclusions tab.
Excluded websites have these characteristics:
• Do not invoke a Password Manager icon.
• Do not automatically log in users.
• Do not display password reminders.
To add a new website to the exclusions list:
1 Click the Website Exclusions tab.
2 Click Add Website.
Dell Data Protection | Console User Guide
Password Manager
29
3 Enter the URL of the website to exclude.
4 Click Save.
Once you have excluded a website, the website is not managed by Password Manager. Simply delete the website from the Website
Exclusions list to reverse the exclusion. To remove a website from the exclusions list: click X.
After adding several websites, you can:
• To sort the list by website, ascending or descending, click the Website column heading.
• To search within the list, enter part of the URL into the search eld. The list is ltered as you type.
Disable Prompts to Train Logon Forms
You can keep existing trained logons but disable prompts to train new logon forms.
To disable prompts for new logons:
1 Open the DDP Console.
2 Click the Password Manager tile.
3 Click the Settings tab.
4 Clear the Prompt to add a logon when on a logon screen check box.
30 Dell Data Protection | Console User Guide
Password Manager
Back up and Restore Password Manager Credentials
The Password Manager lets you securely back up the logon data that is managed by Password Manager. This data can be restored on any
computer protected by Password Manager.
NOTE:
The Password Manager data that is backed up does not include operating system or Preboot Authentication (PBA) logon credentials or
credential-specic information, such as ngerprints.
Back up Credentials
To back up credentials:
1 Click the Backup Credentials tab to set up the backup process.
2 Click Browse and navigate to the desired backup location.
If you attempt to back up the data to a local drive, a recommendation displays to back up the data to portable storage or a network
drive.
3 Enter and conrm a password. This password must be used if these backed up credentials must be later restored.
4 Click Backup.
5 Enter your Windows password.
6 In the Success dialog, click OK.
NOTE:
To view a text log of the backup operation performed, click the and select Log.
Restore Credentials
The backup location must be available, in order to restore credentials.
To restore credentials:
1 Click the Restore Credentials tab.
2 Click Browse to navigate to the backup le, and then enter the password for the le.
3 Click Restore.
WARNING:
Restoring Password Manager data will overwrite any existing data. Logons and other data added after the backup was
created will be lost.
Dell Data Protection | Console User Guide
Password Manager
31
4 Click Next.
NOTE:
To view a text log of the restore operation, click the icon in the title bar and select Log.
32 Dell Data Protection | Console User Guide
Password Manager
Glossary
Credential - A credential is something that proves a person’s identity, such as their ngerprint or their Windows password.
One-Time Password (OTP) - A one-time password is a password that can be used only once and is valid for a limited length of time. OTP
requires that the TPM is present, enabled, and owned. To enable OTP, a mobile device is paired with the computer using the Security
Console and the Security Tools Mobile app. The Security Tools Mobile app generates the password on the mobile device that is used to log
onto the computer at the Windows logon screen. Based on policy, the OTP feature may be used to recover access to the computer if a
password is expired or forgotten, if OTP has not been used to log on to the computer. The OTP feature can be used either for
authentication or for recovery, but not both. OTP security exceeds that of some other authentication methods since the generated
password can be used only once and expires in a short time.
Preboot Authentication (PBA) - Preboot Authentication serves as an extension of the BIOS or boot rmware and guarantees a secure,
tamper-proof environment external to the operating system as a trusted authentication layer. The PBA prevents anything being read from
the hard disk, such as the operating system, until the user has conrmed they have the correct credentials.
Protected – For a self-encrypting drive (SED), a computer is protected once the SED has been activated and the Pre-boot-authentication
(PBA) is deployed.
Self-encrypting Drives (SEDs) - A hard drive that has a built-in encryption mechanism that encrypts all data stored on the media and
decrypts all data leaving the media, automatically. This type of encryption is completely transparent to the user.
Single Sign-On (SSO) - SSO simplies the logon process when multi-factor authentication is enabled at both preboot and Windows logon.
If enabled, authentication is required at preboot only, and users are automatically logged on to Windows. If not enabled, authentication may
be required multiple times.
Trusted Platform Module (TPM) - TPM is a security chip with three major functions: secure storage, measurement, and attestation. The
Encryption client uses TPM for its secure storage function. The TPM can also provide encrypted containers for the software vault. The
TPM is also required for use with the One-time Password feature.
6
Dell Data Protection | Console User Guide
Glossary
33
