Dell™E1910/E2210 Flat Panel Monitor User's Guide

Notes,Cautions,Warnings









Information in this document is subject to change without notice.

©2009DellInc.Allrightsreserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo aretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in

theUnitedStatesand/orothercountries;Adobe is a trademark of Adobe Systems Incorporated, which may be registered in certain jurisdictions.ENERGYSTAR is a registered

trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy

efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model E1910c/E1910f/E2210c/E2210f

July 2009Rev.A00





About Your Monitor

Setting Up Your Monitor

Operating Your Monitor

Troubleshooting

Appendix



NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Back to Contents Page



About Your Monitor

Dell™E1910/E2210 Flat Panel Monitor User's Guide

Package Contents

Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.



Package Contents

Product Features

Identifying Parts and Controls

Monitor Specifications

Plug and Play Capability

LCD Monitor Quality and Pixel Policy

Maintenance Guidelines

NOTE: Some items may be optional and may not ship with your Monitor. Some features or media may not

be available in certain countries.



lMonitor

lStand

lPower Cable





Product Features

The Dell™ E1910 flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■ 19-inch (482.6 mm) viewable area display.

■ 1440x900 resolution, plus full-screen support for lower resolutions.

■ Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.

■ Tilt adjustment capabilities.

■ Removable pedestal and Video Electronics Standards Association (VESA®) 100 mm mounting holes for flexible mounting solutions.

■ Plug and play capability if supported by your system.

■ On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■ Software and documentation media which includes an information file (INF), Image Color Matching file (ICM), and product documentation.

■ Energy Saver feature for Energy Star®compliance.

■ Security lock slot.

■EPEAT™GOLDcompliant.

■ Halogen reduced.

■ Asset Management Capability.



The Dell™E2210 flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:

■ 22-inch (558.8 mm) viewable area display.

■ 1680 x 1050 resolution, plus full-screen support for lower resolutions.

■ Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side.

■ Tilt adjustment capabilities.

■ Removable pedestal and Video Electronics Standards Association (VESA®) 100 mm mounting holes for flexible mounting solutions.

■ Plug and play capability if supported by your system.

■ On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

■ Software and documentation media includes an information file (INF), Image Color Matching file (ICM), and product documentation.

lVGA Cable

lDVI Cable

lDrivers and Documentation media

lQuick Setup Guide

lSafety Information

■ Energy Saver feature for Energy Star®compliance.

■ Security lock slot.

■EPEAT™GOLDcompliant.

■ Halogen reduced.

■ Asset Management Capability.

Identifying Parts and Controls

Front View

Back View





Side View

Front View

Front Panel Controls

Label

Description

1.

Function buttons (For more information, see

Operating the Monitor)

2.

Power On/Off button (with LED indicator)

Back View

Back View with Monitor Stand

Label

Description

Use

1

Regulatory rating label

Lists the regulatory approvals.

2

Security lock slot

To help secure your monitor.

3

Barcode serial number label

To contact Dell for technical support.

4

VESA mounting holes (100mm)

(Behind attached base plate)

To mount the monitor.

5

Cable management slot

To organize cables by placing them through the slot.

6

Dell Soundbar mounting brackets

To attach the optional Dell Soundbar.

7

Stand removal button

Press to release the stand.





Bottom View



LeftView

Right View

Bottom View



Label

Description

1

AC power cord connector

2

DVI connector

3

VGA connector

Monitor Specifications

Flat Panel Specifications

Model

Dell E1910 Flat Panel Monitor

Dell E2210 Flat Panel Monitor

Screen type

Active matrix - TFT LCD

Active matrix - TFT LCD

Panel type

TN

TN

Screen dimensions

19 inches (19-inch viewable image size)

22 inches (22-inch viewable image size)

Preset display area

408.24 (H) X 255.15 (V)

473.76(H)×296.1(V)

Horizontal

408.24 mm (16.08 inches)

473.76 mm (18.65 inches)

Vertical

255.15 mm (10.05 inches)

296.1 mm (11.66 inches)

Pixel pitch

0.2835 mm

0.282 mm

Viewing angle

160°(vertical)typical,160°(horizontal)

typical

160°(vertical) typical,170°(horizontal)typical

Luminance output

300 CD/m² (typical)

250 CD/m² (typical)

Contrast ratio

1000 to 1 (typical)

1000 to 1 (typical)

Faceplate coating

Antiglare with hard-coating 3H

Antiglare with hard-coating 3H

Backlight

CCFL (2) edgelight system

CCFL (2) edgelight system

Response Time

5 ms typical

5 ms typical

*[E1910/E2210] color gamut (typical) is based on CIE1976 (83%) and CIE1931 (72%) test standards.

Color depth

16.7 millions colors

16.7 millions colors

Color Gamut

83% (typical)* CIE1976

83% (typical)* CIE1976

Resolution Specifications

Supported Video Modes

Model

Dell E1910 Flat Panel Monitor

Dell E2210 Flat Panel Monitor

Horizontal scan range

30 kHz to 83 kHz (automatic)

30 kHz to 83 kHz (automatic)

Vertical scan range

56Hzto75Hz(automatic)

56Hzto75Hz(automatic)

Maximum preset resolution

1440 X 900 at 60 Hz

1680 x 1050 at 60 Hz

Video display capabilities (DVI playback)

480i/480p/576i/576p/720p/1080i/1080P

(Supports HDCP)

Preset Display Modes

E1910

E2210

Display Mode

Horizontal Frequency (kHz)

Vertical Frequency (Hz)

Pixel Clock (MHz)

Sync Polarity

(Horizontal/Vertical)

VESA, 720 x 400

31.5

70.0

28.3

-/+

VESA, 640 x 480

31.5

60.0

25.2

-/-

VESA, 640 x 480

37.5

75.0

31.5

-/-

VESA, 800 x 600

37.9

60.0

40.0

+/+

VESA, 800 x 600

46.9

75.0

49.5

+/+

VESA, 1024 x 768

48.4

60.0

65.0

-/-

VESA, 1024 x 768

60.0

75.0

78.8

+/+

VESA, 1152 x 864

67.5

75.0

108.0

+/+

VESA, 1280 x 800

49.7

60.0

83.5

-/+

VESA, 1280 x 1024

64.0

60.0

108.0

+/+

VESA, 1280 x 1024

80.0

75.0

135.0

+/+

VESA, 1440 x 900

56.0

60.0

106.5

-/+

Display Mode

Horizontal Frequency (kHz)

Vertical Frequency (Hz)

Pixel Clock (MHz)

Sync Polarity

(Horizontal/Vertical)

VESA, 720 x 400

31.5

70.0

28.3

-/+

VESA, 640 x 480

31.5

60.0

25.2

-/-

VESA, 640 x 480

37.5

75.0

31.5

-/-

VESA, 800 x 600

37.9

60.0

40.0

+/+

VESA, 800 x 600

46.9

75.0

49.5

+/+

VESA, 1024 x 768

48.4

60.0

65.0

-/-

VESA, 1024 x 768

60.0

75.0

78.8

+/+

VESA, 1152 x 864

67.5

75.0

108.0

+/+

VESA, 1280 x 1024

64.0

60.0

108.0

+/+

VESA, 1280 x 1024

80.0

75.0

135.0

+/+

VESA, 1680 x 1050

65.2

60.0

146.2

-/+

VESA, 1680 x 1050-R

64.6

60.0

119.0

+/+

Electrical Specifications

Video input signals

Analog RGB, 0.7 Volts +/- 5%, positive polarity at 75 ohm input impedance

Digital DVI-D TMDS, 600mV for each differential line, positive polarity at 50 ohm input

impedance

Synchronization input signals

Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG

(Composite SYNC on green)

AC input

voltage/frequency/current

100 to 240 VAC/50 or 60 Hz + 3 Hz/1.6A (Max.)

Inrush current

120 V: 30 A (Max.)/240 V: 60 A (Max.) (E1910)

120V:40A (Max.)/ 240V:80A (Max.) (E2210)

Physical Characteristics

Model

Dell E1910 Flat Panel Monitor

Dell E2210 Flat Panel Monitor

Connector type

15-pin D-subminiature, blue

connector; DVI-D, white

connector

15-pin D-subminiature, blue

connector; DVI-D, white

connector

Signal cable type

Digital: Detachable, DVI-D, Solid

pins, shipped detached from

the monitor

Analog: Detachable, D-Sub,

15pins, shipped attached to

the monitor

Digital: Detachable, DVI-D, Solid

pins, shipped detached from

the monitor

Analog: Detachable, D-Sub,

15pins, shipped attached to

the monitor

Dimensions (with stand)

Height (Extended)

14.32 inches (363.74 mm)

16.01 inches (406.7 mm)

Width

17.45 inches (442.85 mm)

20.13 inches (511.2 mm)

Depth

5.78 inches (146.86 mm)

6.44inches(163.9mm)

Dimensions (without stand)

Height

11.41 inches (289.75 mm)

13.15 inches (334.0 mm)

Width

17.43 inches (442.85 mm)

20.13 inches (511.2 mm)

Depth

2.32 inches (59.00 mm)

2.54 inches (64.5 mm)

Stand dimensions

Height (Extended)

11.39 inches (289.25 mm)

12.39 inches (314.7 mm)

Width

9.88 inches (250.86 mm)

10.47 inches (265.9 mm)

Depth

5.78 inches (146.86 mm)

6.44 inches (163.7 mm)

Weight

Weight with packaging

12.70 lbs (5.76 kg)

15.50 lbs (7.03 kg)

Weight with stand assembly and cables

11.11 lbs (5.04 kg)

13.27 lbs (6.02 kg)

Weight without stand assembly

(For wall mount or VESA mount

considerations - no cables)

7.91 lbs (3.59 kg)

9.70 lbs (4.40 kg)

Weight of stand assembly

2.20 lbs (1.00 kg)

2.58 lbs (1.17 kg)

Environmental Characteristics

Temperature



Operating

5°to40°C(41°to104°F)

Non-operating

Storage: -20°to60°C(-4°to140°F)

Shipping: -20°to60°C(-4°to140°F)

Humidity



Operating

10% to 80% (non-condensing)

Non-operating

Storage: 5% to 90% (non-condensing)

Shipping: 5% to 90% (non-condensing)

Altitude



Operating

3,657.6 m (12,000 ft) max

Non-operating

12,192 m (40,000 ft) max

Thermal dissipation

95.76 BTU/hour (maximum) 75.24 BTU/hour (typical) (E1910)

106.02 BTU/hour (maximum) 95.76 BTU/hour (typical) (E2210)

Back to Contents Page



Appendix

Dell™E1910/E2210 Flat Panel Monitor User's Guide

Safety Instructions

FCC Notice (U.S. Only) and Other Regulatory Information

Contacting Dell





WARNING: Safety Instructions

For information on safety instructions, see the Product Information Guide.

FCC Notices (U.S. Only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com\regulatory_compliance.

Contacting Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be

available in your area. To contact Dell for sales, technical support, or customer service issues:



Back to Contents Page

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,

electrical hazards, and/or mechanical hazards.

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or

Dell product catalog.

1.

Visit support.dell.com.

2.

Verify your country or region in the Choose A Country/Region drop-downmenuatthebottomofthepage.

3.

Click Contact Us on the left side of the page.

4.

Select the appropriate service or support link based on your need.

5.

Choose the method of contacting Dell that is convenient for you.

Back to Contents Page

Setting Up Your Monitor

Dell™E1910/E2210FlatPanelMonitor

IfyouhaveaDell™desktoporaDell™portablecomputerwithinternetaccess

1. Go to http://support.dell.com,enteryourservicetag,anddownloadthelatestdriverforyourgraphicscard.

2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1440x900 (E1910) or 1680x1050 (E2210) again.

Back to Contents Page

NOTE: If you are unable to set the resolution to 1440x900 (E1910) or 1680x1050 (E2210

),pleasecontactDell™toinquireaboutaGraphicsAdapterthat

supportstheseresolutions.

Back to Contents Page

Setting Up Your Monitor

Dell™E1910/E2210 Flat Panel Monitor

IfyouhaveanonDell™desktop,portablecomputer,orgraphicscard

1. Right-click on the desktop and click Properties.

2. Select the Settings tab.

3. Select Advanced.

4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).

5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).

6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1440x900 (E1910) or 1680x1050 (E2210) again.



Back to Contents Page

NOTE: If you are unable to set the resolution to 1440x900 (E1910) or 1680x1050 (E2210

), please contact the manufacturer of your computer or consider

purchasing a graphics adapter that will support the video resolution of 1440x900 (E1910) or 1680x1050 (E2210).

Back to Contents Page



Operating the Monitor

Dell™E1910/E2210 Flat Panel Monitor User's Guide

Using the Front Panel Controls

Using the On-Screen Display (OSD) Menu

Setting the Maximum Resolution

Using the Dell Soundbar (Optional)

Using the Tilt



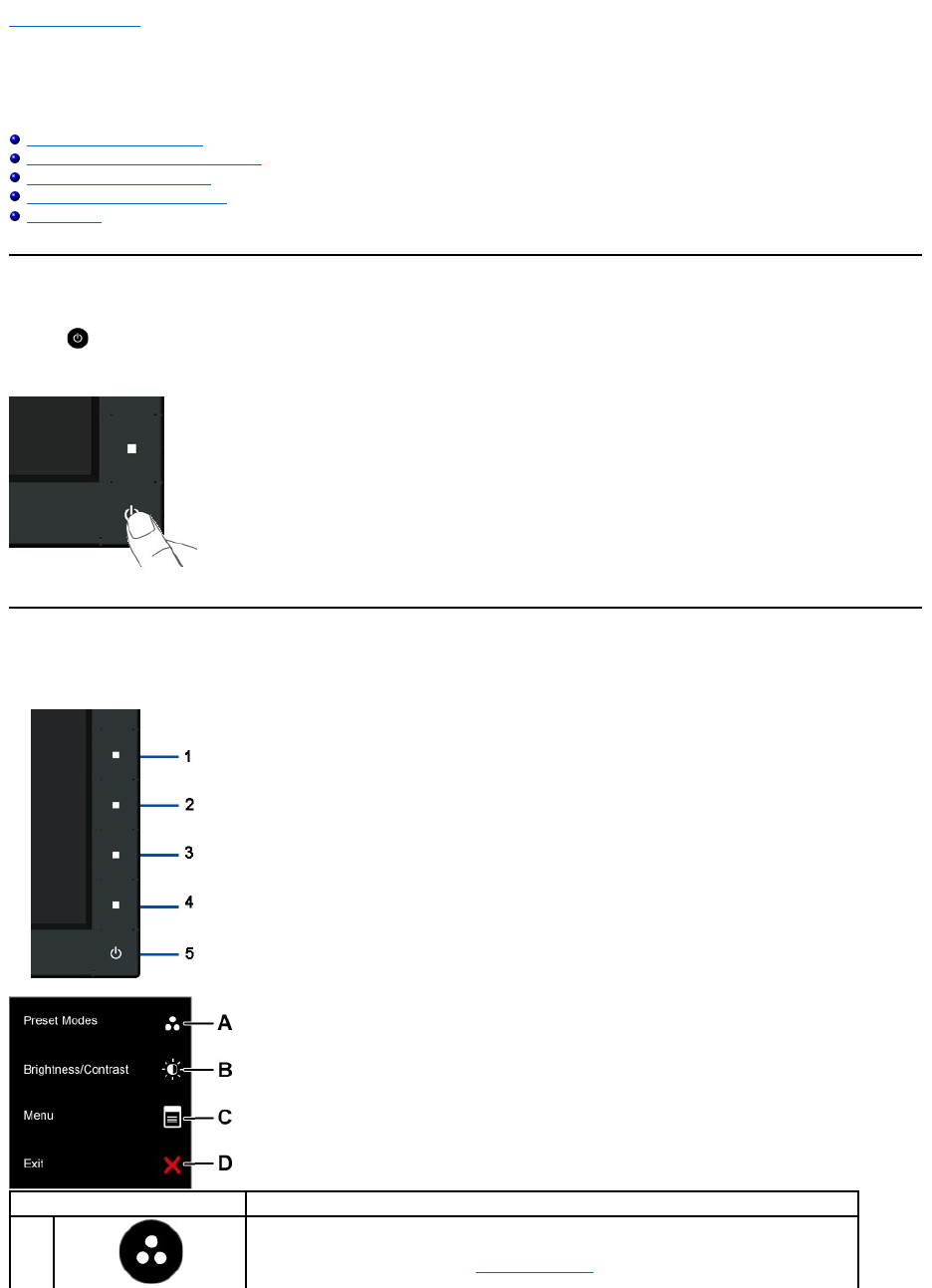

Power On the Monitor

Press the button to turn on the monitor



Using the Front Panel Controls

Usethekeysonthefrontofthemonitortoadjusttheimagesettings.

 

Front panel Key

Description

A



Use this button to directly access the Shortcut Key 1 (Default: Preset Modes) menu or to increase the

value of the selected menu option. See Using the OSD Menu.

Front panel Key

Use the keysonthefrontofthemonitortoadjusttheimagesettings.





Using the On-Screen Display (OSD) Menu



Accessing the Menu System

Preset modes

B

Brightness / Contrast

Use this button to directly access the Shortcut Key 2 (Default: Brightness/Contrast) menu or to decrease

the value of the selected menu option.

C

Menu



Use the Menu key to open the on-screen display(OSD).

D

Exit



Use the Exit key to exit on-screen display(OSD) from menu and sub-menus.

Front panel Key

Description

A

Up

Use the Up key to adjust (increase ranges) items in the OSD menu.

B

Down

Use the Down key to adjust (decrease ranges) items in the OSD menu.

C

OK



Use the OK key to confirm your selection.

D

Back



Use the Back key to go back to the previous menu.

NOTE: IfyouchangethesettingsandtheneitherproceedtoanothermenuorexittheOSDmenu,themonitorautomaticallysavesthosechanges.The

changes are also saved if you change the settings and then wait for the OSD menu to disappear.

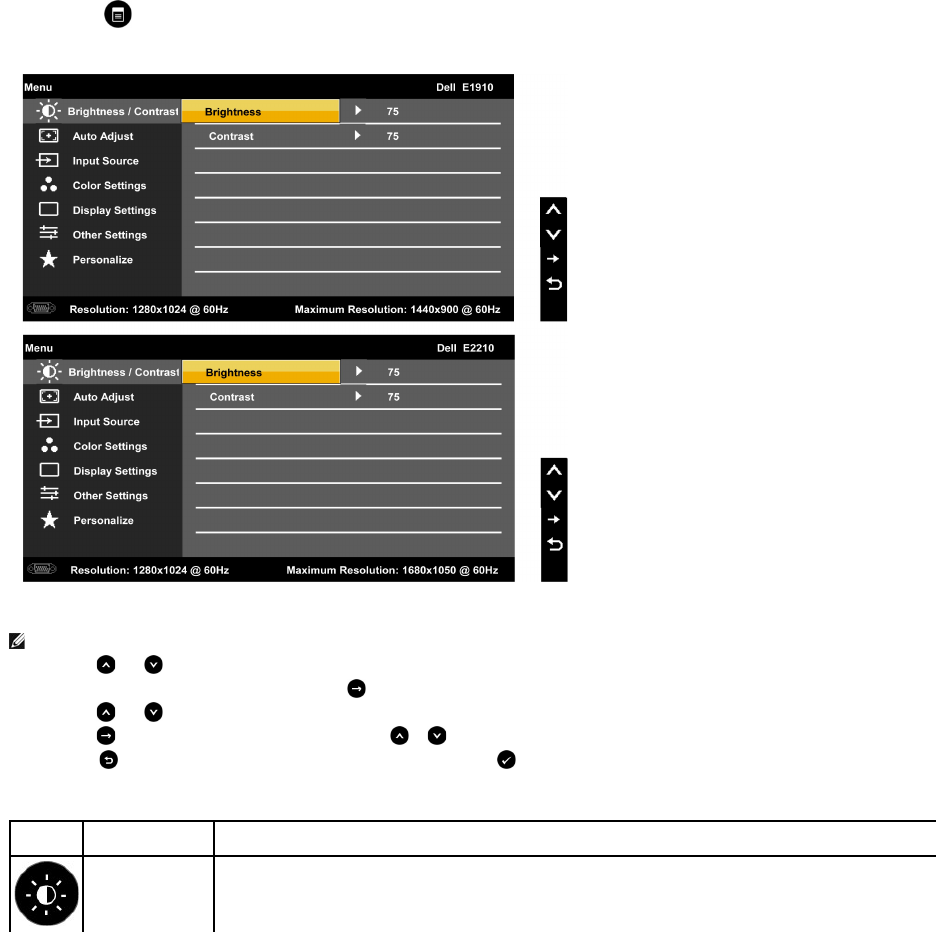

1. Press the button to open the OSD menu and display the main menu.



The table below provides a list of all the OSD menu options and their functions.



Main Menu

NOTE: Auto Adjust is only available when you are using the analog (VGA) connector.

2.

Press the and buttons to toggle between options in the Menu. As you move from one icon to another, the option name is highlighted.

3.

To select the highlighted item on the menu press the button again.

4.

Press the and buttons to select the desired parameter.

5.

Press the buttontoentertheslidebarandthenusethe or buttons, according to the indicators on the menu, to make your changes.

6.

Select the to return to previous menu without accepting current settings or to accept and return to previous menu.

Icon

Menu and

Submenus

Description

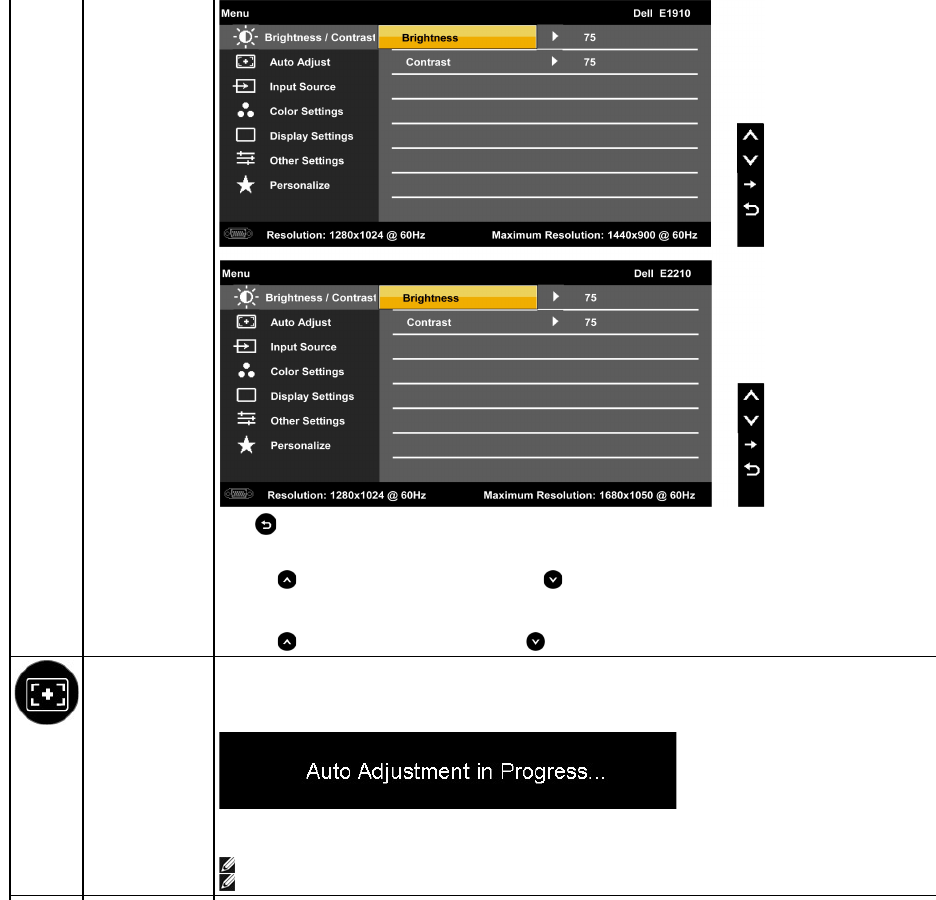

Brightness/Contrast

Use the Brightness and Contrast menu to adjust the Brightness/Contrast.





Back

Press to go back to the main menu.

Brightness

Allows you to adjust the brightness or luminance of the backlight.

Press the keytoincreasebrightnessandpressthe key to decrease brightness (min 0 ~ max 100).

Contrast

Allows you to adjust the contrast or the degree of difference between darkness and lightness on the monitor screen. Adjust brightness first, and adjust

contrast only if you need further adjustment.

Press the key to increase contrast and press the key to decrease contrast (min 0 ~ max 100).

Auto Adjust

Use this key to activate automatic setup and adjust menu. The following dialog appears on a black screen as the monitor self









Auto Adjustment allows the monitor to self-

adjust to the incoming video signal. After using Auto Adjustment, you can further tune your monitor by using the

Pixel Clock (Coarse) and Phase (Fine) controls under Display Settings.





NOTE: In most cases, Auto Adjust produces the best image for your configuration.

NOTE: AUTO ADJUST option is only available when you are using the analog (VGA) connector.

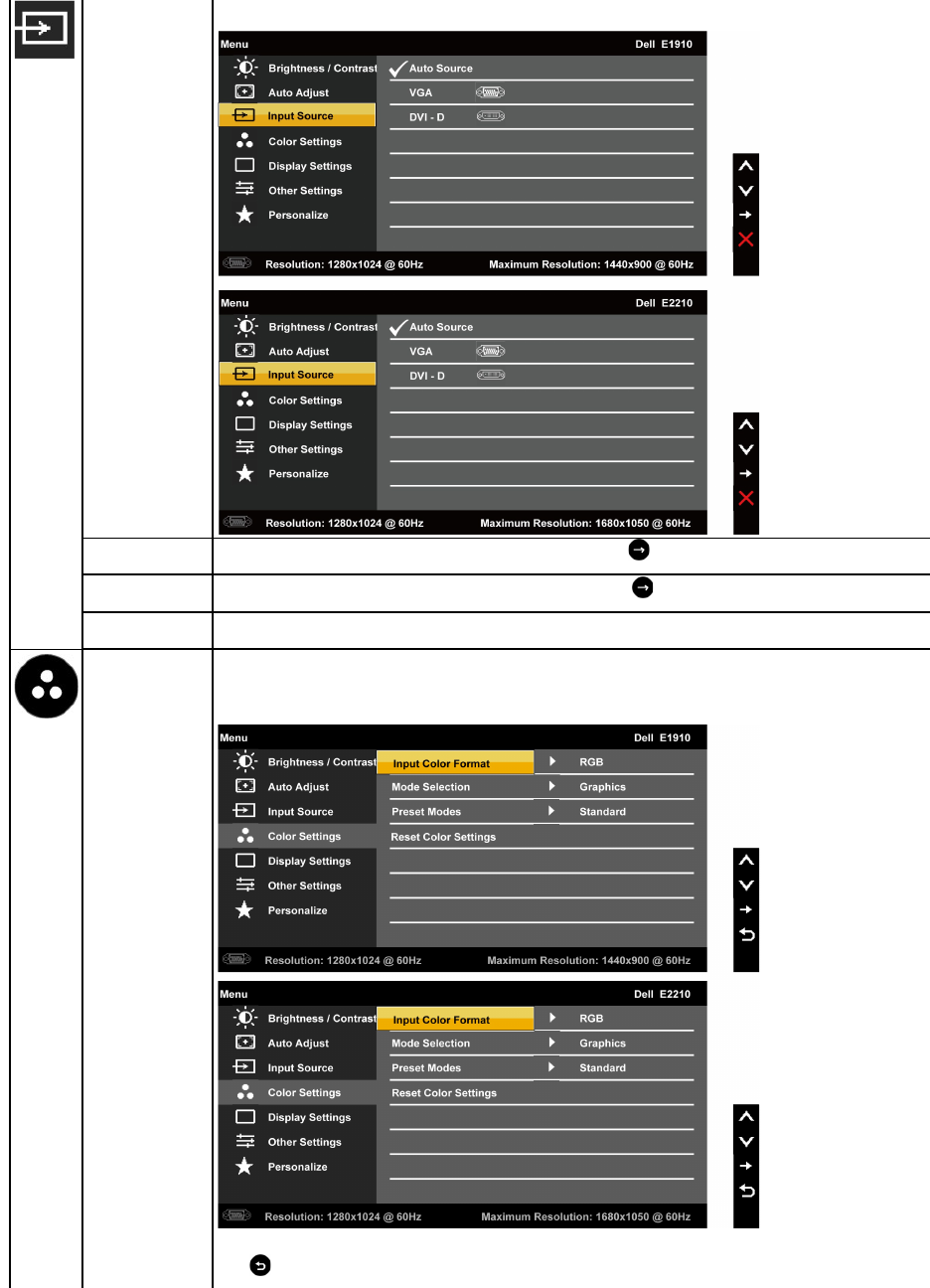

Input Source

Use the Input Source menu to select between different video signals that may be connected to your monitor.

VGA

Select VGA input when you are using the analog (VGA) connector. Push to select the VGA input source.

DVI-D

Select DVI-D input when you are using the Digital (DVI) connector. Push to select the DVI input source.

Scan for Sources

Select Auto Select to scan for available input signals.

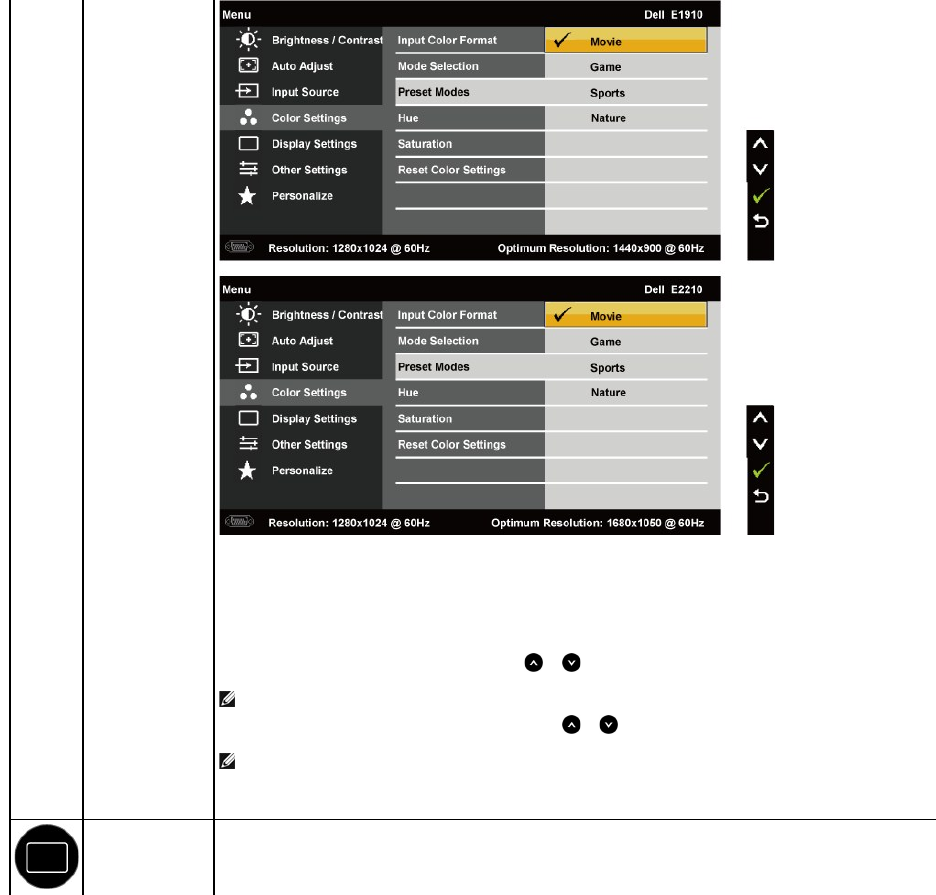

Color Settings

Use the Color Settingsmenutoadjustthemonitor'scolorsettings.







Back

Press to go back to the main menu.



Input Color Format

Allows you to set the video input mode to:

lRGB

: Select this option if your monitor is connected to a computer or DVD player using the VGA and DVI cable or the HDMI to DVI adapter

lYPbPr: Select this option if your DVD player supports only YPbPr output.



Mode Selection

Allows you to set the display mode to:

lGraphics: Select this mode if your monitor is connected to your computer.

lVideo: Select this mode if your monitor is connected to a DVD player.

NOTE: Depending upon the Display Mode you select the Preset Modes available for your monitor change.



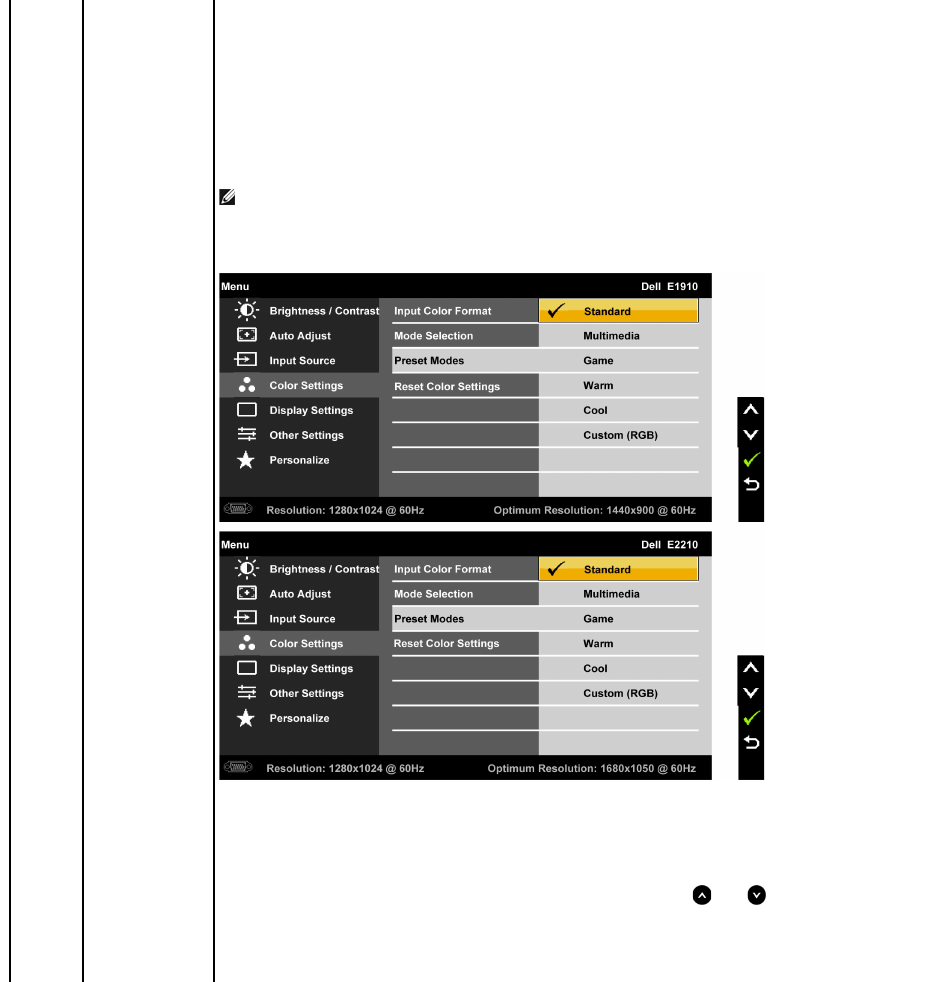

Preset Mode

Allows you to choose from a list of preset color modes.

In the Graphics mode, you can set the color to the following preset values:





lStandard: Loads the monitor's default color settings. This is the default preset mode.

lMultimedia: Loads color settings ideal for multimedia applications.

lGame: Loads color settings ideal for most gaming applications.

lWarm: Increases the color temperature. The screen appears warmer with a red/yellow tint.

lCool: Decreases the color temperature. The screen appears cooler with a blue tint.

lCustom (RGB): Allows you to manually adjust the color settings. Press the and

keys to adjust the Red, Green, and Blue values and create

your own preset color mode.





In the Video mode, you can set the color to the following preset values:







lMovie: Loads color settings ideal for movies. This is the default preset mode.

lGame: Loads color settings ideal for most gaming applications.

lSports: Loads color settings ideal for sports.

lNature: Loads color settings ideal for nature.



Hue

Allows you to adjust the skin tone of the image. Use or to adjust the hue from '0' to '100'.

NOTE: Hue adjustment is available only in the Video mode.



Saturation

Allows you to adjust the color saturation of the image. Use or to adjust the saturation from '0' to '100'.

NOTE: Saturation adjustment is available only in the Video mode.



Reset Color Settings

Resets your monitor's color settings to the factory defaults.

Displays Settings

Use the Displays Settings menu to adjust the monitor's display settings.







Back

Press to go back to the main menu.



Horizontal Position

Use the or buttons to adjust image left and right. Minimum is '0' (-). Maximum is '100' (+).

NOTE: When using a DVI source, the Horizontal Position setting is not available.



Vertical Position

Use the or buttons to adjust image up and down. Minimum is '0' (-). Maximum is '100' (+)

NOTE: When using a DVI source, the Vertical Position setting is not available.



Sharpness

This feature can make the image look sharper or softer. Use or to adjust the sharpness from '0' to '100'



Pixel Clock

The Phase and Pixel Clock adjustments allow you to adjust your monitor to your preference. Use or

buttons to adjust for best image quality



Phase

If satisfactory results are not obtained using the Phase adjustment, use the Pixel Clock (coarse) adjustment and then use Phase (fine), again.

NOTE: Pixel Clock and Phase Adjustments are only available for "VGA" input.



Reset Display

Settings

Select this option to restore default display settings.

Other Settings

Select this option to adjust the settings of the OSD, such as, the languages of the OSD, the amount of time the menu remains on screen, and so on.









Back

Language

Press to go back to the main menu.

Allows you to set the OSD display to one of eight languages: English, Spanish, French, German, Japanese, Brazilian Portuguese, Simplified Chinese or Russian.

Menu Transparency

Allows you to adjust the OSD background from opaque to transparent.

Menu Timer

Allows you to set the time for which the OSD remains active after you press a key on the monitor.

Use the and keys to adjust the slider in 1 second increments, from 5 to 60 seconds.



Menu Lock

Controls user access to adjustments. When Lock is selected, no user adjustments are allowed. All keys are locked except

NOTE:

When the OSD is locked, pressing the menu key takes you directly to the OSD settings menu, with 'OSD Lock' pre

hold key for 15 seconds to unlock and allow user access to all applicable settings.



DDC/CI

DDC/CI (Display Data Channel/Command Interface) allows a software on your computer to adjust the monitor display settings like the brightness, color

balance etc.

Enable (Default): Optimizes the performance of your monitor and provides a better customer experience.

Disable: Disables the DDC/CI option and the following message appears on the screen.



NOTE: For best user experience and optimum performance of your monitor, keep this feature enabled.



LCD Conditioning

This feature will help reduce minor cases of image retention. If an image appears to be stuck on the monitor, select LCD Conditioning to help eliminate any

image retention. Using the LCD Conditioning feature may take some time. LCD Conditioning feature cannot remove severe cases of image retention or burn

in.

NOTE: Use LCD Conditioning only when you experience a problem with image retention.

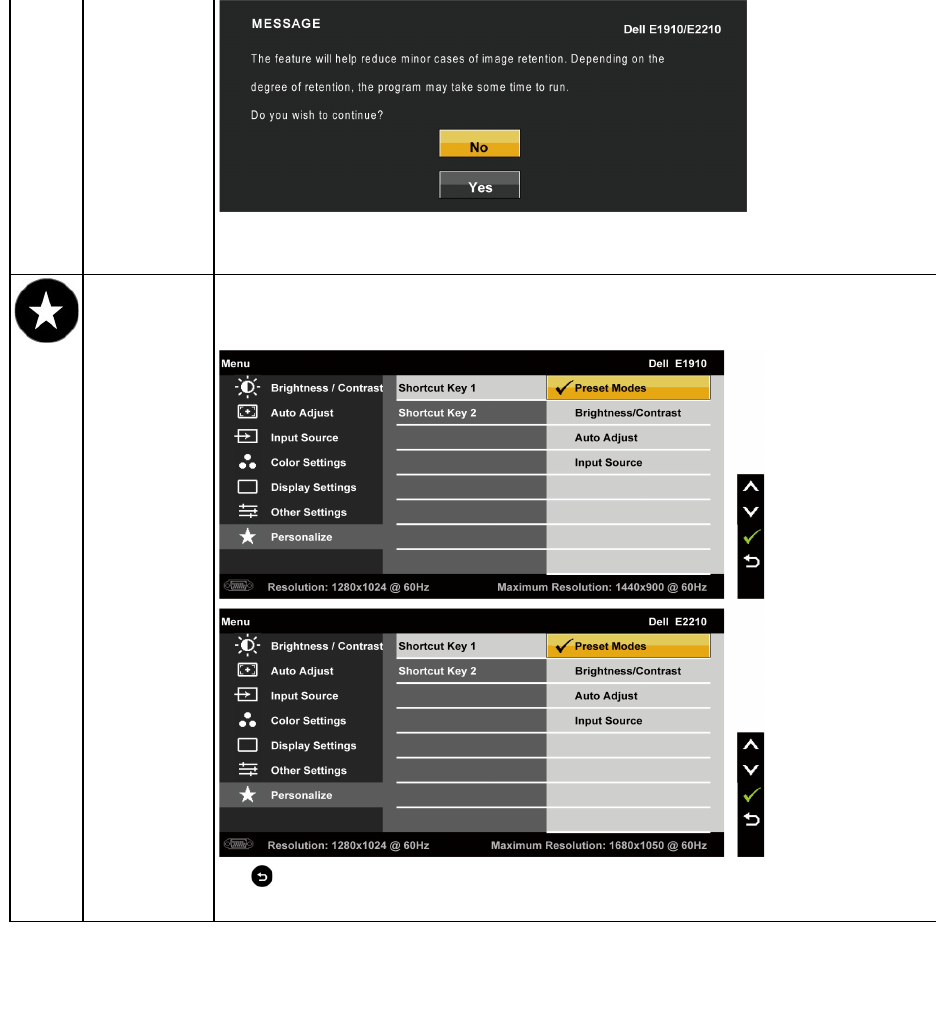

The below warning message appears once user selects “Enable" LCD Conditioning.

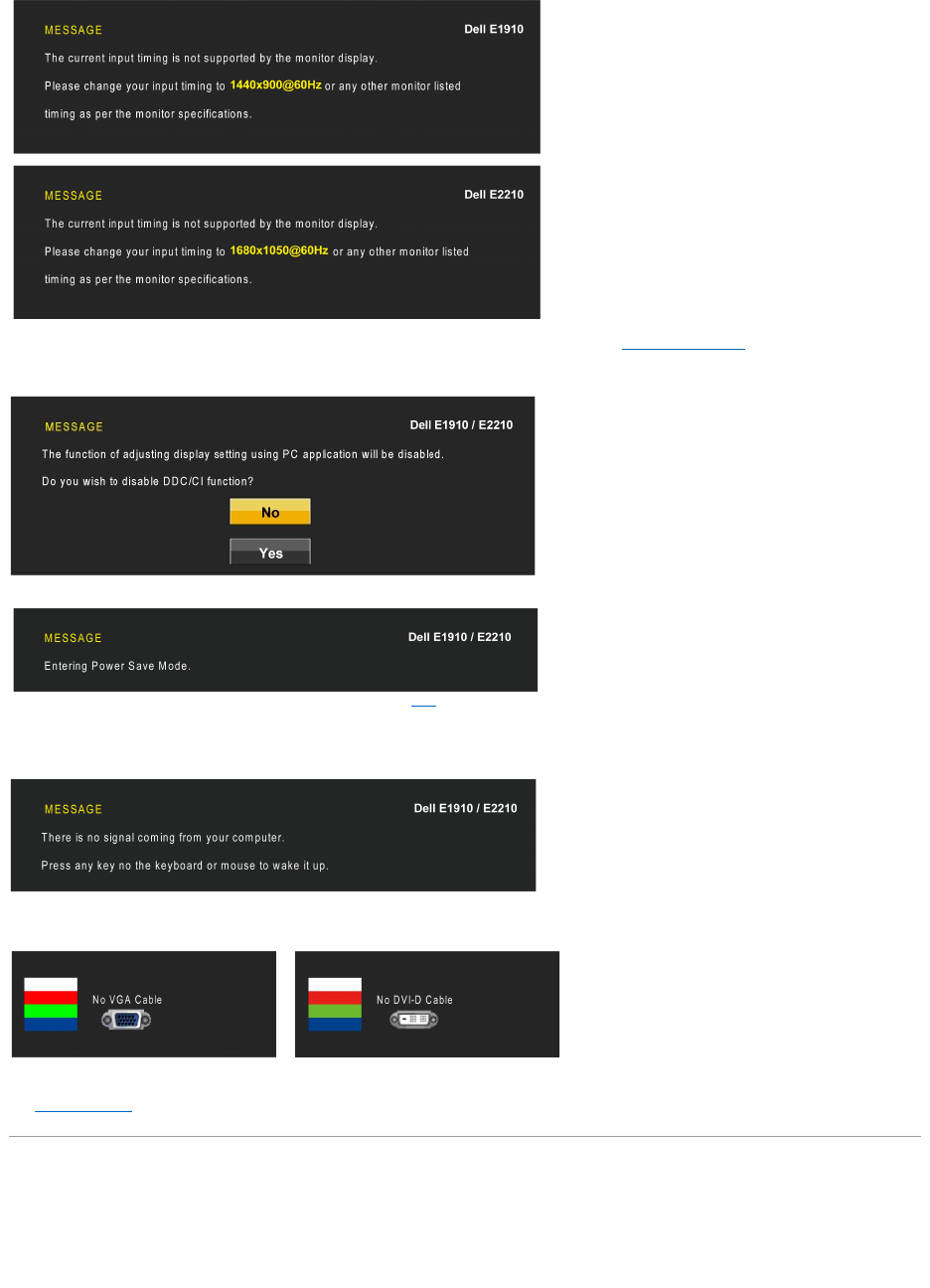

OSD Warning Messages



Factory Reset

ResetsallOSDsettingstothefactorypresetvalues.

Personalize

User can select from "Preset Modes", "Brightness/Contrast", "Auto Adjust", "Input Source" and set as shortcut key 1 and 2.







Back

Press to go back to the main menu.







When the monitor does not support a particular resolution mode you will see the following message:











See Solving Problems for more information.

Setting the Maximum Resolution

To set the Maximum resolution for the monitor:

1. Right-click on the desktop and select Properties.

2. Select the Settings tab.

3. Set the screen resolution to 1440x900 (E1910) or 1680x1050 (E2210).

4. Click OK.



This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor Specifications for the

HorizontalandVerticalfrequencyrangesaddressablebythismonitor.Recommendedmodeis1440x900 (E1910)/1680x1050 (E2210).



YouwillseethefollowingmessagebeforetheDDC/CIfunctionisdisabled.



WhenthemonitorentersthePowerSavemode,thefollowingmessageappears:

Activate the computer and wake up the monitor to gain access to the OSD





If you press any button other than the power button, the following messages will appear depending on the selected input:

If VGA or DVI cable is not connected, a floating dialog box as shown below appears.

or

If you do not see 1440x900 (E1910) or 1680x1050 (E2210) as an option, you may need to update your graphics driver. Depending on your computer,

complete one of the following procedures:

lIf you have a Dell desktop or portable computer:

¡Go to support.dell.com, enter your service tag, and download the latest driver for your graphics card.

lIf you are using a non-Dell computer (portable or desktop):

¡Go to the support site for your computer and download the latest graphic drivers.

¡Go to your graphics card website and download the latest graphic drivers.

Using the Dell Soundbar (Optional)

The Dell Soundbar is a stereo two channel system, mountable on Dell Flat Panel Displays. The Soundbar has a rotary volume and on/off control to adjust the

overall system level, a LED for power indication, and two audio headset jacks.



Using the Tilt

Tilt

With the built-in pedestal, you can tilt the monitor for the most comfortable viewing angle.



Back to Contents Page

1.

Power/volume control

2.

Power indicator

3.

Headphone connectors

NOTE: The stand is detached when the monitor is shipped from the factory.

Back to Contents Page

Setting Up Your Monitor

Dell™E1910/E2210 Flat Panel Monitor

Setting the display resolution to 1440x900 (E1910 Maximum) or 1680x1050 (E2210

Maximum)

For optimal display performance, while using the Microsoft Windows®operating systems, set the display resolution to 1440x900 (E1910) or 1680x1050

(E2210) pixels by performing the following steps:

1. Right-click on the desktop and click Properties.

2. Select the Settings tab.

3. Move the slider-bar to the right by pressing and holding the left mouse button and adjust the screen resolution to 1440x900 (E1910) or 1680x1050

(E2210).

4. Click OK.

Ifyoudonotsee1440x900 (E1910) or 1680x1050 (E2210) as an option, you may need to update your graphics driver. Please choose the scenario below

that best describes the computer system you are using, and follow the provided directions:

1: IfyouhaveaDell™desktoporaDell™portablecomputerwithinternetaccess.

2: IfyouhaveanonDell™desktop,portablecomputer,orgraphicscard.

Back to Contents Page

Dell™E1910/E2210FlatPanelMonitor

Information in this document is subject to change without notice.

©2009DellInc.Allrightsreserve

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo aretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in

theUnitedStatesand/orothercountries;Adobe is a trademark of Adobe Systems Incorporated, which may be registered in certain jurisdictions.ENERGYSTAR is a registered

trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy

efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model E1910c/E1910f/E2210c/E2210f

July 2009 Rev. A00

User Guide

Setting the display resolution to 1440x900 (E1910 Maximum) or 1680x1050 (E2210 Maximum)



Back to Contents Page



Setting Up the Monitor

Dell™E1910/E2210 Flat Panel Monitor User's Guide

Attaching the Stand

Connecting the Monitor

Organizing Your Cables

Attaching the Soundbar (optional)

Removing the Stand

Attaching the Stand

To attach the monitor stand:

1. Remove the cover and place the monitor on it.

2. Fit the two tabs on the upper part of the stand to the groove on the back of the monitor.

3. Press the stand till it snaps into its place.



Connecting Your Monitor

To connect your monitor to the computer:

1. Turnoffyourcomputeranddisconnectthepowercable.

Connect the blue (VGA) cable from your monitor to your computer.

2. Connect either the white (digital DVI-D) or the blue (analog VGA) display connector cable to the corresponding video port on the back of your

computer.Donotusebothcablesonthesamecomputer. Use both the cables only when they are connected to two different computers with

appropriate video systems.

NOTE: The stand is detached when the monitor is shipped from the factory.

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

NOTE:If your computer supports a white DVI connector, connect the white DVI cable (that ships with your monitor) to

the monitor and the DVI connector on your computer.

NOTE:Do not connect both the blue VGA and the white DVI cables to the computer as all monitors ship with the VGA cable

attached to the monitor.

Connecting the white DVI cable





Connecting the blue VGA cable



Organizing Your Cables



After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment,) use the cable management slot

NOTE: The Graphics are used for the purpose of illustration only. Appearance of the computer may vary.

toorganizeallcablesasshownabove.

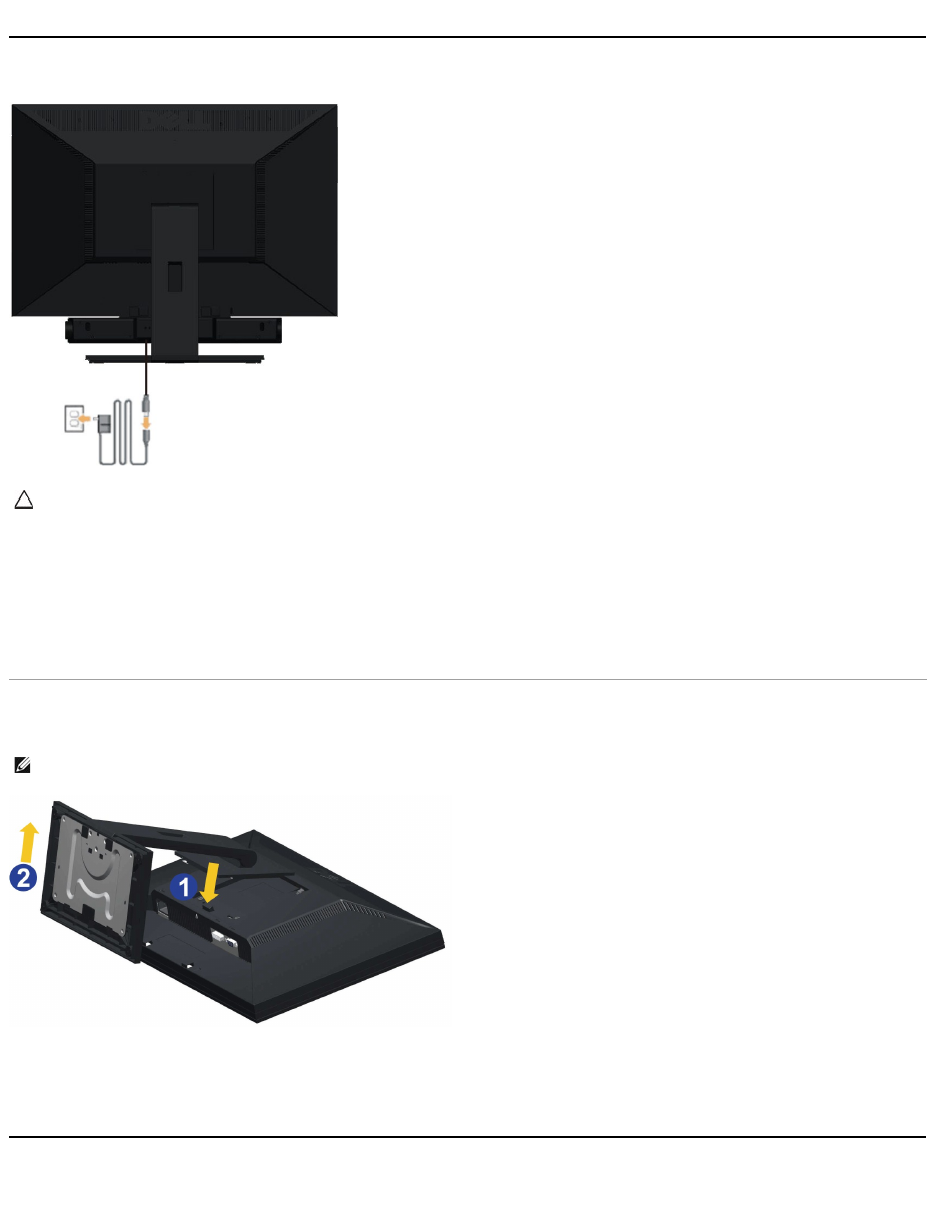

Attaching the Soundbar(optional)

To attach the Soundbar:

Removing the Stand

To remove the stand:

1. Rotate the stand to allow access to the stand release button.

2. Press and hold the stand release button.

3. Lift the stand up and away from the monitor.

Wall Mounting (Optional)

CAUTION: DonotusewithanydeviceotherthanDellSoundbar.

1.

Working from the back of the monitor, attach Soundbar by aligning the two slots with the two tabs along the bottom of the monitor.

2.

Slide the Soundbar to the left until it snaps into place.

3.

Connect the Soundbar with the power brick.

4.

Plug the power cable of the brick to a nearby power outlet.

5.

Insert the lime-green mini stereo plug from the rear of the Soundbar into the computer's audio output jack.

NOTE: To prevent scratches on the LCD screen while removing the stand,ensure that the monitor is placed on a clean surface.

(Screw dimension: M4 x 10mm).

Refer to the instructions that come with the base mounting kit. To convert your LCD display from a desk-mounted to a wall-mounted display, do the following:

1. Verify that the power button is turned Off, then disconnect the power cord.

2. Lay the LCD display face down on a soft cloth.

3. Remove the stand assembly from the back of the LCD display by pressing quick release button.

4. Attach the mounting bracket from the VESA compatible wall mounting kit (100 mm x 100 mm distance).

5. Attach the LCD display to the wall, following the instructions in the wall-mounting kit.



Back to Contents Page





NOTE: For use only with UL Listed Wall Mount Bracket with minimum weight/load: 4.44kg.

Back to Contents Page



Troubleshooting

Dell™E1910/E2210 Flat Panel Monitor

Self-Test

Common Problems

Product Specific Problems

Dell Soundbar Problems



Self-Test

Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly

connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer. To ensure proper Self-Test operation, remove both Digital (white connector) and the Analog (blue

connector) cables from the back of computer.

3. Turn on the monitor.



4. This box also appears during normal system operation, if the video cable becomes disconnected or damaged.

5. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor screen remains blank after you use the previous procedure, check your video controller and computer, because your monitor is functioning

properly.

Built-in Diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your monitor, or

with your computer and video card.

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

The floating dialog box should appear on-screen (against a black background) if the monitor cannot sense a video signal and is working correctly.

While in self-test mode, the power LED remains green. Also, depending upon the selected input, one of the dialogs shown below will continuously

scroll through the screen.

or

NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

To run the built-in diagnostics:

1. Ensure that the screen is clean (no dust particles on the surface of the screen).

2. Unplug the video cable from the back of the computer or monitor. The monitor then goes into the self-test mode.

3. Press and hold the 1st and 4th buttons on the front panel, simultaneously for 2 seconds. A gray screen appears.

4. Carefully inspect the screen for abnormalities.

5. Press the 4th button on the front panel again. The color of the screen changes to red.

6. Inspect the display for any abnormalities.

7. Repeat steps 5 and 6 to inspect the display in green, blue, and white colored screens.

Thetestiscompletewhenthewhitescreenappears.Toexit,pressthe4thbuttonagain.

If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

Common Problems

The following table contains general information about common monitor problems you might encounter and the possible solutions.

Common Symptoms

What You Experience

Possible Solutions

No Video/Power LED off

No picture

lEnsure that the video cable connecting the monitor and the computer is properly

connected and secure.

lVerify that the power outlet is functioning properly using any other electrical equipment.

lEnsure that the power button is depressed fully.

No Video/Power LED on

No picture or no brightness

lIncrease brightness & contrast controls via OSD.

lPerform monitor self-test feature check.

lCheck for bent or broken pins in the video cable connector.

lRun the built-in diagnostics.

Poor Focus

Picture is fuzzy, blurry, or

ghosting

lPerform Auto Adjust via OSD.

lAdjust the Phase and Pixel Clock controls via OSD.

lEliminate video extension cables.

lReset the monitor to Factory Settings.

lChange the video resolution to the correct aspect ratio (16:10).

Shaky/Jittery Video

Wavy picture or fine movement

lPerform Auto Adjust via OSD.

lAdjust the Phase and Pixel Clock controls via OSD.

lReset the monitor to Factory Settings.

lCheck environmental factors.

lRelocate the monitor and test in another room.

Missing Pixels

LCD screen has spots

lCycle power on-off.

lPixel that is permanently off is a natural defect that can occur in LCD technology.

lRun the built-in diagnostics.

Stuck-on Pixels

LCD screen has bright spots

lCycle power on-off.

lPixel that is permanently off is a natural defect that can occur in LCD technology.

lRun the built-in diagnostics.

Brightness Problems

Picture too dim or too bright

lReset the monitor to Factory Settings.

lAuto Adjust via OSD.

lAdjust brightness & contrast controls via OSD.

Geometric Distortion

Screen not centered correctly

lReset the monitor to Factory Settings.

lAuto Adjust via OSD.

lAdjust brightness & contrast controls via OSD.

NOTE: When using '2: DVI-D', the positioning adjustments are not available.



Product Specific Problems

Dell™Soundbar Problems

Horizontal/Vertical Lines

Screen has one or more lines

lReset the monitor to Factory Settings.

lPerform Auto Adjust via OSD.

lAdjust Phase and Pixel Clock controls via OSD.

lPerform monitor self-test feature check and determine if these lines are also in self-test

mode.

lCheck for bent or broken pins in the video cable connector.

lRun the built-in diagnostics.

NOTE: When using '2: DVI-D', the Pixel Clock and Phase adjustments are not available.

Synchronization Problems

Screen is scrambled or appears

torn

lReset the monitor to Factory Settings.

lPerform Auto Adjust via OSD.

lAdjust Phase and Pixel Clock controls via OSD.

lPerform monitor self-test feature check to determine if the scrambled screen appears in

self-test mode.

lCheck for bent or broken pins in the video cable connector.

lRestart the computer in the safe mode.

Safety Related Issues

Visible signs of smoke or

sparks

lDo not perform any troubleshooting steps.

lContact Dell immediately.

Intermittent Problems

Monitor malfunctions on & off

lEnsure that the video cable connecting the monitor to the computer is connected

properly and is secure.

lReset the monitor to Factory Settings.

lPerform monitor self-

test feature check to determine if the intermittent problem occurs in

self-test mode.

Missing Color

Picture missing color

lPerform monitor self-test feature check.

lEnsure that the video cable connecting the monitor to the computer is connected

properly and is secure.

lCheck for bent or broken pins in the video cable connector.

Wrong Color

Picture color not good

lChange the Color Setting Mode in the Color Settings OSD to Graphics or Video

depending on the application.

lTry different Color Preset Settings in Color Settings OSD. Adjust R/G/B value in Color

Settings OSD if the Color Management is turned off.

lChange the Input Color Format to PC RGB or YPbPr in the Advance Setting OSD.

lRun the built-in diagnostics.

Image retention from a static

imageleftonthemonitorfora

long period of time

Faint shadow from the static

image displayed appears on

the screen

lUse the Power Management feature to turn off the monitor at all times when not in use

(for more information, see Power Management Modes).

lAlternatively, use a dynamically changing screensaver.

Specific Symptoms

What You Experience

Possible Solutions

Screen image is too small

Image is centered on screen,

but does not fill entire viewing

area

lReset the monitor to Factory Settings.

Cannot adjust the monitor with

the buttons on the front panel

OSD does not appear on the

screen

lTurn off the monitor, unplug the power cord, plug back, and then turn on the monitor.

The picture does not fill the

entire screen.

The picture cannot fill the

height or width of the screen

lDue to different video formats (aspect ratio) of DVDs, the monitor may display in full

screen.

lRun the built-in diagnostics.

NOTE: When choosing DVI-D mode, the Auto Adjustfunction is not available.

Common Symptoms

What You Experience

Possible Solutions

No sound for system where

the Soundbar draws power

from an AC adapter

No power to Soundbar - the

power indicator is off

lTurn the Power/Volume knob on the Soundbar clockwise to the middle position; check if

the power indicator (green LED) on the front of the Soundbar is illuminated.

lConfirm that the power cable from the Soundbar is plugged into the adapter.

No Sound

Soundbar has power - power

indicator is on

lPlug the audio line-in cable into the computer's audio out jack.

lSet all volume controls to their maximum and ensure that the mute option is not

enabled.

lPlay some audio content on the computer (example, audio CD, or MP3).

lTurn the Power/Volume knob on the Soundbar clockwise to a higher volume setting.

lClean and reseat the audio line-in plug.

lTest the Soundbar using another audio source (For example: portable CD player, MP3

player).

Distorted Sound

Computer's sound card is used

as the audio source

lClear any obstructions between the Soundbar and the user.

lConfirm that the audio line-

in plug is completely inserted into the jack of the sound card.

lSet all Windows volume controls to their midpoints.

lDecrease the volume of the audio application.

lTurn the Power/Volume knob on the Soundbar counter-clockwise to a lower volume

setting.

lClean and reseat the audio line-in plug.

lTroubleshoot the computer's sound card.

lTest the Soundbar using another audio source (For example: portable CD player, MP3

player).



Back to Contents Page

lAvoid using an audio cable extension or audio jack converter.

Distorted Sound

Other audio source is used

lClear any obstructions between the Soundbar and the user.

lConfirm that the audio line-in plug is completely inserted into the jack of the audio

source.

lDecrease the volume of the audio source.

lTurn the Power/Volume knob on the Soundbar counter-clockwise to a lower volume

setting.

lClean and reseat the audio line-in plug.

Unbalanced Sound Output

Sound from only one side of

Soundbar

lClear any obstructions between the Soundbar and the user.

lConfirm that the audio line-in plug is completely inserted into the jack of the sound card

or audio source.

lSet all Windows audio balance controls (L-R) to their midpoints.

lClean and reseat the audio line-in plug.

lTroubleshoot the computer's sound card.

lTest the Soundbar using another audio source (For example: portable CD player, MP3

player).

Low Volume

Volume is too low

lClear any obstructions between the Soundbar and the user.

lTurn the Power/Volume knob on the Soundbar clockwise to the maximum volume

setting.

lSet all Windows volume controls to their maximum.

lIncrease the volume of the audio application.

lTest the Soundbar using another audio source (For example: portable CD player, MP3

player)
