About Your Monitor
Dell™P2210FlatPanelMonitorUser'sGuide
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all the components and contact Dell if something is missing.
Package Contents
Product Features
Identifying Parts and Controls
Monitor Specifications
Plug and Play Capability
Universal Serial Bus (USB) Interface
LCD Monitor Quality and Pixel Policy
Maintenance Guidelines
lMonitor
lStand
lPower Cable
Product Features
The P2210 flat panel display has an active matrix, thin-film transistor (TFT), liquid crystal display (LCD). The monitor features include:
■ 22-inch (558.68 mm) viewable area display (Measured diagonally).
■ 1680 x 1050 resolution, plus full-screen support for lower resolutions.
■ Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
■ Tilt, swivel, vertical extension and rotate adjustment capability.
■ Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.
■ Plug and play capability if supported by your system.
■ Retractable label card allows convenient access to monitor serial number for technical support and easily hidden away providing label-free clean look.
■ On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
■ Software and documentation media includes an information file (INF), Image color Matching File (ICM), and product documentation.
■ Energy Saver feature for Energy Star compliance.
■ Security lock slot.
■ Asset Management Capability.
■ Capability to switch from wide aspect to standard aspect ratio while maintaining the image quality.
■ EPEAT Gold Rating.
■ Halogen Reduced.
Identifying Parts and Controls
Front View
lVGA Cable (attached to the monitor)
lDVI Cable
lUSB up stream cable (enables the USB ports on the monitor)
lDrivers and Documentation media
lQuick Setup Guide
lSafety Information
Back View
Front View
Front panel controls
Label
Description
1
Preset Modes (default, but configurable)
2
Brightness & Contrast (default, but configurable)
3
Menu
4
Exit
5
Power (with power light indicator)
Back view
Back view with monitor stand
Label
Description
Use
1
VESA mounting holes (100 mm x 100 mm -
behind attached base plate)
Wall mount monitor using VESA compatible wall mount kit (100 mm x 100 mm)
2
Stand removal button
Release stand from monitor.
3
Security lock slot
Secures monitor with security cable lock
4
Dell Soundbar mounting brackets
Attaches the optional Dell Soundbar.
5
Information mark
Help locating regulatory and barcode labels
6
Cable management slot
Organizes cables by placing them through the slot.
Label Card View

Side View
NOTE:
Monitor shipped with label card fully inserted in USB compartment. Pull out the label card to access the barcode serial number label and regulatory rating label.
Back View with label card pulled out
Front View with label card pulled out
Label
Description
Use
1
Regulatory label
Lists the regulatory approvals.
2
Barcode serial number label
To contact Dell for technical support.
Bottom View
Monitor Specifications
Flat Panel Specifications
Left view
Right view
Label
Description
Use
1
USB downstream ports
Connect your USB devices.
2
Label card
Provide clean monitor back view when reference to labels is not required.
Bottom view
Bottom view with monitor stand
Label
Description
Use
1
AC power cord connector
Connect the power cable
2
DC power connector for Dell Soundbar.
Connect the power cord for the soundbar (optional)
3
DisplayPort connector
Connect your computer DP cable
4
DVI connector
Connect your computer DVI cable
5
VGA connector
Connect your computer VGA cable
6
USB upstream port
Connect the USB cable that came with your monitor to the monitor and the
computer. Once this cable is connected you can use the USB connectors on
the side and bottom of the monitor.
7
USB downstream ports
Connect your USB devices. You can only use this connector after you have
connected the USB cable to the computer and USB upstream connector on
the monitor.
Screen type
Active matrix - TFT LCD
Panel type
TN
*[P2210] color gamut (typical) is based on CIE1976 (83%) and CIE1931 (72%) test standards.
Resolution Specifications
Supported Video Modes
Preset Display Modes
Electrical Specifications
Screen dimensions
22 inches (22-inch viewable
image size)
Preset display area:
473.76(H)X296.1(V)
Horizontal
473.76 mm (18.7 inches)
Vertical
296.1 mm (11.7 inches)
Pixel pitch
0.282 mm
Viewing angle
160°(vertical)typical
170°(horizontal)typical
Luminance output
250 CD/m²(typical)
Contrast ratio
1000 to 1 (typical), 10000 to 1
(typical Dynamic Contrast On)
Faceplate coating
Antiglare with hard-coating 3H
Backlight
2-CCFL edgelight system
Response Time
5ms panel typical
Color depth
16.7 million colors
Color Gamut
83%*
Horizontal scan range
30 kHz to 83 kHz (automatic)
Vertical scan range
56Hzto75Hz(automatic)
Maximum preset resolution
1680 X 1050 at 60 Hz
Video display capabilities (DVI & DP playback)
480p, 576p, 720p, 1080p
Display Mode
Horizontal Frequency (kHz)
Vertical Frequency (Hz)
Pixel Clock (MHz)
Sync Polarity (Horizontal/Vertical)
VESA, 720 x 400
31.5
70.0
28.3
-/+
VESA, 640 x 480
31.5
60.0
25.2
-/-
VESA, 640 x 480
37.5
75.0
31.5
-/-
VESA, 800 x 600
37.9
60.3
40.0
+/+
VESA, 800 x 600
46.9
75.0
49.5
+/+
VESA, 1024 x 768
48.4
60.0
65.0
-/-
VESA, 1024 x 768
60.0
75.0
78.8
+/+
VESA, 1152 x 864
67.5
75.0
108.0
+/+
VESA, 1280 x 1024
64.0
60.0
108.0
+/+
VESA, 1280 x 1024
80.0
75.0
135.0
+/+
VESA, 1680 x 1050
65.2
60.0
146.0
-/+
Video input signals
Analog RGB, 0.7 Volts +/- 5%, positive polarity at 75 ohm input
impedance
Digital DVI-D TMDS, 600mV for each differential line, positive polarity at
50 ohm input impedance
DP 1.1a signal input support
Synchronization input signals
TTL levels required and separate syncs (including Trigger points), SOG
(Composite SYNC on green)
AC input
voltage/frequency/current
100 to 240 VAC/50 or 60 Hz + 3 Hz/1.5A (Typical)
Physical Characteristics
Environmental Characteristics
Power Management Modes
IfyouhaveVESA'sDPM™compliancedisplaycardorsoftwareinstalledinyourPC,themonitorcanautomaticallyreduceitspowerconsumptionwhennotin
use. This is referred to as Power Save Mode*. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes
functioning. The following table shows the power consumption and signaling of this automatic power saving feature:
Inrush current
120 V: 30 A (Max.)
240 V: 60 A (Max.)
Connector type
15-pin D-subminiature, blue
connector; DVI-D, white
connector;DP,black connector.
Signal cable type
Digital: Detachable, DVI-D, Solid
pins, shipped detached from the
monitor
Analog:attachable, D-Sub, 15pins,
shipped attached to the monitor
Dimensions (with stand)
Height (extended)
461.91 mm (18.18 inches)
Height (compressed)
361.91 mm (14.24 inches)
Width
511.77 mm (20.15 inches)
Depth
184.12 mm (7.25 inches)
Dimensions (without stand)
Height
334.17 mm (13.16 inches)
Width
511.77 mm (20.15 inches)
Depth
65.00 mm (2.56 inches)
Stand dimensions
Height (extended)
363.82 mm (14.32 inches)
Height (compressed)
323.52mm (12.74 inches)
Width
279.92 mm (11.02 inches)
Depth
184.12 mm (7.25 inches)
Weight
Weight with packaging
18.2 lb (8.25 kg)
Weight with stand assembly and cables
14.22 lb (6.45 kg)
Weight without stand assembly
(For wall mount or VESA mount considerations -
no cables)
9.97 lb (4.52kg)
Weight of stand assembly
3.88 lb (1.76 kg)
Temperature
Operating
0°to40°C
Non-operating
Storage: -20°to60°C(-4°to140°F)
Shipping: -20°to60°C(-4°to140°F)
Humidity
Operating
10% to 80% (non-condensing)
Non-operating
Storage: 5% to 90% (non-condensing)
Shipping: 5% to 90% (non-condensing)
Altitude
Operating
3,657.60 m (12,000 ft) max
Non-operating
12,192 m (40,000 ft) max
Thermal dissipation
88.77 BTU/hour (maximum)
75.12 BTU/hour (typical)
VESA Modes
Horizontal Sync
Vertical Sync
Video
Power Indicator
Power Consumption
Normal
Active
Active
Active
Blue
22 W (typical)
The OSD will only function in the normal operation mode. When any button is pressed in Active-off mode, one of the following messages will be displayed:
Activate the computer and the monitor to gain access to the OSD.
* Zero power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
Pin Assignments
VGA Connector
DVIConnector
operation
Active-off mode
Inactive
Inactive
Blanked
Amber
Less than 0.3 W
Switch off
-
-
-
Off
Less than 0.3 W
NOTE: This monitor is ENERGY STAR®-compliant as well as TCO '03 power management compatible.
Pin
Number
15-pin Side of the Connected Signal Cable
1
Video-Red
2
Video-Green
3
Video-Blue
4
GND
5
Self-test
6
GND-R
7
GND-G
8
GND-B
9
Computer 5V/3.3V
10
GND-sync
11
GND
12
DDC data
13
H-sync
14
V-sync
15
DDC clock
DisplayPort Connector
Pin
Number
24-pin Side of the Connected Signal Cable
1
TMDS RX2-
2
TMDS RX2+
3
TMDS Ground
4
Floating
5
Floating
6
DDC Clock
7
DDC Data
8
Floating
9
TMDS RX1-
10
TMDS RX1+
11
TMDS Ground
12
Floating
13
Floating
14
+5V/+3.3V power
15
Selftest
16
Hot Plug Detect
17
TMDS RX0-
18
TMDS RX0+
19
TMDS Ground
20
Floating
21
Floating
22
TMDS Ground
23
TMDS Clock+
24
TMDS Clock-
Pin
Number
20-pin Side of the Connected Signal Cable
1
ML0(p)
2
GND
3
ML0(n)
4
ML1(p)
5
GND
6
ML1(n)
7
ML2(p)
8
GND
9
ML2(n)
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display
Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor
installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the Monitor.
Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on the left side of your monitor.
USB Upstream Connector
USB Downstream Connector
10
ML3(p)
11
GND
12
ML3(n)
13
GND
14
GND
15
AUX(p)
16
GND
17
AUX(n)
18
HPD
19
Re-PWR
20
PWR
NOTE: This monitor supports High-Speed Certified USB 2.0 interface.
Transfer speed
Data Rate
Power Consumption
High speed
480 Mbps
2.5W(Max.,eachport)
Full speed
12 Mbps
2.5W(Max.,eachport)
Low speed
1.5 Mbps
2.5W(Max.,eachport)
Pin Number
4-pin Side of the Connector
1
DMU
2
VCC
3
DPU
4
GND
Pin Number
4-Pin Side of the Signal Cable
1
VCC
2
DMD
3
DPD
4
GND
USB Ports
l1 upstream - back
l4 downstream - 2 on back; 2 on left side
LCD Monitor Quality and Pixel Policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and
do not affect the display quality or usability.For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at: support.dell.com.
Maintenance Guidelines
Cleaning Your Monitor
For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:
lTo clean your antistatic screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the
antistatic coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
lUse a lightly-dampened,warmclothtocleanthemonitor.Avoidusingdetergentofanykindassomedetergentsleaveamilkyfilmonthemonitor.
lIf you notice white powder when you unpack your monitor, wipe it off with a cloth.
lHandleyourmonitorwithcareasadarker-colored monitor may scratch and show white scuff marks more than a lighter-coloredmonitor.
lTo help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.


Back to Contents Page
NOTE:USB2.0functionalityrequiresaUSB2.0-
capablecomputer
NOTE:
The monitor's USB interface works only when the monitor is on or in power save mode. If you turn off the monitor and then turn it on, the attached peripherals may
take a few seconds to resume normal functionality.
WARNING: Read and follow the safety instructionsbeforecleaningthemonitor.
WARNING:Beforecleaningthemonitor,unplugthemonitorpowercablefromtheelectricaloutlet.
Back to Contents Page
Appendix
Dell™P2210FlatPanelMonitorUser'sGuide
Safety Instructions
FCC Notice (U.S. Only) and Other Regulatory Information
Contacting Dell
WARNING: Safety Instructions
For information on safety instructions, see the Product Information Guide.
FCC Notices (U.S. Only) and Other Regulatory Information
For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com\regulatory_compliance.
Contacting Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be
available in your area. To contact Dell for sales, technical support, or customer service issues:
Back to Contents Page
WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock,
electrical hazards, and/or mechanical hazards.
NOTE:
If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
1.
Visit support.dell.com.
2.
Verify your country or region in the Choose A Country/Region drop-downmenuatthebottomofthepage.
3.
Click Contact Us on the left side of the page.
4.
Select the appropriate service or support link based on your need.
5.
Choose the method of contacting Dell that is convenient for you.
Back to Contents Page
Setting Up Your Monitor
Dell™P2210FlatPanelMonitor
IfyouhaveaDell™desktoporaDell™portablecomputerwithinternetaccess
1. Go to http://support.dell.com,enteryourservicetag,anddownloadthelatestdriverforyourgraphicscard.
2. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1680 x 1050 again.
Back to Contents Page
NOTE:
Ifyouareunabletosettheresolutionto1680x1050,pleasecontactDell™toinquireaboutaGraphicsAdapterthatsupportstheseresolutions.
Back to Contents Page
Setting Up Your Monitor
Dell™P2210FlatPanelMonitor
IfyouhaveanonDell™desktop,portablecomputer,orgraphicscard
In Windows XP®:
1. Right-click on the desktop and click Properties.
2. Select the Settings tab.
3. Select Advanced.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1680 X 1050 again.
In Windows Vista® or Windows® 7:
1. Right-click on the desktop and click Personalization.
2. Click Change Display Settings.
3. Click Advanced Settings.
4. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
5. Refer to the graphic card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com ).
6. After installing the drivers for your Graphics Adapter, attempt to set the resolution to 1680 X 1050 again.
Back to Contents Page
NOTE: If you are unable to set the resolution to 1680 x 1050, please contact the manufacturer of your computer or consider purchasing a graphics
adapterthatwillsupportthevideoresolutionof1680x1050.
Back to Contents Page
Operating the Monitor
Dell™P2210FlatPanelMonitorUser'sGuide
Using the Front Panel Controls
Using the On-Screen Display (OSD) Menu
Setting the Maximum Resolution
Using the Dell Soundbar (Optional)
Using the Tilt, Swivel, and Vertical Extension
Rotating the monitor
Adjusting the Rotation Display Settings of Your System

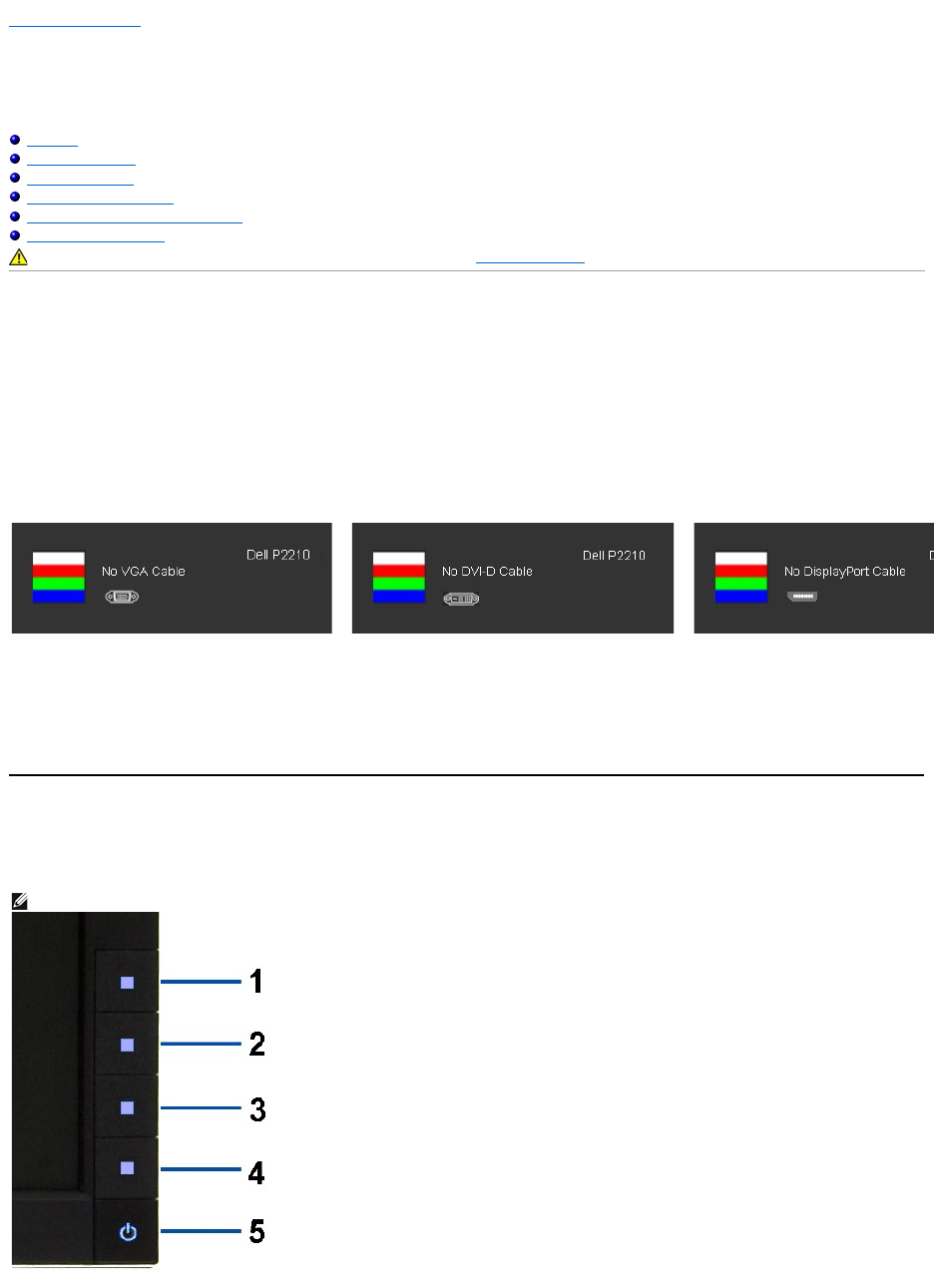

Using the Front Panel
Use the control buttons on the front of the monitor to adjust the characteristics of the image being displayed. As you use these buttons to adjust the controls,
an OSD shows the numeric values of the characteristics as they change.
The following table describes the front panel buttons:
Front panel Button
Description
1
Shortcut
key/
PresetModes
Use this button to choose from a list of preset color modes.
2
Shortcut key /
Brightness/Contrast
Use this button to directly access the "Brightness/Contrast" menu or to increase the values of the selected menu
option.
3
Menu
Use the MENU button to launch the on-screen display (OSD) and select the OSD Menu. See Accessing the Menu
System.
4
Exit
Use this button to go back to the main menu or exit the OSD main menu.
Using the On-Screen Display (OSD) Menu
Accessing the Menu System
1. Push the button to launch the OSD menu and display the main menu.
Main Menu for analog (VGA) Input
or
Main Menu for digital (DVI) Input
or
Main Menu for display (DP) Input
5
Power
(withpowerlight
indicator)
Use the Power button to turn the monitor on and off.
The Blue LED indicates the monitor is on and fully functional. An amber LED indicates DPMS power save mode.
NOTE: IfyouchangethesettingsandtheneitherproceedtoanothermenuorexittheOSDmenu,themonitorautomaticallysavesthosechanges.The
changes are also saved if you change the settings and then wait for the OSD menu to disappear.
2.Push the and buttons to move between the setting options. As you move from one icon to another, the option name is highlighted. See the
followingtableforacompletelistofalltheoptionsavailableforthemonitor.
3.Push the buttononcetoactivatethehighlightedoption.
4.Push and button to select the desired parameter.
5. Push to enter the slide bar and then use the and buttons, according to the indicators on the menu, to make your changes.
6.Select the option to return to the main menu or exit the OSD menu.
NOTE: AUTO ADJUST is only available when you use the analog (VGA) connector.
Icon
Menu and
Submenus
Description
Brightness/Contrast
Use this menu to activate Brightness/Contrast adjustment.
Brightness
Brightness adjusts the luminance of the backlight.
Push the button to increase brightness and push the button to decrease brightness (min 0 ~ max 100).
Contrast
Adjust Brightness first, and then adjust Contrast only if further adjustment is necessary.
Push the button to increase contrast and push the button to decrease contrast (min 0 ~ max 100).
The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.
Dynamic Contrast
Dynamic Contrast adjusts the contrast ratio to 10000:1.
Push the button to select the Dynamic Contrast "On" or "Off" .
Auto Adjust
Even though your computer recognizes your monitor on startup, the Auto Adjustment
function optimizes the display settings for use
with your particular setup.
Auto Adjustment allows the monitor to self-
adjust to the incoming video signal. After using Auto Adjustment, you can further tune
your monitor by using the Pixel Clock
(Coarse) and Phase (Fine) controls under Image Settings.


NOTE: Inmostcases,AutoAdjustproducesthebestimageforyourconfiguration.
NOTE: Auto Adjust option is only available when you are using the analog (VGA) connector.
Input Source
Use the Input Source menu to select between different video signals that may be connected to your monitor.
Auto Select
Push to select the Auto Select, the monitor will auto detect either VGA input or DVI-D input.
VGA
Select VGA input when you are using the analog (VGA) connector. Push to select the VGA input source.
DVI-D
Select DVI-D input when you are using the Digital (DVI) connector. Push to select the DVI input source.
DisplayPort
Select DisplayPort input when you are using the DisplayPort (DP) connector. Push
to select the DisplayPort input source.
Color Settings
Use the Color Settings to adjust the color setting mode and color temperature.
There are different color setting sub-menus for VGA/DVI-D and Video input.
Input Color Format
Choose the RGB option if monitor is connected to a computer or a DVD using a VGA or DVI cable. Choose the YPbPr option if monitor is
connected to a DVD by a YPbPr to VGA or YPbPr to DVI cable or if the DVD color output setting is not RGB.

Mode Selection
You can choose Graphics or Video according to the input signal.
lGraphics: Select this mode if your monitor is connected to your computer.
lVideo: Select this mode if your monitor is connected to a DVD player.

Preset Modes
When you select Graphics, you can choose Standard, Multimedia, Game, Warm, Cool, or Custom (RGB);
lStandard: Loads the monitor's default color settings. This is the default preset mode.
lMultimedia: Loads color settings ideal for multimedia applications.
lGame: Loads color settings ideal for most gaming applications.
lWarm: Increase the color temperature. The screen appears warmer with a red/yellow tint.
lCool: Decreases the color temperature. The screen appears cooler with a blue tint.
lCustom (RGB)
: Allows you to manually adjust the color settings. Press the and buttons to adjust the three colors (R, G, B)
values and create your own preset color mode.
When you select Video, you can choose Movie, Game, Sports, or Nature preset:
lMovie: Loads color settings ideal for movies. This is the default preset mode.
lGame: Loads color settings ideal for game.
lSports: Loads color settings ideal for sports.
lNature: Loads color settings ideal for nature.
Hue
This feature can shift color of video image to green or purple. This is used to adjust the desired flesh tone color. Use or to adjust the
hue from '0' to '100' .
Press to increase the green shade of the video image.
Press to increase the purple shade of the video image.
NOTE: Hue adjustment is available only for video input.
Saturation
This feature can adjust the color saturation of the video image. Use or to adjust the saturation from '0' to '100'.
Press to increase the monochrome appearance of the video image.
Press to increase the colorful appearance of the video image.
NOTE: Saturation adjustment is available only for video input.

Reset Color Setting
s
Reset your monitor color settings to the factory settings.
Display Settings
Use the Display Settings to adjust image.
Back to Contents Page
Setting Up Your Monitor
Dell™P2210FlatPanelMonitor
Setting the display resolution to 1680 x 1050 (maximum)
For maximum display performance with Microsoft® Windows® operating systems, set the display resolution to 1680 x 1050 pixels by performing the following
steps:
In Windows XP®:
1. Right-click on the desktop and click Properties.
2. Select the Settings tab.
3. Move the slider-bar to the right by pressing and holding the left-mouse button and adjust the screen resolution to 1680 x 1050 .
4. Click OK.
In Windows Vista® or Windows® 7:
1. Right-click on the desktop and click Personalization.
2. Click Change Display Settings.
3. Move the slider-bar to the right by pressing and holding the left-mouse button and adjust the screen resolution to 1680 x1050 .
4. Click OK.
If you do not see 1680 x 1050 as an option, you may need to update your graphics driver. Please choose the scenario below that best describes the
computer system you are using, and follow the provided directions:
1: IfyouhaveaDell™desktoporaDell™portablecomputerwithinternetaccess.
2: IfyouhaveanonDell™desktop,portablecomputer,orgraphicscard.
Back to Contents Page
Dell™P2210FlatPanelMonitor
Information in this document is subject to change without notice.
©2009-2010DellInc.Allrightsreserved.
Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.
Trademarks used in this text: Dell and the DELLlogoaretrademarksofDellInc;Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in
the United States and/or other countries.ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has
determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any
proprietary interest in trademarks and trade names other than its own.
Model P2210f & P2210t
January 2010 Rev. A03
User Guide
Setting the display resolution to 1680 x 1050 (maximum)
Back to Contents Page
Setting Up the Monitor
Dell™P2210FlatPanelMonitorUser'sGuide
Attaching the Stand
Connecting the Monitor
Organizing Your Cables
Attaching the Soundbar (optional)
Removing the Stand
Wall Mounting (Optional)
Attaching the Stand
To attach the monitor stand:
1. Remove the cover and place the monitor on it.
2. Fit the two tabs on the upper part of the stand to the groove on the back of the monitor.
3. Press the stand till it snaps into its place.
Connecting Your Monitor
To connect your monitor to the computer:
1. Turnoffyourcomputeranddisconnectthepowercable.
NOTE: The stand is detached when the monitor is shipped from the factory.
NOTE:
Thisisapplicableforamonitorwithastand.WhentheOptiplex™USFF780/OptiplexSFF980AIOstandisbought,pleaserefertotherespectiveAIOstandsetupguideforsetup
instructions.
WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.
Connect the blue (VGA) cable from your monitor to your computer.
NOTE: If your computer supports a white DVI connector, unscrew and detach the blue (VGA) cable from the monitor and then
connect the White DVI cable to the monitor and the white DVI connector on your computer.
2. Connect the white (digital DVI-D) or the blue (analog VGA) or the black (DisplayPort) display connector cable to the corresponding video port on the back
ofyourcomputer.Donotusethethreecablesonthesamecomputer. Use all the cables only when they are connected to three different computers with
appropriate video systems.
Connecting the white DVI cable
Connecting the blue VGA cable

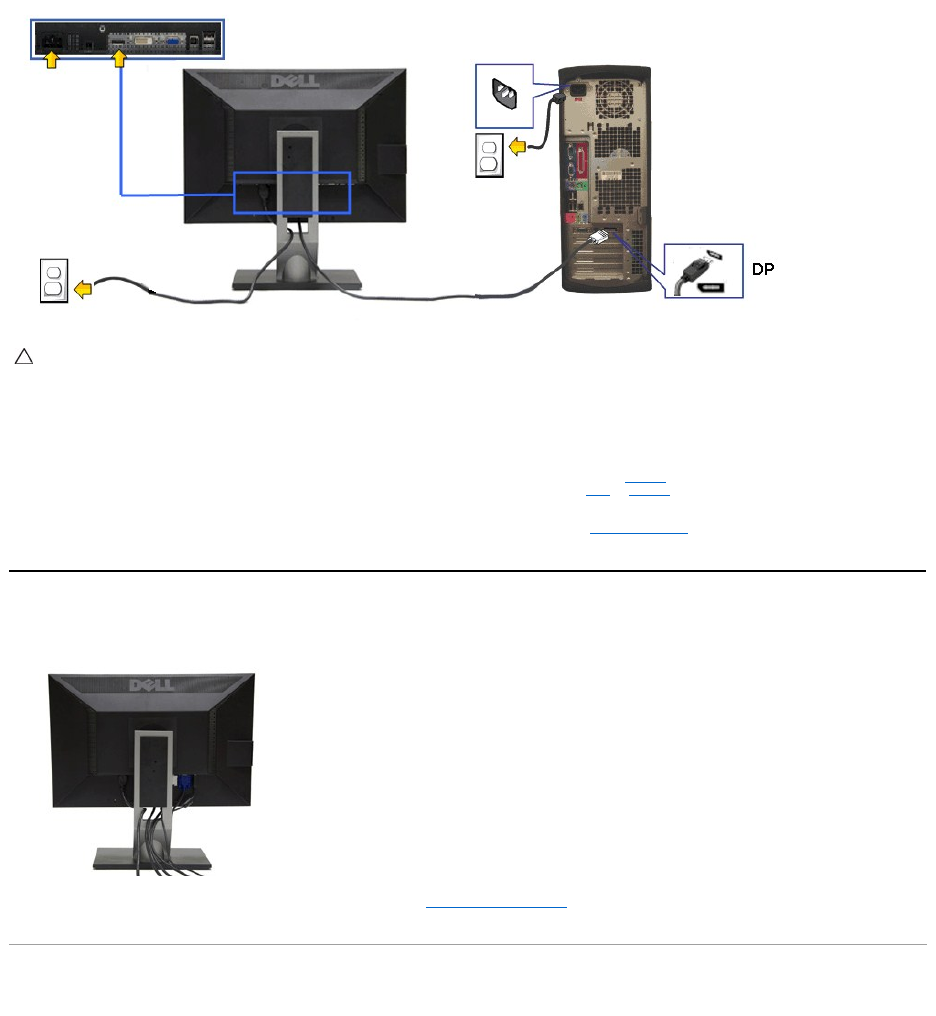

Connecting the black DisplayPort cable
NOTE: Do not connect the blue VGA , the White DVI and the black DisplayPort cables to the computer at the same time. All monitors
ship with the VGA (blue) cable attached by default.
Connecting the USB cable
After you have completed connecting the DVI/VGA/DP cable, follow the procedure below to connect the USB cable to the computer and complete your monitor
setup:
1. Connect the upstream USB port (cable supplied) to an appropriate USB port on your computer. (See bottom view for details.)
2. Connect USB peripherals to the downstream USB ports (side or bottom) on the monitor. (See side or bottom view for details.)
3. Plugthepowercablesforyourcomputerandmonitorintoanearbyoutlet.
4. Turn on the monitor and the computer.
If your monitor displays an image, installation is complete. If it does not display an image, see Solving Problems.
5. Use the cable slot on the monitor stand to organize the cables.
Organizing Your Cables
After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment,) use the cable management slot
toorganizeallcablesasshownabove.
Attaching the Soundbar (Optional)
CAUTION: The Graphics are used for the purpose of illustration only. Appearance of the computer may vary.
To attach the soundbar:
Removing the Stand
To remove the stand:
1. Place the monitor on a flat surface.
2. Press and hold the Stand release button.
3. Lift the stand up and away from the monitor.
Wall Mounting (Optional)
CAUTION: DonotusewithanydeviceotherthantheDellSoundbar.
NOTE: The soundbar power connector (+12 V DC output) is for the optional Dell Soundbar only.
1.
Working from the back of the monitor, attach the Soundbar by aligning the two slots with the two tabs along the bottom of the monitor.
2.
Slide the Soundbar to the left until it snaps into place.
3.
Connect the Soundbar with the DC power connector.
4.
Insert the mini stereo plug from the back of the Soundbar into the computer's audio output jack.
NOTE: To prevent scratches on the LCD screen while removing the stand,ensure that the monitor is placed on a soft, clean surface.
NOTE:Thisisapplicableforamonitorwithastand.WhentheOptiplex™USFF 780/ Optiplex SFF 980 AIO stand is bought, please refer to the respective
AIO stand setup guide for set up instructions.
(Screw dimension: M4 x 10mm).
Refer to the instructions that come with the VESA compatible base mounting kit.
1. Place the monitor panel on a soft cloth or cushion on stable flat table.
2. Remove the stand.
3. Use a screwdriver to remove the four screws securing the plastic cover.
4. Attach the mounting bracket from the wall mounting kit to the LCD.
5. Mount the LCD on the wall by following the instructions that came with the base mounting kit.
Back to Contents Page
NOTE: For use only with UL Listed Wall Mount Bracket with minimum weight/load bearing capacity of 4.36kg.
Back to Contents Page
Troubleshooting
Dell™P2210FlatPanelMonitorUser'sGuide
Self-Test
Built-in Diagnostics
Common Problems
Product Specific Problems
Universal Serial Bus Specific Problems
Dell Soundbar Problems
Self-Test
Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly
connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer. To ensure proper Self-Test operation, remove all Digital (white connector) and the Analog (blue
connector) cables from the back of computer.
3. Turn on the monitor.
1. This box also appears during normal system operation, if the video cable becomes disconnected or damaged.
2. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.
If your monitor screen remains blank after you use the previous procedure, check your video controller and computer, because your monitor is functioning
properly.
Built-in Diagnostics
Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your monitor, or
with your computer and video card.
WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.
The floating dialog box should appear on-screen (against a black background) if the monitor cannot sense a video signal and is working correctly.
While in self-test mode, the power LED remains green. Also, depending upon the selected input, one of the dialogs shown below will continuously
scroll through the screen.
or
or
NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.
To run the built-in diagnostics:
1. Ensure that the screen is clean (no dust particles on the surface of the screen).
2. Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.
3. Press and hold the Button 1 and Button 4 on the front panel, simultaneously for 2 seconds. A gray screen appears.
4. Carefully inspect the screen for abnormalities.
5. Press the Button 4 on the front panel again. The color of the screen changes to red.
6. Inspect the display for any abnormalities.
7. Repeat steps 5 and 6 to inspect the display in green, blue, and white colored screens.
The test is complete when the white screen appears. To exit, press the Button 4 again.
If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.
Common Problems
The following table contains general information about common monitor problems you might encounter and the possible solutions.
Common Symptoms
What You Experience
Possible Solutions
No Video/Power LED off
No picture
lEnsure that the video cable connecting the monitor and the computer is properly
connected and secure.
lVerify that the power outlet is functioning properly using any other electrical equipment.
lEnsure that the power button is depressed fully.
lEnsure that the correct input source is selected via the Input Source Select button.
No Video/Power LED on
No picture or no brightness
lIncrease brightness & contrast controls via OSD.
lPerform monitor self-test feature check.
lCheck for bent or broken pins in the video cable connector.
lRun the built-in diagnostics.
Poor Focus
Picture is fuzzy, blurry, or
ghosting
lPerform Auto Adjust via OSD.
lAdjust the Phase and Pixel Clock controls via OSD.
lEliminate video extension cables.
lReset the monitor to Factory Settings.
lChange the video resolution to the correct aspect ratio (16:10).
Shaky/Jittery Video
Wavy picture or fine movement
lPerform Auto Adjust via OSD.
lAdjust the Phase and Pixel Clock controls via OSD.
lReset the monitor to Factory Settings.
lCheck environmental factors.
lRelocate the monitor and test in another room.
Missing Pixels
LCD screen has spots
lCycle power on-off.
lPixel that is permanently off is a natural defect that can occur in LCD technology.
lRun the built-in diagnostics.
Stuck-on Pixels
LCD screen has bright spots
lCycle power on-off.
lPixel that is permanently off is a natural defect that can occur in LCD technology.
lRun the built-in diagnostics.
Brightness Problems
Picture too dim or too bright
lReset the monitor to Factory Settings.
lAuto Adjust via OSD.
lAdjust brightness & contrast controls via OSD.
Geometric Distortion
Screen not centered correctly
lReset the monitor to Factory Settings.
lAuto Adjust via OSD.
lAdjust brightness & contrast controls via OSD.
NOTE: When using '2: DVI-D', the positioning adjustments are not available.
Horizontal/Vertical Lines
Screen has one or more lines
lReset the monitor to Factory Settings.
lPerform Auto Adjust via OSD.
lAdjust Phase and Pixel Clock controls via OSD.
lPerform monitor self-test feature check and determine if these lines are also in self-test
mode.
lCheck for bent or broken pins in the video cable connector.
lRun the built-in diagnostics.
NOTE: When using '2: DVI-D', the Pixel Clock and Phase adjustments are not available.
Synchronization Problems
Screen is scrambled or appears
torn
lReset the monitor to Factory Settings.
lPerform Auto Adjust via OSD.
lAdjust Phase and Pixel Clock controls via OSD.
lPerform monitor self-test feature check to determine if the scrambled screen appears in
self-test mode.
lCheck for bent or broken pins in the video cable connector.
lRestart the computer in the safe mode.
Safety Related Issues
Visible signs of smoke or
sparks
lDo not perform any troubleshooting steps.
lContact Dell immediately.
Intermittent Problems
Monitor malfunctions on & off
lEnsure that the video cable connecting the monitor to the computer is connected
properly and is secure.
lReset the monitor to Factory Settings.
lPerform monitor self-
test feature check to determine if the intermittent problem occurs in
self-test mode.
Missing Color
Picture missing color
lPerform monitor self-test feature check.
lEnsure that the video cable connecting the monitor to the computer is connected
properly and is secure.
Product Specific Problems
Universal Serial Bus (USB) Specific Problems
Dell™Soundbar Problems
lCheck for bent or broken pins in the video cable connector.
Wrong Color
Picture color not good
lChange the Color Setting Mode in the Color Settings OSD to Graphics or Video
depending on the application.
lTry different Color Preset Settings in Color Settings OSD. Adjust R/G/B value in Color
Settings OSD if the Color Management is turned off.
lChange the Input Color Format to PC RGB or YPbPr in the Advance Setting OSD.
lRun the built-in diagnostics.
Image retention from a static
imageleftonthemonitorfora
long period of time
Faint shadow from the static
image displayed appears on
the screen
lUse the Power Management feature to turn off the monitor at all times when not in use
(for more information, see Power Management Modes).
lAlternatively, use a dynamically changing screensaver.
Specific Symptoms
What You Experience
Possible Solutions
Screen image is too small
Image is centered on screen,
but does not fill entire viewing
area
lCheck the Scaling Ratio setting in Image Setting OSD
lReset the monitor to Factory Settings.
Cannot adjust the monitor with
the buttons on the front panel
OSD does not appear on the
screen
lTurn off the monitor, unplug the power cord, plug back, and then turn on the monitor.
No Input Signal when user
controls are pressed
No picture, the LED light is
green. When you press "+", "-
"
or "Menu" key, the message
"No S-Video input signal", or
"No Composite input signal", or
"NoComponentinputsignal"
appears
lCheck the signal source. Ensure the Computer is not in the power saving mode by
moving the mouse or pressing any key on the keyboard.
lCheck to make sure Video Source to S-Video, Composite or Component is powered and
playing video media.
lCheckwhetherthesignalcableispluggedinproperly.Re-plug the signal cable if
necessary.
lReset the computer or video player.
The picture does not fill the
entire screen.
The picture cannot fill the
height or width of the screen
lDue to different video formats (aspect ratio) of DVDs, the monitor may display in full
screen.
lRun the built-in diagnostics.
NOTE: When choosing DVI-D mode, the Auto Adjustfunction is not available.
Specific Symptoms
What You Experience
Possible Solutions
USB interface is not working
USB peripherals are not
working
lCheck that your monitor is turned ON.
lReconnecttheupstreamcabletoyourcomputer.
lReconnecttheUSBperipherals(downstreamconnector).
lSwitch off and then turn on the monitor again.
lReboot the computer.
l
Some USB devices like external portable HDD require higher electric current; connect the
device directly to the computer system.
High Speed USB 2.0 interface is
slow.
High Speed USB 2.0
peripherals working slowly or
not working at all
lCheck that your computer is USB 2.0-capable.
l
Some computers have both USB 2.0 and USB 1.1 ports. Ensure that the correct USB port
isused.
lReconnecttheupstreamcabletoyourcomputer.
lReconnecttheUSBperipherals(downstreamconnector).
lReboot the computer.
Common Symptoms
What You Experience
Possible Solutions
No Sound
No power to Soundbar - the
power indicator is off
lTurn the Power/Volume knob on the Soundbar clockwise to the middle position; check if
the power indicator (Blue LED) on the front of the Soundbar is illuminated.
lConfirm that the power cable from the Soundbar is plugged into the adapter.
No Sound
Soundbar has power - power
indicator is on
lPlug the audio line-in cable into the computer's audio out jack.
lSet all Windows volume controls to their maximum
lPlay some audio content on the computer (i.e. audio CD, or MP3).
lTurn the Power/Volume knob on the Soundbar clockwise to a higher volume setting.
lClean and reseat the audio line-in plug.
lTest the Soundbar using another audio source (i.e.portable CD player).
Distorted Sound
Computer's sound card is used
as the audio source
lClear any obstructions between the Soundbar and the user.
lConfirm that the audio line-
in plug is completely inserted into the jack of the sound card.
lSet all Windows volume controls to their midpoints.
lDecrease the volume of the audio application.
lTurn the Power/Volume knob on the Soundbar counter-clockwise to a lower volume
setting.
lClean and reseat the audio line-in plug.
lTroubleshoot the computer's sound card.
lTest the Soundbar using another audio source (i.e. portable CD player, MP3 player).
Distorted Sound
Other audio source is used
lClear any obstructions between the Soundbar and the user.
lConfirm that the audio line-in plug is completely inserted into the jack of the audio
source.
lDecrease the volume of the audio source.
Back to Contents Page
lTurn the Power/Volume knob on the Soundbar counter-clockwise to a lower volume
setting.
lClean and reseat the audio line-in plug.
Unbalanced Sound Output
Sound from only one side of
Soundbar
lClear any obstructions between the Soundbar and the user.
lConfirm that the audio line-in plug is completely inserted into the jack of the sound card
or audio source.
lSet all Windows audio balance controls (L-R) to their midpoints.
lClean and reseat the audio line-in plug.
lTroubleshoot the computer's sound card.
lTest the Soundbar using another audio source (i.e. portable CD player).
Low Volume
Volume is too low
lClear any obstructions between the Soundbar and the user.
lTurn the Power/Volume knob on the Soundbar clockwise to the maximum volume
setting.
lSet all Windows volume controls to their maximum.
lIncrease the volume of the audio application.
lTest the Soundbar using another audio source (i.e. portable CD player, MP3 player).

Navigation menu
