Dell U2415
User’s Guide
Model: U2415
Regulatory model: U2415b
Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better
use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss of
data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
____________________
Copyright © 2014 Dell Inc. All rights reserved.
Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft and
Windows are either trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries, Intel is a registered trademark of Intel Corporation in
the U.S. and other countries; and ATI is a trademark of Advanced Micro Devices, Inc. ENERGY
STAR is a registered trademark of the U.S. Environmental Protection Agency. As an ENERGY
STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines
for energy efficiency.
Other trademarks and trade names may be used in this document to refer to either the entities
claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest
in trademarks and trade names other than its own.
2014 - 08 Rev. A00
Contents | 3
Contents
1 About Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . .5
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . 8
Monitor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Plug and Play Capability . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Universal Serial Bus (USB) Interface . . . . . . . . . . . . . . . . 22
LCD Monitor Quality and Pixel Policy. . . . . . . . . . . . . . . 23
Maintenance Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . .24
2 Setting Up the Monitor . . . . . . . . . . . . . . . . . . . . 25
Attaching the Stand. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Connecting Your Monitor . . . . . . . . . . . . . . . . . . . . . . . .26
Organizing Your Cables . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Attaching the Cable Cover. . . . . . . . . . . . . . . . . . . . . . . . 32
Removing the Monitor Stand . . . . . . . . . . . . . . . . . . . . . 33
Removing the Cable Cover . . . . . . . . . . . . . . . . . . . . . . . 33
Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . .34
3 Operating the Monitor. . . . . . . . . . . . . . . . . . . . . 35
Power On the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Using the Front Panel Controls . . . . . . . . . . . . . . . . . . . . 35
Using the On-Screen Display (OSD) Menu . . . . . . . . . . 37
Setting the Maximum Resolution . . . . . . . . . . . . . . . . . . 51
Using the Tilt, Swivel, and Vertical Extension. . . . . . . . . 51
Adjusting the Rotation Display Settings of Your
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
4 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Built-in Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Common Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Product Specific Problems. . . . . . . . . . . . . . . . . . . . . . . . 61
Universal Serial Bus (USB) Specific Problems . . . . . . . .62
4 | Contents
Mobile High-Definition Link (MHL) Specific
Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
5 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
FCC Notices (U.S. Only) and Other Regulatory
Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Contact Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Setting Up Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . .64
About Your Monitor | 5
About Your Monitor
Package Contents
Your monitor ships with the components shown below. Ensure that you have received all
the components and
Contact Dell
if something is missing.
NOTE: Some items may be optional and may not ship with your monitor. Some
features or media may not be available in certain countries.
NOTE: To set up with any other stand, please refer to the respective stand setup
guide for setup instructions.
Monitor
Stand
Cable Cover
6 | About Your Monitor
Power Cable (Varies by
Countries)
DP Cable (Mini-DP to DP)
USB 3.0 Upstream Cable
(Enables the USB Ports on
the Monitor)
•Drivers and
Documentation Media
•Quick Setup Guide
•Factory Calibration
Report
•Safety and Regulatory
Information
About Your Monitor | 7
Product Features
The Dell U2415 flat panel display has an active matrix, Thin-Film Transistor (TFT), Liquid
Crystal Display (LCD) and LED backlight. The monitor features include:
•61.13 cm (24.1-inch) viewable area display (measured diagonally).
1920 x 1200 resolution, plus full-screen support for lower resolutions.
•Wide viewing angle to allow viewing from a sitting or standing position, or while
moving from side-to-side.
•Tilt, swivel, vertical extension and rotate adjustment capabilities.
•Ultra-thin bezel minimizes the bezel gap in multi-monitor usage, enabling easier
set up with an elegant viewing experience.
•Removable stand and Video Electronics Standards Association (VESA™) 100 mm
mounting holes for flexible mounting solutions.
•Extensive all digital connectivity with DisplayPort, mini DisplayPort, HDMI (MHL),
USB 3.0 helps future proof your monitor.
•Plug and play capability if supported by your system.
•Color gamut of 99% sRGB with an average Delta E < 3.
•On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
•Software and documentation media includes an Information File (INF), Image Color
Matching File (ICM), and product documentation.
•Dell Display Manager Software included (comes in the CD shipped with the
monitor).
•Energy Saver feature for Energy Star compliance.
•Security lock slot.
•Stand lock.
•Capability to switch from wide aspect to standard aspect ratio while maintaining
the image quality.
•EPEAT Gold Rating.
•U2415 monitor is BFR/PVC-free (Halogen-free) excluding external cables.
•TCO-Certified Displays.
•Meets NFPA 99 leakage current requirements.
•Arsenic-Free glass and Mercury-Free for the panel only.
•High Dynamic Contrast Ratio (2,000,000:1).
•0.5 W standby power when in the sleep mode.
•Energy Gauge shows the energy level being consumed by the monitor in real time.
•Analogue backlight dimming control for flicker free display.
About Your Monitor | 9
Back View
*It is recommended to use this port for your wireless USB device whenever possible.
Back View with monitor stand
Label Description Use
1VESA mounting holes
(100 mm x 100 mm -
behind attached VESA
Cover)
Wall mount monitor using VESA-compatible wall
mount kit (100 mm x 100 mm).
2Regulatory label Lists the regulatory approvals.
3Stand release button Releases stand from monitor.
4Security lock slot Secures monitor with security lock (security lock
not included).
5Barcode serial number
label
Refer to this label if you need to contact Dell for
technical support.
6USB downstream port* Connects your USB device. You can only use this
connector after you have connected the USB cable
to the computer and USB upstream connector on
the monitor.
7Cable management slot Use to organize cables by placing them through
the slot.
10 | About Your Monitor
Side View
Bottom View
Bottom view without monitor stand
Label Description Use
1AC power cord
connector
Connect the power cable.
2Dell Soundbar
mounting slots
Attach the optional Dell Soundbar. (Concealed below
removable plastic sheets)
3HDMI (MHL) port
connector
Connect your MHL devices with MHL cable.
4DisplayPort in
connector
Connect your computer with DP cable.
5Mini DisplayPort in
connector
Connect your computer with Mini-DP to DP cable.
About Your Monitor | 11
* Headphone usage is not supported for the audio line out connector.
**It is recommended to use either the port (9b) or the USB downstream port on the rear
side for your wireless USB device whenever possible.
6DisplayPort out (MST)
connector
DisplayPort output for MST (Multi-Stream Transport)
capable monitor. DP 1.1 monitor can only be
connected as the last monitor in the MST chain. To
enable MST, refer to instruction on section
"
Connecting the monitor for DP Multi-Stream Transport
(MST) function
".
7Audio-Line out Connect your speakers*.
8USB upstream port Connect the USB cable that came with your monitor
to the computer. Once this cable is connected, you
can use the USB connectors on the monitor.
9
(a, b)
USB downstream port Connect your USB device. You can only use this
connector after you have connected the USB cable to
the computer and USB upstream connector on the
monitor.**
10 Stand lock feature To lock the stand to the monitor using a M3 x 6 mm
screw (screw not included).
12 | About Your Monitor
Monitor Specifications
Flat Panel Specifications
Resolution Specifications
Model U2415
Screen type Active matrix - TFT LCD
Panel type In Plane Switching
Viewable image
Diagonal
Horizontal, Active Area
Vertical, Active Area
Area
611.30 mm (24.1 inches)
518.40 mm (20.41 inches)
324.00 mm (12.75 inches)
167961.60 mm2 (260.35 inch2)
Pixel pitch 0.27 mm x 0.27 mm
Viewing angle 178° (vertical) typical
178° (horizontal) typical
Luminance output 300 cd/m² (typical)
50 cd/m² (minimum)
Contrast ratio 1000 to 1 (typical)
2M to 1 (typical Dynamic Contrast On)
Faceplate coating Anti-Glare with 3H hardness
Backlight LED edgelight system
Response time NORMAL mode: 8 ms grey to grey (typical)
FAST mode: 6 ms grey to grey (typical)
On/Off: 19 ms black to white (typical)
Color depth 16.78 million colors
Color gamut CIE1976 (91%), CIE 1931 (76%), and sRGB coverage 99%
Model U2415
Horizontal scan range 30 kHz to 83 kHz (automatic)
Vertical scan range 56 Hz to 76 Hz (automatic)
Maximum preset resolution 1920 x 1200 at 60 Hz
About Your Monitor | 13
Supported Video Modes
Preset Display Modes
MHL Source Display Modes
Model U2415
Video display capabilities
(HDMI & DP playback)
480p, 480i, 576p, 720p, 1080p, 576i, 1080i
Display Mode Horizontal
Frequency (kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal/
Vertical)
VESA, 720 x 400 31.5 70.1 28.3 -/+
VESA, 640 x 480 31.5 60.0 25.2 -/-
VESA, 640 x 480 37.5 75.0 31.5 -/-
VESA, 800 x 600 37.9 60.3 40.0 +/+
VESA, 800 x 600 46.9 75.0 49.5 +/+
VESA, 1024 x 768 48.4 60.0 65.0 -/-
VESA, 1024 x 768 60.0 75.0 78.8 +/+
VESA, 1152 x 864 67.5 75.0 108.0 +/+
VESA, 1280 x 1024 64.0 60.0 108.0 +/+
VESA, 1280 x 1024 80.0 75.0 135.0 +/+
VESA, 1600 x 1200 75.0 60.0 162.0 +/+
VESA, 1920 x 1080 67.5 60.0 148.5 +/+
VESA, 1920 x 1200 74.0 60.0 154.0 +/-
Display Mode Frequency (Hz)
640 x 480p 60
720 x 480p 60
720 x 576p 50
1280 x 720p 60
1280 x 720p 50
1920 x 1080i 60
1920 x 1080i 50
1920 x 1080p 30
1920 x 1080p 60
14 | About Your Monitor
MST Multi-Stream Transport (MST) Modes
Electrical Specifications
* Not Support HDMI 1.4 optional specification, include HDMI Ethernet Channel (HEC),
Audio Return Channel (ARC), standard for 3D format and resolutions, standard for 2K and
4K digital cinema resolution.
** Support DP1.2 (CORE) specification, include HBR2, MST and DP audio.
1920 x 1080p 50
720 (1440) x 480i 60
720 (1440) x 576i 50
MST Source
Monitor
Maximum number of external monitor can be supported
1920 x 1200 at 60Hz 1920 x 1080 at 60Hz
1920 x 1200 at 60Hz 3 3
1920 x 1080 at 60Hz 3 3
Model U2415
Video input signals •HDMI 1.4 (MHL 2.0)*, 600mV for each differential
line, 100 ohm input impedance per differential pair
•DisplayPort 1.2**, 600mV for each differential line,
100 ohm input impedance per differential pair
AC input voltage/frequency/
current
100 VAC to 240 VAC / 50 Hz or 60 Hz + 3 Hz / 1.5 A
(typical)
Inrush current •120 V: 42 A (Max.) at 0 °C (cold start)
•240 V: 80 A (Max.) at 0 °C (cold start)
About Your Monitor | 15
Physical Characteristics
Model U2415
Connector type DP, black connector (include DP in and DP
out); Mini DisplayPort; HDMI (MHL); USB 3.0
Signal cable type •Digital: detachable, HDMI, 19 pins
•Digital: detachable, MHL, 19 pins
•Digital: detachable, Mini-DP to DP, 20
pins
•Universal Serial Bus: detachable, USB, 9
pins
Dimensions (with stand)
Height (extended) 517.9 mm (20.39 inches)
Height (compressed) 402.9 mm (15.86 inches)
Width 532.2 mm (20.95 inches)
Depth 205.0 mm (8.07 inches)
Dimensions (without stand)
Height 350.6 mm (13.80 inches)
Width 532.2 mm (20.95 inches)
Depth 45.7 mm (1.80 inches)
Stand dimensions
Height (extended) 417.3 mm (16.43 inches)
Height (compressed) 371.6 mm (14.63 inches)
Width 245.0 mm (9.65 inches)
Depth 205.0 mm (8.07 inches)
Weight
Weight with packaging 9.00 kg (19.80 lb)
Weight with stand assembly and cables 6.69 kg (14.72 lb)
Weight without stand assembly (For wall
mount or VESA mount considerations -
no cables)
4.25 kg (9.35 lb)
Weight of stand assembly 2.10 kg (4.62 lb)
Front frame gloss Black Frame - 8%-13% gloss unit
16 | About Your Monitor
Environmental Characteristics
Power Management Modes
If you have VESA's DPM™ compliance display card or software installed in your PC, the
monitor can automatically reduce its power consumption when not in use. This is
referred to as Power Save Mode*. If the computer detects input from the keyboard,
mouse, or other input devices, the monitor automatically resumes functioning. The
following table shows the power consumption and signaling of this automatic power
saving feature.
* Zero power consumption in OFF mode can only be achieved by disconnecting the
main cable from the monitor.
** Maximum power consumption with max luminance, and USB active.
Model U2415
Temperature
Operating 0 °C to 40 °C (32 °F to 104 °F)
Non-operating •Storage: -20 °C to 60 °C (-4 °F to 140 °F)
•Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating •Storage: 5% to 90% (non-condensing)
•Shipping: 5% to 90% (non-condensing)
Altitude
Operating 5,000 m (16,404 ft) (maximum)
Non-operating 12,192 m (40,000 ft) (maximum)
Thermal dissipation •255.91 BTU/hour (maximum)
•78.63 BTU/hour (typical)
VESA Modes Horizontal
Sync
Vertical
Sync
Video Power
Indicator
Power
Consumption
Normal
operation
Active Active Active White 75 W (maximum)**
23 W (typical)
Active-off
mode
Inactive Inactive Blanked White (glowing) Less than 0.5 W
Switch off - - - Off Less than 0.5 W
About Your Monitor | 17

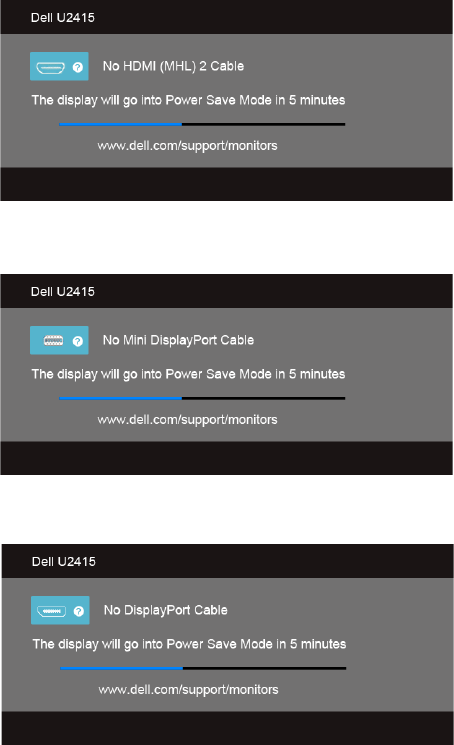

The OSD functions only in the normal operation mode. When any button is pressed in
the Active-off mode, one of the following messages will be displayed:
HDMI (MHL)/Mini DisplayPort/DP input
HDMI (MHL) input
Activate the computer and the monitor to gain access to the OSD.
NOTE: This monitor is ENERGY STAR®-compliant.
18 | About Your Monitor
Pin Assignments
DisplayPort Connector
Pin
Number
20-pin Side of the
Connected Signal Cable
1ML0(p)
2GND
3ML0(n)
4ML1(p)
5GND
6ML1(n)
7ML2(p)
8GND
9ML2(n)
10 ML3(p)
11 GND
12 ML3(n)
13 GND
14 GND
15 AUX(p)
16 GND
17 AUX(n)
18 GND
19 Re-PWR
20 +3.3 V DP_PWR
About Your Monitor | 19
Mini DisplayPort Connector
Pin
Number
20-pin Side of the
Connected Signal Cable
1GND
2Hot Plug Detect
3ML3(n)
4GND
5ML3(n)
6GND
7GND
8GND
9ML2(n)
10 ML0(p)
11 ML2(p)
12 ML0(p)
13 GND
14 GND
15 ML1(n)
16 AUX(p)
17 ML1(p)
18 AUX(n)
19 GND
20 +3.3 V DP_PWR
20 | About Your Monitor
HDMI Connector
Pin
Number
19-pin Side of the
Connected Signal Cable
1TMDS DATA 2+
2TMDS DATA 2 SHIELD
3TMDS DATA 2-
4TMDS DATA 1+
5TMDS DATA 1 SHIELD
6TMDS DATA 1-
7TMDS DATA 0+
8TMDS DATA 0 SHIELD
9TMDS DATA 0-
10 TMDS CLOCK+
11 TMDS CLOCK SHIELD
12 TMDS CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 DDC/CEC Ground
18 +5V POWER
19 HOT PLUG DETECT
About Your Monitor | 21
MHL Connector
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor
automatically provides the computer system with its Extended Display Identification Data
(EDID) using Display Data Channel (DDC) protocols so the system can configure itself
and optimize the monitor settings. Most monitor installations are automatic; you can
select different settings if desired. For more information about changing the monitor
settings, see
Operating the Monitor
.
Pin
Number
19-pin Side of the
Connected Signal Cable
1TMDS DATA 2+
2TMDS DATA 2 SHIELD
3TMDS DATA 2-
4TMDS DATA 1+
5GND
6TMDS DATA 1-
7MHL+
8TMDS DATA 0 SHIELD
9MHL-
10 TMDS CLOCK+
11 GND
12 TMDS CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 GND
18 VBUS (+5V, 900mA maximum)
19 CBUS
22 | About Your Monitor
Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on the monitor.
NOTE: This monitor is Super-Speed USB 3.0 compatible.
* Up to 2A on USB downstream port (port with lightning icon) with BC1.2
compliance devices or normal USB devices.
USB Upstream Connector
Transfer Speed Data Rate Power Consumption*
Super-speed 5 Gbps 4.5 W (Max, each port)
High speed 480 Mbps 4.5 W (Max, each port)
Full speed 12 Mbps 4.5 W (Max, each port)
Pin Number 9-pin Side of the Connector
1VCC
2D-
3D+
4GND
5SSTX-
6SSTX+
7GND
8SSRX-
9SSRX+
About Your Monitor | 23
USB Downstream Connector
USB Ports
•1 upstream - back
•5 downstream - back
•Power Charging Port- the port with lightning icon; supports fast current
charging capability if the device is BC1.2 compatible.
NOTE: USB 3.0 functionality requires a USB 3.0-capable computer.
NOTE: The monitor's USB interface works only when the monitor is On or in the
power save mode. If you turn Off the monitor and then turn it On, the attached
peripherals may take a few seconds to resume normal functionality.
LCD Monitor Quality and Pixel Policy
During the LCD Monitor manufacturing process, it is not uncommon for one or more
pixels to become fixed in an unchanging state which are hard to see and do not affect
the display quality or usability. For more information on Dell Monitor Quality and Pixel
Policy, see Dell Support site at: http://www.dell.com/support/monitors.
Pin Number 9-pin Side of the Connector
1VCC
2D-
3D+
4GND
5SSTX-
6SSTX+
7GND
8SSRX-
9SSRX+
24 | About Your Monitor
Maintenance Guidelines
Cleaning Your Monitor
CAUTION: Read and follow the
Safety Instructions
before cleaning the monitor.
WARNING: Before cleaning the monitor, unplug the monitor power cable from
the electrical outlet.
For best practices, follow the instructions in the list below while unpacking, cleaning, or
handling your monitor:
•To clean your anti-static screen, lightly dampen a soft, clean cloth with water. If
possible, use a special screen-cleaning tissue or solution suitable for the anti-
static coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or
compressed air.
•Use a lightly-dampened, warm cloth to clean the monitor. Avoid using
detergent of any kind as some detergents leave a milky film on the monitor.
•If you notice white powder when you unpack your monitor, wipe it off with a
cloth.
•Handle your monitor with care as a darker-colored monitor may get scratched
and show white scuff marks more than a lighter-colored monitor.
•To help maintain the best image quality on your monitor, use a dynamically
changing screen saver and turn Off your monitor when not in use.
Setting Up the Monitor | 25
Setting Up the Monitor
Attaching the Stand
NOTE: The stand is detached when the monitor is shipped from the factory.
NOTE: This is applicable for a monitor with a stand. When any other stand is
bought, please refer to the respective stand setup guide for the set up instructions.
To attach the monitor stand:
1Remove the cover and place the monitor on it.
2Fit the two tabs on the upper part of the stand to the groove on the back of the
monitor.
3Press the stand till it snaps into place.
26 | Setting Up the Monitor
Connecting Your Monitor
WARNING: Before you begin any of the procedures in this section, follow the
Safety Instructions
.
NOTE: Do not connect all cables to the computer at the same time.
To connect your monitor to the computer:
1Turn Off your computer and disconnect the power cable.
Connect the DP/Mini-DP to DP/HDMI cable from your monitor to the computer.
Connecting the HDMI cable
Connecting the black DisplayPort (Mini-DP to DP) cable
Setting Up the Monitor | 27
Connecting the black DisplayPort (DP to DP) cable
Connecting the monitor for DP Multi-Stream Transport (MST)
function
NOTE: U2415 supports the DP MST feature. To make use of this feature, your PC
Graphics Card must be certified to DP1.2 with MST option.
The default out of factory setting in the U2415 is DP1.1a.
To enable MST connection, please use only DP cable as provided in box (or other DP1.2
certified cable) and change the DP setting to DP1.2 by performing the below steps:
28 | Setting Up the Monitor
A) Monitor is able to show content
1Use OSD button to navigate to Display.
2Go to DisplayPort 1.2 selection.
3Select Enable or Disable accordingly
4Follow the screen message to confirm selection of DP1.2 or DP1.1a.
Setting Up the Monitor | 29
B) Monitor fails to show any content (blank screen)
1Use the and button to highlight DisplayPort or Mini DisplayPort.
2Press and hold the button for approximately 8 seconds.
3The DisplayPort configuration message will appear:
4Use the button to enable DP1.2 or button to exit without making any
changes.
Repeat the above steps to change the setting back to DP 1.1a if necessary.
CAUTION: The graphics are used for the purpose of illustration only. Appearance
of the computer may vary.
30 | Setting Up the Monitor
Connecting the USB 3.0 cable
After you have completed connecting the Mini-DP to DP/DP/HDMI cable, follow the
procedures below to connect the USB 3.0 cable to the computer and complete your
monitor setup:
1Connect the upstream USB 3.0 port (cable supplied) to an appropriate USB 3.0 port
on your computer. (See
Bottom View
for details.)
2Connect the USB 3.0 peripherals to the downstream USB 3.0 ports on the monitor.
3Plug the power cables for your computer and monitor into a nearby outlet.
4Turn On the monitor and the computer.
If your monitor displays an image, installation is complete. If it does not display an
image, see
Universal Serial Bus (USB) Specific Problems
.
5Use the cable slot on the monitor stand to organize the cables.
Setting Up the Monitor | 31
Using the Mobile-High Definition Link (MHL)
NOTE: This monitor is MHL certified.
NOTE: To use the MHL function, use only MHL certified cable and source devices
that support MHL output.
NOTE: Some MHL source devices may take more than a few seconds or longer to
output an image, depending on MHL source devices.
NOTE: When the connected MHL source device enters Standby mode, the monitor
will display black screen or show the massage below, depending on MHL source
device's output.
To enable MHL connection, please perform the below steps:
1Plug the power cable on your monitor into a AC outlet.
2Connect the (micro) USB port on you MHL source device to HDMI (MHL) 1 or HDMI
(MHL) 2 port on the monitor with a MHL certified cable (See
Bottom View
for
details).
3Turn On the monitor and the MHL source device.
4Select input source on monitor to HDMI (MHL) 1 or HDMI (MHL) 2 by using OSD
Menu (See
Using the On-Screen Display (OSD) Menu
for details.)
5If it does not display an image, see
Mobile High-Definition Link (MHL) Specific
Problems
.
32 | Setting Up the Monitor
Organizing Your Cables
After attaching all necessary cables to your monitor and computer, (See
Connecting Your
Monitor
for cable attachment,) organize all cables as shown above.
Attaching the Cable Cover
NOTE: The cable cover is detached when the monitor is shipped from the factory.
1Fit the two tabs on the bottom part of the cable cover to the groove on the back of
the monitor.
2Press the cable cover till it snaps into place.
Setting Up the Monitor | 33
Removing the Monitor Stand
NOTE: To prevent scratches on the LCD screen while removing the stand, ensure
that the monitor is placed on a soft, clean surface.
NOTE: This is applicable for a monitor with a stand. When any other stand is
bought, please refer to the respective stand setup guide for the set-up instructions
.
To remove the stand:
1Place the monitor on a soft cloth or cushion.
2Press and hold the stand release button.
3Lift the stand up and away from the monitor.
Removing the Cable Cover
1Press the tab on the cable cover.
2Remove the two tabs on the bottom part of the cable cover from the groove on the
back of the monitor.
34 | Setting Up the Monitor
Wall Mounting (Optional)
(Screw dimension: M4 x 10 mm).
Refer to the instructions that come with the VESA-compatible wall mounting kit.
1Place the monitor panel on a soft cloth or cushion on a stable, flat table.
2Remove the stand.
3Use a Phillips crosshead screwdriver to remove the four screws securing the plastic
cover.
4Attach the mounting bracket from the wall mounting kit to the monitor.
5Mount the monitor on the wall by following the instructions that comes with the
wall mounting kit.
NOTE: For use only with UL-listed wall mount bracket with minimum weight/load
bearing capacity of 5.88 kg.
Operating the Monitor | 35
Operating the Monitor
Power On the Monitor
Press the button to turn On the monitor.

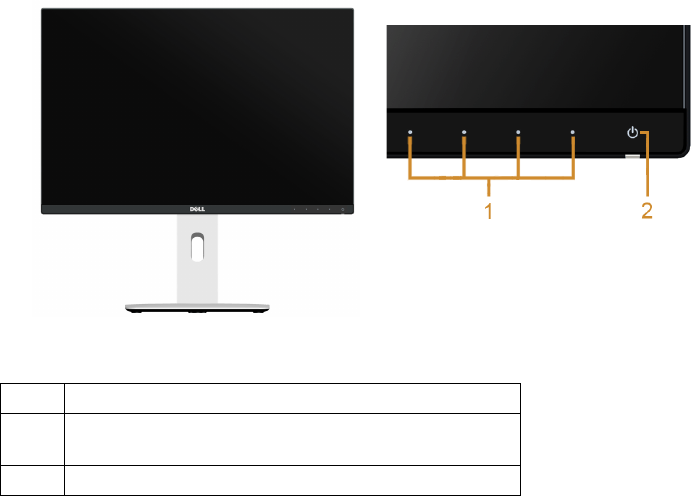

Using the Front Panel Controls
Use the control buttons on the front of the monitor to adjust the characteristics of the
image being displayed. As you use these buttons to adjust the controls, an OSD shows
the numeric values of the characteristics as they change.
The following table describes the front panel buttons:
36 | Operating the Monitor
Front Panel Button
Use the buttons on the front of the monitor to adjust the image settings.
Front Panel Button Description
1
Shortcut key/
Preset Modes
Use this button to choose from a list of preset color modes.
2
Shortcut key/
Brightness/Contrast
Use this button to directly access the Brightness/Contrast
menu.
3
Menu
Use the MENU button to launch the On-Screen Display
(OSD) and select the OSD Menu. See Accessing the Menu
System.
4
Exit
Use this button to go back to the main menu or exit the OSD
main menu.
5
Power
(with power light
indicator)
Use the Power button to turn the monitor On and Off.
The white light indicates the monitor is On and fully
functional. A glowing white light indicates the power save
mode.
Front Panel Button Description
1
Up
Use the Up button to adjust (increase ranges) items in the OSD menu.
2
Down
Use the Down button to adjust (decrease ranges) items in the OSD
menu.
Operating the Monitor | 37
Using the On-Screen Display (OSD) Menu
Accessing the Menu System
NOTE: If you change the settings and then either proceed to another menu or exit
the OSD menu, the monitor automatically saves those changes. The changes are
also saved if you change the settings and then wait for the OSD menu to disappear.
1Press the button to launch the OSD menu and display the main menu.
Main Menu for digital (HDMI (MHL) 1/ HDMI (MHL) 2) input
or
3
OK
Use the OK button to confirm your selection.
4
Back
Use the Back button to go back to the previous menu.
38 | Operating the Monitor
Main Menu for digital (mini DisplayPort) input
or
Main Menu for digital (DP) input
2Press the and buttons to move between the setting options. As you move
from one icon to another, the option name is highlighted. See the following table
for a complete list of all the options available for the monitor.
3Press the button once to activate the highlighted option.
4Press and button to select the desired parameter.
5Press to enter the slide bar and then use the and buttons, according
to the indicators on the menu, to make your changes.
6Select the button to return to the main menu.
Operating the Monitor | 39
Icon Menu and
Submenus
Description
Brightness/
Contrast
Use this menu to activate Brightness/Contrast adjustment.
Brightness Brightness adjusts the luminance of the backlight.
Press the button to increase the brightness and press the
button to decrease the brightness (min. 0 / max. 100).
NOTE: Manual adjustment of Brightness is disabled when Dynamic
Contrast is switched On.
Contrast Adjust the Brightness first, and then adjust the Contrast only if further
adjustment is necessary.
Press the button to increase the contrast and press the
button to decrease the contrast (min. 0 / max. 100).
The Contrast function adjusts the degree of difference between
darkness and lightness on the monitor screen.
40 | Operating the Monitor
Input Source Use the Input Source menu to select between the different video
signals that may be connected to your monitor.
DisplayPort Select the DisplayPort input when you are using the DisplayPort (DP)
connector. Press to select the DisplayPort input source.
Mini
DisplayPort
Select the Mini DisplayPort input when you are using the Mini
DisplayPort (Mini DP) connector. Press to select the Mini
DisplayPort input source.
HDMI (MHL)
1
HDMI (MHL)
2
Select the HDMI (MHL) 1 or HDMI (MHL) 2 input when you are using the
HDMI connectors. Press to select the HDMI (MHL) 1 or HDMI (MHL)
2 input source.
Color Use Color to adjust the color setting mode.
Operating the Monitor | 41
Input Color
Format
Allows you to set the video input mode to:
RGB: Select this option if your monitor is connected to a computer (or
DVD player) using the HDMI cable (or DisplayPort cable); or MHL
devices using MHL cable.
YPbPr: Select this option if your monitor is connected to a DVD player
by YPbPr using HDMI cable (or DisplayPort cable); or MHL devices by
YPbPr using MHL cable.
Or if the DVD (or MHL devices) color output setting is not RGB.
Gamma Allows you to set the Gamma to PC or MAC.
42 | Operating the Monitor
Preset Modes When you select Preset Modes, you can choose Standard, Multimedia,
Movie, Game, Paper, Color Temp.,or Custom Color from the list.
•Standard: Loads the monitor's default color settings. This is the
default preset mode.
•Multimedia: Loads color settings ideal for multimedia applications.
•Movie: Loads color settings ideal for movies.
•Game: Loads color settings ideal for most gaming applications.
•Paper: Loads brightness and sharpness settings ideal for viewing
text. Blend the text background to simulate paper media without
affecting color images. Applies to RGB input format only.
• Color Temp.: Allows users to select the color temperature: 5000K,
5700K, 6500K, 7500K, 9300K and 10000K.
• Custom Color: Allows you to manually adjust the color settings.
Press the and buttons to adjust the three colors (R, G, B)
values and create your own preset color mode.
Hue This feature can shift the color of the video image to green or purple.
This is used to adjust the desired flesh tone color. Use or to
adjust the hue from '0' to '100'.
Press to increase the green shade of the video image.
Press to increase the purple shade of the video image.
NOTE: Hue adjustment is available only when you select Movie or
Game preset mode.
Saturation This feature can adjust the color saturation of the video image. Use
or to adjust the saturation from '0' to '100'.
Press to increase the monochrome appearance of the video
image.
Press to increase the colorful appearance of the video image.
NOTE: Saturation adjustment is available only when you select Movie
or Game preset mode.
Reset Color
Settings
Reset your monitor color settings to the factory settings.
Operating the Monitor | 43
Display Use the Display to adjust image.
Aspect Ratio Adjusts the image ratio to Wide 16:10, 4:3, or 5:4.
Sharpness This feature can make the image look sharper or softer. Use or
to adjust the sharpness from '0' to '100'.
Response
Time
Allows you to set the Response Time to Normal or Fast.
Dynamic
Contrast
Allows you to increase the level of contrast to provide sharper and more
detailed image quality.
Press the button to select the Dynamic Contrast "On" or "Off".
NOTE: Dynamic Contrast provides higher contrast if you select Game
or Movie preset mode.
DisplayPort
1.2
Press to enable or disable DisplayPort 1.2.
To use the DP MST (Daisy Chain) or HBR2 feature, enable DP 1.2.
NOTE: Ensure your Graphics Card can support these features before
selecting DP 1.2. Wrong setting may result in blank screen. Some
Graphics Cards do not support MCCS (Monitor Control Command Set)
at DP 1.2. In these cases, DDM (Dell Display Manager) may not run.
Reset Display
Settings
Select this option to restore default display settings.
44 | Operating the Monitor
Energy
Power
Button LED
Allows you to set the power LED indicator On or Off to save energy.
USB Allows you to enable or disable USB function during monitor standby
mode.
NOTE: USB ON/OFF under standby mode is only available when the
USB upstream cable is unplugged. This option will be greyed out when
the USB upstream cable plugs in.
Reset Energy
Settings
Select this option to restore default Energy settings.
Operating the Monitor | 45
Menu Select this option to adjust the settings of the OSD, such as, the
languages of the OSD, the amount of time the menu remains on screen,
and so on.
Language Language options set the OSD display to one of the eight languages
(English, Spanish, French, German, Brazilian Portuguese, Russian,
Simplified Chinese or Japanese).
Rotation Rotates the OSD by 90 degrees counter-clockwise. You can adjust the
menu according to your
Display Rotation
.
Transparency Select this option to change the menu transparency by pressing the
and buttons (Minimum: 0 ~ Maximum: 100).
Timer OSD Hold Time: sets the length of time the OSD will remain active after
the last time you pressed a button.
Use or to adjust the slider in 1 second increments, from 5 to
60 seconds.
Lock Controls user access to adjustments. When Lock is selected, no user
adjustments are allowed. All buttons are locked.
NOTE:
Lock function – Either soft lock (through the OSD menu) or hard lock
(press and hold the button beside the power button for 10 seconds)
Unlock function– Only hard unlock (press and hold the button beside
the power button for 10 seconds)
Reset Menu
Settings
Reset all OSD settings to the factory preset values.
46 | Operating the Monitor
Personalize Users can choose a feature from Preset Modes, Brightness/Contrast,
Input Source, Aspect Ratio, or Rotation and set it as a shortcut key.
Other
Button
Sound
The monitor beeps every time a new option is selected in the menu.
This feature enables or disables the sound.
Operating the Monitor | 47
NOTE: This monitor has a built-in feature to automatically calibrate the brightness
to compensate for LED aging.
DDC/CI DDC/CI (Display Data Channel/Command Interface) allows your
monitor parameters (brightness, color balance, and etc.) to be
adjustable via the software on your computer.
You can disable this feature by selecting Disable.
Enable this feature for best user experience and optimum performance
of your monitor.
LCD
Conditioning
Helps reduce minor cases of image retention. Depending on the degree
of image retention, the program may take some time to run. You can
enable this feature by selecting Enable.
Reset Other
Settings
Reset all settings under the Other menu to the factory preset values.
Factory Reset Reset all settings to the factory preset values.
48 | Operating the Monitor
OSD Warning Messages
When the Dynamic Contrast feature is enabled (in these preset modes: Game or Movie),
the manual brightness adjustment is disabled.
When the monitor does not support a particular resolution mode, you will see the
following message:
This means that the monitor cannot synchronize with the signal that it is receiving from
the computer. See
Monitor Specifications
for the Horizontal and Vertical frequency
ranges addressable by this monitor. Recommended mode is 1920 x 1200.
You will see the following message before the DDC/CI function is disabled:
When the monitor enters the Power Save mode, the following message appears:
Operating the Monitor | 49
Activate the computer and wake up the monitor to gain access to the
OSD
.
If you press any button other than the power button, one of the following messages will
appear depending on the selected input:
HDMI (MHL)/Mini DisplayPort/DP input
HDMI (MHL) input
If either HDMI (MHL), Mini DisplayPort, or DP input is selected and the corresponding
cable is not connected, a floating dialog box as shown below appears.
or
Operating the Monitor | 51
Setting the Maximum Resolution
To set the maximum resolution for the monitor:
In Windows® 7, Windows® 8, and Windows® 8.1:
1For Windows® 8 and Windows® 8.1 only, select the Desktop tile to switch to classic
desktop.
2Right-click on the desktop and click Screen Resolution.
3Click the Dropdown list of the Screen Resolution and select 1920 x 1200.
4Click OK.
If you do not see 1920 x 1200 as an option, you may need to update your graphics driver.
Depending on your computer, complete one of the following procedures:
If you have a Dell desktop or portable computer:
•Go to http://www.dell.com/support, enter your service tag, and download the
latest driver for your graphics card.
If you are using a non-Dell computer (portable or desktop):
•Go to the support site for your computer and download the latest graphic drivers.
•Go to your graphics card website and download the latest graphic drivers.
Using the Tilt, Swivel, and Vertical Extension
NOTE: This is applicable for a monitor with a stand. When any other stand is
bought, please refer to the respective stand setup guide for set up instructions.
Tilt, Swivel
With the stand attached to the monitor, you can tilt and swivel the monitor for the most
comfortable viewing angle.
NOTE: The stand is detached when the monitor is shipped from the factory.
52 | Operating the Monitor
Vertical Extension
NOTE: The stand extends vertically up to 115 mm. The figure below illustrates how
to extend the stand vertically.
Rotating the Monitor
Before you rotate the monitor, your monitor should be fully vertically extended (
Vertical
Extension
) and fully tilted up to avoid hitting the bottom edge of the monitor.
Operating the Monitor | 53
Rotate clockwise
Rotate counterclockwise
54 | Operating the Monitor
Reverse (180°) mount
NOTE: To reverse (180°) mount, remove the stand and use wall mounting solution
(optional).
NOTE: To use the Display Rotation function (Landscape versus Portrait view) with
your Dell computer, you require an updated graphics driver that is not included
with this monitor. To download the graphics driver, go to www.dell.com/support
and see the Download section for Video Drivers for latest driver updates.
NOTE: When in the Portrait View Mode, you may experience performance
degradation in graphic-intensive applications (3D Gaming and etc.).
Dual-Monitor Setup
The ability to rotate 90° clockwise, 90° counterclockwise and reverse (180°) mount
enable the thinnest borders of each monitor to be placed side by side to ensure
minimum gap between display images.
The recommended dual-monitor setup:
Landscape (side by side)
Operating the Monitor | 55
Landscape (Top-bottom)
Portrait
Supported by wall
mounting solution
(optional)
56 | Operating the Monitor
Adjusting the Rotation Display Settings of Your System
After you have rotated your monitor, you need to complete the procedure below to
adjust the Rotation Display Settings of your system.
NOTE: If you are using the monitor with a non-Dell computer, you need to go the
graphics driver website or your computer manufacturer website for information on
rotating the 'contents' on your display.
To adjust the Rotation Display Settings:
1Right-click on the desktop and click Properties.
2Select the Settings tab and click Advanced.
3If you have an ATI graphics card, select the Rotation tab and set the preferred
rotation.
4If you have an nVidia graphics card, click the nVid ia tab, in the left-hand column
select NVRotate, and then select the preferred rotation.
5If you have an Intel® graphics card, select the Intel graphics tab, click Graphic
Properties, select the Rotation tab, and then set the preferred rotation.
NOTE: If you do not see the rotation option or it is not working correctly, go to
www.dell.com/support and download the latest driver for your graphics card.
Troubleshooting | 57
Troubleshooting
WARNING: Before you begin any of the procedures in this section, follow the
Safety Instructions
.
Self-Test
Your monitor provides a self-test feature that allows you to check whether your monitor
is functioning properly. If your monitor and computer are properly connected but the
monitor screen remains dark, run the monitor self-test by performing the following
steps:
1Turn off both your computer and the monitor.
2Unplug the video cable from the back of the computer. To ensure proper Self-Test
operation, remove all digital cables from the back of computer.
3Turn on the monitor.
The floating dialog box should appear on-screen (against a black background), if the
monitor cannot sense a video signal and is working correctly. While in self-test mode, the
power LED remains white. Also, depending upon the selected input, one of the dialogs
shown below will continuously scroll through the screen.
or
or
58 | Troubleshooting
or
4This box also appears during normal system operation, if the video cable becomes
disconnected or damaged.
5Turn Off your monitor and reconnect the video cable; then turn On both your
computer and the monitor.
If your monitor screen remains blank after you use the previous procedure, check your
video controller and computer, because your monitor is functioning properly.
Built-in Diagnostics
Your monitor has a built-in diagnostic tool that helps you determine if the screen
abnormality you are experiencing is an inherent problem with your monitor, or with your
computer and video card.
NOTE: You can run the built-in diagnostics only when the video cable is unplugged
and the monitor is in self-test mode.
Troubleshooting | 59
To run the built-in diagnostics:
1Ensure that the screen is clean (no dust particles on the surface of the screen).
2Unplug the video cable(s) from the back of the computer or monitor. The monitor
then goes into the self-test mode.
3Press and hold Button 1 and Button 4 on the front panel simultaneously for 2
seconds. A gray screen appears.
4Carefully inspect the screen for abnormalities.
5Press Button 4 on the front panel again. The color of the screen changes to red.
6Inspect the display for any abnormalities.
7Repeat steps 5 and 6 to inspect the display in green, blue, black, white and text
screens.
The test is complete when the text screen appears. To exit, press Button 4 again.
If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the
monitor is functioning properly. Check the video card and computer.
Common Problems
The following table contains general information about common monitor problems you
might encounter and the possible solutions:
Common
Symptoms
What You
Experience
Possible Solutions
No Video/Power
LED off
No picture •Ensure that the video cable connecting the monitor and the
computer is properly connected and secure.
•Verify that the power outlet is functioning properly using
any other electrical equipment.
•Ensure that the power button is depressed fully.
•Ensure that the correct input source is selected in the
Input
Source
menu.
No Video/Power
LED on
No picture or no
brightness
•Increase brightness & contrast controls via OSD.
•Perform monitor self-test feature check.
•Check for bent or broken pins in the video cable connector.
•Run the built-in diagnostics.
•Ensure that the correct input source is selected in the
Input
Source
menu.
Poor Focus Picture is fuzzy,
blurry, or
ghosting
•Eliminate video extension cables.
•Reset the monitor to factory settings.
•Change the video resolution to the correct aspect ratio.
Shaky/Jittery
Video
Wavy picture or
fine movement
•Reset the monitor to factory settings.
•Check environmental factors.
•Relocate the monitor and test in another room.
60 | Troubleshooting
Missing Pixels LCD screen has
spots
•Cycle power On-Off.
•Pixel that is permanently Off is a natural defect that can
occur in LCD technology.
•For more information on Dell Monitor Quality and Pixel
Policy, see Dell Support site at: http://www.dell.com/
support/monitors.
Stuck-on Pixels LCD screen has
bright spots
•Cycle power On-Off.
•Pixel that is permanently off is a natural defect that can
occur in LCD technology.
•For more information on Dell Monitor Quality and Pixel
Policy, see Dell Support site at: http://www.dell.com/
support/monitors.
Brightness
Problems
Picture too dim
or too bright
•Reset the monitor to factory settings.
•Adjust brightness & contrast controls via OSD.
Geometric
Distortion
Screen not
centered
correctly
•Reset the monitor to factory settings.
•Adjust horizontal & vertical controls via OSD.
Horizontal/
Vertical Lines
Screen has one
or more lines
•Reset the monitor to factory settings.
•Perform monitor self-test feature check and determine if
these lines are also in self-test mode.
•Check for bent or broken pins in the video cable connector.
•Run the built-in diagnostics.
Synchronization
Problems
Screen is
scrambled or
appears torn
•Reset the monitor to factory settings.
•Perform monitor self-test feature check to determine if the
scrambled screen appears in self-test mode.
•Check for bent or broken pins in the video cable connector.
•Restart the computer in the safe mode.
Safety Related
Issues
Visible signs of
smoke or sparks
•Do not perform any troubleshooting steps.
•Contact Dell immediately.
Intermittent
Problems
Monitor
malfunctions on
& off
•Ensure that the video cable connecting the monitor to the
computer is connected properly and is secure.
•Reset the monitor to factory settings.
•Perform monitor self-test feature check to determine if the
intermittent problem occurs in self-test mode.
Missing Color Picture missing
color
•Perform monitor self-test feature check.
•Ensure that the video cable connecting the monitor to the
computer is connected properly and is secure.
•Check for bent or broken pins in the video cable connector.
Wrong Color Picture color not
good
•Change the settings of the Preset Modes in the Color menu
OSD depending on the application.
•Adjust R/G/B value under Custom. Color in Color menu
OSD.
•Change the Input Color Format to PC RGB or YPbPr in the
Color menu OSD.
•Run the built-in diagnostics.
Troubleshooting | 61
Product Specific Problems
Image retention
from a static
image left on
the monitor for
a long period of
time
Faint shadow
from the static
image displayed
appears on the
screen
•Use the Power Management feature to turn off the monitor
at all times when not in use (for more information, see
Power Management Modes
).
•Alternatively, use a dynamically changing screensaver.
Specific
Symptoms
What You
Experience
Possible Solutions
Screen image is
too small
Image is
centered on
screen, but does
not fill entire
viewing area
•Check the Aspect Ratio setting in the Display menu OSD.
•Reset the monitor to factory settings.
Cannot adjust
the monitor
with the
buttons on the
front panel
OSD does not
appear on the
screen
•Turn Off the monitor, unplug the power cord, plug it back,
and then turn On the monitor.
•Check whether the OSD menu is locked. If yes, press and
hold the button above the Power button for 10 seconds to
unlock (for more information, see
Lock
).
No Input Signal
when user
controls are
pressed
No picture, the
LED light is white
•Check the signal source. Ensure the computer is not in the
power saving mode by moving the mouse or pressing any
key on the keyboard.
•Check whether the signal cable is plugged in properly. Re-
plug the signal cable if necessary.
•Reset the computer or video player.
The picture
does not fill the
entire screen
The picture
cannot fill the
height or width
of the screen
•Due to different video formats (aspect ratio) of DVDs, the
monitor may display in full screen.
•Run the built-in diagnostics.
62 | Troubleshooting
Universal Serial Bus (USB) Specific Problems
Mobile High-Definition Link (MHL) Specific Problems
Specific
Symptoms
What You
Experience
Possible Solutions
USB interface is
not working
USB peripherals
are not working
•Check that your monitor is turned On.
•Reconnect the upstream cable to your computer.
•Reconnect the USB peripherals (downstream connector).
•Switch Off and then turn On the monitor again.
•Reboot the computer.
•Some USB devices like external portable HDD require higher
electric current; connect the device directly to the
computer system.
High Speed
USB 3.0
interface is
slow
High Speed USB
3.0 peripherals
working slowly or
not working at all
•Check that your computer is USB 3.0-capable.
•Some computers have USB 3.0, USB 2.0, and USB 1.1 ports.
Ensure that the correct USB port is used.
•Reconnect the upstream cable to your computer.
•Reconnect the USB peripherals (downstream connector).
•Reboot the computer.
Wireless mouse
is not working
or lagging
Do not respond
or responds
slowly
•Increase the distance between the USB 3.0 peripherals and
the wireless USB receiver.
•Position your wireless USB receiver as close as possible to
the wireless mouse.
•Use a USB-extender cable to position the wireless USB
receiver as far away as possible from the USB 3.0 port.
Specific
Symptoms
What You
Experience
Possible Solutions
MHL interface
is not working
Can not see MHL
device image
shown on
monitor
•Ensure your MHL cable and MHL device are MHL certified.
•Check your MHL device is turned On.
•Check your MHL device is not in Standby mode.
•Check physical MHL cable connection is corresponding to
input source selected on OSD Menu i.e., HDMI (MHL) 1 or
HDMI (MHL) 2.
•Wait for 30 seconds after connecting MHL cable as some
MHL devices require longer recovery time.
Appendix | 63
Appendix
WARNING: Safety Instructions
WARNING: Use of controls, adjustments, or procedures other than those
specified in this documentation may result in exposure to shock, electrical
hazards, and/or mechanical hazards.
For information on safety instructions, see the Product Information Guide.
FCC Notices (U.S. Only) and Other Regulatory
Information
For FCC notices and other regulatory information, see the regulatory compliance
website located at www.dell.com/regulatory_compliance.
Contact Dell
For customers in the United States, call 800-WWW-DELL (800-999-3355).
NOTE: If you do not have an active Internet connection, you can find contact
information on your purchase invoice, packing slip, bill, or Dell product catalog.
Dell provides several online and telephone-based support and service options.
Availability varies by country and product, and some services may not be available in
your area.
To get online Monitor support content:
1Visit www.dell.com/support/monitors.
To contact Dell for sales, technical support, or customer service issues:
1Visit www.dell.com/support.
2Verify your country or region in the Choose A Country/Region drop-down menu at
the bottom of the page.
3Click Contact Us on the left side of the page.
4Select the appropriate service or support link based on your need.
5Choose the method of contacting Dell that is convenient for you.
64 | Appendix
Setting Up Your Monitor
Setting the display resolution
For maximum display performance with Microsoft® Windows® operating systems, set
the display resolution to 1920 x 1200 pixels by performing the following steps:
In Windows® 7, Windows® 8, and Windows® 8.1:
1For Windows® 8 and Windows® 8.1 only, select the Desktop tile to switch to classic
desktop.
2Right-click on the desktop and click Screen Resolution.
3Click the Dropdown list of the Screen Resolution and select 1920 x 1200.
4Click OK.
If you do not see the recommended resolution as an option, you may need to update
your graphics driver. Please choose the scenario below that best describes the computer
system you are using, and follow the given steps.
If you have a Dell™ desktop or a Dell™ portable computer with
internet access
1Go to www.dell.com/support, enter your service tag, and download the latest
driver for your graphics card.
2After installing the drivers for your graphics adapter, attempt to set the resolution to
1920 x 1200 again.
NOTE: If you are unable to set the resolution to 1920 x 1200, please contact Dell™
to inquire about a graphics adapter that supports these resolutions.
If you have a non Dell™ desktop, portable computer, or graphics
card
In Windows® 7, Windows® 8, and Windows® 8.1:
1For Windows® 8 and Windows® 8.1 only, select the Desktop tile to switch to classic
desktop.
2Right-click on the desktop and click Personalization.
3Click Change Display Settings.
4Click Advanced Settings.
5Identify your graphics controller supplier from the description at the top of the
window (e.g. NVIDIA, ATI, Intel etc.).
6Refer to the graphic card provider website for updated driver (for example,
http://www.ATI.com OR http://www.NVIDIA.com).
7After installing the drivers for your graphics adapter, attempt to set the resolution to
1920 x 1200 again.
Appendix | 65
NOTE: If you are unable to set the recommended resolution, please contact the
manufacturer of your computer or consider purchasing a graphics adapter that will
support the video resolution.
