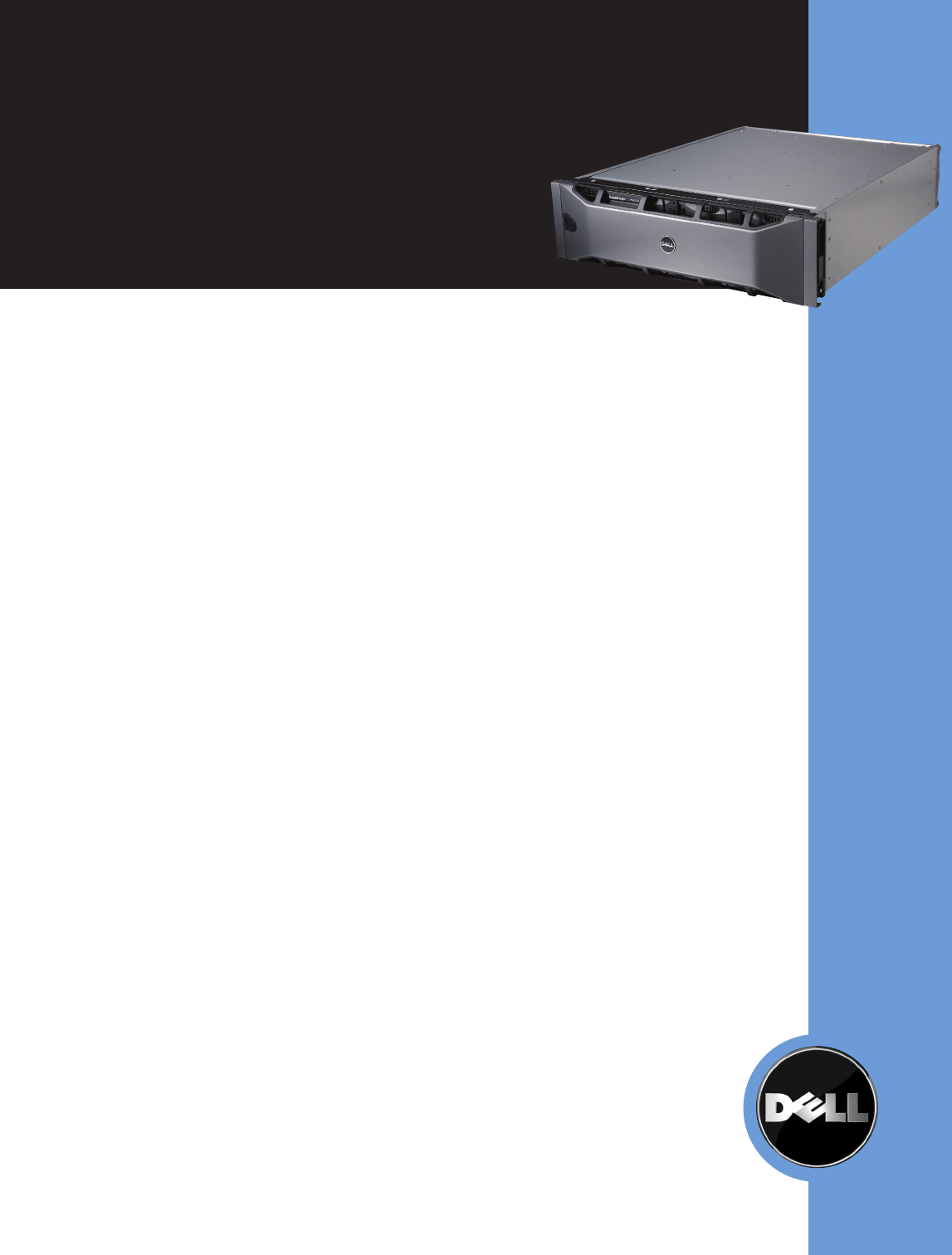

DELL EQUALLOGIC
PS6000S
The Dell™ EqualLogic™ PS6000S is a virtualized iSCSI SAN that combines intelligence and automation
with fault tolerance to provide simplified administration, rapid deployment, enterprise performance and
reliability, and seamless scalability. The first EqualLogic array with Solid State Disk (SSD) drives, the
PS6000S array provides exceptional random IOPS performance with very low latency. With either 8 or
16 SSD drives, and up to 1.6 TB† per array, the PS6000S is designed as a cost-eective SSD option for
the highest priority applications with moderate-sized data stores.
EXCEPTIONAL EASE OF USE
The PS6000S is an intelligent storage array that is designed to provide rapid installation, simple management, and seamless
expansion. All PS Series storage arrays include SAN configuration features and capabilities that sense network connections,
automatically build RAID sets, and conduct system health checks to help ensure that all components are fully functional.
A PS6000S is designed to be installed, configured, and serving storage in less than one hour.
MODULAR DESIGN WITH ENTERPRISE RELIABILITY
EqualLogic PS Series arrays are based on a virtualized modular storage architecture that enables IT managers to purchase only
the storage they need, when they need it — helping to prevent both underutilization and over-provisioning. Using innovative
data movement technology, all EqualLogic PS Series arrays in a SAN work together to automatically manage data, load balance
across all resources, and expand to meet growing storage needs.
The EqualLogic SAN line is designed to meet and exceed the rugged requirements of the data center. The PS6000S includes
fault tolerance capabilities through fully redundant and hot-swappable components — standard dual-controllers, dual fan
trays, dual power supplies, and robust Solid State Disk drives with hot spares.
ENTERPRISE DATA SERVICES WITHOUT ADDITIONAL COST
With built-in storage features once available only to top-tier data centers, the PS6000S enables best practice storage for every
size organization. EqualLogic PS Series arrays include the following enterprise data services and software features with no
additional software licensing fees:
MANAGEMENT | PS Group Manager • SAN HeadQuarters Multi-Group Monitoring • Rapid Provisioning • Remote Setup Wizard • Roles-Based
Administration • Volume Management
DATA PROTECTION, AVAILABILITY AND RECOVERY | Auto-Replication, Multi-Site • Instant Volume Restore • Multi-Path I/O1 • Multi-Volume,
Writeable Snapshots • Snapshot and Auto-Replication Scheduler • Volume Cloning • Volume Consistency Sets
STORAGE VIRTUALIZATION | Array Evacuation • Automatic Load Balancing • Automatic or Manual Storage Tiering • Complete SAN
Virtualization • Online Data and Volume Movement • RAID Load Balancing • Storage Pools • Thin Provisioning
MAINTENANCE | Auto-Stat Disk Monitoring System • E-mail Home • Enclosure Monitoring System • Performance Monitoring
SERVER MANAGEMENT AND PROTECTION INTEGRATION | Auto-Snapshot Manager/Microsoft® Edition2 • Auto-Snapshot Manager/VMware™
Edition3 • Automatic MPIO Connection Management • Microsoft® VSS and VDS Providers • Smart Copy for Microsoft® Hyper-V™, Exchange®, SQL
Server®, Windows® File Systems and VMware® VMFS • VMware® Site Recovery Manager Adapter
FLEXIBILITY WITH LOW COST OF OWNERSHIP
The EqualLogic PS Series arrays represent a breakthrough in storage economics, from purchase and setup to operation and
upgrades. Unlike traditional SANs, the EqualLogic PS Series includes software and applications expected from an enterprise-
level SAN at no extra cost. The PS Series scales on-demand — and online — allowing storage growth without disrupting
applications. As a result, EqualLogic PS6000S arrays provide exceptional flexibility at a low total cost of ownership.
Whether consolidating a direct-attached storage (DAS) infrastructure, migrating data from an existing SAN or NAS
system, streamlining data protection processes, or simply adding storage capacity, the EqualLogic PS Series from
Dell offers a family of proven, high-performance, self-managing storage arrays designed to meet the requirements of
today’s critical datacenter environments.
1Qualified for Microsoft® Windows Server® 2003, Windows Server® 2008, including Hyper-V, Windows Server® 2008 R2, including Hyper-V, VMware®, Linux® and
Sun™ Solaris™ Operating Systems
2Qualified for Microsoft® Windows Server® 2003, Windows Server® 2008, including Hyper-V ™ and Windows Server® 2008 R2 including Hyper-V ™
3Qualified for VMware® ESX 3.5, ESXi 3.5/4, ESX 3 and ESX 4
SIMPLIFY YOUR STORAGE AT WWW.DELL.COM/PSseries
© 2009 Dell Inc. All rights reserved. Microsoft, Windows and Windows Vista are registered trademarks
of Microsoft Corporation in the United States and/or other countries.
SS639_USA_030409_102109
FEATURES DELL™ EQUALLOGIC™ PS6000S
Product Configurations
Storage Controllers Dual controllers with a total of 4 GB† battery-backed memory
Battery-backed memory provides up to 72 hours of data protection
Solid State Disk Drives Eight (8) or sixteen (16) hot-pluggable Solid State Disk (SSD) drives
Drive Capacity SSD drives available in 50 GB† and 100 GB†
System Capacity 800 GB† using sixteen (16) 50 GB† drives, or 400 GB† using eight (8) 50 GB† SSD drives , 800 GB† using eight (8) 100 GB† drives, or 1.6 TB†
using sixteen (16) 100 GB† drives
Technical Highlights
Volumes Up to 1,024
Snapshots 512 per volume / up to 10,000 total
Hosts Accessing
PS Series Group Up to 512 per pool / 2,048 per group
Host Protocol Any standards-compliant iSCSI initiator
Operating Systems
Supported
Windows® 2000 Server, Windows Server® 2003, Windows Server® 2008, including Hyper-V™, Windows Vista®, Windows Server® 2008 R2
including Hyper-V™, Windows XP®, Red Hat® Enterprise Linux®, SUSE® Linux® Enterprise, Sun™ Solaris™, IBM® AIX®, HP-UX, Mac OS® X,
VMware® ESX Server 3 / 3.5 / 4 / ESXi 3.5 / 4, Citrix® XenServer™, Novell® NetWare®
RAID Support Automatic RAID 5, RAID 6, RAID 10, and RAID 50
GbE Network Interfaces Four (4) copper per controller
TCP Network Support IPv4, IPv6 core support
Expansion Option Can be combined with other EqualLogic PS Series online
Reliability Redundant, hot-swappable controllers, power supplies / cooling fans, and disks
Individual disk drive slot power control
Enclosure Monitoring
System
Automatic spare configuration and utilization
SMART
Automatic bad block replacement
Auto-Stat Disk Monitoring System (ADMS) to monitor health of data on disk drives
Management Interfaces
SAN HeadQuarters multi-group performance and event monitoring tool SNMP, telnet, SSH, HTTP, Web (SSL), host scripting
Serial console Multi-administrator support
Ability to configure a separate management network
Security
CHAP authentication
Access control for iSCSI
Access control for management interfaces including RADIUS support
Notification Methods SNMP traps, e-mail, syslog
Power
AC voltage: 100-240 VAC ±10% single phase Frequency: 47-63 Hz
Power factor: 0.98 (minimum) Power consumption: 275 VA, 300 Peak VA (operating maximum)
Heat dissipation: 940 BTU per hour (maximum) Power supplies: Dual 440W dc
Environmental
Temperature range: 5 to 35°C / 41 to 95°F
Storage temperature: -20 to 60°C / -22 to 140°F
Altitude: -70 to 3,048 m operational / -305 to 12,192 m non-operational
Relative humidity: 20 to 80% non-condensing operational / 5 to 95% non-condensing non-operational
Shock: 5 g 10 ms ½ sine operational / 30 g 10 ms ½ sine non-operational
Vibration: Random .21 grms @ 5-500Hz operational / Random 1.04 grms 2-200Hz non-operational
Acoustics: Sound Power Operating: <5.8 db LpA @ 20°C
Air Quality: Airborne contaminant level of G2 or lower as defined by ISA-S71.04-1985
Physical
Height: 13 cm / 5.12 in / 3 EIA units
Width: 48.26 cm / 19.0 in / 1EC Rack Compliant
Depth: 55.1 cm / 21.7 in
Weight: 35 kg / 77.6 lb (maximum configuration)
Basic and Optional Dell
Support Services
1-Year Dell Basic Service*: Included with all EqualLogic purchases. For a period of one year – telephone support services during local business hours
excluding local national holidays; service parts shipped via next business day freight method or the next most expedited shipping available in the locality;
access to software/firmware updates.
Dell ProSupport** for IT or for End-Users with NBD or 4 Hour Onsite Options: Direct access to Dell experts, 7x24x365 phone support, collaborative
hardware and software support, escalation support, global Command Center management and monitoring, how-to application and configuration
assistance (Dell ProSupport for End-Users only).
Additional Dell ProSupport** Options include: Keep your Hard Drive (KYHD), Mission Critical, and Dell ProSupport for IT with Enterprise-Wide Contract.
Optional Dell ProConsult
Storage Consulting from Dell** offers a comprehensive suite of assessment, design and implementation services to help customers get the
most from their EqualLogic PS Series product, covering data management, application performance, data protection and cost of ownership.
Dell Consultants can provide practical action-oriented plans, to help deliver specific, predictable and measured outcomes through high-
impact, short duration projects.
†GB means 1 billion bytes and TB equals 1 trillion bytes; actual capacity varies with preloaded material and operating environment and will be less.
*For a copy of the EqualLogic Limited Warranty and Dell’s Basic Service Description write Dell Inc., Attn: Customer Service, 300 Innovative Way, Suite 301, Nashua, NH 03062 USA or see www.dell.com/warranty and www.dell.com/servicecontracts
** Availability and terms of Dell Services vary by region. For more information, visit www.dell.com/servicedescriptions
