Dell Wyse ThinOS Release 8.3.2

Administrator’s Guide

Notes, cautions, and warnings

NOTE: A NOTE indicates important information that helps you make better use of your product.

CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

© 2017 - 2018 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other

trademarks may be trademarks of their respective owners.

2017 - 01

Rev. A04

Contents

1 Introduction....................................................................................................................................................6

About this Guide.................................................................................................................................................................6

Technical Support.........................................................................................................................................................7

Release scope.....................................................................................................................................................................7

2 Getting Started: Quickly Learning the Basics.................................................................................................8

Connecting to a Remote Server.......................................................................................................................................8

Connecting a Remote Server Manually.....................................................................................................................9

Using Your Desktop............................................................................................................................................................9

Conguring Thin Client Settings and Connection Settings.........................................................................................10

Connecting to a Printer....................................................................................................................................................10

Connecting to a Monitor..................................................................................................................................................10

Locking the Thin Client.................................................................................................................................................... 10

Signing O and Shutting Down...................................................................................................................................... 10

Additional Getting Started Details................................................................................................................................... 11

Zero Desktop Features................................................................................................................................................11

Zero Interactive Desktop Guidelines..........................................................................................................................11

Zero Toolbar.................................................................................................................................................................12

List of Connections.....................................................................................................................................................12

Classic Desktop Features.................................................................................................................................................13

Classic Interactive Desktop Guidelines.....................................................................................................................13

Using the Shortcut Menu..........................................................................................................................................14

Using the Desktop Menu...........................................................................................................................................14

Using the Connection Manager................................................................................................................................15

Login Dialog Box Features............................................................................................................................................... 16

Accessing System Information........................................................................................................................................17

3 Global Connection Settings..........................................................................................................................19

4 Conguring the Connectivity........................................................................................................................21

Conguring the Network Settings..................................................................................................................................21

Conguring the General Settings............................................................................................................................. 21

Conguring the DHCP Options Settings................................................................................................................ 23

Conguring the ENET Settings................................................................................................................................24

Conguring the WLAN Settings.............................................................................................................................. 26

Conguring the Proxy Settings................................................................................................................................28

Conguring the Remote Connections...........................................................................................................................29

Conguring the Broker Setup.................................................................................................................................. 30

Conguring the Visual Settings................................................................................................................................38

Conguring the General Options............................................................................................................................. 40

Conguring the Authentication settings................................................................................................................. 40

Conguring the Central Congurations........................................................................................................................ 59

Conguring the General Central Congurations ...................................................................................................60

Contents 3

Conguring the WDA Settings..................................................................................................................................61

Conguring the VPN Manager.......................................................................................................................................64

5 Conguring Thin Client Settings..................................................................................................................68

Local Settings Menu........................................................................................................................................................68

Conguring the System Preferences...................................................................................................................... 68

Conguring the Display Settings...............................................................................................................................71

Conguring the Peripherals Settings.......................................................................................................................76

Conguring the Printer Settings.............................................................................................................................. 84

Reset Features................................................................................................................................................................. 93

Resetting to Factory Defaults Using G-Key Reset................................................................................................ 94

Resetting to Factory Defaults Using Shutdown Reset......................................................................................... 94

Resetting Display Settings Using V-Key Reset.......................................................................................................94

Accessing Thin Client BIOS Settings.......................................................................................................................94

6 Citrix HDX RealTime Multimedia Engine (RTME)........................................................................................ 95

Introduction...................................................................................................................................................................... 95

Installing RTME package on ThinOS.............................................................................................................................96

Setting up the RealTime Multimedia Engine (RTME) connector...............................................................................97

Verifying the RTME 1.8 Status....................................................................................................................................... 98

Verifying the RTME 2.1 Status....................................................................................................................................... 99

7 Advanced Details on Conguring ICA and RDP Connections.......................................................................101

Conguring ICA Connections........................................................................................................................................ 101

Conguring RDP Connections......................................................................................................................................105

8 ICA SuperCodec......................................................................................................................................... 110

ICA 14.0.0.91..................................................................................................................................................................... 113

9 Features of RDP 8.1.....................................................................................................................................115

Verifying the Status of VOR/H.264 .............................................................................................................................115

Work Flow of Dual Display..............................................................................................................................................116

Support Matrix for RDP 8.1............................................................................................................................................ 117

10 Introduction to Flash Redirection...............................................................................................................118

Flash Redirection.............................................................................................................................................................118

11 Introduction to TCX 7.0 Flash Redirection.................................................................................................. 121

Working Status of TCX 7.0 Flash Redirection..............................................................................................................121

12 Performing Diagnostics.............................................................................................................................123

System Tools................................................................................................................................................................... 123

Using the Trouble Shooting Options............................................................................................................................. 131

A Central Conguration: Automating Updates and Congurations.................................................................137

How to Set Up Automatic Updates and Congurations............................................................................................137

Using DHCP Options................................................................................................................................................137

B CMOS Management................................................................................................................................... 141

CMOS Central Management: Extracting CMOS Settings to the File Server for Distribution...............................141

4Contents

CMOS Local Management: Extracting CMOS Settings to a USB Key for Distribution........................................ 142

C Examples of Common Printing Congurations........................................................................................... 143

Printing to Local USB or Parallel Printers.................................................................................................................... 143

Using the Printer Setup Dialog Box for Local USB or Parallel Printers..............................................................144

Printing to Non-Windows Network Printers (LPD)....................................................................................................144

Using the Printer Setup Dialog Box for Non-Windows Network Printers (LPD)............................................. 145

Using INI Parameters for Non-Windows Network Printers (LPD)..................................................................... 145

Printing to Windows Network Printers (SMB)...........................................................................................................145

Using the Printer Setup Dialog Box for Windows Network Printers (SMB).....................................................146

Using INI Parameters for Windows Network Printers (SMB).............................................................................146

Using Your Thin Client as a Print Server (LPD).......................................................................................................... 147

Using the Printer Setup Dialog Box for Conguring LPD Services.................................................................... 147

Using INI Parameters for Conguring LPD Services............................................................................................148

Conguring ThinPrint.....................................................................................................................................................148

D Security Changes...................................................................................................................................... 150

E Transport Layer Security (TLS)..................................................................................................................154

F Important Notes.........................................................................................................................................155

G Frequently Asked Questions...................................................................................................................... 158

Contents 5

Introduction

Thin clients running Dell Wyse ThinOS rmware are designed solely for optimal thin client security and performance. These ecient

purpose-built thin clients are virus and malware resistant and oer ultrafast access to applications, les and network resources within Citrix,

Microsoft, VMware and Dell vWorkspace environments, and other leading infrastructures. ThinOS based thin clients are self-managed, go

from power-on to fully productive in seconds, and with no published API, locally accessible le system or browser, require no local McAfee

Anti-Virus software or rewall to protect against viruses or malware.

Topics:

• About this Guide

• Release scope

About this Guide

This guide is intended for administrators of thin clients running Wyse ThinOS. It provides information and detailed system congurations to

help you design and manage a ThinOS environment.

Supported Products

This guide is intended for the following Dell Wyse ThinOS products:

• C10LE

• R10L

• Wyse 3010 Thin Client with ThinOS (T10)

• Wyse 3020 thin client with ThinOS (T10D)

• Wyse 3030 LT thin client with ThinOS

• Wyse 3030 LT thin client with PCoIP

• Wyse 3040 thin client with ThinOS

• Wyse 3040 thin client with PCoIP

• Wyse 5010 thin client with ThinOS (D10D)

• Wyse 5010 thin client with PCoIP (D10DP)

• Wyse 5040 AIO thin client (5212)

• Wyse 5040 AIO thin client with PCoIP (5213)

• Wyse 5060 thin client with ThinOS

• Wyse 5060 thin client with PCoIP

• Wyse 7010 thin client with ThinOS (Z10D)

Finding the Information You Need in this Guide

You can use either the Search window or Find toolbar to locate a word, series of words, or partial word in an active PDF document. For

detailed information on using these features, refer to the Help in your PDF reader.

1

6Introduction

Technical Support

To access technical resources self-service portal, knowledge base, software downloads, registration, warranty extensions/ RMAs, reference

manuals, and so on, visit www.dell.com/wyse/support . For Customer Support, visit www.dell.com/support/contents/us/en/19/article/

Contact-Information/International-Support-Services/international-contact-center?ref=contactus , and phone numbers for Basic and Pro

Support are available at www.dell.com/supportcontacts.

NOTE: Before proceeding, verify if your product has a Dell service tag. For Dell service tagged products, go to www.dell.com/

support/contents/us/en/19/article/Product-Support/Dell-Subsidiaries/wyse.

Release scope

ThinOS 8.3.2 release is intended to support a new platform—Wyse 3040 thin client. A few updates to the existing features or new

enhancements may be included in each release. To know more about the feature updates since ThinOS 8.3.1 release, see Dell Wyse ThinOS

8.3.1 Hot Fix Release Notes and Dell Wyse ThinOS 8.3.2 Release Notes.

Introduction 7

Getting Started: Quickly Learning the Basics

Use the following information to quickly learn the basics and get started using your thin client:

•Connecting to a Remote Server

•Using Your Desktop

•Conguring Thin Client Settings and Connection Settings

•Connecting to a Printer

•Connecting to a Monitor

•Locking the Thin Client

•Signing O and Shutting Down

•Additional Getting Started Details

NOTE:

ThinOS is centrally managed and congured using INI les to automatically push updates and any desired default conguration to all

supported thin clients in your environment — see Central Conguration: Automating Updates and Congurations.

If no INI les are detected, you can use local dialog boxes on each thin client to make available congurations. ThinOS will save many of

these locally congured settings such as resolution, mouse, and keyboard to persist after reboot. However, once INI les are detected,

rebooting causes ThinOS to become stateless while ignoring locally congured settings after a reboot and then the settings contained

in the INI le will be used.

Topics:

• Connecting to a Remote Server

• Using Your Desktop

•Conguring Thin Client Settings and Connection Settings

• Connecting to a Printer

• Connecting to a Monitor

• Locking the Thin Client

• Signing O and Shutting Down

• Additional Getting Started Details

• Classic Desktop Features

• Login Dialog Box Features

• Accessing System Information

Connecting to a Remote Server

On your initial connection to central conguration, we recommended that you connect using a wired connection plug in the network-

connected Ethernet cable to your thin client before starting the thin client to obtain the congurations desired by the administrator. This

wired connection will also provide any wireless congurations provided by the administrator through INI les.

If you must initially connect to central conguration through wireless, use the Wireless tab in the Network Setup dialog box to enter the

SSID and encryption congurations required or set up by the network administrator. For more information, see Conguring the Network

Settings.

2

8Getting Started: Quickly Learning the Basics

Central Conguration — If you are congured for automatic detection using INI les — see

Dell Wyse ThinOS INI Guide

, your thin client

will automatically detect and connect to the congured remote services during the boot-up process. Press the power button to turn on

your thin client to see the Login dialog box. Enter your User name, Password, and Domain, and then click Login. After authentication is

successful, your available connections are presented.

NOTE:

Although the thin client will default to the Classic Desktop for INI backward compatibility, you can congure the thin client to display

the Zero Desktop by using the SysMode=VDI parameter in the INI les or by selecting the desktop option in the dialog box. For more

information, see Using Your Desktop.

Manual Connection — If you are not yet set up for central conguration, you will see the Zero Toolbar, where you can congure the initial

server connection you want using the Remote Connections dialog box before you can log in. For more information, see Connecting to a

Remote Server manually.

You only need to complete this manual conguration once or after reboot to factory defaults. After the thin client knows the location of

your server, it automatically connects to the server for login when you start the thin client in the future. After you conrm that your

environment is ready for deployment, you can create INI les for central conguration.

Connecting a Remote Server Manually

To connect a Remote Server manually, complete the following tasks:

1 Click the System Settings icon on the Zero Toolbar to open the System Settings menu, and then click Remote Connections to open

the Remote Connections dialog box.

2 Click the Broker Setup tab of the Remote Connections dialog box to congure one of the following connections:

• ICA or RDP connection —Select None, select ICA or RDP, click Congure Connection, and then follow the wizard.

• A specic broker server connection — Select Microsoft, Citrix Xen, Dell vWorkspace, VMware View, Amazon WorkSpaces or

Other, and then enter the IP Address for the server in the Broker Server box.

NOTE: For more details, see Conguring the Remote

Connections.

3 Click OK, and then restart the thin client.

Click the Shutdown icon on the Zero Toolbar to open, and use the Shutdown dialog box to restart the thin client.

NOTE:

• If an ICA or RDP connection is congured— After thin client restarts, click the Home icon on the Zero Toolbar to open the list

of available connections. Click the ICA or RDP connection you created, and then log in.

• If a specic Broker Server connection is congured— After thin client restart, the Login dialog box appears for your server.

Enter the User name, Password, and Domain and click Login. After authentication is successful, your Zero Toolbar is

presented with your assigned connections dened by the broker server.

Using Your Desktop

What you see after logging on to the server depends on the administrator congurations.

•Users with a Classic Desktop - will see the classic ThinOS desktop with full taskbar, desktop, and Connect Manager familiar to ThinOS

users. This option is the default out-of-the-box experience and is recommended for terminal server environments with published

applications and for backward compatibility with ThinOS 6.x versions. For more information on using the Classic Desktop, see Classic

Desktop Features.

•Users with a Zero Desktop - will see the Zero Desktop with the Zero Toolbar showing the assigned list of connections from which to

select. This option is recommended for VDI and any full-screen only connections. For more information on using the Zero Desktop, see

Zero Desktop Features.

Getting Started: Quickly Learning the Basics 9

In any desktop case, you can select the desktop option you want (Classic Desktop or Zero Desktop) and create the connections you need

using the Visual Experience tab on the Remote Connections dialog box.

To open the Remote Connections dialog box, perform one of the following tasks:

•Classic Desktop — Click User Name , and then select System Setup > Remote Connections.

NOTE: User Name is the user who is logged-on and is located at the lower-left pane of the taskbar

•Zero Desktop — Click the System Settings icon on the Zero Toolbar, and then select Remote Connections.

Conguring Thin Client Settings and Connection

Settings

While the use of INI les is recommended to congure thin client settings and connection settings available to users , see How to Set Up

Automatic Updates and Congurations, you can use dialog boxes on a thin client to:

• Set up your thin client hardware, look and feel, and system settings, see Conguring Thin Client Settings Locally.

•Congure connection settings, see Conguring Thin Client Settings Locally.

Connecting to a Printer

To connect a local printer to your thin client, be sure you obtain and use the correct adapter cables which are not included. Before use, you

may need to install the driver for the printer by following the printer driver installation instructions. For information on connecting to

printers, see Conguring the Printer Setup.

Connecting to a Monitor

Depending on your thin client model, connections to monitors can be made using either a VGA (analog) monitor port, a DVI (digital) monitor

port, or a DisplayPort (digital) and the proper Dell monitor cables/splitters/adapters. For information on conguring dual display settings,

see Conguring the Display Settings.

NOTE:

For dual-monitor supported thin clients— when using a DVI to DVI/VGA splitter, ensure that the DVI monitor will be the primary

monitor; when using a DisplayPort, ensure that the DisplayPort monitor will be the primary monitor.

Locking the Thin Client

To help ensure that no one else can access your private information without permission, ThinOS allows you to lock your thin client so that

credentials are required to unlock and use the thin client after you do one of the following:

•Unplug a signed-on smart card — If an administrator has set SCRemovalBehavior=1for the signing parameter in the INI les and

you unplug the smart card that you used to sign on to the thin client, then the thin client will lock. To unlock the thin client for use, you

must use the same smart card and your correct PIN. Note that removing a signed-on smart card can also cause the thin client to log-

o, if an administrator has set the INI les to do so in this case you must sign-on as usual to use the thin client.

•Use Lock Terminal from the Shortcut Menu and Shutdown dialog box — On the Classic Desktop, right-click on the desktop and

select Lock Terminal, or use the Shutdown dialog box, see Classic Desktop Features. On the Zero Desktop, use the Shutdown dialog

box, see Signing O and Shutting Down. To use the thin client, you must use your correct password.

•Use the screen saver — If an administrator has set LockTerminal=2 for the ScreenSaver parameter in the INI les and you use

the screen saver, then the thin client will lock. To open the thin client for use, you must use your correct password.

Signing O and Shutting Down

Use the Shutdown dialog box to select the available option you want:

10 Getting Started: Quickly Learning the Basics

•Classic Desktop — Click Shutdown in the Connect Manager or Desktop Menu.

•Zero Desktop — Click the Shutdown icon on the Zero Toolbar.

NOTE: You can also congure automatic behavior after all desktop sessions are closed by using the Remote Connections dialog

box, see Central Conguration: Automating Updates and Congurations.

Additional Getting Started Details

This section includes additional details on the following:

•Zero Desktop Features

•Classic Desktop Features

•Login Dialog Box Features

•Accessing System Information

Zero Desktop Features

This section includes information on:

•Zero Interactive Desktop Guidelines

•Zero Toolbar

•List of Connections

Zero Interactive Desktop Guidelines

The Zero Desktop has a default background with the Zero Toolbar at the left of the screen.

The Following table lists the available Zero Desktop shortcuts.

Action Press

Display the Zero Toolbar Ctrl+Alt+UpArrow

Open a selection box for toggling between the desktop and

currently-active connections

Ctrl+Alt+DownArrow

Lock the thin client Ctrl+Alt+LeftArrow

or

Ctrl+Alt+RightArrow

Keyboard shortcuts to menu commands Left-Alt+UnderlinedLetter

or

Right-Alt+UnderlinedLetter

Capture the full desktop to the clipboard Print Screen

Capture the active window to the clipboard Alt+PrintScreen

Getting Started: Quickly Learning the Basics 11

NOTE:

• You can copy and paste between application sessions and between sessions and the desktop, however, this function depends on

session server congurations.

• In addition to the standard two-button mouse, the thin client supports a Microsoft Wheel Mouse used for scrolling. Other similar

types of a wheel mouse may or may not work.

To switch the left and right buttons, use the Peripherals dialog box, see Conguring the Peripherals Settings.

Zero Toolbar

The Zero Toolbar usually appears at the left corner of the Zero Desktop. However, depending on administrator congurations, the toolbar

can be removed or hidden. It is shown only when a user moves the mouse pointer over the left edge of the desktop screen.

Administrators can congure the toolbar settings using either a dialog box, see Conguring the Remote Congurations or the SysMode

parameter in the wnos.ini le, see

Dell Wyse ThinOS INI Guide

.

Table 1. Toolbar icons

Icon What It Does

Home Opens the list of available connections, see List of Connections.

System Information Displays thin client system information, see Accessing System

Information .

System Settings Opens the System Settings menu to congure thin client system

settings and perform diagnostics, see Conguring the Connectivity,

Conguring Thin Client Settings Locally, Central Conguration:

Automating Updates and Congurations.

Shutdown Terminal Click the Shutdown Terminal icon to use the Shutdown options

available on the thin client, see Signing O and Shutting Down.

Note that the Shutdown Terminal icon does not display on the

toolbar when using the Admin Mode button to congure system

settings.

NOTE:

If congured to display by an administrator, the current date and time are shown on the Zero Toolbar. The thin client is capable of

synchronizing its clock to time provided by a Simple Network Time Protocol (SNTP) server.

List of Connections

On the Zero Toolbar, you can click the Home icon to open your list of assigned connections. In some cases, the list may contain only default

connections.

Use the following guidelines depending on user privilege level, some options may not be available for use:

12 Getting Started: Quickly Learning the Basics

Table 2. Connection Options

Option What It Does

Name of the connection Opens the connection you want to use.

NOTE: All open connections display a blue icon to the left

of the connection name in the list.

Reset icon Resets the connection.

NOTE: It is useful when a connection is not functioning

properly or you need to reboot the connection.

Close icon Closes the connection.

NOTE: The Close icon is grayed out for connections that

are not open.

Edit icon Opens the Connection Settings dialog box, see Advanced Details

on Conguring ICA and RDP Connections to change the

connection options.

NOTE: Depending on user privilege level, editing options

may not be available for use.

Add Connection Allows you to congure or add new connections.

Conguring Global Connection Settings If you do not use INI les to provide global connection settings, you

can click Global Connection Settings to open and use the Global

Connection Settings dialog box to congure settings that aect all

of the connection in the list.

Classic Desktop Features

This section includes information on:

•Classic Interactive Desktop Guidelines

•Using the Shortcut Menu

•Using the Desktop Menu

•Using the Connect Manager

Classic Interactive Desktop Guidelines

The Classic Desktop has a Dell Wyse default background with a horizontal task bar at the bottom of the screen.

Use the following guidelines:

• Icons representing available server connections and published applications are displayed on the background. If you pause the mouse

pointer over an icon, the information about the connection will be displayed. Right-clicking on an icon opens the Connection Settings

dialog box which displays additional information about the connection. The number of icons that can be displayed on the desktop

depends on the desktop resolution and administrator conguration.

• A server connection and published application can be opened by double-clicking a desktop icon or a user can navigate to the desktop

icon they want by using tab key and pressing Enter to initiate the connection.

• Right-clicking on the desktop provides a Shortcut Menu, see Using the Shortcut Menu.

Getting Started: Quickly Learning the Basics 13

• Clicking the User Name or clicking on the desktop, opens the Desktop Menu, see Using the Desktop Menu.

NOTE: User Name is the user who is logged-on and is located at the lower-left pane of the task bar.

NOTE: If congured to display by an administrator, the volume control is displayed in the right corner of the taskbar and the

current time and date are shown when the cursor is placed on the time; the thin client is capable of synchronizing its clock to

time provided by a Simple Network Time Protocol (SNTP) server.

Using the Shortcut Menu

To use the Shortcut Menu:

1 Log in as Administrator.

2 Right-click on your desktop

The Shortcut Menu is displayed.

3 On the Shortcut Menu, you are able to view and use the following options:

aAdministrator Mode — Allows administrators to congure various settings locally on thin client.

bHide all windows — Brings the full desktop to the foreground.

cCopy to clipboard — Copies an image of the full screen, current window or event log to the clipboard. The clipboard contents

can then be pasted to an ICA or an RDP session.

dPurge clipboard — Discards the contents of the clipboard in order to free up memory.

eLock Terminal — Puts the thin client in a locked state if the user has signed on to the system with a password. The thin client

can only be unlocked using the same password.

fGroup Sessions — Enables you to open more than three ICA or three RDP or three ICA seamless sessions. The sessions are

displayed as a group on the taskbar

Using the Desktop Menu

To use the desktop menu:

1 Click your Desktop or click your User Name.

User Name is the user who is logged-on and is at the bottom-left side of the taskbar.

The desktop menu is displayed.

2 On the desktop menu, you are able to view and use the following options:

aSystem Setup — Provides access to the following local system setup dialog boxes:

•Network Setup — Allows selection of DHCP or manual entry of network settings, as well as entry of locations of servers

essential to thin client operation. This menu selection is disabled for Low-privileged users. See Conguring the Network

Settings.

•Remote Connections — Allows you to congure thin client Broker connections including Microsoft, Citrix Xen, Dell

vWorkspace, VMware View, Amazon WorkSpaces or Other broker server connections. For more information, see Conguring

the Remote Connections.

•Central Conguration — Allows you to congure thin client central connection settings such as le server and optional

WDM server settings. For more information, see Conguring the Central Congurations.

•VPN Manager — Allows you to congure thin client VPN manager. For more information, see Conguring the VPN

Manager.

•System Preference — Allows user selection of thin client parameters that are matter of personal preference. For more

information, see Conguring the System Preferences

.

•Display — Allows you to congure the monitor resolution and refresh rate. For more information, see Conguring the Display

Settings.

14 Getting Started: Quickly Learning the Basics

•Peripherals — Allows you to select the peripherals settings such as keyboard, mouse, volume and touch screen settings. For

more information, see Conguring the Peripherals Settings.

•Printer — Allows conguration of network printers and local printers that are connected to the thin client. For more

information, see Conguring the Printer Settings.

bSystem Information — Provides thin client system information. See Accessing System Information .

cSystem Tools — Opens a submenu from which the wnos.ini and user.ini windows can be opened to view the contents of the

les. See System Tools.

dTrouble shooting Options — Displays Performance Monitor graphs that display client CPU, Memory and Networking

information and trace route response messages. For more information, See Using the Trouble Shooting Options and System

Tools

eApplications — Contains a submenu of all locally congured applications and is populated with published applications when a

user is signed on using either PNLite or PNAgent.

fShutdown — Opens the Sign-o/Shutdown/Shutdown/Restart the System dialog box. See Signing O and Shutting Down

Using the Connection Manager

To use the Connection Manager:

1 Click Connect Manager on the Taskbar.

• The Connect Manager has a list of connection entries and a set of command buttons available for use with the connections.

• Non-privileged users cannot view the Connect Manager.

The Connection Manager dialog box is displayed.

2 In the Connection Manager dialog box, use the following buttons to congure the Connection Manager settings:

a Click Connect to select a connection from the list and make a connection.

b Click New to open the Connection Settings dialog box either directly or through the Connection Protocol menu selection for

creating a new connection denition.

For more information on the Connection Settings dialog box, refer to Advanced Details on Conguring ICA and RDP

Connections.

The new locally dened connections are added to the connection list. Be aware of the following information:

•High-privileged user — Typically, all locally dened connection denitions are temporary and are lost when the user logs o

and when the thin client restarts or is shut down. However, if congured by an administrator (enablelocal=yes), locally

dened connection denitions can be saved in these cases.

•Stand-alone user — Locally dened connections are retained when the thin client restarts or is shut down and there is no

individual logon. Network conguration settings must be made locally.

c Click Properties to open the Connection Settings dialog box for the selected connection

Getting Started: Quickly Learning the Basics 15

For more information on the Connection Settings dialog box, refer to Advanced Details on Conguring ICA and RDP

Connections.

Be aware of the following information:

•High-privileged user — Can view and edit the denitions for the currently selected connection. Edits are not permanently

retained when the user signs-o.

•Low-privileged user — Cannot create or edit connections, but can view connection denitions.

•Stand-alone user — Can permanently modify the persistent connections except when PNAgent/PNLite services are used.

d Click Sign-o to sign o from the thin client.

e Select a connection from the list, and click delete to delete the selected connection.

f Select a Virtual connection from the list, and click Reset VM to reset a selected virtual connection.

g Click Global Connection Settings tab to open and use the Global Connection Settings dialog box to congure settings that

aect all of the connections in the list.

For more information on the Global Connection Settings dialog box, refer to Global Connection Settings.

Login Dialog Box Features

While the Login dialog box allows you to log on to the server, it also allows you to:

• Obtain system information.

• Access Admin Mode to congure thin client settings.

• Change or reset your own password and unlock your account.

• Open the Shutdown dialog box by using CTRL+ALT+DELETE.

In the Login dialog Box, use the following guidelines:

•System Information— Click the Sys Info button to open the System Information dialog box. You can view the thin client system

information such as System Version, IP Address, information on devices connected to your thin client, event logs and so on. For more

information, see Accessing System Information.

•Admin Mode — Click the Admin Mode button to congure various settings locally on the thin client other than broker desktop

congurations. For example, you can choose to manually congure the Citrix Xen Broker Server URL or override the URL that is

centrally dened by le servers by using the Remote Connections dialog box as described in Remote Connections.

•Classic Desktop — Use the Leave Administrator Mode option in the Shutdown dialog box.

•Zero Desktop — Use the Leave Administrator Mode option in the Shutdown dialog box, or use the Leave Administrator Mode icon

(X) in the upper-right pane of the System Settings menu.

NOTE: By default the Admin Mode button is not displayed on the log on dialog box. You can display it by selecting the Show

local admin button check box in the Shutdown dialog box, see Signing O and Shutting Down.

NOTE:

By default there is no password needed for Admin Mode button use. You can password protect the Admin Mode button (to require

login credentials) by using the AdminMode parameter in a wnos.ini le, see Dell Wyse ThinOS INI Guide.

•Shutdown — Click the Shutdown button to open and use the Shutdown dialog box to sign o, shut down, restart, reset the system

setting to factory defaults, and so on. For information, see Signing O and Shutting Down.

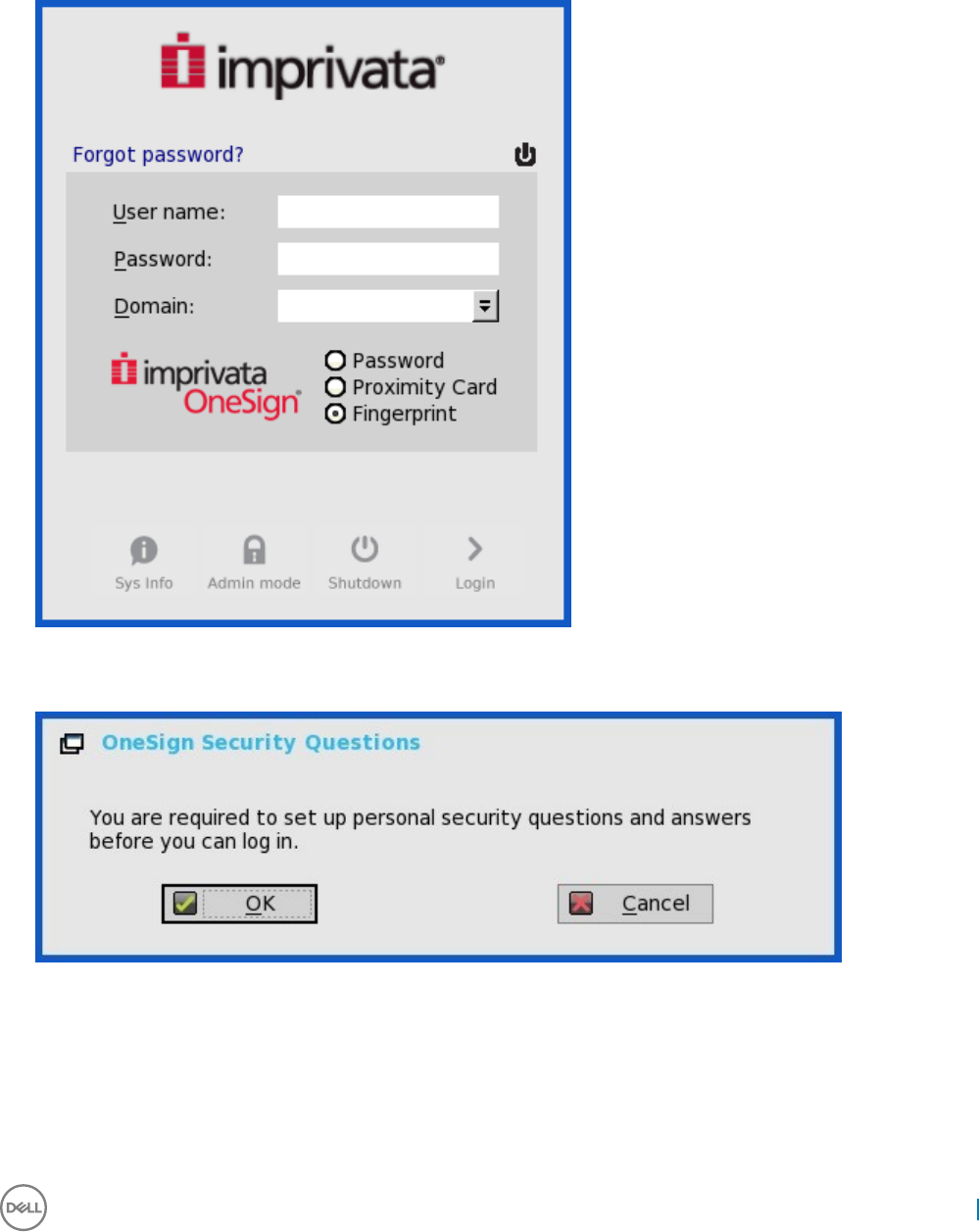

•Account Self-Service — Click the Account Self-Service icon shown when congured using the AccountSelfService option of the

PasswordServer INI parameter to open and use the Account Self-Service dialog box to change or reset your own password and unlock

your account. For information on INI parameter, see Dell Wyse ThinOS INI Guide.

This process assumes that the security questions and answers have been pre-registered by the user inside of their Windows environment.

Users must use HTTPS (not HTTP) for an account self-service server address such as https://IPAddress, in the Broker Setup tab. For

more information, see Conguring the Remote Connections. After answering the security questions, your new password will be set or your

account will be unlocked.

16 Getting Started: Quickly Learning the Basics

Accessing System Information

Use the System Information dialog box to view system information.

•Classic Desktop — Click System Information from the desktop menu.

•Zero Desktop — Click the System Information icon on the zero toolbar.

The System Information dialog box includes:

•General Tab — Displays general information such as System Version, Serial Number, Memory Size (Total and Free), CPU Speed, ROM

Size, Monitor, Parallel ports, Terminal Name, Boot from, Memory speed, SSD size, Resolution and Serial ports.

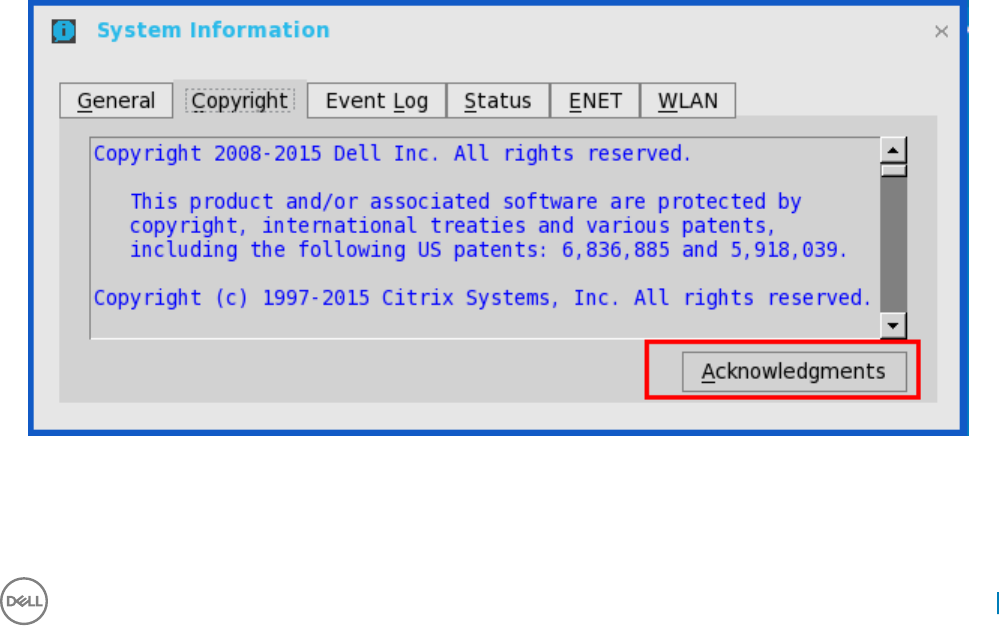

•Copyright Tab — Displays the software copyright and patent notices.

Acknowledgements button is added in the Copyright tab in System Information. This button is related to third party software and is

available only in following clients:

• Wyse 3030 LT with ThinOS

• Wyse 3040 with ThinOS

• Wyse 5010 with ThinOS (D10D)

• Wyse 5040 AIO thin client (5212)

• Wyse 5060 with ThinOS

• Wyse 7010 with ThinOS (Z10D)

This feature is supported on the following PCoIP enabled clients:

• Wyse 3030 LT with PCoIP

• Wyse 3040 with PCoIP

• Wyse 5010 with PCoIP (D10DP)

• Wyse 5040 with PCoIP (5213)

• Wyse 5060 with PCoIP

•Event Log Tab — Displays the thin client start-up steps normally beginning from System Version to Checking Firmware or error

Messages that are helpful for debugging problems. The details about the monitors connected to the thin client are also displayed.

Getting Started: Quickly Learning the Basics 17

Following is the screenshot displaying the Event Log tab for Monitors details:

•Status Tab — Displays status information about TCP performance related parameters, UDP performance related parameters, CPU

Busy, System Up Time, CCM status, Free Memory, Active sessions, and WDM status.

•IPv6 Tab — Displays IPv6 information such as Link-local Address, IPv6 Address and IPv6 Default Gateway.

NOTE: This tab is displayed when IPv6 is enabled in the General tab of the Network Setup dialog box, see Conguring the

Network Settings.

•ENET Tab— Displays information about wired network connections.

•WLAN Tab— Displays information about wireless network connections.

18 Getting Started: Quickly Learning the Basics

Global Connection Settings

If you do not use INI les to provide central conguration (global connection settings) to users, you can use the Global Connection

Settings dialog box to congure settings that aect all of the connections in your list of connections:

• Zero Desktop — Click Global Connection Settings in the List of Connections.

• Classic Desktop — Click Global Connection Settings in the Connect Manager.

To congure the Global Connection Settings:

1 On the desktop taskbar, click Connect Manager > Global Connection Settings.

The Global Connection Settings dialog box is displayed.

2 Click the Session tab to select the check boxes you want for the options that are available to all sessions.

The Smart Card check box species the default setting for connecting to a smart card reader at startup.

3

Global Connection Settings 19

NOTE:

ICA sessions always have automatic connection to attached smart card readers. When using the Disks check box for automatic

connection to connected USB sticks, use the following guidelines:

• More than one disk can be used at the same time, however, the maximum number of USB sticks including dierent subareas

is 12.

• Be sure to save all data and sign o from the session mapping the USB stick before removing the USB stick.

NOTE: USB devices redirection — By default, audio, video and printer devices will not use HDX USB for redirection. You

can make selections for USB device redirection on the Session tab of the Global Connection Settings dialog box.

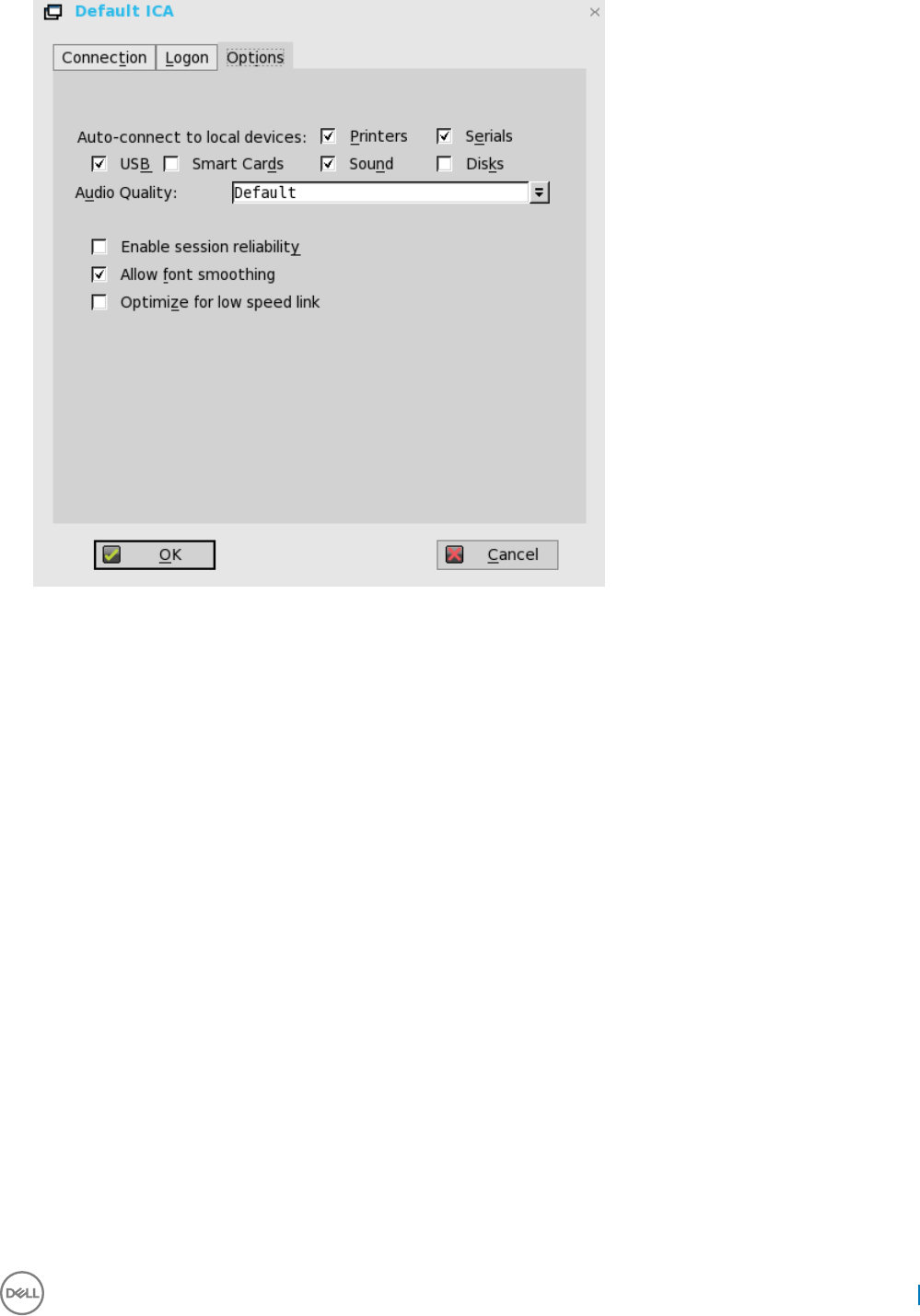

3 Click the ICA tab to select the check boxes you want for the options that are available to all ICA sessions. Select the audio quality

optimized for your connection.

Map to — When a drive is entered, maps a disk under the drive.

4 Click the RDP and use the following guidelines:

• Enable or disable Network Level Authentication (NLA)— The NLA authentication method veries users before they are allowed to

connect with a full Remote Desktop connection.

• Enable or disable ForceSpan— This dual-monitor feature allows you to span the session horizontally across two monitors, thus two

monitors acting as one large monitor.

• Enable or disable Terminal Service multimedia Redirection (TSMM).

• Enable or disable Record from Local (recording from local microphone).

• Enable or disable RemoteFX.

• Select the USB Redirection Type (TCX USB or RDP USB)— TCX USB is the default. To use RDP USB, you must use a RemoteFX

session for Windows 7/Windows2008R2 session. However, RDP USB is not supported using a standard Windows 7/

Windows2008R2 session. For Windows 8 session and above, RDP USB is supported.

5 In PCoIP enabled clients, an additional tab named PCoIP is available. Select the USB device redirection type from the drop-down list.

The available values are PCoIP USB and TCX USB.

20 Global Connection Settings

Conguring the Connectivity

This chapter helps you to understand various conguration settings for a secure connection. Connectivity menu includes:

•Conguring the Network Settings.

•Conguring the Remote Connections.

•Conguring the Central Congurations.

•Conguring the VPN Manager.

IMPORTANT:

To congure the settings on Classic desktop, click System Setup from the desktop menu, and use the conguration tabs.

To congure the settings on Zero desktop, click the System Settings icon on the zero toolbar, and then use the conguration tabs.

Topics:

•Conguring the Network Settings

•Conguring the Remote Connections

•Conguring the Central Congurations

•Conguring the VPN Manager

Conguring the Network Settings

To congure the network settings use the following options:

•Conguring the General Settings.

•Conguring the Options Settings.

•Conguring the ENET Settings.

•Conguring the WLAN Settings.

•Conguring the Proxy Settings.

Conguring the General Settings

To congure the general network settings:

1 From the desktop menu, click System Setup, and then click Network Setup.

The Network Setup dialog box is displayed.

4

Conguring the Connectivity 21

2 Click the General tab, and use the following guidelines:

a To set the default gateway, select the type of network interface from the available options.

1Single Network support — Either wireless or wired network is connected.

•ENET — Click this option, if you want set up the Ethernet Wired Network Connection.

•WLAN — Click this option, if you want set up the Wireless Network Connection.

• If the user use wireless network after selecting ENET connection or wired network after selecting WLAN connection,

then the system log "WLAN: set default gate way xx.xx.xx.xx" for rst case and "ENET: set default gate way

xx.xx.xx.xx" for second case are printed to ensure that the UI setting reects the actual usage.

NOTE: The User Interface (UI) will not be changed automatically.

2Dual Network support — Both wireless and wired networks are connected. The default gateway is determined by the UI

settings.

bUse Static Name Servers— By default, this check box is not selected (OFF=dynamicfrom DHCP).

If name servers are changed using GUI, INI or link down/ up, then the details are displayed in Event Logs.

In dynamic mode, the DNS/WINS can be merged from Ethernet and Wireless, if network is not working.

c Enter the URL address of the DNS Domain in the DNS Domain box.

d Enter the IP address of the DNS Server in the DNS Server box.

Use of DNS is optional. DNS allows you to specify remote systems by their host names rather than IP addresses. If a specic IP

address (instead of a name) is entered for a connection, it is used to make the connection. Enter the DNS Domain and the

network address of an available DNS Server. The function of the DNS Domain entry is to provide a default sux to be used in

name resolution. The values for these two boxes may be supplied by a DHCP server. If the DHCP server supplies these values,

they replace any locally congured values. If the DHCP server does not supply these values, the locally congured values will be

used.

NOTE: You can enter up to 16 DNS Server addresses, separated by a semicolon, comma, or space. The rst address is

for the primary DNS server and the rest are secondary DNS servers or backup DNS servers .

e Enter the IP address of the WINS Server in the WINS Server box.

Use of WINS is optional. Enter the network address of an available WINS name server. WINS allows you to specify remote

systems by their host names rather than IP addresses. If a specic IP address (instead of a name) is entered for a connection, it

22 Conguring the Connectivity

is used to make the connection. These entries can be supplied through DHCP, if DHCP is used. DNS and WINS provide

essentially the same function, name resolution. If both DNS and WINS are available, the thin client attempts to resolve the name

using DNS rst and then WINS.

You can enter two WINS Server addresses (primary and secondary), separated by a semicolon, comma, or space.

f Enter the digit multiplier of 30 seconds in the TCP Timeout box to set the time-out value of a TCP connection. The value must

be 1 or 2 which means the connection time-out value is from 1x30= 30 seconds to 2x30= 60 seconds. If the data for connecting

to the server is not acknowledged and the connection is time out, setting the time-out period retransmits the sent data and

again tries to connect to the server till the connection is established.

3 Click OK to save the settings.

Conguring the DHCP Options Settings

To congure the options settings:

1 From the desktop menu, click System Setup, and then click Network Setup.

The Network Setup dialog box is displayed.

2 Click the Options tab, and use the following guidelines:

aDHCP Option IDs — Enter the supported DHCP options. Each value can only be used once and must be between 128 and 254.

For information about DHCP options, see DHCP Options.

bInterpret DHCP Vendor-Specic Info — Select this check box for automatic interpretation of the vendor information.

cDHCP Vendor ID — Shows the DHCP Vendor ID when the dynamically allocated over DHCP/BOOTP option is selected.

Conguring the Connectivity 23

dDHCP UserClass ID — Shows the DHCP UserClass ID when the dynamically allocated over DHCP/BOOTP option is selected.

3 Click OK to save the settings.

Conguring the ENET Settings

To congure the ENET settings:

1 From the desktop menu, click System Setup, and then click Network Setup.

The Network Setup dialog box is displayed.

2 Click the ENET tab, and use the following guidelines:

aEthernet Speed — Normally the default (Auto-Detect) should be selected, but another selection can be made if automatic

negotiation is not supported by your network equipment. Selections include Auto-Detect, 10 MB Half-Duplex, 10 MB Full-

Duplex, 100 MB Half-Duplex, 100 MB Full-Duplex, and 1 GB Full-Duplex.

The 10 MB Full-Duplex option can be selected locally at the device, however, this mode may need to be negotiated through

AutoDetect.

b The IPV4 check box is selected by default. Click Properties to set various options supported by IPV4.

•Dynamically allocated over DHCP/BOOTP — Selecting this option enables your thin client to automatically receive

information from the DHCP server. The network administrator must congure the DHCP server using DHCP options to

provide information. Any value provided by the DHCP server replaces any value entered locally on the Options tab, however,

locally entered values are used if the DHCP server fails to provide replacement values.

24 Conguring the Connectivity

•Statically specied IP Address — Select this option to manual enter the IP Address, Subnet Mask and Default Gateway:

•IP Address — Must be a valid network address in the server environment. The network administrator must provide this

information.

•Subnet Mask — Enter the value of the subnet mask. A subnet mask is used to gain access to machines on other

subnets. The subnet mask is used to dierentiate the location of other IP addresses with two choices: same subnet or

other subnet. If the location is other subnet, messages sent to that address must be sent through the Default Gateway,

whether specied through local conguration or through DHCP. The network administrator must provide this value.

•Default Gateway — Use of gateways is optional. Gateways are used to interconnect multiple networks (routing or

delivering IP packets between them). The default gateway is used for accessing the internet or an intranet with multiple

subnets. If no gateway is specied, the thin client can only address other systems on the same subnet. Enter the address

of the router that connects the thin client to the internet. The address must exist on the same subnet as the thin client

as dened by the IP address and the subnet mask. If DHCP is used, the address can be supplied through DHCP.

c Select the IPV6 check box, and then click Advanced to select various IPV6 supported setting options from the available check

boxes.

d Click properties and use the following guidelines:

•Wait DHCP — Selecting this option enables your thin client to wait for IPV6 DHCP before the sign-in, if not selected the

system will only wait for IPV4 DHCP if enabled.

•Dynamically allocated over DHCP/BOOTP — Selecting this option enables your thin client to automatically receive

information from the DHCP server. The network administrator must congure the DHCP server (using DHCP options) to

provide information. Any value provided by the DHCP server replaces any value entered locally on the Options tab, however,

locally entered values are used if the DHCP server fails to provide replacement values.

•Statically specied IP Address — Select this option to manually enter the IP Address, Subnet Mask and Default Gateway.

•IP Address — Must be a valid network address in the server environment. The network administrator must provide this

information.

•Subnet Mask — Enter the value of the subnet mask. For more information, see various options supported by IPV4 in

this section.

•Default Gateway — Use of gateways is optional. For more information, see various options supported by IPV4 in this

section.

•DNS Servers — Use of DNS is optional. DNS allows you to specify remote systems by their host names rather than IP

addresses. If a specic IP address (instead of a name) is entered for a connection, it rather than DNS is used to make the

connection. Enter the network address of an available DNS Server. The value for this box may be supplied by a DHCP server.

If the DHCP server supplies this value, it replaces any locally congured value. If the DHCP server does not supply this value,

the locally congured value is used.

e Select the check box to enable IEEE802.1x Authentication.

•EAP Type — If you have enabled the Enable IEEEE 802.1x authentication check box, select the EAP Type option you want

(TLS, LEAP PEAP or FAST).

•TLS — If you select the TLS option, click Properties to open and congure the Authentication Properties dialog box.

• Select the Validate Server Certicate check box because it is mandatory to validate your server certicate.

NOTE:

The CA certicate must be installed on the thin client. Also note that the server certicate text eld supports

a maximum of approximately 127 characters, and supports multiple server names.

• If you select the Connect to these servers check box, the box is enabled where you can enter the IP address of server.

• Click Browse to nd and select the Client Certicate le and Private Key le you want.

The following kinds of server names are supported — all examples are based on Cert Common name company.wyse.com

Conguring the Connectivity 25

NOTE:

Using only the FQDN, that is company.wyse.com does not work. You must use one of the options (note that *.wyse.com is

the most common option as multiple authentication servers may exist): servername.wyse.com

*.wyse.com

*wyse.com

*.com

fLEAP — If you select the LEAP option, click Properties to open and congure the Authentication Properties dialog box. Be

sure to use the correct Username and Password for authentication. The maximum length for the username or the password is

64 characters.

gPEAP — If you select the PEAP option, click Properties to open and congure the Authentication Properties dialog box. Be

sure to select either EAP_GTC or EAP_MSCHAPv2, and then use the correct Username, Password and Domain. Validate

Server Certicate is optional.

NOTE:

The server certicate text box for LEAP and PEAP supports a maximum of approximately 127 characters, and supports

multiple server names.

hFAST—If you select the FAST option, click Properties to open and congure the Authentication Properties dialog box. Be sure

to select either EAP_GTC or EAP_MSCHAPv2, and then use the correct Username, Password and Domain. Validate Server

Certicate is optional.

i To congure EAP-GTC, enter the username only. The password or PIN is required when authenticating.

To congure EAP-MSCHAPv2, enter the username, password and domain.

IMPORTANT: The domain/username in the username box is supported, but you must leave the domain box blank.

The CA certicate must be installed on the thin client and the server certicate is forced to be validated. When EAP-

MSCCHAPV2 is selected in EAP type in the Authentication Properties dialog box (for PEEP IEEE802.1x authentication), an

option to hide the domain is available for selection. Username and Password boxes are available for use, but the Domain text box

is disabled.

3 Click OK to save the settings.

Conguring the WLAN Settings

1 From the desktop menu, click System Setup, and then click Network Setup.

The Network Setup dialog box is displayed.

2 Click the WLAN tab, and use the following guidelines:

26 Conguring the Connectivity

aAdd— Use this option to add and congure a new SSID connection.

You can congure the SSID connection from the available security type options.

b After you congure the SSID connection, the added SSID connection is listed on the page of the WLAN tab.

cRemove — Use this option, if you want to remove a SSID connection by selecting the SSID connection from the list.

Conguring the Connectivity 27

dProperties — Use this option to view and congure the authentication properties of a SSID connection that is displayed in the

list.

e Select the Disable Wireless Device check box, if you want to disable a wireless device.

From ThinOS 8.3, EAP-FAST authentication is supported. During the initial connection, when there is a request for a Tunnel PAC from

the authenticator, the PAC is used to complete the authentication. Therefore, the rst time connection always fails and the following

connections succeed.

•New User Interface (UI): Wireless > EAP Type > EAP - FAST; Second authentication method supports MSCHAPv2/GTC only for

EAP-FAST.

• Only automatic PAC provisioning is supported in this release. The user/machine PAC provisioning generated with Cisco EAP-FAST

utility is not supported.

3 Click OK to save the settings.

Conguring the Proxy Settings

The network Proxy tab is added to support Cloud Client Manager (CCM) and HDX Flash Redirection.

Supported Protocols

• For HDX FR, HTTP and HTTPS protocols are supported.

• If both are congured, the HDX FR works with HTTPS proxy.

28 Conguring the Connectivity

• User credential pass through is possible with $UN/$PW.

• For CCM, HTTP, HTTPS and Socks5 (recommended) protocols are supported.

1 From the desktop menu, click System Setup, and then click Network Setup.

The Network Setup dialog box is displayed.

2 Click the Proxy tab, and use the following guidelines:

a Enter the HTTP proxy port number or HTTPS proxy port number, Username and Password in the respective elds. However,

Credential pass through ($UN/$PW) is not recommended because it starts before user sign on.

CCM uses both HTTP/HTTPS and MQTT protocols to communicate with CCM/MQTT server. However, the HTTP proxy cannot

redirect TCP packages to MQTT server which requires a Socks5 proxy server. If there is only HTTP server available, then the

real-time command that requires MQTT will not work.

HTTP/HTTPS proxy default port is 808, and SOCK5 proxy default port is 1080.

b Select the Use the rst proxy server for all protocols check box to allow all the protocols to use the same server in HTTP Proxy

elds. Both HTTP and HTTPS proxy use the same host and port, and Socks5 proxy agent uses HTTP host with default Socks 5

port (1080).

c If SOCKS5 proxy is congured, then CCM proxy uses the SOCKS5 only. If SOCKS5 is not congured, then CCM proxy searches

for alternative protocols, for example, HTTP in the conguration.

d Specify the supported applications as CCM and FR in the Apply proxy server on eld.

3 Click OK to save the settings.

User Scenarios

1Congure correct proxy server host and port.

2Congure the user credentials according to the proxy server settings.

3 On system restart, the client checks in to the CCM server through Socks5 proxy server.

4 MQTT connection is established through Socks5 proxy server.

5 Real-time commands work ne through Socks5 proxy server.

6 Connect to the Citrix desktop, congure proxy in internet options of the browser, and then playback HDX FR through the HTTP/

HTTPS proxy authentication.

Conguring the Remote Connections

Use the Remote Connections dialog box to congure thin client remote connections including ICA, RDP, Citrix XenDesktop, Microsoft,

VMware View, Dell vWorkspace, and other broker server connections. This dialog box also enables you to congure visual options, and

general connection settings.

•Conguring the Broker Setup

•Conguring the Visual Settings

•Using the General Options

•Conguring the Authentication Settings

NOTE:

In the Classic Desktop option, the Remote Connections dialog box allows you to create default ICA and RDP connections for use. If

you want to create several ICA and RDP connections (more than the default connections), use the Connect Manager, For more

information see Using the Connect Manager.

Conguring the Connectivity 29

Conguring the Broker Setup

To congure the Broker setup:

1 From the desktop menu, click System Setup, and then click Remote Connections.

The Remote Connections dialog box is displayed.

2 Select Broker type from the drop-down list.

a If you select None from the list, click either of the following connection protocols:

•ICA — For more information, see Conguring ICA Connections.

•RDP — For more information, see Conguring RDP Connections.

b If you select the Citrix Xen, use the following guidelines:

• Select the check box to enable the StoreFront style.

•Broker Server— Enter the IP address/Hostname/FQDN of the Broker Server.

•Auto Connect List—Enter the name of the desktops that you want to launch automatically after logging in to the respective

broker. More than one desktop can be entered. Each desktop name is separated by semi-colon, and is case-sensitive.

30 Conguring the Connectivity

• Select the check box to enable automatic reconnection at logon.

NOTE:

If you enable the automatic reconnection, you are able to select from the reconnection options. Click either of the

options where you can connect to the disconnected sessions only or connect to both active and disconnected

sessions.

• Select the check box to enable automatic reconnection from the button menu.

NOTE: If you enable the automatic reconnection, you are able to select from the reconnection options. Click

either of the options where you can connect to the disconnected sessions only or connect to both active and

disconnected sessions.

•Account Self-Service Server— Enter the IP address of the Account self-service server.

•XenApp — Use this option, if you want to set default settings to XenApp.

•XenDesktop— Use this option, if you want to set default settings to XenDesktop.

c If you select the VMWare view, use the following guidelines:

•Broker Server— Enter the IP address/Hostname/FQDN of the Broker Server.

•Auto Connect List—Enter the name of the desktops that you want to launch automatically after logging in to the respective

broker. More than one desktop can be entered. Each desktop name is separated by semi-colon, and is case-sensitive.

•Security mode—Select the preferred Security mode from the following options:

•Warning —Warn Security requires FQDN address with self-signed certicate, or without any certicate, but

corresponding warning message is displayed for user to continue.

•Full—Full Security requires FQDN address with domain certicate.

•Low—Security allows FQDN/IP address with/without certicate.

•Default— Follows global security mode settings.

For PCoIP enabled clients, an additional Connection Protocol drop-down list for protocol selection is available. By default, the

option is set to Server Default.

From the Connection Protocol drop-down list, select the type of protocol connection. The available options are:

•Server Default— Select this protocol connection to display the desktop with default protocol as congured in the VMware

View Admin console, for each pool in the broker. If a desktop pool is congured with default protocol as RDP in the View

Admin console, then only the RDP connection of the desktop is displayed in ThinOS after users sign in to the device.

•All Supported—Select this protocol connection to display the desktop in both RDP and PCoIP connections, when a desktop

pool is congured to allow users to select protocol as yes. If a desktop is congured with default protocol as PCoIP and allow

user to select protocol as no, then ThinOS only displays the desktop in PCoIP connection.

•RDP only— Select this protocol connection to display only the desktop in RDP connection. If a desktop pool is congured

with default protocol as PCoIP in the View Admin console, and allow user to select protocol as no, then this desktop is not

displayed in ThinOS after user signs in to the device.

•PCoIP only—Select this protocol connection to display only the desktop in PCoIP connection, for each pool in the broker. If

a desktop pool is congured with default protocol as RDP in the View Admin console, and allow user to select protocol as no,

then this desktop is not displayed in ThinOS after user signs in to the device.

For more information about VMware Horizon View broker, see Using the VMware Horizon View broker and PCoIP.

d If you select the Microsoft, use the following guidelines:

•Broker Server—Enter the IP address/Hostname/FQDN of the Broker Server.

•Auto Connect List—Enter the name of the desktops that you want to launch automatically after logging in to the respective

broker. More than one desktop can be entered. Each desktop name is separated by semi-colon, and is case-sensitive.

e If you select Dell vWorkspace, use the following guidelines:

•Broker Server— Enter the IP address/Hostname/FQDN of the Broker Server.

Conguring the Connectivity 31

•Auto Connect List—Enter the name of the desktops that you want to launch automatically after logging in to the respective

broker. More than one desktop can be listed. Each desktop name is separated by a semi-colon, and is case-sensitive.

• Select the check box to enable vWorkspace Gateway.

•vWorkspace Gateway— Enter the IP Address of the vWorkspace Gateway.

f If you select Other, you must enter the IP address of the Broker server in the Broker Server box.

g If you select the Amazon Workspaces, use the following guidelines:

NOTE: Amazon Workspaces connection is applicable only for PCoIP clients running ThinOS 8.3 and later versions.

•Broker Server— Enter the IP address/Hostname/FQDN of the Broker Server.

•Auto Connect List—Enter the name of the desktops that you want to launch automatically after logging in to the respective

broker. More than one desktop can be listed. Each desktop name is separated by a semi-colon, and is case-sensitive.

•Security mode—Select the preferred Security mode from the following options:

•Warning —Warn Security requires FQDN address for domain certicate installed in PCM. If certicate is not installed on

the client, corresponding warning message is displayed for you to continue.

•Full—Full Security requires FQDN address with domain certicate installed in PCM, and certicate installed on the client.

•Low—Security allows FQDN/IP address with/without certicate.

•Default— Follows global security mode settings.

•Connection Protocol— The drop-down list is disabled for AWS broker. By default, the option is set to PCoIP Only.

32 Conguring the Connectivity

For information about deploying AWS WorkSpaces and AWS EC2 PCM for AWS WorkSpaces, go to www.teradici.com/web-

help/Connecting_ZC_AWS_HTML5/TER1408002_Connecting_ZC_AWS.htm#03_DeployPCM.htm%3FTocPath%3D3.

For information about conguring the Broker Server address = “URI (https://<FQDN or IP address>) of the PCM”, go to

www.teradici.com/web-help/Connecting_ZC_AWS_HTML5/TER1408002_Connecting_ZC_AWS.htm#05_Connect.htm

%3FTocPath%3D5.

Known issues with Amazon Web Services/Workspaces

• Key combination Ctrl + Alt disconnects users from AWS session intermittently with old agent in AWS desktop. To x this

issue, update to latest agent by rebooting the desktop.

• Each user is assigned with one WorkSpaces desktop, and therefore logon with any username returns to the single desktop

and then the session connects automatically. Disconnecting from the desktop returns user to logon screen.

3 Click OK to save the settings.

VMware Horizon View broker and PCoIP

VMware Horizon View Broker timeout— The VMware Horizon View Broker timeout does not force the user to sign out from the broker

anymore when the secure tunnel is enabled.

In earlier version of ThinOS, when the broker times out, the user session is disconnected and the user is logged out from the broker. From

ThinOS 8.2 release, ThinOS disconnects the user session from the broker, but does not force user logout. This is because the user has local

connections other than the broker desktop, and these connections are active when the broker timeout is reached.

PCoIP session NUM/CAP keyboard status synchronizes with session instead of thin client—This is applicable for session startup only.

The PCoIP session keyboard NUM/ CAP status synchronizes from remote session to client, whereas RDP/ ICA synchronize status from

local to remote session.

For example,

1 Set keyboard NUM=off in current PCoIP session.

2 Disconnect the session.

3 Set client keyboard NUM=on.

4 Reconnect to the PCoIP session.

5 The keyboard NUM status in both session and client is updated to NUM=off.

RDS desktop through PCoIP—You can view and connect to the Remote Desktop Service (RDS) desktop through the PCoIP protocol in

the broker using PCoIP enabled ThinOS clients. In VMware Horizon View 6.0 and later versions, the RDS desktop has RDP and PCoIP

connections based on server congurations.

NOTE: The RDS Application over PCoIP is not supported.

The RDS desktop protocol switch message dialog box is provided in this release. A typical user scenario is as follows:

1 Connect to the RDS desktop through protocol. For example, RDP.

2 Disconnect from the desktop.

3 Connect to the same RDS desktop through another protocol. For example, PCoIP.

The message dialog box is displayed, allowing you with an option to continue.

The options available are:

•Cancel— You can end the PCoIP connection, and connect to the desktop in RDP again.

•Log Out and Reconnect— You can connect to the desktop through PCoIP, and the earlier session in RDP is logged out.

Conguring the Connectivity 33

USB redirection RDS desktop through PCoIP— This feature is supported.

Supporting the VMware Real Time Audio-Video

Use the Real-Time Audio-Video feature to run Skype and other online conference applications on the remote desktop. Using this feature,

both audio and video devices that are connected to your thin client are available to use for VoIP in remote desktop.

To know more about the VMware Real Time Audio-Video support, go to pubs.vmware.com/horizon-62-view/topic/com.vmware.horizon-

view.desktops.doc/GUID-D6FD6AD1-D326-4387-A6F0-152C7D844AA0.html.

NOTE: There is no additional conguration for ThinOS. RTAV video requires RTME package to be installed on your device.

To validate the VMware Real Time Audio-Video, do the following:

1 Connect to the VMware PCoIP desktop with the audio and video devices.

NOTE: USB redirection must be disabled for the audio/video devices.

2 Verify the audio playback of the system using the VMware Virtual Audio.

34 Conguring the Connectivity

3 Verify the system audio recording using the VMware Virtual Microphone.

4 Verify the Audio settings in VoIP application.

Conguring the Connectivity 35

5 Verify the Video settings in VoIP application using the VMware Virtual Webcam.

6 Start the audio/video calls.

Dependencies and Known Issues

• Dependency: RTME.i386.pkg needs to be installed for RTAV video.

• The answer call button of the local audio device, supported by HDX RTME, is not supported by RTAV.

• RTAV does not support RDS desktop, for example, 2008R2/ 2012R2 according to VMware.

• Support for PCoIP protocol only. RDP protocol is not supported according to VMware.

• Webcam preferences are not supported. For example, the rst webcam displayed in the Camera tab in local peripheral settings is used

always.

36 Conguring the Connectivity

• Camera/Video: High Denition video is not supported because of the RTAV limitation. The local camera setting does not aect RTAV

video because of the application design. Dell recommend users not to interfere with the local camera settings.

Citrix Icon Refresh

Citrix applications can be refreshed by clicking Refresh from PNMenu.

There are two methods to refresh the Citrix applications:

• Manual refresh

• Auto refresh using the INI parameter

Refreshing Citrix Applications Manually

To refresh the Citrix application manually, do the following:

1 For single StoreFront or PNAgent server, change the application in broker, and then click Refresh from PNMenu.

The following message is displayed in the lower right pane during application refresh.

2 Applications are refreshed in Session bar list, Connect Manager list and App menu list.

The following log is displayed in the Event Log window:

ICA: refresh store “xxx”…” or “ICA: refresh PNAgent”xxx”…

3 For MultiFarm (StoreFront or PNAgent servers) or Multilogon (StoreFront or PNAgent servers), select a single server to refresh or

click Refresh All to refresh all servers.

Conguring the Connectivity 37

NOTE:

Warning message is displayed when you open or edit or remove applications when you refresh the applications.

4 Refresh scope covers the aspects such as, application removed, added, duplicated, disabled, enabled, icon/title change, and on/o

desktop.

Active sessions that are started are not aected by application refresh.

5 The disconnect session can be reconnected after application refresh, if Automatic reconnection at logon is enabled in remote

connection.

Refreshing the Citrix Applications Automatically Using INI Parameter

To automatically refresh the Citrix application, set the following INI parameter:

SessionConfig=ICA RefreshTimeOut=dd:hh:mm

For example, 01:01:22, means the application will start refresh automatically, every 1 day: 1 hour: 22 minutes.

Limitations of Citrix Icon Refresh

Following are the limitations of Citrix icon refresh:

• Citrix icon refresh is supported in classic mode and storefront mode only.

• Virtual Desktop Infrastructure (VDI) mode is not supported.

Conguring the Visual Settings

To congure the visual settings:

1 From the desktop menu, click System Setup, and then click Remote Connections.

The Remote Connections tab is displayed.

2 Click Visual Experience tab, and use the following guidelines:

38 Conguring the Connectivity

NOTE: The Visual Experience tab is grayed out, if the StoreFront Style check box is selected for a Citrix Broker Server

entered in the Broker Setup tab.

aClassic Desktop — Displays the full taskbar, desktop and Connect Manager familiar to ThinOS users. This option is

recommended for terminal server environments and for backward compatibility with ThinOS 6.x versions.

bZero Launchpad — Displays the new launch pad style GUI designed for VDI use. Functionality is accessed through an always

available interface. This option is recommended for VDI and any full-screen only connections. Toolbar, hotkey and connection

icon options are also available for conguration.

If you select the Zero Launchpad, then use the following guidelines:

• Select the check box to enable Zero Toolbar activation in left pane.

• Select the button if you want to enable Zero Toolbar activation in left pane when you pause a mouse on the screen.

• Select the button if you want to enable Zero Toolbar activation in left pane only after clicking.

• Select the check box to disable hotkey to show toolbar.

• Select the check box to always disable toolbar when you have one session available.

• Select the check box to disable Home Icon.

3 Click OK to save the settings.

Conguring the Connectivity 39

Conguring the General Options

To congure the general options:

1 From the desktop menu, click System Setup, and then click Remote Connections.

The Remote Connections dialog box is displayed.

2 Click the General Options tab, and use the following guidelines:

a Click the available options to select the action after you exit all open desktops. The available options are None, Sign-o

automatically, Shut down the system automatically and Restart the system automatically.

NOTE: By default, None is selected and the thin client automatically returns to the terminal desktop.

bDefault Sign-on Username— Enter the Default user name.

cDefault Sign-on password— Enter the Default password.

dDefault Sign-on Domain— Enter the Default Domain.

e Click Clear locally saved connections to clear locally saved connections.

NOTE: If you enter all three default sign-on credentials (Username, Password and Domain), you are automatically

logged on to your desktop upon system start.

Conguring the Authentication settings

To congure the authentication settings:

1 From the desktop menu, click System Setup, and then click Remote Connections.

40 Conguring the Connectivity

The Remote Connections dialog box is displayed.

2 Click the Authentication tab, and select the authentication type.

Three types of authentication are displayed.

• Imprivata— Conguring the Imprivata OneSign Server.

• Caradigm—Conguring the Caradigm Server.

• SECUREMATRIX— Conguring SECUREMATRIX.

• HealthCast—Introduction to HealthCast.

3 After conguring your preferred authentication, click OK to save the settings.

Conguring the Imprivata OneSign Server

OneSign Virtual Desktop Access provides a seamless authentication experience and can be combined with single sign-on for No Click

Access to desktops and applications in a virtual desktop environment.

Conguring the Connectivity 41

To congure the OneSign Server, enter the details of the OneSign Server (either https://ip or https://FQDN values), reboot the client to

display the logon dialog box, and then enter credentials to open the VDI broker dialog box for logon use. You can also set this feature in your

INI le, see Dell Wyse ThinOS INI Reference Guide.

The following OneSign features or actions are supported:

• Client and Broker Authentication

• Citrix Xen App

• Citrix Xen Desktop

• VMware View

• Kiosk Mode

• Fast User Switching

• Non-OneSign user VDI access

• Hotkey Disconnect

• Proximity card reader redirection

• Guided Question and Answer login

• Authenticate w/Password

• Authenticate w/Password + Password Change

• Authenticate w/Password + Password Change | New Password is Invalid

• Authenticate w/Proximity Card + Password

• Authenticate w/Proximity Card + Pin

• Authenticate w/Proximity Card + Pin | Pin not enrolled

• Authenticate w/Proximity Card Alone | Retrieve Password

• Retrieve User Identity Password

• Reset User Identity Password

• Update User Identity Password

• Enroll Proximity Card

• Lock/Unlock Terminal with Proximity CardLock/Unlock Terminal with Proximity Card

For details on Deployment in an Imprivata OneSign ProveID Environment, see Knowledge Base Solution #23254 . Go to www.dell.com/

wyse/knowledgebase and search for 23254.

ThinOS supports latest Imprivata WebAPI version 5. It includes OneSign Objects (WebAPI v4) and Fingerprint Authentication (WebAPI v5).

From ThinOS 8.3.1 Hot Fix release, Imprivata SSO solution is supported for ARM platforms—Wyse 3010 thin client and Wyse 3020 thin

client series.

Conguring objects on Imprivata Server

Imprivata WebAPI is updated from v4 to v5. From earlier version, supports conguration objects are supported that enables you to control

dierent aspects of client behavior. The Imprivata WebAPI feature is available on OneSign server 4.9 and later versions. The Conguration

objects control dierent aspects of the client behavior.

Use the following guidelines to congure the objects on Imprivata Server:

1 Conguring the General conguration object

a On the Imprivata server, click Computer policy, and then click General tab.

b Select the check box to allow users to shut down and restart workstation from lock screen.

NOTE: Display shutdown button and restarts commands to the user on the OneSign GINA.

42 Conguring the Connectivity

The following conguration objects are supported on Imprivata server:

•Shutdown Allow

• If you enable this feature by selecting the check box, the shutdown and restart icon is shown in ThinOS login and locked

windows.

• If you clear the check box, the shutdown and restart icon is grayed out.

•FailedOneSignAuth Allow—

Only yes or no options are supported. Non-OneSign user can log in to the Broker by clicking No radio button.

•Logging Allow

• OneSign logs could output on ThinOS with this feature. An INI conguration is needed correspondingly.

• Loglevel=0/1/2/3. The default value is 0. If set to 0, logs are not displayed.

•Display name format — Account name can be shown correctly with dierent formats in pop-up notications.

2 Conguring the Walkway conguration object

On the Imprivata server, click Computer policy, and then click the Walk Away tab.

•Key mouse inactivity enabled and behavior — The check box in addition to keyboard and mouse inactivity is not supported.

•Passive proximity cards

• If you want to use proximity card to lock the computer, select the Tap to lock check box.

• If you want to lock the computer and log in as a dierent user. select the Switch users check box.

• INI parameter isTapToLock=0/1/2.

••Lock warning enabled and type— The three types that are supported are: none, notication balloon and Screensaver.

• None — No warning messages are displayed.

Conguring the Connectivity 43

•Notication balloon— ThinOS displays a notication window.

• Screensaver— Hide the display contents before the workstation locks.

•Warning message— The message can be customized.

•Lock Screen type —Only obscure type is supported.

•Hot key to lock workstation or log o user— ThinOS can support following keys:

“F1 ~ F12”, "BKSP", “DEL”, “DOWN”, “END”, “ENTER”, “ESC”, “HOME”, “INS”, “LALT”, “LEFT”, “LCONTROL”, “NUMLOCK”,

“PGDN”, “PGUP”, “RCONTROL”, “RIGHT”, RTALT”, “SPACE”, “TAB”, “UP”, “a~z”, “A~Z”, “0~9” and modier “+”, “%”, “^” (Shift,

Alt and Control)

•Suspend action — The server conguration controls this feature on ThinOS. Therefore a new INI is added—

SuspendAction=0/1; 0 means lock, 1 means signo.

3 Conguring the SSPR Conguration Object

The SSPR conguration object controls the Self-Service Password Reset behavior for a user. The enabled attribute species whether

the user is allowed to reset their password as part of emergency access. The mandatory attribute species whether the user must

reset their password as part of emergency access.

4 Conguring the RFIDeas conguration object

The RFIDeas conguration object controls the behavior of the RFIDeas readers. The conguration can be congured by two ways, the

computer policy of OneSign server and ThinOS INI.

5 Conguring the Custom background conguration object

On the Imprivata server, click Computer policy, and then click the Customization tab.

Custom background image impacts the wallpaper of ThinOS sign-on screen.

6 Conguring the Co-Branding conguration object

On the Imprivata server, click Computer policy , and then click Customization.

44 Conguring the Connectivity

Logo image impacts all the dialog boxes in ThinOS with raw logo.

7 Conguring the SSPR Customization Conguration object

• The text displayed in sign-on UI and lock window can be customized.

• The largest size supported by ThinOS is 17 characters.

ThinOS UI:

8 Password Self-Services force enrollment feature

Selecting this check box allows you to reset the primary authentication password.

INI conguration for Imprivata OneSign Server

A new INI parameter is added to the OneSignServer=AutoAccess=command. The new value is AutoAccess=Local. When

AutoAccessis set to local, the ThinOS ignores the brokers that are set on the Imprivata OneSign Appliance and starts the broker/

connections which are dened in wnos.ini or local dened on the client. You can start the vWorkspace, Microsoft, and other ThinOS

connections while supporting Imprivata user authentication.

Proximity card enrollment

Conguring the Connectivity 45

1 Tap the proximity card. The card enrollment page is displayed.

2 Enter the credentials and then click OK.

Proximity card is enrolled successfully.

46 Conguring the Connectivity

Imprivata Bio-metric Single Sign-On

Fingerprint identication feature is highly reliable, and cannot be easily replicated, altered, or misappropriated.

The prerequisites of OneSign server are:

• Imprivata v4.9 or later appliance version is needed that supports the WebAPI v5 and later versions.

• Fingerprint identication license is required.

Notes on Imprivata Bio-metric Single Sign-On

• ARM platforms (T/TD) are not supported.

• Supported protocols are RDP, ICA, and PCoIP.

• Required Fingerprint reader devices are:

• ET710 (PID 147e VID 2016)

• ET700 (PID 147e VID 3001)

Supported Scenarios

1 Signing/Unlocking the ThinOS Devices using Fingerprint Authentication.

•Congure the OneSign server on ThinOS, and then plug-in the ngerprint reader device.

• The ThinOS Fingerprint window is displayed automatically after OneSign server is initialized.

Conguring the Connectivity 47

• Fingerprint authentication works on the ThinOS unlock window.

2 Unlocking the Virtual Desktop using Fingerprint Authentication.

• Enable the Imprivata Virtual Channel from ThinOS Global Connection Settings.

48 Conguring the Connectivity

• When you lock the virtual desktop in the session, the Fingerprint window is displayed automatically.

Conguring the Connectivity 49

3 Managing Fingerprints on virtual desktop.

• Legend Fingerprint Management is supported.

• Fingerprint management with Imprivata Conrm ID enabled is not supported. This requires both supervisor and user to nish the

enrollment and it is recommended to use Windows platform to perform this action.

To manage ngerprints, do the following:

a Right-click the OneSign agent icon in System tray.

b Click Manage Fingerprints, and enter the correct credentials in the displayed window to manage your Fingerprints.

50 Conguring the Connectivity

Conguring the Caradigm Server

Caradigm Single Sign-on and Context Management (SSO & CM) is the product of the Caradigm Company which provides Single Sign-on

and Context Management Services. Caradigm solution has been integrated since ThinOS 8.1.

To congure the Caradigm integration on ThinOS, do the following:

1 From the desktop menu, click System Setup, and then click Remote Connections.

The Remote Connections dialog box is displayed.

2 Click the Authentication tab, and then click Caradigm.

Conguring the Connectivity 51

aSSO & CM Server—Enter the IP addresses of the Single Sign-On (SSO) and Context Management (CM) Servers.

bDefault Group Name—Type the name of the default group in the Default Group Name box.

cEnable logo remote desktop

• Select the check box to log o the current user from the session before system sign-o.

• Clear the selection to disconnect from the session.

3 Click OK to save the settings.

Conguring the Caradigm Vault Server

To congure the Caradigm Vault Server on ThinOS:

1 From the desktop menu, click System Setup, and then click Remote Connections.

The Remote Connections dialog box is displayed.

2 Click the Authentication tab, click the Caradigm button, enter the IP address of the SSO & CM Server, and then click OK.

3 On the Caradigm Vault Server, use the following guidelines:

• Ensure that the Enroll unenrolled badges option is checked.

• Make sure that all Badge ID mapping entries are deleted.

52 Conguring the Connectivity

4 Click SSO&CM > Advanced Congurations , and use the following guidelines:

a Ensure that the Enable Proximity Support check box is selected.

b Ensure that the Enable way2care check box is selected.

5 To prepare a certicate to the Caradigm Vault Server, use the following guidelines:

The Caradigm Vault Server uses the certicate to validate the connection between the Tap Server and the thin client.

a To raise a request for the certicate:

• The certicate should be issued by your Certicate Authority.

• Prepare the certicate in two formats:

• PFX format which has a private key.

• The other is PEM format which is text-based, Base64-encoded DER le. For Example, Caradigm.cer, Caradigm.pfx.

b To import a certicate to the thin client, use either of the following two options:

• Click System Setup > System tools > Certicates to import certicates from USB storage or le server.

• Use INI le to import certicate.

AddCertificate=client_cert.pfx password=passpass

c To add a certicate to Vault server:

Conguring the Connectivity 53

Use the Thin Client Certicates page to add certicates for the thin client devices. The certicate must be a text in PEM

format, that is, a text-based Base64-encoded DER le.

• Open the DER cert le on Notepad.

• Log in to the Vault Server Admin Console, and then click Appliance > Thin Client Certicates.

• Copy the Notepad text to the Vault server

Conguration on VDI Server and Desktops

Caradigm solution of ThinOS supports the multi-types of VDI server such as VMware View Horizon 6, Citrix XenApp 6.5, Citrix XenDesktop

5.6 and Citrix XenDesktop 7.6.

To congure the VDI server and desktop:

• Install the Caradigm desktop components in the servers and desktops.

• Indicate vault server IP, and then provide a valid security token.

• Add following lines to Service section of the \programdata\sentillion\vergence\Authenticator.ini conguration le.

TapServerIdentification=True

RemotePromptForPassword=Badge

NOTE:

At present, the following PCoIP enabled thin clients oer Caradigm SSO over PCoIP:

• Wyse 3030 LT with PCoIP

• Wyse 3040 with PCoIP

• Wyse 5010 with PCoIP (D10DP)

• Wyse 5040 AIO with PCoIP (5213)

• Wyse 5060 with PCoIP

SSO and CM client installed on your VDI server and desktops must be upgraded to latest version 6.2.5 in order to support this feature.

Conguring SECUREMATRIX

SECUREMATRIX enhances the security of enterprise and cloud-based applications while providing seamless end user experience for a one-

time password (OTP) that can be used for authentication with desktops, Windows, VPNs, intranets, extranets, web servers, e-commerce

and other network resources.

To congure the SECUREMATRIX Server , enter either https://ip or https://FQDN values, reboot the client to display the log on dialog

box, and then enter credentials to open the VDI broker dialog box for logon use. You can also set this feature in your INI le, see Dell Wyse

ThinOS INI Guide. For details see SECUREMATRIX documentation.

Introduction to HealthCast

HealthCast Single Sign-On (SSO) solution is designed to improve user convenience, streamline workow, and strengthen security

compliance in demanding environments. The same proximity cards used for physical access are used to tap-in and tap-out of unique user

sessions and to tap-over any sessions unintentionally left open on the ThinOS devices. Typically, you must type in your password only one

time each day and use your proximity cards to streamline workow and save time as they move between shared computers securely. Also,

proximity cards can be secured with a PIN, if congured by the organization. The HealthCast SSO solution also supports user self-service

password reset so that you can reset your own passwords without the need to call the help desk.

NOTE: HealthCast SSO Solution on ThinOS is a client-server solution. ThinOS provides the client-side functionality, but you

must also install and congure the HealthCast Server components on a server system in order for the solution to work properly.

Contact HealthCast on HealthCast website for one or more server installation executables, server requirements, and

conguration information.

54 Conguring the Connectivity

Conguring HealthCast on ThinOS

HealthCast Web API Server is integrated with ThinOS release to implement the HealthCast SSO solution. To use the HealthCast SSO

solution, ThinOS must be congured to use the HealthCast Web API Server. You can do this by using the INI le (wnos.ini), or using the

ThinOS UI. Dell recommends you to use the INI le for large deployments.

ThinOS UI conguration

• To use the HealthCast Web API, congure the HealthCast settings on the thin client side. To congure, do the following:

a From the desktop menu, click System Setup , and then click Remote Connections.

The Remote Connections dialog box is displayed.

b Click the Authentication tab, and then click HealthCast.

Figure 1. Authentication tab

c Enter the HealthCast server details in the box provided.

Conguring the Connectivity 55

d To import the client certicate, click Browse, and select the appropriate certicate you want to use.

e Click OK to save the settings.

INI conguration

To congure using INI parameters, add the following INI parameters to your wnos.ini le:

•HealthCastServer— The server address and options needed for the client to connect to the HealthCast Web API Server.

HealthCastServer=<https address> SecurityMode=<default, full, warning, low> ClientCerticate=<cert-pfx-le-name>

For example: HealthCastServer=https://server1.example.com SecurityMode=full ClientCerticate=client-cert.pfx.

For more information on INI parameters, see Dell Wyse 8.3.2 INI Reference Guide.

HealthCast SSO features and functionality on ThinOS

The following are the HealthCast SSO features and functionality on ThinOS:

•Proximity card enrollment

• HealthCast supports user self-enrollment. Therefore, there is no need to bring the proximity card to a special registration station, or

for IT sta to be involved. Instead, you must only tap the disenrolled proximity card at a terminal and you can follow the easy

registration process. This is a one-time event after which you can use the card wherever HealthCast is installed.

56 Conguring the Connectivity

Figure 2. Proximity card enrollment

•Manual login and lock/unlock terminal

• If you do not have a card, or choose not to use your card, then you can manually log in using your user name and password.

Administrators can disable manual login, if they wish, so that users can sign on with their proximity cards. You can also lock or

unlock the terminal, if you have signed on with a manual login.

Figure 3. Manual login and lock/unlock terminal

•Proximity card login and lock/unlock terminal

• After the proximity card is registered, tap the card at a terminal to login.

Conguring the Connectivity 57

Figure 4. Login

You can lock the session to secure it, but leave the remote session connected for fast access when you return. To do this, tap the

proximity card and the session is locked.

Figure 5. Lock terminal

To resume the session, tap the card again.

58 Conguring the Connectivity

•Walk away

• Terminals can be congured to lock or log o sessions that have been left open. The time that will elapse before automatic lock or

log o can be set by an administrator using the convenient web administration application.

•Tap-Over

• If a session is locked or left open, a second user can tap their own proximity card and this will disconnect the rst session and log

the second user into their own unique session.

•Forgotten card

• If you forget your card at home, you can receive a temporary card and register it for the day using the same easy registration

process mentioned above.

• Lost or stolen card

• If you report a card as lost or stolen, an administrator can immediately disable the card using the convenient web administration

application. This prevents anyone else from using it.

•Self-Service Password Reset (SSPR)

• If SSPR enabled by an administrator, you can register for SSPR and reset your passwords without calling the help desk.

Figure 6. SSPR enrollment

•Easy to use web-based administration tool

• Administrators can quickly and easily congure settings, manage proximity cards, and users using a web-based administration tool.

Conguring the Central Congurations

Use the Central Conguration dialog box to congure thin client central connection settings such as le server, optional WDM server

settings, and optional Cloud Client Manager.

Use the following options to congure the central congurations:

•Conguring the General Central Congurations.

•Conguring the WDA Settings.

Conguring the Connectivity 59

Conguring the General Central Congurations

To congure the general central congurations:

1 From the desktop menu, click System Setup, and then click Central Conguration.

The Central Conguration dialog box is displayed.

2 Click General tab, and use the following guidelines:

File Servers/Path, Username and Password — Enter the IP address or host name of the le server that provides the system

software and update images. The address can be supplied through DHCP, if DHCP is used.

aFile Servers/Path — Allows maximum of 128 characters. The data species part of the path to be used when the server is

accessed. Multiple le servers/paths may be named, as long as all data ts in the length limitation.

bUsername — Enter the username to log in to the le server. Use maximum of 15 characters.

cPassword — Enter the password to log in to the le server. Use maximum of 15 characters.

3 Click OK to save the settings.

60 Conguring the Connectivity

Conguring the WDA Settings

Use this tab to congure the WDM and CCM settings.

To congure the WDA settings, do the following:

1 From the desktop menu, click System Setup, and then click Central Conguration.

The Central Conguration dialog box is displayed.

2 Click WDA, and use the following guidelines.

WDM is selected by default. WDA service automatically runs after the client boot up.

If the rst discovery, for example, the WDM service is not successful, then it seeks for the next priority, for example, CCM service.

This continues till a discovery is successful. If all discoveries fail, then it is started again automatically after a xed time (24 hours).

aWDM Servers — Enter the IP addresses or host names, if WDM is used. Locations can also be supplied through user proles, if

user INI proles are used.

bDNS Name Record — (Dynamic Discovery) Allows devices to use the DNS host name lookup method to discover a WDM

Server.

cDHCP Inform — (Dynamic Discovery) Allows devices to use DHCP Inform to discover a WDM Server.

Conguring the Connectivity 61

dEnable Automatic Discovery After Missed Check-ins — Select the number of missed check-ins after which you want the auto

discovery options enabled.

3 Click OK to save the settings.

Service checked in status is displayed in System Information.

The following is the INI parameter for this feature:

WDAService={yes(default),no}Priority ={WDM(default),CCM,“WDM;CCM”,“CCM;WDM”}

To congure the CCM settings, do the following:

1 Click CCM, and use the following guidelines.

aEnable Cloud Client Manager (CCM) — Select the check box to enable the Cloud Client Manager (CCM).

62 Conguring the Connectivity

bDNS SRV record—Select this check box if you want the thin client to obtain CCM values through DNS server, and then try to

register into the CCM server. By default, the check box is selected. If the check box selection is canceled, then the thin client will

not try to obtain the CCM values through DNS server.

To create DNS records in DNS server, use the following information:

#CCM server URL

DNS Record Type: DNS SRV

Record Name: _WMS_MGMT._TCP.<Domain>

Value Returned: WDMNG Server URL

Example: _WMS_MGMT._TCP.WDADEV.com

# MQTT Server URL

Conguring the Connectivity 63

DNS Record Type: DNS SRV

Record Name: _WMS_MQTT._TCP.<Domain>

Value Returned: CCM Server URL

Example: _WMS_MQTT._TCP.WDADEV.com

# Group Token

DNS Record Type: DNS Text

Record Name: _WMS_GROUPTOKEN.<Domain>

Value Returned: Group Token (as String)

Example: _WMS_GROUPTOKEN .WDADEV.com

# CA Validation

DNS Record Type: DNS Text

Record Name: _WMS_CAVALIDATION.<Domain>

Value Returned: TRUE or FALSE (as String)

Example: _WMS_CAVALIDATION.WDADEV.com

cGroup Registration Key — Enter the Group Registration Key as congured by your cloud Client Manager administrator for the

desired group.

NOTE: If you enable the Cloud Client Manager (CCM ), make sure that you have entered the Group Registration Key and

enabled the CCM Advanced Settings.

2 Click OK to save the settings.

From ThinOS 8.3.1 Hot Fix release, the following additional CCM features are supported:

• Support for the ThinOS client login to CCM server console.

• Support for the ThinOS client packages installation by using On-Premises Services in CCM server console.

Conguring the VPN Manager

VPN Manager is included in ThinOS 8.1 to manage VPN connections. A virtual private network (VPN) extends a private network across a

public network such as the Internet. It enables a computer or Wi-Fi-enabled device to send and receive data across shared or public

networks as if the devices are directly connected to the private network, while beneting from the functionality, security and management

policies of the private network.

To congure the VPN Manager, use the following guidelines:

1 In Classic Mode, from the desktop menu, click System Setup > VPN Manager .

64 Conguring the Connectivity

In Zero Mode, user can view the VPN Manager tab in System Settings panel.

2 Click VPN Manager.

The VPN Manager dialog box is displayed.

Conguring the Connectivity 65

3 Click New to create a new session.

a Session Name (up to 21 characters) – Enter the name of the Session Name. This is not a mandatory option. If the eld is left

blank, the VPN server name will be used as the session name.

b VPN server (up to 63 characters) – Enter the IP address of the VPN Server. This is dened as either an IP address or a host

name. This is a mandatory option.

c Login Username (up to 31 characters) – Enter the Login Username. This is a mandatory option.

d Login Password (up to 31 characters) – Enter the password of the user. This is not a mandatory option.

e Select the check box to Auto-connect on system startup.

f Select the check box to show progress in detail.

g Click OK.

66 Conguring the Connectivity

When the connections are created, the description column lists the session name and the Auto column shows which connection

is automatically connected when the unit restarts. Only one session can be set to auto-connect.

4 Click Connect.

The connection status is displayed.

Conguring the Connectivity 67

Conguring Thin Client Settings

You can congure available thin client settings on the thin client using the following. Depending on user privilege level, some dialog boxes

and options may not be available for use.

•Local Settings Menu

•Reset Features

NOTE:

While it is not recommended to use dialog boxes for conguring thin client settings, they are available in case you want to temporarily

override central default congurations or you do not have the option to set up central conguration (smaller environments). In general,

it is recommended that you use central conguration to enable you to automatically push updates and any desired default conguration

to all supported thin clients in your environment, see Central Conguration: Automating Updates and Congurations.

Topics:

• Local Settings Menu

• Reset Features

Local Settings Menu

Local Settings menu items include:

•Conguring the System Preferences

•Conguring the Display settings

•Conguring the Peripherals Settings

•Conguring the Printer Settings

To access the Local Settings menu:

•Zero Desktop — Click the System Settings icon on the Zero Toolbar. Administrators can also click the Admin Mode button on the

Login dialog box.

•Classic Desktop — Click User Name, and select System Setup.

NOTE: User Name is the user who is logged-on and is at the lower-left pane of the taskbar.

Conguring the System Preferences

Use the System Preference dialog box to select personal preferences such as screen saver, time/date and custom information settings.

Use the following options to congure the System Preferences:

•Setting the General System Preference

•Setting Time and Date

•Setting the Custom Information

5

68 Conguring Thin Client Settings

Setting the General System Preference

To congure the general settings for system preference:

1 From the desktop menu, click System Setup, and then click System Preferences.

The System Preference dialog box is displayed.

2 Click the General tab, and use the following guidelines:

aScreen Saver — Allows you to select the type of screen saver you want. The default is to Turn O Screen.

Other selections available include Flying Bubbles , Moving Image and Showing Pictures which are screen savers with the

monitor remaining on.

bTimer — Select a time after which the screen saver is to be activated; either disable, 1 minute, 5 minutes, 10 minutes (default),

15 minutes, or 30 minutes.

When the thin client is left idle for the specied idle time, the screen saver is initiated.

cLocale — Select a language to be activated for the user login-experience; either French, German, or default English.

NOTE: Locale changes the language for the user login-experience screens only displayed during boot-up and login and

not the conguration or administrator screens.

Only the following messages are applicable for French locales:

• Username/Password/Domain

• System Information

• Shut down the system, restart the system, reset the system setting to factory default

• OK, Cancel

• Initiating devices

• Looking up IP address from DHCP, Note: Pressing CTRL-ESC keys cancel out of network check

• Retry DHCP for an IP address

• Waiting for network link. Verify that network cable is plugged into back of unit

Conguring Thin Client Settings 69

• Check Cable, No Ethernet link

• Leave administrator mode

• Connecting

• Sign o from account

• Lock Terminal, Unlock Password

• Terminal is locked, Invalid unlock password

dTerminal Name — Allows entry of a name for the thin client. The default is a 14-character string composed of the letters WT

followed by the thin client Ethernet MAC address.

Some DHCP servers use this value to identify the IP address lease in the DHCP Manager display.

3 Click OK to save the settings.

Setting the Time and Date

To congure the Time and Date settings:

1 From the desktop menu, click the System Setup, and then click System Preferences.

The System Preference dialog box is displayed.

2 Click the Time/Date tab, and use the following guidelines:

aTime Zone— Select a time zone where the thin client operates from the drop-down list. Default value is Unspecied.

bEnable Daylight Saving— Allows you to enable the daylight saving settings. When selected, the Start Date and End Date boxes

must be properly congured to dene the daylight saving starting (month/week/day) and ending (month/week/day) periods.

Use the following guidelines to enter the Start date and End date:

•Month— Species the month in the year from January through December.

•Week— Select 1 through 4 for the week in the month. Week last denotes the last week in the month.

•Day — Species the day of the week from Monday through Sunday.

cTime Format — Allows you to select a 12 or 24-hour time format. default is 24-hour format.

dDate Format — Allows you to select a yyyy/mm/dd (year/month/day) or dd/mm/yyyy (day/month/year) date format. Default

is yyyy/mm/dd.

70 Conguring Thin Client Settings

eTime Servers — List of IP addresses or host names with optional TCP port number of Time Servers.

Each entry with optional port number is specied as Name-or-IP: port, where: port is optional. If not specied, port 80 is used.

Locations can be supplied through user proles if user proles are used. The Time Servers provide the thin client time based on

the settings of time zone and daylight saving information. If DHCP is used, locations can be supplied through DHCP.

fChange Date and Time — Allows you to change date and time for secure environments requiring a solution to outside server

access. When connecting to a le server over HTTPS, the proper time must be dened on the thin client for SSL/ certication

validation.

3 Click OK to save the settings.

Setting the Custom Information

Use the Custom Info tab to enter conguration strings for use by WDM software. The conguration strings can contain information about

the location, user, administrator, and so on.

To set the custom information:

1 From the desktop menu, click System Setup, and then click System preferences.

The System preference dialog box is displayed.

2 Click the Custom Info tab to enter conguration strings used by WDM software. The conguration strings can contain information

about the location, user, administrator, and so on. Clicking OK transfers the custom eld information you enter in the dialog box to the

Windows registry. The information is then available to the WDM Client Manager. For more information on using Custom Fields and

using WDM for remote administration and upgrading thin client software, see WDM documentation.

3 Click OK to save the settings.

Conguring the Display Settings

Use the Display dialog box to select the resolution and refresh rate for the monitor used with the thin client.

Use the following options to congure the Display Settings:

•Conguring the General Display Settings

Conguring Thin Client Settings 71

•Conguring the Dual Head Settings

Conguring the General Display Settings

To congure the general display settings:

1 From the desktop menu, click System Setup, and then click Display.

The Display dialog box is displayed.

2 Click the General tab, and use the following guidelines:

aSelect best display setting on DDC monitor—If the monitor is VESA DDC2B (Display Data Channel) compatible, selection of

this option allows the thin client to automatically select the best resolution and refresh rate.

If your monitor is not DDC compatible, then Monitor does not support Plug and Play message is displayed. Click OK to

acknowledge the message and remove it from the screen.

bDDC table— If the monitor is VESA DDC2B (Display Data Channel) compatible, selection of this option allows you to select the

resolution and refresh rate you want from the list.

cUser dened display setting— Select this option and select the resolution and refresh rate supported by your monitor. All

combinations are allowed.

Resolutions include:

640 x 480 (not on Wyse 3020 thin client with ThinOS—T10D)

800 x 600 (not on Wyse 3020 thin client with ThinOS—T10D)

1024 x 768

1152 x 864

72 Conguring Thin Client Settings

1280 x 720

1280 x 768 (not on Wyse 3010 thin client with ThinOS—T10)

1280 x 1024

1360 x 768 (not on Wyse 3010 thin client with ThinOS and Wyse 3020 thin client with ThinOS—T class)

1366 x 768

1368 x 768 (not on Wyse 3010 thin client with ThinOS and Wyse 3020 thin client with ThinOS—T class)

1400 x 1050

1440 x 900

1600 x 900

1600 x 1200

1680 x 1050

1920 x 1080

1920 x 1200

1920 x 1440

2560 x 1080

2560 x 1440

2560 x 1600

3840 x 2160

Refresh rate list selections include:

60 Hz (default)

75 Hz

85 Hz

dRotation —Select a rotation option; either None, Left turn 90 degrees, or Right turn 90 degrees.

eDesktop Color— Only 32 bit is permitted from ThinOS 8.2. This value is selected by default.

fUsage Help — This section contains brief instructions for using the Display dialog box and running the test. No operator entry

can be made in this box.

Make note of the instructions in the area, regarding v-key reset usage in case of display failure.

3 Click OK to save the settings.

Supported monitor resolutions—The following are the list of tested monitor resolutions:

Table 3. Supported monitor resolutions

Monitor resolutions Wyse 5060 thin client Wyse 3040 thin client

640 x 480 Supported Supported

800 x 600 Supported Supported

1024 x 768 Supported Supported

Conguring Thin Client Settings 73

Monitor resolutions Wyse 5060 thin client Wyse 3040 thin client

1152 x 864 Supported Supported

1280 x 720 Supported Supported

1280 x 768 Supported Supported

1280 x 1024 Supported Supported

1360 x 768 Supported Supported

1366 x 768 Supported Supported

1368 x 768 Supported Supported

1400 x 1050 Supported Supported

1440 x 900 Supported Supported

1600 x 900 Supported Supported

1600 x 1200 Supported Supported

1680 x 1050 Supported Supported

1920 x 1080 Supported Supported

1920 x 1200 Supported Supported

2560 x 1080 Supported Supported

2560 x 1440 Supported Supported

2560 x 1600 Supported Supported

3440 x 1440 Supported Not Supported

3840 x 2160–Dual 4K Supported

Dual 3840 x 2160 is supported with Dual

Display ports for 30 Hz display refresh rate.

Not Supported

The following are the tested Dell monitors for Wyse 5060 thin client, supporting dual 3840 x 2160 resolution:

Dell P2815Q (3840 x 2160)

Dell UP3216Q (3840 x 2160)

Conguring the Dual Head Display Settings

To congure the Dual head display settings:

1 From the desktop menu, click System Setup, and then click Display.

The Display dialog box is displayed.

2 Click Dual Head tab, and use the following guidelines:

74 Conguring Thin Client Settings

This feature is applicable for supported Dual Monitor Capable Thin Clients Only.

aDual Head—Select Mirror Mode to have the two monitors work in a matching state, or Span Mode to have the two monitors

work separately second is extended from rst.

bMain Screen—Select which of the two monitors you want to be the main screen (Screen1 or Screen2). The other screen is

extended from the main screen.

The other screen is extended from the main screen. When using a DVI to DVI/VGA splitter with VGA and DVI monitors at the

same time, the VGA monitor will be the primary monitor.

cLayout—Select how you want the two monitors to be oriented to each other.

Horizontal — where you move between the monitors from the left and right of the screens.

Vertical— where you move between the monitors from the top and bottom of the screens.

dAlignment— Select how you want the monitors to be aligned Bottom, Center, or Top.

Bottom means screens are bottom-aligned in a horizontal orientation; Center means screens are center-aligned; Top means

screens are top-aligned in a horizontal orientation.

eTaskbar (Classic Desktop Only)—Select under which screen you want the Taskbar to appear Whole Screen or Main Screen

Gamma Supported Monitors Only— Use the Gamma Setup tab to adjust the saturation values for Red, Green and Blue on

VGA connected monitors supporting gamma settings, if you feel the default settings are too light. Be aware that the Gamma

Setup tab will be disabled once you click Save+Exit. You can enable it again by setting rgamma={1-100} ggamma={1-100}

bgamma={1-100} in the Resolution INI parameter. For more information, see Dell Wyse ThinOS INI Guide.

Conguring Thin Client Settings 75

For Swap dual screens, when you set Main Screen to Screen2, an additional check box is displayed at the bottom of the tab that

allows you to swap dual screens. If you clear the check box, the Screen1 is usually the left one or the top one in dual display.

When you set Main Screen to Screen2, the main screen is changed to the right screen or bottom screen. If you select the swap

dual screens check box, you are able to set Main Screen to Screen2, but still have it at the left side or the top side, which is

considered more user friendly.

Conguring the Peripherals Settings

The Peripherals dialog box enables you to congure the settings for the Keyboard, Mouse, Audio, Serial, Camera, Touch Screen, and

Bluetooth.

•Conguring the Keyboard Settings

•Conguring the Mouse Settings

•Conguring the Audio Settings

•Conguring the Serial Settings

•Conguring the Camera Settings

76 Conguring Thin Client Settings

•Conguring the Touch Screen Settings

•Conguring the Bluetooth Settings

Conguring the Keyboard Settings

To congure the Keyboard settings:

1 From the desktop menu, click System Setup, and then click Peripherals.

The Peripherals dialog box is displayed.

2 Click the Keyboard tab and set the Character Set, Keyboard Layout, Delay Before Repeat and Repeat Rate parameters. The following

table explains the parameters present on the Peripherals dialog box.

Parameter Description

Character Set Species the character set. Each character is represented by a

number. The ASCII character set, for example, uses the numbers

0 through 127 to represent all English characters and special

control characters. European ISO character sets are similar to

ASCII, but they contain additional characters for European

languages.

Keyboard Layout Presently the keyboard languages listed in the Keyboard layout

drop-down list are supported. The default value is English

(United States).

Delay Before Repeat Species the repeat parameters for held-down key. Select the

Delay before repeat value as either 1/5 second, 1/4 second, 1/3

second, 1/2 second, 3/4 second, 1 second, 2 seconds, or No

Repeat. The default is 1/3 second.

Repeat Rate Select Slow, Medium, or Fast. The default value is Medium.

3 Click OK to save the settings.

Conguring Thin Client Settings 77

Conguring the Mouse Settings

To congure the Mouse settings:

1 From the desktop menu, click System Setup, and then click Peripherals.

The Peripherals dialog box is displayed.

2 Click the Mouse tab to select the mouse speed and mouse orientation.

3 Select the Swap left and right mouse buttons check box to swap mouse buttons for left-handed operations.

4 Click OK to save the settings.

Conguring the Audio Settings

To congure the audio settings:

1 From the desktop menu, click System Setup, and then click Peripherals.

The Peripherals dialog box is displayed.

2 Click the Audio tab to select the volume settings for connected devices.

78 Conguring Thin Client Settings

a Click the Playback Devices tab to select the type of the audio from the drop-down menu.

• Use slider to control the volume settings for the playback devices.

• Select the check box to mute.

b Click the Recorded Devices tab to select the type of the record from the drop-down menu.

• Use slider to control the volume settings for the record devices.

• Select the check box to mute.

c The Recorder tab allows you to do the following tasks:

• Collect information about the speaker and microphone currently being used.

• Examine the performance of the speaker and microphone currently being used.

• Export the recorded audio sample to a USB key for archiving and further analysis.

For example, the connected USB headsets are displayed in the drop-down. Select the HD Audio option for analog earphone use,

the Speaker check box to enable the internal speaker, and the Boost check box for audio enhancement.

d Select the Speaker check box to connect the speaker.

e Select the Boost check box to boost the connected devices.

Conguring the Serial Settings

To congure the Serial settings:

1 From the desktop menu, click System Setup, and then click Peripherals.

The Peripherals dialog box is displayed.

2 Click the Serial tab and do the following:

Conguring Thin Client Settings 79

aSelect Port—Click the button to select the Port. Default is COM 1

bBaud Rate — Select the Baud Rate from the drop-down list. Default is 9600.

cParity — Click the button to select the Parity.

dStop— Click the button to select the stop bits 1, 1.5, 2. Default value is 1.

eSize—Click the button to select the Character size 5, 6, 7, or 8 bits. Default is 8.

fFlow Control —Click the button to select Flow Control: Either None, XON/XOFF, CTS/RTS, or Both can be selected .Default

is None

gSerial Touch Screen selections — Select the required touch screen from the drop-down list. Available options are ELO,

MicroTouch and FastPoint .

hTouch Screen on — Select the required serial port ( COM port) or None from the drop-down list.

3 Click OK to save the settings.

Conguring the Camera Settings

Use the Camera tab to interface with cameras that are locally connected to the thin client (USB) and supported by a UVC driver. When

using the HDX RealTime webcam feature of XenDesktop 5 or XenApp 6, you can control options such as maximum resolution and frames

per second (10 FPS is recommended).

By default, the format of USB camera is set to RAW.

80 Conguring Thin Client Settings

NOTE:

You can optimize performance and modify the frame rate per second, if the Optimize for CPU check box is selected—supported

values include 1/1, 1/2, 1/3, 1/4, 1/5, and 1/6– directly from the thin client (if the webcam supports Universal Video Driver).

This feature is experimental and does not currently support central conguration (INI parameters). Also, this feature is CPU intensive

and is recommended for high performance products.

Conguring the Touch Screen Settings

Use the Touch Screen tab to congure touch screens that are connected to the thin client (USB). The tab is available (not grayed out)

when the thin client detects that a touch screen is attached through a USB port and the setup or calibration has not been performed. The

Touch Setup window prompts you to touch two circles on the screen to make the necessary calibration adjustment. The adjusted calibrated

values are saved in the local terminal NVRAM until the system is reset to factory default, or another type of touch monitor is connected.

Conguring the Bluetooth Settings

The Bluetooth feature helps you to connect your thin client with Bluetooth enabled devices such as headsets and mouses.

The Intel wireless chipset 7260 comes with an integrated Bluetooth module. The ThinOS Bluetooth feature is based on this technology. The

following platforms with Intel wireless chipset 7260 support the Bluetooth feature. However, the Bluetooth smart is not supported on

ThinOS.

To congure the Bluetooth settings:

1 From the desktop menu, click System Setup, and then click Peripherals.

The Peripherals dialog box is displayed.

2 Click the Bluetooth tab, and use the following guidelines:

Conguring Thin Client Settings 81

Bluetooth enabled devices, such as headsets and mouses that are available in the Thin Client environment are listed in the Bluetooth

page. The following attributes are displayed in the list.

•Name — Species the name of the Bluetooth enabled device.

•Type — Species the type of the Bluetooth enabled devices, such as headsets, mouses, and keyboards.

Both Human Interface Devices (HID) and Headset Bluetooth devices are supported in ThinOS 8.2.

•HID Type

• HID includes mouse and keyboard.

• The maximum number of HIDs that can be connected is seven.

•Headset type

• The Bluetooth headset is supported in this release.

• The maximum number of Bluetooth headsets that can be connected is one.

IMPORTANT: Other types of Bluetooth devices are not scanned and supported.

•Status

— The Bluetooth page has two columns, namely, Status and Paired.

Status Connected The Bluetooth device is connected to the ThinOS device. It is ready to be used.

Connecting The Bluetooth device is connecting to the ThinOS device.

Disconnected The Bluetooth device is not connected to the ThinOS device.

Paired YES The Bluetooth device is paired with the ThinOS device.

NO The Bluetooth device is not paired with the ThinOS device.

The following are the user scenarios and corresponding Bluetooth statuses displayed on the Bluetooth page.

82 Conguring Thin Client Settings

User Scenario Status

Device turned o Disconnected | Paired

Device turned on Connected | Paired

Device diconnected from ThinOS Disconnected | Not Paired

•Connect— Select a particular Bluetooth enabled device, and click Connect to connect the selected device to the thin client. If the

Bluetooth device is connected successfully, the status is displayed as Connected in the Bluetooth window.

•Disconnect— Select a particular Bluetooth enabled device that is already connected to the thin client, and click Disconnect to

disconnect the Bluetooth connection of the selected device from the thin client. If the Bluetooth device is disconnected

successfully, the status is displayed as Disonnected in the Bluetooth window.

•Remove— Select a particular Bluetooth device that is disconnected from ThinOS, and click Remove to remove the device from

the list.

•Scan— All Bluetooth devices enter into Page Scan mode. Dierent Bluetooth devices enter into the Page Scan mode at dierent

instances such as when a specic button is pressed three times or a specic button is pressed and held until the LED turns blue.

•Auto Connect function—The Auto Connect function is designed for HIDs.

Prerequisites:

• ThinOS has no HIDs connected such as USB or Bluetooth HIDs.

• The Bluetooth HIDs are congured as Page Scan mode.

When you start the ThinOS client, the Bluetooth HIDs can connect to ThinOS automatically without scanning or pairing operations.

The Bluetooth HIDs automatically reconnects after you restart the ThinOS client.

•Reconnect function—The Reconnect function is designed for HIDs and Headsets.

When you restart the system with the Bluetooth device (HID/headset) that is already paired and connected, the Bluetooth device

automatically reconnects within a few seconds.

For example, you can hover the Bluetooth mouse, and then click a few times for the Bluetooth mouse to reconnect successfully.

The Bluetooth headset reconnects automatically, but might require you to manually close or reopen the device on certain

occasions.

Certied Devices

The following are the certied Bluetooth devices:

• Dell WM713 Bluetooth Mouse

• Dell Wireless Bluetooth Travel Mouse – WM524

• Rapoo E6100, BlueTooth keyboard

• Thinkpad Compact Bluetooth Keyboard

• Logitech Ultrathin Touch Bluetooth Mouse T630

• Logitech K480 Bluetooth keyboard

• Microsoft ARC touch Bluetooth mouse

• Logitech M557 Bluetooth mouse

• Plantronics Calisto 620-M, Bluetooth Speakerphone

• Plantronics BLACKWIRE C710, BlueTooth Headset

• Plantronics Voyager Legend UC B235 NA

• Jabra PRO 9470 NCSA, Bluetooth Headset

• Jabra MOTION UC+ MS / LINK 360, Bluetooth, Lync

• Jabra SUPREME UC MS /LINK 360, Bluetooth Headset

Conguring Thin Client Settings 83

• Jabra Speak 510 MS, Bluetooth speakerphone

• Jabra EVOLVE 65 MS Stereo Headset

Known Issues of the Bluetooth feature

1 If more than two Bluetooth mouse devices are connected to ThinOS along with more than two other Bluetooth devices, it may cause

low performance of Bluetooth connectivity.

Workaround: Dell recommends using one mouse and one keyboard in ThinOS with Bluetooth connection.

2 The Bluetooth device name displays N/A sometimes.

Workaround: Remove this device from the list and re-scan.

3 The Bluetooth device status is not refreshed sometimes when wireless chipset 7260 is shut down.

Workaround: Close the ThinOS Bluetooth window and re-open it. The status is updated.

4 Only supports volume button and mute button on Bluetooth headset.

5 The performance of Bluetooth feature is low during wireless connection.

Conguring the Printer Settings

Use the Printer Setup dialog box to congure network printers and local printers that are connected to the thin client. Through its USB

ports, a thin client can support multiple printers. If more than one printer is to be used and another port is not available on your thin client

and the port that is to be used must be shared with a USB modem converter, connect a USB hub to the port.

Use the following options to congure the Printer Settings:

•Conguring the Ports Settings

•Conguring the LPDs Settings

•Conguring the SMBs Settings

•Using the Printer Setup Options

•Using the Help

•Conguring the Citrix UPD Printer

Conguring the Ports Settings

To congure the Ports settings:

1 From the desktop menu, click System Setup, and then click Printer.

The Printer Setup dialog box is displayed.

2 Click the Ports tab, and use the following guidelines:

84 Conguring Thin Client Settings

aSelect Port— Select the port you want from the list. LPT1 or LPT2 selects the connection to a direct-connected USB printer.

bPrinter Name — (Required) Enter name you want displayed in your list of printers.

most USB direct-connected printers report/ll in their printer name automatically.

NOTE: If Enable LPD service for the printer is selected, the printer name becomes the queue name for other clients

using LPR to print to this printer.

cPrinter Identication — Enter the type or model of the printer in the exact text of the Windows printer driver name—including

capitalizations and spaces, most USB direct-connected printers report/ll in their printer identications automatically.

This entry must be either the device driver name for the printer under the Microsoft Windows system, or a key to map to the

device driver. If not specied, the name will be defaulted to the printer-supplied identication for standard direct-connected USB

printers or Generic / Text Only for non-USB connected printers upon connection to Windows hosts. The driver name mapping

takes place either through a printer-mapping le read by the system as part of the global prole (wnos.ini) or by MetaFrame

servers through the MetaFrame printer conguration le (\winnt\system32\wtsprnt.inf).

dPrinter Class— This is optional. Select the printer class from the list PCL5, PS, or TXT or PCL4.

eEnable the printer device — Select this option to enable the directly-connected printer. It enables the device to display on the

remote host.

fEnable LPD service for the printer — Select this to make the thin client an LPD (Line Printer Daemon) network print server for

LPR printing requests from the network.

NOTE:

If the thin client is to be used as an LPD printer server, DHCP must not be used and a static IP address must be assigned to

the client, see Conguring the Network Settings.

3 Click OK to save the settings.

Conguring Thin Client Settings 85

Conguring the LPDs Settings

To congure the LPDs Settings:

1 From the desktop menu, click System Setup, and then click Printer.

The Printer Setup dialog box is displayed.

2 Click the LPDs tab, and use the following guidelines when printing to a non-Windows network printer:

NOTE: Be sure to check with your vendor that the printer can accept Line Printer Request print requests.

aSelect LPD —Select the port you want from the list.

bPrinter Name —(Required) Enter name you want displayed in your list of printers.

cPrinter Identication—Enter the type or model of the printer in the exact text of the Windows printer driver name—including

capitalizations and spaces.

This name must be either the device driver name for the printer under the Microsoft Windows system, or a key to map to the

device driver. If not specied, the name will be defaulted to the printer-supplied identication for standard direct-connected USB

printers or Generic / Text for non-USB connected printers upon connection to Windows hosts. The driver name mapping takes

place either through a printer-mapping le read by the system as part of the global prole (wnos.ini) or by MetaFrame servers

through the MetaFrame printer conguration le (\winnt\system32\wtsprnt.inf).

dLPD Hosts—The DNS or WINS name of the server for the network printer. An IP address of the printer on the network can also

be entered.

If the printer is attached to another thin client on your network, the entry in the LPD Hosts box is the name or address of that

thin client.

eLPD Queue Name — An LPD host maintains a named queue for each supported printer. Enter the name of the queue

associated with the printer to be used.

86 Conguring Thin Client Settings

This name can be dierent for each vendor. This eld is required and must be correct so that the network printer accepts

incoming print jobs properly. For example, auto can be used for HP LaserJet 4200n PCL6 as per documentation found on the HP

Web site.

NOTE:

If the printer is attached to another thin client on your network, the LPD Queue Name must match the content of the

Printer Name box on the thin client with the printer attached.

fPrinter Class — (Optional) Select the printer class from the list.

gEnable the printer device — Must be selected to enable the printer. It enables the device so it displays on the remote host.

3 Click OK to save the settings.

Conguring the SMBs settings

To congure the SMBs settings:

1 From the desktop menu, click System Setup, and then click Printer.

The Printer Setup dialog box is displayed.

2 Click SMBs tab, and use the following guidelines when printing to a Windows network printer.

aSelect SMB —Select the SMB you want from the list.

bPrinter Name —(Required) Enter the name to be displayed in your list of printers.

cPrinter Identication- Enter the type or model of the printer in the exact text of the Windows printer driver name—including

capitalizations and spaces.

This name must be either the device driver name for the printer under the Microsoft Windows system, or a key to map to the

device driver. If not specied, the name will be defaulted to the printer-supplied identication for standard direct-connected USB

printers or Generic / Text for non-USB connected printers upon connection to Windows hosts. The driver name mapping takes

place either through a printer-mapping le read by the system as part of the global prole (wnos.ini) or by MetaFrame servers

through the MetaFrame printer conguration le (\winnt\system32\wtsprnt.inf).

Conguring Thin Client Settings 87

d\\Host\Printer—Enter the Host\Printer or use the browse folder icon next to the box to browse your Microsoft Networks and

make the printer selection you want from the network printers available (the DNS name or IP address of the Windows print

server on the network).

ePrinter Class —(Optional) Select the printer class from the list.

fEnable the printer device—Must be selected to enable the printer. It enables the device so it displays on the remote host.

gEnable LPD service for the printer—Select this to make the thin client an LPD (Line Printer Daemon) network print server for

LPR printing requests from the network, see Using Your Thin Client as a Print Server (LPD).

If the thin client is to be used as an LPD printer server, DHCP must not be used and a static IP address must be assigned to the

thin client as described in Conguring the Network Settings.

3 Click OK to save the settings.

Using the Printer Setup Options

To congure the Printer setup options:

1 From the desktop menu, click System Setup, and then click Printer.

The Printer Setup dialog box is displayed.

2 Click the Options tab, and use the following guidelines:

aDefault Printer —Select the printer you want to be the default printer from your list of available printers.

bEnable .print Client and Port —If you want to enable .print Client, select Enable .print Client , and then enter the port.

3 Click OK to save the settings.

Using the Help

When you click the Help tab, the following message is displayed in the text box.

Printer Identication is supplied by printer device. Change it to a Window’s printer driver name or setup a driver mapping le.

Conguring the Citrix UPD Printer

Use of Citrix Universal Printer Driver (Citrix UPD) ensures that all printers connected to a client can also be used from a virtual desktop or

application session without integrating a new printer driver in the data center. Citrix UPD is the base of Citrix Universal Printer. It is an auto-

created printer object that uses the Citrix UPD and is not tied to any specic printer dened on the client.

88 Conguring Thin Client Settings

To congure the Citrix UPD usage on ThinOS:

1 Connect a printer to ThinOS client.

2 From the desktop menu, click System Setup, and then click Printer.

The Printer Setup dialog box is displayed.

3 Enter the name of the printer in the Printer Name box.

4 Enter any string of the Printer identication in the Printer Identication box.

5 Select the type of the printer class from the drop-down list, select the check box to enable the printer device and then click OK.

6 Start a XenDesktop or XenApp application connection.

7 Open the Devices and Printers in the desktop or application, notice the printer is mapped as UPD printer by default. You can use the

HP-LaserJet-P2035 [UPD:PCL5c] to perform the print job.

Citrix UPD conguration on server

a To enable the printer policy, use the following guidelines:

1 To enable the printer policy in XenApp 6.5– Go to the DDC Server, click Start > Citrix AppCenter .

Conguring Thin Client Settings 89

2 Click Citrix Resources > XenApp > Policies > User > Settings > Printing > Client Printers and enable the Auto-create

generic universal printer.

3 Click Printing > Drivers and set the Universal print driver usage to Use universal printing only from the drop-down menu

available.

90 Conguring Thin Client Settings

4 To enable the printer policy in XenApp/XenDesktop 7.5 and XenApp/XenDesktop 7.6:

a Go to the Citrix DDC Server,

1 Click Citrix studio > policies and add a policy. Enable the Auto-create generic universal printer option.

2 Set the Universal print driver usage to Use universal printing only from the drop-down menu.

Conguring Thin Client Settings 91

b Check registry and make sure the same driver has been installed.

1 Check the drivers in registry of the server or desktop which you want to connect. The server or desktop must have ps,

pcl5, pcl4 drivers in the registry and the same driver must be installed on the server or desktop.

2 Go to HKEY_LOCAL_MACHINE\SOFTWARE\Citrix\UniversalPrintDrivers\. ThinOS does not support EMF and XPS.

NOTE: The supported drivers in the following table are one of the supported drivers for Citrix UPD used in

ThinOS. One of the recommended driver is provided here as an example..

The supported drivers are listed in the following table.

Printer class Printer driver

PS HP Color LaserJet 2800 Series PS

PCL5 HP LaserJet 2200 Series PCL 5

PCL4 HP LaserJet Series II

c If the server or desktop which you want to connect does not have these drivers, follow the steps mentioned here:

1 For example, in XenApp A6.5+2008 R2, add PCL driver in Server. Go to Device and Printers > Select any printer > Click

Printer server properties > Driver tab and then add HP LaserJet 2200 Series PCL 5 driver.

92 Conguring Thin Client Settings

2 Under HKEY_LOCAL_MACHINE\SOFTWARE\Citrix\UniversalPrintDrivers\PCL5c\, change DriverAlias and DriverName

HP LaserJet 2200 Series PCL 5.

Reset Features

Reset features include:

•Resetting to Factory Defaults Using G-Key Reset

•Resetting to Factory Defaults Using Shutdown Reset

Conguring Thin Client Settings 93

•Resetting Display Settings Using V-Key Reset

•Accessing Thin Client BIOS Settings

Resetting to Factory Defaults Using G-Key Reset

High-privileged or Stand-alone users can reset the thin client to factory default settings using the G-key reset feature.

To reset the thin client to factory default settings, restart the thin client and continuously tap the G key during the restart process. G-key

reset impacts all conguration items, including, but not limited to, both network conguration and connections dened in local NV-RAM.

NOTE: G-key reset is disabled for Low-privileged and Non-privileged users in Lockdown mode.

Resetting to Factory Defaults Using Shutdown Reset

A High-privileged or Stand-alone user can reset the thin client to factory default settings from the Shutdown dialog box.

To reset the thin client to factory defaults:

1 From the desktop menu, click Shutdown.

The Shutdown dialog box is displayed.

2 After starting your thin client you will see a Dell logo for a short period of time.

3 Click Restart the system to restart your thin client.

4 Select the Reset the system setting to factory default check box to restore your system settings to default factory settings.

5 Click OK to save the settings.

Shutdown reset impacts all conguration items, including, but not limited to network conguration and connections dened in local

NV-RAM. However, the terminal name will not be changed.

NOTE:

Shutdown reset is disabled for Low-privileged and Non-privileged users, regardless of lock down state.

Resetting Display Settings Using V-Key Reset

If the display settings are inappropriate for the particular monitor that is connected, it is possible that the display will not function properly

when the thin client restarts. To correct this, power-on the thin client while continuously tapping the V key. This will restart the thin client

with a default/automatic display resolution.

Accessing Thin Client BIOS Settings

After starting your thin client you will see a Dell logo for a short period of time. During this period you can press and hold the Delete key to

enter the BIOS with Fireport as the password to make necessary modications. For example, you can use the F7 key to use Optimized

Defaults (load optimal default values for all the items in the BIOS setup utility).

NOTE: This does not apply to the Wyse 3020 thin client with ThinOS (T10D) no BIOS on ARM platform — to access the

WLOADER on an ARM platform, press the power button for about four seconds until the power light turns green, and then press

the Delete key.

94 Conguring Thin Client Settings

Citrix HDX RealTime Multimedia Engine (RTME)

RTME 1.8 was a new feature introduced in ThinOS 8.2. This is the Citrix HDX RealTime Optimization Pack 1.8 for Lync. In ThinOS 8.3

release, the Citrix HDX RealTime Optimization Pack 2.0 (RTME 2.0) was supported. Citrix RTME 2.0 was introduced to support

Microsoft Skype for Business 2015 client/UI (only), in addition to RTME 1.8 supporting the Microsoft Lync 2010/2013 clients. From ThinOS

8.3.1 HF release, RTME 2.0 is updated to a newer version 2.1.200—Citrix HDX RealTime Optimization Pack 2.1.200 for Microsoft Skype for

Business 2016. This section provides information about supported platforms for RTME, installation of RTME package, Citrix remote Server/

Desktop host preparation, conguration on ThinOS, and RTME status check and troubleshooting.

•Introduction

•Installing the RTME package on ThinOS

•Setting up the RTME connector

•Verifying the RTME 1.8 Status

•Verifying the RTME 2.1 Status

Topics:

• Introduction

• Installing RTME package on ThinOS

• Setting up the RealTime Multimedia Engine (RTME) connector

• Verifying the RTME 1.8 Status

• Verifying the RTME 2.1 Status

Introduction

Citrix HDX RealTime Optimization pack oers high-denition audio and video calls. RTME 1.8 and 2.0 co-existed in ThinOS 8.3 release

package. RTME 2.1.200 is supported from 8.3.1 HF release and ThinOS 8.3.2 release.

For more information about Citrix RTME 1.8 feature, go to docs.citrix.com/en-us/hdx-optimization/1-8/hdx-realtime-optimization-pack-

about.html.

For information on how to use Citrix RTME 1.8 feature, go to docs.citrix.com/en-us/hdx-optimization/1-8/hdx-realtime-optimization-pack-

troubleshooting.html.

For more information about RTME 2.1 features, go to Docs.citrix.com/en-us/hdx-optimization/2-1.

For more information on how to use Citrix RTME 2.1 feature, go to Docs.citrix.com/en-us/hdx-optimization/2-1/hdx-realtime-install.

Supported Environments

• Citrix environment: XenDesktop and XenApp 5.6/6.5/7.x

• Desktop with RTME connector 1.8 (Lync server and client version 2010 and 2013; Skype for Business client in Lync 2013 GUI is

supported).

• Desktop with RTME connector 2.1 (Both Skype for Business 2015 and Skype for Business 2016 are supported).

• Supported networks: LAN, WAN (VPN), wireless and so on.

• Supports calls between RTME clients or between RTME and standard Lync clients.

6

Citrix HDX RealTime Multimedia Engine (RTME) 95

Installing RTME package on ThinOS

You are required to install the RTME.i386 package for the RTME feature to work on ThinOS.

To install the RTME.i386 package:

1 Upload the RTME.i386.pkg to directory \wnos\pkg\.

NOTE: For RTME package version, see

Dell Wyse ThinOS 8.3.2 Release Notes

.

2 You must ensure that the INI autoload is not set to value 0.

3 Restart the thin client and wait till the auto-installation of packages is complete.

The installed RTME package is displayed in the Packages window in System Tools.

NOTE: The Packages screenshot is for reference only. For actual package versions, see the latest ThinOS build or Release

Notes.

96 Citrix HDX RealTime Multimedia Engine (RTME)

Setting up the RealTime Multimedia Engine (RTME)

connector

This section describes how to install and use Lync or Skype for Business (SFB) on a Citrix desktop.

1 Install Citrix HDX RealTime Connector on Citrix desktop VDA/Server.

NOTE:

• HDX RealTime Multimedia Engine is the package installed on ThinOS; it is HDX RealTime Connector that needs to be installed

or upgraded on the remote server and VDA.

• The Upgrade option from 1.7 to 1.8 is discussed at Docs.citrix.com/en-us/hdx-optimization/1-8/upgrade-1-7-to-1-8.html.

• The Firewall conguration is required on remote server and VDA. For more information, refer to Docs.citrix.com/en-us/hdx-

optimization/1-8/hdx-realtime-optimization-pack-congure-rewall.html.

• To know about the technical overview of RTME 2.1, go to Docs.citrix.com/en-us/hdx-optimization/2-1/hdx-realtime-

optimization-pack-overview.

IMPORTANT: The RTME 1.8 feature on ThinOS supports only HDX RealTime Connector 1.8 due to Citrix limitation.

2 Update the ThinOS rmware, and install the RTME.i386.pkg on the ThinOS client. For information about installing the RTME package,

see Installing the RTME package on ThinOS.

IMPORTANT: In ThinOS 8.3.1 HF release and ThinOS 8.3.2 release, the RTME 1.8 and 2.1 co-exist in the release package,

supporting both versions of RTME connectors.

3 (This step is for RTME 1.8 only) Congure the Domain Name Server (DNS) settings on ThinOS for Lync Server.

NOTE: You must ensure that the thin client does not have USB redirection for video/audio devices in order to have RTME

working correctly.

4 Log in to your Citrix Desktop, and sign in to Lync client or Skype for Business (SFB) client.

• For RTME 1.8, the RTME icon is displayed in the lower-left corner of the Lync client window.

• For RTME 2.1, the RTME icon is displayed on taskbar.

Use the Lync Application to perform the following tasks:

• Start an audio or video call

• Select user to call

• Call from the IM window

• Type a name or number to call

• Answer the call

• Audio call

• Video call

• Headset button to answer the call

• Transfer call/ mute/ hold call

• Control the video: Pause/ End/ Picture in Picture (PiP)

• Set the volume levels

• Use Dial Pad

• Make a conference call

• Help and Hang up

• Minimize/maximize or close the Lync window

• Perform Network Health check:

• For RTME 1.8, press Ctrl+N to open the Network Health window.

Citrix HDX RealTime Multimedia Engine (RTME) 97

• For RTME 2.1, right-click the RTME icon on taskbar and select Call Statistics.

The attributes, such as received packets, sent packets, video frame rate, video resolution, audio codec, and video codec are displayed in

the above described window.

Verifying the RTME 1.8 Status

The Citrix HDX RealTime Connector for Microsoft Lync 2013 dialog box enables you to verify the RTME 1.8 status.

To view the Citrix HDX RealTime Connector for Microsoft Lync 2013 dialog box:

1 Do any of the following to view the Citrix HDX RealTime Connector for Microsoft Lync 2013 dialog box:

• Click the RTME icon in the lower-left corner of the Lync application window, and click Audio Video Settings.

• Click the Lync menu icon in the upper-right corner of the Lync application window, and click Tools > Audio Video Settings.

The Citrix HDX RealTime Connector for Microsoft Lync 2013 dialog box is displayed.

2 Click the About tab in the Citrix HDX RealTime Connector for Microsoft Lync 2013 dialog box.

The RTMS status is displayed in the upper-right pane of the dialog box. If the RealTime Multimedia Engine is successfully initiated

between the ThinOS client and Citrix Desktop, the RTME status is displayed as follows:

Status Registered

Connection Type Secured

Mode Optimized

You can also view the Citrix HDX RealTime Connector for Microsoft Lync 2013 version and Citrix HDX RealTime Media Engine

version in the dialog box.

3 Click the Audio Device tab to congure the RTME audio settings, such as speakers, microphone, and ringer settings.

NOTE: The RTME audio device on ThinOS shows only one device from ThinOS local playback device. It can actually work

the way they are congured at ThinOS local playback device and record device. The RTME audio device for ringtone is

limited to use ThinOS local playback device. This is a known Issue.

98 Citrix HDX RealTime Multimedia Engine (RTME)

4 Click the Video Device tab to congure the RTME video settings. From the drop-down list, select the webcam that you want to use

for video calls.

5 Click the Call Forwarding tab to congure the call forwarding settings.

You can congure the following options:

• Turn o call forwarding

• Forward any call to a specic number

• Simultaneously ring

NOTE: The latest call forwarding settings congured by you are displayed in the lower pane of the dialog box.

For more information about trouble shooting, go to docs.citrix.com/en-us/hdx-optimization/1-8/hdx-realtime-optimization-pack-

troubleshooting.html.

Known Issues with RTME 1.8 feature

• RTME operation system on ThinOS is displayed as Linux.

• RTME audio device on ThinOS will display only one device from ThinOS local playback device. It can actually work the way they are

congured at ThinOS local playback device and record device. The RTME audio device for ringtone is limited to use ThinOS local

playback device.

• The RTME 1.8 feature on ThinOS does not work with other versions of HDX RealTime connector due to known Citrix limitation.

• If you change the audio device during an RTME call, the audio input or output might stop responding.

• Using similar hardwares, such as Dx0D, ThinOS, Linux, and Windows (D90D7) produce similar video frame rate (20-30) and video

resolution (320-400). It produces better video quality using laptop or PC because of better CPU capability.

• In a video conference call, when dierent user is speaking, the on-screen video switches to the active user, but takes a few seconds to

switch over.

Certied devices

The following are the certied devices for RTME:

• Plantronics BLACKWIRE C435-M Headset

• Plantronics Calisto 620-M, Bluetooth Speakerphone

• POLYCOM Deskphone CX300

• Jabra PRO 935 MS Headset

• Jabra MOTION 360 hands free Bluetooth Headset

• Plantronics BLACKWIRE C-310M Headset

• Plantronics Voyager Legend UC B235 NA Bluetooth Headset

• Jabra UC Voice 750MS Duo (Dark) Headset

• Logitech USB Webcam 9000

• Logitech C525 HD Webcam

• Microsoft LifeCam 3.0 Cinema

• Logitech HD Webcam C310

• Logitech HD Webcam C910

• Logitech HD Webcam C920

• Logitech HD Webcam C930

Verifying the RTME 2.1 Status

This section describes the working of RTME 2.1 and how to verify the RTME status.

Salient Features

Citrix HDX RealTime Multimedia Engine (RTME) 99

• Native SFB client menus and operations are available.

• Better initialization eliminates DNS confusions.

• Supports more call features, such as call delegation, and response group.

• Supports video codec H.264-UC, and audio codec SILK introduced by RTME 2.1.

To verify the RTME status, do the following:

1 Install the correct connector on the remote desktop.

2 Install the correct package on the ThinOS device.

3 Plug-in the audio/video devices.

NOTE: HDX USB redirections are not available for the audio/video devices.

4 Connect to the remote desktop using SFB client.

5 Verify the RTME connector 2.1 icon on taskbar. The status is displayed as Connected.

6 Verify the About, and Settings options from the RTME connector 2.1 menu.

7 Verify the audio/video devices from SFB client menus.

8 Establish the video/audio calls.

9 Pick up the calls by either clicking the mouse or using the headset button.

10 Verify the Call Statistics from the RTME connector 2.1 menu.

NOTE: RTME 2.1 supports various call scenarios. For more information, refer to

Citrix technical overview

.

Known Issues

• When using Webcam such as, C930 with RTME 2.1, the incoming video may appear late. For example, the video may be displayed after

5–10 seconds, or a blue video is displayed instead.

• The video sent from client in call is decided by capabilities of both endpoints in the call. Sending higher video from one client does not

mean that the client has better capability than the other one in call.

• RTME status dialog displays operation system as Linux.

• Only single audio device is supported in ThinOS 8.3 release.

• RTME audio microphone conned to local audio record device.

• Changing the video/audio device during RTME call results in issue with audio input or output.

• Volume: Dell recommends you to adjust the speaker volume in audio settings of SFB client to high. By default, the SFB client audio

volume is set to 40 percent. SFB 2015 call window to high, and the system local playback/record audio volume for better voice input/

output. The default volume is a bit low.

• Camera/Video: The local camera setting does not aect/impact the RTME video output because of the RTME design.

100 Citrix HDX RealTime Multimedia Engine (RTME)

Advanced Details on Conguring ICA and RDP

Connections

Use the following information when conguring ICA and RDP connections. This information assumes that the thin client does not have a

locked down privilege level.

•High-privileged user — The additional functionality provided by the Connection Settings dialog box allows testing of connection

denitions before they are entered by a network administrator into the user prole les.

•Low-privileged user — The settings for the selected connection can be viewed but cannot be edited, and new connections cannot be

dened. Connection denitions are controlled by a network administrator and are accessed by the thin client from the user proles on a

remote server.

•Stand-alone user — The Connect Manager is available to Stand alone users because connection denitions cannot be accessed from

remote user proles. If user proles are available on an FTP server but are not accessed because DHCP is not available or is not

congured to provide the le server IP address, the le server IP location can be entered manually using the Network Setup dialog box.

Topics:

•Conguring ICA Connections

•Conguring RDP Connections

Conguring ICA Connections

To congure the ICA connection option you selected in the Remote Connections dialog box, perform the following tasks:

1 Click Default ICA icon on the desktop.

2 Click Settings, and then click the Connection tab.

To congure the ICA Connections, do the following:

7

Advanced Details on Conguring ICA and RDP Connections 101

aServer or Published Application — Select the type of connection to which the settings apply.

bConnection Description — Enter the descriptive name that is to appear in the connection list (38 characters maximum).

cBrowser Servers — Enter a delimited (comma or semicolon) list of IP addresses or DNS-registered names of ICA servers that

contains the master browsers list, or that could refer to another server that contains the list.

The master browsers list is generated automatically by a browsing program on one of the ICA servers (selected by negotiation

between servers). It is used to provide the information displayed in the Server Name or IP box. No entry is needed if the list is on

an ICA server in the same network segment as the thin client. No entry is necessary if the connection is to a server, or if the

server name or IP contains the IP address of the server.

dHost Name or Application Name (title depends on the Server or Published Application option selected) — You can enter a

delimited semicolon or comma-separated list of server host names or IP addresses, or you can select from the list of ICA servers

or published applications obtained from the ICA master browser. You can also use Browse next to the box to make the selection

you want.

If you enter a delimited list of servers, the thin client will attempt to connect to the next server on the list if the previous server

attempt fails. If you use the list and the selected connection fails, the thin client will attempt to connect to the next one on the

list.

102 Advanced Details on Conguring ICA and RDP Connections

NOTE:

The Host Name may be resolved using one of three mechanisms: ICA master browser, DNS or WINS. Master browser is the

only mechanism that can resolve a published application unless manual entry is made in DNS for the application. DNS uses

the default domain name in the network control panel to attempt to construct an FQDN but will also try to resolve the name

without using the default.

eEncryption Level — Allows you to select the security level of communications between the thin client and the ICA server.

Basic (the default option) is the lowest level of security. Basic allows faster communication between the device and the ICA

server because it requires less processing than the higher levels of encryption.

NOTE: The encryption selection applies to the security of communications between the thin client and the ICA server

only. It is independent of the security settings of individual applications on the ICA server. For example, most web

nancial transactions require the thin client to use 128-bit encryption. However, transaction information could be

exposed to a lower level of security if the thin client encryption is not also set to 128 bits.

fUse HTTP for browsing — When selected, the thin client, by default, uses HTTP when browsing.

gAlternate address via rewall — When selected, the thin client uses an alternate IP address returned from the ICA master

browser to get through rewalls. Used for the Windows log on when the connection is activated.

hDisplay Resolution — Select the display resolution for this connection.

If you select the Published Application option, the Connection Display allows you to select the Seamless Display Resolution

option.

Colors — Select the color depth of the ICA session. If High Colors (16 bits) or True Colors is selected and the ICA server does

not support this color depth, the thin client renegotiates the color depth to the lower value, for example, 256 Colors [8–bits].

iWindow mode and Full screen mode — Select the initial view of the application and desktop in a windowed screen or full

screen.

jAuto-connect on start-up — When selected, automatically connects the session on start-up.

kReconnect after disconnect — When selected, causes the thin client to automatically reconnect to a session after a non

operator-initiated disconnect. If selected, the wait interval is that set in the Delay before reconnecting box (enter the number of

seconds 1–3600) or the user prole for yes (20 seconds) or seconds. The default is 20 seconds, if there is no INI le description

of this connection, or is a Stand-alone user, or simply omitted.

3 Click logon tab, and use the following guidelines:

Advanced Details on Conguring ICA and RDP Connections 103

aLogging on area — Enter Login Username, Password, Domain name, and Logon Mode.

If the Login Username, Password, and Domain name boxes are not populated, you can enter the information manually in the ICA

server login screen when the connection is made:

•Login Username — Maximum of 31 characters is allowed.

•Password — Maximum of 19 characters is allowed.

•Domain Name — Maximum of 31 characters is allowed.

•Logon Mode — Select User-specied credentials, Smart Card, or Local User.

bStart Command area— Server Connection Option Only — This area is disabled for a Published Application option.

Application (127 characters maximum) and Working Directory (63 characters maximum) — Enter an initialization string and

arguments, including an associated working directory, that you want to start automatically on the server when the connection is

made.

4 Click Options tab and use the following guidelines:

104 Advanced Details on Conguring ICA and RDP Connections

aAutoconnect to local devices — Select any options (Printers, Serials, USB, Smart Cards, and Disks) to have the thin client

automatically connect to the devices.

bAllow font smoothing — When selected, enables font smoothing (smooth type).

cOptimize for low speed link — When selected, allows optimization for low-speed connections, such as reducing audio quality

and/or decreasing protocol-specic cache size. Intended for a connection spanning a WAN link or using dialup.

dEnable session reliability — When enabled, session reliability allows a user to momentarily lose connection to the server without

having to re-authenticate upon regaining a connection. Instead of a user’s connection timing out after X seconds, the session is

kept alive on the server and is made available to the client upon regaining connectivity. Session reliability is most relevant for

wireless devices.

Conguring RDP Connections

To congure the RDP connection option you selected in the Remote Connections:

1 Click the RDP tab on the desktop.

The Default RDP dialog box is displayed.

2 Click the Connection tab, and use the following guidelines:

Advanced Details on Conguring ICA and RDP Connections 105

aConnection Description— Enter the descriptive name that is to appear in the connection list (38 characters maximum).

bHost Names— Use the list to select the valid DNS server name or the IP address of the server to which the thin client

connection is to be made you can also use Browse next to the box to make the selection you want. For example, a list of WTS

servers on the local network from which you can select.

NOTE: The server name may be resolved using one of two mechanisms: DNS, and WINS. DNS uses the default domain

name in the network control panel to attempt to construct an FQDN but will also try to resolve the name without using

the default.

cConsole mode— Select to set the RDP connection with Windows Console mode.

dDisplay Resolution— Select the display resolution for this connection.

Colors—

Select the color depth of the RDP session. If High Colors (16 bits) or True Colors (32 bits) is selected and the RDP server does

not support this color depth, the thin client renegotiates the color depth to the lower value for example, 256 Colors (8 bits). The

highest is 32 bits, if hardware supports it.

eFull screen on 1 monitor and Span both monitors— Select the initial view of the application in a full screen or span.

fAuto-connect on start-up— When selected, automatically connects the session on start-up.

gRe-connect after disconnect—When selected, causes the thin client to automatically reconnect to a session after a non-

operator-initiated disconnect. If selected, the wait interval is that set in the Delay before re-connecting box (enter the number

of seconds 1 to 3600) or the user prole for yes (20 seconds) or seconds. The default is 20 seconds, if there is no INI le

description of this connection, or is a Stand-alone user, or is simply omitted.

106 Advanced Details on Conguring ICA and RDP Connections

You can reset the options on the Connection tab of the Connection Settings (RDP) dialog box. To do so, click the Reset VM

command button. This command button is located in the upper-right of the dialog box. It appears only with a VDM broker

connection.

3 Click Logon tab, and use the following guidelines:

aLogging on area —Enter login username, password, and domain name. If these boxes are not populated, you can enter the

information manually in the RDP server login screen when the connection is made. Use the following guidelines:

•Login Username — Maximum of 31 characters is allowed.

•Password — Maximum of 19 characters is allowed.

•Domain Name — Maximum of 31 characters is allowed.

bApplication —(127 characters maximum) and Working Directory (63 characters maximum)— Enter an initialization string and

arguments, including an associated working directory, that you want to start automatically on the server when the connection is

made.

cUse TS Gateway— Enables the use of Terminal Services Gateway (TS Gateway) server when connecting. If required, then

enter the IP address or URL of the TS Gateway server in the Server name box. You can also enable Use Same Info (if the server

credentials are the same credentials as your Remote Desktop Credentials (Host remote computer credentials) in the Login

Username, Password, and Domain name elds) or disable Use Same Info and enter the Server name, User name, Password, and

Domain name of the TS Gateway server if required.

NOTE: A TS Gateway server is a type of gateway that enables authorized users to connect to remote computers on a

corporate network from any computer with an Internet connection. A TS Gateway server enables Remote Desktop

connections to a corporate network from the Internet without having to set up virtual private network (VPN)

connections. Ask your network administrator whether you need to specify a TS Gateway server.

•User Name — Enter a user name for the connection.

•Password — Enter the password.

•Domain — Enter the domain name.

NOTE: The User name, Password, and Domain name elds are optional. If you leave any of these elds blank,

interactive login is required and users must enter the information at login time.

Advanced Details on Conguring ICA and RDP Connections 107

4 Click Options tab, and use the following guidelines:

aWallpaper — When selected, disables the desktop wallpaper.

bMenu / Window animation — When selected, disables the menu or window animation.

cTheme — When selected, disables the desktop themes.

dShow content when dragging — By default, when you grab a Window by the title bar and move it around, the contents of the

window will move with it. Select this to disable this content view so that only the outline of the window moves when dragging it,

until you drop the window. This option can be benecial, as it uses less processing power.

eFont smoothing — Converts vector text to bitmap for better display.

fAuto-connect to local devices — Select any options (Printers, Serials, USB, Smart Cards, and Disks) to have the thin client

automatically connect to the devices.

NOTE: USB — Redirects locally attached USB devices on the thin client to a Microsoft Windows terminal server.

When the user connects to the terminal server, locally attached USB devices on the thin client are accessible.

gRDP Audio Playback — Select the audio playback options such as Play Locally, Do not play, and Play on remote computer.

hRDP Audio Recording — Select the audio recording options such as Do not record, and Record from local.

iTurn compression o — When selected, turns compression o (intended for high-speed connections).

jOptimize for low speed link —When selected, allows optimization for low-speed connections, such as reducing audio quality

and/or decreasing protocol-specic cache size. Intended for a connection spanning a WAN link or using dialup.

kAuto detect network — When selected, turns on the auto detect network feature. This feature is enabled by default. It also

disables the Optimize for low speed link option and the Desktop Experience options by default.

lMouse queue timer— Species the default queue timer of a mouse event in an ICA or RDP session (in 1/100 of a second). It

can be used to adjust the bandwidth of a network.

5 Click OK to save the settings.

RDP Dynamic resizing

The windows in an RDP session can be resized directly by using the mouse.

How to work

108 Advanced Details on Conguring ICA and RDP Connections

1 Launch an RDP session (Windows 8.1/2012 r2) by using Window mode and non-default resolution.

2 Use the mouse to change the size of the session window.

Known Issues

Resizing the session window causes the MS media player’s frame region to dispatch. This is a server side issue.

Advanced Details on Conguring ICA and RDP Connections 109

ICA SuperCodec

ICA SuperCodec is a H.264 decoder integrated on ThinOS ICA client side. Server encodes the session image into H.264 stream and sends it

to client side. Client decodes the H.264 stream by SuperCodec and show the image on screen. It should improve user experience especially

for HDX3DPro desktops.

Supported Environment

XenDesktop/ XenApp 7.5 or later versions

Supported Platforms

All the platforms support ICA SuperCodec except on C10LE and R10L.

Verifying the working status of the ICA connections

•For Wyse 3010 with ThinOS (T10) and Wyse 3020 with ThinOS (T10D)

ICA SuperCodec is enabled by default when ThinOS resolution is lesser than or equal to 1920 x 1080.

a When the feature is working, the following results are displayed:

ThinOS event log ICA: SuperCodec enabled

Click HDX Monitor > Graphics > Thinwire advanced > Encoder: DeepCompressionV2Encoder for NON-HDX3DPro desktops or

DeepCompressionEncoder for HDX3DPro desktops.

8

110 ICA SuperCodec

b When the feature is disabled, you can view the following results:

ThinOS event log: System resolution exceeds hardware limitation (1920 x 1080), disable SuperCodec

ICA SuperCodec 111

Click HDX Monitor > Graphics > Thinwire Advanced > Encoder > CompatibilityEncoder; CompatibilityEncoder.

•For other platforms except C10LE, R10L Wyse 3010 with ThinOS (T10) and Wyse 3020 with ThinOS (T10D)

• ICA SuperCodec is always enabled without any limitation.

• ThinOS event log displays ICA: SuperCodec enabled.

NOTE: For ICA connections, there is no INI parameter.

ICA SuperCodec behavior on Wyse 3040 thin client

ICA SuperCodec is disabled automatically, if the ThinOS monitor resolution is bigger than 1920 x 1200. The event log System resolution

exceeds hardware limitation (1920 x 1200), disable Supercodec is printed.

112 ICA SuperCodec

ICA 14.0.0.91

•Supported Environment

This release supports ICA connections with XenApp 7.x and later versions including XenDesktop 7.5 and later versions.

•New Features — This version of ICA has new features such as:

•Multicast support in Virtual Driver Multi-Media (VDMM)

1 Launch an ICA Desktop in XenDesktop 7.x or XenApp 7.x

2 Start multimedia and from the le menu, click Open URL.

Event logs are displayed.

NOTE: ICA multicast does not support C10 due to VIA platform limits.

3 Supported protocols: HTTP, MSB, MMS; RTSP/RTCP are not supported.

•SuperCodec support in Virtual Driver ThinWire (VDTW)

For information about SuperCodec, refer to ICA SuperCodec.

•Keyboard Timer Support

1 Add SessionConfig=ica KeyboardTimer=1000in wnos.ini.

2 Launch an ICA desktop, and then open the Notepad in the session.

3 When you try to edit something in Notepad, you will see some delay in the key input.

•Mouse Snap To position

1 Launch an ICA desktop.

2 In Control Panel, go to Mouse Settings.

3 Click Pointer Options > Snap To.

4 Enable Automatically move pointer to the default button in the dialog box, and then click OK to close the dialog box.

5 Re-open the mouse setting.

The mouse pointer snaps to OK button automatically.

•VDMM support

1 Launch an ICA desktop.

2 Run multimedia in session and try to play a video clip.

3 Seek the progress bar to a certain position.

ICA SuperCodec 113

4 Wait for the video clip to repeat the playback.

5 Again seek the progress bar to a certain position. User can seek to the correct position and continue to play.

114 ICA SuperCodec

Features of RDP 8.1

Remote Desktop Protocol (RDP) H.264 and VOR is enabled by default for all ThinOS platforms, except C10LE and R10L.

Remote desktops such as Window 8, Window 8.1, Window 10, and Windows 2012R2 are supported in this release.

The following are the dependencies of RDP 8.1:

•Dependence 1: RDP GFX status, H.264 and VOR work only when GFX is enabled.

•Dependence 2: VOR is dynamic. So the enablement / disablement of VOR dynamically changes during the change in the video

resolution (enlarge/shrink).

•Dependence 3: H.264 enablement is decided at the beginning of connection, depending on the maximum resolution available for the

session.

The following INI parameter must be set to enable GFX, H.264 and VOR:

SessionConfig=RDP EnableGFX=yes/no EnableVOR=yes/no

enablerdph264=yes/no

Topics:

• Verifying the Status of VOR/H.264

• Work Flow of Dual Display

• Support Matrix for RDP 8.1

Verifying the Status of VOR/H.264

• When the feature is enabled and when enablement dependencies are valid, the following screens are displayed in the Event Log tab:

9

Features of RDP 8.1 115

• When the feature is disabled, the following screen is displayed in the Event Log tab for disablement:

• Also, when video resolution exceeds VOR limitation, there is no event log for VOR disablement.

Work Flow of Dual Display

In dual-display, the RDP feature only works within a limited resolution.

The ‘maximum resolution possibly for the session’ for H.264 enablement is as follows:

• RDP without force span which is the same as single display.

• RDP with force span + window mode is dependent on system resolution value

• RDP with force span + full screen + default resolution is veried by system resolution x 2.

• RDP with force span + full screen + not default resolution is veried by selected resolution x 2.

116 Features of RDP 8.1

Support Matrix for RDP 8.1

The following table displays the support matrix for RDP 8.1:

Table 4. Support Matrix for RDP 8.1

Platform Support

GFX Support

VOR Support

RDP H.

264

Default

GFX Default

VOR Default

H.264 HW/ SW

decoder H.264 limits

on session

resolution

VOR limits on

video

resolution

C10LE No No No N/A N/A N/A N/A N/A N/A

R10L Yes Yes

(Gstream

er)

No Yes Yes N/A N/A N/A 1920 x 1200

Wyse 3010 with

ThinOS (T10)

Yes Yes (FBF) Yes No Follows

GFX

Follows

GFX

HW only 1920 x 1080 1920 x 1080

Wyse 3020 with

ThinOS (T10D)

Yes Yes (FBF) Yes Yes Yes Yes HW only 1920 x 1080 1920 x 1080

Wyse 3030 LT

with ThinOS /

Wyse 3030 LT

with PCoIP

Yes Yes (FBF) Yes Yes Yes Yes HW/ SW

conditional

1920 x 1200 1920 x 1200

Wyse 3040 with

ThinOS / Wyse

3040 with PCoIP

Yes Yes (FBF) Yes Yes Yes Yes HW/ SW

conditional

1920 x 1200 1920 x 1200

Wyse 5010 with

ThinOS (D10D) /

Wyse 5010 with

PCoIP (D10DP)

Yes Yes (FBF) Yes Yes Yes Yes HW/ SW

conditional

1920 x 1200 1920 x 1200

Wyse 5060 with

ThinOS / Wyse

5060 with PCoIP

Yes Yes (FBF) Yes Yes Yes Yes HW/ SW

conditional

1920 x 1200 1920 x 1200

Wyse 7010 with

ThinOS (Z10D)

Yes Yes (FBF) Yes Yes Yes Yes HW/ SW

conditional

1920 x 1200 1920 x 1200

Features of RDP 8.1 117

Introduction to Flash Redirection

The Flash Redirection solution is to o-load ash content to the ThinOS client, and locally render and decode the ash playback. The o-

loading is conducted by Citrix HDX Flash Redirection. The local rendering and decoding process are conducted by customized ash player

and other multimedia process that runs locally on ThinOS.

Supported Environment— Supports only Citrix Connections with XenApp 6.5 and later versions and XenDesktop 7.0 and later versions.

Supported Platforms:

• Wyse 3030 LT with ThinOS

• Wyse 3030 LT with PCoIP

• Wyse 3040 with ThinOS

• Wyse 3040 with PCoIP

• Wyse 5010 with ThinOS (D10D)

• Wyse 5010 with PCoIP (D10DP)

• Wyse 5040 AIO thin client (5212)

• Wyse 5040 AIO with PCoIP (5213)

• Wyse 5060 with ThinOS

• Wyse 5060 with PCoIP

• Wyse 7010 with ThinOS (Z10D)

Flash Redirection

Required packages

User must install the FR.i386.pkg package for the feature to work:

Installation of packages

To install the required packages, follow the steps mentioned here:

1 Upload packages to directory \wnos\pkg\.

2 Ensure that the INI autoload is not set to 0. Set INI AutoLoad=1 AddPkg=FR in wnos.ini.

3 Restart the client to read the File Server and wait till the auto installation of packages is complete.

10

118 Introduction to Flash Redirection

You can view the installed packages in the Packages tab in the System Tools dialog box.

NOTE: For ThinOS package versions, see

Dell Wyse ThinOS 8.3.2 Release Notes

.

4 Server conguration for Flash redirection

a To ignore the dierences in ash player versions, user must add the FlashPlayerVersionComparisonMask and

ClientFlashPlayerVersionMinimum registry key on the desktop.

If it is XenApp 6.5, IEBrowserMaximumMajorVersion registry key is required to ignore the dierences in IE Browser

versions.

For more information, see docs.citrix.com/en-us/xenapp-and-xendesktop/7-9/hdx/ash-redirection.html.

From XenDesktop 7.9, you must add more entries in registry for HDX FR to work. For information about these additional entries,

refer to Citrix Technical documents.

5 Client conguration for Flash redirection

By default, no client conguration is required. New INI parameters are added to support HDX FR Client congurations, for example, to

fetch the server side content. The newly added INI parameters are:

SessionConfig=ICA\

HDXFlashUseFlashRemoting=Never | Always (default) \

HDXFlashEnableServerSideContentFetching=Disabled (default) | Enabled \

How to verify it is working or not working

Introduction to Flash Redirection 119

a Right-click the ash video to know the ash player version. It displays version information of the customized player at ThinOS

client side which is 11.1.102.59. If the ash player version is dierent, then it is unsuccessful server rendering.

b During the ash playback, it will display ThinOS event logs for HDX FR in the System Information dialog box.

1 FR: Media type video/x-264

2 FR: Media type audio/mpeg

For information about basic operations on Citrix HDX ash redirection and policies congurations, see Citrix documentation.

Known Issues

a Playback ash videos in Internet Explorer browser with normal security settings.

b Playback with videos ≤ 720p; the 1080p video may show graphic issue.

c Playback full screen video with resolution ≤ 1920 x 1200; for example, full screen playback with ThinOS resolution 1920 x 1200; in

2560 x 1600 full screen video there could be graphic issues.

d After ash video is loaded it will stay in initial size; for example, resizing browser will not resize the video content; it is same

behavior with Citrix HDX FR Linux client.

e Only English font is supported; for example, subtitles in other languages will not be properly displayed.

f In some scenario the video shows no content initially; when user resizes browser the video appears normally; it is likely to happen

with x86 desktops and is a known issue for Citrix HDX FR Linux client.

g Playback with videos that can work with HDX FR on Linux or Windows client: There are a number of videos/websites known as

not working with Citrix HDX FR solution such as msn.com, espn.com, movies.yahoo.com, and dell.com. Flash videos simply

cannot load with these websites using HDX FR solution. Some of them are working periodically; for example, videos on dell.com

were working well during this Feb/March but stopped working afterwards; the results can vary depending on user location as

well (US/Europe/Asia). It is therefore recommended to make sure the target videos work with HDX FR on Linux or Windows,

before working with it on ThinOS.

h The solution on ThinOS is based on Citrix HDX FR Linux version. It is advised to compare with Linux client in case of any issues.

i Playback YouTube.com videos may run into some issues; for example, cannot show video unless user copy the URL and paste it

to the browser to visit again. In case any observation we recommend to compare with Linux client.

120 Introduction to Flash Redirection

Introduction to TCX 7.0 Flash Redirection

The Dell Wyse TCX Suite 7.0 is a single software solution that provides full benets of cloud client-computing without the limitations of

competing software suites. The TCX Flash Redirection is one of the component of TCX Suite 7.0 that enables the cloud client users to

experience improved Flash video content performance in a remote computing environment.

TCX Flash Redirection uses the client CPU to decode and render ash. TCX Flash Redirection uses the Adobe ash player plug-in that

supports the NPAPI interface on the client. TCX 7.0 Flash Redirection is supported over RDP and PCoIP protocols. TCX Flash Redirection

uses less Sever CPU cycles.

For more information about the TCX 7.0 Flash Redirection feature and Supported environment, refer to Dell Wyse TCX 7.0 Admin Guide.

Supported Platforms

The following are the platforms that supports TCX 7.0 ash redirection:

• Wyse 3030 LT with ThinOS

• Wyse 3030 LT with PCoIP

• Wyse 3040 with ThinOS

• Wyse 3040 with PCoIP

• Wyse 5010 with ThinOS (D10D)

• Wyse 5010 with PCoIP (D10DP)

• Wyse 5040 AIO thin client (5212)

• Wyse 5040 AIO with PCoIP (5213)

• Wyse 5060 with ThinOS

• Wyse 5060 with PCoIP

Working Status of TCX 7.0 Flash Redirection

Pre-requisites

•TCX.i386.pkg must be installed on client for the feature to work.

•TFRSServerBHO Class must be enabled in browser add-on.

•Enable Protected Mode is turned o in the Security options of Internet Explorer.

•Enable third-party browser extensions is enabled in Advanced options of Internet Explorer.

Verifying the working status of TCX 7.0 Flash Redirection

Verifying the status of TCX 7.0 Flash Redirection is similar to HDX FR.

Right-click the menu, and navigate to the Event log tab in System Information to verify whether the TCX FR is working eectively. The

following screenshot displays the TCX status log in the Event Log tab.

Use the following INI parameter to display the HW label:

MMRConfig=VIDEO flashingHW=1

11

Introduction to TCX 7.0 Flash Redirection 121

Known Issues with TCX 7.0 Flash Redirection

TCX FR on ThinOS is not working for certain ash video pages. However, the result is the same between FR over RDP, and FR over PCoIP.

Dell recommends you to validate, and block the URL that does not work, before deploying TCX FR on all the systems.

122 Introduction to TCX 7.0 Flash Redirection

Performing Diagnostics

Diagnostics include:

•System Tools

•Using the Trouble Shooting Options

Topics:

• System Tools

• Using the Trouble Shooting Options

System Tools

Use the System Tools dialog box to view device details, package details and Global INI/User INI information. You can also import

certicates using the Certicates tab.

1 From the desktop menu, click System Tools.

The System Tools dialog box is displayed.

2 Click the Devices tab to display all the locally attached devices, including USB, Serial, and Parallel on applicable platforms. The details

about the monitors connected to the thin client are also displayed.

The Device Viewer button was previously available in the Devices tab of the System Information dialog box.

12

Performing Diagnostics 123

NOTE: The Mirror File Server tab has been removed from the System Tools dialog box, as it can now be viewed in the

Devices tab.

3 Click the Certicates tab, and use the following guidelines:

124 Performing Diagnostics

a Import the certicates by selecting either USB Storage or File Server from the drop-down list, and then click Import to import

the required certicate.

b Click Delete to delete the imported certicate.

c Click View Certicate to view the imported certicate information such as Version, Validity, and Serial number. You can also view

the certicate path and certicate status.

4 Click the Packages tab, and use the following guidelines:

ThinOS packages that are installed on thin client are listed in the Packages tab.

Performing Diagnostics 125

a Click the Delete button to delete the selected package.

b Click the Delete all button to delete all the packages.

The following packages are displayed in the Package tab:

•base.i386.pkg

•FR.i386.pkg

•RTME.i386.pkg

•pcoip.i386.pkg—This package is available only on Wyse 3030 LT with PCoIP, Wyse 3040 with PCoIP, Wyse 5010 with PCoIP

(D10DP), Wyse 5040 AIO with PCoIP (5213), and Wyse 5060 with PCoIP.

•TCX.i386.pkg

IMPORTANT: You cannot delete the base package separately. If you click Delete All, all packages are deleted including the

base package. When you click Delete All, a message is displayed prompting you to restart the device.

126 Performing Diagnostics

NOTE: From ThinOS 8.2 release, base.i386.pkg is mandatory for all ThinOS clients. At present, PCoIP package is

mandatory for the following PCoIP enabled thin clients:

• Wyse 3030 LT with PCoIP

• Wyse 3040 with PCoIP

• Wyse 5010 with PCoIP (D10DP)

• Wyse 5040 AIO with PCoIP (5213)

• Wyse 5060 with PCoIP

Other packages are optional. Base package and PCoIP package are integrated into the ThinOS rmware image. Installing

the latest ThinOS rmware image will automatically install the latest version of these packages on ThinOS client. You

cannot manually install or upgrade these embedded packages. However, the package version details of respective packages

are displayed in the Packages tab for engineering information purpose only.

5 Click the Global INI tab to view wnos.ini information.

6 Click the User INI tab to view wnos.ini information.

7 Click the WDM INI to view the received WCM congurations.

Performing Diagnostics 127

WCM function is supported from WDM for comprehensive client conguration. Without conguration from server, the client loads the

cached settings (wdm.ini), if available.

Limitation

To upgrade or downgrade rmware/image through WCM, you are required to enable WDM le server function by selecting the WTOS

INI path upon checkin (FTP/HTTPS/HTTP/CIFS) check box in the WTOS preferences in the WDM conguration manager.

User Scenario

a Create or edit client congurations from WCM (JSON).

128 Performing Diagnostics

b Select the target devices, and publish conguration settings through the Package Distribution Wizard.

Performing Diagnostics 129

For more information about WDM Package Manager and Prole Manager, refer to the WDM Admin Guide.

8 Click OK to save the settings.

130 Performing Diagnostics

Using the Trouble Shooting Options

Use the Trouble Shooting dialog box to congure Trace and Event log settings, performance monitor graphs that display client CPU,

Memory, and Networking information, and CMOS management extract and restore cmos settings as described in CMOS Local

Management: Extracting CMOS Settings to a USB Key for Distribution. It also allows you to view wnos.ini cached information for

troubleshooting purposes.

To use the trouble shooting options:

1 From the desktop menu, click Trouble Shooting.

The Trouble Shooting dialog box is displayed.

2 Click the General tab, and use the following guidelines:

a Click either USB or File Server to select your target device you want to use for CMOS management.

bExtract CMOS — Click this option to extract the CMOS settings to the USB Key or le server based on your target device

selection.

cRestore CMOS — Click this option to write the CMOS settings from the USB Key to the target thin client.

dPerformance Monitor — Click this option to display your thin client CPU, Memory, and Networking information. The graphs

display on top of all windows.

eForce Coredump — Use this option to forcibly generate the debug information for technical investigation when your system is

not responding.

3 Click the Trace tab to congure the trace actions and Delay on Trace. The available options for Trace action are None, Capture, and

Playback.

Performing Diagnostics 131

4 Click the Capture tab to congure the Export Event Log, Network Capture to USB, Wireless Capture to USB, and USB DEV Trace.

132 Performing Diagnostics

If you want to enable the error messages, use the following guidelines:

• Click either One-time or Persistent option to enable logging the unexpected error message.

• Turn o logging and then check the log le under the folder ftp:/wnos/trouble_shoot.

• Be sure to enable the Enable Trace option of the Privilege parameter in a wnos.ini le. For more information, see Dell Wyse ThinOS

INI Guide.

Performing Diagnostics 133

• Use the Network capture to USB option to enable the capture of network information, that is, a network trace of all trac

coming in and out of the thin client to a USB drive that is inserted into the thin client.

After login and use of the XenDesktop server or network, you will see a ThinOS_WS.pcap le in the USB drive which you can

analyze using software such as a packet analyzer used for network troubleshooting, and analysis.

NOTE:

Ensure that you have inserted the USB drive into the thin client before selecting the Network capture to USB option. The

Network capture to USB option is automatically cleared, if there is no USB drive inserted and you exit the dialog box, or after

restarting the thin client; if needed, you must select the option again.

5 Click the Ping tab, and use the following guidelines to execute the ping diagnostic utility and display response messages:

aEnter Hostname or IP — Enter the IP address, DNS-registered host name, or WINS-registered host name of the target to be

pinged.

bData area — Displays ping response messages. The ping command sends one echo request per second, calculates round trip

times and packet loss statistics, and displays a brief summary upon completing the calculation.

cStart — Executes the ping command. If the host is operational and on the network, it responds to the echo request. By default,

echo requests are sent until interrupted by clicking Stop.

dStop — Terminates the ping request and leaves the Ping dialog box open, so you can read the summary posted in the data area.

134 Performing Diagnostics

NOTE:

Ping sends an echo request to a network host. The host parameter is either a valid host name or an IP address. If the host is

operational and on the network, it responds to the echo request. Ping sends one echo request per second and calculates round

trip times and packet loss statistics. It displays a brief summary upon completion of the calculation.

The ping utility can be used to:

• Determine the status of the network and various foreign hosts.

• Track and isolate hardware and software problems.

• Test, measure, and manage networks.

• Determine the IP address of a host if only the host name is known.

IMPORTANT:

Not all network equipment will respond to ping packets, as this is a common mechanism used in denial-of-service attacks. Lack of

response does not necessarily indicate that the target of the ping is unusable for other purposes.

6 Click the Trace Route tab to execute the tracert diagnostic utility and display response messages. Use the following guidelines:

aEnter Hostname or IP — Enter the IP address, DNS-registered host name, or WINS-registered host name of the target to be

traced.

bData area — Displays round-trip response time and identifying information for each device in the path.

cStart — Executes the tracert command.

dStop — Terminates the tracert command and leaves the Trace Route dialog box open, so that you can read the information

posted in the data area.

Performing Diagnostics 135

The tracert utility traces the path from your thin client to a network host. The host parameter is either a valid host name or an IP

address. The tracert utility sends out a packet of information three times to each device (routers and computers) in the path and

displays the round trip response times and identifying information in the message box.

7 Click OK to save the settings.

136 Performing Diagnostics

Central Conguration: Automating Updates and

Congurations

This appendix describes how to set up your environment to provide your thin clients running ThinOS with automatic updates and

congurations in three simple steps.

NOTE: Dell Wyse thin clients do not require device management software. They are congured to obtain their IP address, as well

as the location of rmware and conguration instructions, from a DHCP server. However, you can use WDM for a more hands-on

management of your thin clients. For information about conguring your thin clients to communicate with a WDM server, see the

WDM related INI parameters in

Dell Wyse ThinOS INI Guide

.

How to Set Up Automatic Updates and Congurations

For a thin client running ThinOS to successfully access INI les and update itself from a server, you must set up the server with the correct

folder structure where the INI les and other update les are located, direct the thin client to the server, and then reboot or start the thin

client

Once DHCP and servers are congured and available, the thin client checks (at each boot up) to see whether or not any updates are

available on a predened server DHCP Option #161 species the server URL, DHCP Option #162 species the root path to the server. If

updates are available, the updates are automatically installed.

Using DHCP Options

This table contains the DHCP options available for use.

Table 5. DHCP Options

Option Description Notes

1 Subnet Mask Required. However, it is not required unless

the thin client must interact with servers on

a dierent subnet. MS DHCP requires a

subnet mask and is always send one.

2 Time Oset Optional.

3 Router Optional, but recommended. It is not

required unless the thin client must interact

with servers on a dierent subnet.

6 Domain Name Server(DNS) Optional, but recommended.

15 Domain Name Optional, but recommended. See Option 6.

28 Broadcast Address Optional.

44 WINS servers IP Address Optional.

51 Lease Time Optional, but recommended.

52 Option Overload Optional.

A

Central Conguration: Automating Updates and Congurations 137

53 DHCP Message Type Recommended.

54 DHCP Server IP Address Recommended.

55 Parameter Request List Sent by thin client.

57 Maximum DHCP

Message Size

Optional (always sent by thin client).

58 T1 (renew) Time Optional, but recommended.

59 T2 (rebind) Time Optional, but recommended.

61 Client identier Always sent.

161 File server (ftp/http/https) Optional string. Can be either the name or

the IP address of the le server. If a name is

given, the name must be resolvable by the

DNS servers specied in Option 6. If the

option provided by the server is blank or the

server provides no value for the eld, the

machine on which the DHCP server resides

is assumed to also be the le server.

162 Root path to the le server (ftp/http/https) Optional string. If the option provided by the

server is blank and the server provides no

value for the eld, a null string is used.

\wyse\wnos is automatically appended to

the search path. For example, if you enter

pub\serversoftware, the path searchedare

pub\serversoftware\wyse\wnos.

NOTE: You can have the \wyse

automatic component of the search

path omitted by appending a dollar

sign ($) to the entered path. For

example, if you enter pub

\serversoftware$, the path

searched will be pub

\serversoftware\wnos.

NOTE:

The usage or omission of a leading

slash (\) on the path is critical on

some servers. Some servers limit

access to the root path of the user

specied at login. For those servers,

the usage of the leading slash is

optional. Some *NIX servers can be

congured to allow the le user

access to the entire le system. For

those servers, specifying a leading

slash species that access is to start

at the root le system. Proper

matching of the le specication to

the le server in use is critical to

ensuring proper operation. A secured

Windows server requires the slash to

be specied in order to complete

proper access.

181 PNAgent/ PNLite server list Optional string. The thin client uses the

server to authenticate the Windows

138 Central Conguration: Automating Updates and Congurations

credentials of the user and to obtain a list of

ICA published applications valid for the

validated credentials. The user supplies

those credentials when logging in to the thin

client.

182 NT domain list for PNAgent/ PNLite Optional string. The thin client creates a

pull-down list of domains from the

information supplied in option 182. This list is

presented at thin client login in the order

specied in the DHCP option (for example,

the rst domain specied becomes the

default). The selected domain is the one

which must authenticate the user ID and

password. Only the selected domain is used

in the authentication process. If the domain

list is incomplete and the user credentials

must be veried against a domain not in the

list, assuming that the server in option 181 is

capable of authenticating against a domain

not in the list, the user has the option of not

using any of the domains specied in option

182 and typing a dierent domain name at

the time of login.

184 File server Username Optional string. Username to use when

authenticating to the server specied in

Option 161.

185 File server Password Optional string. Password to use when

authenticating to the server specied in

Option 161.

186 WDM server list Optional binary IP addresses of WDM. This

option can specify up to two WDM servers.

If two are specied, at boot time the thin

client attempts to check-in to the rst

server. If it cannot contact the rst server, it

tries to check-in to the second server.

187 WDM server port Optional number. Byte, word, or two-bytes

array.

NOTE: The value of this option tag,

when not embedded in Vendor

Class Specic Information option, is

interpreted in reverse order when it

is sent as 2-bytes example, the

value of 0x0050 was interpreted as

0x5000. This option tag was used

by old ThinOS releases. New

ThinOS releases still accept this

option tag for backward

compatibility.

188 Virtual Desktop Broker server Optional string.

190 WDM secure port Optional number, word or two-bytes array.

Species to use HTTPS to communicate

with WDM instead of HTTP.

192 WDM server port Optional number, word or two-bytes array.

Central Conguration: Automating Updates and Congurations 139

NOTE: The value of this option tag

represents the same information as

option tag 187. The dierence is

that ThinOS interprets the value of

this option tag in correct order (for

example, the value of 0x0050 is

interpreted as0x0050). If the DHCP

server provides both option tag 192

and 187, option tag 192 takes

precedence.

194 WDM FQDN Optional Fully Qualied Domain Name for

the WDM.

199 Cloud Client Manager Group Key Optional string. Can provide a CCM Group

Registration Key for the cloud Client

Manager agent. When cloud Client Manager

is disabled and the Group Key of Cloud

Client Manager is null, this option takes

eect. Cloud Client Manager uses the

optional string as the Group Registration

Key. If the Cloud Client Manager server or

MQTT server is null, the Cloud Client

Manager agent sets the values to the

default server values.

140 Central Conguration: Automating Updates and Congurations

CMOS Management

This appendix includes general CMOS management information for use with the following supported versions:

• C10 BIOS version 1.0B_SPC001-0407 or later

• D10D BIOS version 3.0D or later

• R10 BIOS version 1.0H_SPC-0T51 or later

Depending on the method of distribution you want to use, complete one of the following:

•CMOS Central Management: Extracting CMOS Settings to the File Server for Distribution.

•CMOS Local Management: Extracting CMOS Settings to a USB Key for Distribution.

Topics:

• CMOS Central Management: Extracting CMOS Settings to the File Server for Distribution

• CMOS Local Management: Extracting CMOS Settings to a USB Key for Distribution

CMOS Central Management: Extracting CMOS

Settings to the File Server for Distribution

CMOS central management allows ThinOS administrators to easily manage CMOS settings for large deployments of thin client devices

using central conguration methodologies. The following instructions are for C10 BIOS version 1.0B_SPC001–0407. However, the

instructions are also applicable for other supported BIOS versions.

1 To prepare a Reference Drive containing BIOS version 1.0B_SPC001-0407 or later:

a The Reference Device is a golden image you use to distribute to other thin client devices. To use Reference Drive, enter the

BIOS Setup Utility. Press the Delete key, enter the Password — Fireport (case sensitive) and press Enter. Congure the CMOS

settings, includes AutoPower, BootOrder, P-key setting, BiosPassword.

b Save your CMOS Settings.

c Restart your thin client device.

2 To create a CMOS INI File in a File Server:

a In the le server, create a cmos.ini le and place it in the wnos directory/folder under the le server ini directory. Make sure that

wnos directory on the le server has upload privilege.

b Type the following name in the cmos.ini le: Device=cmos Action=extract.

3 To reboot the Reference Device to the File Server containing the CMOS INI File:

a On the thin client you want to use as a Reference Device, start the thin client.

b In the Login dialog box, enter the credentials you need to access the cmos.ini le.

c After login, to view the Event Log tab, do the following:

Click System Information icon > System Information dialog box > Event Log tab.

You can open the event log to view a CMOS: extract to C10_cmos.1.0B_SPC001 event. This means that the CMOS central

management le (containing the CMOS settings from your Reference Device) is now copied to the wnos directory/folder on the

le server. As this is a C10 BIOS version 1.0B_SPC001-0407 example, the CMOS central management le name would be

C10_cmos.1.0B_SPC001. These CMOS settings are now ready for distribution to other thin clients.

4 To prepare the File Server containing the CMOS INI File for Distribution:

a Write the following line in the cmos.ini le for distribution on your le server: Device=cmos Action=restore

b Save the le.

B

CMOS Management 141

5 Log in to all Target Device to the File Server containing the CMOS INI File:

a Start the thin client devices for which you want to distribute the Reference Device CMOS Settings.

b To access the cmos.ini. le, enter your credentials in the Login dialog box.

c To open Event Log, click System Information icon. In the System Information dialog box, select Event Log tab.

You can view the CMOS: restore from C10_cmos.1.0B_SPC001 event. This means that your Central Management le containing

the CMOS settings from your Reference Device is copied to the targeted thin client devices.

NOTE: After you target your thin client devices contain the CMOS settings you want, do not log in to the le server

containing the cmos.ini le with the restore action (unless you want to redo the restore process). Administrators can

remove the cmos.ini le to prevent from unwanted CMOS overwrites.

NOTE: It is recommended to initially complete these procedures on a le server designated to test the success of your

CMOS central management settings/process. While the central conguration method can be used to enforce your CMOS

settings in a production environment, be aware that any thin client device that logs in to the le server that contains the

cmos.ini and its extract and restore commands are subject to those commands (CMOS overwrites).

CMOS Local Management: Extracting CMOS Settings

to a USB Key for Distribution

CMOS local management allows ThinOS administrators to easily manage CMOS settings for small deployments of thin clients using USB

Key distribution methods. The following instructions are for R10 BIOS version 1.0B_SPC001–0407. However, the instructions are also

applicable for other supported BIOS versions.

1 To prepare a Reference Drive containing BIOS version 1.0B_SPC001-0407 or later:

a The Reference Device is a golden image you use to distribute to other thin client devices. To use Reference Drive, enter the

BIOS Setup Utility. Press the Delete key, enter the Password — Fireport (case sensitive) and press Enter. Congure the CMOS

settings, includes AutoPower, BootOrder, P-key setting, BiosPassword.

b Save your CMOS Settings.

c Restart your thin client device.

2 To extract the CMOS Settings to a USB Key.

a Attach a formatted USB key on the thin client device which you want to use as a Reference Device. For example, to format on

Windows 7, attach the USB Key, right-click on the USB key, select Format, click Restore device defaults, select Quick Format,

and then click Start.

b Use the Extract CMOS to USB GUI feature of ThinOS to extract the CMOS settings to the USB Key. On Classic Desktop: Right-

click the desktop and select Extract CMOS to USB. On Wyse Zero Desktop: In the General tab of the System Tools dialog box

(System Settings icon > System Tools > General tab), click Extract CMOS to USB.

c Once extraction successful you see a pop-up message: CMOS: extract to R10_cmos.1.0H_SPC), properly eject and detach the

USB Key. The CMOS settings on the USB Key are now ready for distribution to other thin clients

3 To restore the CMOS Settings to your Target devices:

a On all of the target thin clients that you want to distribute the Reference Device CMOS settings, start the thin client.

b Use the Restore CMOS from USB GUI feature of ThinOS to write the CMOS settings from the USB Key to the target thin

client: For Classic Desktop: Right-click the desktop and select Restore CMOS from USB. For Wyse Zero Desktop: In the General

tab of the System Tools dialog box ( System Settings icon > System Tools > General tab), click Restore CMOS from USB.

c Once restoration successful you see a pop-up message: CMOS: restore from R10_cmos.1.0H_SPC properly eject and detach the

USB Key. The CMOS settings on the USB Key are now written to your target thin client.

142 CMOS Management

Examples of Common Printing Congurations

This appendix provides examples on using the Printer Setup dialog box and ThinOS INI parameters for common printing situations. Use

these general guidelines in addition to the information provided in Conguring the Printer Setup.

IMPORTANT: Host-based printers are not supported.

It includes:

•Printing to Local USB or Parallel Printers

•Using the Printer Setup Dialog Box for Local USB or Parallel Printers

•Using INI Parameters for Local USB or Parallel Printers

•Printing to Non-Windows Network Printers (LPD)

•Using the Printer Setup Dialog Box for Non-Windows Network Printers (LPD)

•Using INI Parameters for Non-Windows Network Printers

•Printing to Windows Network Printers (SMB)

•Using the Printer Setup Dialog Box for Windows Network Printers

•Using INI Parameters for Windows Network Printers

•Using Your Thin Client as a Print Server (LPD)

•using the Printer Setup Dialog Box for Conguring LPD Services

•Using INI Parameters for Conguring LPD Services

•Conguring ThinPrint

Topics:

• Printing to Local USB or Parallel Printers

• Printing to Non-Windows Network Printers (LPD)

• Printing to Windows Network Printers (SMB)

• Using Your Thin Client as a Print Server (LPD)

•Conguring ThinPrint

Printing to Local USB or Parallel Printers

You can print to locally attached printers through USB or Parallel ports.

IMPORTANT:

Microsoft Remote Desktop Session Host (RDSH), Microsoft Terminal Services, and Citrix XenApp each have their own printing policies

that must be congured properly to allow client side printing. For details on conguring printing in these environments, see your vendor

instructions.

C

Examples of Common Printing Congurations 143

Using the Printer Setup Dialog Box for Local USB or Parallel

Printers

In this example you have an HP LaserJet 4000 attached to a thin client USB port. When connecting USB printers, some printers ll out the

Printer Name and Printer Identication elds for you.

To Congure the Printer to print locally attached printers through USB or Parallel ports.

1 From the desktop menu, click System Setup > Printer.

The Printer Setup dialog box is displayed.

2 Click Printer Setup, and use the following guidelines for the Ports tab when printing to a local USB printer:

aSelect Port — Select LPT1 or LPT2 port.

bPrinter Name — Enter name you want displayed in your list of printers, most USB direct-connected printers report/ll in their

printer name automatically.

cPrinter Identication — Enter the type or model of the printer in the exact text of the Windows printer driver name —

including capitalizations and spaces most USB direct-connected printers report/ll in their printer identications automatically. In

our example case, enter HP LaserJet 4000 Series PCL.

dPrinter Class — You can leave this as default.

eEnable the printer device — Must be selected to enable the directly connected printer enables the device so it displays on the

remote host.

3 Click OK to save the settings.

Using INI Parameters for Local USB or Parallel Printers

Conguring local printing using ThinOS INI parameters is simple and an easy way to congure a printer for all clients in your environment

assuming every printer is the same.

Your INI parameters will look something like the following:

Printer=LPT1 \

Name="HP LaserJet 4000" \

PrinterID="HP LaserJet 4000 Series PCL" \

Enabled=yes

NOTE: The PrinterID is the exact text of the Windows printer driver name, so if a printer driver is named HP LaserJet 4000

Series PCL in Windows, then it must be exactly the same in the PrinterID eld in the INI parameters including capitalizations and

spaces.

Printing to Non-Windows Network Printers (LPD)

ThinOS can print to non-Windows network printers as long as the printers can accept LPR print requests. Most workgroup printers and

large network printers have this capability be sure to check with your vendor that the printer can accept Line Printer Request print

requests.

Once your thin client is congured to print to an LPR capable printer, the client will then redirect this printer through an RDP or ICA

connection to your back end infrastructure. In this way the client will connect to your back end infrastructure and this network printer will

appear as a client local printer.

144 Examples of Common Printing Congurations

Using the Printer Setup Dialog Box for Non-Windows Network

Printers (LPD)

To congure the Printer Setup dialog box for Non-Windows Network Printers (LPD).

1 From the desktop menu, click System Setup, and then click Printer.

The Printer Setup dialog box is displayed.

In this example we have an HP LaserJet 4200n attached to a thin client through LPR.

2 Click the LPDs tab and use the following guidelines when printing to a non-Windows network printer:

aSelect LPD — Select LPD1 or LPD2 port.

bPrinter Name — Enter name you want displayed in your list of printers.

cPrinter Identication — Enter the type or model of the printer in the exact text of the Windows printer driver name —

including capitalizations and spaces.

In this example, enter HP LaserJet 4200n PCL6.

dLPD Hosts — The DNS or WINS name of the server for the network printer. An IP address of the printer on the network can

also be entered as we have used in our case example.

NOTE: If the printer is attached to another thin client on your network, the entry in the LPD Hosts box is the name or

address of that thin client.

eLPD Queue Name — An LPD host maintains a named queue for each supported printer. Enter the name of the queue

associated with the printer used. This name can be dierent for each vendor. This eld is required and must be correct so that

the network printer accepts incoming print jobs properly. In our case example, auto can be used for HP LaserJet 4200n PCL6 as

per documentation found on the HP website.

NOTE: If the printer is attached to another thin client on your network, the LPD Queue Name must match the content

of the Printer Name box on the thin client with the printer attached.

fPrinter Class —You can leave this as default.

gEnable the printer device — Must be selected to enable the printer enables the device so it displays on the remote host.

Using INI Parameters for Non-Windows Network Printers

(LPD)

Conguring network printing using ThinOS INI parameters is simple and an easy way to congure a printer for all clients in your environment

assuming every printer is the same.

Your INI parameters will look something like the following:

Printer=LPD1 \

LocalName="HP LaserJet 4200n" \

Host=10.10.10.1 \

Queue=auto \

PrinterID="HP LaserJet 4200 PCL6" \

Enabled=yes

NOTE: The PrinterID is the exact text of the Windows printer driver name, so if a printer driver is named HP LaserJet 4200n

PCL6 in Windows, then it must be exactly the same in the PrinterID eld in the INI parameters including capitalizations and

spaces.

Printing to Windows Network Printers (SMB)

ThinOS can print to printers that are shared by Microsoft print servers. There are some conguration requirements that need to be

considered when conguring SMB printing from ThinOS which may require changes to your thin client setup.

Examples of Common Printing Congurations 145

Since connecting to a Microsoft Windows Print Server requires domain credentials, you must provide the credentials to ThinOS either on

demand as the printer is used or by administrator setup providing credentials cached from the Dell Wyse login screen, see Example 3:

Dening an SMB Printer to Use User Credentials Cached by ThinOS (Advanced) in Using INI Parameters for Windows Network Printers

(SMB). This section will discuss both methods.

Using the Printer Setup Dialog Box for Windows Network

Printers (SMB)

Conguring an SMB printer is this manner forces users to enter their credentials before each printing; this means they will be temporarily

pulled out of their remote session to enter their credentials (this can be avoided by using an INI le as discussed in Using INI Parameters for

Windows Network Printers (SMB).

Enter the context of your task here (optional). This is where introductory content goes.

1 From the desktop menu, click System Setup > Printer.

The Printer setup dialog box is displayed.

2 Click the SMBS tab, and use the following guidelines when printing to a Windows network printer:

NOTE: The printer name shared by Windows must not contain any spaces or ThinOS will not be able to use it.

aSelect SMB — Select the SMB you want from the list.

b\\Host\Printer — Click the browse folder icon next to the box to browse your Microsoft Networks and make the printer

selection you want from the network printers available the DNS name or IP address of the Windows print server on the network.

After entering required domain credentials, the Printer Setup dialog box will display

cPrinter Name — Enter name you want displayed in your list of printers.

dPrinter Identication — Enter the type or model of the printer in the exact text of the Windows printer driver name—including

capitalizations and spaces.

In example case, enter HP LaserJet 4100 Series PCL.

ePrinter Class —You can leave this as default.

fEnable the printer device — Must be selected to enable the printer.

It enables the device so it displays on the remote host.

Click Test Print and you will be prompted to enter your Windows credentials, these credentials will be used to access the printer

share. This is also the same dialog box that will display for a user when they attempt to print to this printer.

Using INI Parameters for Windows Network Printers (SMB)

Conguring SMB printing using ThinOS INI parameters is simple and an easy way to congure printers shared by a Windows server for all

clients in your environment. The primary advantage of conguring SMB printing using ThinOS INI parameters is that you can pre-dene the

domain account to use to authenticate the printer. The following examples discuss how the credentials can be supplied.

1. Dening an SMB Printer with Generic User Credentials in Plain Text

Printer=SMB1 \

LocalName="Demo SMB Printer" \

Host=\\dp-dc-ftp \

Name="TechSupportPrinter" \

PrinterID="HP LaserJet 4100 Series PCL" \

Enabled=yes \

Username=Username1 \

Password=Password \

Domain=contoso

2. Dening an SMB Printer with Generic User Credentials that are Encrypted

Printer=SMB1 \

LocalName="Demo SMB Printer" \

Host=\\dp-dc-ftp \

146 Examples of Common Printing Congurations

Name="TechSupportPrinter" \

PrinterID="HP LaserJet 4100 Series PCL" \

Enabled=yes \

Username-enc=PACGOGDBPKDOPGDGKC \

Password-enc=PFDBOHDBODCJPODP \

Domain=contoso

NOTE: In order to create the encrypted passwords for use in an INI le you will want to use a program such as ConfGen. This

application has built in support for creating the encrypted strings. ConfGen can be downloaded from technicalhelp.de/

IMPORTANT: This is a non-supported tool that is linked solely for the purpose of this example.

3. Dening an SMB Printer to Use User Credentials Cached by ThinOS (Advanced)

NOTE: This method requires that the user log in to ThinOS so that the credentials can be cached for later use. The example INI

section provided below provides the minimum requirements you need.

Signon=NTLM

Connect=RDP \

Host=1.2.3.4 \

Username=$UN \

Password=$PW \

Domain=$DN \

AutoConnect=1

Printer=SMB1 \

LocalName="Demo SMB Printer" \

Host=\\dp-dc-ftp \

Name="TechSupportPrinter" \

PrinterID="HP LaserJet 4100 Series PCL" \

Enabled=yes \

Username=$UN \

Password=$PW \

Domain=$DN

Using Your Thin Client as a Print Server (LPD)

A ThinOS thin client can be congured as a basic network print server, to share local printers with other thin clients.

Using the Printer Setup Dialog Box for Conguring LPD

Services

From the Classic Desktop mode only, a thin client can be congured to provide LPD (Line Printer Daemon) services making the thin client a

printer server on the network. Set up the thin client that is to provide LPD print services as follows:

To congure LPD Services using the Printer Setup Dialog Box.

1 From the desktop menu, click System Setup > Network Setup to open the Network Setup dialog box.

2 Enter a static IP address for the thin client.

3 From the desktop menu, click System Setup > Printer to open the Printer Setup dialog box and select any of the listed ports.

4 Select a LPT.

5 Name the printer in the Printer Name box.

6 Enter the Printer Identication type or model of the printer in the exact text of the Windows printer driver name — including

capitalizations and spaces. In our example case, enter HP LaserJet 4000 Series PCL.

7 You can leave Printer Class as default.

8 Select Enable the Printer Device.

9 Select Enable LPD service for the printer.

10 For Setting Up Windows 2003/2008 Servers, see Setting Up Windows 2003/2008 Servers.

Examples of Common Printing Congurations 147

Setting Up Windows 2003/2008 Servers

To Congure Setting the Windows 2003/2008 Servers

1 Navigate to Control Panel > Administrative Tools > Services and ensure the Microsoft TCP/IP Printing service is installed. If it is not,

install it using the Microsoft installation instructions.

2 Add the thin client as the LPD printer by completing the following:

a Navigate to Control Panel > Printers > Add Printers > Local Printer > Create a new port and select LPR PORT.

NOTE: If you do not see LPR Port, ensure that the Microsoft TCP/IP Printing service is installed correctly.

b Type the thin client IP address or DNS name in the Name or address of host providing LPD box.

c Type the printer name assigned in Using the Printer Setup Dialog Box for Conguring LPD Services in the Name of printer on

that machine box.

d Click OK, and then click NEXT.

3 After you have selected the printer, you can perform your normal printer setup for the application server. For example, select the

manufacturer printer type and printer name.

Using INI Parameters for Conguring LPD Services

Conguring LPD printing using ThinOS INI parameters is simple and an easy way to congure a ThinOS thin client to be a basic network

print server, to share local printers with other thin clients.

Your INI parameters will look something like the following:

Printer=LPT1 \

Name="HP LaserJet 4000" \

PrinterID="HP LaserJet 4000 Series PCL" \

Enabled=yes \

EnableLPD=yes

NOTE: The PrinterID is the exact text of the Windows printer driver name, so if a printer driver is named HP LaserJet 4000

Series PCL in Windows, then it must be exactly the same in the PrinterID eld in the INI parameters including capitalizations and

spaces.

Conguring ThinPrint

No ThinPrint specic conguration is available on the thin clients. Thus to be able to use ThinPrint, users must rst set up their printers

according to the user documentation, and then congure ThinPrint on the thin client using the Printer Setup dialog box.

To congure the ThinPrint, use the following guidelines:

• Use the Printer Identication eld to enter a printer class (you can change the printer name as needed).

• Printer IDs are assigned (depending on the physical port) as follows:

• COM1 = 1

• COM2 = 2

• LPT1 = 3 — USB printers are detected automatically on LPT1

• LPT2 = 4

• LPD0 = 5– The LPD Queue name is transmitted as the printer name; the Printer Identication as class

• LPD1 = 6 — The LPD Queue name is transmitted as the printer name; the Printer Identication as class

• LPD2 = 7 — The LPD Queue name is transmitted as the printer name; the Printer Identication as class

148 Examples of Common Printing Congurations

• LPD3 = 8 — The LPD Queue name is transmitted as the printer name; the Printer Identication as class

• SMB1 = 9 — In the form \\host\printershare

• SMB2 = 10

• SMB3 = 11

• SMB4 = 12

To install the relevant ThinPrint product on the server use the following guidelines:

•Printer Objects Created Manually by the Administrator — After you install.print Engine, create a printer object on the server to use

the native driver and ThinPort as a printer port. You can use any protocol (TCP, RDP or ICA) because ThinOS has.print clients for all of

the protocols. The printer object needs to observe ThinPrint naming conventions, for example, HPLJ5#_:2, in which case print jobs are

sent to the local printer that has ID number .2 by referring to.print client port ID. If no ID number is present, the.print client sends the

print job to the printer set as current.

•Printer Objects Created Automatically by ThinPrint AutoConnect — When using ThinPrint AutoConnect, the thin client identies

with the thin client ID number 84 and thus is recognized as a thin client without a local spooler. You can also set up a template on the

server that uses a native driver example, HPLJ5) and ThinPort, and then name this template as you want in the form _#AnyName.

You can then make sure that the rules on ThinPrint Autoconnect [1] have been set to assign the desired local printers to use this server

template. The assigned printer will then be shown in the user session using the HPLJ5 driver and ThinPort; it is named automatically

according to ThinPrint naming convention with the printer name from the client side included. Alternatively, you can also dene a

template name according to the client printer name (replace.AnyName. with printer name 4. and 5. above for example, _#HP Laserjet 5

so that the local printer object.HP Laserjet 5. is mapped to this template without any rules dened on the ThinPrint Autoconnect.

Examples of Common Printing Congurations 149

Security Changes

A new global security policy has been dened for ThinOS and this policy is applied to all secure connections (https/SSL connections) with

a few exceptions.

Purpose: To improve the security level by default and add the global conguration. This security policy integrates security setting for each

application.

INI Parameter Description

SecurityPolicy={full | warning (default) |

low}

SecuredNetworkProtocol={yes | no (default)}

TLSMinVersion={1 (default), 2, 3}

TLSMaxVesion={1, 2, 3 (default)}

Full: SSL connection need to verify server certicate. If it is

untrusted, cancel the connection.

Warning (default): SSL connection need to verify server

certicate. If it is untrusted, the user can continue or cancel the

connection.

Low: Server certicate is not veried– this is the value set for a

few applications.

After rmware is updated, the default value is set to warning for all

applicable applications immediately.

There is one exception for le server and WDM.

The old ini SecurityLevel |SecureProtocol from Privilege segment

is deleted.

All applications running on the default SSL security mode follow the global mode. In the global mode, the default value is Warning. The

aected applications include VMware View, Amazon Workspaces (AWS), File Server, WDMService, Caradigm Server, and OneSign Server.

For more information about the security mode INI parameters, see Dell Wyse ThinOS INI Guide.

The following are the exceptions:

• File Server and WDM in factory reset state: Before loading any INI parameter, the SSL security mode is set to Low, and after loading the

INI parameter, the value is changed to follow the global mode value. For example, the default value is set to Warning, if the value is not

changed by the INI parameter.

System with previous settings (default value is set to Low) follows the global mode after the unit is upgraded. For example, the default

value is set to Warning, if the value is not changed by the INI parameter.

• VMware View and AWS brokers include own security settings (GUI and INI). From 8.3 release, an additional option is added to follow

the global mode as its new default value. The security mode GUI context is updated for better understanding.

D

150 Security Changes

• CCM, Microsoft RDS broker, Citrix broker, and SecureMatrix are always Full.

File Server default protocol is retained as FTP without any setting from WDM/DHCP/INI and always displays the full address with protocol

prex. For example, ftp://.

New rmware/client deploy information

• Dell recommends you to dene the SecurityPolicy before upgrading to version 8.3 and later. If not, you may get warning messages that

require intervention to proceed.

• Before upgrading to version 8.3 and later, it is recommended to dene the desired SSL security level and add the required Security

Policy parameters/options to global INI le.

• For SecurityPolicy=Fullor warning, you are required to add certicates from the respective File, View, AWS, WDM, OneSign,

and/or Caradigm server(s) to the ThinOS client before updating the rmware.

• The default protocol of File Server is still FTP and ftp prex is added automatically, if the protocol is not provided.

Improved user friendly messages are displayed for errors and warnings.

The UI is not changed and only the message is modied for security errors/warnings.

In full security mode, the following warning message is displayed:

Security Changes 151

For warning security mode, the following warning messages are displayed:

The server address does not convert to http, if WDM server is set as https.

• In the previous scenario, If WDM server is congured without HTTPS, and local WDM server address is specied in HTTPS, then the

system converts it to HTTP address.

• In the current scenario, the system does not convert the WDM server address to HTTP.

152 Security Changes

Manual discovery is removed from WDM. In the WDA tab, the Manual discovery method option is removed (Highlighted in red color in the

following screenshot).

Security Changes 153

Transport Layer Security (TLS)

Transport Layer Security (TLS) is a protocol that provides communication security between the client and server applications.

Upgrade to Transport Layer Security (TLS)— In the ThinOS 8.2 release, the TLS is upgraded from version 1.0 to version 1.2. By default,

the ThinOS client uses TLS 1.2 to secure any communication protocols, connections, or applications upon SSL/ TLS in general and falls

back to the previous SSL/ TLS version when negotiating with the server.

E

154 Transport Layer Security (TLS)

Important Notes

•USB 3.0 on Wyse 7010 with ThinOS (Z10D)—The Wyse 7010 with ThinOS (Z10D) devices support two USB 3.0 ports. The USB 3.0 is

supported on ThinOS 8.1 and compatible with USB 2.0. When USB 2.0 device is connected to 3.0 ports, the behavior of the device

remains unaltered. For USB 3.0 device to connect to 3.0 ports, the device type should be of 5 Gbps. All types of USB devices work

when connected to USB 3.0 port.

Known issue

• Camera preview has some known issue.

•Create INI options to change the BIOS feature— New INI Parameters are added to change the BIOS feature on the ThinOS devices.

INI Parameters:

Device=cmos

[Password=password encrypt={no, yes}]

[BootOrder={PXE, HardDisk, USB}]

[WakeOnLan={yes, no}]

[AutoPower={yes, no}]

[BootFromUSB={yes, no}]

[USBController={yes, no}]

[COMController={yes, no}]

[PopupMenu={yes, no}]

[OnboardAudio={yes, no}]

Supported platforms:

• Wyse 3020 with ThinOS (T10D)

• Wyse 3030 LT with ThinOS

• Wyse 3040 with ThinOS

• Wyse 5010 with ThinOS (D10D)

• Wyse 5040 AIO thin client (5212)

• Wyse 5060 with ThinOS

• Wyse 7010 with ThinOS (Z10D)

This feature is supported on the following PCoIP enabled clients:

• Wyse 3030 LT with PCoIP

• Wyse 3040 with PCoIP

• Wyse 5010 with PCoIP (D10DP)

• Wyse 5040 with PCoIP (5213)

• Wyse 5060 with PCoIP

NOTE: For platform Wyse 3020 with ThinOS (T10D), only support options (Password/Encrypt/BootOrder/AutoPower) are

available.

•Present the Hardware conguration in ThinOS from BIOS – This feature is displayed in the General tab of System Information. The

tab displays the hardware conguration information from the BIOS. Based on the BIOS, user can view the following six parameters

related to hardware conguration:

CPU Speed, Memory Speed, ROM Size, SSD Size, Parallel Ports, and Serial ports.

F

Important Notes 155

Supported platforms:

• Wyse 3030 LT with ThinOS

• Wyse 3040 with ThinOS

• Wyse 5010 with ThinOS (D10D)

• Wyse 5040 AIO thin client (5212)

• Wyse 5060 with ThinOS

• Wyse 7010 with ThinOS (Z10D)

This feature is supported on the following PCoIP enabled clients:

• Wyse 3030 LT with PCoIP

• Wyse 3040 with PCoIP

• Wyse 5010 with PCoIP (D10DP)

• Wyse 5040 with PCoIP (5213)

• Wyse 5060 with PCoIP

•Anonymous logon—This feature enables the users to log into the Storefront server congured with unauthenticated store without

Active Directory (AD) user credentials. It allows unauthenticated users to access the applications instead of AD accounts.

NOTE: Anonymous logon is not supported with legacy mode of Storefront server.

•TS Gateway III uses HTTPS / DTLS connections

TS Gateway III is supported in Windows Server 2012R2.

Limitations

TS gateway III uses UDP transfer which is supported with desktop Windows 8 and later versions. However, the UDP transfer for TS

gateway is disabled in this release.

User scenarios

a Connection with TS gateway congured in supported OS (e.g. Windows Server 2012 R2), it uses TS gateway III and the logs are

displayed as shown in the following screenshot:

156 Important Notes

b Connection with TS gateway congured in unsupported OS (e.g. Windows Server 2008R2), it uses TS gateway II and the logs are

displayed as shown in the following screenshot:

c When remote connection with TS gateway III closed: There are no additional logs displayed in the Event Log tab.

•Linux/Windows 10 desktop support

• Linux hosted desktop in Citrix, and vWorkspace brokers is supported.

• Windows 10 desktop in multiple brokers is supported.

• Windows 10 desktop is supported in Citrix, VMware, RDS brokers.

• Windows 10 does not support MMR/TSMM over RDP protocol, but Windows 10 MMR works with the Citrix connections.

•Server Name option—In ThinOS 8.0, the manual input DNS Servers are replaced by DHCP. From ThinOS 8.1, the manual input DNS

Servers are retained behind DHCP.

•Support for the Gemalto smartcard IDPrime MD840

Gemalto smartcard IDPrime MD830 was supported in v8.2 release. MD840 is added in this release. IDGo 800 v1.2.1 - 01 for the

Windows middleware is required for supporting Gemalto smartcard IDPrime MD840.

Known Issue: Prime MD 840 smartcard: If rst container is used, then XEN broker log-on fails.

•VNC RFB version upgrade: Since ThinOS 8.0_214, the VNC RFB version has been upgraded to 3.8 for some applications like

DameWare. The VNC version is upgraded to 3.8, so it is recommended to use the DameWare software to remotely control the thin

clients. Earlier, DameWare would not work, and you would have to use other softwares such as VNC Viewer. The advantage of using

DameWare is auto conguration and easy deployment while the limitation is that it requires minimum VNC version 3.8.

Important Notes 157

Frequently Asked Questions

1 How to enable USB Redirection in RDP windows 10 session?

Change policy: Go to Computer Conguration > Administrative Templates > Windows Components > Remote Desktop Service >

Remote Desktop Session Host > Device and Resource Redirection > Do not allow supported Plug and disable Play device

redirection.

2 How to enable ICA SuperCodec on XenDesktop 7.9?

Under Citrix Policy, Use video codec for compression needs to be congured to enable ICA SuperCodec on both non-HDX 3D Pro

desktop (standard VDA) and HDX 3D Pro desktop (VDA for HDX 3D Pro).

By default, Use video codec when preferred is selected. Then ICA SuperCodec is enabled on HDX 3D Pro Desktop only, but disabled

on non-HDX 3D Pro desktop. If you select Do not use video codec, ICA SuperCodec is disabled on both HDX 3D Pro desktop and

non-HDX 3D Pro desktop.

G

158 Frequently Asked Questions

Although ICA SuperCodec is disabled on non-HDX 3D Pro Desktop, if you set Use video codec when preferred or Do not use video

codec, OR disabled on HDX 3D Pro Desktop if you set Do not use video codec, ThinOS may still print log ICA: SuperCodec enabled,

and this is a known issue.

If you select Use video codec when available, ICA SuperCodec is enabled for both HDX 3D Pro desktop and non-HDX 3D Pro

desktop.

Frequently Asked Questions 159
