Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

Software releases are created to correct defects, make enhancements, or add new features. These releases are tested on all current,

actively shipping platforms and operating systems as applicable. This release notes contain details on the supported platforms, any changes

in the conguration settings and licensing details as well. The bug xes along with the workarounds are documented in the release notes.

Any changes in the feature functionality from an end-user perspective are listed with the description of each feature at a high level.

Current Version: 1.0.5

Release Date: 26 May 2017

Previous Version: 1.0.3.1

Contents

Release type and denition................................................................................................................................................1

Supported platforms..........................................................................................................................................................2

BIOS details.........................................................................................................................................................................2

Build details......................................................................................................................................................................... 2

AES password encryption tool..........................................................................................................................................3

New features...................................................................................................................................................................... 4

Existing features.................................................................................................................................................................7

RPMs list............................................................................................................................................................................. 8

Fixed issues.........................................................................................................................................................................9

Known issues..................................................................................................................................................................... 11

Tested peripherals.............................................................................................................................................................12

Test environment.............................................................................................................................................................. 14

Driver details......................................................................................................................................................................15

Release type and denition

ThinLinux v1.0.6 supports updated BIOS for SUSE Linux Enterprise Server (SLES) SP2 release with all the features and languages

supported by ThinLinux 1.0.3.1 and 1.0.5 for Wyse 3030 LT thin client and Wyse 5060 thin client platforms.

2017 - 05

Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes 1

Supported platforms

The following are the platforms supported in this release:

Table 1. Supported platforms

Thin client Memory conguration—Flash/RAM BIOS Version

Wyse 3030 LT thin client 4 GB/ 2 GB 1.0E

Wyse 5060 thin client 8 GB/ 4 GB 1.0F

BIOS details

The following table contains BIOS details of the supported platforms:

Table 2. BIOS details

Thin client BIOS Version File Name Size in Bytes

Wyse 3030 LT thin client 1.0E 10E.zip 3,914,980

Wyse 5060 thin client 1.0F 10F.zip 13,331,821

Build details

Following are the build details

Table 3. Image package details

Platform : Wyse 5060 thin client

Build version 4.4.21-69.1.11864.0.PTF.1007653-default

Build number 1.0.6

Build le name 1.0.6_5060_merlin.exe

Size (bytes) 788,218,726

Table 4.

Platform : Wyse 3030 LT thin client

Build version 4.4.21-69.1.11864.0.PTF.1007653-default

Build number 1.0.6

Build le name 1.0.6_3030LT_merlin.exe

Size (bytes) 777,166,851

2 Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

Table 5. Package details

File(s) name Build (version) Size in bytes

image-upgrade-1.0.6-Wyse.zip 1.0.6 (4.4.21-69.1.11864.0.PTF.1007653-

default)

683,909,662

all-addons-1.0.6-Wyse.zip 733,867,262

1.0.6.zip 683,632,895

AES password encryption tool

When the INI parameters are used, base-64 encryption is enabled for all passwords by default. If anyone wants to use AES encryption, they

must generate an AES encrypted password by using the WyseINIkeyCrypt.exe tool.

ThinLinux supports two password encryption methods for all the passwords in connections and global settings used in INI.

The two methods are as follows:

Base64 Encryption Passwords

• All passwords in INI le are base-64 encrypted by default.

• To generate base-64 encrypted password follow these steps:

• Log in to thin client

• Open the xterm

• Type regencode followed by password in plain text

Example: thinuser@LWT- regencode password

cGFzc3dvcmQ=

Encrypted output for password is cGFzc3dvcmQ=

AES password encryption

• For AES Encryption support, add PasswordEncryptionCode=2 ini parameter in INI le.

• All Passwords related to connections and users in INI le can be AES encrypted.

• Use the following procedure for creating AES Encrypted password:

a Copy the WyseINIKeyCrypt.exe on any windows machine.

b Open the .exe by clicking twice.

c Enter the plain text password in Password to encode edit box.

d Click Encrypt get AES encrypted password.

e Click Base64 button to get base-64 encrypted password.

Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

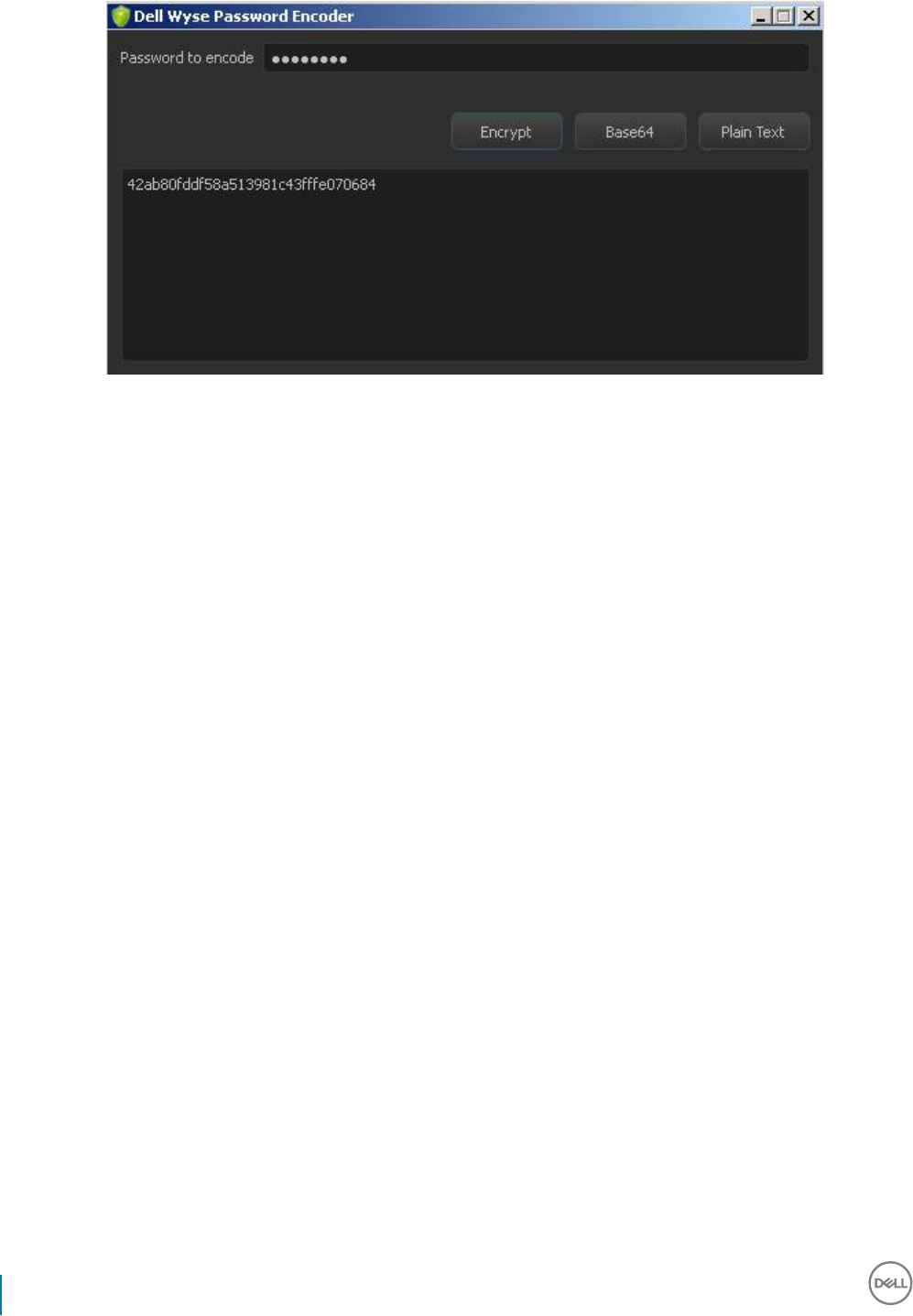

Figure 1. Dell Wyse Password Encoder

• Copy the encrypted password and place it in the INI le where password eld is mapped.

• Non-English characters are not supported for AES encryption password.

New features

Following are the supported features:

Functional behavior and components update

The basic functional behavior remains the same as ThinLinux 1.0.5.

BIOS

• Wyse 3030LT thin client BIOS v1.0E:

• Data Wipe –Enabling this feature allows users to securely erase the data from all internal storage devices like HHD, SSD, mSATA,

and eMMC. Data is wiped on the next restart.

• By default Data Wipe option is disabled.

• Wyse 5060 thin client BIOS v1.0F:

• Data Wipe – Enabling this feature allows users to securely erase the data from all internal storage devices like HHD, SSD, mSATA,

and eMMC. Data is wiped on the next restart.

• By default Data Wipe option is disabled.

Citrix ICA v13.5

This release is integrated with Citrix ICA v13.5

Features supported

This release provides the following new features, enhancements, and also resolves previously reported issues.

• Support for multi-stream ICA

• Support for the HTML5 video redirection

• Support for GStreamer 1.x

HTML5 video redirection validation: To validate HTML 5 video redirection, you can use the test page if the redirection works. HTML 5

video redirection uses video redirection technology, to check if the video is played on client side, also checks that the actual HTML5

4Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

Redirection is working or not, and similarly MMR is validated. But instead of playing the video in Windows Media Player, the following URL

plays the video in the Session browser:www.citrix.com/virtualization/hdx/html5-redirect.html

ICA Multi-stream Validation: To congure multistream ICA on the XenApp/XenDesktop VDA, see Product documentation. On the Linux

client, enable multistream ICA support by setting the following in All_Regions.ini:

[WFClient]

AllowMultiStream=TRUE

After the conguration, when you try connecting a session on the client side, netstat -t shows multiple TCP connections between client

and server.

For more information, see www.citrix.com/virtualization/hdx/html5-redirect.html and Docs.citrix.com/en-us/xenapp-and-xendesktop/

7-13/policies/reference/ica-policy-settings/multistream-connections-policy-settings.html

For new ini parameters for ICA multi-stream, see INI parameters

VMware View client v4.4

VMware View client v4.4 is integrated as part of this MR release.

New features

•Support for Blast Extreme Adaptive Transport (BEAT): With the VMware Blast display protocol, Horizon Client for Linux uses TCP

networking when it connects to a server or BEAT, if the agent and Blast Secure Gateway (if enabled) supports BEAT connectivity. You

can select network condition options to use only TCP networking or BEAT networking.

•Support unauthenticated access to remote RDSH applications: You can connect published applications using an unauthenticated

access account with Horizon Client.

•Hide security information for enhanced security: Horizon 7 version 7.1 administrator can congure global settings to hide security

information in Horizon Client for Linux, including server URL information and the Domain drop-down menu. To authenticate, when

the Domain drop-down menu is hidden in Horizon Client, you must provide domain information by entering your user name in the

format domain\username or username@domain in the User name text box.

•Support restart of a remote desktop: You can restart a remote desktop from the Horizon Client for Linux. Restarting a remote desktop

is equivalent to the Windows operating system restart command.

•USB redirection support for remote applications: Locally attached USB devices can be connected to remote applications.

•OpenSSL 1.02 K support: The OpenSSL Library is updated to version openssl-1.0.2k.

•VMware Access Point renamed to VMware Unied Access Gateway: With version 2.9, VMware Access Point is renamed to VMware

Unied Access Gateway. This change is not reecting in Horizon 7 version 7.1, and Horizon Client 4.4 documentation sets.

For new ini parameters for VMware BEAT, see INI parameters.

Auto screen lock

Auto screen lock allows you to lock the screen. The screen lock time out can be set through UI settings, and INI parameters. Alternatively,

you can also use the keyboard shortcut—Ctrl+Alt+l or Windows key+l to activate the screen lock. To set the Screen lock from UI, click

System Settings > System > Power.

NOTE: This auto screen lock feature is dependent on Turn o screen setting. If set to never, then the screen saver timeout is

disabled.

For more information about the INI parameters, see INI parameters

Hide application icon

Admin can now hide application icons which should be invisible to non-admin users.

Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

For more information about the INI parameters, see INI parameters

Firewall settings

Firewall settings allows you to congure rewall through System Settings UI, and INI parameters. For Firewall Setting UI, click System

Settings > Security > Firewall.

Firewall conguration is managed using the iptables command-line utility, that uses policy chains to allow or block trac. iptables

provides a packet ltering framework for Linux, that allows you to lter network trac that ows in and out of your server/workstation.

Example Script:

•/usr/sbin/iptables -A OUTPUT -p icmp -j DROP

•/usr/sbin/iptables -A INPUT -p icmp -j ACCEPT

The above mentioned script is used to Drop ICMP Output Connections and Accept ICMP Input Connections. For more information on

using iptables, see https://www.suse.com/communities/blog/basic-iptables-tutorial/

For more information about the INI parameters, see INI parameters

Custom info settings

Custom info settings allows you to set custom info through UI, and INI parameters. While the admin user can view and modify the custom

info, non-admin user can only view the custom info.

To set the Custom info from UI, click System Settings > System > Custom Info.

For more information about the INI parameters, see INI parameters

INI parameters

Table 6. INI parameters

INI Parameter Value type Description

ICAMultiStream={Yes/No} Boolean —Yes/No

Default: No

You can enable or disable ICA MultiStream.

NetworkMode= {poorconnect/

excellentconnect/ typicalconnect}

Text—poorconnect/excellentconnect/

typicalconnect

Default:typicalconnect

Select Vmware Network Mode based on

user Bandwidth according to BEAT

functionality.

UnauthAccessEnabled={Yes/No} Boolean—Yes/No

Default: No

UnauthAccessEnabled enable/disable the

UnAuthenticated access for Published

Applications (Vmware).

UserDomainName={Yes/No} Boolean —Yes/No

Default: No

Vmware: UserDomainNameEnable/Disable

function User Name with Domain, that is

Domain/user.

VMWareView.SendCtrlAltDelToVM={Yes/N

Boolean—Yes/No

Default: No

Vmware: CTRL-ALT-DEL Key eventA global

parameter to control the passing of CTRL-

ALT-DEL key event to the VM.

6 Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

INI Parameter Value type Description

Display.LockScreenTimeout={0/60/120/180

/240/300/480/600/720/900}

Numbers—

0/60/120/180/240/300/480/600/720/90

Default: 0

Auto Lockscreen Timeout sets lockscreen

timeout value (in seconds). A value of 0,

means that auto lockscreen is disabled.

Custom.HideFirefox={Yes/No} Boolean—Yes/No

Default: No

Hide Firefox Browser IconHide/Show

Firefox Browser Icon for user login.This

setting does not have any eect on admin

Custom.HideSettings={Yes/No} Boolean—Yes/No

Default: No

Hide/Show Firefox Browser Icon for user

on admin login

Firewall.Enable={Yes/No} \

script=script_le_name

Boolean—Yes/No

Default: No

Enable/Disable rewall and also set the

rewall script.

NOTE: The rewall script le should

be placed under rewall directory in

the ini-server root directory.

CustomInfo={Yes/No} \location="..."

\contact="..." \custom1="..." \custom2="..."

\custom3="..."

Boolean—Yes/No

Default: No

Sets the custom elds: Location, Contact,

Custom1, Custom2, and Custom3

Desktop="" ForceDownload={Yes/No} Boolean—Yes/No

Default:No

Desktop Background ImageNew option for

the Desktop INI parameter to enable force

download of a specied image le.

TerminalName="..." String Set Terminal Name

IPV6.Disable={Yes/No} Boolean—Yes/No

Default: No

You can disable/enable IPv6.

Existing features

• New Enhanced UI

• User, Session, Login, and Administration

• System Settings App

• Connections and VDI(Citrix and RDP)

• Import/Export Conguration

• Citrix Desktop Appliance mode

• Management

• 802.1X and SCEP

• INI les and INI settings support

• Network and Wireless modules

• Add-ons Management

• Imaging solutions

• Display settings and Quad display

• Dual 4K support (3840X2160@30hz)

• Custom GNOME

• Firefox Web Browser

• System Information

Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

• Factory Reset

• Security

• Logs and Tools

• Energy Star

• Language Support (ThinLinux default language will be set to English-US). You can change system language from Language page.

Supported languages are:

• English

• France French

• Spanish

• German

• Dutch

• Japanese

• Portuguese

•Chinese—Simplied

• Korean

RPMs list

Table 7. RPMs list

Optional Addons

32bit_runtime-1.0.0-01.00.x86_64.rpm lsb5-5.0-3.1.x86_64.rpm

at-3.1.14-7.3.x86_64.rpm lsb5-core-5.0-3.1.x86_64.rpm

bc-1.06.95-6.56.x86_64.rpm lsb5-desktop-5.0-3.1.x86_64.rpm

chrome_opt-1.0-0.20.x86_64.rpm lsb5-imaging-5.0-3.1.x86_64.rpm

ed-1.9-3.63.x86_64.rpm lsb5-languages-5.0-3.1.x86_64.rpm

ericom_powerterm-8.3.0-00.09.x86_64.rpm m4-1.4.16-15.74.x86_64.rpm

glibc-i18ndata-2.22-49.16.noarch.rpm mailx-12.5-28.1.x86_64.rpm

google-chrome-stable_current_x86_64.rpm man-2.6.6-1.32.x86_64.rpm

gro-1.22.2-5.429.x86_64.rpm merlin_nonpxe-3.4.5-00.02.x86_64.rpm

gro-full-1.22.2-5.429.x86_64.rpm ncurses-devel-5.9-40.124.x86_64.rpm

gstreamer-plugin-gstclutter-2.0.18-1.5.x86_64.rpm netpbm-10.66.3-4.1.x86_64.rpm

gxditview-1.22.2-5.429.x86_64.rpm oem_branding-1.0.0-00.06.x86_64.rpm

hplip-3.14.6-3.14.x86_64.rpm opensc-0.13.0-2.1.3.x86_64.rpm

hplip-hpijs-3.14.6-3.14.x86_64.rpm perl-HTML-Tidy-1.56-1.48.x86_64.rpm

hplip-sane-3.14.6-3.14.x86_64.rpm perl-Net-DBus-1.0.0-8.53.x86_64.rpm

ica_32bit-13.5.0.10185126-00.07.x86_64.rpm perl-Tie-IxHash-1.23-3.19.noarch.rpm

8 Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

Optional Addons

kernel-default-extra-4.4.21-69.1.11864.0.PTF.1007653.x86_64.rpm perl-X11-Protocol-0.56-12.19.x86_64.rpm

libcairo-script-interpreter2-1.15.2-20.2.x86_64.rpm perl-XML-Twig-3.44-3.12.noarch.rpm

libieee1284-0.2.11-53.144.x86_64.rpm perl-XML-XPath-1.13-99.19.x86_64.rpm

libjpeg62-62.1.0-30.1.x86_64.rpm perl-XML-XPathEngine-0.14-3.16.noarch.rpm

liblcms1-1.19-17.31.x86_64.rpm phonon-backend-gstreamer-4.7.2~git20140418-3.4.x86_64.rpm

libmng1-1.0.10-113.5.x86_64.rpm postx-2.11.8-27.11.x86_64.rpm

libnetpbm11-10.66.3-4.1.x86_64.rpm psutils-p17-1022.64.x86_64.rpm

libphonon4-4.7.1-2.34.x86_64.rpm python-gobject2-2.28.6-24.80.x86_64.rpm

libpipeline1-1.2.6-1.20.x86_64.rpm python-qt4-4.10.3-7.11.x86_64.rpm

libpng15-15-1.5.22-4.1.x86_64.rpm python-sip-4.15.4-6.3.x86_64.rpm

libqt4-4.8.6-7.1.x86_64.rpm sane-backends-1.0.24-1.237.x86_64.rpm

libqt4-sql-4.8.6-7.1.x86_64.rpm sane-backends-autocong-1.0.24-1.237.x86_64.rpm

libqt4-sql-sqlite-4.8.6-7.1.x86_64.rpm snmp-mibs-5.7.3-4.2.x86_64.rpm

libqt4-x11-4.8.6-7.1.x86_64.rpm star-1.5nal-69.1.x86_64.rpm

libQtWebKit4-4.8.6+2.3.3-3.1.x86_64.rpm tack-5.9-40.124.x86_64.rpm

libreoce_bundle-1.0.0-00.00.x86_64.rpm time-1.7-5.13.x86_64.rpm

libreoce_calc_express-1.0.0-00.00.x86_64.rpm unzip-6.00-32.1.x86_64.rpm

libsensors4-3.4.0-4.5.x86_64.rpm wget-1.14-10.3.x86_64.rpm

libsnmp30-5.7.3-4.2.x86_64.rpm wyse_lang-1.0.0-00.08.x86_64.rpm

libtidyp-1_04-0-1.04-13.55.x86_64.rpm xdg-utils-20140630-5.1.noarch.rpm

lsb-release-2.0-28.1.noarch.rpm

Fixed issues

Following are the xed issues in this release:

Table 8. Fixed issues

Issue no Issue description

CIR89554 Wyse 3030LT thin client - Linux - CTRL-ALT-DEL not passing through to VM.

CIR90324 JSON - ThinLinux device Conguration - Certicate issues.

Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

Issue no Issue description

CIR89429 934684210 - Pro / Wyse 7020 (D50Q) / Dual Monitor is not showing correctly.

CIR89944 Ericom PowerTerm Interconnect Keyboard issue.

CIR89896 ThinLinux: Unable to connect to wireless network specied in WLX.INI le, connections only work when using local

GUI.

CIR90120 Wyse 3030LT thin client : Citrix application does not launch in full screen.

CIR90792 Wyse 3030LT thin client : Domain name "SYNCHRONY" does not populate domain name in PAM login.

CIR89977 Wyse 3030LT thin client : There is no option to lock the device.

CIR89070 Enhancement CIR - 91348: ThinLinx - Need GUI and ini parameters to congure rewall.

CIR89389 Allow setting Location, Contact, Custom1, Custom2, and Custom3 WDM elds from local GUI, and INI Just as WTOS

currently does.

CIR89970 Wyse 3030LT thin client : There is no option to lock the device.

CIR89971 Wyse 3030LT thin client : Setting applet need be moved from desktop or need option to hide.

CIR89973 Add a force download on every boot optional parameter to the Desktop=image INI parameter Thinlinux background

does not update when image le is updated on the server side.

CIR89967 Wyse 3030LT thin client : Built in Firefox is available for the pnagent users.

CIR90600 ThinLinux goes into reboot loop when importing conguration le.

CIR90127 Wyse 3030LT thin client : Citrix icons for published applications are not in proper color.

CIR90144 Strange English and Korea font in web page.

CIR91778 D50Q known middle mouse button issue is also aecting ThinLinux.

CIR89776 Ability to Congure (Turn on or O) Support for IPV6 Via a Switch or Radio Button.

CIR91709 5020 Linux X11VNC Service not starting.

CIR91576 Cannot print to Windows Shared Network Printers.

CIR89279 Z50Q: Unable to set socket-recv-timeout for RDP-connection in ConnectionManager.

LS-103 The add-on is listed twice in the remove addon list.

LS-109 If IPV6 congured with INI, Network UI does not reect with changes.

LS-121 Maximized Resolution does not work if Browser Connection is created with INI.

LS-125 System setting not updated when switch to admin mode through the Keyboard shortcuts.

10 Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

Known issues

Table 9. Known issues

Summary Work around

Export and Import conguration using Http and https is not

working from system setting UI. You can congure FTP protocol to use this function.

Unable to perform rmware upgrade through WCM, its creating

wrong thin-linux.info.NA

WMS: Force base system update in the client is by default setting

to o in the Update settings even after making ON using WMS App

Policy.

Sporadically smart card is not getting detected while launching the

VMWare session

Disconnect the smart card and connect it to the dierent version of

USB ports, that is if disconnected from 3.0, then connect to 2.0

ports.

Citrix 13.5–Certication: HDX Multimonitor Task Bar not visible—

Grey Band appears. NA

Unable to set custom info parameter from the WMS server. NA

Unable to image with merlinUpdate.URLthrough anonymous user

showing as access denied in the cached_update.log le. NA

Under system settings, all the Menu names may convert to invalid

names and are displayed inside braces when we uninstall and install

add-ons.

Wireless: Wireless connection is not creating through INI

parameters for the security type WEP - 64 bit and 128 bit. NA

When unplug network cable, the RDP session is getting

disconnected after 1 minute even if we specify as 120 seconds in

Socket Recv Timeout.

ThinLinux: Unable to connect citrix server when we set browser

protocol as Use Default in ThinLinux. NA

In BIOS, Power Loss Recovery to Last State is not working when

we do a hard power o using power button. NA

Citrix Connection is launching in only one display when two displays

connected after selecting Full screen resolution with Expand to all

monitors option.

The INI Parameters FileServerUsername=xyz is not disabling

the Use Anonymous option in INI Settings. NA

VMware Multi-Media redirection is not working. NA

Unable to launch citrix connection through browser using PIV smart

card. NA

Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

Summary Work around

Wyse 3030LT thin client-VMware Blast—unable to minimize the

session from desktop viewer when we play media redirection les in

full screen.

Use Ctrl+Alt+Down arrow key to minimize the session

On Wyse 3030 LT thin client platform, the thin client do not

respond while upgrading or downgrading the merlin image with

BIOS v1.0C or 1.0E.

Tested peripherals

Table 10. USB storage devices

Device Make

USB Flash Drive • Sandisk Ultra USB 3.0–64 GB

• Transcend USB 2.0–8 GB

• Sony USB 2.0–32 GB

USB DVD-RW Dell CD/DVD DW316

External Portable Hard Disk Toshiba 3.0–500 GB

Table 11. Printer devices

Device Make

LaserJet Dell B5465dnf

LaserJet Dell B5460dn

Laserjet HP LaserJet pro MFP M435nw

Table 12. Web Cameras

Model Type

Logitech HD Webcam C525

Logitech HD Pro C920

MS Life cam HD3000

Table 13. Smart Cards

Smart Cards

Gemalto .Net V2+

Yubikey (PIV)

12 Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

Table 14. Keyboards

Model Type

USB — Dell KB216P Dell Keyboard

USB — Dell KB212-B Dell Keyboard

Wireless — Logitech MK710 Wireless Keyboard

Table 15. Mouse

Model Type

USB—MS111-P Dell Mouse

USB—MS116 Dell Mouse

Wireless—Logitech M705 Wireless Mouse

Table 16. Monitors

Model Type

Dell 19’’ 1905FP Dell Monitor

Dell 19’’ P1913S Dell Monitor

Dell UZ2315Hf, Dell Monitor

Dell U2414H Dell Monitor

Dell P2210 Dell Monitor

Dell UZ2215H Dell Monitor

Dell P2214H Dell Monitor

Dell 22” S2240T Dell Monitor

Dell 20’’ E2016H Dell Monitor

Dell 22’’ E2216H Dell Monitor

Dell 23’’ E2316H Dell Monitor

Dell 24” UltraHD P2415Q Dell 4K Monitor

Dell 27” UltraHD P2715Q Dell 4K Monitor

Table 17. USB Headsets

Dell Professional Stereo Headset UC550 (Lync certied)

Plantronics calisto 830

Plantronics Blackwire C720

Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

Plantronics Calisto USB speaker phone

Jabra Speak 410 USB

Jabra handset cisco 450

Jabra BIZ 2400 Mono USB

Logitech H340

Plantronics Black Wire C520

Black wire DA45

Table 18. Wireless AP

Device Make

DELL IAP-25 DELL

Table 19. 802.1x

Device Make

Switch 3750 Cisco

Test environment

Table 20. Citrix 13.5

Citrix 13.5

XenApp6.5 XenApp7.13 XenDesktop 7.13

Windows2008 R2 64-bit Windows2012 R2 64-bit Windows2012 R2 64-bit

Servers/Desktops

NA Windows7 Enterprise 32-bit Windows7 Enterprise 32-bit

NA Windows 8.1 Enterprise 32-bit Windows 8.1 Enterprise 32-bit

Table 21. VMware Horizon View 7.1

VMware Horizon View 7.1

Connection Server Windows2012 R2 64-bit

Desktop Windows7 Enterprise 32-bit

Desktop Windows 8.1 Enterprise 32-bit

Desktop Ubuntu 32/64 bit desktop

RDS Server Windows2008 R2 64-bit/Windows 2012

14 Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

VMware Horizon View 7.1

Desktop Windows 10

Table 22. RDP 8.1

RDP 8.1

RDP RAIL Server Windows2012 R2

RDP TS Gateway Server Windows2012 R2

Desktop Windows7 Enterprise 64-bit

Desktop Windows 8.1 Enterprise 64-bit

Driver details

Table 23. Driver details

Drivers Files Version

Display Adapter VGA compatible Controller Radeon HD 8330E

Ethernet Adapter RealTek RTL-8168 Gigabit Ethernet driver

Audio HDA-Intel – HDA ATI SB (ALSA Driver)

trademarks may be trademarks of their respective owners.

Dell Wyse ThinLinux Maintenance Release v1.0.5

Release Notes

Dell Wyse 5060 Thin Client ThinLinux Maintenance Release V1.0.5 Notes User Manual Linux Notes5 En Us

wyse-5060-thin-client - Dell Wyse ThinLinux Maintenance Release v1.0.5 Release Notes wyse-5060-thin-client_release-notes5_en-us

Navigation menu

Versions of this User Manual:

Views

Navigation
