Helmet Bluetooth Headset
User Manual
Model: F1
Please read below content carefully before using
Thanks for purchasing F1 Bluetooth helmet intercom headset, may you will enjoy it. Please
read the “Safety Instructions” before using the product for your safety and correct use.
Caution
Do not immerse in water to avoid damaging the product as well as shortening its lifetime.
DO NOT drop or apply shock to the product. Such act may cause irreparable damage to the product.
DO NOT expose the product to open flame or under the direct sunlight for a prolonged period of the
time. Such environment may cause malfunction or fire.
Please do not change the setting or talk on the cell phone while driving. It may cause an accident.
Please note: in no event our product shall be liable for any special, indirect, punitive, incidental,
exemplary or consequential damages, or any damages whatsoever resulting from the usage of this
product.
Conversation on the cell phone when driving is extremely dangerous. Please go out of the road for
doing the telephone call.
If anything unusual such as smoke, heat or bad smell is detected, please disconnect immediately the
power and stop the usage. Continuing the use may cause electric shock or fire.
DO NOT lick, bite or put the product into the mouth. Such act may result in serious
injuries/accidents. Take utmost caution around children.
DO NOT change the mic when it gets wet. With water exposure, it may cause fire, electrification or
failure.
Temperature range of use: -15℃-50℃
Please use only qualified accessories which have been authenticated by us, in order to guarantee the
product correct functioning.
Note on battery charge
For battery charge, use USB terminal or USB adaptor at normal temperature.
Use regulation USB terminal only. Otherwise it may cause smoke generation or fire.
When charging the battery, if any strange odor or high heat should broken out, please immediately
pull the plug from the body. It may cause smoke generation or fire.
Do not leave the product in a state of charge long after the charging is completed. Such condition
may cause smoking/ignition.
Charge battery at least once every six months even if the product is not use for an extended period of
time. Over discharge may require battery replacement.

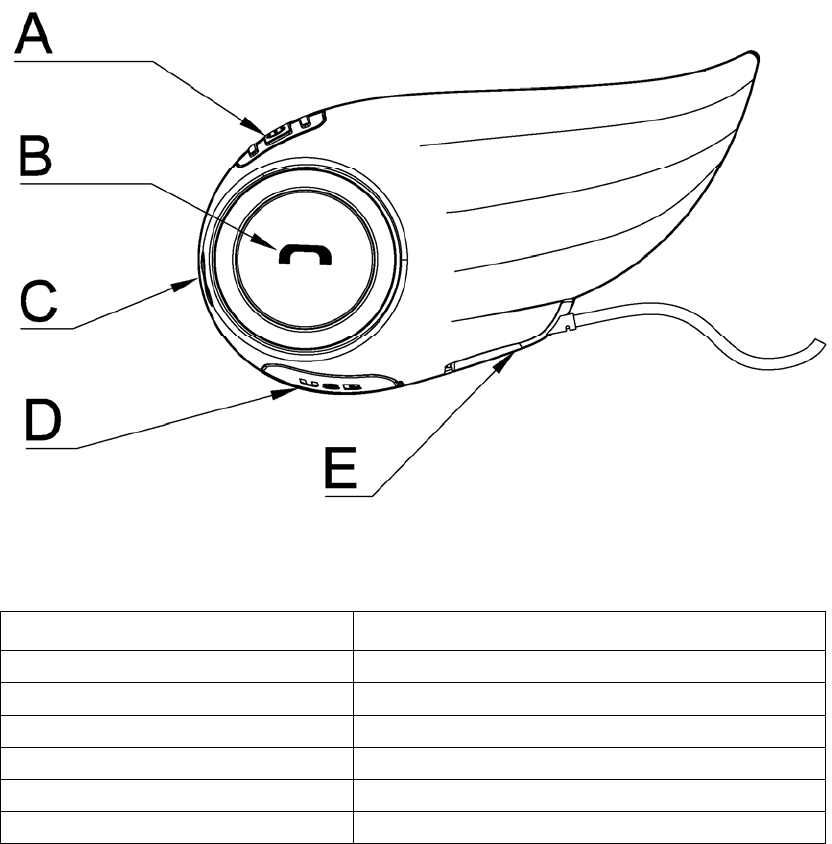

Product Overview:
A. Power on/off Button/Pairing Button
B. Multi-functional Button
C. LED Indicator
D. Charging
E. Headset jack
About Charging
LED flash indicator Indicated State
LED Indicators off Power off
Red/Blue lights flashing alternately Pairing state
Blue light flash every 1 secs. Standby/working state
Red light flash every 3 secs. Battery is low
Red light flashing every 1 seconds Charging
Red light is on for a long time Charging completed
Technical Specification
Name of Product Helmet Bluetooth Headset
Model F1
Microphone Type DSP Noise Suppression MIC
Bluetooth Version V3.0 Class 1
Chip CSR BlueCore5MM
Bluetooth Profile HSP, HFP, A2DP, AVRCP, INTERCOM
Operation Range 10 meters
Intercom Range Up to 800 meters
Frequency Range 2.402-2.480GHz
Sensitivity -80db
Transmitting Power 16dB(max)
Charge Time About 3 hours
Music Play Time About 10 hours
Cell Phone Talk Time About 10 hours
Intercom Talk Time About 8 hours
Standby time About 100 hours
Working Temperature -15℃～50℃
Storage Temperature -25℃～60℃
How to fit
It’s very easy to fit F1 on your helmet. Please follow below steps:
1．Removing adhesive protective sticker from back of Velcro pieces and firmly applying one
speaker to ear pocket inside helmet on right side.

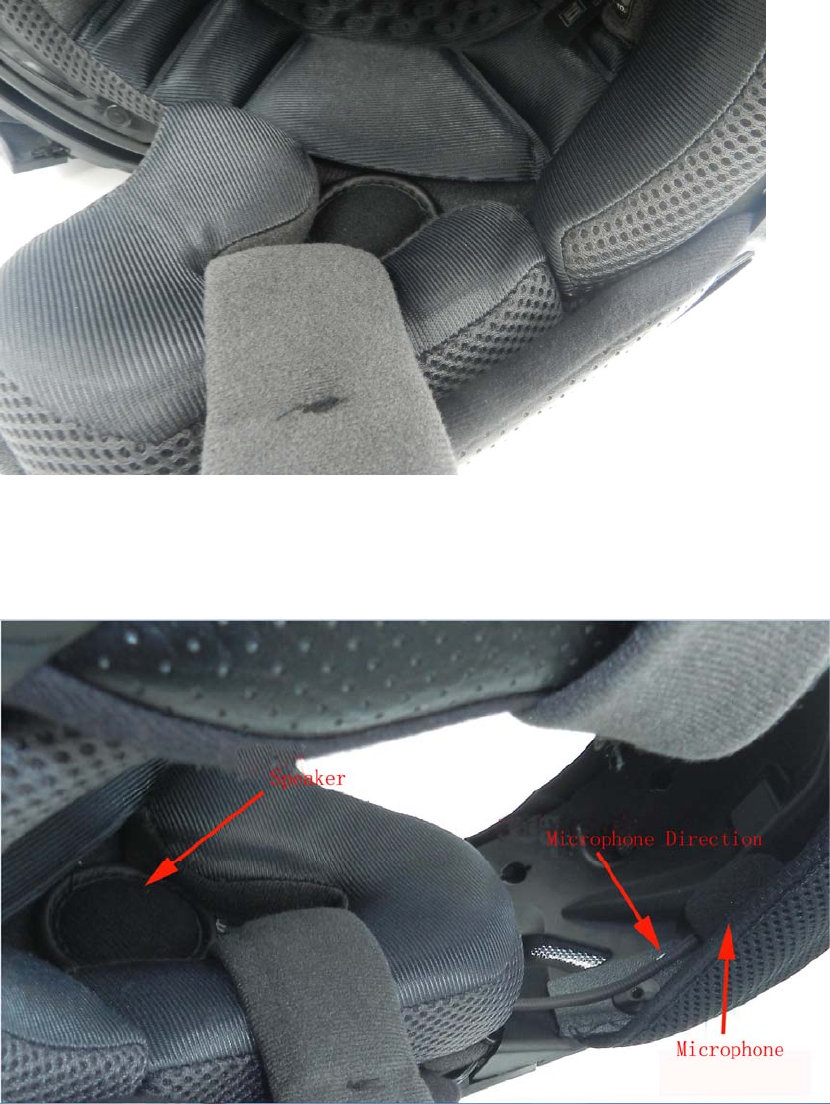

2．Applying the other speaker to ear pocket inside helmet on left side and applying the
microphone support also on the left inner liner of the helmet.
Note: Please pay attention to the site of the microphone to ensure crystal
voice, the white dot on the microphone support should be exactly opposite to the
mouth and the distance between the microphone and mouth should be no more
than 2cm, improper installation may led to low voice or even no voice.

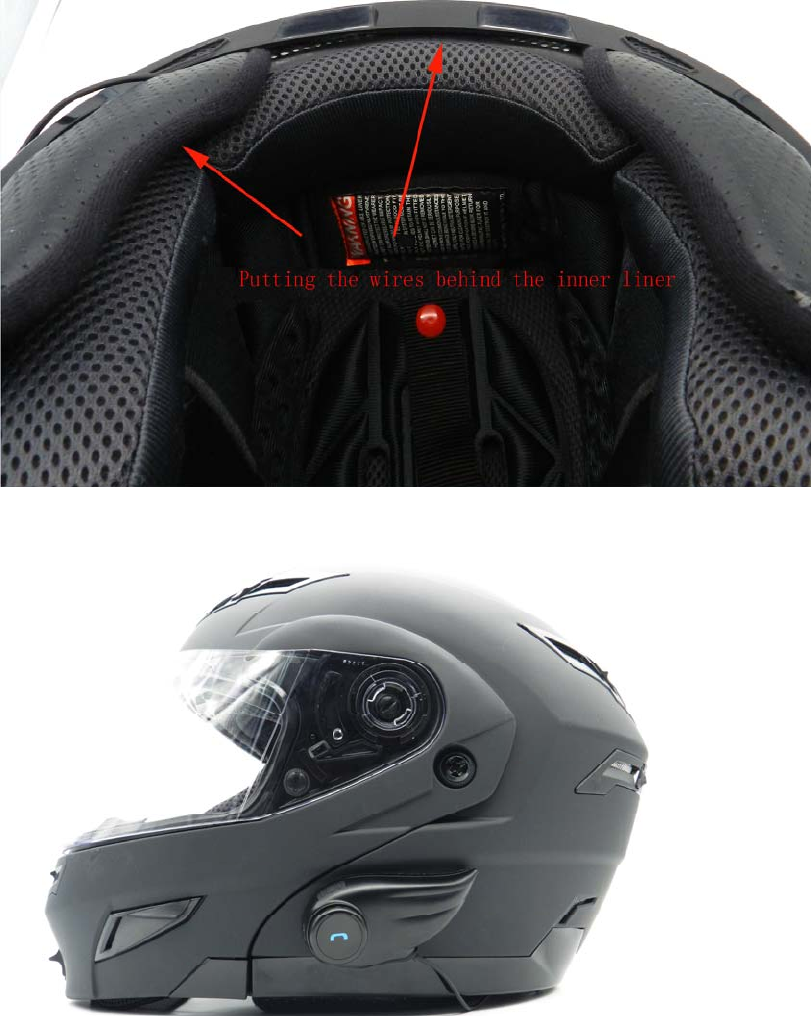

3.Putting the wires behind the inner liner of the helmet.
4.Sticking the F1 main unit by Velcro tapes on proper site on the helmet.
Installed F1 Headset
Main Features
Support 800m max range full duplex intercom.
With DSP wind noise suppression to ensure the crystal clear voice
quality when speeding along the highway.
Intercom states prompts.
Support the A2DP.
Sharing the music from the mobile phone or other music sources with
A2DP.
Support music play, pause, playback and forward control with AVRCP.
Hands free, when connected with mobile phones with Bluetooth
function can realize hands free call-answering
Voice dialing
Last number redial
Automatically/Manually answering/rejecting/hanging up
Can connect with following dual link pairs
Two mobile phones
On mobile phone and one radio phone with DELKING Bluetooth
adapter/dongle device
One cell phone and one GPS navigator with Bluetooth HFP/HSP profile
One radio device with DELLKING BT Adapter/Dongle and one GPS navigator
with Bluetooth HFP/HSP profile
Can listen the merged audio from both connected devices or talk group at the
same time
Can listen to GPS messages even during active call
Can listen and speak to walkie-talkie radio even during active call
High security and privacy level, only the user can hear from the conversation
from both far ends, the audio from two other far ends are completely blocked,
and can not listen to each other to prevent information leakage to unwanted
person.
Support connecting with the GPS Navigation.
Sharing the audio from the GPS Navigation.
Connect with DELLKING Bluetooth adapter/dongle
Switchable PTT function, can select to control two radio phones
Mix listen to two radio phone, and talk to one radio at the same time
Mix listen and talk with one radio and one phone
One button and 5 buttons finger remote control supported
3 hour charging
100 hours working time
remote control
The USB port is for power charger only
How To use
Power on/off
In power off state, press Multi-functional Button and hold it for about 3 seconds, release the
button when the led indicator flash blue indicating the headset is been powered on successfully.
In power on state, press Multi-functional Button and hold it for about 6 seconds, release the
button when the led indicator flash red indicating the headset is been powered off.
Pairing Two Bluetooth Helmet Intercom headsets
To conduct duplex talk-back between two helmet Bluetooth headset, they need to pair with each
other for using at the first time, and the pair info will be saved for using next time (it pairs each
other automatically). Follow the instruction below:
Place two Bluetooth headsets in a visible area together (distance less than1 meter range), and ①
make sure there is no other Bluetooth headsets in pairing state within 10M around, and both of the
Bluetooth Helmet Intercom headsets are in power off state.
②Press and hold Power on/off Button of both Bluetooth Helmet Intercom headsets for about 8
seconds,when the led indicators of both headsets flash red and blue quickly and alternately, release
both buttons, at this moment, the two Bluetooth Helmet Intercom headsets are in pairing state.
Then short press either of pairing button, the pressed Bluetooth Helmet Intercom headset will
search another in pairing state one and try to pair with it.
Once paired success, both Bluetooth Helmet Intercom headsets indicators will③ become flashing
blue slowly.
Pairing between F1 Bluetooth headset and Mobile.
Place the① F1 Bluetooth Helmet Intercom headset and the mobile phone in a visible area within
1 meter range.
Make sure the Bluetooth Helmet Intercom headset is in power off state.②
Press and hold③ Power on/off Button for about 8 seconds, release the button when the led
indicator flash red and blue quickly and alternately, then the Bluetooth Helmet Intercom headset is
in pairing state now.
Follow the user manual of your mobile phone, turn on the Bluetooth function, and searching④
the Bluetooth headset devices.
From the found devices in your mobile phone, select the device named “⑤F1”, and then connect
to pair with it, when it prompts to enter password, enter password <0000>. Once paired successful,
LED Indicator will change from Blue/Red alternately to Blue flashing. Now you can use the
headset to answer you phone call, or enjoy the music from your mobile phone.
PS: Pairing password may be not necessary for some mobile.
Function Operations
①Answer incoming call
When there is an incoming phone call, press Multi-functional Button once to answer the call or
the headset will connect the call automatically if there’s no operations for about 10s .
②Reject incoming phone call
Short press Multi-functional Button for about 1s to reject an incoming phone call.
③Hang up call
In call active state, Short press Multi-functional Button for 1s to hang up the call.
④Last number redial
Rotating the Multi-functional Button to the left (forward) twice, then the Mobile phone will
dial out the last call out number.
⑤Voice Dial
Rotating the Multi-functional Button to the right (backward) twice, then the mobile will
prompt you to speak out your desired information. (only when headset is in standby state, or music
play paused state.)
(Note: The above function requires the mobile phone supports HFP Bluetooth Profile, and
please make sure your Mobile Phone supports Voice Dial before activate Voice Dial
function.)
Bluetooth Intercom talking
①Turn on Bluetooth Intercom talking function
F1 Bluetooth Intercom headset has memory function.When they paired successfully once, they
will remember each other. You can start the intercom directly when both of the headsets are
powered on.
②Turn off Bluetooth Intercom talking function
Either of Bluetooth Helmet headset users want to turn off the Intercom talking function, just short
Phone call
press the Power on/off button once to end the intercom; if one user want to turn on the intercom
talking function again, then short press the power on/off button once or say “Hello” loudly to the
microphone, then the Intercom call will be activated.
Stereo music play control and Volume control
①Play forward/backward
Rotating the Multi-functional Button to the right (backward) to select next music. Rotating the
Multi-functional Button to the left (forward) to select the previous music.
②Pause/Play
Short press the Multi-functional Button once, the music can be paused or played.
(Note: The above function requires the mobile phone supports Bluetooth A2DP and AVRCP)
③Volume control
To adjusting voice volume during the phone call state, Music playing state and FM radio playing
state, quickly and sustainably rotating the Multi-functional Button to the right (backward) to turn
up the volume; quickly and sustainably Rotating the Multi-functional Button to the left (forward)
to turn down the volume. Release the Button till you feel good.When reaching the maximum or
minimum volume, a “Di Dong” tone will be played.
Dual-link
(two mobile phones or one Mobile Phone GPS or Bluetooth Device）
①Pairing the Bluetooth headset and the mobile phones (GPS or Bluetooth Device).
②Connected with the Bluetooth headset, when there’s incoming phone calls, press the
Multi-functional Button to answer the call or the headset will auto connect the phone if there’s
no operations for 10s; the incoming call for the other mobile can be answered only by press the
Multi-functional Button once.
③Double press the Multi-functional Button to hang up the first call; short press the
Multi-functional Button for 1s to end up the second incoming call.
④Press the Multi-functional Button once to pause the music, then long press the
Multi-functional Button for about 1s to transfer to music of the other mobile, press the
Multi-functional Button once then the music of this mobile phone can be played.
GPS navigator
Make sure the GPS have the Bluetooth function.After pairing and connecting, the voice can be
shared from the GPS navigator.
USB setup
Connection to a PC
The F1 Speaker Hand-mic can be connected to a Windows PC for charger by proper USB cable.
Please refer to the following steps:
First power off the F1, then connecting the F1 Bluetooth headset to a PC by proper USB cable.
Once such a cable is inserted into both the F1 Bluetooth headset and PC USB port, the F1 is put
into the battery power off charging state. For enabling its communication with the wizard
software, in power off state, press and hold the Power button for more than 20s until the LED
indicator goes out, at that moment, the F1 Bluetooth headset can be detected by the wizard
software.
PTT Function
①This function need to use with Bluetooth dongle ，
made by Dellking users can control his
walkie-talkie radio to talk by wireless PTT，
②Pairing headset with Bluetooth adapter (users can refer to the method of adapter using manual to
pair);
③When pairing successful, the Multi-functional Button of the headset will work as a remote
PTT button to control the two-way radio that connects with the Dellking adapter; when the headset
is connected with the adapter, user cannot use the Multi-functional Button to control FM any
more or the music from the mobile phone. The media control can only be restored after can be
played only when the headset is disconnected with the adapter;
④Power off the Dellking radio adapter to disconnect with with the headset, the function of the
Multi-functional Button to control A2DP music, FM can be restored;
⑤Dellking adapter will occupy one HSP/HFP link, if one adapter is connected with the Bluetooth
headset, then there’s only one mobile phone can be connected to the headset;
⑥When the adapter connects with the headset, if there is still another mobile phone also
connected with the headset, the phone call from the mobile phone can also be answered and hang
up, short press to answer the call and double press the Power on/off Button to hang up or reject
the call.
Connecting with Bluetooth remote control
This function need to use with Dellking Bluetooth remote control, like BTR-001 or
BTR-005.
Please refer to the following steps:
Long press the Power on/off Button of F1 Bluetooth helmet headset for about 8s,
release the button when the LED indicator becomes flash red and blue alternately, at
this moment, F1 is in pairing state;
Long press the Power on/off Button of bluetooth remote control for about 6s,release
the button when the LED indicator becomes flash red and blue alternately, at this
moment, remote control is in pairing state;
When both indicators of the headset and remote control shift to flash blue slowly,
indicating pairing successfully.
When pairing successfully, the Power on/off button of the remote control act as a
multi-functional button, now you can control calls and music by remote control.
FAQ:
1.Can not power on
It might low battery, please try again after charging for 3-4 hours,then plug and unplug the USB
connector to reset the device.
2.Not sound
Please check if the speaker is correctly fixed, or the volume is too low.
Is the sound channel switch in the correct position?
3.Speakers have echo
Maybe they are too close to the microphone, please move the speakers away from the
Microphone to a normal distance.
4.Disconnect with mobile phone
Make sure if it is low battery, if not, the distance between the headset and mobile phone within
10m or between them exist obstacles that absorb frequency signals like metals or water ?
5.Can not pair with mobile phone
Clear all the pairing information according to user manual, and then put the headset and mobile
phone together within 1m and try to pair after entering password 0000.
6.Fail to connect with mobile phone
Please make sure the mobile phones support Bluetooth function and Bluetooth HFP, A2DP
and AVRCP or other related protocols.
7.Fail to reconnect or automatically reconnect with mobile phone
Remove all the matching information according to Bluetooth headset manual as well as that of
your phone. Then turn off your mobile phone, take out the battery for several seconds, restart
mobile phone and pair with Bluetooth headset again.
8.System halted
The system halts when strong radio frequency interface occurs. Like when nearby high power
TV transmitting tower, GSM base or airport radar, the headset would crash. It can be reset by
charging after get away from interface software.
9.Abnormal instruction of charging indicator
A.When the headset haven’t been used for long time or overused, it need to be pre-charge for an
Hour, then pull out and insert the charger, it will indicate normal charging. Please don’t count
the pre-charging time into normal charging time.
B.Try another charging cable or charger
10.Whether or not support using while charging
No, we don not recommend user to use while charging.
11.Compatibility with other chargers
Cigarette lighter charger of the motorcycle, emergency battery pack or other type charge might
be used for charging as long as their actual output voltage is between 5V to 6V and have the
same plug style and power source positive and negative polarities with our initial charger.
However the user will be responsible for the risk of using other chargers and we don’t
Guarantee the effects.
12.Wrong operation into test mode or USB upgrade mode
Because of wrong operation and going into the test mode or USB upgrade mode, the set must
be charged for one or two seconds to reset.
13.Please send back your helmet headset to our after-sales service department for help if above 1
to 12 suggestions fail to solve your problem.
Dellking
Guarantee Card
———————————————————————————————
User information
Name
Product
model
Purchase
time
Repairing Record
Repairing date Problems and
solutions
Repaired date Customer
signature
———————————————————————————————
Guarantee items
We provide reliable after-sales service for our customers, please return
the product to the local supplier if there’s any quality problems. Customers
also can refund or exchange the product for no reasons within 7days once
purchasing.
The following situations are not guaranteed for free repairing or refund or
exchange:
1.Damage due to incorrect installation ignoring the user manual
2.All damage due to man-made and other accidents
3.Damage due to unreasonable refitting and repairing without Dellking’s
confirmation.
4.The scratch on the product surface.
5.The guarantee period is over.
FCC Warning:
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue.
Device types F1 (FCC ID: 2AIO2-F1) has also been tested against this SAR limit. The highest
reported SAR values for body-worn accessory is 0.12 W/kg respectively. This device was tested
for typical body-worn operations with the back of the device kept 0mm from the body. To
maintain compliance with FCC RF exposure requirements, use accessories that maintain a 0mm
separation distance.
