IMPORTANT INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTRUCTIONS IMPORTANTES
CONSERVEZ LES PRÉSENTES INSTRUCTIONS
INSTRUCIONES IMPORTANTES
REPASE Y GUARDE ESTAS INSTRUCCIONES
LEA ESTE INSTRUCTIVO ANTES DE UTILIZAR EL APARATO
ISTRUZIONI IMPORTANTI
CONSERVARE LE ISTRUZIONI
EC-701 AND EC-702 ESPRESSO AND CAPPUCCINO MAKER/ CAFETERIE
MODÈLE EC-701 ET EC-702 / CAFETERA ELECTRICA MODELO EC-701 Y EC-
702 / MACCHINA DA CAFFÈ EC-701 E EC-702
Register this product on-line and receive a free trial issue of Cook's Illustrated. Visit
www.delonghiregistration.com.
Visit www.delonghi.com for a list of service centers near you. (U.S. and Canada only)
Enregistrez ce produit en ligne et recevez un numéro gratuit de Cook's Illustrated. Visitez
www.delonghiregistration.com.
Visitez www.delonghi.com pour y voir une liste des centres de réparation proches de chez
vous. (É.-U. et Canada).
Registre este producto en línea y reciba un ejemplar gratis de Cook's Illustrated. Visite
www.delonghiregistration.com.
Visite www.delonghi.com para ver la lista de centros de servicios cercanos a usted.
(Estados Unidos y Canada)
Registra questo prodotto "on-line" per ricevere una copia omaggio della rivista “Cook’s
Illustrated”. Visita www.delonghiregistration.com.
Visita www.delonghi.com per una lista dei centri di servizio a te piu vicini.
(Stati Uniti e Canada)
ELECTRICAL CHARACTERISTICS: CARACTÉRISTIQUES ÉLECTRIQUES:
CARACTERISTICAS ELECTRICAS: CARATTERISTICHE ELETTRICHE:
120 V ~ 60 Hz 1100W
![](asset-3.png)
3
1
8
9
10
11
12
13
4
21
20
19
2
3
5
1817
15
14
7
6
22
16
![](asset-4.png)
2019
2 31
5
9
678
10 12
13
17
21 22 23
18
24
14 15 16
4
11
4
![](asset-5.png)
5
25 26
![](asset-6.png)
6
SHORT CORD INSTRUCTIONS
-A short power cord is provided to reduce risks resulting from becoming entangled in or tripping
over a longer cord.
-Longer, detachable power supply cords or extension cords are available and may be used if care
is exercised in their use.
-If an extension cord is used, the marked electrical rating should be at least as great as the
electrical rating of the appliance. If the appliance is provided with 3- wire, grounding type cord,
the extension should be a GROUNDING TYPE 3 - WIRE CORD. The longer cord should be
arranged so that it will not drape over the counter-top or table top where it can be pulled on by
children or tripped over.
-Your product is equipped with a polarized alternating current line plug (a plug having one blade
wider than the other). This plug will fit into the power outlet only one way. This is a safety feature.
If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should
still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety
purpose of the polarized plug.
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always be followed,
including the following:
•Read all instructions.
•Do not touch hot surfaces. Use handles and knobs.
•To protect against fire, electrical shock and personal injury, do not immerse cord, plug
or appliance in water or other liquid.
•Never allow the appliance to be used by children.
•Unplug from the outlet when not in use and before cleaning. Allow to cool before fitting
or taking off parts, and before cleaning the appliance.
•Do not operate with a damaged cord or plug, or after the appliance malfunctions, or
has been damaged in any manner. Return the appliance to the nearest authorized
service facility for examination, repair or adjustment.
•The use of accessory attachments or spare parts not recommended by the appliance
manufacturer may result in fire, electrical shock or personal injury.
•Do not use outdoors.
•Do not let the cord hang over the edge of the table or counter, or touch hot surfaces.
•Do not place on or near a hot gas or electrical burner, or in a heated oven.
•Plug cord into the wall outlet. To disconnect, turn any control to “off”, then remove plug
from wall outlet.
•Do not use the appliance for other than the intended use. This appliance is to be utilized
for domestic use only. Any other use is to be considered improper and, therefore,
dangerous.
SAVE THESE INSTRUCTIONS
THIS PRODUCT IS FOR HOUSEHOLD USE ONLY
![](asset-7.png)
7
Read this instruction booklet carefully before
installing and using the appliance. This is the only
way to ensure the best results and maximum safety
for the user.

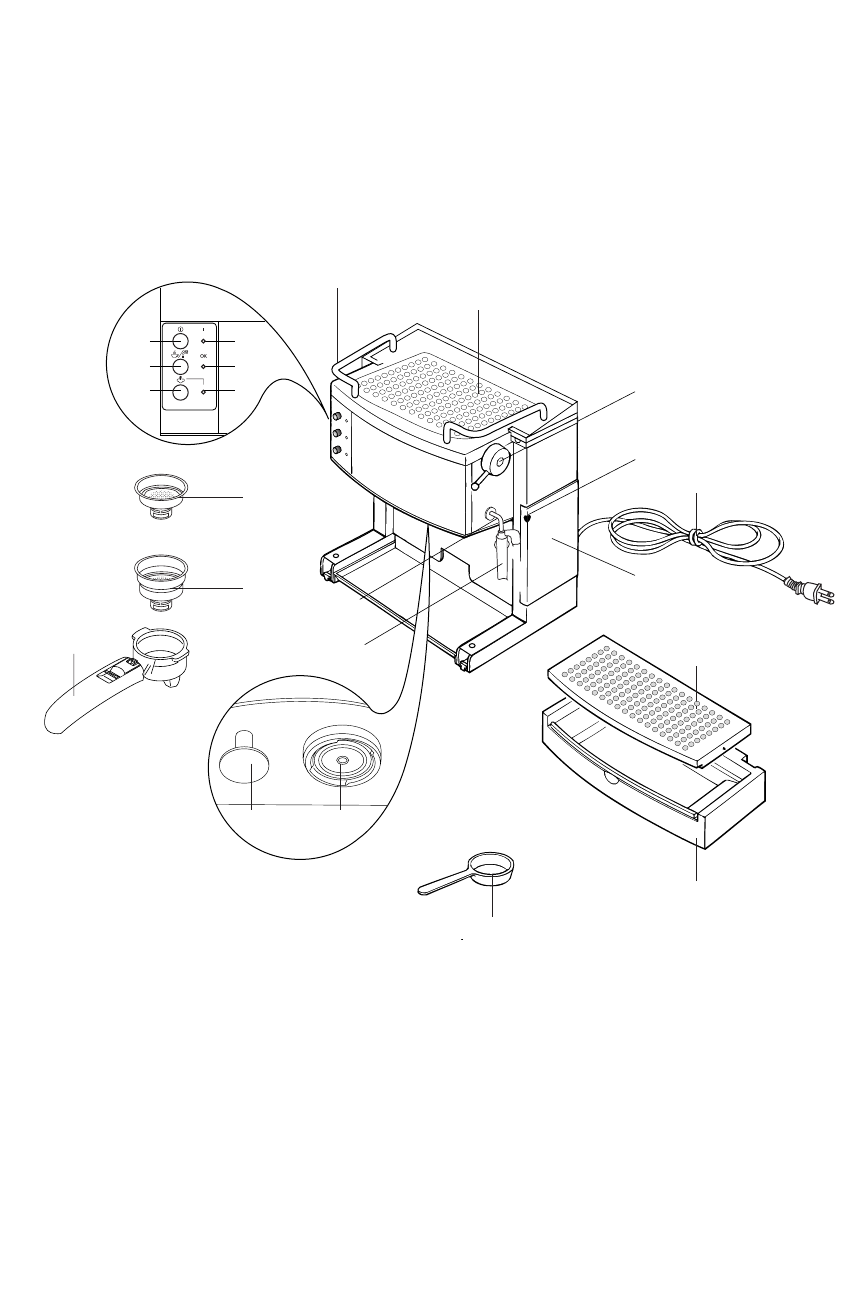

DESCRIPTION
(see page 3)
The terminology below will be used repeatedly on the
following pages.
1Cup storage tray
2Steam knob
3Water level indicator
4 Power cord
5 Water tank
6Patented cappuccino system frother
7Steam tube
8ON/OFF button
9Coffee/hot water button
10 Steam button
11 ON/OFF indicator light
12 Preheating completed indicator light
13 Steam indicator light
14 Small filter for 1 cup ground coffee or 1 pod
15 Large filter for 2 cups ground coffee
16 Patented dual-function filter holder
17 Tamper
18 Boiler outlet
19 Measuring scoop
20 Removable drip tray
21 Removable cup support
22 Cup tray bars
SAFETY WARNINGS
• This appliance is designed to "make espresso coffee"
and "hot drinks". Use with care to avoid scalds from
the water and steam jets or through incorrect use.
• Never touch hot parts.
• After removing the packaging, make sure the
product is complete. If in doubt, do not use the
appliance and contact a professionally qualified
person.
• The packing elements (plastic bags, polystyrene foam,
etc.) should be kept out of reach of children as they are a
safety hazard.
• This appliance is intended for domestic use only. Any
other use is considered improper and thus
dangerous.
• The manufacturer cannot be held responsible for any
damage caused through incorrect, wrong or
unreasonable use.
• Never touch the appliance with wet or damp hands.
• Never let children use the appliance without
supervision.
•Never allow children to play with the appliance.
• Should the appliance break or not function correctly,
turn it off and do not tamper with it. For all repairs,
contact authorized service centers only and insist on
the use of original spare parts.
Failure to respect the above could reduce the safety
of the appliance.
• The power cord for this appliance must not be
replaced by the user as this operation requires the
use of special tools. In the event of damage, contact
an authorized service center only to avoid all risks.
INSTALLATION
•Place the appliance on a work surface away from
water faucets and sinks.
•Check that the voltage of the outlet corresponds to
the value indicated on the appliance rating plate.
Connect the appliance to an efficiently grounded
electrical socket with a minimum rating of 10A only.
The manufacturer declines all liability for any
accidents caused by the absence of an efficient
ground system.
•If the plug fitted to the appliance does not match the
power socket, have the outlet replaced with a
suitable type by a qualified electrician.
•Never install the appliance in environments where
the temperature may reach 0°C (32°F) or lower (the
appliance may be damaged if the water freezes).
![](asset-8.png)
HOW TO MAKE ESPRESSO COFFEE
FILLING THE WATER TANK
Remove the water tank by pulling sideways and lifting
the intake tubes out of the water (fig. 1).
Rinse and fill with clean cold water (fig 2). Check the
water level by viewing the floating ball. Replace the
water tank in the housing, making sure the tubes are in
the water.
The water tank can also be filled by extracting it just
enough to pour in water directly from a jug.
PREHEATING THE COFFEE UNIT
To obtain espresso coffee at the right temperature, the
coffee machine must be preheated. It is, therefore,
recommended to press the ON/OFF button (fig. 3) at
least 15 minutes before preparing the espresso,
making sure the filter holder is attached to the
appliance (check that the steam knob is closed).
To attach the filter holder, position it under the boiler
outlet with the handle towards the left (fig. 4), push it
upwards while at the same time rotating the handle
towards the right. Rotate firmly. Wait for 15 minutes,
then make the coffee as described in the following
section.
Alternatively, you can preheat more rapidly by
proceeding as follows:
1.Press the ON/OFF button (fig. 3) and attach the filter
holder to the appliance without adding ground
coffee.
2.Place a cup under the filter holder. Use the same cup
as will be used to prepare the coffee in order to
preheat it.
3.Wait for the OK indicator light to come on (fig. 5),
then immediately press the coffee button (fig. 6). Run
the water off until the OK indicator light goes out,
then interrupt delivery by pressing the coffee button
again (fig. 6).
4.Empty the cup, detach the filter holder and empty out
the hot water.
(It is normal for a small and harmless puff of steam to
be emitted when removing the filter holder).
HOW TO PREPARE ESPRESSO COFFEE USING THE
PATENTED FILTER HOLDER FOR GROUND COFFEE
1.After preheating the appliance as described in the
previous section, place the ground coffee filter in the
filter holder. Make sure the tab is correctly inserted
in the slot as shown in fig. 7, otherwise you will not
be able to attach the filter holder to the appliance.
The appliance comes with two filters; the small filter
should be used for one coffee and the large filter for
two coffees.
2.To make a single coffee only, place one level measure
of ground coffee, about 0.24 ounces (7 grams), in the
filter (fig. 8). To prepare two coffees, place two loosely
filled measures of ground coffee (0.42 ounces/6+6
grams) in the filter. Fill the filter a little at a time to
prevent the ground coffee from overflowing.
IMPORTANT: to ensure correct operation, before
placing the ground coffee in the filter holder, clean the
filter of residues of ground coffee from the previous
infusion.
3.Distribute the ground coffee evenly and tamp lightly
with the tamper (fig. 9).
Note: Correct tamping of the ground coffee is
essential to obtain a good espresso. If tamping is
excessive, espresso delivery will be slow and the
crema will be dark. If tamping is too light, coffee
delivery will be too rapid and the froth will be skimpy
and light colored.
4.Remove any excess coffee from the rim of the filter
holder and attach to the appliance. Rotate firmly
(fig. 4) to avoid water leaking out.
5.Place the cup or cups under the filter holder spouts
(fig. 10). It is recommended to heat the cups before
making the coffee by rinsing them with a little hot
water or placing them to warm on the cup storage
tray for at least 15-20 minutes (fig. 26).
6.Make sure the OK indicator light (fig. 5) is on (if it is
off, wait until it comes on), then press the coffee
button (fig. 6). Once the required quantity of
espresso has been obtained, interrupt delivery by
pressing the coffee button again (fig. 6).
7.To remove the filter holder, rotate the handle from
right to left.
IMPORTANT: to avoid splashes, never remove the
filter holder while the appliance is delivering
espresso.
8.To dispose of the used coffee, lock the filter in place
using the lever incorporated in the handle then empty
the grounds by turning the filter holder upside down
and tapping (fig. 11).
9.To turn the coffee machine off, press the ON/OFF
8
![](asset-9.png)
button (fig. 3).
IMPORTANT: the first time the appliance is used, all
accessories must be washed through by making at
least five coffees without using ground coffee.
HOW TO PREPARE ESPRESSO COFFEE USING PODS
1.Preheat the appliance as described in the section
"PREHEATING THE COFFEE UNIT", making sure the
filter holder is attached.
NOTE: use pods conforming to the ESE standard,
indicated on the pack by the following symbol:
The ESE standard is a system accepted by leading pod
producers and enables espresso coffee to be prepared
simply and cleanly.
2.Place the small 1 cup ground coffee or pod filter in
the filter holder, making sure the filter is correctly
inserted in the slot as shown in fig. 7.
3.Insert a pod, centering it as close as possible on the
filter (fig. 12). Always follow the instructions on the
pod packaging to position the pod on the filter
correctly.
4.Attach the filter holder to the appliance. Always
rotate as far as it will go (fig. 4).
5.Proceed as in points 5, 6 and 7 in the previous
section.
HOW TO MAKE CAPPUCCINO
1.Prepare the espresso coffees as described in the
previous sections, using sufficiently large cups.
2.Press the steam button (fig. 13) and wait for the
steam indicator light to come on (fig. 13). The OK
indicator light indicates that the boiler has reached
the ideal temperature for steam production.
3.In the meantime, fill a container with about 3.5
ounces (100 grams) of milk for each cappuccino to
be prepared. The milk must be at refrigerator
temperature (not hot!). In choosing the size of the
container, bear in mind that the milk increases in
volume by 2 or 3 times.
NOTE: IT IS RECOMMENDED TO USE SKIM MILK AT
REFRIGERATOR TEMPERATURE.
4.Place the container with milk under the cappuccino
frother.
5.Dip the cappuccino frother into the container with
milk (fig. 14), taking care not to immerse the raised
line on the cappuccino frother (indicated by the
arrow in fig. 15). Turn the steam knob at least a half
turn counter-clockwise (fig. 16). Steam is given off by
the cappuccino frother, giving the milk a creamy
frothy appearance. To obtain a creamier froth, dip
the cappuccino frother into the milk and rotate the
container with slow movements from the bottom
upwards.
6.When the required temperature is reached
(140°F/60°C is ideal), interrupt steam delivery by
rotating the steam knob clockwise and at the same time
pressing the steam button (fig. 13).
7.Pour the frothed milk into the cups containing the
espresso coffee prepared previously. The cappuccino
is ready. Sweeten to taste and if desired, sprinkle the
froth with a little cocoa powder.
Note: To prepare more than one cappuccino, first
make all the espressos then at the end prepare the
frothed milk for all the cappuccinos.
IMPORTANT: always clean the cappuccino frother
after use. Proceed as follows:
1.Discharge a little steam for a few seconds by rotating
the steam knob (fig. 16). This empties any milk left
inside the steam tube.
IMPORTANT: it is recommended to follow this
procedure each time you make cappuccino to avoid
milk stagnating in the steam tube.
2.With one hand, hold the steam tube firmly and with
the other unscrew the cappuccino frother itself by
rotating clockwise and pulling downwards (fig. 17).
3.Remove the nozzle from the steam tube by pulling it
downwards (fig. 18).
4.Wash the cappuccino frother and steam nozzle
thoroughly with warm water.
5.Make sure the two holes indicated by the arrows in fig.
19 are not blocked. If necessary, clean with a pin.
6.Replace the steam nozzle by inserting it onto the
steam tube and rotating firmly towards the top of the
tube.
7.Replace the cappuccino frother by inserting it and
rotating counter-clockwise.
HOT WATER PRODUCTION
1.Turn the appliance on by pressing the ON/OFF
button (fig. 3). Wait until the OK indicator light
comes on (fig. 5).
2.Place a container under the cappuccino frother.
3.Press the coffee button (fig. 6) and at the same time
open the steam knob. Hot water is delivered from the
cappuccino frother.
4.To interrupt delivery of hot water, close the steam knob
by rotating clockwise and press the coffee button again
(fig. 6).
9
![](asset-a.png)
CLEANING AND MAINTENANCE
Before cleaning the outside of the appliance, always
turn off, unplug from the outlet and allow to cool.
CLEANING THE FILTER HOLDER FOR GROUND
COFFEE
About every 200 coffees, clean the filter holder for
ground coffee as follows:
• Remove the filter from the filter holder.
• Clean the inside of the filter holder. Never wash in a
dishwasher.
• Remove the cap (fig. 20) by unscrewing in the
direction indicated by the arrow on the cap.
• Remove the filter from the container by pushing it
from the cap end.
• Remove the gasket.
•Rinse all components and clean the metal filter
thoroughly in hot water using a brush (fig. 21). Make
sure the holes in the metal filter are not blocked. If
necessary, clean with a pin (see fig. 22).
•Replace the filter and plastic disk on the gasket as
shown in fig. 23. Make sure to insert the pin on the
plastic disk into the hole in the gasket indicated by
the arrow in fig. 23.
•Replace the assembly in the steel filter container (fig.
24), making sure the pin is inserted in the hole in the
support (see arrow in fig. 24).
• Finally, screw on the cap.
Failure to clean as described above invalidates the
warranty.
CLEANING THE BOILER OUTLET
About every 200 coffees, the espresso boiler outlet
must be cleaned as follows:
• Make sure the appliance is not hot and that it is
unplugged from the socket;
•Using a screwdriver, unscrew the screw fixing the
espresso boiler outlet (fig. 25);
•Clean the boiler with a damp cloth;
•Clean the boiler outlet thoroughly in hot water using
a brush. Make sure the holes are not blocked. If
necessary, clean with a pin (fig. 22).
•Rinse under running water, rubbing all the time.
•Replace the espresso boiler outlet, making sure the
gasket is correctly positioned.
Failure to clean as described above invalidates the
warranty.
OTHER CLEANING OPERATIONS
1.Do not use solvents or abrasive cleaning products to
clean the appliance. A soft, damp cloth is sufficient.
2.Clean the filter holder, filters, drip tray and water
tank regularly.
IMPORTANT: during cleaning, never immerse the
espresso maker in water. It is an electrical appliance.
DESCALING
You must descale the coffee machine about every 200
coffees.
Use the descaler provided only. To descale, proceed as
follows:
1.Fill the tank with 34 ounces (1 liter) of water;
2.Pour the contents of the descaler bottle provided
(250 ml) into the tank. For subsequent descaling
operations, descaling solution can be purchased
from authorized technical service centers.
3.Press the ON/OFF button (fig. 3) and wait for the
OK indicator light to come on.
4.Make sure the filter holder is not attached and
position a container under the boiler outlet.
5.Press the coffee button, half empty the tank and
every now and then rotate the steam knob to allow a
little of the solution to run off. Then interrupt by
pressing the coffee button again.
6.Leave the solution to work for about 15 minutes, then
run off the rest of the water in the tank.
7.To eliminate residues of the solution and scale, rinse
the water tank well, fill with clean water and replace
in its housing. Press the coffee button and operate the
appliance until the water tank is completely empty;
8.Press the coffee button again and repeat the last
operation.
Repair of damage to the espresso maker caused by
scale is not covered by the warranty unless descaling
is performed regularly as described above.
10
![](asset-b.png)
No milk froth is formed when
making cappuccino
• Milk not cold enough
•Cappuccino maker dirty
•Always use skim milk at refrigerator
temperature.
•Thoroughly clean the holes in the
cappuccino frother
The crema is too light
(delivered from the spout
too fast)
• The ground coffee is not pressed
down firmly enough
• There is not enough ground coffee
• The ground coffee is too coarse
• Tamp/Press the ground coffee down
more firmly
• Increase the quantity of coffee
•Use ground coffee for espresso
coffee machines only
The crema is too dark
(delivered from the spout too
slowly)
• The ground coffee is pressed down
too firmly
• There is too much ground coffee
•The espresso boiler outlet is blocked
•The ground coffee is too fine
• Tamp/Press the coffee down less
firmly
•Reduce the quantity of ground coffee
•Clean as described in the section
"Cleaning the boiler outlet"
•Use ground coffee for espresso coffee
machines only
The coffee has an acidic taste •Inadequate rinsing after descaling •After descaling, rinse the appliance as
described in the section "Descaling"
PROBLEM POSSIBLE CAUSES SOLUTION
No espresso coffee is
delivered
•No water in the tank
• The holes in the filter holder are
blocked
•The espresso boiler outlet is blocked
The espresso coffee drips
from the edges of the filter
holder rather than the holes
• The filter holder is inserted incorrectly
• The espresso boiler gasket has lost
elasticity
• The holes in the filter holder are
blocked
•Attach the filter holder correctly and
rotate as far as it will go
•Have the espresso boiler gasket
replaced at a service center
•Clean the holes
The espresso coffee is cold •The espresso OK indicator light was
not on when the coffee switch was
pressed
•No preheating performed
•The cups were not preheated
•Wait until the espresso OK indicator
light comes on
•Preheat as described in the section
"Preheating the coffee unit"
•Preheat the cups by rinsing with hot
water
The pump is excessively noisy •The water tank is empty •Refill the tank
• Fill the tank with water
• Clean the filter holder spout holes
• Clean as described in the
section"Cleaning the boiler outlet"
11
![](asset-c.png)
12
This warranty applies to all products with De’Longhi or Kenwood brand names.
Limited Warranty
What does the warranty cover?
We warrant each appliance to be free from defects in material and workmanship. Our obligation under this
warranty is limited to repair at our factory or authorized service center of any defective parts or part
thereof, other than parts damaged in transit. In the event of a products replacement or return, the unit must
be returned transportation prepaid. The repaired or new model will be returned at the company expense.
This warranty shall apply only if the appliance is used in accordance with the factory directions, which
accompany it, and on an Alternating current ( AC ) circuit.
How long does the coverage last?
This warranty runs for one year ( 1 ) from the purchase date found on your receipt and applies only to the
original purchaser for use.
What is not covered by the warranty?
The warranty does not cover defects or damage of the appliance, which result from repairs or alterations to
the appliance outside our factory or authorized service centers, nor shall it apply to any appliance, which
has been subject to abuse, misuse, negligence or accidents. Also, consequential and incidental damage
resulting from the use of this product or arising out of any breach of contract or breach of this warranty are
not recoverable under this warranty. Some states do not allow the exclusion or limitation of incidental or
consequential damage, so the above limitation may not apply to you.
How do you get service?
If repairs become necessary, see contact information below:
U.S. Residents:
Please contact our toll free hotline at 1-800-322-3848 or log onto our website at www.delonghi.com.
For all accessories, spare parts or replacement parts, please contact our parts division at 1-800-865-6330.
Residents of Canada: Please contact our toll free hotline at 1-888-335-6644 or log onto our website at
www.delonghi.com.
Residents of Mexico: Please refer to the Limited Warranty statement for Mexico.
Please refer to the back page of the manual for De’Longhi addresses.
The above warranty is in lieu of all other express warranties and representations. All implied warranties are
limited to the applicable warranty period set forth above. This limitation does not apply if you enter into an
extended warranty with De’Longhi. Some states do not allow limitations on how long an implied warranty
lasts, so the above exclusions may not apply to you. De’Longhi does not authorize any other person or
company to assume for it any liability in connection with the sale or use of its appliance.
How does state law apply?
This warranty gives you specific legal rights, and you may also have other rights, which vary from state to
state.
![](asset-d.png)
5732142400/12.07
De’Longhi America, Inc.
Park 80 West, Plaza One
Saddle Brook, NJ 07663
1-800-322-3848
De’Longhi Canada, Inc.
6150 McLaughlin Road
Mississauga, Ontario
L5R 4E1 Canada
1-888-335-6644
Fiducia Italiana S.A. de C.V.
Pestalozzi #814
Col. Narvarte
Del. Benito Juarez
C.P. 03100
MEXICO
tels: 5543 1447
lada sin costo: 01 800 711 8805
www.delonghi.com
