Portable Navigation

Nav100

NAVIGATION

ENGLISH

CONTENTS

ENGLISH

3Nav100

Controls

Feature highlights

System requirements

Packing contents

5INFORMATION AND SAFETY

Driving precautions

General precautions

Storage precautions

Accessories and repair precautions

Cleaning

Note

7OVERVIEW

Controls

10 INSTALLATION

Setting up the Nav100 on a vehicle

11 PREPARATION

Recharging the Nav100

12 STARTING UP

Start up the Nav100

14 BASIC FUNCTIONS

Using the hot keys

Using the touch screen

15 OPERATION WITH A COMPUTER

Connecting to a computer

Installing ActiveSync

Installing Nav100 Contacts Manager

Creating a partnership

ActiveSync

Contacts Manager

Using Contacts Manager

19 MAIN MENU FUNCTIONS

The main menu

20 MULTIMEDIA MODE

Multimedia mode overview

MP3mode

Operating MP3

Photo mode

23 CONTACTS MANAGEMENT

Contacts

Using contacts

25 SYSTEM CONFIGURATION

System settings overview

Volume

Power

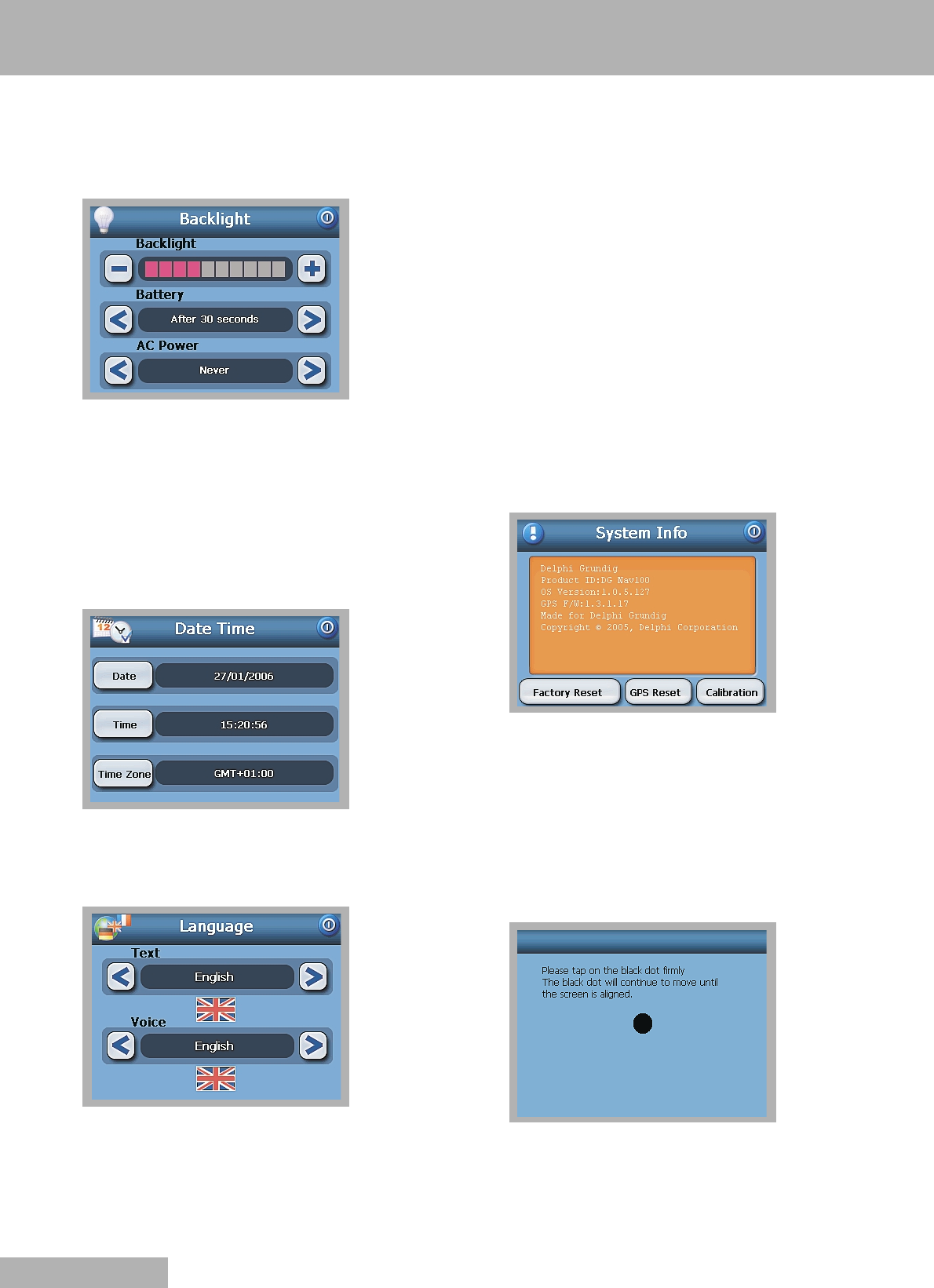

Backlight

Date Time

System Info

Recalibrating the screen

Resetting Nav100 or loading the factory default settings

Resetting the GPS function

28 INFORMATION

Technical data

Troubleshooting

Delphi Grundig Service

ENGLISH

■ CONTROLS

1Power on /Standby

2Reset

3External aerial interface

4Headphone socket

5USB interface

6AC adapter port

7SD slot

8Volume –

9Volume +

10 Zoom in k

11 Zoom out k

12 Navigation pad

13 Enter

14 MAP (navigation) button

15 MENU (main menu) button

Nav100

CONTROLS

8910 12 11 14 15

Nav100

ENGLISH

■ FEATURE HIGHLIGHTS

POWERFUL SYSTEM

7Microsoft Windows CE .NET 4.2 operating system

7Samsung S3C2410 266 MHz application processor

7SiRF Star II LP chipset with Xtrac v2

WIDE AND ACCURATE GPS COVERAGE

7Destinator DG

7NAVTEQ digital map database

7Integrated patch antenna for optimum satellite pick up

MOBILE DESIGN

7Compact and lightweight body makes it easy for users

to carry it anywhere while driving

7Car mount kit for multi-vehicle usage (windshield or

dashboard mounting)

7On-the-road recharging options via the car charger

ERGONOMIC FEATURES

73.5-inch 200-nit QVGA TMR LCD touch-sensitive screen

7Accessible control hot keys with backlight illumination

7Simple easy-to-use user interface with large icons and

command buttons

7Multi-language support for user interface and

navigation

Nine languages: English, Italiano, Français, Castellano,

Deutsch, Português, Nederlands, Dansk, Svenska

7Advanced power-saving options

MULTIMEDIA PROGRAMS

7MP3 for the musical entertainment

7Photo for the favourite digital pictures

CONTACTS MANAGEMENT PROGRAMS

7Contacts for managing contact information on the

device

7Nav100 Contacts Manager for managing contact

information on your computer

7Microsoft ActiveSync for synchronizing contact informa-

tion

■ SYSTEM REQUIREMENTS

Your computer should meet the following conditions for

processing music files and loading data onto your

Nav100.

7Microsoft Windows 2000, XP

7Microsoft Outlook 2000 or later

7Intel Pentium II 233 MHz or AMD K 6-2 266 MHz or

higher

765 MB RAM (128 MB recommended)

7USB interface (USB 2.0 recommended)

712 to 65 MB available memory on the hard disc

7CD-ROM drive

7VGA graphics card or compatible video graphics

adapter at 256 color or higher

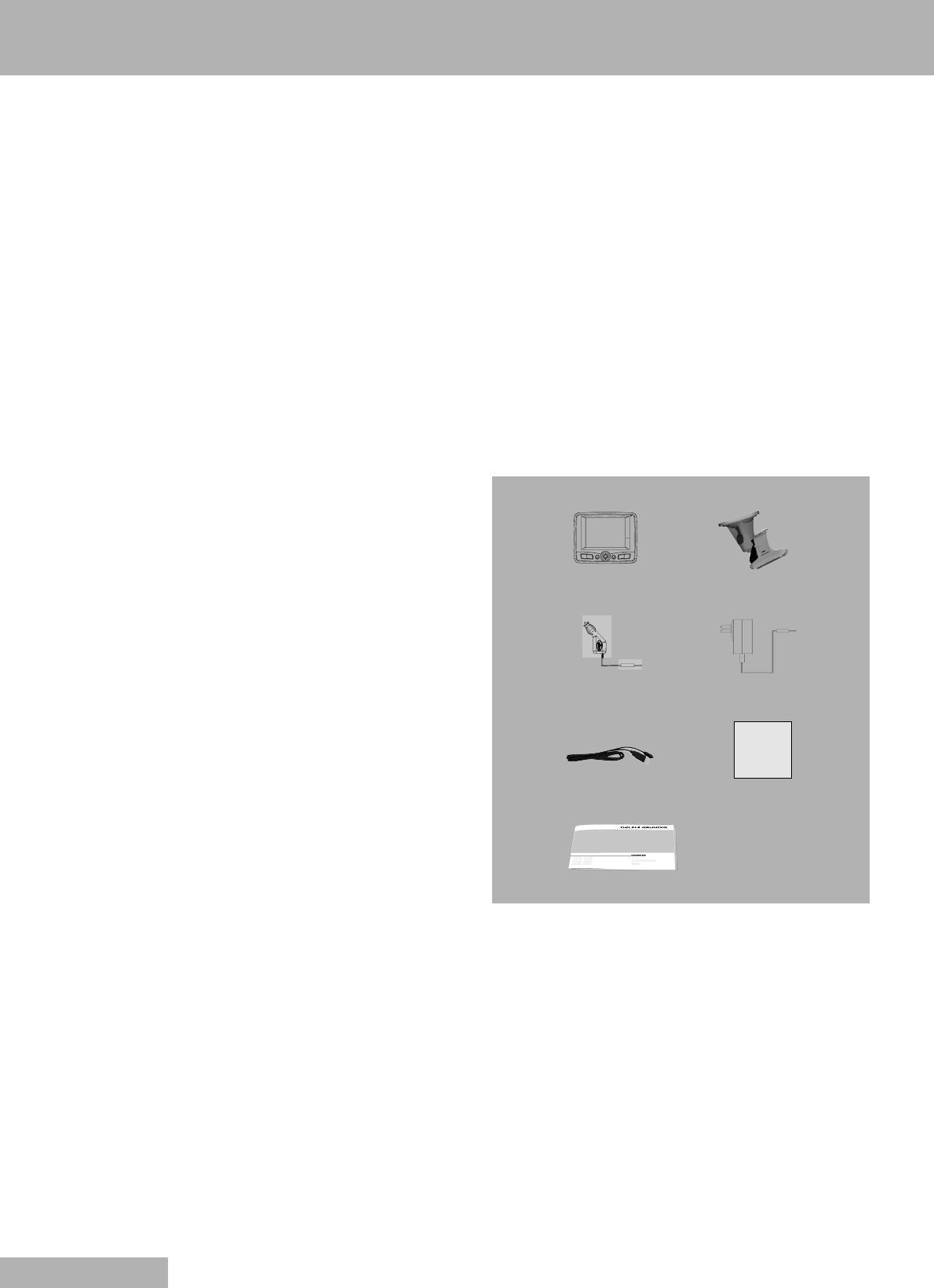

■ PACKING CONTENTS

1Nav100

2Cradle for car mounting

3Car charger (AC adapter)

4AC adapter for home charging

5USB cable

6CD with software and instruction manual

7Quick start guide

INFORMATION AND SAFETY

ENGLISH

■ DRIVING PRECAUTIONS

When using the device in a vehicle, the vehicle operator is

solely responsible for operating the vehicle in a safe man-

ner. It is your responsibility to comply with all traffic laws.

Failure to follow the directions below could result in death

or catastrophic bodily injury to you or to others.

7Do not attempt to enter information or configure the

device while driving. If you need to do so, pull out of

traffic and come to a stop in a legally permissible and

safe location before using your device.

7Vehicle operators must maintain full surveillance of

pertinent driving conditions at all times. Minimize the

need to view the device screen while driving and use

voice prompts to guide you.

7Never place the device on the passenger seat or any

place else in the car where it can become a projectile

during a collision or stop.

7An air bag inflates with great force. Do not mount the

device in the area over the air bag or in the airbag

deployment area.

7Although reasonable attempt has been made to ensure

that the database in your Nav100 is accurate, such

information may change from time to time. The Nav100

database does not include any of the following:

Legal restrictions, road slope, bridge height, weight or

other limits

Construction work zones or hazards, road closures,

traffic conditions

Weather conditions

Emergency events

It is your responsability to disregard any unsafe,

hazardous or illegal route suggestions. Your judgement

and common sense shall take precedence over any

information that may be received through the use of

your device.

■ GENERAL PRECAUTIONS

DEVICE USAGE PRECAUTIONS

7Do not use your device anywhere it may be exposed to

water or in conditions of high humidity.

7Do not expose the device to extreme temperatures,

which could occure in a vehicle under direct sunlight.

Such exposure can shorten the life of the device, dama-

ge the plastic housing and/or battery and increase the

risk of explosion.

7Do not subject your device to sudden and severe

temperature changes. This could result in moisture

condensation in the device that could cause damage to

the device. In the event of moisture condensation,

allow the device to dry out completely.

7Do not leave the device unattended on an automobile

dashboard. When your vehicle is parked and the device

is not in use, protect it from theft and extreme heat by

storing it in an unobtrusive location, away from direct

sunlight.

7The device is not a toy. Never allow children to play

with the device.

7Never touch the liquid that might leak from a broken

liquid crystal display. Contact with this liquid could

cause a skin rash. If the crystal display liquid should

come into contact with the skin or clothing, wash it

immediately with clear water.

7Never raise the sound volume level too high when

using the device with earphones. An excessive sound

volume level could cause damage to your hearing.

7Use only the original car charger and AC adapter

respectively which are included in the packing contents

to charge Nav100.

INFORMATION AND SAFETY

ENGLISH

CAR MOUNT PRECAUTIONS

7Some countries prohibit the mounting of any electronic

device in any location on the vehicle dashboard. Be

sure to check the local laws for applicable mounting

before installing the car mount.

7Some newer vehicle models may have a heat reflective

shield embedded in the windshield. This may in some

cases obstruct the GPS signal reception. If you encoun-

ter this problem in the vehicle, you need to purchase an

external GPS antenna. For more information, contact

the local Delphi Grundig dealer.

7The heating and cooling cycle of a vehicle’s interior will

in some cases loosen the adhesion of the suction cup.

Check the vacuum seal of the car mount for adequate

adhesion each time you use the unit and reinstall it if

necessary.

7If the car mount has problems staying on, clean the

plastic suction cup with alcohol, then reinstall.

Moistening the suction cup may help adhesion in some

cases.

7To avoid extreme temperature from damaging the car

mount, remove the unit if the temperature inside your

vehicle exceeds 70° C.

7The dip in humidity and temperature at night may

loosen the adhesion of the suction cup. For this reason,

as well as for security, it is recommended that you

remove both the car mount kit and the Nav100 when

leaving your vehicle overnight.

■ STORAGE PRECAUTIONS

7Do not store the device anywhere it may be exposed to

water or in conditions of high humidity.

7When the device is not in use for an extended period of

time, bring it indoors and store it in some location with

a temperature range of +5° to +50° C.

■ ACCESSORIES AND REPAIR PRECAUTIONS

7Only Delphi Grundig authorized accessories should be

used with the device. The use of incompatible accesso-

ries could result in bodily injury and/or damage to the

device. The use of unauthorized accessories will also

void your warranty.

7Never attempt to disassemble, repair or make any

modification to the device. Refer all repair needs to the

local Delphi Grundig dealer.

■ CLEANING

7Use a damp soft dry cloth to wipe the device’s casing

(not the display screen). Never use organic solvents

such as benzene or paint thinner to clean the device.

Use of these solvents can cause deformation or

discoloration.

7Use a soft, clean, lint-free cloth to clean the display

screen. Moistenend LCD screen wipes could also be

used as required.

■ NOTE

This device is designed only for in-car use.

■ ENVIRONMENTAL NOTE

This product has been made from high-quality parts and

materials which can be re-used and recycled.

Therefore, do not throw the product away with normal

household waste at the end of its life. Take it to a

collection point for recycling electrical and electronic

devices. This is indicated by this symbol on the product, in

the operating manual and on the packaging.

Please find out about collection points operated by your

local authority.

Help protect the environment by recycling used products.

OVERVIEW

ENGLISH

■ CONTROLS

REAR AND FRONT PANELS

Power status LED indicator. Indicates the

battery power status.

– Green: battery is fully charged; the device is

running on battery power.

– Orange: battery charging.

– Red: battery charge is near depletion level.

You need to recharge your device.

Display Touch screen. Displays the applications, data

and map images available on your device. It is

touch-sensitive and responds to finger taps.

MENU Main menu hot key. Displays the main menu

panel; also called the home panel.

MAP Navigation hot key. Displays the navigation

panel.

kZoom in hot key. When in navigation mode,

zooms in on the center of a map.

In photo mode: when in full screen mode,

zooms in on the displayed image.

Joystick Multi-directional joystick. Move in a left-right

(»a« and »s«) or up-down ( »A« and »S«)

direction to scroll through displayed items.

Press to open (if it is a file icon) or launch (if it is

a program or settings icon) a selected icon

(»ENTER«).

kZoom out hot key. When in navigation mode,

zooms out from the center of a map.

In photo mode: when in full screen mode,

zooms out on the displayed image.

+Volume up hot key. Press to increase volume.

–Volume down hot key. Press to decrease

volume.

Speaker Speaker. Emits system sounds.

– + MAPJoystick MENU

Speaker

OVERVIEW

ENGLISH

RIGHT AND LEFT PANELS

Slot SD/MMC slot. Accepts SD and MMC storage

cards, allowing you to use audio, image, and

map files stored in it for use with internal appli-

cations. You can also use it to back up data

from your device.

0Earphone jack (earphones/headphones).

USB port. Connects the device to computer run-

ning on the Microsoft Windows platform.

(

5V DC Power connector. Connects the device to an AC

power outlet.

ÉExternal aerial interface (MMCX input). Interface

for an external GPS aerial.

Ω

Slot

5V DC

(

OVERVIEW

ENGLISH

TOP AND BOTTOM VIEWS

Power button/backlight control.

As a power button:

– If the device is off, press the button to turn it

on. The power LED indicator on the front panel

lights up green.

– If the device is on, press the button to turn it

off. The power LED indicator also turns off.

As a backlight control:

– Press and hold to activate or deactivate the

screen backlight.

ZSoft reset button. Press to perform a soft reset

if the device freezes (i.e., the device no longer

responds to the buttons on the screen).

INSTALLATION

ENGLISH

■ SETTING UP THE Nav100 ON A VEHICLE

The Nav100 comes with a car mount kit and a car charger

with which you can set up the device on a vehicle. Fasten

the bracket in a secure location.

Notes

Some countries prohibit the mounting of any electronic

device in any location on the vehicle dashboard. Be sure

to check your local laws for acceptable mounting areas

before installing the car mount bracket.

Some newer vehicle models may have a heat reflective

shield embedded in the windshield. This may in some

cases obstruct the GPS signal reception. If you encounter

this problem in your vehicle, you need to purchase an

external GPS antenna. For more information, contact your

local Delphi Grundig dealer.

CAR MOUNT INSTALLATION REMINDERS

Install the car mount on the surface of a vehicle:

7That is smooth, flat and free of dirt and oil

7Where the driver can easily view/reach it without

taking his/her eyes off too far from the road

7Where the device will not obscure car controls nor re-

strict the driver’s view of the road

7Far from the air bag deployment area

SETTING UP ON A VEHICLE

This section shows how to install the car mount kit in a

vehicle’s windshield using the suction cup. For dashboard

installation procedures using the self-adhesive power disc

connector refer to the Nav100 Quick Start Guide.

1Clean the mounting surface with a glass cleaner and a

clean cotton cloth.

2If the ambient temperature is below + 15° C warm the

mounting area and the suction cup to ensure a strong

suction bond.

3Fix the suction cup to the selected area with the locking

lever facing up.

4Flip the locking lever away from you to create a vacuum

between the suction cup and the mounting surface.

5Make sure that the suction bond is strong enough befo-

re proceeding to the next step.

6Insert the pegs on the car mount’s cradle plate to the

holes on the back of the cradle, and then move the

cradle downwards until both parts are engaged (you

will hear a click sound).

7Insert the SD card into the device.

8Dock the device on the cradle.

9Adjust the car mount for the best viewing angle.

CHARGING ON A VEHICLE

After setting up the device on the car mount, connect the

car charger. If the car engine is turned off, you may be

required to switch the vehicle ignition back into the acces-

sories position. Consult your vehicle owner’s manual.

1Connect the car charger to the power connector of the

Nav100.

2Plug the other end of the car charger to your vehicle’s

cigarette lighter socket.

– The power LED indicator lights up orange during the

charging. The hot keys backlight is also lit up.

Note

The device comes with the battery pre-charged to at least

30% capacity. You can start using it once it is mounted in

your vehicle and connected to the cigarette lighter.

However, for maximum usage time you need to charge

your device to full capacity.

PREPARATION

ENGLISH

■ RECHARGING THE Nav100

Nav100 uses a high-density rechargeable 2200 mAh

Lithium Ion battery. The stauts icon located on the top

right corner of the main menu panel indicates the level of

the device’s battery power:

– Battery full charged

– Battery charging

– Battery level low

– Battery level very low, rechargement required

– Battery power depleted, device will automatically

turn off; recharging required.

If the battery level becomes low in the course of normal

use, recharge the device. Normally, please use the AC

adapter to recharge the Nav100. However, this may be dif-

ficult when there is nor available AC power outlet on

hand. When the device’s battery is drained while on the

road, you can still recharge the device by using either the

car charger cable or the USB cable bundled with the devi-

ce. Recharging time from empty to full capacity is about 6

hours in all cases.

Note

If the battery level reaches very low status, the device will

automatically turn off. In this case, you have about 12

hours to recharge your device after which you risk losing

all data on the device’s internal memory. In case all data is

lost, the next time you power on the device you will be

prompted to restore the data.

TO RECHARGE THE DEVICE USING THE AC ADAPTER

1Plug the AC adapter into any AC current outlet.

2Connect the AC adapter cord to the power connector on

the left panel of the device.

– The power LED indicator lights up orange during char-

ging. The hot keys backlight is also lit up.

3Once charging is complete, as indicated when the

power LED indicator lights up green, disconnect the AC

adapter cord from the device.

TO RECHARGE THE DEVICE USING THE CAR CHARGER

1Connect the car charger to the power connector of the

Nav100.

2Plug the other end of the car charger to your vehicle’s

cigarette lighter socket.

– The power LED indicator lights up orange during the

charging. The hot keys backlight is also lit up.

Note

Always remove the car charger from the vehicle’s cigarette

lighter socket when it is not used for Nav100.

STARTING UP

ENGLISH

■ START UP THE Nav100

After mounting the Nav100 on a vehicle it is ready to be

used. Turn it on to calibrate the screen. After screen

calibration, proceed to system settings configuration

(refer to the sections on the pages 25 to 27). If you intend

to start using Nav100 at once, we recommend configuring

the language and date/time settings first. The rest of the

user preferences can be set up later.

TURNING ON THE DEVICE

1Turn on the device by pressing the power button » «

on the top right panel of the device.

– The power LED indicator on the front panel lights up

green.

– The main menu panel displays. This is also refered to

as the home panel.

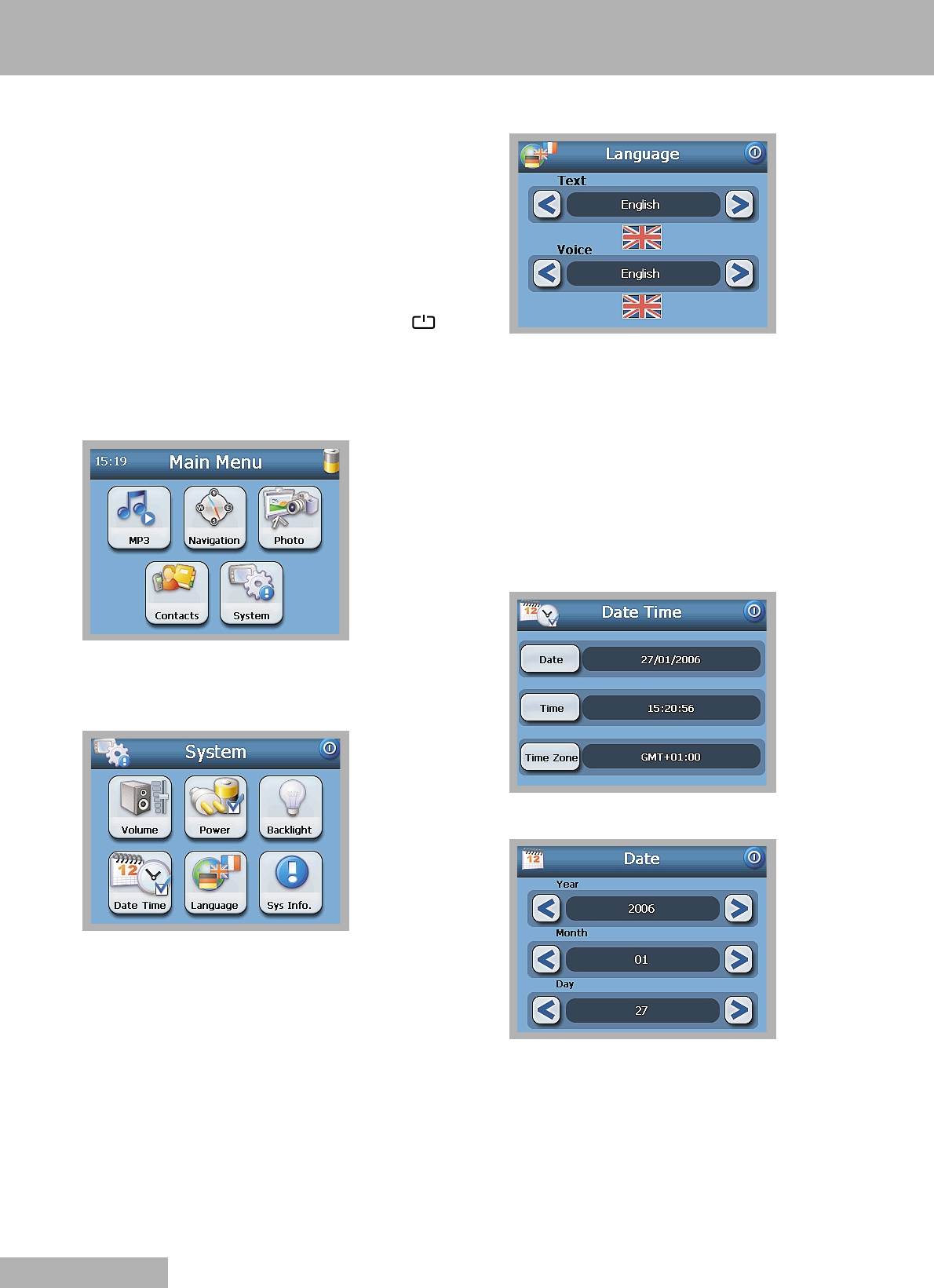

SETTING THE SYSTEM LANGUAGE

1Tap the »System« icon on the main menu panel.

2Tap the »Language« icon on the »System« menu panel.

3Tap »<« or »>« under the »Text« and »Voice« settings

until the language of your choice is displayed.

4Tap »Ȃ« to apply the changes made.

Note

If you change the menu language (default setting

»English«), the menu options will no longer correspond

with the English menu options listed in this instruction

manual.

SETTING DATE AND TIME

1Tap the »Date Time« icon on the »System« menu panel.

2Tap »Date«.

3Tap »<« or »>« under the »Year«, »Month« and

»Day« settings to set the date values.

4Tap »Ȃ« to apply the changes made.

STARTING UP

ENGLISH

5Tap »Time«.

6Tap »<« or »>« under the »Hour« and »Minute«

settings to set the time values.

7Tap »Ȃ« to apply the changes made.

8Tap »Time Zone«.

9Tap »<« or »>« for the time zone of your choice.

10 Tap »Ȃ« to apply the changes made.

11 Tap »Ȃ« twice to apply the changes made and return

to the main menu panel.

TURNING OFF THE DEVICE

1Turn off the device by pressing the power button » «

on the top right panel of the device.

– The power LED indicator on the front panel turns off.

– The main menu panel disappears.

BASIC FUNCTIONS

ENGLISH

■ USING THE HOT KEYS

All seven hot keys ligth up when pressed for easier opera-

tion under low light conditions.

Note

The function of the hot keys may be disabled in some

screens. For example, the magnification level hot keys are

inactive when viewing the MP3 directory.

ADJUSTING THE VOLUME

1Press »+« or »–« on the front panel to adjust the

volume level of system sounds.

ZOOMING IN AND OUT

1Press »k« or »k« on the front panel to control the

magnification level of images.

LAUNCHING THE NAVIGATION PANEL

1Press »MAP« on the front panel to launch the

navigation panel directly.

LAUNCHING THE MAIN MENU PANEL

1Press »MENU« on the front panel to launch the main

menu panel.

USING THE JOYSTICK

1Push the joystick into an up/down or left/right

direction to control actions and to scroll through

functions in the device.

2Press the joystick to use it as an »ENTER« key.

Note

The function of the joystick may be disabled in some

screens. For example, the up/down direction is inactive

when in MP3 playback mode.

USING THE TOUCH SCREEN BACKLIGHT

Under some lighting conditions, viewing the information

on the device may be difficult. If this is the case use the

backlight to illuminate the touch screen.

1Press and hold the power button » « until the

backlight turns on.

2Press and hold the power button » « until the

backlight turns off.

■ USING THE TOUCH SCREEN

The Nav100 touch sensitive screen allows for a more natu-

ral way of entering information into the device using

fingers instead of a stylus. The actions are done by:

7Tap - Touch the screen once with your finger to open

items and select options.

7Hold and drag - Tap a slider icon and drag it across the

screen. In Photo’s Full Screen mode, hold and drag the

image to pan it in different directions.

7Return - Tap to apply any changes made and/or revert

to the previous screen.

■ USING THE SD/MMC SLOT

Nav100 has a SD/MMC slot compatible with a range of SD

and MMC storage cards that you can use to back up or

transfer files and data.

Also, the Nav100’s GPS navigation system has its core on

the Destinator DG program. Using this program requires

that users load the digital maps available in the

Destinator DG SD card included with the device.

INSERTING A STORAGE CARD

1Hold the device securely, and then push the card into

the slot until you hear an audible system sound; this

will signal that the card is already properly seated

within the slot.

– The card is secure when it is not protruding from the

slot.

REMOVING A STORAGE CARD

1Hold the device securely, and then push against the top

of the card, as if you were pushing it further into the

slot, letting the card spring out. An audible system

sound will signal that the card has been released.

2Gently remove the card from the slot.

OPERATION WITH A COMPUTER

ENGLISH

■ CONNECTING TO A COMPUTER

1Plug the USB cable supplied into the USB port » «

on the left panel and into the USB interface of the com-

puter.

Note

ActiveSync has to be installed before (refer to the section

below).

2Use File Explorer to copy digital music and image files

into the device’s SD/MMC card and access them when

in Multimedia mode.

Notes

It is advisable to organize files into subfolders. This will

served as playlists and albums when you access the files

from your device.

To enable access of multimedia files from your device, it

should be located on the SD/MMC card, not on the

device’s memory.

3Use Nav100 Contacts Manager to import/export

contact information between your device and your

computer.

4Use ActiveSync to synchronize contact information

located on the device and the computer.

■ INSTALLING ACTIVESYNC

Use Microsoft ActiveSync to exchange information bet-

ween the Nav100 and a computer running on the

Microsoft Windows platform.

If you have a previous version of the Microsoft ActiveSync

installed on your computer, uninstall it first before

installing the Microsoft ActiveSync version from the

Nav100 Companion CD.

1Close any open programs, including those that run at

startup, and disable any virus-scanning software.

2Insert the Nav100 Companion CD in to your computer’s

CD-ROM drive.

– The following picture will be displayed:

(

3Select your desired language.

– The window »Please select your task« will appear.

4Click »Install ActiveSync«.

5Follow the on-screen instructions.

– After installation, the ActiveSync icon » « will

appear on your computer’s system tray (on the lower

right-hand corner of the screen).

Note

For detailed information on how to use ActiveSync on your

computer, start ActiveSync on your computer, click

»Help«, then »Microsoft ActiveSync Help«.

■ INSTALLING Nav100 CONTACTS MANAGER

Use Contacts Manager to manage the contact information

located on the device and on the computer.

1Click »Install Contacts Manager« on the »Please

select your task« screen.

– The installation wizard will automatically begin.

2Follow the on-screen instructions.

3Click »Finish« after the installation process is

completed.

OPERATION WITH A COMPUTER

ENGLISH

■ CREATING A PARTNERSHIP

After completing the installation procedures of ActiveSync

and Contacts Manager, set up a partnership between the

Nav100 and the computer with the help of the New

Partnership setup wizard.

Once you have created a partnership, you will be able to

synchronize contact information using ActiveSync.

1If you want to upload files into a SD/MMC card for use

with your Nav100, insert the card to the device.

2Connect the device to the computer using the USB

cable supplied.

– The New Partnership setup wizard will automatically

start on your computer screen.

3Follow the on-screen instructions.

4When prompted to select the items to be synchronized,

select only »ContactSync«.

5Click »Finish« on the »Setup Complete« dialog box.

– The initial synchronization process will automatically

begin when finish using the wizard. After the initial

synchronization, information you have stored in

Microsoft Outlook Contacts in the computer will now

be available on the Nav100 without having to type a

word.

6Disconnect the device from the computer and you are

ready to go.

Note

Once you have completed the first synchronisation

process, you can initiate synchronization from your device

anytime, using the USB cable.

■ ACTIVESYNC

Use ActiveSync to synchronize the contact information

located on your Nav100 and your computer. Each time

you synchronize, ActiveSync compares the information on

your device with the information on your computer. This

means you will always have the most up-to-date contacts

list wherever you are.

SYNCHRONIZING CONTACTS

1Insert a SD or MMC storage card into the device.

– Exported contact files will be saved to this storage

card for later access from your device.

2Connect the device to the computer using the USB

cable supplied.

3Double-Click the ActiveSync icon » « on your compu-

ter’s system tray.

Note

If the wizard does not automatically appear, launch

ActiveSync on your computer by clicking on its icon from

»Start«, then »Programs«.

4Click »Options«, then the »Rules« tab to configure syn-

chronization settings.

5Select your preferred settings for the »Conflict

Resolution« and »File Conversion« options.

OPERATION WITH A COMPUTER

ENGLISH

6Click »OK«.

– The settings you have selected would apply to all

future contacts synchronizations.

7Click »Sync« icon to start contacts synchronization.

– Contact information located on the Nav100 and the

computer will now be synchronized.

■ CONTACTS MANAGER

Use Nav100 Contacts Manager to manage the contact

information located on your device and on your computer.

This PC program shares the same contact database as the

Contacts component of Microsoft Outlook. It only has an

import/export function; you still have to create contact

entries in Microsoft Outlook Contacts.

For more information on how to use Microsoft Outlook

Contacts on your computer, open Microsoft Outlook, press

»F1«, type “Using Contacts”, then press »Enter«.

■ USING CONTACTS MANAGER

Use Contacts Manager to export and import contact infor-

mation between your Nav100 and your computer.

1Click »Start« ɮ»Programs« ɮ»NAV100« ɮ

»Contacts Manager« to open Contacts Manager.

– The Contacts Manager main window displays.

EXPORTING CONTACTS FROM YOUR COMPUTER

1Insert a SD or MMC storage card into the device.

– Exported contact files will be saved to this storage

card for later access from your device.

2Connect the device to the computer using the USB

cable supplied.

Note

ActiveSync has to be installed before (refer to the section

“Installing ActiveSync” on page 15).

3Open File Explorer to check that the device is now dis-

played as a USB mass storage device.

4Click »Selected only« on the Contacts Manager

window.

5Click the contacts you want to export.

6Click »Export«.

7Select the drive name corresponding to the Nav100.

8Type a filename for the contact file.

9Click »OK«.

– Selected contacts will be exported to the SD/MMC

card installed in your device.

10 Click »OK« on the completion dialog box.

OPERATION WITH A COMPUTER

ENGLISH

IMPORTING CONTACTS FROM YOUR Nav100

1Insert a SD or MMC storage card containing the

contact files you wish to import into the computer.

2Connect the device to the computer using the USB

cable supplied.

Note

ActiveSync has to be installed before (refer to the section

“Installing ActiveSync” on page 15).

3Open File Explorer to check that the device is now dis-

played as a USB mass storage device.

4Click »Selected only« on the Contacts Manager

window.

5Click the contacts you want to import.

6Click »Import«.

7Select the drive name corresponding to the Nav100.

8Select the contact entries you want to import.

9Click »OK«.

– Contacts will now be imported to your computer.

10 Click »OK« on the completion dialog box.

– Imported contact information will be added to your

Microsoft Outlook Contacts list and be shared with

Contacts Manager.

MAIN MENU FUNCTIONS

ENGLISH

■ THE MAIN MENU

1Turn on the device by pressing the power button » «

on the top right panel of the device.

– The power LED indicator on the front panel lights up

green.

– The main menu panel displays.

– The panel’s title bar displays the current time (with

24-hour notation), the panel name and the battery

power level status icon.

OPERATING THE MAIN MENU

There are five program icons on the main menu panel.

7- Tap »MP3« to launch the MP3 panel for music

mode operation.

7- Tap »Navigation« to to display the Navigation

Panel. Refer to the DG User’ Guide for more

information on how to use the device in naviga-

tion mode.

7- Tap »Photo« to launch the photo panel for

picture mode operation.

7- Tap »Contacts« to launch the Contacts

program. Refer to the DG Quick Starter Guide

or the DG User’s Guide for more information on

how to use this program.

7- Tap »System« to launch the system panel to

configure the device’s user preferences.

MULTIMEDIA MODE

ENGLISH

■ MULTIMEDIA MODE OVERVIEW

In addition to it’s navigating function, the Nav100 is also a

mobile entertainment tool that lets you enjoy the digital

music and image collection on the road. MP3 and Photo

extend the device’s functions to the multimedia scene.

Note

The device’s multimedia programs - MP3 and Photo - are

not available in navigation mode. This is for safety

reasons so as not to distract the driver’s attention from

the road.

To enable access of multimedia files from the device, it

should be located on the SD/MMC card, not on the

device’s memory. Do this either by:

7Using the USB cable to connect the device, with the

SD/MMC card inside, to the computer and then use File

Explorer to copy digital music and image files into the

device’s SD/MMC card folder.

7Using a compatible card reader to directly copy digital

music and image files to the SD/MMC card.

Note

It is advisable to organize files into sub-folders. This will

served as playlists and albums when you accesss the files

from your device.

■ MP3 MODE

Enjoy your favorite music on the road. The program fea-

tures:

7Support for MP3and WAV files.

7Auto-scanning of supported files in the device’s

SD/MMC card.

7Separate volume control enabling you to adjust the

playback sound level while retaining the volume level

set for system sounds.

7Hot key function for volume control.

7Using the USB cable to connect the device, with the

SD/MMC card inside, to the computer and then use File

Explorer to copy digital music and image files into the

device’s SD/MMC card folder.

7Playlist support based on sub-directory contents.

Note

Each sub-directory containing compatible music files is

treated as an individual playlist. For a more organized file

search, it is advisable to name sub-directories based on

genre or listening preferences. To illustrate, a sub-directo-

ry containing music you listen to when travelling can be

named “Journey favorites”; or “Top alternative” for a sub-

directory consisting of your favorite alternative songs.

7Shuffle and repeat playback functions.

■ OPERATING MP3

OPENING MP3

1Tap »MP3« on the main menu panel.

– The MP3 playback pad displays.

OPENING FILES FOR PLAYBACK

The program will automatically scan the device’s SD/MMC

card for supported digital files. Only sub-directories

containing compatible music files will be displayed.

1Search for the file you want to play. Tap »§« or »$«

or use the joystick in the left/right direction to scroll

through all available files.

2Tap a file or press the joystick to start playback of the

selected file.

Notes

When the file is located in the root directory, tap the file

for playback.

When the file located inside a sub-directory, tap the sub-

directory icon, then tap a file for playback.

2Tap » « to return to the device’s root directory.

Note

The selected file will be played automatically. Files in the

same directory will also be played provided that the re-

peat function is disabled.

PLAYBACK FUNCTIONS

The icons in the playback pad let you control the playback

mode.

1Tap »II« to pause playback and »s« to resume

playback.

MULTIMEDIA MODE

ENGLISH

2Hold and drag the slider »as« of the progress bar to

adjust the progress of the current track.

3Tap »aa« to skip backward to the previous track.

– If the current file is the first track in the list, the last

track will be played.

4Tap »ss« to skip forward to the next available track.

– If the current file is the last track in the list, the first

track will be played.

Note

You can also move the joystick left/right to skip to the pre-

vious/next track. Pressing the joystick during file playback

will revert the screen to the main menu panel.

PLAYING TRACKS IN RANDOM ORDER

Each directory containing supported music files is

considered a playlist. You can choose to shuffle the

playback sequence to play files in random order.

1Tap » « to enable the random mode.

Note

An enabled random mode is indicated by the word

»Random« on the playback display pad and a fade-out

random icon.

2Tap the fade-out random button to disable the random

mode.

REPEATING TRACKS

The repeat mode lets you play the current track in a loop.

The same track will be played over and over again until

you disable the repeat mode.

1Tap » « to enable the repeat mode.

Note

An enabled repeat mode is indicated by the word

»Repeat« on the playback display pad, and a fade-out

repeat icon.

2Tap the fade-out repeat button to disable the repeat

mode.

ADJUSTING THE VOLUME

To adjust the playback volume, you can use either the

MP3 volume control slider or the volume control hot keys.

1Hold and drag the slider »a« of the volume progress

bar.

– This will only affect the volume of the track playback.

2Pressing »+« or »–« on the front panel will adjust the

sound level for the device’s sounds.

■ PHOTO MODE

These days every mobile gadget seems to be equipped

with a digital camera, better for capturing that

spontaneous moment. With Nav100 you can keep these

images of your favorite moments as mobile as you are by

using Photo. The program features:

7Support for JPEG (1-, 4-, 8- and 24-bit) files.

7Auto-scanning of supported files in the device’s

SD/MMC card.

7Three viewing modes: Thumbnail, Full Screen and Slide

Show.

7Album support based on sub-directory contents.

Note

Each sub-directory containing compatible image files is

treated as an individual album. For a more organized file

search, it is advisable to sort image files into sub-directo-

ries based on something, such as a particular event or a

certain period. To illustrate, a sub-directory containing

pictures from your daughter’s birthday can be named

“Cassie’s 10th birthday”; or “May 11 to June 24 log” for a

sub-directory consisting of pictures taken during that

period.

MULTIMEDIA MODE

ENGLISH

OPENING PHOTO

1Tap »Photo« on the main menu panel.

– The Photo playback pad displays.

– The program will automatically scan the device’s

SD/MMC card for supported image files. Image files

will be displayed as thumbnails; only sub-directories

containing compatible files will be displayed.

1Search for the file you want to view. Tap » « or » «

or use the joystick in the up/down direction to scroll

through all available files.

– When a thumbnail is selected, a red border appears

around it.

VIEWING FILES IN FULL SCREEN MODE

In Full Screen Mode, image files can be viewed in a larger

or smaller scale. You can also change its orientation

angle.

1Search for the file you want to view. Tap » « or » «

or use the joystick in the up/down direction to scroll

through all available files.

2Tap » « to return to the device’s root directory.

3Open the file in Full Screen Mode.

Notes

When the file is located in the root directory, tap the file

for playback.

When the file is located inside a sub-directory, tap the

sub-directory icon, then tap a file for playback.

4Tap » « or use the joystick left to display the previous

available image file.

5Tap » « or use the joystick in a right direction to

display the next available file.

6Tap »k« or press the zoom in hot key on the front

panel to zoom into the center of the image.

Note

When in a zoom in state, you can hold and drag the image

to pan it in any direction you want.

7Tap »k« or press the zoom out hot key on the front

panel to zoom out the image display.

8Tap » « to rotate the images 90° clockwise.

9Tap the touch screen or press the joystick to return to

Thumbnail Mode.

VIEWING FILES IN SLIDE SHOW MODE

You have the option to view images in a slide show much

like viewing a PowerPoint presentation in your computer.

Images are adjusted to fit the entire display area and are

shown in a 3-second interval.

1In Thumbnail Mode, tap » «.

2Tap the touch screen or press the joystick to stop the

Slide show and return to the previous viewing mode.

ENGLISH

CONTACTS MANAGEMENT

ENGLISH

■ CONTACTS

Contacts maintains a list of your friends’ and colleagues’

contact information. These include email address, street

address, multiple phone numbers and other related infor-

mation, such as birthday or anniversary date.

Contacts maintains a list of your friends’ and colleagues’

contact address. You can enter multiple address entries

for each contact. This program is integrated with

Destinator DG enabling users to treat all address entries

as possible destination points in navigation mode.

Note

Contact files imported/exported to the device and the

computer are saved in .fs format.

■ USING CONTACTS

1Tap »Contacts« on the main menu panel.

– The Contacts control pad displays.

– The control pad displays the list of contacts and seve-

ral command buttons for performing various Contacts

tasks.

CREATING A NEW CONTACT

1Tap »New«.

2Enter the related information for the new contact.

3Tap »Save« to save the new contact.

EDITING CONTACT INFORMATION

1In the Contacts control pad, tap the contact you wish to

edit.

2Tap »Edit«.

3Enter the new information for the contact.

4Tap »Save« to save the new contact.

NAVIGATING TO A CONTACT ADDRESS

1In the Contacts control pad, tap the contact whose

address you want to navigate to.

2Tap »Navigate«.

– Address entries for the selected contact appear.

3Tap the address you want to navigate to.

4Tap »Navigate«.

– Destinator plans your route. The calculated route is

shown on the map as a blue line from your current

GPS position.

Note

For more information on how to work in navigation mode,

refer to the Destinator Quick Starter Guide or the

Destinator User’s Guide (located in the Destinator CD).

24 ENGLISH

CONTACTS MANAGEMENT

EXPORTING CONTACTS FROM YOUR Nav100

1Insert a SD or MMC storage card into the device.

– Exported contact files will be saved to this storage

card for later access from your computer.

2Tap » « in the Contacts control pad.

3Select whether to export all contacts, or just the

currently selected one.

4Tap »OK« on the completion dialog box.

Note

Use Contacts Manager to import this contact file to your

computer (refer to page 18).

IMPORTING CONTACTS TO YOUR Nav100

1Insert a SD or MMC storage card containing the contact

files you want to import into the device.

Note

Use Contacts Manager to export contact files from your

computer (refer to page 17).

2Tap » « in the Contacts control pad.

3Tap the contact file you wish to import into your device.

4Tap »Import«.

5Tap »OK« on the completion dialog box.

– Selected contact file will be added to the Contact list.

DELETING A CONTACT

1In the Contacts control pad, tap the contact you wish to

delete.

2Tap »Delete«.

3Tap »Yes« to confirm the deletion.

ENGLISH

SYSTEM CONFIGURATION

ENGLISH

■ SYSTEM SETTINGS OVERVIEW

You can adjust the settings of the device to suit the way.

Adjusting certain settings, such as those for system volu-

me, power LED and hot keys/touch screen backlight may

increase the standby time.

1Tap »System« main menu panel.

– The system menu panel displays.

OPERATING THE SYSTEM MENU

There are six preferences icons on the system menu

panel.

7- Tap »Volume« to set the volume level for

system sounds and enable tapping sound.

7- Tap »Power« to view the battery power level

and enable the hot keys backlight.

7- Tap »Backlight« to set the touch screen

backlight level and enable its auto-off function.

7- Tap »Date Time« to change the system date,

time, and time zone settings.

7- Tap »Language« to set the language option for

the system menus and voice prompts.

7- Tap »Sys. Info.« to display your device’s model

name and related technical specifications.

Options for factory reset, GPS reset, and screen

recalibration are also shown.

■ VOLUME

1Tap »–« or »+« to adjust the volume level.

2Tap »Ȃ« to apply the changes made.

3Tap the »Enable sounds for taps« checkbox.

4Tap »Ȃ« to apply the changes made.

■ POWER

1Tap the »Hot keys backlight on when pressed« check

box.

2Tap »<« or »>« to set the hot keys backlight’s auto-off

function.

– Options include backlight off after 5, 10, 15, and 20

seconds.

3Tap »Ȃ« to apply the changes made.

4Tap the »Hot keys backlight on when AC-in« checkbox.

5Tap »Ȃ« to apply the changes made.

26 ENGLISH

SYSTEM CONFIGURATION

■ BACKLIGHT

1Tap »–« or »+« to adjust the screen backlight level.

2Tap »Ȃ« to apply the changes made.

3Tap »<« or »>« under the »Battery« and »AC Power«

settings.

– Options include Never, backlight off after 10 or 15

seconds and backlight off after 1, 2, or 3 minutes.

4Tap »Ȃ« to apply the changes made.

■ DATE TIME

Refer to the “Starting up” section on page 12 and 13.

■ LANGUAGE

Refer to the “Starting up” section on page 12 and 13.

Notes

The Nav100’s user interface supports nine languages.

This includes English, Italiano, Français, Castellano,

Deutsch, Português, Nederlands, Dansk and Svenska.

If you change the menu language (default setting

»English«), the menu options will no longer correspond

with the English menu options listed in this instruction

manual.

To load additional language options, refer to the

Destinator User’s Guide.

When an additional language is installed and selected, it

will only affect the Destinator DG user interface. System

menus and non-navigation screens (Contacts, MP3,

Photo) will default to English.

■ SYSTEM INFO

Your device’s model name and related technical specifica-

tions are displayed. Options for factory reset, GPS reset,

and screen recalibration are also shown.

■ RECALIBRATING THE SCREEN

If while using the device, you discover tapping an item

doesn’t bring up the appropriate response, it means your

device has lost its calibration. Reclibrate the screen.

1Tap »Calibration« on the system info screen.

2Tap the center of the black dot as it moves around the

screen.

3Tap the black dot again to apply the changes made.

ENGLISH

SYSTEM CONFIGURATION

ENGLISH

■ RESETTING Nav100 OR LOADING THE FACTORY

DEFAULT SETTINGS

You may have to perform a reset if the device freezes (i.e.,

the device no longer responds to the buttons on the

screen). A soft reset allows your device to get a fresh

start, similar to rebooting a computer. This will restart

your device and adjust memory allocation. All records and

entries are retained after a soft reset. GPS settings are

also retained.

1Hold the device securely, and then press the soft reset

button »Z« on the bottom of the device.

If you still encounter system errors even after soft

resetting the device, load the factory default settings to

correct the error. These default settings have been

selected to optimize your device’s performance.

2Tap »Factory Reset« on the system info screen.

3Tap »Yes« on the dialog box.

4After the factory reset, reconfigure your device’s user

preferences.

■RESETTING THE GPS FUNCTION

In the following circumstances, the TTFF (Time To Fix First)

values of your Nav100 may be longer than usual.

7After a long period of inactivity.

7If the current GPS fix position is more than 500 km, or

more than 12 hours apart, from the previous position.

This is due to the GPS algorithm and rotational velocity

between the satellites and planet Earth, and is deemed

normal. To correct this, perform a GPS reset. This will

update the GPS database, which contains information

about the GPS satellites that the unit needs to function in

navigation mode.

1Tap »GPS Reset« on the system info screen.

2Tap »Yes« on the dialog box.

– The GPS reset process will take about a minute to

complete.

28 ENGLISH

INFORMATION

■TECHNICAL DATA

This device complies with the EU directive

89/336 EEC.

HARDWARE FEATURES

Processor:

7Samsung S3C2410 266 MHz application processor

GPS chipset:

7SiRF Star II LP chipset with Xtrac v2 firmware

Memory:

764 MB SDRAM for system memory (for user

applications and map storage)

764 MB Flash ROM onboard flash memory (for operating

system and embedded applications)

Power:

7High density rechargeable 2200 mAh Lithium Ion

battery

– Up to 6 straight hours of operation (backlight in 10%

and GPS locked)

– 6 hours charging time from empty to full capacity via

car charger or AC adapter

7Recharging options

– Indoors using the AC adapter

– On-the-road using either the car charger

7Power status LED indicator

Display:

73.5-inch screen for a wider viewing angle

7320 x 240 QVGA screen with 16.7M colors for a full-

color display

7200-nit LCD provides higher brightness, high contrast

and low power consuming display

7TMR (Transmissive with Micro Reflective) technology

allows the screen to display well-reproduced images

even under bright outdoors lighting

7Hardware backlight control via the power button

Audio:

72W built-in speaker

73.5 mm stereo earphone jack on the device

Connectivity:

7USB port

7SD/MMC slot

Hardware command interface:

7Volume control hot keys

7Image magnification level hot keys

7Main menu hot key

7Navigation hot key

7Multi-directional joystick

GPS SPECIFICATIONS

Chipset:

7SiRF Star II LP chipset with Xtrac v2 firmware

Receiver:

712 parallel channel, WAAS enabled

Antenna:

7Integrated patch antenna for optimum satellite pick up

at every angle

7Optional connection for external antenna when the

vehicle’s windshield has a heat reflective shield

Navigation software (DG features):

7Destinator Address Manager

7Favorite destination hot list

7Destination history

7Navigation mode support for driving

7Trip planner

Map database:

7NAVTEQ digital map database

7Following navigation systems are available with pre-

installed map material on the SD card:

– Nav100 with Benelux, France and UK/Ireland

– Nav100 with Germany and Alps

– Nav100 with France, Iberia and EU roads

– Nav100 with Alps, Italy and Greece

– Nav100 with Finland, Scandinavia and EU roads

TTFF (Time To Fix First, typical):

7Reacquisition: 1 sec.

7Hot start: 8 sec.

7Warm start 35 sec.

7Cold start: 55 sec.

Accuracy of position fix (horizontal position):

710 m for 90%

Velocity:

70.1 m/s

Protocol:

7NMEA-0183 v3.0 supporting the following commands:

– GGA

– GGL

– GSA

– GSV

– RMC

– VTG

ENGLISH

INFORMATION

ENGLISH

SOFTWARE SPECIFICATIONS

Operating system:

7Microsoft Windows CE .NET 4.2

Navigation Software:

7Destinator DG

Address book:

7Contacts

– Maximum capacity of 500 contacts entries

– Integrated with Destinator DG for faster navigation

using address entries as destination points

Contacts management:

7Contacts for mananging contact information on your

device

7Contacts Manager for managing contact information on

your computer

7Microsoft ActiveSync for synchronizing contact informa-

tion between your device and your computer

Multimedia applications:

7MP3 - supports MP3 and WAV formats

7Photo - supports JPEG formats

ENVIRONMENTAL SPECIFICATIONS

Temperature:

7Operating 0° to 50°C

7Storage –20° to +70°C

Relative humidity (non-condensing):

7Operating 20% to 90% RH

7Non-operating 20% to 90% RH

DIMENSIONS AND WEIGHT

Compact and lightweight:

7Dimensions (W x H x D): 119.9 x 90.5 x 46.9 mm

7Weight: 200 g

Technical and design modifications reserved

■ TROUBLESHOOTING

If a fault occurs, first refer to this information before you

take the device for repair.

If you are unable to rectify the fault using the information

given here, contact your specialist dealer.

Never under any circumstances attempt to repair the devi-

ce yourself, as this invalidates the guarantee.

30 ENGLISH

■ DELPHI GRUNDIG SERVICE

PRODUCT DEFECTIVE

Within warranty period: Please contact your local dealer.

The dealer needs proof of ownership for the unit as well

as a detailed description of the nature of the failure.

Out of warranty: In case of defect return the unit to one of

our Service Centres or to the dealer together with the

invoice as proof of ownership as well as a failure

description.

You will receive a notification of the cost. The amount will

be refunded with the service invoice once the unit is

repaired.

INFORMATION

Audio

Touch screen

Multimedia mode

Navigation mode

System information and performance

Power

No sound is coming from the device

The touch screen is not responding to the finger taps

Picture files cannot be viewed

Music files or pictures cannot be played or viewed while

navigating

Sometimes the device takes longer than 5 minutes to

get a GPS fix

How to acquire a GPS fix within standard time frame

(about 1 minute in general)?

How to check the OS version of the device?

How to restore the system back to its default factory set-

tings?

Does performing a factory reset mean a GPS reset as

well?

The systems stops functioning normally

It is not possible to turn on the device

If the earphone is plugged into the device,

the speaker is automatically shut off.

Disconnect the earphone

Check that the device’s volume settings are

not muted. Tap »Volume« in the system

menu panel

The screen may have lost its calibration.

Recalibrate the screen. Refer to the

“Recalibrating the screen” section on page

You may be trying to view an image that is

not supported by Photo.

The device’s multimedia programs - MP3

and Photo - are not available in navigation

mode. This is for safety reasons so as not

to distract the driver’s attention from the

road

If the previous GPS fix position was more

than 500 km or 12 hours apart from your

current position and time, it will take a sig-

nificantly longer than the standard TTFF

time to get a GPS fix. This is due to the

nature of the GPS algorithm and rotational

velocity between the satellites and planet

Earth, and deemed normal ands is not the

fault of your Nav100 device

Perform a GPS reset. Refer to the

“Resetting the GPS function” section on

page 27

Perform a soft Reset on the device. Refer to

the “Resetting Nav100 or loading the facto-

ry default settings” section on page 28.

The device’s OS version appears on the

bottom left corner of the screen

View the device’s OS version and other

technical specifications. Tap »Sys. Info« in

the system menu panel

Perform this task by using the »Factory

Reset« button on the system info screen.

Refer to the “Resetting Nav100 or loading

the factory default settings” section on

page 27

No. The feactory reset function mainly

resets the OS settings to their default fac-

tory values; it will not cause the GPS

settings to reset

Perform a soft reset on the device. Refer to

the “Resetting Nav100 or loading the facto-

ry default settings” section on page 27

The battery power may be depleted.

Recharge the device. Refer to the “Rechar-

ging the Nav100” section on page 11

ASPECT QUESTION ANSWER

ENGLISH

INFORMATION

ENGLISH

WEB SERVICES

You will find full information about Delphi Grundig

Programme on the Internet at:

www.delphigrundig.com

If you have any questions, e-mail:

info@delphigrundig.com

DELPHI EUROPEAN SERVICE CENTRES

BENELUX

Electronics By Knowledge B.V.

Marconiweg 15

NL-3899 BR Zeewolde

Phone: 0031 36 521 8400

Fax: 0031 36 521 8490

e-mail: info@ebknl.nl

ČESKÁ REPUBLICA

VIDEOPROGRESS

Kolma 9 / 672

CZ-190 00 Praha 9

Phone: 00420 2 8481 4444

Fax: 00420 2 8481 4444

e-mail: servis@videoprogress.cz

DEUTSCHLAND

GTE Industrieelektronik GmbH

Helmholtzstrasse 38-40

D-41747 Viersen

Phone: 0049 2162 3703 0

Fax: 0049 2162 3703 63

e-mail: nsc@gte.de

ESPAÑA

CO - SERVICE, S.L.

Calle Gava, 29-31 (Junto Pl. España)

E-08014 Barcelona

Phone: 0034 93 3319658

Fax: 0034 93 4322113

e-mail: sat@coservice.es

FRANCE

SOCODEP

9. rue Galilee Parc de la Bouvre

F-44340 Bouguenais

Phone: 0033 2 40 65 32 42

Fax: 0033 2 04 65 04 17

e-mail: socodep@wanadoo.fr

IRELAND

Car Phonics Ltd.

35 Blackhall Place

IRL-Dublin 7

Phone: 00353 1 633 4722

Fax: 00353 1 633 4781

e-mail: carradio@eircom.net

ITALIA

ELETTRONICA 83 SE.DI.CO.

Via della Magliana Antica 15/17

I-00146 Roma

Phone: 0039 06 55.30.07.13

Fax: 0039 06 55.30.08.08

e-mail: sedico@sedico83.it

ÖSTERREICH

VIDEO-HIFI-SAT-TV Kundendienst Ges.m.b.H

Franz-Josef-Kai 39

A-5020 Salzburg

Phone: 0043 662 437772

Fax: 0043 662 437773

e-mail: kundendienst@utanet.at

PORTUGAL

Multibanda Electronica

R. Jorge Barradas 15

P-1500-369 Lisboa

Phone: 00351 217 620 480

Fax: 00351 217 620 490

e-mail: multibanda.ger@netcabo.pt

SCHWEIZ

Sertronics AG Service for Electronics

Fegistrasse 5

CH-8957 Spreitenbach

Phone: 0041 56 417 732 0

Fax: 0041 56 417 7576

e-mail: kuko@sertronics.com

UNITED KINGDOM

Adavanced Electronics & Logistics Ltd.

High Street, Princes End

GB-Tipton, West Midlands Dy4 9HG

Phone: 0044 121 522 6652

Fax: 0044 121 522 6655

e-mail: info@qualtronyc.co.uk

Delphi Deutschland GmbH • Beuthener Str. 41 • D-90471 Nürnberg, Germany • http://www.delphigrundig.com

Delphi Portable Navigation Nav100 Users Manual 1_Nav100.English

Portable Navigation Nav100 5d90966c-6275-4231-b9ae-8eb5b0b2e449

Nav100 to the manual 5d90966c-6275-4231-b9ae-8eb5b0b2e449

Navigation menu

Versions of this User Manual:

Views

Navigation
