Delta Networks, Inc. WLAN Compact Flash Card Manual
Manual
Wireless CF Card
User Manual
Federal Communications Commission (FCC) Compliance Notice: Radio
Frequency Notice
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures: (1) Reorient or relocate the receiving antenna, (2) Increase the
separation between the equipment and receiver, (3) Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected, (4) Consult
the dealer or an experienced radio/TV technician for help.
Federal Communications Commission (FCC) Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio
frequency exposure limits, human proximity to the antenna shall not be less than 20 cm
(8 inches) during normal operation.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
IMPORTANT NOTE:
Wireless CF Card
iii
TABLE OF CONTENT
INTRODUCTION ............................................................................. 1
CONNECT THE CF CARD TO YOUR PDA.................................2
HARDWARE INSTALLATION ............................................................... 2
DRIVER INSTALLATION...............................................................3
INSTALL DRIVER UNDER WINDOWS CE ........................................... 3
CONFIGURATION UTILITY......................................................... 6
LINK INFO .................................................................................. 6
CONFIGURATION...................................................................... 6
ENCRYPTION ............................................................................. 7
ABOUT ........................................................................................ 8
Wireless CF Card
1
Introduction
The Wireless CF card helps you create a wireless network for sharing
your broadband cable or DLS internet access among multiple PCs or
PDAs in and around your home of office. It is designed for PDA
running Win CE 3.0. Its auto-sensing capability allows packet
transfer in 11Mbps for maximum throughput, or speed reduction to
the lower 1Mbps speed for distance or working in a noisy
environment.
Features
11 Mbps High-Speed Transfer Rate
Interoperable with IEEE 802.11b(DSSS) 2.4GHz-compliant
Equipment
Plug-and Play Operation Provides Easy Setup
Utilizes Intersil Prism2.5 chip sets
Advanced Power Management Features Conserve Valuable
Notebook PC Battery Life
Direct Sequence Spread Spectrum Compatible to Prevent Lost
Connections
Rugged Metal Design with Integrated Antenna
Wired Equivalent Privacy (WEP) 64/128-bit data encryption
Driver Supports Win CE 3.0
Wireless CF Card
2
Connect the CF Card to Your PDA
Hardware Installation
Locate an available Type I CF slot on your notebook computer
or PDA.
With the CF card 50-pin connector facing the CF slot and the
“Network CF Card” label facing up, slide the CF card
completely into the CF slot.
Insert the driver CD into your CD drive.
The Hardware Installation is complete.
Wireless CF Card
3
Driver Installation
Install Driver Under Windows CE
The CF card driver is installed with configuration utility
automatically while the CF card is installed on your PDA.

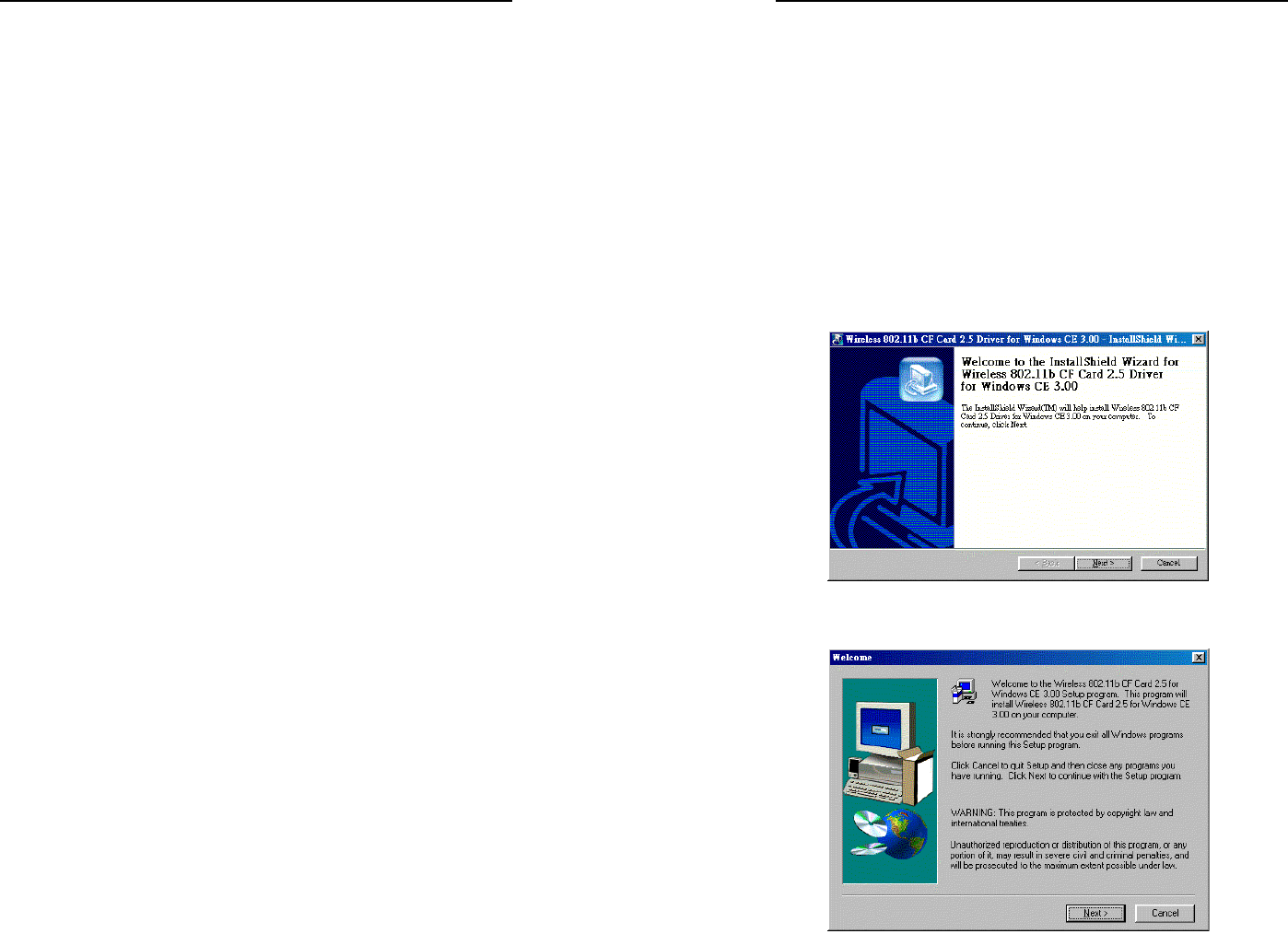

1. With the CF card inserted into your PDA while your PDA is
connected to your PC, insert the Setup CD into your CD-ROM
drive. Execute the Setup.exe file of the CD-ROM drive.
Wireless 802.11b CF Card 2.5 Driver for Windows CE 3.00 –
InstallShield Wizard screen appears. Click the Next button to
proceed.
2. The following screen will indicate that Windows is ready to
continue the installation. Click the Next button.
Wireless CF Card
4

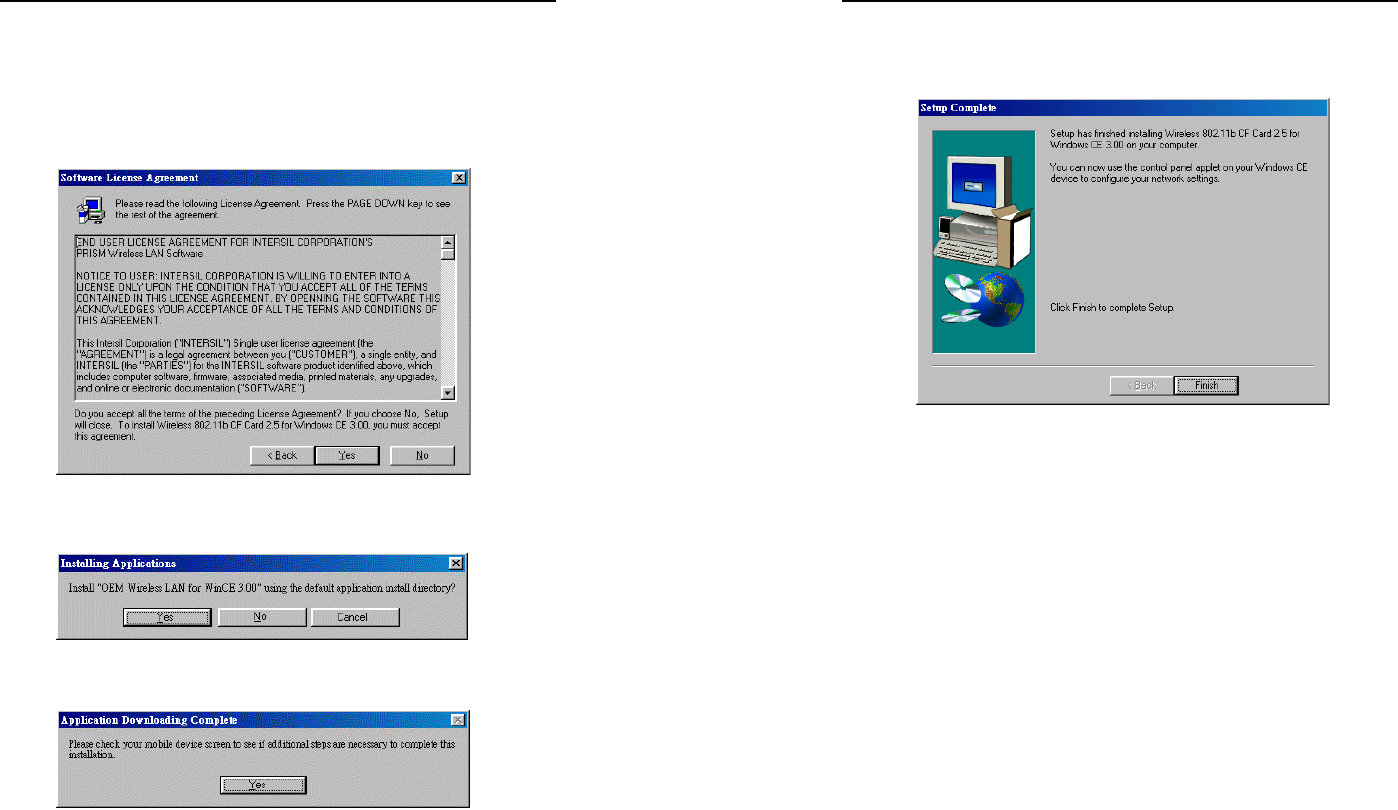

3. Software License Agreement screen appears. Read the entire
agreement by clicking the Page Down button on your keyboard.
Click the Ye s button if you agree, or No if you disagree.
Clicking No will terminate the installation. If you click Ye s , the
installation will continue.
4. Click the Ye s button to use the default application install
directory.
5. Check your PDA and then click the Yes button.
Wireless CF Card
5
6. Once the installation wizard is complete, click the Finish
button.
Wireless CF Card
6
Configuration Utility
The Configuration Utility is provided to allow you further
customization of the CF Card and your wireless network.
LINK INFO
The Link Info screen provides information about the current link
between the CF Card and the wireless Access Point.
The Current Channel field shows to what channel the CF Card is
set.
The Current Tx Rate field shows the transfer rate in megabits per
second.
The Throughput fields show the rate at which data is transferred and
received in Bytes per second.
The Link Quality and Signal Strength fields will be displayed by
the strength of the block when applicable.
CONFIGURATION
The Configuration screen allows you to customize the setting for the
CF Card and your wireless network.
The Mode setting determines the architecture of your wireless
network. Select Ad-Hoc or Infrastructure Mode depending on your
network type. The Ad-Hoc mode is used for a simple peer-to-peer
network and allows the sharing of local resources only between CF
Cards without needing a wireless Access Point. The Infrastructure
mode allows a wireless network to be integrated into an existed,
wired network through an Access Point. Infrastructure networks
permit roaming between Access Points while maintaining a
connection to all network resources and provide additional features,
such as WEP security, power saving and extended range.
Wireless CF Card
7
The acronym for Service Set Identifier, SSID is the unique name
shared among all points in a wireless network. The SSID must be
identical for all points in the network. It is case sensitive and must not
exceed 32 characters.
The Tx Rate field shows the current transfer rate for the CF Card. To
optimize performance and range, the Tx Rate should be set to Fully
automatic, which will automatically adjust the transfer speed for best
performance and longest range.
Power Saving Mode, or PS Mode, enables or disables the power
saving features of your CF Card. This setting can only be enabled or
disabled in Infrastructure mode.
The Channel setting specifies the channel used in wireless
communication and should be set to the same channel as the other
points in the wireless network.
ENCRYPTION
The 64/128-bit WEP keys can be generated from a user-defined
passphrase.
The Passphrase can be any text string with a maximum of 32
characters.
WEP must be enabled from the Configuration screen in order to set
the 64/128-bit key. To generate an encryption key:
1. Type exactly the same case sensitive PassPhrase in the
PassPhrase field.
2. Click the Apply button to create the encryption key. Te
Passphrase generates four unique keys.
3. Make sure that the Default Key is the same for each point on the
network.
Wireless CF Card
8
ABOUT
The About screen shows the release information for the
Configuration Utility.
