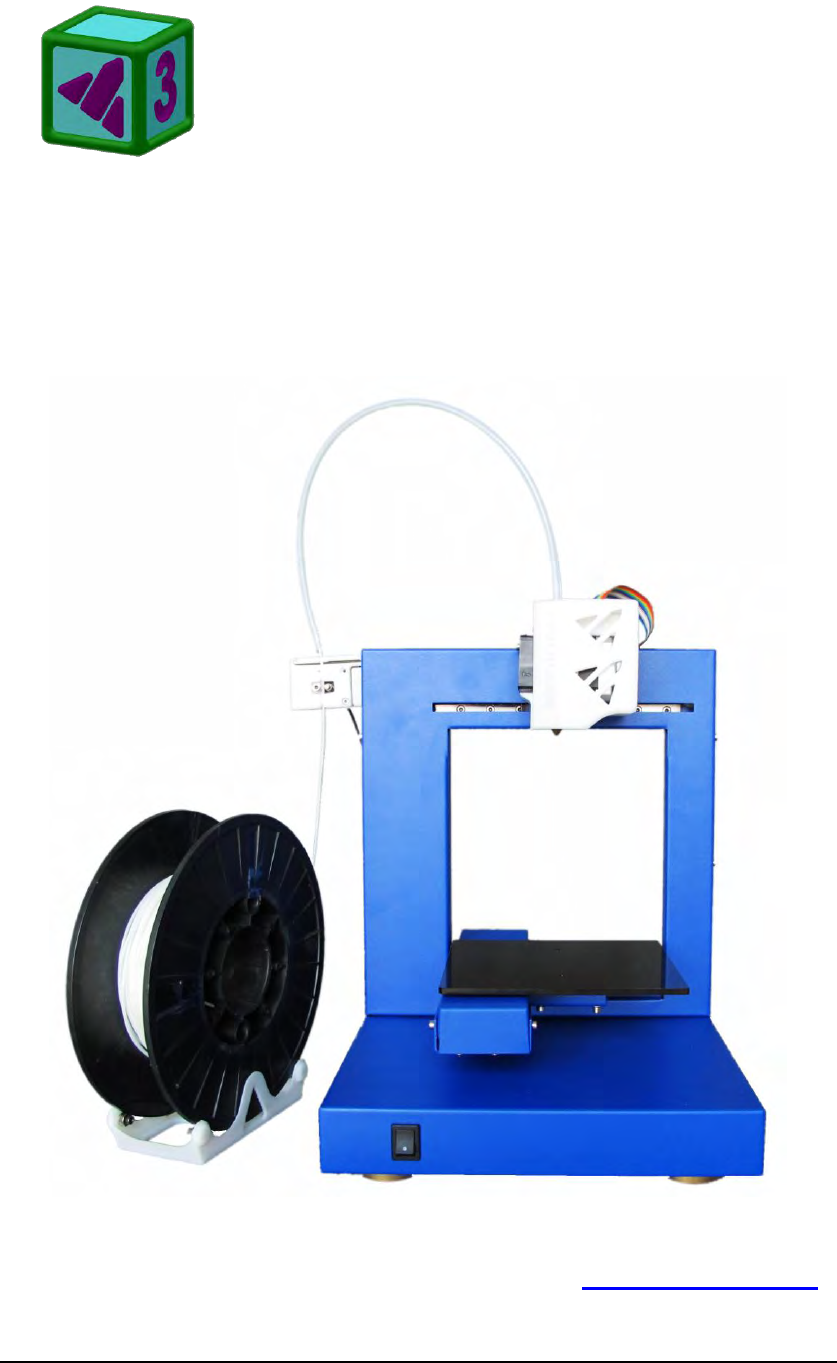

Delta Micro Factory 3DP 3D Printer User Manual
Delta Micro Factory Corporation. 3D Printer
user manual
UP! 3D Printer User Manual 1
Legal Notice
The information in this document is subject to change without notice.
DELTA MICRO FACTORY CO. MAKES NO WARRANTY OF ANY KIND WITH
REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE. Delta Micro Factory Co. shall not be liable for errors
contained herein or for incidental or consequential damages in connection with the
furnishing, performance, or use of this Material. Changes or modifications to the
system not expressly approved by Delta Micro Factory Co., the party responsible for
compliance, could void the user‘s authority for use. This document is protected by
copyright. All rights reserved. Its use, disclosure, and possession are restricted by an
agreement with Delta Micro Factory Co. per software copyright. No part of this
document may be photocopied, reproduced or translated into another language
without the prior written consent of Delta Micro Factory Co.
© Copyright 2011 Delta Micro Factory Corporation All rights reserved.
1. Introduction
UP! 3D Printer User Manual 2
1. INTRODUCTION .................................................................................................................................... 3
1.1 HOW TO USE THIS MANUAL.................................................................................................................... 3
1.2 PRECAUTIONS ..................................................................................................................................... 3
1.2.1 Safety ....................................................................................................................................... 3
1.2.2 Protection ................................................................................................................................ 4
2. OVERVIEW ............................................................................................................................................ 5
2.1 APPEARANCE ...................................................................................................................................... 5
2.2 SPECIFICATIONS ............................................................................................................................... 8
2.2.1 Printer Physical Characteristics ................................................................................................ 8
2.2.2 Specifications ........................................................................................................................... 8
2.2.3 Environmental specifications ................................................................................................... 8
3. OPERATION........................................................................................................................................... 9
3.1 PREPARATION .................................................................................................................................. 9
3.1.1 Installing the printer ................................................................................................................ 9
3.1.2 Installing the software ........................................................................................................... 16
3.1.3 Installing drivers .................................................................................................................... 16
3.2 USING THE BASIC FUNCTIONS ........................................................................................................ 18
3.2.1 Start the program .................................................................................................................. 18
3.2.2 Loading a 3D model ............................................................................................................... 18
3.2.3 View Options ......................................................................................................................... 20
3.2.4 Model transformations .......................................................................................................... 21
3.2.5 Placing models onto the build platform ................................................................................ 23
3.3 GETTING READY TO PRINT ............................................................................................................ 24
3.3.1 Initializing the Printer ............................................................................................................ 24
3.3.2 Calibrating the Nozzle Height ................................................................................................ 25
3.3.3 Leveling the print platform .................................................................................................... 28
3.3.4 Other Maintenance Options .................................................................................................. 28
3.3.5 Preparing the Platform .......................................................................................................... 31
3.3.6 Print Setup Options ................................................................................................................ 34
4. PRINTING ............................................................................................................................................ 39
5. MODEL REMOVAL .............................................................................................................................. 42
REMOVING SUPPORT MATERIAL ................................................................................................................. 43
6. MAINTENANCE ................................................................................................................................... 45
CHANGING THE MATERIAL......................................................................................................................... 45
VERTICAL CALIBRATION............................................................................................................................. 45
CLEANING THE NOZZLE.............................................................................................................................. 47
REMOVING / CHANGING THE NOZZLE .......................................................................................................... 48
CLEANING THE PLATFORM ......................................................................................................................... 48
LUBRICATION OF BEARINGS ........................................................................................................................ 49
SPARE PARTS ........................................................................................................................................... 49
7.0. TIPS & TRICKS .................................................................................................................................. 50
8. TROUBLESHOOTING ........................................................................................................................... 52
SOLUTION FOR "USB.DLL NOT FOUND" PROBLEM .......................................................................................... 52
1. Introduction
UP! 3D Printer User Manual 3
1. Introduction
1.1 How to use this manual
This User Manual is divided into four sections which cover the Introduction,
Overview, Operation, and Troubleshooting. Please study this manual carefully before
installation, and use the printer according to these instructions. Keep this manual
handy and refer to it when necessary.
1.2 Precautions
Please read this section carefully before using the printer.
1.2.1 Safety
The printer can only be used with the power adapters supplied by this company,
or the product may be damaged, with a risk of fire.
To avoid burning, or model deformation, do not touch the model, nozzle, or the
platform by hand, or any other part of the body, while the printer is working or
immediately after it has finished printing.
Protective glasses should always be worn when removing support material,
especially PLA.
The brown sections of the currently supplied gloves melt at around 200 degrees,
therefore please do not hold the extruder block with the gloves.
There is a slight smell from ABS when it is being extruded. The smell is, however,
not too unpleasant. A well ventilated room is recommended by most people to be
safe, however when printing keep the printer away from any draughts as this can
affect the warping of ABS prints. When ABS is burnt is releases toxic fumes.
The following classifications are used in this manual.
CAUTION: Indicates a potentially hazardous situation which, if not
avoided, may result in minor or moderate injury.
WARNING: Indicates a potentially hazardous situation which, if not
avoided, may result in serious injury.
1. Introduction
UP! 3D Printer User Manual 4
Gloves: When performing certain maintenance procedures, the machine
may be hot and gloves are required to avoid burns.
Safety Glasses: Wear safety glasses to avoid injury to your eyes.
1.2.2 Protection
The printer must not be exposed to water or rain, or damage may occur.
Do not shut down the UP! System or pull out the USB cable when loading a
digital model, or the model data may be lost.
When using the ―Extrude‖ function, keep at least 50mm between the nozzle and
the platform. If too close, the nozzle may get blocked.
The printer is designed to work properly at an ambient temperature of between
15°C and 30°C and humidity of between 20% and 50%; Operating outside these
limits may result in low quality models.
2. Overview
UP! 3D Printer User Manual 5
2. Overview
The UP! Printer is designed with ultimate portability and simplicity in mind. The
system and software allow you to print great models with only a few keystrokes, even
if you have never used a 3D printer before. The system uses a nozzle to deposit
molten plastic, so printed parts are strong and durable. Congratulations on purchasing
an UP! Printer.
2.1 Appearance
Figure 1. Front view of printer
① Pedestal ② Platform
③ Nozzle .④ Extruder guard
⑤ Filament tube .⑥ Filament supplier
⑦ ABS plastic ⑧ Material spool
⑨ Material spool holder ⑩ Initialize button
①
②
③
③
③
④
⑥
⑤
⑧
⑦
⑨
⑩
2. Overview
UP! 3D Printer User Manual 6
Figure 2. Kit contents
① Platform adhesives ② Power adapter (20 V)
③ Tool set ④ Power adapter (5 V)
⑤ USB cable & Filament tube ⑥ Gloves
Figure 3. Tool set
① Woodcut knife ② Tweezers
③ Hexagon wrench ④ Nozzle wrench & Nozzle
⑤ Shovel ⑥ Screws
⑦ Brush ⑧ Pliers
①
②
③
④
⑤
⑥
①
②
③
④
⑤
⑥
⑦
⑧
2. Overview
UP! 3D Printer User Manual 7
Figure 4. Axis
Figure 5. Back view of printer
Extruder axis
Z axis
Platform axis
Power on/off button
Power interface
Connecting cable
2. Overview
UP! 3D Printer User Manual 8
2.2 Specifications
2.2.1 Printer Physical Characteristics
Printing Material
ABS or PLA Plastic
Material Color
White
Layer Thickness
0.20 – 0.40 or 0.25－0.35 mm,
depending on model
Print Speed
10－100 cm3/h
Print Size
140×140×135mm
Printer Weight
5 KG (11 lb)
Printer Size
245 × 260 × 350 mm
2.2.2 Specifications
Power Requirements
100-240 VAC, 50-60 Hz, 200W
Model Support
Auto-generated Support
Input Format
STL
Workstation compatibility
Windows XP/Vista/Win7
2.2.3 Environmental specifications
Ambient temperature
15°C ～30°C
Relative humidity
20%～50%
3.Operation
UP! 3D Printer User Manual 9
3. Operation
3.1 Preparation
3.1.1 Installing the printer
Open the box and take out the printer and accessories.
Assemble the parts contained in the box as follows:
1. Remove the extruder guard first, then unscrew the M4 screw from the extruder, and
then fix the extruder onto the holder. Please make sure the extruder is parallel with the
Extruder axis. (Tool set includes the M4 screw and Allen key)
3.Operation
UP! 3D Printer User Manual 10
2. Install the ABS plastic spool holder. Unscrew the short M3 screw (M3X5) from the
printer, and then fix the spool holder with a long M3 screw (M3X8). Please note that
the spool holder should lock onto the printer‘s corner.
3.Operation
UP! 3D Printer User Manual 11
The below picture is an alternative filament holder. The stl file can be downloaded at the
―download‖ section of www.pp3dp.com.
3. Install the filament supplier. Unscrew the short M3 screw (M3X5) from the printer,
and then fix the filament supplier with a long M3 screw (M3X8). Please note that the
filament supplier should lock onto the printer‘s corner.
4. Install the extruder cable (14-pin). You can see a 14-pin socket on the top of
extruder. Connect the plug into the socket, and put the upper lid back on.
3.Operation
UP! 3D Printer User Manual 12
5. Connect the power adapter to the power interface, and connect one end of the
connection cable to the socket beside to power interface, and the other end to filament
feeder.
3.Operation
UP! 3D Printer User Manual 13
6. Put the ABS plastic spool onto the holder (choose one type of holder you like), and
thread the ABS filament into the feeder and press the micro switch. The filament will
automatically feed material for as long as you hold down the switch. Please remember
to insert the end of the ABS filament into the filament tube.
7. Insert the end of ABS filament into the Filament tube. Press the feed switch until
the filament goes all the way through the filament tube, and about 10cm of filament
protrudes from the tube.
Start the UP! Software (refer to the software install procedure in 3.1.2 if you have not
already installed it), and press the ―Extrude‖ button in the ―maintenance‖ dialogue
box, which is accessed from the ―3D Print‖ menu. After the printer nozzle has
warmed up to 260°C, the printer will beep. Push the filament into the hole at the top
3.Operation
UP! 3D Printer User Manual 14
of the extruder head and hold it there with some gentle pressure until the extruder
motor grabs it and starts pulling it through the extrusion head. The extruder will then
automatically extrude a thin filament of material.
(Windows version)
(Mac version)
3.Operation
UP! 3D Printer User Manual 15
8. Install the print platform. Raise the platform axis to a height at which you can reach
under it to insert the screws. Line up the screw holes on the platform with the screw
holes on the heater base and insert the screws in from the bottom and tighten them.
3.Operation
UP! 3D Printer User Manual 16
3.1.2 Installing the software
Start the UPx.xx setup.exe file and install it to the specified directory (Default is
Program files/UP). Note: This installs the UP software, the UP drivers, and the UP
sample files into your Program files/UP folder.
3.1.3 Installing drivers
Connect the printer to a computer with the USB cable. The computer should pop up the
―Found New Hardware Wizard‖ window. Choose ―No, not this time‖, and then ―next‖.
Choose ―Install from a list or specific location (Advanced)‖, then ―Next‖.
3.Operation
UP! 3D Printer User Manual 17
Click ―Browse‖, and choose C:\Program Files\UP\Driver, then ―Next‖.
The following dialogue box pops up. Choose ―Continue Anyway‖, and the drivers
will install automatically.
If you have any problems installing the drivers, or get an " Winusb.dll not found" error,
please refer to the driver section in the troubleshooting section of this manual.
3.Operation
UP! 3D Printer User Manual 18
3.2 Using the basic functions
3.2.1 Start the program
Click on the icon on the desktop. The program should open as follows:
3.2.2 Loading a 3D model
Click ―File / Open‖ or on the toolbar and select the model you want to open. UP
only supports STL files (which is the standard input format for 3D printing files), and
the UP3 format (which is UP‘s proprietary compressed STL format)
Move the mouse pointer onto the model, and click the left mouse key. Some model
information is presented in a floating window, as shown below:
(Windows version)
3.Operation
UP! 3D Printer User Manual 19
(Mac version)
TIP: You can open several models and print them all at the same time. Just repeat the
open model procedure for each model you want to add. See the ―Placing models
on the build platform‖ section for more information.
Unloading the model: click the left mouse button on the model to select it, and then
click ―Unload‖ on the toolbar, or click the right mouse button while over the model
and a context menu will appear. Choose unload the model or unload all models (if you
have more than one file open and want to remove all of them).
Saving the model: Choose the model, then click ―Save‖. The file is saved in UP3
format and its size is 12%~18% of the original STL file. This is a convenient format
for users to archive or transfer files.
Note on STL files: For a model to print correctly, all the faces of the models need to
have their normal facing outwards. The Up software uses model colour to indicate
whether a model is OK or not. The default colour used by the software when opening
a model is a light grey/pink colour. If the normal are facing the wrong way, then the
model is coloured in red.
3.Operation
UP! 3D Printer User Manual 20
Fixing STL Files: The Up software has an option that attempts to fix models with bad
surfaces. Under the ―Edit‖ menu you will see a ―Fix‖ option. Select the model with
inverted surfaces, and click the ―Fix‖ option to try and fix it.
Merging models: Several separate models can be merged into a single file by using
the ―Merge‖ option from the ―Edit‖ menu. Simply open all the models you want to
merge and arrange them the way you want on the platform and click on the ―Merge‖
option. When you then save the file, all the components will be saved as a single STL file.
3.2.3 View Options
To observe the target model in different ways, use the mouse to control the view.
Rotate: Press the middle mouse button and move the mouse: The view can be rotated
and observed from different angles.
Pan: Press Ctrl and the middle mouse button at the same time and move the mouse:
This causes the view to pan. You can also use the arrow keys to pan the view.
Scale: Rotate the mouse wheel: The view gets zoomed in or out.
3.Operation
UP! 3D Printer User Manual 21
View: The system has 8 preset standard views stored under the ―View‖ button on the
toolbar. Click the View button on the toolbar (the startup value for the View
button is ―Fit") to find these options:
3.2.4 Model transformations
Model Transformation can be achieved through the Edit menu or the toolbar:
(Windows version)
Moving the model: Click the ―Move‖ button and choose, or
input, the distance you want to move in the text box. Then
choose the axis (direction) in which you want to move. Each
time you click the axis button the model will move again.
For example: Move the model -5mm along Z axis (or down 5mm).
Procedure: 1. Click on ―Move‖; 2. Input ―-5‖ in the text box;
3. Click the ―Z axis‖.
(Windows version)
(Mac version)
(Mac version)
3.Operation
UP! 3D Printer User Manual 22
Tip: If you hold down the ‗Ctrl‘ key, you can simply drag the model to whatever
position you want.
Rotating the model: Click the ―Rotate‖ button on the toolbar, choose or input how many
degrees you want to rotate in the text box, then choose the axis to rotate around.
For example: Rotate the model around Y axis by 30o.
Procedure: 1. Click ―Rotate‖; 2. Input 30 in the text box；3. Click ―Y axis‖.
Note: positive numbers rotate counterclockwise and negative numbers rotate clockwise.
Scaling the model: Click ―Scale‖, choose or input a scaling factor in the text box, and
then either scale the model uniformly by clicking the scale button again, or choose the
axis around which you want to scale if you only want to scale in one direction.
Example1: Scale up the model uniformly by 2.0 times.
Procedures: 1. Click ―Scale‖; 2. Input 2.0 in the text box; 3. Click ―Scale‖ again.
Example2: Scale up the model by 1.2 times along the Z axis only.
Procedures: 1. Click ―Scale‖; 2. Input 1.2 in the text box; 3. Click ―Z axis‖
3.Operation
UP! 3D Printer User Manual 23
Unit Conversion: This option is provided as a convenient way to convert metric
models to imperial, and vice versa. To convert an imperial model to metric, select the
25.4 option from the scale menu and click ―Scale‖ again. To convert from metric to
imperial, select the 0.03937 option and click ―Scale‖.
3.2.5 Placing models onto the build platform
Appropriately placing your models on the platform can have an effect on print quality.
TIP: In general, try to place your model in the centre of the platform.
Auto Place: Click the ―Auto Place‖ button, on the far right of the toolbar, to
automatically place the model on the platform. When there is more than one model on
the platform, using ―Auto Place‖ is recommended.
By Hand: Press the Ctrl key and choose the target model by pressing and holding the
left mouse button. Move the mouse and drag the model to the desired position.
Using the “Move” button: Click the ―Move‖ button on the toolbar, choose or input
the distance in the text box, and then choose the axis for the direction in which you
want to move.
NOTE: When more than one model is open, the gap between each model should be
kept to at least 12mm to prevent the models sticking together.
3.Operation
UP! 3D Printer User Manual 24
3.3 Getting Ready to Print
3.3.1 Initializing the Printer
Before anything can be printed, the printer must be initialized. Click the ―Initialize‖
option under the ―3D print‖ menu. The printer will beep and the initialization
procedure will begin. The printer will then return the platform and print head to the
printer‘s origin and beep again when it is ready.
(Windows version)
(Mac version)
TIP: If your printer is not responding properly, the first thing to try is to
re-initialize the printer by clicking the „Initialize‟ option from the „3D Print‟
menu.
3.Operation
UP! 3D Printer User Manual 25
3.3.2 Calibrating the Nozzle Height
This section is probably the most important of the entire manual. Please read it
carefully to ensure that you understand the nozzle height setup procedure, as it is
vital to successful 3D printing.
To print successfully, the platform should be set to start at a distance of 0.2mm from
the nozzle. As each printer is slightly different, this distance needs to be calibrated
before starting to print. The correct distance between the nozzle and platform is
recorded in the “Nozzle” box of the “Setup” screen (found under the “3D Print”
menu, but we use the “Maintain” dialogue box to figure out what this distance
should be.
NOTE: It is only possible to move the nozzle to 8mm higher than the height recorded
in the ―Setup‖ screen. If, for example, the nozzle height in the ―setup‖ screen
is set to 120mm, you will only be able to move the nozzle up to 128mm in the
―Maintenance‖ screen. This maximum value is indicated by the ―Max‖ value
shown in the platform and nozzle line of the ―Maintain‖ screen.
If you are having problems adjusting the nozzle height in the ―Maintenance
― screen because it will not go high enough, close the ―Maintenance‖ screen,
open the ―Setup‖ screen, and set the nozzle height to 140mm (for example).
Then go back to the ―Maintenance‖ screen and continue with your nozzle
height adjustments.
3.Operation
UP! 3D Printer User Manual 26
In the above example, this tells the printer that, after being initialized, and when a
print job begins, the platform is 139.5mm away from the nozzle.
To figure out the correct nozzle distance, please follow these steps:
1 - Open the ―Maintain‖ dialogue box from the ―3D Print‖ menu. The current nozzle
height is indicated as shown in the picture below.
(Windows version)
(Mac version)
2 - In the text box, type in the height to which you want the platform to move to, and
click the ―To‖ button. In the above example, the platform would move to 124mm
above the platform‘s origin.
3 - Check the distance between the nozzle and the platform. If, for example, the
platform appears to be about 7mm away from the nozzle, increase the number in
the text box to 130 and click the ―To‖ button. Note that we have only increased the
number by 3mm instead of 4mm. The reason for this is that we do not want to
crash the platform into the nozzle, so we want to increase the height in smaller and
smaller increments as we get closer to the nozzle.
3.Operation
UP! 3D Printer User Manual 27
4 - Once you are about 1mm away from the nozzle, start increasing the number in the
text box by 0.1mm increments and click the ―To‖ button. Repeat this until you get
to within 0.2mm of the nozzle.
TIP: An easy way to check the distance between the nozzle and platform is to fold a
piece of paper in two (Which will make it about 0.2mm thick) and use that as a
spacer to gauge the distance between the nozzle and platform.
5 - Once you are within 0.2mm of the nozzle, write down the number you have in the
―To‖ box. This is the correct calibration height! Close the ―Maintain‖ window and
open the ―Setup‖ Window. In the ―Setup‖ window ―Nozzle‖ box, enter the number
you recorded on the ―Maintain‖ Screen. Alternatively, you can click the ―Set to
Nozzle Height‖ button to automatically transfer the value across to the setup screen.
You have now successfully setup the nozzle height.
NOTE: Once you have setup the nozzle height once, you do not need to do it
again as it is automatically recorded in the “Setup” Screen.
TIP: You may need to regularly recalibrate nozzle height after moving the printer, or
if you find the models are not adhering to the platform properly, or are warping.
If you keep adding new green paint on top of the old green paint, you may also
need to recalibrate your nozzle height regularly.
TIP: If you happen to crash the platform into the nozzle while making height
adjustments, it is good practice to re-initialize the printer before undertaking any
other operations.
3.Operation
UP! 3D Printer User Manual 28
3.3.3 Leveling the print platform
After you have correctly calibrated your nozzle height, check that the nozzle is at the
same distance at all four corners of the print platform. If it is not, you may need to
adjust the platform until it is level with the nozzle at all 4 corners. There are 3 screw
and 3 spring washers under the platform heater.
Loosen a screw and the related corner of platform will rise. Tighten, or loosen, the
screws until you have the same gap between the nozzle and the platform at all four
corners of platform.
Modification: One of the Up forum users, Drew Petitclerc, reports an improved level
adjustment system, in which he has replaced the spring washers with a small stack of
rubber disks which allows much more freedom and precision in leveling the platform.
He removed the three shorter M3 screws and spring washers and replaced them with a
stack of high temp stiff rubber disks centered between the three longer M3 screws.
You adjust the level by tightening the appropriate screws and compressing the disks.
Always adjust by tightening the screws, never by loosening them. The stack gives you
a central, compressible, pivot point and three screws are optimal for balance. Add or
remove disks to set overall Z spacing of plate to support arm.
3.3.4 Other Maintenance Options
Click ―Maintain‖ on the ―3D Print‖ menu, and the following dialog box pops up:
3.Operation
UP! 3D Printer User Manual 29
(Windows version)
(Mac version)
Extrude: Squeezes material out of the nozzle. Click on this button, and the nozzle is
heated. When the temperature is high enough (260°C), the material is squeezed out of
the nozzle. The system beeps before material starts extruding, and it beeps again when
finished. When changing the material (See section 6), this function is used to deliver
the new material to the nozzle. This function can also be used to test whether the
nozzle is working correctly.
Withdraw: Withdraws the material from the extrusion head. When the material runs
out, or the nozzle needs to be changed, click this button. When the nozzle is up to
temperature (260°C) and beeps, gently pull out the material. If the material gets stuck,
pull it out it by hand.
New Spool: This is used so the printer can keep track of how much material has been
used, and warn you if you don‘t have enough material left to print your model. Click
this button and enter the value of how many grams of material you have on the current
spool. If it is a new spool, the quantity should be set to 700 grams. You can also
specify whether the material you are printing with is ABS or PLA.
3.Operation
UP! 3D Printer User Manual 30
TIP: An empty spool weighs about 280 grams so, if you are installing a partially used
spool, weigh it, and subtract 280 grams from the weight. This gives you the value
to enter into the material text box.
Status: Displays the temperature of the nozzle and platform.
Stop All: Stops heating and all the movement of the printer. Once you click this
button, the current model being printed is cancelled. You CANNOT resume a print
job once the printer has been stopped. After you use the ―Stop All‖ option, you will
need to re-initialize the printer.
Pause Print: This button allows you to pause a print in mid-progress, but yu can then
resume the print job where it left off. This is very useful if you, for example, want to
change the material colour mid-print. Another popular use for pausing a job mid-print
is to allow fasteners to be inserted into printed cavities and then printed over to lock
the fastener into place.
Nozzle & Platform: The five buttons (FL, FR, Center, NL, NR) control the position
of the nozzle and the platform. The nozzle moves to the left and right; the platform
moves forward and backward.
The ―To‖ button controls the height of the platform, and is used in the nozzle height
calibration procedure described in 3.3.2.
The ―Bottom‖ button returns the platform to the lowest position.
Set Nozzle Height: Takes whatever value you have in the ―To‖ box and transfers it to
the Nozzle box of the setup screen.
3.Operation
UP! 3D Printer User Manual 31
3.3.5 Preparing the Platform
Before printing, the platform must be prepared so that the model adheres to the
platform enough to be printed without the model moving while, at the same time,
being easy to remove from the platform after printing. There are several options for
preparing the platform:
Method 1 – The Green Paint from PP3DP. Com: This is a special adhesive paint that
you need to paint onto the platform. The platform should be painted with a thin and
even coat of paint to achieve best performance.
After several prints, you will find the paint starts to wear off, so the platform needs to
be regularly repainted. Note that if you repaint on top of old paint the paint thickness
will, eventually, build up to the level where you need to recalibrate your nozzle height.
The surface finish may also become uneven, which could affect print quality.
TIP: To clean off the old paint from the platform, leave the platform to soak in water
for a few hours and the paint will then easily peel off.
Method 2 – Blue Masking Tape: Many users have reported successfully using Blue
Masking Tape instead of the green paint. Simply cover the platform with a layer of
blue masking tape and print onto the tape. Replace the tape when it wears out.
3.Operation
UP! 3D Printer User Manual 32
Method 3 – Veroboard: Many users have reported excellent results by using a piece
of Veroboard to cover the build platform. Veroboard is a perforated fiberglass board
covered with copper tracks that is commonly used for prototyping electronic circuits.
It can be purchased from almost any electronic supply store. Best results are obtained
by attaching the veroboard to the platform with the copper side down. This helps with
heat transfer, and prevents damage if the nozzle drags along the veroboard.
When using Veroboard, the first layer of the raft pushes plastic into all the
perforations, and this provides a strong mechanical bond with the surface that
prevents it from later lifting. The Veroboard can be either taped down (with masking
tape or double-sided tape), or clipped to the platform with bulldog clips as shown in
the picture below (picture courtesy of TeamTeamUSA).
Users have also reported that it can be easier to remove the model from the Veroboard
after the model has cooled down. As the plastic cools, it shrinks away from the
perforations, which would make it easier to pull out. Users have also reported that
some brands of veroboard are better than others and have also reported some cases
where this inferior veroboard itself warps.
Method 4 – Kapton tape: Kapton is a polyamide film developed by DuPont which
can remain stable in a wide range of temperatures, from -273 to +400 °C. Kapton is
used in, among other things, flexible printed circuits (flexible electronics) and thermal
micrometeoroid garments, the outside layer of space suits (from Wikipedia). Many
users have reported excellent anti-warping results by covering their platform with a
layer of Kapton tape.
Users of the Kapton tape method recommend cleaning the platform by wiping it with
acetone prior to printing and also recommend proper pre-heating.
3.Operation
UP! 3D Printer User Manual 33
Thanks to Drew Petitclerc from the Up Forum for the picture of his machine with
Kapton tape.
Method 5 – Glass: If printing only with PLA, many users report good results printing
straight onto a sheet of glass. The sheet of glass (14omm x 165mm) is attached to a
longer version of the aluminium platform (also 140mm x 165mm) with bulldog clips.
Forum user Drew Petitclerc uses a piece of glass with Kapton tape on one side. That
way he simply flips the glass platform around depending on whether he is printing
ABS or PLA.
TIP: Whatever platform preparation method you use, the 2 factors that most influence
warpage on large prints are ensuring that the platform is well leveled, and well
pre-heated.
3.Operation
UP! 3D Printer User Manual 34
3.3.6 Print Setup Options
Click menu ―3D Print->Setup‖. The following dialog box pops up:
Print Options
Z Resolution: Sets the print resolution (layer thickness) of the printer. This can be
between 0.2mm per layer to 0.4mm per layer (depending on the printer model).
Optimize: Disabled.
Height Options
Base: This is the thickness of the raft of material before the support layer is printed
under the part. When the printer starts printing, it first prints a raft of non-solid
material in which all the lines of support material are horizontal (along the Y axis). It
keeps building up horizontal rows of support material for as many mm as you have
chosen. Then, just before it gets to the bottom surface of the real part, it starts to build
support layers perpendicular to the raft layers layer.
(Mac version)
(Windows version)
3.Operation
UP! 3D Printer User Manual 35
The default value for this parameter is set to 2mm.
Nozzle: represents the distance between nozzle and the print platform when it is at the
bottom position. It is essential that this value be correctly set for good printing. See
section 3.3.2. for instructions on calibrating your printer.
Part Options
Surface: This parameter determines how many layers form the bottom face of a part
when it is not solid. For example, if you set it to 3, the machine will print 3 complete
layers before going into non-solid mode. This does not, however, affect the side wall
thickness on non-solid parts, which are all the same thickness (approximately 1.5mm)
irrespective of the fill mode.
Angle: The part Angle determines at what point solid (dense) support material gets
used. If the angle is small than the printer will add solid fill layers under the part
surface. The thickness of this solid (dense) support is determined by the ―dense‖
parameter under the Support options as described below.
Fill Options
There are four ways to fill the interior of the parts, as described below.
The Part is made of nearly solid plastic, which gives you the
strongest part. This setting is recommended for functional
engineering parts. On previous software version this was
referred to as ―Solid‖
The part has an outer wall thickness of solid plastic (about
1.5mm), but its interior is filled with a reasonably small
scaffold structure. On previous software version this was
referred to as ―Loose‖
The part has an outer wall thickness of solid plastic (about
1.5mm), but its interior is filled with a medium spaced
scaffold structure. On previous software version this was
referred to as ―Hollow‖
3.Operation
UP! 3D Printer User Manual 36
The part has an outer wall thickness of solid plastic (about
1.5mm), but its interior is filled with a large spaced scaffold
structure. On previous software version this was referred to as
―Big hole‖
Support Options
Dense: This represents how many layers of ‗solid‘ (dense) material form part of the
support structure directly beneath the model.
Angle: Angle at which support material gets used. For example if 10° is used, support
material only gets used if angle of surface is greater than 10° from horizontal (so
support material is almost not used unless there is a direct overhang), If set to 50° than
support material is used for any surface is greater than 50° away from horizontal.
3.Operation
UP! 3D Printer User Manual 37
Set to > 10°
Set to > 50°
There is always a delicate balance between
minimizing the amount of support material, versus
the quality of the part, versus the difficulty of
removing support material.
The orientation of the part on the print platform is
also critical in determining both how much support
material gets used, and also how difficult the
support material will be to remove.
As a general rule, it is easier to remove support
material from the outside of a part than from the
inside. As can be seen in the picture to the right,
the part would use a lot more support material if
printed with the opening facing downwards than if
it were facing upwards.
Space: The distance between the lines of non-solid support material. Changing this
parameter requires some experience in balancing the quantity of support material used,
ease of support material removal, and part print quality.
Area: The surface area above which support material gets used. When you choose
5mm2, for example, there will be no support if the overhanging area is less than 5mm2.
Benefit? A little material is saved and a slightly faster print speed is achieved.
3.Operation
UP! 3D Printer User Manual 38
Other Options
Stable Support: Stable support creates support that is more solid, and the model is
less likely to distort, but the support material is then more difficult to remove.
Tip: All setup and configuration settings are stored in the Up Software, not on the Up
Printer. This means that, if you change to a different computer, you will need to
repeat all the calibration and setup procedures.
3.Operation
UP! 3D Printer User Manual 39
4. Printing
TIP: One of the keys to successful printing on the Up is platform preparation and
preheating. Particularly with large parts, there is a tendency for the edges of the
part to lift from the platform (which is a little colder than the center) and cause
the parts to warp. The best way to prevent this is to ensure that a) the platform is
perfectly level, b) that the nozzle height is correctly set and that c) the platform is
very well preheated. It also helps to run the printer in a room that is not too cold
(ie warmer than, say, 18C and free of drafts.
Please ensure the following points are taken care of before printing:
Connect the 3D printer, initialize it, and set up the printing system. Load the
model and place it properly on the virtual platform of the software window. Check
if there is enough material for the model (the software will, generally, tell you if
there is not enough material when you begin the print). If not, change the reel to a
new one.
For large models (over 40mm2) results can be improved by preheating the build
platform. Click the ―Preheat‖ option on the ―3D Print‖ menu and the printer
begins to heat the platform. Let the platform get up to 100C before beginning to
print.
Click menu ―3D Print->Print‖, and the print dialog box pops up. Choose
―Preferences‖ to set the printing parameters. Click ―OK‖ to begin to print.
(Windows version)
3.Operation
UP! 3D Printer User Manual 40
(Mac version)
Print Options:
Speed: Fine, Normal or Fast. This simply determines the speed at which the printer
moves. As a general rule, the slower you print, the better the quality of the parts. For
tall parts, running at Fast speed can be problematic as the printer can vibrate to the
extent that print quality is affected. For large surface area parts, the Fine setting can be
problematic as the printer takes longer to print the part and the corners are therefore
more likely to lift a little bit.
UnSolid Model: This function is useful for printing STl files that are not perfect. A
perfect STL file is a fully enclosed surface, with no holes in the surface skin, and no
overlapping surfaces. If your file is not perfect, this option should allow you to print it
anyway.
TIP: Once the print has started, you can unplug the PC from the printer. The print job
is stored in the printer‘s internal memory, so the PC is no longer required
Calculating model costs
The main factor that will affect model cost is the part interior fill structure, and
support material. If, for example, one is printing a cube measuring 30mm x 30mm x
30mm, with a layer thickness of 0.2mm, the following quantities of material are used
depending on the print mode.
3.Operation
UP! 3D Printer User Manual 41
Model info: 30×30×30mm layer thickness: 0.2mm
The prices above are calculated with ABS from PP3DP.com at $35 USD for a 700g
roll. The easiest way to calculate how much material will be used for your model is to
use the ―Print Preview‖ option under the ―3D Print‖ menu. This will tell you the total
weight of material used, including the raft and any support material.
3.Operation
UP! 3D Printer User Manual 42
5. Model Removal
1. When the model has finished printing, the printer will beep, and the nozzle and
platform stop heating.
2. Remove the printer platform from the printer by removing the 2 screws at the
bottom of the platform.
3. Gently slide the spatula under the model and slowly wiggle it back and forth to
pry loose the model. Remember to use gloves as the platform and model may still
be hot.
TIP: It is very strongly recommended that you remove the platform from the printer
before removing the parts. If you do not, you are very likely to eventually bend
the entire platform assembly so that it is no longer at right angle to the printer
head. For an easier way to remove the platform see the Tips & Tricks section of
the manual for instructions on printing little knobs to glue onto the platform
screws that make it much easier to remove without tools.
TIP: The model is easier to remove from the printer when it is still hot. If you want to
3.Operation
UP! 3D Printer User Manual 43
heat the platform before removing your model, use the ―preheat‖ option from the
―3D Print‖ menu
CAUTION: It is strongly recommended that you do not remove the model
from the platform while it is still attached to the printer. If the model is
removed with a lot of force while the platform is still on the printer, the
mechanical structure of the printer may be damaged or its precision
affected.
Removing Support Material
Printed models are composed of two parts. One part is the model itself, and the other
part is the support material used to support any overhanging parts of the model.
The support material is the same physical material as the model material, but the
support material is printed at a much lower density. It is very easy to distinguish the
model from the support material so it is easy to remove.
Have a look at the teapot in the above pictures. The left picture shows the teapot with
support material removed, and the right picture shows the teapot with its support
material still attached.
The support material gets removed using a combination of tools. Some material can
easily be cracked off by hand. Support material close to the model is easier to remove
using tools such as wood carving chisels, long nose pliers, or wire cutters.
3.Operation
UP! 3D Printer User Manual 44
It takes some practice to get comfortable with removing support material, but it can
become quite an enjoyable and therapeutic task!
CAUTION: ALWAYS WEAR SAFETY GLASSES WHEN REMOVING
SUPPORT MATERIAL, ESPECIALLY WITH PLA MATERIAL.
CAUTION: The support material and the tools are sharp. Wear
gloves and safety glasses when removing the part from the printer.
3.Operation
UP! 3D Printer User Manual 45
6. Maintenance
Changing the Material
First withdraw the leftover material from the printer. Initialize the printer and
choose ―3D print->Maintain‖. Click ―Withdraw‖ and the system automatically
begins to heat the nozzle. When the nozzle reaches the correct temperature, the
printer will beep, and you can gently withdraw the material.
Place a new spool of material on the spool holder, and pull it through the filament
tube, until the material is about 10cm out of the tube, then insert it into the hole at
the top of the extruder head.
Select the ―maintain‖ menu form the ―3D Print‖ menu. Then press the ―Extrude‖
button in the ―maintain‖ dialogue. After the printer nozzle has warmed up to
260°C, the printer will beep. Push the filament into the hole at the top of the
extruder head, with a little pressure, and the extruder will automatically extrude
material. The plastic thread squeezed out of the nozzle should be thin, bright
and smooth.
If the nozzle is blocked, remove the nozzle and clean it.
The extruder and platform are hot. Use gloves when working in this
area of printer.
Vertical Calibration
The Vertical calibration procedure allows you to ensure that the printer platform is perfectly
horizontal and that the printer prints consistently in the X, Y and Z direction.
First, print the supplied Calibration model on your printer. The calibration file is in C:\Program
Files\UP\Example.
3.Operation
UP! 3D Printer User Manual 46
After the calibration model is printed, measure the X1 and X2 length, as shown in the pictures
below.
Open the ―Calibrate‖ box form the ―3D Print‖ menu and enter the measured X1 and X2 values
into the appropriate boxes.
IMPORTANT NOTE: Before you enter any new calibration values, always click the ―Reset‖
button, otherwise the new values get added to the old ones. Before you enter any new values, the
bar at the very top of the screen should read: XY: 0.00 deg / XZ: 0.00 deg.
Next, take down the Front Centre ‗L‘ shaped component, and measure its deviation. Put the exact
3.Operation
UP! 3D Printer User Manual 47
value into the Z box. If it deviates to the right side, the value to be put into the Z box will be a
positive value. If the deviates to the left, the value to put into the Z box will be a negative value.
Finally, measure the height of Front Center component, which should be 40mm if it is not scaled.
Enter the exact measured value into the ―H‖ box of the ―Calibrate dialogue box.
Click ―OK‖ to record all these values and exit the calibration window.
Cleaning the nozzle
After a lot of printing, the nozzle may be covered with a layer of oxidized ABS. When
the printer is printing, this oxidized ABS may melt on the nozzle, and may create
discolored spots the model. To avoid this you need to regularly clean the nozzle.
Firstly, preheat the nozzle in order to melt the oxidized ABS. Use the ―Extrude‖ button
on the ―Maintain‖ dialogue box, then lower the platform to the bottom.
Lastly, use some heat-resistant material, like 100 percent cotton cloth or soft paper. A
pair of tweezers will also be required. Then clip paper or some other heat-resistant
things with tweezers to clean up the nozzle.
3.Operation
UP! 3D Printer User Manual 48
TIP: Many users also soak their nozzle in acetone to clean them, or even use an
ultrasonic cleaning bath to help clean their nozzles
Removing / Changing the nozzle
Should the nozzle become blocked, you may need to remove it in order to unblock, or
change it. To remove the nozzle, use the nozzle wrench provided in the toolkit that
comes with your Up Printer. It is, generally, easiest to remove the nozzle when it is hot
and, should you need more torque than can be applied with the small screw on the
wrench, replace it with the small Allen key form the toolkit to provide more power.
Cleaning the platform
If you are using the special green paint on your platform, the platform requires
cleaning after a few prints to get it back to a smooth surface. Simply remove the
platform from the machine and soak it in water for a few hours and the paint will peel
of easily.
Once clean, repaint it with green paint, or cover it with blue masking tape.
3.Operation
UP! 3D Printer User Manual 49
Lubrication of bearings
The bearings on the Up Printer may occasionally require a bit of lubrication to keep it
operating smoothly. The recommended grease to use is lithium grease. When
lubricating the bearings, first clean off as much old grease as possible from the
bearings, and then apply new grease to the bearing and slide the platform in the
appropriate direction to spread the grease.
Spare parts
Almost all the plastic parts on the printer are printed by the Up printer itself. If you
need to print spare parts for your printer, the files for all spare parts can be found in
the C:\Program Files (x86)\UP\Example\UP Spare Part folder.
3.Operation
UP! 3D Printer User Manual 50
7.0. Tips & Tricks
Large parts can sometimes have their corners lift from the platform, which causes the
part to distort. This is caused by uneven heat across the surface of the platform.
Preheating the platform before beginning large parts is essential to minimize this
lifting. Also, the faster you can print such parts, the less lifting you are likely to get.
Some ways to increase print quality include:
If possible, try to avoid printing such large parts in solid mode.
Set the layer resolution to as high as you can get away with.
Print the part in ―Fast‖ mode.
Removing the screws that attach the print platform to the printer can be inconvenient.
This can be made much easier by printing little screw caps with handles on them, that
get epoxied to the screw heads. This means the screws can then be removed without
the need for a tool. Files for the screw caps can be downloaded from:
http://www.thingiverse.com/thing:4113
After printing, use a fast drying epoxy glue to glue them onto the screws, Clamp the
screw and cap in a vice until the glue is dry to prevent the screw cap not sitting firmly
on the screw.
3.Operation
UP! 3D Printer User Manual 51
Regularly check your nozzle height! It can change for a number of reasons, some of
which you may not even be aware of. To check your nozzle height, refer to section
3.3.2
To get the best results out of your Up printer, the print platform must be perfectly
lined up with the Nozzle. This means that when you set the nozzle height, it should be
exactly the same distance from the nozzle at all four corners, and the center, of the
print platform. If this is not the case, please follow the ―leveling the print platform‖
procedure listed in 3.3.3
4. Troubleshooting
UP! 3D Printer User Manual 52
8. Troubleshooting
Problem or error
message
Solution
No power
Verify power cord is securely plugged in.
Extruder or platform
fails to reach operating
temperature
1. 1. Verify printer has initialized. if not, initialize the
printer
2. 2. Heater is damaged, replace the heater
Material not extruding
Material is stuck in the extruder. See 3.3.3 Maintain
(Extrude)
The gap is too wide between the bearing and wire feed
rollers.
Cannot communicate
with printer
1. Make sure the USB cable is connected to the printer,
and to the PC
2. Unplug the USB cable, then plug in again.
3. Reset the printer—power off then power on.
4. Restart the PC
Others
Contact Technical Support : Support@pp3dp.com
Solution for "Winusb.dll not found" problem
If you encounter a ―Winusb.dll not found‖ error message, please follow the steps below:
Option 1: Uninstall Older Driver and Automatically Install New Driver
1. Open the Windows control panel, go to the ―System Properties‖ dialog box, then
select the ―Hardware‖ page.
4. Troubleshooting
UP! 3D Printer User Manual 53
2. Click ―Device Manager‖ button, and the following dialog box will popup. Find the
―3DPrinter@FreeMC‖ in the USB section.
3. Click the right mouse button and select the ―Uninstall‖ option. The confirm dialog
box will appear. Click ―OK‖.
4. Troubleshooting
UP! 3D Printer User Manual 54
4. Install the latest UP! software.
5. Unplug the USB cable, then plug again. Windows will find a new device.
Manually select driver folder (Default is C:\Program files\UP\Driver or C:\Program
files(X86)\UP\Driver);
6. There should now be a new driver section in the device manager as shown below:
Option 2: Update the driver manually.
1. Install the latest UP software.
2. Find the ―3DPrint@FreeMC‖ driver in the ―Device Manager‖ dialog box (it should
be located in the USB section).
4. Troubleshooting
UP! 3D Printer User Manual 55
3. Select ―Update Driver.‖ in the right click menu.
4. Select the up driver folder (the default is C:\program files\UP\Driver).
5. A ―Free Motion Card‖ section should now have been inserted into the Device
Manager.
4. Troubleshooting
UP! 3D Printer User Manual 56
Acknowledgements
PP3DP team is grateful for the wording and editing support from Prof. Olaf Diegel,
and also grateful to Mr. Drew Petitclerc from the Up! Forum for providing the picture
of his machine with Kapton tape.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment。
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for
help.
FCC ID: O5L-3DP
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
