Delta Systems INC. 915MHz RECEIVER Instruction Manual Rev 3

USERS MANUAL

Instruction manual to teach a new transmitter’s code to a receiver
The user’s manual applies to the following units:
Transmitter
FCC ID: R932039010
IC: 6268A-2039010
Model Number: 2039-010
Receiver
FCC ID: R932039500
IC: 6268A-2039500
Model Number: 2039-500
Product Description
The FreeRein™ wireless control system includes a receiver box with either two or four
outputs and a transmitter requiring a single CR2032 coin cell. The system is designed for
12- 24volt DC systems only.
1. Physically attach the receiver box*, if not already done.
2. Make sure the power line of the receiver is disconnected.
3. Press and hold any of the transmitter’s buttons and simultaneously reconnect the
power line of the receiver to the 12V power source.
4. There will be an audible click in the relay if the receiver has learned the new
transmitter’s code.**.
5. The device is activated and ready for use.

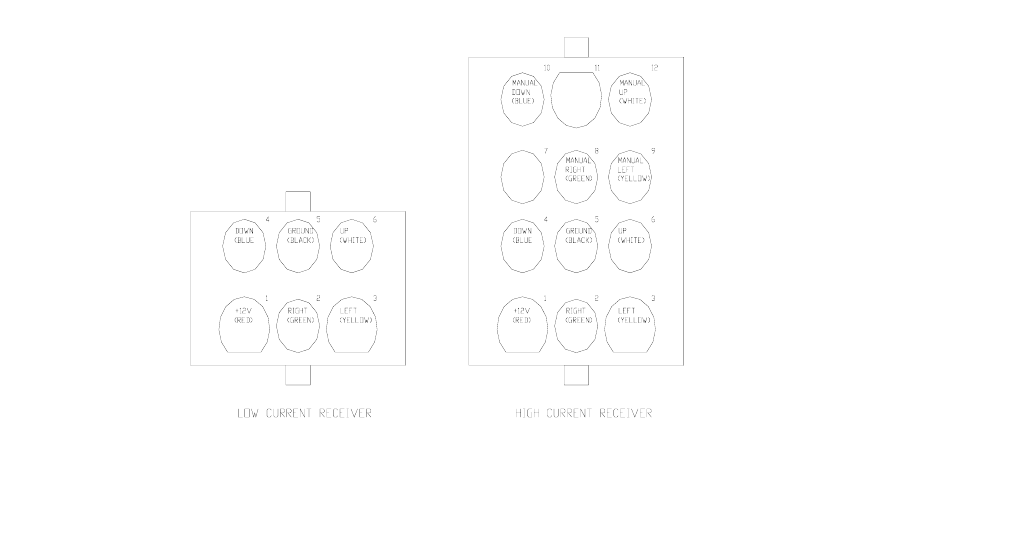

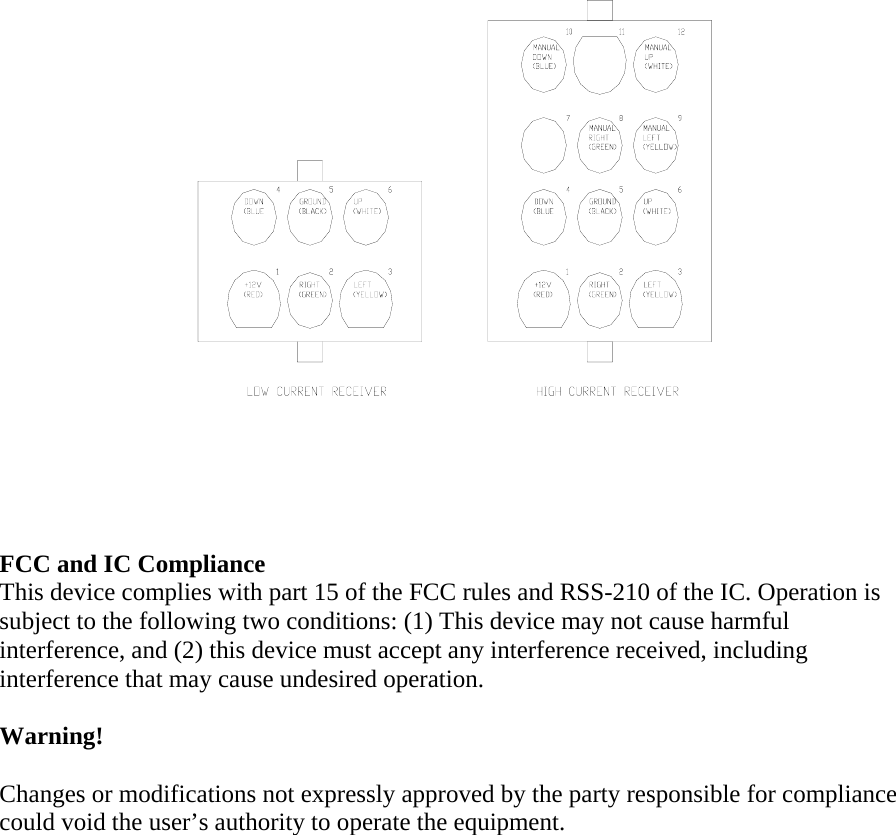

6. Refer to the diagram for electrical connections.
*Note: For optimum performance affix the receiver box as far away from electric noise as
possible. (Example: Electric motors)
**Note: A receiver can learn the code for and be controlled by up to four different
transmitters. (Not controlled simultaneously, however)
FCC and IC Compliance
This device complies with part 15 of the FCC rules and RSS-210 of the IC. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Warning!
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
