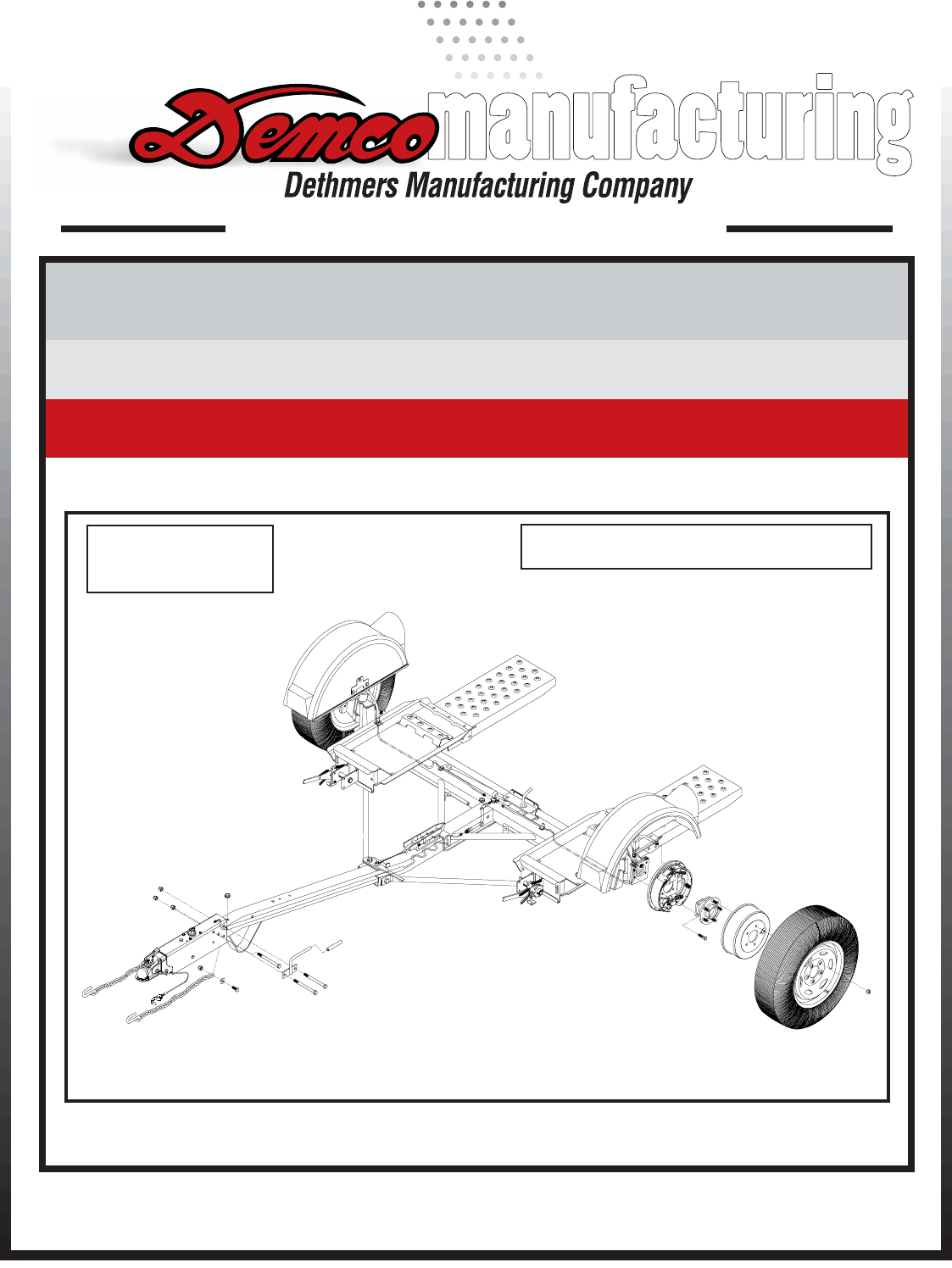

OPERATORS MANUAL

KK260 (8WIDE) & KK360 (8-1/2 WIDE)

KAR-KADDY

DOING OUR BEST TO PROVIDE YOU THE BEST

DEMCO  Dethmers Mfg. Co.  4010 320th St.  P.O. Box 189  Boyden, IA 51234

PH: (712) 725-2311  Toll Free: 1-800-543-3626  FAX: 1-800-845-6420

www.demco-products.com

ASSEMBLY

CALIBRATION

OPERATION

REPLACEMENT PARTS

READ complete manual CAREFULLY

BEFORE attempting operation.

8-03

RD20005,Rev 3

Page 2

Thank you for purchasing a Demco Kar-Kaddy. We feel you have made a wise choice and hope you

are completely satisfied with your new piece of equipment.

GENERAL INFORMATION

1. Unless otherwise specified, high-strength (grade 5)

(3 radial-line head markings) hex head bolts are

used throughout assembly of this piece of equip-

ment.

2. Whenever the terms "LEFT" and "RIGHT" are

used in this manual it means from a position behind

the Kar-Kaddy and facing forward.

3. When placing a parts order, refer to this manual for

proper part numbers and place order by PART NO.

and DESCRIPTION.

Introduction

tween you, your dealer, or Dethmers Manu-

facturing Company (DEMCO).

To contact NHTSA, you may either

call the Auto Safety Hotline toll-free at

1-800-424-9393 (or 366-0129 in

Washington, D.C. area) or write to:

NHTSA,

U.S. Department of Transportation

Washington, D.C. 20590.

You can also obtain other information

about motor vehicle safety from the Hot-

line.

"Reporting Safety Defects"

If you believe that your vehicle has a

defect which could cause a crash or could

cause injury or death, you should immedi-

ately inform the National Highway Traffic

Safety Administration (NHTSA) in addition

to notifying Dethmers Manufacturing Com-

pany (DEMCO).

If NHTSA receives similar complaints,

it may open an investigation, and if it finds

that a safety defect exists in a group of

vehicles, it may order a recall and remedy

campaign. However, NHTSA cannot be-

come involved in individual problems be-

TABLE OF CONTENTS

General Information................................................................................................................ Page 2

Bolt Torque ............................................................................................................................. Page 3

Safety, Maintenance, & Important Loading Instructions ......................................................... Page 4

Testing Lights Before Use.................................................................................................... Pages 5

Loading Instructions ............................................................................................................ Page 5-7

Kar-Kaddy 260 and 360 Parts Breakdown and List ............................................................ Page 8-9

Kar-Kaddy 260 and 360 Parts List cont. .............................................................................. Page 10

Limited Warranty Information ............................................................................................... Page 11

DA66 Brake Actuator Parts Breakdown and List................................................................. Page 12

DA603 Brake Actuator Parts Breakdown and List ............................................................... Page 13

DA91 Brake Actuator Parts Breakdown and List................................................................. Page 14

10" Self-Adjusting Brake Cluster Parts Breakdown and List ............................................... Page 15

Optional Surge Brakes Parts Breakdown and List .............................................................. Page 16

KK260 and KK360 Parts Assembly Instructions .......................................................... Pages 17-18

Wiring and Fender Assembly Instructions ........................................................................... Page 19

Kar-Kaddy Toe-In Adjustment .............................................................................................. Page 20

Wheel Jack, Deflector, & Light Bar (optional) Parts Breakdown and List ............................ Page 21

Winch, Tool Box, & Spare Tire w/Mounting Bracket (optional) Parts Breakdown and List .. Page 22

Notes.................................................................................................................................... Page 23

Page 3

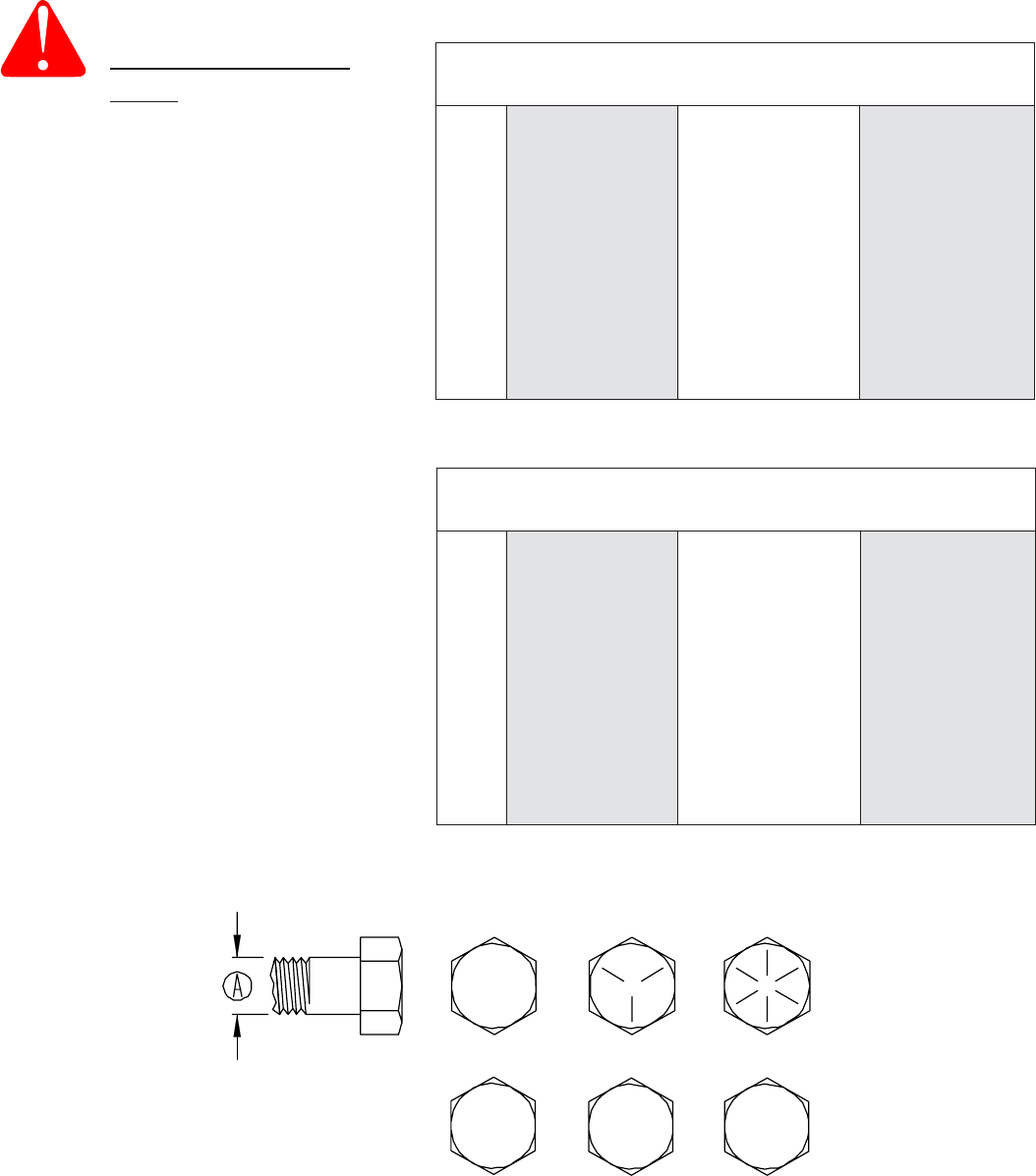

BOLT TORQUE

TORQUE DATA FOR STANDARD NUTS, BOLTS, AND CAPSCREWS.

Tighten all bolts to torques specified in chart unless otherwise noted. Check tightness of bolts

periodically, using bolt chart as guide. Replace hardware with same grade bolt.

NOTE: Unless otherwise specified, high-strength Grade 5 hex bolts are used throughout

assembly of equipment. Bolt Torque for Standard bolts *

GRADE 2 GRADE 5 GRADE 8

Alb-ft (N.m) lb-ft (N.m) lb-ft (N.m)

1/46 (8) 9 (12) 12 (16)

5/1610 (13) 18 (25) 25 (35)

3/820 (27) 30 (40) 45 (60)

7/1630 (40) 50 (70) 80 (110)

1/245 (60) 75 (100) 115 (155)

9/1670 (95) 115 (155) 165 (220)

5/895 (130) 150 (200) 225 (300)

3/4165 (225) 290 (390) 400 (540)

7/8170 (230) 420 (570) 650 (880)

1225 (300) 630 (850) 970 (1310)

Torque figures indicated are valid for

non-greased or non-oiled threads and

heads unless otherwise specfied.

Therefore, do not grease or oil bolts or

capscrews unless otherwise specified

in this manual. When using locking

elements, increase torque values

by 5%.

* GRADE or CLASS value for bolts

and capscrews are identified by their

head markings.

Torque Specifica-

tions

CLASS 8.8 CLASS 9.8 CLASS 10.9

Alb-ft (N.m) lb-ft (N.m) lb-ft (N.m)

6 9 (13) 10 (14) 13 (17)

7 15 (21) 18 (24) 21 (29)

8 23 (31) 25 (34) 31 (42)

10 45 (61) 50 (68) 61 (83)

12 78 (106) 88 (118) 106 (144)

14 125 (169) 140 (189) 170 (230)

16 194 (263) 216 (293) 263 (357)

18 268 (363) -- -- 364 (493)

20 378 (513) -- -- 515 (689)

22 516 (699) -- -- 702 (952)

24 654 (886) -- -- 890 (1206)

Bolt Torque for Metric bolts *

GRADE-2 GRADE-5 GRADE-8

8.8 10.9

9.8

CLASS 8.8 CLASS 9.8 CLASS 10.9

Page 4

SAFETY

Safety is of utmost importance at all times. There are

several items that must be checked each time before

using and while using the Kar Kaddy.

Make sure all bolts are properly tightened and those

requiring a set torque are up to specifications:

Tie Rod Castle Nut - 75 ft./lbs.

Lug Nuts - 75 to 80 ft./lbs.

Check Lug Nut tension after the first 5 miles and

periodically thereafter.

The ball hitch must latch securely around the ball and

the safety lock pin or lever must be in position to lock the

hitch on the ball.

RECOMMENDED BALL HEIGHT: 18 inches to the top

of the ball on the towing vehicle.

Hook the towed vehicle safety chains to the frame of the

vehicle directly above the area where the chain is

mounted on the Kar Kaddy. Leave some slack in the

chain to allow suspension movement.

Check to make sure that all lights are in proper working

order.

Examine the winches and straps, making sure they are

in good conditon.

Be certain the safety lock pins are locking the strap

winches.

Retighten straps over the tires after the first 5 miles and

every 50 miles thereafter. Ensure that they are tight.

The KK260 tires must be inflated to the recommended

50 PSI.

The KK260SB, KK360 and KK360SB tires must be

inflated to the recommended 50 PSI.

The strap on the optional tongue winch must be in good

condition and should be stored neatly on winch when

not in use.

NOTE: The winch strap must not be left connected to

the towed vehicle after it is loaded and strapped down.

Make sure the optional light bar is fastened securely at

the rear of the towed vehicle.

The wires to the optional light bar should be run along the

car and fastened so as not to damage the finish of the

towed vehicle.

NOTE: This unit cannot be backed up, when loaded or

with the steering lock pin removed.

All vehicles mounted on the Kar Kaddy must be mounted

with the front of the vehicle facing forward.

Rear Wheel Drive: Disconnect the towed vehicle

driveshaft for rear wheel drive vehicles with automatic

transmission.

For manual transmission: Consult your vehicle owners

manual for towing suitability with the drive shaft con-

nected. MAINTENANCE

Periodically check all bolts and nuts to insure proper

tension or torque.

Grease the king pin and tie rod end grease zerks every

2500 miles.

An occasional drop of oil may be required on the moving

parts of the tie down winches.

A light film of oil should periodically be applied to steering

stabilizer arm to prevent rust.

NOTE: Proper toe-in is 1/32". This is preset at the

factory.

The operator should periodically have the toe-in checked

and adjusted if needed at a qualified alignment shop.

Improper toe-in can result in irregular tire wear.

IMPORTANT LOADING INSTRUCTION

Check your wheel tie-down straps.

Your Kar Kaddy is equipped with custom made

wheel tie-down straps of a standard size that will fit

most tires, however if your tires are too large or too

small you will want to exchange these new straps

for the proper size straps.

1. Tire too large - This is very obvious the strap

will not basket over the tire properly, call us,

we will provide at NO Charge on an exchange

basis, the proper size strap. You must return

your new unused straps and provide us with

the Make and Model car and the tire size.

2. Tire too small - This is not as obvious, the

basket will fit down over the tire very well, the

problems cannot be readily seen. You must

tighten the straps down solid and then check

on the inside of the tire and be sure the strap,

when tightened does not come in contact with

any metal that may cause wear or cutting such

as strut mounts. If there is contact, you need a

smaller strap, call us, we will provide on a NO

Charge, exchange basis, the proper size strap.

You must return your new unused straps and

provide us with the Make and Model car and

tire size.

Thank you for Purchasing Products.

WARNING:

FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT IN LOSS OF TOWING VEHICLE CONTROL,

SEPERATION OF THE TOW DOLLY FROM THE TOWING VEHICLE, SEPERATION OF THE TOWED VEHICLE FROM

THE TOW DOLLY, CAUSING SEVERE PERSONAL INJURY, DEATH, OR PROPERTY DAMAGE.

Page 5

TESTING LIGHTS BEFORE USE

1. Check that the WHITE (ground) wire of the wiring harness

is connected to the Kar Kaddy frame and the WHITE

(ground) wire is connected to the frame of the towing

vehicle.

2. With headlights in "ON" position, the tail lights, the light

cluster bar, the license plate light, and the clearance lights

should be lighted.

3. Start engine and have someone depress brake pedal.

Brake lights of tow dolly and towing vehicle should come

"on" and "off" simultaneously with each application.

4. Turn left turn signal on. Left turn light of Kar Kaddy and

towing vehicle should flash simultaneously. Should the

turn signal lights of the trailer function opposite to those of

the towing vehicle, it is probable that the YELLOW (Driver

side) and GREEN (Passenger side) wires have been

reversed. Check the plug connection under the tongue of

the Kar Kaddy to make sure wire colors are not crossed at

that point. If plug connection is incorrect, correct problem

by reversing yellow and green wire connection on the

towing vehicle.

Step 1. Secure ball coupler to 2" (5,000 lb. capacity) towing

vehicle ball only. Make sure that the hitch and the hitch ball

are in good condition and not rusted, loose or stripped.

Recommended ball height is 18" to the top of the ball.

Make sure hitch is locked down and secured with safety clip.

Criss-cross safety chains under tongue and secure to towing

vehicle frame.

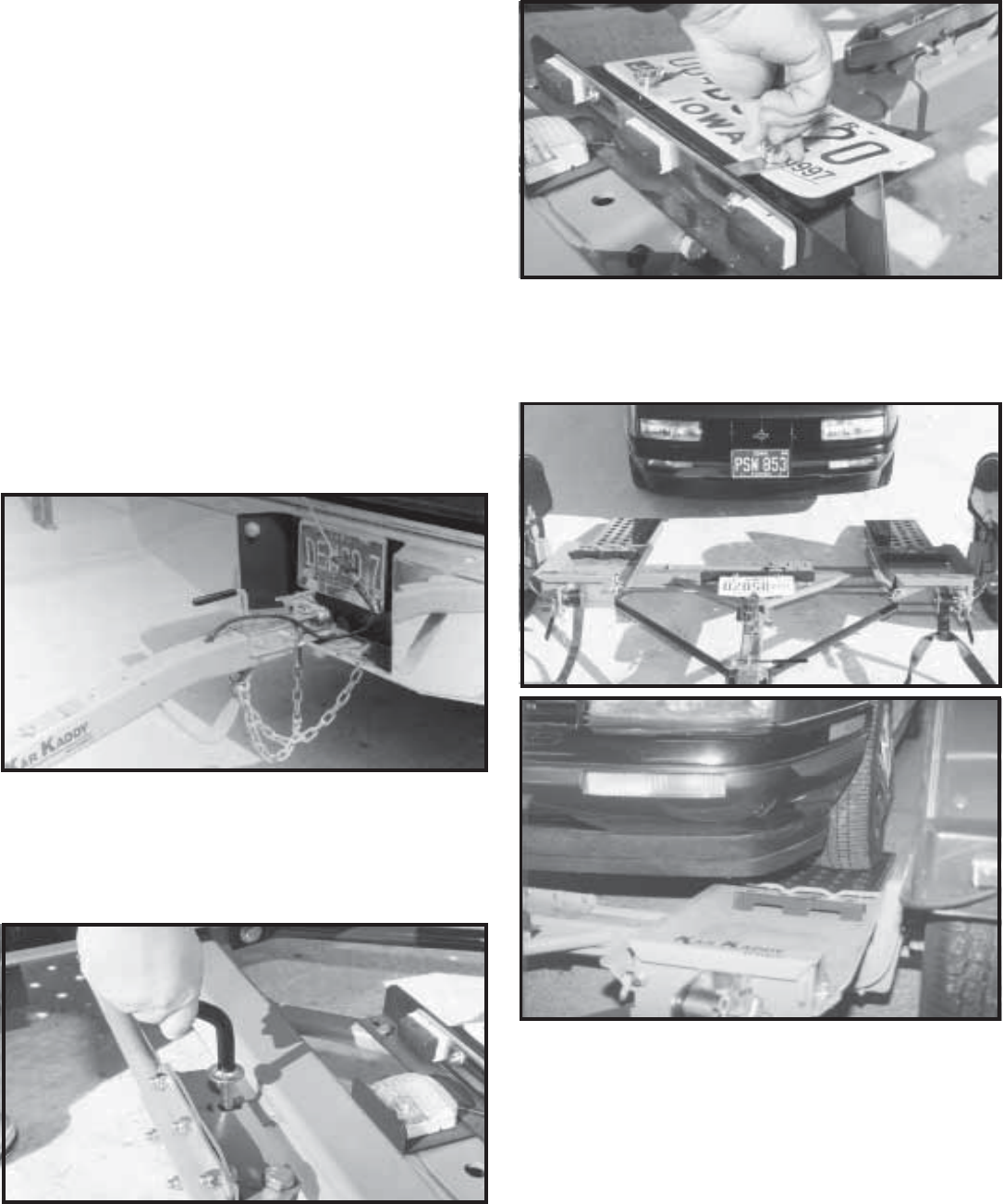

LOADING INSTRUCTIONS

Refer to load limits on inside of front cover.

Step 3. Loosen wing nut on back of license plate holder, turn

the clip on the front to a horizontal position and put license in the

"down" position. Turn the clip back so it rests against the back

of the light bar to hold the license down and tighten wing nut.

(License must be "UP" with the tow dolly empty).

Step 2. Remove black locking pin BEFORE loading vehicle

onto the Kar Kaddy. The removal of the locking pin allows

"Auto Steer" to operate. When towing the dolly empty, this pin

must be in place.

IMPORTANT: Tire tread width or body width of towed

vehicle must not exceed:

KK260 - 70" max. (outside to outside),

42" min. (inside to inside),

72" max. (body width).

KK360 - 76" max. (outside to outside),

42" min. (inside to inside),

78" max. (body width).

Step 4. Before loading (and unloading) towed vehicle make

sure platform and towed vehicle are in straight alignment. Tow

dolly must be completely and properly hooked up to the towing

vehicle. Towing vehicle must be larger and at least 1000

lbs. heavier than the tow dolly and towed vehicle com-

bined.

Page 6

Step 5. Grasp bed release handle on tongue and pull

toward coupler. This releases the tilt bed to permit loading.

Step 7. Drive vehicle onto the platform - front forward - until

tires touch the wheel stops at the front of each side of the

platform and the platform tilts to a flat position. Make sure the

car is centered on the platform. Towed vehicle tires must fit in

wheel troughs without overhanging sides. Engage towed

vehicle parking brake. Shift loaded car into "park" and lock

steering wheel with front tires in a straight position. If the car

does not have a locking steering column the steering wheel

must be tied securely with front tires in a straight position.

Rear Wheel Drive: Disconnect towed vehicle driveshaft for

rear wheel drive vehicles with automatic transmission.

For manual transmission: Consult your vehicle owners

manual for towing suitability with the drive shaft connected.

Step 8. Place one tie-down strap over each tire and secure

hooks to rods located at the rear of each wheel platform. The

short side of the hook must face the rear of the Kar Kaddy.

Step 9. Be sure tie-down winch is centered with the tire before

tightening straps.

Step 6. With someone safely guiding you, slowly drive ve-

hicle onto platform FRONT FORWARD. (Any vehicle mounted

on tow dolly must be mounted with front of the vehicle facing

forward.) Drive the car forward until the tires touch the ramps.

Make sure the tire is aligned to ascend onto the ramps.

Page 7

Examine winches and straps to make sure they are in

good condition.

Check wheel nuts every trip.

Tires must be inflated to recommended pressure by tire

manufacturer.

Be certain the safety lock pins lock the strap winches.

Retighten the straps over the tires after the first 5 miles

of travel. Check straps every 50 miles therafter to

ensure they are tight and not rubbing or fraying.

Step 10. Thread tie-down strap through the slotted tube on the

tie-down winch. Pull approx. 6" of strap through this slot.

Begin tightening strap making sure the tail becomes enclosed

by the strap coming over the tire. Tighten the straps ensuring

that the strap fed through the slot binds between the shaft and

the strap being wound onto the winch shaft. While tightening

straps, pull cross strap forward to ensure even tightening.

NOTE: Be sure to tighten straps until each tire starts to

flatten against tire stop. After each strap is tight, insert a

safety pin in each winch. Disengage towed vehicle parking

brake.

Straps must be retightened after first 5 miles of travel. Check

straps every 50 miles thereafter to ensure they are tight and

not rubbing or fraying.

Step 14. To pull the Kar Kaddy empty, make sure "Auto-

Steer" LOCKING PIN IS IN PLACE and towing vehicle

safety chains are up and hooked. Tie-down winch handles

should be left in a down postion (horizontal) position with

safety pins in place when towing loaded or empty. DO NOT

ATTEMPT TO PULL KAR KADDY WITH WHEEL PLAT-

FORM IN LOADING (tilted) POSITION.

DAMAGE PREVENTION

Check your vehicle manual or registration for vehicle weight.

Towing vehicle must be larger and at least 1,000 lbs. heavier

than the towed vehicle and tow dolly combined.

Do not pack goods in car that is being towed. Overloading the

Kar Kaddy or exceeding the width limit may result in damage

to both car and Kar Kaddy.

REAR WHEEL DRIVE PRECAUTIONS

Disconnect towed vehicle driveshaft for rear wheel drive

vehicles with automatic transmission. Simply placing trans-

mission in neutral is not sufficient to prevent damage to

transmisssion.

For manual transmission: Consult your vehicle owners manual

for towing suitability with the drive shaft connected.

ALL VEHICLES MOUNTED ON THE KAR KADDY MUST BE

WITH THE FRONT OF THE VEHICLE FACING FORWARD.

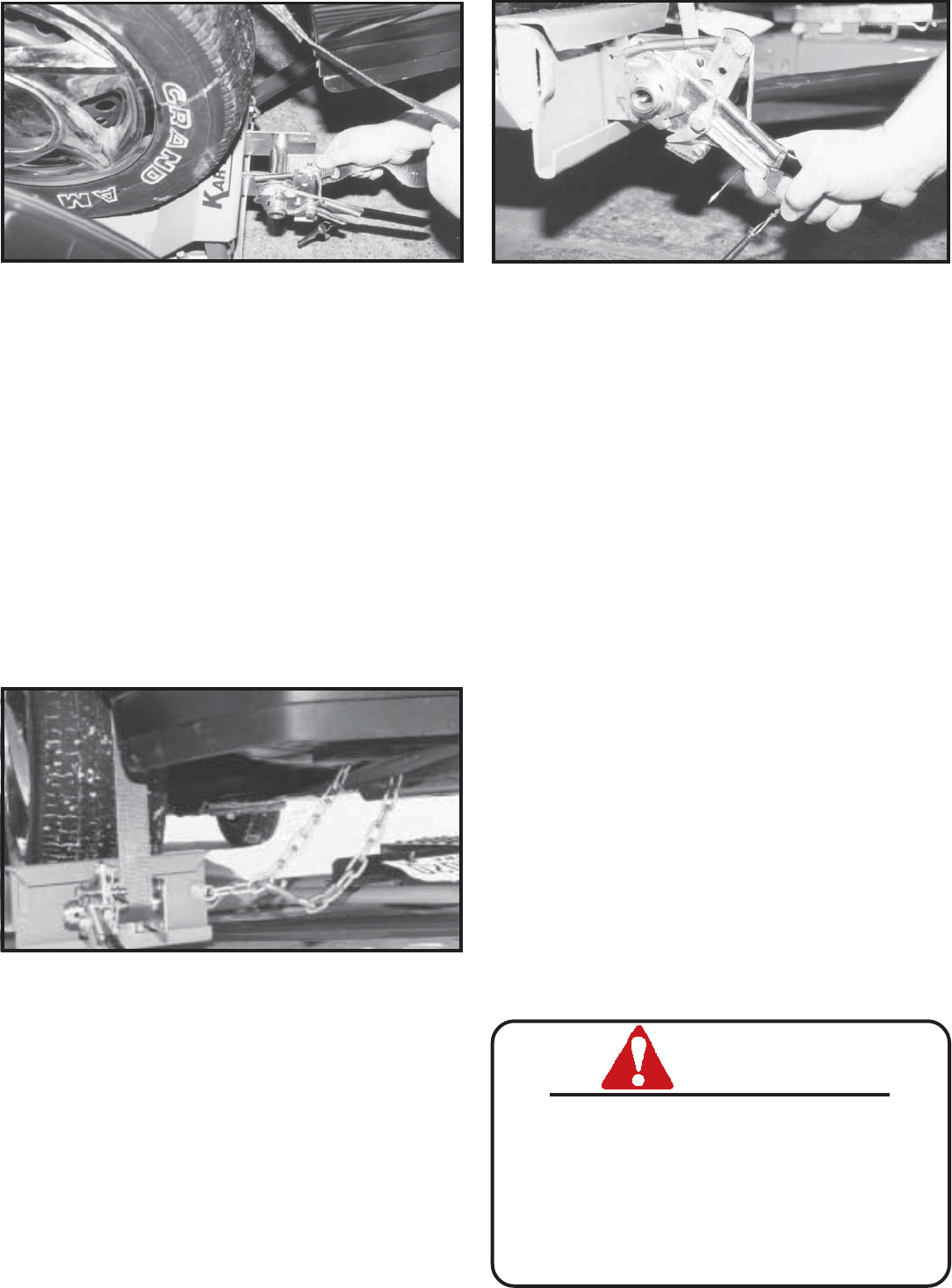

Step 12. Hook the towed vehicle safety chains to frame of

vehicle directly above the area where the chains are mounted

on the Kar Kaddy. Leave some slack in the chains to allow

suspension movement of the towed vehicle.

Step 11. Make sure the tie-down strap is the correct size for

the auto tire. See page 11 of this instruction for proper fit and

exchange instructions.

Step 13. TO UNLOAD towed vehicle. Make sure that plat-

form and vehicle are straight. Reinstall driveshaft. Ensure that

towed vehicle parking brake is fully engaged, then unhook the

towed vehicle safety chains, and release the tie-down straps.

NOTE: Tie down straps must be "quick -released" by grasping

ratchet pawl (A) and ratchet handle (B) simultaneously and

pushing down sharply. This process will permit easy removal

of strap from winch.Swing the wheel platform locking latch

handle forward, towards the coupler. This will allow the

platform to tilt as you slowly drive off. Make sure the winch

ratchet handles are horizontal. Replace the "Auto Steer"

locking pin (for towing empty).

SAFETY

Page 8

Right Fender

35 43

46 47

86 46

100

66 82

103

104

33 109

110

111

112

113

114

108

107

106

105

100

*69

*69 *69

*69 72

62 65

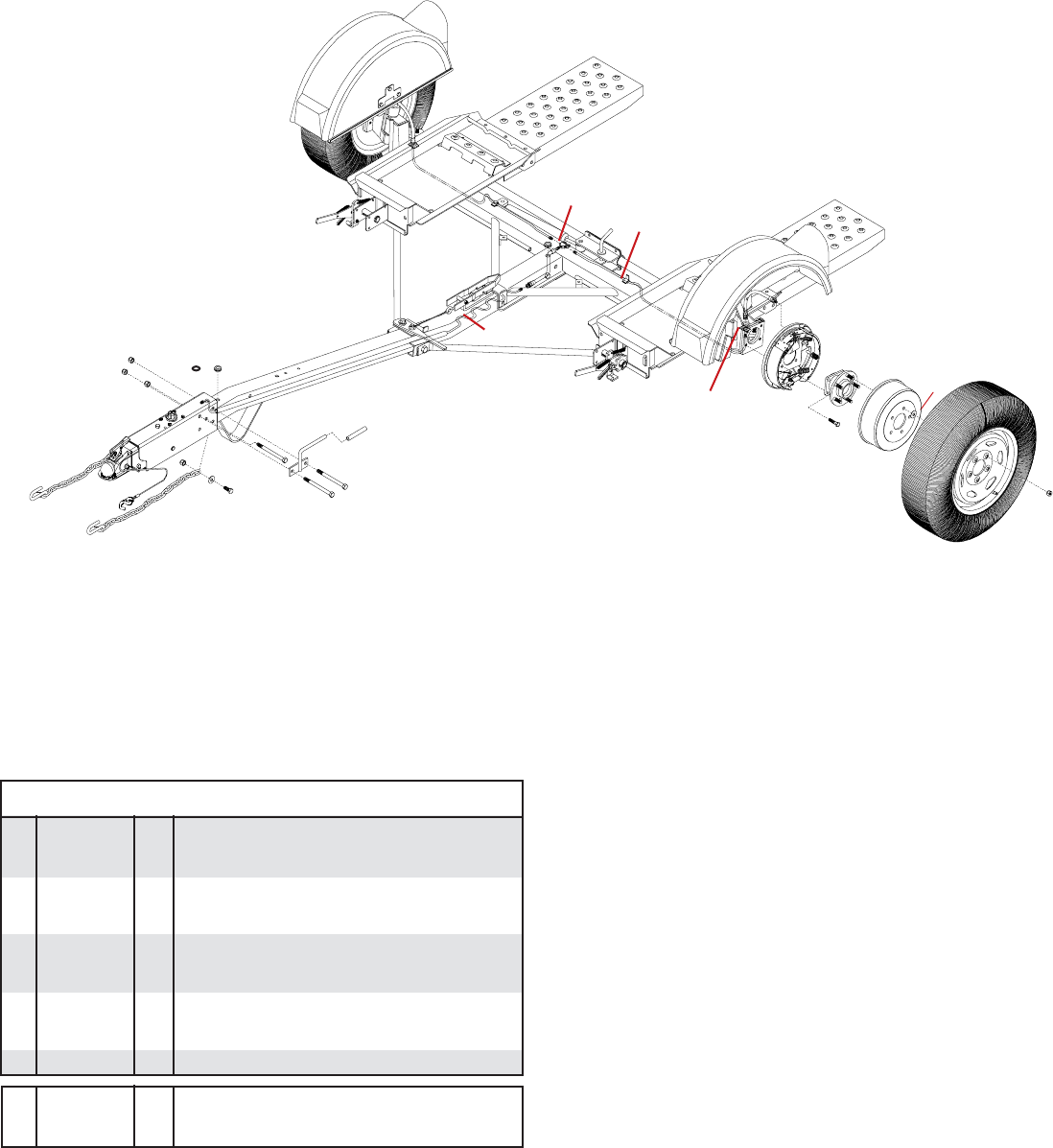

KK260 (8'wide) and KK360 (8-1/2' wide) PARTS BREAKDOWN

5217

Coupler Repair Kit

not included

for

Fulton

5000 lb.

coupler

KIT #5511

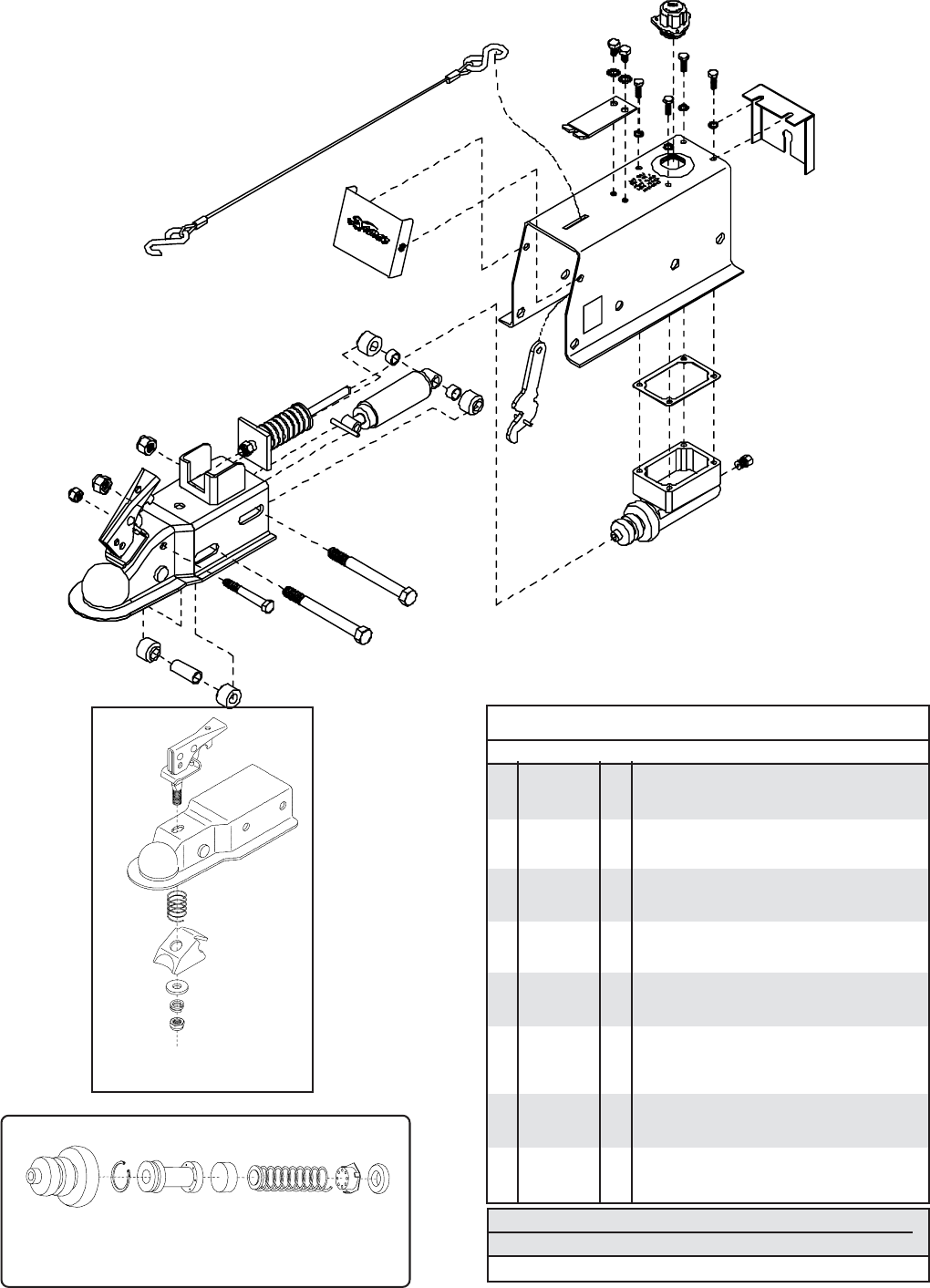

TILT-BED LATCH

ASSEMBLY

128

121

122

123 124

125

126

127 129

120

118 116

117

119

DECALS

RD21002 1 Instruction Decal

RD21003 - 5 ft. Gold Striping (for fenders)

RD21001 4 Kar Kaddy Decal (brown)

DA21005 - Check Wheel Nuts & 50 Psi. C Range BSW

(KK360, KK260SB, KK360SB)

ZA21003 1 VIN

DECAL

NO. QTY. DESCRIPTION

Part# 07426

Hook Retainer

Replacement Only

Page 9

KK6LBAS

License Plate Mount

and Light Cluster

(not available)

79 77

51 74

130

*70

104

109

115

103

102

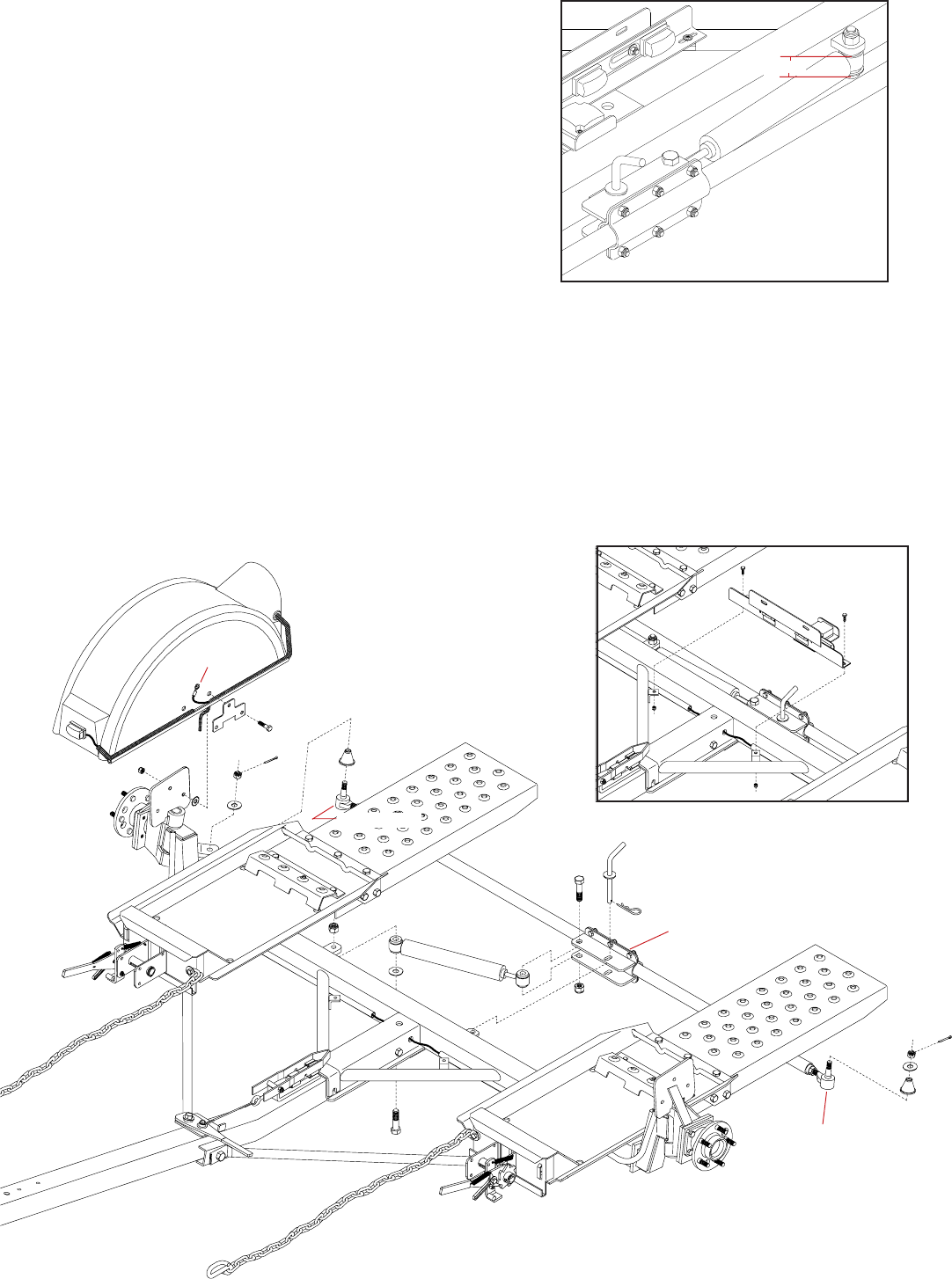

Left Fender

Left Winch Shown

151413

19 20

1. 5432 1 Left Ratchet Winch Assembly (Plated)

2. 5433 1 Right Ratchet Winch Assembly (Plated)

3. 03569-95 1 Ratchet Frame

4. 03570-95 1 Left Spool Tube

-03571-95 1 Right Spool Tube

5. 03577 1 Heavy Duty External Snap Ring

6. 03574-95 1 Ratchet Handle

7. 03668 1 18 Ga. Shim Washer

8. 03575-95 1 Left Ratchet Gear

-03576-95 1 Right Ratchet Gear

9. 03666 1 5/16" x 1-1/4" Roll Pin

10. 02243 1 Black Vinyl Hand Grip

11. 05450 1 Winch Pawl

12. 01864 2 Winch Pawl Spring SS

13. 05449 1 Winch Pawl Bushing SS

14. 00059 1 3/8" Flatwasher

15. 05444 1 3/8"-16 UNC x 3/4" Hex Bolt w/epoxy Gr.5

16. 03572-95 1 Left Ratchet Pawl Arm

-03573-95 1 Right Ratchet Pawl Arm

17. 03578 1 5/16"-18 UNC x 1/2" Shoulder Screw

18. 01998 1 5/16" Flatwasher SS

19. 02002 1 1/4" Flatwasher SS

20. 02772 2 1/4"-20 UNC Nylon Locknut

21. 04055 1 1/4"-20 UNC x 1" Hex Hd. Bolt Gr.5

22. 00214 1 1/4" Flatwasher

23. 05337 1 Lock Pin w/Cable

- 5192 License Plate Light and Light Cluster

24. 04505-25 1 License Plate and Light Cluster Bracket

25. 04176 4 1/4"-20UNC x 3/4" Carriage Bolt

26. 02519 2 1/4"-20UNC x 1/2" Slotted Truss Head Bolt

27. 02163 1 Square License Plate Light w/washer and nut

-02164 - Clear License Plate Light LENS ONLY

REF. PART

NO. NO. QTY. DESCRIPTION

91 92

Page 10

REF. PART

NO. NO. QTY. DESCRIPTION

29. 02580-95 1 License Plate Clip

30. 02770 2 1/4-20UNC Nylon Insert Wing Nut

31. 01077 2 1/4"-20UNC Serrated Locknut

32. 04513 1 Light Cluster

10. 02243 2 Black Vinyl Hand Grip

33. 01883 11 Electrical Wire Splicer

34. 01881 1 Trunk Connector

35. 04785 1 Front Half Trailer Wiring Harness

36. 04786 1 Rear Half Trailer Wiring Harness

37. 01855 1 Safety Lock Pin

38. 04496 1 5000 lb. Ball Coupler (lever lock)

39. 02288-95 1 Bolt on Handle

-04017-95 1 Bolt on Handle (used with brakes)

40. 01338 2 1/2"-13UNC x 4-1/2" Hex Head Bolt (gr.5)

-01975 2 1/2"-13UNC x 5" Hex Hd. Bolt (gr.5) (used w/ brakes)

41. 02189 1 1/2" I.D. Rubber Handle Grip

42. 02178 13 1/2"-13UNC Nylon Insert Locknut

43. 01863 1 5/8" Grommet for wiring harness

44. 02771 2 7/16"-14UNC Nylon Insert Locknut

45. 01853 2 24" Transport Safety Chain w/ Hook

-02383 2 36î Transport Chain w/ Hook (used w/ brakes)

46. 00059 9 3/8" Flat Washer

47. 01898 4 7/16"-14UNC x 1-1/4" Hex Head Bolt (gr.5)

48. 07077-26 1 Kar Kaddy Tongue

49. 03503 2

5/8"-11 UNC x 1-1/4" Epoxied Hex Hd Bolt (gr.5)

50. 02434 1 5/8"-13UNC x 4-1/2" Hex Head Bolt (gr.5)

51. 02587 3 5/8"-13UNC Nylon Insert Locknut

52. 02747-25 2 Bracing Strut

53. 02383 2 36" Safety Chain

54. 02579-95 2 Pivot Bushing

55. 00085 12 1/2" Flatwasher

56. 01254 2 1/2"-13UNC x 1-1/2" Hex Head Bolt (gr.5)

57. 04815 2 Grommet

58. 02772 8 1/4"-20UNC Nylon Insert Locknut

59. 04642 2 Grease Zerk

60. 01731 4 1-1/4" Dust Cap

61. 01734 2 1" dia. x 6-1/2" lg. King Pin

62. 01732 4 1"I.D. x 1-1/4"O.D. x 1-1/2"lg. Bushing (brnz)

63. 04165-26 1 Right Wheel Carrier

64. 04166-26 1 Left Wheel Carrier

-04642 4 1/4"-28UNF Grease Zerk

65. 05587 2 1" I.D.x 14 GA Narrow Rim Machine Washer

66. 07075-26 1 KK260 Main Frame (8' wide)

-07076-26 1 KK360 Main Frame (8-1/2' wide)

-09528-26 1 KK260SB Main Frame (8' wide)

-09529-26 1 KK360SB Main Frame (8-1/2' wide)

67. 04369 2 Hub and Spindle (115mm B.C.)

-02917 - Replacement 12mm x 1.5 Stud Bolt

68. 02210 8 7/16"-20UNF x 1-1/4" grade 8 Epoxied Bolt

*69. 5179 1 Right Tie Rod End w\Right Hand Threads

*70. 5178 1 Left Side Tie Rod End with Left Hand Threads

71. 07426 4 Rubber Hook Retainer

72. 01905 1 9/16"-18UNF Jam Nut w/Right Hand Threads

73. 01904 1 9/16"-18UNF Jam Nut w/Left Hand Threads

74. 01869-26 1 Tie Rod (KK260 - 8' wide)

-04771-26 1 Tie Rod (KK360 - 8-1/2" wide)

75. 02592 16 3/8"-16UNC Nylon Insert Locknut

76. 01871-26 1 Tie Rod Shock and Stop Mount Back-up Plate

77. 01870-26 1 Tie Rod Shock and Stop Mounting Clamp

78. 02696 2 5/8"-11UNC x 2-3/4" lg. Hex Head Bolt (gr.5)

79. 00907 6 3/8"-16UNC x 1" Hex Head Bolt (gr.5)

80. 00477 1 5/8" Flatwasher

81. 01729-26 1 Steering Stabilizer Cylinder

REF. PART

NO. NO. QTY. DESCRIPTION 82. 01718-95 1 Locking Pin

-02189 1 Black Handle Grip

83. 00182 1 Small Hair Pin

84. 03528 2 Tie Down Strap w/J-Hook

85. 04503-25 2 Tilt Bed Ramp (KK260 - 8' wide)

-04772-25 2 Tilt Bed Ramp (KK360 - 8-1/2' wide)

86. 00078 2 7/16" Lockwasher

87. 00967 8 1/2"-13UNC x 1-1/4" lg. Hex Head Bolt (gr.5)

88. 04167 6 7/16"-20UNF x 1" lg. Hex Head Bolt (gr.8)

89. 04171-25 2 Rear Tire Stop (KK260 - 8' wide)

-04773-25 2 Rear tire Stop (KK360 - 8-1/2' wide)

90. 00523 4 3/8"-16UNC x 1-1/4" lg. Hex Head Bolt (gr.5)

91. 00789 2 3/8"-16UNC x 3/8" lg. Hex Socket Set Screw

92. 01930 2 3/8"-16UNC x 1/4" lg. Hex Socket Set Screw

93. 04941 2

P195/75R14 "B" Range BSW Radial Tire (KK260)

-04826 2 ST205/75R14 "C"Range BSW Radial Tire

(KK360,KK260SB,KK360SB)

94. 04367 2 Rim (6 x 14) (serial # 19001 & later)

95. 02933 10 Chrome Lug Nut

-5333 1 LH Fender Assembly (qtyís below are for 1 fender)

-5334 1 RH Fender Assembly (qtyís below are for 1 fender)

28. 00214 3 1/4" Flatwasher

97. 05356 1 Left Fender

98. 05355 1 Right Fender

- 4 Stainless Steel Ground Strap

99. 04508 1 Amber Fender Reflective Decal

100. 04498 1 Front Fender Light with lead wire

101. 01769 1 Kar Kaddy Mud Flap

102. 05338 2 1/4"-20UNC x 3/4" lg. Brown Sltd Truss Bolt

103. 05446 1 4-1/2" Enclosed Round Tail Light

104. 05447 1 Rubber Grommet for 05446 Light

105. 04424-95 1 Fender Back-up Plate

106. 02316 1 White Ground Wire

107. 00914 3 3/8"-16UNC x 1-1/2" lg. Hex Head Bolt (gr.5)

108. 04499 3 3/8" I.D. External Tooth Lockwasher

109. 02313 1 3-Way Plug Pigtail (tail light)

110. 04944 1 5/8" Grommet (thin wall)

111. 05443 1 Cable Hanger - wire harness

112. 02298 1 22-1/2" Wire Protector Loom

113. 04425 4 Tinnerman Fender Clamp

114. 04515 1 17-1/2" Wire Protector Loom

115. 04804 1 Red Fender Reflective Decal

116. 05449 1 Spacer Bushing - Stainless Steel

117. 05444 1 3/8"-16 UNC x 3/4" Epoxied Hex Bolt (Gr 5)

118. 03382-95 1 Latch Handle Pivot Bushing

119. 03574-95 1 Latch Handle

120. 03434 1 5/16"-18 UNC x 5-1/4" Eye Bolt

121. 04221 1 5/16"-18 UNC x 2-1/2 Hex Head Bolt (Gr 5)

122. 02802 1 5/16-18 UNC Nylon Insert Locknut

123. 03381-95 1 Latch Catch

124. 00007 1 5/16"-18 UNC Hex Nut

125. 03379-95 1 Latch Block

126. 03435 1 Roll Pin (5/16" x 2-1/4")

127. 03499 1 Latch Spring - Stainless Steel

128. 03433 1 Latch Cable

129. 00004 1 5/16" Flatwasher

130. 04168 6 7/16"-20UNF Nylon Insert Locknut

-CMO8021 12 oz. Buckskin Touch-up Paint (Aerosol)

-IC8633 12 oz. Brown Touch-up Paint (Aarosol)

* Indicates this kit includes appropri-

ate tie rod end (left or right hand

threads), grease zerk, rubber cup,

cotter pin and castle nut.

Page 11

1. Extent and Duration of this Warranty:

Your Demco Kar Kaddy is warranted to be free from defects in

materials and workmanship under normal use and service for a

period of one year after date of purchase by the original (first)

retail owner, or until it is resold or transferred by the original

owner. New Departure Hyatt Hubs used on the KK260 and

KK360 are warranted for a period of three years after the date of

purchase by the original (first) retail owner or until itís resold or

transferred by the original owner. Tires and lights are not

included in this warranty.

Tires are warranted by the manufacturer against defects in

materials and workmanship, but not against road hazards.

Any part of the Demco Kar Kaddy, except tires and lights, found,

in the judgement of the manufacturer to be defective in materials

or workmanship will be repaired or replaced at the manufacturerís

option without charge for parts or labor to the original owner.

2. Manufacturer and Warrantor of Tow Dolly:

Dethmers Manufacturing Co.

4010 320th Street

P.O. Box 189

Boyden, IA 51234

(712) 725-2311

The manufacturer and warrantor of the tires has his name

permanently molded into the tires. Tire warranty questions and

claims can be taken directly to an authorized dealer of the tire

manufacturer.

3. Repair or Replacement Procedure:

If your Demco Kar Kaddy develops a defect (except for tires or

lights) during the warranty period, promptly notify Dethmers

Manufacturing Co. customer service department. Until such

notice is received, Warrantor will not be responsible for any repair

or replacement.

Upon receipt of notice from you, Warrantor will have a choice of

options in replacing any part it determines to be defective:

a) Warrantor may require you at your own expense to deliver

or ship the part to its factory or authorized dealer. Any

defective part will be repaired or replaced and returned to

you free of charge. Any part returned to Warrantor and

found not to be defective will be returned to you freight

collect with an explanation.

b) Warrantor may elect to ship a new part to its dealer to be

exchanged free of charge for the defective part returned

by you to the dealer.

c) Warrantor may elect to ship or deliver a replacement part

to your address.

Warranty claims on tires should be presented to a local autho-

rized dealer of the tire manufacturer. Provide proof of purchase

when making a tire warranty claim.

4. Limitations on Warranty Coverage:

Coverage under this warranty will be effective only when a copy

of the original invoice, showing the date and location of purchase,

accompanies any claim for warranty.

Warrantor has no liability whatsoever and this warranty is null and void

if any Demco Kar Kaddy has been misassembled or subjected to

neglect, negligence, misuse, accident or operated in any way contrary

to the operating and maintenance instructions as specified in the Demco

Ownerís Manual for that model tow dolly.

This warranty does not cover any tow dolly that has been altered

or modified so as to affect the tow dollyís operation, performance

or durability, or that has been modified to change the intended

use of the tow dolly.

In addition, the warranty does not extend to repairs made

necessary by normal use of parts, accessories or other equip-

ment which in the judgment of Warrantor, are either incompat-

ible with the Demco Kar Kaddy, or affect its operation, perfor-

mance or durability.

This warranty does not cover:

1) normal wear and tear

2) road film or gravel damage to paint

3) paint

4) rust damage

5) Any Demco Kar Kaddy that has been loaded in excess of the

load capacity stated on the tow dolly identification label.

Warrantor has a policy of continuous product improvement. We

reserve the right to change or improve the design of any Demco

Kar Kaddy model, including but not limited to state of the art

changes, without assuming any obligation to modify any tow

dolly previously manufactured.

Warrantor assumes no responsibility to the owner for loss of use

of the tow dolly, loss of time, inconvenience or other damage

consequential or otherwise, including, but not limited to ex-

pense for gasoline, expense of transporting the tow dolly to the

dealer and expense of returning the tow dolly, mechanicís

travel time, telephone or telegram charges, road service/towing

charges, rental of another tow dolly during the time warranty

repairs are being performed, travel, lodging, loss or damage to

personal property or loss of revenue or earnings.

5. Limitations of Implied Warranties:

All implied warranties, if any, expire and terminate upon expi-

ration of this warranty. Some states do not allow limitation on

how long an implied warranty lasts, so this limitation may not

apply to you.

6. Limitation of Consequential Damages:

Warrantorís responsibility under this warranty extends solely to

repair or replacement of your Demco Kar Kaddy and its com-

ponent parts.

Warrantor does not assume responsibility for, nor shall it be

liable for, any special, incidental or consequential damages.

Some states do not allow the exclusion or limitation on inciden-

tal or consequential damages, so the above exclusion or

limitation may not apply to you.

7. Use of Vehicle Identification Number (VIN):

The VIN is a 17 digit number located in the lower left corner of

the tow dolly identification label. The label is located on the left

side of the tow dolly frame. Be sure to include the VIN number

in all communications with Warrantor or its dealers concerning

the warranty.

8. Purchaserís Rights:

This warranty gives you specific legal rights, and you may also

have other rights which vary from

DEMCO PRODUCTS - KAR KADDY

ORIGINAL PURCHASERíS LIMITED WARRANTY

Page 12

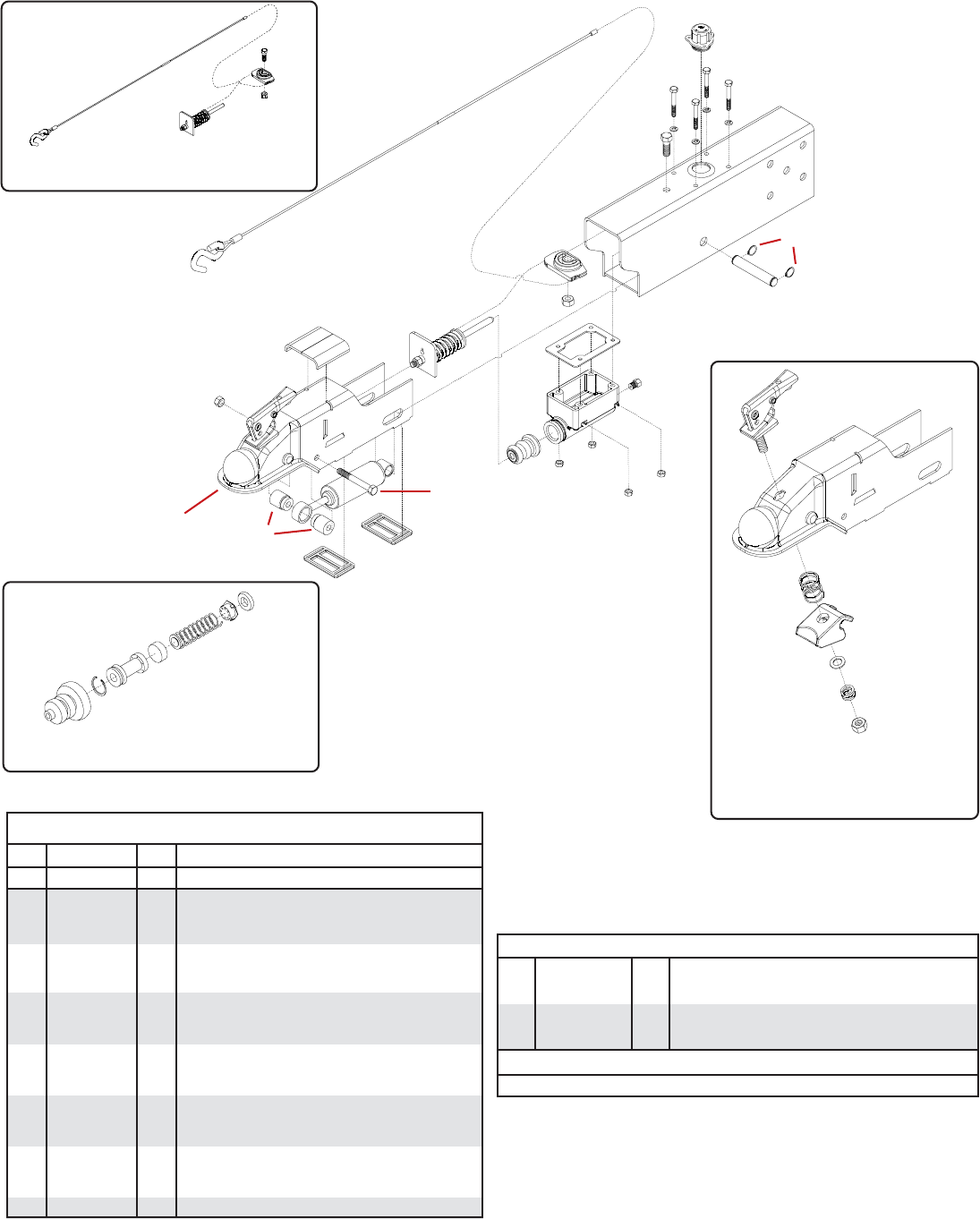

Model DA66 ACTUATOR PARTS BREAKDOWN

-8606701 1DA66 Brake Actuator complete (incl. ref. 1-25)

-5400 -Lever Replacement Kit (incl. items w/*)

-5398 -Master Cylinder Repair Kit w/ gasket

-5495 -Coupler Repair Kit

ACTUATOR PARTS LIST

Please order replacement parts by PART NO. and DESCRIPTION.

REF. PART

NO. NO. QTY. DESCRIPTION

19 19

20 20

1. 07599-95 1 6000# 2" Ball Coupler

2. SB23278 4 Roller

3. 05957-95 1 Front Roller Spacer

4. 02166 1 3/8"-16UNC x 2-3/4" Hex Head Bolt (gr.5)

5. 07176 1 3/8" Stover Lock Nut

6. 05684 2 1/2"-13UNC x 4-1/2" Hex Head Bolt (gr.5)

7. 02178 2 1/2"-13UNC Nylon Insert Lock Nut

8. 05959 1 Push Rod Assembly

9. 05692 1 Damper/ Shock

10. 05958-95 2 Rear Roller Spacer

11. *05951 1 Emergency Lever

12. 05955-95 1 Front Cover

13. *SB24700 1 2' Cable with S-Hooks

14. SB10555 2 Replacement S-Hook ONLY

15. 05960 2 5/16"-18UNC x 1/2" Self-Tapping Screw

16. 05424 2 5/16" External Tooth Lock Washer

17. *05693-95 1 Emergency Lever Spring

18. 03876 1 Master Cylinder Cap w/ diaphragm & O-ring

19. 01076 4 1/4-20UNC x 3/4" Hex Head Bolt

20. 00057 4 1/4" Lock Washer

21. 03564-95 1 Outer Case

22. 05681 1 Replacement Master Cyl. Gasket ONLY

23. 05680 1 Master Cylinder with gasket 05681 X

24. SB12098 1 1/8" pipe - 3/6" inverted Flare Fitting

25. 05966-95 1 Back Cover

5495

Coupler Repair Kit

for

6000 lb.

coupler

5398 Master Cylinder Repair Kit

(gasket included)

Page 13

5695 - Emergency Lock Cam Replacement Kit

20. ----- 1 7/16î-14UNC x 1 1/4î Hex Head Bolt (Gr. 5)

21. ----- 1 7/16î-14UNC Lock Nut (Center Punch)

22. ----- 1 Emergency Catch Cam (black oxide finish)

23. ----- 1 Pushrod Assembly (includes cable)

5696 -Coupler Repair Kit (2î lever lock)

5398 -Master Cylinder Repair Kit w/ gasket

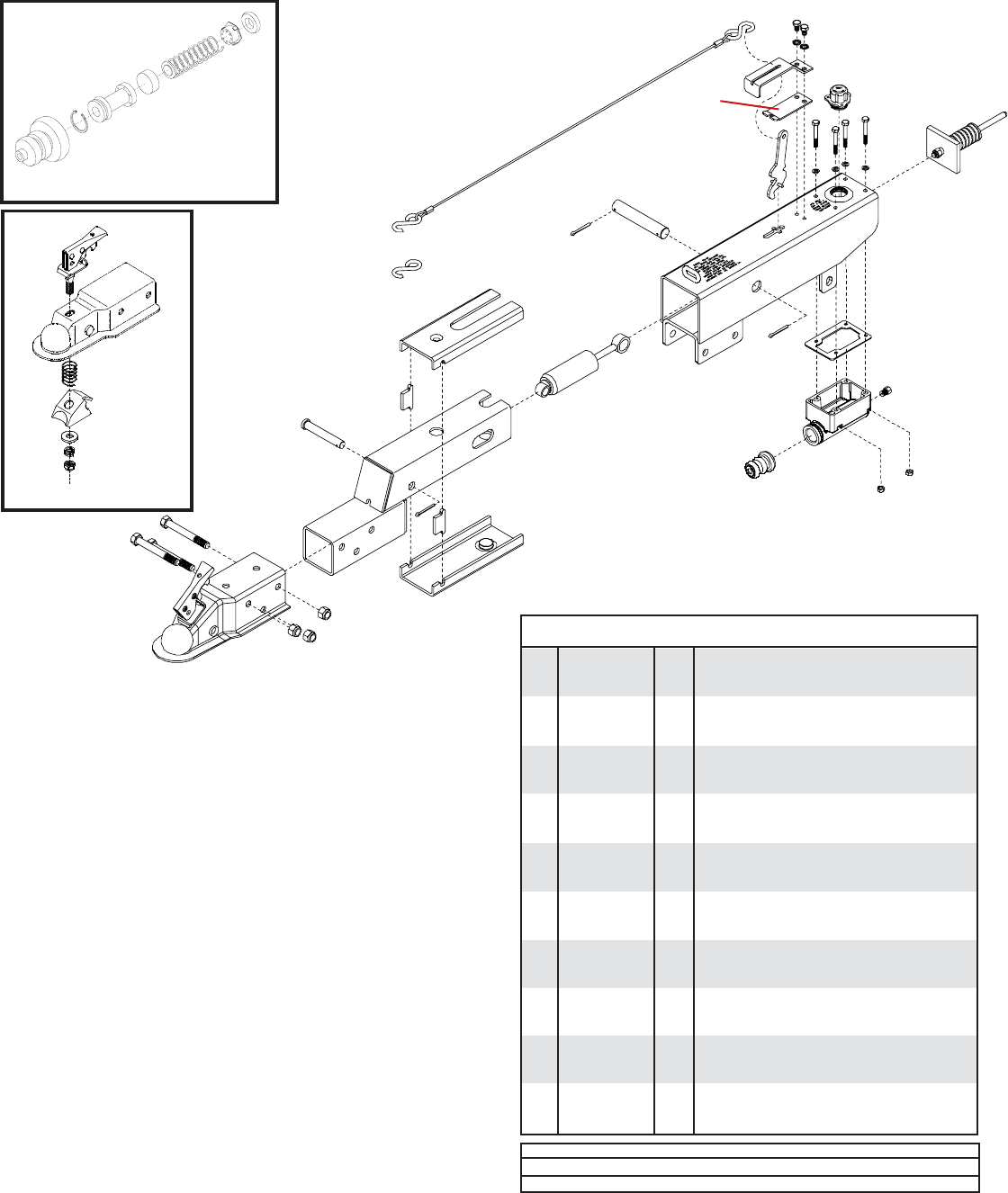

DA603 BRAKE ACTUATOR PARTS BREAKDOWN

5398 Master Cylinder Repair Kit (drum)

(gasket included)

Please order replacement parts by PART NO. and DESCRIPTION.

1. 00057 4 1/4î Lock Washer

2. 00062 4 1/4î-20 UNC Hex Nut

3. 00179 1 3/8î-16 UNC Lock Nut (Center Punch)

4. 00618 4 1/4"-20UNC x 2" Hex Head Bolt (Gr.5)

5. SB12098 1 .018 Connector Orifice (Drum Brakes)

6. 02207 1 3/8î-16UNC x 3î Hex Head Bolt (Gr. 5)

7. 03876 1 3 Tab Fill Cap w/ Diaphram & O-Ring

8. 09153 1 Master Cylinder Gasket (incl. in 10616 & 11190)

9. 10616 1 Composite Master Cylinder (drum)

10. 11367-95 1 Coupler/Inner Slider (plated)

10a. 5698 - Coupler/Inner Slider w/ Lever Lock Assy.

11. 11368 2 Top Plastic Slider

12. 11369 2 Bottom Plastic Slider

13. 11371-95 2 Shock Spacer (plated)

14. 11389-95 1 Rear Shock Pin (plated)

15. 11390-95 1 Outer Case (plated)

16. 11401 2 External Snap Ring

17. SB12426 1 Damper

18. 05687 1 Protective Boot (incl. in 10616 & 5398)

-8606301 -Plated Actuator f/ drum brakes

ACTUATOR PARTS LIST

REF.

NO. PART NO. QTY. DESCRIPTION

5696 Coupler Repair Kit

(2î lever lock)

**Components not sold separately**

Item #23

includes cable

Item #10 is not

included in 5696

10a

REPLACEMENT KITS

(components not sold separately)

5695 Emergency Lock Cam

Replacement Kit

Components not

sold separately

Page 14

MODEL DA91 ACTUATOR PARTS BREAKDOWN

5398 Master Cylinder Repair Kit

(gasket included)

2î Lever Lock Coupler

RATED AT 6000#

not included

REF.

NO. PART NO. QTY. DESCRIPTION

Model 91 ACTUATOR PARTS LIST

1. 09417 1 6000# 2" Lever Lock Coupler (zinc plated)

2. 01896 3 1/2"-13UNC x 4" Hex Head Bolt (gr.5)

3. 02178 3 1/2"-13UNC Nylon Insert Lock Nut

4. 05426 1 Front Shock Pin (drop tube actuators)

5. 11079-95 1 Drop Tube Actuator Slider (plated)

6. SB12426 1 Damper/ Shock

7. 11164-95 1 3 Bolt Mount Outer Case (plated)

8. 05424 2 5/16" External Tooth Lock Washer

9. 02363 2 5/32" x 1 1/4 Cotter Pin(Qty 3 w/drop tube)

**10. 05408 1 3/32" Cable with hooks

11. SB10555 - Replacement S-Hooks ONLY

**12. 05693-95 1 Emergency Lever Spring (plated)

13. 05961 2 5/16"-18UNC x 5/8" Hex Head Bolt (gr.5)

14. 00618 4 1/4-20UNC x 2" Hex Head Bolt (gr.5)

15. 00057 4 1/4" Lock Washer

**16. 05951 1 Emergency Lever Assembly

17. 03876 1 Master Cylinder Cap w/ Diaphragm & O-ring

-05849 1 O-Ring Only (not shown)

18. 05977 1 Push Rod Assembly

19. 00062 4 1/4-20 UNC Hex Nut

20. 09153 - Plastic Master Cyl. Gasket ONLY

21. 10616 1 Master Cylinder

-11190 - Master Cylinder

22. SB12098 1 .018 Connector Orifice (Drum Brakes)

23. 03866-95 1 Lever Guide (plated)

24. 05687 1 Master Cylinder Protective Boot

25. 05986-95 1 Connecting Pin (plated)

26. 10965 1 Upper Slider

27. 10966 1 Lower Slider

28. 10967 2 Side Spacers

-5401 - Lever Replacement Kit (incl. items w/**)

-5650 - Master Cyl. Replacement Kit (drum)

-5495 - Coupler Repair Kit

**16

**10

Please order replacement parts by PART NO. and DESCRIPTION

**12

BLEEDING THE SYSTEM

The first requirement for safe, sure hydraulic braking is the use

of quality brake fluid. Use only DOT-3 or DOT-4 brake fluid from

a sealed container.

If pressure bleeding equipment is available, follow the

manufacturerís instruction in bleeding the system.

If system must be bled manually, proceed as follows: Fill

master cylinder with fluid. Install bleeder hose on first wheel

cylinder to be bled.

Have loose end of hose submerged in brake fluid in glass

container to observe bubbling.

By loosening the bleeder screw located in the wheel cylinder

one turn, the system is open to the atmosphere through the

passage drilled in the screw. Pump actuator with long steady

strokes. The bleeding operation is completed when bubbles

no longer rise to the surface of the fluid. Be sure to close

bleeder screw securely.

Repeat bleeding operation at each wheel cylinder. During the

bleeding process, replenish the brake fluid, so the level does

not fall below the 1/2 full level in the master cylinder reservoir.

After bleeding is complete, make sure master cylinder reser-

voir is filled and filler cap is securely in place.

After the bleeding operation has been completed, apply pres-

sure to the system and check the whole brake system for leaks.

5495

Coupler Repair Kit

Page 15

557

REF. PART

NO. NO. QTY. DESCRIPTION

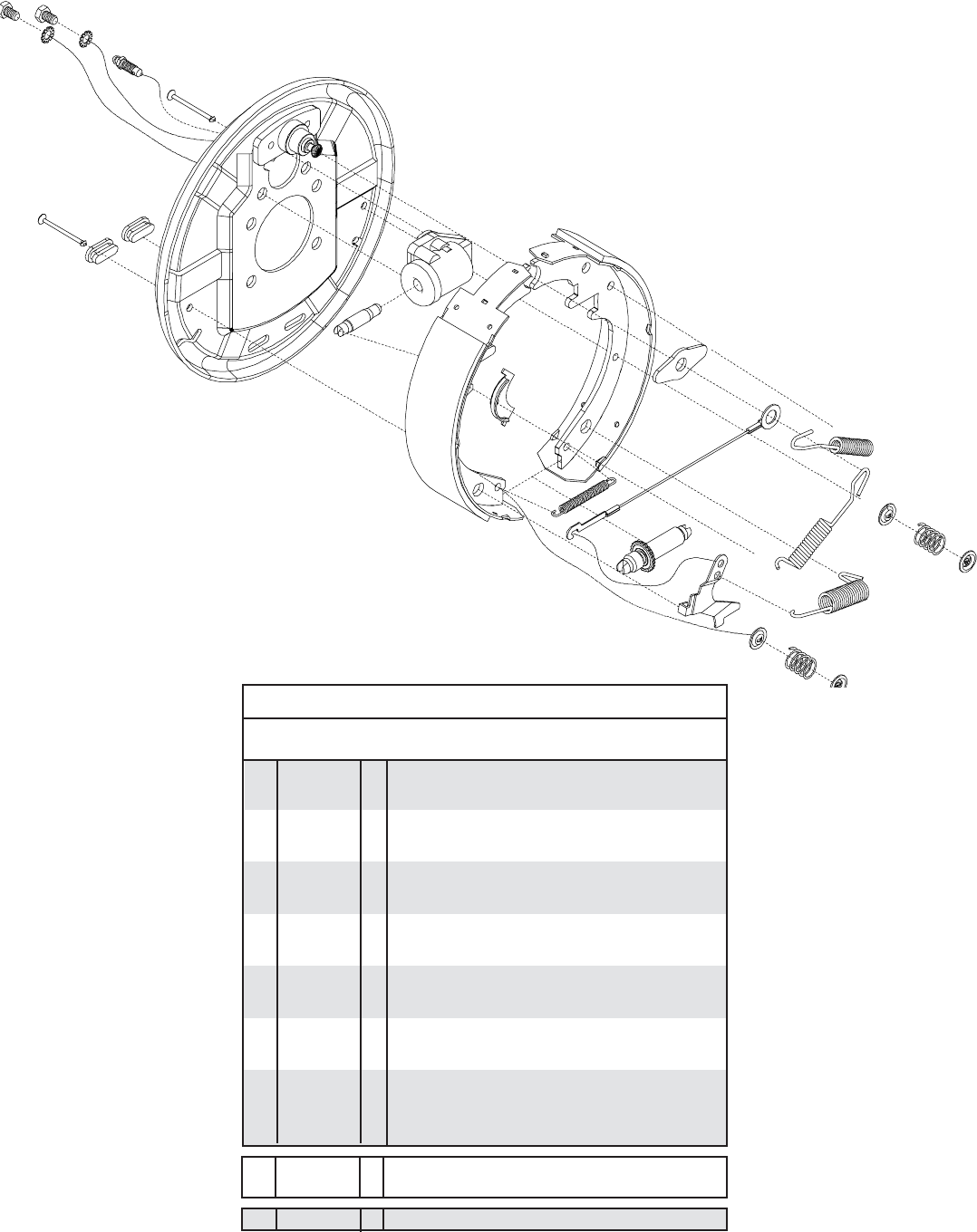

BRAKE CLUSTER PARTS LIST

-SB24429 -Left Hand Cluster (shown above)

-SB24428 -Right Hand Cluster

1. SB23871 1 Back Plate Assembly - (NDH Hub Mounting)

2. SB9254 2 Cover Plate - Adjusting Hole

3. SB10954 1 Brake Shoe Kit (includes 2 Primary & 2 Secondary)

4. 04305 2 5/16"-18UNC-Gr5 x 1/2" Hex Hd Bolt

5. 05424 2 5/16" External Tooth Washer

6. SB9776 1 Wheel Cylinder Assembly - Right

-SB9777 1 Wheel Cylinder Assembly - Left

7. 05431 1 Bleeder - replacement

8. SB9783 1 Push Rod

9. SB24047 1 Adjusting Screw Assembly - "R" (for LEFT cluster)

-SB24048 1 Adjusting Screw Assembly - "L" (for RIGHT cluster)

10. SB10958 2 Spring - Shoe

11. SB10961-95 1 Shoe Guide

12. SB23937 1 Cable

13. SB23936 1 Cable Guide

14. SB23724 1 Spring - Adjusting Screw

15. 05415-95 1 Lever - Right

-05414-95 1 Lever - Left

16. SB10959 2 Pin - Shoe Hold Down

17. SB9789 4 Cup Shoe Hold Down

18. 05983 2 Spring - Shoe Hold Down

19. 03380 1 Spring

Please order replacement parts by PART NO. and DESCRIPTION.

Brake shoe kit can be ordered for one complete axle only.

-SB15845 1Wheel Cylinder Repair Kit

(includes spring, cup and boot)

-SB40929 210" Brake Drum

10" SELF-ADJUSTING BRAKE CLUSTER and DRUM PARTS BREAKDOWN

Page 16

OPTIONAL SURGE BRAKES (KK260SB and KK360SB) PARTS BREAKDOWN

Model DA603

Brake Actuator 1

Please order replacement parts by PART NO. and DESCRIPTION.

SURGE BRAKES PARTS LIST

1. SB587 1 87" Brake Line

2. 01863 2 Rubber Gommet

3. 02746 1 54" Protective Hose

4. SB7H67 1 7" Brake Hose (rubber)

5. SB536 2 36" Brake Line (KK260SB)

5. SB540 2 40" Brake Line (KK360SB)

6. SB7764 2 Rubber Brake Line Clip

SB10H136

2 10" Brake Hose (rubber)

8. 02210 8 7/16"-20UNF x 1-1/4" Epoxied Bolt (gr.8)

9. 04174 4 12mm Retainer Washer (2 per drum)

10. 00496 2 Machine Washer

11. 02549 4 Rubber Protector

12. SB7785 1 3/16 Brake Line Tee

13. SB24429 - Left Brake Cluster

-- SB24428 - Right Brake Cluster

14. SB15545 - 10î Brake Drum

REF. PART

NO. NO. QTY. DESCRIPTION

BLEEDING THE SYSTEM

The first requirement for safe, sure hydraulic braking is the use

of quality brake fluid. Use only DOT-3 or DOT-4 brake fluid from

a sealed container.

If pressure bleeding equipment is available, follow the

manufacturerís instruction in bleeding the system.

If system must be bled manually, proceed as follows: Fill

master cylinder with fluid. Install bleeder hose on first wheel

cylinder to be bled.

Have loose end of hose submerged in brake fluid in glass

container to observe bubbling.

By loosening the bleeder screw located in the wheel cylinder

one turn, the system is open to the atmosphere through the

passage drilled in the screw. Pump actuator with long steady

strokes. The bleeding operation is completed when bubbles

no longer rise to the surface of the fluid. Be sure to close

bleeder screw securely.

Repeat bleeding operation at each wheel cylinder. During the

bleeding process, replenish the brake fluid, so the level does

not fall below the 1/2 full level in the master cylinder reservoir.

After bleeding is complete, make sure master cylinder reser-

voir is filled and filler cap is securely in place.

After the bleeding operation has been completed, apply pres-

sure to the system and check the whole brake system for leaks.

Page 17

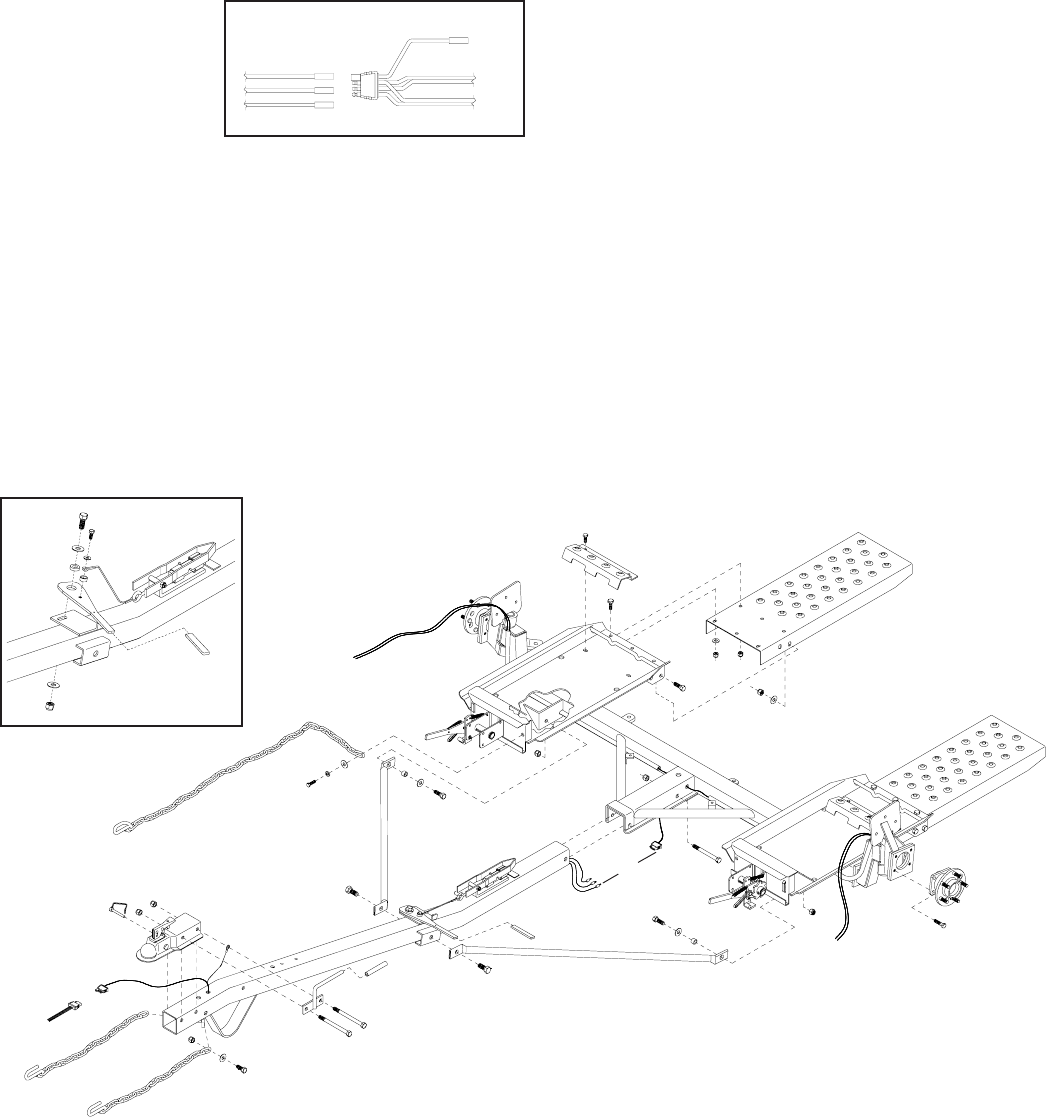

KK260 AND KK360

ASSEMBLY INSTRUCTIONS

1. Place the main frame on blocks or some other sturdy

support so that the frame rests approximately 8" - 10" off

the ground. Attach the tilt bed ramps (#1) as shown using

four 1/2" x 1-1/4" grade 5 bolts (#4), flat washer (#5) and

lock nuts (#6), two on each side of each ramp, and then

three 7/16" x 1" grade 8 bolts (#2) and lock nuts (#3) on the

top of each ramp. Torque 7/16" bolts to 80 ft. lbs. and

torque 1/2" bolts to 75 ft. lbs.

2. Attach rear tire stop (#7) as shown using two 3/8" x 1-1/4"

grade 5 bolts (#8), flat washers (#9) and lock nuts (#10).

These 3/8" x 1-1/4" bolts will also go through the tilt bed

ramps. Torque 3/8" x 1-1/4" bolts to 35 ft. lbs.

3. Hold tongue up to

front of trailer and

locate the three

bullet connectors

extending out the

back of the tongue

and plug into the con-

nector protruding from under the main frame channel. Do

not cross colors when making this connection. See

drawing above. Make sure the the pigtail for the license

plate bracket is out.

4. Mount the tongue (#11) to the front of the Kar Kaddy

mainframe using a 5/8" x 4-1/2" grade 5 bolt (#12) and lock

nut (#13)(torque to 50 ft. lbs). Do not torque over 50 ft. lbs.

or bed will not tilt.

5. Mount the latch handle (#14) to the mounting plate using

the 1/2" x 1-1/4" grade 5 bolt (#15), two 1/2" flatwashers

(#16), bushing (#17), and 1/2" locknut (#18). Put stainless

steel bushing (#19) into latch cable (#20) and secure to

handle using 3/8" x 3/4" grade 5 bolt (#21) and 5/16"

flatwasher (#22). Adjust latch so cable is snug by loosening

bolt and nut and sliding handle forward or back.

24" Chain

36" Chain

Yellow/Brown

Wires

Green/Brown

Wires

Latch Handle

Installation

Connector

1920

2625 24

25 27

293031

40 42

6. Lay the bracing struts (#23) out along the tow dolly tongue

with the back end (the end with the larger hole in it) of the

bracing strut toward the mainframe. Loosely bolt the back

of each bracing strut to the trailer frame as shown using

1/2" x 1-1/2" grade 5 bolt (#24), flatwasher (#25), pivot

bushing (#26) and locknut (#27). Hold up the front end (the

end with the smaller hole) of each bracing strut to the

tongue and secure with two 5/8" x 1-1/4" epoxied hex head

bolts (#28). Torque the 1/2" x 1-1/2" bolt with the pivot

bushing to 75 ft. lbs. Torque the two 5/8" x 1-1/4" epoxied

hex head bolts to 100 ft. lbs.

7. Remove the 7/16" x 1-1/4" bolt (#29), flat washer (#30), and

lock washer (#31) from the front of each wheel platform tire

stop. Slide the tie-down winches into the channel at the

front of the wheel platforms as shown. The ratchet handles

are to the outside of each winch and ratchet springs are to

the top. Attach two towed vehicle safety chains (#32, 36"

long). Secure one chain to each wheel platform tire stop

and replace flat washer, lock washer and 7/16" x 1-1/4"

bolt.

8. Attach each hub and spindle assembly (#33) as shown

using four 7/16" x 1-1/4" grade 8 epoxied bolts (#34).

(Torque to 80 ft. lbs.)

9. Secure the hitch coupler (#35) and the lift handle (#36) to

the front end of the tongue (#11) with two 1/2" x 4-1/2"

grade 5 bolts (#37) and lock nuts (#38). The white ground

wire is attached under the head of the rear bolt attaching

the hitch coupler. (It is very important that a good ground

is made). Torque the lock nuts to 75 - 80 ft. lbs. Tap the

rubber grip (#39) onto the handle with a rubber hammer or

a wooden mallet.

10. Attach the two 24" long transport safety chains (#40) to the

two holes located in the tongue rest using two 7/16" x 1-

1/4" grade 5 bolts (#41), flat washers (#42) and lock nuts

(#43). Torque bolts to 50 ft. lbs.

Pigtail

Brown/Green

Brown/Yellow

Yellow

Green

Brown

Page 18

11. DO NOT MOVE THE TIE ROD LOCKING CLAMP FROM

ITS FACTORY PRESET POSITION.

GREASE TIE ROD ENDS BEFORE USING.

NOTE: Tie rods are factory set and should not be

readjusted.

12. Bolt on the steering stabilizer cylinder (#1) as shown using

a 5/8" x 2-3/4" bolt (#2) coming up from the bottom,

through a 5/8" flat washer (#3), through cylinder end and

into threaded ear on the Kar Kaddy main frame. Snug bolt

up, then tighten putting 3/16" squeeze on the rubber of the

cylinder end. The final gap between the flat washer and

the threaded ear is 1-1/4". Lock in place with a 5/8" lock

nut (#4). Extend cylinder and attach the other end of the

cylinder to the tie rod locking clamp using a 5/8" x 2-3/4"

bolt and lock nut. Align locking clamp and tow dolly frame

ear, slide in black handle locking pin (#5) and secure with

hair pin (#6).

The "auto steer" feature is locked.

NOTE: If installed properly there should be a 1-1/4" gap

between the flat washer and the threaded ear as shown in

Figure A.

NOTE: A light film of oil should be applied to retractable

shaft of steering stabilizer cylinder to prevent rust from

forming. If Kar Kaddy sets idle for extended periods of

time, turn wheels of tow dolly so that the shaft is fully

retracted to prevent rust.

Figure A

13. Mount the license plate bracket (#7) to the frame as shown

using 1/4" x 3/4" carriage bolts (#8) and lock nuts (#9).

Plug pigtail into license plate light. Install license plate and

license plate clip (#29) as shown on the top of page 17.

14. Bolt the fenders (#10) on as shown using 3/8" x 1-1/2"

grade 5 bolts (#11), back-up plates (#12) and lock nuts

(#13) in each fender. Mount the fender with the light pocket

to the rear. The 3/8" I.D. external star washer (#14) mounts

between fender inner frame and main frame mounting plate

to ensure a good ground. Attach the white ground wire (the

end with the eye loop on it) under the center top bolt head.

The tie rod and locking clamp is

shown unattached to the Kar

Kaddy for illustration purposes

only. The tie rod is shipped as-

sembled for you.

Tie Rod Locking Clamp

Grease Zerk

White

Ground Wire

Grease Zerk

1-1/4"

Page 19

WIRING & FENDER

ASSEMBLY INSTRUCTIONS

NOTE: It is advantageous to wire the fender lights

prior to attaching the wheels.

1. Cut off stripped ends of the wiring harness, cut off stripped

ends of the front clearance light, and cut off the stripped

end of the white ground wire. The yellow/brown wires must

be run to the left tail light pocket. The green/brown wires

must be run to the right tail light pocket. Starting at either

fender, pull the loom downward from the center of the

fender and push the green/brown (or yellow/brown) wires

upward through the loom until it comes out by the light

pocket. Push the white ground wire through the slit in the

top of the loom in the fender trough toward the light pocket.

2. Push the brown clearance light wire through the loom on

the front of the fender until it comes out the loom in the

center of the fender, then push the brown wire through the

slit in the top of the back loom and toward the light pocket

until it comes out the loom. Mount the amber clearance

light to the front of the fender using the stainless steel

grounding strap (attached to the steel frame inside the

fender)SEE BELOW, then a 1/4" flat washer and lock nut.

Make sure the wire runs through the recess in the back of

the light so it doesn't get pinched when tightening the

mounting nut.

3. When wiring the pigtail into the tow dolly harness at the

fender pocket, the wire ends should NOT be stripped. Use

the wire connectors to make all contacts. Lay the wire in

the connector, pinch securely with a pliers, close the wire

connector.

Push the hollow looped end of the fender wireloom hanger

into the small hole under the fender pocket on the side of

the fender. Leave the holder open.

Make sure all four wires are coming out the fender wire

loom. Slide the rubber fender grommet over the wires and

up close to the wire loom. Splice the brown clearance

fender light and tow dolly brown wire together. Make sure

the connector is far enough from the loom to allow you to

push the connector into the hole in the fender pocket later.

4. Pull the black and white wire from the pigtail through the

hole in the fender pocket outward. Splice the white wire

to the white wire coming out the loom. Splice the black

wire to the brown wire. Splice the green (or yellow) wire

to the red wire of the pigtail. Make the connections on the

outside of the fender pocket, then push the connectors

and wires back into the fender pocket. Push the grommet

into the fender with the wire loom close to the grommet.

Wrap the loom hanger tie around the wire loom and insert

the peg into fender.

White

Triple Wire Plug

from Light

Black Red

White Wire

Connector

Yellow or

Green

Yellow/Brown or

Green/Brown

WIRING DIAGRAM FOR THE

TOW DOLLY FENDER

5. Push the round rubber light seal into the light pocket. Be

sure the lip is secured in the light housing. Plug the pigtail

into the fender light. Push the round light into the rubber

seal until it snaps in firmly. Wire the other fender in the

same manner.

6. Mount the mud flaps to the inside back of the fender using

two 1/4" x 3/4" brown colored truss head bolts with flat

washers and lock nuts. Make sure the Kar Kaddy logo on

the flap faces the rear.

7. Attach the wheels to the main frame. Use the supplied

lug nuts (#4) and torque to 75 - 80 ft. lbs.

WIRING OF THE TOWING VEHICLE

Connect wiring to towing vehicle, keeping in mind the color

code indicated below.

1. Make certain towing vehicle lights are "OFF".

2. Connect YELLOW wire to left turn signal and stop wire in

the left rear of towing vehicle with the wire splicer (01883)

supplied.

3. Connect GREEN wire to the right turn signal and stop wire.

4. Connect BROWN wire to tail light wire.

5. VERY IMPORTANT - connect WHITE wire to frame body

of towing vehicle. This is the common ground, and a clean

metal - to - metal contact must be made.

CAUTION: Many flashers for vehicle turn signals will not

carry the additional load of Kar Kaddy turn signals. If

normal operation does not occur when connected to the

Kar Kaddy, a heavy duty replacement flasher may be

obtained through auto parts outlets.

WHITE Ground

BROWN Tail Lights, License Plate Lights,

Light Cluster Bar & Clearance Lights

YELLOW Left Turn and Stop

GREEN Right Turn and Stop

COLOR CODE FOR WIRING HARNESS

Inside of fender with grounding

strap attached.

Brown

Jumper

Brown Jumper

to Front

Clearance

Light

White Ground Wire to

Fender

Page 20

12"

BACK MEASUREMENT

FRONT MEASUREMENT

(1/32" to 1/16" less than back measurement)

18"

Ground

Put a mark on each side of the locking clamp on the

tie rod.

2. Loosen the locking nuts on each end of the tie rod and then

the six bolts on the tie rod locking clamp.

3. Turn the tie rod whichever direction is needed until you

have a front measurement of 1/32" to 1/16" less than the

back measurement.

4. Hold the tie rod and tighten the locknuts on each end.

5. Measure again to make sure the toe-in measurement has

not moved.

6. Tighten the locking clamp bolts while holding clamp

between the marks you previously put on the tie rod.

7. Reassemble the rest of the Kar Kaddy unit.

Have the tongue in a "hooked-up position with the ball

coupler 18" off the ground. Jack up the axle just enough to

allow you to take the wheels off and put blocks under the axle.

Take the wheels off.

Find two 24" long bars, these could be a level, a square or

a straight piece of iron bar. Clamp one bar tight to the face of

each hub with 12" extending forward and backward of the

center of the spindle. The bars must be parallel to the platform

the car sits on. Measure across the back end of the bars and

then across the front end. The front measurement should be

1/32" to 1/16" less than the back measurement. If the unit

needs to be adjusted, this must be done by adjusting the tie rod.

TOE-IN ADJUSTMENT

MEASURING THE TOE-IN

KAR-KADDY TOE-IN ADJUSTMENT

LOCKING

CLAMP

Page 21

-KK2WJ 1Optional Wheel Jack w/ hardware

Please order replacement parts by PART NO. and DESCRIPTION.

OPTIONAL WHEEL JACK

WHEEL JACK PARTS LIST

* All options may not mount on tow dolly simultaneously.*

REF. PART

NO. NO. QTY. DESCRIPTION

KK2DF Optional Deflector

1. 02055-25 2 Deflector Framework

2. 02592 4 3/8"-16UNC Nylon Insert Lock Nut

3. 02759 2 3/8"-16UNC Square U-Bolt (fits around 3" tube)

4. 00161-95 2 Lock Handle

5. 02054-25 1 Deflector Slide Mount

6. 00095 4 3/8"-16UNC x 3/4" lg. Square Head Set Screw

7. 02743-25 1 Deflector Upright Post

8. 02165 1 Deflector Lacing Cord (1/8" x 25 ft.)

9. 02161 1 Deflector Fabric

Please order replacement parts by PART NO. and DESCRIPTION.

OPTIONAL DEFLECTOR PARTS LIST

OPTIONAL DEFLECTOR PARTS BREAKDOWN

OPTIONAL LIGHT BAR (KKLB) PARTS BREAKDOWN

KKLB Kar Kaddy Light Bar (complete)

REF. PART

NO. NO. QTY. DESCRIPTION

LIGHT BAR PARTS LIST

Please order replacement parts by PART NO. and DESCRIPTION.

11 11

1. 01772 2 Nylon Security Strap with hooks & tightener

2. 01857 1 Left Tail/ Brake and Signal Light w/Lenses

3. 01773 1 Brown Jumper Wire

4. 01886 4 Wire Holder (metal)

5. 02385-25 1 Light Bar Framework

6. 02386.25 2 Adjustable Light Bracket

7. 01856 1 Right Tail/ Brake and Signal Light w/Lenses

8. 02772 10 1/4"-20UNC Nylon Insert Locknut

9. 00092 6 1/4"-20UNC x 1/2" Hex Head Bolt

10. 01777-25 2 Light Bar "Z" Bracket

11. 01778 4 3" Suction Cup w/Bolt (#13)

12. 02198 1 Light Bar Wiring Harness (new style)

13. 00068 4 1/4"-20UNC x 3/4" Hex Head Bolt

14. 01911 - Large Red Lens

15. 01912 - Small Red Lens

16. 01890 - Clear Lens

114

COLOR CODE FOR WIRING HARNESS

WHITE Ground

BROWN Tail Lights, License Plate Lights,

Light Cluster Bar & Clearance Lights

YELLOW Left Turn and Stop

GREEN Right Turn and Stop

Page 22

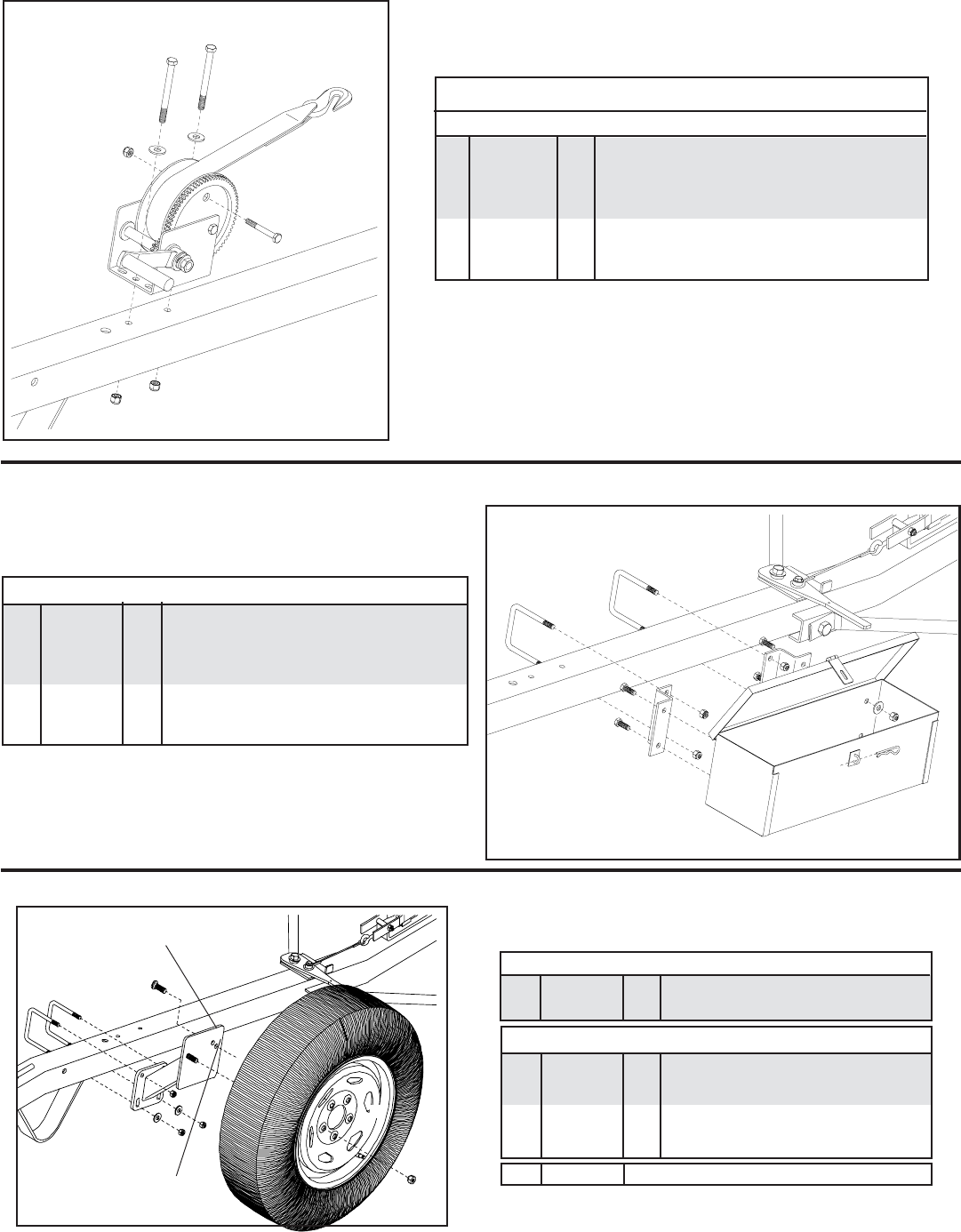

1. 00059 4 3/8" Flatwasher

2. 02592 8 3/8"-16UNC Nylon Insert Locknut

3. 01888-25 1 Tool Box

4. 00182 1 Small Hair Pin

5. 02742-25 2 Mounting "Z" Bracket

6. 00907 4 3/8"-16UNC x 1" Hex Head Bolt (gr.5)

7. 02759 2 3/8"-16UNC x 3" Square U-Bolt

OPTIONAL WINCH

KK2TB 1Optional Tool Box

OPTIONAL TOOL BOX

PARTS LIST

Please order replacement parts by PART NO. and DESCRIPTION.

* All options may not mount on tow dolly simultaneously.*

OPTIONAL SPARE TIRE and MOUNT PARTS BREAKDOWN

REF.

NO. PART NO. QTY. DESCRIPTION

PARTS LIST

KK2W 1Optional Winch

Please order replacement parts by PART NO. and DESCRIPTION.

1. 04620 1 Winch Mechanism (1400 capacity)

-04621 - Replacement Handle

3. 01738 1 Strap Assembly (includes strap & hook)

4. 02207 1 3/8"-16UNC x 3" Hex Hd. Bolt (gr.5)

5. 02769 2 3/8"-16UNC x 4" Hex Head Bolt (gr.5)

6. 00059 2 3/8" Flatwasher

7. 02592 3 3/8"-16UNC Nylon Insert Locknut

* All options may not mount on tow dolly simultaneously.*

3. 02193-25 1 Spare Tire Bracket

4. 02917 1 Stud Bolt (12mm x 1.5)

5. 02933 2 Wheel Nut (12mm) Chrome

6. 02759 2 3/8"-16UNC Square U-Bolt

7. 00059 2 3/8" Flatwasher

8. 02592 4 3/8"-16UNC Nylon Insert Locknut

KK6STM 1Spare Tire Mounting Bracket

1. N/A 1 ST205/75R 14"x"C" BSW Radial Tire

2. 04367 1 6" x 14" Rim 115mm Bolt Circle

-KK8STBR 1Optional Spare Tire and Rim

-KK6TC Optional Spare Tire Cover

Please order replacement parts by PART NO. & DESCRIP-

Drive in stud here for

tire with rim #04173 X

(100mm bolt circle).

Drive in stud here for

tire with rim #04366

(115mm bolt circle).

378

* All options may not mount on tow dolly simultaneously.*

Page 23

NOTES

Page 24

DETHMERS MFG. COMPANY

P.O. BOX 189

4010 320th St., BOYDEN, IA. 51234

PH: (712) 725-2311 FAX: (712) 725-2380

TOLL FREE: 1-800-54DEMCO (1-800-543-3626)

www.demco-products.com

Demco Dethmers Manufacturing Company Utility Trailer Kk260 Users Manual

KK360 to the manual 21a62de5-7a46-4867-a1a7-0292800cbe3d

Navigation menu

Versions of this User Manual:

Views

Navigation
