DVD VIDEO AUTO CHANGER

DVM-1815

OPERATING INSTRUCTIONS

MODE D'EMPLOI

INSTRUCCIONES DE OPERACION

2Z_

_ _ 3_ _ _ _i_ _ _ _ _ _ _ _

®®

£®®®

@@@@

50@@

U.,fT-b, LD

Y_y

_©gd_ o o

e....

DENON

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS I

APPLIANCE TO RAIN OR MOISTURE. I

CAUTION

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

,_ The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the

presence of uninsulated 'dangerous voltage" within the

product's enclosure that may be of sufficient magnitude

to constitute a risk of electric shock to persons.

,_ The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in

the literature accompanying the appliance.

_- Laser Safety _-=

This unit employsa laser.Only a qualified service personshould removethe cover or attemptto service this device,due to possible

eye injury.

CAUTION: USEOF CONTROLSORADJUSTMENTSOR PERFORMANCEOF PROCEDURESOTHERTHANTHOSESPECI-

FIEDHEREINMAYRESULTINHAZARDOUSRADIATIONEXPOSURE.

CAUTION: VISIBLEAND INVISIBLELASER RADIATIONWHEN OPEN AND INTERLOCKDEFEATED.DO NOTSTAREINTO

BEAM.

LOCATION: INSIDE,NEARTHE DECK MECHANISM.

IFCC WARNING-This equipment may generate or use radio frequency energy. Changes or modifications to

this equipment may cause harmful interference unless the modifications are expressly approved in the

instruction manual.The user could lose the authority to operate this equipment if an unauthorized change

or modification is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numerique de la classe B eet conforme ala norme NMB-003 du Canada.

ICAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT. I

IATTENTION: POUR EVITER LES CHOC ELECTRIOUES, INTRODUlRE LA LAME LA PLUS LARGE DE LA

FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU'AU FOND.

Nonuse periods - Turn the unit off when it is not in use. Unplug the unit from the household AC outlet if it is

not to be used for a long time. Unplug the unit during lightning storms.

IA NOTE ABOUT RECYCLING

This product'spackaging materials are recyclableand can be reused. Please dispose of any materialsin accordancewith your

local recycling regulations.

Batteries should never bethrown away or incinerated butdisposed of in accordancewith your local regulationsconcerning

chemical wastes.

• Keep the set away from moisture water and dust.

• Never disassemble or modify the set in any way.

• Do not put heaw objects on the AC power cord.

• Keep the AC power cord away from heat appliances.

• Once the AC power cord is damaged be sure to replace with a new one.

2 EN

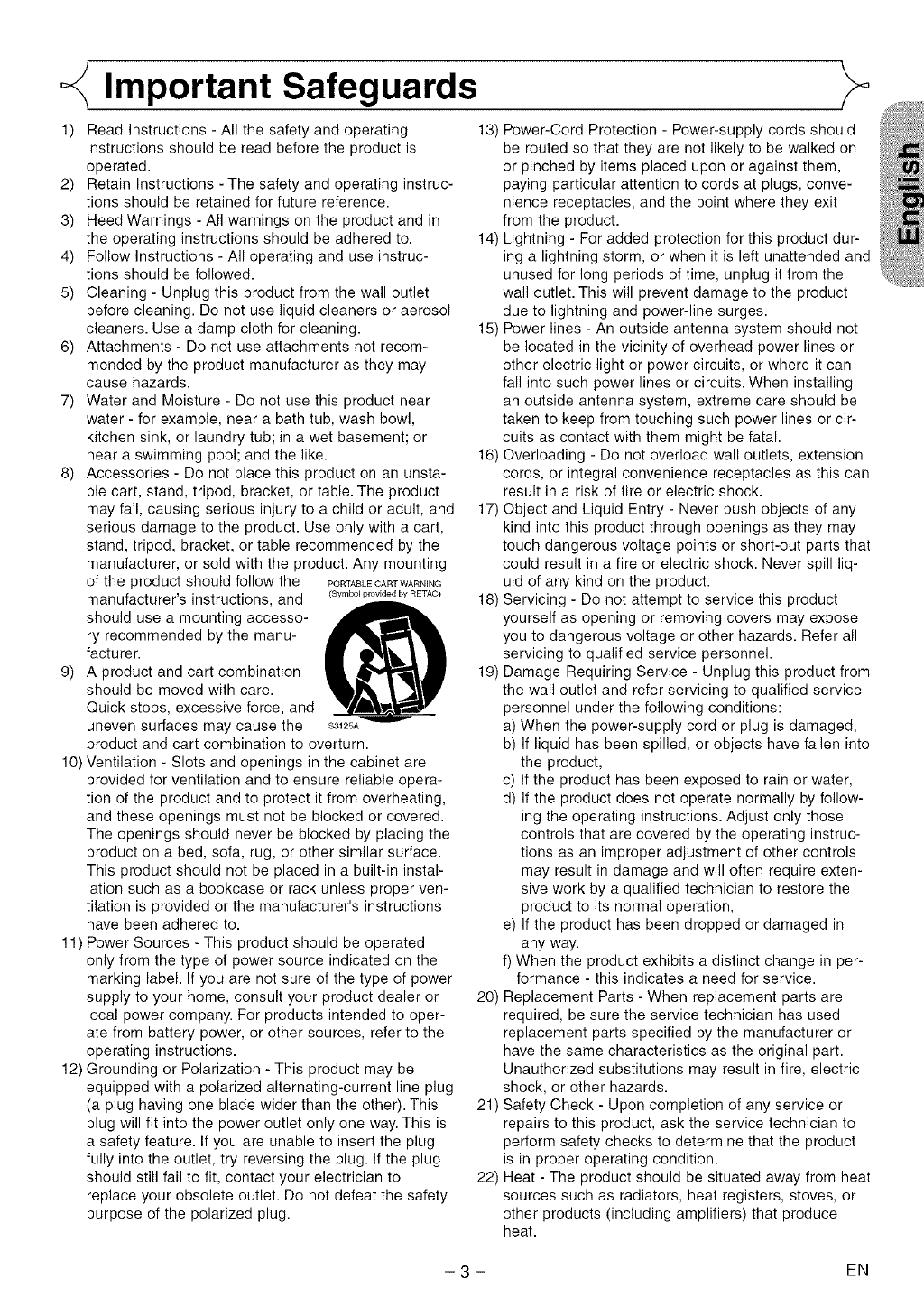

Important Safeguards

1) Read Instructions - All the safety and operating 13)

instructions should be read before the product is

operated.

2) Retain Instructions - The safety and operating instruc-

tions should be retained for future reference.

3) Heed Warnings - All warnings on the product and in

the operating instructions should be adhered to.

4) Follow Instructions - All operating and use instruc-

tions should be followed.

5) Cleaning - Unplug this product from the wall outlet

before cleaning. Do not use liquid cleaners or aerosol

cleaners. Use a damp cloth for cleaning. 15)

Power-Cord Protection - Power-supply cords should

be routed so that they are not likely to be walked on

or pinched by items placed upon or against them,

paying particular attention to cords at plugs, conve-

nience receptacles, and the point where they exit

from the product.

14) Lightning - For added protection for this product dur-

ing a lightning storm, or when it is left unattended and

unused for long periods of time, unplug it from the

wall outlet. This will prevent damage to the product

due to lightning and power-line surges.

Power lines - An outside antenna system should not

6) Attachments - Do not use attachments not recom-

mended by the product manufacturer as they may

cause hazards.

7) Water and Moisture - Do not use this product near

water - for example, near a bath tub, wash bowl,

kitchen sink, or laundry tub; in a wet basement; or

near a swimming pool; and the like.

8) Accessories - Do not place this product on an unsta-

ble cart, stand, tripod, bracket, or table. The product

may fall, causing serious injury to a child or adult, and

be located in the vicinity of overhead power lines or

other electric light or power circuits, or where it can

fall into such power lines or circuits. When installing

an outside antenna system, extreme care should be

taken to keep from touching such power lines or cir-

cuits as contact with them might be fatal.

16) Overloading -Do not overload wall outlets, extension

cords, or integral convenience receptacles as this can

result in a risk of fire or electric shock.

17) Object and Liquid Entry - Never push objects of any

serious damage to the product. Use only with a cart,

stand, tripod, bracket, or table recommended by the

manufacturer, or sold with the product. Any mounting

of the product should follow the PORTABLECARTWARNING

manufacturer's instructions, and

should use a mounting accesso-

ry recommended by the manu-

facturer.

9) A product and cart combination

should be moved with care.

Quick stops, excessive force, and

uneven surfaces may cause the

(Symbol provided by RETAC)

$3125A

product and cart combination to overturn.

10) Ventilation - Slots and openings in the cabinet are

provided for ventilation and to ensure reliable opera-

tion of the product and to protect it from overheating,

and these openings must not be blocked or covered.

The openings should never be blocked by placing the

product on a bed, sofa, rug, or other similar surface.

This product should not be placed in a built-in instal-

lation such as a bookcase or rack unless proper ven-

tilation is provided or the manufacturer's instructions

have been adhered to.

11) Power Sources - This product should be operated

only from the type of power source indicated on the

marking label. If you are not sure of the type of power

kind into this product through openings as they may

touch dangerous voltage points or short-out parts that

could result in a fire or electric shock. Never spill liq-

uid of any kind on the product.

18) Servicing - Do not attempt to service this product

yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all

servicing to qualified service personnel.

19) Damage Requiring Service - Unplug this product from

the wall outlet and refer servicing to qualified service

personnel under the following conditions:

a) When the power-supply cord or plug is damaged,

b) If liquid has been spilled, or objects have fallen into

the product,

c) If the product has been exposed to rain or water,

d) If the product does not operate normally by follow-

ing the operating instructions. Adjust only those

controls that are covered by the operating instruc-

tions as an improper adjustment of other controls

may result in damage and will often require exten-

sive work by a qualified technician to restore the

product to its normal operation,

e) If the product has been dropped or damaged in

any way.

f) When the product exhibits a distinct change in per-

formance - this indicates a need for service.

supply to your home, consult your product dealer or

local power company. For products intended to oper-

ate from battery power, or other sources, refer to the

operating instructions.

12) Grounding or Polarization - This product may be

equipped with a polarized alternating-current line plug

(a plug having one blade wider than the other). This

plug will fit into the power outlet only one way. This is

a safety feature. If you are unable to insert the plug

fully into the outlet, try reversing the plug. If the plug

should still fail to fit, contact your electrician to

replace your obsolete outlet. Do not defeat the safety

purpose of the polarized plug.

20) Replacement Parts - When replacement parts are

required, be sure the service technician has used

replacement parts specified by the manufacturer or

have the same characteristics as the original part.

Unauthorized substitutions may result in fire, electric

shock, or other hazards.

21) Safety Check - Upon completion of any service or

repairs to this product, ask the service technician to

perform safety checks to determine that the product

is in proper operating condition.

22) Heat - The product should be situated away from heat

sources such as radiators, heat registers, stoves, or

other products (including amplifiers) that produce

heat.

-3- EN

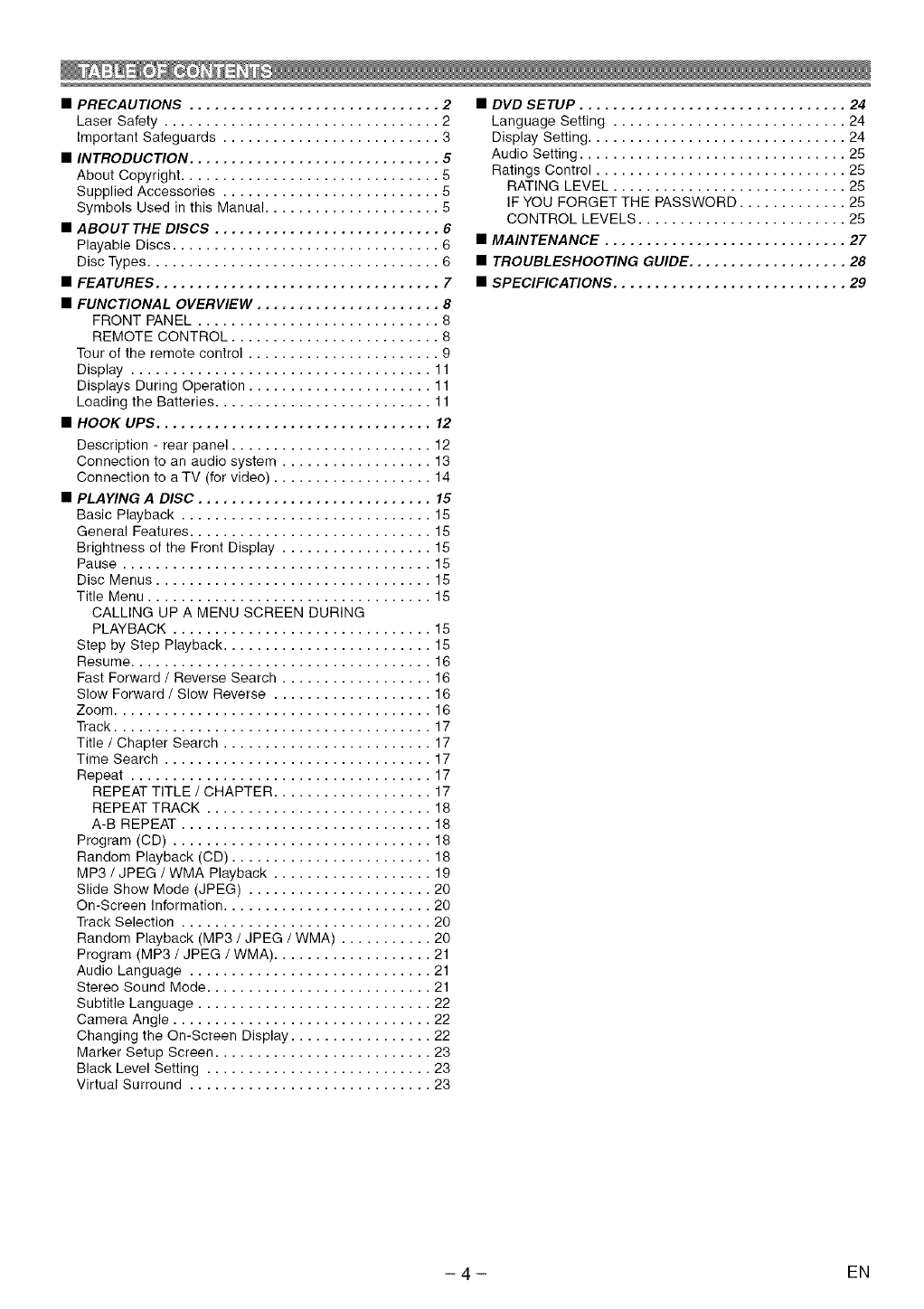

•PRECAUTIONS .............................. 2

Laser Safety ................................. 2

Important Safeguards .......................... 3

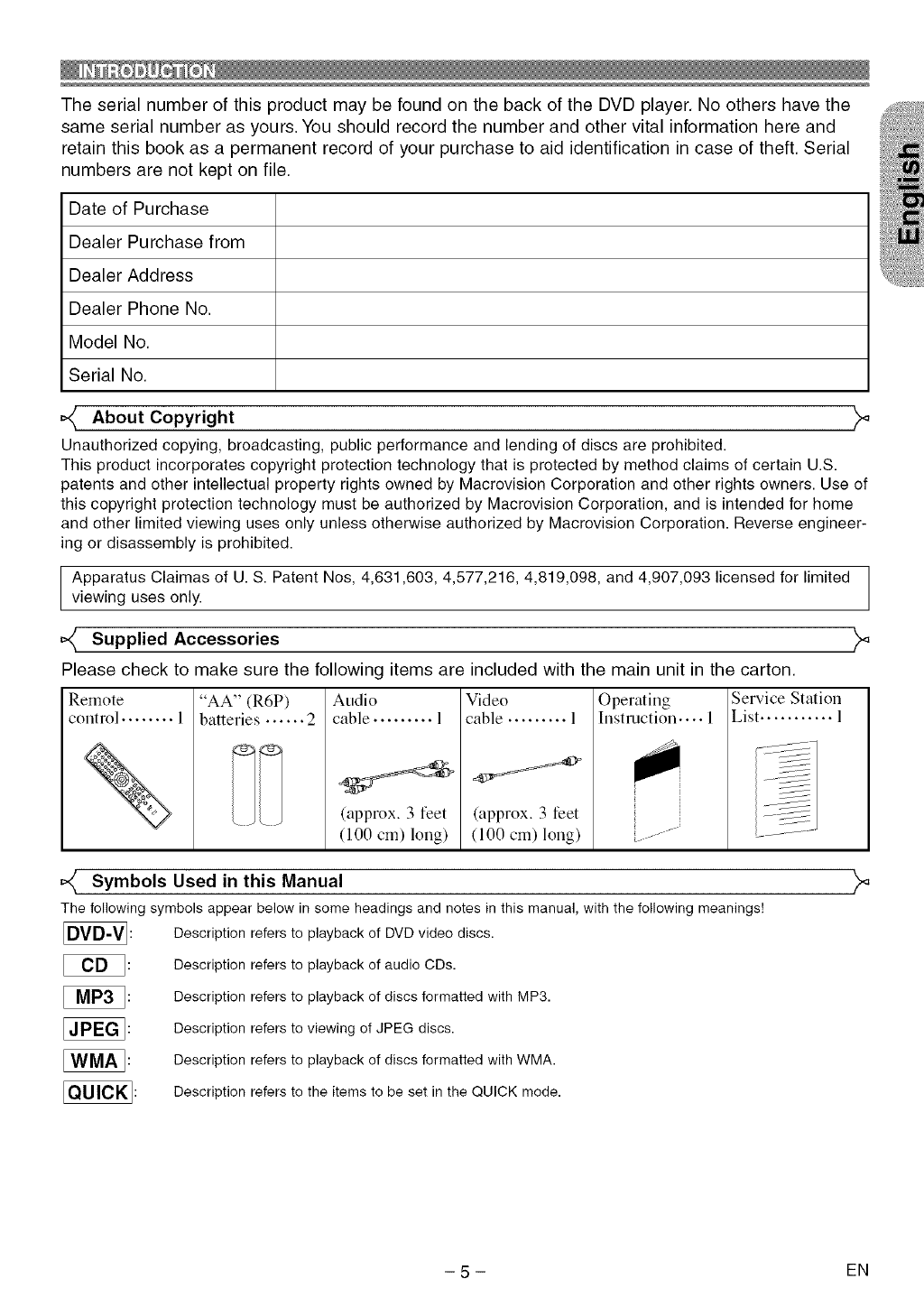

•INTRODUCTION .............................. 5

About Copyright ............................... 5

Supplied Accessories .......................... 5

Symbols Used in this Manual ..................... 5

•ABOUTTHE DISCS ........................... 6

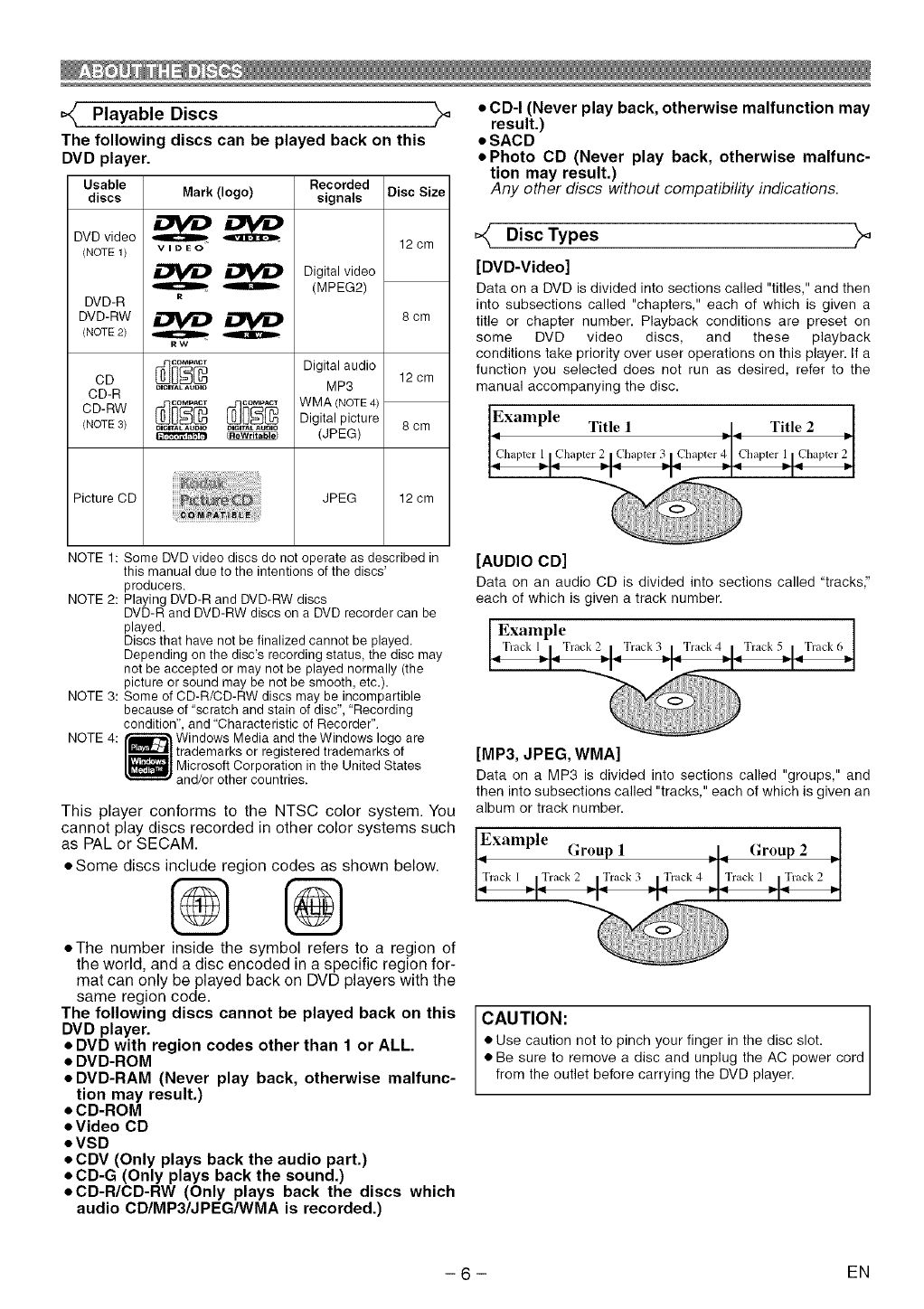

Playable Discs ................................ 6

Disc Types ................................... 6

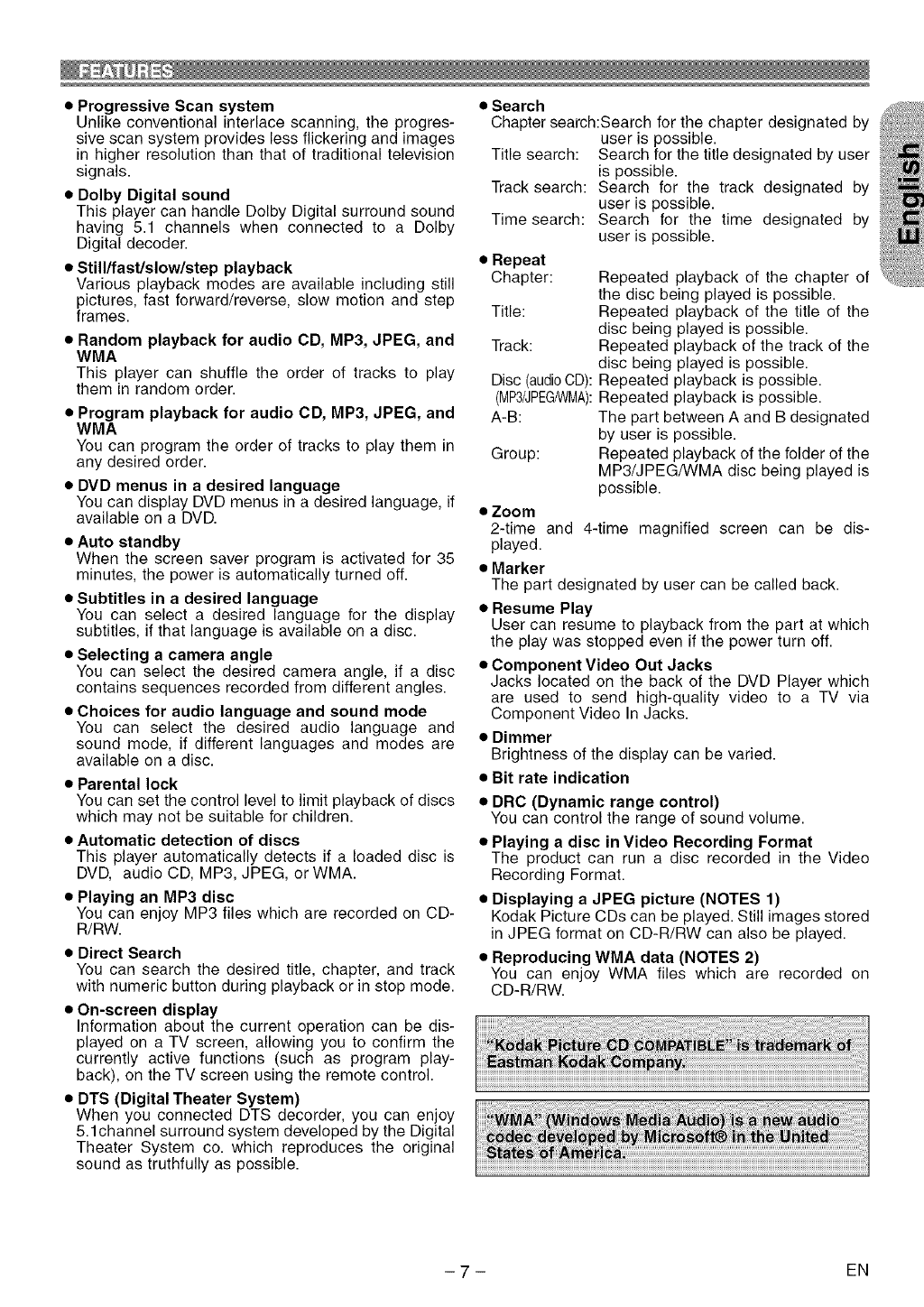

•FEATURES .................................. 7

•FUNCTIONAL OVERVIEW ...................... 8

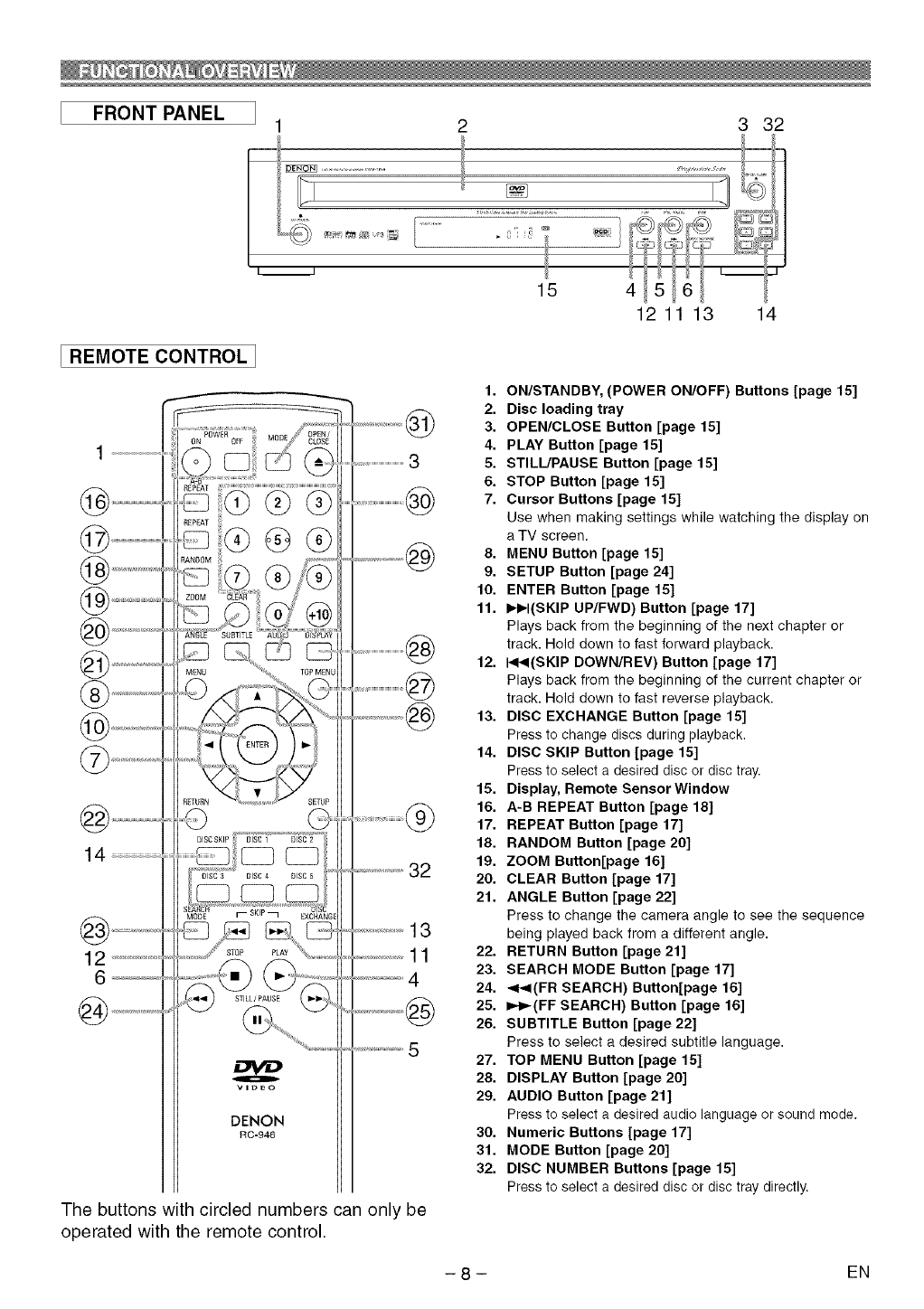

FRONT PANEL ............................. 8

REMOTE CONTROL ......................... 8

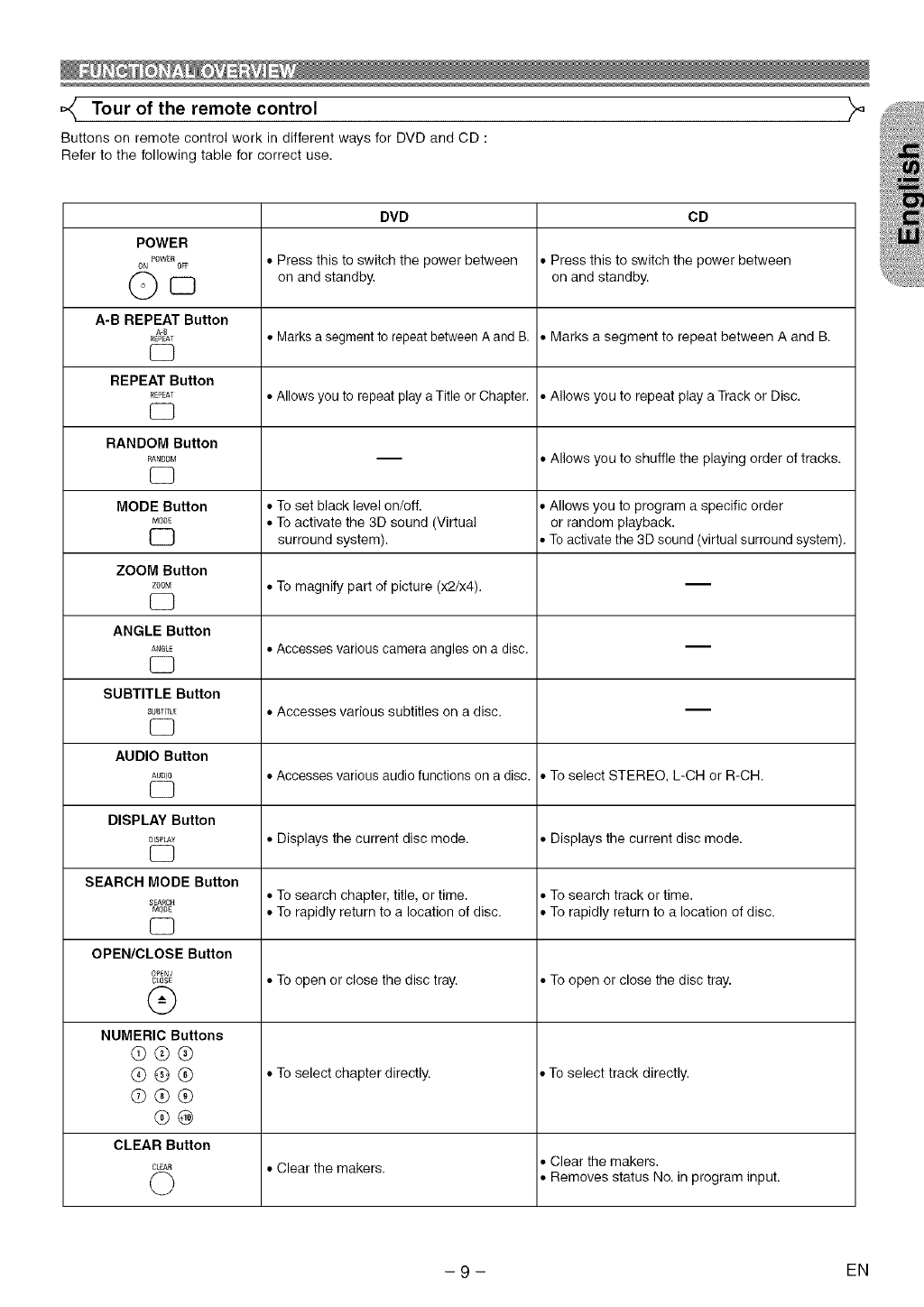

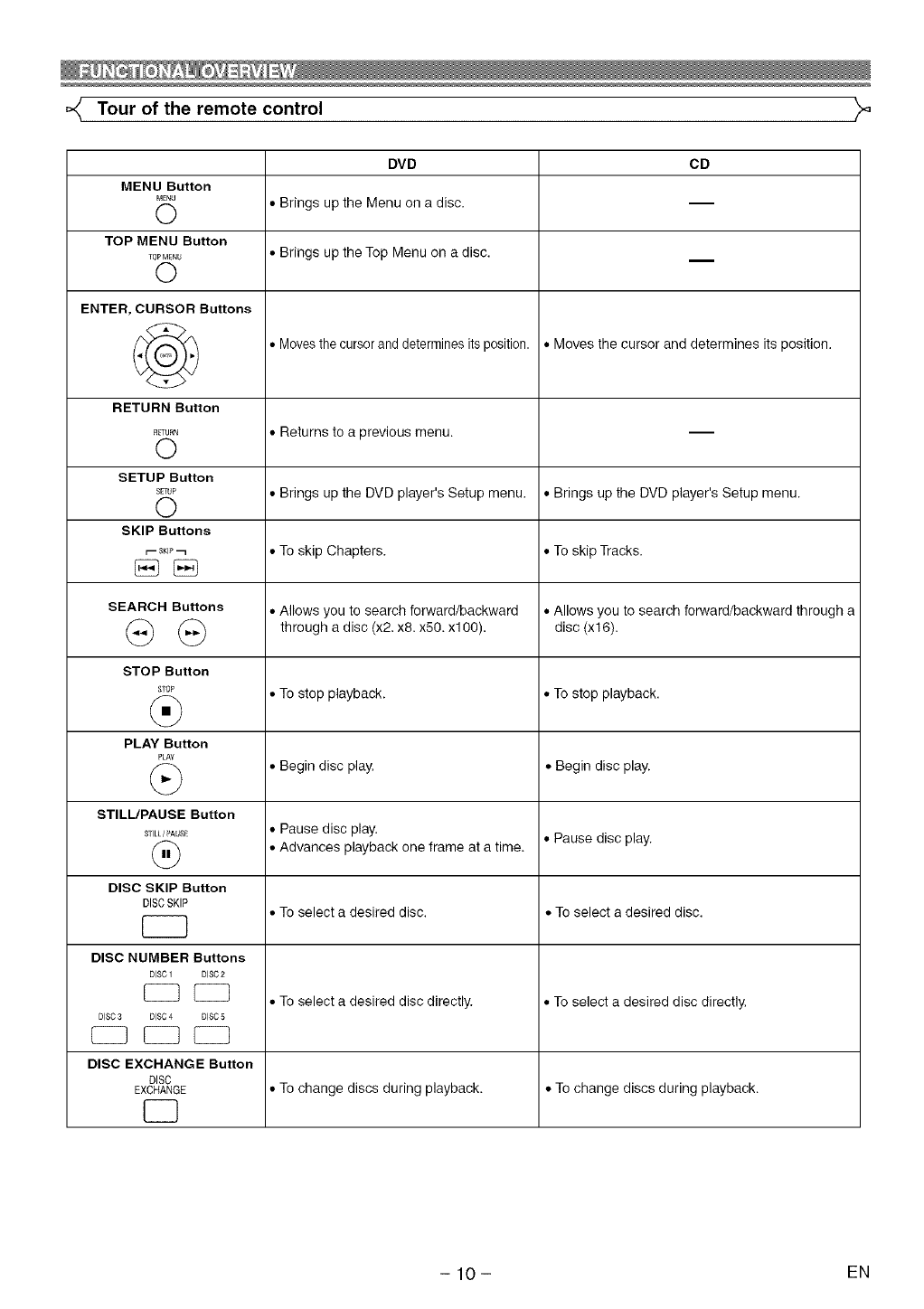

Tour of the remote control ....................... 9

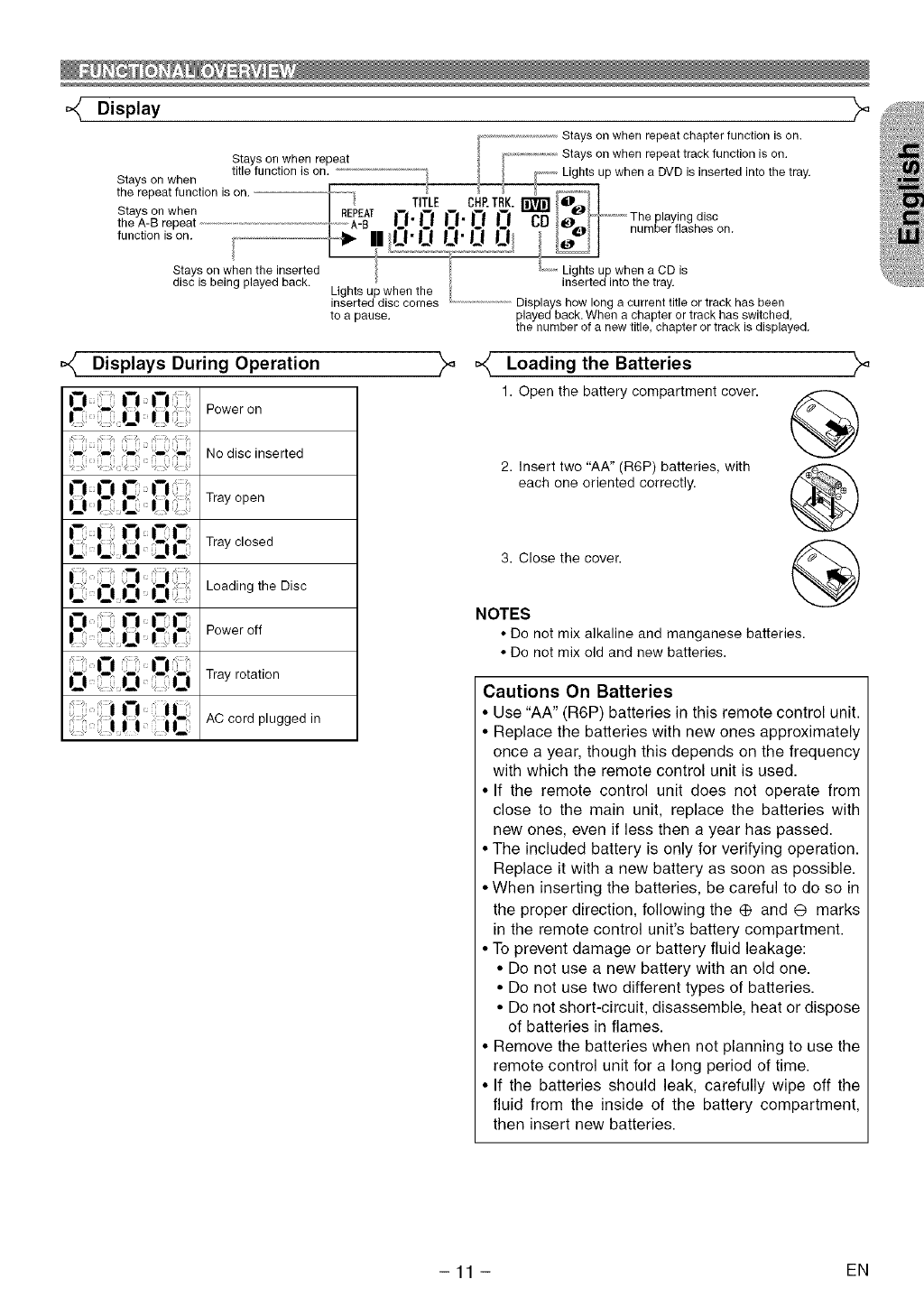

Display .................................... 11

Displays During Operation ...................... 11

Loading the Batteries .......................... 11

•HOOK UPS ................................. 12

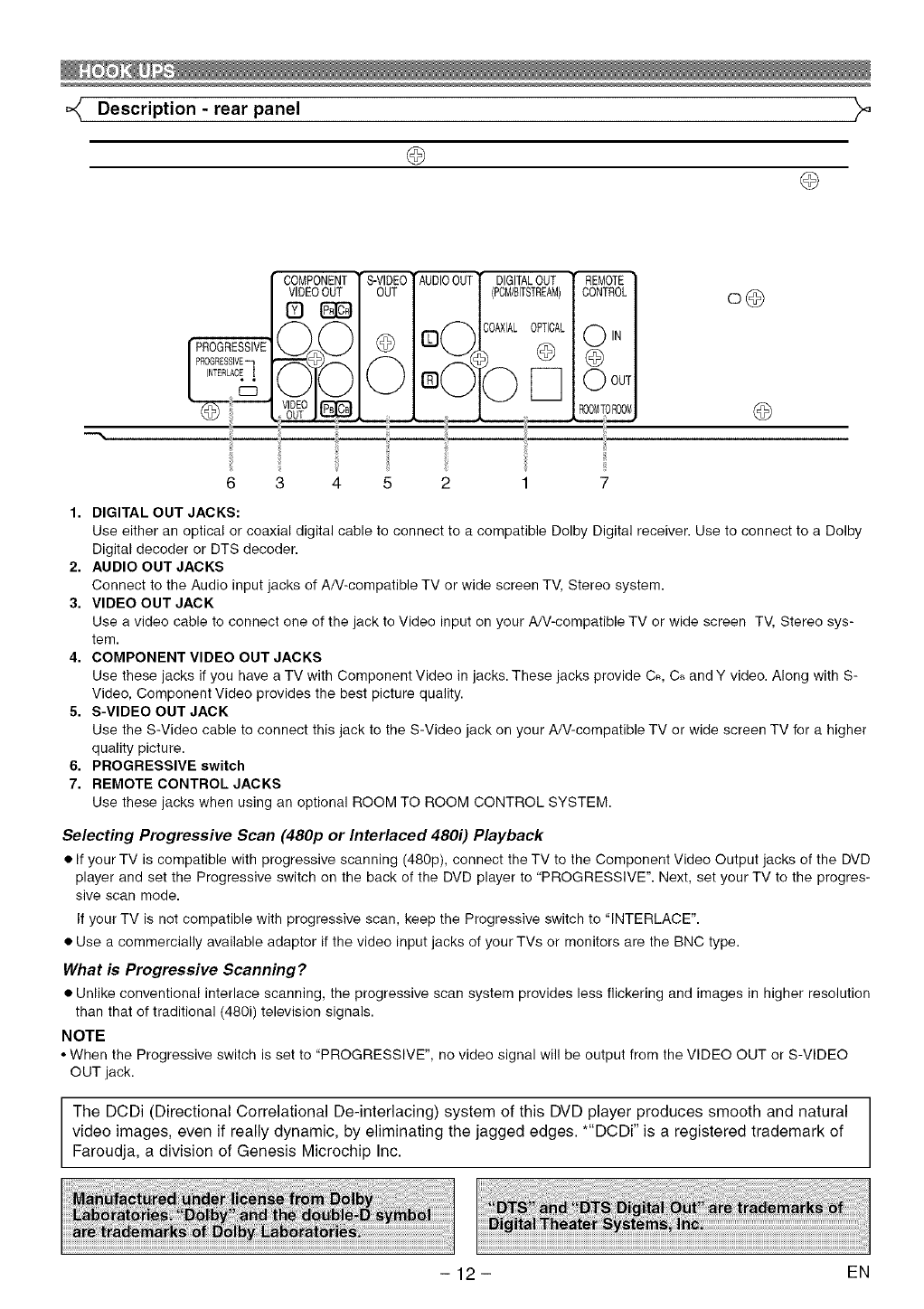

Description - rear panel ........................ 12

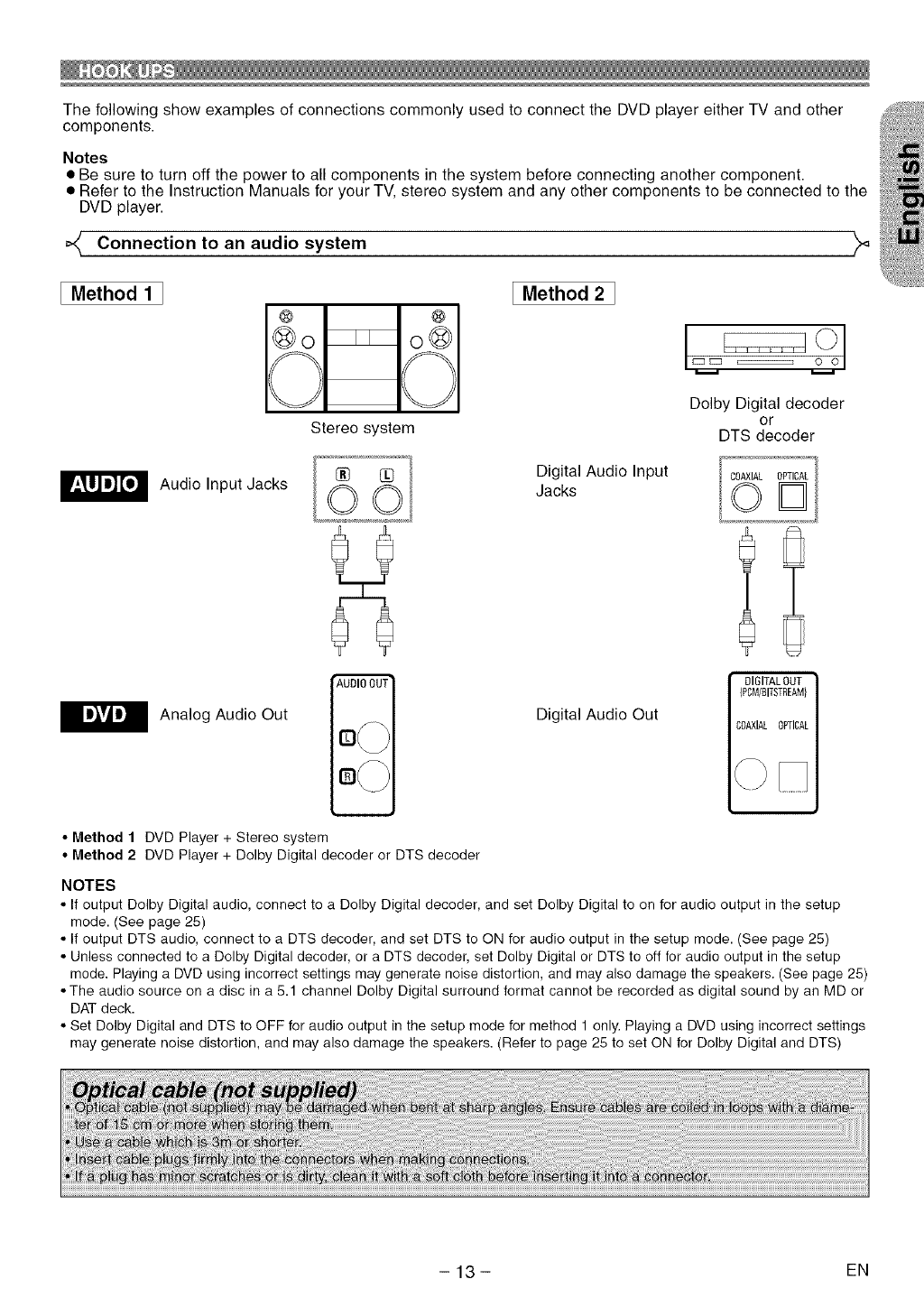

Connection to an audio system .................. 13

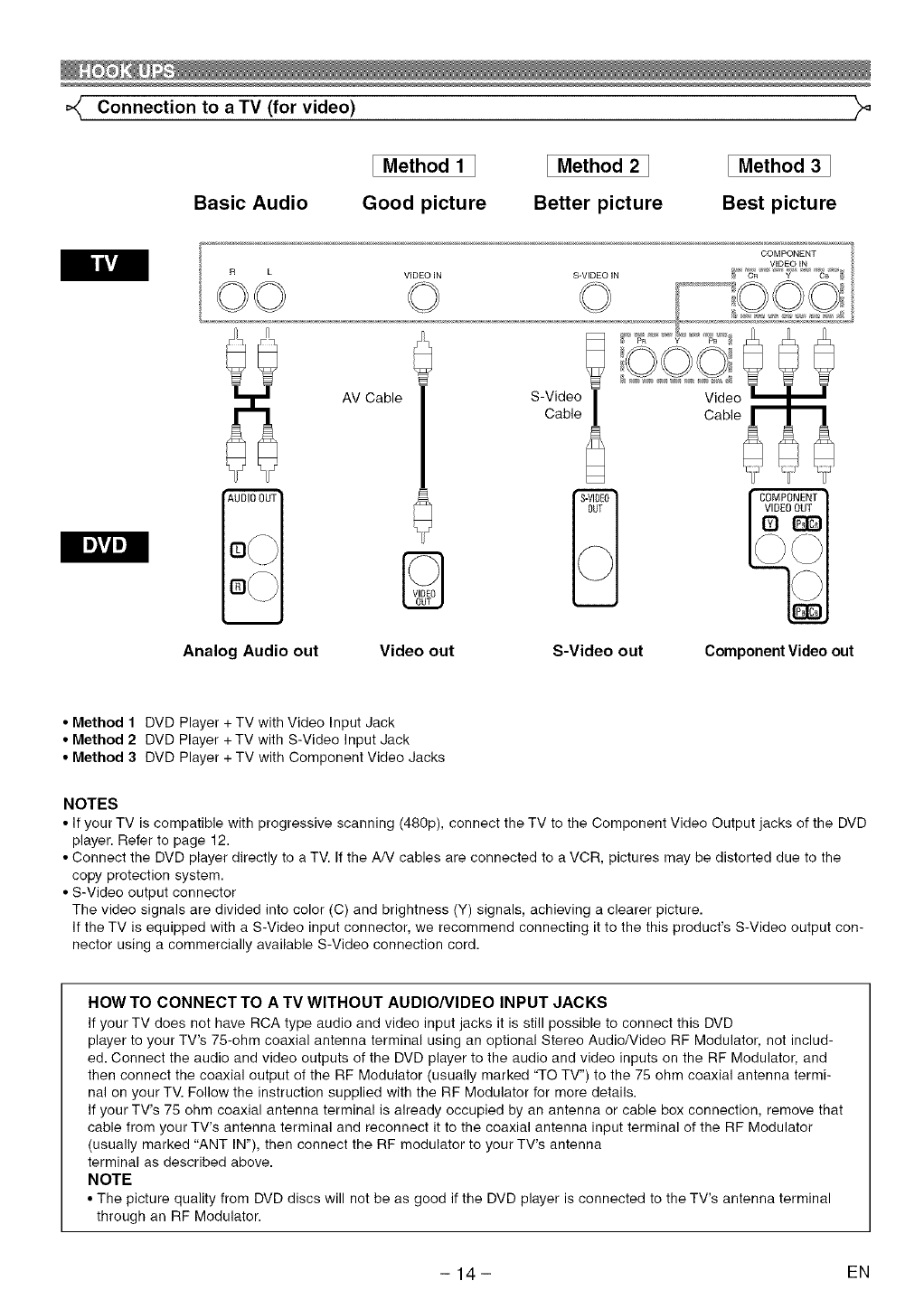

Connection to a TV (for video) ................... 14

• PLAYING A DISC ............................ 15

Basic Playback .............................. 15

General Features ............................. 15

Brightness of the Front Display .................. 15

Pause ..................................... 15

Disc Menus ................................. 15

Title Menu .................................. 15

CALLING UP A MENU SCREEN DURING

PLAYBACK ............................... 15

Step by Step Playback ......................... 15

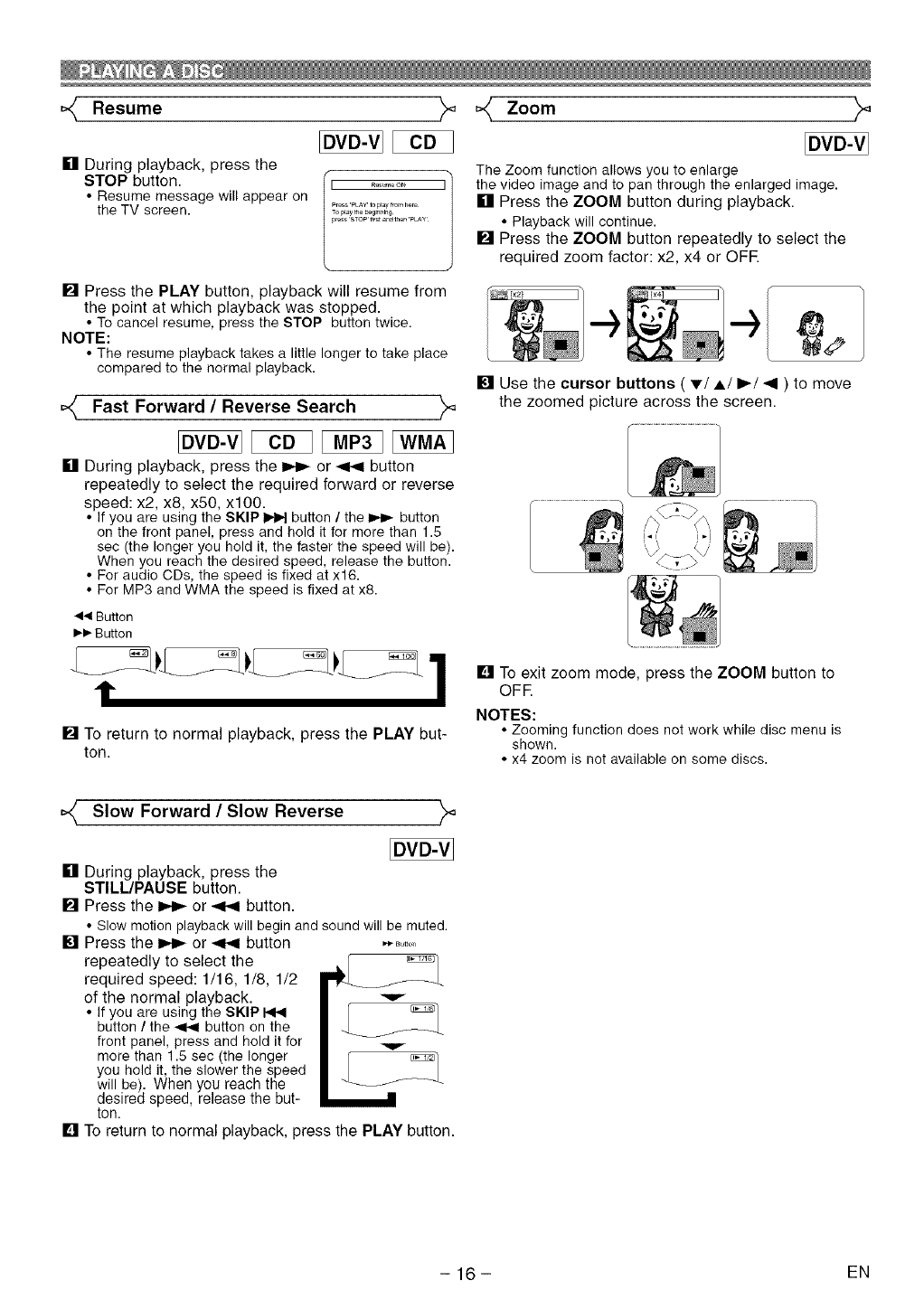

Resume .................................... 16

Fast Forward/Reverse Search .................. 16

Slow Forward/Slow Reverse ................... 16

Zoom ...................................... 16

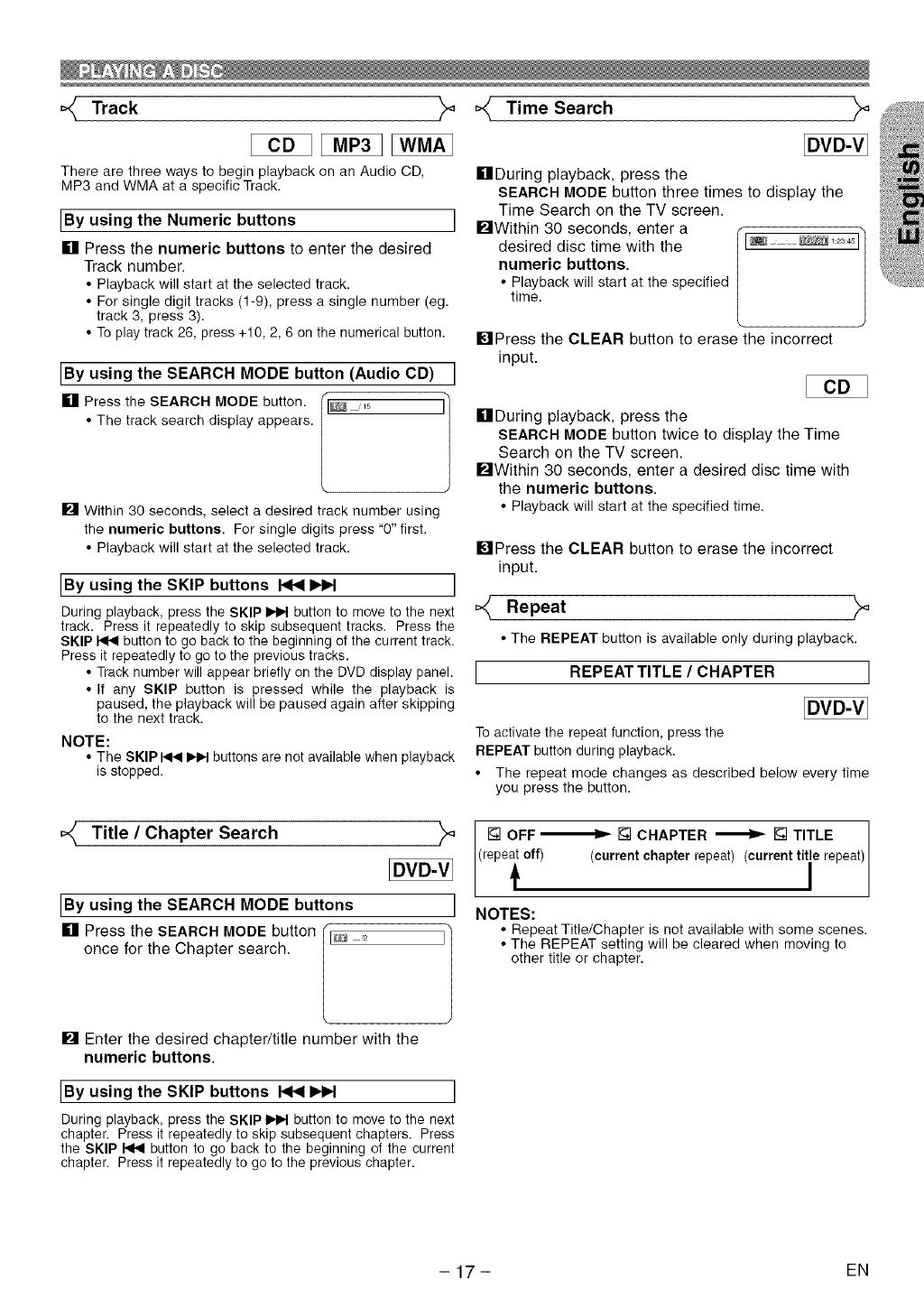

Track ...................................... 17

Title /Chapter Search ......................... 17

Time Search ................................ 17

Repeat .................................... 17

REPEAT TITLE /CHAPTER ................... 17

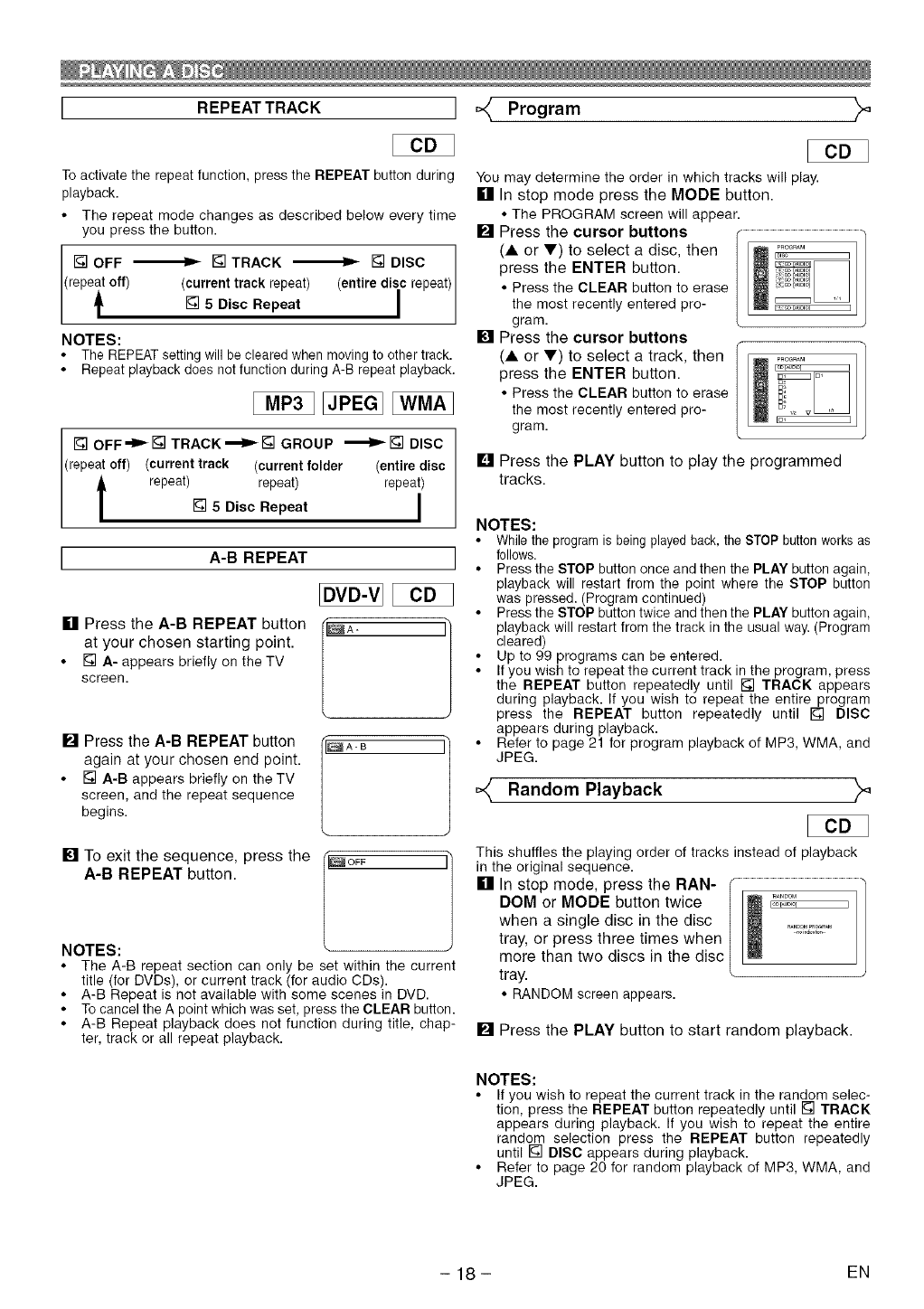

REPEAT TRACK ........................... 18

A-B REPEAT .............................. 18

Program (CD) ............................... 18

Random Playback (CD) ........................ 18

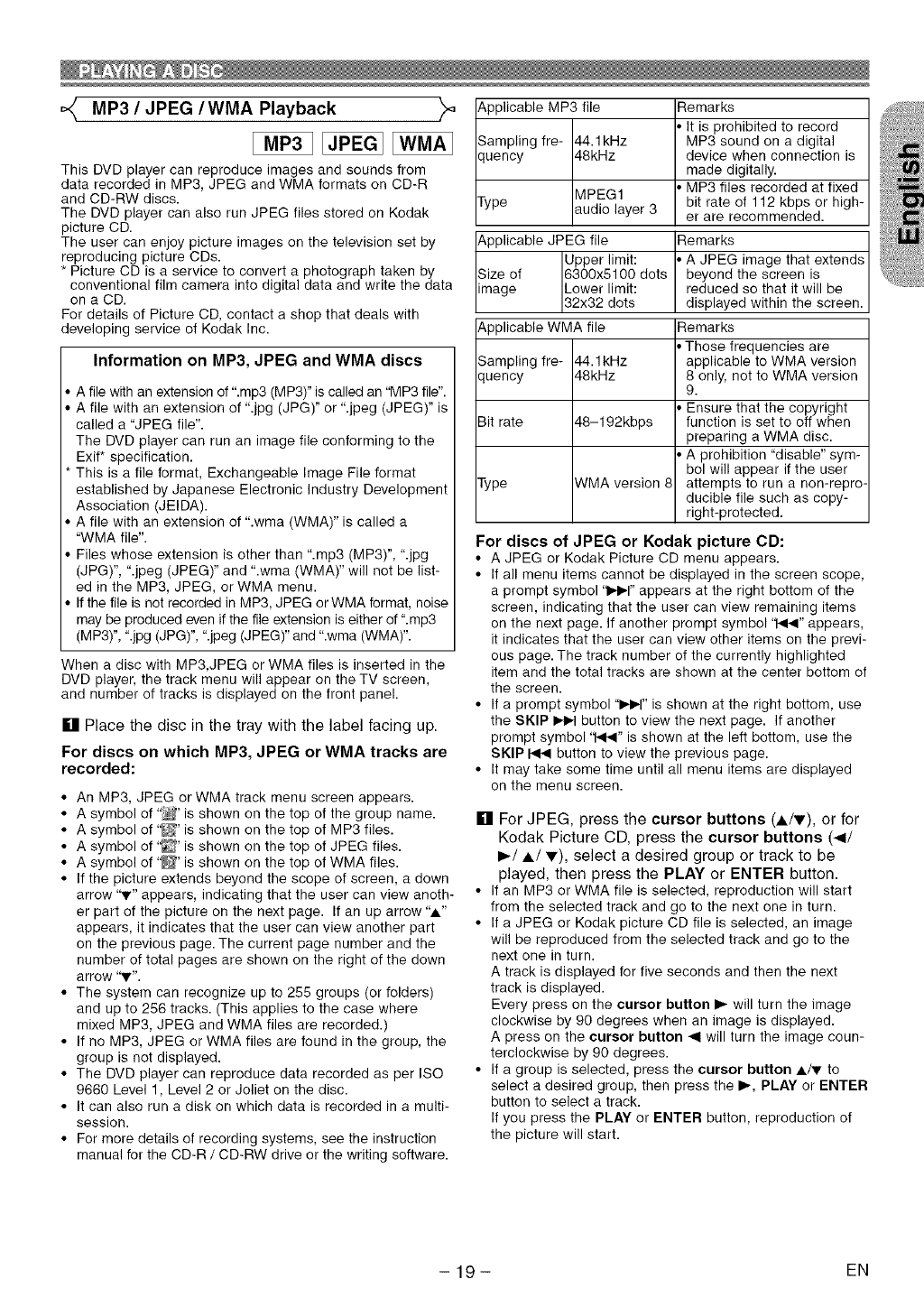

MP3 /JPEG /WMA Playback ................... 19

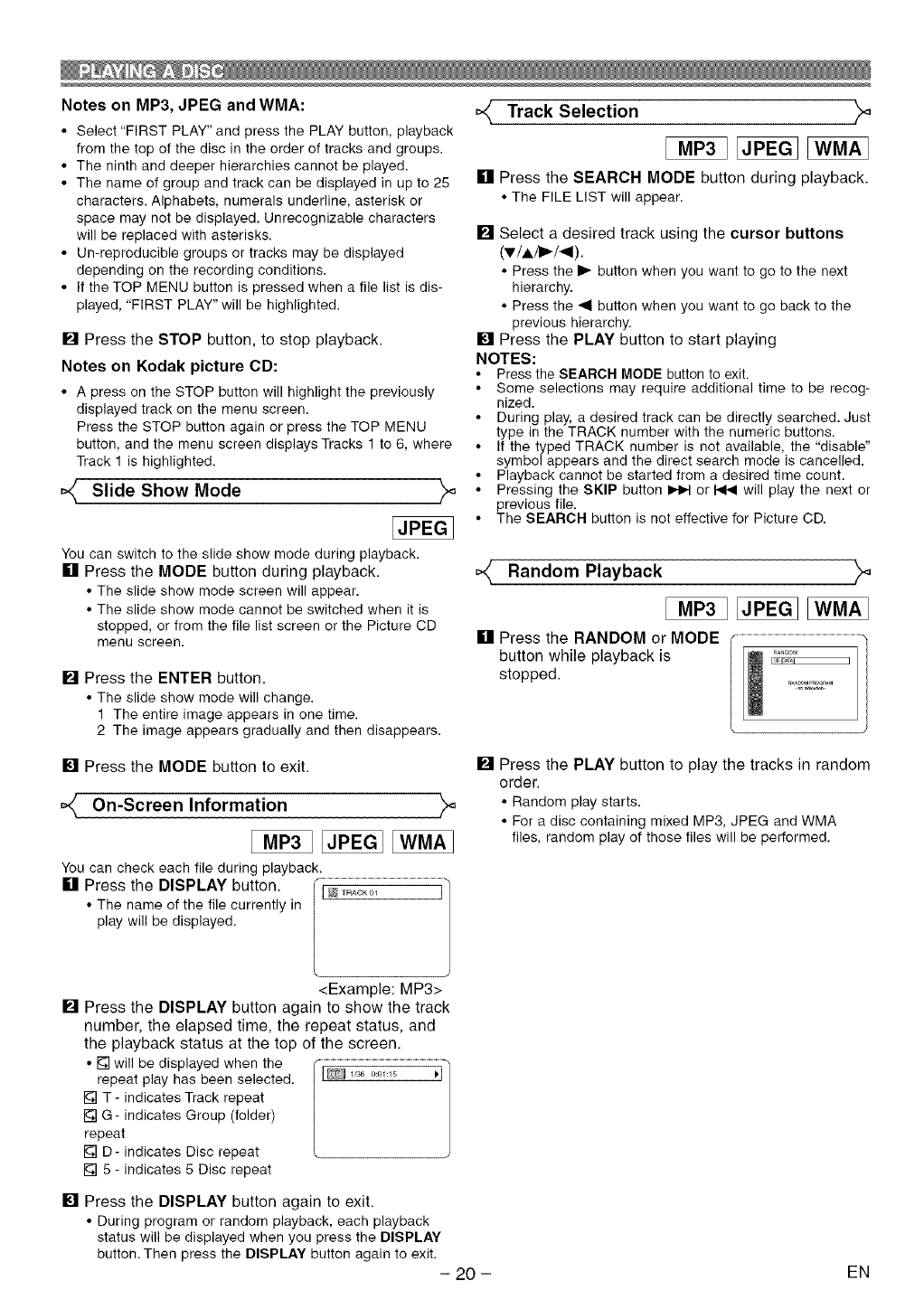

Slide Show Mode (JPEG) ...................... 20

On-Screen Information ......................... 20

Track Selection .............................. 20

Random Playback (MP3 /JPEG /WMA) ........... 20

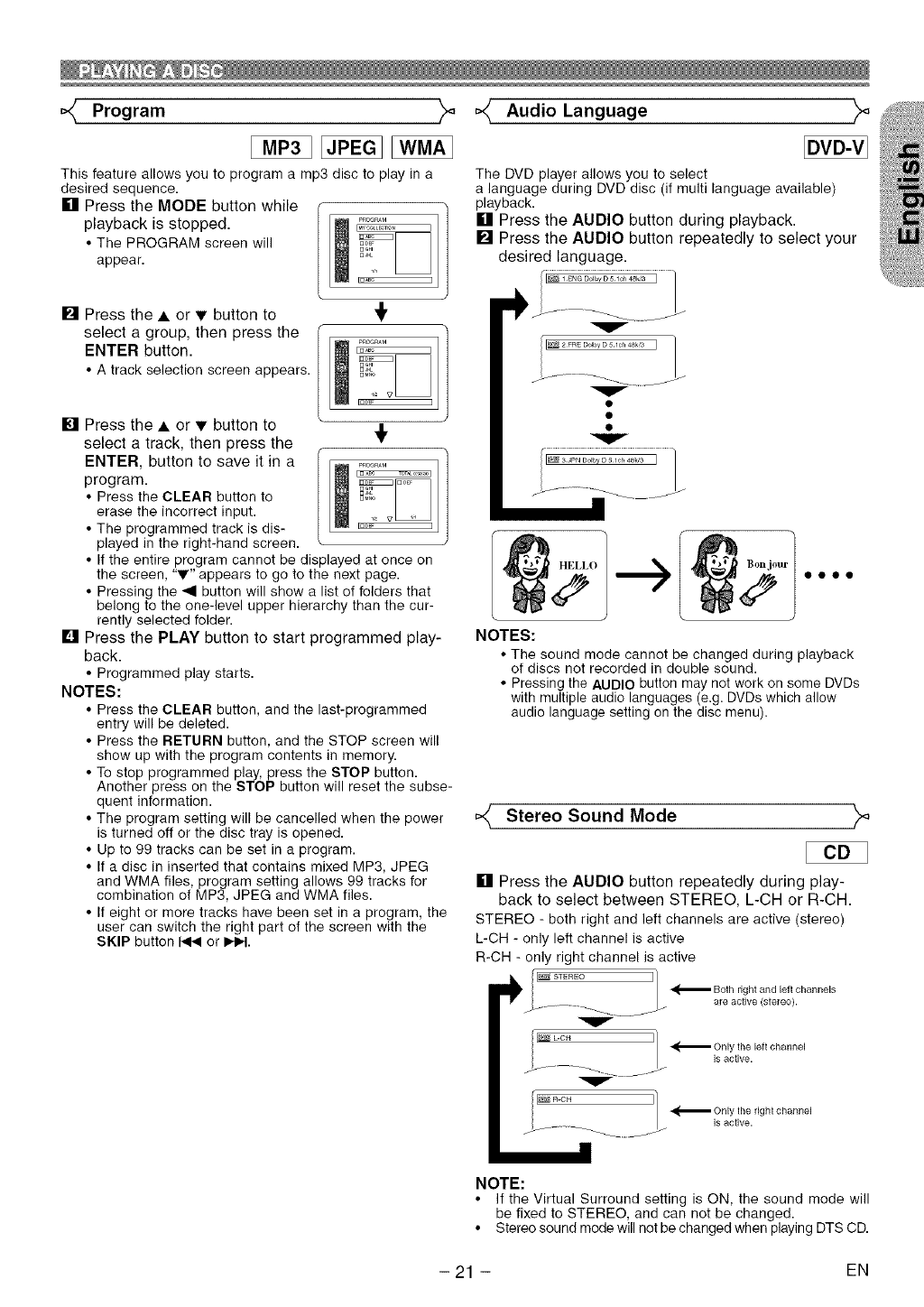

Program (MP3 /JPEG /WMA) ................... 21

Audio Language ............................. 21

Stereo Sound Mode ........................... 21

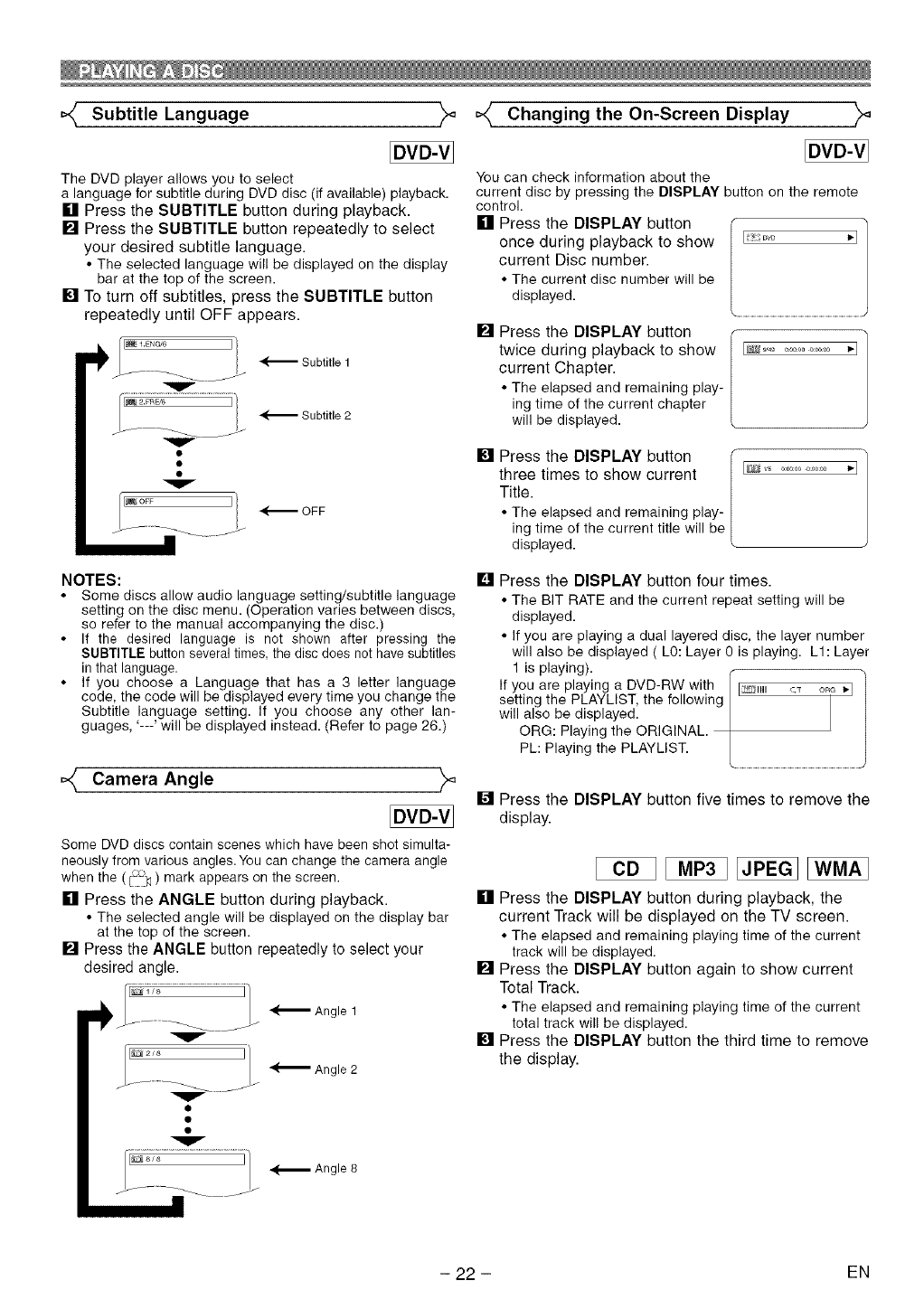

Subtitle Language ............................ 22

Camera Angle ............................... 22

Changing the On-Screen Display ................. 22

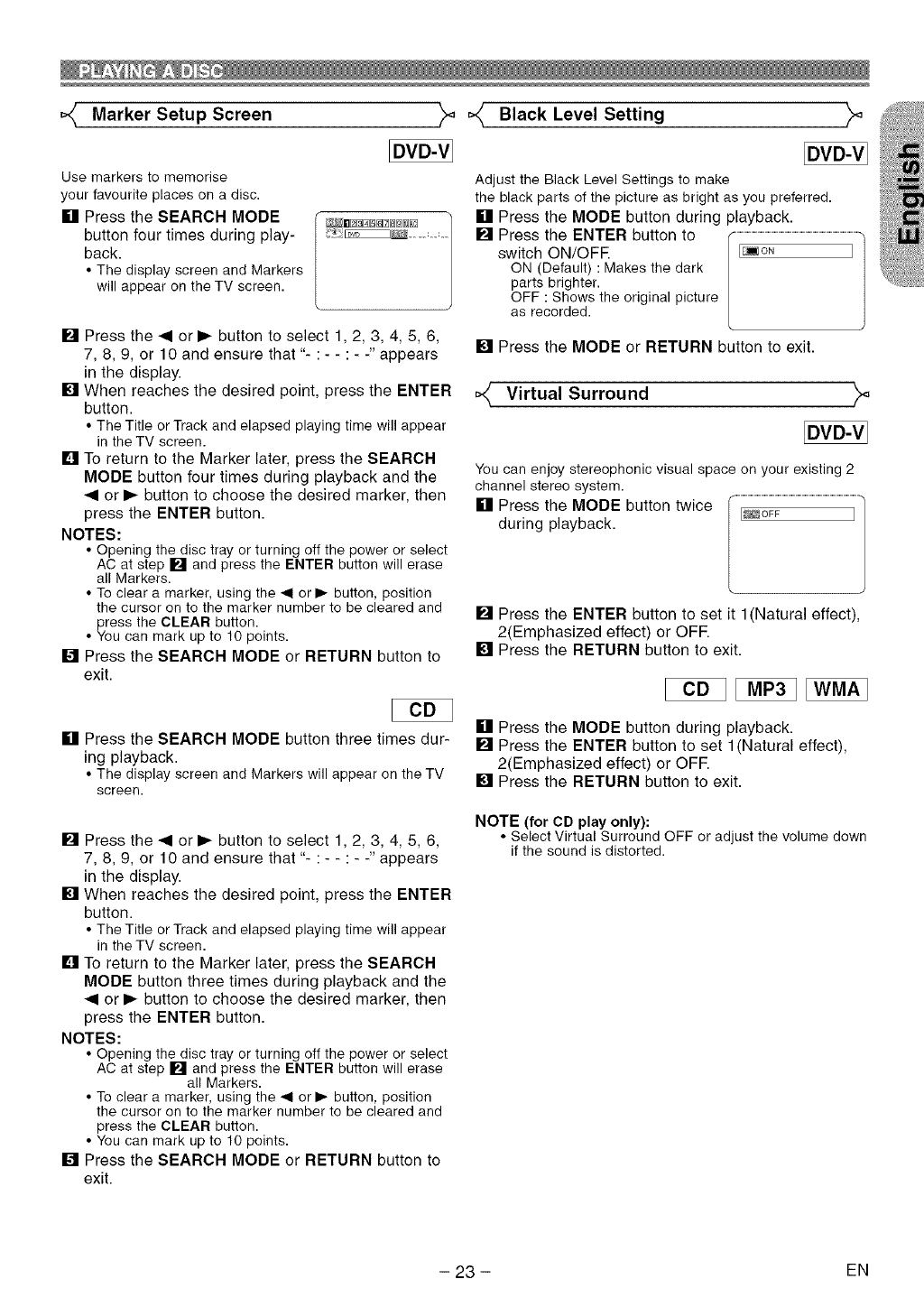

Marker Setup Screen .......................... 23

Black Level Setting ........................... 23

Virtual Surround ............................. 23

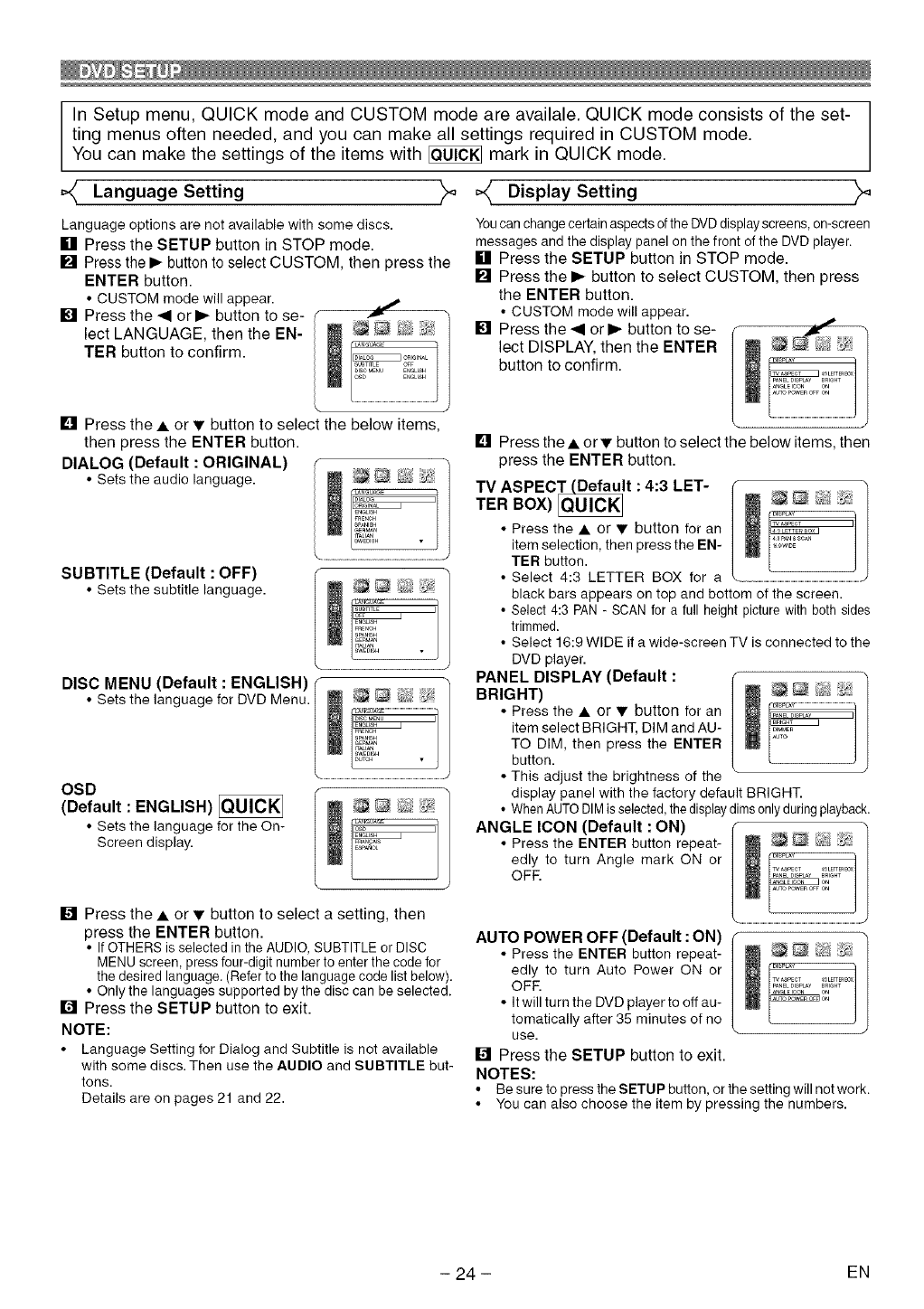

• DVD SETUP ................................ 24

Language Setting ............................ 24

Display Setting ............................... 24

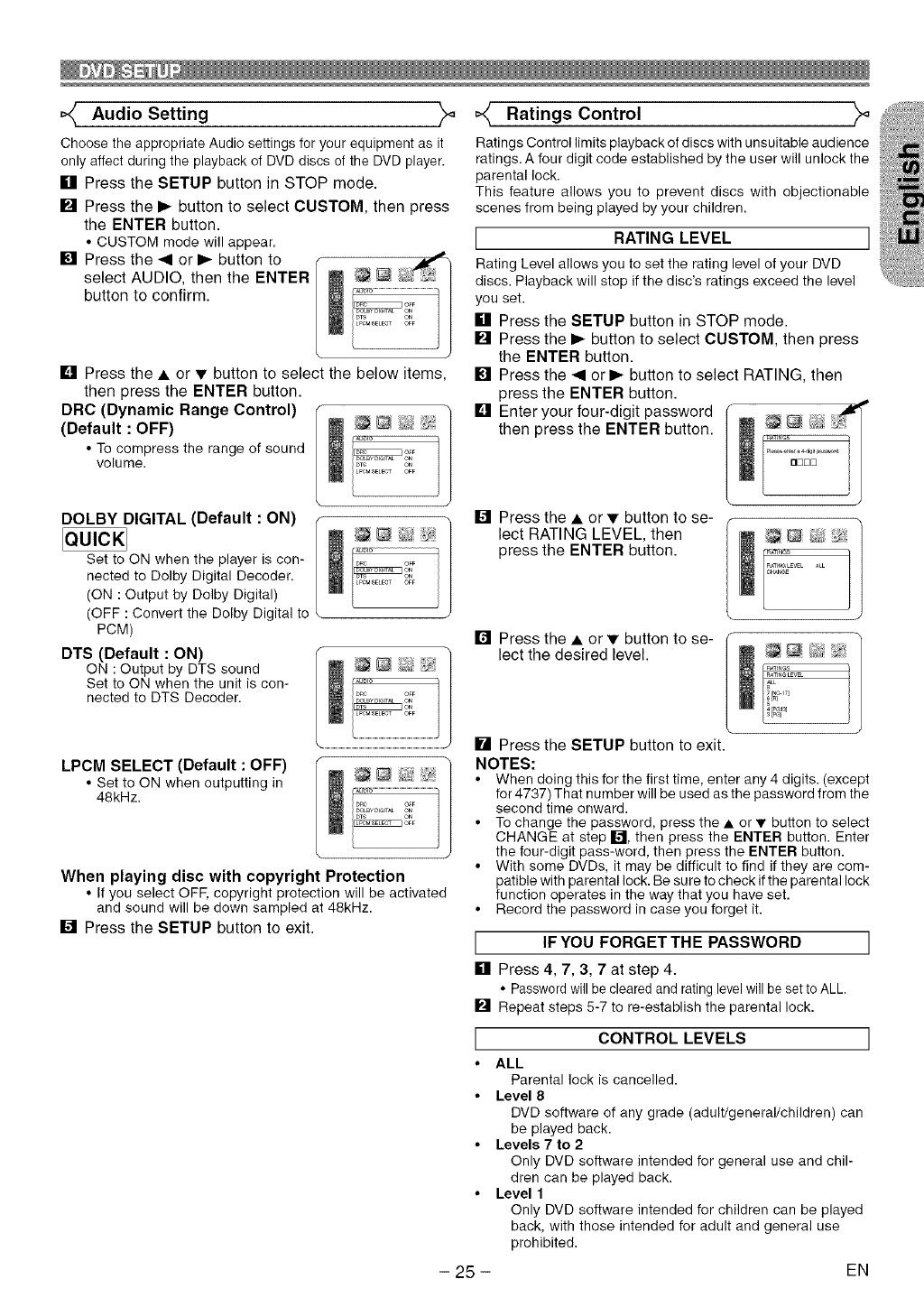

Audio Setting ................................ 25

Ratings Control .............................. 25

RATING LEVEL ............................ 25

IFYOU FORGET THE PASSWORD ............. 25

CONTROL LEVELS ......................... 25

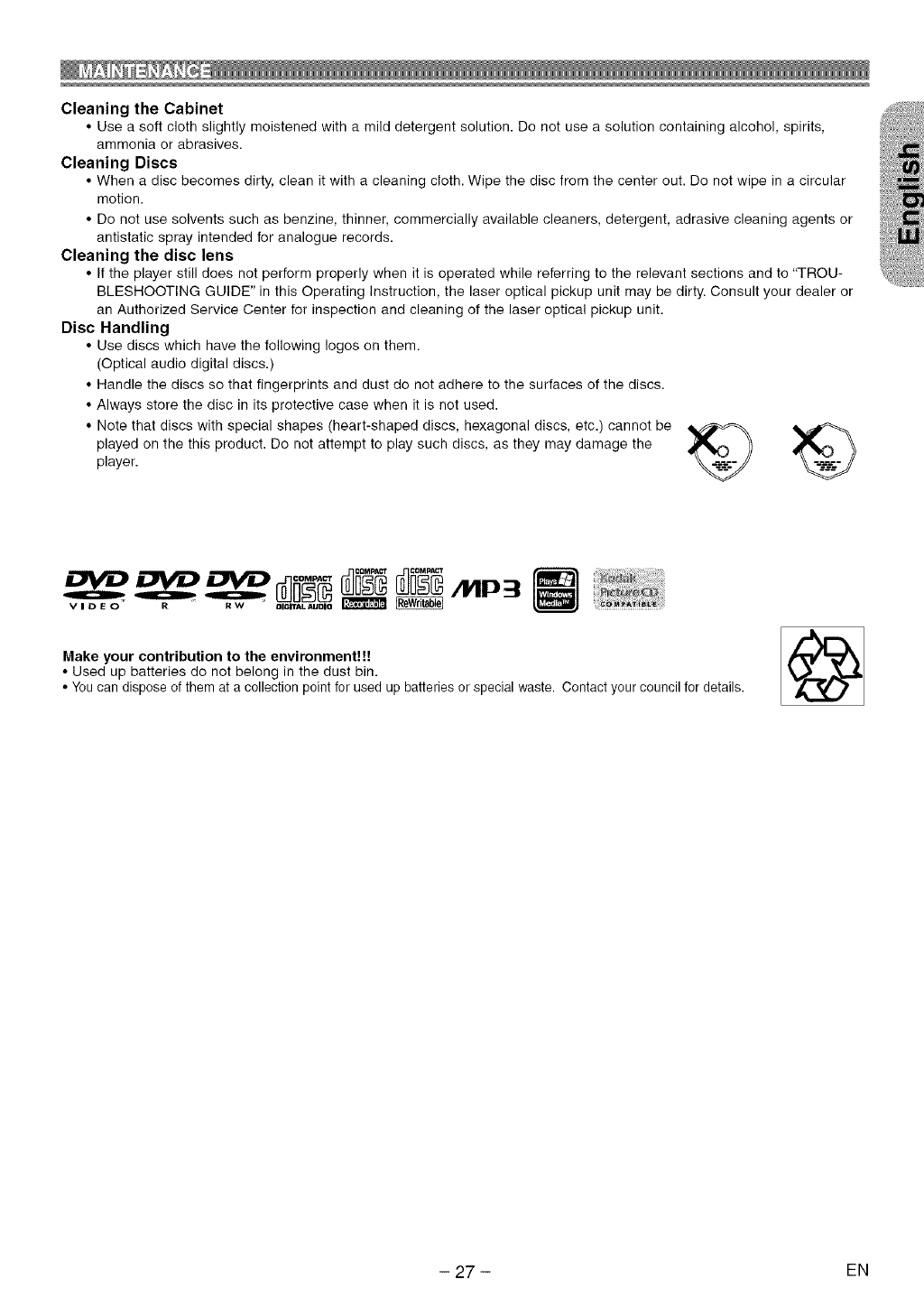

• MAINTENANCE ............................. 27

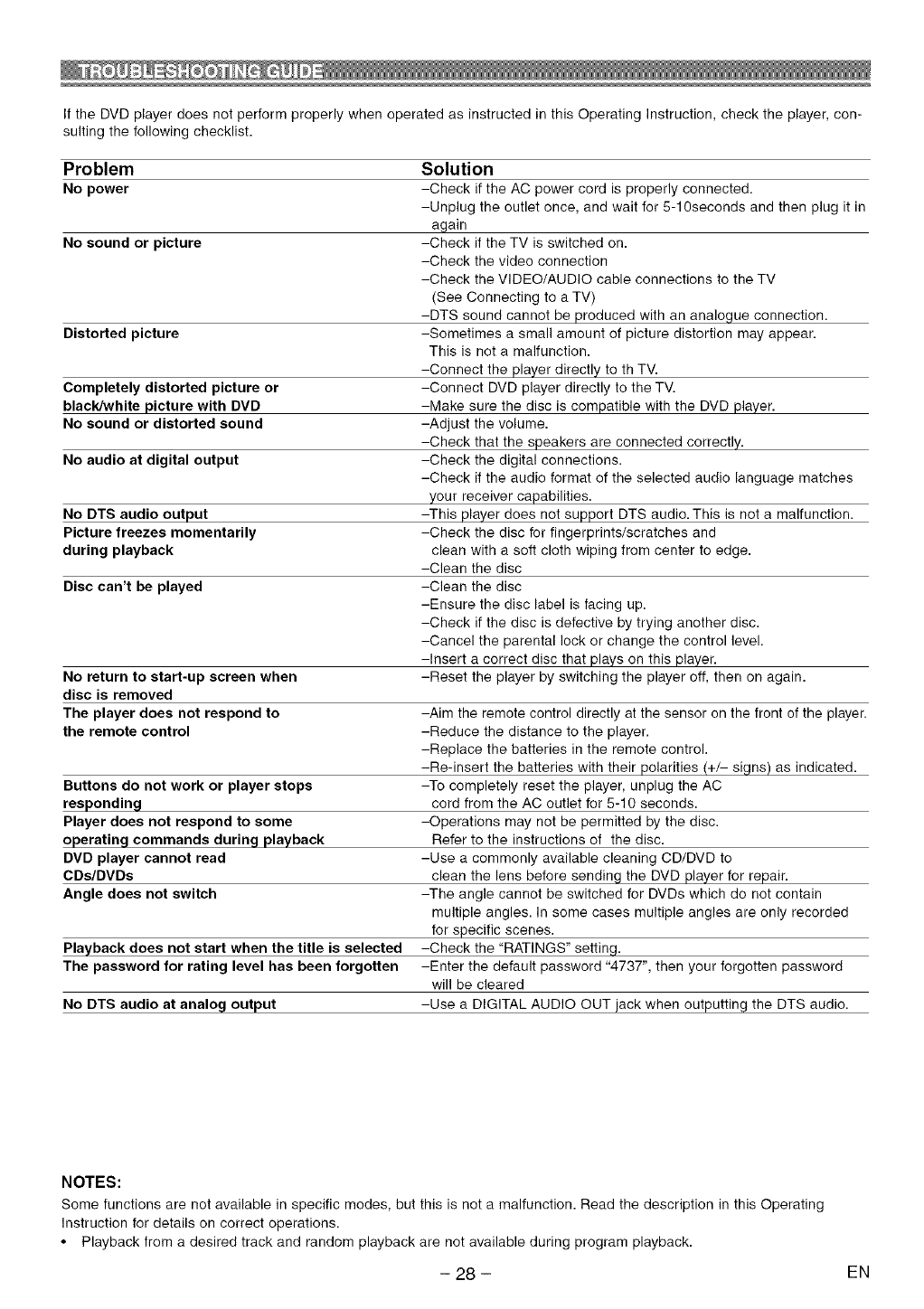

•TROUBLESHOOTING GUIDE ................... 28

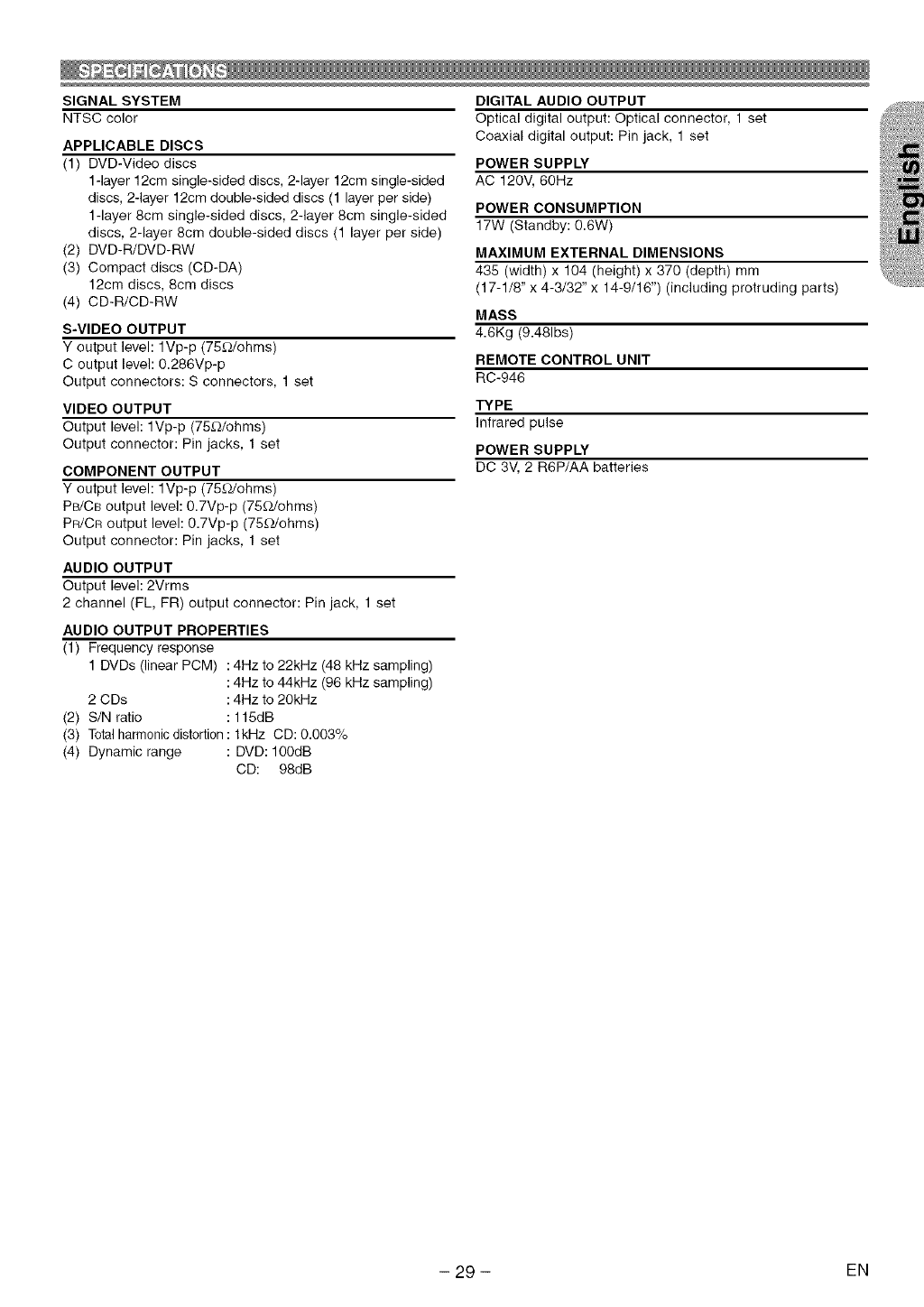

•SPECIFICATIONS ............................ 29

-4- EN

TheserialnumberofthisproductmaybefoundonthebackoftheDVDplayer.Noothershavethe

sameserialnumberasyours.Youshouldrecordthenumberandothervitalinformationhereand

retainthisbookasa permanentrecordof yourpurchaseto aididentificationincaseoftheft.Serial

numbersarenotkeptonfile.

Dateof Purchase

DealerPurchasefrom

DealerAddress

DealerPhoneNo.

ModelNo.

SerialNo.

About Copyright

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited.

This product incorporates copyright protection technology that is protected by method claims of certain U.S.

patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of

this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home

and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineer-

ing or disassembly is prohibited.

Apparatus Claimas of U. S. Patent Nos, 4,631,603, 4,577,216, 4,819,098, and 4,907,093 licensed for limited

viewing uses only.

rSupplied Accessories _>_

Please check to make sure the following items are included with the main unit in the carton.

"AA" (R6P)

batteries ...... 2

Remote

control ........ 1 Audio

cable ......... 1

(approx. 3 feet

(100 cm) long)

Video

cable ......... 1

(approx. 3 feet

(100 cm) long)

Operating

Instruction .... 1

Service Station

List ........... 1

Symbols Used in this Manual

The following symbols appear below in some headings and notes in this manual, with the following meanings!

_: Description refers to playback of DVD video discs.

Description refers to playback of audio CDs.

Description refers to playback of discs formatted with MP3.

Description refers to viewing of JPEG discs.

Description refers to playback of discs formatted with WMA.

Description refers to the items to be set in the QUICK mode.

-5- EN

J-_PlayableDiscs

The following discs can be played back on this

DVD player.

Usable Recorded

discs Mark (logo) signals

DVDvideo

(NOTE 1)

DVD-R

DVD-RW

(NOTE 2)

CD-R

CD-RW

(NOTE 3)

Picture CD

VIDEO

DIC=IT_LAtSOIO

OIc=r_ALAUOle nlelTAL _UOIO

Digital video

(MPEG2)

Disc Size

12cm

8cm

Digital audio 12cm

MP3

WMA (NOTE4)

Digital picture 8 cm

(JPEG)

JPEG 12 cm

• CD-I (Never play back, otherwise malfunction may

result.)

•SACD

•Photo CD (Never play back, otherwise malfunc-

tion may result.)

Any other discs without compatibility indications.

_,_ Disc Types _-=

[DVD-Video]

Data on a DVD is divided into sections called "titles," and then

into subsections called "chapters," each of which is given a

title or chapter number. Playback conditions are preset on

some DVD video discs, and these playback

conditions take priority over user operations on this player. If a

function you selected does not run as desired, refer to the

manual accompanying the disc.

__ Title 1

NOTE 1: Some DVD video discs do not operate as described in

this manual due to the intentions of the discs'

producers.

NOTE 2: Playing DVD-R and DVD-RW discs

DVD-R and DVD-RW discs on a DVD recorder can be

played.

Discs that have not be finalized cannot be played.

Depending on the disc's recording status, the disc may

not be accepted or may not be played normally (the

picture or sound may be not be smooth, etc.).

N©TE 3: Some of CD-R/CD-RW discs may be incompartible

because of "scratch and stain of disc", "Recording

condition", and "Characteristic of Recorder".

NOTE 4: Windows Media and the Windows logo are

trademarks or registered trademarks of

Microsoft Corporation in the United States

and/or other countries.

This player conforms to the NTSC color system. You

cannot play discs recorded in other color systems such

as PAL or SECAM.

• Some discs include region codes as shown below.

• The number inside the symbol refers to a region of

the world, and a disc encoded in a specific region for-

mat can only be played back on DVD players with the

same region code.

The following discs cannot be played back on this

DVD player.

• DVD with region codes other than 1 or ALL.

• DVD-ROM

• DVD-RAM (Never play back, otherwise malfunc-

tion may result,)

•CD-ROM

•Video CD

•VSD

•CDV (Only plays back the audio part.)

•CD-G (Only plays back the sound.)

•CD-R/CD-RW (Only plays back the discs which

audio CD/MP3/JPEG/WMA is recorded.)

[AUDIO CD]

Data on an audio CD is divided into sections called "tracks,"

each of which is given a track number.

Example

[MP3, JPEG, WMA]

Data on a MP3 is divided into sections called "groups," and

then into subsections called "tracks," each of which is given an

album or track number.

uExample Group 1_1_ Group 2 r[

CAUTION:

• Use caution not to pinch your finger in the disc slot.

• Be sure to remove a disc and unplug the AC power cord

from the outlet before carrying the DVDplayer.

-6- EN

• Progressive Scan system

Unlike conventional interlace scanning, the progres-

sive scan system provides less flickering and images

in higher resolution than that of traditional television

signals.

• Dolby Digital sound Track search:

This player can handle Dolby Digital surround sound

having 5.1 channels when connected to a Dolby Time search:

Digital decoder.

• Still/fast/slow/step playback • Repeat

Various playback modes are available including still Chapter:

pictures, fast forward/reverse, slow motion and step

frames. Title:

Track:

•Random playback for audio CD, MP3, JPEG, and

WMA

This player can shuffle the order of tracks to play

them in random order.

•Program playback for audio CD, MP3, JPEG, and

WMA

You can program the order of tracks to play them in

any desired order.

• DVD menus in a desired language

You can display DVD menus in a desired language, if

available on a DVD.

• Auto standby

When the screen saver program is activated for 35

minutes, the power is automatically turned off.

• Subtitles in a desired language

You can select a desired language for the display

subtitles, if that language is available on a disc.

• Selecting a camera angle

You can select the desired camera angle, if a disc

contains sequences recorded from different angles.

• Choices for audio language and sound mode

You can select the desired audio language and

sound mode, if different languages and modes are

available on a disc.

• Parental lock

You can set the control level to limit playback of discs

which may not be suitable for children.

• Automatic detection of discs

This player automatically detects if a loaded disc is

DVD, audio CD, MP3, JPEG, or WMA.

• Playing an MP3 disc

You can enjoy MP3 files which are recorded on CD-

R/RW.

• Direct Search

You can search the desired title, chapter, and track

with numeric button during playback or in stop mode.

• On-screen display

Information about the current operation can be dis-

played on a TV screen, allowing you to confirm the

currently active functions (such as program play-

back), on the TV screen using the remote control.

• DTS (Digital Theater System)

When you connected DTS decorder, you can enjoy

5.1channel surround system developed by the Digital

Theater System co. which reproduces the original

sound as truthfully as possible.

• Search

Chapter search:Search for the chapter designated by

user is possible.

Title search: Search for the title designated by user

is possible.

Search for the track designated by

user is possible.

Search for the time designated by

user is possible.

Repeated playback of the chapter of

the disc being played is possible.

Repeated playback of the title of the

disc being played is possible.

Repeated playback of the track of the

disc being played is possible.

Disc (audioCD): Repeated playback is possible.

(MP3/JPEG/VVMA):Repeated playback is possible.

A-B: The part between A and B designated

by user is possible.

Group: Repeated playback of the folder of the

MP3/JPEG/WMA disc being played is

possible.

• Zoom

2-time and 4-time magnified screen can be dis-

played.

• Marker

The part designated by user can be called back.

• Resume Play

User can resume to playback from the part at which

the play was stopped even if the power turn off.

• Component Video Out Jacks

Jacks located on the back of the DVD Player which

are used to send high-quality video to a TV via

Component Video In Jacks.

• Dimmer

Brightness of the display can be varied.

• Bit rate indication

•DRC (Dynamic range control)

You can control the range of sound volume.

• Playing a disc in Video Recording Format

The product can run a disc recorded in the Video

Recording Format.

• Displaying a JPEG picture (NOTES 1)

Kodak Picture CDs can be played. Still images stored

in JPEG format on CD-R/RW can also be played.

• Reproducing WMA data (NOTES 2)

You can enjoy WMA files which are recorded on

CD-R/RW.

-7- EN

FRONT PANEL 1

3 32

12 11 13 14

[REMOTE CONTROL]

............................................

DENON

R0-946

..... 32

....................13

_ 11

The buttons with circled numbers can only be

operated with the remote control.

1. ON/STANDBY, (POWER ON/OFF) Buttons [page 15]

2. Disc loading tray

3. OPEN/CLOSE Button [page 15]

4. PLAY Button [page 15]

5. STILL/PAUSE Button [page 15]

6. STOP Button [page 15]

7. Cursor Buttons [page 15]

Use when making settings while watching the display on

a TV screen.

8. MENU Button [page 15]

9. SETUP Button [page 24]

10. ENTER Button [page 15]

11. I_I_I(SKIP UP/FWD) Button [page 17]

Plays back from the beginning of the next chapter or

track. Hold down to fast forward playback.

12. HIll(SKIP DOWN/REV) Button [page 17]

Plays back from the beginning of the current chapter or

track. Hold down to fast reverse playback.

13. DISC EXCHANGE Button [page 15]

Press to change discs during playback.

14. DISC SKIP Button [page 15]

Press to select a desired disc or disc tray.

15. Display, Remote SensorWindow

16. A-B REPEAT Button [page 18]

17. REPEAT Button [page 17]

18. RANDOM Button [page 20]

19. ZOOM Button[page 16]

20. CLEAR Button [page 17]

21. ANGLE Button [page 22]

Press to change the camera angle to see the sequence

being played back from a different angle.

22. RETURN Button [page 21]

23. SEARCH MODE Button [page 17]

24. _I_I(FR SEARCH) Button[page 16]

25. m,-t_(FF SEARCH) Button [page 16]

26. SUBTITLE Button [page 22]

Press to select a desired subtitle language.

27. TOP MENU Button [page 15]

28. DISPLAY Button [page 20]

29. AUDIO Button [page 21]

Press to select a desired audio language or sound mode.

30. Numeric Buttons [page 17]

31. MODE Button [page 20]

32. DISC NUMBER Buttons [page 15]

Press to select a desired disc or disc tray directly.

8 EN

_Tour of the remote control

Buttons on remote control work in different ways for DVD and CD :

Refer to the following table for correct use.

DVD CD

POWER

_0wE_ •Press this to switch the power between • Press this to switch the power between

ON OFF

_ on and standby, on and standby.

A-B REPEAT Button

A-B

_T •Marks a segment to repeat between A and B. • Marks a segment to repeat between A and B.

REPEAT Button

_T • Allows you to repeat play a Title or Chapter. • Allows you to repeat play a Track or Disc.

RANDOM Button

_NDOM -- • AllOWSyOUto shuffle the playing order of tracks.

MODE Button • To set black level on/off. Allows you to program a specific order

MOOE • TOactivate the 3D sound (Virtual or random playback.

surround system). To activate the 3D sound (virtual surround system).

ZOOM Button

zoom • To magnify part of picture (x2/x4).

ANGLE Button

ANGLE • Accesses various camera angles on a disc. I

SUBTITLE Button

SU_TmE • Accesses various subtitles on a disc. I

AUDIO Button

AUD_0 • Accesses various audio functions on a disc. • To select STEREO, L-CH or R-CH.

DISPLAY Button

D_SPL_V • Displays the current disc mode. • Displays the current disc mode.

SEARCH MODE Button • To search chapter, title, or time. • To search track or time.

S_RCH

_'_ • To rapidly return to a location of disc. • To rapidly return to a location of disc.

OPEN/CLOSE Button

0PEN/

CLOSE • TOopen or close the disc tray. ° To open or close the disc tray.

NUMERIC Buttons

Q®®

(_) (_) (_) • To select chapter directly. To select track directly.

®®®

®@

CLEAR Button

CLEAR • Clear the makers. • Clear the makers.

O • Removes status No. in program input.

-9- EN

Tour of the remote control

DVD CD

MENU Button

MENU *Brings up the Menu on a disc.

TOP MENU Button

TOPME.U ° Brings up the Top Menu on a disc.

ENTER, CURSOR Buttons

• Moves the cursor and determines itsposition. • Moves the cursor and determines its position,

RETURN Button

RFURN

O • Returns to a previous menu.

SETUP Button

SETUp • Brings up the DVD player's Setup menu. •Brings up the DVD player's Setup menu.

SKIP Buttons

r-sK,__ • TO skip Chapters. • To skip Tracks.

SEARCH Buttons • Allows you to search forward/backward •Allows you to search forward/backward through a

(_ _ through a disc (x2. x8. x50. x100), disc (x16).

STOP Button

sTo_ • To stop playback. • To stop playback.

PLAY Button

• Begin disc play. • Begin disc play.

STILL/PAUSE Button

STILL/_AUSE • Pause disc play.

(_ • Advances playback one frame at a time. •Pause disc play.

DISC SKIP Button

DISCSKIP • TO select a desired disc. • To select a desired disc.

DISC NUMBER Buttons

DISC 1 DISC 2

_ • To select a desired disc directly. •To select a desired disc directly,

D_sc3 D_sc4 D_sc_

DISC EXCHANGE Button

DISC

EXCHANGE •To change discs during playback. • To change discs during playback.

- 10- EN

_._ Display _>_

l, Stays on when repeat chapter function is on.

Stays on when repeat _,..........................Stays on when repeat track function is on.

title function is on. _,,,,,,,,,Lights up when a DVD is inserted into the tray.

Stays on when _L_

the repeat function is on. }ii_J TITLE CliP.TRK. _ _]p.......... I1

Stayson when REPEATI"t" 17 I'1" t'1 I"1 CD _t"l _'_""TuhebP_'_gsdeiSC_

the A-B repeat ....... B

function is on. _, !| _,._-_'L-_ _._-_"_,._-_0 _ _'"

Stays on when the inserted /_,,,,,Lights up when a CD is

disc is being played back. Lights up when the inserted into the tray.

inserted disc comes ......................................Displays how long a current title or track has been

to a pause, played back. When a chapter or track has switched,

the number of a new title, chapter or track is displayed.

Displays During Operation

Poweron

Nodisc inserted

Tray open

Tray closed

Loading the Disc

Poweroff

Tray rotation

ACcord pluggedin

Loading the Batteries

1. Open the battery compartment cover.

2. Insert two "AA" (R6P) batteries, with

each one oriented correctly.

3. Close the cover.

NOTES

• Do not mix alkaline and manganese batteries.

• Do not mix old and new batteries.

Cautions On Batteries

• Use "AA" (R6P) batteries in this remote control unit.

• Replace the batteries with new ones approximately

once a year, though this depends on the frequency

with which the remote control unit is used.

• If the remote control unit does not operate from

close to the main unit, replace the batteries with

new ones, even if less then a year has passed.

• The included battery is only for verifying operation.

Replace it with a new battery as soon as possible.

• When inserting the batteries, be careful to do so in

the proper direction, following the @ and O marks

in the remote control unit's battery compartment.

• To prevent damage or battery fluid leakage:

• Do not use a new battery with an old one.

• Do not use two different types of batteries.

• Do not short-circuit, disassemble, heat or dispose

of batteries in flames.

• Remove the batteries when not planning to use the

remote control unit for a long period of time.

• If the batteries should leak, carefully wipe off the

fluid from the inside of the battery compartment,

then insert new batteries.

- 11 - EN

Description - rear panel _>_

©©

_!CPROGRESSIVE

1. DIGITAL OUT JACKS:

COMPONENT_ S-VIDEO"AUDI(OUT]" DIGITALOUT"REMOTE_1

VIDEOOUT OUT / (PCM/BITSTREAM)C0NTROLI

/ RO0_,_TORO0_,_I

3 4 5 1 7

o©

Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver. Use to connect to a Dolby

Digital decoder or DTS decoder.

2. AUDIO OUT JACKS

Connect to the Audio input jacks of AN-compatible TV or wide screen TV, Stereo system.

3. VIDEO OUT JACK

Use a video cable to connect one of the jack to Video input on your AN-compatible TV or wide screen TV, Stereo sys-

tem.

4. COMPONENT VIDEO OUT JACKS

Use these jacks if you have a TV with Component Video in jacks. These jacks provide CR,CB and Y video. Along with S-

Video, Component Video provides the best picture quality.

5. S-VIDEO OUT JACK

Use the S-Video cable to connect this jack to the S-Video jack on your AN-compatible TV or wide screen TV for a higher

quality picture.

6. PROGRESSIVE switch

7. REMOTE CONTROL JACKS

Use these jacks when using an optional ROOM TO ROOM CONTROL SYSTEM.

Selecting Progressive Scan (480p or Interlaced 4800 Playback

• If your TV is compatible with progressive scanning (480p), connect the TV to the Component Video Output jacks of the DVD

player and set the Progressive switch on the back of the DVD player to "PROGRESSIVE". Next, set your TV to the progres-

sive scan mode.

If your TV is not compatible with progressive scan, keep the Progressive switch to "INTERLACE".

• Use a commercially available adaptor if the video input jacks of your TVs or monitors are the BNC type.

What is Progressive Scanning?

• Unlike conventional interlace scanning, the progressive scan system provides less flickering and images in higher resolution

than that of traditional (480i) television signals.

NOTE

• When the Progressive switch is set to "PROGRESSIVE", no video signal will be output from the VIDEO OUT or S-VIDEO

OUT jack.

The DCDi (Directional Correlational De-interlacing) system of this DVD player produces smooth and natural

video images, even if really dynamic, by eliminating the jagged edges. *"DCDi" is a registered trademark of

Faroudja, a division of Genesis Microchip Inc.

- 12- EN

The following show examples of connections commonly used to connect the DVD player either TV and other

components.

Notes

• Be sure to turn off the power to all components in the system before connecting another component.

• Refer to the Instruction Manuals for your TV, stereo system and any other components to be connected to the

DVD player.

Connection to an audio system _>_

Stereo system

[Method 1 I IMethod 2 I

Audio Input Jacks _) 1_ 1, Digital Audio Input

Jacks

Dolby Digital decoder

DTS decoder

l' COAX,ALDL

©,,

Analog Audio Out oO

• Method 1 DVD Player + Stereo system

• Method 2 DVD Player + Dolby Digital decoder or DTS decoder

Digital Audio Out

DI61TAL 0UT

(PCM/BITSTREAM}

NOTES

• If output Dolby Digital audio, connect to a Dolby Digital decoder, and set Dolby Digital to on for audio output in the setup

mode. (See page 25)

• If output DTS audio, connect to a DTS decoder, and set DTS to ON for audio output in the setup mode. (See page 25)

• Unless connected to a Delby Digital decoder, or a DTS decoder, set Dolby Digital or DTS to off for audio output in the setup

mode. Playing a DVD using incorrect settings may generate noise distortion, and may also damage the speakers. (See page 25)

• The audio source on a disc in a 5.1 channel Dolby Digital surround format cannot be recorded as digital sound by an MD or

DAT deck.

• Set Dolby Digital and DTS to OFF for audio output in the setup mode for method 1 only. Playing a DVD using incorrect settings

may generate noise distortion, and may also damage the speakers. (Refer to page 25 to set ON for Dolby Digital and DTS)

- 13- EN

Connection to a TV (for video) _>_

Basic Audio

[Method 1 I

Good picture

IMethod 2 1

Better picture

I Method 3 ]

Best picture

VIDEO IN

COMPONENT

VIDEO IN

AV Cable

IAUDIO OUT

Analog Audio out Video out

S-Video out

COMPONENT

__VIDE0OUT

Component Video out

•Method 1 DVD Player + TV with Video Input Jack

•Method 2 DVD Player + TV with S-Video Input Jack

•Method 3 DVD Player + TV with Component Video Jacks

NOTES

• If your TV is compatible with progressive scanning (480p), connect the TV to the Component Video Output jacks of the DVD

player. Refer to page 12.

• Connect the DVD player directly to a TV. If the AN cables are connected to a VCR, pictures may be distorted due to the

copy protection system.

• S-Video output connector

The video signals are divided into color (C) and brightness (Y) signals, achieving a clearer picture.

If the TV is equipped with a S-Video input connector, we recommend connecting it to the this product's S-Video output con-

nector using a commercially available S-Video connection cord.

HOW TO CONNECT TO A TV WITHOUT AUDIO/VIDEO INPUT JACKS

If your TV does not have RCA type audio and video input jacks it is still possible to connect this DVD

player to your TV's 75-ohm coaxial antenna terminal using an optional Stereo AudioNideo RF Modulator, not includ-

ed. Connect the audio and video outputs of the DVD player to the audio and video inputs on the RF Modulator, and

then connect the coaxial output of the RF Modulator (usually marked "TO TV") to the 75 ohm coaxial antenna termi-

nal on your TV. Follow the instruction supplied with the RF Modulator for more details.

If your TV's 75 ohm coaxial antenna terminal is already occupied by an antenna or cable box connection, remove that

cable from your TV's antenna terminal and reconnect it to the coaxial antenna input terminal of the RF Modulator

(usually marked "ANT IN"), then connect the RF modulator to your TV's antenna

terminal as described above.

NOTE

• The picture quality from DVD discs will not be as good if the DVD player is connected to the TV's antenna terminal

through an RF Modulator.

- 14- EN

_,_Basic Playback

Getting started

•Turn on the power of the TV, amplifier and any other com-

ponents which are connected to the DVD.

• Make sure the TV and audio receiver (commercially avail-

able) are set to the correct channel.

[] Press the POWER ON button.

• "P-ON" will appear briefly on the display panel.

[] Press the OPEN/CLOSE button to open disc load-

ing tray.

[] Press the DISK SKIP button repeatedly or press

the DISK NUMBER button.

• The desired disk tray moves to the front position.

[] Place the disc in the tray,

with the label facing up.

• Repeat steps 3 and 4 to

load more discs.

Right side tray

Left si(te tray

[] Press the PLAY button.

• The tray will close automatically, and playback will then

start from the first chapter or track of the disc. If the

playback does not start automatically, press the PLAY

button.

• If the disc has not been set on the tray, the DVD player

will play the disc which is set on the right side tray.

• When you want to select the other disc, press the DISC

SKIP button repeatedly or the DISC NUMBER button

for your desired disc.

• When you playback the DVD with a title menu is

recorded, it may appear on the screen. In this case,

refer to "TITLE MENU".

[] Press the STOP button to stop playback.

NOTES:

• A "prohibited icon" may appear at

the top-right on the TV screen

during operation, warning that a

prohibited operation has been

encountered by the DVD player or

the disc.

• With DVDs that use some titles

for playback program signals, playback may start from

the second title, or it may skip these titles.

• During the playback of two layered disc, pictures may

stop for a moment. This happens when the 1st layer

switches to the 2nd layer.This is not a malfunction.

• During the playback of a DVD-RW which has been

recorded in the VR mode, the sound or picture may

freeze momentarily depended on disc content.

• You can open the tray and change 2 discs during play-

back by pressing the DISC EXCHANGE button.

• Disc position will be displayed on the TV screen for

about 5 minutes when you turn on the power or close

the tray.

_" General Features

DVD may contain menus to navigate the disc and access

special features. Press the appropriate numerical key or use

the cursor buttons ( _'/• /I_/_1 ) to highlight your selec-

tion in the DVD main menu and press the ENTER button to

confirm.

NOTE:

• Unless stated, all operations described are based on

remote control use. Some operations can be carried

out using the menu bar on the TV screen.

rBrightness of the Front Display

The brightness of the front display can be adjusted from the

SETUP menu. Details are on page 24.

Pause

[] During playback, press the

STILL/PAUSE button. Iqq

• Playback will pause and sound

will be muted.

[] To continue playback, press the PLAY button.

Disc Menus

[] Press the MENU button.

• The DVD main menu will appear.

[] If the feature is not available, _ symbol may

appear on the TV screen.

[] If disc menu is available on the disc, audio lan-

guage, subtitle options, chapters for the title and

other options will appear for selection.

[] Press the cursor buttons ( V/A/I_/_1 ) to select

an item, and the ENTER button to confirm selec-

tion.

Title Menu _>_

[] Press the TOP MENU button.

• The title menu will appear.

[] If the feature is not available, (_ symbol may

appear on the TV screen.

[] Press the cursor buttons ( V/A/I_/_1 ) to select

an item, and the ENTER button to confirm selec-

tion.

• Playback will begin at the selected Title.

ICALLING UP A MENU SCREEN DURING PLAYBACK I

• Press the MENU button to call up the DVD main menu.

• Press the TOP MENU button to call up the title menu.

NOTE:

• Contents of menus and corresponding menu opera-

tions may vary between discs. Refer to the manual

accompanying the disc for details.

Step by Step Playback

[] During playback, press the

STILL/PAUSE button.

• Playback will pause and sound

will be muted.

F_q

[] The disc advances by one frame each time the

STILL!PAUSE button is pressed.

[] To exit step by step playback, press the PLAY but-

ton.

- 15- EN

_- Resume

[] During playback, press the

STOP button.

• Resume message will appear on

the TV screen.

Zoom

The Zoom function allows you to enlarge

the video image and to pan through the enlarged image.

[] Press the ZOOM button during playback.

• Playback will continue.

[] Press the ZOOM button repeatedly to select the

required zoom factor: x2, x4 or OFR

[] Press the PLAY button, playback will resume from

the point at which playback was stopped.

• To cancel resume, press the STOP button twice.

NOTE:

• The resume playback takes a little longer to take place

compared to the normal playback.

Fast Forward /Reverse Search

CD II MP31[

[] During playback, press the I_ or _1 button

repeatedly to select the required forward or reverse

speed: x2, x8, x50, xl00.

• If you are using the SKIP _ button /the _ button

on the front panel, press and hold it for more than 1.5

sec (the longer you hold it, the faster the speed will be).

When you reach the desired speed, release the button.

• For audio CDs, the speed is fixed at x16.

• For MP3 and WMA the speed is fixed at xS.

[] Use the cursor buttons ( v/A/I_/_1 ) to move

the zoomed picture across the screen.

_14 Button

I_1,_Button

[] To return to normal playback, press the PLAY but-

ton.

[] To exit zoom mode, press the ZOOM button to

OFE

NOTES:

• Zooming function does not work while disc menu is

shown.

• x4 zoom is not available on some discs.

K Slow Forward /Slow Reverse _>_

[] During playback, press the

STILL/PAUSE button.

[] Press the _ or _ button.

• Slow motion playback will begin and sound will be muted.

[] Press the _ or _ button ......

repeatedly to select the

required speed: 1/16, 1/8, 1/2

of the normal playback.

• If you are using the SKIP

button /the _ button on the

front panel, press and hold it for

more than 1.5 sec (the longer

you hold it, the slower the speed

will be). When you reach the

desired speed, release the but-

ton.

[] To return to normal playback, press the PLAY button.

- 16- EN

_" Track _ _ Time Search _>_

There are three ways to begin playback on an Audio CD,

MP3 and WMA at a specific Track.

[By using the Numeric buttons I

[] Press the numeric buttons to enter the desired

Track number.

• Playback will start at the selected track.

• For single digit tracks (1-9), press a single number (eg.

track 3, press 3).

• To play track 26, press +10, 2, 6 on the numerical button.

[By using the SEARCH MODE button (Audio CD)

[] Press the SEARCH MODE button. _ _

• The track search display appears.

[] Within 30 seconds, select a desired track number using

the numeric buttons. For single digits press "0" first.

• Playback will start at the selected track.

By using _ _ I

the SKIP buttons

During playback, press the SKIP _ button to move to the next

track. Press it repeatedly to skip subsequent tracks. Press the

SKIP _ button to go back to the beginning of the current track.

Press it repeatedly to go to the previous tracks.

• Track number will appear briefly on the DVD display panel.

• If any SKIP button is pressed while the playback is

paused, the playback will be paused again after skipping

to the next track.

NOTE:

• The SKIP I_1_1I_1_1buttons are not available when playback

is stopped.

•During playback, press the

SEARCH MODE button three times to display the

Time Search on the TV screen.

Ik31Within 30 seconds, enter a

desired disc time with the _ _ _ ......

numeric buttons.

• Playback will start at the specified

time.

Ik-lpress the CLEAR button to erase the incorrect

input.

•During playback, press the

SEARCH MODE button twice to display the Time

Search on the TV screen.

Ik31Within30 seconds, enter a desired disc time with

the numeric buttons.

• Playback will start at the specified time.

Ik-lpress the CLEAR button to erase the incorrect

input.

To activate the repeat function, press the

REPEAT button during playback.

Repeat _>_

• The REPEAT button is available only during playback.

REPEAT TITLE /CHAPTER I

The repeat mode changes as described below every time

you press the button.

Title /Chapter Search

[By using the SEARCH MODE buttons I

once for the Chapter search.

[] Enter the desired chapter/title number with the

numeric buttons.

By using _ _ I

the SKIP buttons

During playback,press the SKIP _ buttonto moveto the next

chapter. Press it repeatedlyto skip subsequentchapters. Press

the SKIP _ button to go back to the beginning of the current

chapter. Pressit repeatedlyto go to the previouschapter.

F_']OFF ,_1=,_ I_ CHAPTER ,_._ I_'] TITLE

(repel_off) (current chapter repeat current ttie repeat

NOTES:

• Repeat Title/Chapter is not available with some scenes.

• The REPEAT setting will be cleared when moving to

other title or chapter.

- 17- EN

I REPEATTRACK ] _ Program _>_

To activate the repeat function, press the REPEAT button during

playback.

• The repeat mode changes as described below every time

you press the button.

[] OFF 'miD-- [] TRACK ,miD-- [] DISC

repe_ off (_]r_e;ti:_Rkel_::;t) (entire diic repeat),

NOTES:

• The REPEAT setting will be cleared when moving to other track.

• Repeat playback does net function during A-B repeat playback.

[] OFF-_'_[] TRACK'_I_-[] GROUP ,_lP.-[] DISC

(repeat off) (current track (current folder (entire disc

trepeat) repeat) repeai)

[] 5 Disc Repeat

IA-B REPEAT ]

[] Press the A-B REPEAT button

at your chosen starting point.

• [] A- appears briefly on the TV

screen.

[] Press the A-B REPEAT button

again at your chosen end point.

• [] A-B appears briefly on the TV

screen, and the repeat sequence

begins.

[] To exit the sequence, press the

A-B REPEAT button.

NOTES:

• The A-B repeat section can only be set within the current

title (for DVDs), or current track (for audio CDs).

• A-B Repeat is not available with some scenes in DVD.

• To cancel the A point which was set, press the CLEAR button.

• A-B Repeat playback does not function during title, chap-

ter, track or all repeat playback.

You may determine the order in which tracks will play.

[] In stop mode press the MODE button.

• The PROGRAM screen will appear.

[] Press the cursor buttons ...................................................................................................................

(A or V) to select a disc, then

press the ENTER button.

• Press the CLEAR button to erase

the most recently entered pro-

gram.

[] Press the cursor buttons

(A or V) to select a track, then

press the ENTER button.

• Press the CLEAR button to erase

the most recently entered pro-

gram.

[] Press the PLAY button to play the programmed

tracks.

NOTES:

• While the programis being played back, the STOP button works as

follows.

• Press the STOP button once and then the PLAY button again,

playback will restart from the point where the STOP button

was pressed. (Program continued)

• Press the STOP button twice and then the PLAY button again,

playback will restart from the track in the usual way. (Program

cleared)

• Up to 99 programs can be entered.

• If you wish to repeat the current track in the program, press

the REPEAT button repeatedly until [] TRACK appears

during playback. If you wish to repeat the entire program

press the REPEAT button repeatedly until [] DISC

appears during playback.

• Refer to page 21 for program playback of MP3, WMA, and

JPEG.

Random Playback _>_

This

in the original sequence.

[] In stop mode, press the RAN-

DOM or MODE button twice

when a single disc in the disc

tray, or press three times when

more than two discs in the disc

tray.

• RANDOMscreenappears.

shuffles the playing order of tracks instead of playback

_ANDOM

_N_M PR_R_

[] Press the PLAY button to start random playback.

NOTES:

• If you wish to repeat the current track in the random selec-

tion, press the REPEAT button repeatedly until [] TRACK

appears during playback. If you wish to repeat the entire

random selection press the REPEAT button repeatedly

until [] DISC appears during playback.

• Refer to page 20 for random playback of MP3, WMA, and

JPEG.

- 18- EN

MP3 /JPEG/WMA Playback

This DVD player can reproduce images and sounds from

data recorded in MP3, JPEG and WMA formats on CD-R

and CD-RW discs.

The DVD player can also run JPEG files stored on Kodak

picture CD.

The user can enjoy picture images on the television set by

reproducing picture CDs.

* Picture CD is a service to convert a photograph taken by

conventional film camera into digital data and write the data

on a CD.

For details of Picture CD, contact a shop that deals with

developing service of Kodak Inc.

Information on MP3, JPEG and WMA discs

A file with an extension of ".mp3 (MP3)" is called an "MP3 file".

A file with an extension of ".jpg (JPG)" or ".jpeg (JPEG)" is

called a "JPEG file".

The DVD player can run an image file conforming to the

Exif* specification.

This is a file format, Exchangeable Image File format

established by Japanese Electronic Industry Development

Association (JEIDA).

A file with an extension of ".wma (WMA)" is called a

"WMA file".

Files whose extension is other than ".mp3 (MP3)", ".jpg

(JPG)", ".jpeg (JPEG)" and ".wma (WMA)" will not be list-

ed in the MP3, JPEG, or WMA menu.

If the file is not recorded in MP3, JPEG or WMA format, noise

may be produced even if the file extension is either of ".rap3

(MP3)", ".jpg (JPG)", ".jpeg (JPEG)" and ".wma (WMA)".

When a disc with MP3,JPEG or WMA files is inserted in the

DVD player, the track menu will appear on the TV screen,

and number of tracks is displayed on the front panel.

[] Place the disc in the tray with the label facing up.

For discs on which MP3, JPEG or WMA tracks are

recorded:

• An MP3, JPEG or WMA track menu screen appears.

• A symbol of "iJ' is shown on the top of the group name.

• A symbol of '_' is shown on the top of MP3 files.

• A symbol of '_' is shown on the top of JPEG files.

• A symbol of '_' is shown on the top of WMA files.

• If the picture extends beyond the scope of screen, a down

arrow "T" appears, indicating that the user can view anoth-

er part of the picture on the next page. If an up arrow "A"

appears, it indicates that the user can view another part

on the previous page. The current page number and the

number of total pages are shown on the right of the down

arrow "T'.

• The system can recognize up to 255 groups (or folders)

and up to 266 tracks. (This applies to the case where

mixed MP3, JPEG and WMA files are recorded.)

• If no MP3, JPEG or WMA files are found in the group, the

group is not displayed.

• The DVD player can reproduce data recorded as per ISO

9660 Level 1, Level 2 or Joliet on the disc.

• It can also run a disk on which data is recorded in a multi-

session.

• For more details of recording systems, see the instruction

manual for the CD-R /CD-RW drive or the writing software.

Applicable MP3 file Remarks

It is prohibited to record

Sampling fre- 44.1kHz MP3 sound on a digital

quency 48kHz device when connection is

made digitally.

MP3 files recorded at fixed

Type MPEG1 bit rate of 112 kbps or high-

audio layer 3 er are recommended.

Applicable JPEG file Remarks I

Upper limit: A JPEG image that extends I

Size of 6300x5100 dots beyond the screen is I

image Lower limit: reduced so that it will be

32x32 dots d spayed w th n the screen.

Applicable WMA file Remarks

, Those frequencies are

Sampling fre- 44.1kHz applicable to WMA version

quency 48kHz 8 only, not to WMA version

Ensure that the copyright

Bit rate 48-192kbps function is set to off when

preparing a WMA disc.

A prohibition "disable" sym-

bol will appear if the user

Type WMA version 8 attempts to run a non-repro-

ducible file such as copy-

right-protected.

For discs of JPEG or Kodak picture CD:

• A JPEG or Kodak Picture CD menu appears.

• If all menu items cannot be displayed in the screen scope,

a prompt symbol '1_1_1"appears at the right bottom of the

screen, indicating that the user can view remaining items

on the next page. If another prompt symbol '1_1_1"appears,

it indicates that the user can view other items on the previ-

ous page. The track number of the currently highlighted

item and the total tracks are shown at the center bottom of

the screen.

• If a prompt symbol "1_1_1"is shown at the right bottom, use

the SKIP _ button to view the next page. If another

prompt symbol 'l,ql_l" is shown at the left bottom, use the

SKIP _ button to view the previous page.

• It may take some time until all menu items are displayed

on the menu screen.

[] For JPEG, press the cursor buttons (A/V), or for

Kodak Picture CD, press the cursor buttons (_1/

I_/A/V), select a desired group or track to be

played, then press the PLAY or ENTER button.

• If an MP3 or WMA file is selected, reproduction will start

from the selected track and go to the next one in turn.

• If a JPEG or Kodak picture CD file is selected, an image

will be reproduced from the selected track and go to the

next one in turn.

A track is displayed for five seconds and then the next

track is displayed.

Every press on the cursor button I_ will turn the image

clockwise by 90 degrees when an image is displayed.

A press on the cursor button _1 will turn the image coun-

terclockwise by 90 degrees.

• If a group is selected, press the cursor button A/_ to

select a desired group, then press the I_, PLAY or ENTER

button to select a track.

If you press the PLAY or ENTER button, reproduction of

the picture will start.

- 19- EN

Notes on MP3, JPEG and WMA:

•Select "FIRST PLAY" and press the PLAY button, playback

from the top of the disc in the order of tracks and groups.

• The ninth and deeper hierarchies cannot be played.

• The name of group and track can be displayed in up to 25

characters. Alphabets, numerals underline, asterisk or

space may not be displayed. Unrecognizable characters

will be replaced with asterisks.

• Un-reproducible groups or tracks may be displayed

depending on the recording conditions.

• If the TOP MENU button is pressed when a file list is dis-

played, "FIRST PLAY" will be highlighted.

[] Press the STOP button, to stop playback.

Notes on Kodak picture CD:

• A press on the STOP button will highlight the previously

displayed track on the menu screen.

Press the STOP button again or press the TOP MENU

button, and the menu screen displaysTracks 1 to 6, where

Track 1 is highlighted.

Slide Show Mode

Track Selection _,_

[] Press the SEARCH MODE button during playback.

• The FILE LIST will appear.

[] Select a desired track using the cursor buttons

(T/A/_/_).

• Press the I_ button when you want to go to the next

hierarchy.

• Press the _1 button when you want to go back to the

previous hierarchy.

[] Press the PLAY button to start playing

NOTES:

• Press the SEARCH MODE button to exit.

• Some selections may require additional time to be recog-

nized.

• During play, a desired track can be directly searched. Just

type in the TRACK number with the numeric buttons.

• If the typed TRACK number is not available, the "disable"

symbol appears and the direct search mode is cancelled.

• Playback cannot be started from a desired time count.

• Pressing the SKIP button _ or _ will play the next or

previous file.

• The SEARCH button is not effective for Picture CD.

You can switch to the slide show mode during playback.

[] Press the MODE button during playback.

• The slide show mode screen will appear.

• The slide show mode cannot be switched when it is

stopped, or from the file list screen or the Picture CD

menu screen.

[] Press the ENTER button.

• The slide show mode will change.

1 The entire image appears in one time.

2 The image appears gradually and then disappears.

[] Press the MODE button to exit.

On-Screen Information /_

You can check each file during playback.

[] Press the DISPLAY button.

• The name of the file currently in

play will be displayed.

Random Playback _><

[] Press the RANDOM or MODE .......................................................................................................................

button while playback is _M

stopped. RANDr_iMr._c_r_M

[] Press the PLAY button to play the tracks in random

order.

• Random play starts.

• For a disc containing mixed MP3, JPEG and WMA

files, random play of those files will be performed.

<Example: MP3>

[] Press the DISPLAY button again to show the track

number, the elapsed time, the repeat status, and

the playback status at the top of the screen.

• [] will be displayed when the

repeat play has been selected.

[] T - indicates Track repeat

[] G- indicates Group (folder)

repeat

[] D- indicates Disc repeat

[] 5 - indicates 5 Disc repeat

[] Press the DISPLAY button again to exit.

• During program or random playback, each playback

status will be displayed when you press the DISPLAY

button.Then press the DISPLAY button again to exit.

- 20 - EN

_" Program

This feature allows you to program a rap3 disc to play in a

desired sequence•

[] Press the MODE button while

playback is stopped .......• _ ]

• The PROGRAM screen will

appear•

[] Press the • or • button to

select a group, then press the

ENTER button.

• A track selection screen appears.

,!,

PROQ_AM ]

aD_

[] Press the • or • button to ,,I,

select a track, then press the T

ENTER, button to save it in a PROGRAM

program.

• Press the CLEAR button to

erase the incorrect input.

• The programmed track is dis ....

played in the right-hand screen.

• If the entire program cannot be displayed at once on

the screen, "•" appears to go to the next page.

• Pressing the "91 button will show a list of folders that

belong to the one-level upper hierarchy than the cur-

rently selected folder.

[] Press the PLAY button to start programmed play-

back.

• Programmed play starts.

NOTES:

• Press the CLEAR button, and the last-programmed

entry will be deleted.

• Press the RETURN button, and the STOP screen will

show up with the program contents in memory.

• To stop programmed play, press the STOP button.

Another press on the STOP button will reset the subse-

quent information.

• The program setting will be cancelled when the power

is turned off or the disc tray is opened.

• Up to 99 tracks can be set in a program.

• If a disc in inserted that contains mixed MP3, JPEG

and WMA files, program setting allows 99 tracks for

combination of MP3, JPEG and WMA files.

• If eight or more tracks have been set in a program, the

user can switch the right part of the screen with the

SKIP button _ or I_1.

Audio Language _>_

The DVD player allows you to select

a language during DVD disc (if multi language available)

playback.

[] Press the AUDIO button during playback.

[] Press the AUDIO button repeatedly to select your

desired language.

NOTES:

• The sound mode cannot be changed during playback

of discs not recorded in double sound.

• Pressing the AUDIO button may not work on some DVDs

with multiple audio languages (e•g• DVDs which allow

audio language setting on the disc menu).

Stereo Sound Mode _>_

[] Press the AUDIO button repeatedly during play-

back to select between STEREO, L-CH or R-CH.

STEREO - both right and left channels are active (stereo)

L-CH - only left channel is active

R-CH - only right channel is active

I_ STEREO I

Both right and left channels

are active (steleo).

Only theleftchannel

Iis active.

Only the right channel

is active.

NOTE:

•If the Virtual Surround setting is ON, the sound mode will

be fixed to STEREO, and can not be changed.

• Stereo sound mode will not be changed when playing DTS CD.

- 21 - EN

MXSubtitle Language /_ _Changing the On-Screen Display _:_

The DVD player allows you to select

a language for subtitle during DVD disc (if available) playback.

[] Press the SUBTITLE button during playback.

[] Press the SUBTITLE button repeatedly to select

your desired subtitle language.

• The selected language will be displayed on the display

bar at the top of the screen.

[] To turn off subtitles, press the SUBTITLE button

repeatedly until OFF appears.

_'_ Subtitle 1

_'_ Subtitle 2

You can check information about the

current disc by pressing the DISPLAY button on the remote

control.

[] Press the DISPLAY button

once during playback to show I: .... J'l

current Disc number.

• The current disc number will be

displayed.

[] Press the DISPLAY button

twice during playback to show

current Chapter.

• The elapsed and remaining play-

ing time of the current chapter

will be displayed.

.......................................................................................................................J

_,_ OFF

[] Press the DISPLAY button

three times to show current

Title.

• The elapsed and remaining play-

ing time of the current title will be

displayed.

NOTES:

• Some discs allow audio language setting/subtitle language

setting on the disc menu. (Operation varies between discs,

so refer to the manual accompanying the disc.)

• If the desired language is not shown after pressing the

SUBTITLE button several times, the disc does not have subtitles

in that language.

• If you choose a Language that has a 3 letter language

code, the code will be displayed every time you change the

Subtitle language setting. If you choose any other lan-

guages, '---' will be displayed instead. (Refer to page 26.)

_- Camera Angle

Some DVD discs contain scenes which have been shot simulta-

neously from various angles. You can change the camera angle

when the ( iu_!_) mark appears on the screen.

[] Press the ANGLE button during playback.

• The selected angle will be displayed on the display bar

at the top of the screen.

[] Press the ANGLE button repeatedly to select your

desired angle.

Angle 1

Angle 2

Angle 8

[] Press the DISPLAY button four times.

• The BIT RATE and the current repeat setting will be

displayed.

• If you are playing a dual layered disc, the layer number

will also be displayed ( L0: Layer O is playing. L1 : Layer

1 is playing).

If you are playing a DVD-RW with /I;,_zl,ll _T o_G_'1

setting the PLAYLIST, the following [/

will also be displayed.

ORG: Playing the ORIGINAL.

PL: Playing the PLAYLIST.

[] Press the DISPLAY button five times to remove the

display.

[] Press the DISPLAY button during playback, the

current Track will be displayed on the TV screen.

• The elapsed and remaining playing time of the current

track will be displayed.

[] Press the DISPLAY button again to show current

Total Track.

• The elapsed and remaining playing time of the current

total track will be displayed.

[] Press the DISPLAY button the third time to remove

the display.

- 22 - EN

Marker Setup Screen __Black Level Setting

Use markers to memorise

your faveurite places on a disc.

[] Press the SEARCH MODE

button four times during play-

back.

• The display screen and Markers

will appear on the TV screen.

[] Press the _1 or I_ button to select 1,2, 3, 4, 5, 6,

7, 8, 9, or 10 and ensure that" • : "appears

in the display.

[] When reaches the desired point, press the ENTER

button.

• The Title or Track and elapsed playing time will appear

in the TV screen.

[] To return to the Marker later, press the SEARCH

MODE button four times during playback and the

_1 or I_ button to choose the desired marker, then

press the ENTER button.

NOTES:

• Opening the disc tray or turning off the power or select

AC at step [] and press the ENTER button will erase

all Markers.

• To clear a marker, using the _1 or I_ button, position

the cursor on to the marker number to be cleared and

press the CLEAR button.

• You can mark up to 10 points.

[] Press the SEARCH MODE or RETURN button to

exit.

Adjust the Black Level Settings to make

the black parts of the picture as bright as you preferred.

[] Press the MODE button during playback.

[] Press the ENTER button to

switch ON/OFE

ON (Default) : Makes the dark

parts brighter.

OFF : Shows the original picture

as recorded.

[] Press the MODE or RETURN button to exit.

Virtual Surround

Youcan enjoy stereophonic visual space on your existing 2

channel stereo system.

[] Press the MODE button twice

during playback.

[] Press the ENTER button to set it 1(Natural effect),

2(Emphasized effect) or OFE

[] Press the RETURN button to exit.

[] Press the SEARCH MODE button three times dur-

ing playback.

• The display screen and Markers will appear on the TV

screen.

[] Press the MODE button during playback.

[] Press the ENTER button to set 1(Natural effect),

2(Emphasized effect) or OFE

[] Press the RETURN button to exit.

[] Press the _1 or I_ button to select 1,2, 3, 4, 5, 6,

7, 8, 9, or 10 and ensure that" • : "appears

in the display.

[] When reaches the desired point, press the ENTER

button.

• The Title orTrack and elapsed playing time will appear

in the TV screen.

[] To return to the Marker later, press the SEARCH

MODE button three times during playback and the

_1 or I_ button to choose the desired marker, then

press the ENTER button.

NOTES:

• Opening the disc tray or turning off the power or select

AC at step [] and press the ENTER button will erase

all Markers.

• To clear a marker, using the _1 or I_ button, position

the cursor on to the marker number to be cleared and

press the CLEAR button.

• You can mark up to 10 points.

[] Press the SEARCH MODE or RETURN button to

exit.

NOTE (for CD play only):

• Select Virtual Surround OFF or adjust the volume down

if the sound is distorted.

- 23 - EN

InSetupmenu,QUICKmodeandCUSTOMmodeareavailale.QUICKmodeconsistsof theset-

tingmenusoftenneeded,andyoucanmakeallsettingsrequiredinCUSTOMmode.

Youcanmakethesettingsoftheitemswith_ markinQUICKmode.

_" Language Setting _ _ Display Setting _:_

Language options are not available with some discs.

[] Press the SETUP button in STOP mode.

[] Press the I_ button to select CUSTOM, then press the

ENTER button.

• CUSTOM mode will appear, j

[] Press the _1 or I_ button to se- ,,""

lect LANGUAGE, then the EN- _ _ _i_ _"

TER button to confirm.

[] Press the • or • button to select the below items,

then press the ENTER button.

DIALOG (Default :ORIGINAL)

• Setsthe audio language.

SUBTITLE (Default : OFF)

• Setsthe subtitle language.

DISC MENU (Default : ENGLISH)

• Setsthe language for DVD Menu.

_N_UA_E

SU_T_E

OSD

(Default : ENGLISH)

• Setsthe language for the On-

Screen display.

[] Press the • or • button to select a setting, then

press the ENTER button.

• If OTHERS is selected in the AUDIO, SUBTITLE or DISC

MENU screen, press four-digit number to enter the code for

the desired language. (Refer to the language code list below).

• Onlythe languages supported bythe disc can be selected.

[] Press the SETUP button to exit.

NOTE:

• Language Setting for Dialog and Subtitle is not available

with some discs.Then use the AUDIO and SUBTITLE but-

tons.

Details are on pages 21 and 22.

YoucanchangecertainaspectsoftheDVDdisplayscreens,on-screen

messagesandthe displaypanel onthefront ofthe DVDplayer.

[] Press the SETUP button in STOP mode.

[] Press the I_ button to select CUSTOM, then press

the ENTER button.

• CUSTOM mode will appear.

[] Press the _1 or I_ button to se- _ -

lect DISPLAY, then the ENTER _

button to confirm.

[] Press the • or • button to select the below items, then

press the ENTER button.

TV ASPEC_It : 4:3 LET-

QUICK _ @ __

TER BOX)

• Press the • or • button for an

item selection, then press the EN-

TER button.

• Select 4:3 LETTER BOX for a

black bars appears on top and bottom of the screen.

• Select 4:3 PAN - SCAN for a full height picture with both sides

trimmed.

• Select 16:9 WIDE if a wide-screen TV is connected to the

DVD player.

PANEL DISPLAY (Default :

BRIGHT) _ Q _:1_'_/_

• Press the • or • button for an

item select BRIGHT, DIM and AU-

TO DIM, then press the ENTER

button.

• This adjust the brightness of the

display panel with the factory default BRIGHT.

• When AUTODIMis selected,the displaydims only duringplayback.

ANGLE ICON (Default : ON)

• Press the ENTER button repeat- _ _ L_!._;:_':_

edly to turn Angle mark ON or

OFR

AUTO POWER OFF (Default : ON)

• Press the ENTER button repeat-

edly to turn Auto Power ON or

OFR

• It will turn the DVD player to off au-

tomatically after 35 minutes of no

use.

[] Press the SETUP button to exit.

NOTES:

Be sure to press the SETUP button, or the setting will not work.

You can also choose the item by pressing the numbers.

- 24 - EN

_Audio Setting

Choose the appropriate Audio settings for your equipment as it

only affect during the playback of DVD discs of the DVD player.

[] Press the SETUP button in STOP mode.

[] Press the I_ button to select CUSTOM, then press

the ENTER button.

• CUSTOM mode will appear.

[] Press the _1 or I_ button to

select AUDIO, then the ENTER

button to confirm.

[] Press the • or • button to select the below items,

then press the ENTER button.

DRC (Dynamic Range Control)

(Default : OFF) _ _ _Q_i_

• To compress the range of sound

volume.

DOLBY DIGITAL (Default : ON)

Set to ON when the player is con-

nected to Dolby Digital Decoder.

(ON : Output by Dolby Digital)

(OFF : Convert the Dolby Digital to

PCM)

DTS (Default : ON)

ON : Output by DTS sound

Set to ON when the unit is con-

nected to DTS Decoder.

LPCM SELECT (Default : OFF)

• Set to ON when outputting in

48kHz.

Ratings Control _>_

Ratings Control limits playback of discs with unsuitable audience

ratings. A four digit code established by the user will unlock the

parental lock.

This feature allows you to prevent discs with objectionable

scenes from being played by your children.

IRATINGLEVEL I

Rating Level allows you to set the rating level of your DVD

discs. Playback will stop if the disc's ratings exceed the level

you set.

[] Press the SETUP button in STOP mode.

[] Press the I_ button to select CUSTOM, then press

the ENTER button.

[] Press the _1 or I_ button to select RATING, then

press the ENTER button.

[] Enter your four-digit password

then press the ENTER button.

[] Press the • or • button to se-

lect RATING LEVEL, then

press the ENTER button.

When playing disc with copyright Protection

• If you select OFF,copyright protection will be activated

and sound will be down sampled at 48kHz.

[] Press the SETUP button to exit.

[] Press the • or • button to se-

lect the desired level.

,x"

Ptea e entera_digil pa_er J

_BDDD .

#_Trtq_

EWL ALL

[] Press the SETUP button to exit.

NOTES:

• When doing this for the first time, enter any 4 digits. (except

for 4737) That number will be used as the password from the

second time onward.

To change the password, press the • or • button to select

CHANGE at step I[qtl,then press the ENTER button. Enter

the four-digit pass-word, then press the ENTER button.

With some DVDs, it may be difficult to find if they are com-

patible with parental lock. Be sure to check if the parental lock

function operates in the way that you have set.

Record the password in case you forget it.

IIFYOU FORGETTHE PASSWORD I

[] Press 4, 7, 3, 7 at step 4.

• Password will be cleared and rating level will be set to ALL.

[] Repeat steps 5-7 to re-establish the parental lock.

I CONTROLLEVELS I

• ALL

Parental lock is cancelled.

Level 8

DVD software of any grade (adult/general/children) can

be played back.

Levels 7 to 2

Only DVD software intended for general use and chil-

dren can be played back.

Level 1

Only DVD software intended for children can be played

back, with those intended for adult and general use

prohibited.

-25- EN

Code Lan uguage Code Lan uguage Code Lan_ Code

A-B Frisian 5271 Malay 5965 Somali 6561

Abkhazian 4748 Galician 5358 Malayalam 5958 Spanish [SPA] 5165

Afar 4747 Georgian 5747 Maltese 5966 Sundanese 8567

Afrikaans 4752 German [GER] 5051 Maori 5955 Swahili 8569

Albanian 8563 Greek [GRE] 5158 Marathi 5964 Swedish [SWE] 8568

Arnharic 4759 Greenlandic 5758 Moldavian 5961 T

Arabic 4764 Guarani 5360 Mongolian 5960 Tagalog 8658

Armenian 5471 Gujarati 5367 Nauru 6047 Tajik 8653

Assamese 4765 Hausa 5447 Nepali 6051 Tamil 8647

Ayr'nara 4771 Hebrew 5569 Norwegian [NOR] 6061 Tatar 8666

Azerbaijani 4772 Hindi 5455 O-R Telugu 8651

Bashkir 4847 Hungarian [HUN] 5467 Occitan 6149 Thai 8654

Basque 5167 I-K Oriya 6164 Tibetan 4861

Bengali;Bangla 4860 Icelandic lICE] 5565 Oromo(Afan) 6159 Tigrinya 8655

Bhutani 5072 Indonesian 5560 Panjabi 6247 Tonga 8681

Bihari 4854 Interlingua 5547 Pashto;Pushto 6265 Tsonga 6665

Bislama 4855 Interlingue 5551 Persian 5247 Turkish [TUR] 6664

Breton 4864 Inupiak 5557 Polish 6258 Turkmen 6657

Bulgarian 4853 Irish [IRI] 5347 Portuguese [POR] 6266 Twi 6669

Burmese 5971 Italian [ITA] 5566 Quechua 6367 U-Z

Byelorussian 4851 Japanese [JPN] 5647 Rhaeto-Romance 6459 Ukrainian 6757

C-E Javanese 5669 Romanian [RUM] 6461 Urdu 6764

Cambodian 5759 Kannada 5760 Russian [RUS] 6467 Uzbek 8772

Catalan 4947 Kashmiri 5765 S Vietnamese 8855

Chinese [CHI] 7254 Kazakh 5757 Samoan 6559 Volapuk 8861

Corsican 4961 Kinyarwanda 8469 Sangho 6553 Welsh 4971

Croatian 5464 Kirghiz 5771 Sanskrit 6547 Wolof 8961

Czech 4965 Kirundi 8460 Scots Gaelic 5350 Xhosa 7054

Danish [DAN] 5047 Korean [KOR] 5761 Serbian 6564 Yiddish 5655

Dutch [DUT] 6058 Kurdish 5767 Serbo-Oroatian 6554 Yoruba 7161

English [ENG] 5160 L-N Sesotho 6566 Zulu 7267

Esperanto 5161 Laothian 5861 Setswana 6660

Estonian 5166 Latin 5847 Shona 6560

F-H Latvian;Lettish 5868 Sindhi 6550

Faroese 5261 Lingala 5860 Singhalese 6555

Fiji 5256 Lithuanian 5866 Siswat 6565

Finnish [FIN] 5255 Macedonian 5957 Slovak 6557

French [FRE] 5264 Malagasy 5953 Slovenian 6558

If you choose a Language that has a 3 letter language code, the code will be displayed every time you change the Audio or Subtitle language I

Lsetting on pages 21 and 22. If you choose any other languages, ---' will be displayed instead. (3 letter language code is written in bracket.) J

- 26 - EN

Cleaning the Cabinet

• Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits,

ammonia or abrasives.

Cleaning Discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center out. Do not wipe in a circular

motion.

• Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, adrasive cleaning agents or

antistatic spray intended for analogue records.

Cleaning the disc lens

• If the player still does not perform properly when it is operated while referring to the relevant sections and to "TROU-

BLESHOOTING GUIDE" in this Operating Instruction, the laser optical pickup unit may be dirty. Consult your dealer or

an Authorized Service Center for inspection and cleaning of the laser optical pickup unit.

Disc Handling

• Use discs which have the following Iogos on them.

(Optical audio digital discs.)

• Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.

• Always store the disc in its protective case when it is not used.

• Note that discs with special shapes (heart-shaped discs, hexagonal discs, etc.) cannot be

played on the this product. Do not attempt to play such discs, as they may damage the

player.

V.DEO R o.o. ......o AVlP3

Make your contribution to the environment!H

• Used up batteries do not belong in the dust bin.

• Youcan dispose of them at a collection point for used up batteries or special waste. Contact your council for details. @

- 27 - EN

If the DVD player does not perform properly when operated as instructed in this Operating Instruction, check the player, con-

sulting the following checklist.

Problem

No power

No sound or picture

Distorted picture

Completely distorted picture or

black/white picture with DVD

No sound or distorted sound

No audio at digital output

No DTS audio output

Picture freezes momentarily

during playback

Disc can't be played

No return to start-up screen when

disc is removed

The player does not respond to

the remote control

Buttons do not work or player stops

responding

Player does not respond to some

operating commands during playback

DVD player cannot read

CDs/DVDs

Angle does not switch

Playback does not start when the title is selected

The password for rating level has been forgotten

No DTS audio at analog output

Solution

-Check if the AC power cord is properly connected.

-Unplug the outlet once, and wait for 5-10seconds and then plug it in

again

-Check if the TV is switched on.

-Check the video connection

-Check the VIDEO/AUDIO cable connections to the TV

(See Connecting to a TV)

-DTS sound cannot be produced with an analogue connection.

-Sometimes a small amount of picture distortion may appear.

This is not a malfunction.

-Connect the player directly to th TV.

-Connect DVD player directly to the TV.

-Make sure the disc is compatible with the DVD player.

-Adjust the volume.

-Check that the speakers are connected correctly.

-Check the digital connections.

-Check if the audio format of the selected audio language matches

your receiver capabilities.

-This player does not support DTS audio. This is not a malfunction.

-Check the disc for fingerprints/scratches and

clean with a soft cloth wiping from center to edge.

-Clean the disc

-Ensure the disc label is facing up.

-Check if the disc is defective by trying another disc.

-Cancel the parental lock or change the control level.

-Insert a correct disc that plays on this player.

-Reset the player by switching the player off, then on again.

-Aim the remote control directly at the sensor on the front of the player.

-Reduce the distance to the player.

-Replace the batteries in the remote control.

-Re-insert the batteries with their polarities (+/- signs) as indicated.

-To completely reset the player, unplug the AC

cord from the AC outlet for 5-10 seconds.

-Operations may not be permitted by the disc.

Refer to the instructions of the disc.

-Use a commonly available cleaning CD/DVD to

clean the lens before sending the DVD player for repair.

-The angle cannot be switched for DVDs which do not contain

multiple angles. In some cases multiple angles are only recorded

for specific scenes.

-Check the "RATINGS" setting.

-Enter the default password "4737", then your forgotten password

will be cleared

-Use a DIGITAL AUDIO OUT iack when outputting the DTS audio.

NOTES:

Some functions are not available in specific modes, but this is not a malfunction. Read the description ill this Operating

Instruction for details on correct operations.

• Playback from a desired track and random playback are not available during program playback.

- 28 - EN

SIGNAL SYSTEM

NTSC color

APPLICABLE DISCS

(1) DVD-Video discs

l-layer 12cm single-sided discs, 2-layer 12cm single-sided

discs, 2-layer 12cm double-sided discs (1 layer per side)

l-layer 8cm single-sided discs, 2-layer 8cm single-sided

discs, 2-layer 8cm double-sided discs (1 layer per side)

(2) DVD-R/DVD-RW

(3) Compact discs (CD-DA)

12cm discs, 8cm discs

(4) CD-R/CD-RW

S-VIDEO OUTPUT

Y output level: lVp-p (75£_/ohms)

C output level: 0.286Vp-p

Output connectors: S connectors, 1 set

VIDEO OUTPUT

Output level: lVp-p (75£2/ohms)

Output connector: Pin jacks, 1 set

COMPONENT OUTPUT

Y output level: lVp-p (75£_/ohms)

PB/CB output level: 0.7Vp-p (75£2/ohms)

PR/CR output level: 0.7Vp-p (75£_/ohms)

Output connector: Pin jacks, 1 set

AUDIO OUTPUT

Output level: 2Vrms

2 channel (FL, FR) output connector: Pin jack, 1 set

AUDIO OUTPUT PROPERTIES

(1) Frequency response

1 DVDs (linear PCM) : 4Hz to 22kHz (48 kHz sampling)

: 4Hz to 44kHz (96 kHz sampling)

2 CDs : 4Hz to 20kHz

(2) S/N ratio : 115dB

(3) Total harmonic distortion : lkHz CD: 0.003%

(4) Dynamic range : DVD: 100dB

CD: 98dB

DIGITAL AUDIO OUTPUT

Optical digital output: Optical connector, 1 set

Coaxial digital output: Pin jack, 1 set

POWER SUPPLY

AC 120V, 60Hz

POWER CONSUMPTION

17W (Standby: 0.6W)

MAXIMUM EXTERNAL DIMENSIONS

435 (width) x 104 (height) x 370 (depth) mm

(17-1/8" x 4-3/32" x 14-9/16") (including protruding parts)

MASS

4.6Kg (9.481bs)

REMOTE CONTROL UNIT

RC-946

TYPE

Infrared pulse

POWER SUPPLY

DC 3V, 2 R6P/AA batteries

- 29 - EN

Printed in China

511 4081 004

DENON, Ltd.

1G11, YUSHIMA 3-CHOME, BUNKYOU-KU, TOKYO 113-0034, JAPAN

Telephone: (03) 3837-5321 0VMN03732

E8620UD -_-k -k -k -_

Denon DVM 1815 User Manual DVD Manuals And Guides L0405288

DENON DVD Systems Manual L0405288 DENON DVD Systems Owner's Manual, DENON DVD Systems installation guides

DVM-1815 L0405288

Navigation menu

Versions of this User Manual:

Views

Navigation
