CD/HDD MUSIC SYSTEM

CHR-F103

OPERATING INSTRUCTIONS

BEDIENUNGSANLEITUNG

MODE D’EMPLOI

ISTRUZIONI PER L’USO

INSTRUCCIONES DE FUNCIONAMIENTO

GEBRUIKSAANWIJZING

BRUKSANVISNING

ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH FRANCAIS

¢SAFETY PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol, within an

equilateral triangle, is intended to alert the user to the presence

of uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a

risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended

to alert the user to the presence of important operating and

maintenance (servicing) instructions in the literature

accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT

EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

•DECLARATION OF CONFORMITY

We declare under our sole responsibility that this product, to which this

declaration relates, is in conformity with the following standards:

EN60065, EN55013, EN55020, EN61000-3-2 and EN61000-3-3.

Following the provisions of 73/23/EEC, 89/336/EEC and 93/68/EEC

Directive.

•ÜBEREINSTIMMUNGSERKLÄRUNG

Wir erklären unter unserer Verantwortung, daß dieses Produkt, auf das

sich diese Erklärung bezieht, den folgenden Standards entspricht:

EN60065, EN55013, EN55020, EN61000-3-2 und EN61000-3-3.

Entspricht den Verordnungen der Direktive 73/23/EEC, 89/336/EEC und

93/68/EEC.

•DECLARATION DE CONFORMITE

Nous déclarons sous notre seule responsabilité que l’appareil, auquel se

réfère cette déclaration, est conforme aux standards suivants:

EN60065, EN55013, EN55020, EN61000-3-2 et EN61000-3-3.

D’après les dispositions de la Directive 73/23/EEC, 89/336/EEC et

93/68/EEC.

•DICHIARAZIONE DI CONFORMITÀ

Dichiariamo con piena responsabilità che questo prodotto, al quale la

nostra dichiarazione si riferisce, è conforme alle seguenti normative:

EN60065, EN55013, EN55020, EN61000-3-2 e EN61000-3-3.

In conformità con le condizioni delle direttive 73/23/EEC, 89/336/EEC e

93/68/EEC.

QUESTO PRODOTTO E’ CONFORME

AL D.M. 28/08/95 N. 548

•DECLARACIÓN DE CONFORMIDAD

Declaramos bajo nuestra exclusiva responsabilidad que este producto al

que hace referencia esta declaración, está conforme con los siguientes

estándares:

EN60065, EN55013, EN55020, EN61000-3-2 y EN61000-3-3.

Siguiendo las provisiones de las Directivas 73/23/EEC, 89/336/EEC y

93/68/EEC.

•EENVORMIGHEIDSVERKLARING

Wij verklaren uitsluitend op onze verantwoordelijkheid dat dit produkt,

waarop deze verklaring betrekking heeft, in overeenstemming is met de

volgende normen:

EN60065, EN55013, EN55020, EN61000-3-2 en EN61000-3-3.

Volgens de bepalingen van de Richtlijnen 73/23/EEC, 89/336/EEC en

93/68/EEC.

•ÖVERENSSTÄMMELSESINTYG

Härmed intygas helt på eget ansvar att denna produkt, vilken detta intyg

avser, uppfyller följande standarder:

EN60065, EN55013, EN55020, EN61000-3-2 och EN61000-3-3.

Enligt stadgarna i direktiv 73/23/EEC, 89/336/EEC och 93/68/EEC.

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

THIS PRODUCT SHOULD NOT BE ADJUSTED OR REPAIRED BY ANYONE

EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.

ADVARSEL: USYNLIG LASERSTRÅLING VED ÅBNING, NÅR

SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION.

UNDGÅ UDSAETTELSE FOR STRÅLING.

VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ

KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA

ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1

YLITTÄVÄLLE NÄKYMÄMTTÖMÄLLE LASERSÄTEILYLLE.

VARNING: OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA

BRUKSANVISNING SPECIFICERATS, KAN ANVÄNDAREN

UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING SOM

ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1.

CLASS 1 LASER PRODUCT

LUOKAN 1 LASERLAITE

KLASS 1 LASERAPPARAT

CLASS 1

LASER PRODUCT,

ATTENZIONE: QUESTO APPARECCHIO E’ DOTATO DI DISPOSITIVO

OTTICO CON RAGGIO LASER.

L’USO IMPROPRIO DELL’APPARECCHIO PUO’ CAUSARE PERICOLOSE

ESPOSIZIONI A RADIAZIONI!

CAUTION:

•The ventilation should not be impeded by covering the ventilation openings with items,

such as newspapers, tablecloths, curtains, etc.

•No naked flame sources, such as lighted candles, should be placed on the apparatus.

•Attention should be drawn to the environmental aspects of battery disposal.

•Do not expose the set to dripping or splashing fluids.

•No objects filled with liquids, such as vases, shall be placed on the apparatus.

ACHTUNG:

•Die Belüftung sollte auf keinen Fall durch das Abdecken der Belüftungsöffnungen durch

Gegenstände wie beispielsweise Zeitungen, Tischtücher, Vorhänge o. Ä. behindert

werden.

•Auf dem Gerät sollten keinerlei direkten Feuerquellen wie beispielsweise angezündete

Kerzen aufgestellt werden.

•Bitte beachten Sie bei der Entsorgung der Batterien die geltenden

Umweltbestimmungen.

•Das Gerät sollte keinerlei Flüssigkeit, also keinem Tropfen oder Spritzen ausgesetzt

werden.

•Auf dem Gerät sollten keinerlei mit Flüssigkeit gefüllten Behälter wie beispielsweise

Vasen aufgestellt werden.

ATTENTION:

•La ventilation ne doit pas être gênée en recouvrant les ouvertures de la ventilation avec

des objets tels que journaux, rideaux, tissus, etc.

•Aucune flamme nue, par exemple une bougie, ne doit être placée sur l’appareil.

•Veillez à respecter l’environnement lorsque vous jetez les piles usagées.

•L’appareil ne doit pas être exposé à l’eau ou à l’humidité.

•Aucun objet contenant du liquide, par exemple un vase, ne doit être placé sur l’appareil.

PRECAUZIONI:

•Le aperture di ventilazione non devono essere ostruite coprendole con oggetti, quali

giornali, tovaglie, tende e così via.

•Non posizionare sull'apparecchiatura fiamme libere, come ad esempio le candele accese.

•Prestare attenzione agli aspetti legati alla tutela dell’ambiente quando si smaltisce la

batteria.

•L’apparecchiatura non deve essere esposta a gocciolii o spruzzi.

•Non posizionare sull’apparecchiatura nessun oggetto contenete liquidi, come ad esempio

i vasi.

PRECAUCIÓN:

•La ventilación no debe quedar obstruida por hacerse cubierto las aperturas con objetos

como periódicos, manteles, cortinas, etc.

•No debe colocarse sobre el aparato ninguna fuente inflamable sin protección, como velas

encendidas.

•A la hora de deshacerse de las pilas, respete la normativa para el cuidado del medio

ambiente.

•No se expondrá el aparato al goteo o salpicaduras cuando se utilice.

•No se colocarán sobre el aparato objetos llenos de líquido, como jarros.

WAARSCHUWING:

•De ventilatie mag niet worden belemmerd door de ventilatieopeningen af te dekken met

bijvoorbeeld kranten, een tafelkleed, gordijnen, enz.

•Plaats geen open vlammen, bijvoorbeeld een brandende kaars, op het apparaat.

•Houd u steeds aan de milieuvoorschriften wanneer u gebruikte batterijen wegdoet.

•Stel het apparaat niet bloot aan druppels of spatten.

•Plaats geen voorwerpen gevuld met water, bijvoorbeeld een vaas, op het apparaat.

OBSERVERA:

•Ventilationen bör inte förhindras genom att täcka för ventilationsöppningarna med föremål

såsom tidningar, bordsdukar, gardiner osv.

•Inga blottade brandkällor, såsom tända ljus, bör placeras på apparaten.

•Tänk på miljöaspekterna när du bortskaffar batteri.

•Apparaten får inte utsättas för vätska.

•Inga objekt med vätskor, såsom vaser, får placeras på apparaten.

ENGLISHDEUTSCHFRANCAISITALIANOESPAÑOLNEDERLANDSSVENSKA

¢NOTE ON USE / HINWEISE ZUM GEBRAUCH / OBSERVATIONS RELATIVES A L’UTILISATION / NOTE SULL’USO /

NOTAS SOBRE EL USO / ALVORENS TE GEBRUIKEN / OBSERVERA

•Avoid high temperatures.

Allow for sufficient heat dispersion when installed in a rack.

•Vermeiden Sie hohe Temperaturen.

Beachten Sie, daß eine ausreichend Luftzirkulation

gewährleistet wird, wenn das Gerät auf ein Regal gestellt

wird.

•Eviter des températures élevées

Tenir compte d’une dispersion de chaleur suffisante lors de

l’installation sur une étagère.

•Evitate di esporre l’unità a temperature alte.

Assicuratevi che ci sia un’adeguata dispersione del calore

quando installate l’unità in un mobile per componenti audio.

•Evite altas temperaturas

Permite la suficiente dispersión del calor cuando está

instalado en la consola.

•Vermijd hoge temperaturen.

Zorg voor een degelijk hitteafvoer indien het apparaat op

een rek wordt geplaatst.

•Undvik höga temperaturer.

Se till att det finns möjlighet till god värmeavledning vid

montering i ett rack.

•Handle the power cord carefully.

Hold the plug when unplugging the cord.

•Gehen Sie vorsichtig mit dem Netzkabel um.

Halten Sie das Kabel am Stecker, wenn Sie den Stecker

herausziehen.

•Manipuler le cordon d’alimentation avec précaution.

Tenir la prise lors du débranchement du cordon.

•Manneggiate il filo di alimentazione con cura.

Agite per la spina quando scollegate il cavo dalla presa.

•Maneje el cordón de energía con cuidado.

Sostenga el enchufe cuando desconecte el cordón de

energía.

•Hanteer het netsnoer voorzichtig.

Houd het snoer bij de stekker vast wanneer deze moet

worden aan- of losgekoppeld.

•Hantera nätkabeln varsamt.

Håll i kabeln när den kopplas från el-uttaget.

•Keep the apparatus free from moisture, water, and dust.

•Halten Sie das Gerät von Feuchtigkeit, Wasser und Staub

fern.

•Protéger l’appareil contre l’humidité, l’eau et lapoussière.

•Tenete l’unità lontana dall’umidità, dall’acqua e dalla

polvere.

•Mantenga el equipo libre de humedad, agua y polvo.

•Laat geen vochtigheid, water of stof in het apparaat

binnendringen.

•Utsätt inte apparaten för fukt, vatten och damm.

•Unplug the power cord when not using the apparatus for

long periods of time.

•Wenn das Gerät eine längere Zeit nicht verwendet werden soll,

trennen Sie das Netzkabel vom Netzstecker.

•Débrancher le cordon d’alimentation lorsque l’appareil n’est

pas utilisé pendant de longues périodes.

•Disinnestate il filo di alimentazione quando avete

l’intenzione di non usare il filo di alimentazione per un lungo

periodo di tempo.

•Desconecte el cordón de energía cuando no utilice el

equipo por mucho tiempo.

•Neem altijd het netsnoer uit het stopkontakt wanneer het

apparaat gedurende een lange periode niet wordt gebruikt.

•Koppla ur nätkabeln om apparaten inte kommer att

användas i lång tid.

* (For apparatuses with ventilation holes)

•Do not obstruct the ventilation holes.

•Die Belüftungsöffnungen dürfen nicht verdeckt werden.

•Ne pas obstruer les trous d’aération.

•Non coprite i fori di ventilazione.

•No obstruya los orificios de ventilación.

•De ventilatieopeningen mogen niet worden beblokkeerd.

•Täpp inte till ventilationsöppningarna.

•Do not let foreign objects into the apparatus.

•Keine fremden Gegenstände in das Gerät kommen lassen.

•Ne pas laisser des objets étrangers dans l’appareil.

•E’ importante che nessun oggetto è inserito all’interno

dell’unità.

•No deje objetos extraños dentro del equipo.

•Laat geen vreemde voorwerpen in dit apparaat vallen.

•Se till att främmande föremål inte tränger in i apparaten.

•Do not let insecticides, benzene, and thinner come in

contact with the apparatus.

•Lassen Sie das Gerät nicht mit Insektiziden, Benzin oder

Verdünnungsmitteln in Berührung kommen.

•Ne pas mettre en contact des insecticides, du benzène et

un diluant avec l’appareil.

•Assicuratevvi che l’unità non venga in contatto con

insetticidi, benzolo o solventi.

•No permita el contacto de insecticidas, gasolina y

diluyentes con el equipo.

•Laat geen insektenverdelgende middelen, benzine of

verfverdunner met dit apparaat in kontakt komen.

•Se till att inte insektsmedel på spraybruk, bensen och

thinner kommer i kontakt med apparatens hölje.

•Never disassemble or modify the apparatus in any way.

•Versuchen Sie niemals das Gerät auseinander zu nehmen

oder auf jegliche Art zu verändern.

•Ne jamais démonter ou modifier l’appareil d’une manière

ou d’une autre.

•Non smontate mai, nè modificate l’unità in nessun modo.

•Nunca desarme o modifique el equipo de ninguna manera.

•Nooit dit apparaat demonteren of op andere wijze

modifiëren.

•Ta inte isär apparaten och försök inte bygga om den.

III

A NOTE ABOUT RECYCLING:

This product’s packaging materials are recyclable and can be reused. Please dispose of any

materials in accordance with the local recycling regulations.

When discarding the unit, comply with local rules or regulations.

Batteries should never be thrown away or incinerated but disposed of in accordance with the local

regulations concerning chemical waste.

This product and the accessories packed together constitute the applicable product according to the

WEEE directive except batteries.

HINWEIS ZUM RECYCLING:

Das Verpackungsmaterial dieses Produktes ist für zum Recyceln geeignet und kann wieder verwendet werden. Bitte

entsorgen Sie alle Materialien entsprechend der örtlichen Recycling-Vorschriften.

Beachten Sie bei der Entsorgung des Gerätes die örtlichen Vorschriften und Bestimmungen.

Die Batterien dürfen nicht in den Hausmüll geworfen oder verbrannt werden; bitte geben Sie die Batterien gemäß

örtlichen Bestimmungen an den Sammelstellen oder Sondermüllplätzen ab.

Dieses Produkt zusammen mit den Zubehörteilen ist das geltende Produkt der WEEE-Direktive, davon

ausgenommen sind die Batterien.

UNE REMARQUE CONCERNANT LE RECYCLAGE:

Les matériaux d’emballage de ce produit sont recyclables et peuvent être réutilisés. Veuillez disposer de tout

matériau conformément aux réglements de recylage locaux.

Lorsque vous mettez cet appareil au rebut, respectez les lois ou réglementations locales.

Les piles ne doivent jamais être jetées ou incinérées, mais mises au rebut conformément aux réglements locaux

concernant les déchets chimiques.

Ce produit et les accessoires emballés ensemble sont des produits conformes à la directive DEEE sauf pour les piles.

NOTA RELATIVA AL RICICLAGGIO:

I materiali di imballaggio di questo prodotto sono riutilizzabili e riciclabili. Smaltire i materiali conformemente alle

normative locali sul riciclaggio.

Per smaltire l’unità, osservare la normativa in vigore nel luogo di utilizzo.

Non gettare le batterie, né incenerirle, ma smaltirle conformemente alla normativa locale sui rifiuti chimici.

Questo prodotto e gli accessori inclusi nell’imballaggio sono applicabili alla direttiva RAEE, ad eccezione delle batterie.

ACERCA DEL RECICLAJE:

Los materiales de embalaje de este producto son reciclables y se pueden volver a utilizar. Disponga de estos

materiales siguiendo los reglamentos de reciclaje de su localidad.

Cuando se deshaga de la unidad, cumpla con las reglas o reglamentos locales.

Las pilas nunca deberán tirarse ni incinerarse. Deberá disponer de ellas siguiendo los reglamentos de su localidad

relacionados con los desperdicios químicos.

Este producto junto con los accesorios empaquetados es el producto aplicable a la directiva RAEE excepto pilas.

EEN AANTEKENING WAT BETREFT HET RECYCLEREN:

Het inpakmateriaal van dit product is recycleerbaar en kan opnieuw gebruikt worden. Er wordt verzocht om zich van

elk afvalmateriaal te ontdoen volgens de plaatselijke voorschriften.

Volg voor het wegdoen van de speler de voorschriften voor de verwijdering van wit- en bruingoed op.

Batterijen mogen nooit worden weggegooid of verbrand, maar moeten volgens de plaatselijke voorschriften

betreffende chemisch afval worden verwijderd.

Op dit product en de meegeleverde accessoires, m.u.v. de batterijen is de richtlijn voor afgedankte elektrische en

elektronische apparaten (WEEE) van toepassing.

EN KOMMENTAR OM ÅTERVINNING:

Produktens emballage är återvinningsbart och kan återanvändas. Kassera det enligt lokala återvinningsbestämmelser.

När du kasserar enheten ska du göra det i överensstämmelse med lokala regler och bestämmelser.

Batterier får absolut inte kastas i soporna eller brännas. Kassera dem enligt lokala bestämmelser för kemiskt avfall.

Denna apparat och de tillbehör som levereras med den är de som uppfyller gällande WEEE-direktiv, med undantag

av batterierna.

FRANCAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKAENGLISH DEUTSCH

CAUTION:

To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet.

The mains plug is used to completely interrupt the power supply to the unit and must be within easy access by the

user.

VORSICHT:

Um dieses Gerät vollständig von der Stromversorgung abzutrennen, trennen Sie bitte den Netzstecker von der

Wandsteckdose ab.

Die Hauptstecker werden verwendet, um die Stromversorgung zum Gerät völlig zu unterbrechen; er muss für den

Benutzer gut und einfach zu erreichen sein.

PRECAUTION:

Pour déconnecter complètement ce produit du courant secteur, débranchez la prise de la prise murale.

La prise secteur est utilisée pour couper complètement l’alimentation de l’appareil et l’utilisateur doit pouvoir y

accéder facilement.

ATTENZIONE:

Per scollegare definitivamente questo prodotto dalla rete di alimentazione elettrica, togliere la spina dalla relativa

presa.

La spina di rete viene utilizzata per interrompere completamente l’alimentazione all’unità e deve essere facilmente

accessibile all’utente.

VOORZICHTIGHEID:

Om de voeding van dit product volledig te onderbreken moet de stekker uit het stopcontact worden getrokken.

De netstekker wordt gebruikt om de stroomtoevoer naar het toestel volledig te onderbreken en moet voor de

gebruiker gemakkelijk bereikbaar zijn.

FÖRSIKTIHETSMÅTT:

Koppla loss stickproppen från eluttaget för att helt skilja produkten från nätet.

Stickproppen används för att helt bryta strömförsörjningen till apparaten, och den måste vara lättillgänglig för

användaren.

PRECAUCIÓN:

Para desconectar completamente este producto de la alimentación eléctrica, desconecte el enchufe del enchufe de

la pared.

El enchufe de la alimentación se utiliza para interrumpir por completo el suministro de alimentación a la unidad y debe

de encontrarse en un lugar al que el usuario tenga fácil acceso.

ENGLISH

Contents

Thank you for purchasing this DENON CD/HDD Music System. Please read the operation instructions thoroughly in order to acquaint yourself with the CD/HDD Music System and achieve maximum satisfaction from

it.

Be sure to keep these instructions for future reference, should any questions or problems arise.

Accessories······················································································2

Features of the CHR-F103 ··························································2, 3

Before using ····················································································3

Cautions on handling the hard disk

(also referred to as hard disk drive or “HDD”)····························3

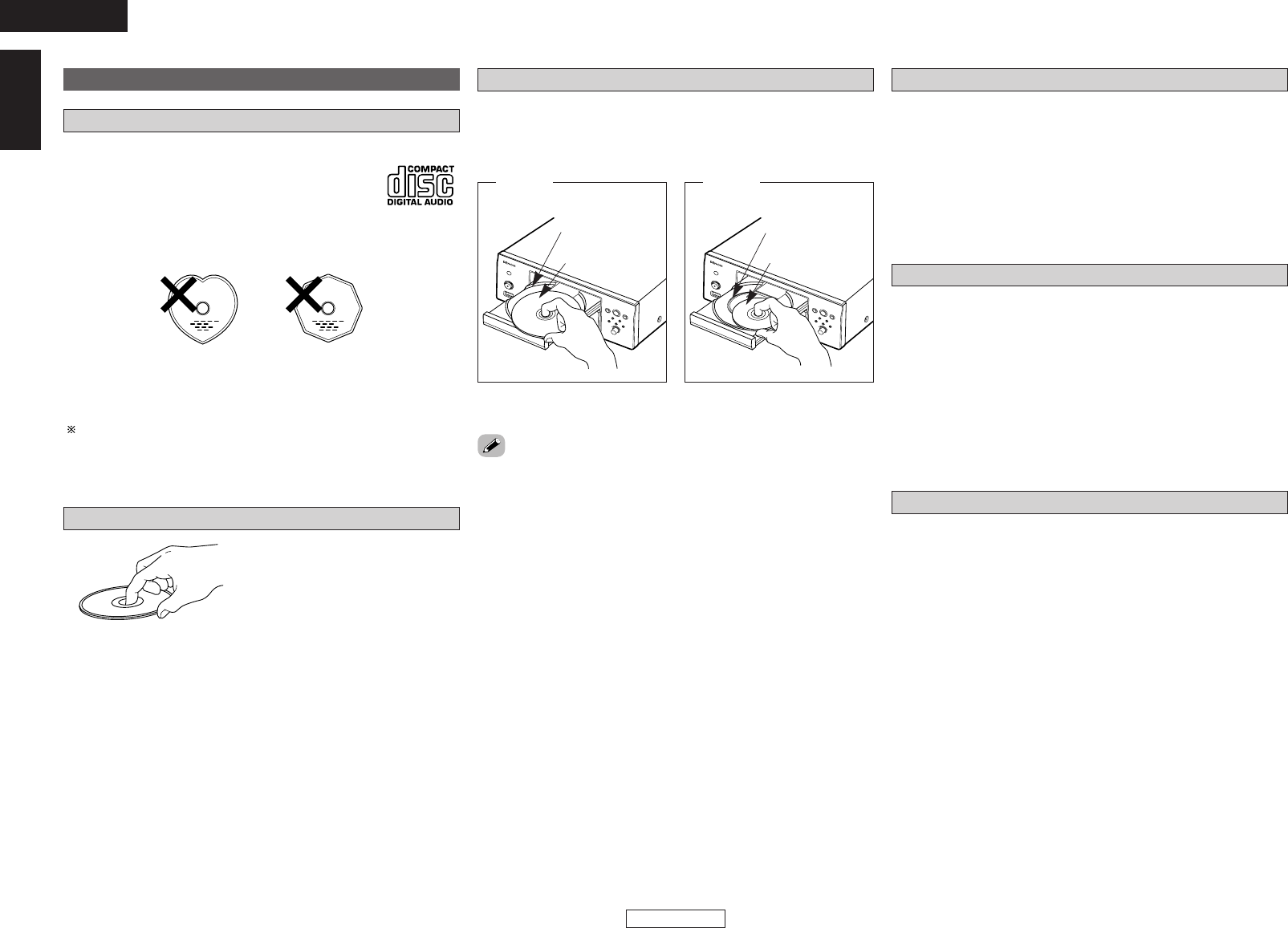

About discs

Discs usable on this set·································································4

Holding discs··················································································4

Loading discs ·················································································4

Cautions on loading discs ······························································4

Cautions on handling······································································4

Cautions on storing discs·······························································4

Cleaning discs ················································································5

About the remote control unit

Inserting the batteries····································································5

Operating range of the remote control unit···································5

Part names and functions

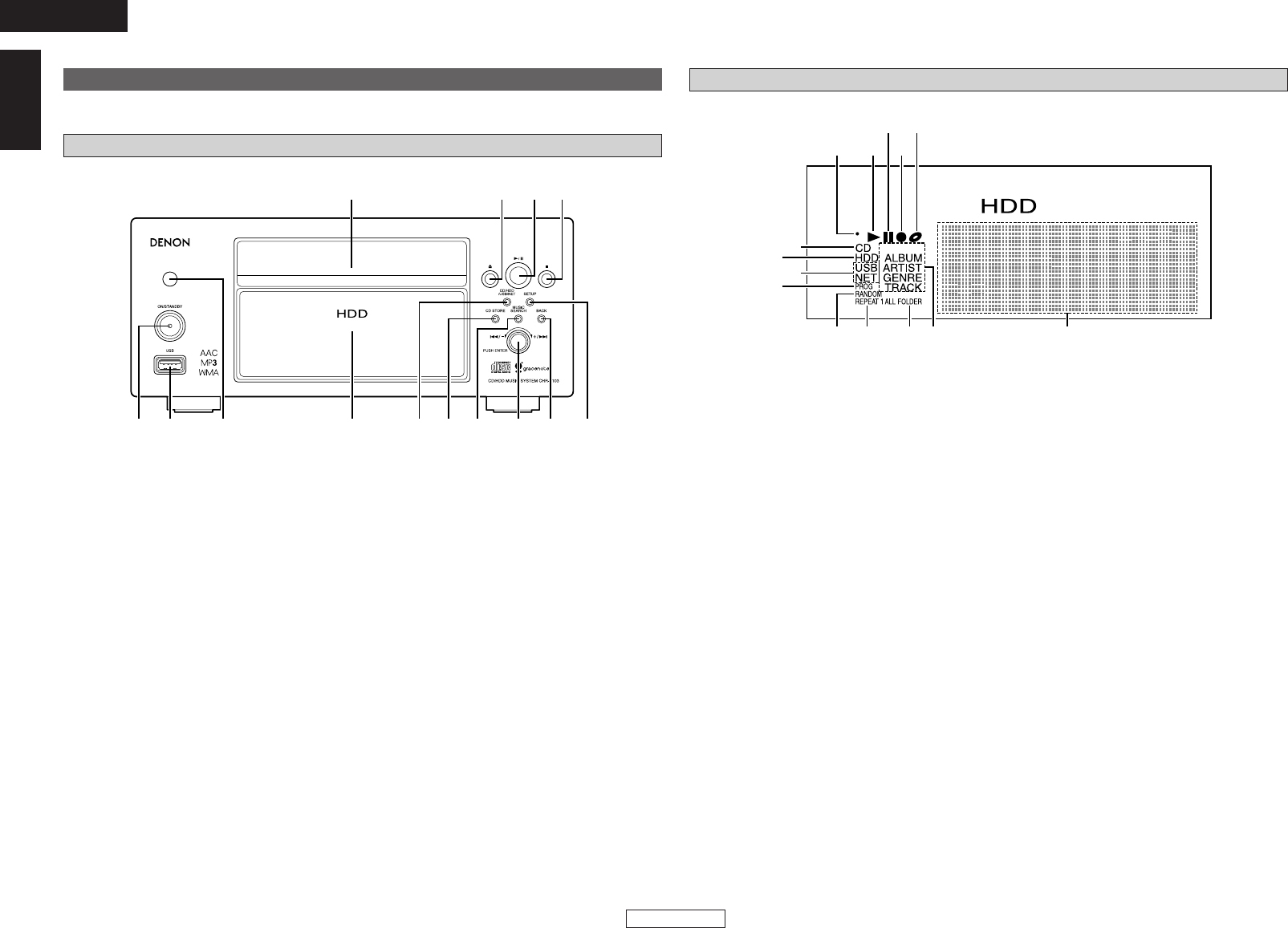

Front panel ·····················································································6

Display····························································································6

Rear panel ······················································································7

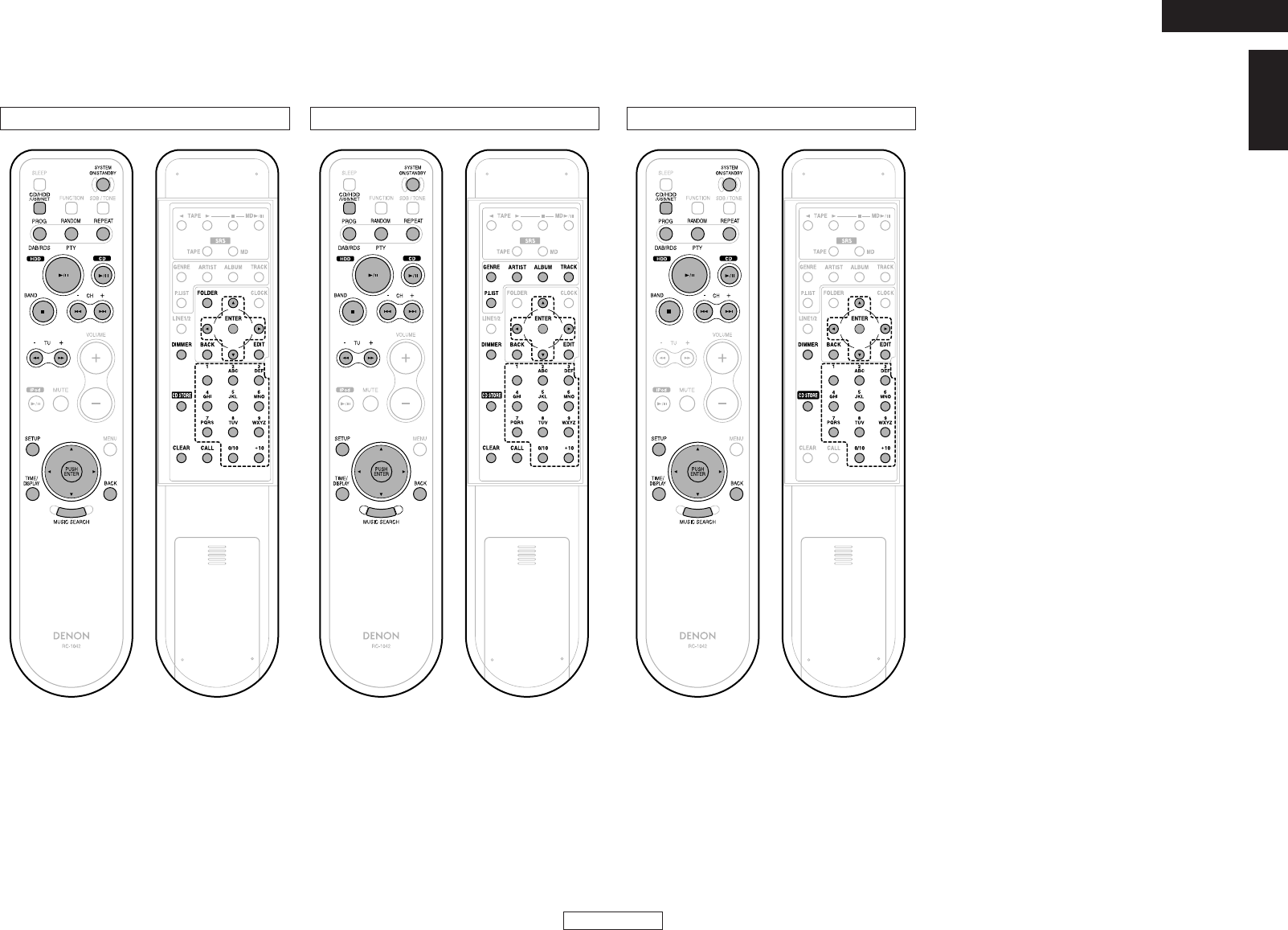

Remote control unit ···································································8, 9

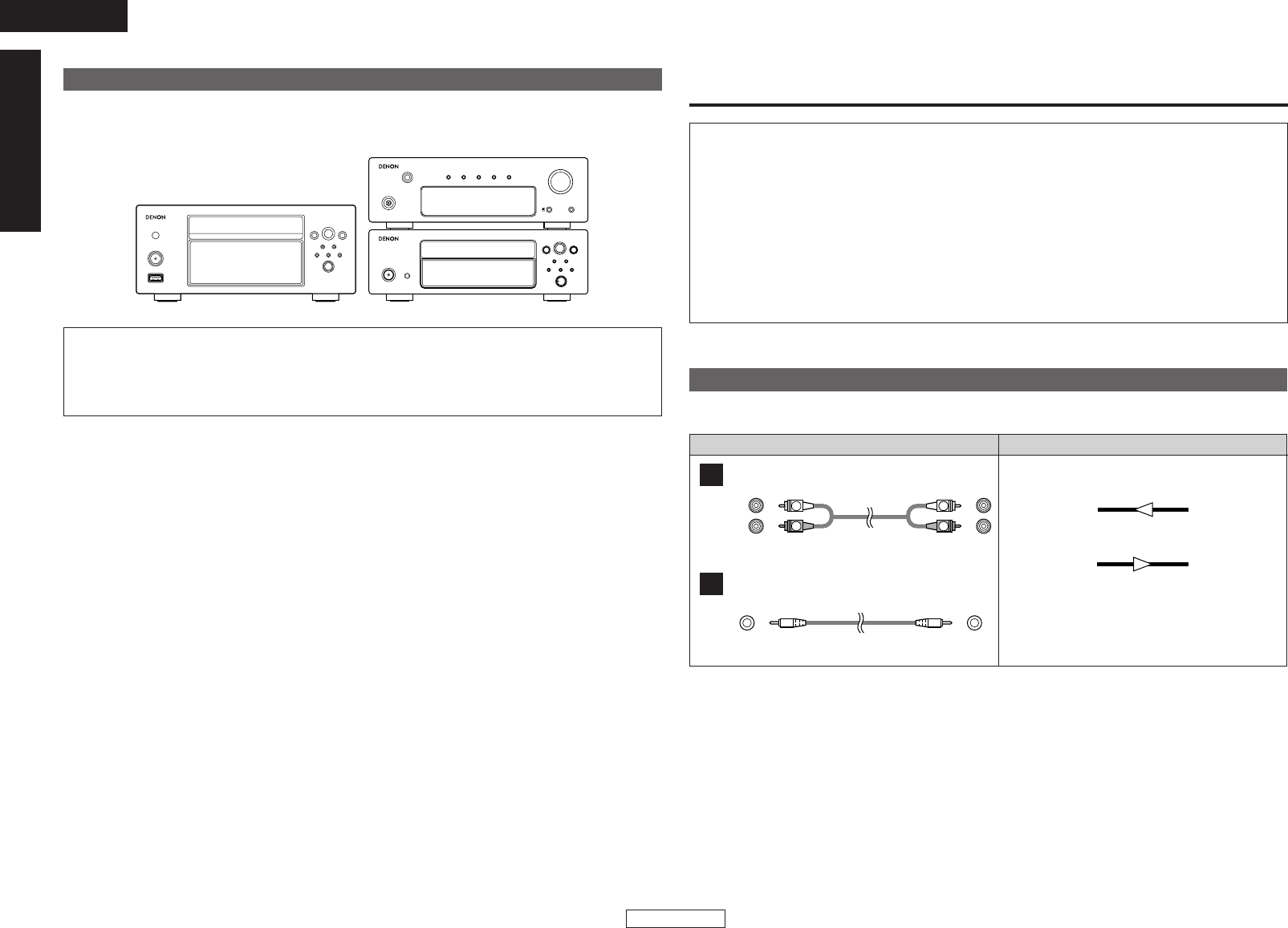

Recommended system layout·····················································10

Getting Started

Cable indications ··········································································10

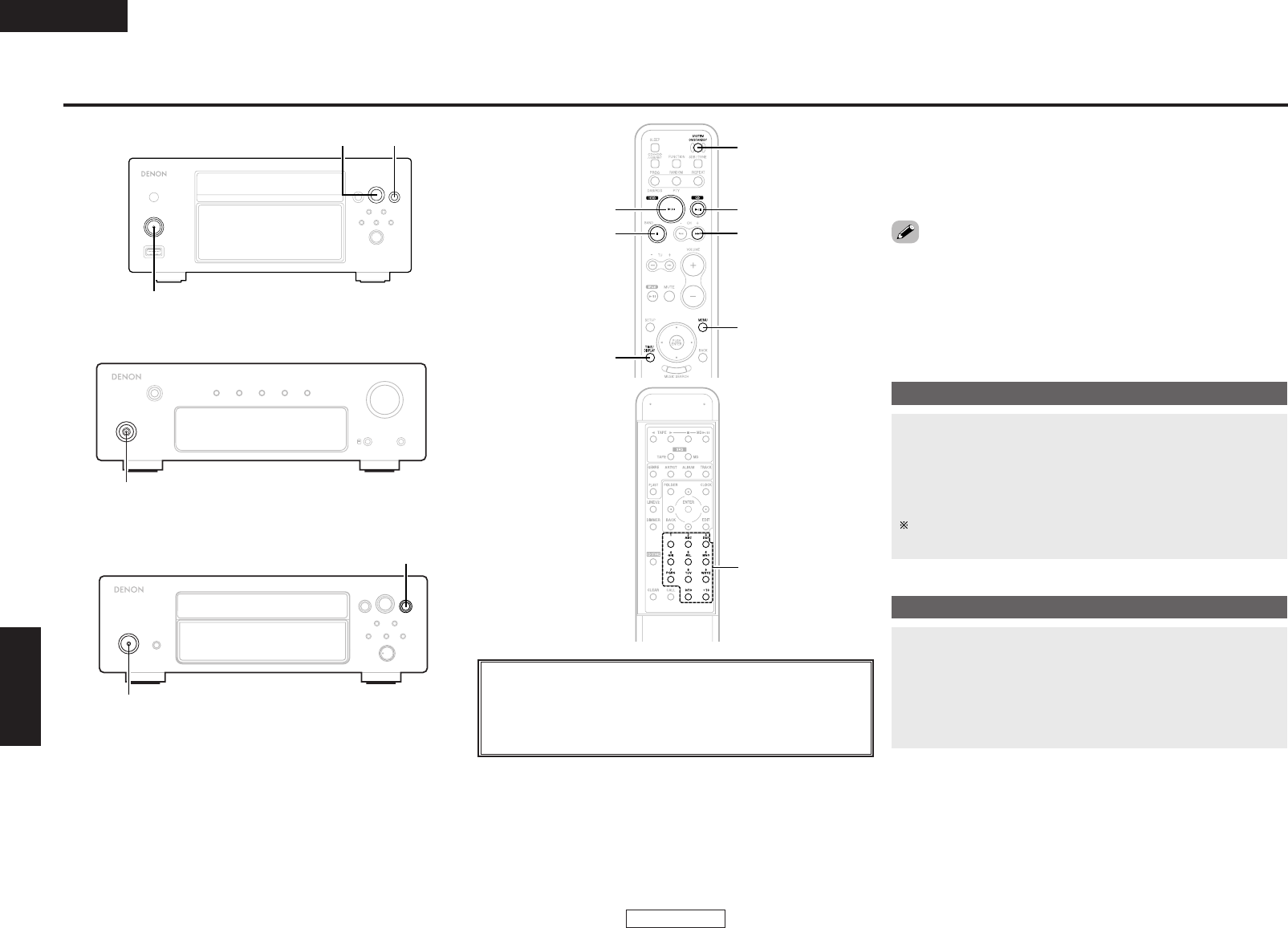

System connections·····································································11

Using the network audio function

Gracenote®music recognition service·········································12

Internet radio function··································································12

Music server function ··································································12

Network audio connection and required system···················12, 13

Network-related settings······························································13

Connections

Before operating

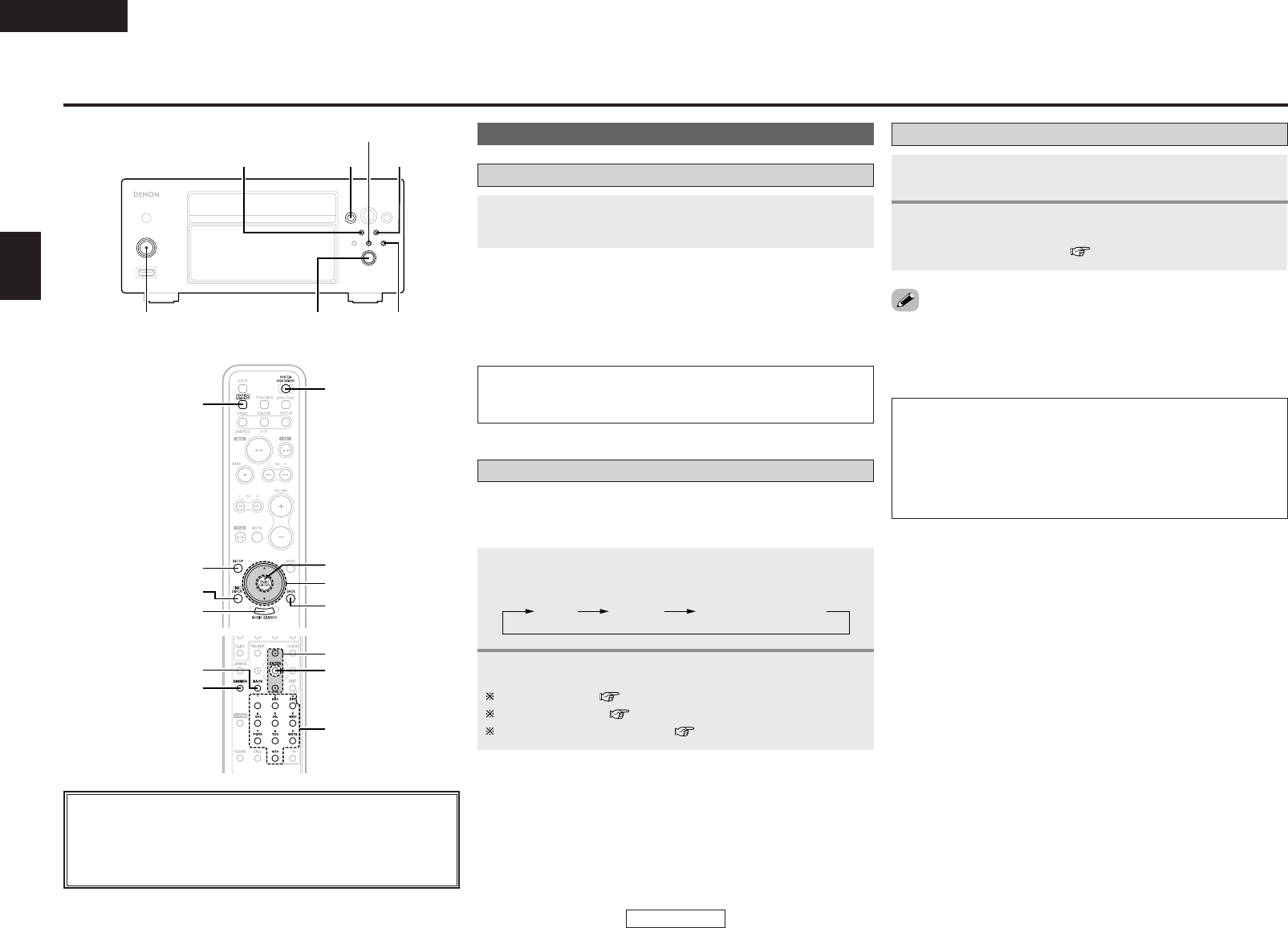

Turning the power on ···································································14

Selecting the function ··································································14

Loading discs ···············································································14

Switching the display ···································································15

Dimmer function···········································································15

Operation

Setting operations········································································15

Making the recording mode settings (Store Setting)

Setting the recording sound quality (Store Mode)·······················15

Recording monitor auto playback setting (Store Monitor) ···········16

Making the network settings (Network Setting)

Making the IP address settings (IP Address)·······························16

Making the proxy settings (Proxy) ···············································17

Making the Internet radio settings (Internet Radio)·····················17

Making other settings (Others)

PC applications (PC Connect Mode) ············································17

HDD information (HDD Info) ························································17

Setting the display characters (Character) ···································17

Inputting the computer’s language (PC Language)······················18

Updating the CDDB (CDDB Update)············································18

Setup

Before recording

Sources that can be recorded······················································19

Setting the recording mode ·························································19

Recording

Recording CDs ·············································································19

Monitoring the tracks being recorded··········································20

Deleting

Deleting single tracks···································································20

Deleting tracks by album or artist name······································21

Deleting all tracks·········································································21

Recording and Deleting

Playing tracks on the HDD···························································22

Searching for and playing tracks on the HDD························22, 23

CD playback

Playing CDs ··················································································23

Playing music files

Before playing MP3 or WMA files ···············································24

Creating MP3 or WMA discs (CD-R/CD-RW discs)

compatible with the CHR-F103 ···················································24

Playing files ··················································································25

Special playback features

Playing programs··········································································25

Playing in random order ·······························································25

Playing tracks (files) repeatedly····················································26

Listening to Internet radio······················································26, 27

Registering Internet radio stations as your favorites ···················27

Presetting (registering) Internet radio stations·····························27

Updating the list of radio stations ················································28

Playing music files stored on a computer (music server)······28, 29

Playback of USB memory devices

Before playing a USB memory device ·········································29

Playing USB memory devices······················································29

Playback

Inputting characters

Changing titles ·············································································30

Changing genre names ································································31

Creating playlists

Adding tracks to playlists ·····························································31

Clearing tracks from playlists ·······················································31

Changing the order of tracks on playlists·····································31

Clearing playlists ··········································································31

Clearing all the playlists································································31

Editing

Getting Started

ENGLISH

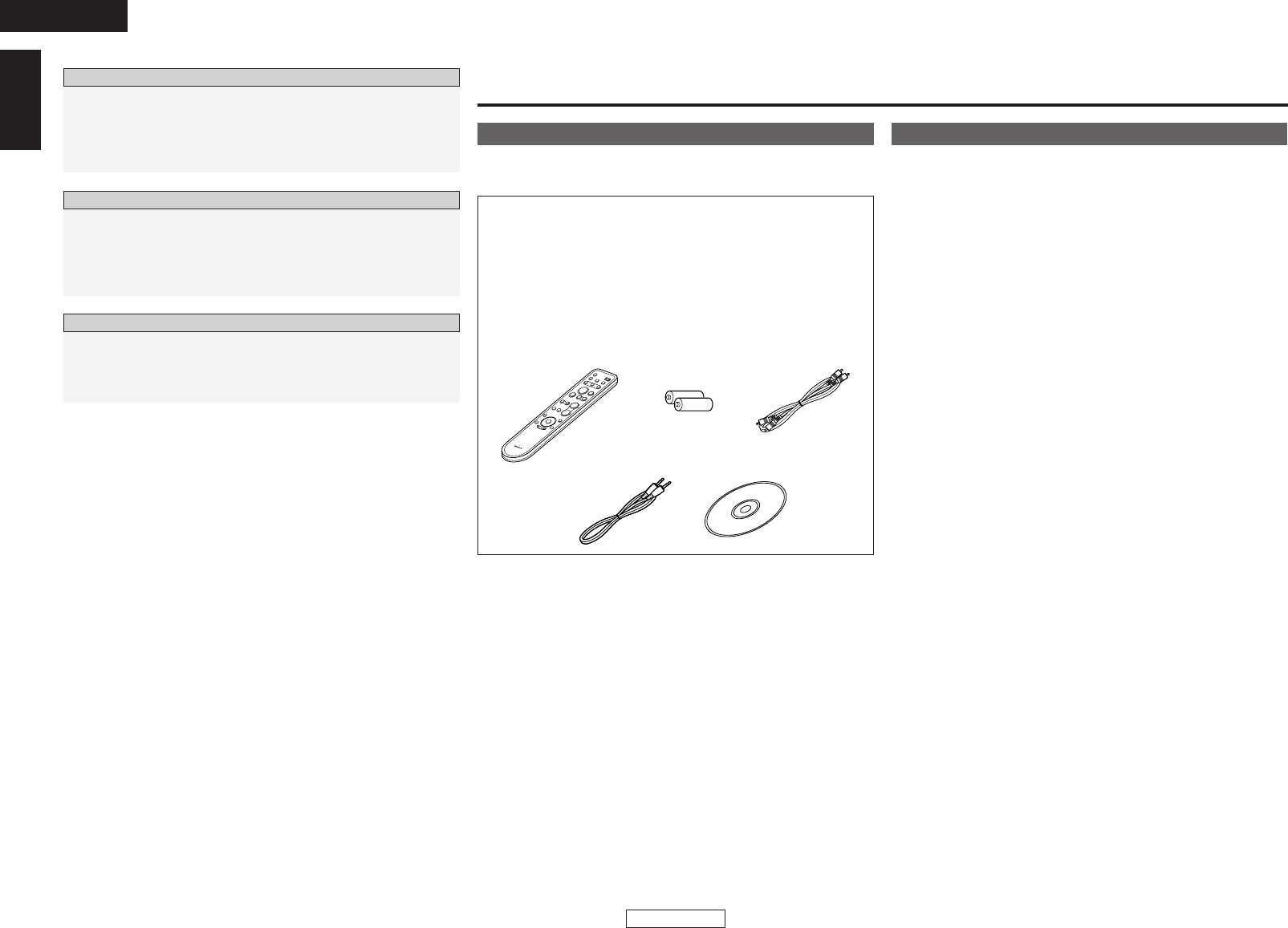

Accessories

Check that the following parts are attached in addition to the main

unit:

qOperating instructions .............................................................1

wService station list....................................................................1

eRemote control unit (RC-1042) ................................................1

rR6P/AA batteries .....................................................................2

tPin-plug cable (Cable length: Approx. 0.6 m)...........................1

ySystem cable (mini-plug cable)

(Cable length: Approx. 0.5 m)..................................................1

uDenon Music Manager disc (CD-ROM)

(including installation instructions)...........................................1

rte

Getting Started

Features of the CHR-F103

¢Recording of your CD library onto the hard disk

Recording of up to 900 CD tracks in linear PCM format offering the

same quality as CDs*1 or up to about 10,000 tracks in high quality

compression WMA (Windows Media Audio)*2 format onto the

CHR-F103’s hard disk.

*1: Calculated based on 4 minutes per track

*2: In the standard mode

¢Automatic display of titles using the Gracenote®

database

The CHR-F103 includes a database of the titles of some 350,000

CDs*3, so when the tracks from a CD are recorded on to the hard

disk, the CD’s album name, track names and artist names are also

recorded and displayed automatically. An Internet environment can

be used to acquire and display the track data for new releases and

CDs not included in the built-in database over the Internet from the

Gracenote®server.

*3: Information for some 350,000 titles is included from the Gracenote®

database as of April 2006.

¢Easy searching thanks to various search menus

In addition to the “genre”, “artist”, “album” and “track” search

menus, it is also possible to create up to 20 original playlists or use

two automatically generated playlists (of recently recorded tracks

and recently played tracks) to easily search for the desired track

among the many tracks recorded on the hard disk.

¢Monitoring of the tracks being recorded

When recording from a CD onto the hard disk, it is possible to

monitor the tracks being recorded or to play tracks previous

recorded on the hard disk.

¢Editing of files from a computer using Denon

Music Manager

“Denon Music Manager”, an exclusive application, can be used to

edit the titles of track lists or to edit playlists. It can also be used

to import music files from a computer onto the CHR-F103 or

backup the tracks from the hard disk onto a computer.

Auto power on function·······························································32

Auto function selection································································32

CD synchronized recording··························································33

Timer playback function·······························································33

Edit function··················································································33

System Operations

Denon Music Manager function

Required recommended equipment and environment

for using Denon Music Manager ·················································34

Installing Denon Music Manager ·················································34

Connecting to a computer ···························································34

PC applications

Trademarks····················································································35

Troubleshooting······································································36, 37

Hard disk inspection and repairs ················································37

Specifications················································································38

Others

Getting Started

ENGLISH

NOTE:

•This CD/HDD music system uses a semiconductor laser. To

ensure stable operation, it is recommended to use the set

indoors at a temperature of 5°C (41°F) ~ 35°C (95°F).

Before using

Pay attention to the following before using this unit:

•Moving the unit.

First eject the disc and turn off the power, wait 3 minutes after

turning off the power, then unplug the power cord from the power

outlet.

Disconnect the connection cables between the different

components before doing this.

•Cautions on using mobile phones.

Using a mobile phone near this unit may result in noise. If so, move

the mobile phone away from this unit when it is in use.

•Condensation (dew).

Water droplets may condense on internal operation parts if the set

is brought into a heated room from the cold outdoors or when the

room is heated rapidly. If this happens, the set may not operate

properly.

•Should condensation occur.

The condensation will evaporate in one hour or less, at which time

the system will function normally.

•Before turning the power operation switch on.

Check once again that all connections are correct and that there are

not problems with the connection cables. Always set the power

operation switch to the standby position before connecting and

disconnecting connection cables.

•Sufficiently ventilate the place of installation.

If the unit is left in a room full of the smoke from cigarettes, etc., for

long periods of time, the surface of the optical pickup could get dirty,

in which case it will not be able to read the signals properly.

•Store the operating instructions in a safe place.

After reading the operating instructions, store them in a safe place

as they could come in handy in the future.

•Power is supplied to some of the circuitry even when the power

is set to the standby mode using the power operation switch.

When traveling or leaving home for long periods of time, be

sure to unplug the power supply cord from the power outlet.

•Note that the illustrations in these instructions may differ from

the actual unit for explanation purposes.

Cautions on handling the hard disk (also referred

to as hard disk drive or “HDD”)

The HDD is a recording medium with many fragile elements. Be

careful of the following when handling it.

¢Cautions on the installation environment

•Do not obstruct the cooling fan’s ventilation holes on the rear

panel.

•Set on a flat surface that is not subject to vibrations or shocks.

•Do not place on receivers (amplifiers) or other components that

get hot during operation.

•Place in a room that does not fill with smoke. (Cigarette smoke,

the smoke from the food smoking process, insecticides and the

like can damage the HDD.)

¢Cautions during operation

To avoid partial damage to the HDD’s recording surface or

malfunction of the HDD, heed the following during operation:

•Do not subject to vibrations or shocks.

•Do not unplug the power cord. (Note that the sound being

recorded or played could be lost if there is a power failure during

operation.)

¢Backing up the HDD

By way of precaution against HDD breakdown, it is recommended

that you periodically back up the recorded data onto a computer

(page 34).

Notice of exemption from responsibility for compensation for

loss of recorded information

DENON will accept no responsibility whatsoever for compensation

for recordings or editings that could not be performed properly or

for loss of recorded or edited content, regardless of the cause of

the problem.

Also note that DENON will accept no responsibility for loss of

contents during repairing of the CHR-F103.

¢Internet Radio function

The CHR-F103 can be used to listen to radio broadcasts distributed

around the world from Internet radio stations. “vTuner”, an

Internet radio station database service, offers access to radio

stations using a list customized for DENON users.

¢Music server compatibility

The CHR-F103 is compatible with network music players. Music

files stored on a computer can be played on the CHR-F103 via a

LAN.

¢USB port for playing USB memory devices

¢Large display for easy checking of titles

¢192 kHz/24 bit high precision D/A converter

¢8x oversampling digital filter

¢Deluxe looking front design

¢Optical digital output terminals

¢Playback of MP3 and WMA audio files recorded

on CD-R/CD-RW discs

¢System functions when used in combination with

DENON F102 series components

•Auto power on

•Auto function selection

•CD Synchro recording

•Timer playback

•Repeat play/CD programmed play/Random play

Getting Started

ENGLISH

Cautions on loading discs

•Only load one disc at a time. Loading two or more discs can damage

the set or scratch the discs.

•Do not use cracked or warped discs or discs that have been repaired

with adhesive, etc.

•Do not use discs on which the sticky part of cellophane tape or

labels is exposed or on which there are traces of where labels have

been removed. Such discs could get caught inside the player and

damage it.

Cautions on handling

•Do not get fingerprints, oil or dirt on discs.

•Take special care not to scratch discs when removing them from

their cases.

•Do not bend or heat discs.

•Do not enlarge the hole at the center.

•Do not write on the labeled (printed) surface with ball-point pens,

pencils, etc., or stick new labels on discs.

•Water droplets may form on discs if they are moved suddenly from

a cold place (outdoors for example) to a warm place, but do not try

to dry them off using a hairdryer, etc.

Cautions on storing discs

•Be sure to remove discs after using them.

•Be sure to store discs in their cases to protect them from dust,

scratches, warping, etc.

•Do not store discs in the following places:

1. Places exposed to direct sunlight for long periods of time

2. Dusty or humid places

3. Places exposed to heat from heating appliances, etc.

Loading discs

•Set the disc with the labeled side facing up.

•Make sure the disc tray is fully open when inserting the disc.

•Place the discs flatly, 12 cm discs in the outer tray guide (Figure 1),

8 cm discs in the inner tray guide (Figure 2).

Figure 1

Outer tray guide

12 cm discs

Figure 2

Inner tray guide

8 cm discs

•Place 8 cm discs in the inner tray guide without using an adapter.

•In the following cases, “No Disc” is shown on the display:

•When no disc is loaded

•When the disc is loaded upside-down

•When the disc’s information could not be read properly

About discs

Discs usable on this set

qMusic CDs

Discs with the mark at the right can be used on

this set.

Note however that discs with special shapes

(heart-shaped discs, octagonal discs, etc.) cannot

be played. Do not attempt to play them, as doing

so could damage the set.

wCD-R/CD-RW

•Some discs and some recording formats may not be playable.

•Non-finalized discs cannot be played.

Finalization:

Finalization is the process that makes recorded CD-R/CD-RW discs

playable on compatible players.

Holding discs

Do not touch the signal surface.

Getting Started

ENGLISH

About the remote control unit

The included remote control unit (RC-1042) can be used to operate

not only the CHR-F103 but also other components in the F102 series

(page 32).

NOTE:

•The system remote control unit included with the receiver (DRA-

F102/F102DAB) cannot be used to operate the CHR-F103. Use

the remote control unit included with the CHR-F103.

Operating range of the remote control unit

30° 30°

Approx. 7 m

•Point the remote control unit at the remote sensor when operating

it.

•When used connected to other components in the F102 series,

point the remote control unit at the remote control sensor of the

receiver (DRA-F102/F102DAB) when operating it.

•The remote control unit can be used from a distance of up to about

7 meters, at a horizontal angle of up to 30° with respect to the

sensor.

NOTE:

•The set may function improperly or the remote control unit may

not operate if the remote control sensor is exposed to direct

sunlight, strong artificial light from an inverter type fluorescent

lamp or infrared light.

Notes on batteries:

•Replace the batteries with new ones if the set does not operate

even when the remote control unit is operated nearby the unit.

(The attached batteries are only for verifying operation.)

•When inserting the batteries, be sure to do so in the proper

direction, following the “<” and “>” marks in the battery

compartment.

•To prevent damage or leakage of battery fluid:

•Do not use a new battery together with an old one.

•Do not use two different types of batteries.

•Do not short-circuit, disassemble, heat or dispose of batteries

in flames.

•If the battery fluid should leak, carefully wipe the fluid off the

inside of the battery compartment and insert new batteries.

•Remove the batteries from the remote if it will not be in use for

long periods.

Inserting the batteries

qRemove the remote control

unit’s rear cover.

wSet two R6P/AA batteries in

the battery compartment in

the indicated direction.

ePut the rear cover back on.

Cleaning discs

•If there are fingerprints or dirt on discs, wipe them off before using

the disc. If not the sound quality could be reduced and the sound

may be broken.

•Use a commercially available disc cleaning set or a soft cloth to clean

discs.

Gently wipe the disc from the

inside towards the outside.

Do not wipe with a circular motion.

NOTE:

•Do not use record spray, antistatic agents, or benzene, thinner or

other solvents.

Getting Started

ENGLISH

Display

e t

!0 !3!1 !2 !4

qLights when a remote control signal is received.

wLights when a disc is playing.

eLights when the pause mode is set.

rLights during recording from a CD onto the

HDD.

tLights while a disc is being loaded.

yLights when the CD function is set.

uLights when the HDD function is set.

iLights when the USB/NET function is set.

oLights during programmed playback.

!0 Lights during random playback.

!1 Lights during repeat playback.

!2 Lights when the folder mode is set.

!3 Light to indicate the type of file currently

displayed on the list when the HDD function is

set.

!4 Display screen

Part names and functions

Front panel

For buttons not explained here, see the page indicated in parentheses ( ).

wq e r t !0y oiu

!4 !1!3 !2

qPower operation switch

(ON/STANDBY) ·········································(14)

wUSB input terminal···································(29)

eRemote control sensor·······························(5)

rDisplay

tCD/HDD/USB/NET button·······················(14)

yCD STORE button ·····································(19)

uMUSIC SEARCH button····························(22)

iJog dial/PUSH ENTER button ·················(15)

Turn: To select (+/–) while a list is displayed

During playback: Skip (8/9)

Press: Set (ENTER)

oBACK button··············································(15)

!0 SETUP button············································(15)

!1 Stop button (2)·········································(19)

!2 Play/pause button (1/3)···················(22, 23)

!3 Disc tray open/close button (5)··············(14)

!4 Disc tray ·······················································(4)

Getting Started

ENGLISH

Rear panel

q w e r y u it

qETHERNET terminal··································(12)

wPC CONTROL (USB) terminal ··················(34)

eREMOTE CONTROL jack

This terminal will be used in the future for

additional functions.

rSYSTEM CONNECTOR jacks····················(11)

tDIGITAL OUT (OPTICAL) terminals ·········(11)

yLINE OUT terminals··································(11)

Use the LINE OUT 1 terminals as the main

output, the LINE OUT 2 terminals as the

recording output.

uAC outlet····················································(11)

iPower supply cord····································(11)

Getting Started

ENGLISH

q !4

Remote control unit

[Front]

qSLEEP button*

wCD/HDD/USB/NET button·······················(14)

ePROGRAM button·····································(25)

rRANDOM button·······································(25)

tHDD play/pause button (1/3)················(22)

yStop (2)/BAND*button···························(19)

uTuning buttons (+, –)*

Search buttons (6, 7)······················(23)

iiPod play/pause button (1/3)*

oMUTE button*

!0 SETUP button············································(15)

!1 Cursor buttons (DD, HH, FF, GG)·····················(15)

!2 TIME/DISPLAY button ······························(15)

!3 MUSIC SEARCH button····························(22)

!4 SYSTEM ON/STANDBY button···············(14)

!5 SDB/TONE button*

!6 FUNCTION button*

!7 REPEAT button··········································(26)

!8 CD play/pause button (1/3)···················(23)

!9 Channel buttons (+, –)*

Skip buttons (8, 9)·························(23)

@0 VOLUME buttons (+, –)*

@1 MENU button ············································(33)

@2 PUSH ENTER button·································(15)

@3 BACK button··············································(15)

[Rear]

qTAPE buttons*

wTAPE SRS button*

eGENRE button···········································(22)

rARTIST button···········································(22)

tPLAY LIST button······································(22)

yFOLDER button ·········································(24)

uLINE 1/2 button*

iDIMMER button ········································(15)

oBACK button··············································(15)

!0 CD STORE button ·····································(19)

!1 CLEAR button············································(25)

!2 CALL button ··············································(25)

!3 MD buttons*

!4 MD SRS button*

!5 TRACK button ···········································(22)

!6 ALBUM button ··········································(22)

!7 CLOCK button*

!8 ENTER button············································(15)

!9 Cursor buttons (DD, HH, FF, GG)·····················(19)

@0 EDIT button ···············································(20)

@1 Number buttons (0 ~ 9, 0/10, +10)··········(15)

* : Indicates buttons that can be used when

system connections are made ( page 11).

Refer to the operating instructions of the

components connected using system

connections.

NOTE:

•If buttons on the front or rear are pressed strongly, the button on the opposite side will be activated

too.

Getting Started

ENGLISH

¢Buttons operable for the different functions

CD function HDD function USB/NET function

Getting Started

Connections

ENGLISH

Signal directionAudio cable

Cable indications

Connect using the connection cables shown below.

Analog connections (Stereo)

Pin-plug cable

System connections

System cable

(White)

(Red)

Connections

NOTE:

•Do not plug in the power supply cord until all connections have been completed.

•When making connections, also refer to the operating instructions of the other components.

•Be sure to connect the left and right channels properly (left with left, right with right).

•Do not bundle power supply cords together with speaker cables. Doing so could result in humming

or noise.

•Making connections with the power turned on could result in noise or damage the speakers.

•Bunching the power supply cords and connection cables together could result in humming or noise.

•Connect all the connection cables between the different components firmly. The system may not

operate properly if the connections are incomplete.

•Be sure to disconnect the power supply cords when changing the connections. Changing the

connections while the system is operating could result in malfunction.

Audio signal

IN OUT

OUT IN

CHR-F103

DRA-F102/

F102DAB

DRR-F102

Recommended system layout

To ensure performance and safety, it is recommended to arrange the components as shown below when

connecting to models in the F102 series.

NOTE:

•Arrange in such a way that the receiver’s ventilation holes are not obstructed so that the heat can

dissipate.

•Do not place other components directly on top of the receiver.

•To ensure safety, do not make stacks of more than three components.

Connections

ENGLISH

A A B

System connections

System operations can be performed when the components of the

F102 series are connected with system cables ( page 32, 33).

Match the shapes

Match the shapes then insert firmly all the way in.

•All of the system operations are controlled from the receiver (DRA-

F102/F102DAB).

•It is also possible to connect devices other than F102 series

components. In this case, however, system operations cannot be

performed. AC 230 V, 50 Hz

Wall power outlet

NOTE:

•Do not unplug the power supply cord while the system is operating.

•The maximum total power consumption of devices connected to the CHR-F103’s AC outlets is 60 W. Do not connect devices with power

consumptions greater than 60 W.

¢When connecting the optical digital output

connector with an optical transmission cable

(commercially available)

Receiver

[DRA-F102/

F102DAB]

(Sold separately)

Cassette deck

[DRR-F102]

(Sold separately)

CD/HDD music

system

[CHR-F103]

(This unit)

Use the LINE OUT 1 terminals

for connection to the receiver.

Connections

ENGLISH

Using the network audio function

When connected to a network, the following functions can be used:

£Gracenote®music recognition service

£Internet radio

£Music server

The “Gracenote®music recognition service” is the name of a service

provided by Gracenote®and generally known as “CDDB”.

Text information on CD titles, artist names, track names, etc., can be

obtained automatically and displayed on the CHR-F103’s display by

accessing the Gracenote®server over the Internet.

Gracenote®music recognition service

¢If you do not have the environment for

connecting to the Internet

The CHR-F103 has part of the Gracenote®database stored in it*,

so some title information can be obtained without connecting to

the Internet.

Note, however, that the internal database may not contain title

information for recently released CDs.

*: Information for approximately 350,000 titles selected from the

Gracenote®database in April 2006 is stored in the CHR-F103.

¢vTuner

The CHR-F103’s Internet radio station list uses “vTuner”, a radio

station database service. This database service is edited and

prepared for the CHR-F103.

¢Using the “Gracenote®music recognition

service”

You do not have to perform any operation in particular.

When a CD is inserted or when recording or playback of a CD

begins, the CD’s text information is acquired automatically and

displayed on the CHR-F103.

¢Broadband Internet connection

Internet radio refers to radio programs broadcast over the Internet.

With this function you can listen to Internet radio broadcasts from all

over the world.

•Stations can be selected by genre or region.

•Up to 60 stations can be preset.

•MP3 format Internet radio programs can be played.

•Your favorite radio stations can be registered by accessing an

exclusive DENON Internet radio URL from a Web browser on a

computer. (A setting must be made for automatic download

(page 28).) (The function is managed for individual users, so

you must provide your MAC or e-mail address.) Exclusive URL:

http://www.radiodenon.com

Internet radio function Network audio connection and required system

This function plays music files stored on a computer via a LAN (local

area network).

Connection to the server is done using one of the following

technologies:

•Windows Media Connect

•Windows Media DRM10

Music server function

Ethernet cable

Computer

Gracenote®music recognition service

Music server

Internet radio

To WAN side of

modem

To LAN port

To LAN port/

Ethernet port

Router

Modem

Connections

ENGLISH

¢Router

When using the CHR-F103, we recommend using a router

equipped with the functions listed below.

•Built-in DHCP (Dynamic Host Configuration Protocol) server

This is a function that automatically assigns IP addresses to

devices on the LAN.

•Built-in 100BASE-TX switch

To connect multiple devices, it is recommended to have a built-in

switching hub with a speed of 100 Mbps or greater.

¢Ethernet cable (CAT-5 or greater recommended)

No Ethernet cable is included with the CHR-F103. Procure a cable

with the necessary length.

¢Personal computer

For the music server function, a computer with the following

specifications is required:

1) OS (Operating System):

Windows®XP Service pack 2

2) Processor:

Intel PentiumII or AMD processor, etc.

We recommend 1 GHz or greater.

3) RAM:

Min. 128 MB, we recommend 256 MB or greater.

4) Software:

.NET Framework 1.1

5) Internet browser:

Microsoft Internet Explorer 5.01 or later

6) LAN port required

7) 300 MB or greater free hard disc space required

Free hard disk space is required to store music files.

The following table gives an approximate estimate of the required

free space.

¢Modem

Format Bit rate Per one minute Per one hour

MP3/WMA

128 kbps Approx. 1 MB Approx. 60 MB

WAV

(LPCM)

192 kbps Approx. 1.5 MB Approx. 90 MB

256 kbps Approx. 2 MB Approx. 120 MB

392 kbps Approx. 3 MB Approx. 180 MB

1400 kbps Approx. 10 MB Approx. 600 MB

•Depending on the server, video files may also be displayed, but they

cannot be played on the CHR-F103.

NOTE:

•You must have a contract with an Internet service provider (ISP)

in order to connect to the Internet.

(If you already have a broadband connection to the Internet, no

new contract is required.)

•For instructions on connecting to the Internet, contact your ISP

or a computer store.

•The types of routers that can be used depend on the ISP.

For details, contact your ISP or a store selling computers and

related equipment.

NOTE:

•Sophisticated knowledge of networks is required to make router

security settings.

Make the security settings at your own discretion. DENON will

accept no responsibility for any problems arising due to security

settings. Furthermore, DENON will not respond to inquiries on

the settings and operation of the various devices.

¢Router settings

•We recommend enabling the router’s DHCP server function

(setting for automatically assigning IP addresses). Normally

it is enabled, so there is no need to change it.

•Depending on the security settings of the router, etc., it may not

be possible for the CHR-F103 to connect to the Internet.

•Also refer to the router’s operating instructions.

¢CHR-F103 settings

•If the router’s DHCP server function is enabled, the CHR-F103

can be used as is with the settings already made upon

purchase.

•Depending on the router’s settings, it may be necessary to

change the CHR-F103’s settings ( page 16) (to assign a fixed

IP address and connect to the network, etc.).

¢Others

•When the contract with your provider is of the type by which the

network settings are made manually, you must make the

“Network-related settings”.

•The CHR-F103 is not compatible with PPPoE. If your contract is

of the PPPoE setting type, you need a PPPoE-compatible router.

•For some ISPs (Internet Service Providers), you may have to

make proxy server settings in order to use the Internet radio

function. If proxy server settings for connecting to the Internet

have been made on the computer, make the same settings on

the CHR-F103.

•The CHR-F103 is designed to make the network settings

automatically using the DHCP and Auto IP functions.

Network-related settings

NOTE:

•Be sure to use a shielded type cable for USB/Ethernet

connections.

Depending on the connected computer/router, there may be

much noise generated from the cable.

Operation

ENGLISH

Before operating

Operation

Press ON/STANDBY.

•When the power turns on, the power indicator lights green.

¢Turning the power off (to the standby mode):

Press <ON/STANDBY>again.

•The power indicator lights red while switching to the standby

mode.

•The power indicator turns off once the standby mode is set.

NOTE:

•When in the standby mode, a very small amount of power is

consumed, even if all the indicators are turned off. NOTE:

•Playback of discs not conforming to CD standards (CDs with

copy control, for example), is not guaranteed.

•Do not press the disc tray in by hand when the power is turned

off. Doing so could damage the set.

•Do not insert foreign objects into the disc tray. Doing so could

damage the set.

About the button names in this explanation

<>: Buttons on the main unit

[]: Buttons on the remote control unit

Button name only :

Buttons on the main unit and remote control unit

ON/STANDBY

[

]

CD/HDD/USB/NET

BACK

SETUP

[TIME/DISPLAY]

MUSIC SEARCH

ENTER

CD/HDD/USB/NET

ON/STANDBY <JOG DIAL>,

ENTER

BACK

SETUP

MUSIC SEARCH

ENTER

[

]

[

DIMMER

]

BACK

[

NUMBER

]

(1~9, 0/10)

Turning the power on

Selecting the function

With the CHR-F103, it is possible to switch playback between three

sources: music discs, the HDD and an external source (USB audio,

network audio, etc.).

Press CD/HDD/USB/NET to select the function of the

source to be played.

Playback of the selected function starts.

Listening to CD ( page 23)

Listening to HDD ( page 22)

Listening to USB/NETWORK ( page 26 ~ 29)

CD HDD USB/NETWORK

Loading discs

Press <5>to open the disc tray.

Load a disc.

•When a CD is loaded, the album name, track name, etc., are

displayed automatically ( page 23).

•If there are multiple data entries in the Gracenote®database

corresponding to that CD, “Select CD Info” is displayed. Use <JOG

DIAL>or [DD HH]to select the entry to be display, then press ENTER.

•To change the displayed information, stop playback and press BACK.

Operation Setup

ENGLISH

¢To change the number of lines displayed:

Press [TIME/DISPLAY] while in the stop mode.

Switching the display

3-line display 6-line display

The display is set to 3 lines upon purchase.

Kanji can only be displayed in the 3-line display mode.

¢Changing the displayed contents

():

Press [TIME/DISPLAY] during playback.

The display switches as follows each time [TIME/DISPLAY] is

pressed:

CD HDD USB/NET

Album name Artist name

Track name

Track number/

No. tracks on album Elapsed track time

Remaining track time

Remaining disc time

only

Dimmer function

The brightness of the display can be changed.

The brightness of the display switches as follows each

time [DIMMER] is pressed:

Bright Medium

Off Dark

Setup

The following settings can be made:

£Recording mode setting (Store Setting)

£Network settings (Network Setting)

£Others (Others)

Setting operations

Use the procedure described below to make the settings using the

setup menu.

Press SETUP.

•“Setup Menu” is displayed.

Use <JOG DIAL>or [DD HH]to select the setting menu,

then press ENTER to set.

For settings at which you input numbers:

Use [NUMBER] (1 ~ 9, 0/10) to input all the places,

then press ENTER to set.

When a button is pressed, the cursor moves automatically to the

next input position.

Press SETUP.

•The setting mode is quit.

At the different items, either select “Exit” and press ENTER or

press BACK to return to the setting menu one step before.

To return all the setup data to the defaults set upon purchase, in

the standby mode, press ON/STANDBY while pressing in MUSIC

SEARCH.

The following settings can be made:

£Recording sound quality setting (Store Mode)

£Recording monitor auto play setting (Store Monitor)

Making the recording mode settings

(Store Setting)

Setting the recording sound quality

(Store Mode)

Use this procedure to set the quality of the sound recorded on the

HDD.

•Upon purchase this is set to “HQ”.

Use <JOG DIAL>or [DD HH]to select.

Press ENTER.

From the “Store Setting” mode, select “Store Mode”

then press ENTER.

Normal:

WMA (Windows Media Audio 44.1 kHz/128 kbps)

Up to about 10,000 tracks can be recorded.

HQ (High Quality):

WMA (Windows Media Audio 44.1 kHz/192 kbps)

Up to about 7,000 tracks can be recorded.

LPCM (Linear PCM):

Up to about 900 tracks can be recorded.

The sound quality increases in the order Normal →HQ →LPCM,

but the higher the sound quality, the fewer the number of tracks

that can be recorded.

Setup

ENGLISH

Recording monitor auto playback setting

(Store Monitor)

•Upon purchase this is set to “On”.

Use <JOG DIAL>or [DD HH]to select.

Press ENTER.

From the “Store Setting” mode, select “Store

Monitor” then press ENTER.

Off:

The sound being recorded is not automatically monitored (played).

On:

The sound being recorded is automatically monitored (played).

The following settings can be made:

£IP address setting (IP Address)

£Proxy setting (Proxy)

£Internet radio setting (Internet Radio)

Making the network settings (Network Setting)

¢Automatic setting of the IP address

When the router’s DHCP server function is enabled (setting for

automatically assigning IP addresses), the CHR-F103 can be used

as set upon purchase (“On” – DHCP server enabled).

Making the IP address settings (IP Address)

¢Manual setting of the IP address

If the router does not have a DHCP server function or it is disabled

and a fixed IP address must be set, make the setting described

below.

For the IP address and other information, contact your ISP

(Internet service provider).

Select “DHCP” then press ENTER.

Select “Off” then press ENTER.

•The manual setting mode is set.

From the “Network Setting” mode, select “IP

Address” then press ENTER.

Use <JOG DIAL>or [DD HH]to select the next setting

item, then press ENTER.

•IP Address

•Subnet Mask

• Gateway

•Primary DNS

•Secondary DNS

Use [NUMBER] (1 ~ 9, 0/10) to input all the places,

then press ENTER.

Repeat steps 4and 5to set all the items.

About the button names in this explanation

<>: Buttons on the main unit

[]: Buttons on the remote control unit

Button name only :

Buttons on the main unit and remote control unit

[

]

ENTER

<JOG DIAL>,

ENTER

[

NUMBER

]

(1~9, 0/10, +10)

[

]

Setup

ENGLISH

Making the Internet radio settings

(Internet Radio)

£Updating the list of Internet radio stations ( page 28)

The following settings can be made:

£PC applications (PC Connect Mode)

£HDD information (HDD Info)

£Display character settingg (Character)

£Setting of the input language used on the computer for the music

server (PC Language)

£CDDB update (CDDB Update)

Making other settings (Others)

page 34

PC applications (PC Connect Mode)

The HDD’s usage conditions are displayed.

HDD information (HDD Info)

From the “Others” mode, select “HDD Info” then press

ENTER.

Free Space EEEE%:

The HDD’s free space (%) is displayed.

Stored Tracks EEEEEEEEEE:

The number of tracks recorded on the HDD is displayed.

EEEEindicates numbers.

Making the proxy settings (Proxy)

¢When the ISP specifies the proxy setting

If no proxy setting is specified, there is no need to make the

setting.

Select “Proxy” then press ENTER.

Select “On” then press ENTER.

From the “Network Setting” mode, select “Proxy”

then press ENTER.

¢Setting the proxy by address or name

Select “Proxy (Address)” or “Proxy (Name)” then

press ENTER.

Select “Address” or “Name” according to the proxy

type specified by the ISP, then press ENTER.

Use [NUMBER] (1 ~ 9, 0/10, +10) to input the address

(numbers) or name (letters), then press ENTER once

all the places have been input.

¢When the ISP has specified the port setting

Select “Port” then press ENTER.

Use [NUMBER] (1 ~ 9, 0/10) to input all the places,

then press ENTER.

Setting the display characters (Character)

Use this procedure to set the MP3 ID3-Tag character code type played

with the USB input.

•Upon purchase this is set to “Auto”.

Use <JOG DIAL>or [DD HH]to select.

From the “Others” mode, select “Character Set” then

press ENTER.

Press ENTER.

Latin:

ISO 8859-1 Latin-1 is selected.

Japanese:

Shift JIS is selected.

Auto:

The character code type is selected automatically.

Setup

ENGLISH

Updating the CDDB (CDDB Update)

•Use this procedure to update the Gracenote®database (CDDB)

stored in the CHR-F103.

•An update disc (available for a charge) is required for this update. For

details, contact a DENON customer inquiry center.

From the “CDDB Update” mode, use [DD HH]to select

“Yes”, then press ENTER.

•The disc tray opens.

Load the update disc.

•The tray closes and updating of the CDDB data begins.

(“Updating the Gracenote Database...” flashes.)

•Once updating is completed, “Complete” is displayed and the

disc tray opens.

From the “Others” mode, select “CDDB Update”

then press ENTER.

Remove the update disc, press <5>to close the tray,

then press ON/STANDBY to turn off the power.

•Updating is completed.

Inputting the computer’s language

(PC Language)

If you wish to display the character data from the computer used as

the music server in English, use this procedure to input the language

used on the computer. Normally the characters are displayed in the

same language as used on the computer so there is no need to

change this setting. Only change it if the character data from the

computer is not displayed properly on the CHR-F103.

Use <JOG DIAL>or [DD HH]to select.

From the “Others” mode, select “PC Language” then

press ENTER.

Press ENTER.

About the button names in this explanation

<>: Buttons on the main unit

[]: Buttons on the remote control unit

Button name only :

Buttons on the main unit and remote control unit

ON/STANDBY

[

H F GH F G

]

ENTER

<JOG DIAL>,

ENTER

ON/STANDBY

CD STORE

[

H F GH F G

]

ENTER

CD STORE

Recording and Deleting

ENGLISH

HDD CD WAV MP3 WMA

Recording and Deleting

Before recording

Sources that can be recorded

£CDDA (Music CDs)

NOTE:

•CD-R/CD-RW sources containing music files in such formats as

MP3 and WMA cannot be recorded.

•Copyright protected tracks cannot be recorded.

£Recording sound quality setting ( page 16)

Setting the recording mode

Built-in

HDD

Operation title

Source for which operation can be performed

Operations for which no function is indicated can be performed

regardless of which function is set.

Function to be set

Function : HDD

Music

CD-R/CD-RW discs or USB memory

devices containing these music

files

About the explanation of the setting functions for the various

operations and the corresponding sources

Deleting

Recording

Recording CDs

Press CD STORE.

Select this to record all the tracks or only specific tracks.

Use <JOG DIAL>or [DD HH]to select “All Track” (to

record all the tracks) or “Select Track” (to record

selected tracks).

Load the CD.

When “Select Track” is selected:

qPress ENTER or CD STORE.

wUse <JOG DIAL>or [DD HH]to select a track to be

recorded, then press ENTER to add a “ ” mark.

eOnce the tracks have been selected, press CD

STORE.

•Recording starts.

-1

When “All Track” is selected:

Press ENTER or CD STORE.

•Recording starts.

The recording progress is displayed (“Storing OO%”).

Recording is performed at approximately 12 times the normal

speed when the file type is set to “LPCM”, approximately 4

times the normal speed otherwise.

The stop mode is set automatically once recording is completed.

If an error arises during recording and normal recording is not

possible, that track is skipped and recording continues. In this

case, “Storing Completed - Some Tracks Aborted” is displayed

once recording is completed.

-2

¢To stop recording

Press 2, use <JOG DIAL>or [FF GG]to select “Y”, then press ENTER.

NOTE:

•The tracks being recording will not be stored if the power cord is

unplugged during recording.

•If the CD has already been recorded, “Already Stored - Start

Storing?” is displayed.

•The HDD, USB audio and network audio sound can be played while

a CD is being recorded. (The function can be switched and the

normal playback operations can be performed.)

•When the remaining free space on the HDD is low, “Remaining

Capacity Low” is displayed. Delete any unnecessary files to free

space.

Recording and Deleting

ENGLISH

Monitoring the tracks being recorded

Use this procedure to listen to the tracks being recorded.

Stop playback of other sources.

Use <JOG DIAL>or [DD HH]to select “Store Monitor”,

then press ENTER.

•The recorded track is displayed during recording.

Press MUSIC SEARCH.

Use <JOG DIAL>or [DD HH]to select the track to be

monitored, then press <1/3>, [HDD 1/3]or ENTER.

•Recording monitoring starts.

With the monitor function, the sound actually recorded is played.

Directly after recording starts, monitor playback only begins after

enough data for monitoring has been recorded on the HDD.

¢When “Recording monitor auto playback setting”

(page 16) is set to “On”

A while after recording starts, the function switches to HDD and

playback of the recorded track starts.

¢When “Recording monitor auto playback setting”

(page 16) is set to “Off”

•The repeat and random play modes are canceled when monitor

playback starts.

Deleting Function : HDD

Use this procedure to delete tracks you no longer need.

NOTE:

•Once tracks are deleted, they cannot be retrieved. Check

carefully before deleting.

Deleting single tracks Function : HDD

Use <JOG DIAL>or [DD HH]to select “Tracks”, then

press ENTER.

In the stop mode, press MUSIC SEARCH.

•The search menu is displayed.

Select the track to be deleted, then press [EDIT].

Use <JOG DIAL>or [DD HH]to select “Track Erase”,

then press ENTER.

Use <JOG DIAL>or [FF GG]to select “Y”, then press

ENTER.

•“Complete” is displayed once the track is deleted.

About the button names in this explanation

<>: Buttons on the main unit

[]: Buttons on the remote control unit

Button name only :

Buttons on the main unit and remote control unit

[

H F GH F G

]

MUSIC SEARCH

[

HDD

]

ENTER

<JOG DIAL>,

ENTER

MUSIC SEARCH <

[

H F GH F G

]

ENTER

[

EDIT

]

Recording and Deleting

ENGLISH

Deleting all tracks Function : HDD

Select “Artists”, “Albums”, “Tracks” or “Genres”

then press [EDIT].

•“All Erase” is displayed.

In the stop mode, press MUSIC SEARCH.

•The search menu is displayed.

Press ENTER.

•“All Erase?” is displayed.

Use <JOG DIAL>or [FF GG]to select “Y”, then press

ENTER.

•“Really?” is displayed.

Use <JOG DIAL>or [FF GG]to select “Y”, then press

ENTER.

•During the deleting procedure, “Process in Progress...”

flashes on the display.

•Several minutes may be required for the tracks to be deleted.

•Once the track is deleted, “Complete” is displayed, then “No

Track” is displayed.

All the tracks on the HDD are erased at once.

Use <JOG DIAL>or [DD HH]to select the album or

artist name to be deleted, then press [EDIT].

In the stop mode, press MUSIC SEARCH.

•The search menu is displayed.

Use <JOG DIAL>or [DD HH]to select “Album Erase” or

“Artist Erase”, then press ENTER.

Use <JOG DIAL>or [FF GG]to select “Y”, then press

ENTER.

•“Complete” is displayed once the track is deleted.

Deleting tracks by album or artist name

Function : HDD

Use this procedure to delete multiple tracks by album or artist name.

•If deleted tracks were included on playlists, they are removed from

the playlists.

•Some time may be required for the deleting procedure, depending

on how many tracks are to be deleted.

Playback

ENGLISH

Use <JOG DIAL>or [DD HH]to select the search menu,

then press ENTER.

You can also display the search menus by pressing [PLAY LIST],

[ARTIST], [ALBUM], [TRACK] or [GENRE].

Press <1/3>or [HDD 1/3].

•The selected track or all the tracks on the menu are played.

Press MUSIC SEARCH.

•The search menu is displayed.

¢Stopping playback:

Press 2.

¢Resuming from the point at which playback was

last stopped:

In the stop mode, press <1/3>or [HDD 1/3].

Searching for and playing tracks on the HDD

Function : HDD

Playlists:

To search among playlists.

Artists:

To search by artist.

Albums:

To search by album name.

Tracks:

To search by track name.

Genres:

To search by genre.

Playing tracks on the HDD Function : HDD

Tracks stored on the HDD are sorted by genre, artist and album. They

can also be grouped into playlists.

These categories can be used to quickly find the tracks you want to

hear.

¢Narrow-in search menu

aUse this procedure to search by narrowing in on the desired

track in the following order:

Genre

GENRE

Artist

ARTIST

Album

ALBUM

Track

TRACK

¢Favorites search menu

•The names of playlists can be changed as desired ( page 30).

Recently listened to tracks

Recently Played

Recently recorded CDs

Recently Stored

Playlist

Maximum 256 tracks :

Stored automatically

Maximum 20 :

Stored automatically

Maximum 20 lists :

Maximum 256 tracks per list

Playback

NOTE:

•After recording or editing, it is not possible to listen from the

point at which the stop mode was last set.

About the button names in this explanation

<>: Buttons on the main unit

[]: Buttons on the remote control unit

Button name only :

Buttons on the main unit and remote control unit

[

H F GH F G

]

MUSIC SEARCH

[

HDD

]

[

REPEAT

]

[RANDOM]

[

]

[

]

[

]

[

]

[

]

ENTER

BACK

MUSIC SEARCH

<JOG DIAL>,

ENTER

BACK

[

H F GH F G

]

ENTER

[

ARTIST

]

[

GENRE

]

[

PLAY LIST

]

[

ALBUM

]

[

TRACK

]

[

NUMBER

]

(1~9, 0/10, +10)

BACK

Playback

ENGLISH

¢Stopping playback:

Press 2.

¢Stopping playback temporarily:

During playback, press <1/3>or [CD 1/3].

To resume playback, press <1/3>or [CD 1/3]again.

¢To fast-forward or fast-reverse (search):

During playback, press and hold [7]or [6].

•Normal playback resumes when the button is released.

•When the searching operation is started while in the pause mode,

searching is performed at high speed.

•During playback, press BACK to display the track name list.

¢Cueing (moving to the beginning of tracks):

During playback, use <JOG DIAL>or [89]to select the track

to be cued.

¢Direct search:

•Press [NUMBER] (1 ~ 9, 0/10, +10).

Example: 4th track : [4]

Example: 12th track : [+ 10] [2]

Example: 20th track : [+ 10] [0/10]

CD playback Function : CD

Playing CDs Function : CD

Press <5>to open the tray and load the CD.

Loading the CD : ( page 4)

When the tray closes, the CD’s information is searched

automatically and the album and track names are displayed (

page 14).

Accessing

Gracenote

Database

THE BEST HIT 1/18

SONG_A

SONG_B

Artist A

SONG_A

3/18

0:06

(Unknown) 1/15

TR01

TR02

If the corresponding CD information cannot be found

Use <JOG DIAL>, [8 9]or [DD HH]to select the

track to be played.

Press <1/3>, [CD 1/3]or ENTER.

¢Press [RANDOM] or [REPEAT] after selecting the desired menu

(genre, artist, album, etc.) to play the tracks on that menu in

random order or repeatedly.

¢Handy functions for searching from lists:

qSearching by switching between first letters

Use [FF GG]to switch the first letter (A ⇔B ⇔C...).

wSearching by narrowing in on letters

Use [NUMBER] (1 ~ 9, 0/10, +10) to input the first letter of the desired

title, then the second letter, etc.,

•The titles are narrowed in each time a letter is input.

Playback

ENGLISH

Playing music files Function : CD

MP3 WMA

Before playing MP3 or WMA files

There are many music distribution sites on the Internet from which

you can download files in MP3 or WMA (Windows Media Audio)

format. Music (files) downloaded from these sites can be played on

the CHR-F103 if they have been burned onto CD-R/CD-RW discs.

Creating MP3 or WMA discs (CD-R/CD-RW discs)

compatible with the CHR-F103

•When recording MP3 or WMA files onto CD-R/CD-RW discs, set the

writing software’s format to “ISO9660 level 1”. Files recorded in

other formats may not play properly.

•When burning MP3 or WMA files onto CD-R/CD-RW discs, avoid

using a folder hierarchy with more than 8 levels. Files and folders

from folder level 9 or lower cannot be played.

•The maximum number of files and folders that can be played is

1,000 (total for the number of files and folders). The maximum

number of folders is 255.

•The CHR-F103 is not compatible with packet write software or

playlists.

•Also read the operating instructions of the software used to create

the MP3 or WMA files.

•Be sure to give the extension “.MP3” or “.WMA” to MP3 or WMA

files. The files cannot be played if they have any other extensions.

(For Macintosh computers, MP3 files can be played by giving the

files the extension “.MP3” after a file name consisting of no more

than 8 capital letters or numbers before storing them on the CD-

R/CD-RW disc.)

Your recordings may be used for your personal enjoyment only,

and may not be used for other purposes without the consent of

the copyright holder as per copyright laws.

File format Sampling

frequency (kHz)

Bit rate

(kbps) Extension

MP3 32, 44.1, 48 32 ~ 320 .MP3

WMA 32, 44.1, 48 64 ~ 192 .WMA

Playable MP3 and WMA files

•The CHR-F103 is compatible with “MPEG-1 Audio Layer-3”

standards. It is not compatible with “MPEG-2 Audio Layer-3”,

“MPEG-2.5 Audio Layer-3”, “MP1” or “MP2” standards, etc.

•The CHR-F103 is compatible with MP3 ID3-Tag standards up to

Version 2.3.

•The CHR-F103 is compatible with WMA META tags for title, artist

and album names.

¢Settings for folders and files to be played

(folder mode/disc mode):

Use [FOLDER] to switch.

•Folder mode

The “FOLDER” indicator is lit.

The files in the selected folder and the folders underneath it are

played.

•Disc mode (folder mode: off):

The “FOLDER” indicator is off.

The entire disc from the position of the selected file is played.

The WMA logo, Windows Media and the

Windows logo are registered trademarks or

trademarks in the United States and other

countries of Microsoft Corporation of the United

States.

About the button names in this explanation

<>: Buttons on the main unit

[]: Buttons on the remote control unit

Button name only :

Buttons on the main unit and remote control unit

[

HDD

][

]

BACK

[

]

[

]

[PROG]

[

REPEAT

]

[RANDOM]

[

]

[TIME/DISPLAY]

ENTER

<JOG DIAL>,

ENTER

BACK

[

FOLDER

]

BACK

[

CLEAR

][

CALL

]

ENTER

[

]

Playback

ENGLISH

Special playback features

Playing programs Function : CD

Up to 25 tracks can be programmed.

Use <JOG DIAL>or [DD HH]to select the name of the

track to be programmed, then press ENTER.

•The number in the program is displayed to the left of the track

name.

Repeat this operation until you have programmed all the desired

tracks.

Press [PROG].

•“PROG” is displayed.

Press <1/3>or [CD 1/3].

•The tracks are played in the programmed order.

¢Checking the order of the programmed tracks:

In the stop mode, press [CALL].

•The track names are displayed in the programmed order.

¢Clearing programmed tracks:

Press [CLEAR].

•The program at the position of the cursor is cleared.

¢Stopping programmed playback:

In the stop mode, press [PROG].

NOTE:

•The program is cleared if the disc tray is opened.

Playing in random order Function : HDD or CD

MP3 WMAHDD CD

Press [HDD 1/3], [CD 1/3]or <1/3>.

In the stop mode, press [RANDOM].

•“RANDOM” is displayed.

¢Stopping random playback:

In the stop mode, press [RANDOM].

•The “RANDOM” indicator is off.

•When the function is set to , random playback is

possible by genre, artist, or album.

•If [REPEAT] is pressed during random playback, the tracks are played

once in a random order, then played again in a different random

order.

•The files played randomly differ according to the music file playback

mode.

· In the folder mode: Files in selected folder and folders underneath

· In the disc mode: All the files on the disc

HDD

NOTE:

•When the random mode is set during programmed playback, the

program is cleared.

•When the random mode is set in the single track repeat mode,

the mode switches to all-track repeat.

MP3

WMA

Use <JOG DIAL>or [DD HH]to select the folder or file.

Set a CD-R/CD-RW disc containing music files in

MP3 or WMA format in the disc tray ( page 4).

Press <1/3>, [CD 1/3]or ENTER.

•The track or file name is displayed and playback starts.

The track name, artist name and album name are only displayed

if they are recorded on the disc.

The folder name and file name are displayed if the track name,

artist name and album name are not recorded on the disc.

Use [TIME/DISPLAY] to switch the contents displayed on the first

line.

•When a copyright-protected file or a file that cannot be played

properly is selected, “Can’t Play” is displayed. Select a different file.

NOTE:

•Programmed playback is not possible with discs containing files

in MP3 or WMA format.

•The time may not be displayed properly if the search or pause

operation is performed while playing files recorded with a

variable bit rate.

Playing files Function : CD

¢To change the folder or file during playback:

Press BACK to display the list, then use [DD HH]or [89]to

select the folder or file.

Playback

ENGLISH

MP3 WMAHDD CD

During the stop or play mode, use [REPEAT] to select the

repeat mode.

One-track repeat

“REPEAT 1”

All track repeat

“REPEAT ALL”

None

In the stop mode, press [HDD 1/3], [CD 1/3]or <1/3>to start

playback.

¢Stopping repeat play

In the stop mode, press [REPEAT] until the “REPEAT” indicator

turns off.

•In the mode it is possible to set repeat play by genre,

artist or album.

•The files played repeatedly depend on the music file playback mode.

· In the folder mode: Files in selected folder and folders underneath

· In the disc mode: All files on the disc

HDD

Connections to the required system and specific settings must be

made in order to listen to Internet radio ( page 12, 16).

When you first connect to an Internet radio station, “Update?”

appears on the display.

Use <JOG DIAL>or [DD HH]to select “Internet Radio”,

then press ENTER.

•The initial screen when not connected to the Internet appears.

Connecting to an Internet radio station for the first

time:

Press ENTER.

•The update screen appears.

Set the input source to “USB/NET”.

•The Network Audio screen appears.

Press ENTER.

•The most recent list of radio stations is downloaded from the

vTuner website (several minutes are required for the

download).

Use <JOG DIAL>or [DD HH]to select the desired item,

then press ENTER.

At the end, the station list is displayed.

Use <JOG DIAL>or [DD HH]to select the desired

station, then press ENTER or [GG].

•Connection starts, and playback begins once the buffer

reaches “100%”.

The pause mode is set if [GG] is pressed during playback, and

playback resumes when [GG]is pressed again.

Press BACK in the play or pause mode to display the previous

menu screen.

Listening to Internet radio

Function : USB/NET

Playing tracks (files) repeatedly

Function : HDD or CD

Internet Radio

1/5

Genres

Countries

About the button names in this explanation

<>: Buttons on the main unit

[]: Buttons on the remote control unit

Button name only :

Buttons on the main unit and remote control unit

[

HDD

][

]

BACK

ENTER

[

REPEAT

]

[

H F GH F G

]

<JOG DIAL>,

ENTER

BACK

[

H F GH F G

]

ENTER

[

EDIT

]

BACK

[

NUMBER

]

(1~9, 0/10, +10)

Playback

ENGLISH

•There are many Internet radio stations on the Internet, and the

quality of the programs they broadcast as well as the bit rate of the

tracks varies widely.

Generally, the higher the bit rate, the higher the sound quality, but

depending on the communications lines and the server’s traffic,

streamed music or sound with a high bit rate can easily be

fragmentary. Inversely, a lower bit rate means lower sound quality,

but less tendency to break up.

•“Radio Station Server Full” or “Connection Down” is displayed if

the station is busy or not broadcasting.

Favorites are listed at the top of the menu screen, so when they are

registered they can be tuned in easily.

Use <JOG DIAL>or [DD HH]to select “Favorites”, then

press ENTER.

•The favorites registration menu screen appears.

Use <JOG DIAL>or [FF GG]to select “Y”, then press

ENTER.

Press [EDIT] while the Internet radio station you want

to register is playing.

•The registration menu screen appears.

There are two ways to register stations, by presetting them or by

storing them in your favorites.

When preset, stations can be tuned in directly with the remote control

unit.

Use <JOG DIAL>or [DD HH]to select “Preset”, then

press ENTER.

•The preset registration menu screen appears.

Use [NUMBER] (1 ~ 9, 0/10, +10) to register the station

at the desired preset channel.

•This completes the registration procedure.

Press [EDIT] while the Internet radio station you want

to register is playing.

•The registration menu screen appears.

NOTE:

•Presettings are cleared if a new entry is preset at a preset

channel that has already been used.

¢Listening to preset Internet radio stations

Select the “USB/NET” function, then use [NUMBER] (1 ~

9, 0/10, +10).

•The station is connected to automatically and playback begins.

¢Listening to Internet radio stations registered in

your favorites

Use <JOG DIAL>or [DD HH]to select the desired

station, then press ENTER.

•Playback starts.

Select the “USB/NET” function, use <JOG DIAL>or

[DD HH]to select “Favorites”, then press ENTER.

•The Internet radio stations registered in your favorites are

displayed.

¢Clearing radio stations from your favorites

In the stop mode, at the screen displayed in step 2

under “Listening to Internet radio stations registered

in your favorites”, use <JOG DIAL>or [DD HH]to select

the radio station you want to clear.

Registering Internet radio stations as your

favorites Function : USB/NET

Presetting (registering) Internet radio stations

Function : USB/NET

Add to Favorite?

Y / N

USB/Network Menu

1/3

Favorites

Preset

USB/Network Menu

2/3

Favorites

Preset

Use <JOG DIAL>or [FF GG]to select “Y”, then press

ENTER.

Press [EDIT].

•The clear screen appears.

Clear Favorite?

Y / N

Playback

ENGLISH

Updating the list of radio stations

Use <JOG DIAL>to select “Internet Radio”, then

press ENTER.

Use <JOG DIAL>or [DD HH]to select “Auto Update” or

“Manual Update”, then press ENTER.

•The update screen appears.

If “Radio List Version” is selected, the current version is

displayed.

Use SETUP to select “Network Setting”, then press

ENTER (page 16).

When “Auto Update” is selected:

Use <JOG DIAL>or [DD HH]to select “ON”, then press

ENTER.

•The radio station list is updated automatically.

-1

When “Manual Update” is selected:

Use <JOG DIAL> to select “Start”, then press ENTER.

•The radio station list is updated.

-2

Connections to the required system and specific settings must be

made in order to play music files.

Use this procedure to play music files (in WMA, MP3 or WAV format)

or playlists (m3u or wpl) stored on a computer (music server)

connected to the CHR-F103 via a network.

Before starting, you must launch the computer’s server software and

set the files as server contents. For details, see the operating

instructions of your server software.

Use <JOG DIAL>or [DD HH]to select the host name of

the computer (music server) on which the music files

you want to play are located, then press ENTER.

Use <JOG DIAL>or [DD HH]to select the desired music

file, then press ENTER or [GG].

•Connection starts, and playback begins once the buffer

reaches “100%”.

Press [9]to select the next file, [8]to select the previous

file.

The pause mode is set if [GG] is pressed during playback, and

playback resumes when [GG]is pressed again.

Press BACK during playback to display the previous menu screen.

Set the input source to “USB/NET”.

The host names of the computers (music servers) in the network

are also displayed.

¢Playing music files that have been preset or

registered in your favorites

Music files can be preset or registered in your favorites and played

using the same procedure as for Internet radio stations.

Use <JOG DIAL>or [DD HH]to select the search item or

the desired folder, then press ENTER.

When a folder is selected and [GG]is pressed, playback of the files

in the folder begins.

Playing music files stored on a computer

(music server) Function : USB/NET

About the button names in this explanation

<>: Buttons on the main unit

[]: Buttons on the remote control unit

Button name only :

Buttons on the main unit and remote control unit

BACK

ENTER

[

REPEAT

]

[

H GH G

]

SETUP

[

]

[

]

[RANDOM]

[TIME/DISPLAY]

<JOG DIAL>,

ENTER

BACK

SETUP

[

H G

]

BACK

ENTER

Playback

ENGLISH

WAV

MP3

WMA

Before playing a USB memory device

This procedure can be used to play music files (in MP3, WMA or WAV

format) stored on a USB memory device.

•The CHR-F103 can only play USB memory devices compatible with

the mass storage class.

•The CHR-F103 is compatible with USB memory devices in “FAT16”

or “FAT32” format.

•If the USB memory device is divided into multiple partitions, only the

top drive can be selected.

File format Sampling

frequency (kHz)

Bit rate

(kbps) Extension

MP3 32, 44.1, 48 32 ~ 320 .MP3

WMA 32, 44.1, 48 48 ~ 192 .WMA

Playable MP3 and WMA files

•The CHR-F103 is compatible with “MPEG-1 Audio Layer-3”

standards. It is not compatible with “MPEG-2 Audio Layer-3”,

“MPEG-2.5 Audio Layer-3”, “MP1” or “MP2” standards, etc.

•The CHR-F103 is compatible with MP3 ID3-Tag (Ver. 2) standards.

•The CHR-F103 is compatible with WMA META tags.

•The CHR-F103 can only play music files that are not copyright

protected*.

*: Contents downloaded from pay music sites on the Internet are

and encoded in WMA format may be copyright protected,

depending on the computer’s settings.

Playing USB memory devices

Use <JOG DIAL>to select “USB”, then press ENTER.

•The files and folders stored on the USB memory device are

displayed.

“USB” is not displayed if no USB memory device is connected.

Connect the USB memory device to the USB input

terminal.

Use <JOG DIAL>or [DD HH]to select the folder or file

you want to play, then press <1/3>or [GG].

•Playback starts.

•When a file is selected, playback can also be started by

pressing ENTER.

The CHR-F103 can display folder and file names like titles. Up to

95 letters and numbers can be displayed. Non-compatible

characters are replaced with a “.” (period).

The display can be switched between the artist and album name

using [TIME/DISPLAY].

¢Repeat mode

The repeat mode switches when [REPEAT] is pressed while playing

a USB memory device.

REPEAT 1 REPEAT ALL OFF

¢Random mode

The random mode is switched on and off each time [RANDOM] is

pressed.

•When <1/3>is pressed while the USB memory device or folder is

selected, playback of all the files on the USB memory device or in

the folder begins.

NOTE:

•The audio signals are not output from the digital output terminal.

•DENON will accept no responsibility for any loss of or damage to

data on a USB memory device when the USB memory device is

being used connected to the CHR-F103.

•USB memory devices will not operate via a USB hub.

•DENON does not guarantee operation or supply of power to all

USB memory devices.

•It is not possible to connect a USB cable between to the CHR-

F103’s USB terminal and a computer and use the units as such.

•The CHR-F103 is not compatible with the iPod shuffle.

NOTE:

•Presettings are cleared if a new entry is preset at a preset

channel that has already been used.

•When the following operations are performed, the music server’s

database is updated and it may no longer be possible to play

music files that have been preset or registered in your favorites.

⋅When the music server is stopped then restarted

⋅When music files are deleted or added to the music server

Playback of USB memory devices

Function : USB/NET

Editing

Small letterCapital letter

[NUMBER]

ENGLISH

: ; < = > ? @ [ \ ] ^ _ { } £

Editing

Inputting characters Function : HDD

Letters (capital and small) and numbers can be used to change the

artist, album, track, playlist and track genre names.

Changing titles Function : HDD

Press [EDIT].

In the stop mode, display the title you want to change

(page 22).

Use <JOG DIAL>or [DD HH]to select “Rename”, then

press ENTER.

Use <JOG DIAL>or [DD HH]to select the item to be

changed, then press ENTER.

When an artist or album name is selected and the name is

changed, all the tracks with that artist or album name are

changed as well.

When a track is selected and its artist or album name is changed,

the artist or album name is only changed for that track.

To clear one character at a time:

Use [FF GG]to set the cursor to the letter to be cleared,

then press [CLEAR].

-1

To clear the entire title:

Press and hold in [CLEAR] for at least 2 seconds.

-2

Use [CALL] to switch between capital and small

letters.

Use [NUMBER] (1 ~ 9, 0/10, +10) to select the

character to be input.

A maximum of 114 characters per title can be input.

Characters assigned to the different buttons

11 ! ” # $ % & ’ ( ) * + , – . / 1 ! ” # $ % & ’ ( ) * + , – . /

2AB C 2 À Á Â Ã Ä Å Æ Ç a b c 2 à á â ã ä å æ ç

3D E F 3 È É Ê Ë d e f 3 è é ê ë

4G H I 4 Ì Í Î Ï g h i 4 ì í î ï

5J K L 5 j k l 5

6M N O 6 Ñ Ò Ó Ô Õ Ö Ø m n o 6 ñ ò ó ô õ ö ø

7PQ R S 7 ß p q r s 7 ß

8TU V 8 Ù Ú Û Ü t u v 8 ù ú û ü

9W X Y Z 9 w x y z 9ÿ

0/10 0 _ (space) 0 _ (space)

+10 : ; < = > ? @ [ \ ] ^ _ { } £

Repeat steps 5to 7to input the title.

Press ENTER to set the characters you have input.

Title Rename:

To change the track/file name

Artist Rename:

To change the artist name

Album Rename:

To change the album name

Playlist Rename:

To change the playlist name

Genre Change:

To change the genre name

About the button names in this explanation

<>: Buttons on the main unit

[]: Buttons on the remote control unit

Button name only :

Buttons on the main unit and remote control unit

ENTER

[

H F GH F G

]

MUSIC SEARCH

[PROG]

<JOG DIAL>,

ENTER

MUSIC SEARCH

[

H F GH F G

]

ENTER

[

EDIT

]

[

CALL

]

[

CLEAR

]

[

NUMBER

]

(1~9, 0/10, +10)

Editing

ENGLISH

Changing genre names Function : HDD

Use <JOG DIAL>or [DD HH]to select “Genre Change”,

then press ENTER.

Perform steps 1to 3under “Changing titles”.

Use <JOG DIAL>or [DD HH]to select the new genre

name.

Select one of the 25 genre names.

Press ENTER to set the genre name you have chosen.

Creating playlists Function : HDD

This feature can be used to organize the tracks stored on the HDD in

20 groups consisting of up to 256 tracks each.

The playlists only consist of data on the track order, etc. They are

used to call out the tracks on the HDD in the specified order to play

them.

Clearing a track from a playlist does not delete it from the HDD.

Adding tracks to playlists

Press [EDIT].

[PROG] can be used to add the currently playing track to the

playlist.

In the stop mode, display the track you want to add

(page 22).

Use <JOG DIAL>or [DD HH]to select “Add to Playlist”,

then press ENTER.

Use <JOG DIAL>or [DD HH]to select the track to be

added to the playlist, then press ENTER.

•The track is added to the end of the playlist, and “Complete”

is displayed.

Clearing tracks from playlists

Use <JOG DIAL>or [DD HH]to select “Track Clear”,

then press ENTER.

In the stop mode, select the track you want to clear

from the playlist, then press [EDIT] (page 22).

Use <JOG DIAL>or [FF GG]to select “Y”, then press

ENTER.

•The track is cleared from the playlist and “Complete” is

displayed.

Changing the order of tracks on playlists

Use <JOG DIAL>or [DD HH]to select “Track Move”,

then press ENTER.

In the stop mode, select the track on the playlist

whose order you want to change, then press [EDIT]

(page 22).

Use <JOG DIAL>or [DD HH]to select the position to

which you want to move the track, then press ENTER.

•The order of the track on the playlist is changed and

“Complete” is displayed.

Use <JOG DIAL>or [DD HH]to select “All Track Clear”,

then press ENTER.

Use <JOG DIAL>or [FF GG]to select “Y”, then press

ENTER.

•The playlist is cleared and “Complete” is displayed.

In the stop mode, select the playlist you want to clear,

then press [EDIT] (page 22).

Clearing playlists

Use <JOG DIAL>or [DD HH]to select “Playlist”, then

press [EDIT].

Use <JOG DIAL>or [FF GG]to select “All Playlist

Clear”, then press ENTER.

•“All Clear?” is displayed.

In the stop mode, press MENU SEARCH.

•The search menu is displayed.

Clearing all the playlists

Use <JOG DIAL>or [FF GG]to select “Y”, then press

ENTER.

•All the playlists are cleared and “Complete” is displayed.

NOTE:

•The contents of the “Recently Played” and “Recently Stored”

playlists are also cleared.

System Operations

ENGLISH

System Operations

About the button names in this explanation

<>: Buttons on the main unit

[]: Buttons on the remote control unit

Button name only :

Buttons on the main unit and remote control unit

ON/STANDBY

This unit [CHR-F103]

ON/STANDBY

Receiver [DRA-F102/F102DAB]

ON/STANDBY

Cassette deck [DRR-F102]

ON/STANDBY

[

]

[

]

[

]

[TIME/DISPLAY]

[

HDD

]

[

NUMBER

]

(1~9, 0/10, +10)

When the CHR-F103 is used in conjunction with other components in

the F102 series, such system operations as CD Synchro recording can

be performed and the system remote control unit (included with the

receiver (DRA-F102/F102DAB)) can be used to operate the various

components.

•All of the system operations are controlled from the receiver (DRA-

F102/F102DAB).

•Also read the operating instructions of the various components.

•The system remote control unit included with the receiver (DRA-

F102/F102DAB) cannot be used to operate the CHR-F103. Use the

system remote control unit included with the CHR-F103.

Press [HDD 1/3]or [CD 1/3]when the power of the

various components is set to the standby mode.

•The power of the various components turns on and the receiver’s

function automatically switches to “CD/HDD”.

•Press [HDD 1/3]to play the hard disc drive, [CD 1/3]to play a CD.

The auto power on function does not work even when <1/3>is

pressed.

Auto power on function

Press <1/3>, [HDD 1/3]or [CD 1/3]during playback

on one of the other components.

•Playback stops and the receiver’s function automatically switches

to “CD/HDD”.

•Press <1/3>to play the function currently selected on the CHR-

F103, [HDD 1/3]to play the hard disc drive, [CD 1/3]to play a CD.

Auto function selection

System Operations

ENGLISH

CD synchronized recording Function : CD

This function lets you easily record the tracks from a CD onto a

cassette tape.

For instructions, see the cassette deck’s operating instructions.

Timer playback function

The receiver’s timer function can be used to conduct playback at set

times.

For operating instructions, refer to the manual included with the

receiver.

•Switch the CHR-F103’s function to the function you want to play

before setting the timer standby mode.

Edit function Function : CD

This function lets you record onto cassette tapes with automatic

editing according to the length of the tape.

Load the CD and cassette tape before starting.

Press [MENU] three times in a row.

•“EDIT” is displayed on the receiver’s display.

Turn on the power of the various components.

Use [9]to set the length of the cassette tape.

Example: To record onto a 60-minute cassette tape, use [9]to

select “C-60”.

Press <1/3>or [CD 1/3].

•Recording of the CD starts.

C – 46 C – 60 C – 90 C –

Tape Edit C – 46

A 20:26

B 11:23

Edit 01–06

Edit 07–09

¢Setting a specific cassette tape length:

When “C –” is displayed, use [NUMBER] (1 ~ 9, 0/10, +10) to input the

time.

Example: To set to 54 minutes

[+10] [+10] [+10] [+10] [+10] [4]

The length can be set to up to 150 minutes.

NOTE:

•The editing function does not work with discs containing 26

tracks or more.

•When using the edited recording function, be sure to load the

cassette tape with side A facing upwards. The beginning of the

cassette tape is found automatically before recording starts.

•When using a tape that is already recorded on, erase the tape

before conducting edited recording.

•When using the edited recording function, set the cassette

deck’s reverse mode to “ ”.

•In some cases it may not be possible to record all the tracks on

the cassette tape even if its length is longer than the total length

of the tracks on the disc, due to the fact that the tracks must be

divided between sides A and B. “OVER” is displayed on the

CHR-F103’s display if there are tracks that cannot be recorded. If

“OVER” is displayed, change the length of the cassette tape as

described in step 3.

•When the editing function is in use, no buttons other than

ON/STANDBY, [MENU], [9], [CD 1/3], 2, <TAPE 2>and

[TIME/DISPLAY] will operate.

•Edited recording is not possible with discs containing files in MP3

or WMA format.

Editing canceled

¢Canceling the editing function:

Press 2 or <TAPE 2>.

(The length of the cassette tape is the total length for sides A and B.)

•When the cassette tape length is set, the numbers of the tracks

and the total playing time for sides A and B respectively are

displayed.

PC applications

ENGLISH

PC applications

Denon Music Manager function

Denon Music Manager can be used for the operations described

below.

£Displaying lists of and editing the tracks on the HDD

£Editing playlists

£Importing music files from a computer

£Backing up the tracks on the HDD onto a computer

£Restoring backed up data onto the CHR-F103

We recommend backing up the data recorded on the CHR-F103’s

HDD periodically. If the HDD should fail, the recordings you have

backed up can be retrieved.

Required recommended equipment and

environment for using Denon Music Manager

•Computer on which Windows XP Service Pack 2 is installed

•HDD with sufficient free space

•USB 2.0 connection terminal

Installing Denon Music Manager

Follow the instructions on the screen and click

“Next”.

Check the settings for installation, then finally click

“Install”.

•Installation is executed. A dialog box appears to indicate that

installation is finished.

Load the included CD-ROM (Denon Music Manager)

onto the computer.

•The installation wizard screen appears.

If the installation menu screen does not appear, open the CD-

ROM drive in “My Computer” and launch “SETUP.EXE”.

Click “Finish”.

•This completes installation.

Connecting to a computer

Once the computer has started up, connect it to the

PC CONTROL (USB) terminal on the CHR-F103’s

rear panel using a commercially available USB cable

(sold separately).

Turn on the CHR-F103’s power.

Turn on the power of the computer on which Denon

Music Manager is installed.

Leave the CHR-F103’s power off.

Select “PC Connect Mode” from “Others” on the

setup menu, then press ENTER.

Select “OK”, then press ENTER.

•“PC Connect Mode” is displayed.

Double-click the Denon Music Manager icon on the

computer to launch Denon Music Manager.

Once all operations are completed, turn off the CHR-

F103’s power.

After the power turns off, disconnect the USB cable.

NOTE:

•NEVER disconnect the USB cable or turn off the power of the

computer or the CHR-F103 while using Denon Music Manager.

Doing so could destroy the data on the HDD or damage the CHR-

F103 or the computer.

NOTE:

•When connecting a computer and the CHR-F103, do not use any

software other than Denon Music Manager.

Using any software other than Denon Music Manager could

destroy the data on the HDD or damage the CHR-F103. Follow the instructions in the operating instructions

included on the Denon Music Manager’s CD-ROM to

perform the operations on the computer (data

backup, etc.).

Others

ENGLISH

Others

Trademarks

Music recognition technology and related data are provided by Gracenote®. Gracenote is the industry

standard in music recognition technology and related content delivery. For more information visit

www.gracenote.com.

Patents: #5,987,525; #6,061,680; #6,154,773, #6,161,132, #6,230,192, #6,230,207, #6,240,459, #6,330,593,

and other patents issued or pending. Some services supplied under license from Open Globe, Inc.

for U.S. Patent: #6,304,523. Gracenote and CDDB are registered trademarks of Gracenote.

The Gracenote logo and logotype, and the “Powered by Gracenote” logo are trademarks of Gracenote.

USE OF THIS PRODUCT IMPLIES ACCEPTANCE OF THE TERMS BELOW.

This product contains technology and data from Gracenote of Emeryville, California (“Gracenote”). The

technology from Gracenote (the “Gracenote Embedded Software”) enables this product to do disc

identification and obtain music-related information, including name, artist, track, and title information

(“Gracenote Data”), which is included on the Gracenote Database (the “Gracenote Database”).

•You agree that you will use Gracenote Data, the Gracenote Database, and Embedded Software for your

own personal non-commercial use only.

•You agree that you will access Gracenote Data only by means of the standard end user functions and

features of this product.

•You agree not to assign, copy, transfer or transmit the Embedded Software or any Gracenote Data to

any third party.

•YOU AGREE NOT TO USE OR EXPLOIT GRACENOTE DATA, THE GRACENOTE DATABASE, OR

GRACENOTE COMPONENT, EXCEPT AS EXPRESSLY PERMITTED HEREIN.

•You agree that your non-exclusive license to use the Gracenote Data, the Gracenote Database, and

Embedded Software will terminate if you violate these restrictions. If your license terminates, you agree

to cease any and all use of the Gracenote Data, the Gracenote Database, and Gracenote Embedded

Software.

•Gracenote reserves all rights in the Gracenote Data, Gracenote Database, and Gracenote Embedded

Software, including all ownership rights.

•You agree that Gracenote may enforce its rights under this Agreement against you directly in its own

name.

The Embedded Software and each item of Gracenote Data are licensed to you “AS IS.” Gracenote makes

no representations or warranties, express or implied, regarding the accuracy of any Gracenote Data.

Gracenote reserves the right to delete data or to change data categories in any Data updates and for any

cause that Gracenote deems sufficient.

No warranty is made that the Embedded Software is error-free or that functioning of the Embedded

Software will be uninterrupted. Gracenote is not obligated to provide you with any new enhanced or

additional data types or categories that Gracenote may choose to provide in the future.

GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR

PURPOSE, TITLE, AND NON-INFRINGEMENT. GRACENOTE DOES NOT WARRANT THE RESULTS

THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE COMPONENT OR ANY

GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL OR

INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES.

“This product is protected by certain intellectual property rights of Microsoft. Use or distribution of such

technology outside of this product is prohibited without a license from Microsoft.”

“Content owners use Windows Media digital rights management technology (WMDRM) to protect their

intellectual property, including copyrights. This device uses WMDRM software to access WMDRM

protected content. If the WMDRM software fails to protect the content, content owners may ask

Microsoft to revoke the software’s ability to use WMDRM to play or copy protected content. Revocation

does not affect unprotected content. When you download licenses for protected content, you agree that

Microsoft may include a revocation list with the licenses. Content owners may require you to upgrade

WMDRM to access their content. If you decline an upgrade, you will not be able to access content that

requires the upgrade.”

vTuner

This product is protected by certain intellectual property rights of Nothing Else Matters Software and

BridgeCo. Use or distribution of such technology outside of this product is prohibited without a license

from Nothing Else Matters Software and BridgeCo or an authorized subsidiary.

Others

ENGLISH

Symptom Cause Measures Page

Troubleshooting

If a problem should arise, first check the following.

1. Are all connections proper ?

2. Have you operated the player according to the Operating Instructions ?

If this unit is not operating properly, check the items listed in the table below. Should the problem persist,

there may be a malfunction. Disconnect the power immediately and contact your store of purchase.

Display does not light and

no sound is produced

when power is turned on.

•Power supply cord is not plugged into

power outlet.

•Plug the power supply cord into the

power outlet.

¢System

No sound is produced or

sound is distorted.

•Incomplete connections with the

various devices.

•The receiver’s function setting or

adjustments are not right.

•Check the connections.

•Check the receiver’s function and

controls and adjust as necessary.

—

Display is dim. • Dimmer function is on. • Turn the dimmer function off by

pressing the DIMMER button on the

remote control unit.

Symptom Cause Measures Page

“No Disc” is shown on

the display even though

a CD is loaded.

•The disc is not properly loaded. • Reload the disc. 4

¢CD

Disc is not played when

1/3button is pressed.

•The disc is dirty or scratched. • Wipe the dirt off the disc or replace

the disc.

A specific part of a disc

is not played.

•The disc is dirty or scratched. • Wipe the dirt off the disc or replace

the disc.

A CD-R or CD-RW disc

cannot be played.

•The disc has not been finalized.

•The recording conditions are bad or

the quality of the disc itself it poor.

•Finalize the disc then play it.

•Use a properly recorded disc.

—

MP3 and WMA files

cannot be played.

•The file formats, extensions or settings

made when disc was created are not

compatible with the CHR-F103.

•Create discs with file formats,

extensions or settings compatible

with the CHR-F103.

CD disc information is

not displayed.

•You are not connected to the network.

•The CD information is not included in

the Gracenote database on the HDD.

•Connect to the network. 12

Symptom Cause Measures Page

Selected tracks are not

recorded.

•Copyright protected tracks cannot be

recorded.

•MP3 and WMA files cannot be

recorded.

•Copy from the computer onto the

internal HDD using Denon Music

Manager.

¢HDD

Recorded tracks are not

displayed.

•Track registration information may

not be displayed properly if recording

was not completely normally, if the

AC power cord was unplugged during

recording, etc.

•If the track registration information is

not normal, press the ON/STANDBY

button while pressing the 2button

and the CD/HDD/USB/NET button

simultaneously with the CHR-F103 in

the standby mode. “Rebuild Index

Mode” is displayed.

Select “Yes” then press the ENTER

button to rebuild the information

registered on the HDD.

—

CD recording takes a lot

of time.

•Recording can take a long time if the

CD is scratched or dirty.

•Wipe the dirt off the disc or replace

the disc.

Symptom Cause Measures Page

You are not connected to

the network.

•The LAN cable is disconnected.

•(Server and CHR-F103) connected by

cross cable.

•Router’s or hub’s power is off.

•Network settings are wrong.

•Connect properly with a LAN cable.

•Turn on the power of the router or

hub.

•Check the router’s or hub’s operating

instructions.

•Contact your line administrator or

provider.

—

¢NET

Sound is broken. • The sound may be broken depending

on the network environment.

•If the playback bit rate is high or the

server traffic is heavy, stop the other

applications running on the server.

No sound is produced. • Playback data is in a format with which

the CHR-F103 is not compatible.

Others

ENGLISH

Symptom Cause Measures Page

USB memory device is

not recognized.

•USB memory device is in a format

other than one with which the CHR-

F103 is compatible (“FAT16” and

“FAT32”).

•Use a USB memory device with a

format with which the CHR-F103 is

compatible.

¢USB

Files on a USB memory

device cannot be played.

•USB memory device is divided into

several partitions.

•The CHR-F103 only selects the top

drive, so move the files to be played to

the top drive.

“Not Support” is

displayed when playing

files recorded in MP3 or

WMA format.

•You have selected a copyright-

protected file or a file that cannot be

played normally.

•Use the 8and 9buttons on the

remote control unit to select a

different file.

Hard disk inspection and repairs

Depending on the type of problem, DENON may check the data you have stored on your hard disk during

inspection or maintenance. Note that DENON will not copy or store this data.

Note that if the hard disk must be formatted during repairs, DENON will do so at its discretion. When the

hard disk is formatted, all the data on it is lost. Please back up the data beforehand ( page 34).

Others

ENGLISH

Specifications

¢Audio performance (LINE OUT 1)

No. channels: 2 channels

Frequency response: 2 Hz ~ 20 kHz

Dynamic range: 100 dB

S/N: 108 dB

Harmonic distortion: 0.004 % (1 kHz)

Separation: 100 dB

Wow & flutter: Below measurable limits (± 0.001 % W. peak)

Analog audio output: Output level : 2.0 Vrms (LINE OUT)

¢Usable discs: Compact Disc (CD / CD-R / CD-RW)

Diameter: 120 mm / 80 mm

Playback format: CD-DA / WMA / MP3

¢Signal format

Sampling frequency: 44.1 kHz

Quantization bit: 16-bit linear/channel

Transfer bit rate: 4.3218 Mbps

¢Digital output signal format

Format: Digital audio interface

Optical output: –15 ~ –21 dBm

Emission wavelength: 660 nm

¢Pickup

Type: Objective lens drive type pickup

Objective lens drive type: Secondary parallel drive

Light source: Semiconductor laser

Wavelength: 780 nm

¢HDD section

Playback format: WMA (.WMA) / AAC (.M4A) / MP3 (.MP3) / LPCM

Depending on the type of file, some AAC files may not play properly.

Sampling frequency: 32 kHz / 44.1 kHz / 48 kHz

Bit rate: WMA: 64 ~ 192 kbps

AAC: 16 ~ 320 kbps

MP3: 32 ~ 320 kbps

Recording format: WMA / LPCM

Bit rate (WMA): 128 kbps (Normal) / 192 kbps (HQ)

No. recordable WMA files: Approx. 10,000 (Normal)

Approx. 7,000 (HQ)

LPCM: Approx. 900

¢General

Power supply: AC 230 V, 50 Hz

Power consumption: 22 W

Standby : 0.1 W or less

Maximum external dimensions: 250 (W) x 101 (H) x 250 (D) mm (Not including protruding parts)

250 (W) x 110 (H) x 268 (D) mm (Including protruding parts)

Mass: 3.9 kg

¢Remote control unit (RC-1042)

Remote control type: Infrared pulse

Batteries: R6P/AA Type (two batteries)

External dimensions: 52 (W) x 233 (H) x 21 (D) mm

Mass: 173 g (included batteries)

* For purposes of improvement, specifications and design are subject to change without notice.

Denon Brand Company, D&M Holdings Inc.

Printed in China 00D 511 4478 206

TOKYO, JAPAN

www.denon.com
