ＢＨＴ-12００ Series
Operator’s Guide
2D Code Handy Terminal
BHT-1281QULWB-CE
Thank you for using the DENSO WAVE 2D Code Handy Terminal.
Please read this manual thoroughly prior to operation to ensure full use of the product’s functionality,
and store safely in a convenient location for quick reference even after reading.
This manual contains only the basic details required for operation.
Please refer to the User’s Manual for further details on general operation.
The User’s Manual can be downloaded free of charge from the DENSO WAVE Web site (QBdirect).
http://www.qbdirect.net/
496487-XXXX
Some of the pixels on the LCD touch screen may not illuminate or stay permanently illuminated.
Furthermore, there may also be inconsistencies in color and brightness. None of these aspects
represent an LCD defect.
A thin Newton’s ring (rainbow-like patterns) may appear on the touch panel. This does not necessarily
indicate a problem with the touch panel.
About This Manual
Due to changes and improvements, the content of this manual may be subject to change without prior notice.
The reproduction or duplication of the whole or part of this manual is strictly prohibited without prior consent.
Please contact DENSO WAVE if this manual is lost.
Every attempt has been made to ensure that the content of this manual is thorough and up to date, however,
we kindly ask you to report any questionable descriptions, mistakes or omissions, if any, to DENSO WAVE.
Liability Limitations
DENSO WAVE INCORPORATED (“DENSO WAVE”) does not assume any product liability (including
damages for lost profits, interruption of operations, or the loss of business-related information) arising out of,
or in connection with, the use of, or inability to use the BHT system software or related manuals.
DENSO WAVE takes reasonable precautions to ensure its products do not infringe upon any patents or other
intellectual property rights of other(s), however, DENSO WAVE cannot be responsible for any patent or other
intellectual property right infringement(s) or violation(s) arising from any of the following.
(1) The use of DENSO WAVE’s products in connection or in combination with other components,
products, devices, data processing systems or software not supplied by DENSO WAVE.
(2) The use of DENSO WAVE’s products in a manner for which they were not intended nor designed.
(3) The modification of DENSO WAVE’s products by parties other than DENSO WAVE.
If it is judged by DENSO WAVE that malfunction of the product is due to the product having been dropped or
subjected to impact, repairs will be made at a reasonable charge even within the warranty period.
Customer Registration
To allow us to provide our customers with comprehensive service and support, we request that all
customers complete a Member Registration Form. Registered members will be offered the
following privileges.
The latest upgrade information
Free exhibition and event information for new products
Free web-information service “QBdirect.”
QBdirect Service Contents
Information searching service (FAQ) Offers detailed information on each product.
Download service The latest OS systems for the BHT Series, repair software, and
sample programs can be downloaded.
E-mail inquiries Product related queries can be sent in by e-mail.
* Please note that these privileges may be subject to change without prior notice.
How to Register : Access the URL below and follow the instructions provided.
http://www.qbdirect.net/
Usage Precautions
Usage environment restrictions
Do not use the BHT where it may be exposed to fire, high temperatures, or direct sunlight.
(Failure to observe this may result in damage, overheating, explosion, or fire.)
* When the BHT is stored in a high-temperature, high-humidity environment of 50 to 60C, leave
to sit in a location at room temperature and normal humidity for at least 1 day prior to use.
Failure to observe this may cause a reading failure or damage the BHT.
Do not use the BHT in places with extreme temperature variations.
(Failure to observe this may lead to BHT malfunction due to condensation.)
* Leave the BHT for a short while prior to use when moved from a cold to a warm environment.
Do not use the BHT in places where it may be exposed to strong impact or
significant static electricity.
Do not use the BHT in places where a strong magnetic field is generated.
(Failure to observe this may lead to BHT malfunction due to magnetic force.)
Keep the BHT away from electromagnetic waves and metallic objects.
Wireless communication may not be possible in the following locations.
In the vicinity of other RFID devices
(Failure to observe this may lead to BHT malfunction.)
In the vicinity of the following devices operating on a 2.4 GHz waveband
(Communication may not be possible due to electromagnetic interference.)
Industrial, scientific, or medical equipment such as microwave ovens
Wireless LAN devices
Logistics systems in places such as plants or warehouses
Wireless devices such as personal or amateur radio stations
In the vicinity of household appliances emitting electromagnetic waves such as computers or
televisions
(Communication may not be possible due to electromagnetic noise.)
In the vicinity of metallic objects, in places with high levels of metallic dust, or in places
surrounded my metal walls
(Communication may not be possible due to the presence of metallic objects.)
SAFETY PRECAUTIONS
Be sure to observe all these safety precautions.
Meaning of Symbols
WARNING
Alerts you to those conditions which could cause serious
bodily injury or death if the instructions are not followed
correctly.
CAUTION
Alerts you to those conditions which could cause minor
bodily injury or substantial property damage if the
instructions are not followed correctly.
WARNING
Handling the battery
Incorrect handling of the battery could cause the batteries to generate heat or
smoke, or to rupture or burn. This is DANGEROUS. Be sure to observe the
following.
Never disassemble or modify the battery.
Never connect the positive and negative terminals of the battery with a wire or other metallic
materials.
Do not carry or store the battery together with ballpoint pens, necklaces, coins, hairpins, or
anything else metallic.
Never burn or heat the battery.
Do not use or leave the battery anywhere there is excessively high temperature (60C or higher),
such as near fire or stoves.
Do not put the battery into water of any kind or moisten it.
Never charge the battery near a fire or anywhere exposed to direct sunlight.
Failure to do so could activate the protector due to high temperature and thus prevent the
battery from being full charged. Or it may break the protector, resulting in the battery to overhead,
blowout, or combustion.
Never charge the battery where any inflammable gases may be emitted.
Doing so could cause fire.
Do not stick a needle into the battery, hammer at it, or tread on it.
Do not let the battery undergo any shock or impact or throw it at something hard.
Do not use batteries that are deformed, scratched or cracked remarkably.
Solder nothing to the battery directly.
The battery is exclusively for the BHT. Do not use the battery for purposes other than charging
the BHT.
If battery fluid leaks from the battery and it gets into your eyes, rinse them with clean water
thoroughly without rubbing and consult a doctor as soon as possible. Otherwise, you may
damage your eyes.
If the battery does not finish recharging within the specified time, stop recharging.
Never place the battery in a microwave oven or high-pressure container.
If abnormal odor, heat, discoloration, deformation or any other abnormal conditions are noticed
when the battery is in use, being charged, or is in storage, remove it from the BHT or Cradle and
avoid further use.

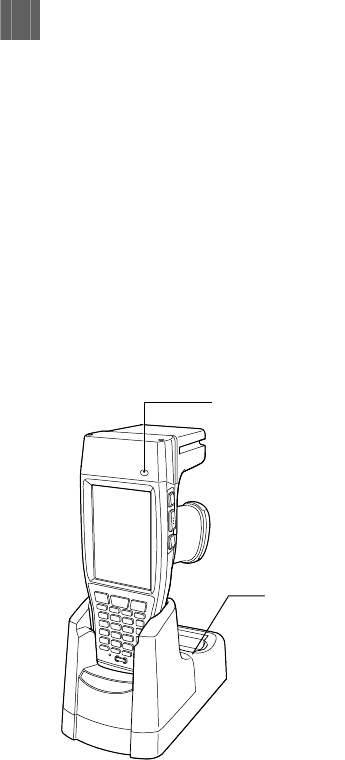

Only use the Cradle for charging the battery.
The battery may be warm immediately after charging or use.
To System Designers:
When introducing BHT in those systems that could affect human lives (e.g., medicines
management system), develop applications carefully through redundancy and safety design
hich avoids the feasibility of affecting human lives even if a data error occurs. w
Handling the BHT
Incorrect handling of the BHT could cause electric shock, impaired vision, skin
problems, injury, burns and generation of heat and smoke from the BHT. Be sure
to observe the following to use the device correctly.
Never put the BHT into a microwave oven or high-pressure container.
Doing so could cause the BHT to break, generate heat, rupture or burn.
Never put the BHT in places where there are excessively high temperatures, such as inside
closed-up automobiles, or in places exposed to direct sunlight.
Doing so could affect the housing or parts, resulting in a fire.
Avoid using the BHT in extremely humid or dusty areas, or where there are drastic temperature
changes.
Moisture or dust will get into the BHT, resulting in malfunction, fire or electrical shock.
If smoke, abnormal odors or noises come from the BHT, immediately turn off the power, pull out
the battery, and contact your nearest dealer.
Failure to do so could cause smoke or fire.
If you drop the BHT so as to damage its housing, immediately turn off the power, pull out the
battery.
Failure to do so could cause smoke or fire.
Do not use batteries or power sources other than the specified ones.
Doing so could generate heat or cause malfunction.
Never disassemble or modify the BHT; doing so could result in an accident such as break or fire.
Do not insert foreign materials in the BHT.
If foreign material or water gets into the BHT, immediately turn off the power, pull out the battery,
and contact your nearest dealer.
Failure to do so could cause smoke or fire.
If the LCD breaks and the liquid leaks from the LCD by mistake, do not swallow, inhale or touch
it.
Do not place the RF tag read antenna of the BHT within 22 cm from the mounting location of an
embedded medical device (a cardiac pacemaker, etc.). For more information, see the web site
of the Ministry of Internal Affairs and Communications.
The 2D Code Handy Terminal uses a laser light for indicating the scanning range. The
intensity of the laser light is too low to inflict bodily injury. However, do not stare into
beam.
You must observe the following precautions when handling the BHT equipped with laser
light.
1) Never stare into the reading window.
2) Never point the reading window at someone’s eye.
The 2D Code Handy Terminal complies with IEC 60825-1 Ed. 2: 2007.
In accordance with Clause 5 and 6, IEC 60825-1, the following information is provided to
the user:
Reading Window
(Laser Light emission window) BHT-1281QULWB-CE
LASER LIGHT
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT
Caution – Use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser light exposure.
CAUTION
Handling the BHT
Incorrect handling of the BHT could cause generation of heat and smoke from the BHT, and
malfunction. Be sure to observe the following to use the device correctly.
When using the hand strap or neck strap, exercise due care to avoid getting them caught in
other objects or entangled in rotating machinery.
Failure to do so could result in accident or injury.
Do not use the BHT in the vicinity of wireless devices such as personal radios and ham radios.
This could cause malfunction of the BHT.
Do not place magnetic cards or the like near the BHT speaker.
Doing so may result in the loss of magnetic data from cash cards, credit cards, etc.
Do not place your ear near the speaker/beeper when tones are being emitted.
Doing so may result in hearing loss.
Do not apply excessive force when inserting or removing the battery.
Doing so will result in damage.
In environments where static electricity can build into significant charges (e.g., if you wipe off the
plastic plate with a dry cloth), do not operate the BHT.
Doing so will result in malfunction or machine failure.
Do not drop the BHT on the floor or apply strong shock to it.
Doing so could cause malfunction of the BHT.
Do not use batteries other than the specified ones.
Make sure that the BHT and the battery are dry before putting it in the Cradle.
Failure to do so could result in fire or electrical shock.
Wireless Equipment
●Precautions relating to the frequency used by this device
In addition to industrial, scientific, and medical equipment such as microwave ovens, static
wireless stations (permit required) used for mobile identification in places such as plant
manufacturing lines and specified low-power wireless stations (no permit required) operate
on the same frequency band as this device.
1. Before using this device, ensure that no static wireless stations or specified low-power
wireless stations for mobile identification are being used in the vicinity.
2. In the event of instances of electromagnetic interference from this device to a static
wireless station being used for mobile identification, either promptly alter the usage
frequency, or halt the electromagnetic discharge
3. If other problems arise due to reasons such as electromagnetic interference from this
device to a specified low-power wireless station being used for mobile identification,
please contact DENSO WAVE through QBdirect.
● Requests to system designers
・Communication may not be possible depending on the environment in which the device is
being used. Ensure that problem-free communication is possible prior to use.
・Use a program capable of retransmitting data if communication fails.
・If the BHT is introduced into an environment in which a device using 2.4 GHz waveband
electromagnetic waves is operating, or if another device using 2.4 GHz waveband
electromagnetic waves is introduced following introduction of the system, run all devices
and ensure that communication with the BHT is possible prior to use.
・Check communication once again prior to use if any changes are made to the usage
environment (addition of household appliances, movement or addition of shelves,
equipment and so on) following introduction of the system.

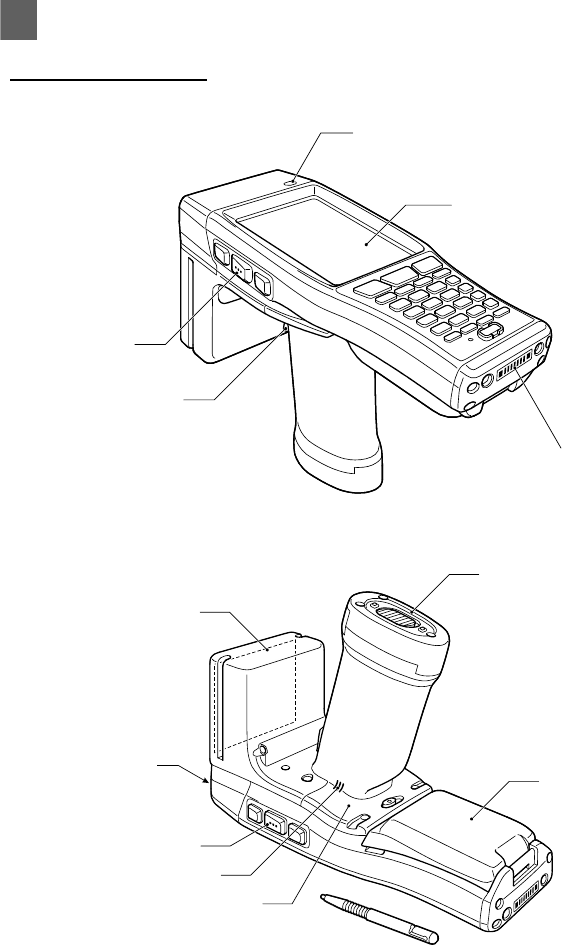

Components and Functions
BHT-1281QULWB-CE
Indicator LED
When succeeding in the reading of the barcode,
*Do not cover these antenna sections with
metal-evaporated tape or by hand.
Doing so may result in communication failures.
Reading window
Battery cover
illuminates in blue.Illuminates in red during charging,
and turns green on completion of charging.
Trigger Ke
y
Speaker
LCD (with Touch panel)
Display characters and graphic patterns.
Data may be entered by tapping the screen
directly with the stylus.
Trigger Ke
y
Interface port
BHT charge terminals and Interface terminals
Battery cover
RFID antenna
Trigger Ke
y
IEEE802.11b/g/n
2.4GHz
built-in antenna* Stylus
Bluetooth®
built-in antenna*

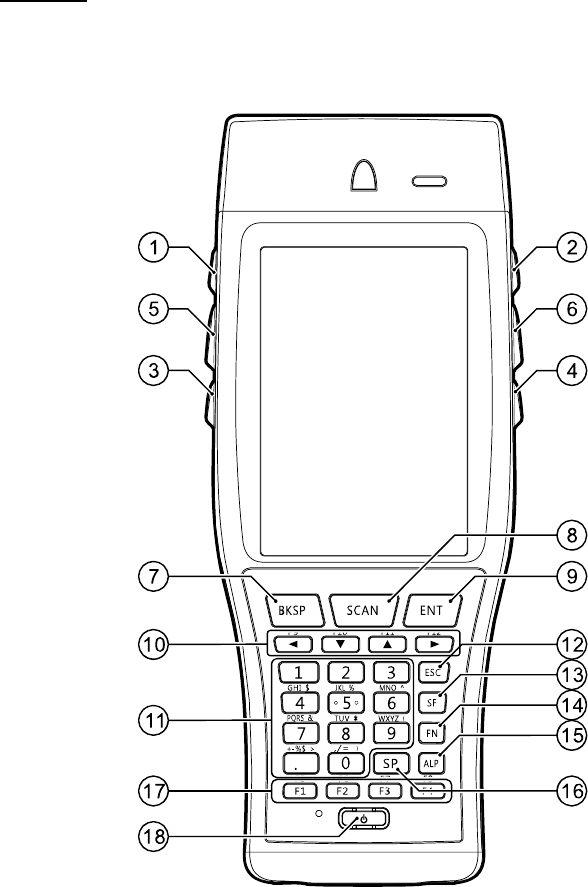

Key pad
The BHT key functions can be set at user programs.
The diagram below shows an example of settings for each key function.

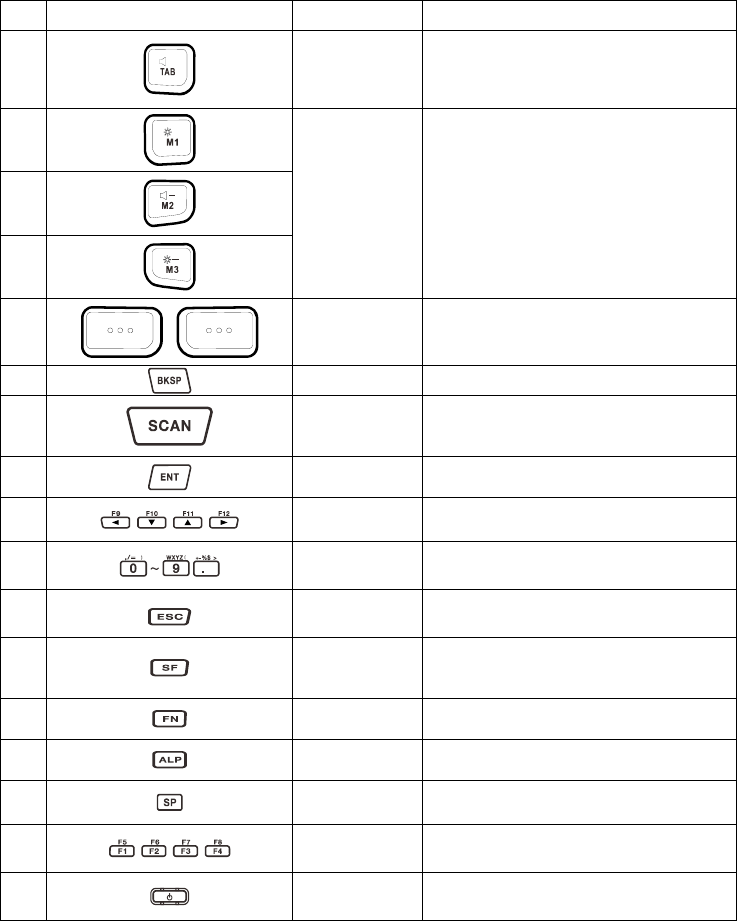

No. Key Name Function and Description
①
+
Tab key Used to enter a tab character.
②
+
③
④
M1, M2, M3
magic keys
・The SF and ENT key functions can be
assigned to these magic keys by
making settings at the SYSTEM
MENU.
・Character strings can be assigned at
user programs.
* Refer to the User’s Manual for details
on how to operate the SYSTEM MENU.
⑤
⑥
Trigger keys
Press to scan codes and RF tags.
(This key performs the same function
as the Scan key.）
⑦ Backspace key Moves back one character.
⑧ Scan key
Press to scan codes.
(This key performs the same function
as a Trigger key.)
⑨ Enter key Press to finalize entered data or execute
operations.
⑩ Cursor keys Used to move the cursor and select
menus.
⑪ Numerical keys Used to enter data.
⑫ Escape key Cancels the operation.
⑬ Shift key
Used in combination with other keys such
as the numerical keys or power key for
special input procedures.
⑭ Function mode
key Switches to Function mode.
⑮ Alphabetical
mode key Switches to alphabet entry mode.
⑯ Space key Used to enter a space.
⑰ Function keys Used to select functions.
⑱ Used to select
functions. Turns the BHT power ON and OFF.
Input Method
Using the Stylus
The BHT liquid crystal display (LCD) is a touch screen.
Buttons, menus and so displayed on the screen can be
selected using the stylus provided.
Touch Screen Operation
Select the LCD touch screen buttons and menus and so on using the stylus provided.
Action Description
Tap This involves tapping the touch screen once. This function is the equivalent of a
“click” with a mouse on a computer.
Double-tap This involves tapping the touch screen twice in quick succession. This function is the
equivalent of a “double-click” with a mouse on a computer.
Drag This involves moving the stylus to an object while pressing the touch screen. This
function is the equivalent of “dragging” with the mouse on a computer.
Hold This involves tapping the touch screen for several seconds.
This function is the equivalent of a “right-click” with the mouse on a computer.
Always use the stylus provided to operate the touch screen. Never use fingernails or any pointed or
hard objects, or apply strong pressure or impact to the touch screen. This may result in damage or a
malfunction.
If dirty, clean the touch screen and stylus tip prior to operation. Failure to observe this may result in
scratches to the LCD screen or hinder smooth movement of the stylus.
Proper Care of the BHT
Make sure to turn OFF the BHT before cleaning.
● Terminal dirt on the BHT and battery
Periodically wipe any dirt from the terminals of the BHT and battery with a cotton swab or similar soft
object. The terminal should be treated with the utmost care so as not to be scratched or bent during a
cleaning.
Never use organic solvents such as benzene or alcohol, as this may cause the coated surface to come
off.
● Housing dirt
Wipe any dirt from the housing with a dry, soft cloth.
If excessively dirty, wipe with a soft cloth that has been soaked in soapy water (always use neutral
detergent) and wrung out thoroughly.
Never use organic solvents such as benzene or alcohol, as this may cause the housing to be marred or
paint to peel off.
● LCD screen dirt
Never rub or strike the LCD screen with anything hard, as this may result in scratches on the screen or
breakage.
● Keypad dirt
When cleaning the keypad, do not scrub the surface too hard or pull on the keys, as this may break the
keys.
● Code reading window dirt
Any dirt or dust adhering to the clear plate of the code reading window will adversely affect reading
performance.
When using in dusty areas, perform periodic inspections to check whether any dust has accumulated
on the clear plate of the code reading window, and if so, first blow the dust away with an airbrush, and
then gently wipe the plate with a cotton swab or similar soft object.
If sand or hard particles have accumulated, rubbing the plate will result in scratches. Blow the particles
away with an airbrush or wipe with a soft brush.
Preparation
Follow the steps below to prepare the BHT for use.
Step 1 Charging the Battery Charge the battery.
Step 2 Attaching the Stylus Attach the stylus to prevent it from being lost.
Step 3 Turning ON the Power Preparation is now complete.
Step 1 Charging
The battery is not charged when purchased and must therefore be charged prior to use.
The following Cradle can be used with the BHT.
Cradle: CU-1211, CU-1233
It takes about 9 hours to charge the batteries (when both the batteries in the BHT main body and
in the grip are mounted).
・It takes about 4.5 hours when the battery is mounted only in the BHT main body.
・If a battery of which discharge amount is small is used, it takes less time to complete charging.
■Charging with the BHT
Place the BHT on the Cradle.*
The LED illuminates in red and charging begins.
The BHT Indicator LED will change to green when
charging is complete.
Plugging in the BHT into the CU: Slide the BHT
gently into the CU. Make sure that it is placed
along the guides and not tilted or twisted. If the
BHT does not easily fit into the CU, please
take it out, check the CU and the BHT for
interfering obstacles and try again. Never use
any force to attach the BHT into the CU.
Indicator LED
Spare battery charging slot
Cradle

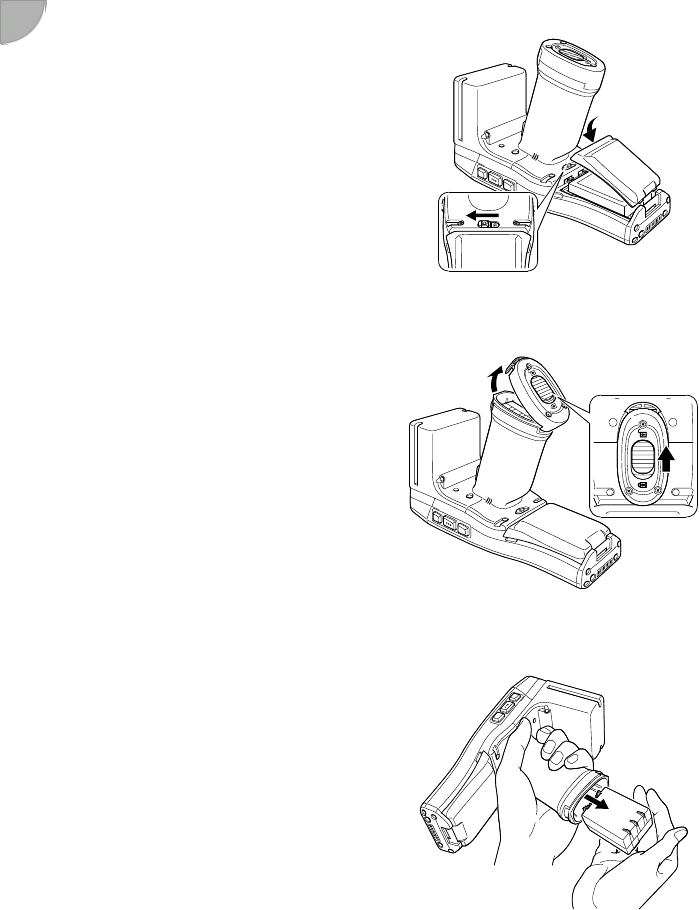

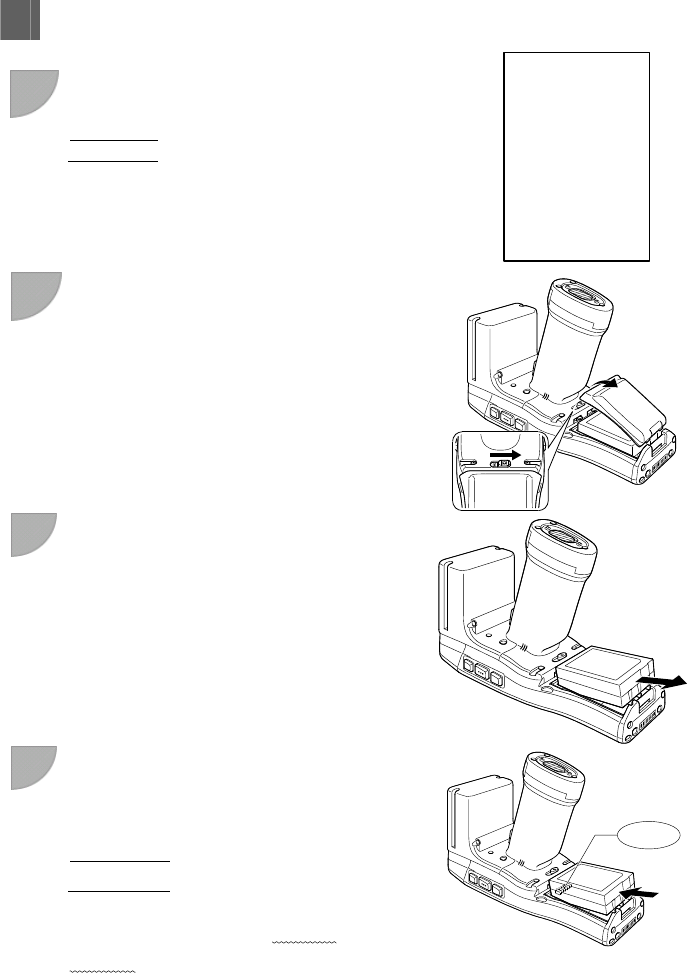

* Refer to “How to Replace the Battery” for how to insert the battery into the BHT main body.
Caution when Installing the BHT to the CU
・Place the BHT on the CU carefully. Insert the BHT along the guides at the both sides of the CU.
・If the BHT does not fit into the guides smoothly, take it off and confirm that there is no foreign object
which blocks the insertion. Then, insert the BHT again. Be sure not to install the BHT forcedly.
When the red LED of the BHT is blinking, the conceivable causes are as follows.
Take an appropriate action.
・The battery of the BHT main body is not mounted.
Mount the battery of BHT main body.
・Contact of the electrodes is weak.
Wipe the dirt, etc. on the electrodes and charge the battery again.
・An abnormal temperature of the battery is detected.
Charge the battery in an appropriate temperature condition (0°C to 40°C).
Move the BHT away from the areas where any heat generating materials exist in the vicinity, and the
areas which are exposed to direct sunlight.
When there is no heat generating material in the vicinity, stop charging the battery and replace it.
・Charging is not completed even after the designated charging time has passed.
Charge the battery again in the spare battery charging slot of the CU.
・Failure or end of life of the battery
Replace the battery with a new one.
・The battery has been left for a long time as there is no remaining battery charge.
Charge the battery again in the spare battery charging slot of the CU.
Remove the battery from the BHT main body or the Cradle and store at cool and dry place, when you don’t
use your BHT for an extended period of time.
Check the condition of battery on the following points before you store it for a long time:
- If the battery is full charged (a state right after charge is completed), and
- If the remaining battery level is very low (there is not enough power left to activate the BHT).
Long-term storage under these conditions may deteriorate the performance and life of the battery. You are
recommended to ensure that the battery is at least at the charge level required for long-term storage
In addition, even you don’t use the battery for a long term, keep this power level by recharging once a year
in order to maintain the battery performance.

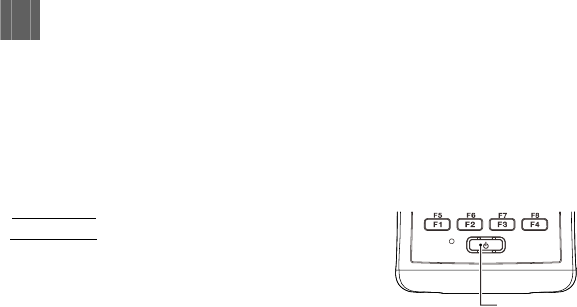

Step 2 Turning ON the Power
It is necessary to perform touch screen calibration and set the date and time when turning ON the BHT
power for the first time. Press the power key to turn ON the BHT power. The calibration screen should
then display.
If the calibration screen does not display, first perform a “full reset.” Refer to “Resetting and Full
Resetting” for details of the full reset method.
Press the power key to turn ON the BHT power.
Point
It may take time to display the screen after
pressing the power key, but it is not malfunction
of the BHT.
Therefore, do not keep pressing the power key
more than needed or press it hard. Doing so may
cause breakage or malfunction of the power key. Power key

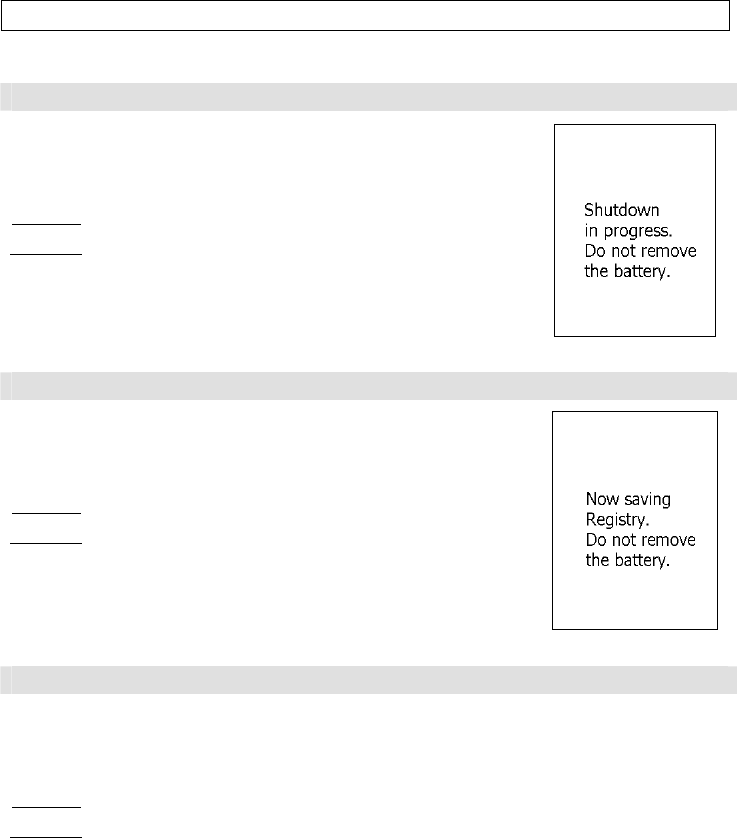

Turning the Power OFF
Use one of the following three methods to turn OFF the BHT power.
(1) Normal power OFF
Press the power key.
The BHT power turns OFF after the message right displays.
Point
Do not remove the battery while the message on the right is displayed.
Failure to observe this may result in data stored in the BHT being lost.
(2) Turning the power OFF after registry back-up
Hold down the SF key and press the power key.
The message right displays and registry back-up is commenced.
The power turns OFF automatically when the back-up is complete.
Point
Do not remove the battery while the message on the right is displayed.
Failure to observe this may result in data stored in the BHT being lost.
(3) Auto power OFF
The power turns OFF automatically when the BHT is not used for the length of time set at the user
program. The default time is set to 3 minutes when the BHT is shipped from the factory.
* Refer to the User’s Manual for further details of auto power OFF.
Point
Do not remove the battery while Auto power OFF is processing.
Failure to observe this may result in data stored in the BHT being lost.

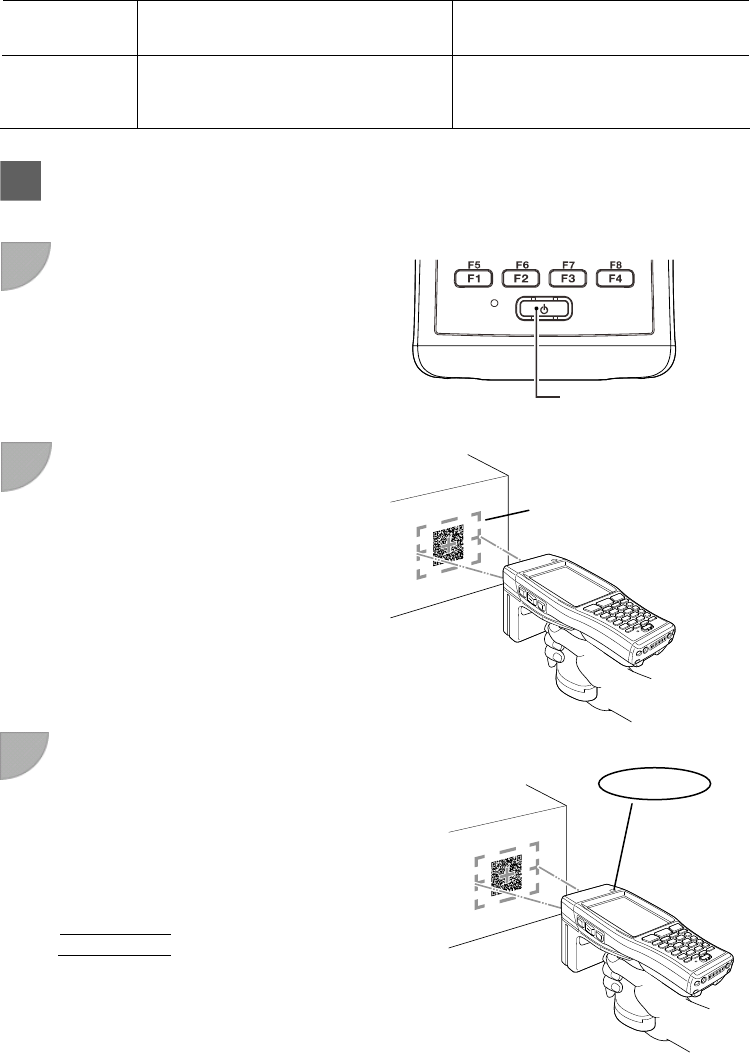

Reading/Writing RF Tags
Read and write RF tags in accordance with the procedures given below.
1 Press the power key to turn the
BHT power ON.
Power Key
2 The red LED is turned ON.
Select System Properties of BhtShell
from the Desktop menu to activate
RFID Menu.
Select TAG READ and Start in RFID
Menu in this order.
Red is ON.
RF tag
Point
The continuous read mode is set at
the time of factory shipment. You can
change the read mode in the Read
Mode menu.
3 When the read/write operation is completed correctly,
the blue LED is turned ON.
Point the RF tag read antenna in the
front side of the BHT toward the RF
tag.
You can confirm that the read/write
operation is completed correctly with
a buzzer sound or the indication on
the LCD.
Blue is ON.
RF tag
Point
The method of confirming that the
read/write operation is completed
correctly may vary according to the
application. Please read the
operation manual of the application.
When an RF tag cannot be read/written correctly
Cause Measure
When an RF tag is placed on a metal plate, it
may not be read/written.
Keep an RF tag 15 cm or more away from a
metal plate.
Effect of metal
If you use the BHT near electric appliances
which generate electromagnetic noise,
including an inverter fluorescent light,
microwave oven, and electromagnetic cooking
device, etc., it may not be able to read and write
RF tags.
Do not use the BHT near electric appliances
which generate electromagnetic noise,
including an inverter fluorescent light,
microwave oven, and electromagnetic
cooking device, etc.
Effect of
electromagnetic
noise
If there is any other RFID device near the BHT,
it may not be able to read/write RF tags.
Do not use the BHT near other RFID
devices.
Radio interference
If the BHT is used near other radio devices such
as a personal radio station or an amateur radio
station, it may not be able to read/write RF tags.
Do not use the BHT used near other radio
devices such as a personal radio station or
an amateur radio station.
If the distance from an RF tag is too close or too
far, the BHT may not be able to read/write it.
The writable distance may be shorter than the
readable distance.
The readable and writable distances vary
according to the RF tag type. Slowly move
the BHT toward and away from an RF tag to
find the readable and writable distances.
Distance from an
RF tag
Scanning codes
Follow the procedure below to scan codes.
1
Turn the BHT power ON.
Power key
2 Select code scanning test of BhtShell from
desktop menu.
Illumination light
Press the trigger key.
The BHT emits an illumination LED.
3 Hold the BHT close to the code to align the
illumination LED.
Blue LED
When the BHT has read the code
successfully, the indicator LED will
illuminate in blue.
Codes can be read also by pressing the
Scan key.
Point
The code scanning method may differ
depending on the application. Perform
scanning in accordance with the
instructions provided in the application
User’s Manual.

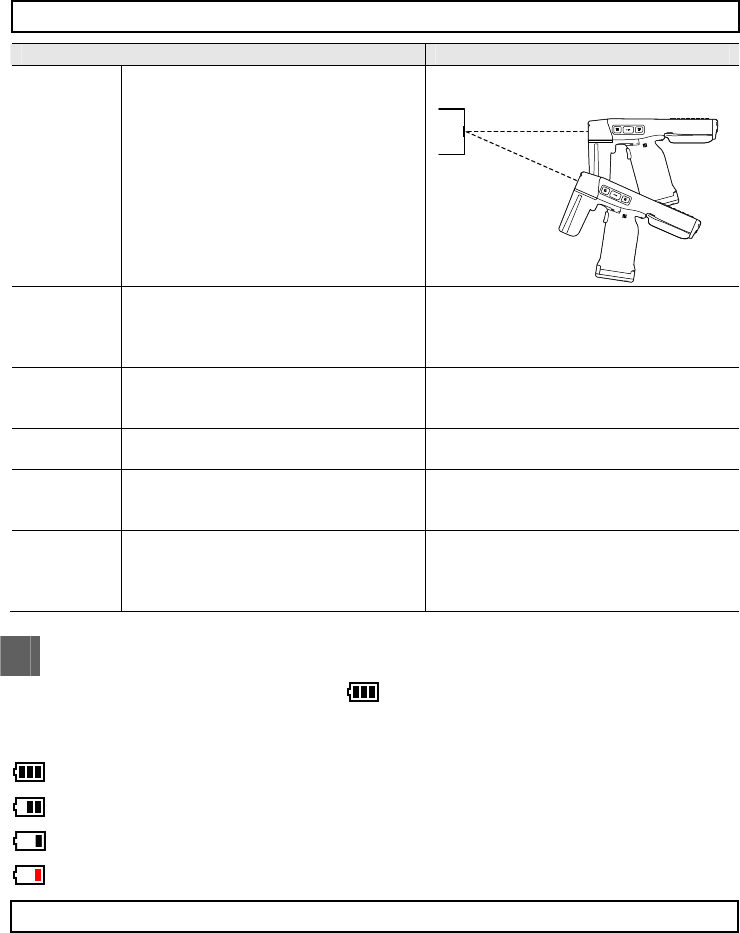

When Unable to Successfully Read Codes
Cause Countermeasure
Change the BHT scanning angle and try
again.
Specular
reflection
When the light is focused on the printed
surface of the code from directly above,
the BHT may not read the code due to
specular reflection.
Scanning may be unsuccessful if it is
too close to or too far from the BHT
reading window, even when the code is
within the read area.
Move the BHT slowly toward or away
from the code and try again.
Distance
from code
Code
surface
curvature
Scanning may be unsuccessful if the
code surface is curved.
Scan the barcode at the center of the
barcode reading window.
Code
surface dirt
Scanning may be unsuccessful if its
surface is dirty. Wipe the dirt from the code and try again.
Blow any dust away with an airbrush, and
then gently wipe the reading window with
a cotton swab or similar soft object.
Code
reading
window dirt
Scanning may be unsuccessful if the
code reading window is dirty.
Perform code scanning away from direct
sunlight. Try adjusting the brightness of
the surrounding light when scanning
indoors.
Code scanning may be adversely
affected by direct sunlight or the
brightness of the surrounding light.
Direct
sunlight,
ambient light
Battery Power Level Indicator
The battery power level can be checked at the icon that displays in the task tray.
The battery power displays in four levels. The battery power level indicator is a guideline to notify the
operator to charge the battery promptly when discharged.
: Sufficient battery power remains
: The battery power is partially depleted. Charge promptly.
: The battery power is almost fully depleted and should be charged immediately.
: The battery power is fully depleted. Charge immediately or replace with a fully charged battery.
Battery Service Life
The battery is a consumable part. And it should be replaced upon the earlier of one year or after being
charged approximately 300 times. The performance of the battery’s lithium-ion battery will deteriorate
gradually with repeated charging and discharging, even during normal use. When the battery operation
time becomes shorter even after charging for the specified length of time, replace the battery with a
new one.
Replacing the Batteries
1 Press the power key to turn OFF the BHT
power. The screen on the right displays. Shutdown
In progress
Do not remove
Point
Do not remove the battery until the power
turns OFF and the screen display clears. The battery.
2 Replacement of the battery in the main
body
Slide the battery cover lock as pushing it
and remove the battery cover.
3 Remove the battery.
4 Confirm that the electrode of a new battery
and that of the BHT are matched, and
mount the battery in the arrow direction.
Te r m ina l
Point
To prevent the data from being lost, be
sure to mount a new battery within 3
minutes.
5
Close the battery cover and restore the
battery cover lock to the original position.
6 Replacement of the battery in the grip
Slide the battery cover lock as pushing it
and remove the battery cover.
7 Remove the battery.
8
Check the protrusions of a new battery and
mount the battery in the arrow direction. Protrusion
9 Close the battery cover, and restore the
battery cover lock to the original position as
pushing it.
Using the BHT after Long Non-Use
Data stored in the BHT may be lost or damaged and the calendar clock may stop if the BHT is left
unused for a long period of time.
・Keep a backup copy of important or critical information.
・Reset the calendar clock if it is stopped.
・The battery is also used as a backup power source. You should not remove the battery from the BHT
for at least 2 days until memory backup power is fully charged.
Please refer to the User’s Manual for more information on trouble shooting.
Troubleshooting Guide
Problem The BHT power does not turn ON.
Make sure that the battery is properly inserted into the BHT.
Check the battery power level and charge the battery if necessary.
Wipe any dirt from the battery and BHT terminals.
Problem The BHT cannot be charged.
Make sure that the Cradle is being used.
Make sure that the battery is properly inserted into the BHT.
Make sure that the BHT has been properly placed on the Cradle.
The BHT LED will turn red when properly placed on the Cradle.
Wipe any dirt from the battery and BHT terminals.
If the battery in use is an old one that has been repeatedly charged 300 times or more,
or if more than one year has elapsed, replace it with a new one.
Problem The BHT unexpectedly turns OFF
Make sure that the battery has been fully charged. If not, charge the battery.
The BHT may be set to auto power OFF. If so, the BHT will automatically turn OFF when it is not used
for the specified period of time.
The auto power OFF setting can only be changed with the user program.
If the BHT cannot be tuned ON even after taking all the above measures, there is a possibility that the
Cradle is broken. Notify the system administrator.
Refer to the User’s Manual for appropriate measures if an error message is displayed on the BHT
during the operation.

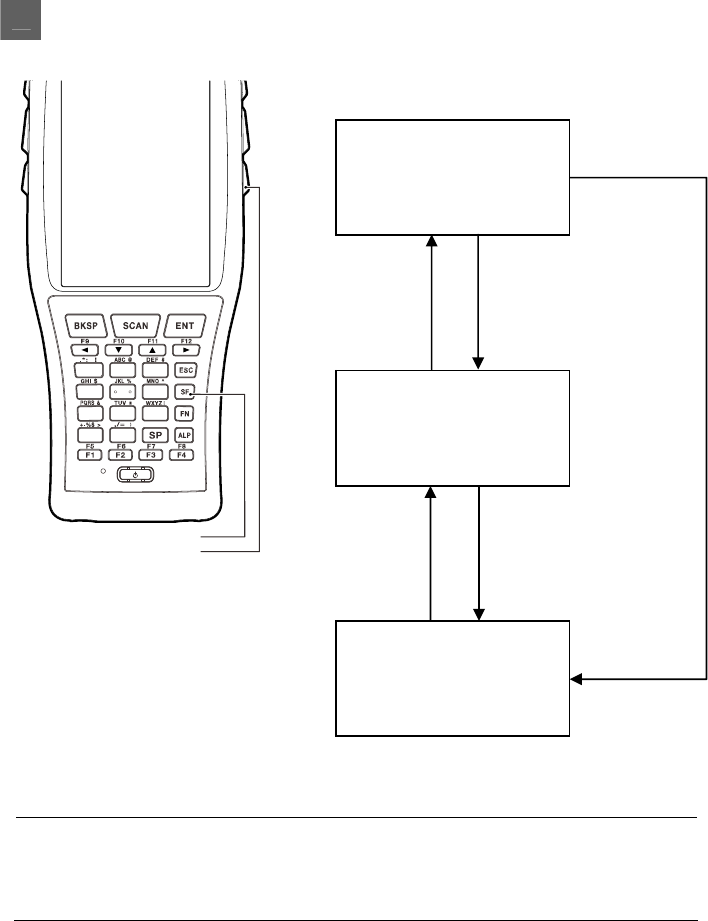

Turning ON/OFF the Backlight
To turn the backlight ON or OFF, hold down the Shift key and press the M3 Key.
M3 ke
y
Shift ke
y
123
456
789
.0
Backlight OFF or dim
(backlight function enabled)
Backlight OFF or dim
(backlight function disabled)
Backlight ON
Hold down the Shift
key and press the M3
Key.
If no key is
pressed for 3
seconds.*
Press any key or tap
the touch screen.
Hold down the Shift
key and press the
M3 Key.
Hold down the Shift
key and press the
M3 Key.
* Within a minute if the BHT is placed on the Cradle.
Time until auto OFF can be set at user programs.
Point
As opposed to pressing the backlight function enable/disable
key, the backlight function can be enabled or disabled at the
Backlight settings menu.
Resetting and Full Resetting
Reset
Reset the BHT in the following cases.
The BHT makes no response to entry from the touch screen or keys.
Programs in the BHT malfunction for some unknown reason.
Reset Method
With the BHT power ON, press the reset key combination
(BKSP + Right Trigger + Power).
Then release all keys.
Point
Data stored as a file will not be lost even after resetting.
However, any data currently being edited will be lost.
Full Reset
Perform a full reset if the problem persists even after resetting.
Full Reset Method
With the BHT power ON, press the full reset key combination
(BKSP + ENT + Left Trigger + Power) more than a second.
Then release all keys.
Point
When performing full reset, all data including files and settings stored in the RAM will also be
lost and the RAM will revert to the factory default. It is recommended that any important data
be backed up to the “FLASH” folder or to the computer before full reset. When the BHT turns
ON after the data in the RAM is deleted, the BHT starts from the “Initial Setup.”
Memory Contents after Reset/Full Reset
Reset Full Reset
Data in the “FLASH” folder Data retained Data retained
(on-board FLASH memory)
Data in the “Storage Card” folder
(microSD Card)
Data retained Data retained
Data in other folders Data retained Data erased
Contents of the Registry Data retained Data erased (Note)
Data being edited Data erased Data erased
(Note) If the Registry has been backed up the backed up Registry will be used.
FCC Regulation (for United States America)
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
Note:
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
<Information>
Company Name : DENSO PRODUCTS AND SERVICES AMERICAS, INC.
Address : 3900 Via Oro Avenue, Long Beach, California 90810, U.S.A.
Tel : +1-310-834-6352
IC Regulation (for Canada)
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must accept
any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts
de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas
produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,
même si le brouillage est susceptible d’en compromettre le fonctionnement.
2.4 GHz WLAN
For product available in the USA/Canada market, only channel 1-11 can be operated. Selection of
other channels is not possible.
FCC/IC Radiation Exposure Statement
The available scientific evidence does not show that any health problems are associated with using low
power wireless devices. There is no proof, however, that these low power wireless devices are
absolutely safe. Low power Wireless devices emit low levels of radio frequency energy (RF) in the
microwave range while being used. Whereas high levels of RF can produce health effects (by heating
tissue), exposure to low-level RF that does not produce heating effects causes no known adverse
health effects. Many studies of low-level RF exposures have not found any biological effects. Some
studies have suggested that some biological effects might occur, but such findings have not been
confirmed by additional research. This 2D code Handy Terminal (BHT-1281QULWB-CE) has been
tested and found to comply with FCC/IC radiation exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65
and RSS-102 of the IC radio frequency (RF) Exposure rules. The maximum SAR levels tested for
(BHT-1281QULWB-CE) has been shown to be 0.20 W/kg at Body.
Les connaissances scientifiques dont nous disposons n’ont mis en évidence aucun problème de santé
associé à l’usage des appareils sans fil à faible puissance. Nous ne sommes cependant pas en
mesure de prouver que ces appareils sans fil à faible puissance sont entièrement sans danger. Les
appareils sans fil à faible puissance émettent une énergie radioélectrique (RF) très faible dans le
spectre des micro-ondes lorsqu’ils sont utilisés. Alors qu’une dose élevée de RF peut avoir des effets
sur la santé (en chauffant les tissus), l’exposition あ à de faibles RF qui ne produisent pas de chaleur
n’a pas de mauvais effets connus sur la santé. De nombreuses études ont été menées sur les
expositions aux RF faibles et n’ont découvert aucun effet biologique. Certaines études ont suggéré
qu’il pouvait y avoir certains effets biologiques, mais ces résultats n’ont pas été confirmés par des
recherches supplémentaires. Ce 2D Code Handy Terminal (BHT-1281QULWB-CE) a été testé et jugé
conforme aux limites d’exposition aux rayonnements énoncées pour un environnement non contrôlé et
respecte les règles les radioélectriques (RF) de la FCC lignes directrices d'exposition dans le
Supplément C à OET65 et d’exposition aux fréquences radioélectriques (RF) CNR- 102 de l’IC. Le
niveau maximum de DAS mesuré pour 2D Code Handy Terminal (BHT-1281QULWB-CE) est de 0.20
W/kg contre le corps.
1, Yoshiike, Kusagi, Agui-cho, Chita-gun, Aichi 470-2297, Japan
http://www.denso-wave.com/
This manual uses recycled paper.
본 인쇄물은 재생지를 활용합니다.
这个印刷品正使用再生纸。
