Denso Wave orporated CTAN10R01 High Frequency 13.56MHz Transceiver User Manual Manual
Denso Wave Incorporated High Frequency 13.56MHz Transceiver Manual
Manual
1
RFID System
Antenna Controller Instruction Manual
Ver : 0.92 Apr. 2012
High Frequency 13.56MHz Transceiver
AN10R-01 : Square Antenna with controller
CTAN10R-01 : M12 Cylinder Antenna with controller
This Instruction Manual sets forth the procedures for handling and precautions.
Before use, read through this guide carefully to make sure that you use the antenna controller both
correctly and effectively. Also keep it handy for ready reference.
For more details on using this antenna controller, see the User’s Manual that is available as a free
download from our website ‘QBdirect’ at ‘‘http://www.qbdirect.net/’. Before downloading, you are
requested to register as a member (free of charge).
2
DECLARATION OF CONFORMITY
For European Union
[EN]
English
Hereby, DENSO WAVE INCORPORATED declares that this HIGH FREQUENCY
13.56MHz TRANSCEIVER is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.
[BG]
Bulgarian
С настоящето, DENSO WAVE INCORPORATED, декларира, че HIGH
FREQUENCY 13.56MHz TRANSCEIVER е в съответствие със същест
вените изисквания и другитеприложими разпоредби на
Директива 1999/5/EC.
[CS]
Czech
DENSO WAVE INCORPORATED tímto prohlašuje, že HIGH FREQUENCY
13.56MHz TRANSCEIVER splňuje základní požadavky a všechna příslušná
ustanoveni Směrnice 1999/5/ES.
[DA]
Danish
Undertegnede DENSO WAVE INCORPORATED erklærer herved, at følgende
udstyr HIGH FREQUENCY 13.56MHz TRANSCEIVER overholder de væsentlige
krav og øvrige relevante krav i direktiv 1999/5/EF.
[DE]
German
Hiermit erklärt DENSO WAVE INCORPORATED, dass sich das Gerät HIGH
FREQUENCY 13.56MHz TRANSCEIVER in Übereinstimmung mit den
grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG befindet.
[ET]
Estonian
Käesolevaga kinnitab DENSO WAVE INCORPORATED seadme HIGH
FREQUENCY 13.56MHz TRANSCEIVER vastavust direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
[EL]
Greek
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Ο ΚΑΤΑΣΚΕΥΑΣΤΗΣ DENSO WAVE INCORPORATED
ΔΗΛΩΝΕΙ ΟΤΙ HIGH FREQUENCY 13.56MHz TRANSCEIVER ΣΥΜΜΟΡΦ
ΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ
ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ
[ES]
Spanish
Por la presente, DENSO WAVE INCORPORATED, declara que este HIGH
FREQUENCY 13.56MHz TRANSCEIVER cumple con los requisitos esenciales y
otras exigencias relevantes de la Directiva 1999/5/EC.
[FR]
French
Par la présente, DENSO WAVE INCORPORATED déclare que l’appareil HIGH
FREQUENCY 13.56MHz TRANSCEIVER est conforme aux exigencies
essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
[IT]
Italian
Con la presente DENSO WAVE INCORPORATED dichiara che questo HIGH
FREQUENCY 13.56MHz TRANSCEIVER è conforme ai requisiti essenziali ed
alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
[LV]
Latvian
Ar šo DENSO WAVE INCORPORATED deklarē, ka HIGH FREQUENCY
13.56MHz TRANSCEIVER atbilst Direktīvas 1999/5/EK būtiskajām prasībām un
citiem ar to saistītajiem noteikumiem.
[LT]
Lithuanian
Šiuo DENSO WAVE INCORPORATED deklaruoja, kad šis HIGH FREQUENCY
13.56MHz TRANSCEIVER atitinka esminius reikalavimus ir kitas 1999/5/EB
Direktyvos nuostatas
[HU]
Hungarian
A DENSO WAVE INCORPORATED ezzennel kijelenti, hogy a HIGH
FREQUENCY 13.56MHz TRANSCEIVER típusú beren-dezés teljesíti az alapvető
követelményeket és más 1999/5/EK irányelvben meghatározott vonatkozó
rendelkezéseket.
3
[NL]
Dutch
Hierbij verklaart DENSO WAVE INCORPORATED dat het toestel l HIGH
FREQUENCY 13.56MHz TRANSCEIVER in overeenstemming is met de
essentiële eisen en de andere relevante bepalin-gen van richtlijn 1999/5/EG.
[PL]
Polish
Niniejszym DENSO WAVE INCORPORATED deklaruje że HIGH FREQUENCY
13.56MHz TRANSCEIVER jest zgodny z zasadniczymi wymaganiami iinnymi
właściwymi postanowieniami Dyrektywy 1999/5/EC.
[PT]
Portuguese
Eu, DENSO WAVE INCORPORATED, declaro que o HIGH FREQUENCY
13.56MHz TRANSCEIVER cumpre os requisitos essenciais e outras provisões
relevantes da Directiva 1999/5/EC.
[RO]
Romanian
Prin prezenta, DENSO WAVE INCORPORATED, declară că aparatul HIGH
FREQUENCY 13.56MHz TRANSCEIVER este în conformitate cu cerinţele
esenţiale şi cu alte prevederi pertinente ale Directivei 1999/5/CE.
[SK]
Slovak
DENSO WAVE INCORPORATED týmto vyhlasuje, že HIGH FREQUENCY
13.56MHz TRANSCEIVER spĺňa základné požiadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
[SL]
Slovenian
DENSO WAVE INCORPORATED izjavlja, da je ta HIGH FREQUENCY 13.56MHz
TRANSCEIVER v skladu z bistvenimi zahtevami in drugimi relevantnimi določili
direktive 1999/5/ES.
[FI]
Finish
DENSO WAVE INCORPORATED vakuuttaa täten että HIGH FREQUENCY
13.56MHz TRANSCEIVER tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
[SV]
Swedish
Denna utrustning är i överensstämmelse med de väsentliga kraven och andra
relevanta bestämmelser i direktiv 1999/5/EC.
■NOTICE
This High Frequency 13.56MHz Transceiver may be operated in below country:
AT DE NL IS
BE GR PL LI
BG HU PT NO
CY IE RO CH
CZ IT SK HR
DK LV SI MK
EE LT ES TR
FI LU SE
FR MT GB
Manufacture
Name: DENSO WAVE INCORPORATED
Address: 1, Yoshiike, Kusagi, Agui-cho, Chita-gun, Aichi, 470-2297, Japan
Product: High Frequency 13.56MHz Transceiver
Model/ Type Number: Square Antenna with controller / AN10R-01
M12 Cylinder Antenna with controller / CTAN10R-01
CE marking
4
FCC and IC Regulations (For North America)
■NOTICE
This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference.
(2) this device must accept any interference, including interference that may cause undesired
operation of this device.
Le présent appareil est conforme aux la partie 15 des règles de la FCC et CNR d'Industrie Canada
applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions
suivantes :
(1) l'appareil ne doit pas produire de brouillage.
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est susceptible d'en compromettre le fonctionnement.
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own expense.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la classe A est conforme a la norme NMB-003 du Canada.
■FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment. Properly shielded and grounded cables and
connectors must be used for connection to host computers and / or peripherals in order to meet FCC
emission limits.
■FCC Radiation Exposure Statement
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
5
中国SRRC
1. 产 请见产说书 产 术
本 品的使用方法等 参 品 明 。本 品的技 参数如下：
■ 频为
使用率：13.553-13.567MHz
■ 发 电场强 设备
所 射的 度在距 10 处过
米 不得超 42dBμA/m(采用准峰
值检波)；
■ 频率容限：≤100×10-6
■ 杂辐 对
散射：于13.553-13.567MHz 频设备频
段 ， 段两端偏移 140kHz
频围值为
率范 的限 9dBμA/m（10 处值
米 ，准峰 ）
■ 杂辐 术标请
散 射等其他技 指 参照 2005/423 号文件
2. 使用者 发频 发
不得擅自更改 射 率、加大 射功率(额频
包括 外加装射 功率放大器)，不得擅自外接
线发线
天 或改用其它 射天 ；
3. 时
使用 应注意 对 种 线电 业务产 扰 发现 扰现 时 应
不得 各 合法的无 通信 生有害干 ；一旦 有干 象 ， 立
扰继续
即停止使用，并采取措施消除干 后方可 使用；
4. 产为
本品 线电设备
微功率无 ， 够
能承受种 线电业务 扰 业 疗应 设备
各 无 的干 或工 、科学及医 用 的
辐扰
射干 ；
5. 产
本品 飞场
不得在 机和机 附近使用。
日本電波法
本機は日本国電波法で定められた「誘導式読書き通信設備」に該当します。
各機器は以下の技術基準に適合し、総務省指定の型式指定を受けています。
適合規格: ARIB STD-T82
総務省型式指定番号: 第AC-10046号 (AN10R-01)
第AC-10054号 (CTAN10R-01)
6
SAFETY PRECAUSIONS
Be sure to observe all these safety precautions.
Please READ through these instructions carefully. They will enable you to use the scanner
correctly.
Always keep this manual nearby for speedy reference.
Strict observance of these warnings and cautions is a MUST for preventing accidents that could
result in bodily injury and substantial property damage. Make sure you fully understand all definitions
of these terms and symbols given below before you proceed to the text itself.
WARNING
WARNING Alerts you to those conditions that could cause serious bodily injury or death if
the instructions are not followed correctly.
CAUTION Alerts you to those conditions that could cause minor bodily injury or
substantial property damage if the instructions are not followed correctly.
SYMBOLS
A triangle ( ) with a picture inside alerts you to a warning of danger. Here you see the
warning for electrical shock.
A diagonal line through a circle ( ) warns you of something you should not do; it may or
may not have a picture inside. Here you see a screwdriver inside the circle, meaning that
you should not disassemble.
A black circle ( ) with a picture inside alerts you to something you MUST do.
WARNING
Wrong handling of the product against these warning precautions could result in serious bodily injury
or death. It may lead to electric shock, vision disturbance, impaired skin, injury or burn or will cause
the product to generate heat or smoke. Be sure to observe the following when using this product.
Effect on implantable medical device
This product is a reader/writer of RFID devices using electric waves. Medical device may be
affected by RFID device in some applications/places. Observe the following precautions to
reduce the effect for implementing RFID.
Those wearing an active implantable medical device (AIMD) are required to stay at least 22
cm away from the antenna part of a fixed or module type RFID device.
Several current reports indicate that RFID devices may cause malfunctions in AIMDs such
as implantable cardiac pacemakers, implantable cardioverter-defibrillator. This is attributed
to general characteristics of electric or electronic devices using radio waves, and not the
unique features of DENSO WAVE’s products or this product itself.
7
To System Designers
When introducing the product in those systems that affect human lives, develop applications
carefully through redundancy and safety design which avoids the feasibility of affecting
human lives even if a data error occurs.
Installation
Do not use the product in places where use of radio waves is restricted, such as on
airplanes or in hospitals. Doing so could case malfunction in electronic devices or medical
equipment.
Never charge the product where any inflammable, explosive or corrosive gases may be
emitted. Doing so could cause fire.
Do not use the product in places where water, oil, or chemicals are nearby or where there
are grit and dust, salt content or metallic powder. Doing so could cause the product to break
or burn.
Do not use product in places where strong vibration or shock is applied. Doing so could
cause the product to break or fire.
Handling
Do not use the product when exceeding the temperature and humidity specified in the
specification. Doing so could cause the product to break or burn.
If smoke, abnormal odors or noises comes from the product, immediately switch off the
product. Failure to do so could cause fire or electrical shock.
Do not scratch, modify, bend, twist, pull, or heat the cable, or allow the cable to get pressed
under heavy materials. The power cable severely handled shall be replaced with a new one.
Failure to do so could cause fire or electrical shock.
If the cable has a lock mechanism, be sure to lock the cable before using it.
Failure to do so could cause fire or electrical shock.
Always fix the power cable with a clamp.
Putting strong pressure could break the cable, resulting fire, electric shock.
If foreign material or water gets into the product, immediately remove the cable.
Failure to do so could cause fire or electrical shock.
Never bring any metals into contact with the electronic parts, touch them with hands or apply
electric potential. Failure to do so could cause fire or electrical shock.
Be sure to tightly fix the screws. The product may be broken, resulting in fire or electrical
shock if any of the screws is loose.
Do not use the device when they are not operated or broken after dropping the device.
Failure to do so could cause fire or electrical shock.
Never put the product into a microwave oven or high-pressure container.
All these warnings and precautions must be strictly observed when using the product.
8
CAUTION
Operating environments and Installation
Never put the product in places where there are excessively high temperatures, such as
inside closed-up automobiles, in places exposed to direct sunlight, or in places generating
heat accumulation caused by radiant, etc. Doing so could affect the parts, resulting in a fire.
Avoid using the product in extremely humid, dusty areas or, where there are drastic
temperature changes. Moisture or dust will get into the product, resulting in malfunction, fire,
or electrical shock.
This product uses the 13.56MHz frequency band to communicate with Tags. Some devices,
such as some motors, inverters, generate electromagnetic waves (i.e., noise) that can affect
communications with Tags. If any of these devices are nearby, communications with Tags
may be affected, resulting in malfunction. If the product is to be used near such devices,
check the effects on communications before using the product.
Avoid wiring nearby power line of high voltage or high current. Doing so could affect
communications, resulting in malfunction.
Ground the earth terminal of this product and any metallic material located around the
product to 100Ω or less.
Do not use the product nearby a radio set such as personal radio or amateur radio. Doing so
could cause malfunction.
Communications performance may be reduced, resulting in malfunction due to mutual
interference if there is more than one Read/Write Antenna. Refer to the manual and confirm
that there is no mutual interference between Read/Write Antennas.
Handling
Never disassemble or modify the product, doing so could result in fire or electric shock.
Do not apply static electricity to electrical parts or connector when installing or wiring the
device. Doing so could cause fire or electrical shock.
Hot plugging/unplugging is not allowed for the connector. Doing so could result in electrical
shock, malfunction, or failure.
Do not plug the unspecified connector into the product.
Doing so could cause fire or electrical shock.
Do not use the screws except specified ones. Doing so could result in electrical shock, fire,
malfunction, or failure.
Keep magnetic cards such as a cash card or a credit card away from this product. Failure to
do so could cause loss of magnetic data.
For safety reasons, disconnect the connection cable when the product is not in use for long
periods of time. Do not use thinners for cleaning.
For the safety reasons, unplug the connection cable during the maintenance. Failure to do
so could cause electrical shock.
Do not use thinners for cleaning. The plastic case coating will be dissolved by thinners.
9
Specification
z AN10R-01: Square Antenna with controller/ CTAN10R-01: M12 Cylinder Antenna with controller
Item Specification
Supply Voltage 8.5Vdc (Class 2 Power source or Limited energy circuit )
Current Consumption 0.23A (at 8.5Vdc)
Operating temperature range -10 to 60 ºC (freezing not allowed)
Operating humidity range 35 to 95%RH (condensation not allowed)
Storage temperature range -25 to 75 ºC (freezing not allowed)
Storage humidity range 35 to 95%RH (condensation not allowed)
Japan ARIB-STD-T82
AN10R-01 第AC-10046号
CTAN10R-01 第AC-10054号
Europe R&TTE Directive
Radio: EN302 291-1,-2
EMC: EN301 489-1,-3
Safety: EN61010-1
USA Radio: FCC Part 15 Subpart C
AN10R-01 FCC ID: PZWAN10R01
CTAN10R-01 FCC ID: PZWCTAN10R01
Canada Radio: IC RSS-Gen
AN10R-01 IC: 1551C-AN10R01
CTAN10R-01 IC: 1551C-CTAN10R01
Applied standard ※
China Radio: SRRC
AN10R-01 CMIIT ID: xxxxxxxxxx
CTAN10R-01 CMIIT ID: 2012DJ0374
Degree of protection IP67 Oil proof (Regulated by Denso Wave)
（Except connector)
Indoor use only
Altitude up to 2000m
Overvoltage category : Ⅱ
Environmental Conditions
Pollution degree : 2
AN10R-01 70g
CTAN10R-01 111g
Weight
AN11R-02 106g
AN10R-01 M4 screws
The tightening torque must be 1.5N･m.
CTAN10R-01 M4 screws
The tightening torque must be 0.75N･m.
Installation
AN11R-02 M12 nut (Attachment)
The tightening torque is less than 21N･m
with attachment shake-proof-washer.
※ if the equipment is used in a manner not specified by the manufacturer, the protection provided by
the equipment may be impaired.
10

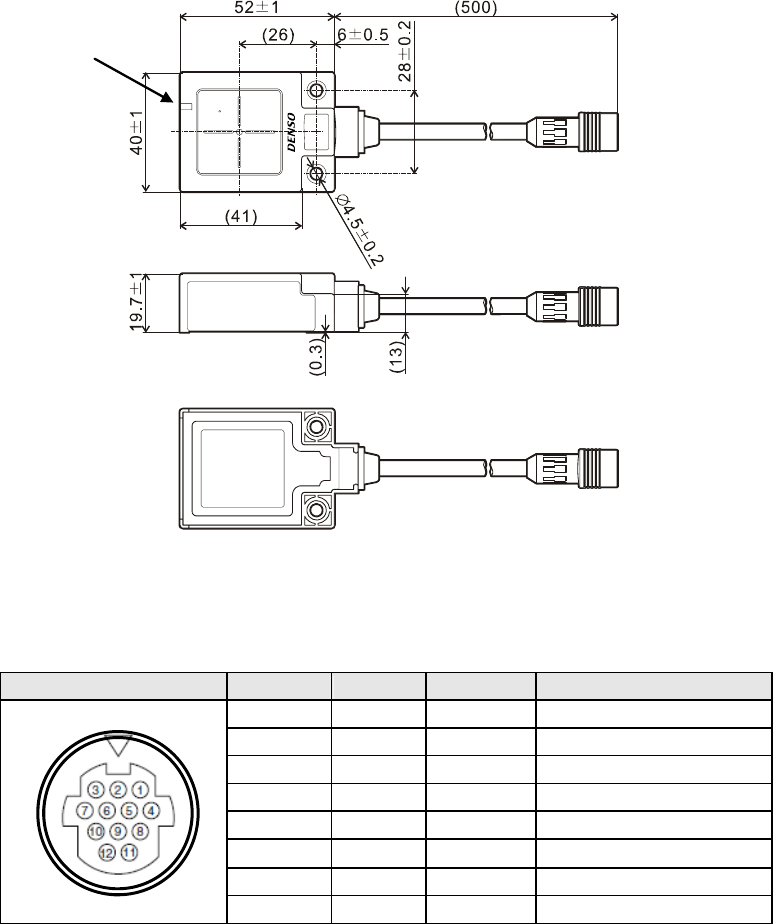

External dimensions (Unit: mm)
z AN10R-01: Square Antenna with controller
z Connector (HRS, HR30-7P-12S(71))
Connector Pin No. Name Direction Explanation
1, 7 GND -
2, 8 8.5V -
3 RxD + Input Rx Data
4 RxD - Input Rx Data
5 TxD - Output Tx Data
6 TxD + Output Tx Data
9 FG -
10-12 NC -
LED
11

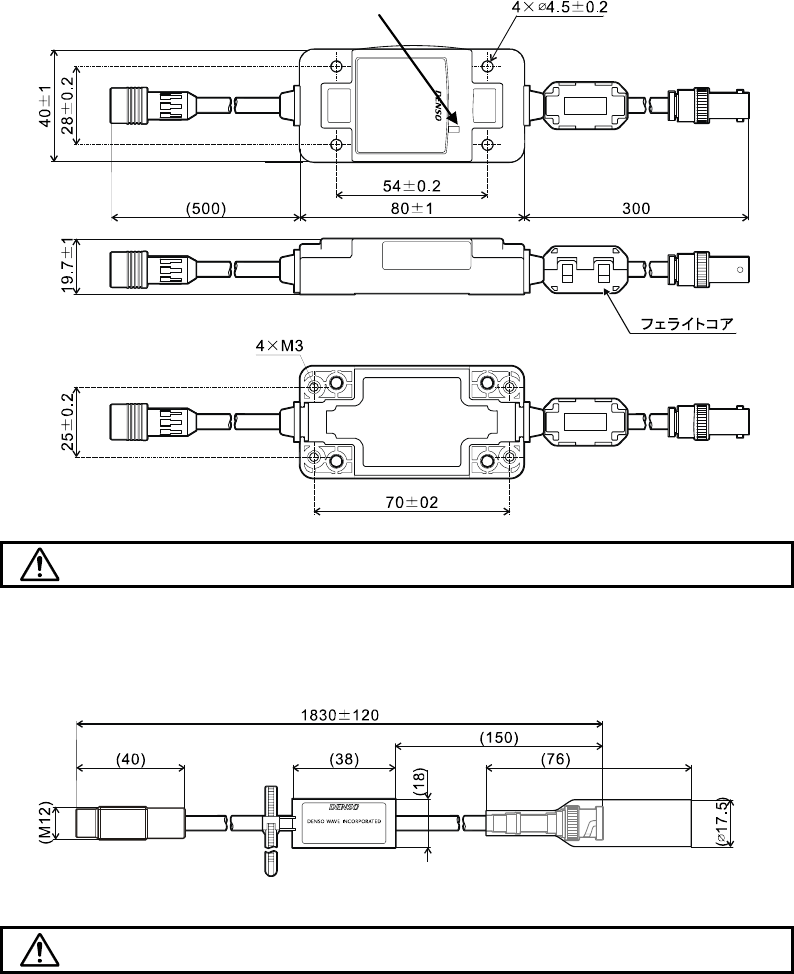

z CTAN10R-01: M12 Cylinder Antenna with controller
Controller (CTAN10R-01)
Note: Ferrite core requires careful handling. Failure to do so could cause a drop or
strong shock, resulting in break.
M12 Cylinder Antenna (AN11R-02)
Note: Screw thread requires careful handling. Failure to do so could cause a drop or
strong shock, resulting in break.
LED
12

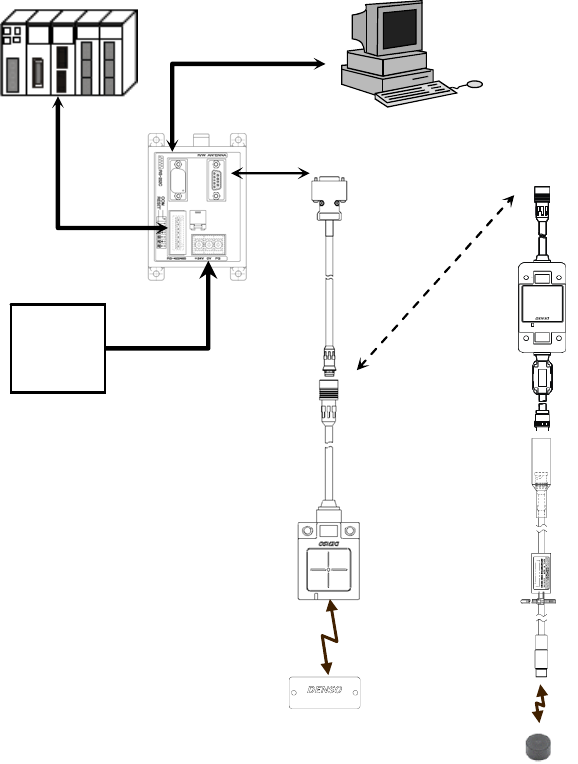

System Configuration
Example)
Power
Supply
PLC or PC
IFAN10R-RS-02
AN10R-01
CTAN10R-01
Tag
TG10R-01
Tag
TG11R-01
RS-422/ -485
RS-232C
AN11R-02
13
Specifications to communicate with the host device
※ For more information, see the Programming Manual.
Specifications to communicate with the RF Tag
※ For more information, see the Programming Manual.
Communication Distance
※ This communication distance is reference value.
Item Specification
Communication System Half Duplex (RS-422)
Baud Rates 9600 / 19200 / 38400 / 115200bps
(Default: 38400bps)
Data Length 8bit
Stop Bit Length 1bit
Error Detection Parity bit even
Cable Length Max. 500m (from PLC to Transceiver)
Item Specification
Tag Type ISO/IEC18000-3 mode1
Communication System Half Duplex
Synchronization Scheme Bit Synchronization
Transceiver Baud Rate 26.48kbit/s (Carrier:13.56MHz)
↓ Modulation Scheme ASK 10 to 30%
Tag Modulation code 1 out of 4
Tag Baud Rate OOK 26.48kbit/s (Sub Carrier:424kHz)
↓ Modulation Scheme Load Modulation
Transceiver Modulation code OOK Manchester
Transceiver Tag Distance (at.Room temperature)
AN10R-01 TG10R-01 (Rectangle) 40mm
10mm
CTAN10R-01
& AN11R-02 TG11R-01 (Cylinder) 5mm
(Condition that Tag filled up in the metal)
14
About This Manual
z Specifications are subject to change without prior notice.
z No part of this publication may be reproduced in any form or by any means without permission in
writing from the publisher.
z Please contact DENSO WAVE if you loose this document.
z DENSO WAVE has taken all possible means to ensure this document. Please inform us if you
have any doubt or find mistakes or missing in the contents of this document.
Liability Limitations
z DENSO WAVE takes reasonable precautions to ensure its products do not infringe upon any
patent of other intellectual property rights of other(s), but DENSO WAVE cannot be responsible for
any patent or other intellectual property right infringement(s) or violation(s) which arise from any of
the following:
(i) The use of DENSO WAVE's product(s) in connection or in combination with other
component(s), product(s), data processing system(s) or equipment or software not supplied
from DENSO WAVE;
(ii) The use of DENSO WAVE's products in a manner for which the same were not intended nor
designed; or
(iii) The modification of DENSO WAVE's products by other(s) than DENSO WAVE.
z Any malfunctions which DENSO WAVE considers to be caused by having been dropped or
received excessive shock shall be repaired at the user’s own expense even within the warranty
period.
z DENSO WAVE takes no responsibility for the operation of ID systems implemented in the
applications where high security level is required or applications that may have a direct or indirect
affect on human body including:
(i) Applications where outdoor use or interference on electrical and electronic devices is
expected.
(ii) Air carriers, hospitals, railways, safety control facilities related to nuclear power, public
administrations, regulations for controlling entertainment and individual institutions, human
life, security control organizations for assets and around-the-clock control facilities to
maintain essential utilities such as electricity, water and gas supplies.
1 Yoshiike Kusagi Agui-cho, Chita-gun Aichi 470-2297, Japan
http://www.denso-wave.com/
