Denso Wave orporated DWBT003 Bluetooth Transmitter Module User Manual

Denso Wave Incorporated Bluetooth Transmitter Module

User Manual

32

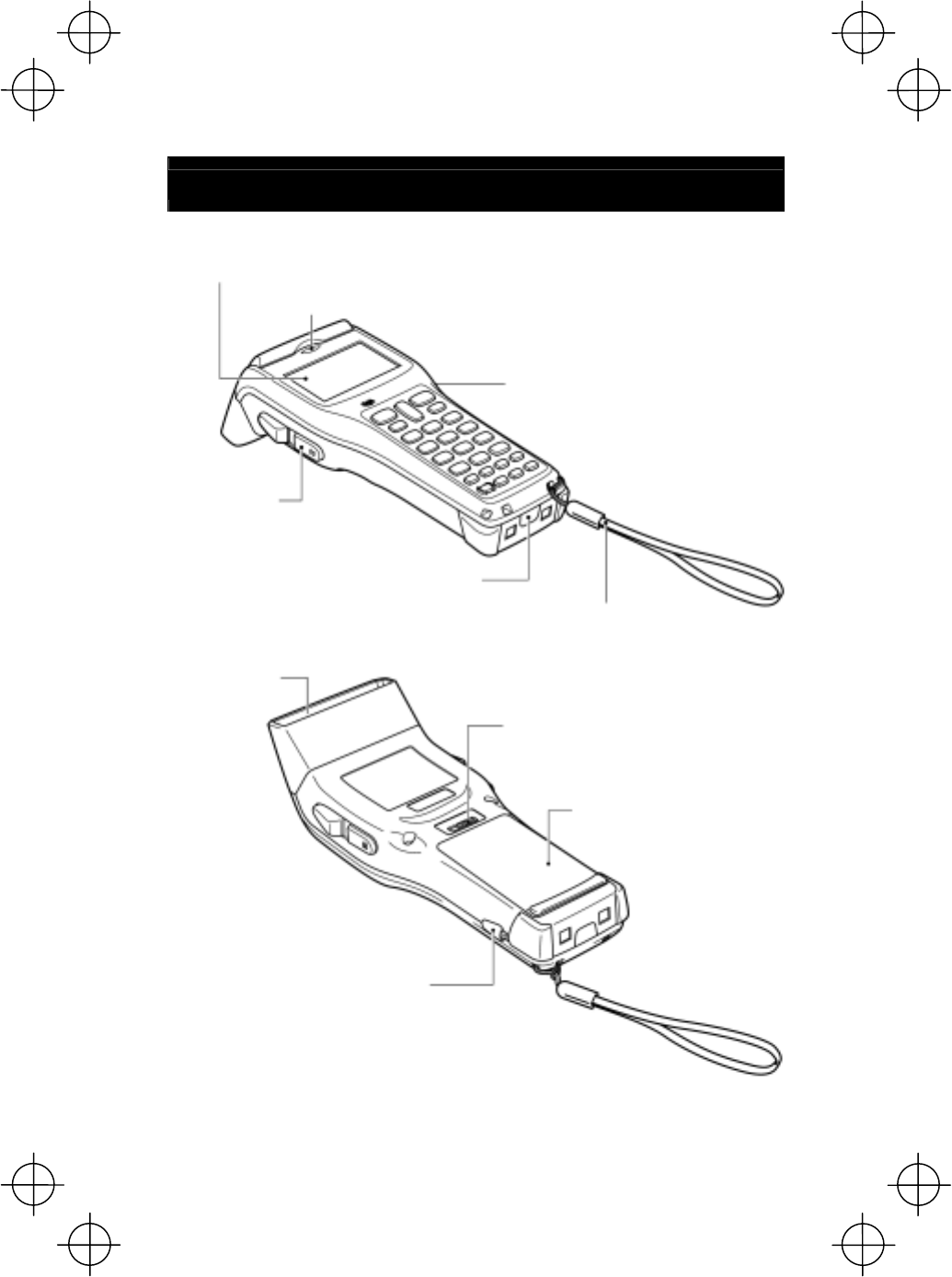

Components and Functions
Indication LED
Illuminates in green when the BHT has successfully read a bar code.
Liquid crystal display (LCD)
Shows the characters and graphic patterns.
Bar-code
reading
window
Trigger switch
(M3 key)
Press this switch to start
bar-code reading.
Trigger switch (M4 key)
Press this switch to start bar-code reading.
IrD
A
interface port
Used to exchange data/programs with
the host computer via its integrated IR
port or via the optical communication
unit CU-300.
Hand strap
Be sure to put your hand
through this strap to
prevent you from dropping
the BHT accidentally.
Connector cover
Inside this cover is the direct-connect
interface port.
Battery cover lock
Use this lock to lock/unlock the battery
cover.
Battery cover
Remove this cover to replace the
battery cartridge.
33
ENT (Enter) ke
y
Finalizes the input data or
operations, and starts the
corresponding processing.
Numerical keys
Used for data input.
Magic keys (M1 to M4)
Each of the M3 and M4 keys
is assigned a trigger switch
by default.
Depending upon definition in
System Mode or in user
programs, M1 to M4 keys
may be used as any of the
ENT key, trigger switch, SF
key, and backlight function
on/off key. These keys can be
also assigned string data.
Trigger switch
(M4 key)
Power ke
y
Turns the BHT on or off.
Trigger switch
(M3 key)
C (Clear) ke
y
Clears the last inputted data or
returns to the original screen.
BS (Backspace)
key
Moves back one
character.
SF (Shift) ke
y
Used in combination with
numerical keys for special input
procedures.
Function keys
Used for choosing
functions.
Cursor keys (F5 to F8)
Used to move up to the
preceding line, down to the next
line, to the preceding character,
and to the next character.
34

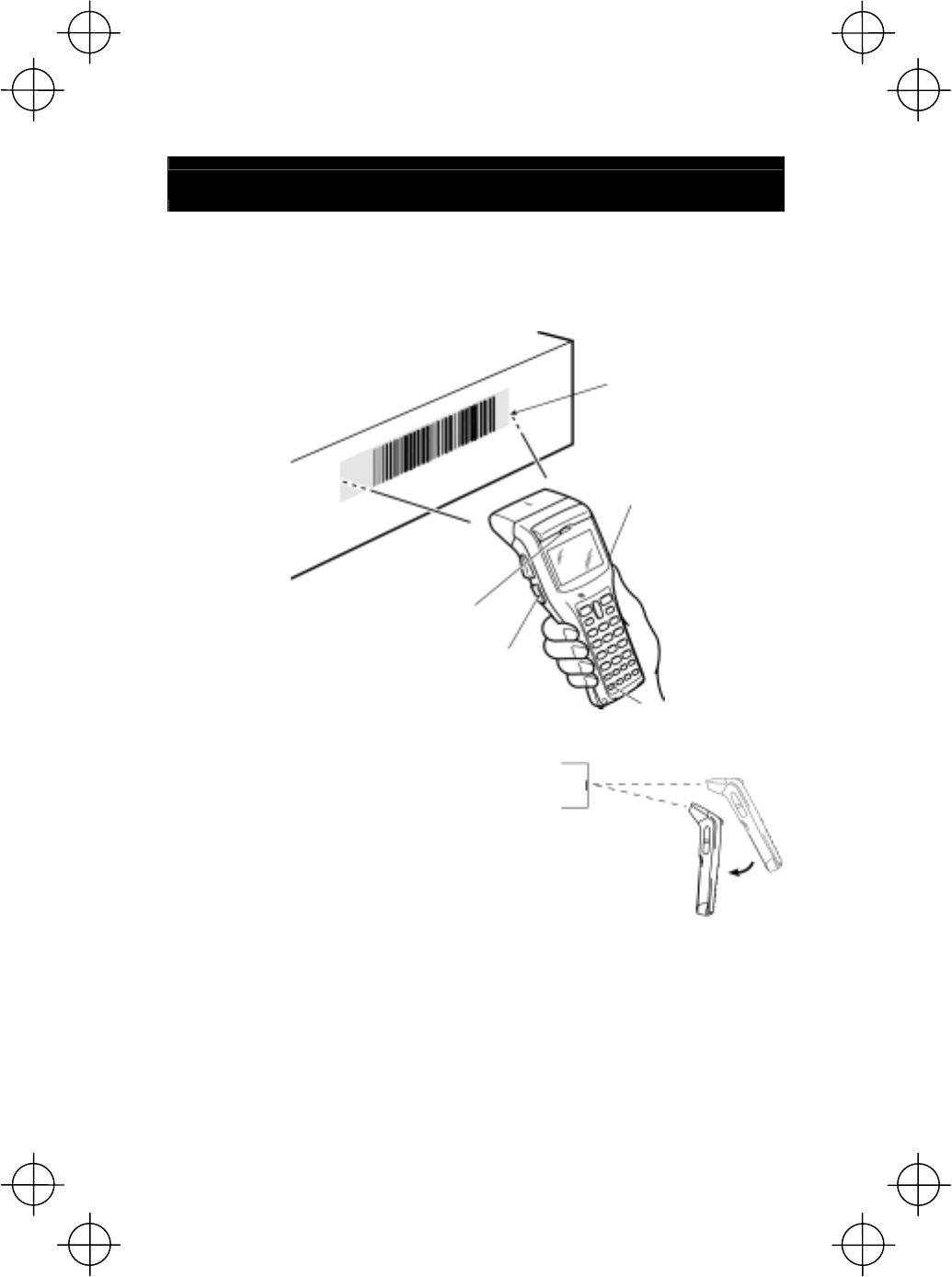

Reading Bar Codes
Turn the BHT on, bring the bar-code reading window to the bar code to be scanned,
and press the trigger switch. The BHT turns on the illumination LED to scan the bar
code.
When the BHT has read the bar code successfully, the indicator LED will illuminate
in green.
• If the BHT fails to read due to specular effects
or other factors, change the scanning angle of
the reading window or the distance from codes
as shown at right, and try it again. (Specular
effects occur when the reflection of the light
from the bar code becomes excessively strong.
This can easily happen when the reflecting
surface is polished or covered with vinyl.)
• To read bar codes wider than the readable area
of the bar-code reading window, pull the
bar-code reading window away from bar codes.
The BHT can read bar codes at a maximum
distance of 45 cm (17.7") from the bar-code
reading window, respectively. **
** Under the following conditions:
- Ambient illuminance: 500 lux (fluorescent lamp)
- ITF conforming to the UPC Shipping Container
Code
- PCS value: 0.9 or more
- Minimum narrow bar width: 1.2 mm min.
(47.2 mils min.)
• The bar code reading procedure may differ depending upon the application used,
so follow the application’s manual.
Illumination range covered
by the illumination LED
Indicator LED
(Illuminates in green when the
BHT has read the bar code
successfully.)
Power ke
y
Trigger switch
(M3 key)*
Trigger switch (M4 key)*
* The trigger switch function is
assigned to both of the M3
and M4 keys by default.
35
• Before reading labels, clean them if stained.
• Avoid using the BHT in direct sunlight. The BHT might fail to read
correctly.
• To read bar codes on curved surfaces, apply the bar-code reading window
to the center of each bar code at a right angle.
• If you pull the bar-code reading window away from bar codes, the actual
scanning range will become narrower than the range covered by the
illumination LED.
• The light intensity of the illumination LED will vary depending upon the
scanning conditions and variation of its elements.
10. Information to user
DWBT003 is installed in the handy terminal, so DWBT003 has no user’s manual.
FCC user’s manual requirements that are FCC rule Part 15.21 and 15.105 are described on user’s
manual of the handy terminal.
US and Canada Regulations
This device complies with Part 15 of FCC rules, Canada ICES-003 and RSS-210 Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE : This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if no
installed and used on accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
NOTE : This Class A digital device apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
FCC WARNING : Changes or modifications not expressly approved by the party responsible fo
r
compliance could void the user’s authority to operate the equipment.
CAUTION : Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and
meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment
has very low levels of RF energy that it is deemed to comply without testing of specific
absorption ratio (SAR).
Co-location : This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
