6.User’s manual requirement
6.1.Operation manual

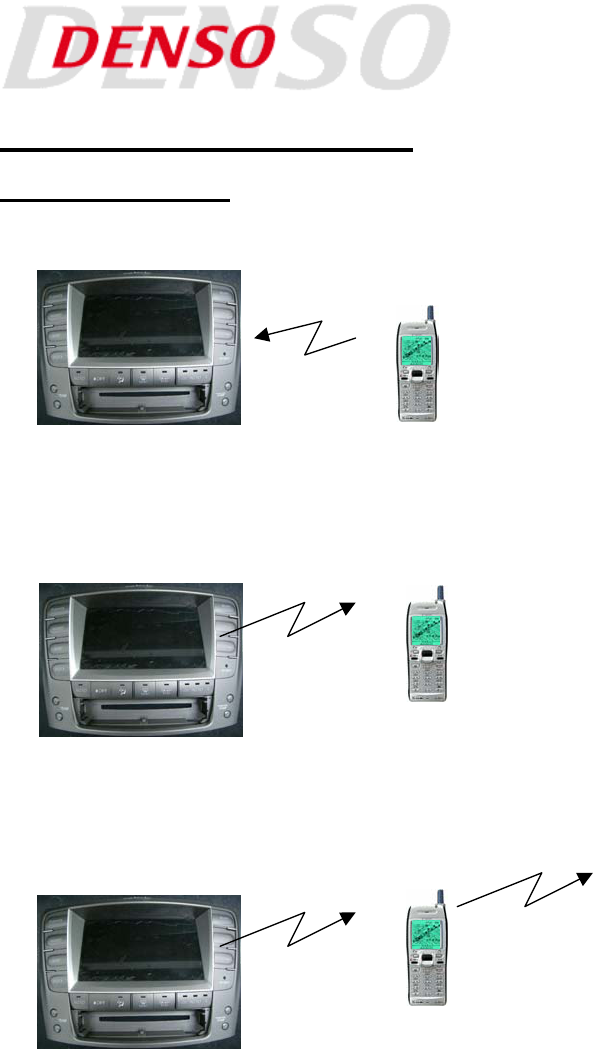

(1) Registration of the cellular phone
Transmits the registration signal from the cellular phone to the navigation system and register the
cellular phone at the navigation system.
(2) Selection of the cellular phone
Transmits the selection signal from the navigation system to the cellular phone and connect the
navigation system with the cellular phone.
(3) Call
Call by inputting the phone number with the touch sensitive panel installed in the navigation
system. Get the phone by operating the touch sensitive panel installed in the navigation system.
Bluetooth
RF signal
Bluetooth
RF signal
Bluetooth
RF signal
Cellular
RF signal
6.2.User’s Manual Requirement of FCC rule
BT0501A is installed in the navigation system, so BT0501A has no manual for user.
FCC user’s manual requirements that are FCC rule Part 15.21 and 15.105 are described on
user’s manual of the vehicle.
Fig 6.2. FCC rule requirement for user’s manual
FCC and RSS-210 Regulations
This device complies with Part 15of the FCC Rules and RSS-210 Rules
Operation is subject to the following two conditions :
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
FCC WARNING : Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
CAUTION : Radio Frequency Radiation Exposure
This equipment complies with FCC radiation exposure limits set forth for uncontrolled equipment and
meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to OET65. This equipment
has very low levels of RF energy that it deemed to comply without maximum permissive exposure
evaluation (MPE). But it is desirable that it should be installed and operated with at least 20cm and
more between the radiator and person’s body (excluding extremities: hands, wrists, feet and legs).
Co-location : This transmitter must not be co-located or operated in conjunction with any other antenna
or transmitter.
6.3. Installation Description
BT0501A shall be installed in the navigation system as shown in Fig.6.3.
When BT0501A is installed in the navigation system, we as OEM shall consider the following
points;
1. Since BT0501A owns its FCC ID number, we shall affix an exterior label on the outside of the
navigation system if the FCC ID is not visible. The exterior label shall use wording such as
either “Contains Transmitter Module FCC ID: HYQBT0501A” or “Contains FCC ID:
HYQBT0501A“.
2. BT0501A complies with requirements of sub-sections 15.203, 15.205, 15.209 and 15.247 in
FCC Rules Part 15. We shall install BT0501A in accordance with their requirements.
3. BT0501A complies with requirements of the sub-section 2.1091. When installers install
BT0501A into the navigator system, they shall ensure that the public is not exposed to radio
frequency energy levels in excess of the Commission’s guidelines in accordance with the
sub-section 15.247(b)(4) in FCC Rules Part 15.
