IMPORTANT: Read and understand this manual before assembling or
operating this chain saw. Improper use of saw can cause severe
injury. Keep this manual for future reference.
MODELS
LNT-2: 076728K, 099178H, 100089-06, 100089-08, & 107709-01
EL-7: 075762J, 098031J, 099039J, 100089-04, 100089-05,
100089-07, & 107714-02
Pole Saw: 104316-04 (8"), 106890-01(10")
Pole Saw Assembly: 104317 (8"), 106821 (10")
ELECTRIC CHAIN SAW
OWNER’S MANUAL
®
2
107990
ELECTRIC CHAIN SAW
®
For more information, visit www.desatech.com
SAFETY
WARNINGS
BEFORE OPERATING SAW
1. Read and understand this owner’s
manual before operating chain saw.
2. Watch what you are doing. Use com-
mon sense. Do not operate saw when
you are tired.
3. Use chain saw for cutting wood only.
Do not use chain saw for purpose not
intended. Do not use for cutting plas-
tic, masonry, etc.
4. Only well-instructed adults should op-
erate chain saw. Never allow children
to operate chain saw.
5. Use only electrical voltage noted on
model plate of chain saw.
6. Use only extension cords marked for
outdoor use. See page 8 for extension
cord requirements.
7. Do not operate chain saw
•while under the influence of alcohol,
medication, or drugs
•in rain or in damp or wet areas
•where highly flammable liquids or
gases are present
•if saw is damaged, adjusted wrong,
or not fully and securely assembled
•if trigger does not turn saw on and off.
Chain must stop moving when you
release trigger. Have faulty switch
replaced by authorized service center.
•while in a hurry
•while in tree or on a ladder unless
trained to do so
8. Wear snug-fitting clothes when oper-
ating chain saw. Do not wear loose
clothing or jewelry. They can get caught
in moving saw chain.
9. Wear the following safety gear when
operating chain saw.
•heavy-duty gloves (wear rubber
gloves when working outdoors)
•steel-toed safety footwear with non-
skid soles
Make certain you read and un-
derstand all
Safety Warnings
on
pages 2 and 3. Improper use of
this chain saw can cause severe
injury or death from fire, electri-
cal shock, body contact with
moving chain, or falling wood.
•eye protection such as safety glasses,
goggles, or face screen
•safety hard hat
•ear mufflers or ear plugs
•hair covering to contain long hair
•face or dust mask (if working in dusty
areas)
10. Before cutting, always provide the fol-
lowing:
•clear work area
•secure footing
•planned retreat path from falling tree
11. Inspect tree before cutting down. Make
sure there are no dead limbs or branches
that may fall on you.
12. To reduce the risk of electric shock, this
saw has a polarized plug (one blade is
wider than the other). This plug will fit
in a polarized outlet only one way. If
the plug does not fit fully in the outlet
of your extension cord, reverse the plug.
If it still does not fit, a polarized exten-
sion cord will be necessary. Do not
change the plug in any way.
WHILE OPERATING SAW
1. Stay alert. Use common sense while
operating chain saw.
2. Keep work area clean. Cluttered areas
invite injuries.
3. Be aware of extension cord while op-
erating chain saw. Be careful not to trip
over cord. Keep cord away from chain
and operator at all times.
4. Keep children, animals, and bystand-
ers away from chain saw and extension
cord. Only chain saw user should be in
work area.
5. Do not cut down a tree unless you are
trained or have expert help.
6. If two or more persons perform buck-
ing and felling operations at the same
time, provide plenty of distance between
operations. Provide distance of at least
twice the height of tree being felled.
7. Secure wood you are cutting by using
clamps or chocks.
8. Grip chain saw firmly with both hands.
Never operate chain saw with one hand.
Never use hand guard as handle.
9. Keep finger off trigger until ready to
make cut.
10. Before starting chain saw, make sure
chain is not touching anything.
11. To guard against electrical shock, avoid
body contact with grounded objects
such as pipes, fences, and metal posts.
12. Keep all parts of body away from chain
when saw is running.
13. Do not force chain saw while cutting.
Apply light pressure. It will do the job
better and safer at the rate for which it
was intended.
14. Cut small brush and saplings with ex-
treme care. Slender material may catch
in chain and be whipped toward you.
This could also pull you off balance.
15. When cutting limb or tree trunk that is
under tension, use extreme caution. Be
alert for wood springing back. When
wood tension is released, limb could
spring back and strike operator caus-
ing severe injury or death.
16. Carry chain saw from one place to an-
other
•with saw stopped and unplugged
•by holding front handle (never use
hand guard as handle)
•with finger off trigger
•with guide bar and chain to rear
WARNING: Some dust created
by power sanding, sawing, grind-
ing, drilling, and other construc-
tion activities contains chemicals
known (to the state of California) to
cause cancer, birth defects, or
other reproductive harm. Some
examples of these chemicals are:
•lead from lead-based paints
•crystalline silica from bricks
and cement and other masonry
products
•arsenic and chromium from
chemically-treated lumber
Your risk from these exposures
varies, depending on how often
you do this type of work. To reduce
your exposure to these chemicals:
work in a well ventilated area, and
work with approved safety equip-
ment, such as those dust masks
that are specially designed to filter
out microscopic particles.
WARNING: This product con-
tains chemicals known to the
State of California to cause can-
cer or birth defects, or other re-
productive harm.
3
107990
OWNER’S MANUAL
For more information, visit www.desatech.com
Kickback Safety Devices On
This Saw
This saw has a low-kickback chain and
reduced kickback guide bar. Both items
reduce the chance of kickback. Kickback
can still occur with this saw.
Properly install front hand guard. This item
can reduce injuries from kickback. Follow
assembly instructions on page 6. Do not
remove front hand guard. Do not replace
front hand guard with substitute.
The following steps will reduce the risk of
kickback.
•Use both hands to grip saw while saw is
running. Use firm grip. Thumbs and
fingers must wrap around saw handles.
•Keep all safety items in place on saw.
Make sure they work properly.
•Do not overreach or cut above shoulder
height.
•Keep solid footing and balance at all
times
•Stand slightly to left side of saw. This
keeps your body from being in direct line
with chain.
•Do not let guide bar nose touch anything
when chain is moving (see Figure 1).
Direction
90°
Quadrant

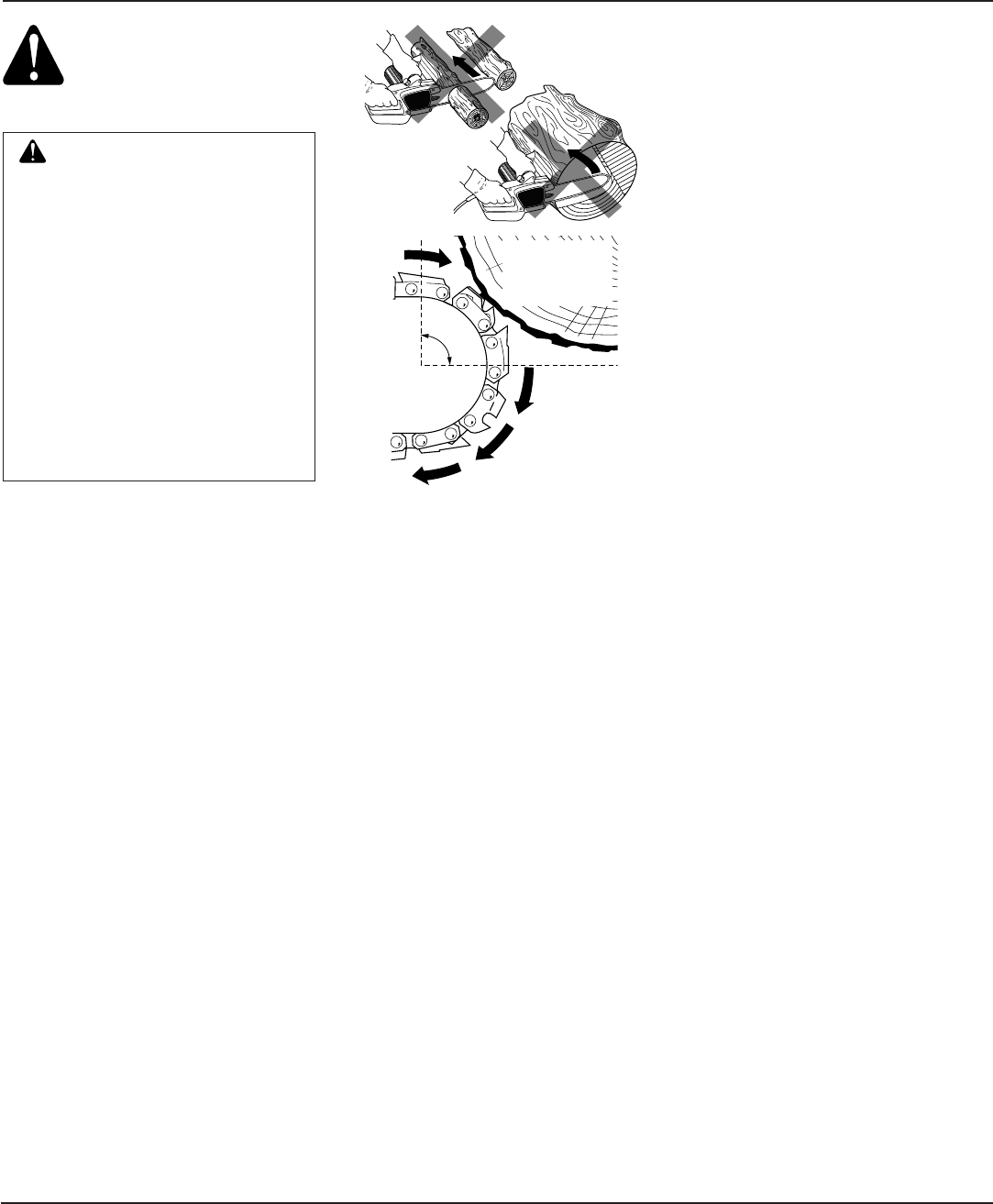

Figure 1 - Kickback Hazard Example: Do
Not Let Nose of Guide Bar Touch Object
While Chain is Moving
Do Not Let
Guide Bar
Touch Here
MAINTENANCE AND
STORAGE OF CHAIN SAW
1. Unplug chain saw from power source
•when not in use
•before moving from one place to an-
other
•before servicing
•before changing accessories or at-
tachments, such as saw chain and
guard
2. Inspect chain saw before and after each
use. Check saw closely if guard or other
part has been damaged. Check for any
damage that may affect operator safety
or operation of saw. Check for align-
ment or binding of moving parts. Check
for broken or damaged parts. Do not
use chain saw if damage affects safety
or operation. Have damage repaired by
authorized service center.
3. Maintain chain saw with care.
•Never expose saw to rain.
•Keep chain sharp, clean, and lubri-
cated for better and safer performance.
•Follow steps outlined in this manual
to sharpen chain.
•Keep handles dry, clean, and free of
oil and grease.
•Keep all screws and nuts tight.
•Inspect power cord often. If dam-
aged, have repaired by authorized
service center.
•Never carry chain saw by power cord.
•Never yank power cord to unplug it.
•Keep power cord from heat, oil, and
sharp edges.
•Inspect extension cords often and
replace if damaged.
4. When servicing, use only identical re-
placement parts.
5. When not in use, always store chain saw
•in a high or locked place, out of
children’s reach
•in a dry place
•in a carrying case or with scabbard
over guide bar
Keep this manual for reference. It is your
guide to safe and proper operation of this
chain saw.
•Never try cutting through two logs at
same time. Only cut one log at a time.
•Do not bury guide bar nose or try plunge
cut (boring into wood using guide bar
nose).
•Watch for shifting of wood or other
forces that may pinch chain.
•Use extreme caution when reentering a
previous cut.
•Use low-kickback chain and guide bar
supplied with this chain saw. Only re-
place these parts with chains and guide
bars listed in this manual.
•Never use dull or loose chain. Keep chain
sharp with proper tension.
•Do not hand sharpen chain on automatic
chain sharpening (Fast Sharp) models.
Saw Maintenance and Kickback
Safety
Follow maintenance instructions in this
manual. Proper cleaning of saw and chain
and guide bar maintenance can reduce
chances of kickback. Inspect and maintain
saw after each use. This will increase the
service life of your saw.
Note:
Even with
proper sharpening, risk of kickback can
increase with each sharpening.
WARNING: Kickback may oc-
cur when the nose or tip of the
guide bar touches an object, or
when the wood closes in and
pinches the saw chain in the cut.
Tip contact in some cases may
cause a lightning fast reverse re-
action, kicking the guide bar up
and back towards the operator.
Pinching the saw chain along the
top of the guide bar may push the
guide bar rapidly back towards
the operator. Either of these re-
actions may cause you to lose
control of the saw which could
result in serious injury to user.
KICKBACK
SAFETY
WARNINGS
4
107990
ELECTRIC CHAIN SAW
®
For more information, visit www.desatech.com
CHAIN SAW NAMES
AND TERMS
Bucking Process of cutting a felled tree or
log into lengths.
Felling Process of cutting down a tree.
Felling Cut Final cut when felling a tree.
Make this cut on opposite side of tree from
notching cut.
Front Handle Located at front of saw body.
Front Hand Guard Shield between front
handle and guide bar. Protects left hand
while using saw.
Guide Bar Metal bar that extends from saw
body. The guide bar supports and guides chain.
Guide Bar Nose Tip or end of guide bar.
Kickback Quick backward and upward
motion of guide bar. Kickback may occur
when tip of guide bar touches an object
while chain is moving. The guide bar will
kick up and back towards operator.
Limbing Process of cutting limb(s) from a
felled tree.
Low-Kickback Chain Chain that reduces
chance of kickback as required by ANS
B175.1.
Normal Cutting Position Stance used while
making bucking and felling cuts.
Notching Cut Notch cut in tree that directs
fall of tree.
Oiler Control System for oiling guide bar
and chain.
Power Head Chain saw without chain and
guide bar. Also known as saw body.
Pushback (Kickback, Pinch) Rapid
pushback of chain saw. Pushback may oc-
cur if chain along top of guide bar is pinched,
caught, or contacts a foreign object.
Rear Handle Handle located at rear of saw
body.
Reduced Kickback Guide Bar Guide bar
that reduces chance of kickback.
Replacement Chain Chain that complies
with ANS B175.1 when used with a specific
saw. It may not meet ANS requirements
when used with other saws.
Saw Chain (Chain) Loop of chain having
cutting teeth for cutting wood. The motor
drives chain. The guide bar supports chain.
Spiked Bumper (Spike) Pointed teeth at
front of saw body beside guide bar. Keep
spiked bumper in contact with wood when
felling or bucking. It helps maintain posi-
tion of saw while cutting.
Sprocket Toothed wheel that drives chain.
Switch Device that completes or interrupts
electrical circuit to motor of saw.
Switch Linkage This device connects switch
to trigger. It moves switch when you squeeze
trigger.
Switch Lockout Device that reduces acci-
dental starting of saw.
Trigger Device that turns saw on and off.
Squeezing trigger turns saw on.
Releasing trigger turns saw off.
Trimming (Pruning) Process of cutting
limb(s) from a living tree.
Undercut An upward cut from underside of
log or limb. This is done while in normal
cutting position and cutting with top of
guide bar.
5
107990
OWNER’S MANUAL
For more information, visit www.desatech.com
Power Cord
Rear Hand
Guard
Rear
Handle
Front Hand
Guard
Guide Bar
Sprocket
Cover
Saw
Chain
Guide Bar
Nose
Scabbard
Oil Cap With
Squeeze Bulb
Trigger
Switch
Lockout
Motor
Housing

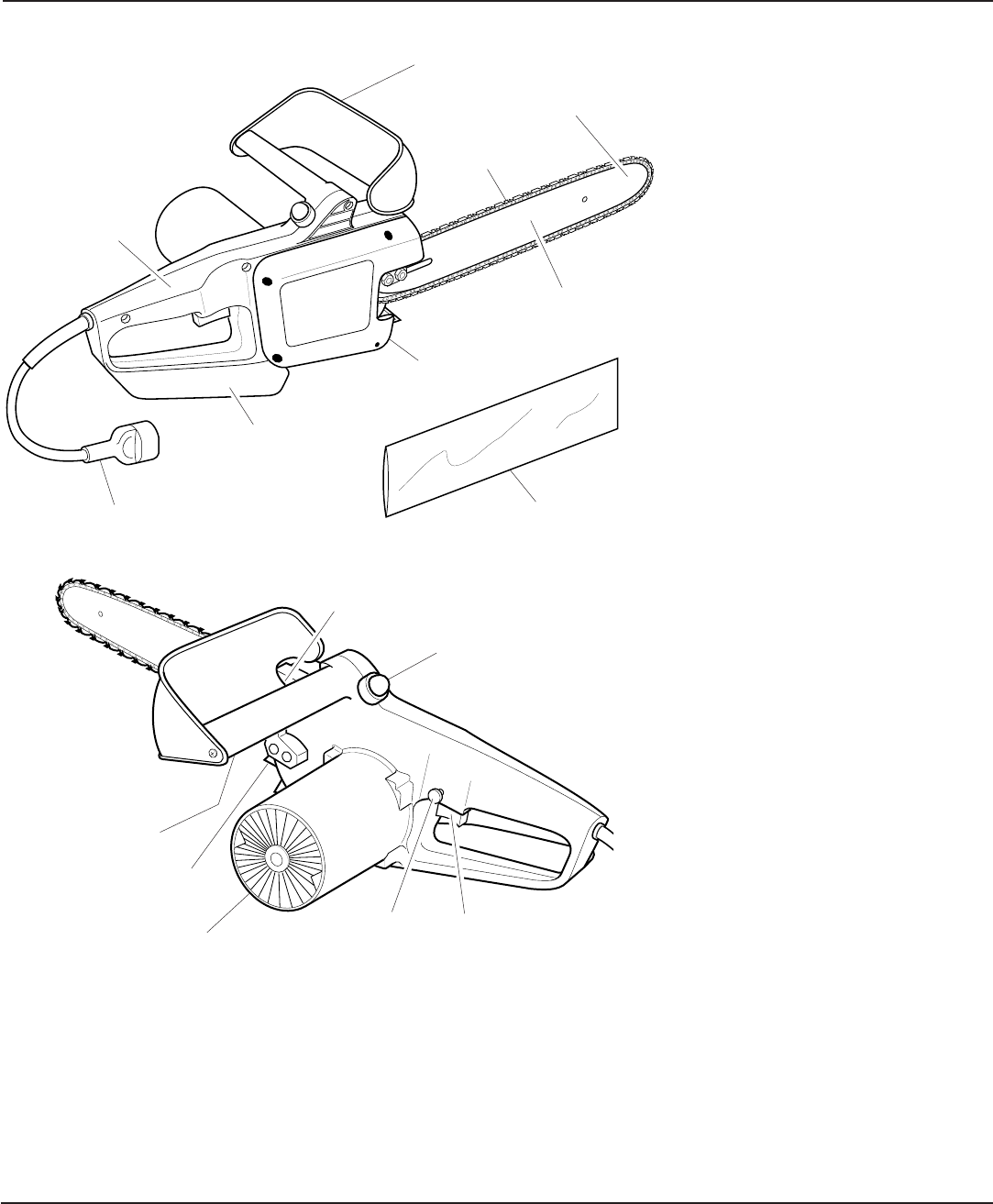

Figure 2 - Electric Chain Saw
Oil Level Sight Hole
(located on saw body,
hidden by front handle)
Front Handle
PRODUCT
IDENTIFICATION
UNPACKING
1. Remove all items from carton.
2. Check all items for any shipping dam-
age. If you find any damage or if any
parts are missing, promptly inform
dealer where you bought chain saw.
Spike
6
107990
ELECTRIC CHAIN SAW
®
For more information, visit www.desatech.com
Mounting
Stand-Outs
Guide Bar
Bolts
Guide Bar
Nuts
Adjusting
Hole
Guide
Bar
Tapping
Screw
Saw
Chain
Cutting
Edge
Cutting
Edge
Towards
Guide
Bar Nose
Front Hand
Guard
Drive
Sprocket

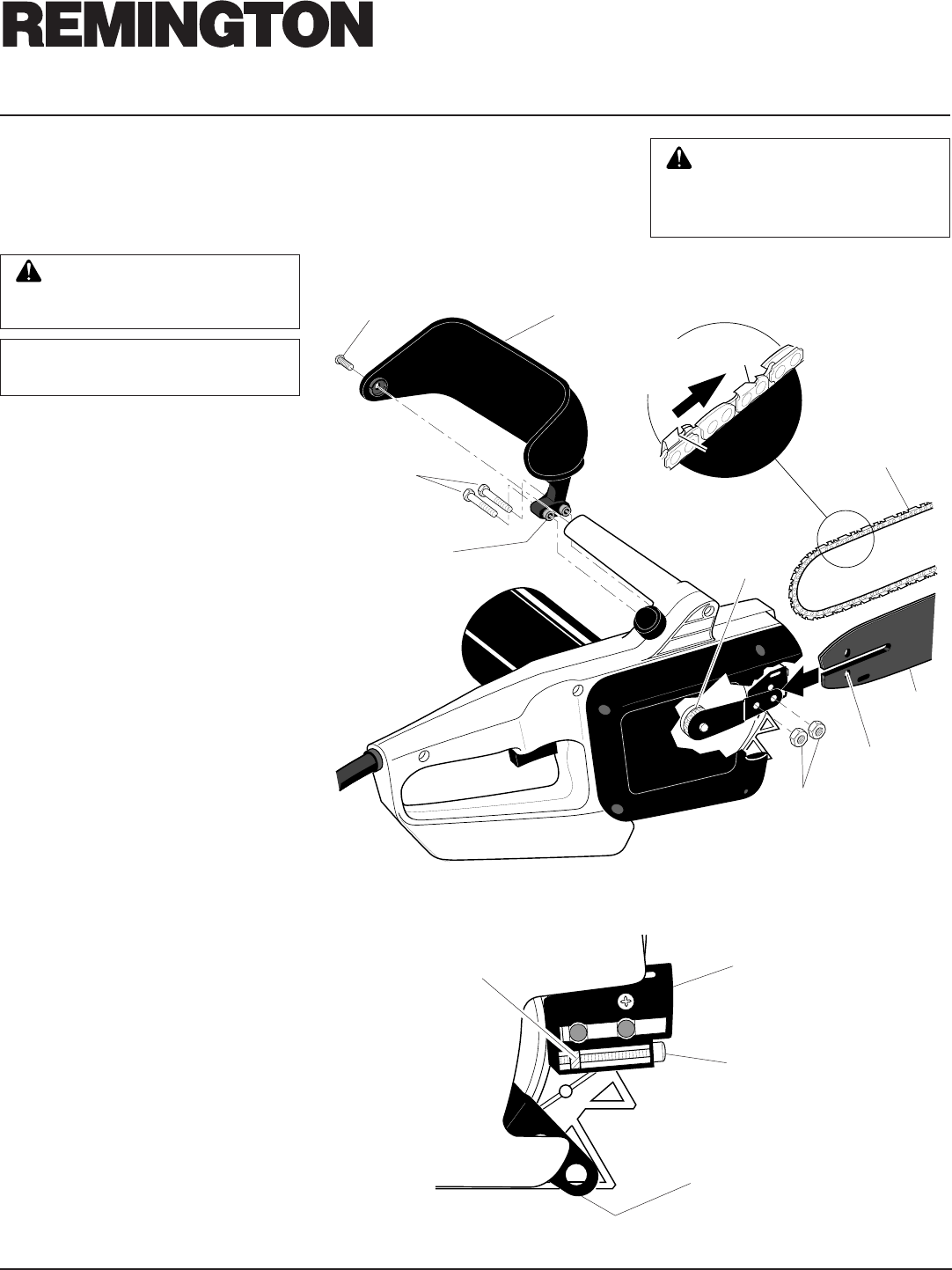

Figure 3 - Assembling Guide Bar, Chain, and Hand Guard
Adjusting
Plate
Adjusting
Screw
Sprocket
Support
Figure 4 - Part Locations For Assembling Guide Bar
Adjusting
Block
ASSEMBLY
The plastic hardware bag should include:
•two guide bar bolts
•two guide bar nuts
•one Phillips-head tapping screw
•automatic chain sharpener (Fast Sharp
models only)
1. Lay chain out flat.
2. Install front hand guard onto saw body.
Do this by pressing two mounting stand-
outs on hand guard into hex-shaped
holes in saw body (see Figure 3).
3Insert tapping screw through hand
guard and into saw handle. Tighten
screw firmly.
4. Turn adjusting screw counterclockwise
(see Figure 4). Continue to turn adjust-
ing screw until adjusting block is to rear
of adjusting plate.
5. Install guide bar onto saw body. Place
rear of guide bar between adjusting
plate and sprocket support.
IMPORTANT:
Make sure to insert ad-
justing block into oval adjusting hole
on guide bar.
6. Line up holes on sprocket support with
center slot on guide bar and holes in
saw body.
7. Insert guide bar bolts through front
hand guard, saw body, center slot of
guide bar, and sprocket support. Attach
guide bar nuts to guide bar bolts.
IMPORTANT:
Tighten guide bar nuts
finger tight only. Make sure adjust-
ing block is in oval adjusting hole on
guide bar.
8. Place chain around drive sprocket, then
along top groove of guide bar and
around guide bar nose.
Note:
Make
sure cutting edges of chain are facing
the right direction. Position chain so
cutting edges on top of guide bar face
guide bar nose (see Figure 3).
Note:
Some models are pre assembled. As-
sembly is not needed on these models.
See Saw Chain Tension Adjustment, page 7.
WARNING: Cutting edges on
chain are sharp. Use protective
gloves when handling chain.
IMPORTANT: Do not clamp chain
saw in vise during assembly.
CAUTION: Do not place chain
on saw backwards. If chain is
backwards, saw will vibrate badly
and will not cut.
9. Adjust saw chain tension. Follow steps
under Saw Chain Tension Adjustment,
page 7.
7
107990
OWNER’S MANUAL
For more information, visit www.desatech.com
Note:
For pre-assembled models, the saw
chain tension is properly set at factory. A
new chain will stretch. Check new chain
after first few minutes of operation. Allow
chain to cool down. Follow steps below to
readjust saw chain tension.
1. Before adjusting chain, make sure
guide bar nuts are only finger tight (see
Figure 3, page 6). Also make sure adjust-
ing block is in oval adjusting hole on
guide bar (see Figures 3 and 4, page 6).
2. Turn adjusting screw clockwise until
all slack is out of chain (see Figure 5).
Note:
There should be no gap between
side links of chain and bottom of guide
bar (see Figure 6).
3. Wearing protective gloves, move chain
around guide bar. Chain should move
freely. If chain does not move freely,
loosen chain by turning adjusting screw
counterclockwise.
SAW CHAIN
TENSION
ADJUSTMENT
WARNING: Unplug chain saw
from power source before adjust-
ing saw chain tension.
WARNING: Cutting edges on
chain are sharp. Use protective
gloves when handling chain.
WARNING: Maintain proper
chain tension always. A loose
chain will increase the risk of
kickback. A loose chain may jump
out of guide bar groove. This may
injure operator and damage
chain. A loose chain will cause
chain, guide bar, and sprocket to
wear rapidly.

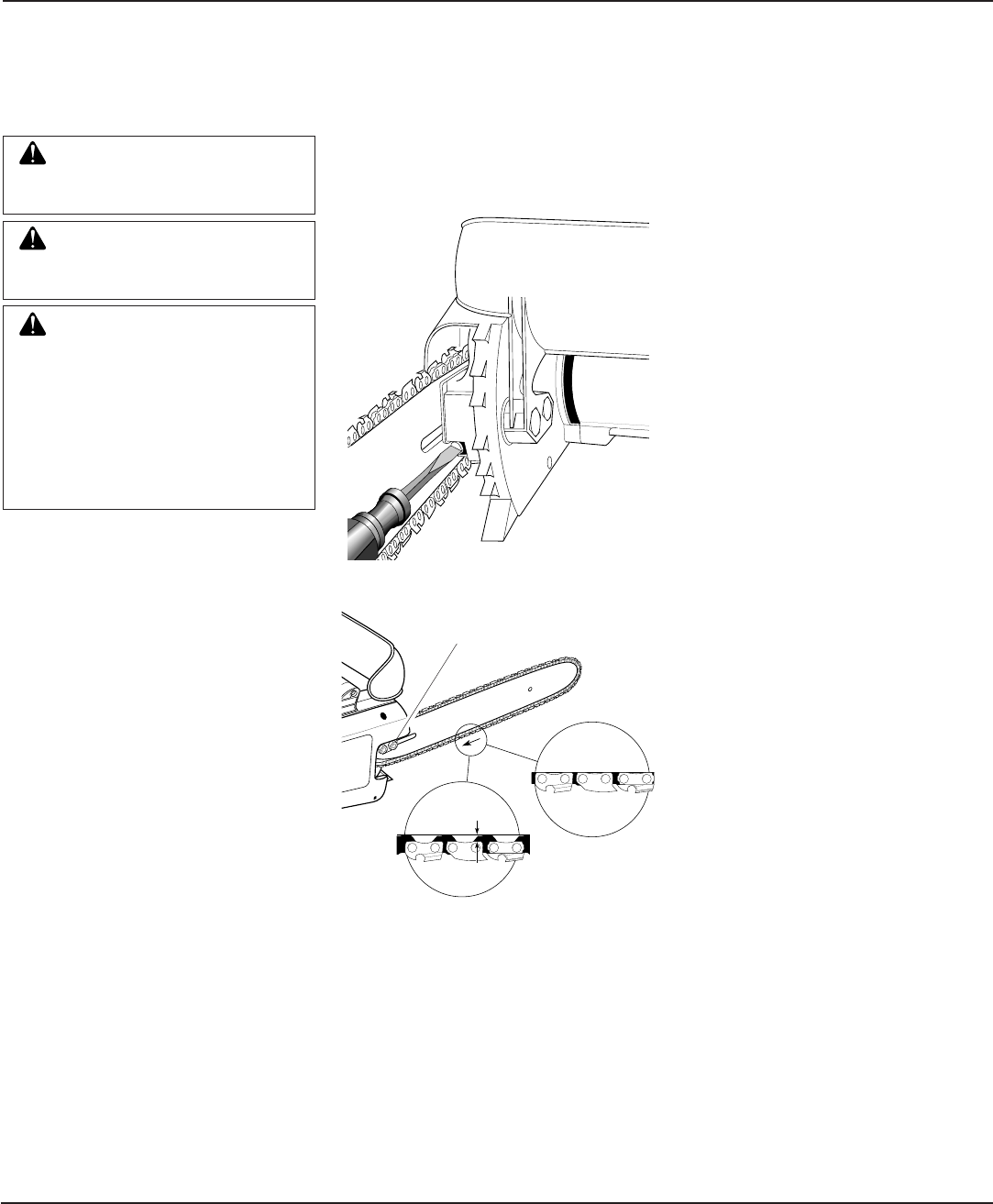

Figure 5 - Turning Adjusting Screw
Guide Bar
Correct
Tension
Guide Bar
Gap
Incorrect
Tension
Guide Bar Nuts
Figure 6 - Saw Chain Adjustment
1. Remove oil cap.
2. Fill oil tank with SAE #30 motor oil.
Note:
For temperatures below 30°F, use
SAE #10 oil. For temperatures above
75°F, use SAE #40 oil.
3. Replace oil cap at once. Tighten oil cap
firmly for good seal. This will avoid oil
seepage from tank.
4. Wipe off excess oil.
Note:
It is normal for oil to seep when saw
is not in use. Empty oil tank after each use to
prevent seepage.
FILLING OIL TANK
4. After chain tension is correct, tighten
guide bar nuts firmly. If not, guide bar
will move and loosen chain tension.
This will increase the risk of kickback.
This can also damage saw.
Note:
A new
chain will stretch. Check new chain
after first few minutes of operation.
Allow chain to cool down. Readjust
chain tension.
8
107990
ELECTRIC CHAIN SAW
®
For more information, visit www.desatech.com
Cord Length AWG Cord Size
25 feet 16 AWG
50 feet 16 AWG
100 feet 16 AWG
150 feet 14 AWG
CUTTING WITH THE CHAIN
SAW
1. Connect saw to extension cord. Con-
nect extension cord to power supply.
2. Make sure section of log to be cut is
not laying on ground. This will keep
chain from touching ground as it cuts
through log. Touching ground with
moving chain will dull chain.
3. Use both hands to grip saw. Always use
left hand to grip front handle and right
hand to grip rear handle. Use firm grip.
Thumbs and fingers must wrap around
saw handles (see Figure 9).
4. Make sure your footing is firm. Keep
feet apart. Divide your weight evenly
on both feet.
5. When ready to make a cut, press in
switch lockout with right thumb and
squeeze trigger (see Figure 9). This will
turn saw on. Releasing trigger will turn
saw off. Make sure saw is running at
full speed before starting a cut.
6. When starting a cut, place moving
chain against wood. Hold saw firmly
in place to avoid possible bouncing or
skating (sideways movement) of saw.
7. Guide saw using light pressure. Do not
force saw. The motor will overload and
can burn out. It will do the job better
and safer at the rate for which it was
intended.
8. Remove saw from a cut with saw run-
ning at full speed. Stop saw by releas-
ing trigger. Make sure chain has
stopped before setting saw down.
9. Practice until you can maintain a steady,
even cutting rate.
Switch
Lockout
Trigger
Figure 9 - Switch Lockout and Trigger
Location
OPERATING CHAIN
SAW
EXTENSION CORDS
Use proper extension cords with this saw.
Use only extension cords marked for out-
door use. The cord must be marked with
suffix W or W-A following the cord type
designation.
Example:
SJTW-A or SJTW.
Use proper sized cord with this saw. Cord
must be heavy enough to carry current
needed. An undersized cord will cause volt-
age drop at saw. Saw will lose power and
overheat. Follow cord size requirements
listed below.
Extension
Cord
Chain Saw
Power Cord

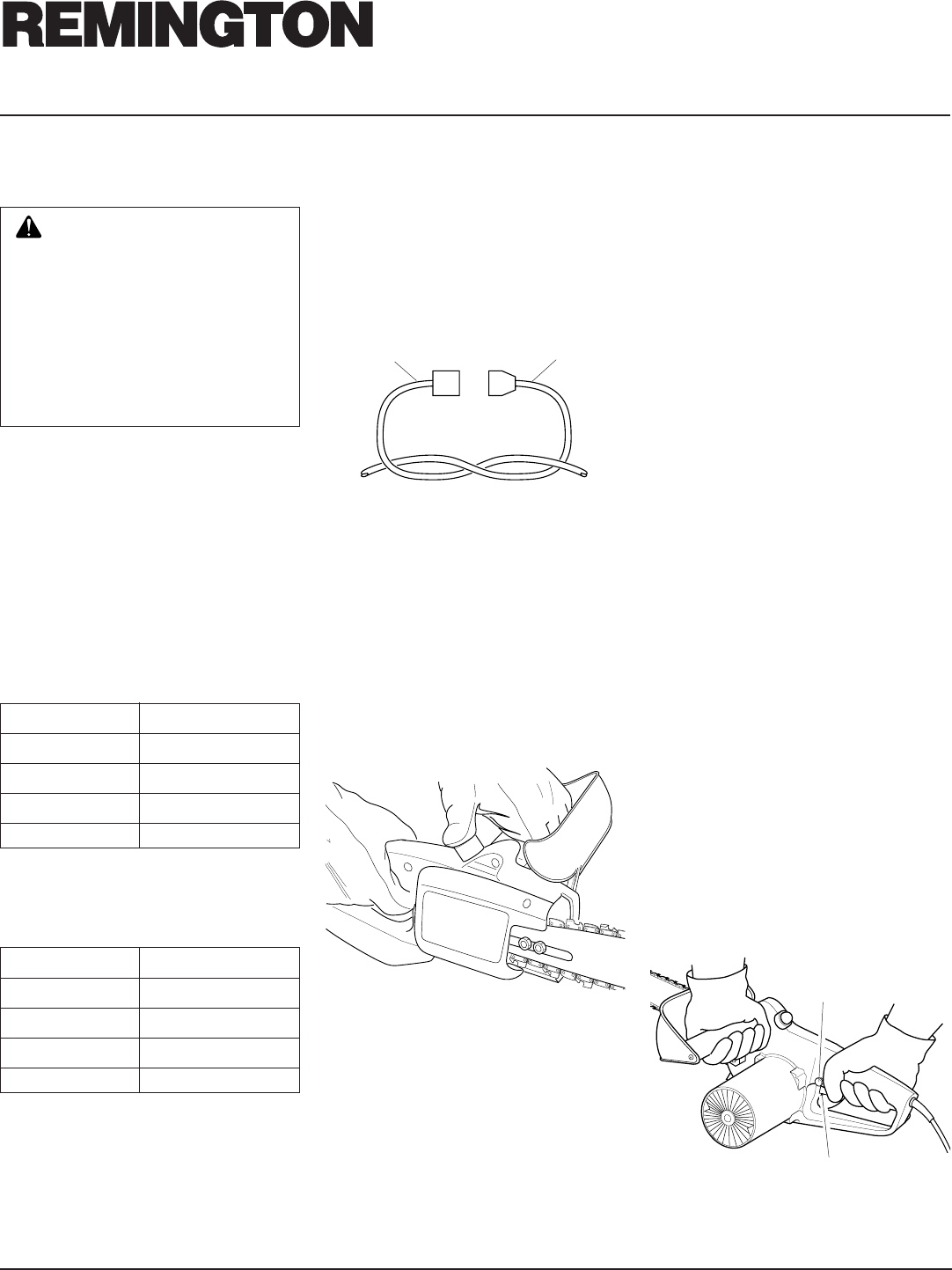

Figure 7 - Tying Extension Cord and
Power Cord in Knot
OILING CHAIN
Always check oil level before using saw. To
oil chain, press squeeze bulb on oil cap. Do
not attempt to operate the oiler while cutting
with the saw. Oil will feed onto guide bar
and chain. Press squeeze bulb on oil cap at
least once before each cut. Check oil level
often by looking at oil sight level hole. Oil
sight level hole is on left side of saw, be-
tween front handle and front hand guard.
WARNING: Read and under-
stand this owner’s manual be-
fore operating this saw. Make
certain you read and understand
all
Safety Warnings
, pages 2 and
3. Improper use of this chain saw
can cause severe injury or death
from fire, electrical shock, or body
contact with moving chain, or
falling wood.
Figure 8 - Pressing Squeeze Bulb on Oil
Cap to Oil Chain
Keep cord away from cutting area. Make
sure cord does not catch on branches or logs
during cutting. Inspect cords often. Replace
damaged cords.
The extension cord may come undone from
the power cord during use. To avoid this,
make a knot with the two cords as shown in
Figure 7 below.
Cord Length AWG Cord Size
25 feet 16 AWG
50 feet 16 AWG
100 feet 14 AWG
150 feet 12 AWG
Models LNT-2: 076728K, 099178H,
100089-06, & 100089-08; Pole Saw Assy
104317 &106821; Pole Saw 104316-04 (8")
& 106890 (10")
Models EL-7: 075762J, 098013J, 099039J,
100089-04, 100089-05, & 100089-07
9
107990
OWNER’S MANUAL
For more information, visit www.desatech.com

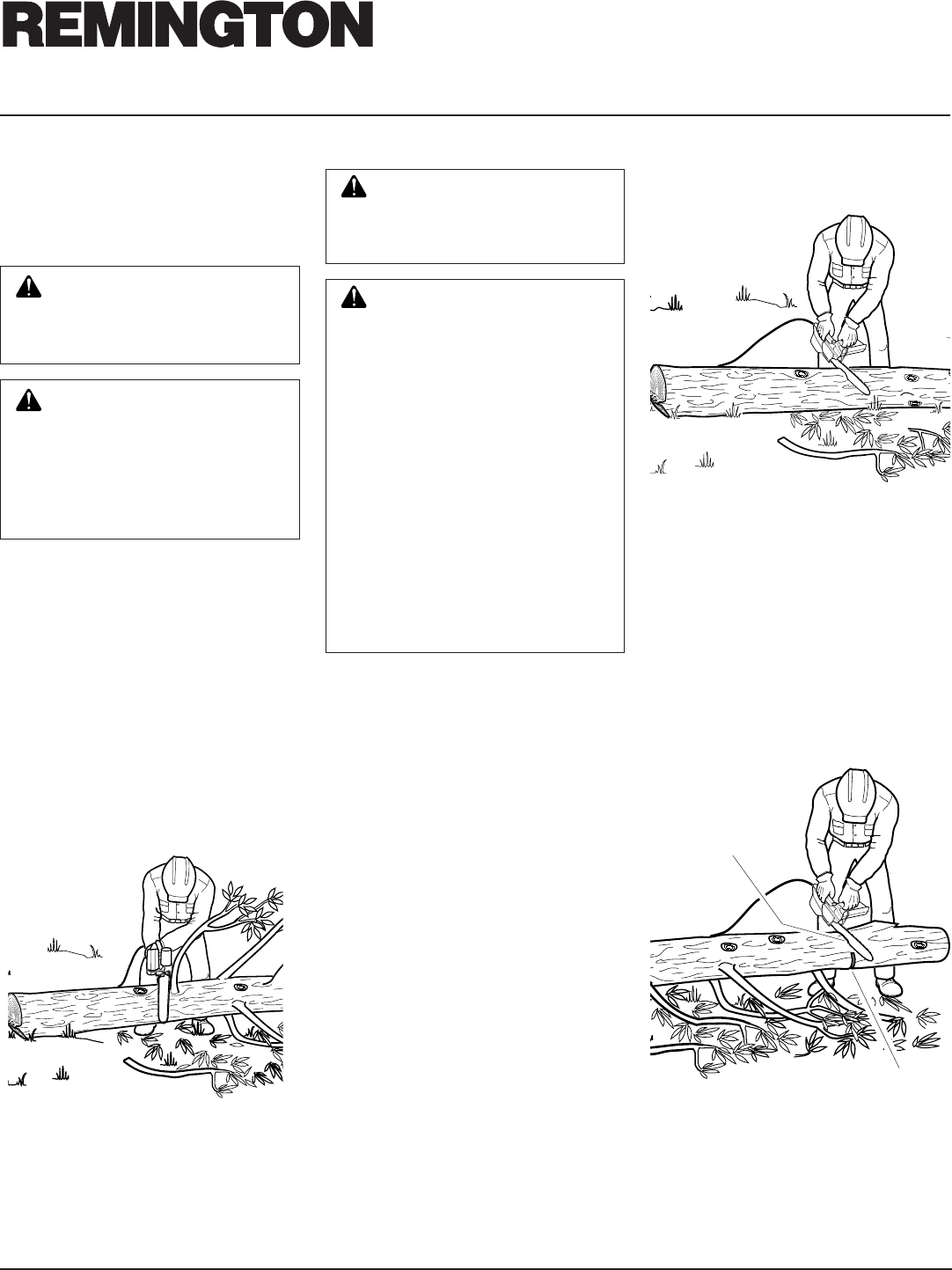

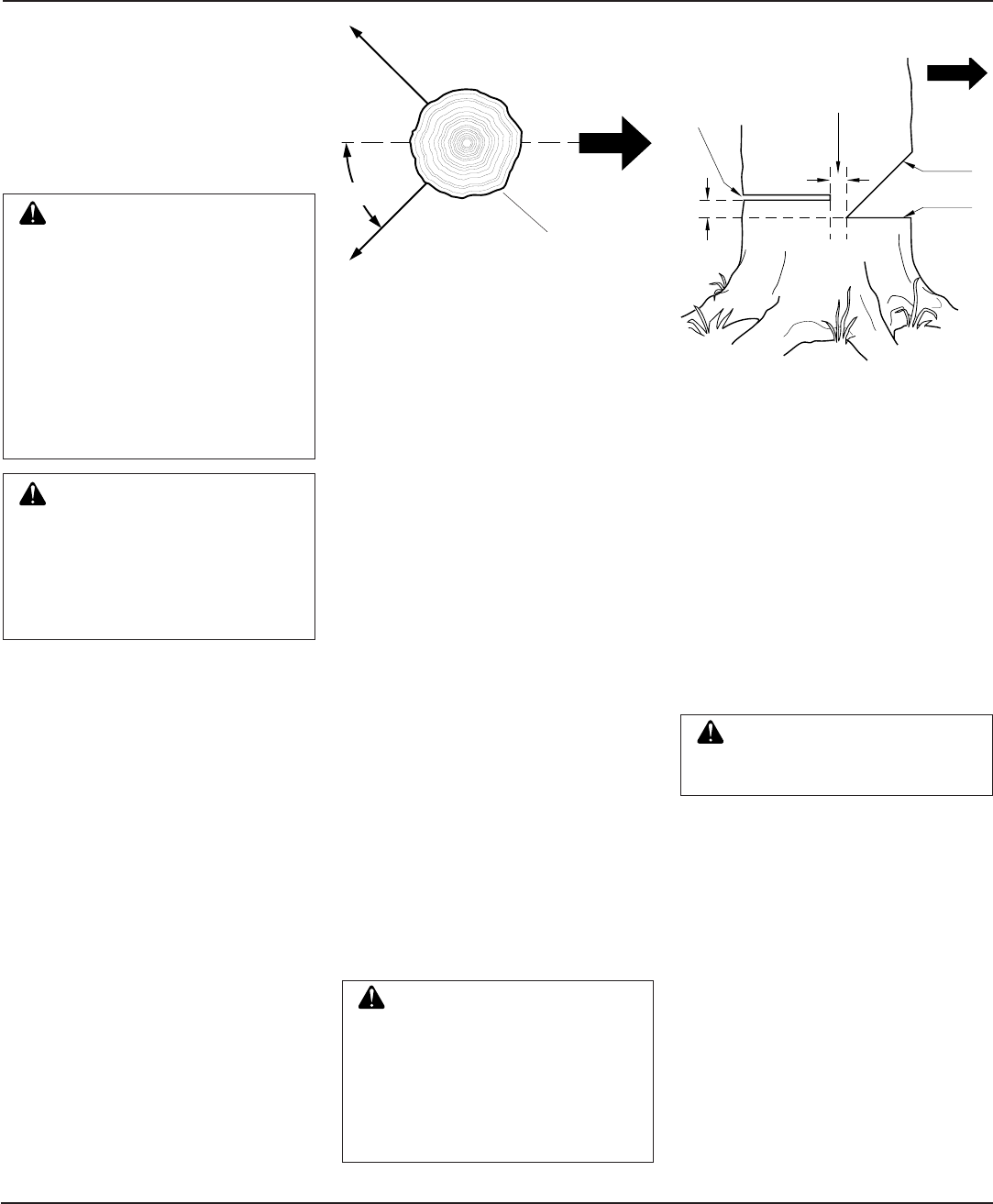

Figure 11 - Felling A Tree
Direction
of Fall
2" 1st Cut -
Lower
Notch Cut
2nd Cut -
Upper
Notch Cut
Hinge
2
Inches
3rd Cut -
Felling Cut
WARNING: Do not cut all the
way through tree. Leave about
two inches of tree diameter un-
cut directly behind felling notch
(see Figure 11). This uncut por-
tion acts as a hinge. The hinge
helps keep tree from twisting and
falling in wrong direction.
WARNING: Be alert for falling
overhead limbs. Watch your foot-
ing while exiting area.
Felling is the process of cutting down a tree.
Make sure your footing is firm. Keep feet
apart. Divide your weight evenly on both
feet. Follow directions below to fell a tree.
Before Felling a Tree
1. Before felling, inspect tree. Make sure
there are no dead limbs or branches that
may fall on you. Study natural lean of
tree, location of larger branches, and
wind direction. This will help you judge
which way tree will fall.
2. Clear work area around tree.
3. Plan and clear a retreat path before fell-
ing. Make retreat path opposite to
planned direction of fall of tree and at
45° angle (see Figure 10).
4. Remove dirt, stones, loose bark, nails,
staples, and wire from tree where you
will make felling cuts.
5. Stay on uphill side when felling tree.
Tree could roll or slide downhill af-
ter falling.
WARNING:
•Avoid kickback. Kickback can
result in severe injury or death.
See
Kickback,
page 3 to avoid
risk of kickback.
•Do not fell a tree without ample
skill or expert help.
•Keep children, animals, and
bystanders away from area
when felling a tree.
•If two or more persons perform
bucking and felling operations
WARNING: When felling a
tree, be aware of your surround-
ings. Do not endanger any per-
son, strike utility lines, or cause
property damage. If tree strikes
utility lines, contact utility com-
pany at once.
Figure 10 - Retreat Path From Tree
Direction
of Fall
Retreat
Path
Retreat
Path
45°
Tree
FELLING A TREE
(Cutting Down a Tree)
Felling Procedure
A) Felling Notch
A properly placed felling notch will deter-
mine direction tree will fall. Place felling
notch on side of tree in direction you want
tree to fall (see Figure 11). Follow direc-
tions below to create a felling notch.
1. Make lower notch cut as close to
ground as possible. Hold saw so guide
bar is horizontal. Cut 1/3 the diameter
of tree trunk (see Figure 11).
Note:
Al-
ways make this horizontal lower notch
cut first. If you make this cut second,
tree can pinch chain or guide bar.
2. Start upper notch cut the same distance
above first cut as first cut is deep.
Example: If lower notch cut is eight
inches deep, start upper notch cut eight
inches above it. Cut downward at 45°
angle. The upper notch cut should meet
end of lower notch cut (see Figure 11).
3. Remove tree trunk wedge created by
notching cuts.
B) Felling Cut
1. Make felling cut two inches higher than
lower notch cut and on opposite side
of tree (see Figure 11). Keep felling cut
parallel to lower notch cut.
2. Cut towards notch.
3. As felling cut nears hinge, tree should
begin to fall.
Note:
If needed, drive
wedges into felling cut to control direc-
tion of fall. If tree settles back and pinches
chain, drive wedges into felling cut to
remove saw. Only use wedges made of
wood, plastic, or aluminum. Never use
wedge made of steel. This could cause
kickback and damage to chain.
4. When tree begins to fall, quickly
•remove saw from felling cut
•release trigger to turn saw off
•put saw down
• exit area using retreat path
Continued
OPERATING CHAIN
SAW
Continued
10
107990
ELECTRIC CHAIN SAW
®
For more information, visit www.desatech.com
BUCKING A LOG
Figure 13 - Bucking Log With Entire
Length On Ground
WARNING: Avoid kickback.
Kickback can result in severe in-
jury or death. See
Kickback
, page
3 to avoid risk of kickback.
WARNING:
•If on slope, make sure log will
not roll down hill. Secure log
by using wooden stakes. Drive
wooden stakes into ground on
downhill side of log. Stand on
uphill side of log while cutting.
Log may roll after cutting.
•Never try cutting through two
logs at same time. This could
increase the risk of kickback.
•While cutting log, never hold
log with your hand, leg, or foot.
•While cutting log, never allow
another person to hold log.
•Turn off and unplug saw be-
fore moving from one place to
another.
Bucking a log is cutting a log into sections.
Make sure your footing is firm. Keep feet
apart. Divide your weight evenly on both feet.
When possible, raise log or section off ground.
Do this by using limbs, logs, chocks, etc.
When cutting through log, maintain control
by reducing cutting pressure near end of cut.
Do not relax your grip on chain saw handles.
Do not let moving chain touch ground.
Ground will dull moving chain. After cut-
ting through log, release trigger to turn saw
off before moving saw.
Follow directions below to buck a log.
LIMBING A TREE
Figure 12 - Limbing A Tree
WARNING: When cutting limb
that is under tension, use extreme
caution. Be alert for wood spring-
ing back. When wood tension is
released, limb could spring back
and strike operator causing se-
vere injury or death.
WARNING: Avoid kickback.
Kickback can result in severe in-
jury or death. See
Kickback
, page
3 to avoid risk of kickback.
Limbing is removing branches from a fallen
tree. Make sure your footing is firm. Keep
feet apart. Divide your weight evenly on
both feet. Do not remove larger limbs under
tree that support log off ground. Remove
each limb with one cut (see Figure 12).
Clear cut limbs from work area often. This
will help maintain a safe work area.
Make sure you start your cut where limb
will not pinch saw during cutting. To avoid
pinching, start cut on freely hanging limbs
from above limb. Start cut on limbs under
tension from under limb. If pinch occurs,
turn saw off, lift limb, and remove saw.
Entire Length Of Log On
Ground
Cut log from top (see Figure 13).
Figure 14 - Bucking Log When Log Is
Supported On One End
1st Cut
2nd Cut
OPERATING CHAIN
SAW
Continued
Log Supported On One End
1. Make first cut on underside of log (see
Figure 14). Use top of guide bar to
make this cut. Cut 1/3 through diam-
eter of log. This cut will keep section
from splintering when cut.
2. Make second cut directly above first
cut. Cut down to meet first cut. This
cut will keep log from pinching guide
bar and chain.
11
107990
OWNER’S MANUAL
For more information, visit www.desatech.com
1st Cut
Figure 15 - Bucking Log When Log Is
Supported On Both Ends
2nd Cut
TRIMMING A TREE (Pruning)

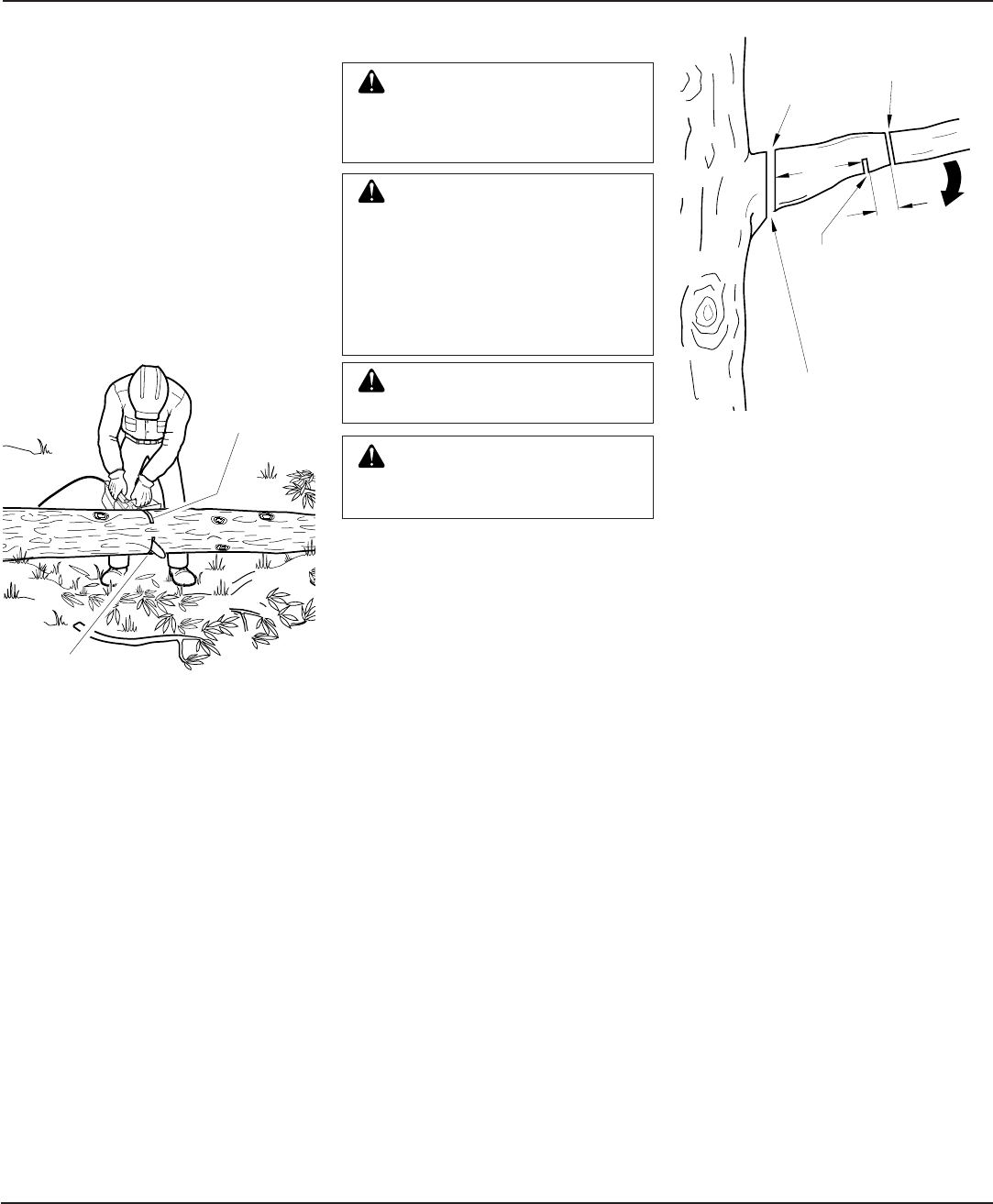

Figure 16 - Cutting A Limb
WARNING: Avoid kickback.
Kickback can result in severe in-
jury or death. See
Kickback
, page
3 to avoid risk of kickback.
WARNING: Do not operate
chain saw while
•in a tree
•on a ladder or any other un-
stable surface
•in any awkward position
You may lose control of saw caus-
ing severe injury.
WARNING: Do not cut limbs
higher than your shoulders.
CAUTION: Seek professional
help if facing conditions beyond
your ability.
Trimming a tree is the process of cutting
limbs from a living tree. Make sure your
footing is firm. Keep feet apart. Divide your
weight evenly on both feet. Follow direc-
tions below to trim a tree.
1. Make first cut six inches from tree trunk
on underside of limb. Use top of guide
bar to make this cut. Cut 1/3 through
diameter of limb (see Figure 16).
2. Move two to four inches farther out on
limb. Make second cut from above limb.
Continue cut until you cut limb off.
3. Make third cut as close to tree trunk as
possible on underside of limb stub. Use
top of guide bar to make this cut. Cut
1/3 through diameter of stub.
4. Make fourth cut directly above third
cut. Cut down to meet third cut. This
will remove limb stub.
2" to 4"
6"
1st Cut -
Pruning Undercut
(to avoid splintering)
3rd Cut - Stub Undercut
(to avoid splintering)
2nd Cut -
Pruning Cut
(to avoid pinching)
4th Cut -
Final Stub
Cut
Log Supported On Both Ends
1. Make first cut from above log (see Fig-
ure 15). Cut 1/3 through diameter of
log. This cut will keep section from
splintering when cut.
2. Make second cut on underside of log,
directly under first cut. Use top of guide
bar to make this cut. Cut up to meet
first cut. This will keep log from pinch-
ing guide bar and chain.
OPERATING CHAIN
SAW
Continued
12
107990
ELECTRIC CHAIN SAW
®
For more information, visit www.desatech.com

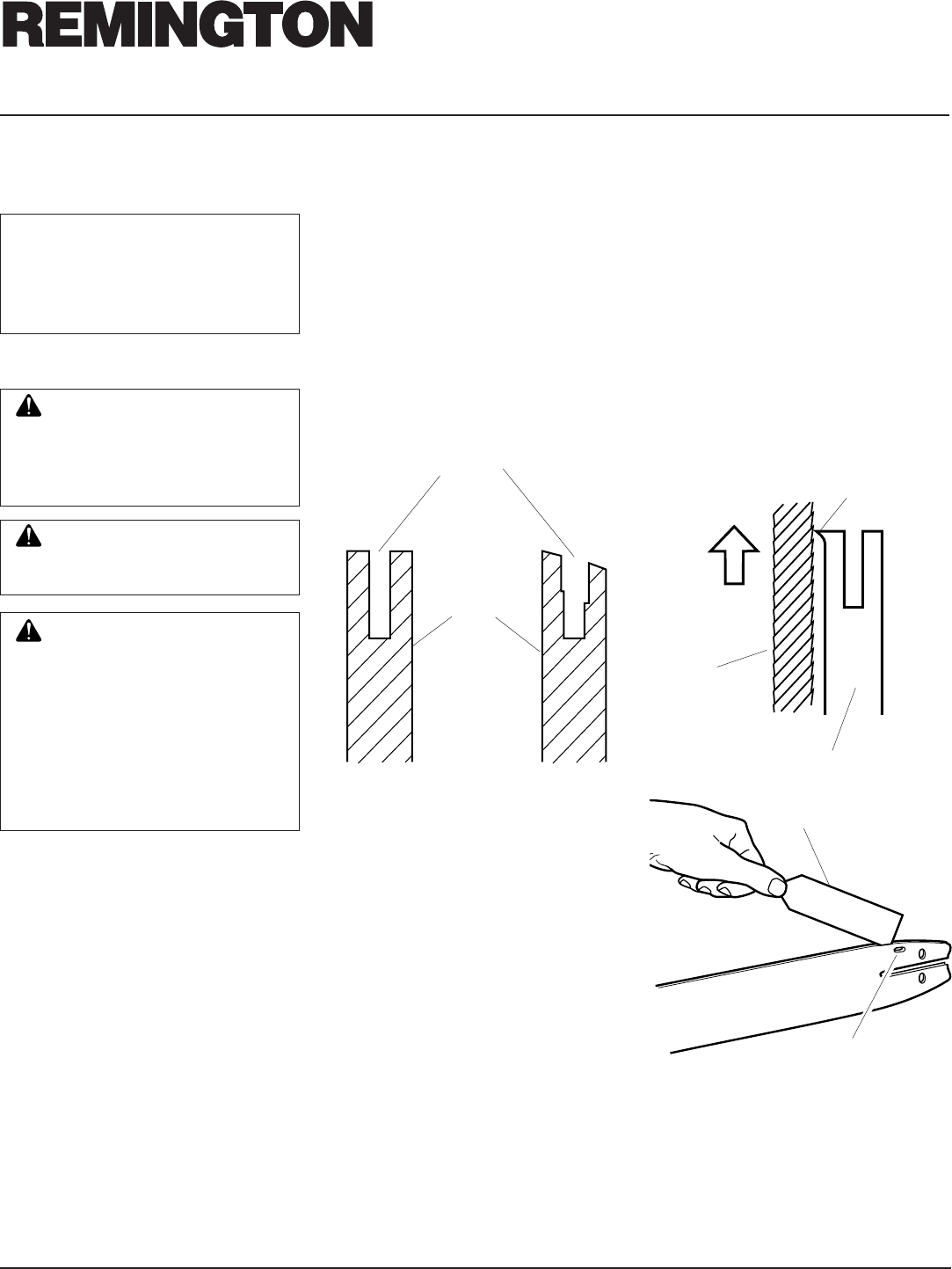

CLEANING SAW BODY
CLEANING AND
MAINTENANCE
Guide Bar
With Uneven
Wear
Figure 17 - Guide Bar Cross Section Show-
ing Uneven Bar Wear
Guide Bar
Groove
Guide Bar
NOTICE: Below are instructions
for servicing your chain saw. Any
servicing not mentioned below
should be done by an authorized
service center.
WARNING: Unplug chain saw
from power source before servic-
ing. Severe injury or death could
occur from electrical shock or
body contact with moving chain.
WARNING: Cutting edges on
chain are sharp. Use protective
gloves when handling chain.
WARNING: When cleaning
saw body,
•do not submerge saw in any
liquids
•do not use products that con-
tain ammonia, chlorine, or
abrasives
•do not use chlorinated clean-
ing solvents, carbon tetrachlo-
ride, kerosene, or gasoline
CARE OF GUIDE BAR
Uneven bar wear causes most guide bar
problems. Incorrect sharpening of chain
cutter and depth gauge settings often cause
this. When bar wears unevenly, it widens
guide bar groove (see Figure 17). This causes
chain clatter and rivet popping. Saw will not
cut straight. Replace guide bar if this occurs.
Inspect guide bar before sharpening chain.
A worn or damaged guide bar is unsafe. A
worn or damaged guide bar will damage
chain. It will also make cutting harder.
Keep saw body clean. Use a soft cloth damp-
ened with a mild soap and water mixture.
Wipe saw body to clean.
Normal Guide
Bar
Figure 18 - Guide Bar Maintenance
Flat File
Burr
Oil Slot
Cleaning Groove With
Putty Knife
Guide Bar
Normal Guide Bar Maintenance
1. Remove guide bar from chain saw.
2. Remove sawdust from guide bar
groove periodically. Use putty knife or
wire.
3. Clean oil slots after each day of use.
4. Remove burrs from sides of guide bar.
Use flat file to make side edges square.
Replace guide bar when
•bar is bent or cracked
•inside groove of bar is badly worn
Note:
When replacing guide bar, see Re-
placement Parts and Accessories, page 19,
for proper bar.
13
107990
OWNER’S MANUAL
For more information, visit www.desatech.com

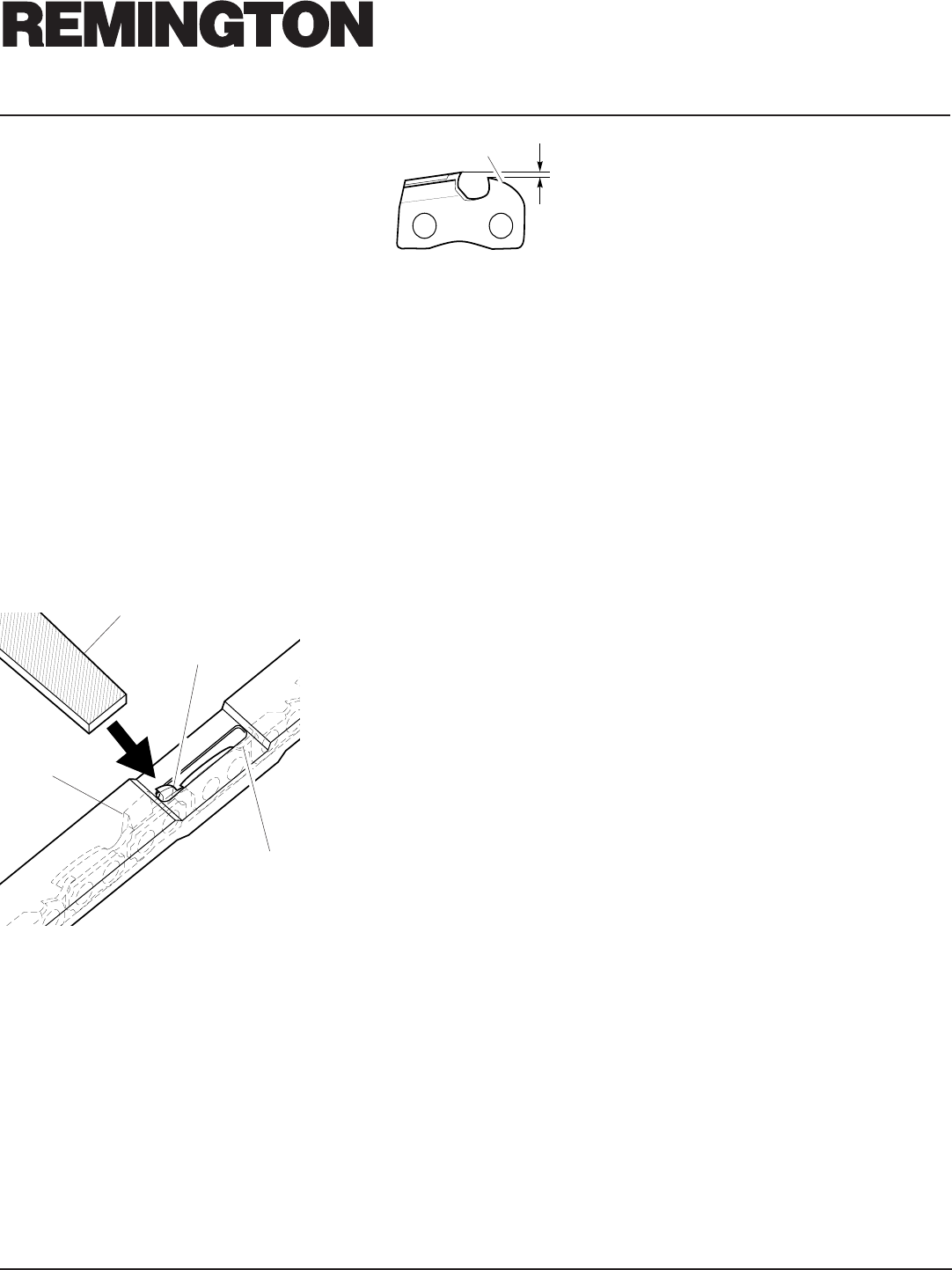

FILE HOLDER
WARNING: Unplug chain saw
from power source before servic-
ing. Severe injury or death could
occur from electrical shock or
body contact with moving chain.
WARNING: Cutting edges on
chain are sharp. Use protective
gloves when handling chain.

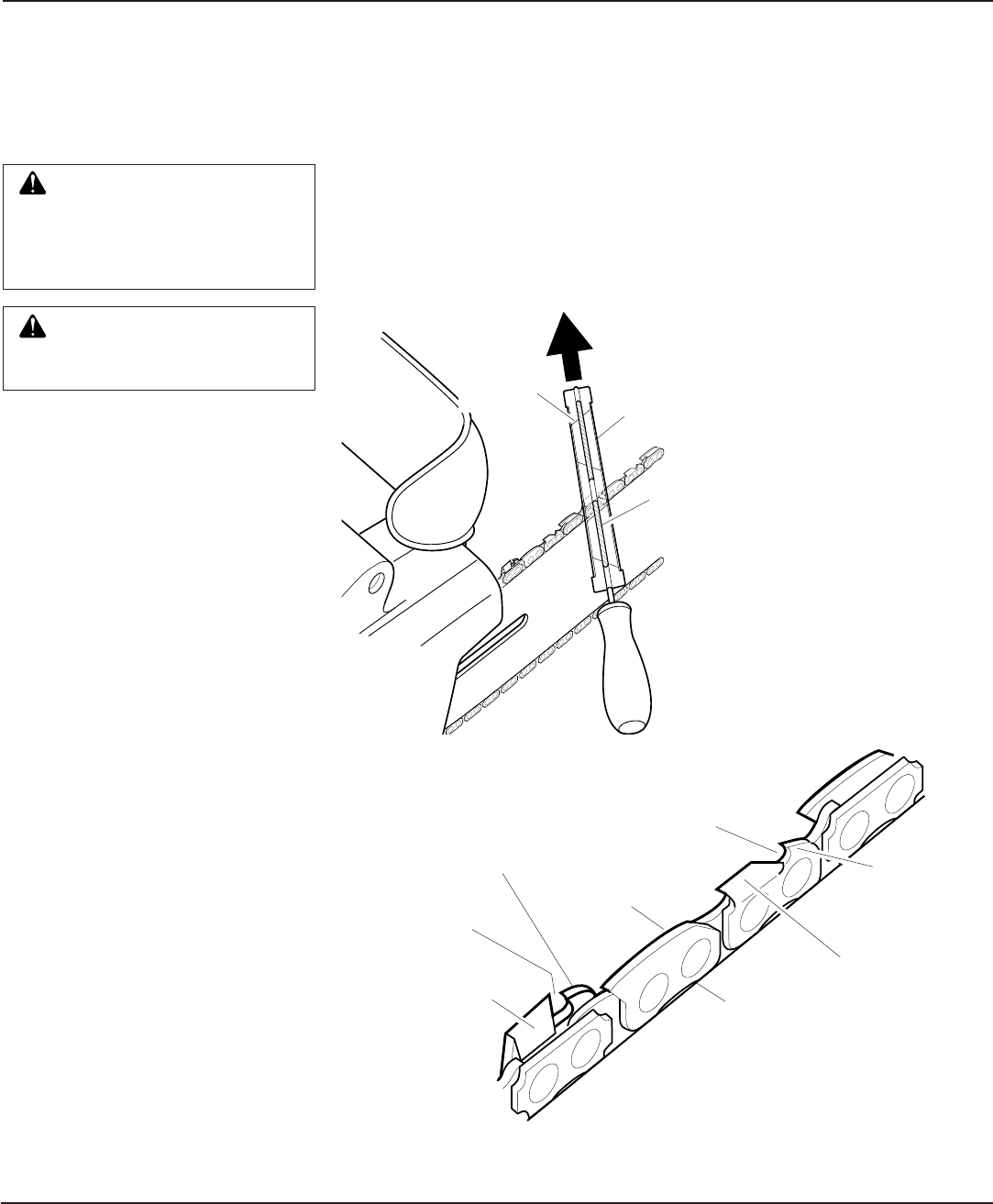

Figure 19 - File and File Guide Placement On Chain
Note:
This illustration
shows file guide
placement and filing
direction for sharpen-
ing cutters on left side
of chain.
Figure 20 - Chain Part Locations
Right Side of
Chain
Left Side of
Chain
Groove
Groove
Depth Gauge
(left side of chain) Depth Gauge
(right side
of chain)
Top Plate
(left side of chain)
Top Plate
(right side of chain)
SHARPENING SAW CHAIN
Keep chain sharp. Your saw will cut faster
and more safely. A dull chain will cause
undue sprocket, guide bar, chain, and motor
wear. If you must force chain into wood and
cutting creates only sawdust with few large
chips, chain is dull.
Items Needed to Sharpen Chain
Purchase these items from your local dealer,
hardware store, or chain saw supplies outlet.
•5/32" round file
•Depth gauge tool
•File guide
•Vise
•Medium sized flat file
Continued
30° Guide
Mark File
Guide
Filing
Direction
5/32"
Round File
Sharpening Cutters
Use file guide for 30° filing.
1. Adjust chain for proper tension (see Saw
Chain Tension Adjustment, page 7).
2. Clamp guide bar in vise to hold saw
steady.
Note:
Do not clamp chain.
3. Press 5/32" round file (attached to file
guide) into groove between top plate
and depth gauge on chain. File guide
should rest on both top plate and depth
gauge (see Figures 19 and 20).
Note:
File at midpoint of guide bar.
4. Hold file guide level. Make sure 30°
mark on file guide is parallel to center
of guide bar (see Figure 19). This will
insure that you file cutters at 30° angle.
5. File from inside towards outside of cut-
ter until sharp. Only file in this one direc-
tion (see Figure 19).
Note:
Two or three
strokes with file should sharpen cutter.
6. After each cutter is sharpened, move
chain forward to sharpen next cutter.
File all cutters on one side of chain.
7. Move to other side of chain and repeat
process.
CLEANING AND
MAINTENANCE
Continued
14
107990
ELECTRIC CHAIN SAW
®
For more information, visit www.desatech.com
Filing Cutter Depth Gauges
The cutter depth gauge clearance is reduced
as cutters are sharpened. After every second
or third sharpening, reset cutter depth gauges.
1. Place depth gauge tool (.025") firmly
across top of two cutters. Make sure
depth gauge enters slot in depth gauge
tool (see Figure 21).
2. Use medium flat file. File depth gauge
level with depth gauge tool.
3. Remove depth gauge tool. With flat file,
round off front corner of cutter depth
gauge (see Figure 22).
After several hand filings, have authorized
service center or sharpening service machine
sharpen chain. This will insure even filing.
Figure 21 - Depth Gauge Tool On Chain
Flat File
Depth
Gauge
Slot
Figure 22 - Round Off Front Corner Of
Depth Gauge
Depth
Gauge
Tool
Depth Gauge
Front Corner
.025"
CLEANING AND
MAINTENANCE
Continued
REPLACING SAW CHAIN
Replace chain when cutters are too worn to
sharpen or when chain breaks. Only use
replacement chain noted in this manual.
Always include new drive sprocket when
replacing chain. This will maintain proper
driving of chain.
Note:
For proper chain and
drive sprocket, see Replacement Parts and
Accessories, page 19.
TECHNICAL
SERVICE
You may have further questions about as-
sembling, operating, or maintaining this saw.
If so, contact our Technical Service Depart-
ment at 1-800-858-8501.
You can also visit our technical service web
site at www.desatech.com.
SERVICE
PUBLICATIONS
You can receive an illustrated parts list free
of charge. Send a self-addressed stamped
envelope to address on back page of this
manual.
When writing, include model number and
serial number of saw. You will find these
numbers on saw motor housing decal.
STORAGE
If storing saw for more than 30 days, follow
steps below.
1. Drain oil tank.
2. Remove and clean guide bar and chain.
Clean guide bar and chain by soaking
in petroleum based solvent or mild soap
and water mixture.
3. Dry guide bar and chain.
4. Place chain in container filled with oil.
This will prevent rust.
5. Wipe a thin coating of oil over surface
of guide bar.
6. Wipe off outside of saw body. Do this
with soft cloth dampened with a mild
soap and water mixture.
7. Store chain saw
•in a high or locked place, out of
children’s reach
•in a dry place
•in a carrying case or with scabbard
over guide bar
15
107990
OWNER’S MANUAL
For more information, visit www.desatech.com
TROUBLESHOOTING WARNING: Unplug chain saw from power source before servicing.
Severe injury or death could occur from electrical shock or body contact
with moving chain.
OBSERVED FAULT
Saw runs, but does not cut
Saw does not cut unless heavily forced.
Cutting produces only sawdust with few
large chips
Saw runs slow. Saw stalls easily
Motor of saw does not run when you squeeze
trigger
Motor of saw runs, but chain does not move
Chain does not get oil
Chain comes off guide bar
Saw smokes
Saw leaks oil
POSSIBLE CAUSE
Chain assembled backwards on guide bar
Chain is dull
Low power supply voltage
1. Switch lockout not pressed in to release
trigger
2. Extension cord connections loose
3. Open line fuse or circuit breaker
4. Bad motor brushes
5. Open wiring circuit on saw
Gear train failure
1. Clogged oil slot in guide bar
2. Oil is too thick
1. Chain is loose
2. Guide bar and chain not assembled right
Saw damaged. Do not use saw
Oil cap is not secure
REMEDY
See Assembly, page 6
See Sharpening Saw Chain, page 13
Extension cord wire size too small. See
Extension Cords, page 8
1. Press in switch lockout before squeez-
ing trigger
2. Check cord connections
3. Check line fuse or circuit breaker
4. See authorized service center
5. See authorized service center
See authorized service center
1. Remove guide bar and clean oil slot
2. Use correct weight of oil. See Filling Oil
Tank, page 7
1. Tighten chain. See Saw Chain Tension
Adjustment, page 7
2. See Assembly, page 6
See authorized service center
Tighten oil cap.
Note:
Empty oil tank when
not in use
Note:
For additional help, visit our
technical service web site at
www.desatech.com.
16
107990
ELECTRIC CHAIN SAW
®
For more information, visit www.desatech.com

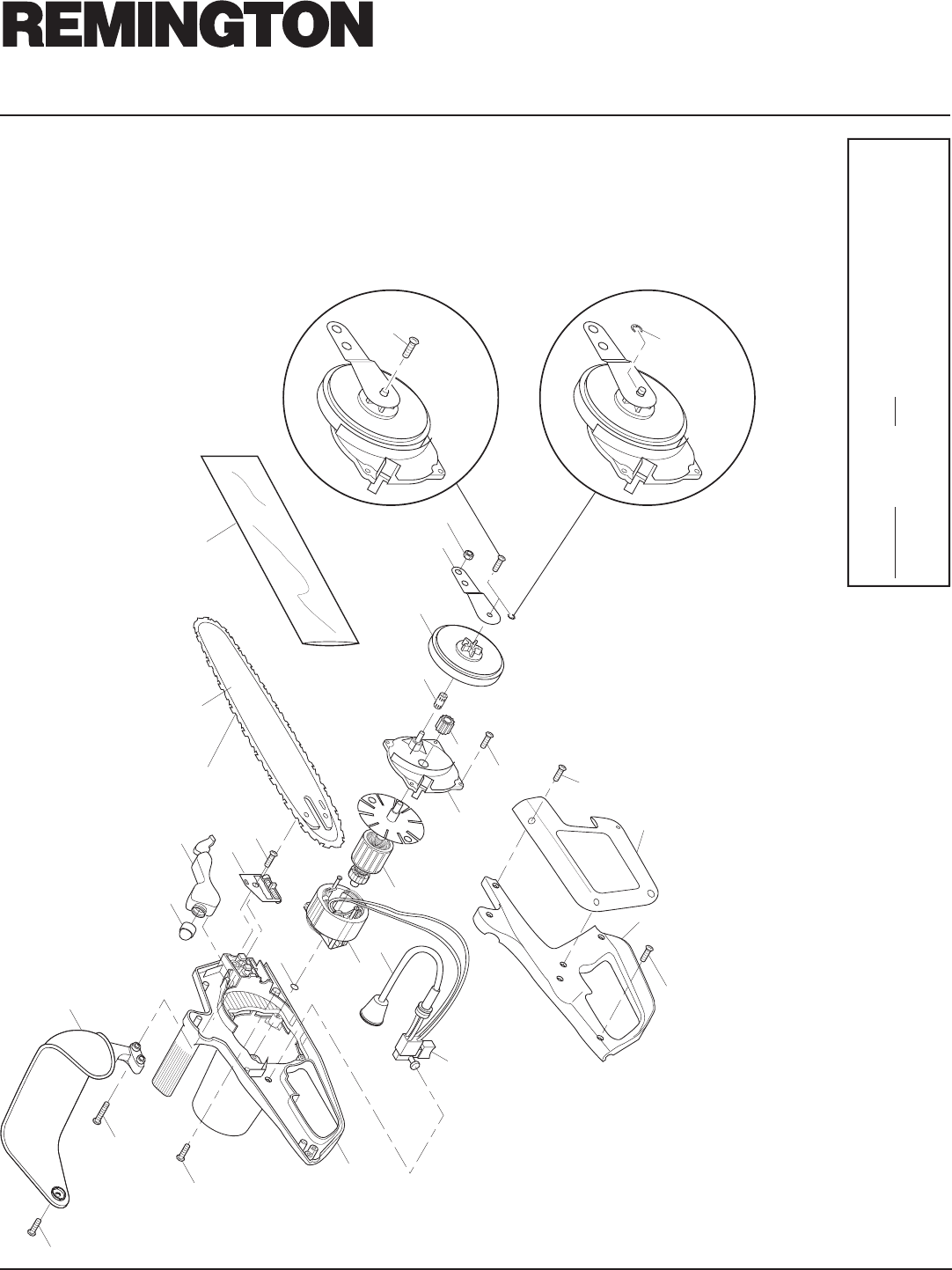

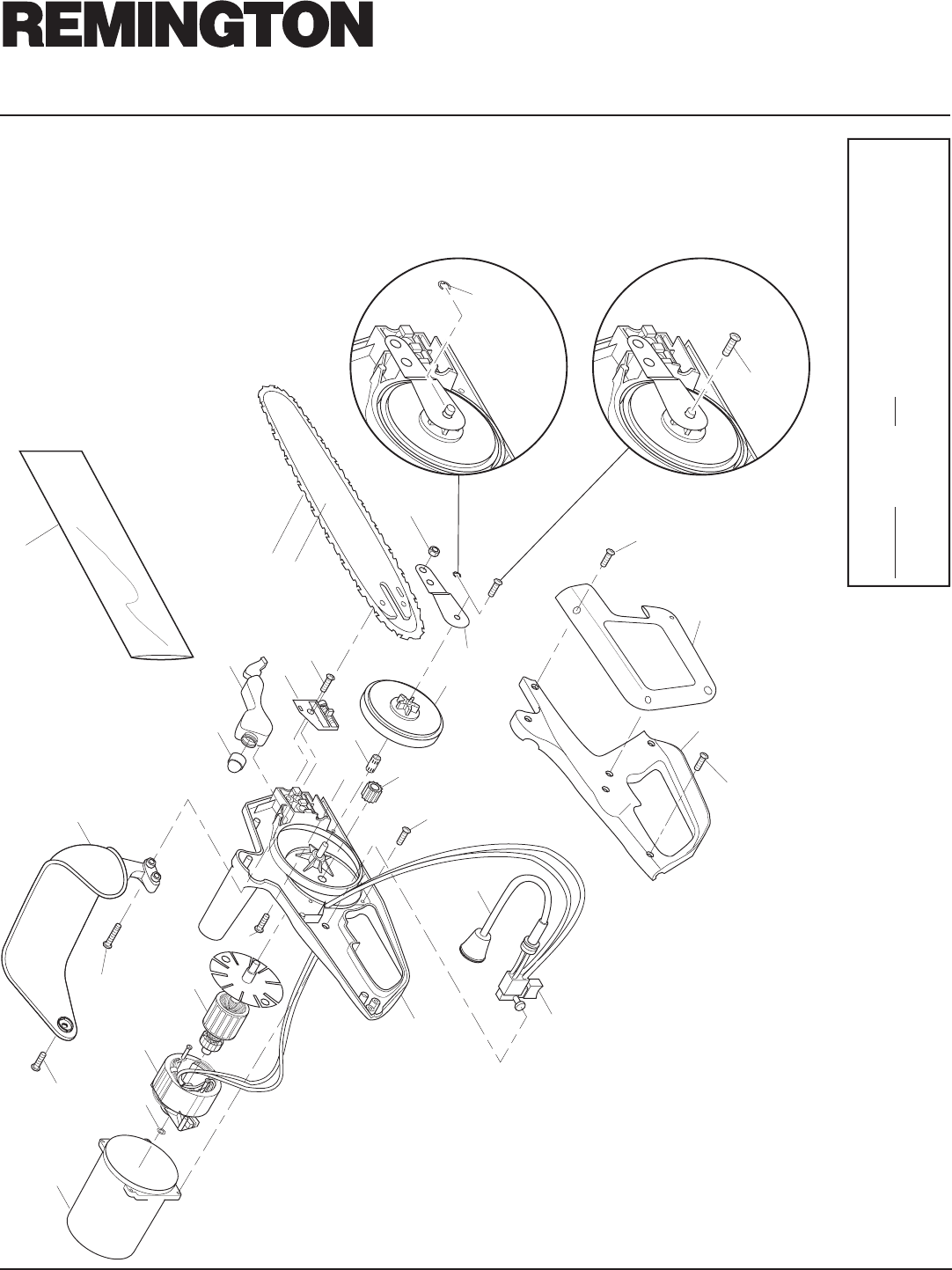

ILLUSTRATED
PARTS
BREAKDOWN
LNT-2
3
4
5
6
7
13
825
9
10
11
12
14
15
16
17
18
19
22
21
21
22
22
23
24
1
226
20B
20A
Shoulder Screw
Installation
E-Ring
Installation
IMPORTANT: Your chainsaw is assembled with
EITHER part 20A OR part 20B depending on your
saw’s design. See illustration above to determine
which saw design you have.
17
107990
OWNER’S MANUAL
For more information, visit www.desatech.com
PARTS LIST
LNT-2
This list contains replaceable parts used in your chainsaw. When ordering parts, be sure to provide the correct
model and serial numbers (from the model plate), then the part number and description of the desired part.
QTY.
KEY PART 100089-06 107709-01
NO. NO. DESCRIPTION 099178H 100089-08 076728K
1097568-01 Guide Bar, 12" __ __ 1
097570-01 Guide Bar, 14" 1 1 __
2091373-02 Saw Chain __ __ 1
091374-02 Saw Chain 1 1 __
3107481-01 Armature Assembly 1 1 1
4075676 Sprocket Roller Bearing 1 1 1
5076744 Hex-Head Bolt 2 2 2
6107512-01 Cap & Bulb Assembly 1 1 1
7099829-01 Cord 1 1 1
8077399-02 Side Cover, Black __ 1__
9076105 Thrust Disk 1 1 1
10 107482-01 Field & Brush Assembly 1 1 1
11 059606 Drive Gear 1 1 1
12 107713-01 Internal Gear 1 1 1
13 106809-01 Front Hand Guard 1 1 1
14 079089-02 Motor Housing, Black 1 1 1
15 NPC-4C Hex Nut 2 2 2
16 077115 Adjusting Plate Assembly 1 1 1
17 075887 Bearing Plate 1 1 1
18 079086-02 Oil Reservoir 1 1 1
19 097403-01 Pan-Head Screw 1 1 1
20A 076905 Pan-Head Shoulder Screw 1 1 1
20B 108120-01 E-Ring 1 1 1
21 076906 Flat-Head Tap Screw 2 2 2
22 107708-01 Pan-Head Tap Screw 10 10 10
23 077143 Sprocket Support 1 1 1
24 077525S Lock-Off Switch 1 1 1
25 106810-01 Sprocket Cover, Black 1 1 1
26 079963-02 Scabbard __ __ 1
079963-04 Scabbard 1 1 __
IMPORTANT: Your
chainsaw is assembled
with EITHER part 20A
OR part 20B depending
on your saw’s design.
See illustration on
previous page to
determine which saw
design you have.
18
107990
ELECTRIC CHAIN SAW
®
For more information, visit www.desatech.com
ILLUSTRATED
PARTS
BREAKDOWN
EL-7
6
10
15
18
16
23
14
1
2
9
4
3
25
27
21
21
17
11
26
12
8
19
19
5
13
22
7
24
20A
20B
Shoulder Screw
Installation
E-Ring
Installation
IMPORTANT: Your chainsaw is assembled with
EITHER part 20A OR part 20B depending on your
saw’s design. See illustration above to determine
which saw design you have.
19
107990
OWNER’S MANUAL
For more information, visit www.desatech.com
PARTS LIST
EL-7
This list contains replaceable parts used in your chainsaw. When ordering parts, be sure to provide the correct
model and serial numbers (from the model plate), then the part number and description of the desired part.
QTY.
098031J
099039J
KEY 075762J 100089-05
NO. PART NO. DESCRIPTION 100089-07 107714-02
1097570-01 Guide Bar, 14" 1 __
097572-01 Guide Bar, 16" __ 1
2091374-02 Saw Chain 1 __
091375-02 Saw Chain __ 1
3100933-01 Armature 1 1
4075676 Sprocket Roller Bearing 1 1
5076744 Hex-Head Bolt 2 2
6107512-01 Oil Reservoir Cap 1 1
7099829-01 Cord 1 1
8077399-02 Side Cover, Black 1 1
9098042-01 Field 1 1
10 059606 Drive Gear 1 1
11 107713-01 Internal Gear 1 1
12 106810-01 Sprocket Cover 1 1
13 106809-01 Front Hand Guard 1 1
14 076053 Motor Housing Assembly 1 1
15 097034-02 Housing Assembly 1 1
16 NPC-4C Hex Nut 2 2
17 077115 Adjusting Plate Assembly 1 1
18 079086-02 Oil Reservoir 1 1
19 059046 Pan-Head Tap Screw 6 6
20A 107708-01 Pan-Head Shoulder Screw 1 1
20B 108120-01 E-Ring 1 1
21 076906 Flat-Head Tap Screw 2 2
22 097403-01 Pan-Head Screw 1 1
23 077143 Sprocket Support 1 1
24 077525S Lock-off Switch 1 1
25 058059 Thrust Washer 1 1
26 079963-04 Scabbard 1 1
27 059045 Pan Head Tap Screw 4 4
PARTS AVAILABLE - NOT SHOWN
079882-01 Hardware Package 1 1
Includes: 2 - NPC-4C Nuts
2 - 076744 Bolts
1 - 097403-01 Screw
IMPORTANT: Your chainsaw is
assembled with EITHER part
20A OR part 20B depending on
your saw’s design. See
illustration on previous page to
determine which saw design
you have.
20
107990
ELECTRIC CHAIN SAW
®
For more information, visit www.desatech.com
AUTHORIZED SERVICE CENTERS
PARTS DEALERS
Ray’s Portable Heater Service
3191 Myers Road
Camino, CA 95709-9550
530-644-7716
Baltimore Electric
5 Manila Drive
Hamden, CT 06514-0322
203-248-7553
1-800-397-7553
Eckley’s Small Engine
31617 Spruce Drive
Eustis, FL 32726-9592
352-357-6764
Parts Company of America
1657 Shermer Road
Northbrook, IL 60062-5362
708-498-5900
1-800-323-0620
www.grainger.com
Portable Heater Parts
342 North County Road 400 East
Valparaiso, IN 46383-9704
219-462-7441
1-800-362-6951
www.portableheaterparts.com
sales@portableheaterparts.com
techservice@portableheaterparts.com
FBD
1349 Adams Street
Bowling Green, KY 42103-3414
270-846-1199
1-800-654-8534
franktalk@aol.com
Lyons & Lyons Sales Co. Inc.
Glen Arm Road
Glen Arm, MD 21057-9454
410-665-6500
1-800-333-5966
lyonsco@erols.com
Master Part Distributors
1251 Mound Avenue NW
Grand Rapids, MI 49504-2672
616-791-0505
1-800-446-1446
www.masterparts.net
Hance Distributors, Inc.
12795 16th Avenue North
Plymouth, MN 55441-4556
763-559-2299
www.hanceco.com
Automotive Equipment Service
3117 Holmes
Kansas City, MO 64109-1716
816-531-9144
1-800-843-3546
www.aes-lawnparts.com
Bowden Electric Motor Service
1681 S. Wesleyan Blvd.
Rocky Mount, NC 27803
252-446-4203
East Coast Energy
10 East Route 36
West Long Branch, NJ 07764-1501
1-800-755-8809
Forrest Lytle and Sons, Inc.
740 West Galbraith Road
Cincinnati, OH 45231-6002
513-521-1464
Bortz Chain Saw Shop
Road #2, Box 64A
Oley, PA 19547-9412
610-987-6452
21st Century
2950 Fretz Valley Road
Perkasie, PA 18944-4034
215-795-0400
1-800-325-4828
Laportes
2444 N 5th Street
Hartsville, SC 29550-7704
843-332-0191
MTA Distributors
555 Hickory Hills Blvd.
Nashville, TN 37189-9244
615-299-8777
1-800-264-0225
Webbs Appliance Center
1519 Church Street
Nashville, TN 37203-3004
615-329-4079
1-800-899-4079
Industrial Hardware
4109 Bainbridge Blvd.
Chesapeake, VA 23324-1403
804-543-2232
1-800-788-0008
catatem@erols.com
Mills Lawn and Garden
928 Commonwealth Place
Virginia Beach, VA 23464
757-361-9293
www.mills-parts.com
Tuco Industrial Products
5223 180th Street SW
Suite 4A-1
Lynnwood, WA 98037-4506
425-743-9533
1-800-735-1268
www.tucoheat.com
ALABAMA (AL)
A & O General Repair Service
1470 Opelika Road
Auburn, AL 36830
334-821-7022
Buddy’s Small Engine
2500 Triana Blvd.
Huntsville, AL 35805
256-536-9404
Southern Power Tool
2824 Cottage Glen Dr.
Mobile, AL 36693
334-639-8188
ARIZONA (AZ)
Best Brothers Lawnmower Repair
5549 W. Glendale Avenue
Glendale, AZ 85301
602-939-9170
D & L Small Engines, Inc.
10023 North 19th Ave.
Phoenix, AZ 85021
602-861-1978
Power Tool Service Center
660 East 19th Street
Tucson, AZ 85719
520-884-8974
ARKANSA (AR)
B.G.I. Sales
2918 Willow Road
Jonesboro, AR 72401
870-802-1220
Fax: 870-802-1220
CALIFORNIA (CA)
Ray’s Portable Heater Service
3191 Meyers Road
Camino, CA 95709
530-644-7716
California Electric Service
1170-G Burnett Ave.
Concord, CA 94520
925-827-1011
Fax: 925-827-5409
California Electric Service
1208 East Ash Avenue
Fullerton, CA 92631
714-870-0900
J & N Garden Equipment
4460 W. Imperial Hwy.
Inglewood, CA 90304
310-671-0079
Shamay's Enterprises
P.O. Box 3714
58643 Knox-Niman Lane
Landers, CA 92285
760-364-2046
West Coast Contractors Supply
#28 13th Street
San Francisco, CA 94103
415-861-6124
Rincon Valley Yard & Garden
4972 Sonoma Hwy
Santa Rosa, CA 95409
707-593-4124
Power Outdoor Equipment
3160 Industrial Drive
Yuba City, CA 95993
530-671-1871
COLORADO (CO)
Ace Mower and Small Engines
4718 Chromium Drive
Colorado Spring, CO 80918
719-593-0862
Bartell Tool Service
1448 W. Cedar Avenue
Denver, CO 80223
303-777-5463
Metrogas Equipment Company
790 West 64th Ave.
Denver, CO 80221
303-428-3036
Winfrey’s Jones LLP
316 18th Street
Greeley, CO 80631
970-353-9576
AAA Electric Company, Inc.
24 South Main Street
Longmont, CO 80501
330-776-6031
Dales Electric Motor Repair
932 Coffman Street
Longmont, CO 80501
303-651-6907
CONNECTICUT (CT)
Baltimore Electronics
5 Manila Ave.
Hamden, CT 06514
203-248-7553
1-800-397-7553
Utility Electric Service
53 Main Street
Hartford, CT 06106
860-246-7271
Goodies Sales and Service
133 Hamilton Street
New Haven, CT 06515
203-865-1470
R & D Services, LLC
790 South Main Street
Plantsville, CT 06479
860-628-5205
FLORIDA (FL)
301 Mower Shop
5724 15th Street E.
Bradenton, FL 34203
941-758-7844
Eckley’s Small Engine
31617 Spruce Drive
Eustis, FL 32736
352-357-6764
Bay Lawn Mower Repair
824 Ohio Avenue
Lynn Haven, FL 32444
850-265-1100
Fax: 850-265-0740
baylawnmowerrepair.com
Al’s Small Engine, Inc.
2496 Blanding Blvd.
Middleburg, FL 32068
904-282-5472
Tool Doctor
1825 N. Magnolia Ave.
Ocala, FL 34475
352-622-5655
Debary Mower & Repair
1104 Shadick Drive
Orange City, FL 32763
386-775-7505
Fax: 386-775-7758
Lindle & Sons Electric Motor Repair
7016 Hwy. 22
Panama City, FL 32401
850-871-1722
Eustis and Sons, Inc.
7035 66th Street North
Pinellas Park, FL 34665
727-544-1486
A1A Small Engines & Equipment
420 S. Dixie Hwy. E.
Pompano Beach, FL 33060
954-946-5044
Mulvaney’s Inc.
2148 W. Tennessee Street
Tallahassee, FL 32304
850-576-5578
A-1 Tool Rental, Inc.
2509 South State Road 7
West Hollywood, FL 33023
954-961-9250
GEORGIA (GA)
Hamilton Hardware
5300 Veterans Pkwy.
Columbus, GA 31904
706-322-6545
Cowan Ace Hardware
1264 Green Street
Conyers, GA 30207
770-483-8818
Able Tool Rental
3360 Fairburn Road
Douglasville, GA 30135
770-949-1932
Douglasville Ace Hardware
6530 Church Street
Douglasville, GA 30133
770-942-7044
Fayette Mower & Appliance
395 S. Glynn St.
Fayetteville, GA 30215
770-461-9400
S & P Rental & Supply Co.
259 Grayson Hwy
Lawrenceville, GA 30245
770-963-0392
Spray Solutions
476 Flowing Wells Rd. D-1
Martinez, GA 30907
706-855-1293
Tifton Electric Motors
1265 US Hwy. 82E
Tifton, GA 31794
912-382-4040
IDAHO (ID)
Rossiter Electric
1501 S. Capitol Ave.
Idaho Falls, ID 83403
208-529-3665
Steam Store Rocky Mountain, Inc.
155 North Gate Mile
Idaho Falls, ID 83401
208-522-0609
J & J Enterprises
1704 Addison Avenue East
Twin Falls, ID 83301
208-733-2001
ILLINOIS (IL)
Uline Lawn Equipment
290 W. Squk Trail
Chicago Heights, IL 60411
708-755-2227
708-755-1533 (Fax)
Lange Electric
912 E. Fayette
Effingham, IL 62401
217-347-7626
Carter’s Small Engine Repair
206 N. Hickory Street
Galatia, IL 62935
618-268-4814
H & R Pump Company, Inc.
2111 E. Washington Street
Joliet, IL 60434
815-726-2950
INDIANA (IN)
Hutchens Sales and Service
R.R. #5, Box 550
Bloomfield, IN 47424
812-876-1891
21
107990
OWNER’S MANUAL
For more information, visit www.desatech.com
Nichols Ice & Oil
2018 Park Road
Connersville, IN 47331
765-825-3741
B & W Repair Service
213 N. Main Street
Dale, IN 47523
812-937-2576
Industrial Motor & Electrical
Supply, Inc.
64466 State Road 19
Goshen, IN 46526
219-862-4044
Tyrie Mower Repair
110 South 16th Street
Lafayette, IN 47905
765-742-7886
Kabelin True Value Hardware
512 Andrew Avenue
Laporte, IN 46350
219-362-7917
Lear Lawn & Garden
2204 N. Wolfe Street
Muncie, IN 47303
765-282-6273
Li’l Engine Sales & Service, Inc.
1428 Vincennes Street
New Albany, IN 47150
812-944-1377
Portable Heater Parts
342 North County Road, 400 East
Valparaiso, IN 46383
219-462-7441
D W Handy’s
217 West 15th St.
Vincennes, IN 47591
812-886-0172
New Paris Farm Store
68443 W. Main Street
P.O. Box 96
New Paris, IN 46553
219-831-4823
IOWA (IA)
Beal’s Motor Rewinding
600 West Beach
Cherokee, IA 51012
712-225-6173
Blink Electric Motors
Rear 116 N. 1st Ave.
Marshalltown, IA 50158
641-752-3036
Northeast Iowa Motor Service
24665-150th Street
Sumner, IA 50674
563-578-5883
Black Hawk Rental
324 West 15th Street
Waterloo, IA 50702
319-234-4421
KANSAS (KS)
Abilene Rent-All & Sales
1701 West 1st Street
Abilene, KS 67410
785-263-7668
NAAB Electric, Inc.
2013 W. Jones
Garden City, KS 67846
316-276-8101
Morris Electric Repair
2423 5th Street
Great Bend, KS 67530
316-792-2919
McPherson Rental Center
911 West First Street
McPherson, KS 67460
620-241-3333
KENTUCKY (KY)
Gillum’s Service & Repair
8611 Rt. US 60
Ashland, KY 41102
606-928-4932
E-Z Rent It Inc.
1428 U.S. 31-W By-Pass
Bowling Green, KY 42101
270-782-9462
Roman’s Repair Shop
601 College Street
Bowling Green, KY 42101
270-746-0857
Hopkinsville Electric Motor
704 W. 15th Street
Hopkinsville, KY 42240
270-886-7585
Rental World, Inc.
9509 Dixie Hwy.
Louisville, KY 40272
502-935-8853
All States Industrial Repair
728 E. Center Street
Madisonville, KY 42431
270-821-6555
D & C Rental & Sales
84 Keystone Drive
P.O. Box 797
Mayfield, KY 42066
270-247-9000
LOUISIANA (LA)
Triangle Bicycle and Lawnmower
5433 Crowder Road
New Orleans, LA 70127
504-241-3239
Wayne’s Heat & Air
1605 W. Vine Street
Opelousas, LA 70570
337-948-4246
Evans of LA, Inc.
907 Cypress Street
West Monroe, LA 71291
318-322-6180
MAINE (ME)
Richard’s Electric Motor
549 Main Street
Caribou, ME 04736
207-498-8950
Roger’s Electric Motor Shop
823-West Main Street
Madawaska, ME 04756
207-728-4253
Rent-N-Save
28 Allen Avenue
Portland, ME 04103
207-797-2223
MARYLAND (MD)
Center Supply Company
6802 Industrial Drive #208
Beltsville, MD 20705
301-595-0860
Lehmans Hardware, Inc.
5921 Belair Road
Baltimore, MD 21206
410-483-5888
Norris Taylor Contractors, Inc.
8480 Ocean Gateway
Easton, MD 21601
410-822-2050
Lyons & Lyons Sales Co. Inc.
Glen Arm Road
Glen Arm, MD 21057-9454
410-665-6500
1-800-333-5966
lyonsco@erols.com
Chesapeake Rent All
210 N. Stokes Street
Havre De Grace, MD 21078
410-939-1720
B & M Sharpening & Repair
8614 Church Lane
Randalstown, MD 21133
410-655-0801
MASSACHUSETTS (MA)
Ormond’s Inc.
115R Dean Ave.
Franklin, MA 02038
508-528-2013
Beacon Lumber/Beacon Rental
513 Church Street
New Bedford, MA 02745
508-995-1766
Mott’s Tool Repair Service
92 Rayber Road
Orleans, MA 02653
508-240-0764
Utility Electric Service #2
810 Main Street
Springfield, MA 01105
413-781-1635
MICHIGAN (MI)
R & A Service
12900 Haggerty Road
Belleville, MI 48111
734-697-1144
Thompson’s Rental Resale Repair
11973 New Lothrop Road
Byron, MI 48418
810-266-4969
Hendricks Sales
7876 Division
Grand Rapids, MI 49548
616-455-8220
Chicago Drive Rentals, Inc.
11298 Chicago Drive
Holland, MI 49424
616-396-9575
Fowler’s Farm City Sales
2876 West Washington Road
Ithaca, MI 48847
989-875-3976
Superior Industrial Sales & Service
116 N. State Street
Jackson, MI 49201
517-784-0539
Norm’s Electric Motor Repair
414 Walbridge Street
Kalamazoo, MI 49007
616-382-5054
A & J Rentals
550 S. 11th Street
Niles, MI 49120
616-684-3200
Bob’s Service Shop
2537 W. Drahner Road
Oxford, MI 48371
248-628-2601
Bid’s Service, Inc.
11276 E. Ten Mile
Warren, MI 48089
586-759-3040
MINNESOTA (MN)
Perry’s Electrical Rebuilders
24664 Hale Avenue
Forest Lake, MN 55025
651-464-8054
Andy’s Small Engine City
2408 Pearl Ct. SE
Rochester, MN 55904
507-280-0373
Reed’s Sales & Service
1260 Payne Ave.
St. Paul, MN 55101
651-774-9515
MISSISSIPPI (MS)
Handy Man Rentals
1904 Shiloh Road
Corinth, MS 38834
662-287-2460
MISSOURI (MO)
Stewarts Enterprises
7631 NW Salebarn Road
Cameron, MO 64429
816-632-6578
B & J Repair Service
21504 Blue Mills Rd.
Independence, MO 64058
816-796-6476
Northwest Power Sales
26848 Haultain Drive
Maryville, MO 64468
660-582-5080
Buchheit, Inc.
Route 7, Box 239
Perryville, MO 63775
573-547-1017
A K Small Engine Works
15726 Hwy C
Versailles, MO 65084
573-378-6339
MONTANA (MT)
Tom’s Service Repair
1111-6th Avenue North
Billings, MT 59101
406-259-6179
Mosch Electric Motors, Inc.
2513 - 17th St. NE
Black Eagle, MT 59414
406-453-2481
Sun Rental Center
1301 - 3rd St. NW
Great Falls, MT 59404
406-761-6688
NEBRASKA (NE)
Hatten’s Electric Service
130 S. Hastings, Box 843
Hastings, NE 68901
402-463-4596
Craft Specialties
201 Pine St.
Hadder, NE 68738
402-379-3129
Flohr Electric Motor
4356 South 90th Street
Omaha, NE 68127
402-331-6863
MSE Parts Unlimited
4935 South 136th Street
Omaha, NE 68137
402-895-0806
Ted’s Mower Sales and Service, Inc.
5155 Q. Street
Omaha, NE 68117
402-731-7058
LaVern Hass Repair
1204 - 1st Road
Wisner, NE 68791
402-529-6846
NEW HAMPSHIRE (NH)
Kingston Enterprises
85 North Road
Kingston, NH 03848
603-642-3506
NEW JERSEY (NJ)
Associated Industries
2433 Rt. 206
Eastampton, NJ 08060
609-267-8417
Woodchuck’s Lawnmower
and Appliance
220 Whitehorse Pike
Magnolia, NJ 08049
856-783-1111
Tep’s Power Equipment
1002 N. High Street
Millville, NJ 08332
856-825-8294
Richard’s Sharpening Service
824 Mill Road
Northfield, NJ 08225
609-641-9481
Capitol Service & Equipment
551 New Market Road
Piscataway, NJ 08855
732-968-5577
NEW YORK (NY)
Valley Mower Service
2857 Ellis Creek Road
Barton, NY 13734
607-589-4825
White Tool Supply Inc.
3047 Atlantic Avenue
Brooklyn, NY 11208
718-227-8844
Lehman’s Farm & Home Supply
Route 26
Denmark, NY 13631
315-493-1151
M & S Repair Shop
303 Hilltop Drive
Elma, NY 14059
716-652-0311
Luther’s Outdoor Equipment
3676 State Route 5
Frankfort, NY 13340
315-894-4467
Crossbay Appliance Service
158-34 Crossbay Blvd.
Howard Beach, NY 11414
718-843-4422
Provenzano’s
84 E. Main Street
Kings Park, NY 11754
631-269-1080
The Warranty Center
16 Church Street
Kings Park, NY 11754
631-269-9057
Para-Deys Tools
708 Victor Road
Macedon, NY 14502
315-986-2520
Allstar Power Equipment
460 East 3rd Street
Mount Vernon, NY 10553
914-668-6252
P & C
12 East Street
Nunda, NY 14517
716-468-5050
Otega Repair
226 County Hwy 7
Otego, NY 13825
607-988-7859
Owego Agway Coop
38 West Avenue
Owego, NY 13827
607-687-2039
Jack-n-Heater Service
185 Beartown Road
Painted Post, NY 14870
607-962-1239
Larmon Small Engine
16353 Co. Rt. 91
Pierrepont Manor, NY 13674
315-465-6671
R & D Mower & Snowblower
Sales and Service
1632 Empire Blvd.
Webster, NY 14580
716-671-9409
22
107990
ELECTRIC CHAIN SAW
®
For more information, visit www.desatech.com
NORTH CAROLINA (NC)
Leonard Electric Motor Repair, Inc.
531 N. Fayetteville Street
Asheboro, NC 27203
336-625-2375
Martin Equipment Company
4209-B US 70 E.
Goldsboro, NC 27534
919-778-5996
Hickory Home & Garden
336 HWY 321 NW
Hickory, NC 28601
704-327-3719
Biltang USA Interstate Supplies
511 Union West Blvd.
Stallings, NC 28104
704-893-2878
Fax: 704-893-0442
iss-go.com
O’Mary’s Small Engine
220 W. Forlines Road
Winterville, NC 28590
252-355-4597
NORTH DAKOTA (ND)
Fix-It Shop
316 21st Street E.
Dickson, ND 58601
701-225-0766
Ted’s Saw Service
901 South 12th Street
Grand Forks, ND 58201
701-775-7343
Craig’s Small Engine Repair
508 East 2nd Street
Williston, ND 58801
701-774-0798
OHIO (OH)
Carter Electrical Repair
3448 Lunar Road NE
Carrollton, OH 44615
330-627-4061
North East Mower Service
412 East 156th Street
Cleveland, OH 44110
216-531-8197
Lefeld Welding & Steel Supply
600 N. Second Street
Coldwater, OH 45828
419-678-2397
Dayton Hardware & Supply
16-32 N. Irwin Street
Dayton, OH 45404
513-258-3721
1-800-762-3426 Ohio only
Ken’s Repair
3246 S. Sectionline
Delaware, OH 43015
740-369-4798
Anytool & Outdoor Power Equip.
21150 Lorain Road
Fairview Park, OH 44126
440-356-1920
Deep Run Mower Service
58781 Heil Addn. Deep Run
Martins Ferry, OH 43935
740-859-6131
Worcester Sales and Service
34200 Lorian Road
N. Ridgeville, OH 44039
440-327-2196
Leonard Hardware
145 North 15th Street
Sebring, OH 44672
330-938-6329
Sparks Sales & Service
5184 Fletcher Chapel Road
Springfield, OH 45502
937-323-5925
United Rentals of North America
5745 Angola Road
Toledo, OH 43615
419-865-5539
OKLAHOMA (OK)
Kay Electric Company
1101 W. Broadway
P.O. Box 635
Altus, OK 73522
580-482-1757
Sooner Distributors
3021 S. High Street
Oklahoma City, OK 73143
405-634-3391
H. L. Moss
1714 E. 15th Street
Tulsa, OK 74104
918-744-1305
OREGON (OR)
Turner’s Lawnmower and Saw
728 SE Robin Way
Gresham, OR 97080
503-665-5441
Pendleton Grain Growers
200 S. 1st Street
Hermiston, OR 97801
541-567-5591
Appliance Repair Central
3203 NE Sandy Blvd.
Portland, OR 97232
503-234-7339
PENNSYLVANIA (PA)
General Rental & Sales Center
P.O. Box 810
Old Rt 1 & 41
Avondale, PA 19311
610-268-2825
Bud’s Tractor and Mower Sevice
21 Bock Lane
Baden, PA 15005
724-869-7142
Engine Doctors
20 Russell Blvd.
Bradford, PA 16701
814-362-3091
Pro-Fix
136 Narrows Road
Edwardsville, PA 18651
570-288-0476
Four All Seasons
641 N. Mountain Road
Harrisburg, PA 17112
717-545-5114
Carson’s Hardware
637-43 Main Street
Hellertown, PA 18055
610-838-7741
Al Muccioli’s Service
2001 Bedford Street
Suite C
Johnstown, PA 15904
814-266-5734
0Valray Nurseries Inc.
R.D. #8, Box 362
Kittanning, PA 16201
724-548-1579
Hillyard Equipment Service Center
633 Lausch Lane
Lancaster, PA 17601
717-569-5768
Petrosky’s Hardware & Supply Co.
602 Alexandria Street
Latrobe, PA 15650
724-537-3541
Raymond, M. Nolt
290 S. Shirk Road
New Holland, PA 17557
717-354-0198
Snyder Electric Company
1500 Chateau Street
Pittsburgh, PA 15233
412-231-3100
Stamm’s Mower Repair
Rd. 5, Pine Lane Box 150
Selinsgrove, PA 17870
570-743-7651
SOUTH CAROLINA (SC)
Hall’s Small Motor Repair
225 Heathwood Drive
Aiken, SC 29803
803-649-6313
Todd’s Electric Motor Repair
110 Laurel Street
Conway, SC 29526
843-248-2444
Laportes
2444 N. 5th Street
Hartsville, SC 29550
843-857-0222
TENNESSEE (TN)
Vista Small Engine
1510 Vista Lane
Clarksville, TN 37043
931-552-6953
Master Repair Service
239 Elmore Road
Crossville, TN 38555
931-484-2061
The Speciality Shop
2300 East Magnolia Avenue
Knoxville, TN 37917
865-523-6894
Authorized Equipment Service
812 Polk Avenue
Memphis, TN 38126
901-774-0850
Webb’s Appliance Service Center
1519 Church Street
Nashville, TN 37203
615-329-4079
TEXAS (TX)
Brunson Feed Mill
709 Sealy Ave.
Ballinger, TX 76821
915-365-2419
Bud’s LP Gas & Supply
225 Grand
Channelview, TX 77330
713-457-2456
Corpus Christi Power Tool & Rpr.
3701 Agnes
Corpus Christi, TX 78405
361-883-1117
Freel Enterprise
118 Elston
Dallas, TX 75232
214-376-9913
Southwest Electric Service
3008 Canton St.
Dallas, TX 75226
214-742-8211
Powell’s Small Engine Service
5906 Hwy 66
Greenville, TX 75402
903-454-1877
Houston Lawnmower & Saw Works
620-1/2 W. 19th Street
Houston, TX 77008
713-864-9269
Fax: 713-864-9338
Ray DeSpain’s Inc.
P.O. Box 184, Loop 494 North
New Caney, TX 77357
281-689-2121
Service Department
James Lawnmower Sales
5034 Rigsby
San Antonio, TX 78222
210-648-0182
Fax: 210-648-3636
UTAH (UT)
Roosevelt Service Center
P.O. Box 1308
133 South 3rd East
Roosevelt, UT 84066
435-722-2119
Appliance Service Center
1475 S. Main Street
Salt Lake City, UT 84115
801-467-6361
Tooele Valley Sales & Service
398 N. Main Street
Tooele, UT 84074
435-882-8180
Fax: 435-882-8181
VERMONT (VT)
Brown and Roberts
182 Main Street
Brattleboro, VT 05301
802-257-4566
VIRGINIA (VA)
Industrial Hardware
4109 Bainbridge Blvd.
Chesapeake, VA 23324
804-543-2232
Warren E. Smith Shops
406 Cambria Street
Christiansburg, VA 24073
540-382-5501
B & B Appliance & Lawn Equipment
71 Lawson Road SE Suite C
Leesburg, VA 22075
703-777-1093
Roberts Small Engine Repair
1109 Curve Road
Pearisburg, VA 24134
540-921-3255
Outdoor Power Equipment
1136-40 Myrtle Street
Suffolk, VA 23434
757-925-4933
Mills Repair Service
928 Commonwealth Place
Virginia Beach, VA 23464
757-361-9293
WASHINGTON (WA)
Action Small Appliance Service
1500 - 145th Place SE
Bellevue, WA 98007
425-643-9806
TUCO Industrial Products
5223 - 180th SW Suite 4A-1
Lynnwood, WA 98037
425-743-9533
Action Small Appliance
2125 Second Avenue
Seattle, WA 98121
206-448-2020
Lifficks Electric Shop
8239 S. Park Avenue
Tacoma, WA 98408
253-474-7403
WEST VIRGINIA (WV)
Beckley Mower Service
405 Prince Street
Beckley, WV 25802
304-253-5748
Raymond’s Service Center
Route 65
Delbarton, WV 25670
304-475-2855
Town and Country Supply
4117 First Avenue
Nitro, WV 25143
304-755-3520
WISCONSIN (WI)
Smith Petroleum Ltd.
217 N. Walworth
Darien, WI 53114
262-724-3206
Ohnstad Power Equipment
12012 Center Hill Road
Darlington, WI 53530
608-776-3802
Bob’s Engine Shop
513 S. Military Road
Fond Du Lac, WI 54935
920-921-2841
Reliance Electric Motors
1621 Livingstone Road
Hudson, WI 54016
715-386-3633
Kewaunee Small Engine
E2068 State Hwy 29
Kewaunee, WI 54216
920-388-2604
Ken’s Economy Sales
8887 Highway A
Marshfield, WI 54449
715-676-2143
Cliff’s Tractor Place
Hwy 35-133
P.O. Box 76
Patch Grove, WI 53817
608-994-2354
Barton Small Engine
1628 N. Main Street
West Bend, WI 53090
262-334-5373
23
107990
OWNER’S MANUAL
For more information, visit www.desatech.com
REPLACEMENT
PARTS AND
ACCESSORIES
WARNING: Use only replacement parts and accessories described in
this manual. Use of other parts or accessories could damage saw or
injure operator.
Purchase these accessories and parts from
your nearest dealer or service center. If they
can not supply these accessories or parts,
either contact your nearest Parts Dealer or
DESA Specialty Products™ for referral infor-
mation. Parts dealers are listed in this manual.
# Must order both pieces.
LNT-2
Part Number Description
104302-01S#Guide bar, 8"
104301S#Chain, 8"
097567-01S Guide bar, 10"
091371S Chain, 10"
097568-02S Guide bar, 12"
091373-02S Chain, 12"
107713-01 Drive sprocket
099178H, 100089-06, 100089-07,
100089-08, & EL-1
Part Number Description
097570-01S Guide bar, 14"
091374-02S Chain, 14"
107713-01 Drive sprocket
EL-7, 098031J, 099039J, 100089-04,
100089-05
Part Number Description
097572-03S Guide bar, 16"
091375-02S Chain, 16"
107713-01 Drive sprocket
POLE SAW, 104316-04 (8")
POLE SAW ASSEMBLY, 104317
Part Number Description
104302-01S Guidebar, 8"
104301S Chain, 8"
107713-01 Drive Sprocket
POLE SAW, 106890-01 (10")
POLE SAW ASSEMBLY, 106821
Part Number Description
097567-01S Guidebar, 10"
091371S Chain, 10"
107713-01 Drive Sprocket
General
Part Number Description
079963-02 Plastic scabbard, 8" & 10"
079963-04 Plastic scabbard,
12", 14", & 16"
106809-01 Hand Guard
077155 Adjusting Plate Assy.
DESA Specialty Products™
P.O. Box 90004
Bowling Green, KY 42102-9004
1-800-858-8501
You can also visit our technical service web
site at www.desatech.com.
107990-01
Rev. G
03/04
P.O. Box 90004
Bowling Green, KY 42102-9004
www.desatech.com
ELECTRIC CHAIN SAW LIMITED WARRANTY
Always specify model and serial numbers when writing the factory.
We reserve the right to amend these specifications at any time without notice. The only warranty applicable is our standard written warranty. We
make no other warranty, expressed or implied.
DESA Specialty Products™ warrants this electric chain saw and any parts thereof, to be free from defects in material and workmanship for one
year (90 days for reconditioned unit) from the date of first purchase from an authorized dealer, provided that the product has been properly
maintained and operated in accordance with all applicable instructions. The bill of sales or proof of purchase must be presented at the time a claim
is made under this warranty.
This warranty is extended only to the original retail purchaser. This warranty covers only the parts and labor required to restore this chain saw
to its proper operating condition. Warranty parts must be obtained through factory authorized dealers and service centers for this product. These
dealers and service centers will provide original factory replacement parts. Failure to use original factory replacement parts voids this warranty.
This warranty does not cover commercial, industrial, or rental usage, nor does it apply to parts that are not in original condition because of normal
wear and tear, or parts that fail or become damaged as a result of misuse, accident, lack of proper maintenance, tampering, or alteration. Travel,
handling, transportation, and incidental costs associated with warranty repairs are not reimbursable under this warranty and are the responsibility
of the owner.
To the full extent allowed by the law of the jurisdiction that governs the sale of the product, this express warranty excludes any and all other
expressed warranties and limits the duration of any and all implied warranties, including warranties of merchantability and fitness for a particular
purpose to one year form the date of first purchase, and DESA Specialty Products’™ liability is hereby limited to the purchase price of the product
and DESA Specialty Products™ shall not be liable for any other damages whatsoever including indirect, incidental, or consequential damages.
Some states do not allow limitation of how long an implied warranty lasts or an exclusion or limitation of incidental or consequential damages,
so the above limitation of damages may not apply to you.
This warranty provides the original purchaser with specific rights. For information regarding those rights, please consult the applicable state laws.
Model ______________
Date Purchased ______________
REPAIR SERVICE
Note:
Only use original replacement parts.
This will protect your warranty coverage for
parts replaced under warranty.
Each authorized service center is indepen-
dently owned and operated. For additional
service center or warranty information, call
1-800-858-8501 or visit our technical ser-
vice web site at www.desatech.com.
WARRANTY SERVICE
If saw requires warranty service, return it to
nearest authorized service center. You must
show proof of purchase. If faulty materials
or workmanship caused damage, we will
repair or replace saw without charge.
NON-WARRANTY SERVICE
If saw requires service, return it to nearest
authorized service center. Repairs will be
billed to you at regular repair list prices.
Note:
Normal wear, misuse, abuse, neglect,
or accidental damage is not covered under
warranty.
