Cellular Gateway Installation
1. Using a Torx T10 driver, remove the four 3/8” #4
screws into the corners of the enclosure top that
fasten it to the enclosure base.
2. Connect the battery.
3. Reinstall the four 3/8” #4 screws into the corners of
the enclosure top that fasten it to the enclosure
base. The screws must be tightened to a torque of
8.2 +/-0.5 kgf-cm to ensure that the IP68 rating is
maintained.
4. Attach the enclosure to a surface. The best RF
performance is obtained by mounting the Gateway
to a vertical service.
5. Insert the external power plug into the jack and
tighten the locking ring. Failure to properly tighten
the locking ring will invalidate the IP68 rating of the
Gateway.
3
WiFi Gateway Installation
1. Using a Torx T10 driver, remove the four 3/8” #4
screws into the corners of the enclosure top that
fasten it to the enclosure base.
2. Connect the battery.
3. Press the button on the Gateway, the green LED will
illuminate.

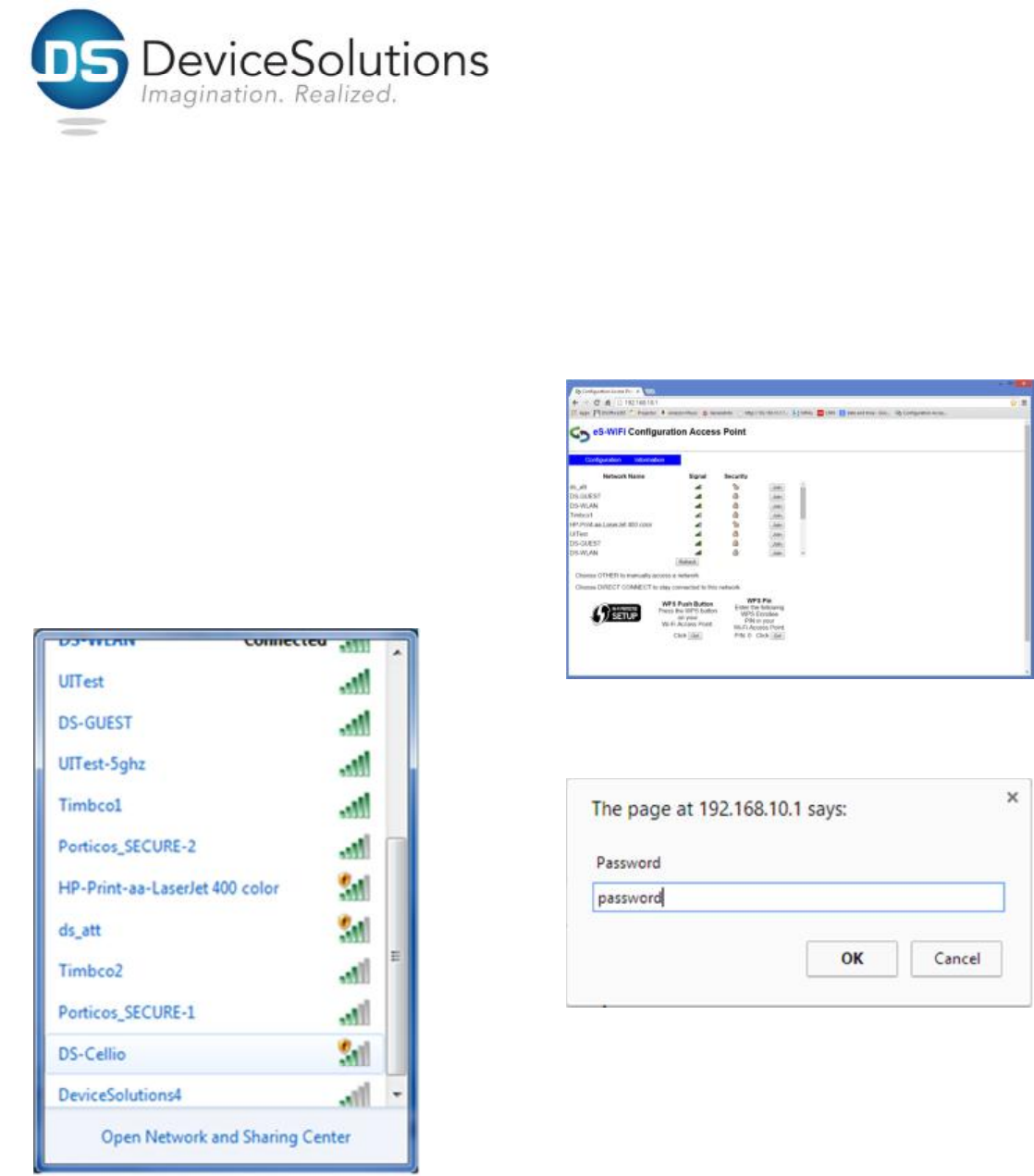

4. The Gateway has become a WiFi Access Point. Using
a laptop or similar device connect to the “DS-Cellio”
network. This is an unsecured connection and does
not require a password.
5. Browse to 192.168.10.1.
6. Locate the desired system and press the Join
button.
7. If required, enter the password for the WiFi Access
Point
8. Reinstall the four 3/8” #4 screws into the corners of
the enclosure top that fasten it to the enclosure
base. The screws must be tightened to a torque of
8.2 +/-0.5 kgf-cm to ensure that the IP68 rating is
maintained.
9. Attach the enclosure to a surface. The best RF
performance is obtained by mounting the Gateway
to a vertical service.
10. Insert the external power plug into the jack and
tighten the locking ring. Failure to properly tighten the locking ring will invalidate the IP68 rating of the
Gateway.
4
Sensor Installation
1. Use a Torx T10 driver to remove the screws that
hold the top of the Sensor's enclosure to the
baseplate.
2. Verify the signal strength at the Sensor. Note: This
signal strength monitoring process may only be
executed on one Sensor at a time.
a. Open the Gateway by using a Torx T10 bit to
remove the four screws which hold the enclosure
top to the base plate.
b. Press the button on the Gateway to enter "Range
Check Mode".
c. Wait for the internal green LED to illuminate.
d. Place the Sensor within 50 feet line of sight of the
Gateway
e. Reboot the Sensor by removing and re-installing
the 9 volt battery
f. Wait for the Sensor's internal LED to illuminate
(up to 10 seconds)
g. The color of the LED indicates the following (red –
poor signal quality, yellow – marginal signal
quality, green – good signal quality)
h. Move the Gateway and/or Sensor until the Sensor
displays a good signal condition for at least 5
consecutive seconds.
i. Repeat c through g for each sensor.
j. Disable "Range Check Mode" for the Gateway by
pressing the button on the Gateway again (if this
step is forgotten the Gateway will exit Range
Check Mode in one hour)
k. Turn off each Sensor by removing the 9 volt
battery (if this step is forgotten the sensor will
exit install mode in five minutes)
3. Strip the insulation from the end of transducer
wires.
4. Tin the ends of the transducer cable with a
soldering iron.
5. Trim the transducer wire such that only 0.25 inches
remains uninsulated.
6. Inspect the transducer cable for loose solder and
wire strands. Repeat steps 3 through 6 if found.
Loose solder or wire strands can cause permanent
damage to the Sensor and/or transducer.
7. Remove the battery from the Sensor. Performing
the following steps with the battery installed can
lead to permanent damage of the device.

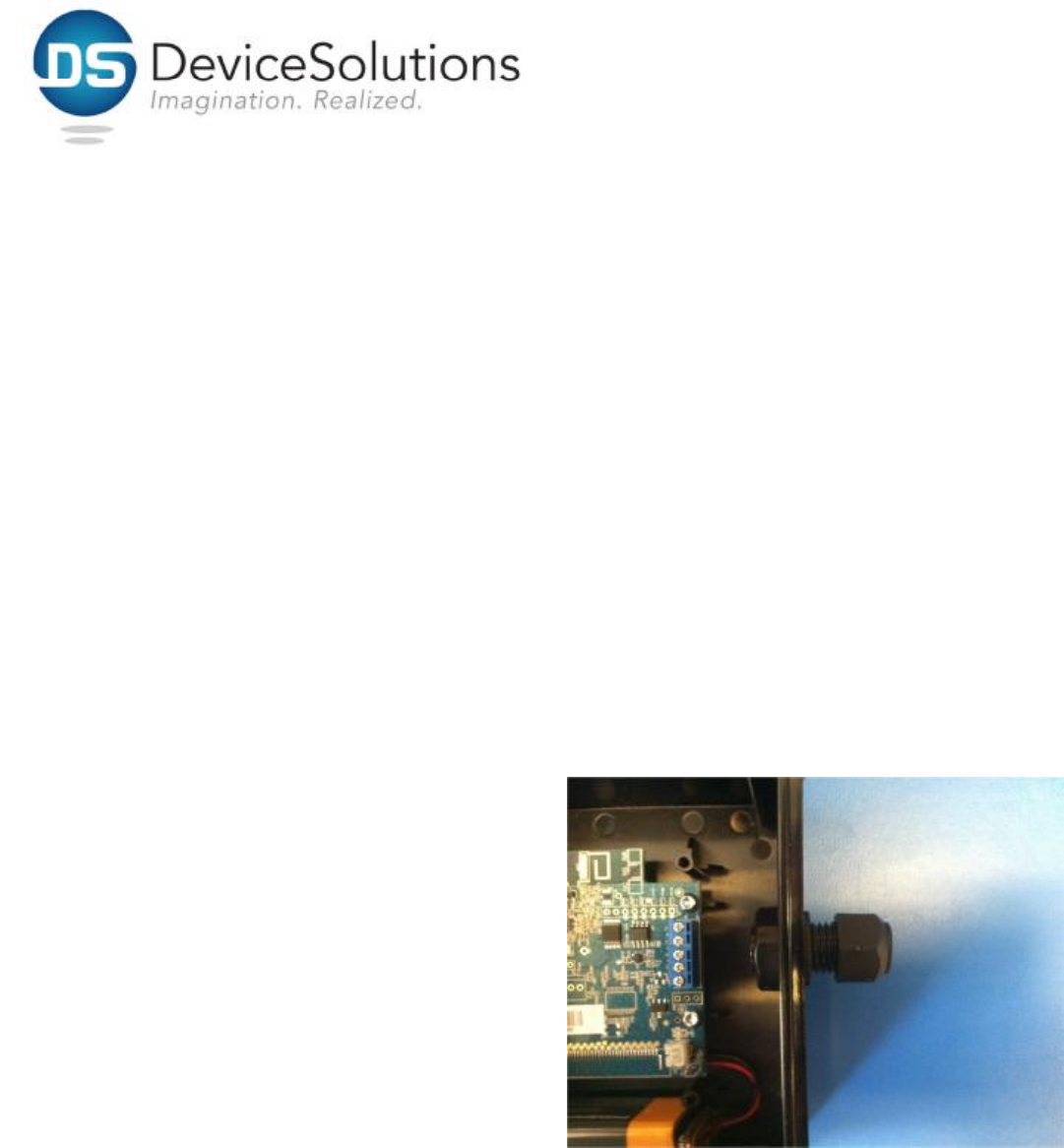

8. Loosen the nut from the outside of the cable
restraint shown above.

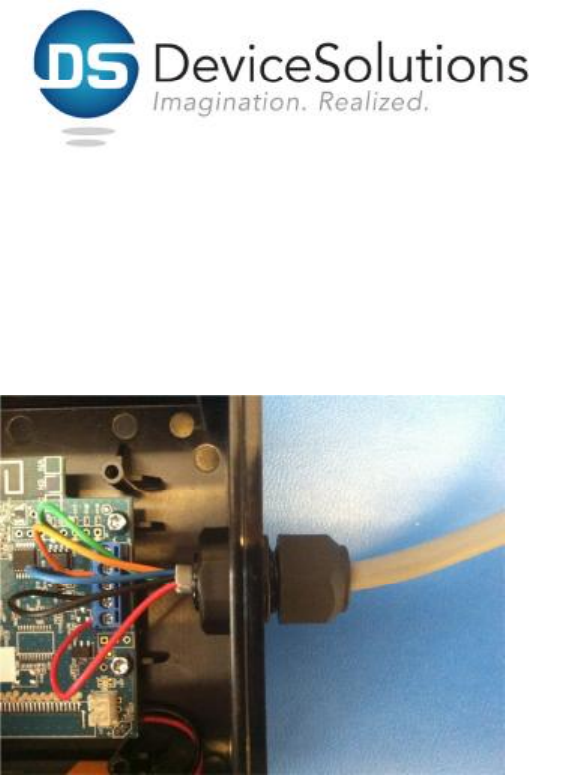

9. Pass the transducer wires through the cable
restraint.
10. Tighten the cable restraint nut to the cable
restraint. Note: The transducer cable must be
between 2.9 and 6.4 mm in diameter and must be
tighten to a torque of 25-30 inch lbs to avoid water
infiltration.
11. Attach the transducer wires to the terminal blocks.
This connection depends on the type of transducer
used.
12. Install the 9 volt battery in the sensor
13. Re-install the screws that hold the top of the
enclosure to the baseplate.
14. Attach the enclosure to a surface. The best RF
performance is obtained by mounting the Sensor
vertically.
