DewertOkin GmbH CU155 CONTROL BOX

User Manual

Kurzanleitung / Quick guide
CU155+ / CU165 / RF-TOUCH
11.04.2018 89905 1.0 1 / 2
RF-TOUCH/App anlernen: Zur Inbetriebnahme des RF-TOUCH oder eines Bluetooth® Gerät muss die Funkkommunikation mit der CU155+ / CU165 aufgebaut werden. Für das Verfahren Ihres
Systems mit einem Bluetooth® Gerät (z.B. Smartphone / Tablet), laden Sie die „OKIN“ App von der entsprechenden Plattform herunter und installieren diese auf Ihrem Gerät.
Achtung! Nehmen Sie immer nur ein System, nie mehrere Systeme gleichzeitig in Betrieb.
Auf Werkseinstellung zurücksetzen
Betätigen Sie 4x kurz hintereinander die Pairing-Taste (a). Die LED schaltet sich ein.
Betätigen Sie jetzt 1x die Pairing-Taste (a). Die LED erlischt.
Der RF-TOUCH ist deaktiviert.
Das Bluetooth® Gerät muss separat in den Bluetooth® Einstellungen (Tablet / Smartphone) aus der Liste der gepairten Geräte entfernt werden.
Initialisierung RF-Touch
Bei der Inbetriebnahme, sowie bei jedem Batteriewechsel sollte die Touchfläche (Fläche mit der Symbolik) des RF-TOUCH nicht berührt werden.
RF-TOUCH automatisch anlernen
Verbinden Sie die CU155+ / CU165 mit der Spannungs-
versorgung.
Die CU155+ / CU165 befindet sich für 120 sec im Pairing
Modus, der teilt sich wie folgt auf: In den ersten 60 sec kann
ein RF-TOUCH angelernt werden, in den zweiten 60 sec ein
Bluetooth® Gerät.
Während des Anlernens vom RF-TOUCH leuchtet die blaue
LED. Betätigen und halten Sie die Taste (P) im Batteriefach
des RF-TOUCH. Halten sie die Taste gedrückt, bis die LED
blinkt, die Pairing Phase ist beendet.
Die blaue LED zum Anlernen eines Bluetooth® Gerätes
beginnt zu blinken.
Ist das Anlernen für Bluetooth® Geräte abgelaufen oder ein
Gerät verbunden, erlischt die blaue LED.
Drücken Sie während der Anlernphase des RF-TOUCH an
einem bereits angemeldeten RF-TOUCH eine beliebige
Taste, wird auf den Bluetooth® Anlernmodus gewechselt.
Sind der RF-TOUCH bzw. ein Bluetooth® Gerät innerhalb
der Pairing Phase angelernt, wird der Pairing Modus
automatisch beendet. Die blaue LED wird ausgeschaltet.
Wiederholung vom automatischen Anlernen: Zuerst ziehen
Sie den Stecker von der Spannungsversorgung, warten Sie
60sec, und stecken Sie anschließend den Stecker wieder in
die Spannungsversorgung. Sie können jetzt mit dem neuen
Anlernvorgang beginnen.
RF-TOUCH anlernen
Das System muss an die Spannungsversorgung ange-
schlossen sein.
Betätigen Sie 2x kurz hintereinander die Pairing-Taste (a)
an der CU155+ / CU165, die LED leuchtet blau. Die
CU155+ / CU165 befindet sich für 120 sec im Pairing
Modus, der teilt sich wie folgt auf: In den ersten 60 sec
kann ein RF-TOUCH angelernt werden, in den zweiten 60
sec ein Bluetooth® Gerät.
Während des Anlernens vom RF-TOUCH leuchtet die
blaue LED. Betätigen und halten Sie die Taste (P) im
Batterie-fach des RF-TOUCH. Halten sie die Taste
gedrückt, bis die LED blinkt, die Pairing Phase ist beendet.
Die blaue LED zum Anlernen eines Bluetooth® Gerätes
beginnt zu blinken.
Ist das Anlernen für Bluetooth® Geräte abgelaufen oder
ein Gerät verbunden, erlischt die blaue LED.
Drücken Sie während der Anlernphase des RF-TOUCH
an einem bereits angemeldeten RF-TOUCH eine
beliebige Taste, wird auf den Bluetooth® Anlernmodus
gewechselt.
Sind der RF-TOUCH bzw. ein Bluetooth® Gerät innerhalb
der Pairing Phase angelernt, wird der Pairing Modus
automatisch beendet. Die blaue LED wird ausgeschaltet.

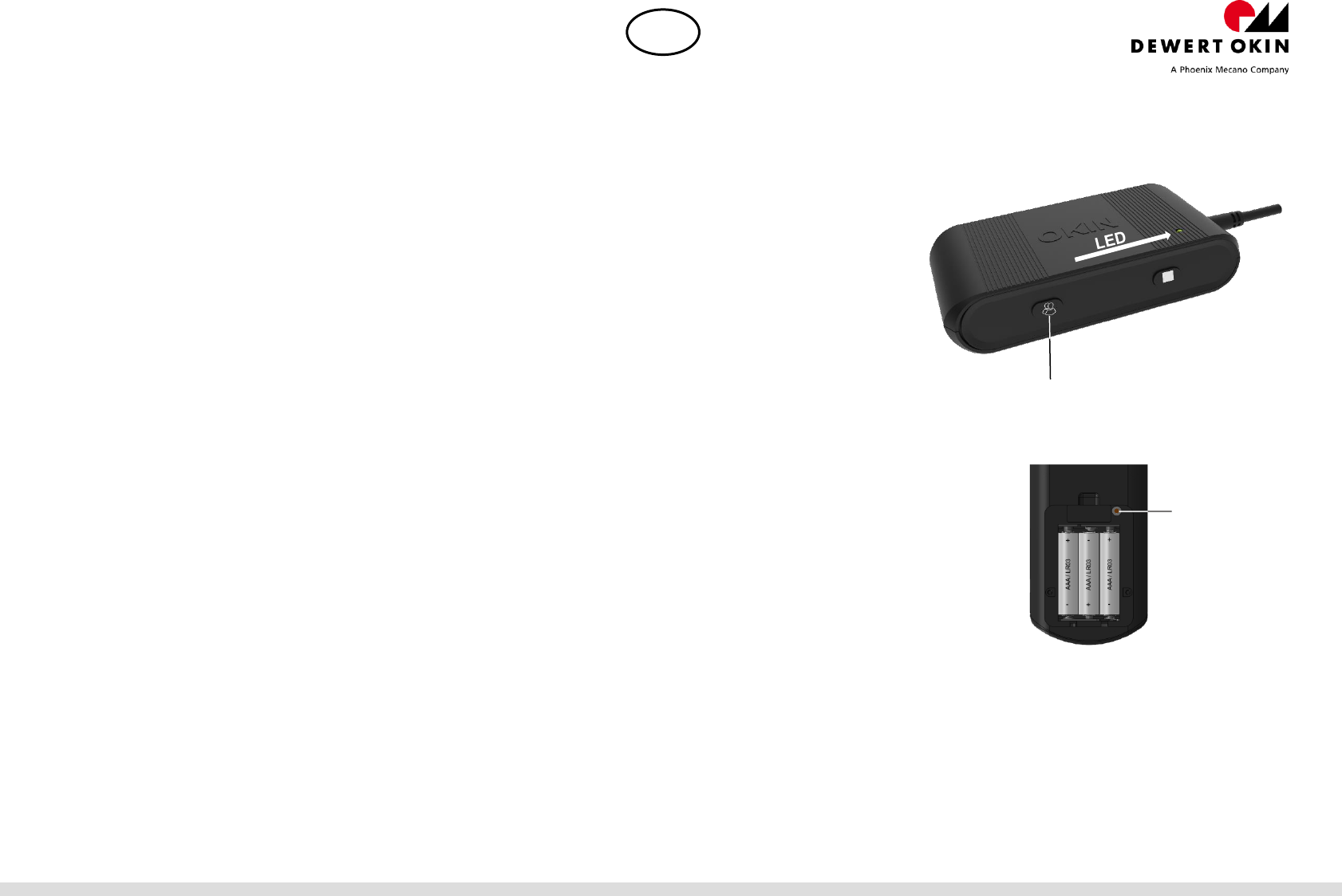

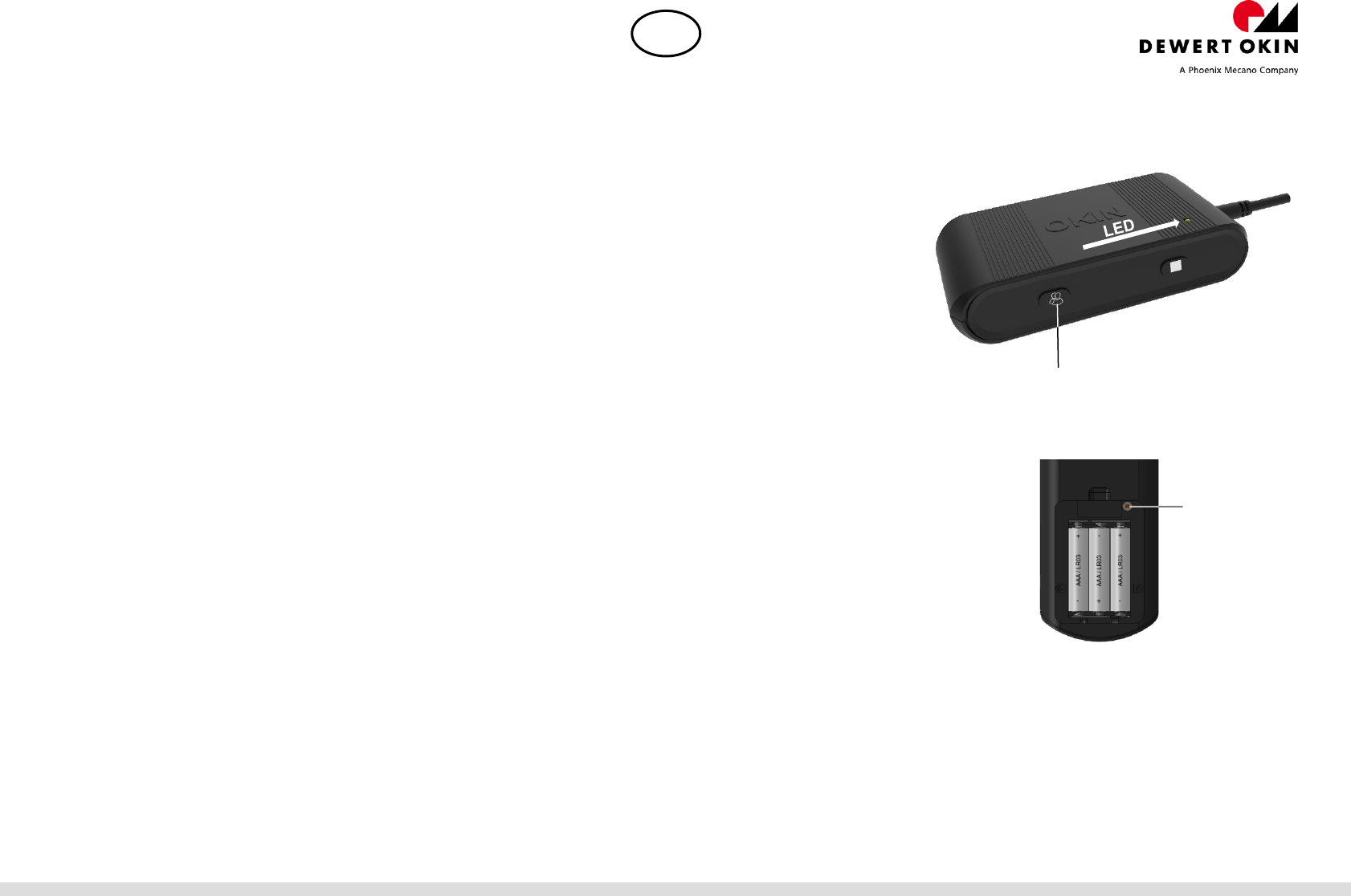

CU155+ / CU165
RF-TOUCH
D
P
a
Kurzanleitung / Quick guide
CU155+ / CU165 / RF-TOUCH
11.04.2018 89905 1.0 2 / 2
Teach-in for the RF-TOUCH or app: To start using the RF-TOUCH or a Bluetooth® device, the wireless link with the CU155+ / CU165 must first be established. In order to use a Bluetooth®
device (a tablet or smart phone) with your system, you will first need to download and install the "OKIN" app for your device.
Automatic teach-in the RF-TOUCH
Connect the CU155+ / CU165 to the power supply.
The CU155+ / CU165 is now in pairing mode for 120 sec,
which is divided as follows: During the first 60 sec, an RF-
TOUCH can be discovered (the teach-in). During the next 60
sec, a Bluetooth® device can be discovered.
The blue LED is illuminated during this teach-in phase for the
RF-TOUCH. Press and hold the button (P) (located in the
battery compartment of the RF-TOUCH). If the LED is blinking,
the pairing phase is finished.
The blue LED for pairing with a Bluetooth® device starts
flashing.
The blue LED switches off when the Bluetooth® pairing
process has timed out or when the device has connected
successfully.
If, during the RF-TOUCH teach-in process, you press any
button on an already paired RF-TOUCH, then it switches to the
Bluetooth® teach-in mode.
If the RF-TOUCH or a Bluetooth® device is discovered during
the pairing phase, then this pairing mode is automatically
ended. The blue LED switch off.
Repeat the automatic teach-in process. First, remove the plug
from the power supply. Then wait 60sec and insert the plug
back into the power supply. You can now start the new teach-
in process.
Teach-in the RF-TOUCH
The system must be connected to the power supply.
Quickly press the Pairing button (a) twice on the
CU155+ / CU165, the LED will illuminate blue. The
CU155+ / CU165 is now in pairing mode for 120 sec,
which is divided as follows: During the first 60 sec, an RF-
TOUCH can be discovered (the teach-in). During the next
60 sec, a Bluetooth® device can be discovered.
The blue LED is illuminated during this teach-in phase for
the RF-TOUCH. Press and hold the button (P) (located
in the battery compartment of the RF-TOUCH). If the LED
is blinking, the pairing phase is finished.
The blue LED for pairing with a Bluetooth® device starts
flashing.
The blue LED switches off when the Bluetooth® pairing
process has timed out or when the device has connected
successfully.
If, during the RF-TOUCH teach-in process, you press any
button on an already paired RF-TOUCH, then it switches
to the Bluetooth® teach-in mode.
If the RF-TOUCH or a Bluetooth® device is discovered
during the pairing phase, then this pairing mode is
automatically ended. The blue LED switch off.
CU155+ / CU165
RF-TOUCH
Note! Only commission one system at a time. Never configure multiple systems simultaneously.
Reset to factory default
Give the Pairing button (a) 4x short press in succession. The LED lights on.
Now actuate the Pairing button (a) one times. The LED lighting extinguishes.
The RF-TOUCH is deactivated.
Remove the Bluetooth® device separately from the list of paired devices in the Bluetooth® settings (Tablet / Smartphone).
Initialization of the RF-Touch
Do not touch the touch surface (surface with the icons) of the RF-TOUCH while the unit is being commissioned or while the batteries are being changed.
GB
P
a
11.01.2018 89316 1.0 5 / 5
FCC WARNING
This device complies Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference
that may cause undesired operation.
Section 15.21 Information to user
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
IC Compliance Notice
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that my
cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables
aux appareils radio exempts de licence. Lexploitation est autorisée aux
deux conditions suivantes:
(1) l’appareil ne diot pas produire de brouillage, et
(2) l’utilisateur de lappareil diot accepter tout bouillage radioélectrique subi,
méme si le brouillage est susceptible d’en compromettre le
fonctionnement.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
Le dispositif a été concu pour rencontrer le général RF.
Le dispositif peut être utilisé dans les conditions de détention.
