RF075E Functional Specification
Introduction
In order to make the hospital bed up / down ,we need to control the
two motors forward / reverse by turning on / off the corresponding
relays.
Product ID
Pic 1. Transmitter’s ID
Product Specification
List 1. Transmitter’s parameter
modulation GFSK
Frequency Range 2.4~2.4835GHz
Transmitted Power 0 dBm
Battery 2 AAA Battery,3V
Working Current <15mA
Standby Current <5uA
Ambient Temperature -40—85℃
RC Dimension 128*40*17mm
PCB Material & Size FR4 1.0mm 55*38.3mm
Housing Material ABS+PC

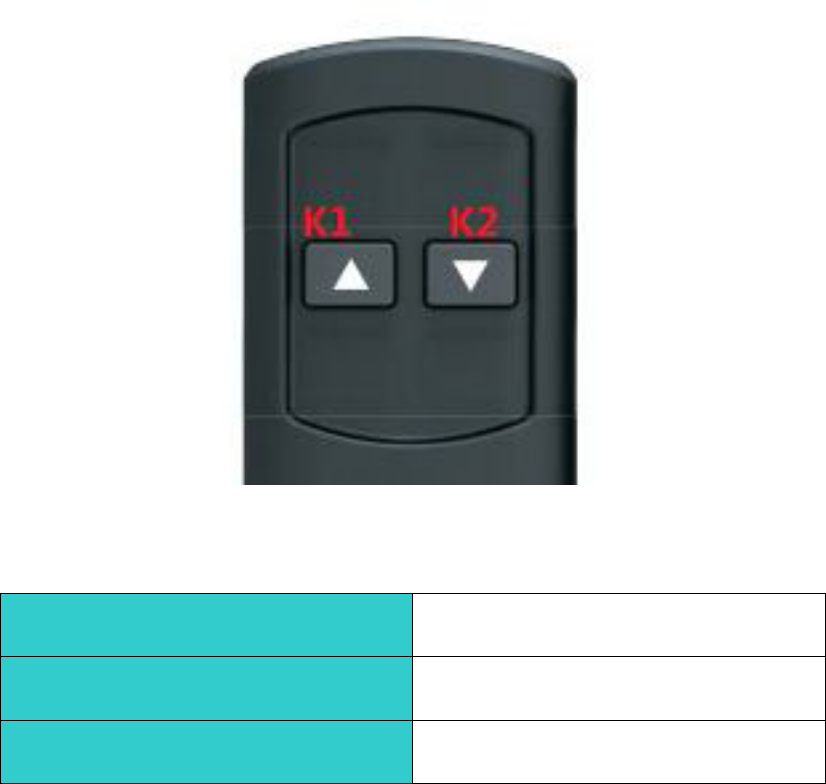

The keys definition:
1. Transmitter:
Definition Function
KEY_1 If pressed , Relay_1 on
KEY_2 If pressed , Relay_2 on
Functional Description
Pairing method：
1. Press the pairing button of the receiver and the LED is on, then
you have 10s to make the remote to pair with the receiver.
2. The distance between the transmitter and the receiver should be
less than 2 meters when we do the pairing action. press the
KEY_1 and KEY_2 of the transmitter simultaneously till the
LED blinks ,then the pairing operation is successful . if we can't
see the LED blinking till it is off ,the pairing is fail.
3. if the transmitter and receiver need to pair again ,repeat the
step 1 and step 2.
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
-Consult the dealer or an experienced radio/TV technician for help.
NOTE 2: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
CE Notes:
Manufacturer: DewertOkin GmbH
Address: Weststr. 1, 32278 Kirchlengern, Germany
declare that this RF075E are in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC. A copy of the DoC may be obtained through the address
above.
