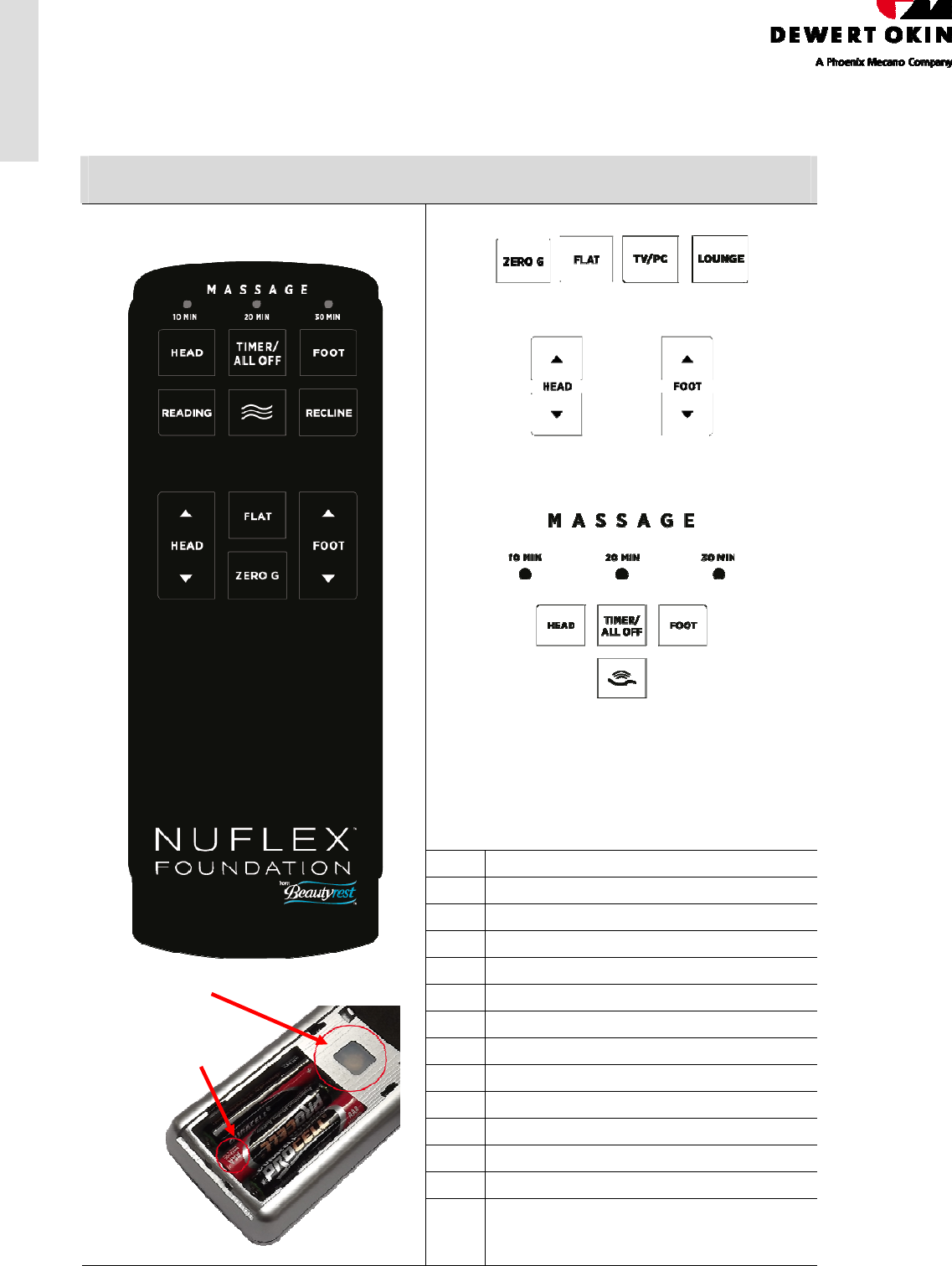

2.3 Remote handset 75019
Keys for fixed positions
Choose between comfortable positions
Manual adjustment keys
Move head & foot rest up and down manually
Massage keys
X With the timer key you program
duration and stop the massage function.
X The LEDs signal the programmed
duration, the key below starts the
massage. With the Head & Foot keys
you can select the massage zones.
Key Function
1 Massage Head ON
2 Adjust Massage timer
3 Massage Foot ON
4 Move bed in TV position
5 Start both Massage (Head and Foot)
6 Move bed in Lounge position
7 Relay 1 on
8 Move bed in Flat position
9 Relay 3 on
10 Relay 2 on
11 Move bed in Zero G position
12 Relay 4 on
Frontside
1 2 3
4 5 6
7 8 9
10 11 12
Pairing button
& battery box
(flipside)
Insert 3x AAA 13
13 Pairing
October 31, 2012 Page 8 of 9
Performance data remote
(RF transmitter)
Modulation GFSK
Frequency Range 2.400~2.4835GHz
Transmitted Power 0 dBm
Battery AAA
Working Current <40mA
Standby Current <8uA
Ambient Temperature
-40—85Ԩ
RC Dimension 145*50*14mm
PCB Material & Size FR4 1.6mm 79*42mm
Housing Material ABS+PC
FCC WARNING
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE 1: Any changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
