DewertOkin RFA1125 RF-TOPLINE User Manual 1

DewertOkin GmbH RF-TOPLINE 1

User Manual

System Quick Guide
11.01.2018 89316 1.0 1 / 5
System overview: CU165 / BETADRIVE BZ / PD21 / RF-TOPLINE
CAUTION! Electrical components should be connected or disconnected only when the power supply cord is unplugged.
CAUTION! There is a delay after the supply voltage is applied before the device actually turns on. Wait at least two seconds before beginning the commissioning.

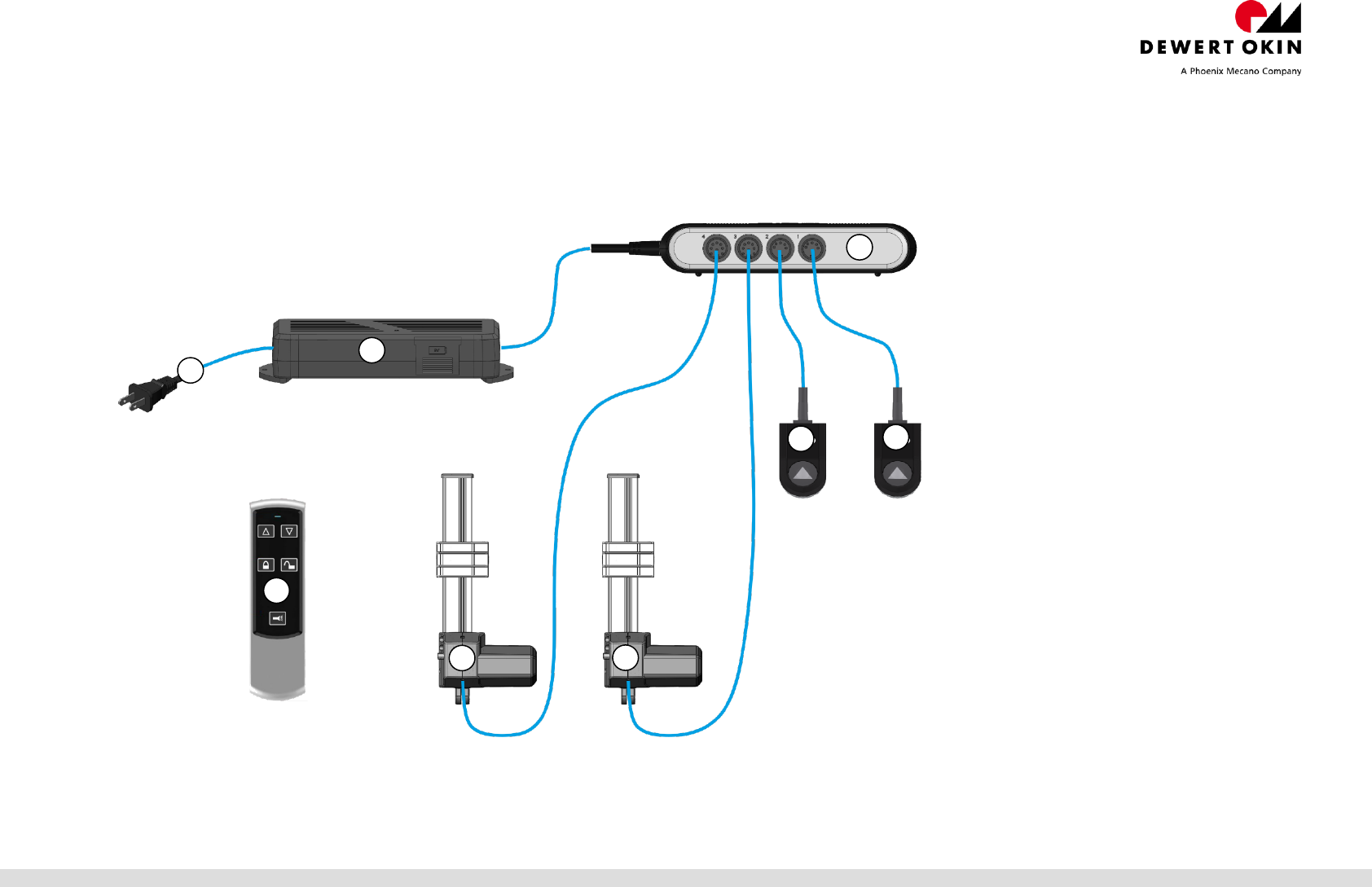

Components that can be connected:
1. CU165
2. BETADRIVE BZ
3. MOTION ASSIST
4. POWER SUPPLY PD21
5. Mains power cord: US Version
6. RF-TOPLINE
1
5
2
3
6
4
2
3
Product Name:RF-TOPLINE
Model Name:A1125
Manufacture:DewertOkin GmbH
System Quick Guide
11.01.2018 89316 1.0 2 / 5
CU165

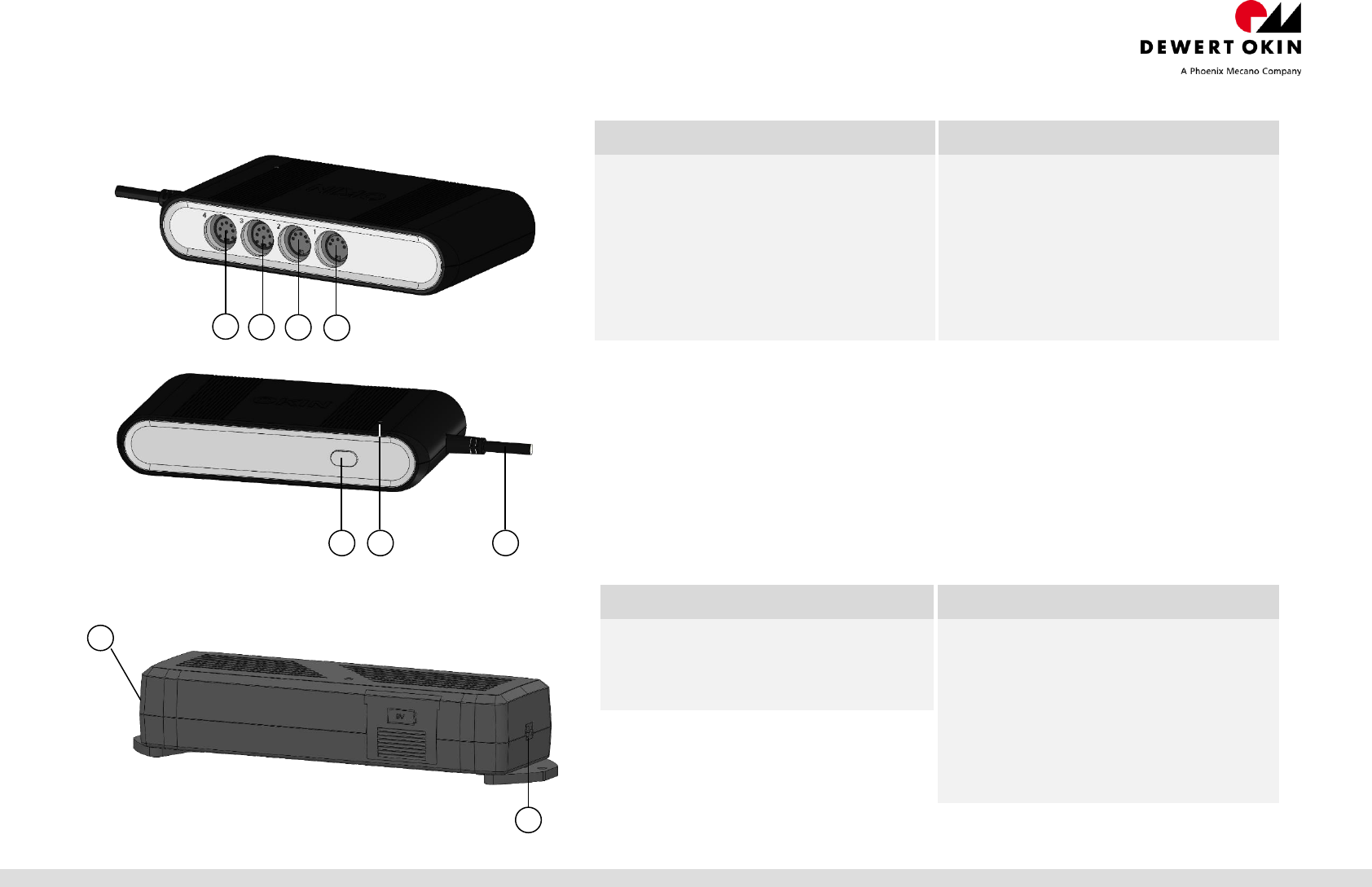

Connection ports and functions
Technical specifications
1. Connection for MOTION ASSIST (M1)
2. Connection for MOTION ASSIST (M2)
3. Connection for M1 (BETADRIVE BZ)
4. Connection for M2 (BETADRIVE BZ)
5. Pairing button
6. Pairing LED
7. Connection to (POWER SUPPLY PD21)
Input voltage 29 V DC
Current consumption max. 4.00 A
Mode of operation
Protection class III
Protection degree IP20
Length x width x height 165 x 86 x 32 mm
Connection ports and functions
Technical specifications
Input voltage 100 - 240 V AC
Frequency 50/60 Hz
Output voltage 29 V DC
Standby ≤ 0,5 W
Protection class II
Protection degree IP20
Length x width x height 215 x 61 x 43 mm
Duty cycle
2 min / 18 min.
5 7 6
4 3 2 1
8
9
System Quick Guide
11.01.2018 89316 1.0 3 / 5

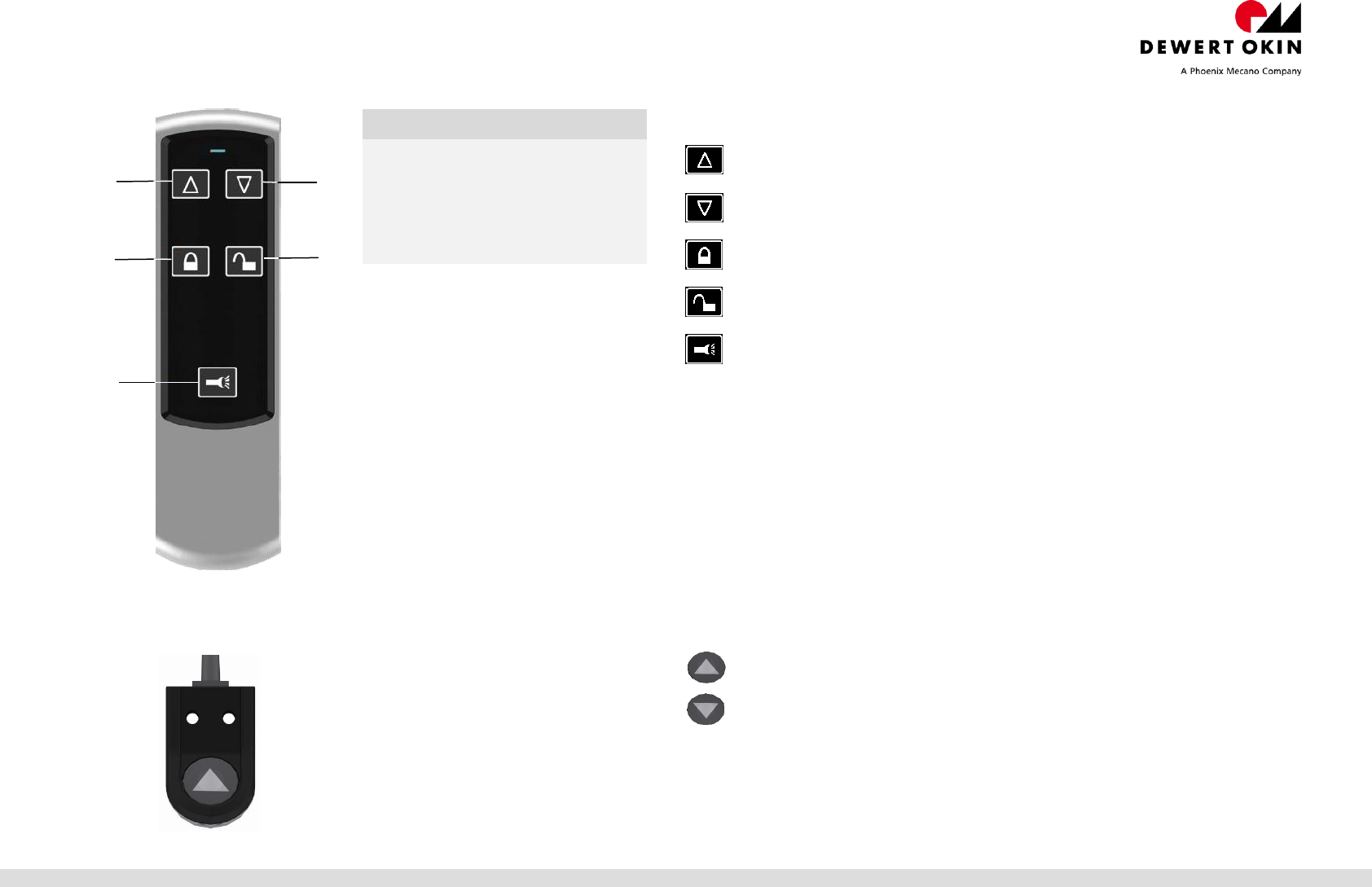

RF-TOPLINE Description of button
Button Function
Note: By pressing the buttons, the lights lit.
Drives up: By pressing the button, all drives automatically move to the
upper end position.
Drives down: By pressing the button, all drives automatically move to the
lower end position.
Button locked: By pressing the button, all MOTION ASSIST handsets are
locked.
Button unlocked: By pressing the button, all MOTION ASSIST handsets
are unlocked.
Flashlight on/off: The flashlight is on as long as this button is pressed.
Note: By pressing a button on the RF-TOPLINE during the automatic movement,
all drives stops.
1 Drives up
2 Drives down
3 MOTION ASSSIT locked
4 MOTION ASSSIT unlocked
5 Flashlight on/off
MOTION ASSIST Description of button
Drive up: The drive move as long as this button is pressed.
Drive down: The drive move as long as this button is pressed.
Note: By pressing a button on the MOTION ASSIST during the automatic
movement, the associated drive stops.
1
3
5
2
4
System Quick Guide
11.01.2018 89316 1.0 4 / 5
RF-TOPLINE
Danger of pinching/crushing injuries!
There is a danger of being crushed when the position is changed. This is
particularly true when there is no mechanism guarding against crushing
injuries. However, crushing injuries may even occur in exceptional cases
when a safety guard is installed. Make sure that there are no persons within
the danger zone and that nobody reaches into the danger zone.
Safety notices
The CU165 system can be used by children of 8 years and older, persons
with reduced physical, sensory or mental capabilities, or persons with lack of
experience or knowledge when they are supervised or instructed concerning
the safe use of the device and when they understand the resulting risks. Do
not allow children to play with this device. The cleaning and user
maintenance must not be carried out by children without supervision.
It may only be used for applications where unintended motion cannot lead to
damage.
It may only be used in dry rooms.
Teach in for the RF-TOPLINE
Connect the CU165 system to the power supply.
Remove the batteries from the battery compartment of the RF-TOPLINE.
Select the positions (2 to 8) of the DIP switches (a).
Note: The DIP switch at position 1 is not relevant for the setting.
Insert the batteries back to the RF-TOPLINE, the radio transmission
channel is adjusted.
Quickly press the Pairing button twice on the CU165 (button 5), the
pairing LED will illuminate. The CU165 is now in pairing mode for 60
seconds.
Press the pairing button (b) in the battery compartment of the RF-
TOPLINE.
The LED on the CU165 will switch off after the teach-in process is
finished. The system is ready for operation.
CAUTION
The user has to make sure that there are no persons within the danger zone
and has to make sure that this does not happen.
a
b
CU165 System Quick Guide
11.01.2018 89316 1.0 5 / 5
