Dexcom 9402 Glucose Monitoring System User Manual

Dexcom, Inc. Glucose Monitoring System Users Manual

Users Manual


STSTM -7 Sensor & STSTM Applicator
STSTM -7 Sensor & STSTM T2 Transmitter
STSTM R2 Receiver
www.DexCom.com







*MAKE SURE YOUR STS R2
RECEIVER IS CHARGED BEFORE
YOU BEGIN.



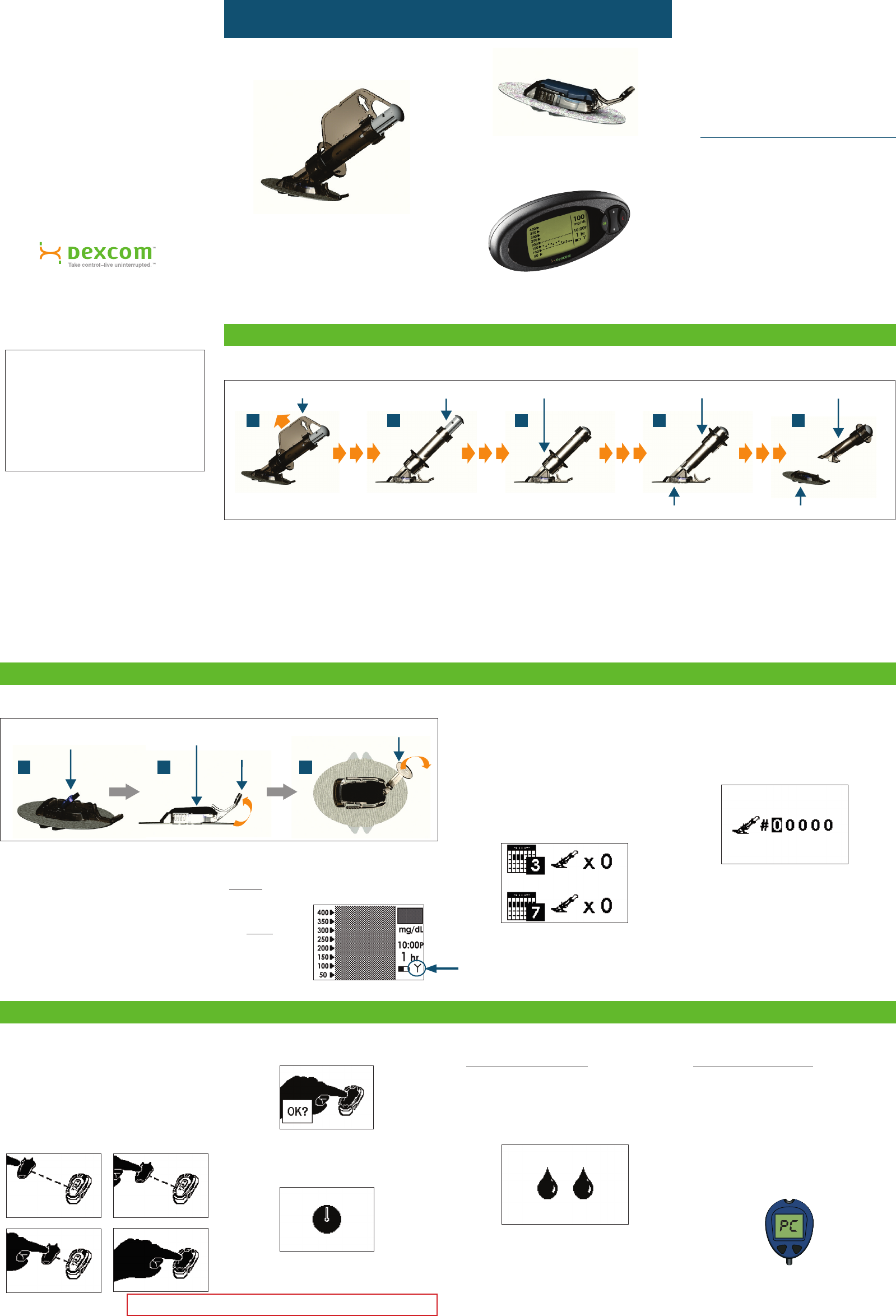

Choose a site on your abdomen (belly) to put
the STS-7 Sensor that is a at area and where
you don’t have any scarring or rough patches
of skin and clean the site with an alcohol
swab.
1. Remove the adhesive backing from the STS
Sensor Pod and place the STS-7 Sensor on
the selected site. Pull the safety lock out
from the STS Applicator (pull near the ar-
row).
2. Place 2 ngers under the collar, with your
thumb on the plunger, and push the plunger
down completely.
3. Pull the collar back completely until you
hear a click.
4. Press the tabs on the sides of the STS-7
Sensor and pull off the STS Applicator.
5. The STS Sensor Pod remains adhered
to the skin after the STS Applicator is
removed.
Install STS-7 Transmitter in
STS Sensor Pod
STS-7 Transmitter Installed
STS Transmitter Latch
Remove STS Transmitter Latch
23
Place the STS T2 Transmitter into the
STS Sensor Pod with the at side facing
down.
Pull the STS Transmitter Latch up onto
the STS T2 Transmitter to snap it into
place.
Remove the STS Transmitter Latch by
holding the end of the latch and quickly
twisting off the latch away from your
body.
1.
2.
3.
Press any buttons on the STS R2 Receiver
to check for the Antenna Icon (Y) at the
bottom right hand corner of the screen. If
4.

1. Dual Blood Drop Prompt: After 2 hours
the STS R2 Receiver will vibrate and dis-
play the Dual Blood Drop Prompt to alert
you to calibrate the STS-7 Sensor. Press
the C Button to clear the prompt.
the Antenna
Icon appears in
the upper right
hand corner of
the screen, refer
to your Users
Guide
Press the Down q Arrow 3 times until
you come to the 9-hour Glucose Trend
Screen. Then hold the Down q Arrow for
at least 7 seconds until you see the STS
License Code Screen (If you have already
inserted a STS-7 Sensor, press the Down
q Arrow 1 more time to get to the STS
License Code Screen):
1.
Press the OK button.
The antenna (Y)
should appear here
Use the Up p and Down q Arrows to
enter the STS License Code found in
your shipment and press the OK button to
conrm the STS License Code.
2.




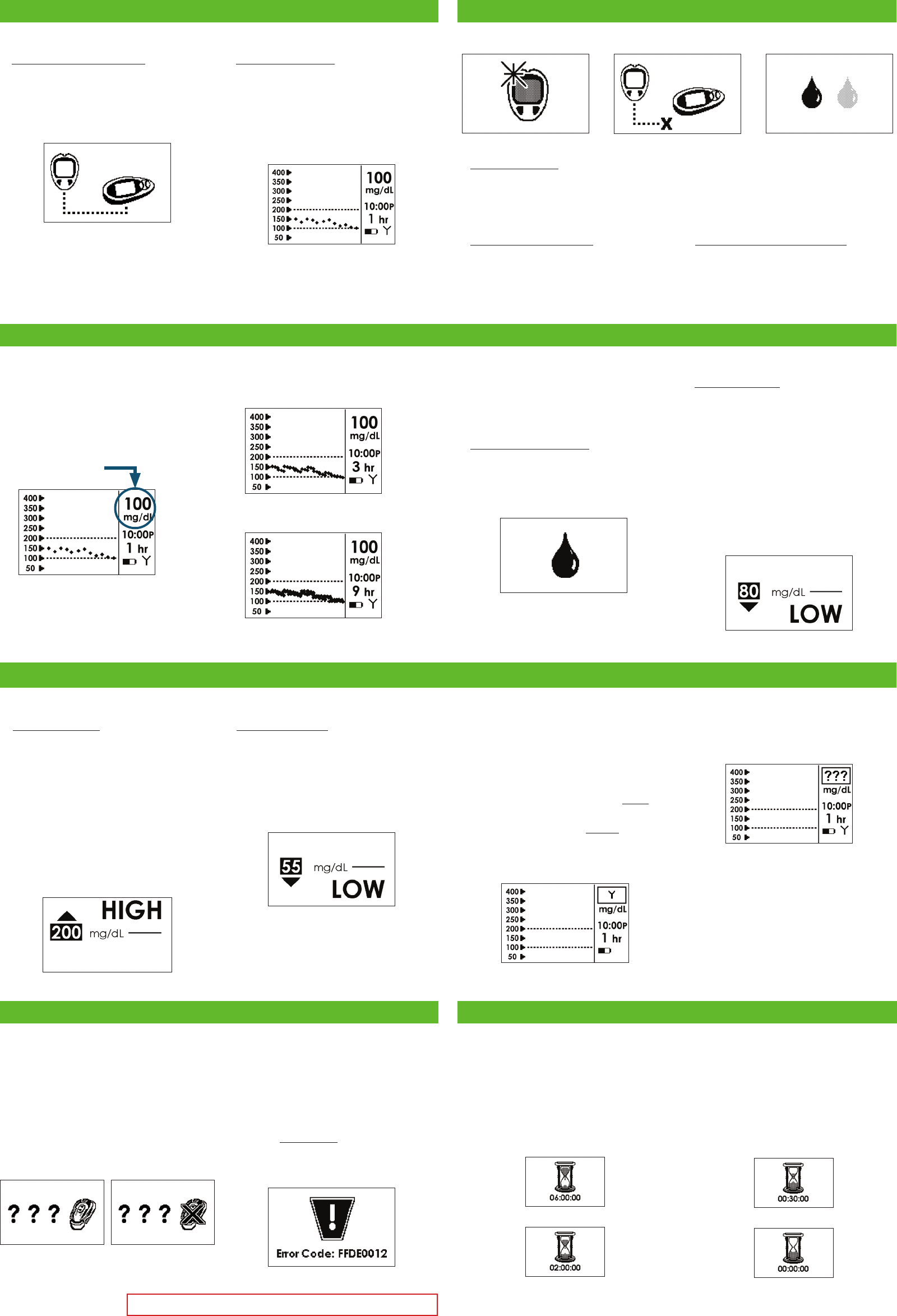

2. Meter Connection Screen: After you take 2
ngersticks using your blood glucose me-
ter, upload the values to your STS R2 Re-
ceiver. Upload the meter values to the STS
R2 Receiver by plugging the connection
cable into the meter rst (the meter must
be off) and then into the STS R2 Receiver.
The Meter Connection Screen (“PC”) will
appear on your blood glucose meter.
1. Dual Blood Drop Prompt
2. Meter Connection Screen
M C
1. Press the Down q Arrow 3 times until you
come to the 9-hour Glucose Trend Screen.
Then hold the Down q Arrow for at least
7 seconds until you see the STS Sensor In-
sertion Screen (If you have already entered
a STS License Code). 2. Press the OK button to conrm Sensor
Insertion and you will see the following
Conrmation Screen:.
3. Your Start-Up Period begins once you
press the OK button.


Condential
Transmitter model number 9400-02
Draft Under FDA Review
Safety Lock Push Plunger Pull Collar Collar Completely Back Remove STS Applicator
23 
Press Tabs STS Sensor Pod Remains Adhered
The error code indicates the STS R2 Re-
ceiver is not functioning properly. Note the
Error code, use your meter to check your
blood glucose readings, and contact Dex-
com Technical Support at 1-877-DEXCOM4
(339-2664) immediately. Your Continuous
Glucose Monitoring Session is nished and
you should remove the STS-7 Sensor.
© DexCom 2006 All rights reserved


The STS R2 Receiver will display screens
that notify you how long you have until the
end of your Continuous Glucose Monitor-
ing Session. You will be notied at 6 hours,
2 hours, 30 minutes before your session
ends, and when your session is nished.
30 minute STS Sensor Expiration Notication
0 hour STS Sensor Expiration Notication
2 hour STS Sensor Expiration Notication
6 hour STS Sensor Expiration Notication

3. Receiver Connection Screen
3. Receiver Connection Screen: The Receiver
Connection Screen will appear on the STS
R2 Receiver while the BG values are being
transferred from the meter to the STS R2
Receiver.
4. 1-Hour Trend Screen
4. 1-Hour Trend Screen: Once the upload is
complete the 1-Hour Trend Screen will
appear. Disconnect the cable from the
meter and STS R2 Receiver. A glucose
value should appear in about 15 minutes
and glucose values will be updated every 5
minutes.

3. Shaded-Out Blood Drop Prompt
New Meter Screen: Indicates that you
have connected a new meter to the STS R2
Receiver. Press OK. You must re-take the
ngersticks and connect the meter to the
STS R2 Receiver.
Connection Failure Screen: Indicates the
meter and STS R2 Receiver are not con-
nected properly. If you see this screen
the meter values will not be transferred
successfully. Clear the alert by pressing
1.
2.
1. New Meter Screen 2. Connection Failure Screen
any button and disconnect the cable from
the STS Receiver. Make sure the meter is
off and reconnect the cable to the STS R2
Receiver (the cable must be plugged into
the meter rst).
Shaded-Out Blood Drop Prompt: Noties
you that 1 more ngerstick is needed for
calibration. Take another ngerstick and
upload it to your STS R2 Receiver.
3.


Press C button to clear the alert and the STS
R2 Receiver will notify the STS-7 Sensor that
the Continuous Glucose Monitoring Session is
complete (00:00:00).
You may see the STS Sensor Removal
Screen during your continuous glucose moni-
toring session. If the screen below appears
your the STS-7 Sensor has notied the STS
R2 Receiver that STS-7 Sensor is no longer
good. Remove the STS-7 Sensor and insert a
new one.


STS Sensor Removal
If the STS-7 System is not displaying
glucose values it could be for the following
reasons:

Your STS™ T2 Transmitter and STS R2
Receiver are not communicating. The
Antenna Icon will appear in the upper
right hand corner of the screen (there is no
Antenna Icon (Y) in the bottom right hand
corner of the screen). Make sure your STS
R2 Receiver and STS T2 Transmitter are
within 5 ft. of each other.
1.
If you upload a ngerstick to update
calibration you may see the Calibration
Update Screen due to the ngerstick not
closely matching your STS-7 System
glucose readings. Take a ngerstick and
upload it to the STS R2 Receiver to update
calibration.
3.
Your STS-7 Sensor is sending the STS
R2 Receiver “noisy” glucose readings
that the STS R2 Receiver will not display.
2.
Once the “noise” stops, your STS R2 Re-
ceiver will display glucose values again.

The device may vibrate and/or beep and dis-
play one of the following screens during use:
Always take a ngerstick before you make any
treatment decisions.
Calibration Update Screen: If the Calibration
Update Screen appears you should clear the
prompt, take a ngerstick using your meter,
and upload the meter value to the STS R2
Receiver.
1.
1. Calibration Update Screen
Low Glucose Alert: The STS R2 Receiver
will vibrate/beep if your current STS-7 Sen-
sor glucose value is below the Low Alert
setting. Press any button on the STS R2
Receiver to acknowledge the alert; if you
do not the STS R2 Receiver will continue
to alert you for the next 10 minutes. The
Factory Low Alert setting is 80 mg/dL. You
should work with your diabetes management
team to determine the best alert setting for
you. (Take a ngerstick before you make
any treatment decisions.)
2.
2. Low Glucose Alert
High Glucose Alert: The STS R2 Receiver
will beep/vibrate if your current STS-7 Sen-
sor glucose value is above the High Alert
setting. Press any button on the STS R2
Receiver to acknowledge the alert; if you
do not the STS R2 Receiver will continue to
alert you for the next 10 minutes. The Fac-
tory High Alert setting is 200 mg/dL. You
should work with your diabetes management
team to determine the best alert setting for
you. (Take a ngerstick before you make
any treatment decisions.)
3.
3. High Glucose Alert
Low Glucose Alarm: In addition to your
personal glucose alert settings, your STS R2
Receiver will beep/vibrate if your glucose
falls below 55 mg/dL. Press any button to
acknowledge the alert if you do not the STS
R2 Receiver will continue to alert you every
5 minutes.
4.
4. Low Glucose Alarm


You can view glucose trends and patterns
using the 1-hour, 3-hour, and 9-hour Glucose
Trends Screens. (See screens below).
Glucose Value

Glucose Trend Screen

Glucose Trend Screen
Press
p
q

Glucose Trend Screen
Press
p
q
Condential Draft Under FDA Review
FCC RequiRements
e DexCom STS™ Transmitter covered by this User’s Guide has been certified
under FCC ID:
PH29402
e STS T2 Transmitter is authorized by rule under the Medical Implant
Communications Service (part 95 of the FCC Rules) and must not cause harmful
interference to stations operating in the 400.150–406.000 MHz band in the
Meteorological Aids (i.e. transmitters and receivers used to communicate
weather data), the Meteorological Satellite, or the Earth Exploration Satellite
Services and must accept interference that may be caused by such aids,
including interference that may cause undesired operation.
e STS T2 Transmitter shall be used only in accordance with the FCC Rules
governing the Medical Implant Communications Service. Analog and digital
voice communications are prohibited. Although the STS T2 Transmitter has
been approved by the Federal Communications Commission, there is no
guarantee that it will not receive interference or that any particular transmission
from the STS T2 Transmitter will be free from interference.
