MWL52-P Wireless LASER 5+1 Buttons Mouse
USER’S MANUAL
Model #: MWL52-P
System Requirement
Mouse compatible with standard Microsoft OS
4th & 5th side buttons require WindowsTM, 2000 or XP, or driver installation
Tilt wheel and the extra hot-key require driver installation to be functioned.
1st, 2nd and wheel are compatible with MAC
6th button, the dpi switch button, on the top case compatible with standard
Microsoft OS and MAC. No driver request.
Before you begin
Keep this installation guide for future reference! It contains Important
Troubleshooting Information.
Keep your old USB mouse as a back-up device.
Getting Started
Congratulations on your purchase of LASER 5+1 button mouse. LASER mouse
is the last technique of mouse industry. The most important feature for LASER mouse
is that can work on most of shining surface and glass. In additional, its high resolution,
1,600 hardware dpi, provides users a great experience to operate.
Package Contains
Your MWL52-P Mouse package includes the following:
1. MWL52-P LASER mouse
2. Receiver
3. Charging USB cable
4. User’s manual
5. CD-ROM Driver for Windows OS
Note：If any part is missing, please contact your dealer for a replacement immediately
Hardware Installation Guide
Step 1. Plug the USB receiver to Computer
1. USB is designed as a PnP device; you can plug the device no matter the computer
is on or off. Of course, you can remove USB device in the same way.
2. If the device is HD or pen drive or any device which can store files, stop the device
than remove is the best way to protect the files.
3. The suggestion is turn on the computer, than plug it.
MWL52-P User Manu- 轉檔用 Page 1 of 8 1.1 Edition
MWL52-P User Manu- 轉檔用 Page 2 of 8 1.1 Edition
Step 2. Waiting for new device detection
1. If your system is Windows ME/ 2000/ XP, windows will find a new device and install
standard driver automatically.
2. The standard software only support standard functions and will not support special
one of the mouse.
Step 3. Insert the AAA battery
1. Turn the mouse up side down.
2. Remove the battery room door.
3. Put 2 AAA batteries in the correct direction.
4. Put the battery room door back.
Step 4. Synchronize the RF Mouse
If the mouse is in sleep mode click the mouse button once to wake it up.
1. Bring the mouse within 1 ft range from the receiver, Hold the mouse upside-down
and use a pointed object, such as a pen tip, to click the “CONNECT” button once.
Do Not depress the CONNECT button longer then 1.5 seconds. (The red sensor
light will go off when the “CONNECT” button is pressed down.)
Note: Please poke the Mouse Connect button first, and then click the receiver’s button
2. Click the receiver’s connect button once (located on the back of the receiver)
within 5 seconds of clicking the connect button on the mouse. The LED will start
blinking, when the connection is established.
3. Move the mouse around to test if it was successful.
4. If the synchronization is not successful for some reason please (1) Remove the
batteries and unplug the receivers (2) Wait for 20 sec then to try the step 1 to 4
again.
Note: * During normal use, please make sure that the mouse is no more than 3 ft
away from the receiver in order to have reliable connection.
** The LED on the receiver will light up or blink while the mouse is being used.
Step 5. Charging Batteries by Mouse
1. Put 2 AAA rechargeable batteries in the battery room.
2. Plug the UBS charging cable into USB port & mouse
Software Installation & Operation Guide
Note: Before installing this driver, existing mouse driver has to be removed.
To install the software, please follow the steps below to finish:

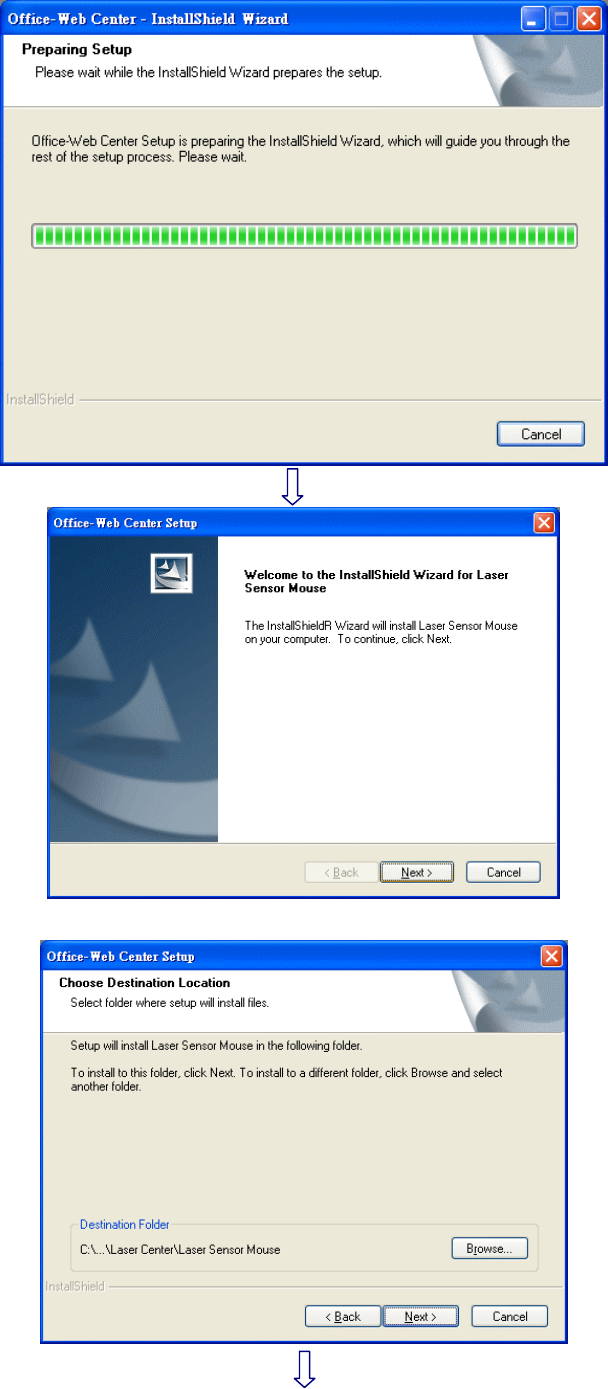

1. Insert the Auto-Run CD-ROM onto CD-ROM driver, the installation menu will be
executed automatically. (If the auto-run does not function itself, double-click the “setup”
icon in the CD files.)

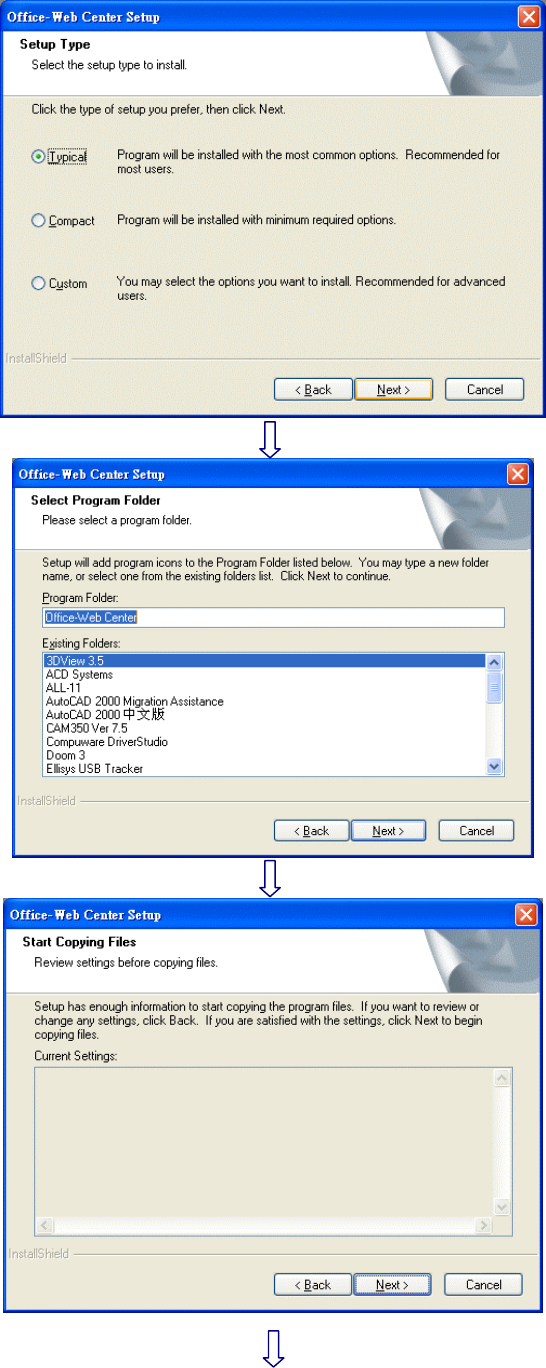

2. The setup program will guide you to finish the installation step by step.
MWL52-P User Manu- 轉檔用 Page 3 of 8 1.1 Edition
MWL52-P User Manu- 轉檔用 Page 4 of 8 1.1 Edition

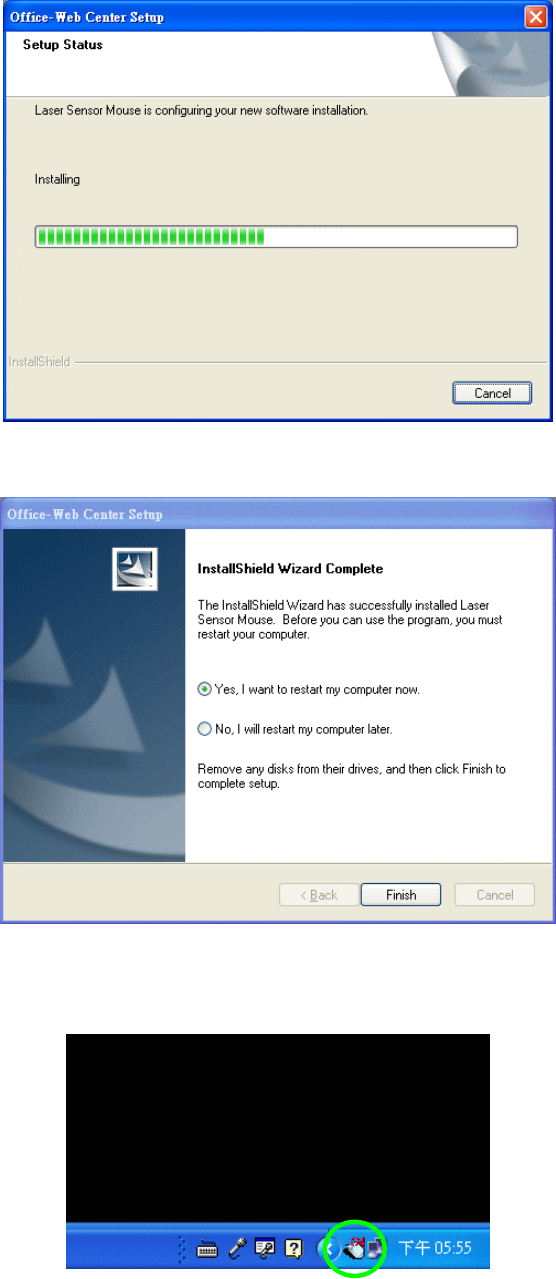

3. After you finish the installation, select "Restart" to reboot your system and activate
multimedia hot keys and wheel scrolling functions.
Programmable Buttons
After installed the driver, a symbol will show in the right hand side of working bar.
The Office-Wheel Function is attached on the mouse software. Users can change the
default function of wheel and extra hot-keys.

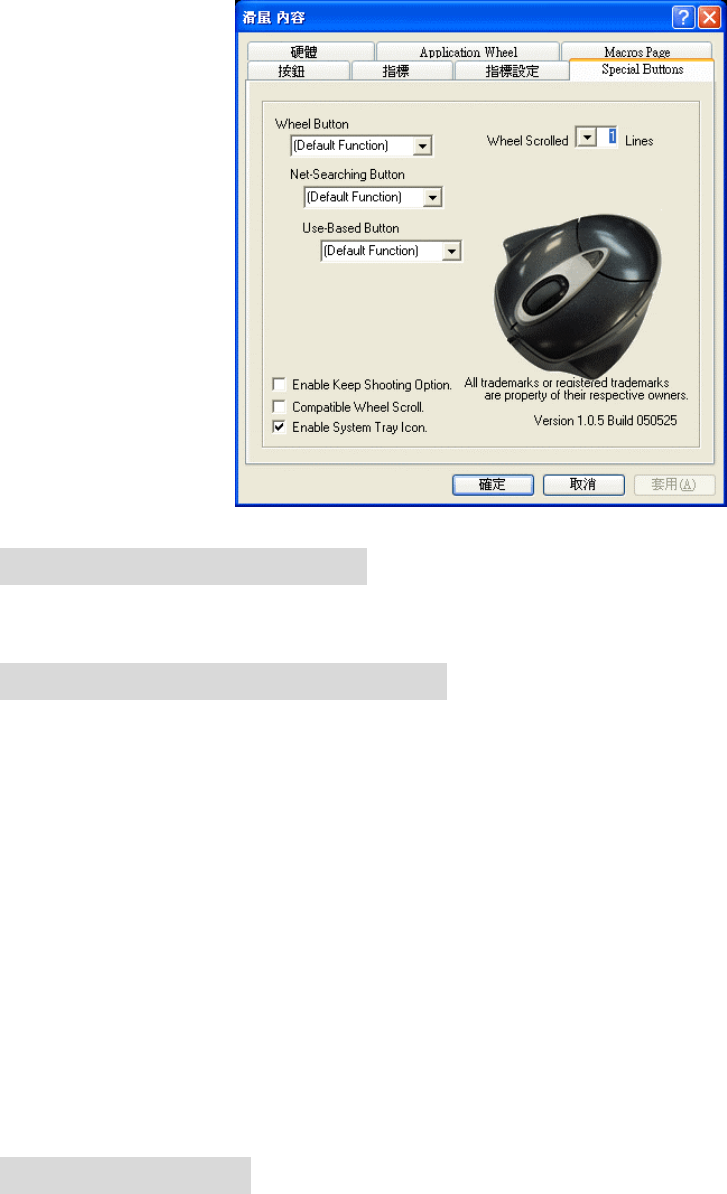

The hot-key can be defined by clicking “Control panel”->”Mouse”->”special buttons”.
MWL52-P User Manu- 轉檔用 Page 5 of 8 1.1 Edition
Mouse setting window
Software/ Driver remove
Please using “Program add/ remove” icon in control panel to remove the driver.
GENERAL SPECIFICATIONS
High-tech 650nm LASER mouse
Tilt Wheel
Multi-channels with 256 ID code/ channel
27MHz RF technology
800/ 1,600 dpi hardware resolution
5+1 buttons design
USB charging cable, to charge mouse during operation
Low power consumption
Right hand Ergonomic design for comfortable grip.
Software added-value smart-functions
Programmable buttons
Compatible with USB 2.0 low-speed protocol
Troubleshooting
MOUSE NOT DETECTED
Please note that USB port needs driver to active in Windows 95/ 98/ NT, or the USB
mice will not working.
Make sure the mouse cable is plugged into the correct port-USB. An USB mouse
connects only to a USB port.
Make sure your USB port has the proper configuration. Refer to your computer
MWL52-P User Manu- 轉檔用 Page 6 of 8 1.1 Edition
documentation for the correct port configuration.
You may have other system devices (e.g. a modem card) that conflict with the
mouse. Check the IRQ/address settings of these devices for conflicts, and change
the setting as required. Refer to your computer documentation to make these
changes. Determine whether the problem is mouse or system related, try the mouse
on a second system or a different mouse on your current system.

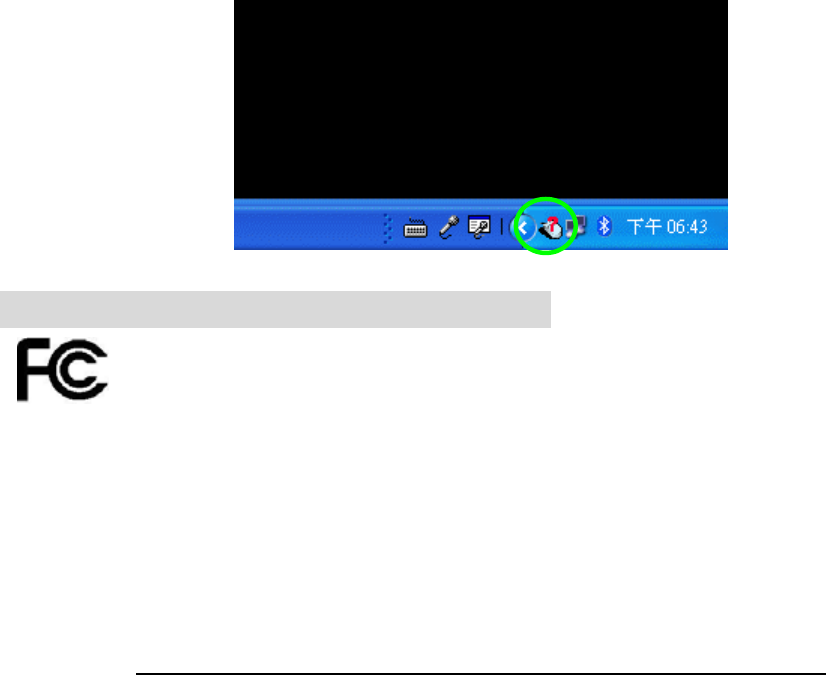

Note: If mouse is not be detected and you installed driver already, a symbol will be
showed in the right hand side of working bar. (as the photo as follow)
Electromagnetic Characteristics (EMC)
Tested to comply with FCC standards
For home or office use
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
CE - Type acceptance: EN300 220 Short Range Device
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
MWL52-P User Manu- 轉檔用 Page 7 of 8 1.1 Edition
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To maintain
compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting antenna
during transmitting.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
MWL52-P User Manu- 轉檔用 Page 8 of 8 1.1 Edition
