MWP141-P1M 27MHz Wireless Optical Mouse page 1 of 8 1.0 Edition
Wireless 3 Buttons Optical Mouse
MWP141-P1M + RX28-1M USER’S MANUAL
Important Ergonomic Information
Some experts believe that using any mouse or trackball may cause serious injury to hands,
wrists, arms, neck, or back. If you feel pain, numbness, or weakness in these areas, see a
qualified health professional.
TO REDUCE THE RISK OF INJURY, FOLLOW THESE PRECAUTIONS:
* Take frequent breaks, get up and walk around several times every hour.
* Vary your tasks throughout the day.
* Keep your shoulders relaxed with your elbows at your side. Position your keyboard and
mouse so you do not have to reach.
* Adjust your chair and keyboard so your upper arms and wrists are straight.
* Avoid resting your wrists on sharp edges.
System Requirement
* Mouse compatible with standard Microsoft OS
* 3rd button and wheel function require Win98/ ME/ 2000/ XP/ Vista
* If your computer’s operating system is Windows 98/ 98SE, please prepare the
Windows98 or 98SE compact disk for system’s request during the installation of mouse.
Before you begin
* Keep this installation guide for future reference! It contains Important Troubleshooting
Information.
* Keep your old PS/2 or USB mouse as back-up devices.
Getting Started
Congratulations on your purchase of an 800dpi Wireless Optical Mouse. By using the
advanced RF technology a 360° operation is possible and no line-of-sight is required between
the receiver and the mouse. The 800 high resolution will bring users the best operation accuracy
and efficiency, especially when the pixel of display over 1024*768 pixel. It operates at twice the
speed and only requires 1/4 of the space in comparison to a 400 dpi mouse.
For travel and loss prevention, store receiver in cavity on the bottom of the mouse,
power will turn off automatically, or by simply pressing the right & left & scroll wheel to turn
MWP141-P1M 27MHz Wireless Optical Mouse page 2 of 8 1.0 Edition
off power, and low-power indicator on the receiver will blink to indicate battery status makes
MWP141 a smart companion for laptop users.
Package Contains
Your Wireless Optical Mouse package includes the following:
1. The Wireless Optical mouse (MWP141-P1M)
2. Ultra mini USB storable receiver (RX28-1M)
3. User’s manual
4. 2 AAA Alkaline batteries
Note
：
If any part is missing, please contact your dealer for a replacement immediately.
Precaution
The optical mouse can not work on a glass or mirror surface. Avoid operating this mouse on
a glossy surface; otherwise, this mouse may not operate normally.
For consideration of saving battery power, it is strongly recommended to operate an optical
mouse on a bright surface with fine texture to obtain lower power consumption of the high
illumination LED. A very dark surface will cause higher power consumption.
For optimal performance, place the receiver at least 8 inches or 20 centimeters away from
other electrical devices, such as the computer, the computer monitor, speakers or other external
storage drives.
For a better transmission distance, avoid using this device on a metal plate or desktop
because a large surface of iron, aluminum, copper and other metal will act as a shield or ground
to the RF antenna of the mouse and receiver. Operating on a metal surface may shorten the
transmission distance.
If your notebook computer has a metal (contains Al or Mg) case, the metal housing of the
LCD panel will isolate partial radiation of the RF signal from the mouse. This could possibly
result in reducing the distance of transmission when you operate the mouse right in front of the
notebook and when the receiver is connected on the back of the notebook. However, the RF
mouse should work properly while you are operating the mouse just beside your desktop
computer.
MWP141-P1M 27MHz Wireless Optical Mouse page 3 of 8 1.0 Edition

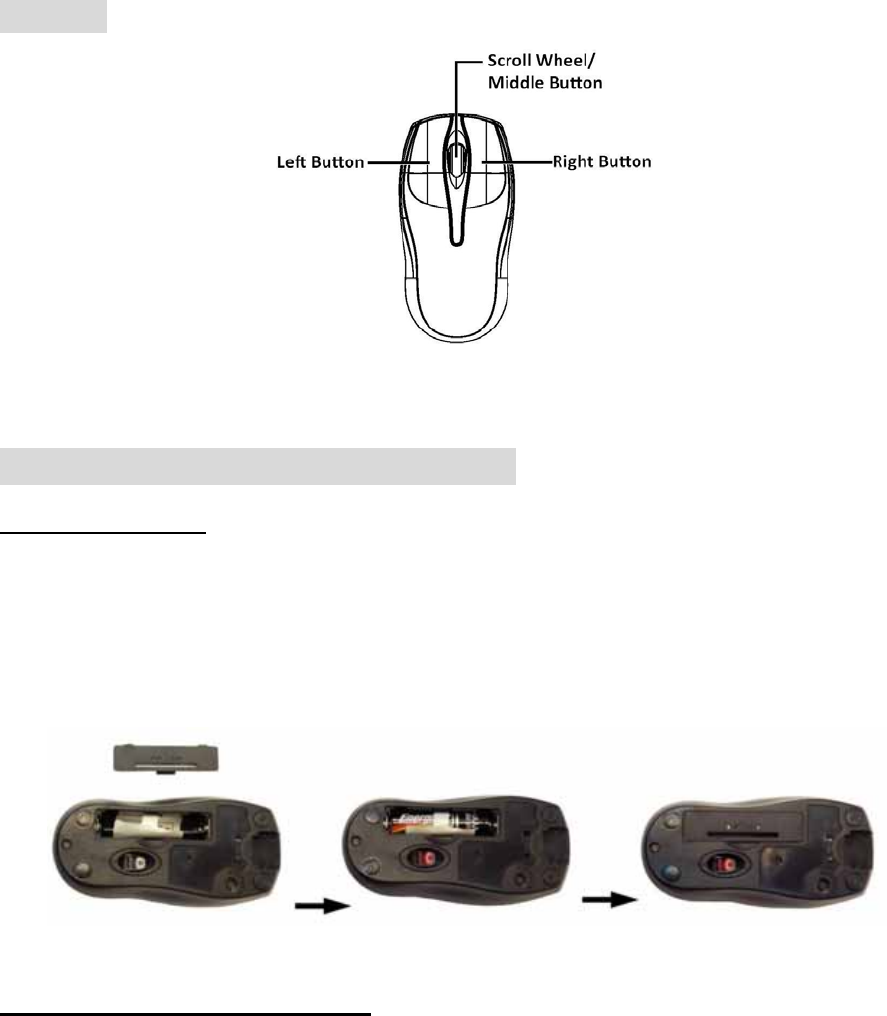

Overview
Hardware Installation Guide (Mouse)
Battery installation:
1. Remove the battery compartment cover.
2. Install batteries with the positive (+) & negative (-) in the correct direction indicated by
the battery compartment label.
3. Replace battery compartment cover. The red LED on the bottom of the mouse will
indicate power to the mouse.
Connect the receiver with computer.
1. Turn off your computer
2. Disconnect the current mouse
3. Plug the USB connector (receiver) into USB port (computer).
4. Turn the computer on
a. USB is a PnP device; you can plug the device no matter the computer is on or off. Of course, you can
remove USB device in the same way.
b. If the device is HD or pen drive or any device which can store files, stop the device than remove is the
best way to protect.
MWP141-P1M 27MHz Wireless Optical Mouse page 4 of 8 1.0 Edition

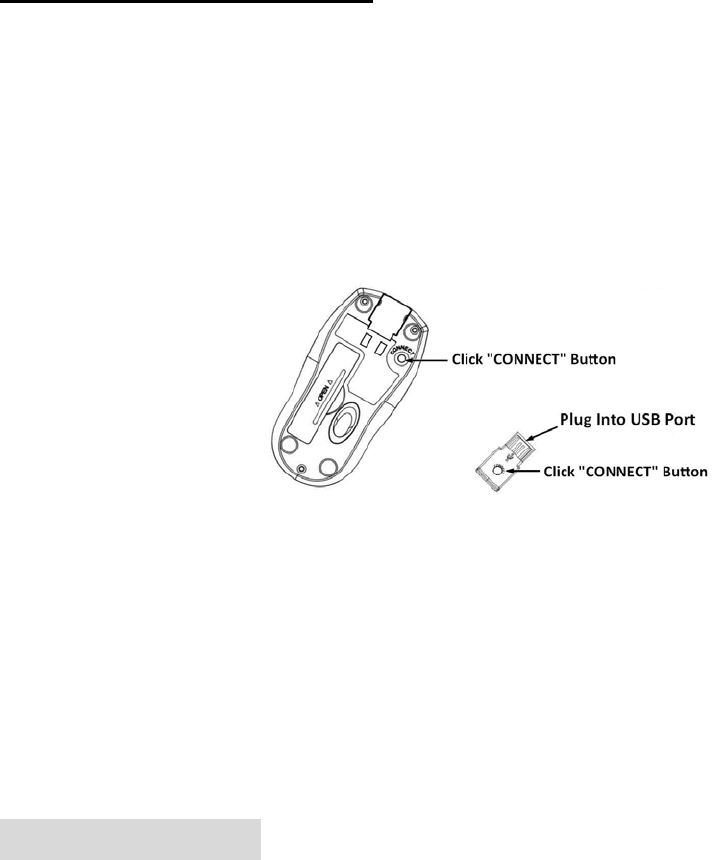

Synchronize the RF Mouse (Pairing)
If the mouse is in sleep mode click the mouse button once to wake it up.
1. Bring the mouse within 1 ft range from the receiver.
2. Power on the mouse.
3. Hold the mouse upside-down and use a pointed object, such as a pen tip, to click the
CONNECT button (ID button) once.
4. Click the receiver’s connect button once, within 5 seconds after clicking the connect
button on the mouse. The LED will start blinking, when the connection is established.
Move the mouse around to test if it was successful.
5. If the synchronization is not successful for some reason please
a. Remove the batteries and unplug the receivers
b. Wait for 20 sec then to try the step 1 to 4 again
Note: * During normal use, please make sure that the mouse is no more than 3 ft away from the receiver
in order to have reliable connection.
** The LED on the receiver will light up or blink while the mouse is being used
Operation Guide
BATTERY LOW INDICATION
When battery voltage level goes under the preset level, the receiver LED will blink
frequency. Although the mouse can still work for a while, the user, at this time, should have a
new set of batteries ready for replacement as soon as possible.
POWER ON/OFF MOUSE
MWP141-P1M designed 2 methods for power saving, you can power ON/OFF by A or B.
A. The MWP141-P1M mouse is designed to automatically turn off when you store the
wireless USB receiver in its bottom. Release the receiver from the bottom to power on.
B. By pushing right, left & scroll wheel to power off, click any button to power on.
OPERATIONS ON POWER SAVING MODE:
In order to conserve battery power, the mouse is designed to reduce power consumption
MWP141-P1M 27MHz Wireless Optical Mouse page 5 of 8 1.0 Edition
gradually from standby mode to sleep mode, if it is not being used.
Standby mode – Around 1 second after the mouse stops moving, it enter into standby mode.
Sleep mode – If the mouse is left intact for around 8 minutes, it goes to sleep mode and shuts
down the sensor to maintain minimum power consumption. No moving operation is possible in
this mode.
WAKE UP THE MOUSE
This mouse can work promptly under standby mode so users might not be able to tell the
existence of this mode. But, in sleep mode, users have to press any button to wake up the mouse
for normal operation.

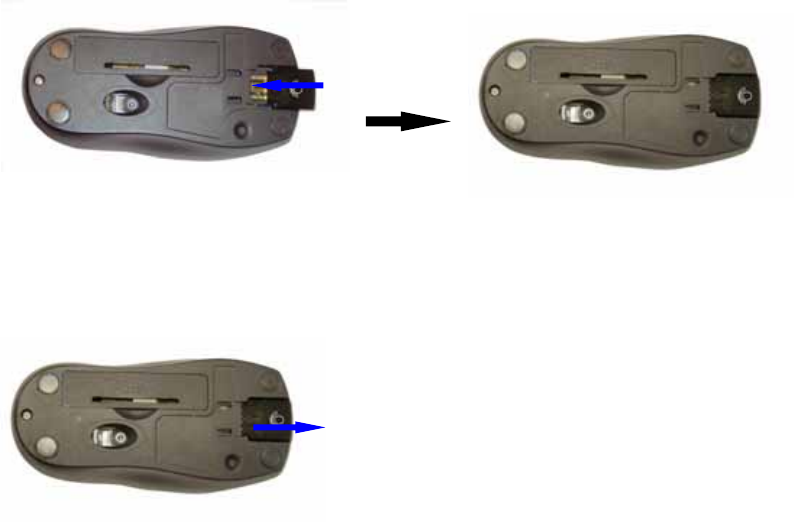

RECEIVER STORAGE
For travel and loss prevention, store receiver in cavity on the bottom of the mouse.
Storing receiver:
To store in the mouse bottom, place USB plug end of receiver (A) into place then snap bottom of
receiver into position (B). Receiver will now be locked into position.
Removing Receiver:
Using the tip of your finger, life receiver from USB plug end first and remove from cavity. The
USB is now active and ready to be inserted into your computer’s USB port.
Pushout
Pushin
BA
MWP141-P1M 27MHz Wireless Optical Mouse page 6 of 8 1.0 Edition
GENERAL SPECIFICATIONS
Ergonomic and enlarge buttons design for comfortable grip.
3 Buttons Wireless optical mouse.
800 dpi hardware resolution.
Low power indicator.
1 channel RF Digital Radio Frequency.
2 AAA batteries to operate the mouse.
Troubleshooting
1. Mouse does not function
If mouse is not functional, please turn off the computer first.
Check the receiver and make sure it is firmly attached to the USB port of the computer.
Check the placement of batteries and see if they are properly connecting.
The "＋" and "－" on the batteries must match the "＋" and "－" on the slots. If the
batteries aren't inserted correctly, the device won't work.
Restart the computer again. If the LED inside the receiver does not light up when moving
the mouse, please re-connect the mouse to the receiver.
Q: The mouse cursor can only move left & right during operation (it could
be caused by low battery or the optical sensor’s data error).
A: Please take out one of batteries and put it back for a power reset and then redo the
connect procedure.
Q: The mouse does not work after waking up from power off mode by pressing the connect
button once.
A: This might be caused by imprecisely depressing the connect button to wake up the
mouse. Users can gain back normal operation by pressing connect button on the mouse first,
and then pressing the one on the receiver. As soon as the LED inside the receiver starts
flashing, the mouse is ready to operate.
Optical Sensor Mouse functions best on surfaces with details for tracking. It may not
function on reflective, reflective pattern or non-visible detail surfaces!
2. Reducing Interference with Other Wireless Devices
Reducing Interference with Other Wireless Devices:
All 27MHz radio-based devices are subject to interference from other 27MHz
radio-based devices, such as wireless telephones, wireless baby monitors, and wireless
toys. It may help to move the receiver unit and the base unit of other wireless devices
(such as wireless telephone cradle) as far apart as possible. You may need to try several
times for a location that is best in your operating environment.
MWP141-P1M 27MHz Wireless Optical Mouse page 7 of 8 1.0 Edition
Move the receiver and the mouse closer to each other so that the receiver is relatively
shorter in distance to the mouse than to other 27MHz transmitters. You may need to
re-establish the “connection”.
Note: Avoid using this device on a metal surface because a large surface of iron, aluminum,
copper, or other metal may act like a shielding to the RF antenna of the mouse and the receiver.
3. Interference with other RF wireless mouse
If the interference comes from other same model of RF wireless mice, please “Setting up
connection between mouse and receiver” of the installation guide to switch to a new RF
channel. A new identification code is also generated upon the completion of channel
switching.
Normally, the effective transmission distance is about 3 feet, depending on the environment. If
the effective distance between the mouse and the receiver is bad, try to change the location of
the receiver.
4. If you have difficulty connecting the wireless mouse:
Increase the distance between the set of wireless mouse and other radio device units.
Turn off the other wireless devices, or their base units that are in close proximity to the
receiver of this wireless mouse.
Try connecting the wireless mouse and its receiver again.
To verify that your device is connected and working properly, open a document and try the
device.
Electromagnetic Characteristics (EMC)
Tested to comply with FCC standards
For home or office use
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one of the following measures:
MWP141-P1M 27MHz Wireless Optical Mouse page 8 of 8 1.0 Edition
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. To
maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the
transmitting antenna during transmitting.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
CE - Type acceptance: EN300 220 Short Range Device
